MP:  J108.530



Created March 27, 2021



Total Accidents:   14
Crossing DOT #:  297012R
TOTAL DAILY TRAINS:   11   (AS OF 2018)



Page created by: Ethan the Railfanner



This crossing is located on the PAL Railroad.



1

2

3

4

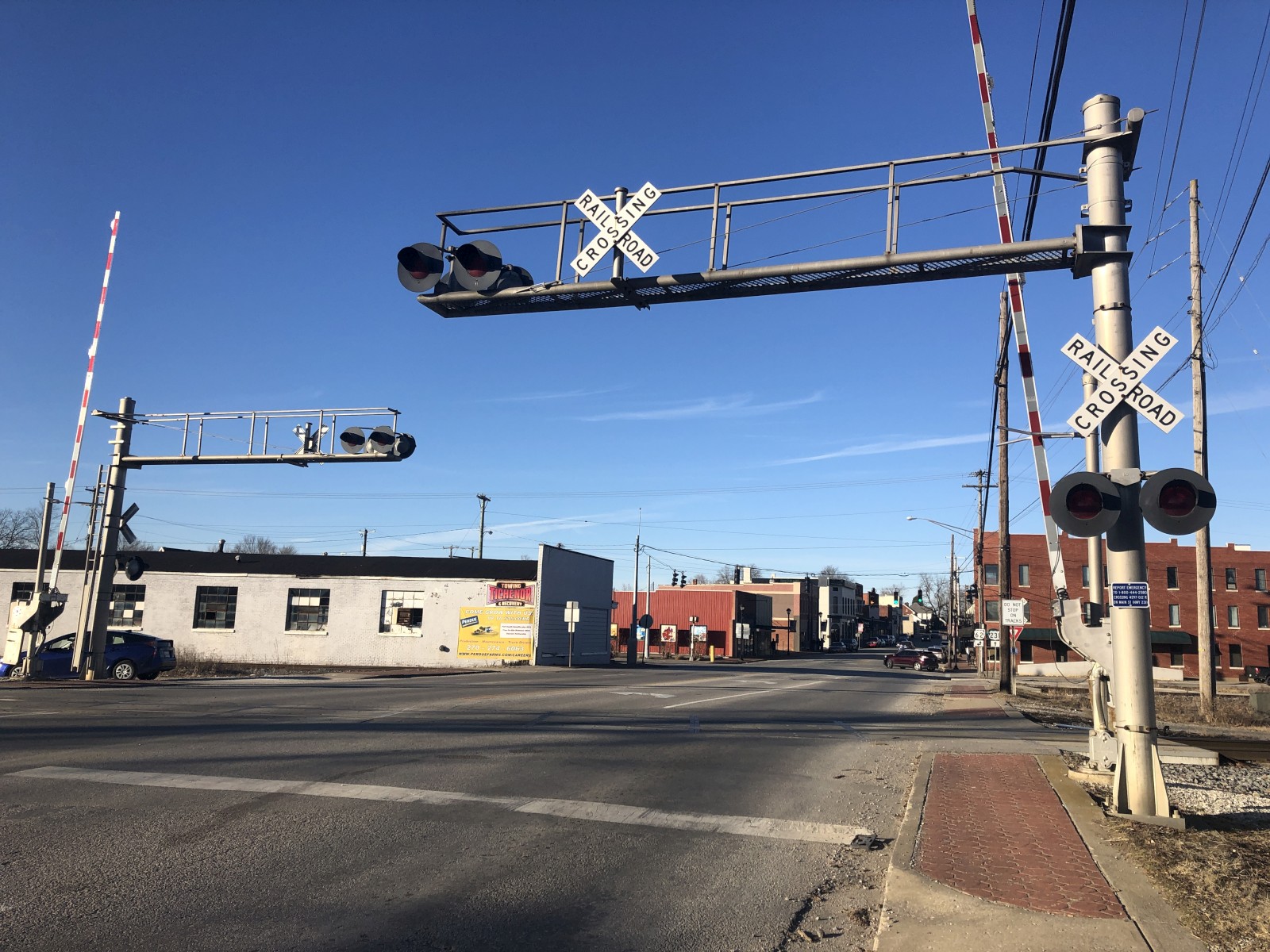

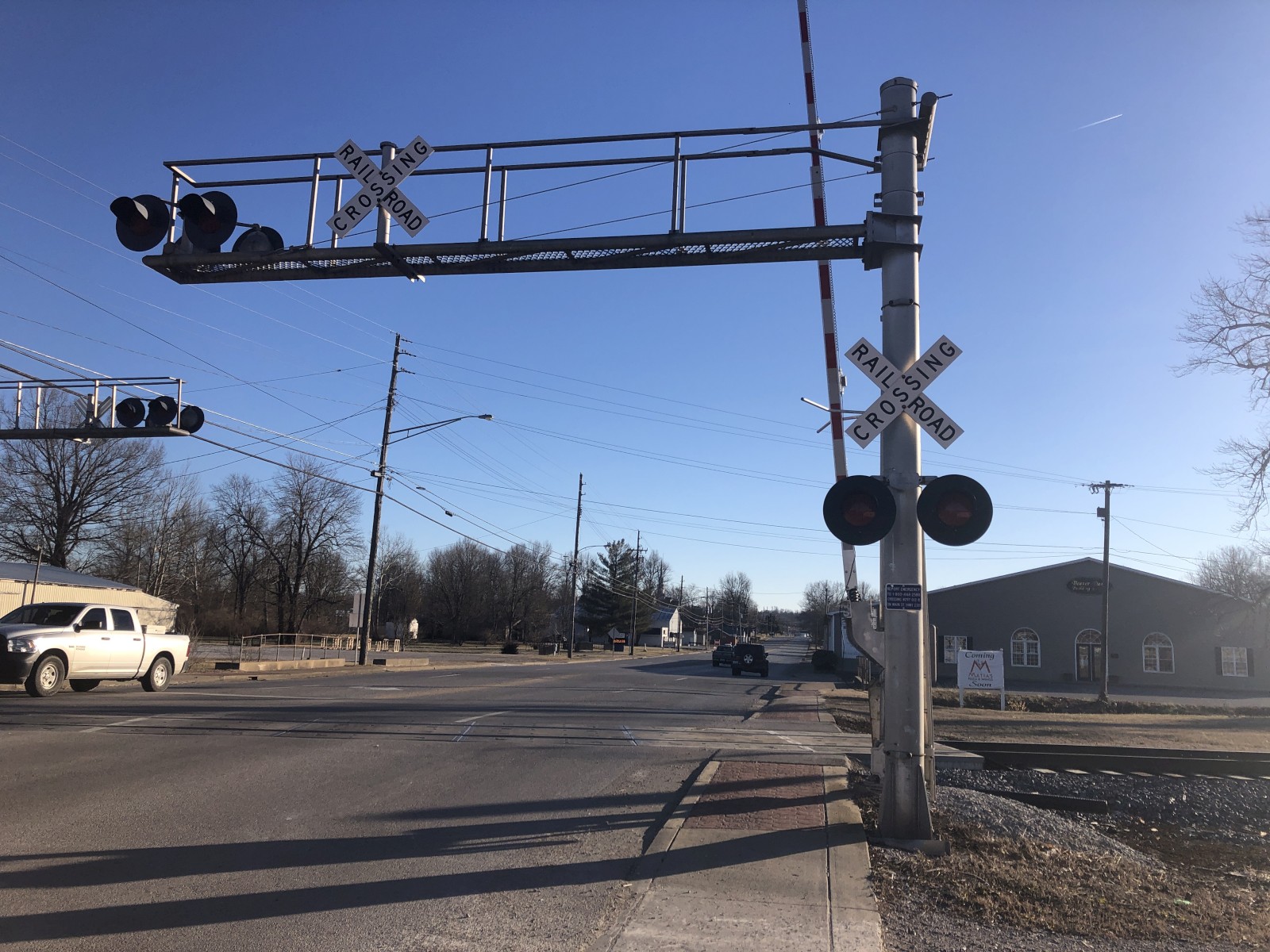

Overviews of this crossing.
The northern signal.

5

6

7

8

It has a Safetran cantilever.
The emergency information.
The mast lights are Safetran 12x24s with Safetran Fading LEDs.

9

10

11

12

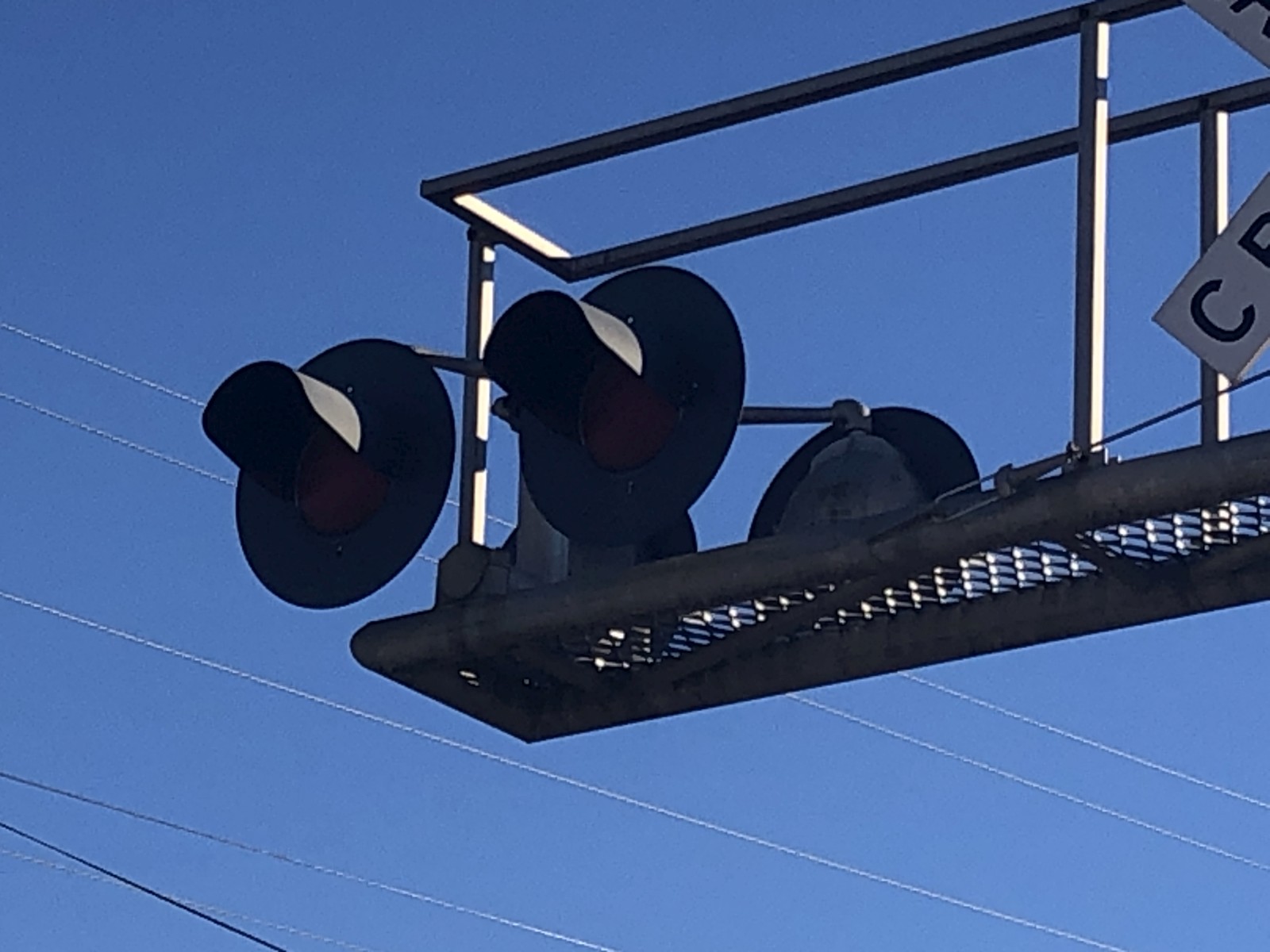

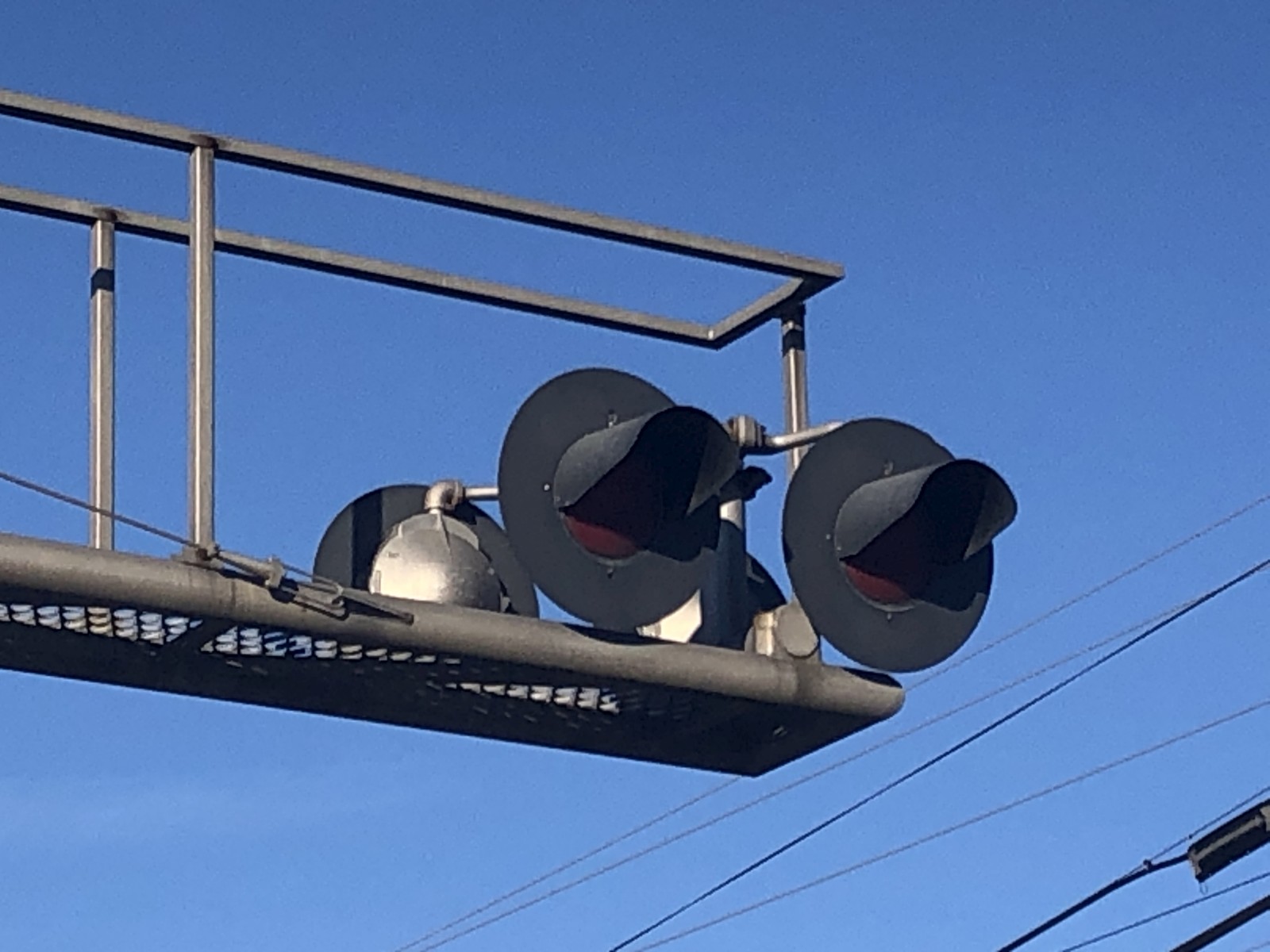

The overhead lights are more Safetran 12x24s, but are incandescent.
A Safetran base.
A Safetran gate mechanism.

13

14

15

16

The gatelights are from Alstom Aurora (NEG Clear LEDs.)

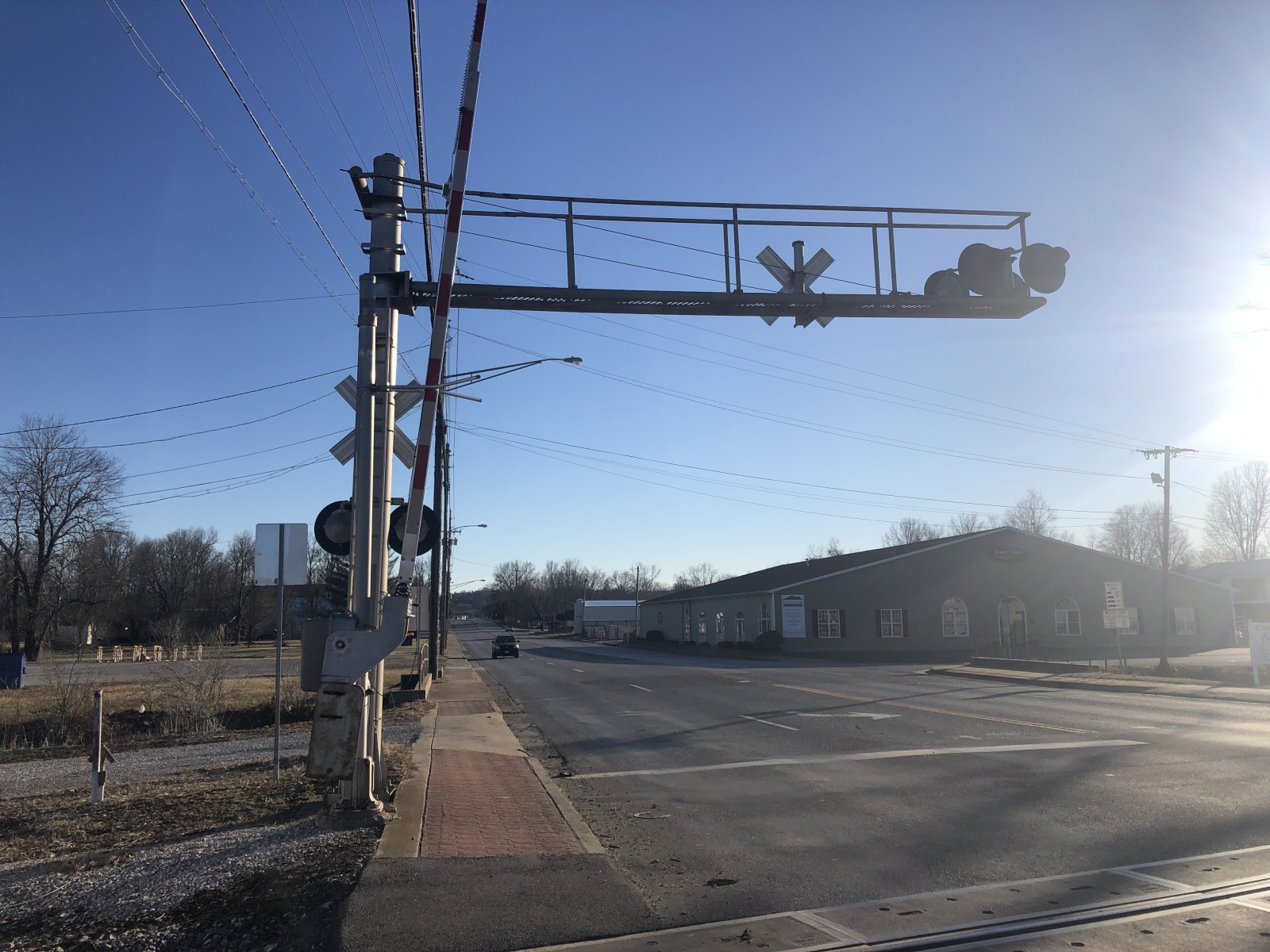

The southern signal.
It has another Safetran cantilever.

17

18

19

20

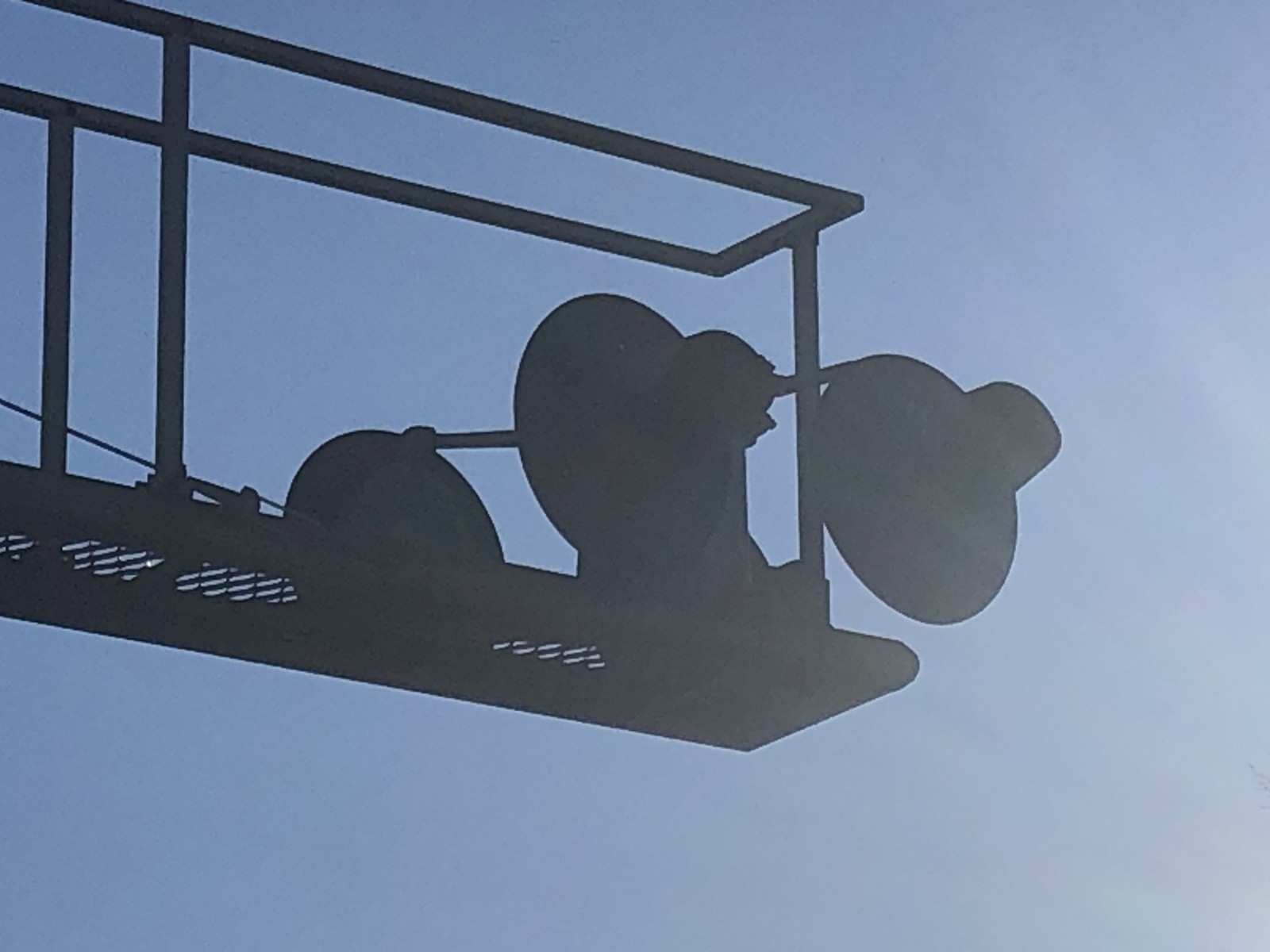

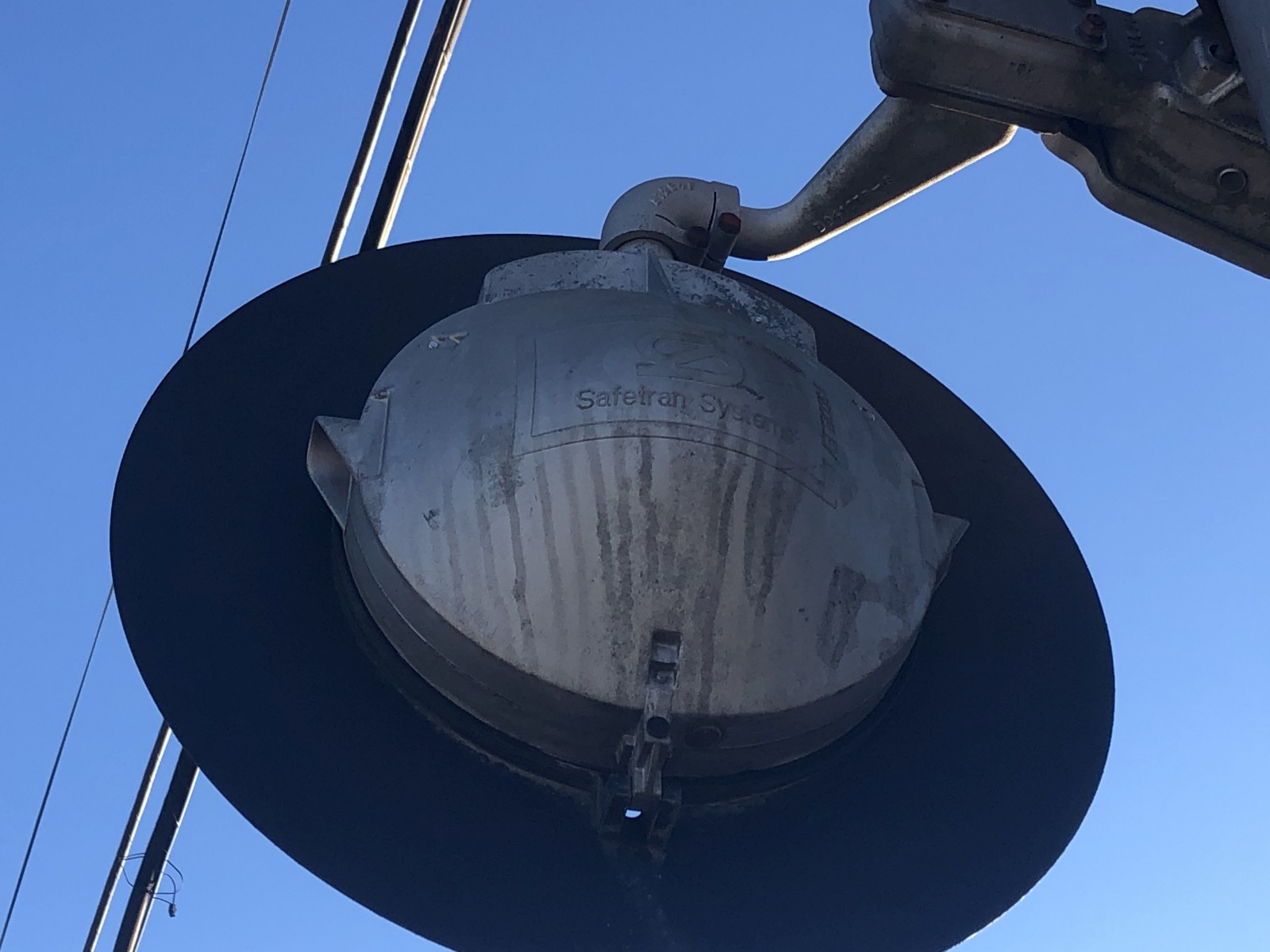

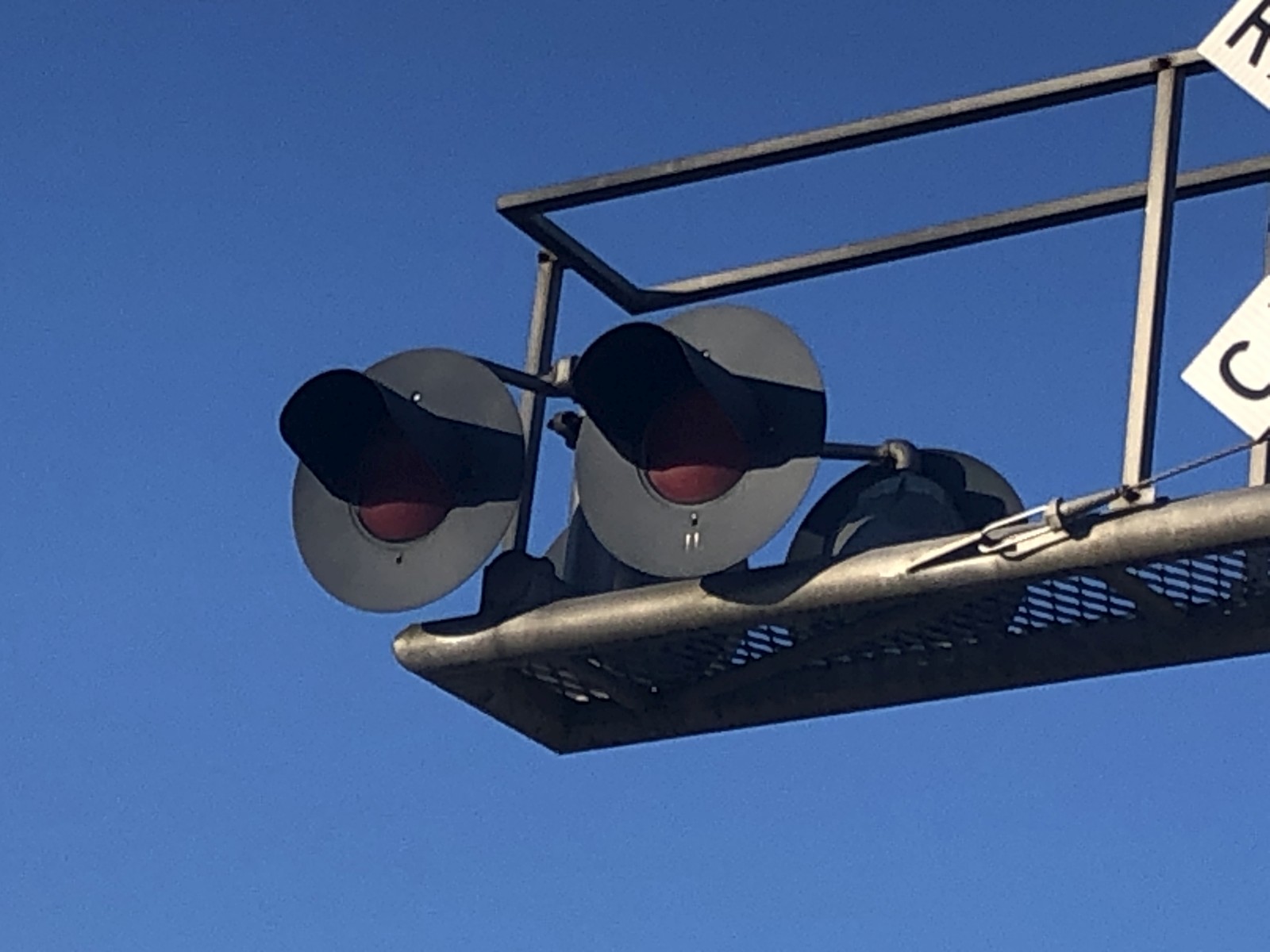

The lights on the cantilever are even more Safetran 12x24 incandescents.

21

22

23

24

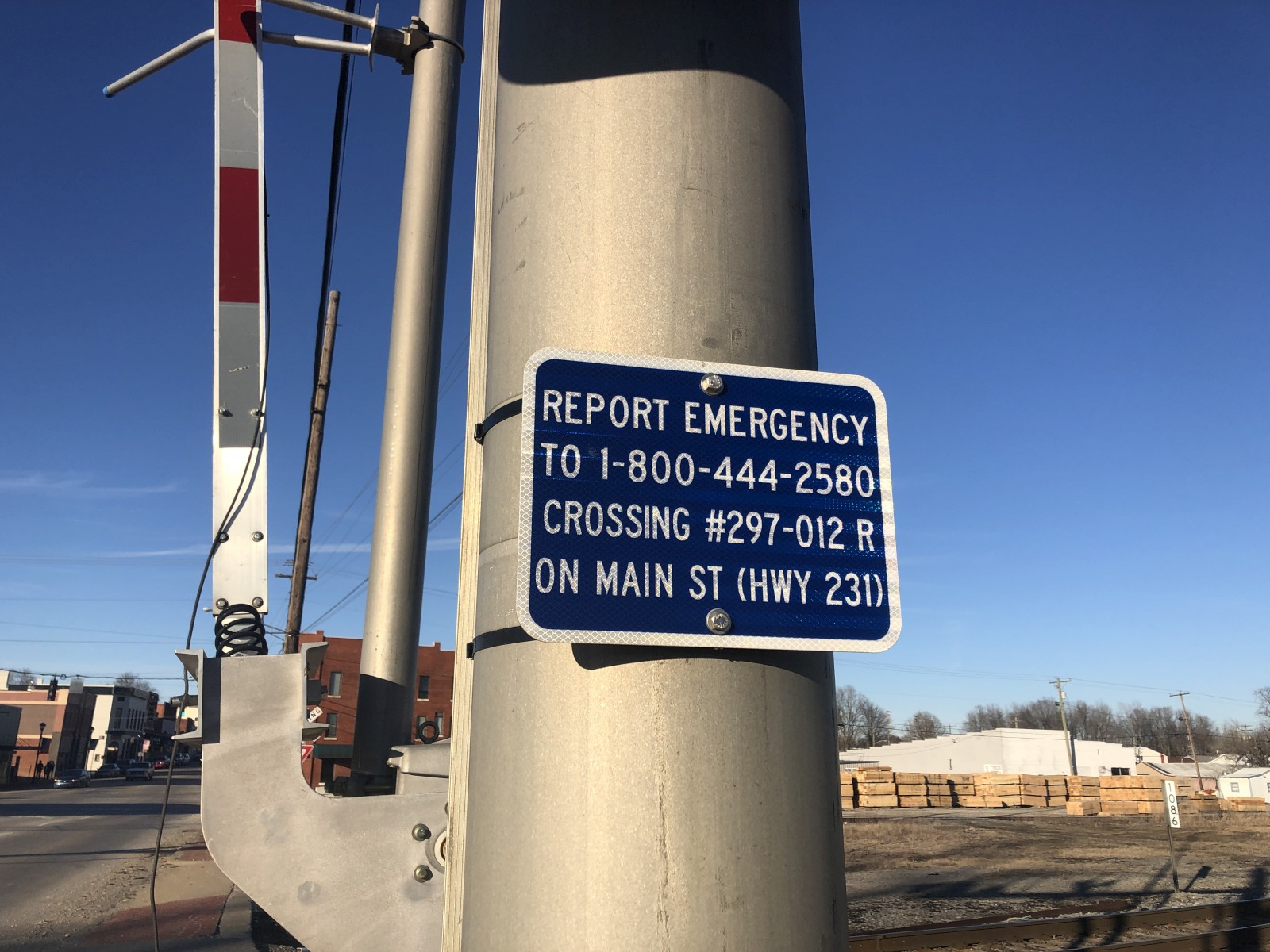

The emergency information.
Another Safetran base.
Another Safetran gate mechanism.
A Safetran Type 3 (Siemens) E-Bell stands on this signal.

25

26

27

28

More Alstom Aurora (NEG Clear LED) gatelights over here.
The relay bungalow.

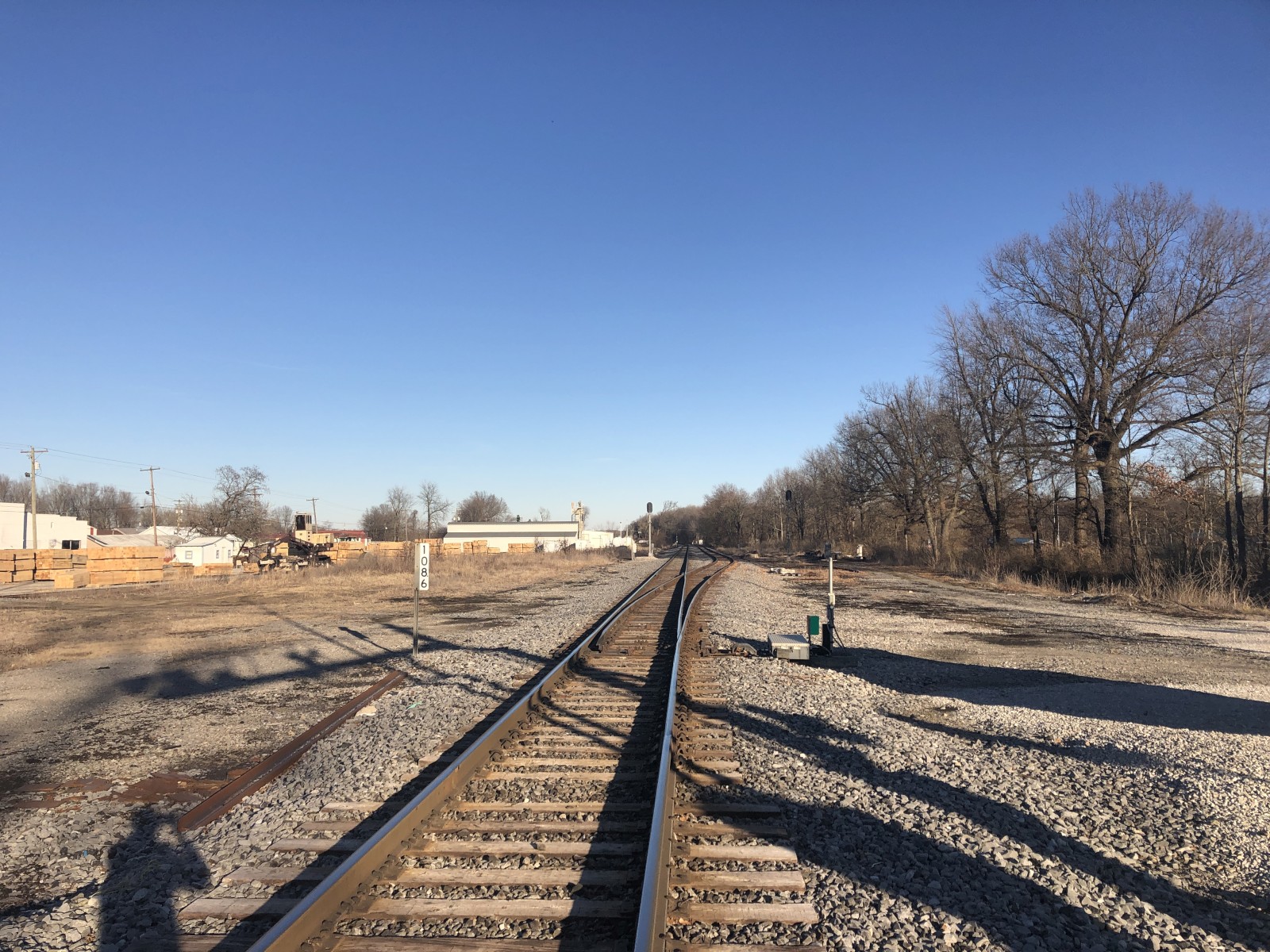

Track view facing west towards Highland Drive in McHenry.
Track view facing east towards Bruce School Road.

29

A mile post marker stands near the crossing.



All pictures were taken on 1-23-21.
