MP: 0HR9.380 |
Created October 27, 2023
Total Accidents: 5
Crossing
DOT #: 344019T
TOTAL
DAILY TRAINS: 2 (AS OF 2021)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |

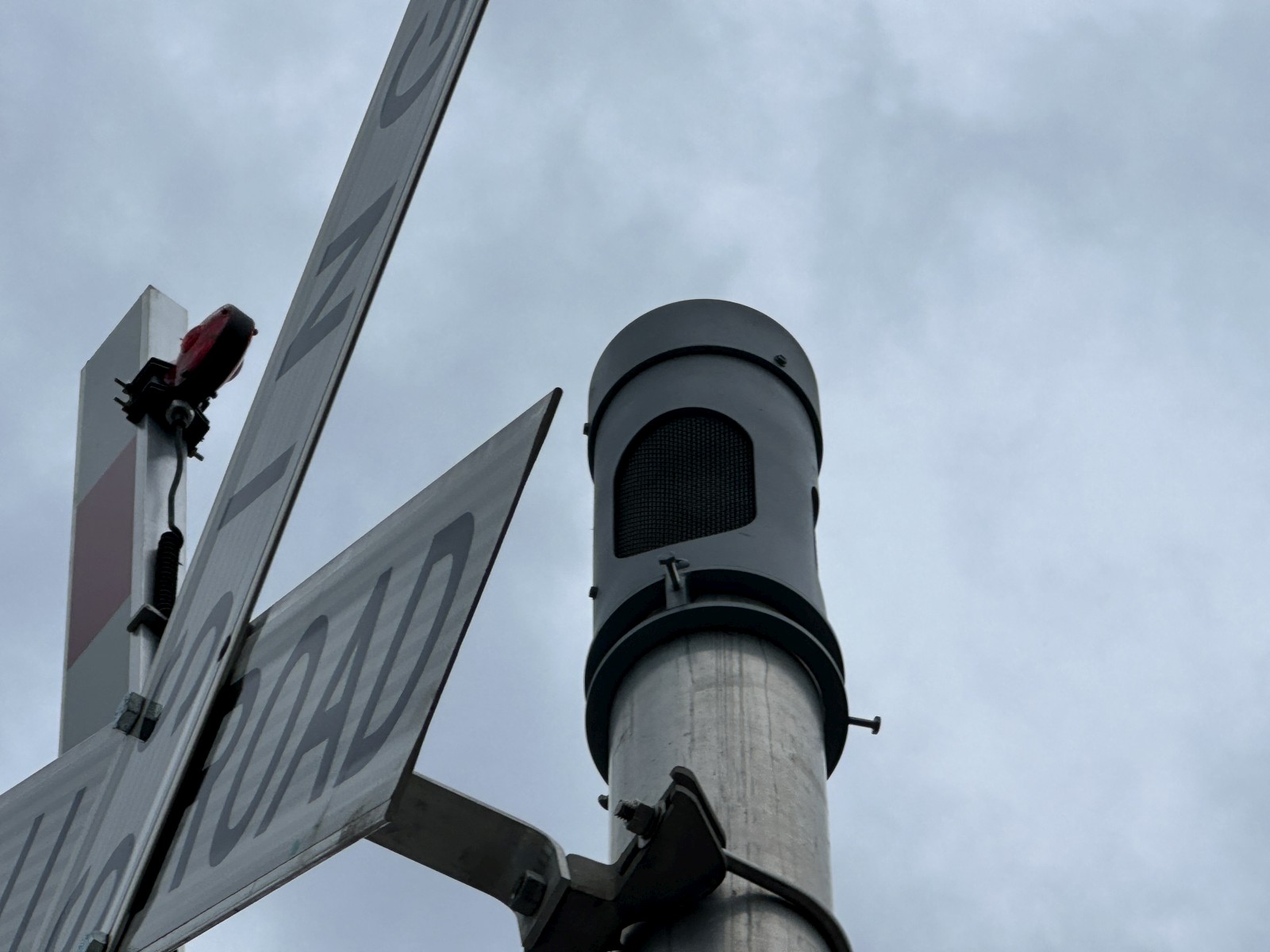

| Bell: | Safetran Type 3 E-Bell | NEG E-Bell |
| Base: | Safetran | WCH |
| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" WCH Flatback w/ Leotek EV series LEDs |

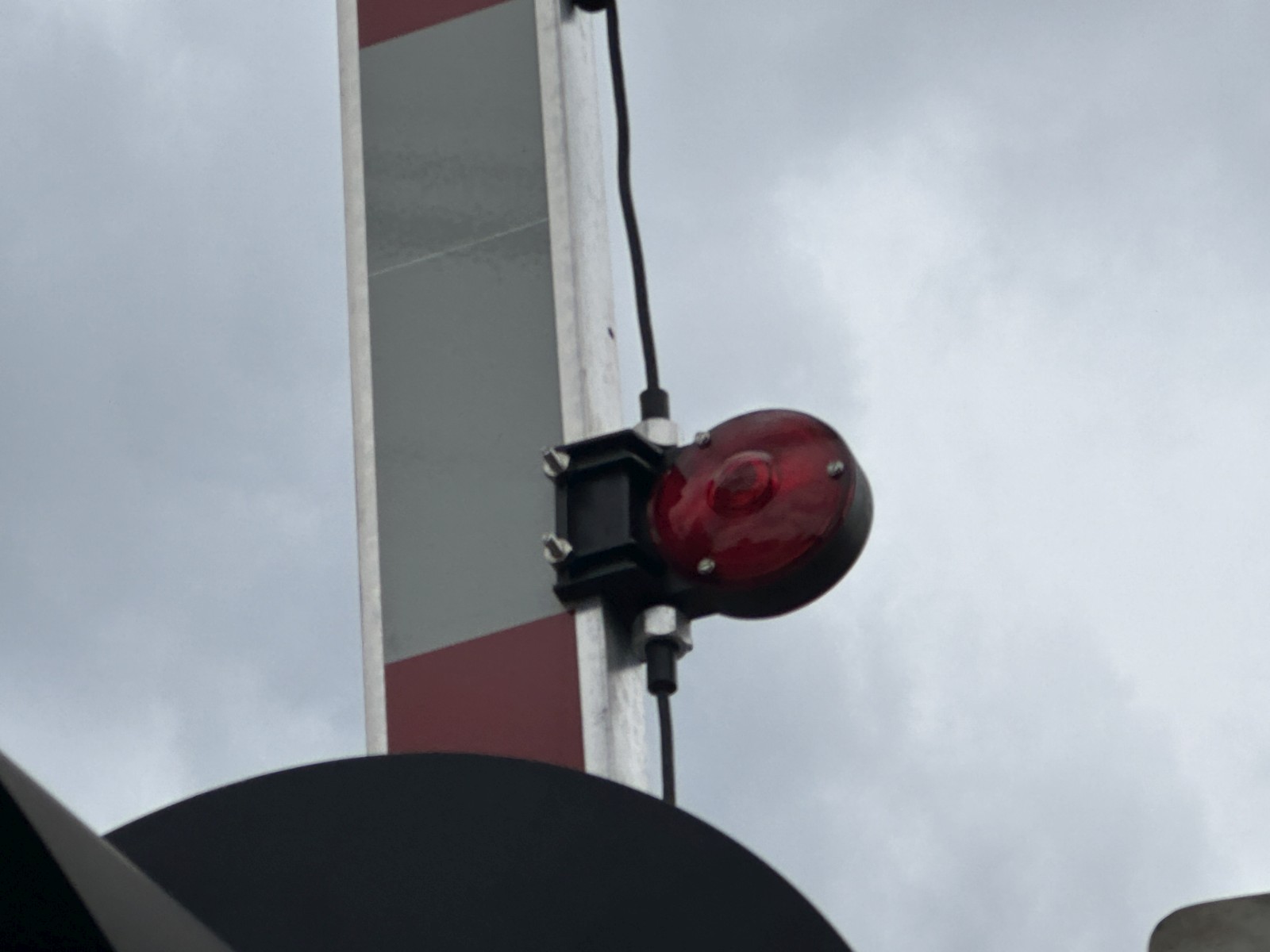

| Gatelights: | 4" NEG LEDs | 4" NEG LEDs |
| Gate Mechanism: | Safetran 2000's | Siemens Imprinted |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the CSX LH&STL Subdivision.
1 |
2 |
Overview of 2 gated signals facing west. |
Overview facing east. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |

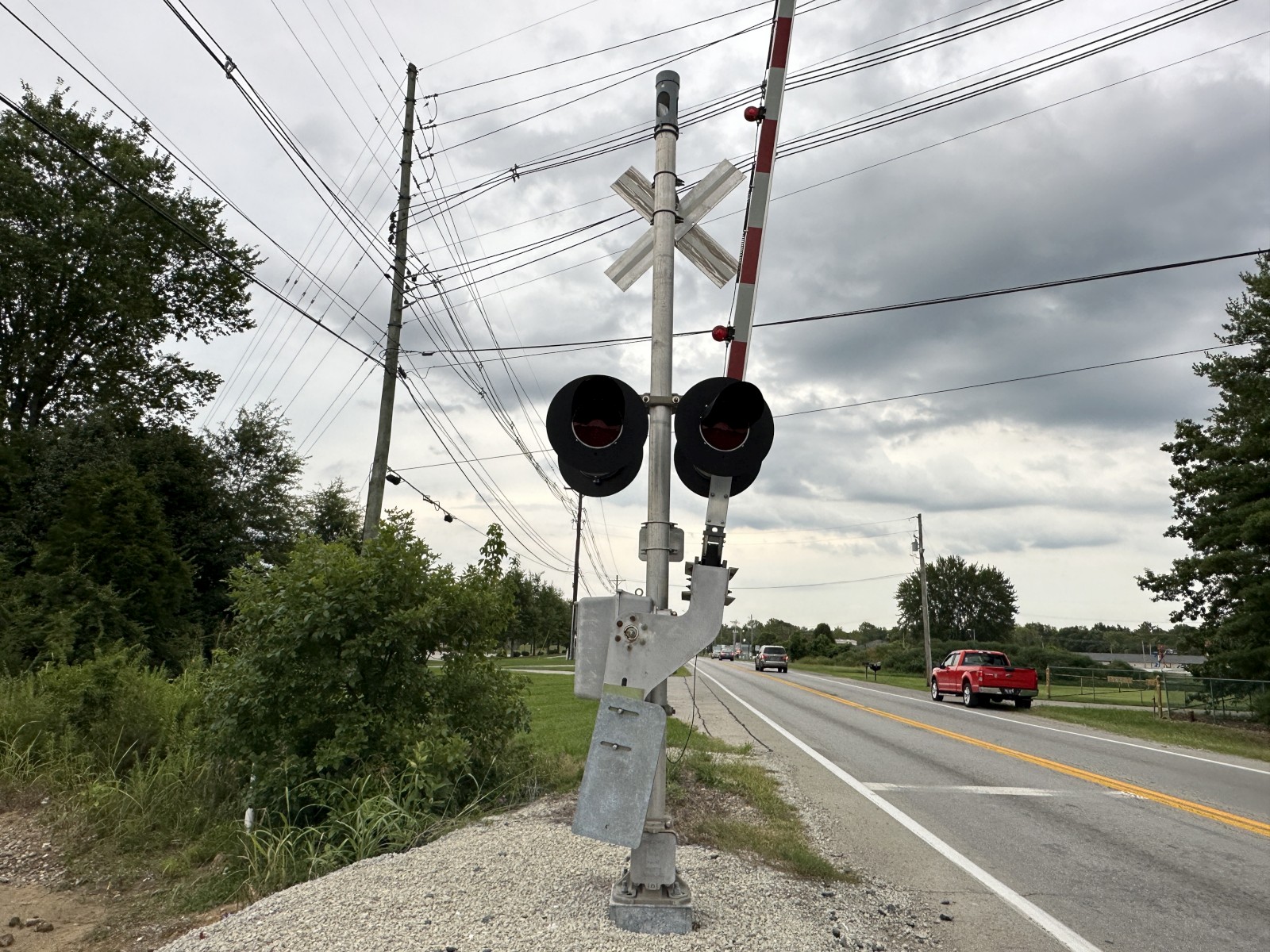

The eastern signal. |
||
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
The western signal. |
||
21 |
22 |
23 |
The relay bungalow. |
Track view facing west towards Manslick Road. |
Track view facing east towards New Cut Road. |
All pictures were taken on 8-13-23.
