| >>>>>>>>>>>>>> | Northwestern Signal | Southeastern Signal | Northwestern Ped. Signal |
| Bell: | N/A | NEG E-Bell | N/A |
| Base: | WRRS 5" Single Sided | WRRS 5" Single Sided | WRRS 5" Single Sided |
| Light Brackets: | WRRS | 2 - WRRS | N/A |
| Lights: | 4 - 8"x20" WCH Incandescents | 4 - 8"x20" WCH Incandescents 2 - 8"x20" GRS Incandescents |
N/A |
| Gate Lights: | 3 - WCH 4" Incandescents | 2 - WCH 4" Incandescents 1 - NEG 4" Incandescent |
N/A |
| Gate Mechanism: | GRS Type B | GRS Type B | GRS Type B |
| Gate Striping: | Diagonal Striping |
Diagonal Striping |
Diagonal Striping |
Pictures 1-5 were taken on November 20, 2006, by Crossingman18 (Blackstorm18000@yahoo.com).
Pictures 6-18 and the video were taken on July 15, 2014, by Crossingman18.
Pictures 19-49 were taken on May 11, 2024, by RailfanRXR.
Page updated in 2016 by Crossingman18.
Page updated in 2024 by RailfanRXR.
This crossing is located on the CSX Waterville Subdivision.
|
1     |
2   |
3  |
|

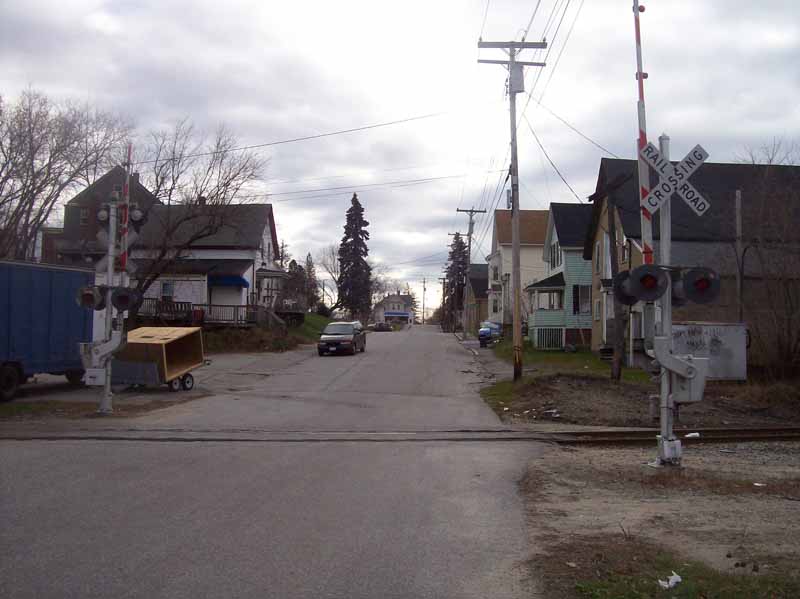

Facing North.
|
Facing South. Holland St. is in the distance. |
Facing East.
|
|
4  |
5    |
|
Facing West. Three pairs of 8" lights on this side of the crossing. The extra set is for visibility for a nearby hill. |
A rare look at a WRRS lantern gate light.
|
This crossing used to have 3 tracks, but two of them were torn out in 1991. The crossing also used to have 24 daily trains back in the 70s and most of the 80s.
The lights are made by WCH, and GRS. The gate motors are WRRS/GRS model 10's, and there is only one pedestrian gate.
The mechanical bell is on the west side of the crossing hidden behind the extra pair of 8" lights, and is a WRRS mini-bell.
6 |
7 |
8 |
9 |
|
Facing East.
|
The East signal.
|

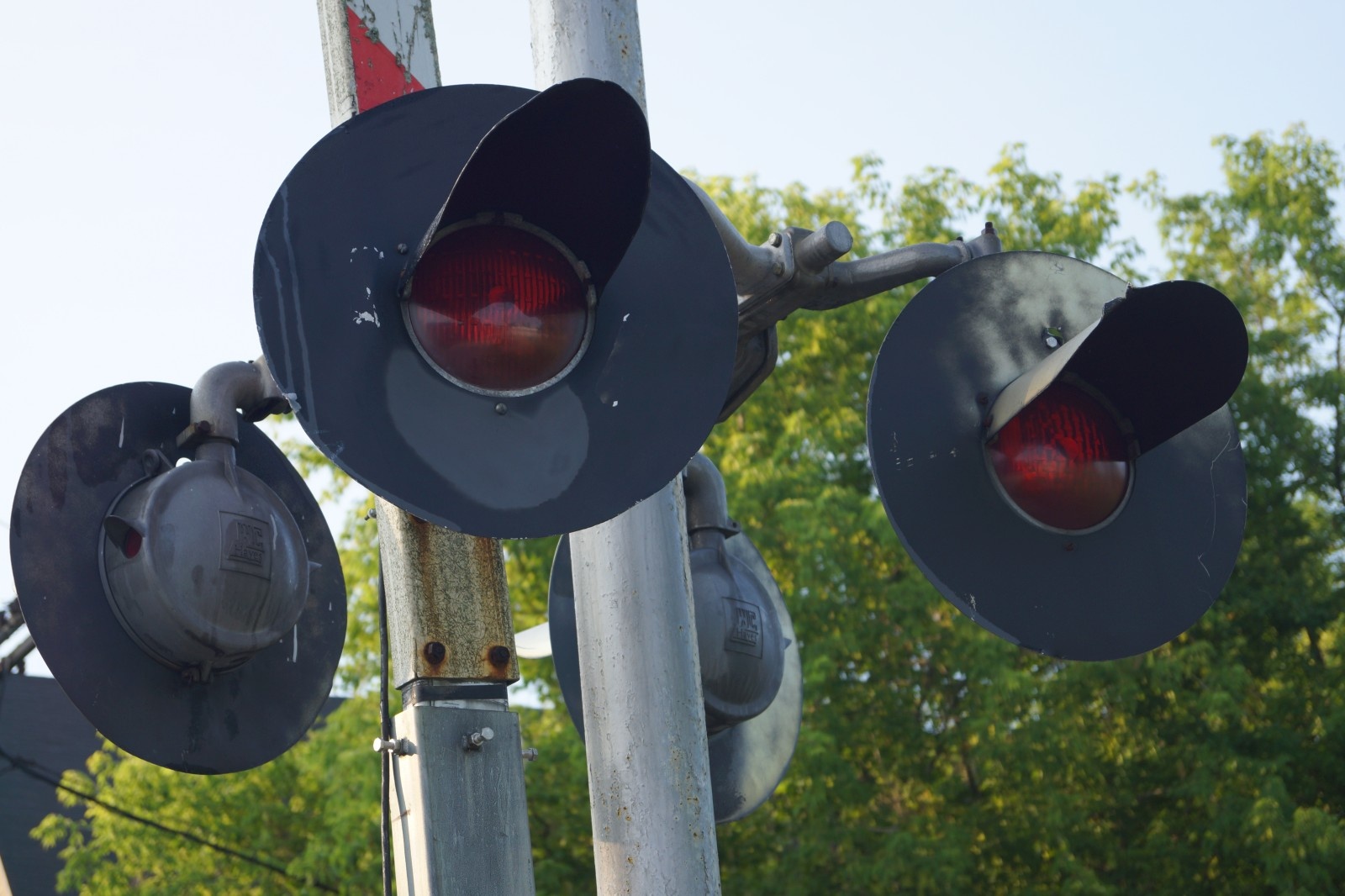

WCH 8" incandescent lights on the East signal.
|

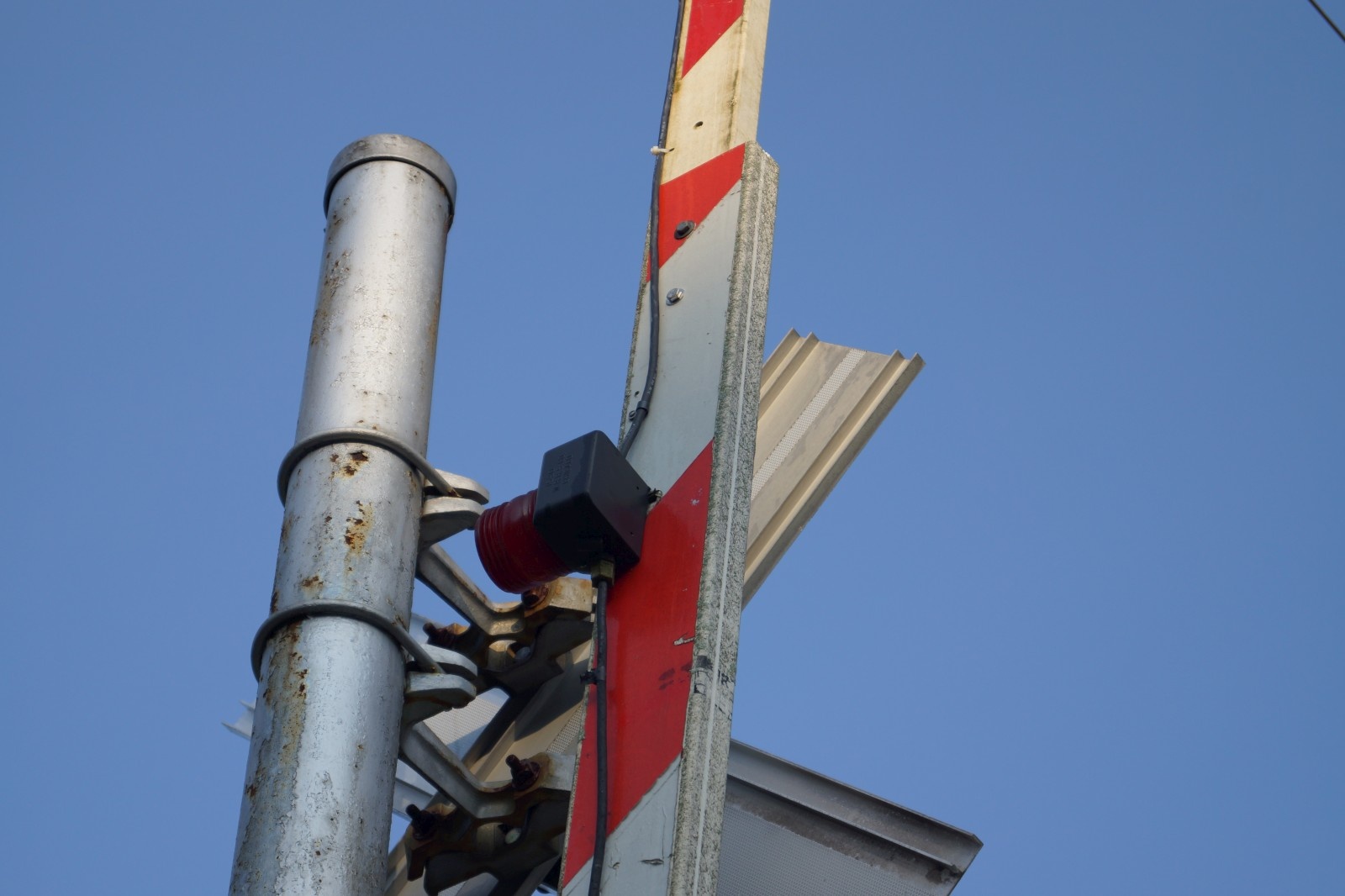

A WRRS lantern gate light remains on the East
signal!
|
10 |
11 |
12 |
13 |
|

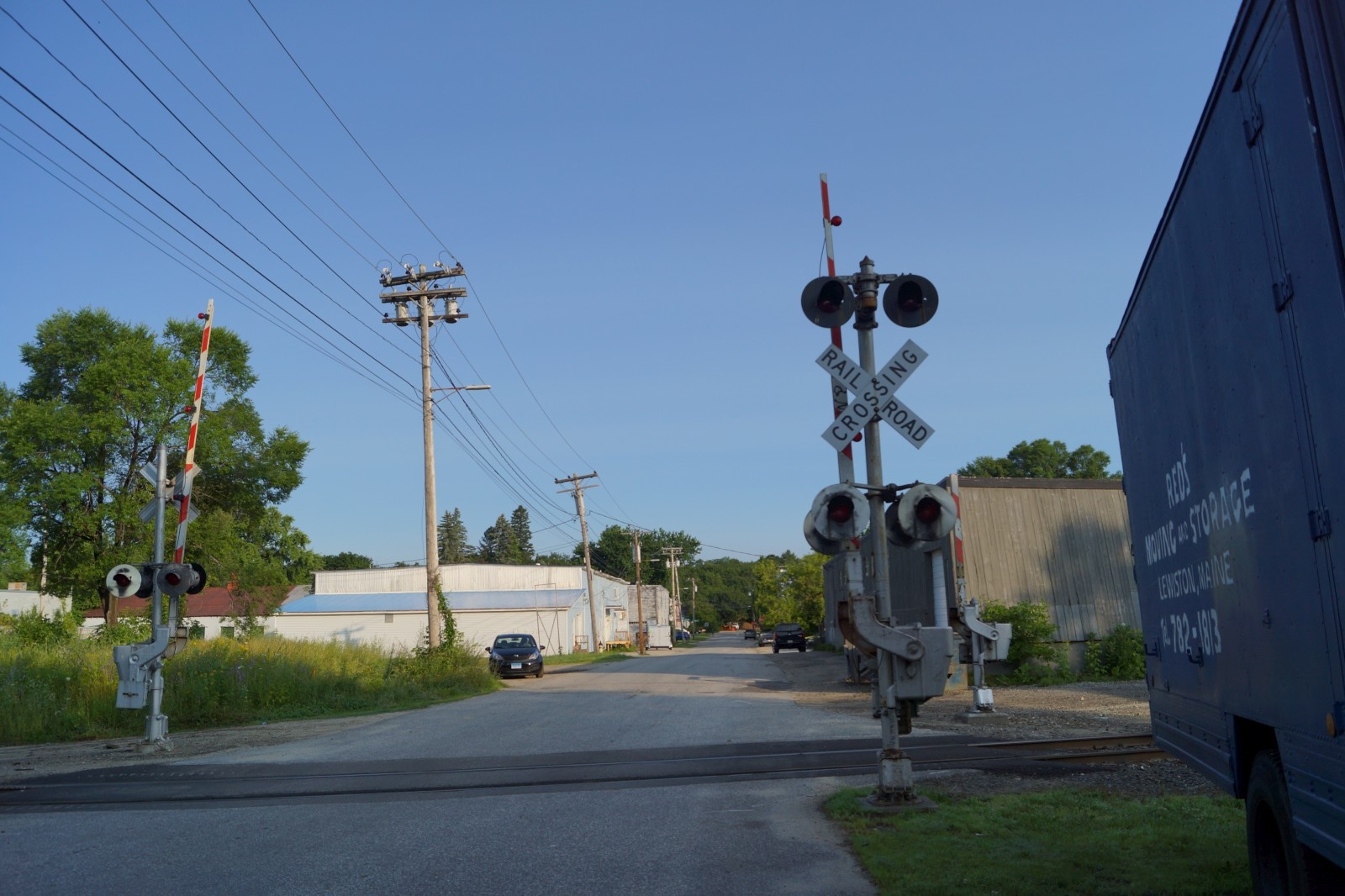

Facing South, Holland St. in the distance.
|
Facing North, heading towards Strawberry Ave.
|
Facing West.
|
The West signal has 4 pair of WCH 8"
incandescent, and a pair of GRS 8" on top.
|
14 |
15 |
16 |
17 |
|

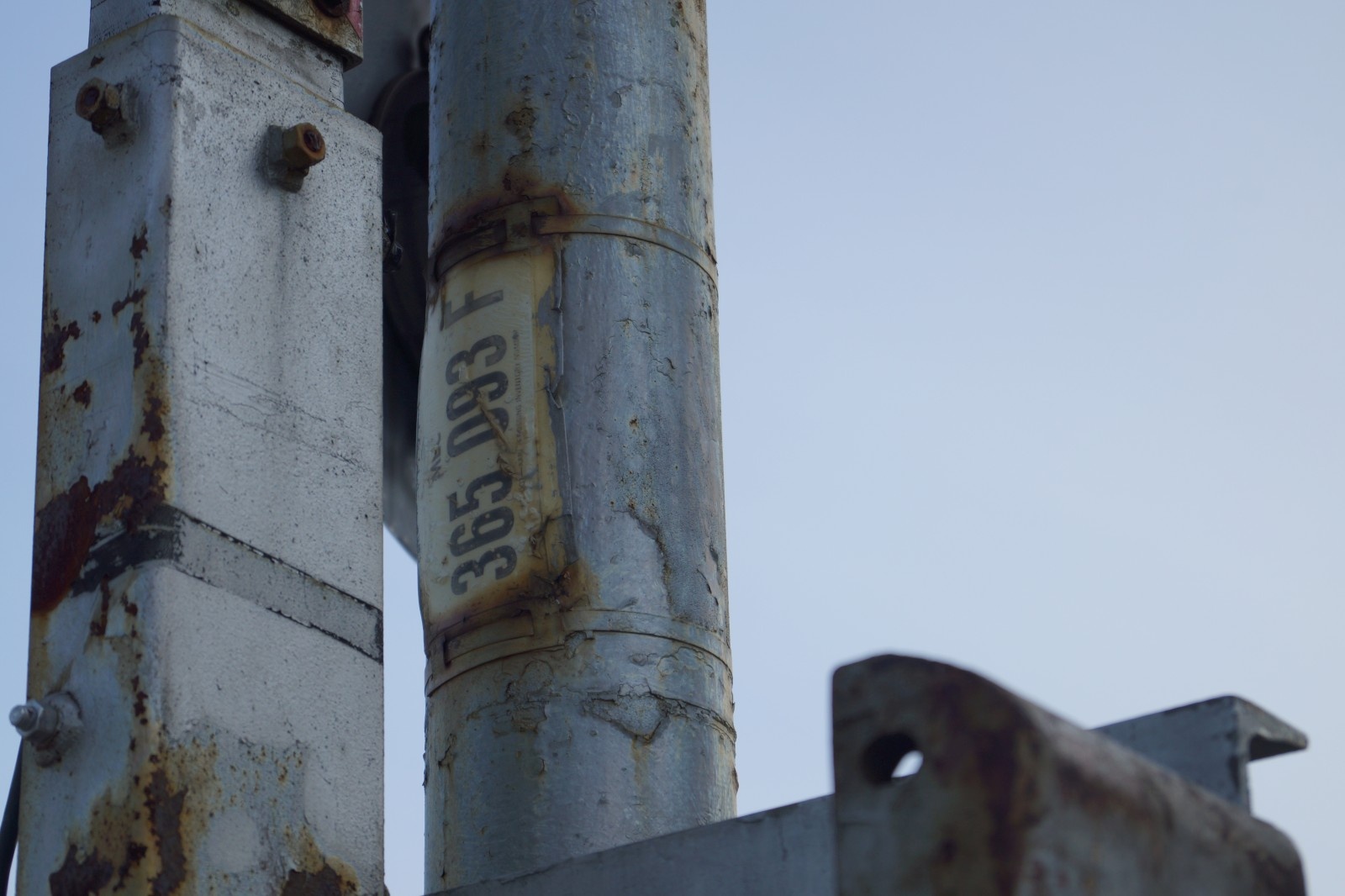

An old Maine Central DOT still stands on the
West signal.
|
A WRRS/GRS model 10 gate mechanism on the
West signal.
|
A WRRS mini-bell hidden behind the GRS lights
on the West signal.
|

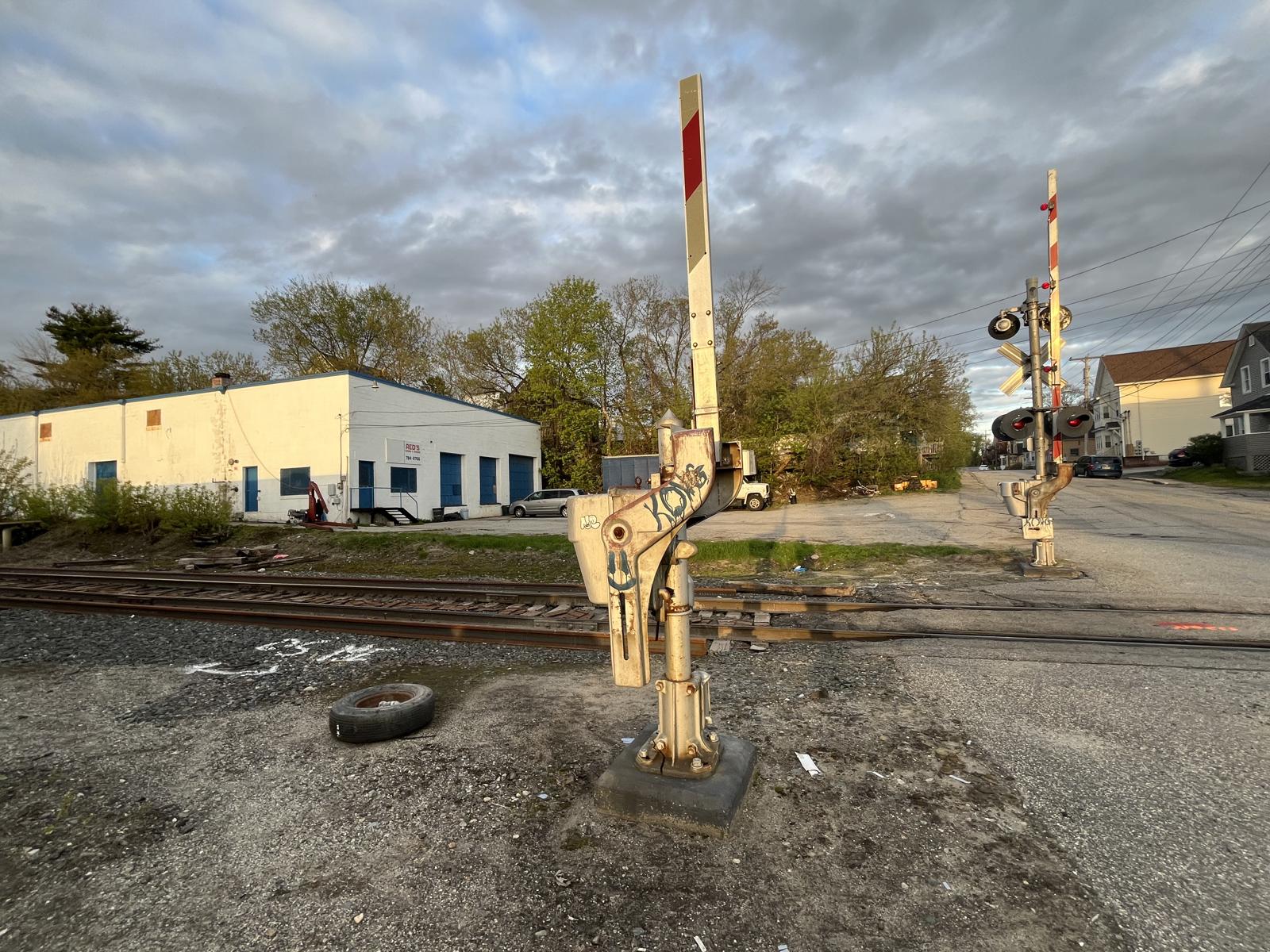

A single pedestrian signal with a WRRS/GRS
model 10 gate mechanism.
|
18 |
|
The relay case sort of being taken over by
the scenery!
|
A return trip to the crossing shows really no changes. Everything appears to look the same as it did in 2006.
19 |
20 |
| Overview facing southeast. | Overview facing northwest. |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |

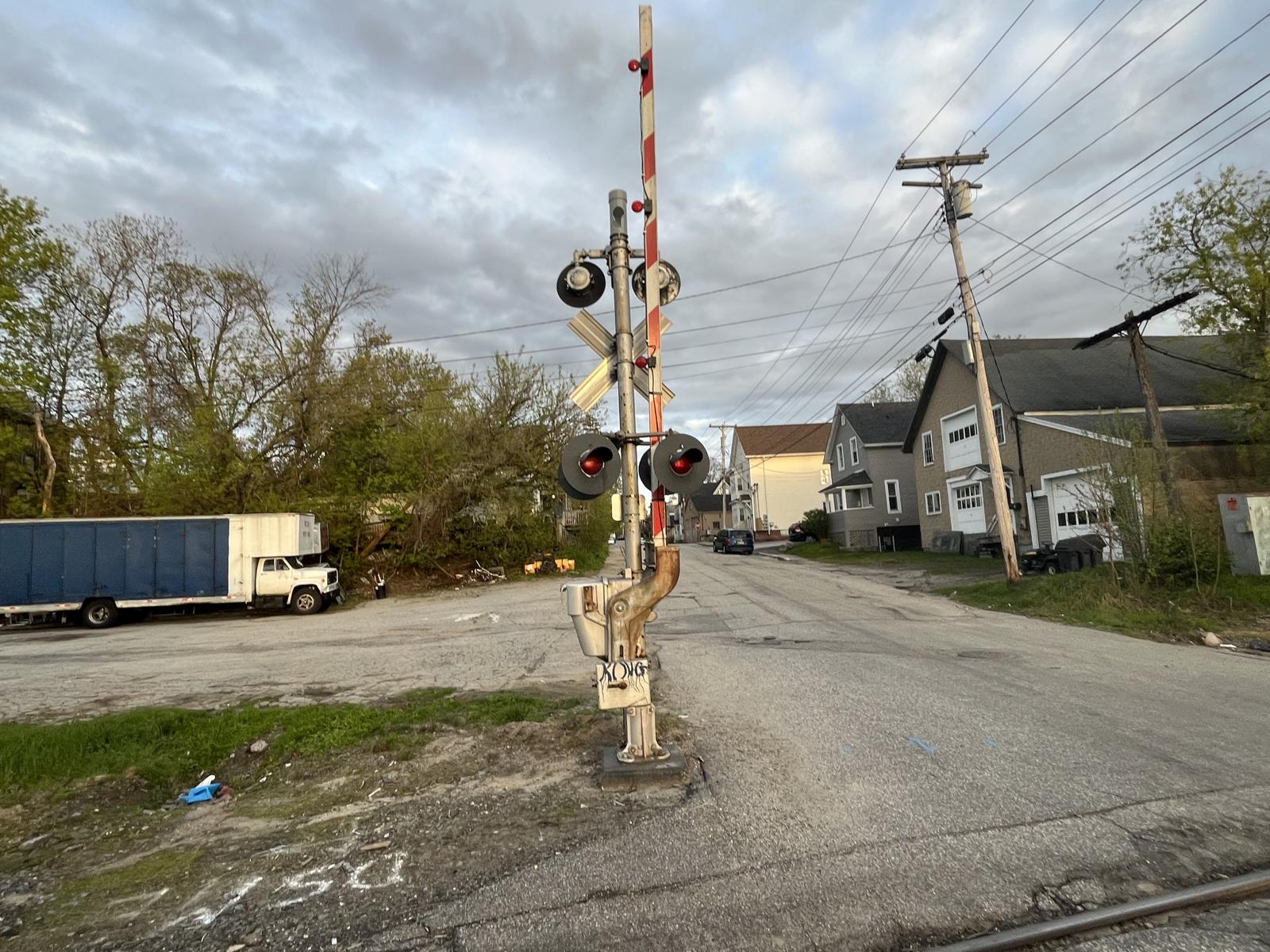

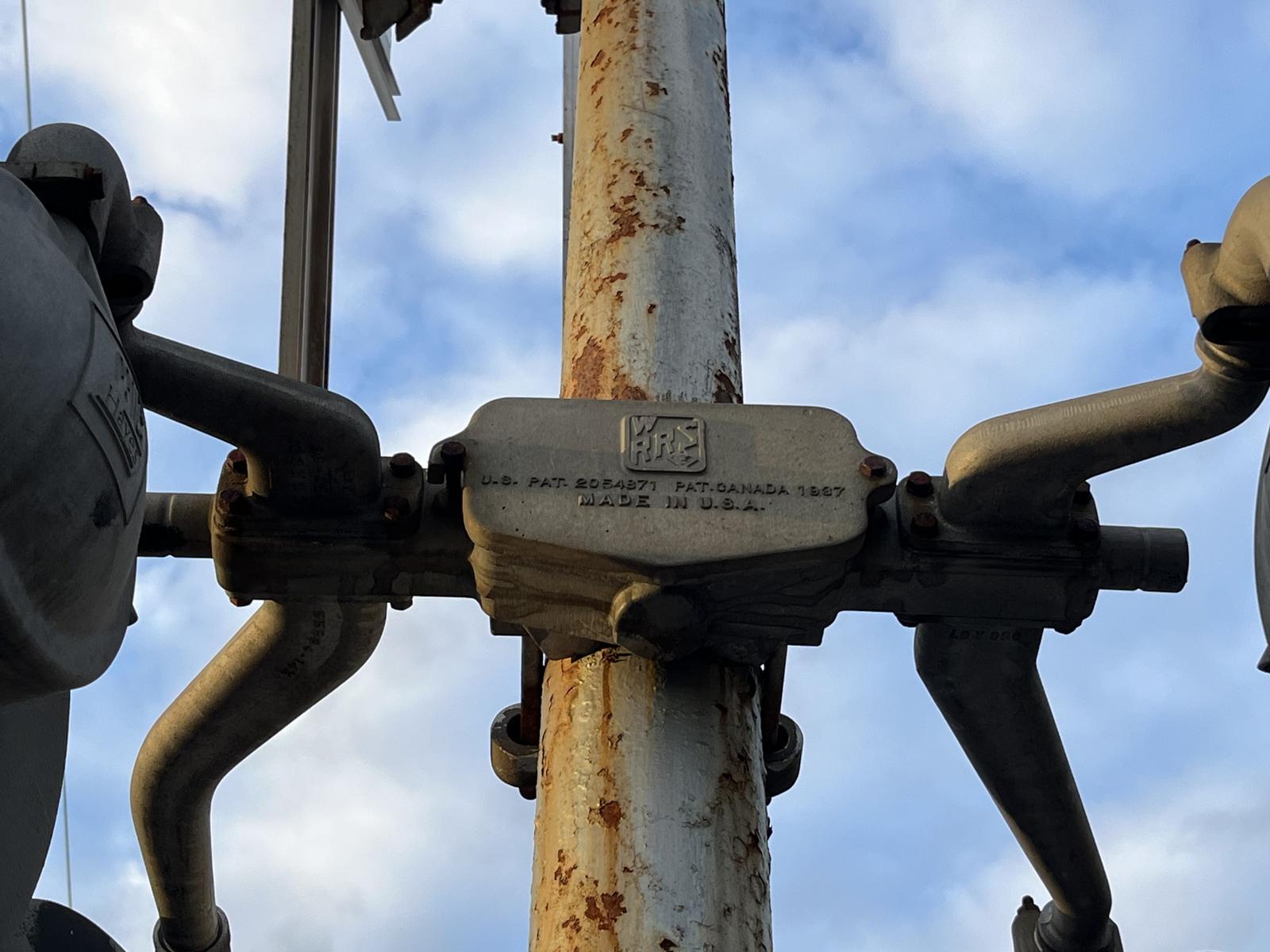

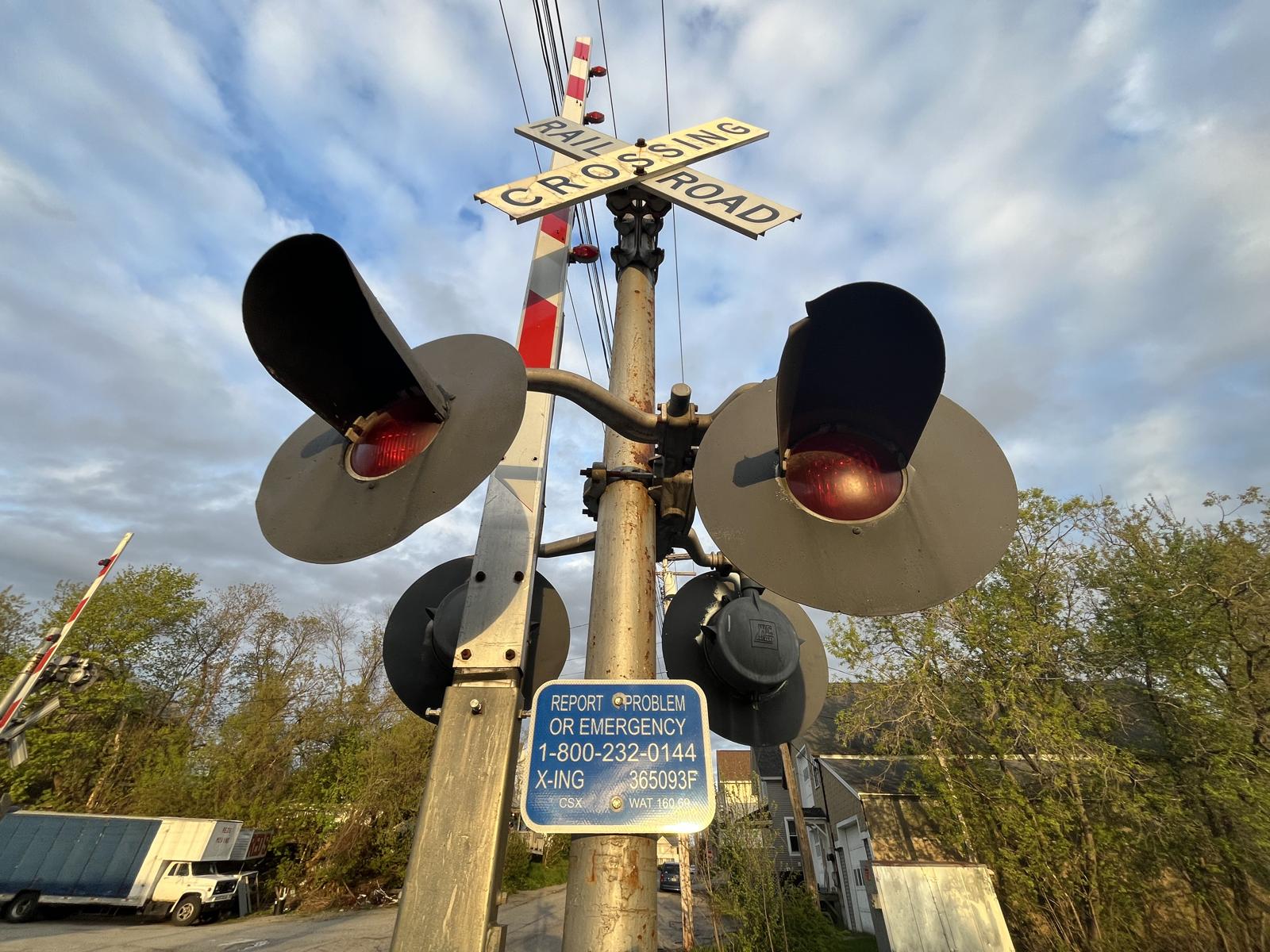

| The northwestern signal. | |||
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |

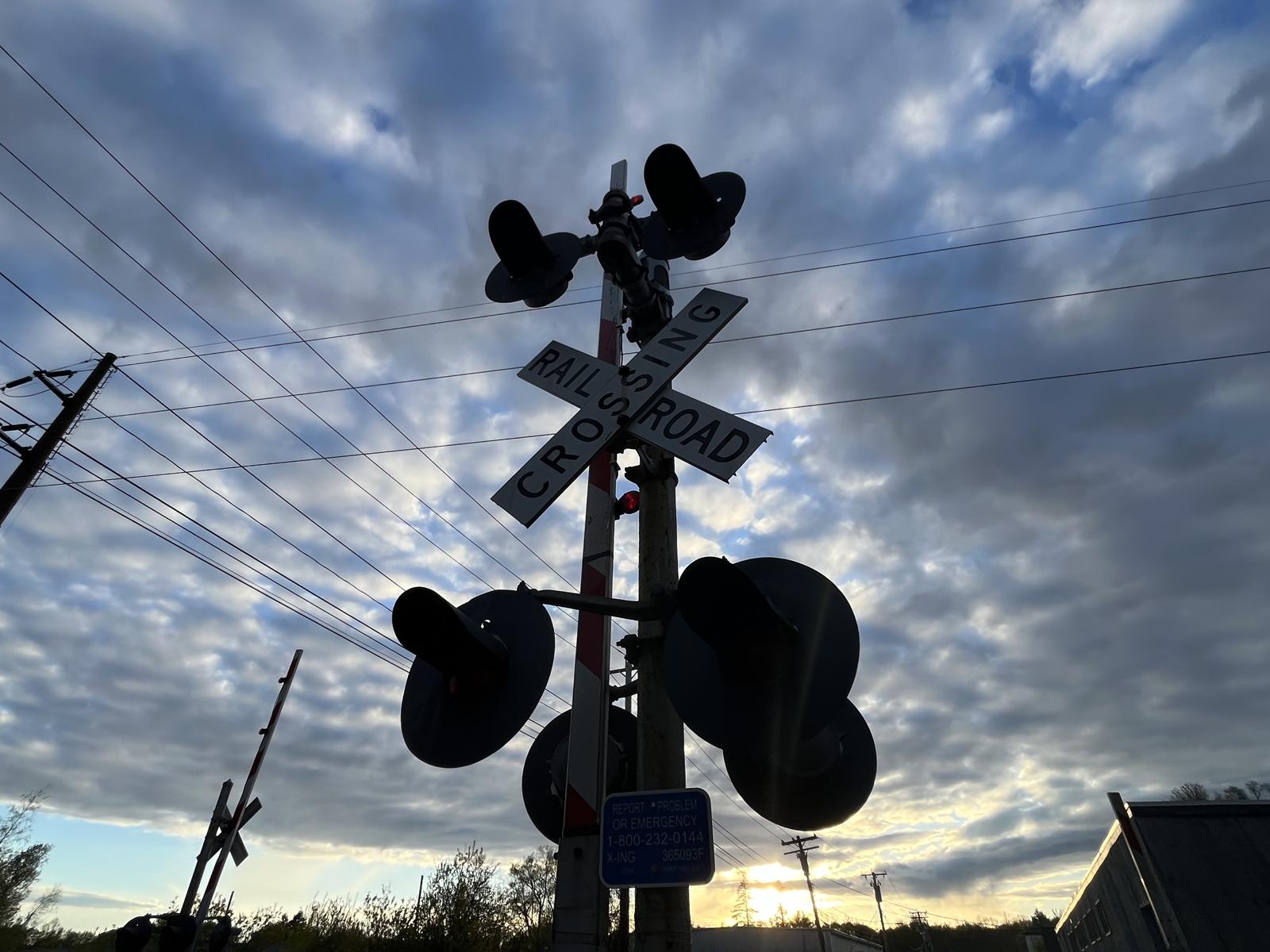

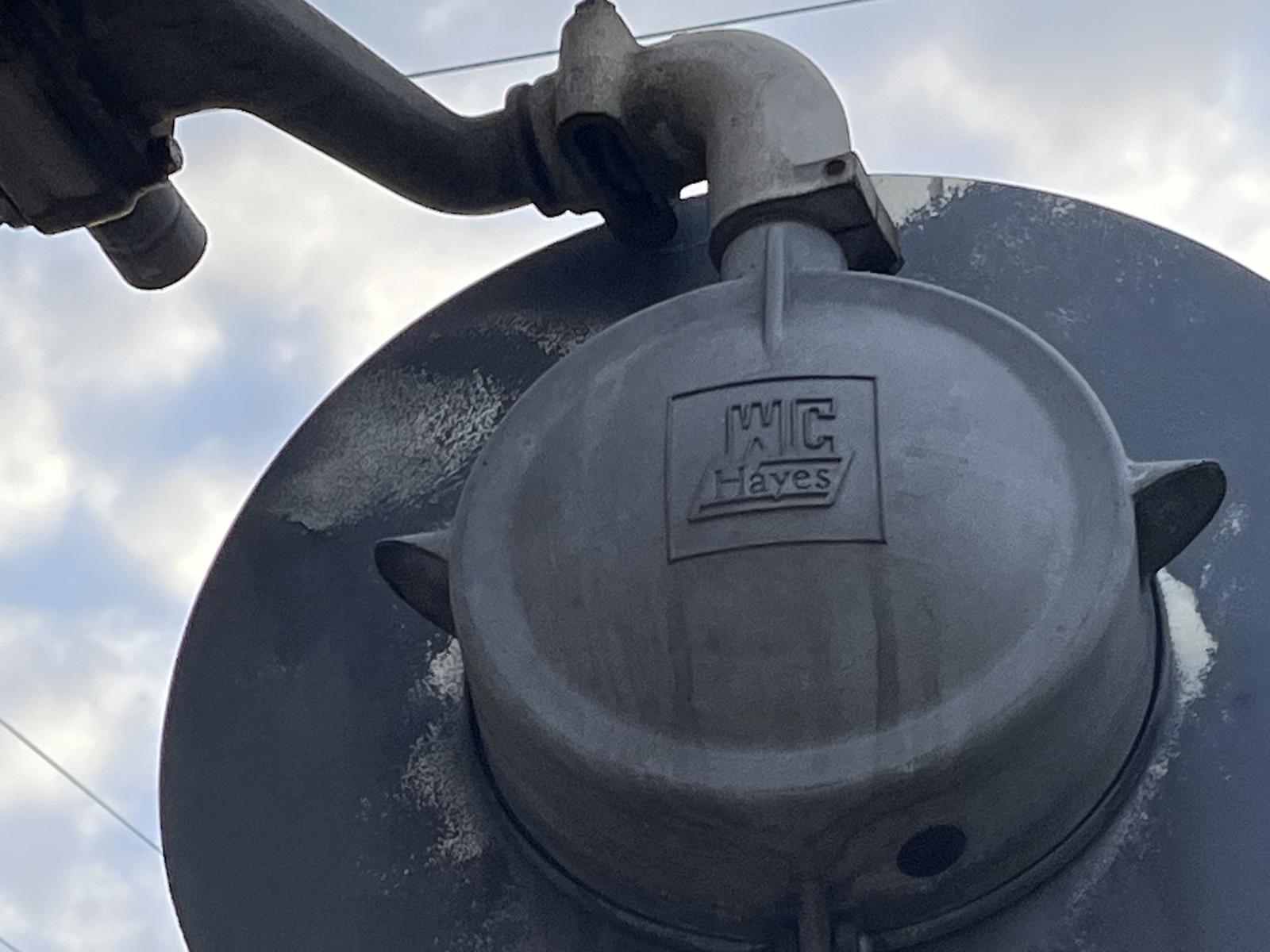

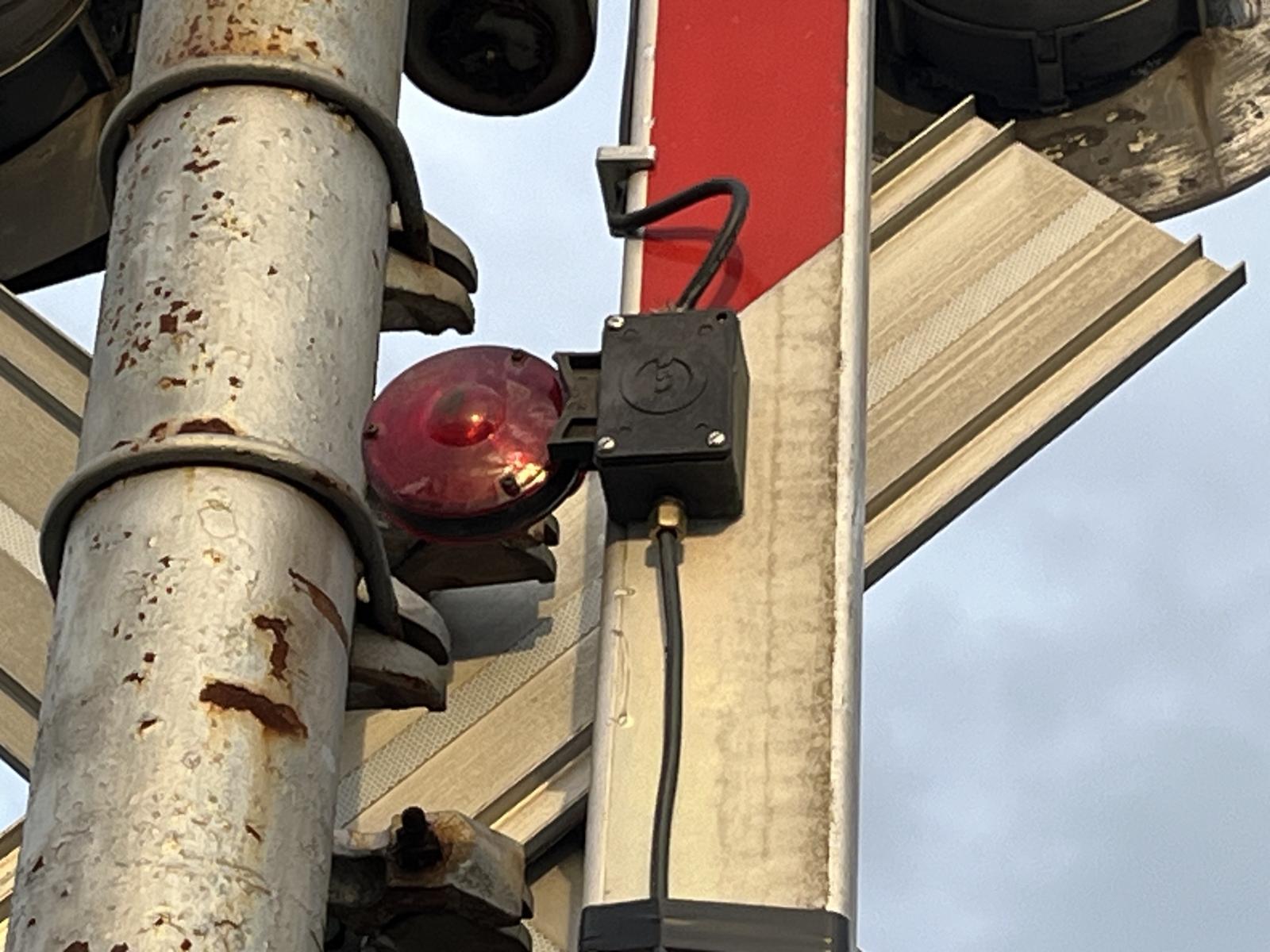

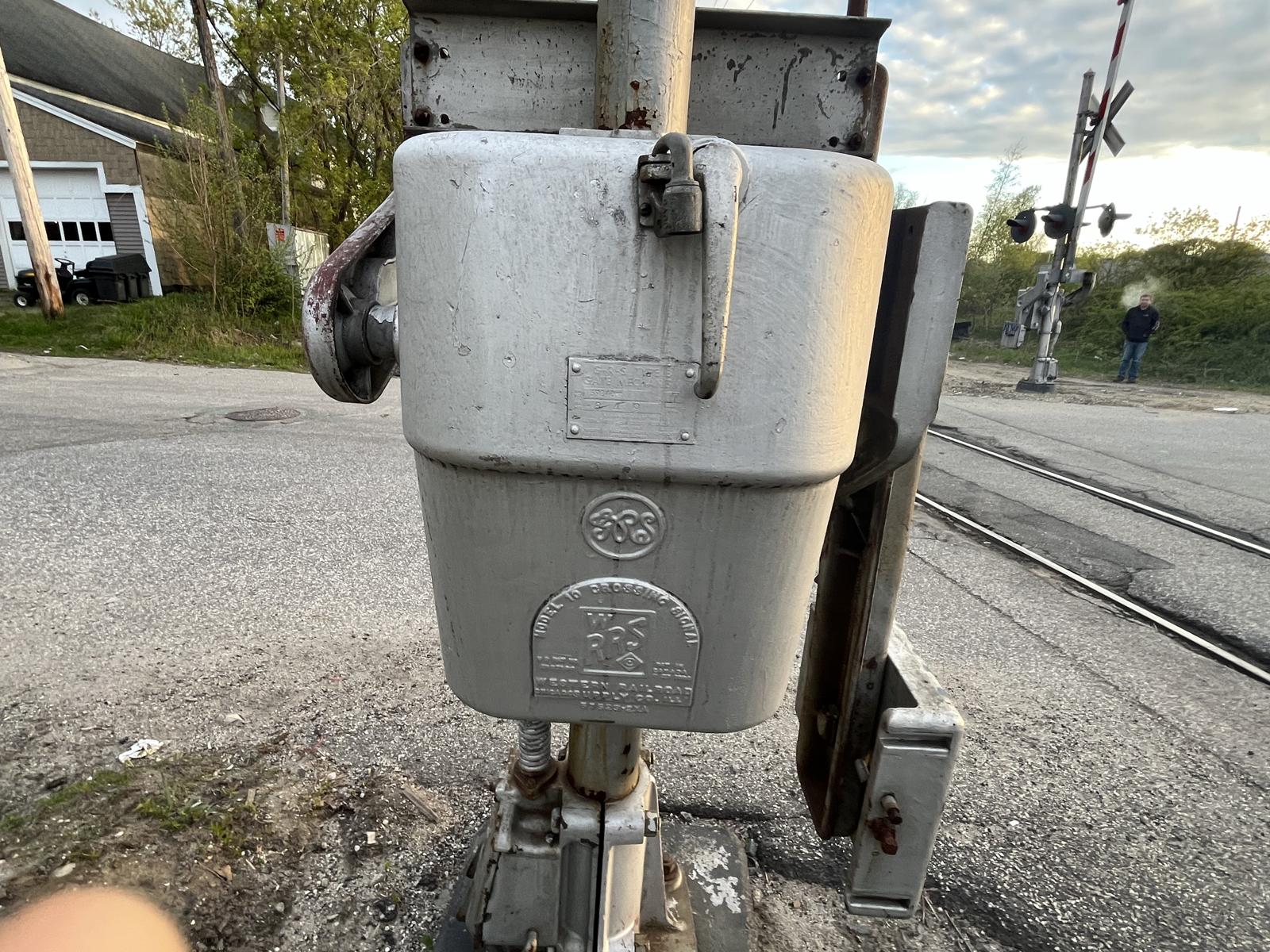

| The southeastern signal. | |||
42 |
43 |
44 |
45 |
| The northwestern pedestrian signal. | |||
46 |
47 |
48 |
49 |

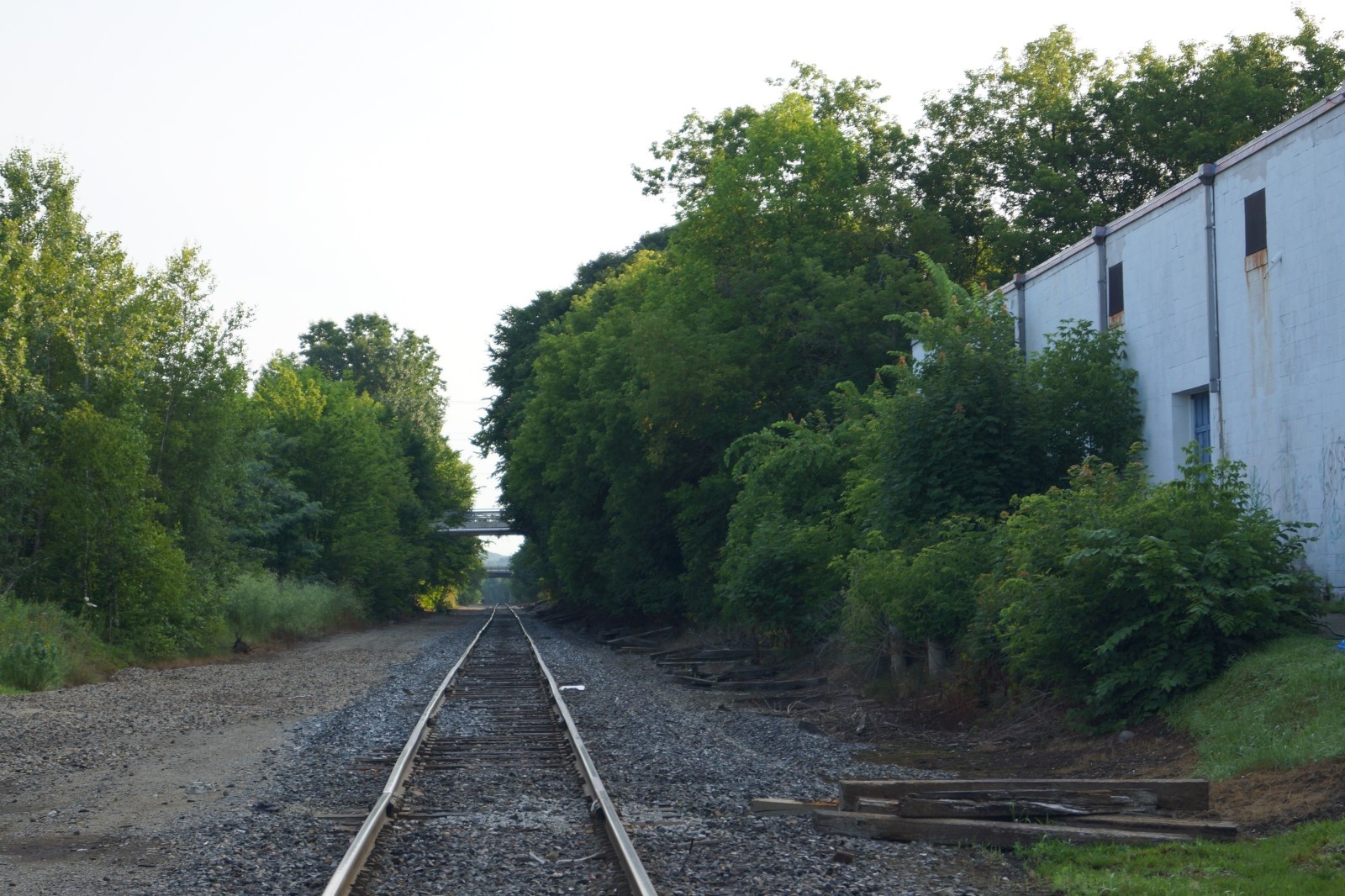

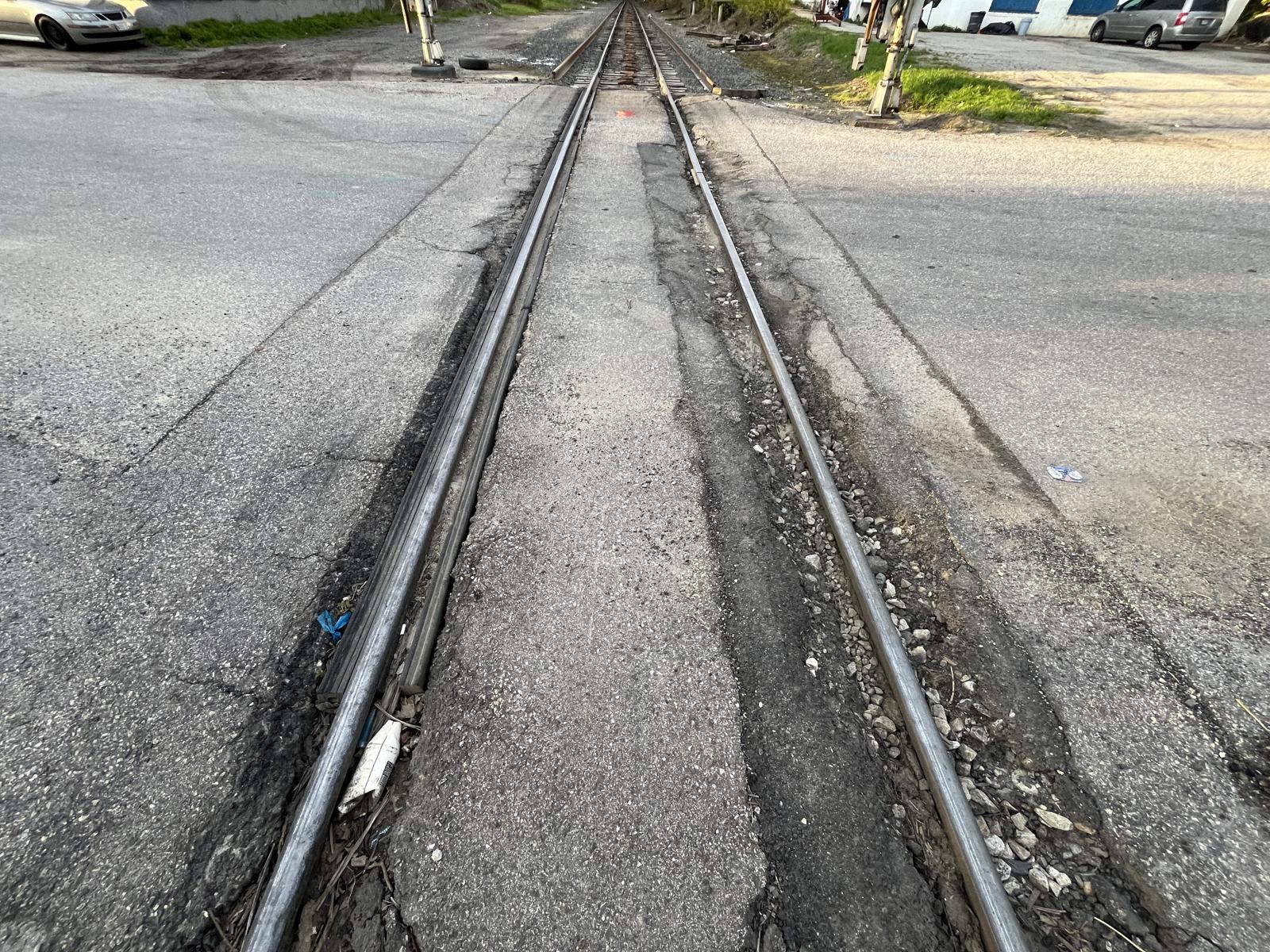

| The relay case. | The grade, made of rubber and asphalt. | Track view facing north towards Libby Ave. | Track view facing south towards Holland St. |
The video below is from Crossingman18. This was before the bell replacement.
