| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | NEG E-Bell | NEG E-Bell |
| Cantilever: | Griswold(?) | Griswold(?) |
| Light Brackets: | Unmarked | Unmarked |
| Lights: | 2 - 12"x24" Unknown w/ Unknown Clear LEDs | 2 - 12"x24" Unknown w/ Unknown Clear LEDs |
| Gate Lights: | 2 - RECO 4" LEDs | N/A |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical Striping | Diagonal Striping |
SV1 |
SV2 |
SV3 |
| Street View from June 2009 showing an older NdeM(?) setup. |
Surprisingly, the crossing barely had any changes between June 2009 and Apr 2023! |
By Apr 2024, the current upgrades were put in place. |
1 |
2 |
| Overview facing north. | Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
| The northern signal. | ||
12 |
13 |
14 |
15 |
16 |
17 |
18 |
| The southern signal. | |||
19 |
| The southern median crossbuck. |
20 |
21 |
22 |

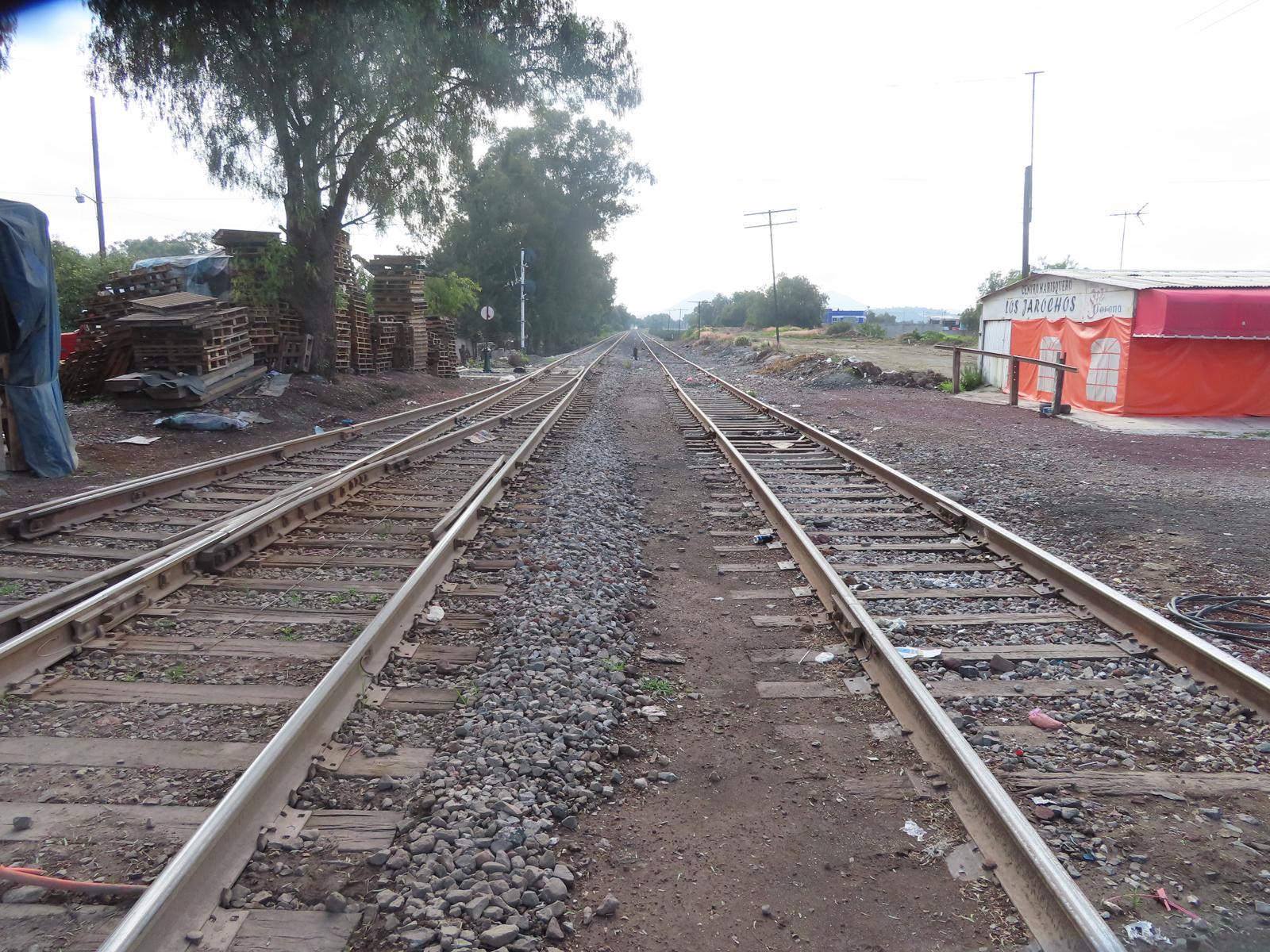

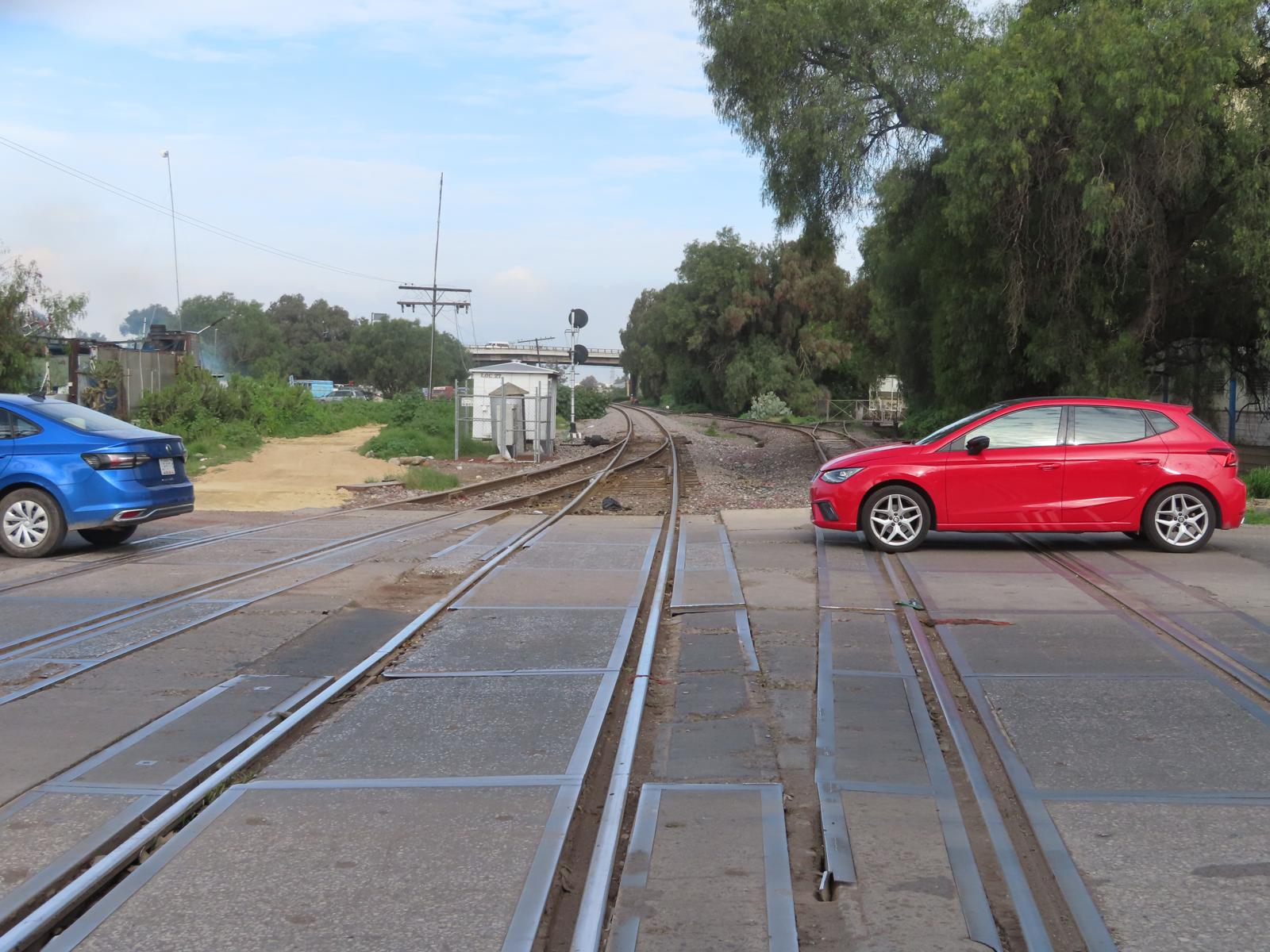

| The relay case in the southwest quadrant. | Track view facing east towards C. Marcos Achar Lobatón. | Track view facing west towards Blvd. del Lago. |
