Videos 1-2 were taken on July 20,
2022, by KCMO Railfan.
The 3rd video was taken on May 29, 2023, by KCMO Railfan.
Pictures 1-51 were taken on May 10, 2025, by KCMO Railfan.
This crossing is located on the UP Sedalia Subdivision with Amtrak
and MNA having trackage rights.
Page created by KCMO Railfan (using HopenRXRTools 1.3.0).
SV1
SV2

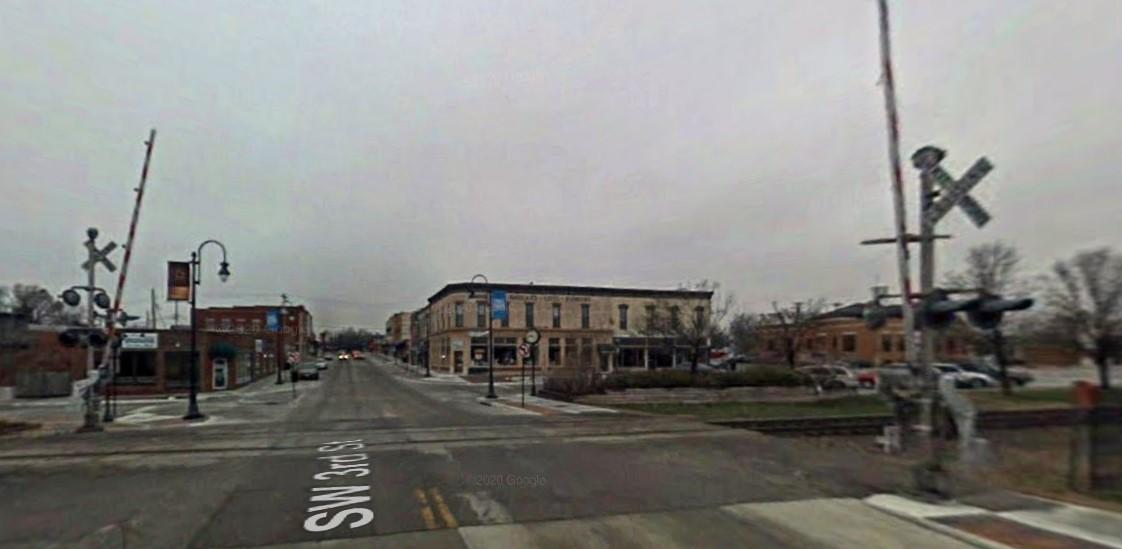

Older low
quality Google Maps Streetview imagery taken from April of
2008 shows the southern signal originally featuring a WCH
Mechanical Bell along with both signals having incandescent
lights. By 2011, the bell on the southern signal was
replaced with the current WCH Electronic Bell, and the
lights were upgraded to LEDs. Sometime in 2023, the
Electro-Tech gate lights on both signals were replaced with
the current NEG Clear LEDs along with the ENS signs being
repositioned.
1
2

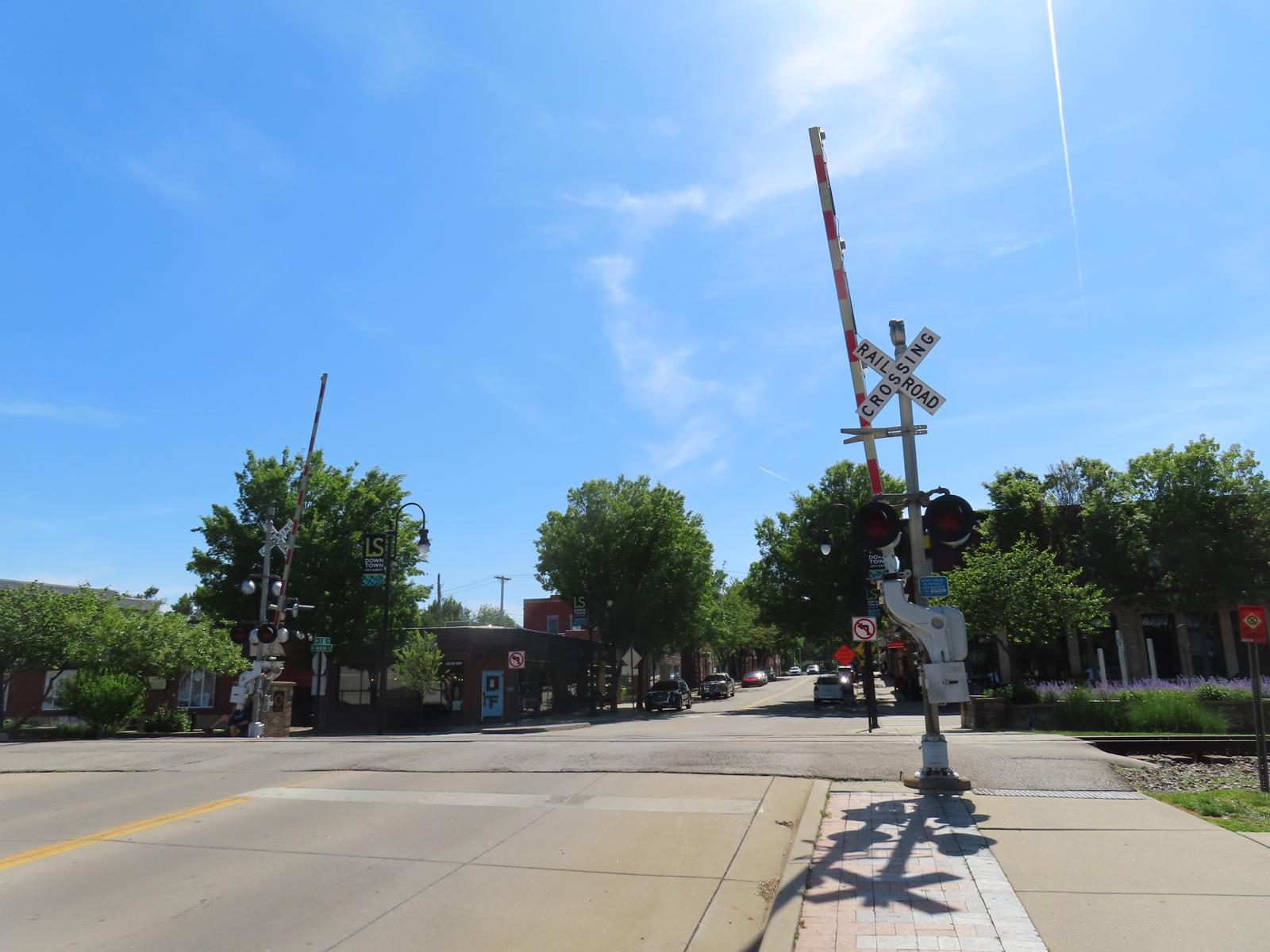

Overview facing
north at a pair of 1980s UP signals.

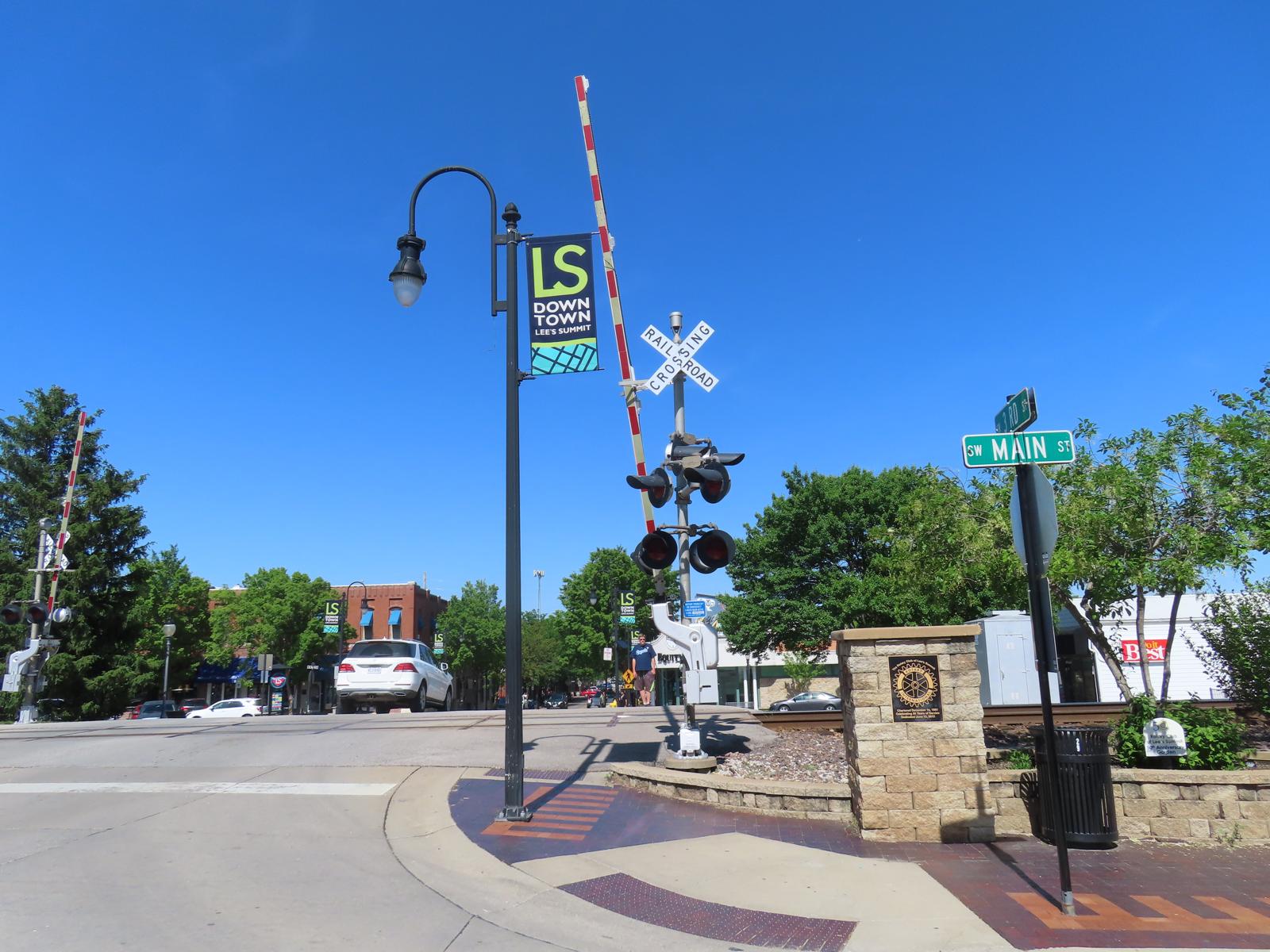

Overview facing
south.
The southern signal:
3
4
5
6

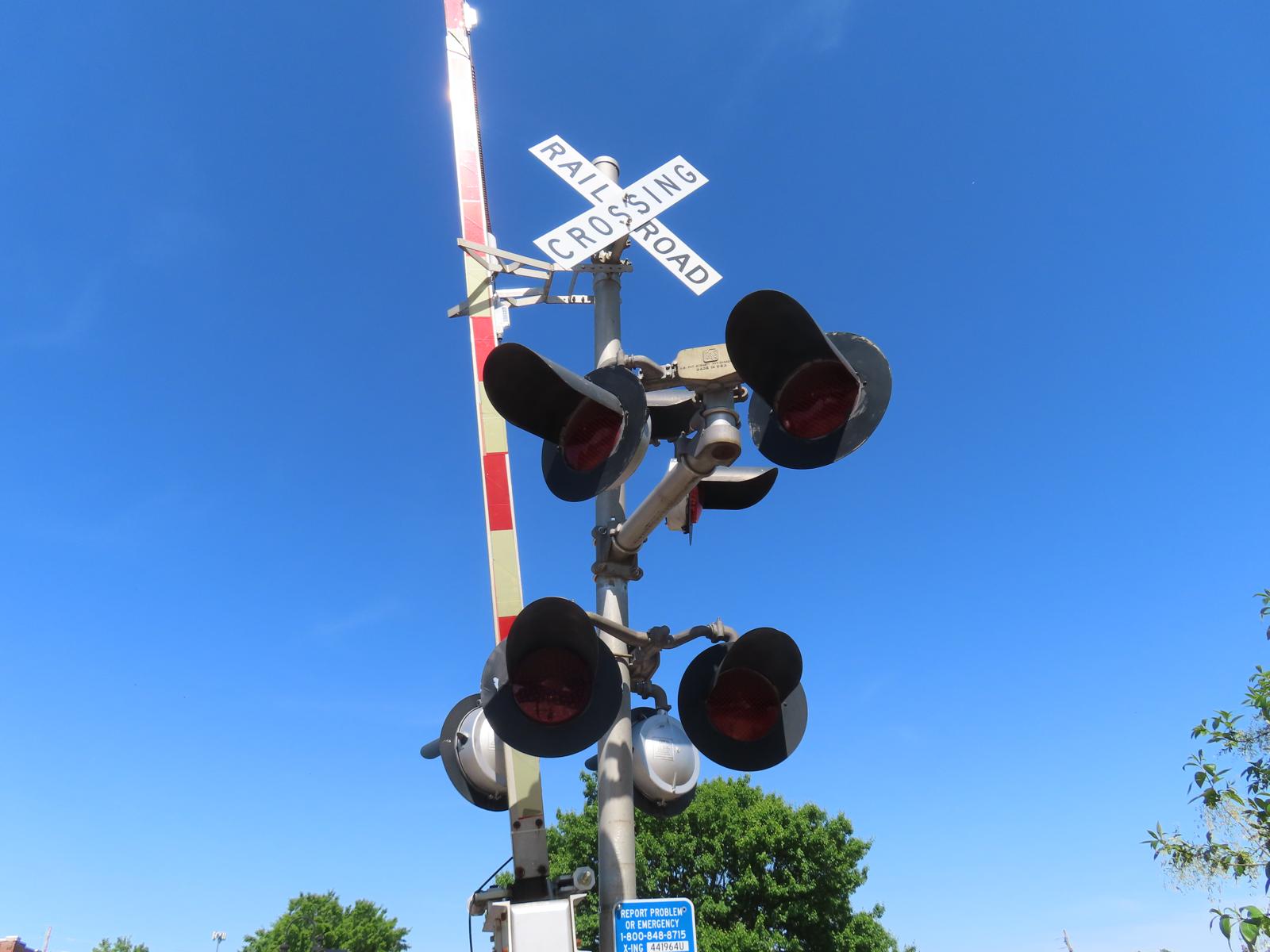

Front view of the southern
signal.

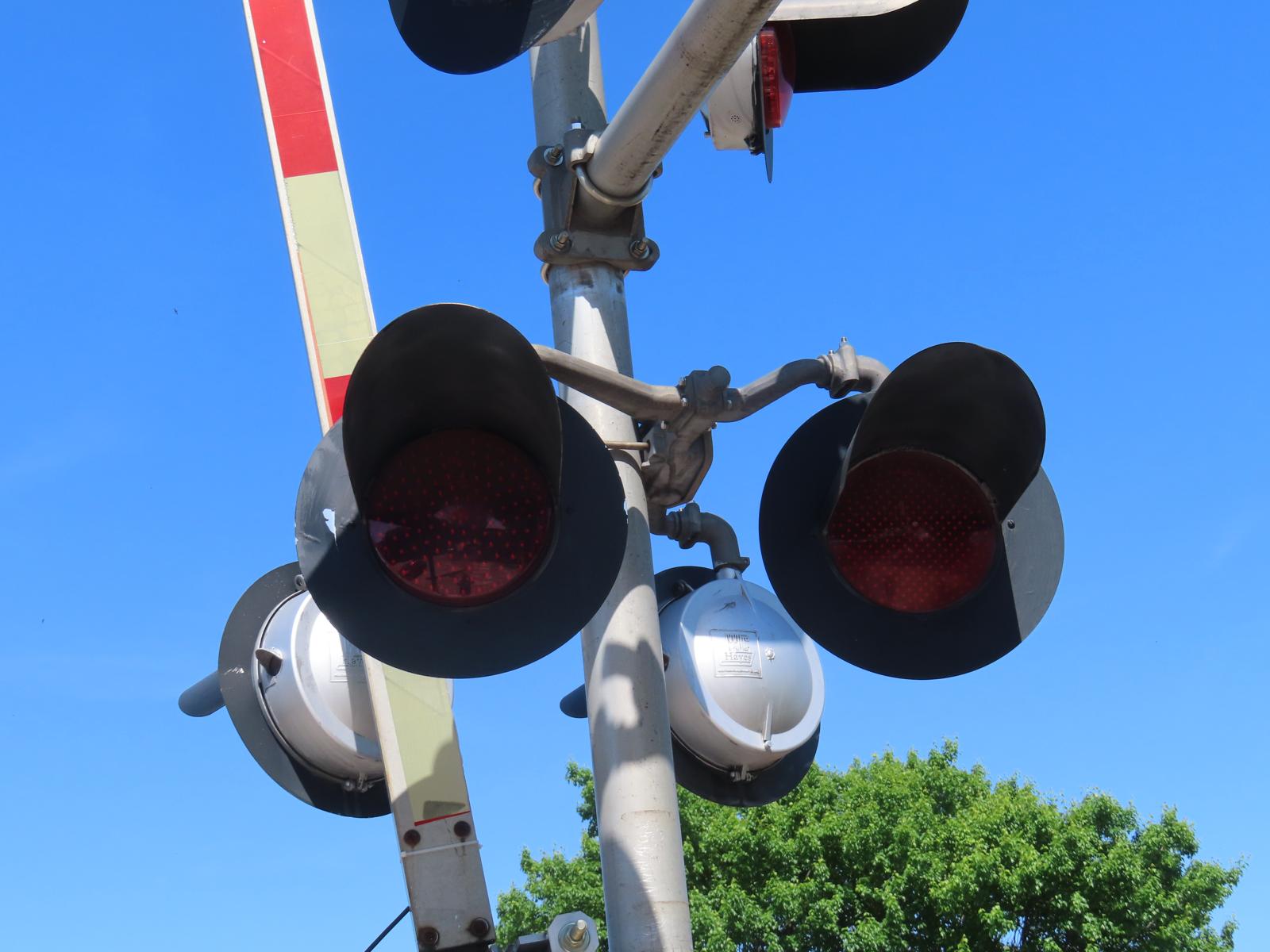

A look at the front, and
side lights on the southern signal.

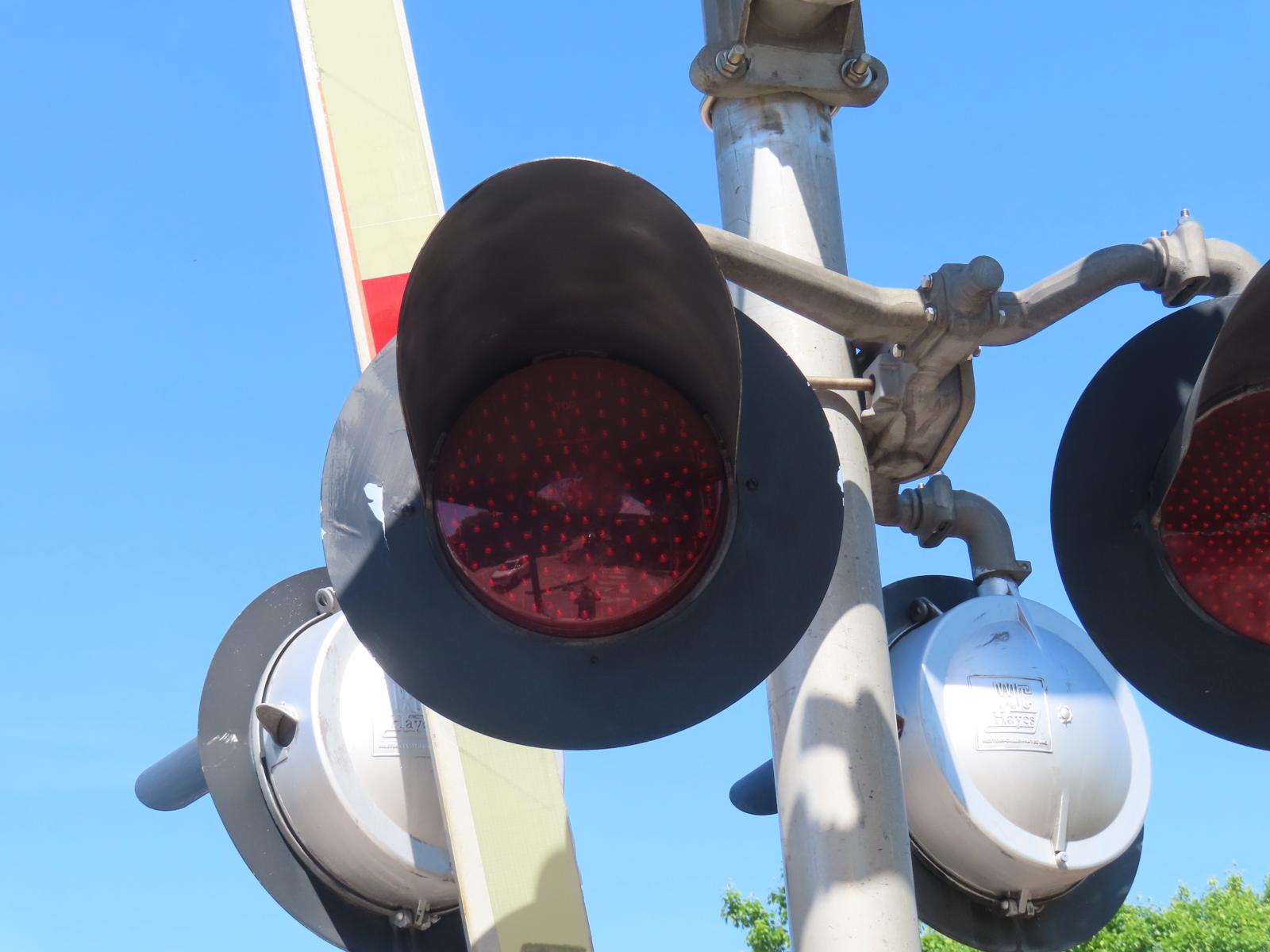

The main lights on the southern signal features 2 pairs of older 12x20s with the
front lights featuring a mixture of GE, and Electro-Tech
LEDs.
Close up at the GE Pixelated Look
LEDs in one of the front lights.
7
8
9
10
Close up at the
Electro-Tech LEDs in one of the front lights.

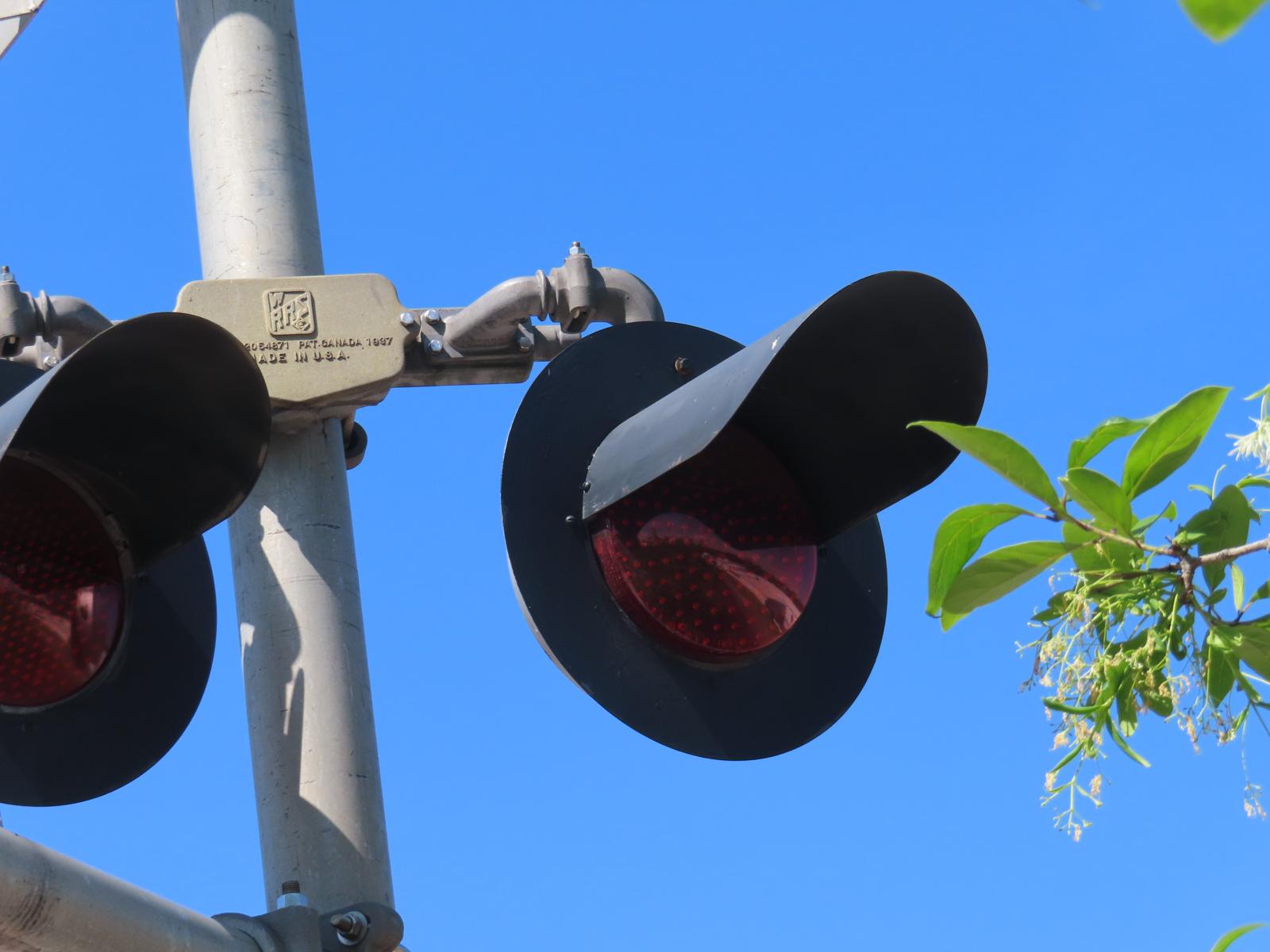

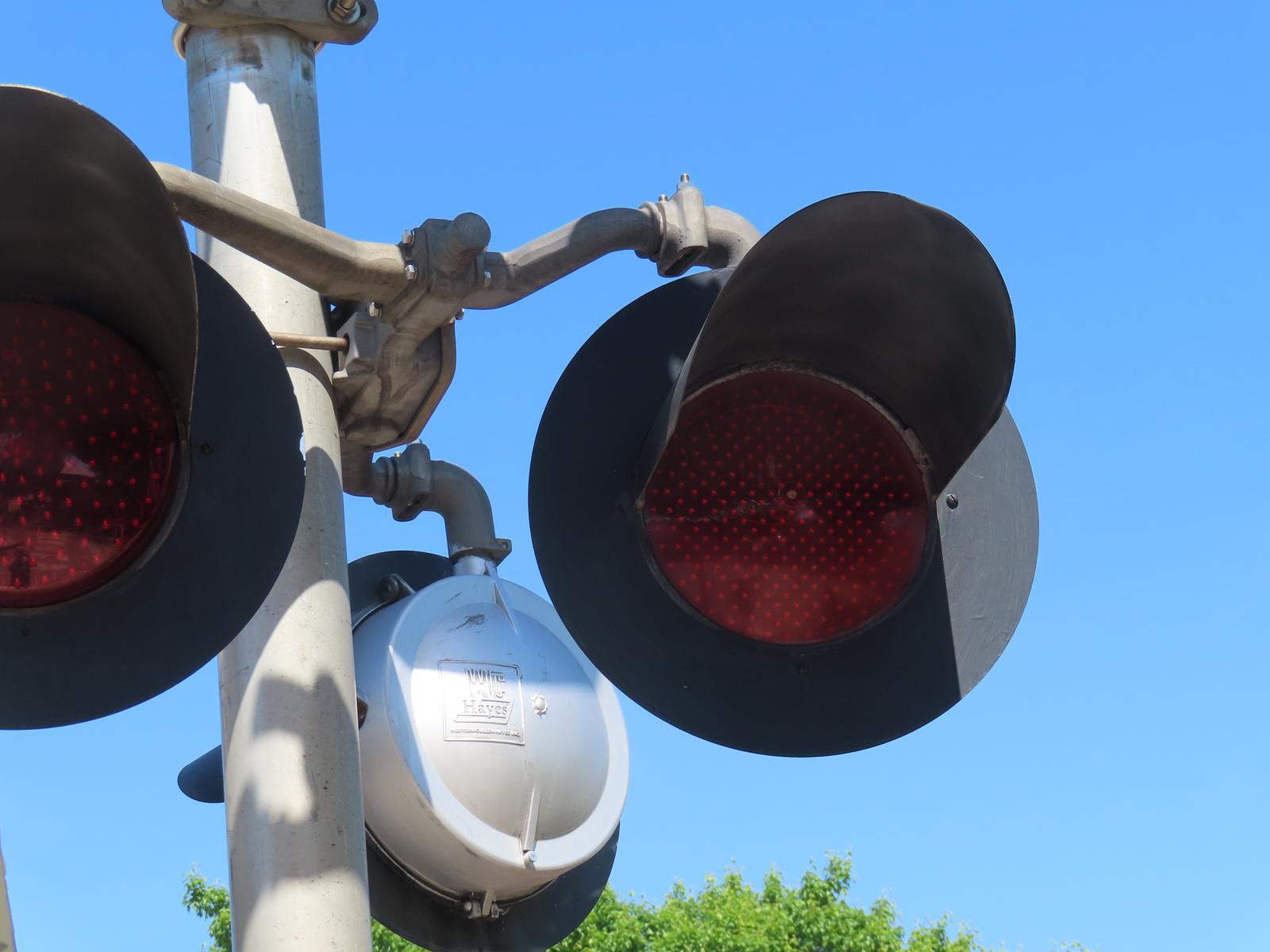

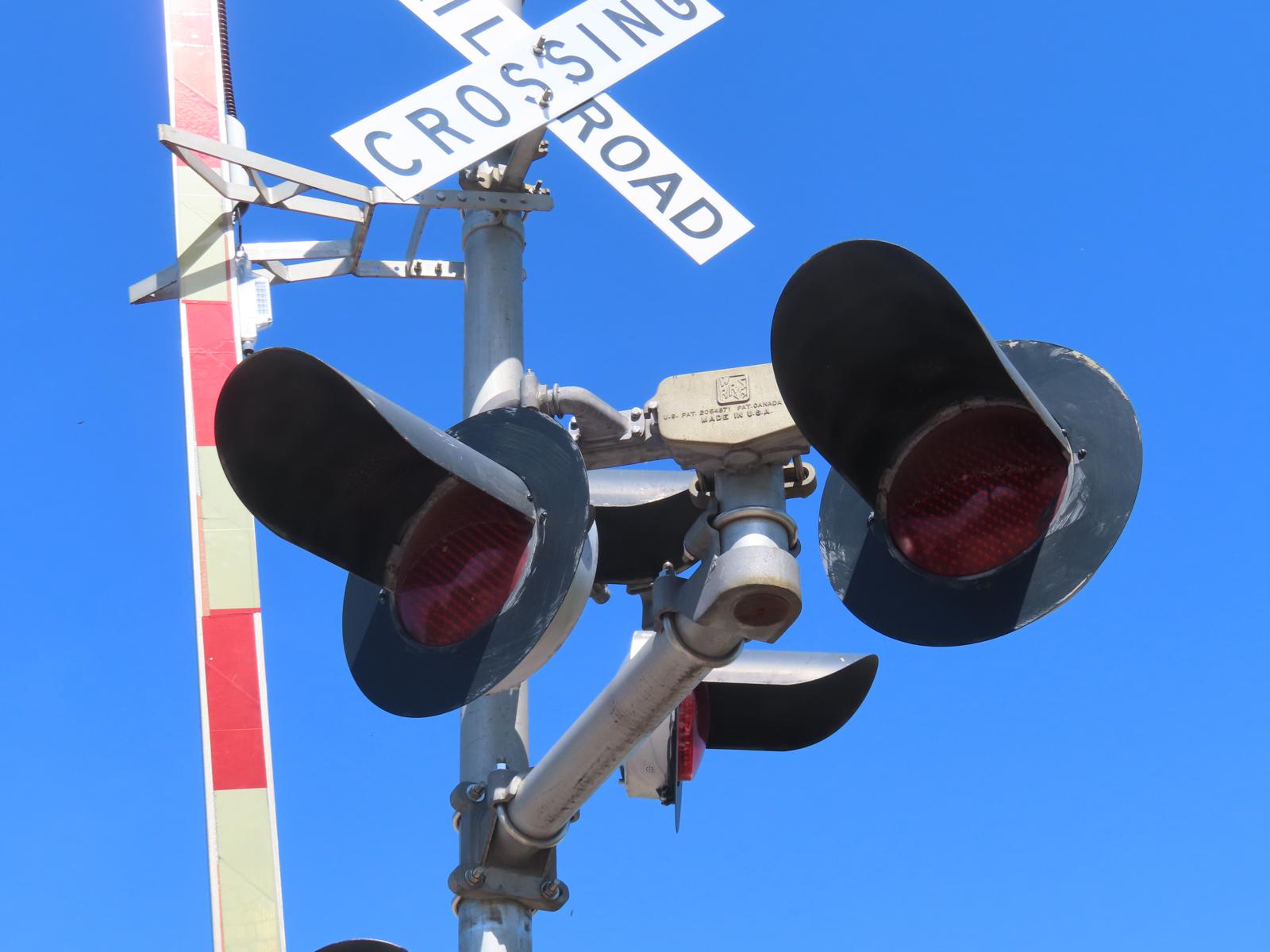

The first set of side
lights on the southern signal is another pair of older
12x20s with both lights featuring Electro-Tech LEDs.
Close up at one of the
Electro-Tech LEDs in one of the first set of side lights.

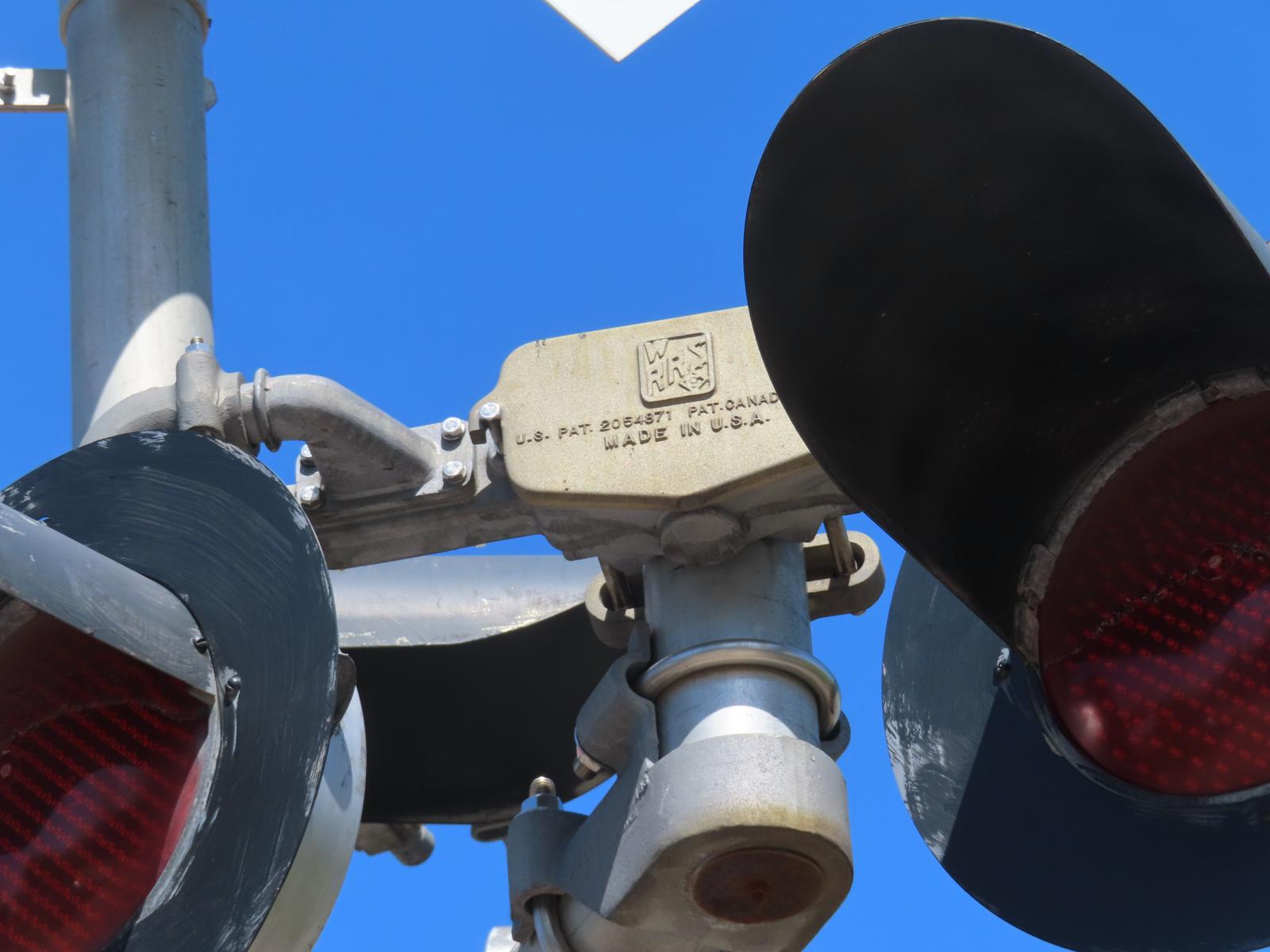

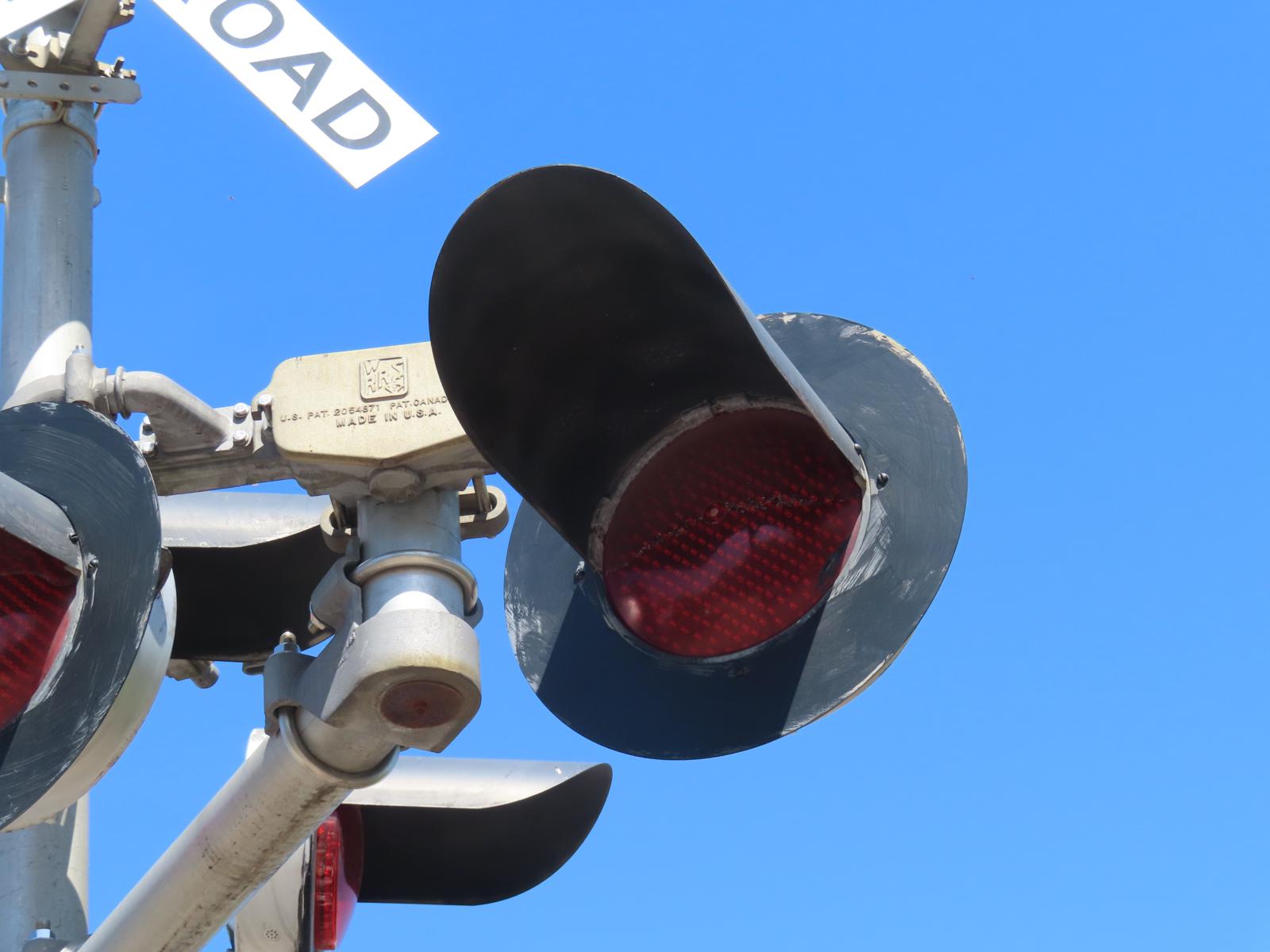

The light bracket for the
first set of side lights is from WRRS.
11
12
13
14

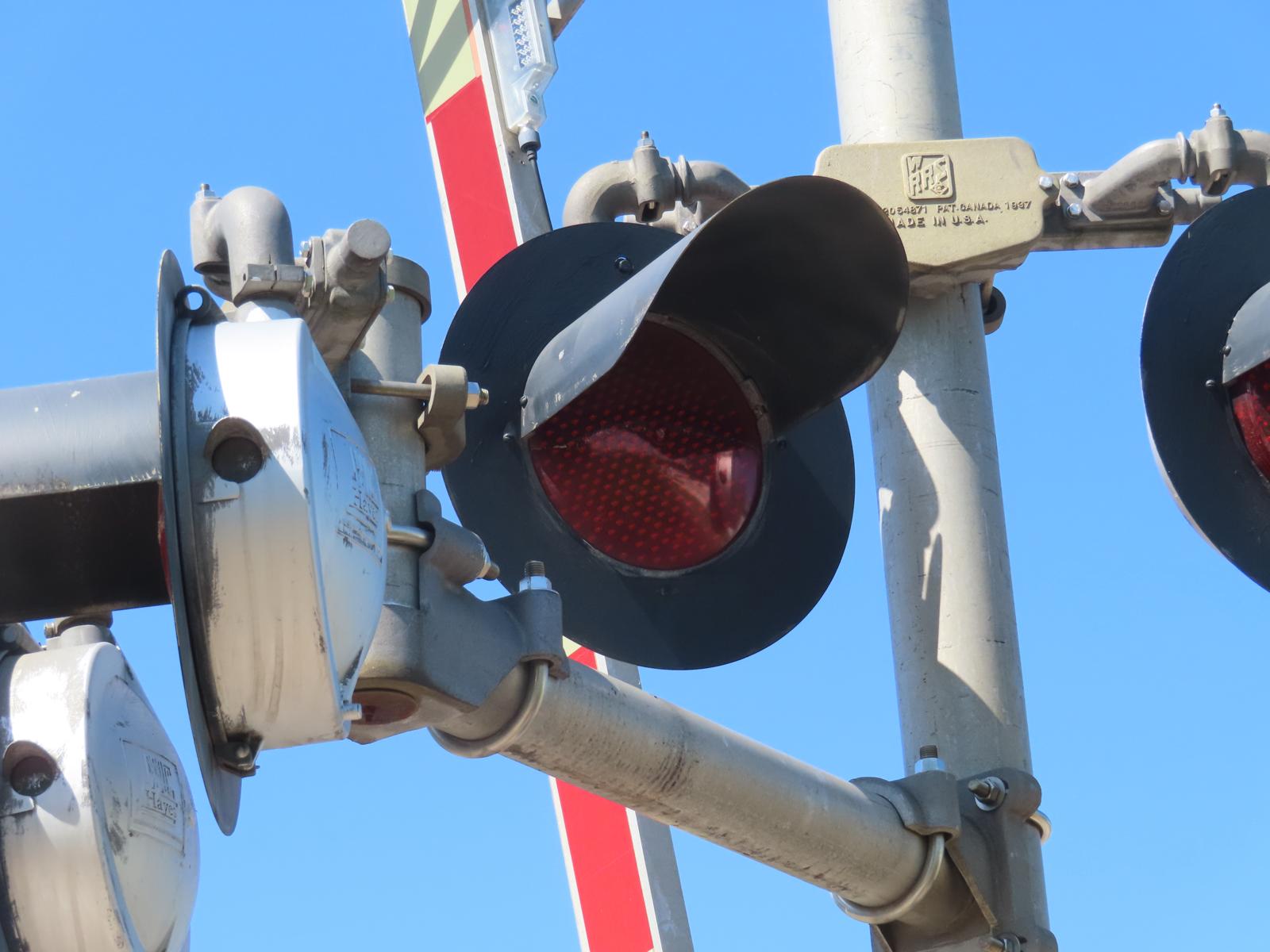

The second set of side
lights on the southern signal also features a pair of older
12x20s, this time with a mixture of GE Pixelated Look, and
Electro-Tech LEDs.
Close up at the GE Pixelated Look
LEDs in one of the side lights.
Close up at the
Electro-Tech LED in one of the side lights.

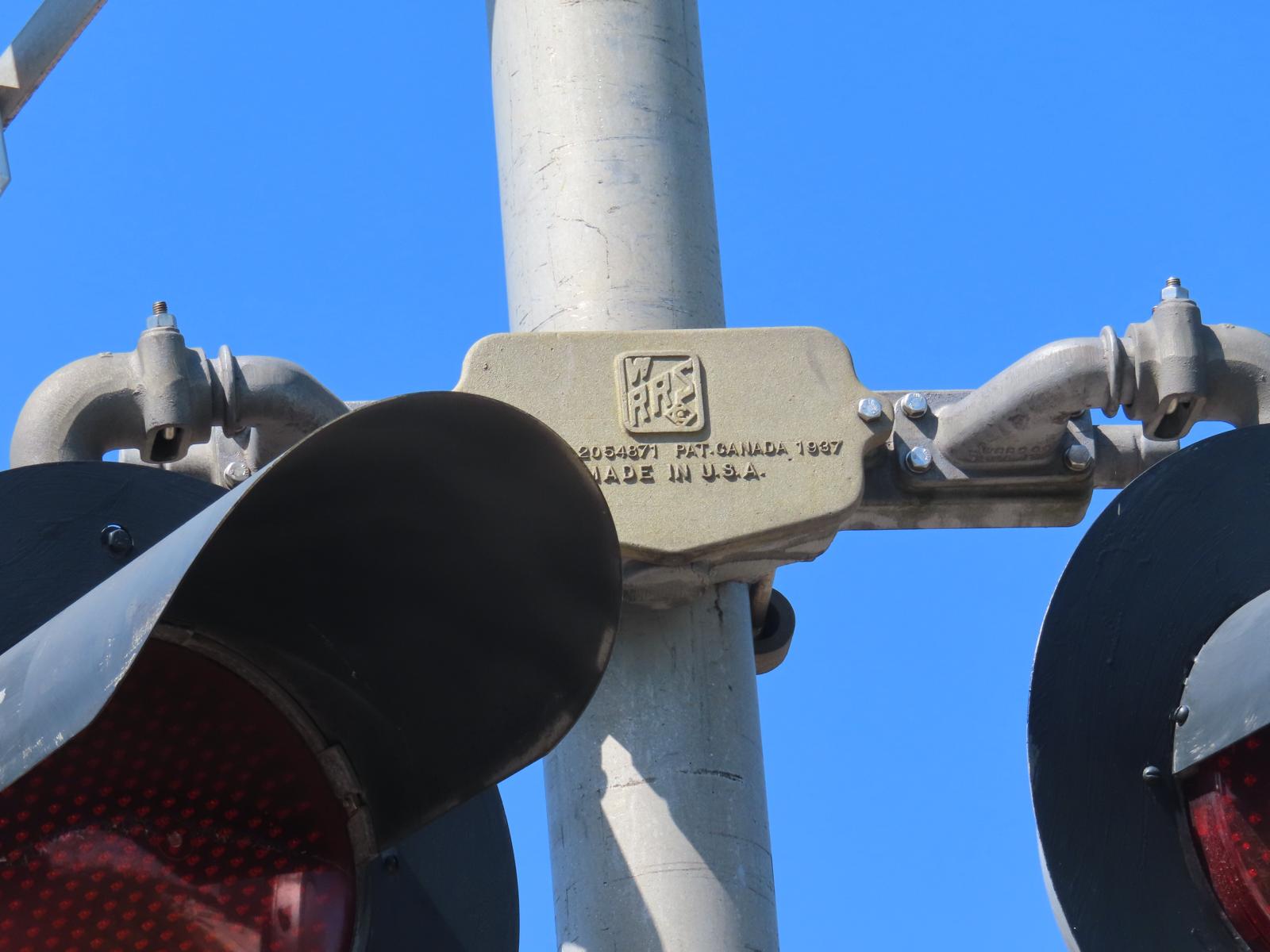

The light bracket for the
second set of side lights is also from WRRS.
15
16
17
18
The signal base on the southern signal is from WCH.

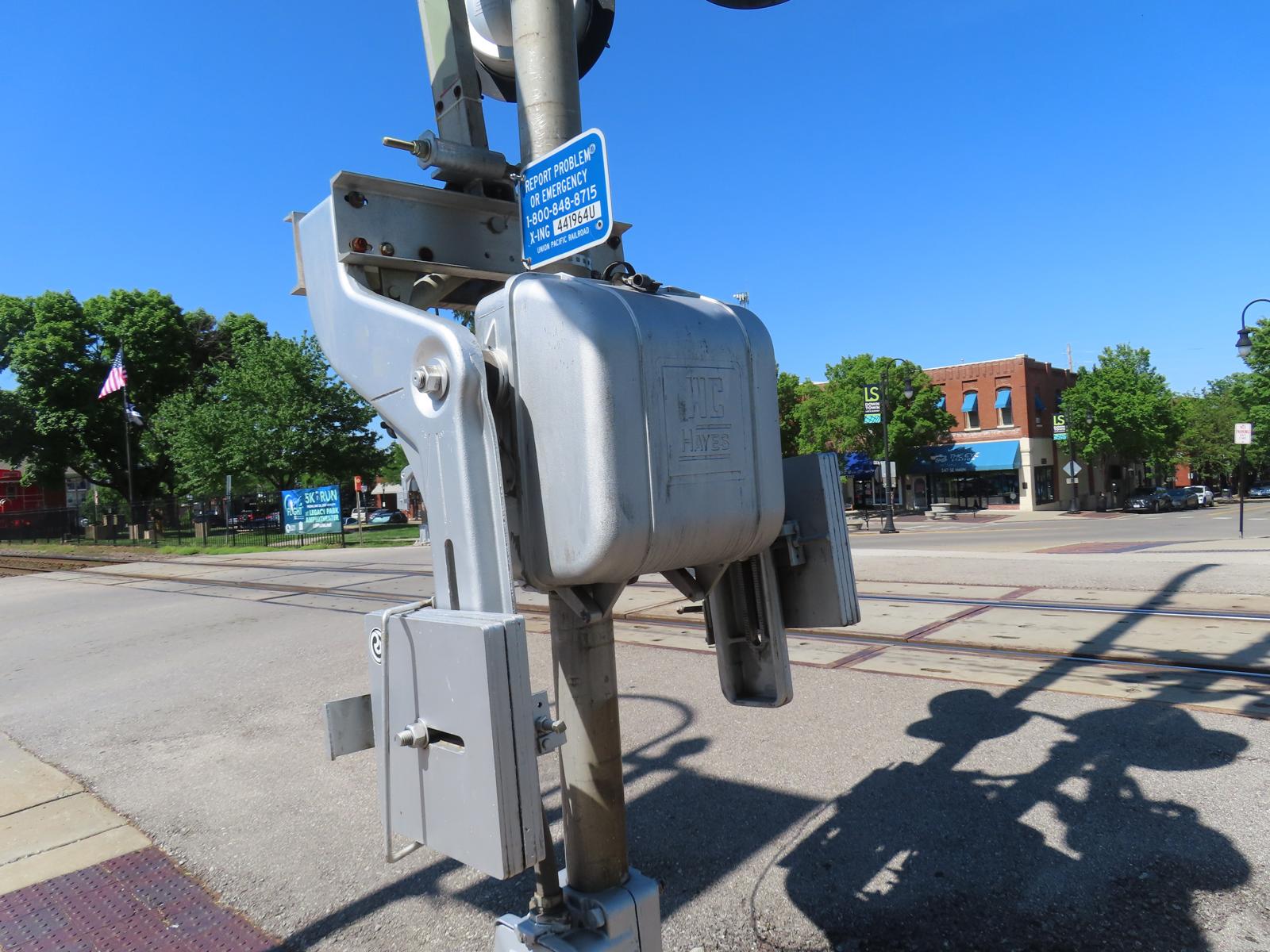

The gate mechanism on the southern signal is also from WCH.
The light bracket for the
main pairs of lights on the southern signal is once again
from WRRS.
19
20
21
22

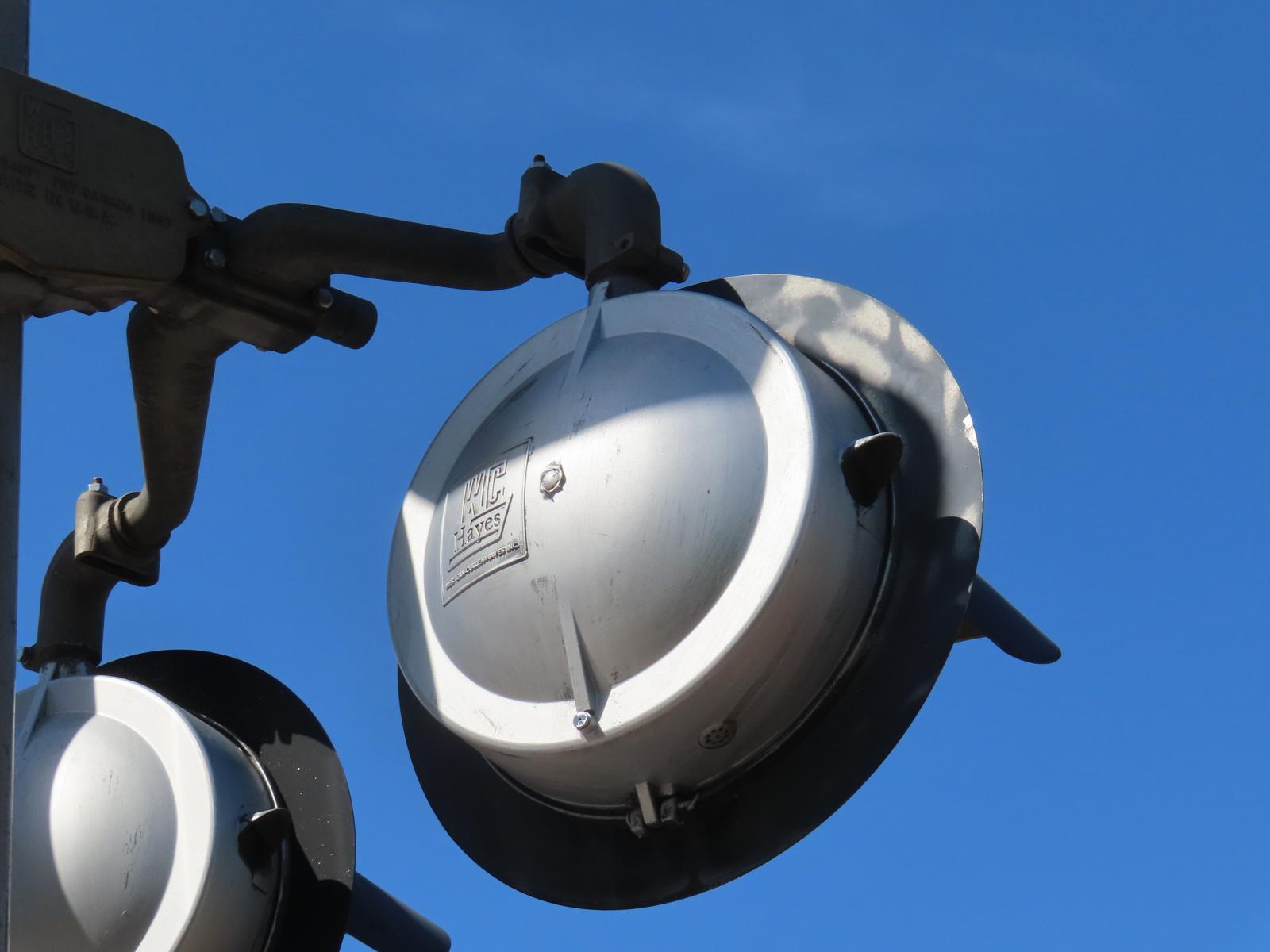

The main pairs of lights on
the southern signal are all from WCH.
Close up at one of the WCH
lights on one of the main pairs of lights.

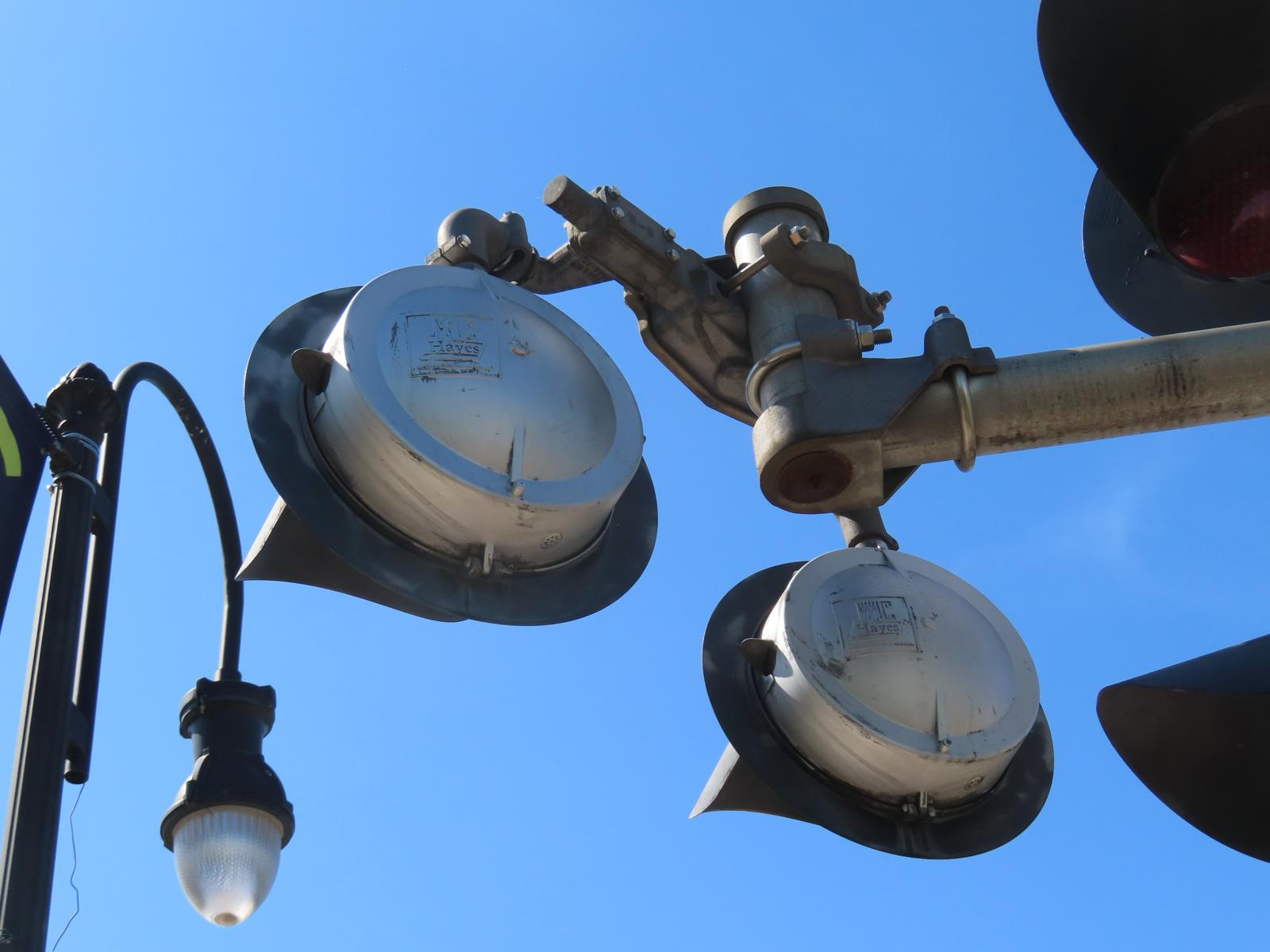

The first set of side
lights are also from WCH.

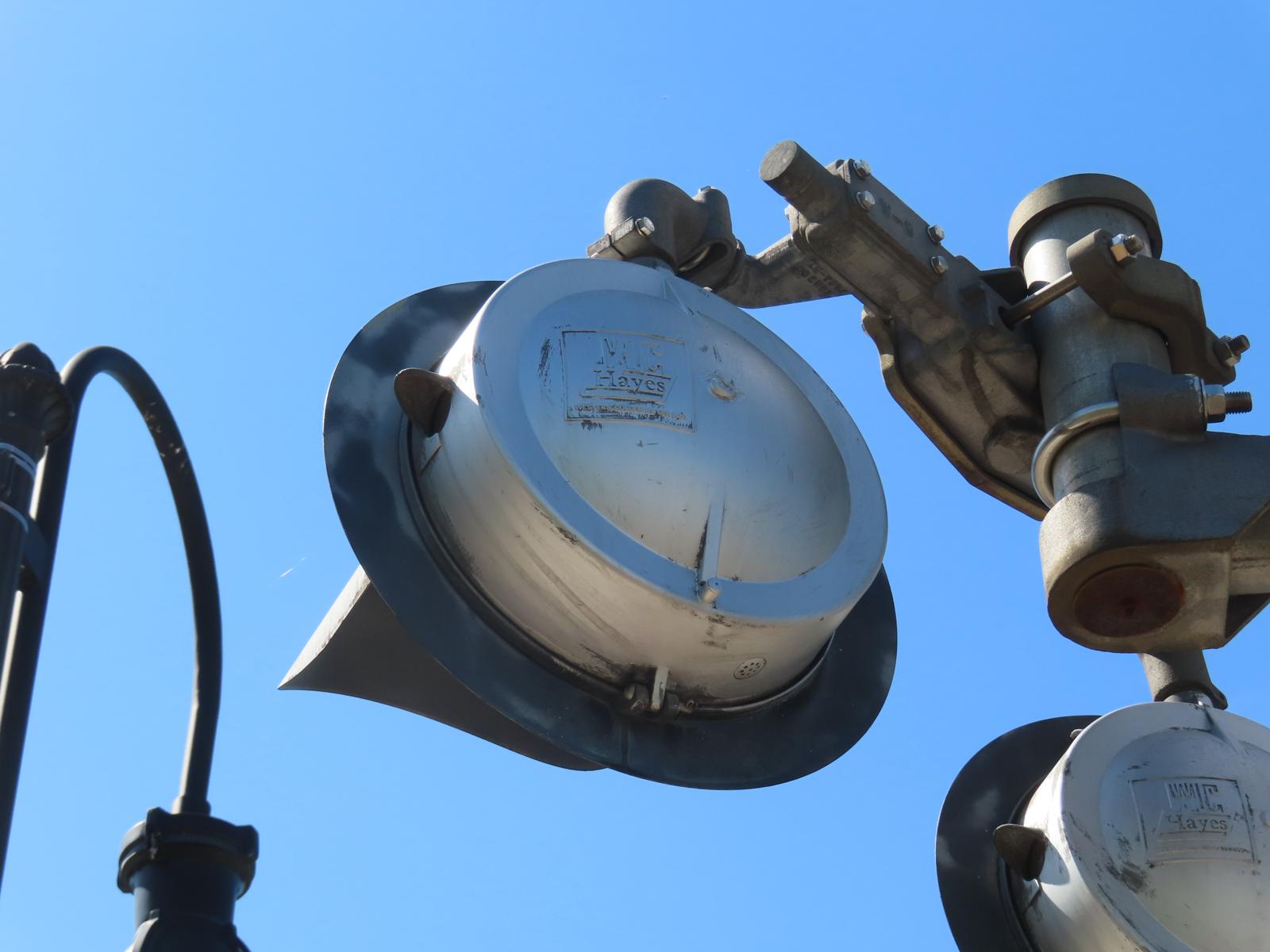

Close up at one of the WCH
lights on one of the first set of side lights.
23
24
25
26
The second set of side
lights are once again from WCH.
Close up at one of the WCH
lights on one of the second set of side lights.

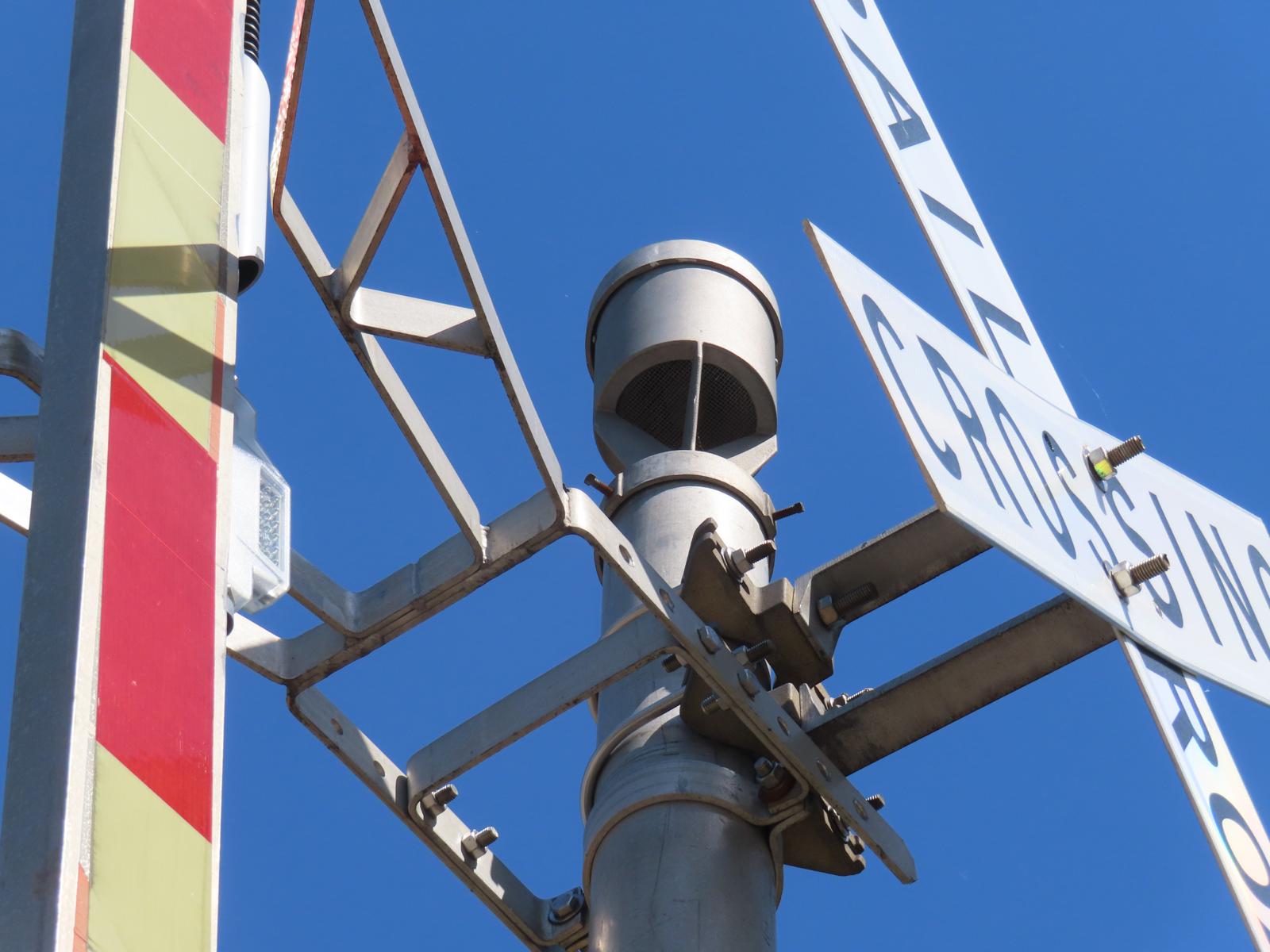

The bell on the southern signal is a WCH
Electronic Bell which only rings when the gates are
lowering, and rising, although they did used to ring the
entire time for a short time before UP reinstated the
original MoPac bell sequence here due to business
complaining.
The gate on the southern
signal features the older vertical striping while the gate
lights are from NEG.
27
28
29
30

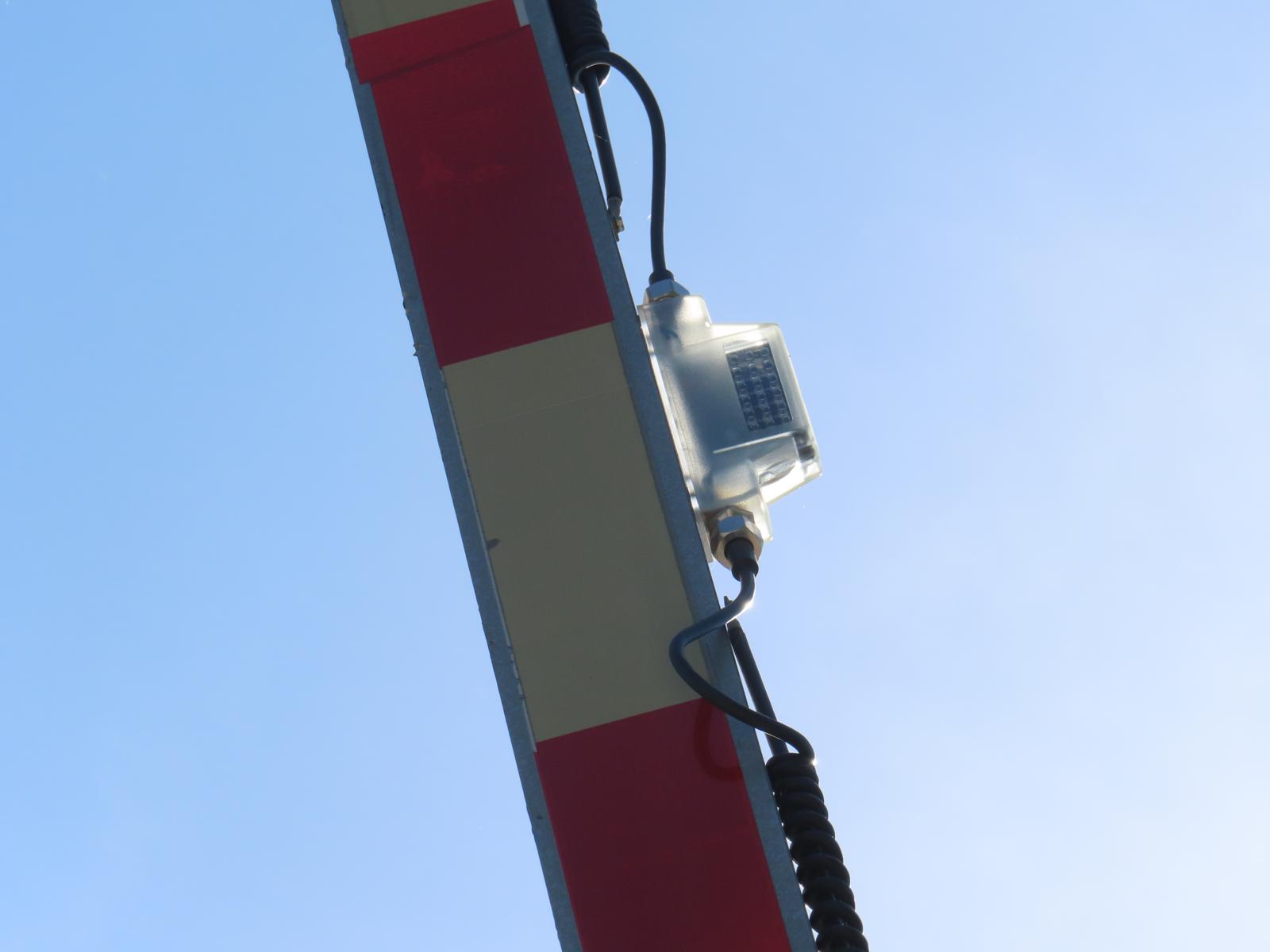

Close up at one of the NEG
Clear LEDs. The gate on this signal used to have
Electro-Tech LEDs until UP replaced those back in early
2023.

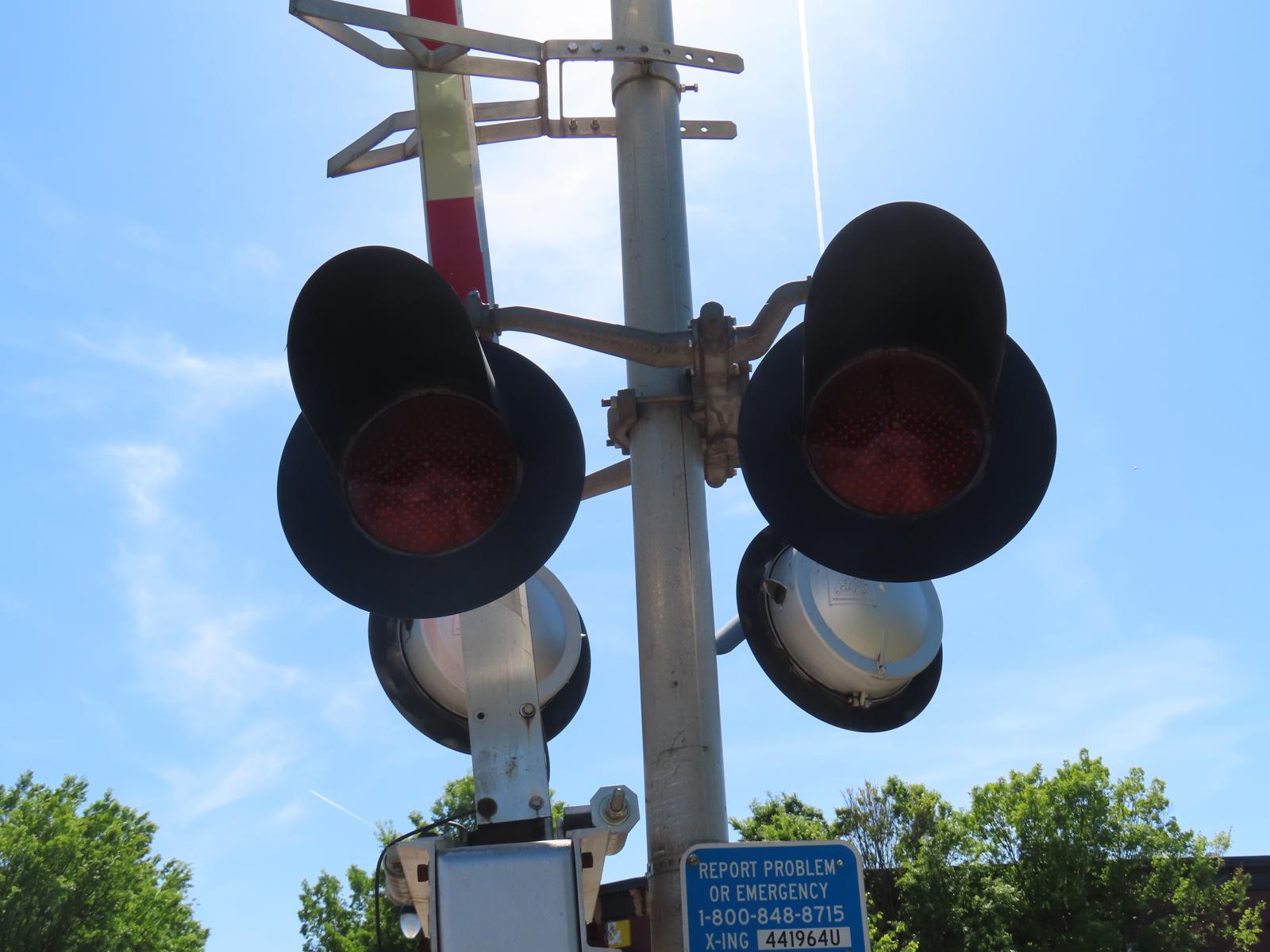

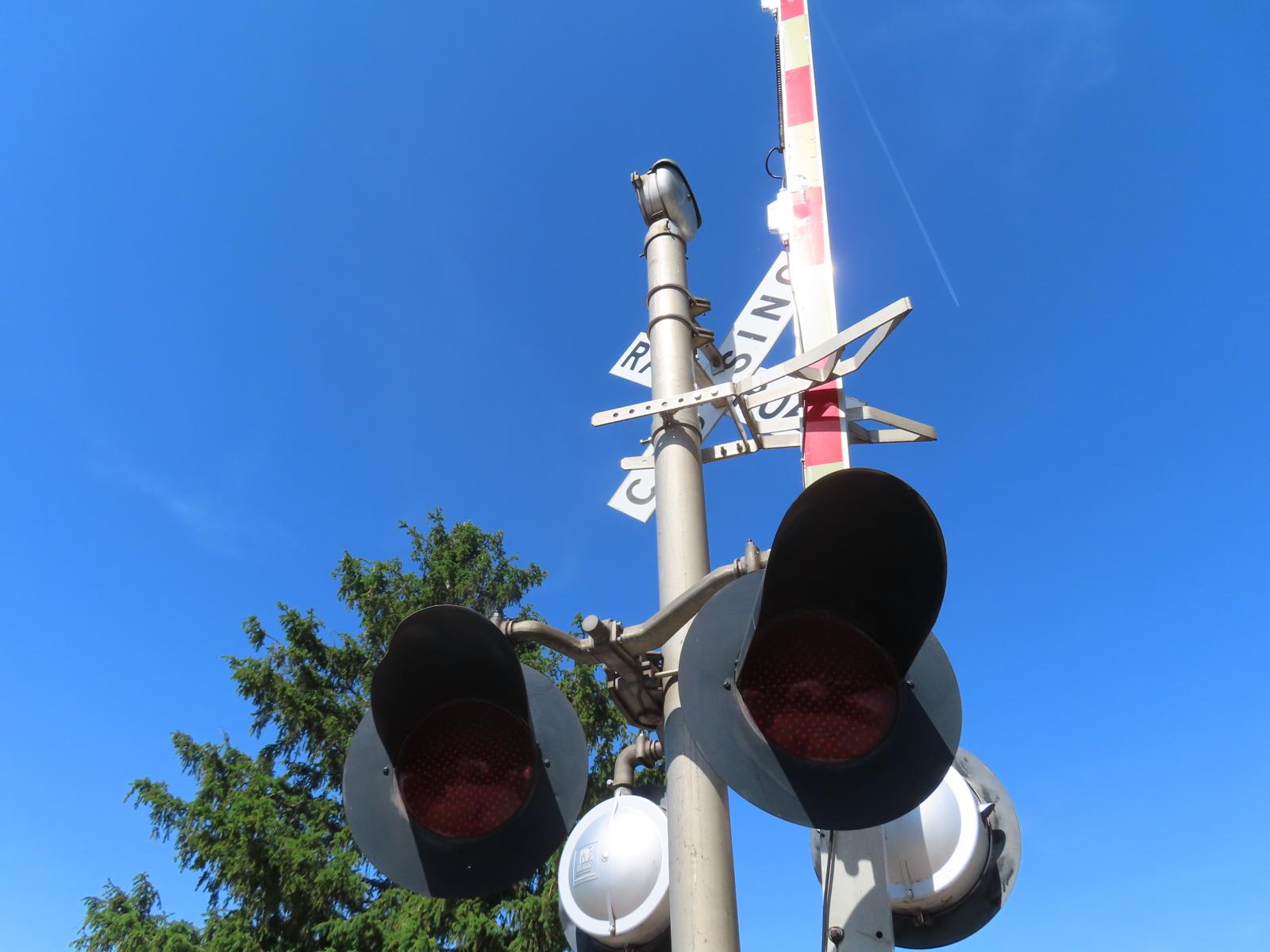

A look at the rear lights
on the southern signal.
Back view of the southern
signal.
The northern signal:
31
32

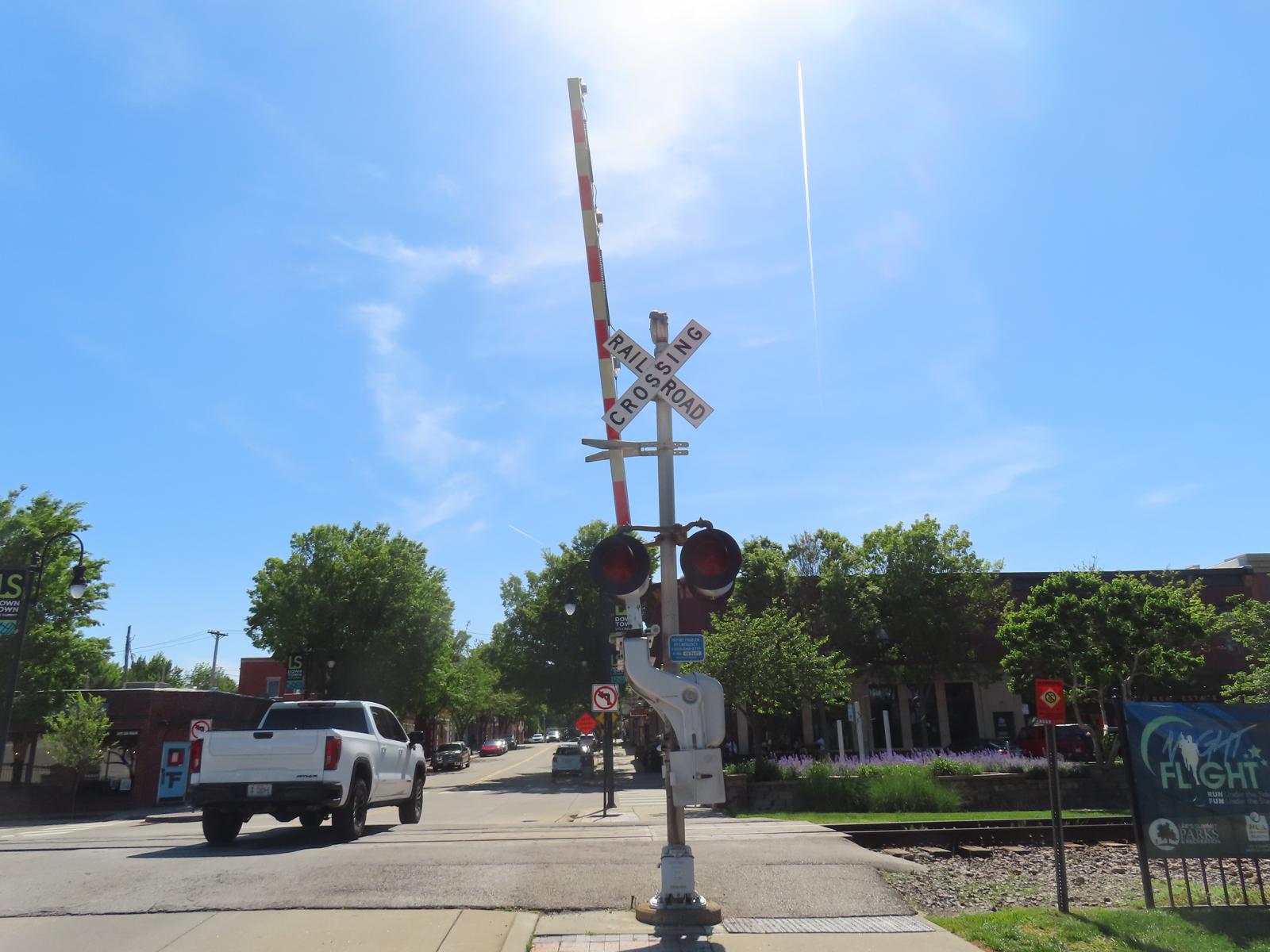

Front view of the northern
signal.

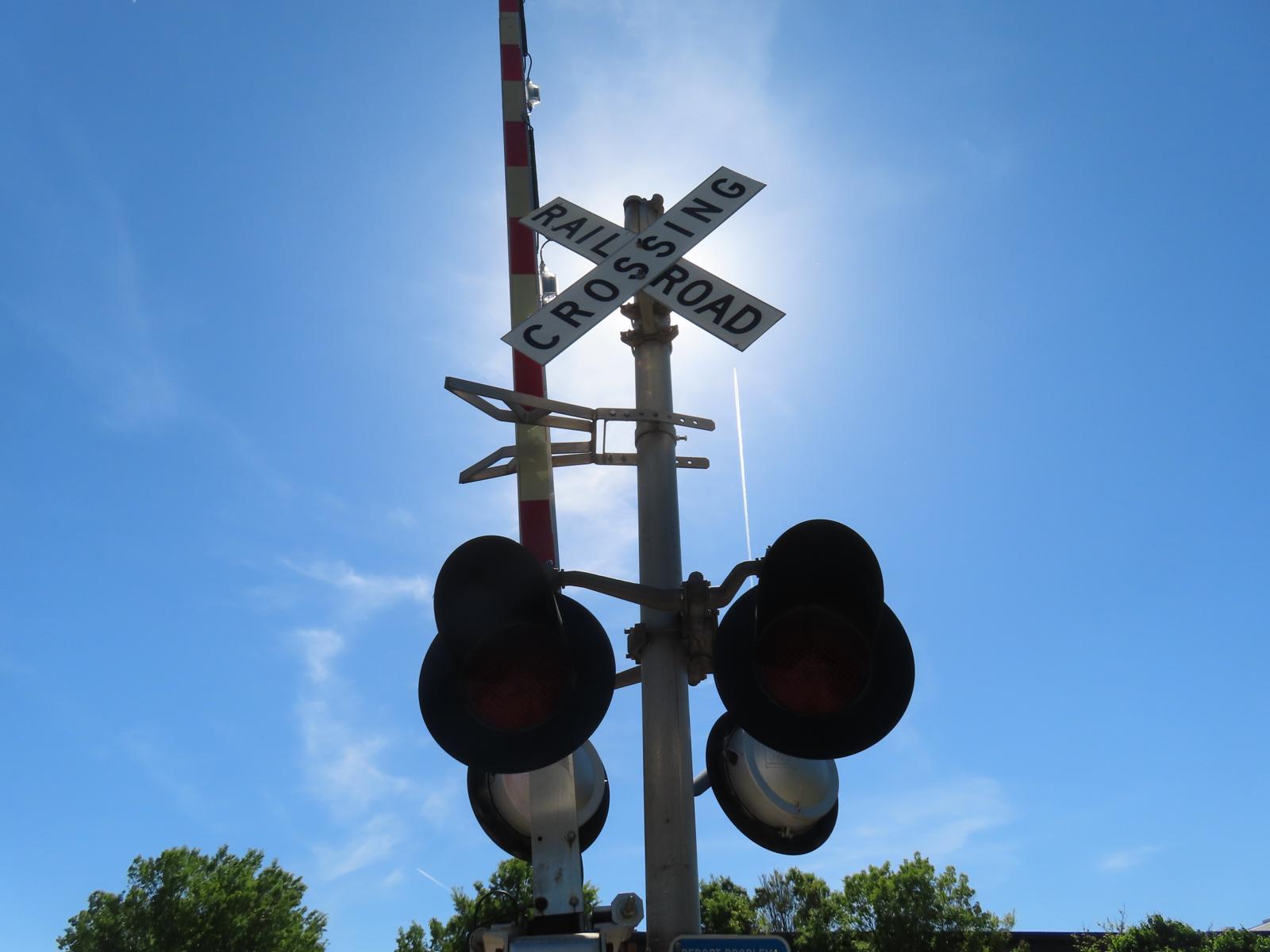

A look at the front lights
on the northern signal.
33
34
35
The northern signal
features 2 pairs of older 12x20s with Electro-Tech LEDs
retrofitted in the existing light frames.
Close up at one of the
Electro-Tech LEDs on the northern signal.
36
37
38
39
The signal base on the northern signal is from WCH.

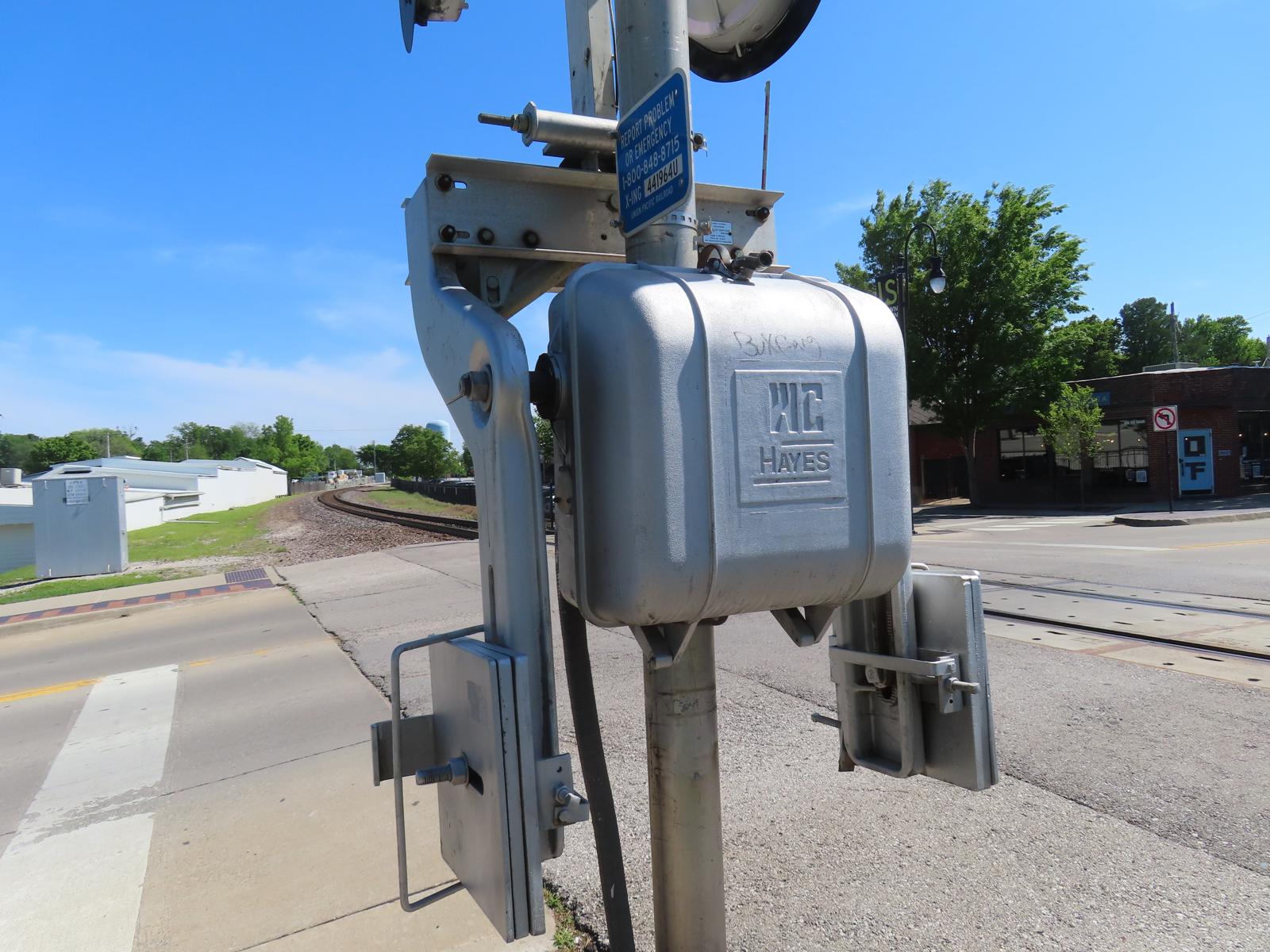

The gate on the northern
signal is also from WCH.
The light bracket on the northern signal is from WRRS.

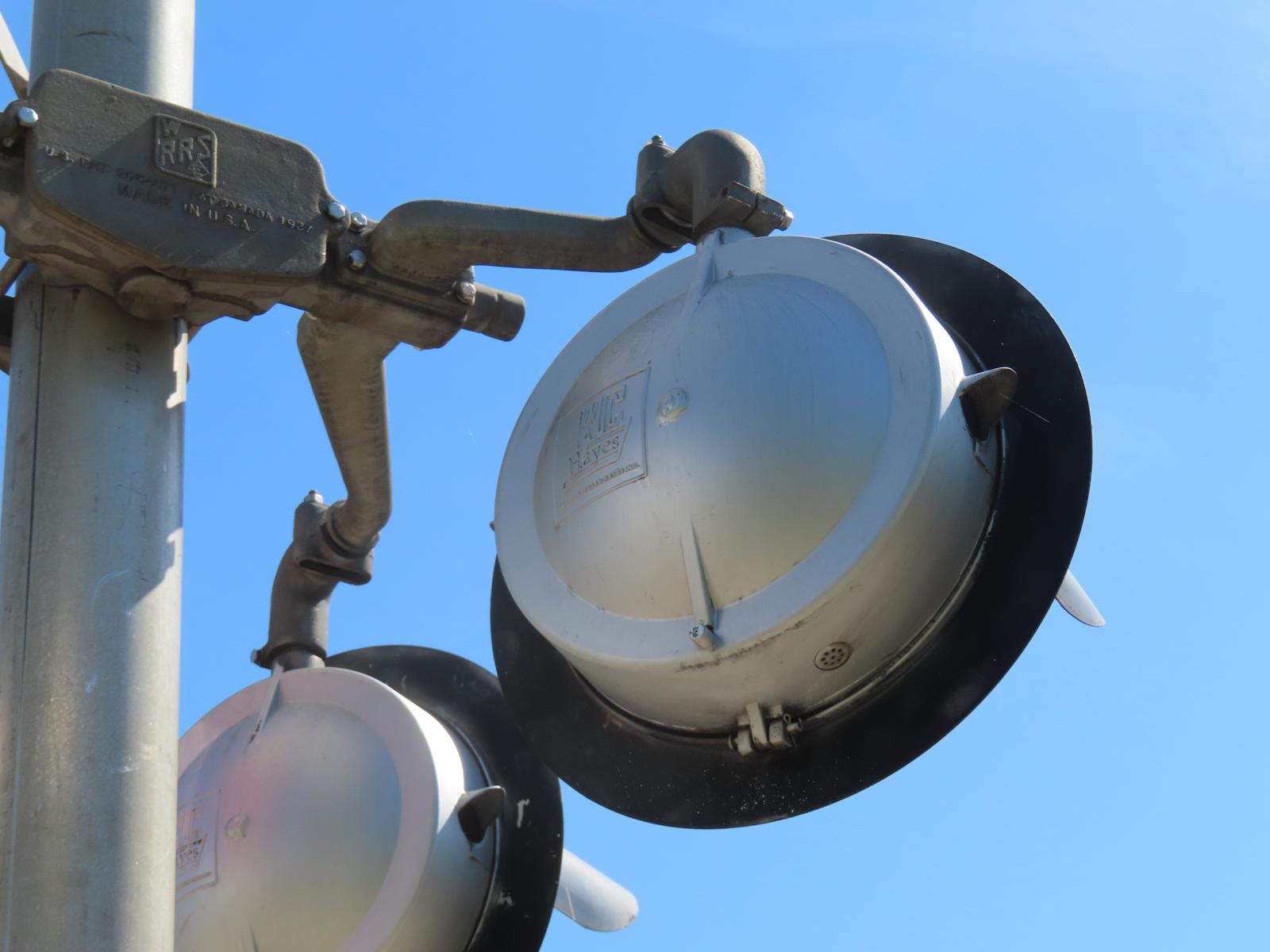

The lights on the northern
signal are all from WCH.
40
41
42
43
Close up at one of the WCH
lights on the northern signal.

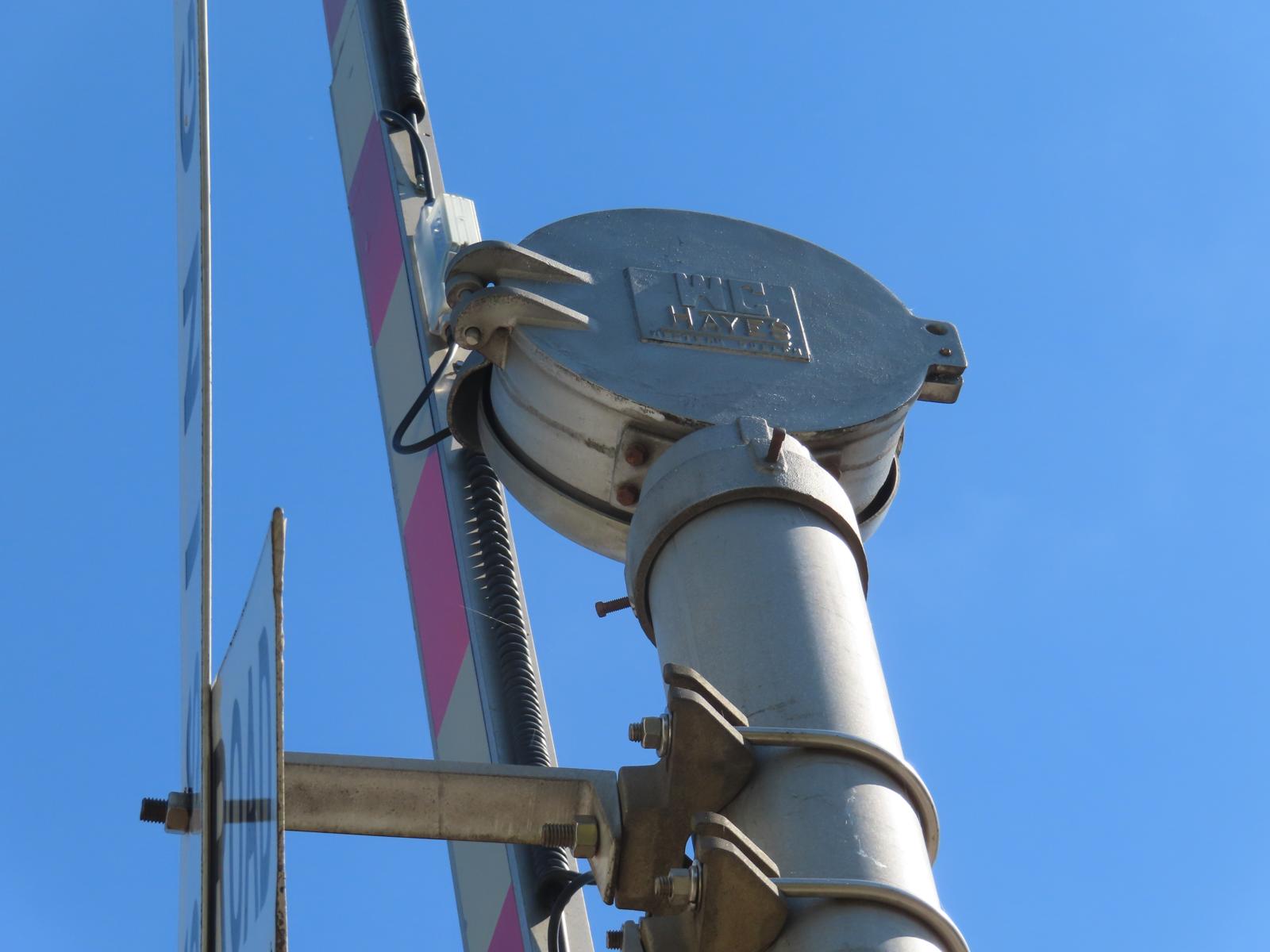

The bell on the northern
signal is a WCH Mechanical Bell which only rings when the
gates are lowering as it's unfortunately about dead.
Front view of the WCH
Mechanical Bell. This one has the "stair step" base.
The gate on the northern
signal features the older vertical striping while the gate
lights are from NEG.
44
45
46
47
Close up at one of the NEG
Clear LEDs. Like with the southern signal, the gate on this
signal also had Electro-Tech gate lights until they were
replaced sometime in early 2023.
