Shimel Rd. (Strasburg, MO)

>>>>>>>>>>>>>>	*Northern Signal*	*Southern Signal*
Bell:	WCH E-Bell	GS E-Bell
Base:	WCH 5" Single Sided	WCH 5" Single Sided
Light Brackets:	WRRS	3 - WRRS
Lights:	4 - 12"x24" WCH w/ Miller Ingenuity 1st Gen LEDs	8 - 12"x24" WCH w/ Miller Ingenuity 1st Gen LEDs
Gate Lights:	3 - Alstom Aurora LEDs	3 - Alstom-Auora LEDs
Gate Mechanism:	WCH Style 3.5	WCH Style 3.5
Gate Striping:	Vertical Striping	Vertical Striping

Pictures 1-49 were taken on March 1, 2025, by KCMO Railfan.
This crossing is located on the UP Sedalia Subdivision with Amtrak having trackage rights.
Page created by KCMO Railfan (using HopenRXRTools 1.3.0).

1	2
Overview facing north at a pair of 2000s era UP signals.	Overview facing south.

The southern signal:
3	4	5

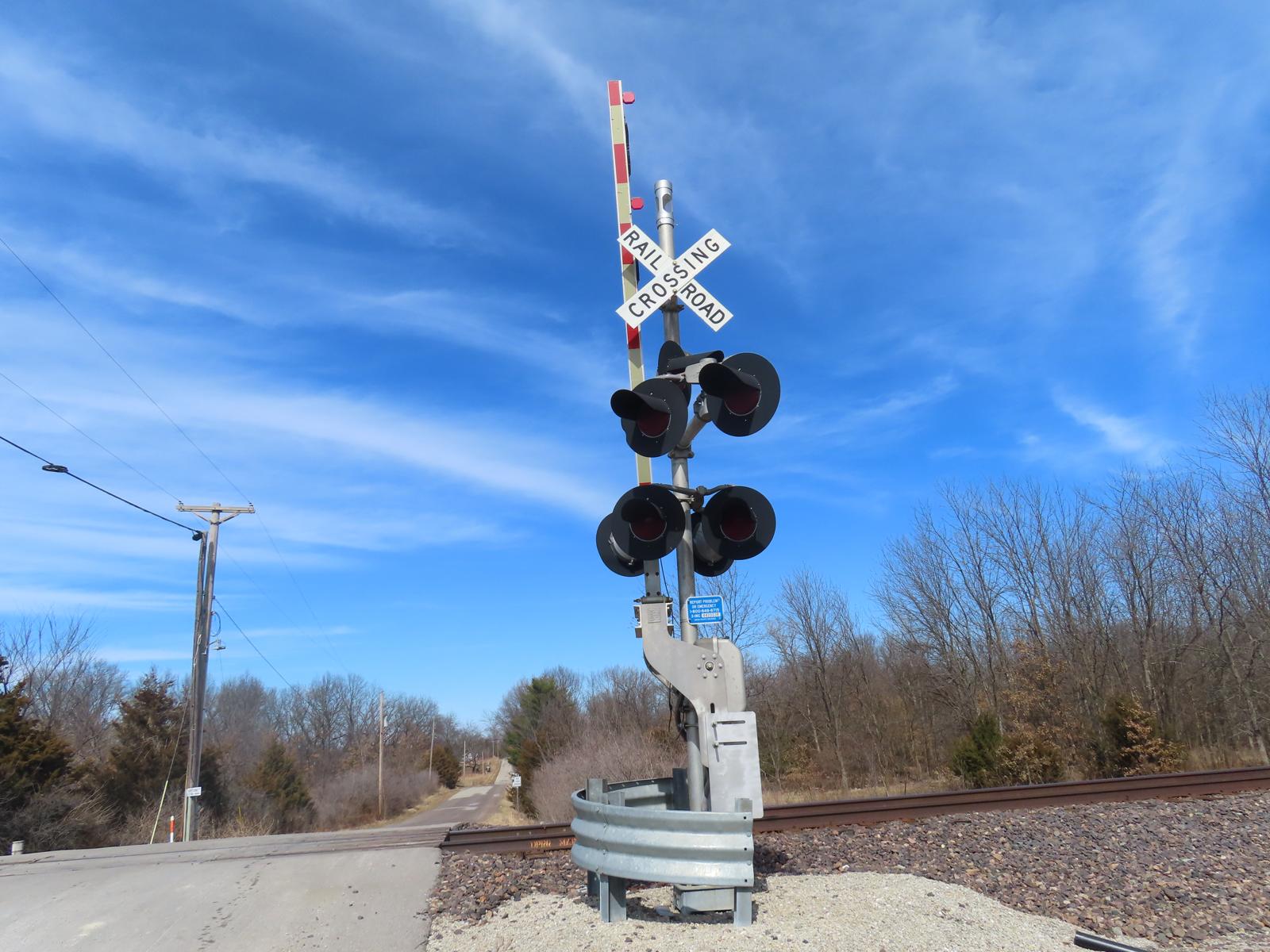

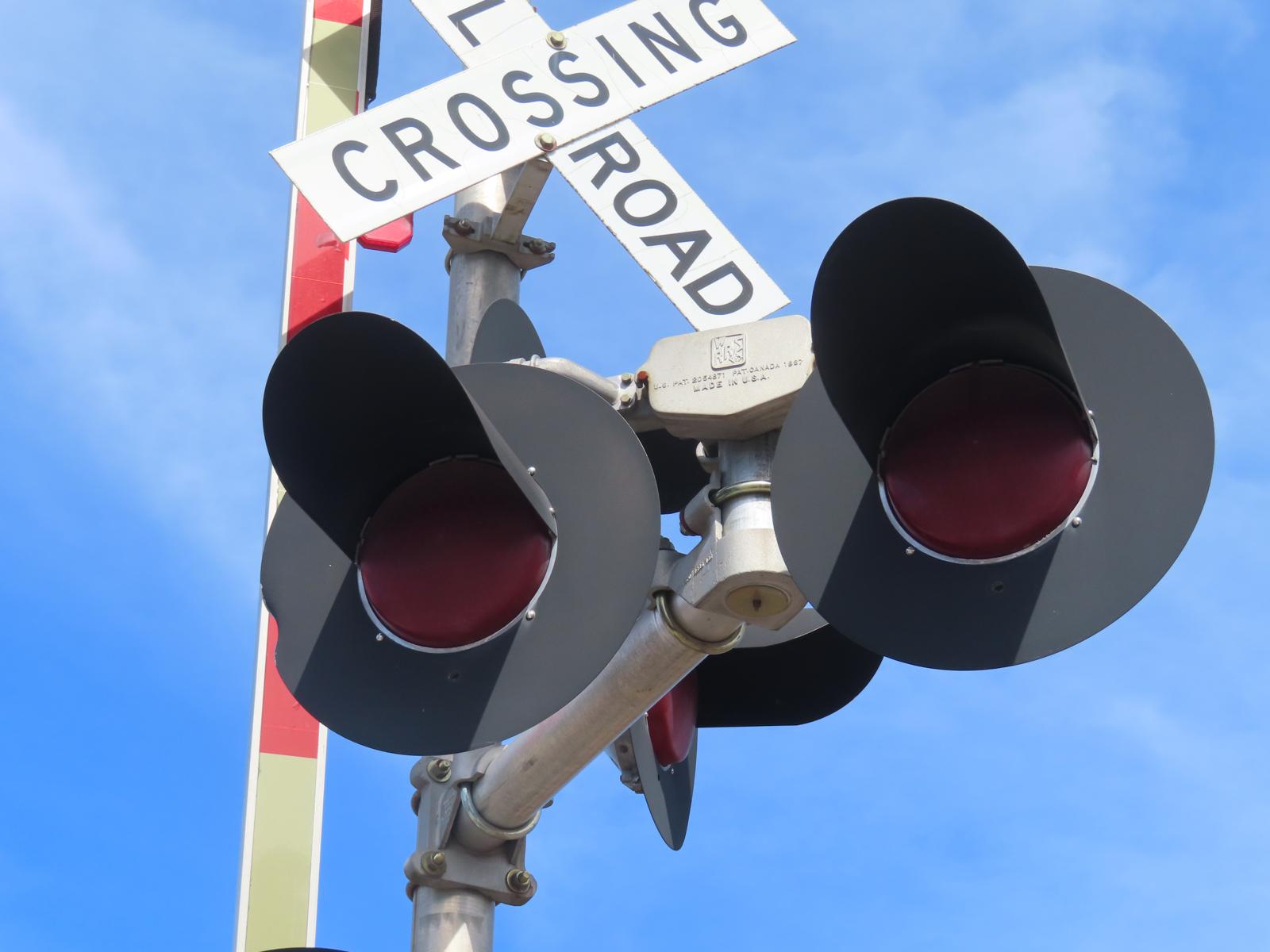

Front view of the southern signal.	A look at the front, and side lights on the southern signal.	The first set of side lights on the southern signal feature a pair of older 12x24s with WCH 1st Gen LEDs in the light frames. These lights are for eastbound traffic approaching the crossing on MO Route 58.

6	7	8

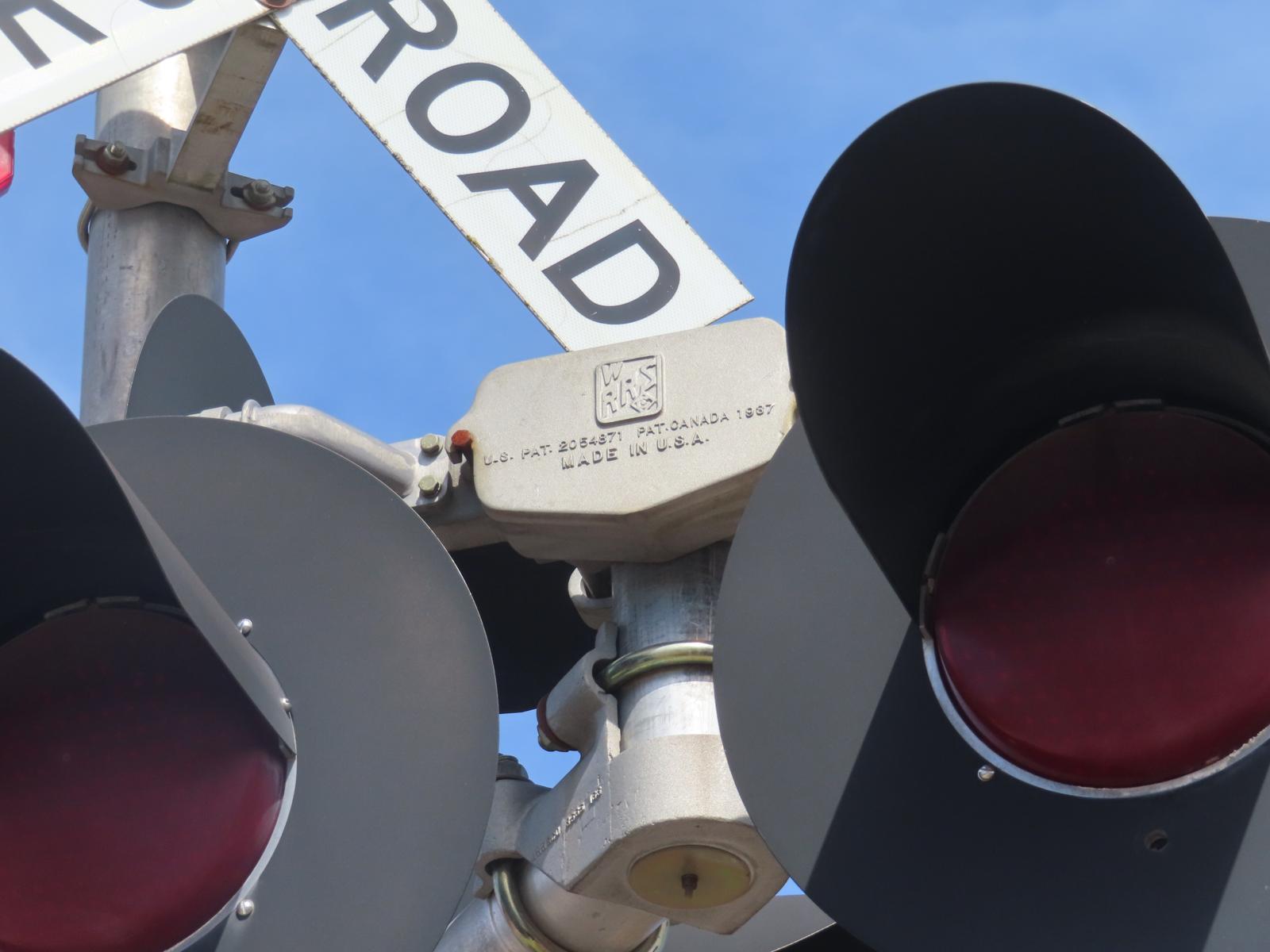

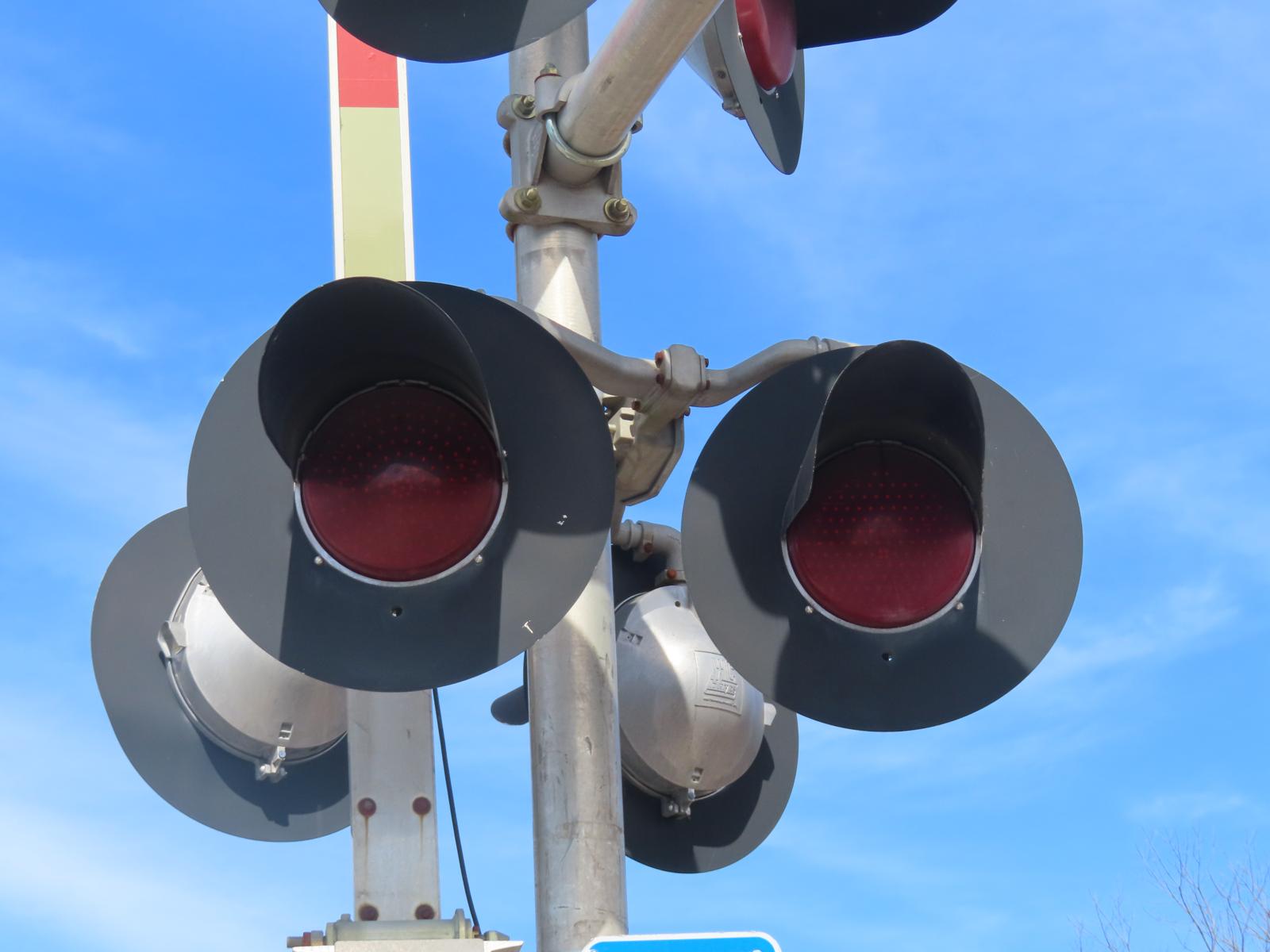

Close up at one of the WCH 1st Gen LEDs in one of the first set of side lights on the southern signal.	The light bracket for the first set of side lights is from WRRS.	The main lights on the southern signal feature 2 pairs of older 12x24s with some more WCH 1st Gen LEDs in the light frames.

9	10	11	12

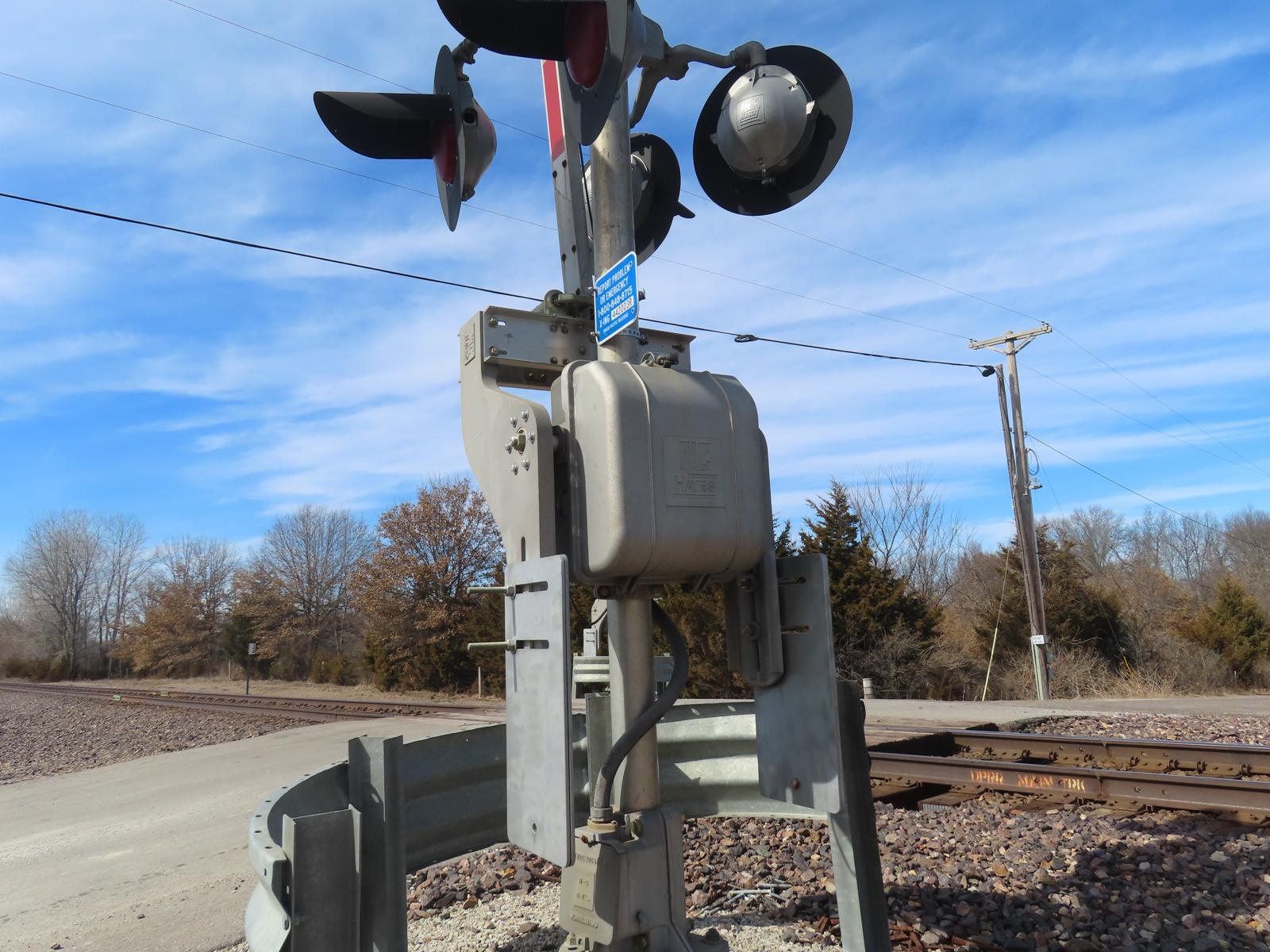

Close up at one of the WCH 1st Gen LEDs in one of the main lights on the southern signal.		The signal base on the southern signal is from WCH.	The gate mechanism on the southern signal is also from WCH.

13	14	15	16

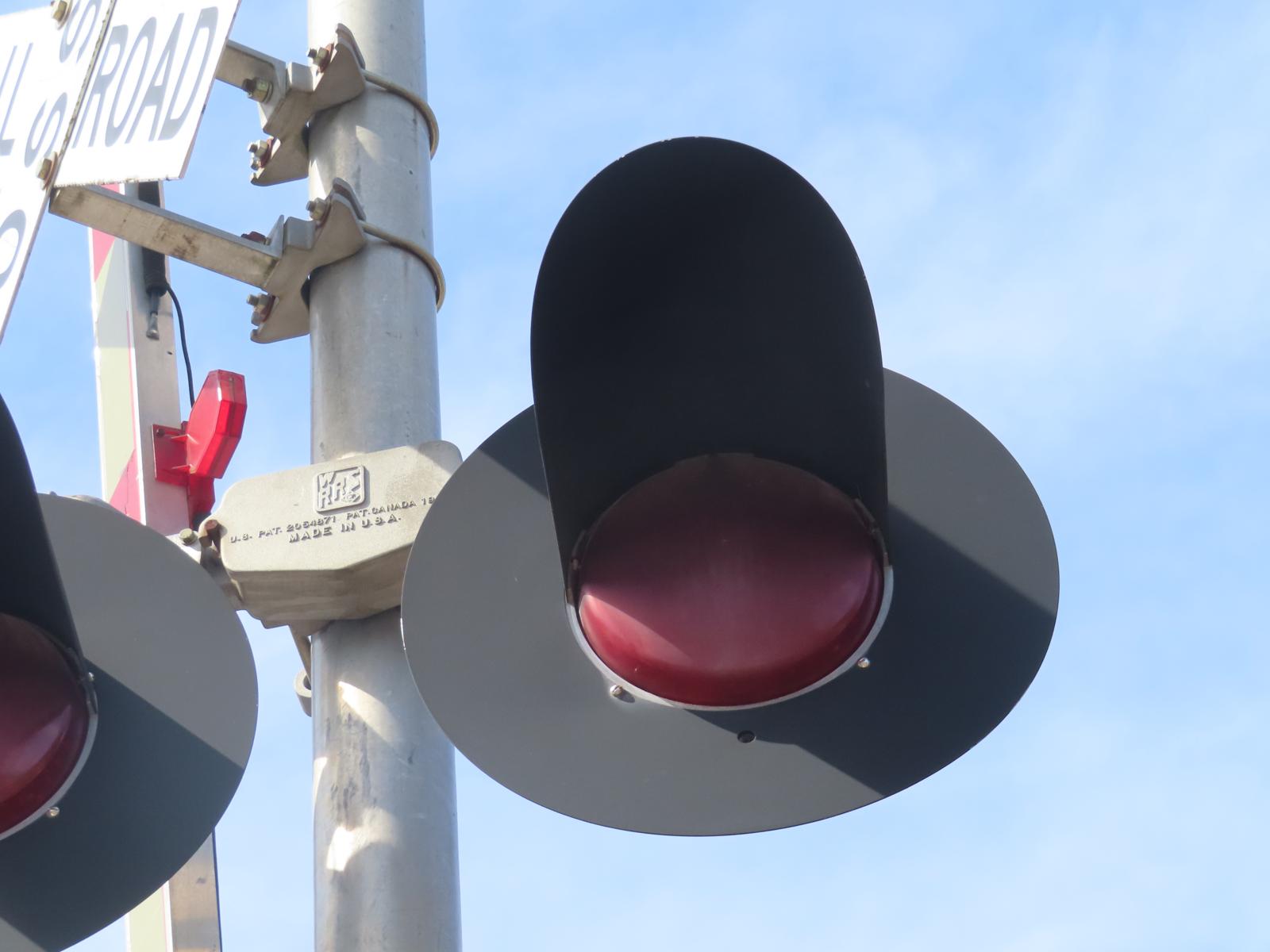

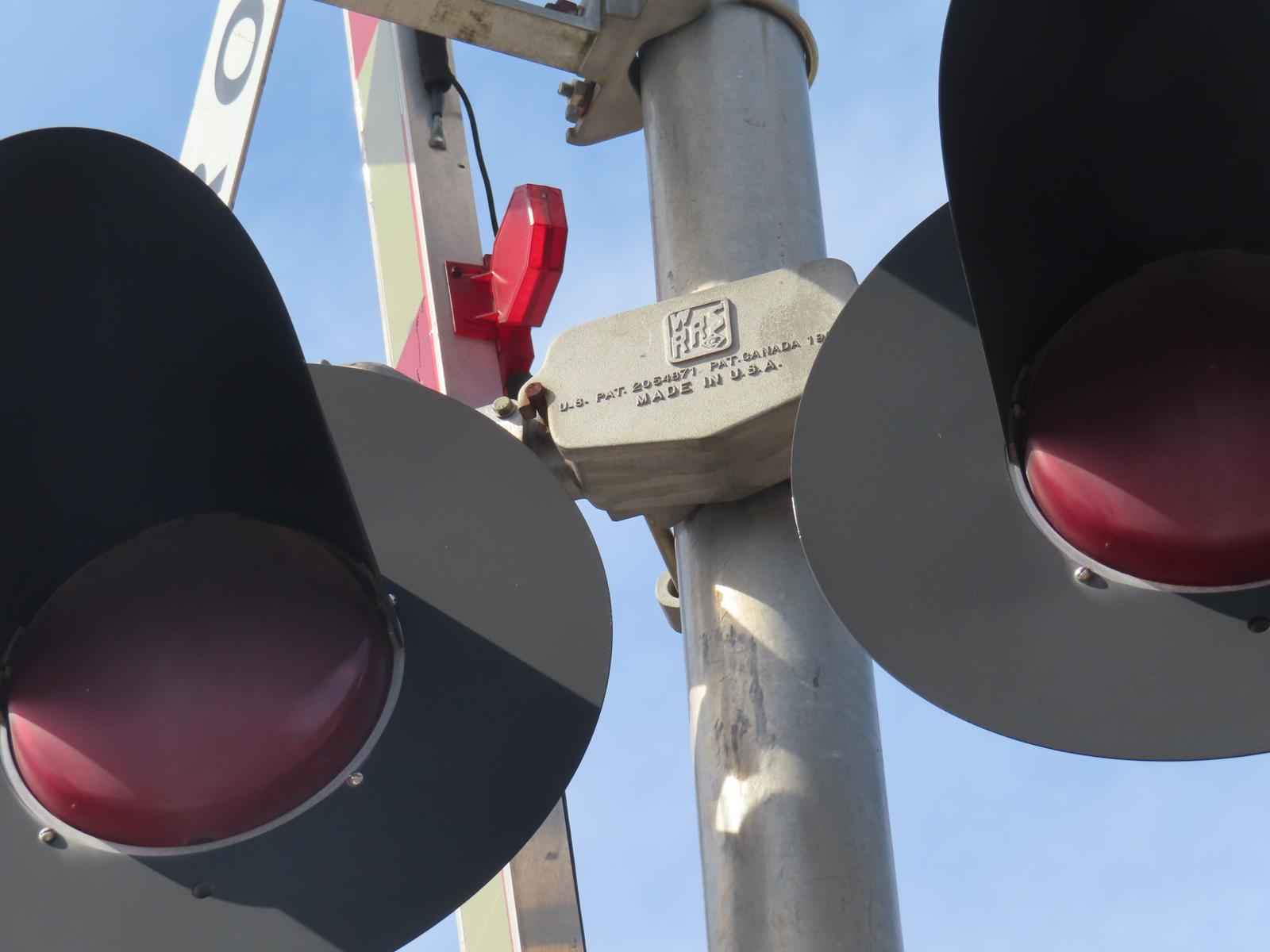

The light bracket for the main pairs of lights on the southern signal is also from WRRS.	We find yet another set of side lights on the southern signal. These lights once again are another pair of older 12x24s with WCH 1st Gen LEDs. These are for westbound traffic approaching the crossing on MO Route 58.	Close up at one of the WCH 1st Gen LEDs in one of the second set of side lights on the southern signal.	We find yet another WRRS light bracket on the southern signal, this time for the second set of side lights.

17	18	19	20

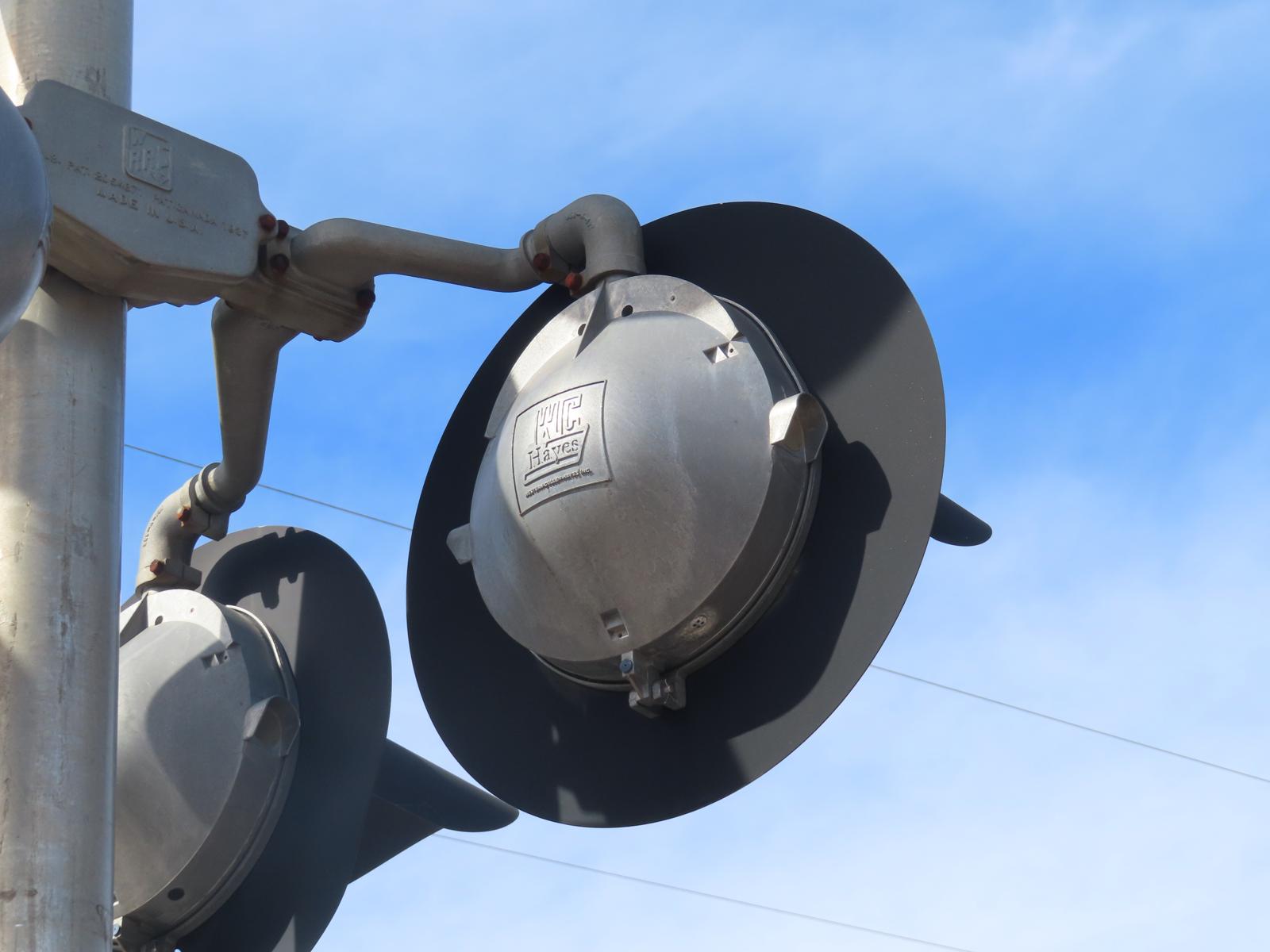

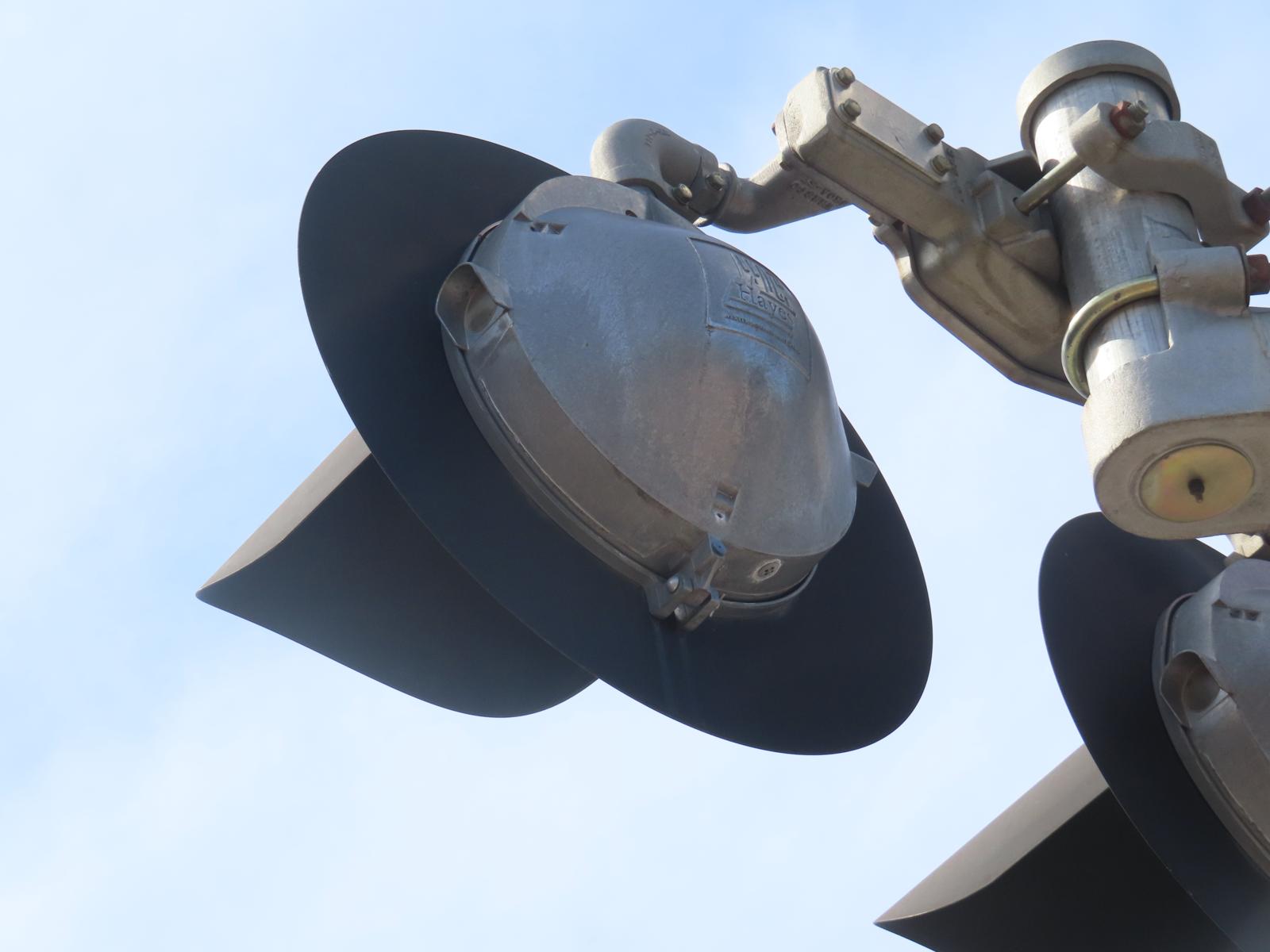

The first set of side lights on the southern signal are from WCH.	Close up at one of the WCH lights on one of the first sets of side lights.	The main lights on the southern signal are also from WCH.	Close up at one of the WCH lights on one of the main lights on the southern signal.

21	22	23	24

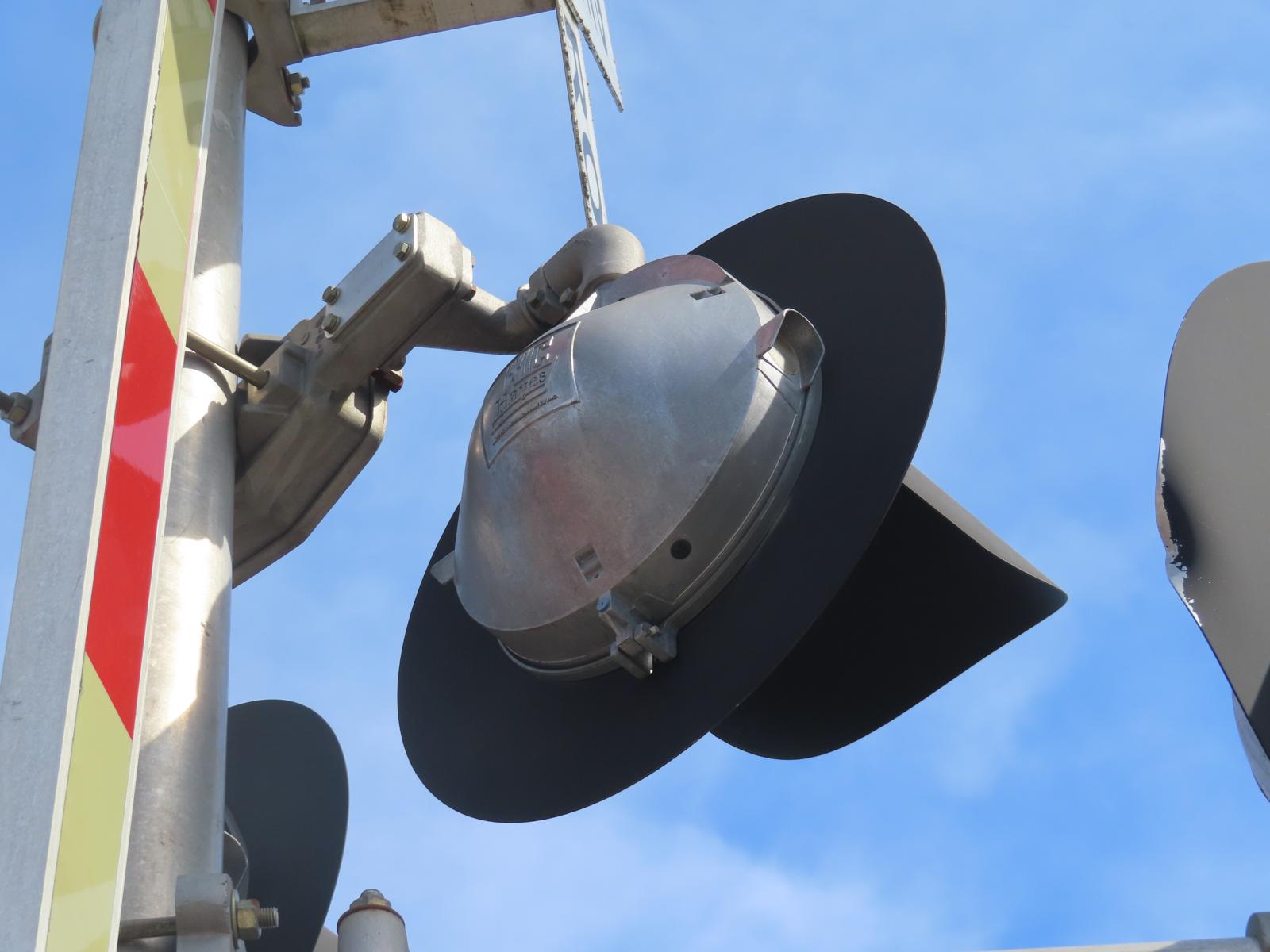

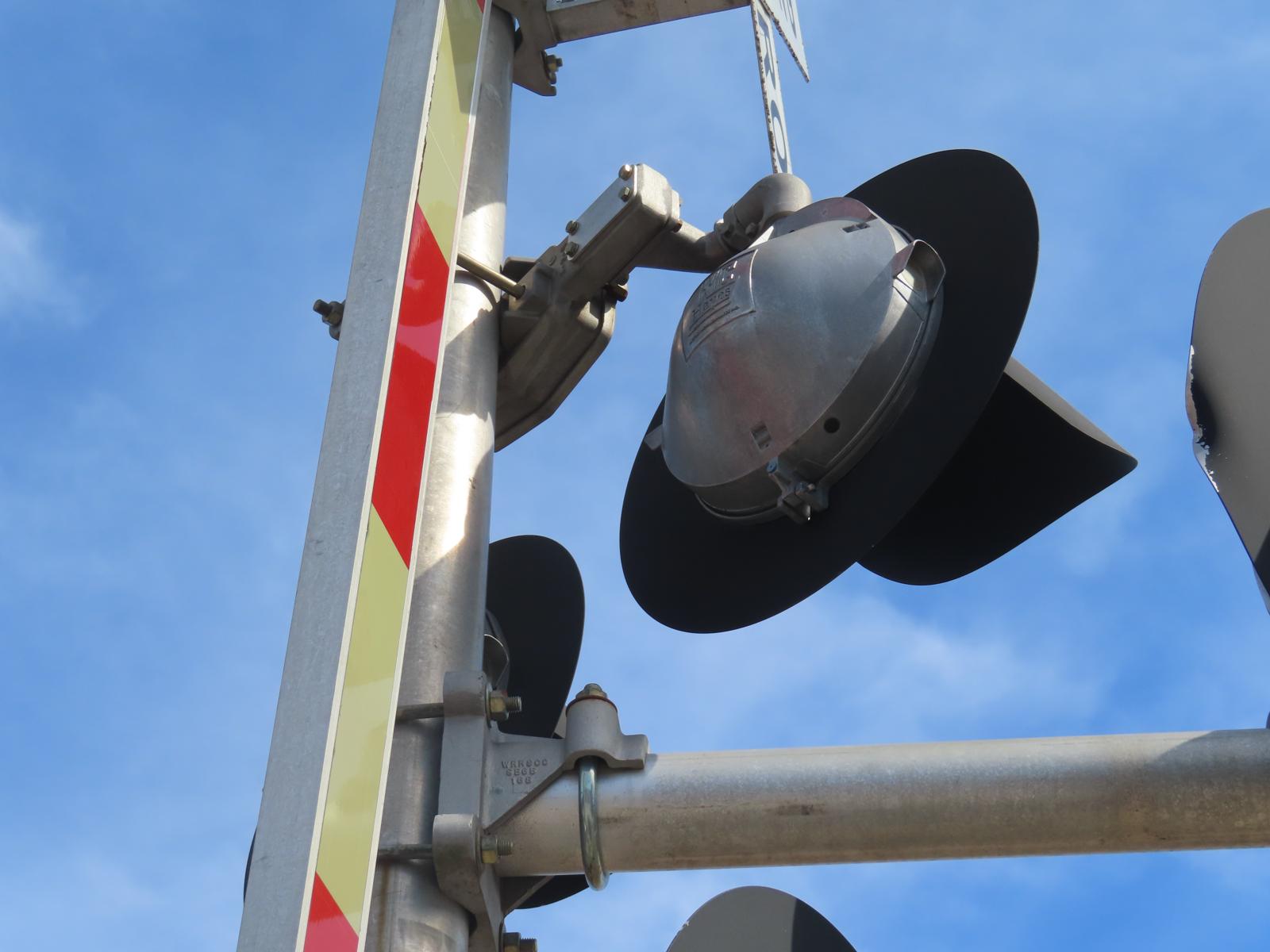

The second set of side lights on the southern signal come once again from WCH.	Close up at one of the WCH lights on one of the second sets of side lights.	The bell on the southern signal is a GS Electronic Bell which replaced the previous WCH Electronic Bell sometime in either the early 2020s. More than likely a type 3.	The gate on the southern signal features the older vertical striping while the gate lights are from Electro-Tech.

25	26	27	28

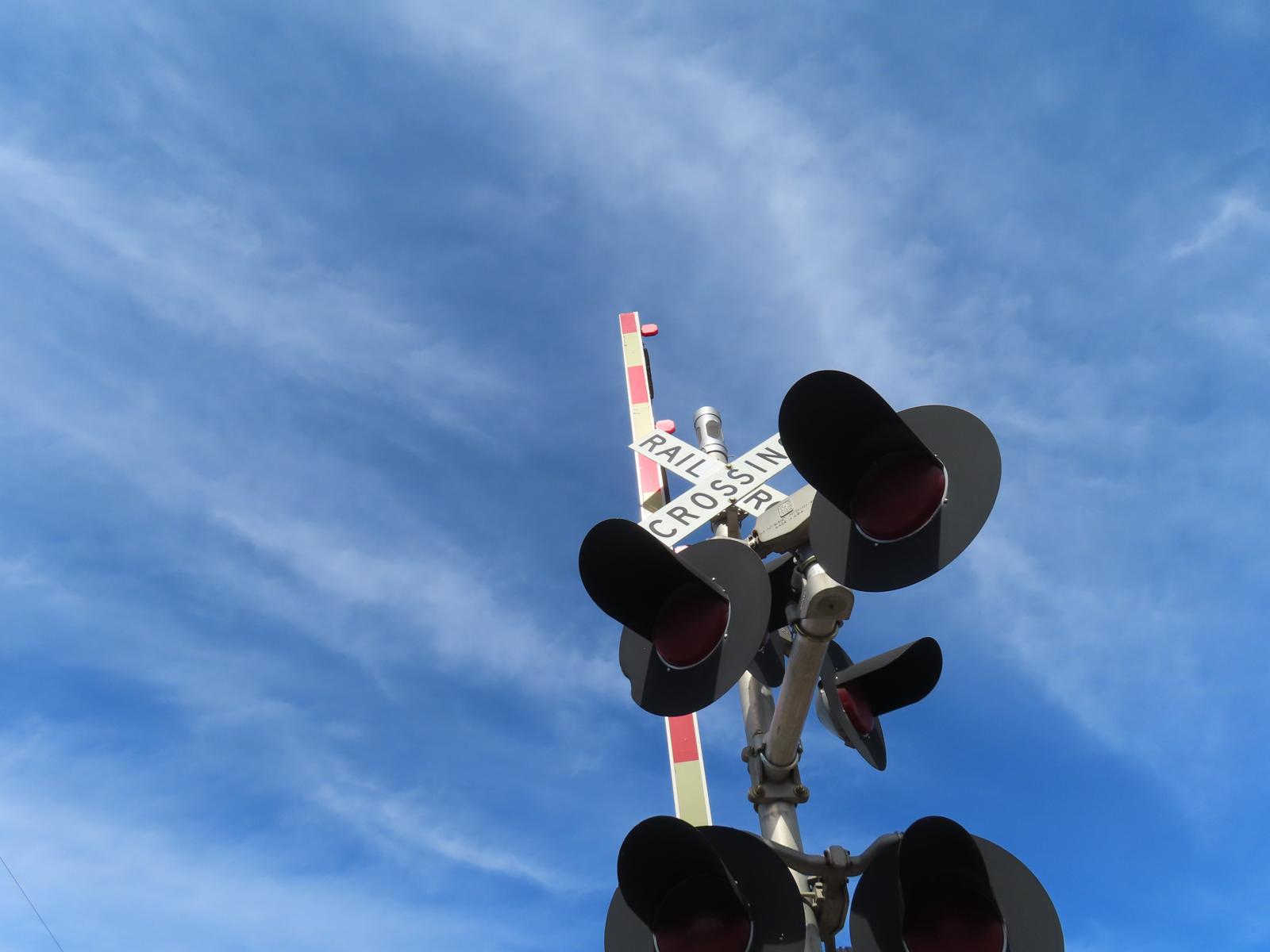

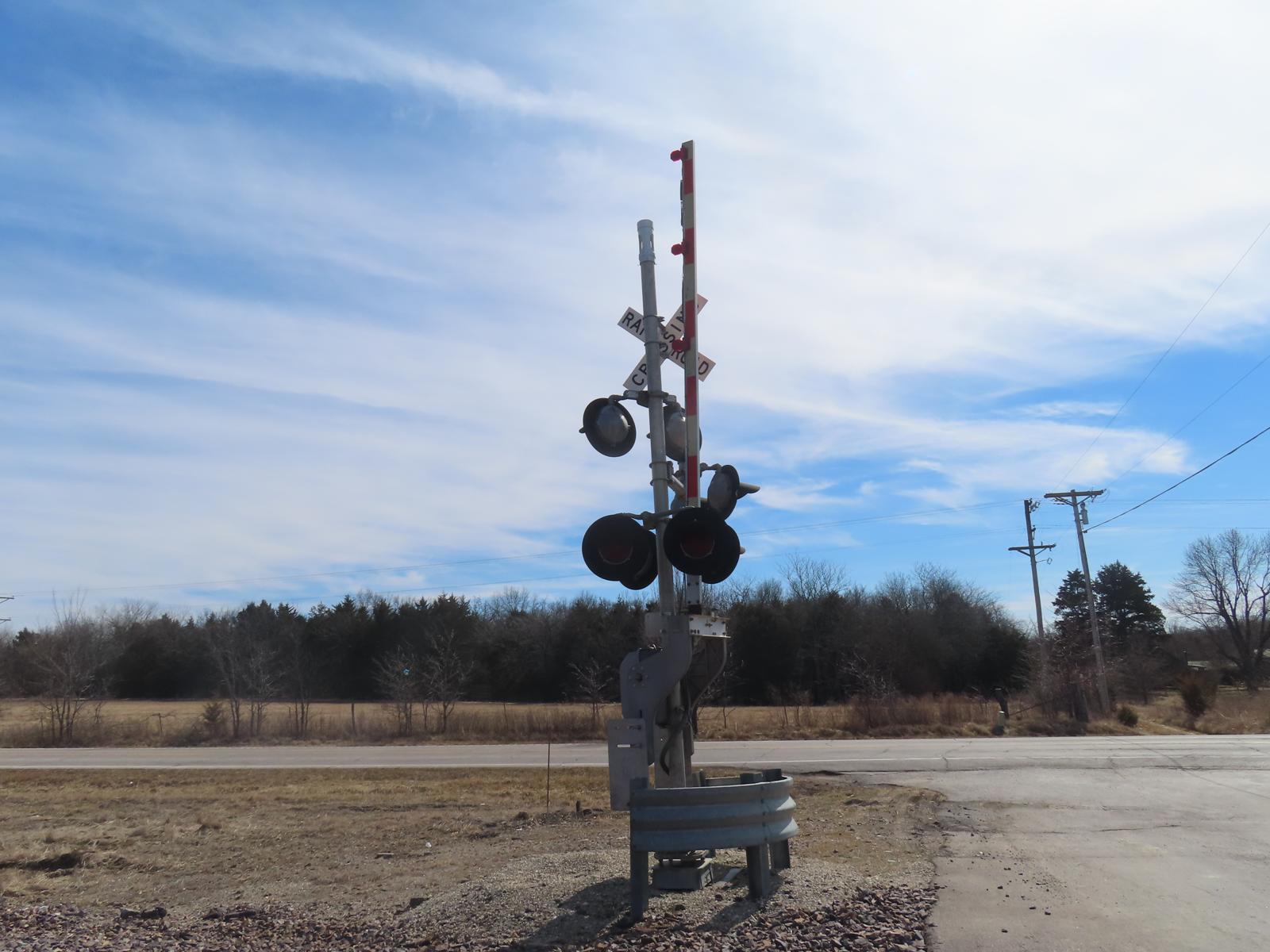

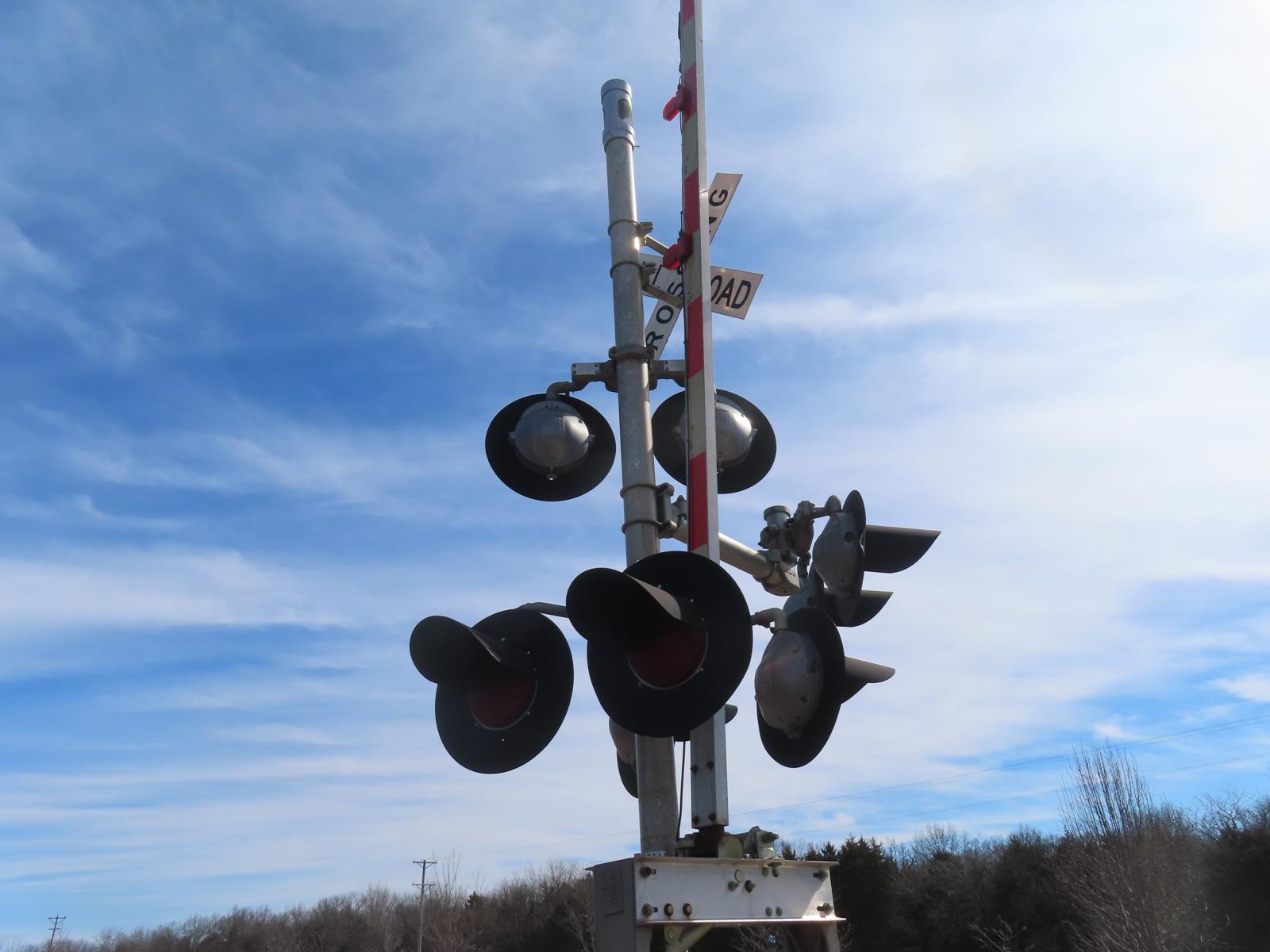

Close up at one of the Electro-Tech gate lights.		A look at the rear lights on the southern signal.	Back view of the southern signal.

The northern signal:
29	30
Front view of the northern signal.	A look at the front lights on the northern signal.

31	32	33

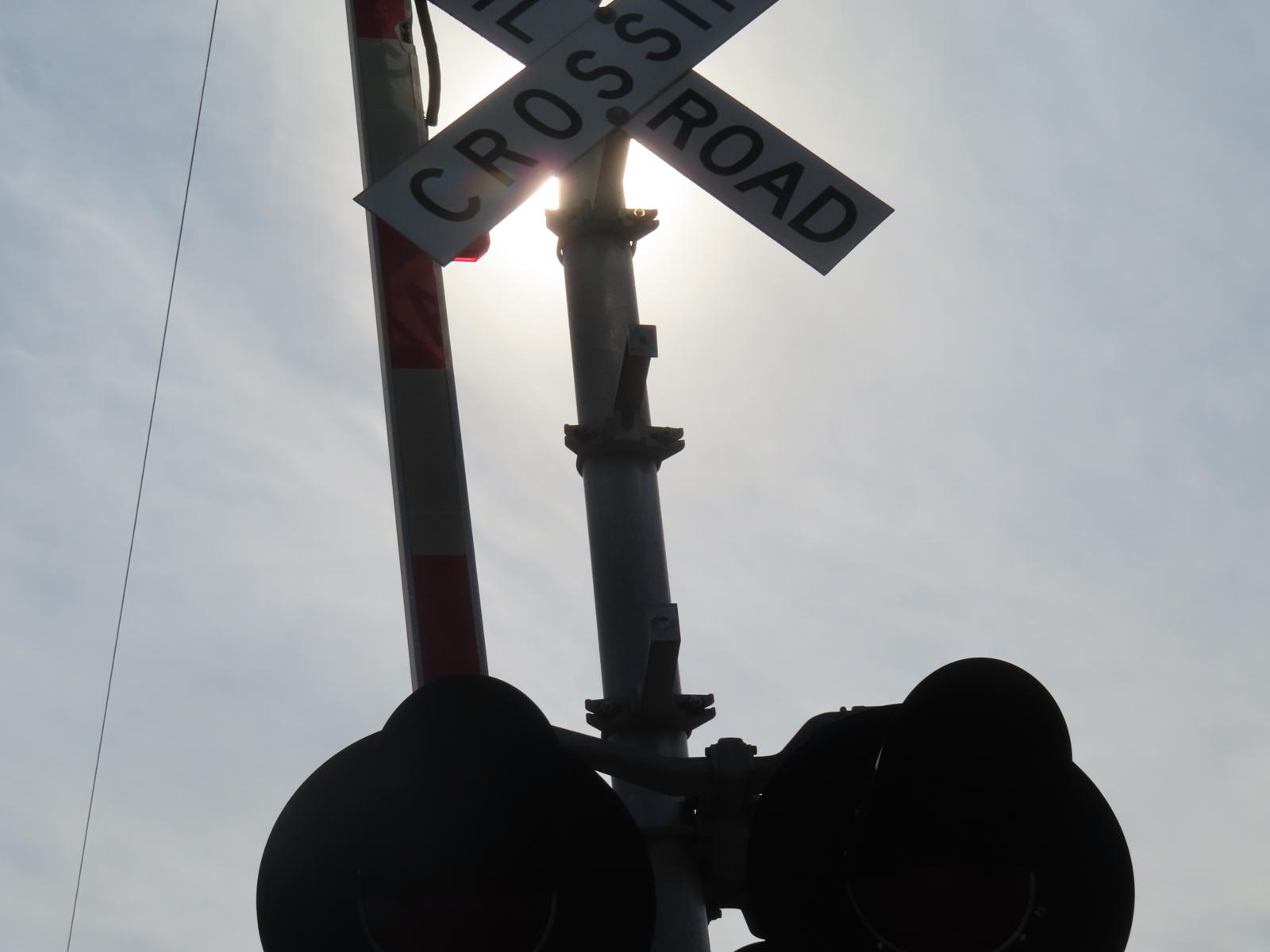

Extra mounting brackets can be found under the crossbuck on the northern signal. More than likely where the crossbuck was originally mounted at before it was moved to its current spot.	The northern signal features 2 pairs of older 12x24s with WCH 1st Gen LEDs in the light frames.	Close up at one of the WCH 1st Gen LEDs on the northern signal.

34	35	36	37

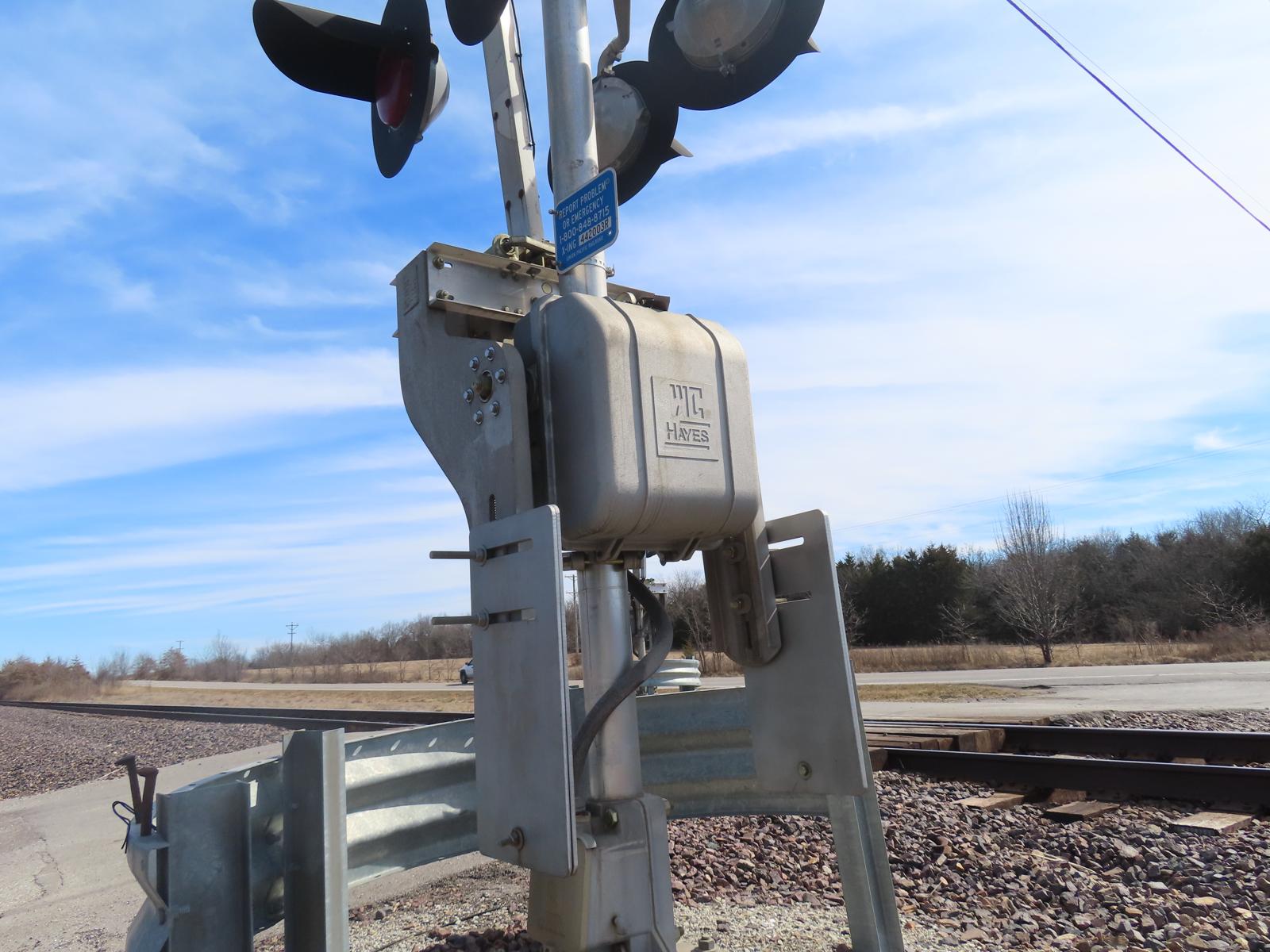

	The signal base on the northern signal is from WCH.	The gate mechanism on the northern signal is also from WCH.	The light bracket on the northern signal is from WRRS.

38	39	40	41
The lights on the northern signal are all from WCH.	Close up at one of the WCH lights on the northern signal.	The bell on the northern signal is a WCH Electronic Bell.	The gate on the northern signal features the older vertical stirping while the gate lights are from Electro-Tech.

42	43	44	45

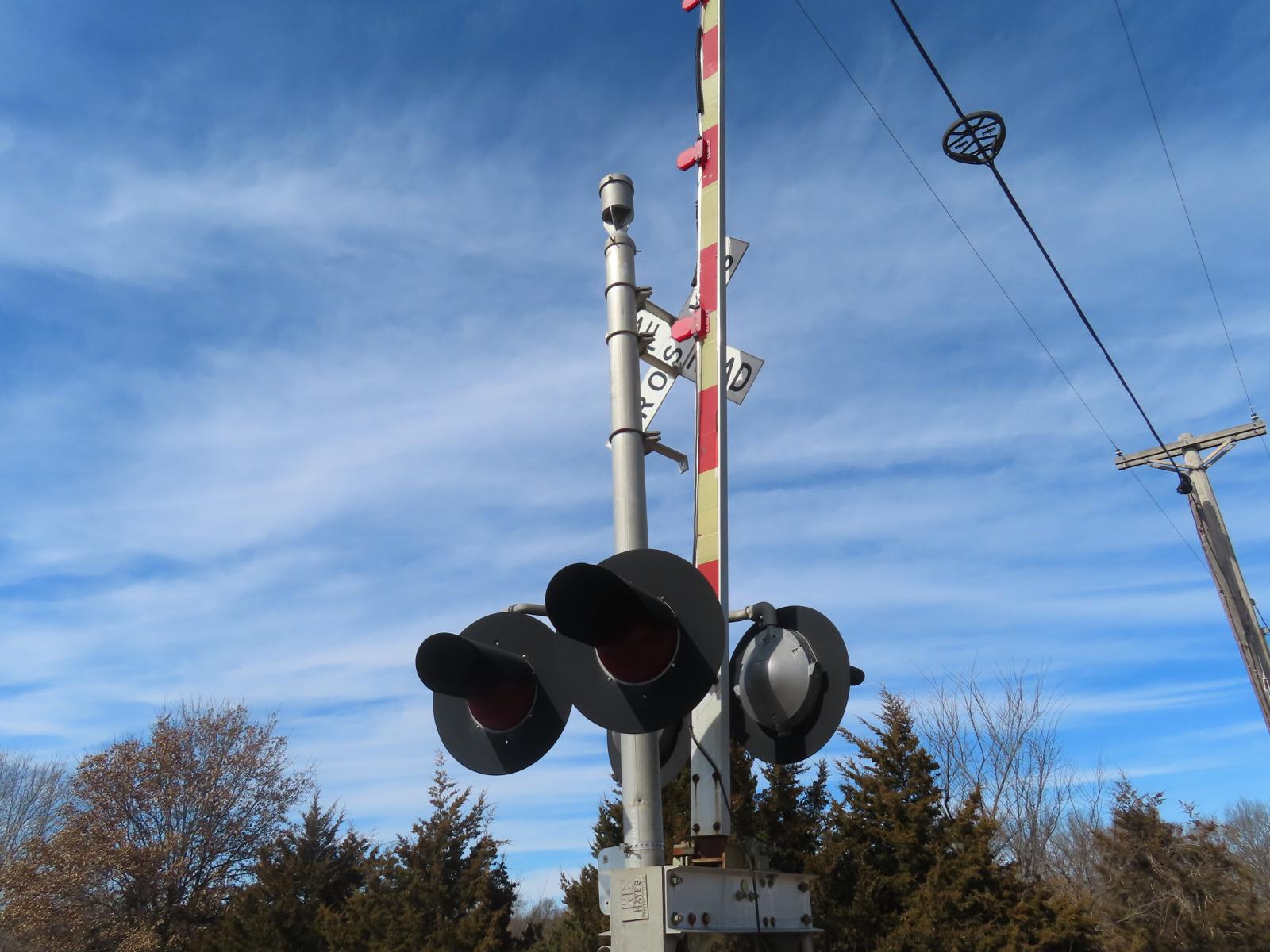

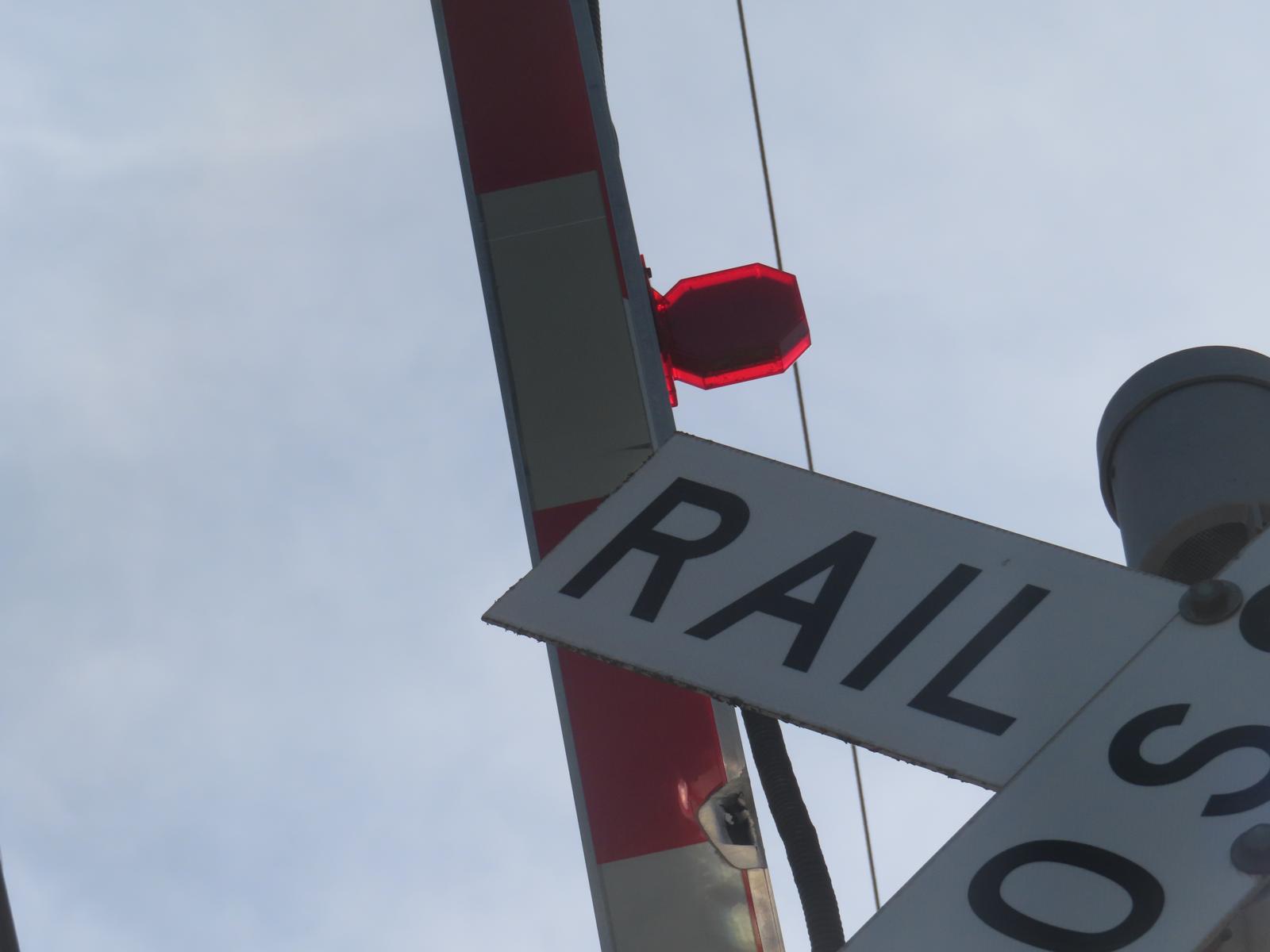

Close up at one of the Electro-Tech LEDs.		A look at the rear lights on the northern signal.	Back view of the northern signal.

46	47	48	49

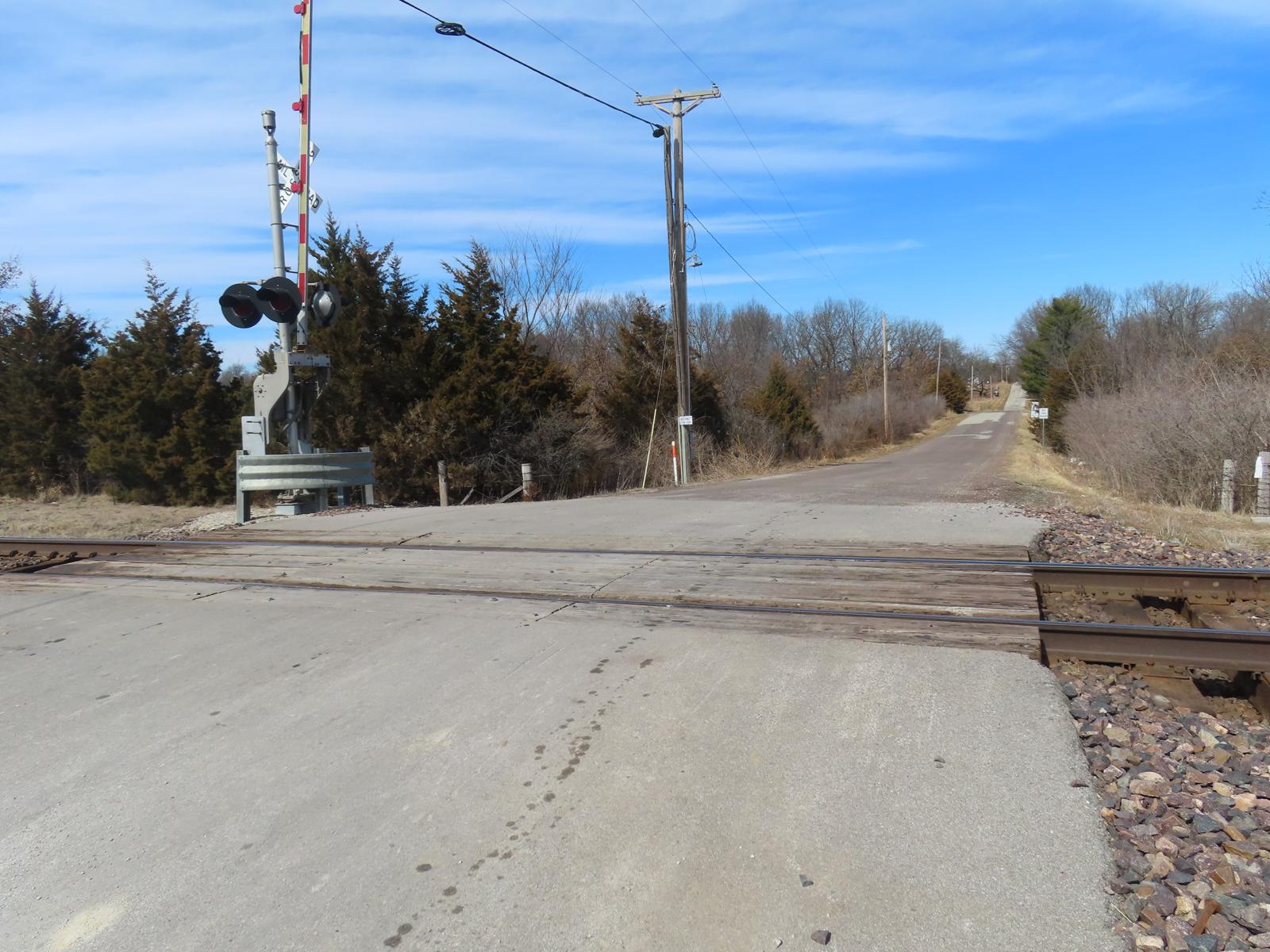

The relay bungalow.	The grade is all wood.	Track view facing east towards State Hwy. AA in Kingsville.	Track view facing west towards 5th St.
