58.84,58.83


053123H,053124P

>>>>>>>>>>>>>> Northern Signal Northern Median Signal Southern Signal Eastern Signal Western Signal
Bell: WCH 2nd Gen Mechanical N/A N/A WCH 2nd Gen Mechanical WCH 2nd Gen Mechanical
Base: WCH 5" Single Sided WCH 4" Clamped WCH 5" Single Sided WCH 5" Single Sided WCH 5" Single Sided
Light Brackets: WRRS 2 - WRRS WRRS WRRS WRRS
Lights: 4 - 8"x20" WCH w/ WCH/Aurora Clear LEDs 6 - 8"x20" WCH w/ WCH Clear LEDs 4 - 8"x20" WCH w/ WCH/Aurora Clear LEDs 2 - 8"x20" WCH w/ WCH/Aurora Clear LEDs 4 - 8"x20" WCH w/ WCH/Aurora Clear LEDs
Gate Lights: 3 - WCH 4" Incandescents N/A 3 - WCH 4" Incandescents 3 - RECO 4" LEDs 3 - RECO 4" LEDs
Gate Mechanism: WCH Style 3 N/A US&S Model 95 Style 1 WCH Style 3 WCH Style 3
Gate Striping: Vertical Striping N/A Vertical Striping Vertical Striping Vertical Striping


>>>>>>>>>>>>>> Northern Pedestrian Signal Southern Pedestrian Signal
Bell: N/A N/A
Base: WRRS 5" Single Sided WCH 5" Single Sided
Light Brackets: N/A WRRS
Lights: N/A 2 - 8"x20" WCH w/ WCH/Aurora Clear LEDs
Gate Lights: N/A N/A
Gate Mechanism: WCH Style 3 WCH Style 3
Gate Striping: Diagonal Striping Diagonal Striping

All pictures and the video were taken on November 11, 2025, by RailfanRXR.
This crossing is located on the CSX Portland Subdivision.
Page created by RailfanRXR (using HopenRXRTools 1.3.0).

These signals were installed in early to mid 1998, replacing vintage GRS signals with wishbone gates and at least one WRRS mechanical bell, which likely replaced a mini bell. 2 of the old signals can be seen here. The southern pedestrian signal had its GRS Type B gate mechanism carried over, and the northern pedestrian signal remained unchanged through the upgrades. In 2010, the southern pedestrian signal had its gate mechanism replaced with a WCH. Shortly after, the northern pedestrian signal had its replaced.

1
 2
 3
 4

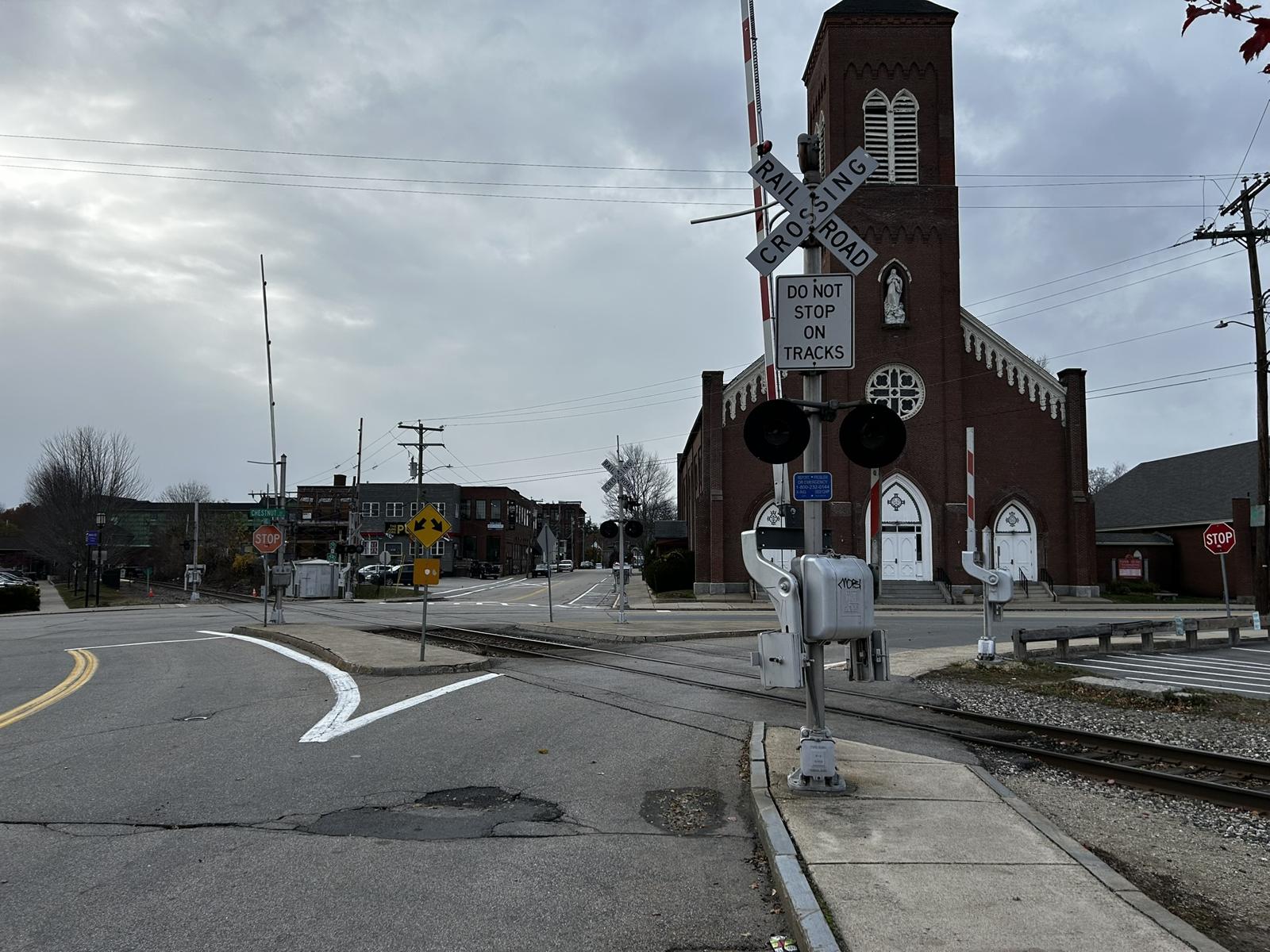

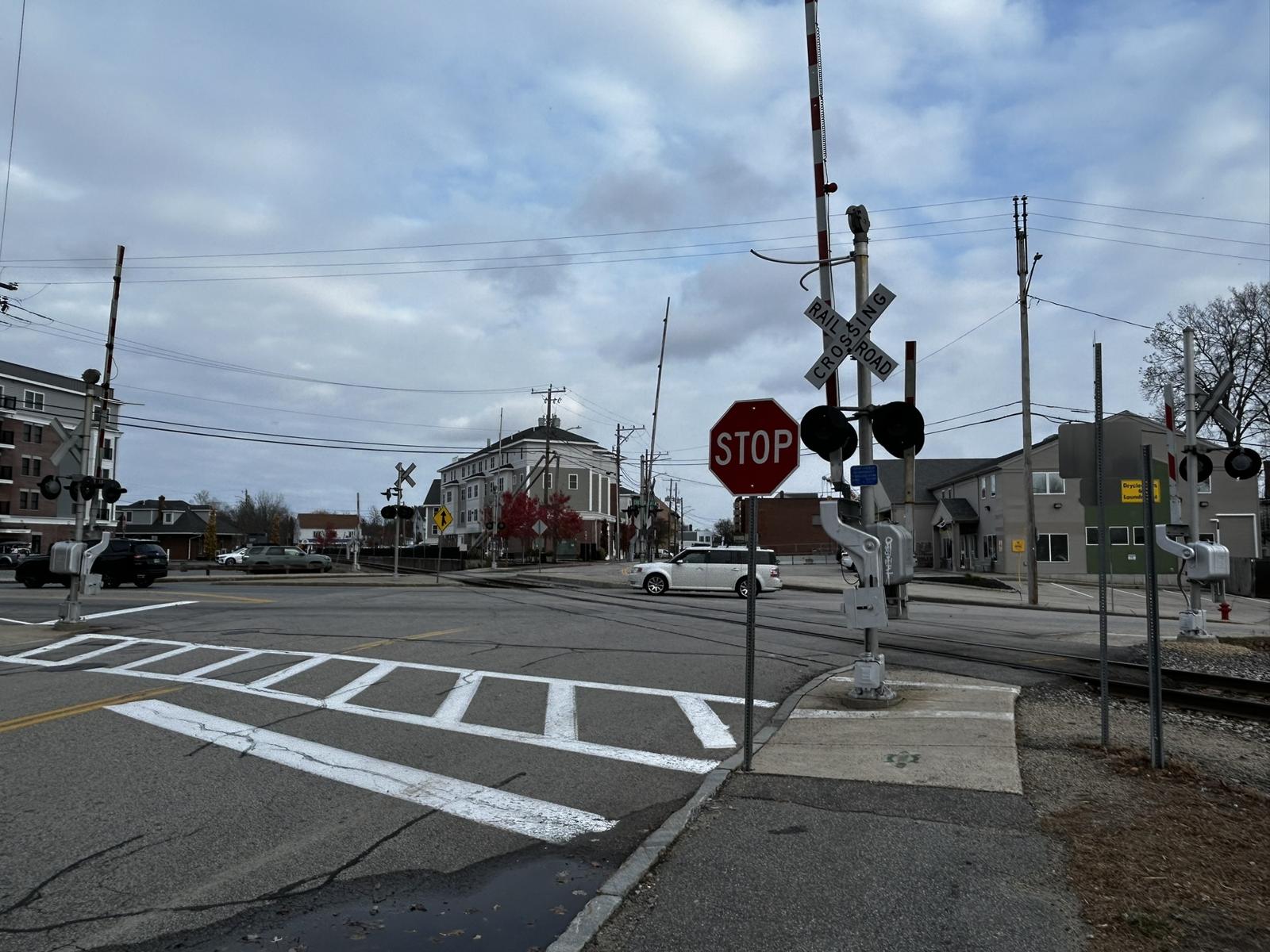

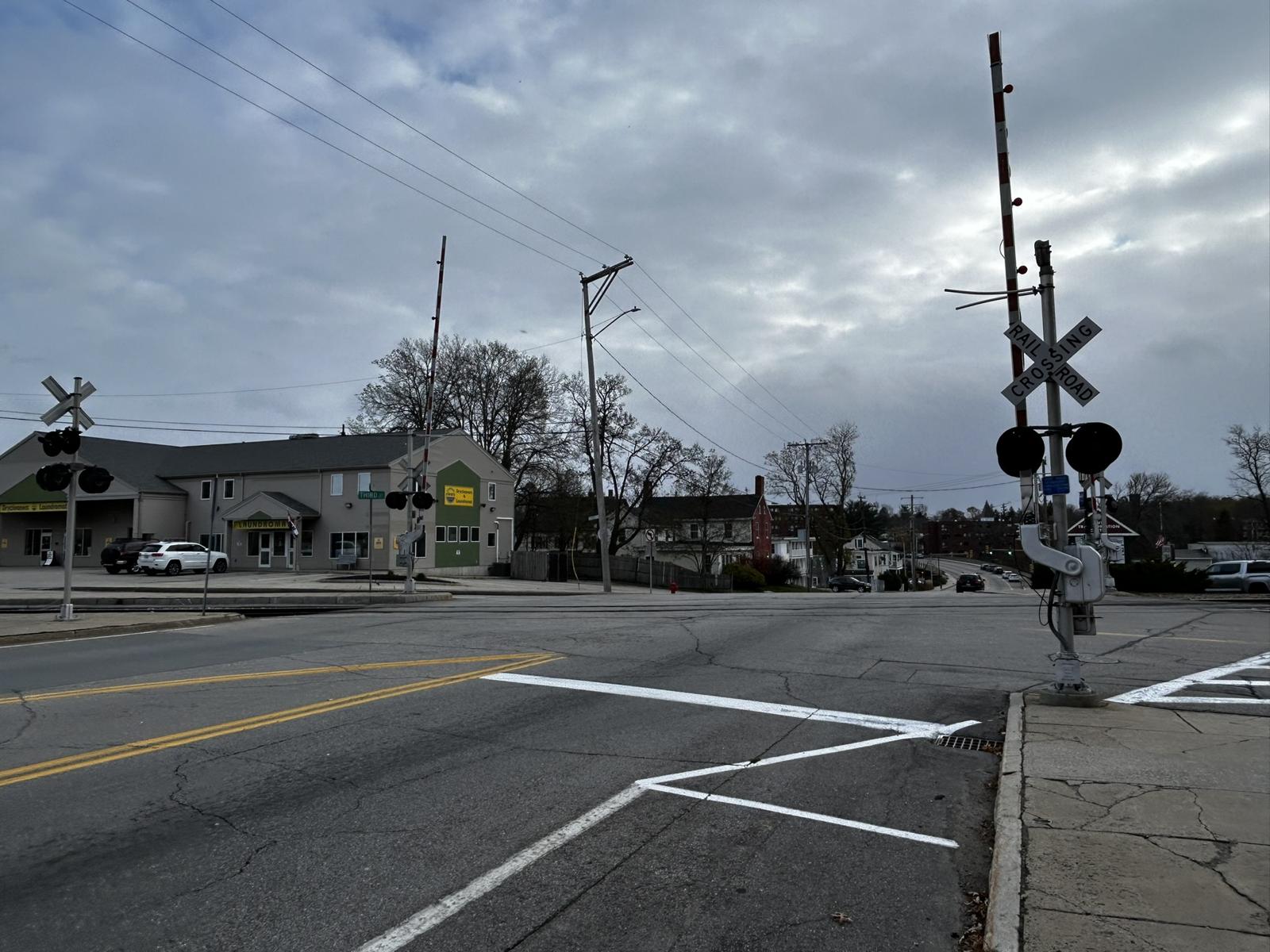

Overview facing north.Overview facing south.Overview facing east.Overview facing west.
5 6 7
8 9 10
11 12 13 14

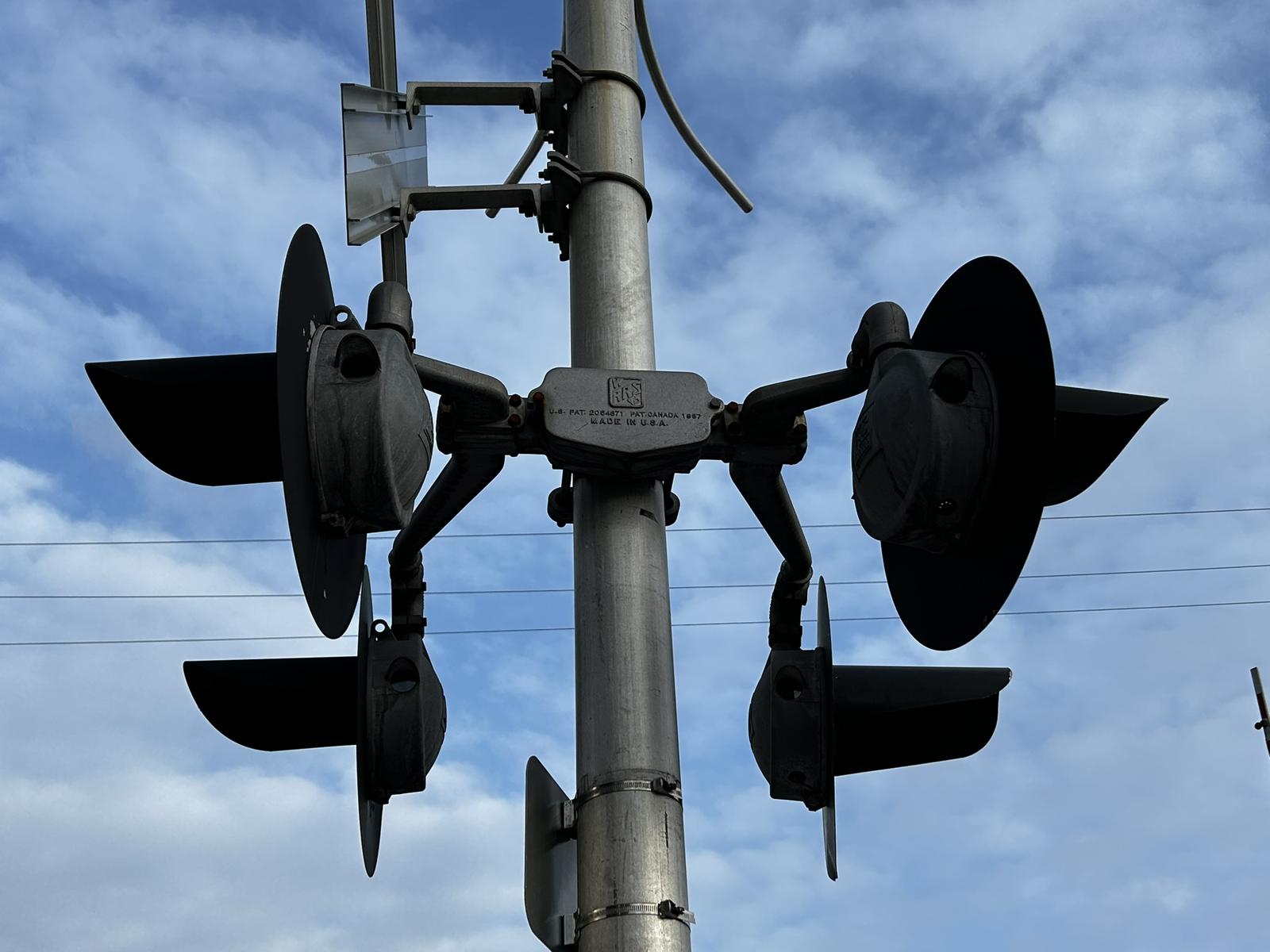

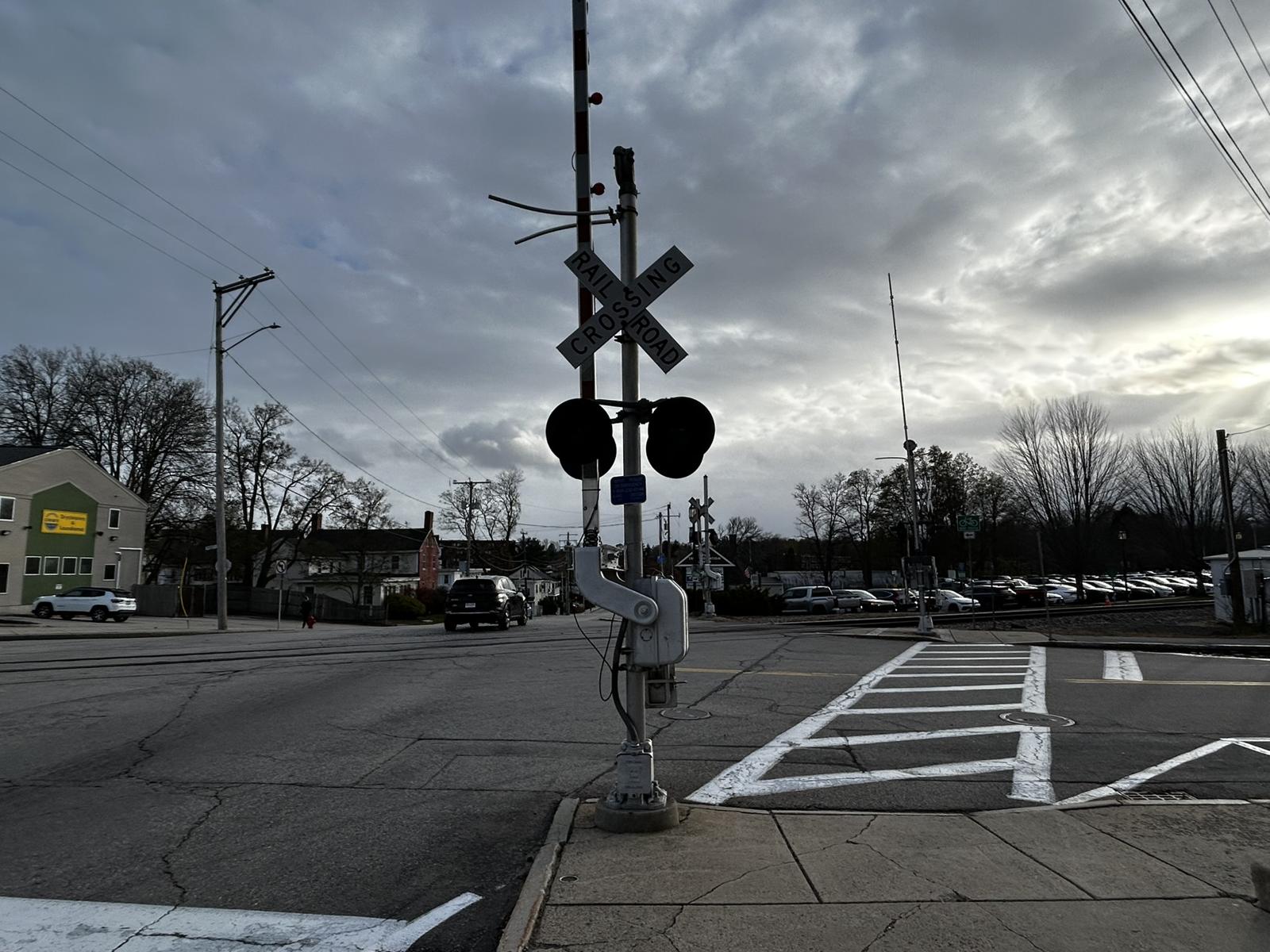

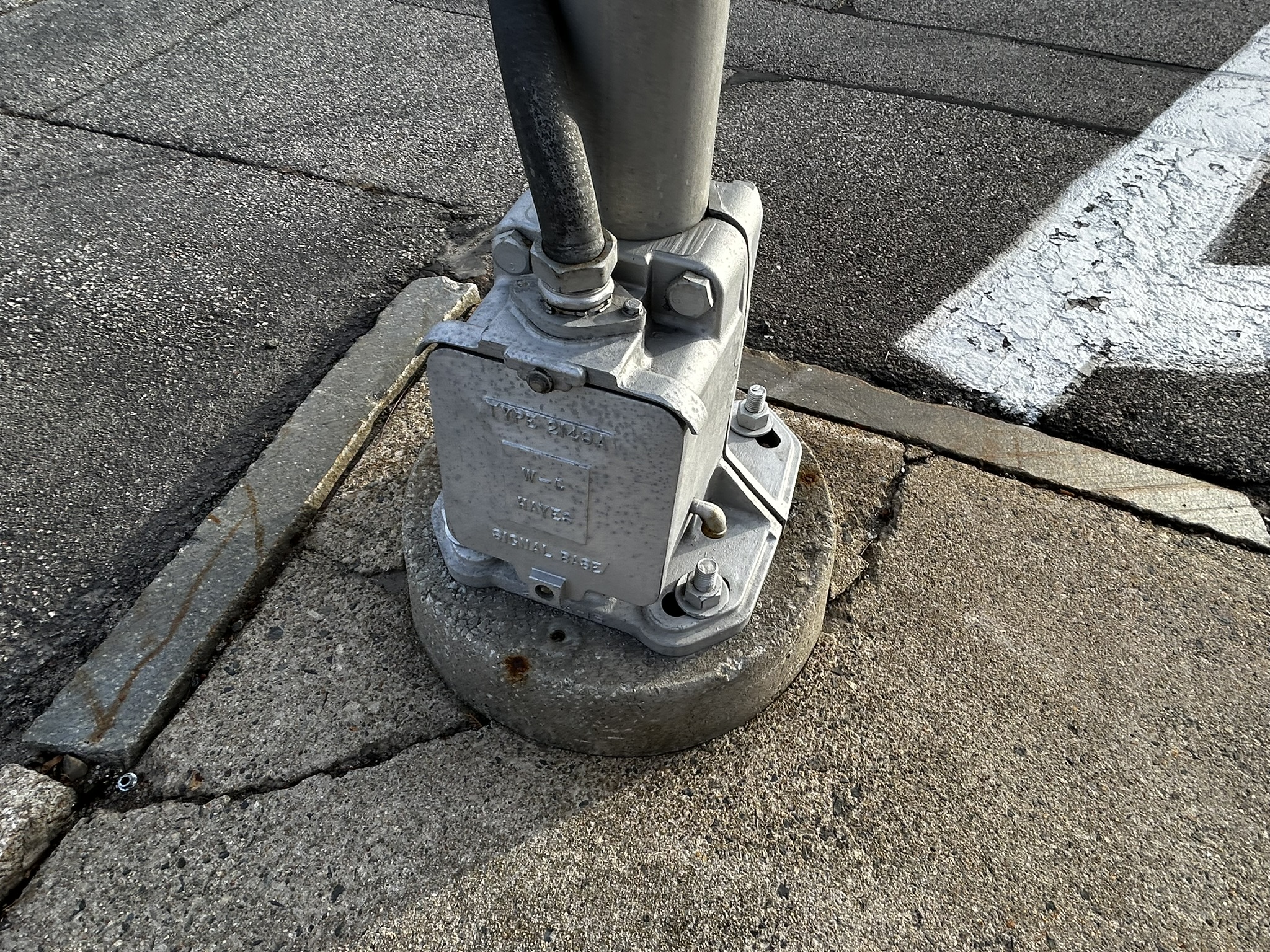

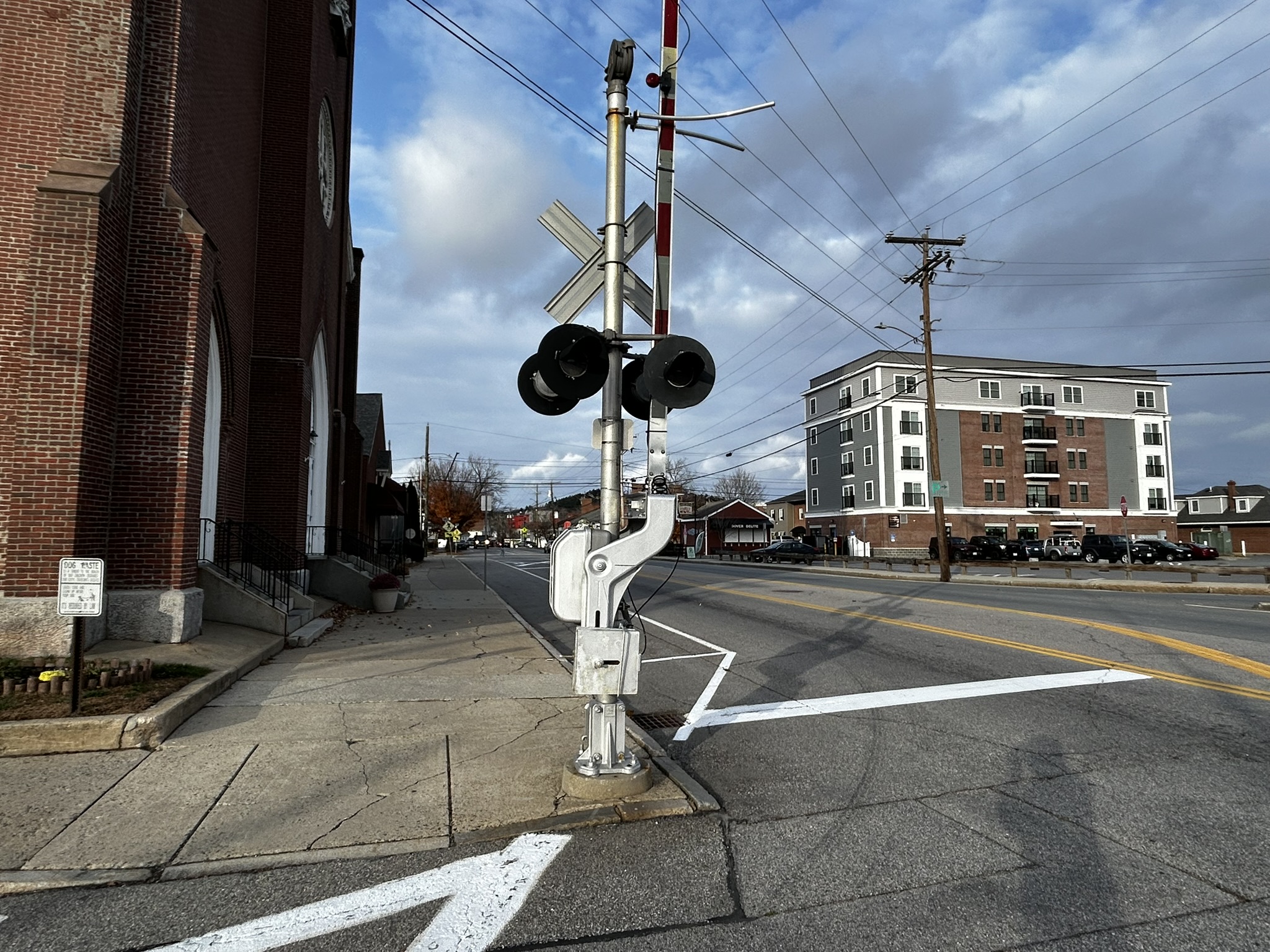

The northern signal.
15 16
17 18 19
The northern median signal.
20 21 22 23
24 25 26 27
The southern signal.
28 29 30 31
32 33 34 35
36 37 38 39

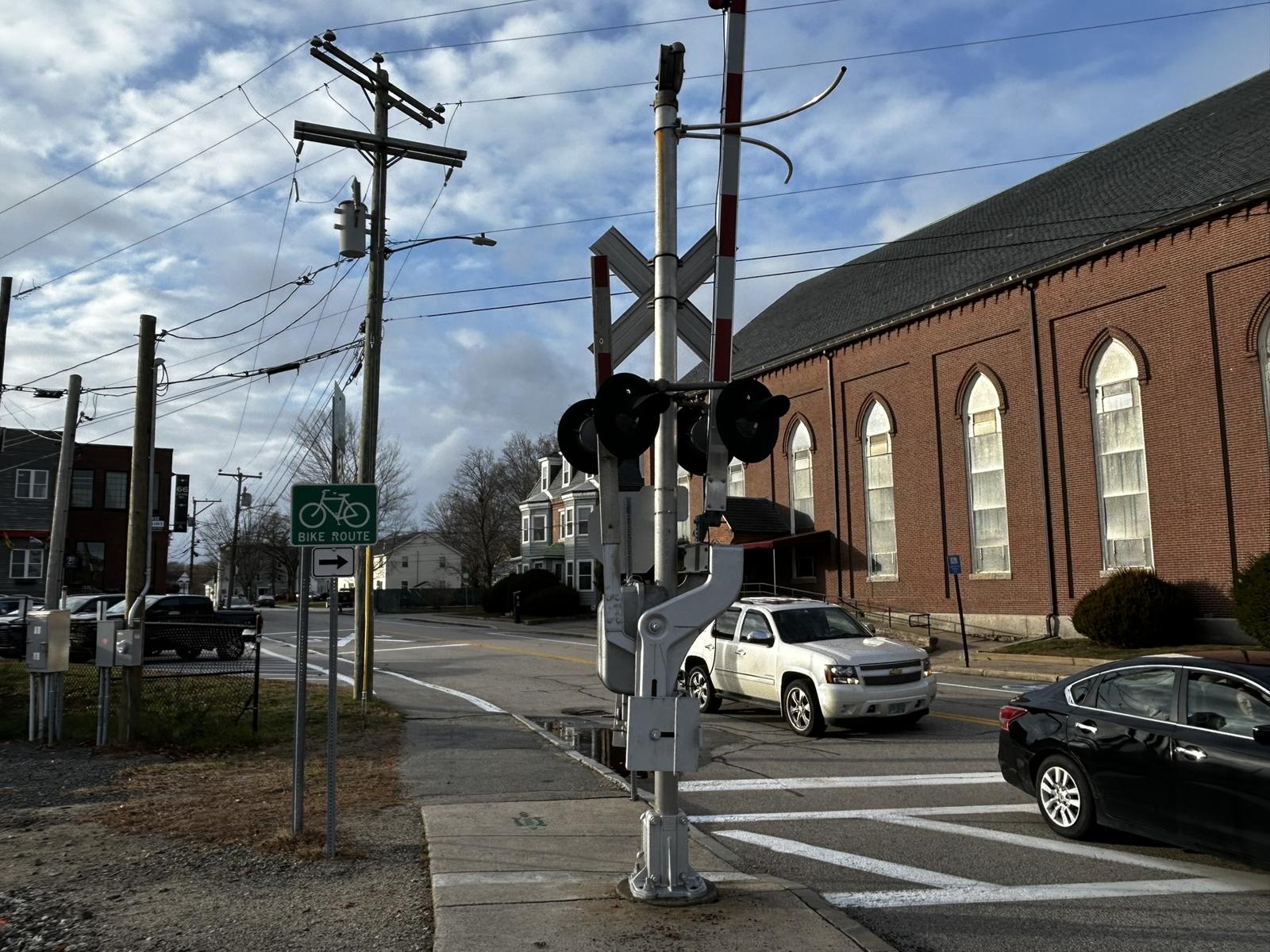

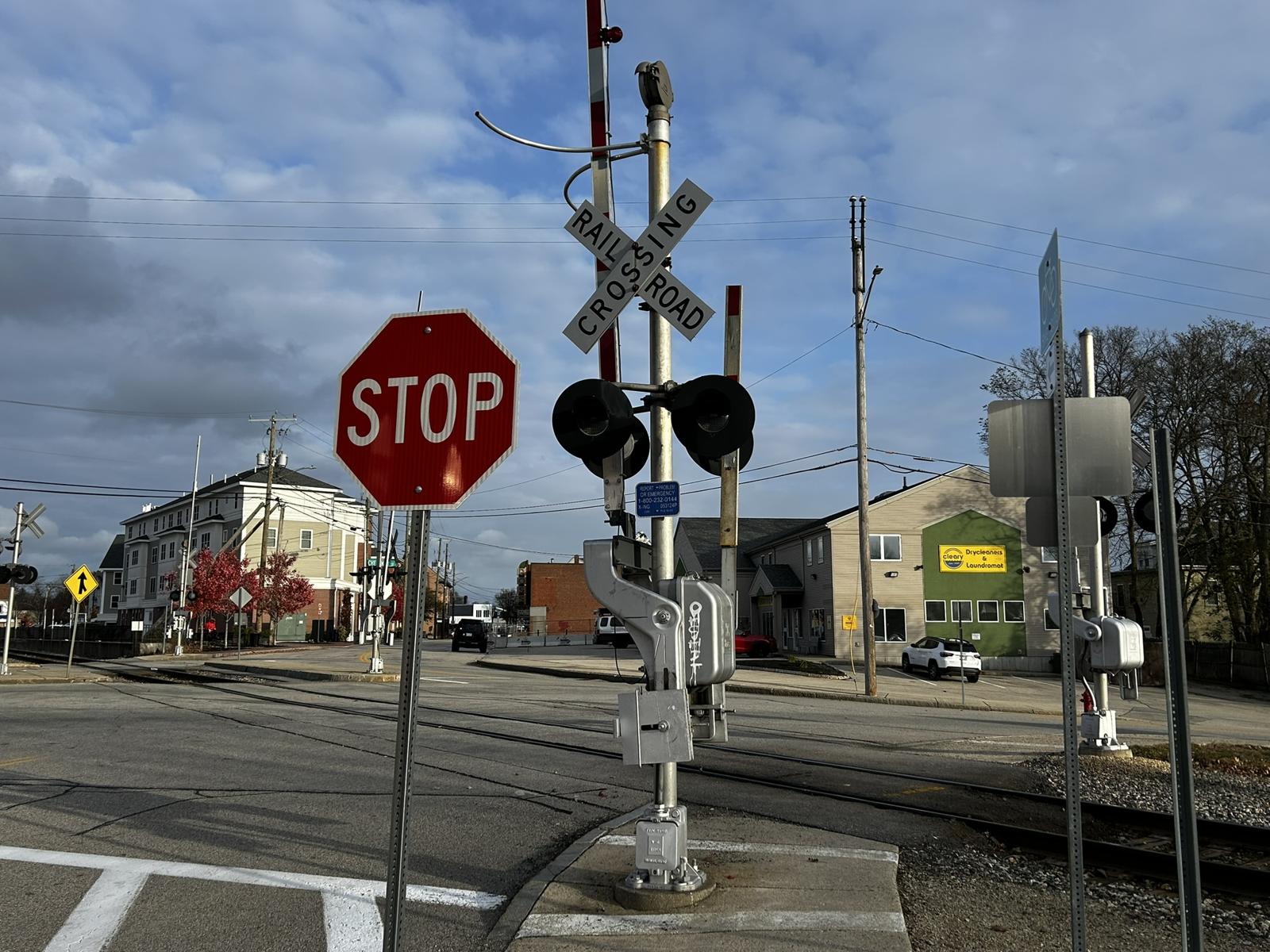

The eastern signal.
40 41 42
43 44 45
46 47 48 49

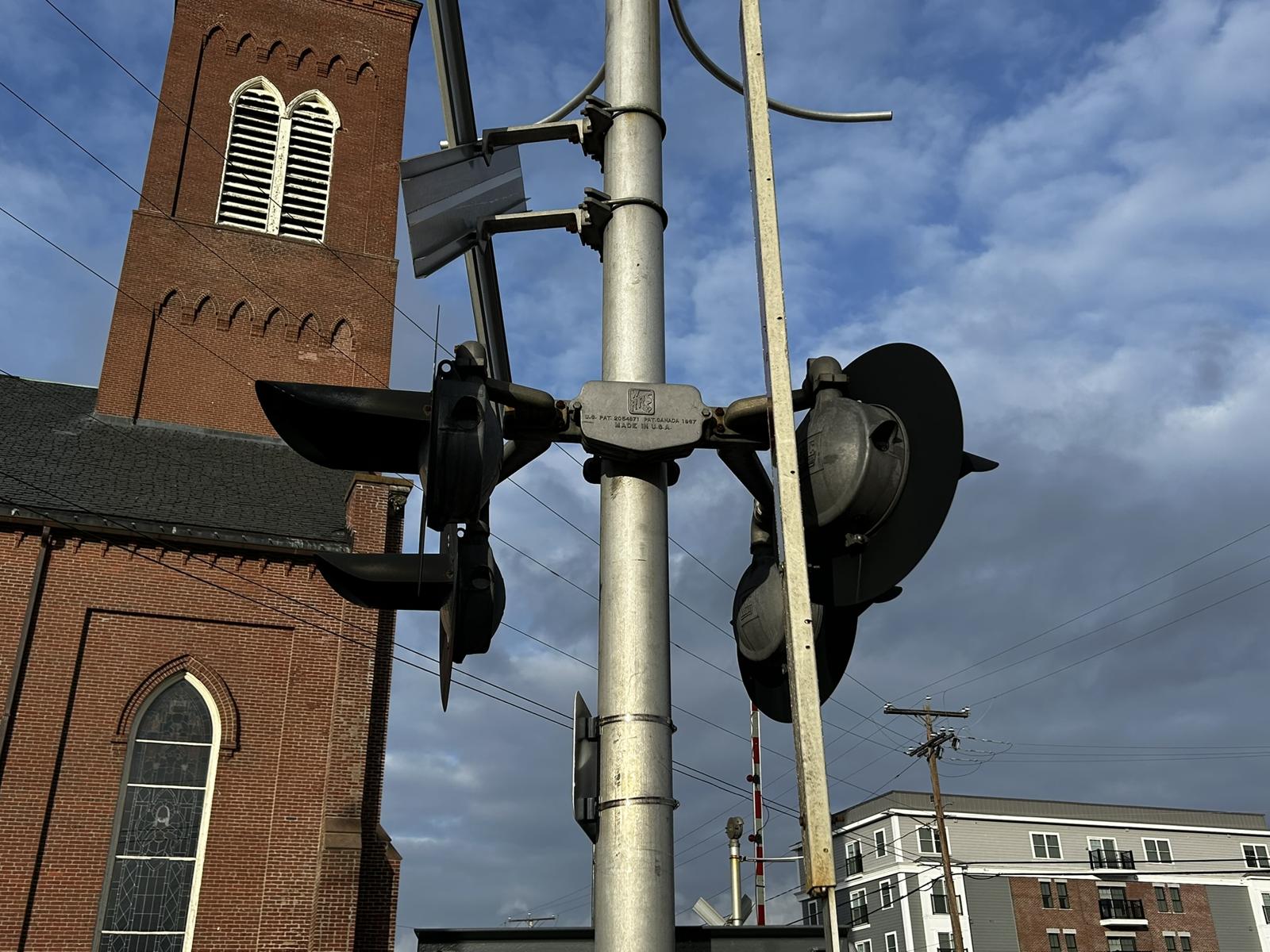

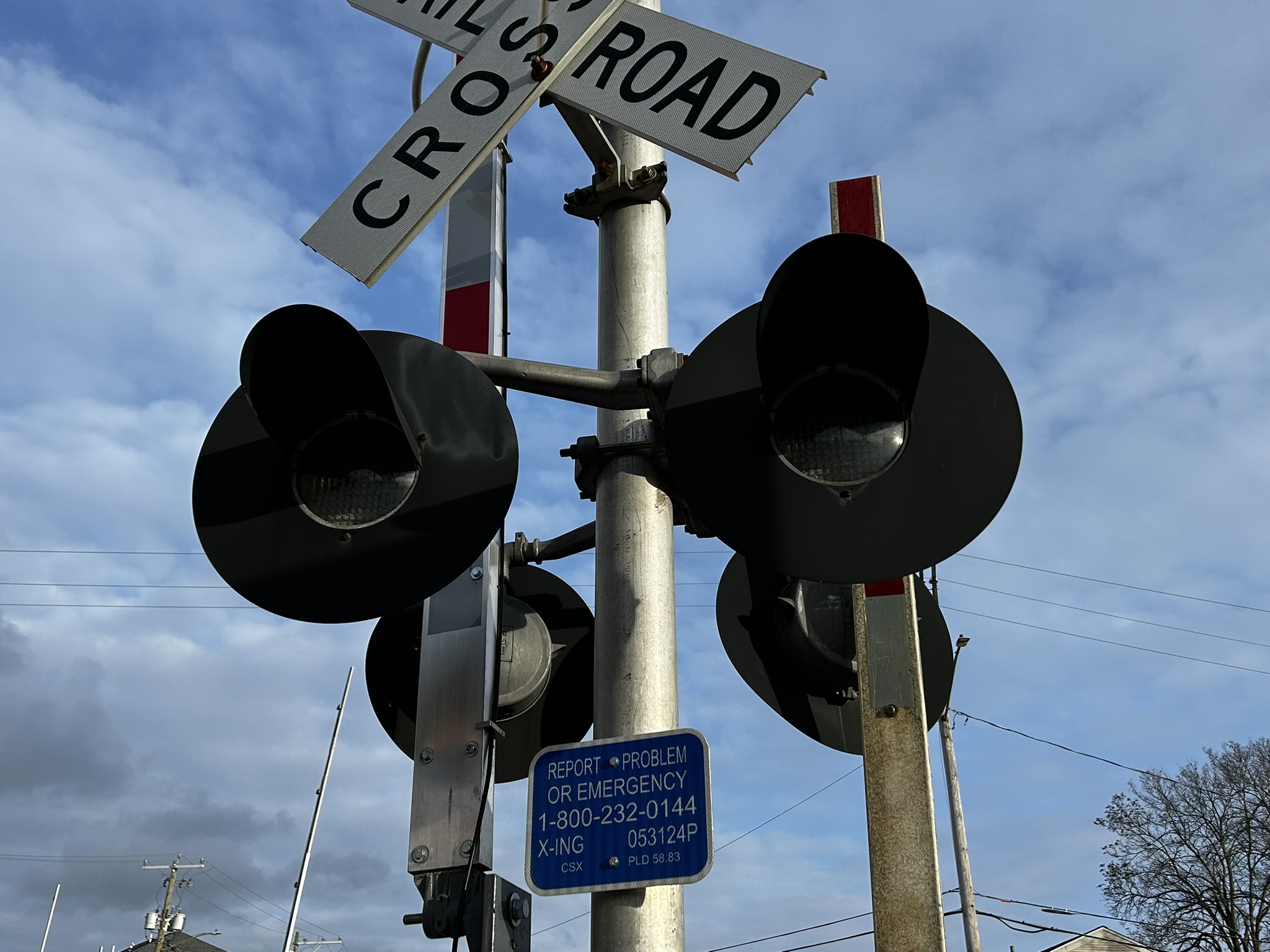

The western signal.
50 51 52 53
The northern pedestrian signal.
54 55 56
57 58 59
The southern pedestrian signal.
60
 61
 62
 63

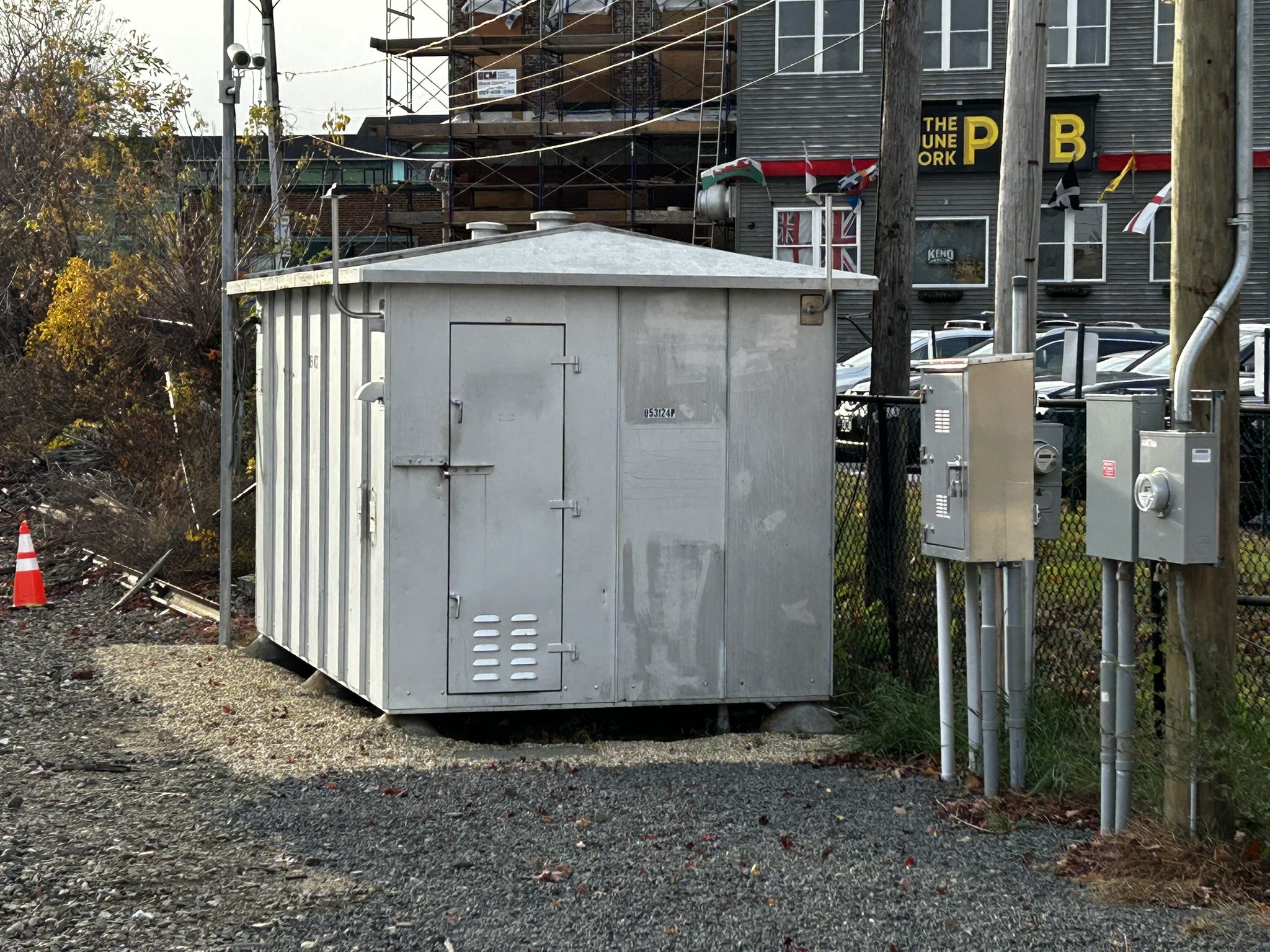

The relay bungalow.The grade, made of rubber and asphalt.Track view facing east towards Central Ave.Track view facing west towards Private Crossing in Madbury.
64 65
66 67 68
The crossing in action!
