>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None GS E Bell
Base: SERRMI 5" Single Sided ^ SERRMI 5" Single Sided ^
Lights: 4 - 12"x20" Safetran w/ GE Uniform Look LEDs 4 - 12"x20" Safetran w/ GE Uniform Look LEDs
Junction Box: Safetran Safetran
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: WCH Style 3 w/ GSI Gate Saver WCH Style 3 w/ GSI Gate Saver
Gate Striping: Diagonal Striping Vertical Striping
Ped Gate Striping: Diagonal Striping Diagonal Striping


>>>>>>>>>>>> Northern Pedestrian Gate Southern Pedestrian Gate
Base: SERRMI 5" Single Sided ^ Safetran 5" Single Sided ^
Gate Light: 4" RECO 4" RECO
Gate Mechanism: WCH Style 3 WCH Style 3
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on April 17, 2023, by Tommy McGowan.
This crossing is located on the NS Lake Erie District.

1 2

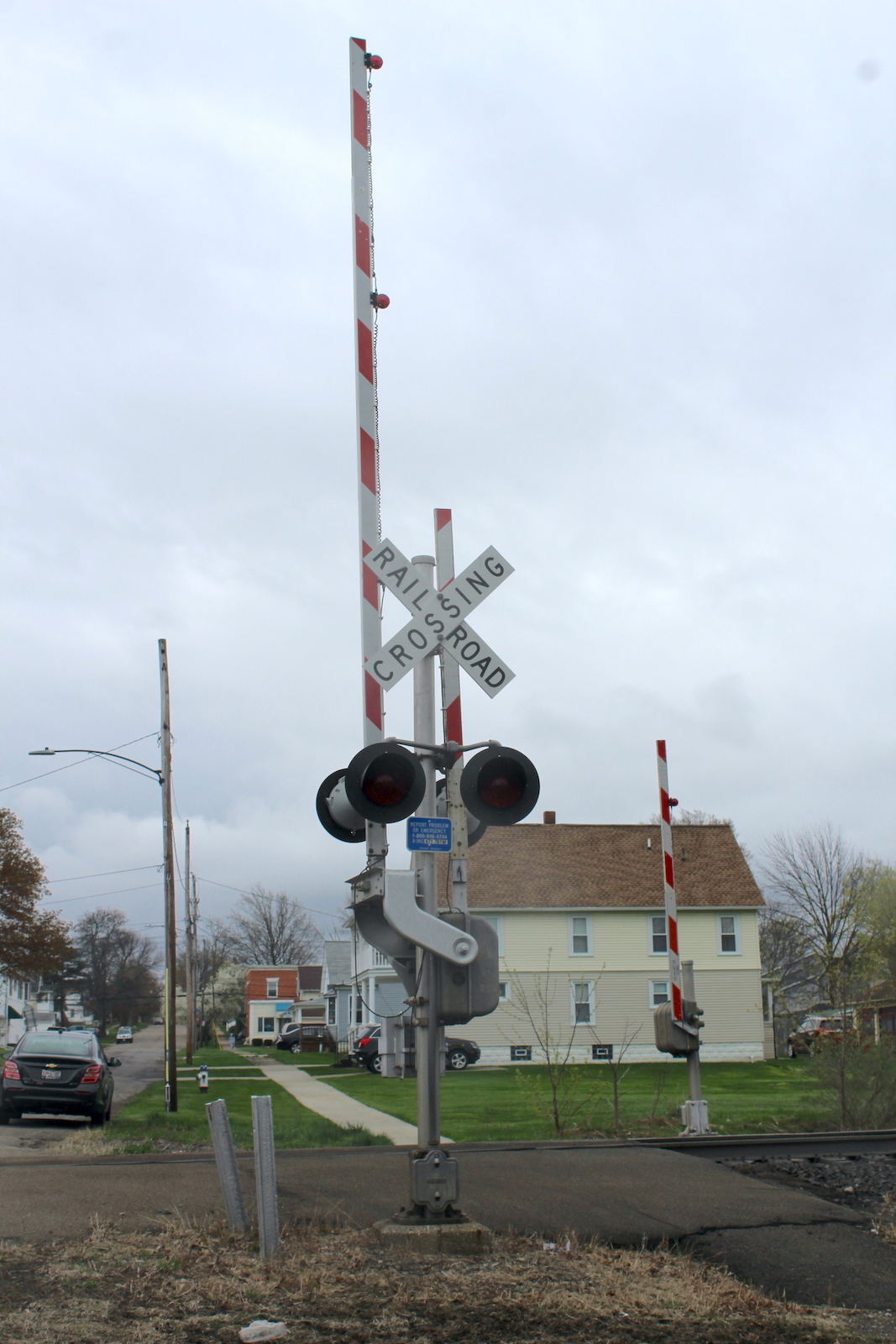

Overview of 2 WCH signals and 2 pedestrian gates facing south. Overview facing north.
3 4 5 6
7 8 9 10
11 12 13 14

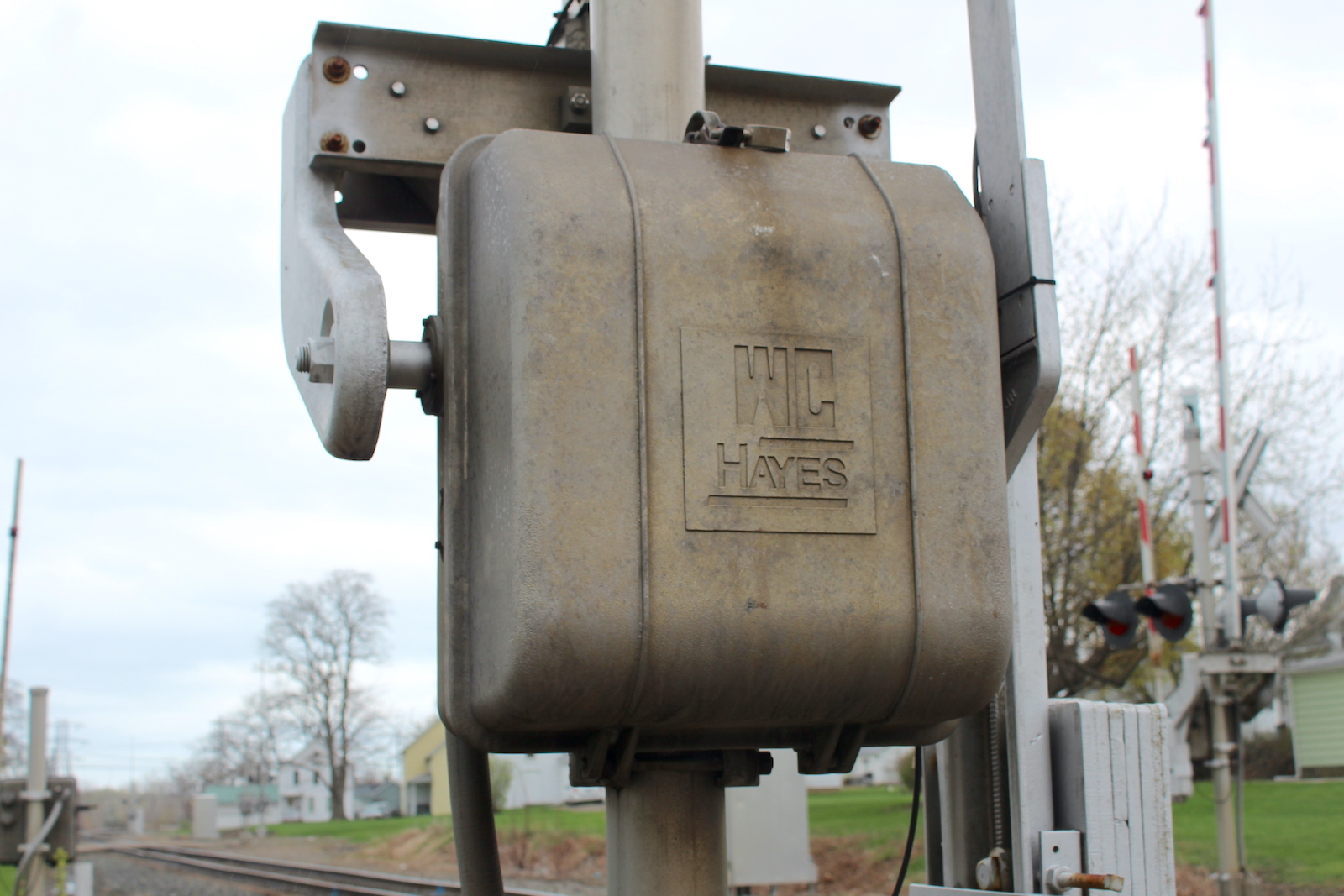

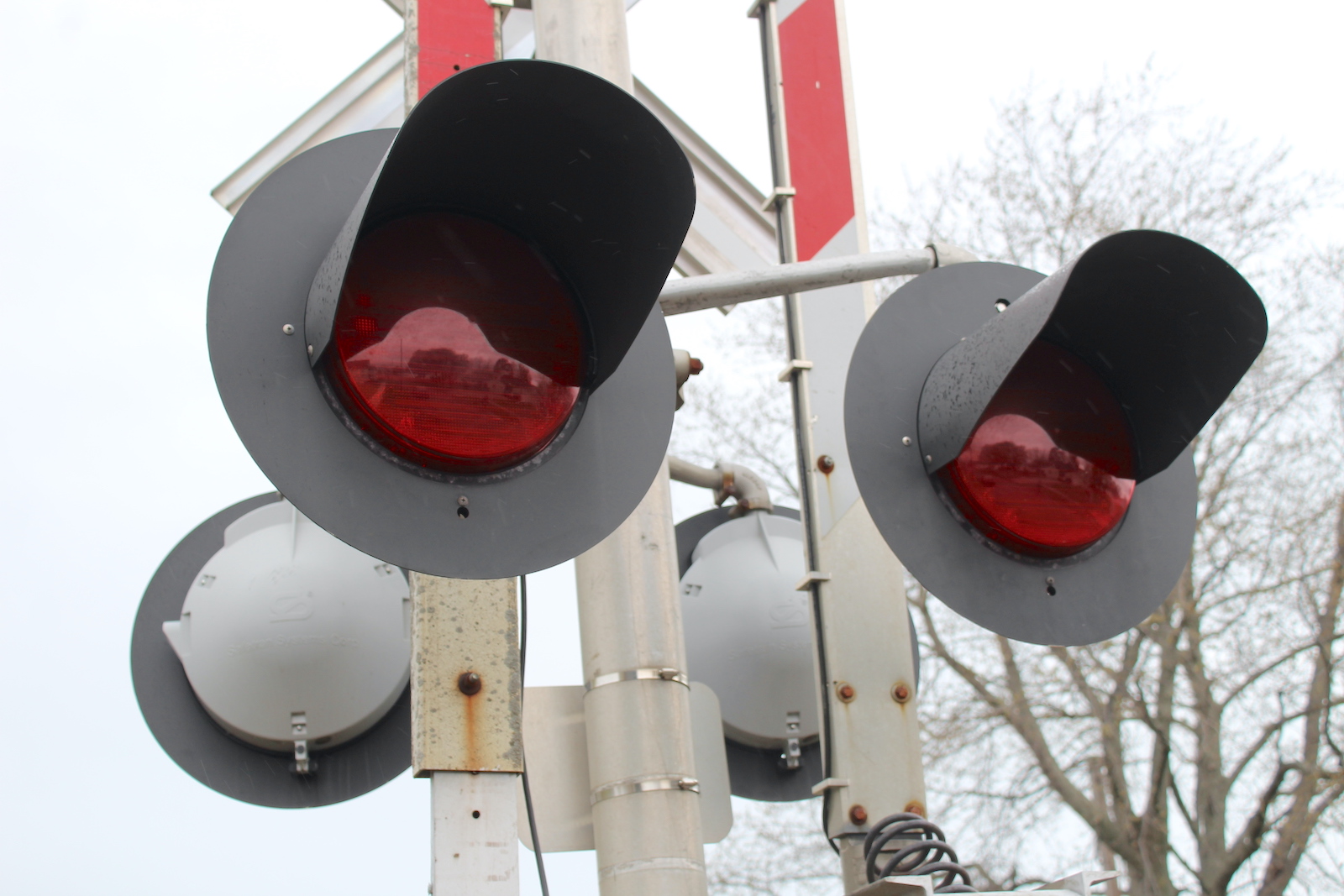

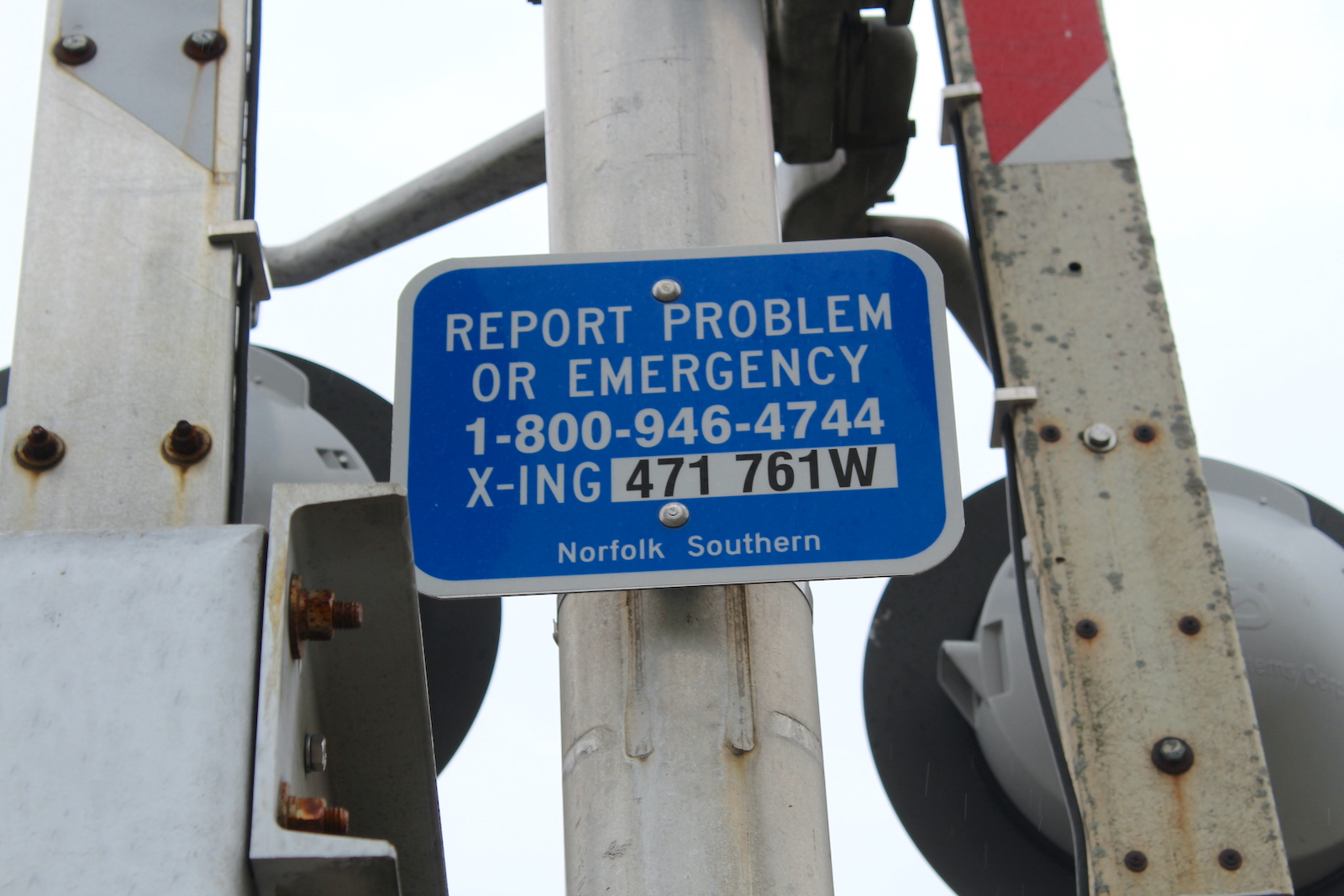

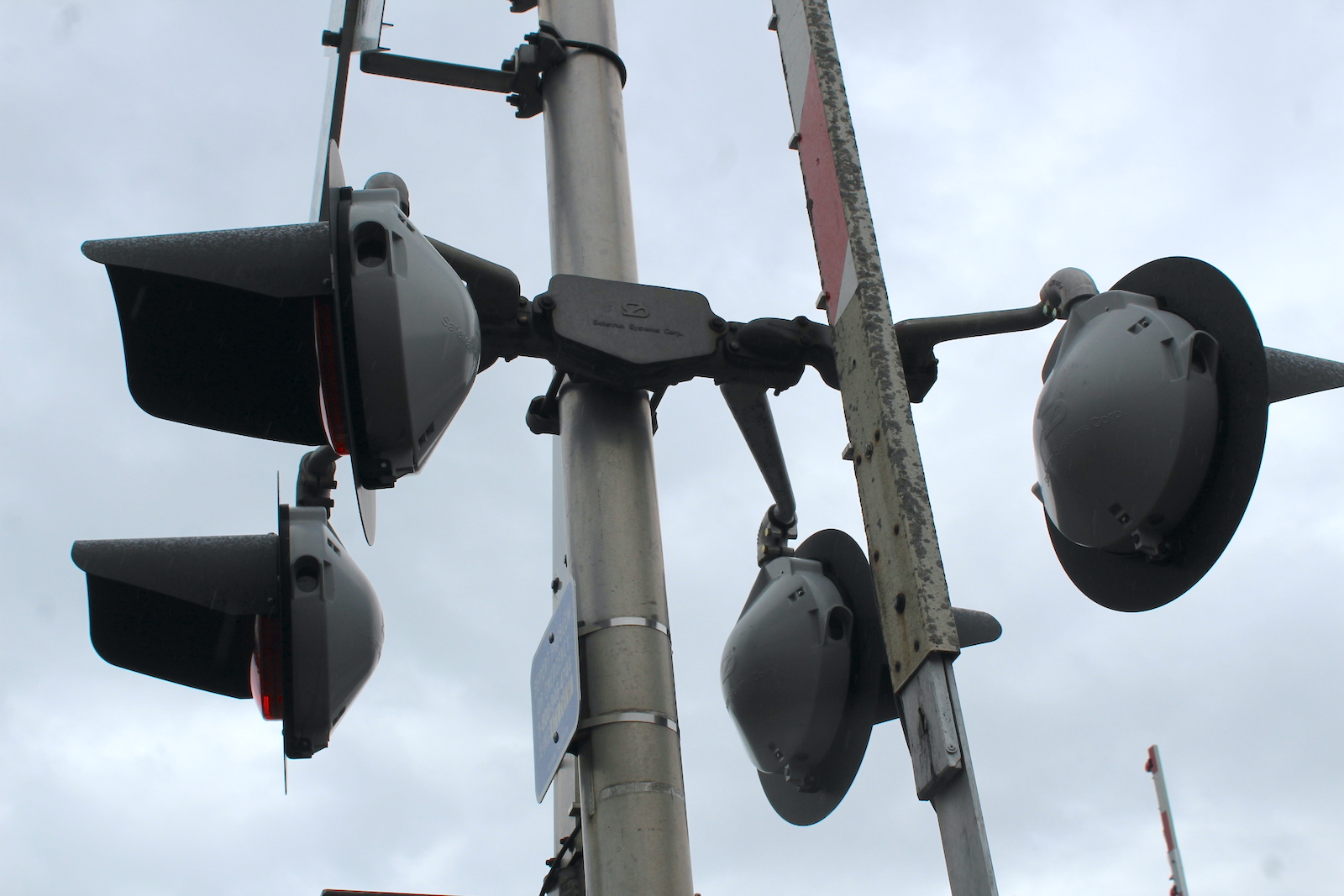

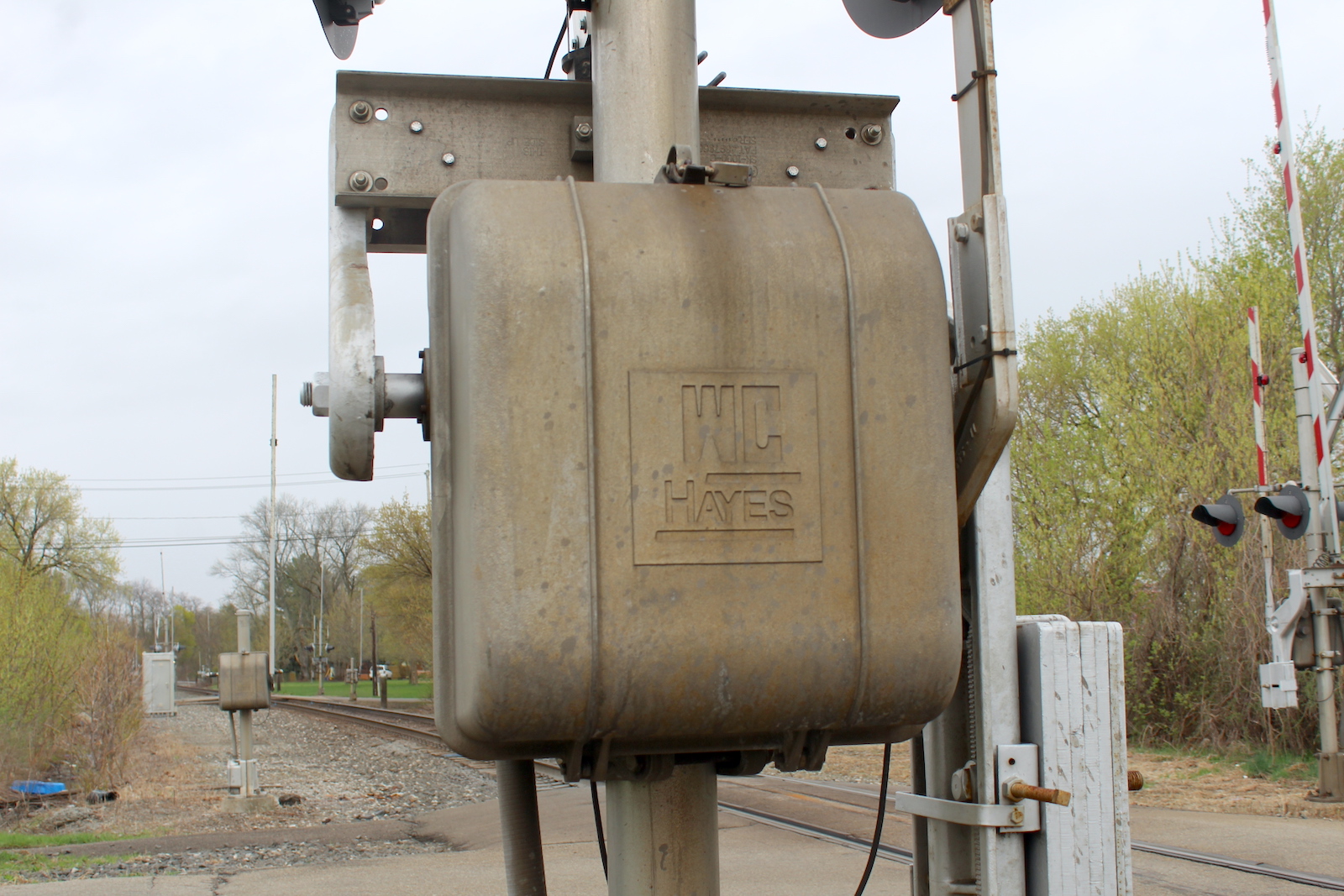

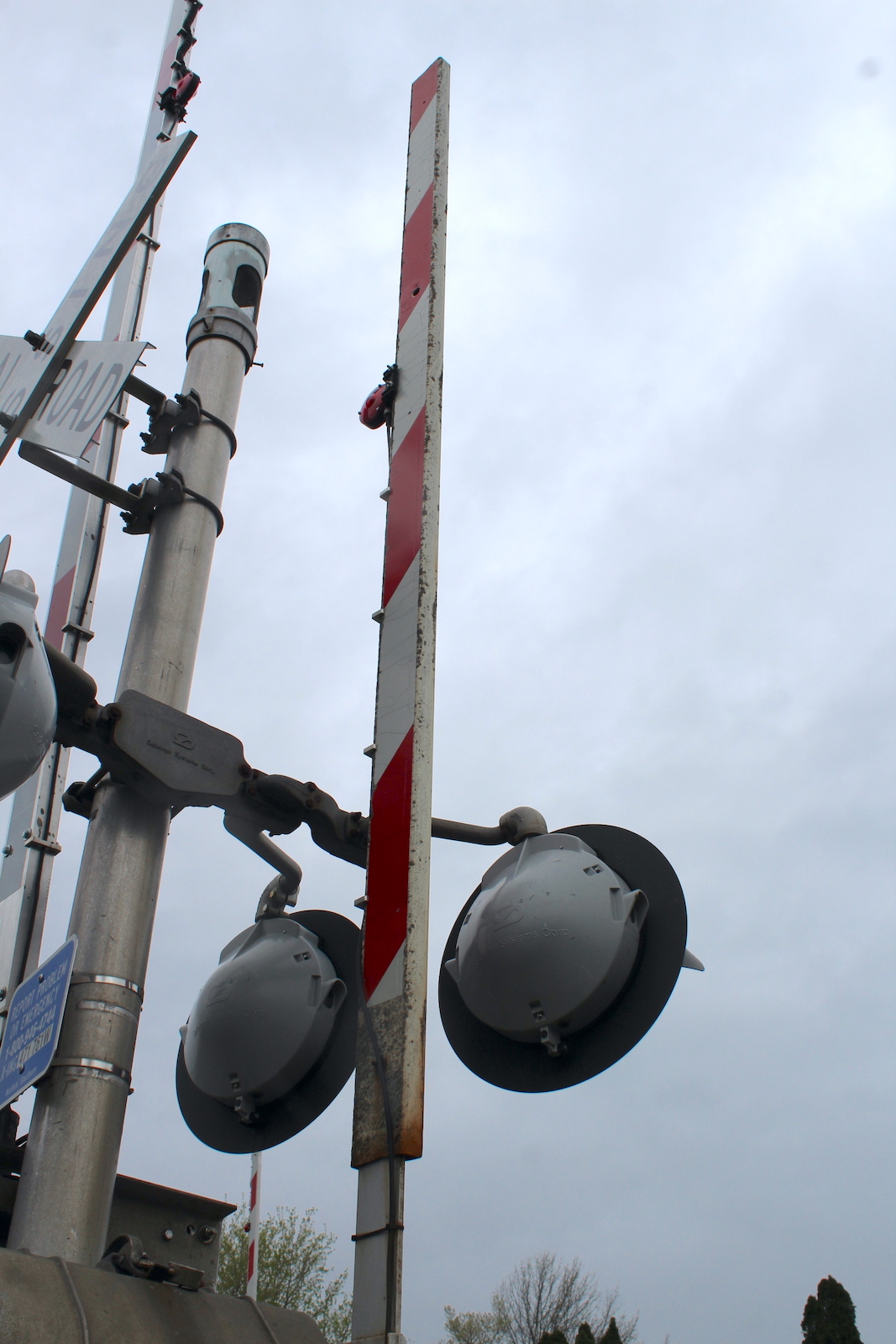

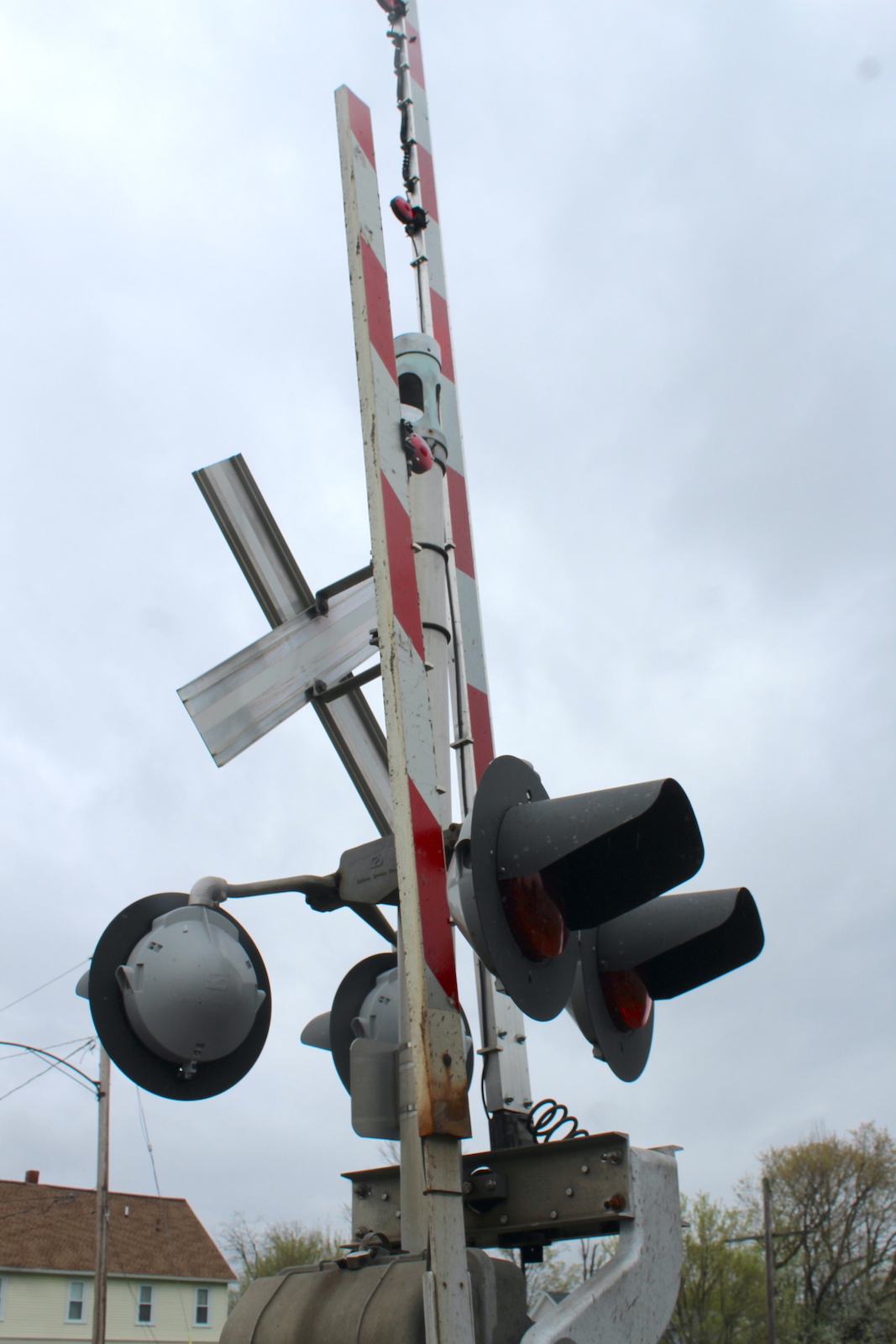

The northern signal.
15 16 17
18 19 20
21 22 23
24 25 26 27

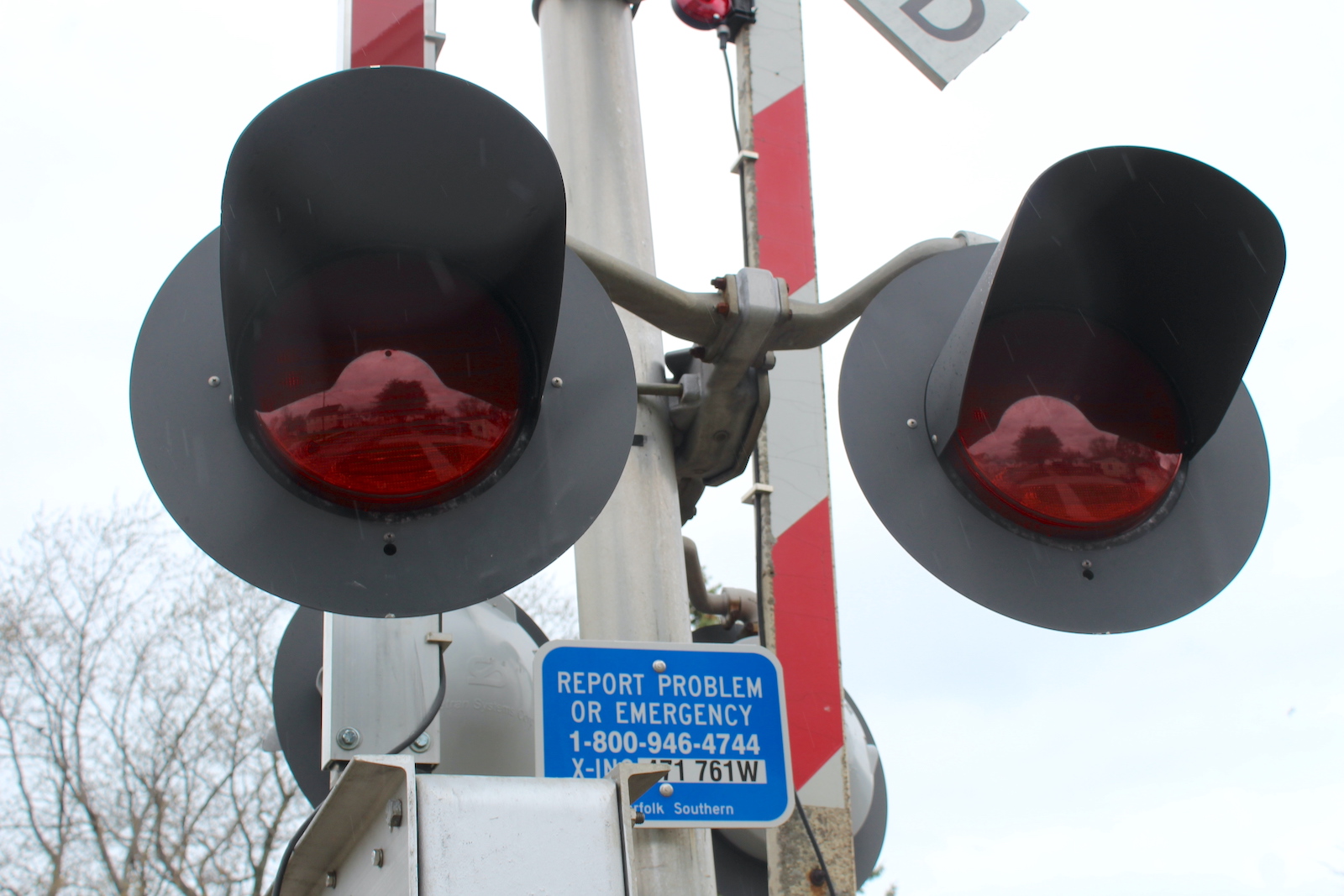

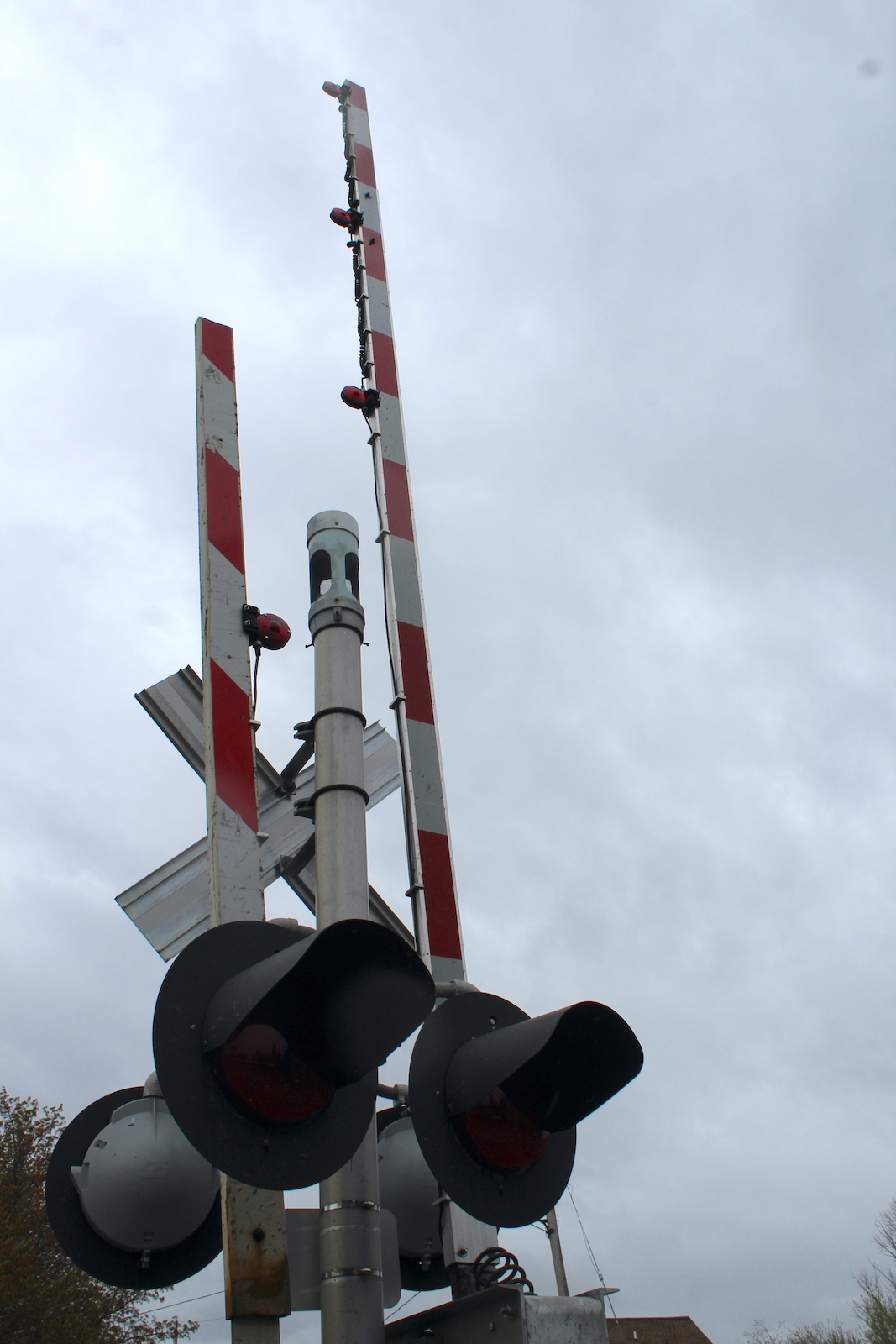

The southern signal.
28 29 30 31

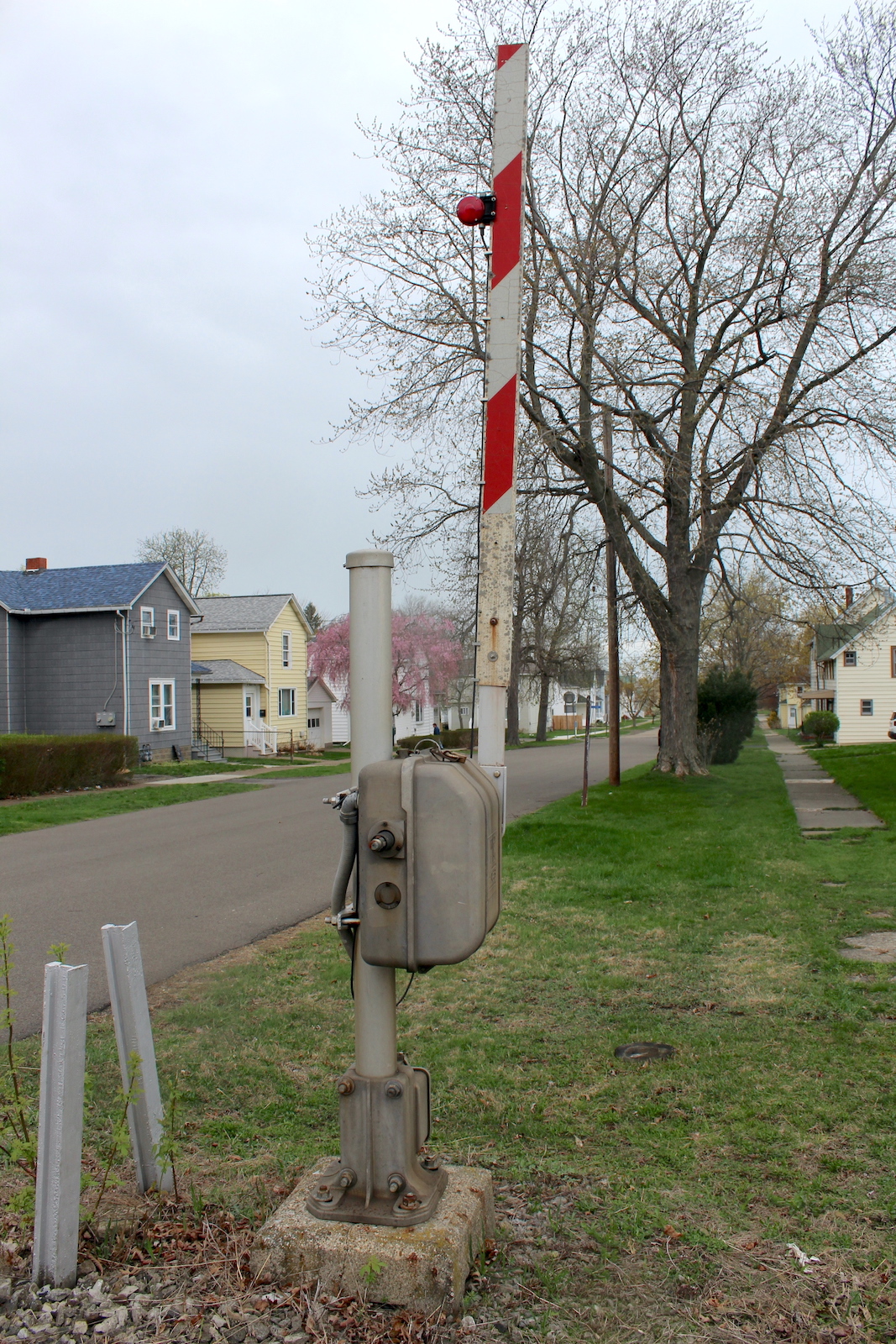

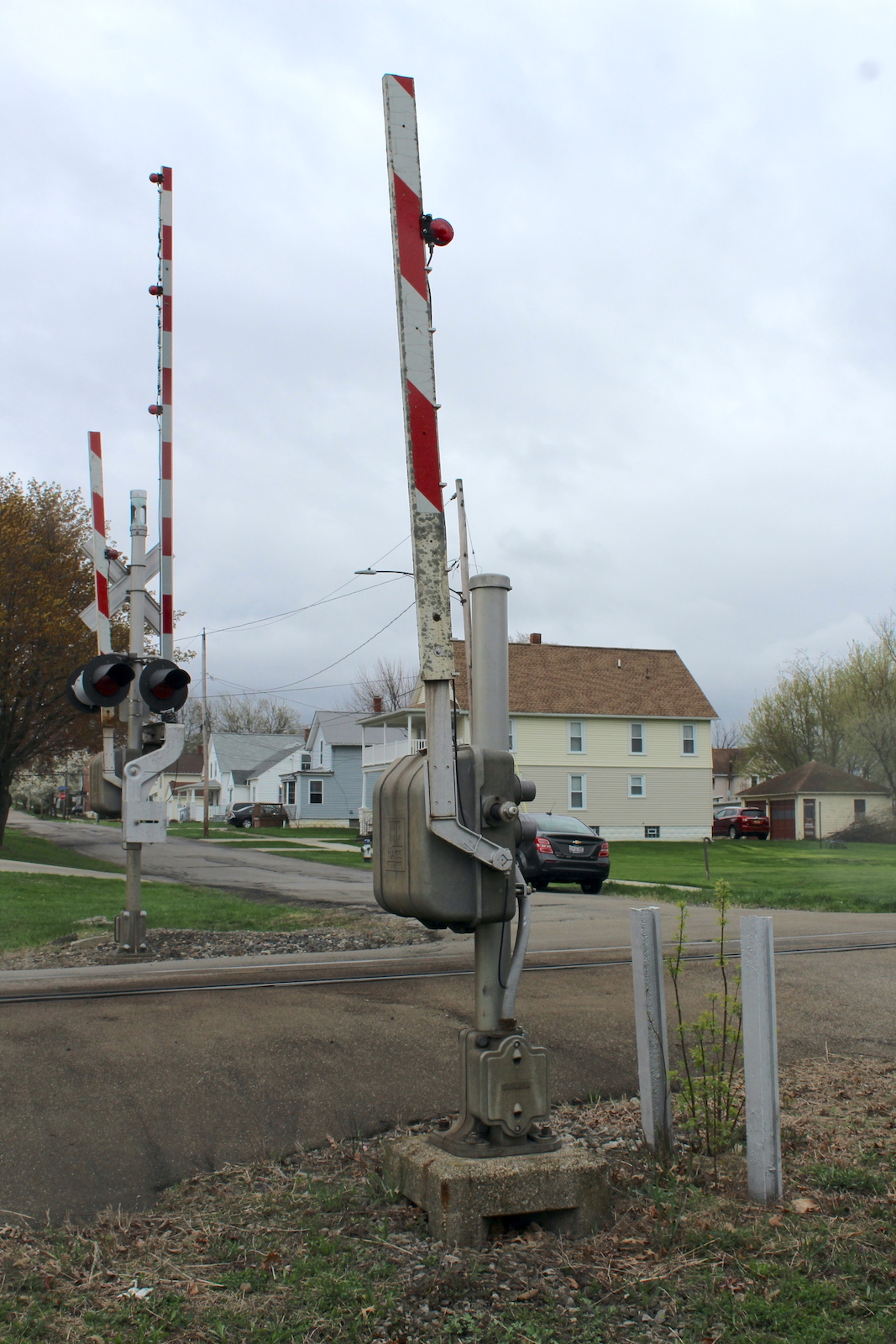

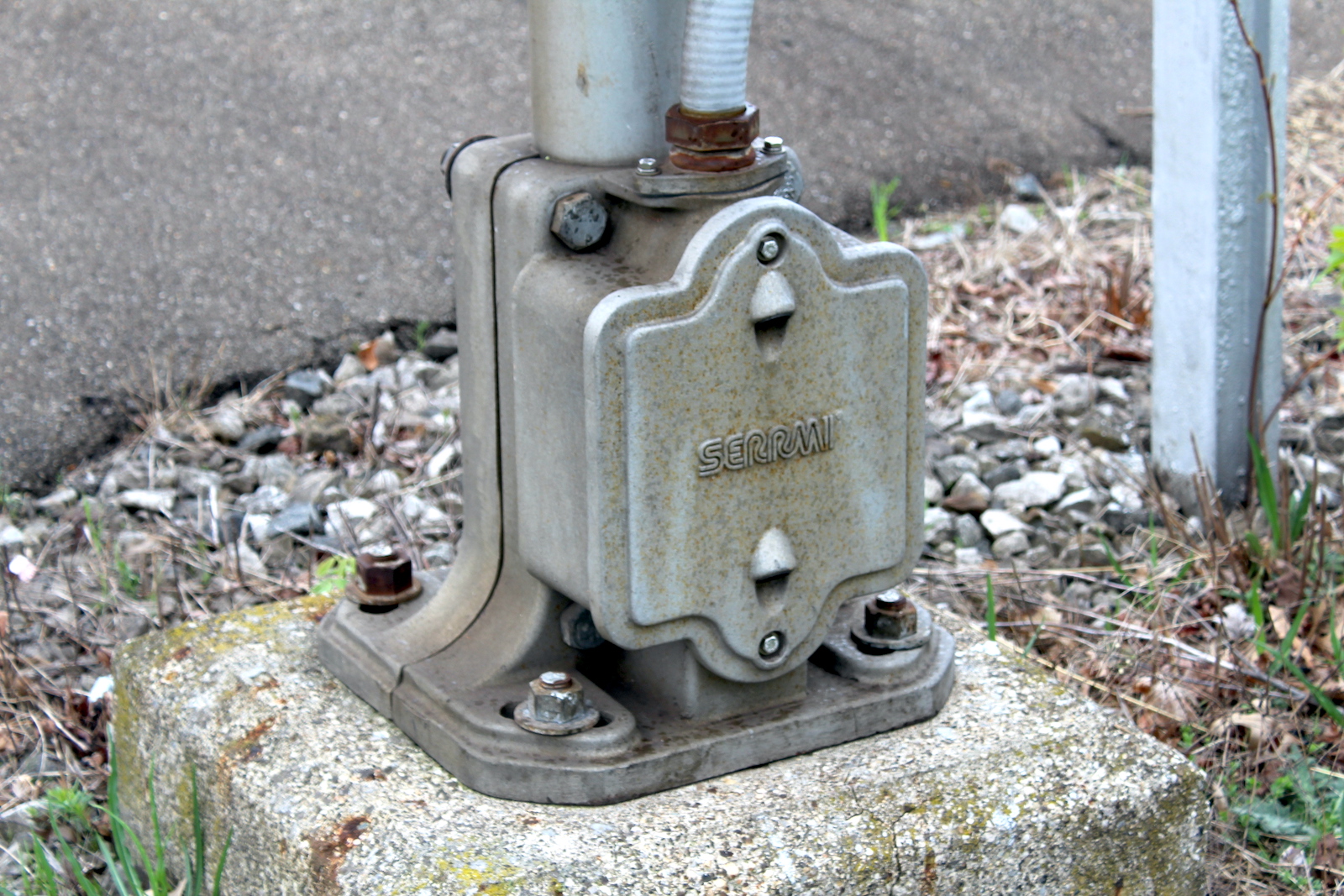

The northern pedestrian gate.
32 33 34 35

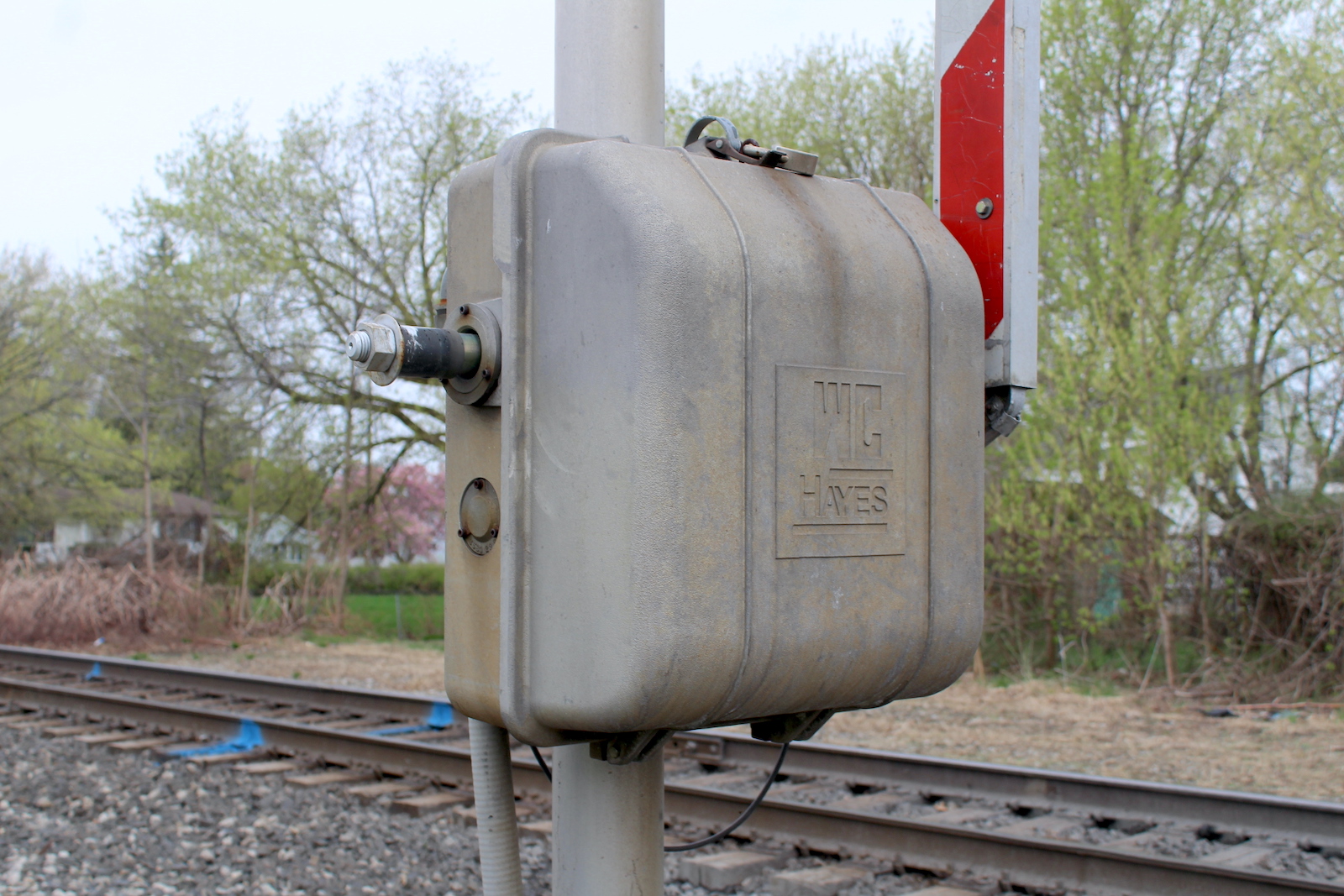

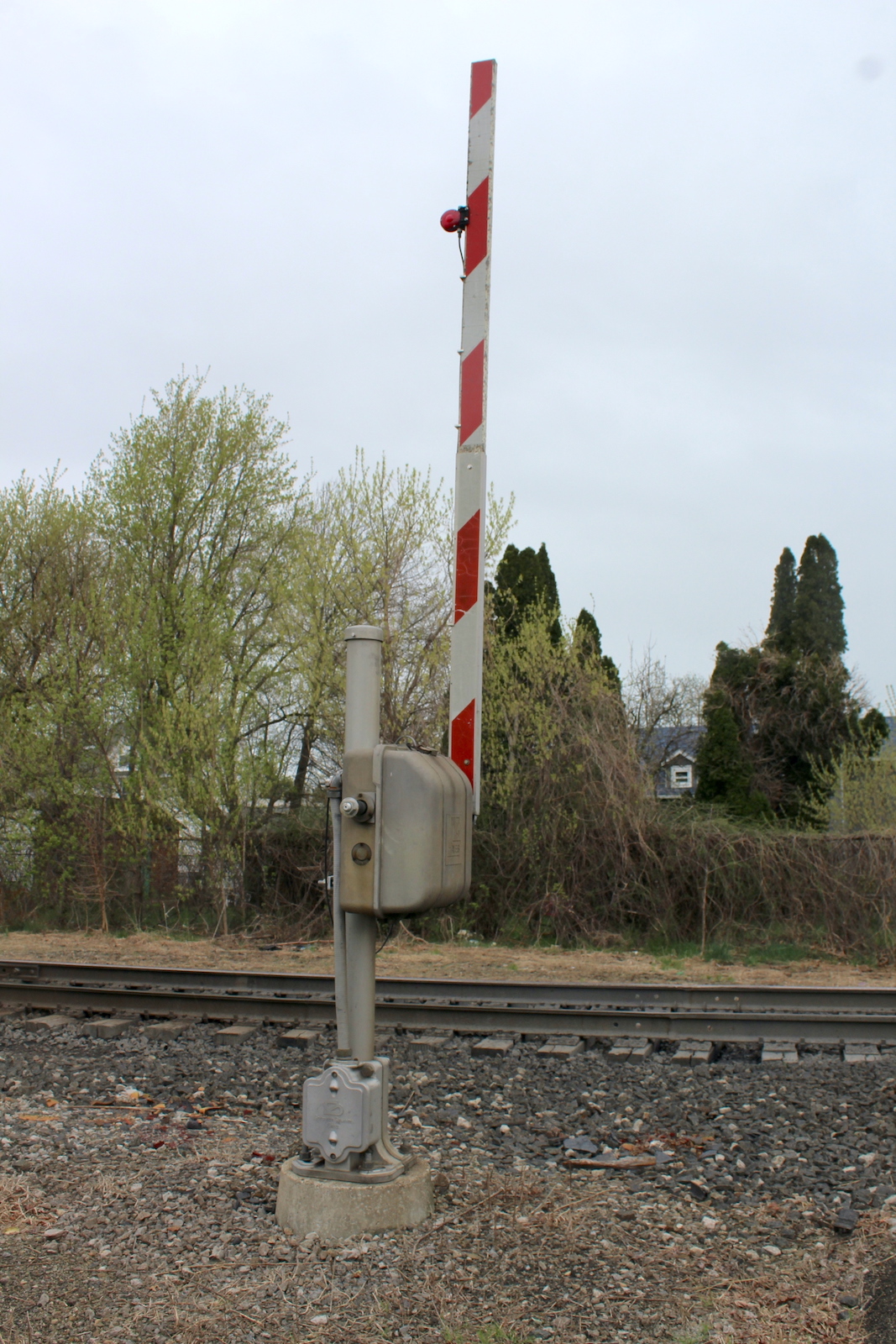

The southern pedestrian gate.
36 37 38 39
The relay bungalow in the southeast quadrant. The grade is rubber and asphalt. Track view facing west at Lord St. Track view facing east at Nevins St.

.
