MP: N/A |
Created June 25, 2020
Total Accidents: N/A
Crossing
DOT #: N/A
TOTAL
DAILY TRAINS: 150-200 (ESTIMATED)
Page created by: Ethan the Railfanner
This crossing is located on the LYNX Blue Line.
1 |
2 |
3 |
4 |
Overview of this crossing. |
The eastern signal. |
It has a WCH base. |
|
5 |
6 |
7 |
8 |
A WCH gate mechanism. |

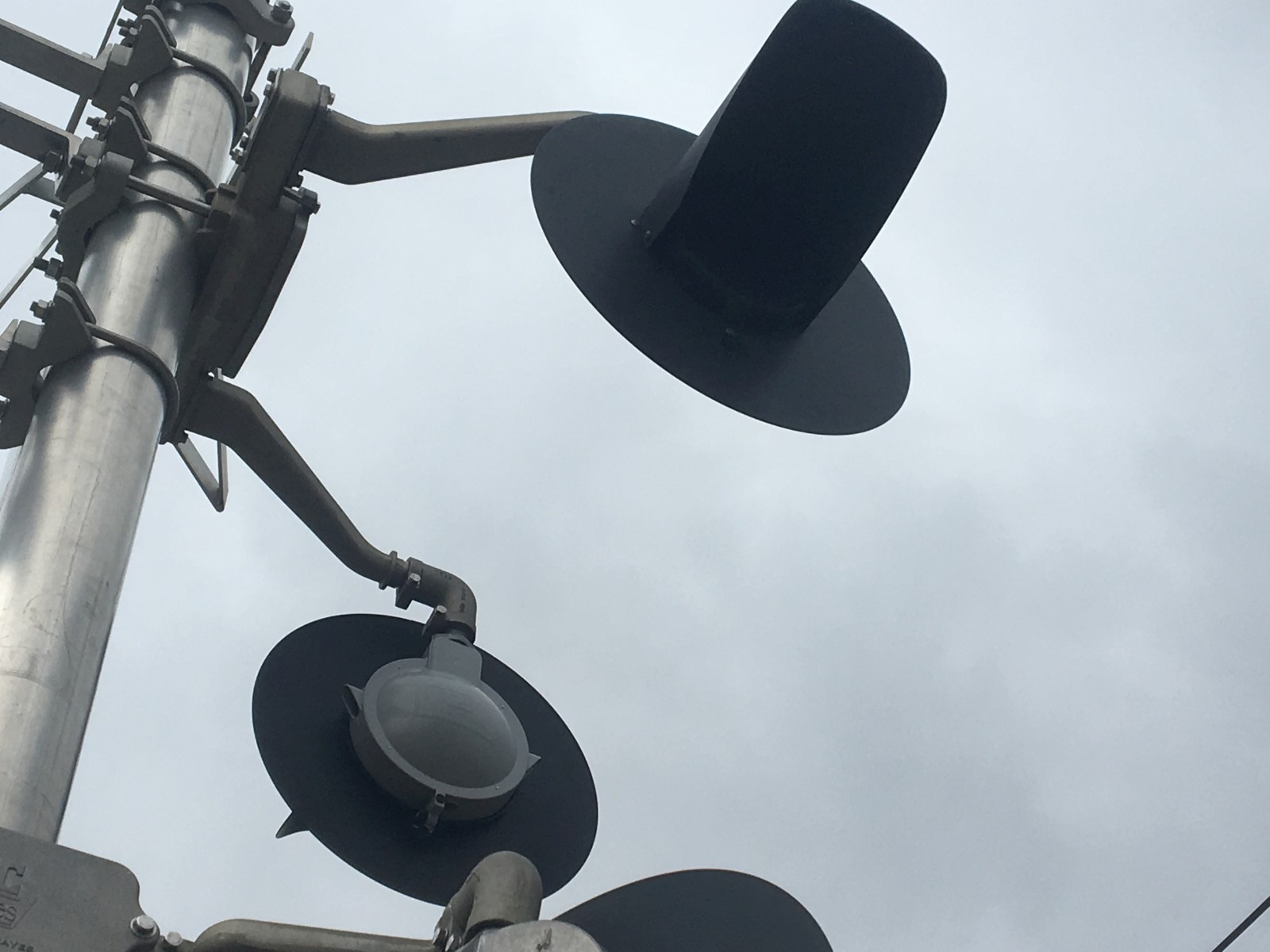

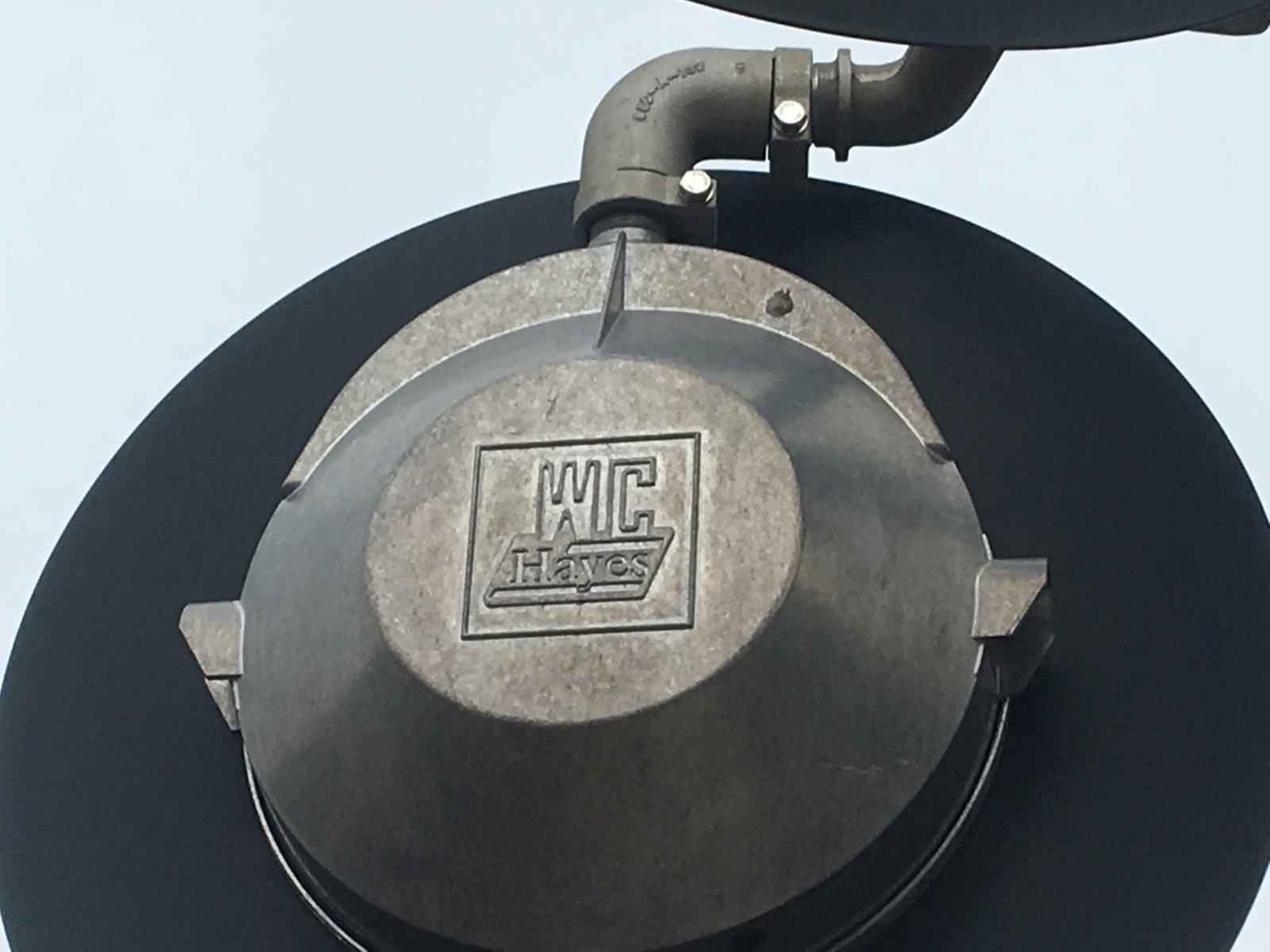

The mast lights on this signal are WCH 12x24s with Leotek IL series LEDs. |

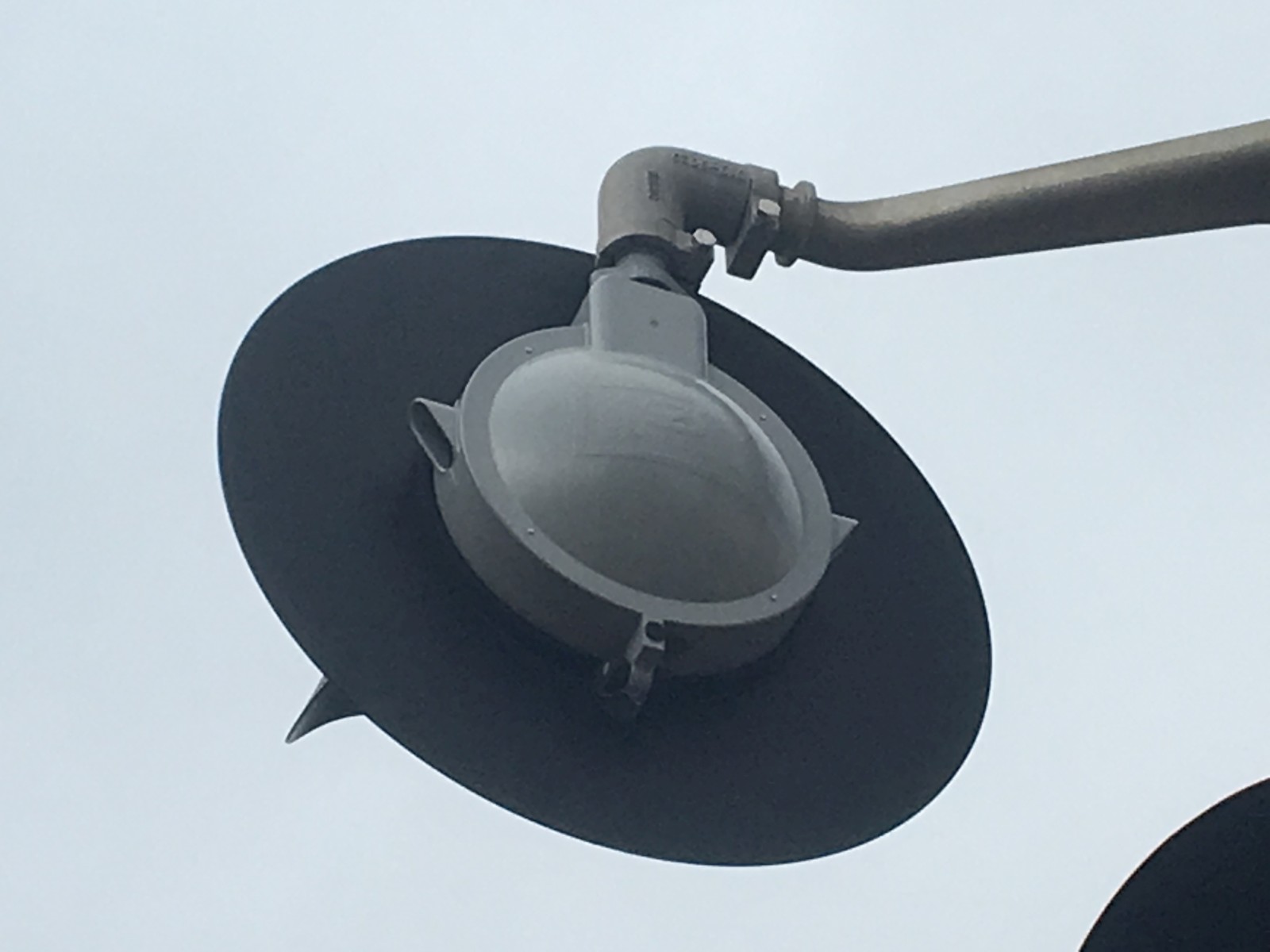

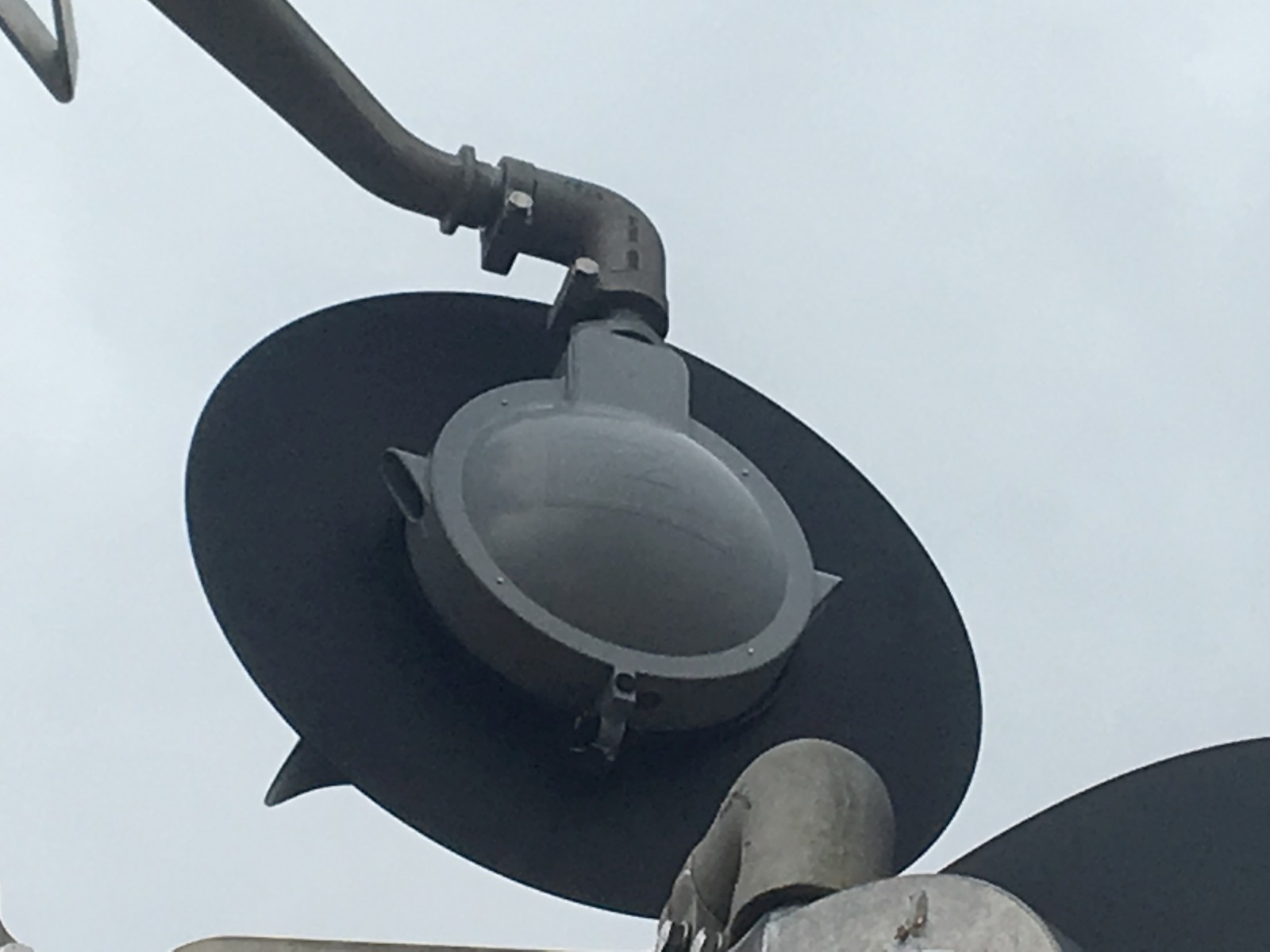

The side lights are a pair of Safetran 8 inchers with white Safetran LEDs. |
|
9 |
10 |
11 |
12 |
The bell here is a WCH E-Bell. |

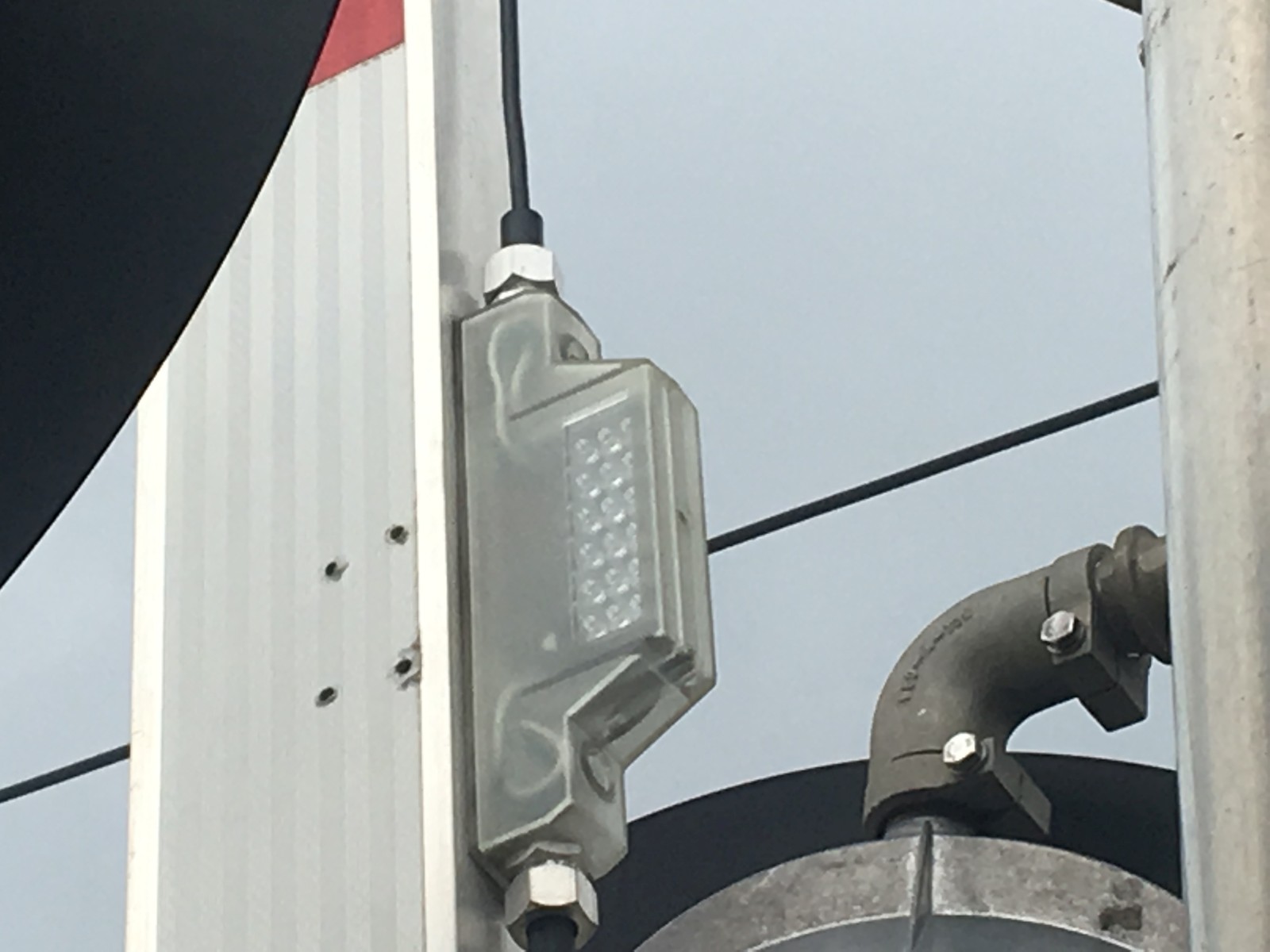

This signal uses Alstom gatelights. |
The western signal. |
13 |
14 |
15 |
16 |
It has another WCH base. |
Another WCH gate mechanism. |

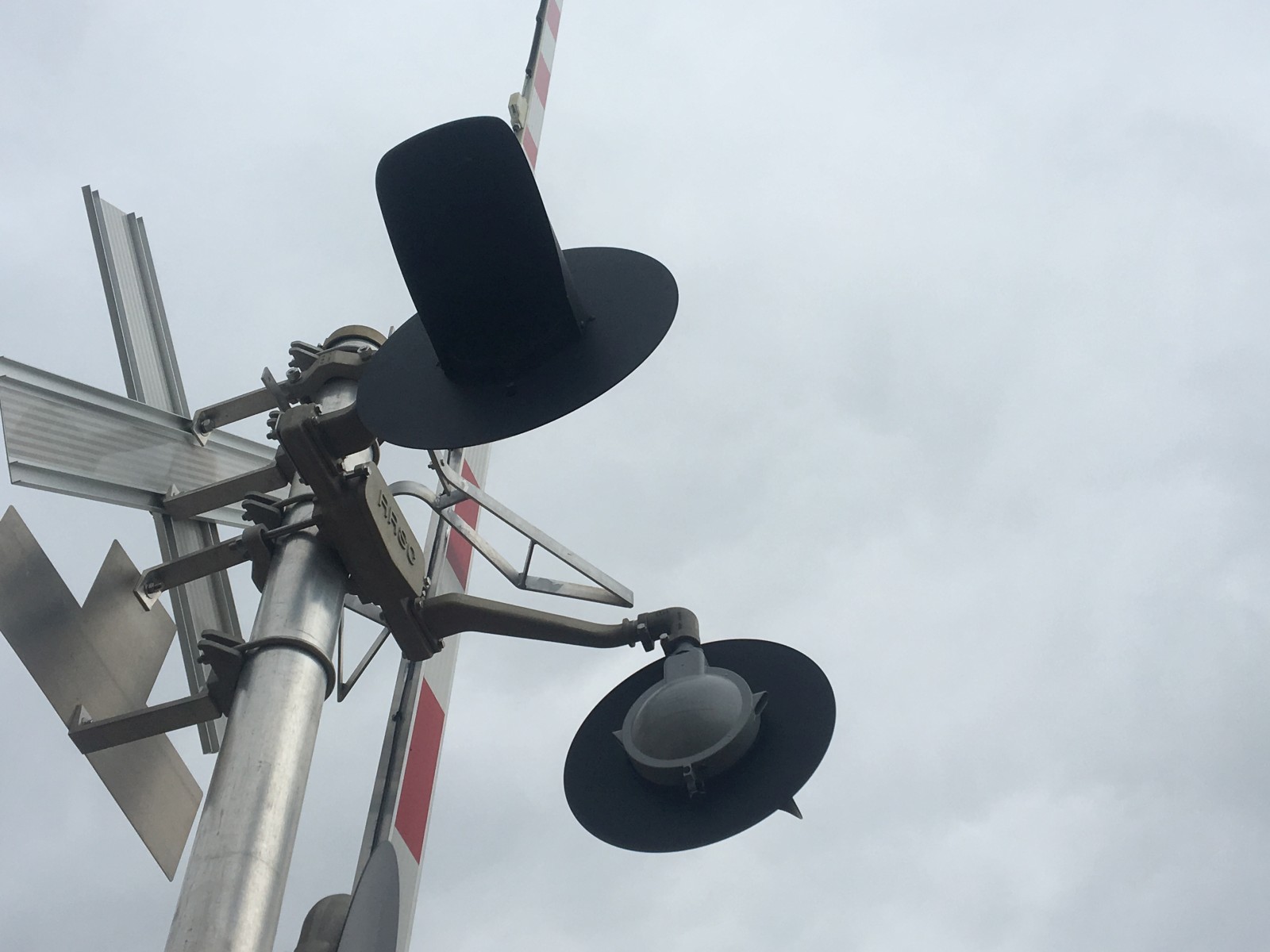

The mast lights are more WCH 12x24s with Leotek IL series LEDs. |
|
17 |
18 |
19 |
20 |
The side lights are another pair of Safetran 8 inchers with white Safetran LEDs. |
More Alstom gatelights over here. |
||
21 |
22 |
23 |

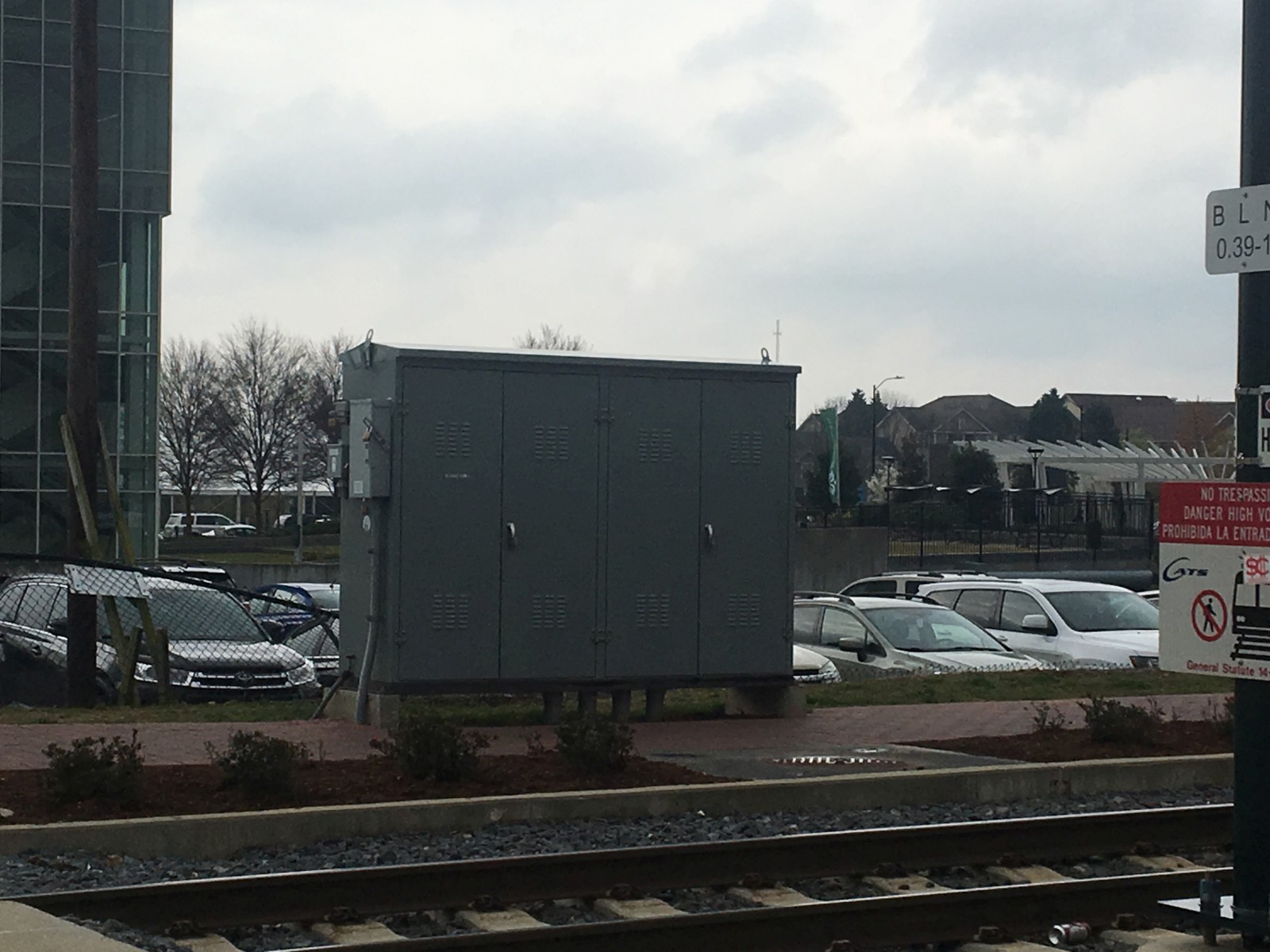

The relay case. |
Track view facing northeast towards 12th Street. |
Track view facing southwest towards 8th Street. |
All pictures were taken on 3-26-19.
The video was taken on 5-28-19.
