MP: N/A |
Created June 25, 2020
Total Accidents: N/A
Crossing
DOT #: N/A
TOTAL
DAILY TRAINS: 150-200 (ESTIMATED)
Page created by: Ethan the Railfanner
This crossing is located on the LYNX Blue Line.
1 |
2 |
3 |
4 |

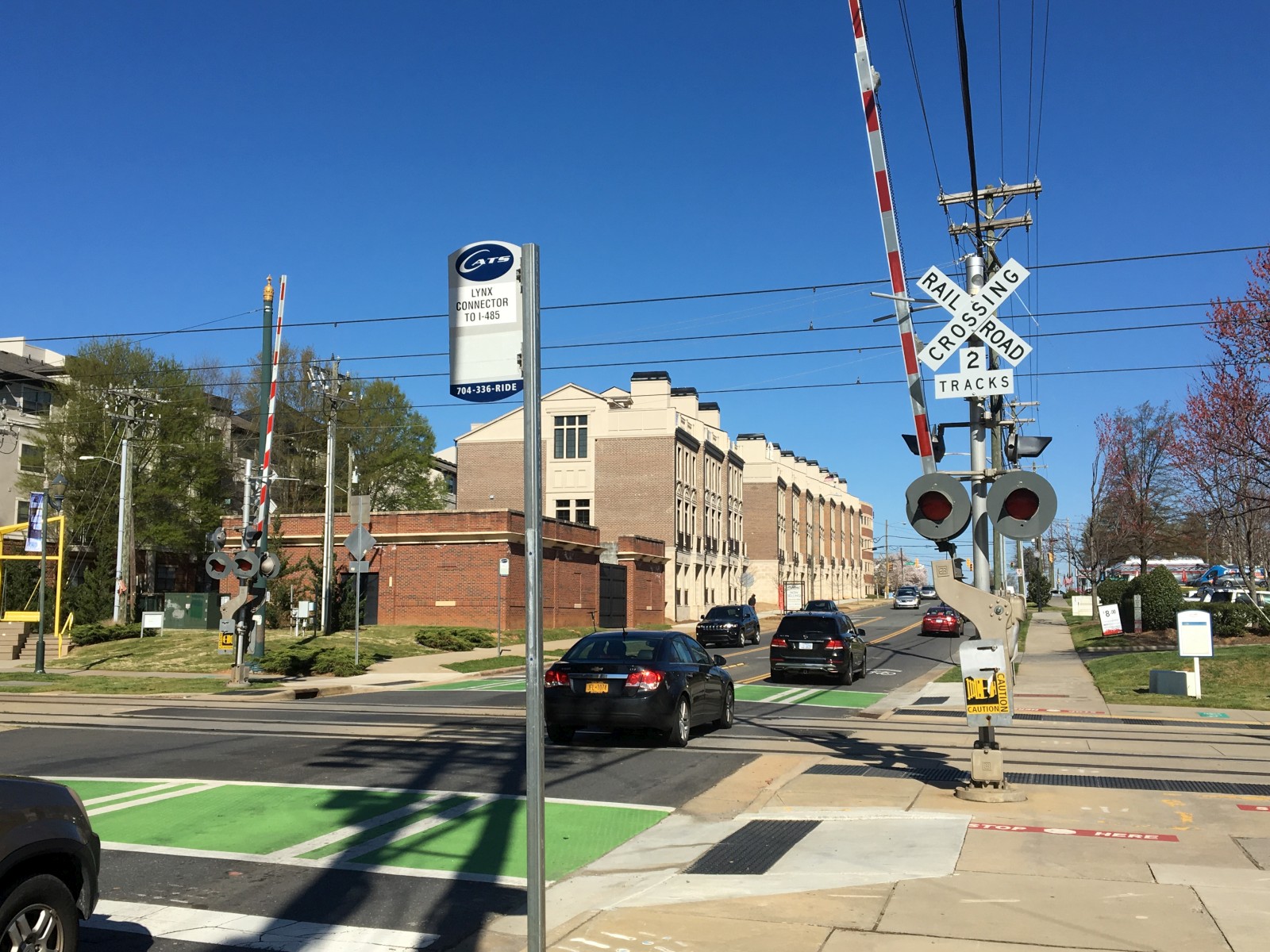

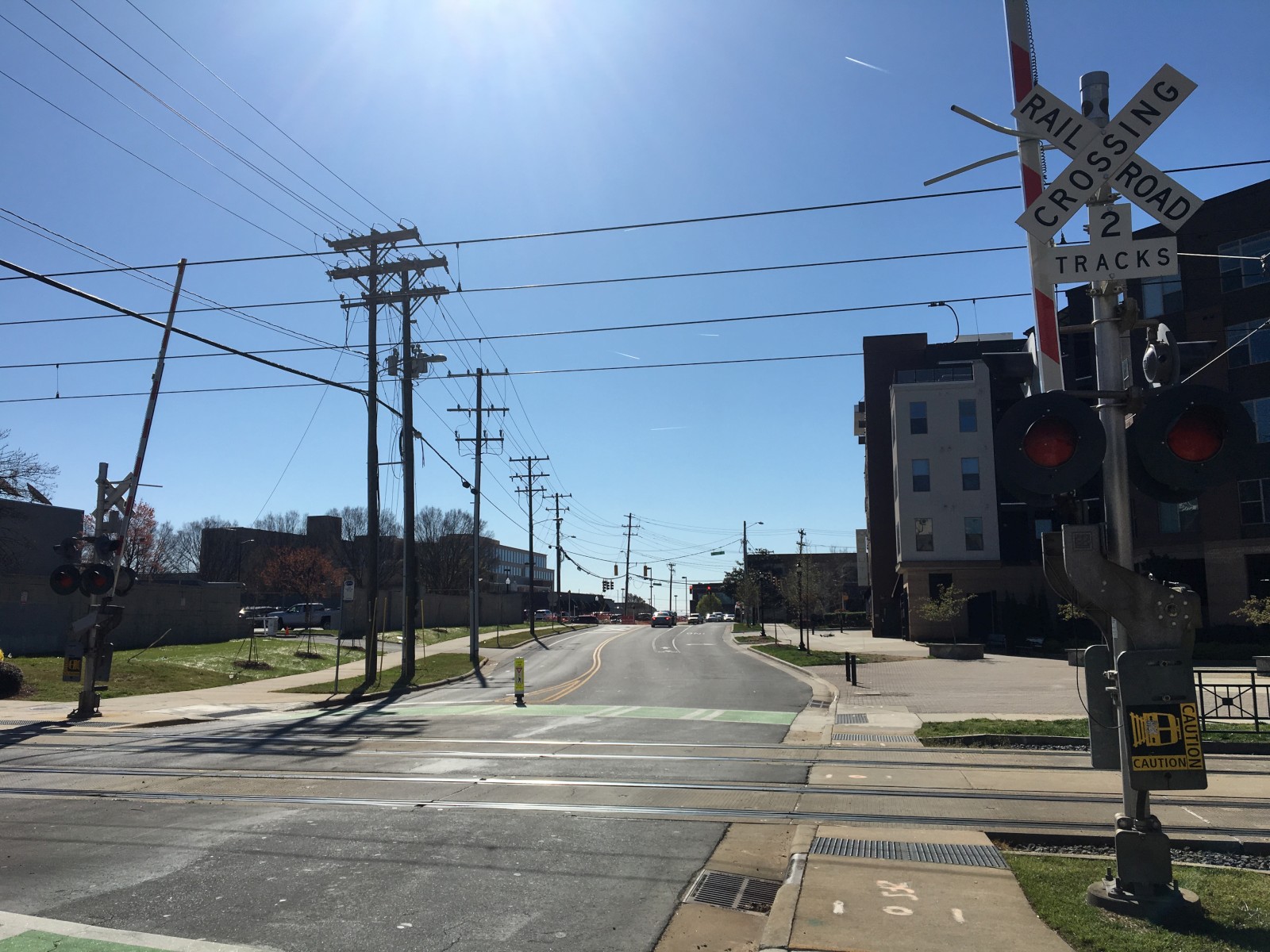

Oveview of this crossing. |

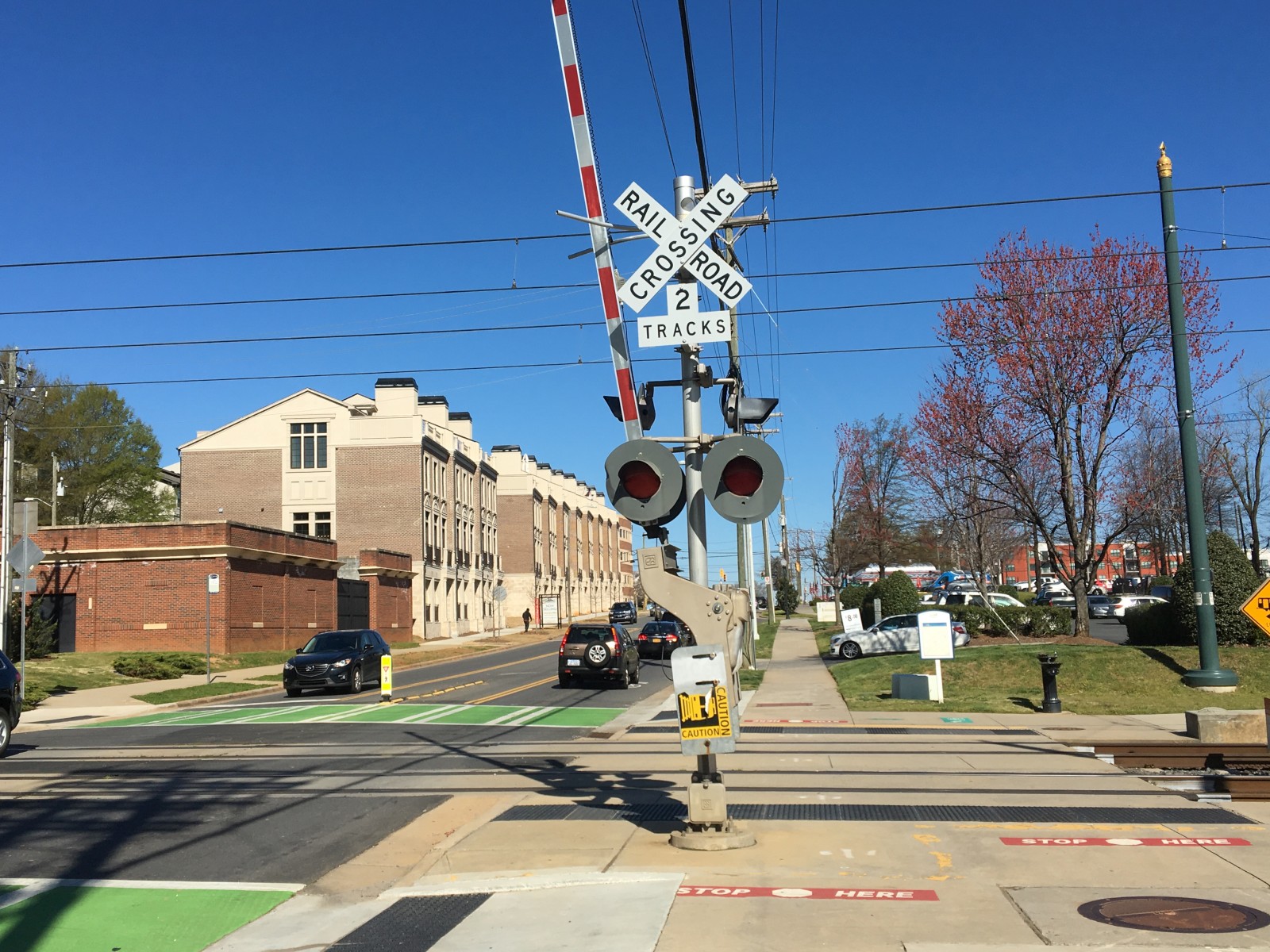

The eastern signal. |
||
5 |
6 |
7 |
8 |

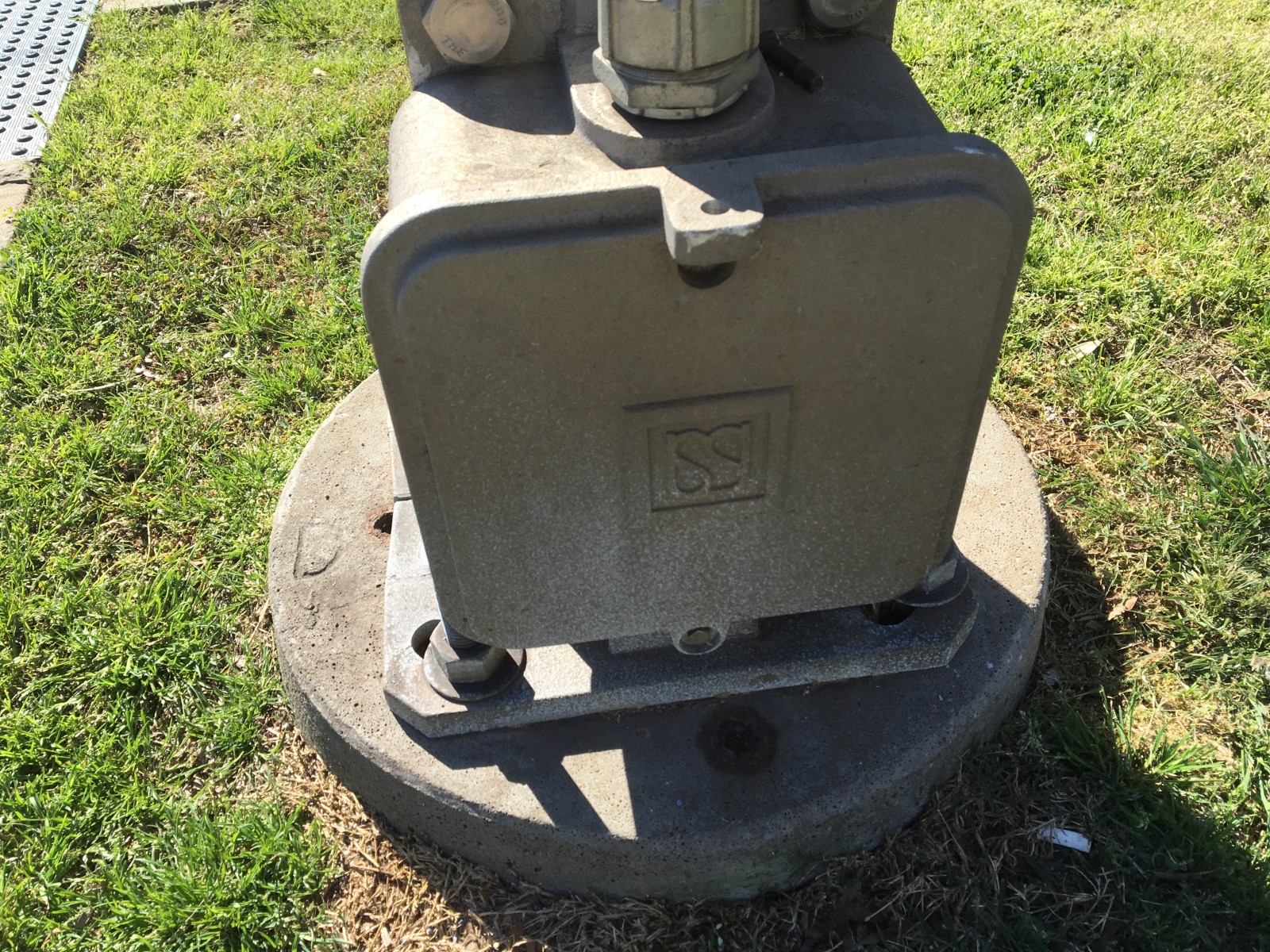

It has a US&S base. |

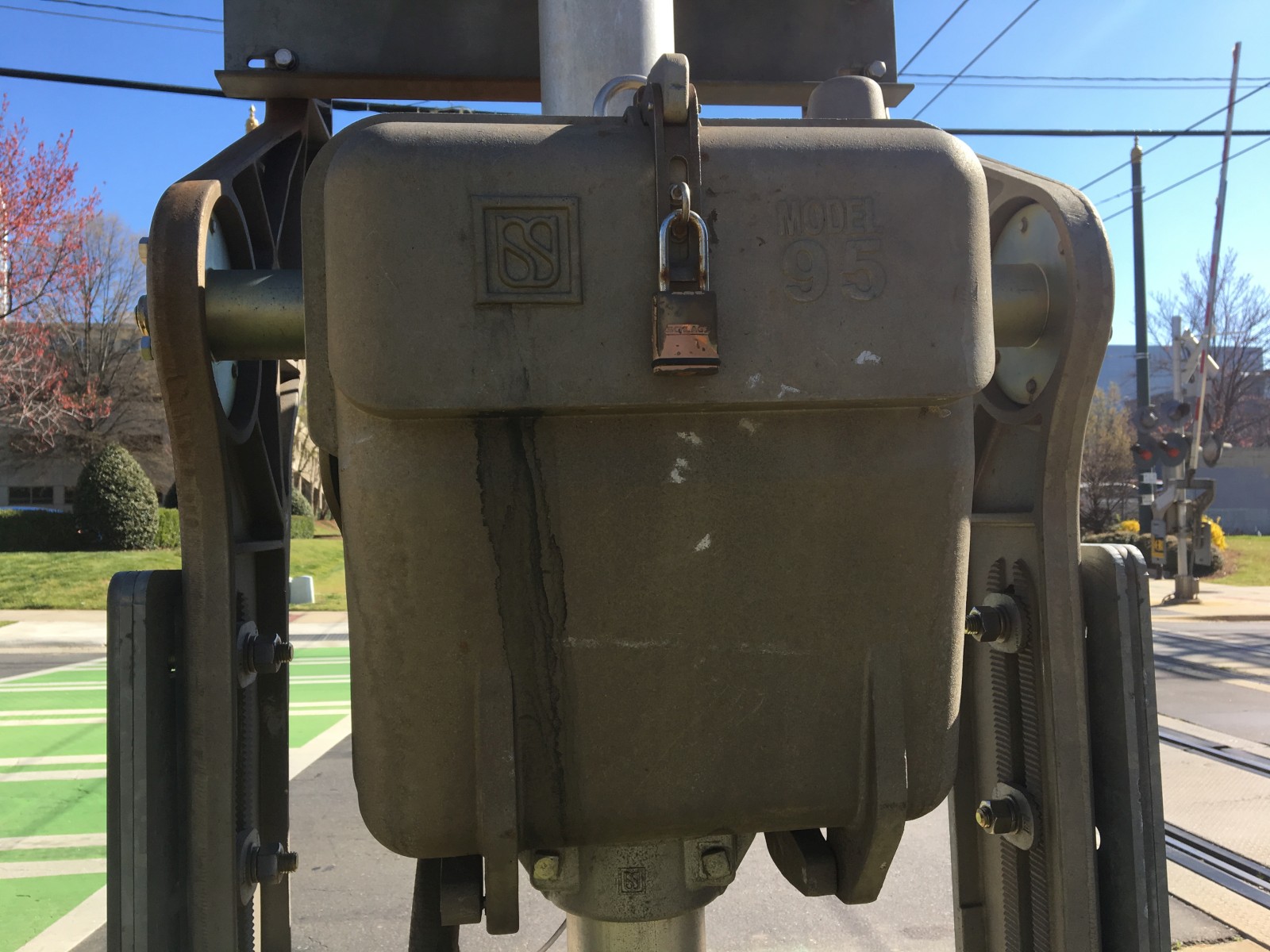

A US&S Model 95 gate mechanism. |

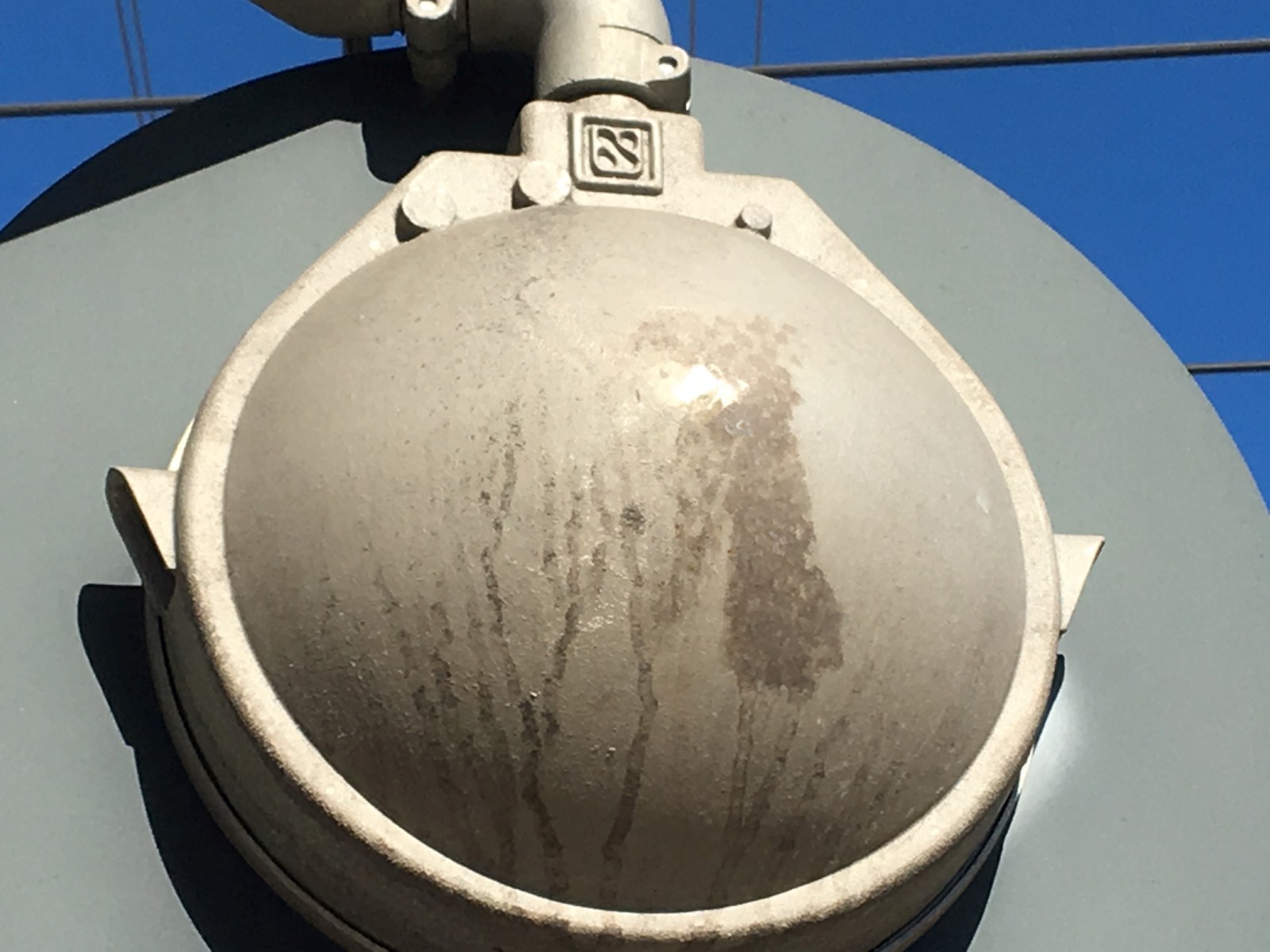

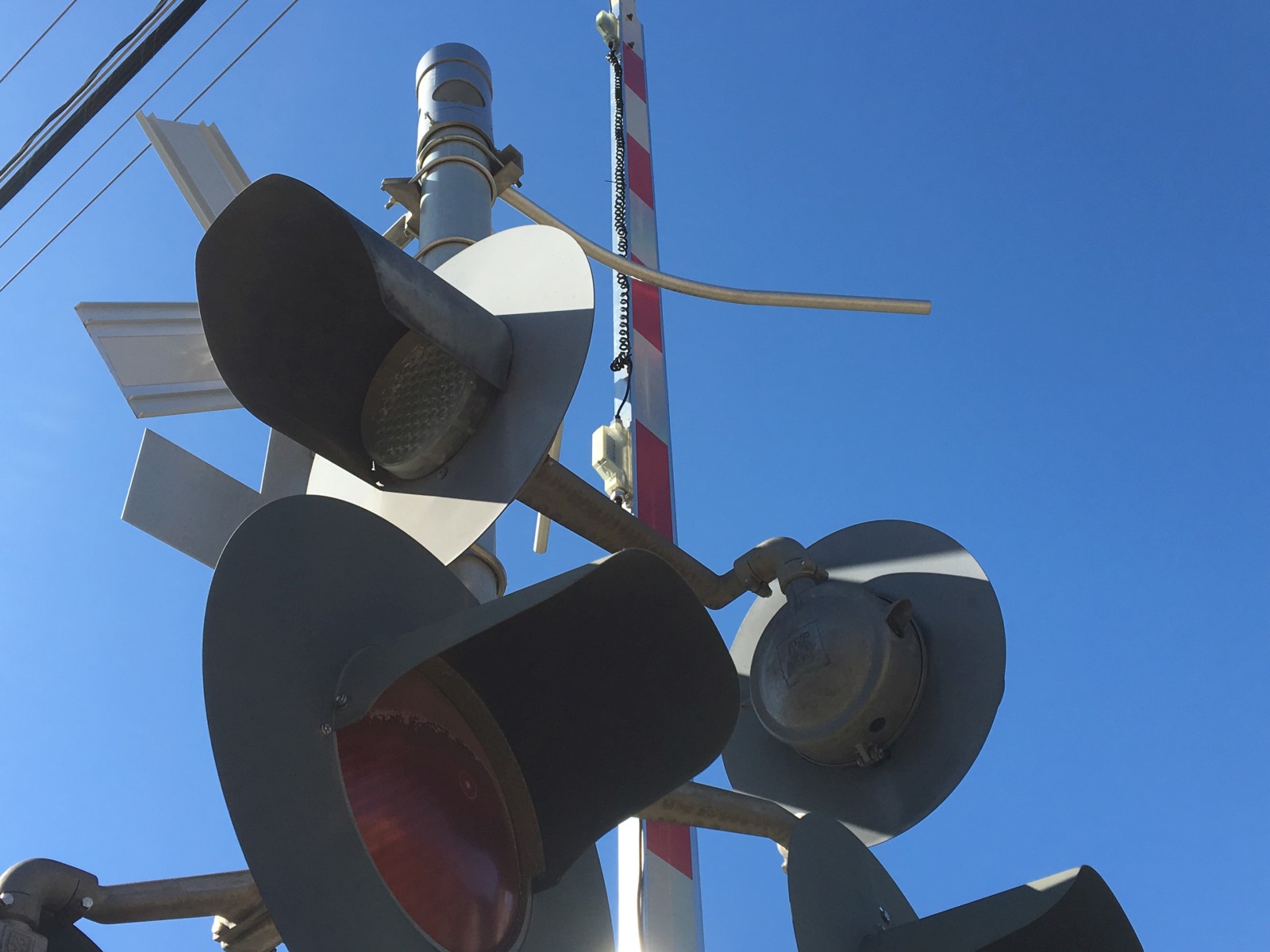

The main lights on this signal are US&S 12x24s with RSI LEDs. |
|
9 |
10 |
11 |
12 |

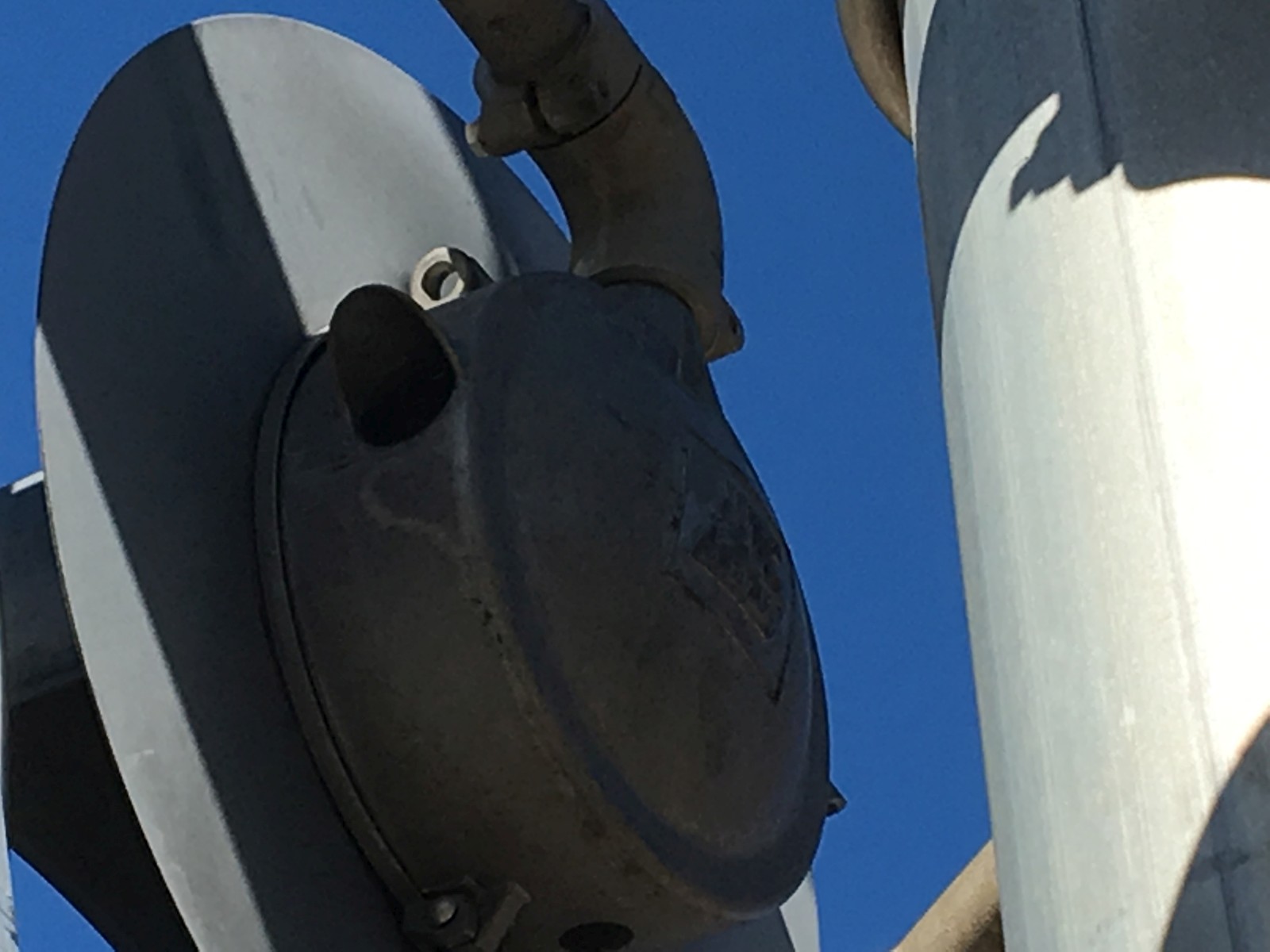

The side lights are a pair of WCH 8 inchers with white Safetran LEDs. |
The bell here is a US&S E-Bell. |

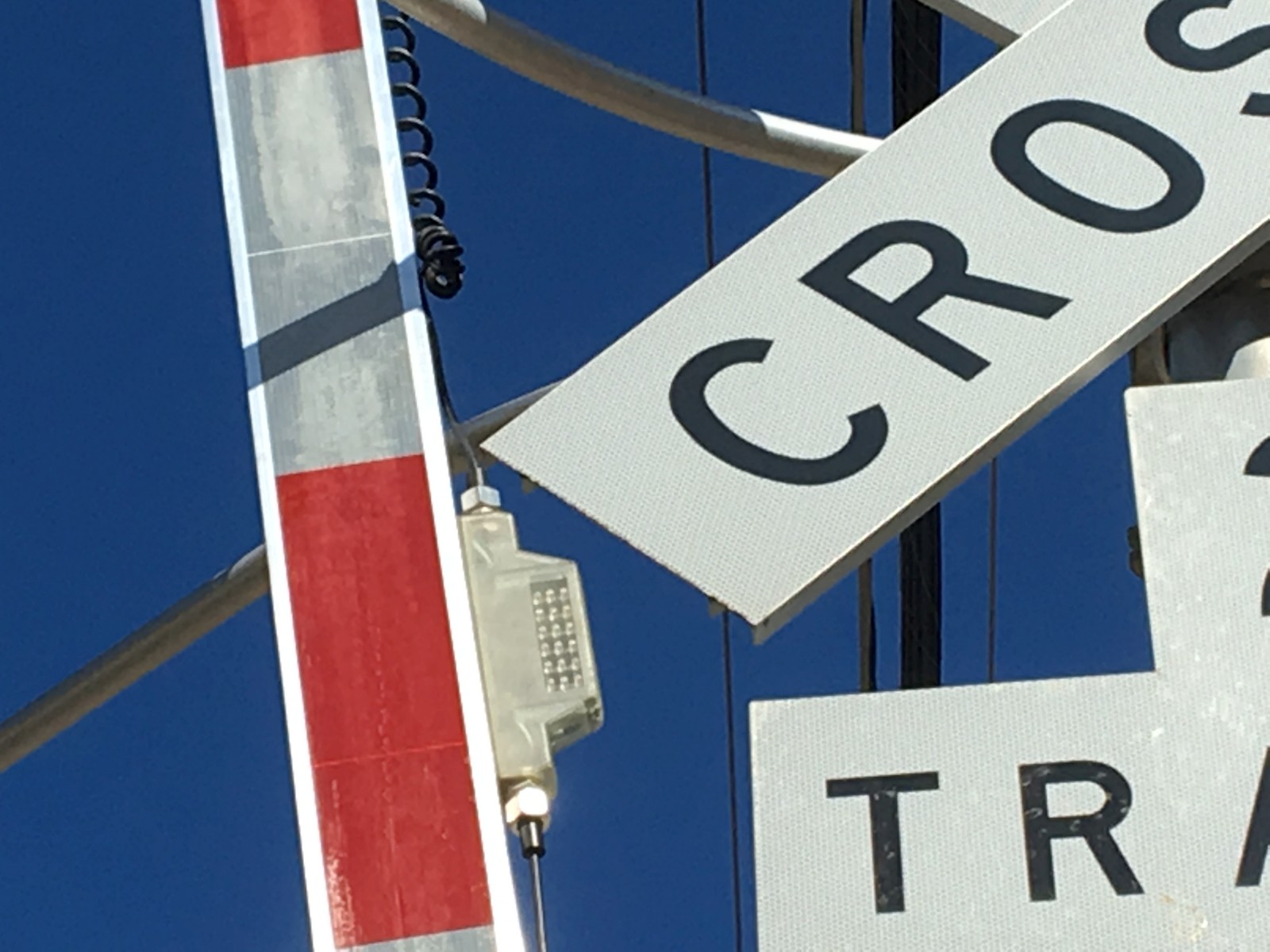

Alstom LED gatelights over here. |
|
13 |
14 |
15 |
16 |

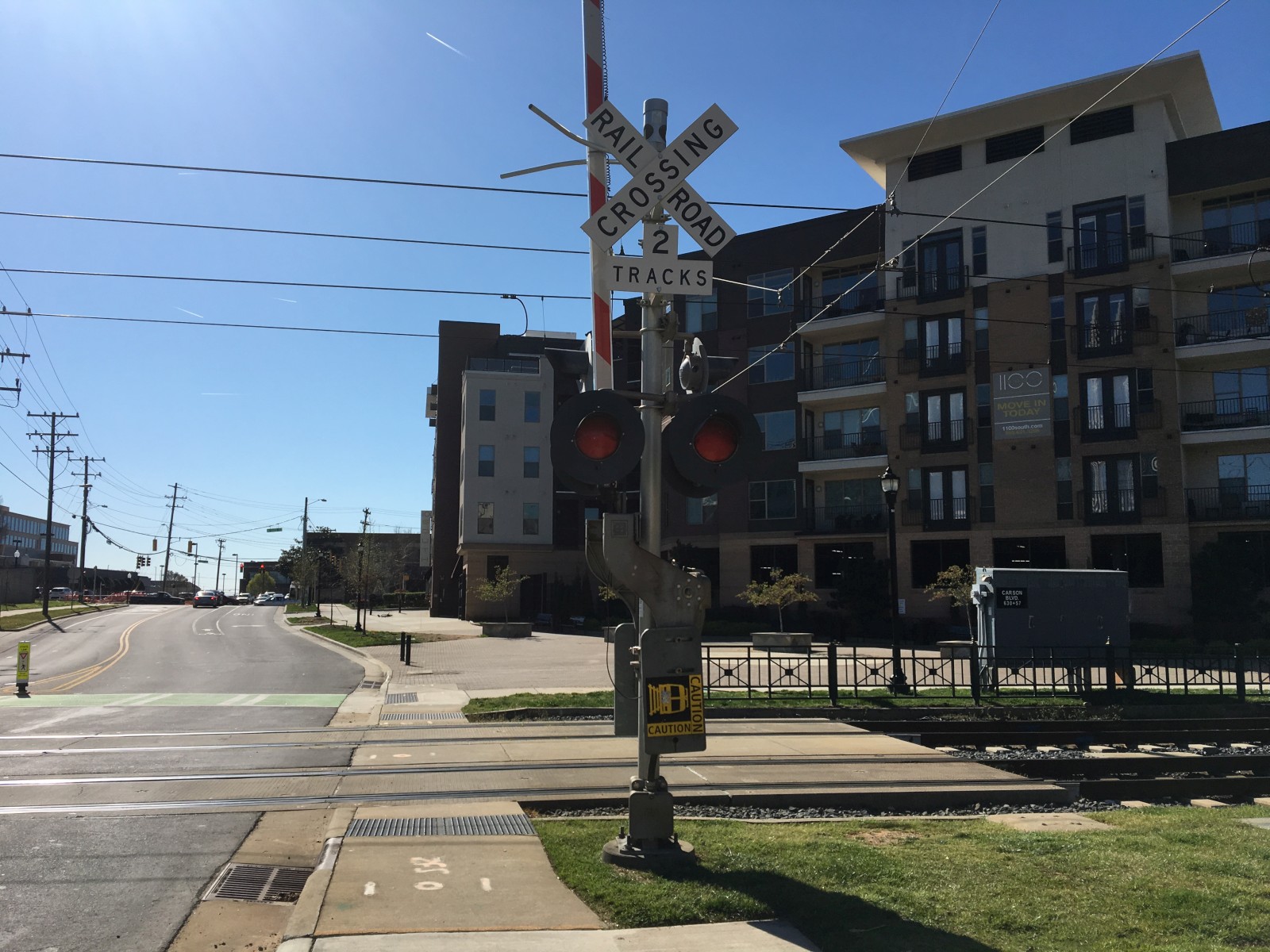

The western signal. |
It has another US&S base. |
Another US&S Model 95 gate mechanism. |

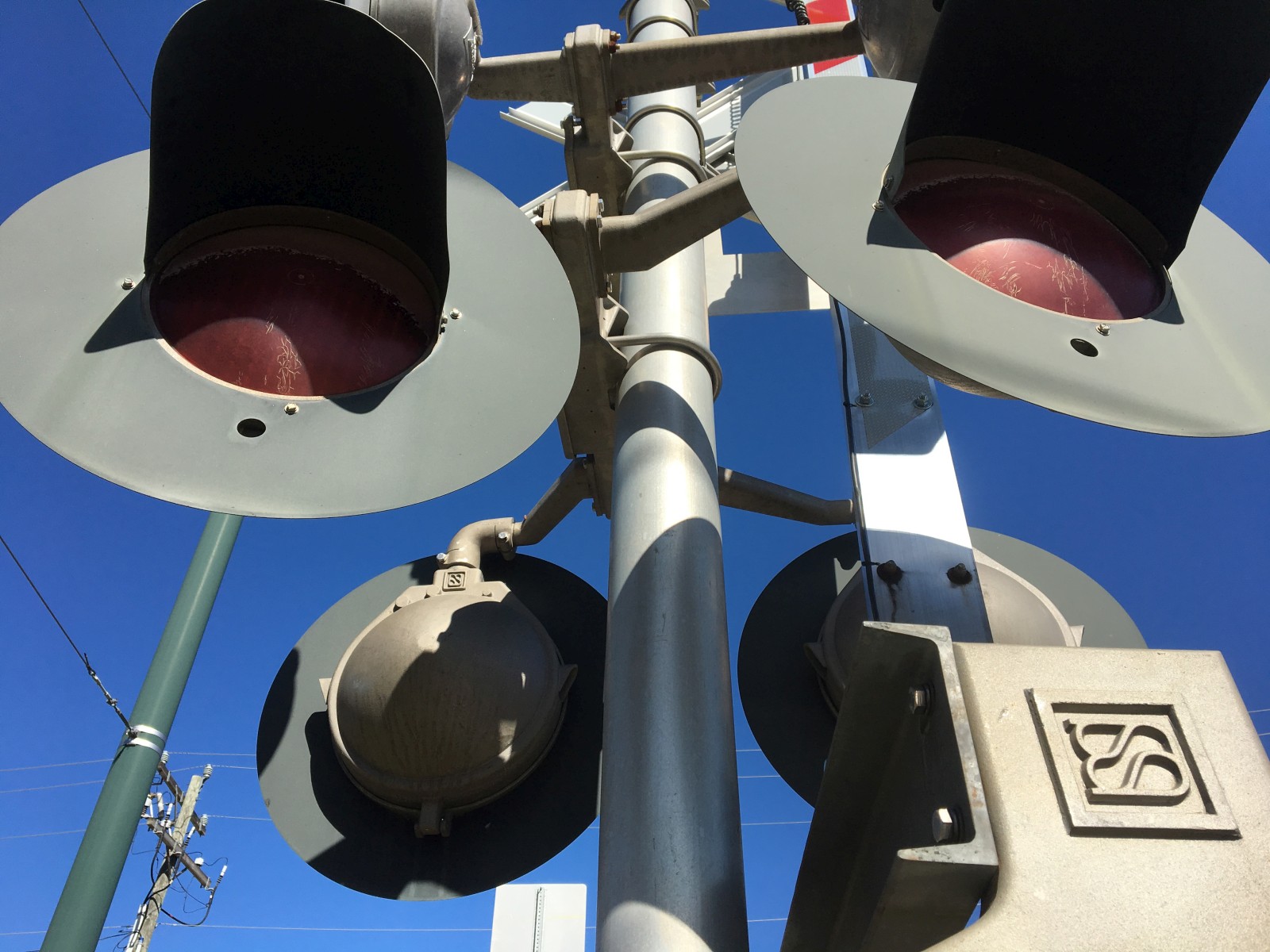

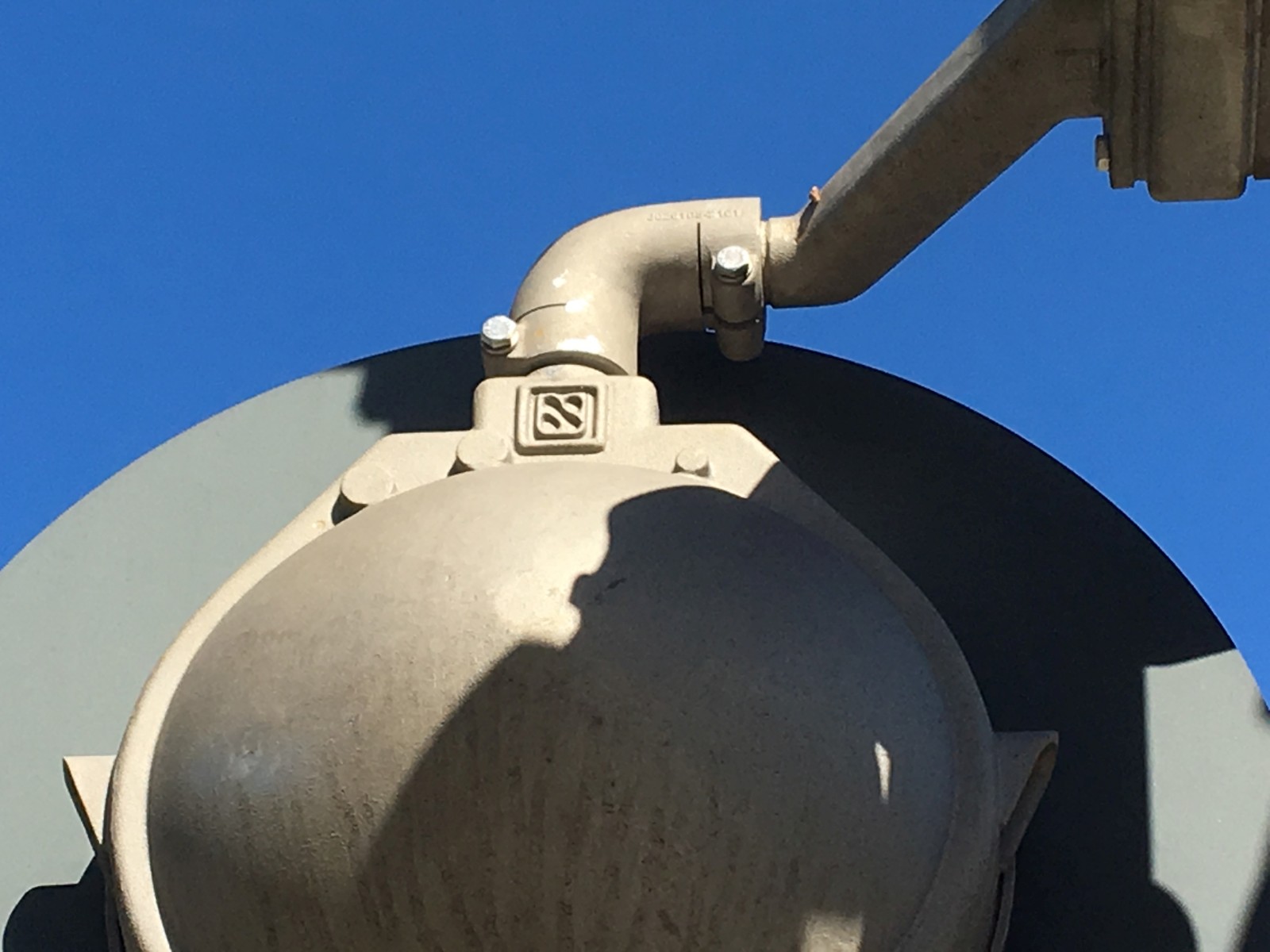

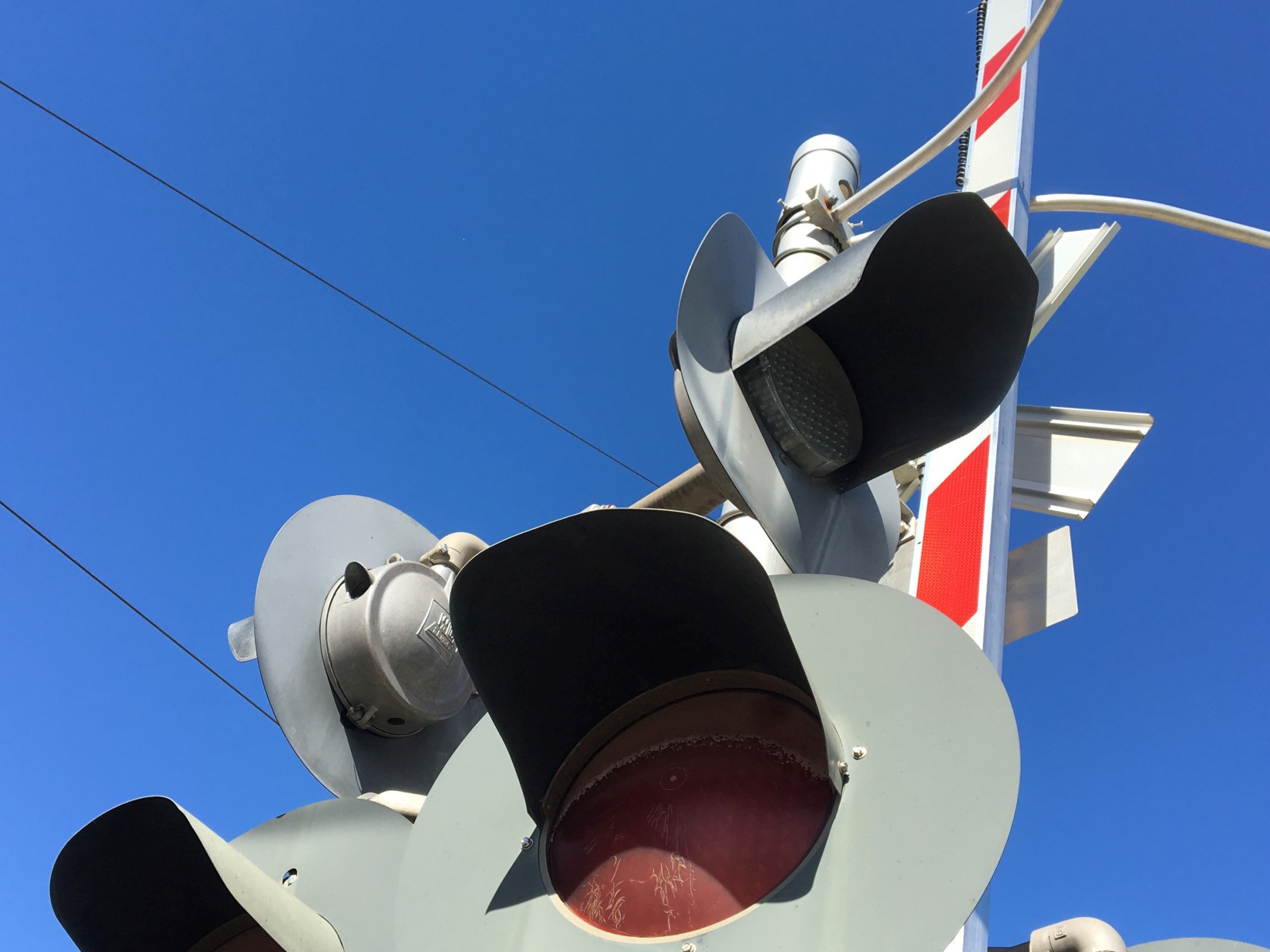

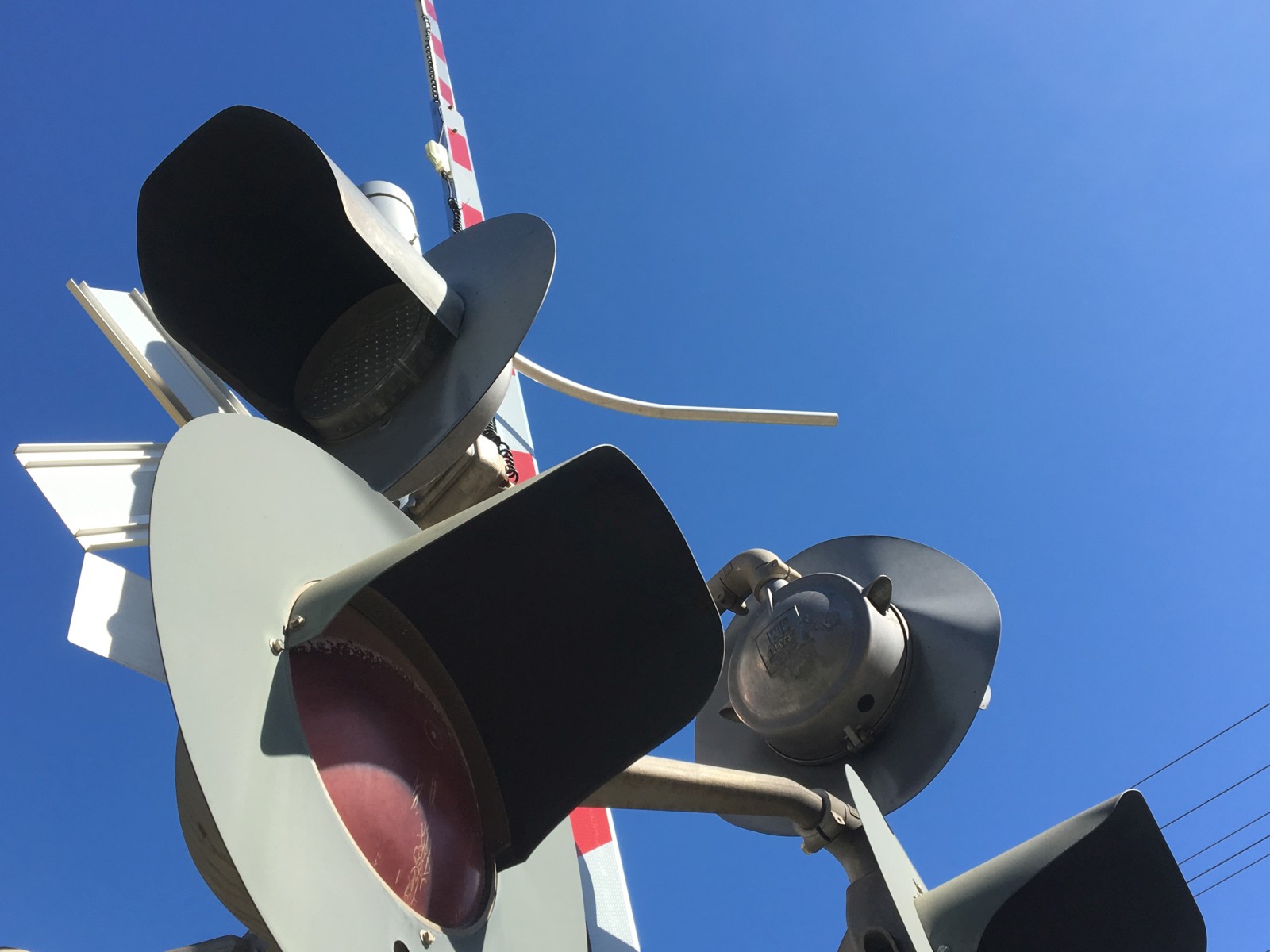

The main lights are more US&S 12x24s with RSI LEDs. |
17 |
18 |
19 |
20 |

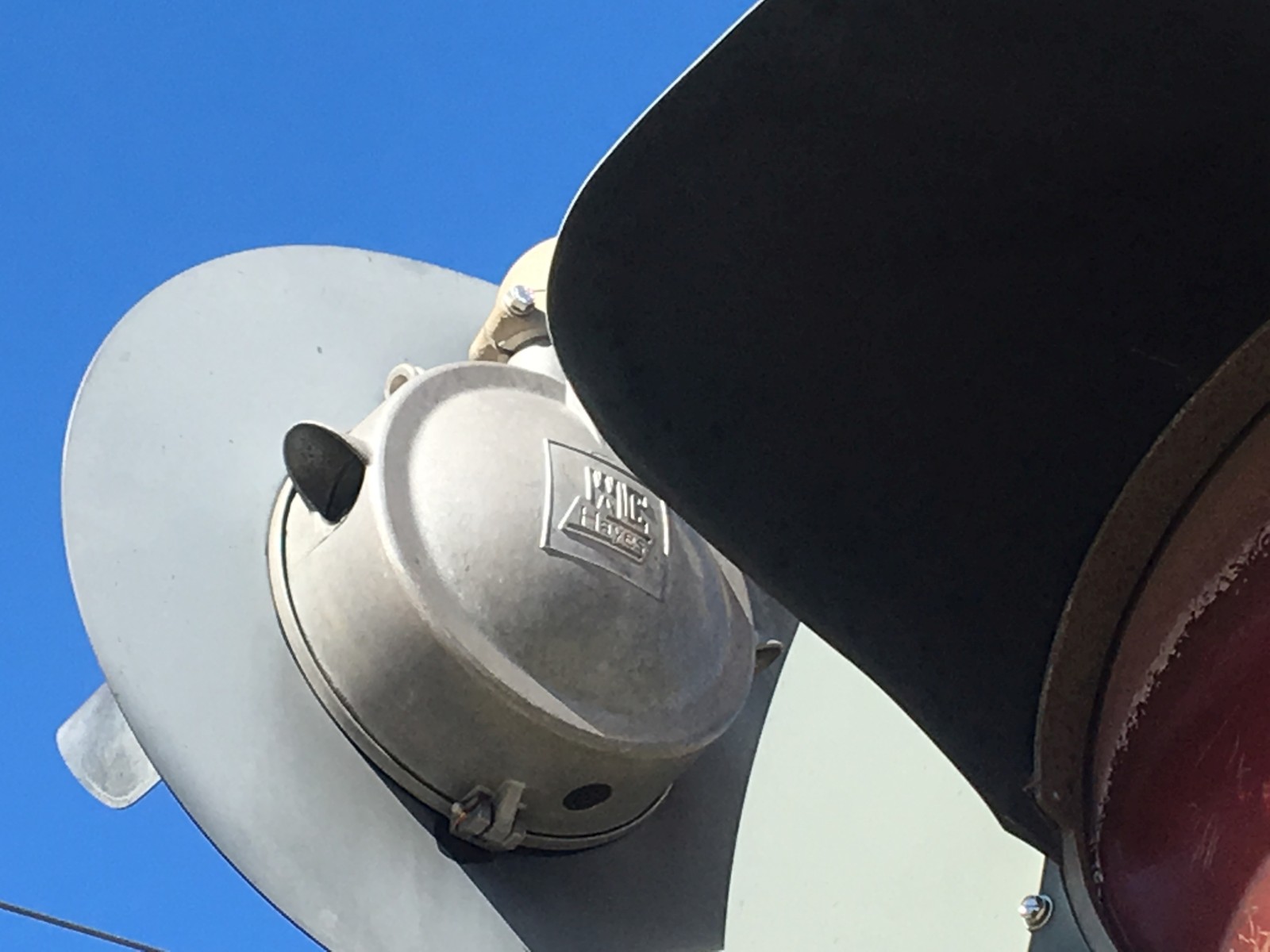

The side lights on this signal are another pair of WCH 8 inchers with white Safetran LEDs. |
|||
21 |
22 |
23 |
24 |

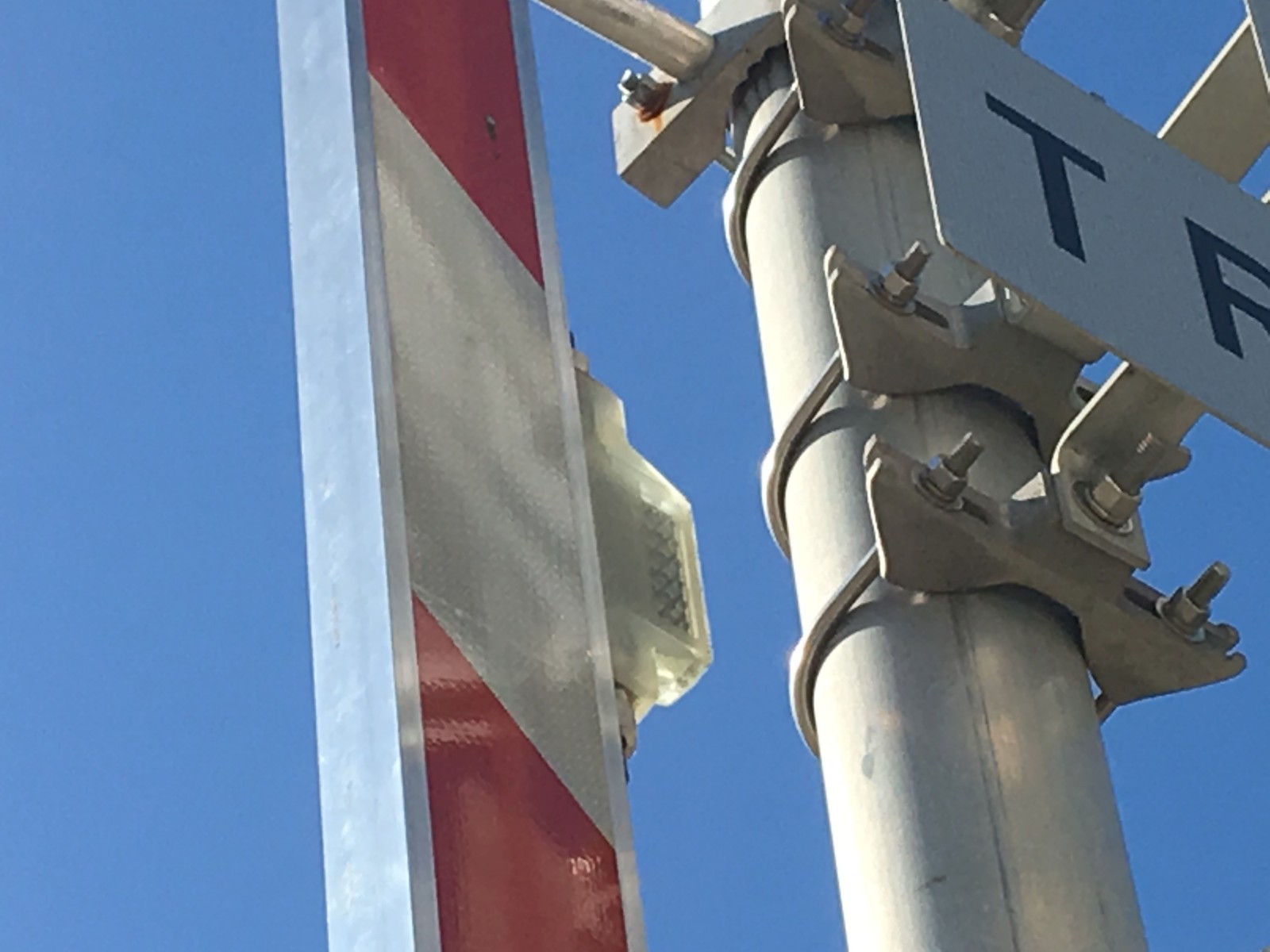

More Alstom LED gatelights over here. |

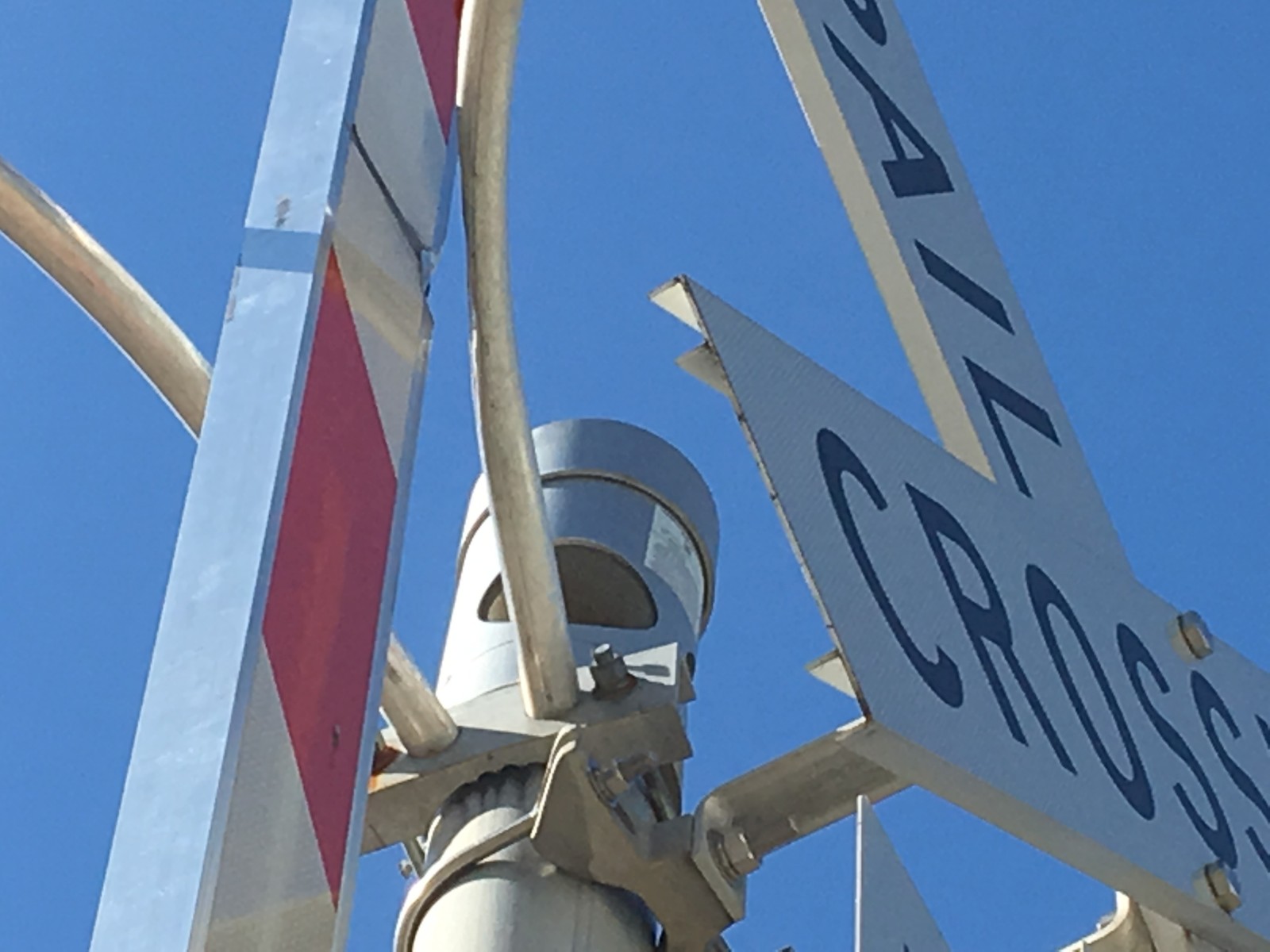

The bell is another US&S E-Bell. |

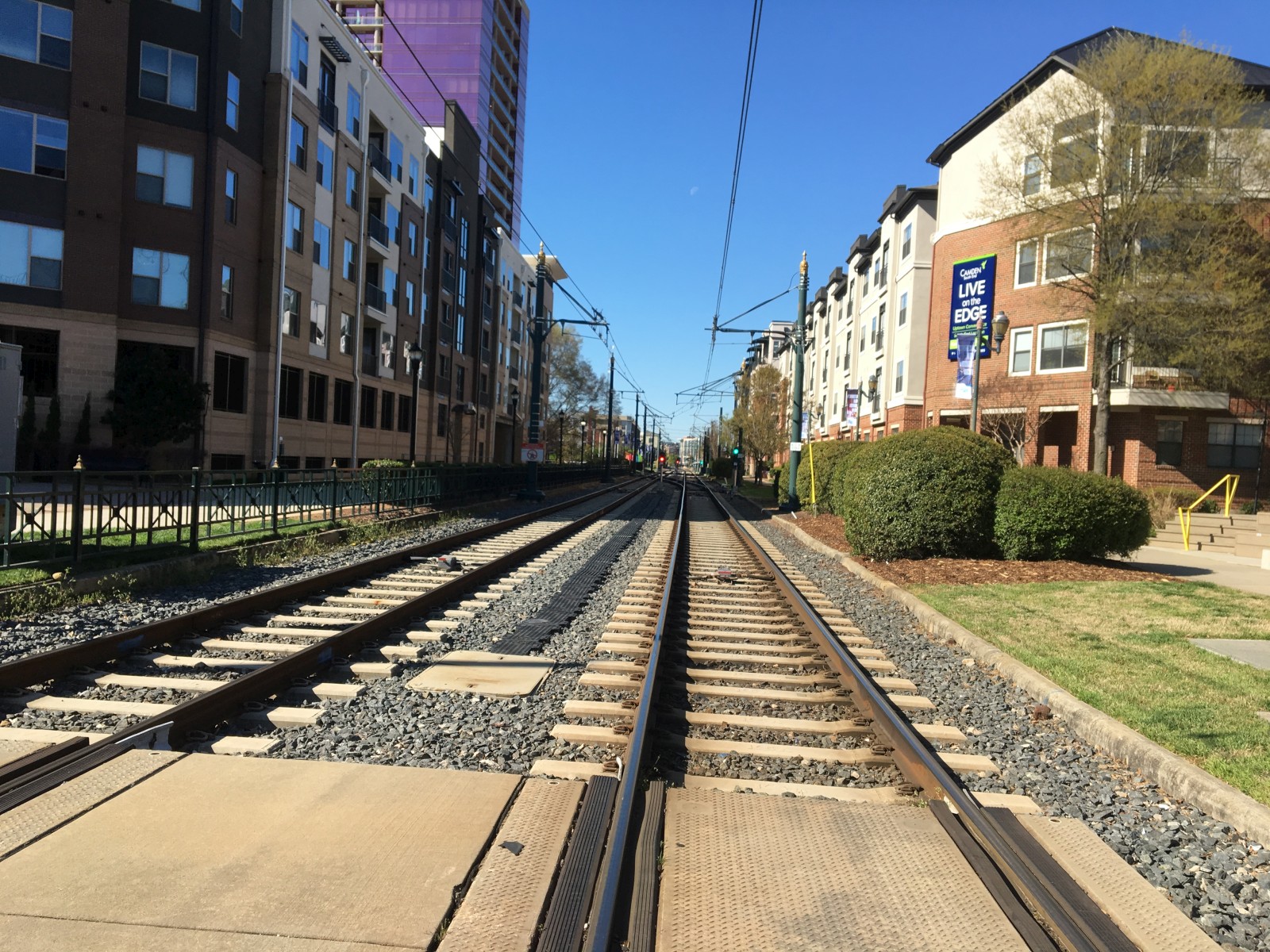

Track view facing west towards Bland Street. |

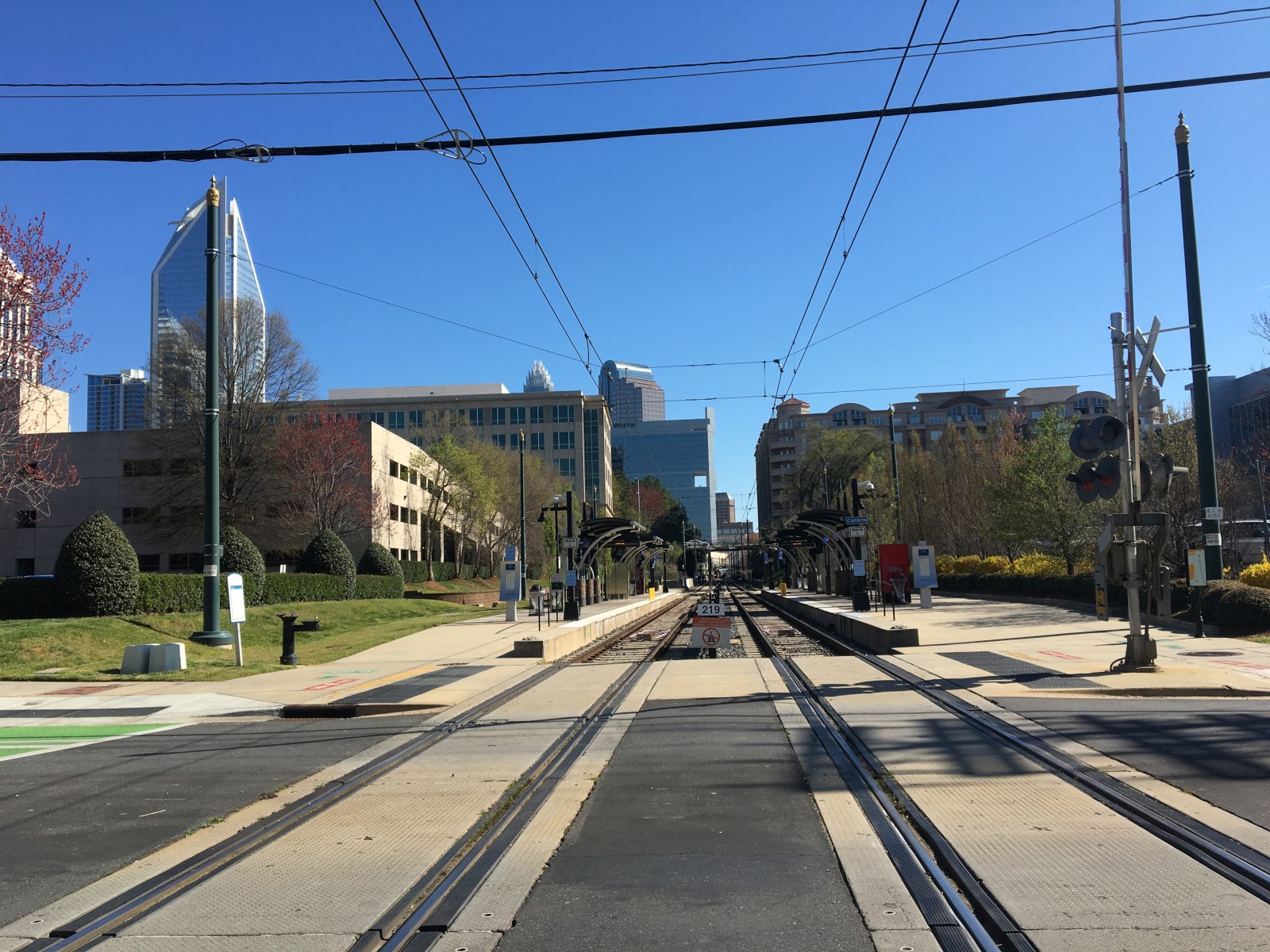

Track view facing east towards M.L.K. Jr. Boulevard. |
25 |

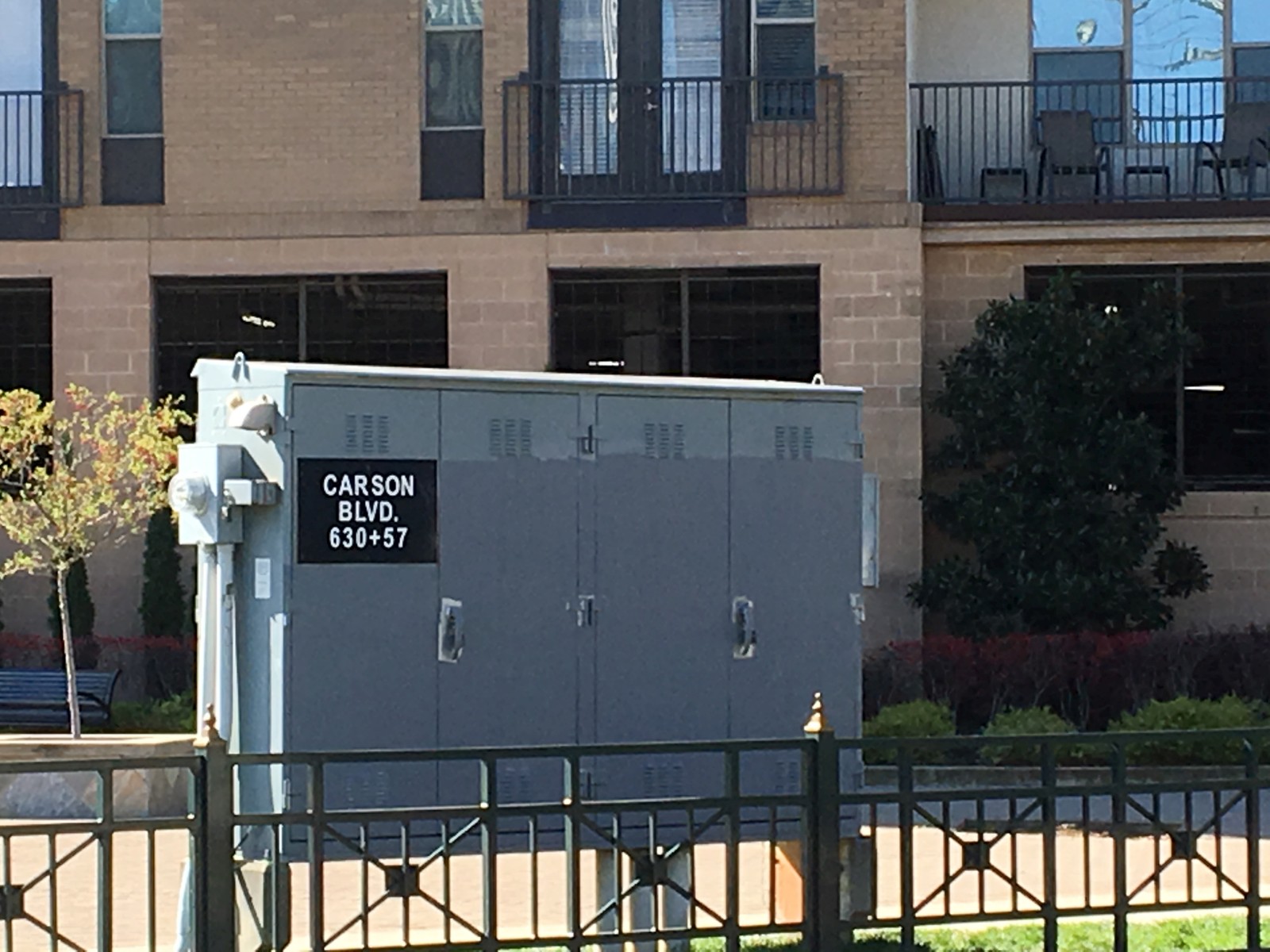

The relay case. |
All pictures were taken on 3-27-19.
The video was taken on 5-29-19.
