MP: R7.510 |
Created June 25, 2020
Total Accidents: 5*
Crossing
DOT #: 716098L
TOTAL
DAILY TRAINS: 150-200 (ESTIMATED)
Page created by: Ethan the Railfanner
This crossing is located on the NS Columbia Line and the Charlotte LYNX light rail.
1 |
2 |
3 |
4 |

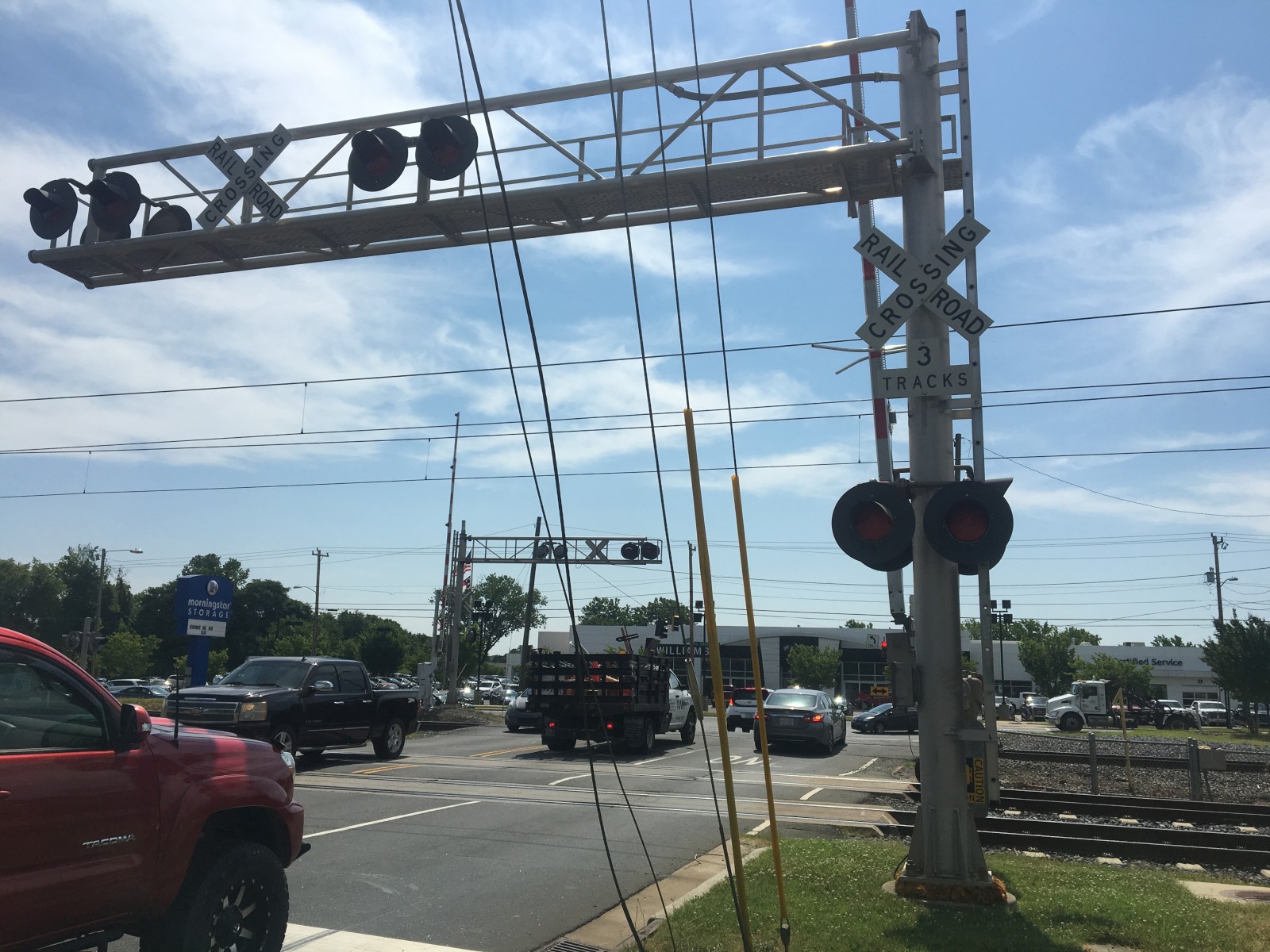

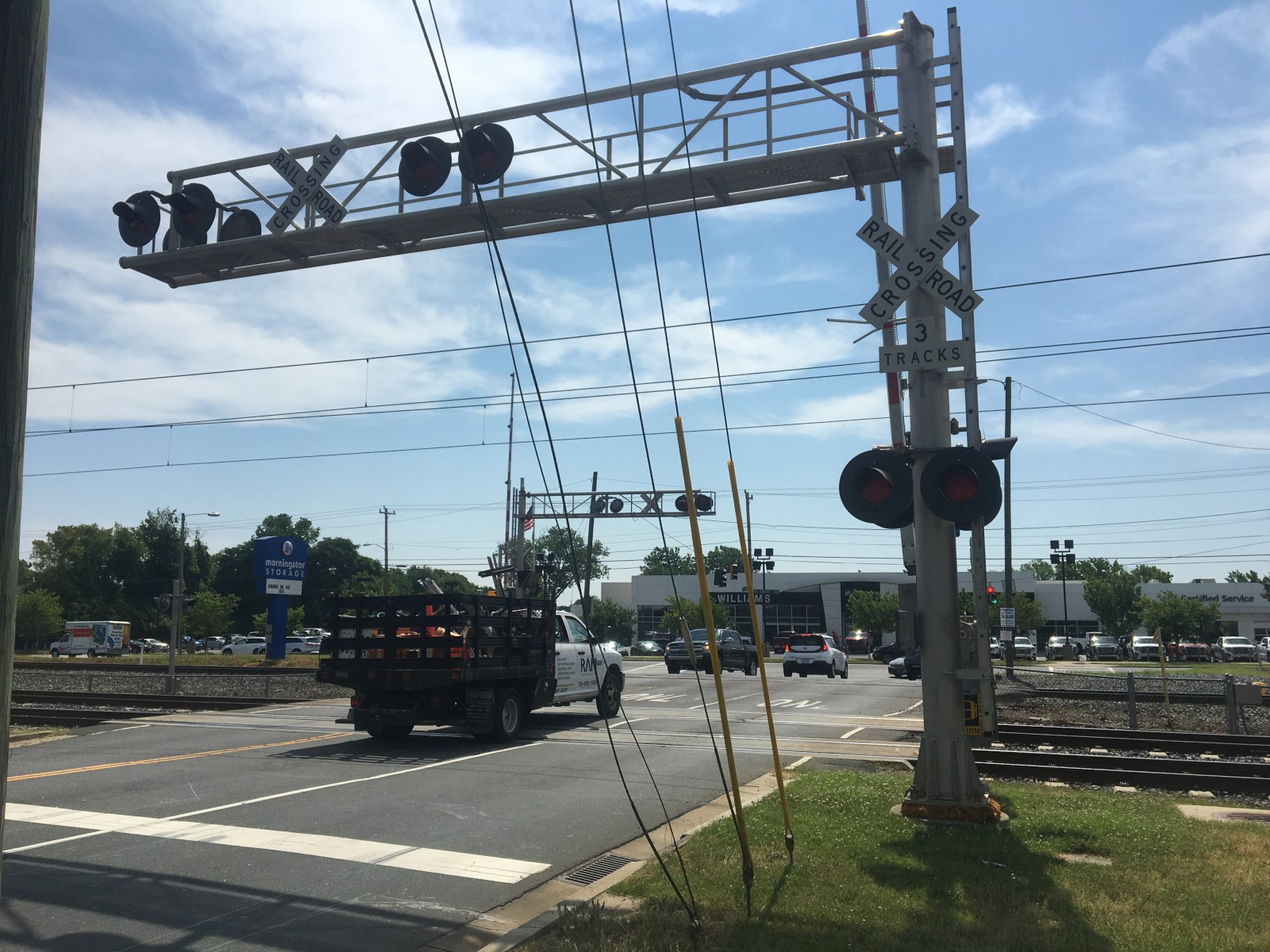

Overviews of this crossing. |
The western signal, which is controlled by LYNX. |
||
5 |
6 |
7 |
8 |
It has a Fabricated Metals cantilever. |
This signal has all US&S 12x24 lights with RSI LEDs. |
||
9 |
10 |
11 |
12 |
A US&S base. |
A US&S gate mechanism. |
13 |
14 |
15 |
16 |

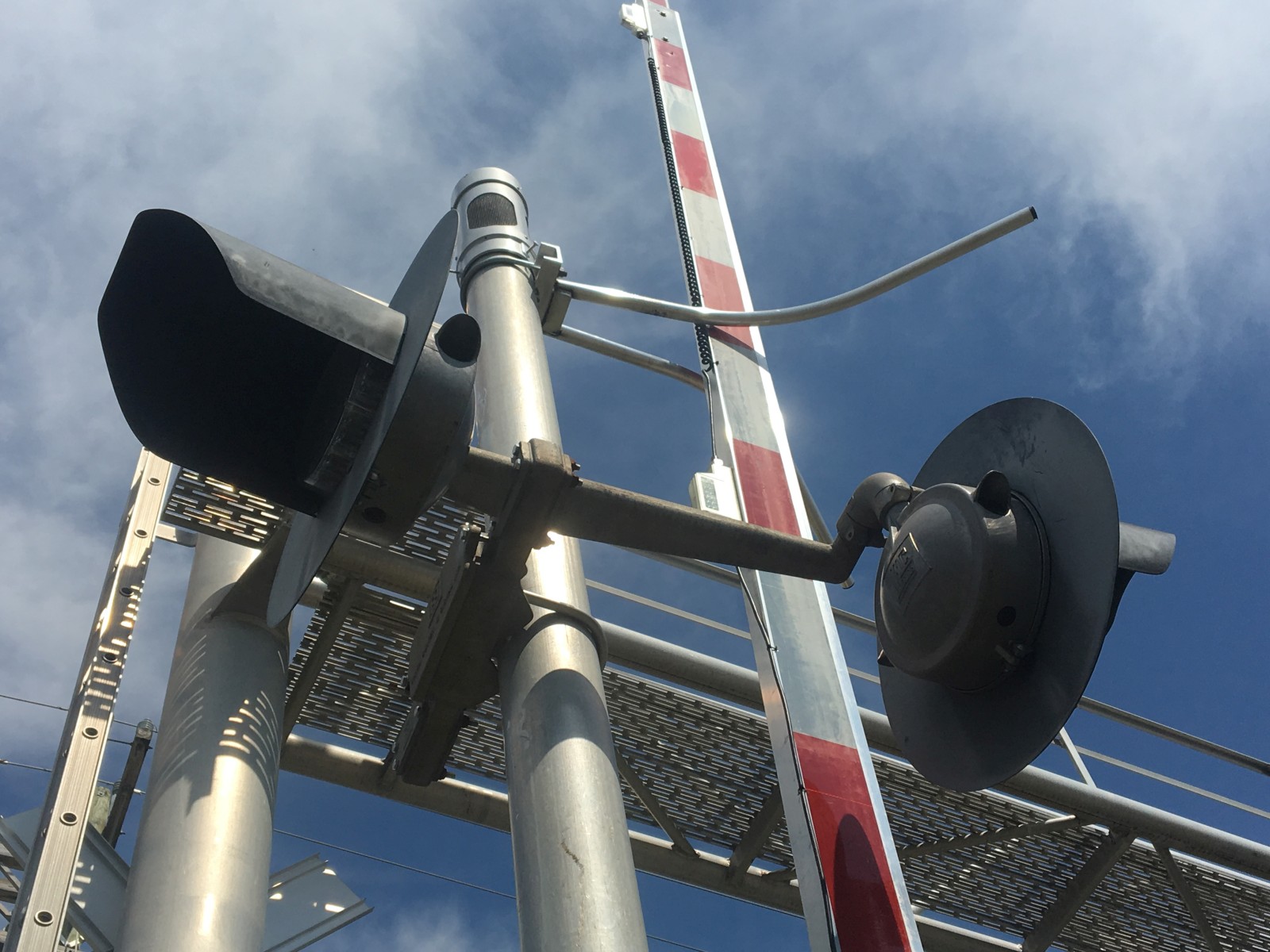

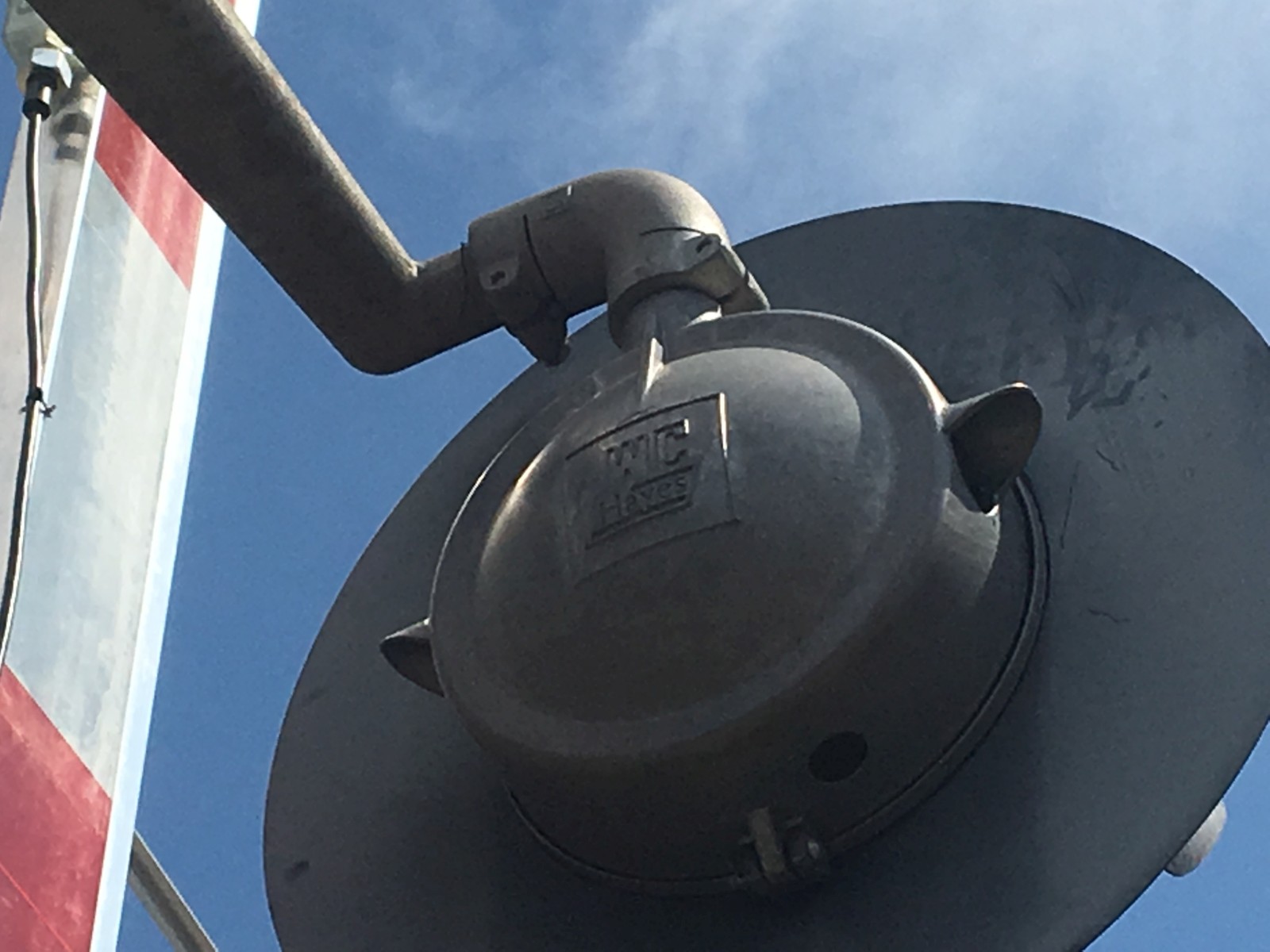

The side lights are also a pair of WCH 8 inchers with white Safetran LEDs! |
The bell here is a General Signals Type 3 E-Bell! |

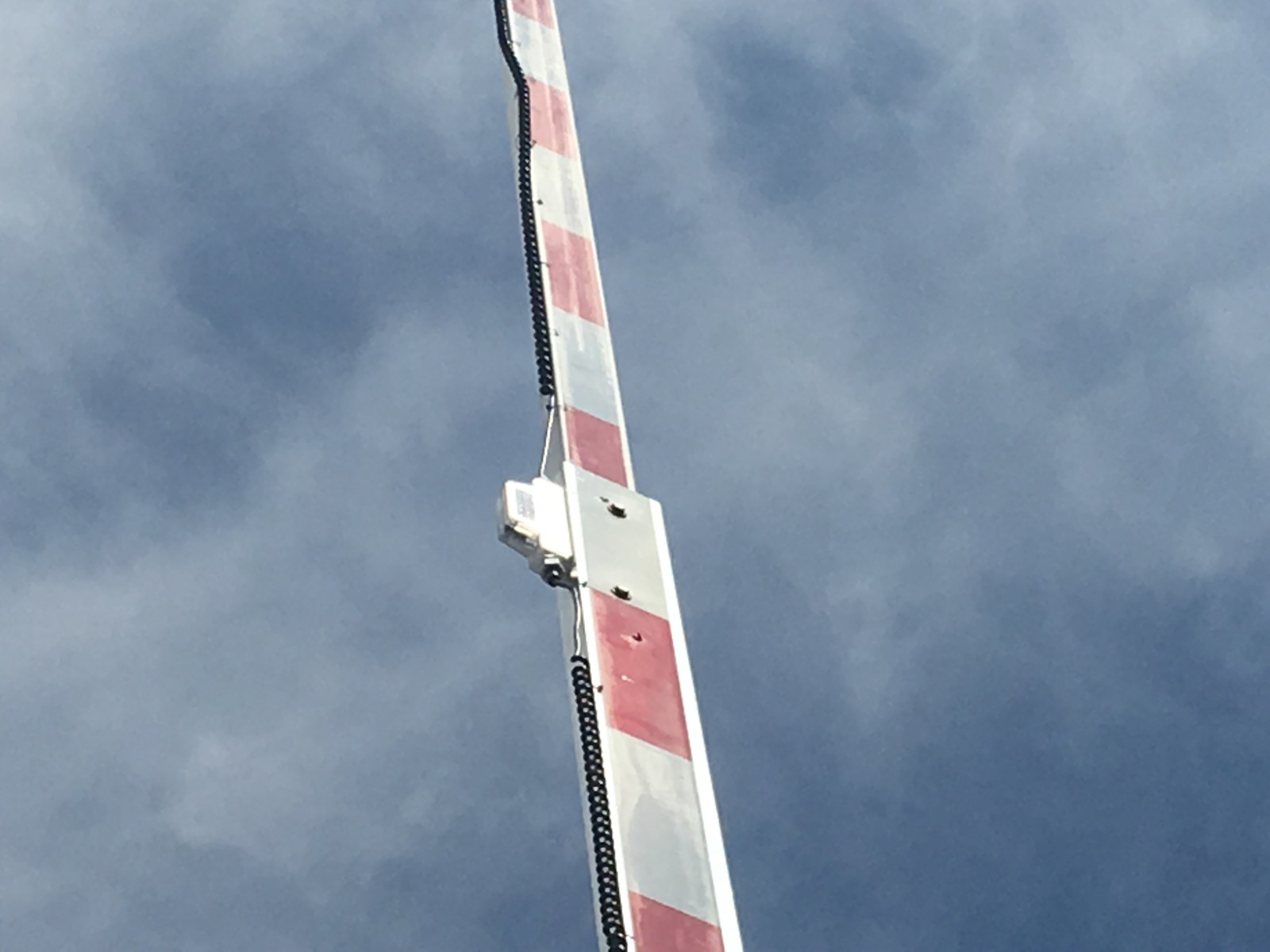

This signal has Alstom LED gatelights. |
|
17 |
18 |
19 |
20 |

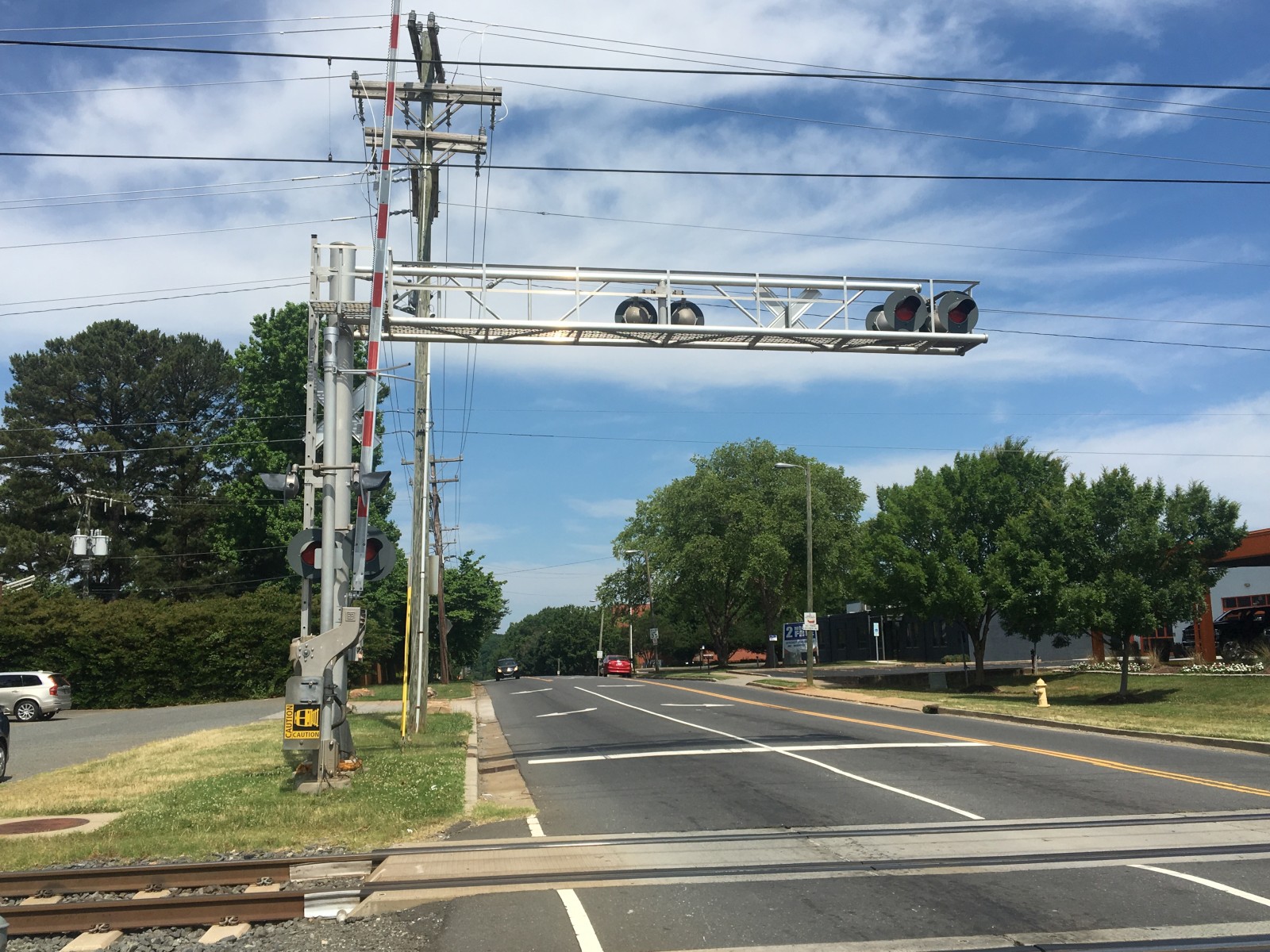

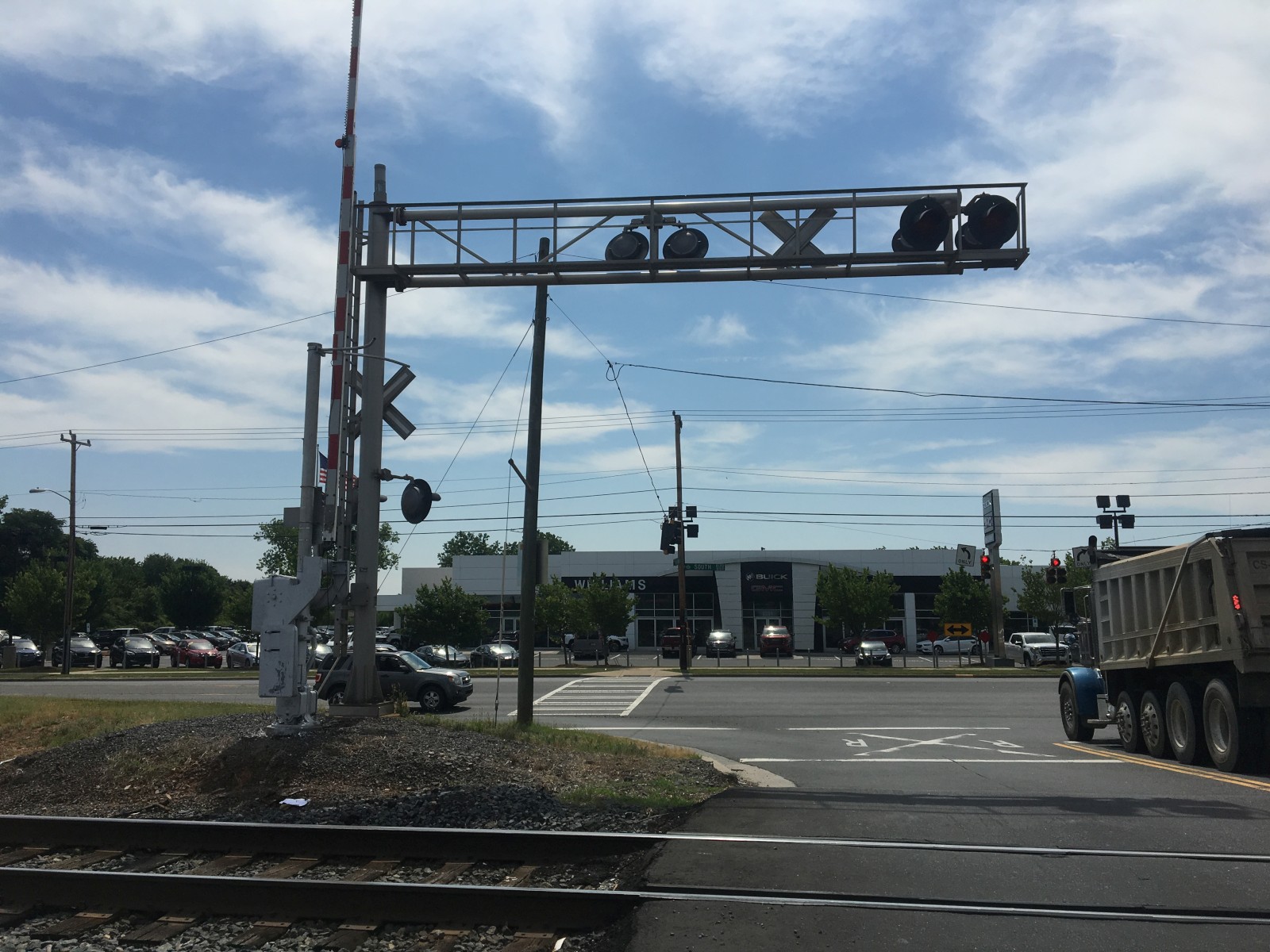

The eastern signal, which is controlled by NS. The bell is a Safetran Type 3 E-Bell. |
It has a Modern Industries cantilever. |
The mast lights on this signal are Modern Industries 12x24 incandescents! |
|
21 |
22 |
23 |
24 |
The overhead lights are more Modern Industries 12x24 incandescents! |

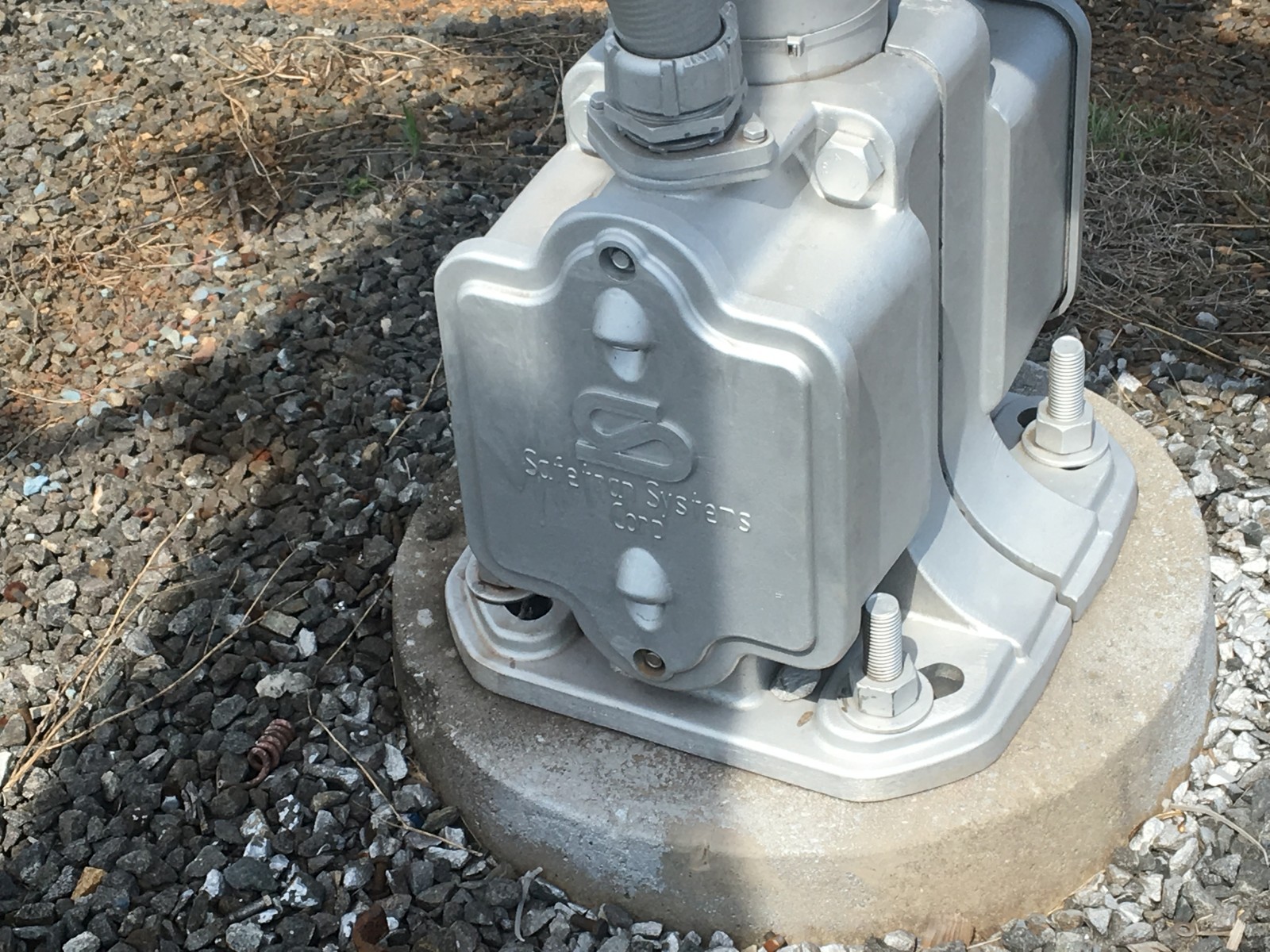

A Safetran base. |
A Safetran gate mechanism. |
|
25 |
26 |
27 |
28 |

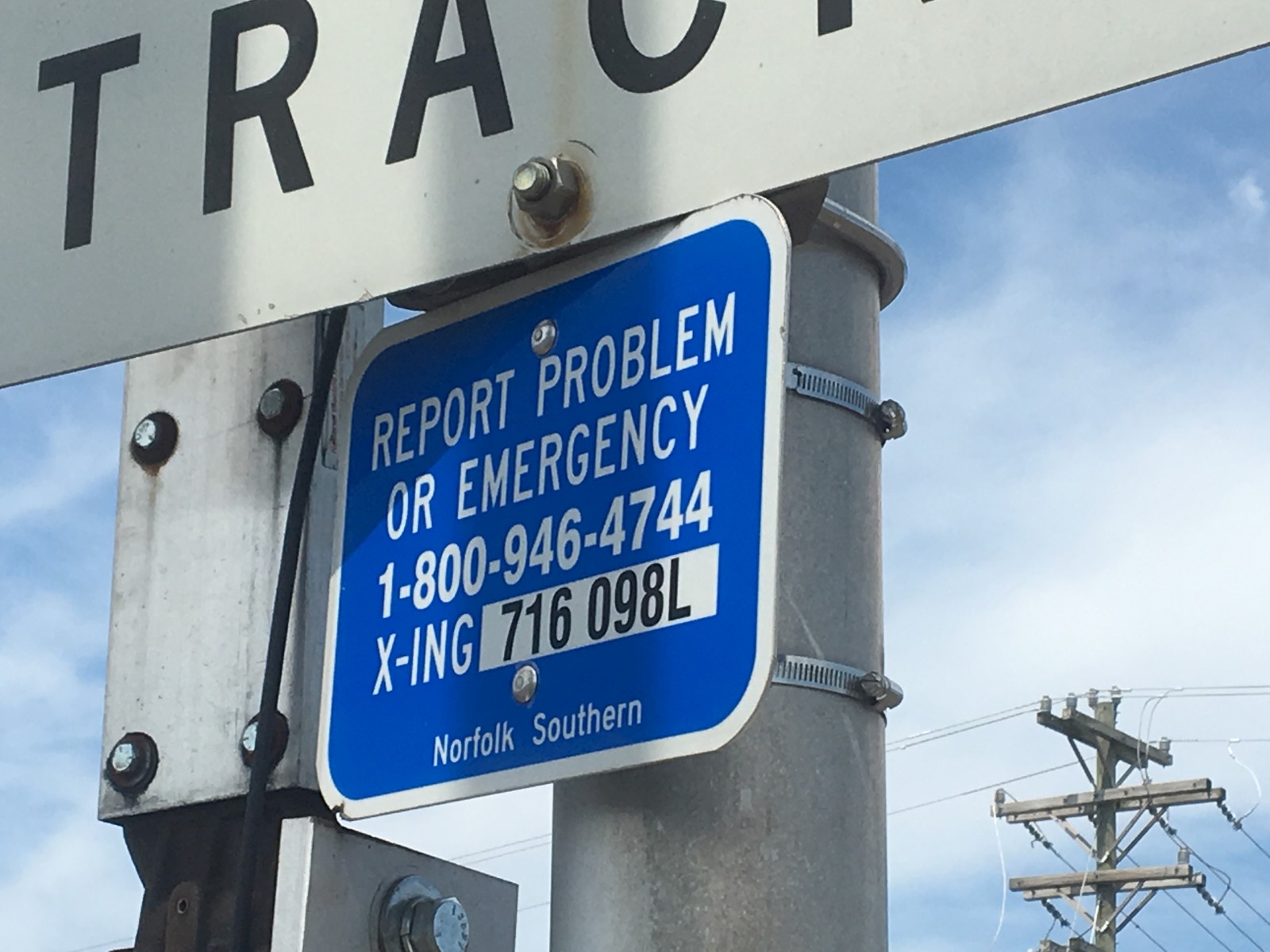

The emergency information. |
This signal has RECO Incandescent gatelights! |

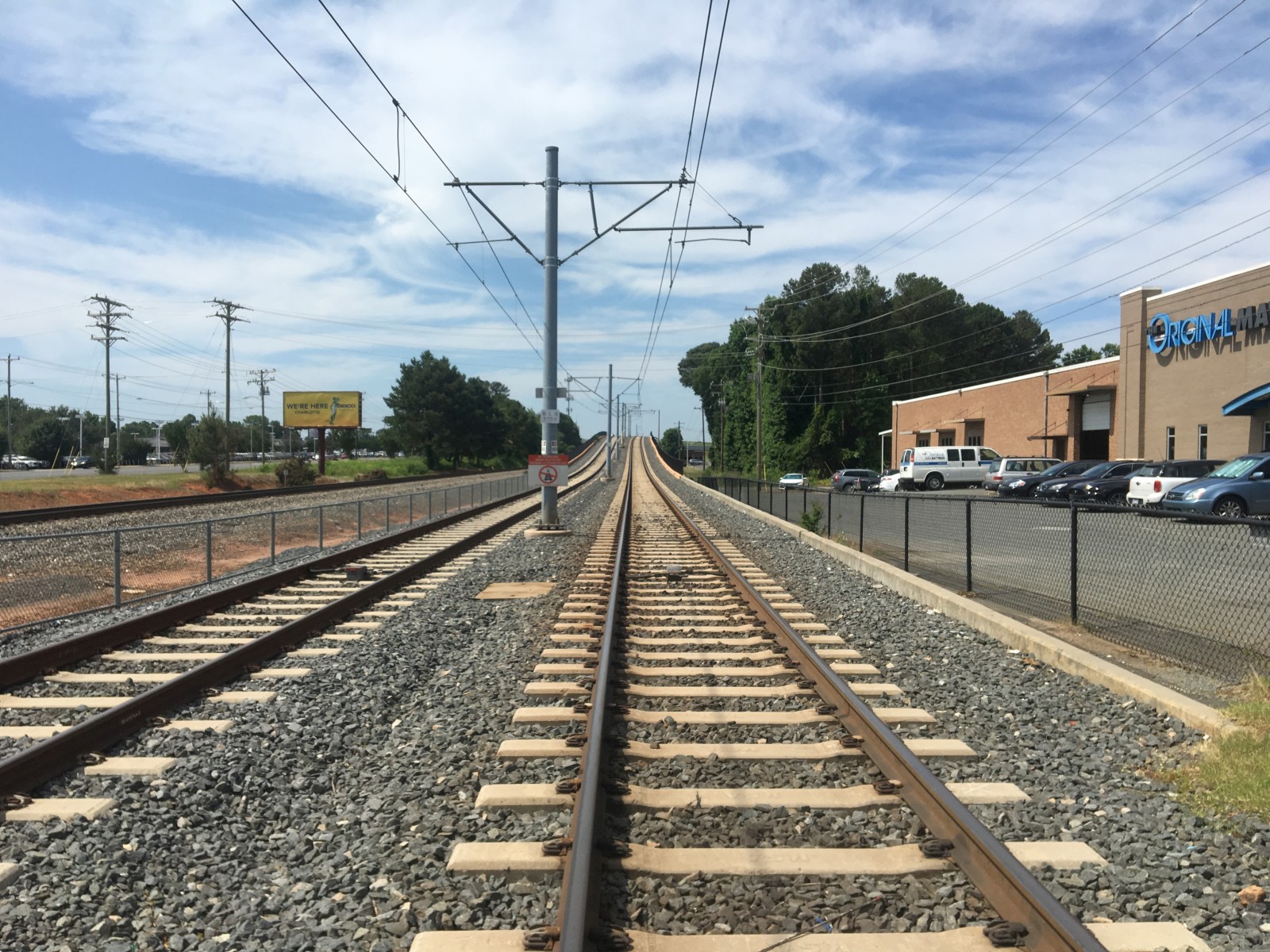

Track view facing south on the LYNX light rail.. |

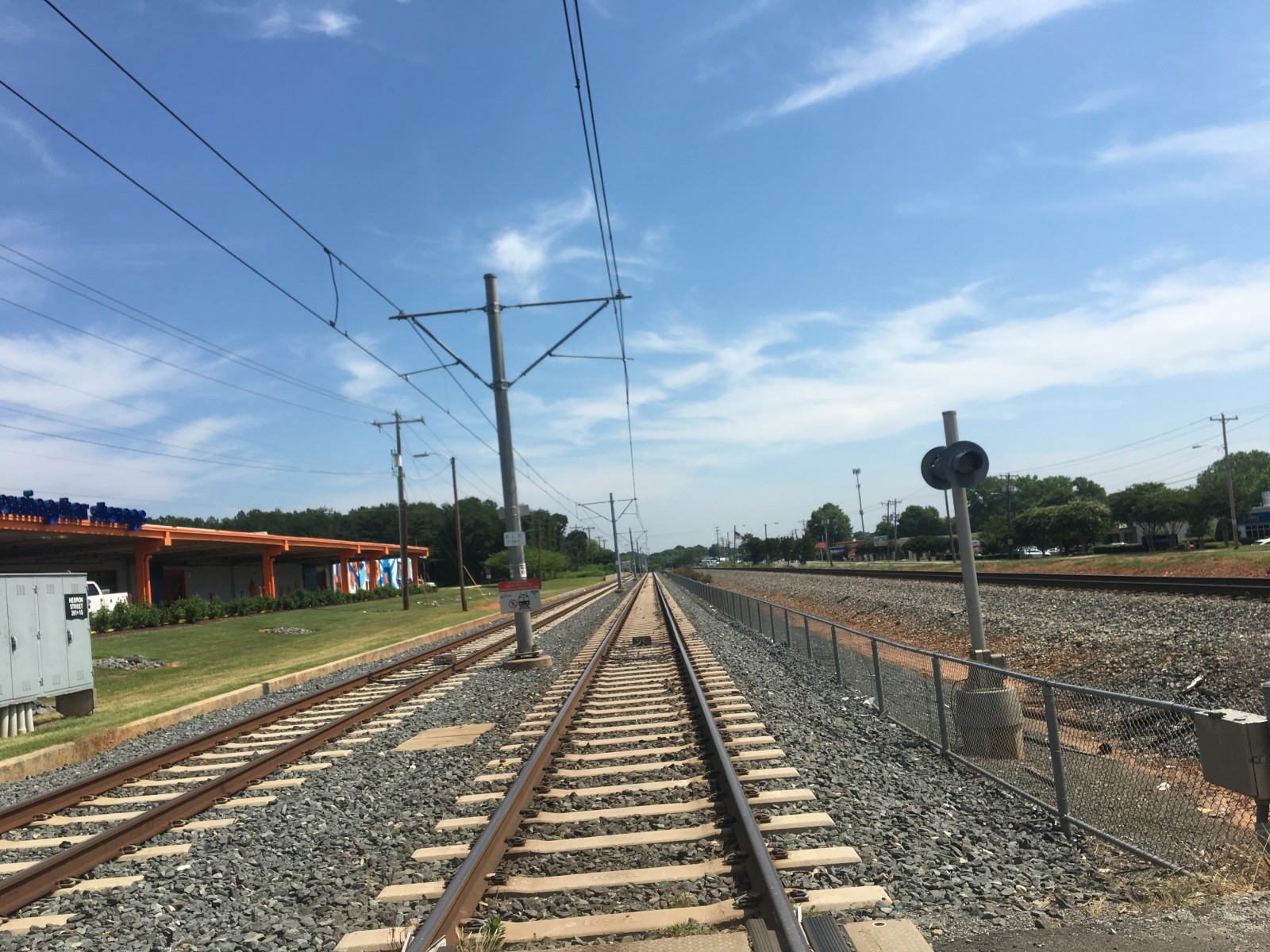

Track view facing north towards Sweden Road on the LYNX light rail. |
29 |
30 |
31 |
32 |
Here's an extra signal that is also controlled by LYNX. |

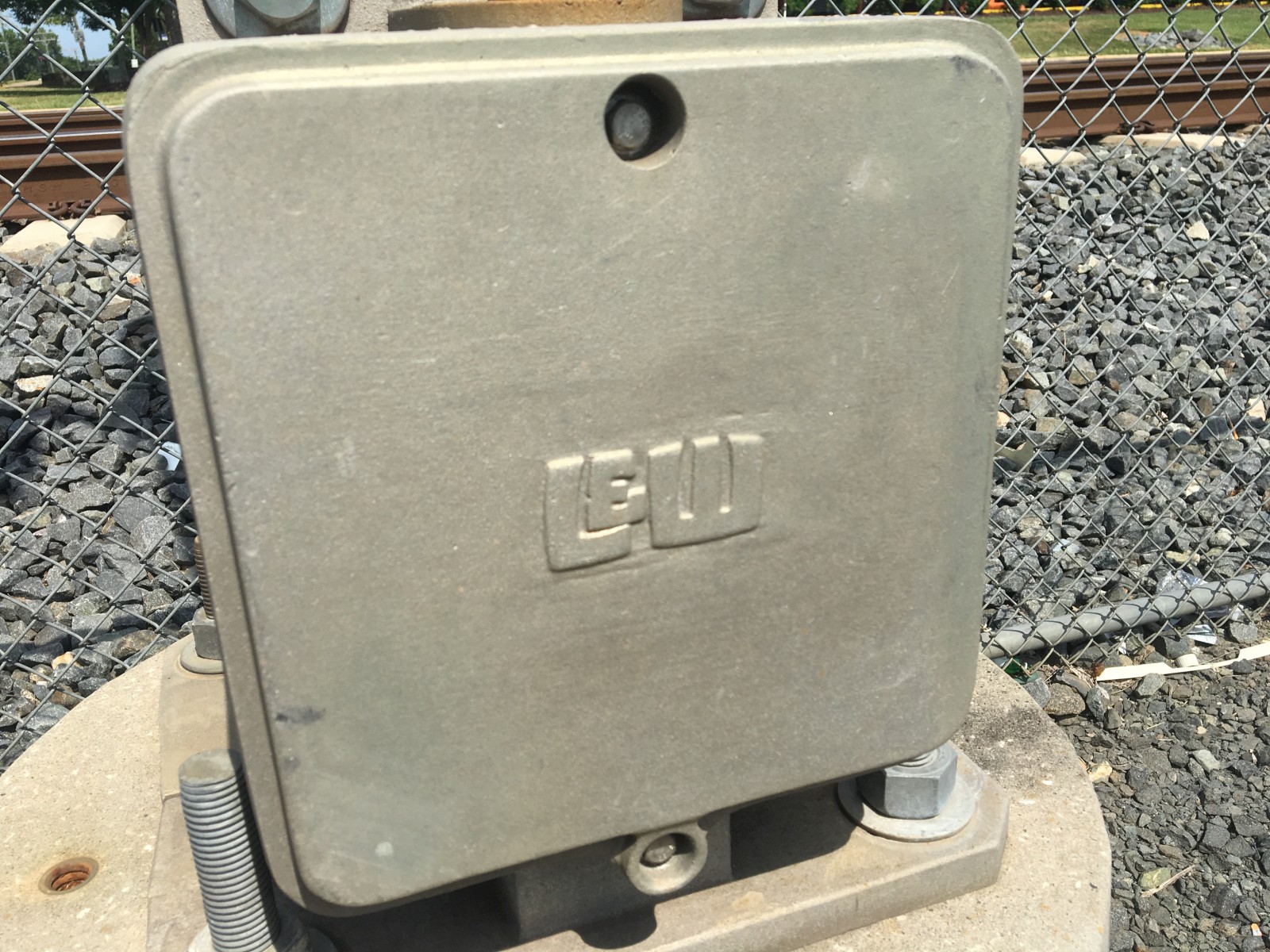

It has an L&W base. |
This signal has another pair of WCH 8 inch lights with white Safetran LEDs! |
|
33 |
34 |

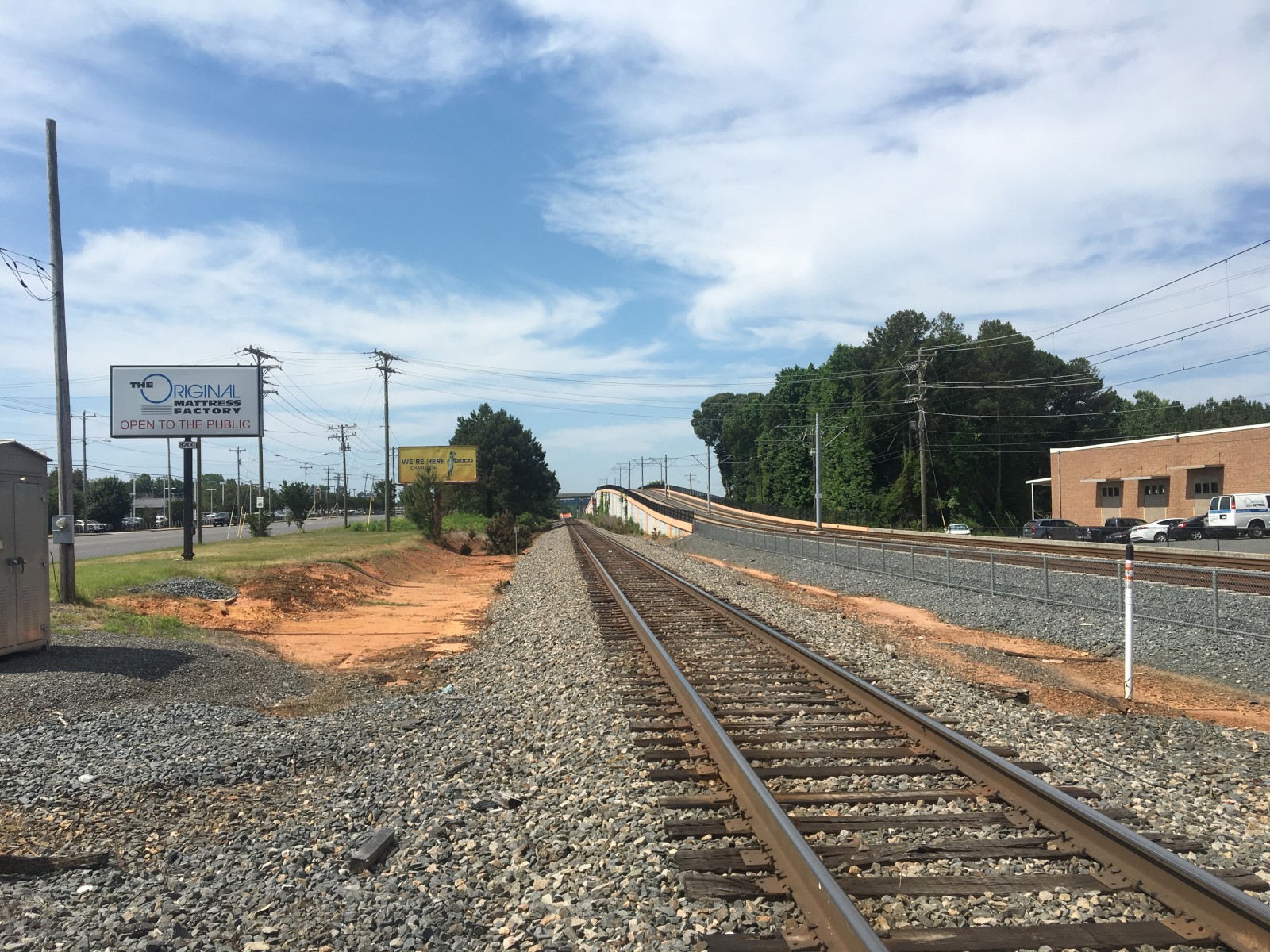

Track view facing south on the NS line. |
The relay case for the LYNX light rail crossings. |
Fun fact: The Safetran Type 3 E-Bell on the eastern signal actually rings when the gates lower and rings again when the crossing deactivates unlike the western signal's GS Type 3 E-Bell, which only rings until the gates lower.
Also, this is the southern most crossing along the LYNX light rail before it ends about 1.5 miles at the I-485 station.
All pictures and the video were taken on 5-29-19.
