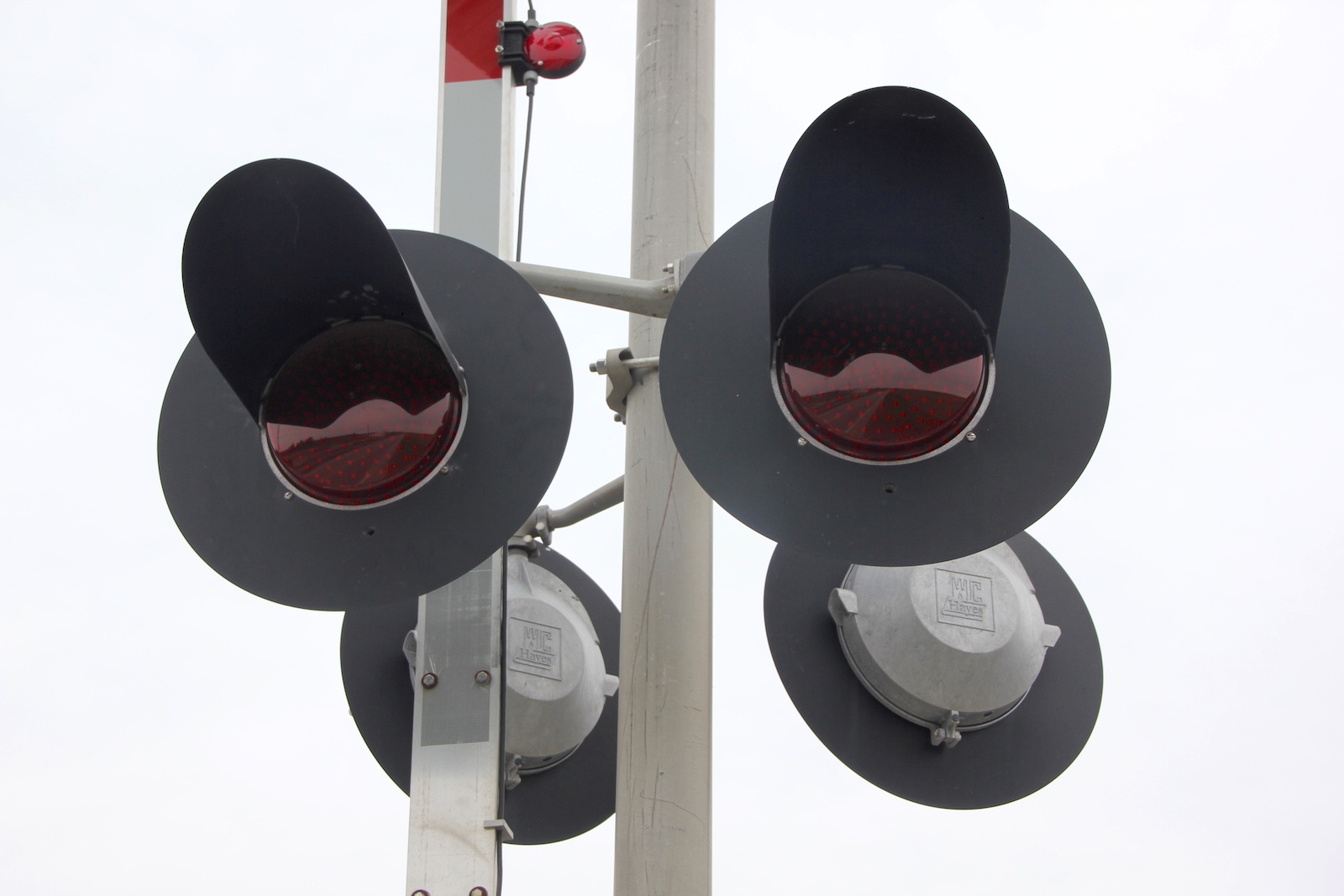

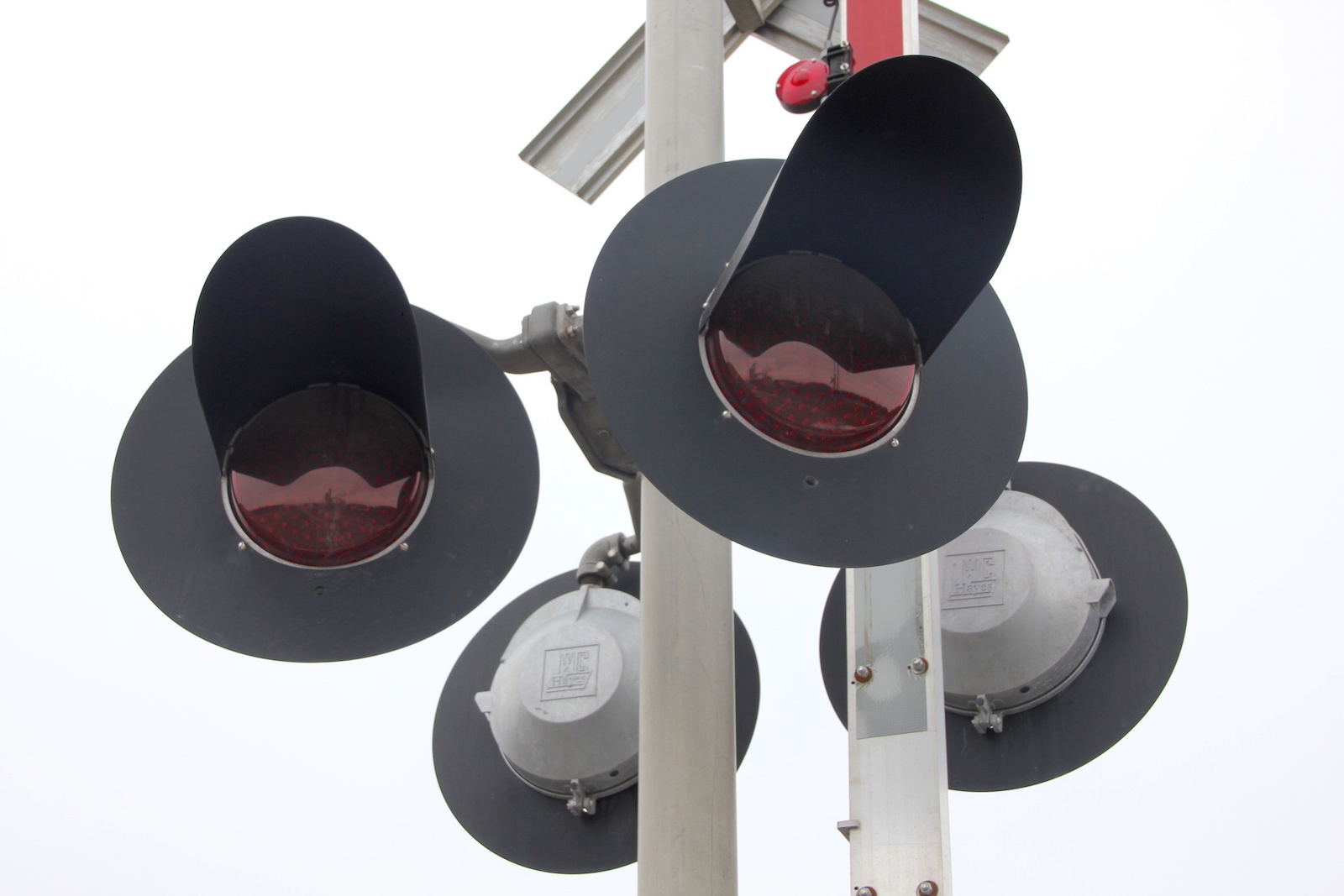

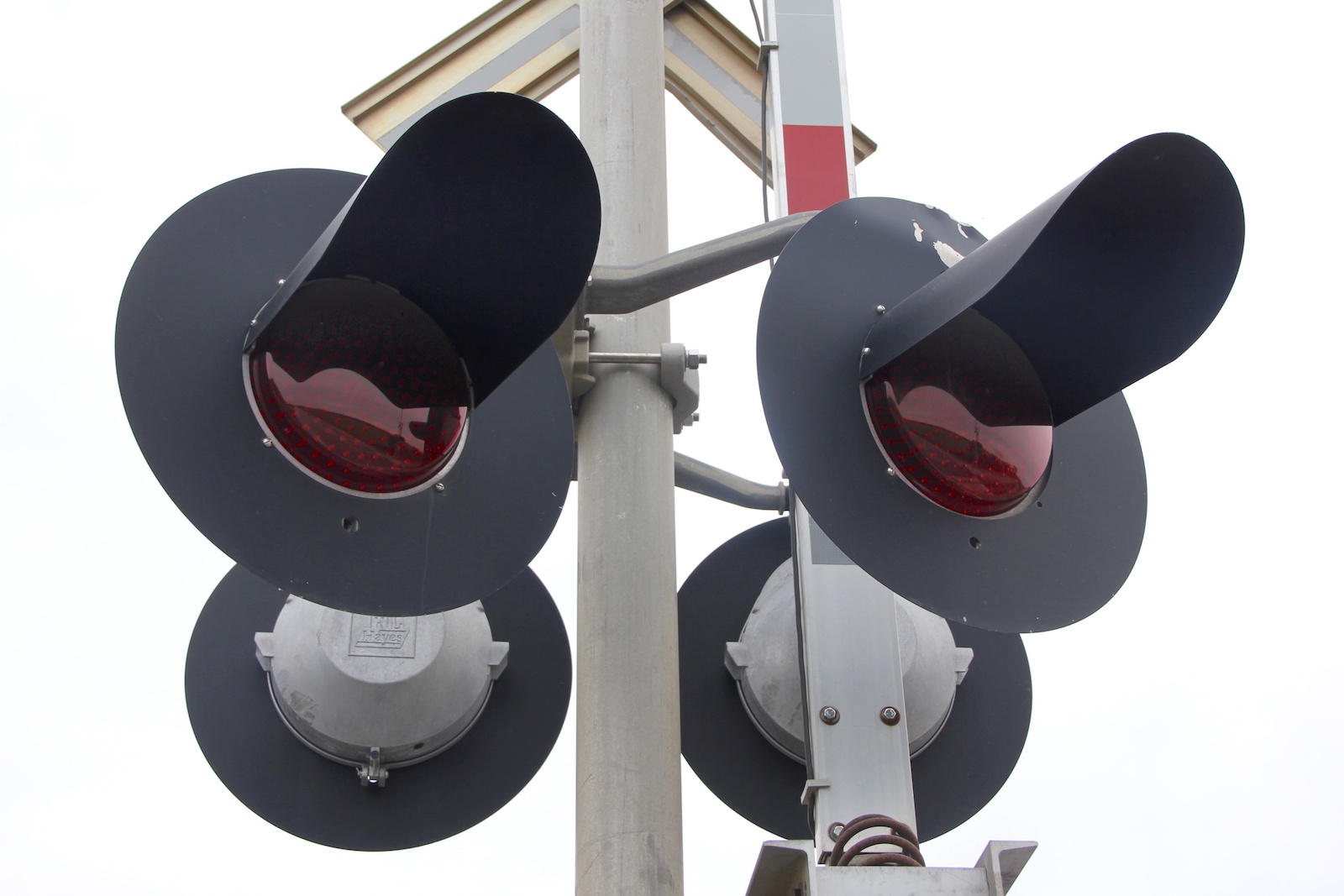

4 - 12"x24" WCH Flatback w/ WCH/Miller 2nd Gen. LEDs
2 - 12"x24" WCH Flatback w/ WCH/Miller 2nd Gen. LEDs
2 - 12"x24" WCH Flatback w/ Leotek EV Series LEDs
Junction Box:
Safetran
WCH
Gate Lights:
3 - NEG 4" LEDs
3 - RECO 4" LEDs
Gate Mechanism:

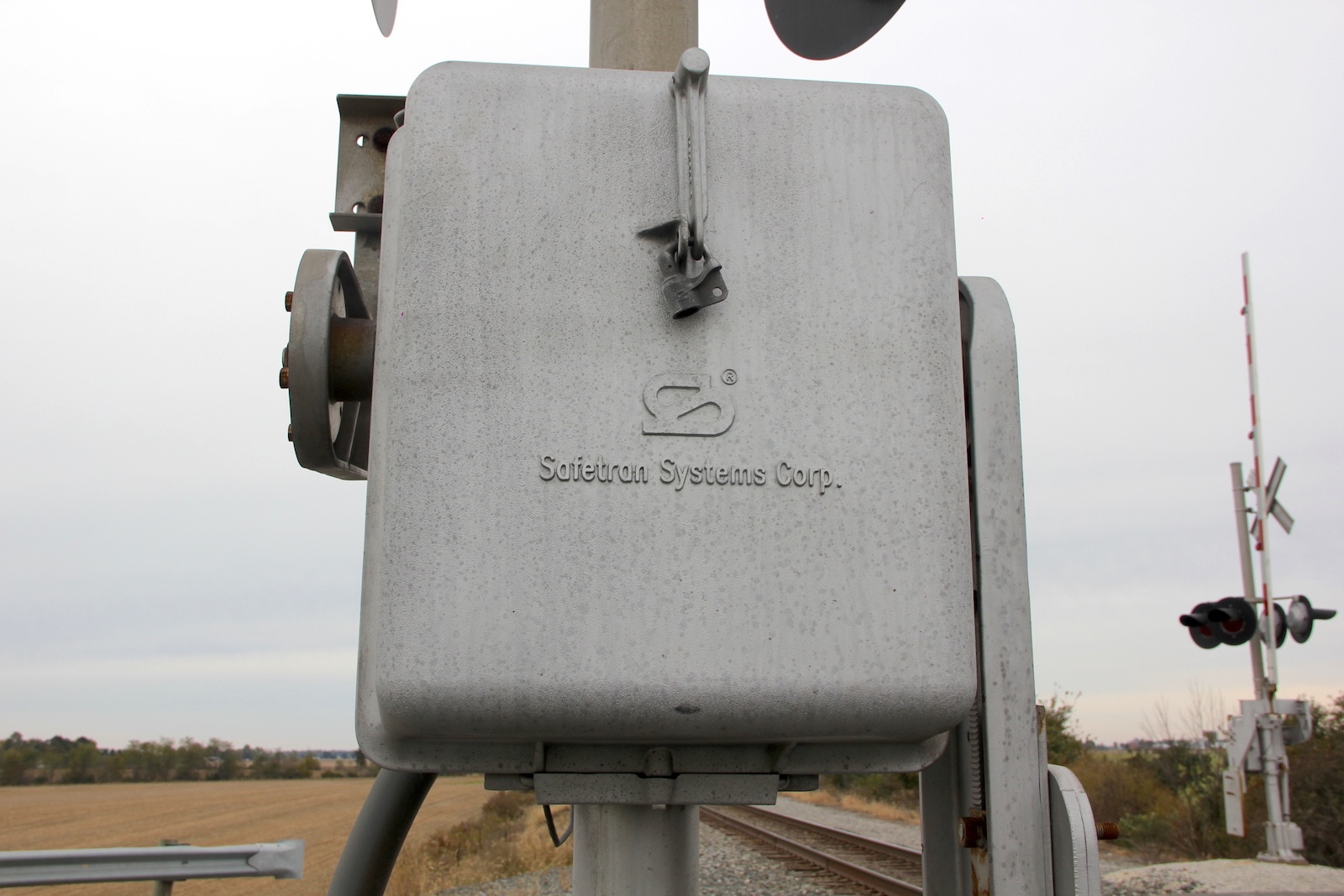

Safetran 1990s w/ Standard Mount
Safetran 2000s w/ GSI Gate Saver
Gate Striping:
Verical Striping
Verical Striping
All pictures were taken on October 25, 2018, by Tommy McGowan.
The video was taken on May 24, 2024, by Nicholas Miles.
This crossing is located on the CSX Columbus Sub.
1
2

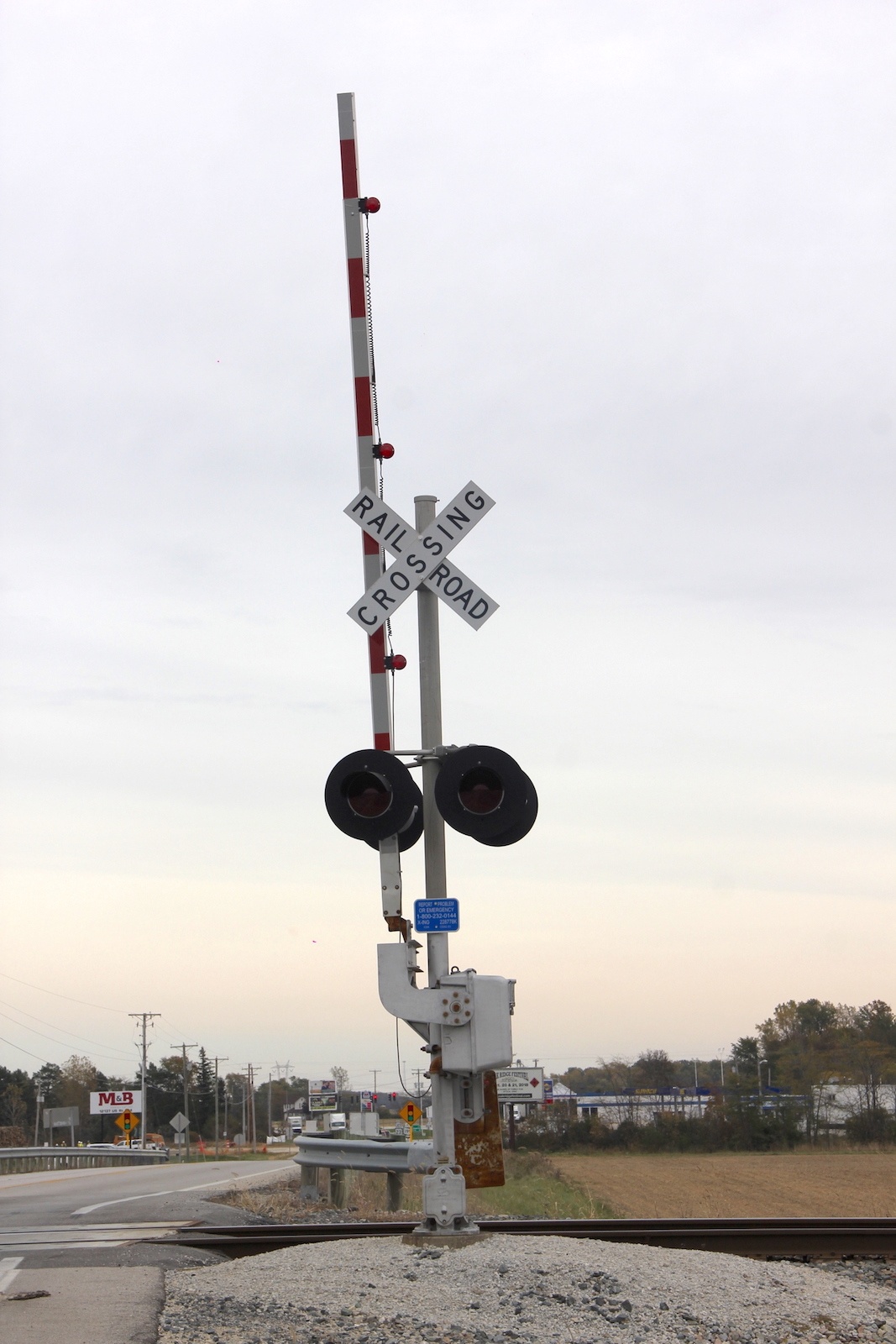

Overview of 2 gated signals facing east.
Overview facing west.
3
4
5
6
7
8
9
10
11

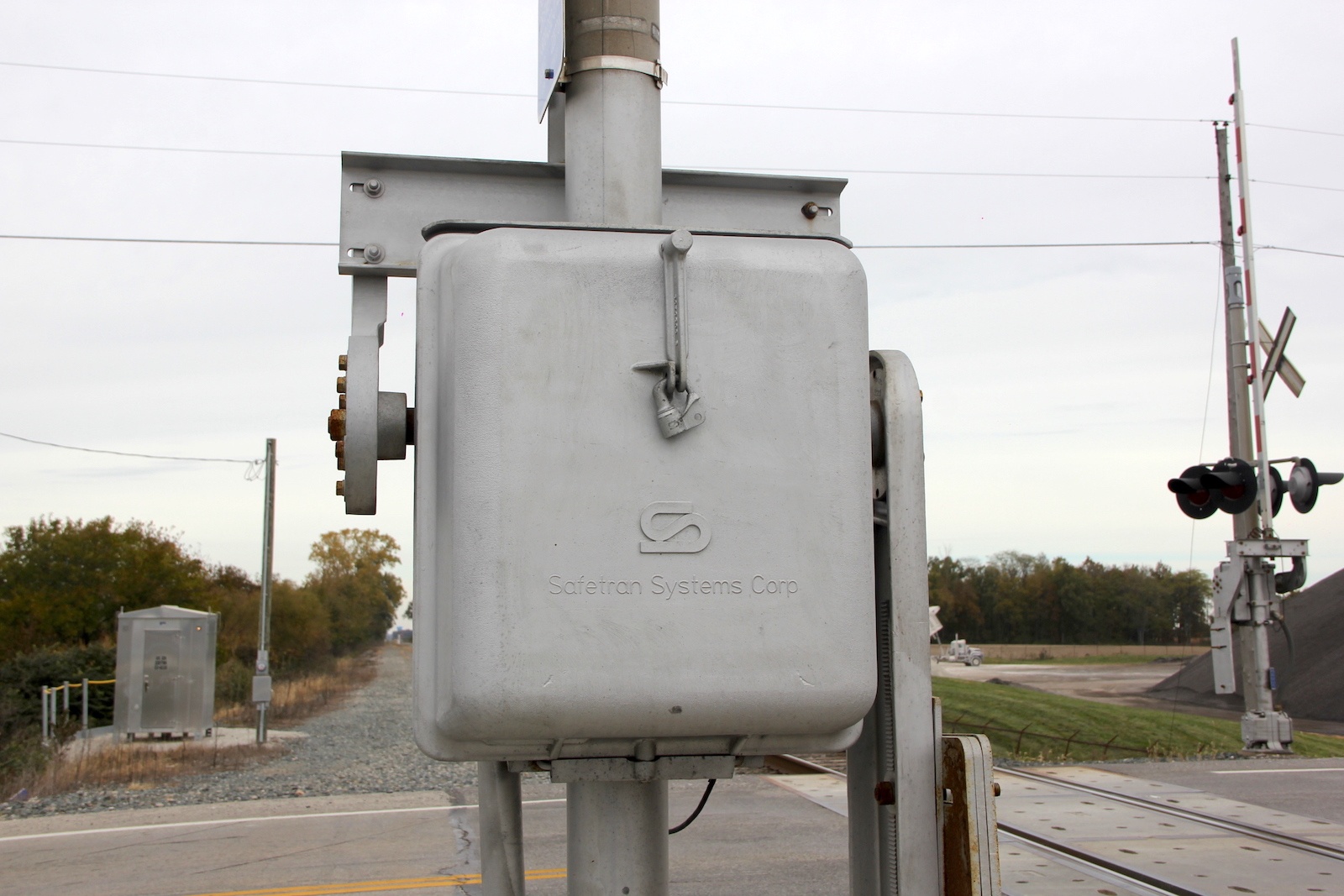

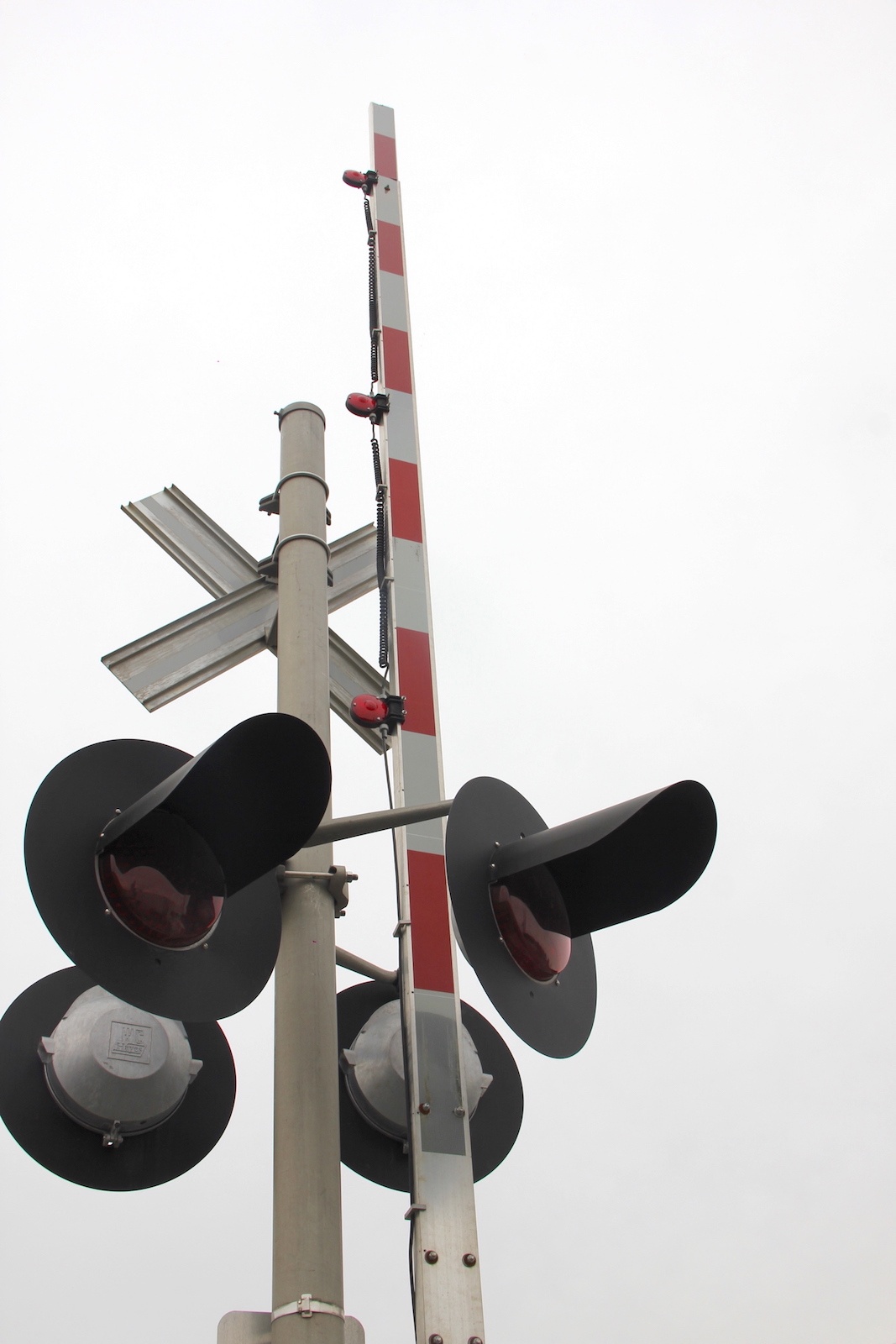

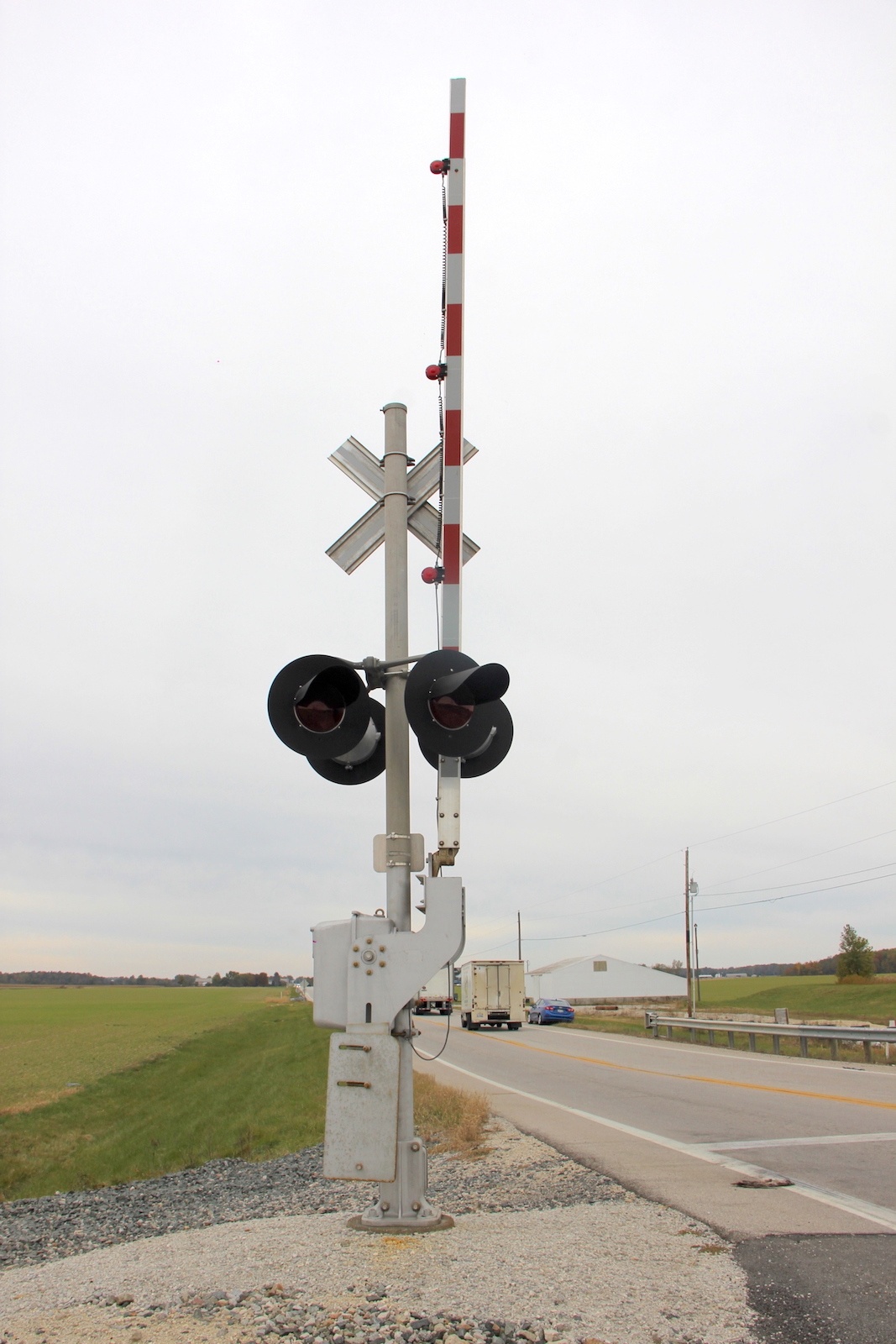

The western signal.
12
13
14
15
16
17
18
19
20
21

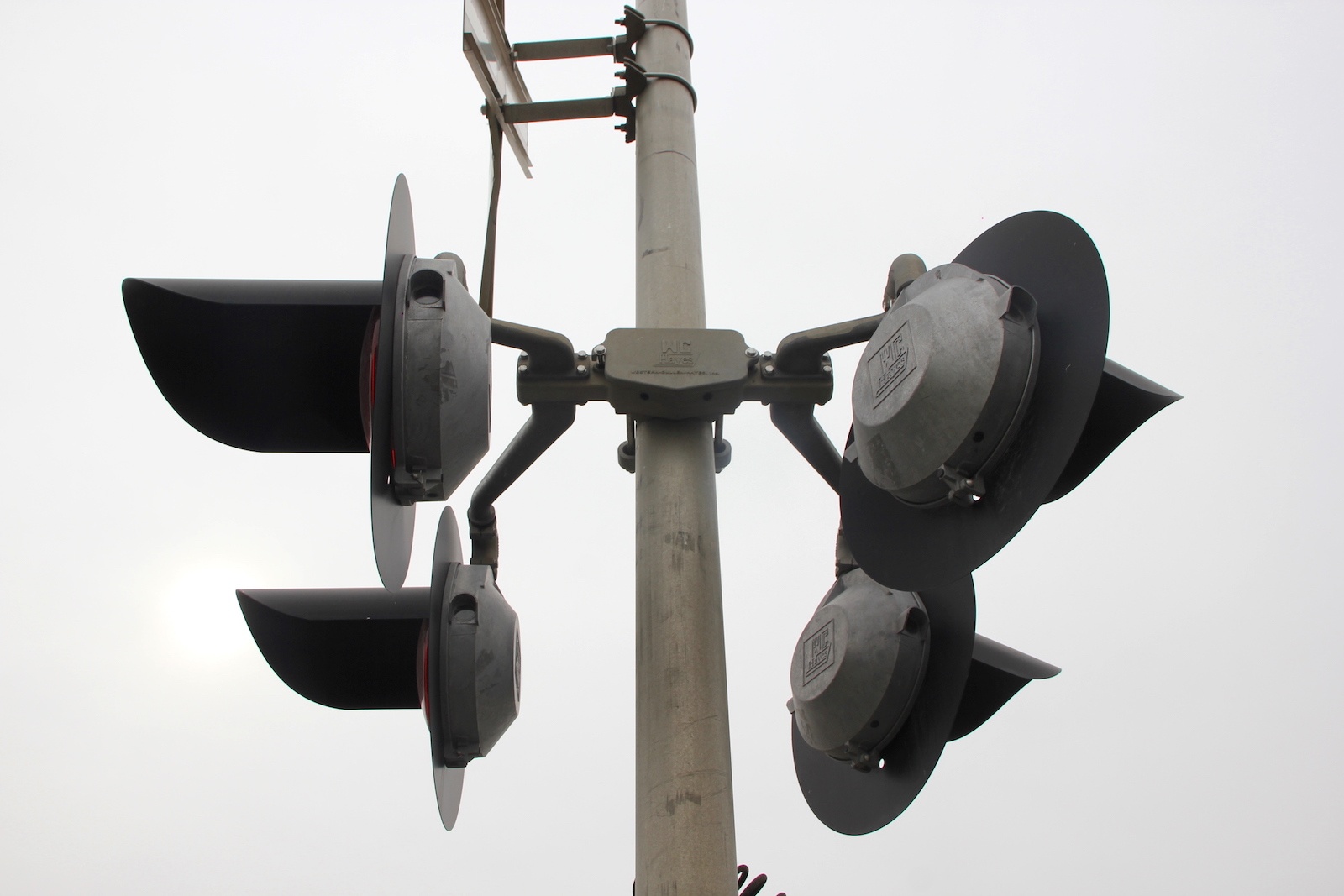

The eastern signal.
22
23
24
25

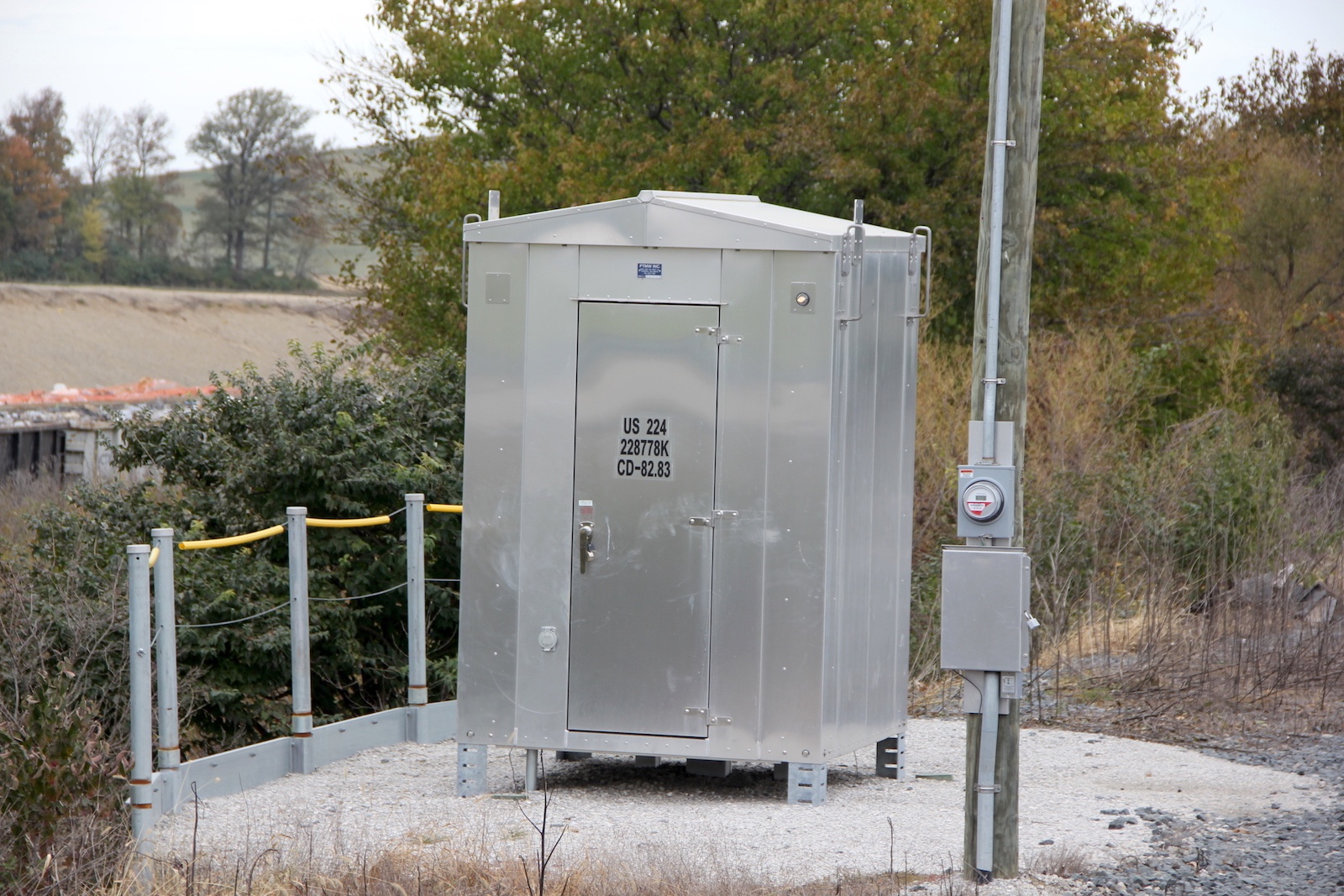

The relay bungalow in the northwest quadrant.

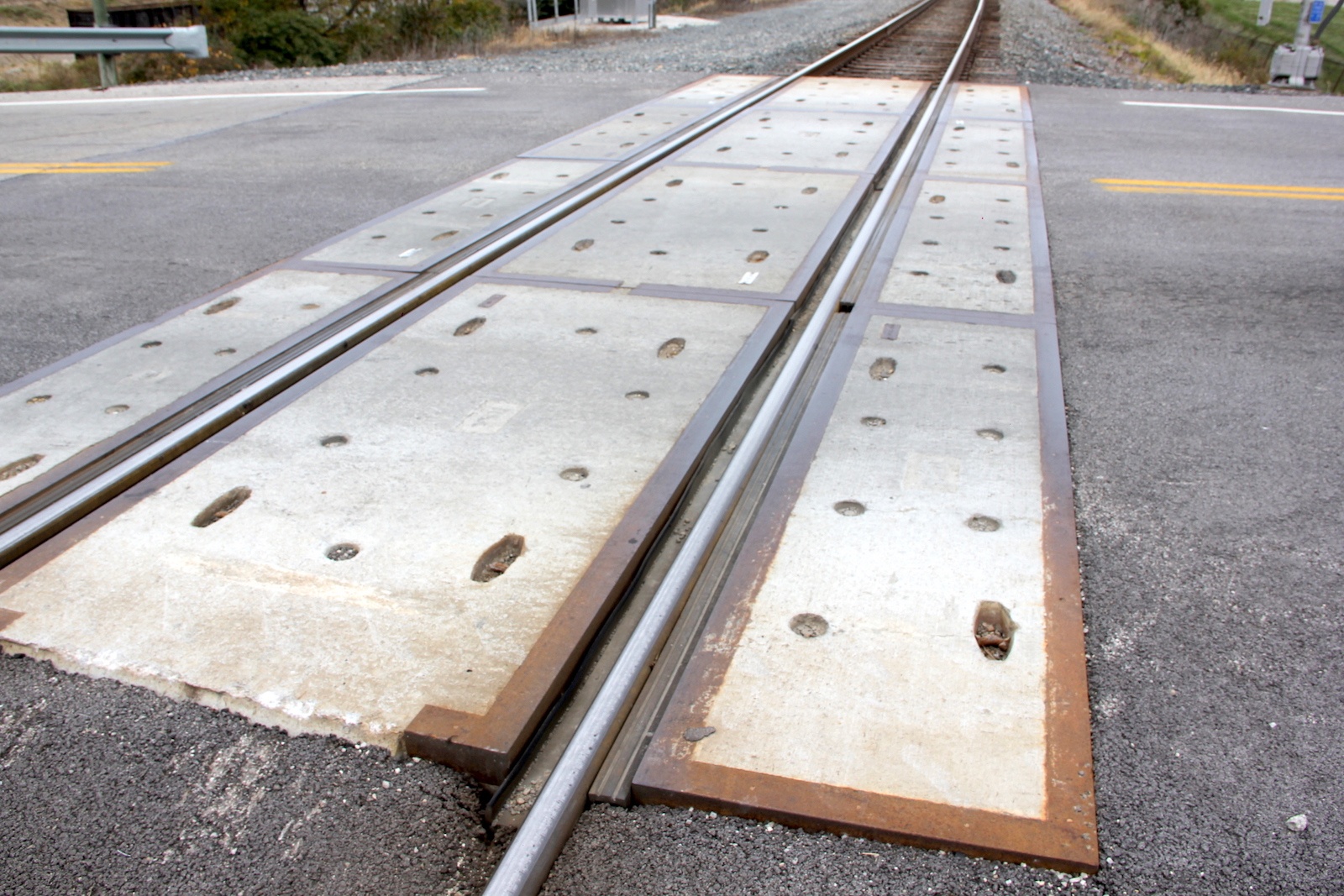

The grade is all concrete.

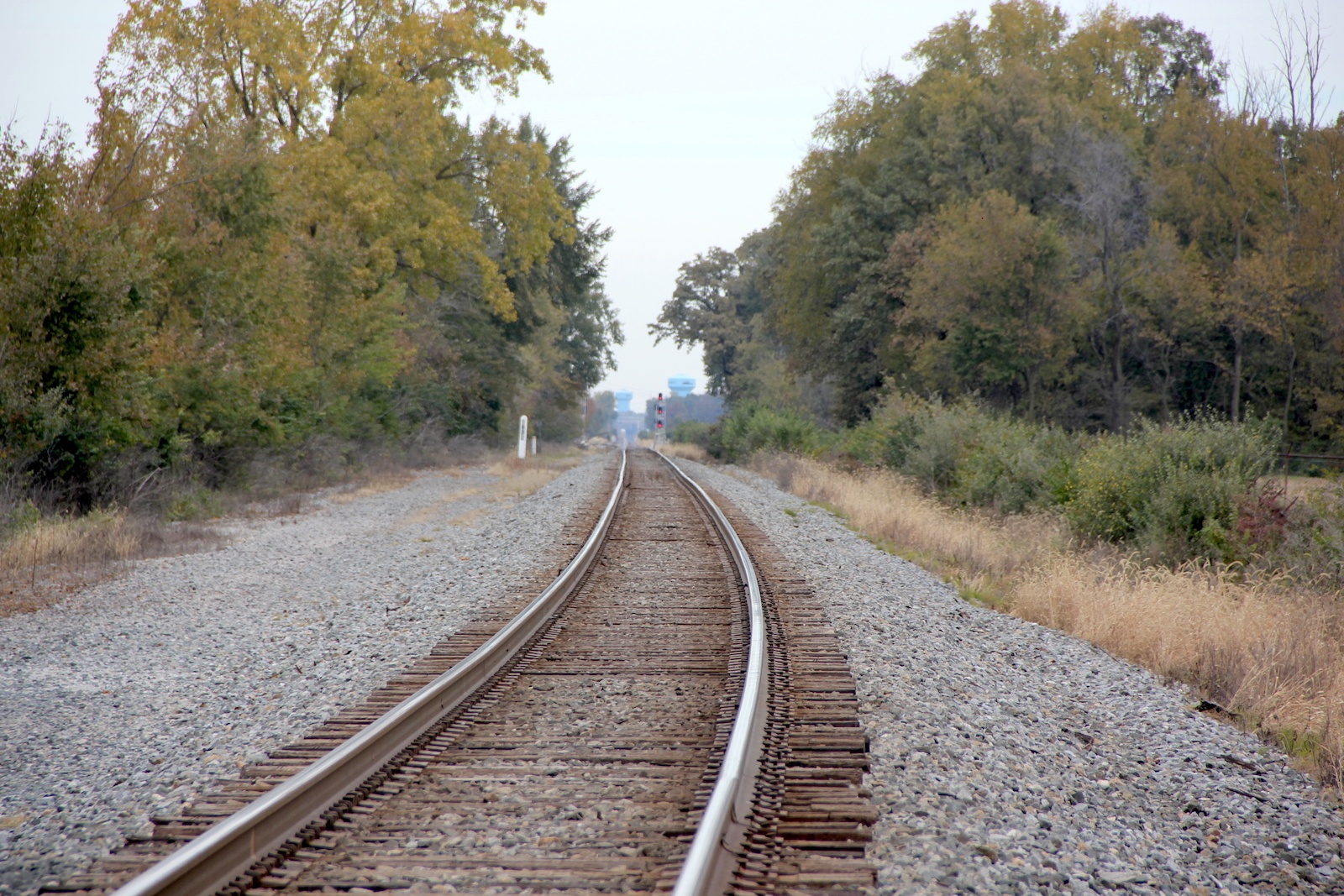

Track view facing north towards Green Rd. #1 in Fostoria.
