>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: GS Type 3 E-Bell
 None

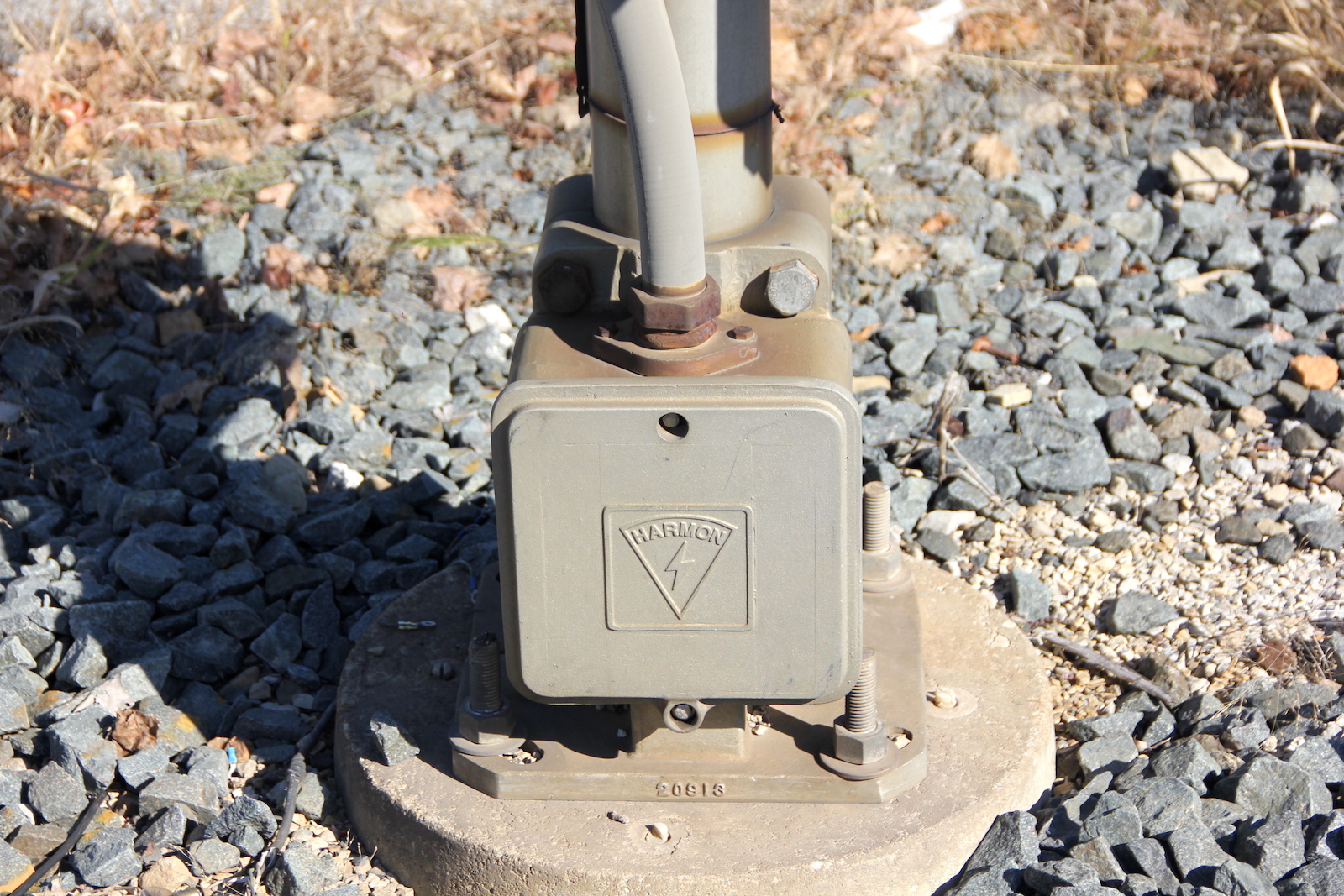

Base: Harmon 5" Single Sided > Harmon 5" Single Sided >

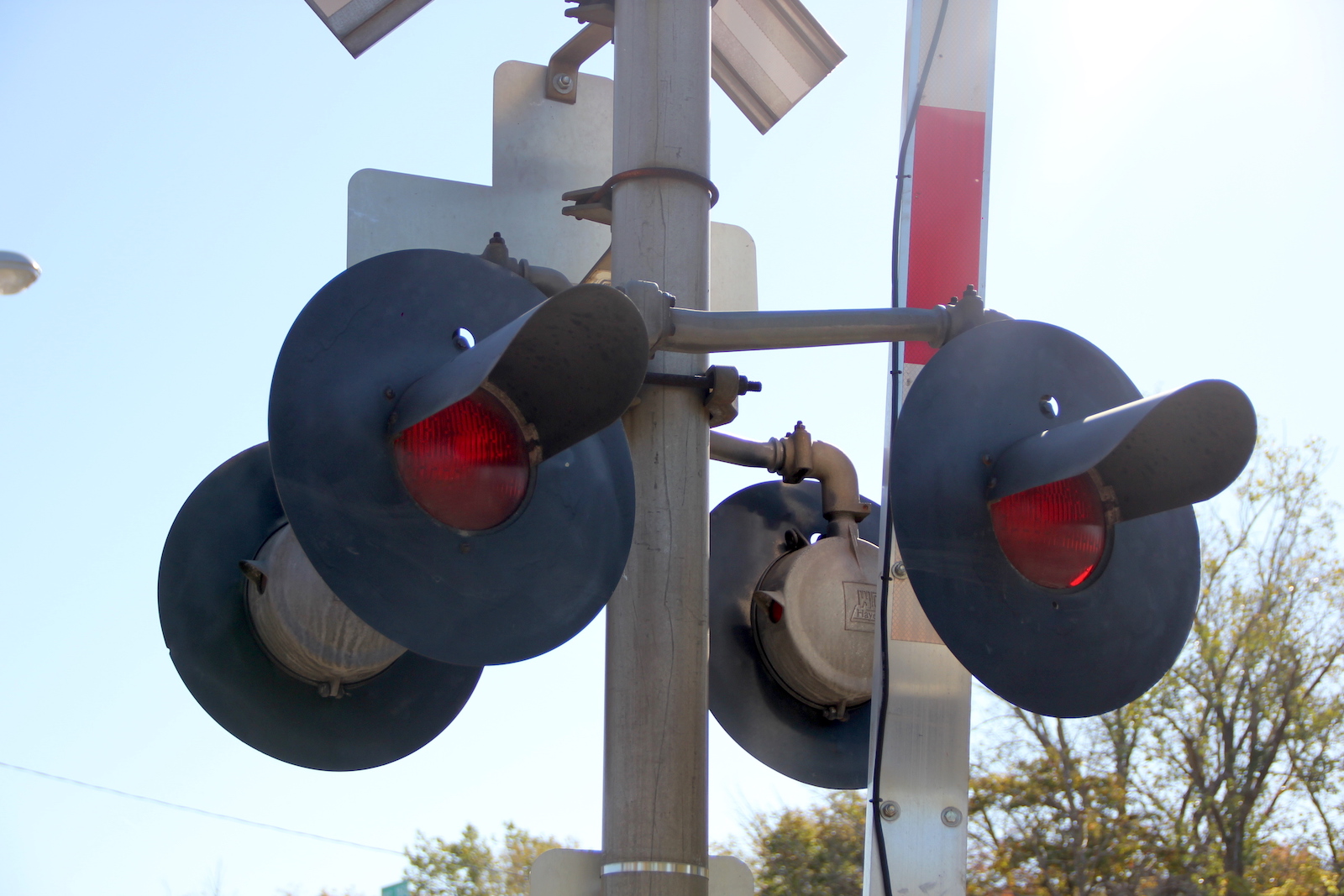

Lights: 4 - 8"x20" Safetran incandescents 4 - 8"x20" WCH incandescents
Junction Box: Safetran WRRS
Gate Lights: 3 - RECO 4" LEDs 3 - RECO 4" LEDs

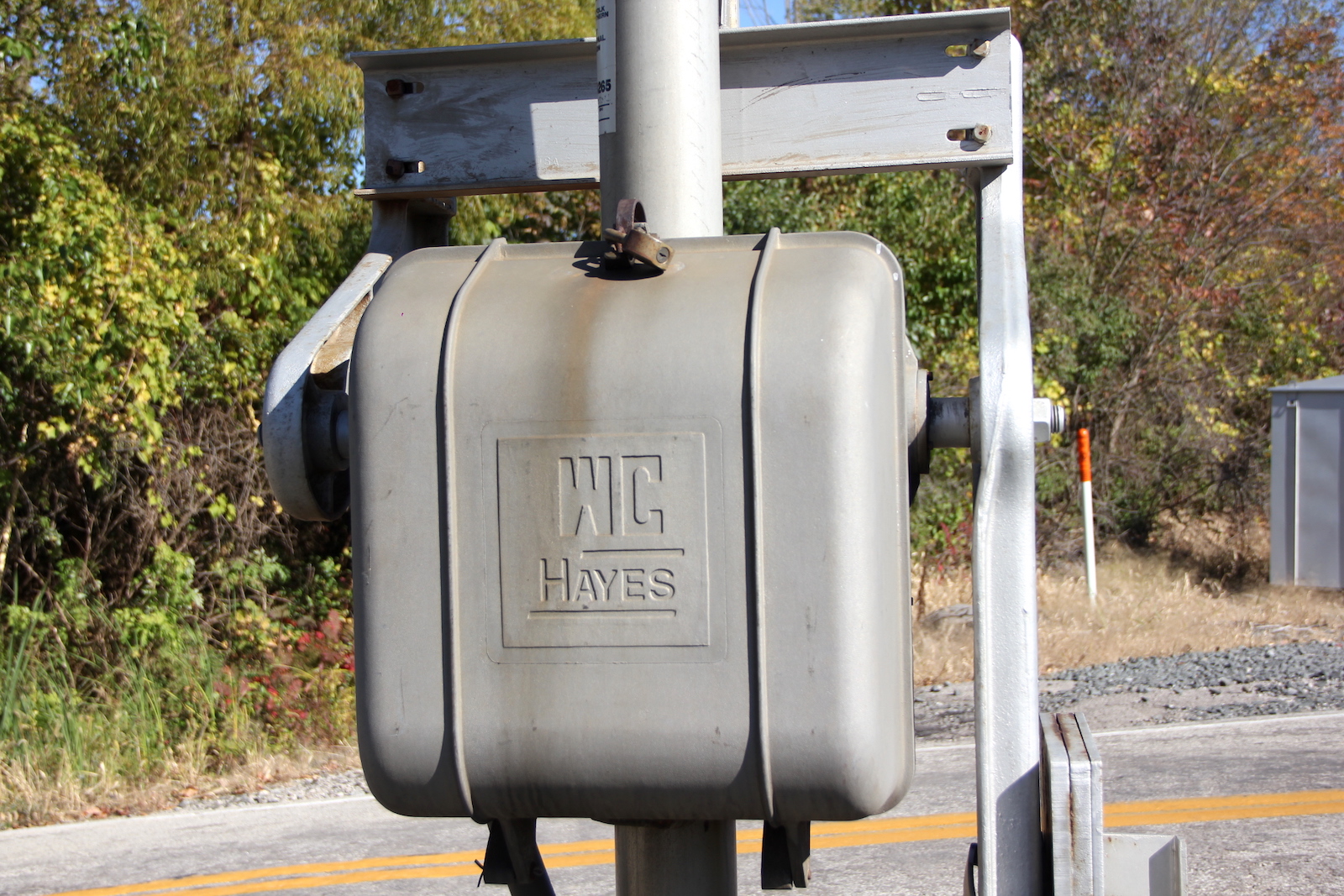

Gate Mechanism: WCH Style 3 w/ Standard Mount WCH Style 3 w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-25 and the 1st video were taken on October 20, 2017, by Tommy McGowan.
The 2nd video was taken on July 9, 2023, by Norfolk Southern Railfan.
Picture 26 was taken on October 23, 2023, by Tommy McGowan.
The 3rd video was taken on August 27, 2025, by Norfolk Southern Railfan.
Pictures 27-30 were taken on September 28, 2025, by Norfolk Southern Railfan.
This crossing is located on the NS Chicago Line.

O1 O2 O3 O4

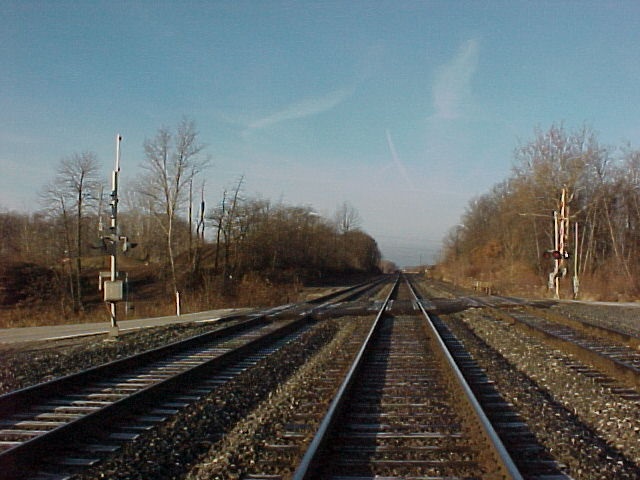

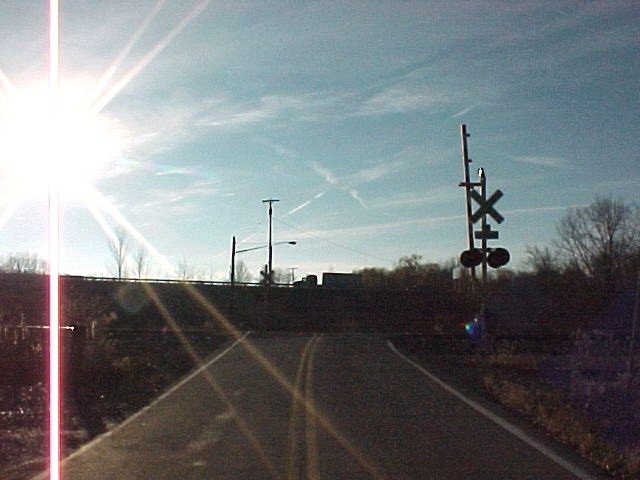

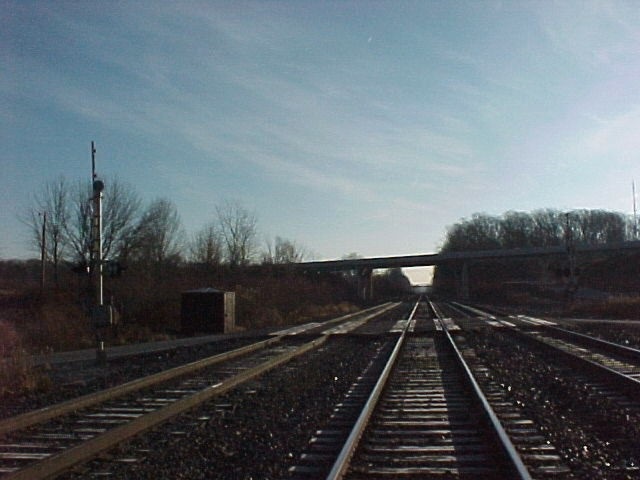

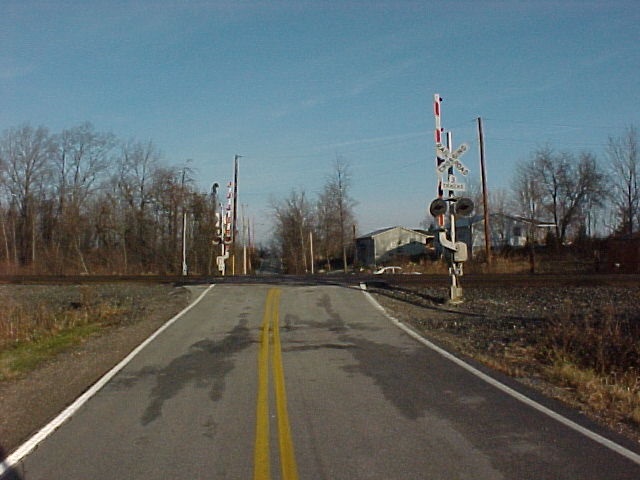

PUCO images from the late 90s or early 2000s showing 2 Conrail signals with 8" lights, WCH gate mechanisms and a Safetran Hybrid Bell. By 2017, both gates were replaced, and the hybrid was replaced with a Siemens E-Bell.
1
 2

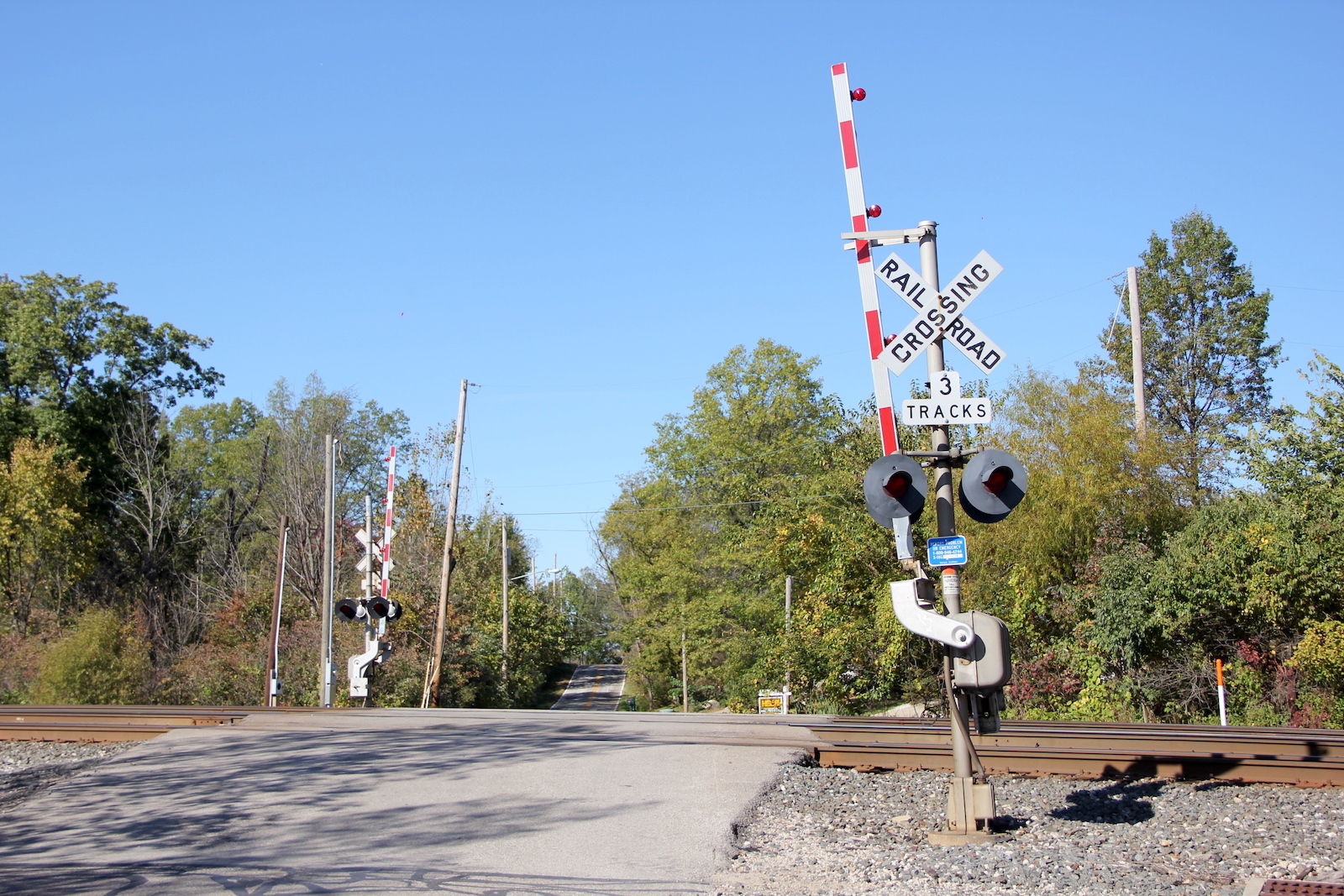

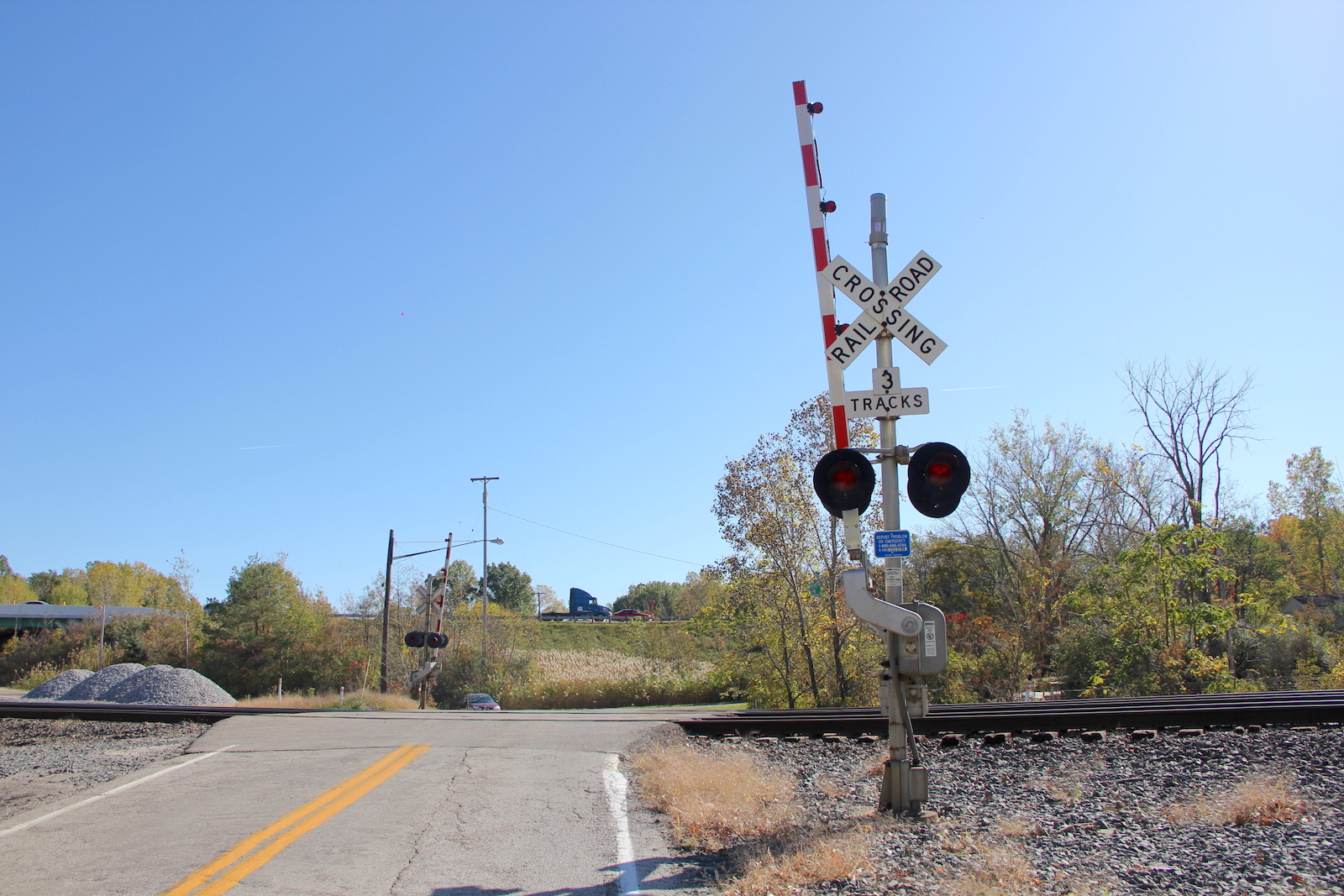

Overview of 2 Conrail gated signals facing north.
 Overview facing south.
3 4 5
6 7 8
9 10 11

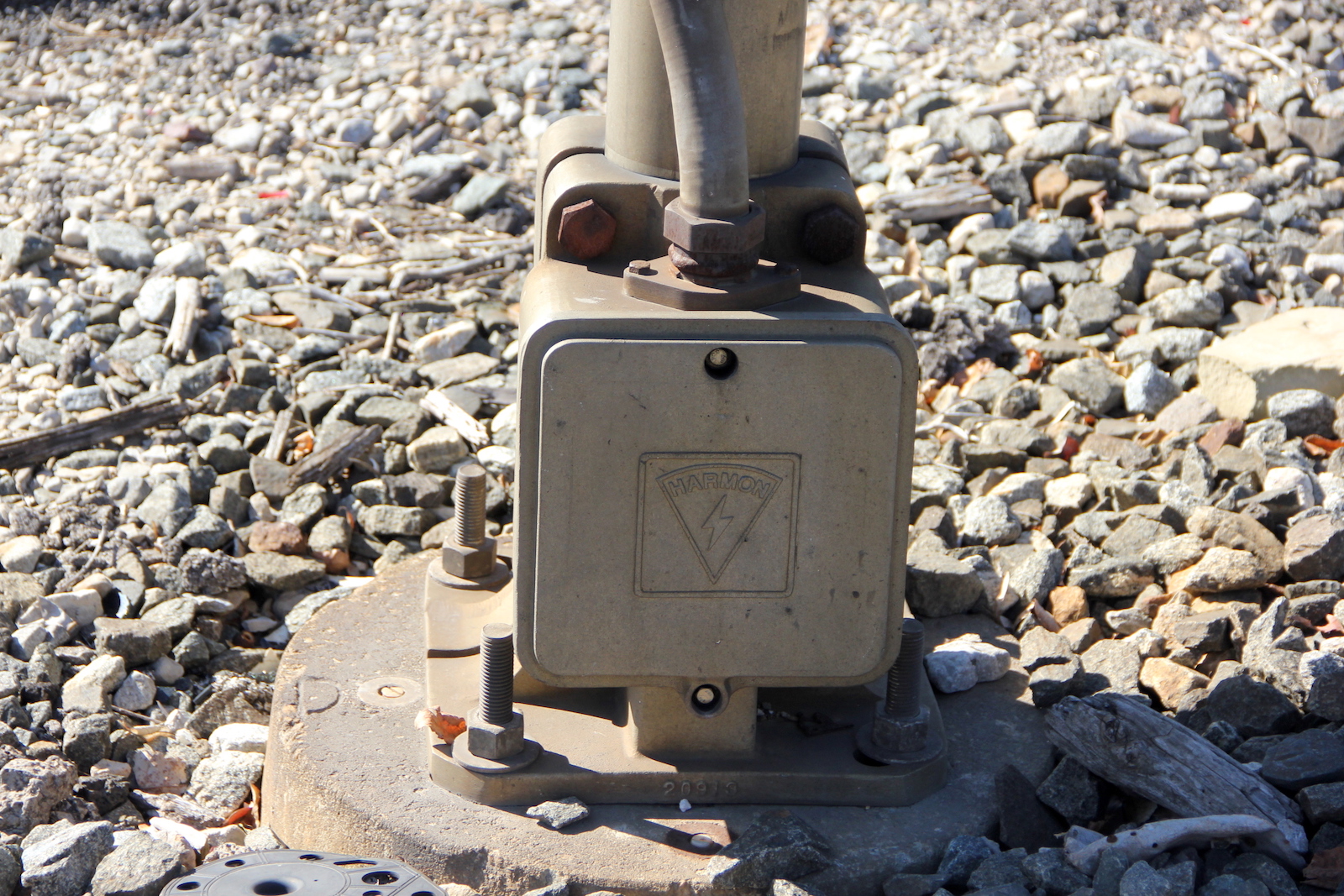

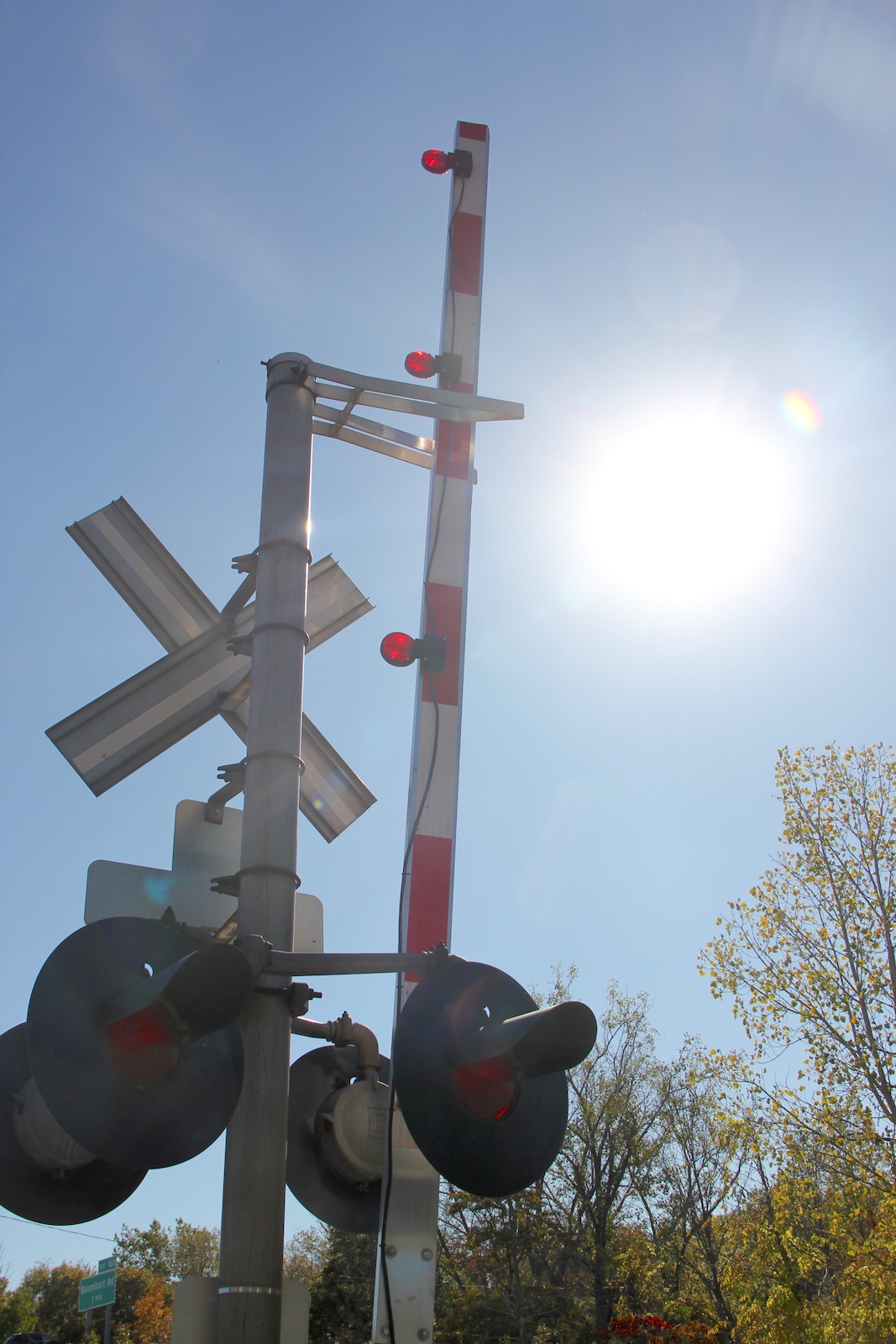

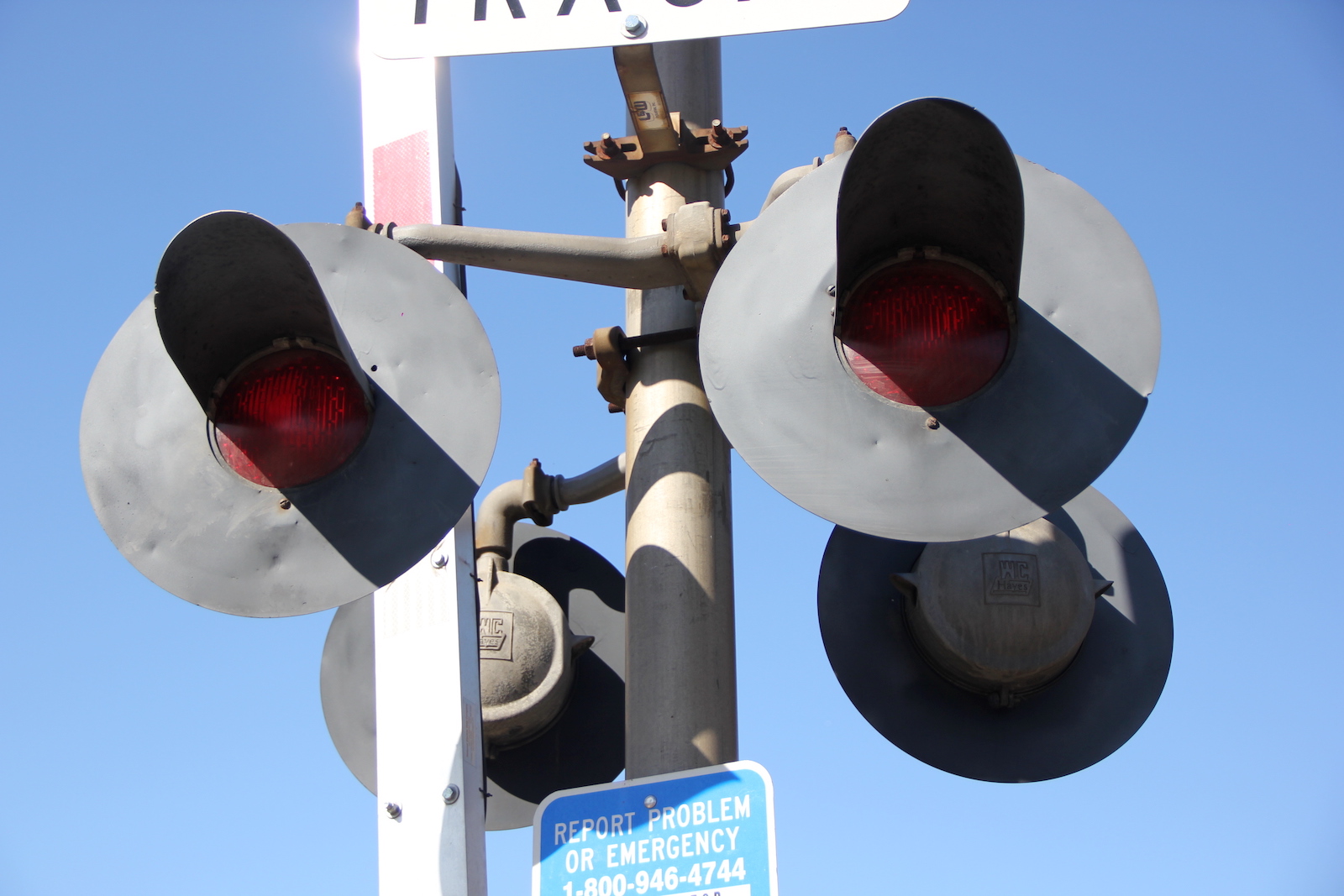

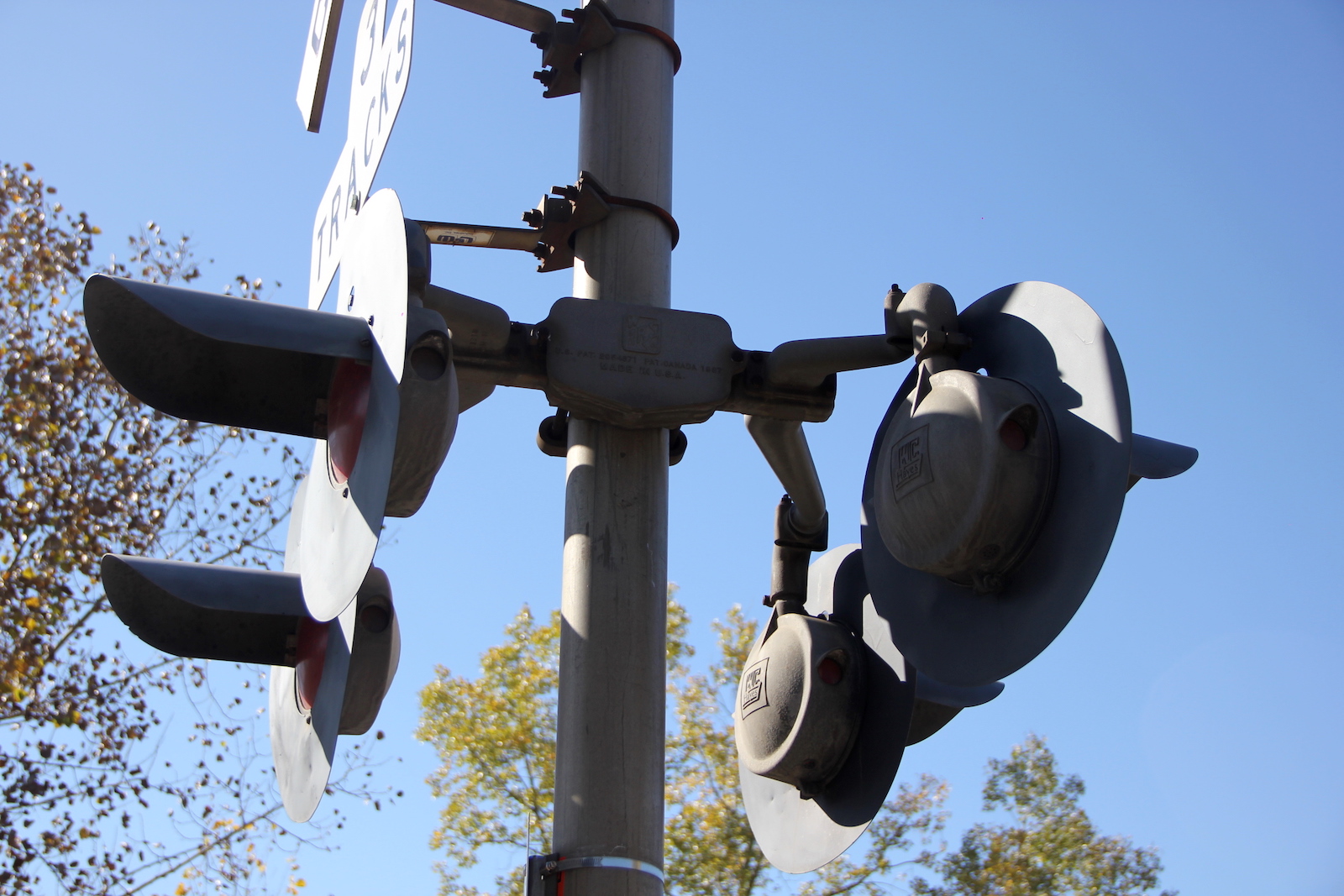

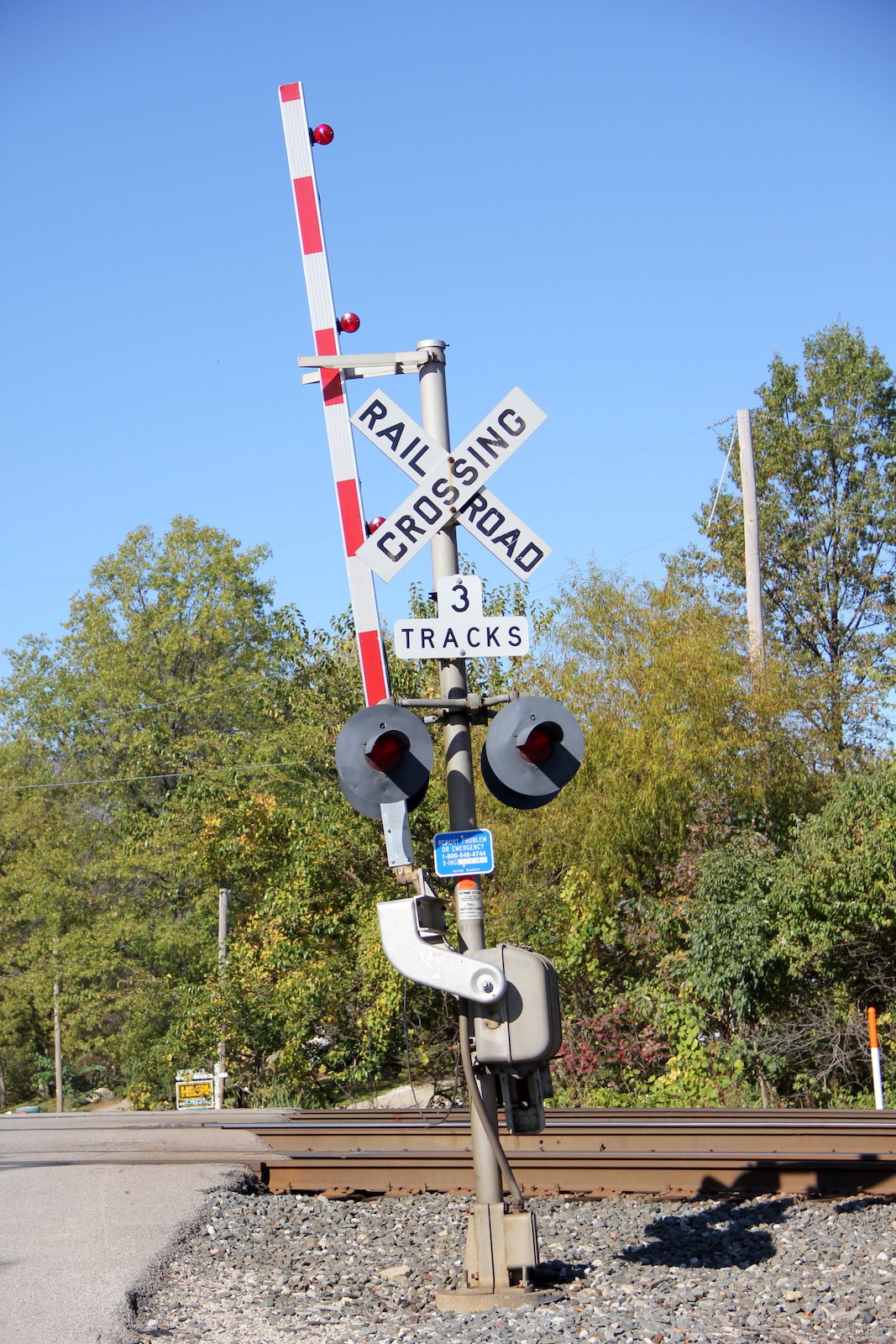

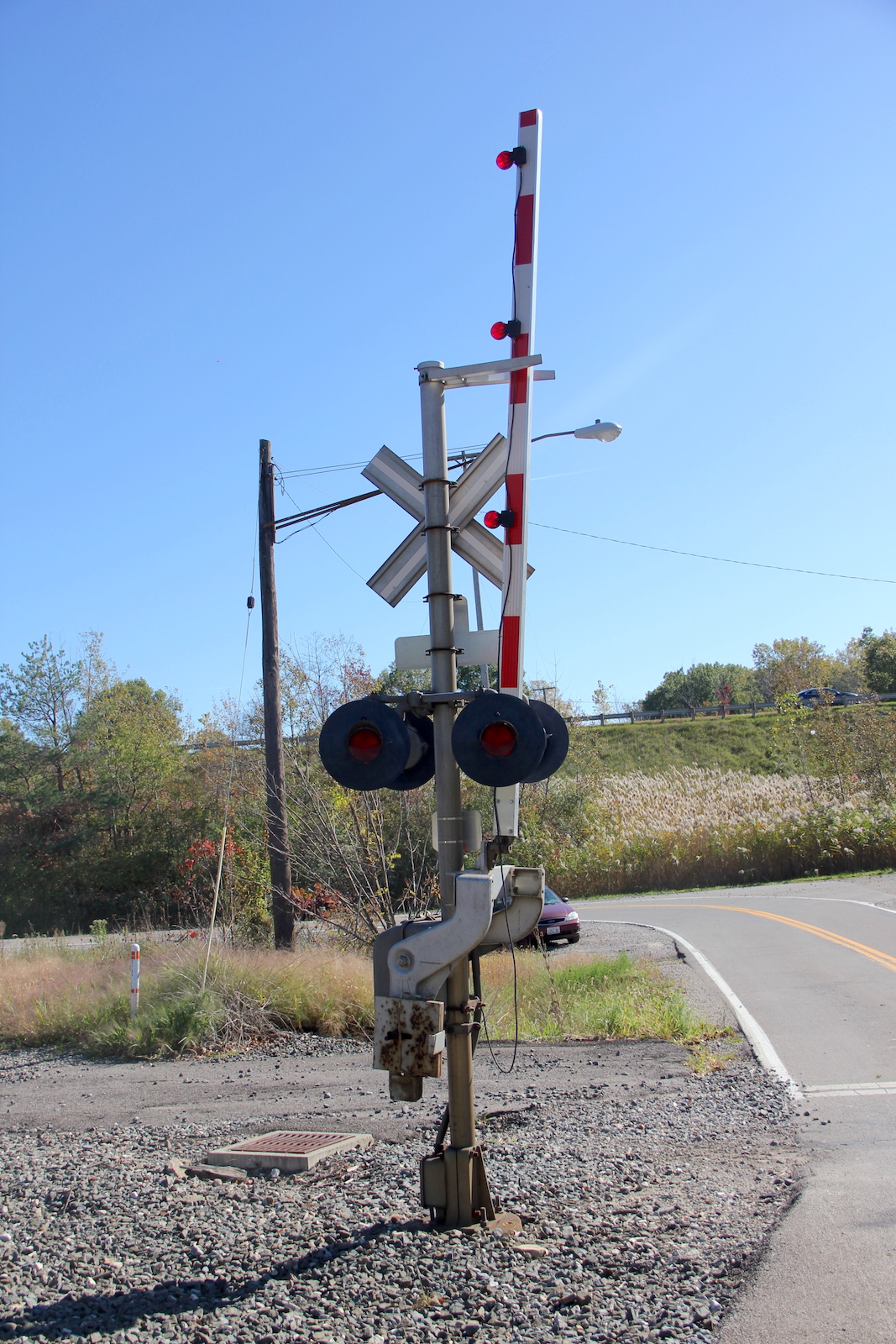

The southern signal.
12 13 14
15 16 17
18 19 20
21

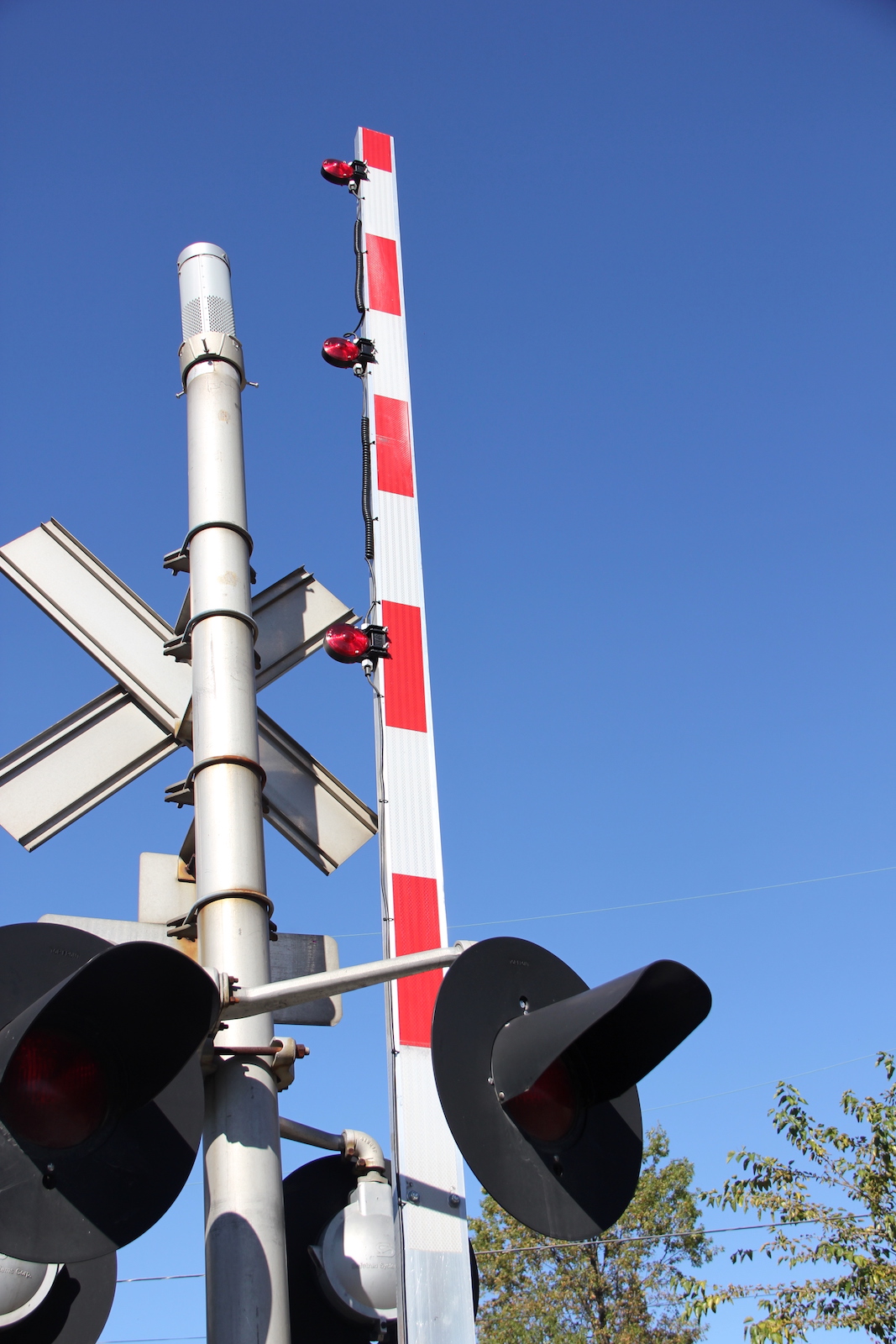

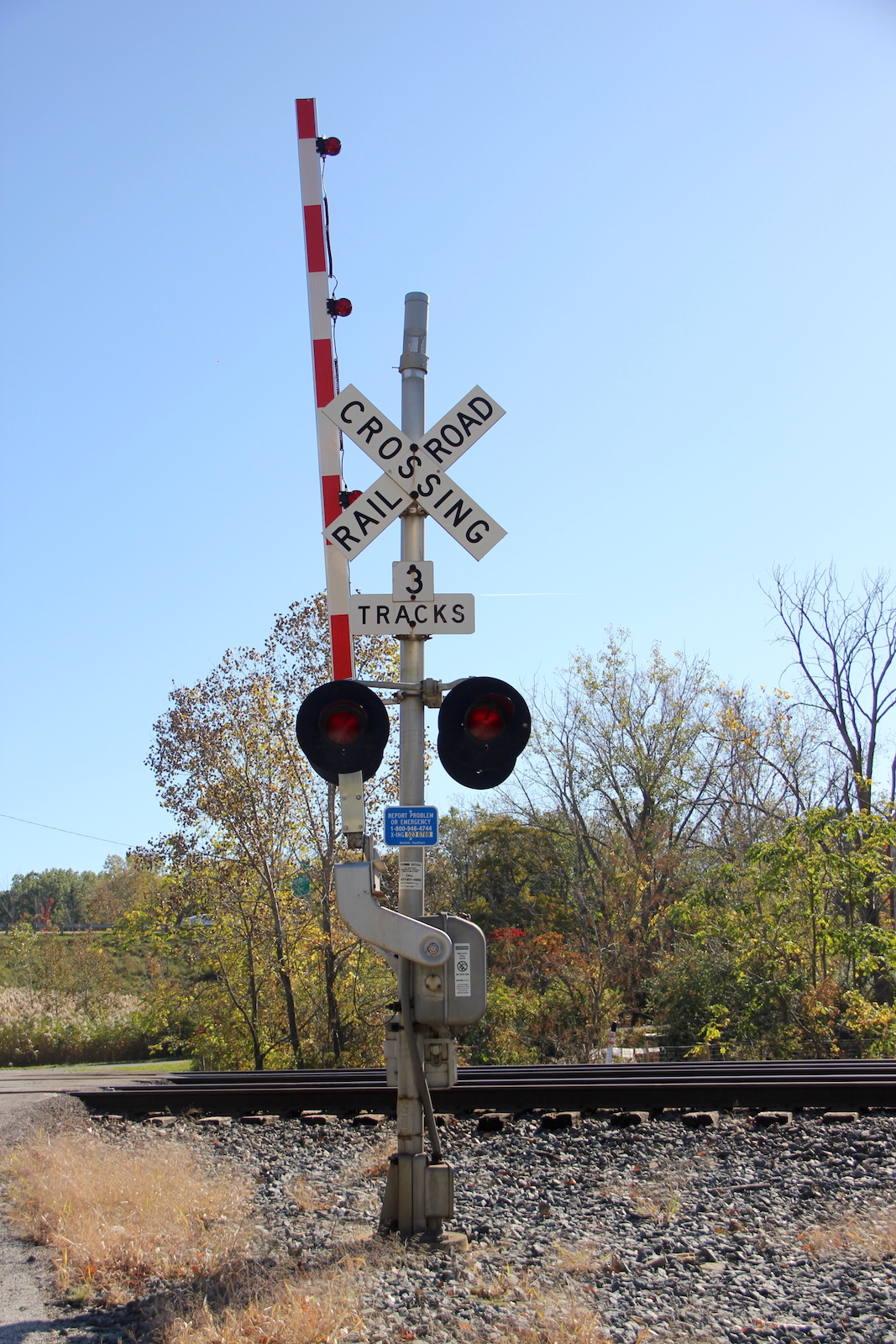

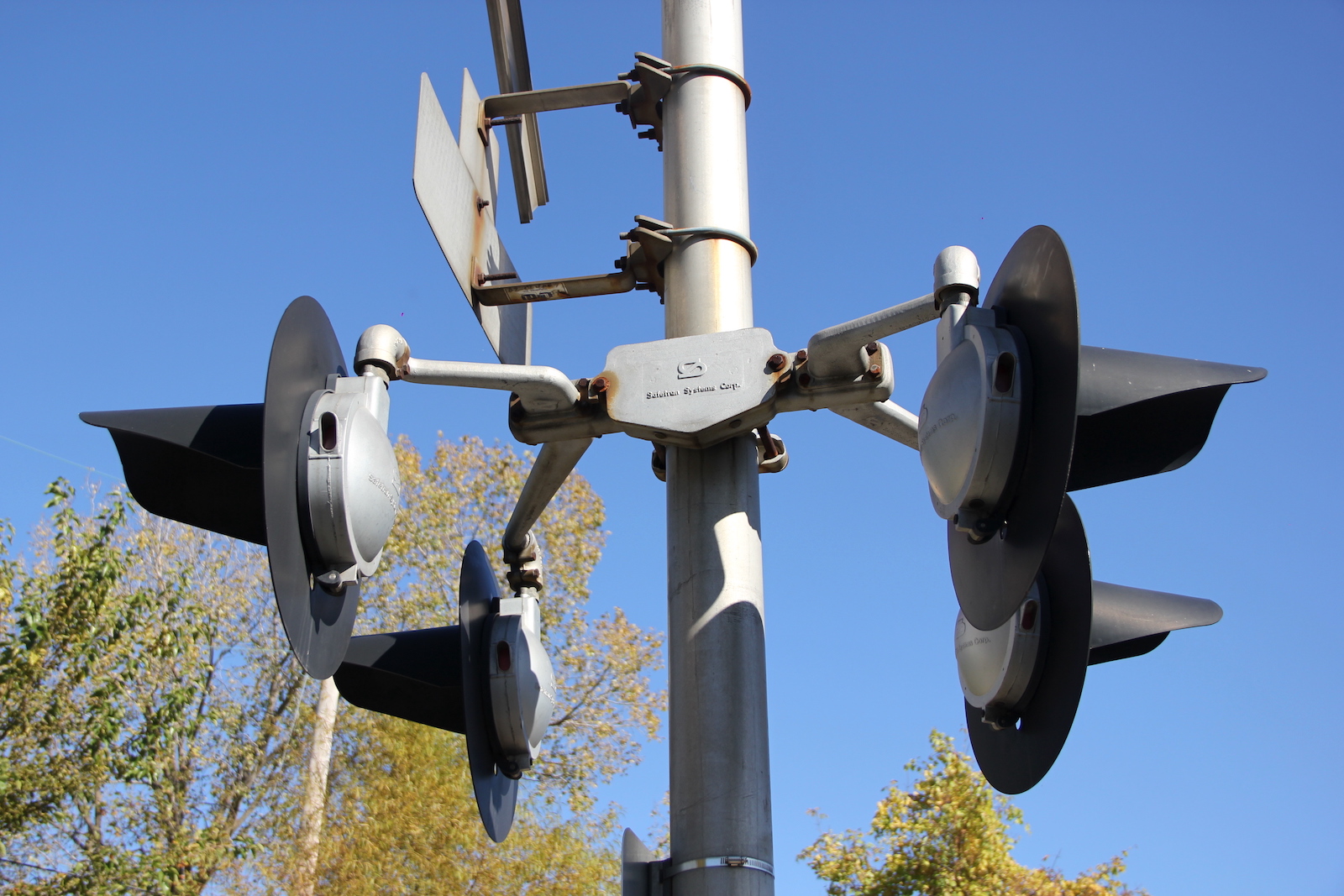

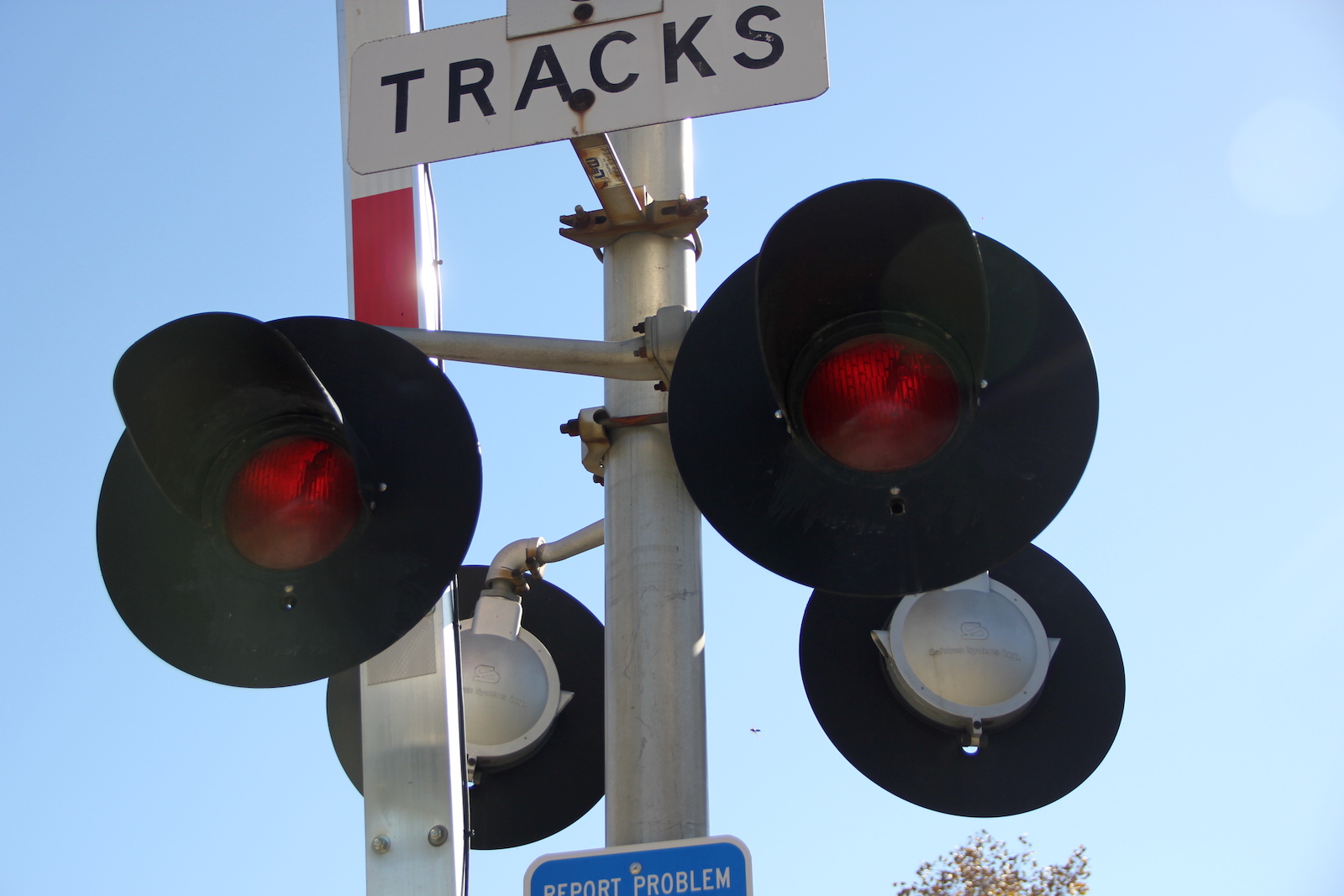

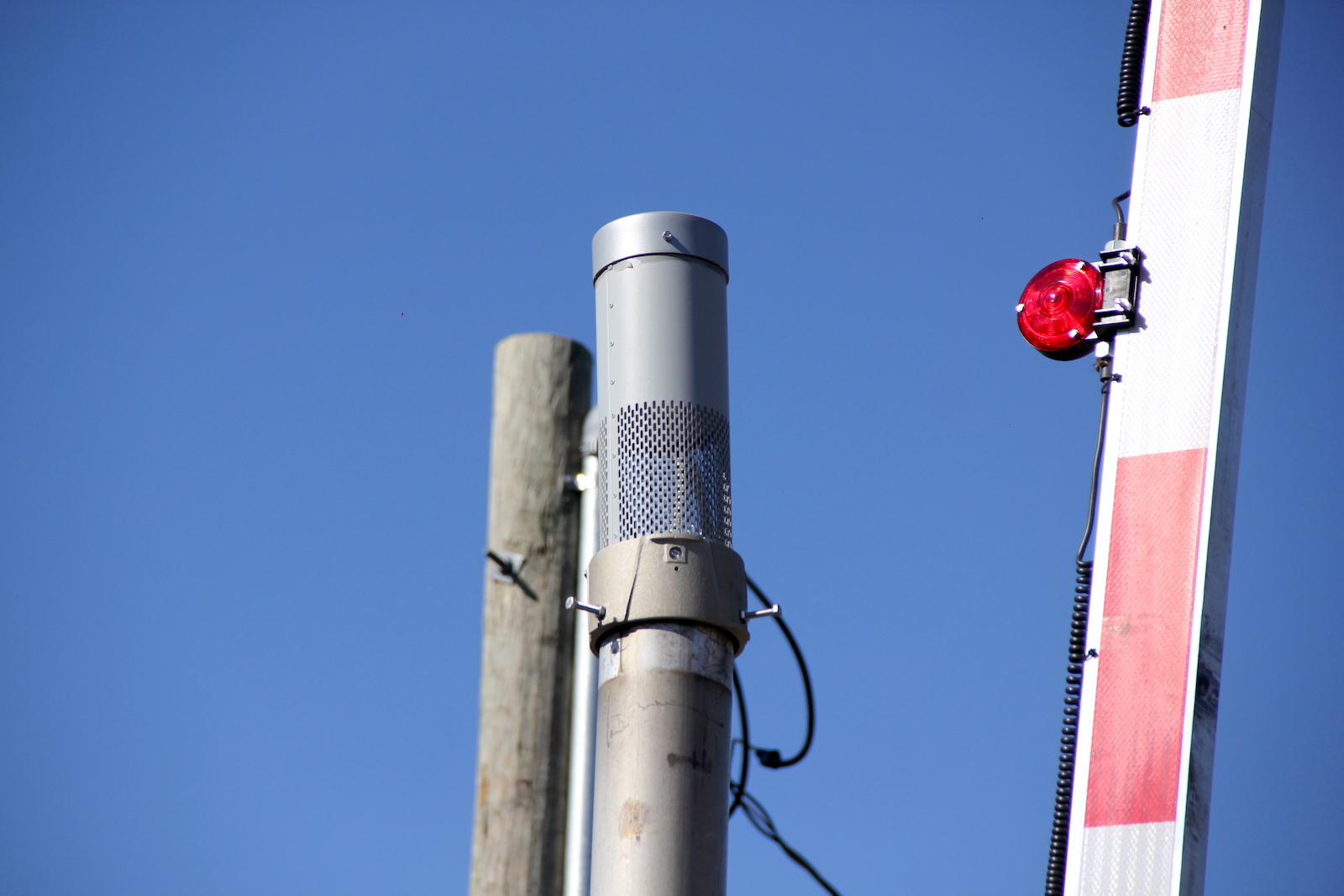

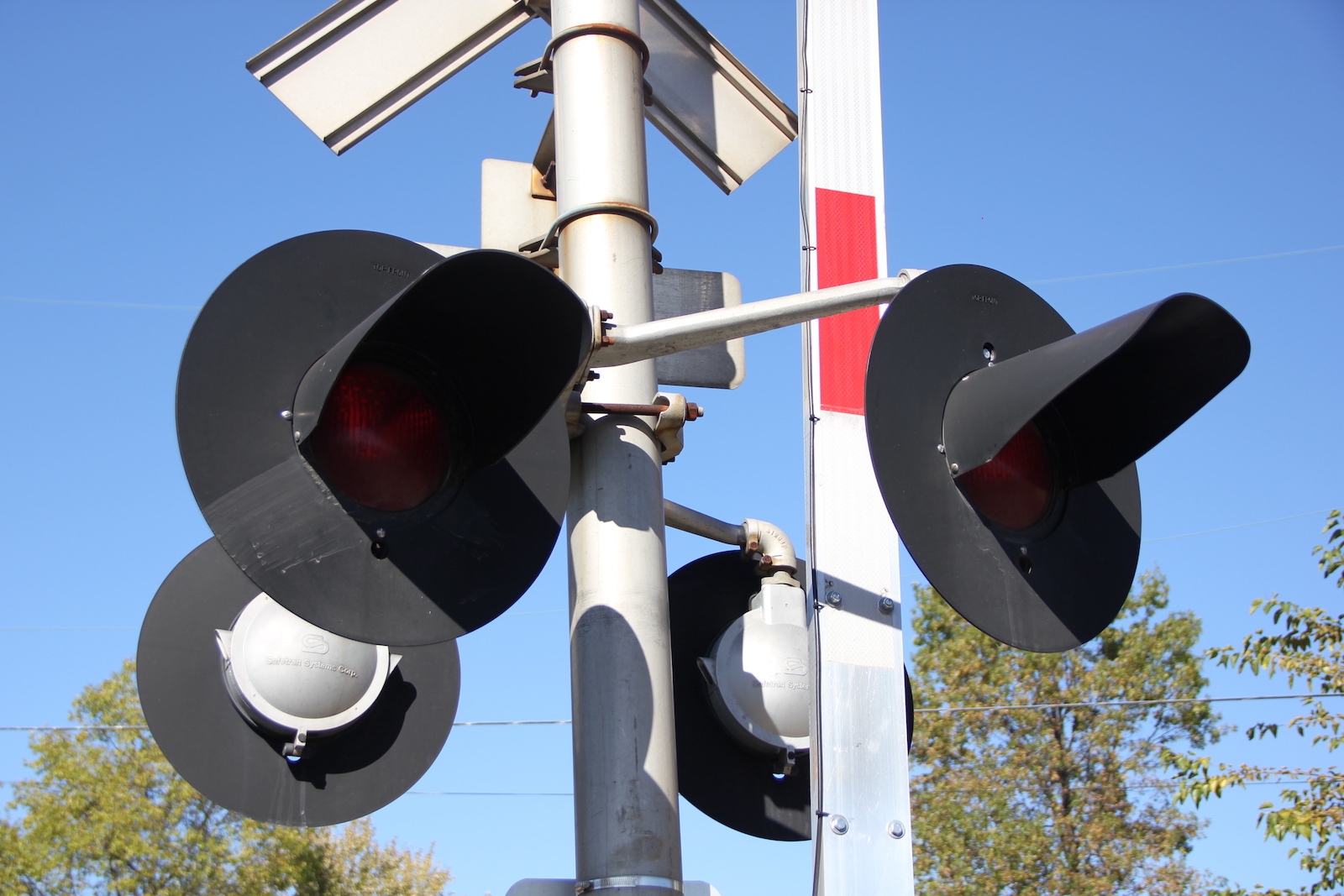

The northern signal.
22 23 24 25

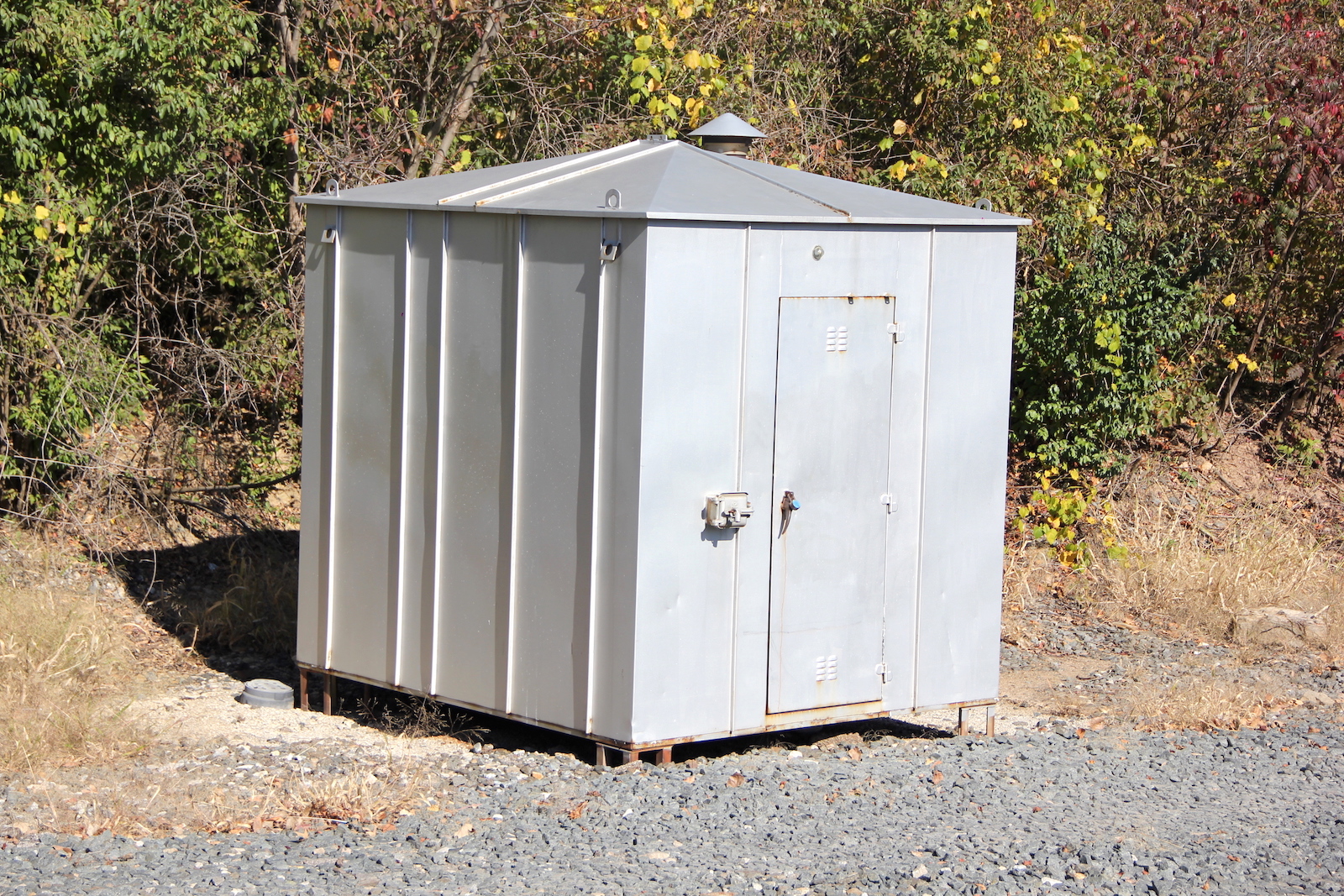

The relay bungalow in the northeast quadrant.

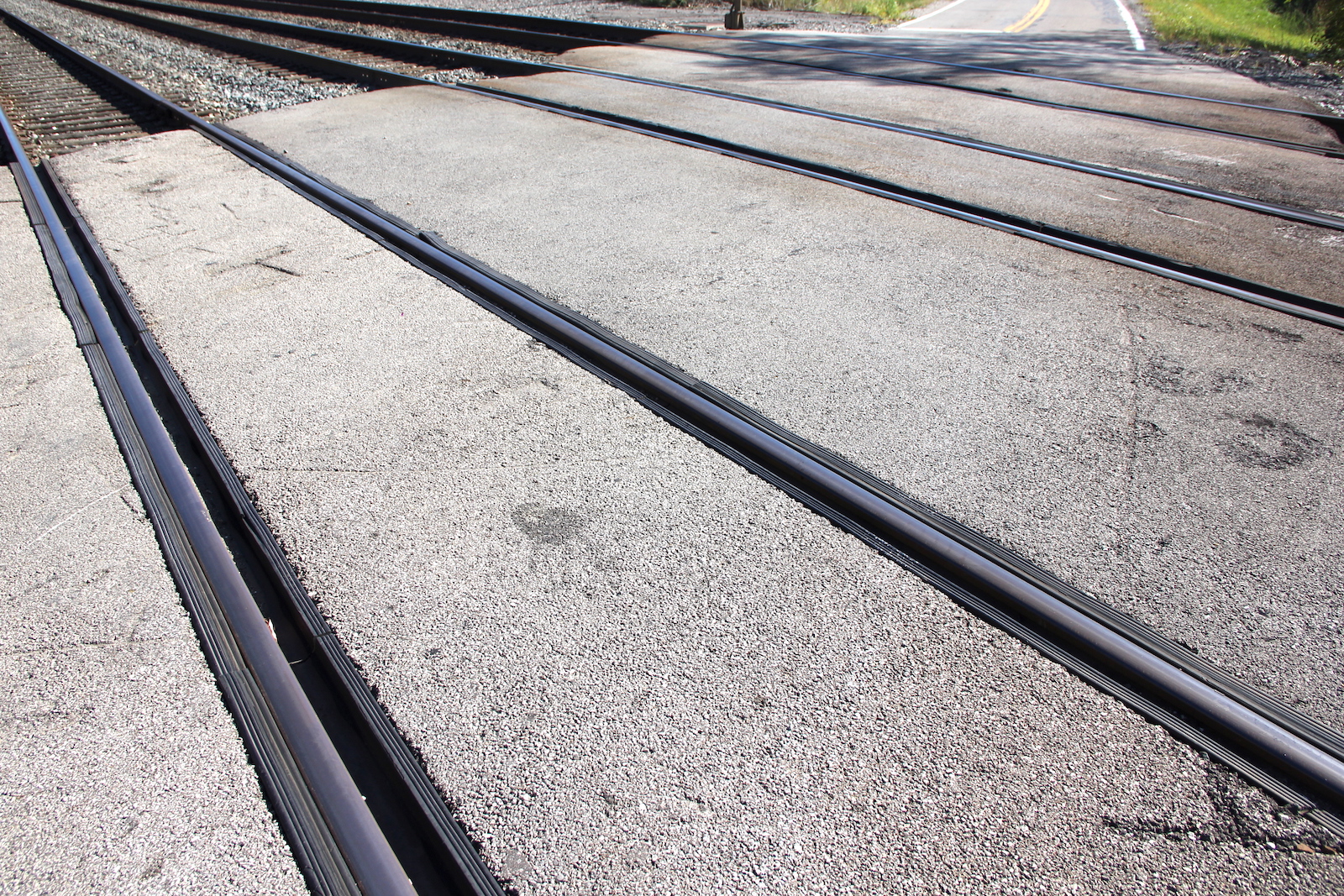

 The grade is rubber and asphalt.

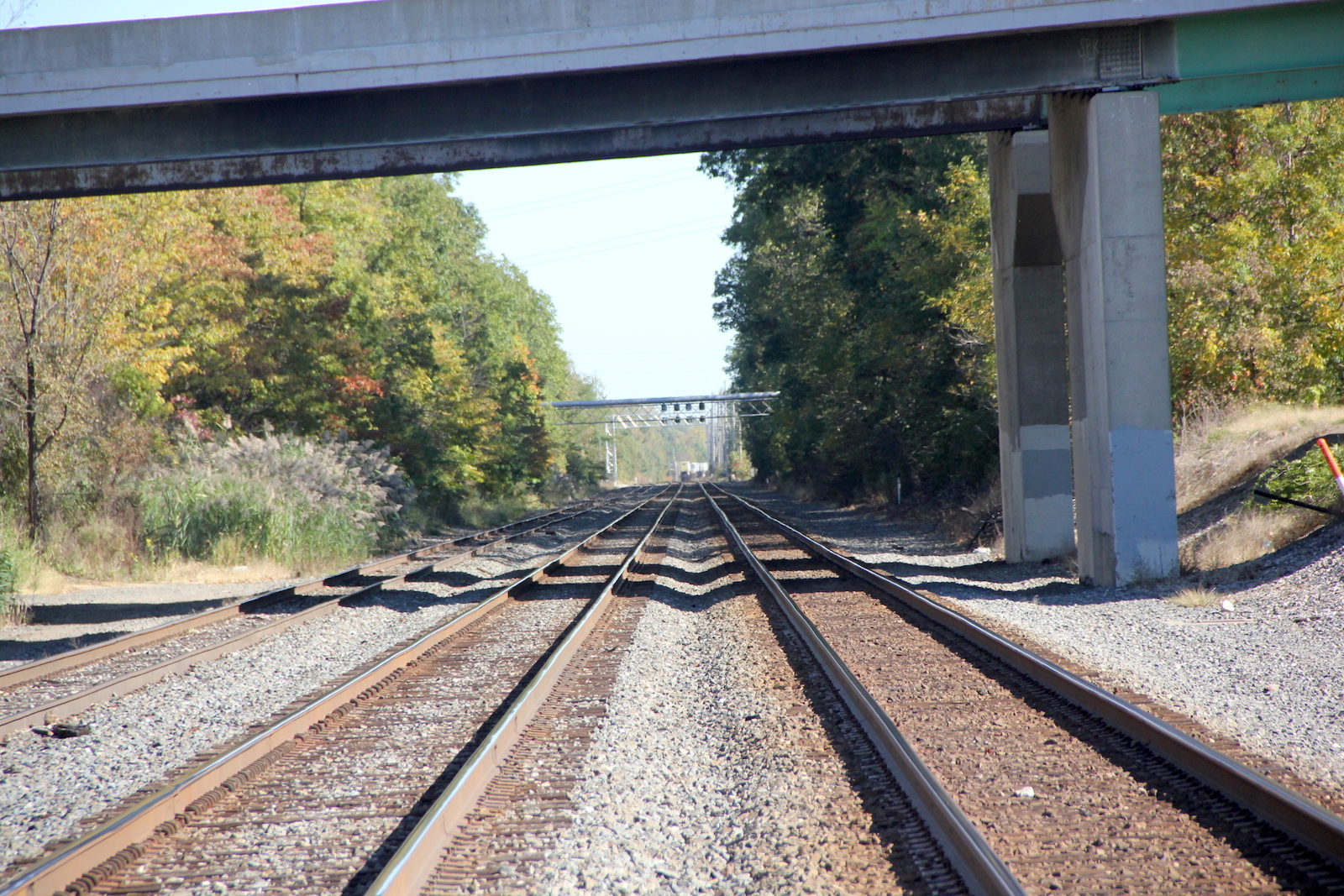

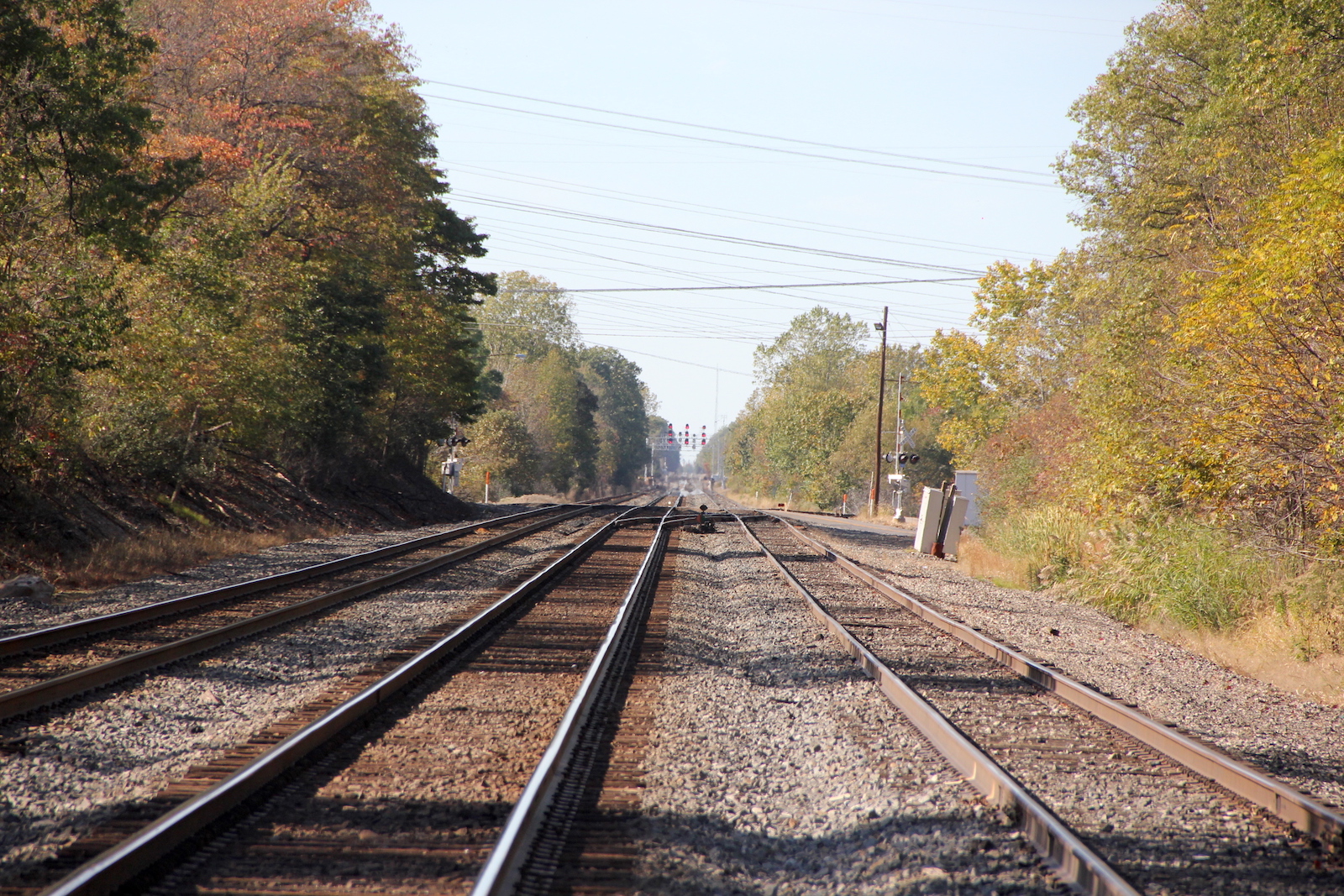

 Track view facing west at Cooper Forest Park Rd.
 Track view facing east towards Dewey Rd.
26

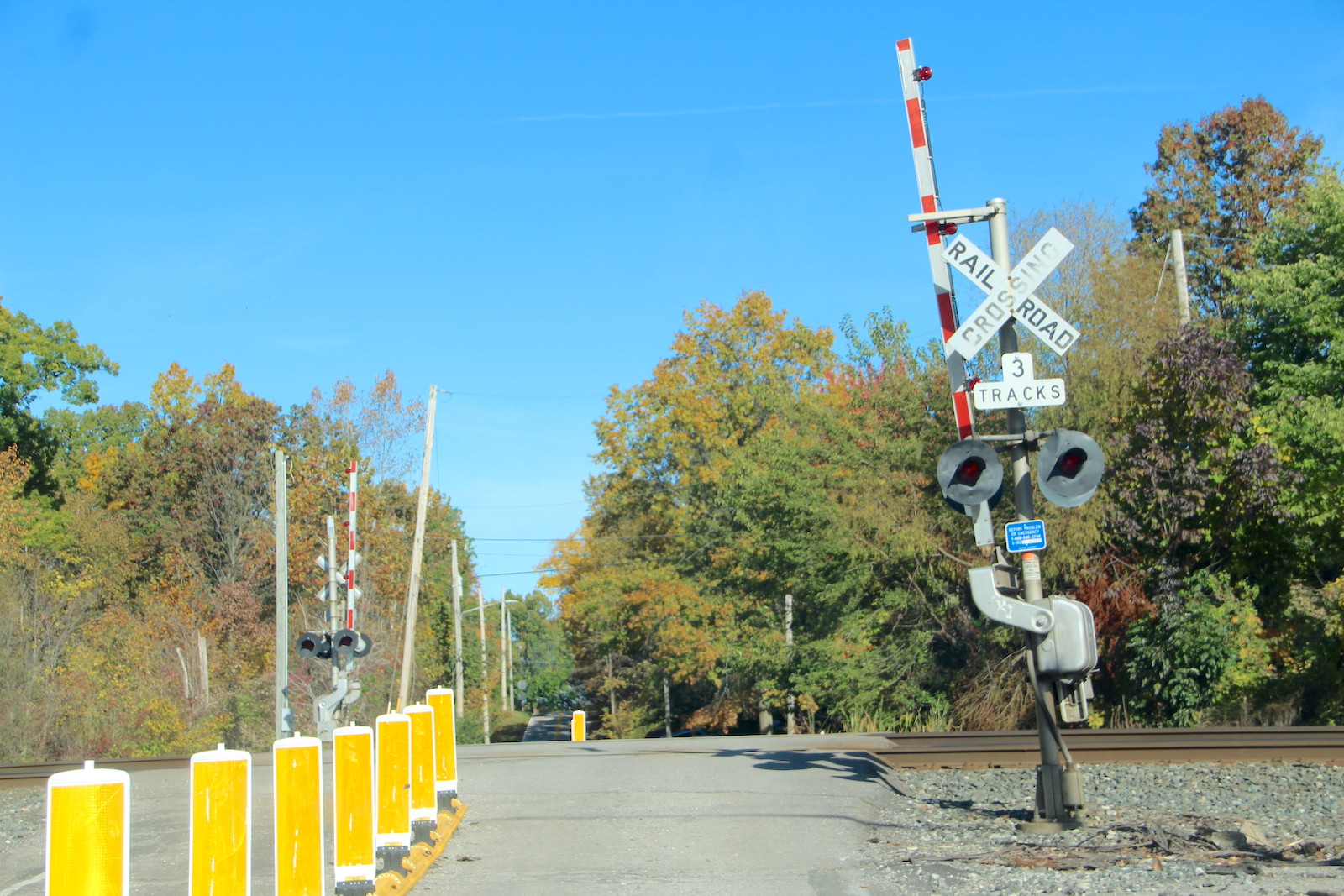

In October 2023, we see the southern signal's gate lights were replaced, but aside from that, this crossing still retains its 8" lights. However, the crossing was becoming a quiet zone at this point.
27
 28 29 30

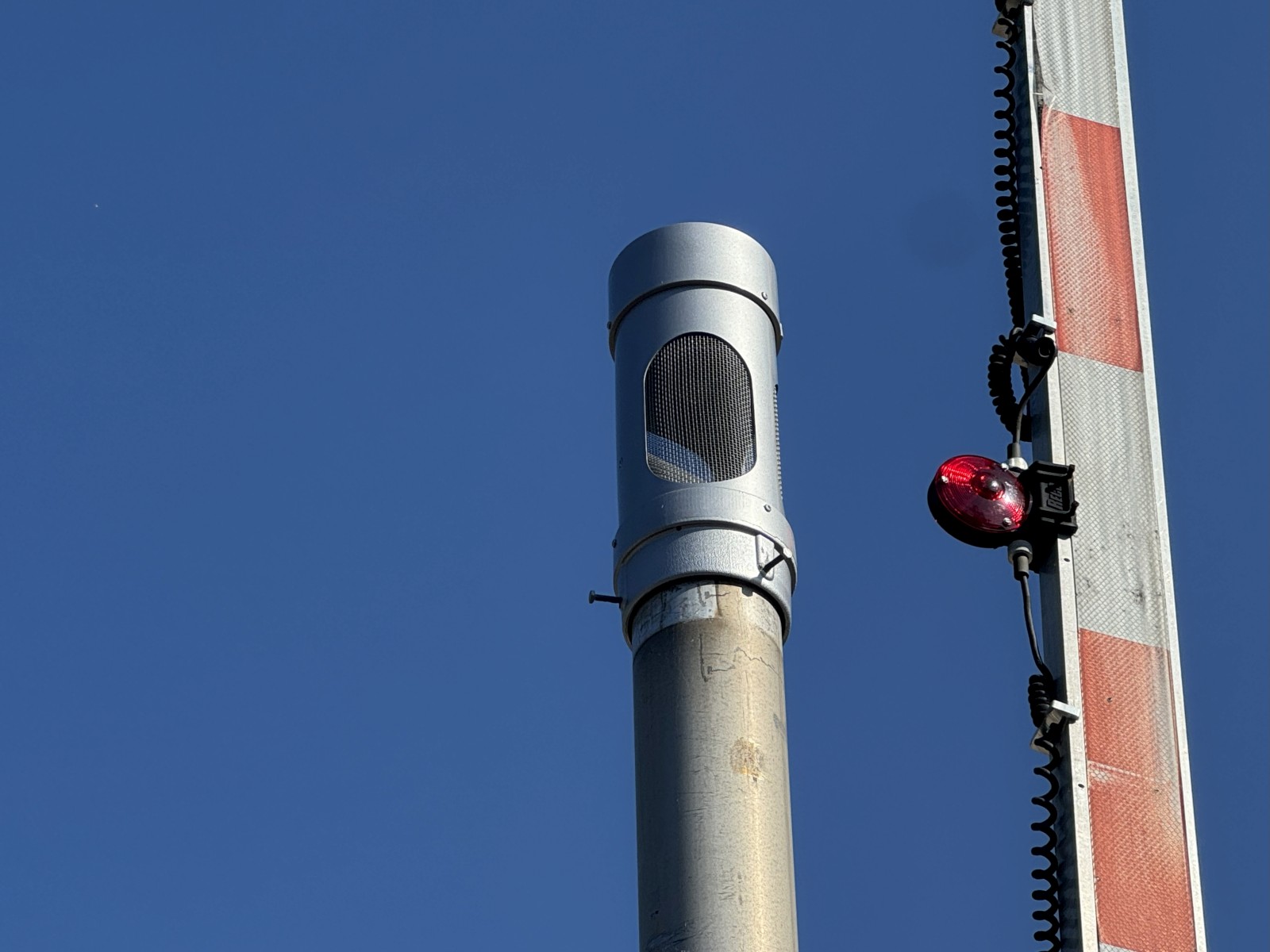

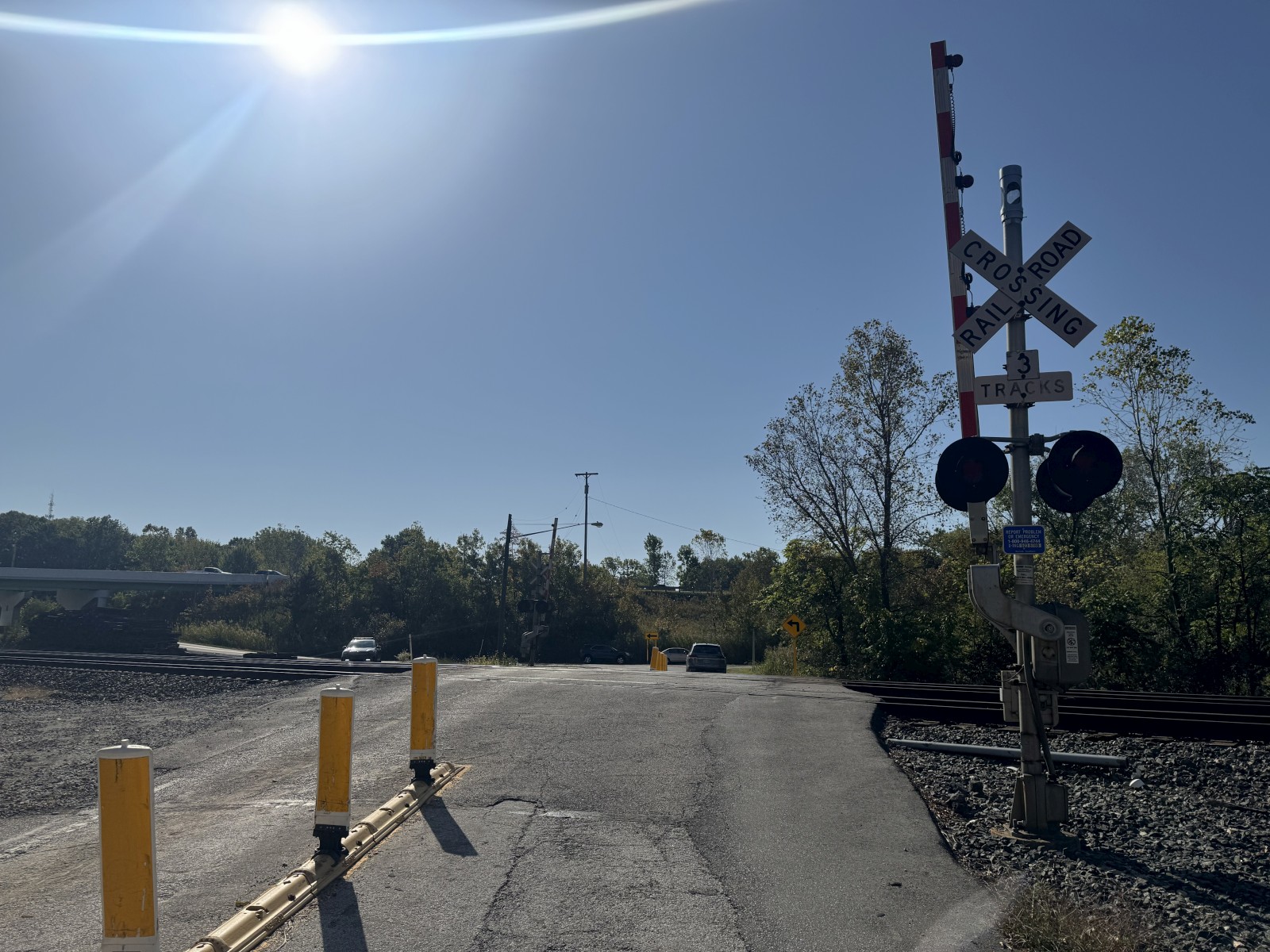

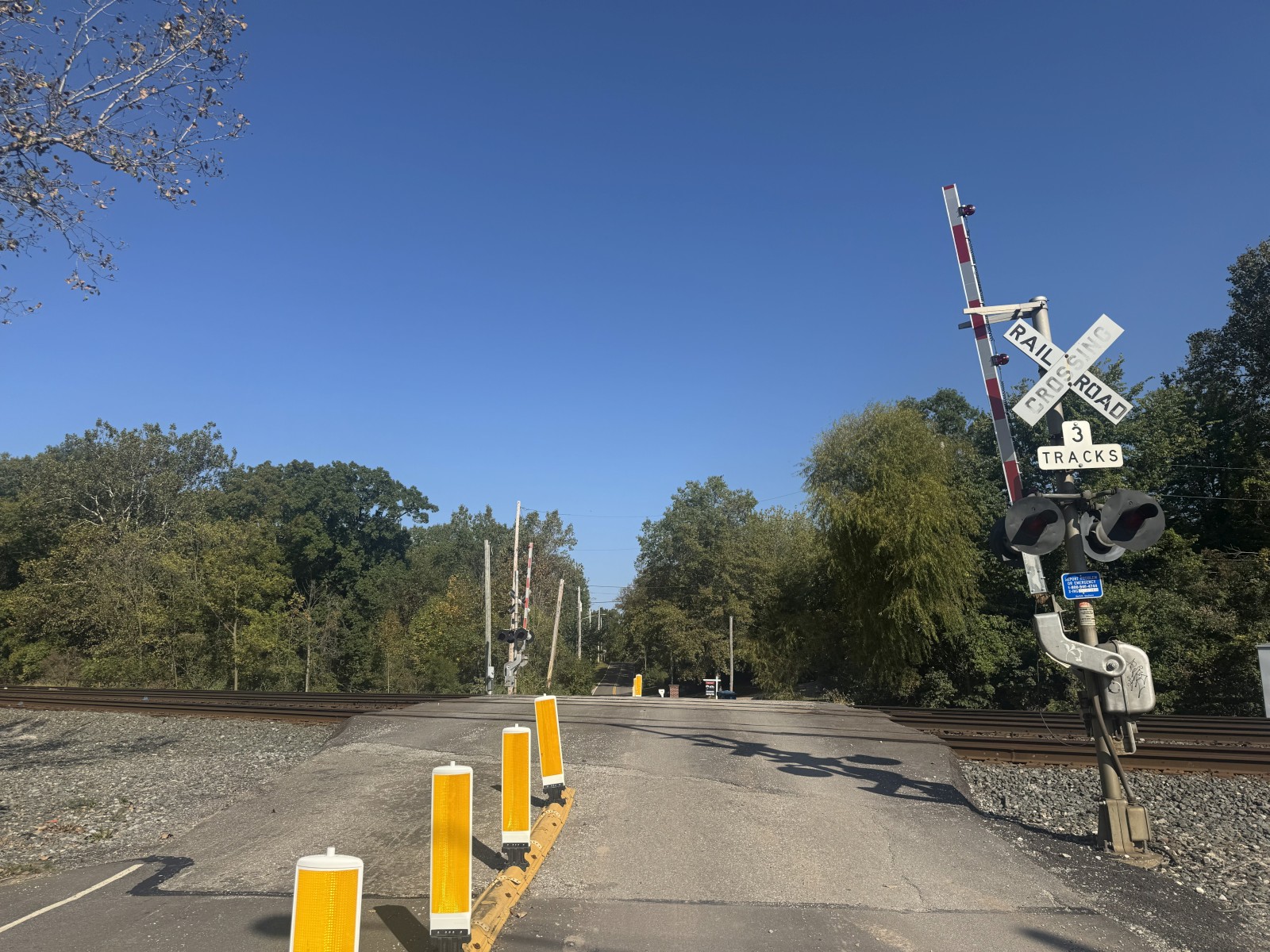

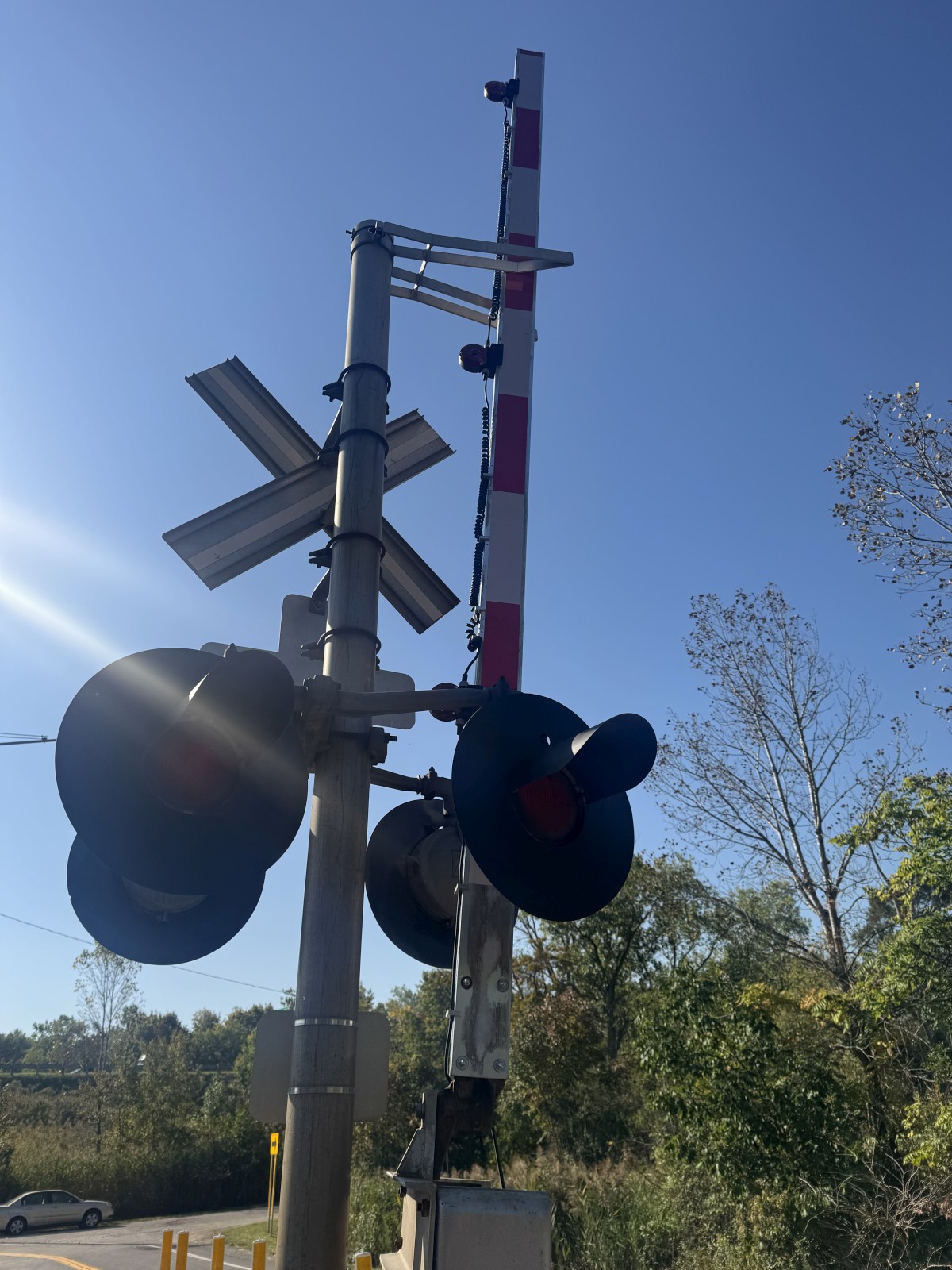

In September 2025, Norfolk Southern Railfan discovered that the gate lights on the southern signal were indeed RECO LEDs and the Siemens E-Bell was replaced with a GS Type 3 E-Bell. Very interestingly, all the lights here are still 8". but now the crossing is a quiet zone crossing.

In the 2nd video below, you can see that the gate mechanism was open on the southern signal. The reason for this was because the gate mechanism was pumping pretty badly, which was causing the signal to shake. This appears to happen normally at this crossing and has happened a couple times. Not sure why NS hasn't replaced the darn thing.
