MP: 73.71 |
Created March 2026
Total Accidents: 0
Crossing

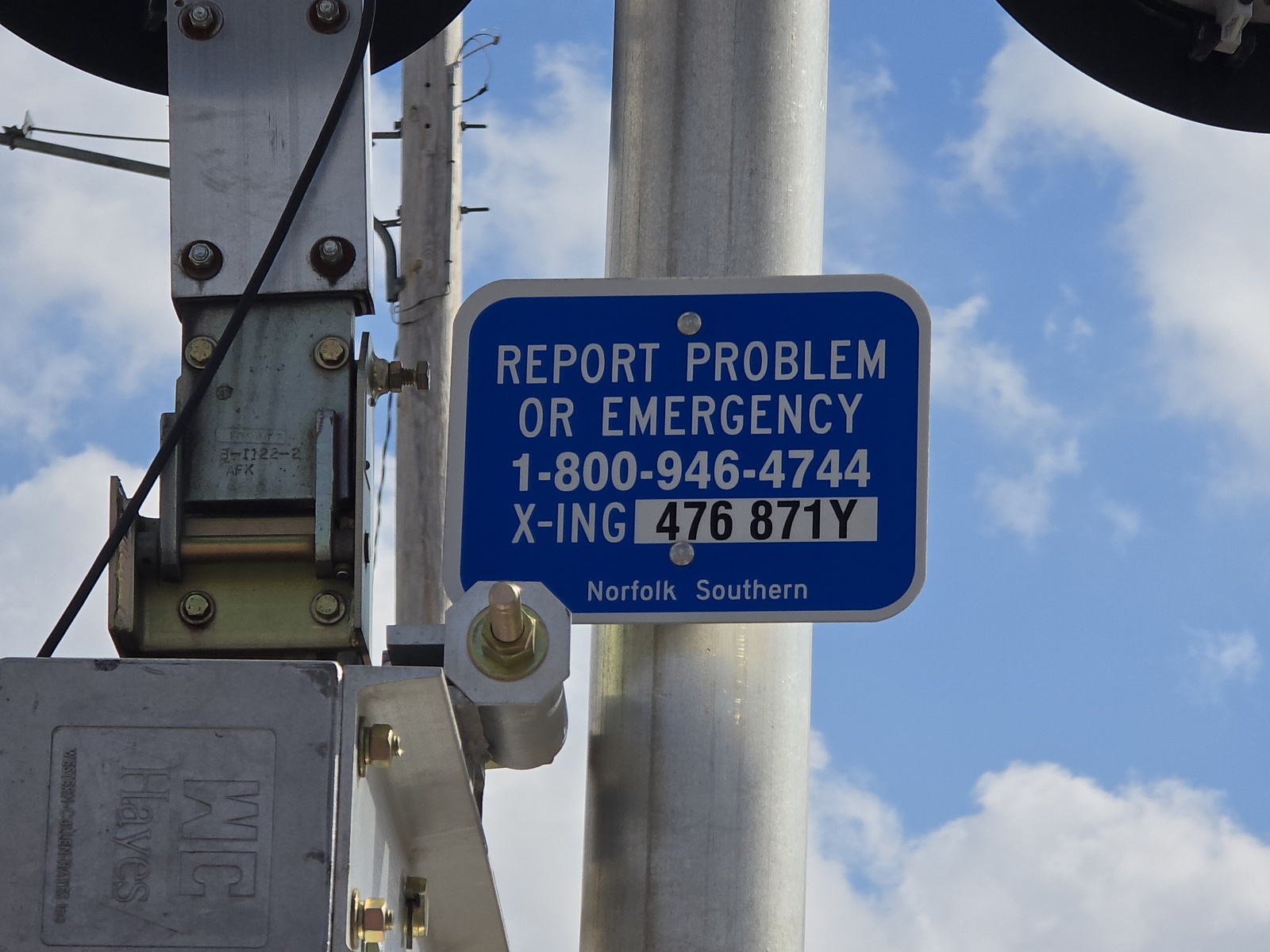

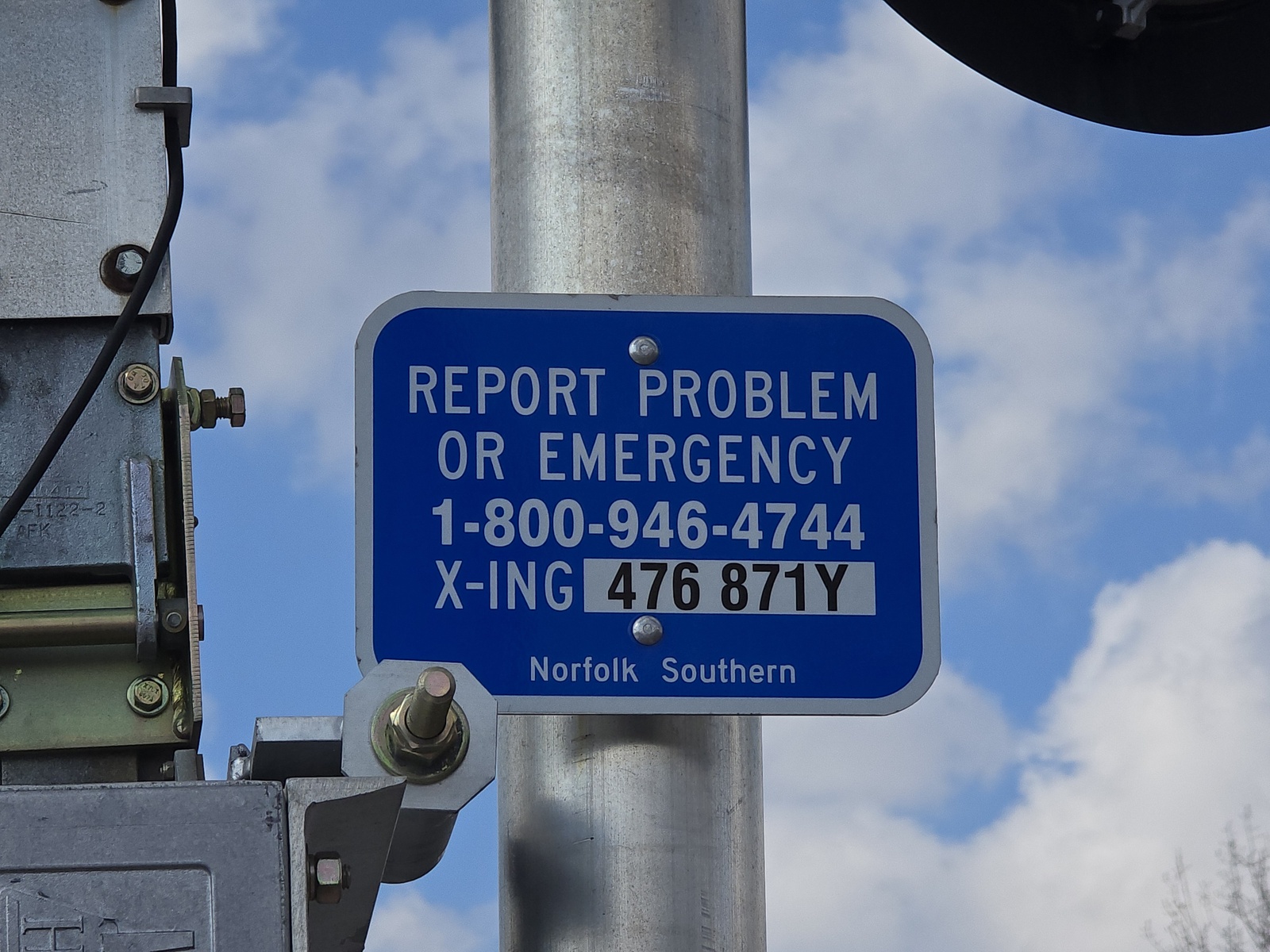

DOT #: 476871Y
TOTAL
DAILY TRAINS: 4 (AS OF 2025)
| >>>>>>>>>>>>> | Northern Signal | Southern Signal |

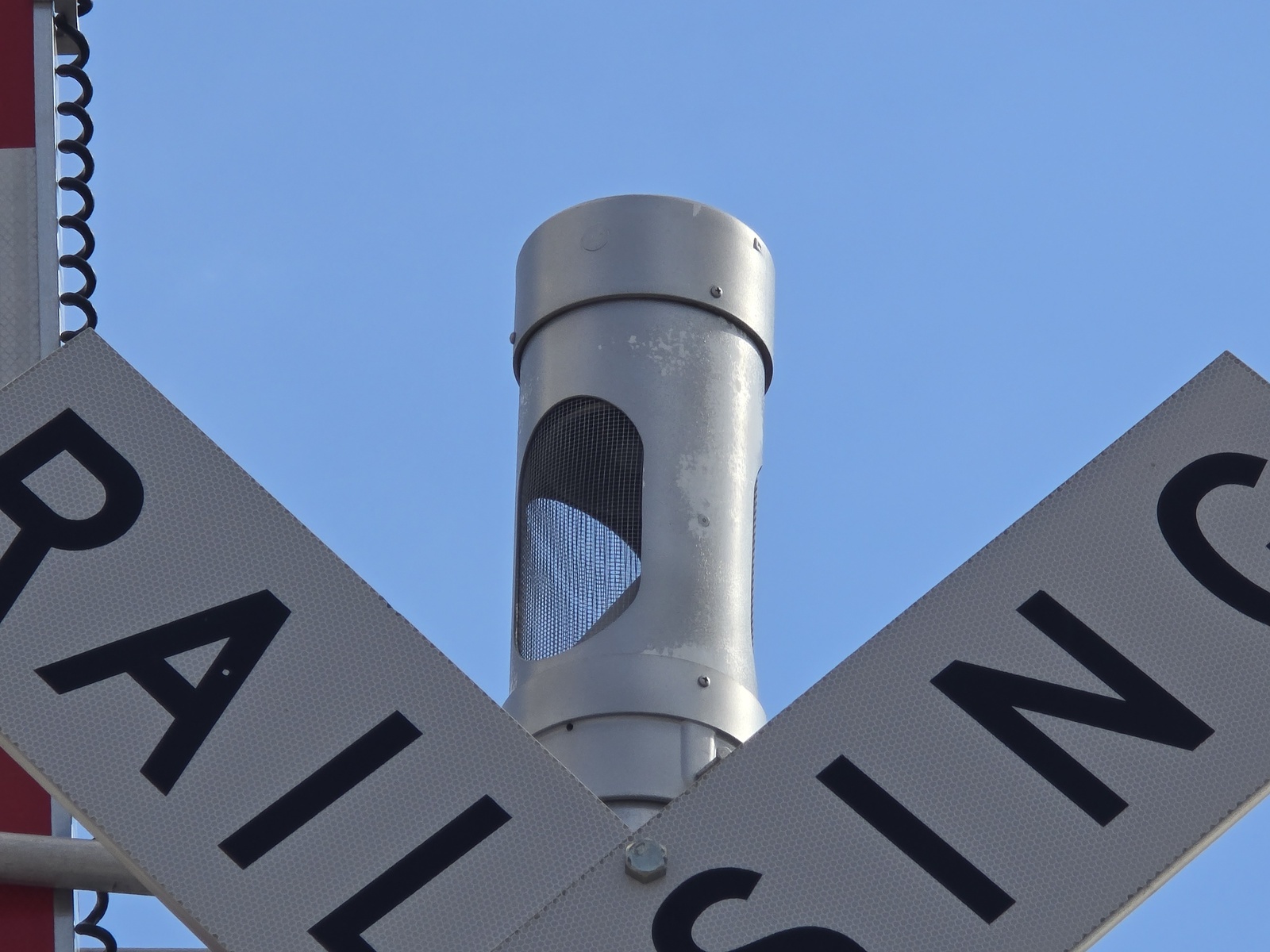

| Bell: | GS E-Bell | N/A |
| Base: |

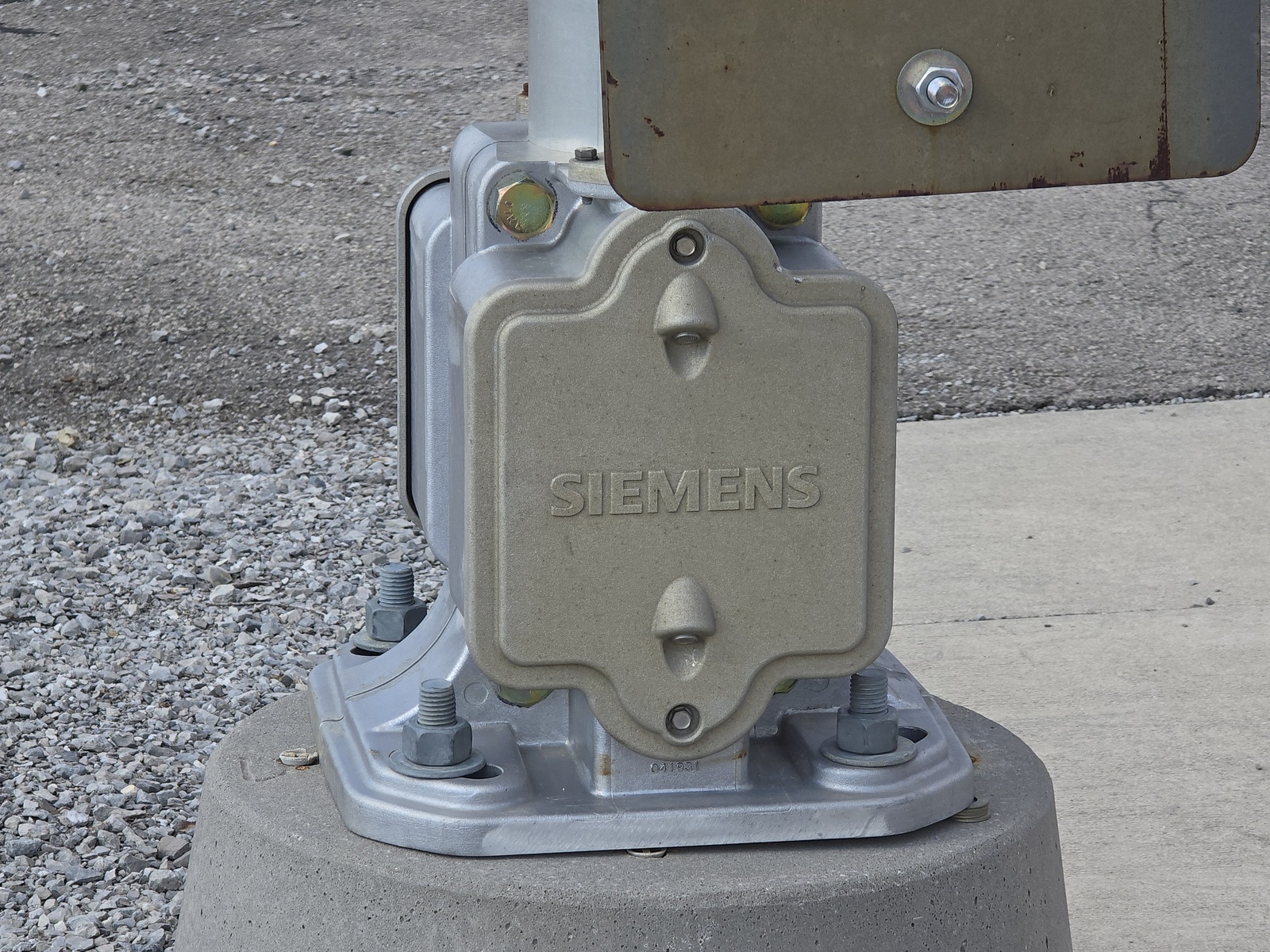

Siemens 5" Double Sided | Siemens 5" Double Sided |

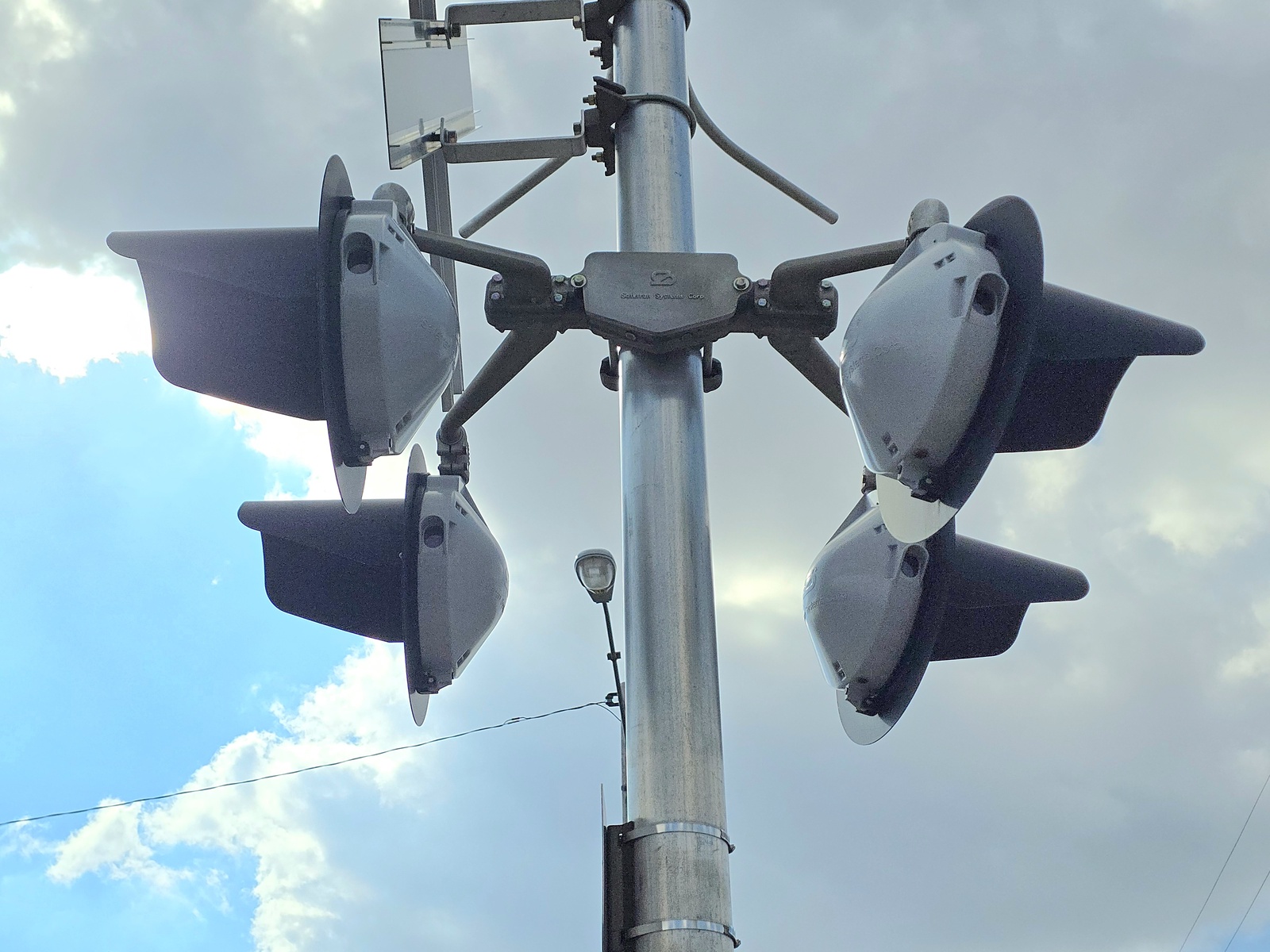

| Light Frames: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Light Brackets: |
Safetran | Safetran |
| Gate Lights: | 3 - RECO 4" | 3 - RECO 4" |
| Gate Mechanism: | WCH Style 4 w/ New WCH Gate Saver | WCH Style 4 w/ New WCH Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Sir Fluent
Pictures 1-25 were taken on February 27, 2026, by Nicholas Miles.
This crossing is located on the NS Lima District.
O1 |
O2 |
O3 |
O4 |

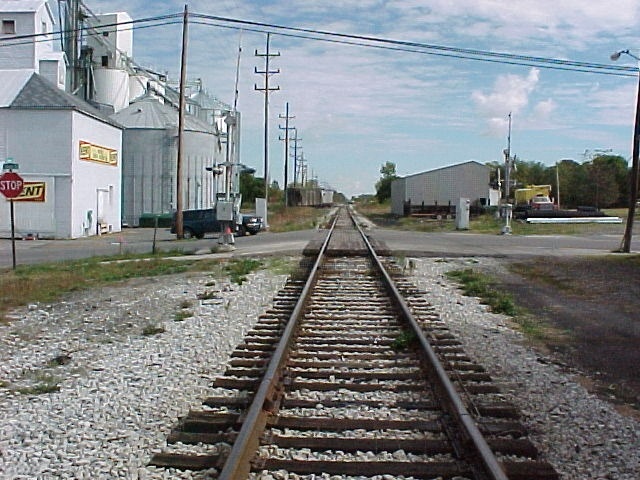

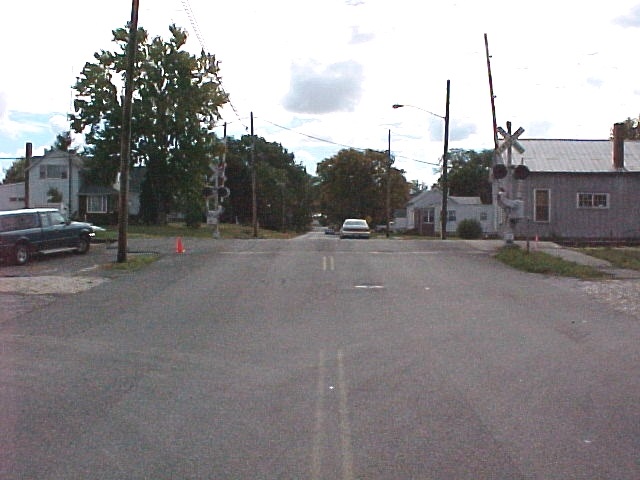

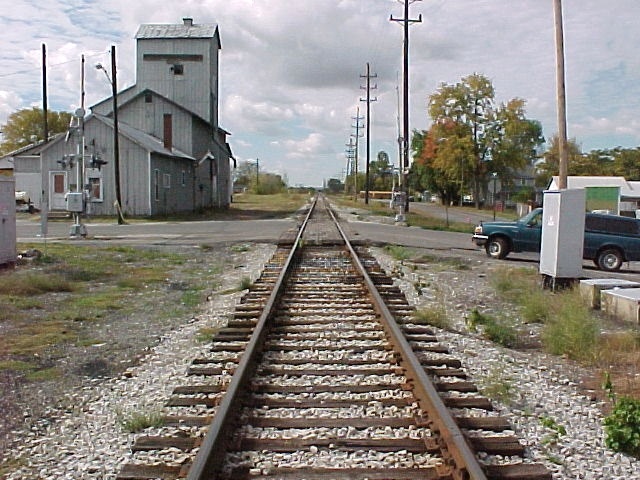

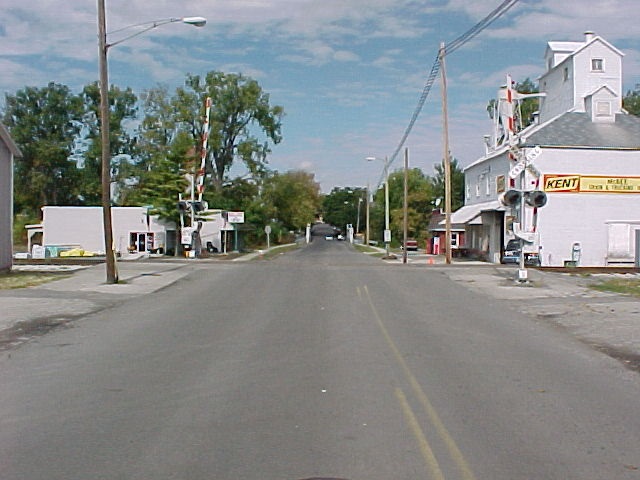

PUCO pictures from likely 2000 shows an old WRRS gated setup with 8 inch cast iron WRRS(?) incandescents, WRRS gate mechanisms and a WRRS(?) mechanical bell. Both signals also had pedestrian gates to protect the sidewalks.
|
|||
G1 |
G2 |

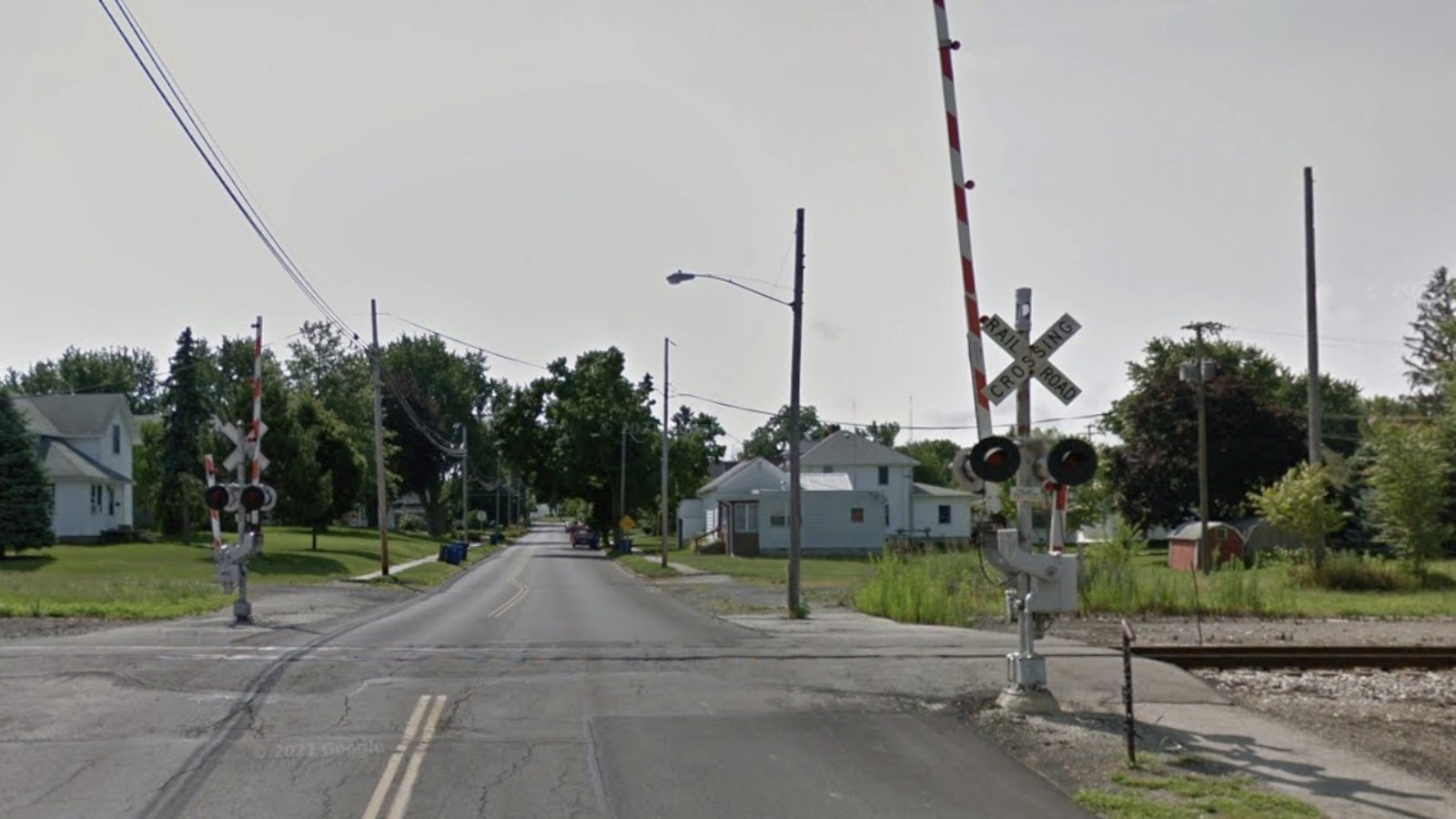

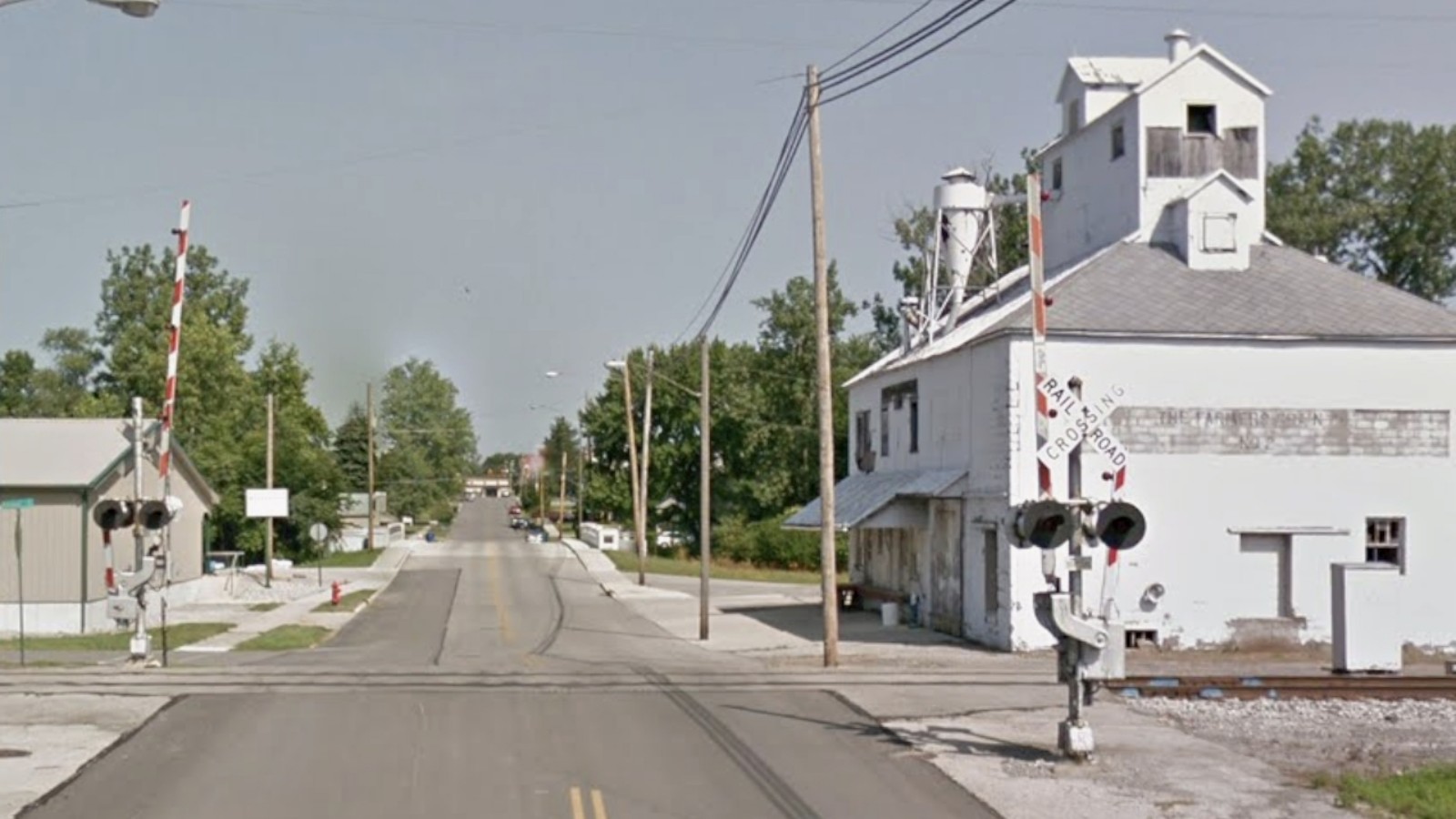

By 2014, we see that the WRRS(?) bell was replaced with a GS E-Bell. Then between 2015 and 2019, these were replaced with new Siemens signals, but with a twist as these new signals have WCH gate mechanisms instead of Siemens ones. The pedestrian gates were removed in the process.
|
|
1 |
2 |

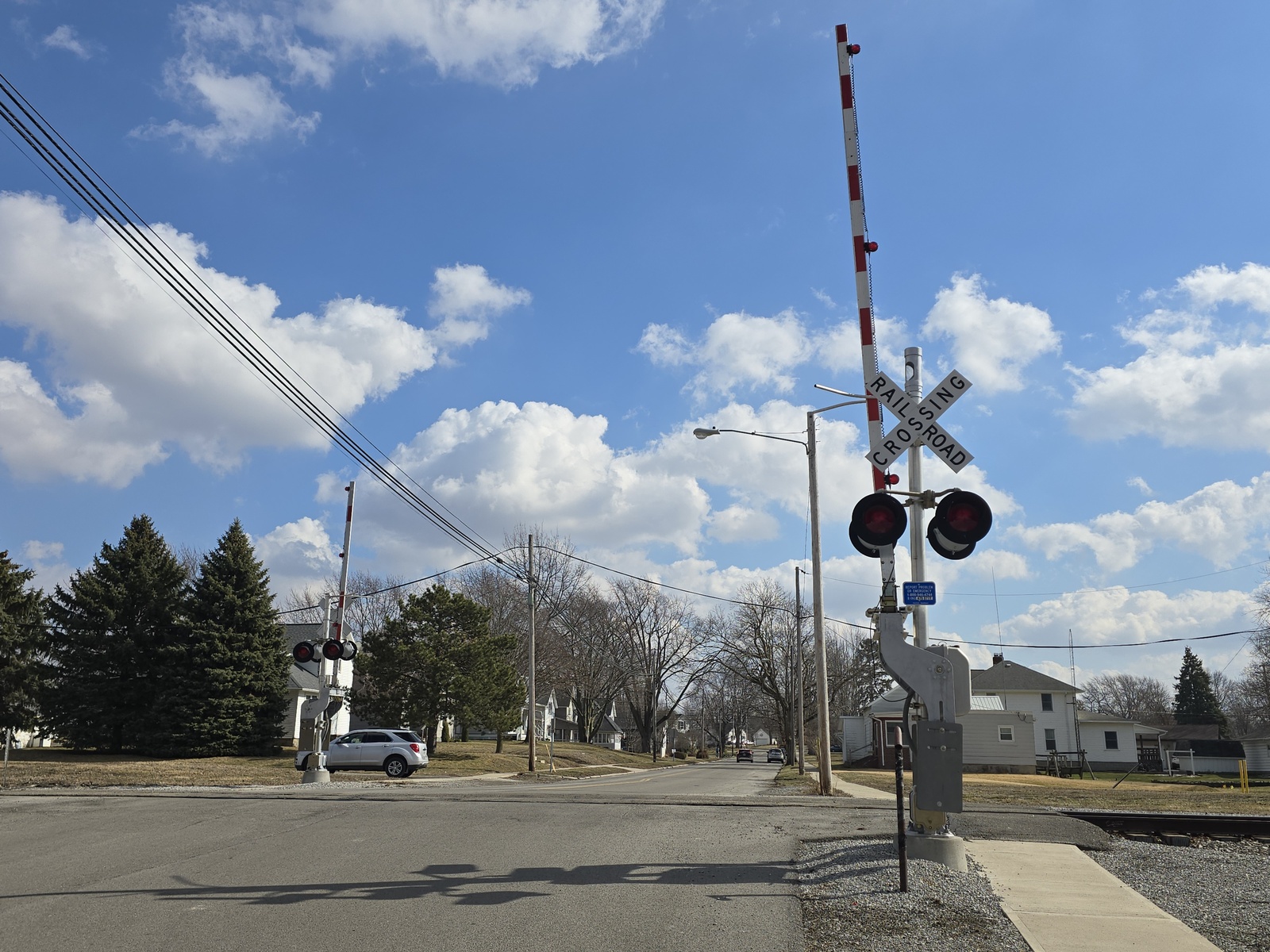

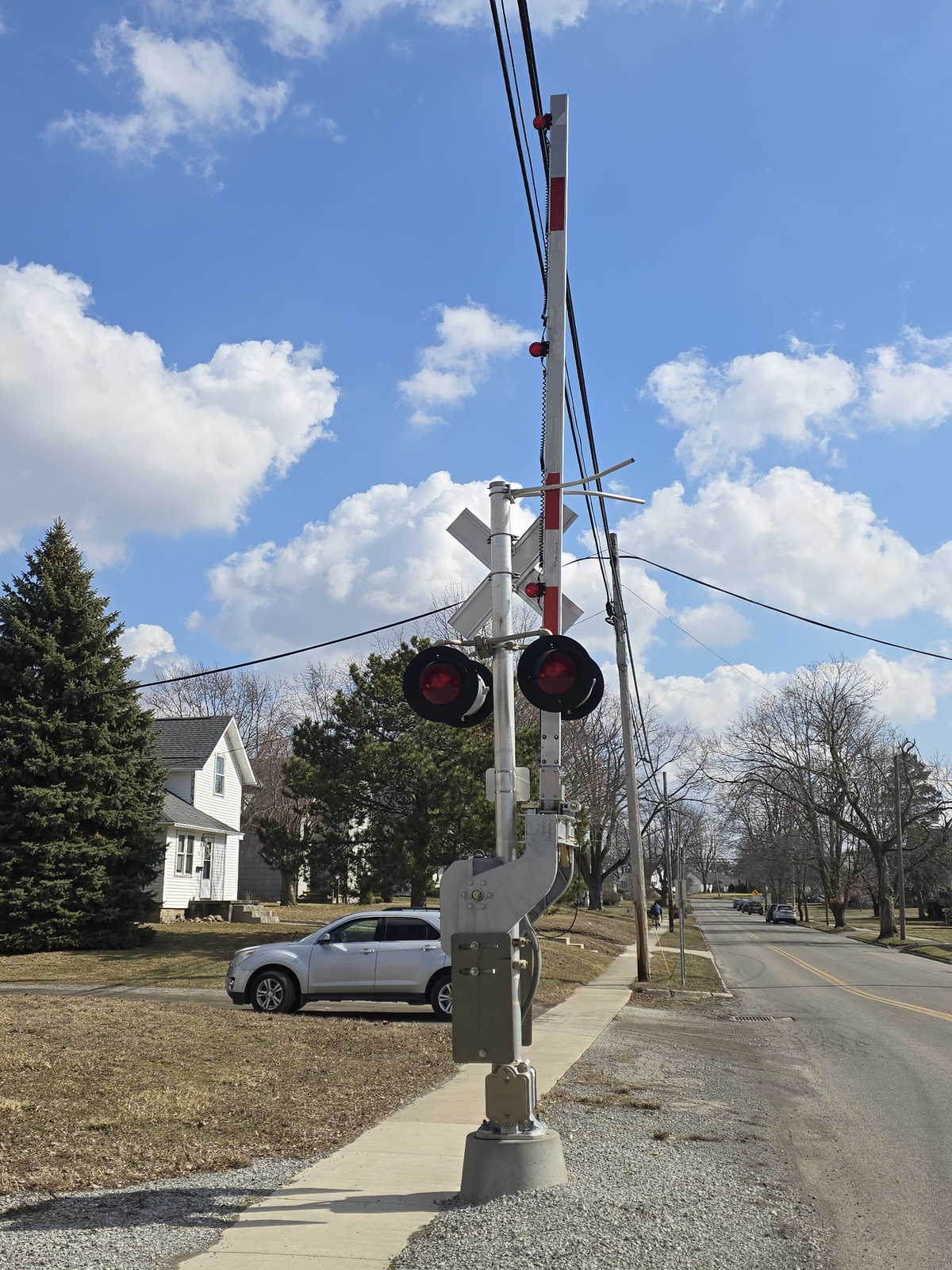

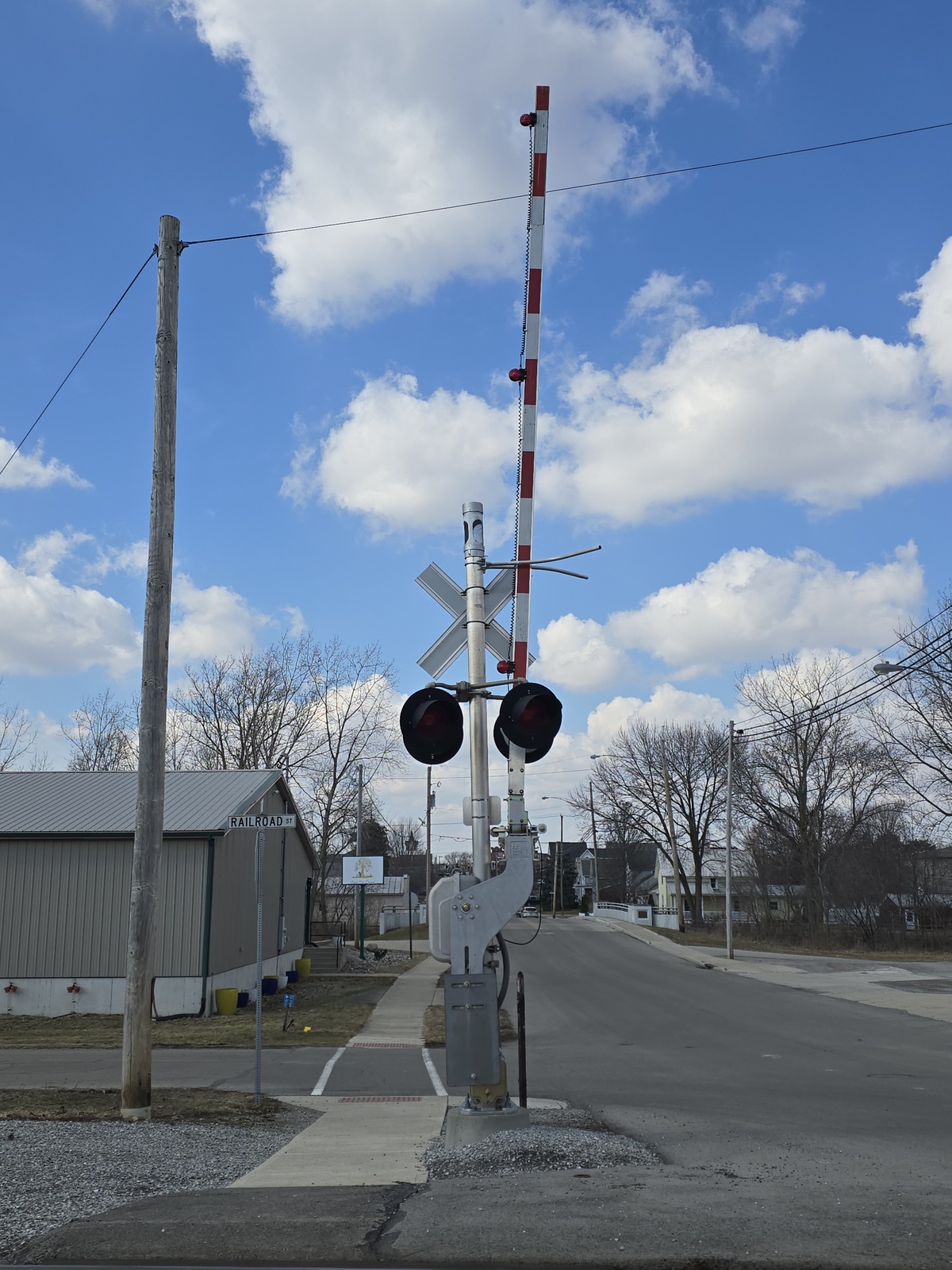

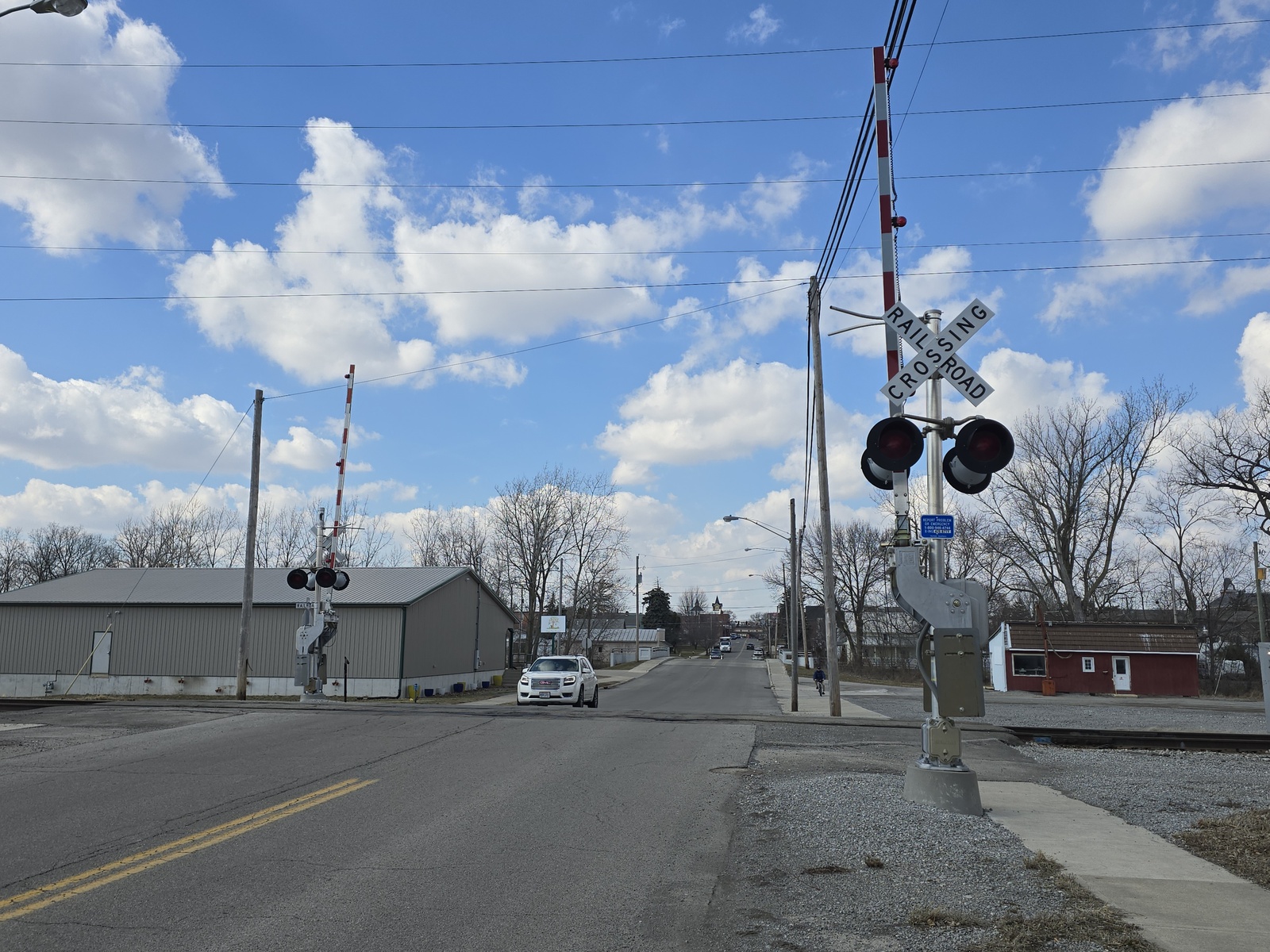

Overviews of 2 fairly newer gated signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |

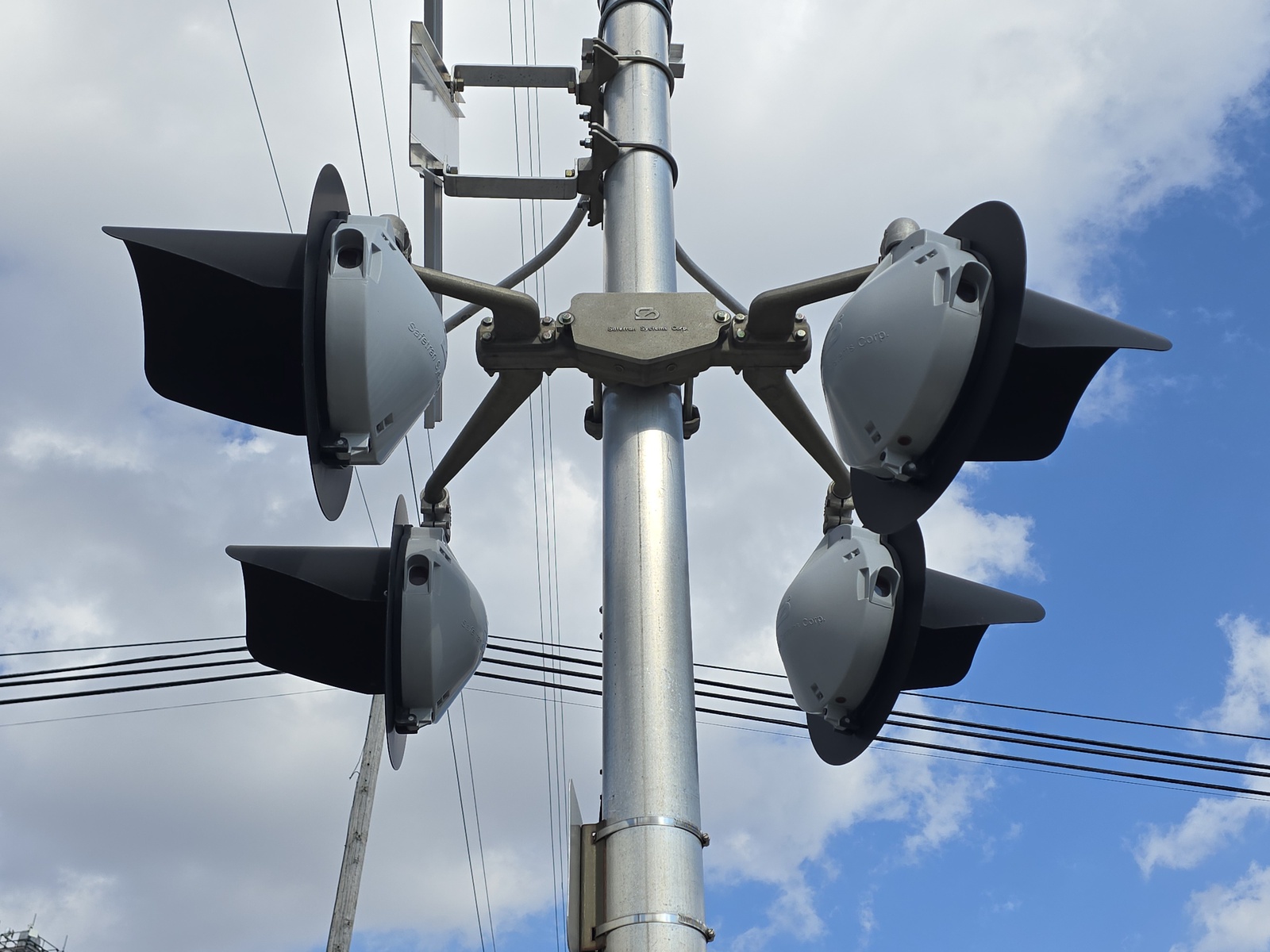

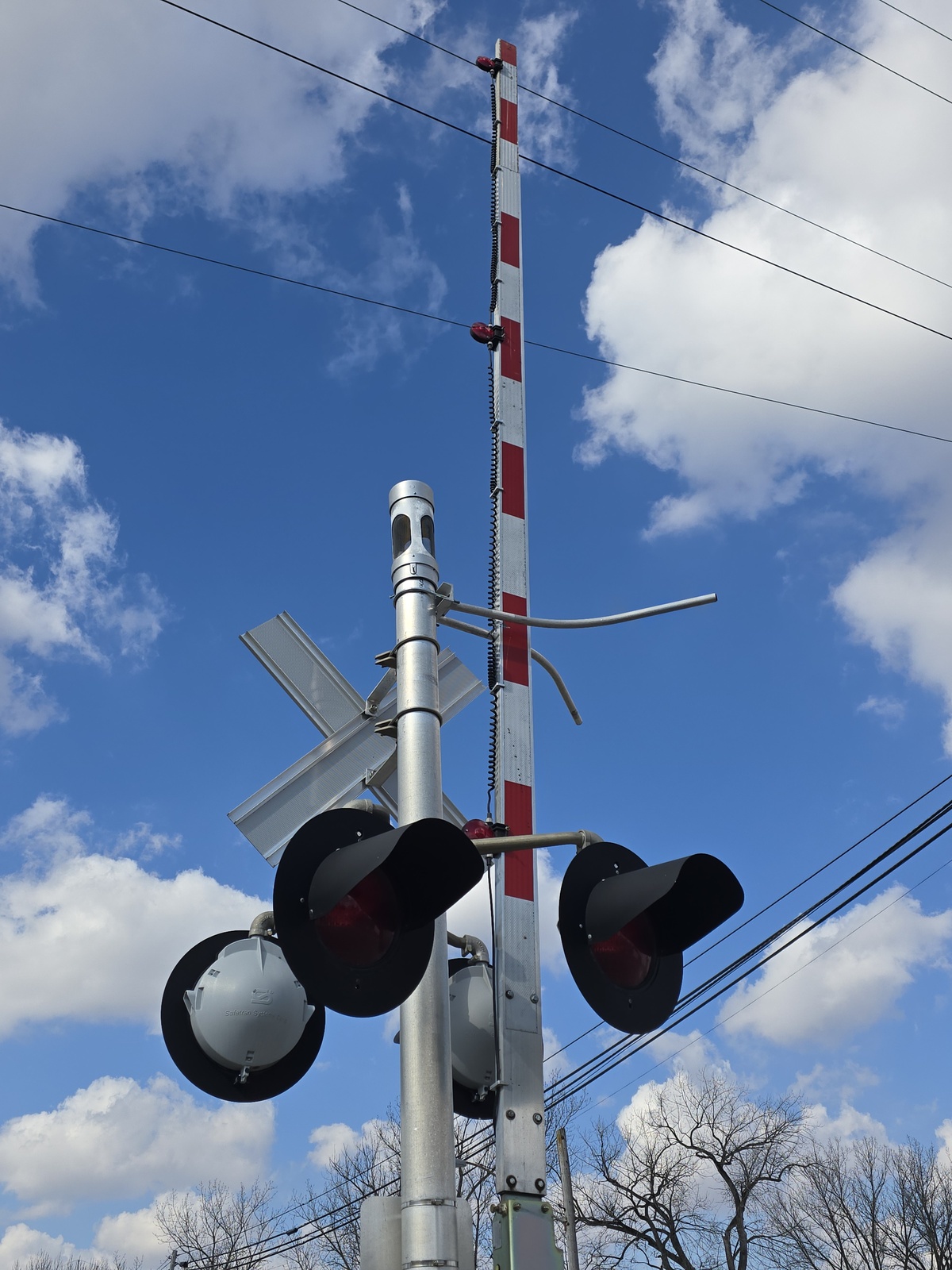

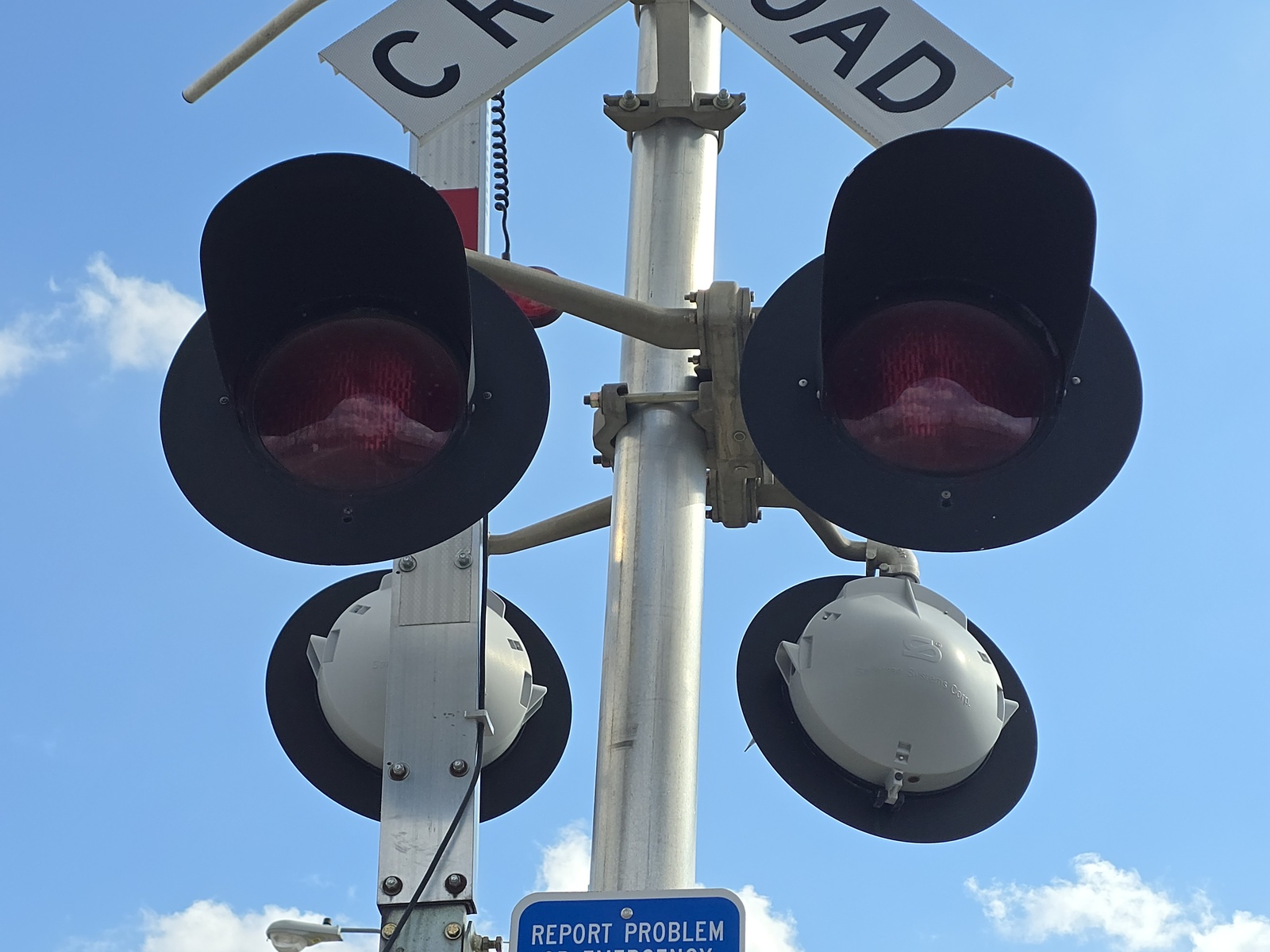

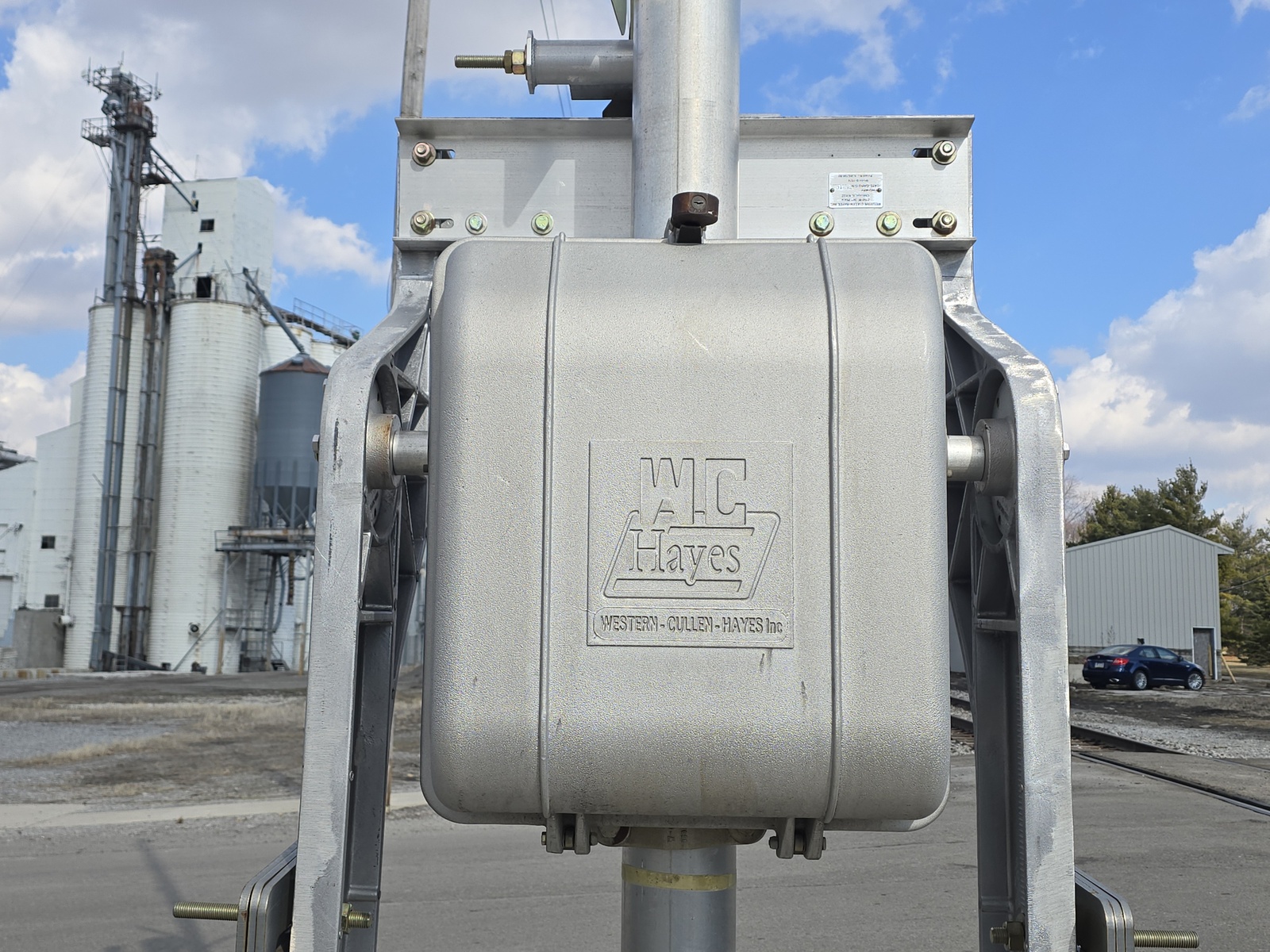

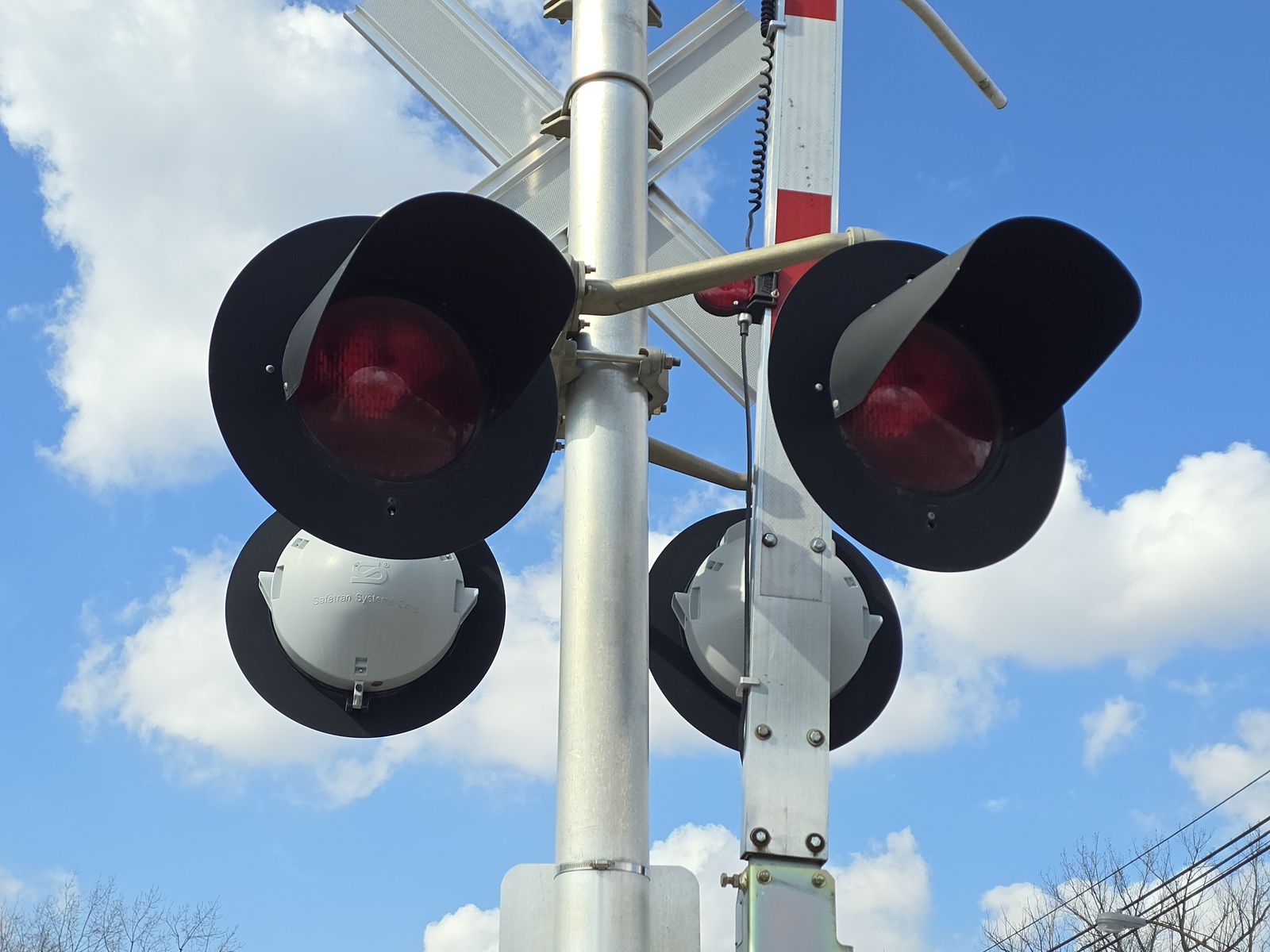

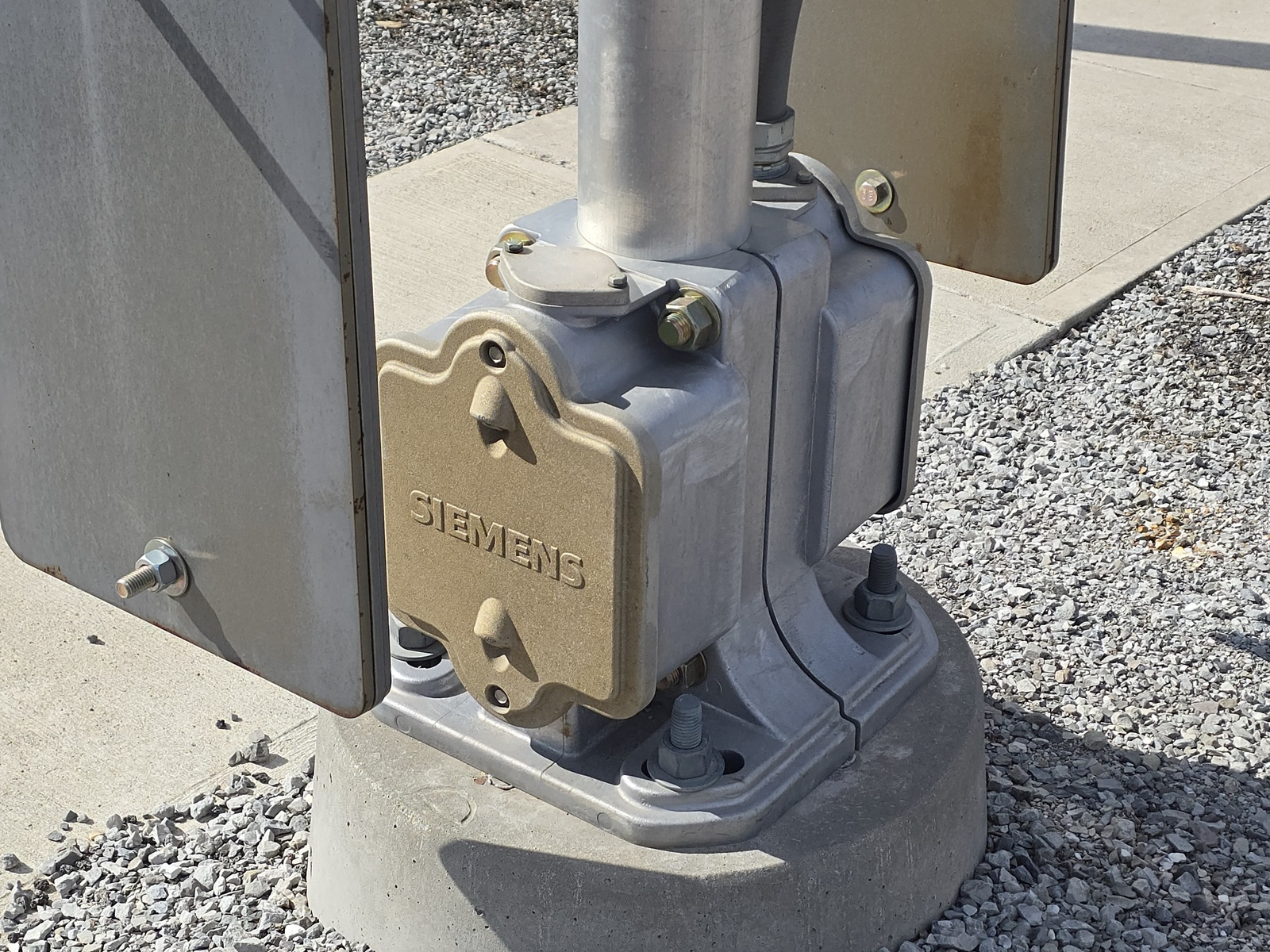

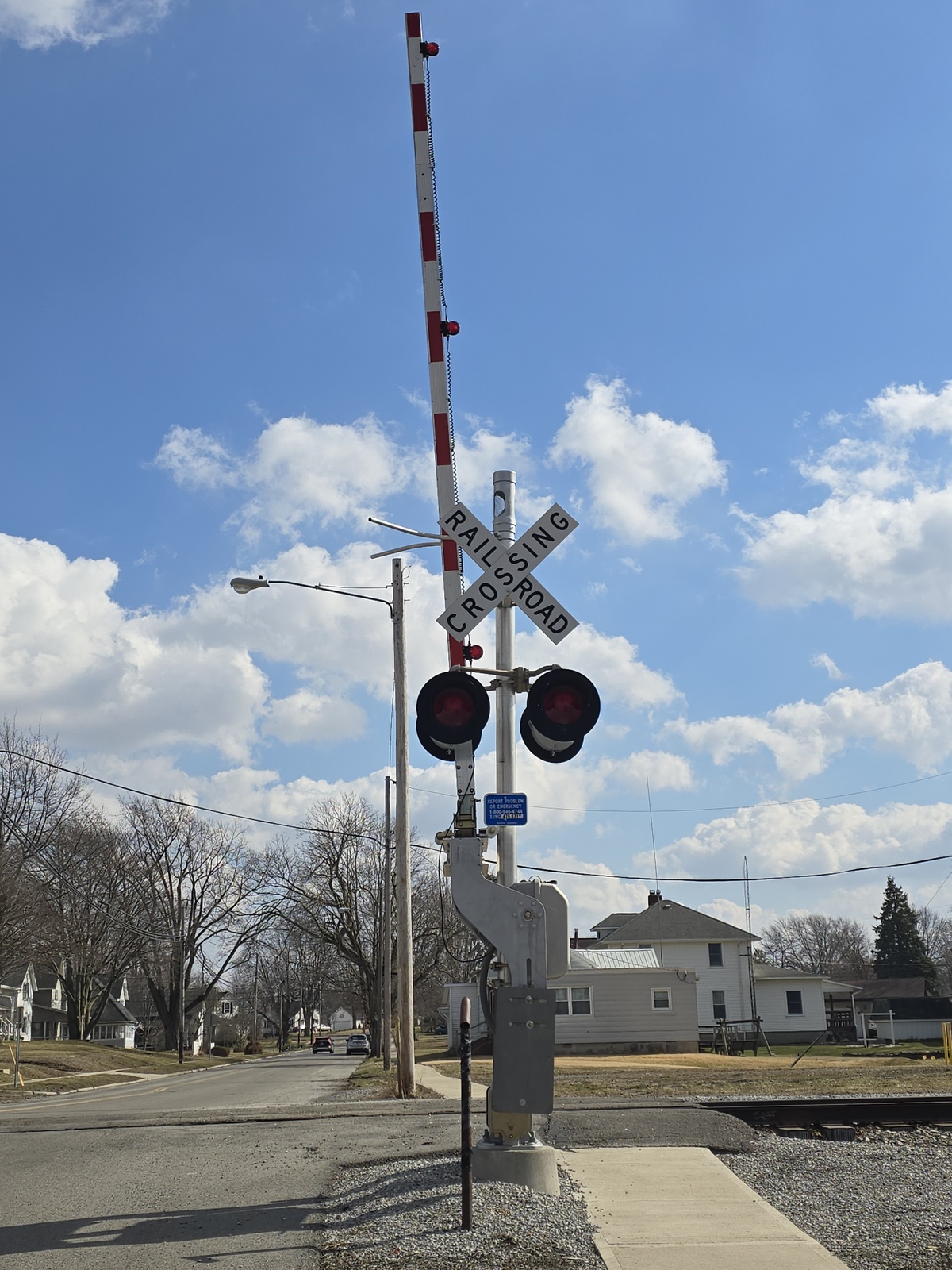

| The northern signal. | |||
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
|

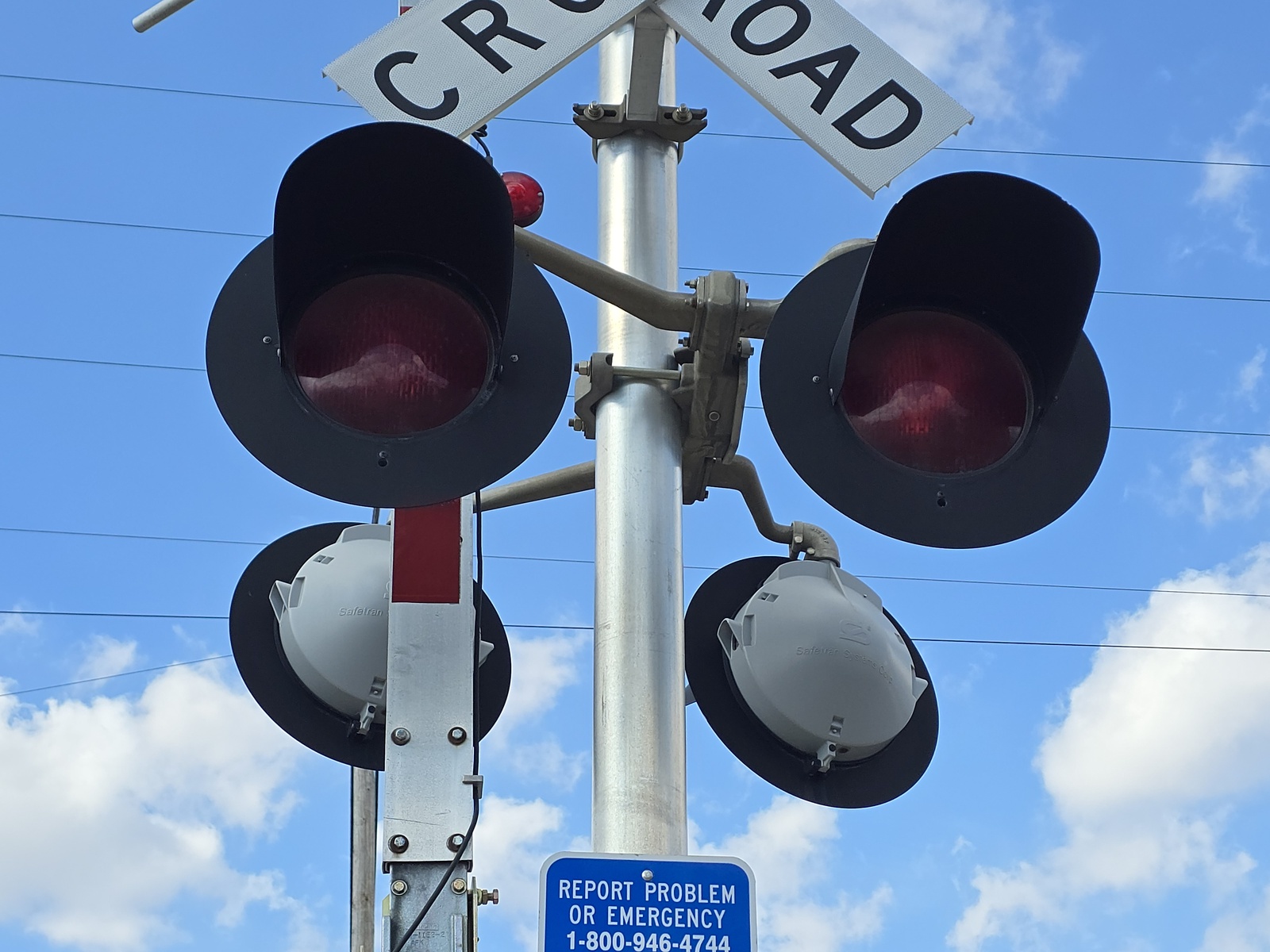

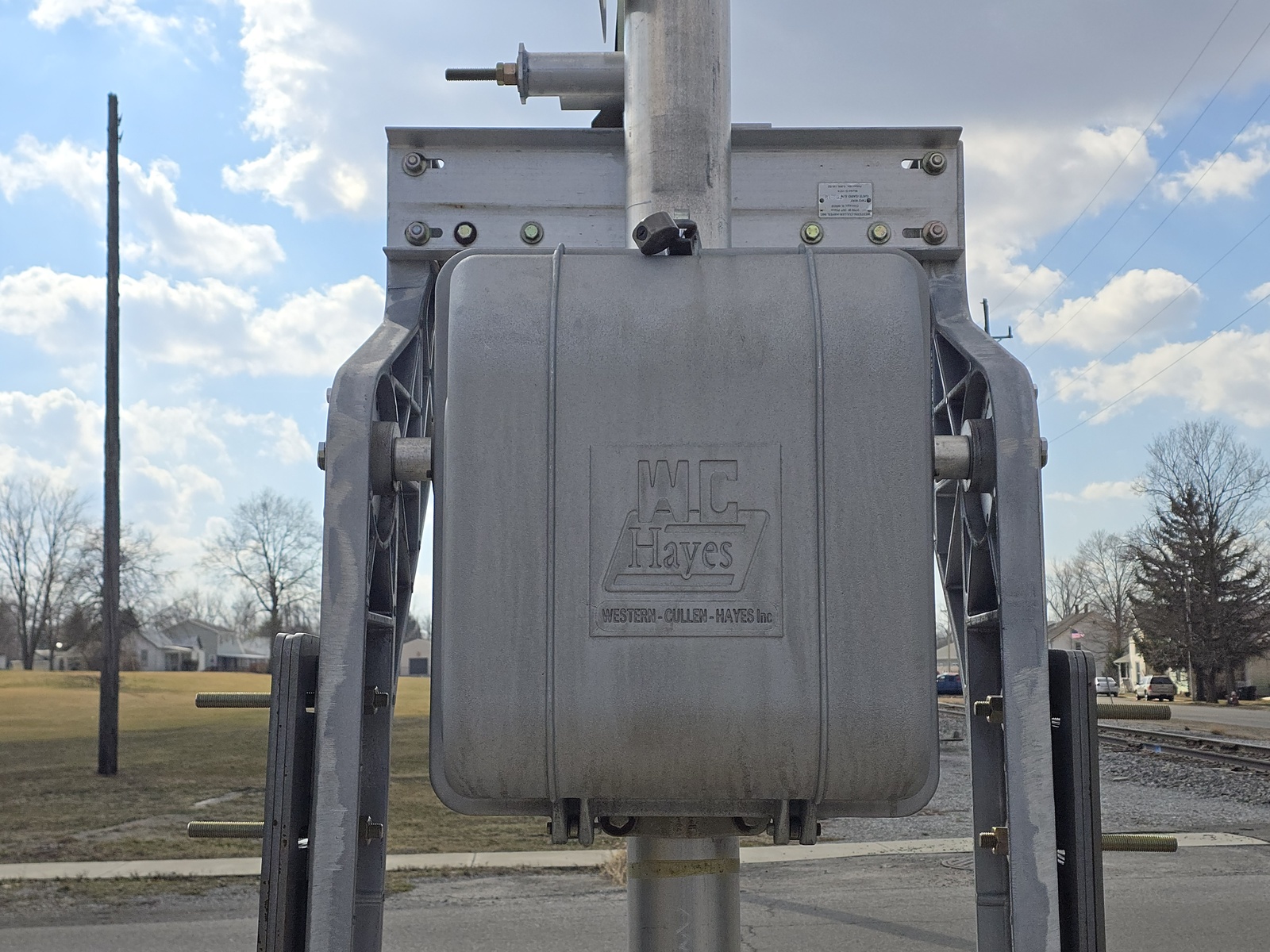

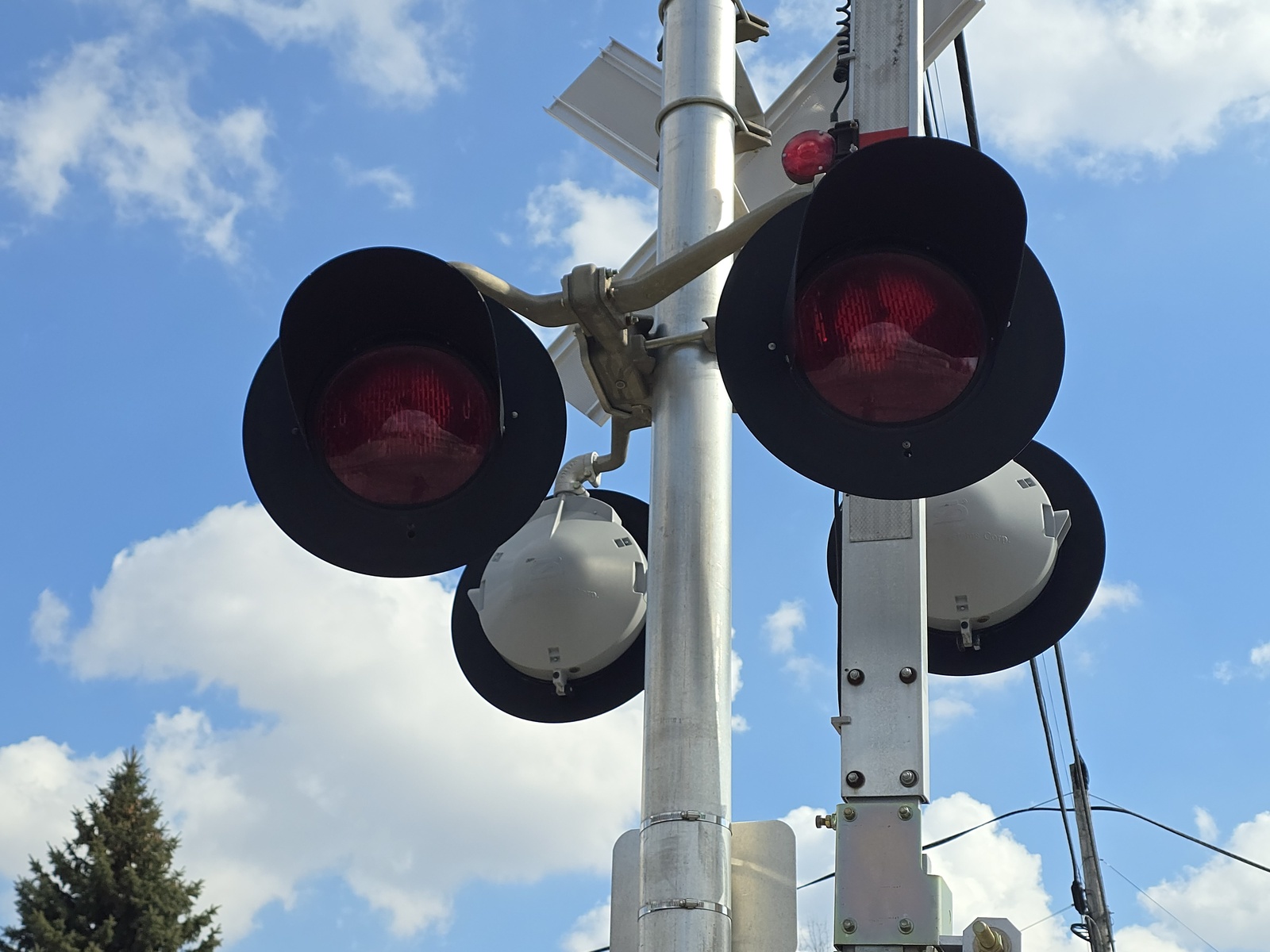

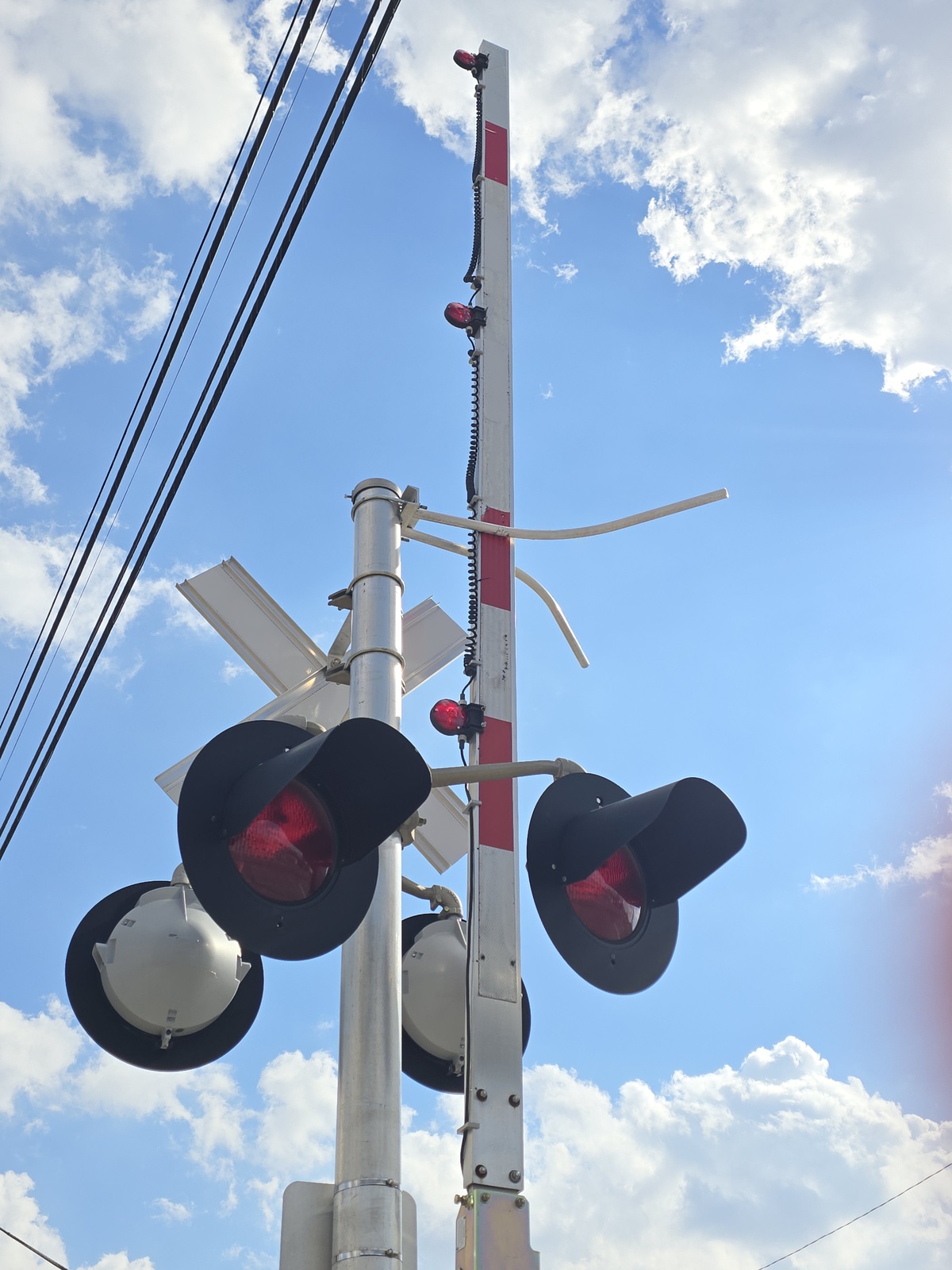

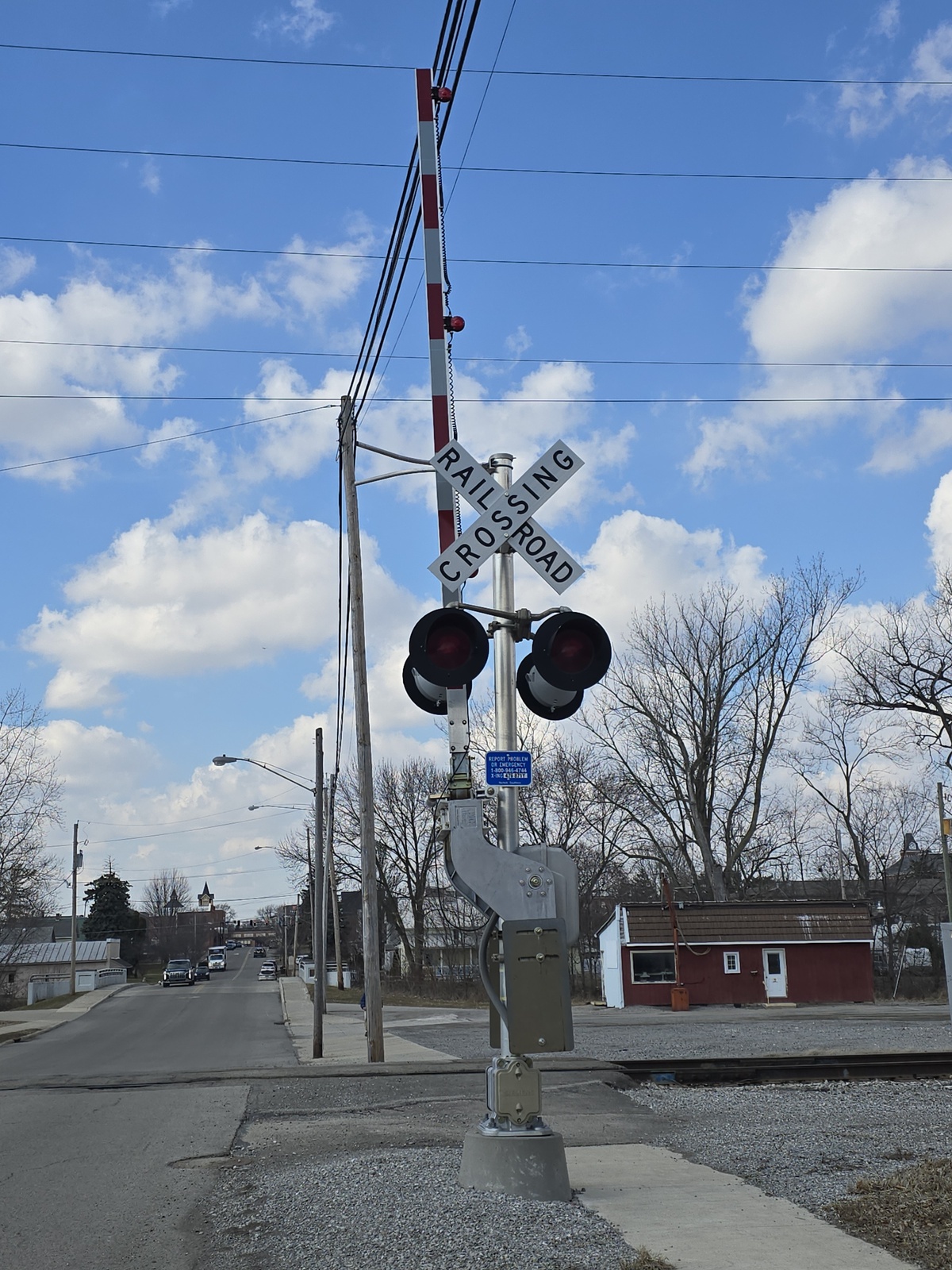

| The southern signal. | |||
22 |
23 |
24 |
25 |

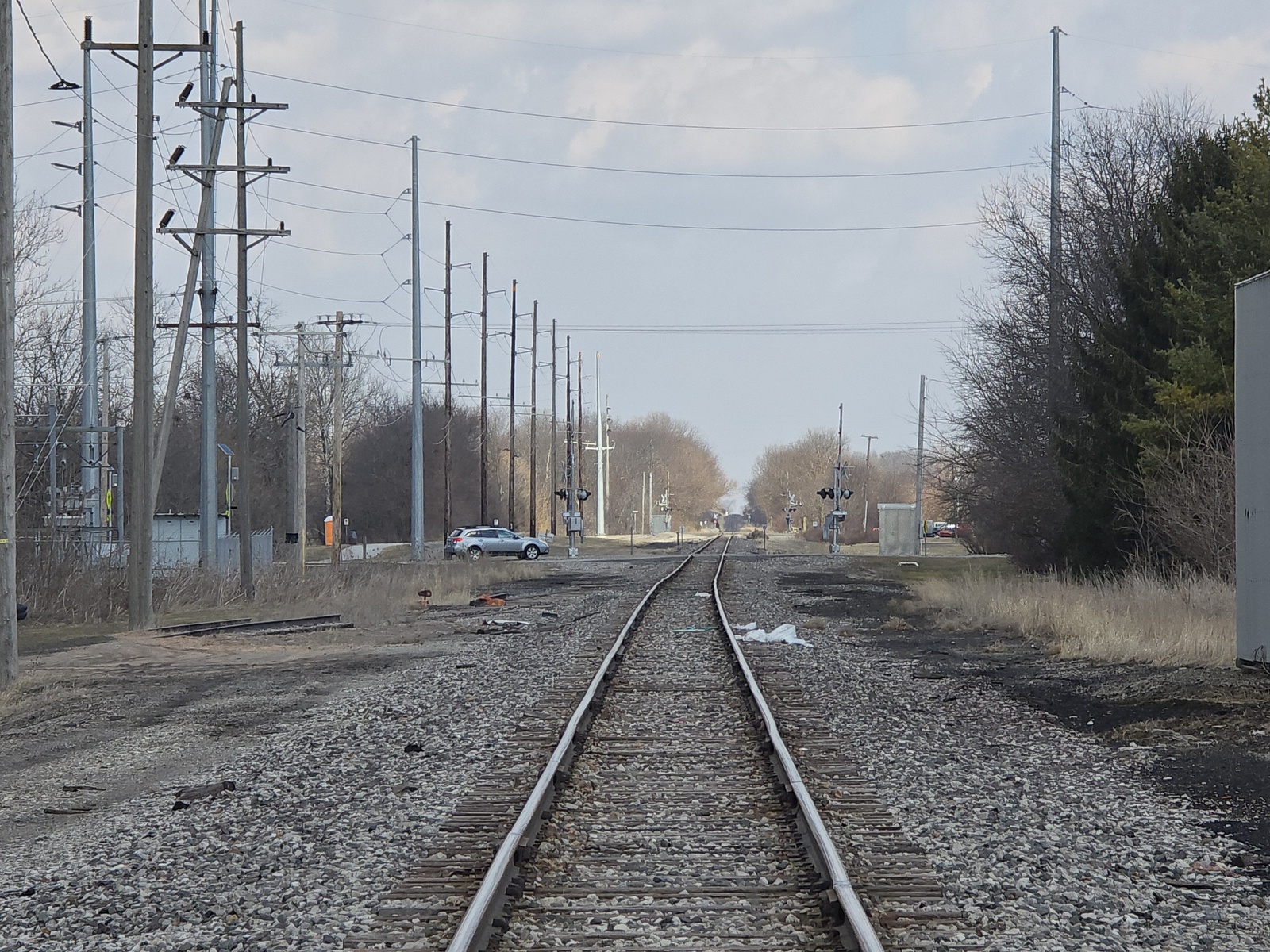

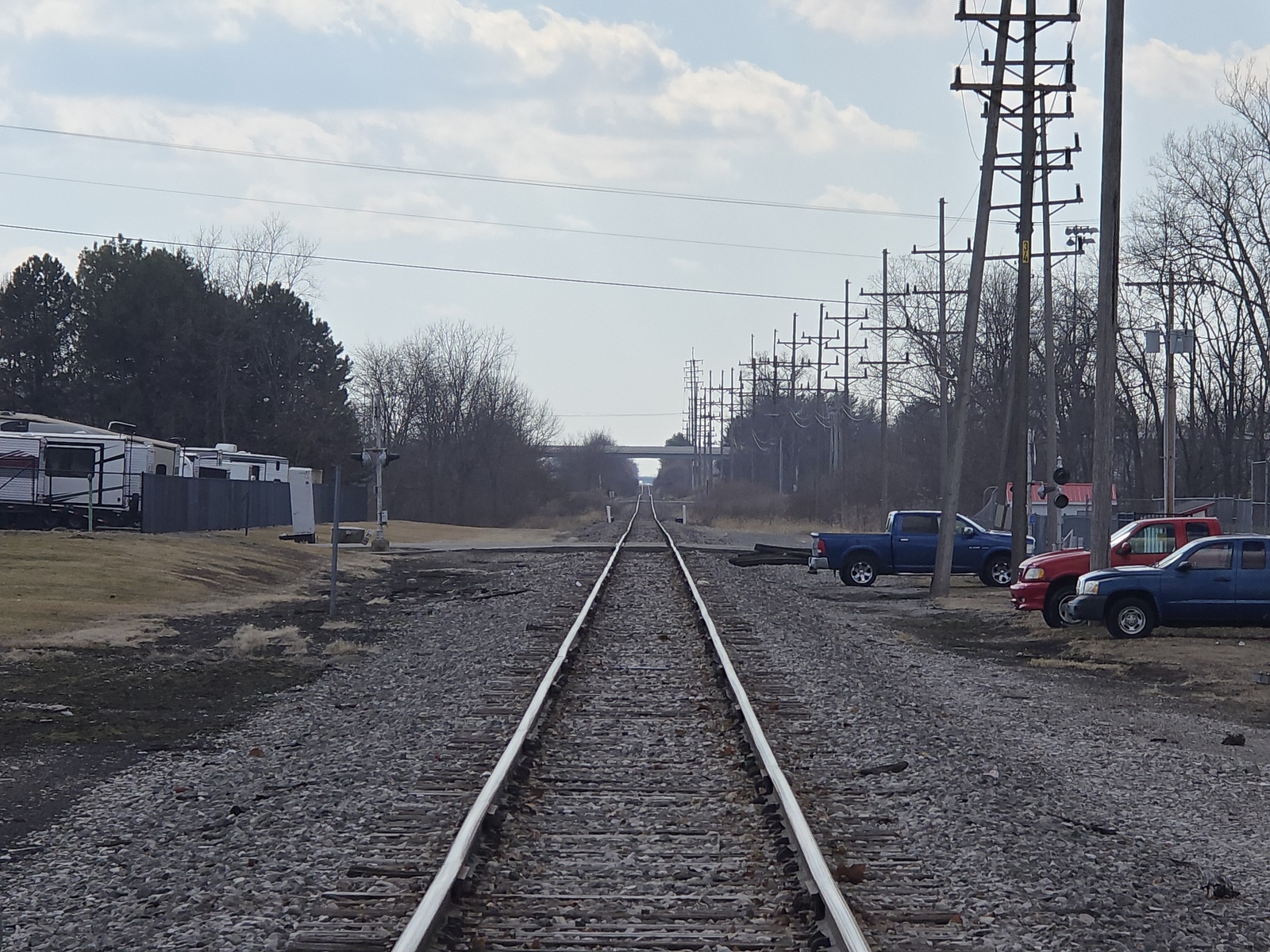

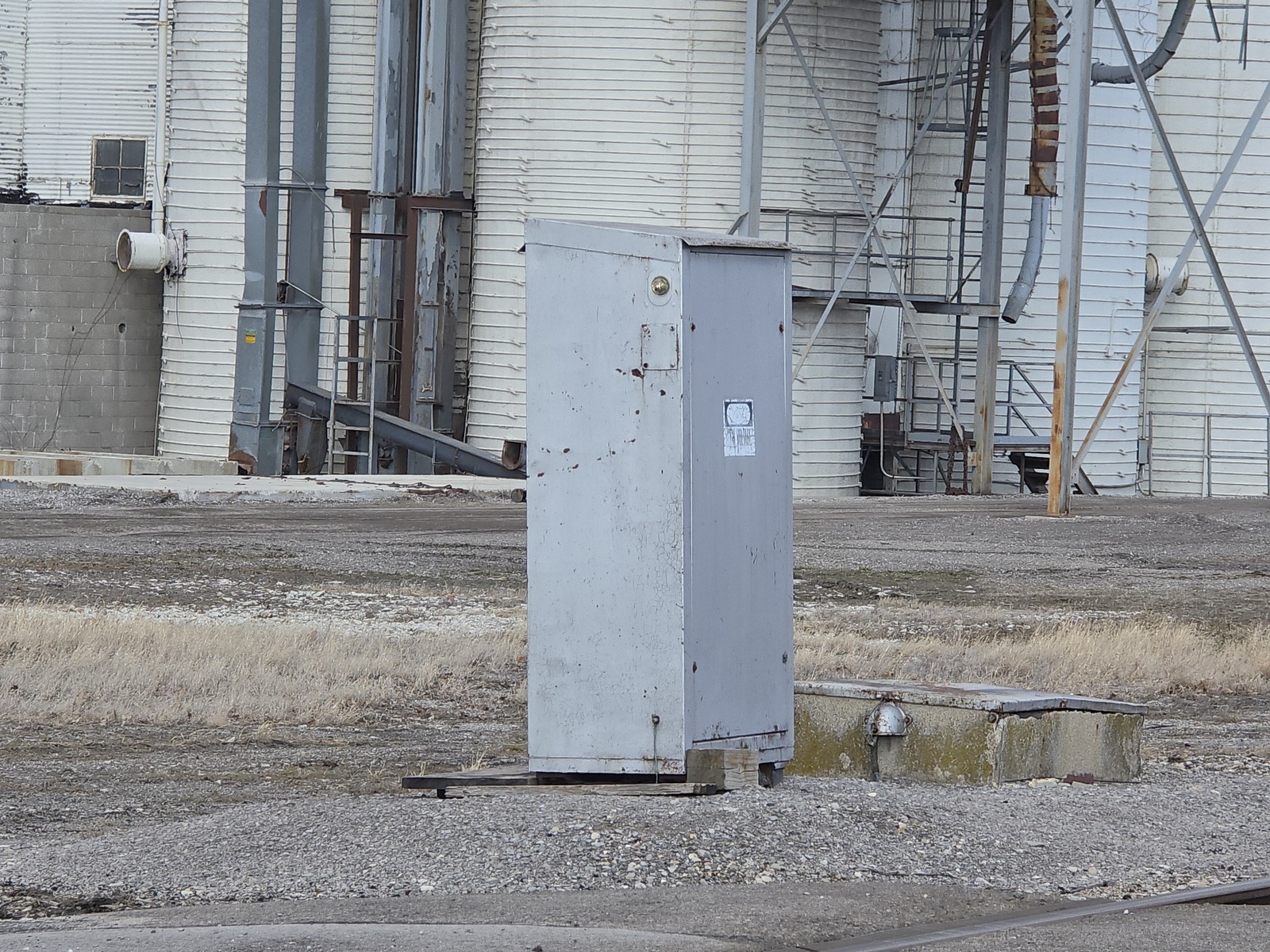

| The relay case in the southeast quadrant. | This crossing's grade is made of rubber and asphalt. | Track view facing east towards Jefferson Street. | Track view facing west towards College Avenue. |
