| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | GS E Bell |
| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x24" Safetran incandescents | 4 - 12"x24" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran 2000s w/ Standard Mount | Safetran 2000s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|
| Overview of 2 gated signals facing east. |
Overview facing west. |
3
| 4
| 5
| 6
|
7
| 8
| 9
| 10
|

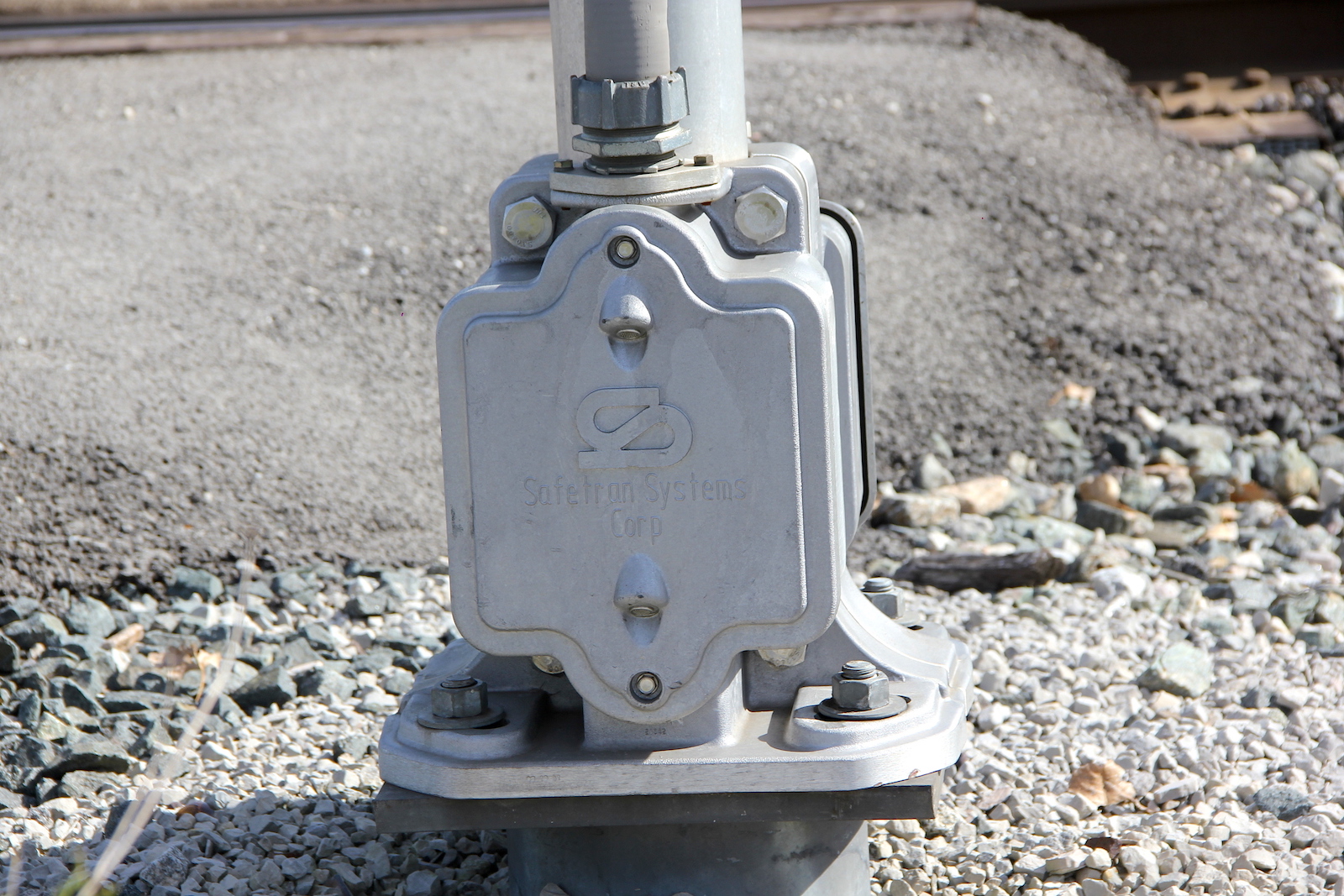

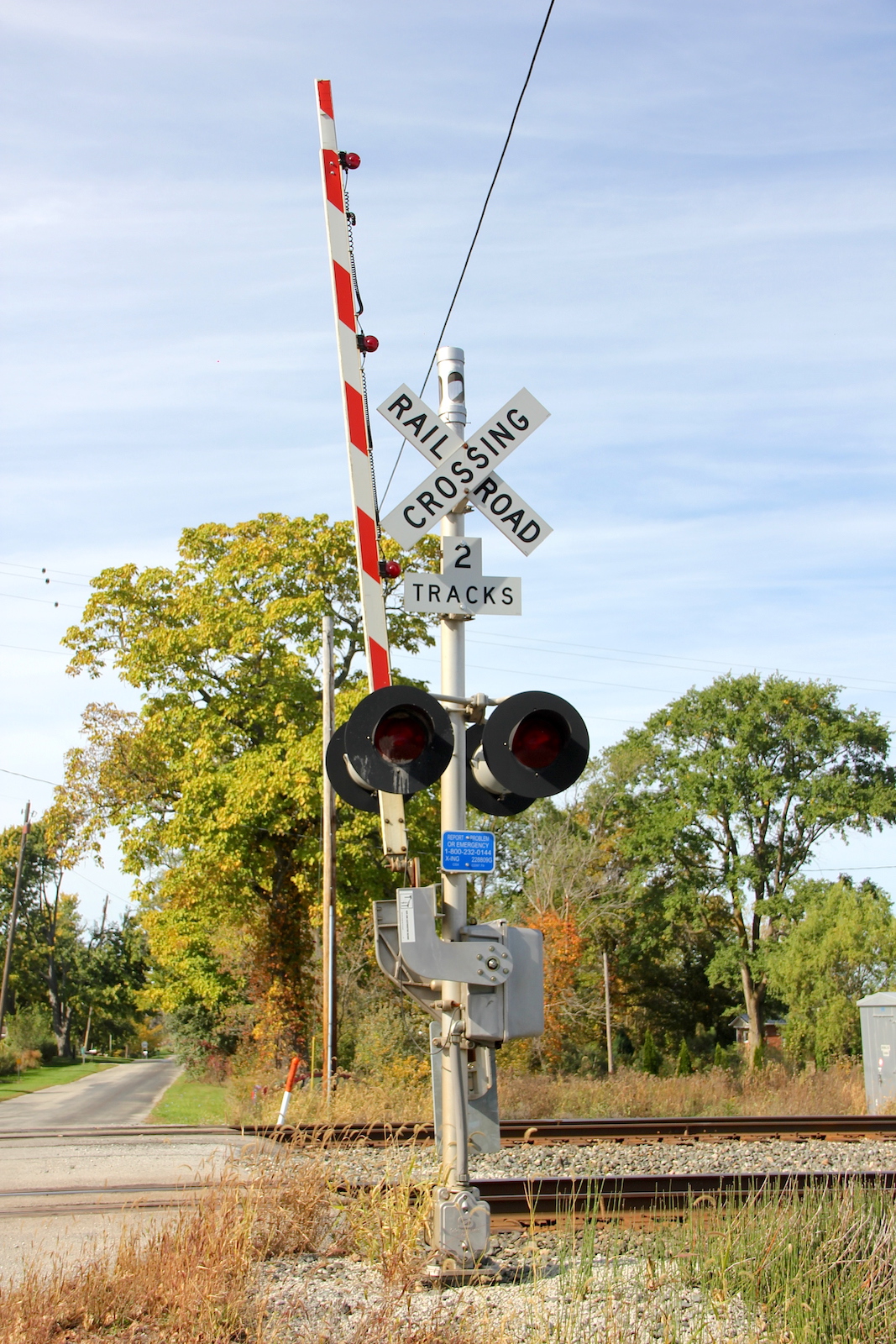

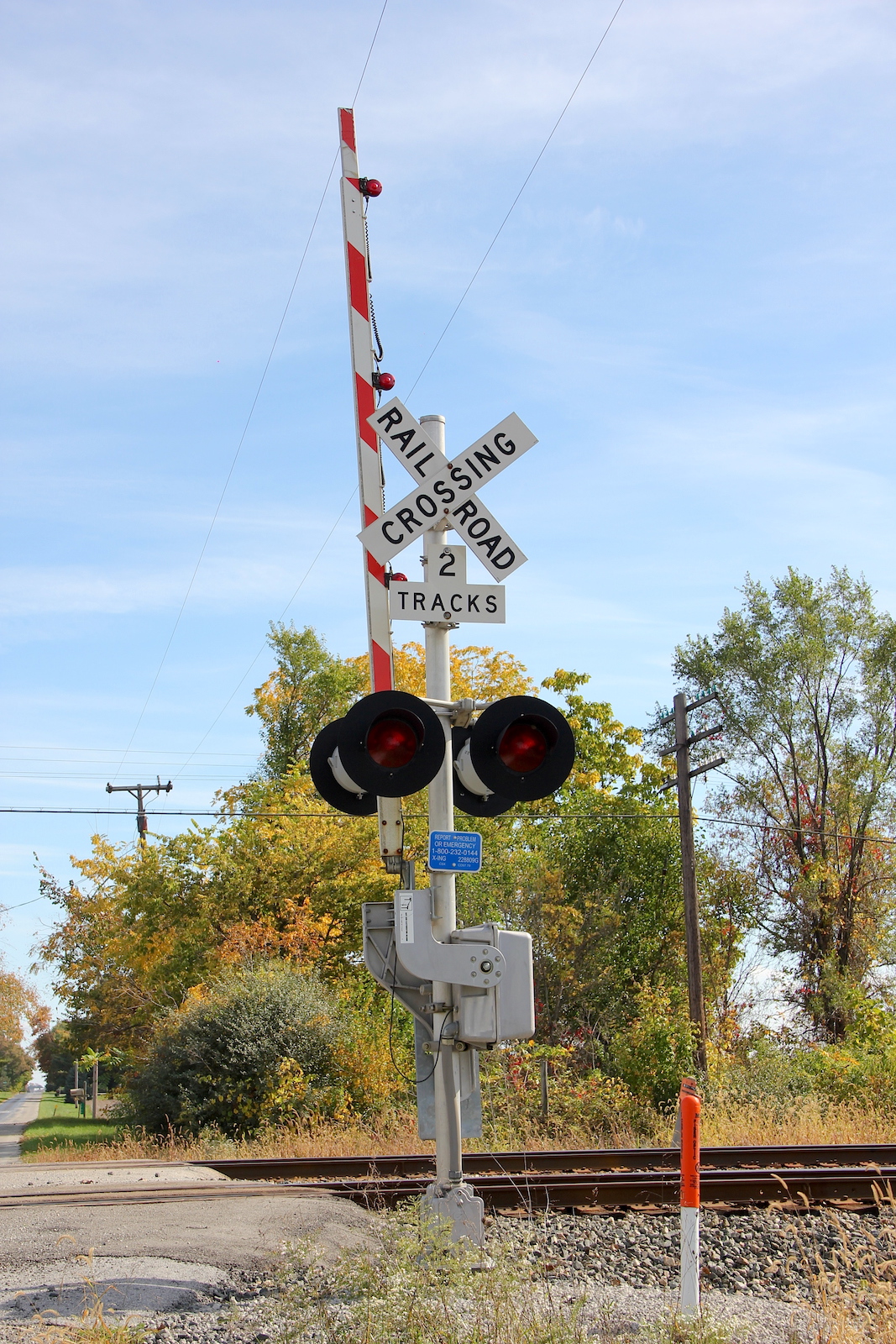

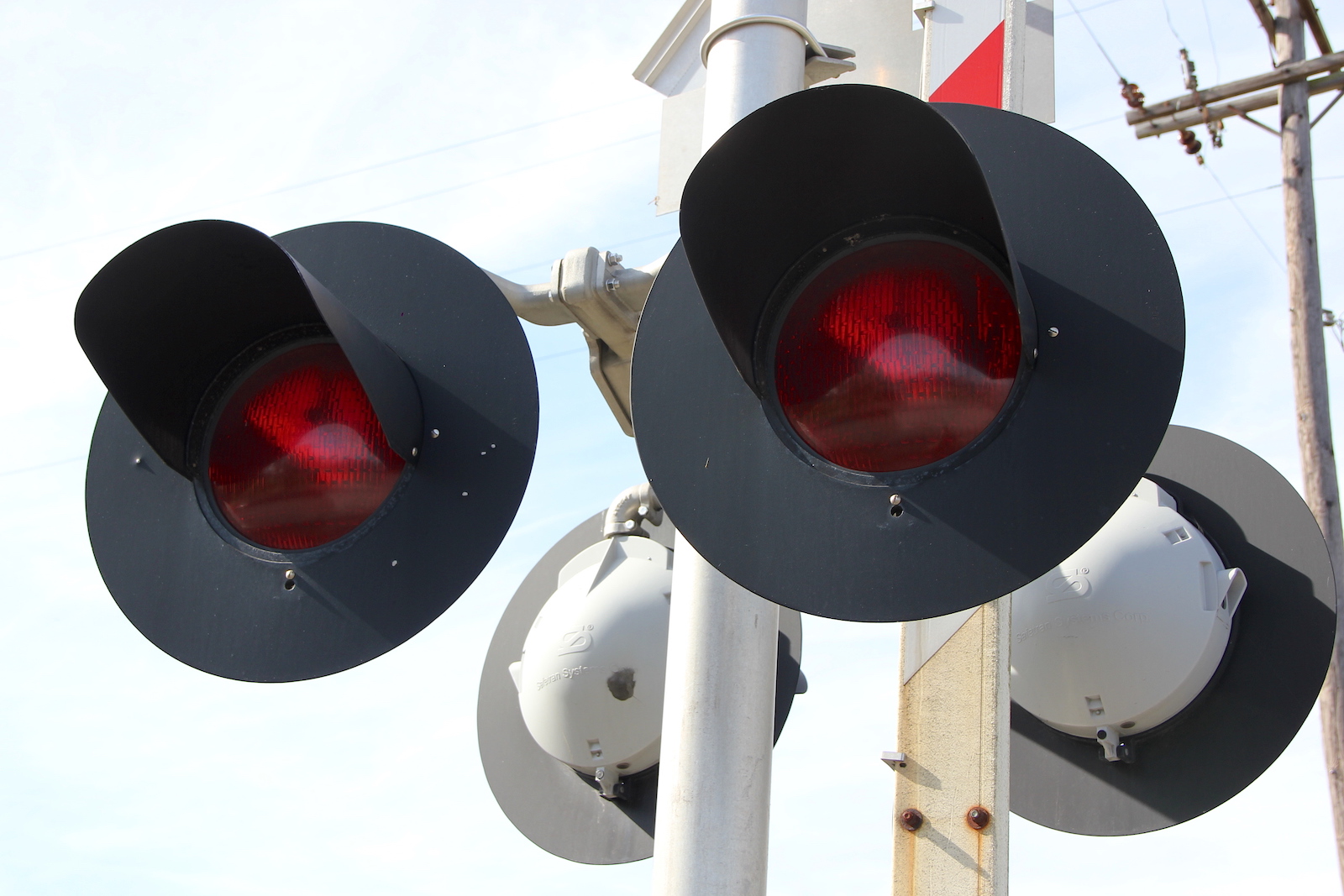

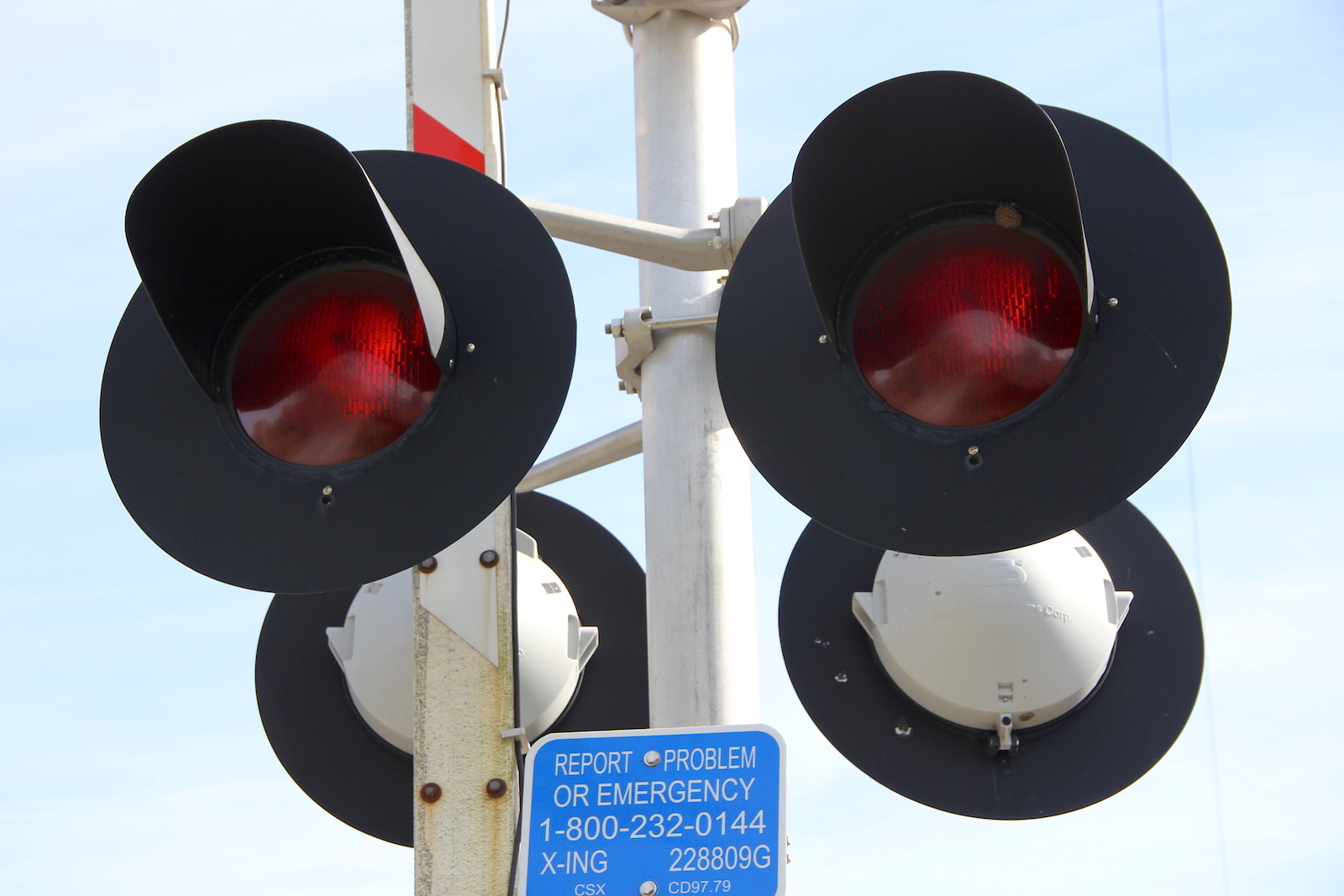

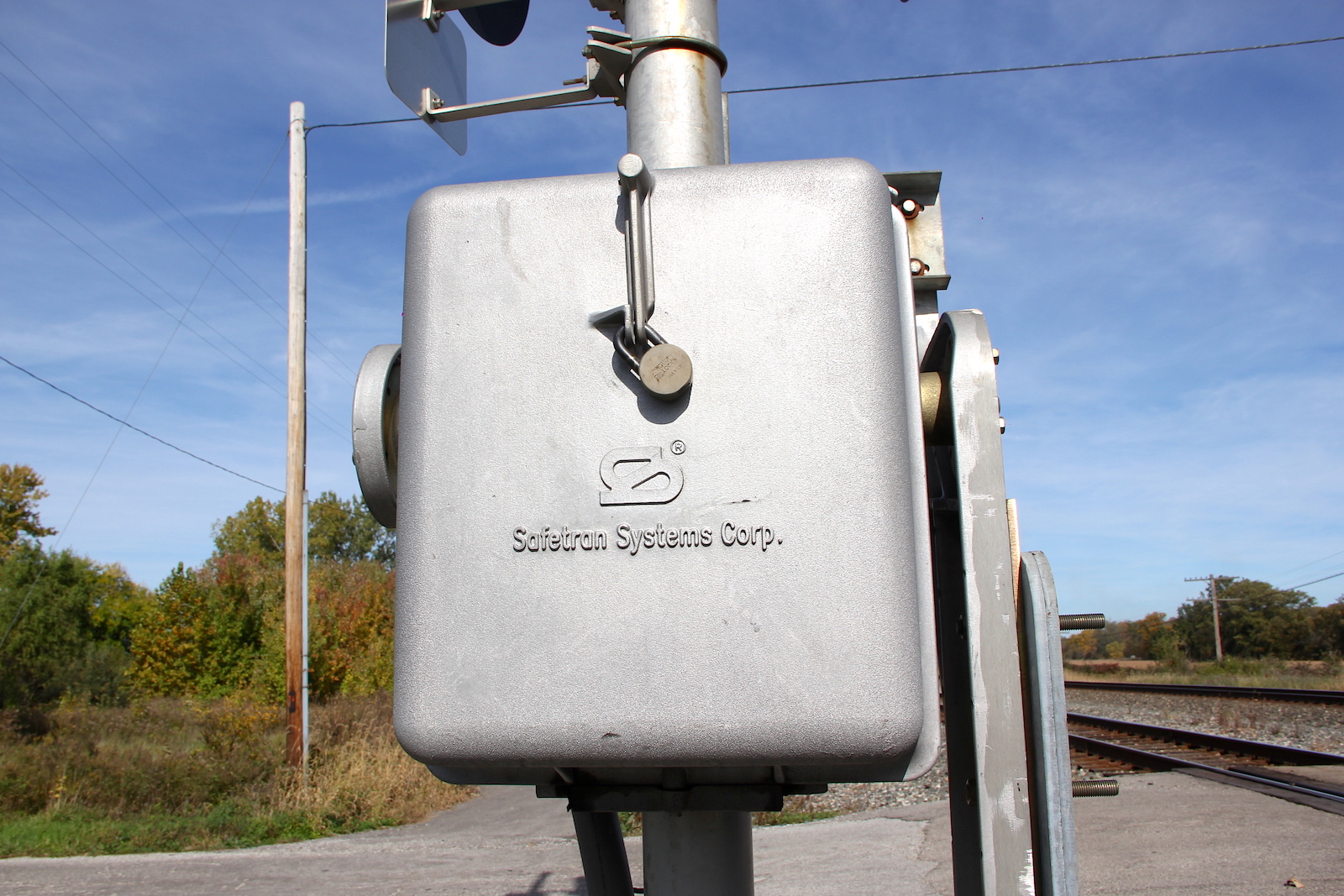

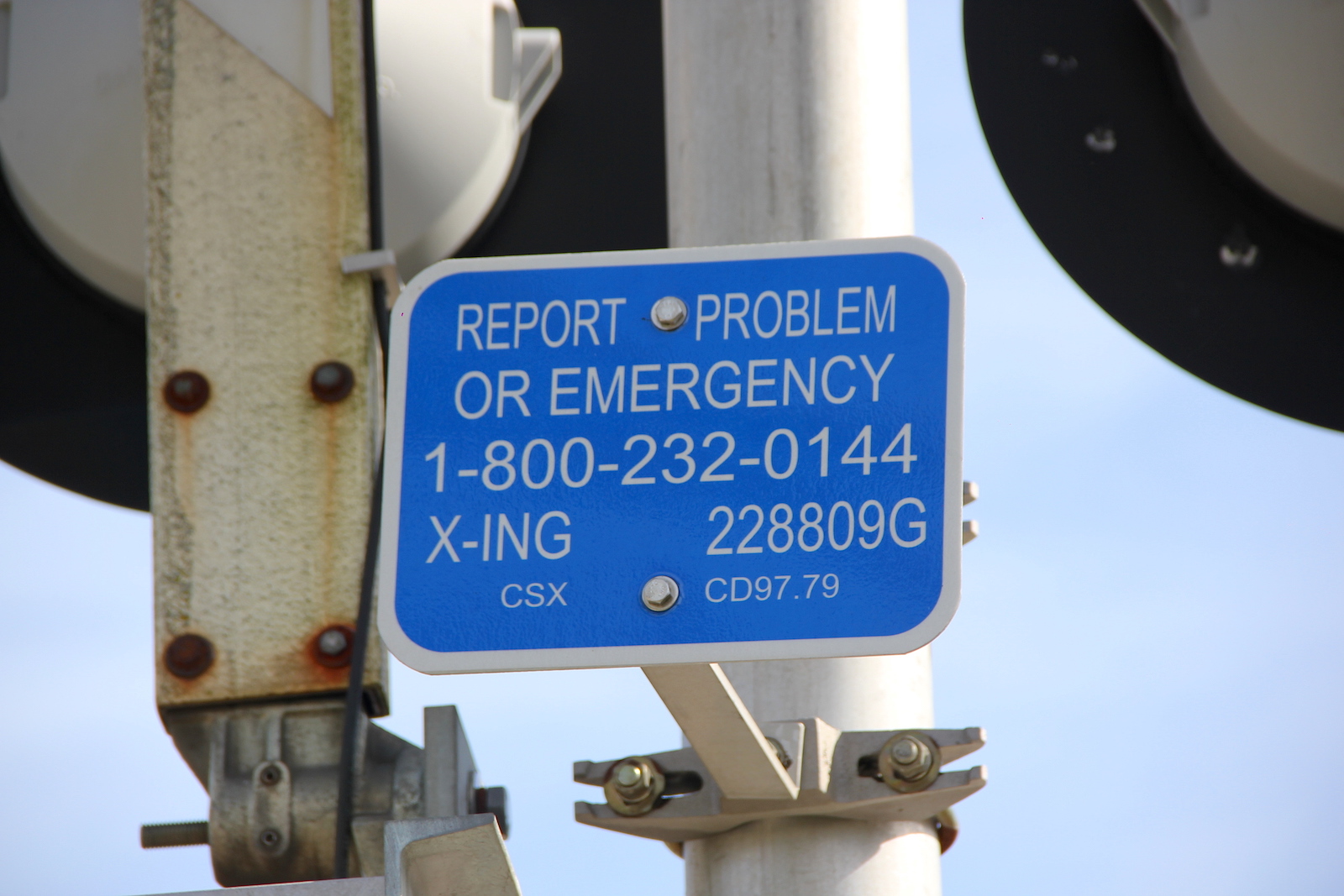

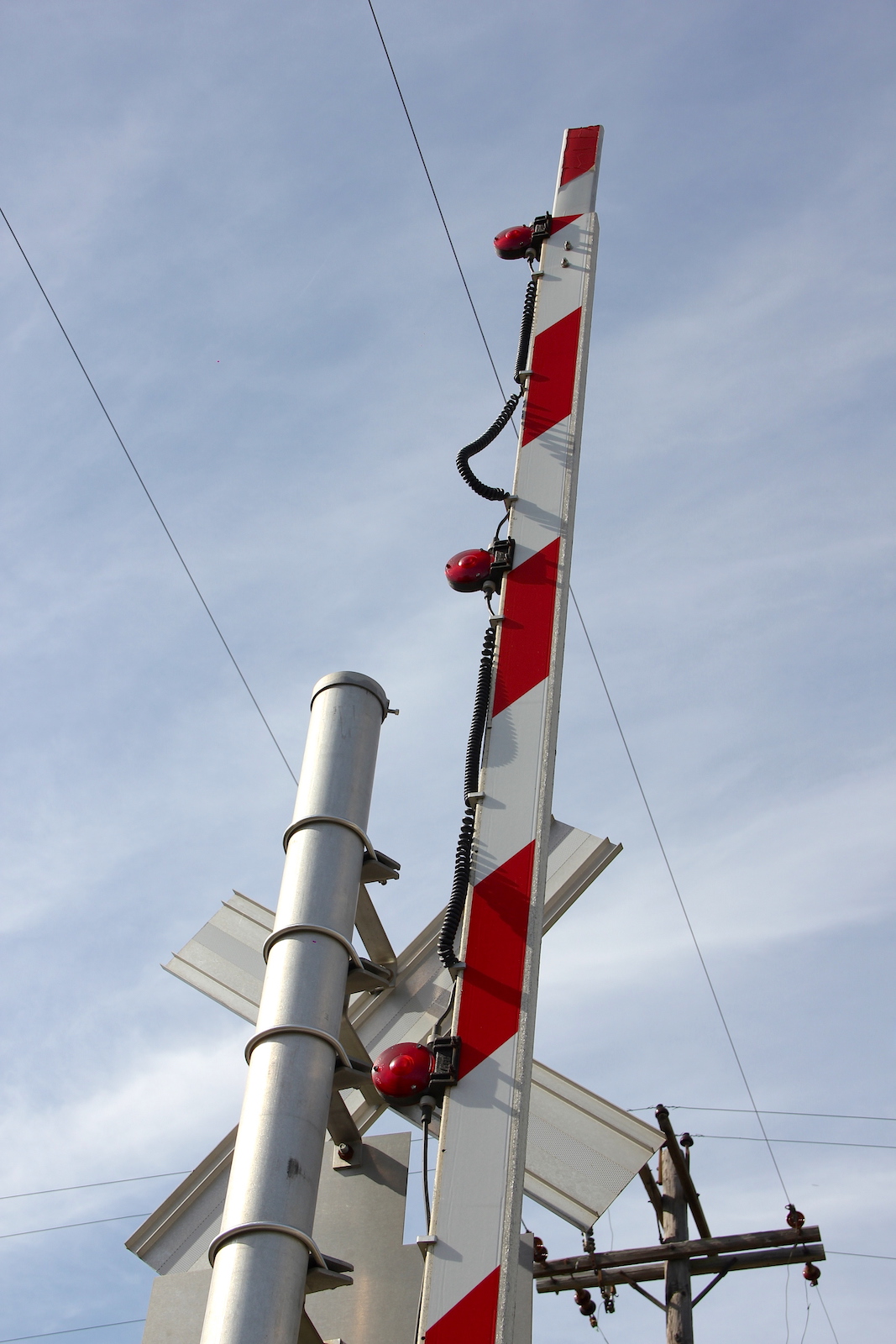

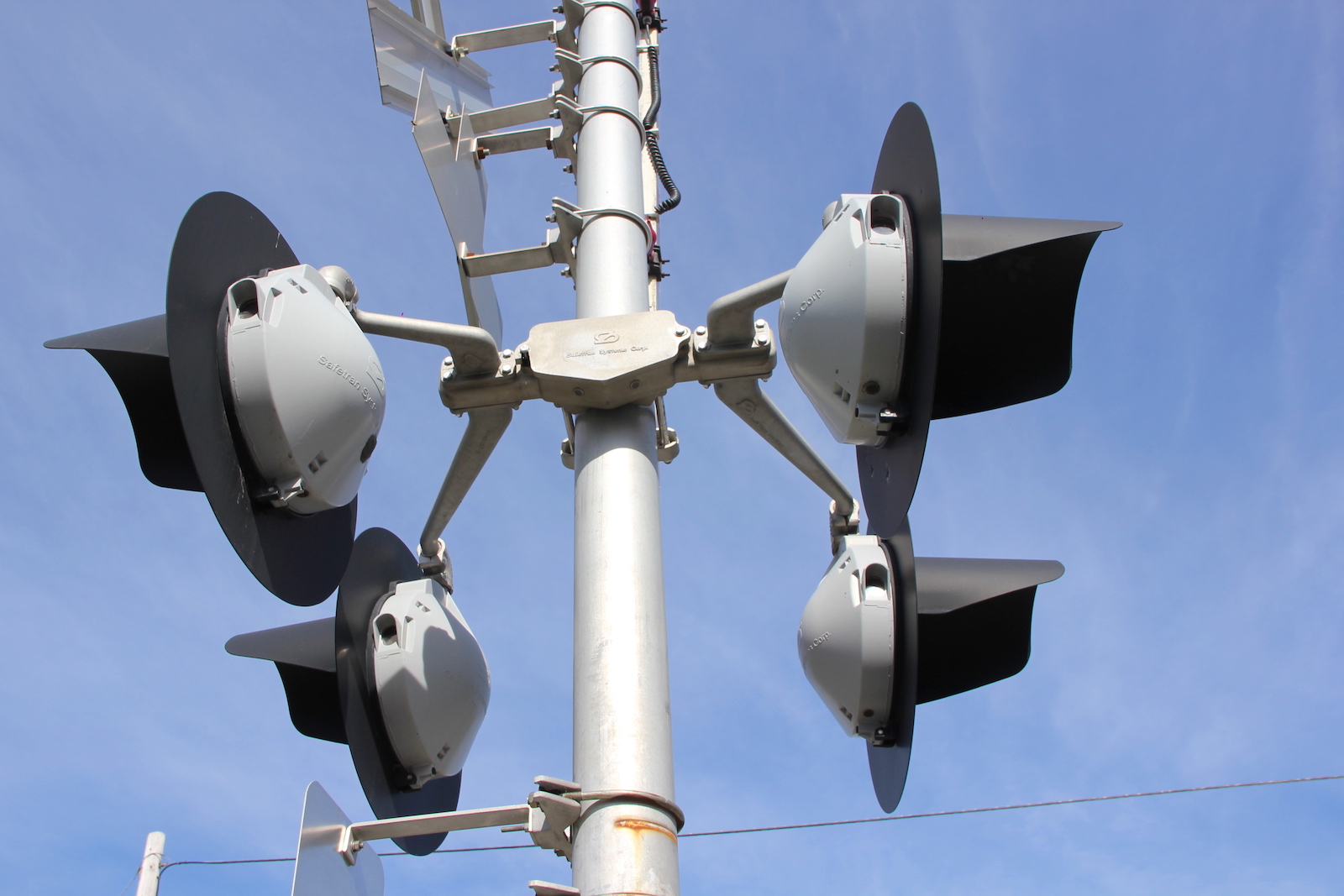

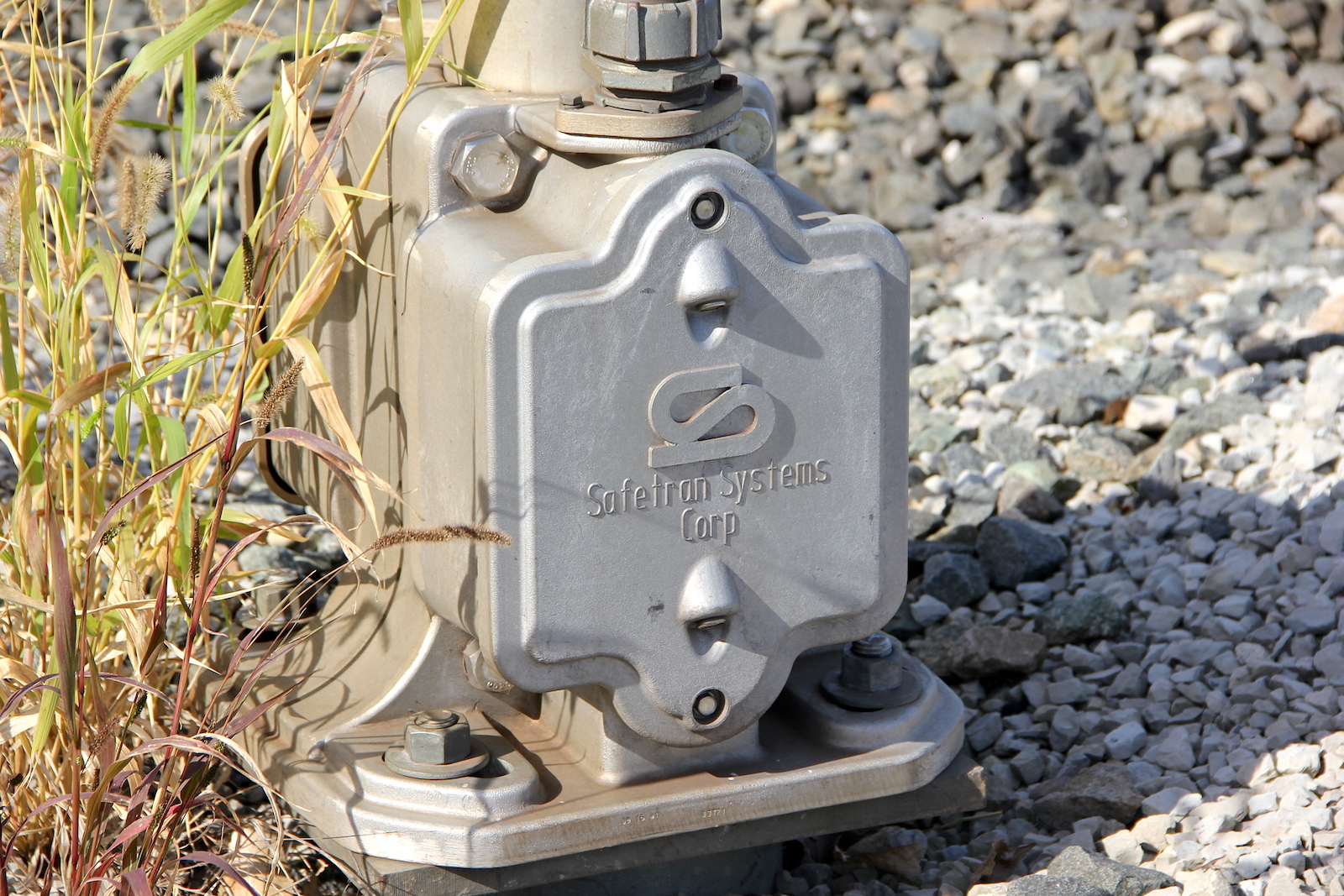

| The western signal. |
11
| 12
| 13
|
14
| 15
| 16
|
17
| 18
| 19 | 20
|

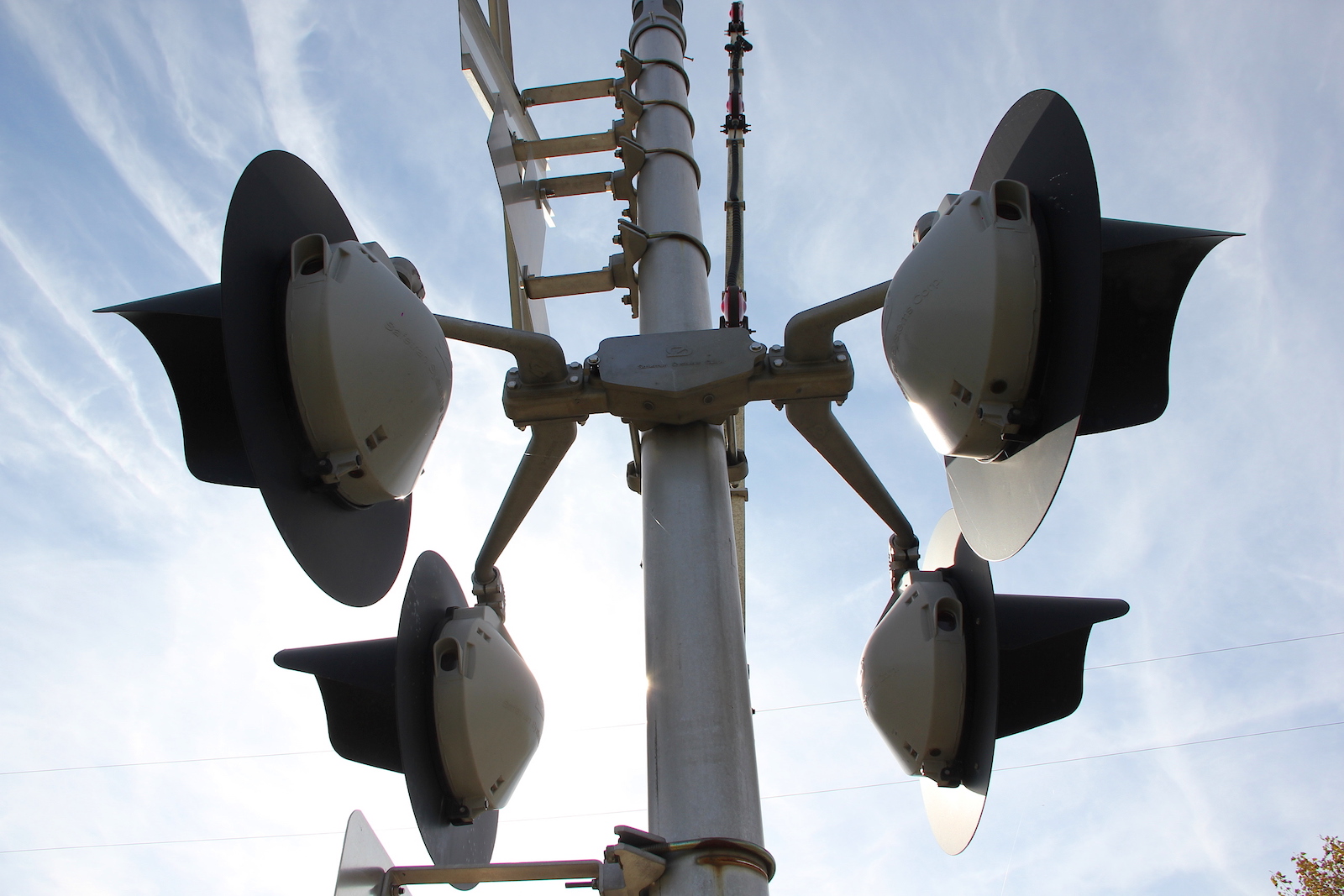

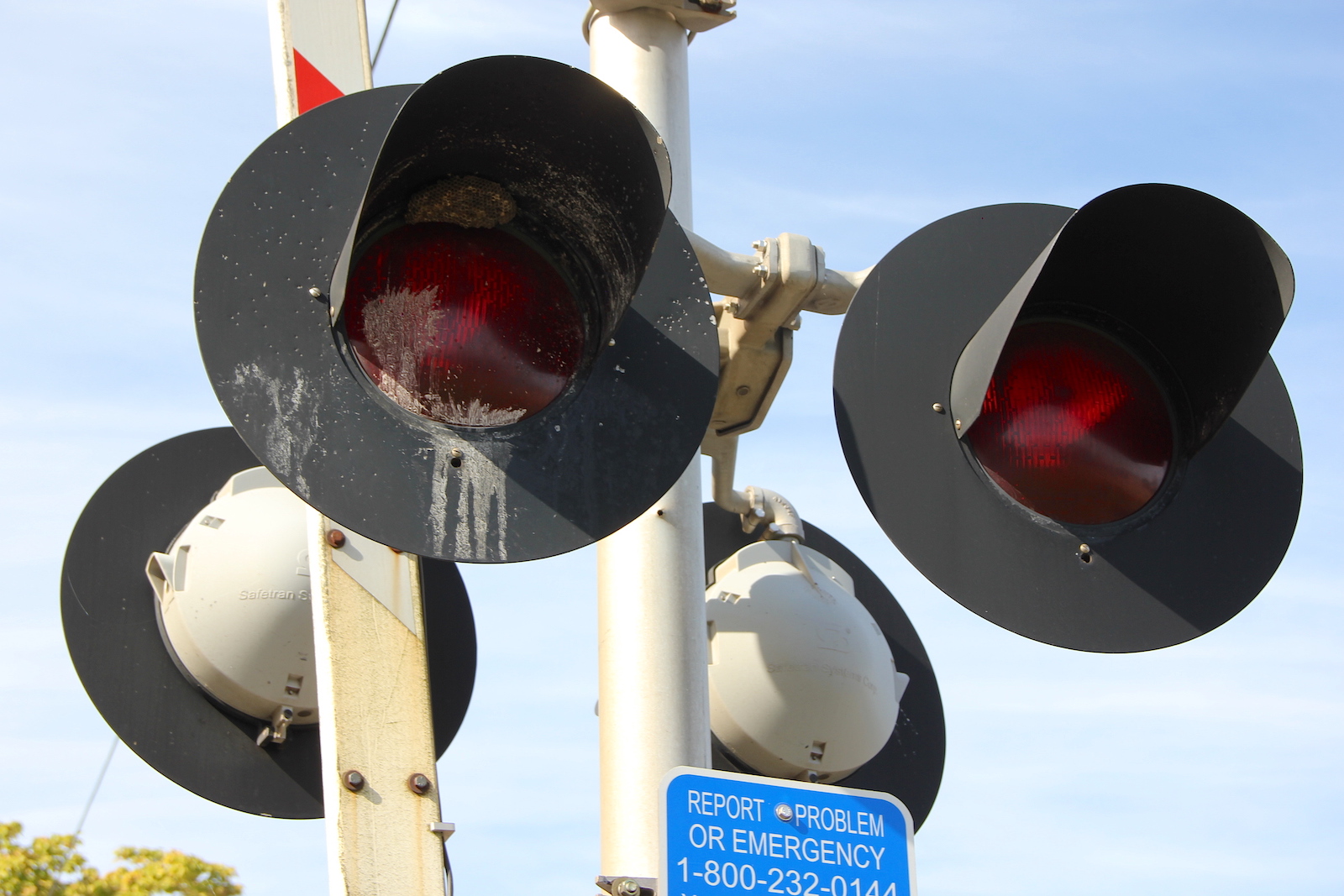

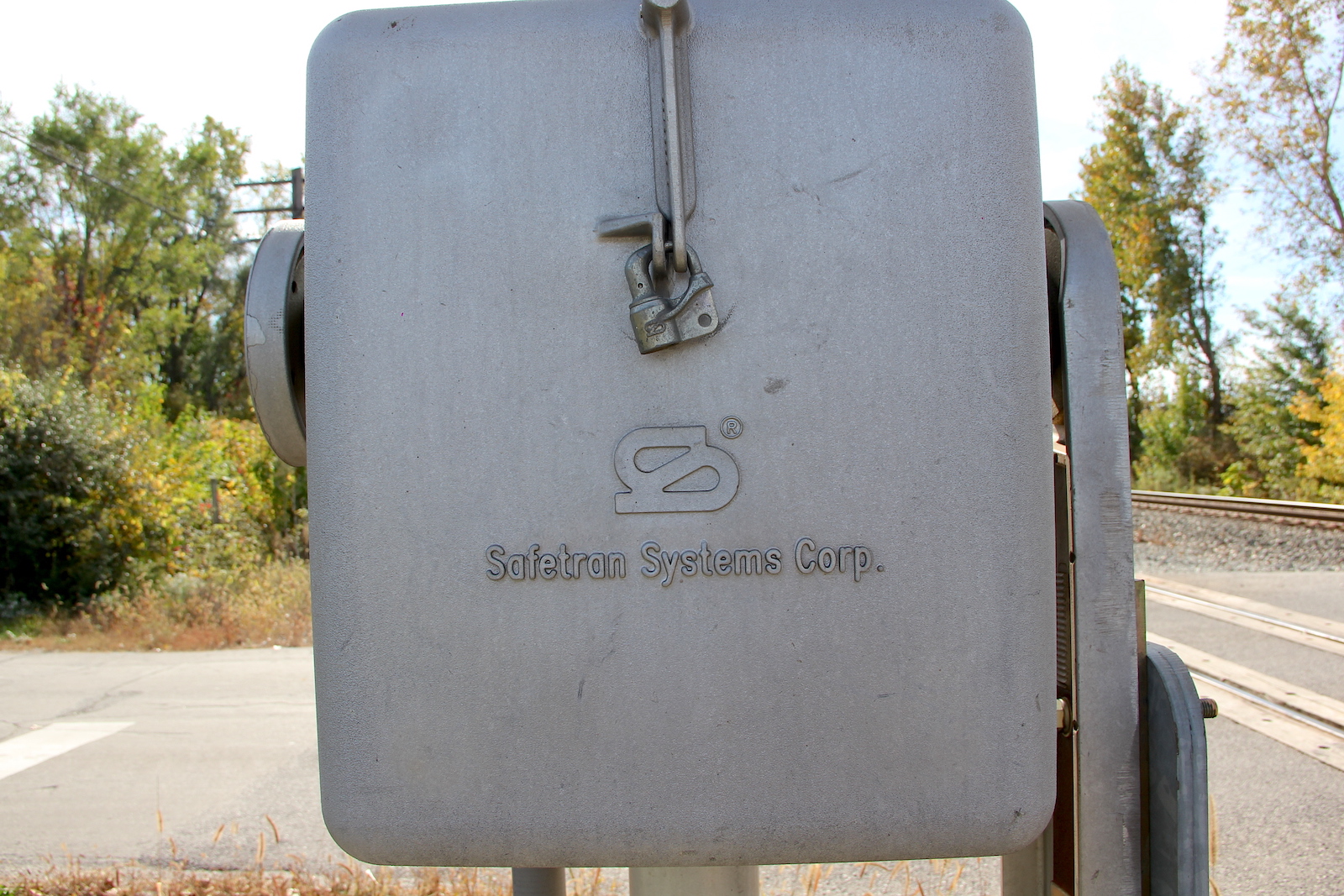

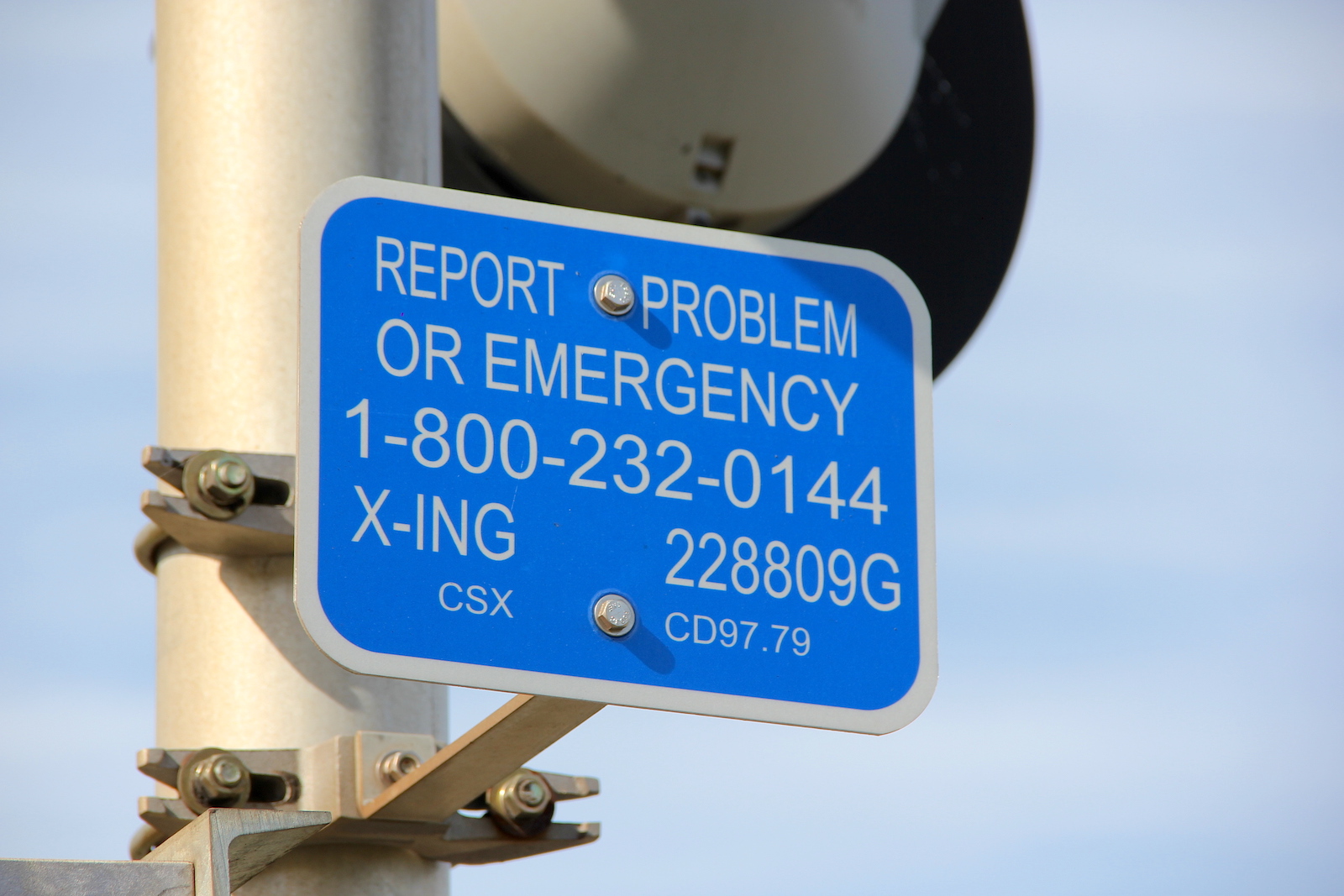

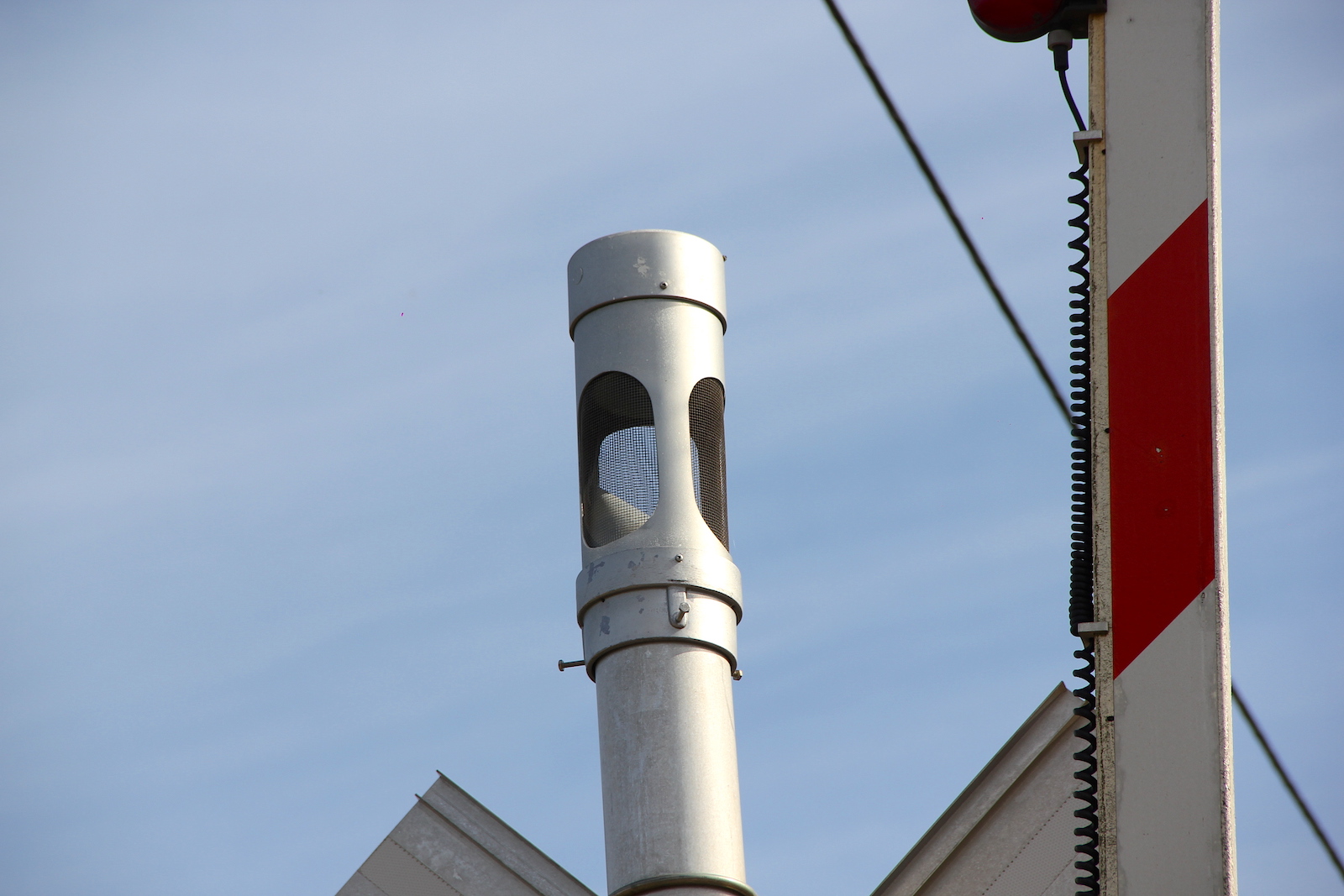

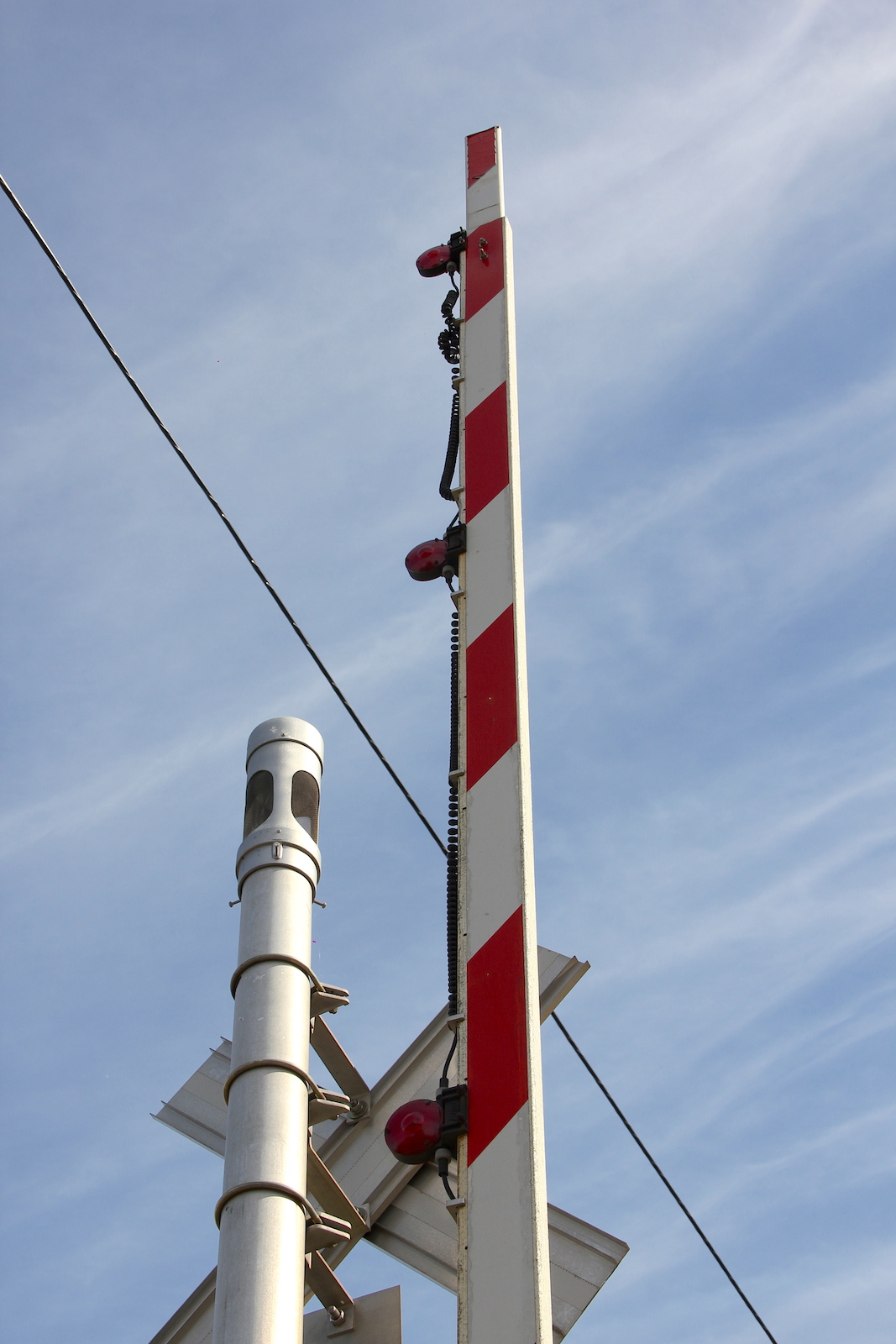

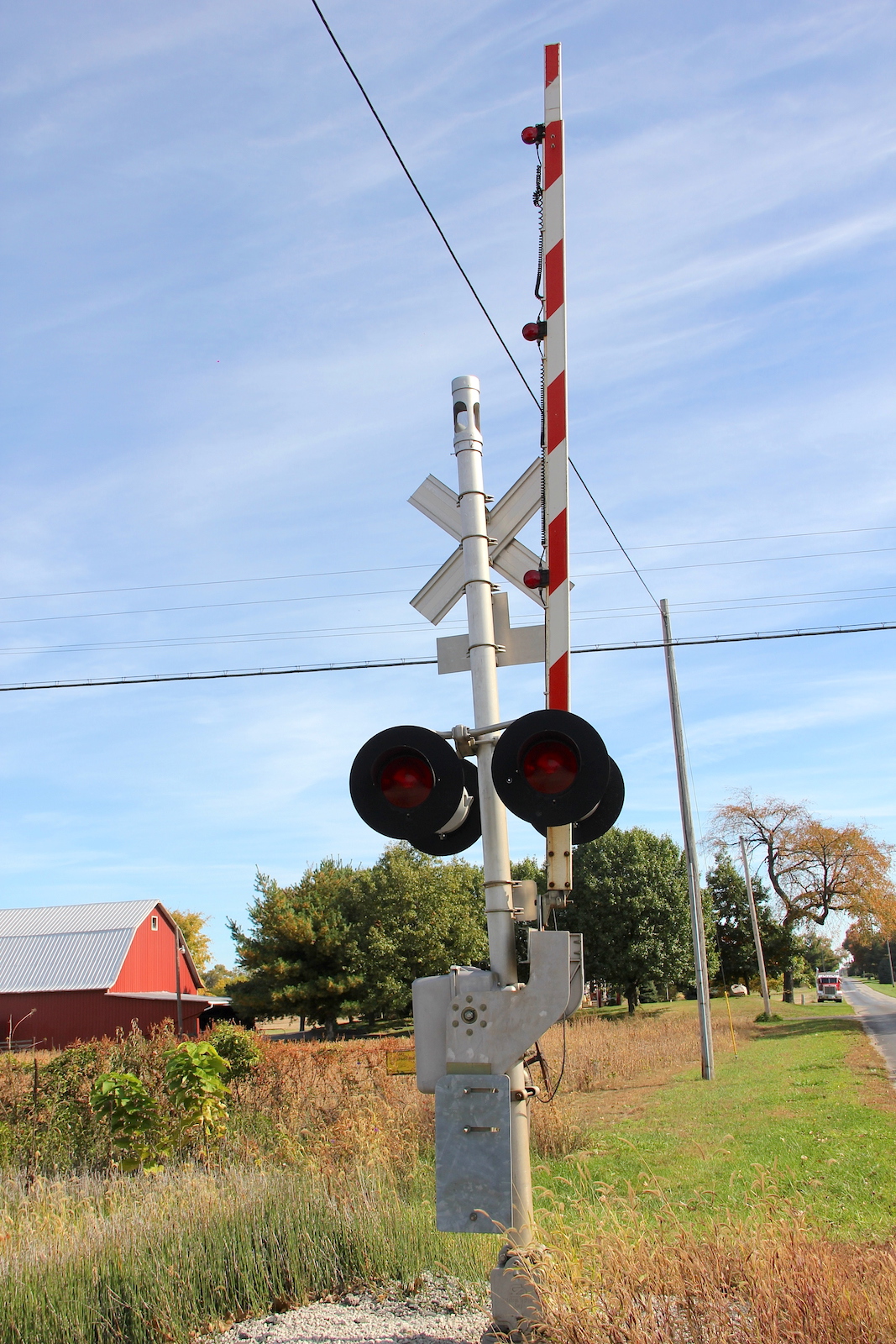

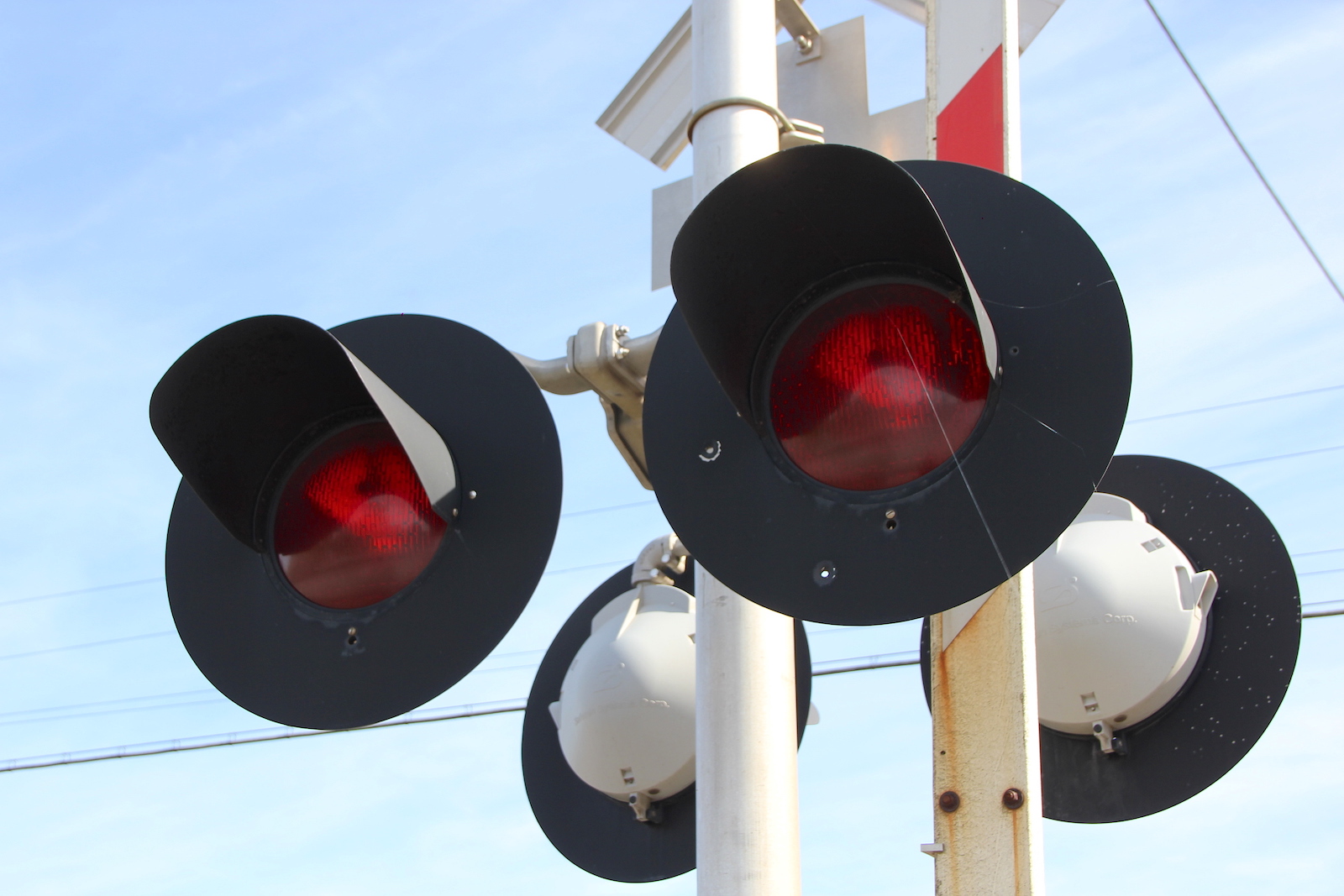

| The eastern signal. |
21
|
22
|
23
|
24
|

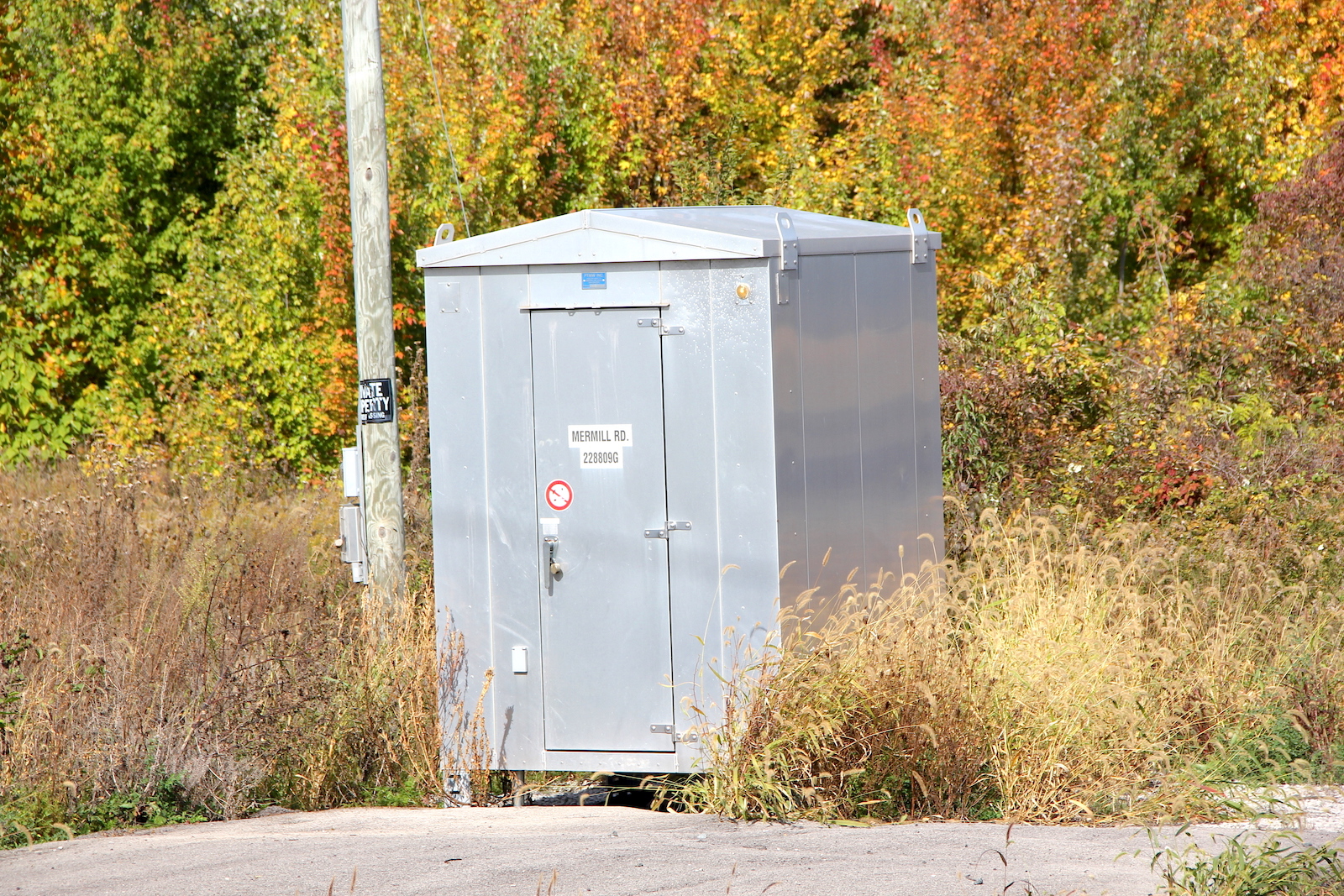

| The relay bungalow in the northwest quadrant. |

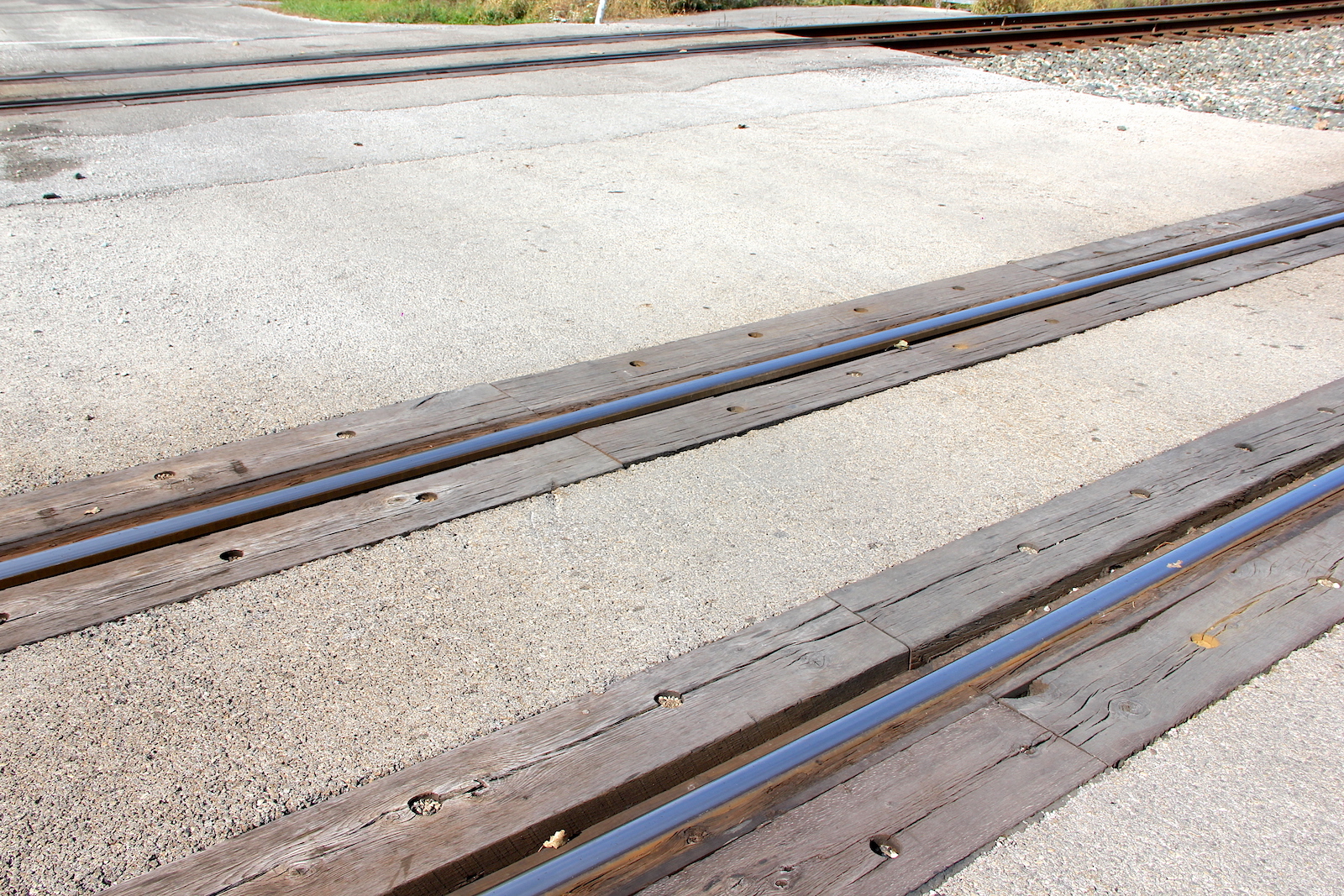

The grade is wood and asphalt. |

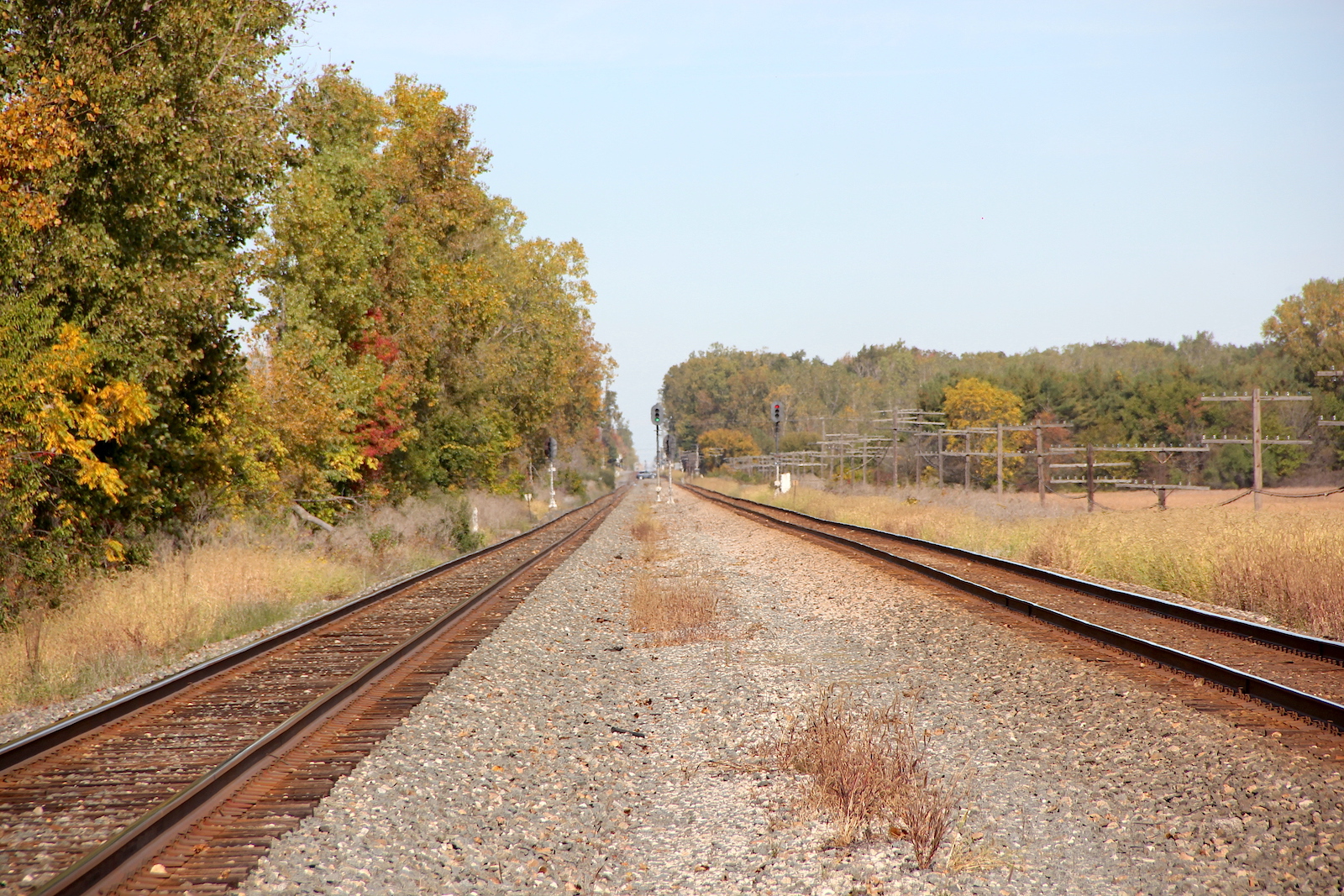

Track view facing north towards Greensburg Pike. |

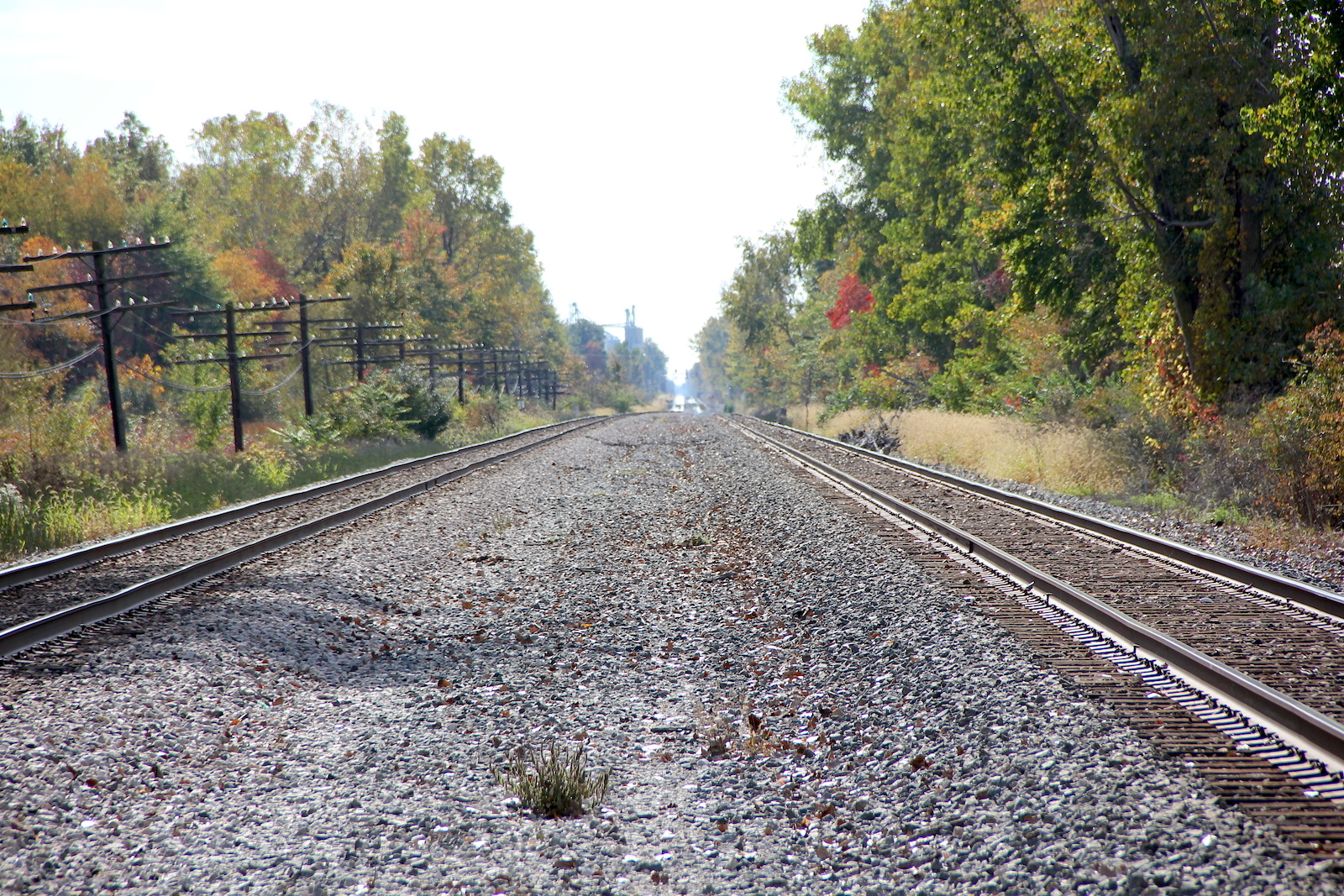

Track view facing south towards Girton Rd. in Risingsun. |
