| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | Siemens E Bell |
| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" NEG incandescents | 4" NEG incandescents |
| Gate Mechanism: | Invensys Rail w/ NEG 1 Way Saver | Invensys Rail w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2
|

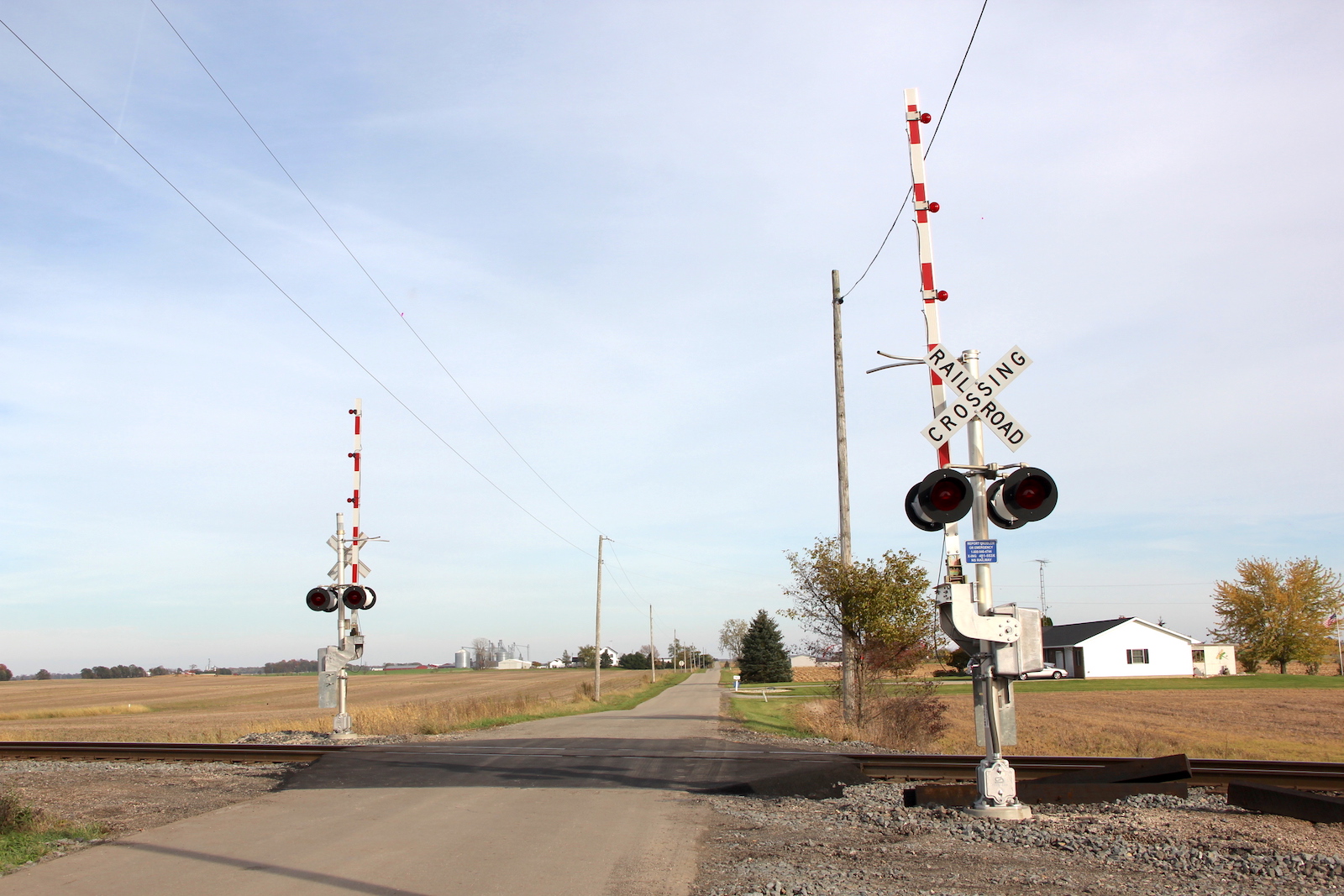

| Overview of 2 gated signals facing east. |

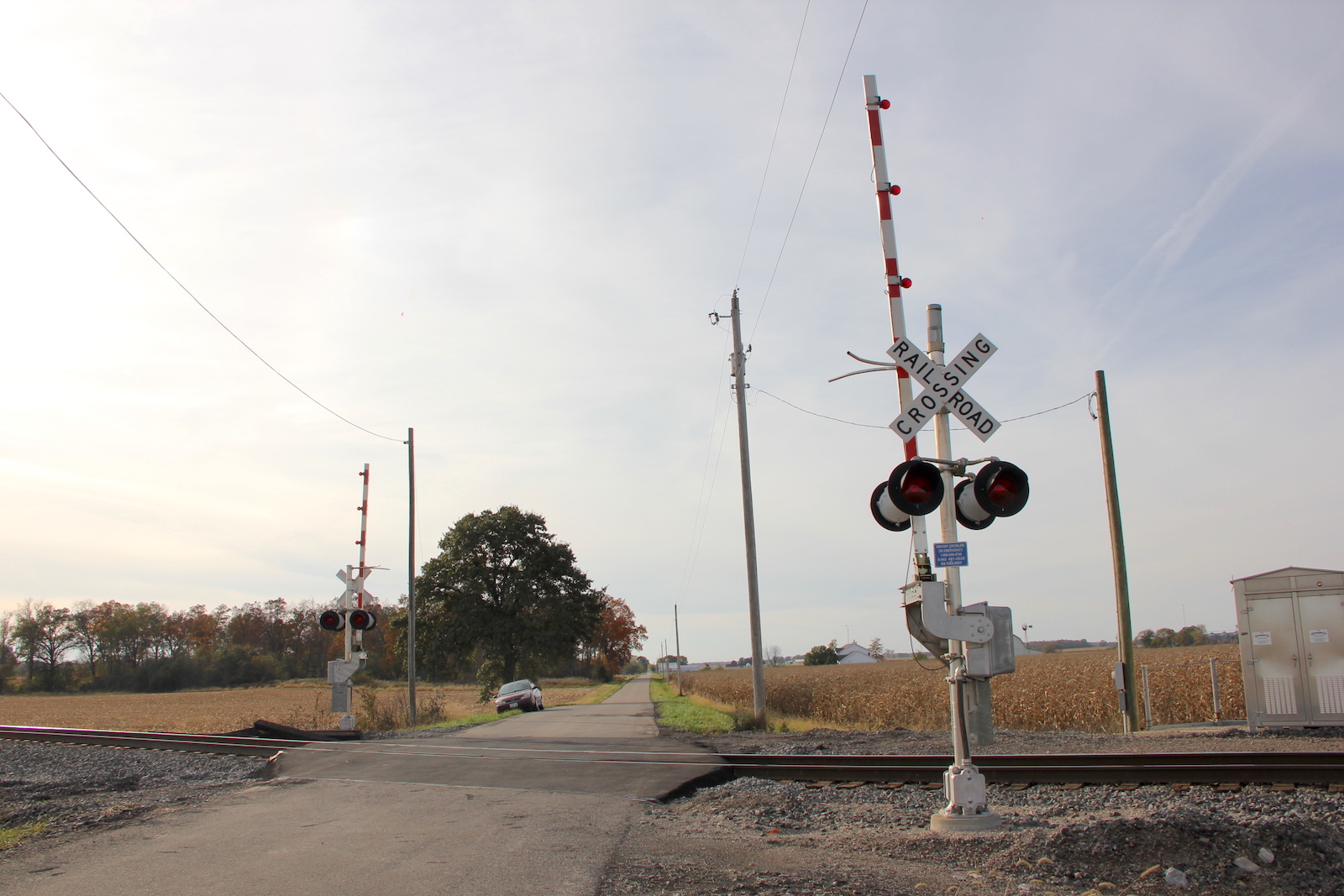

Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

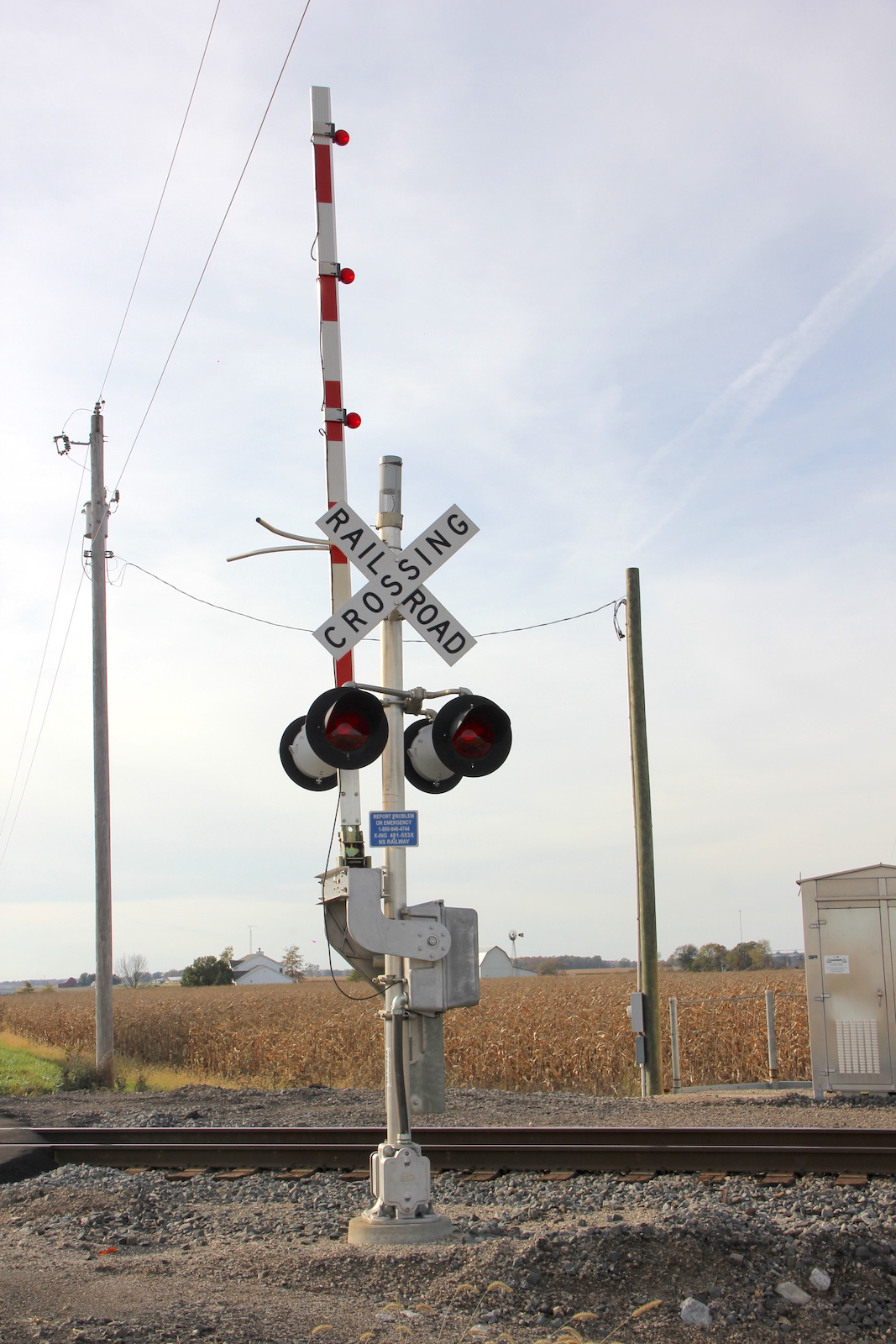

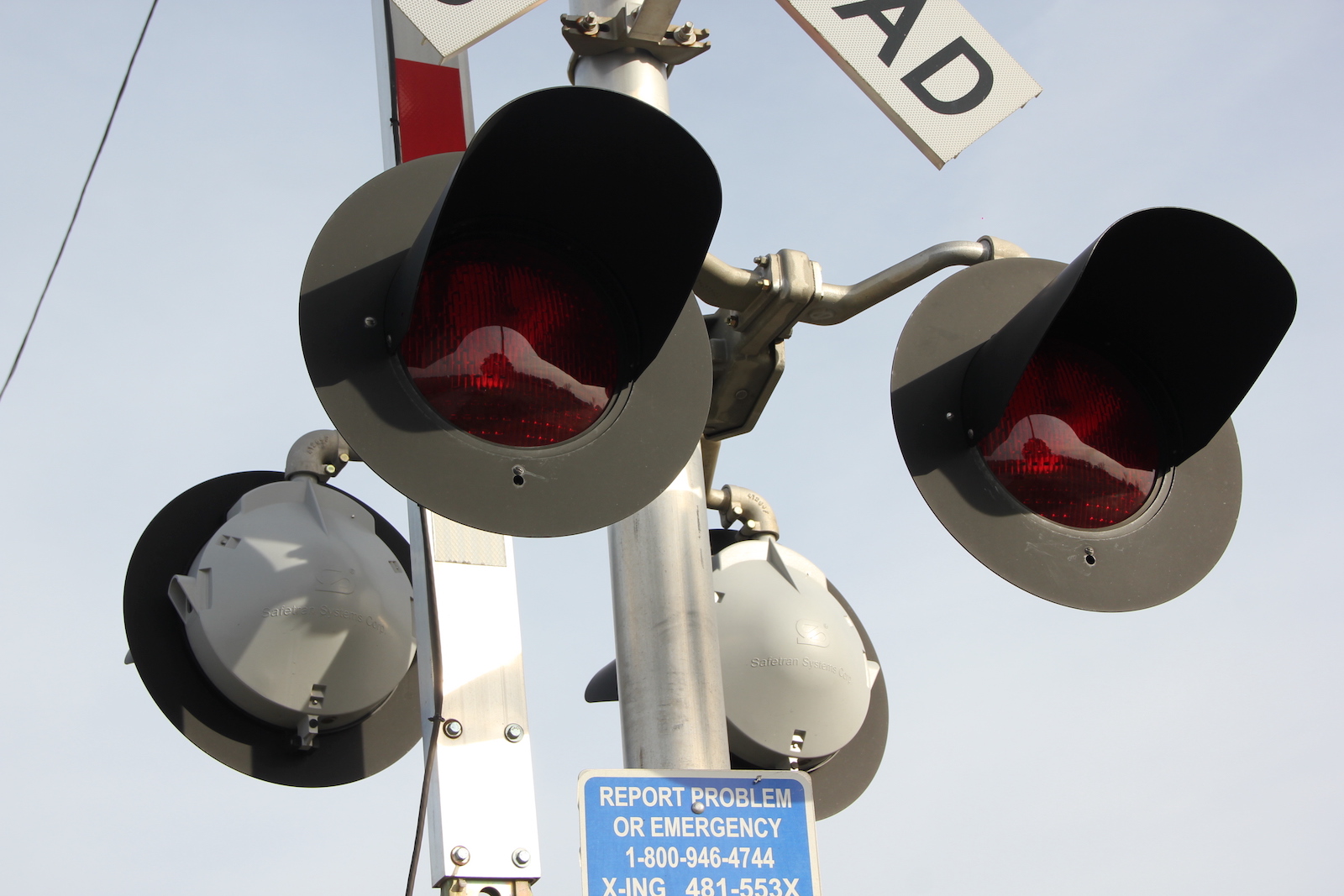

| The western signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|
| The eastern signal. |
22
|
23
|
24
|
25
|

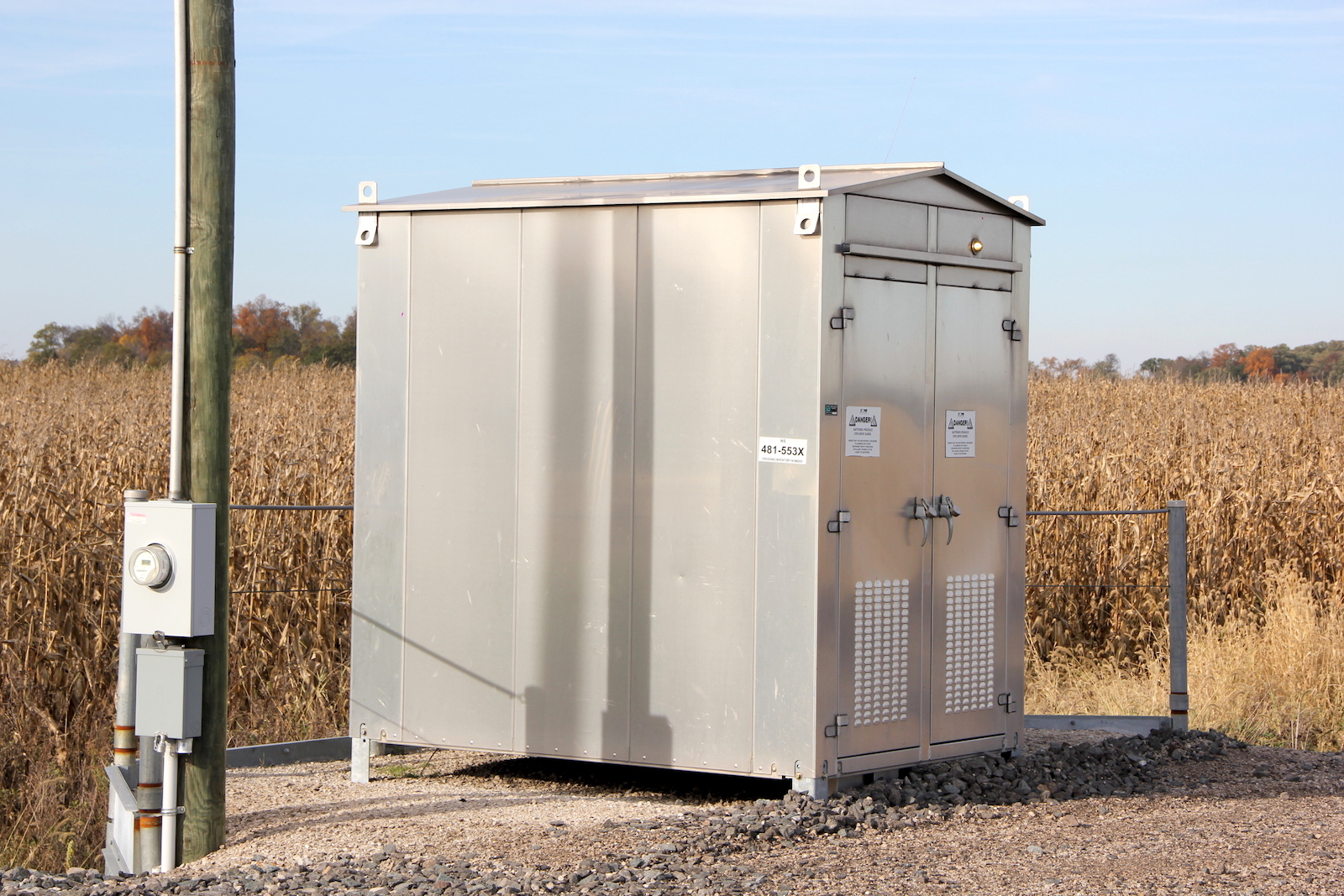

| The relay bungalow in the northwest quadrant |

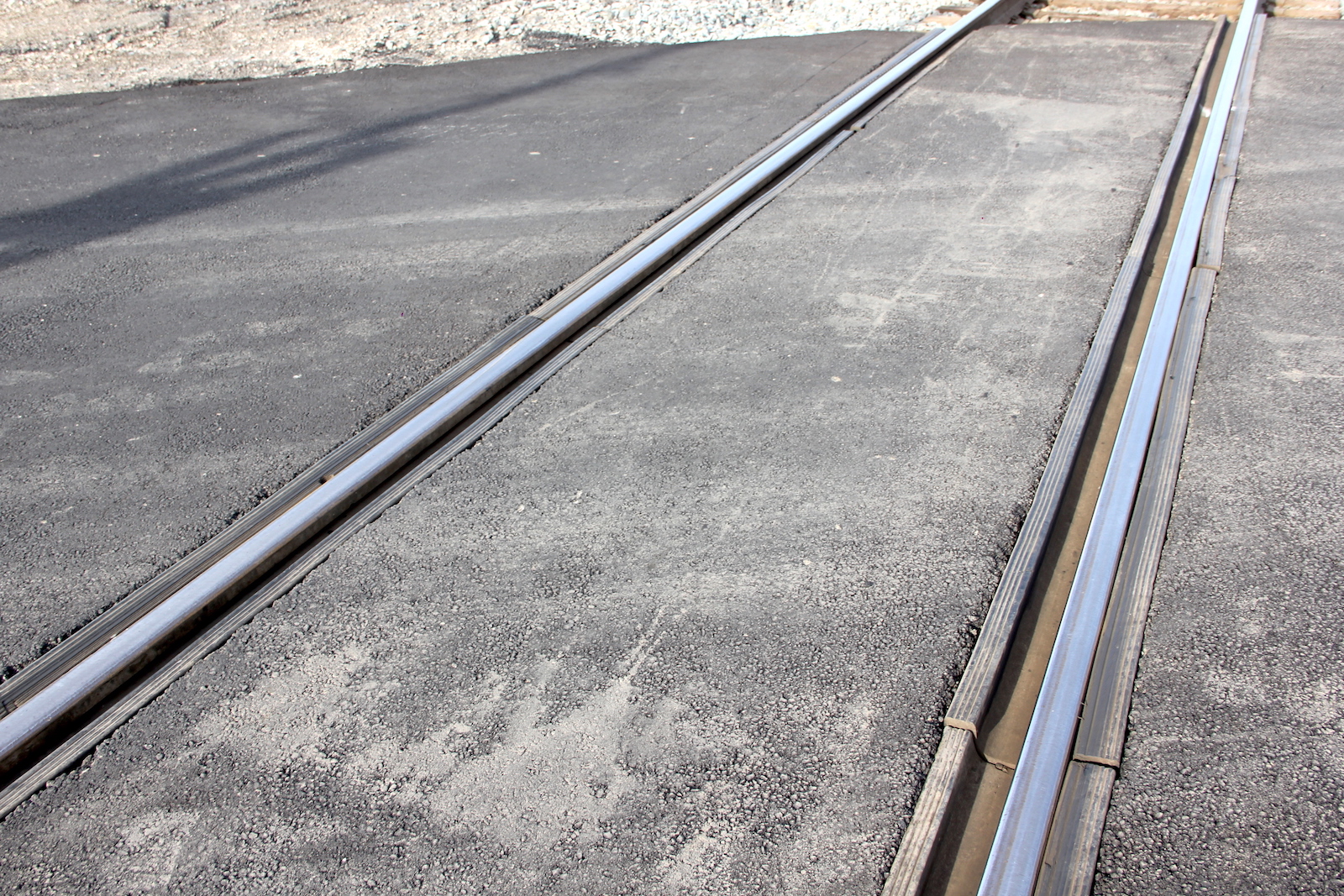

The grade is rubber and asphalt. |
Track view facing north towards Caldwell Rd. |
Track view facing south towards Monnett Rd. in Kirkpatrick. |
