| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | None |

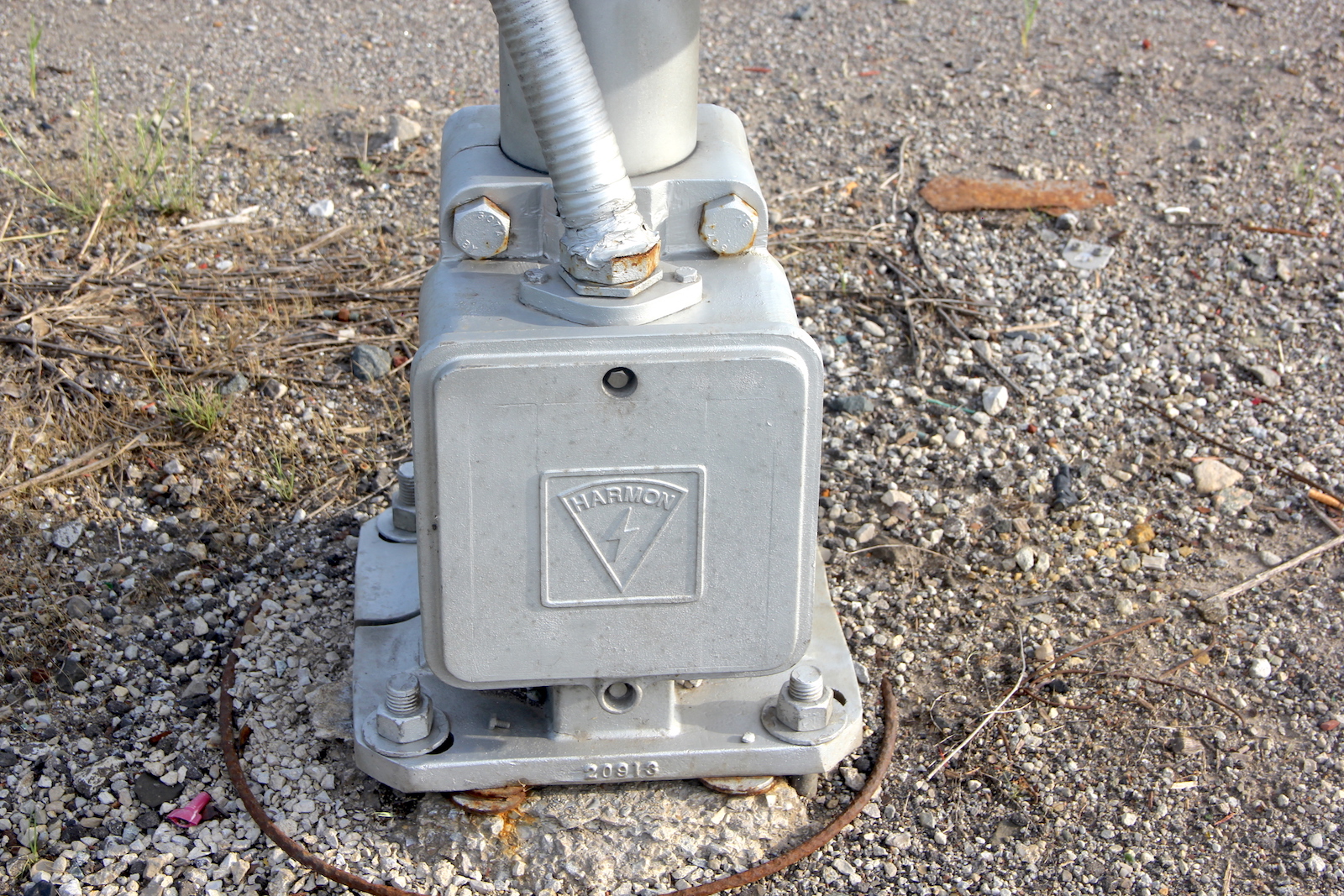

| Base: | Harmon 5" Single Sided > | Harmon 5" Single Sided > |
| Lights: | 4 - 8"x20" Safetran incandescents | 4 - 8"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |

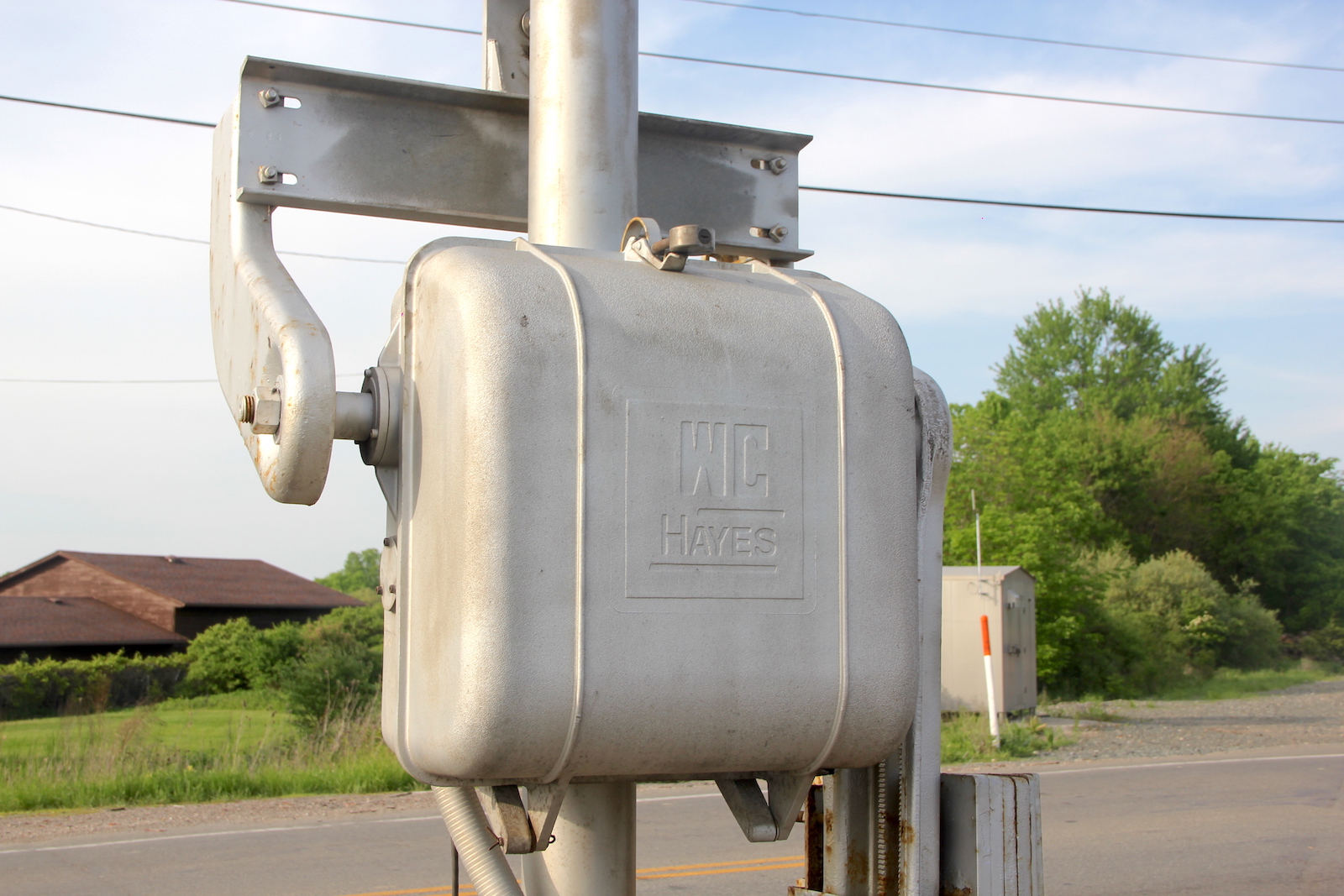

| Gate Mechanism: | WCH Style 3 w/ Standard Mount | WCH Style 1 w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Vertical Striping |
1 |
2
|

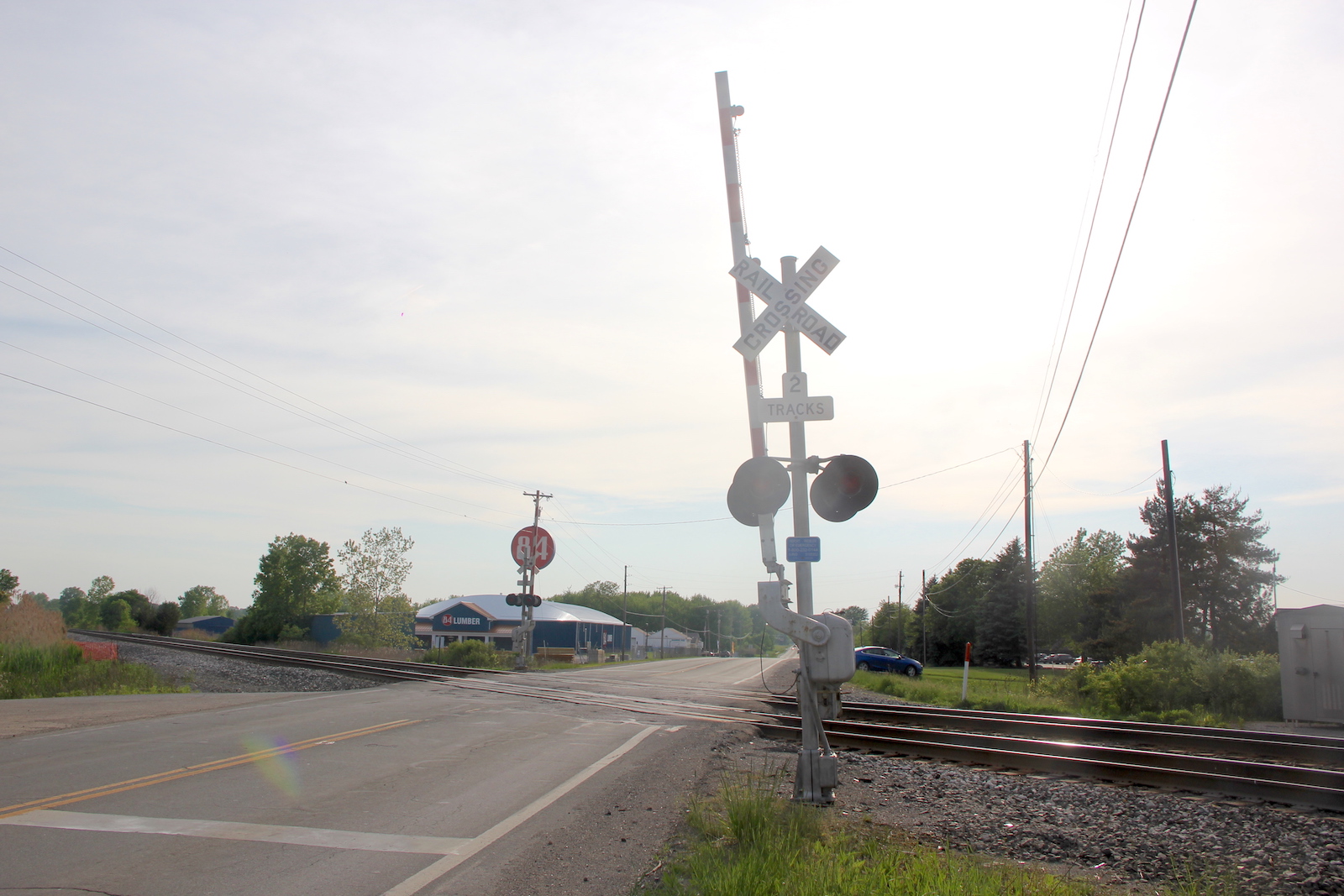

| Overview of 2 bell-less Conrail signals facing east. |
Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

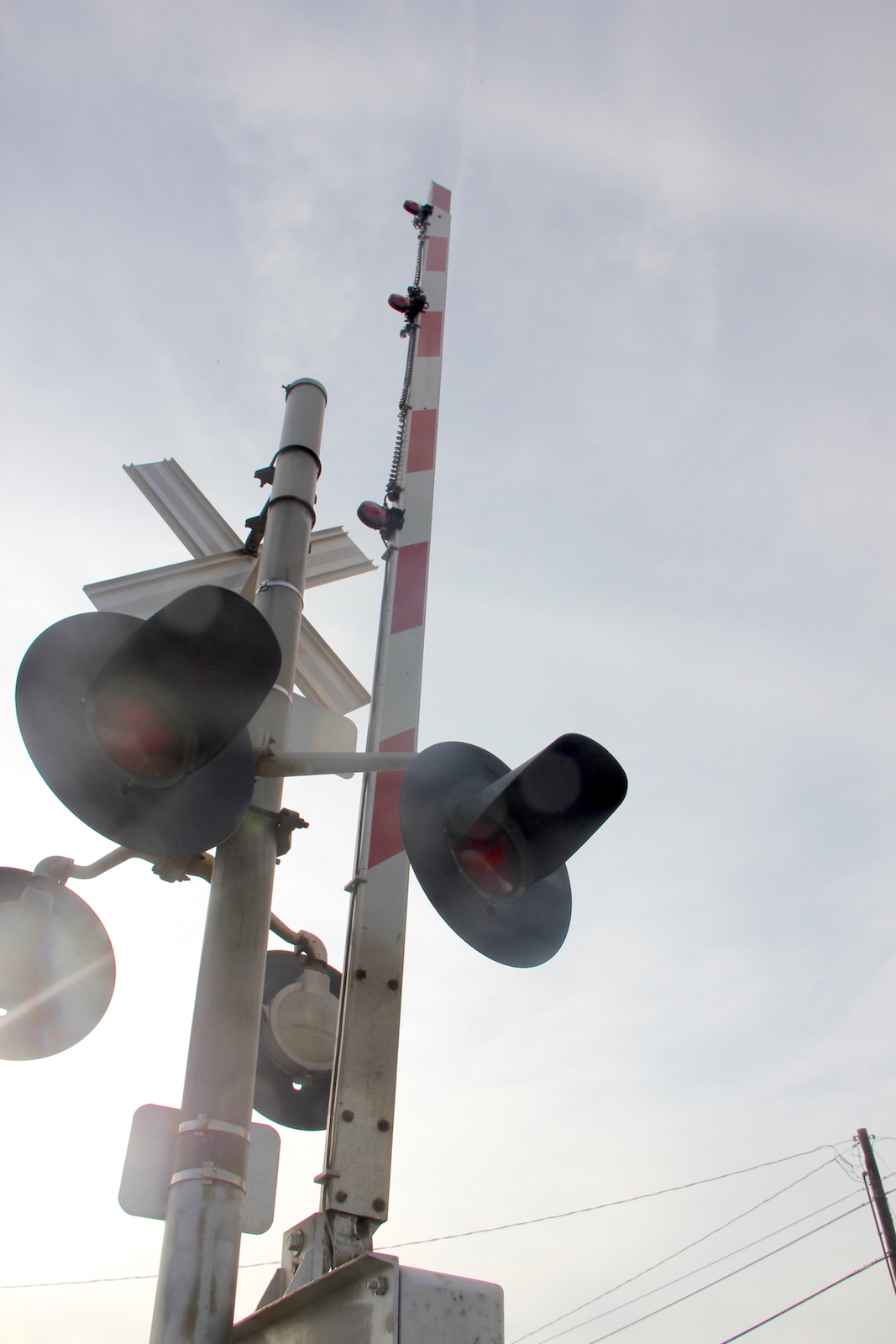

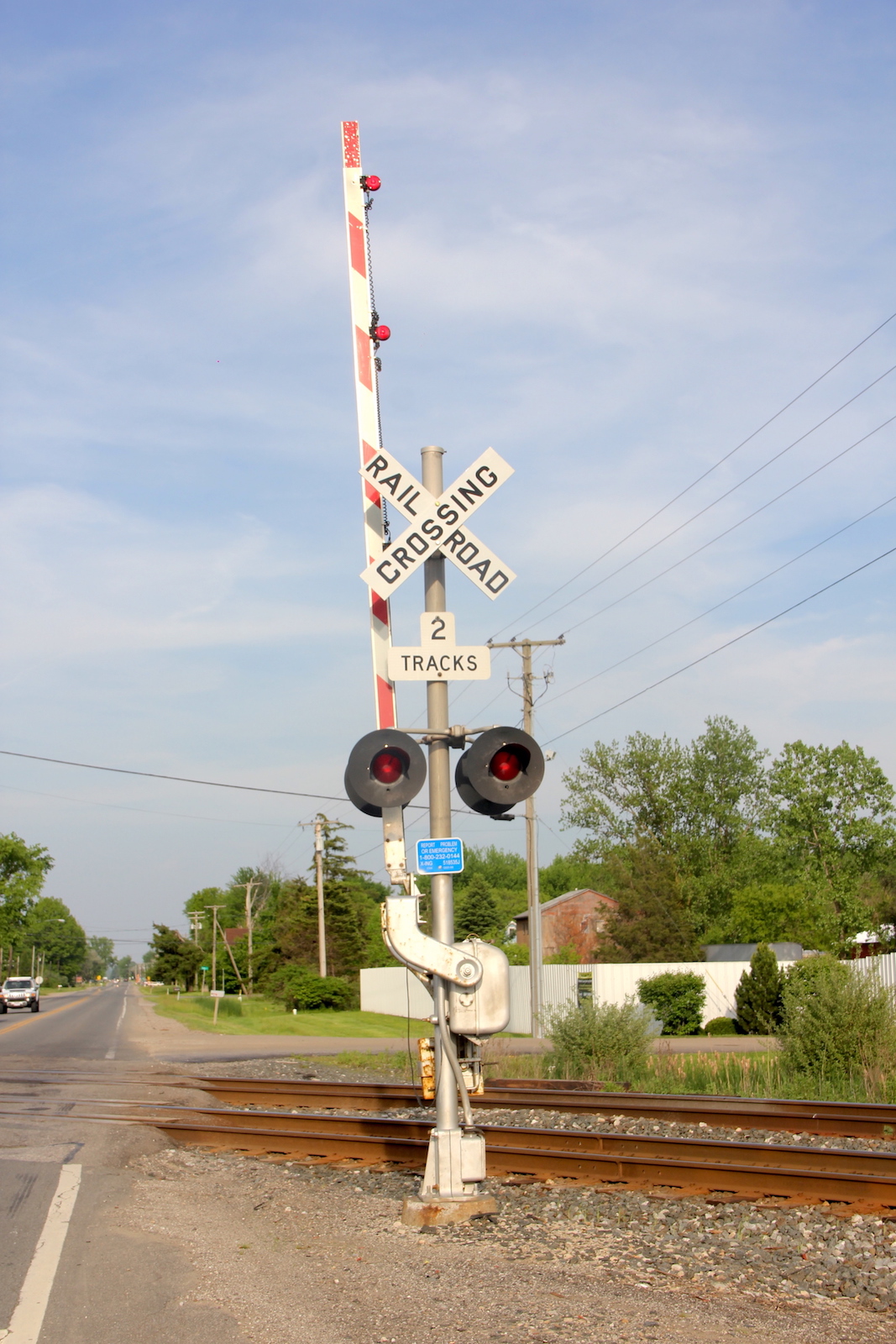

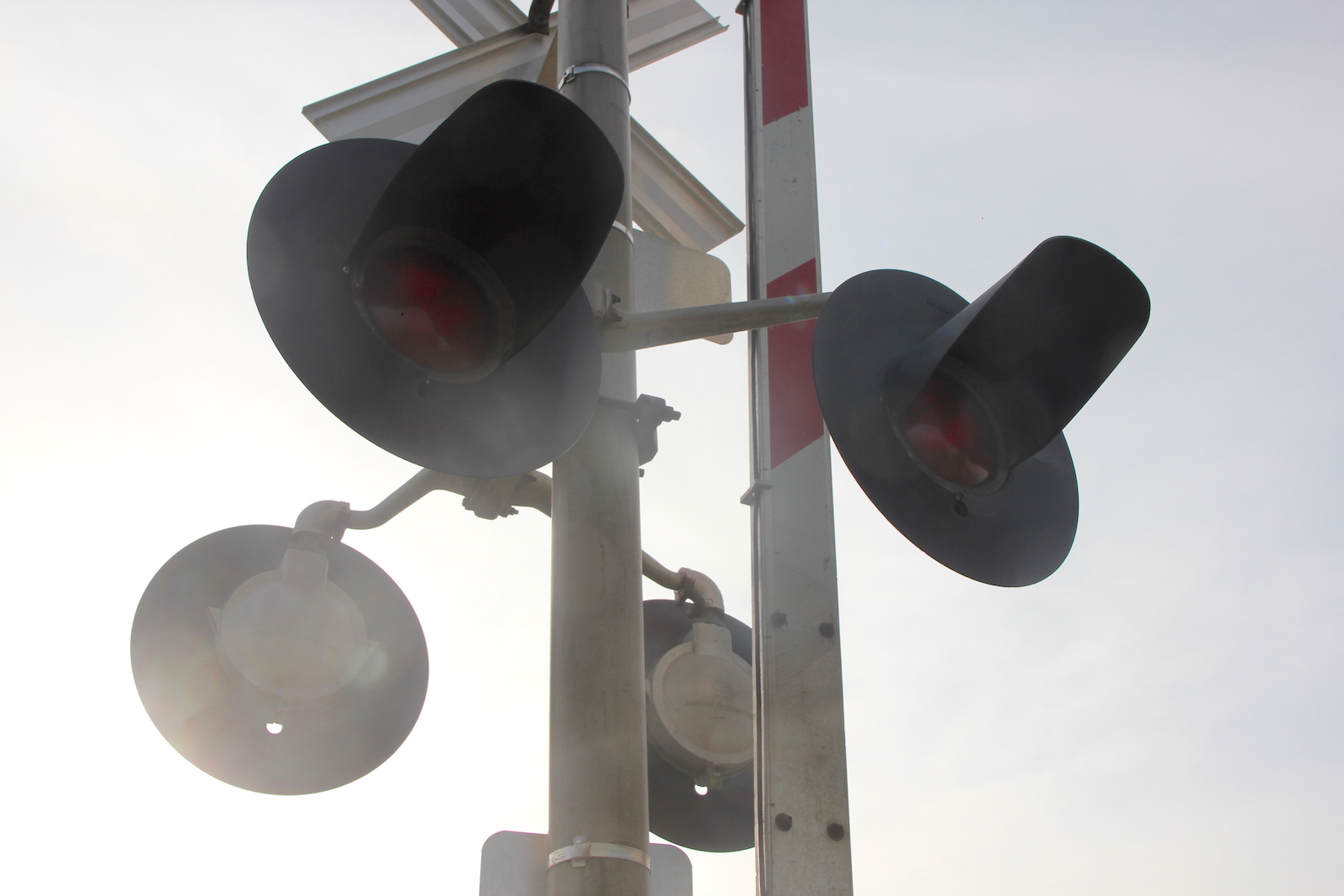

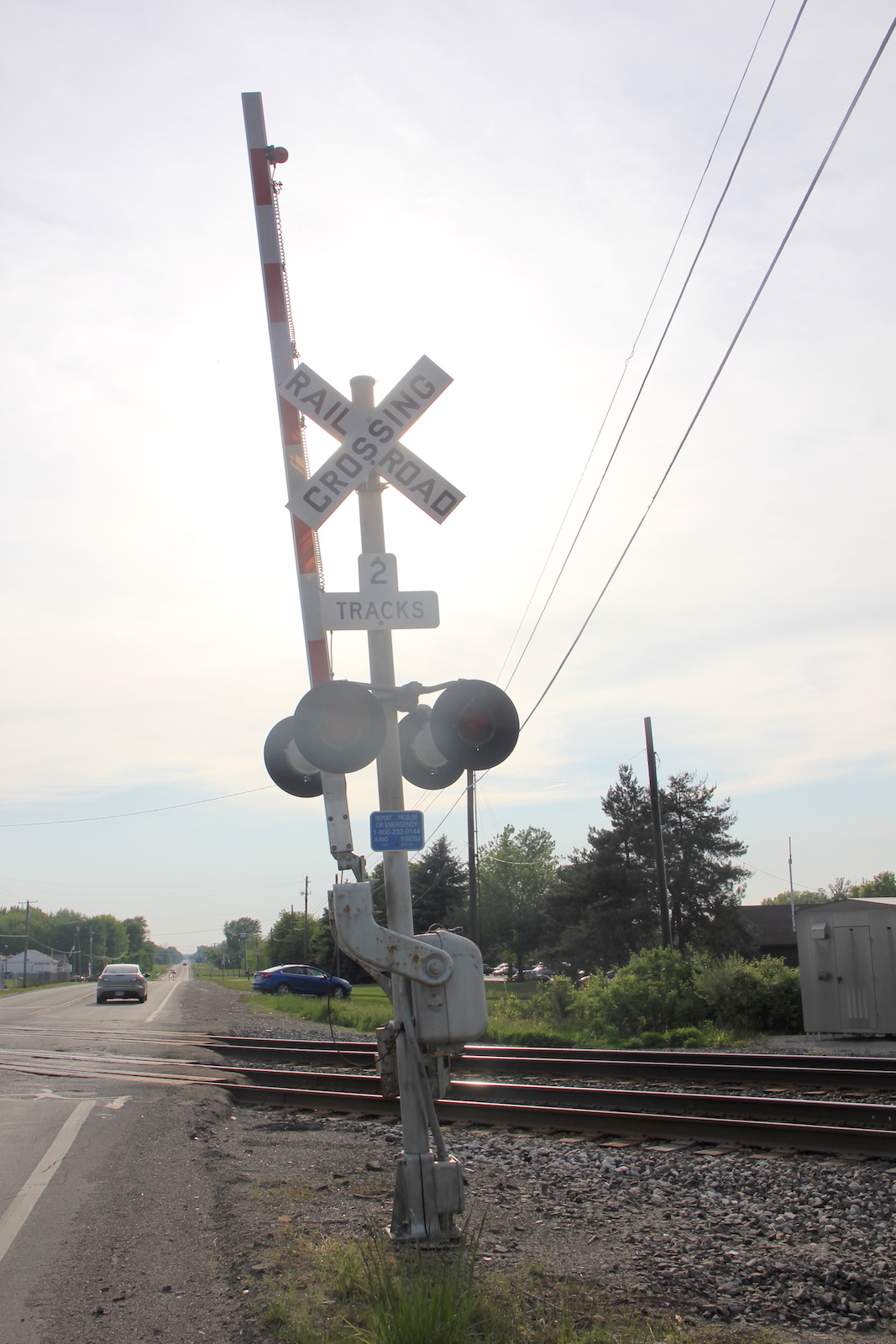

| The western signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20
|

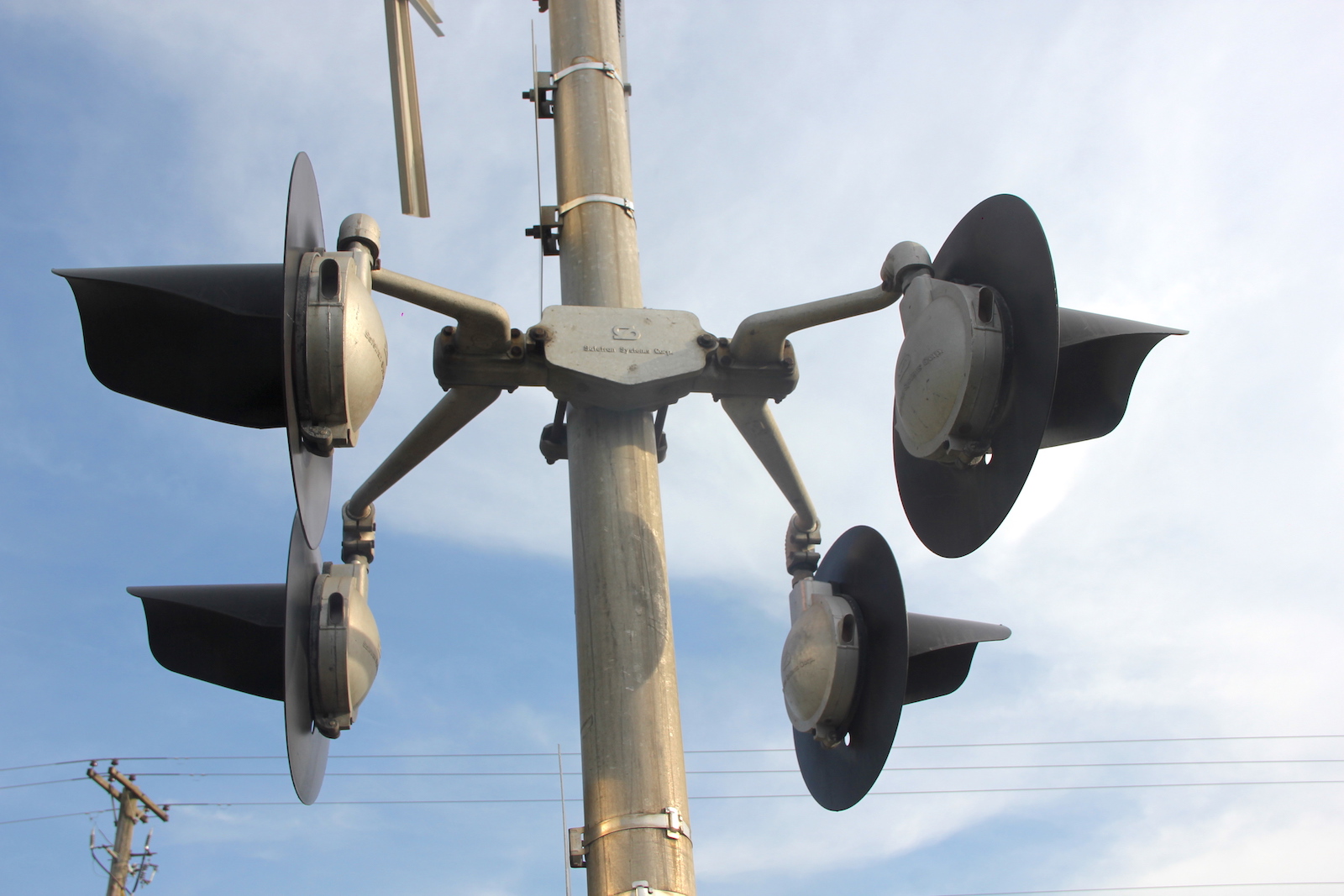

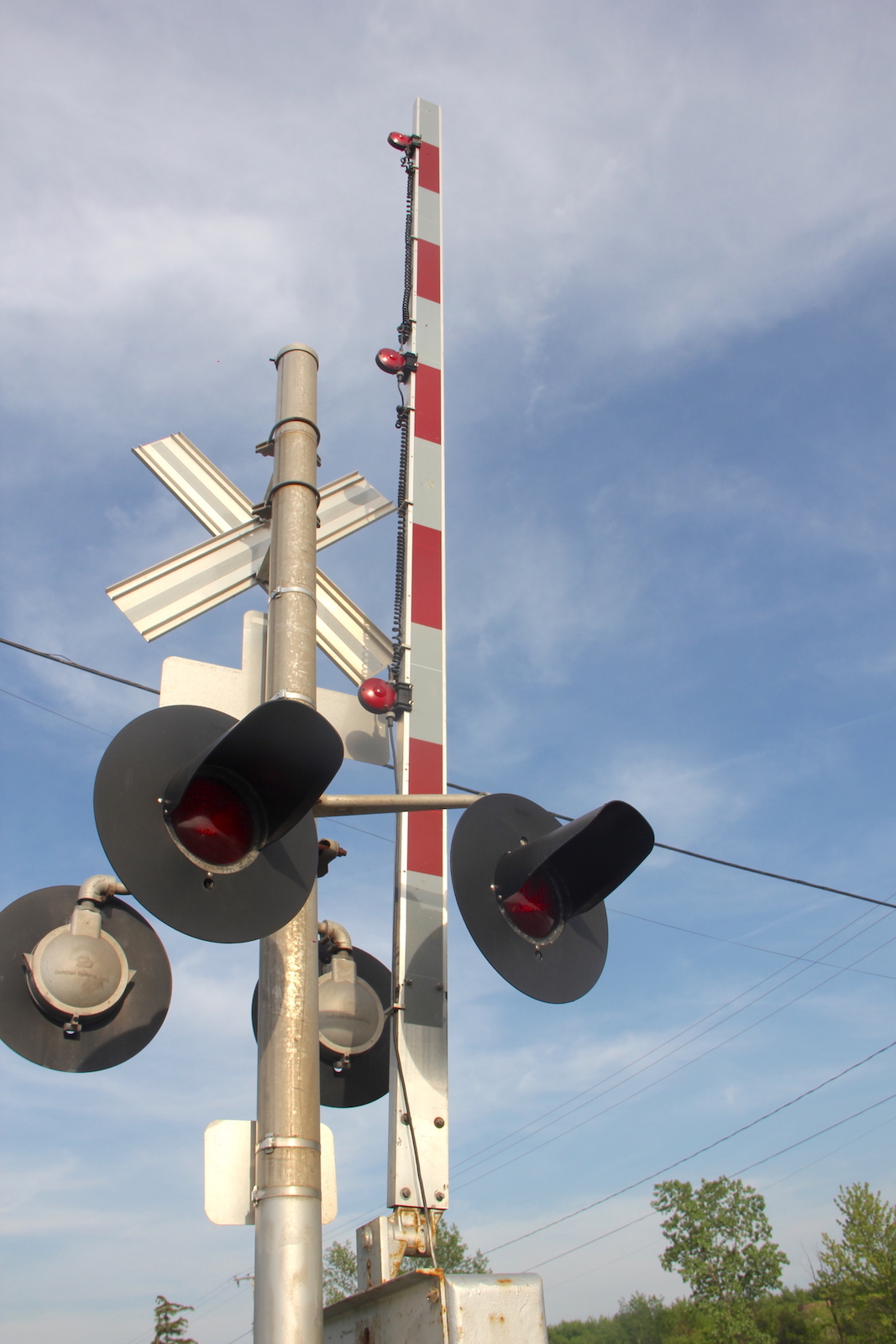

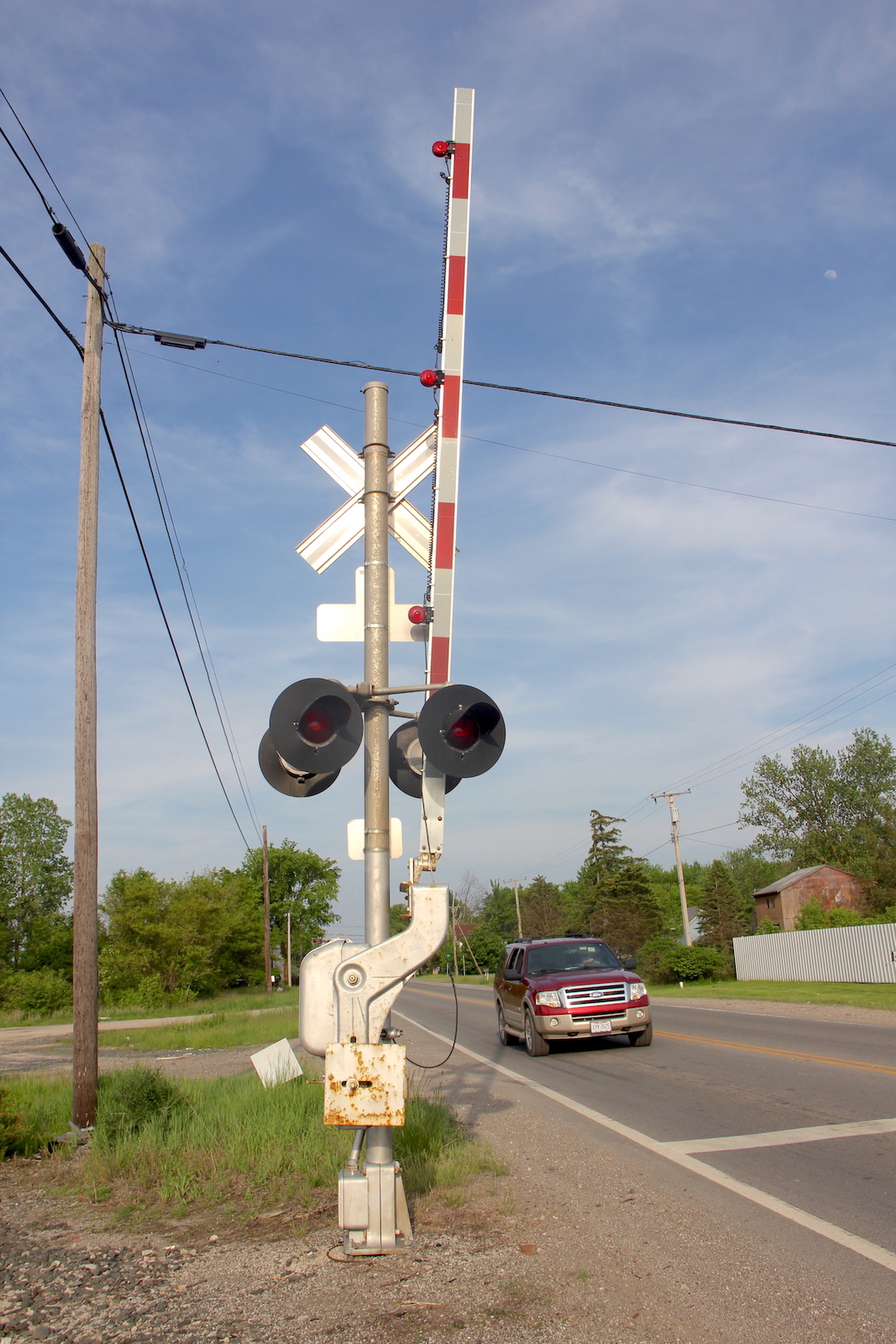

| The eastern signal. |
21
|
22
|
23
|
24
|

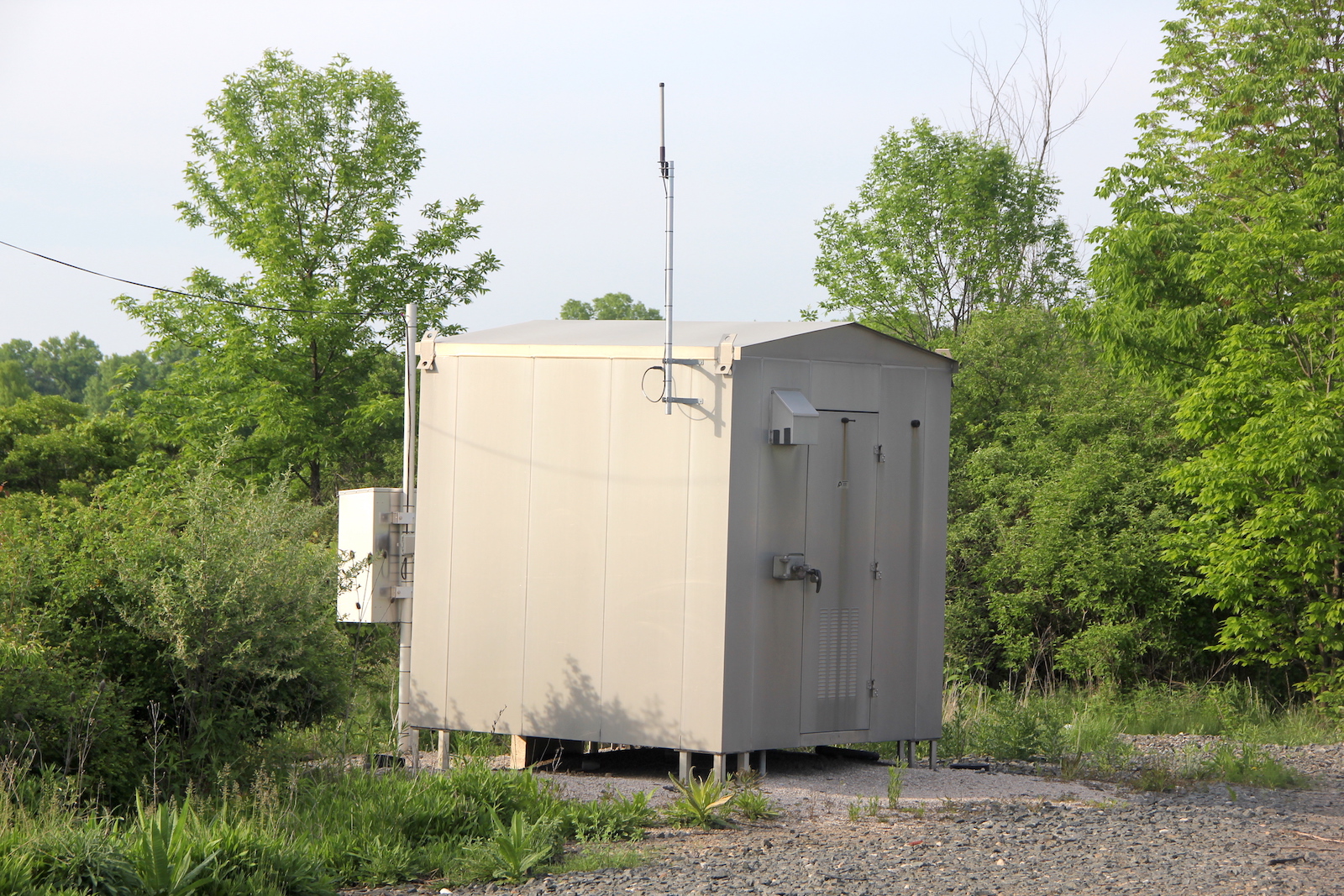

| The relay bungalow in the northwest quadrant. |
The grade is wood and asphalt. |

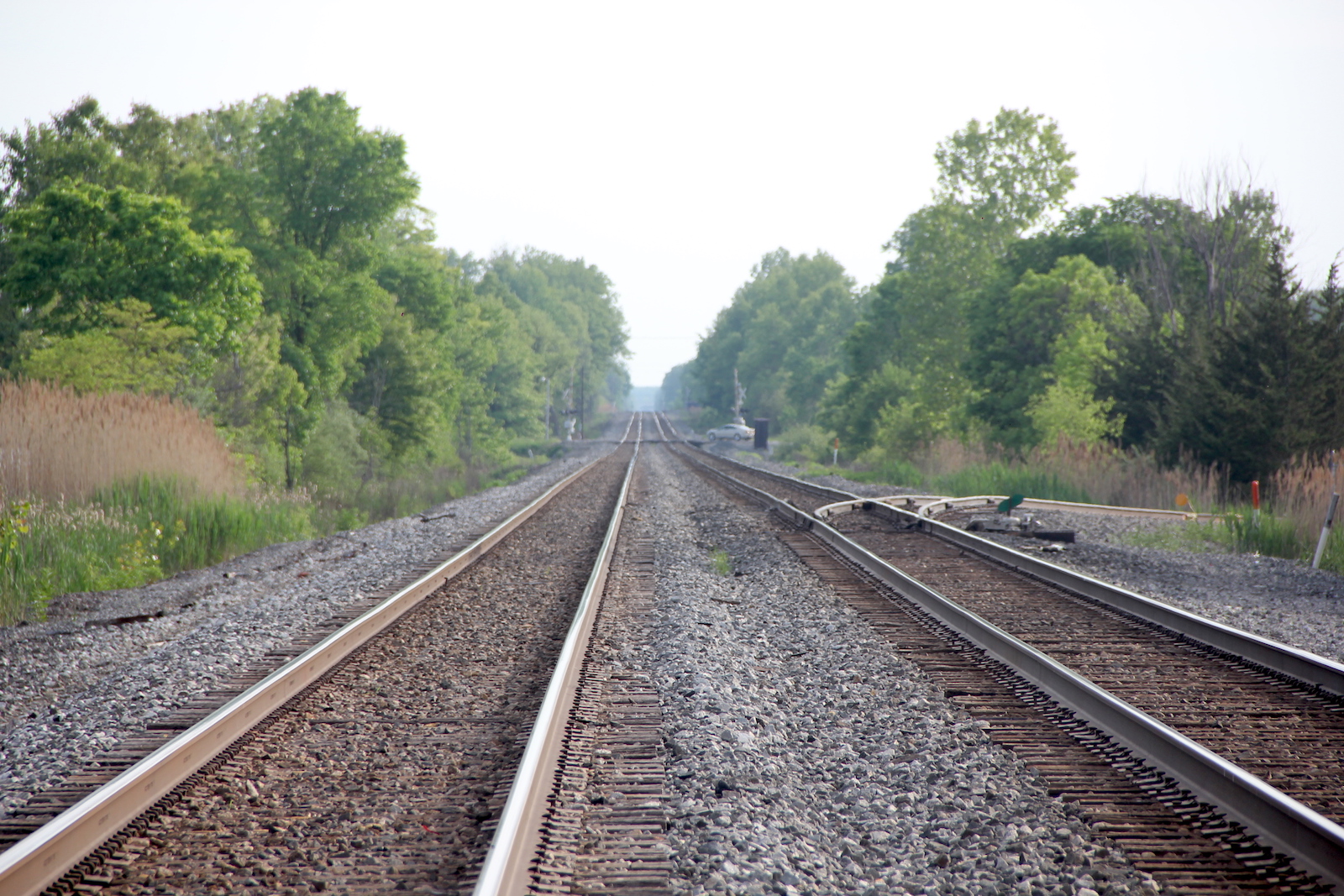

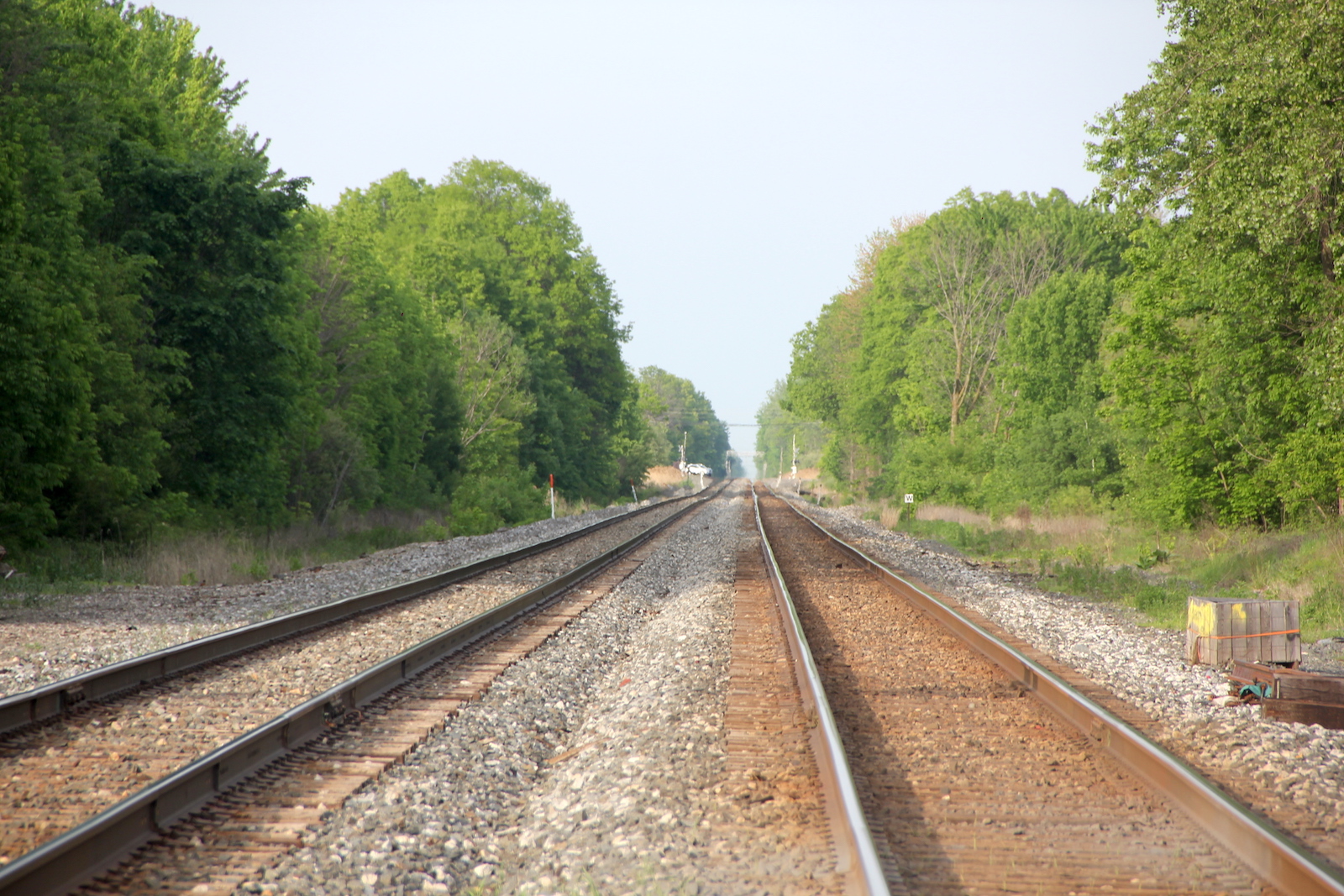

Track view facing west towards Reed Rd. in Grafton. |
Track view facing east towards Hawke Rd. |
25
|

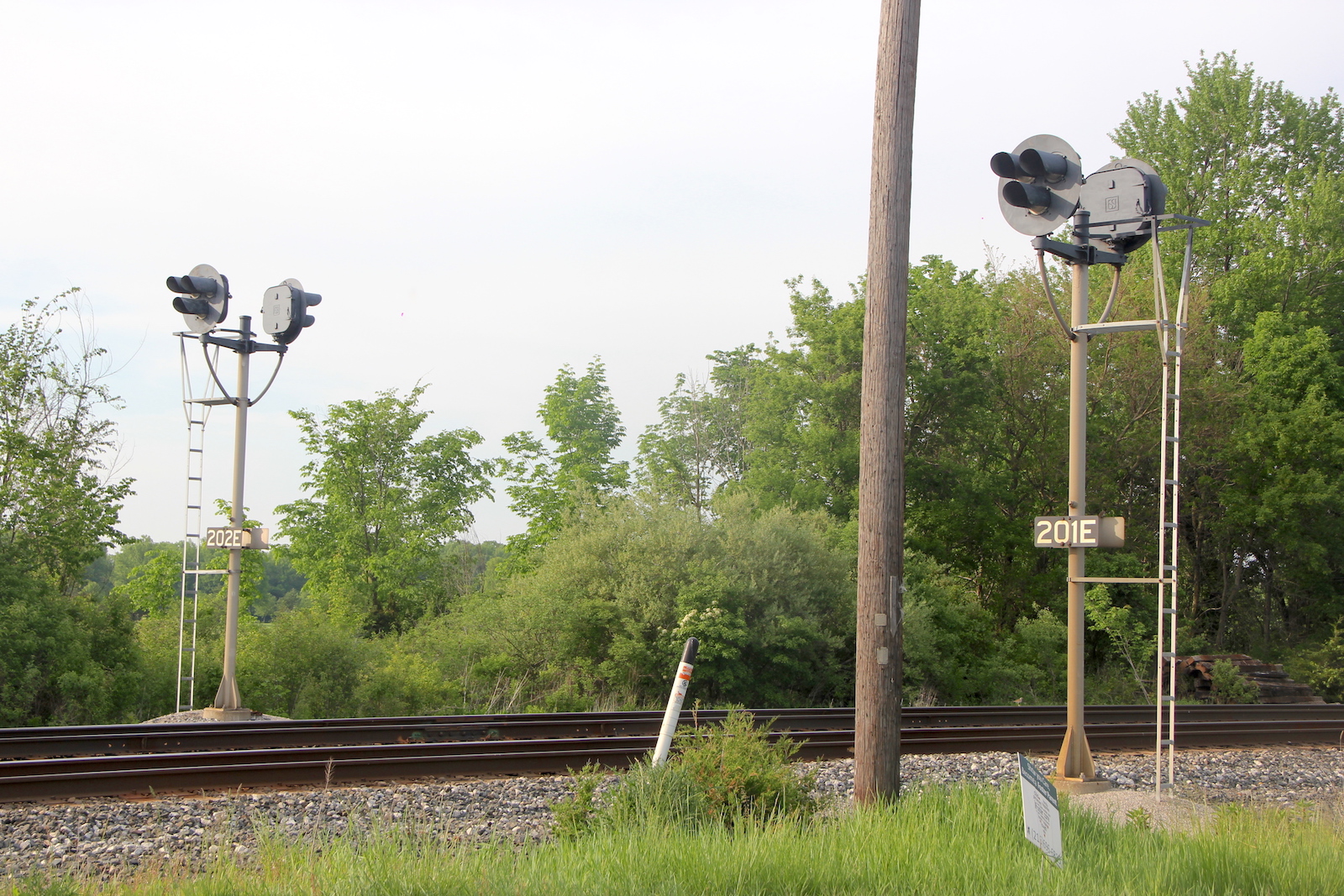

| Tri-light wayside signals next to the crossing. |
