| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | Modern Industries Mechanical Bell |
| Cantilever: | None | Modern Industries Cantilever |

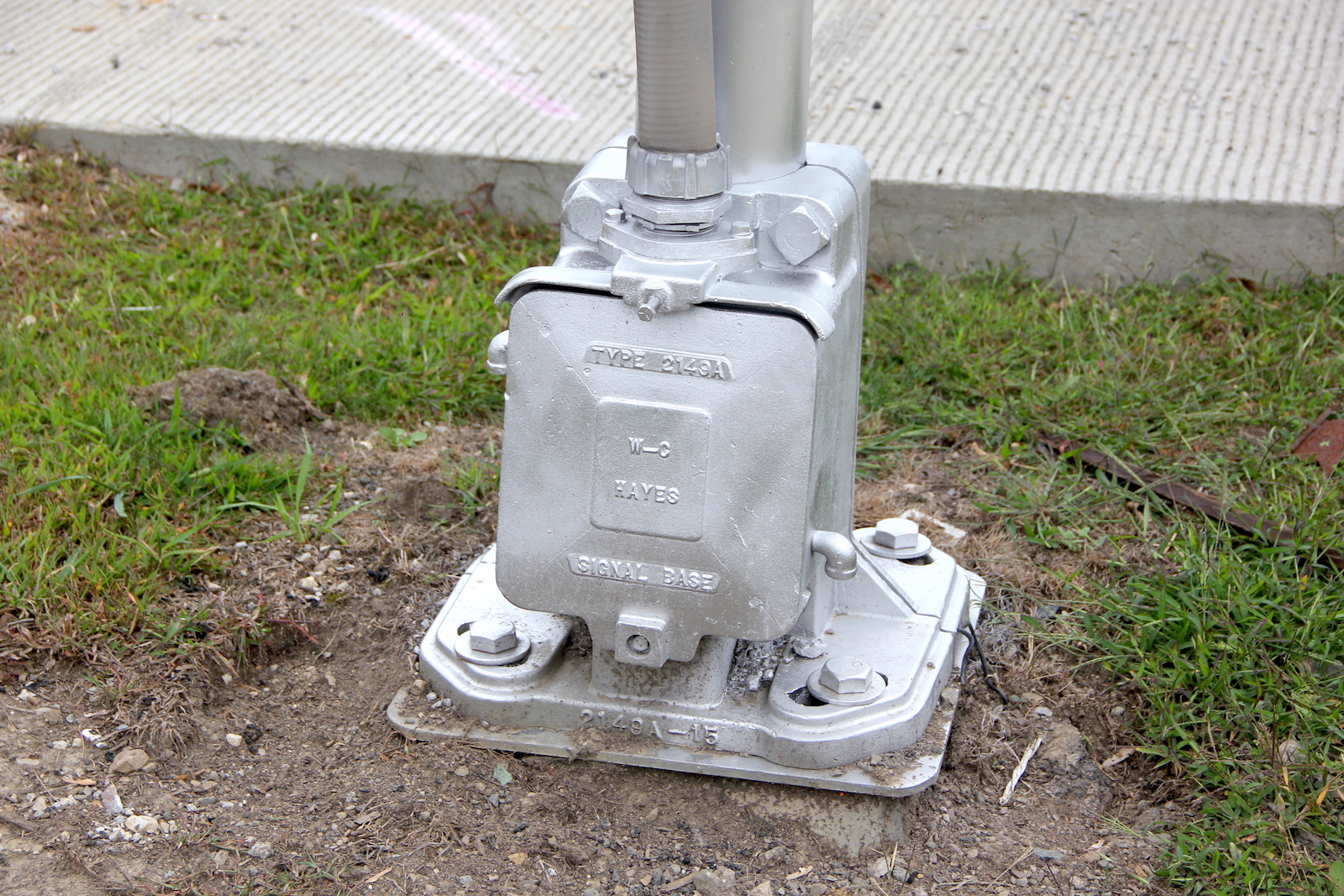

| Mast Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided |
| Lights: | 4 - 8"x20" WCH incandescents | 4 - 12"x24" MI incandescents 4 - 8"x20" MI incandescents |
| Junction Box: | WRRS | MI |
| Gate Lights: | 4" NEG LEDs | 4" RECO |
| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | Safetran 2000s w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 | 2
|

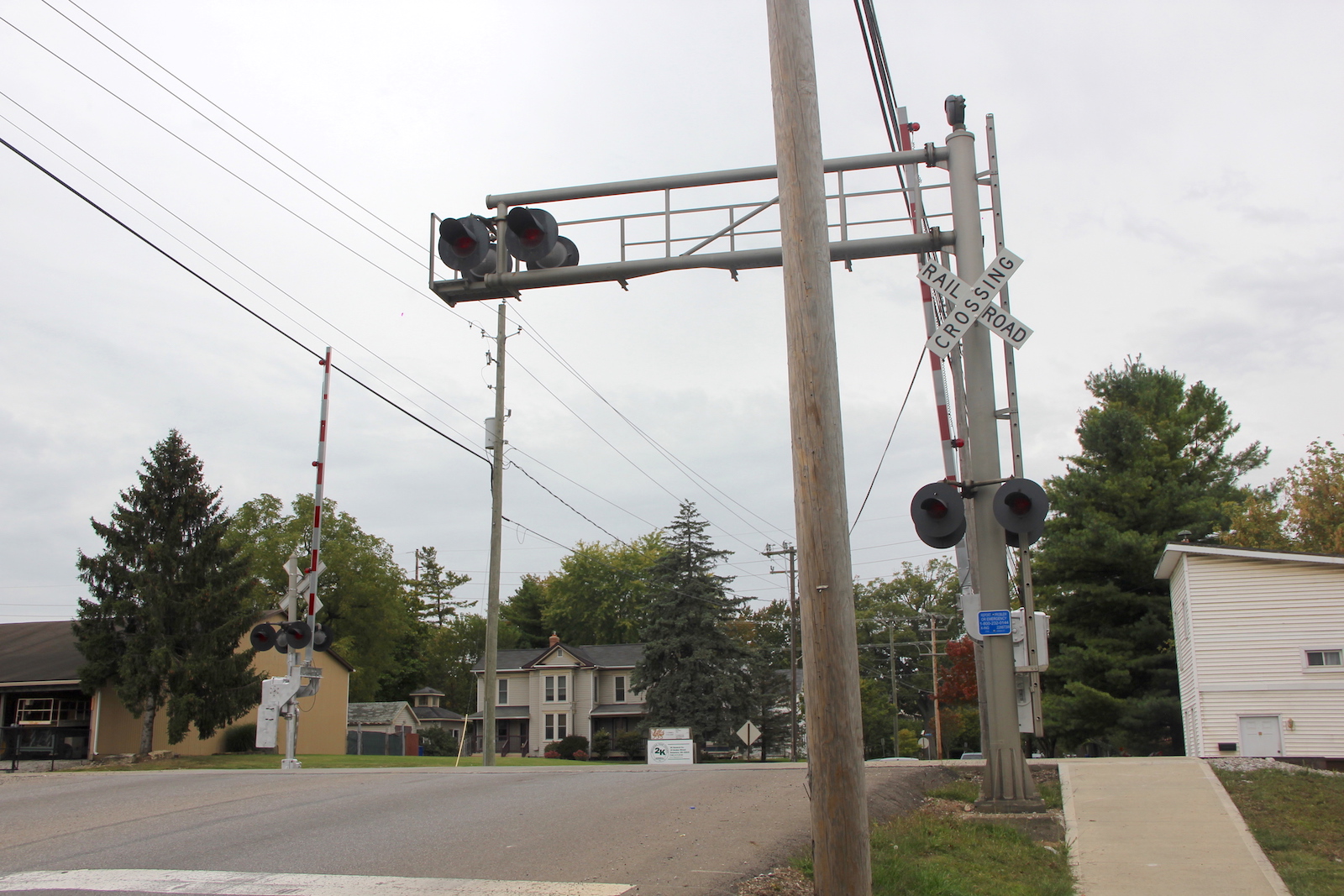

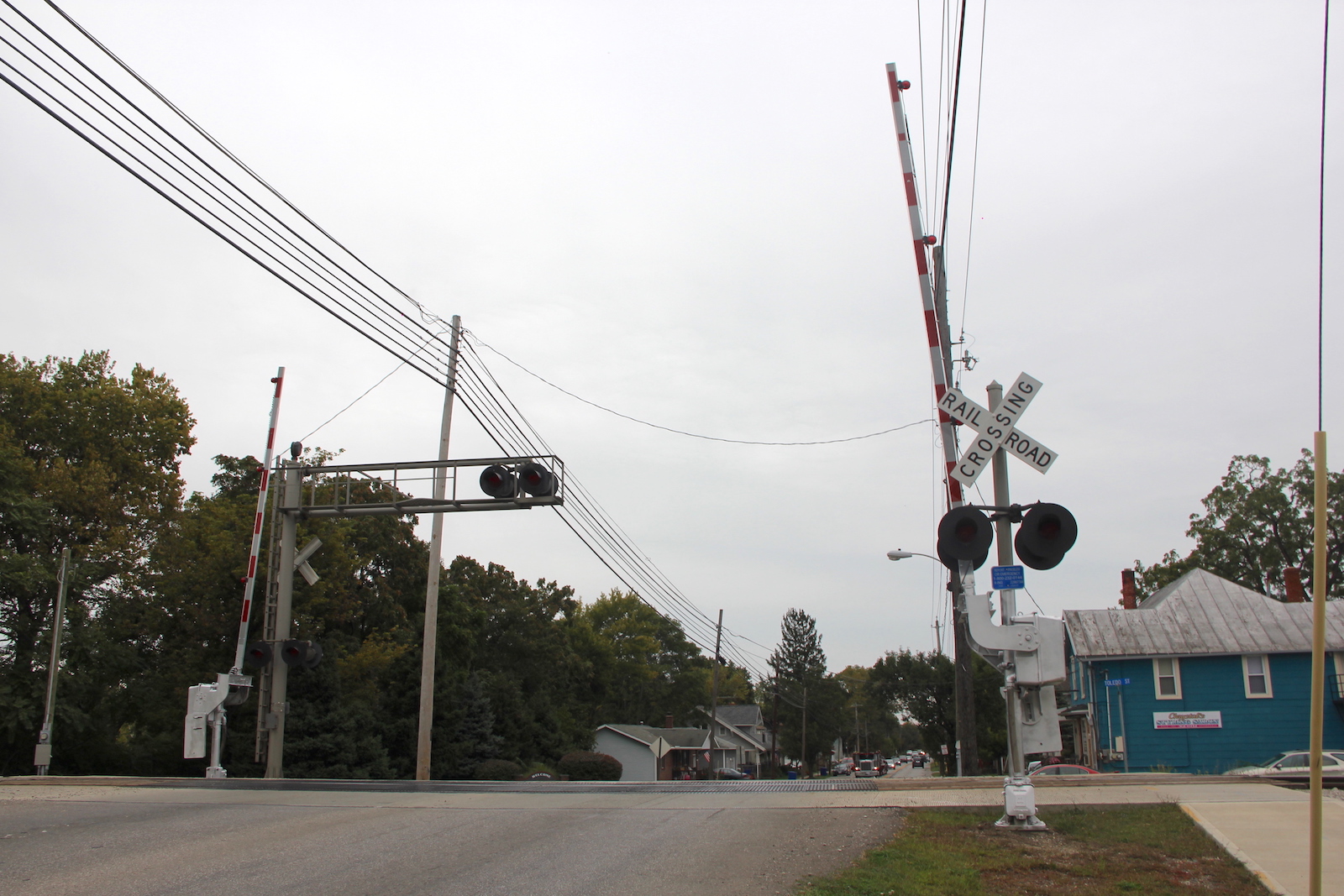

| Overview of 2 gated signals with 1 cantilever facing east. |
Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11
|

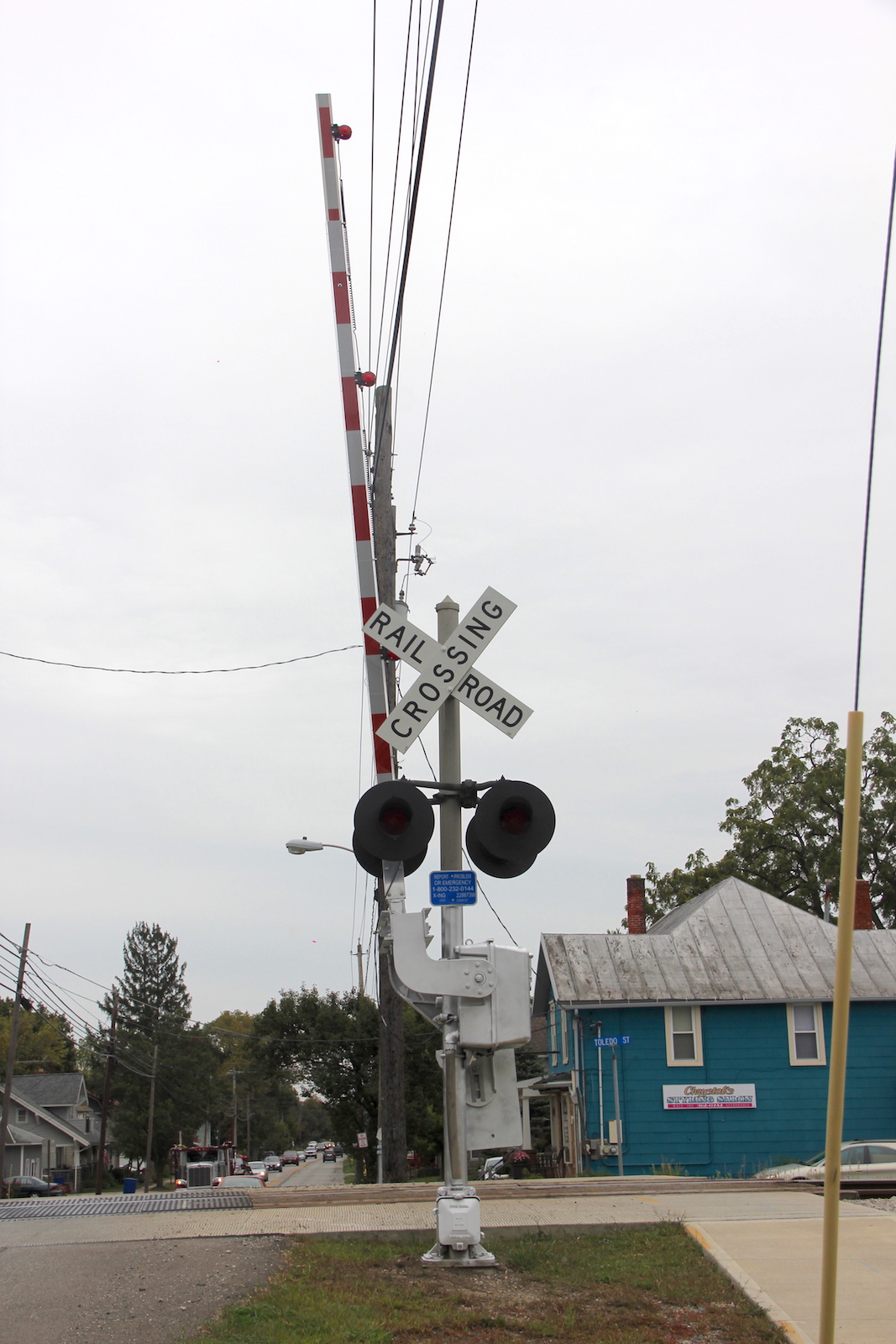

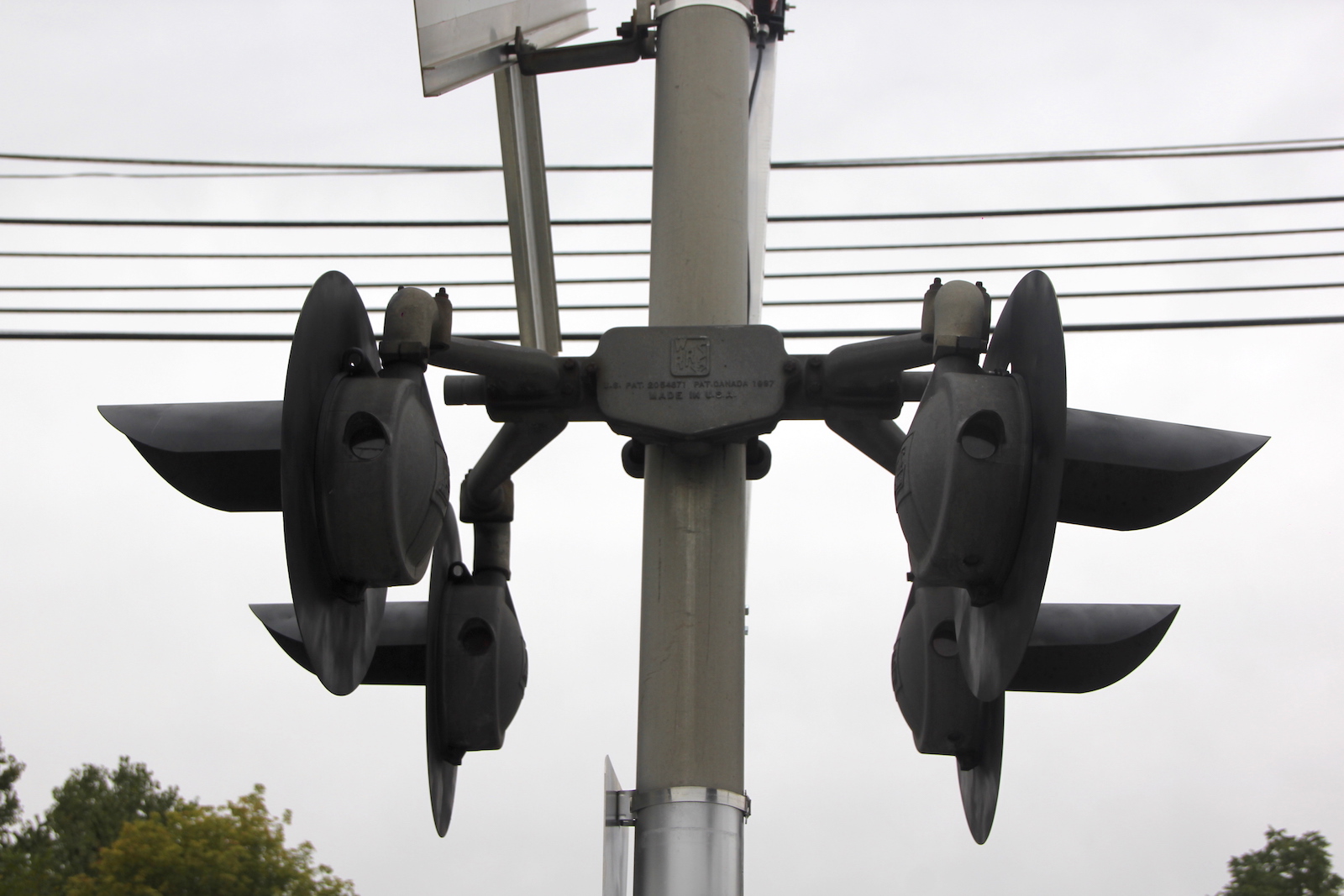

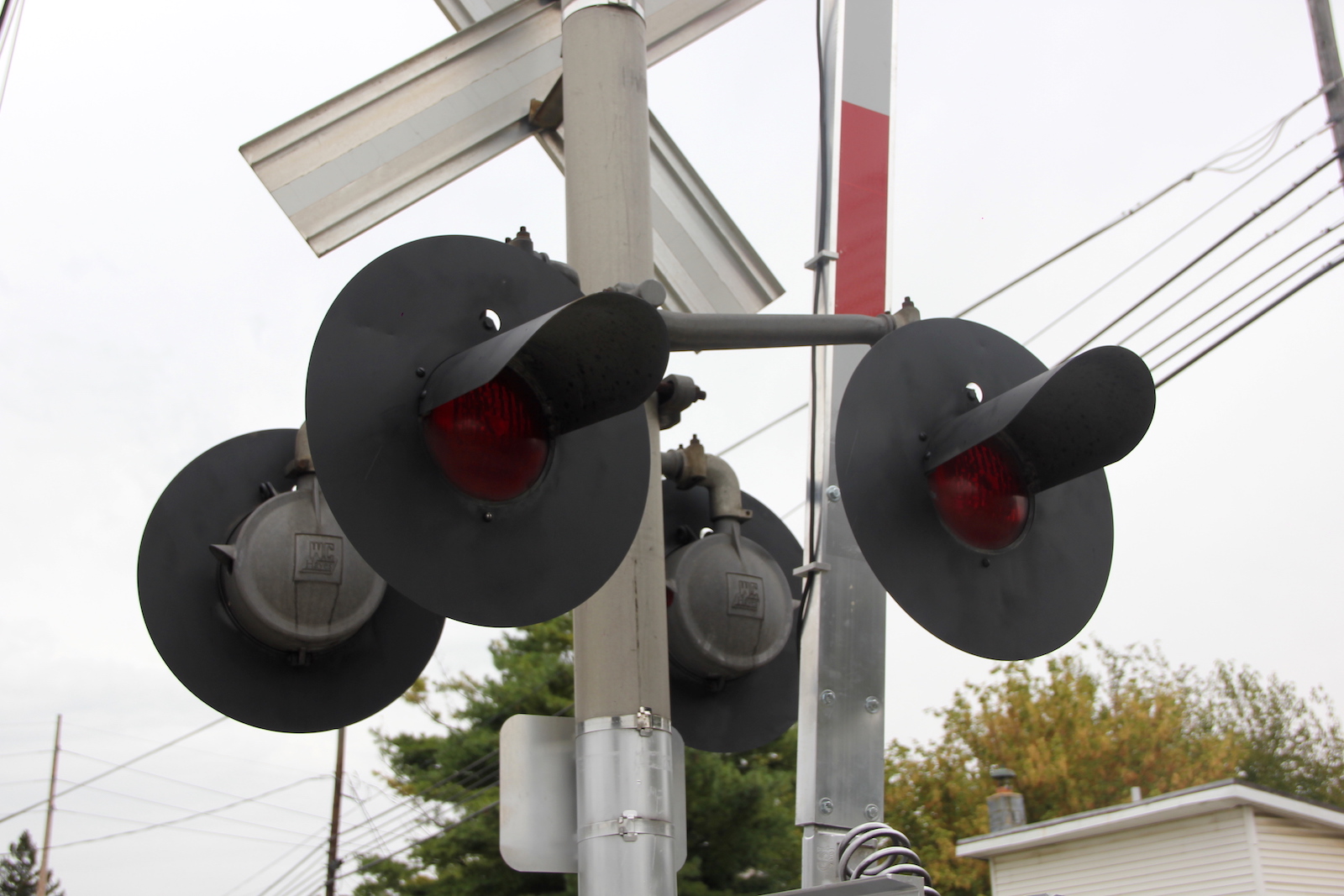

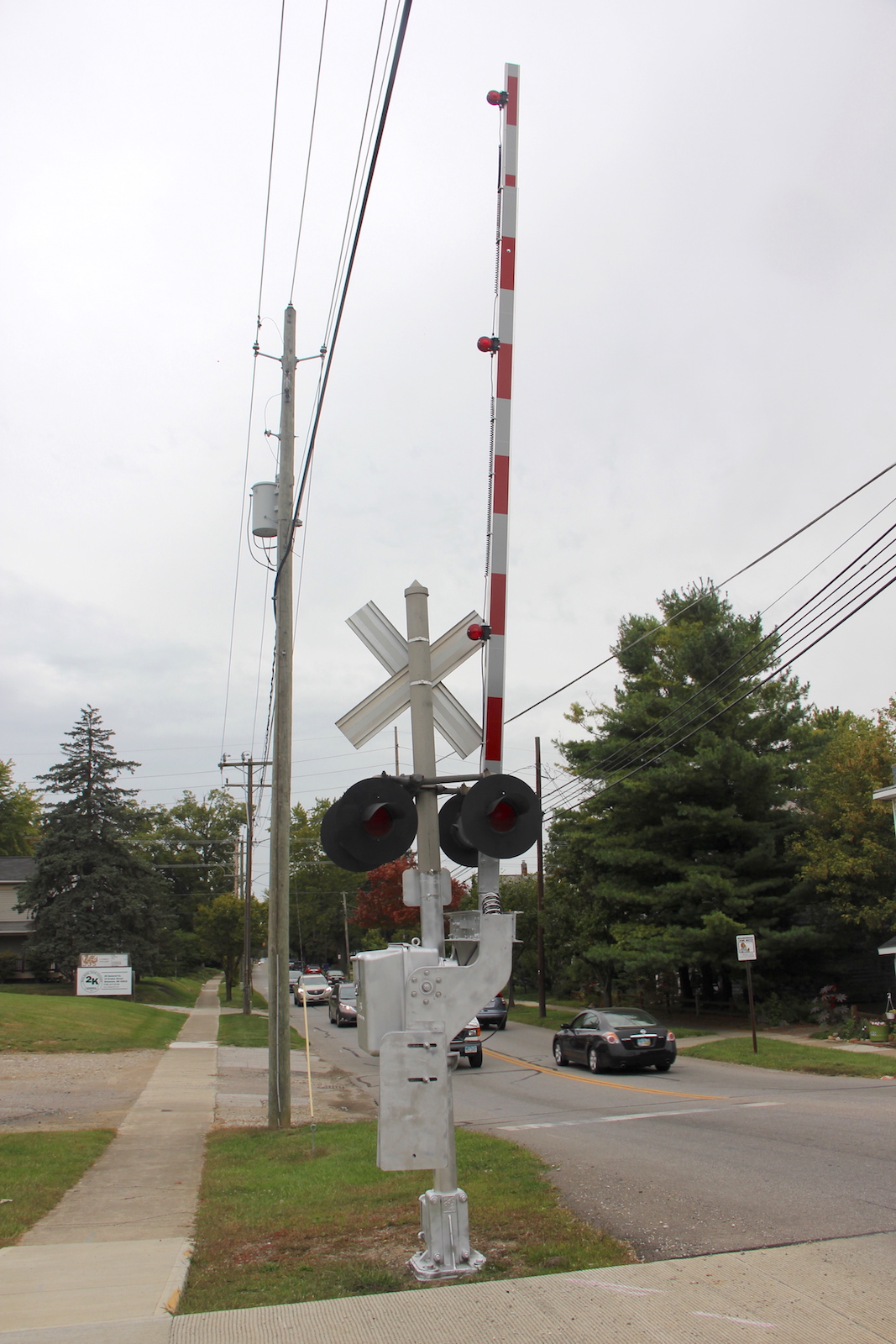

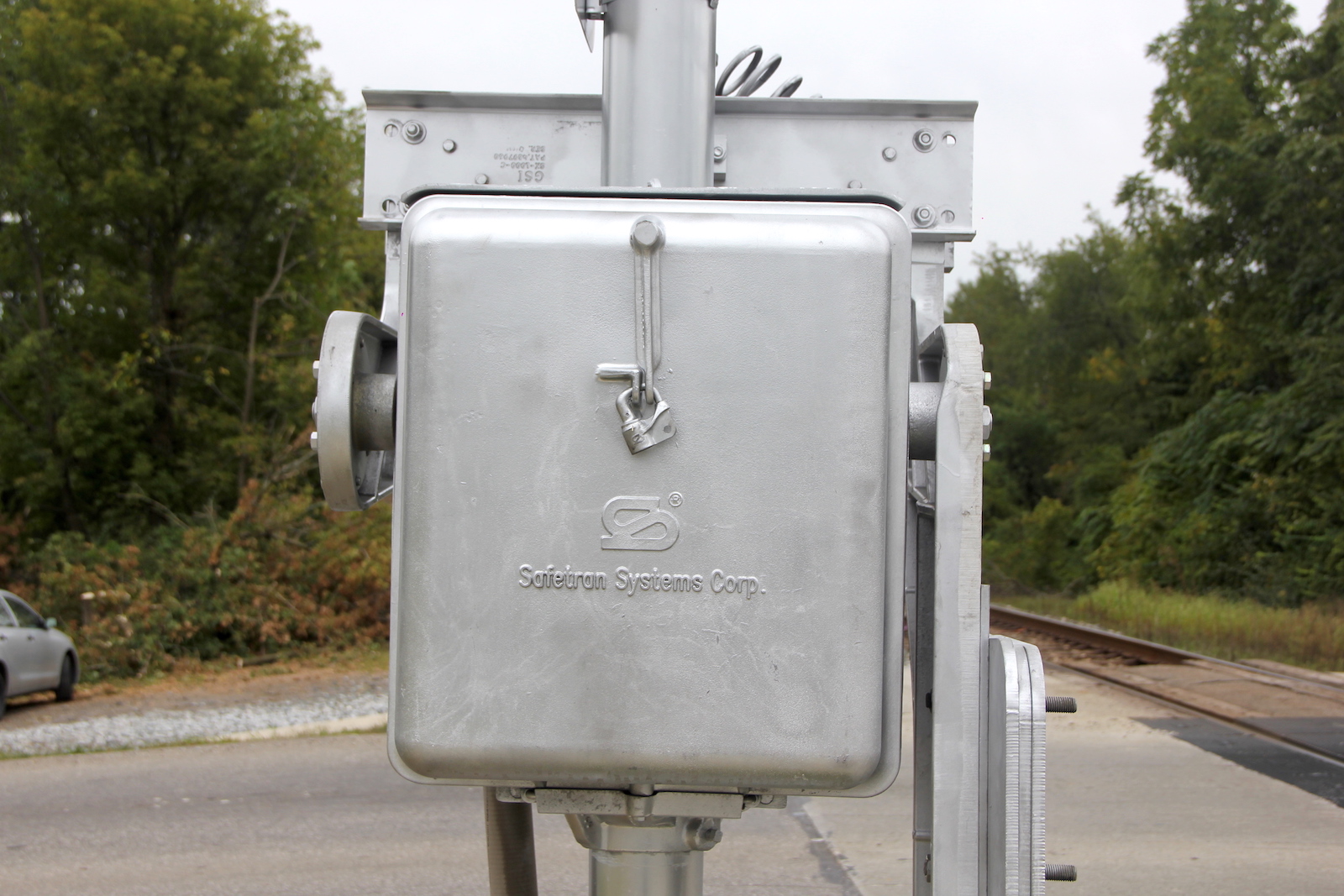

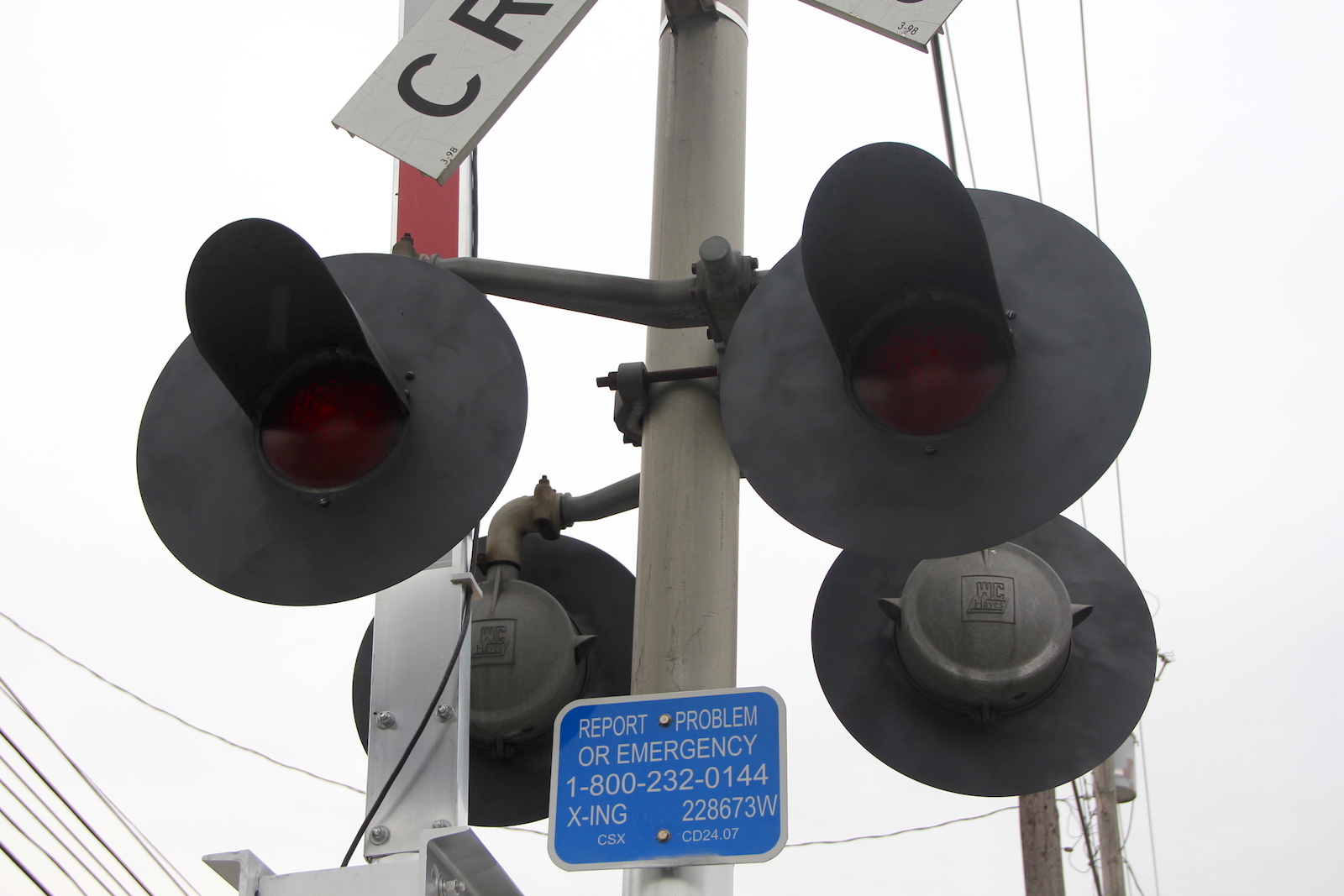

| The western signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20
|
21
| 22
| 23
| 24
|

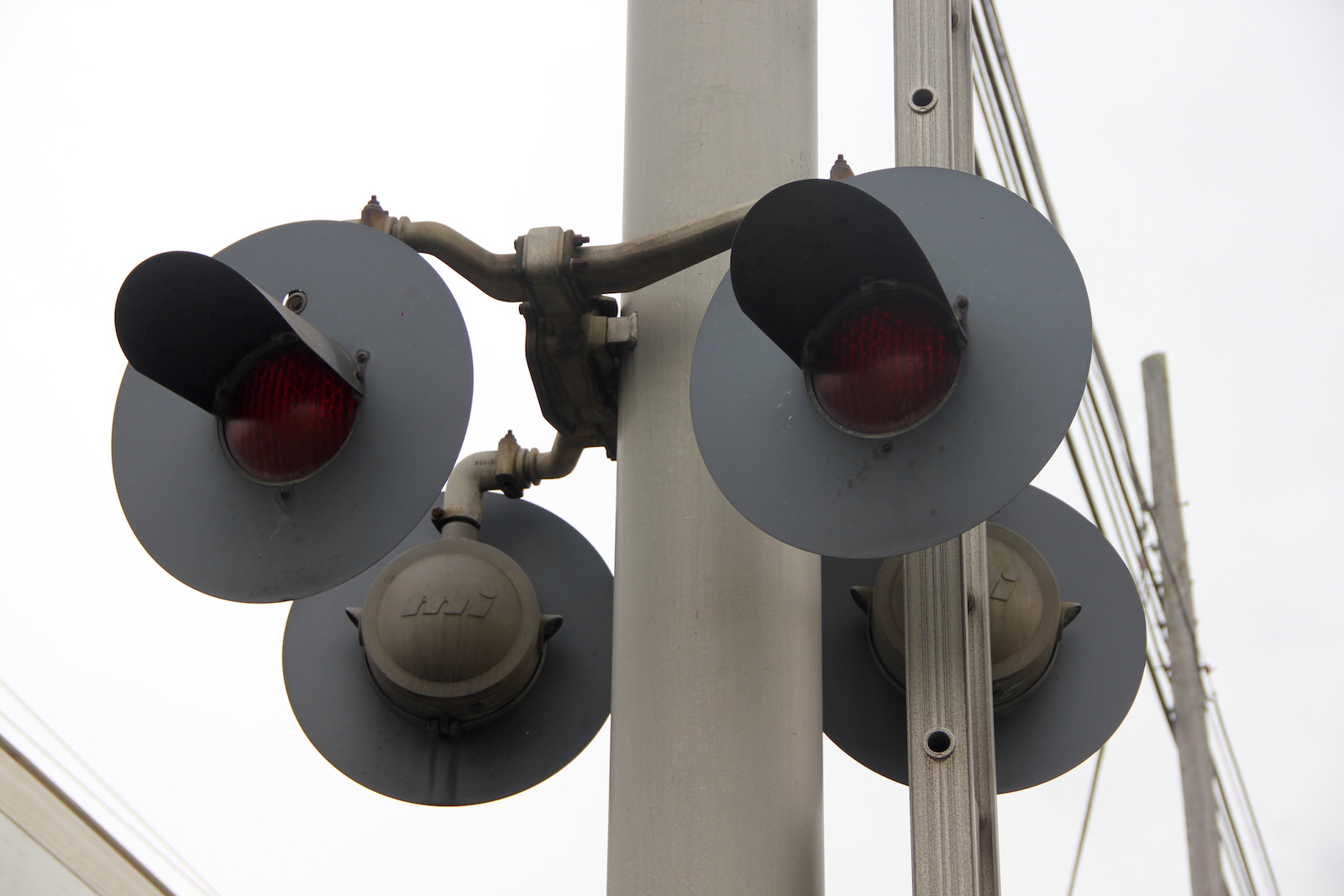

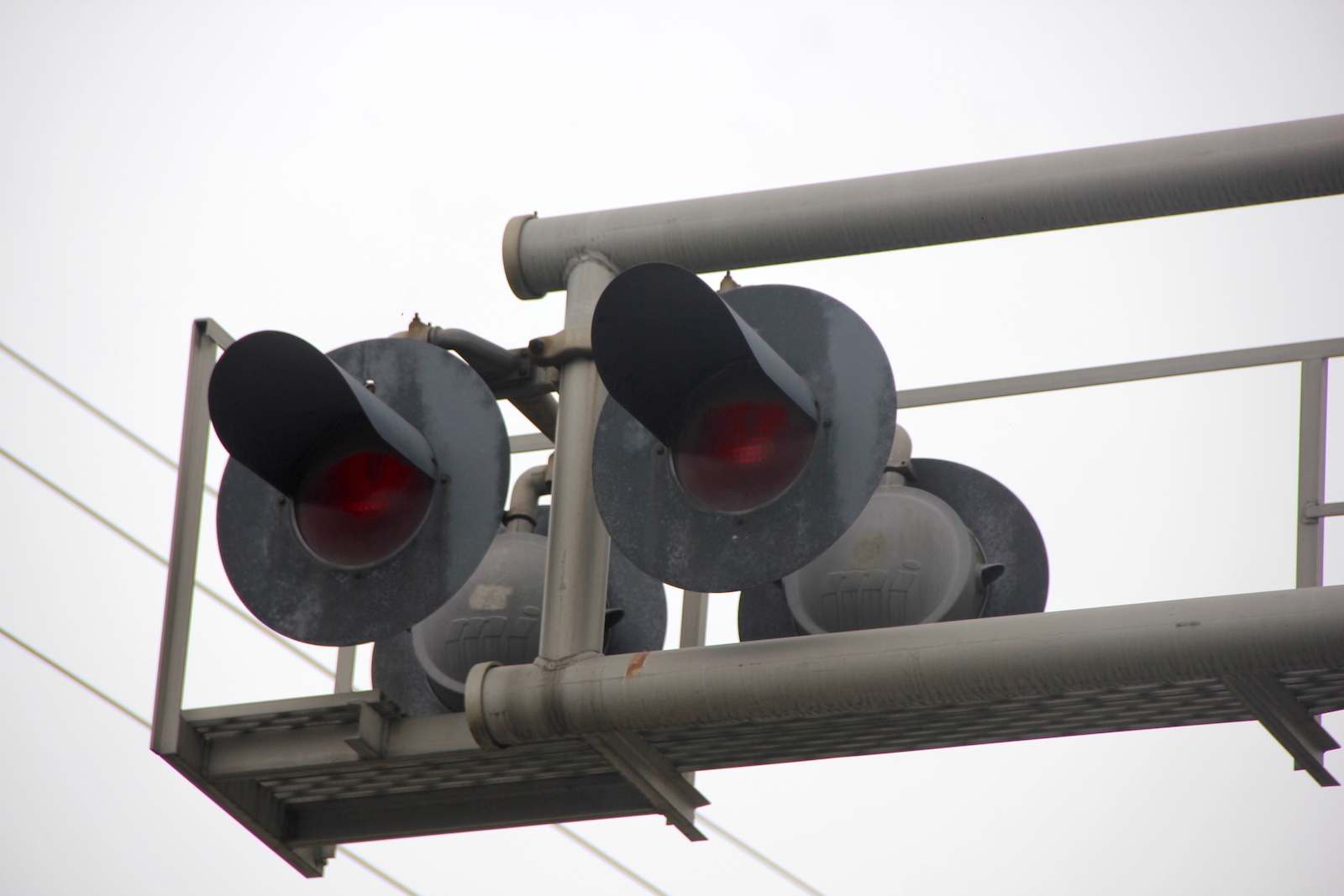

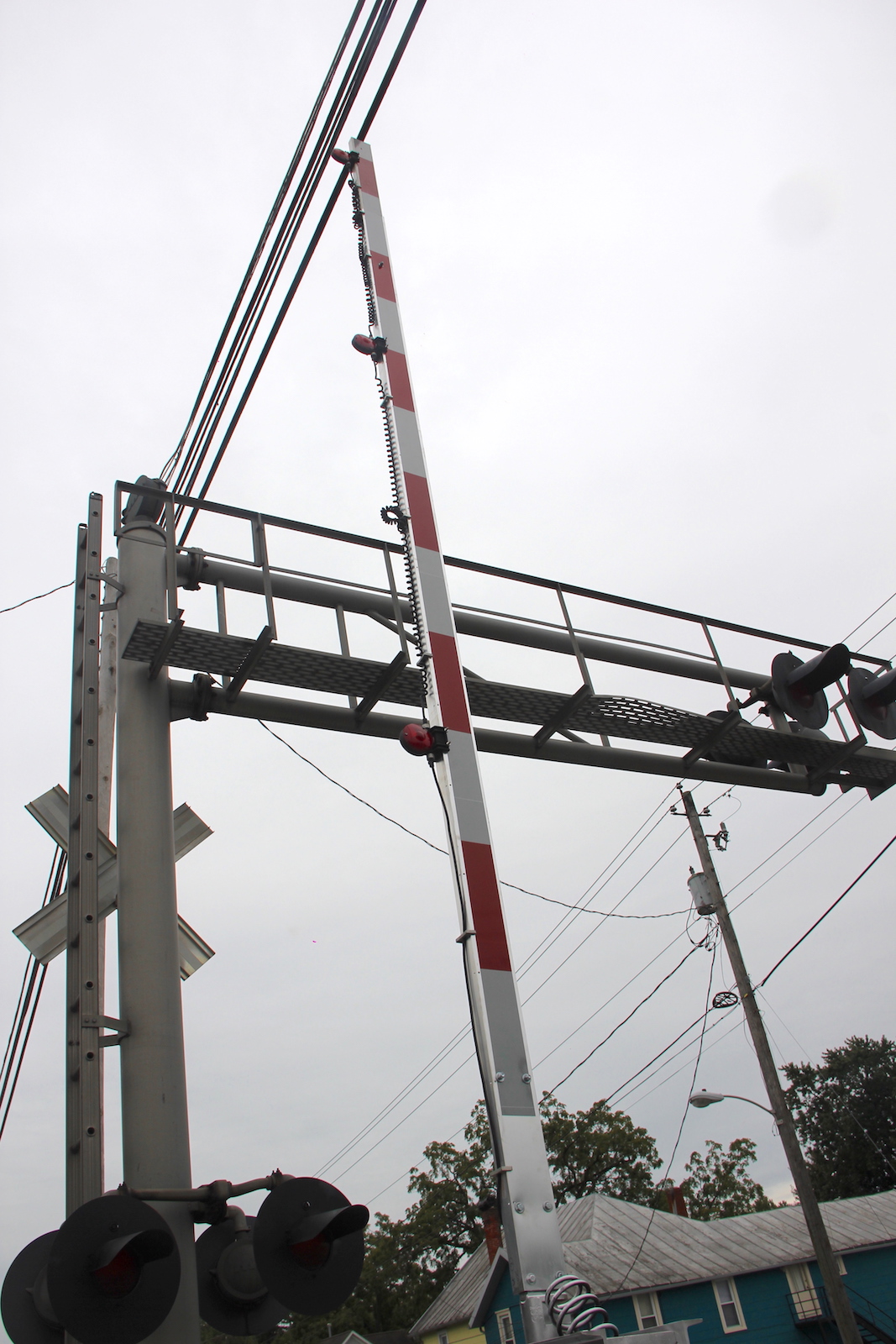

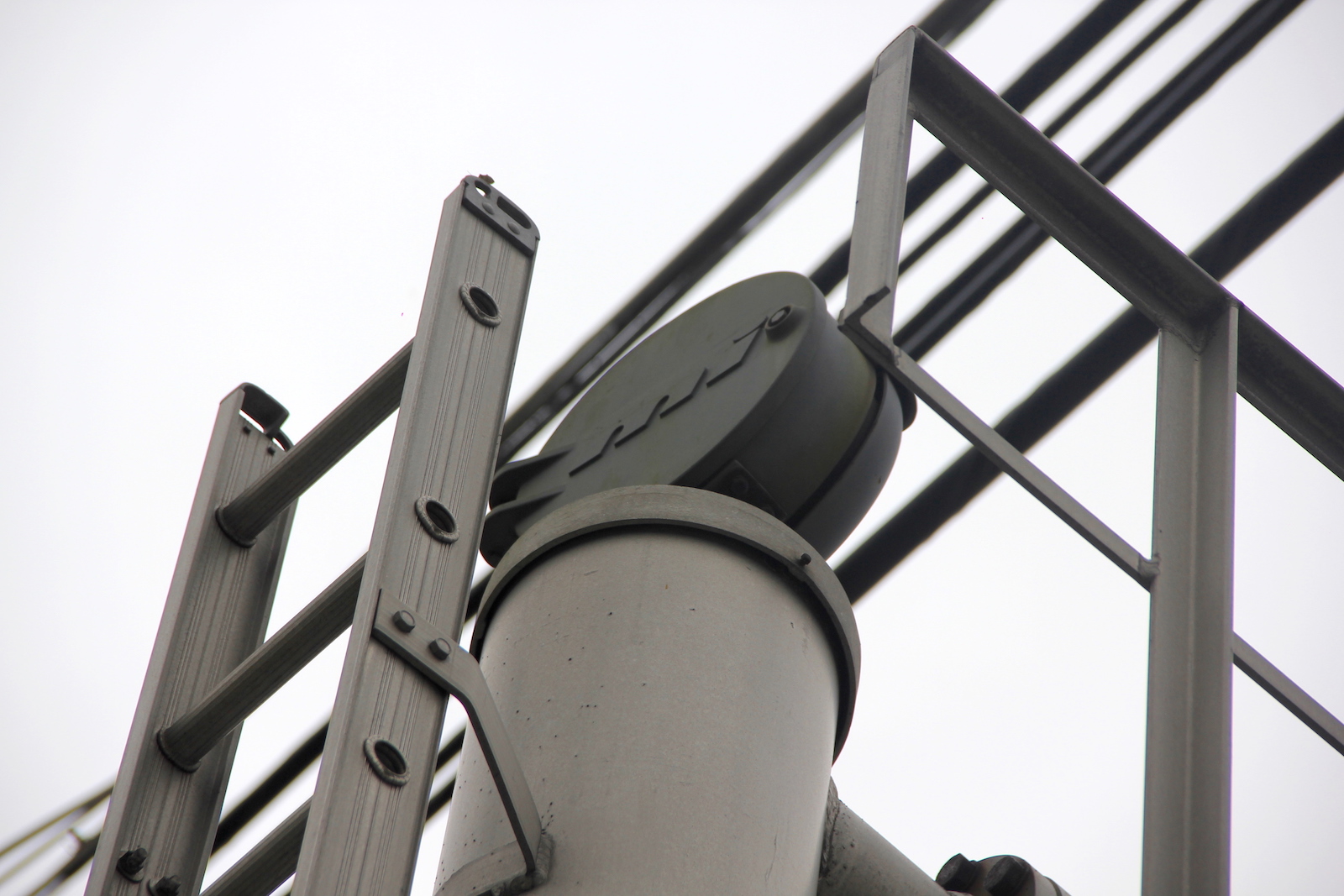

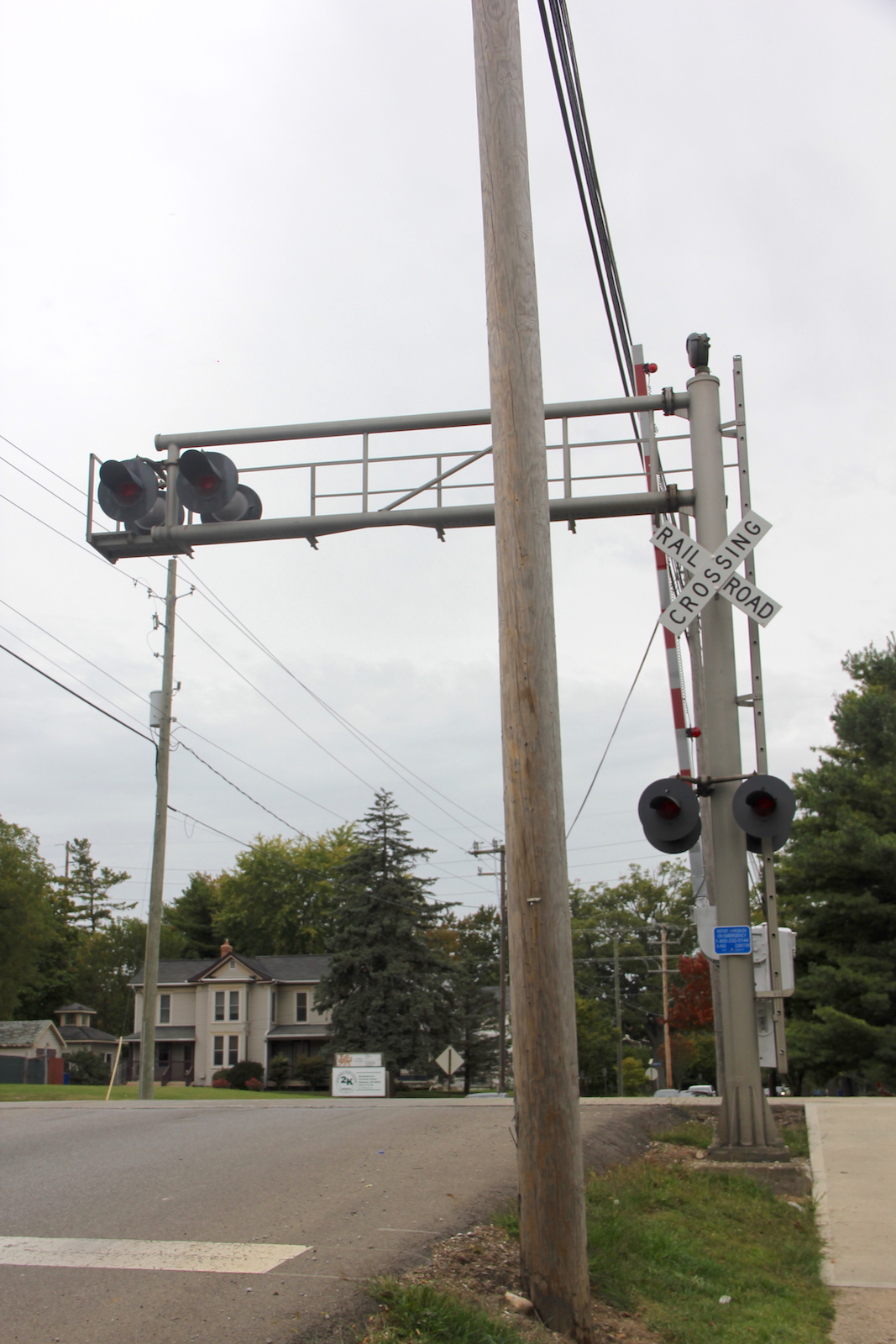

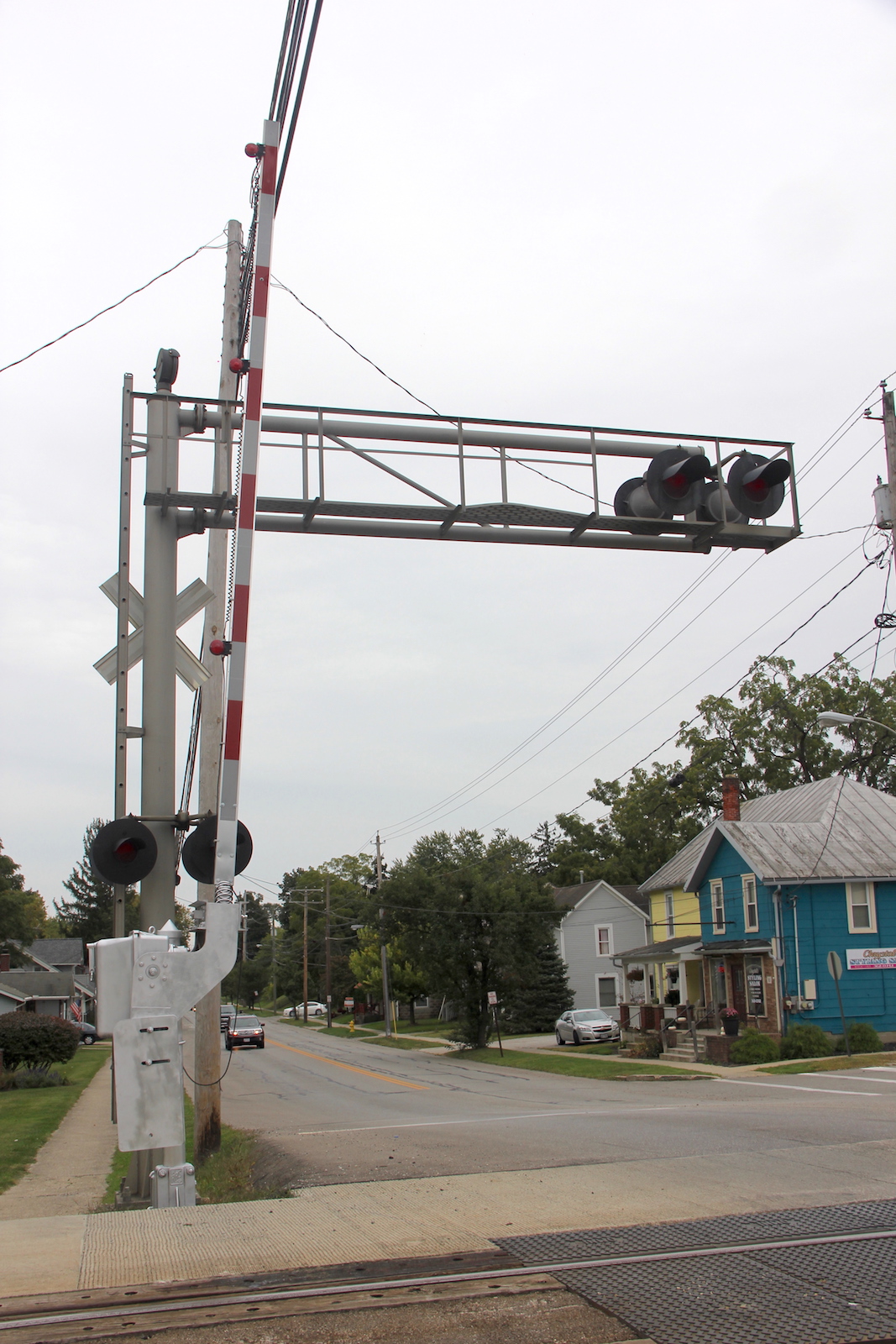

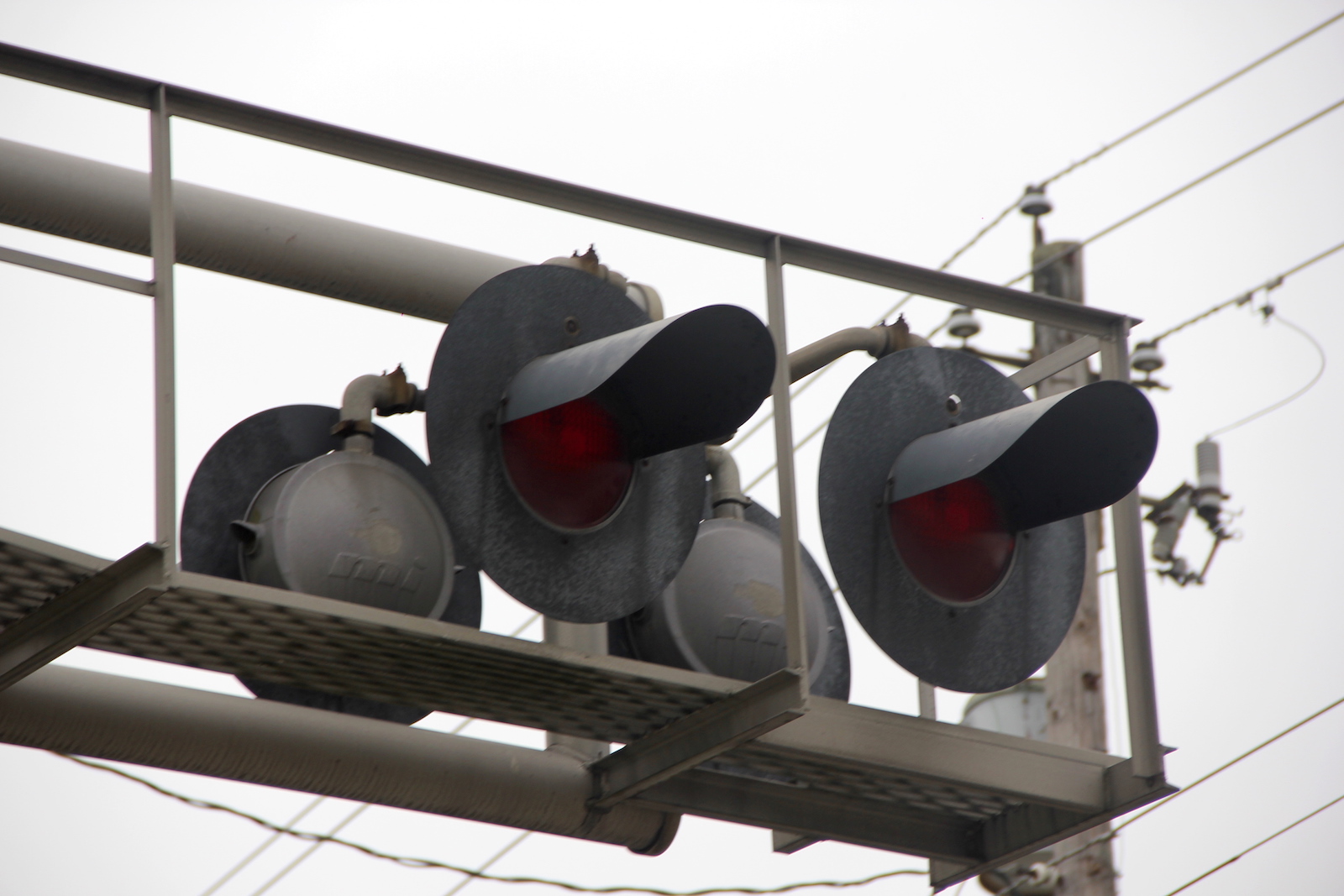

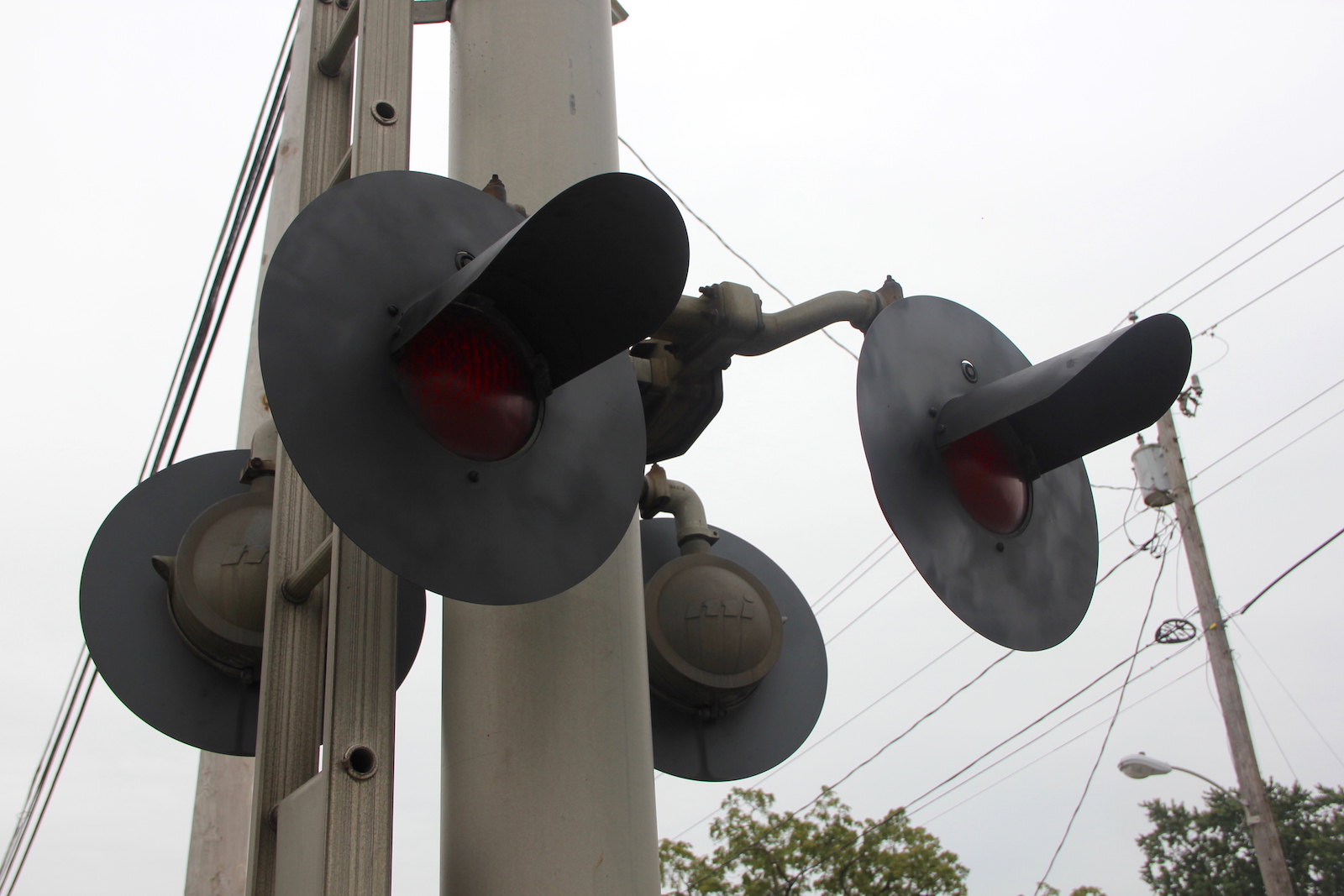

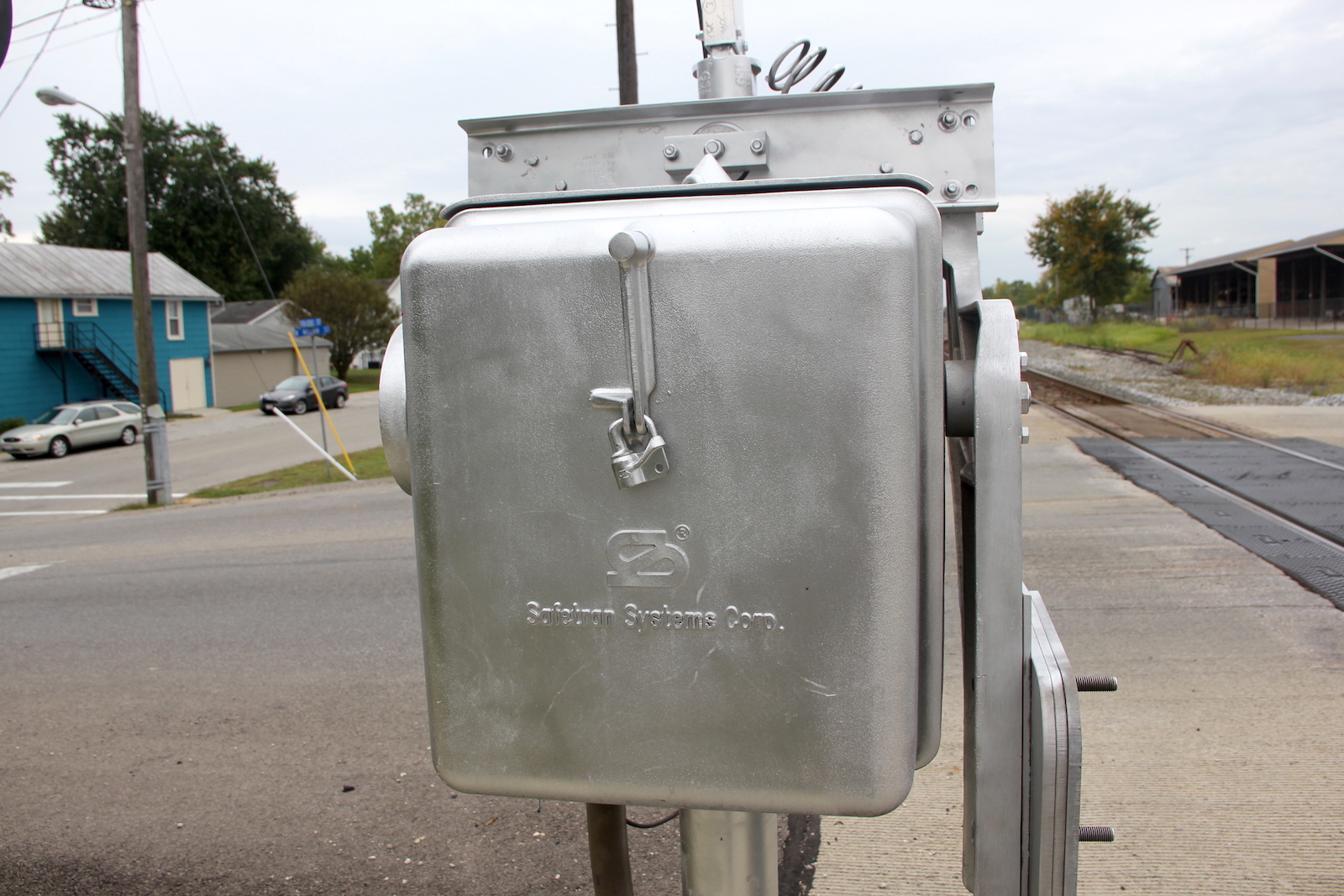

| The eastern signal. |
25
|
26
|
27
|
28
|

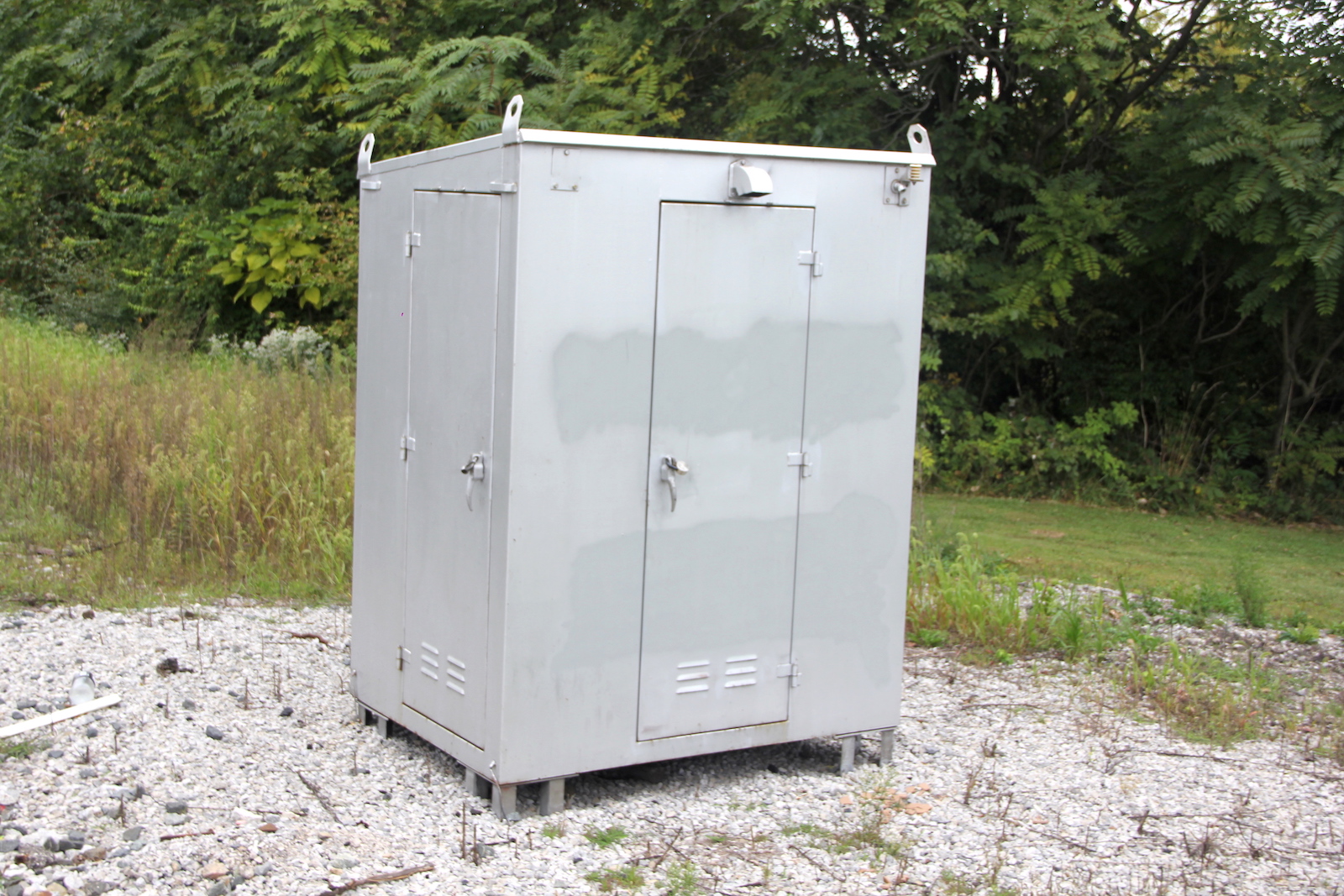

| The relay bungalow in the northeast quadrant. |

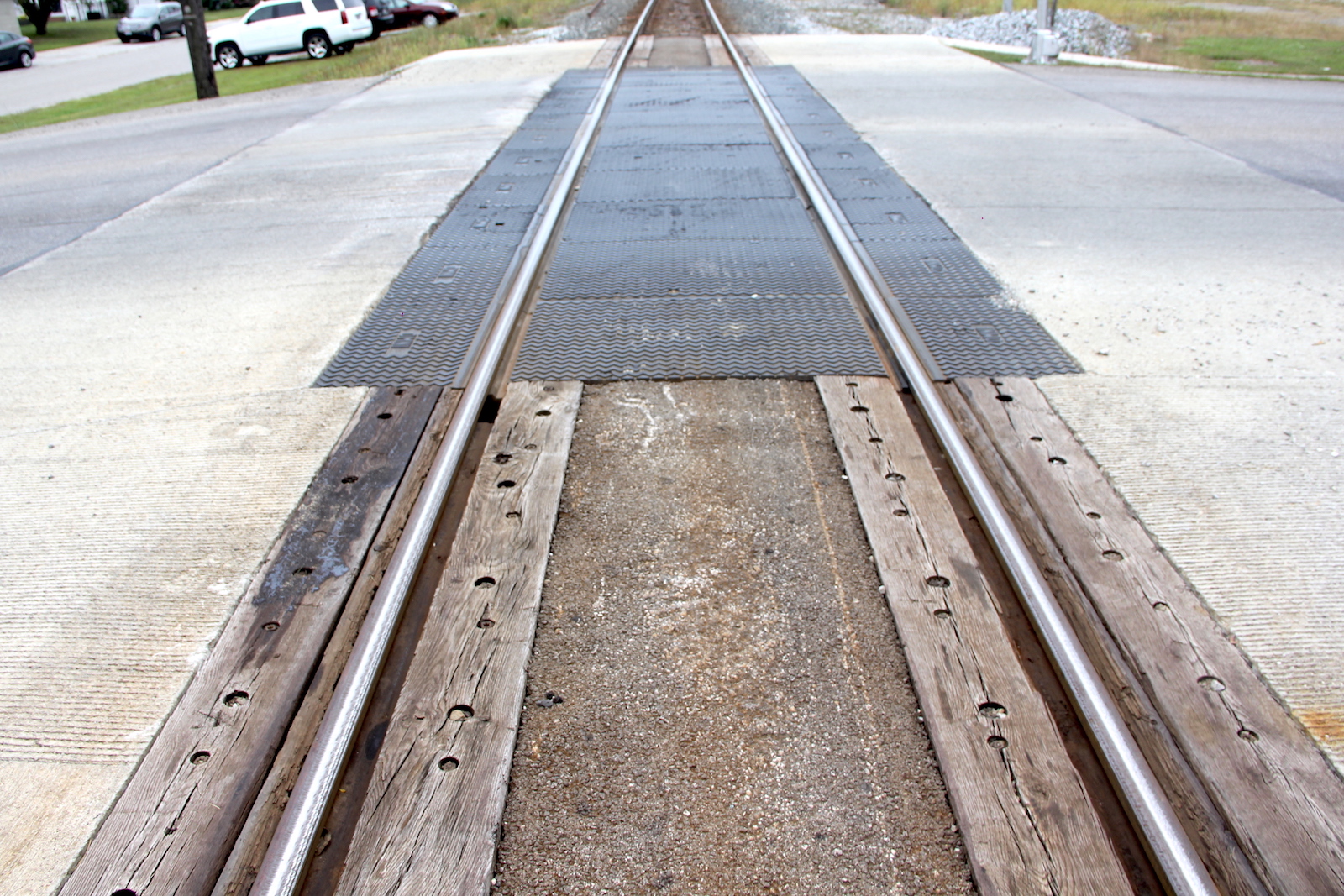

The grade is rubber, wood, and asphalt. |

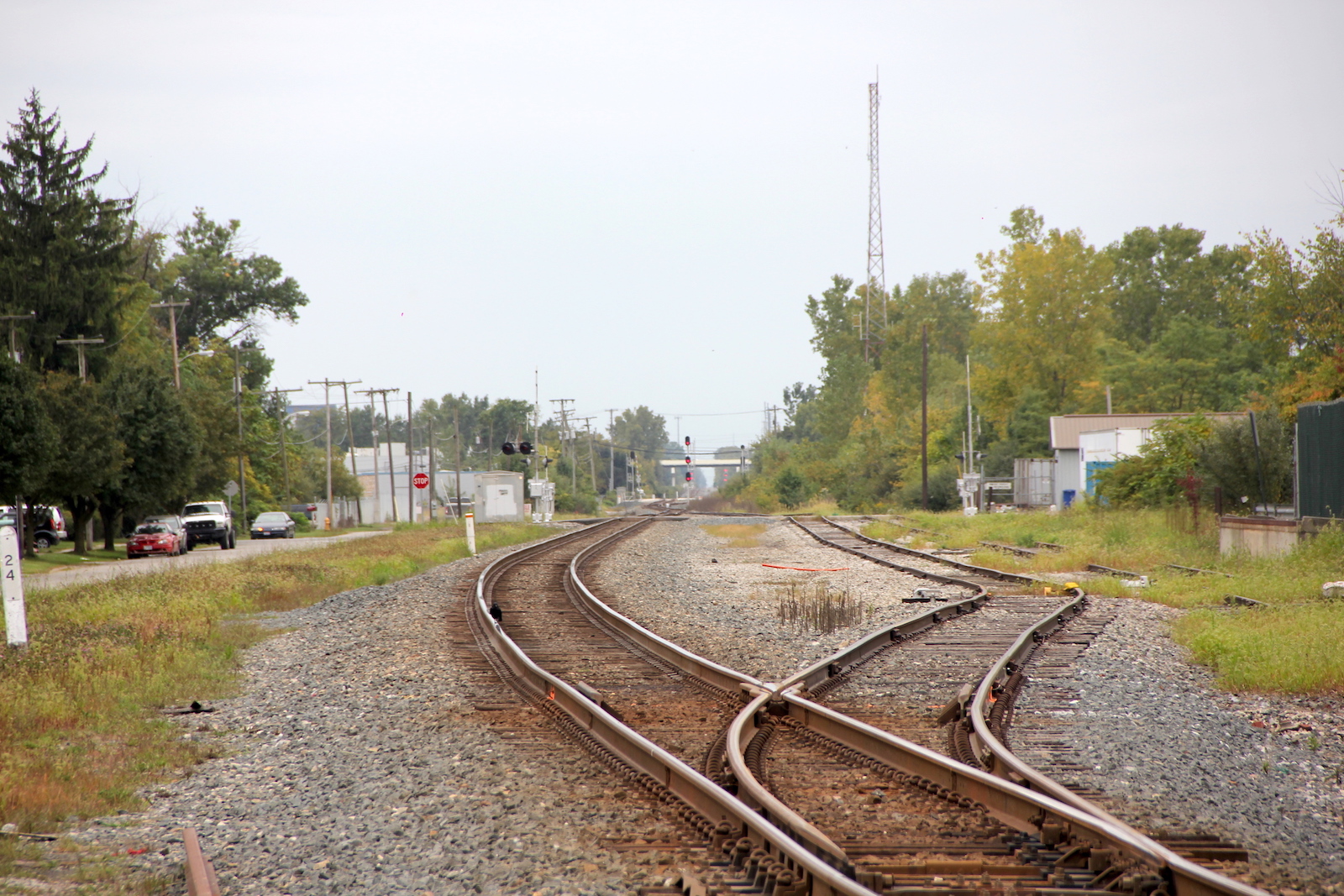

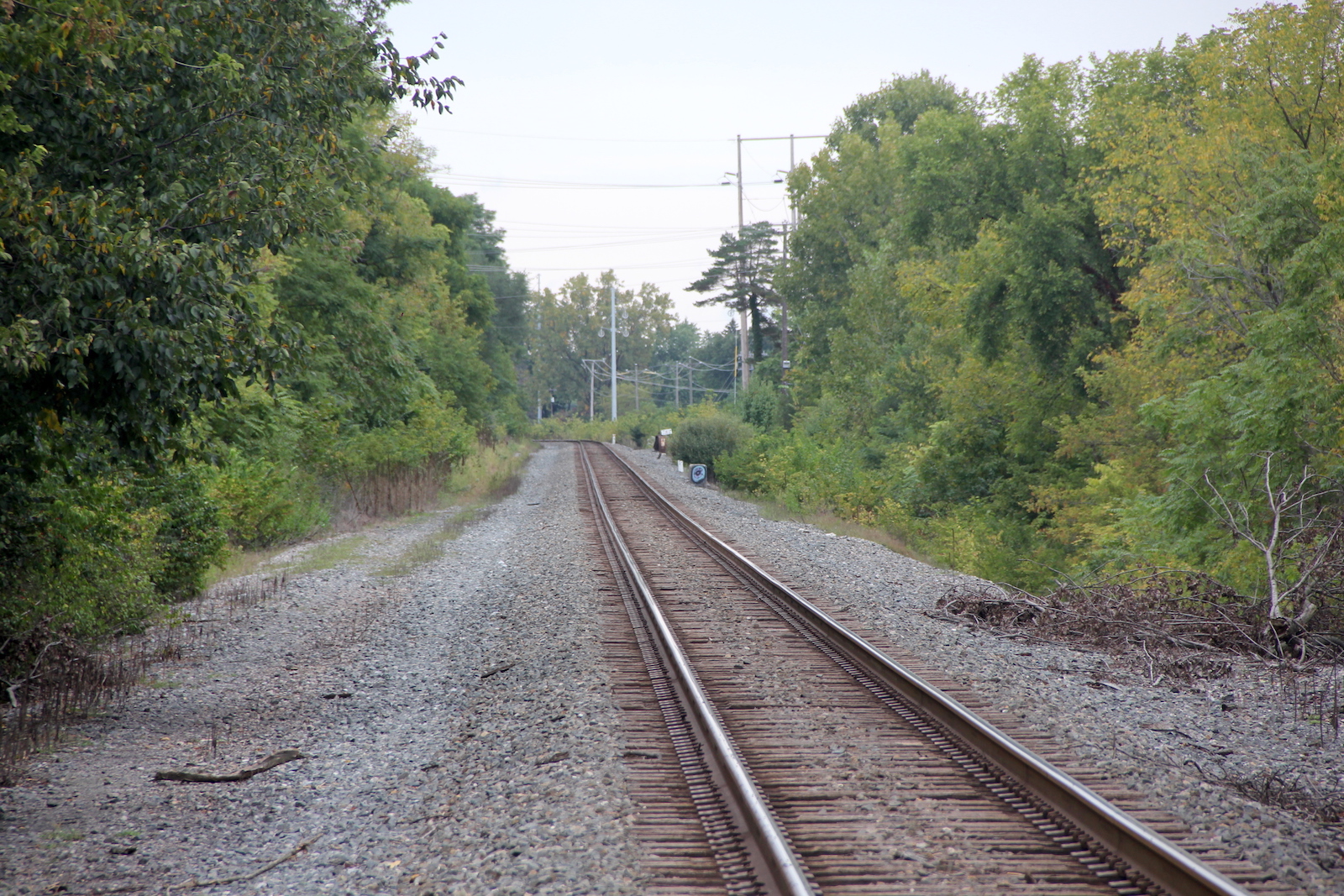

Track view facing north towards Pennsylvania Ave. |
Track view facing south towards Park Ave. |
