MP: 63.15 |
Created June 2025
Total Accidents:
0

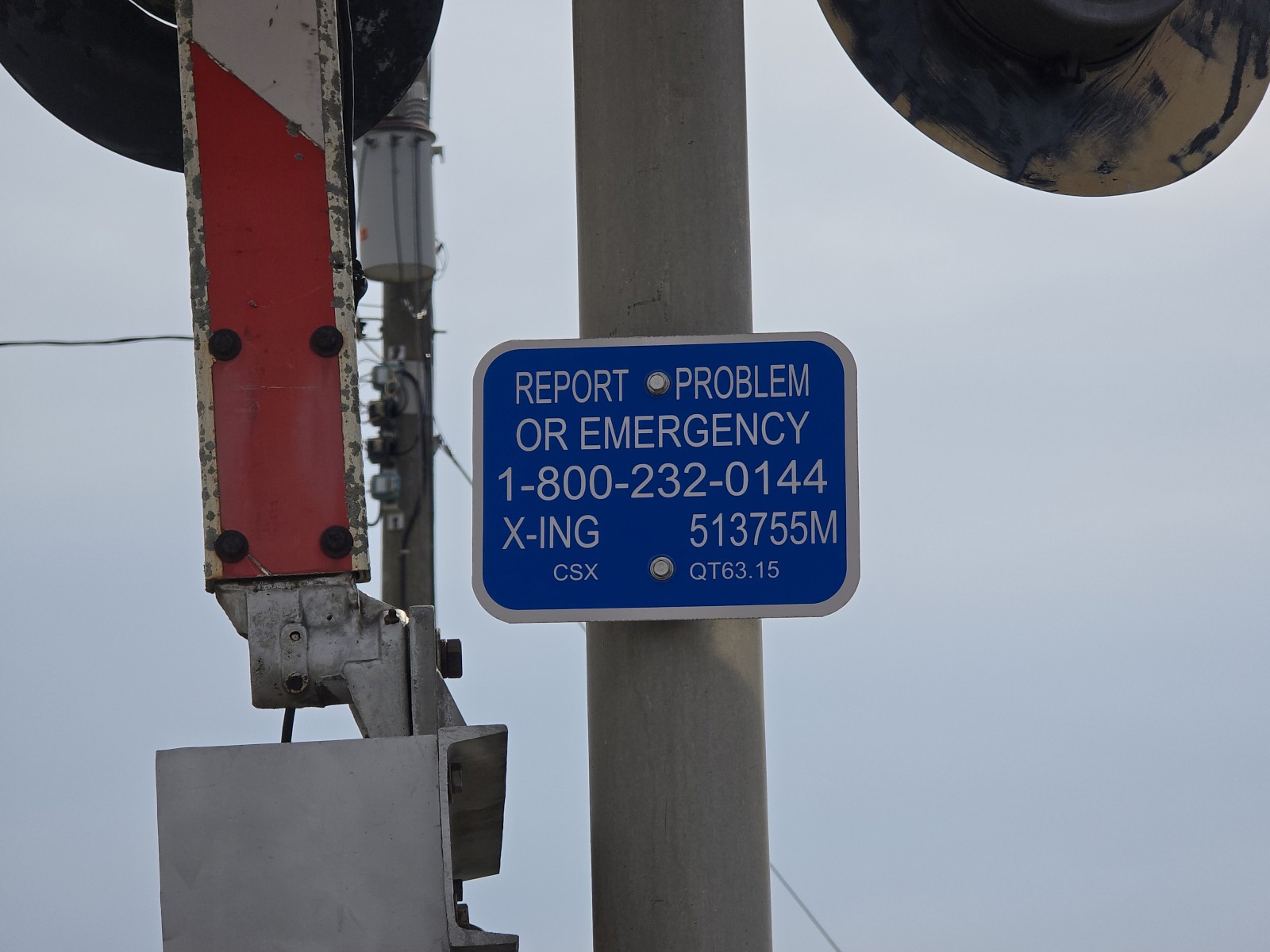

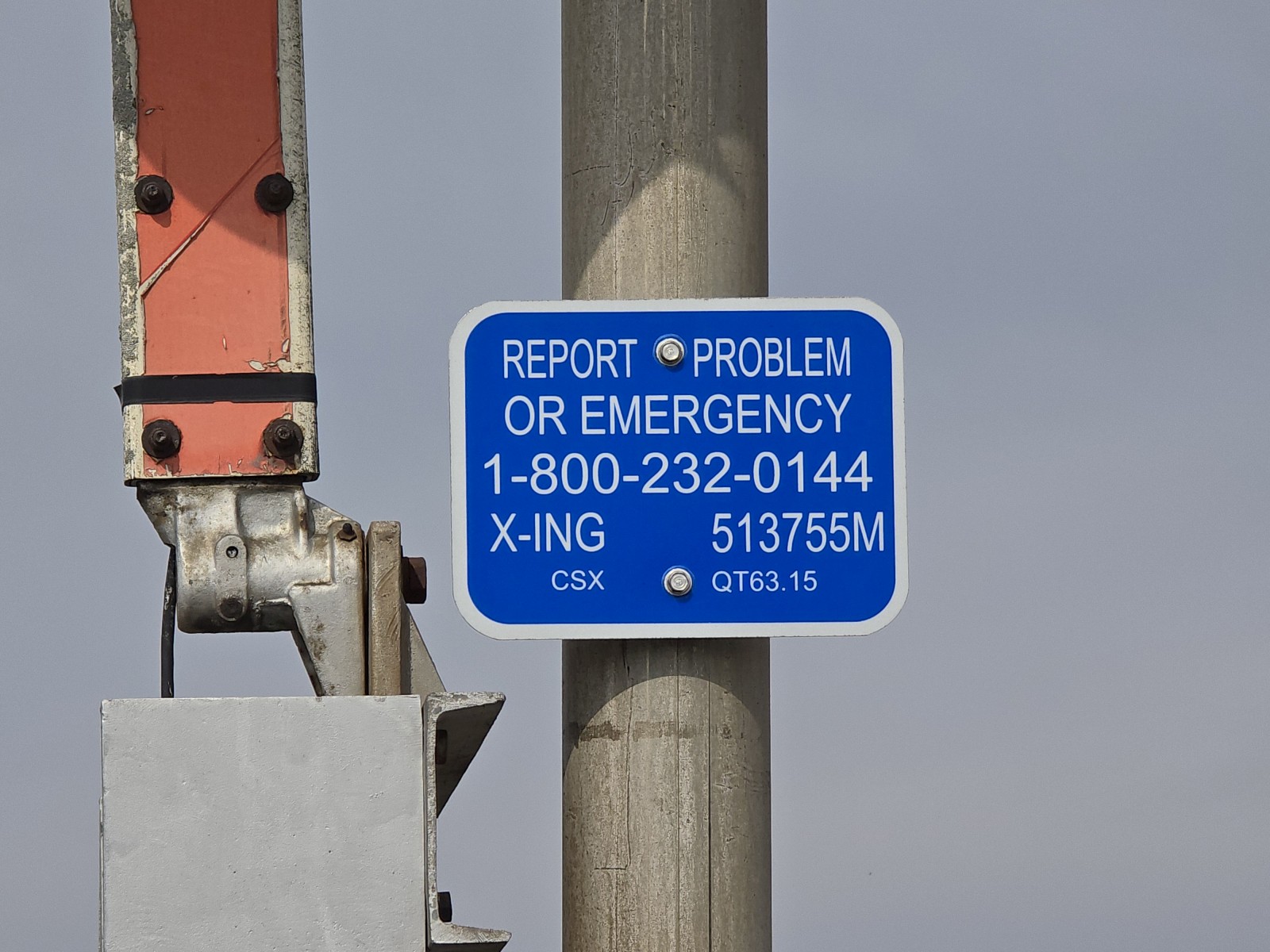

Crossing DOT #: 513755M
TOTAL DAILY TRAINS: 8 (AS
OF 2024)
| >>>>>>>>>>>>> | Western
Signal |
Eastern
Signal |
| Bell: | N/A |

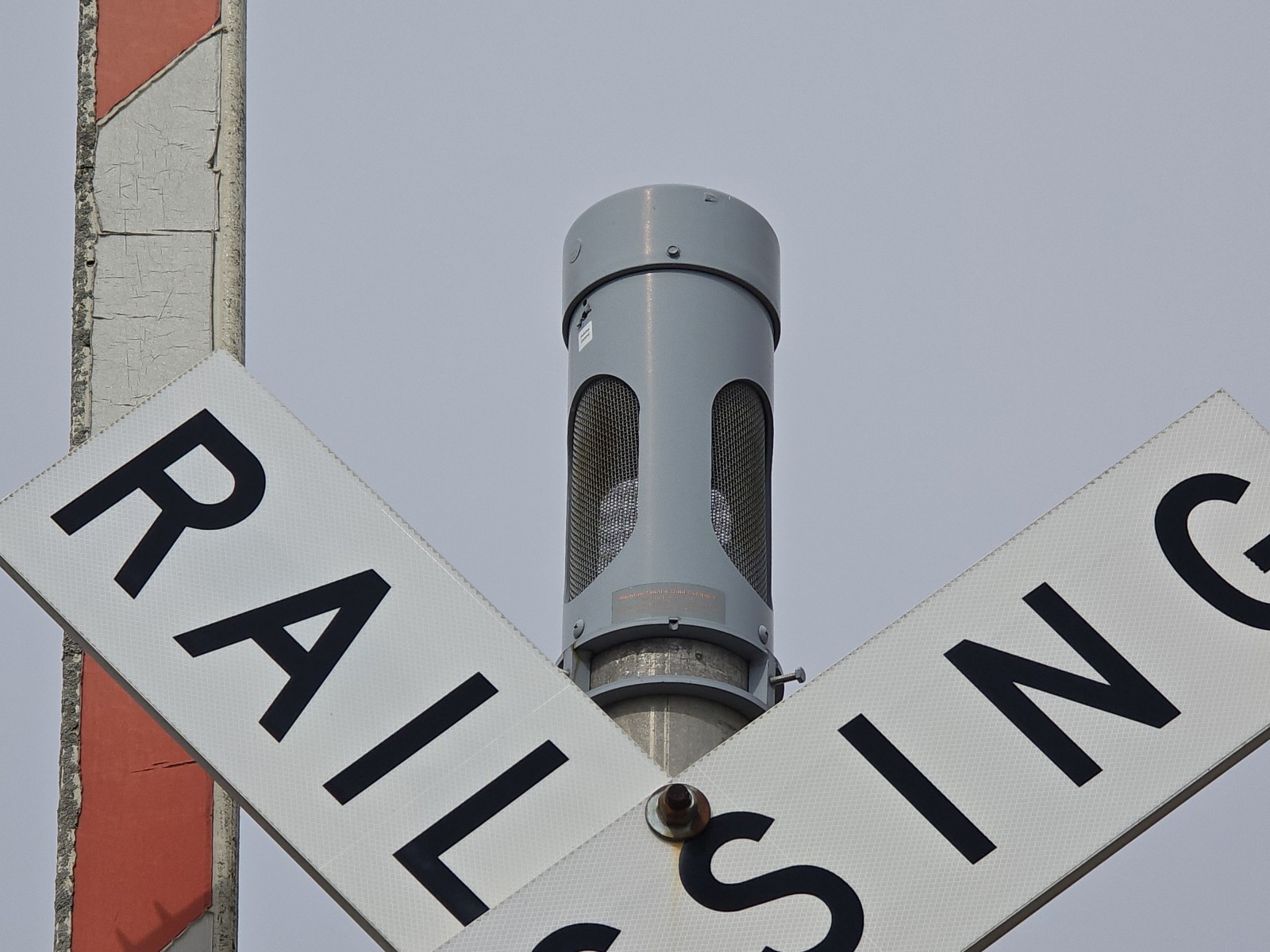

NEG E-Bell |

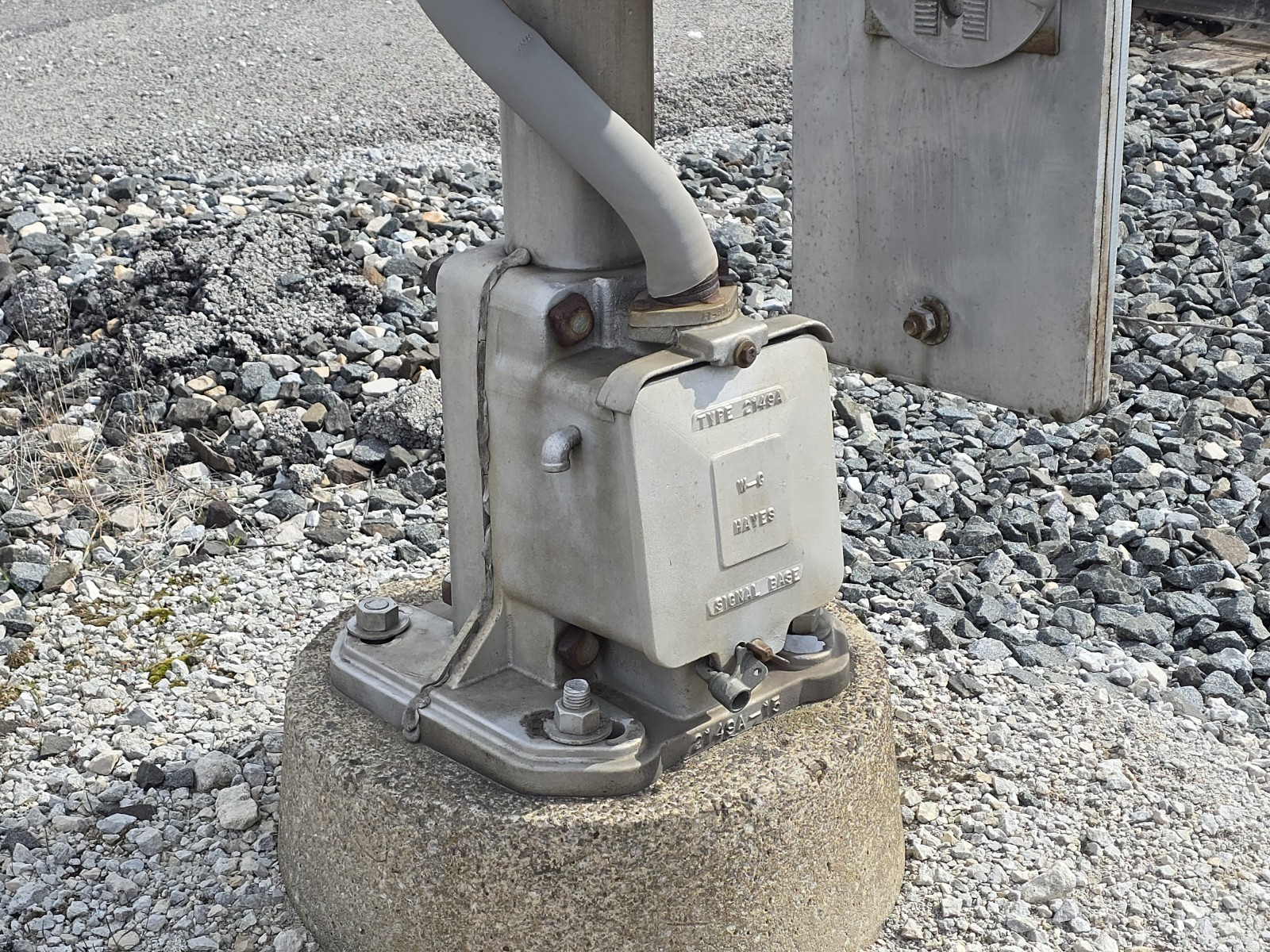

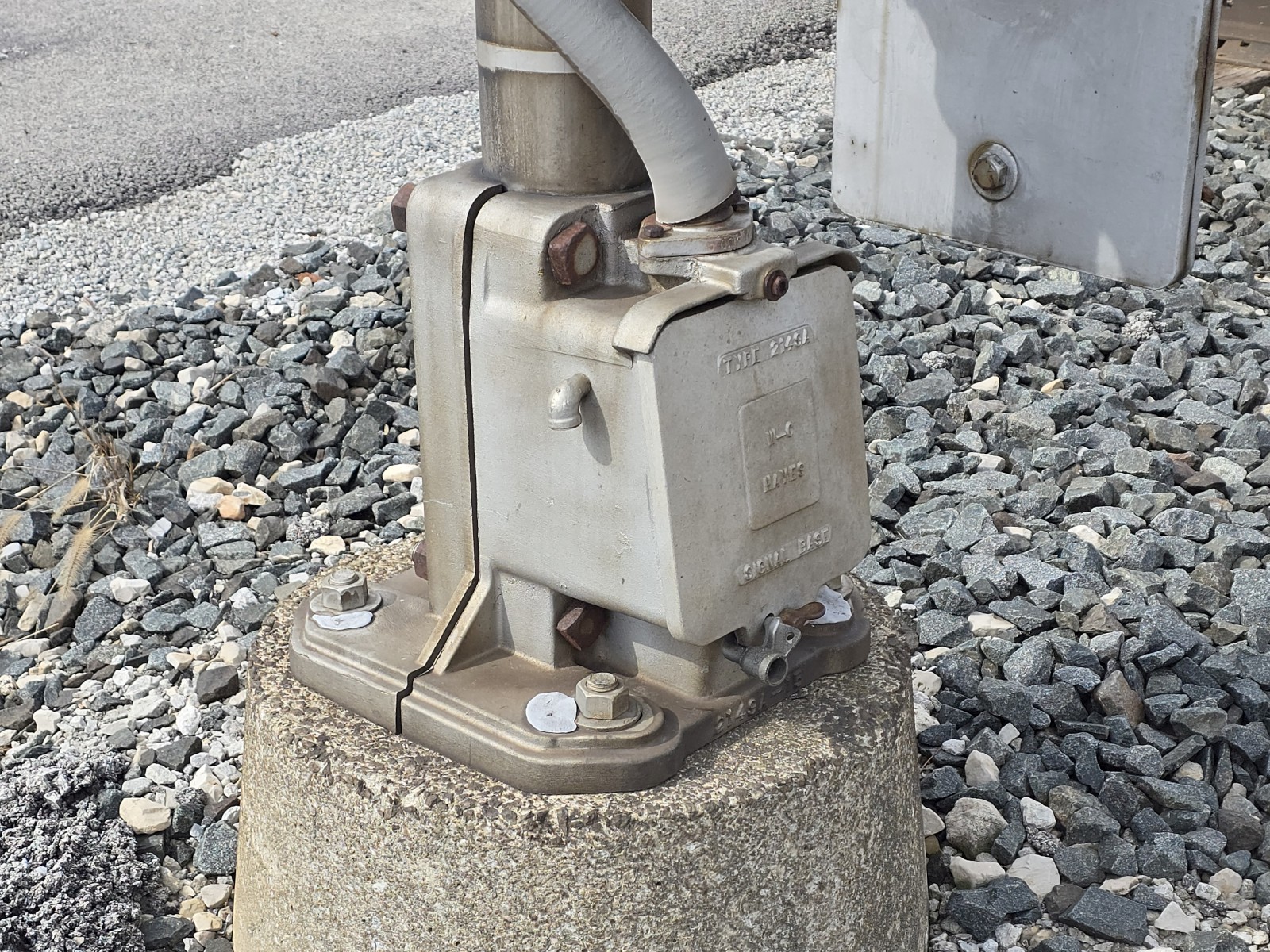

| Base: | WCH 5" Single Sided |
WCH 5" Single Sided |

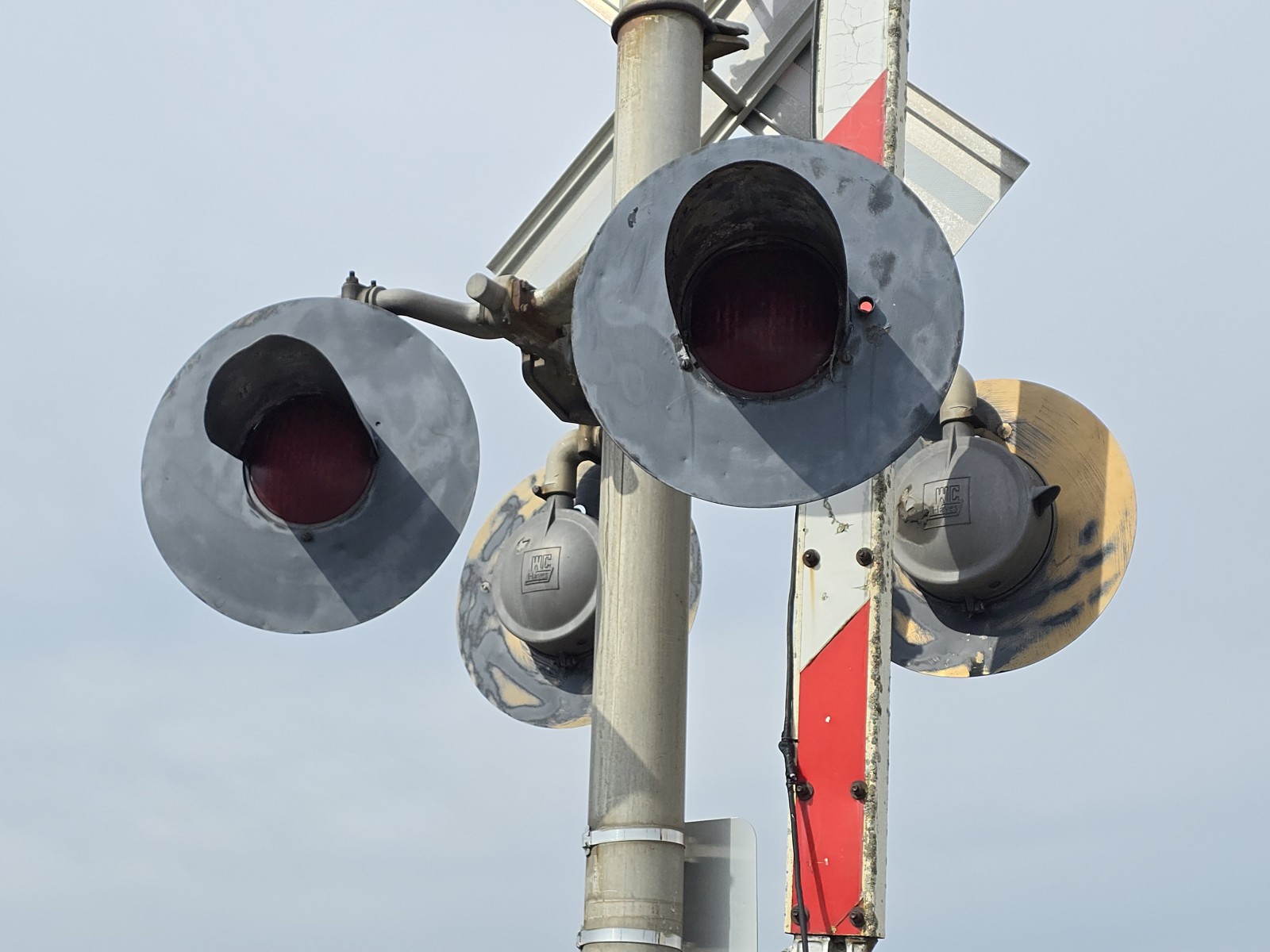

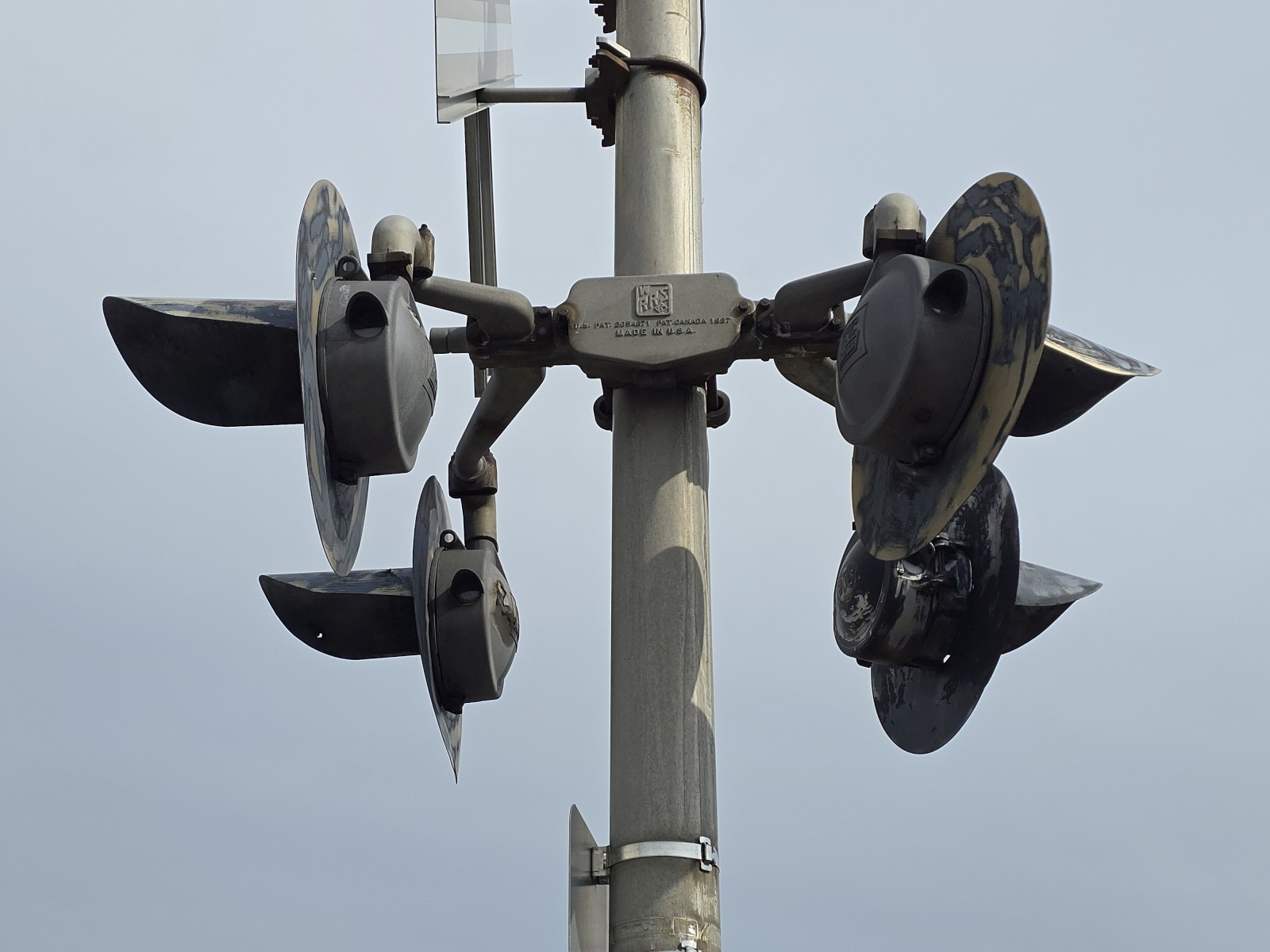

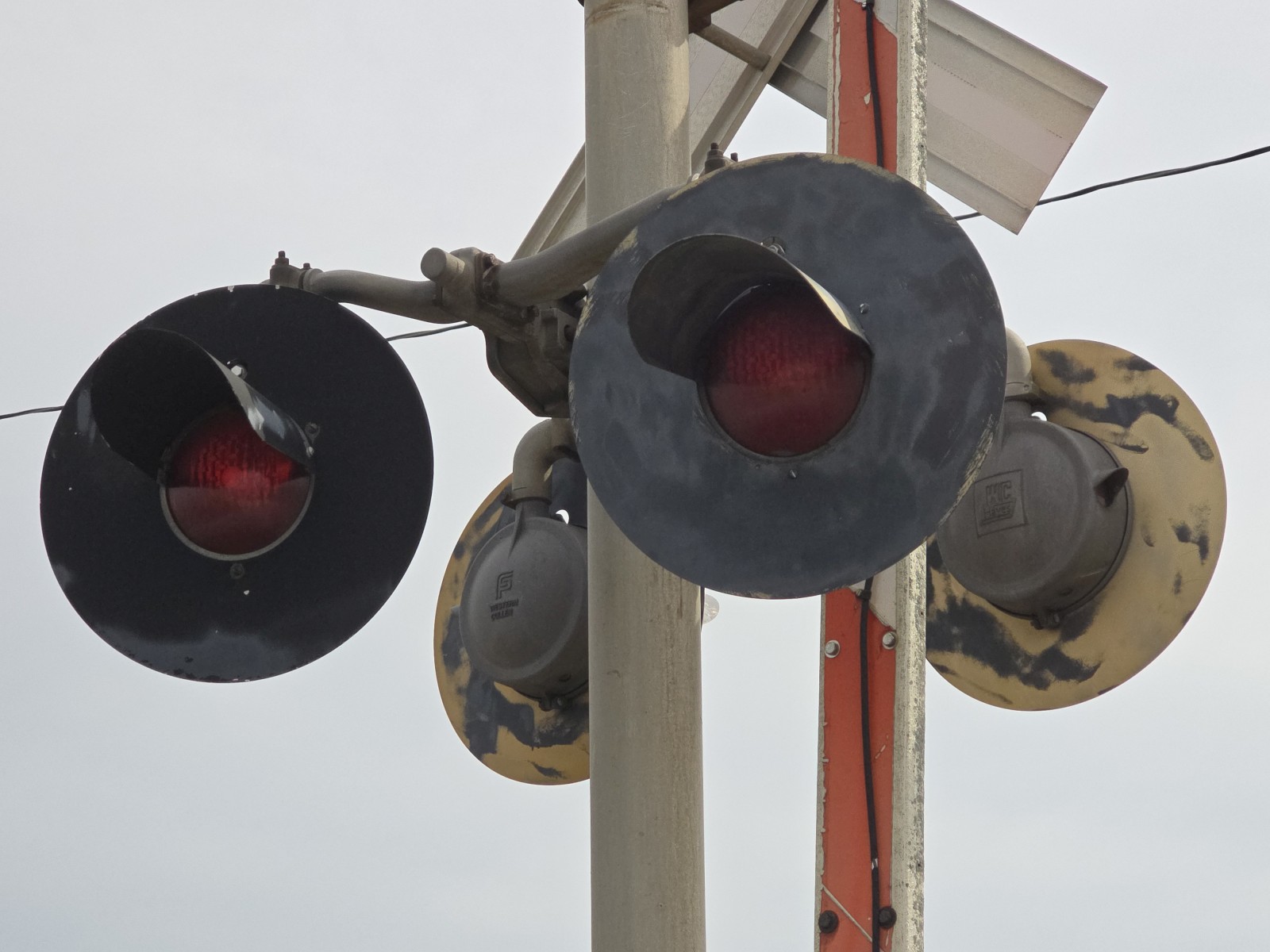

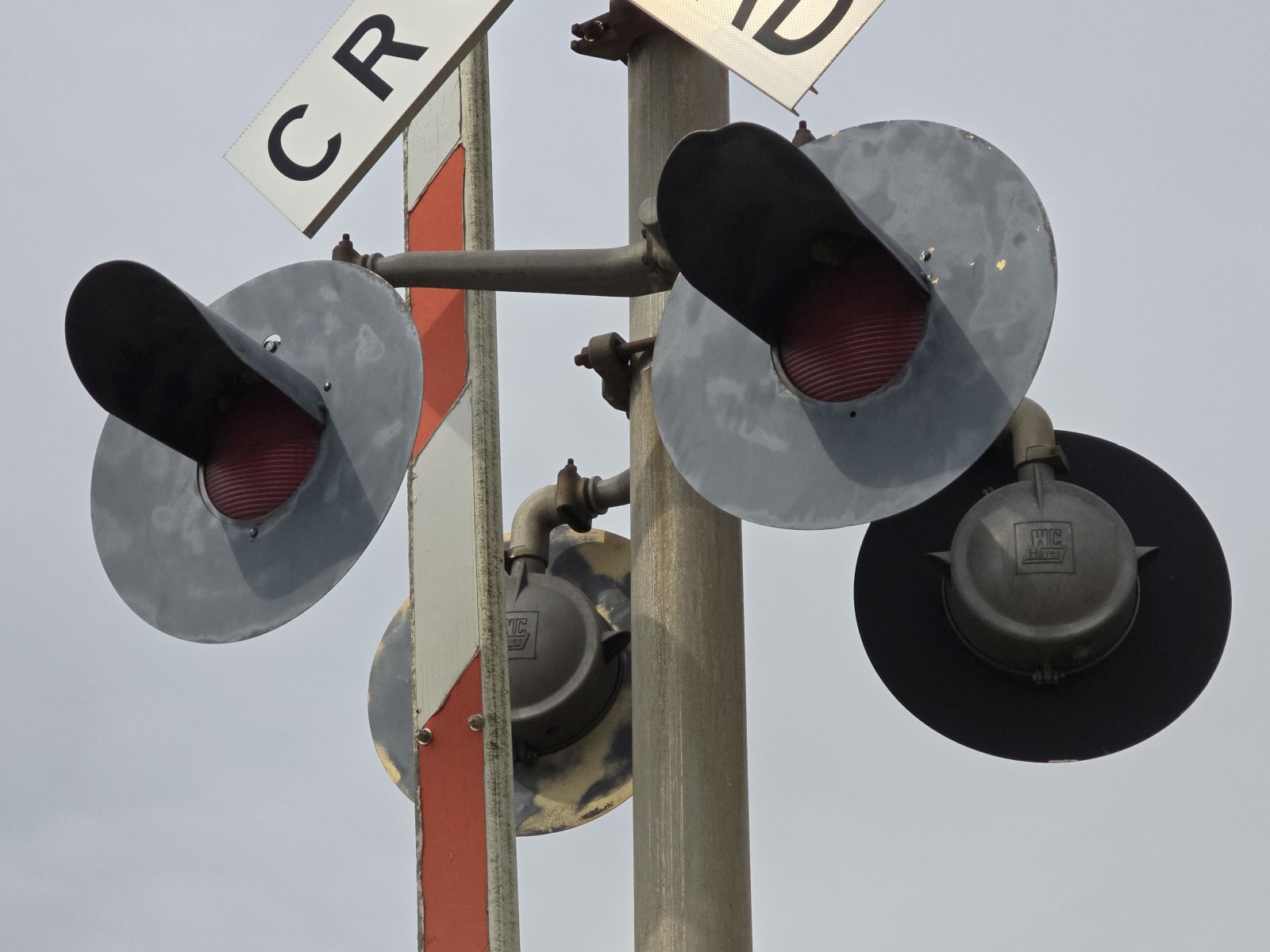

| Light Frames: | 3 - 8"x20" WCH incandescents 1 - 8"x20" GRS incandescent |
3 - 8"x20" WCH incandescents 1 - 8"x20" FS/WCH incandescent |
| Light
Brackets: |
WRRS |
WRRS |
| Gate Lights: | 3 - NEG 4" incandescents |
3 - NEG 4" incandescents |

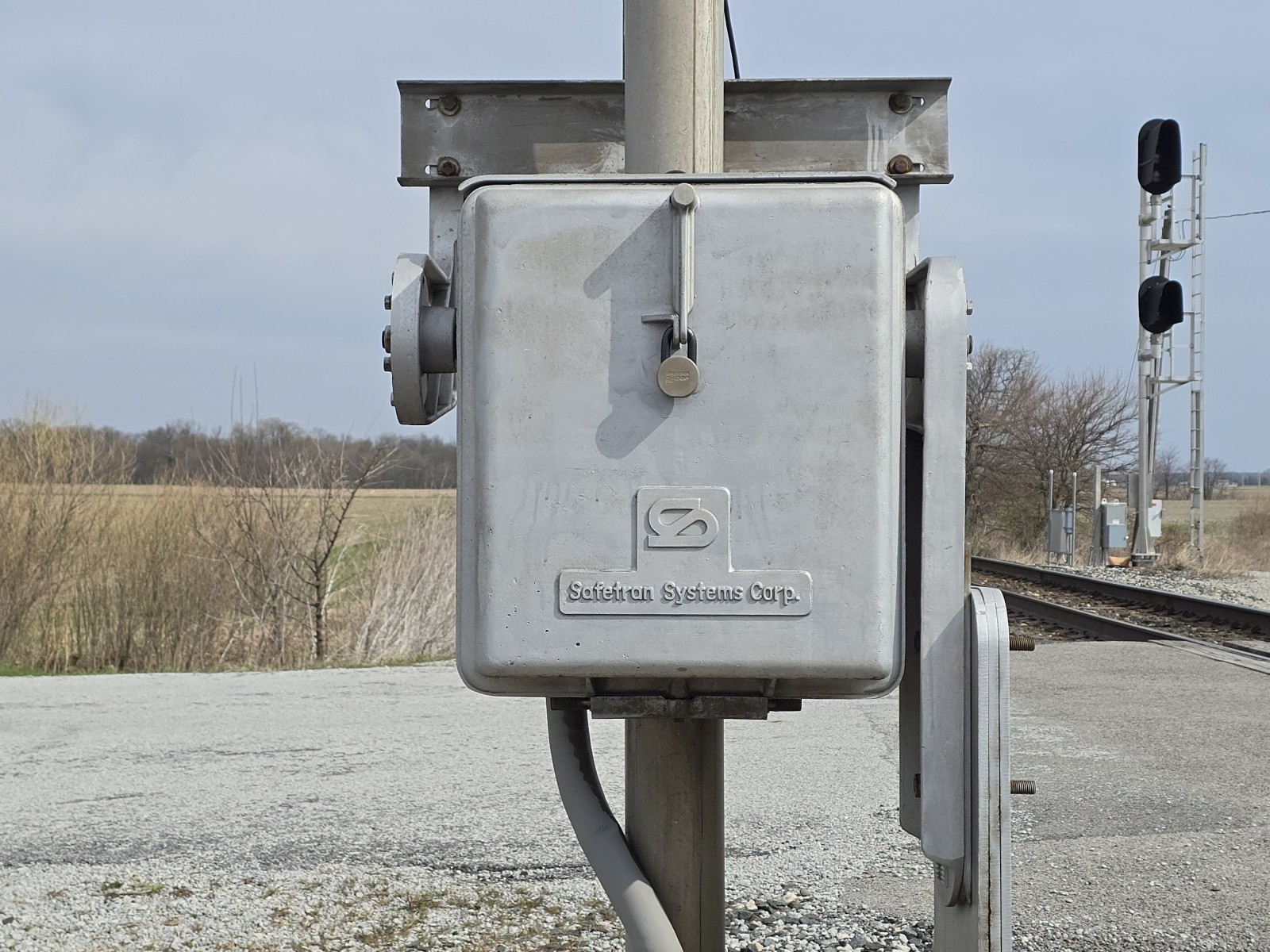

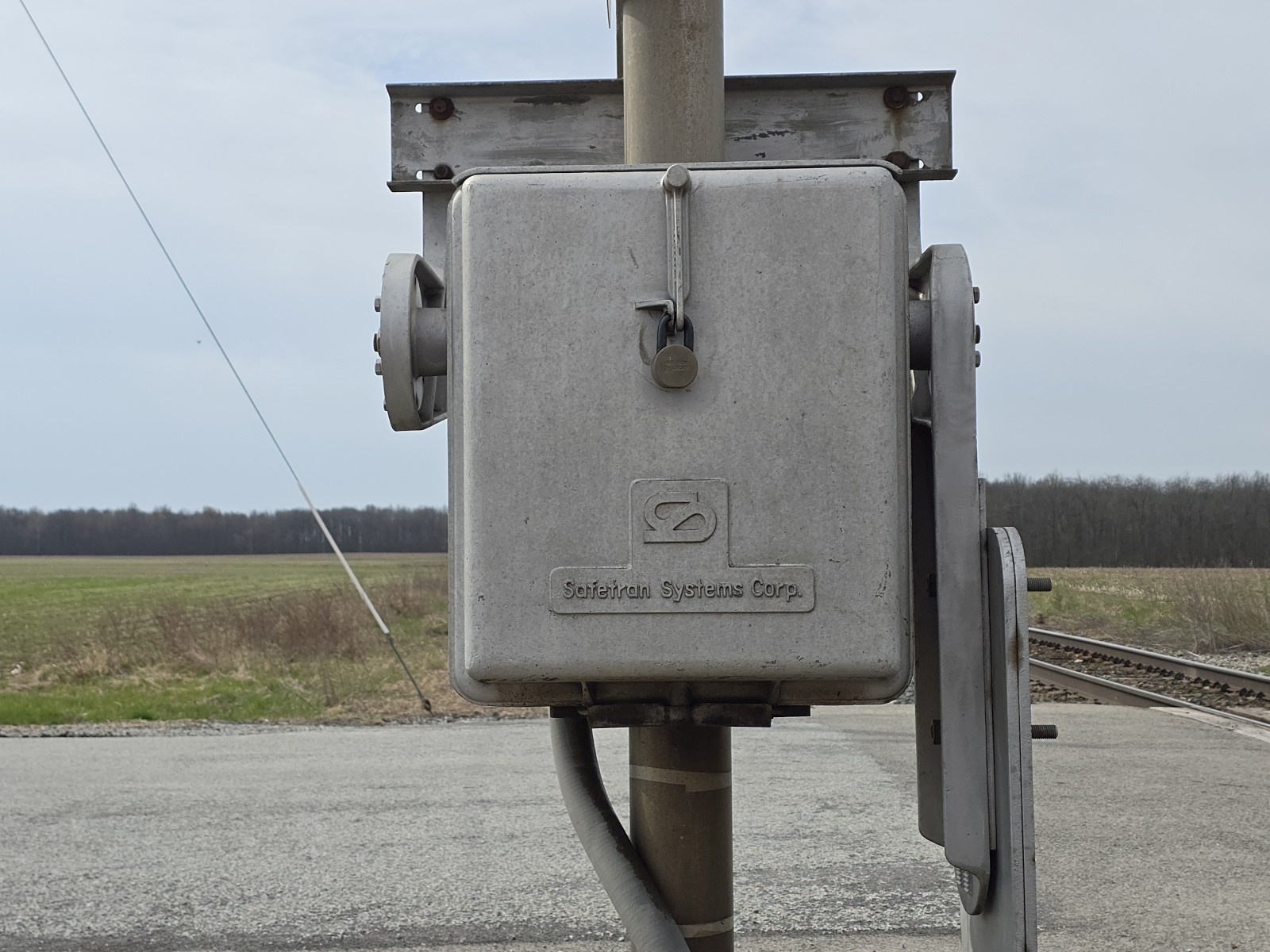

| Gate Mechanism: | Safetran Late 70s w/ Standard
Mount |
Safetran Late 70s w/ Standard Mount |
| Gate Striping: | Diagonal Striping |
Diagonal Striping |
Page created by: Sir Fluent
The video was taken on June 29, 2024, by Nicholas Miles.
Pictures 1-26 were taken on April 14, 2025, by Nicholas Miles.
O1 |
O2 |
O3 |
O4 |

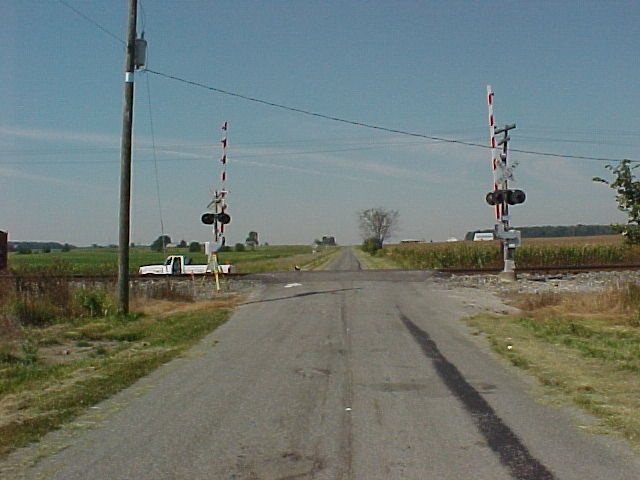

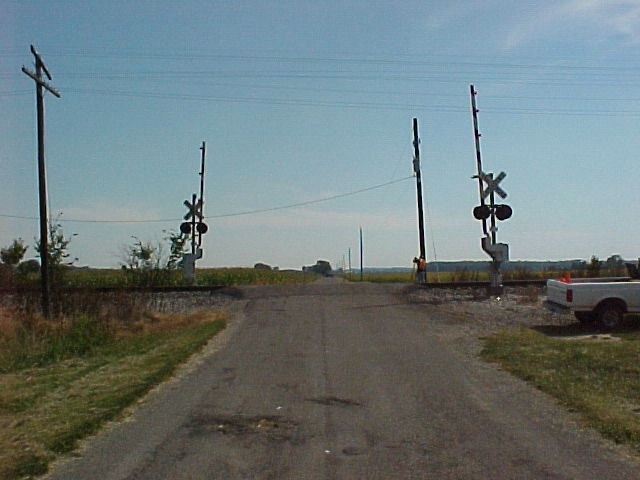

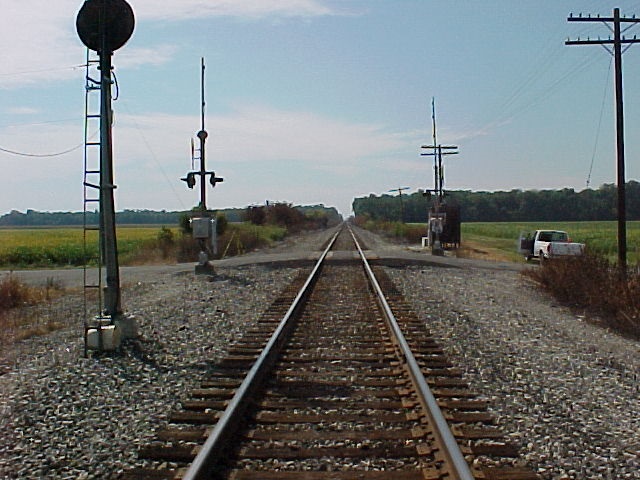

| PUCO
images
from
the
late
90s
or
early
2000s
showing
an
older gated setup with 8" lights, Safetran gate mechanisms and likely a
WCH Mechanical Bell. By 2024, the M-Bell was replaced with an NEG
E-Bell and both crossbucks were replaced. |
|||
|
1 |
2 |
|

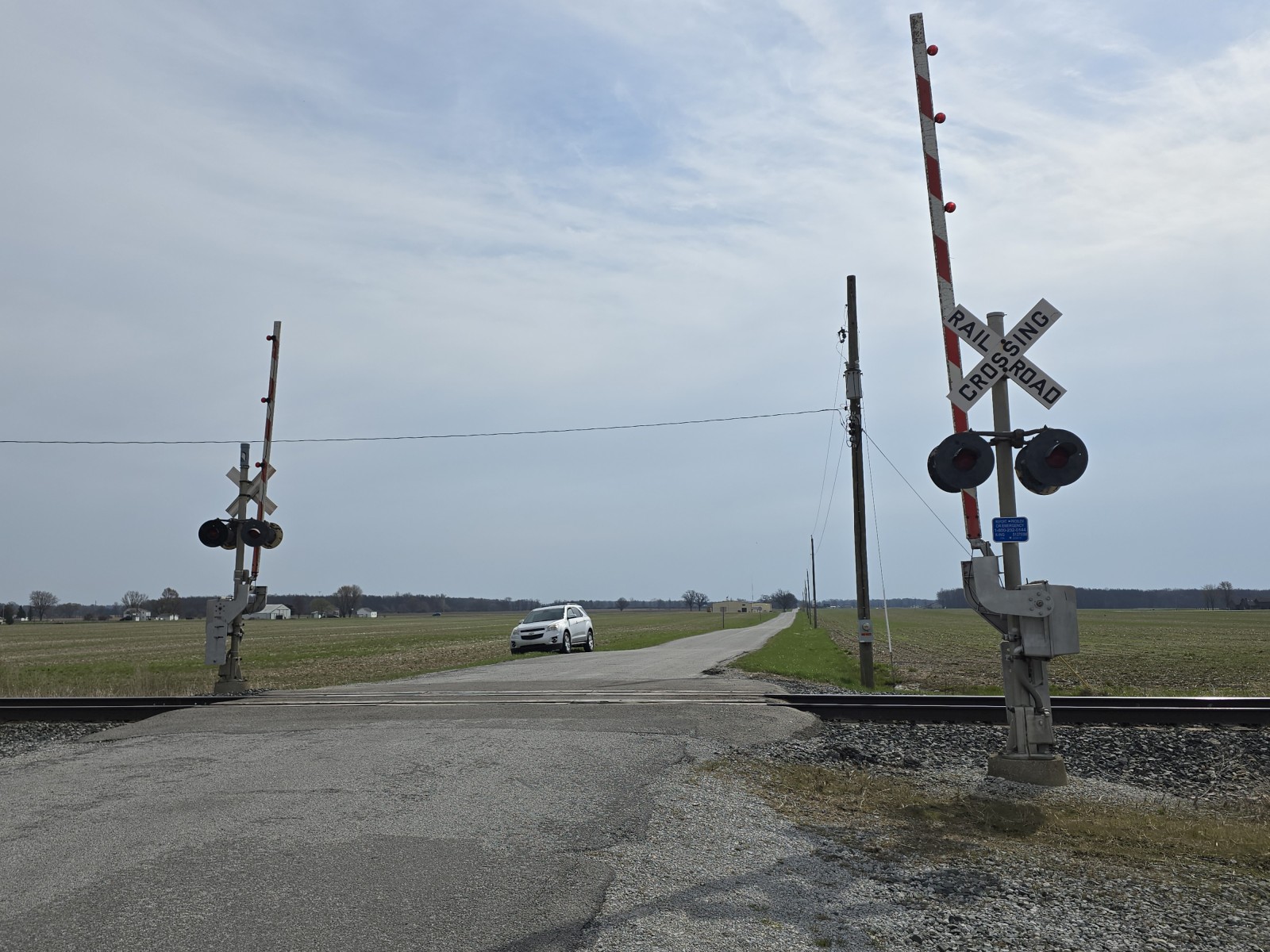

Overview of 2 older gated signals
facing east.
|
Overview
facing west. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
|
|
The western signal.
|
|||
|
12 |
13 |
|
14 |
15 |
16 |
17 |
|
18 |
19 |
20 |
21 |
|
The eastern signal.
|
|||
|
22 |
23 |
24 |
25 |
|

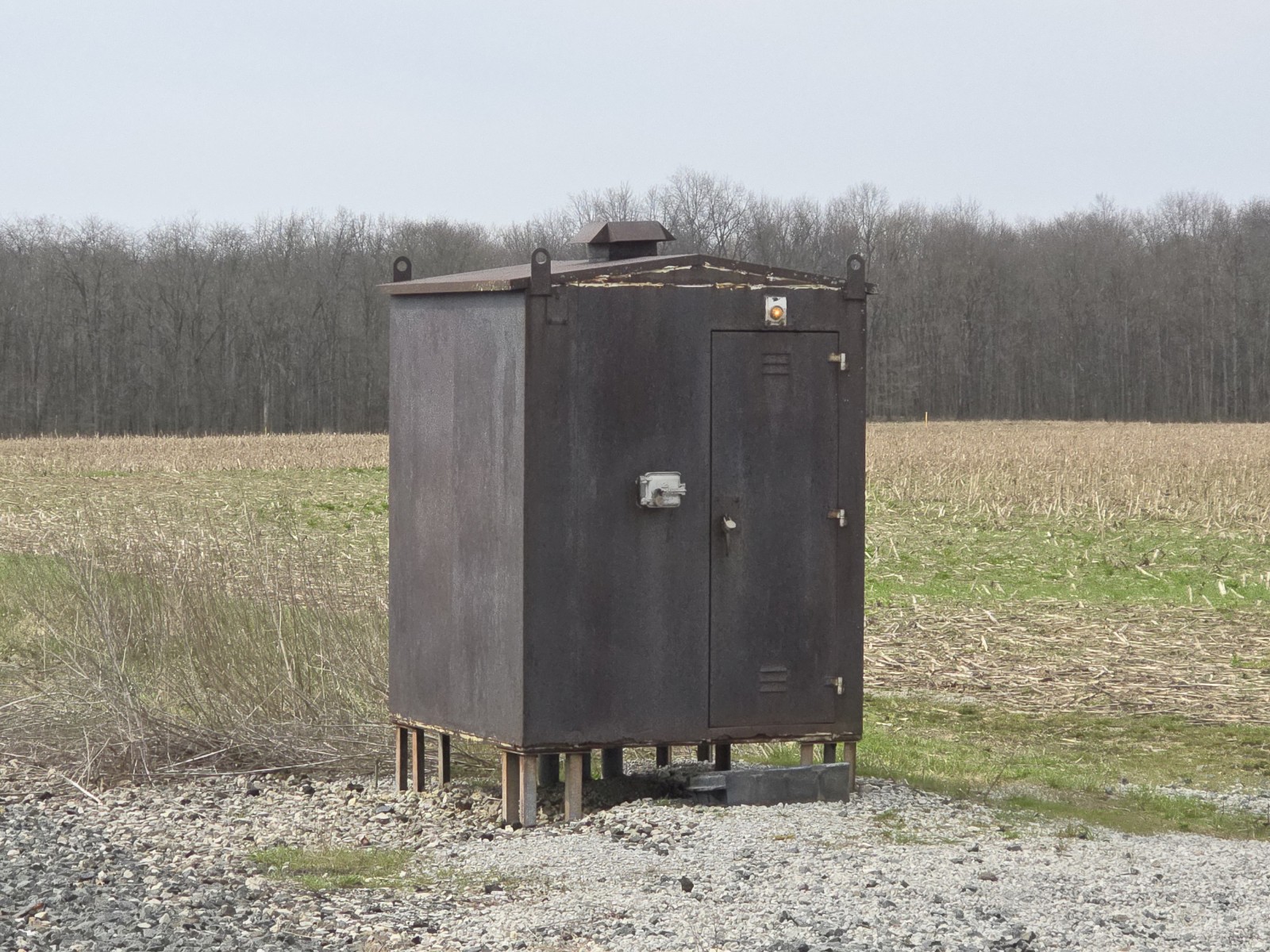

The relay bungalow in the southwest quadrant.
|
This crossing's grade is made of wood and asphalt. |

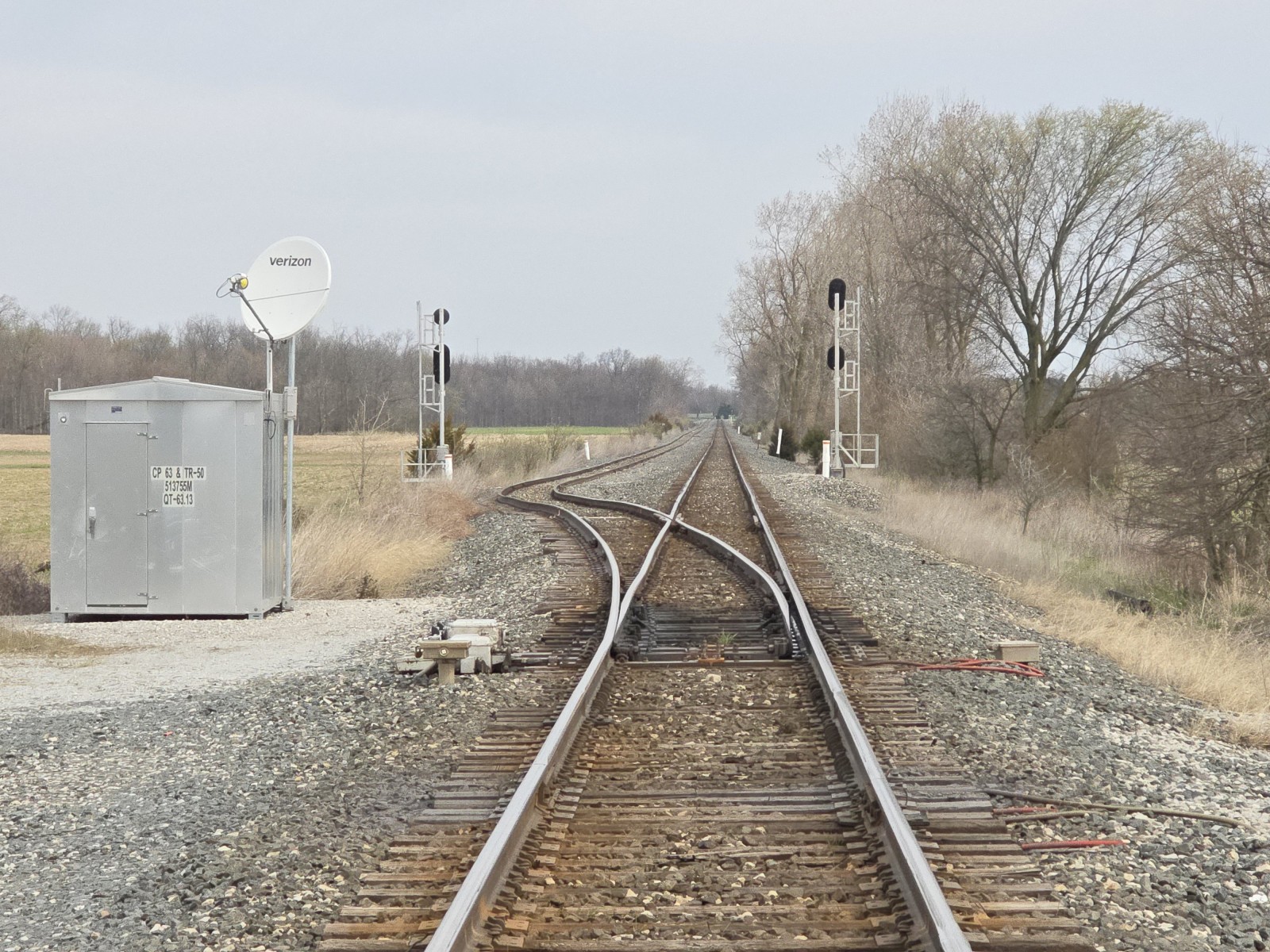

Track view facing north towards Township
Road 40. |
Track view facing south towards Locker Road
in Blanchard. |
|
26 |
||
| A newer wayside
signal stands near this crossing. |
