MP: 60.26 |
Created June 2025
Total Accidents: 6

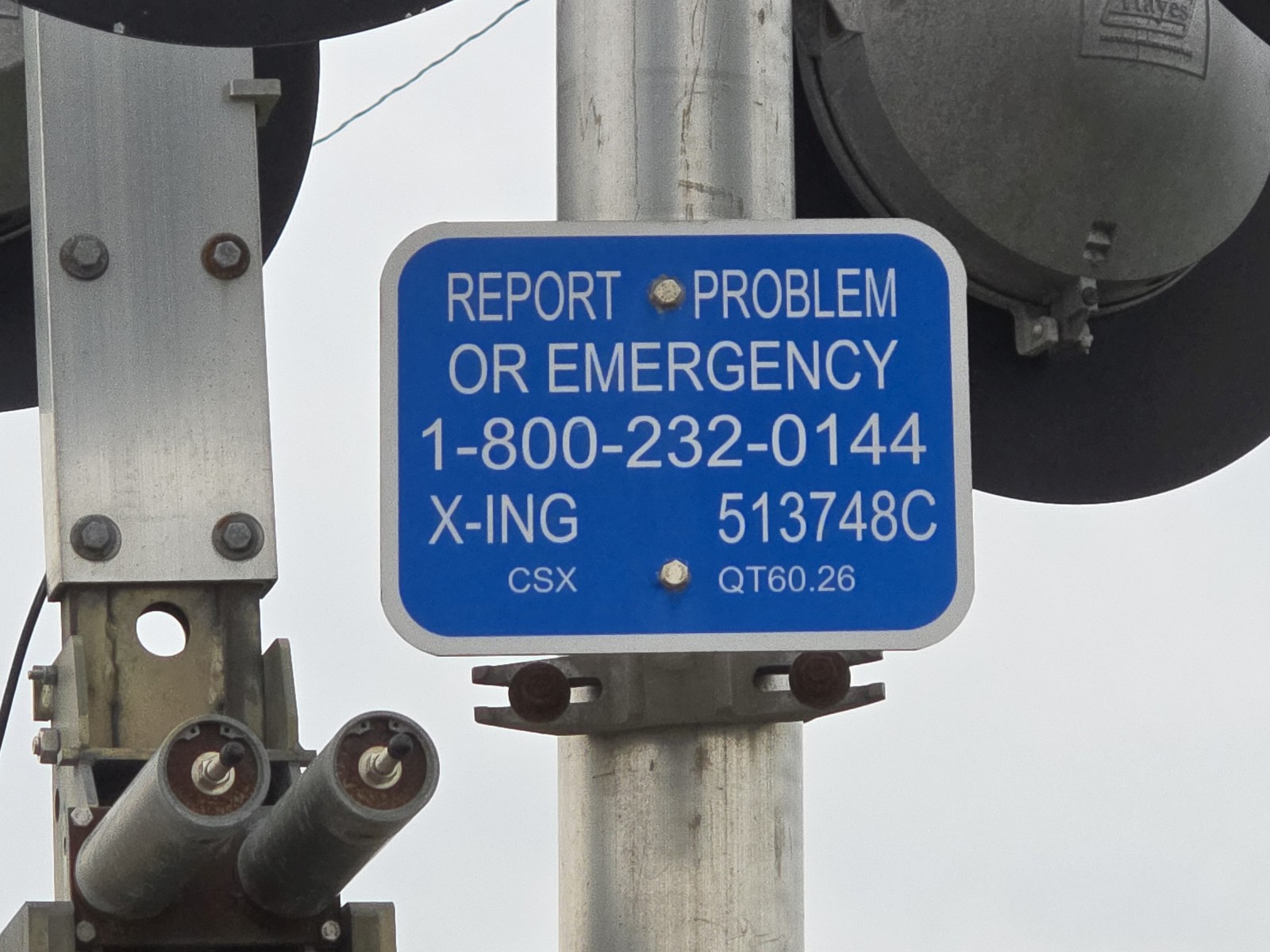

Crossing DOT #: 513748C
TOTAL DAILY TRAINS: 8 (AS
OF 2024)
| >>>>>>>>>>>>> | Northern
Signal |
Southern
Signal |
| Bell: | NEG E-Bell |
NEG E-Bell |
| Base: | WCH 5" Double Sided |
WCH 5" Double Sided |
| Light Frames: | 2 - 12"x24" WCH Flatback w/ Dialight Ball LEDs 2 - 12"x24" WCH w/ WCH/Miller 2nd Gen LEDs |
4 - 12"x24" WCH w/ WCH/Miller 2nd Gen LEDs |
| Light
Brackets: |
WCH |
WCH |
| Gate Lights: | 3 - RECO 4" LEDs |
3 - RECO 4" LEDs |

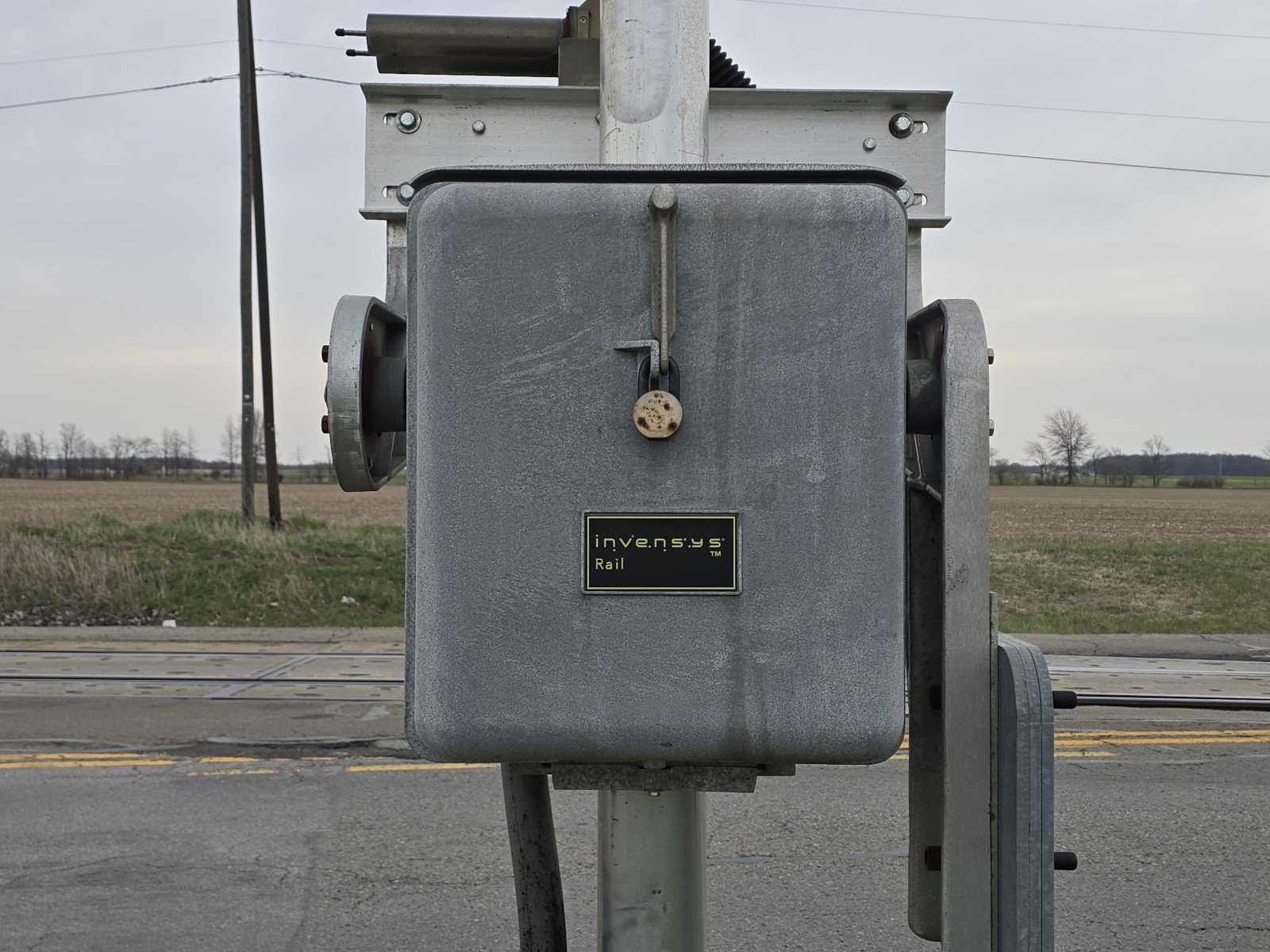

| Gate Mechanism: | Invensys Rail w/ NEG 2 Way Saver |
Invensys Rail w/ NEG 2 Way Saver |
| Gate Striping: | Vertical Striping |
Vertical Striping |
Page created by: Sir Fluent
The video was taken on February 19, 2024, by Nicholas Miles.
Pictures 1-27 were taken on April 14, 2025, by Nicholas Miles.
O1 |
O2 |
O3 |
O4 |

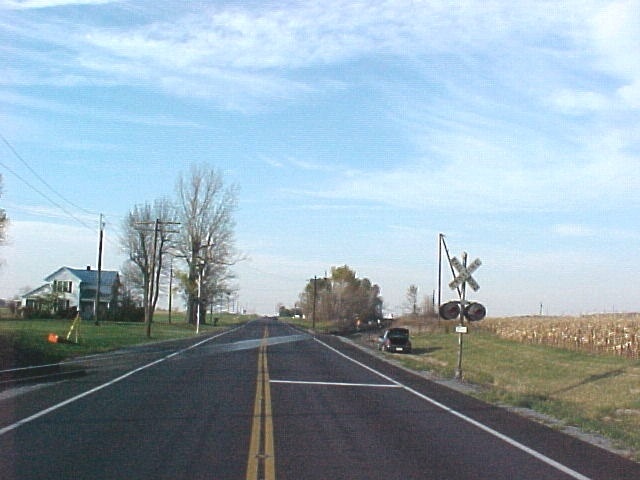

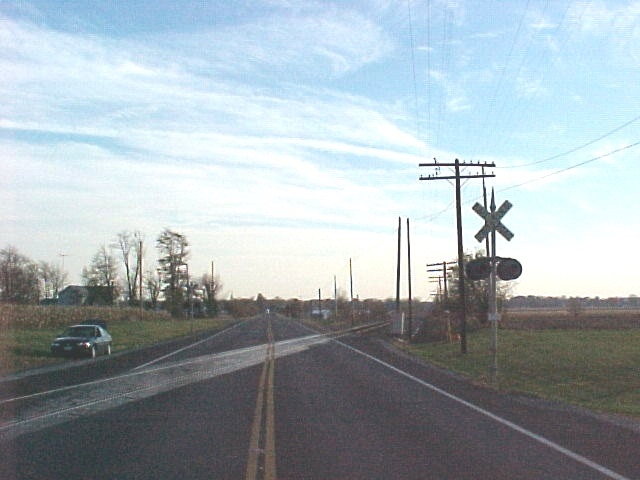

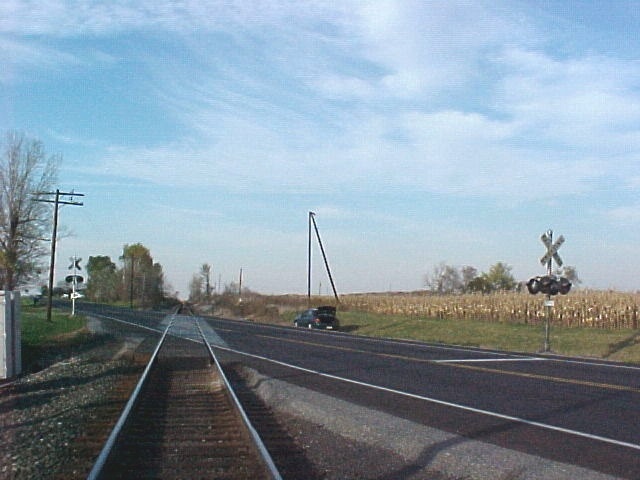

| PUCO
images
from
the
late
90s
or
early
2000s
showing
2
old gateless signals with 8" lights and no bells. In the early 2010s,
these signals were replaced with newer Invensys/WCH signals. |
|||
|
1 |
2 |
|

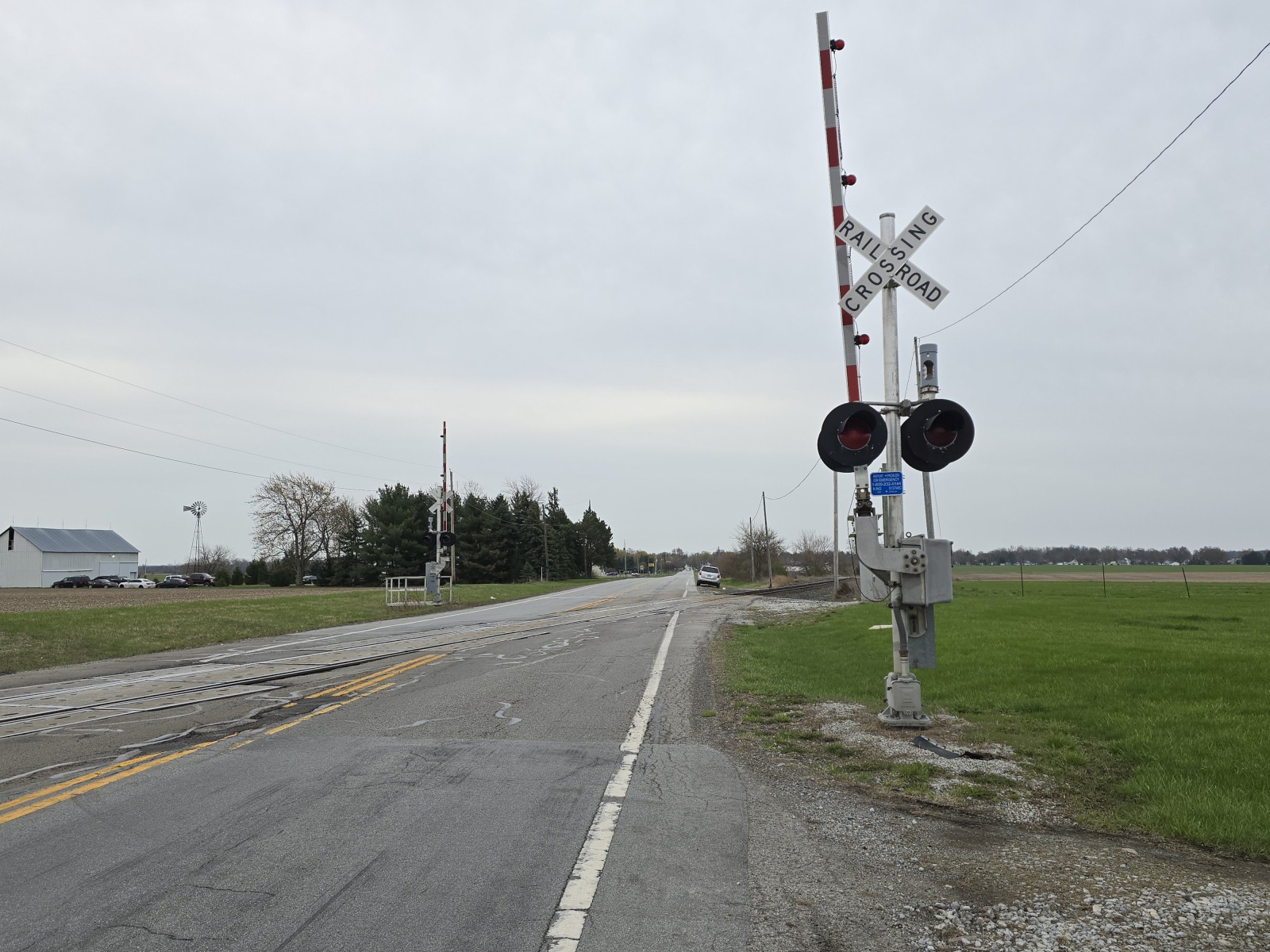

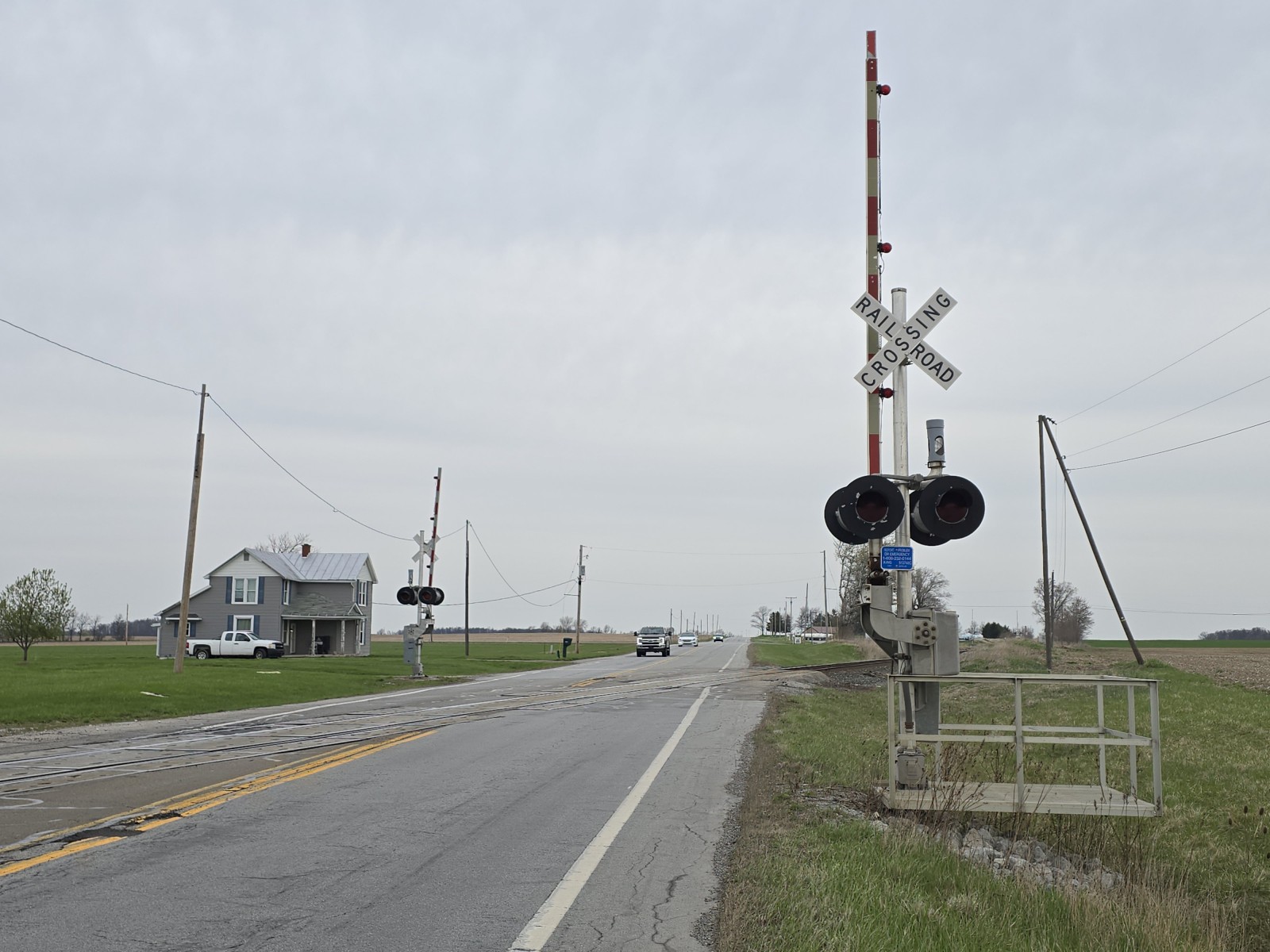

Overview of 2 gated signals facing
south.
|
Overview
facing north. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|

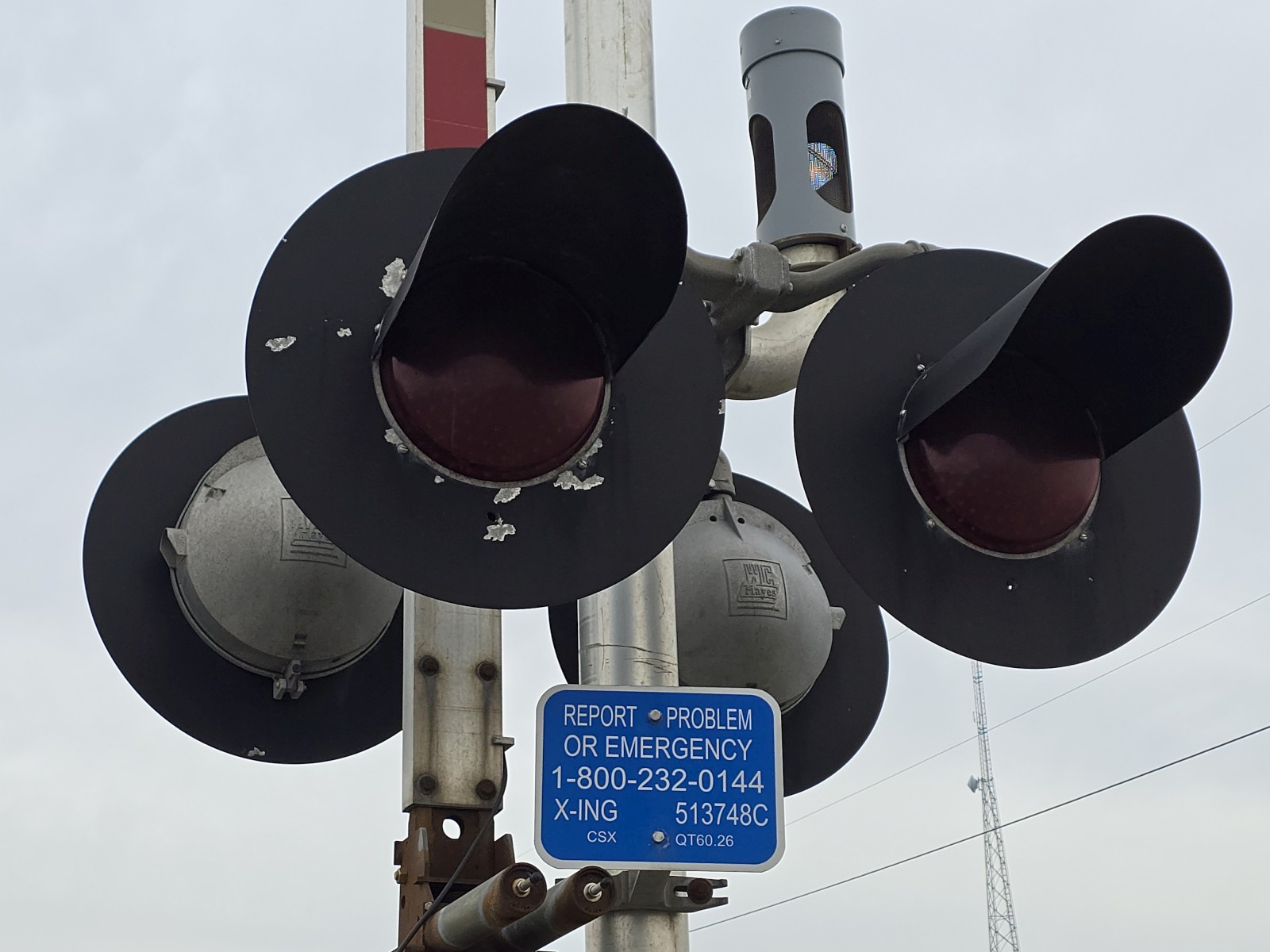

The northern signal. All the LEDs were
originally WCH 2nd Gen LEDs when installed, but sometime in the late
2010s, 2 of the LEDs were replaced with Dialight Ball ones. I'm not sure
where those came from.
|
|||
|
13 |
14 |
|
15 |
16 |
17 |
18 |
|
19 |
20 |
21 |
22 |
|

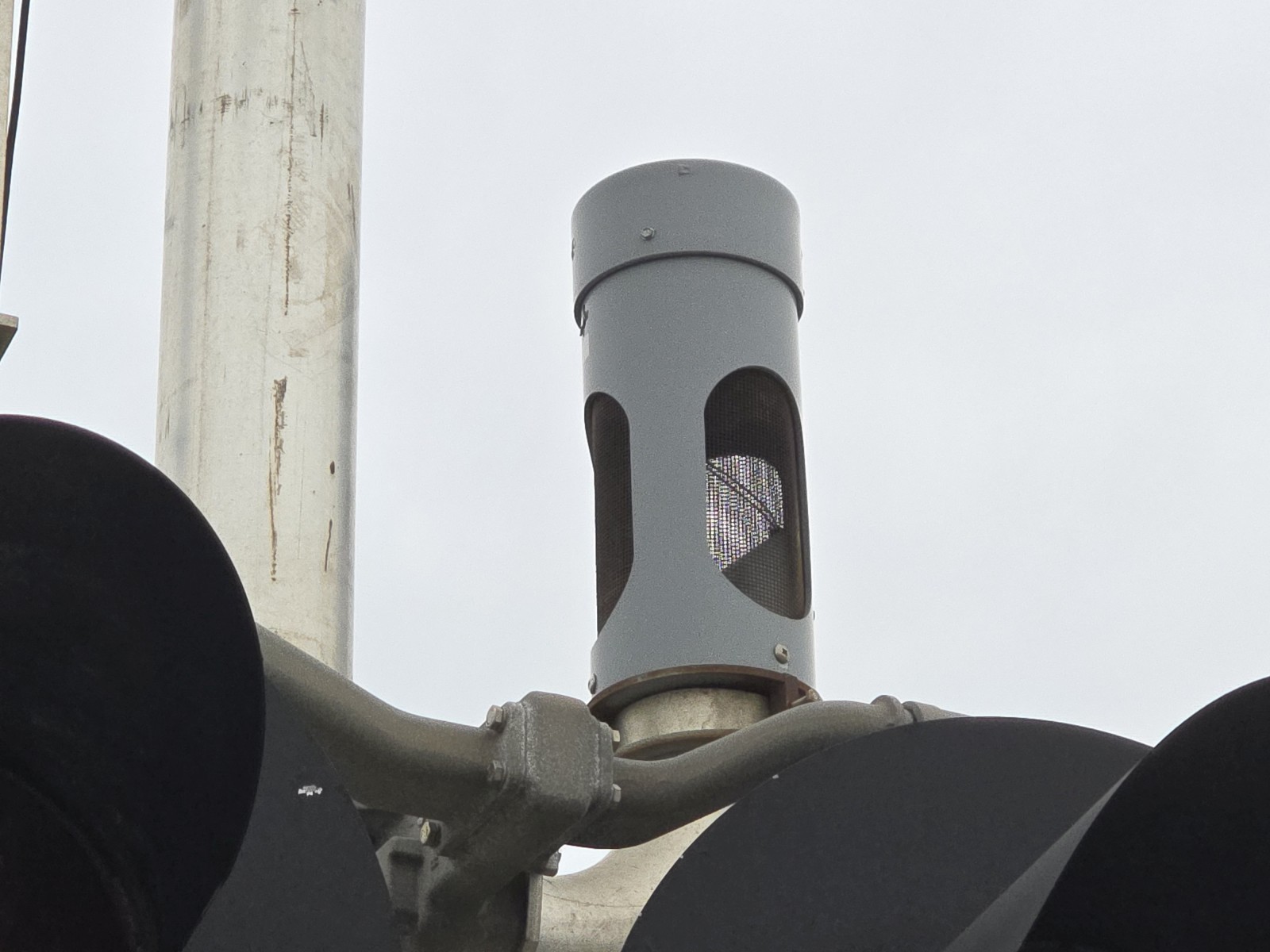

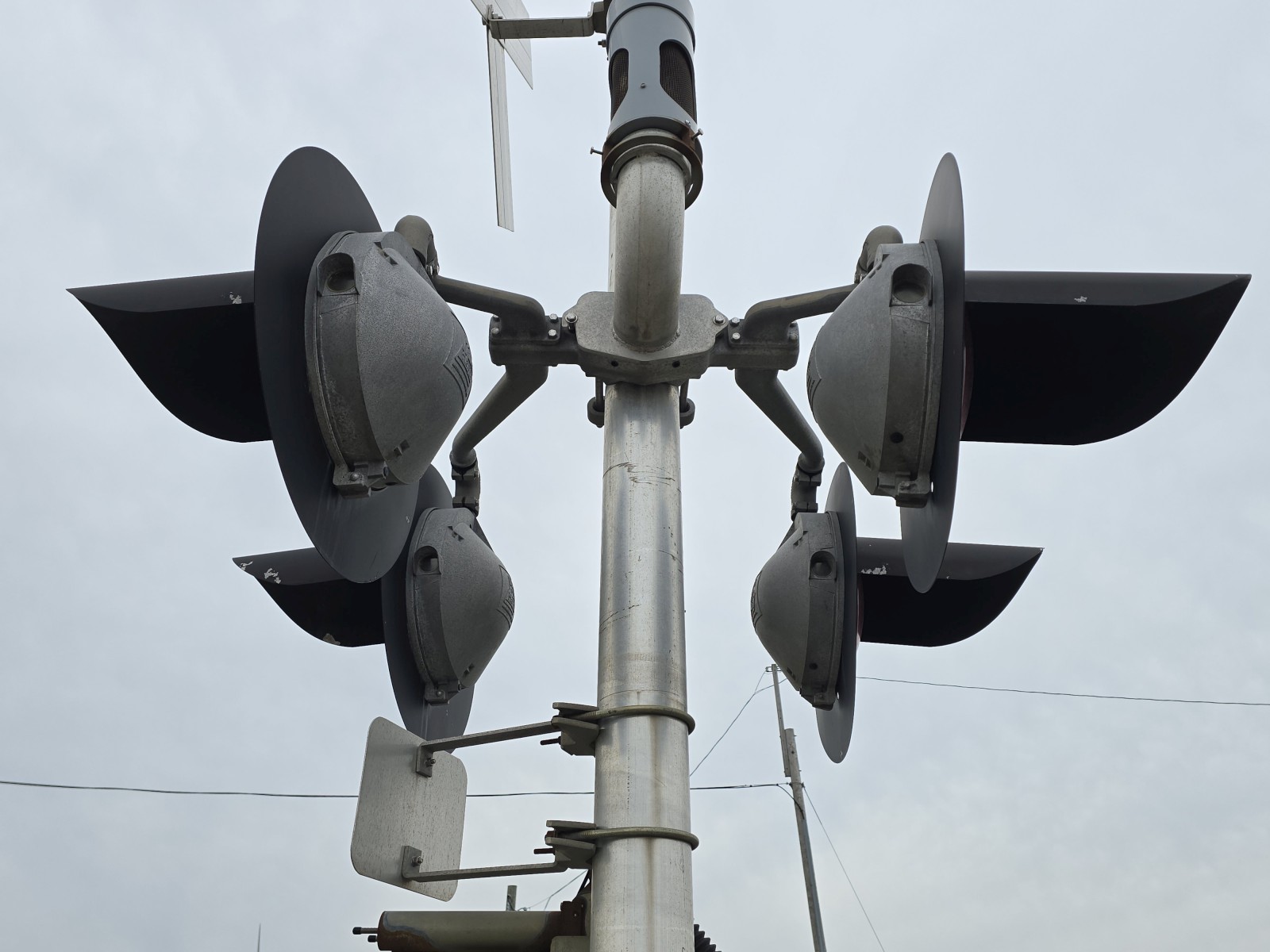

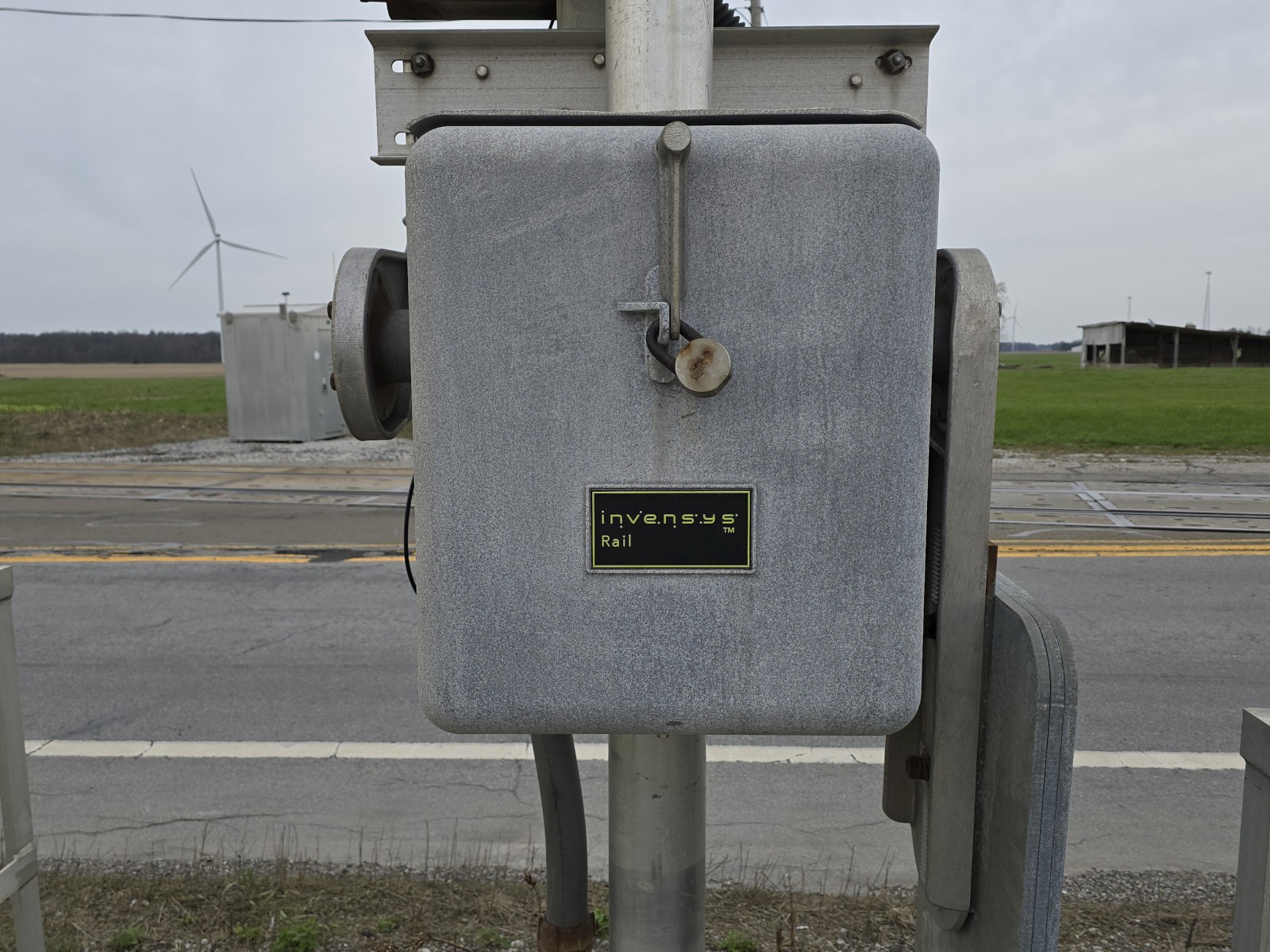

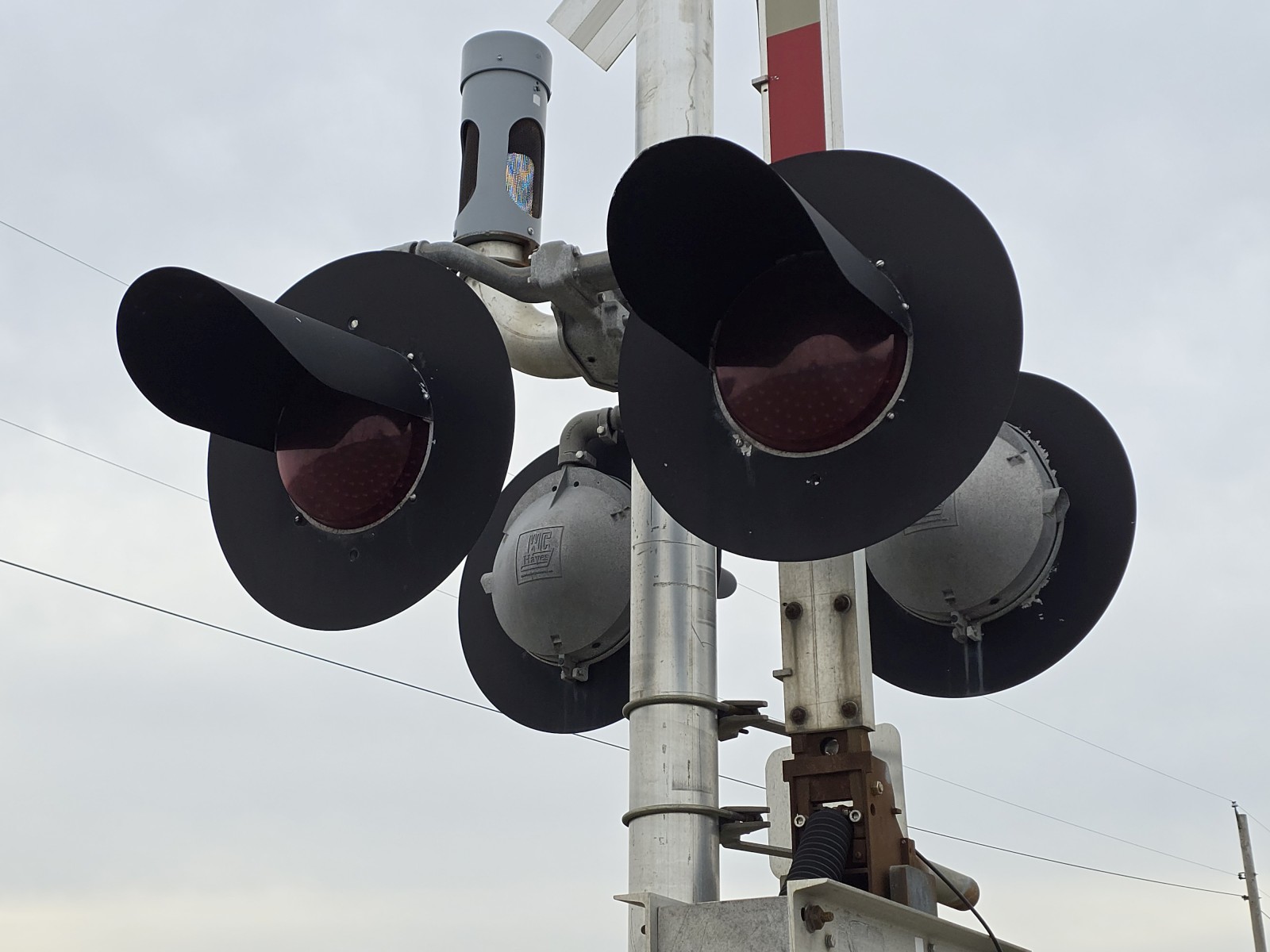

The southern signal.
|
|||
|
23 |
24 |
25 |
26 |
|

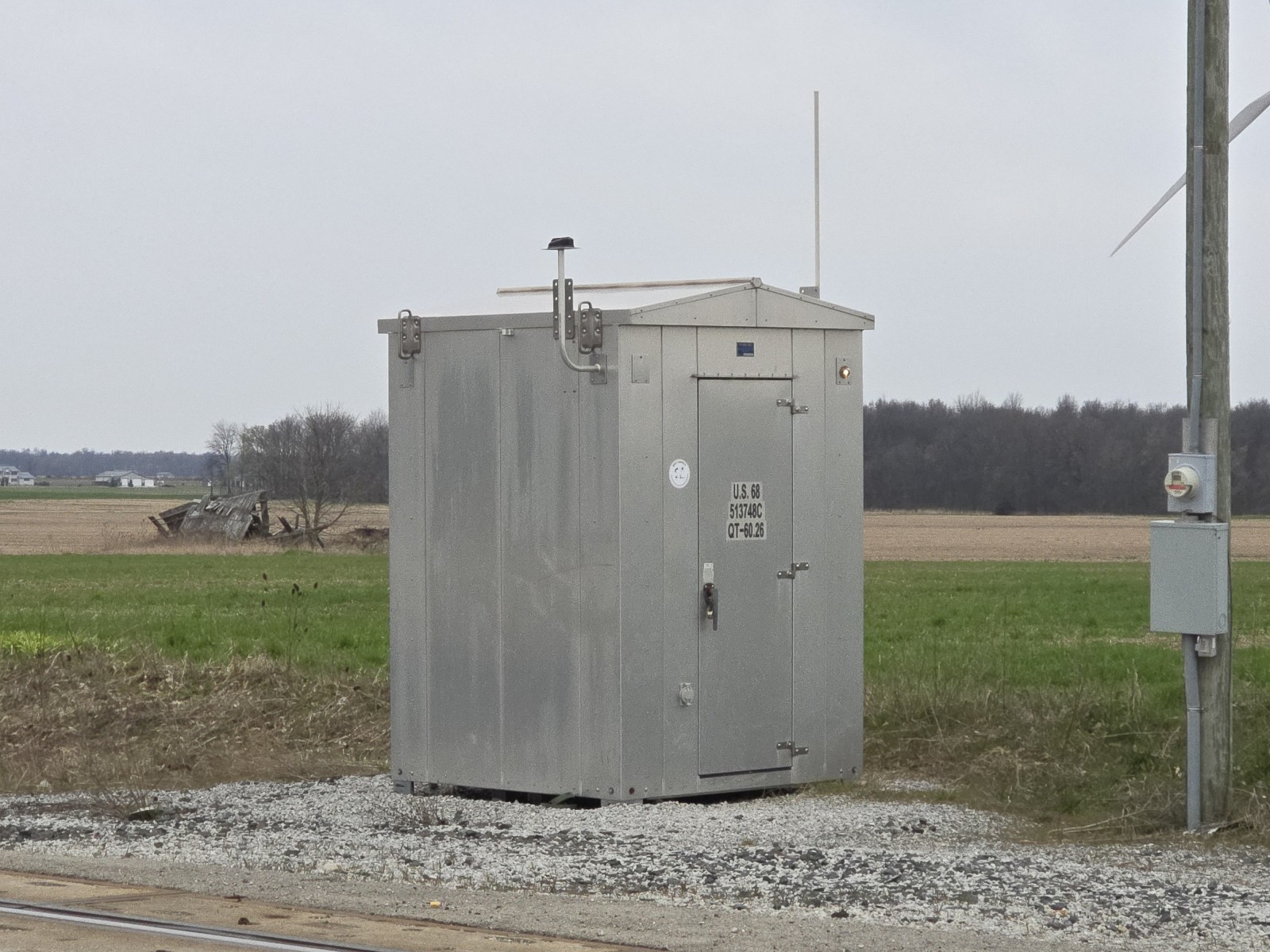

The relay bungalow in the southwest quadrant.
|
This crossing's grade is made of concrete. |

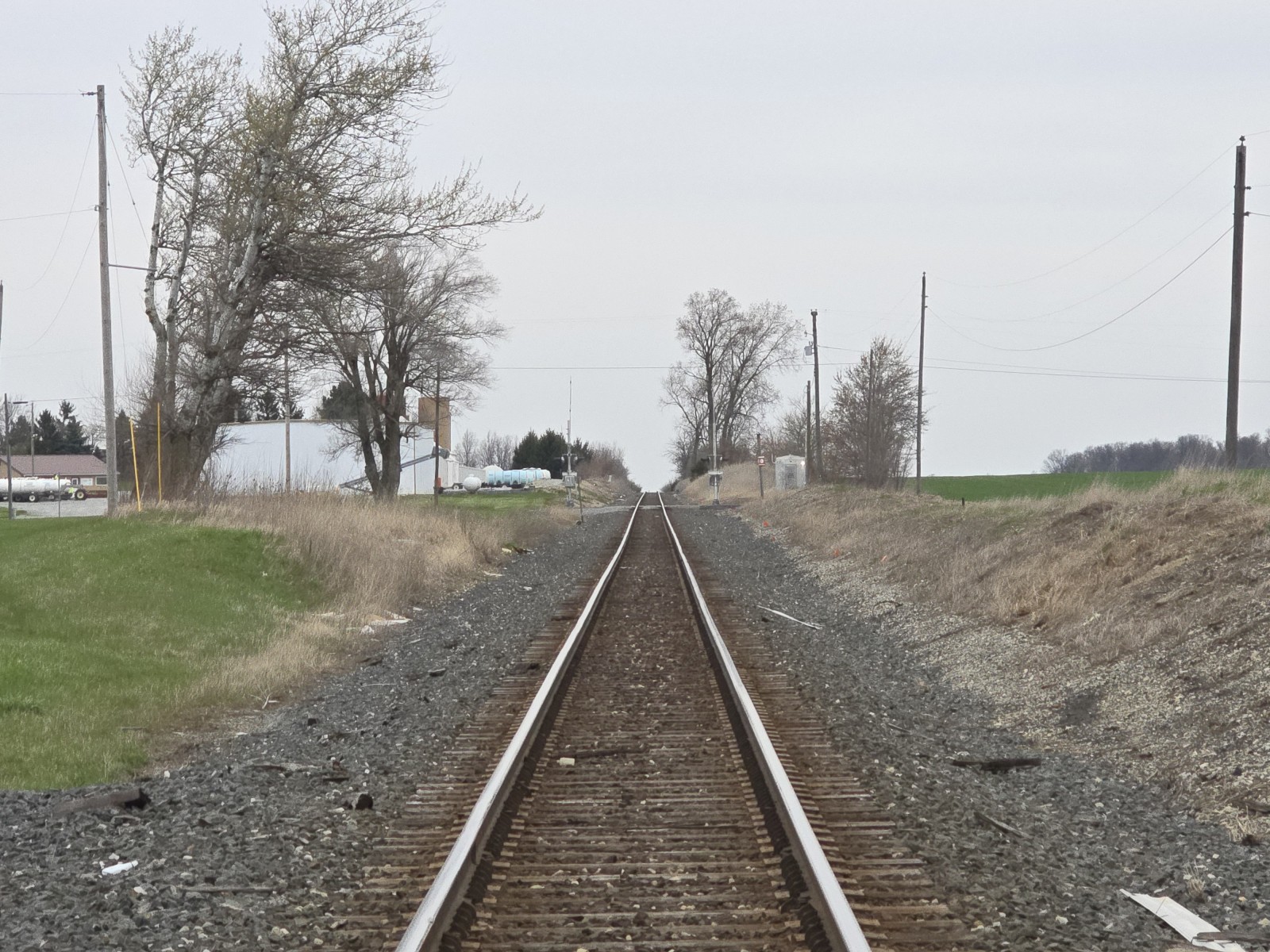

Track view facing north towards Township Road 20. |

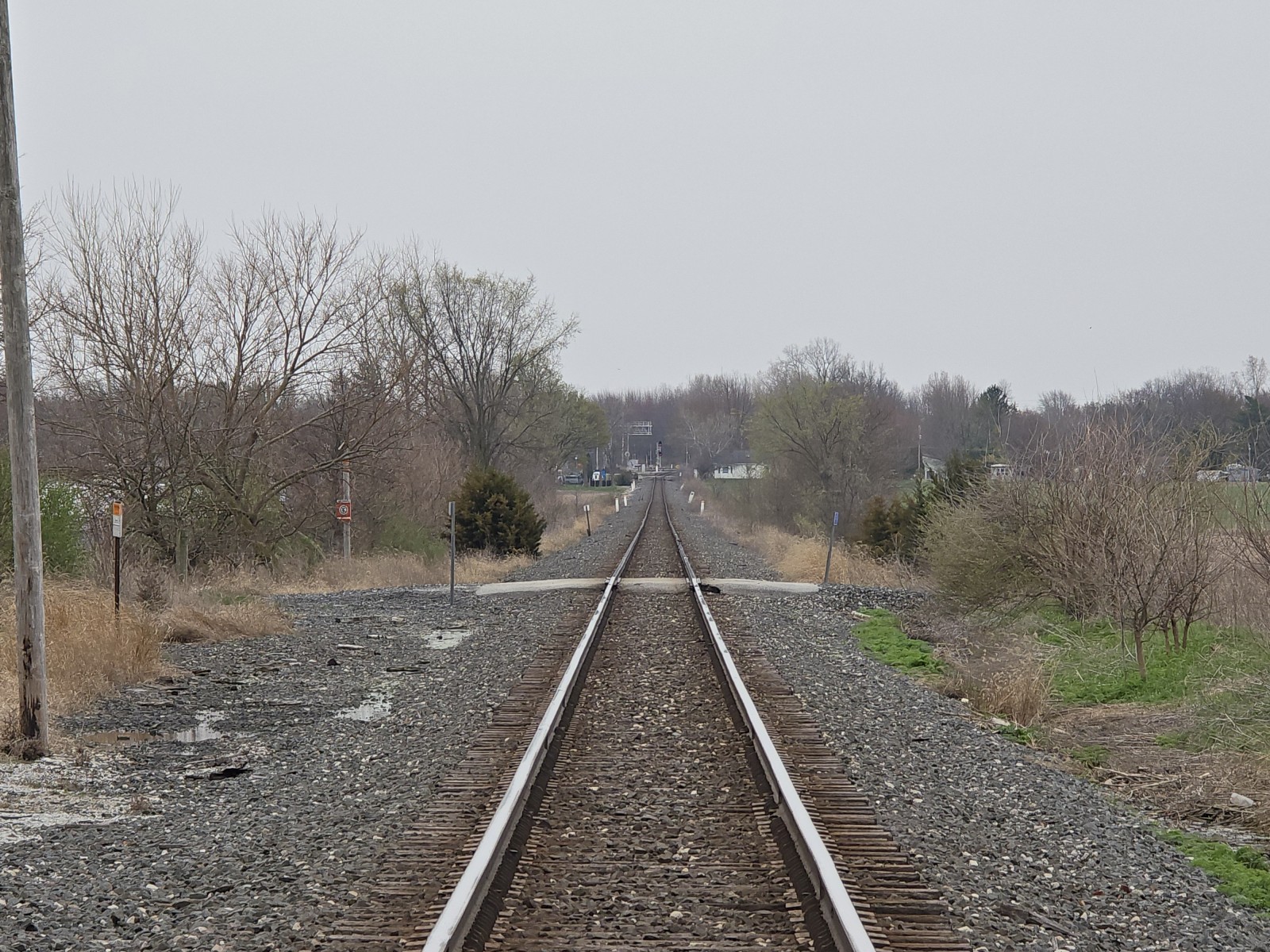

Track view facing south towards Patterson
Street. |
|
27 |
|||
|

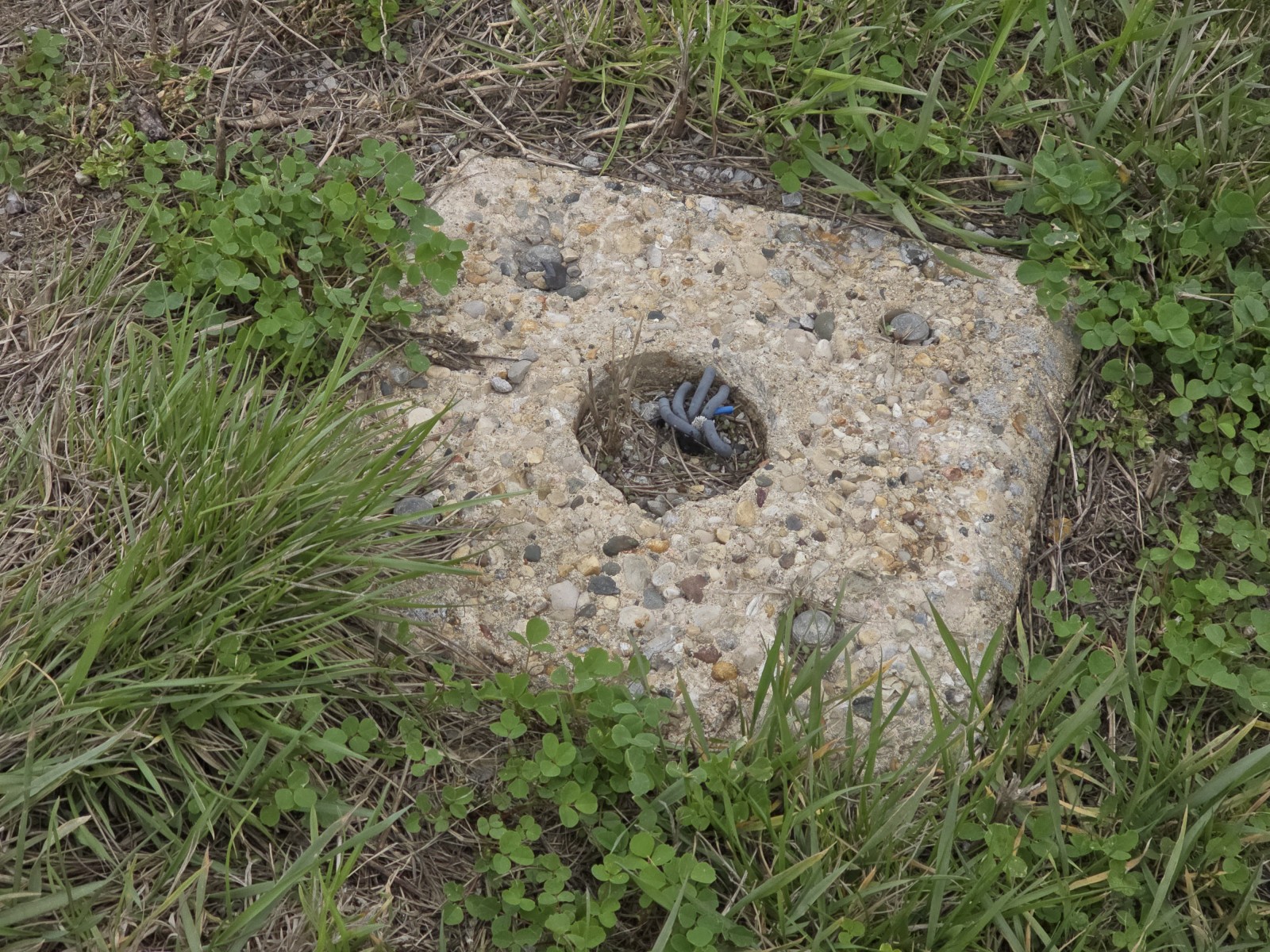

One of the old signal's foundations is still here.
|
|||
