MP: 61.61 |
Created June 2025
Total Accidents:
0
Crossing DOT #: 513753Y
TOTAL DAILY TRAINS: 8
(AS OF 2024)
| >>>>>>>>>>>>> | Western
Signal |
Eastern
Signal |
| Bell: | NEG E-Bell |
NEG E-Bell |
| Base: | WCH 5" Double Sided |
WCH 5" Double Sided |
| Light Frames: | 4 - 12"x24" WCH Flatback w/
Leotek EV Series LEDs |
4 - 12"x24" WCH Flatback w/ Leotek EV Series LEDs |
| Light
Brackets: |
WCH |
WCH |
| Gate Lights: | 3 - NEG 4" LEDs |
3 - NEG 4" LEDs |
| Gate Mechanism: | Siemens Imprinted w/ New NEG 2
Way Saver |
Siemens Imprinted w/ New NEG 2 Way Saver |
| Gate Striping: | Vertical Striping |
Vertical Striping |
Page created by: Sir Fluent
Pictures 1-26 were taken on April 14, 2025, by Nicholas Miles.
O1 |
O2 |
O3 |
O4 |

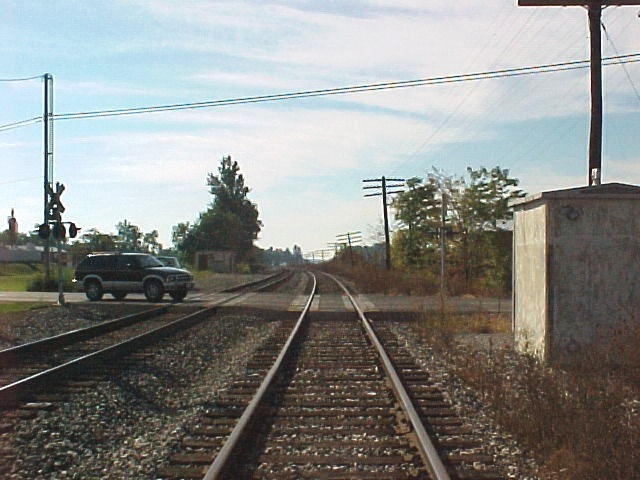

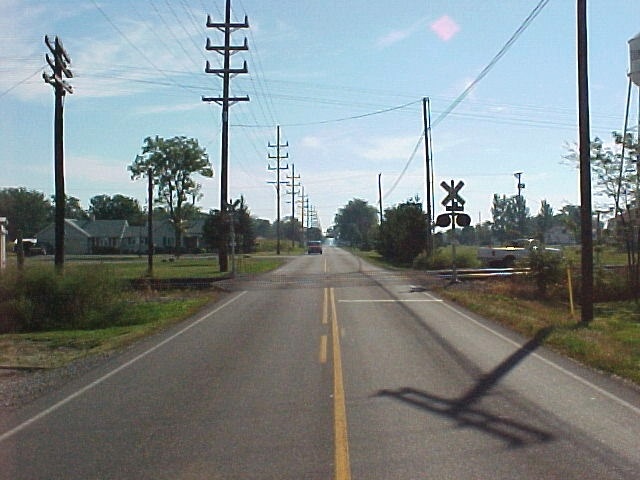

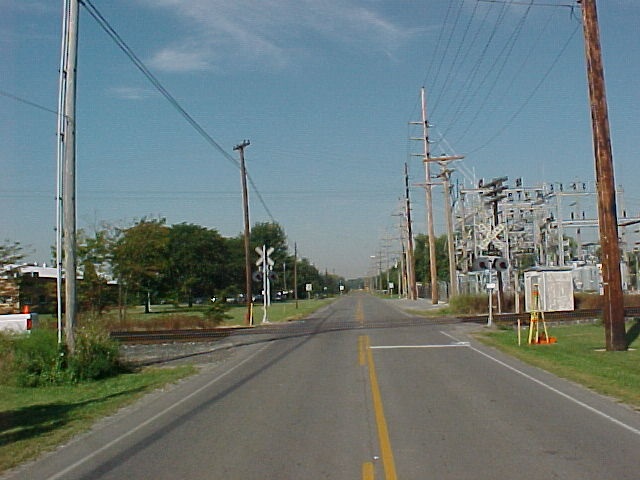

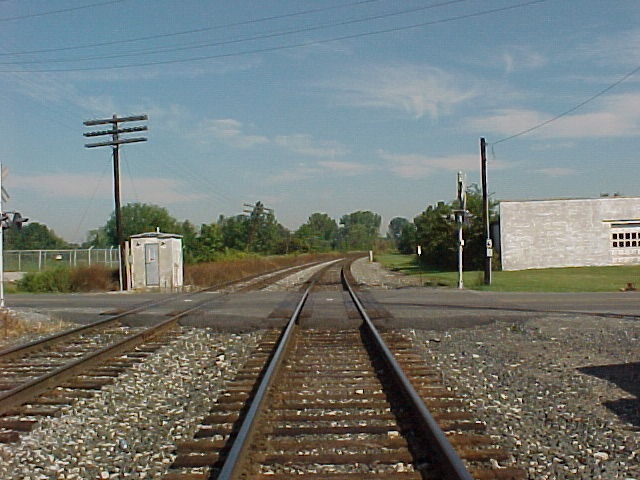

| PUCO
images
from
the
late
90s
or
early
2000s
showing an old gateless setup with 8" lights and no bells. |
|||
SV1 |
SV2 |
||

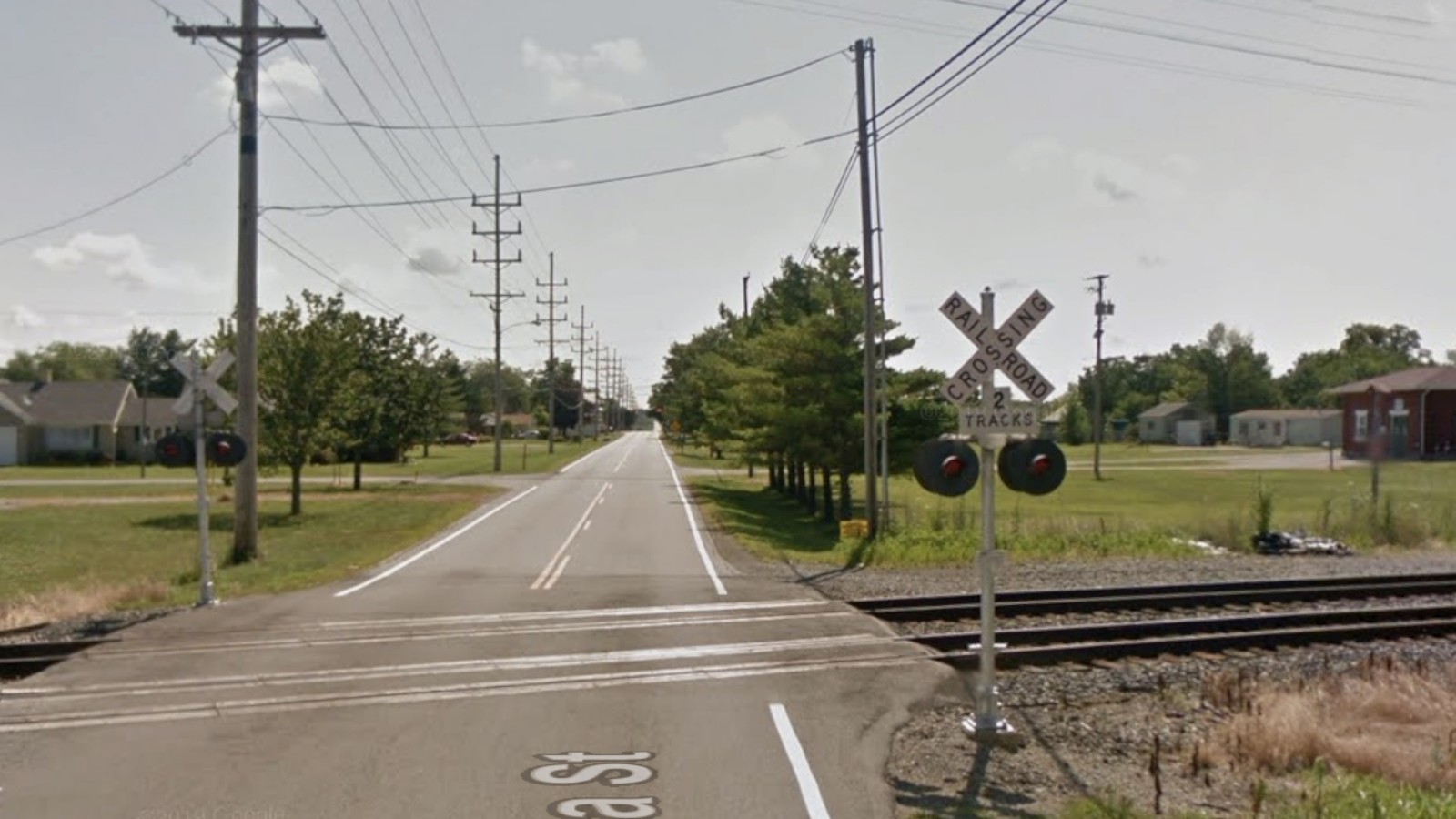

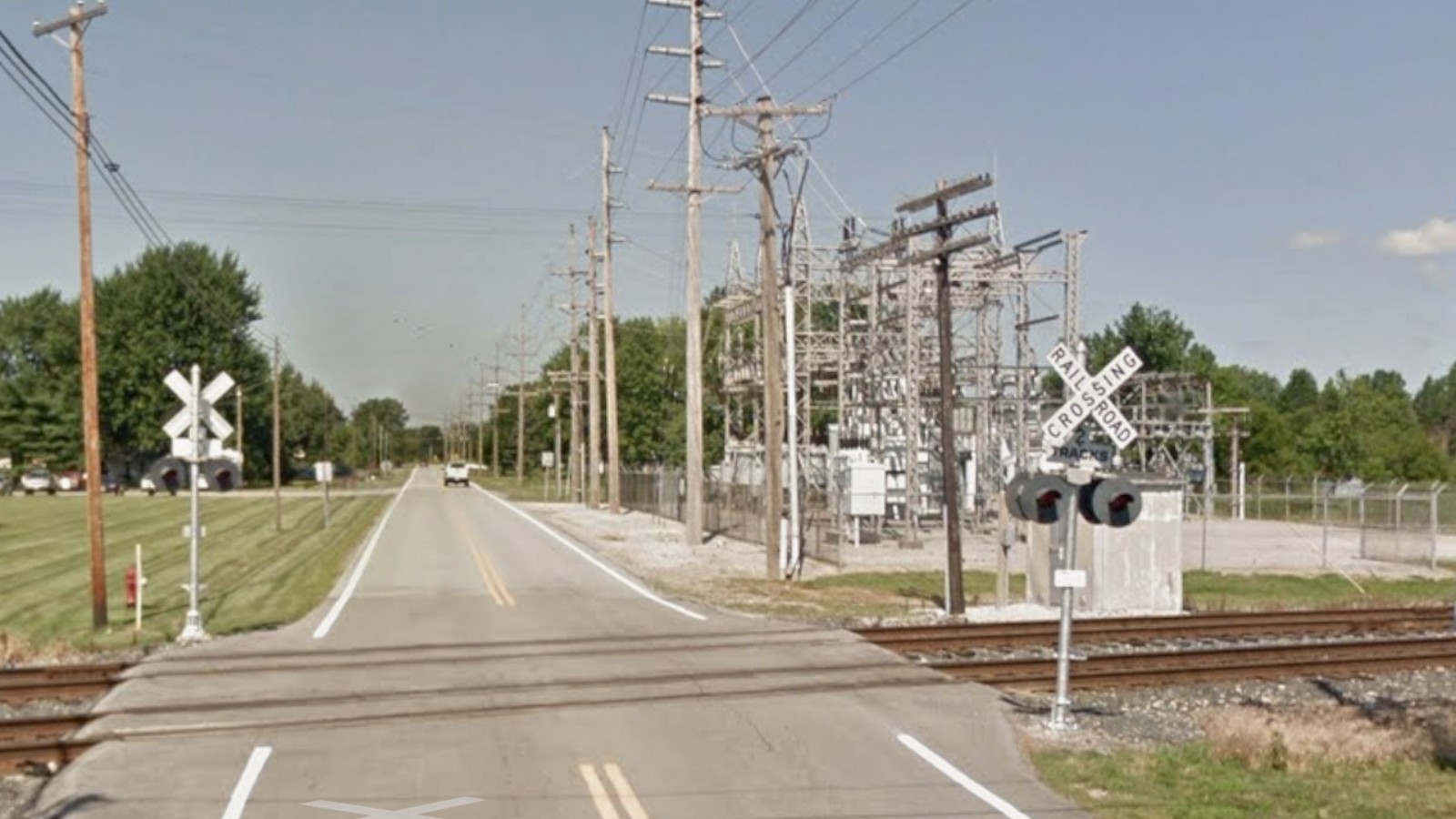

| Streetview
images from July 2014 show both crossbucks and track signs were
replaced. Oddly though, the track signs were reused from somewhere. |
|||
SV3 |
SV4 |
||

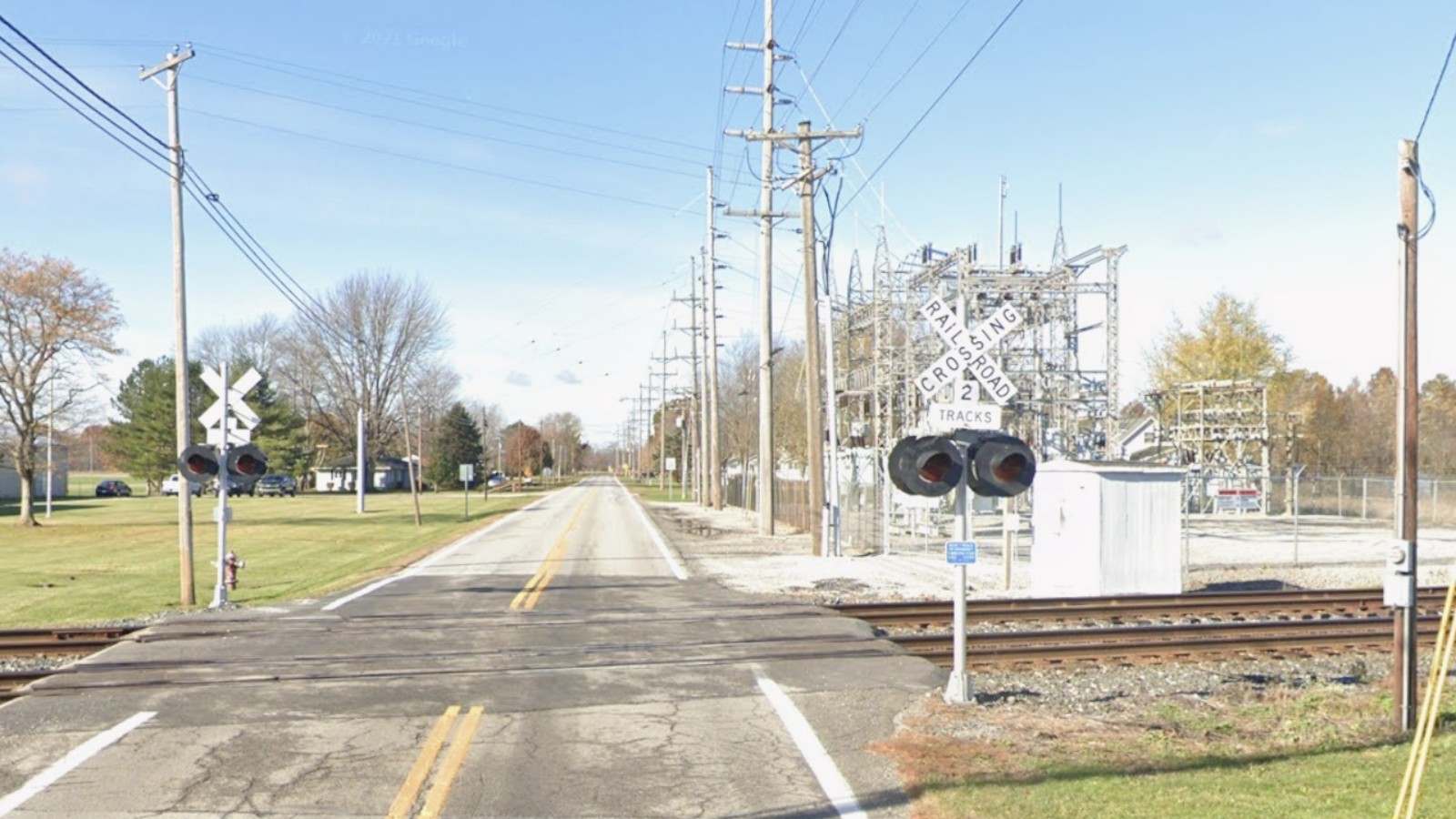

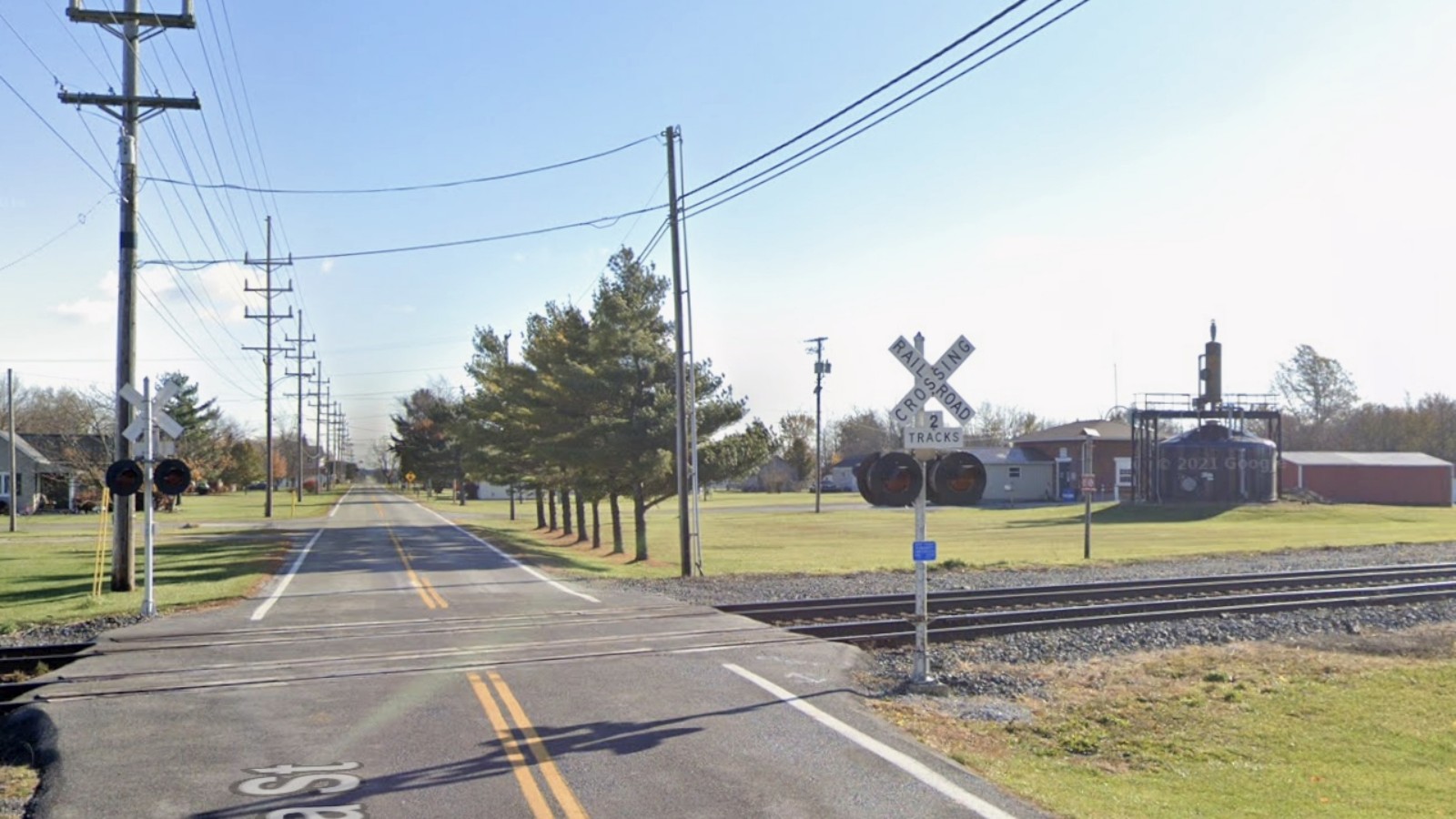

| In
November 2021, we see all the lights were upgraded to LED and the
eastern signal's track sign was replaced with a new one. By 2025, these
signals were replaced with newer Siemens/WCH signals. |
|||
|
1 |
2 |
|

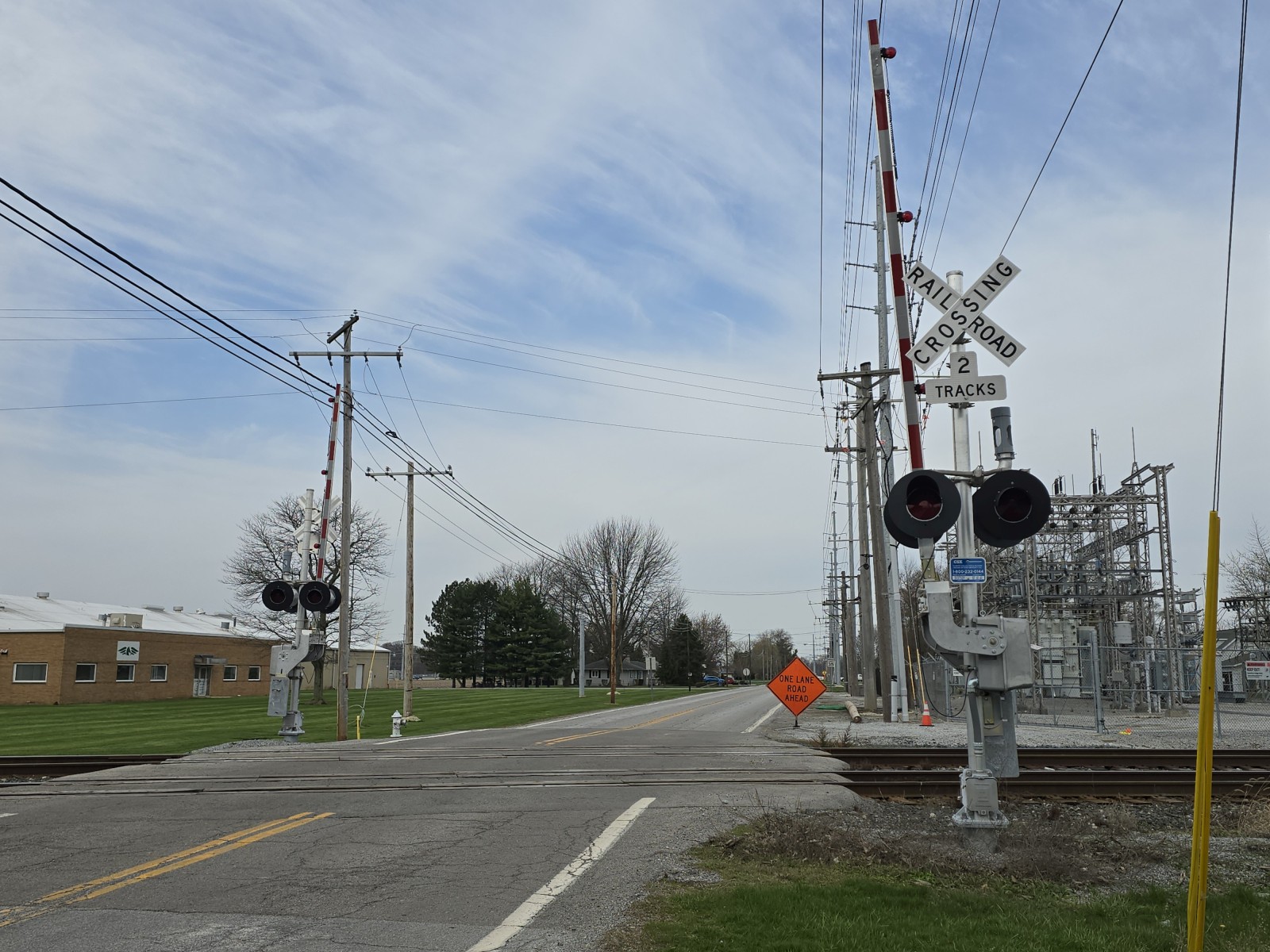

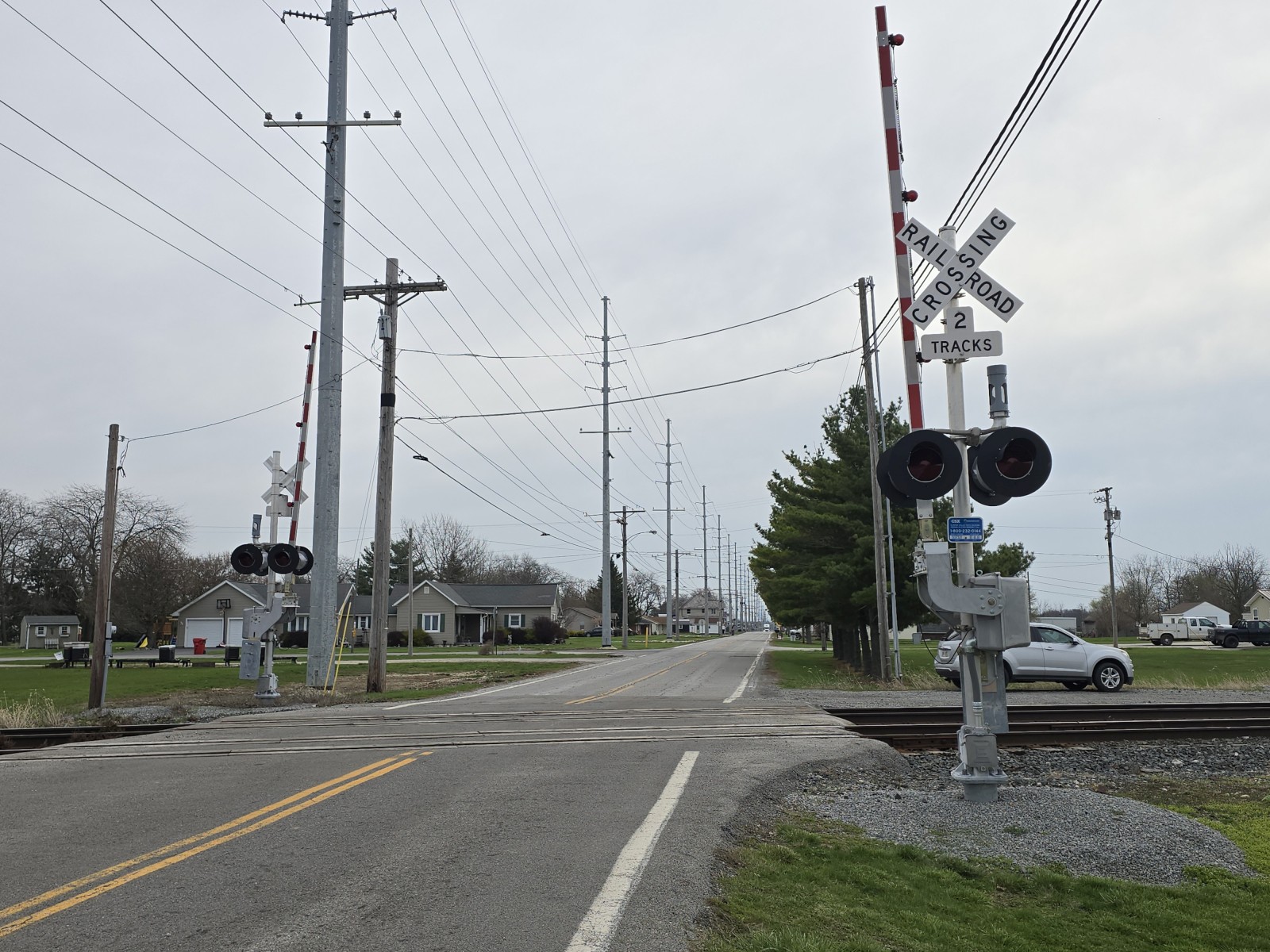

Overview of 2 newer gated
signals facing east.
|
Overview
facing
west. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|

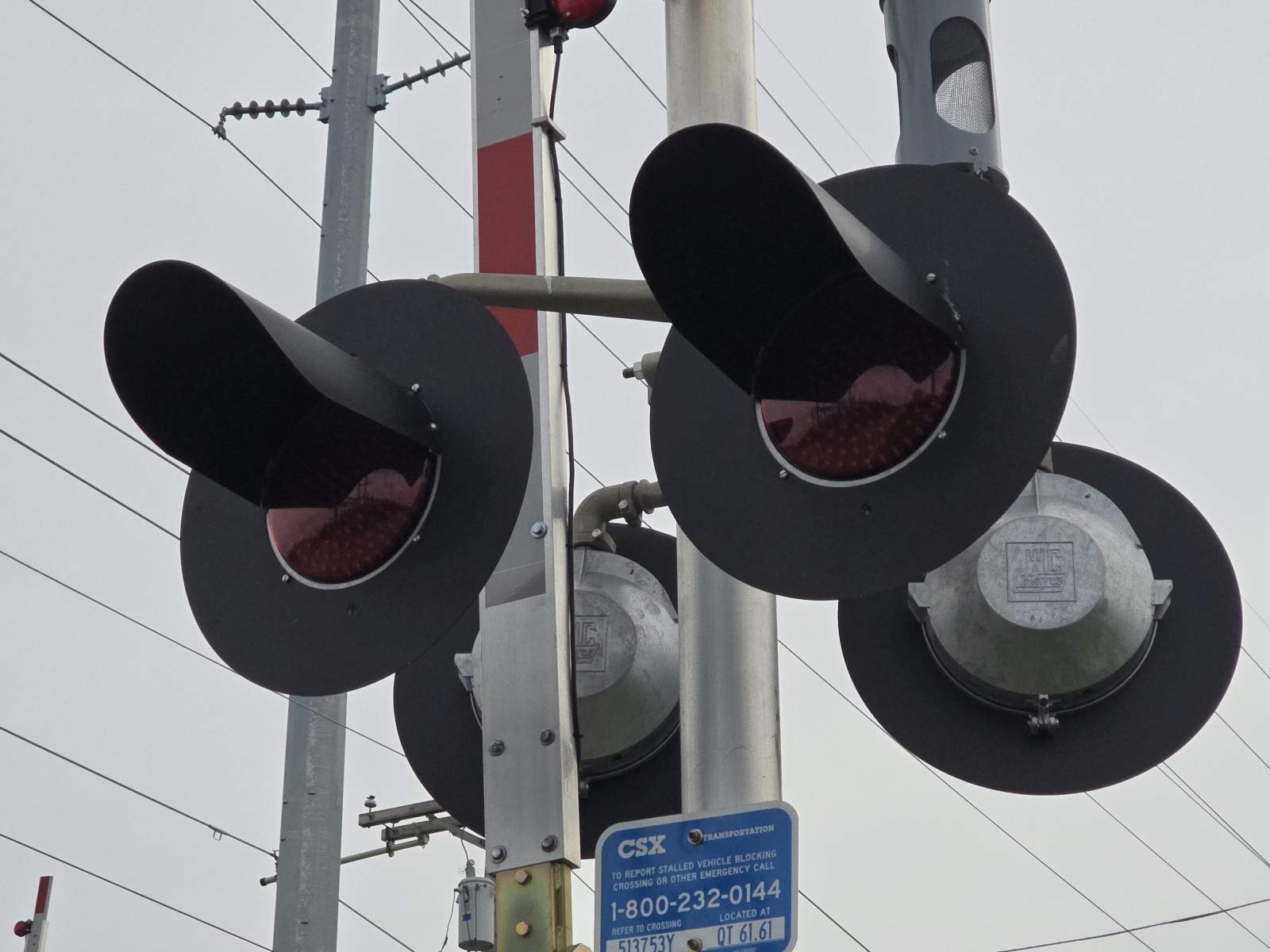

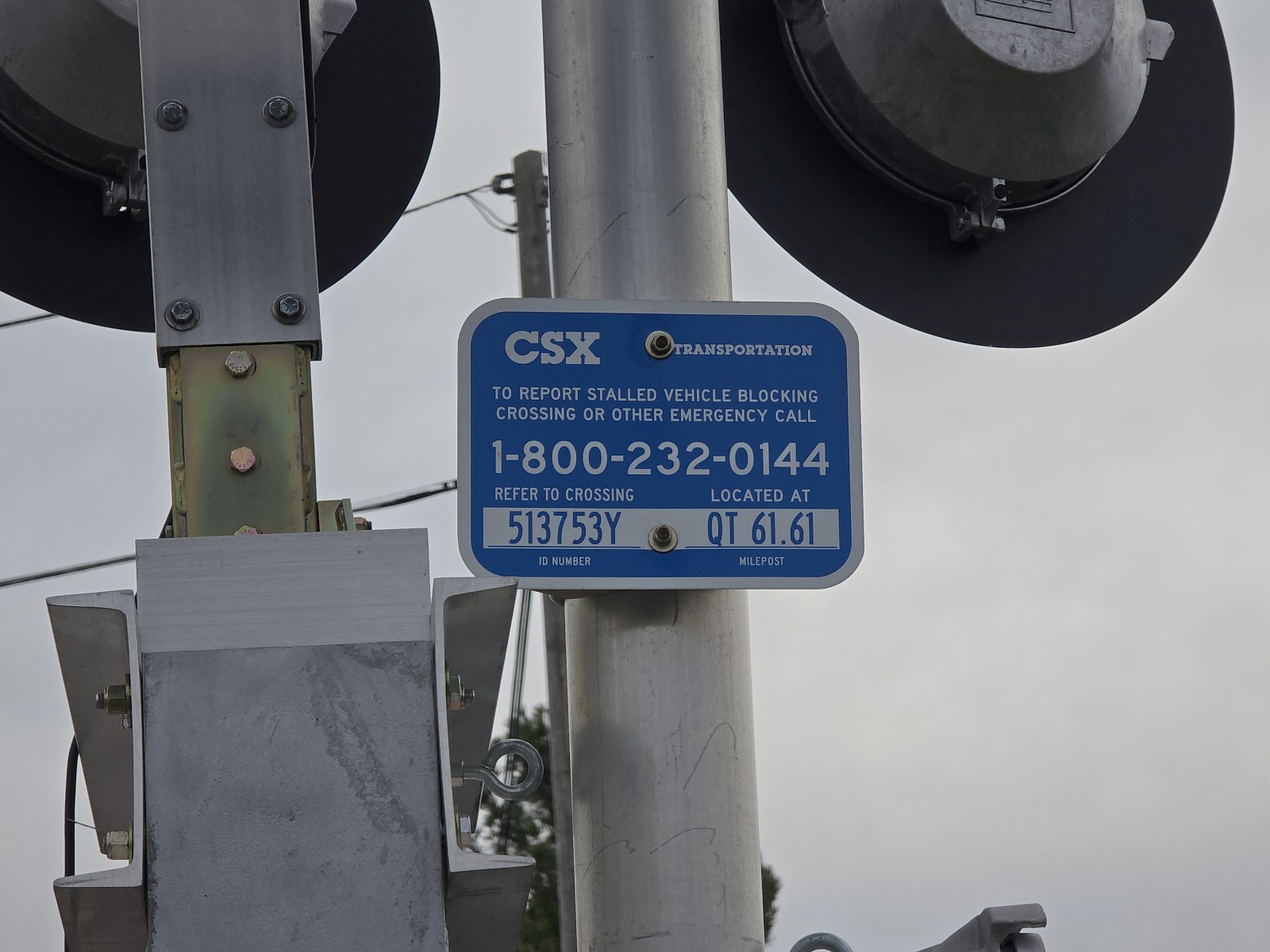

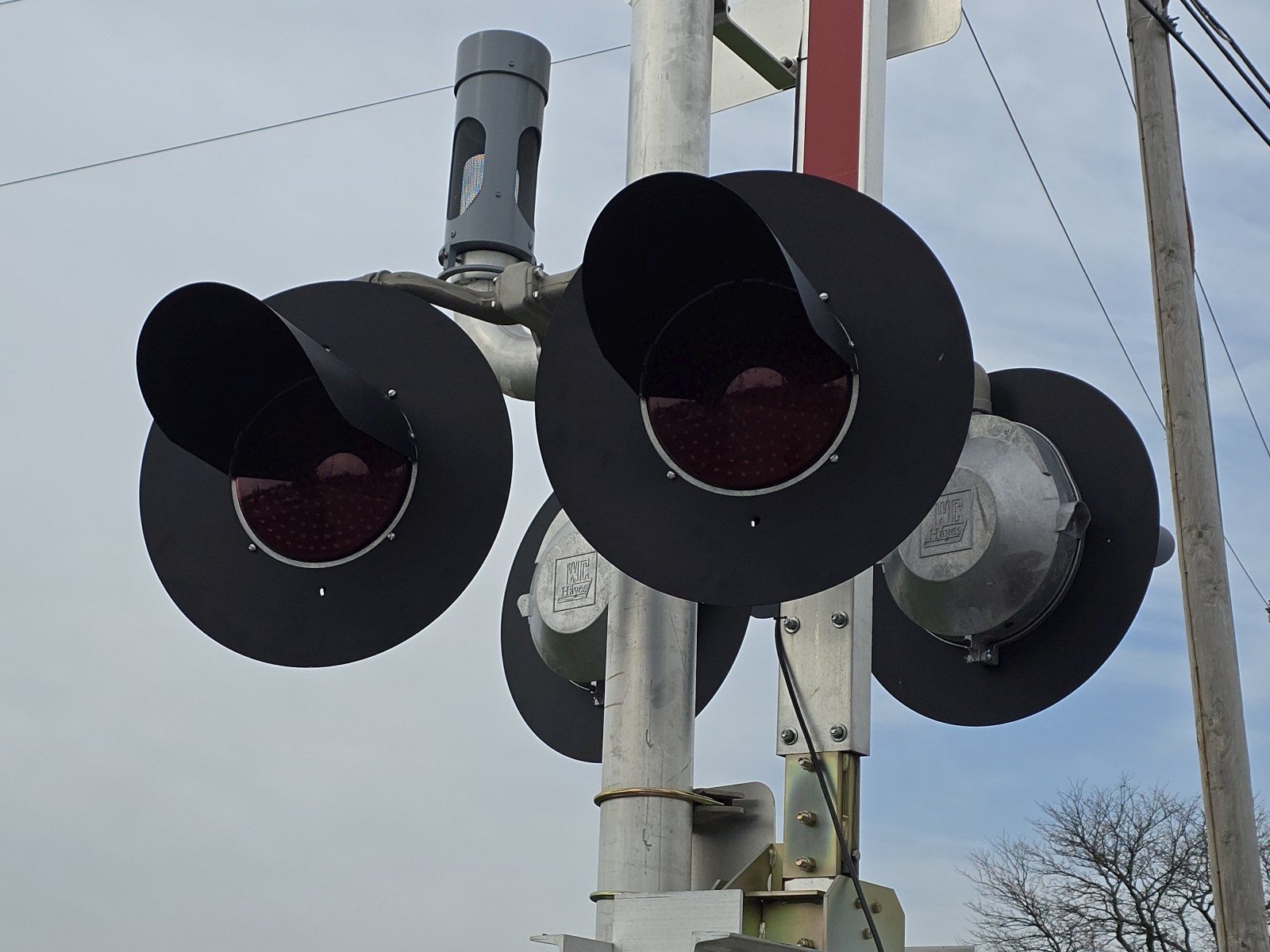

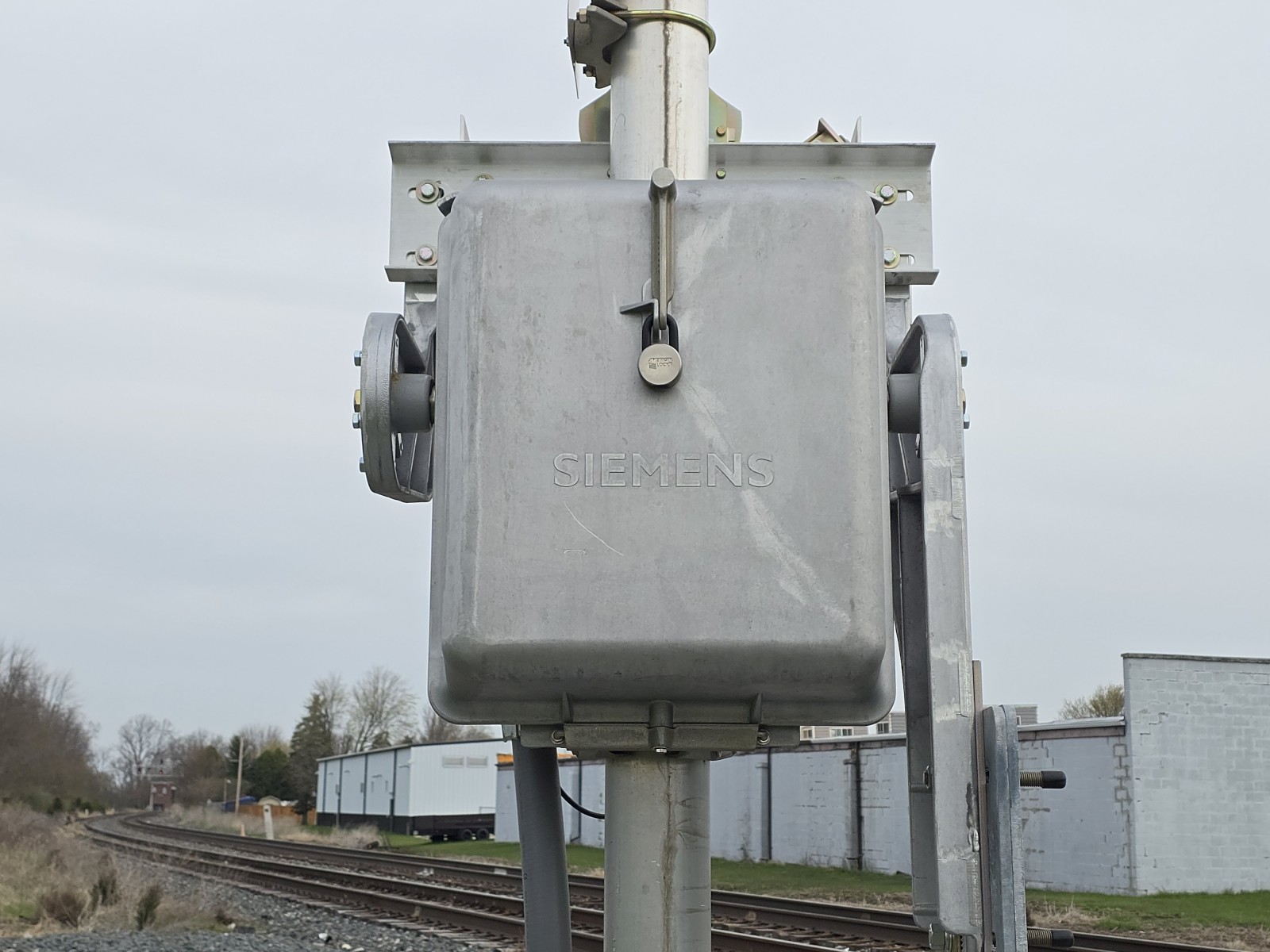

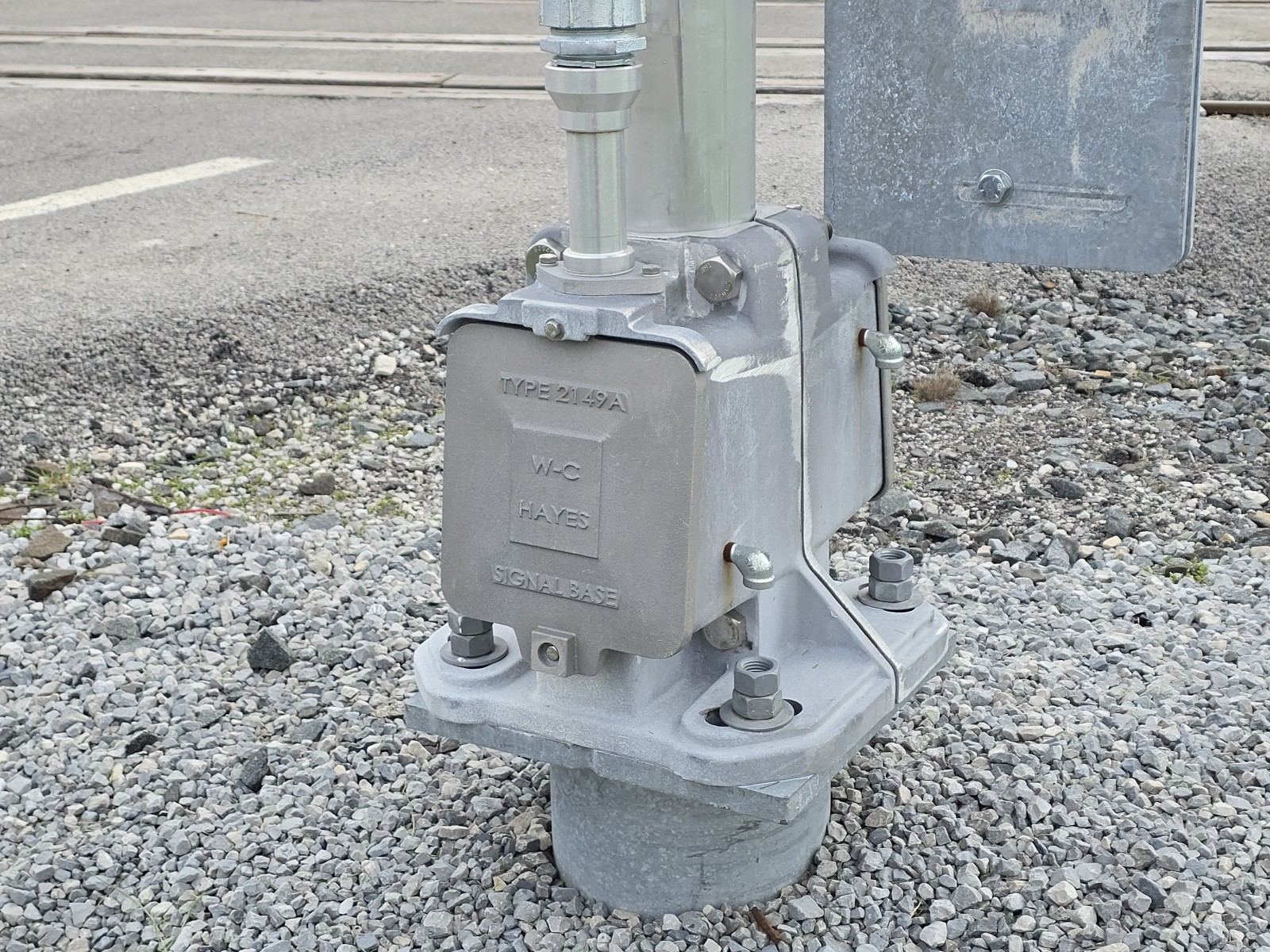

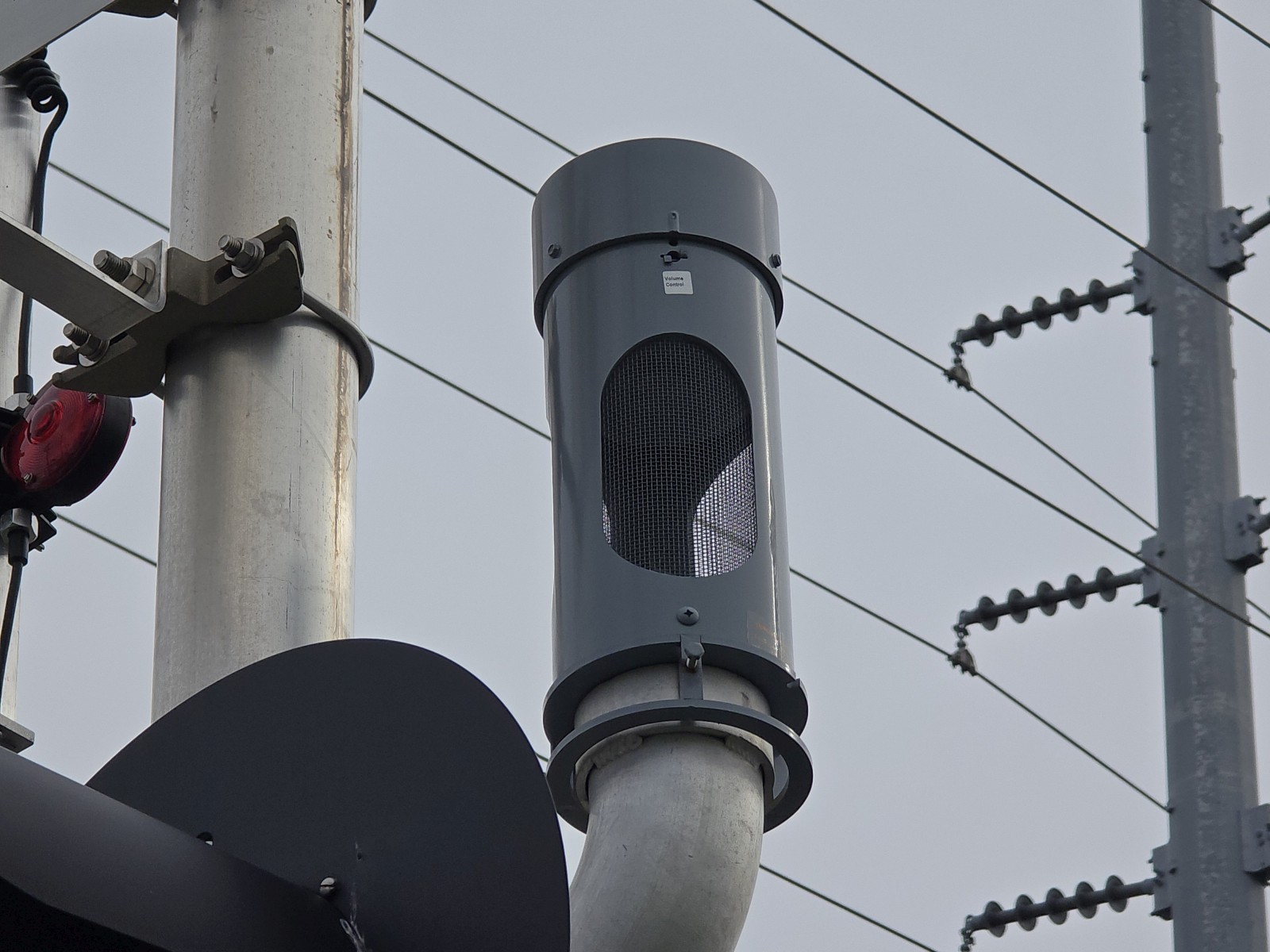

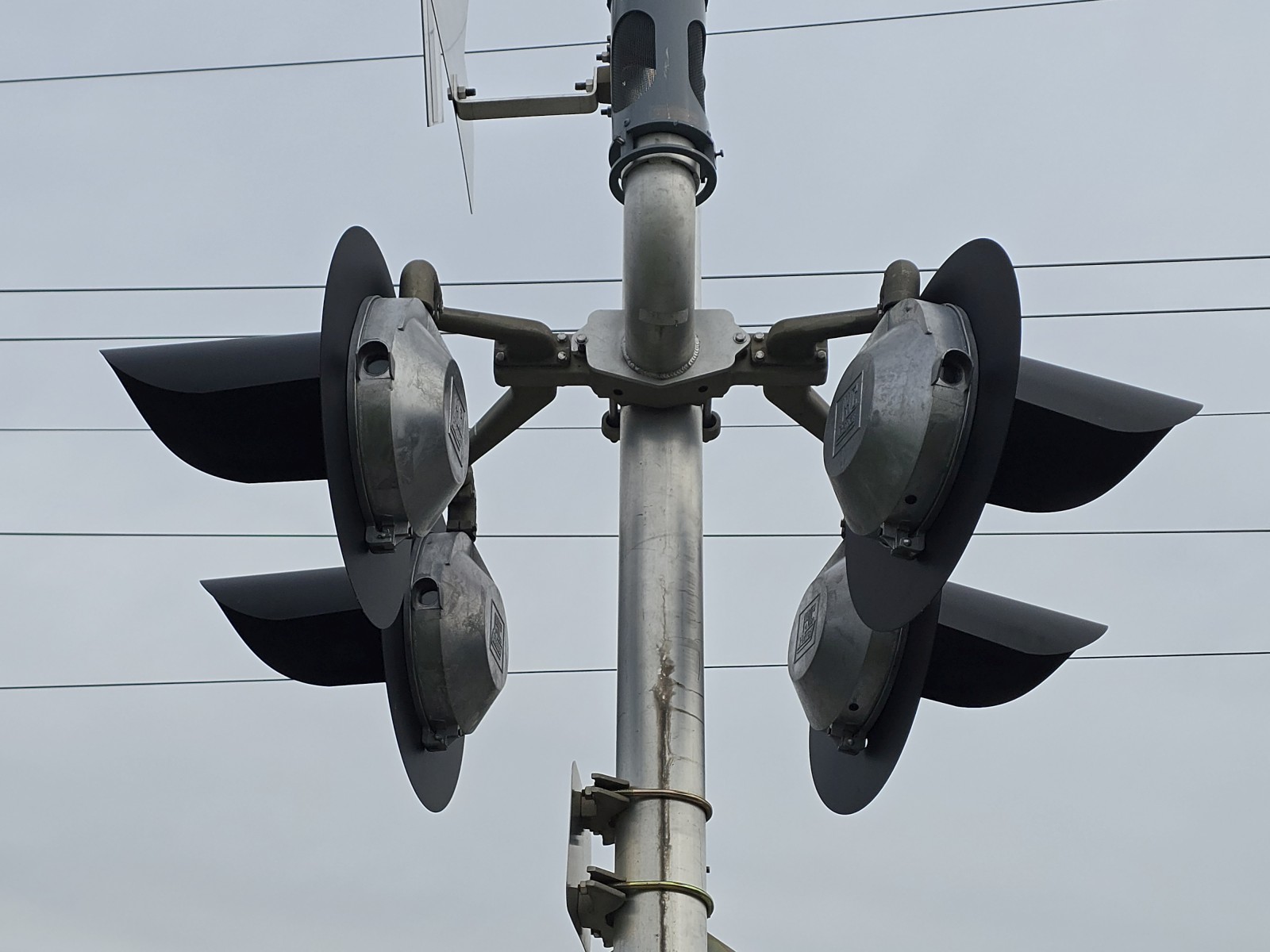

The western signal.
|
|||
|
13 |
14 |
|
15 |
16 |
17 |
18 |
|
19 |
20 |
21 |
22 |
|

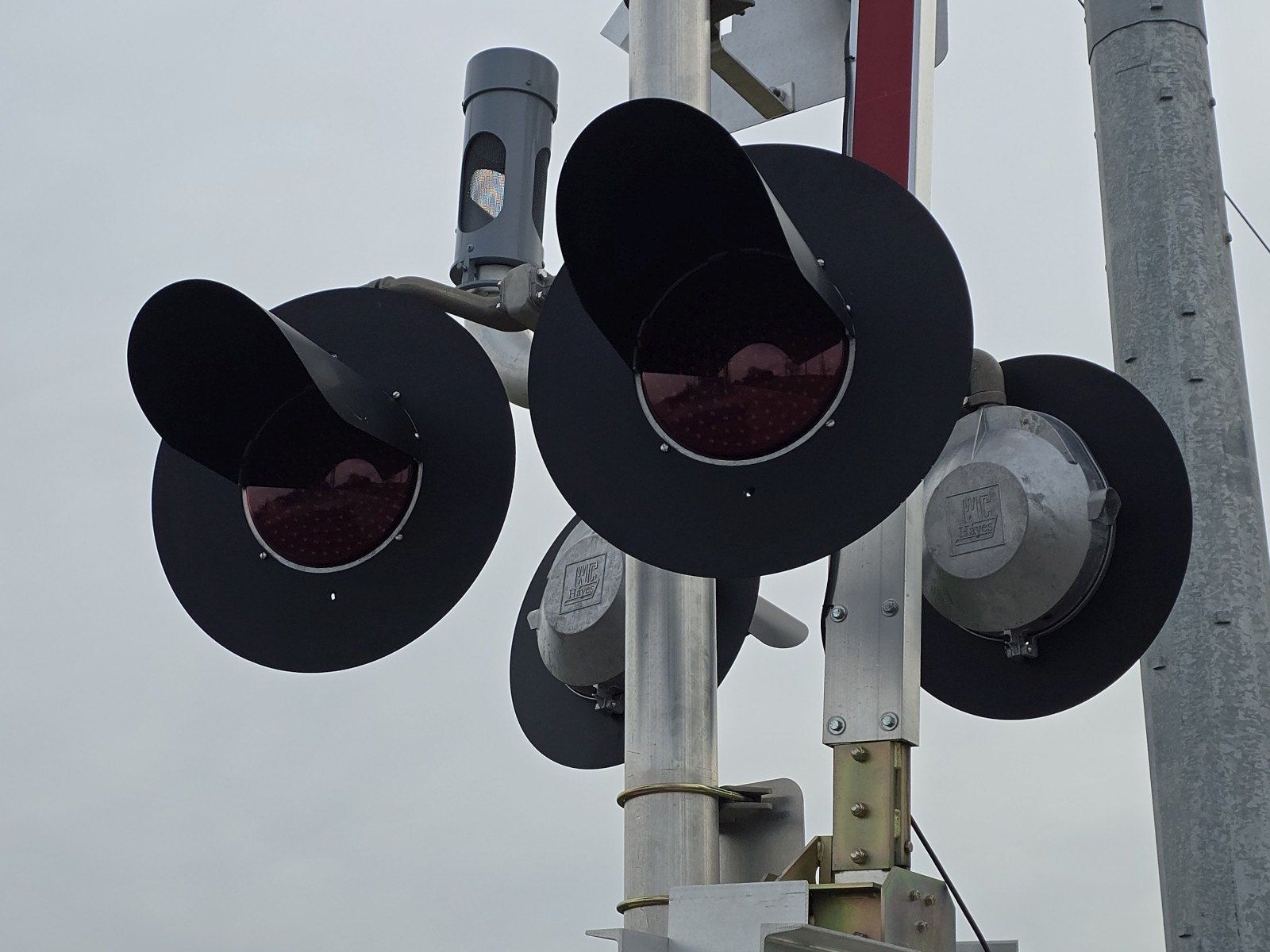

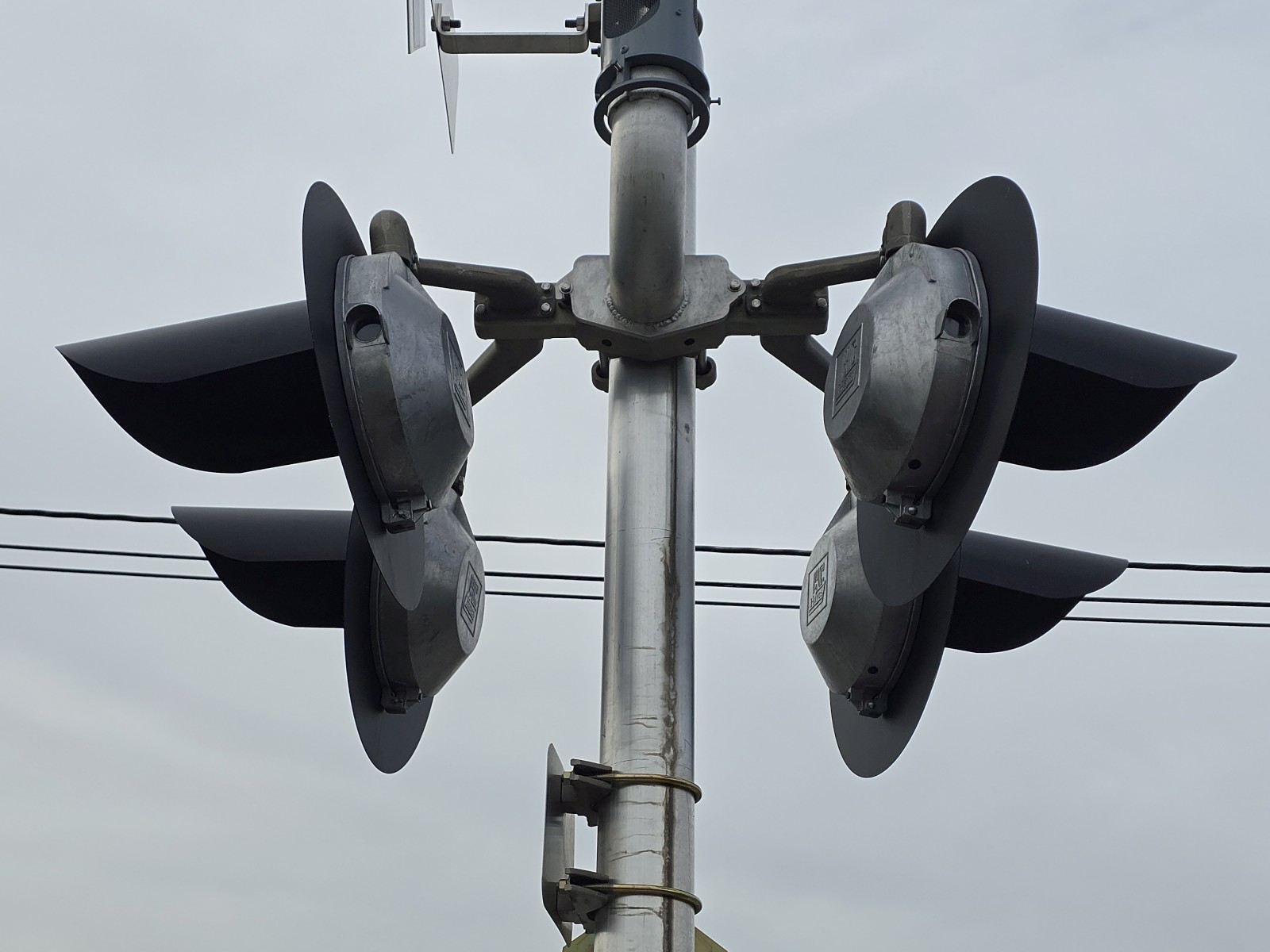

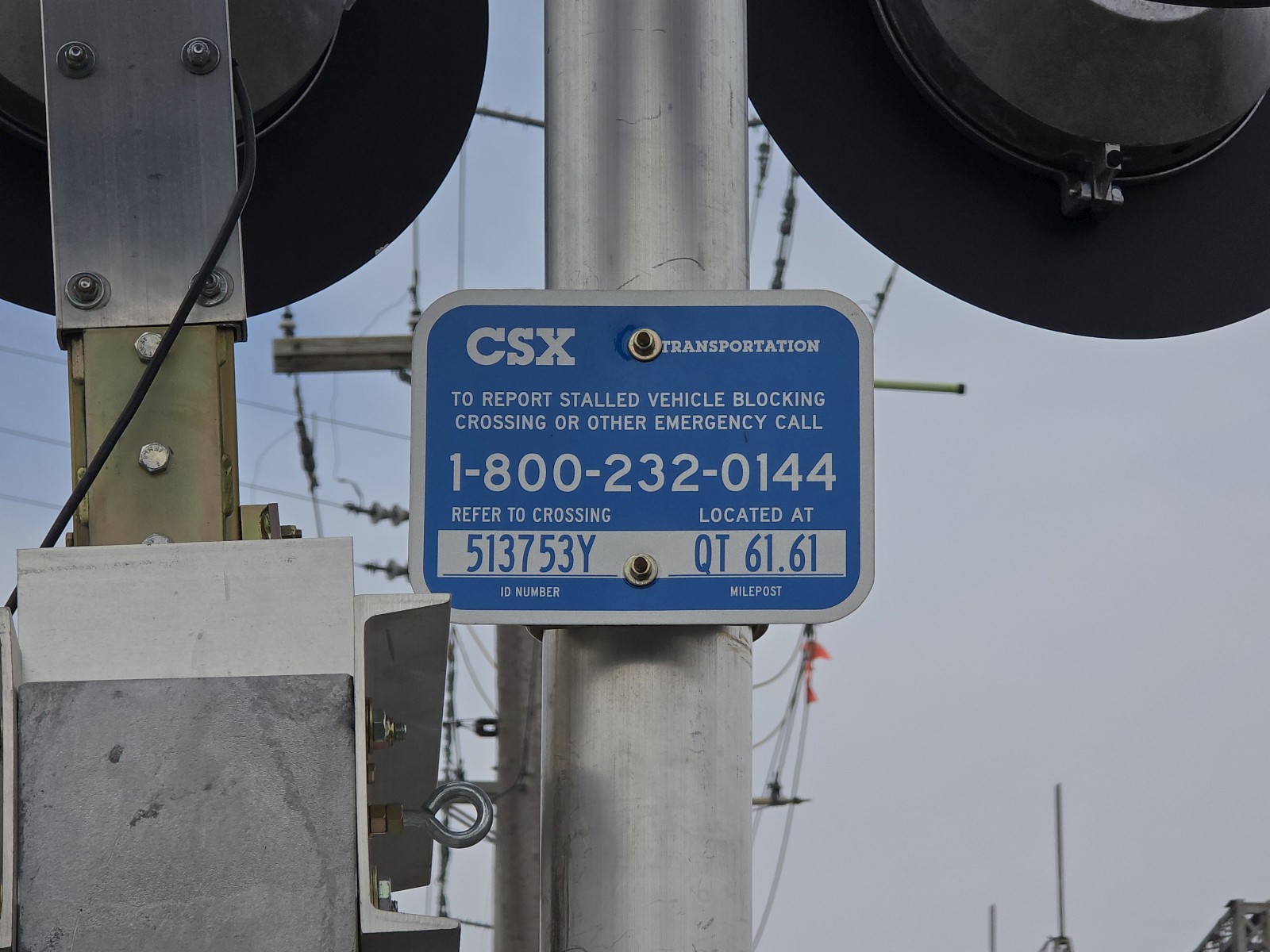

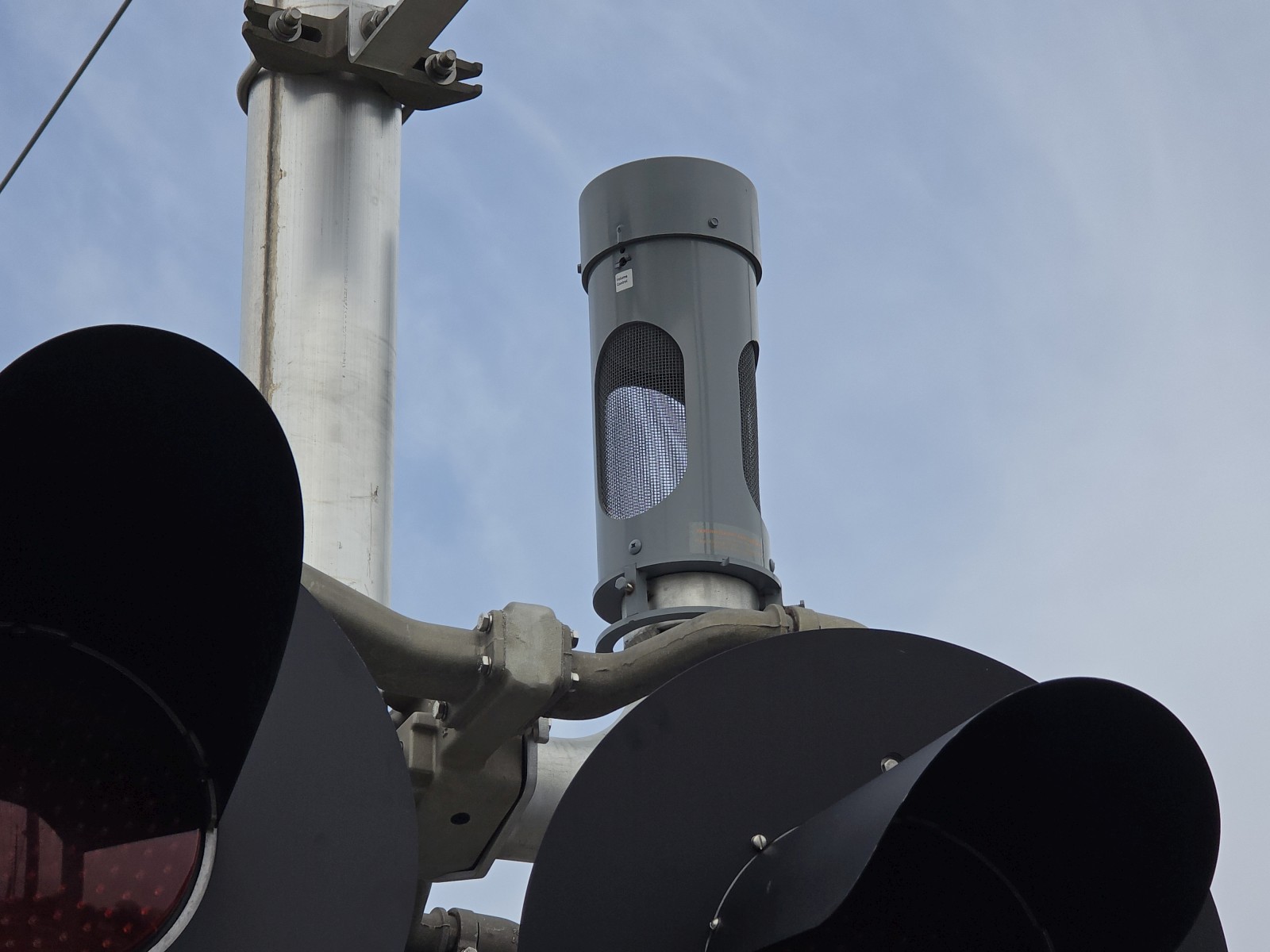

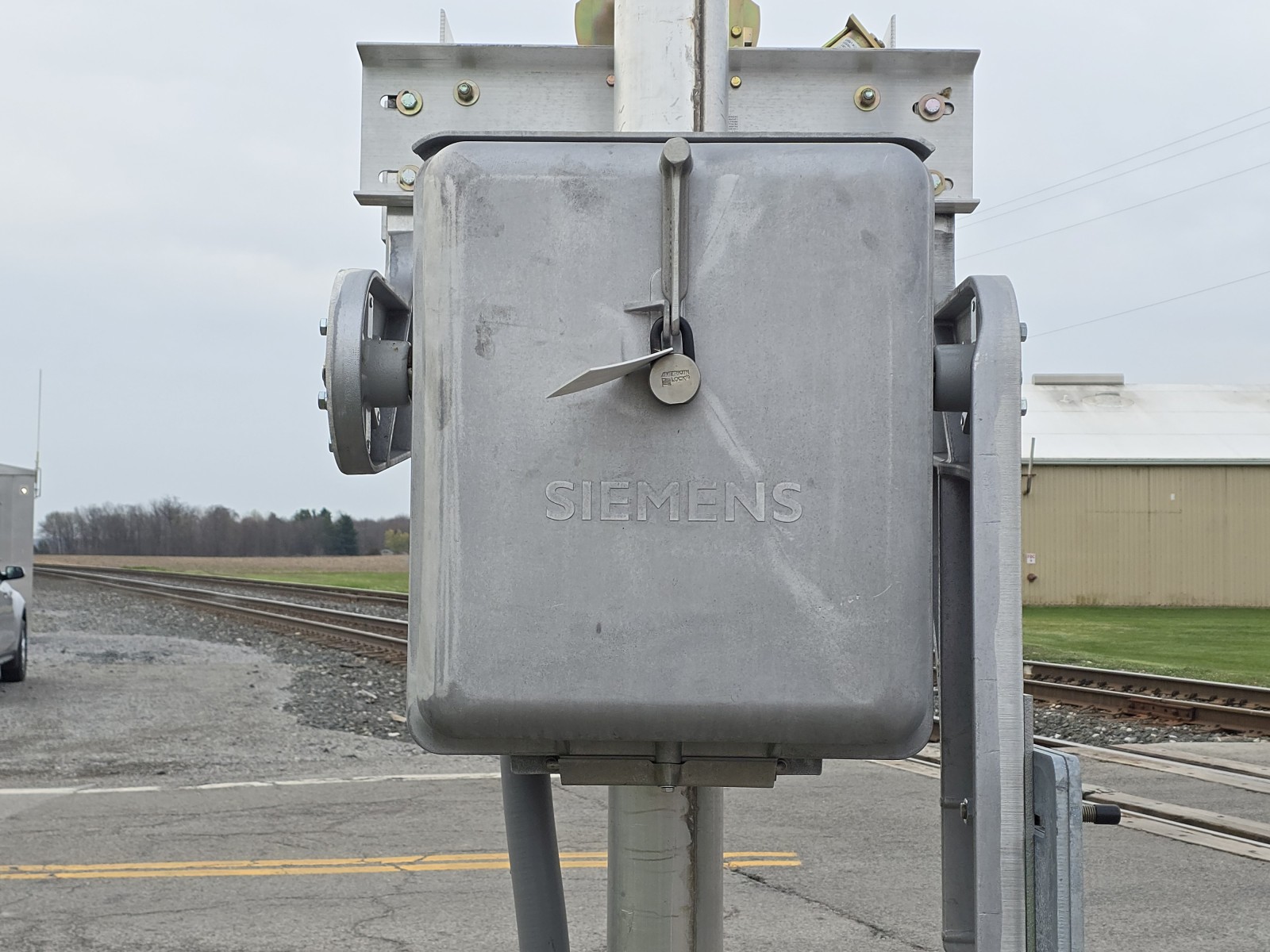

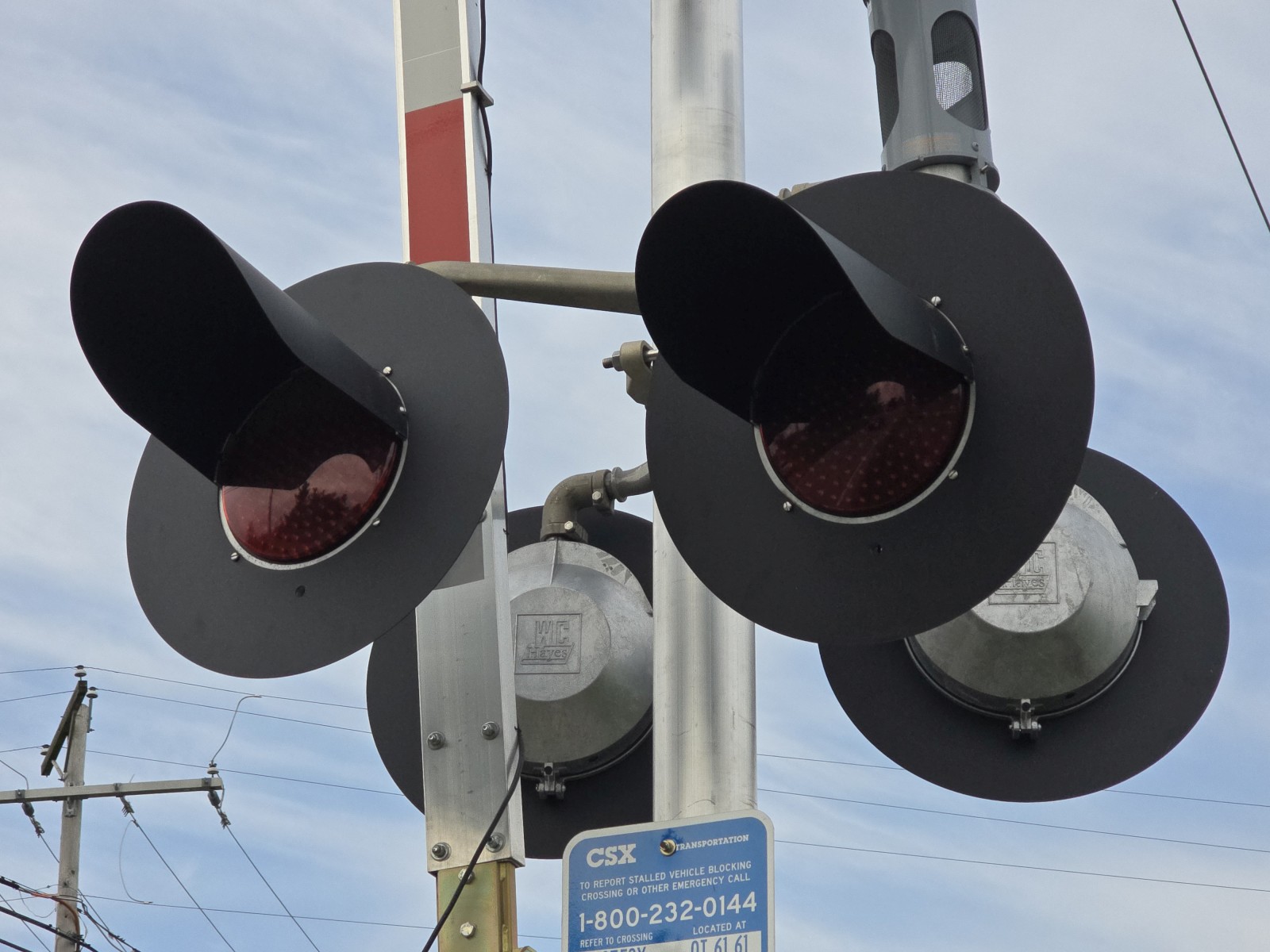

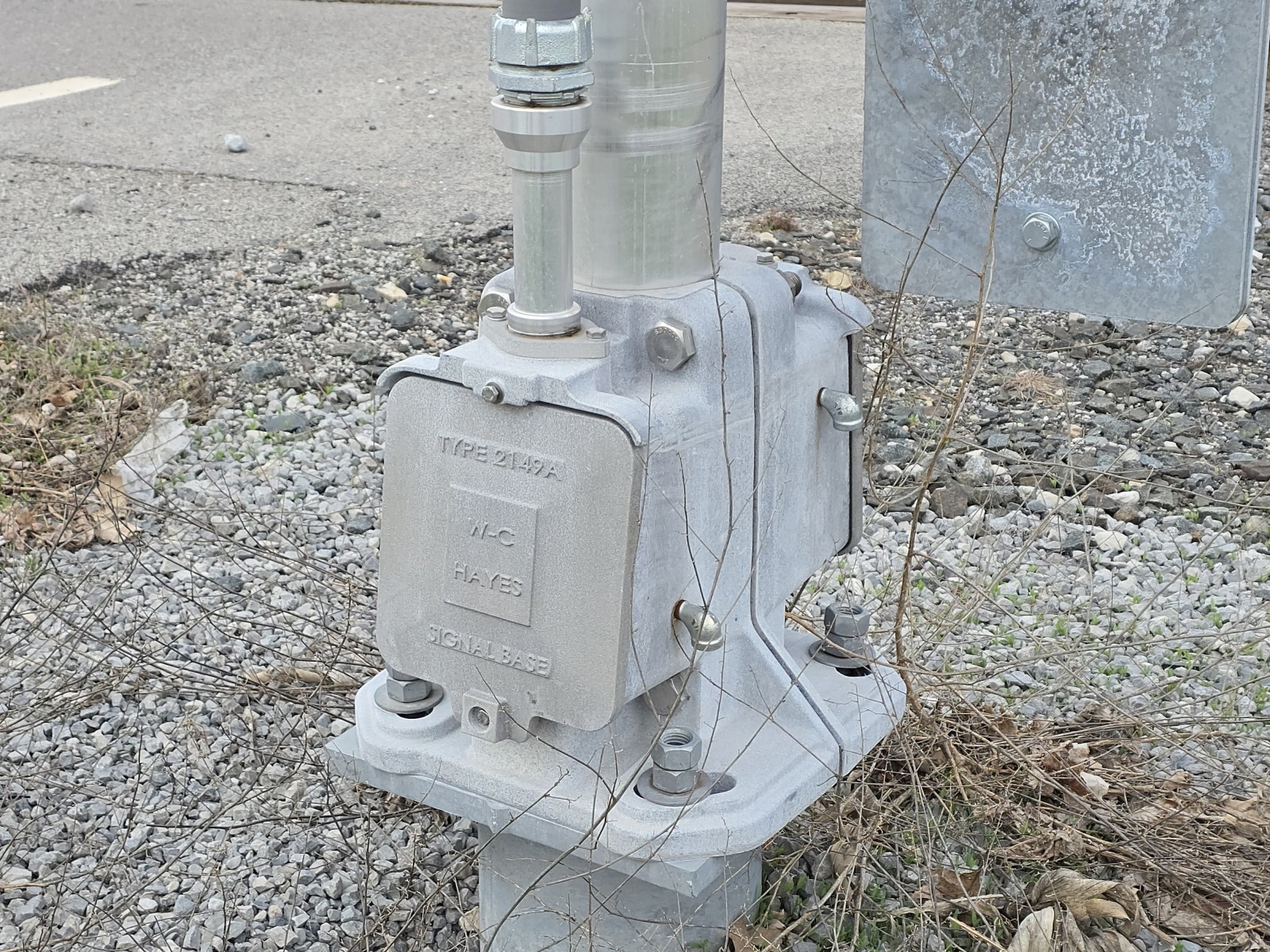

The eastern signal.
|
|||
|
23 |
24 |
25 |
26 |
|

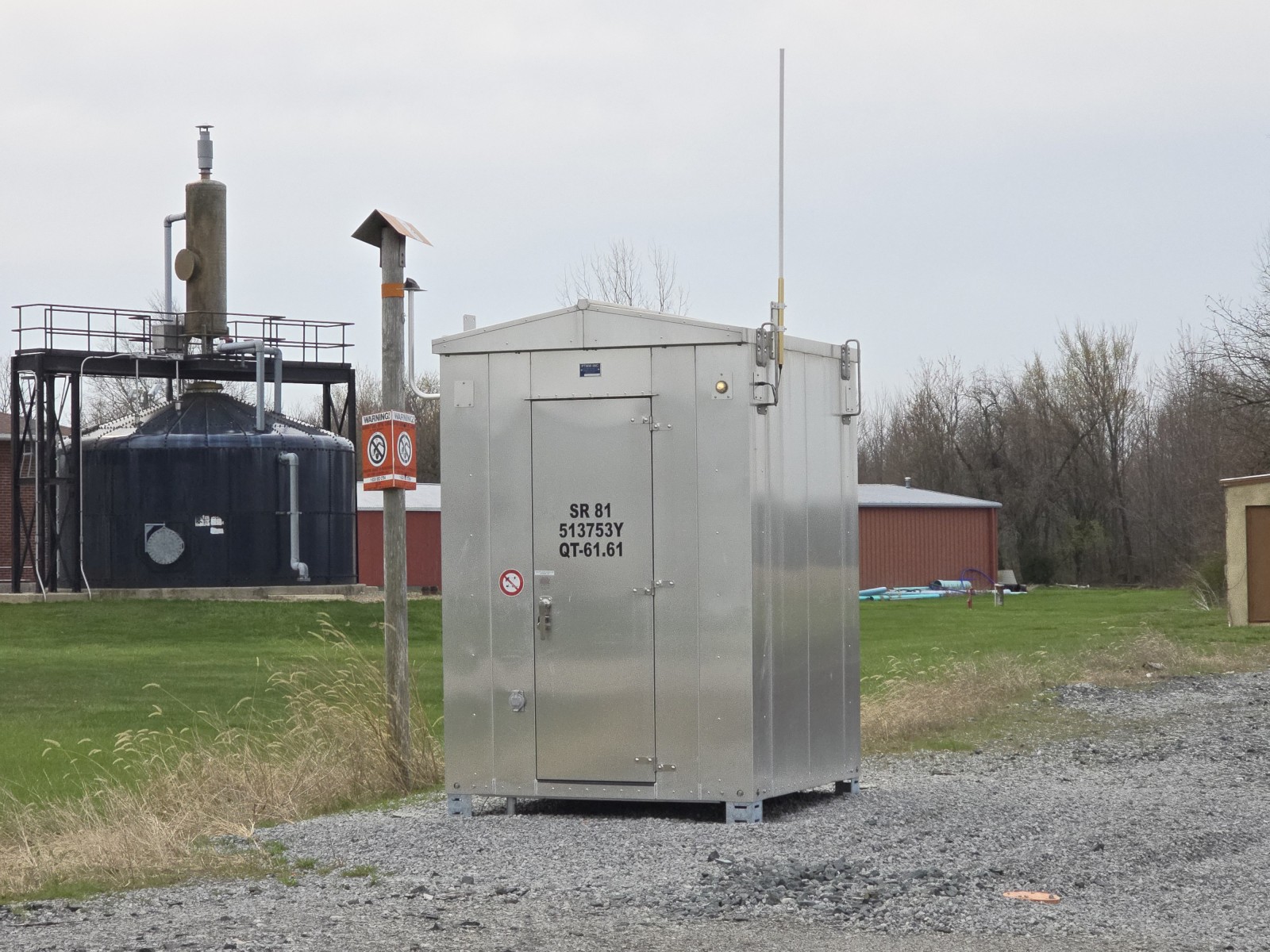

The relay bungalow in the southeast quadrant.
|

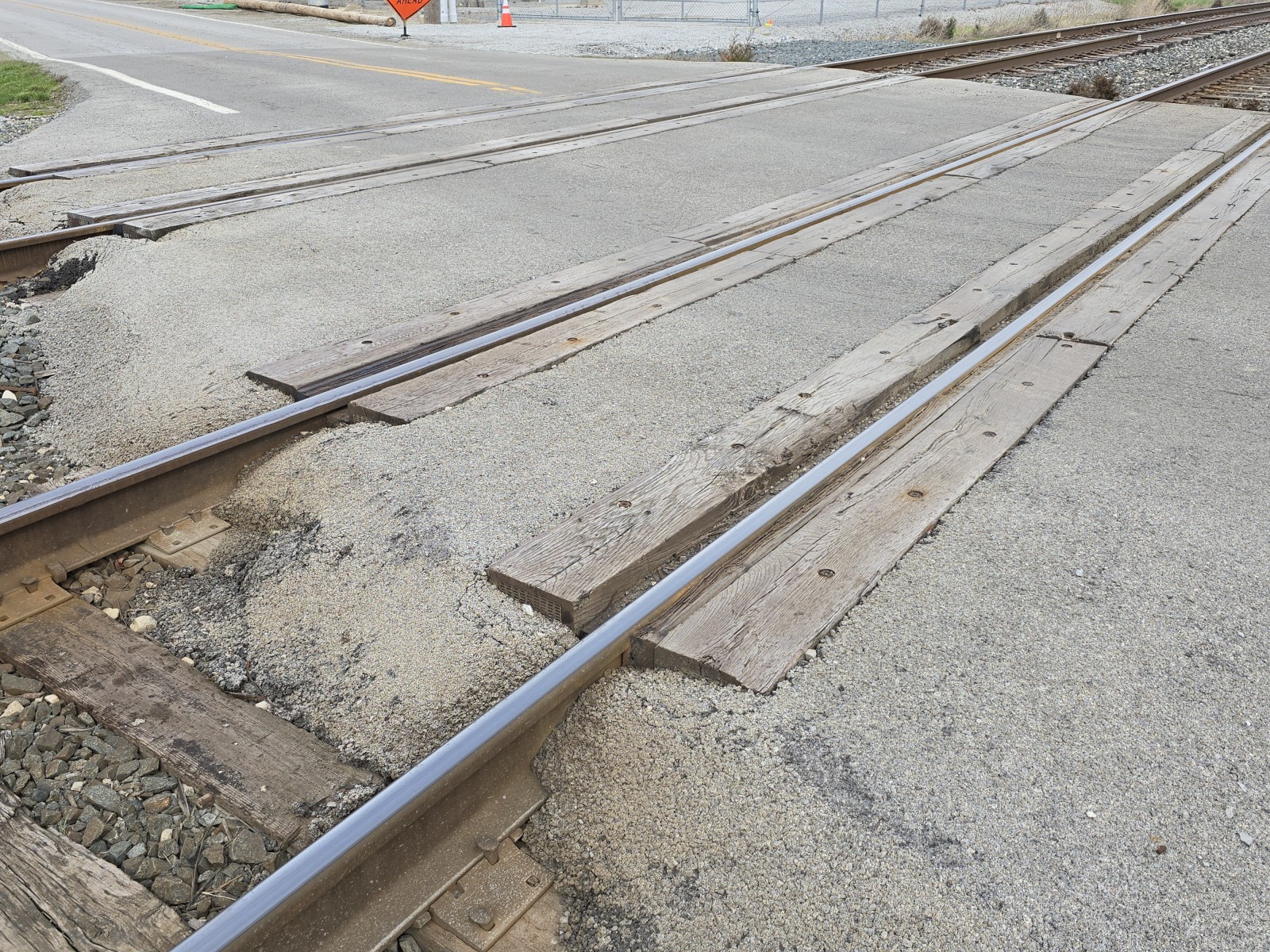

This crossing's grade is made of wood and asphalt. |
Track view facing north
towards Washington
Street. |

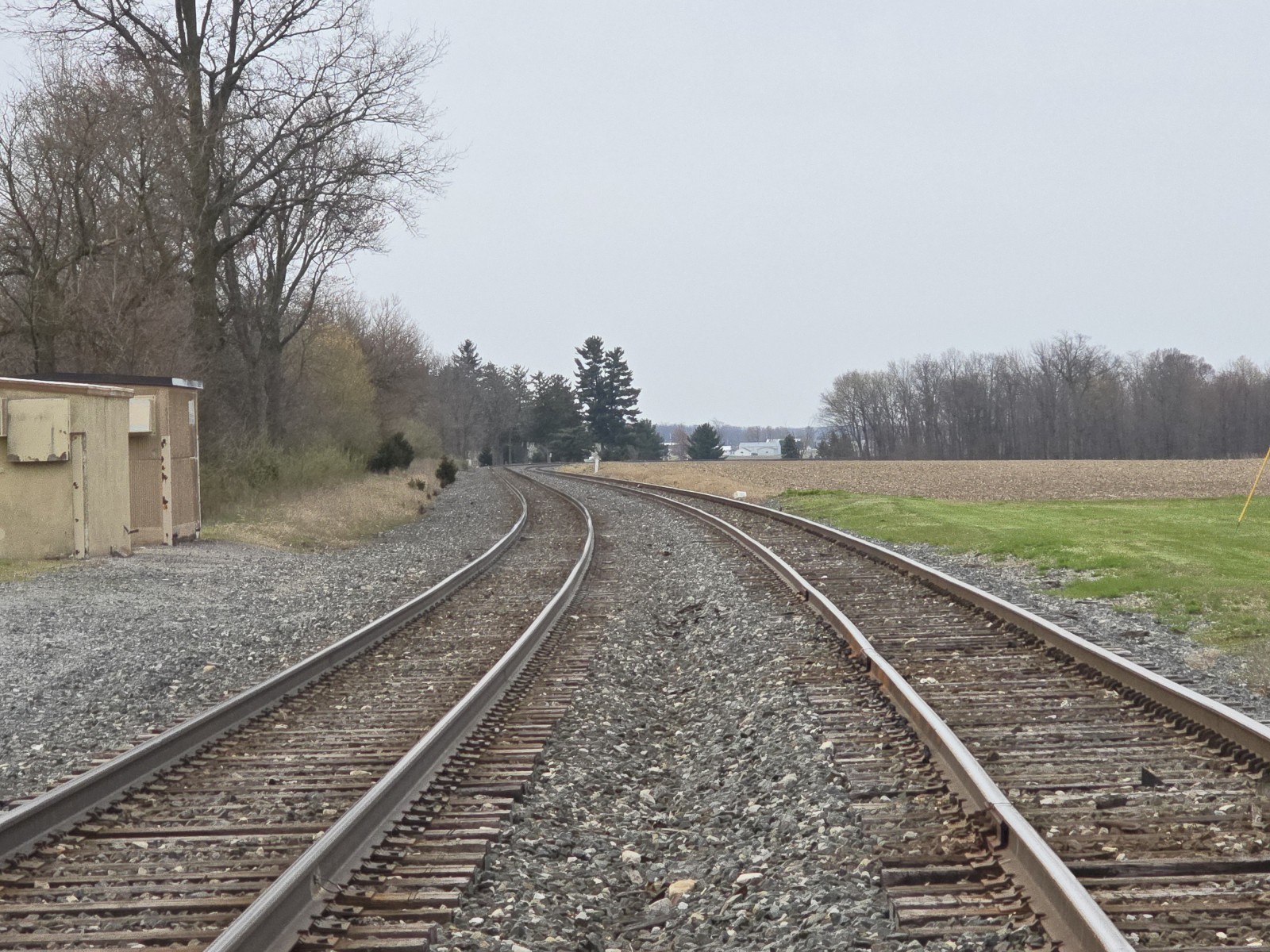

Track view facing south
towards Township
Road 40. |
