MP: 50.02 |
Created June 2025
Total Accidents: 1

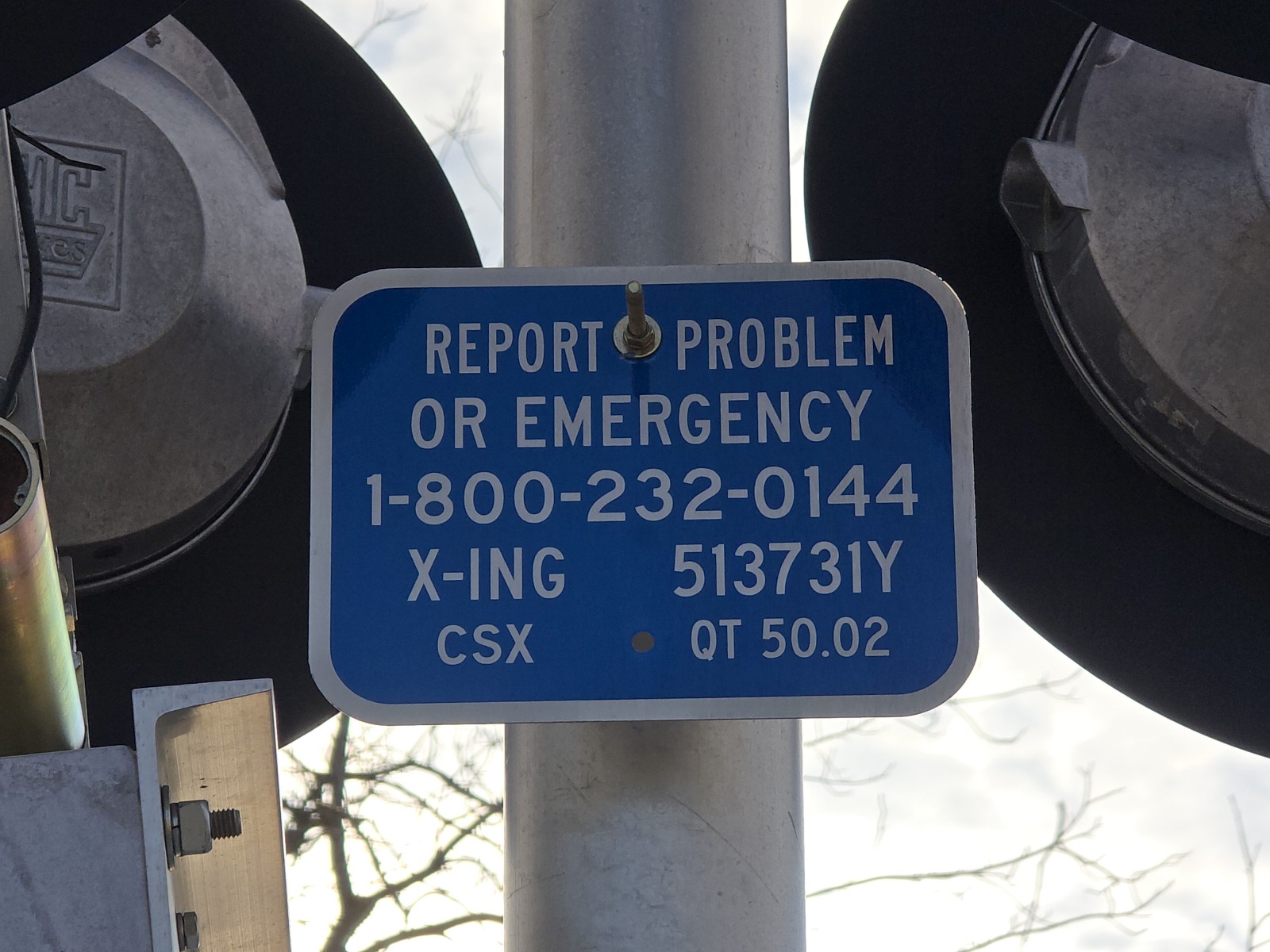

Crossing DOT #: 513731Y
TOTAL DAILY TRAINS: 9
(AS OF 2024)
| >>>>>>>>>>>>> | Western
Signal |
Eastern
Signal |

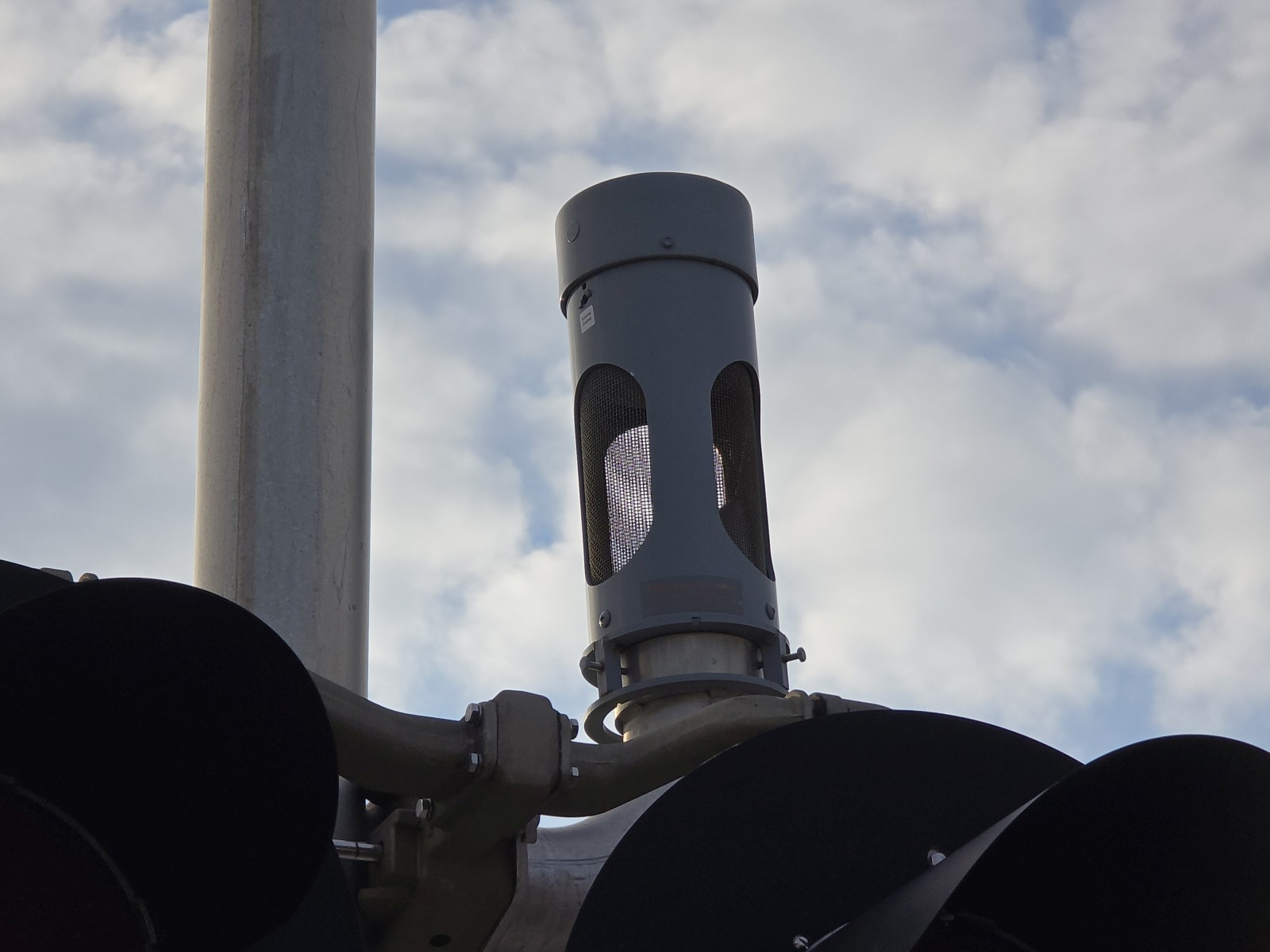

| Bell: | NEG E-Bell |
NEG E-Bell (Dead) |

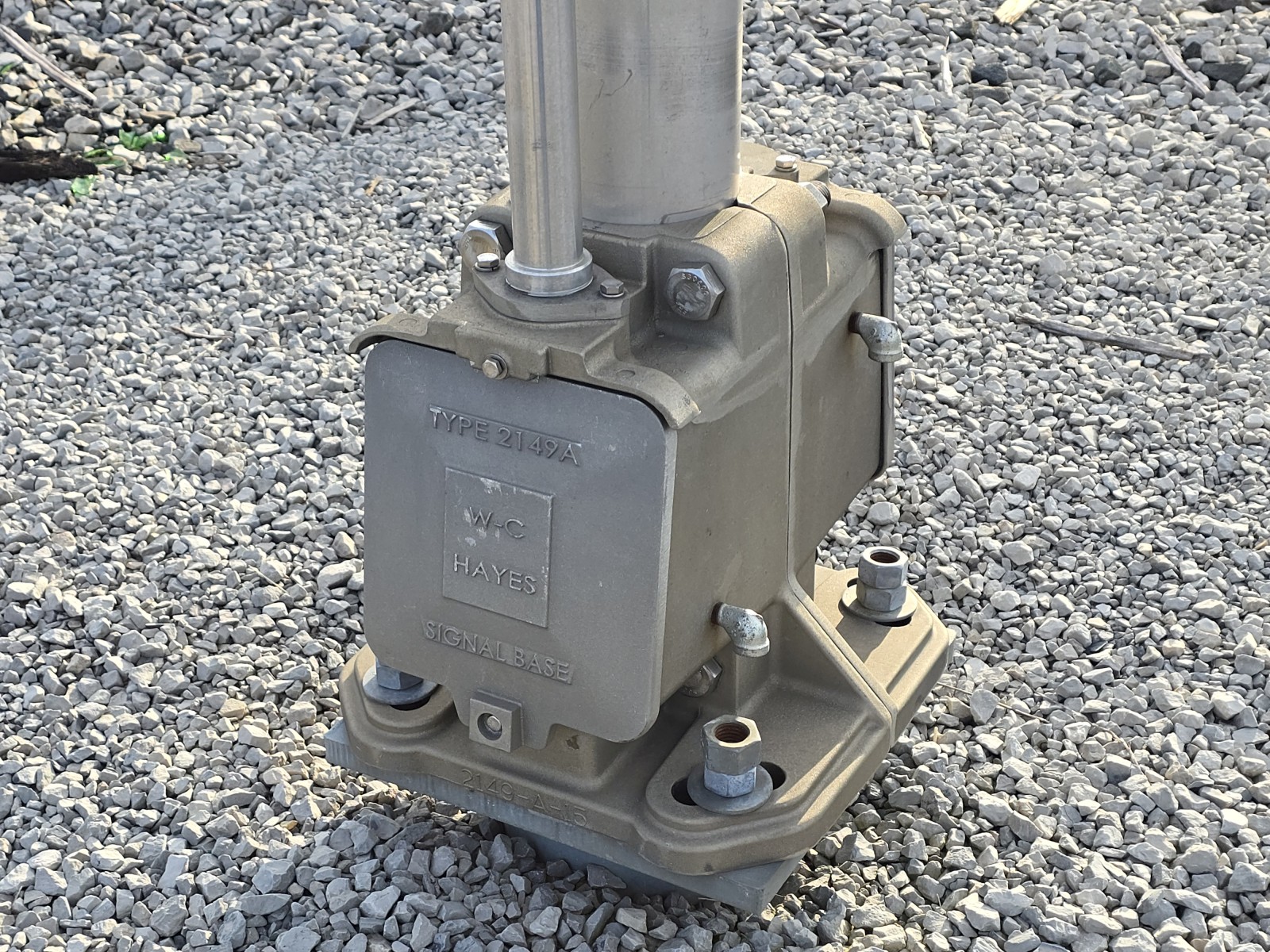

| Base: | WCH 5" Double Sided |
WCH 5" Double Sided |

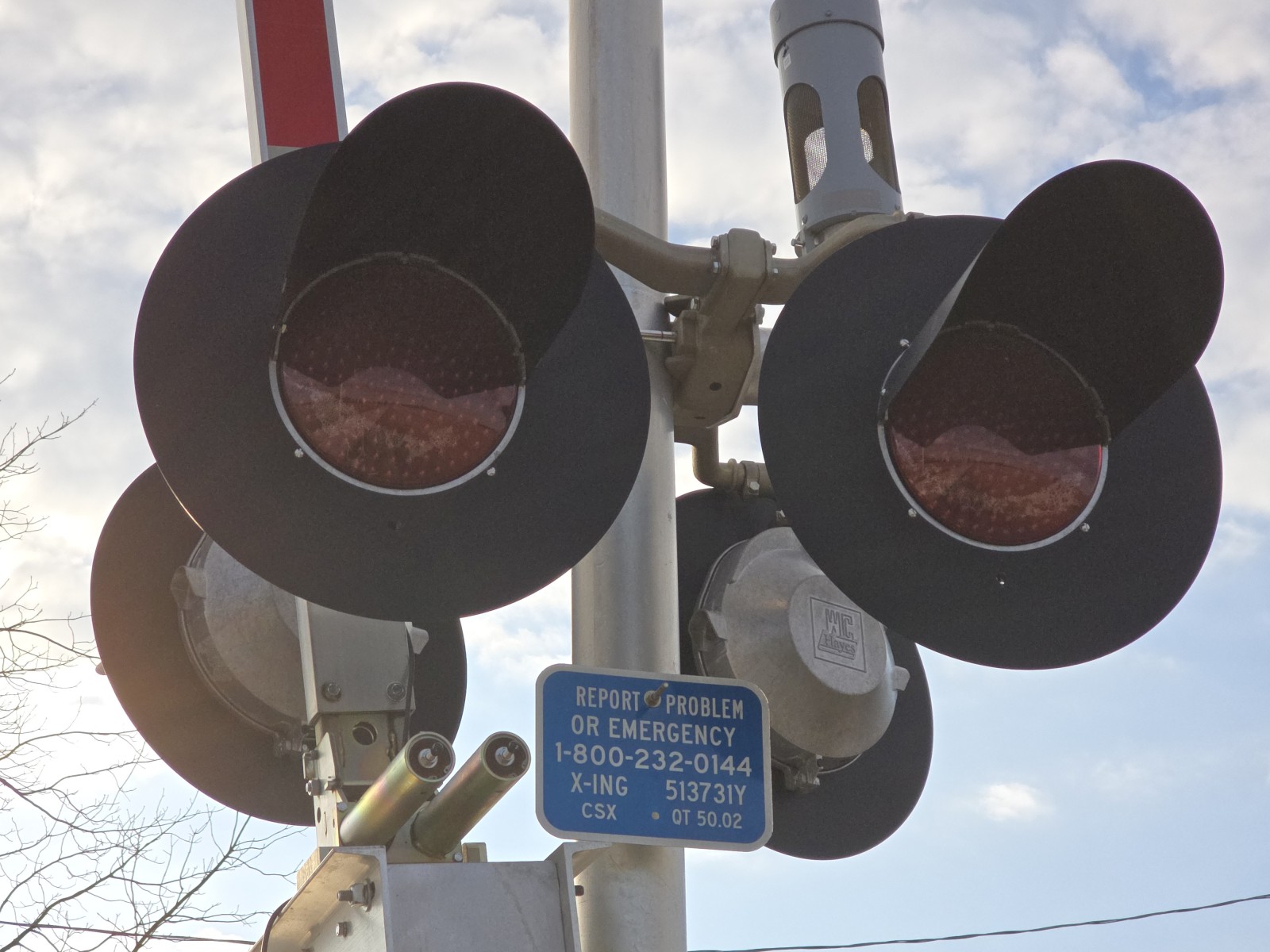

| Light Frames: | 4 - 12"x24" WCH Flatback w/
Leotek EV Series LEDs |
4 - 12"x24" WCH Flatback w/ Leotek EV Series LEDs |
| Light
Brackets: |
WCH |
WCH |
| Gate Lights: | 3 - NEG 4" LEDs |
3 - NEG 4" LEDs |

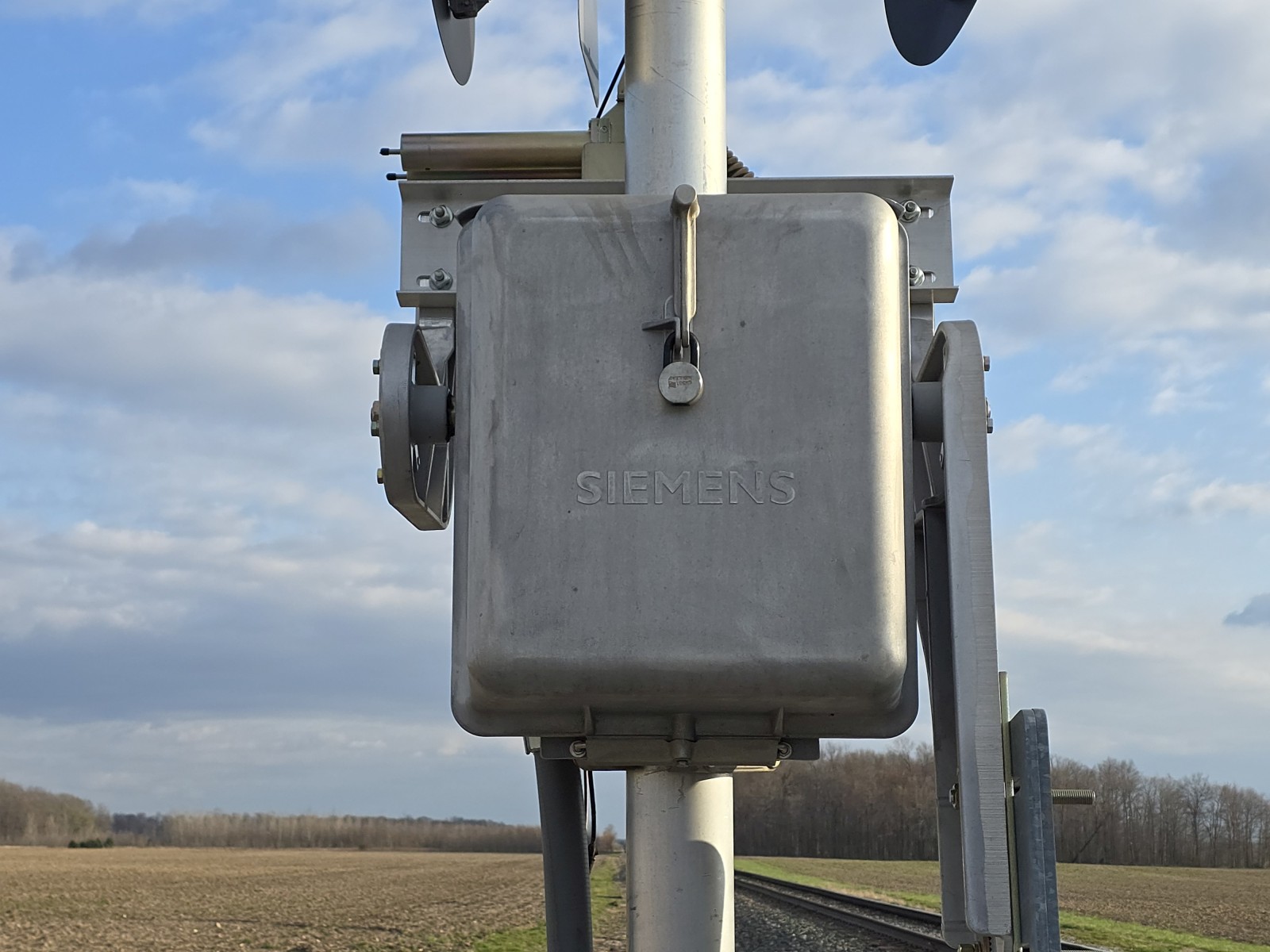

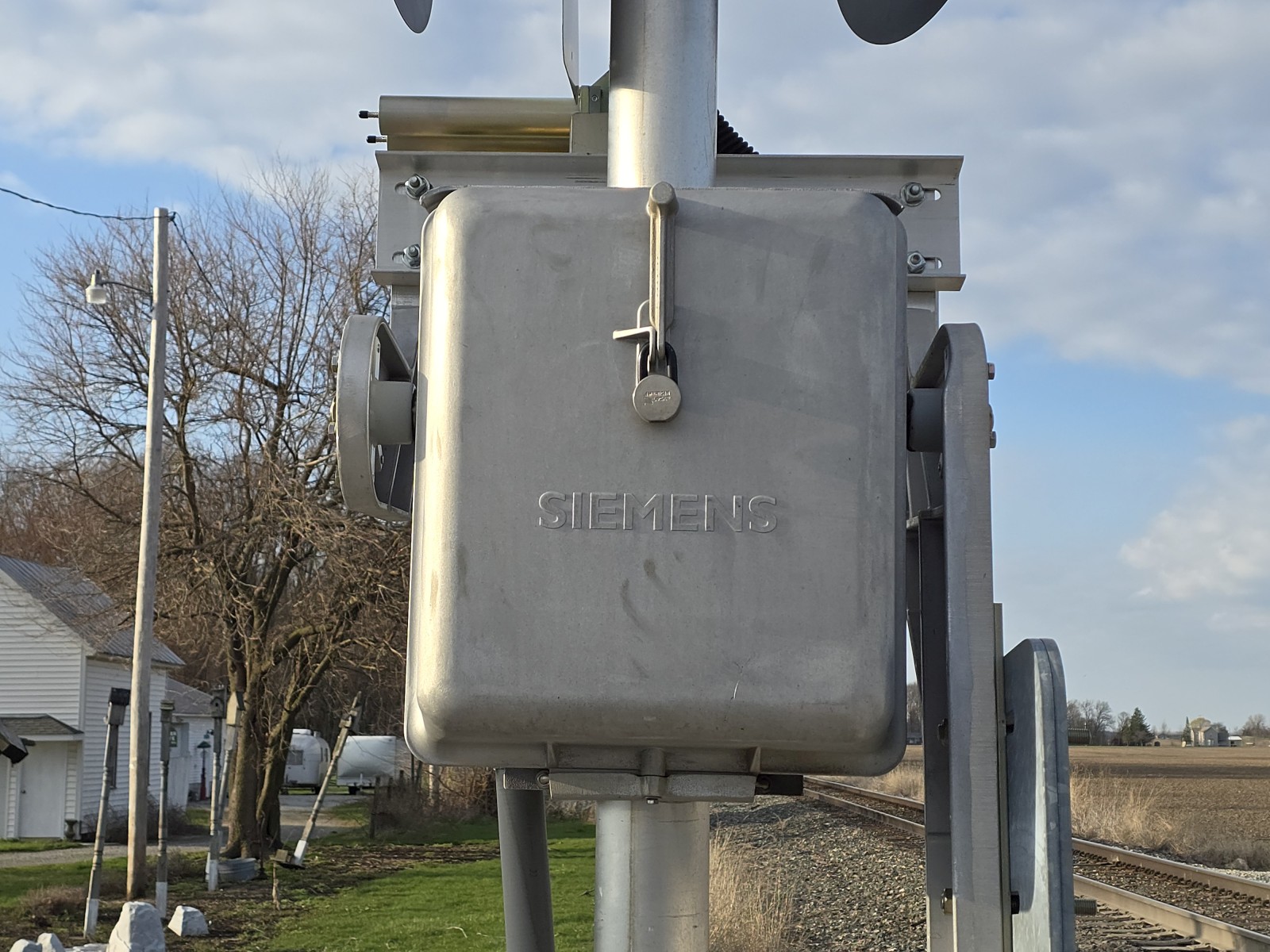

| Gate Mechanism: | Siemens Imprinted w/ NEG 2
Way Saver |
Siemens Imprinted w/ NEG 2 Way Saver |
| Gate Striping: | Vertical Striping |
Vertical Striping |
Page created by: Sir Fluent
The 1st video was taken on July 19, 2024, by Nicholas Miles.
The 2nd video was taken on October 21, 2024, by Nicholas Miles.
Pictures 1-26 were taken on April 11, 2025, by Nicholas Miles.
O1 |
O2 |
O3 |
O4 |

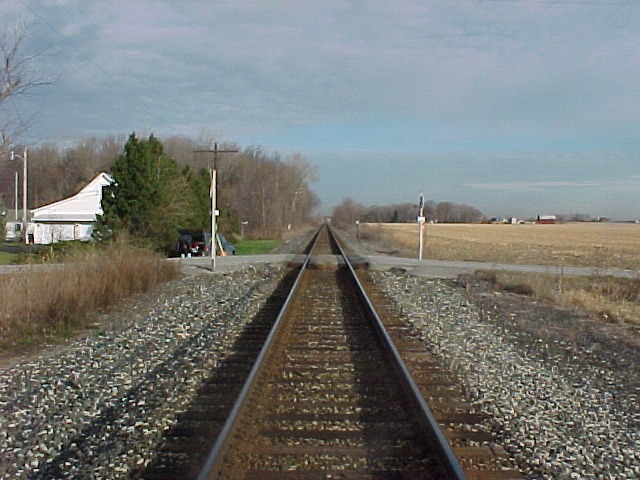

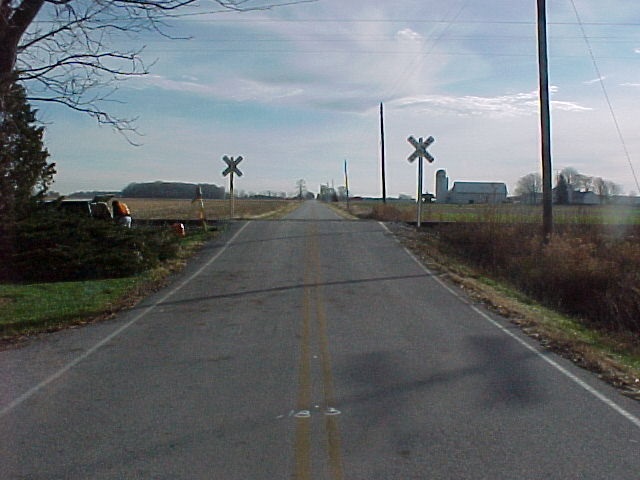

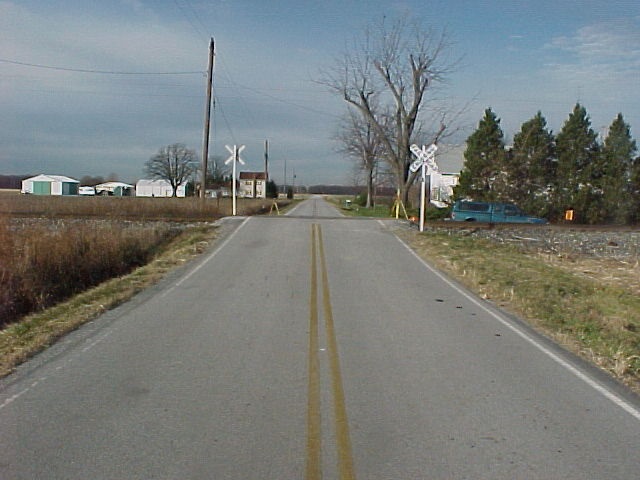

| PUCO
images
from
the
late
90s
or
early
2000s
showing
2
crossbucks protecting a rural crossing. In the early 2010s,
CSX installed new crossbucks here, but in the early 2020s, those were
replaced with newer Siemens/WCH signals. |
|||
|
1 |
2 |
|

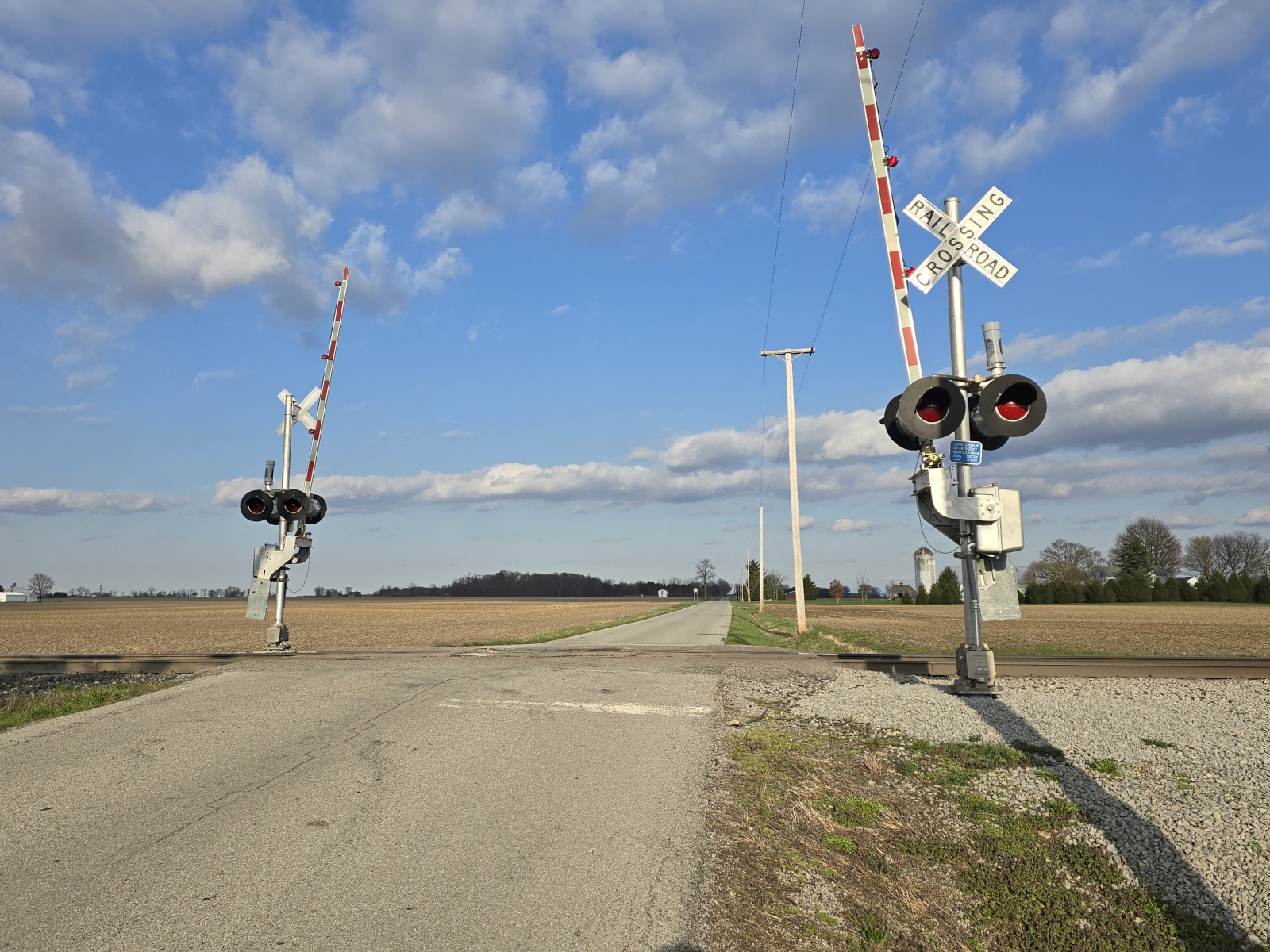

Overview of 2 newer gated signals facing east.
|
Overview
facing
west. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|

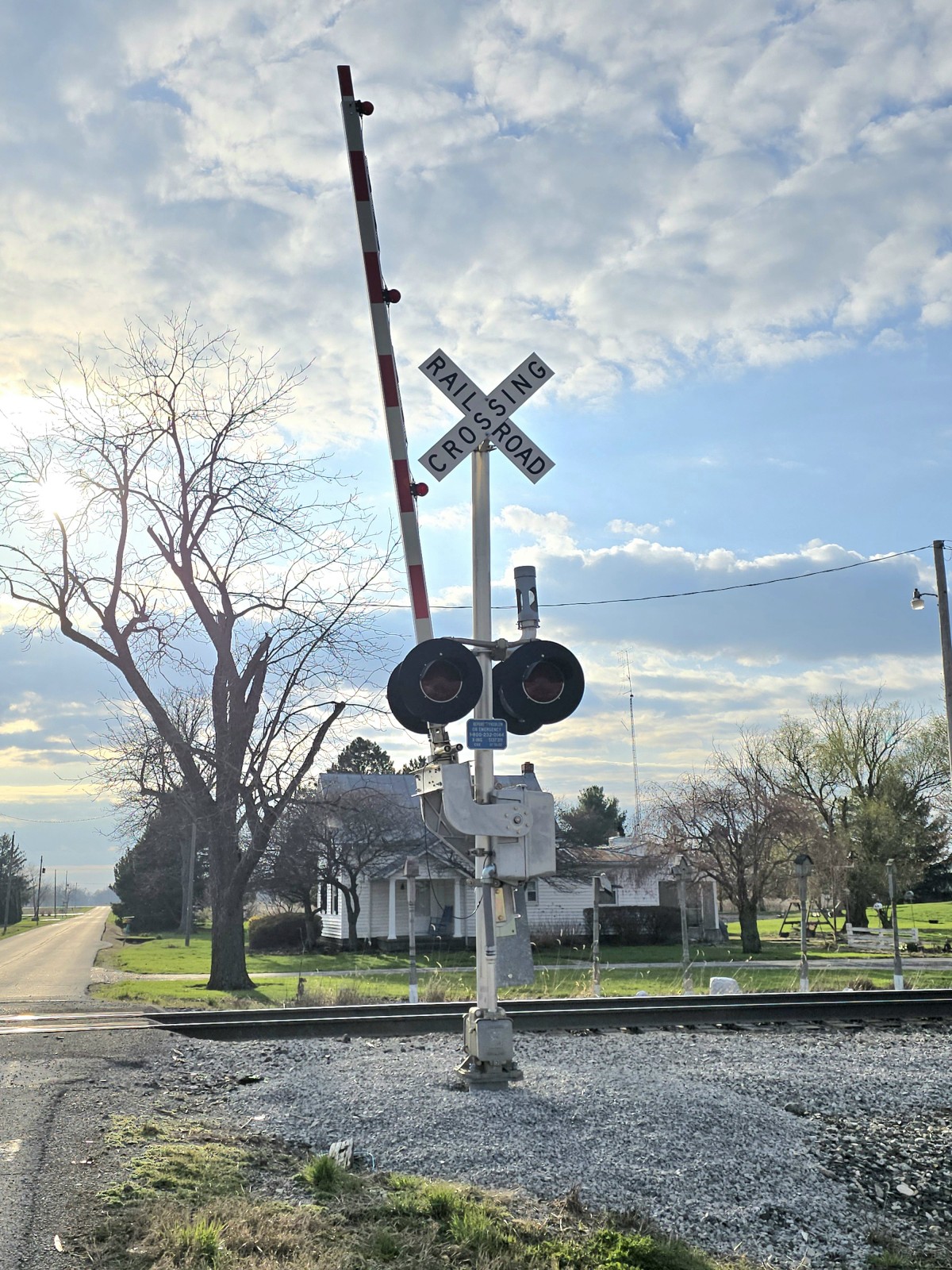

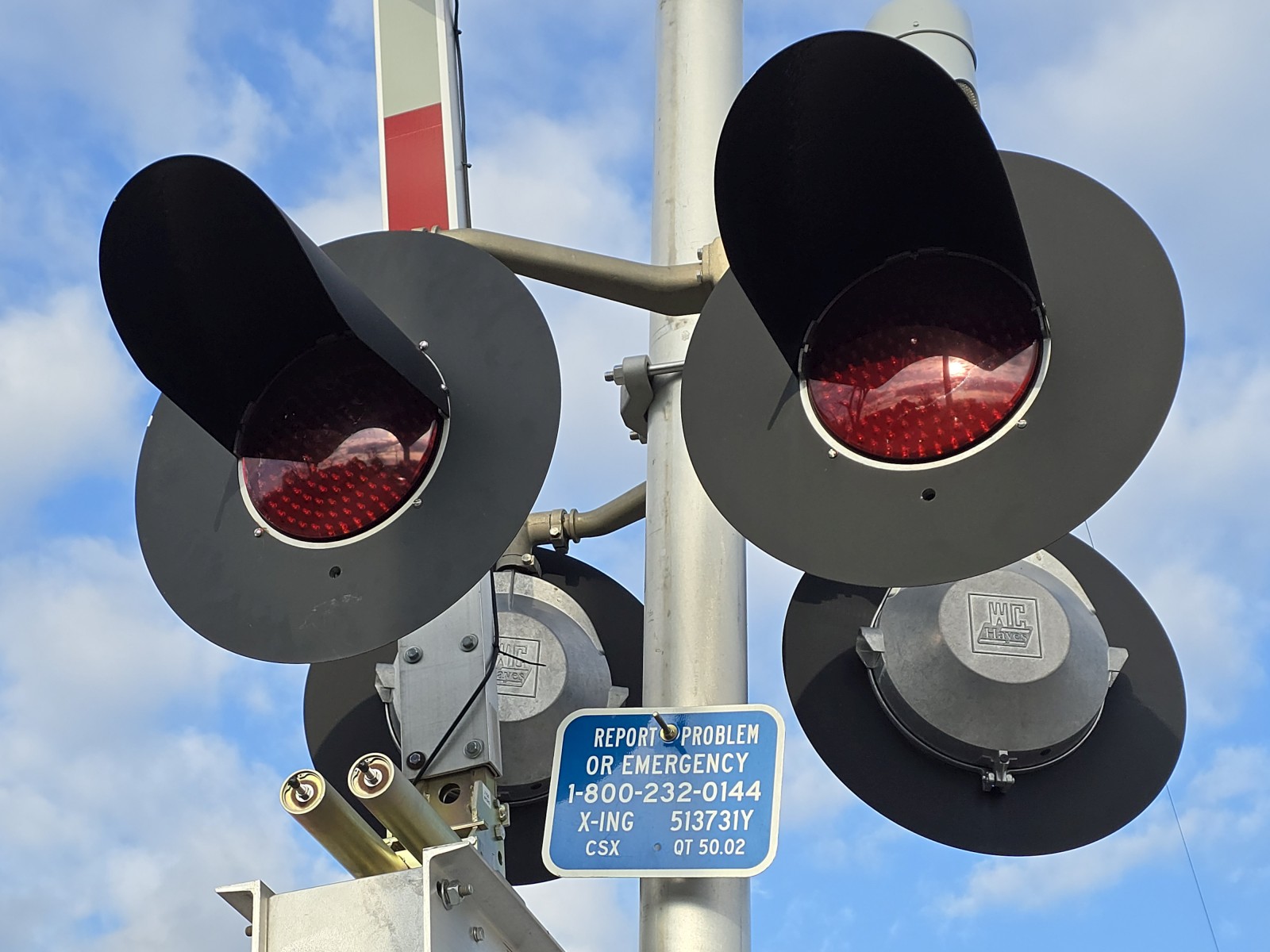

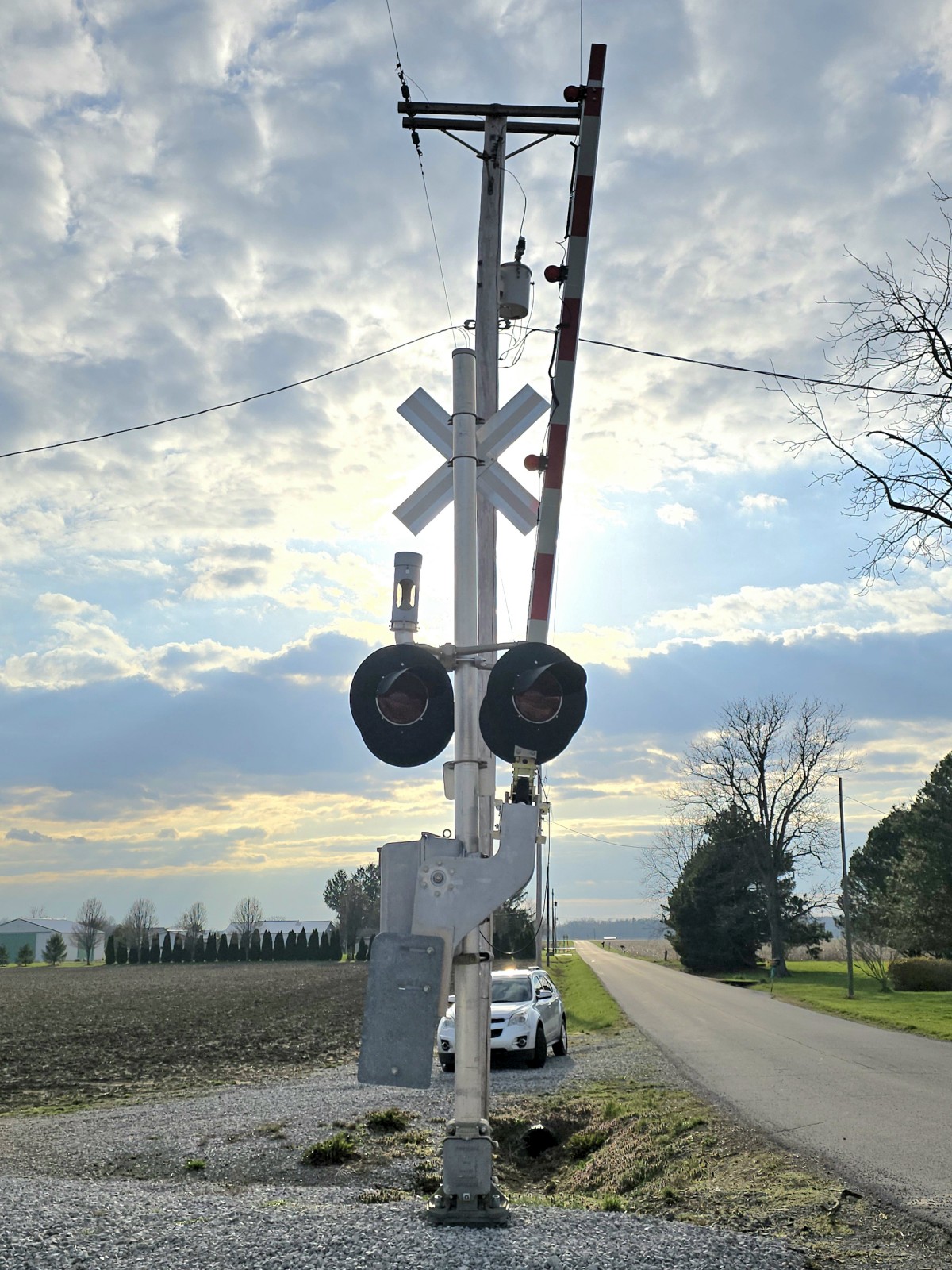

The western signal.
|
|||
|
13 |
14 |
|
15 |
16 |
17 |
18 |
|
19 |
20 |
21 |
22 |
|

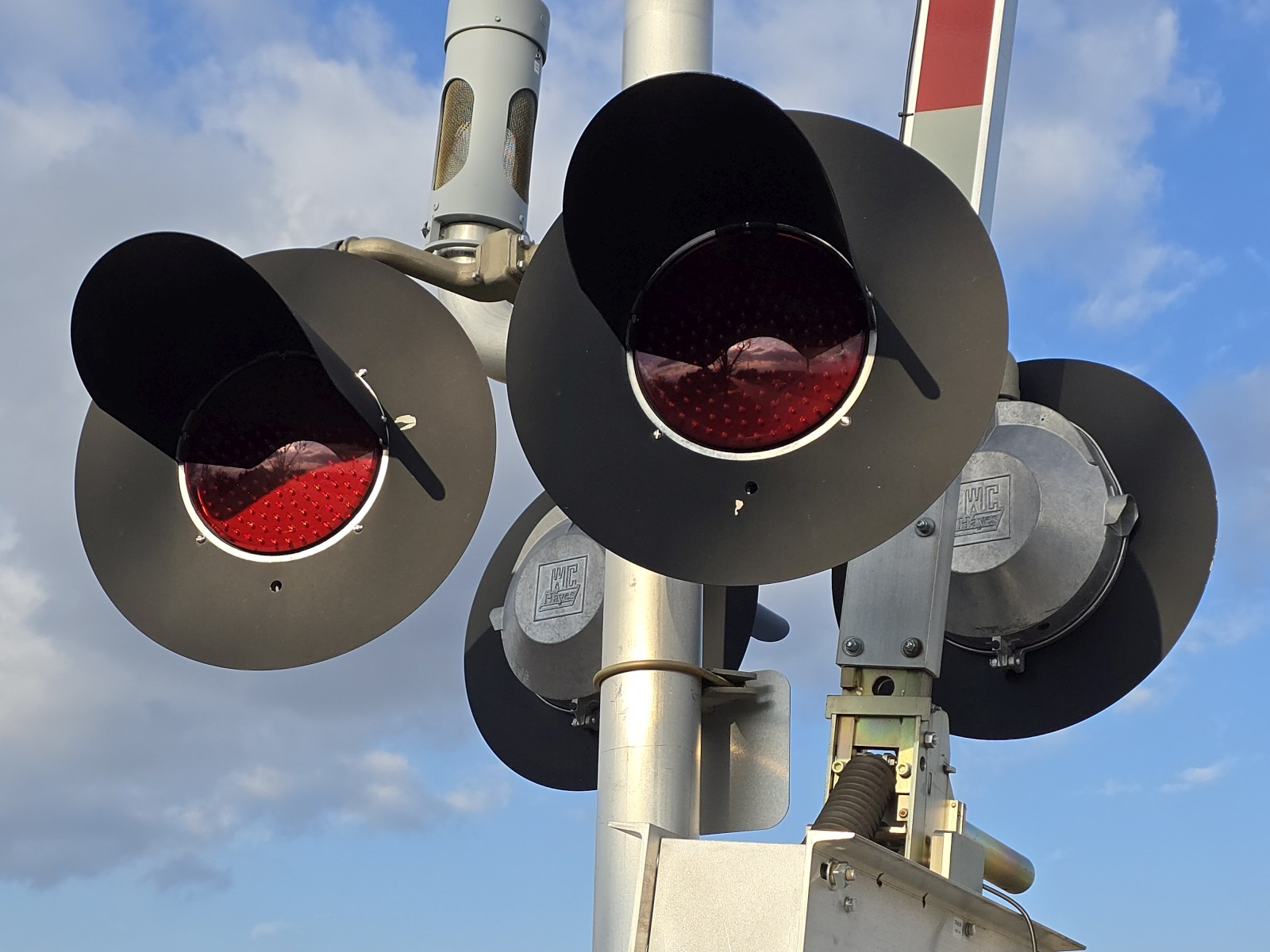

The eastern signal.
|
|||
|
23 |
24 |
25 |
26 |
|

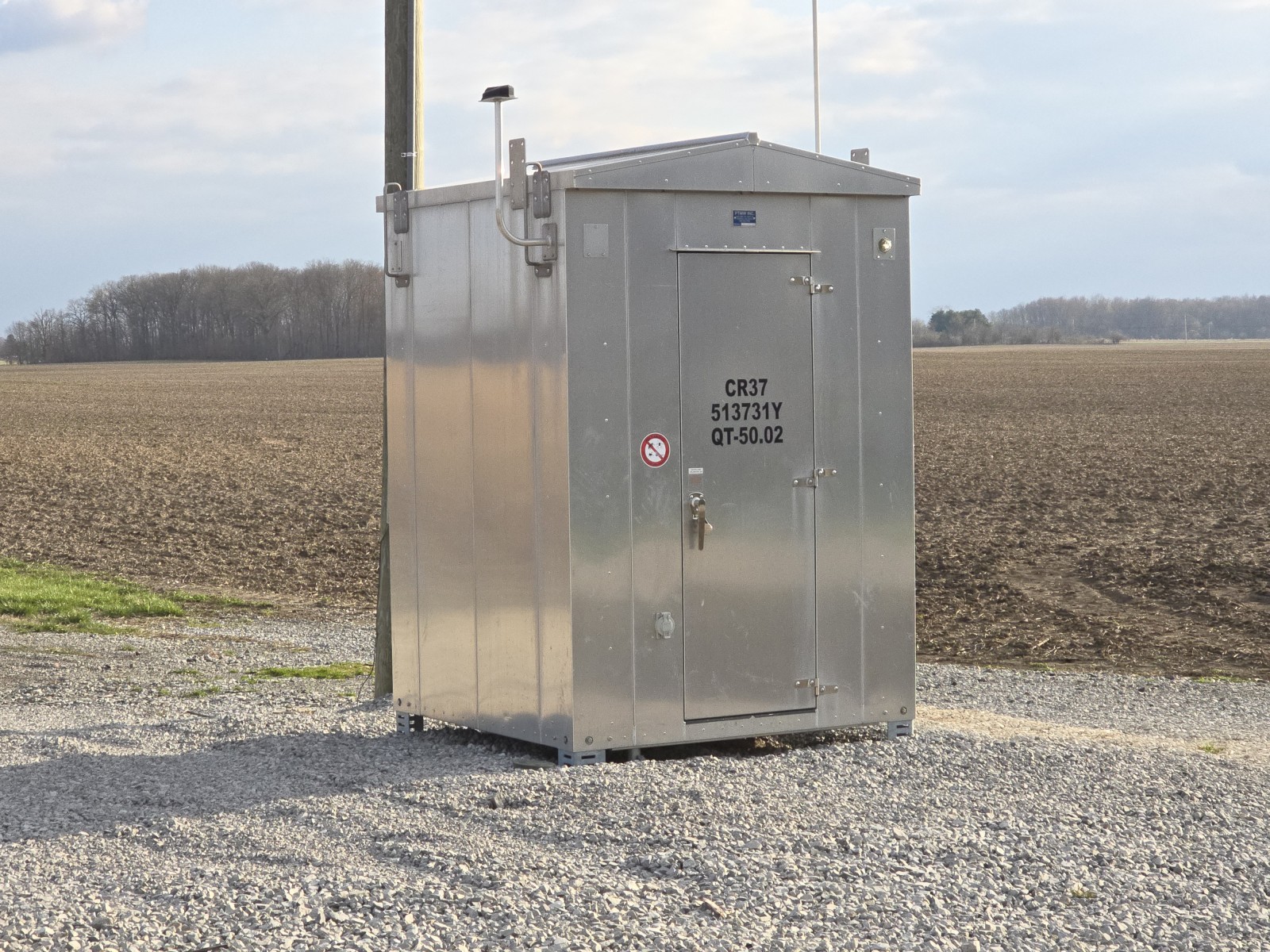

The relay bungalow in the southwest quadrant.
|

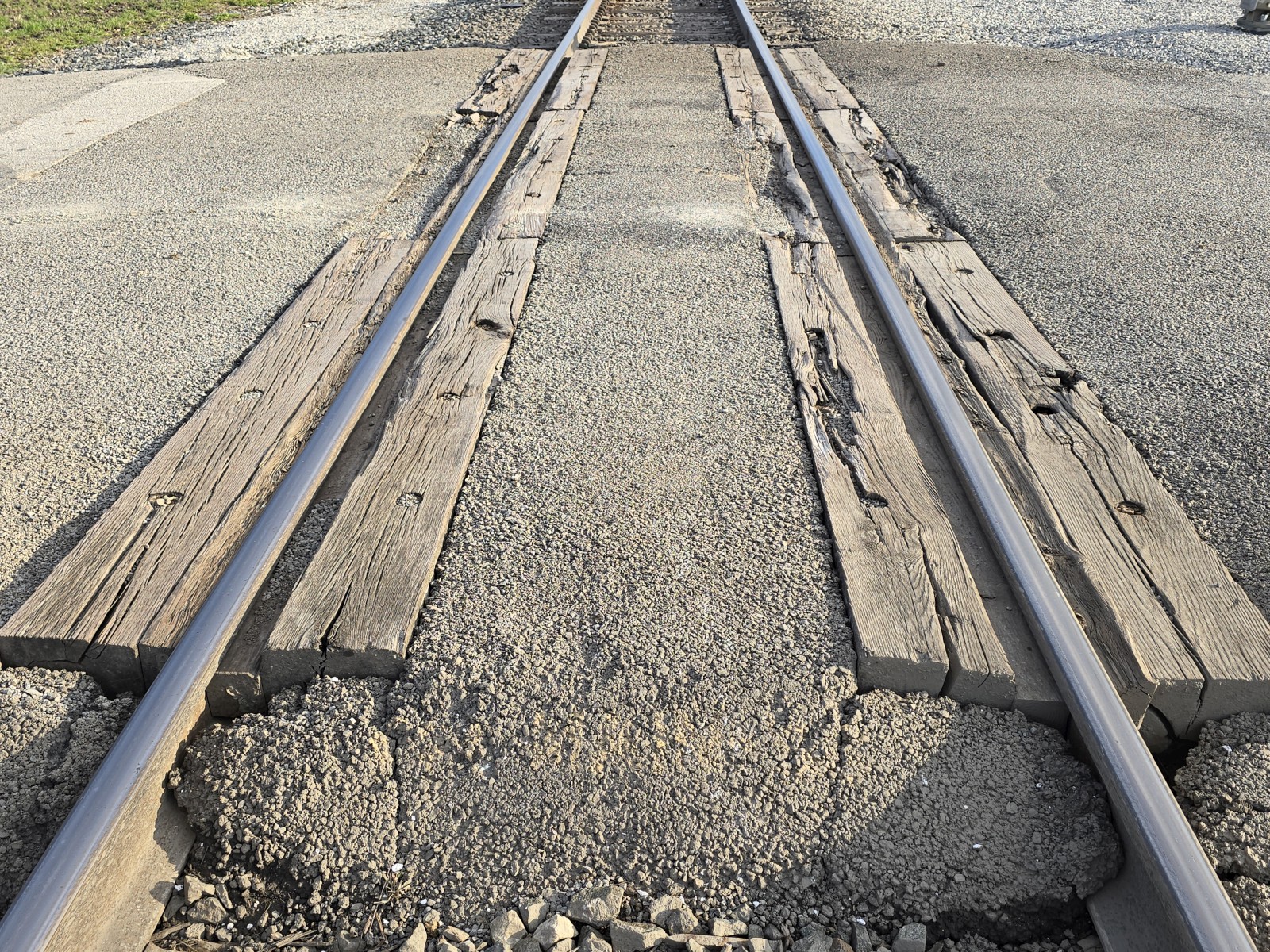

This crossing's grade is made of wood and asphalt. |

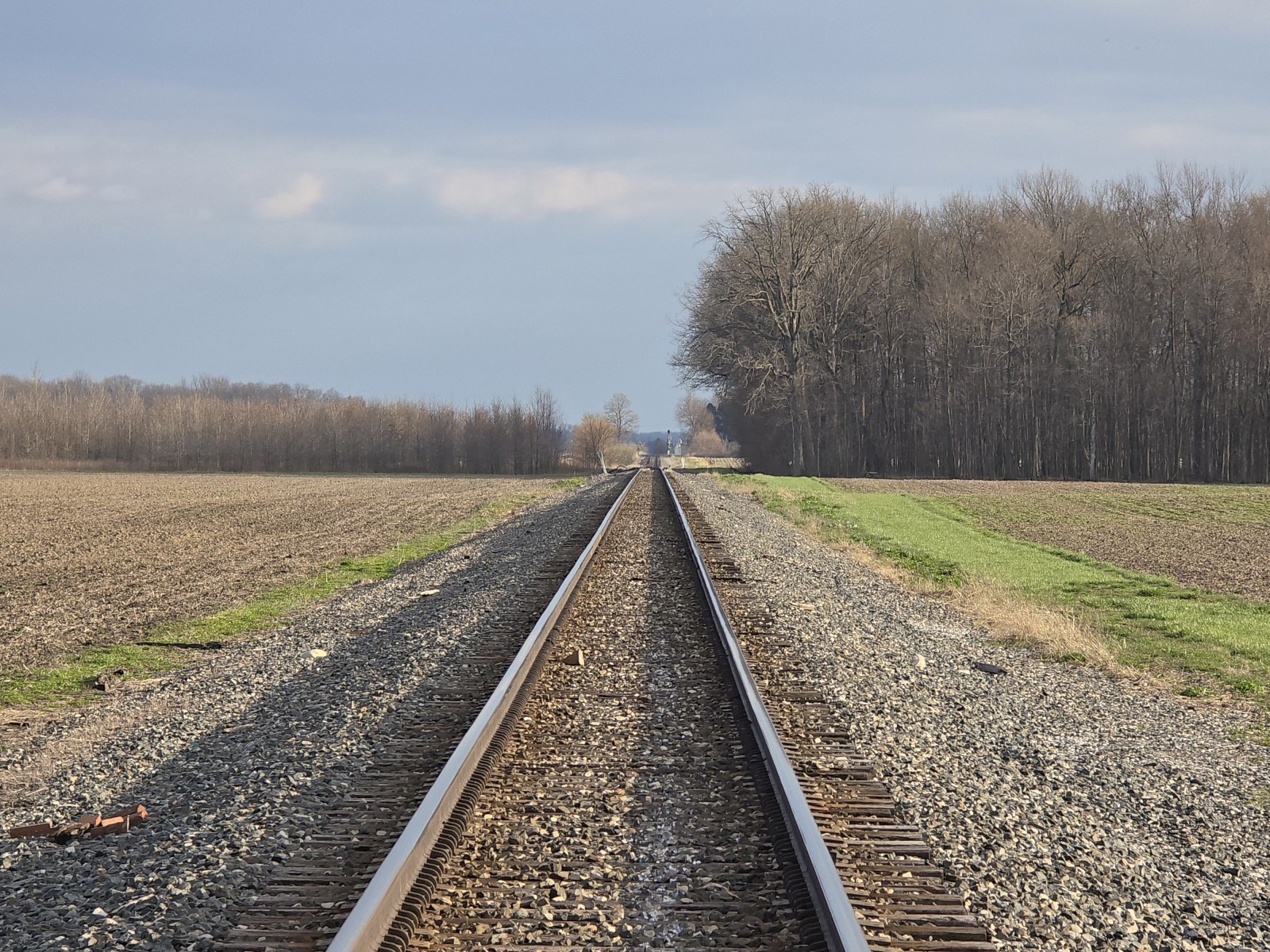

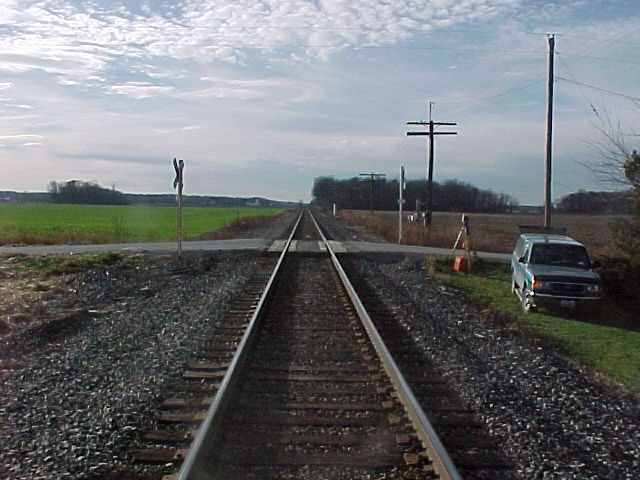

Track view facing north
towards Township
Road 40. |
Track view facing south
towards Township
Road 26 in Arlington. |
