100.30


262074P

>>>>>>>>>>>>>> Northern Signal Southern Signal

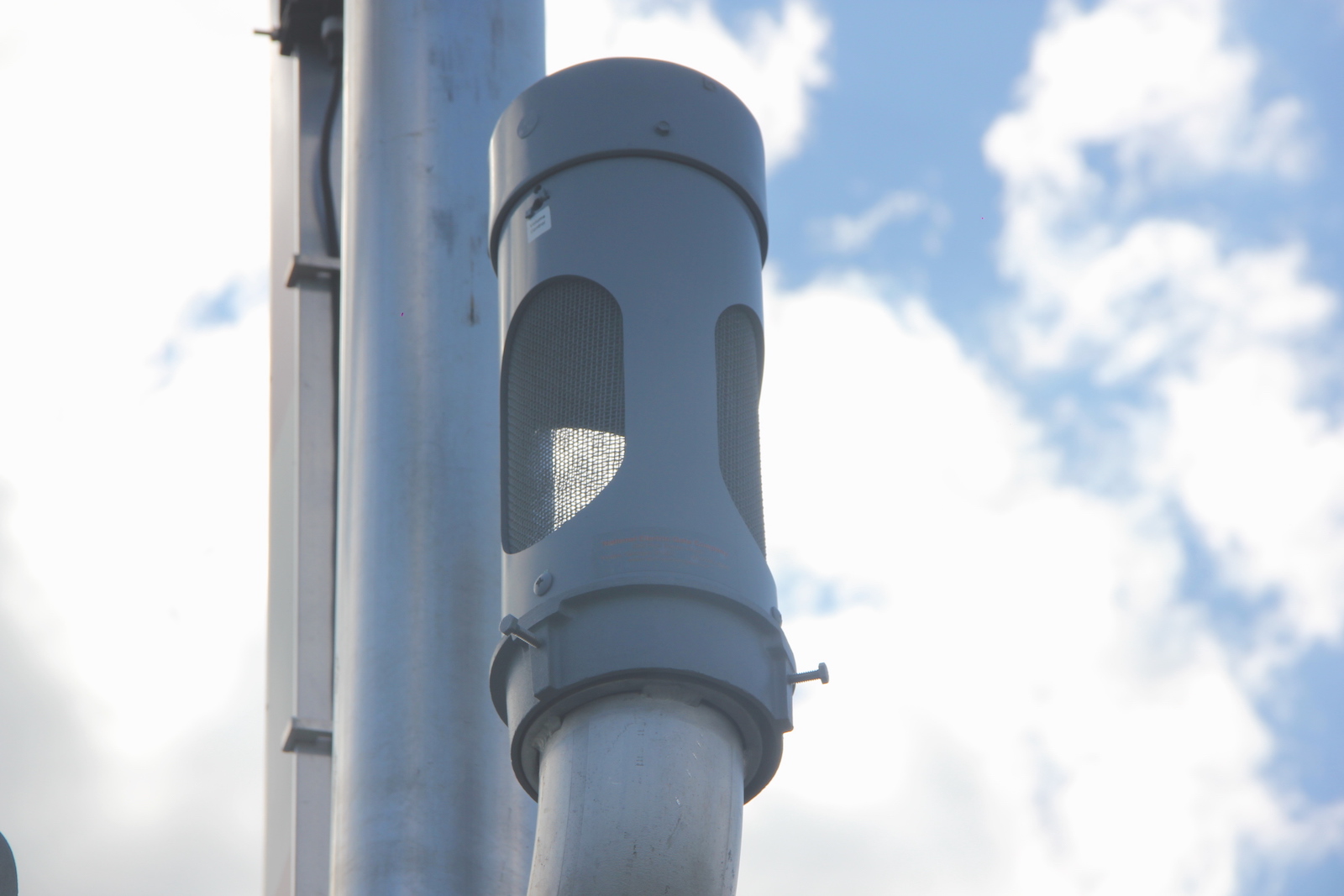

Bell: None NEG E-Bell
Base: WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ Leotek EV LEDs 4 - 12"x24" WCH w/ Leotek EV LEDs
Junction Box: WCH WCH w/ Bell Extension
Gate Lights: 3 - RECO 4" LEDs 3 - RECO 4" LEDs

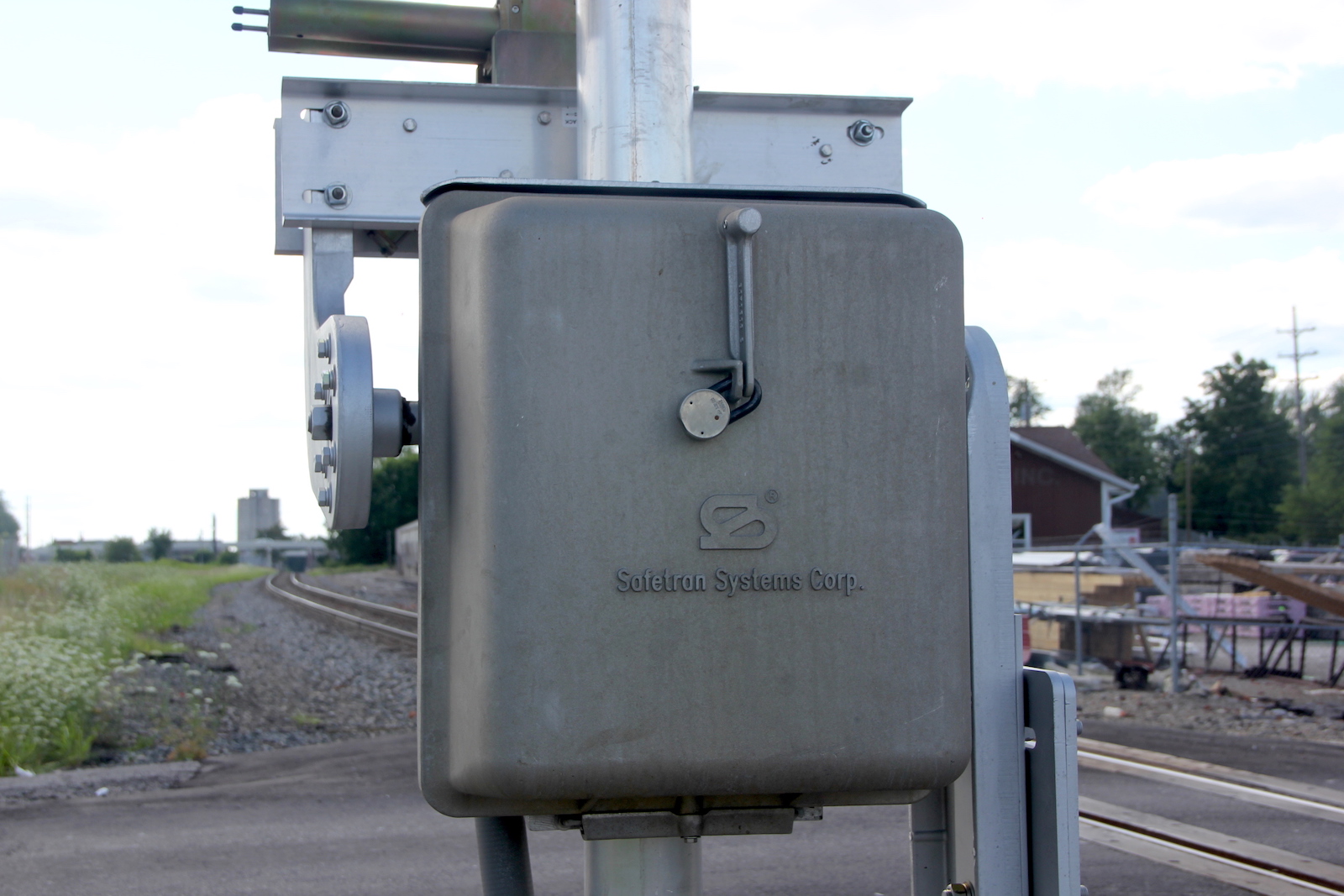

Gate Mechanism: Siemens Sticker Style 2 w/ Old NEG 2 Way Refurbished Safetran 2000s w/ Old NEG 2 Way
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on July 18, 2018, by Tommy McGowan.
The video was taken on March 29, 2024, by Nicholas Miles/Northwestern Ohio Rail Productions.
This crossing is located on the north track of the CSX Mt. Victory Sub. This functions as a double crossing with Greenwood Street #2.

1
 2

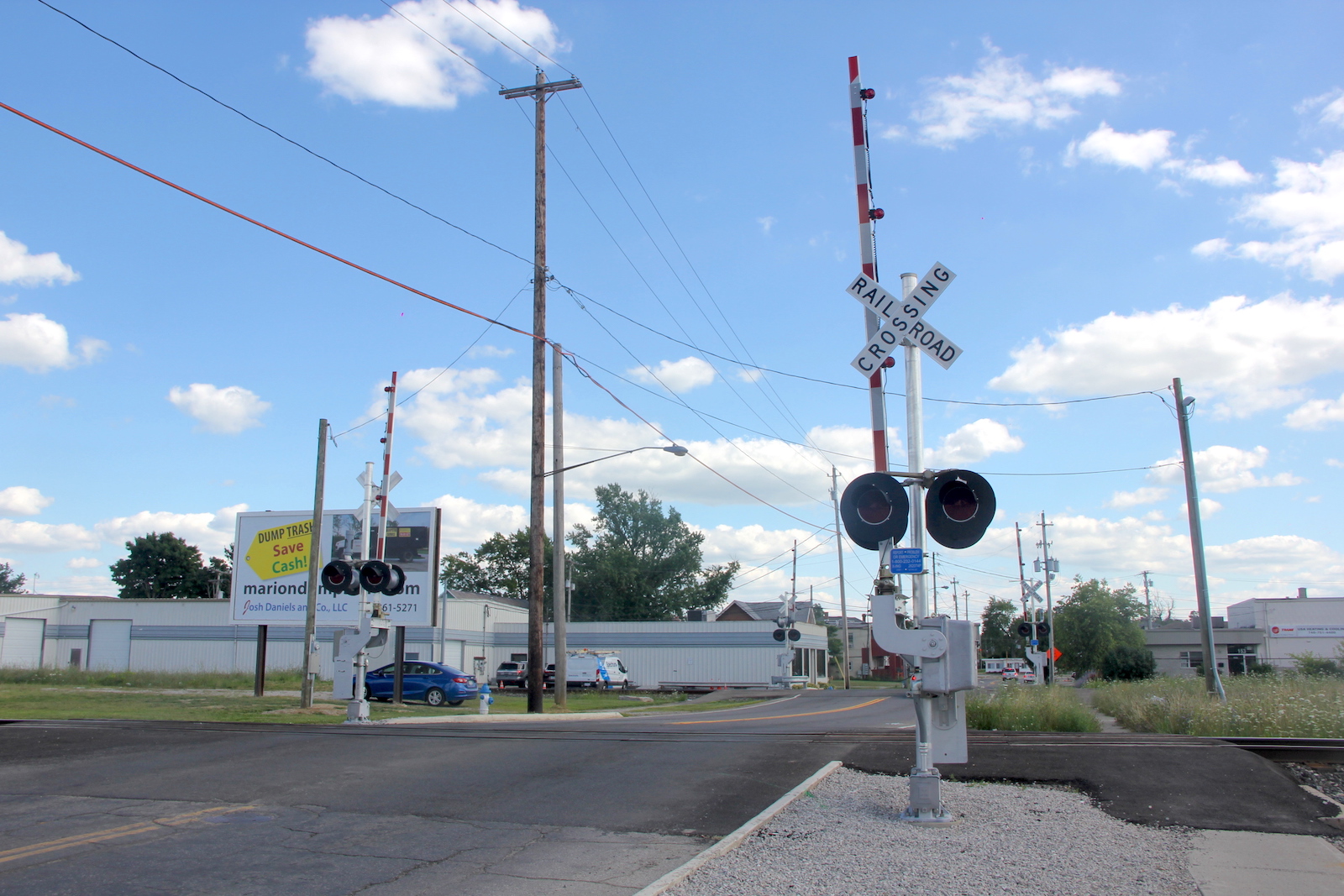

Overview of 2 new gated signals facing south.

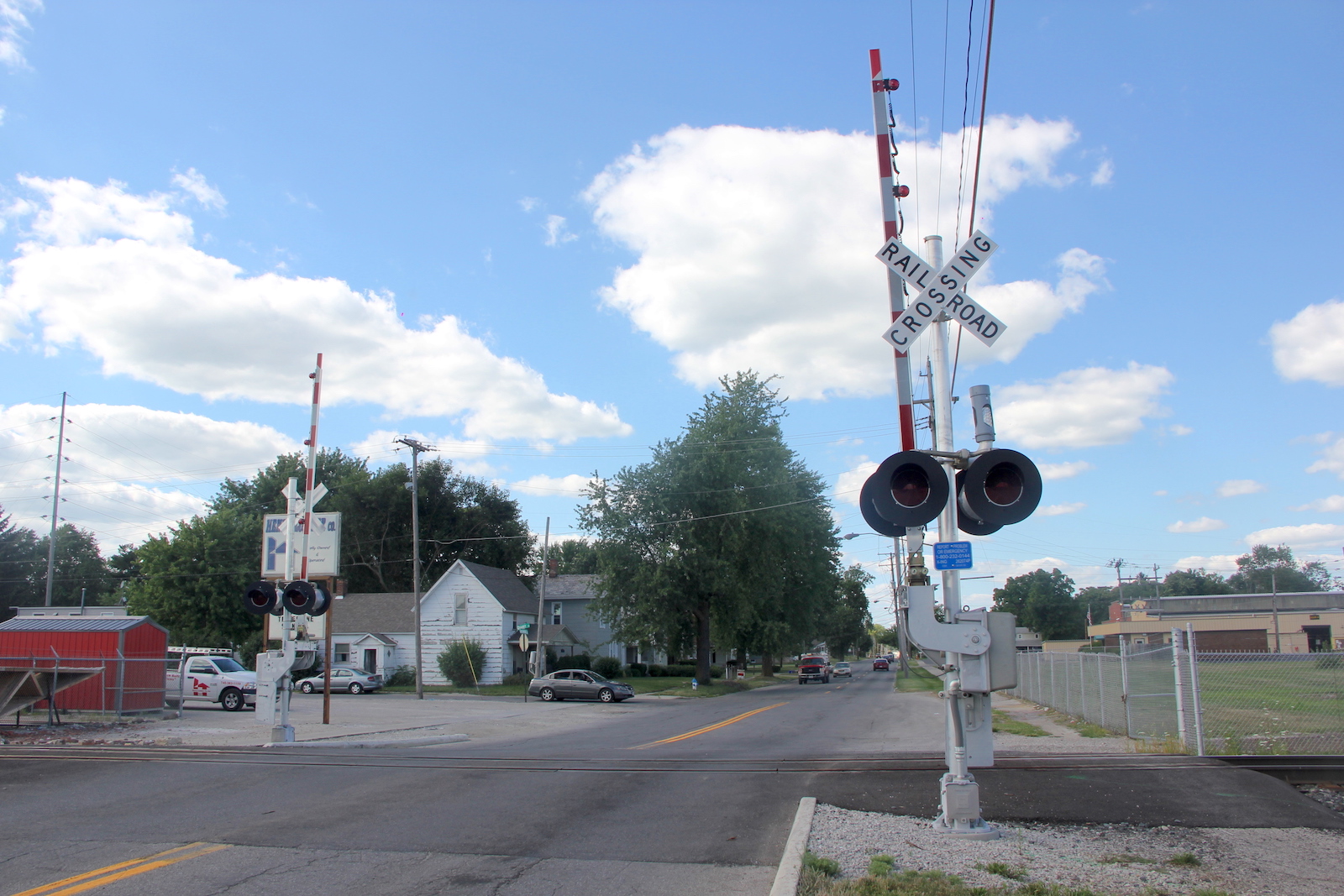

 Overview facing north.
3 4 5
6 7 8
9 10 11

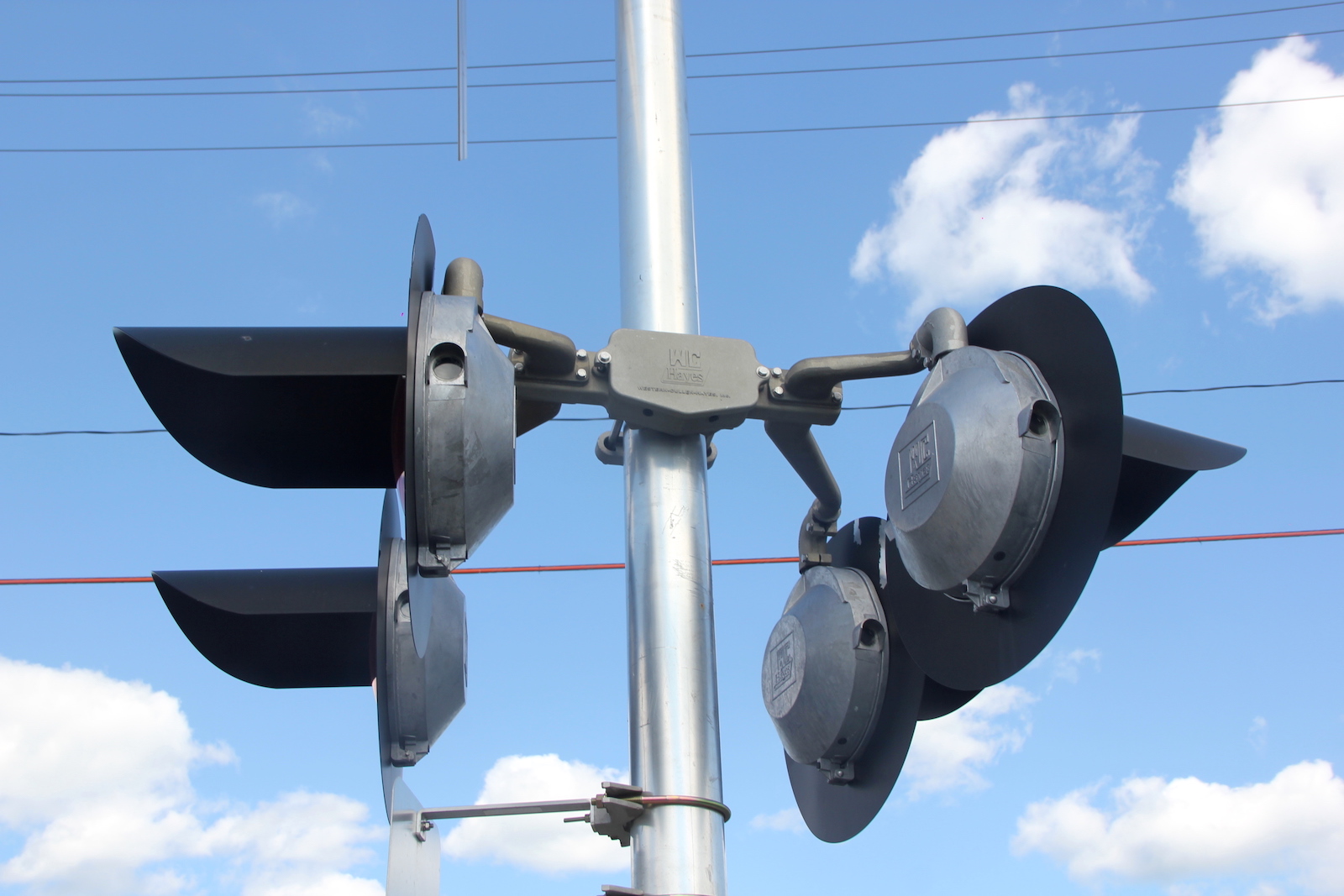

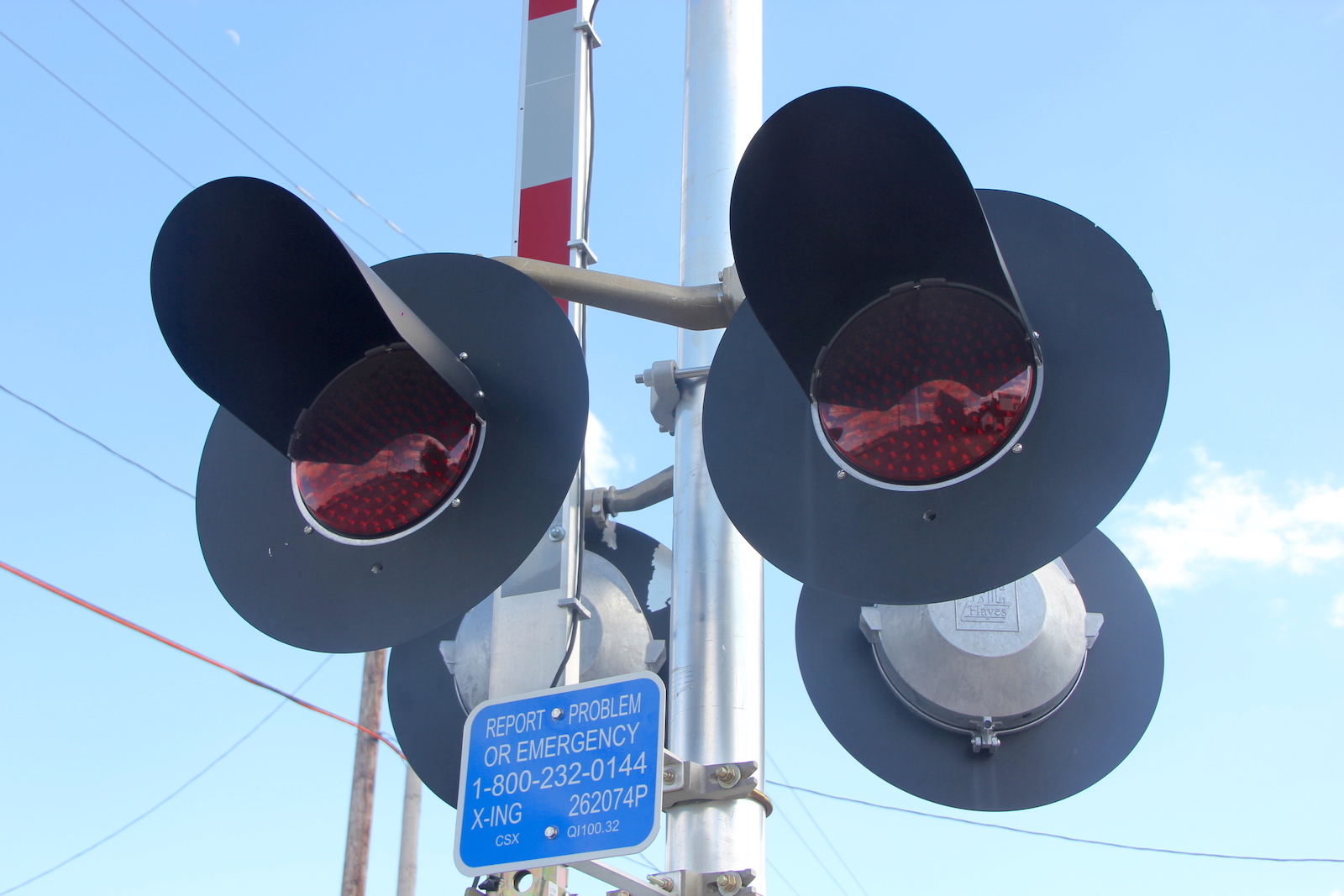

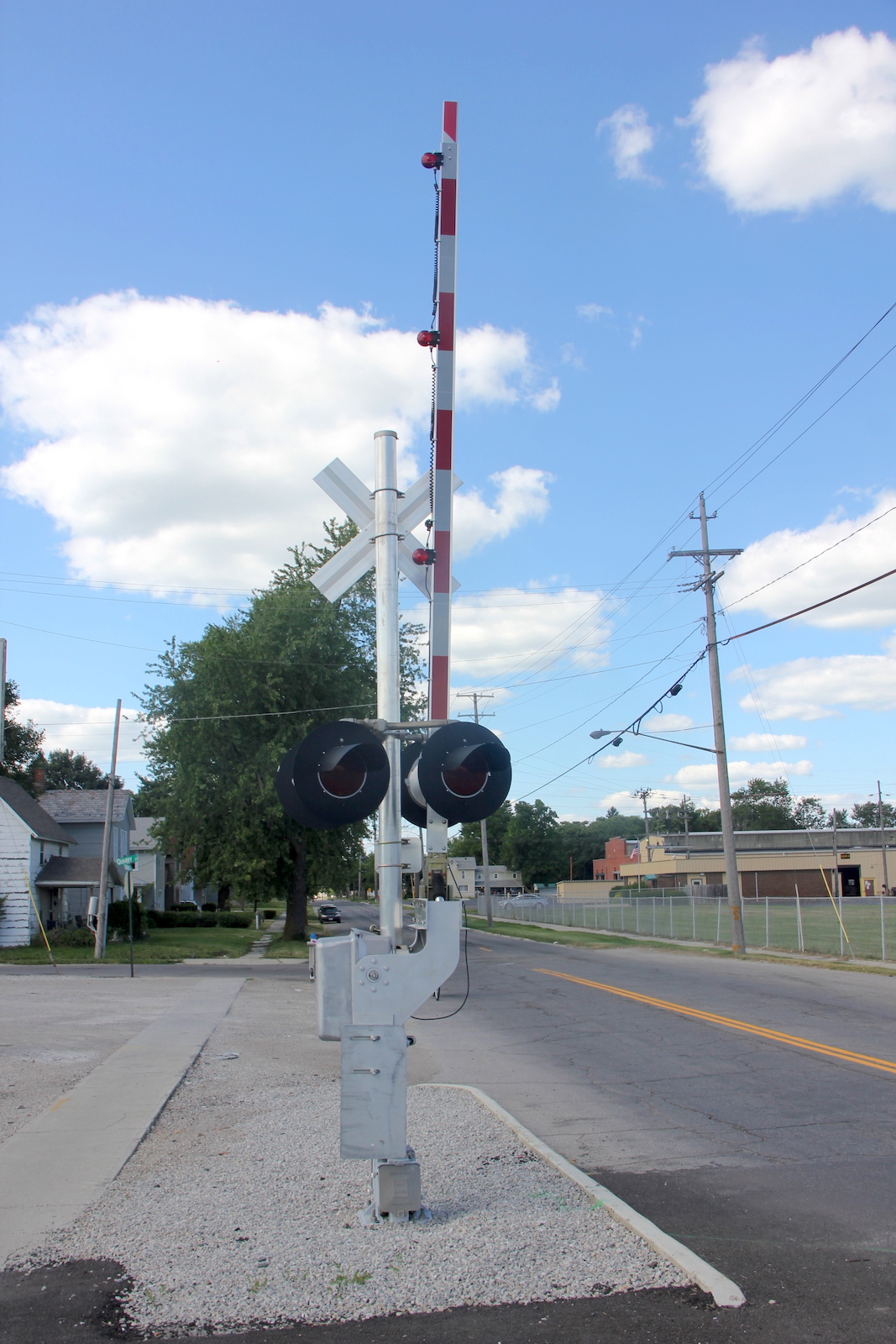

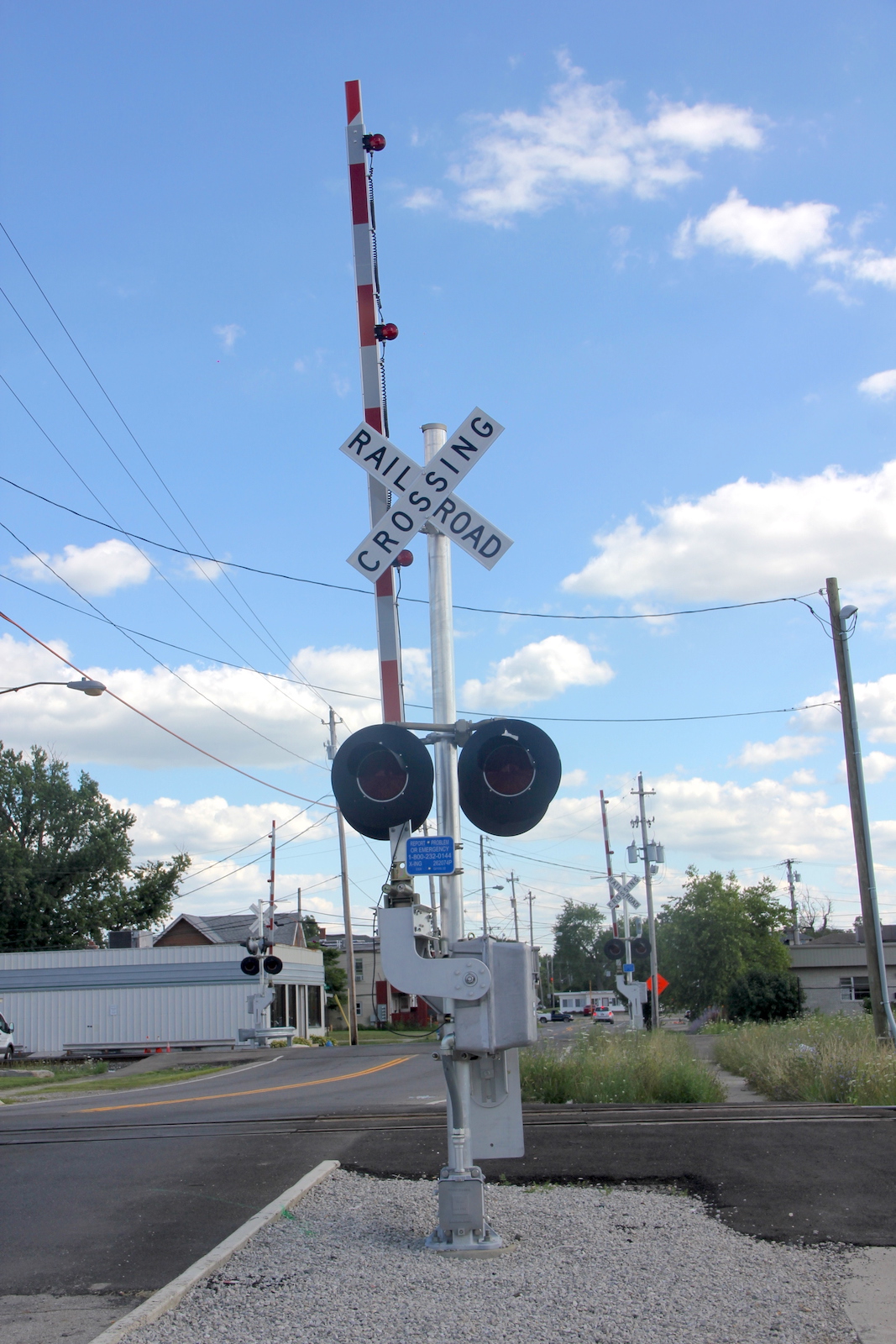

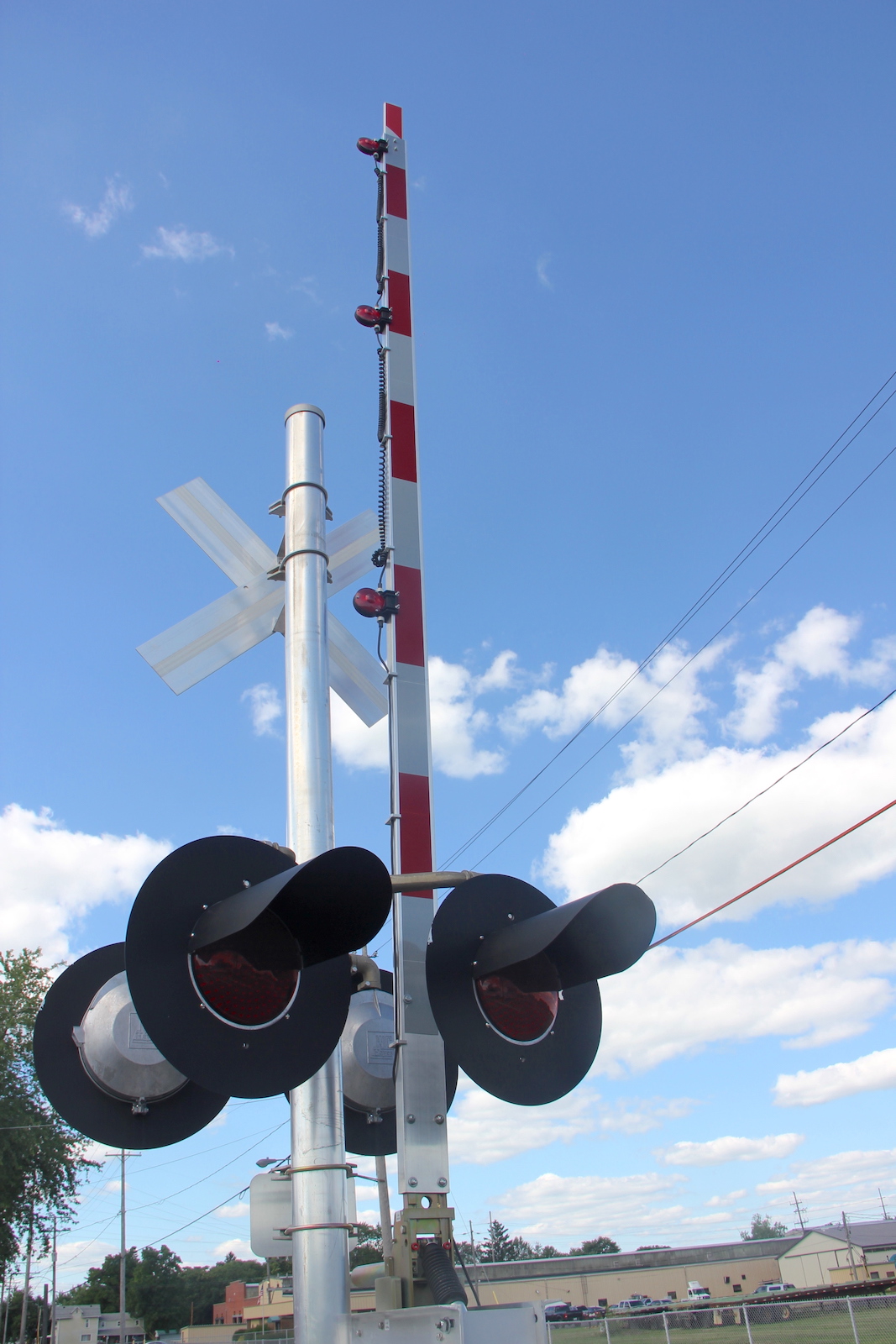

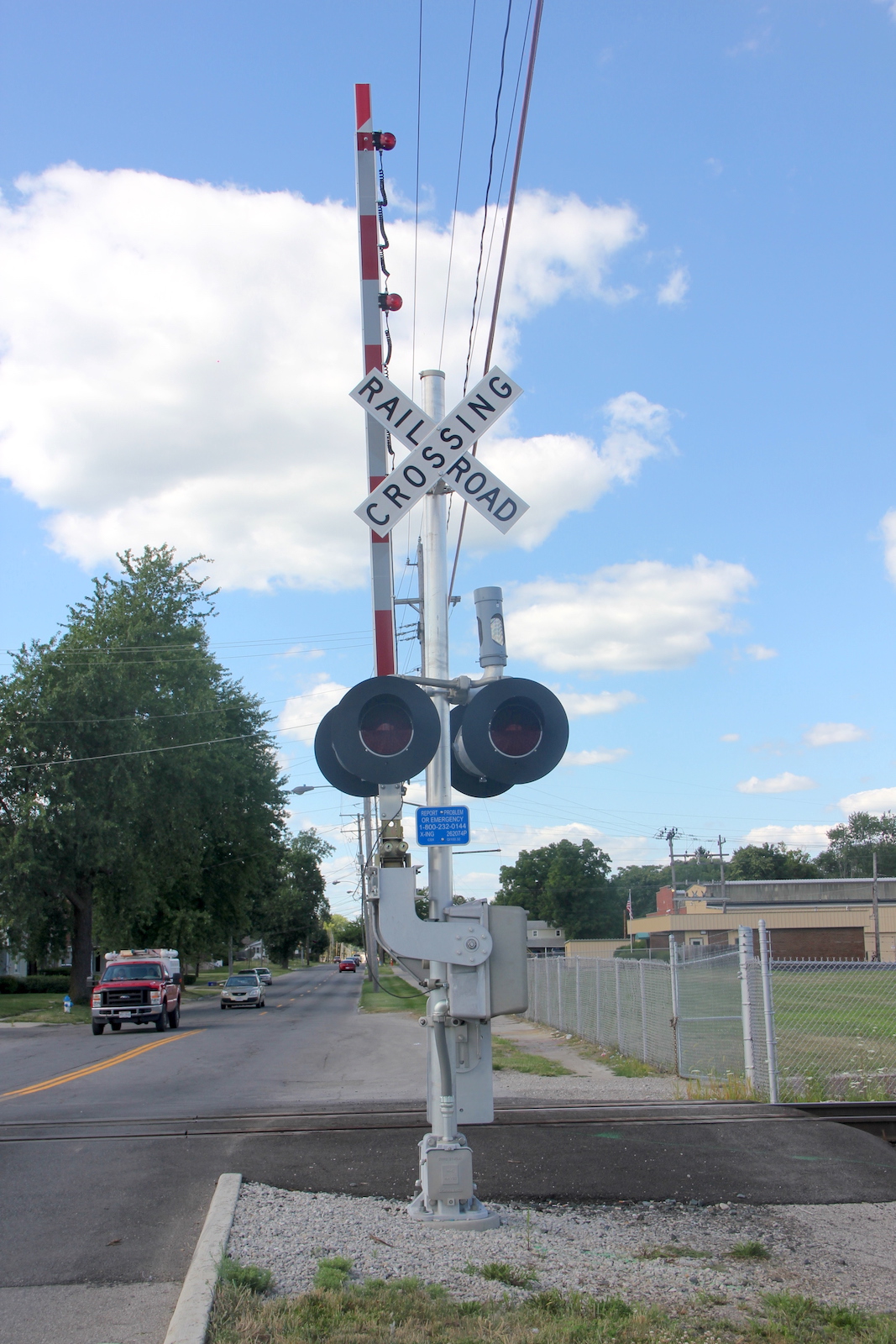

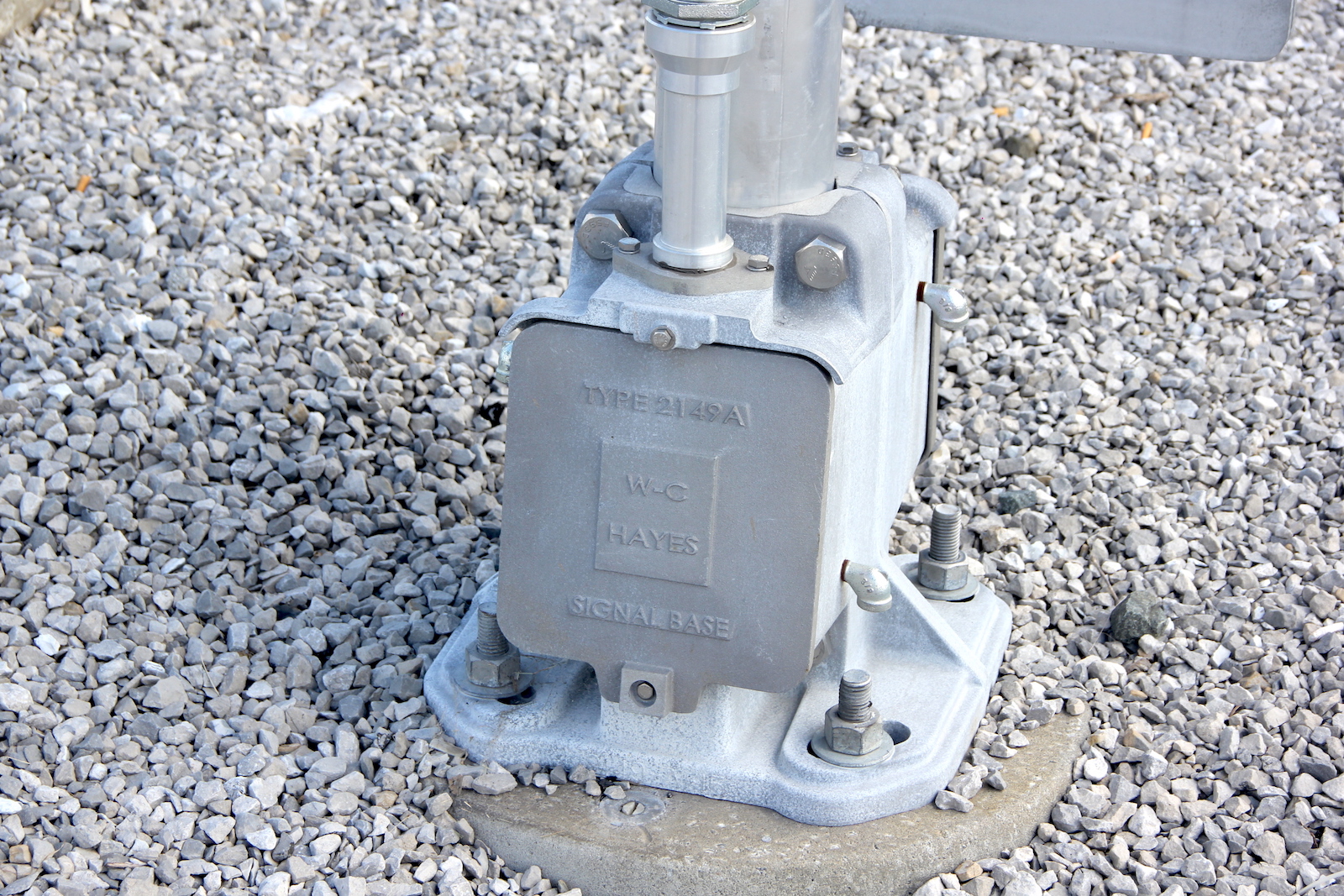

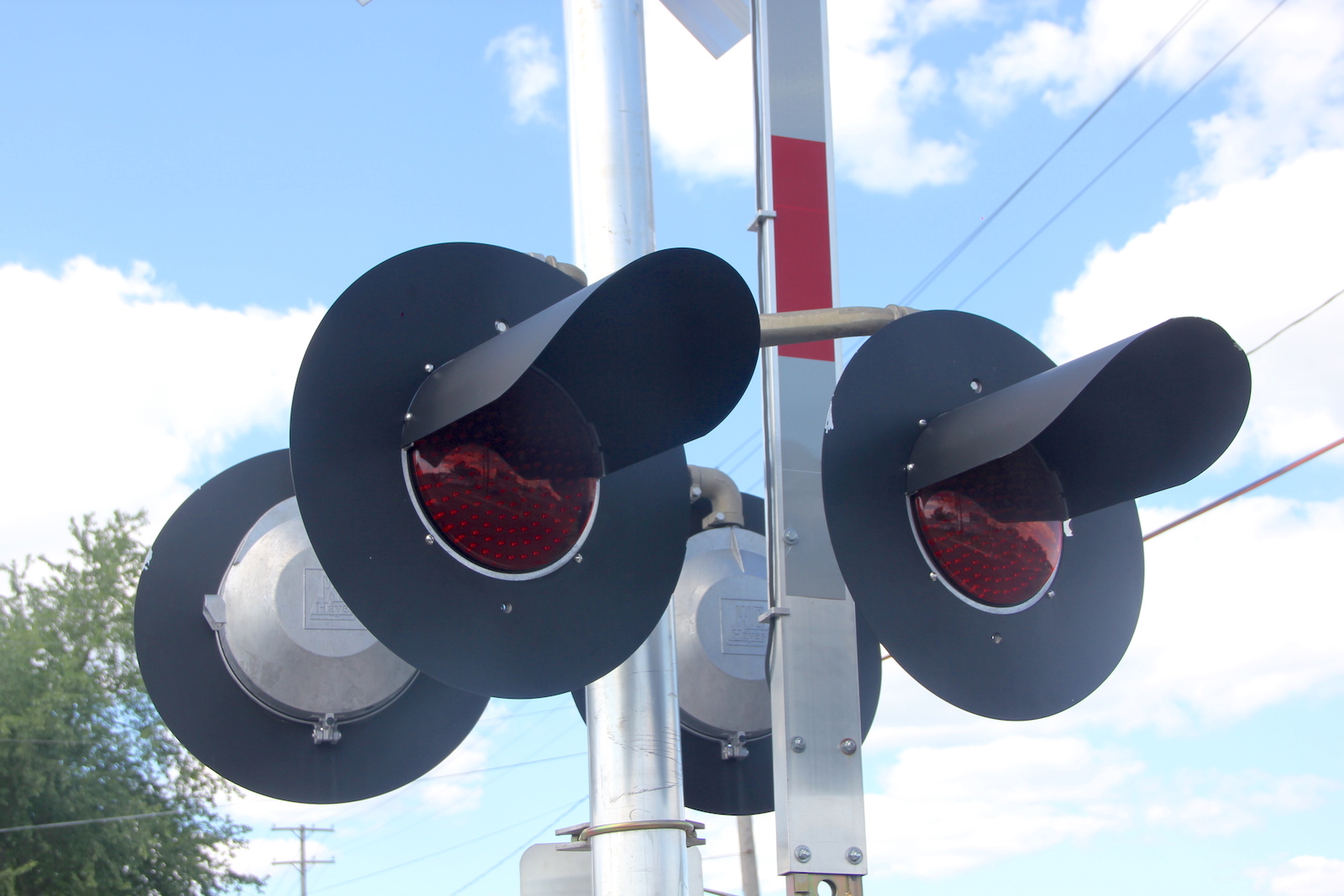

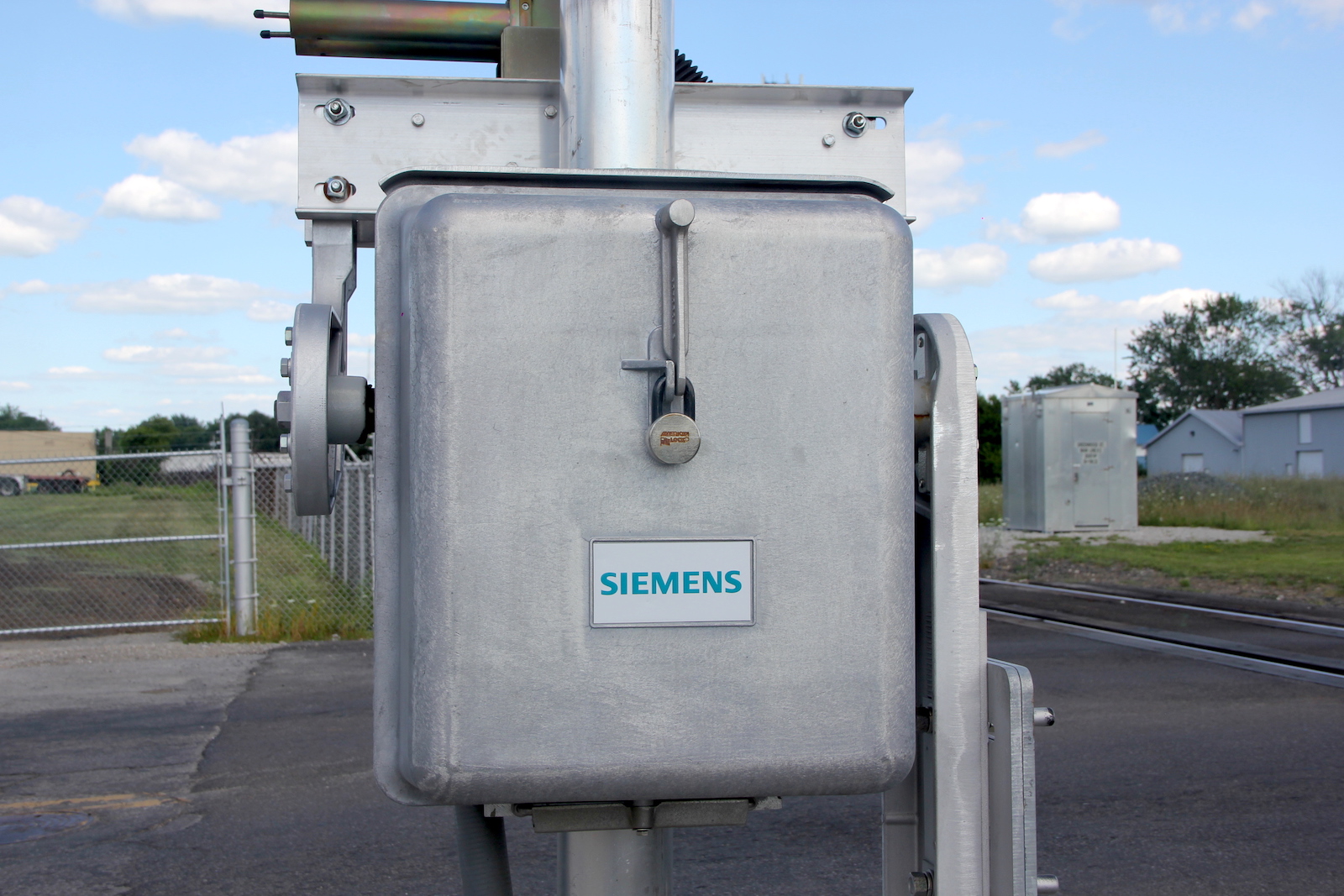

The northern signal.
12 13 14
15 16 17
18 19 20
 21

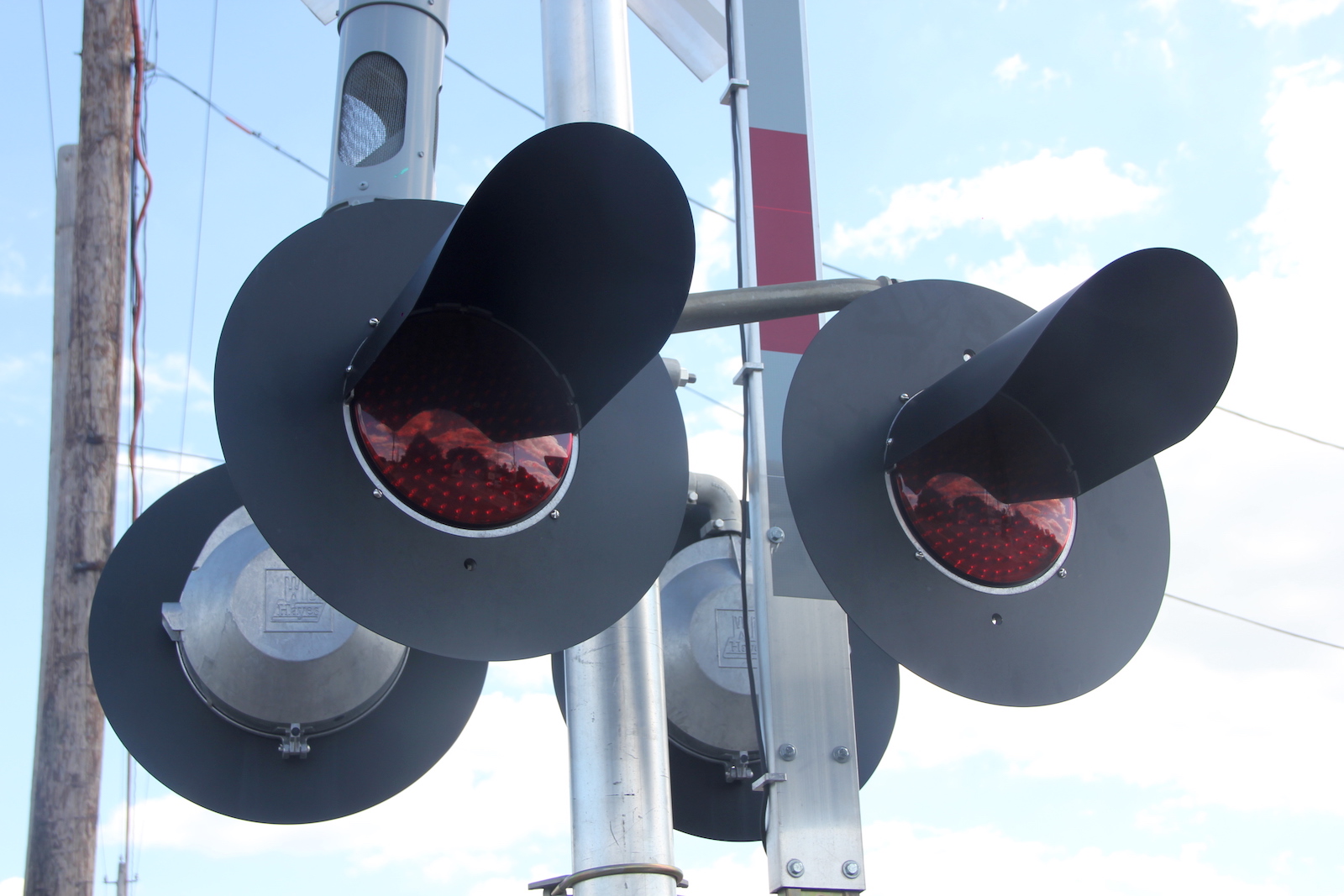

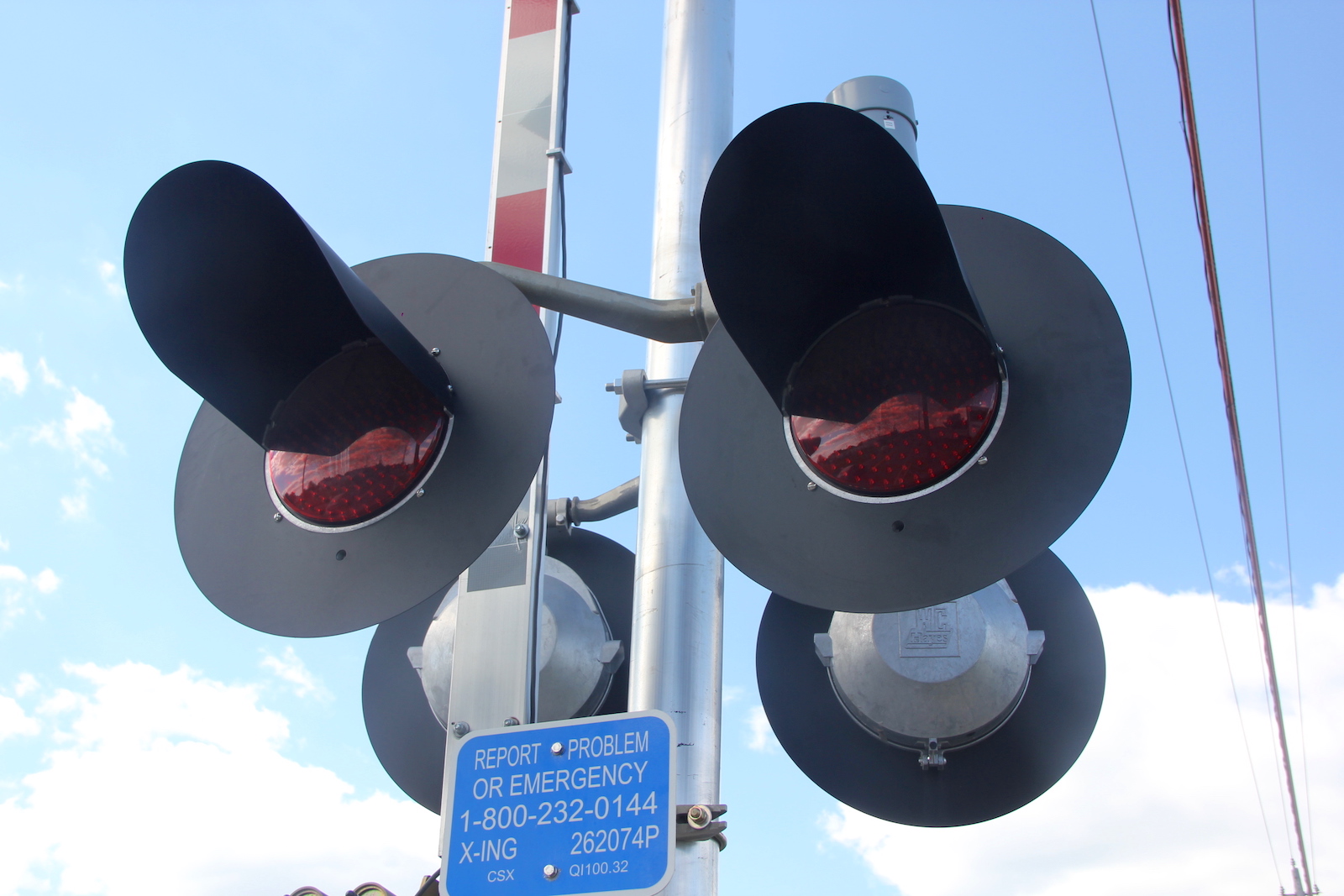

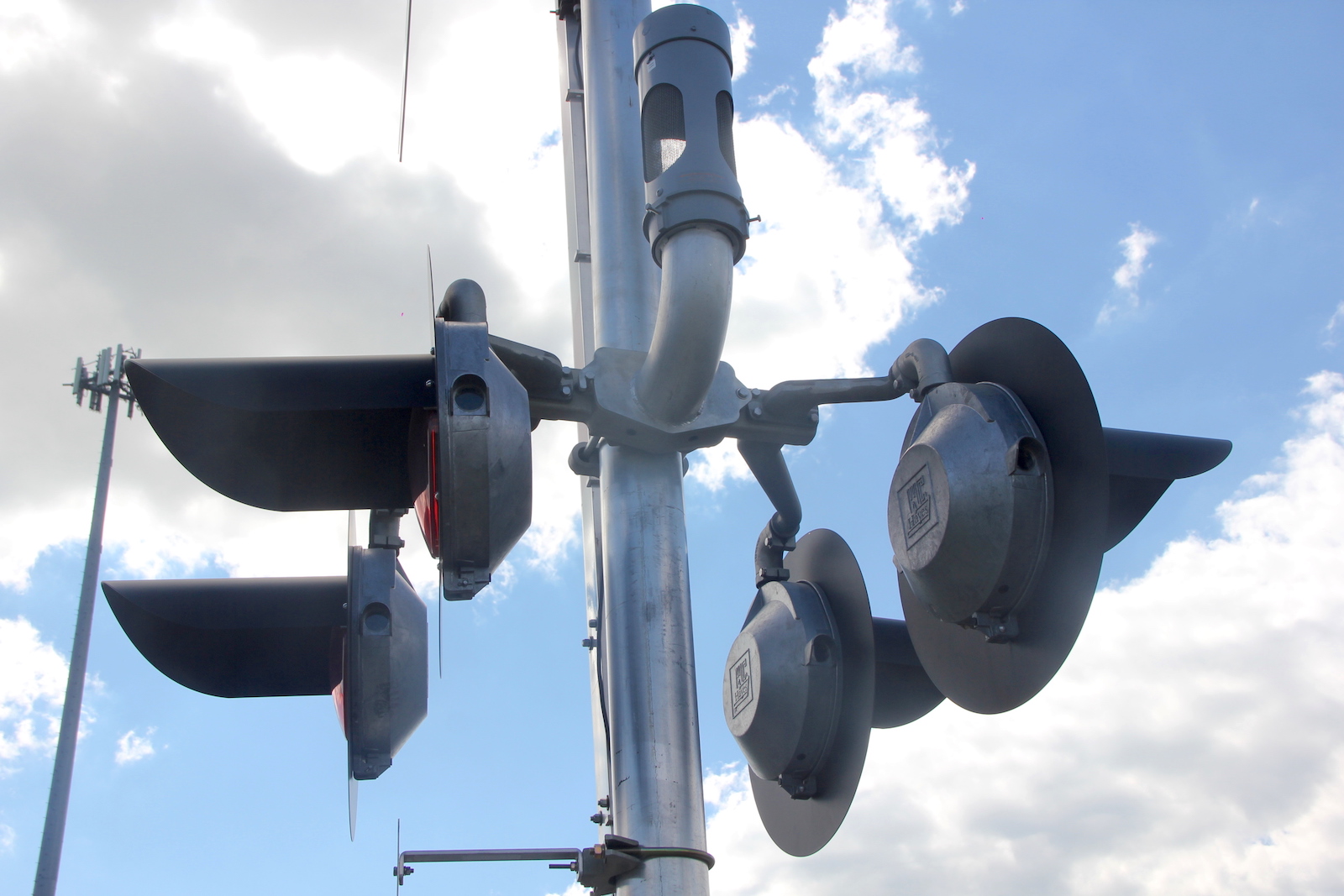

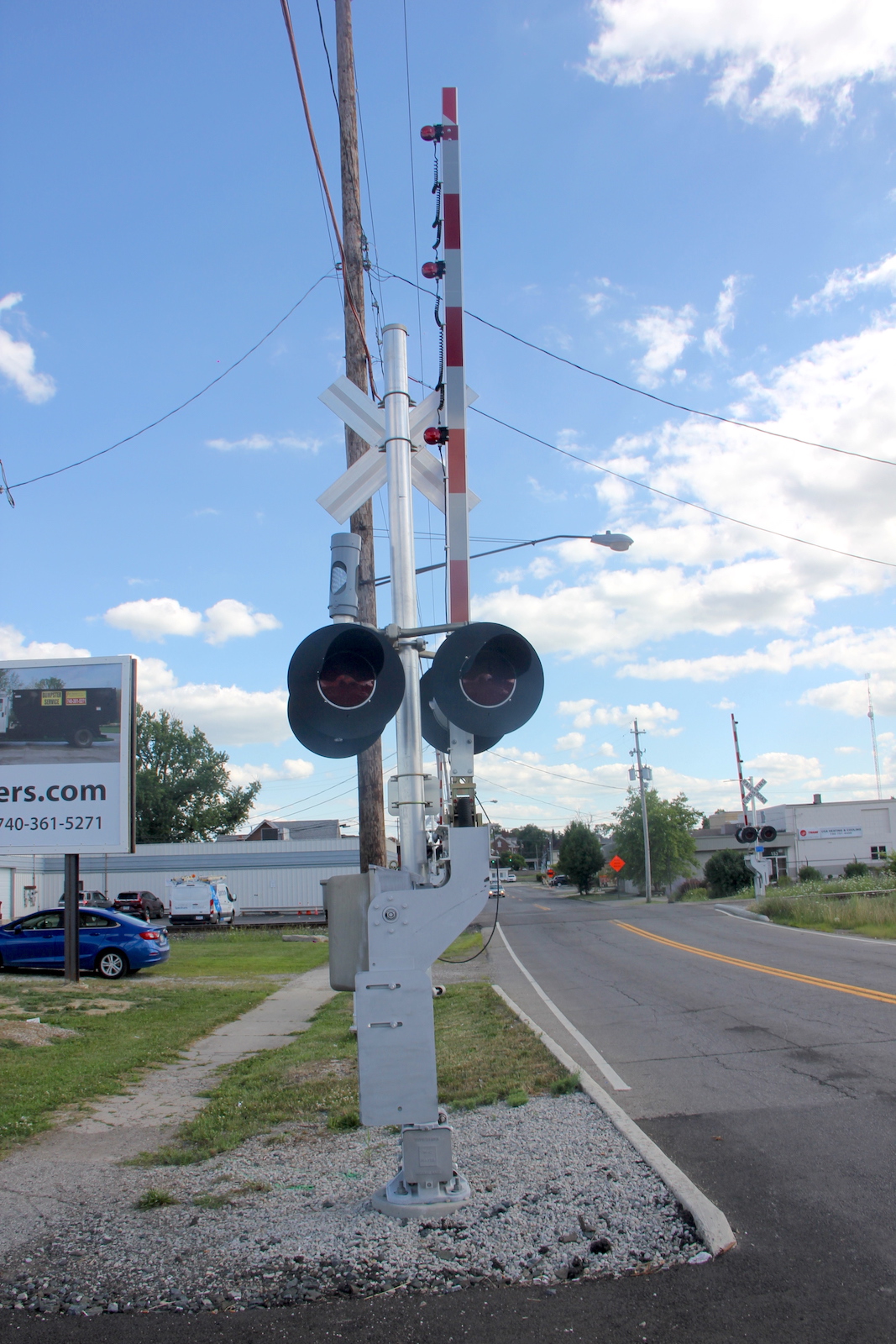

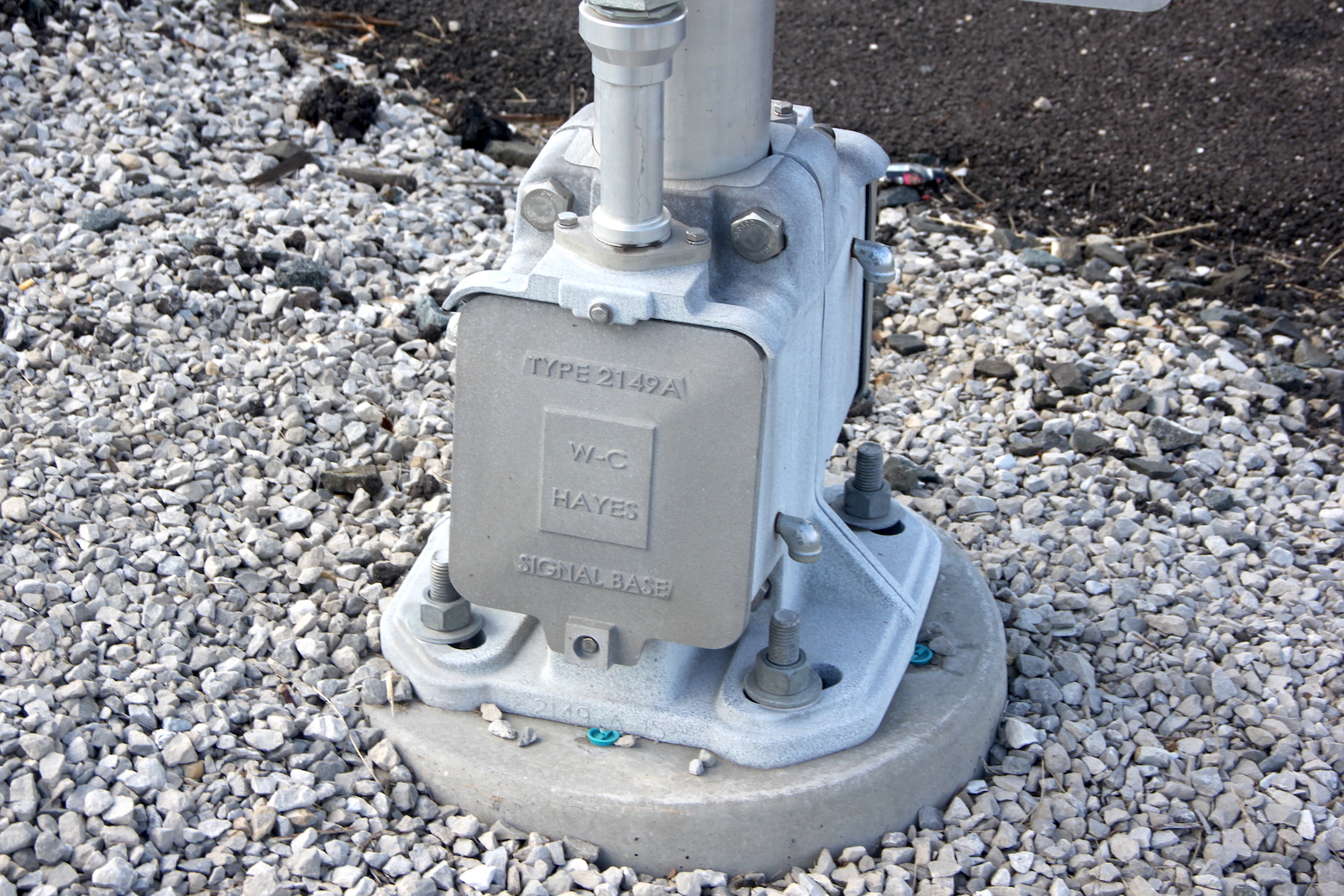

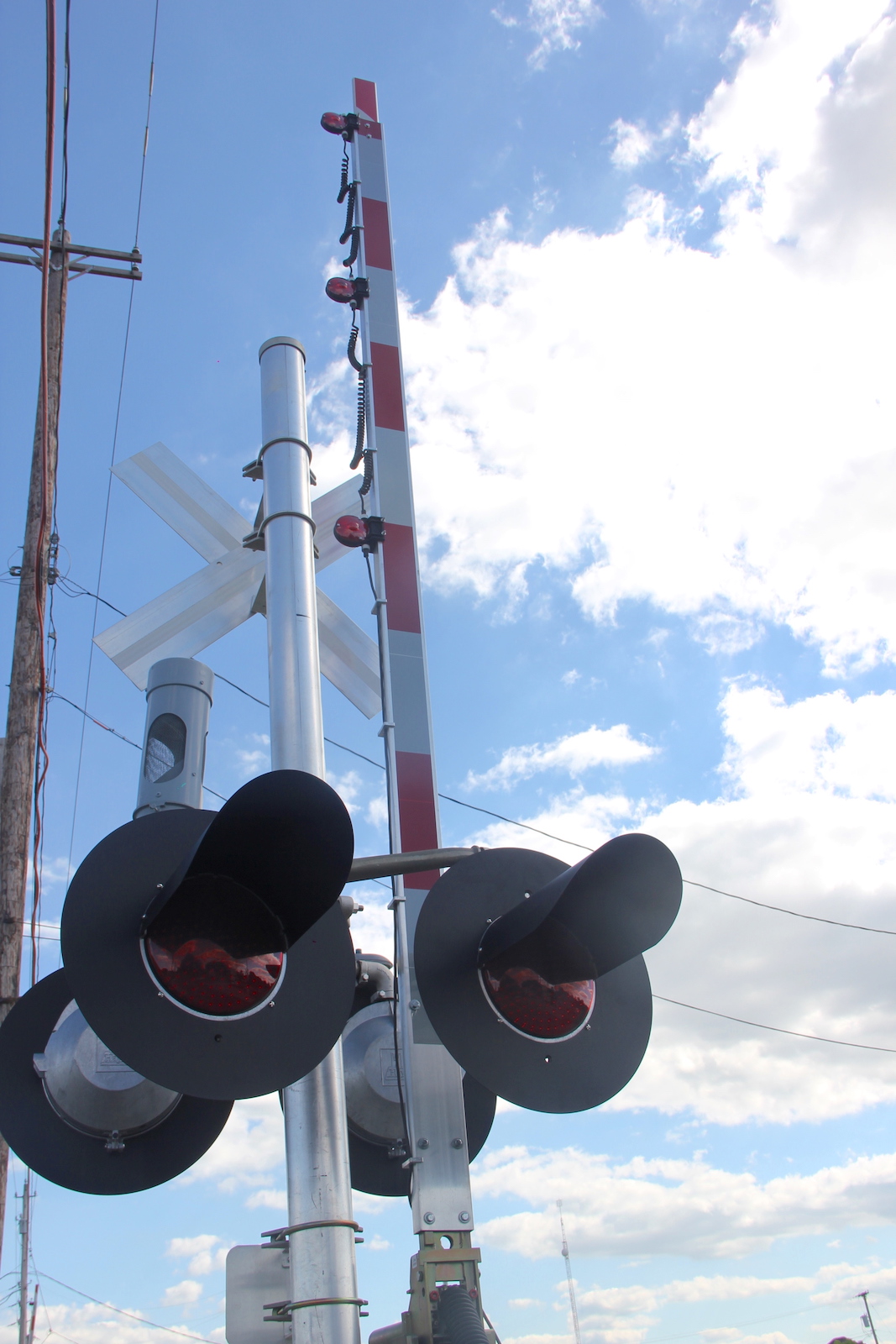

The southern signal.
22 23 24 25

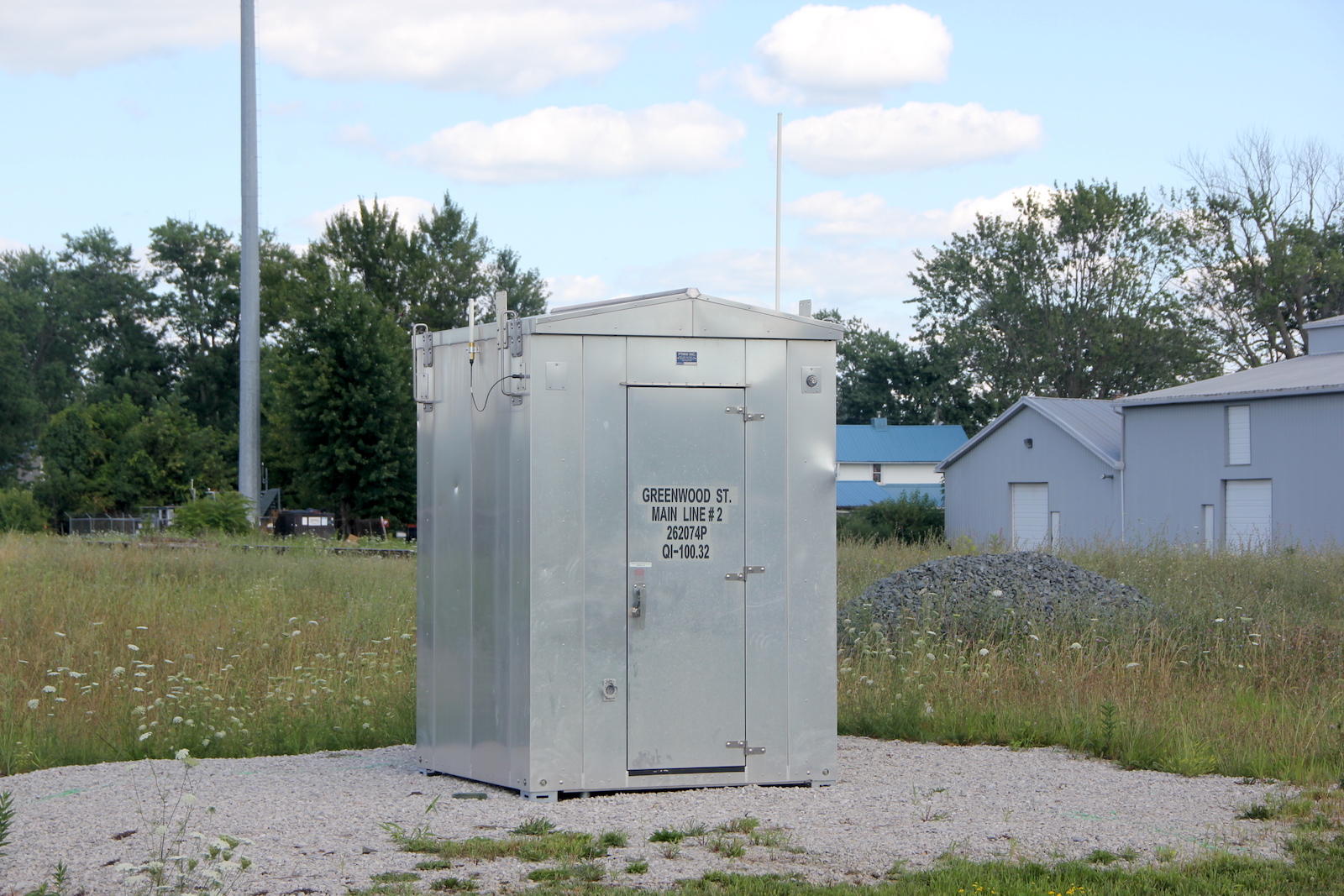

The relay bungalow in the southeast quadrant.

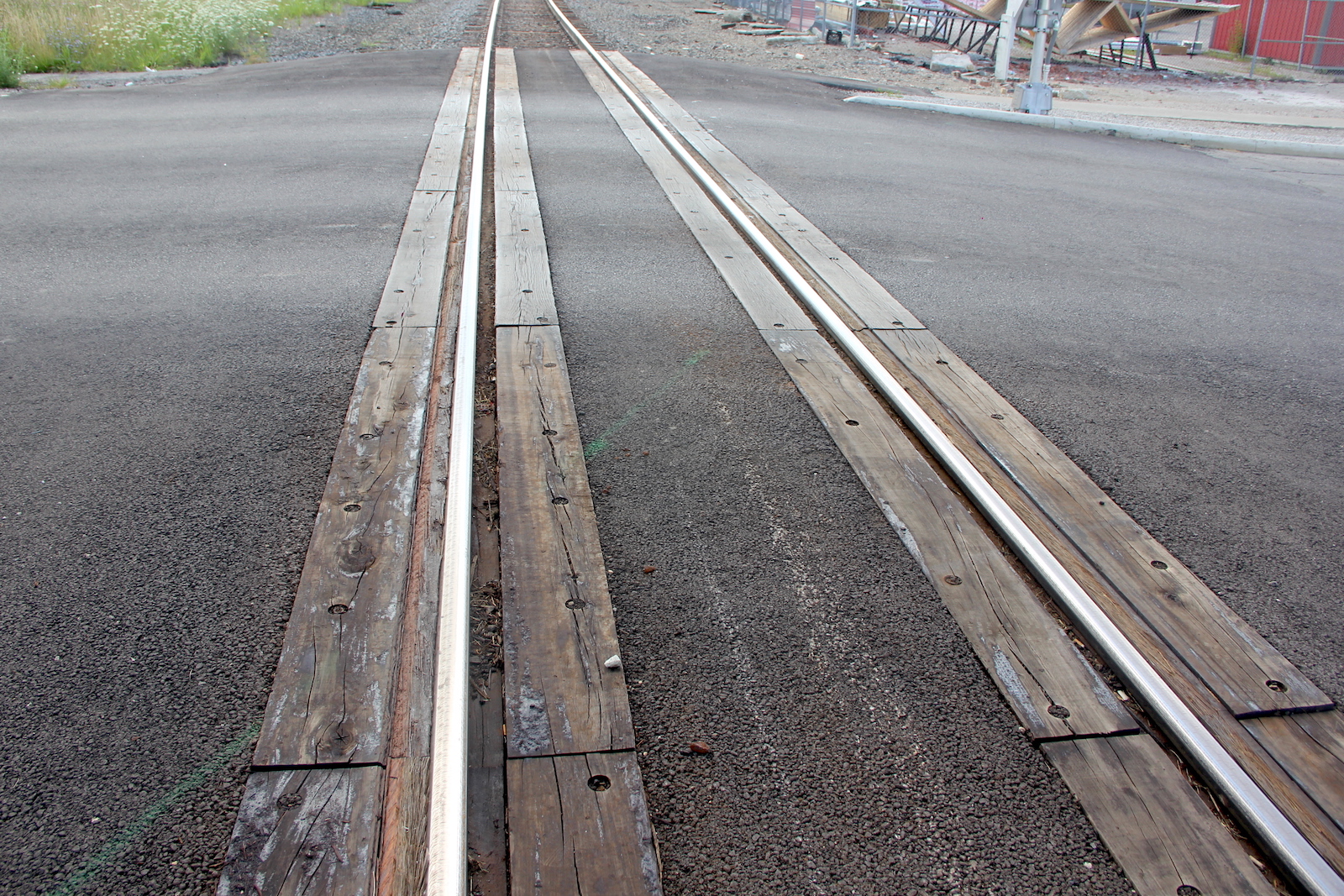

 The grade is wood and asphalt.

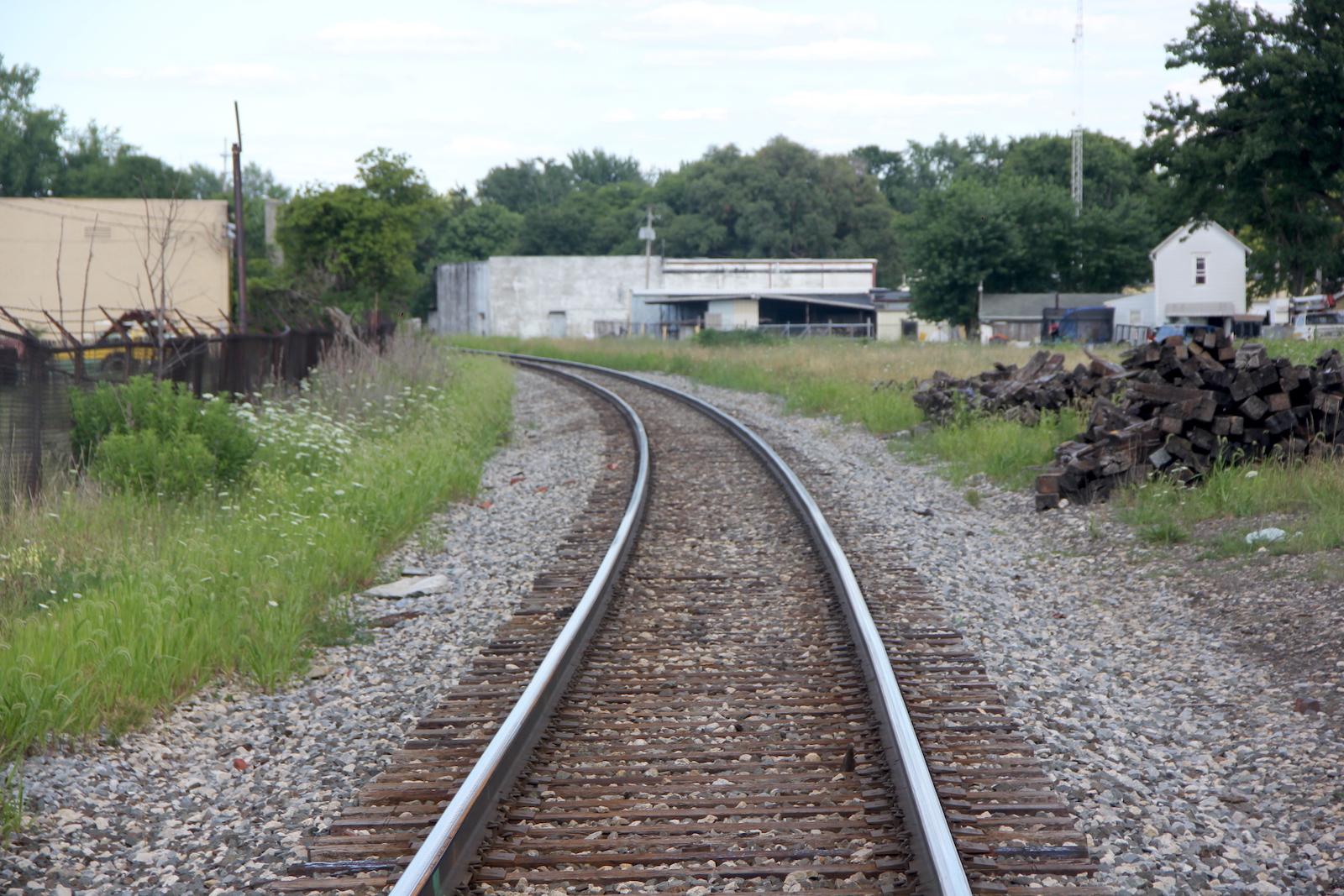

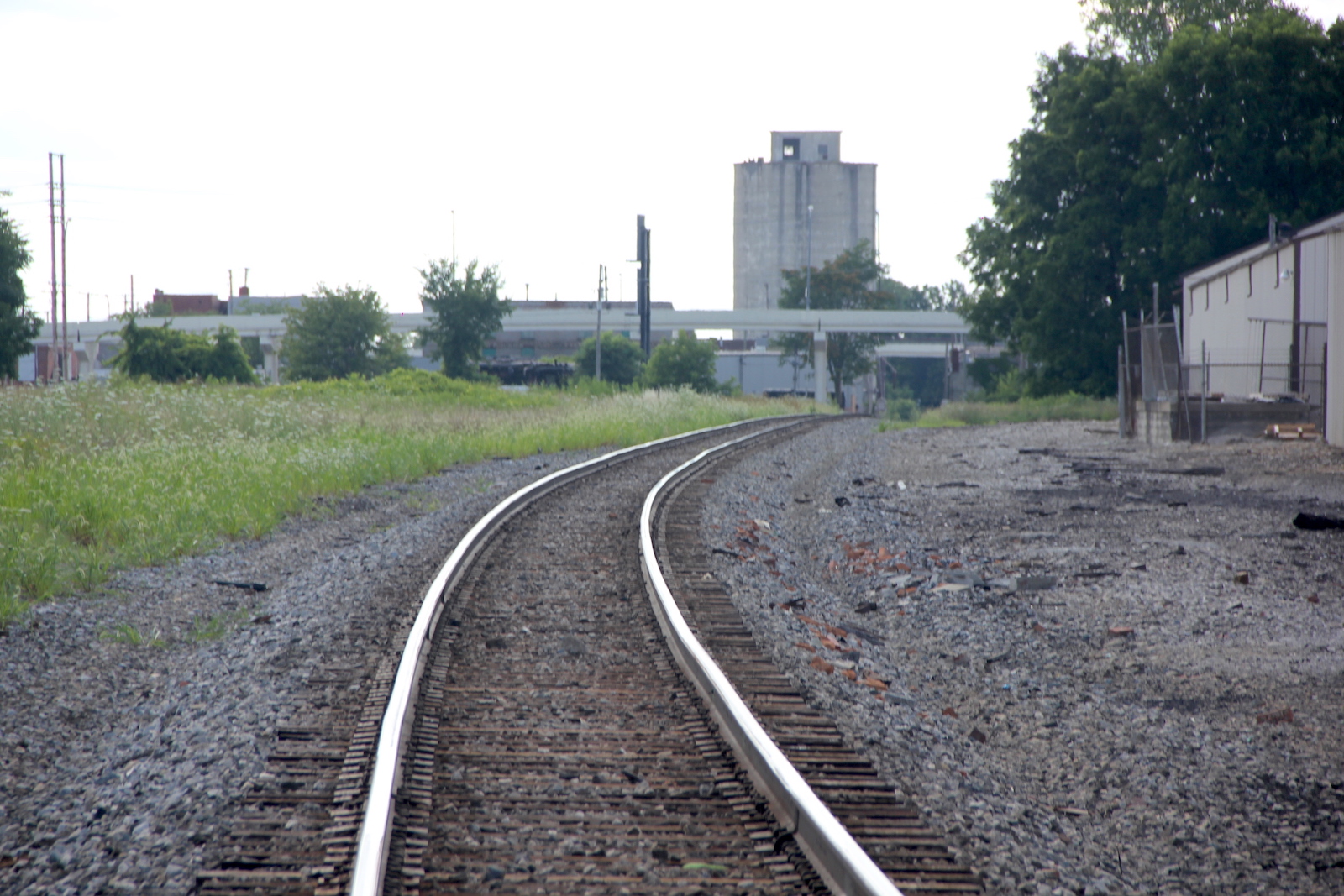

 Track view facing west towards State St. #1.
 Track view facing east towards Jefferson St.

As you can see in the video below, no matter what track the train is on, all 4 signals activate, with the 2 main gates on this crossing and the 2nd crossing lowering together. Depending on which track the train is coming on (let's say the north track in the video below), then the gate on the southern signal will lower while the other stays raised.
