100.31

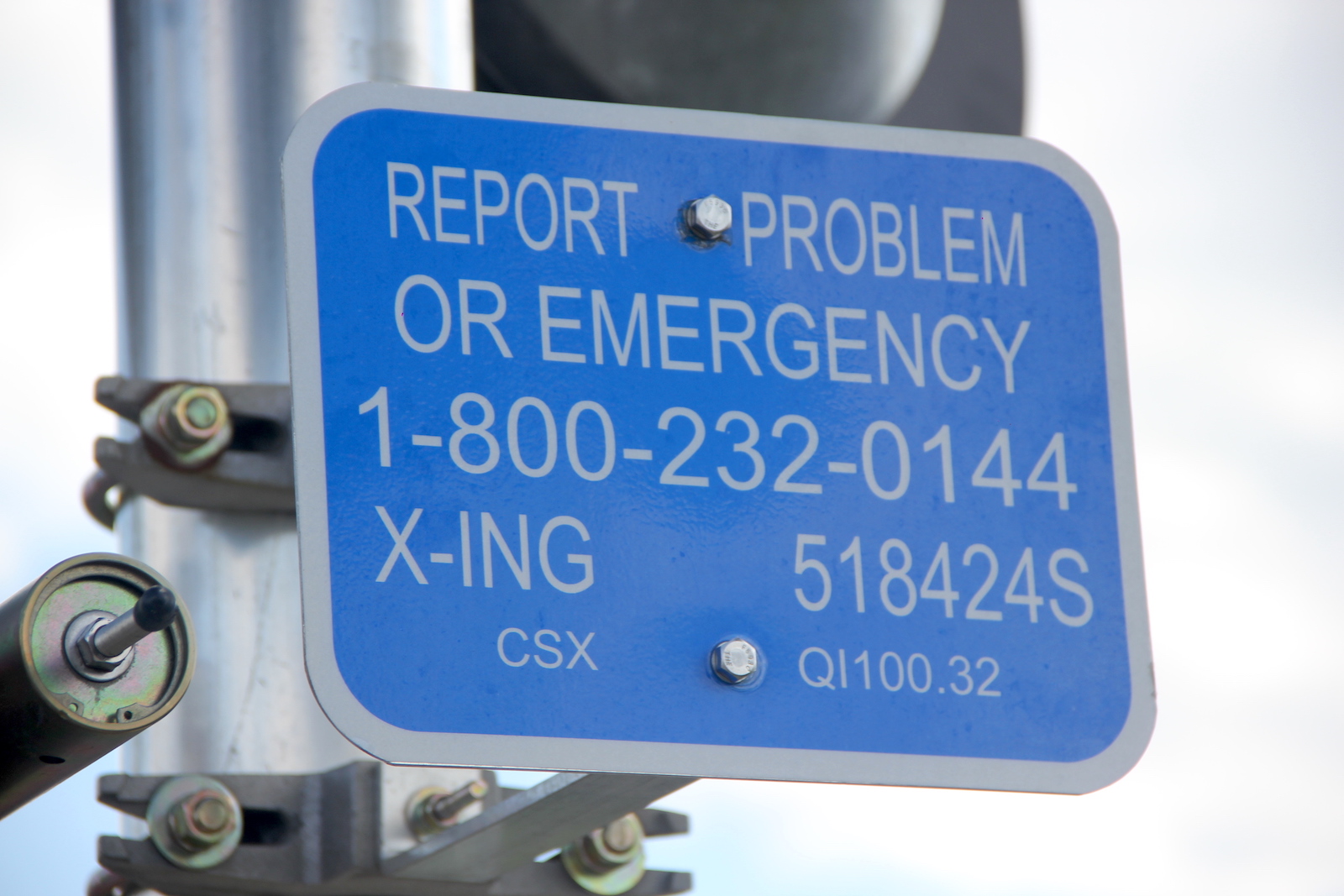

518424S

>>>>>>>>>>>>>> Northern Signal Southern Signal

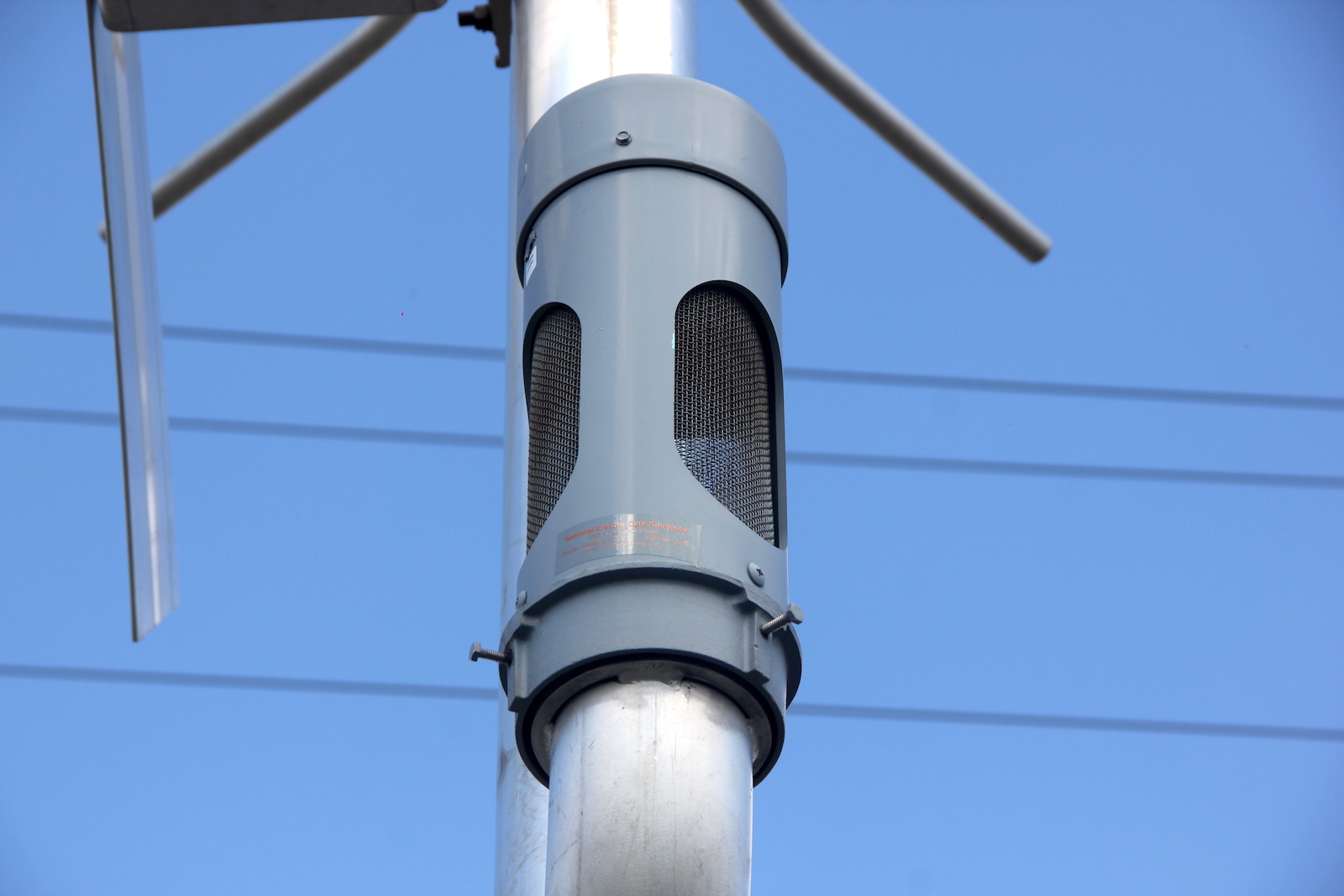

Bell: NEG E-Bell None

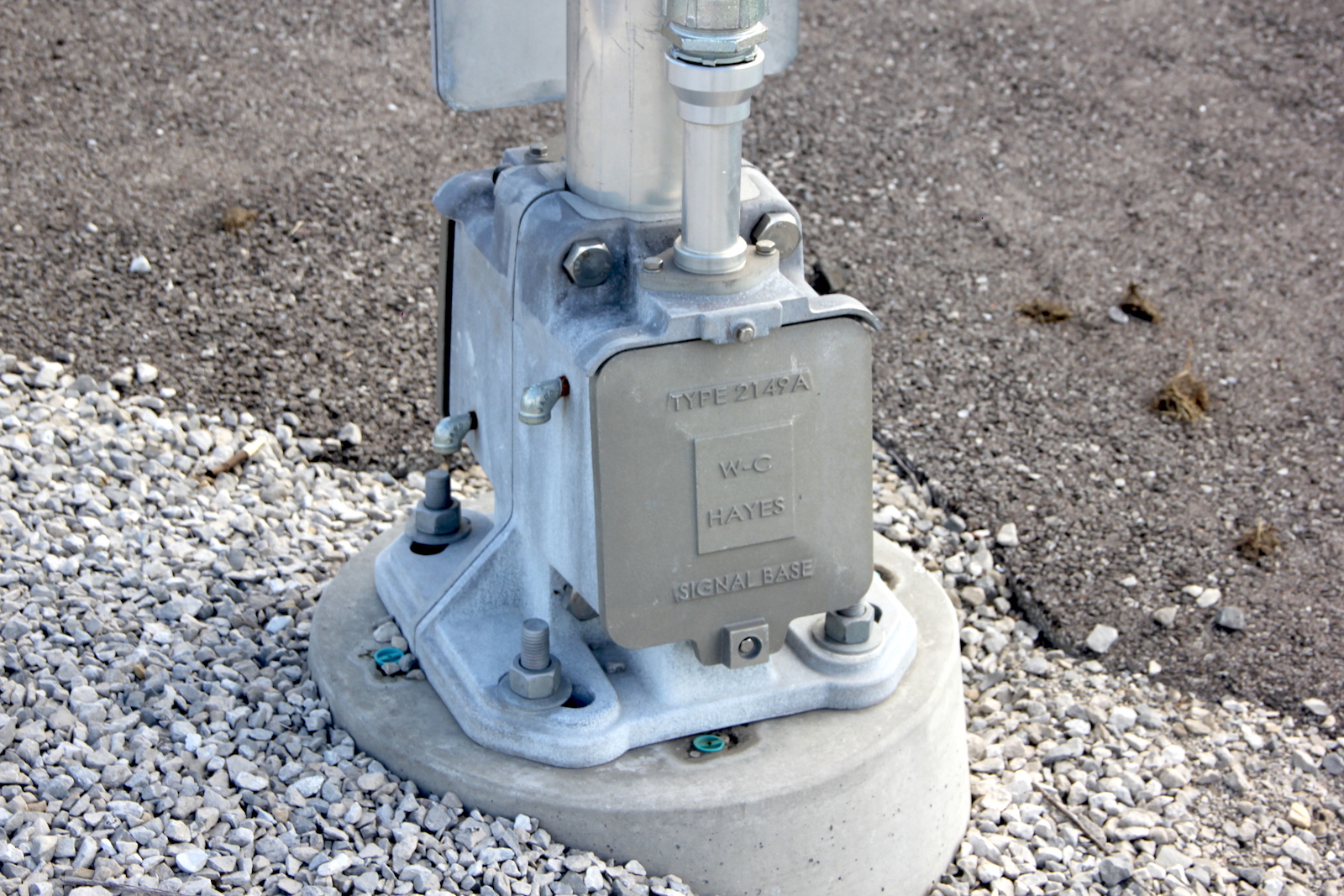

Base: WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ Leotek EV LEDs 4 - 12"x24" WCH w/ Leotek EV LEDs
4 - 12"x24" Safetran w/ 2nd Gen WCH LEDs
Junction Box: WCH w/ Bell Extension 1 - WCH
1 - Safetran
Gate Lights: 3 - NEG 4" LEDs
 3 - NEG 4" LEDs

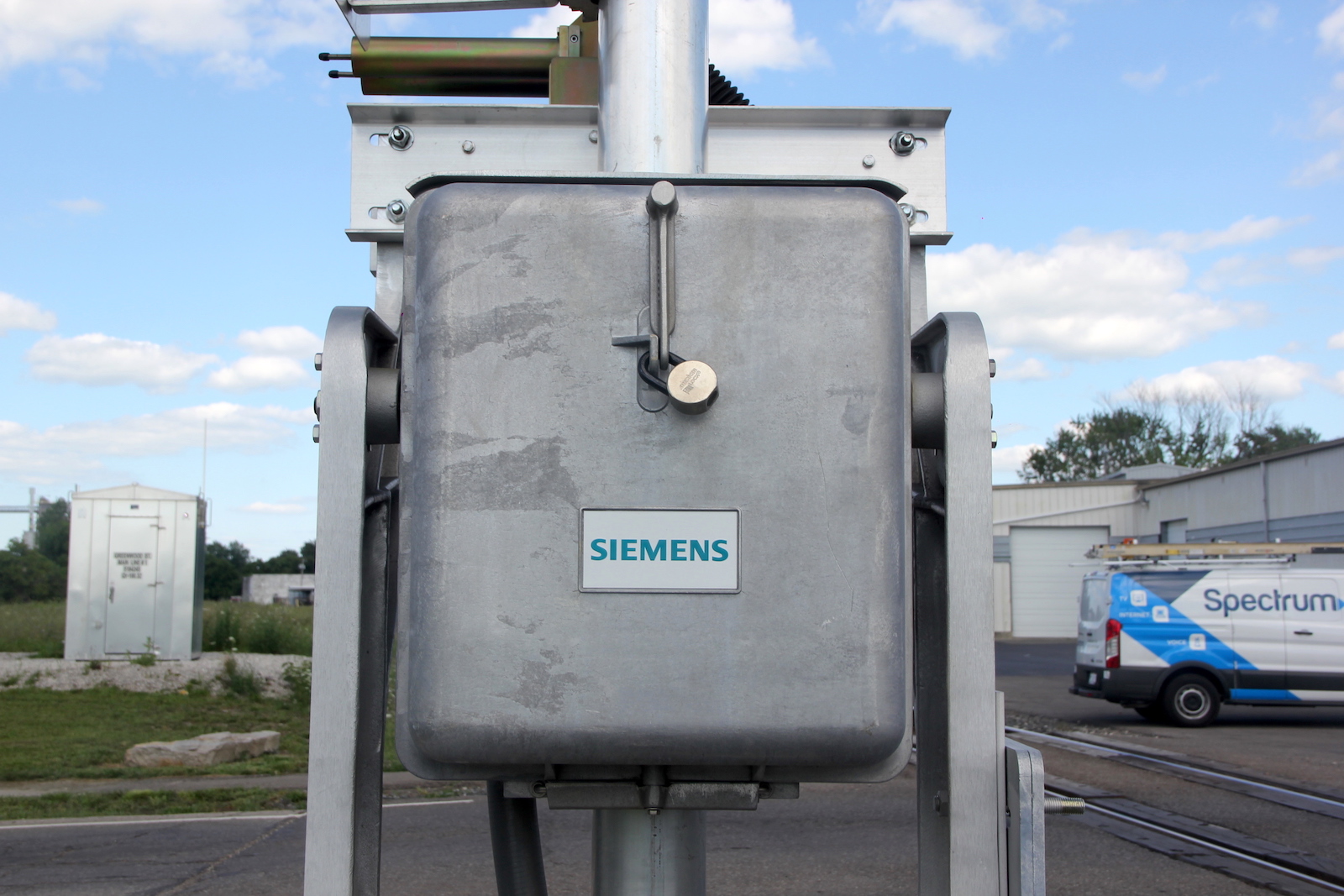

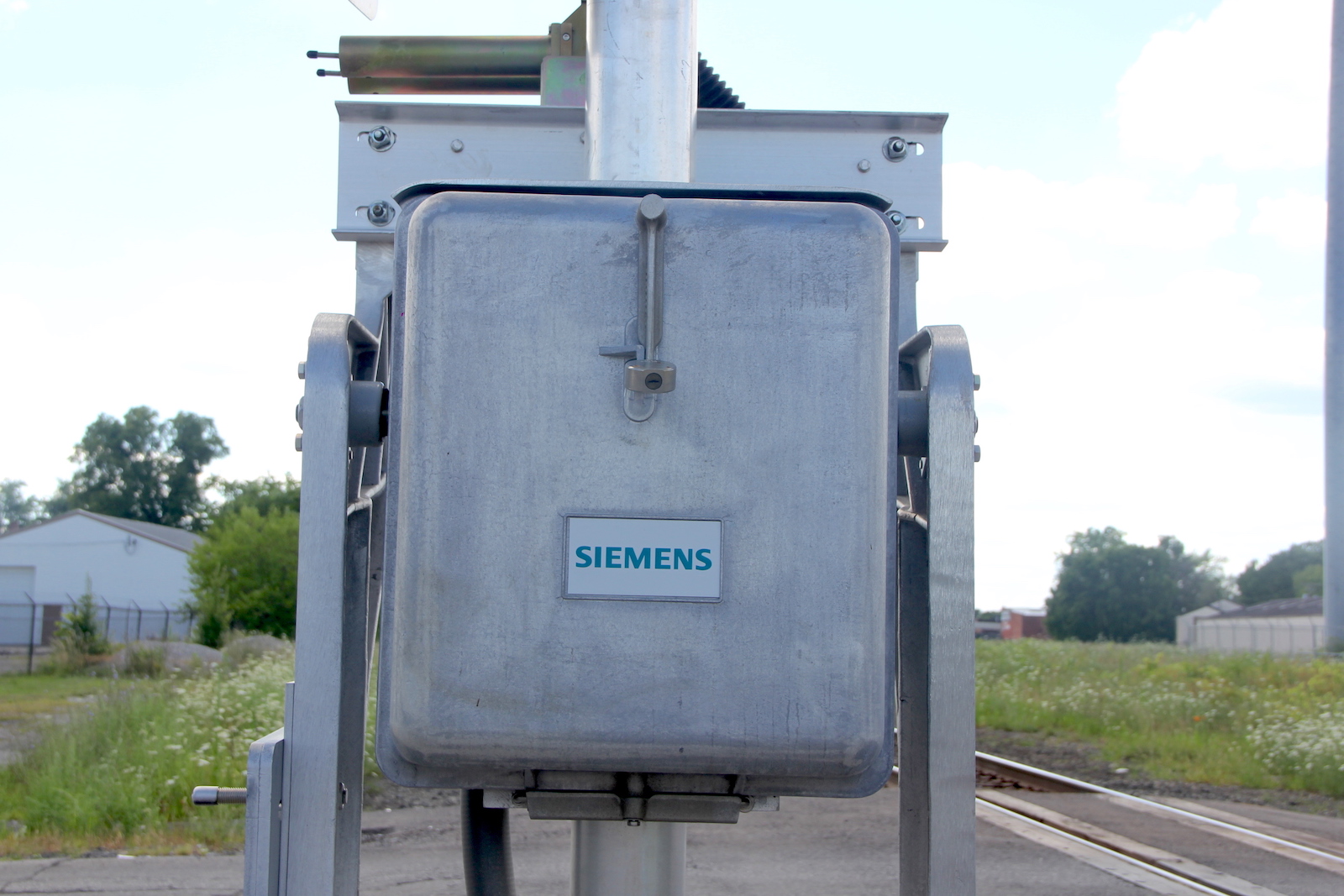

Gate Mechanism: Siemens Sticker Style 2 w/ Old NEG 2 Way Siemens Sticker Style 2 w/ Old NEG 2 Way
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on July 18, 2018, by Tommy McGowan.
The video was taken on August 24, 2024, by Nicholas Miles/Northwestern Ohio Rail Productions.
This crossing is located on the south track of the CSX Mt. Victory Sub. It functions as a double crossing with Greenwood Street #1.

1
 2

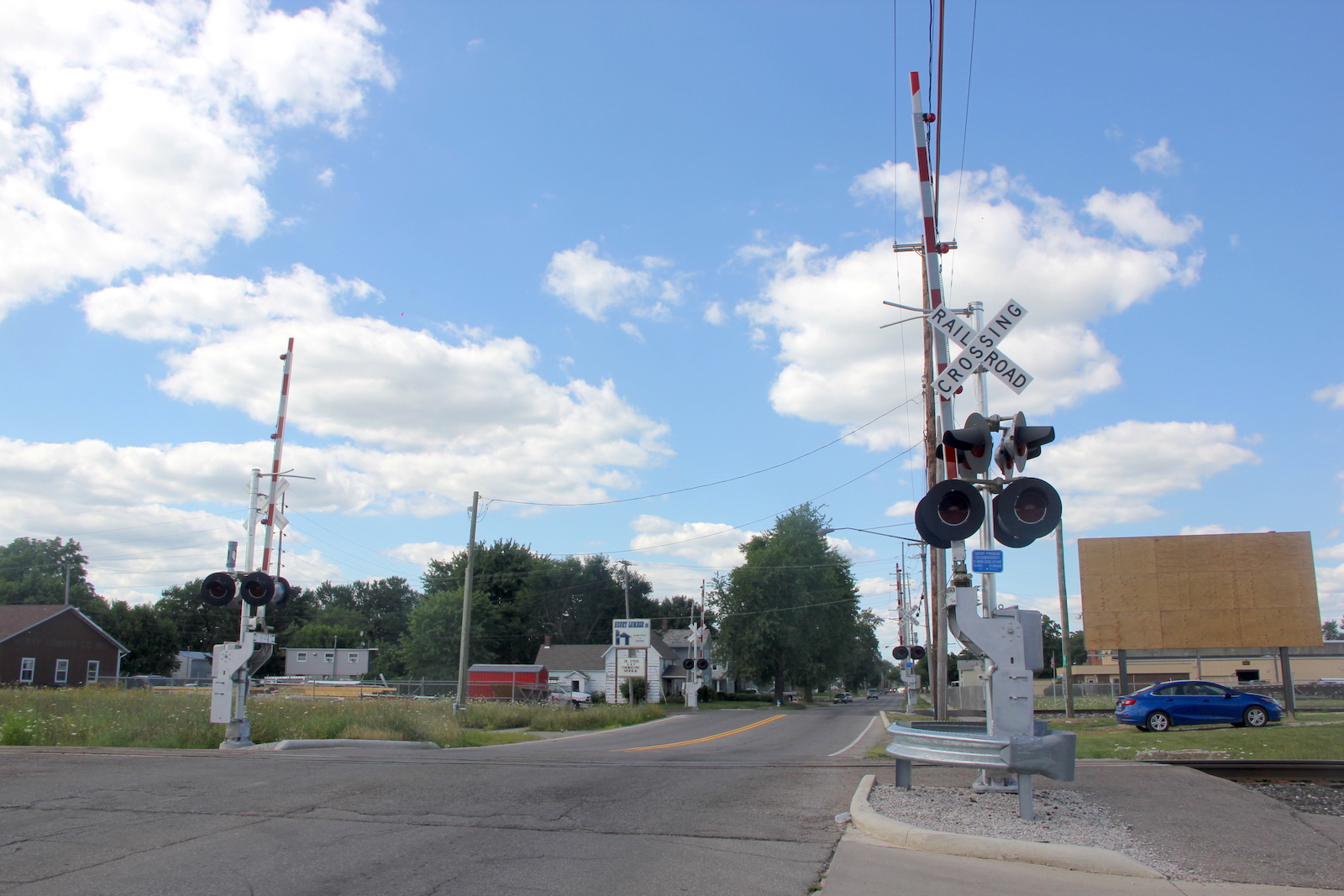

Overview of 2 new gated signals facing south.

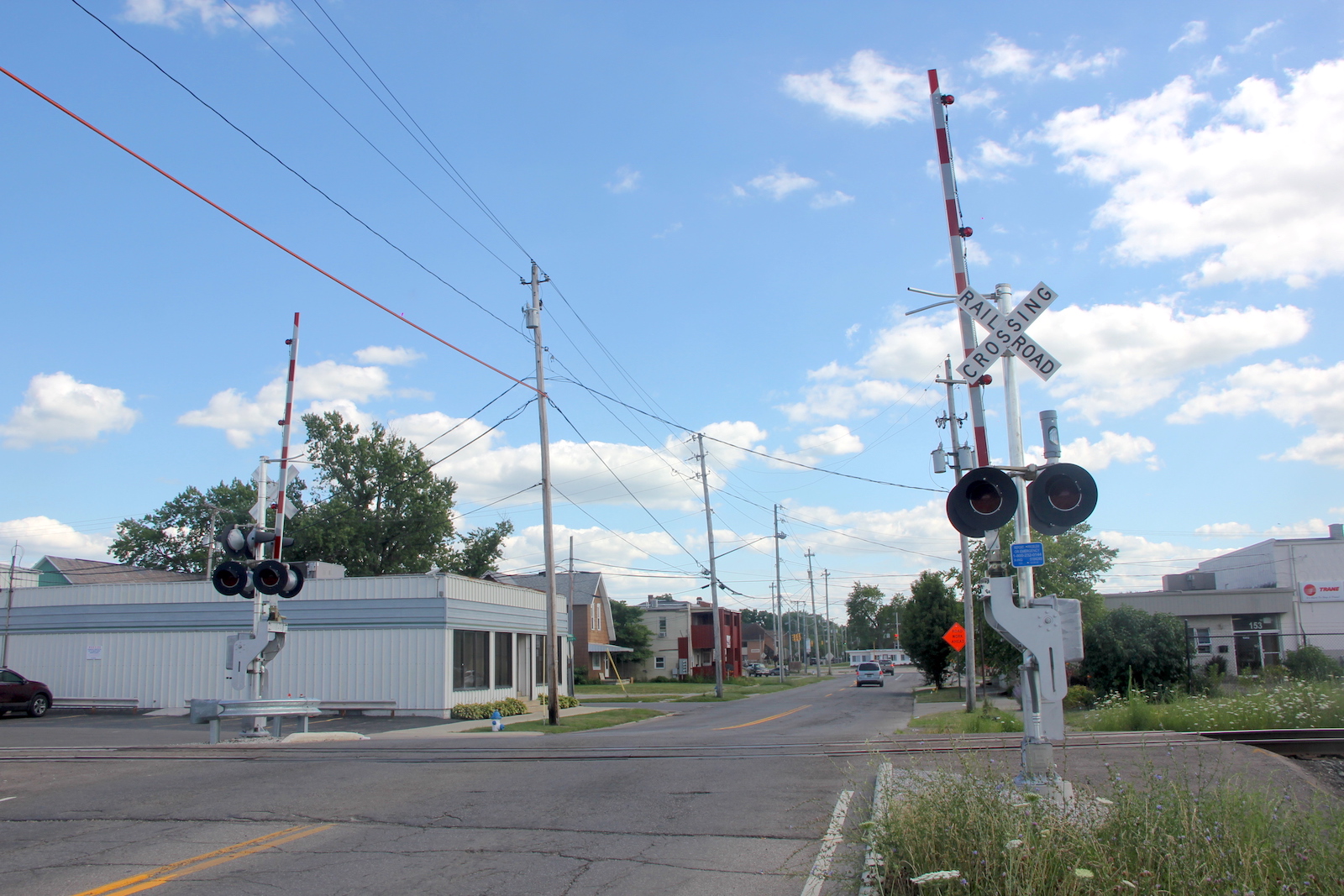

 Overview facing north.
3 4 5
6 7 8
9 10 11 12

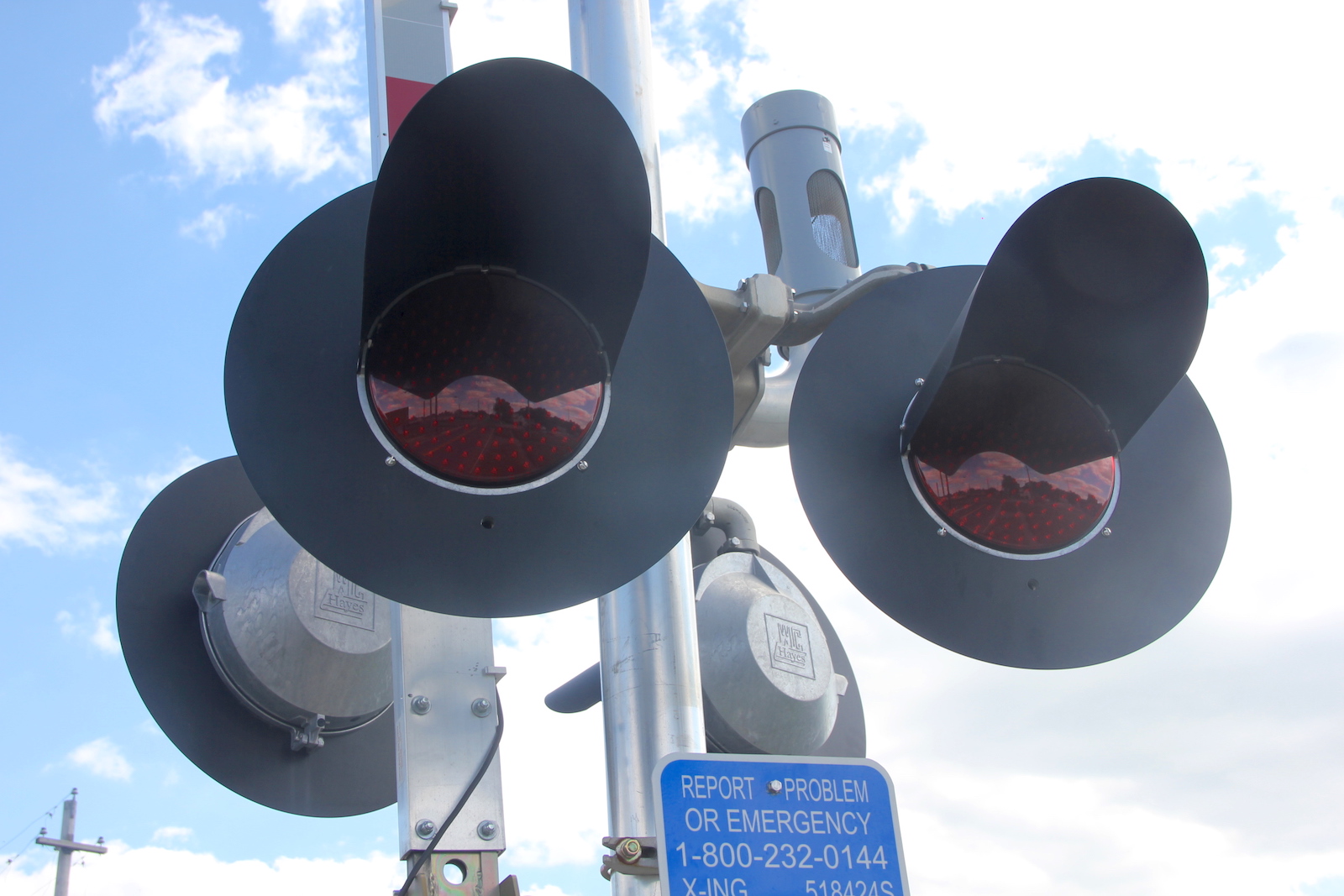

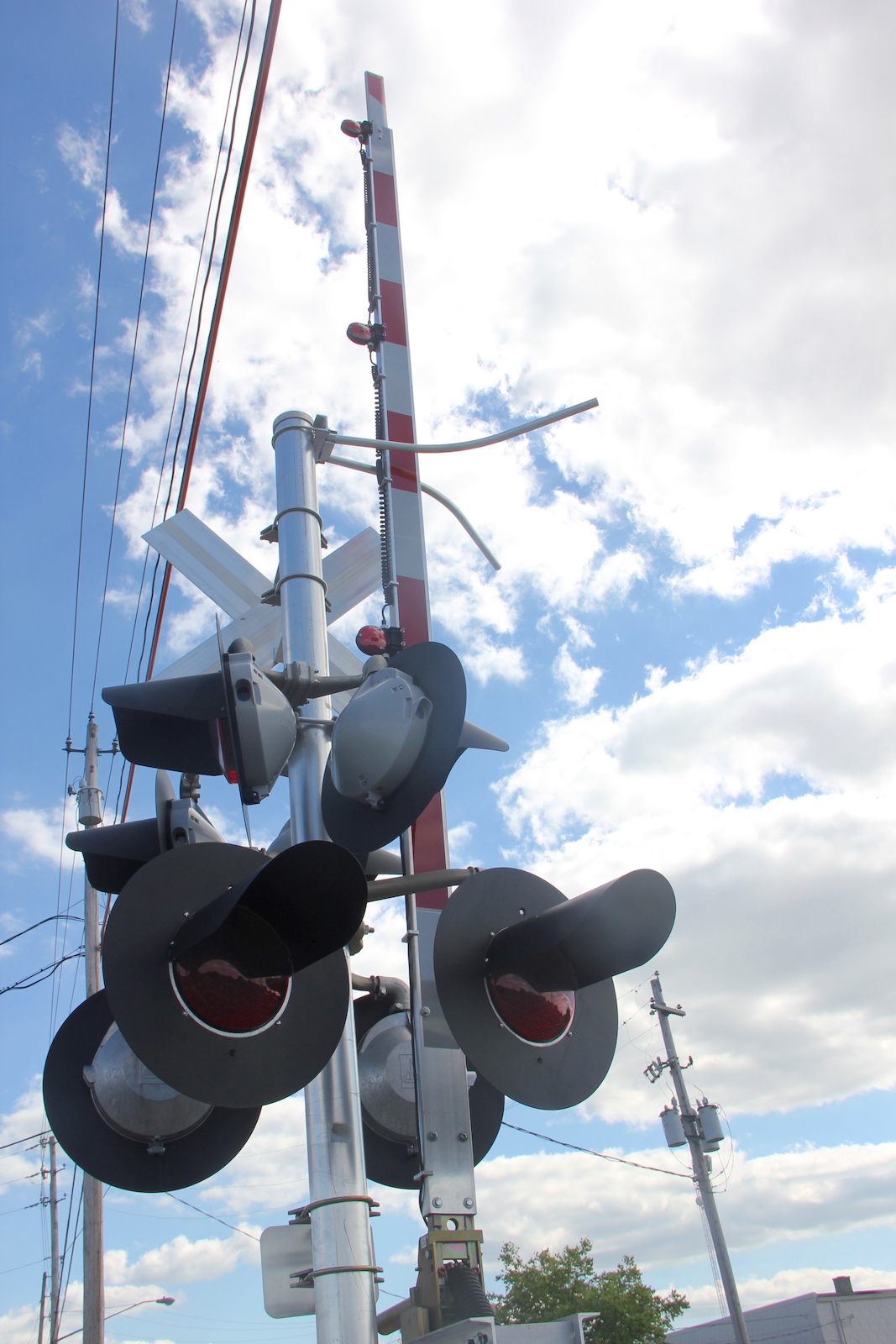

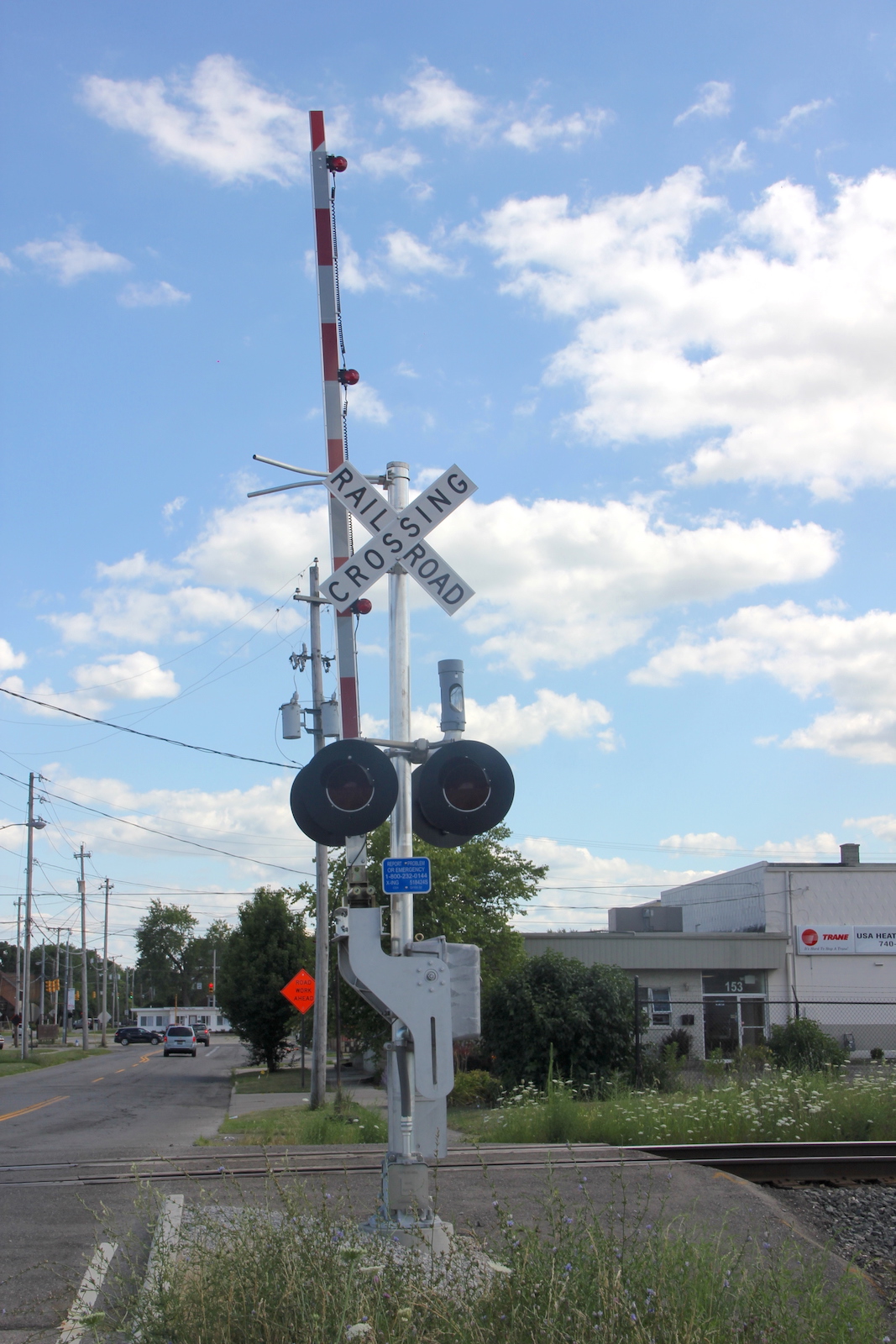

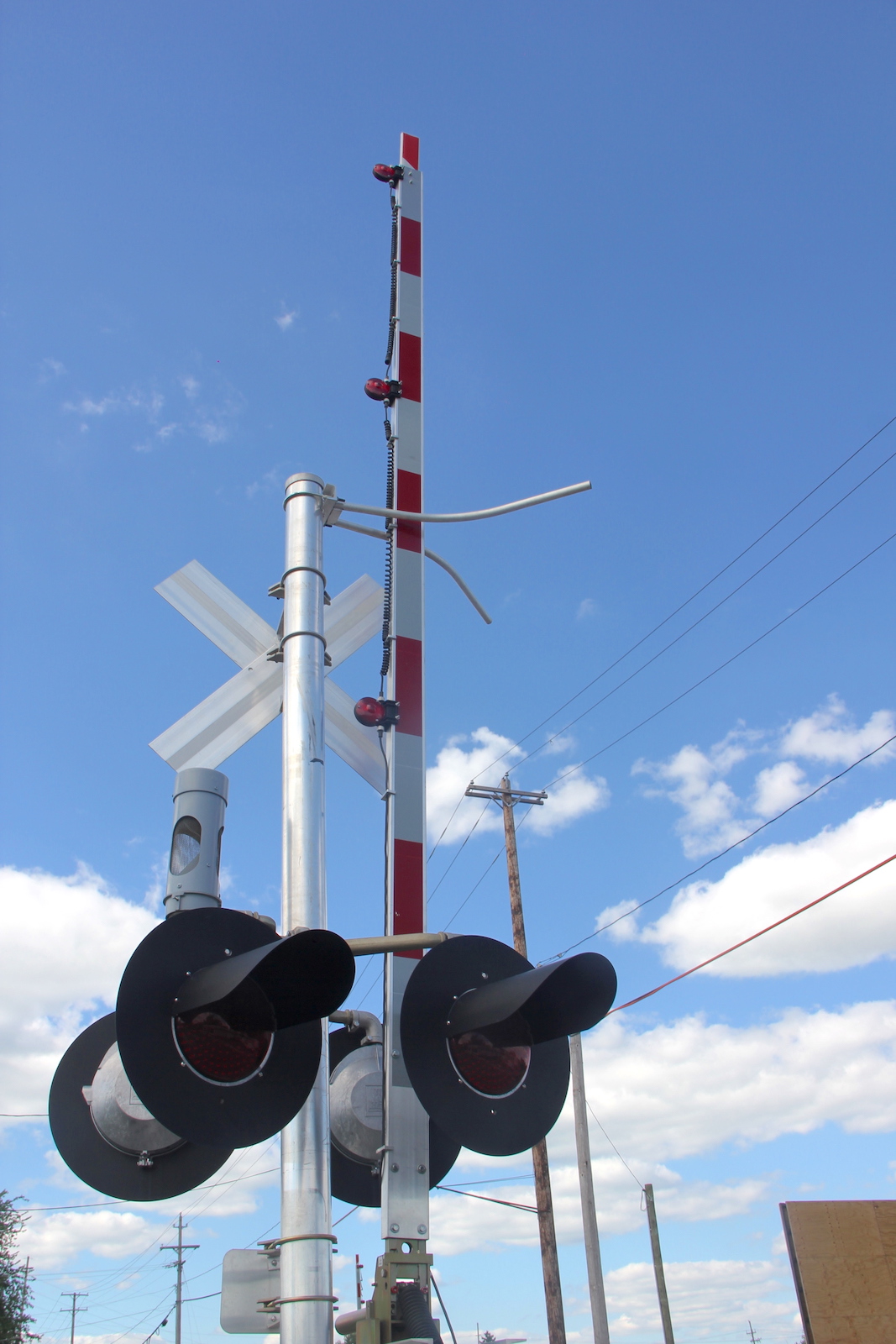

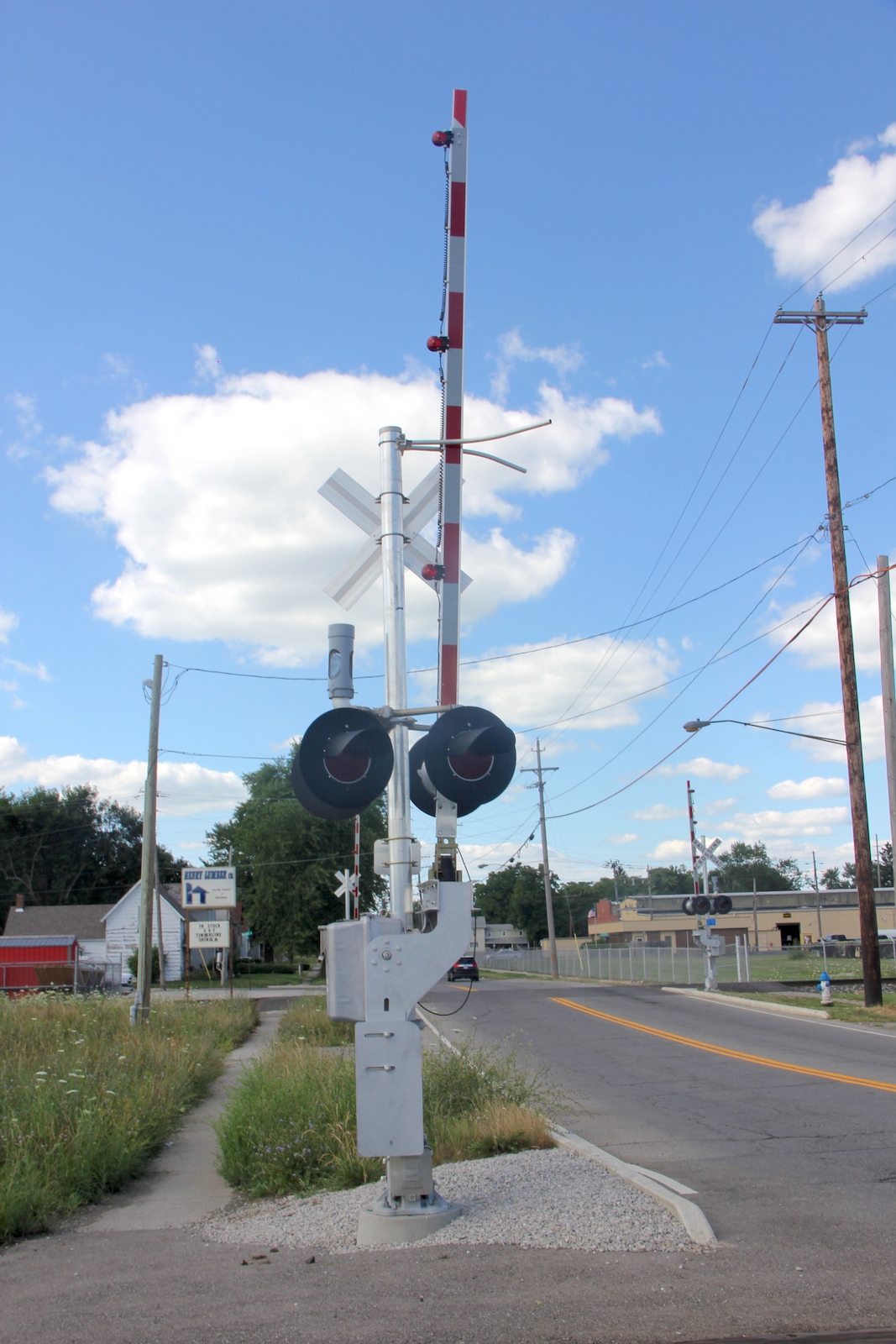

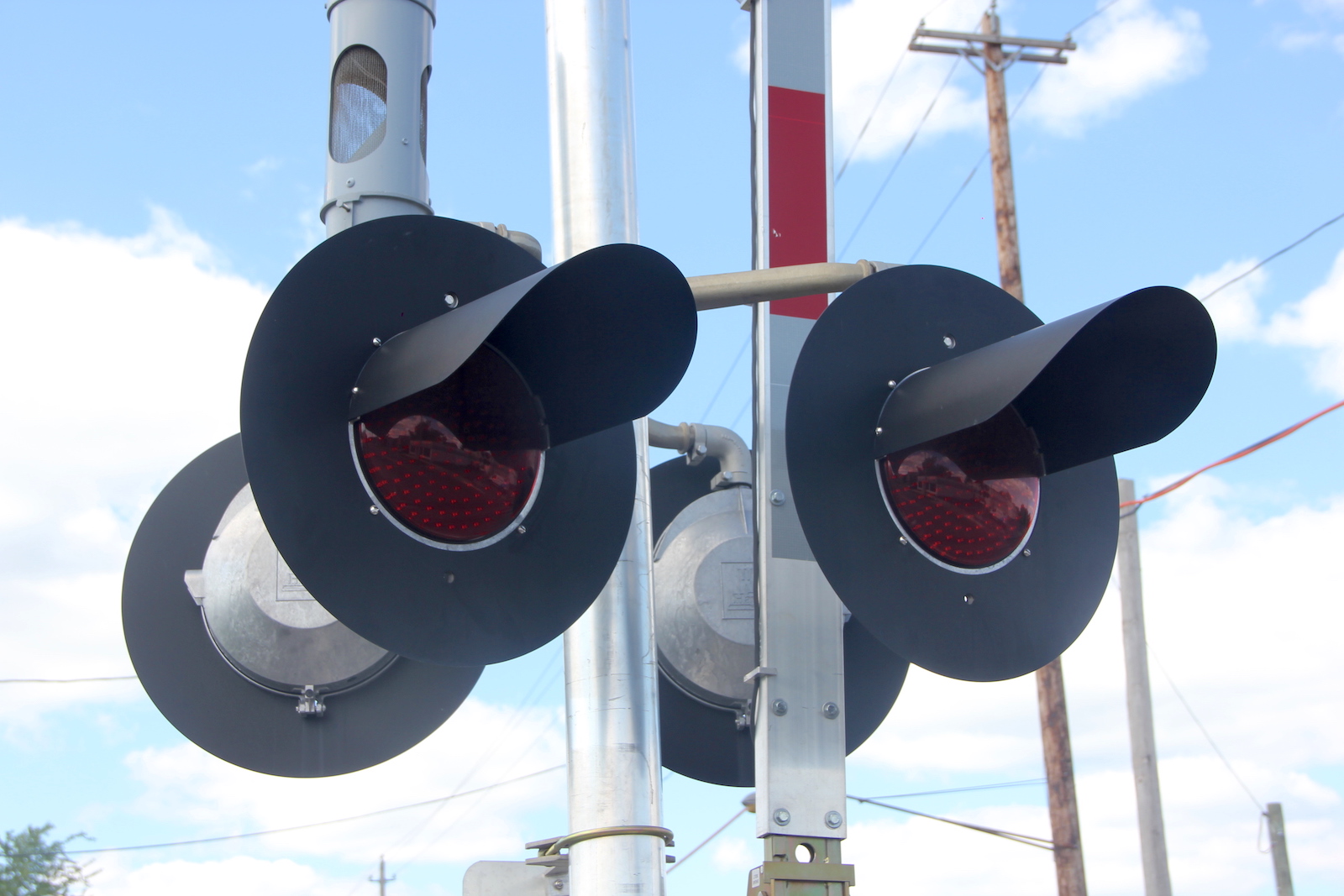

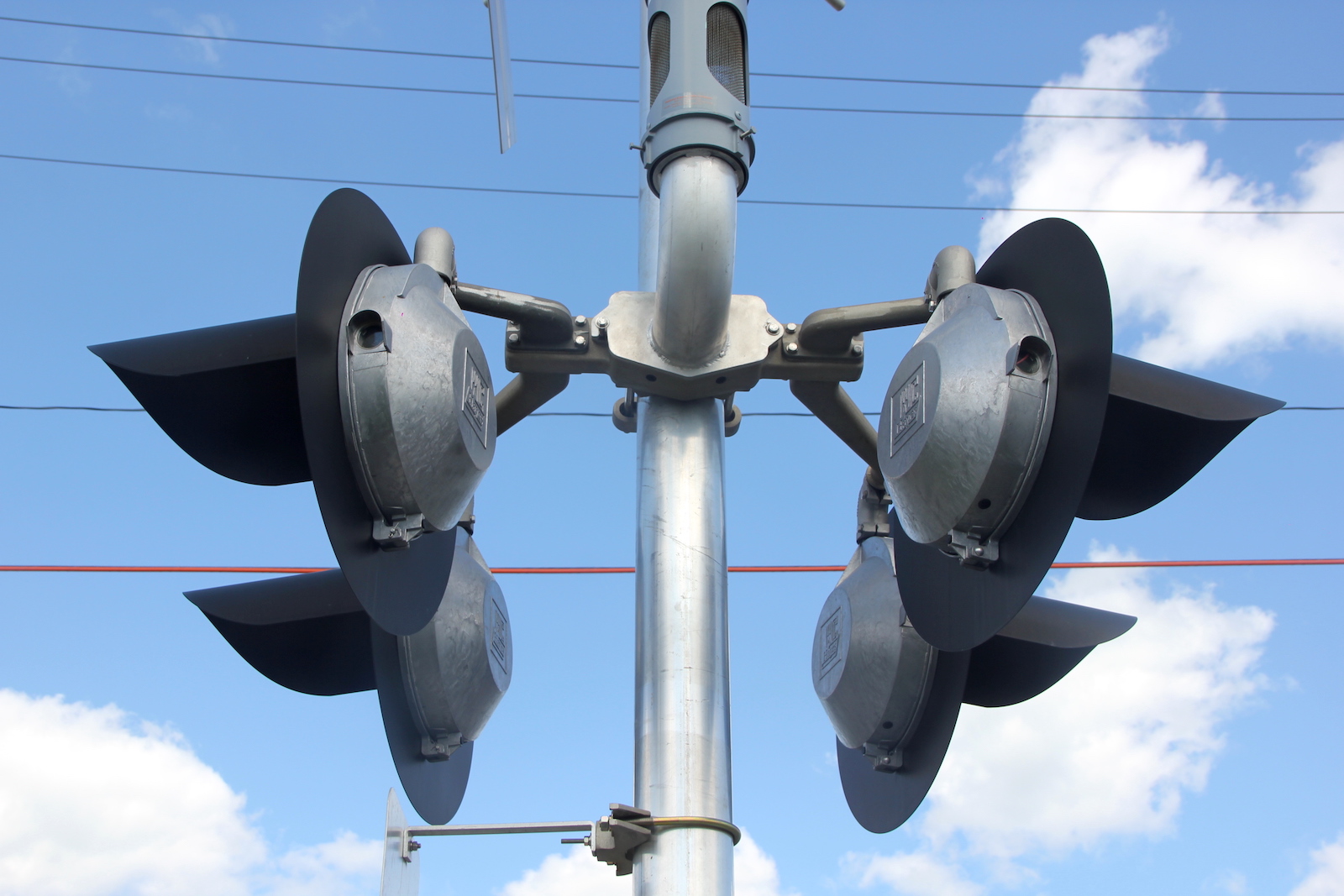

The northern signal.
13 14 15 16
17 18 19 20
21 22 23 24

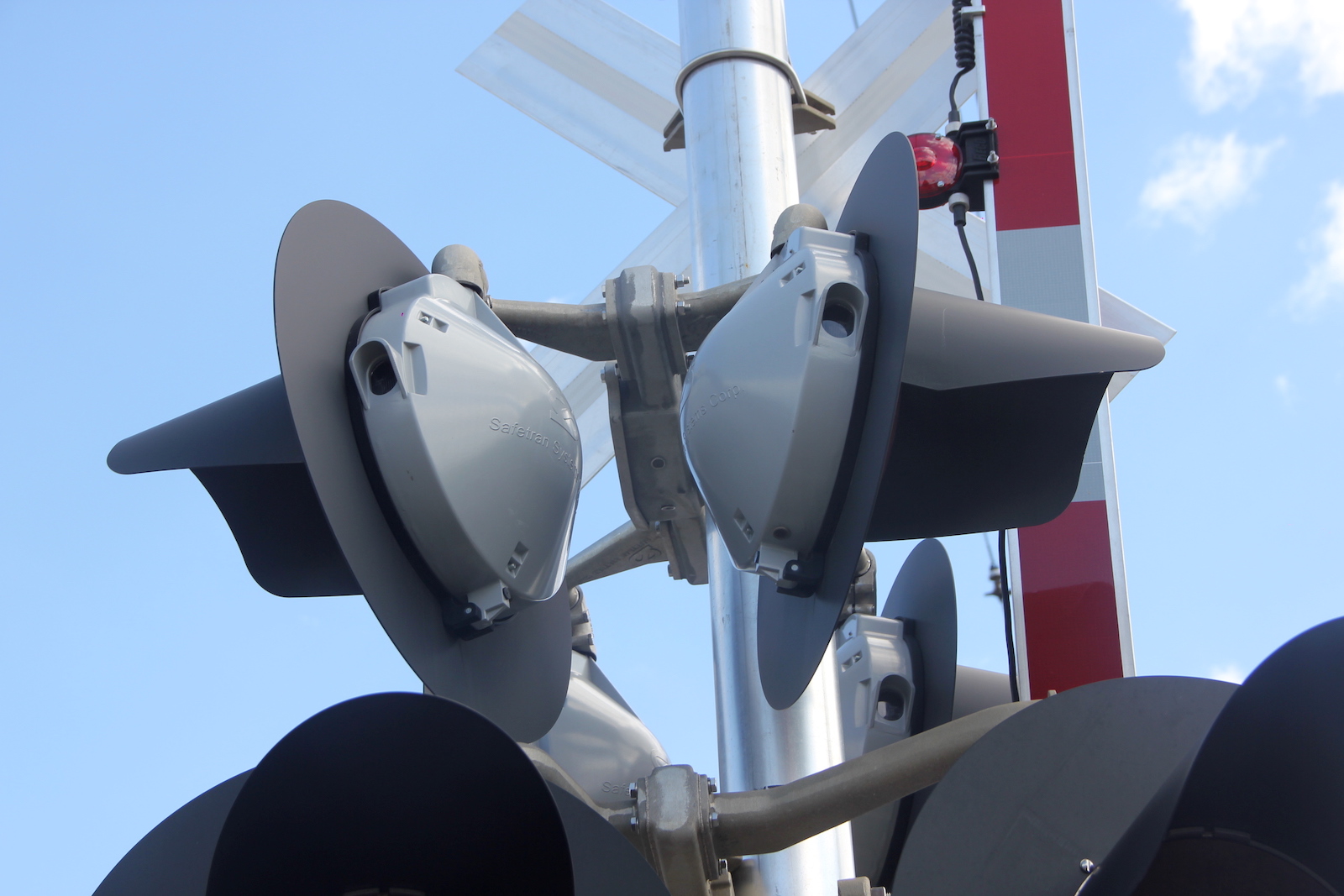

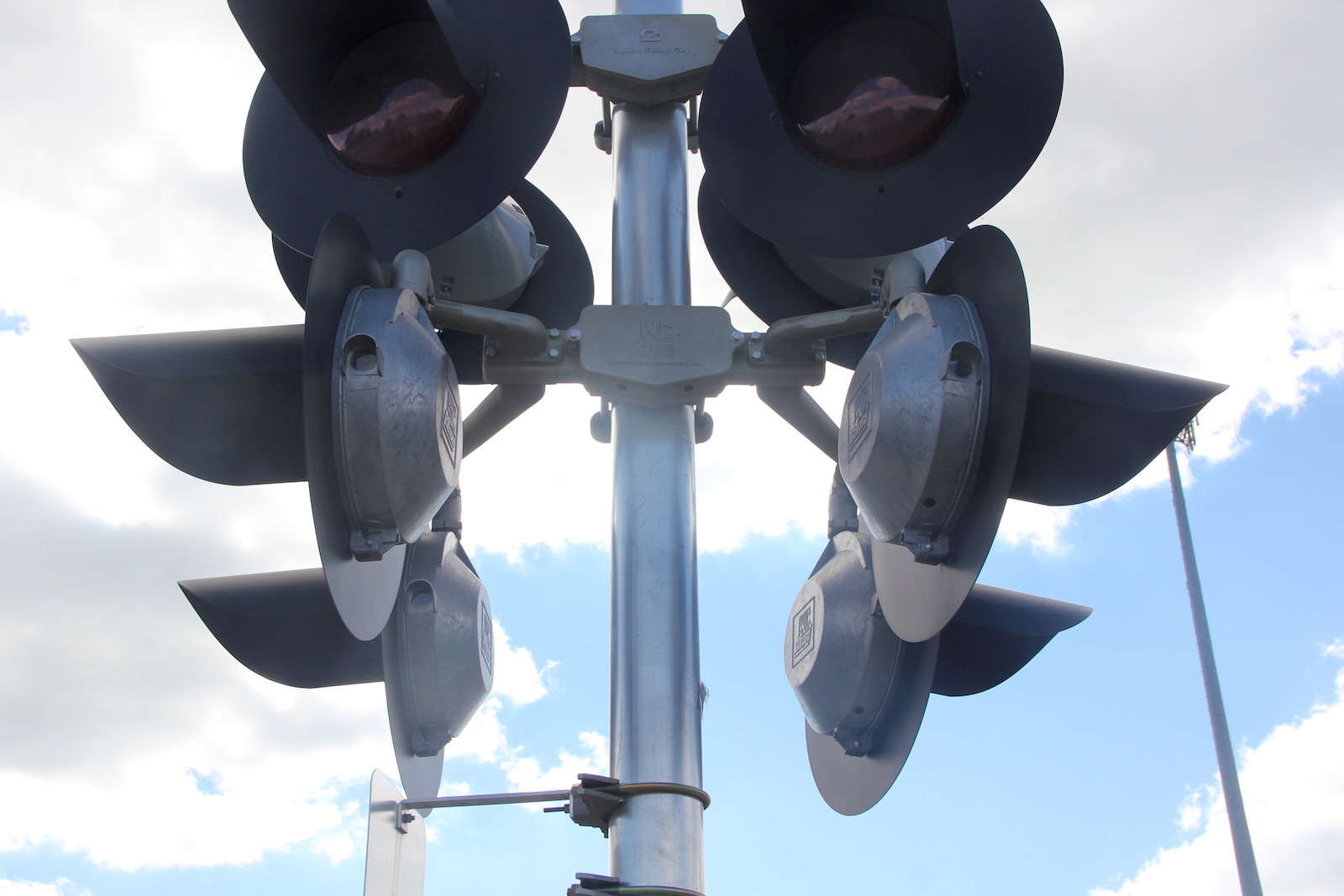

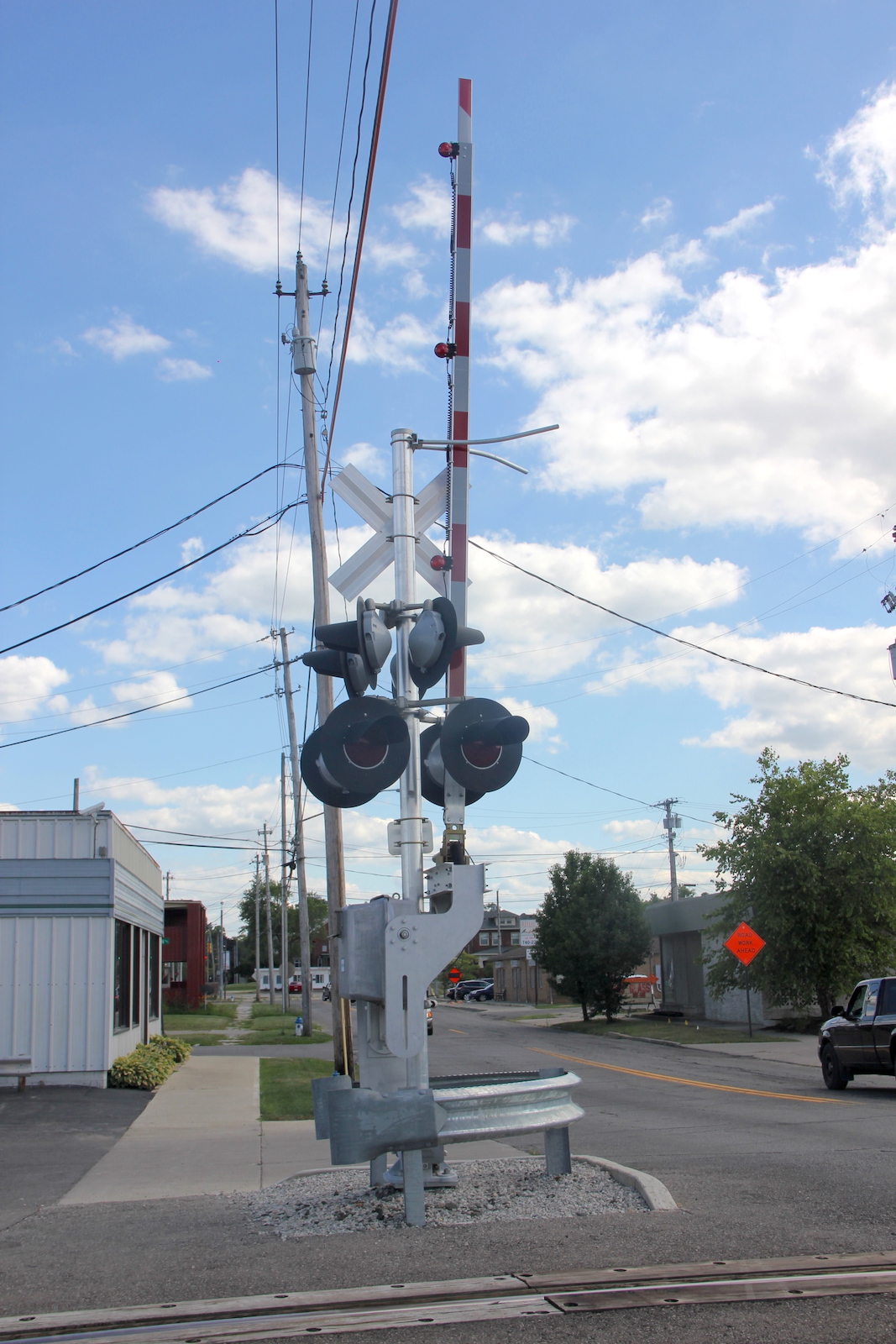

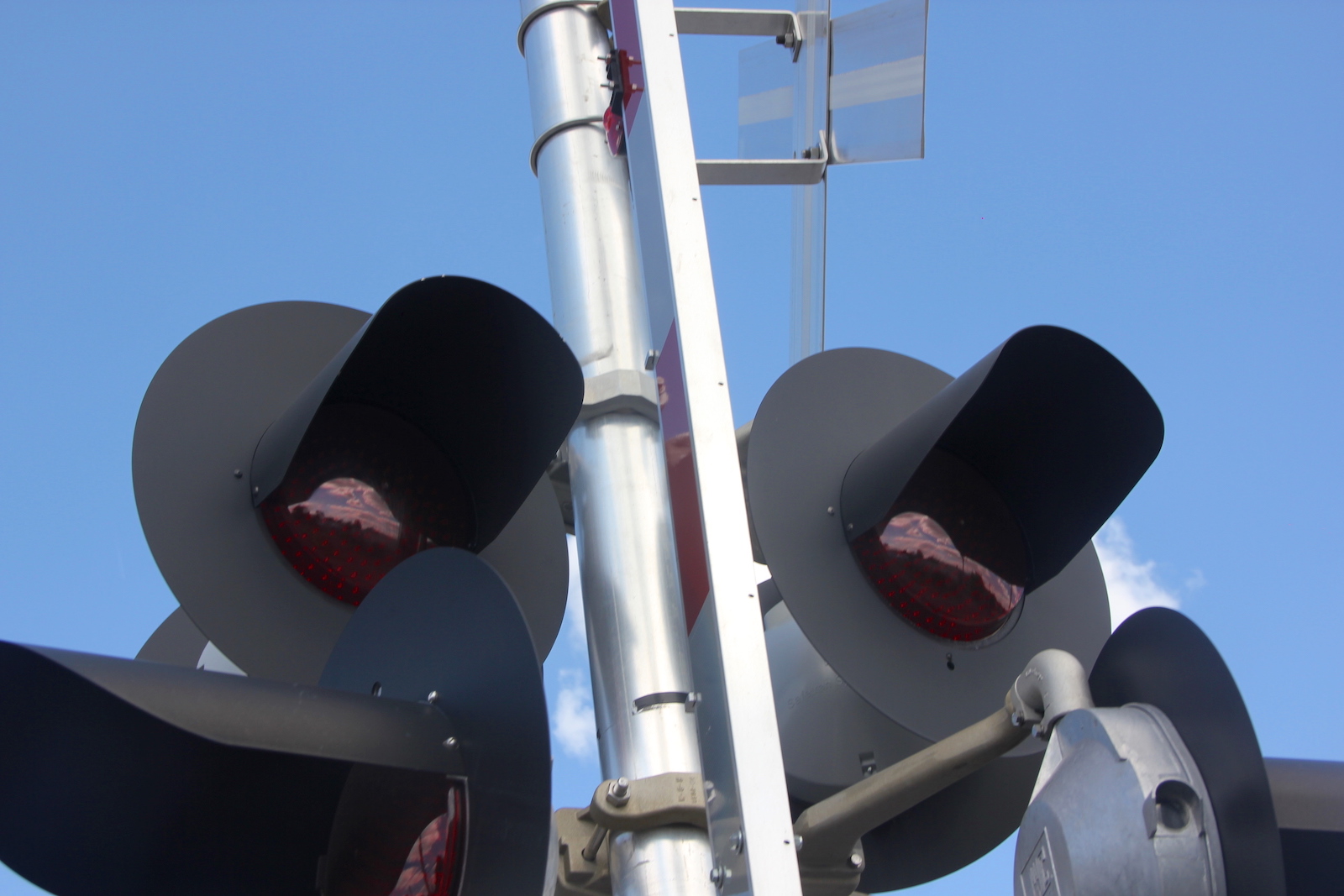

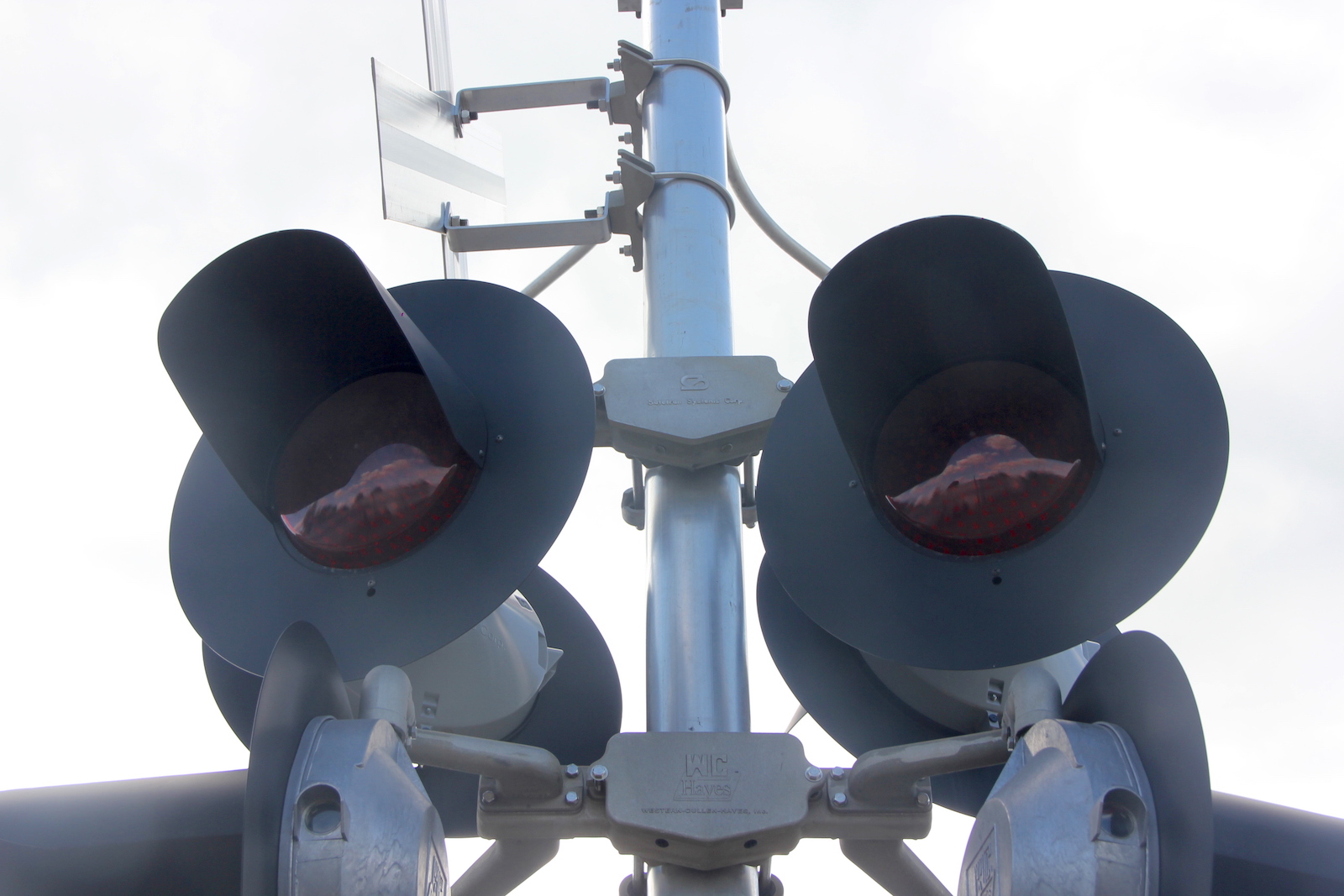

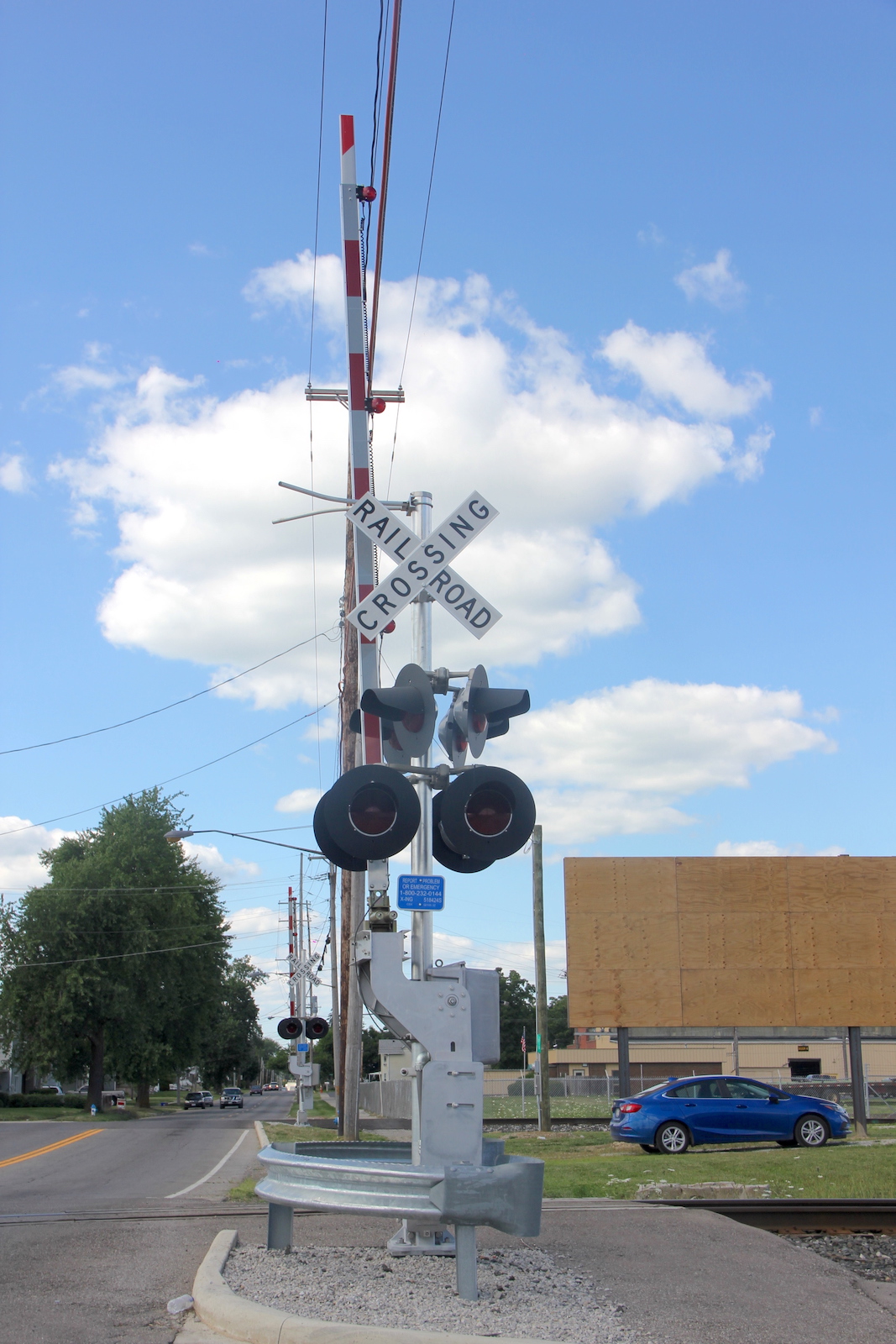

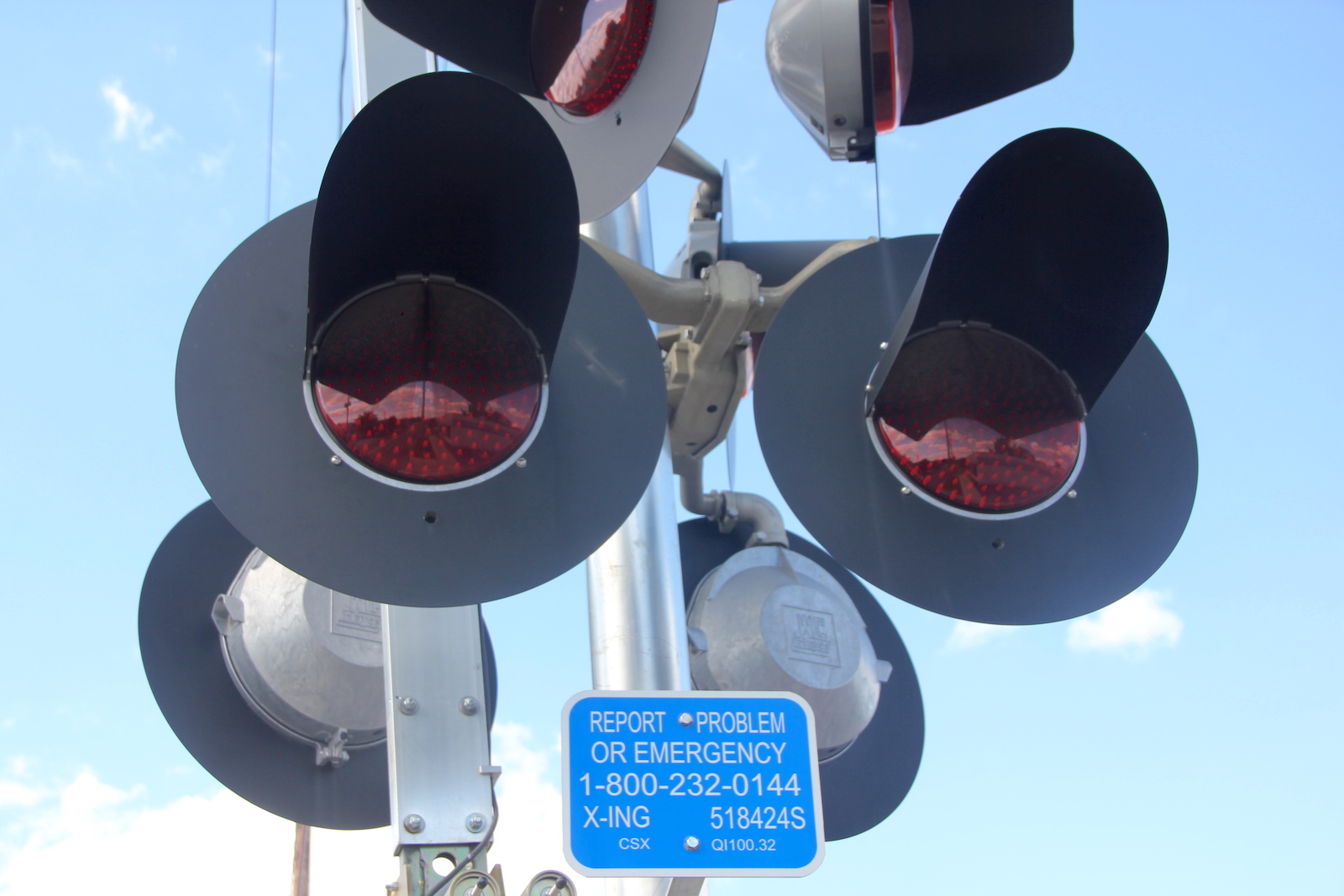

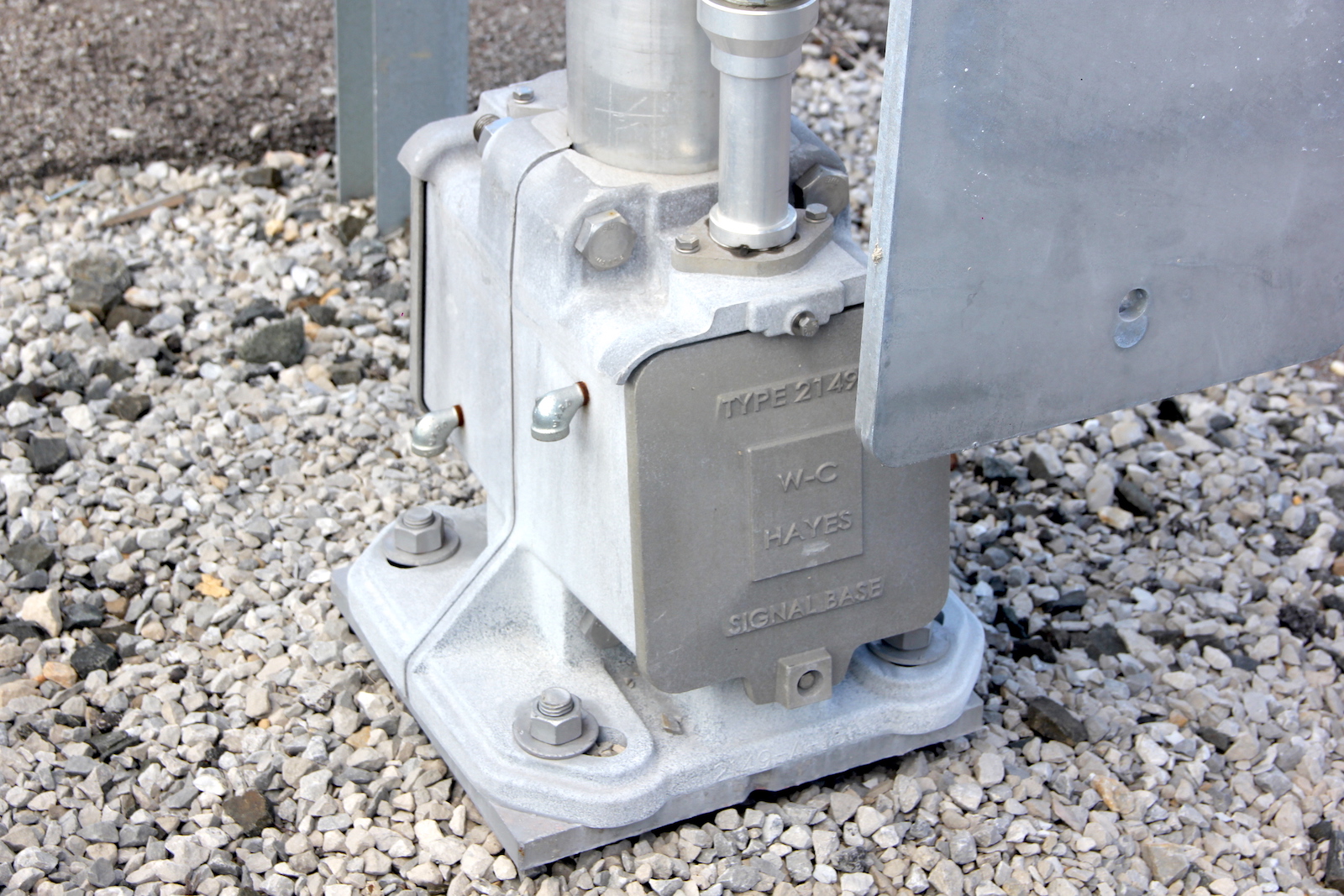

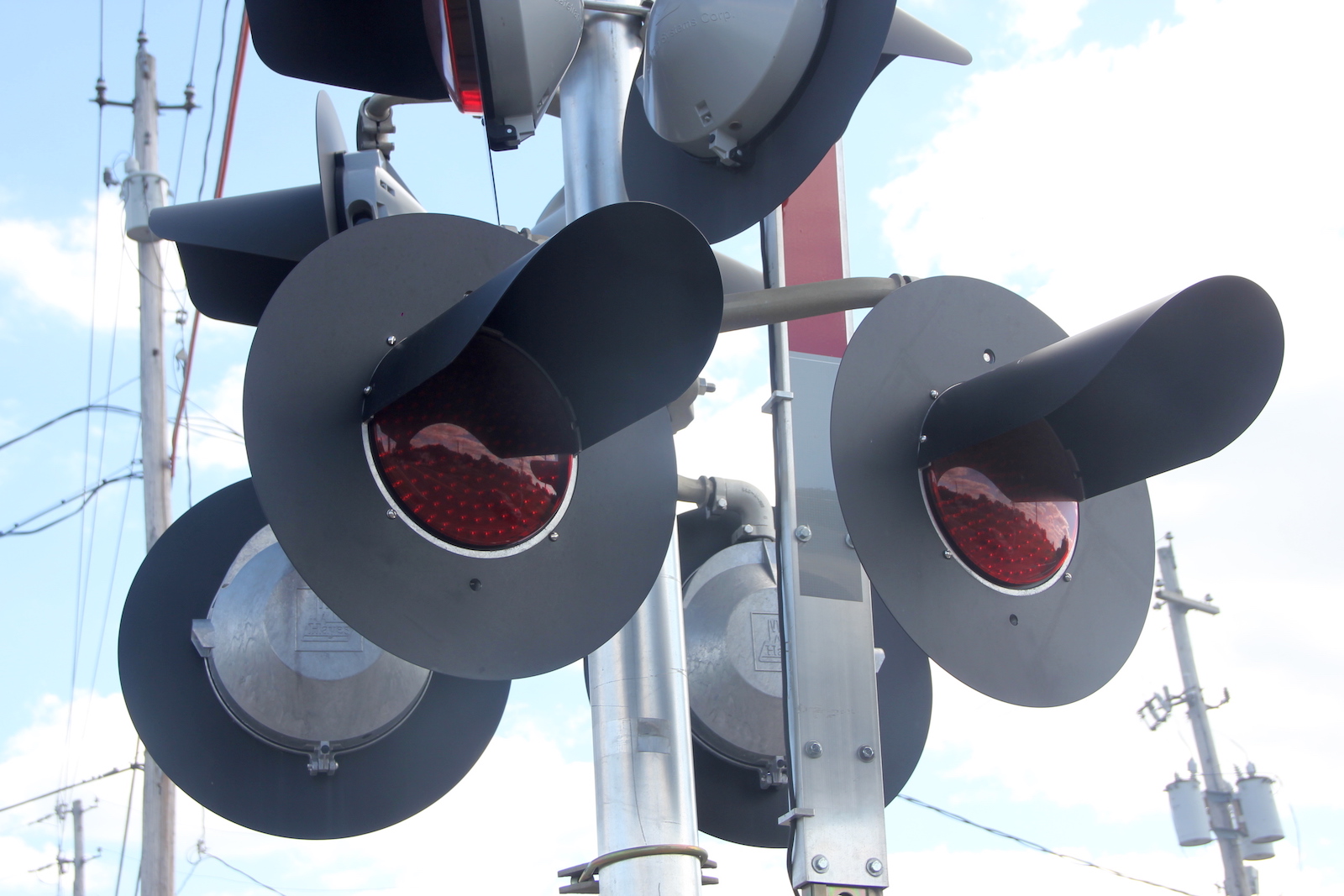

The southern signal.
25 26 27

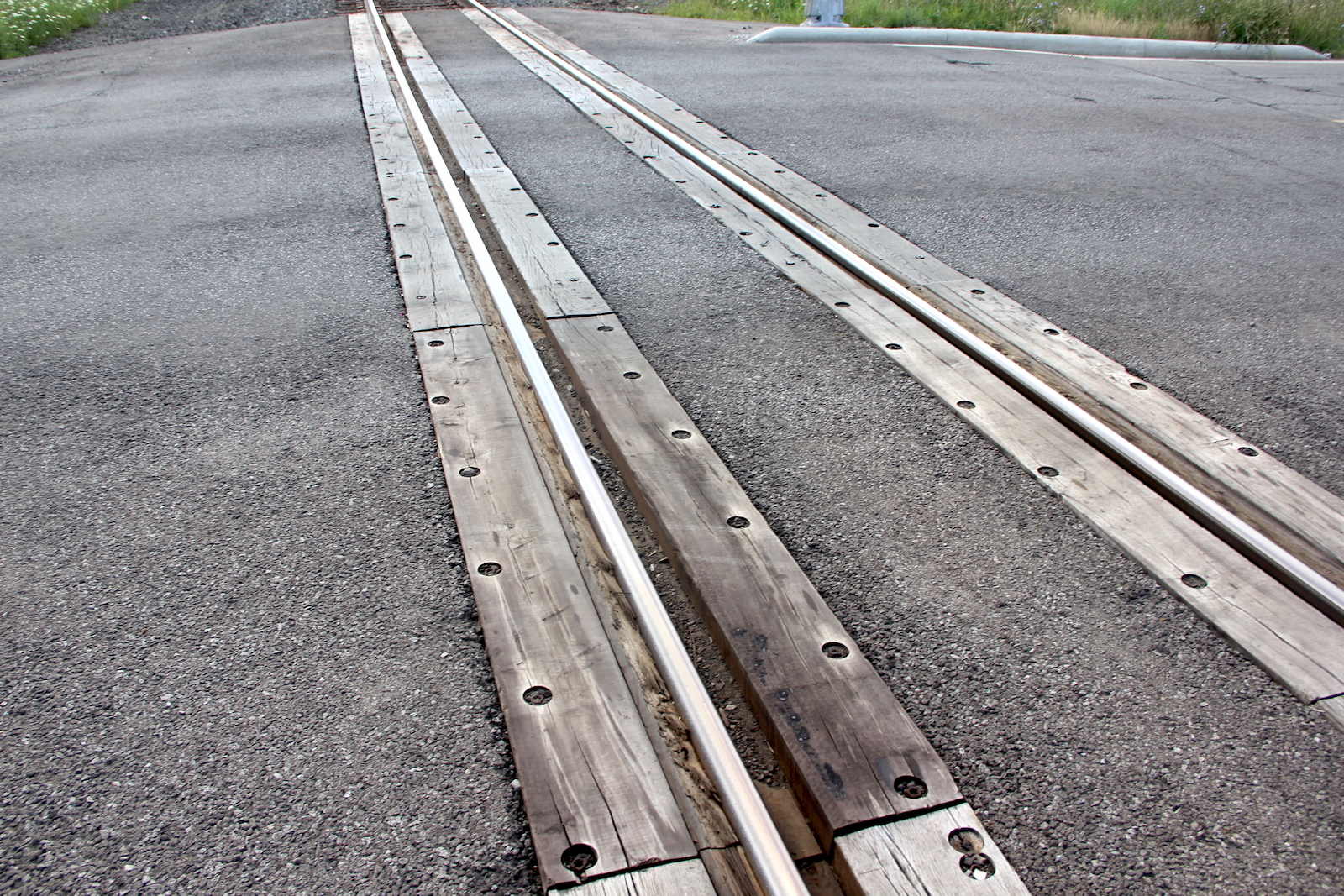

The grade is wood and asphalt.

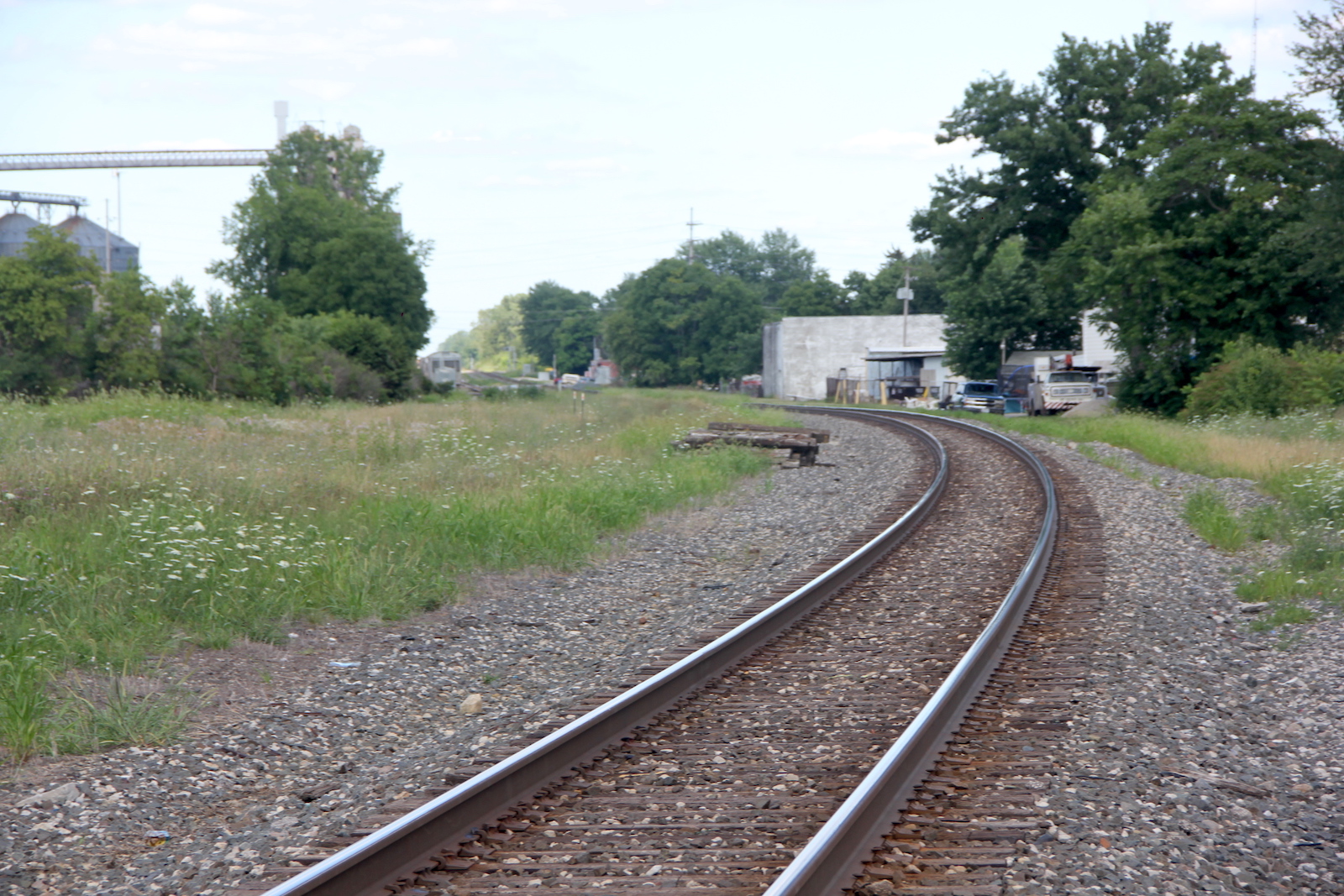

 Track view facing west towards State St. #2.

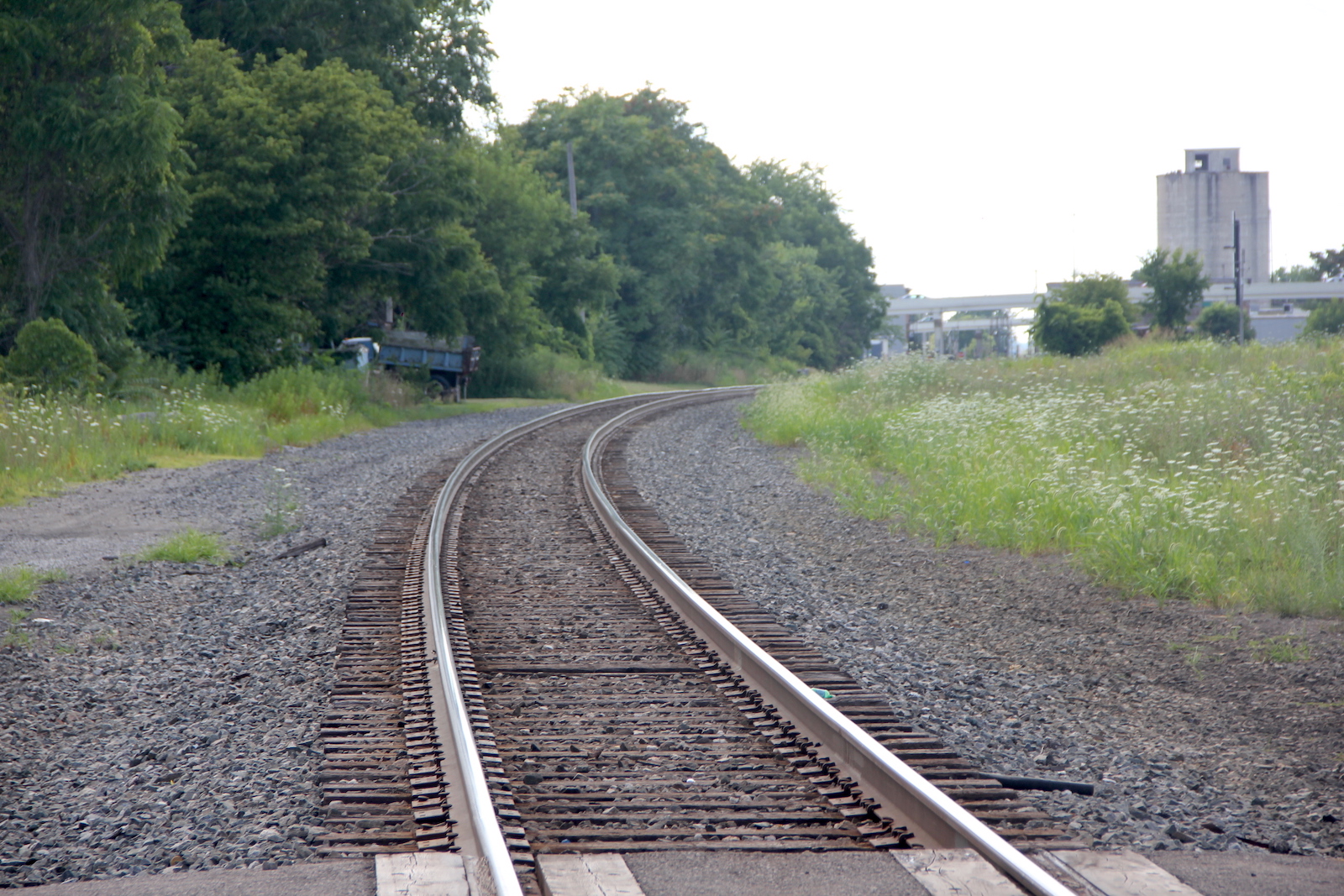

 Track view facing west towards Jefferson St.

As you can see in the video below, no matter what track the train is on, all 4 signals activate, with the 2 main gates on this crossing and the 2nd crossing lowering together. Depending on which track the train is coming on (let's say the south track in the video below), then the gate on the northern signal will lower while the other stays raised.
