| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | None | NEG E Bell |
| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |
| Lights: | 4 - 12"x24" Safetran w/ Leotek EV LEDs | 4 - 12"x24" Safetran w/ Leotek EV LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran 2000s w/ Standard Mount | Safetran 2000s w/ GSI Gate Saver |
| Gate Striping: | Diagonal Striping | Vertical Striping |
1 |
2
|

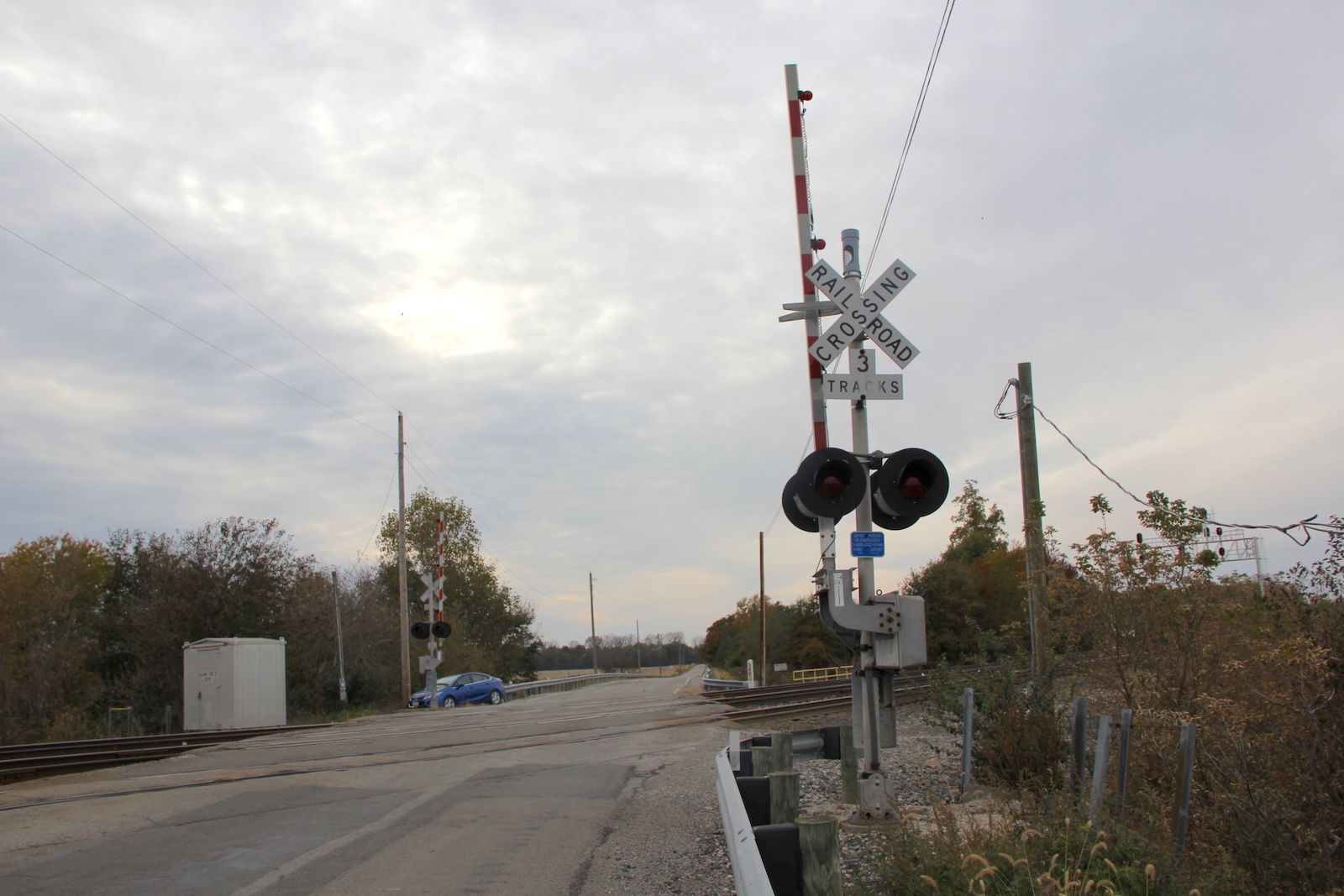

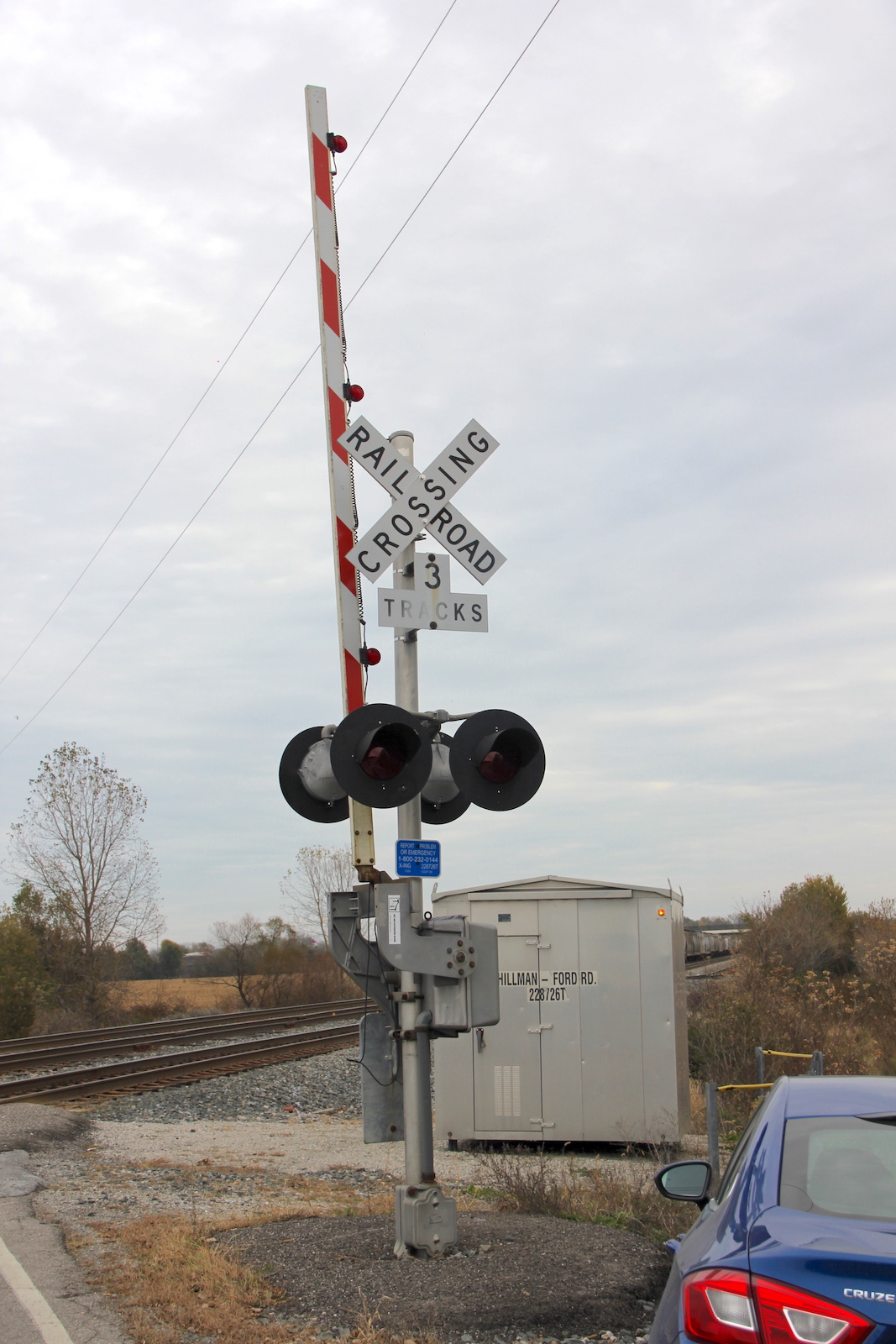

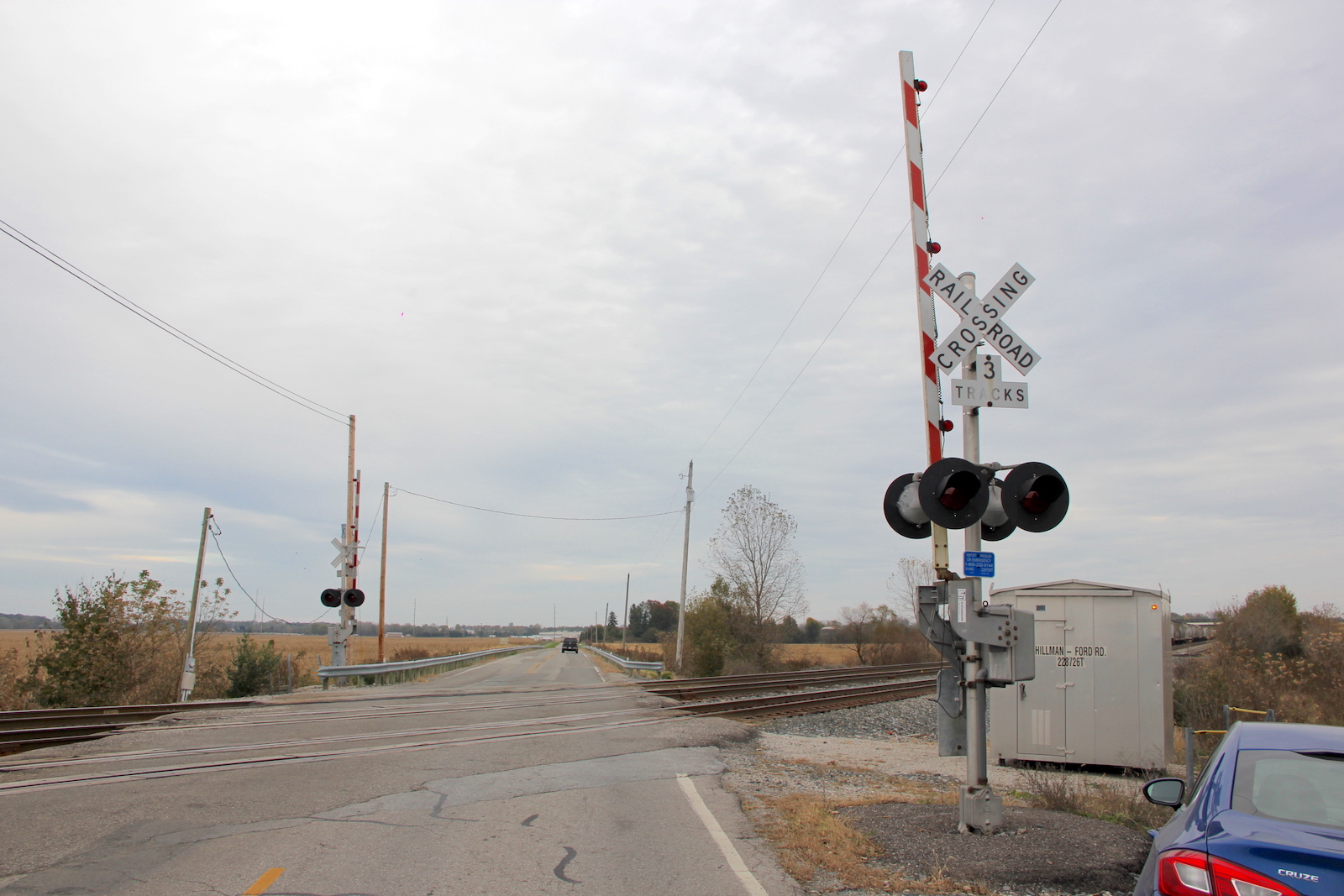

| Overview of 2 gated signals facing southeast. |
Overview facing northwest. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

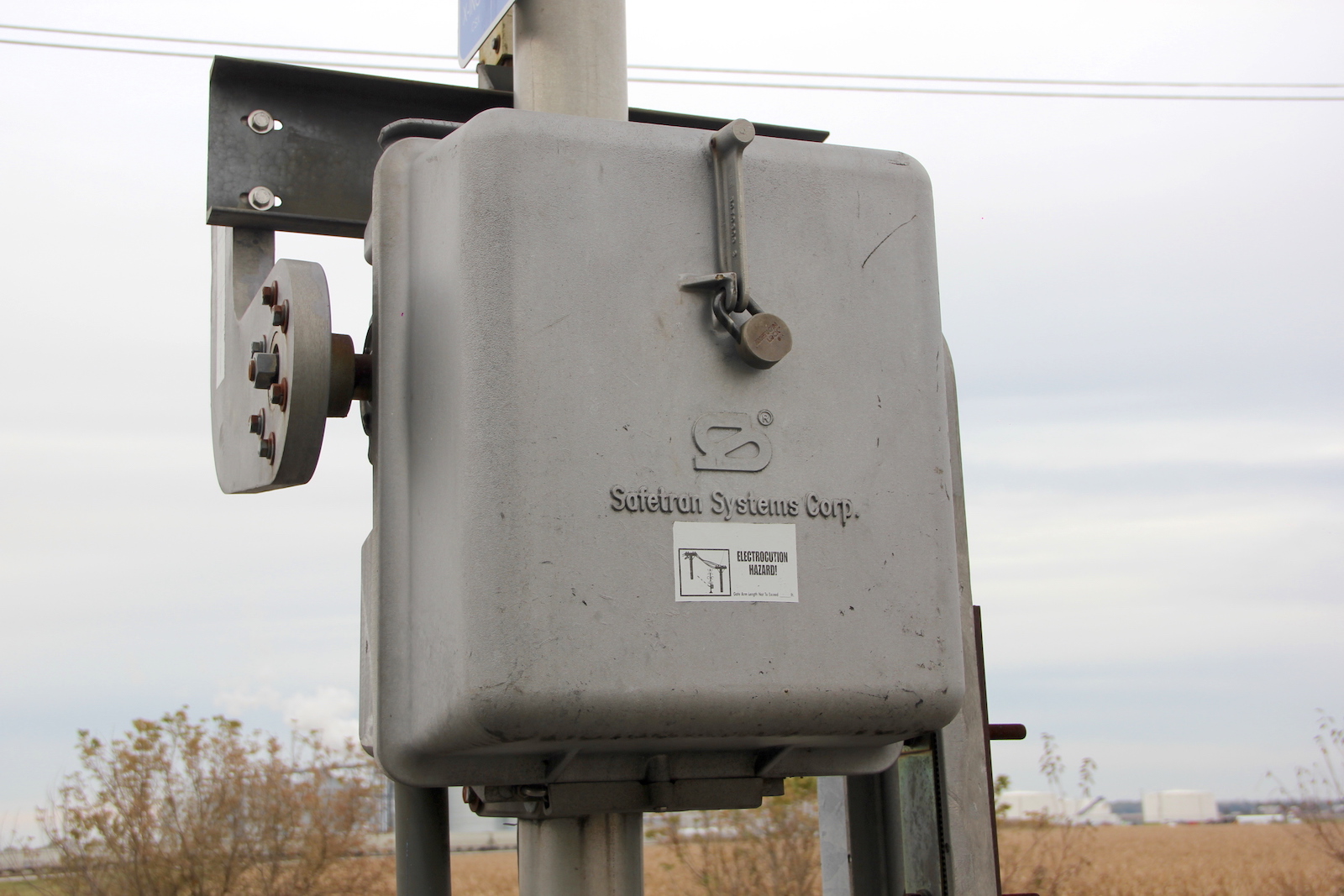

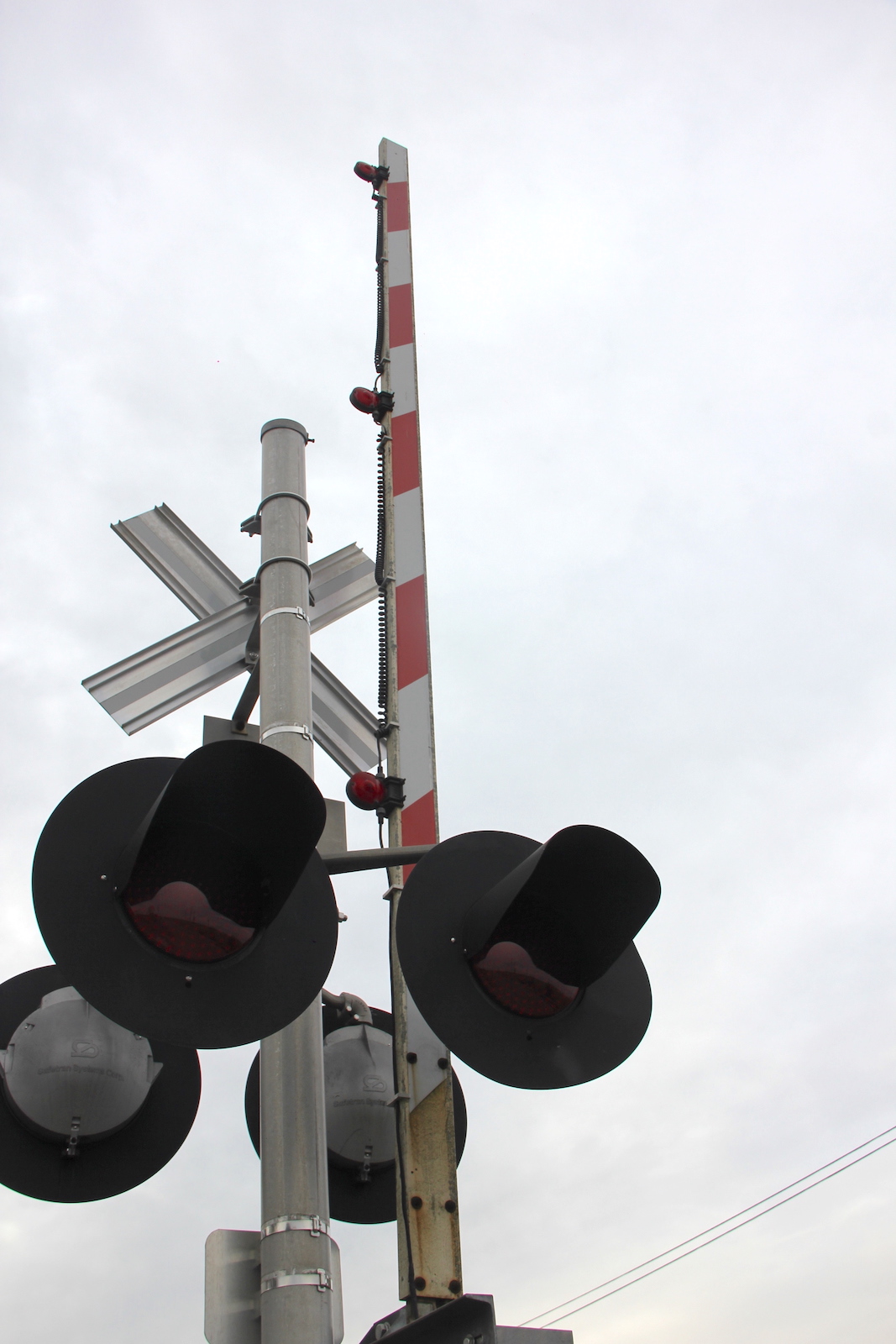

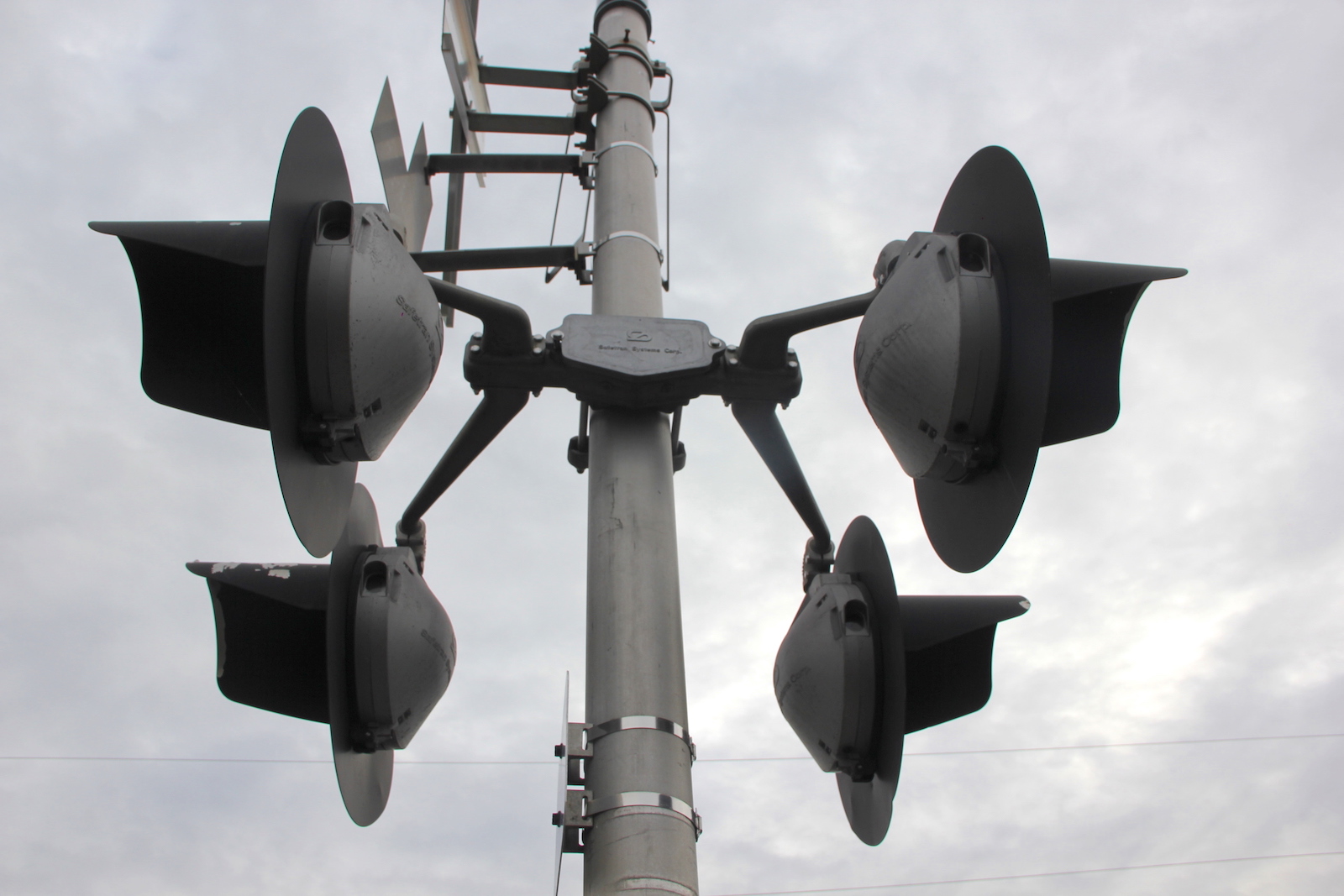

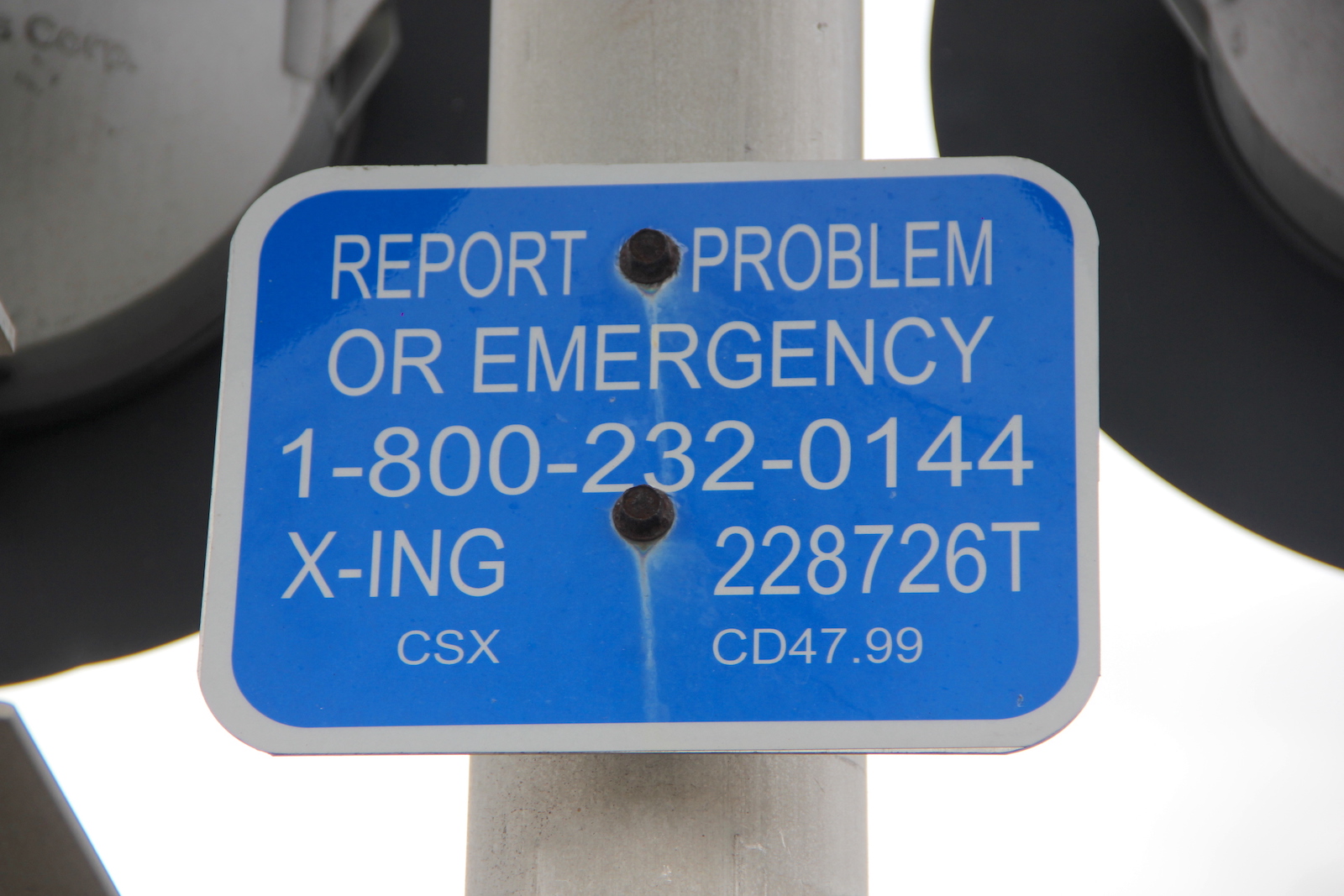

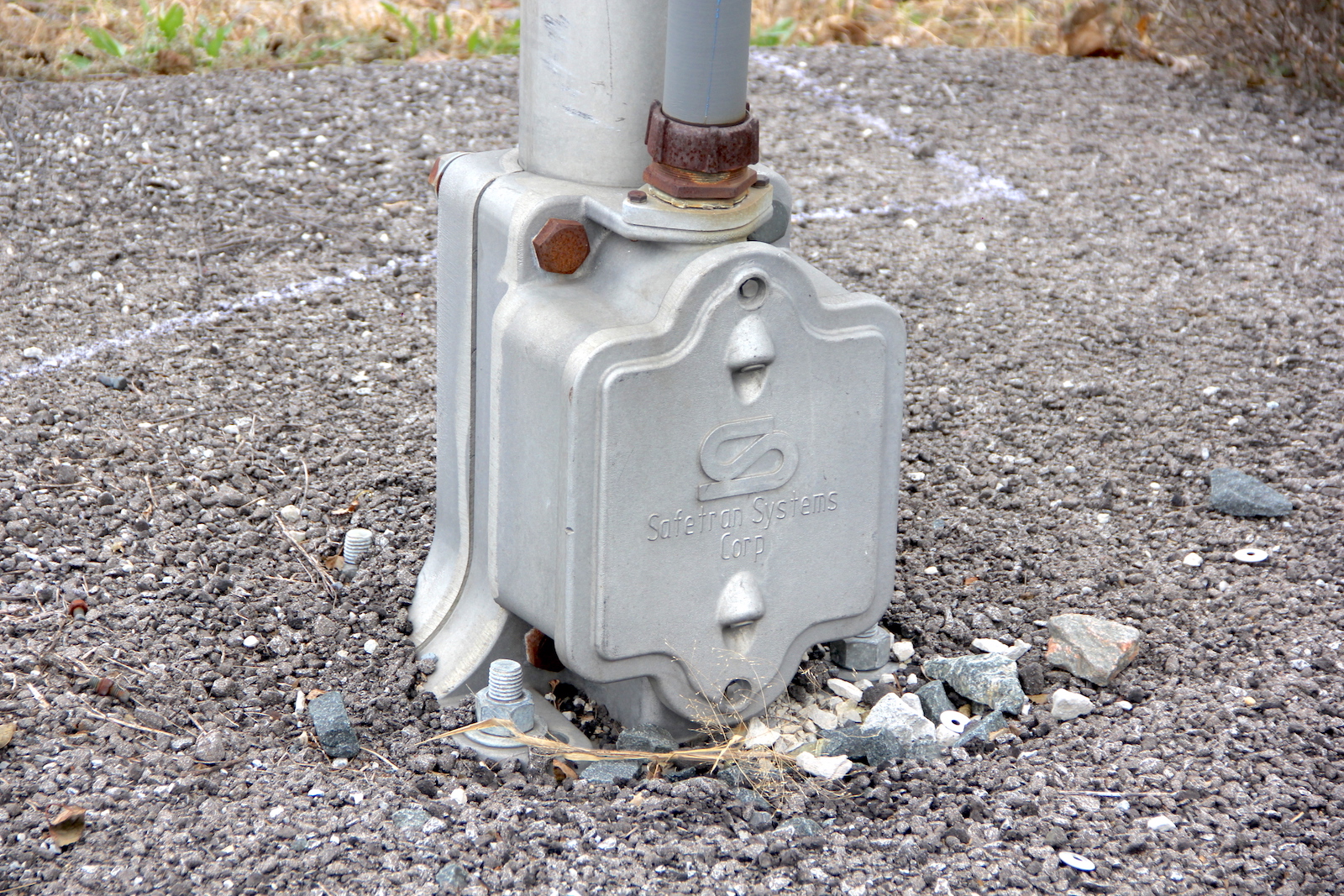

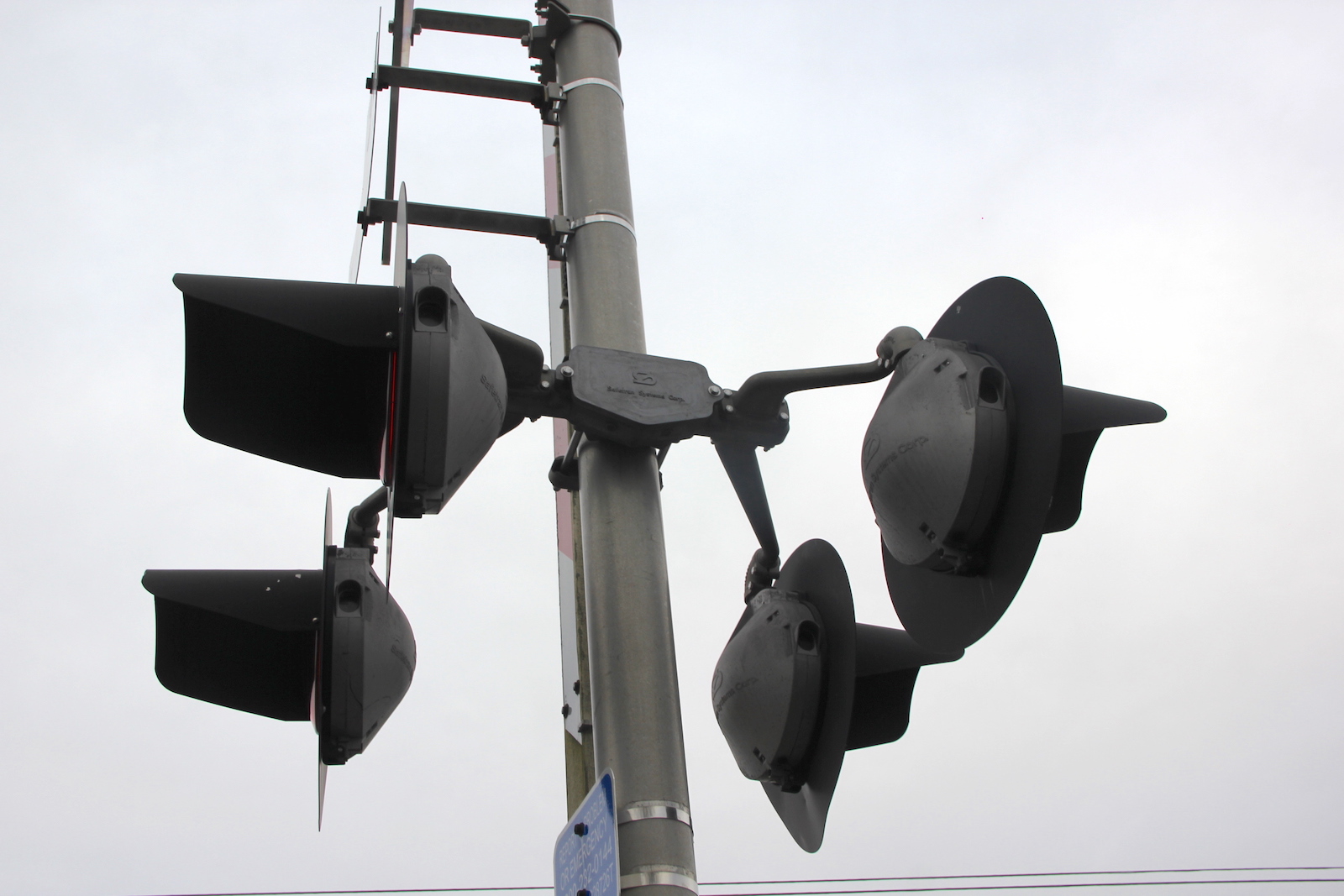

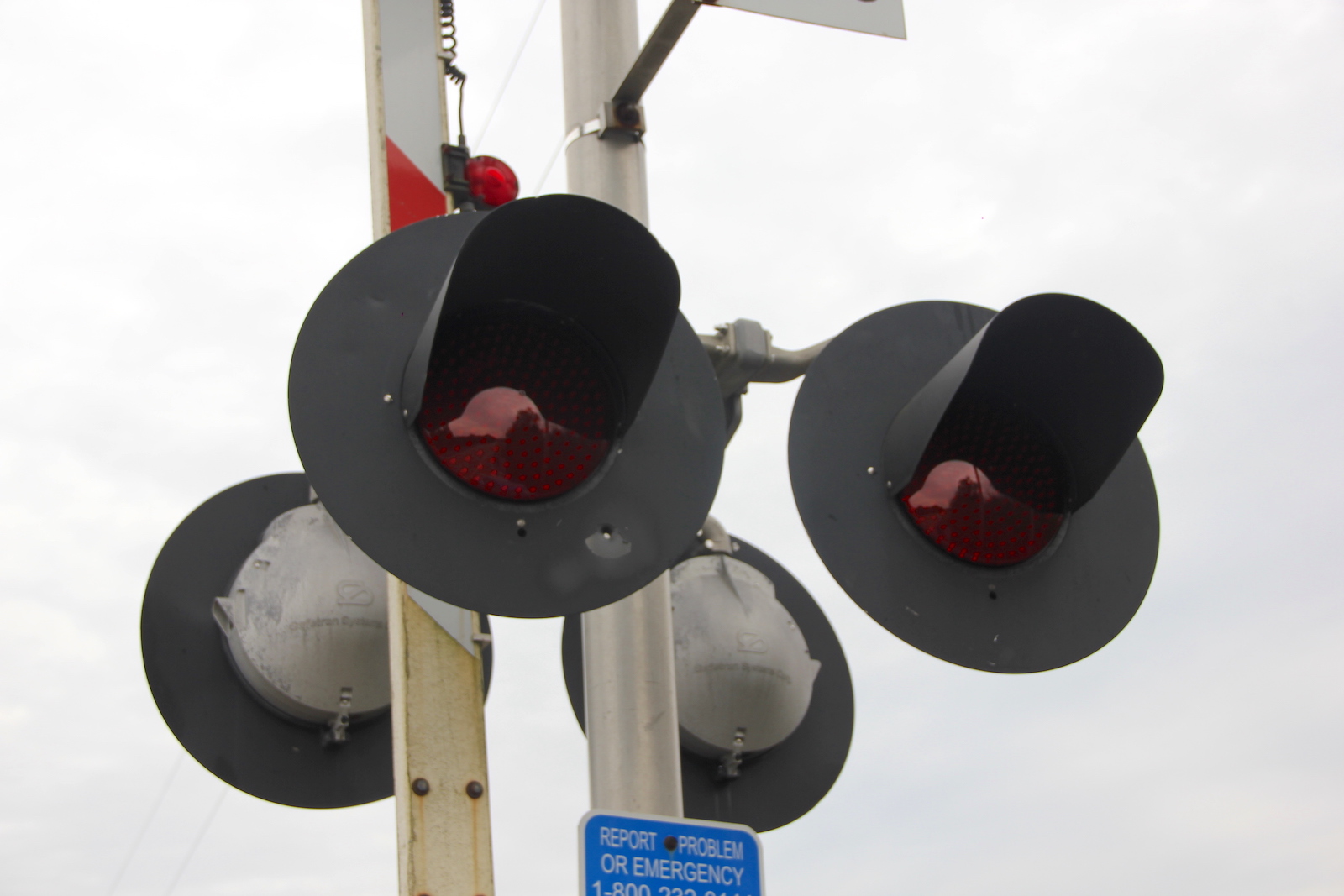

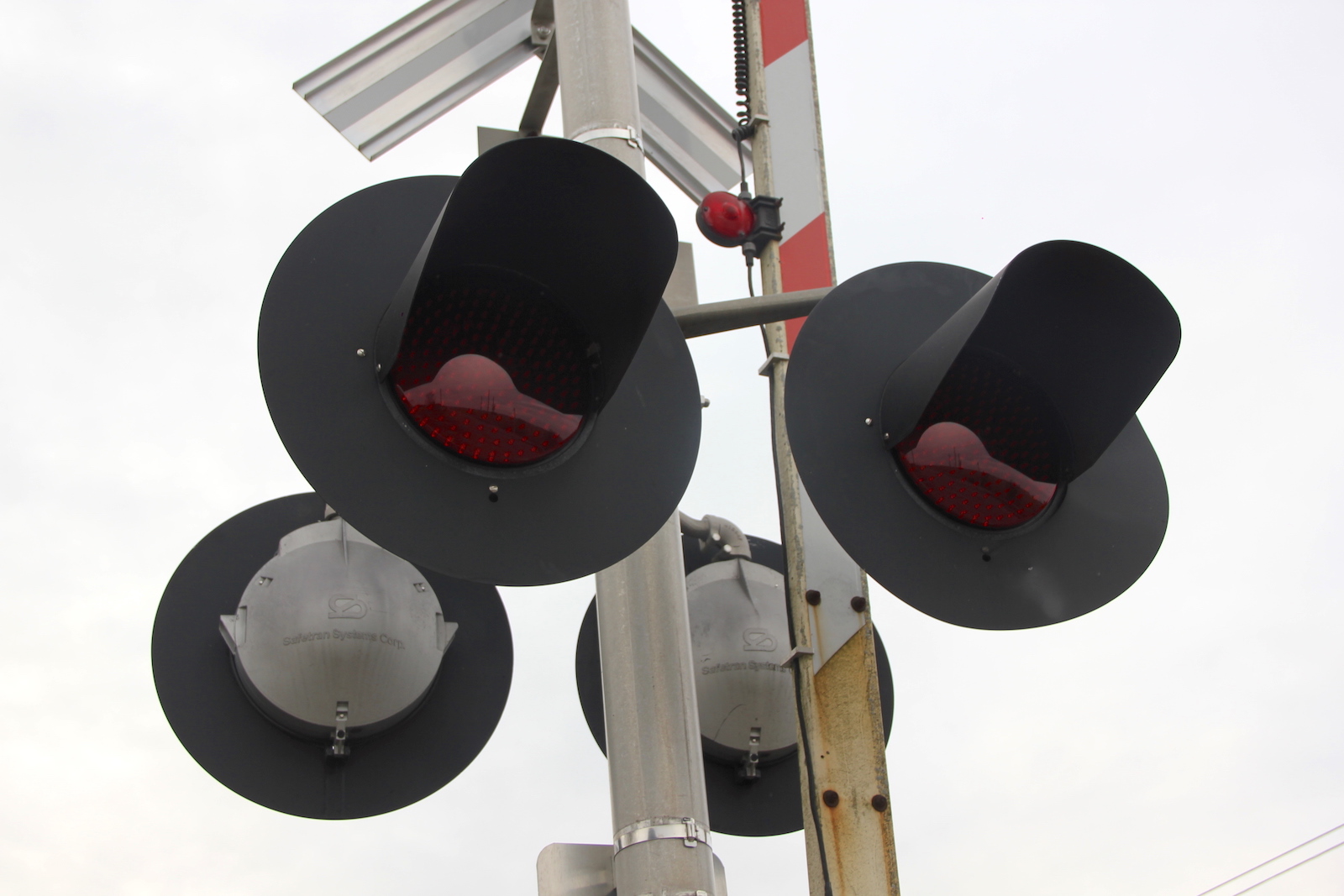

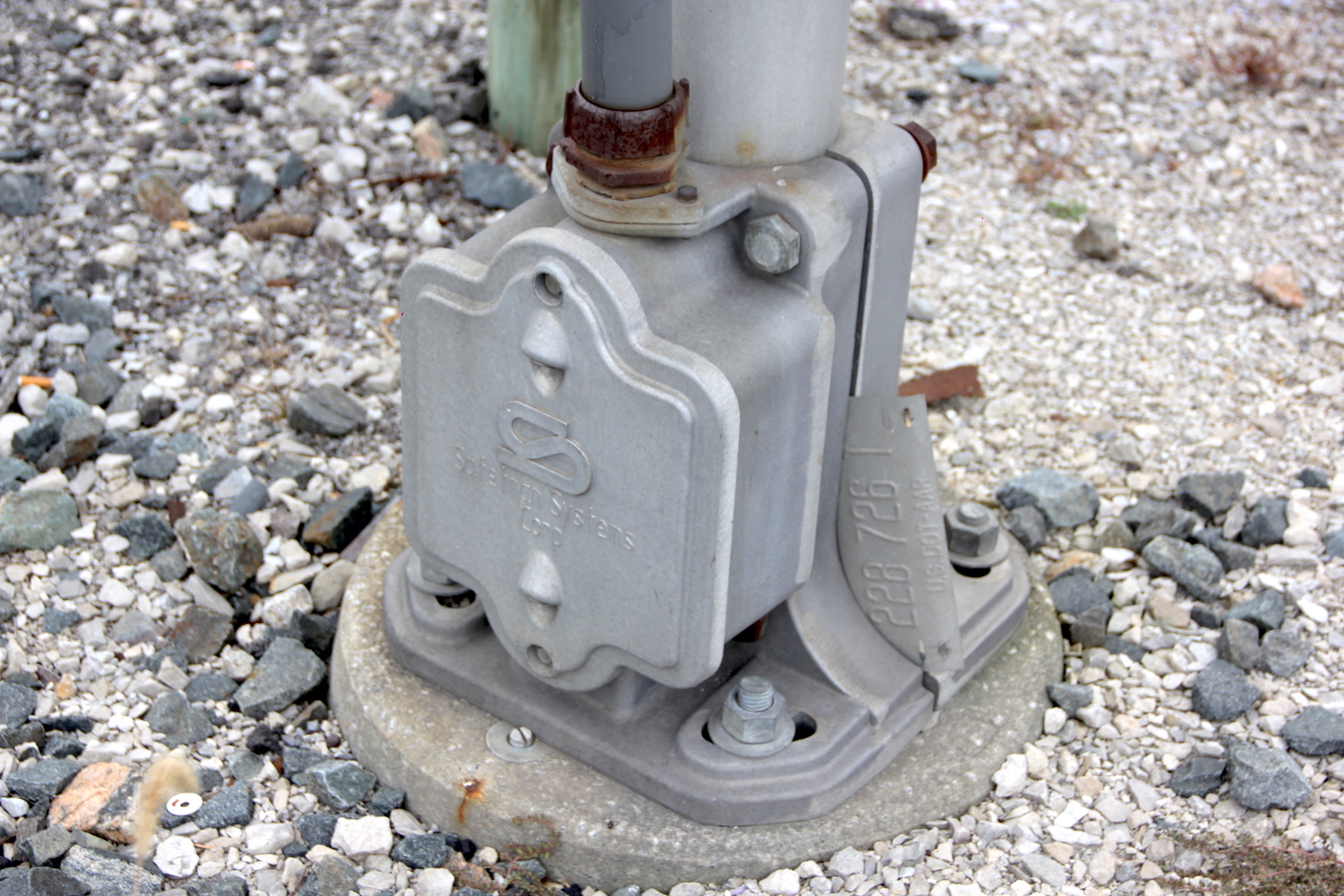

| The northern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

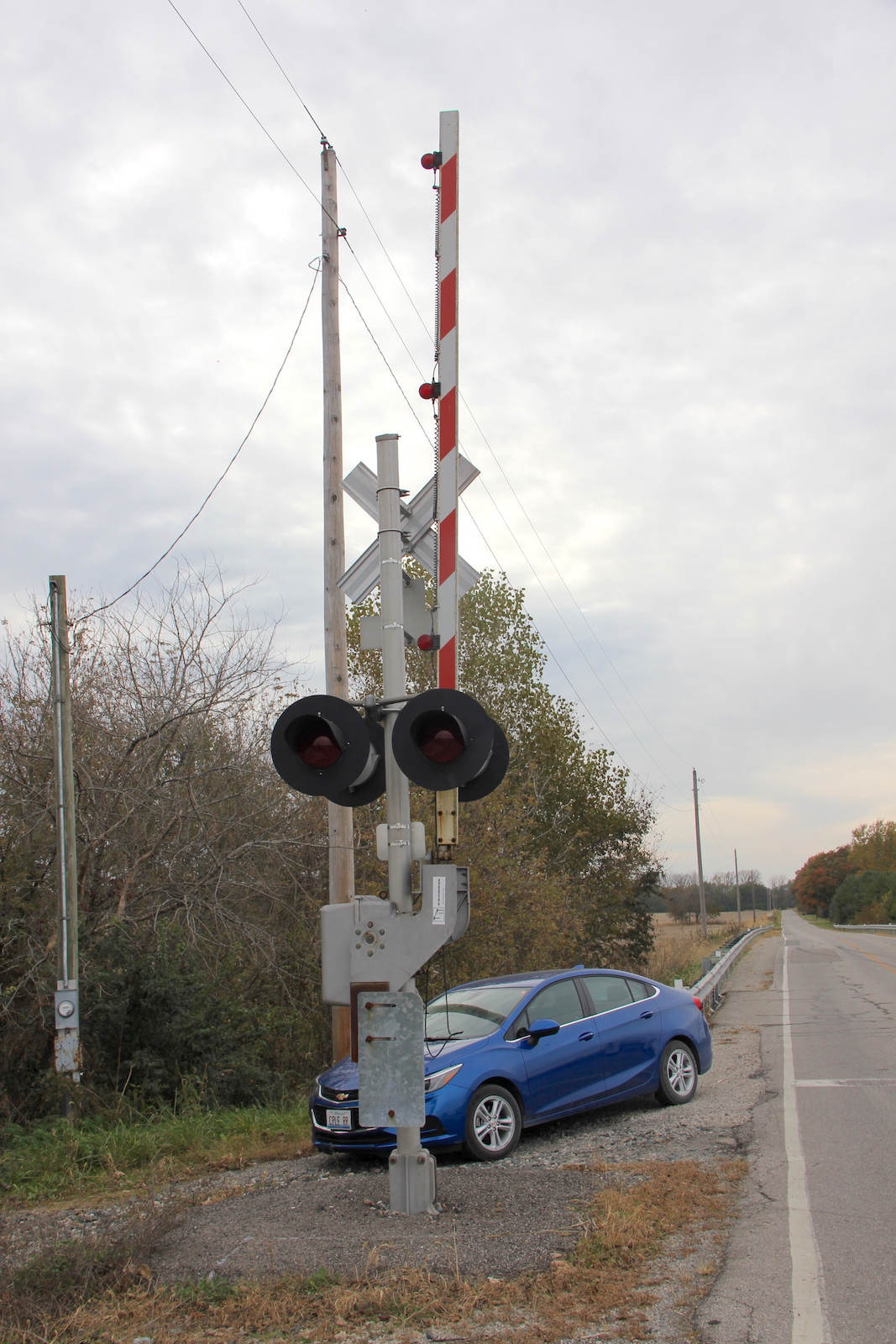

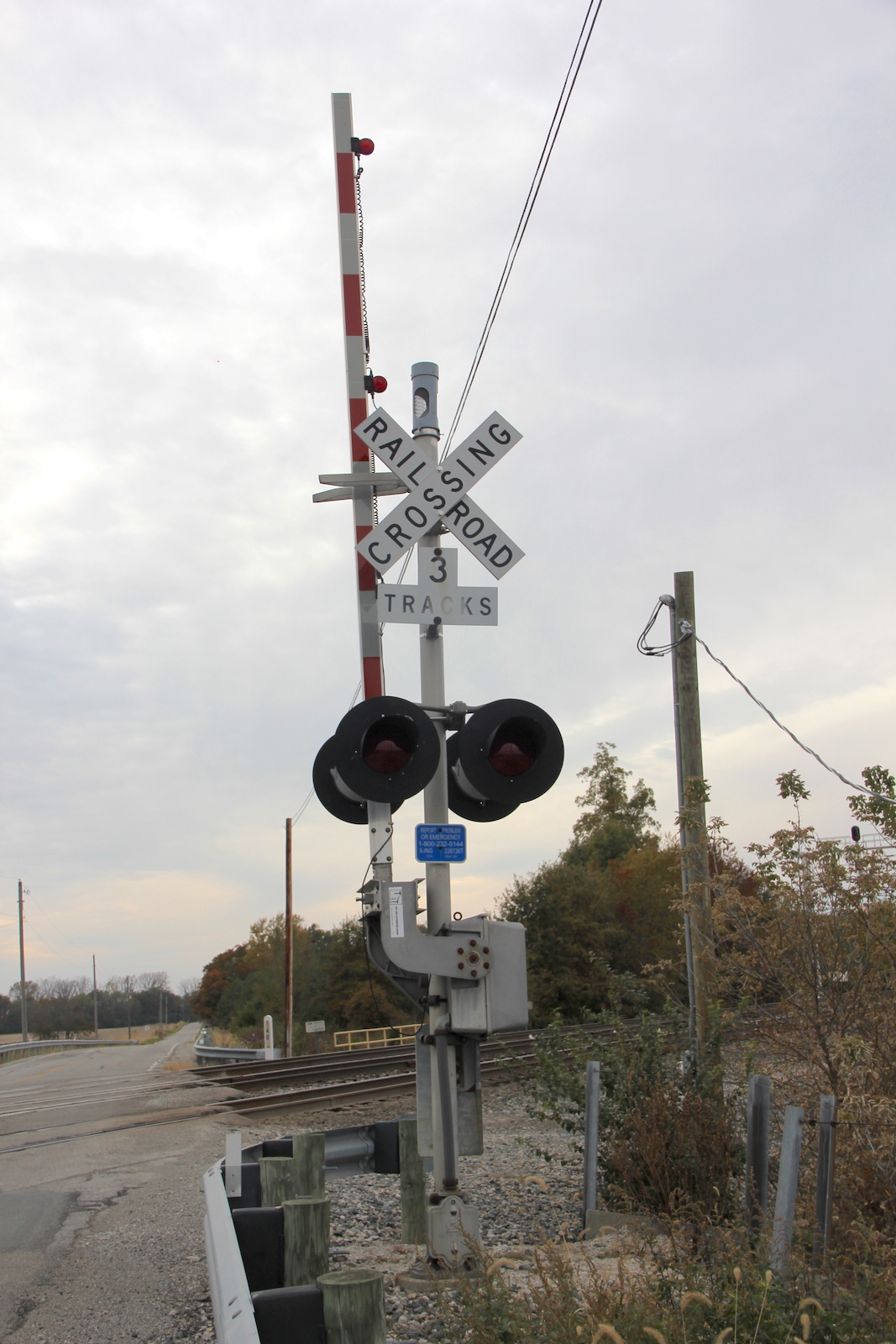

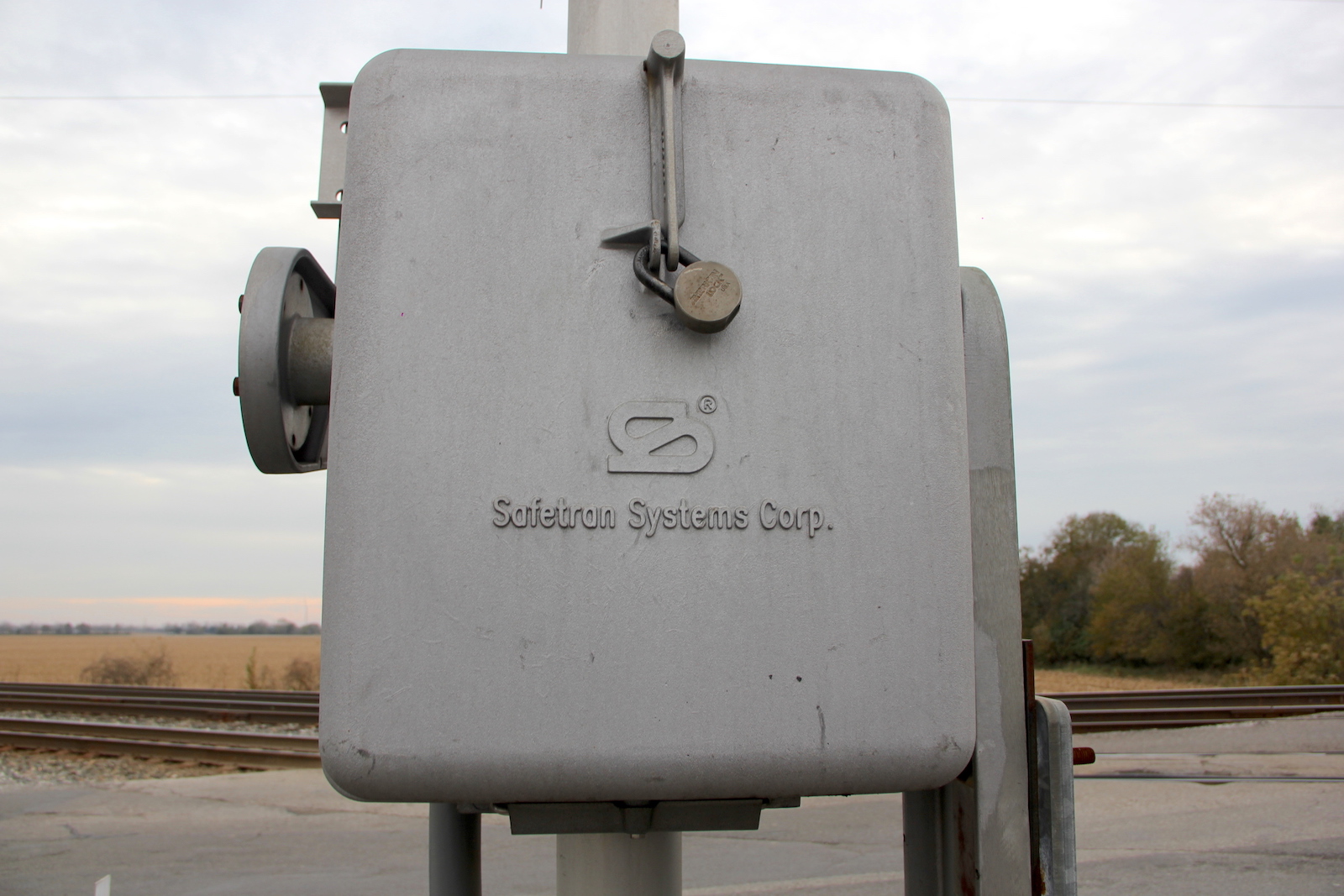

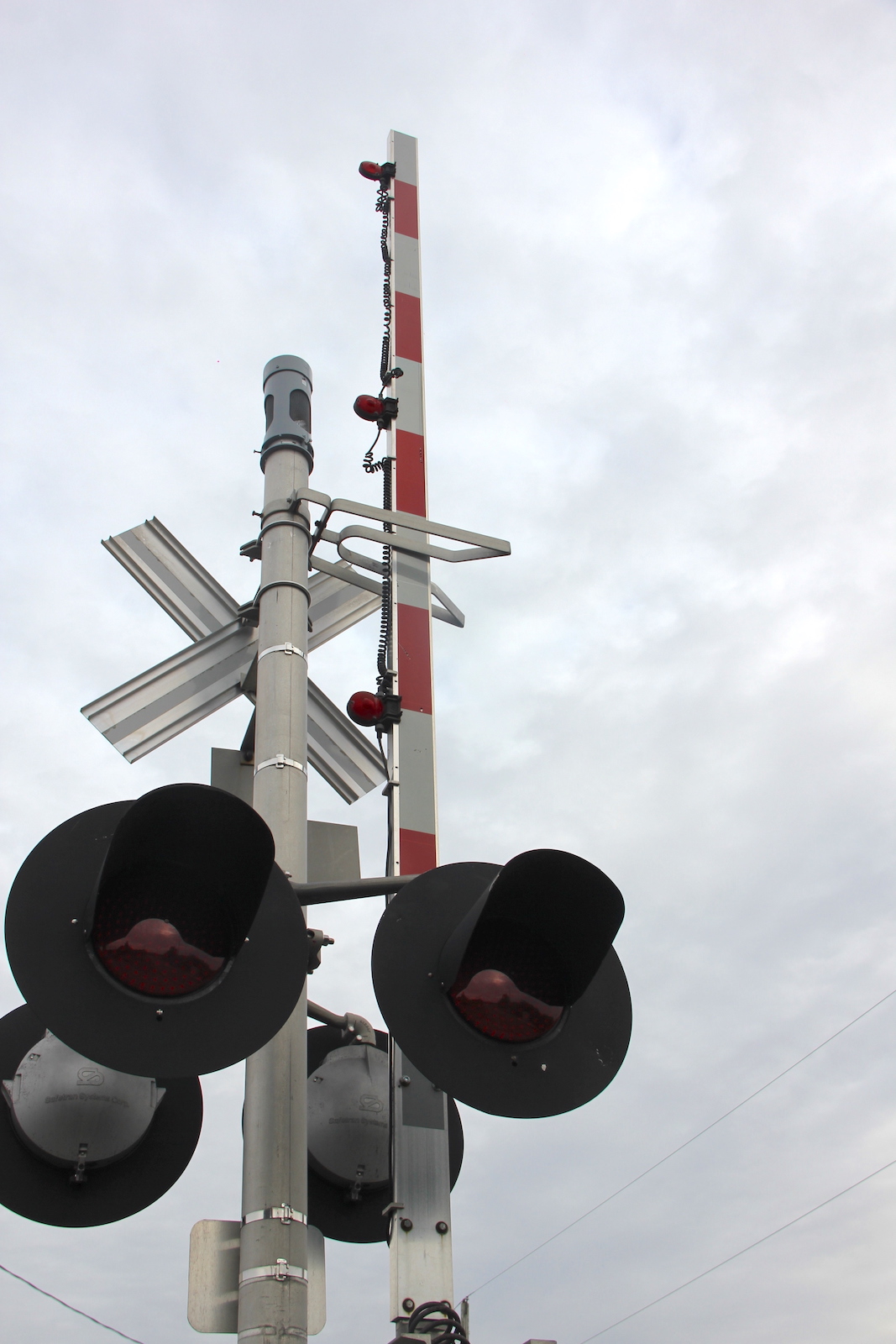

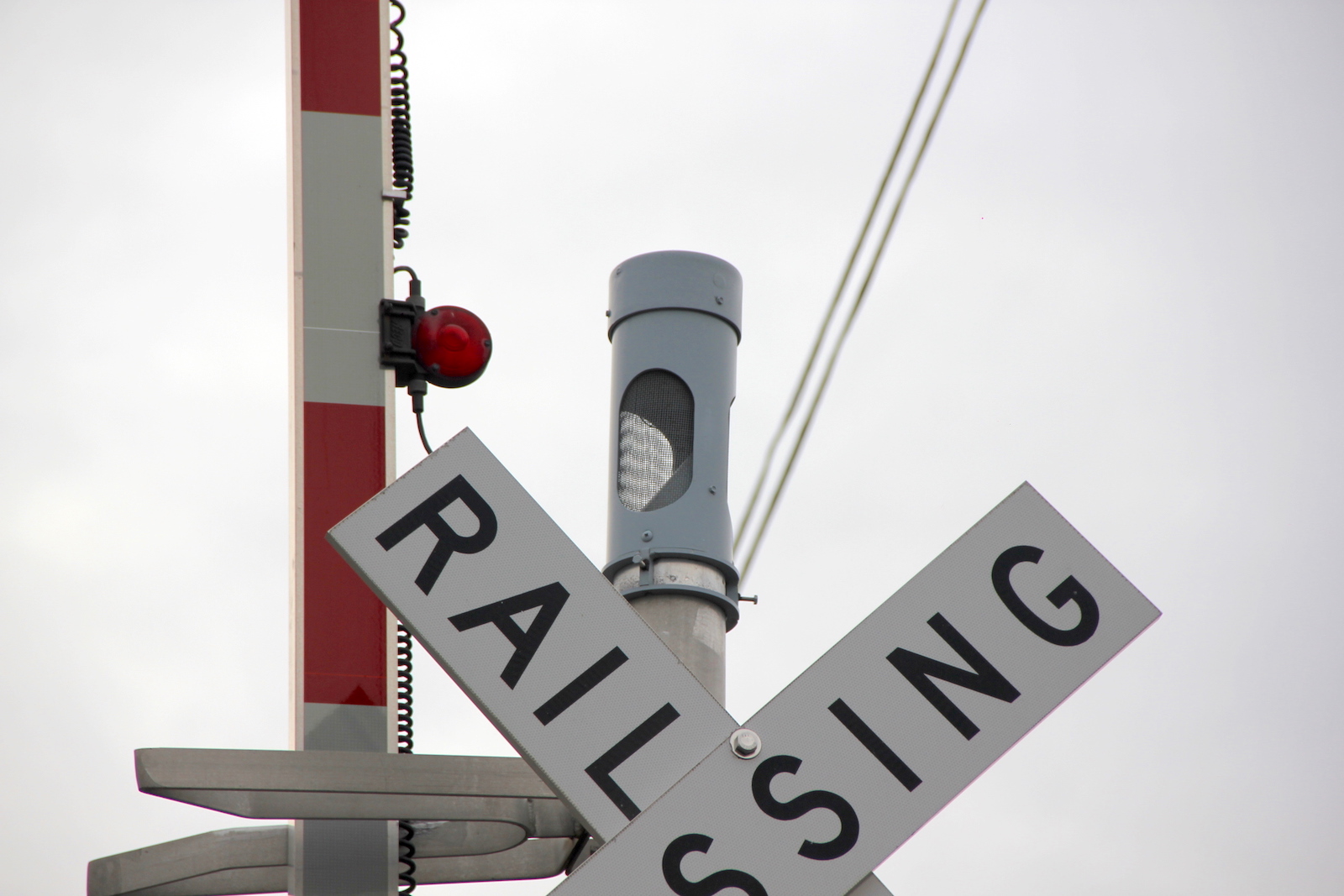

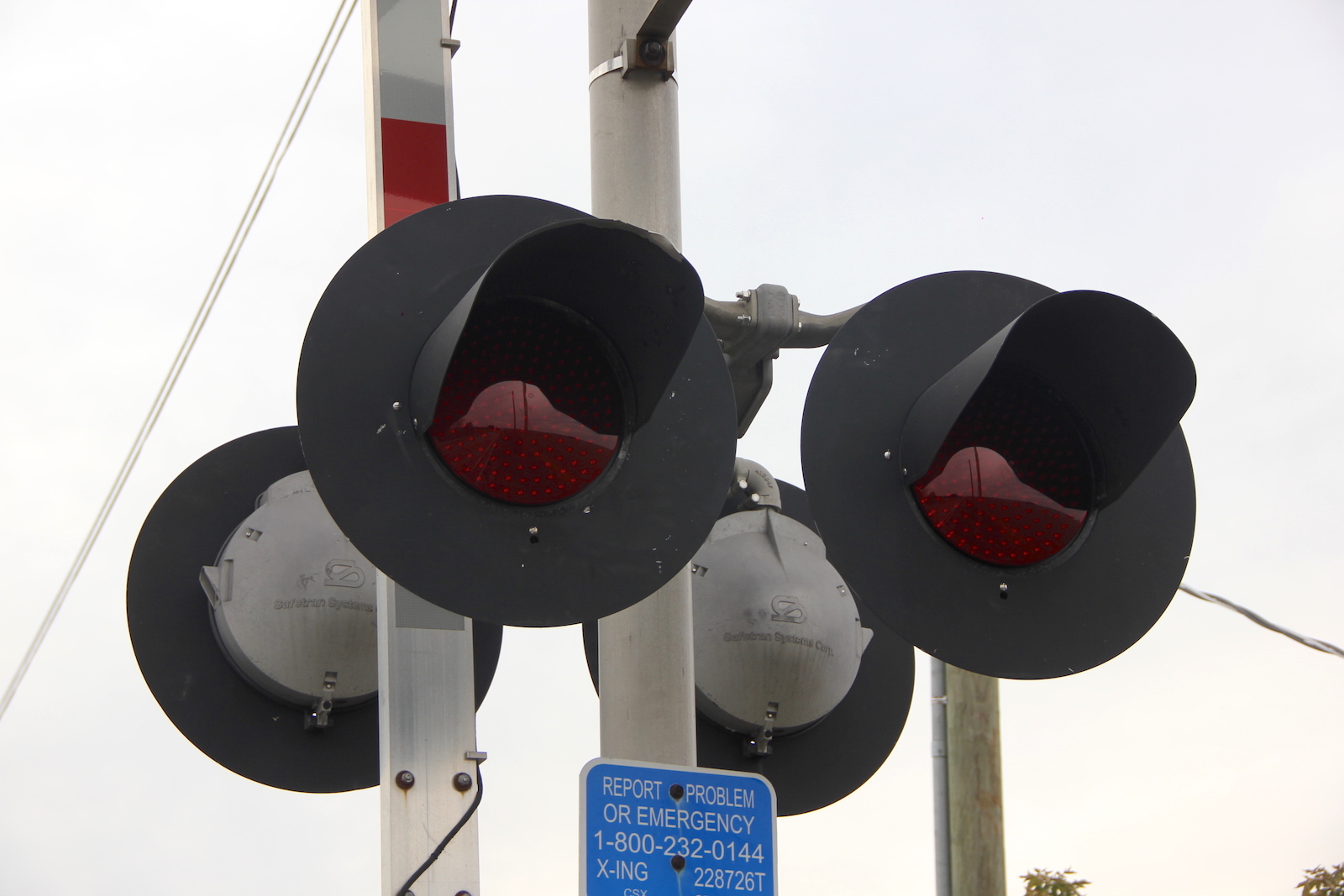

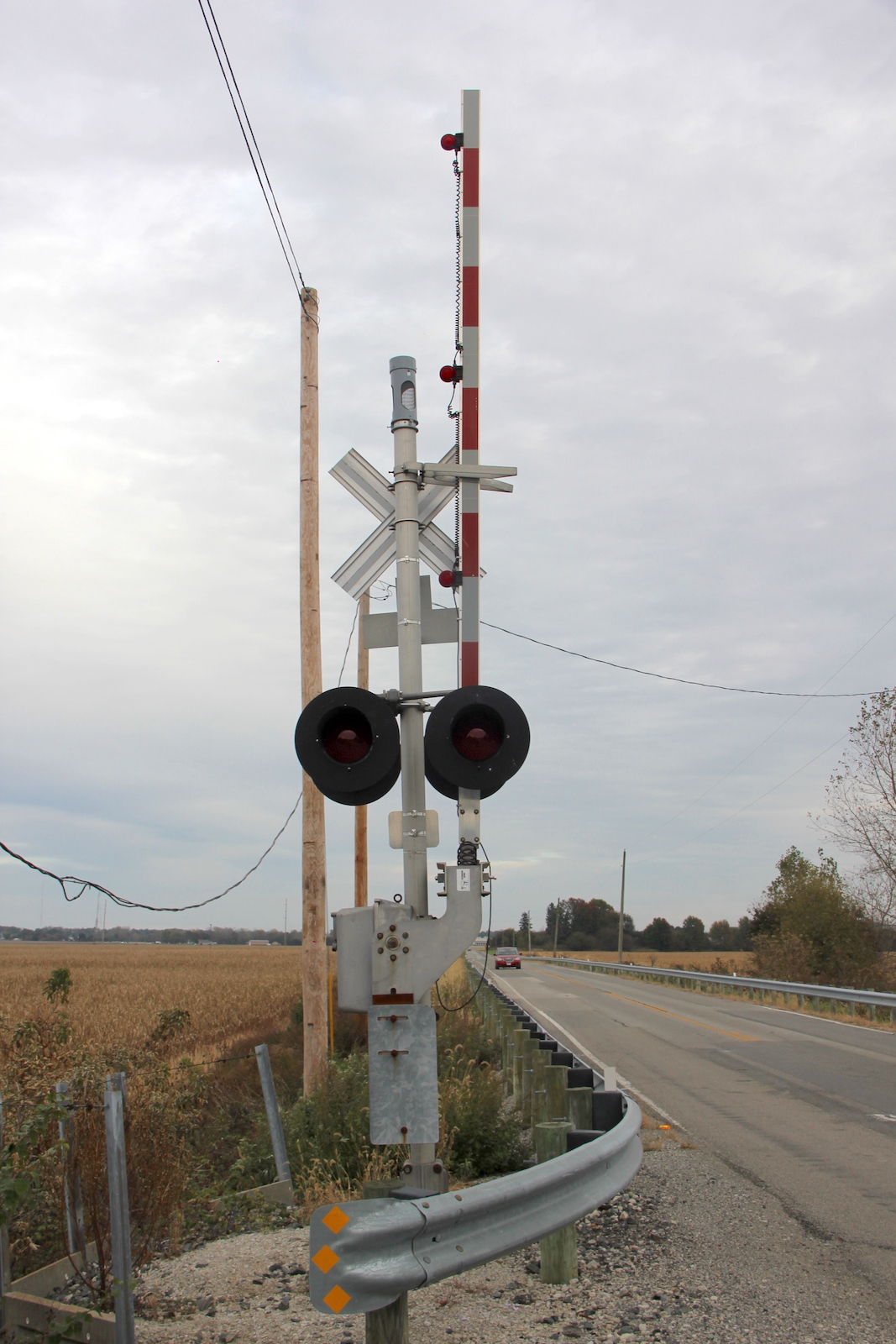

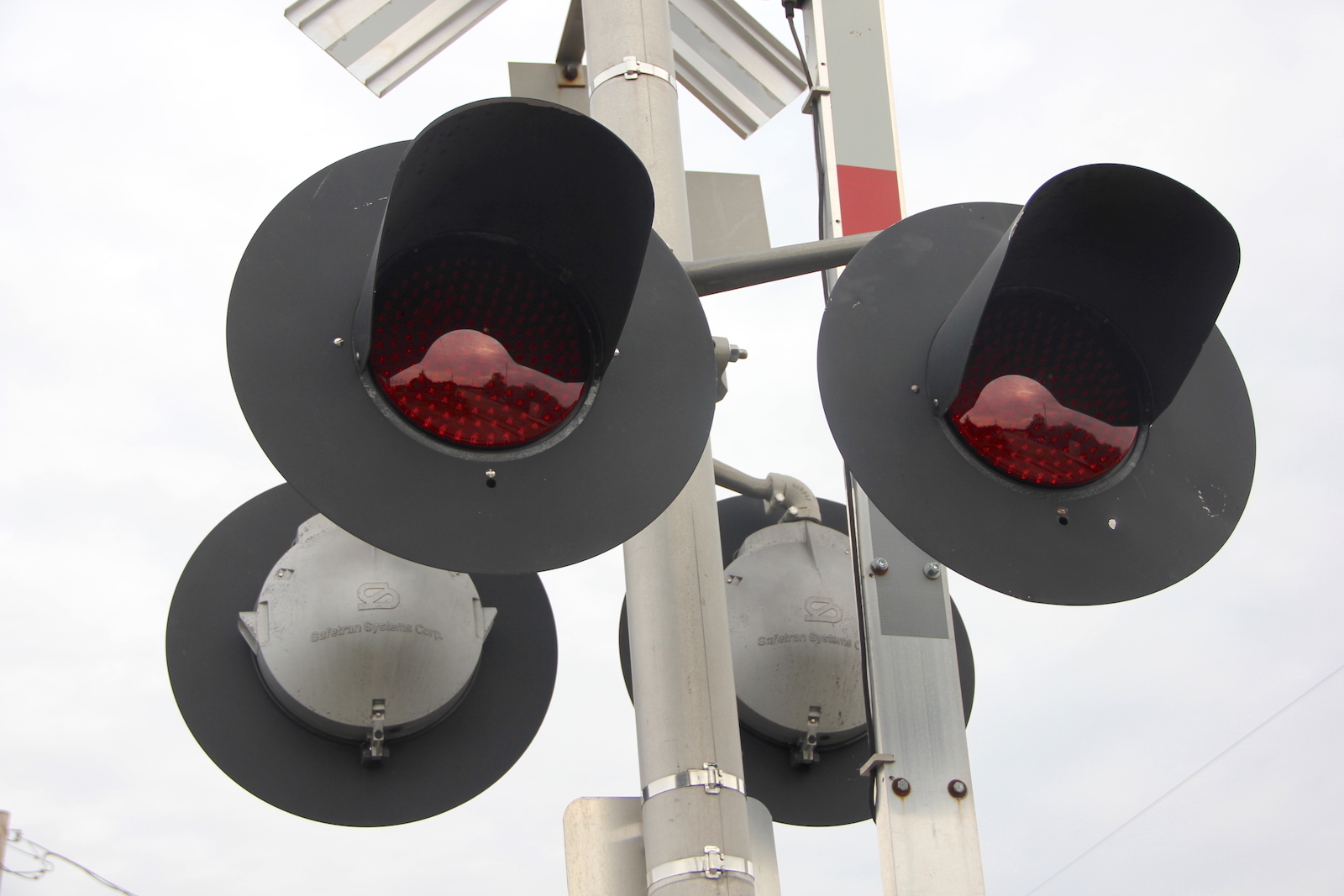

| The southern signal. |
22
|
23
|
24
|
25
|

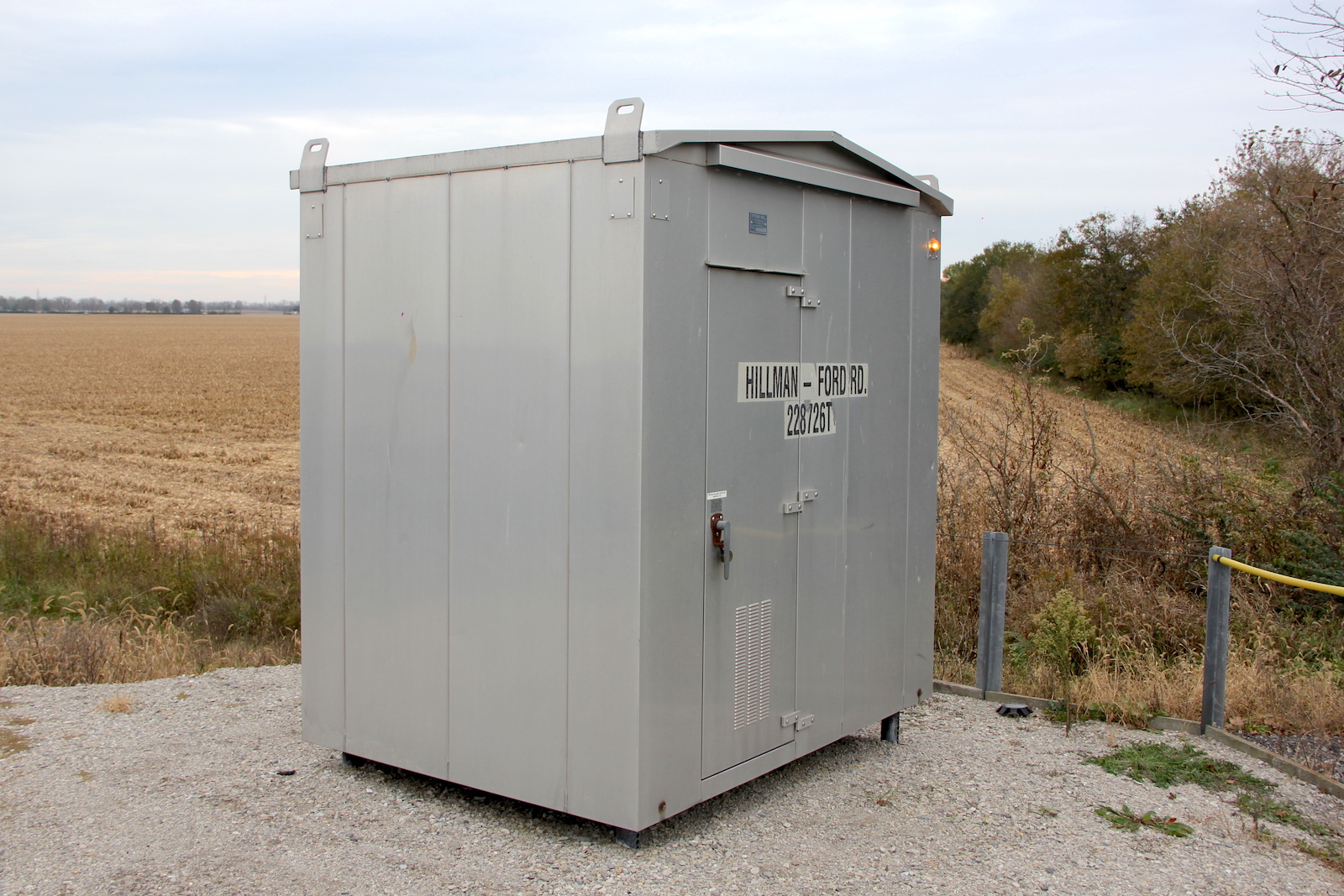

| The relay bungalow in the southwest quadrant. |

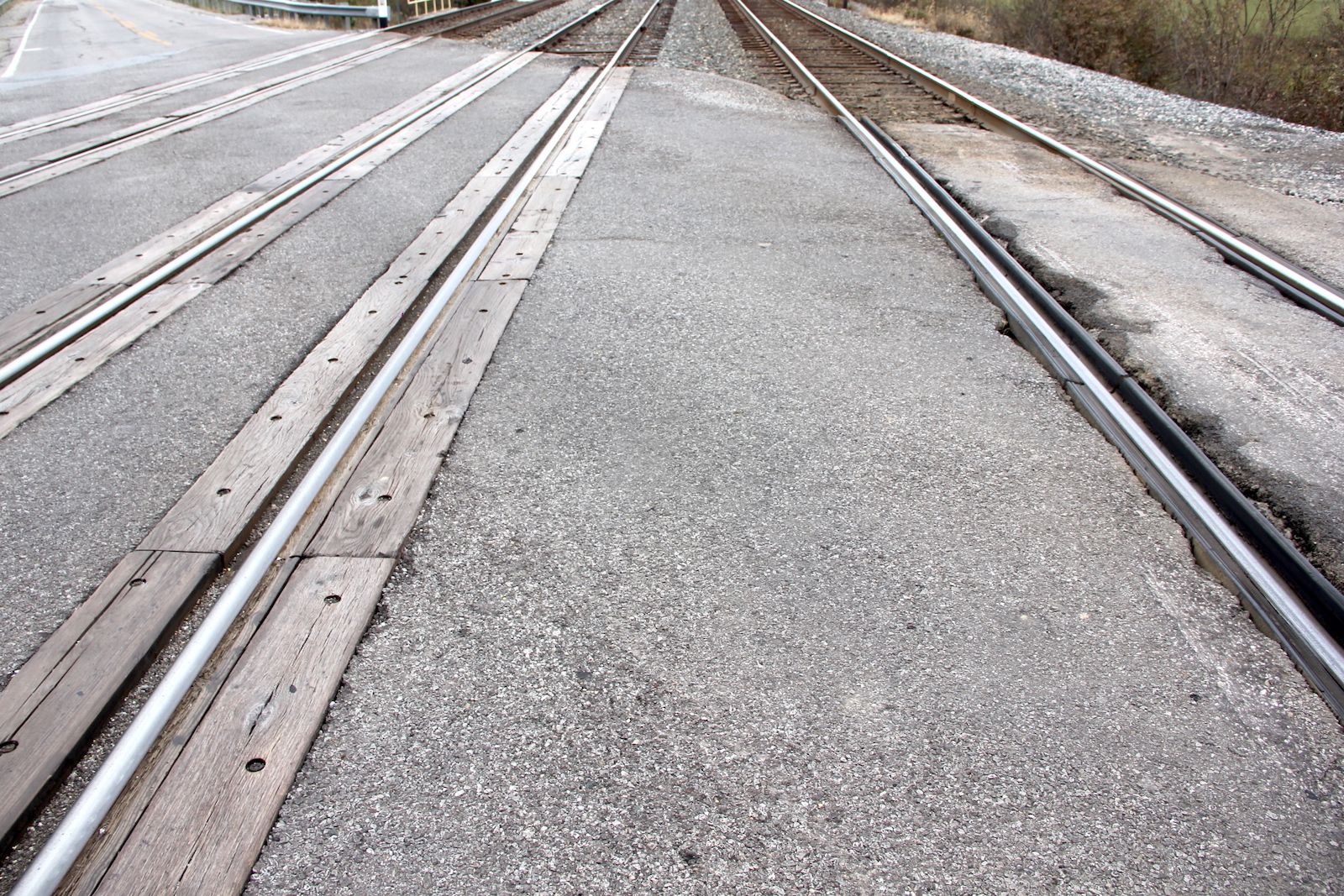

The grade is wood and asphalt for the westernmost trackd and rubber and asphalt for the eastern track. |

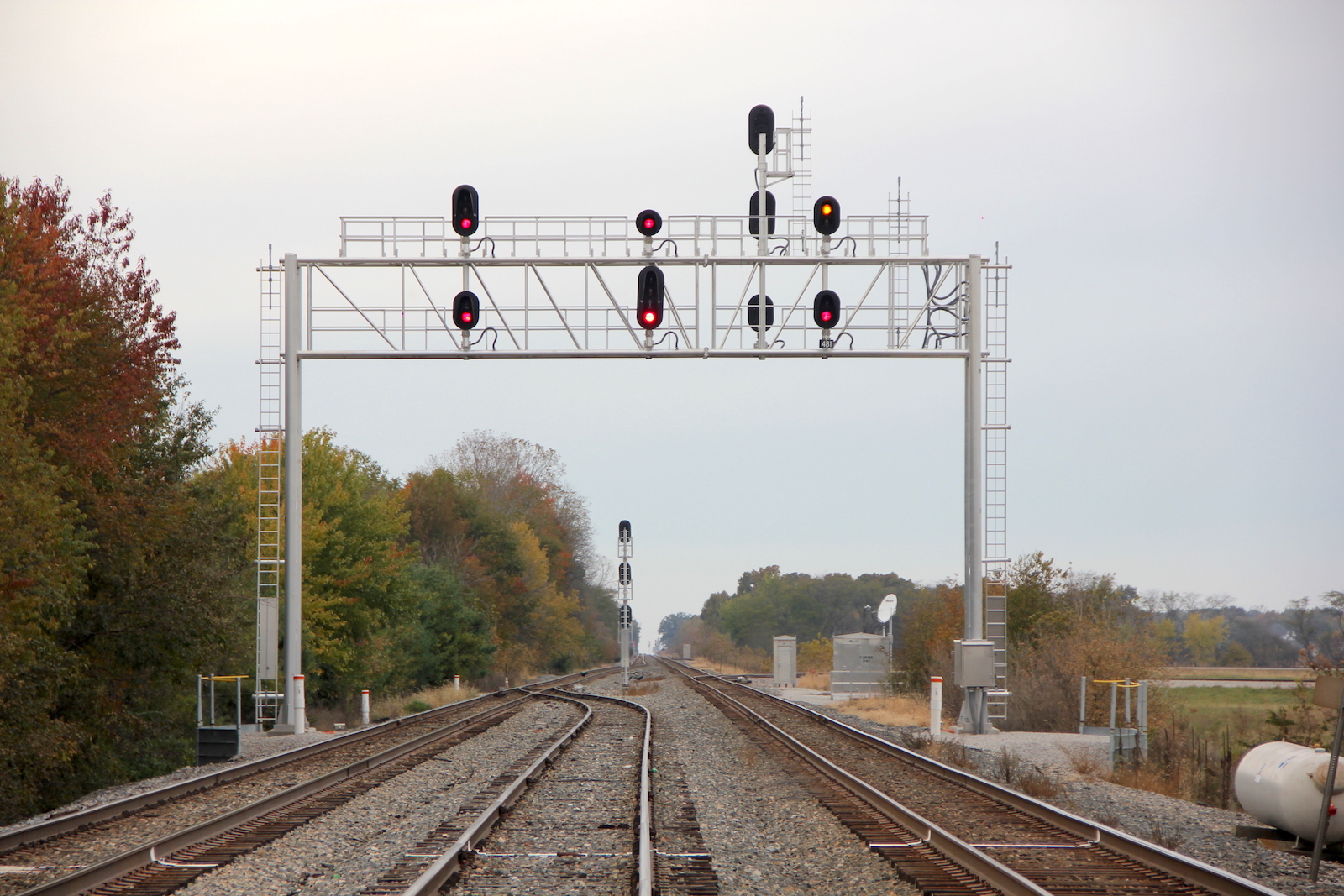

Track view facing north towards Kenton-Galion Rd. |

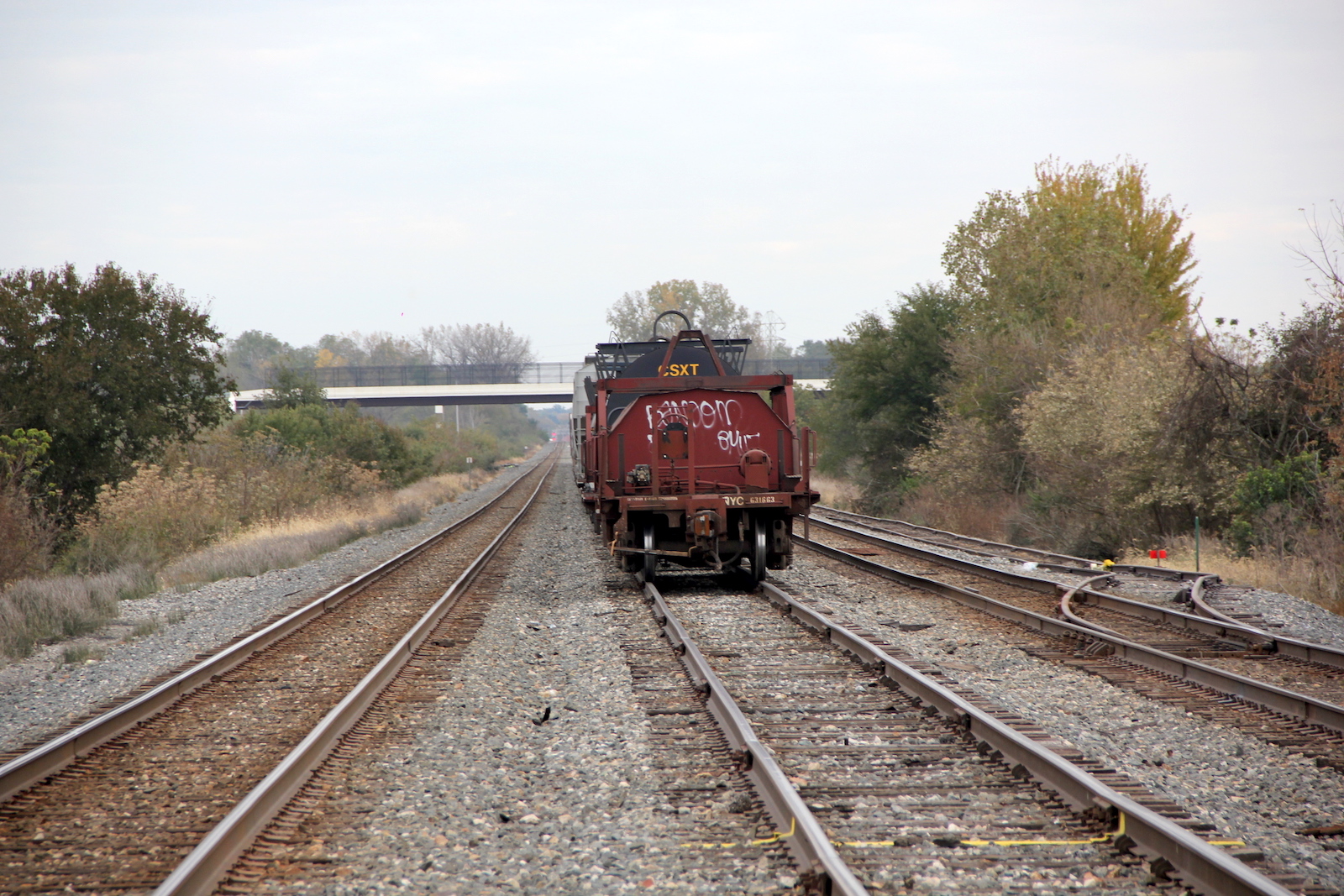

Track view facing south towards Fairground St. #1. |
