MP: 69.24 |
Created March 2026
Total Accidents: 0
Crossing
DOT #: 476861T
TOTAL
DAILY TRAINS: 4 (AS OF 2025)
| >>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Mechanical Bell | N/A |
| Base: |

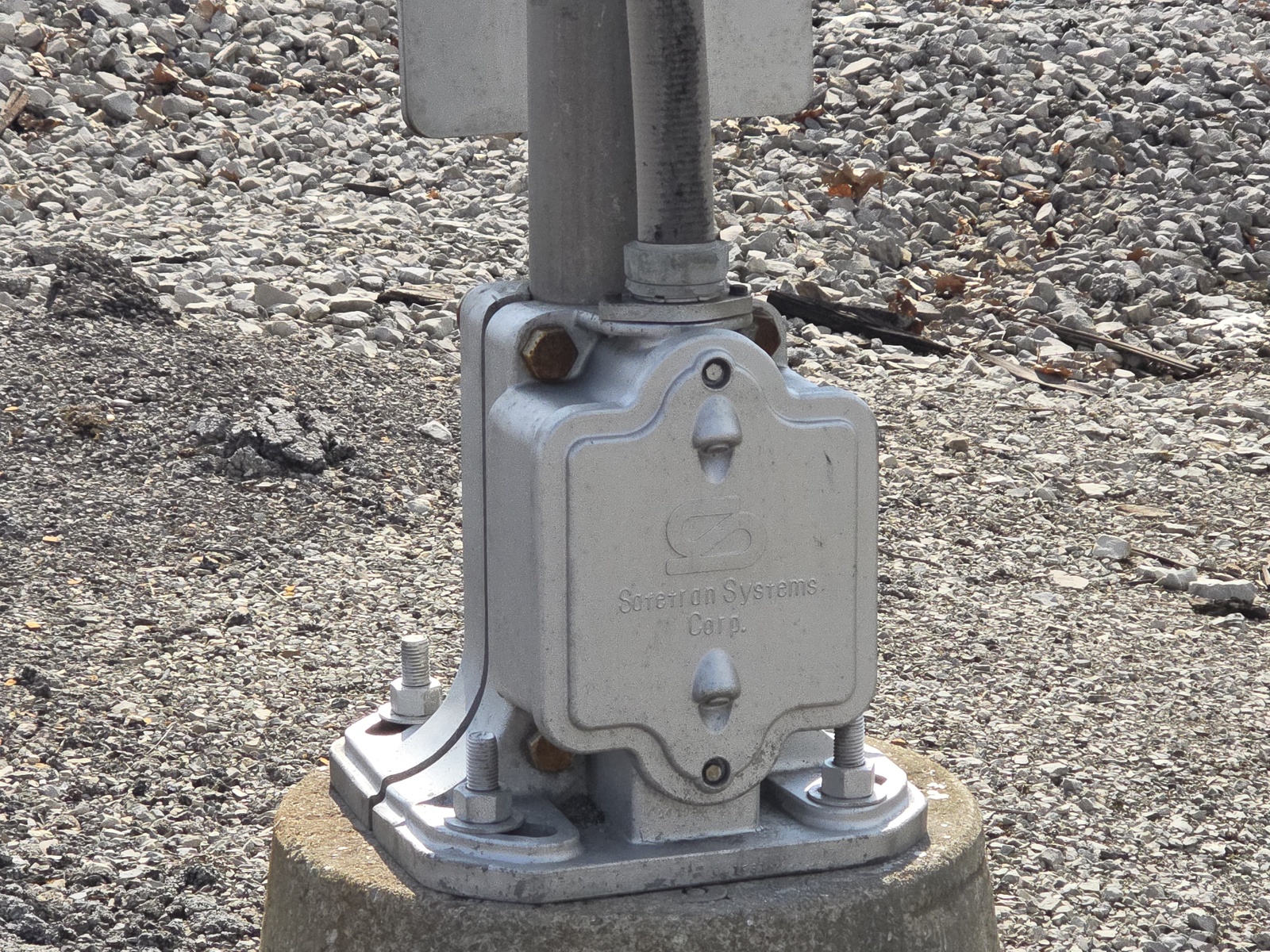

Safetran 5" Single Sided | Safetran/SERRMI 5" Double Sided |
| Light Frames: | 4 - 8"x20" Safetran incandescents | 4 - 8"x20" Safetran incandescents |
| Light Brackets: |
Safetran | Safetran |
| Gate Lights: | 3 - RECO 4" | 3 - RECO 4" |
| Gate Mechanism: | Safetran 1980s w/ Standard Mount | Safetran 1980s w/ Standard Mount |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Sir Fluent
Pictures 1-25 were taken on February 27, 2026, by Nicholas Miles.
This crossing is located on the NS Lima District.
O1 |
O2 |
O3 |
O4 |
|

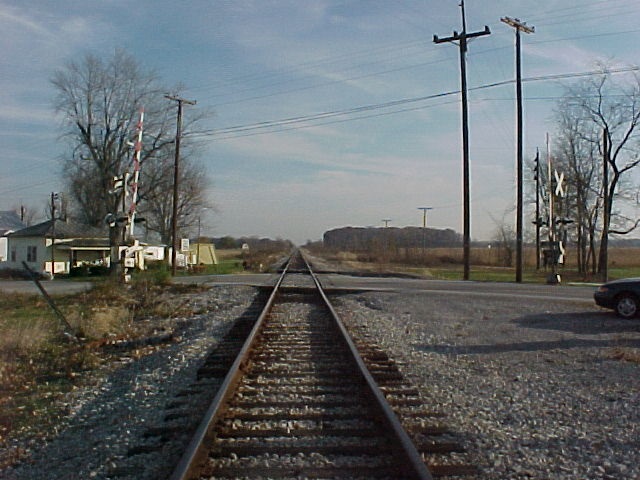

PUCO pictures from 1999 shows an old WRRS gated setup with 8 inch cast iron WRRS incandescents, WRRS gate mechanisms and a WRRS(?) mechanical bell. Now, for whatever reason, between 2014 and 2019, both of these signals were replaced, but instead of using all new signals, NS decided to install older early 80s signals here! I have no idea where these particular signals came from, but its very very odd to see NS reusing older signals for a crossing like this.
|
||||
1 |
2 |
Overviews of 2 older gated signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |

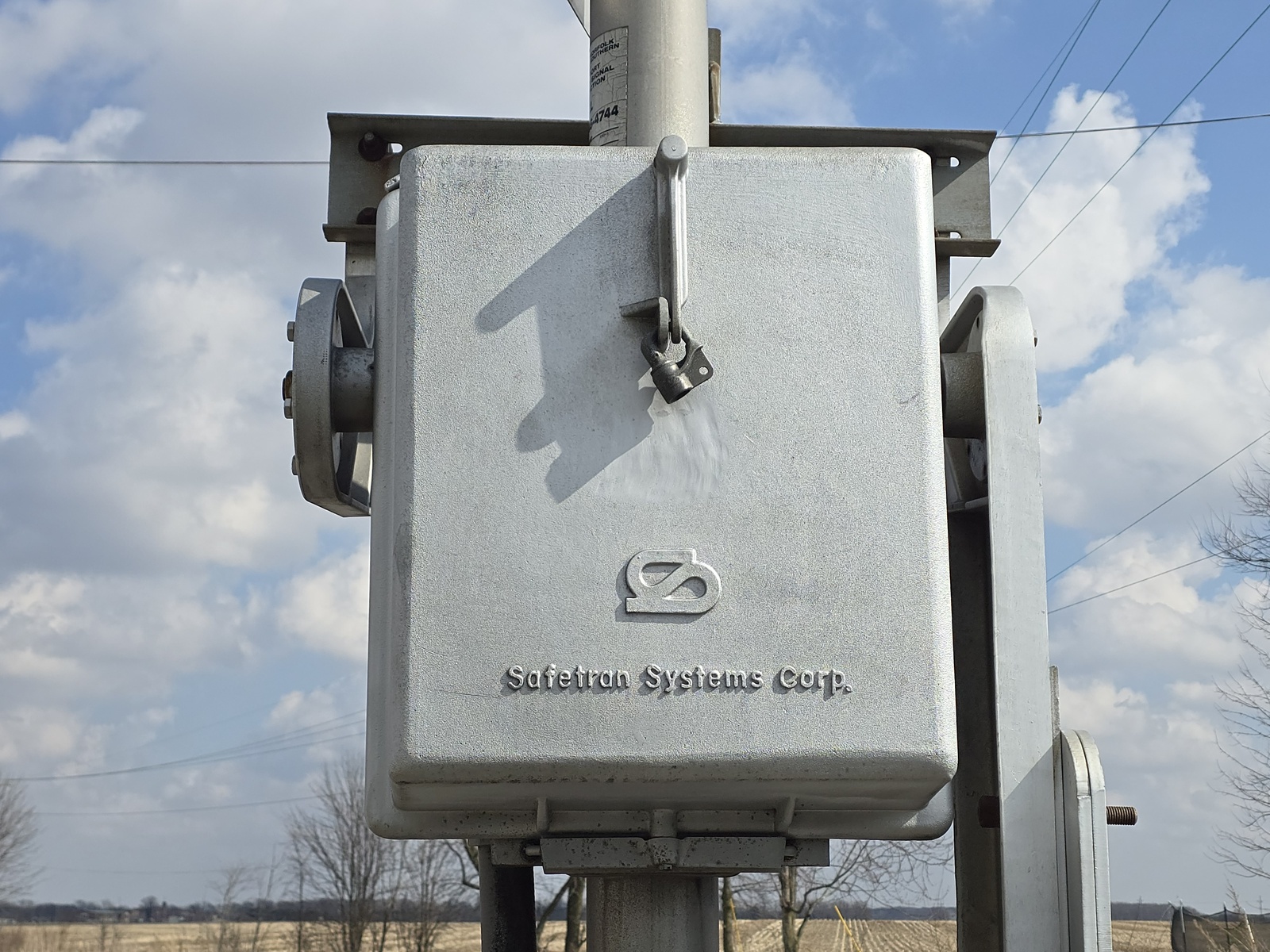

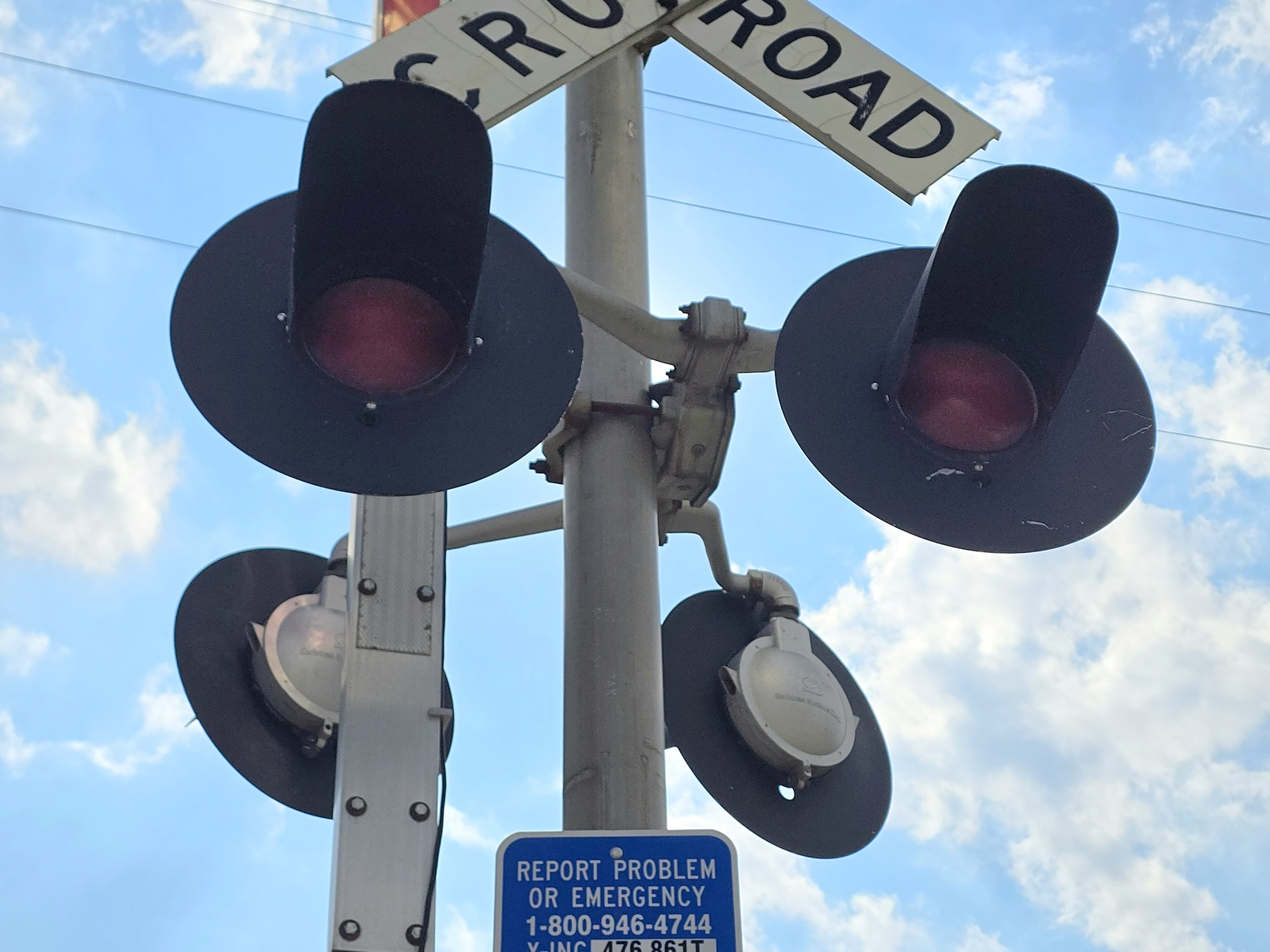

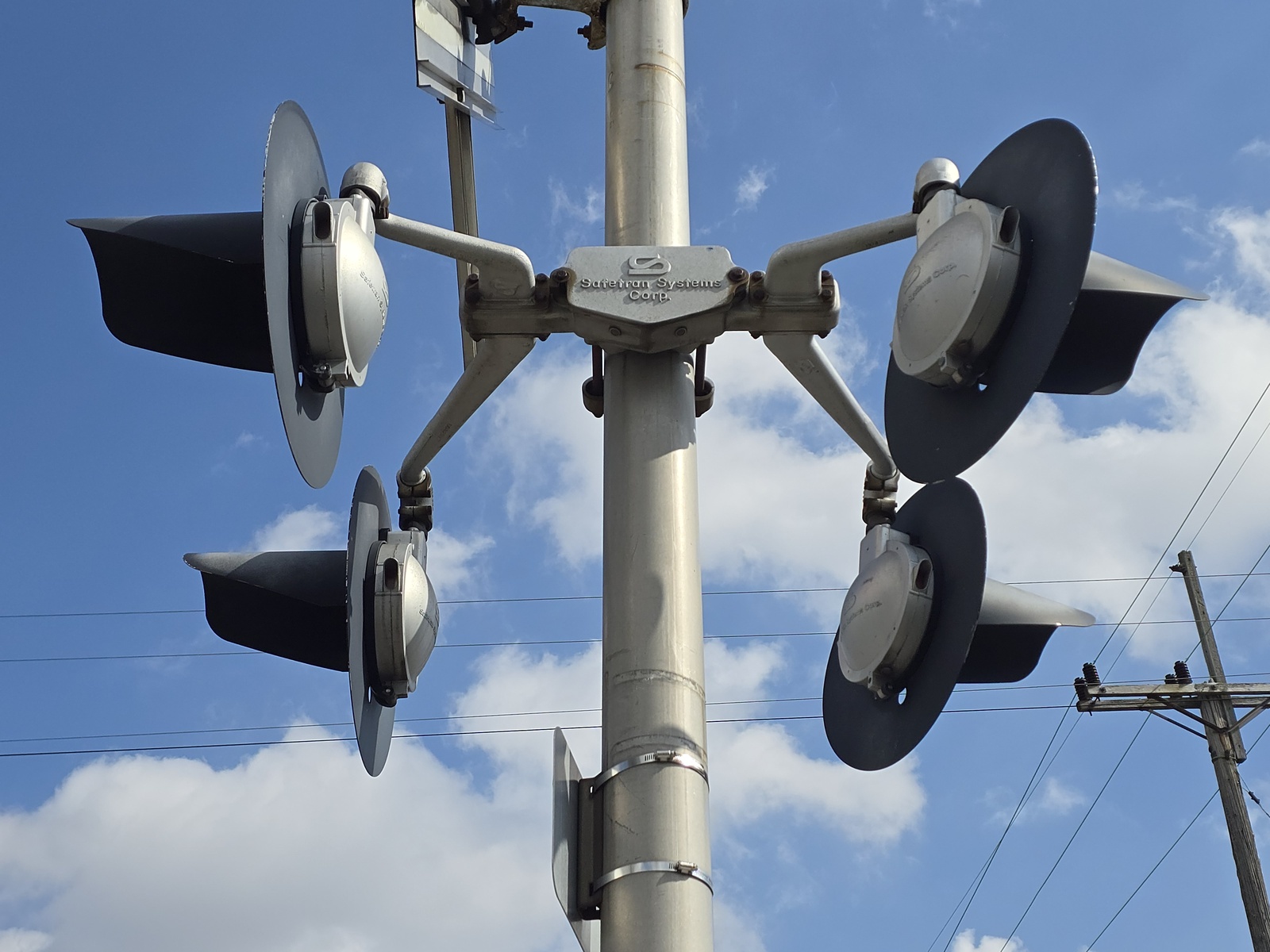

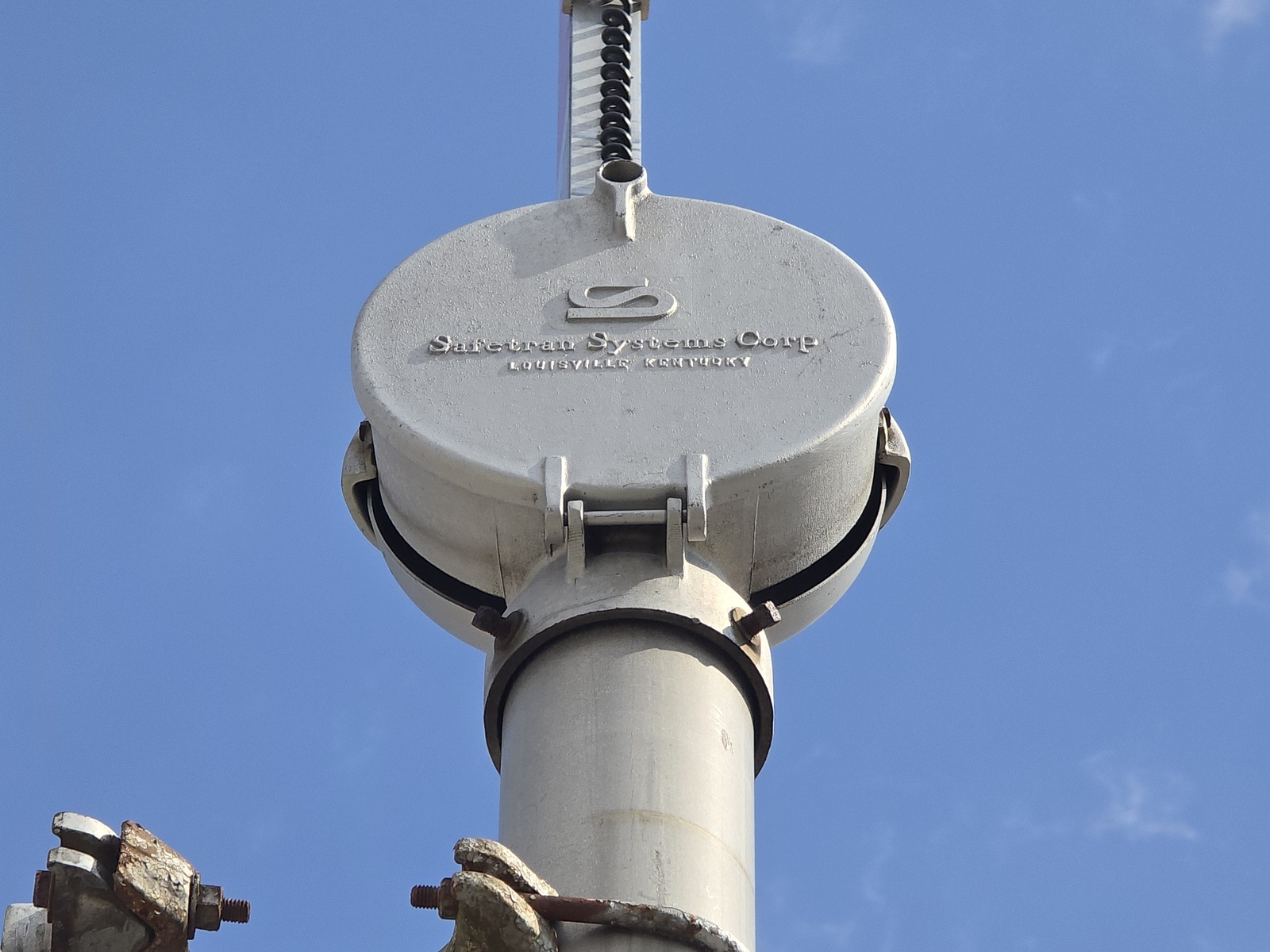

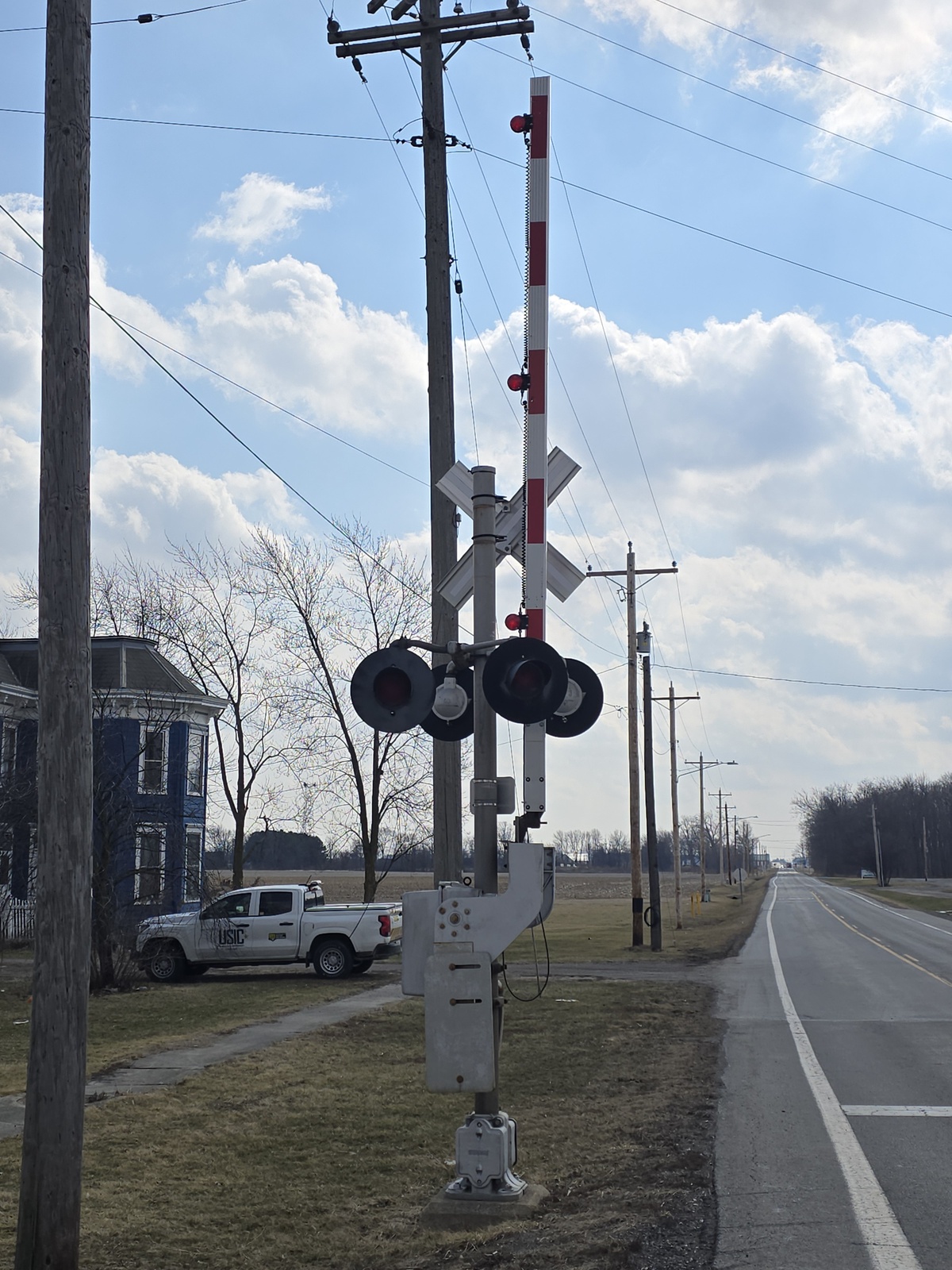

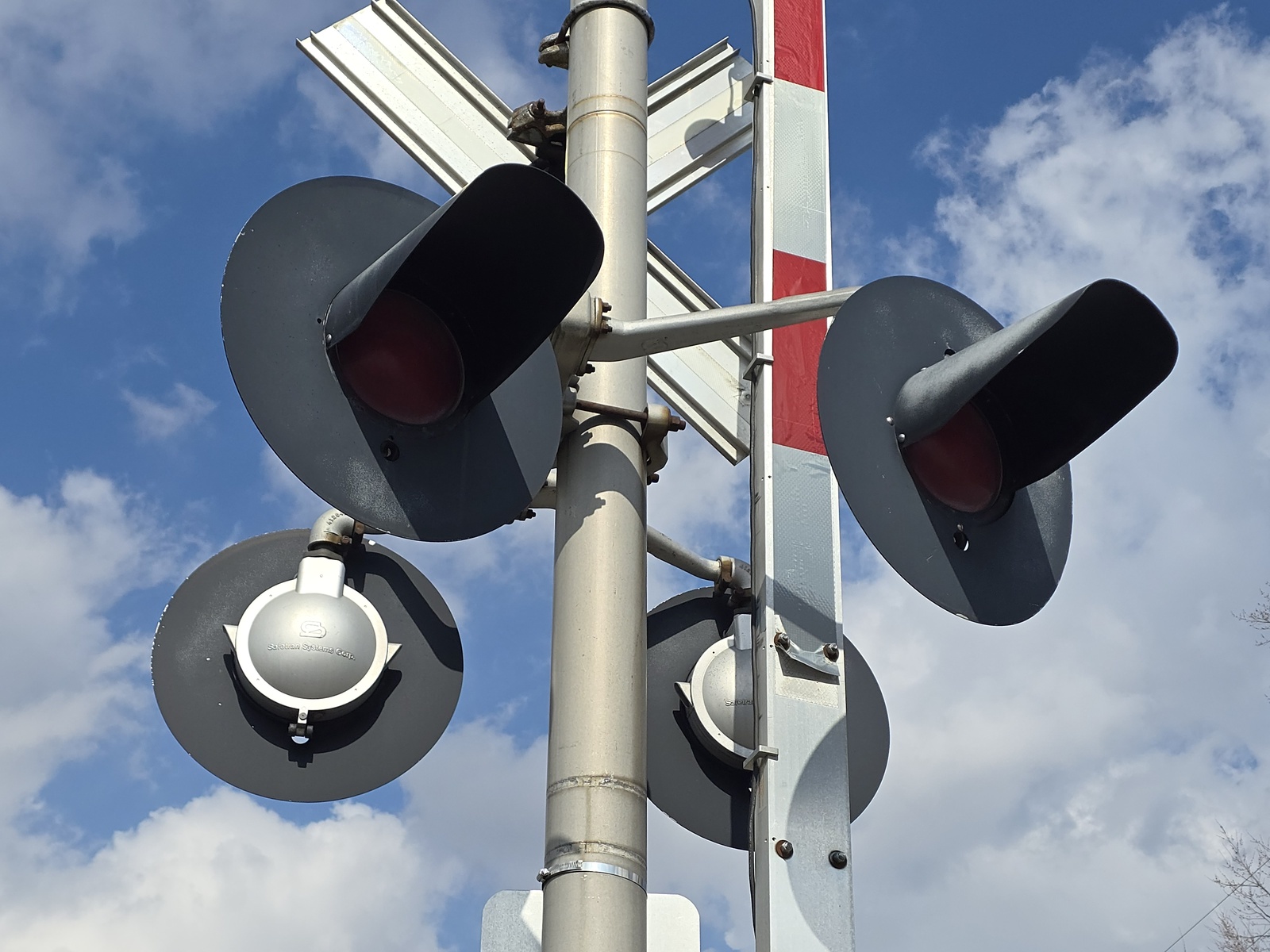

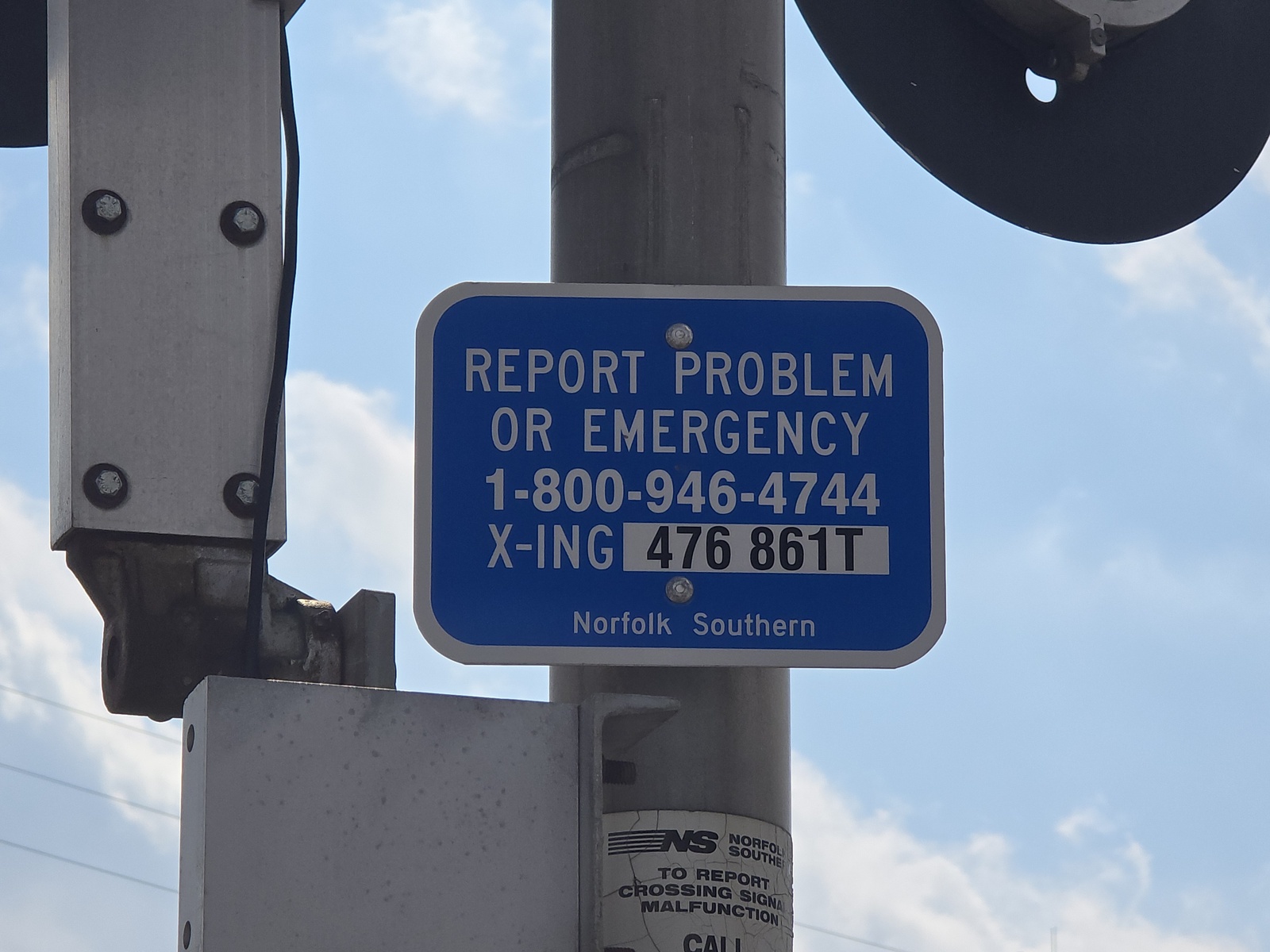

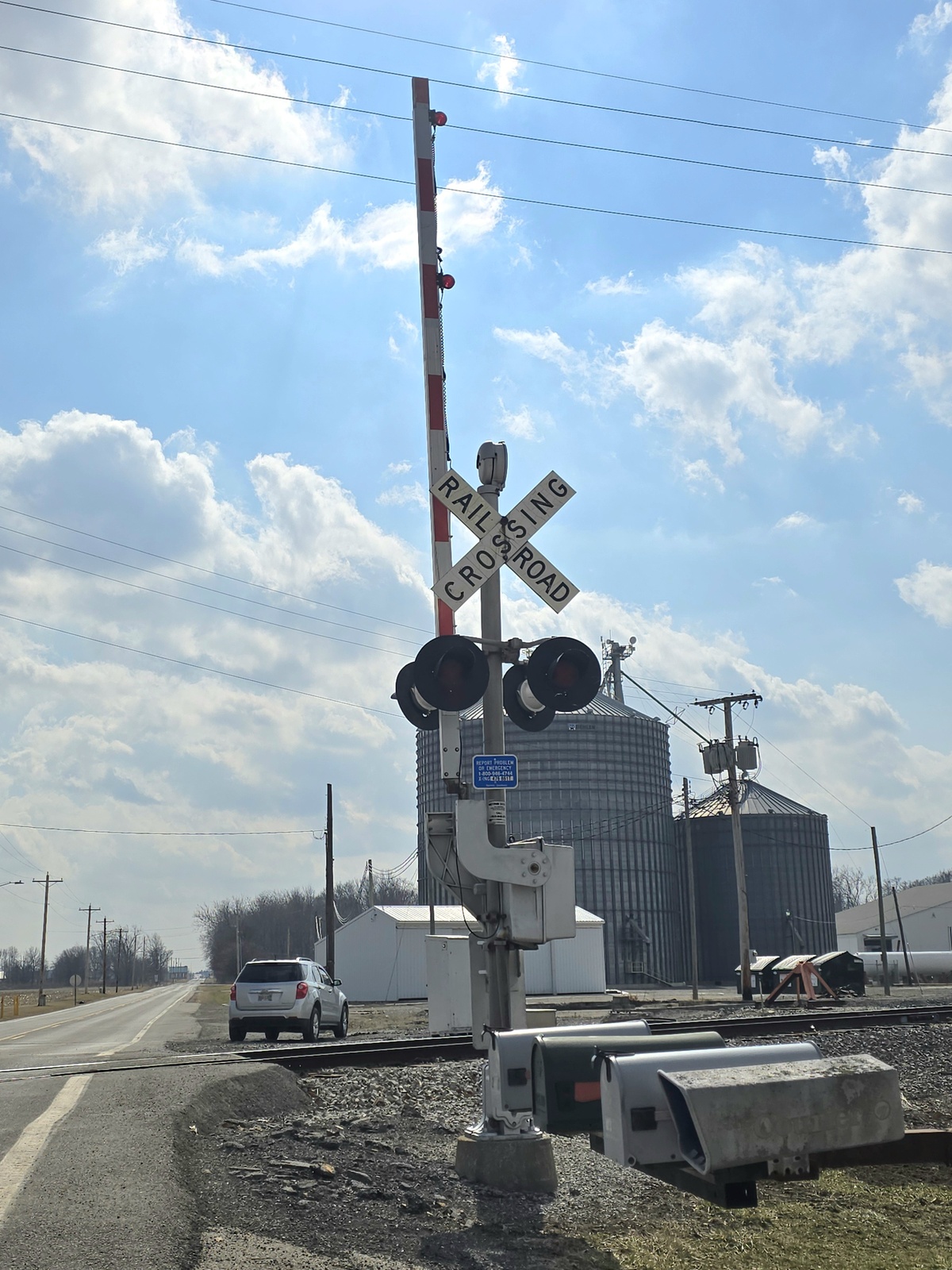

| The northern signal. | |||
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |

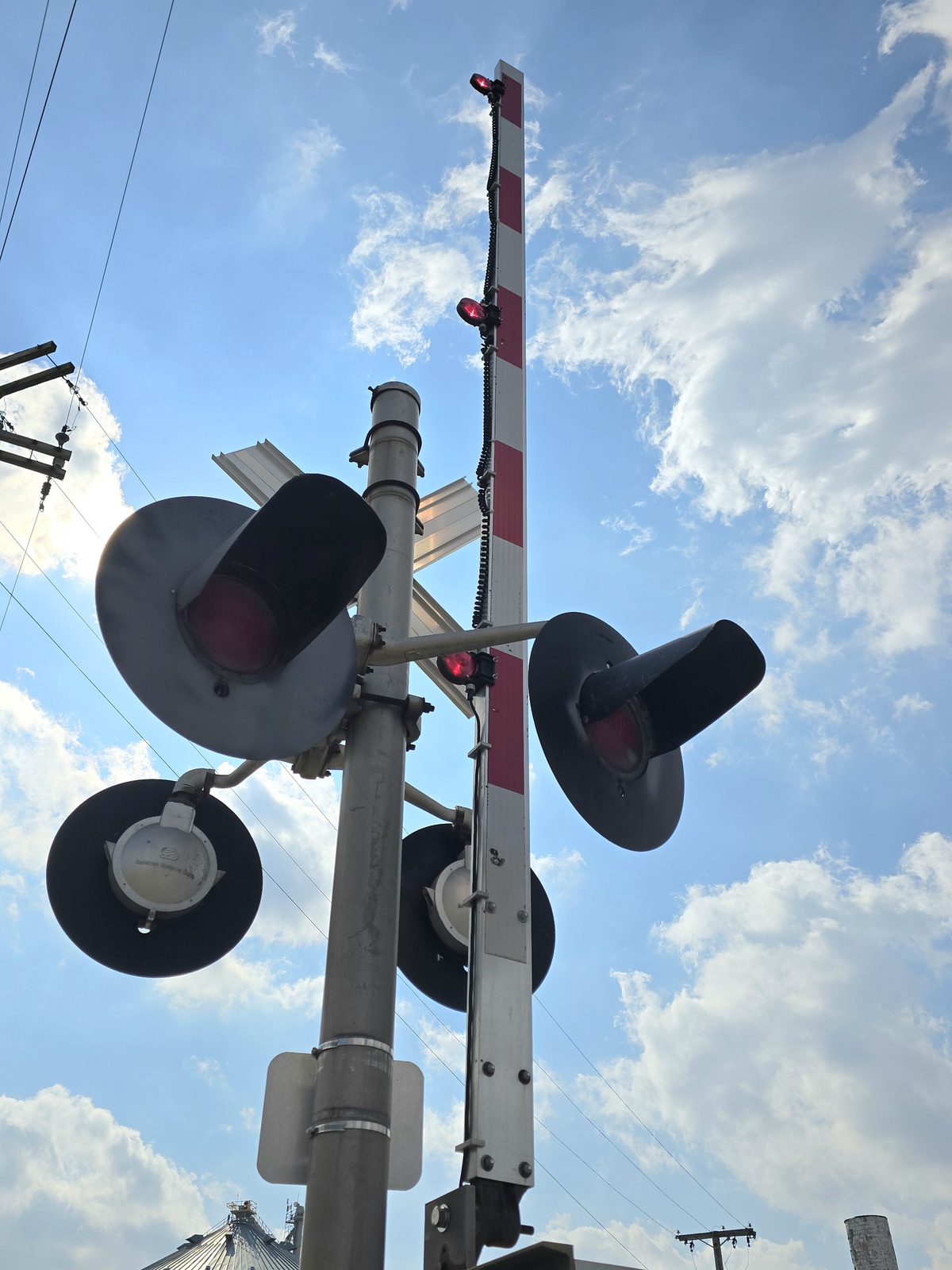

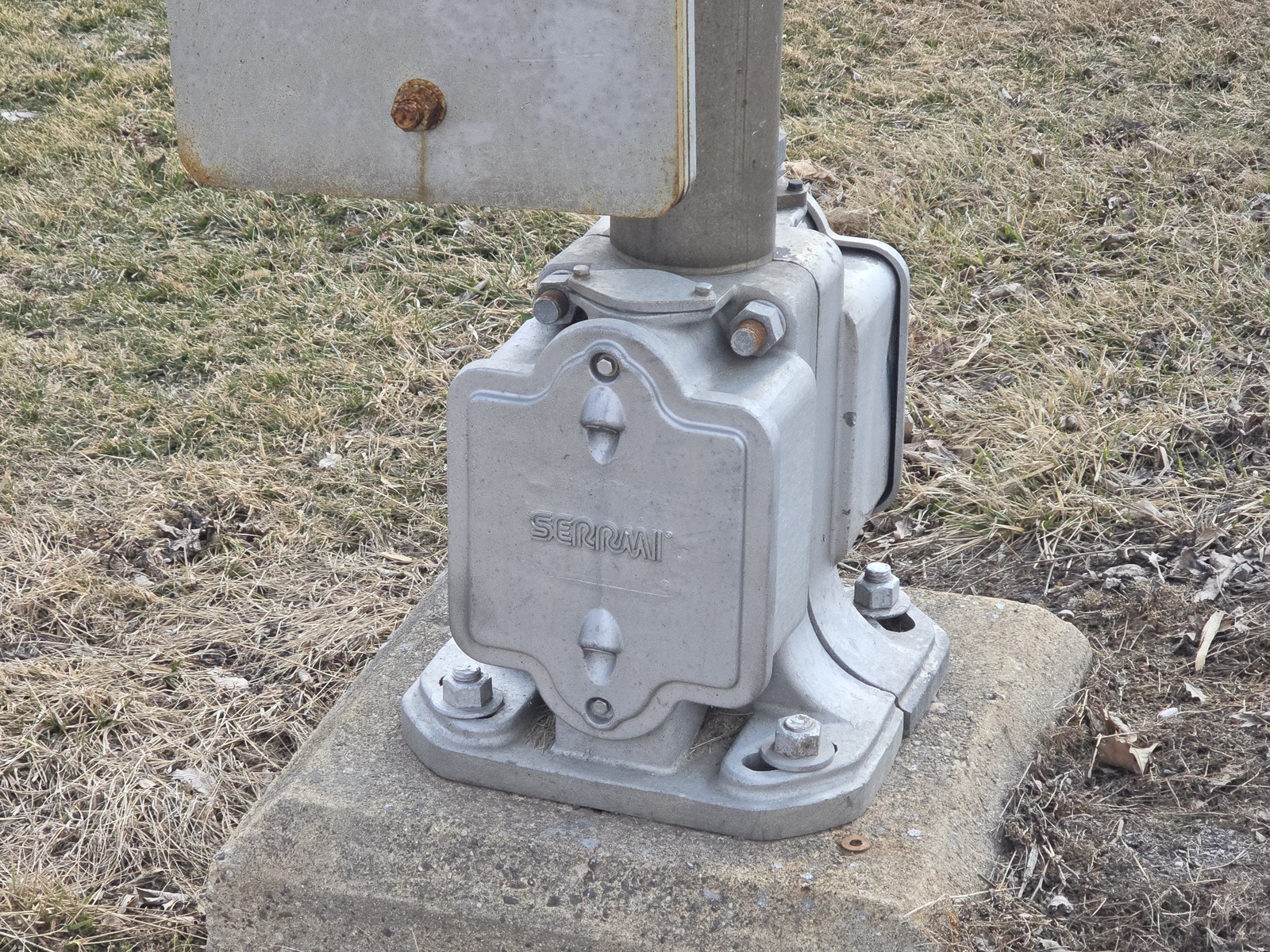

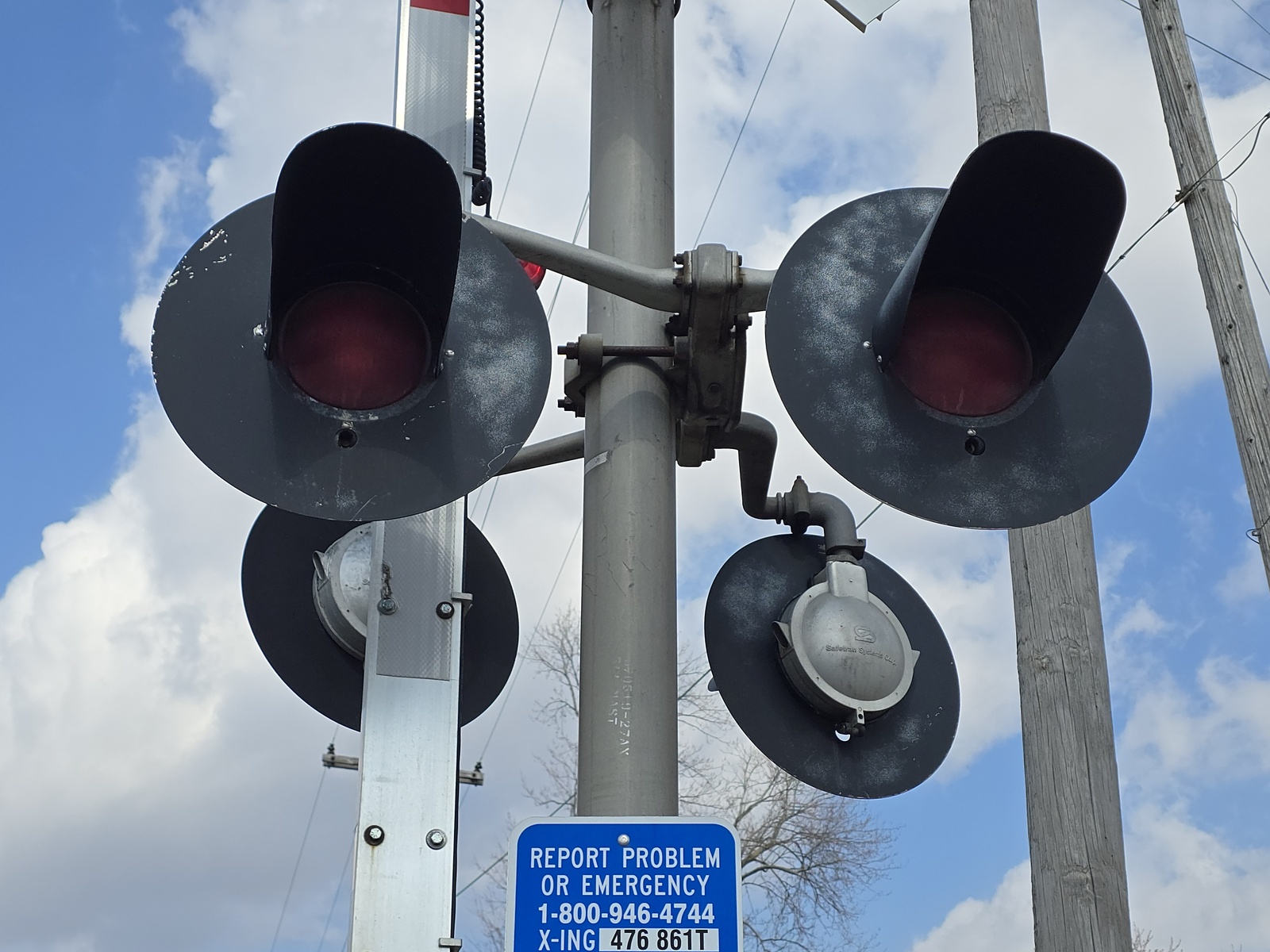

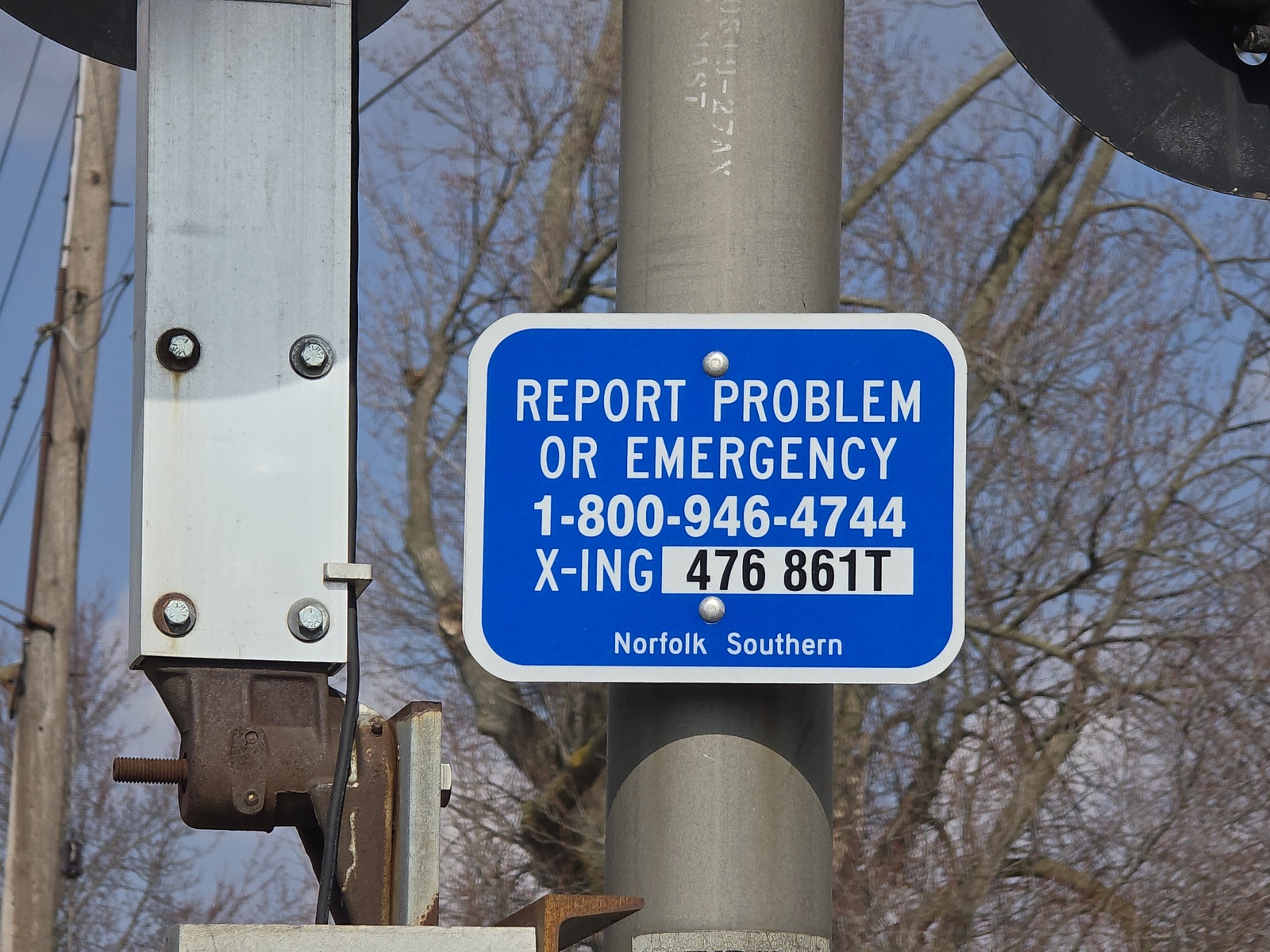

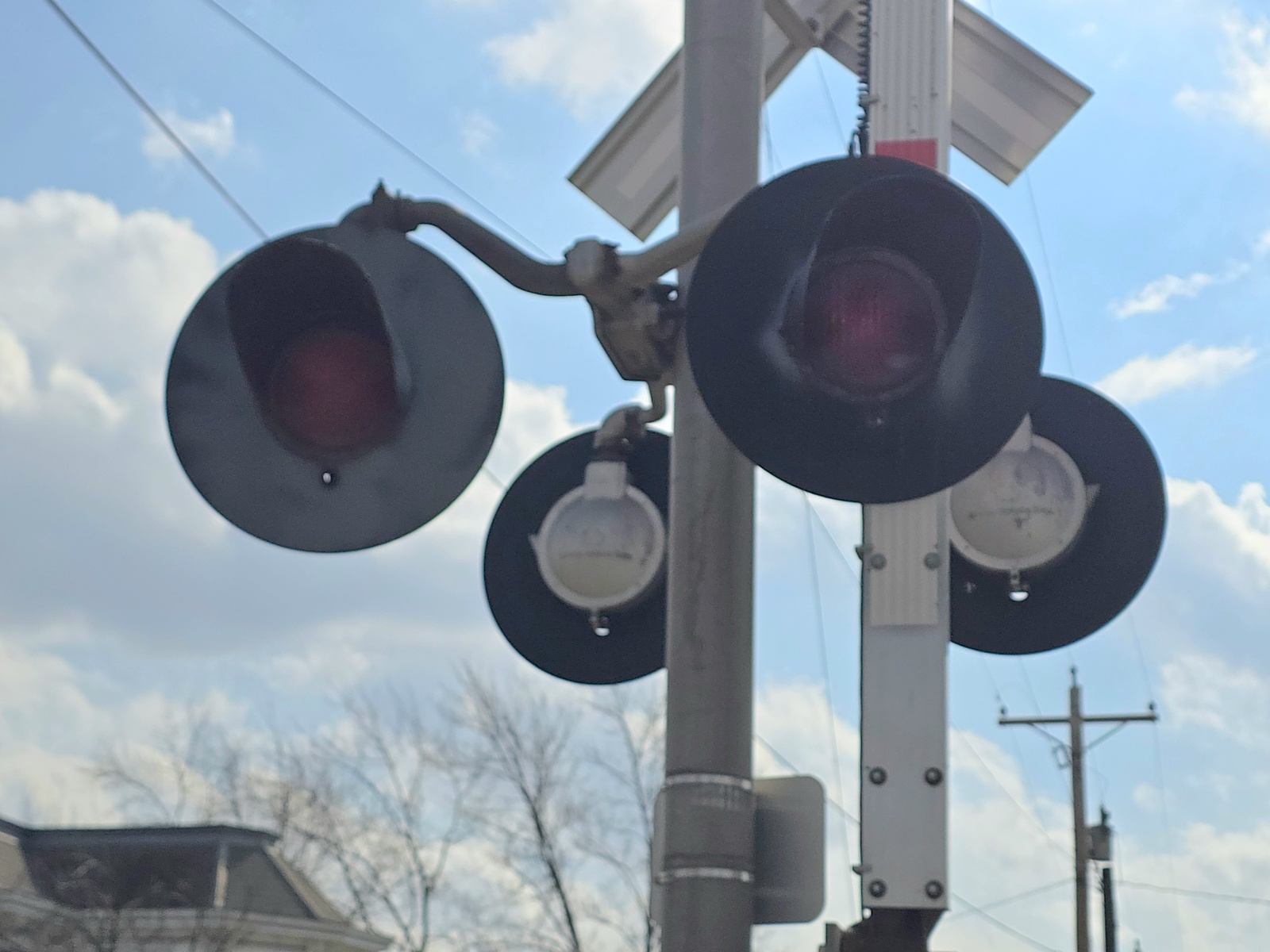

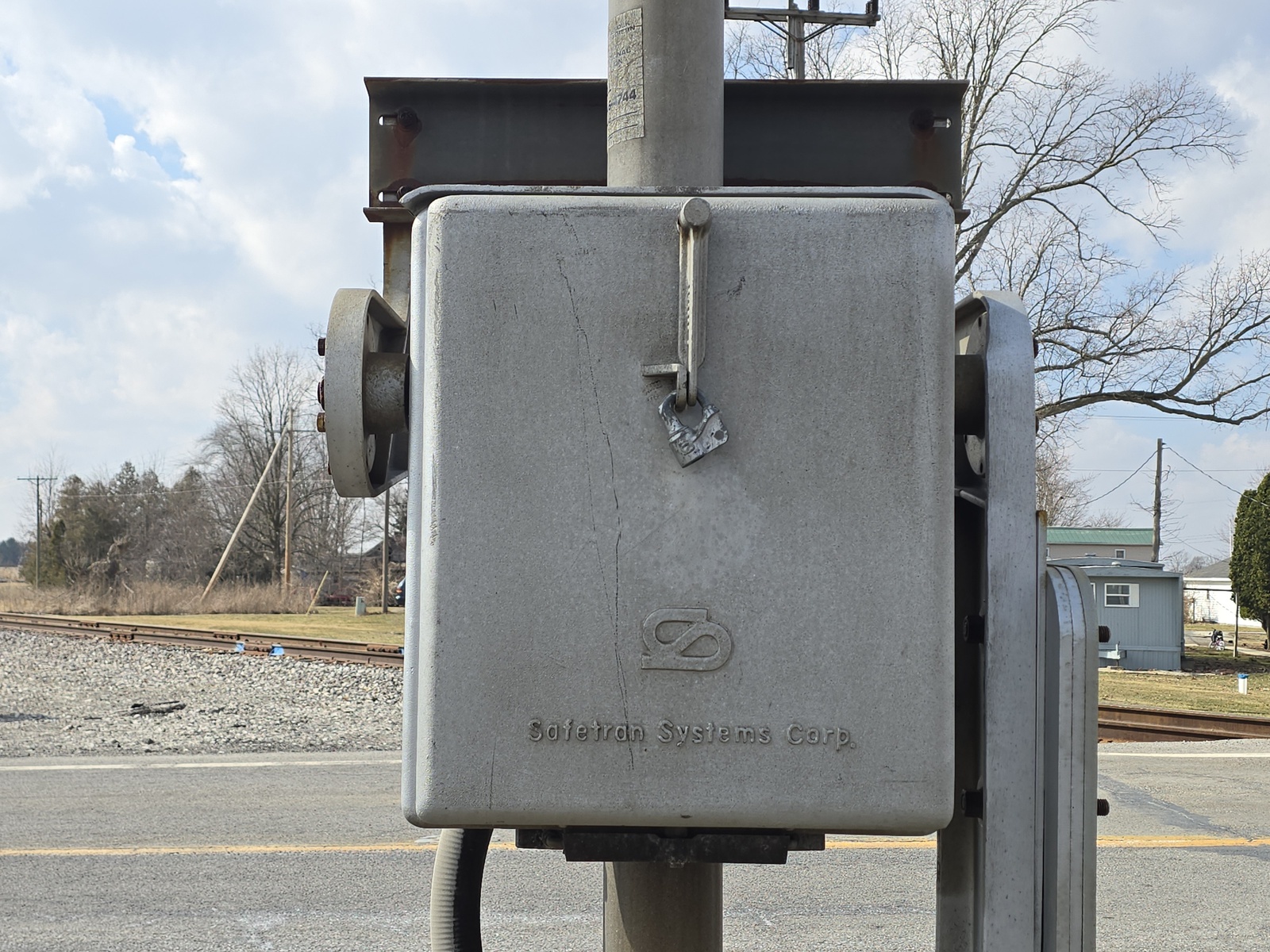

| The southern signal. | |||
21 |
22 |
23 |
24 |

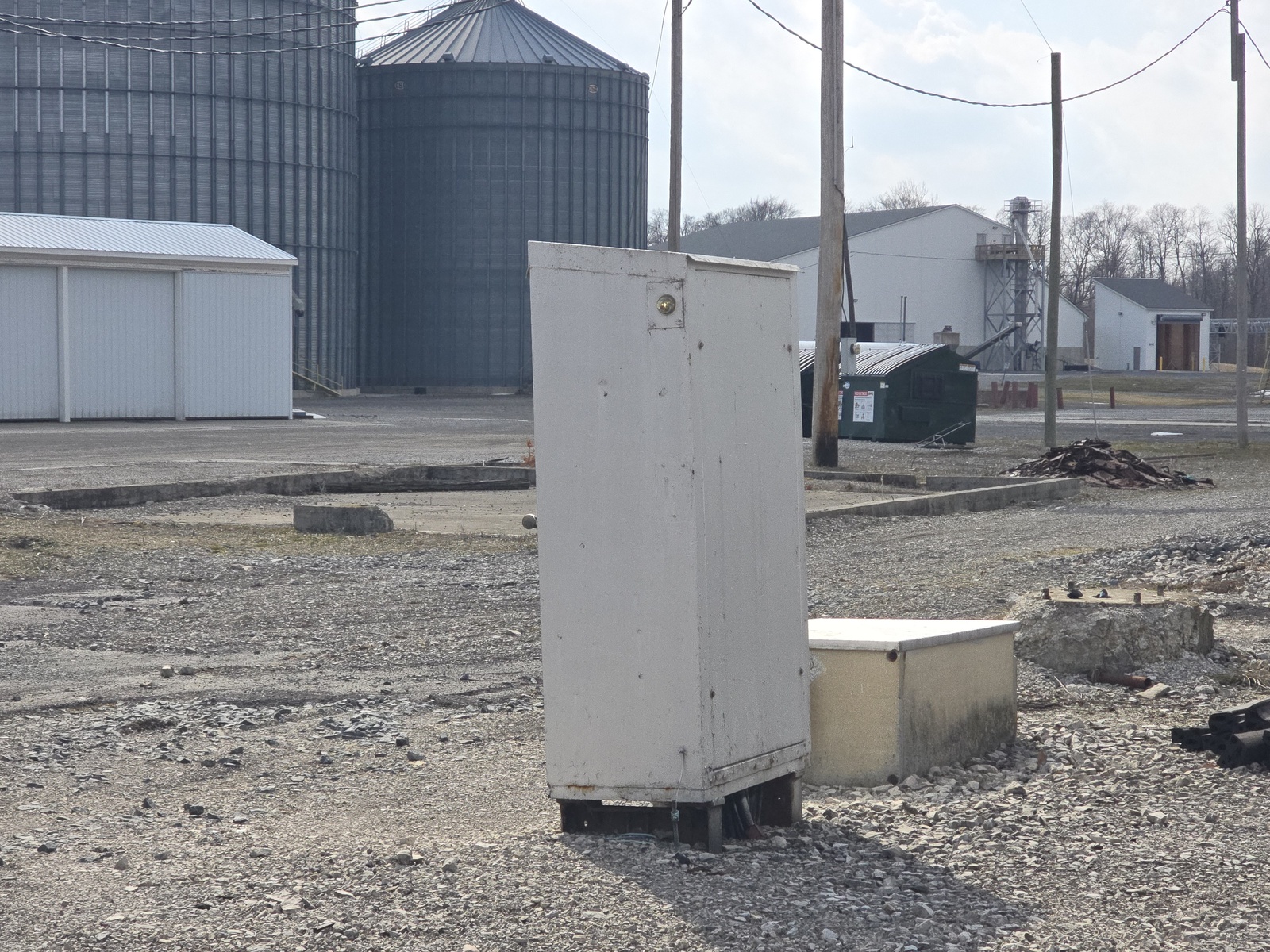

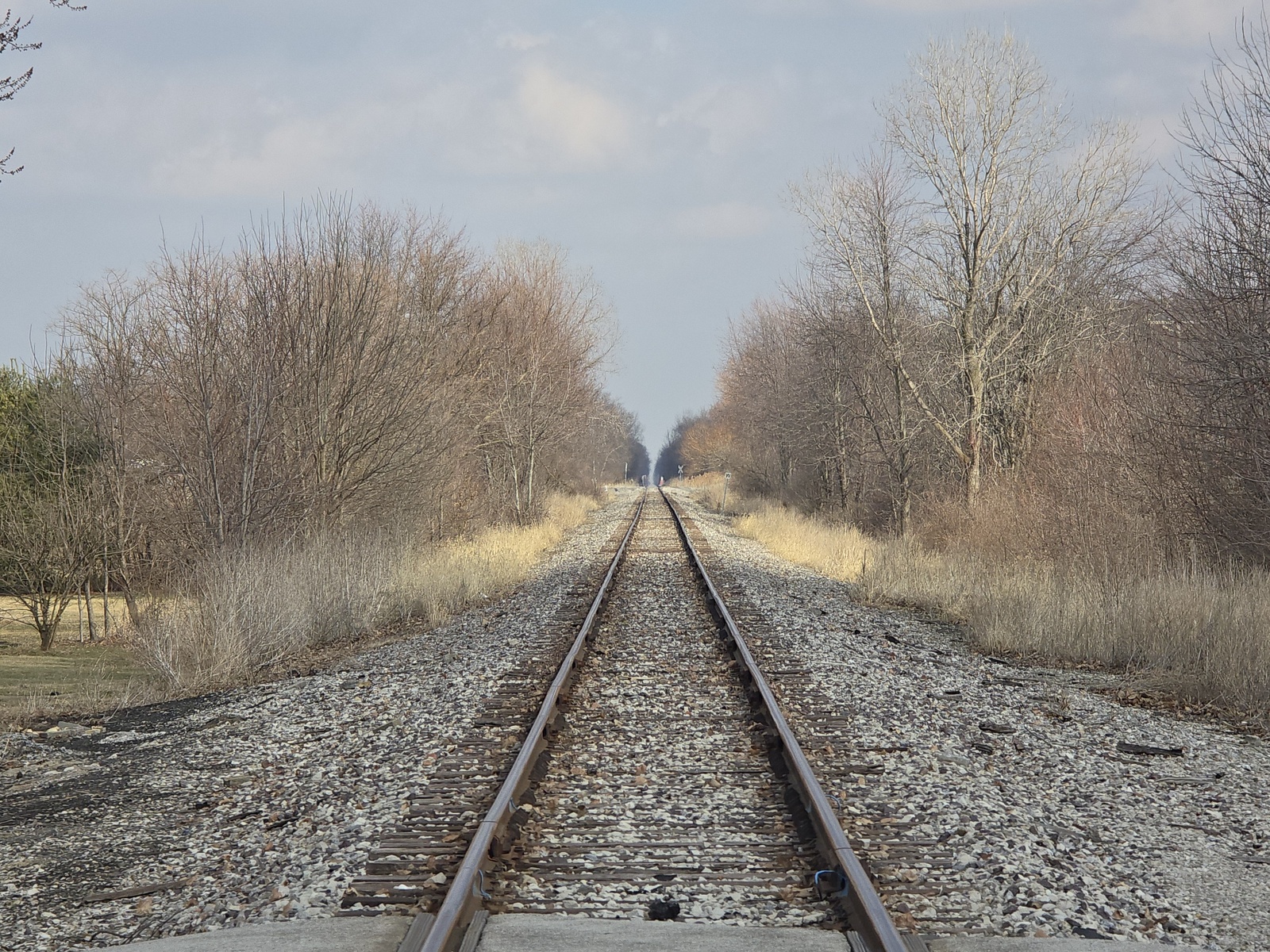

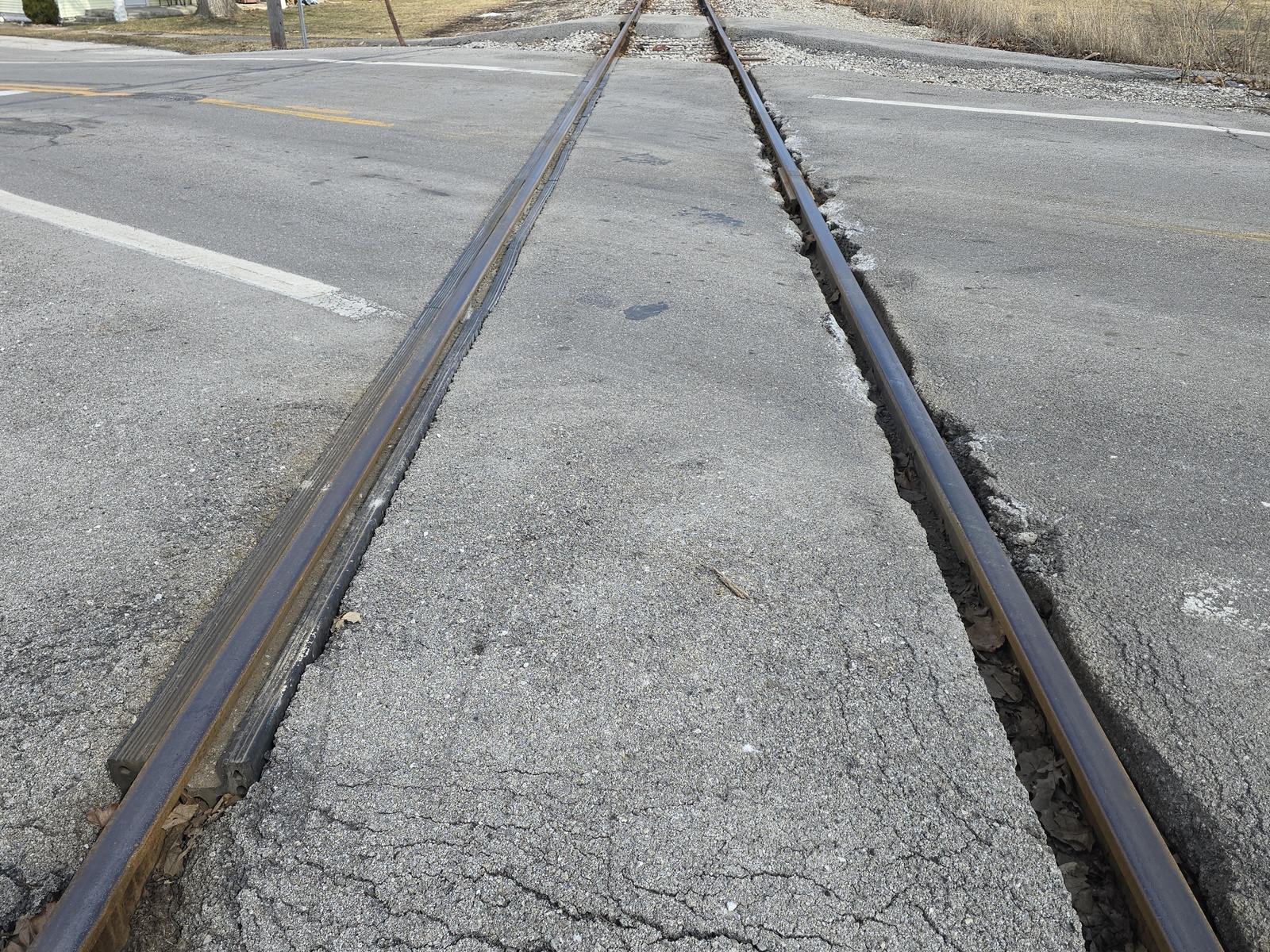

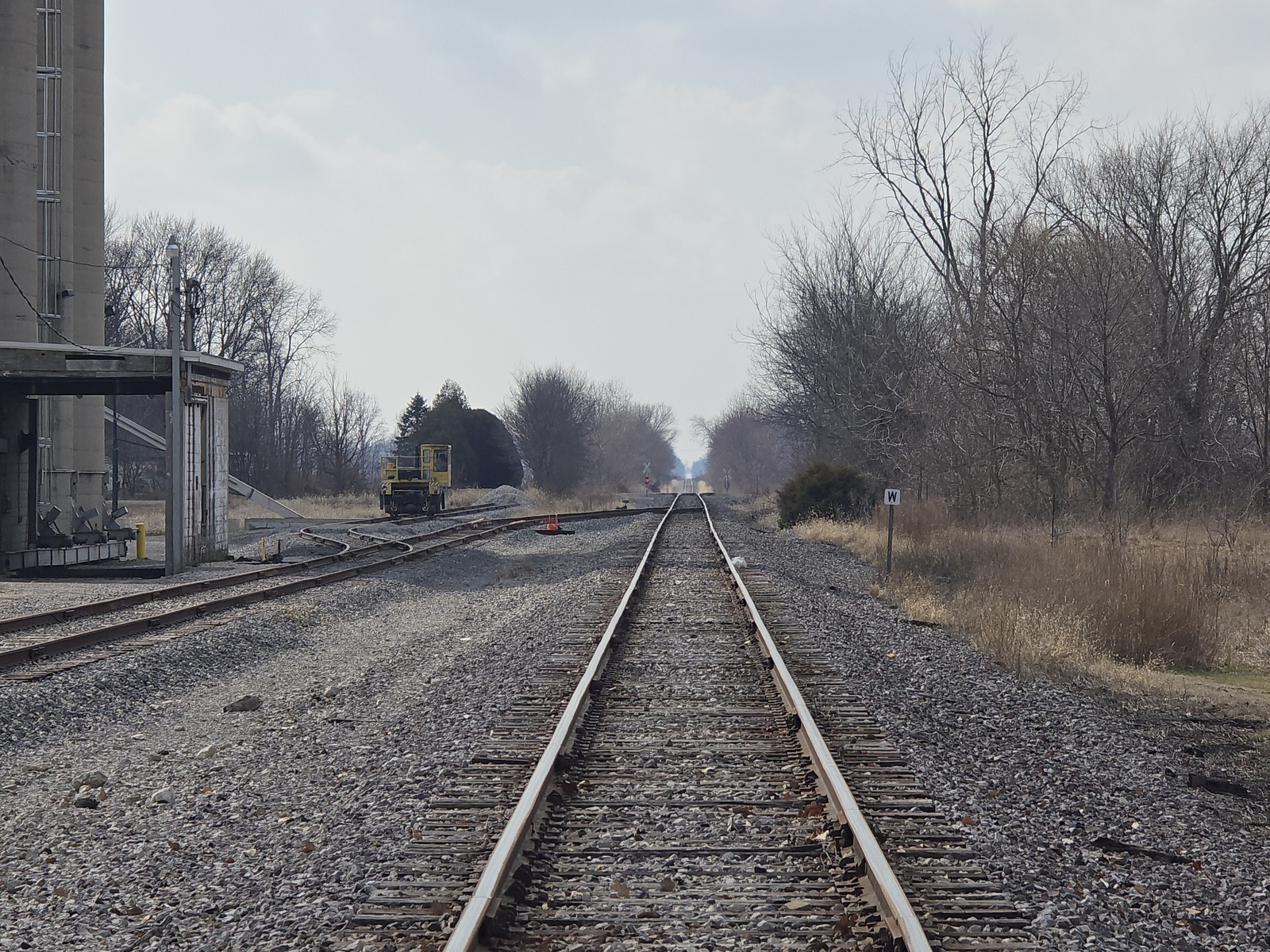

| The relay case in the southwest quadrant. | This crossing's grade is made of rubber and asphalt. | Track view facing east towards County Road 26. | Track view facing west towards Township Road 36. |
25 |

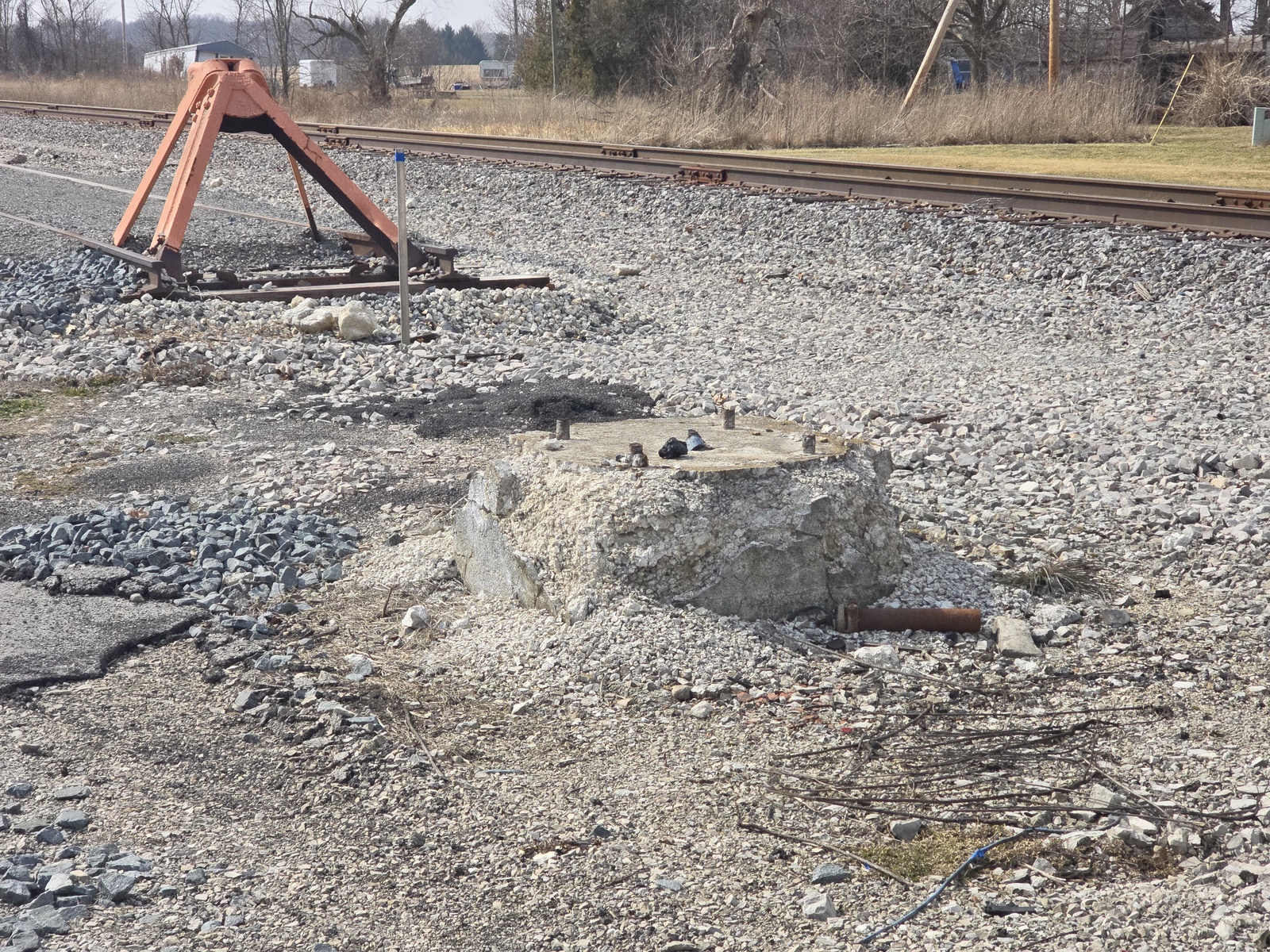

| The old foundation seen here was for the old NKP wayside signal that was here. It was removed between 2009 and 2014. |
