>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Siemens E Bell Siemens E Bell

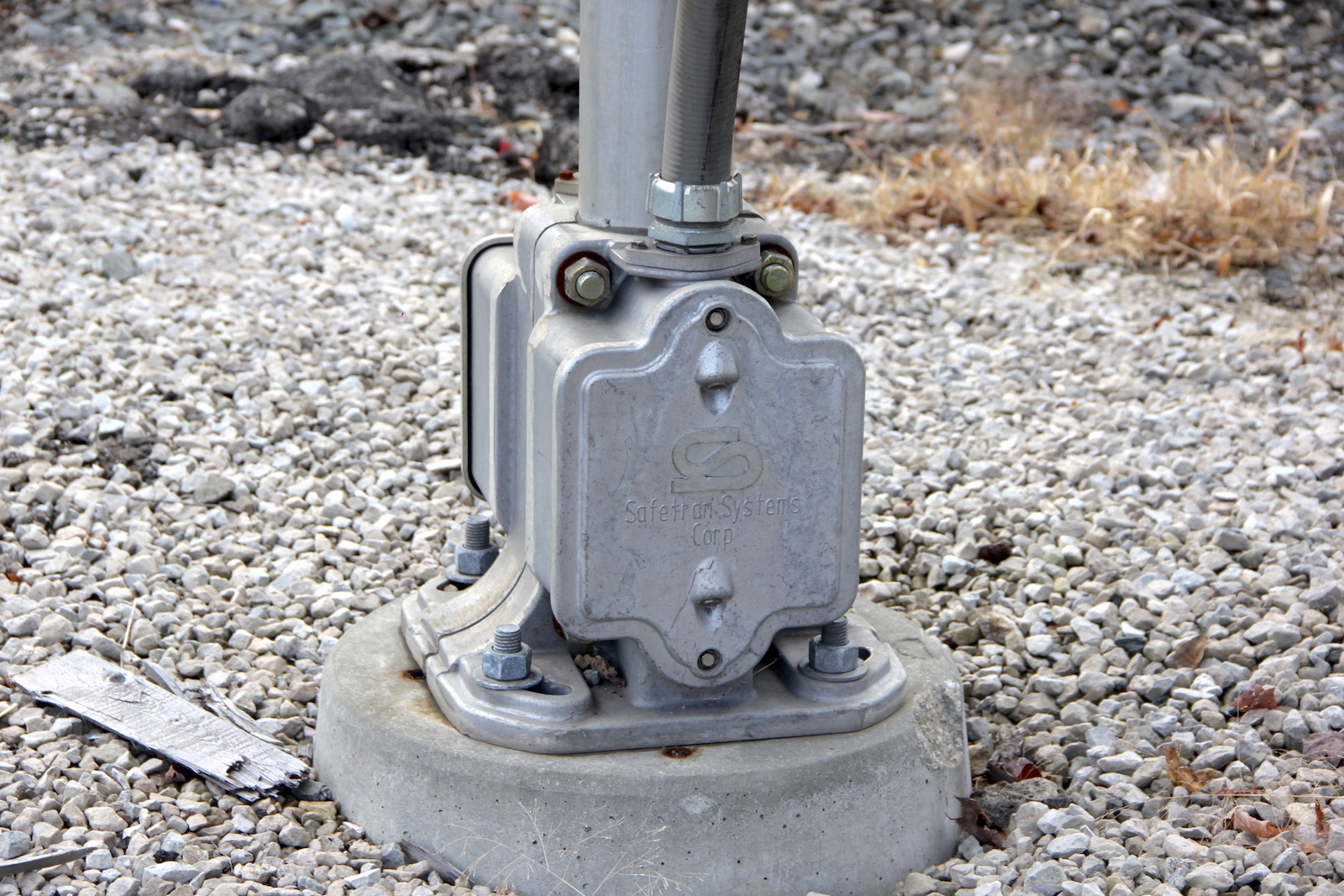

Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran incandescents 4 - 12"x20" Safetran incandescents
Junction Box: Safetran Safetran
Gate Lights: 3 - NEG 4" incandescents 3 - NEG 4" incandescents
Gate Mechanism: Invensys Rail w/ NEG 1 Way Saver Invensys Rail w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on October 25, 2017, by Tommy McGowan.
This crossing is located on the NS Chicago Line.

O1 O2 O3 O4

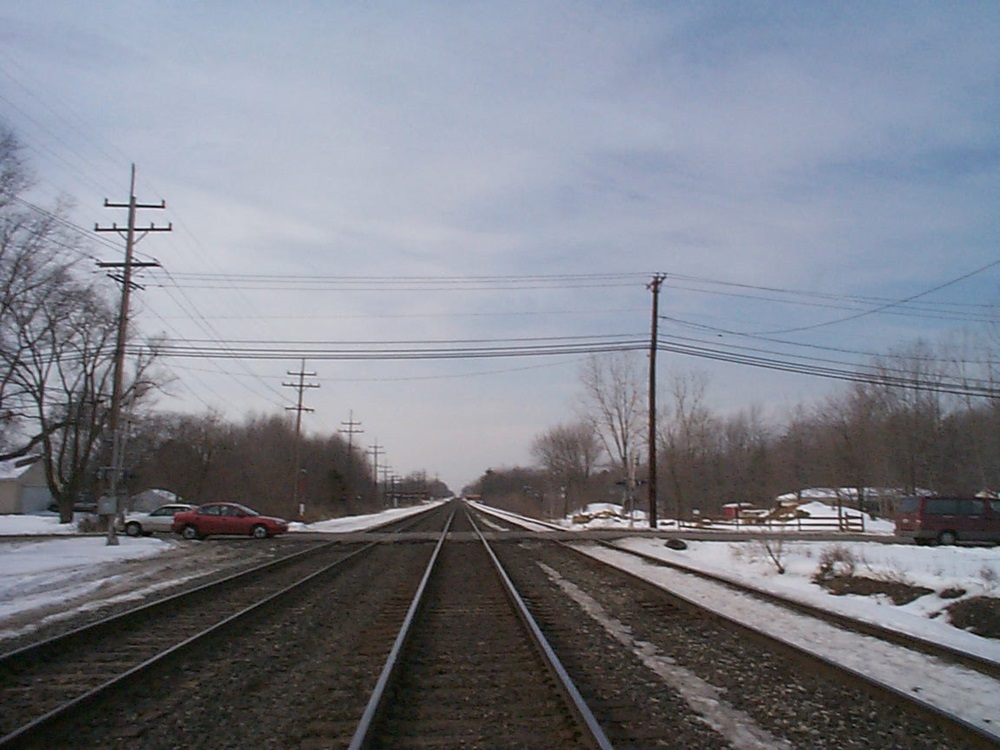

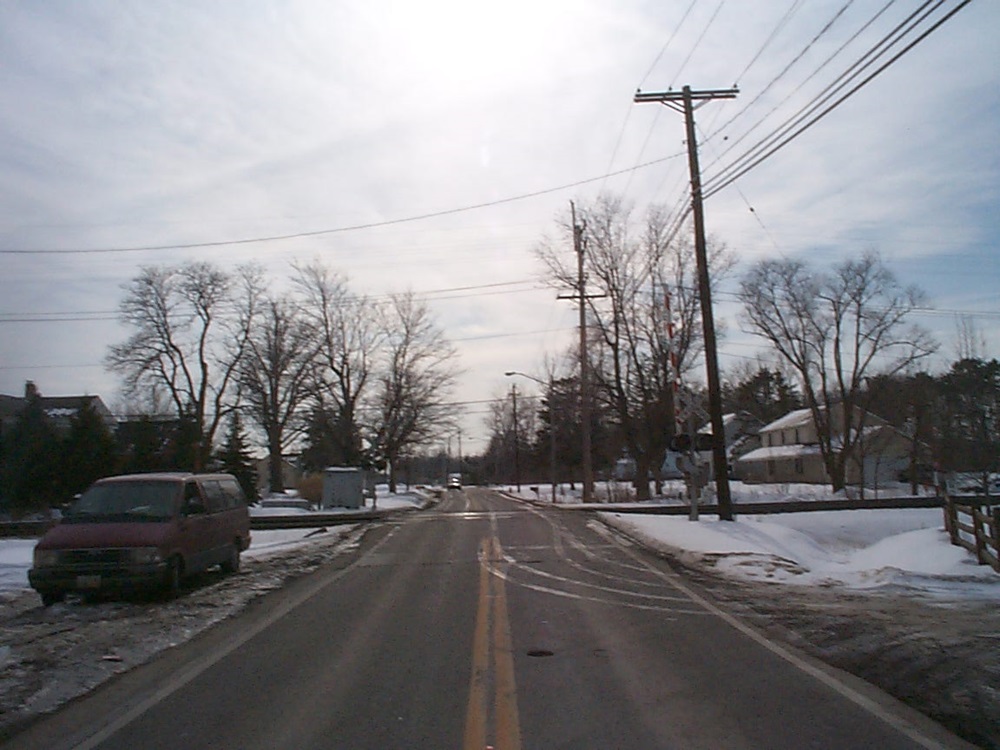

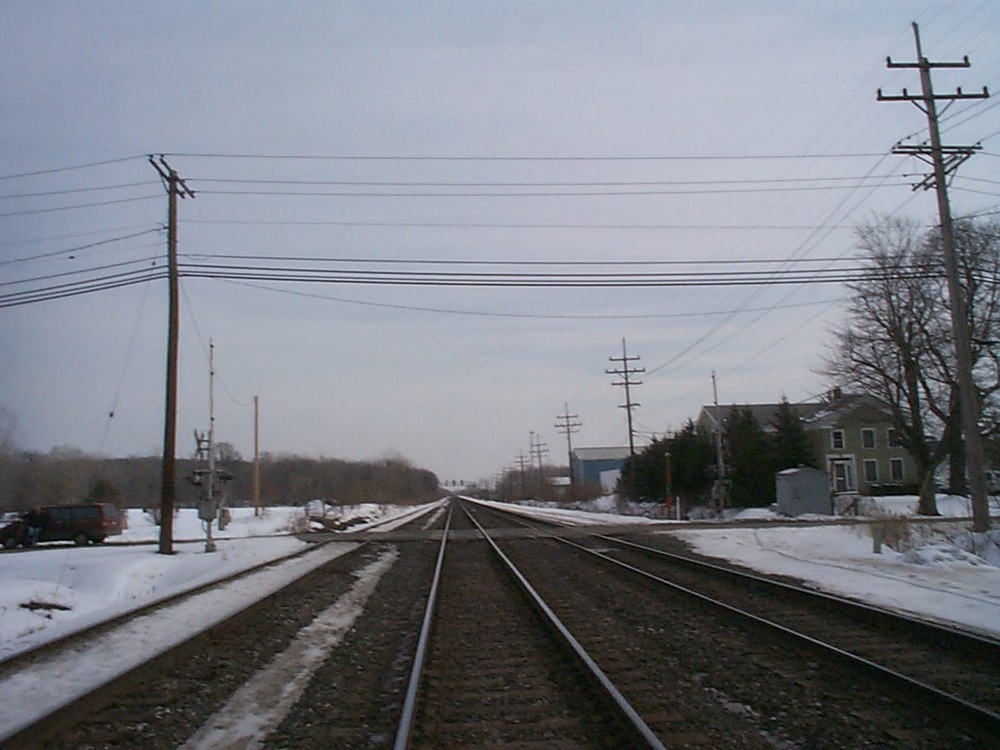

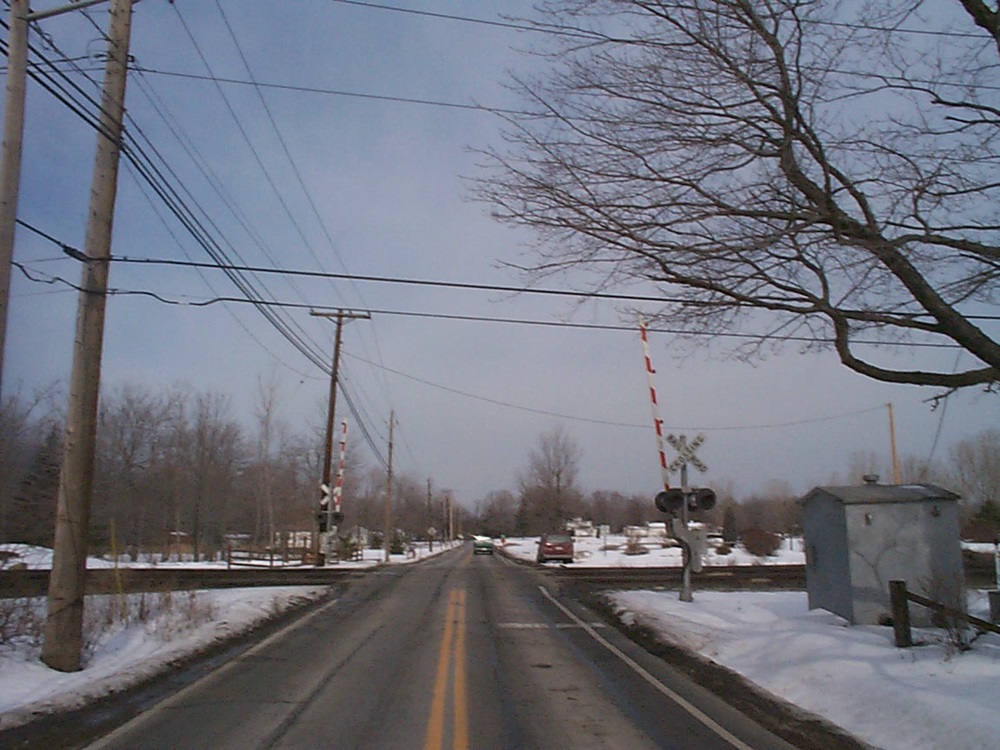

PUCO images from the late 90s or early 2000s showing a Conrail gated setup with 8" lights, a WABCO Model 75 and WCH gate mechanism, and no bells. In the early 2010s, NS replaced these with newer Safetran signals.
1
 2

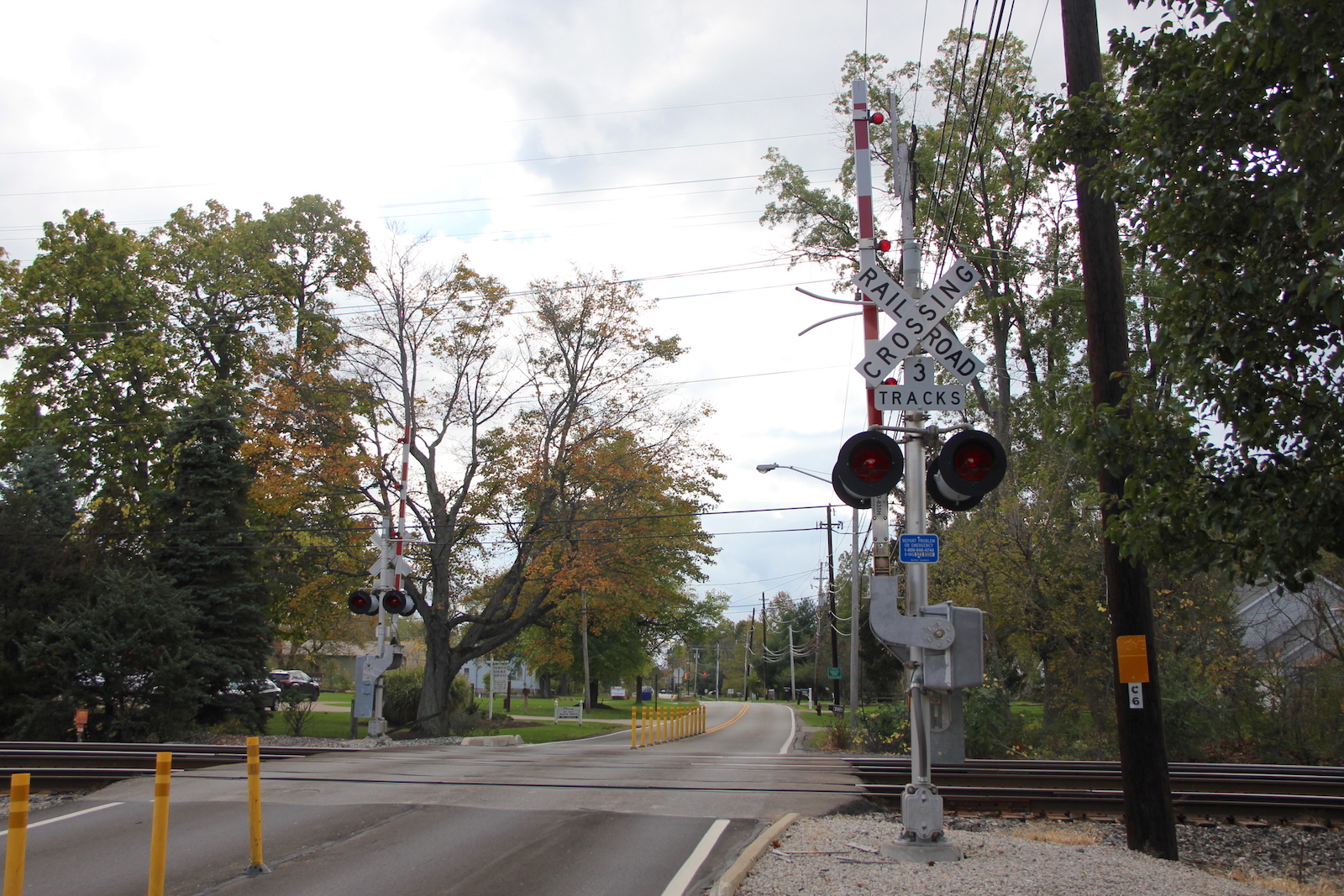

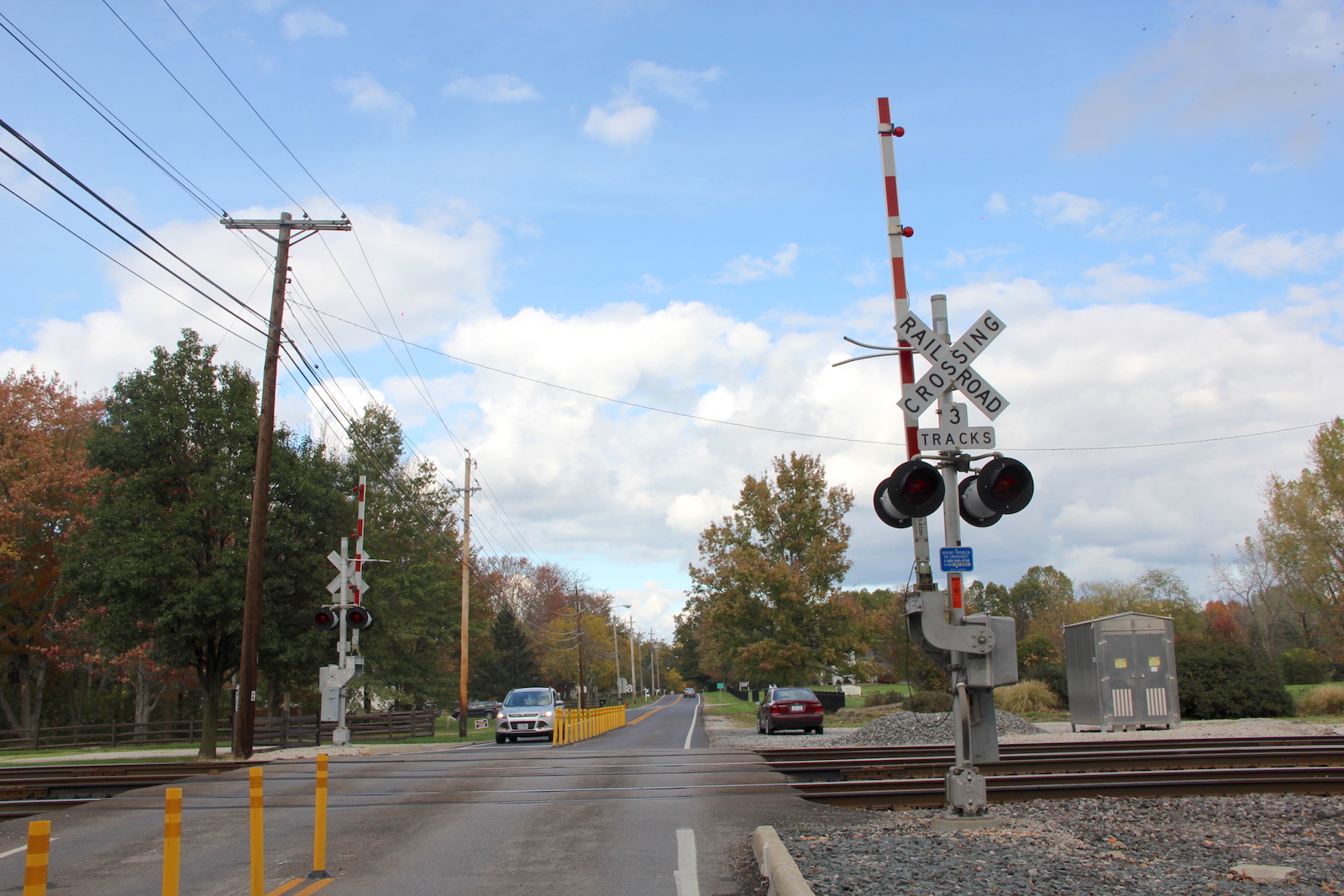

Overview of 2 gated signals facing north. Overview facing south.

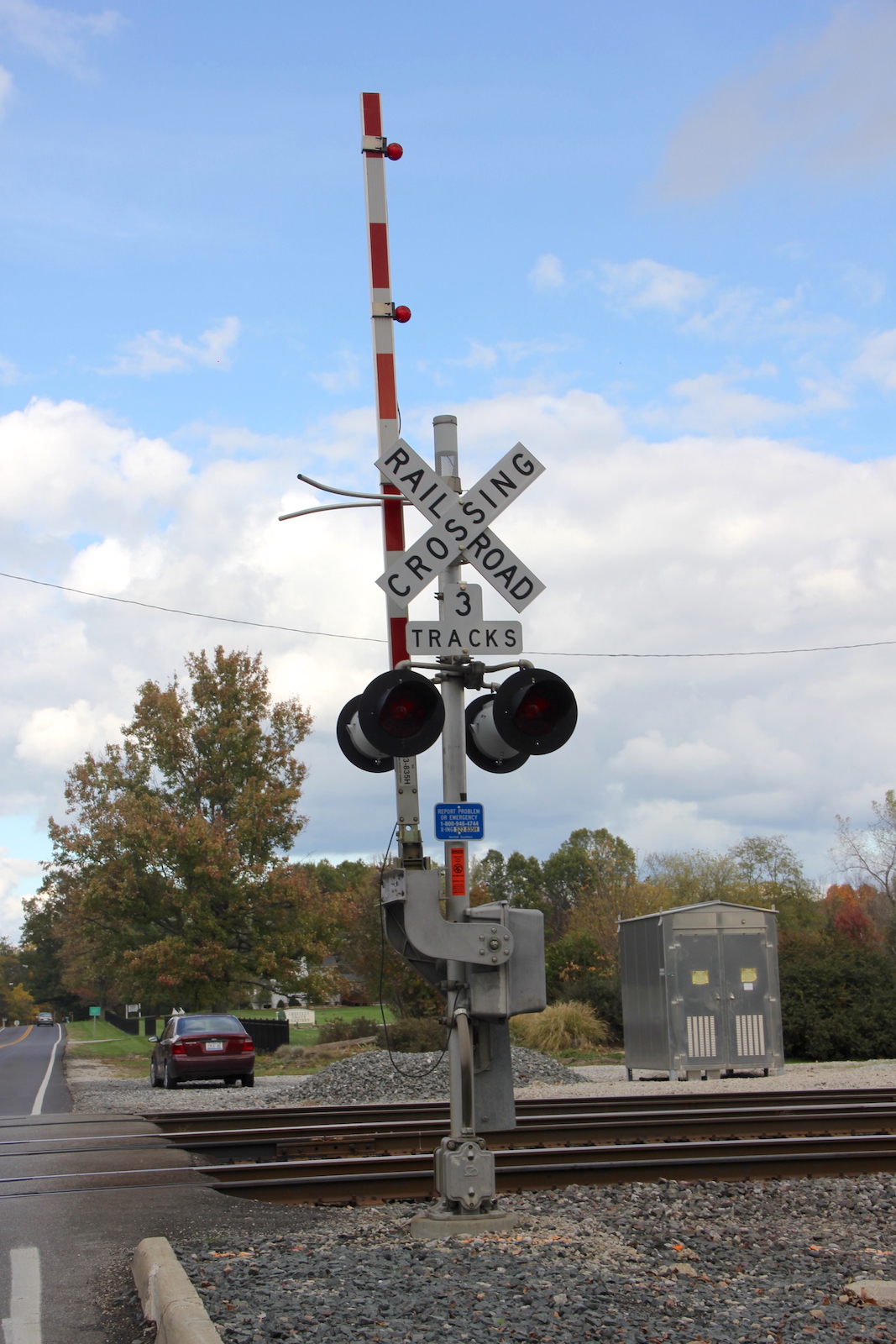

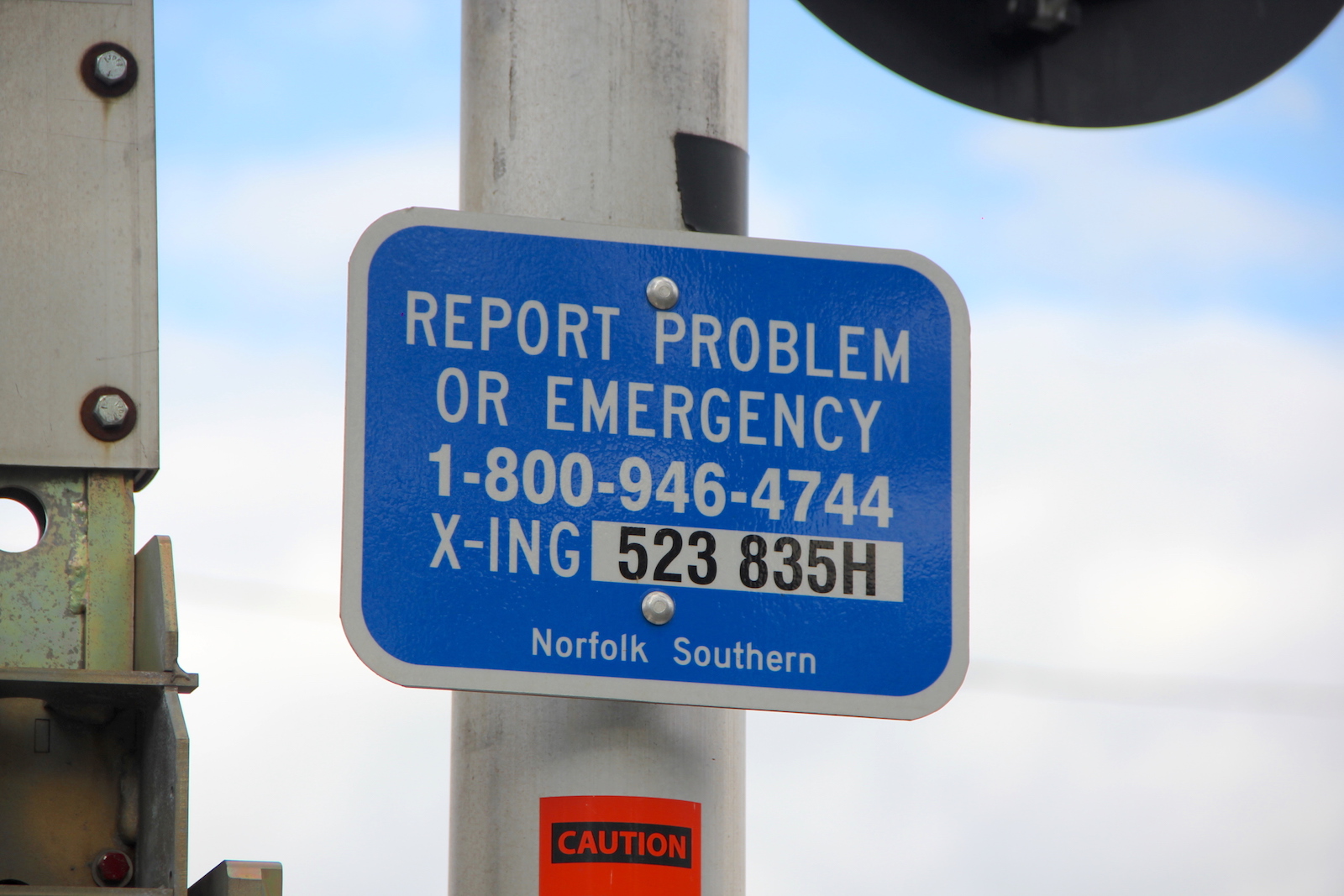

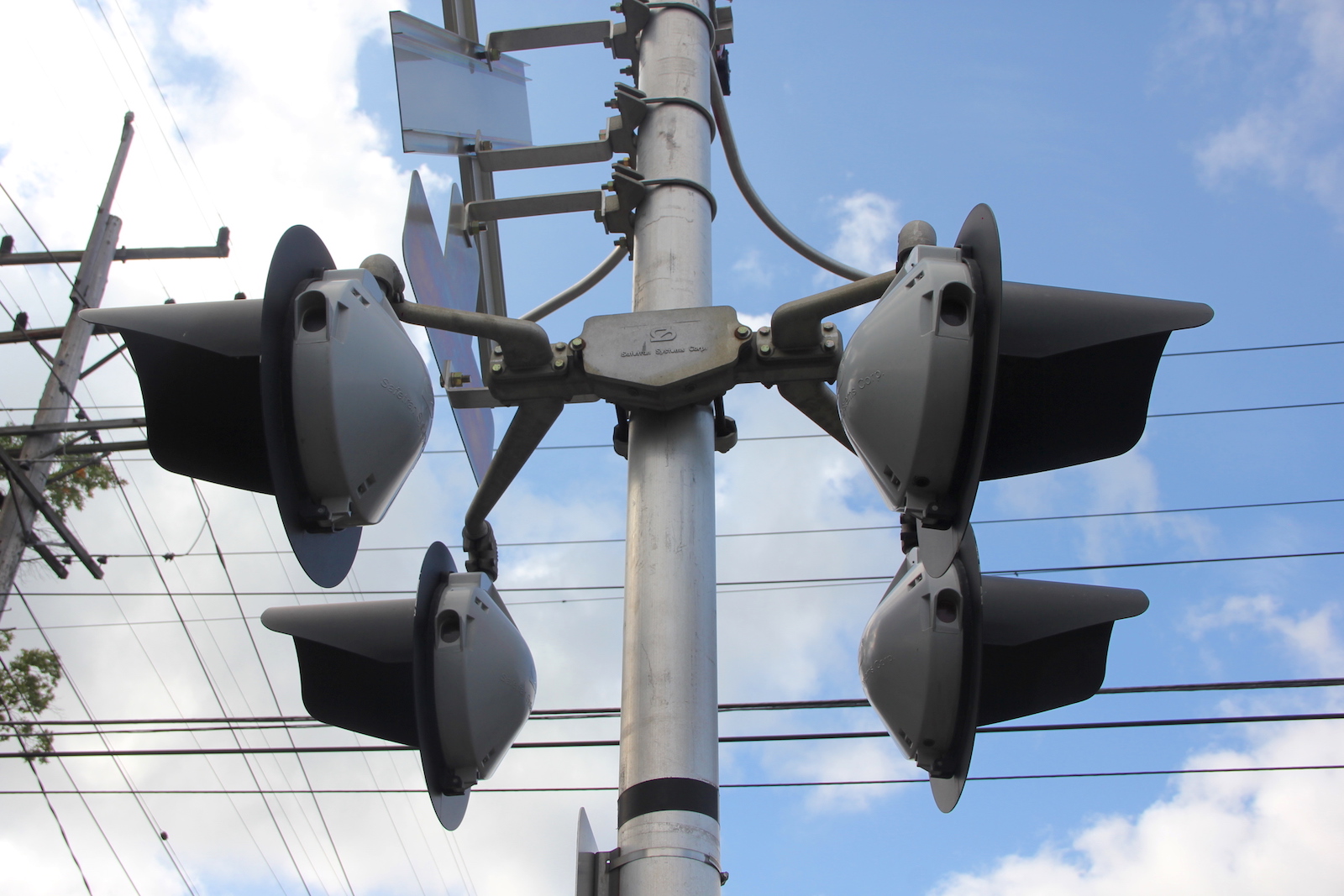

3 4 5
6 7 8
9 10 11

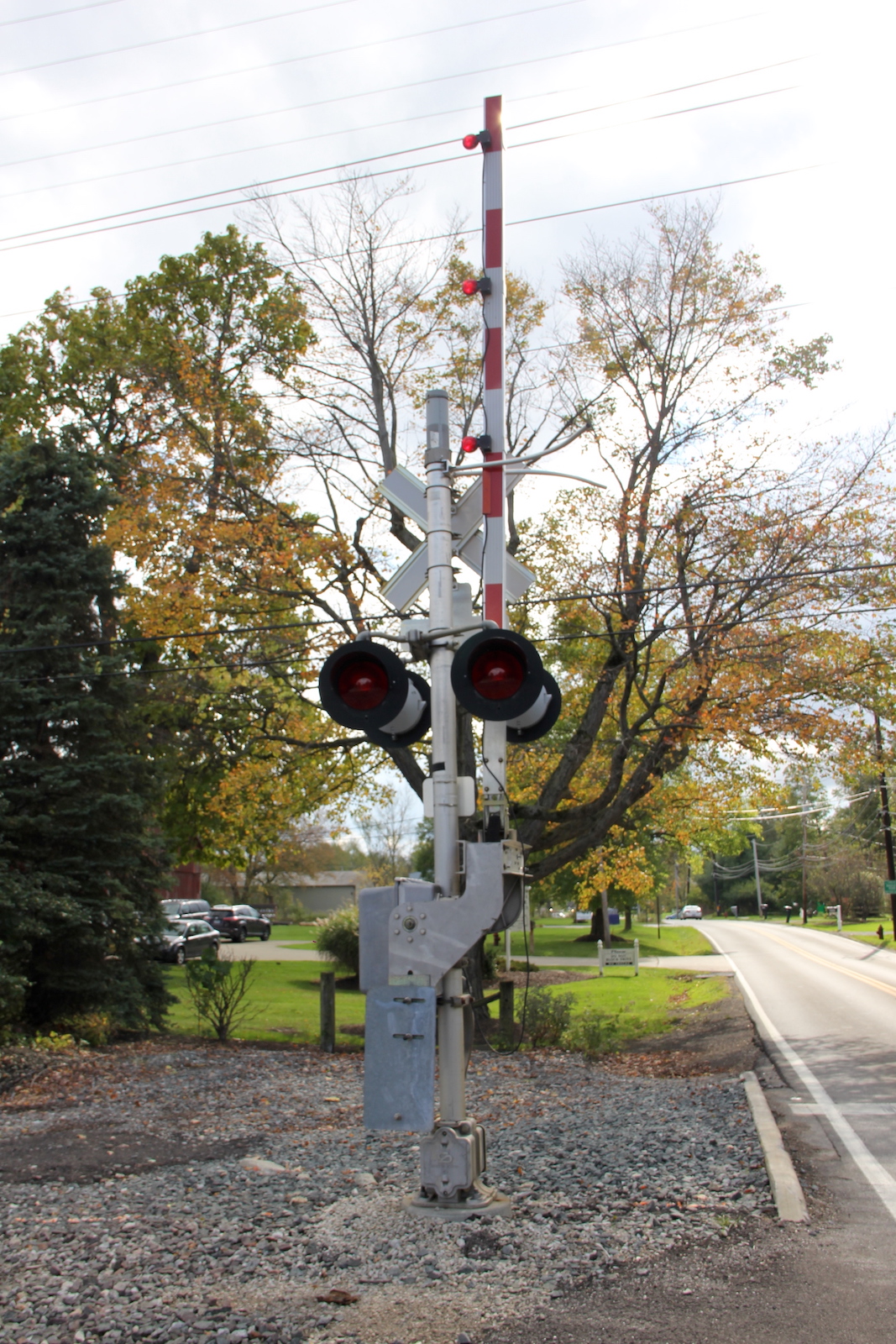

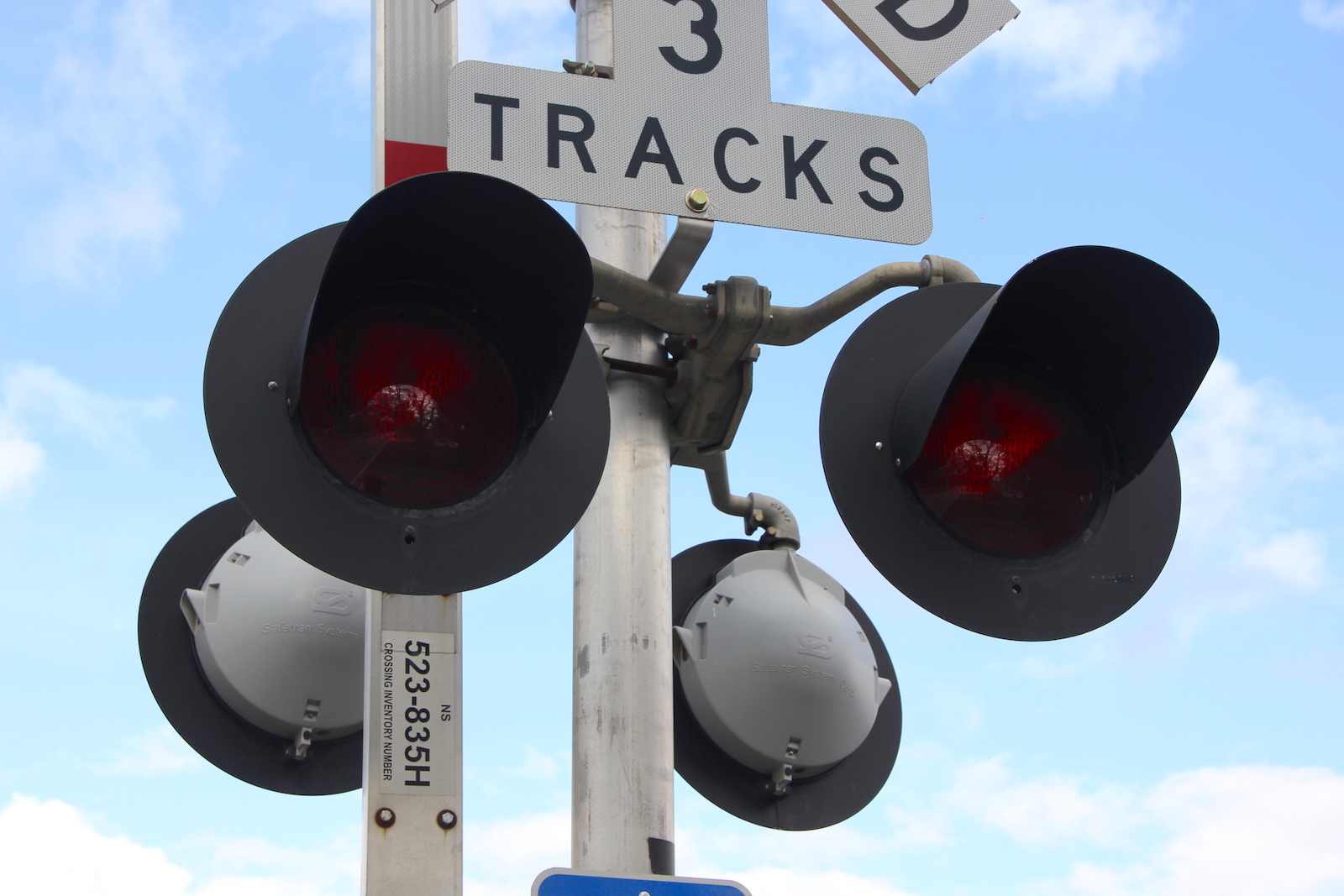

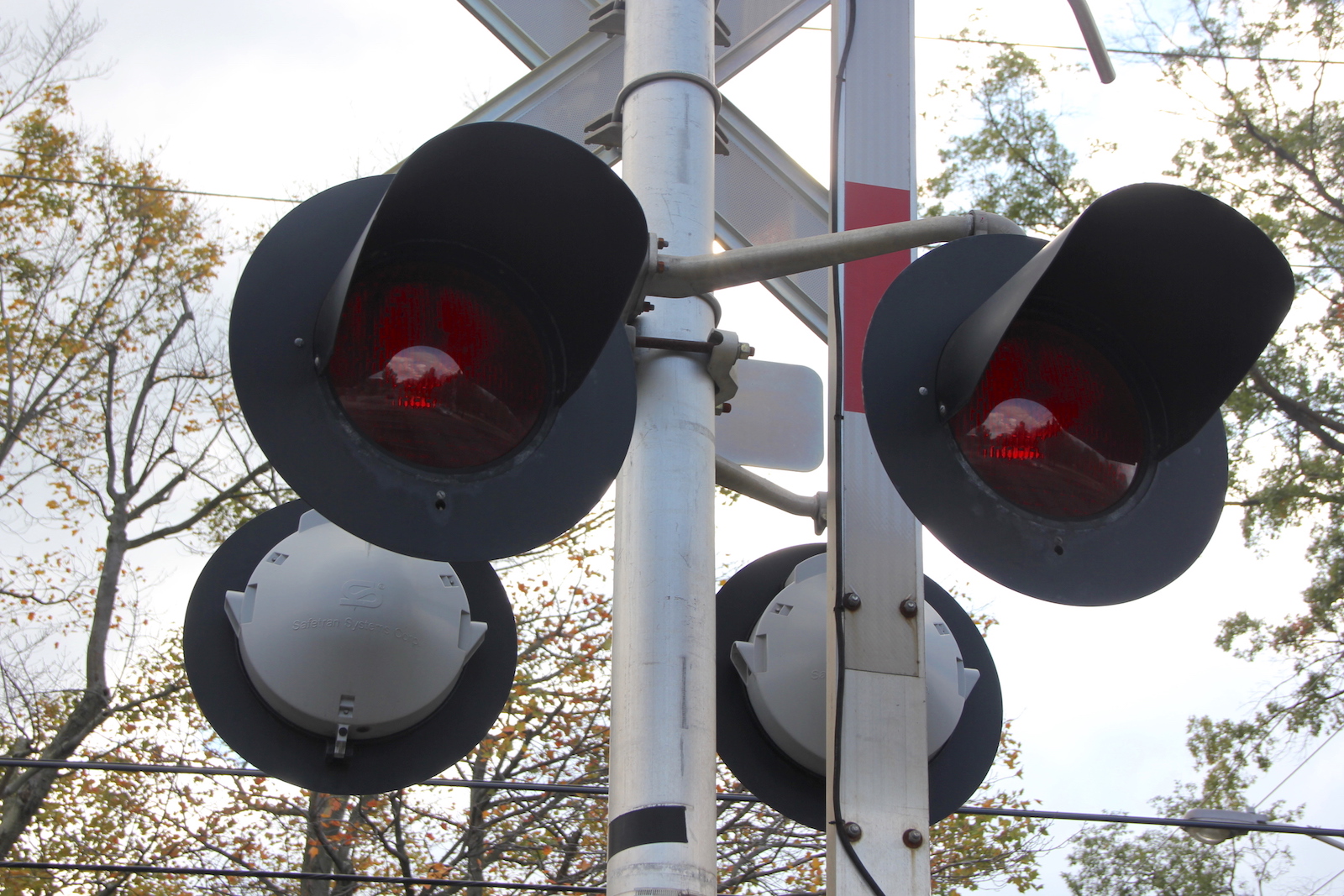

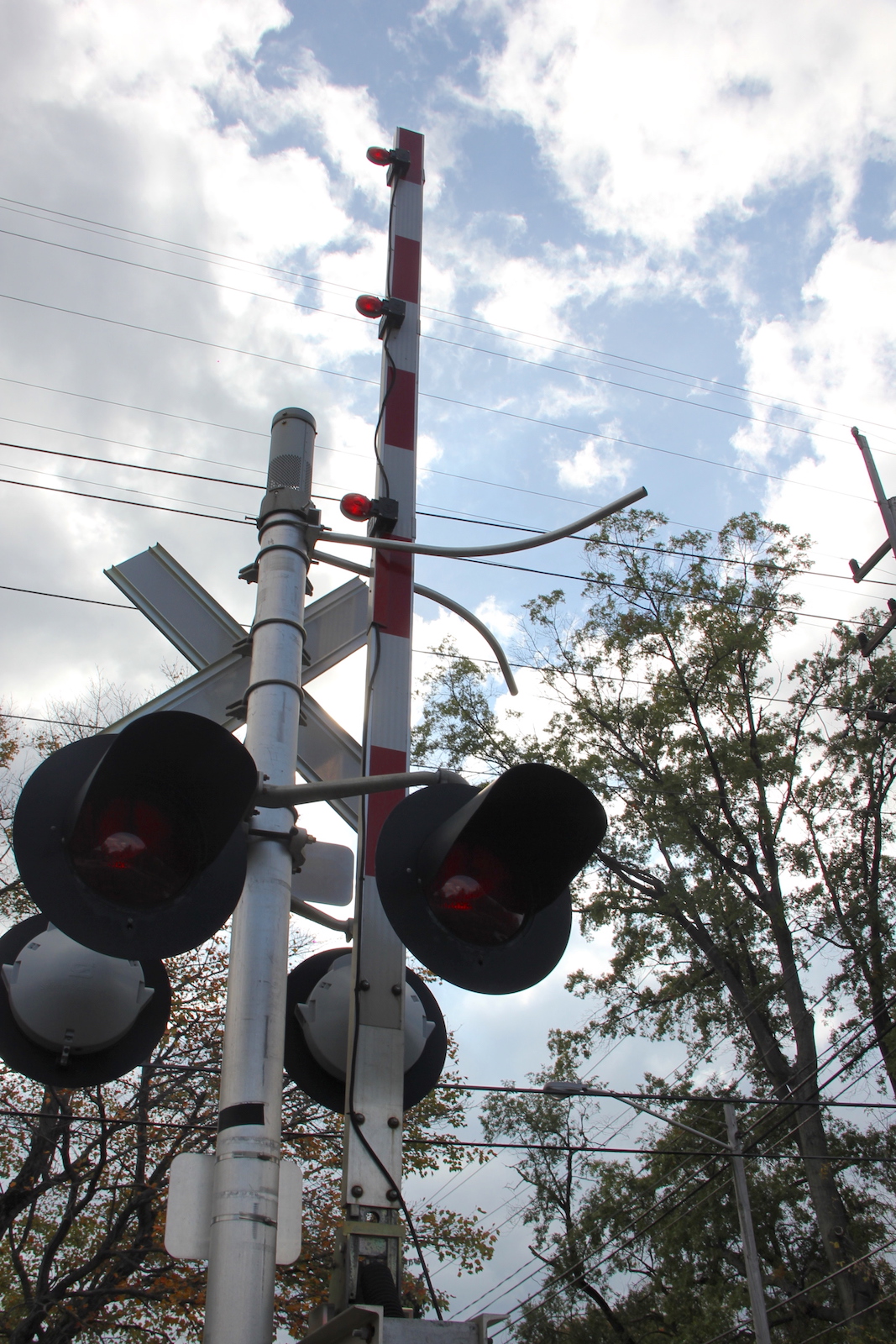

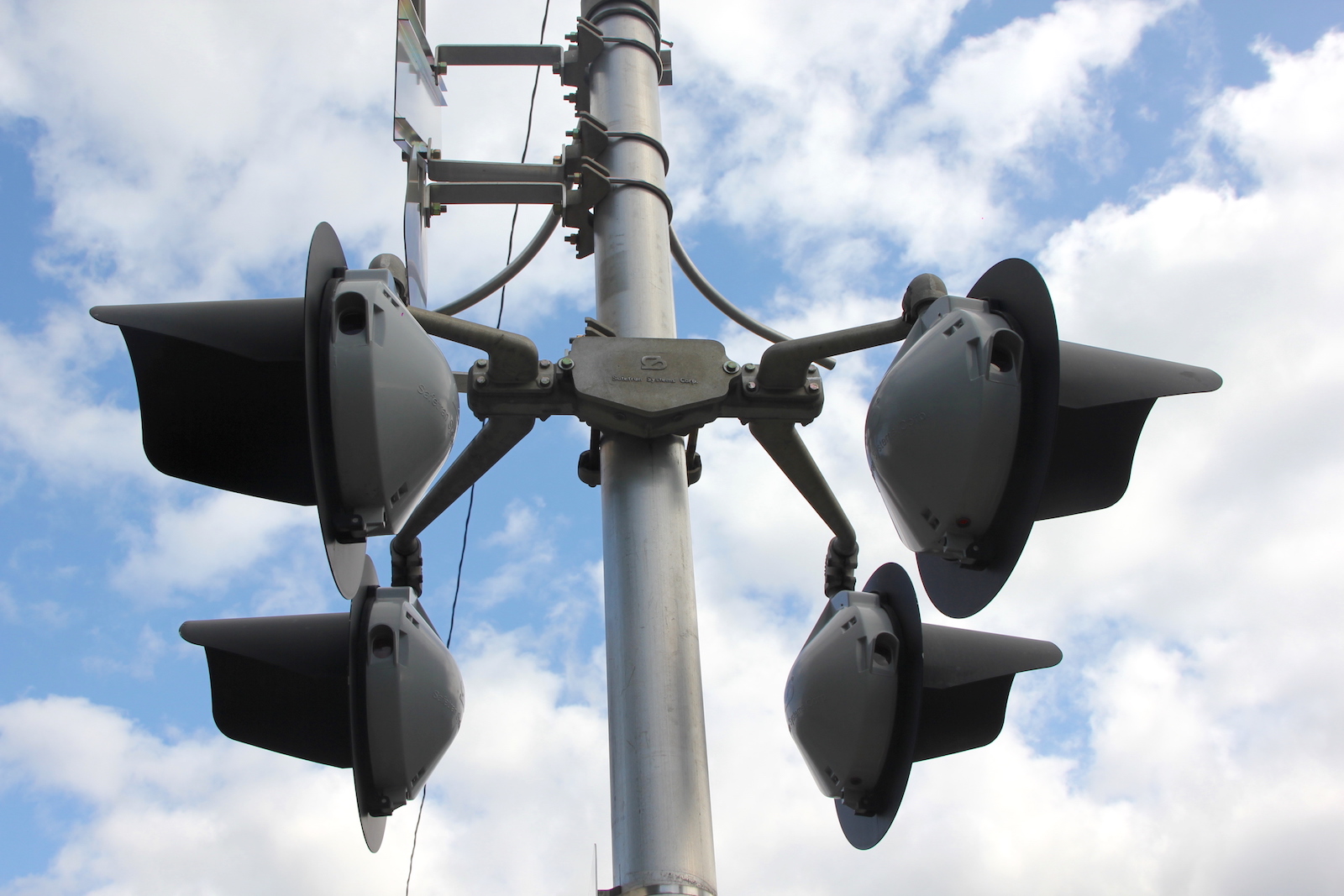

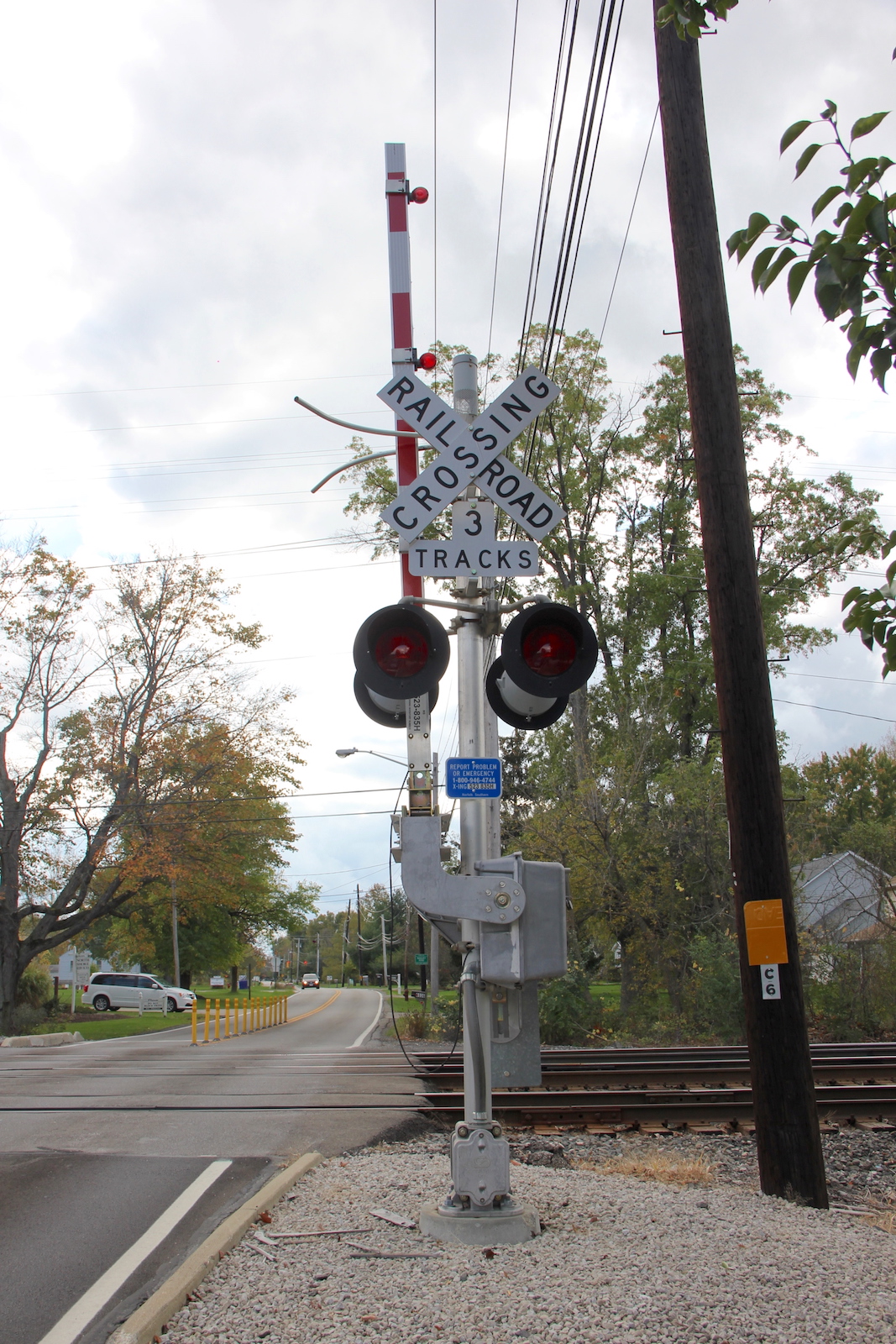

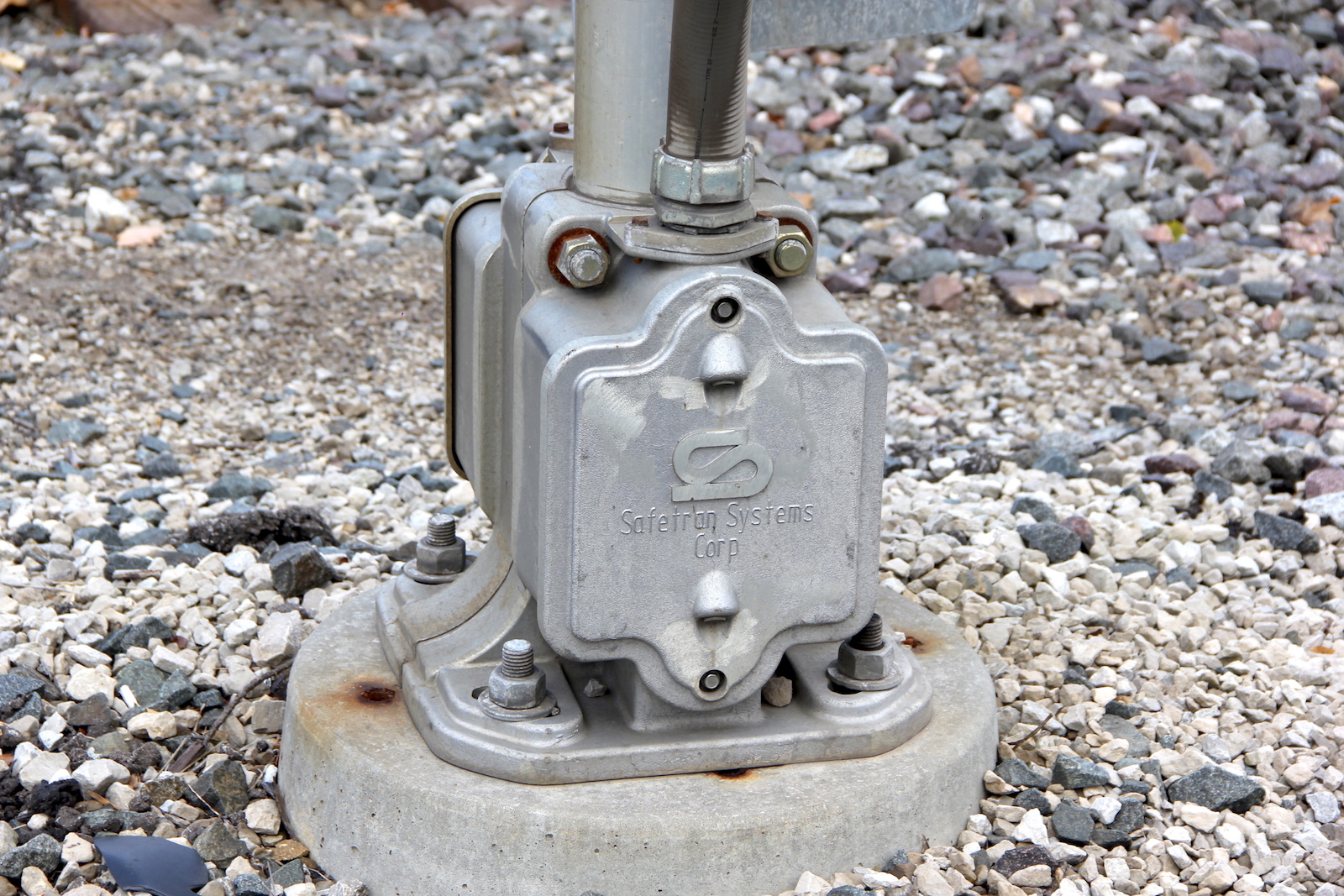

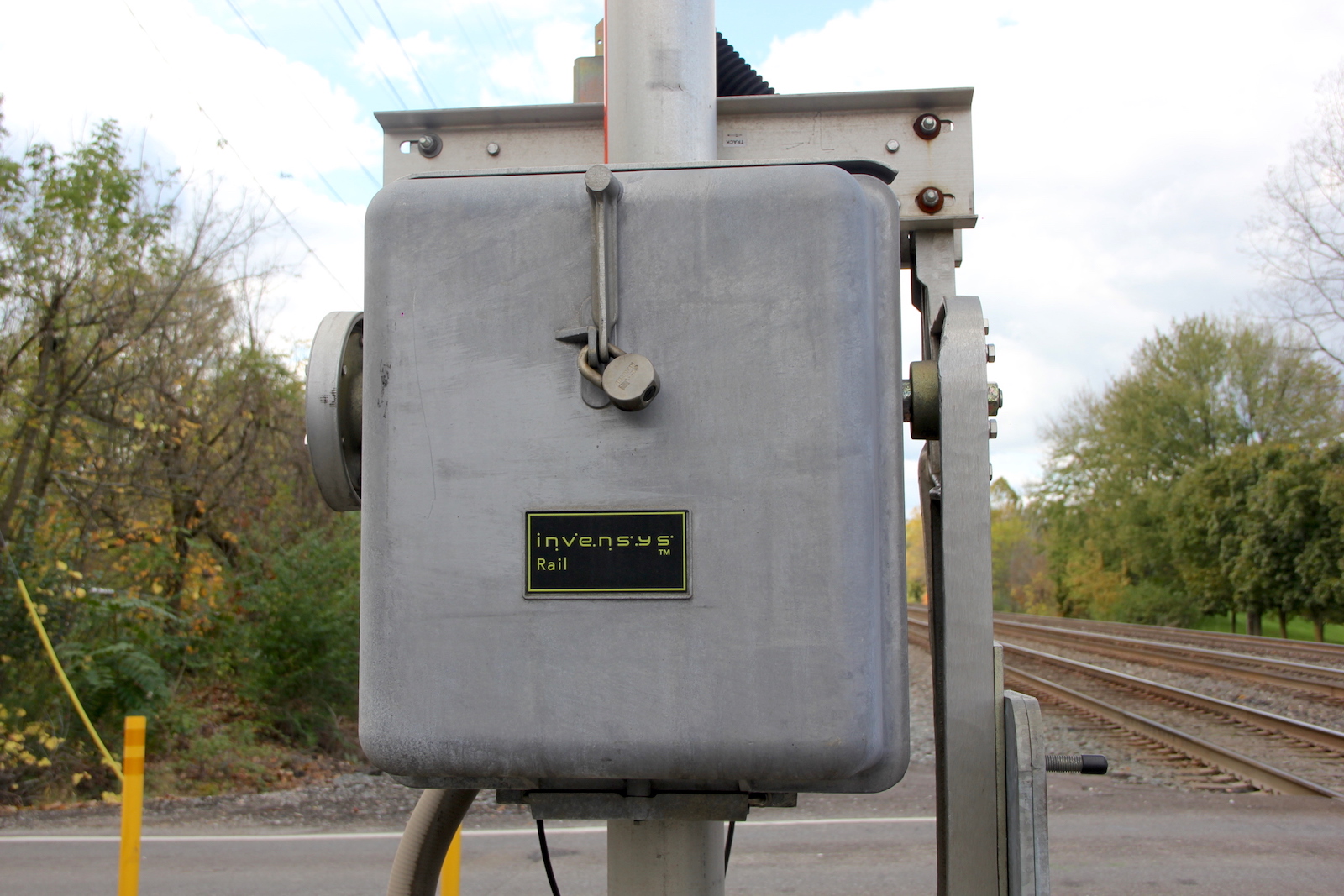

The southern signal.

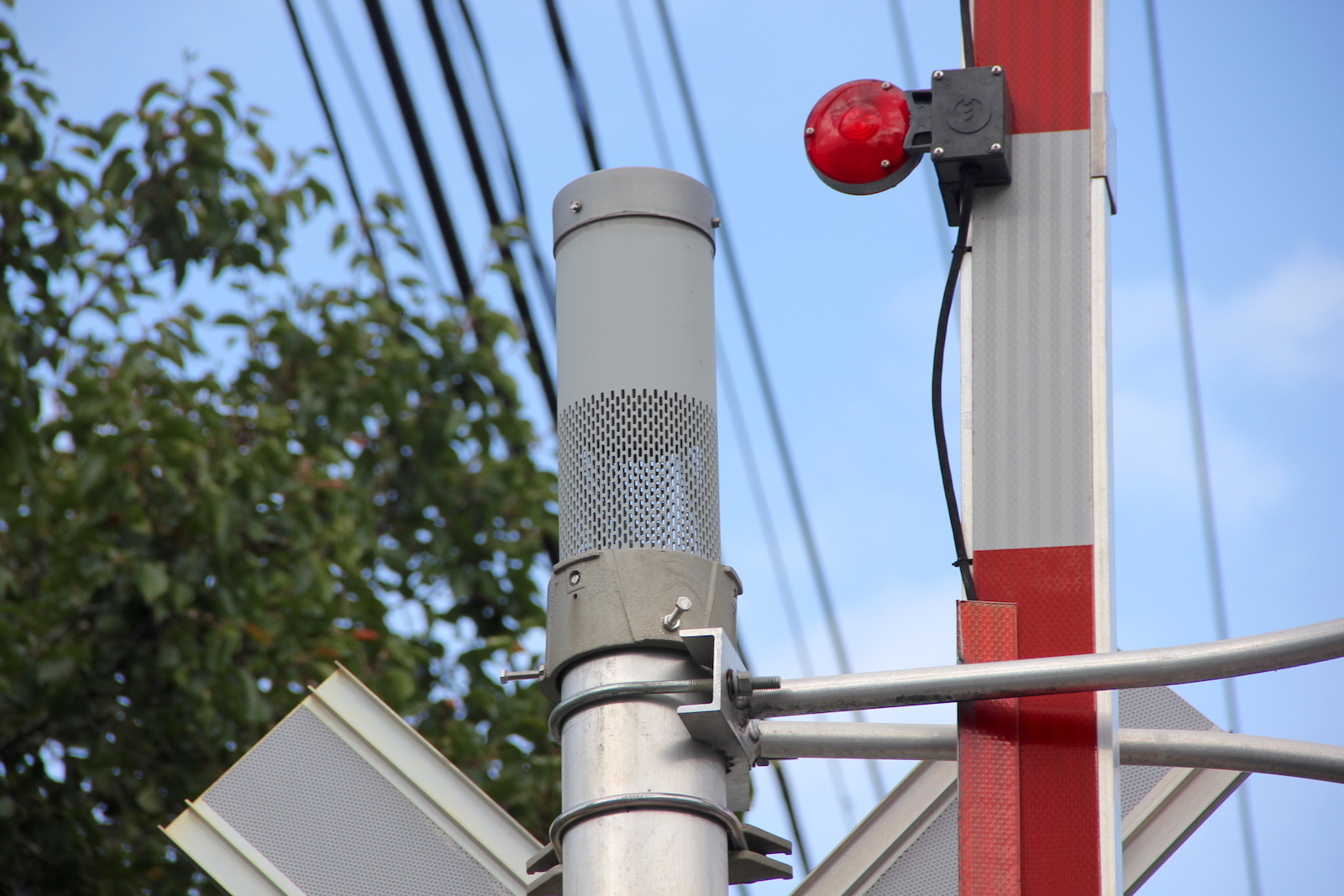

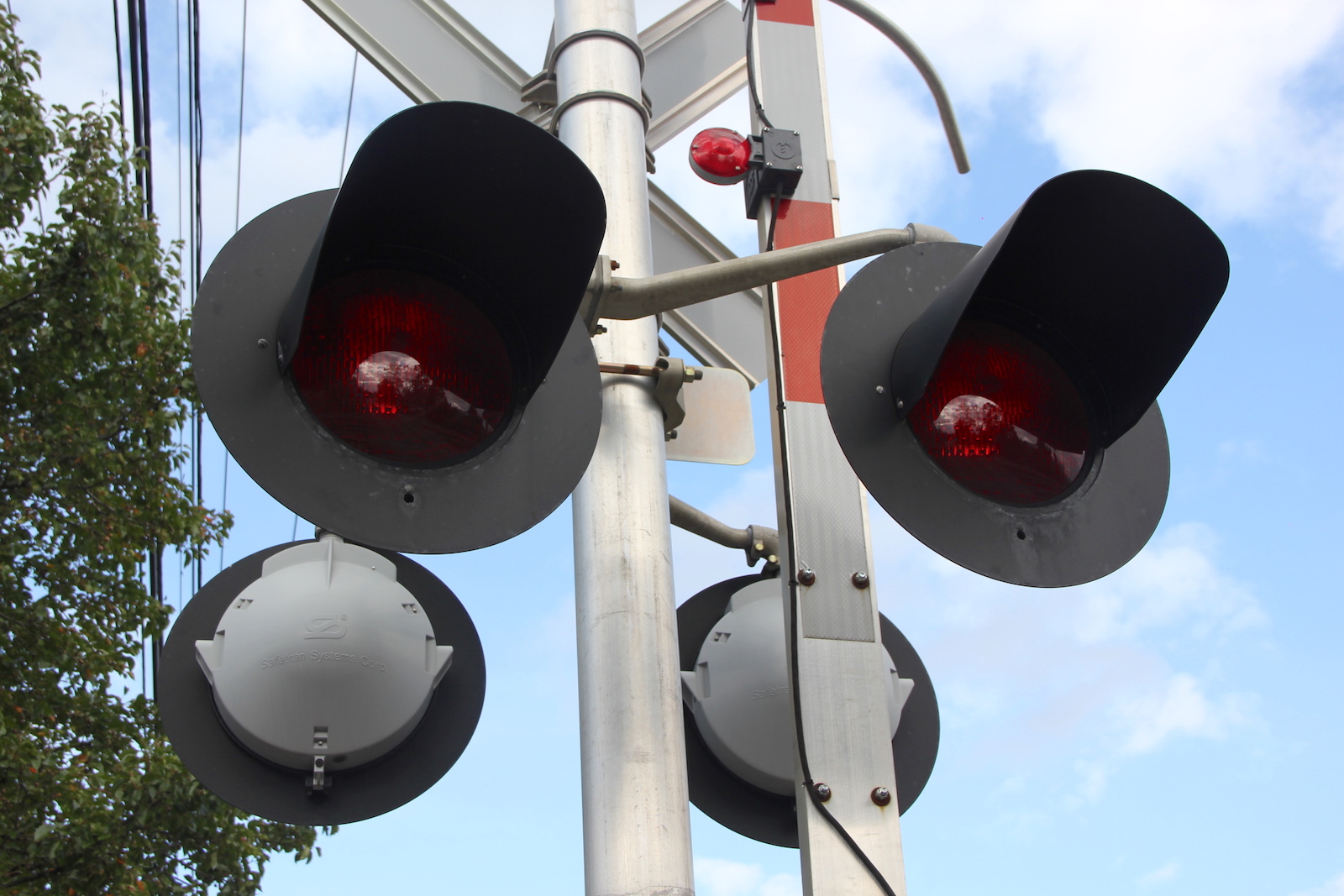

12 13 14
15 16 17
18 19 20
21

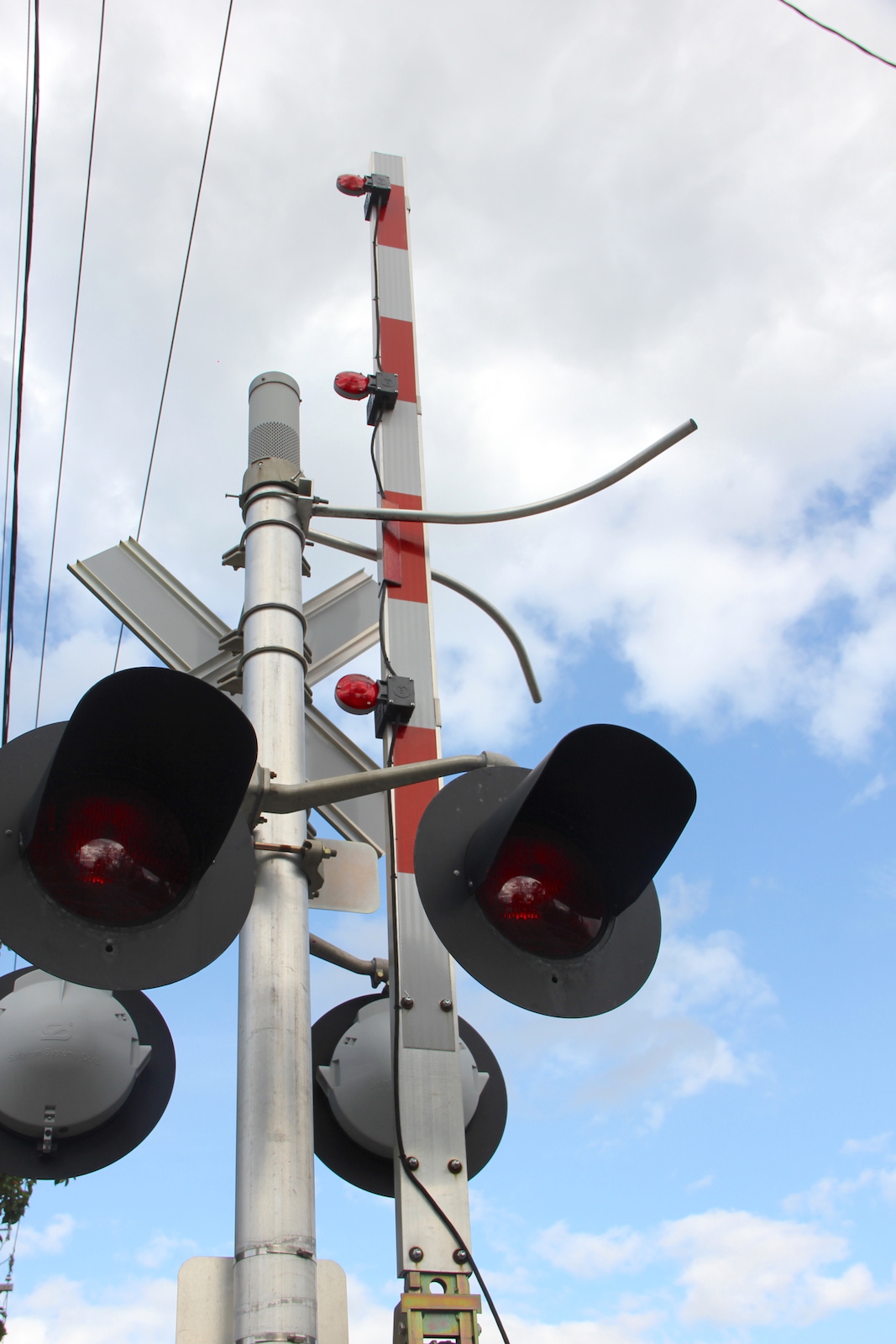

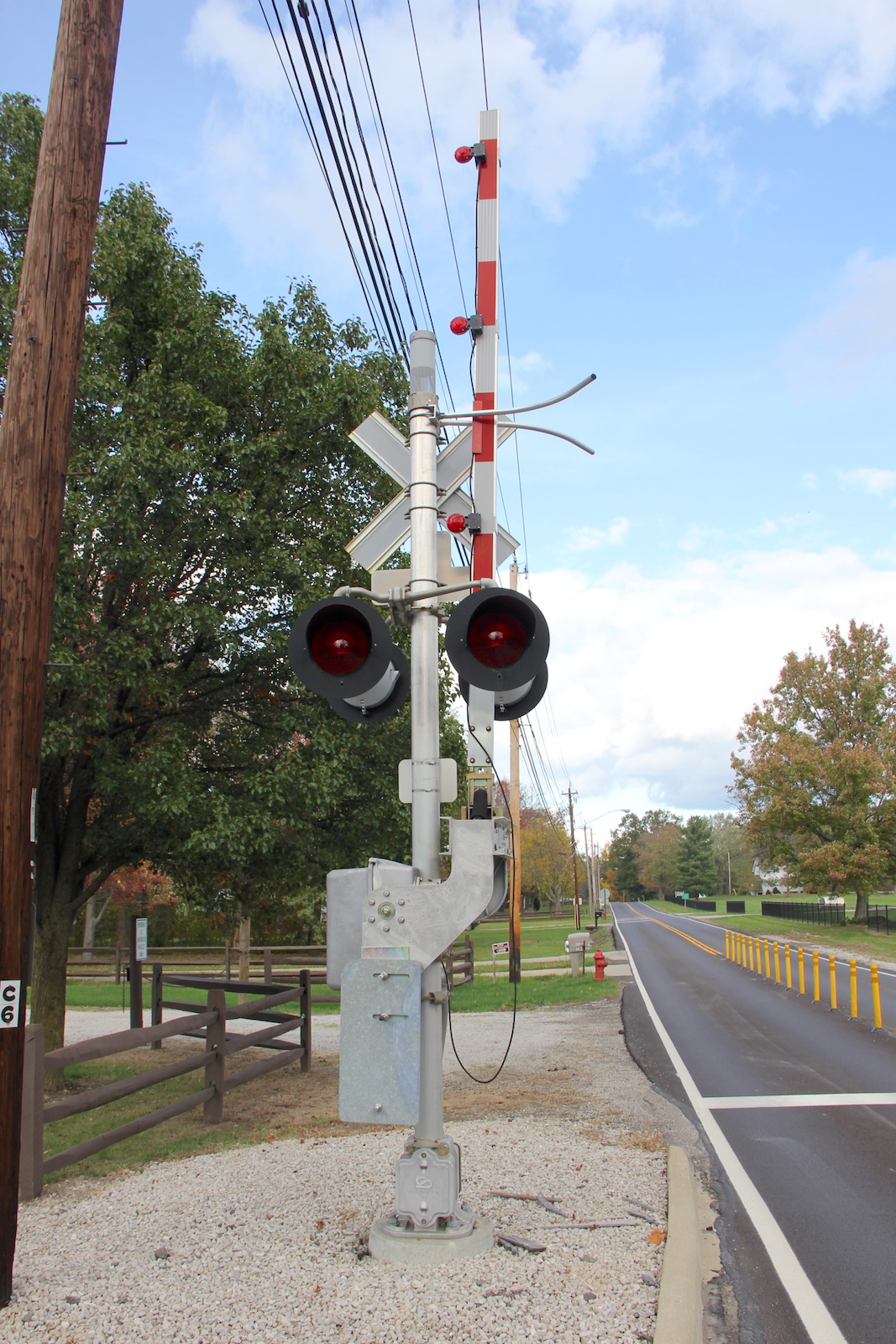

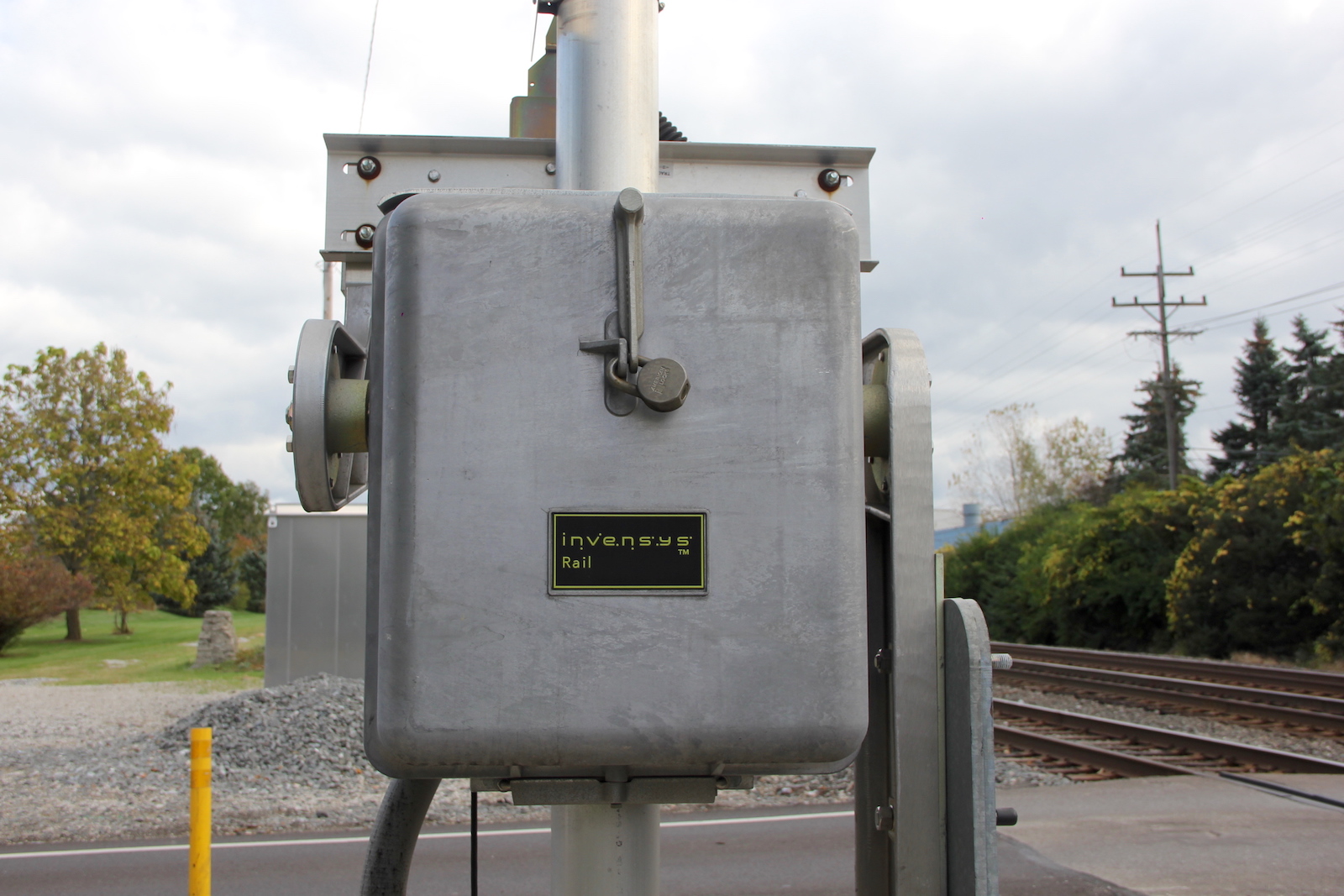

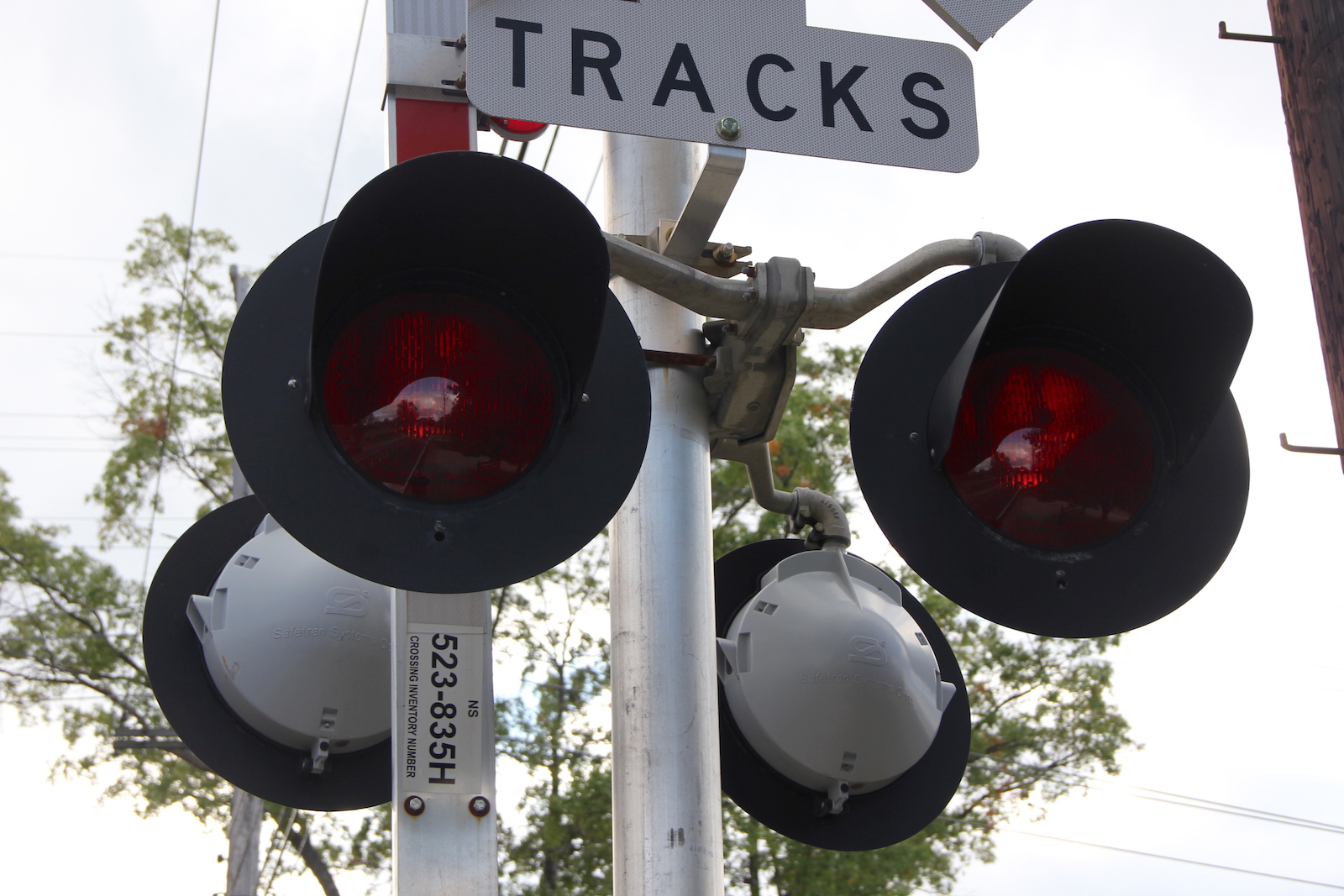

The northern signal.
22 23 24 25

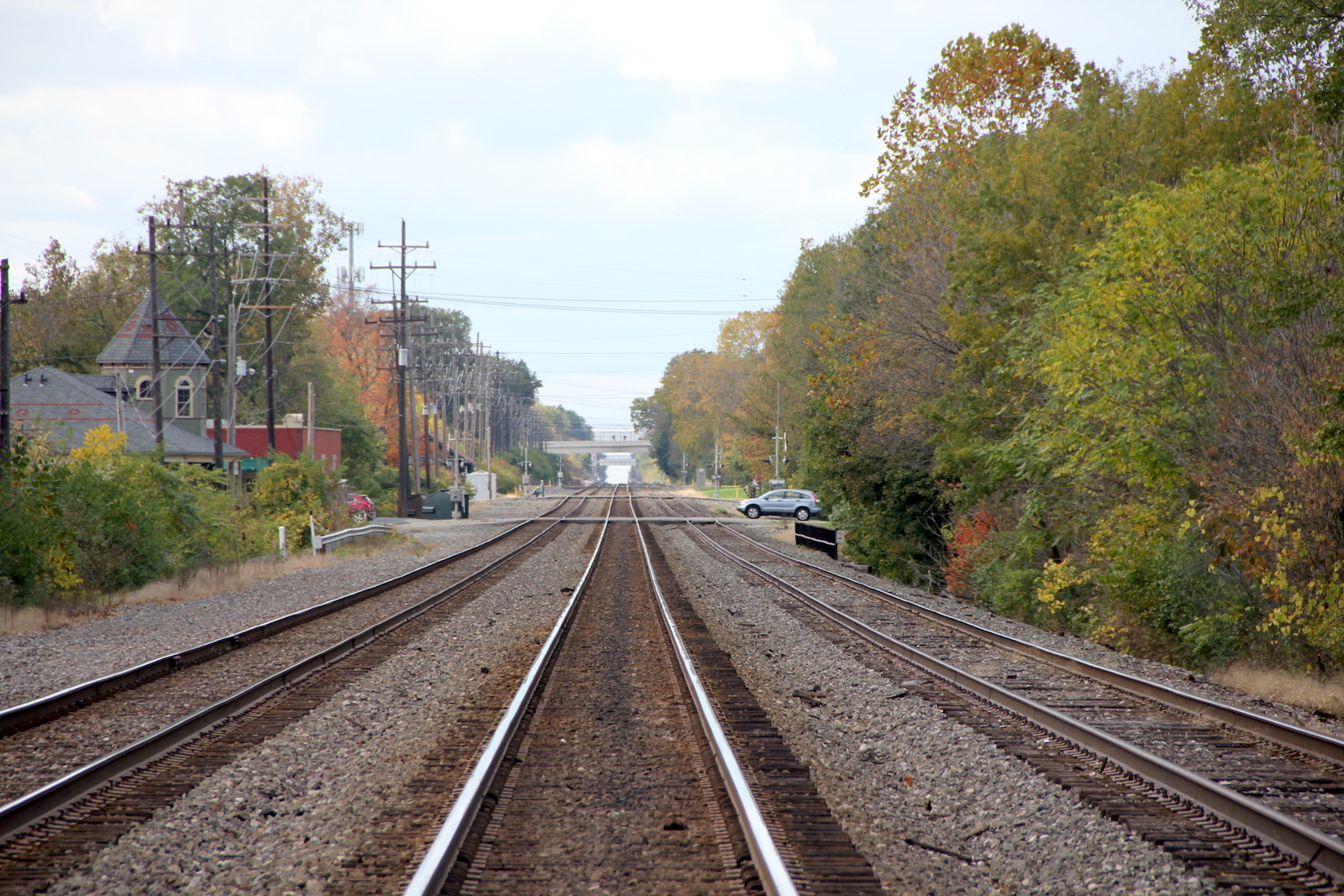

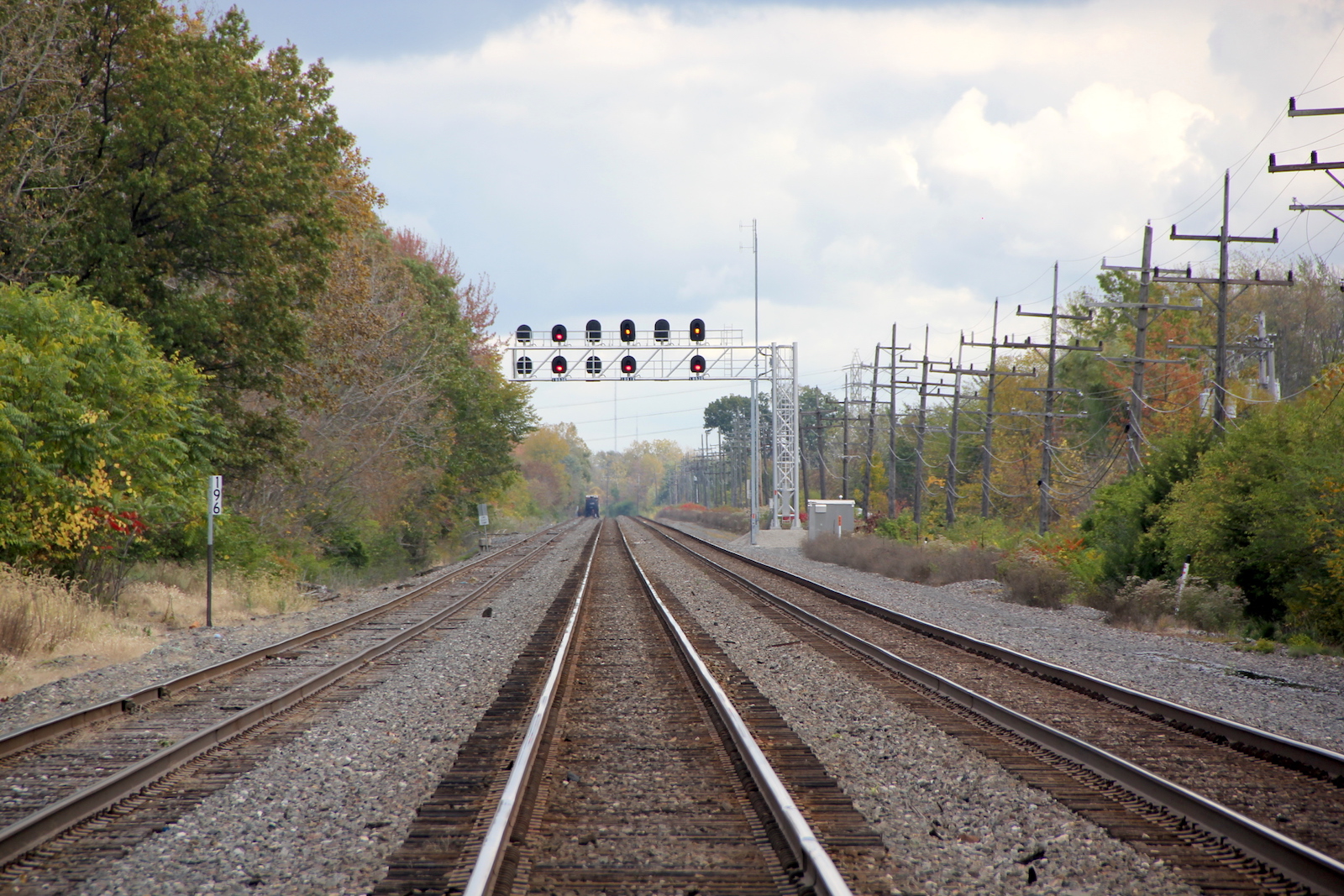

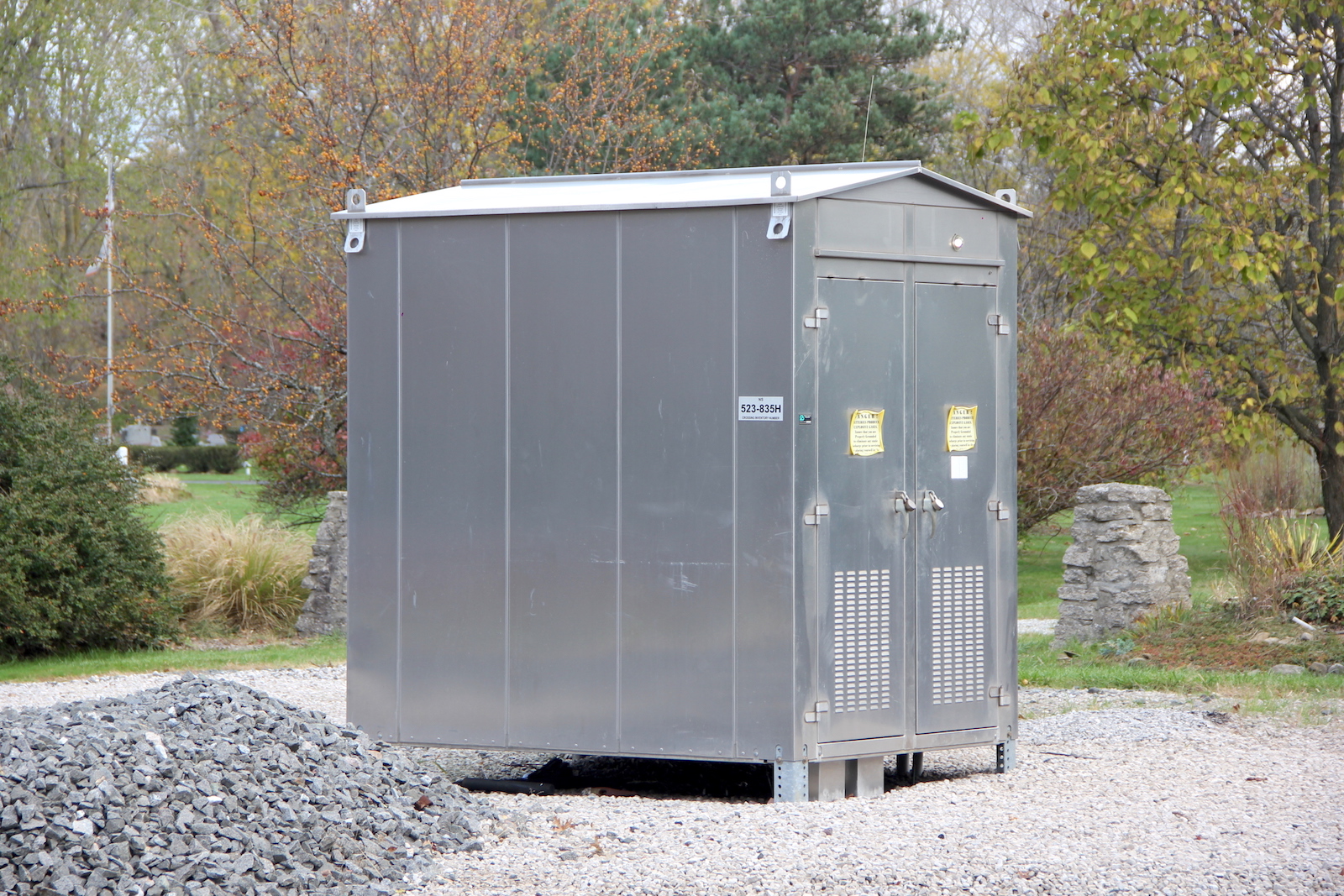

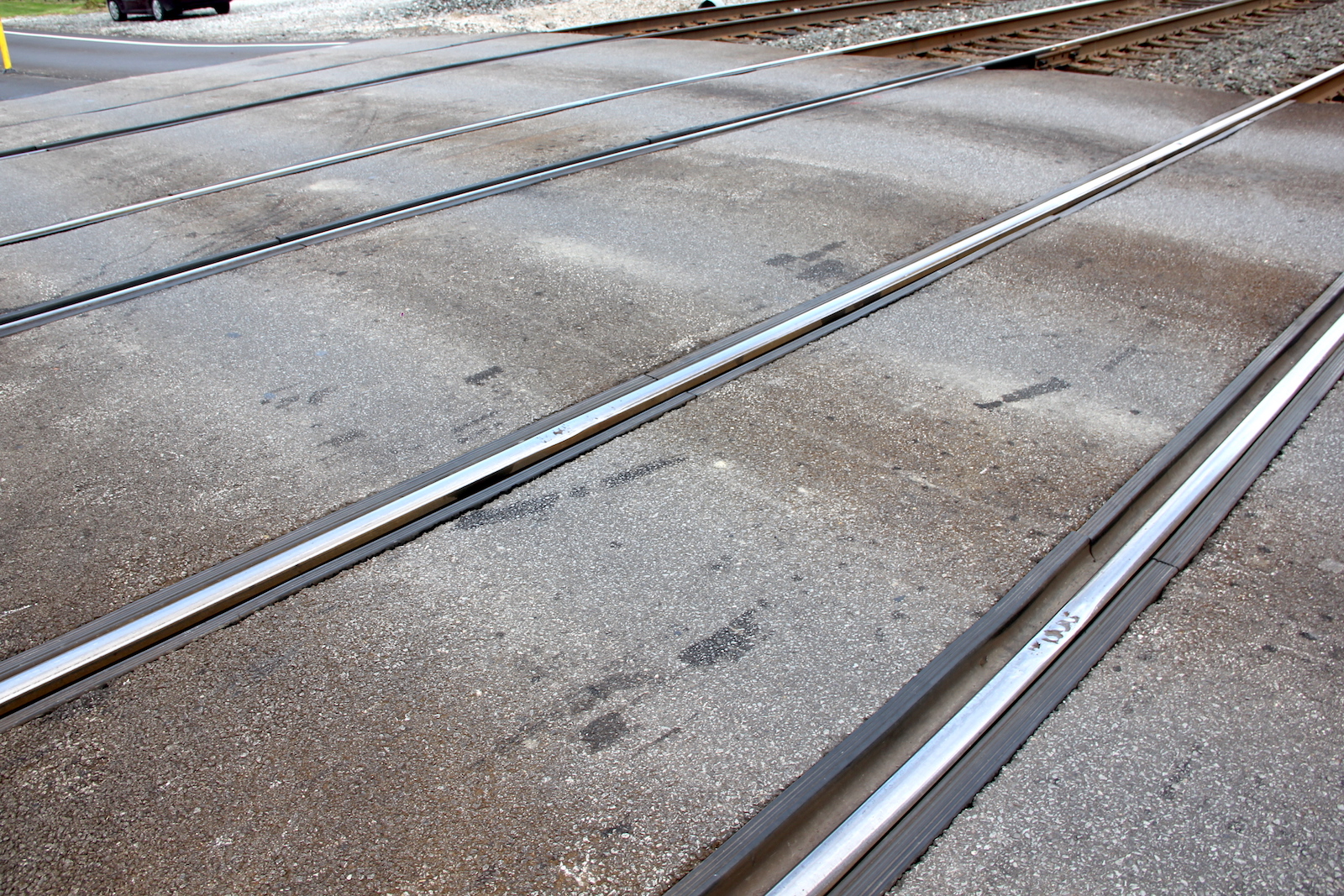

The relay bungalow in the northeast quadrant. The grade is rubber and asphalt. Track view facing west towards OH 252. Track view facing east towards Sheldon Rd. in Brook Park.

.
