148.65


472026E

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: GS E Bell None

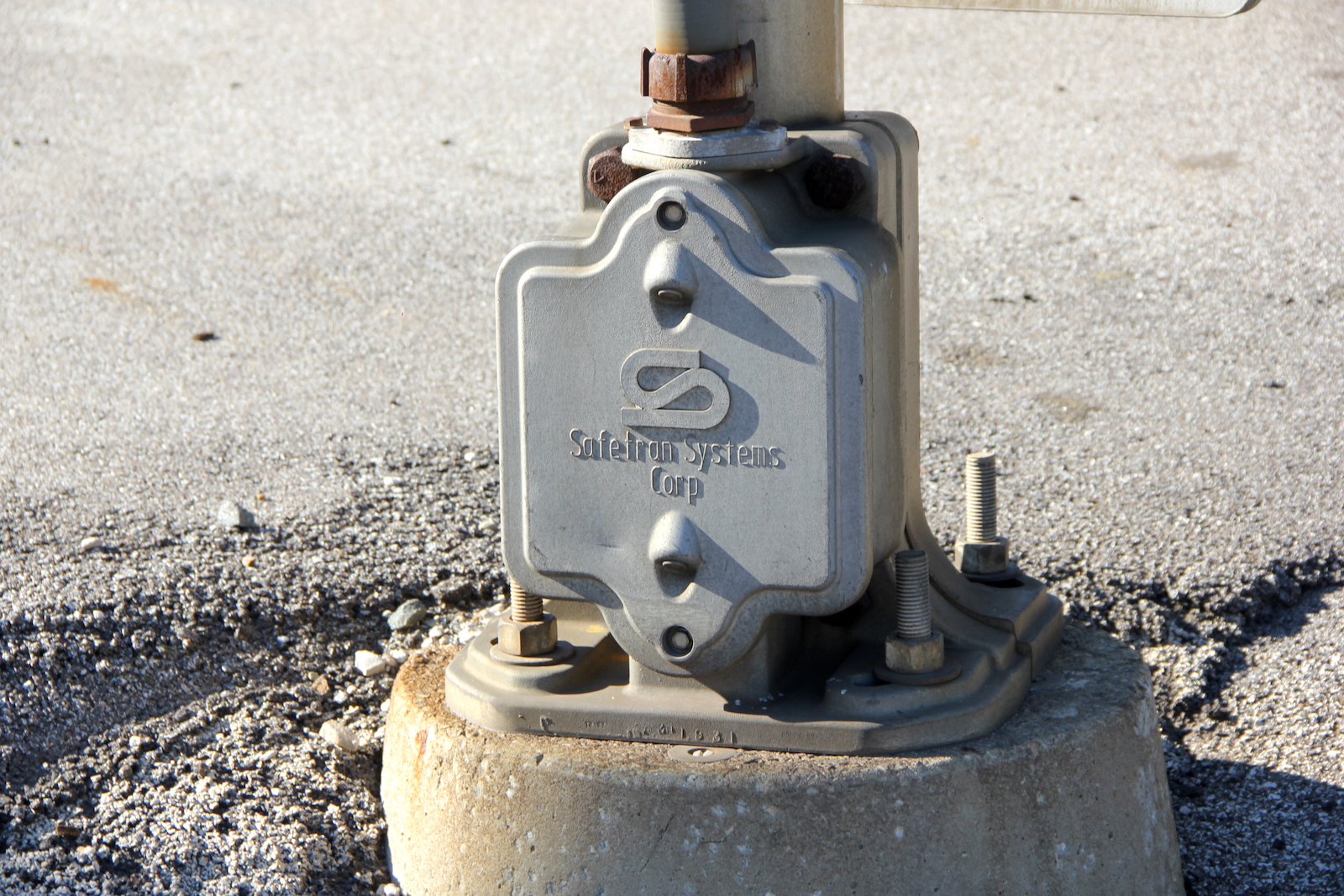

Base: Safetran 5" Single Sided ^ Safetran 5" Single Sided ^
Lights: 4 - 12"x20" Safetran incandescents 4 - 12"x20" Safetran incandescents
Junction Box: Safetran Safetran
Gate Lights: 4" NEG incandescents 4" NEG incandescents
Gate Mechanism: Safetran 2000s w/ GSI Gate Saver Safetran 2000s w/ GSI Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on October 13, 2021, by Tommy McGowan.
This crossing is located on the NS Lake Erie District.

1
 2

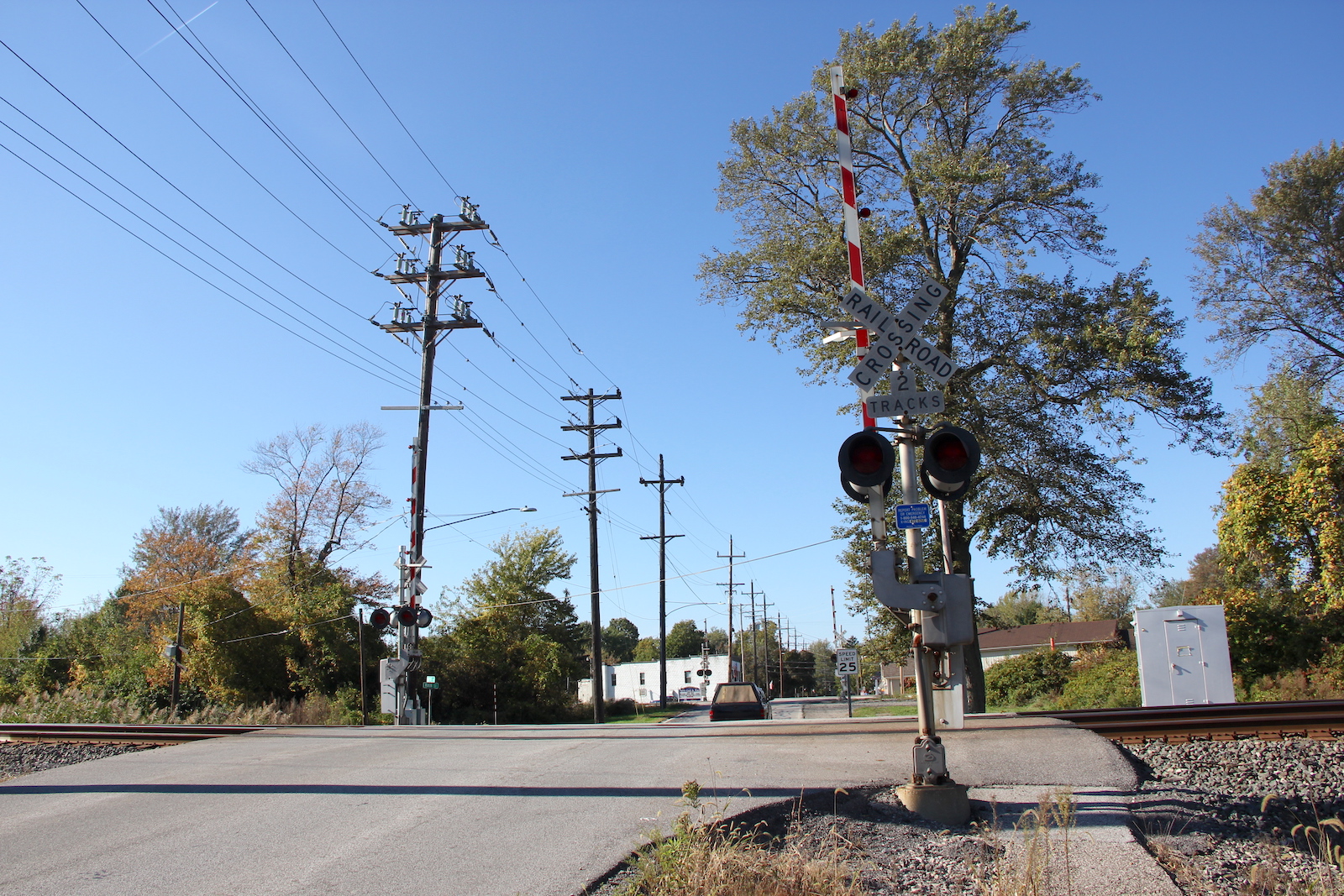

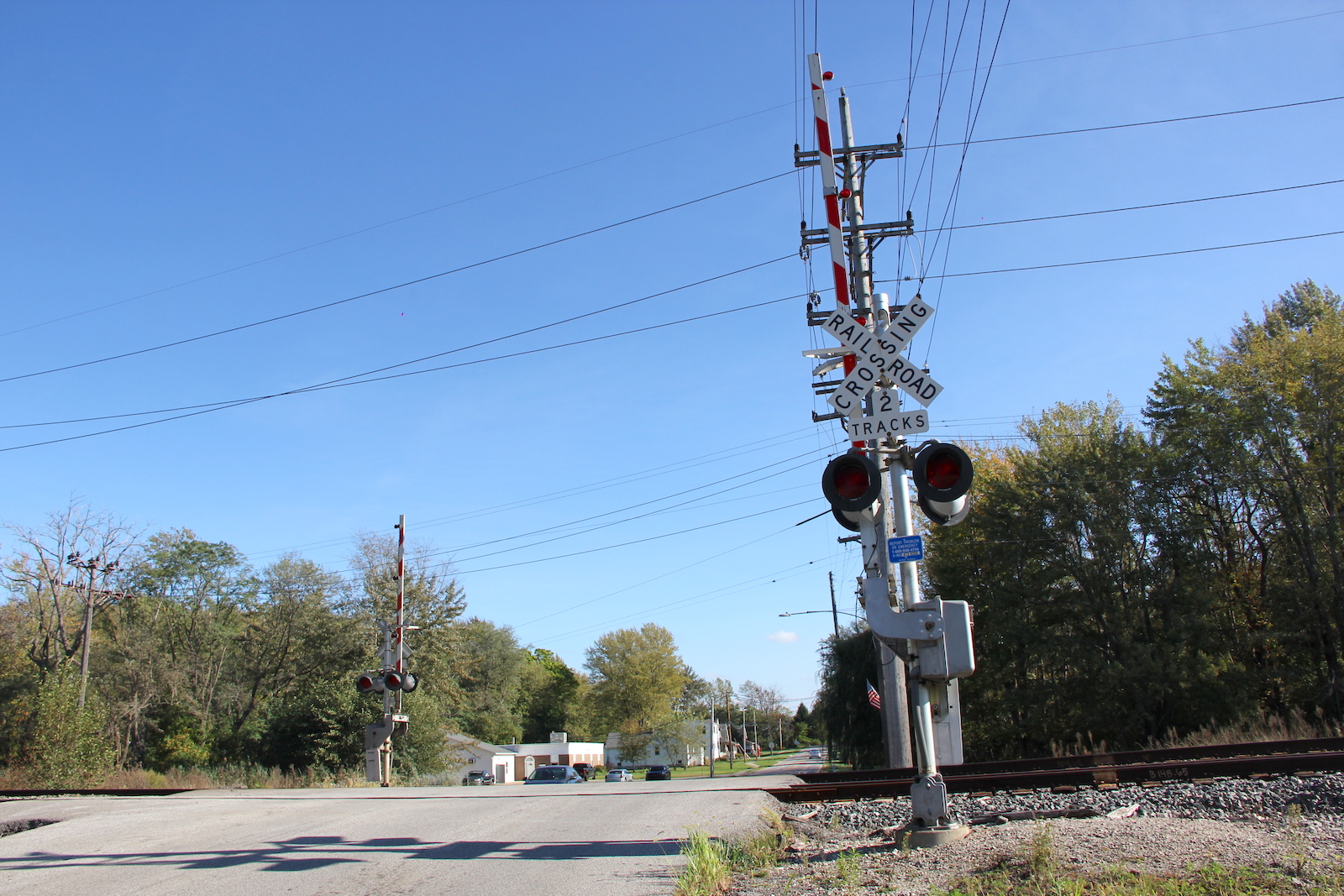

Overview of 2 gated signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11

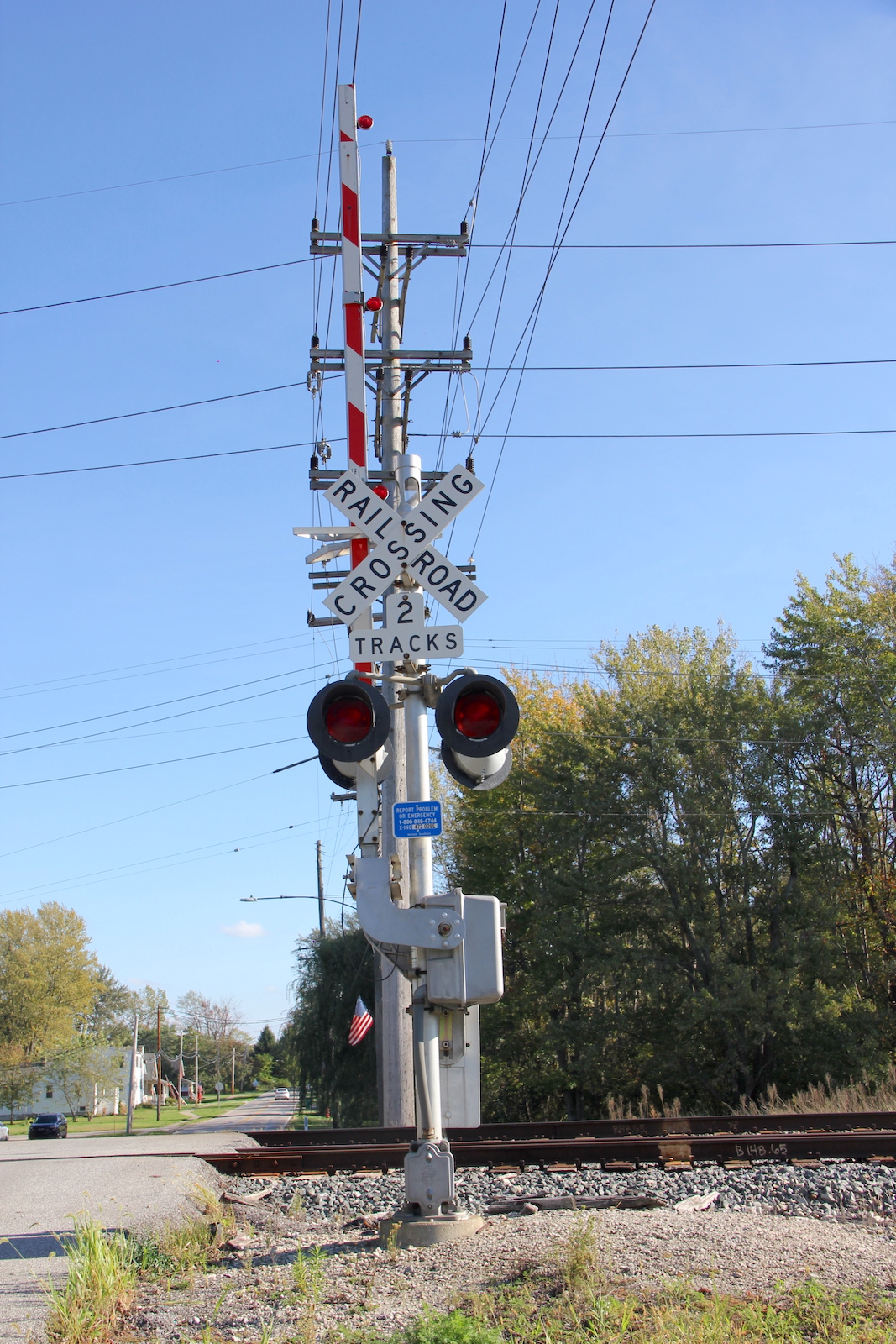

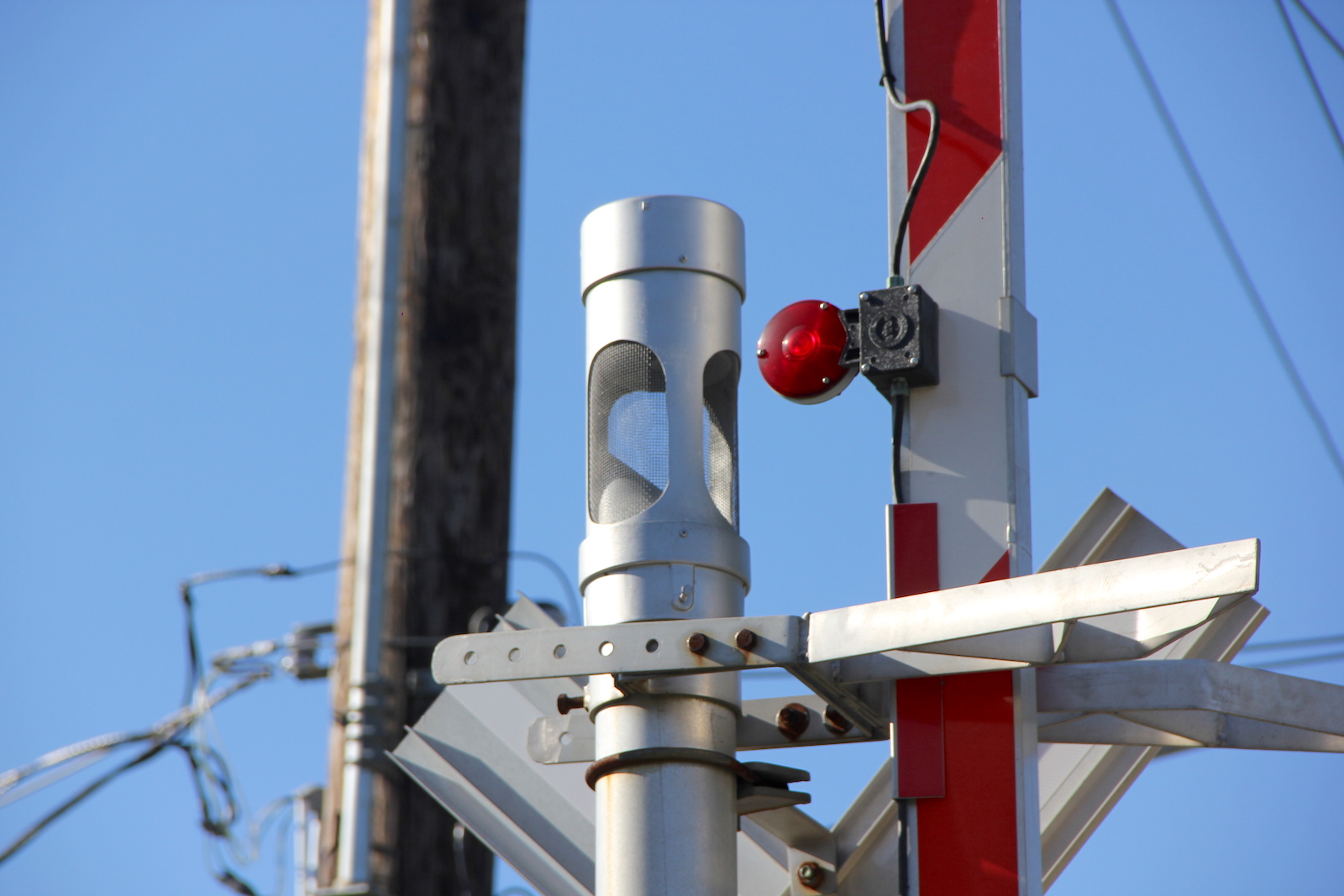

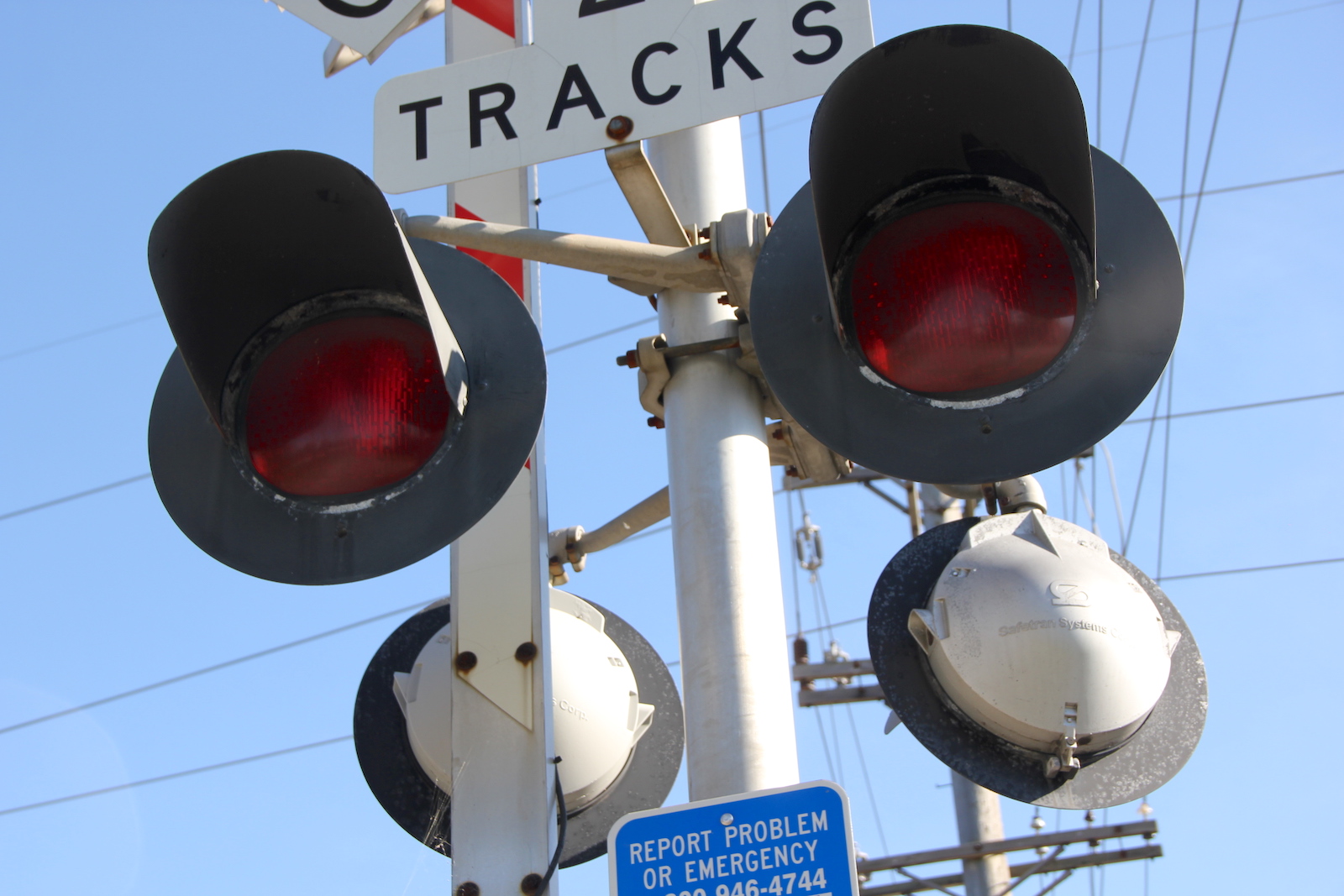

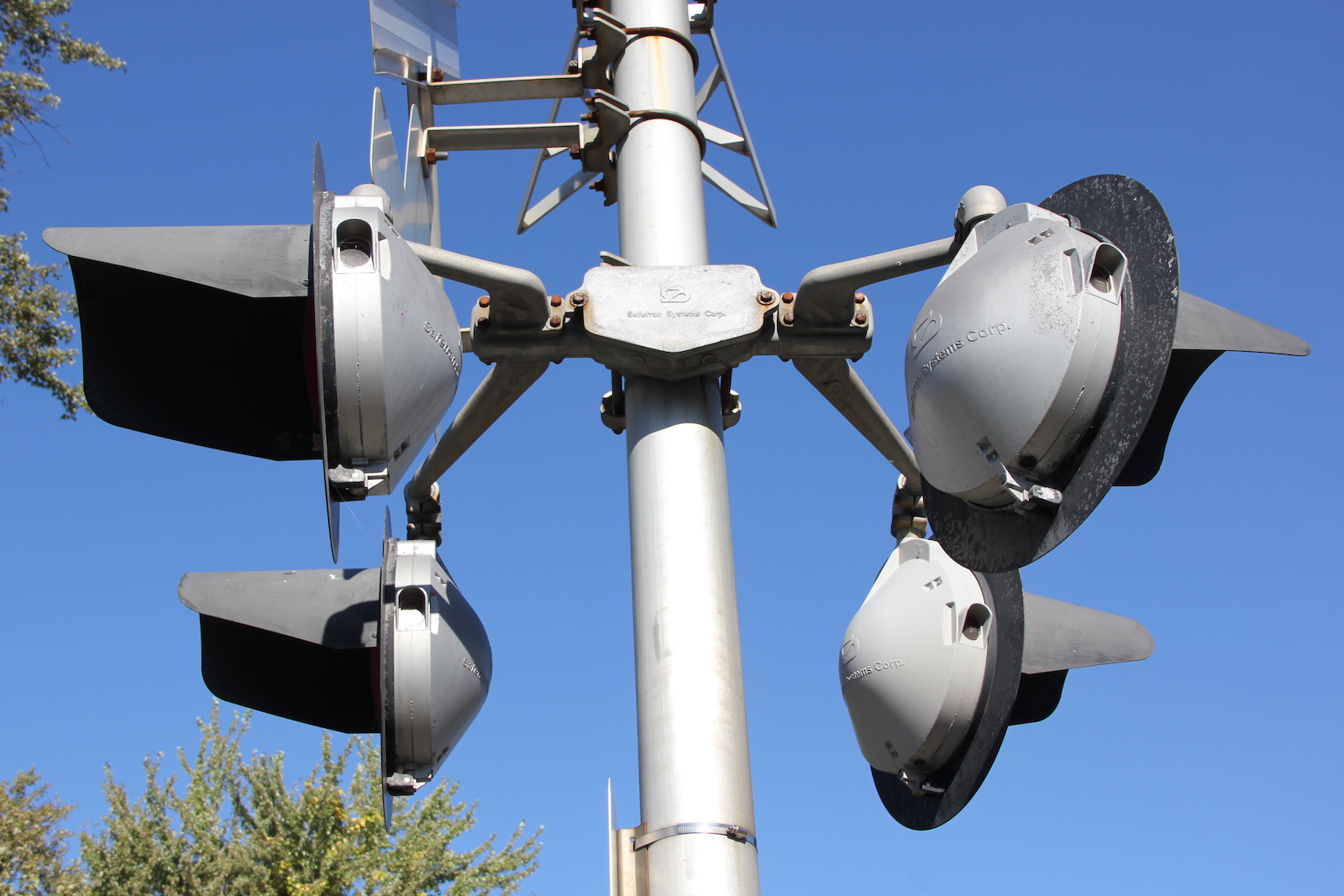

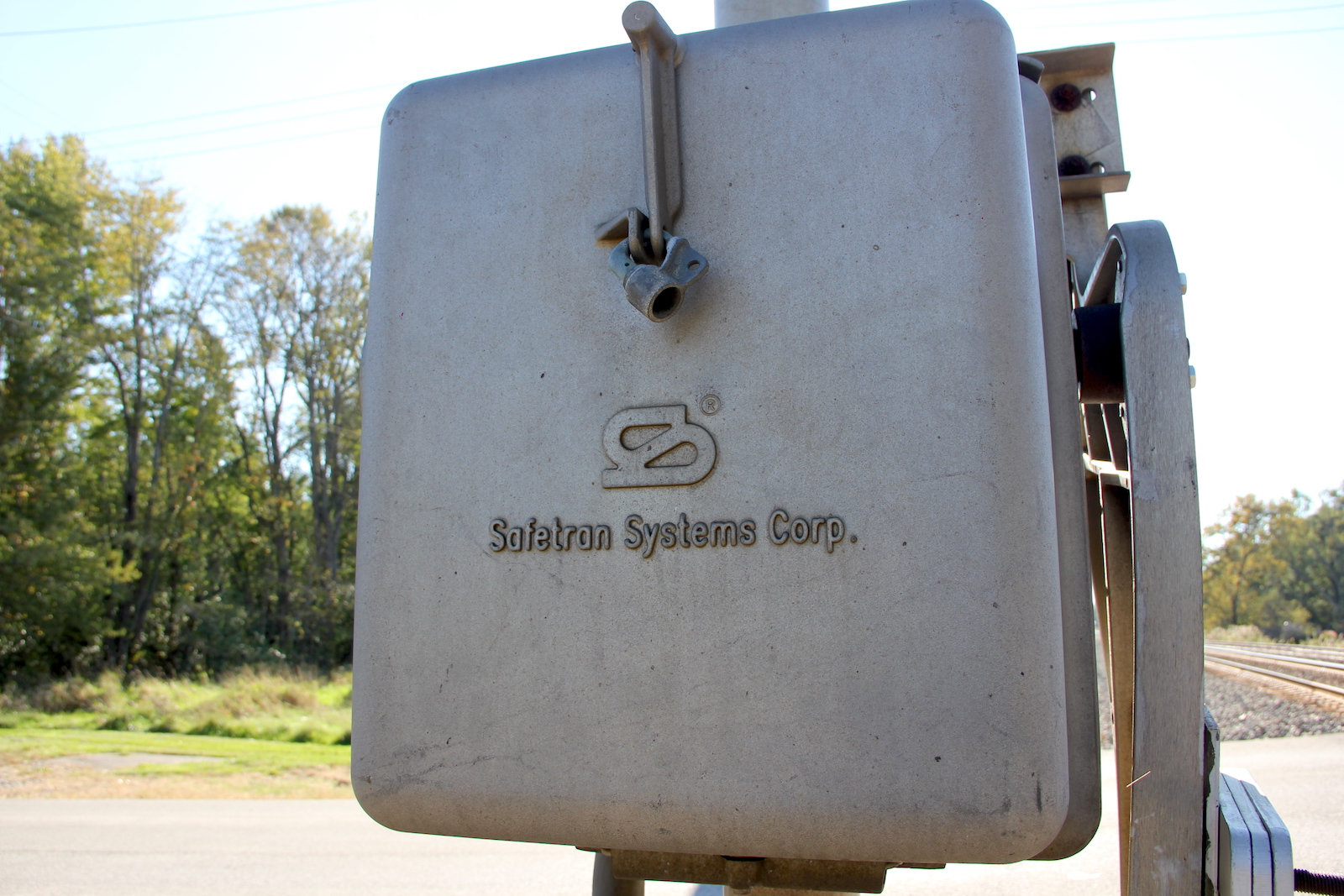

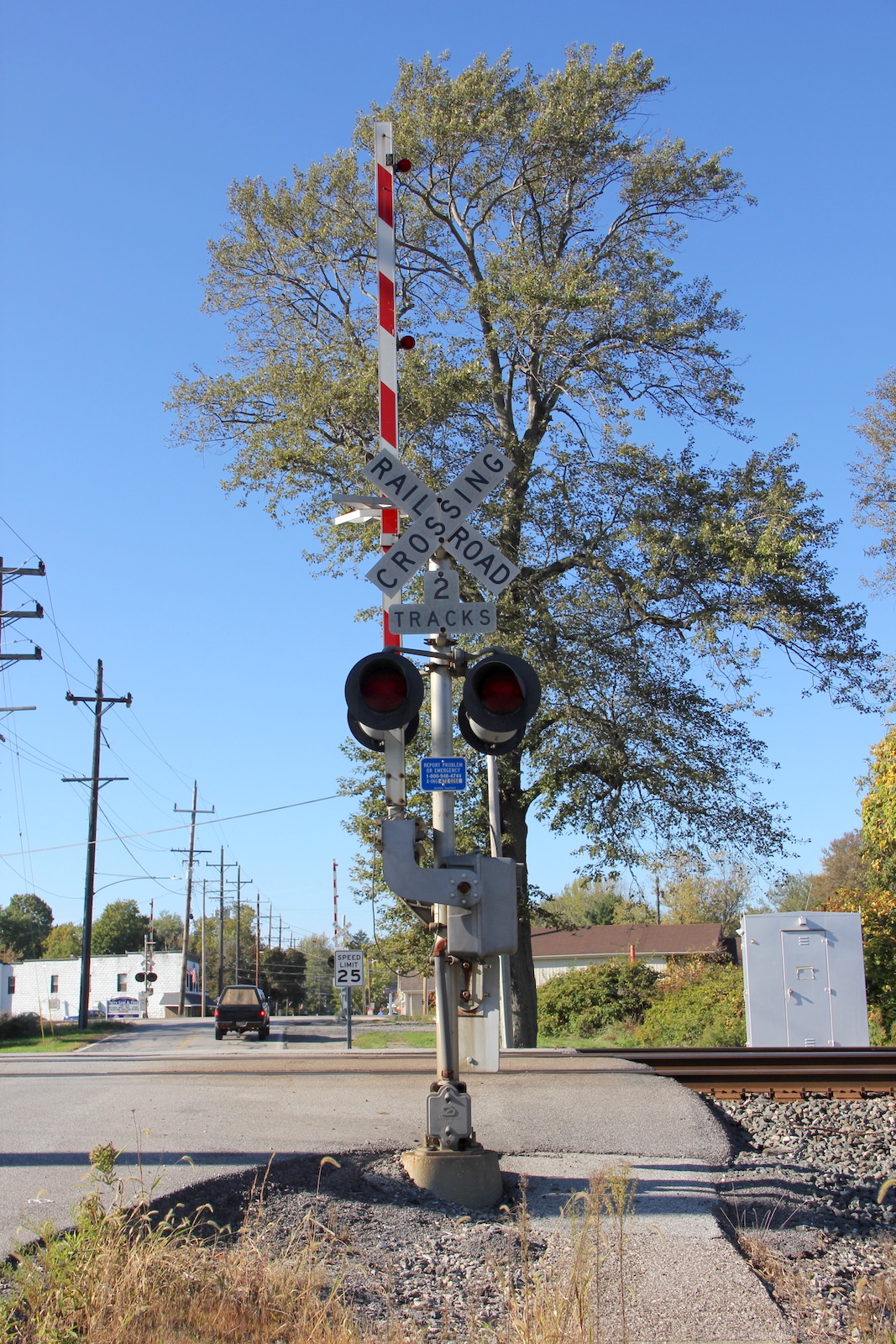

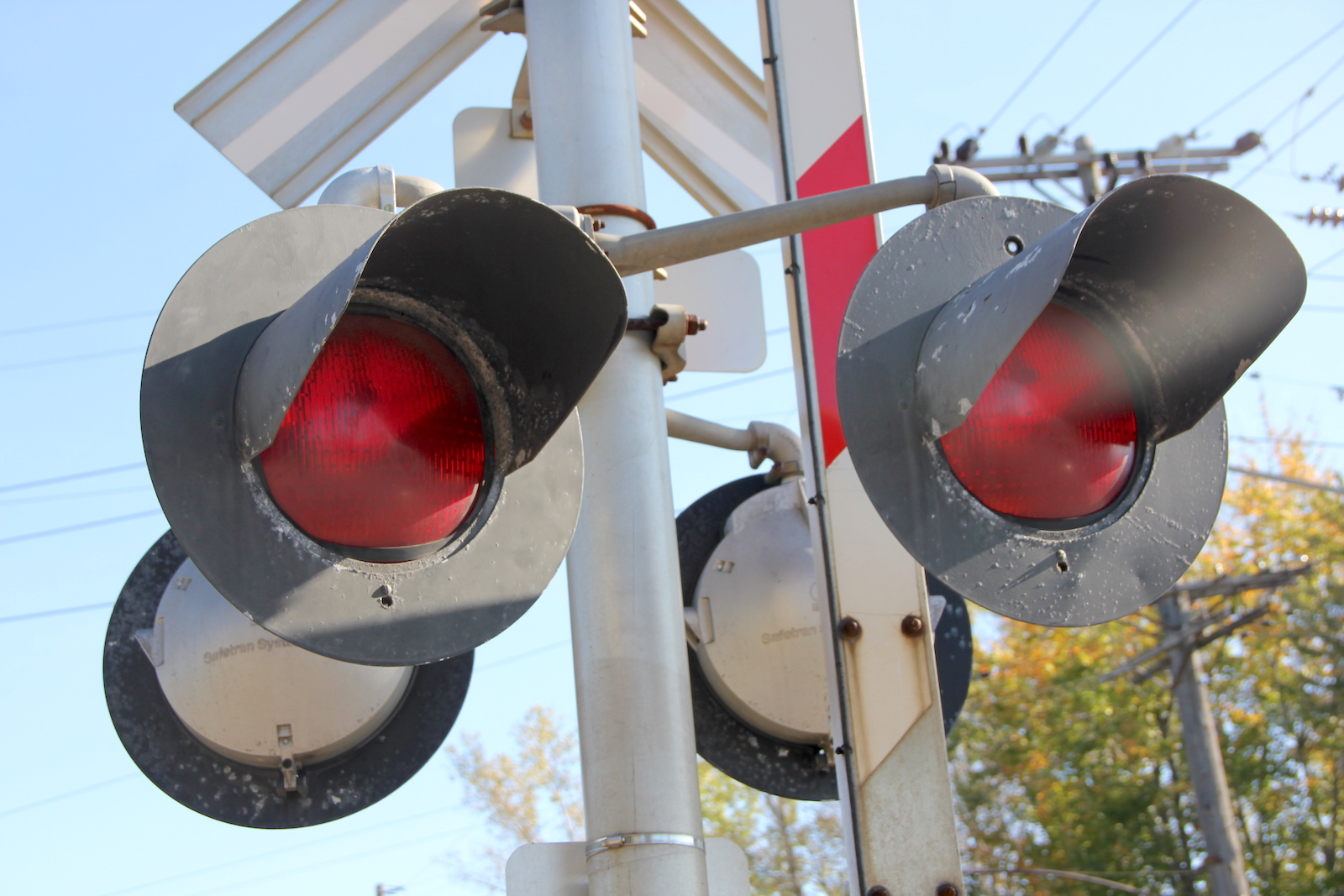

The southern signal.
12 13 14
15 16 17
18 19 20
21

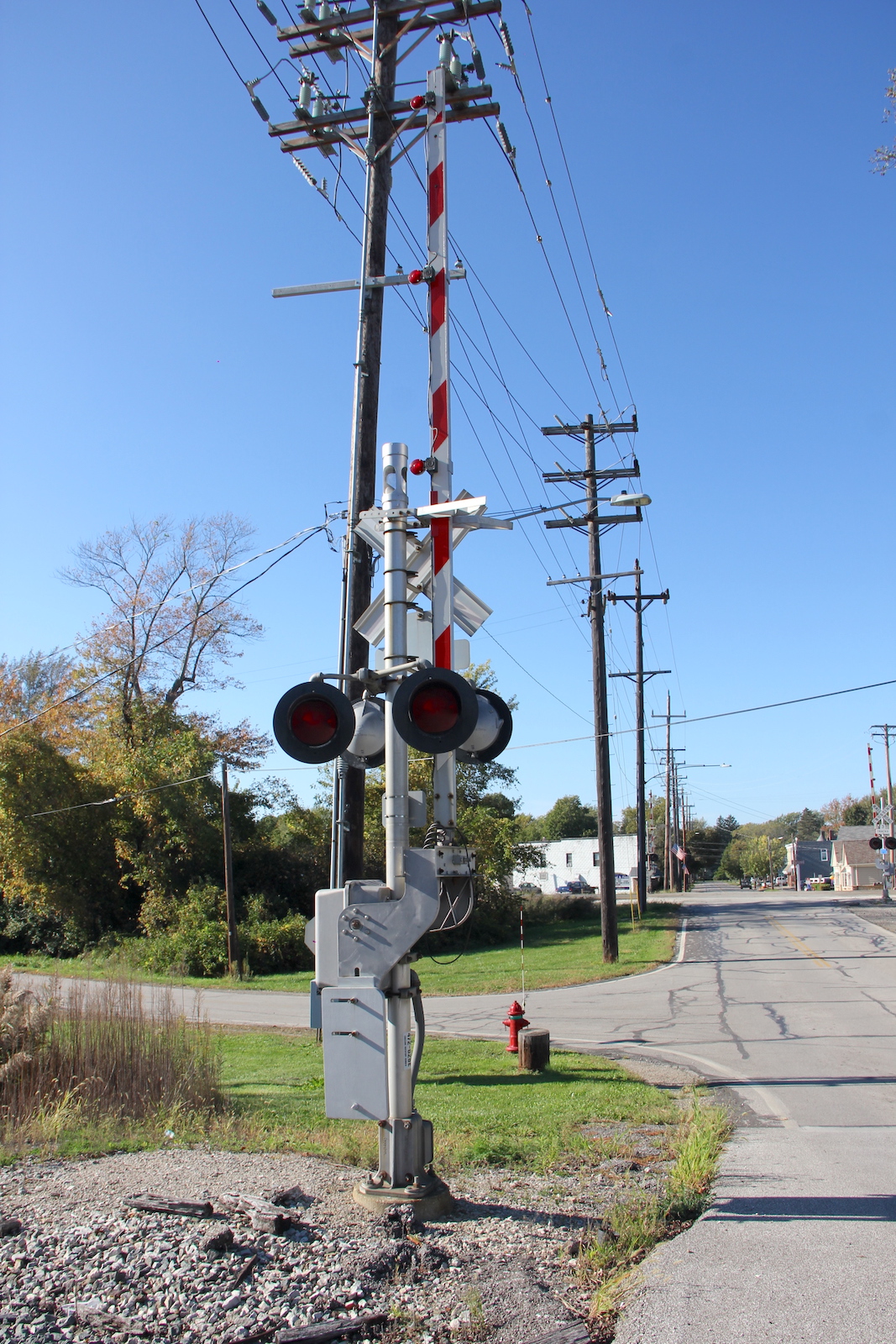

The northern signal.
22 23 24 25

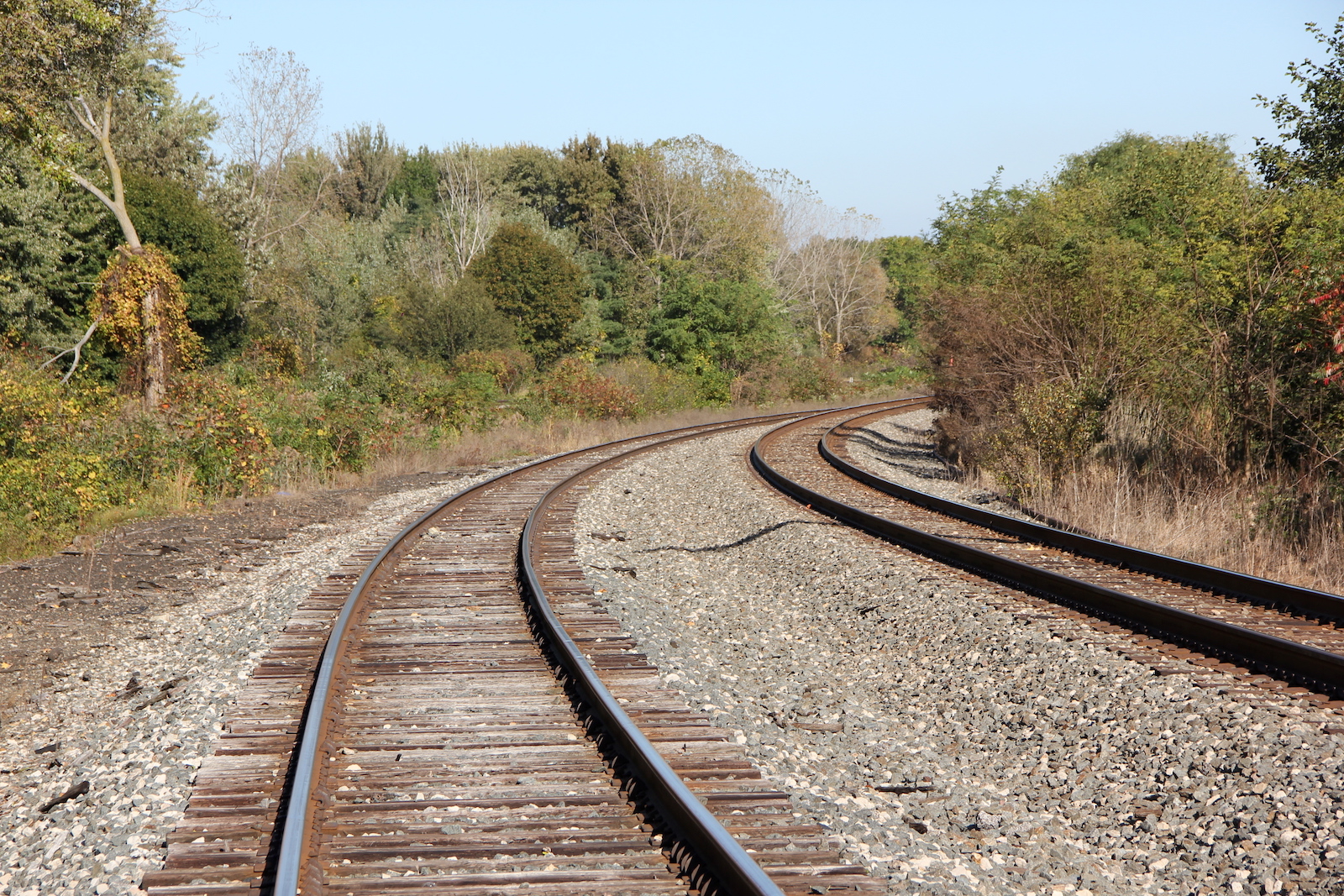

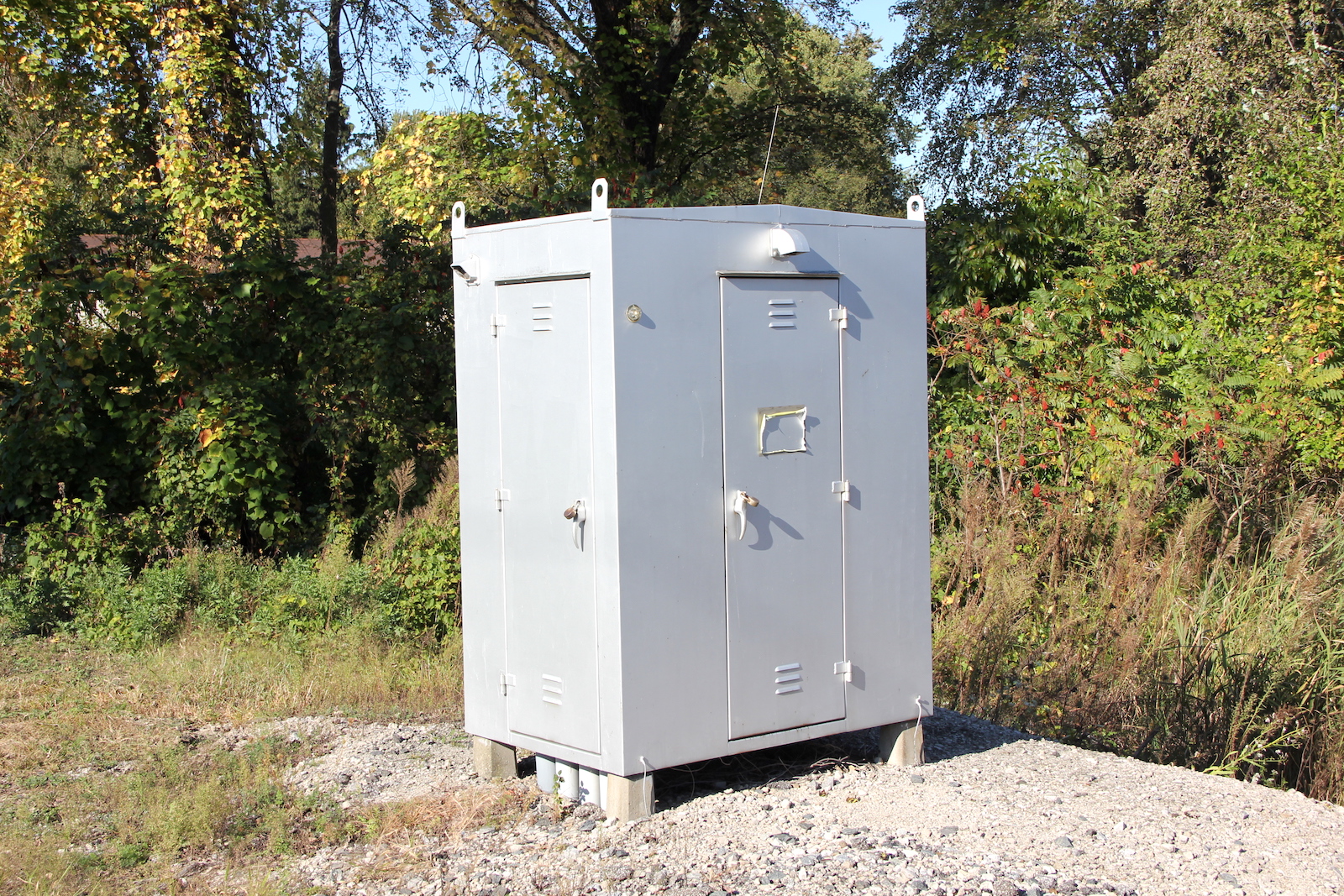

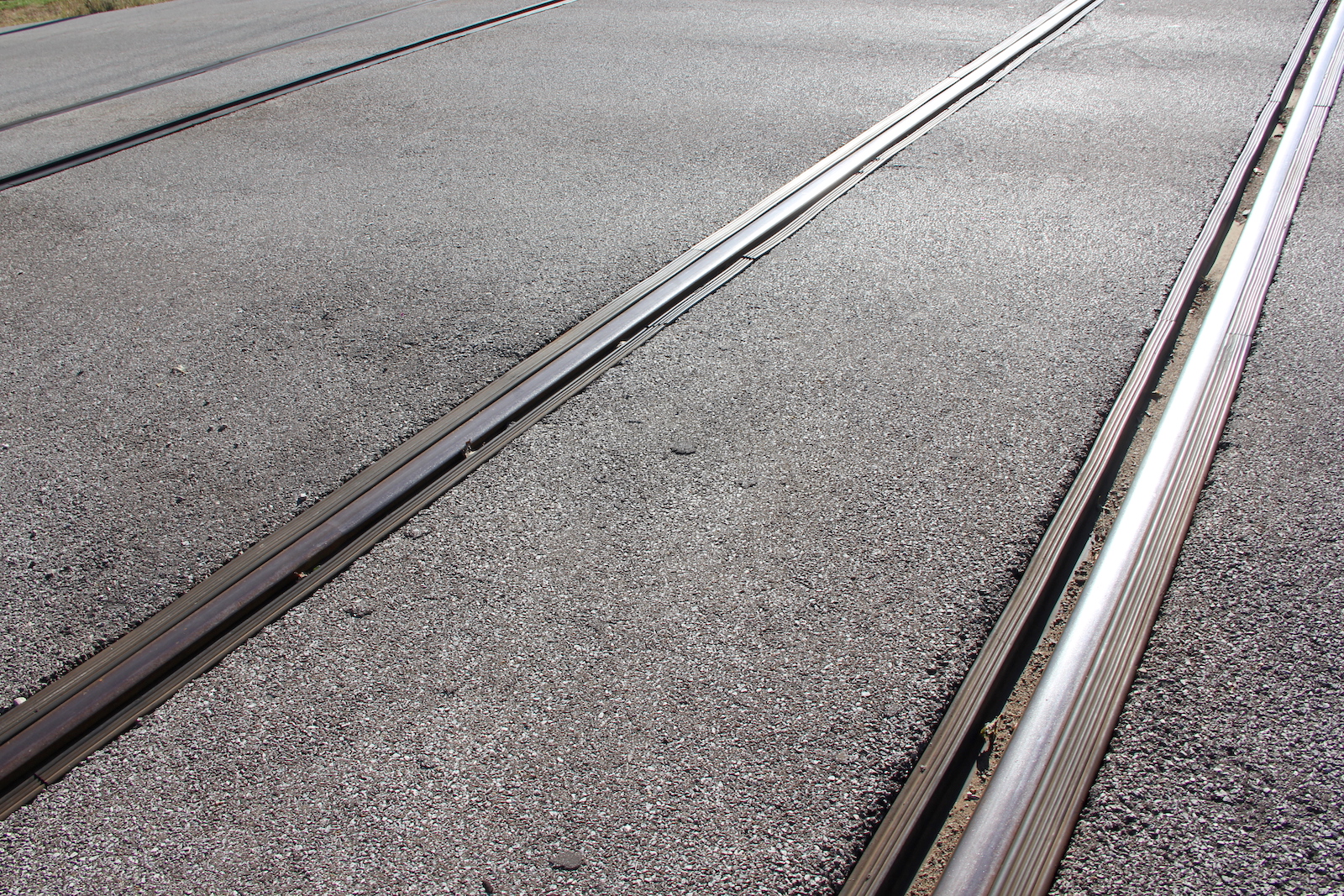

The relay bungalow in the northeast quadrant. The grade is rubber and asphalt. Track view facing west towards Maple St. #2 & #3. Track view facing east towards Davis Rd. #2.

.
