93.19


001974L

>>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: GS E Bell GS E Bell

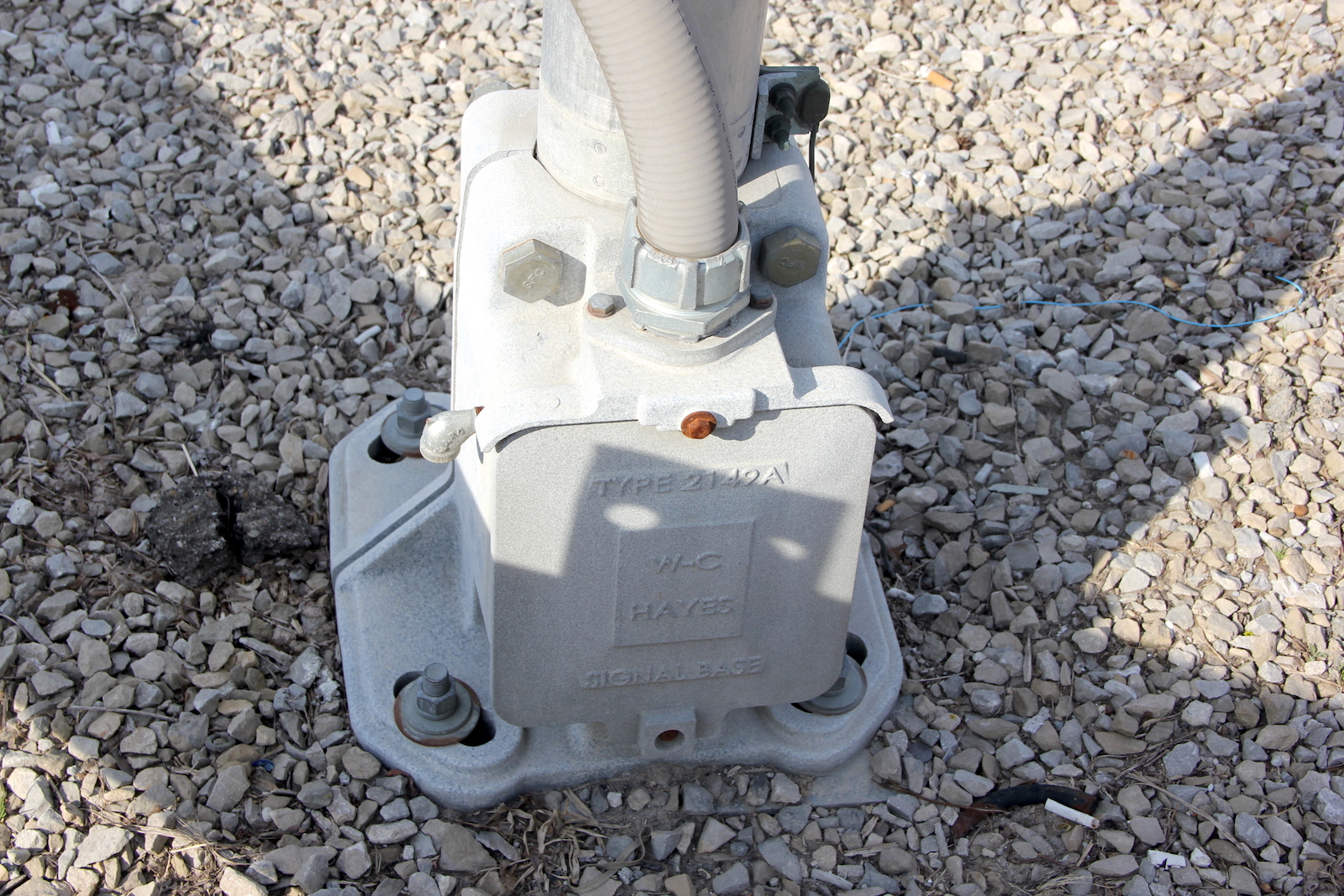

Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^

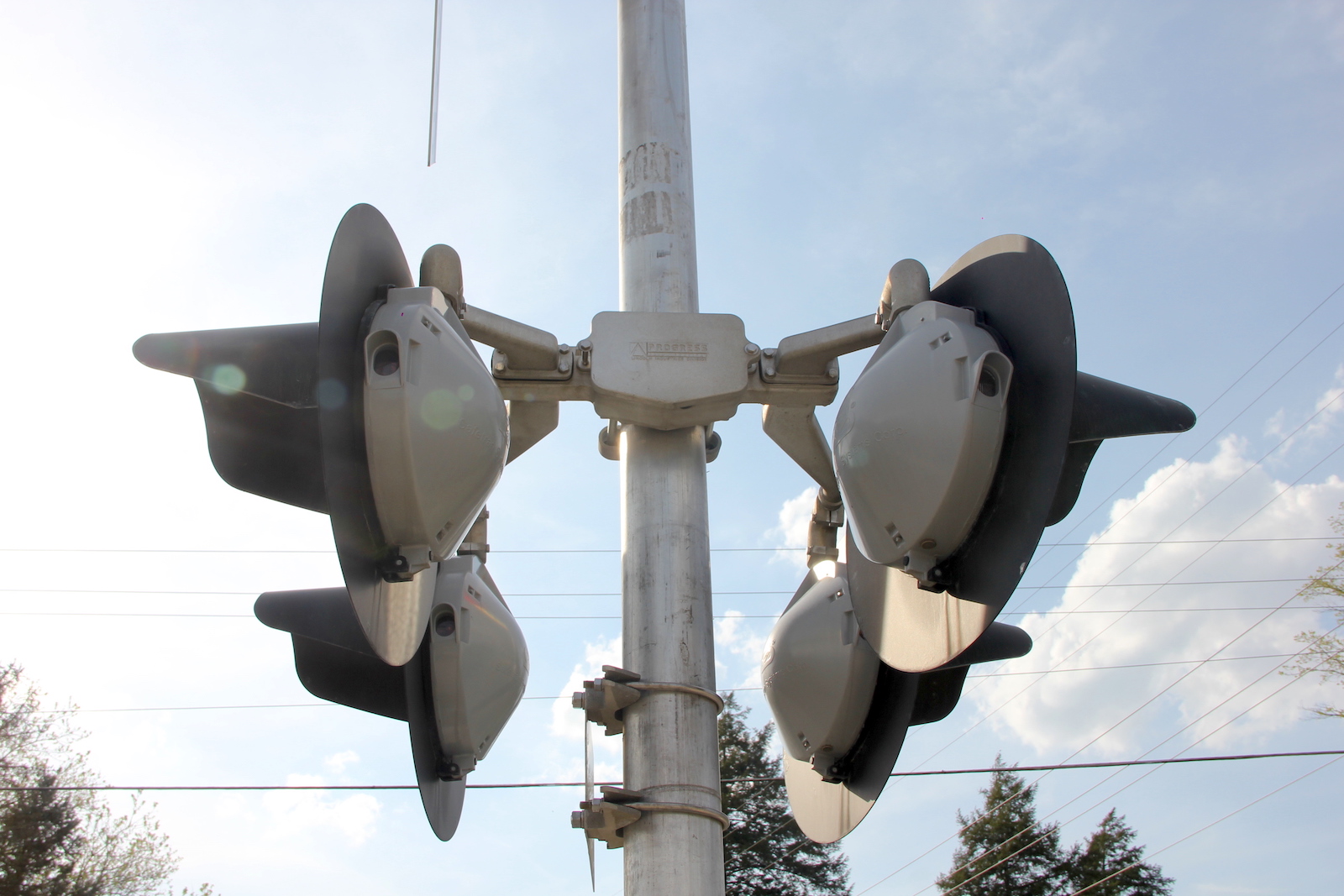

Lights: 4 - 12"x24" WCH w/ Dialight Ball LEDs 4 - 12"x24" WCH w/ Dialight Ball LEDs
Junction Box: Progress Rail Progress Rail
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: Invensys Rail w/ GSI Gate Saver Invensys Rail w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on April 15, 2017, by Tommy McGowan.
This crossing is located on the W&LE Carey Sub.

These signals were installed sometime between 2011 and 2013 replacing a pair of gateless signals that had no bells and appeared to have 12"x24" Safetran Fading LEDs.

1
 2

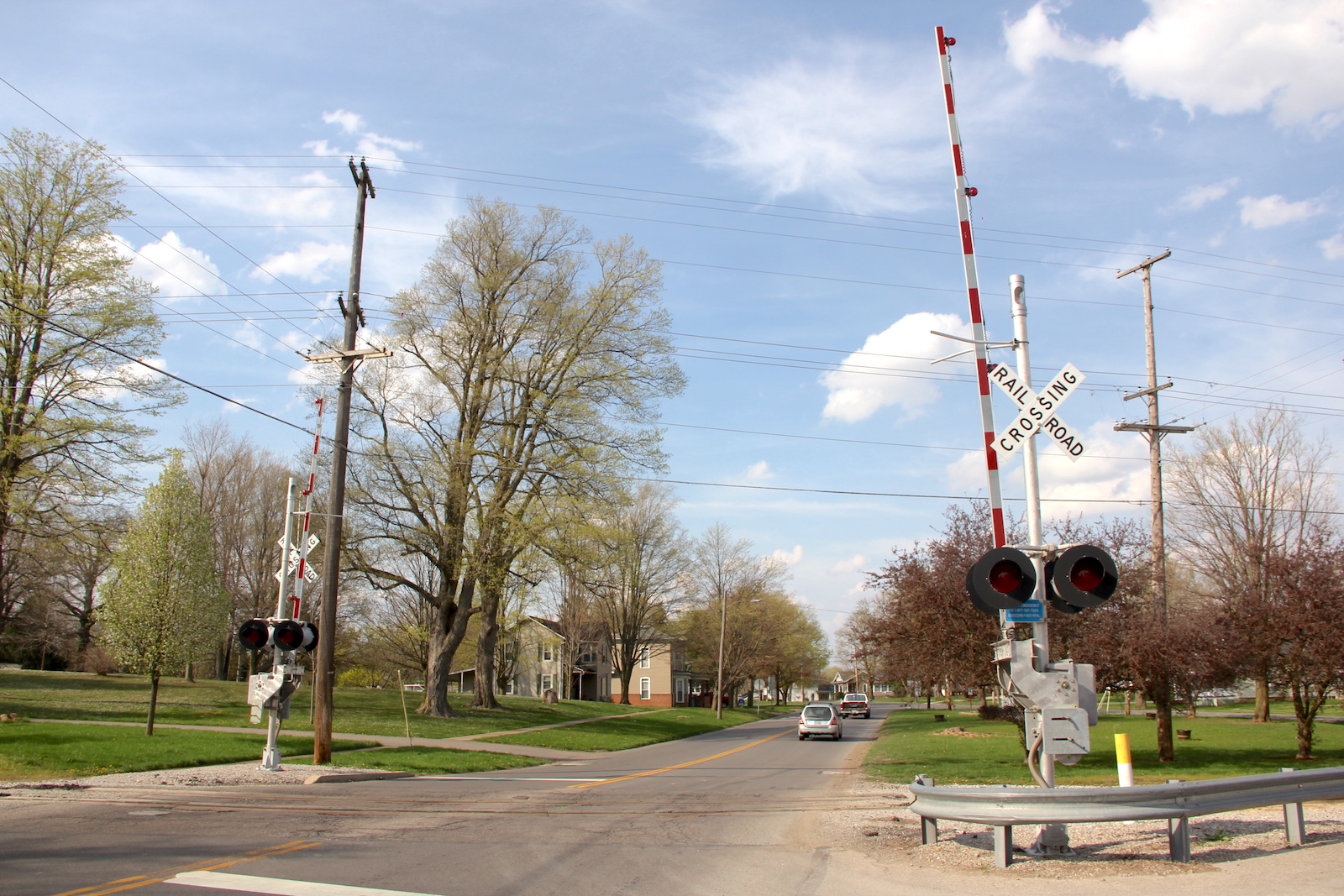

Overview of 2 gated signals facing north.

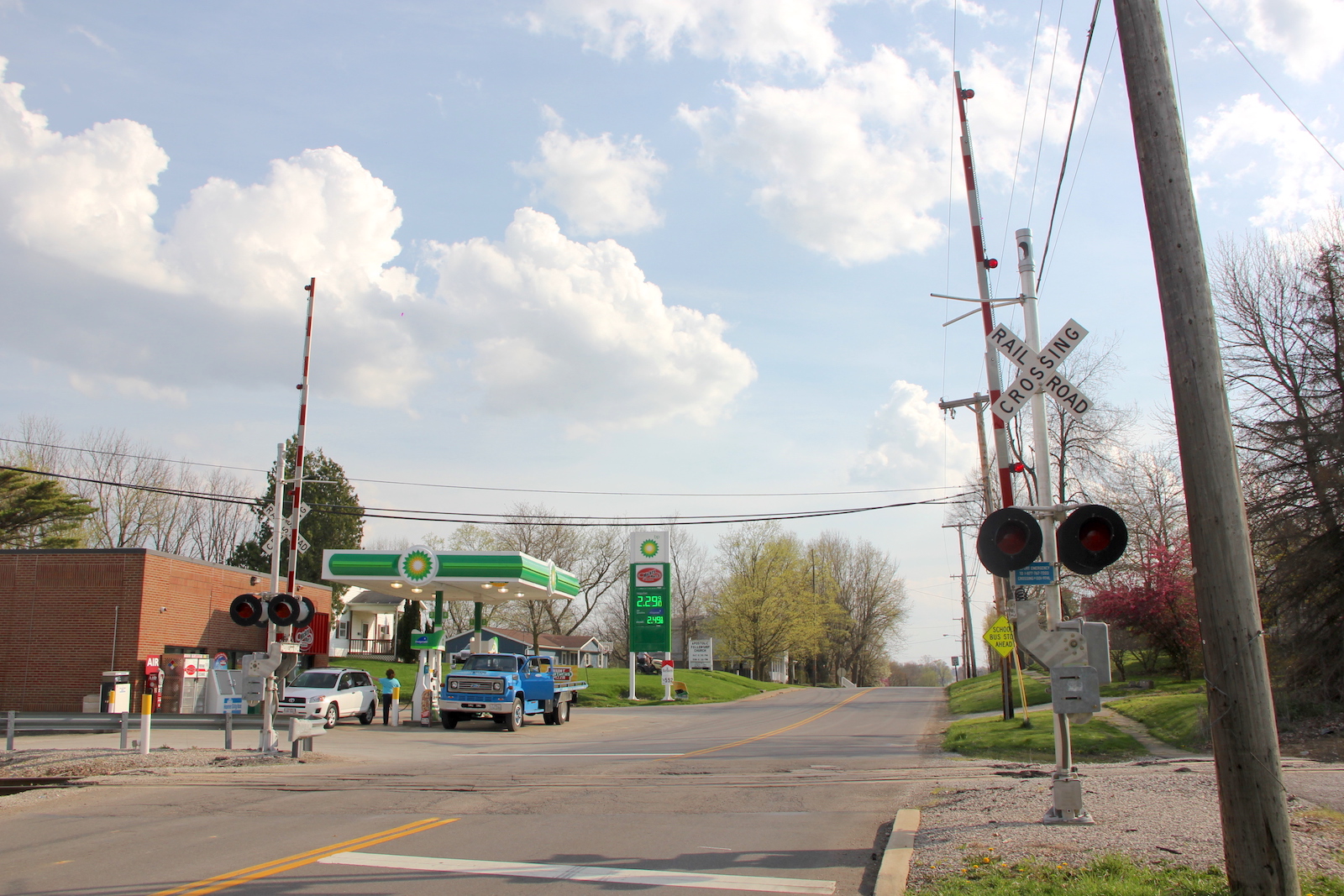

 Overview facing south.
3 4 5
6 7 8
9 10 11
12

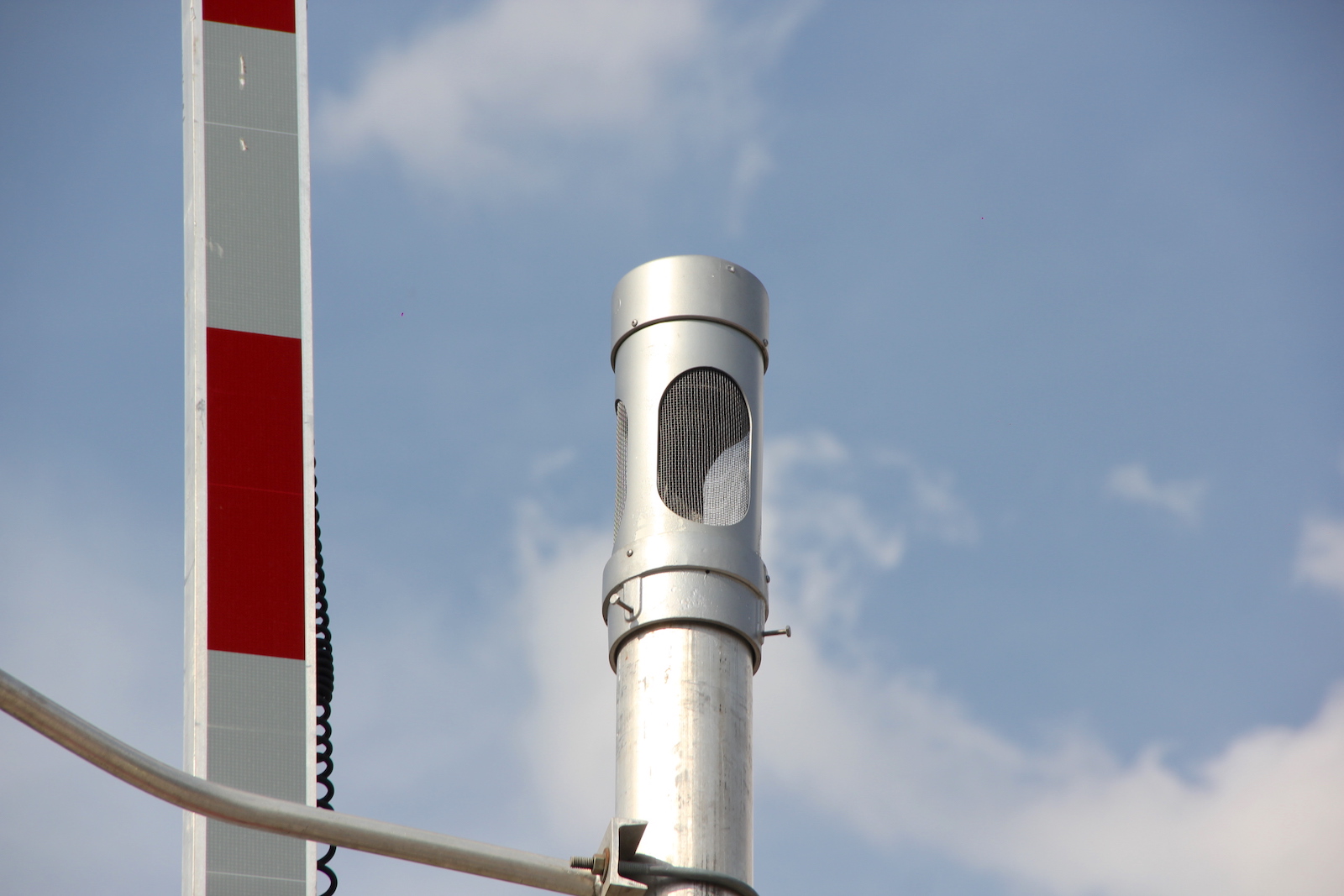

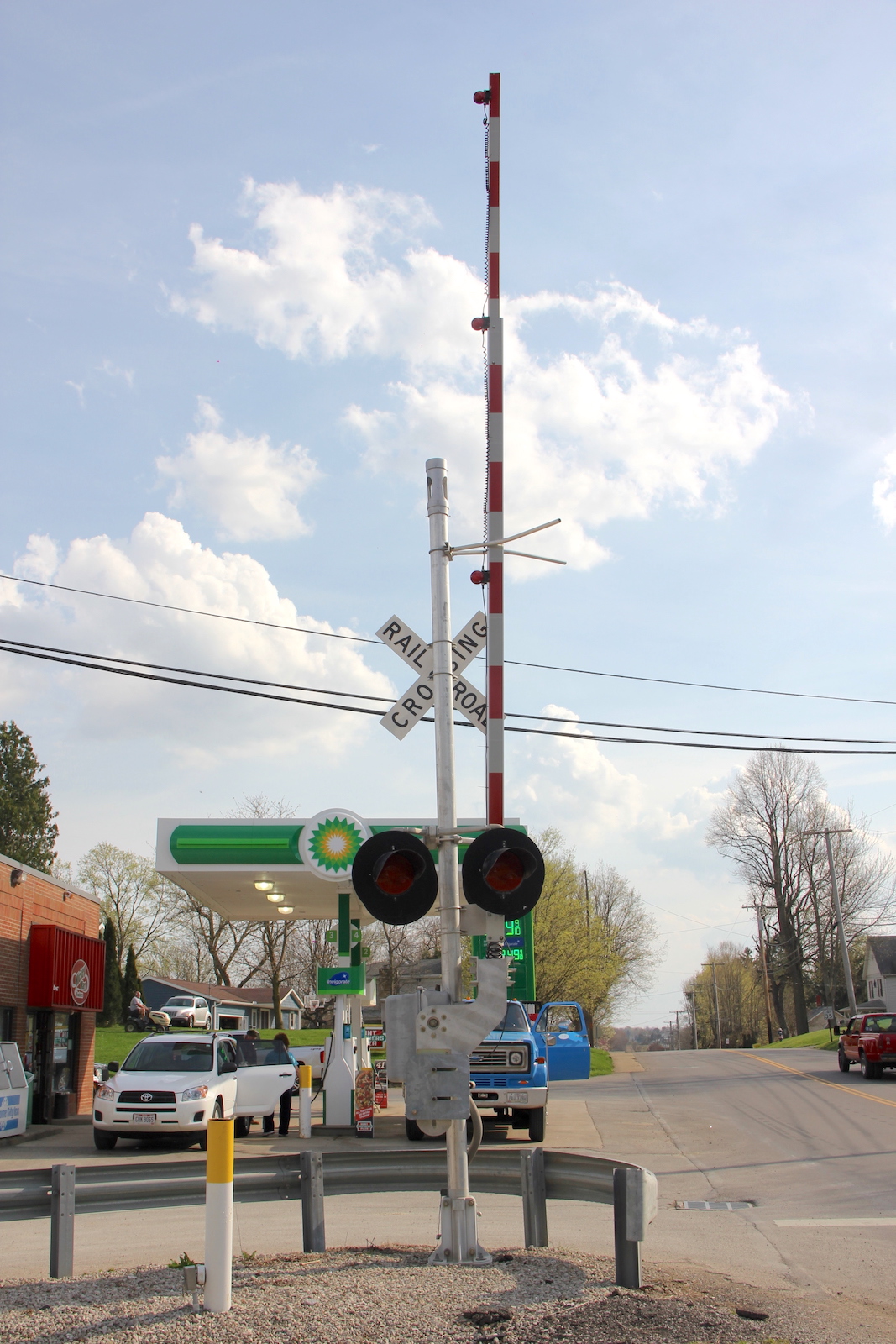

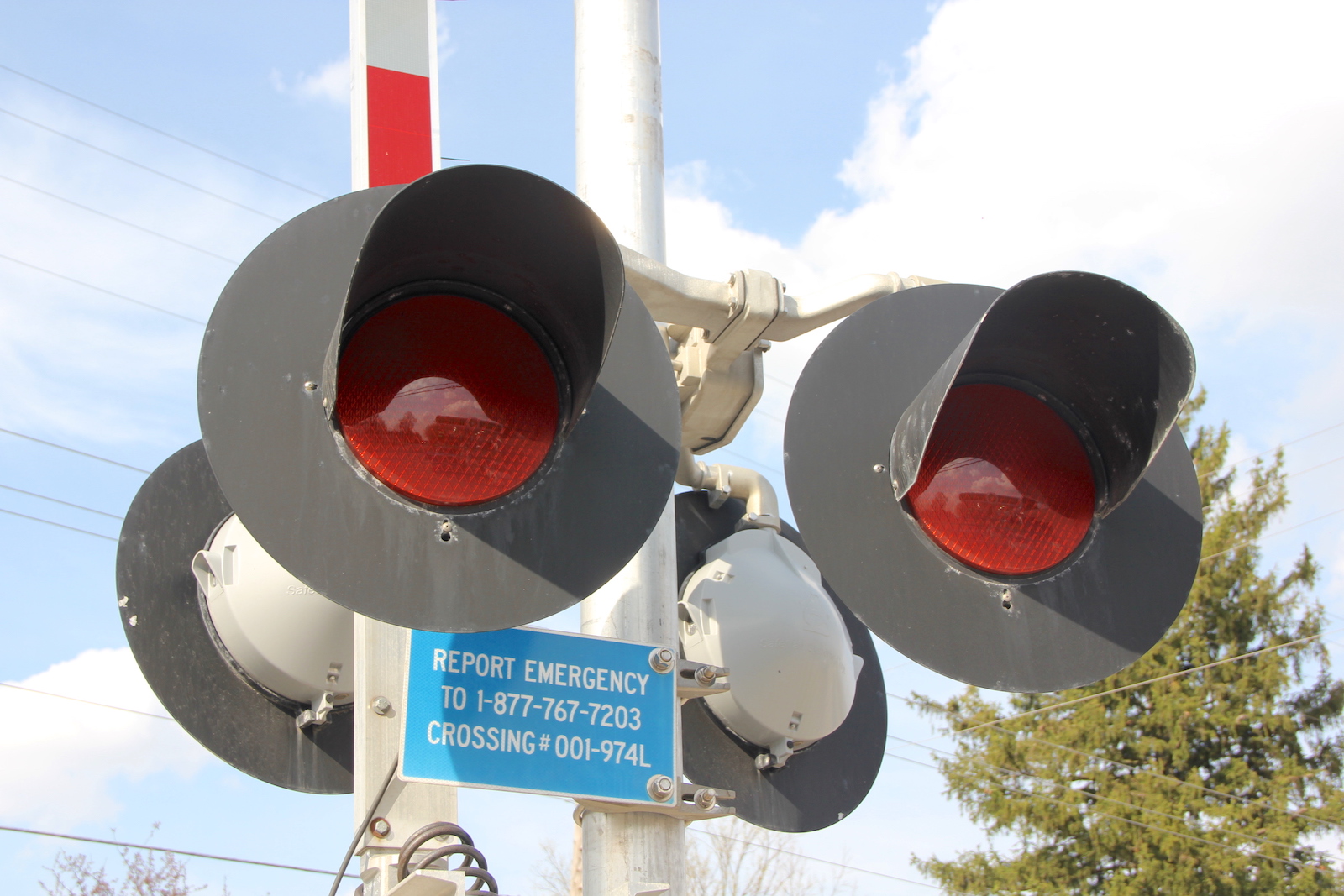

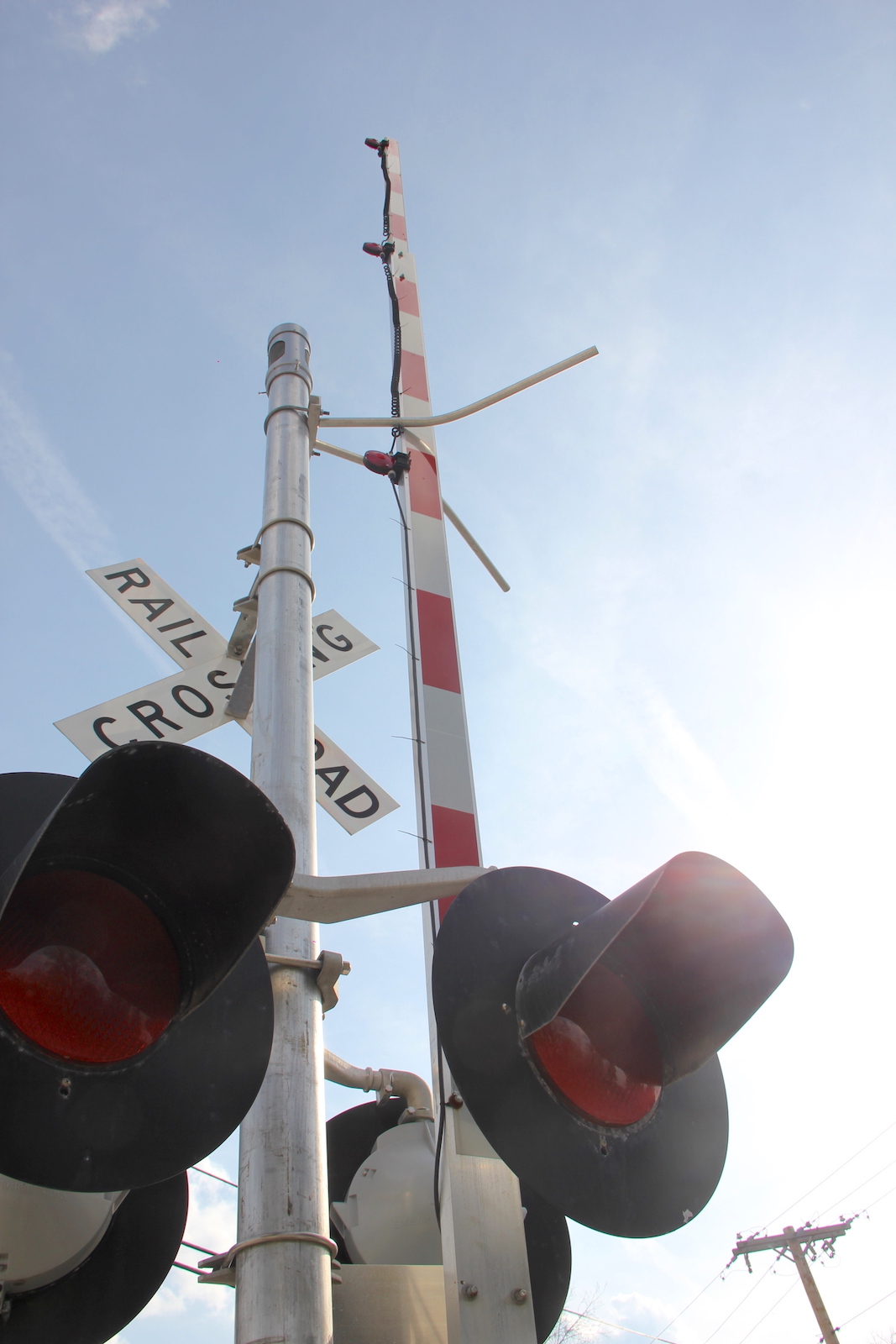

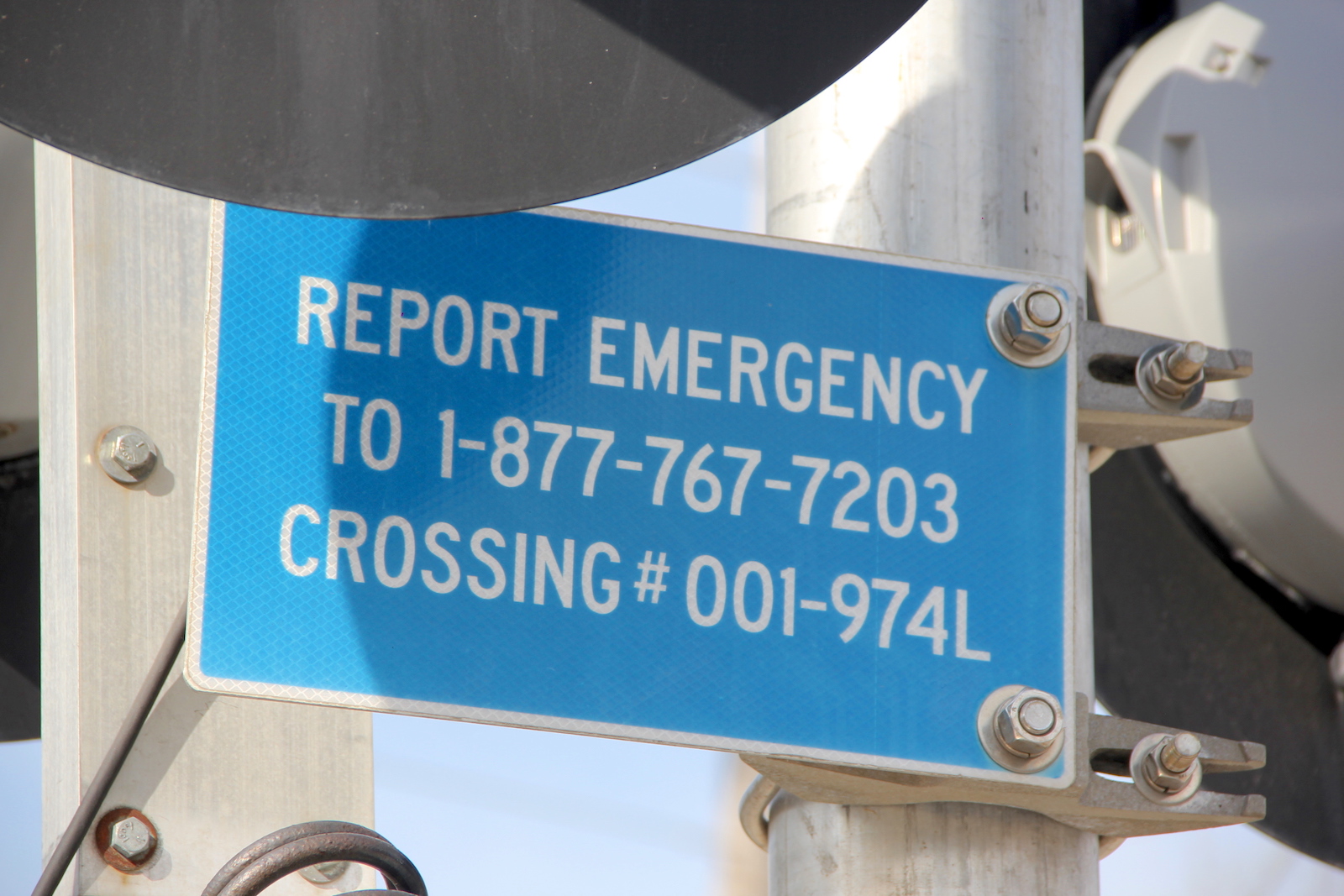

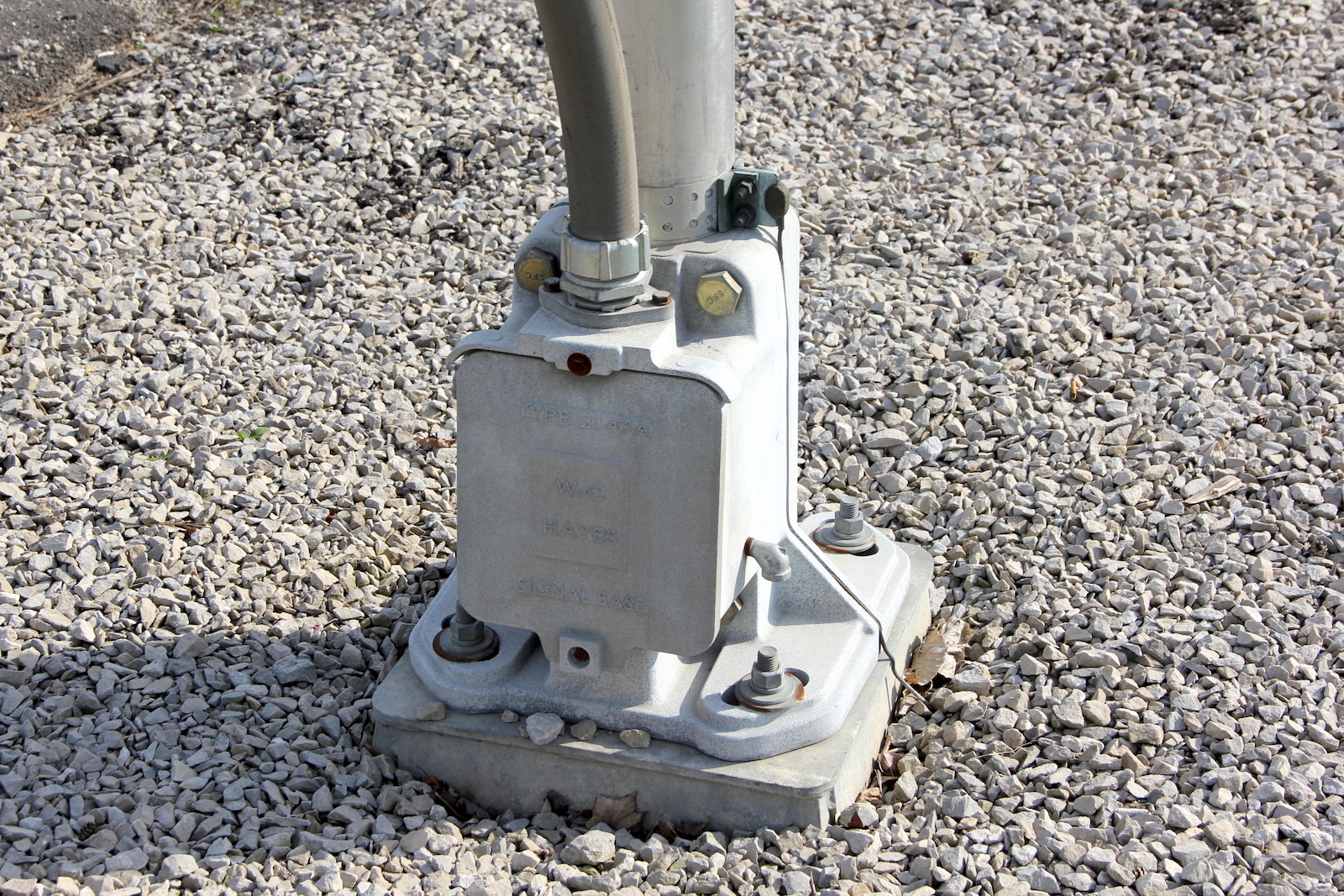

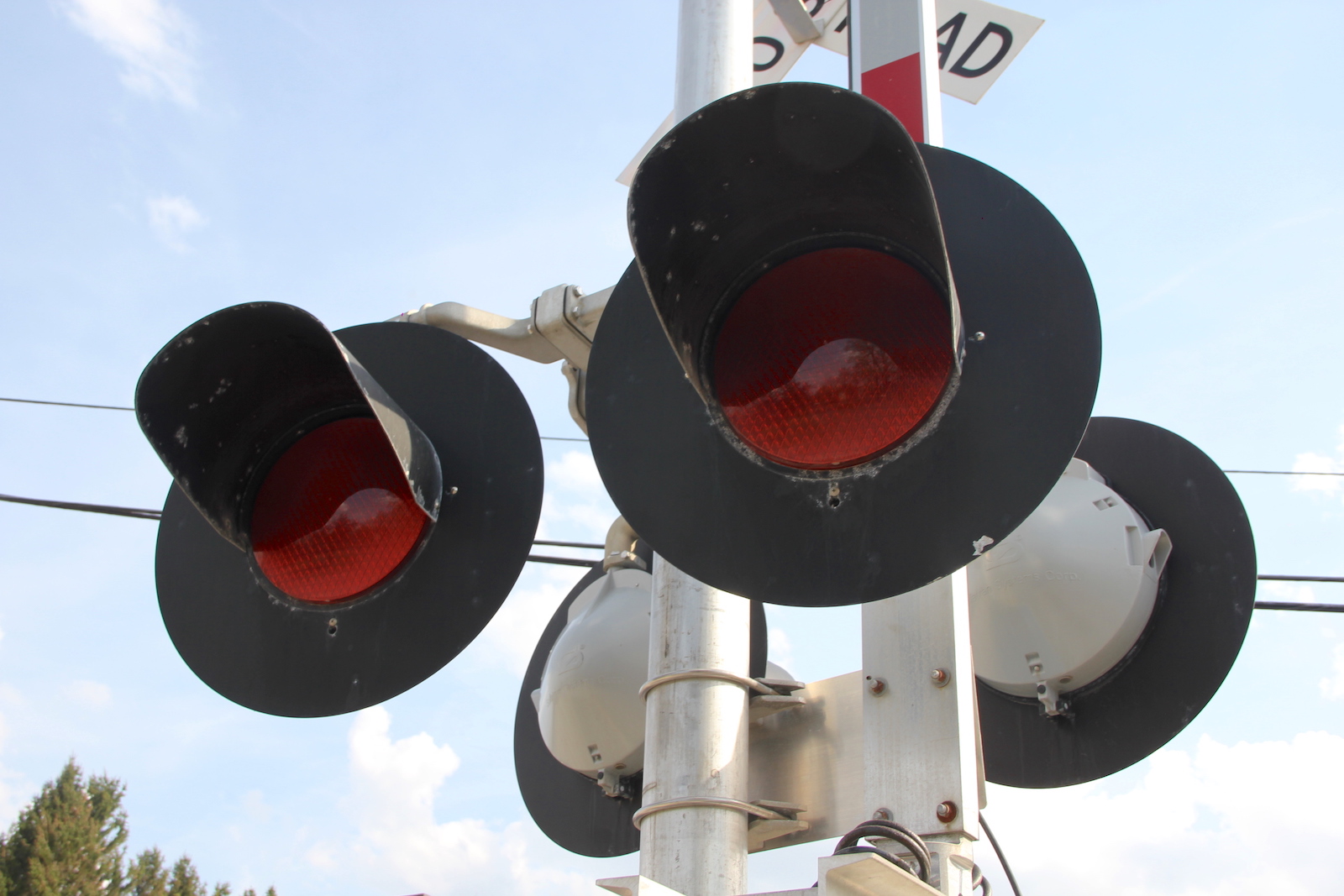

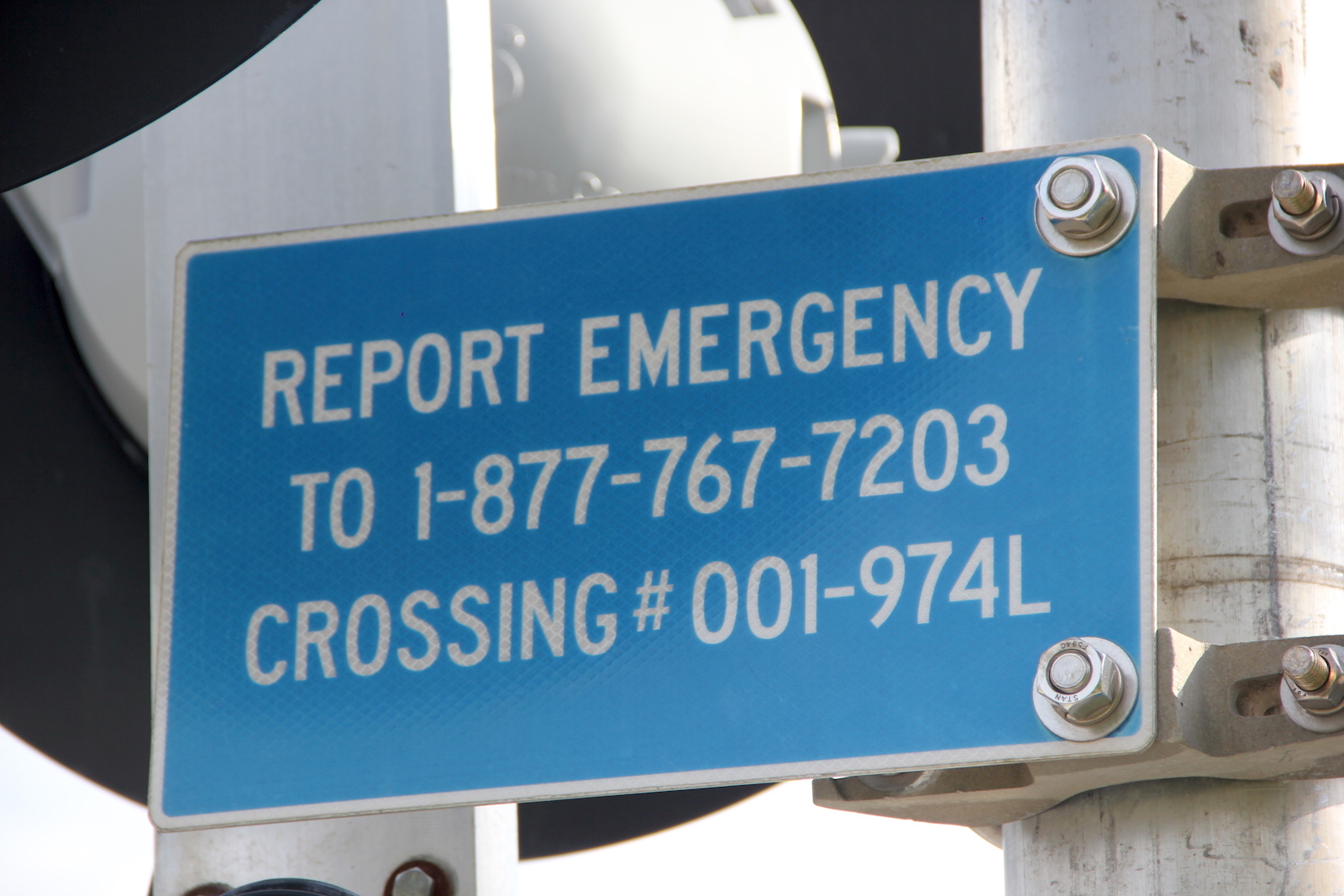

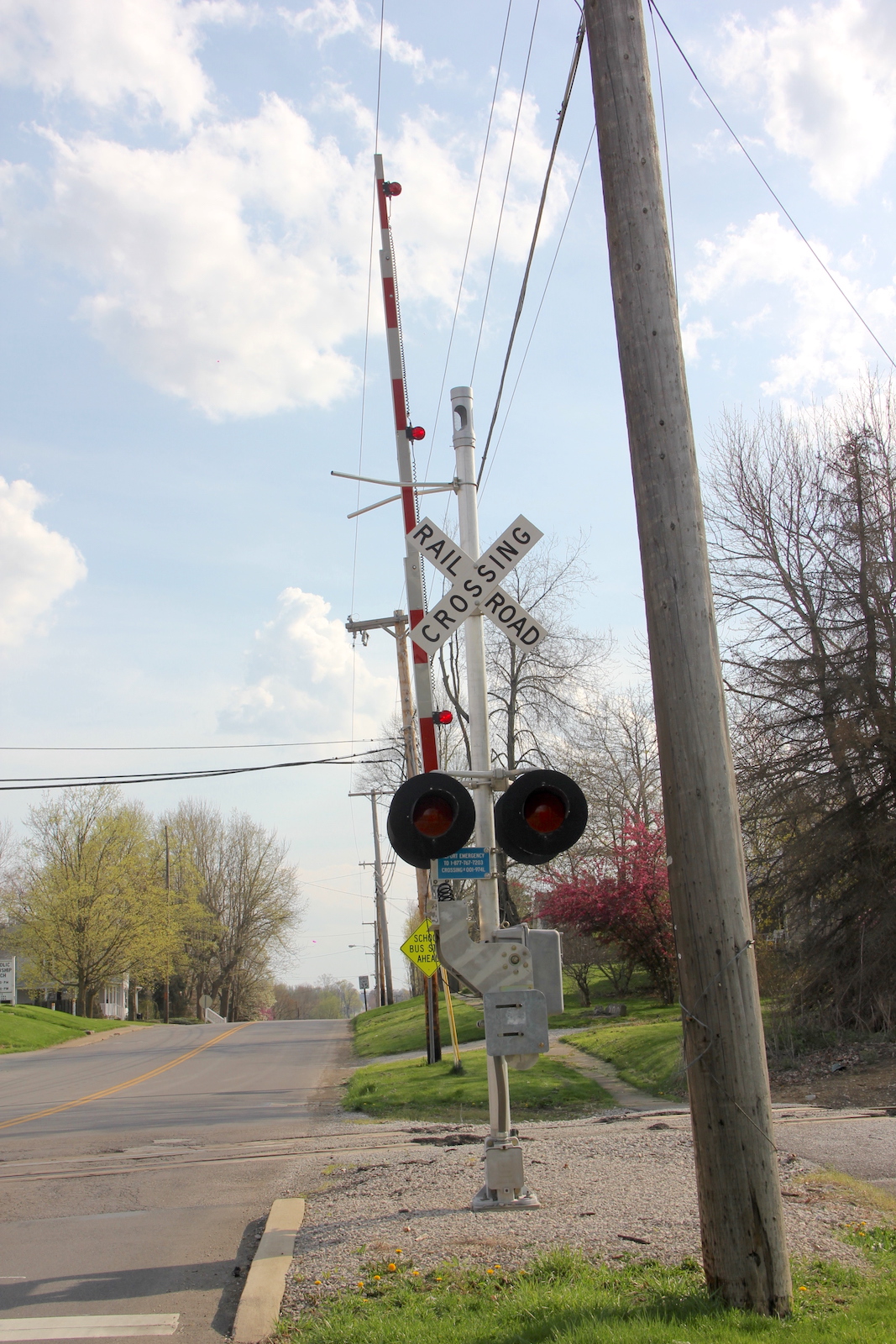

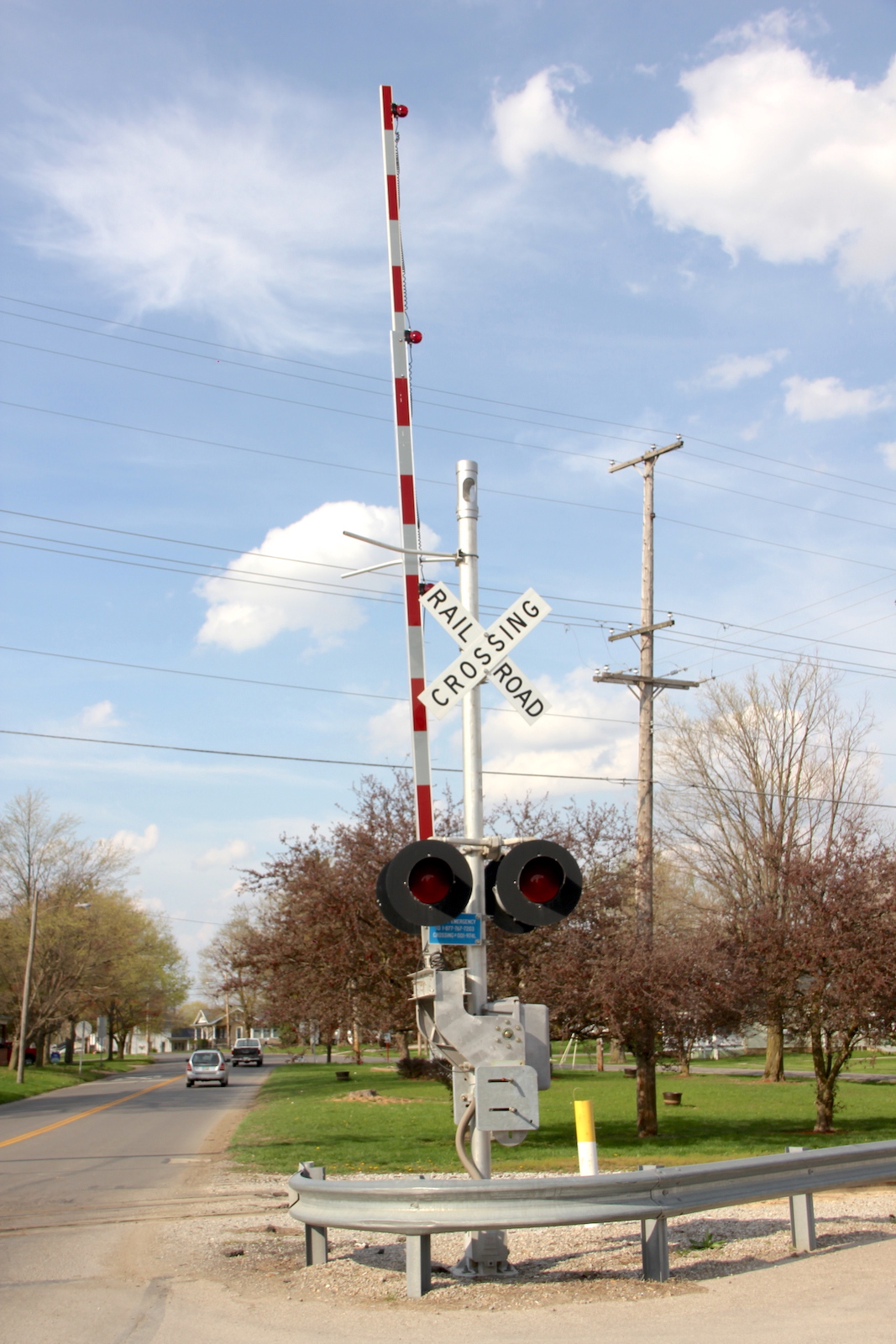

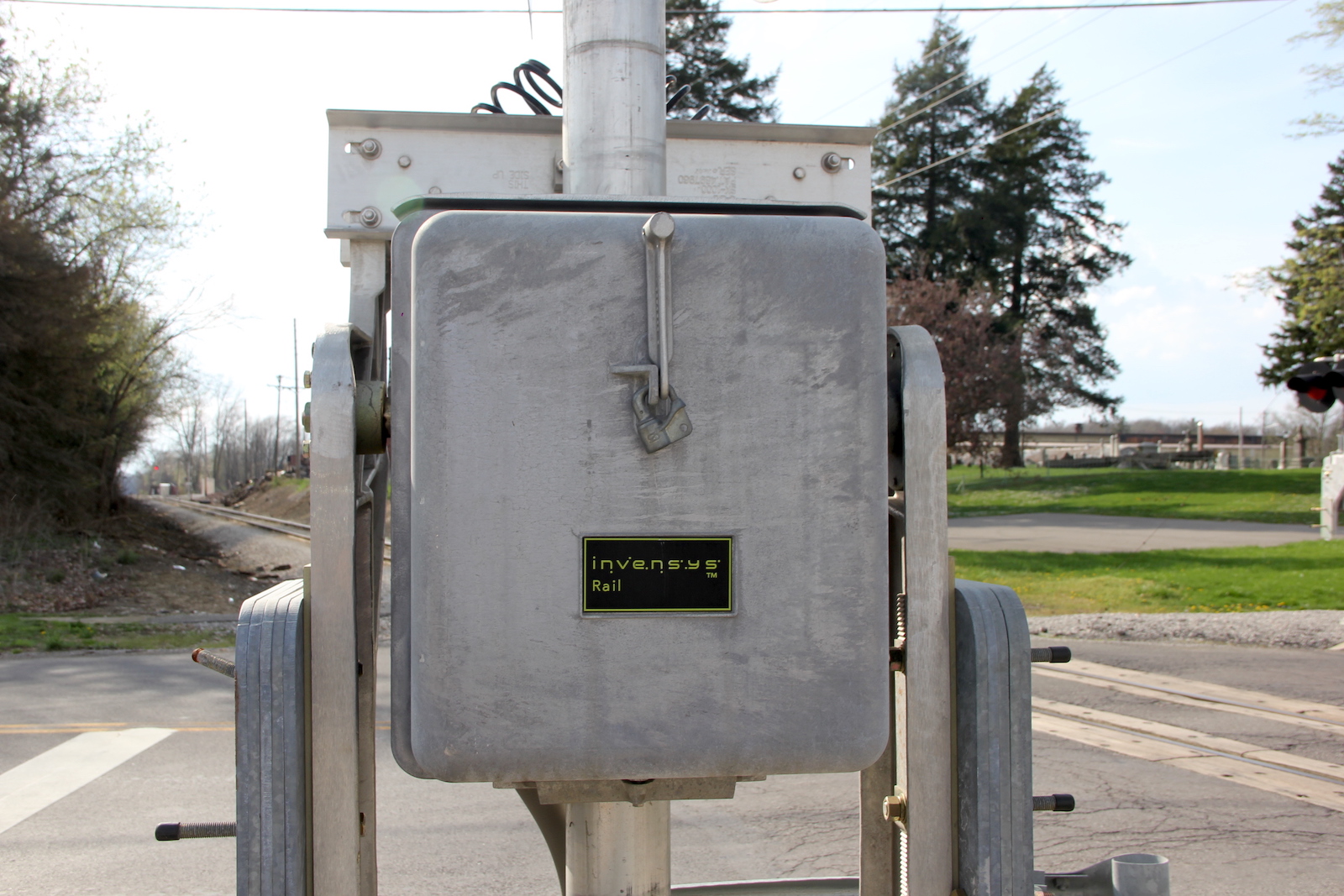

The southern signal.
13 14 15
16 17 18
19 20 21
22

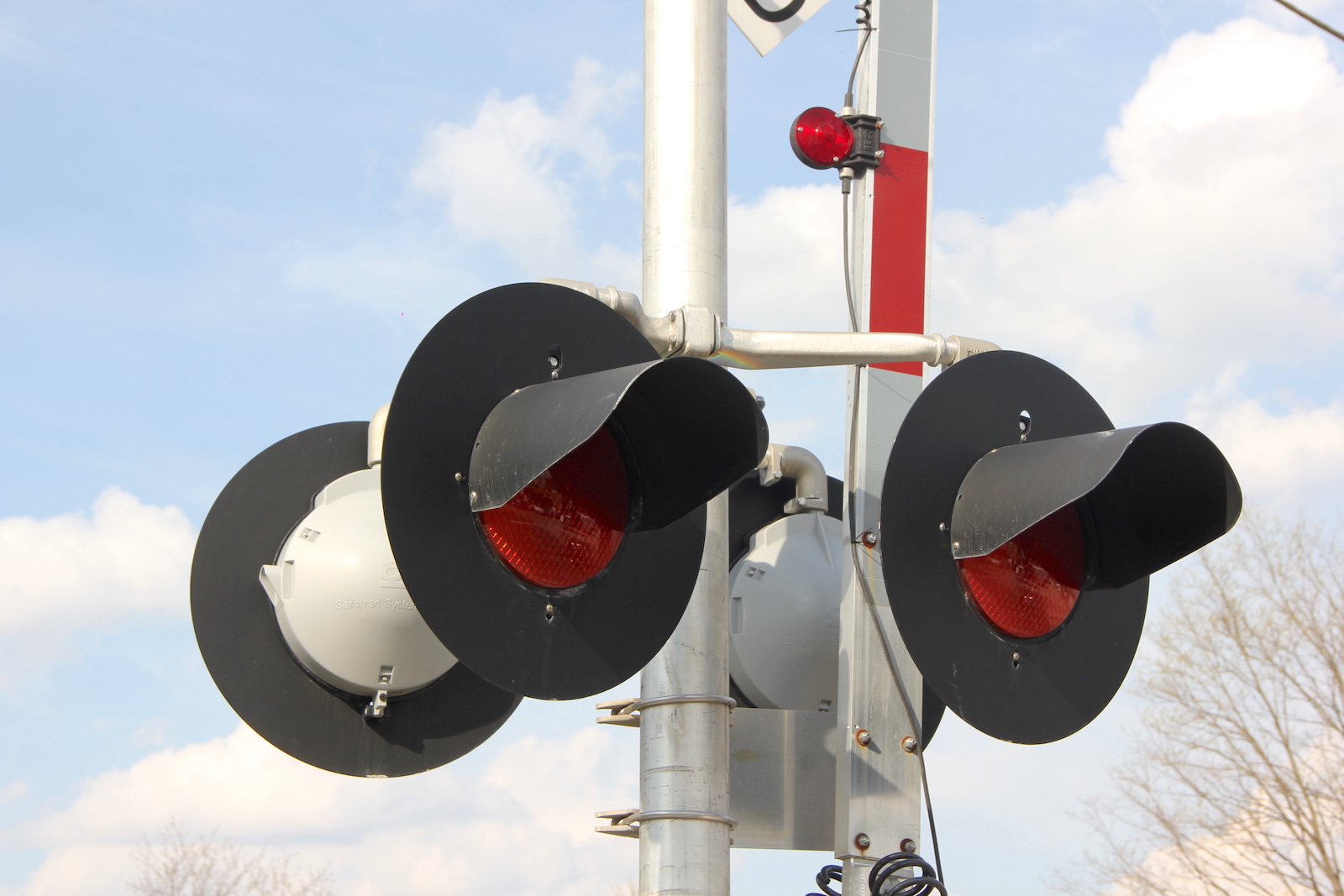

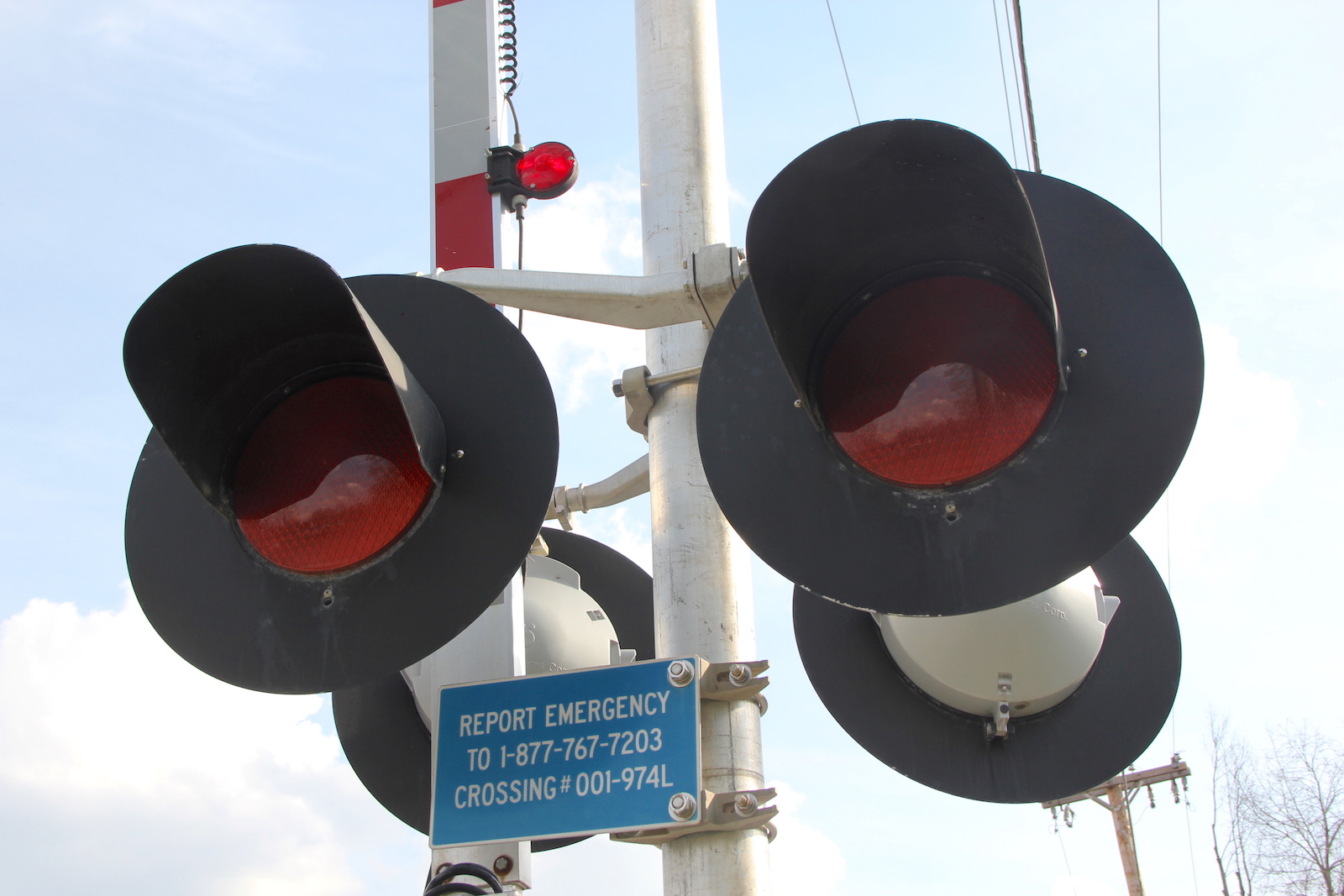

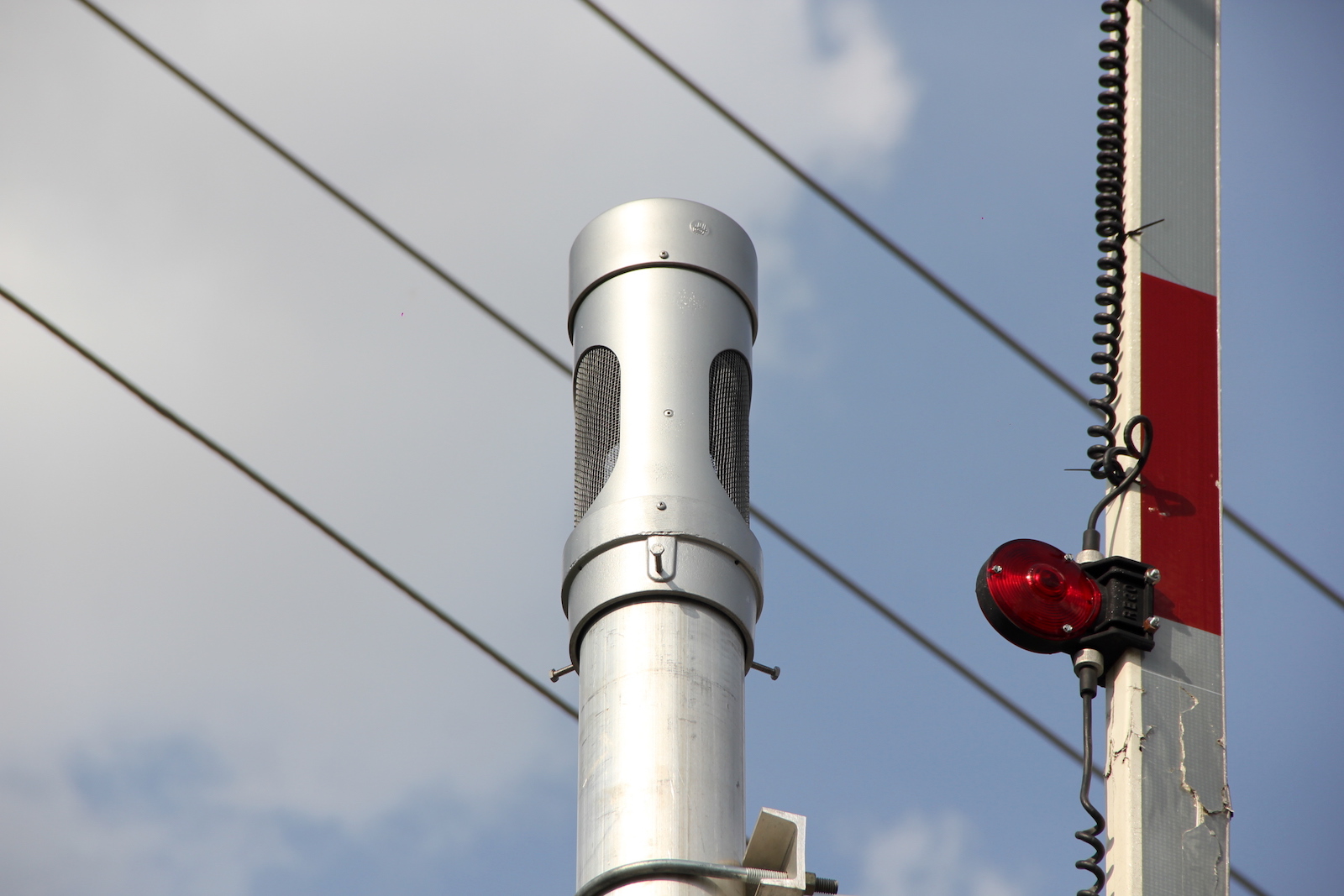

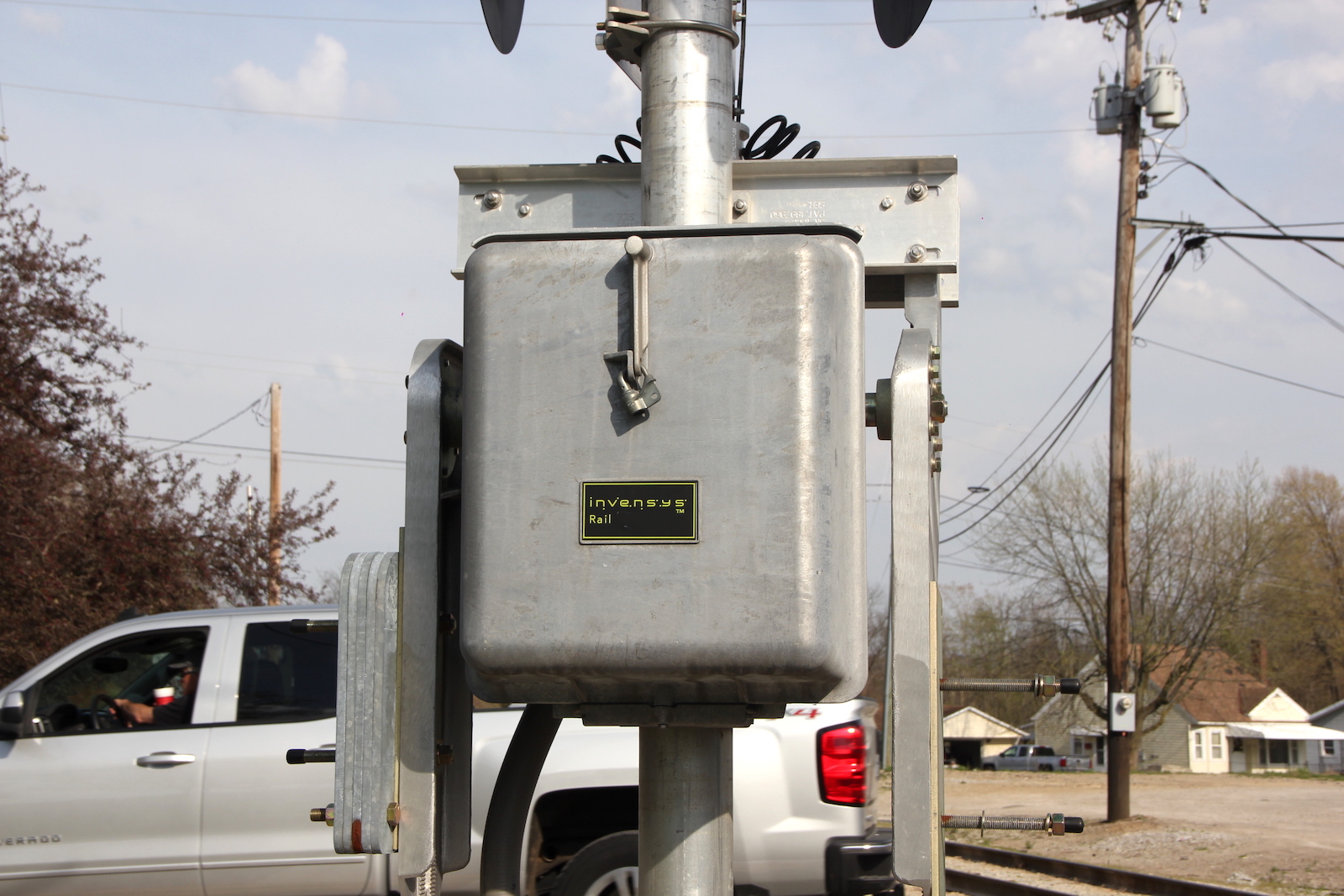

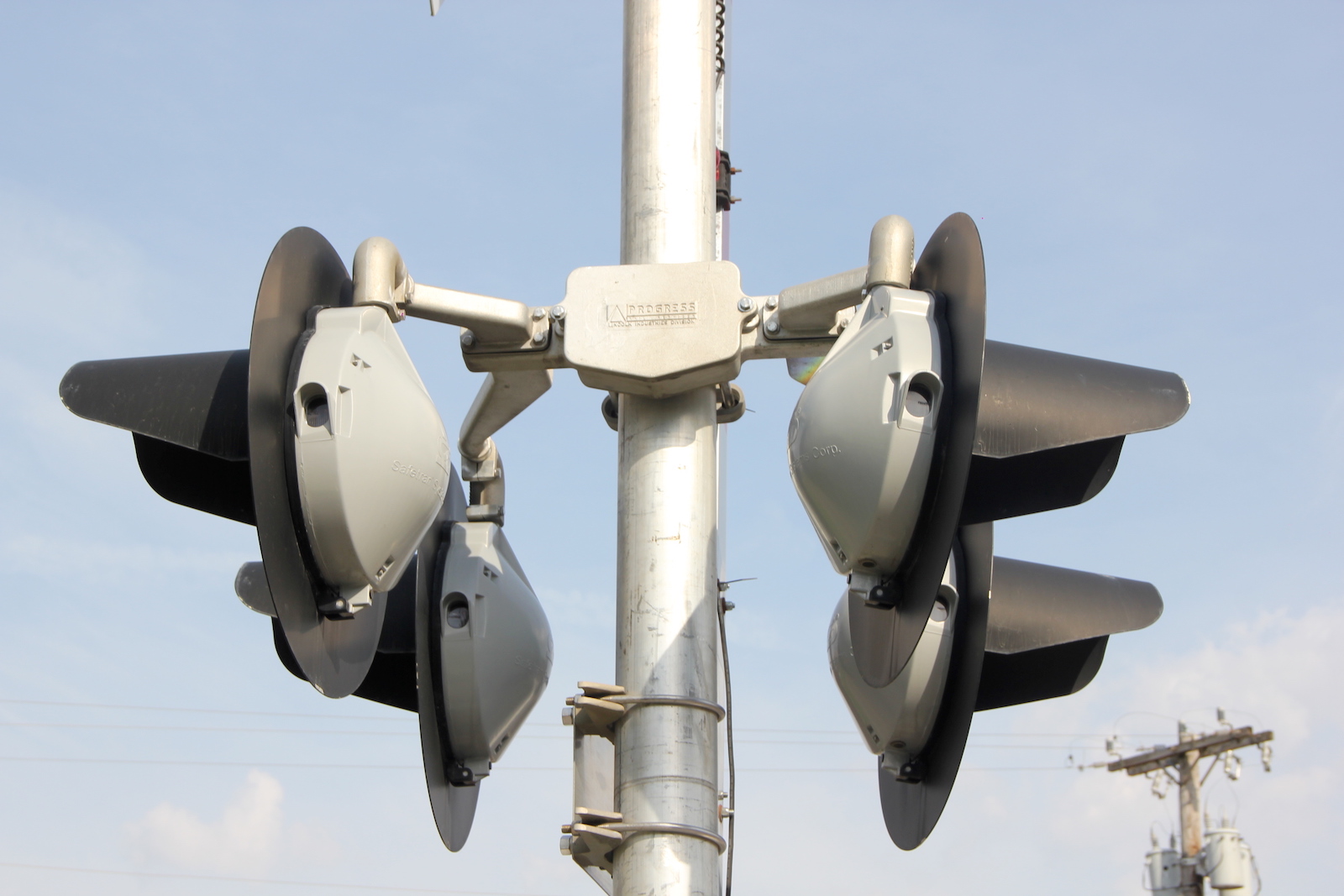

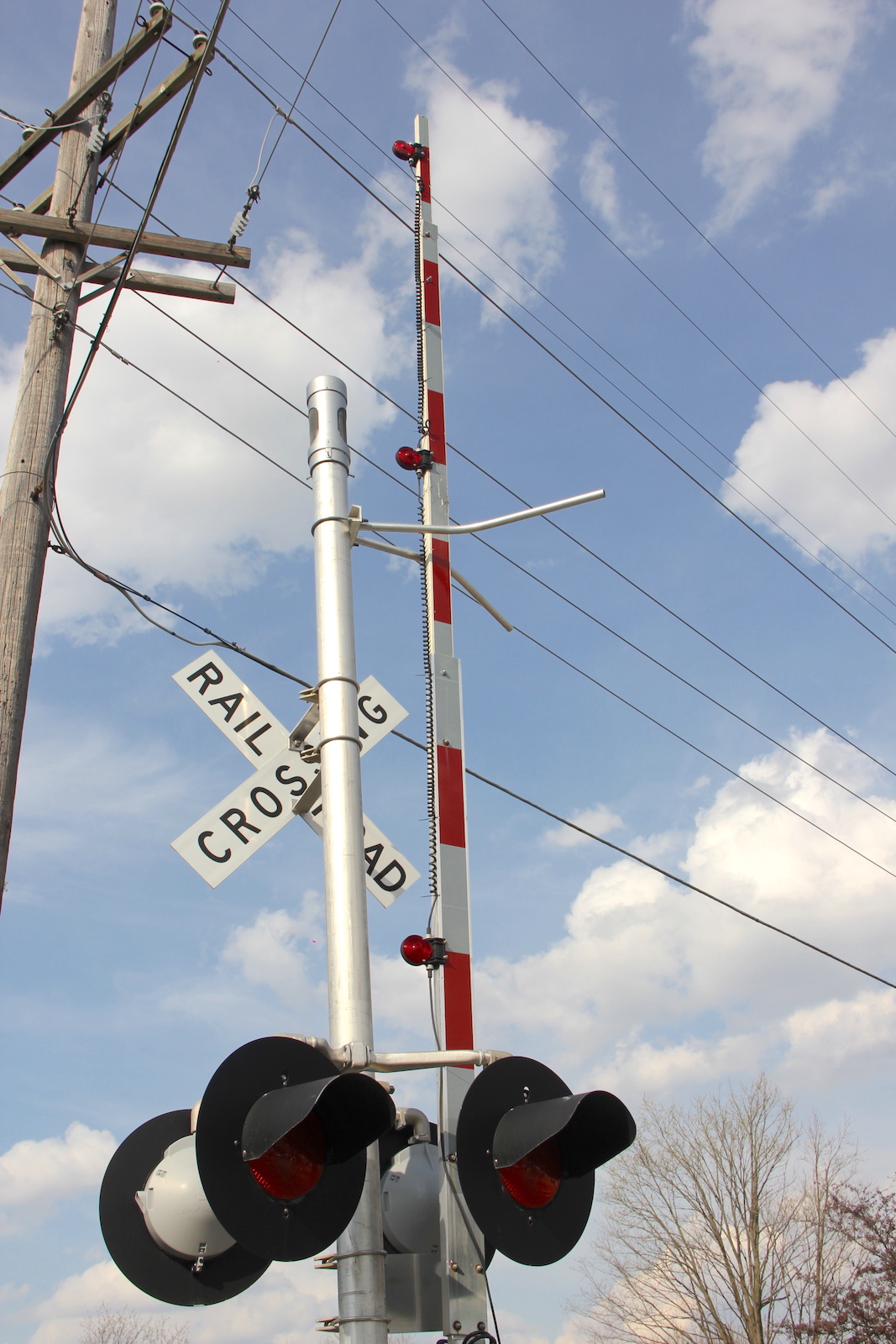

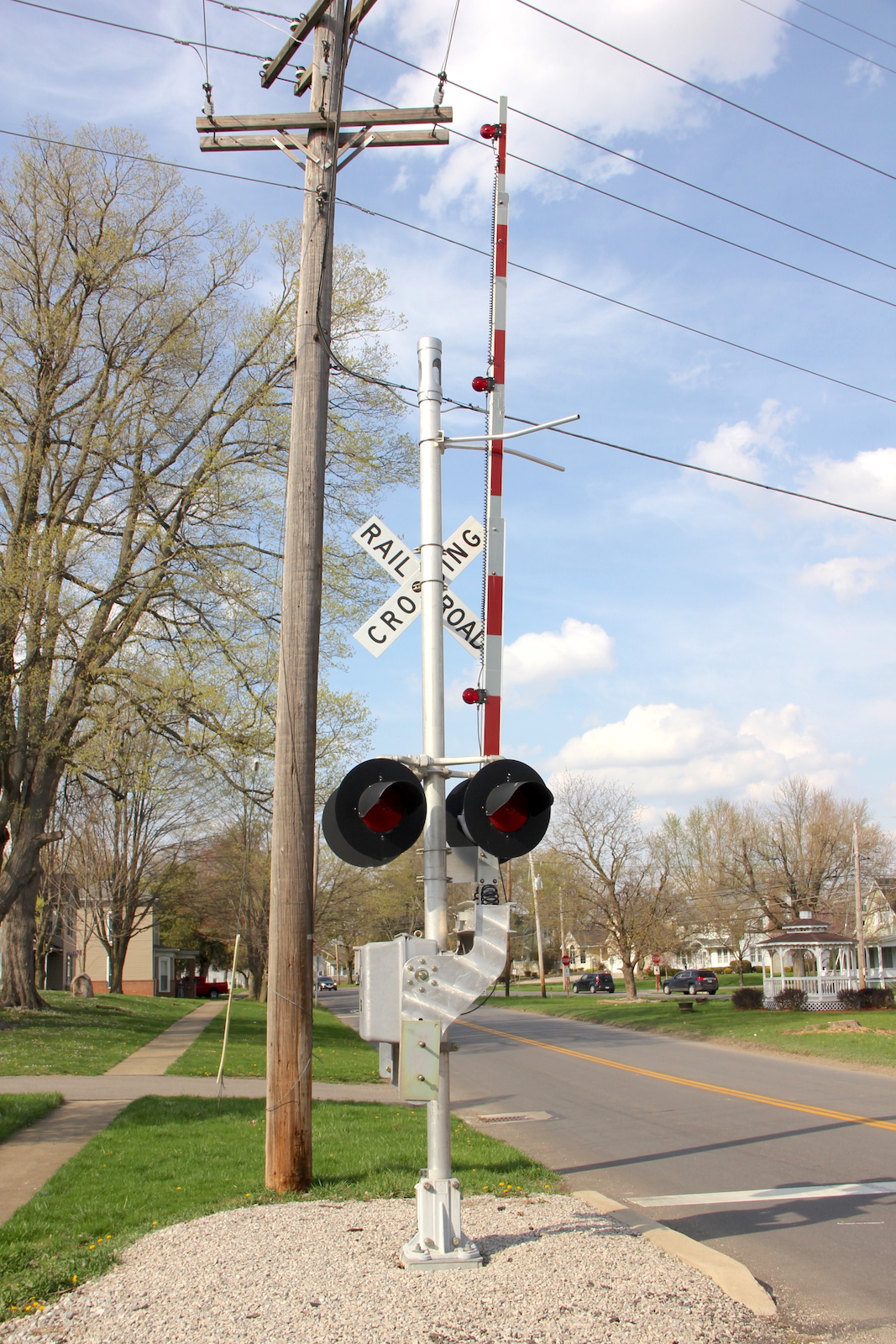

The northern signal.
23 24 25 26

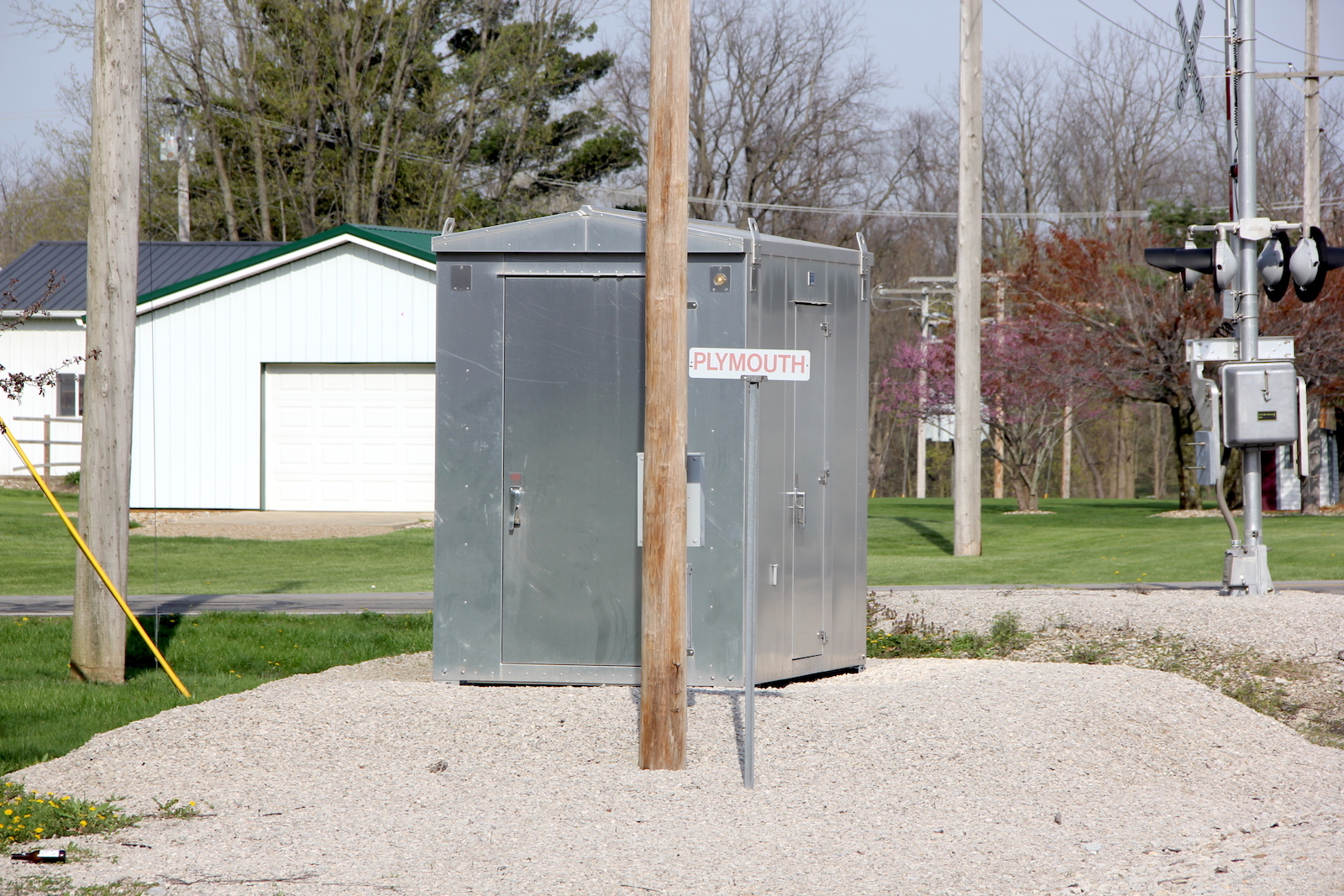

The relay bungalow in the northeast quadrant.

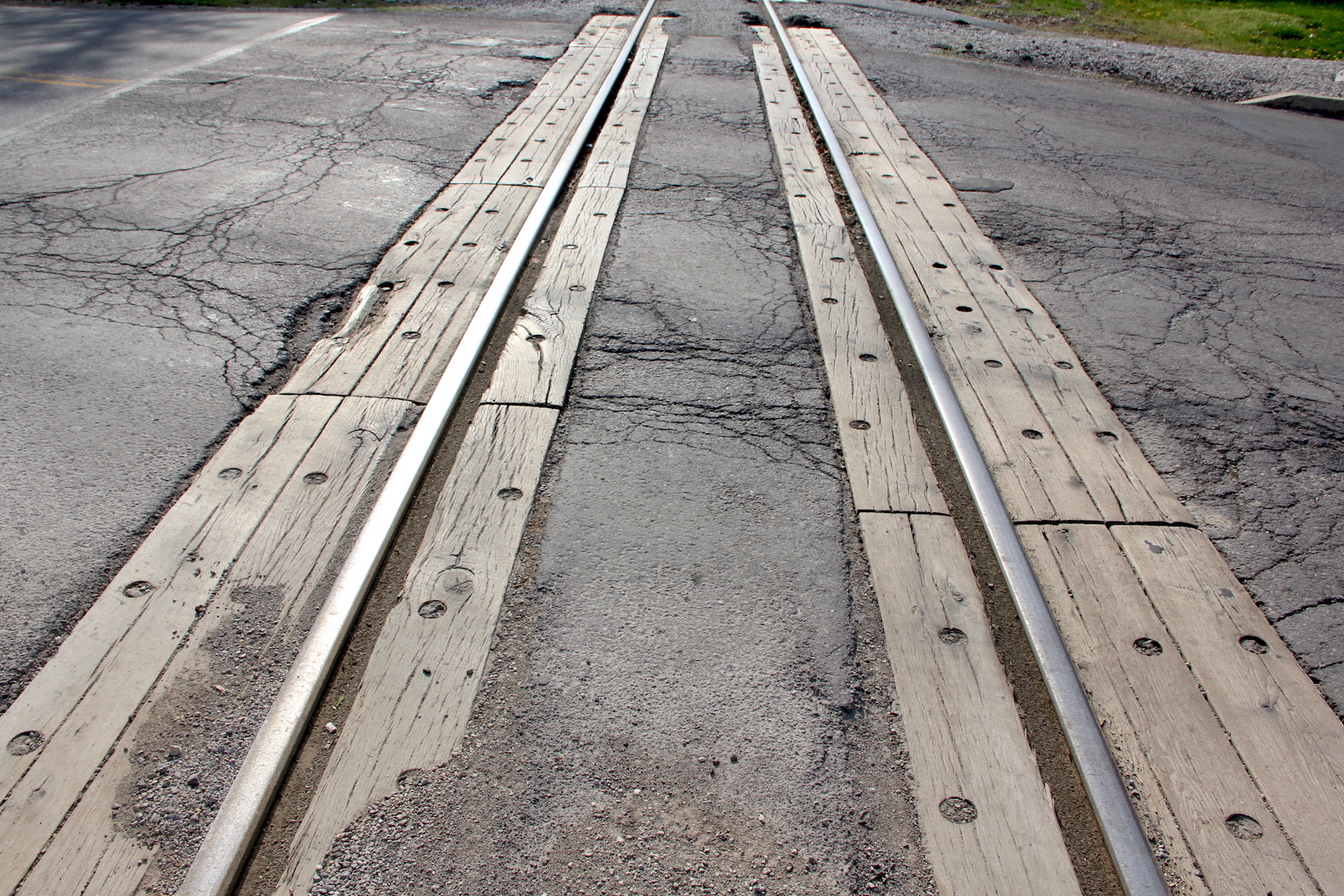

 The grade is wood and asphalt.

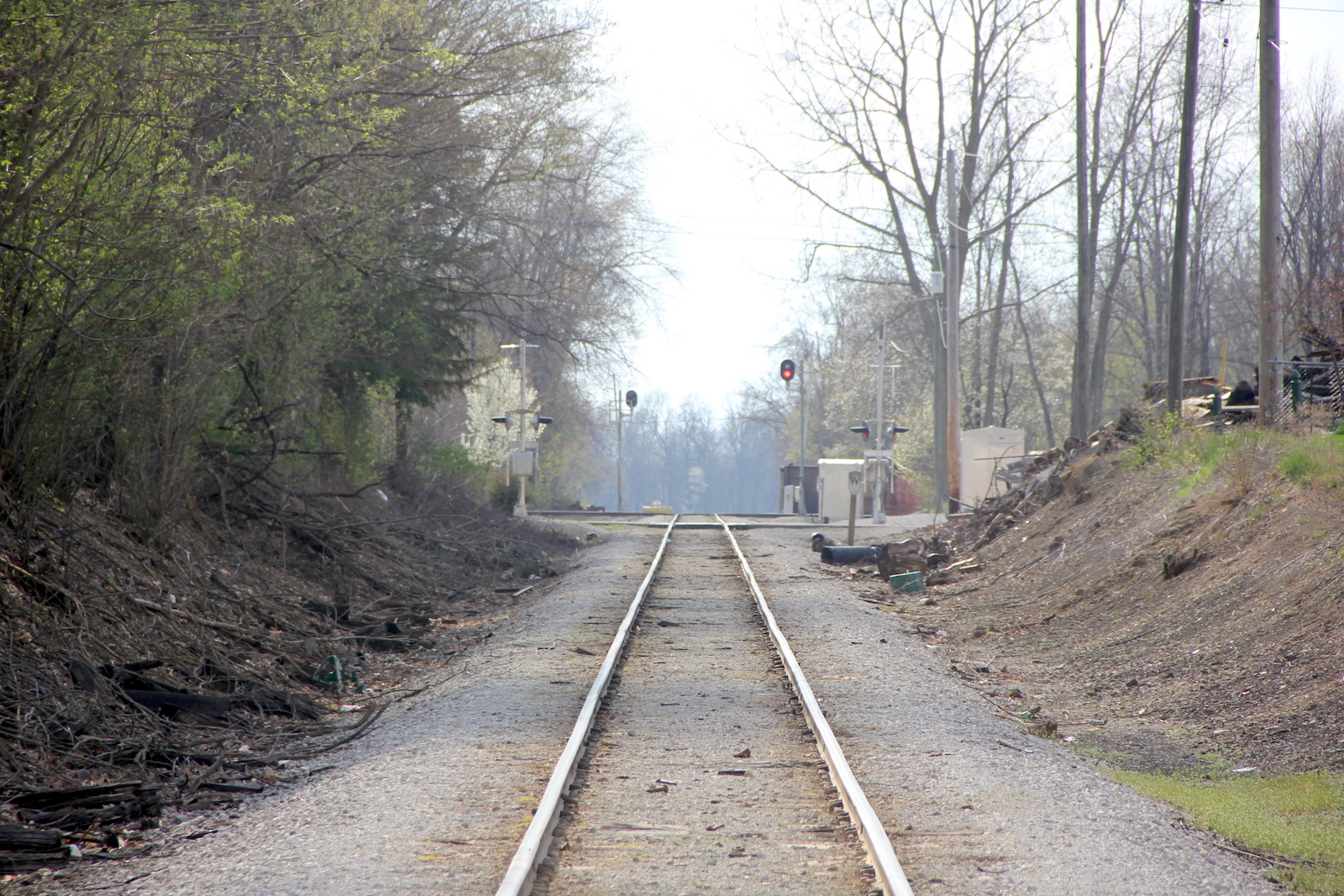

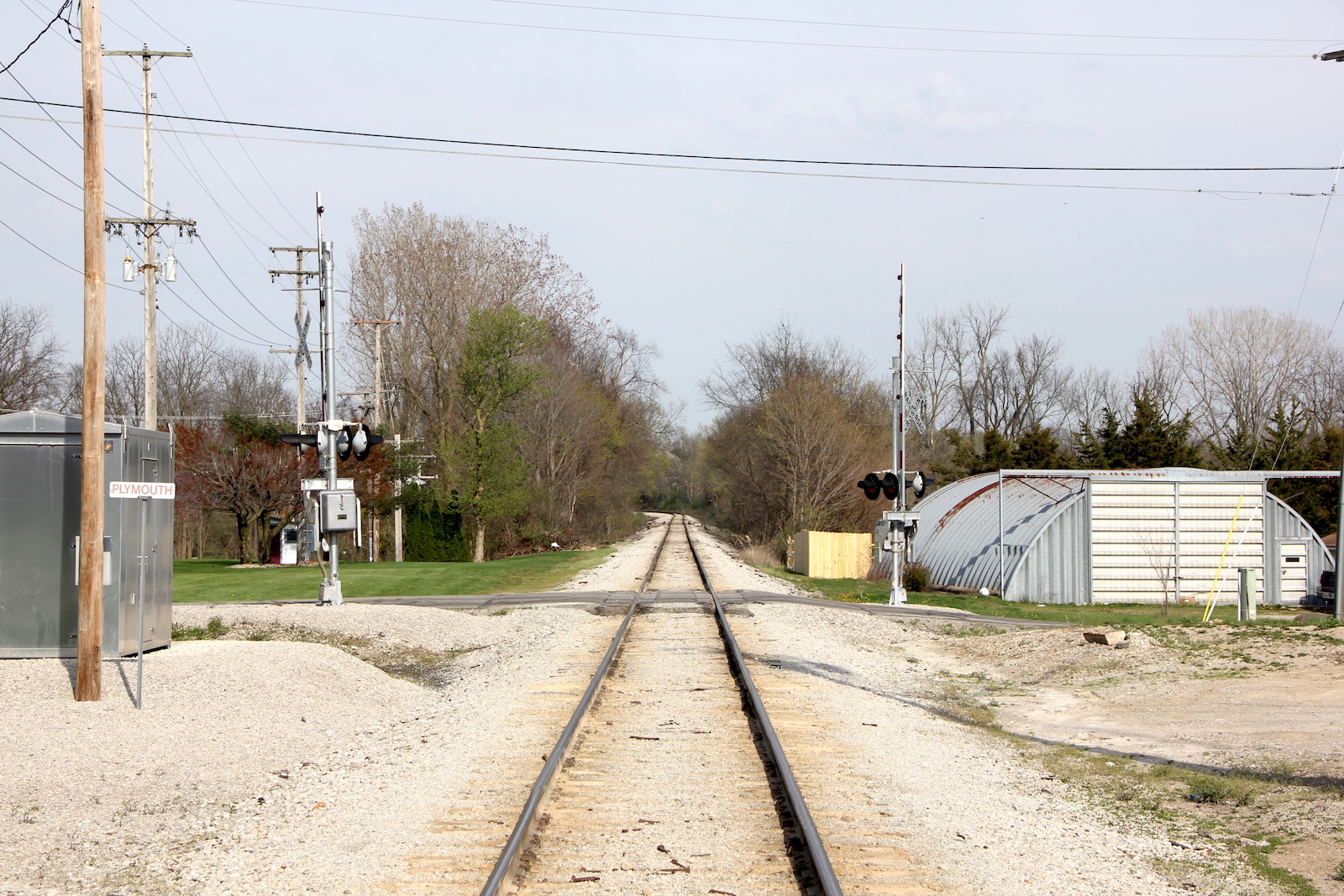

 Track view facing west at Riggs St.
 Track view facing east at Springmill St.
27
Giggity.
