18.39

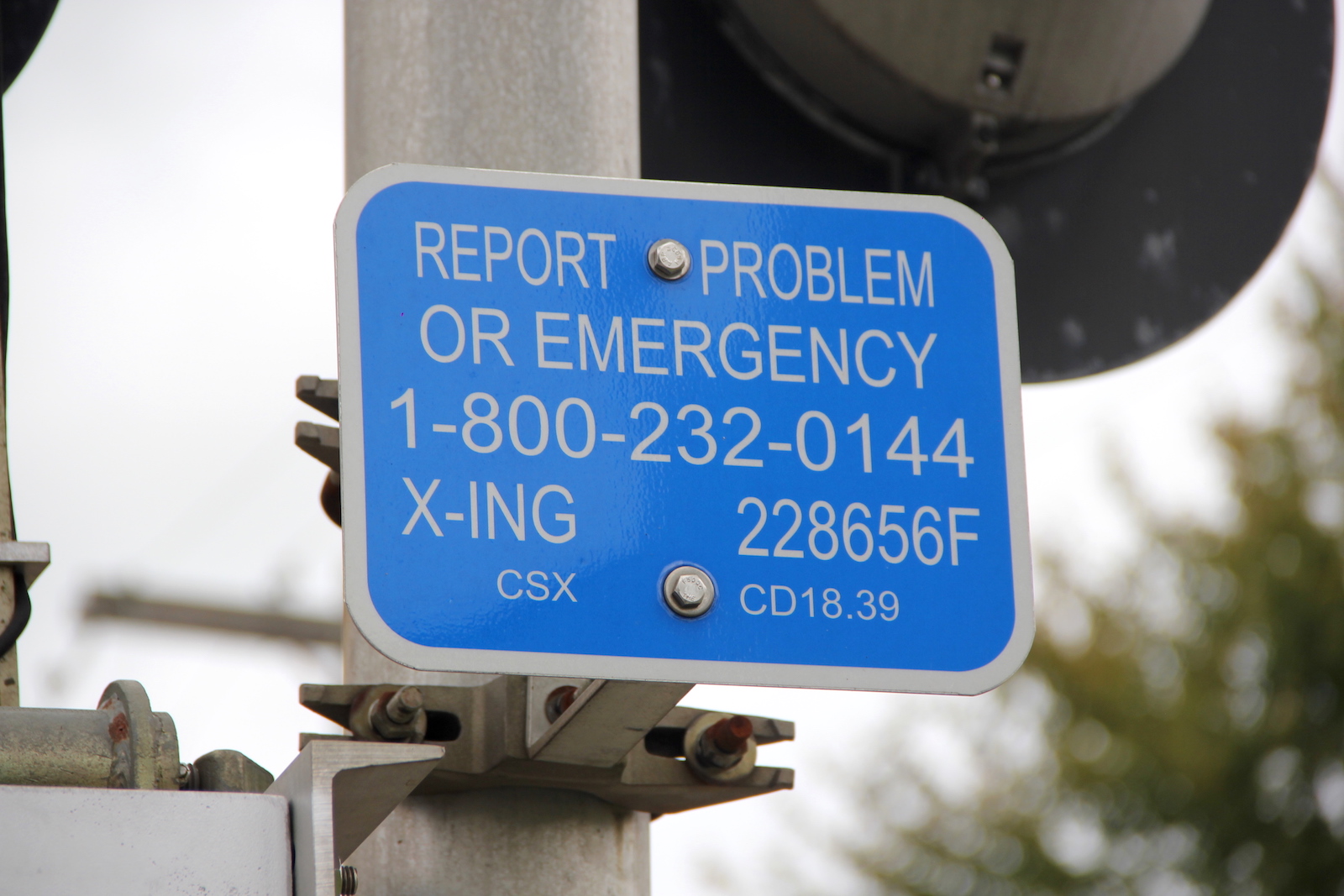

228656F

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: None GS E Bell

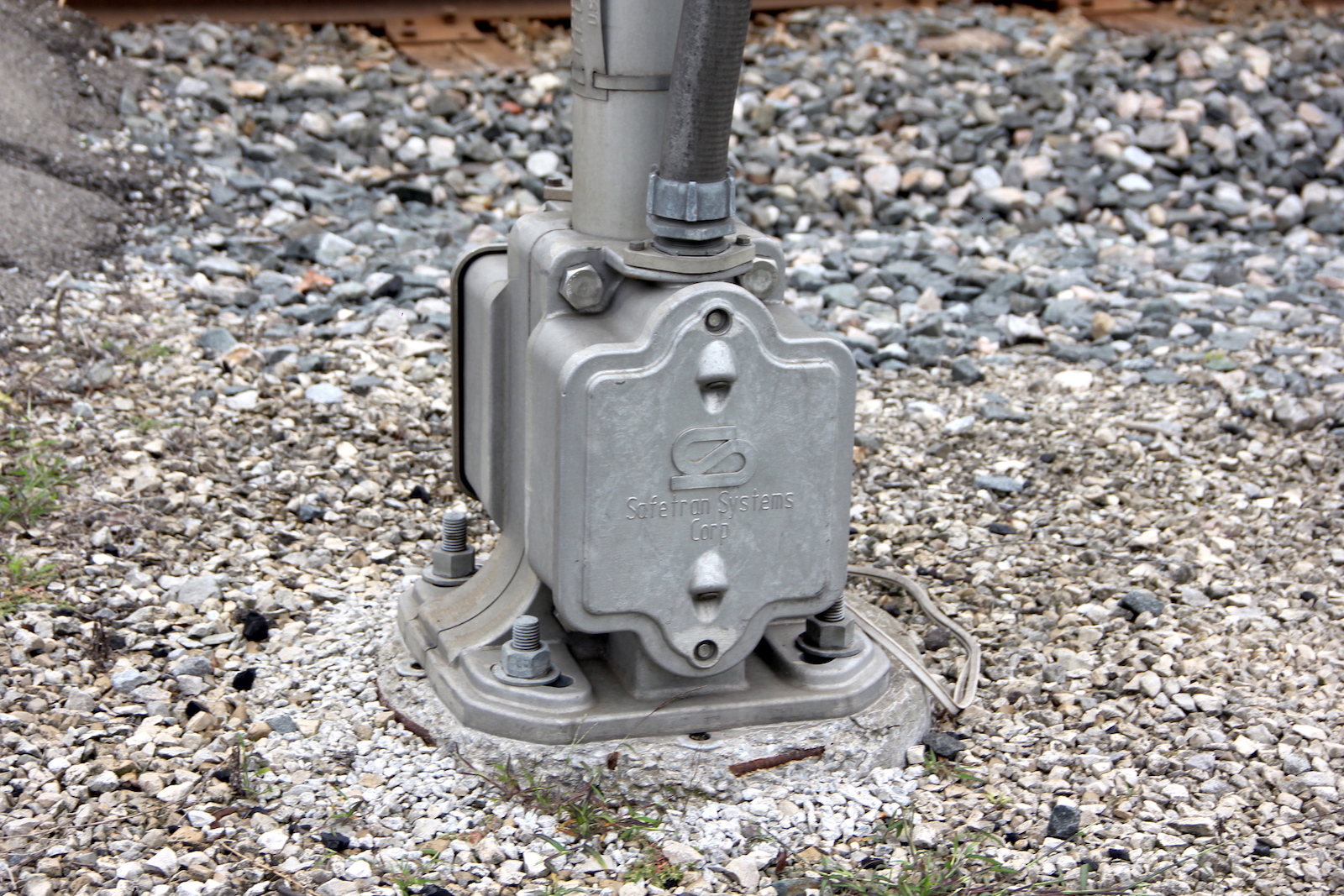

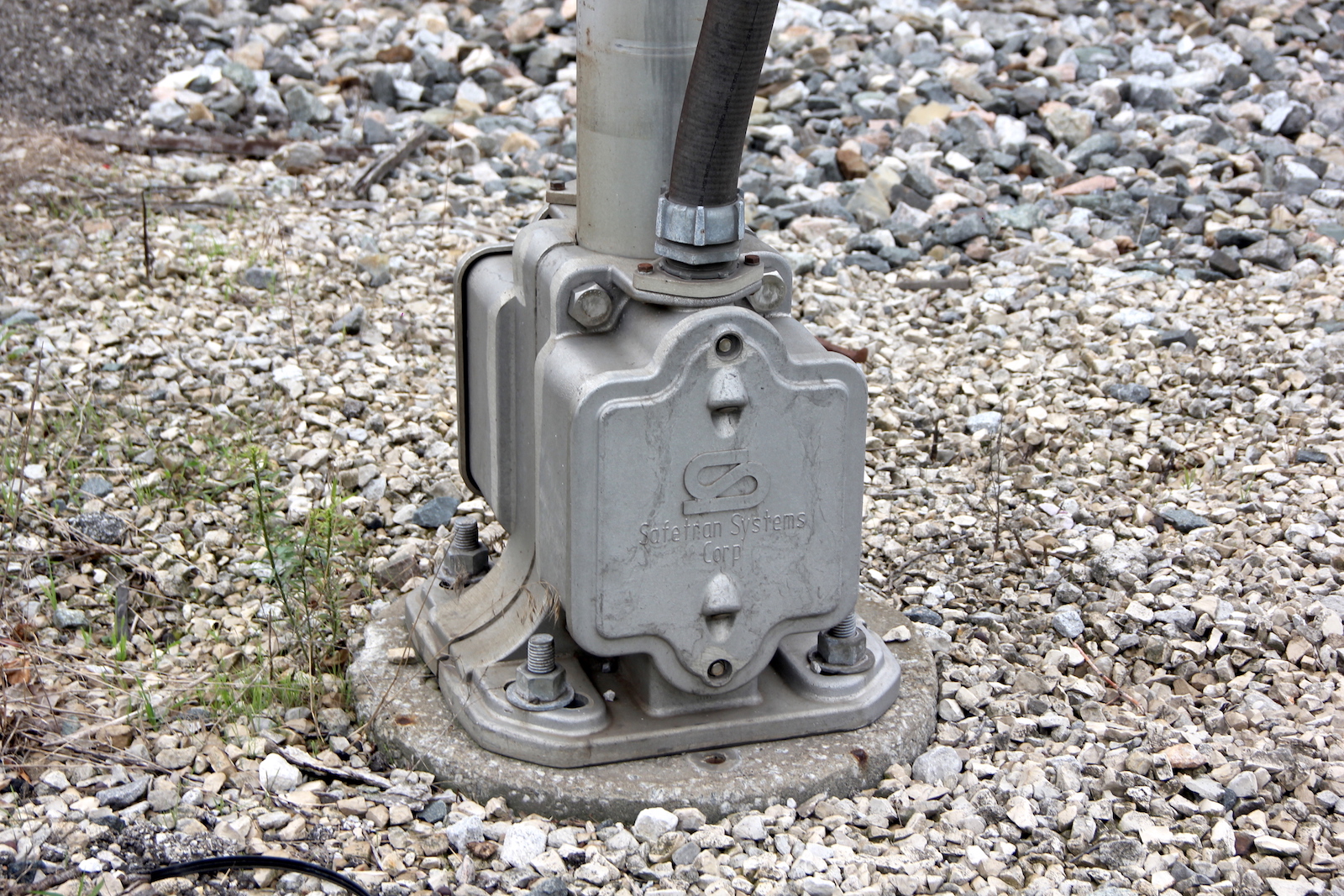

Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^

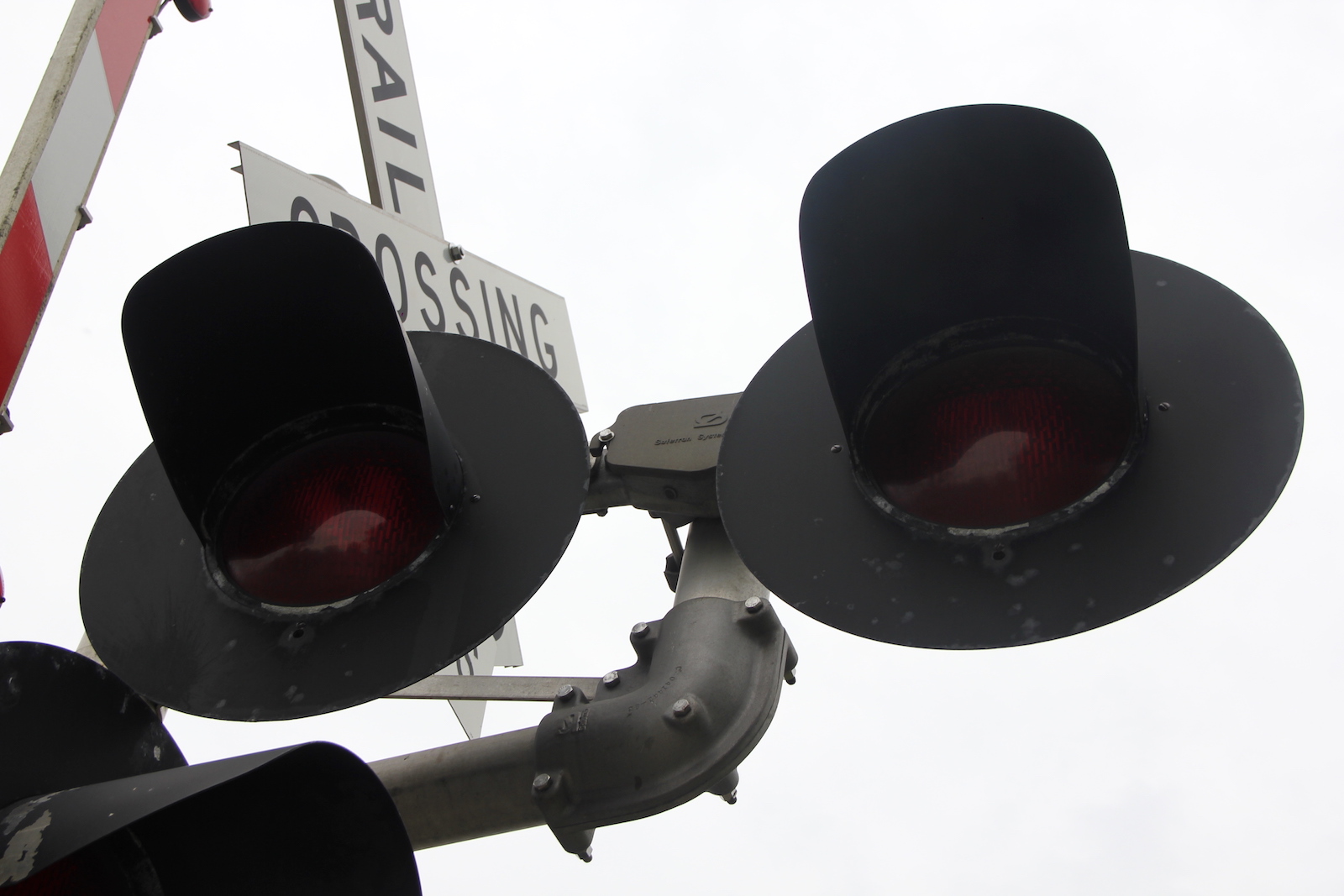

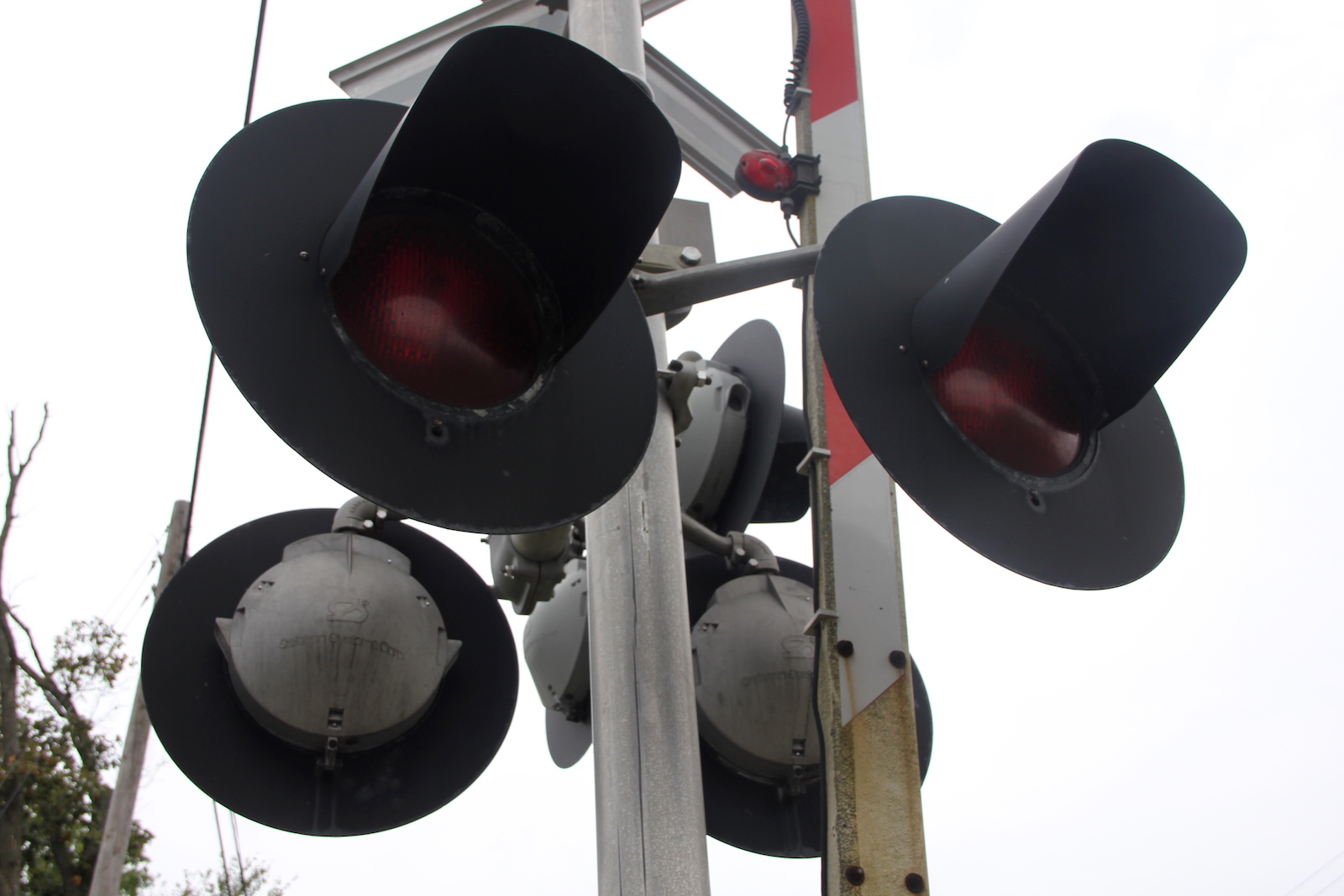

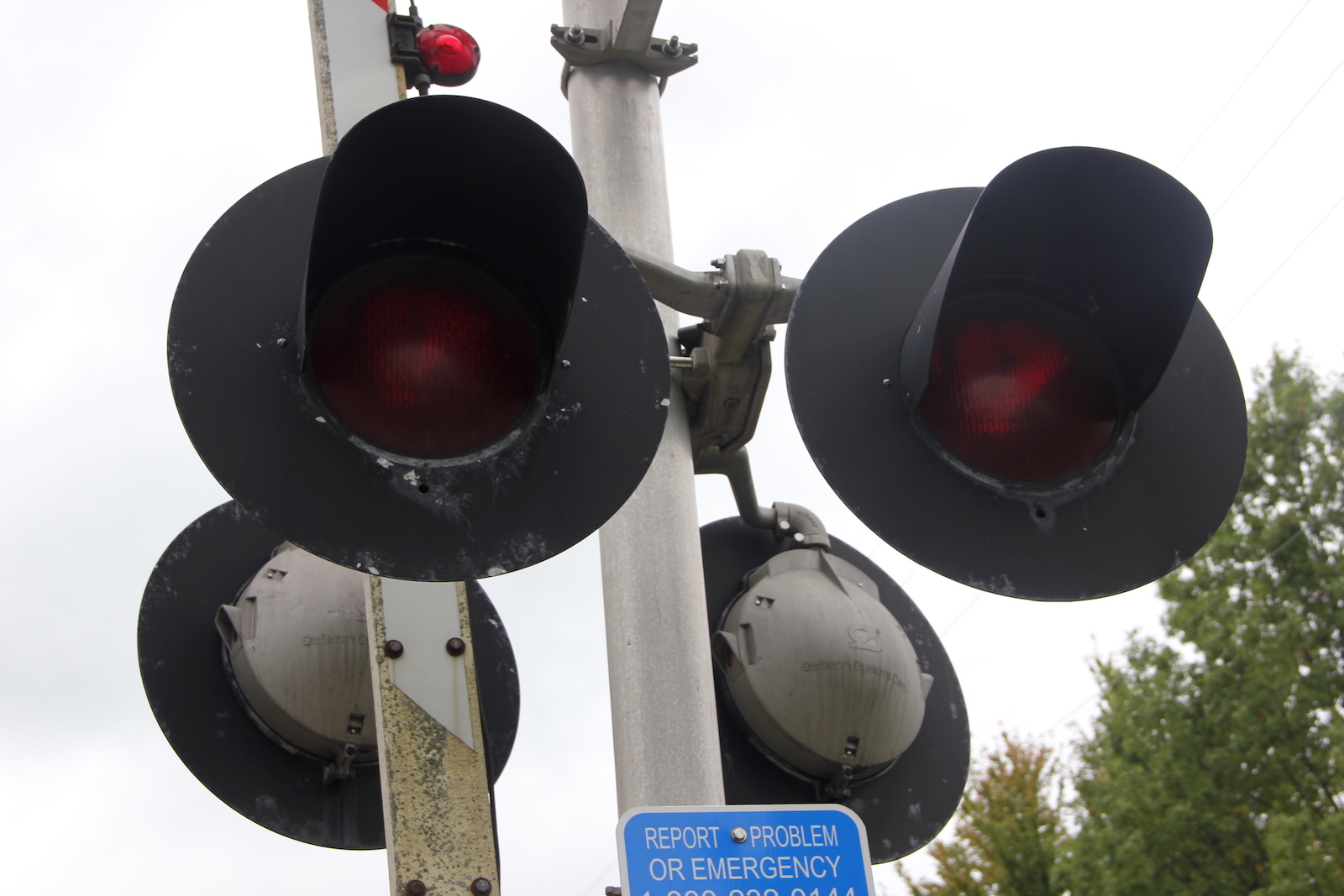

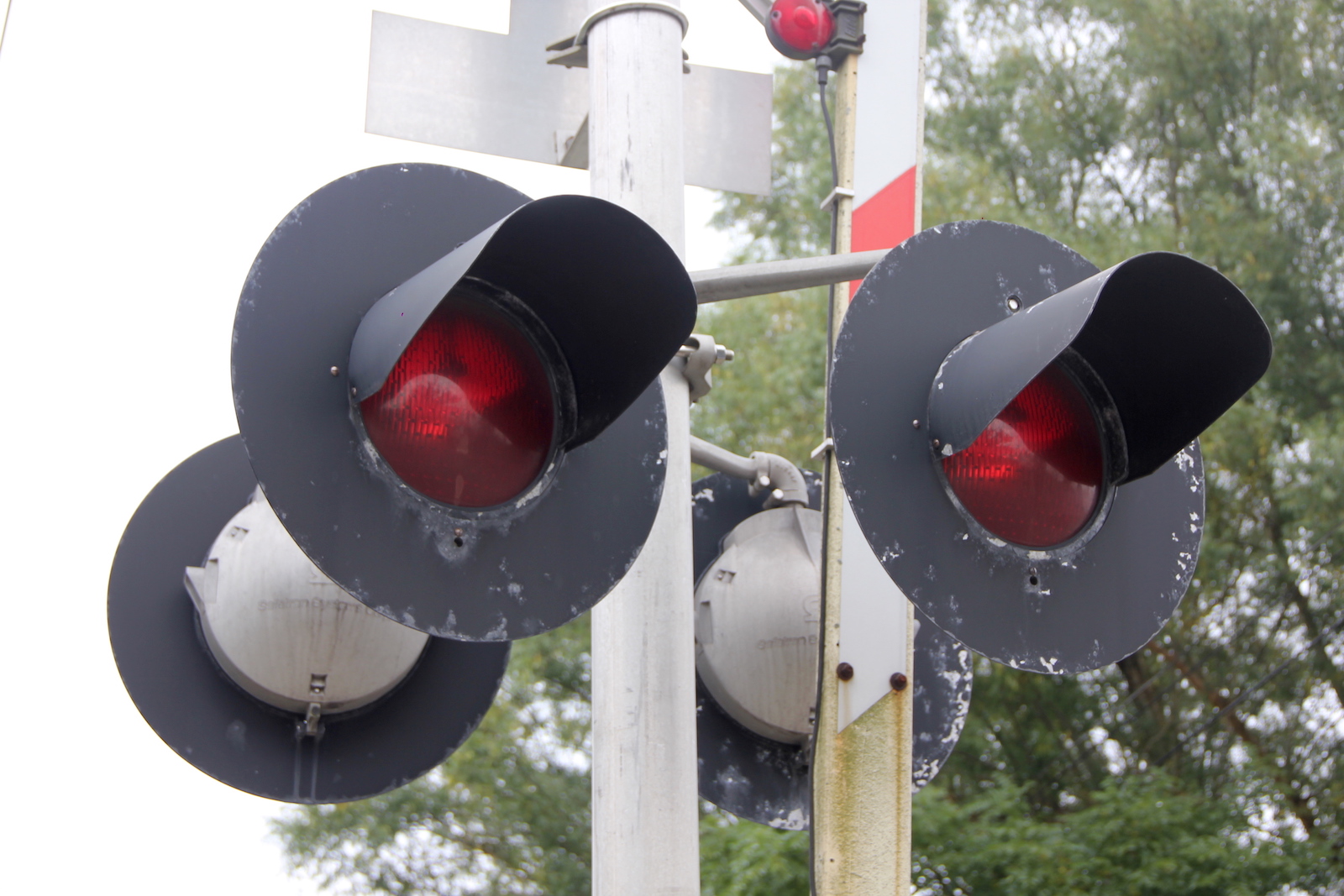

Lights: 6 - 12"x24" Safetran incandescents 4 - 12"x24" Safetran incandescents

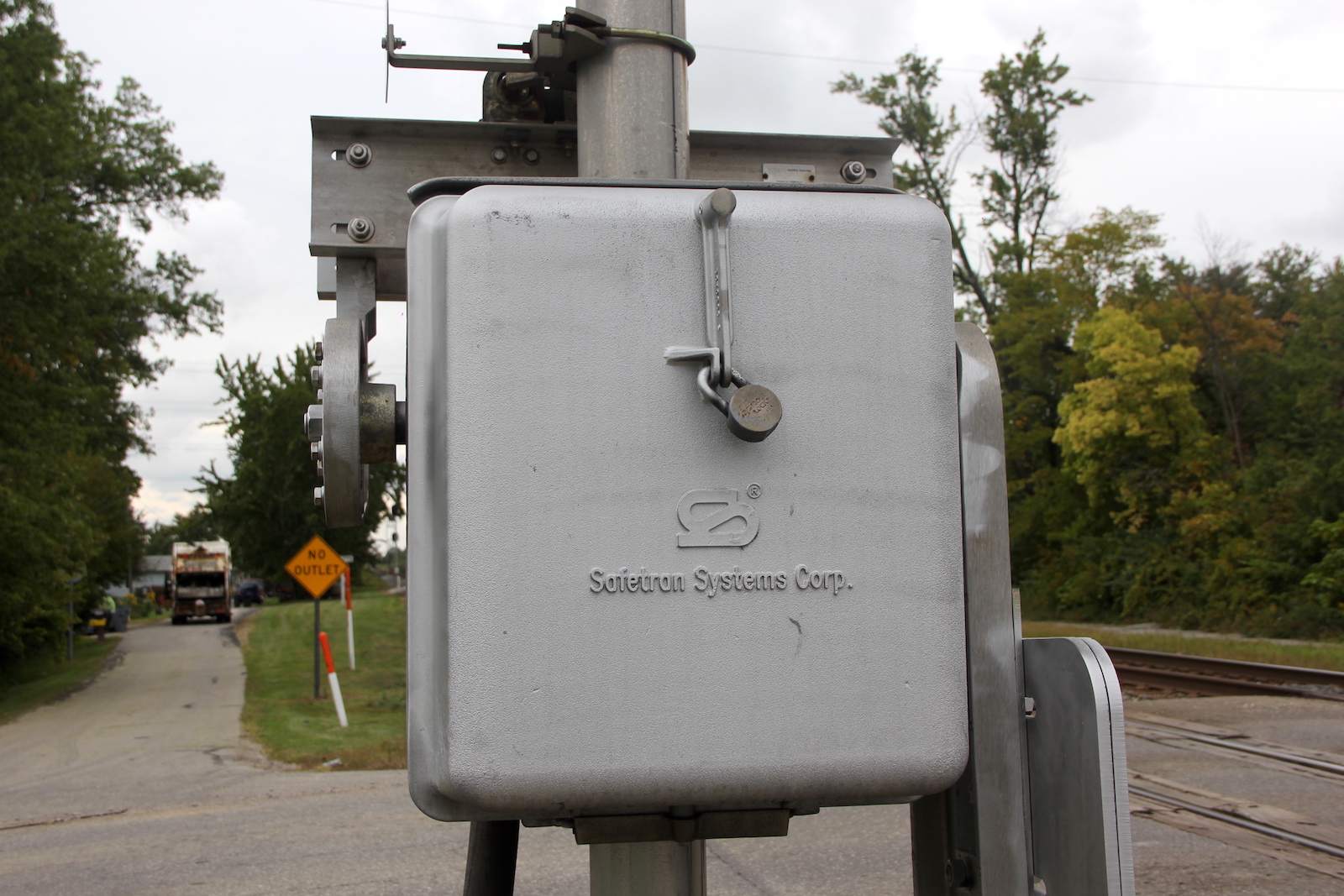

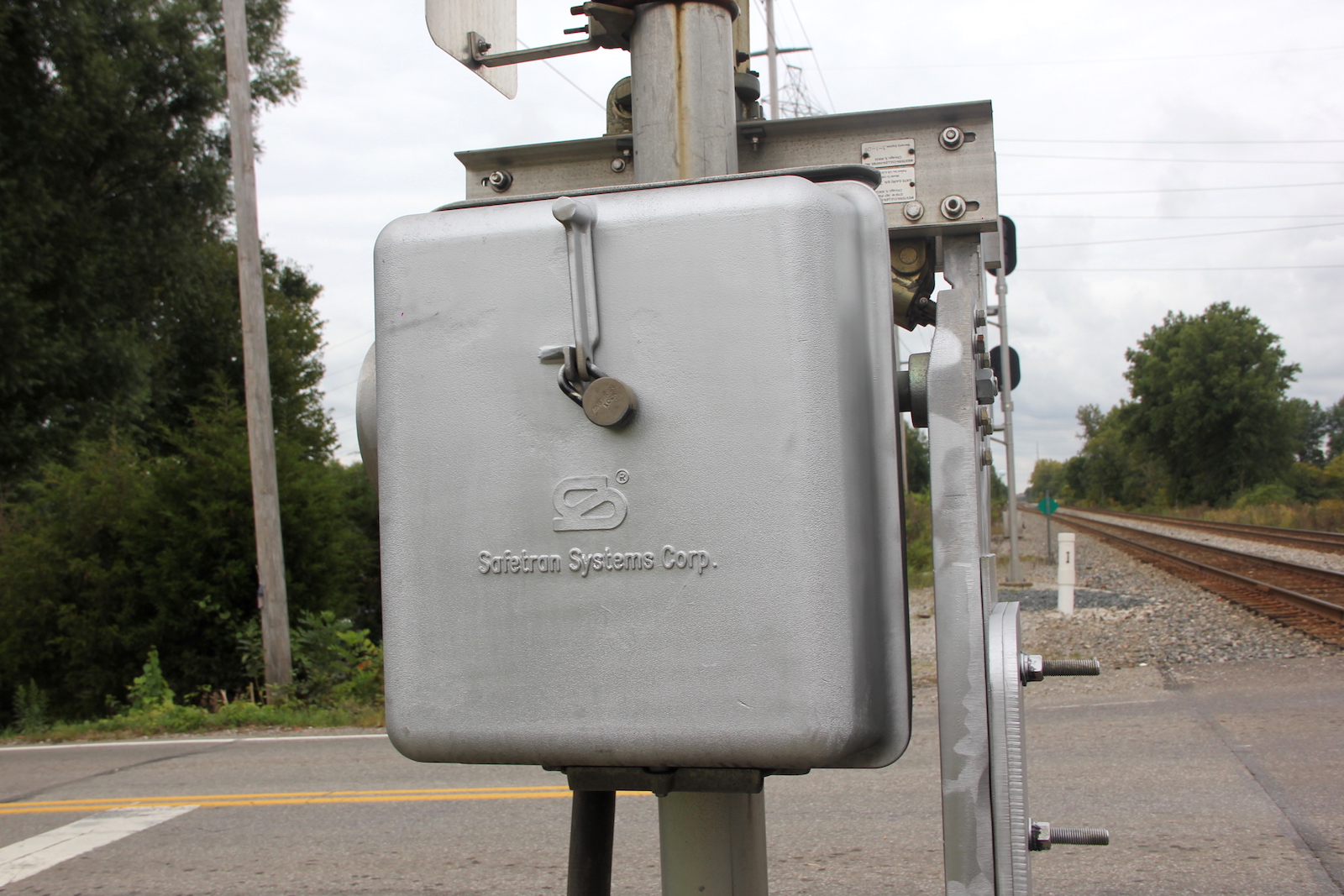

Junction Boxes: Safetran Safetran
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: Safetran 2000s w/ Old WCH Gate Saver Safetran 2000s w/ Old WCH Gate Saver
Gate Striping: Diagonal Striping Diagonal Striping

All pictures were taken on September 13, 2017, by Tommy McGowan.
This crossing is located on the CSX Columbus Sub.

1
 2

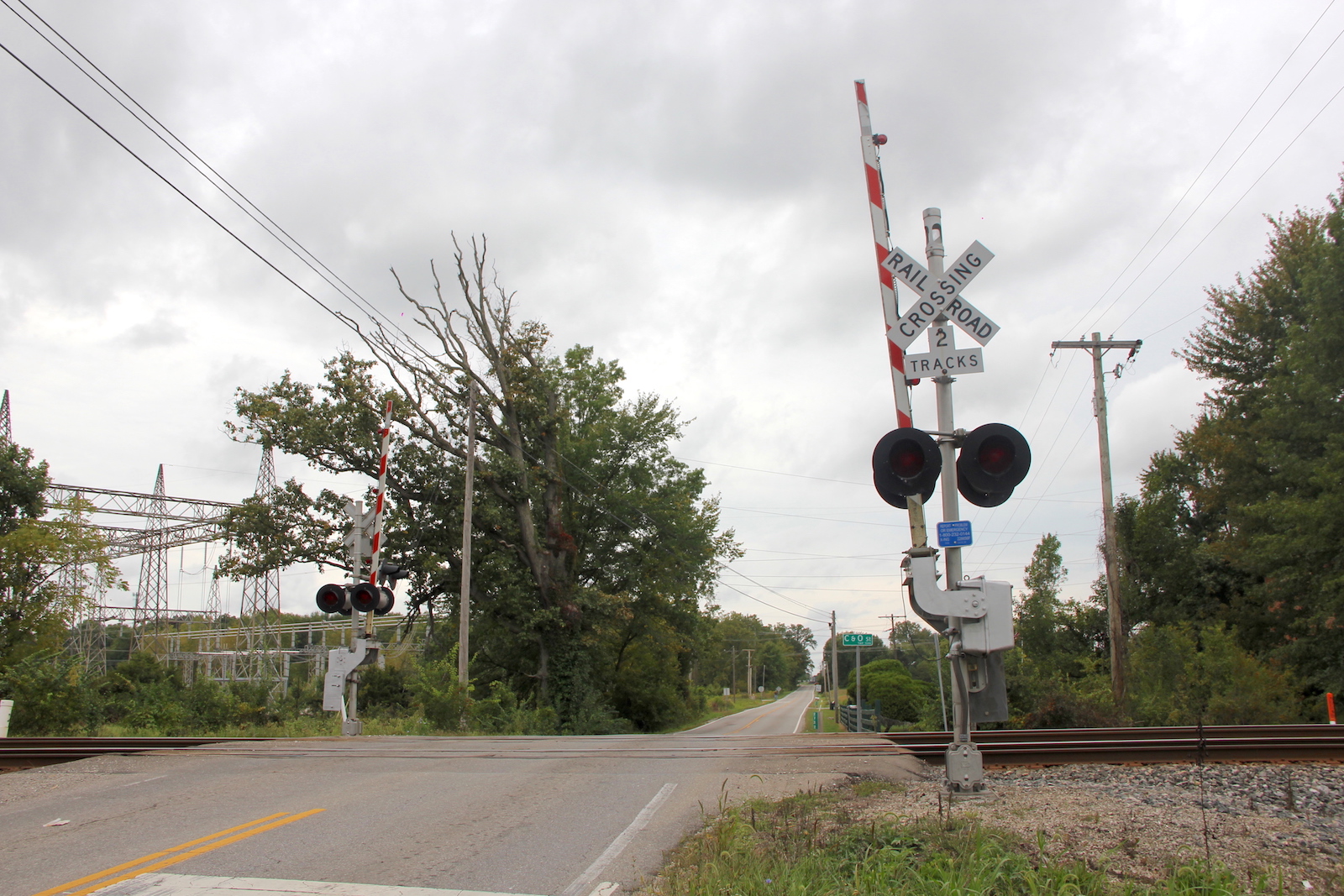

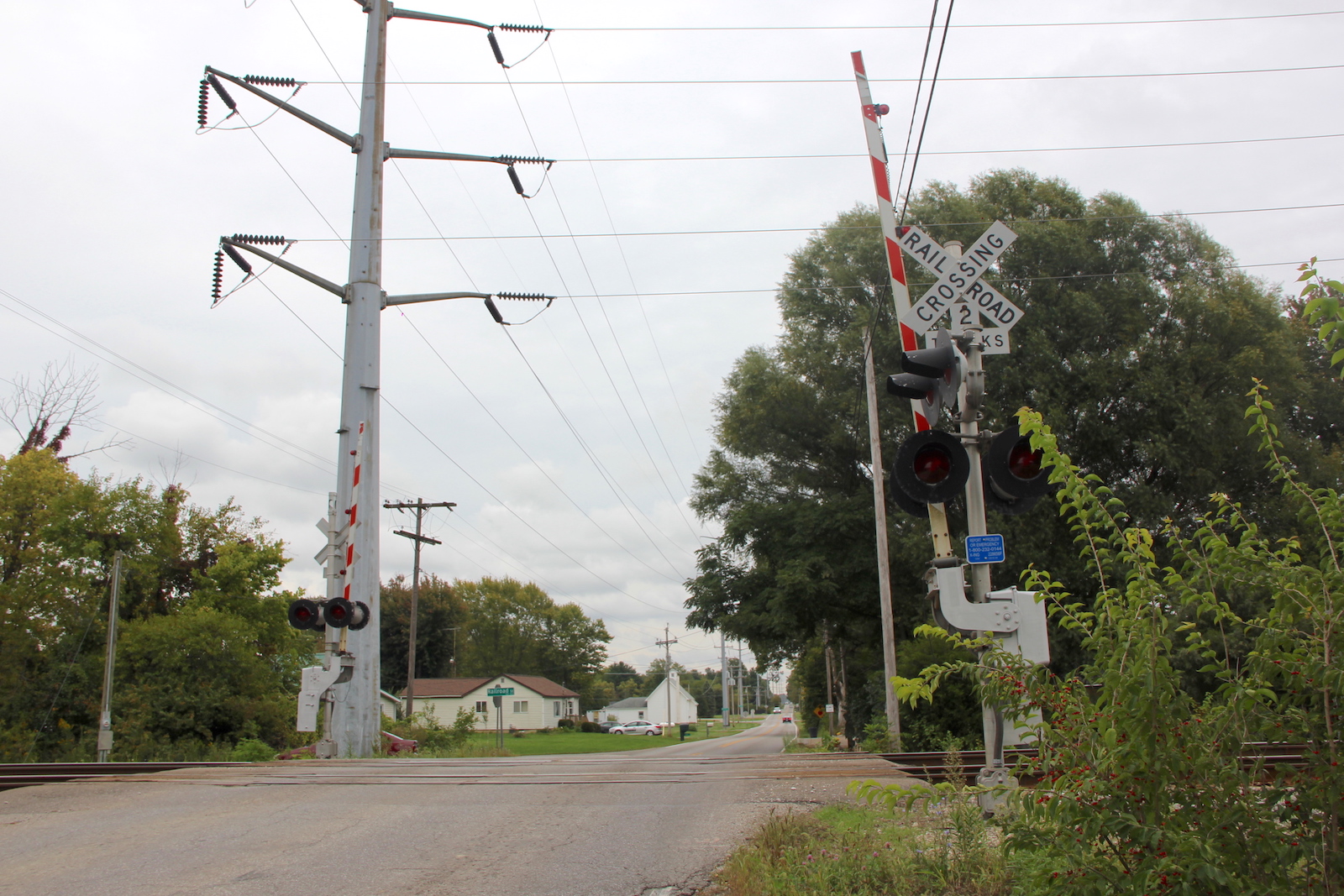

Overview of 2 gated signals facing west. Overview facing east.
3 4 5
6 7 8
9 10 11
12

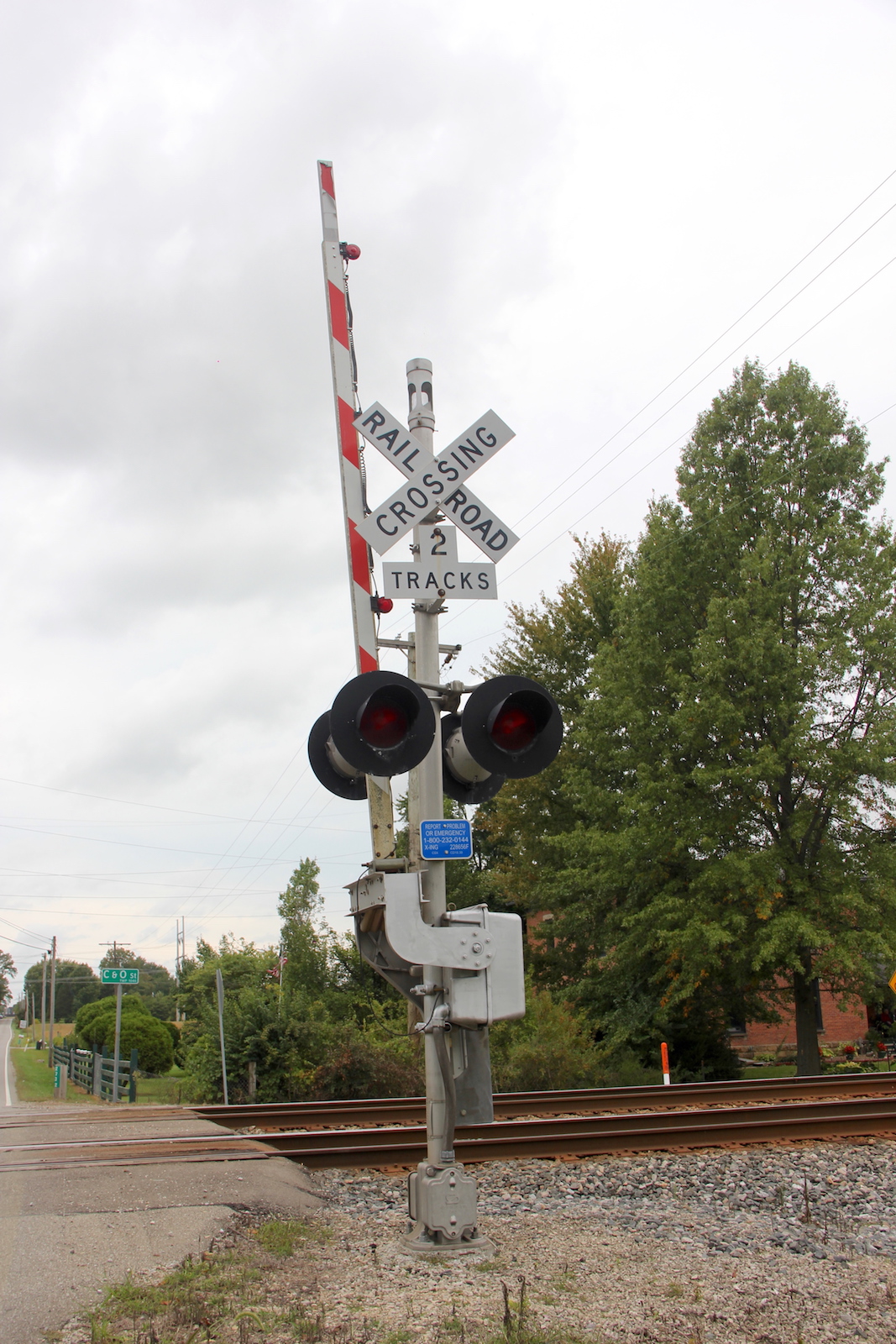

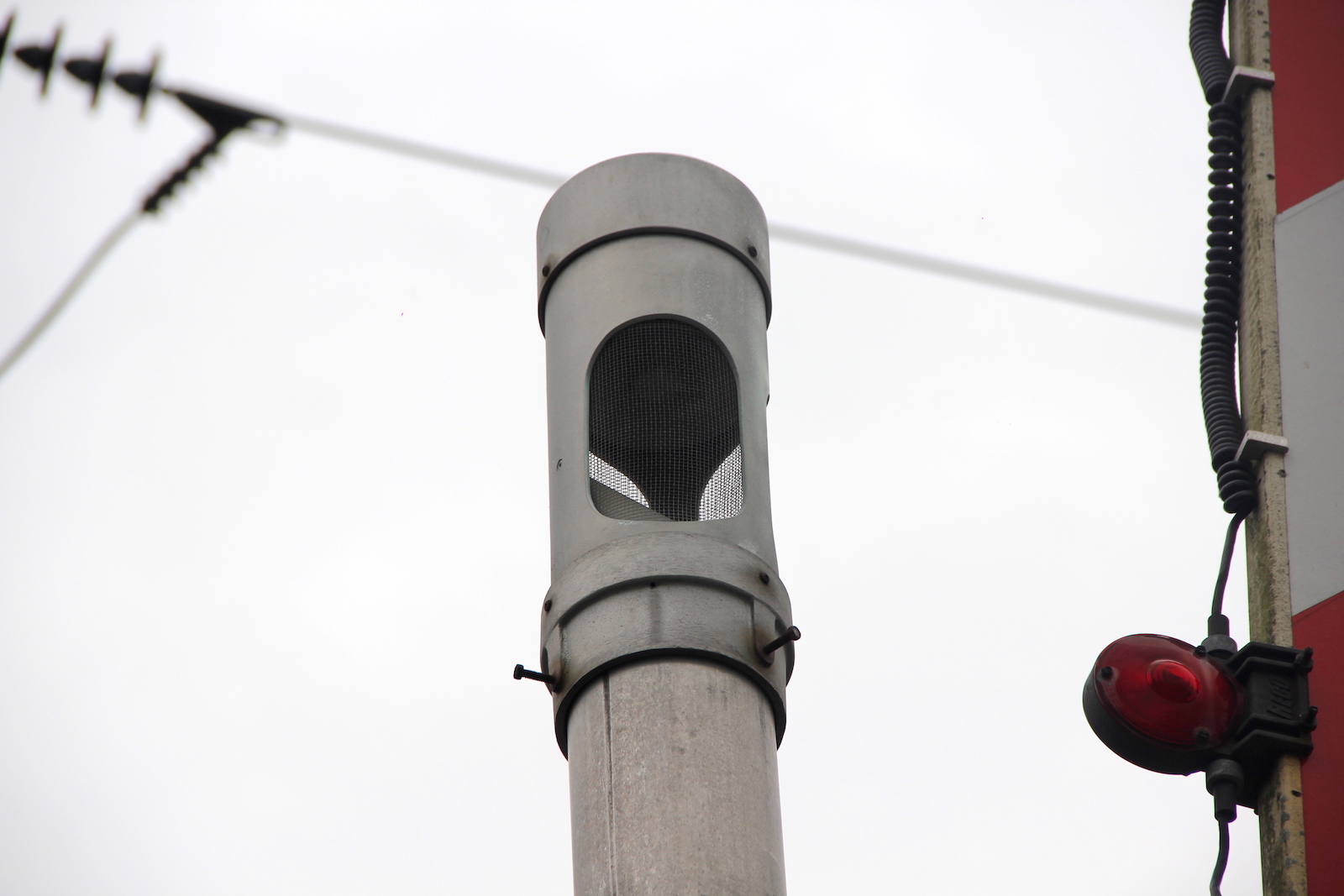

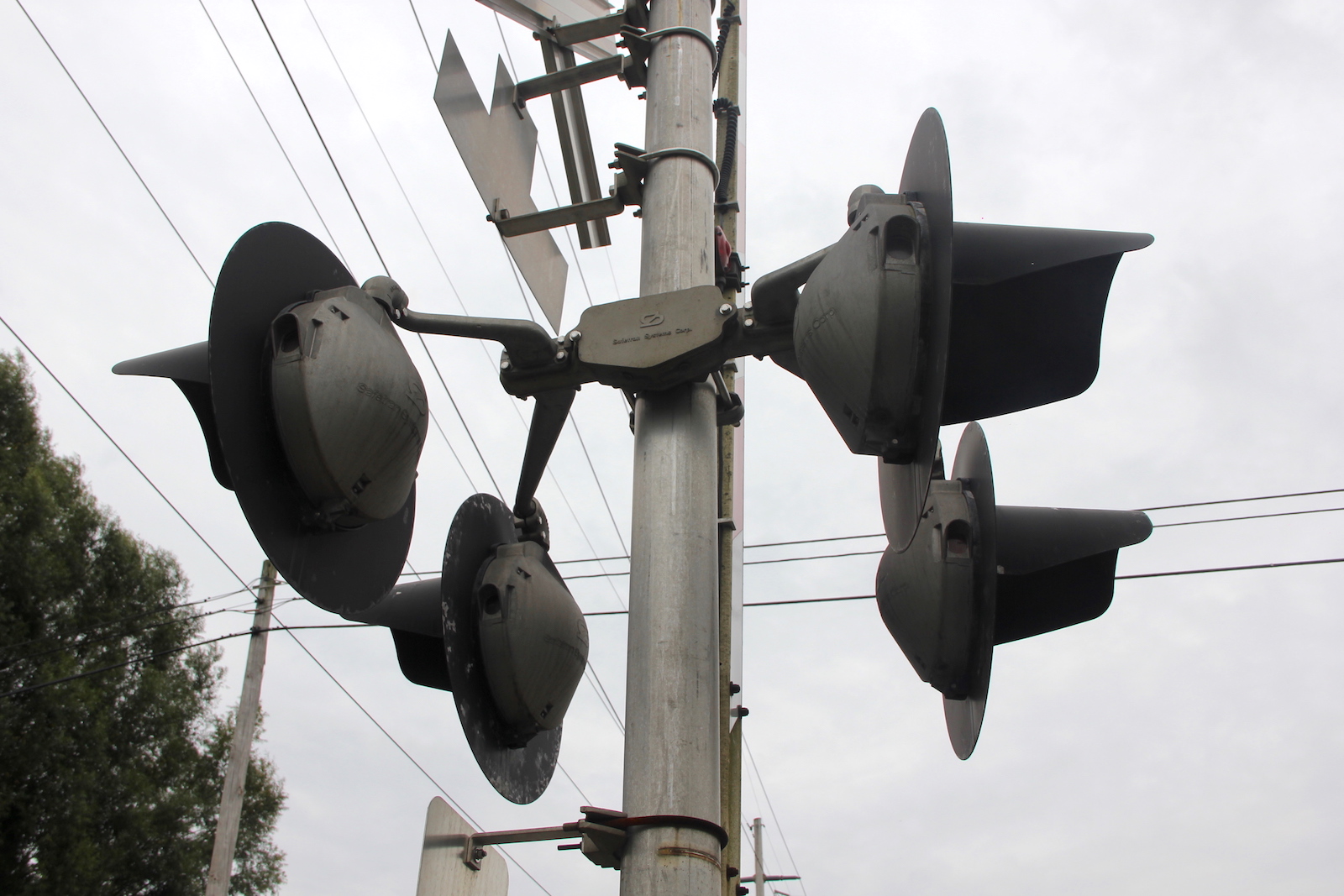

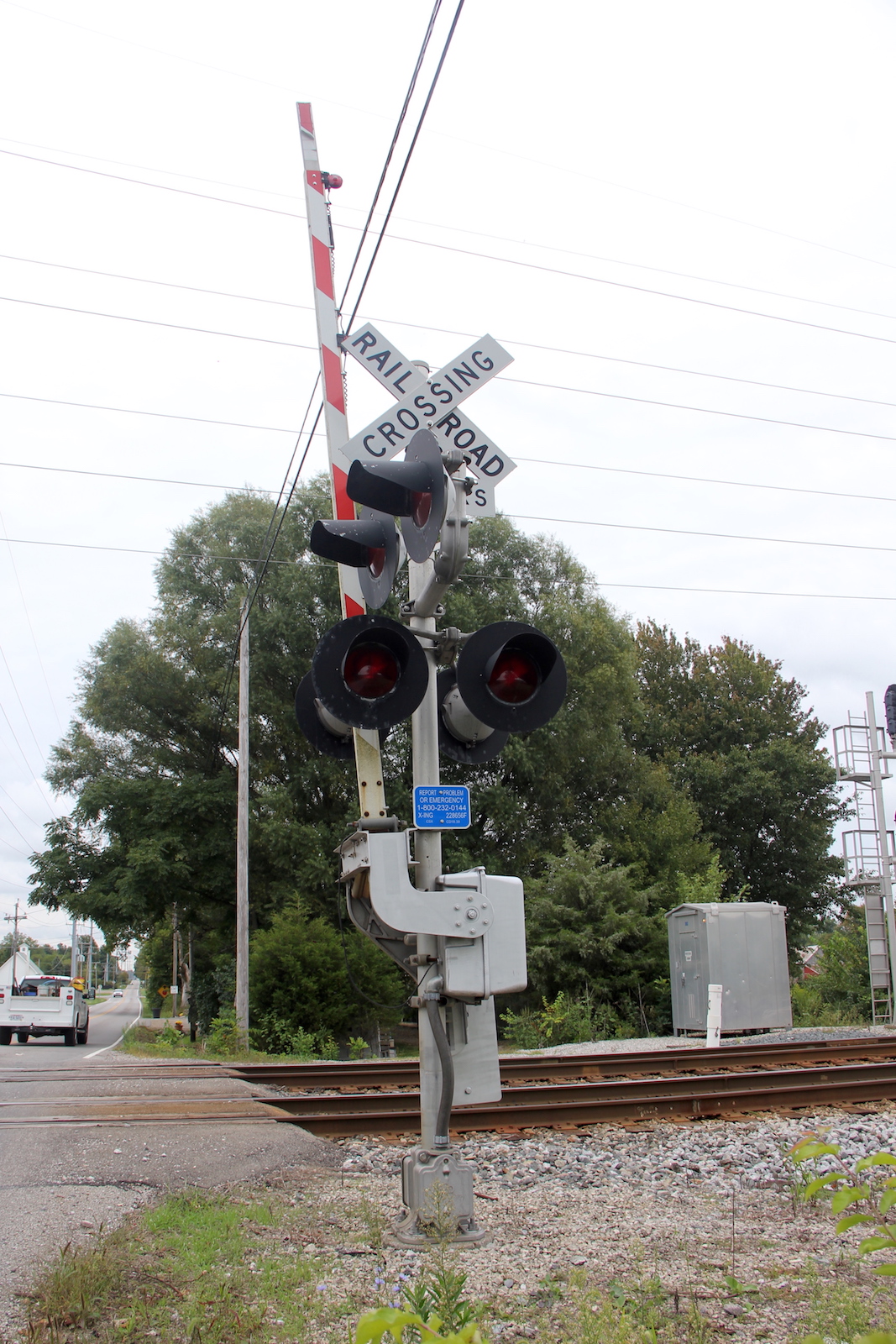

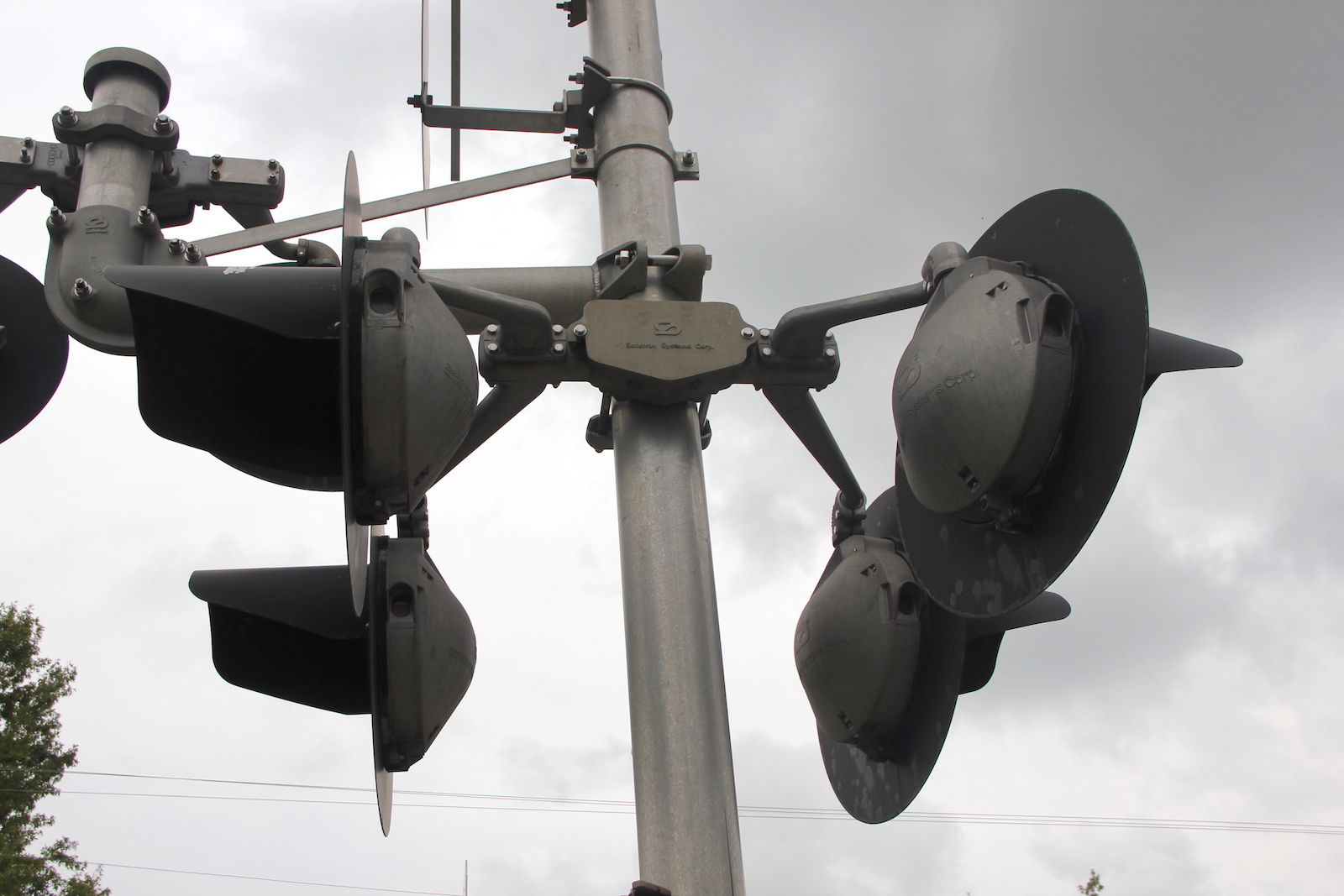

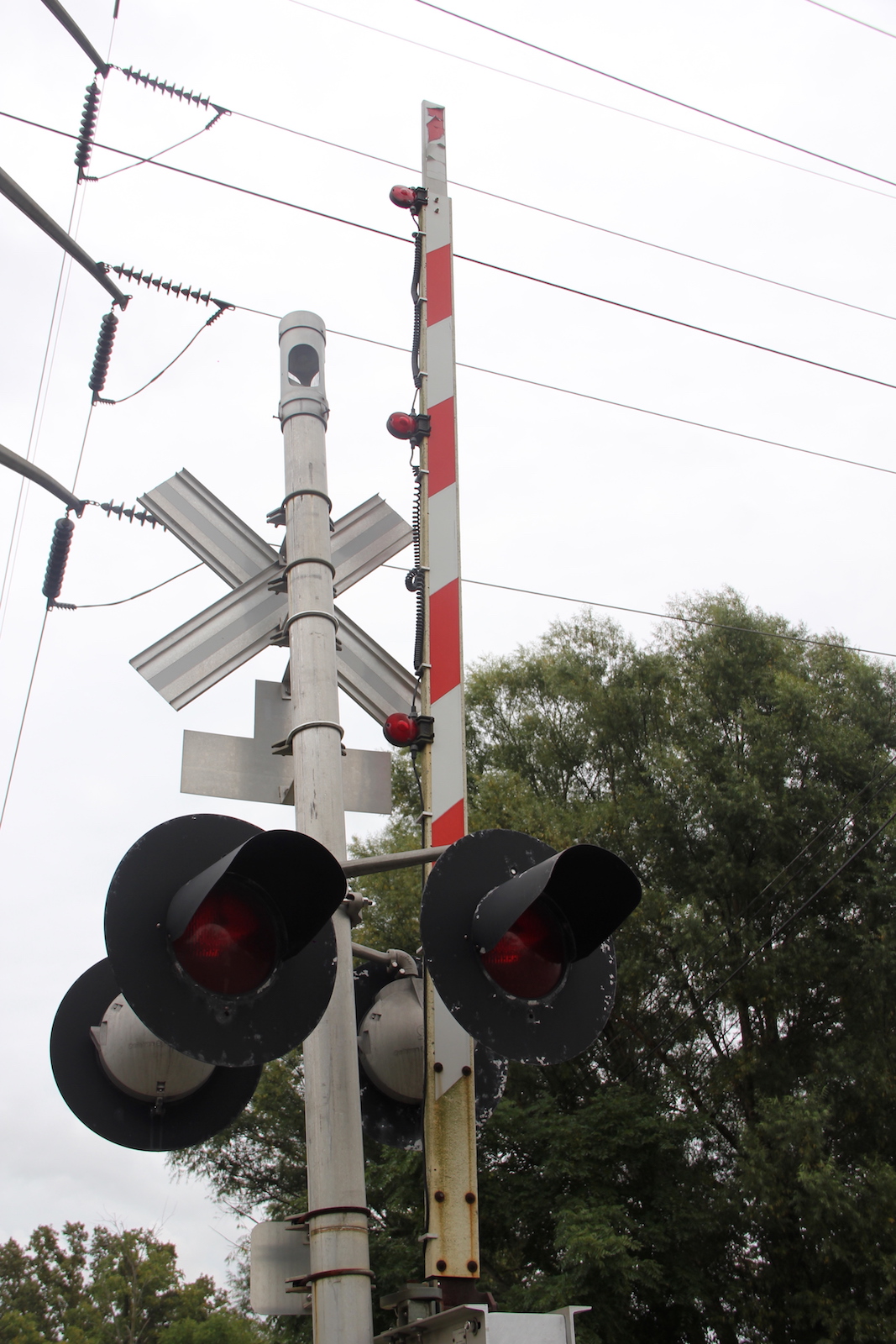

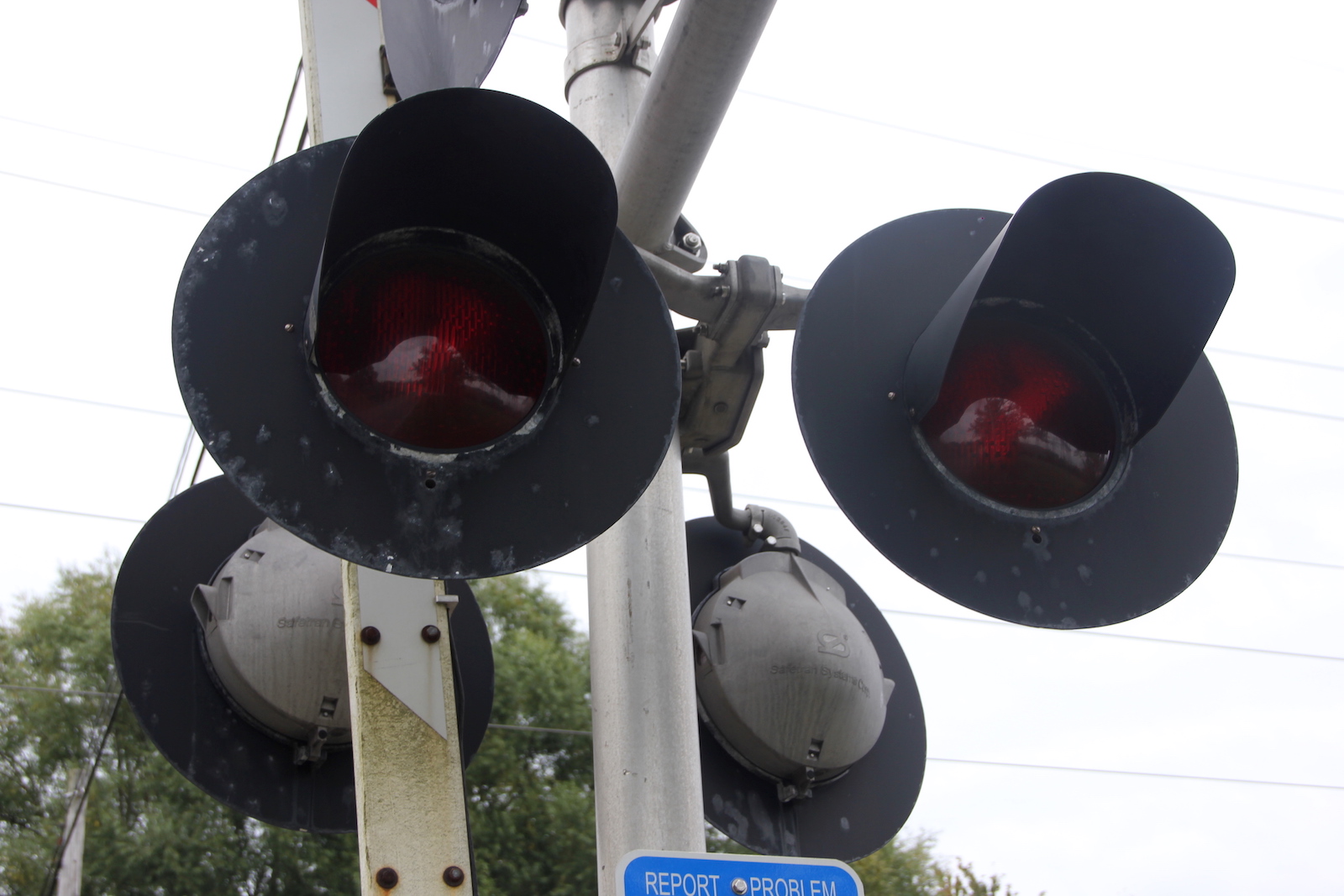

The eastern signal.
13 14 15
16 17 18 19
20 21 22
23

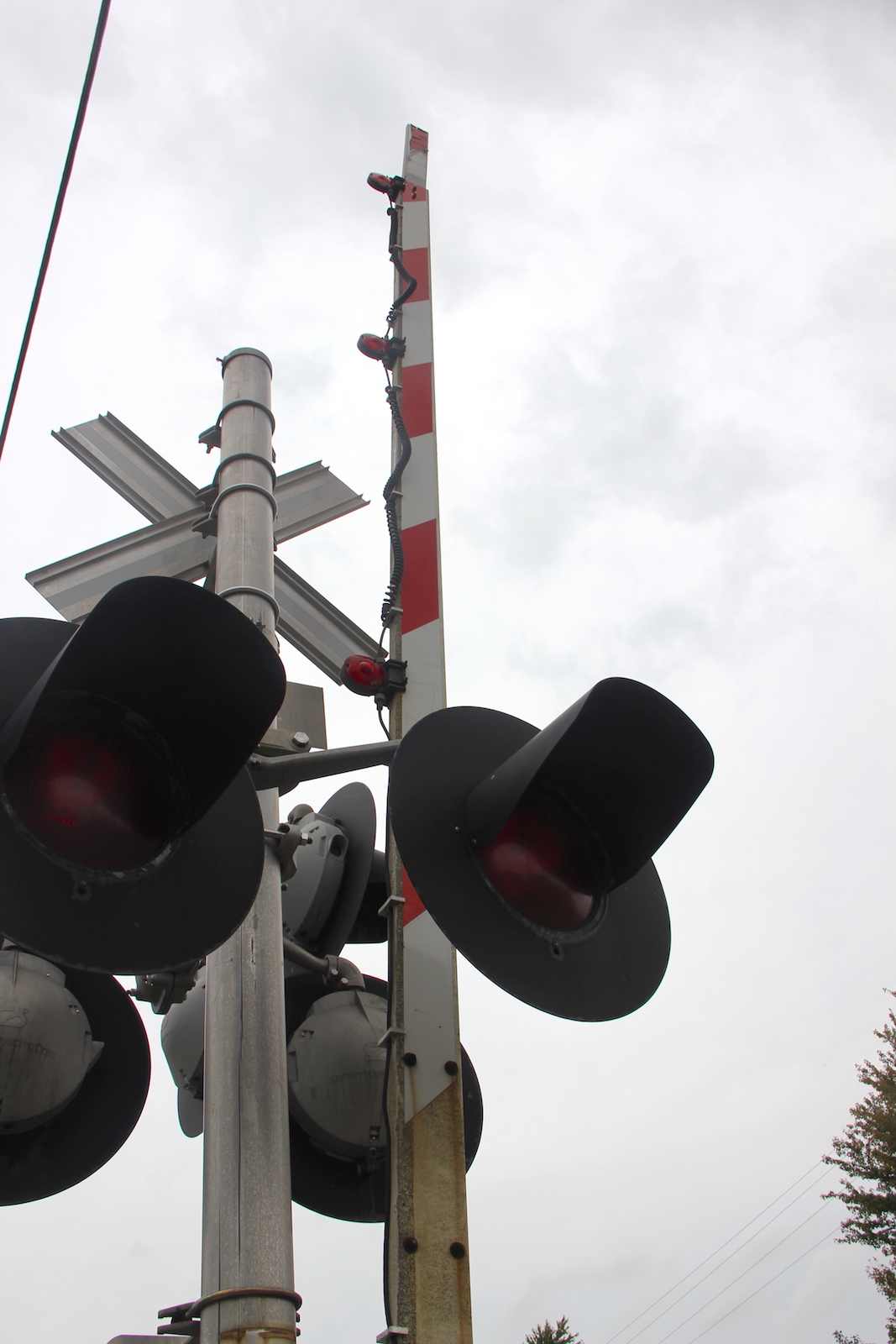

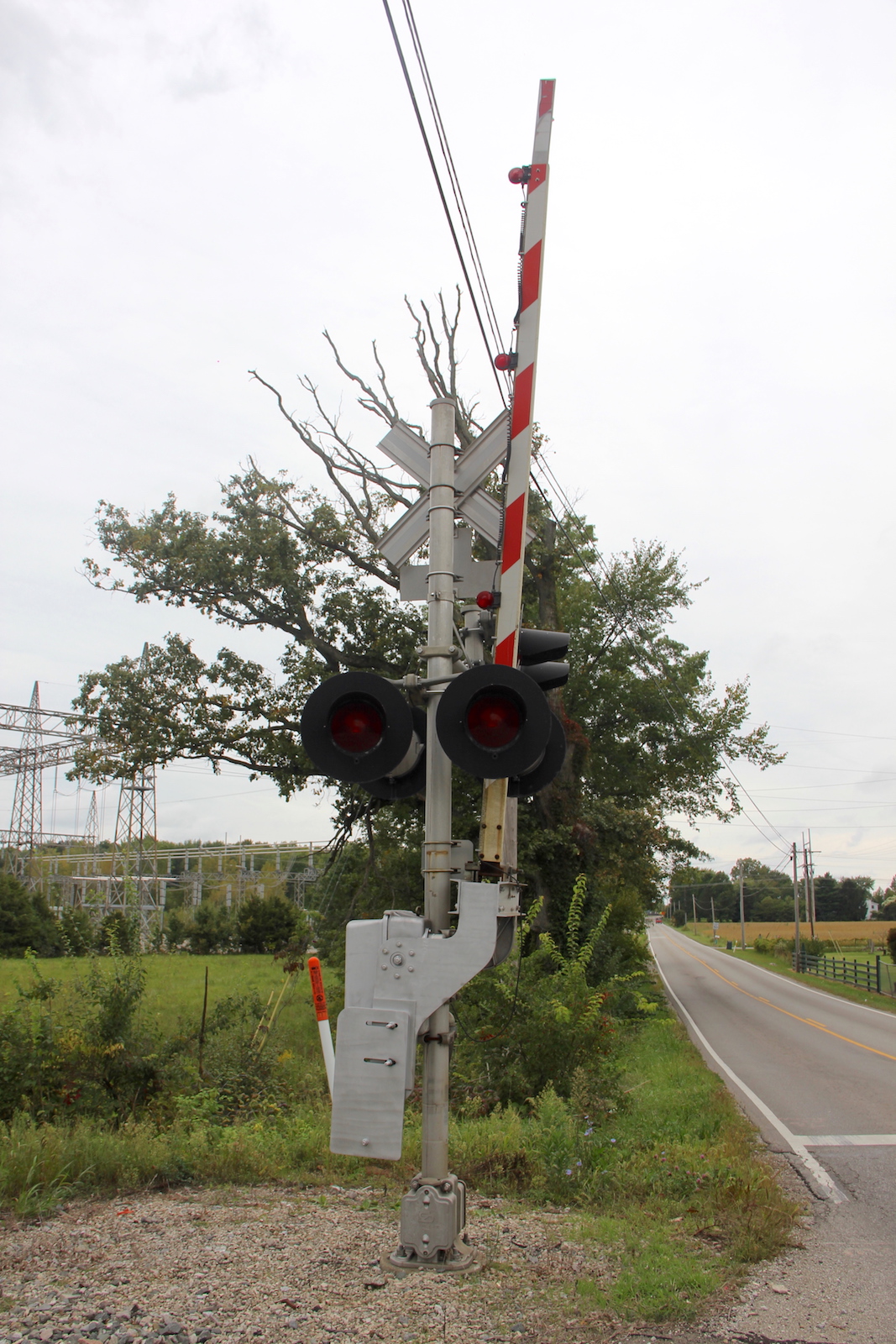

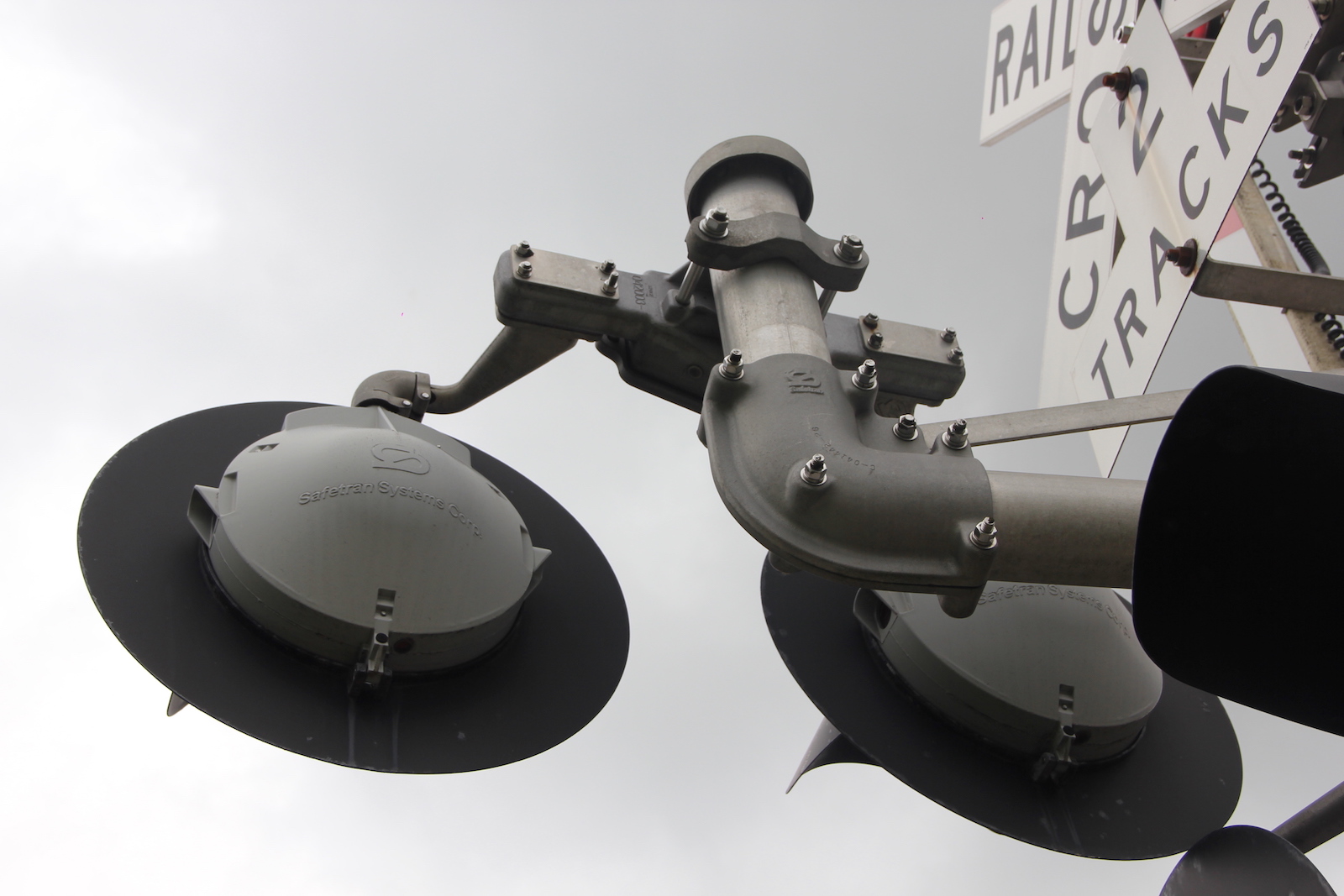

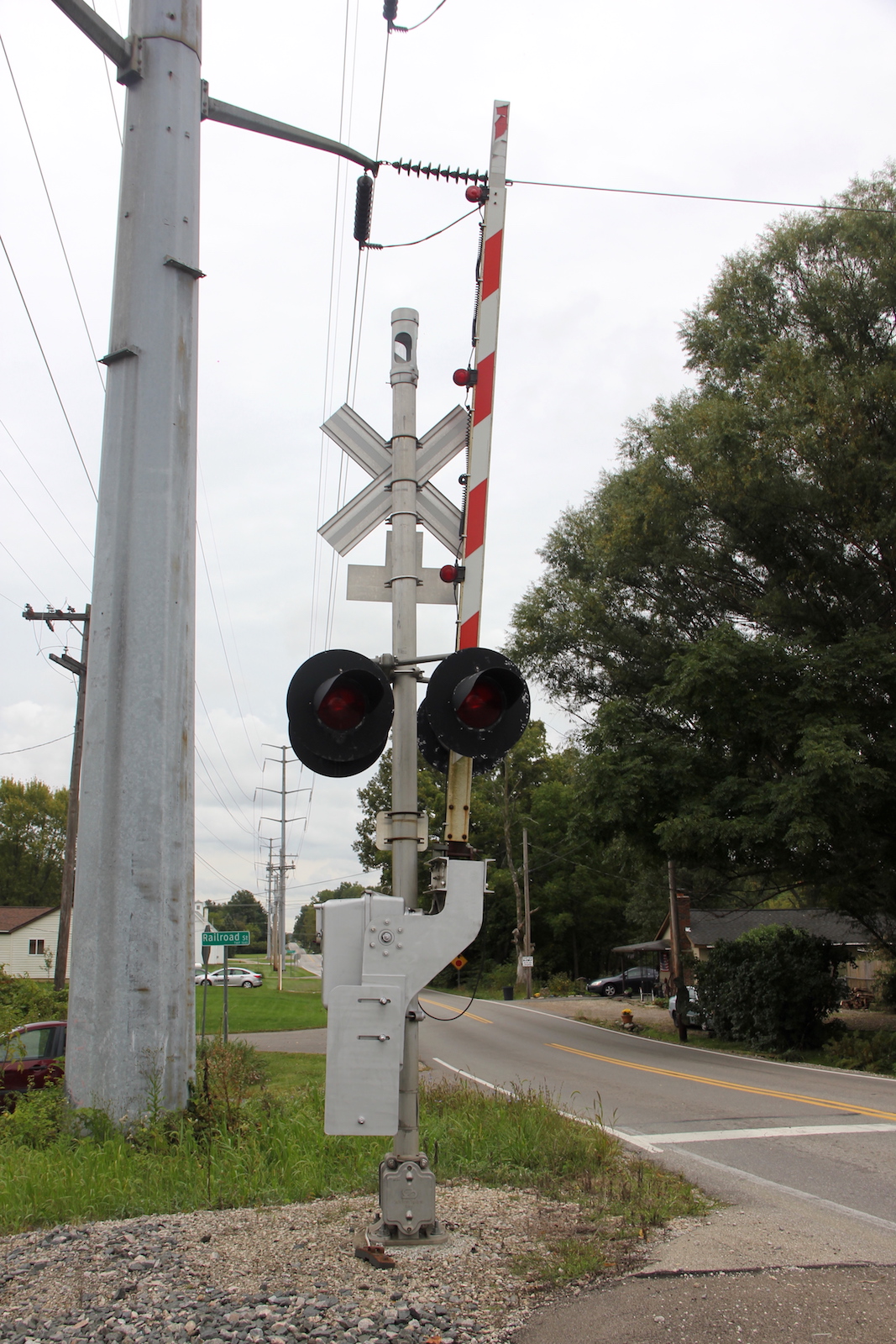

The western signal.
24 25 26 27

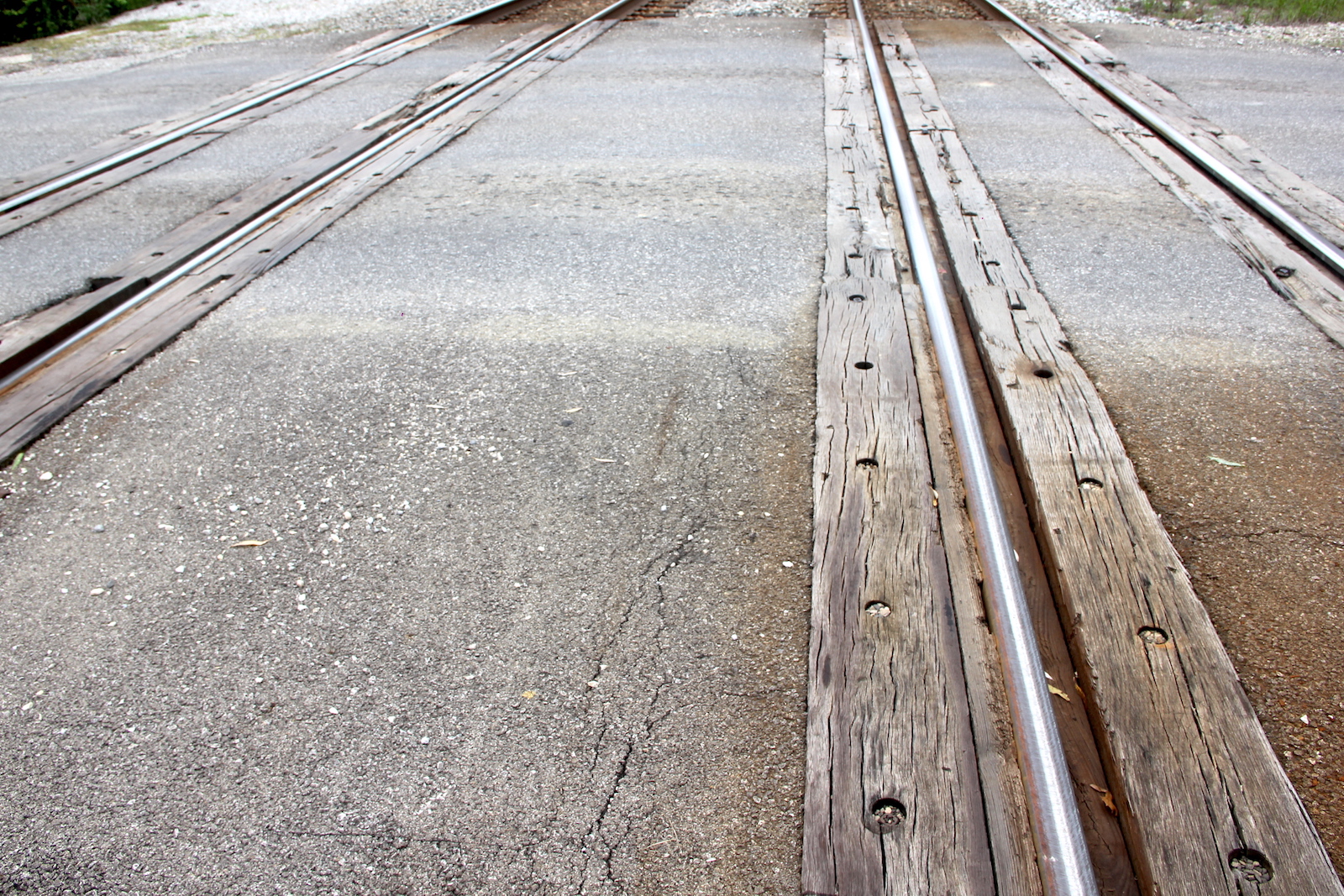

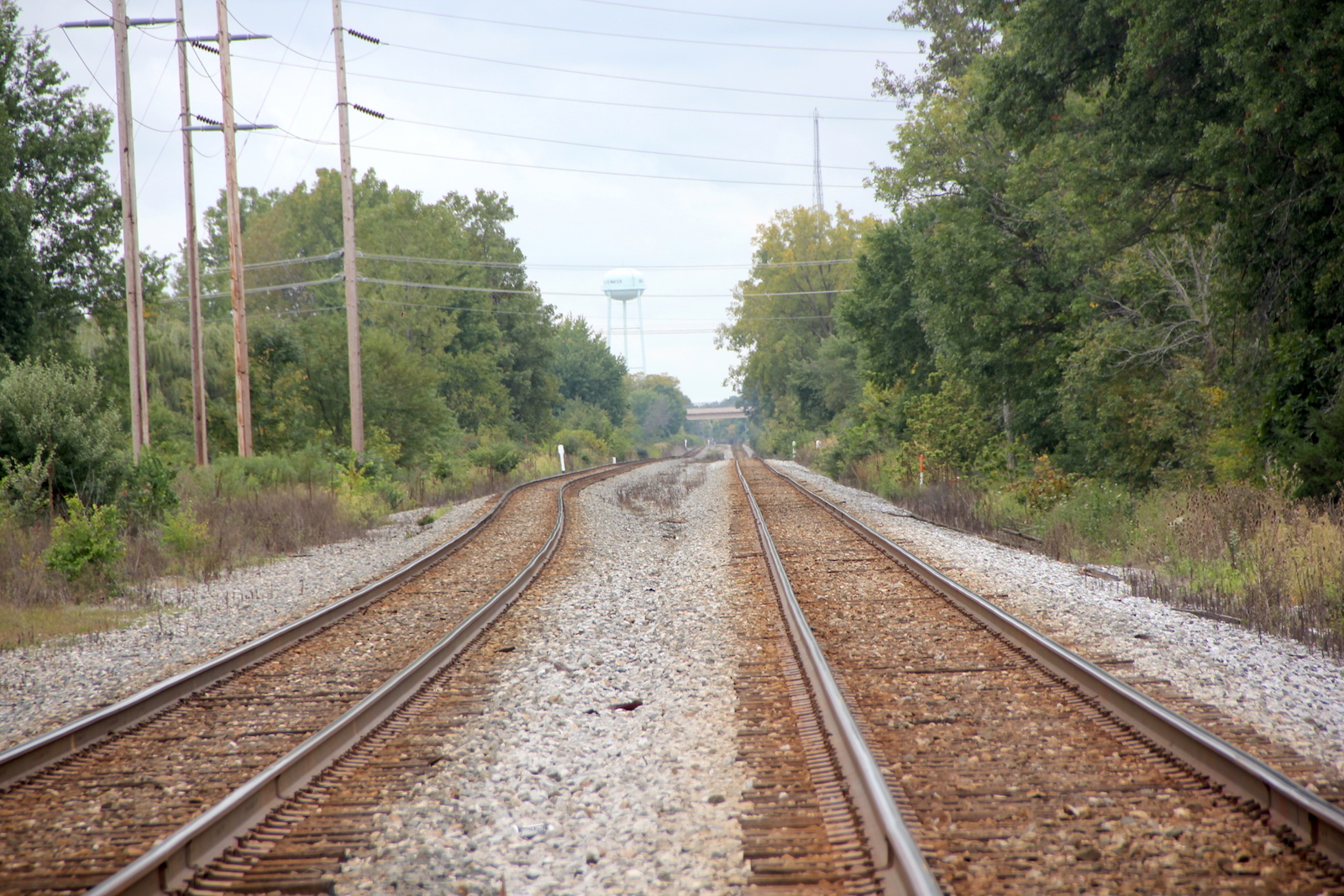

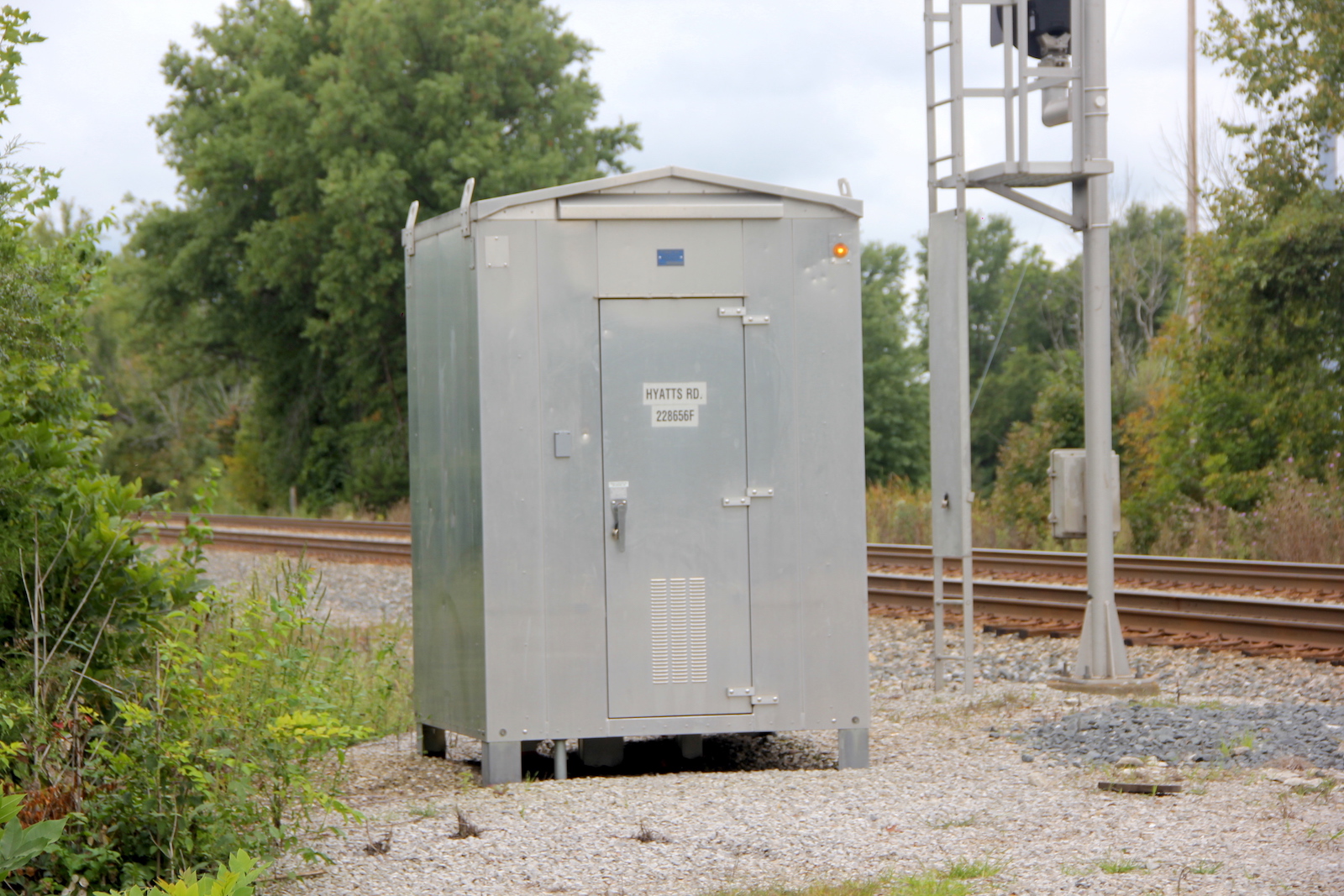

The relay bungalow in the southeast quadrant. The grade is wood and asphalt. Track view facing north towards Clark-Shaw Rd. in Delaware. Track view facing south towards Rutherford Rd.
28 29 30

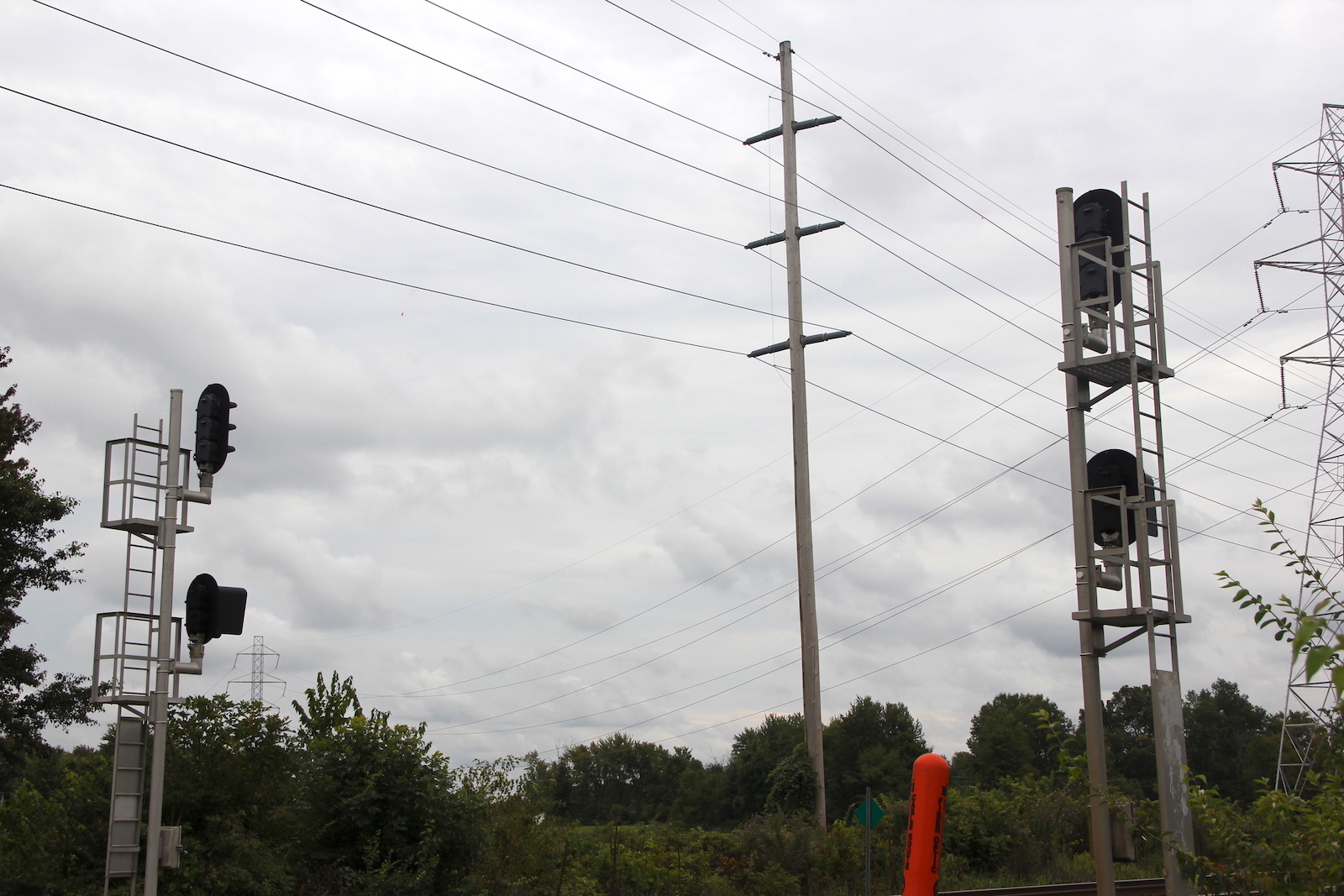

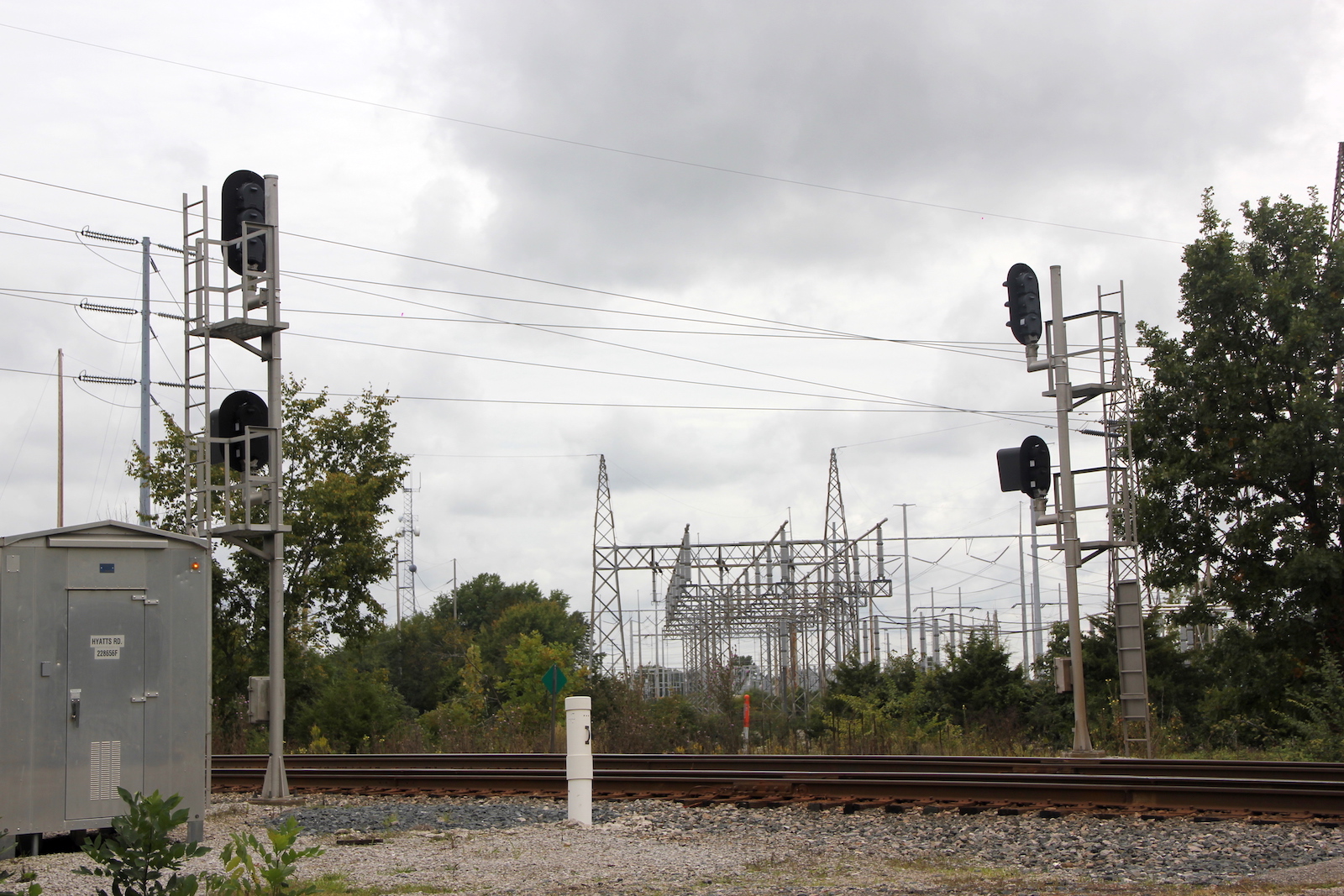

Wayside signals next to the crossing, plus there's a street called C&O St. next to the crossing as well.

.
