MP: 66.63 |
Created March 2026
Total Accidents: 0
Crossing
DOT #: 476853B
TOTAL
DAILY TRAINS: 4 (AS OF 2025)
| >>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 3 E-Bell | N/A |
| Base: |
Safetran 5" Double Sided | Safetran 5" Double Sided |
| Light Frames: | 4 - 12"x20" Safetran incandescents | 6 - 12"x20" Safetran incandescents |
| Light Brackets: |
Safetran | 2 - Safetran |
| Gate Lights: | 3 - NEG 4" incandescents | 3 - NEG 4" incandescents |
| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Vertical and Diagonal Striping | Vertical and Diagonal Striping |
Page created by: Sir Fluent
Pictures 1-26 were taken on February 27, 2026, by Nicholas Miles.
This crossing is located on the NS Lima District.
These signals were installed in the late 2000s replacing a pair of very old gateless signals.
O1 |
O2 |
O3 |
O4 |

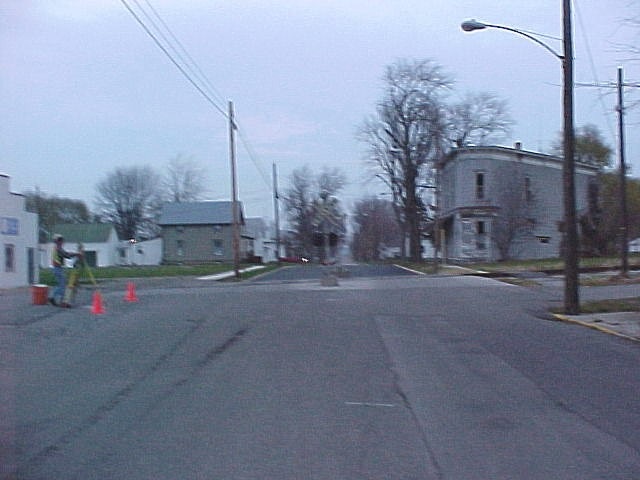

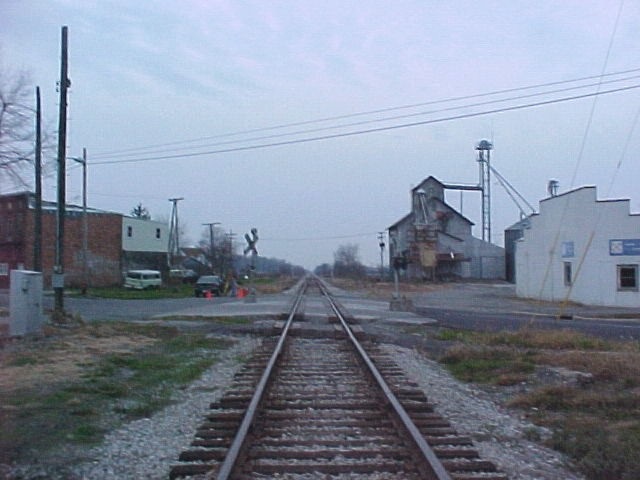

PUCO pictures from 1999 shows a very old gateless setup dating back to the NKP days. These signals likely had 8 inch US&S incandescents and a WRRS(?) mechanical bell. By the late 2000s, these were sadly replaced with new gated signals.
|
|||
1 |
2 |

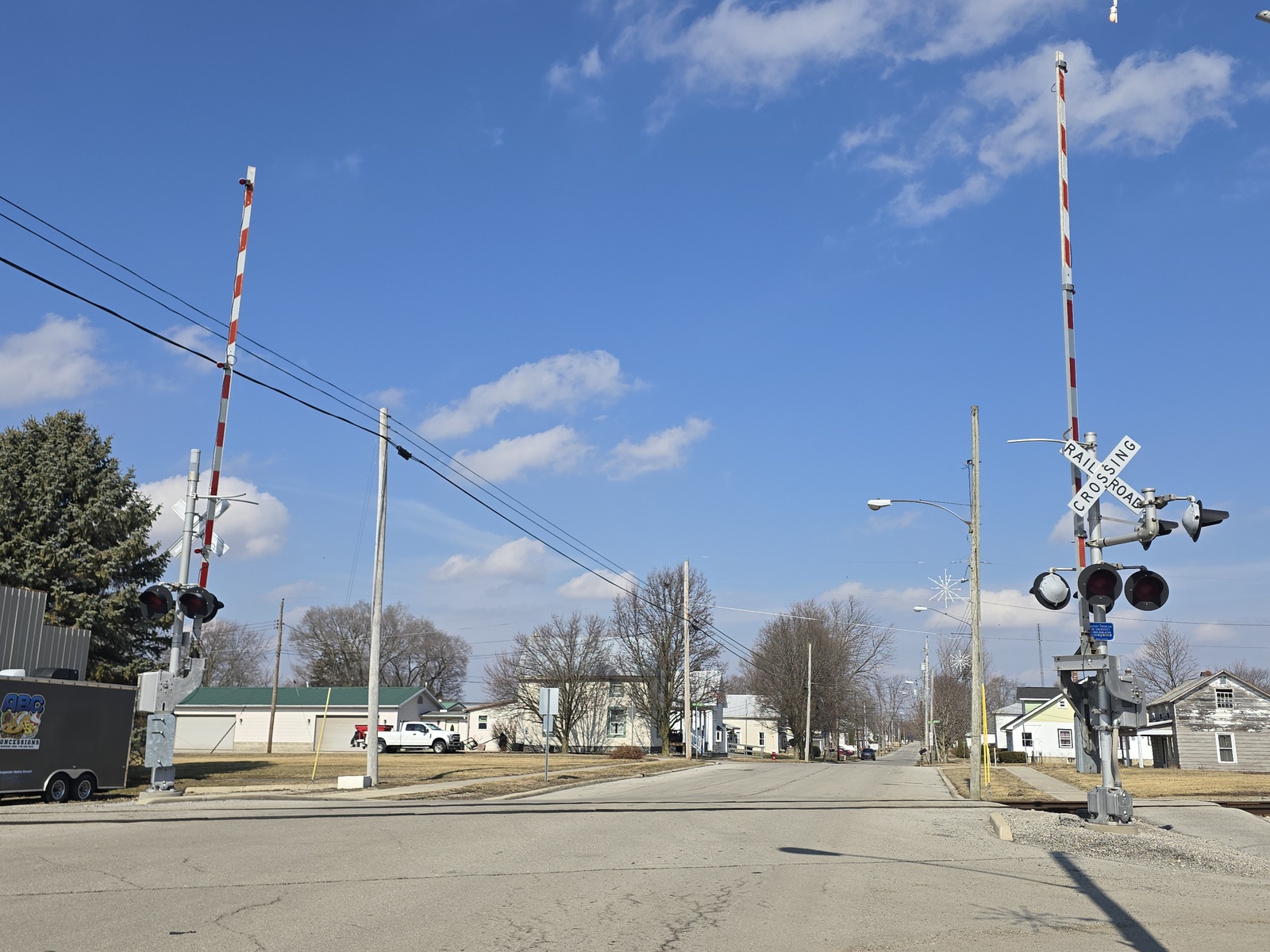

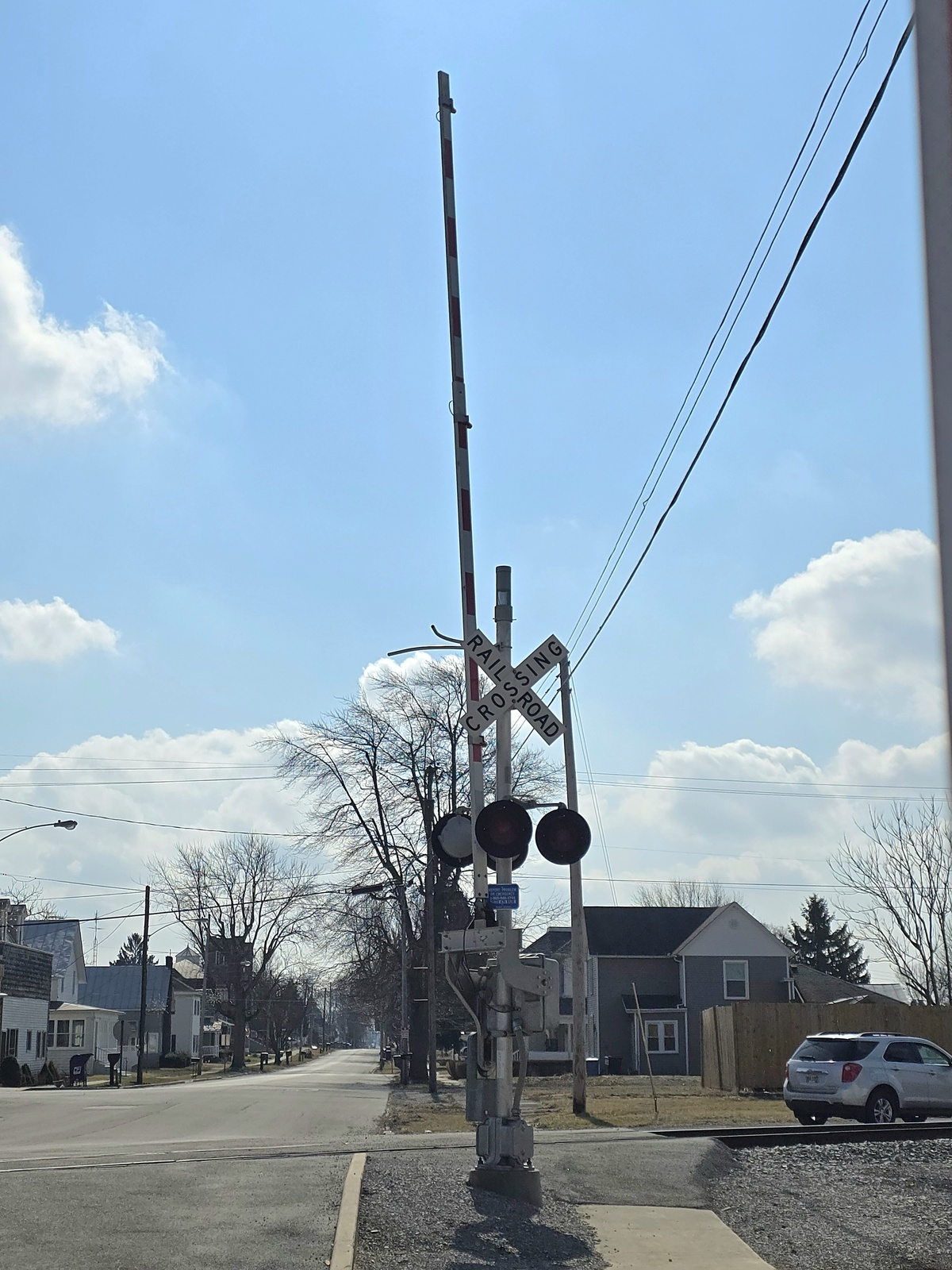

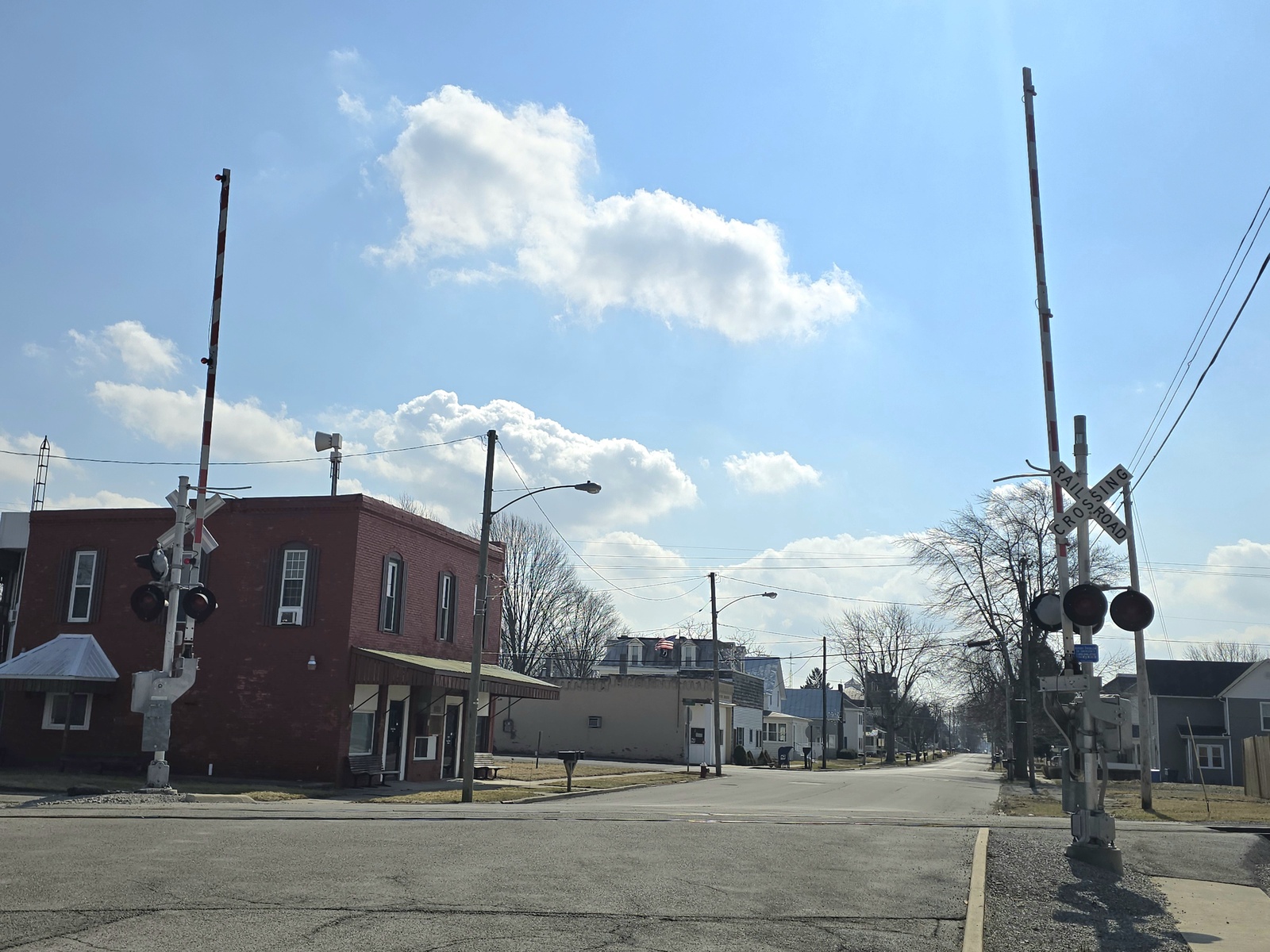

Overviews of 2 gated signals facing south. | Overview facing north. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |

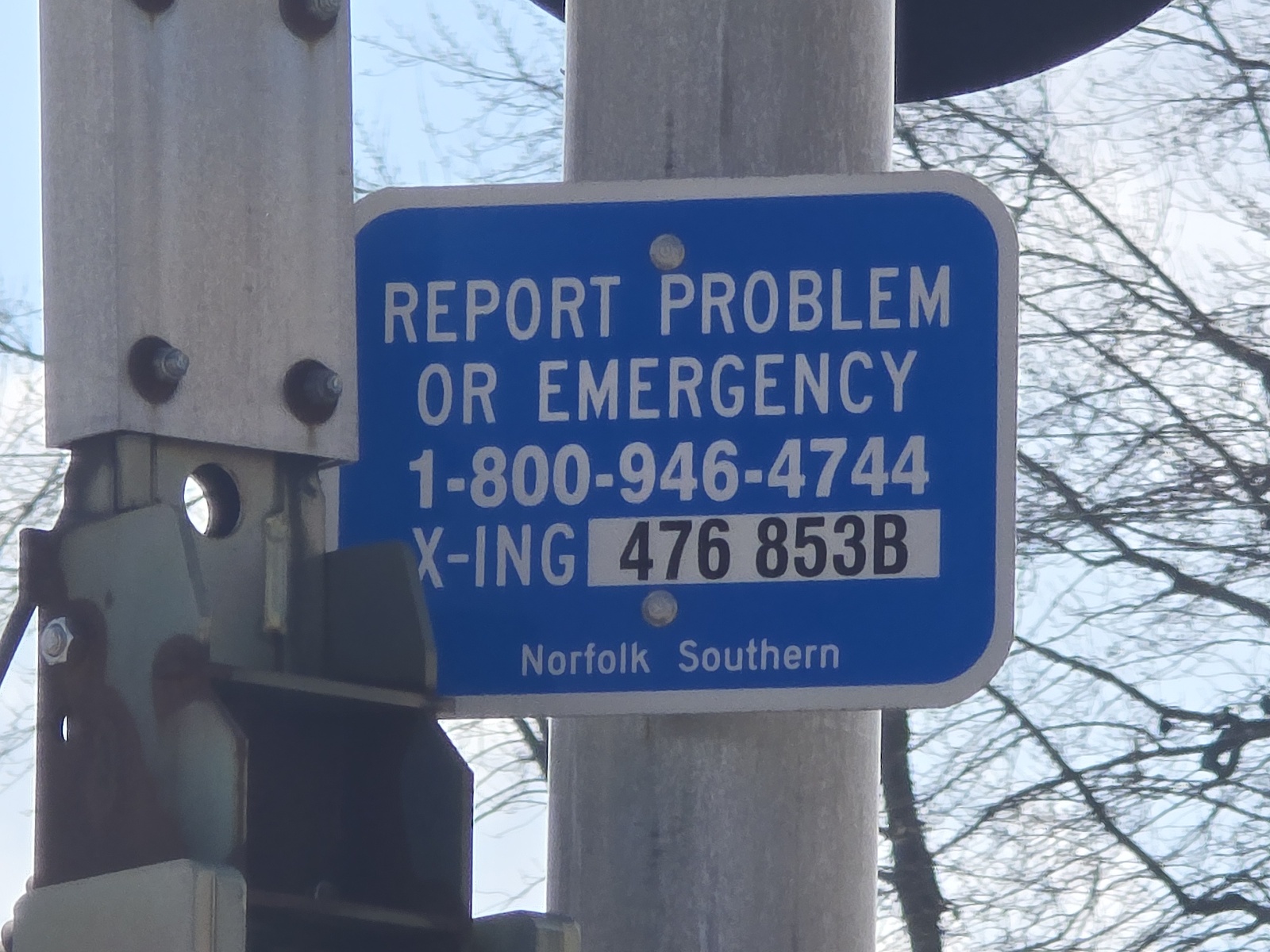

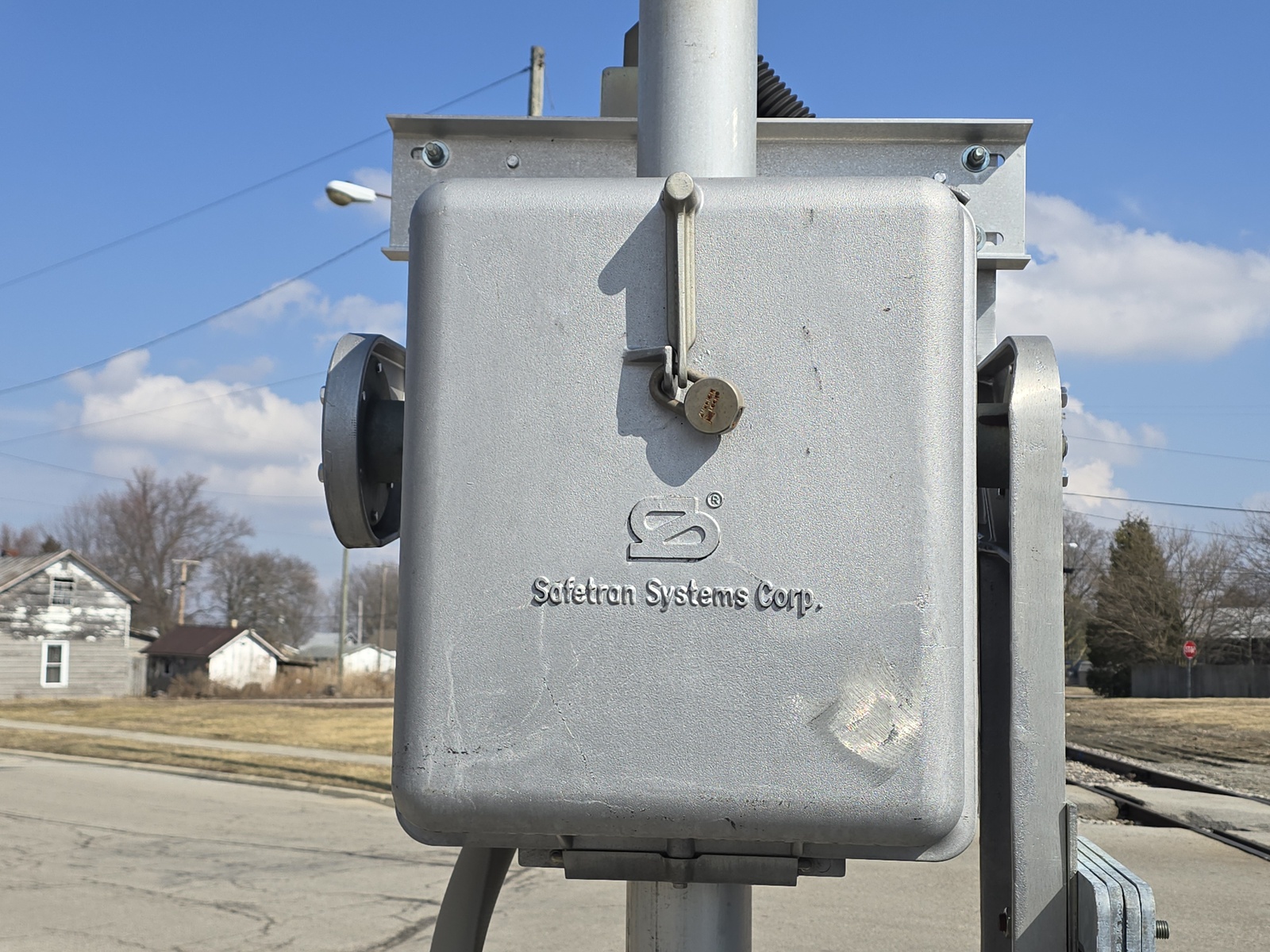

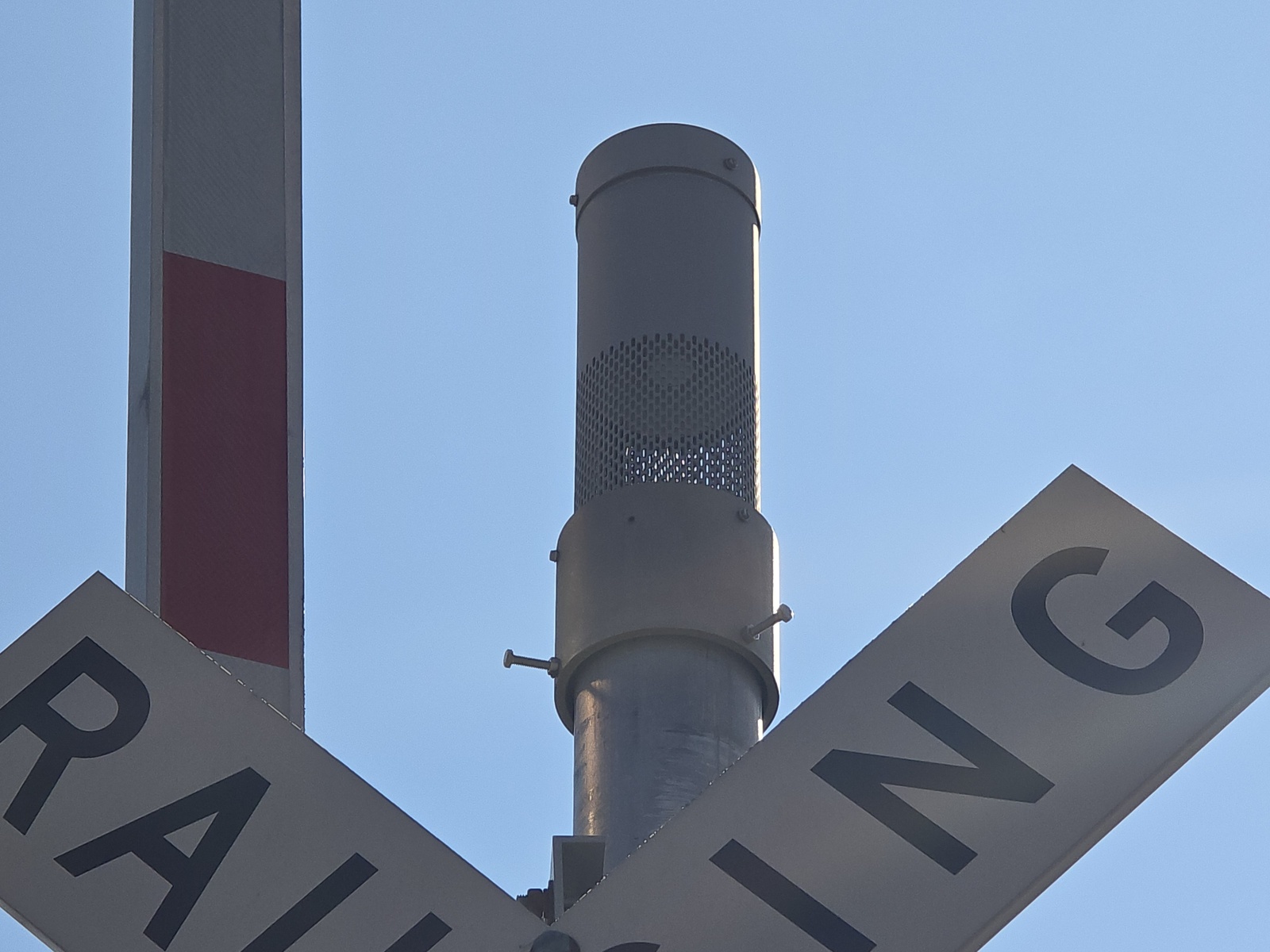

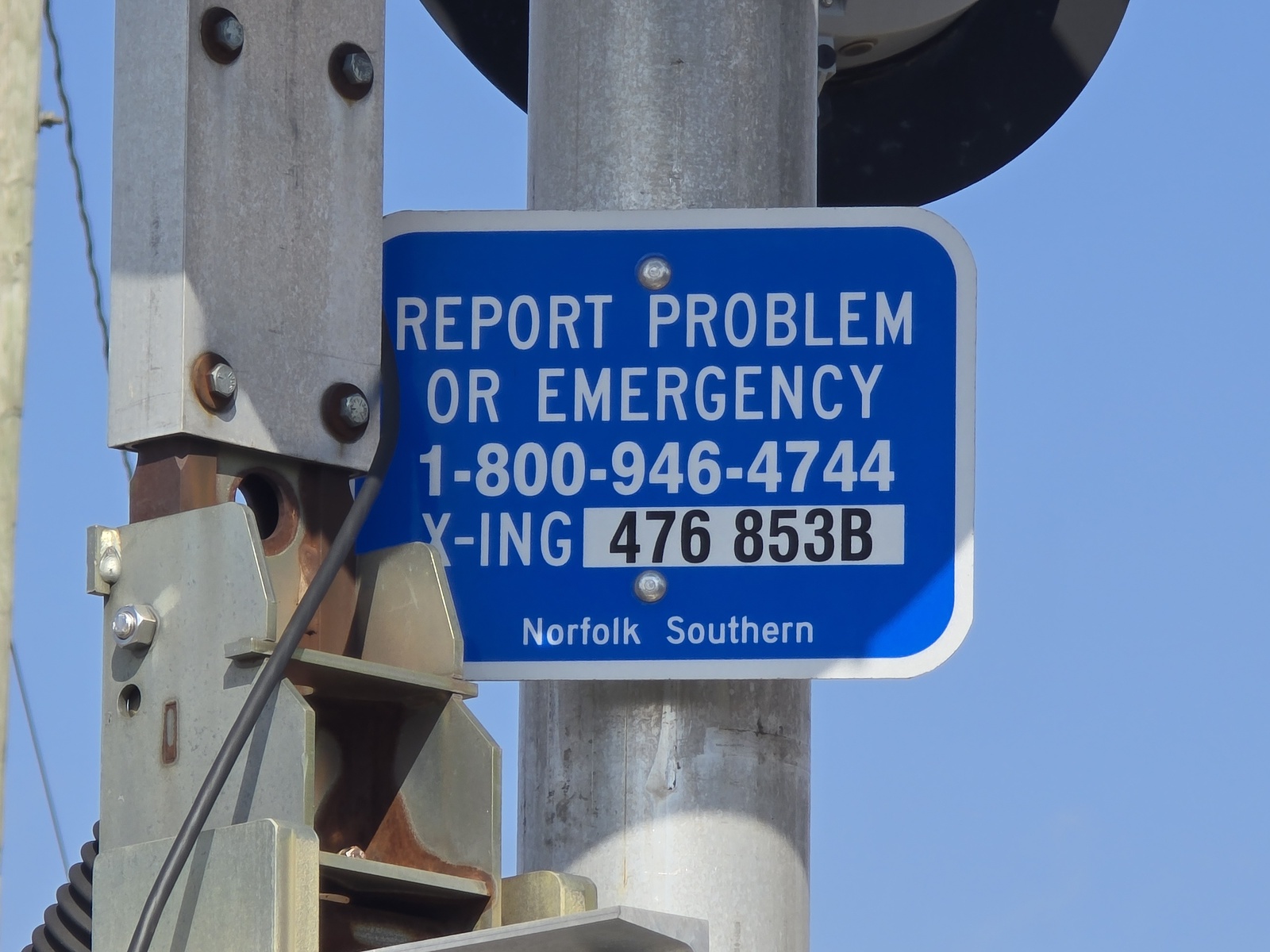

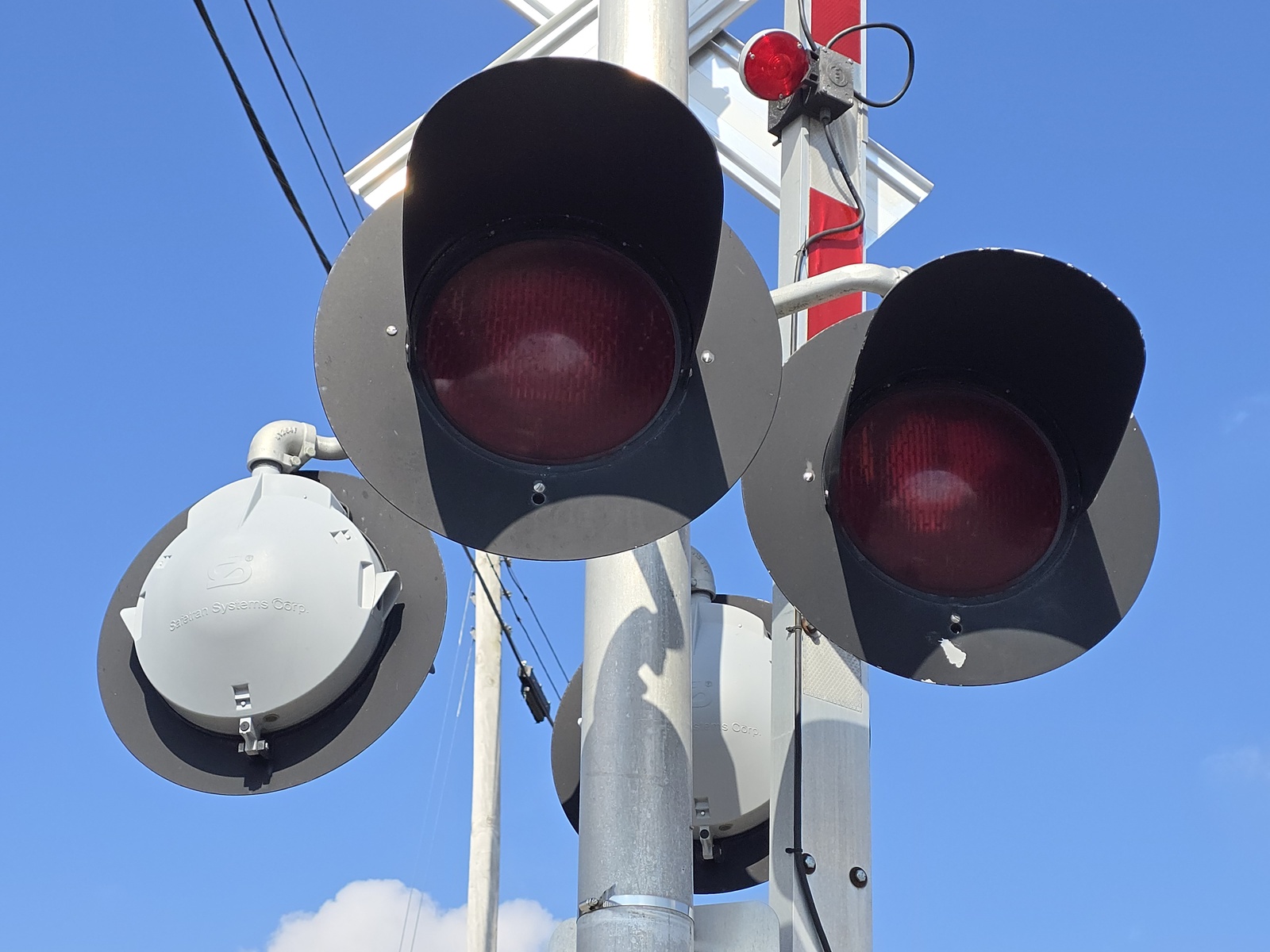

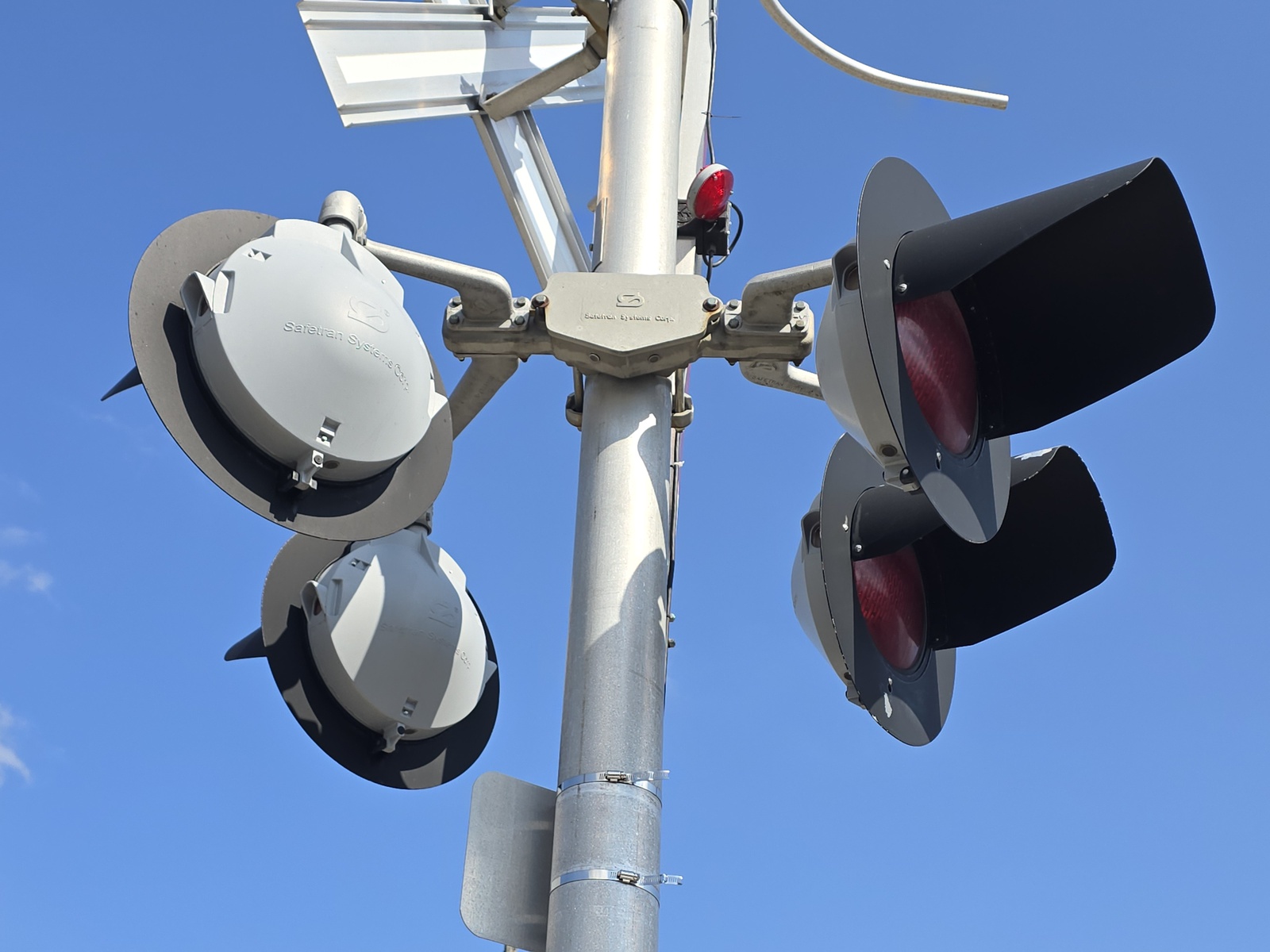

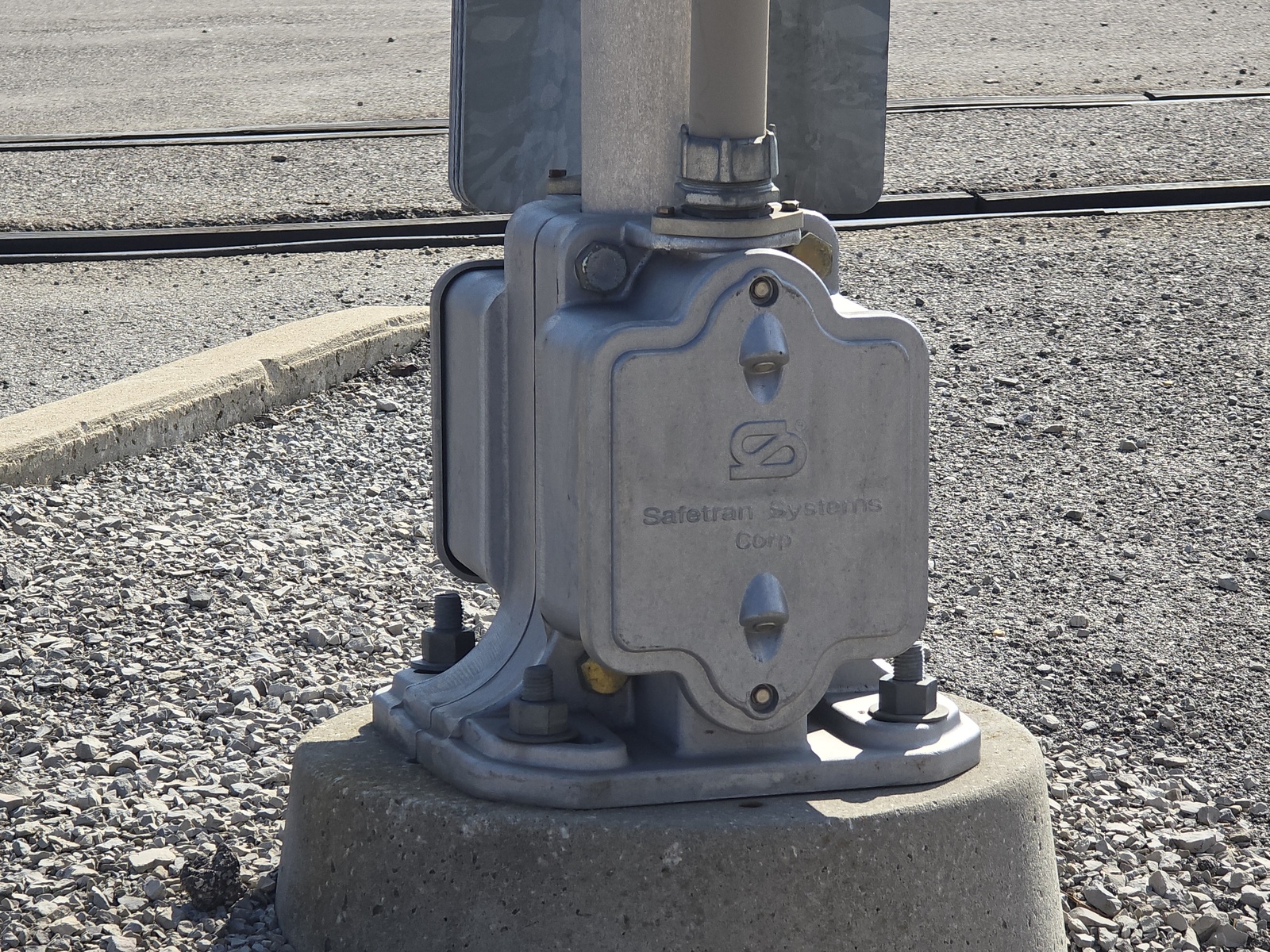

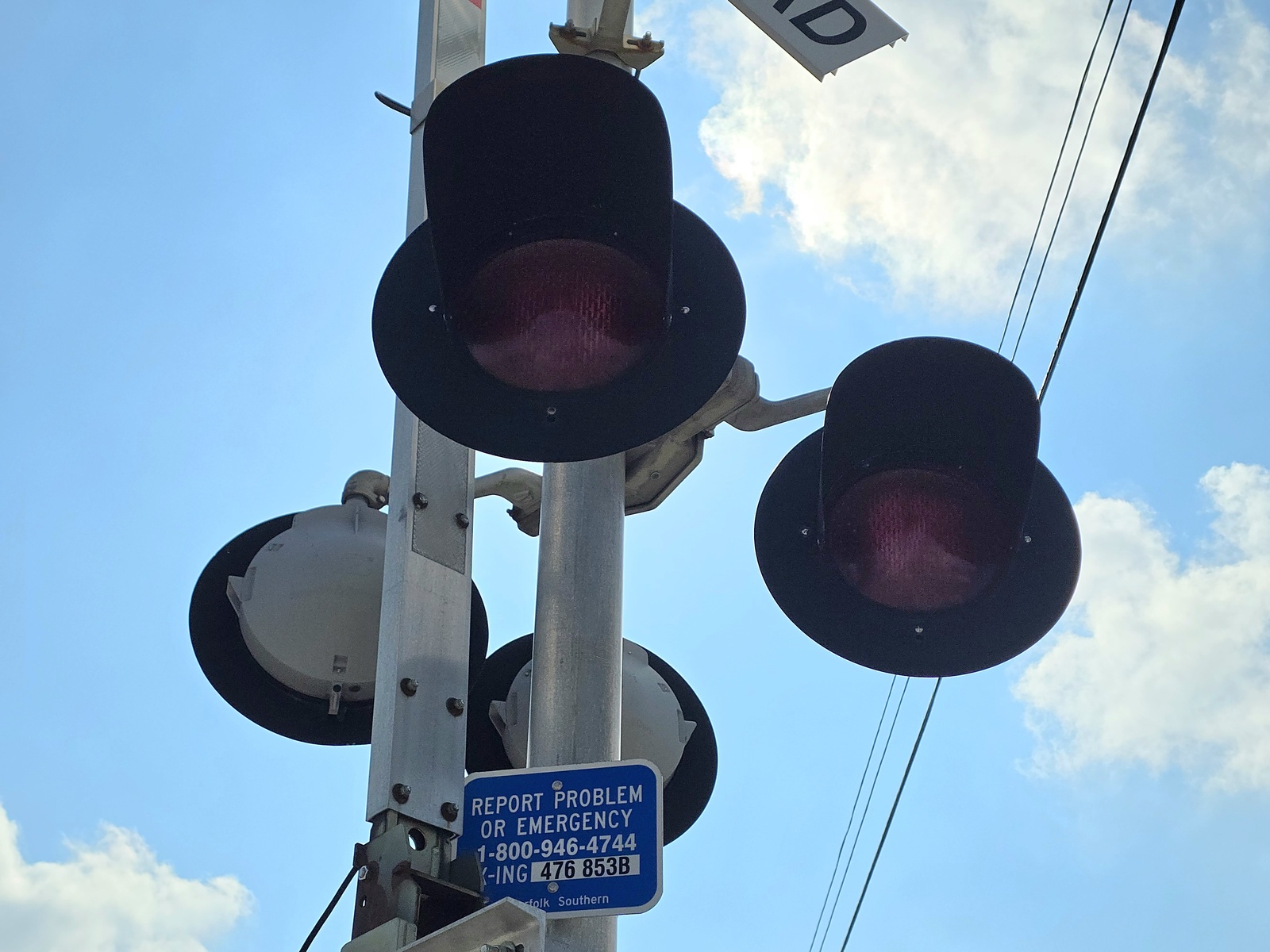

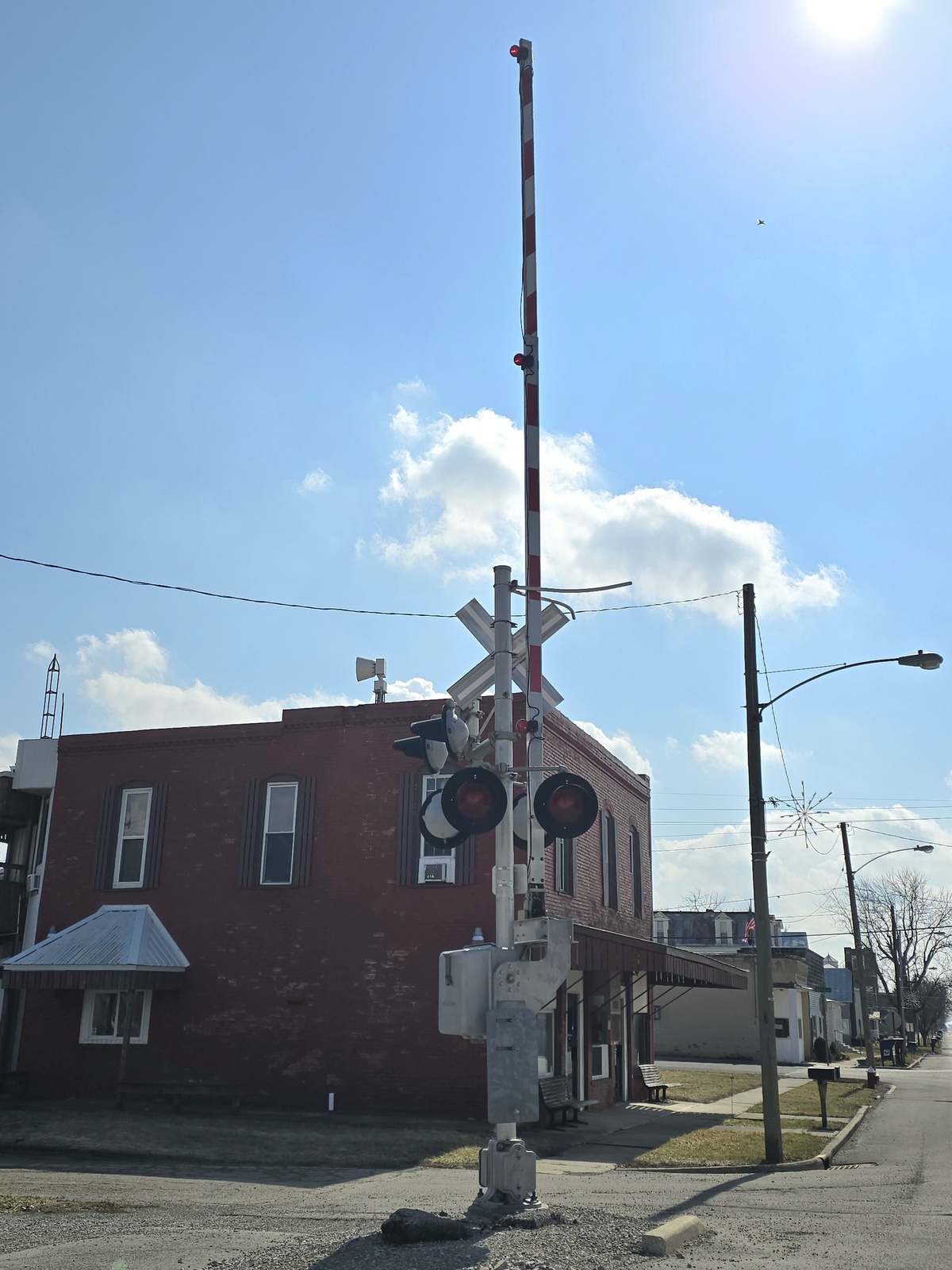

| The northern signal. | |||
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |

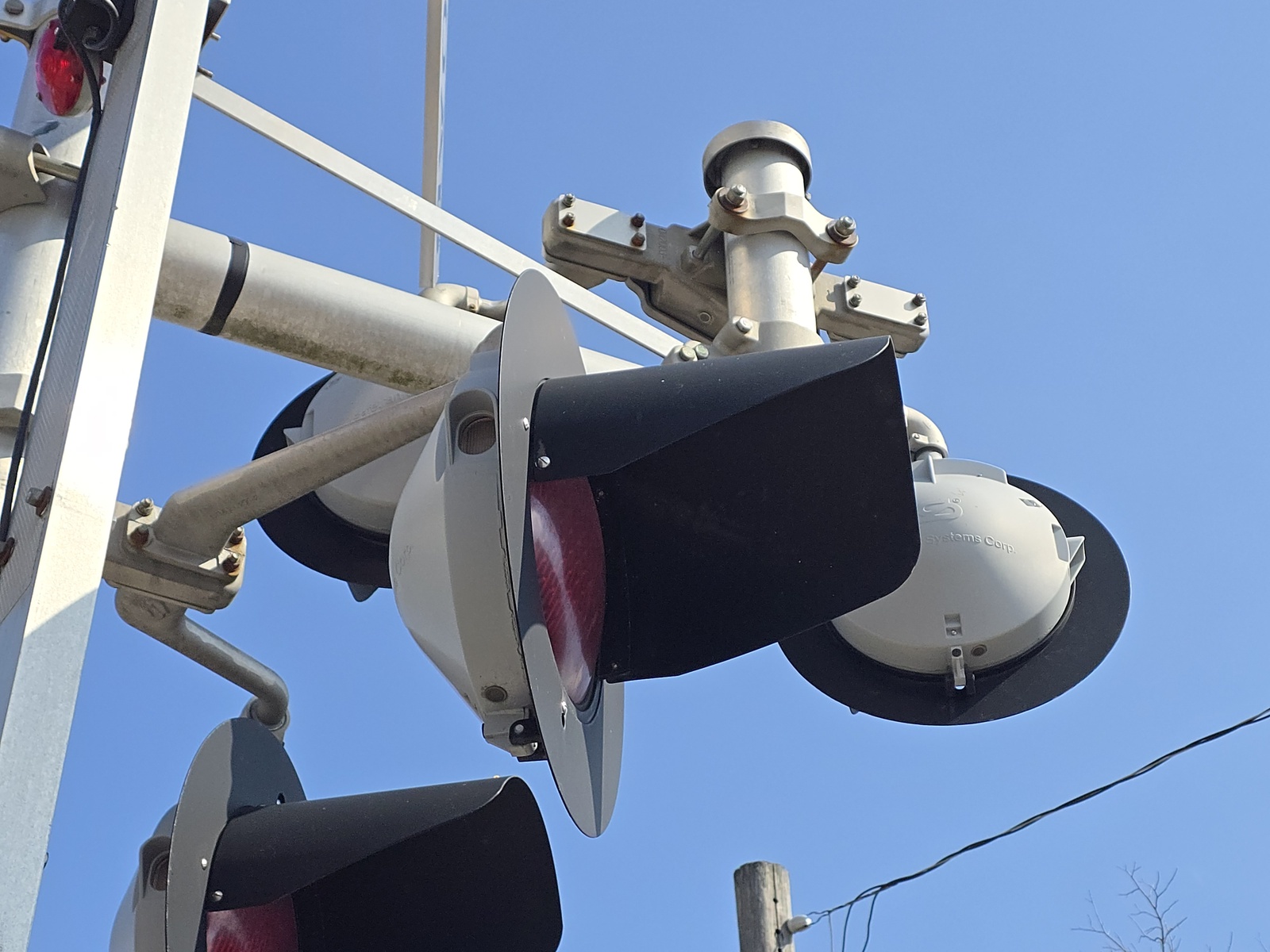

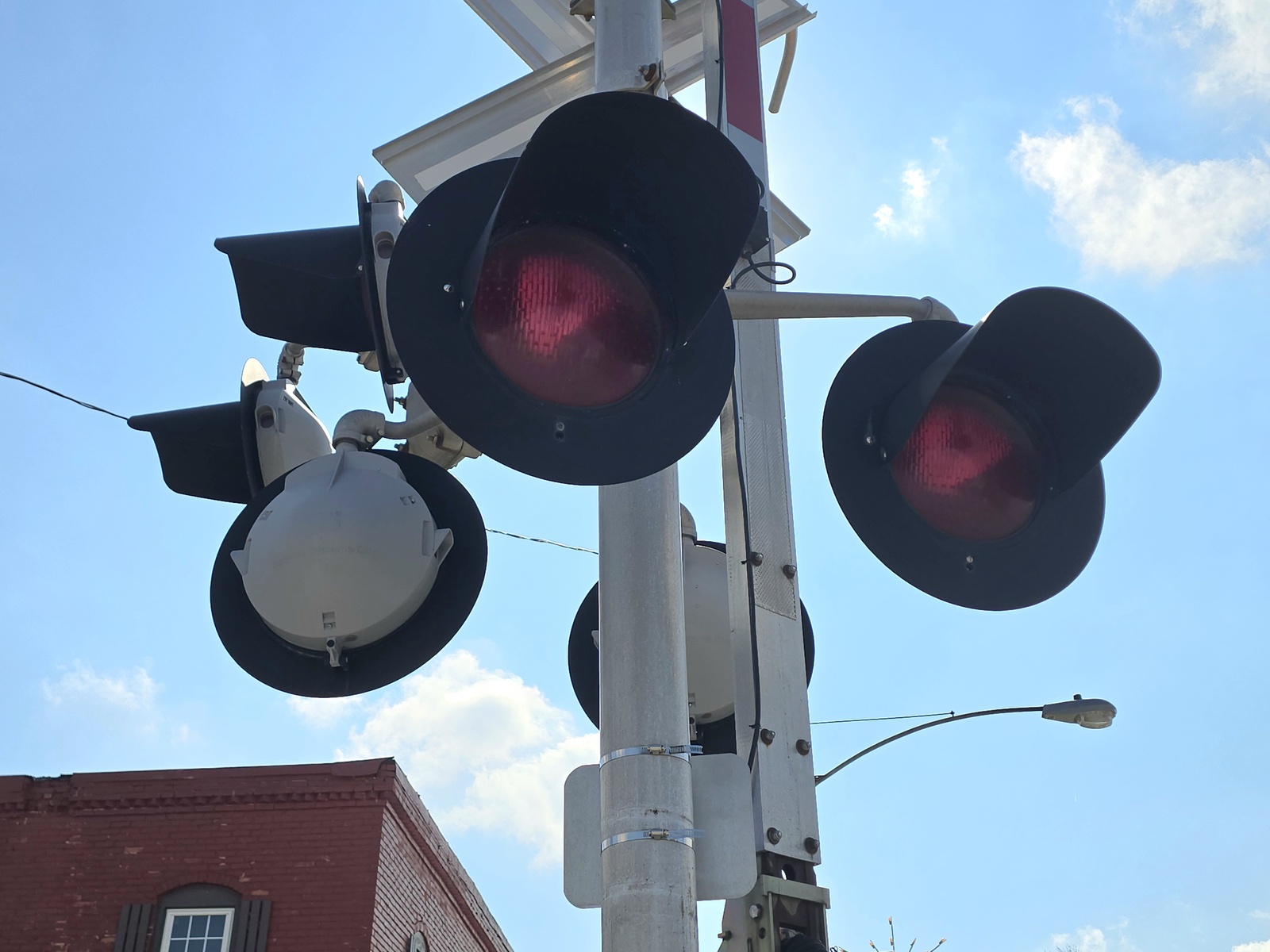

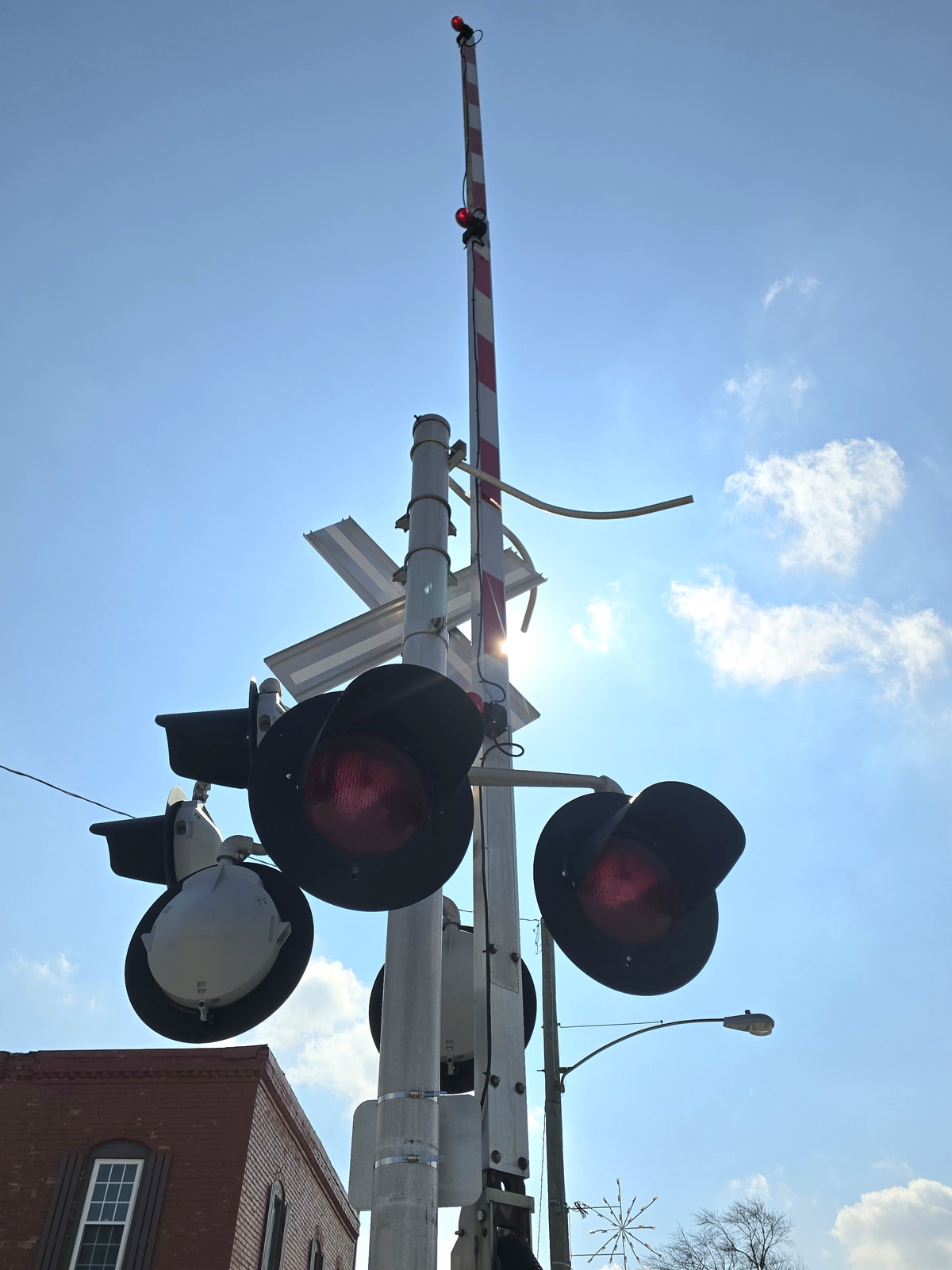

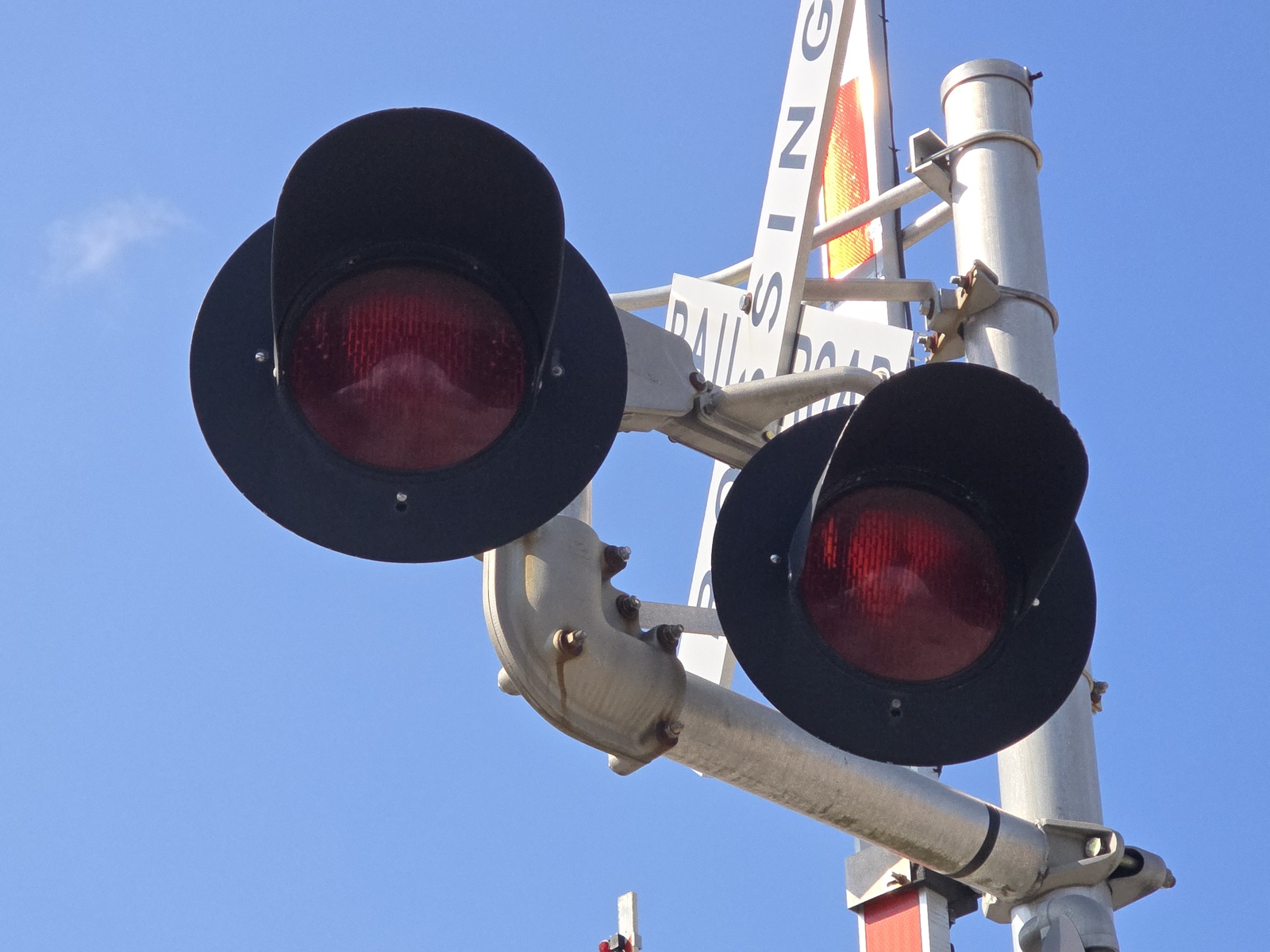

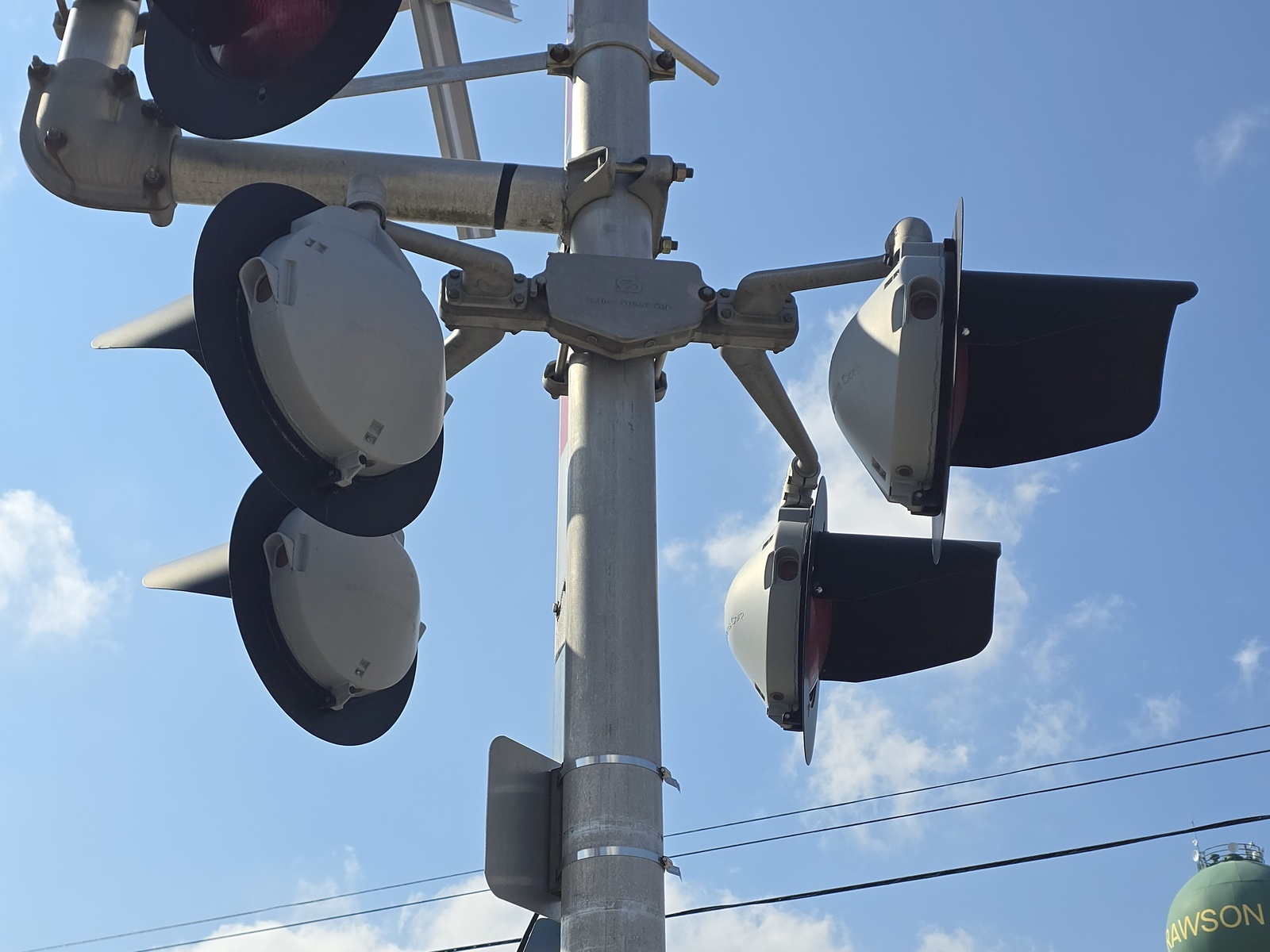

| The southern signal. |
23 |
24 |
25 |
26 |

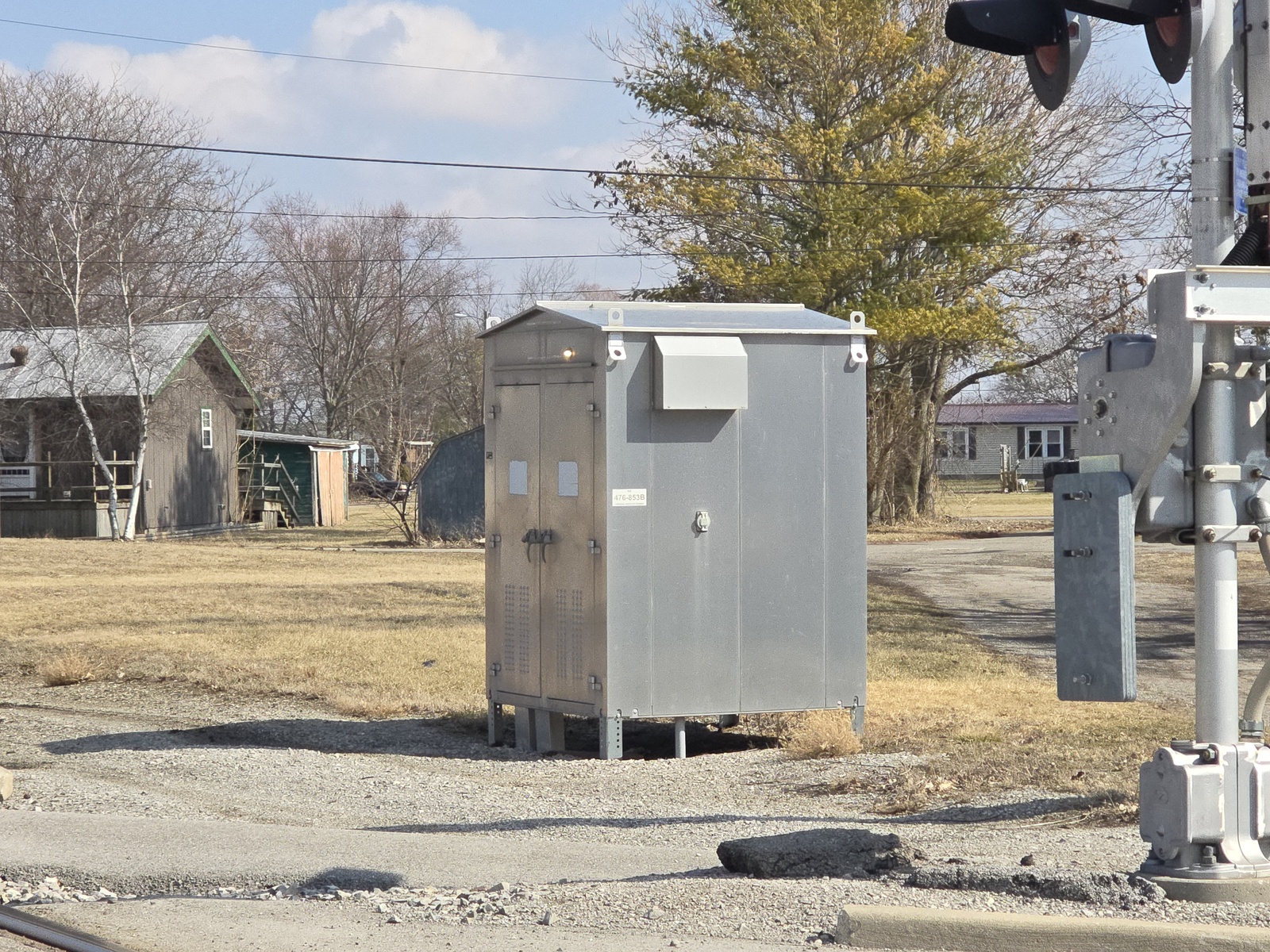

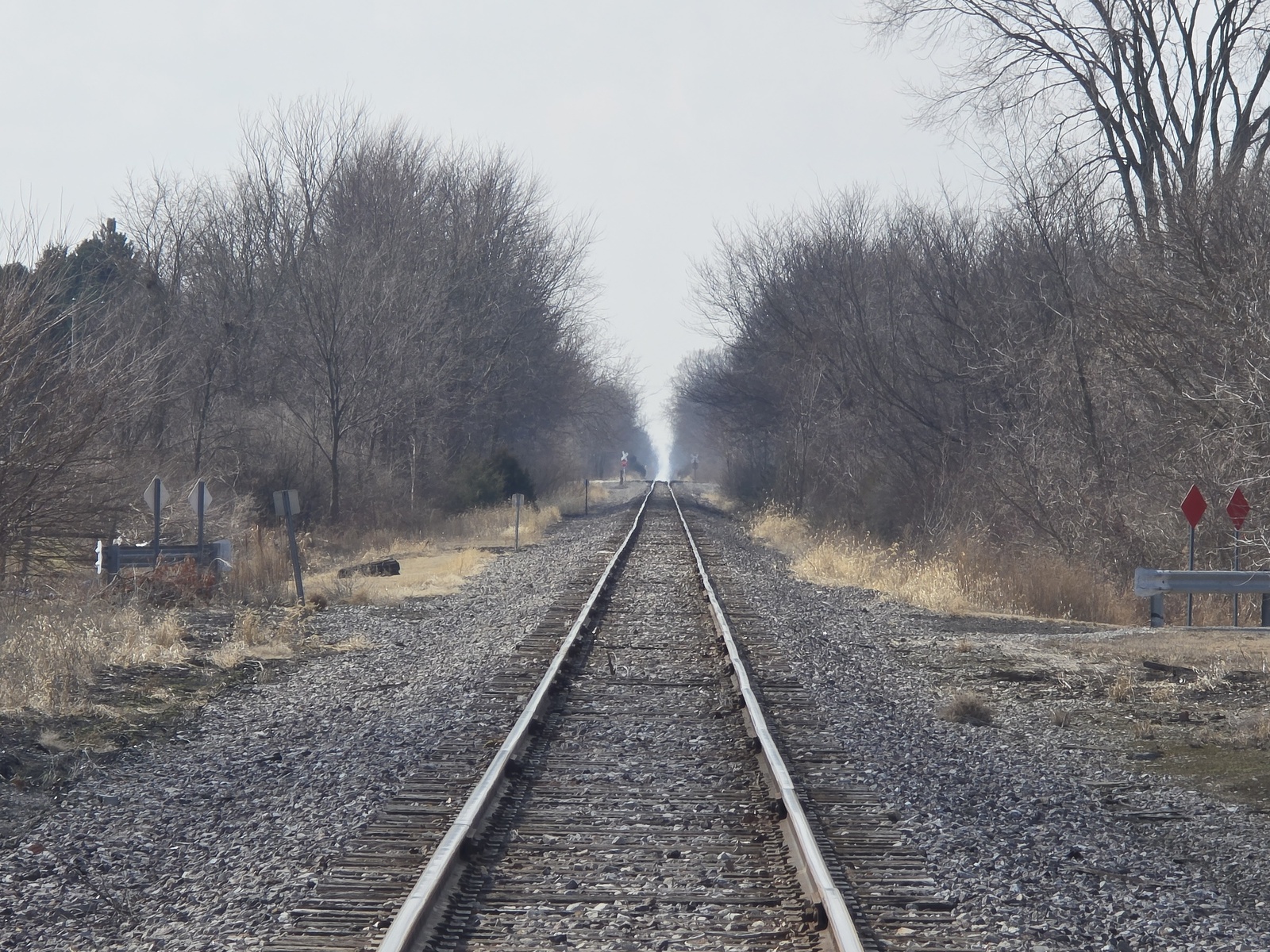

| The relay bungalow in the southeast quadrant. | This crossing's grade is made of rubber and asphalt. | Track view facing east towards Vance Street. | Track view facing west towards County Road 37. |
