MP: 84.60 |
Created November 2025
Total Accidents:
0

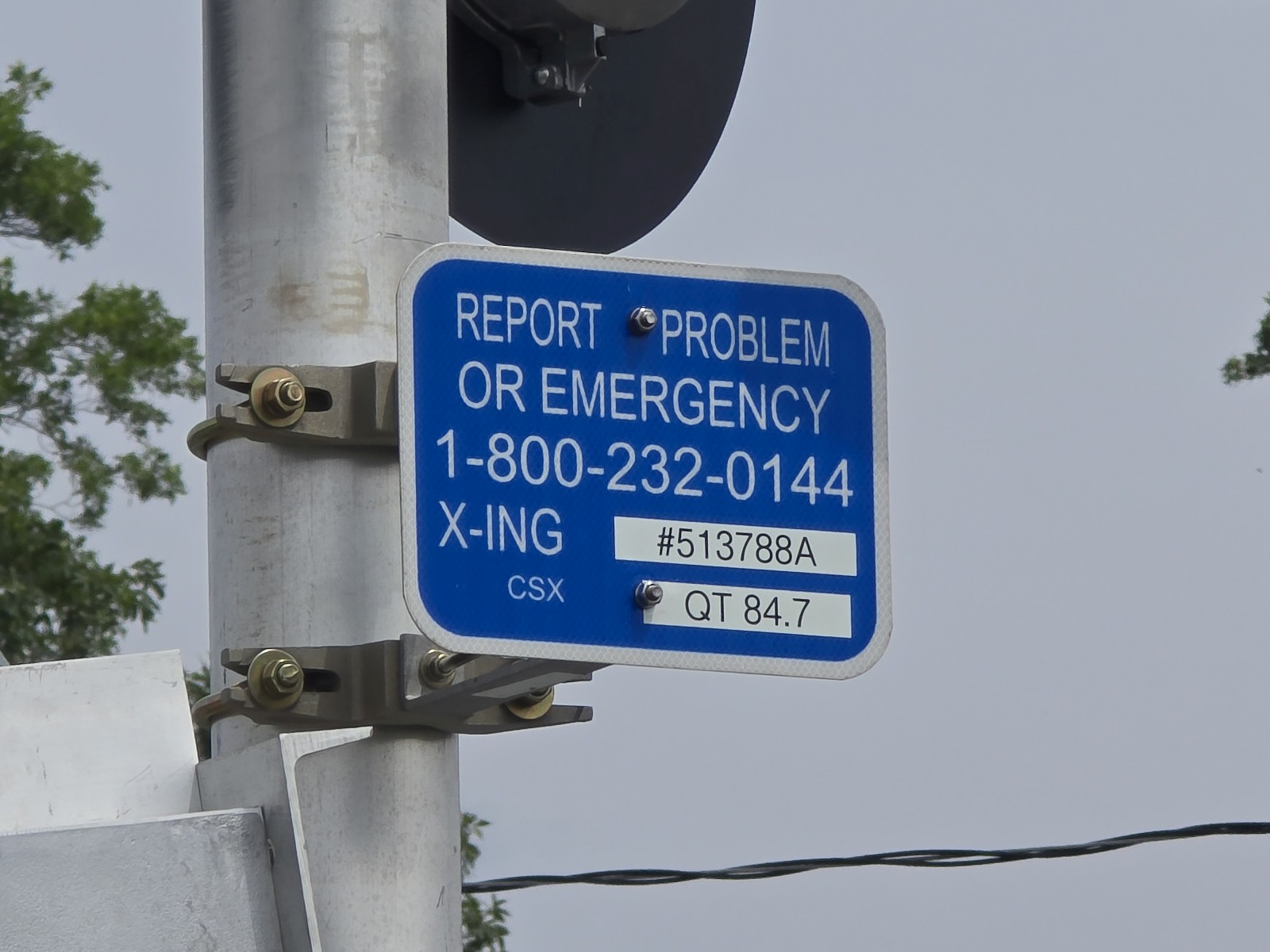

Crossing DOT #: 513788A
TOTAL DAILY
TRAINS: 7 (AS OF 2025)
| >>>>>>>>>>>>> | Western Signal |
Eastern Signal |

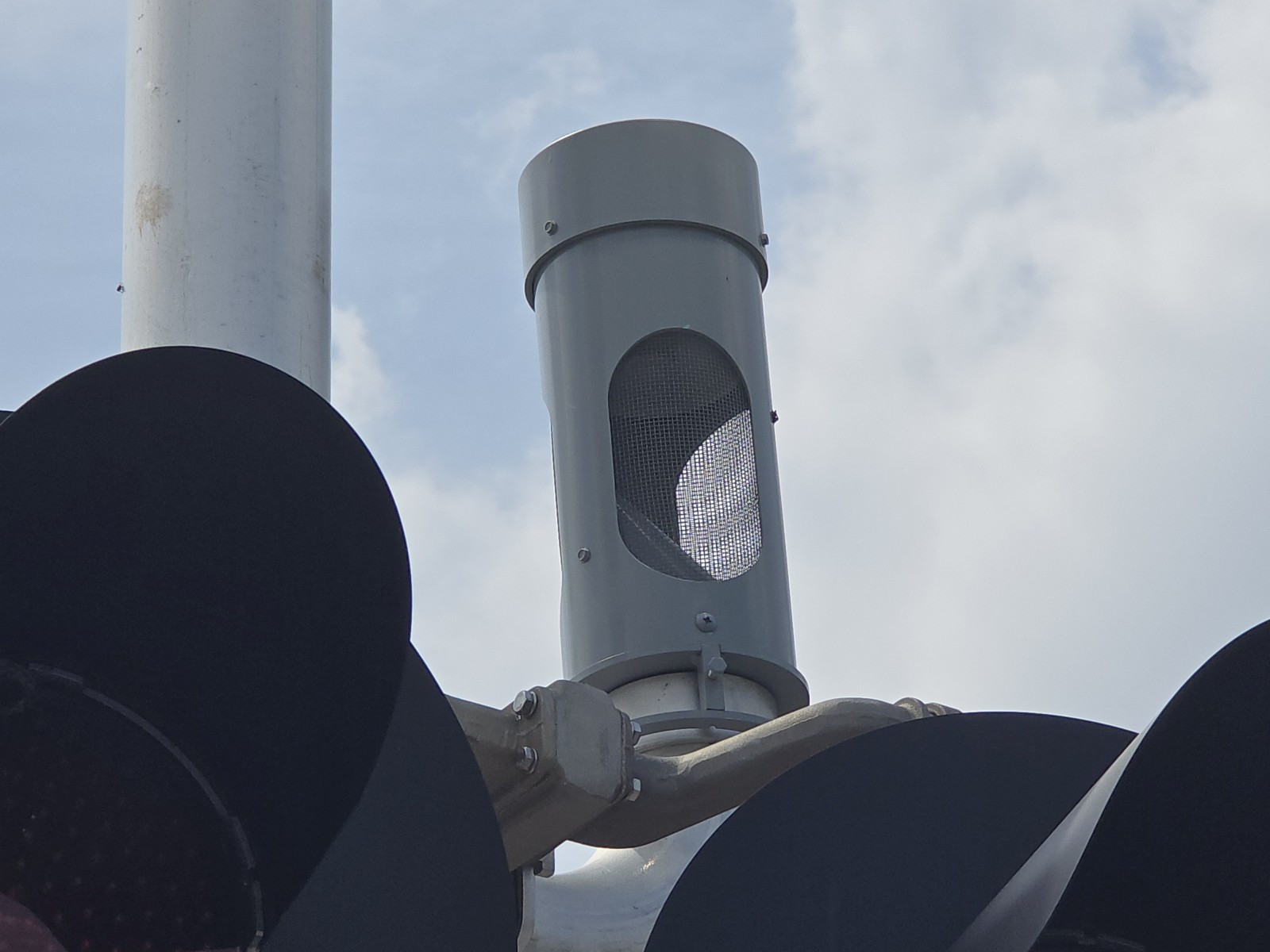

| Bell: | NEG E-Bell |
NEG E-Bell |
| Base: | WCH 5" Double Sided |
WCH 5" Double Sided |

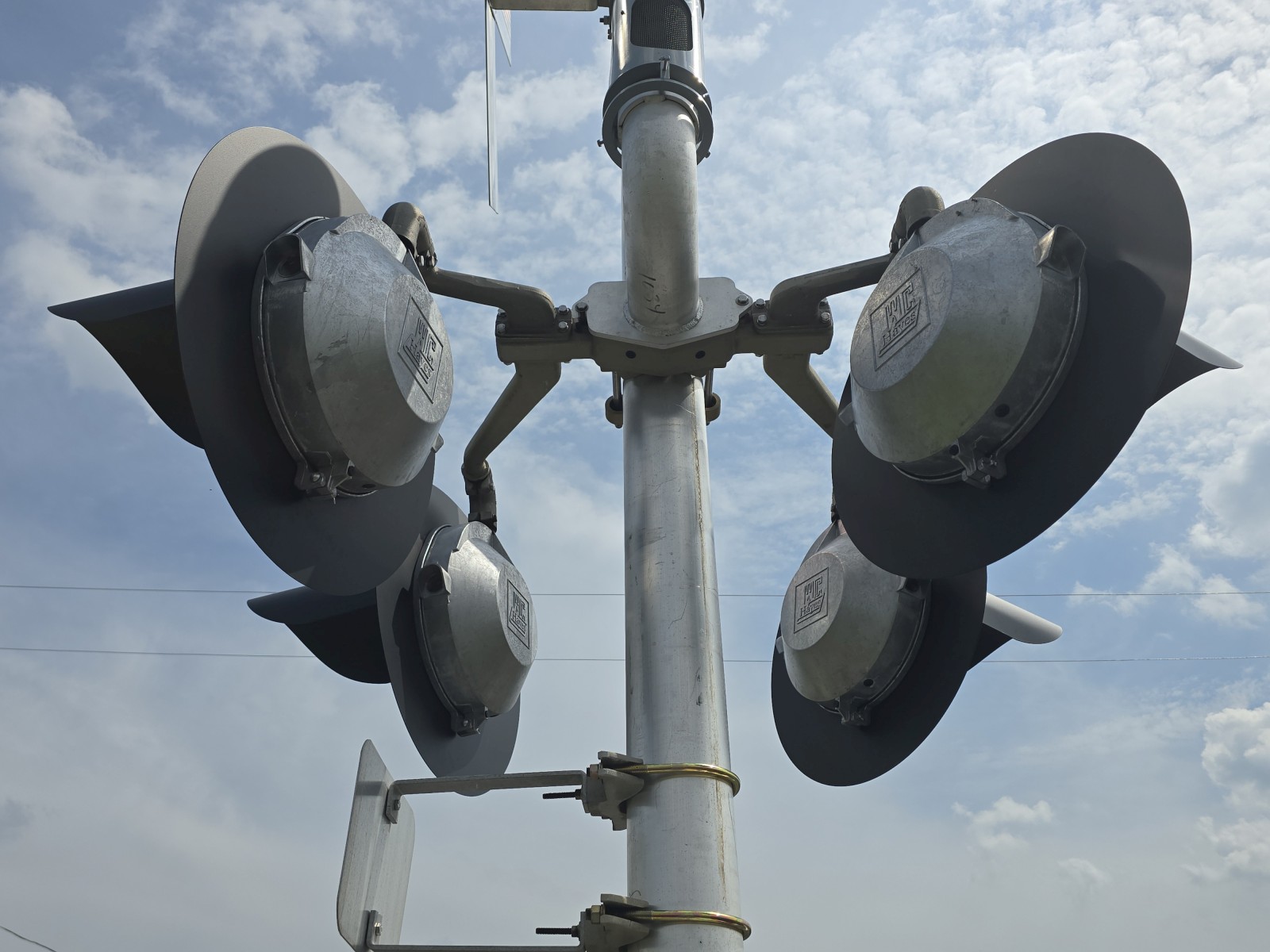

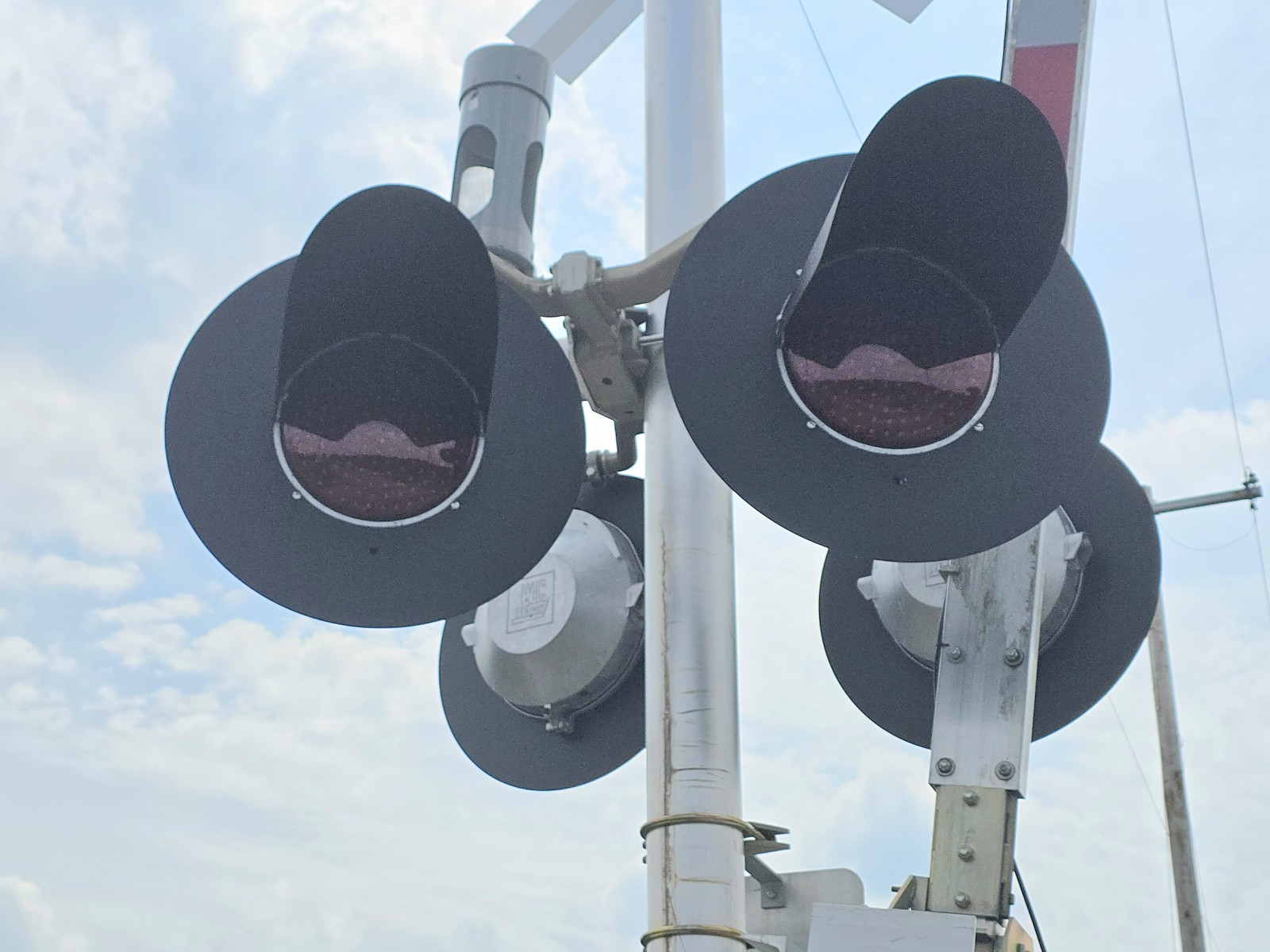

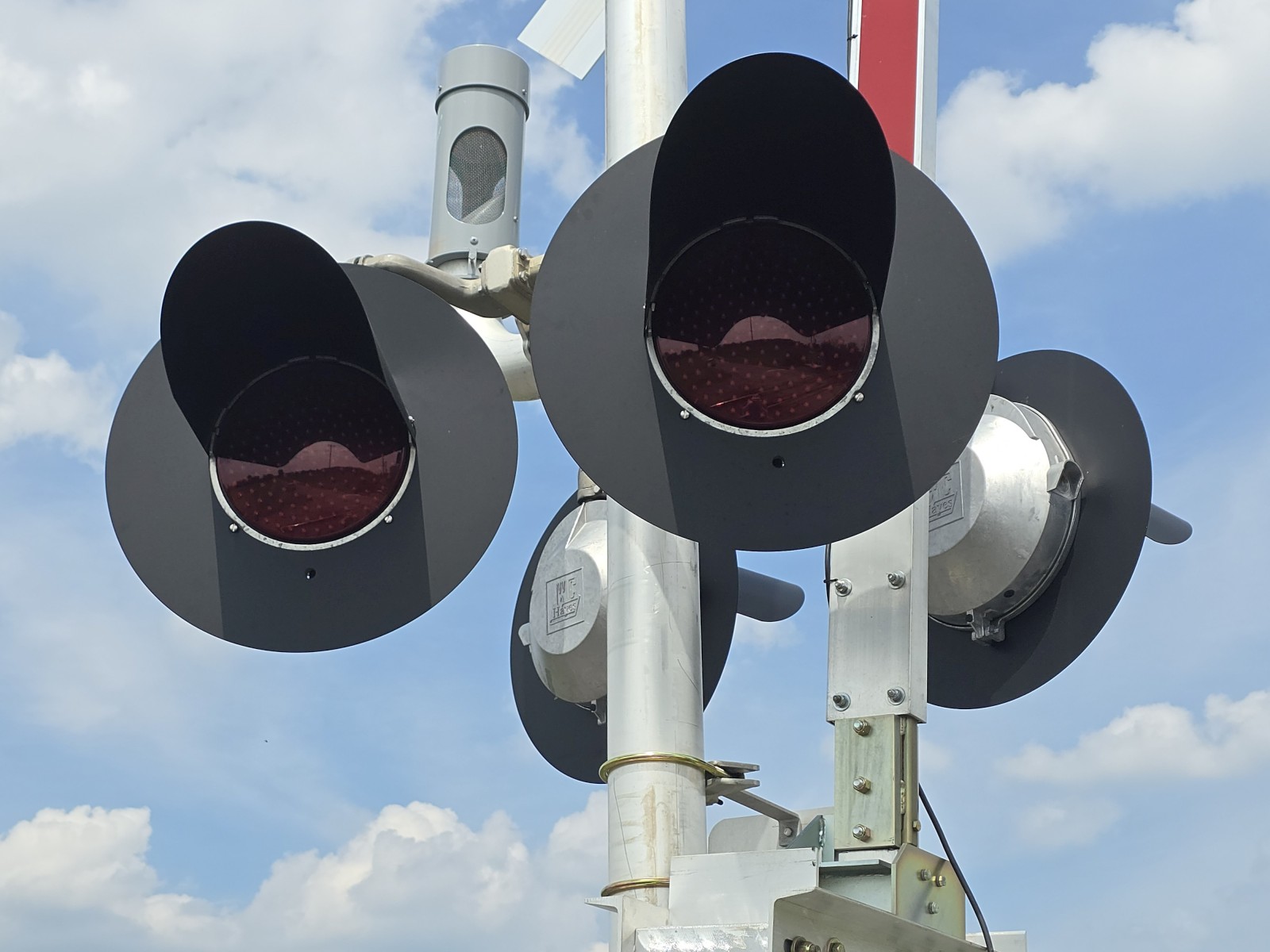

| Light Frames: | 4 - 12"x24" WCH Flatback w/ Leotek EV Series LEDs |
4 - 12"x24" WCH Flatback w/ Leotek EV Series LEDs |
| Light
Brackets: |
WCH |
WCH |
| Gate Lights: | 3 - NEG 4" LEDs |
3 - NEG 4" LEDs |

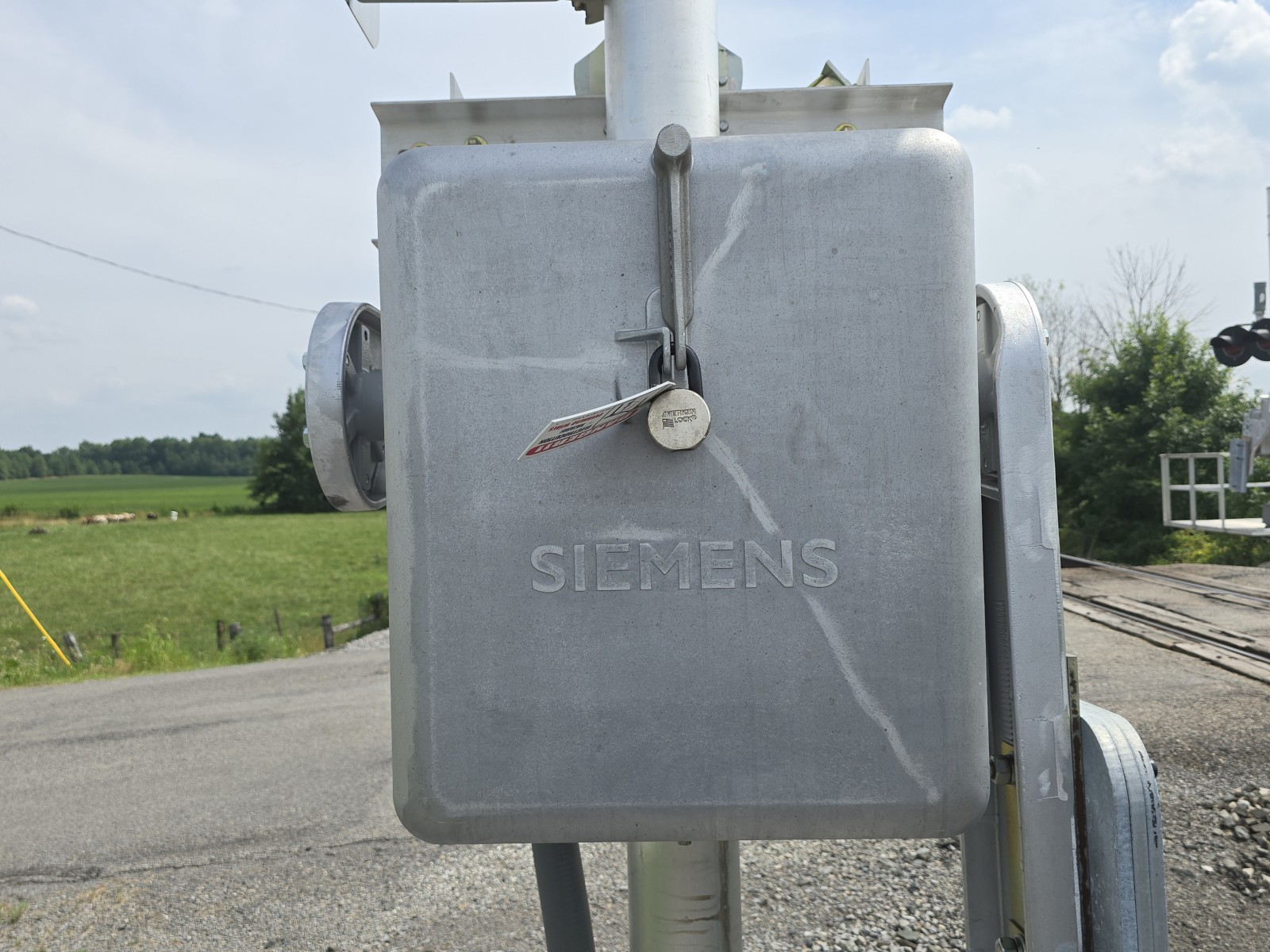

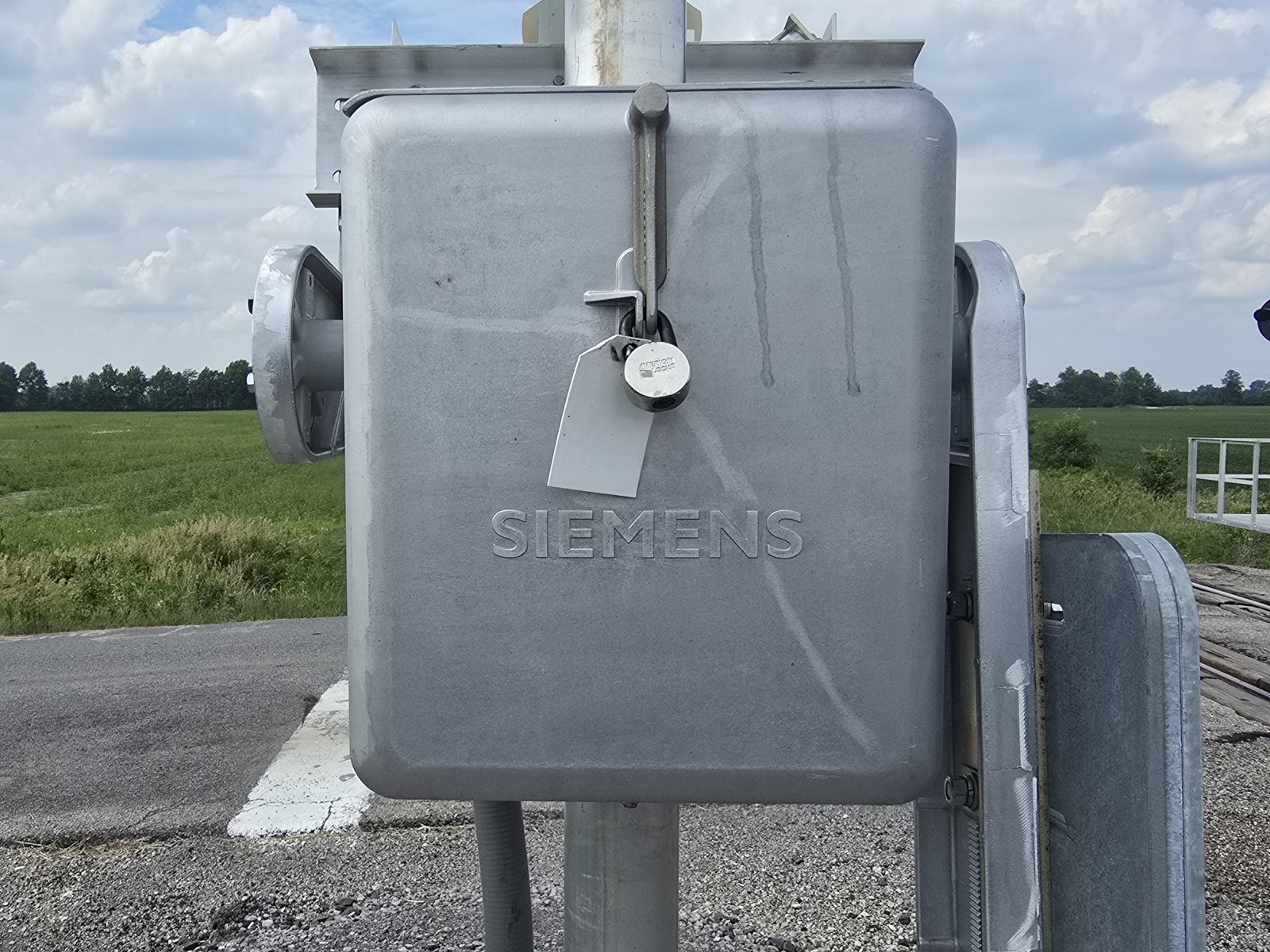

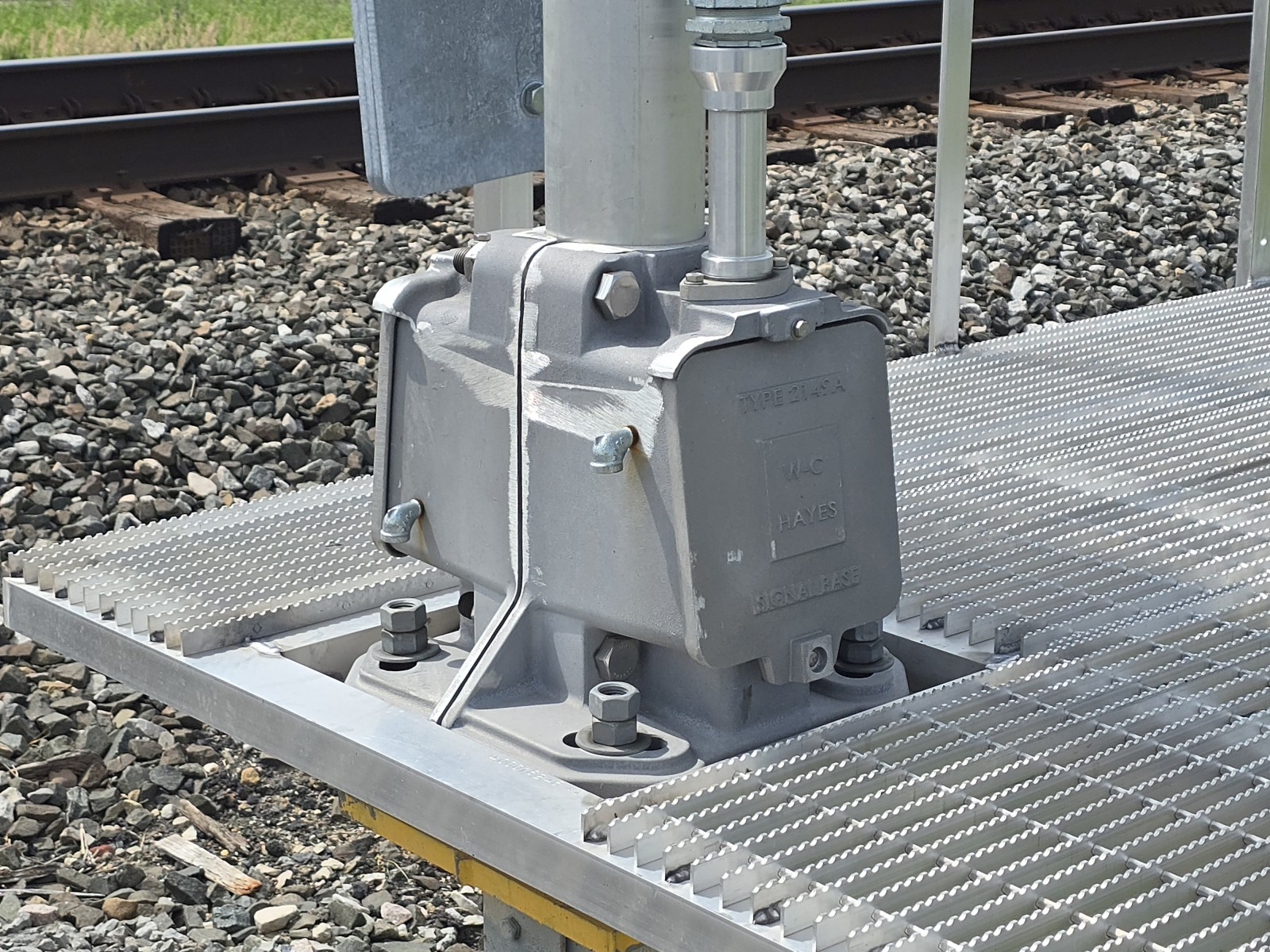

| Gate Mechanism: | Siemens Imprinted w/ NEG 2 Way Saver |
Siemens Imprinted w/ NEG 2 Way Saver |
| Gate Striping: | Vertical Striping |
Vertical Striping |
Page created by: Sir Fluent
The video was taken on April 26, 2025, by Nicholas Miles/Northwestern Ohio Rail Productions.
Pictures 1-26 were taken on July 9, 2025, by Nicholas Miles/Northwestern Ohio Rail Productions.
This crossing is located on the CSX Scottslawn Secondary Subdivision.
These signals were installed in 2024 replacing a pair of crossbucks.
|
1 |
2 |
|

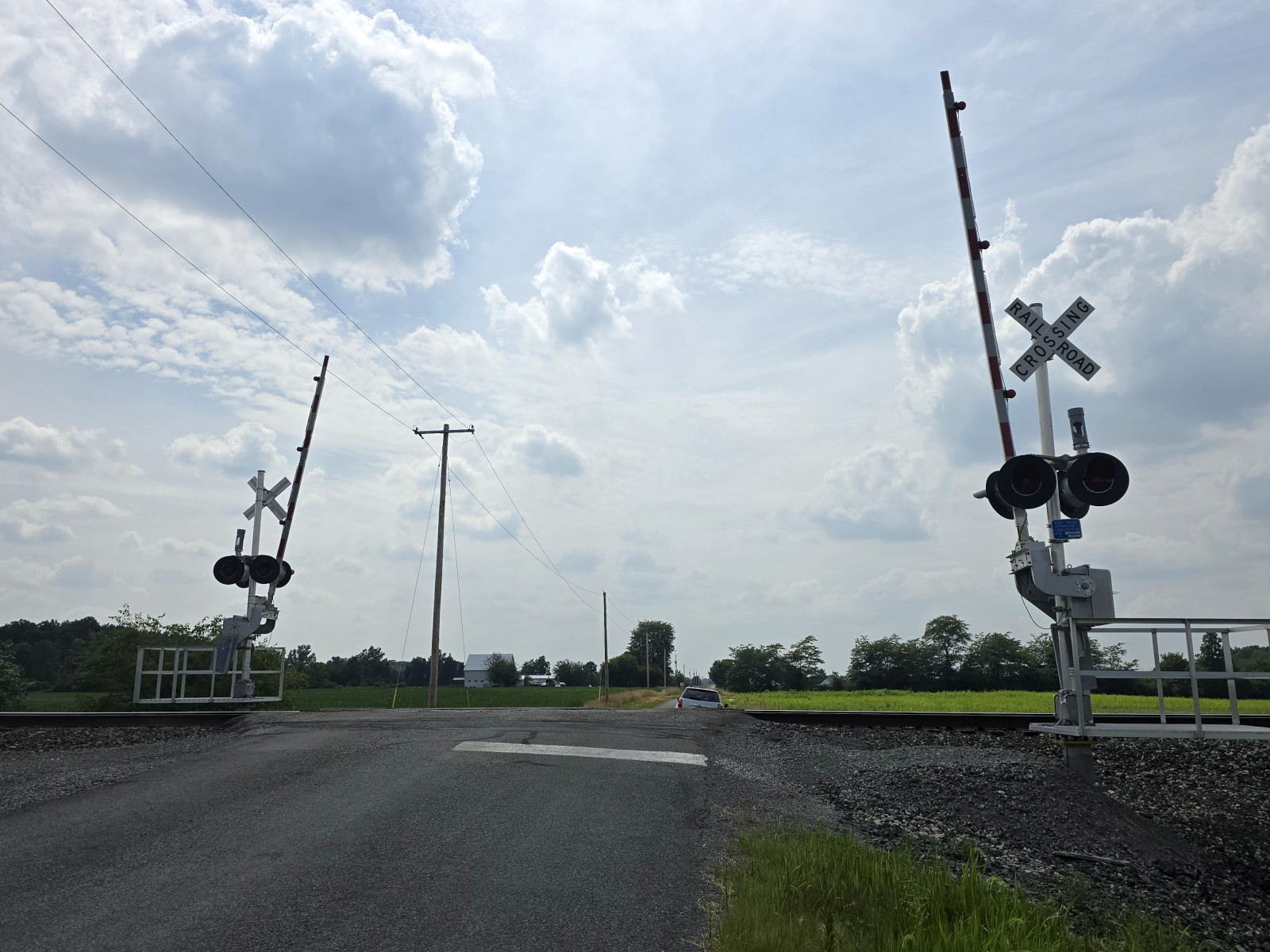

Overview of 2 newer gated signals facing west.
| Overview facing east. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|
The eastern signal.
|
|||
|
13 |
14 |
|
15 |
16 |
17 |
18 |
|
19 |
20 |
21 |
|
|
The western signal.
|
|||
|
22 |
23 |
24 |
25 |
|
The relay bungalow.
|

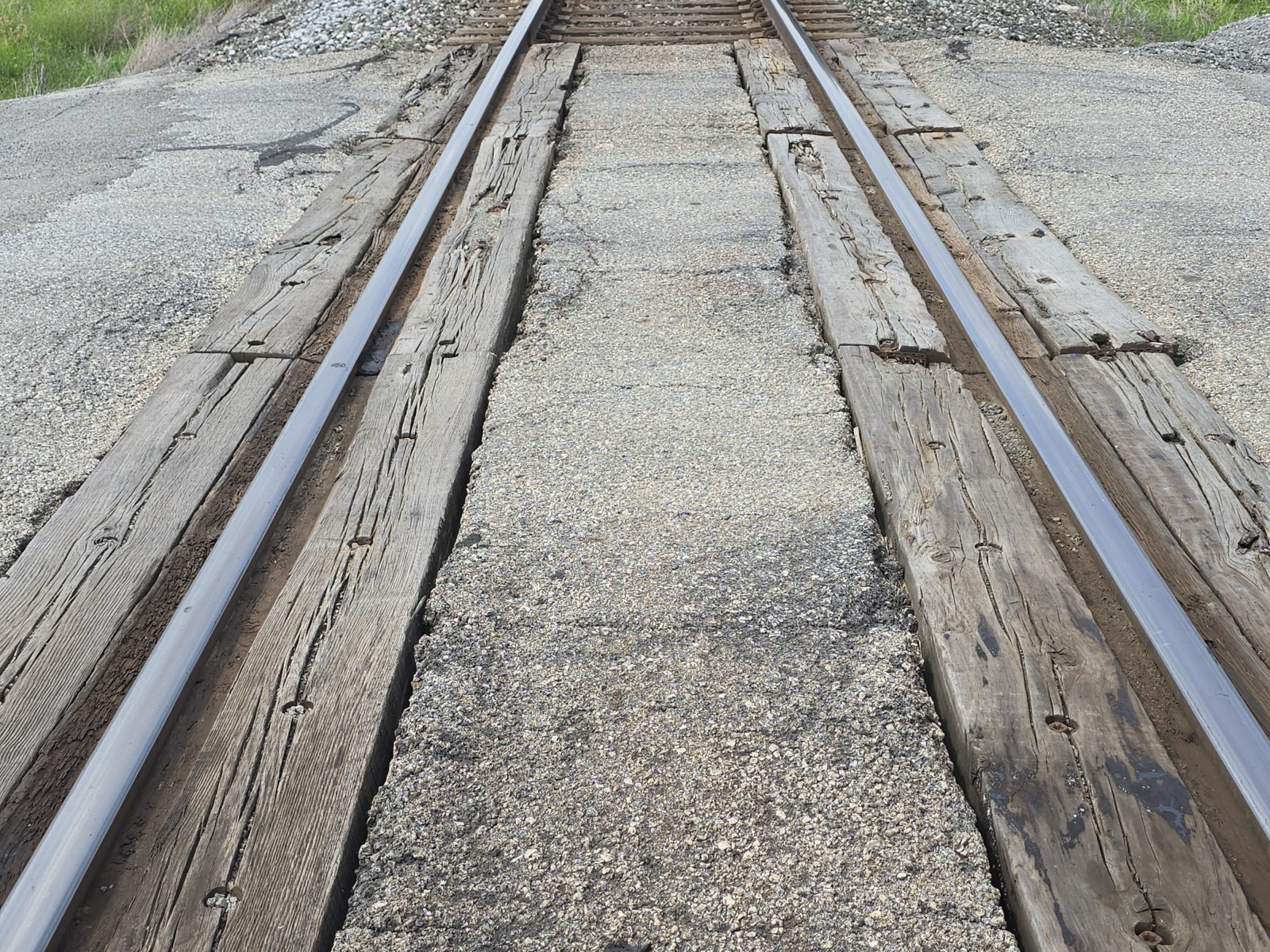

This crossing's grade is made of wood. |

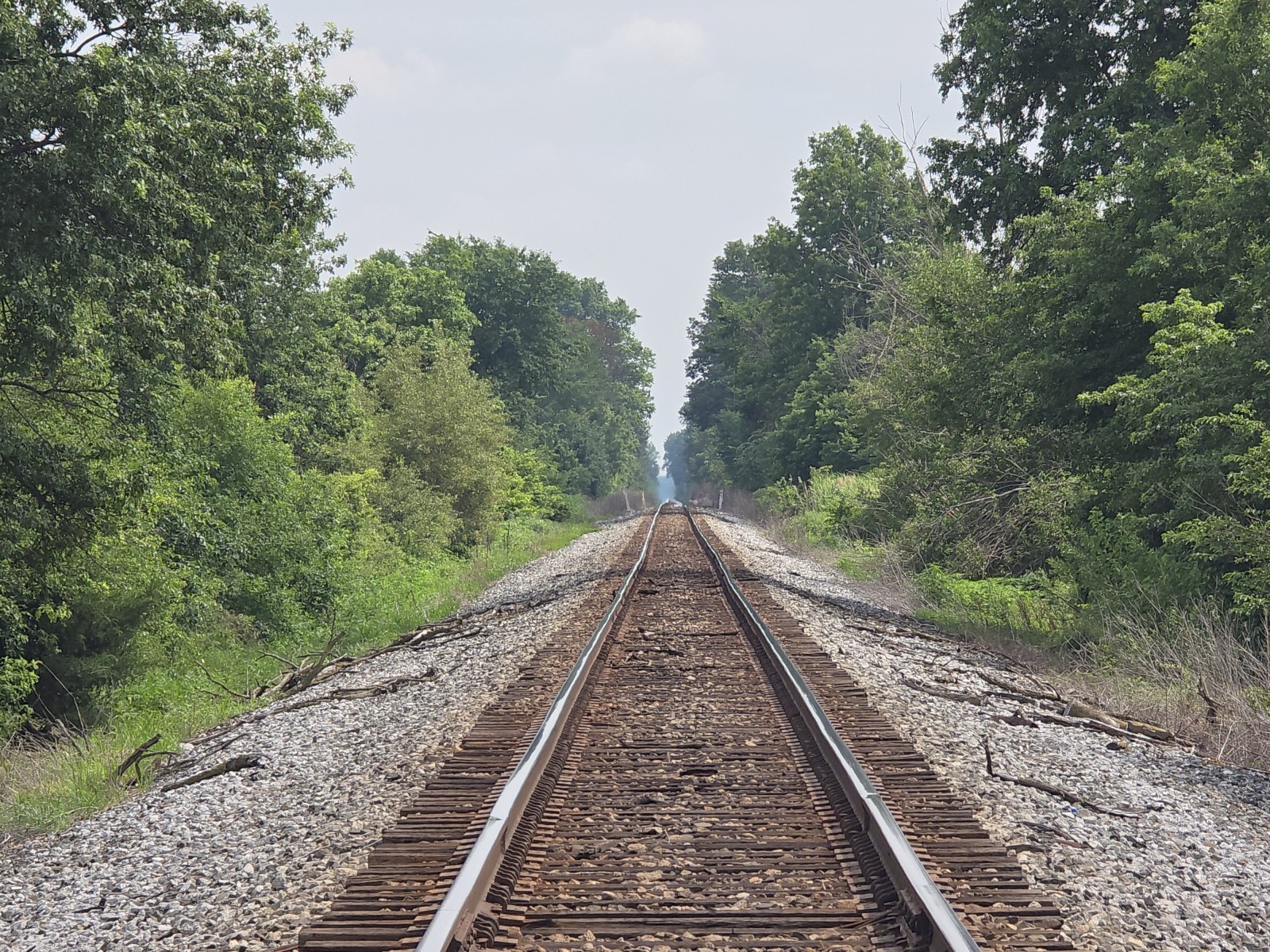

Track view facing north towards CR 117. |
Track view facing south towards CR 20 in West Mansfield. |
|
26 |
| A newer wayside signal stands near the crossing. |
