| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS E Bell | None |

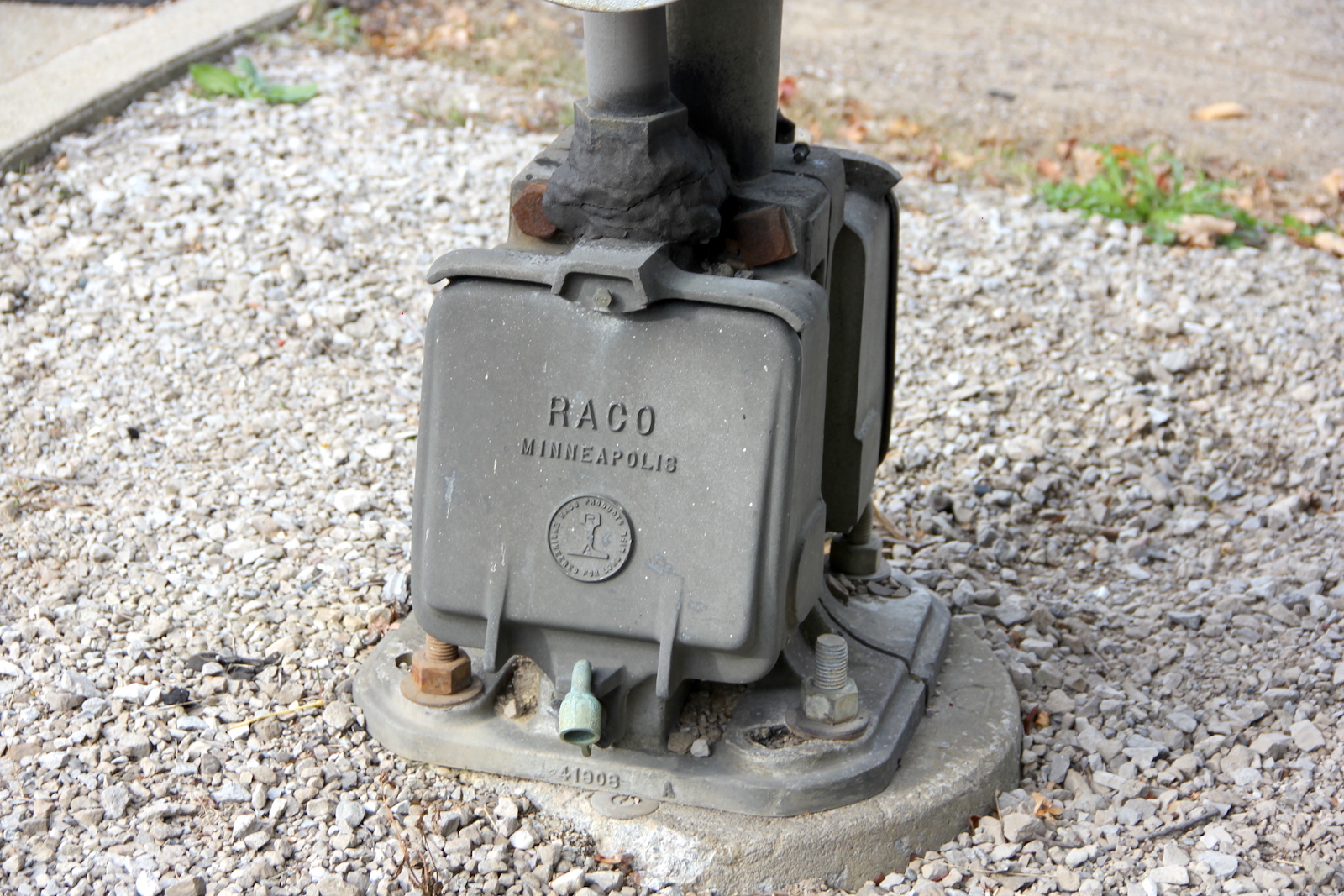

| Base: | Safetran 5" Double Sided ^ | RACO 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 2 - 4" NEG incandescents 1 - 4" Safetran incandescent |
4" NEG incandescents |

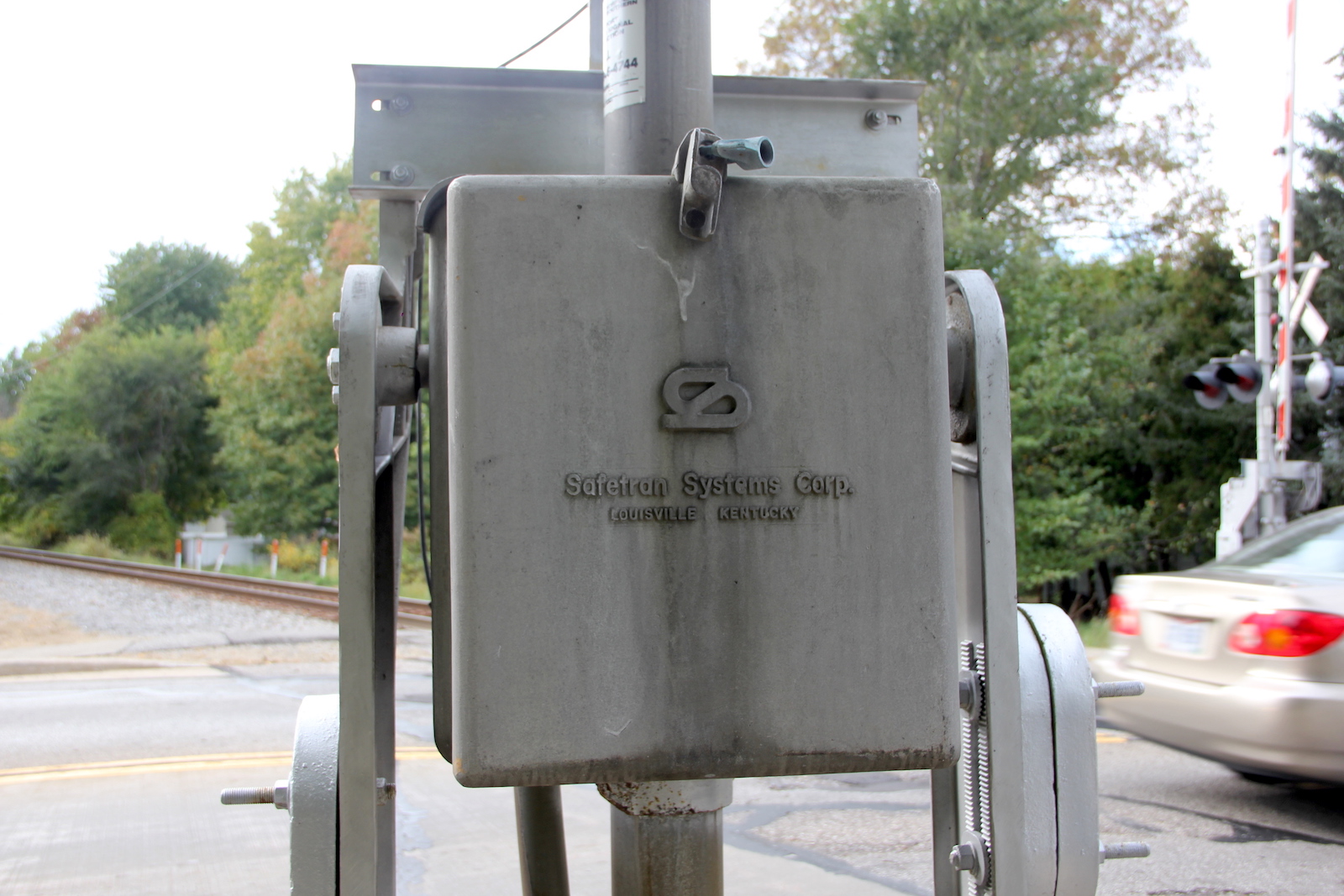

| Gate Mechanism: | Safetran 2000s w/ Standard Mount | Safetran Early 1970s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

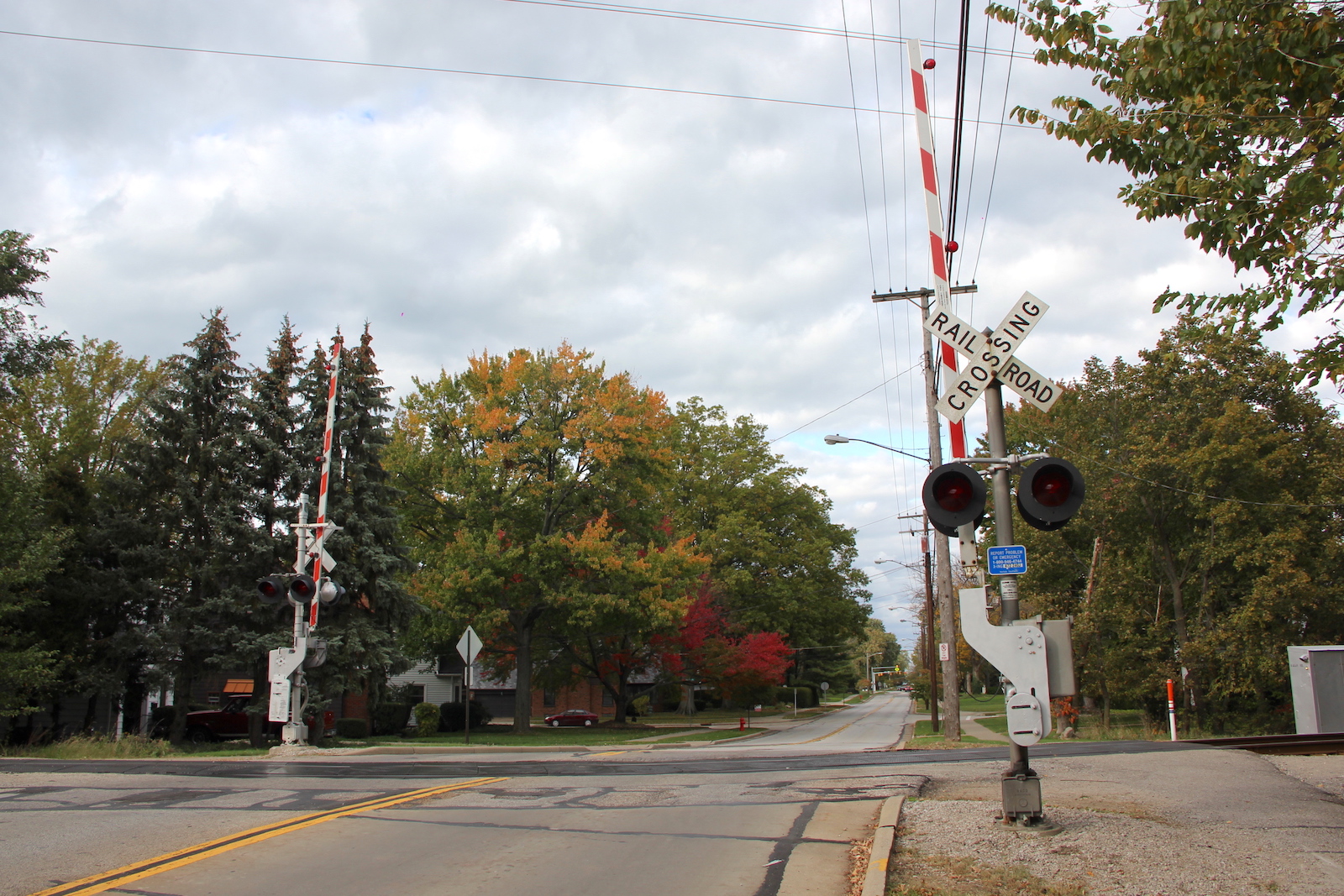

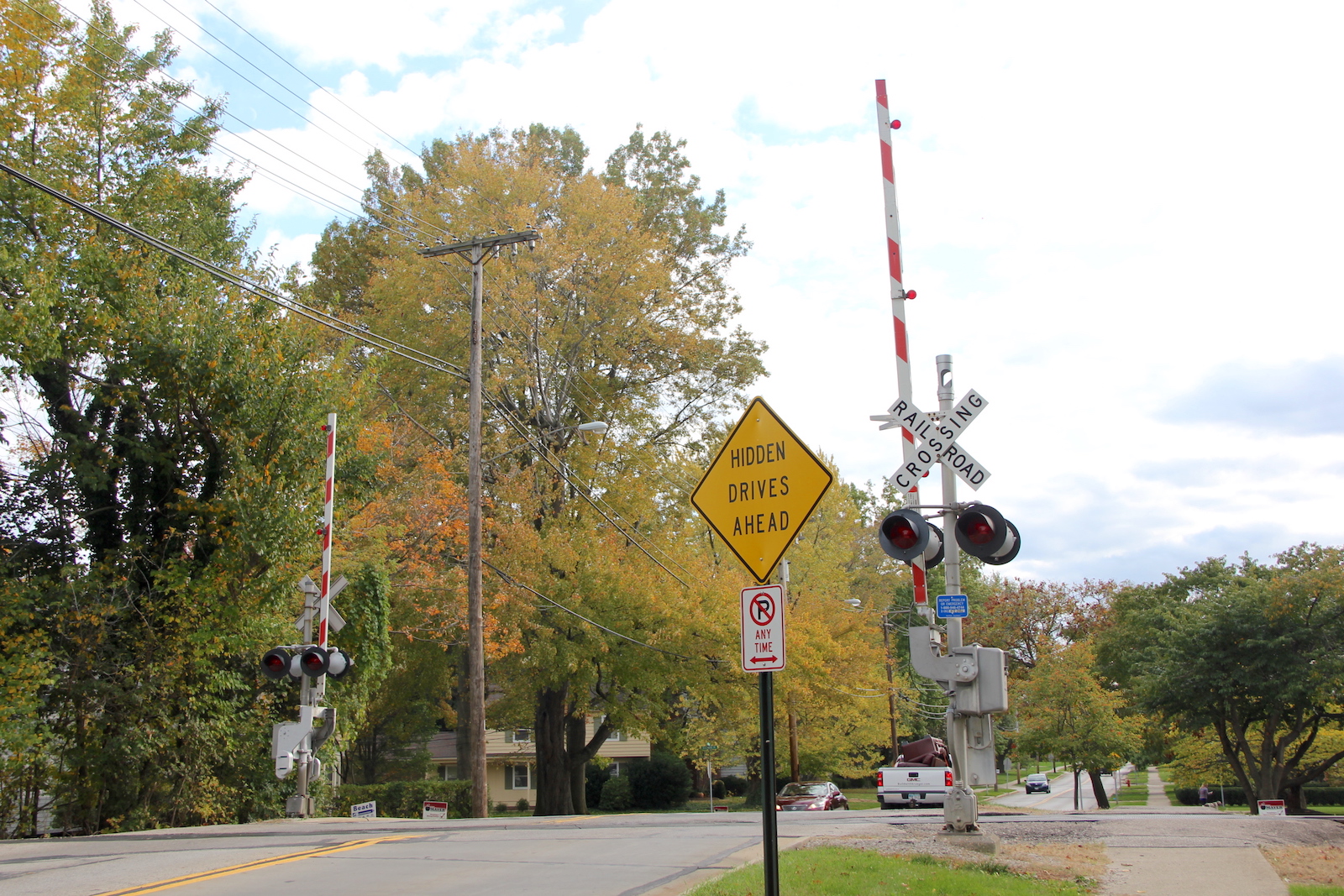

| Overview of 2 gated signals facing north. |
Overview facing south. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

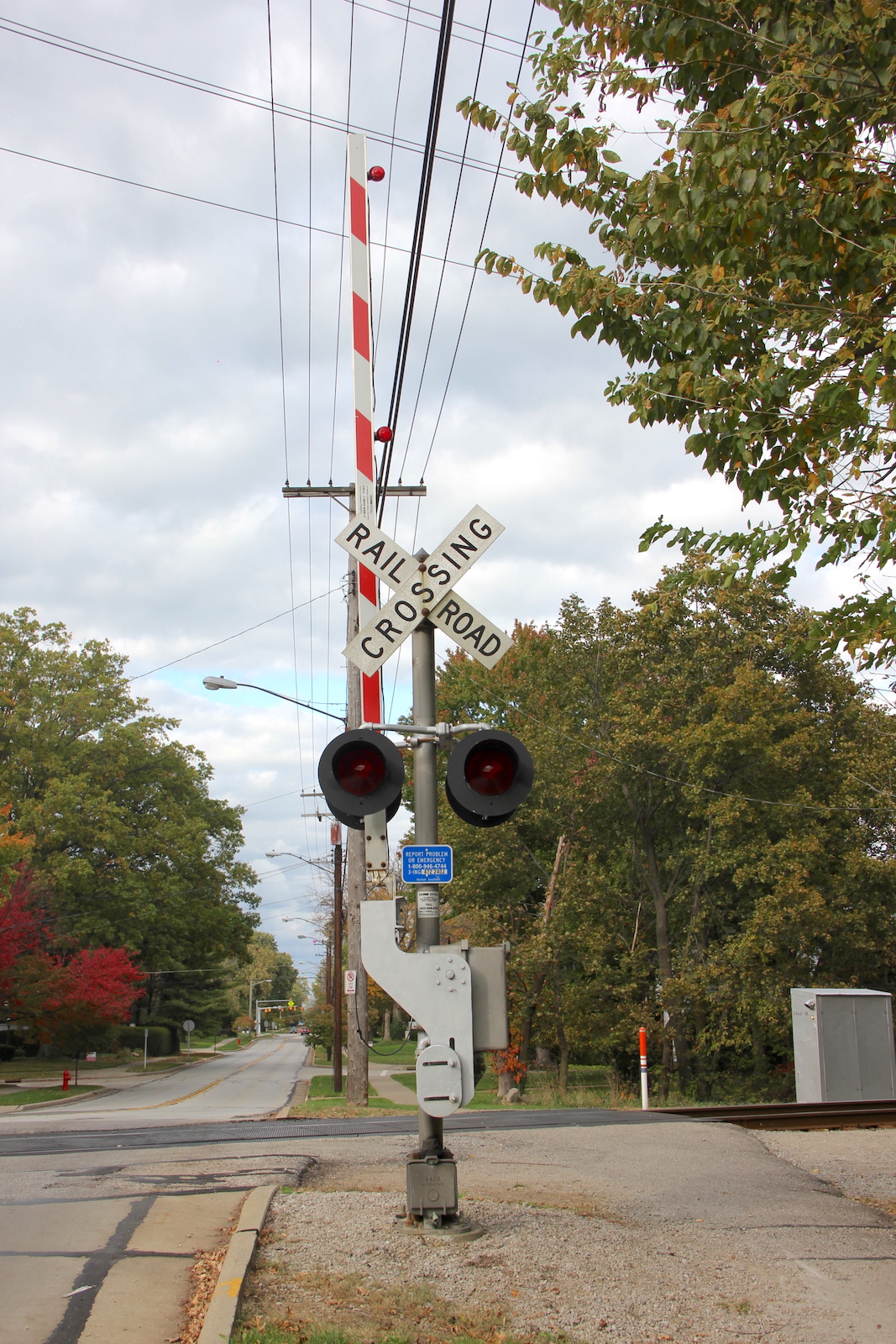

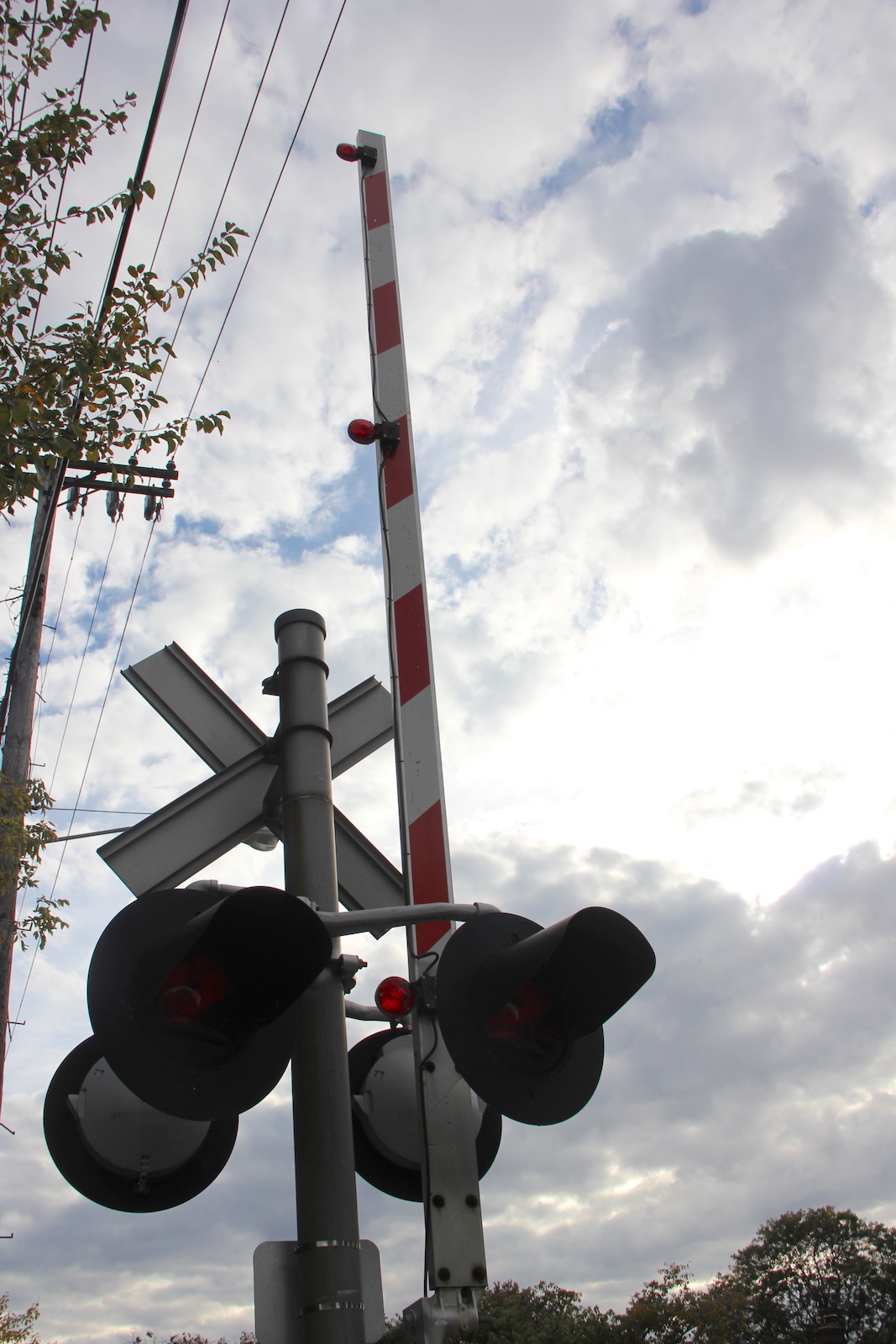

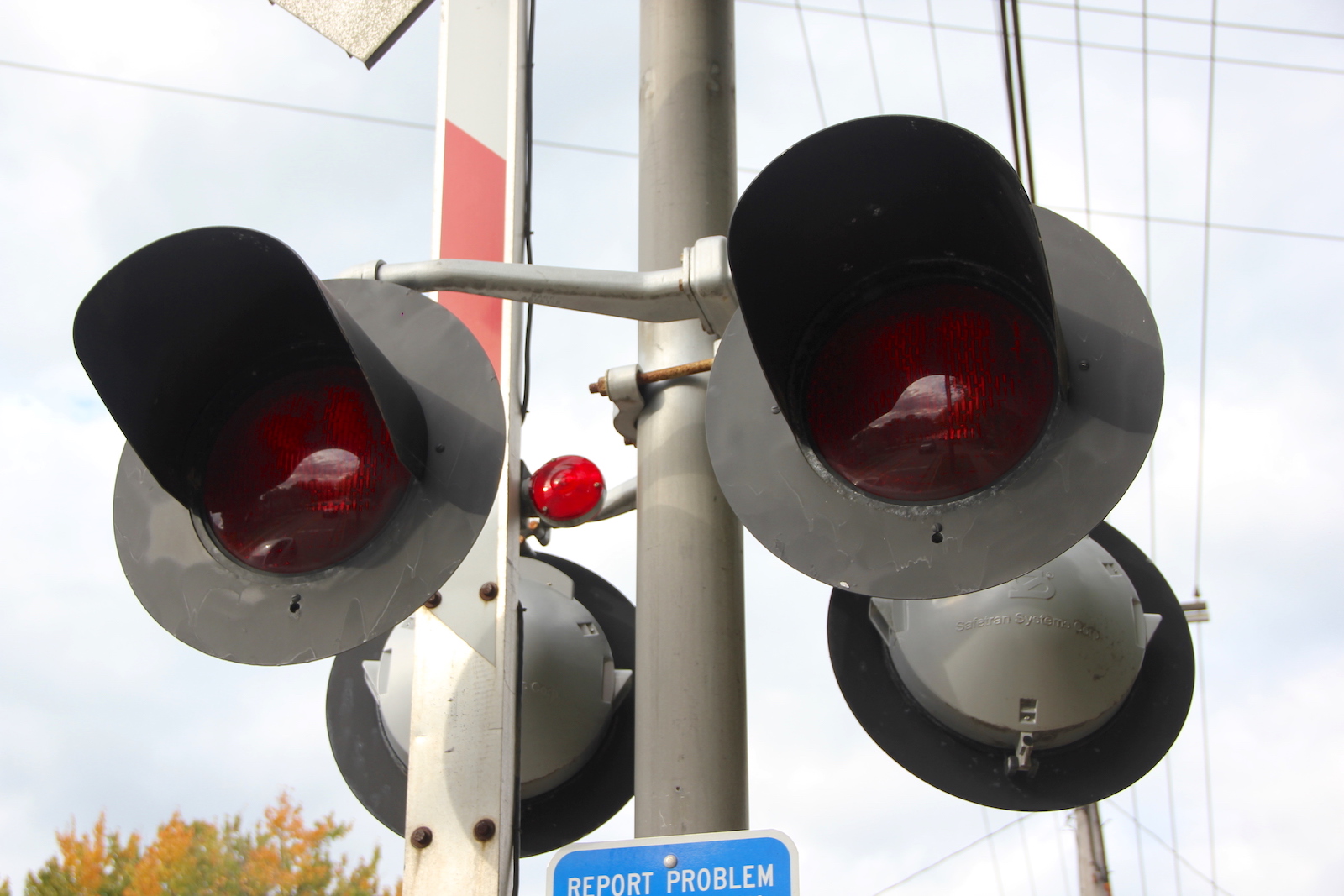

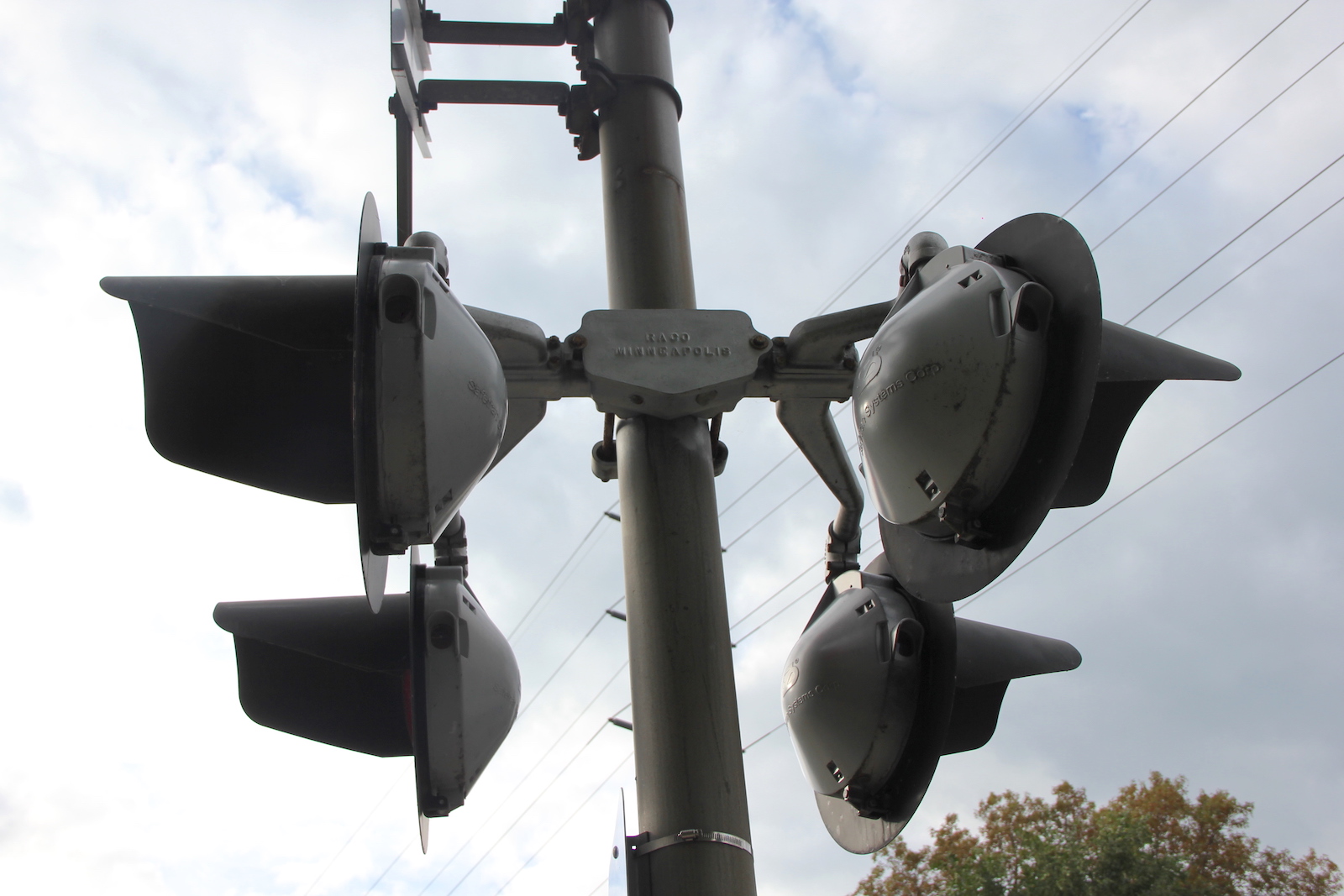

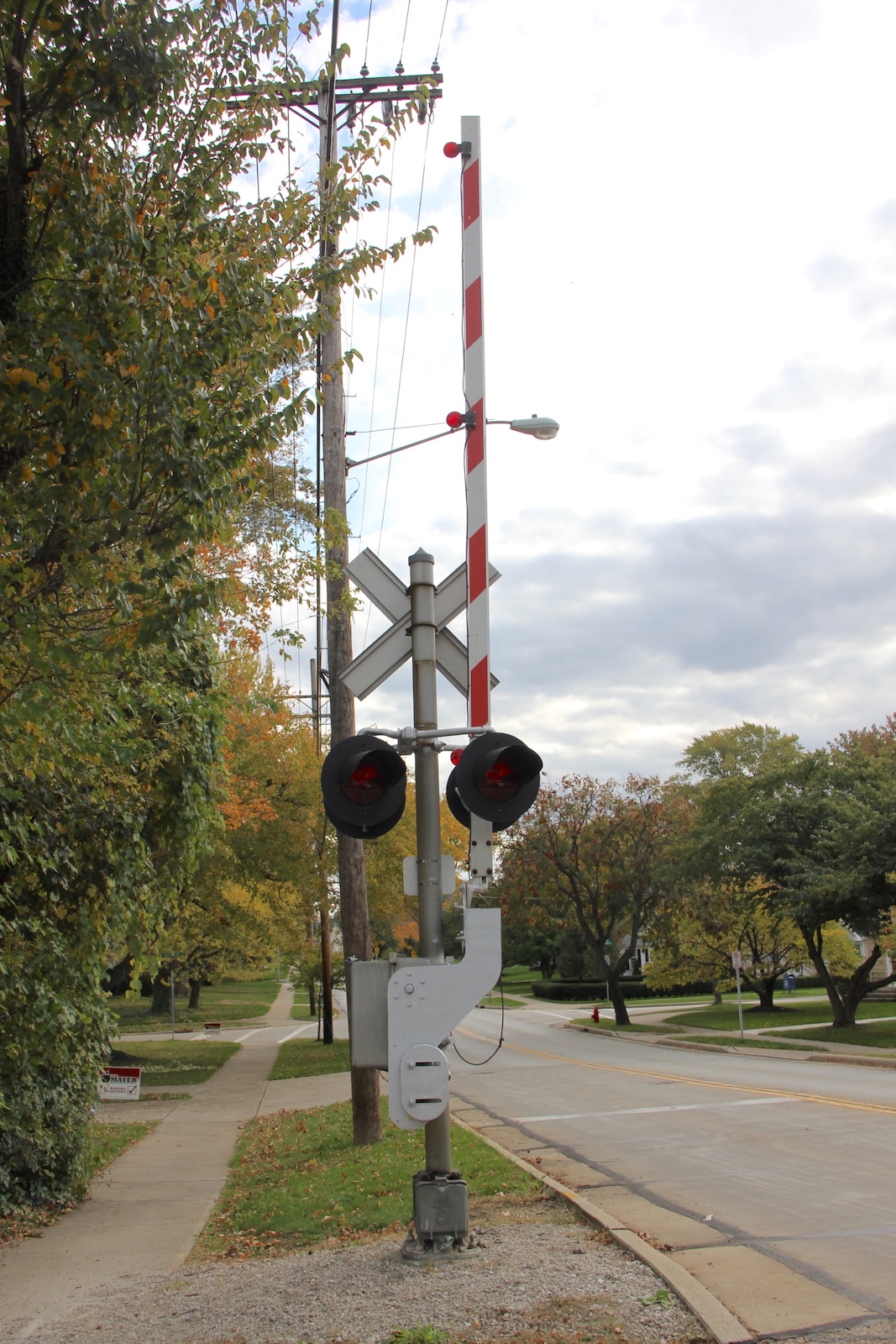

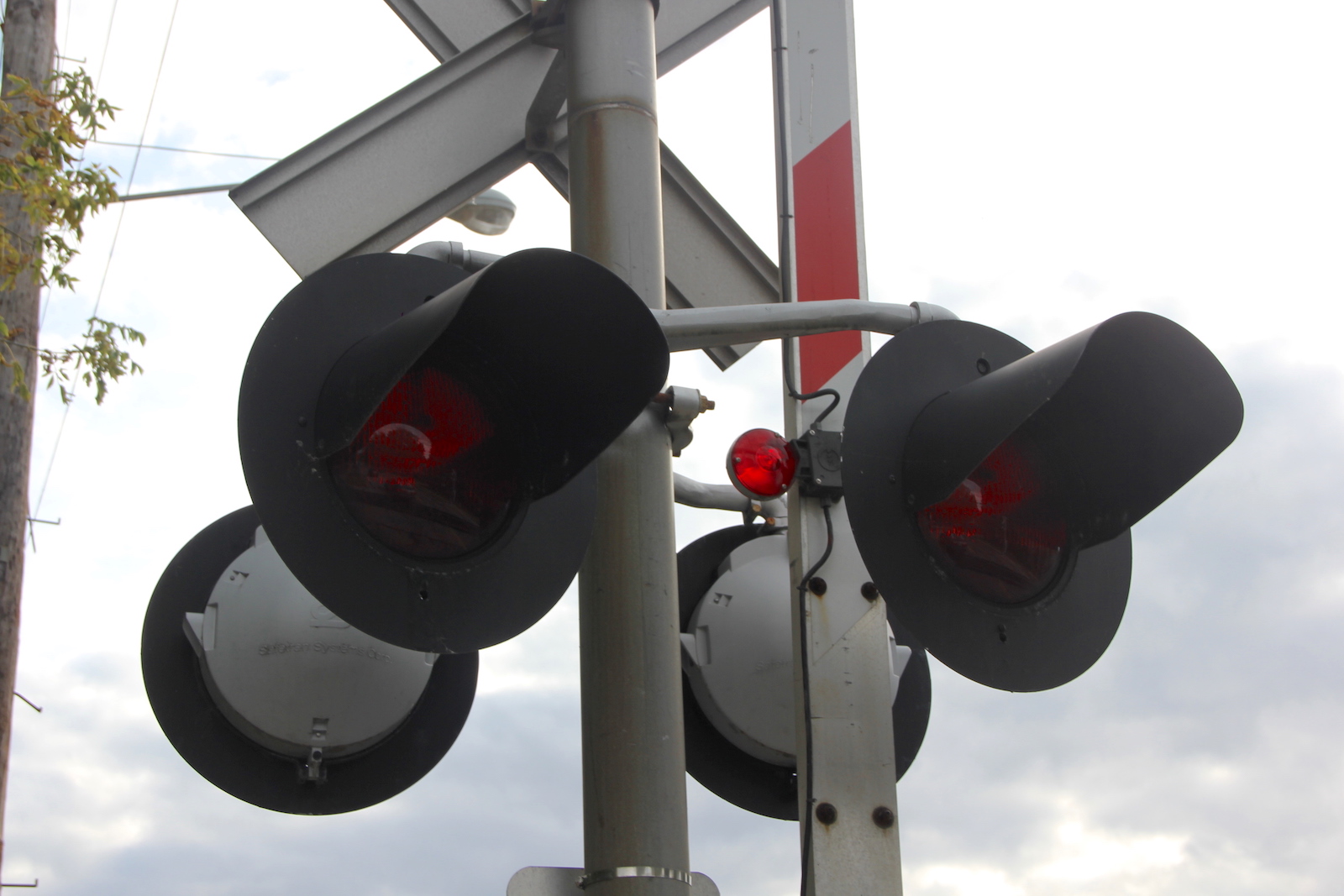

| The southern signal. This appears to be a late RACO/early Safetran signal with replacement 12"x20" lights. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20
|

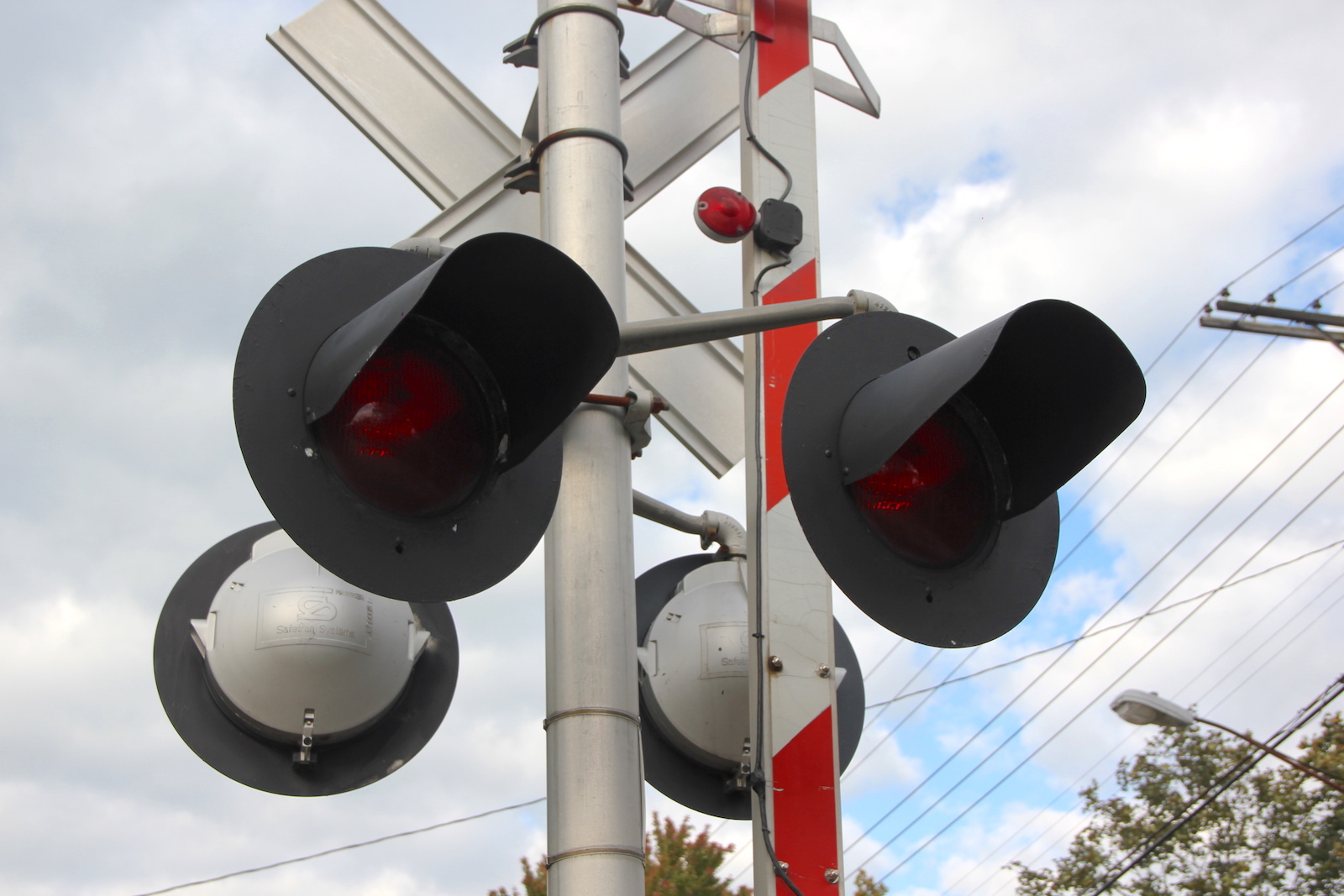

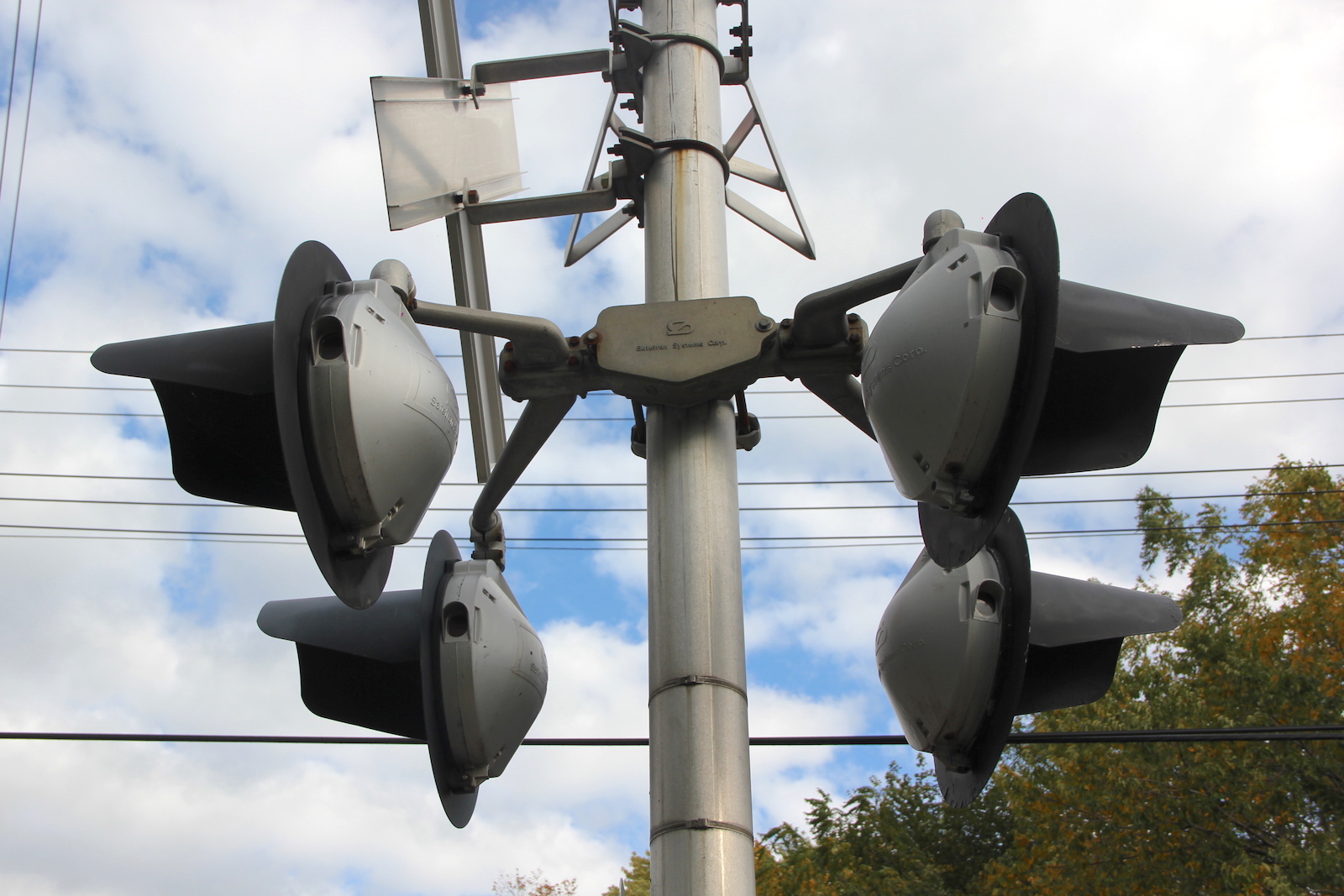

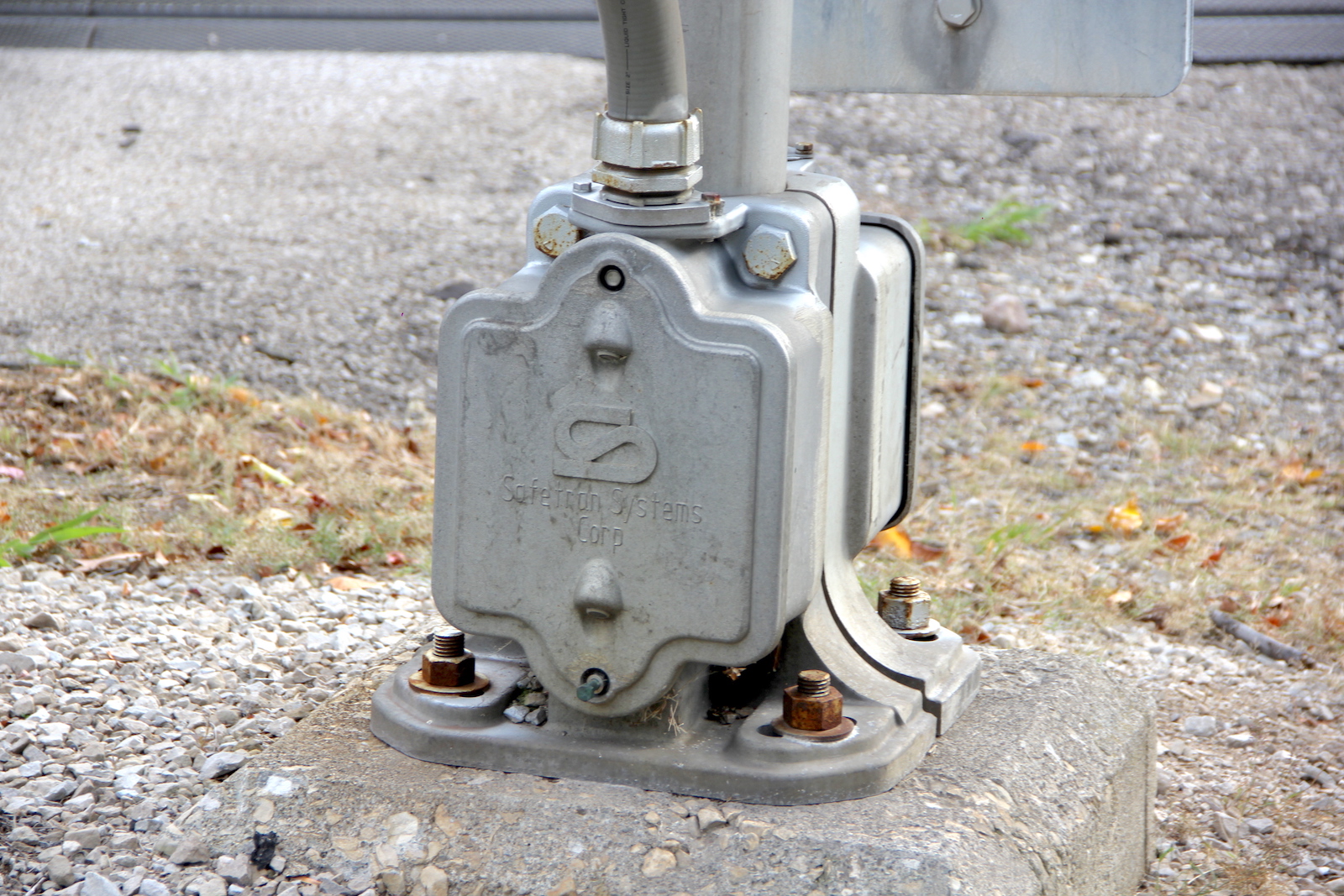

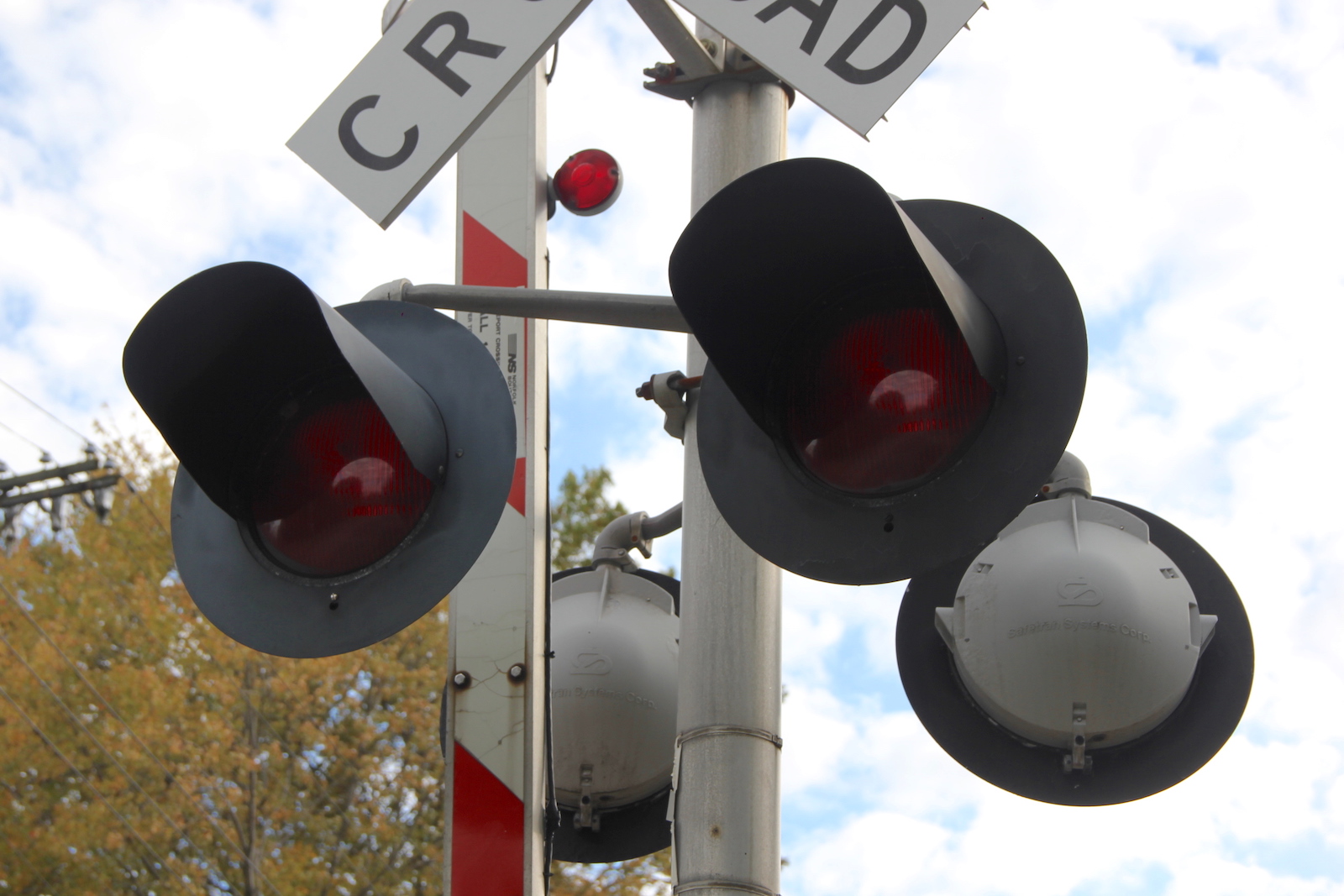

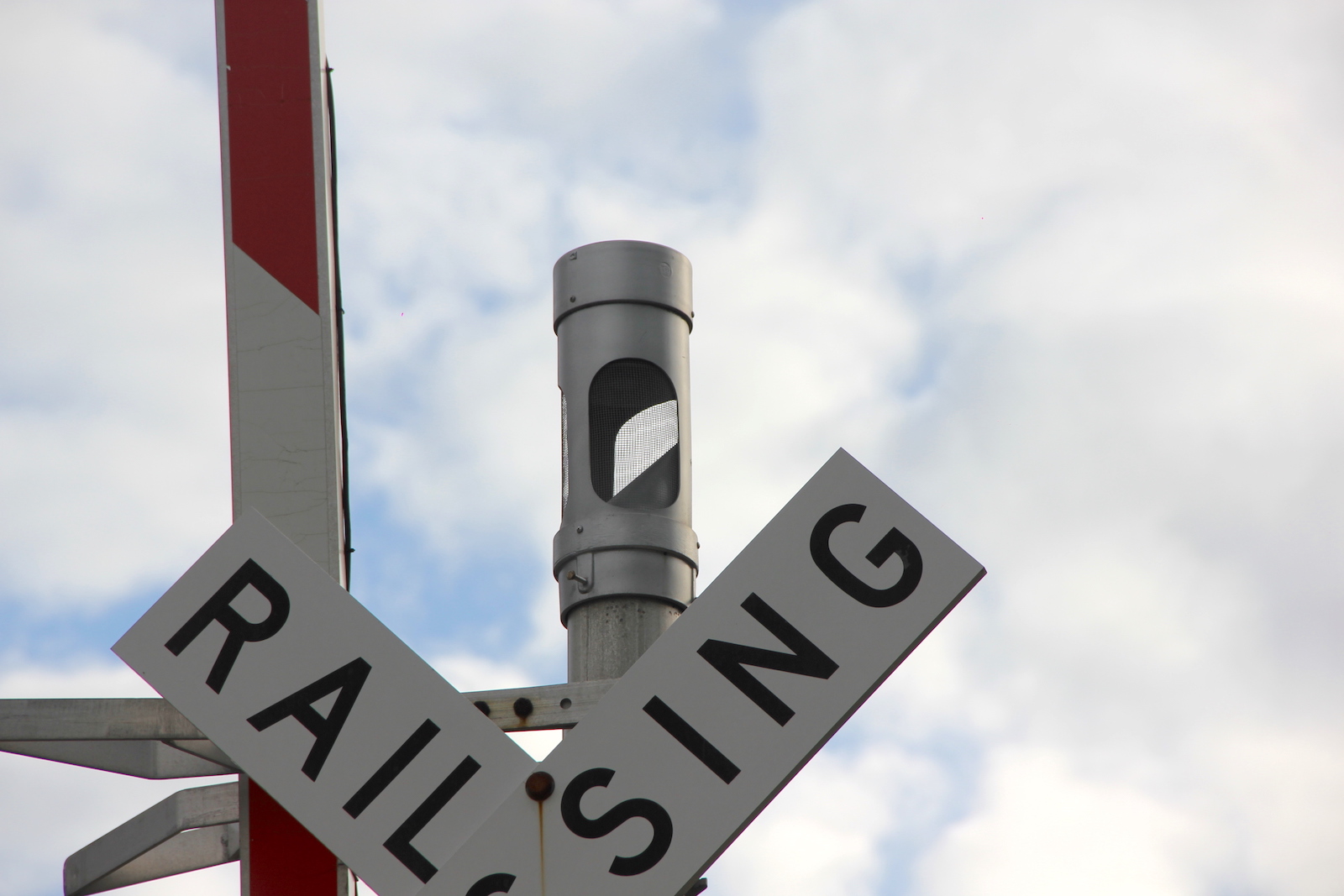

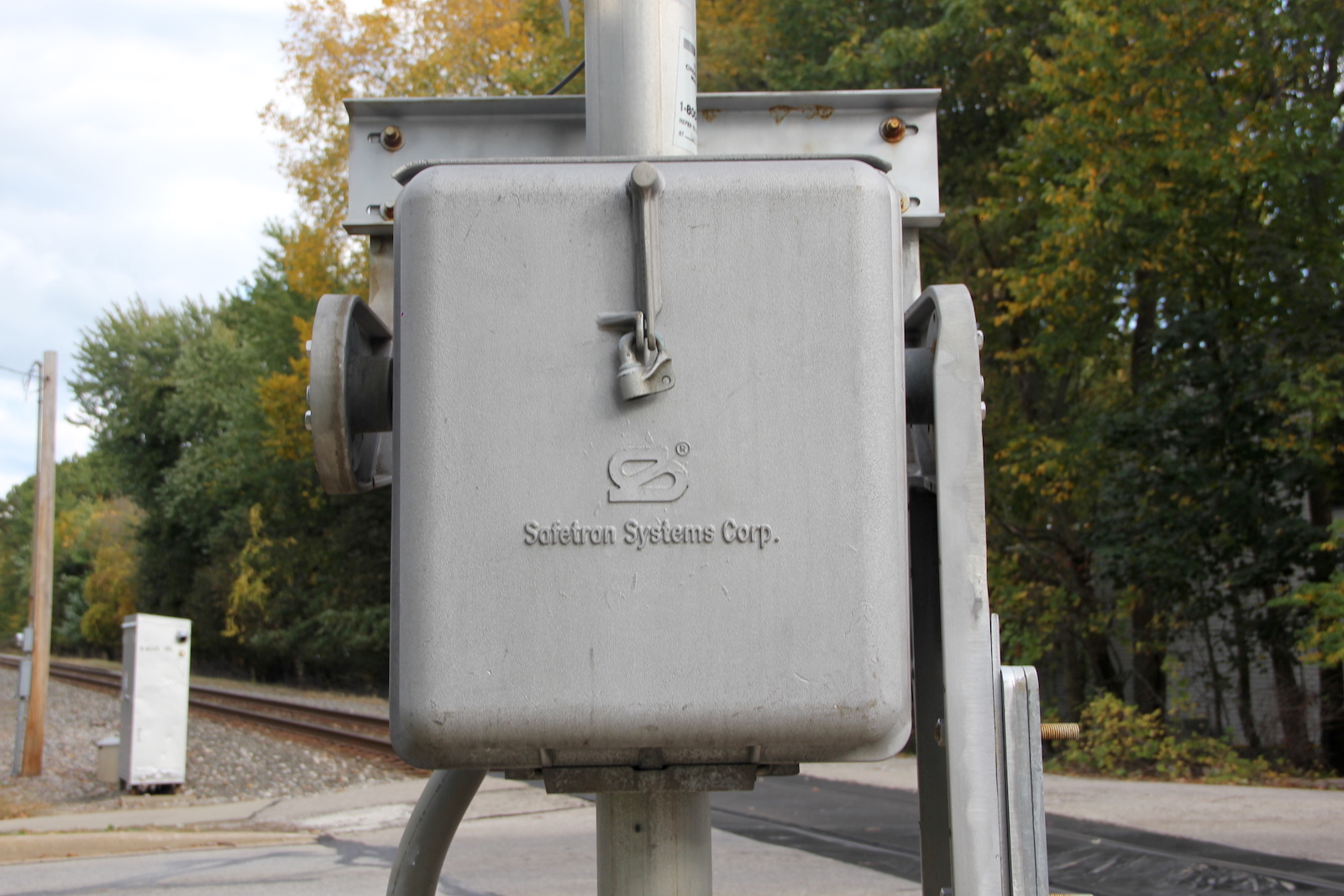

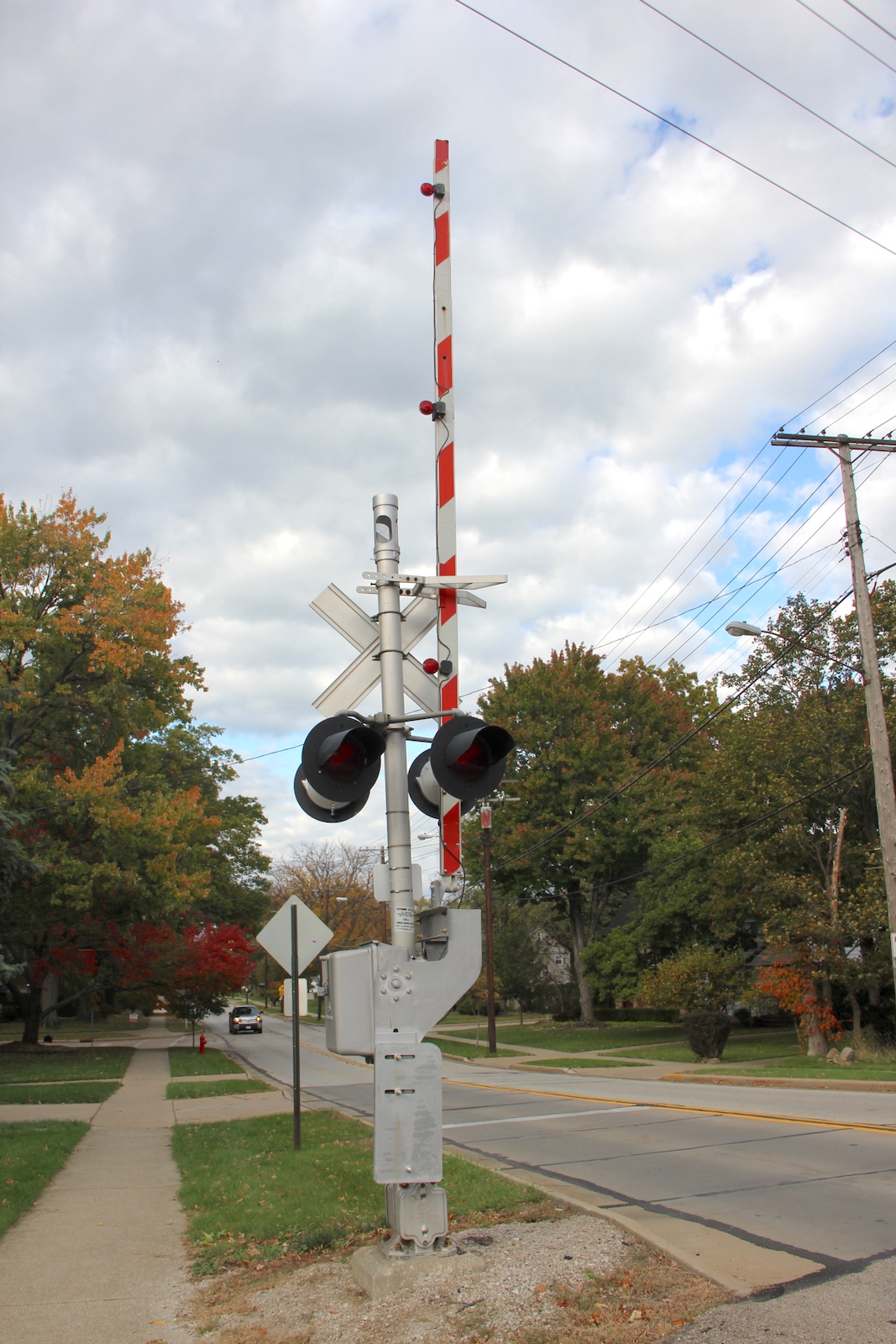

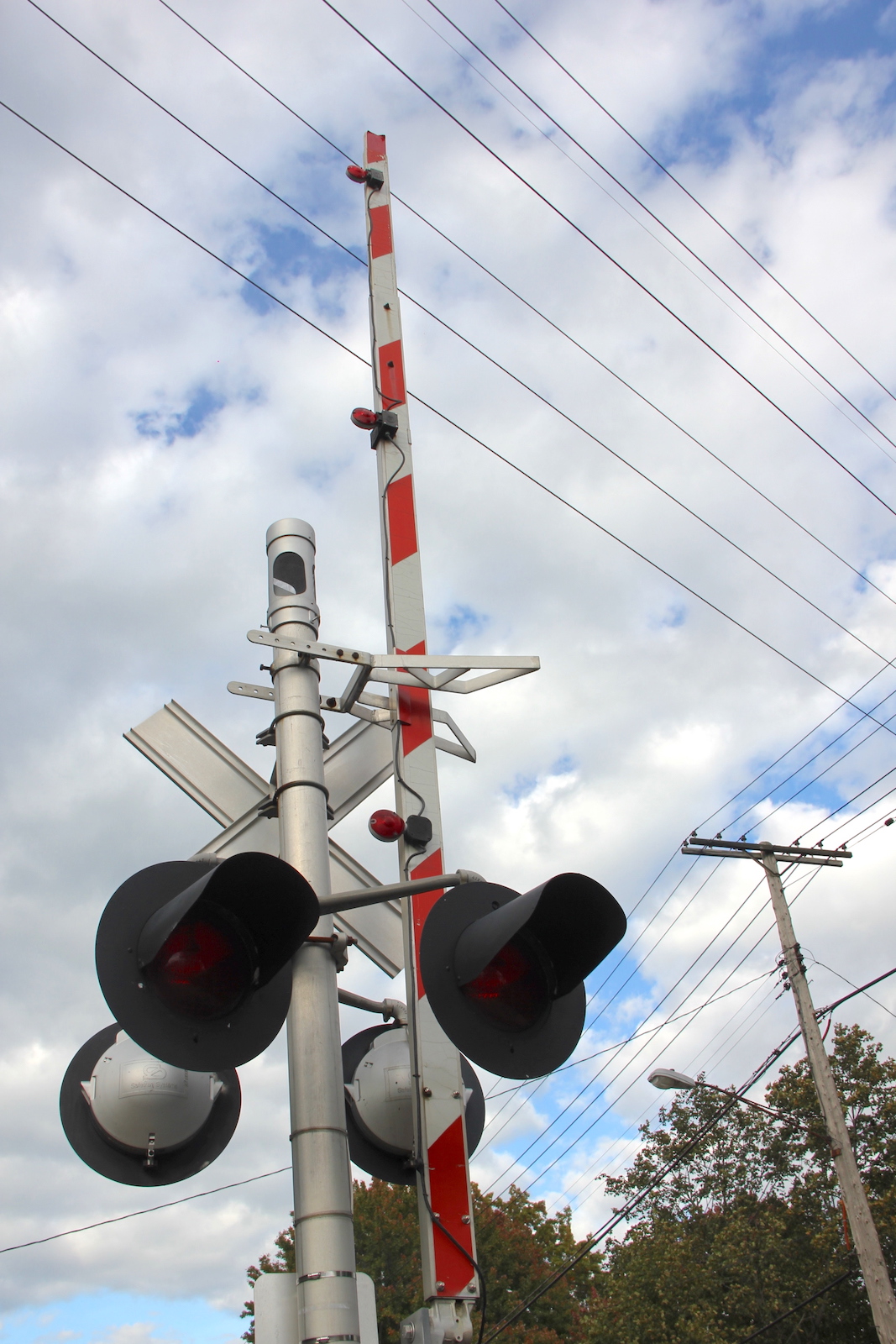

| The northern signal. This appears to be from the early to mid 2000s. |
21
|
22
|
23
|
24
|

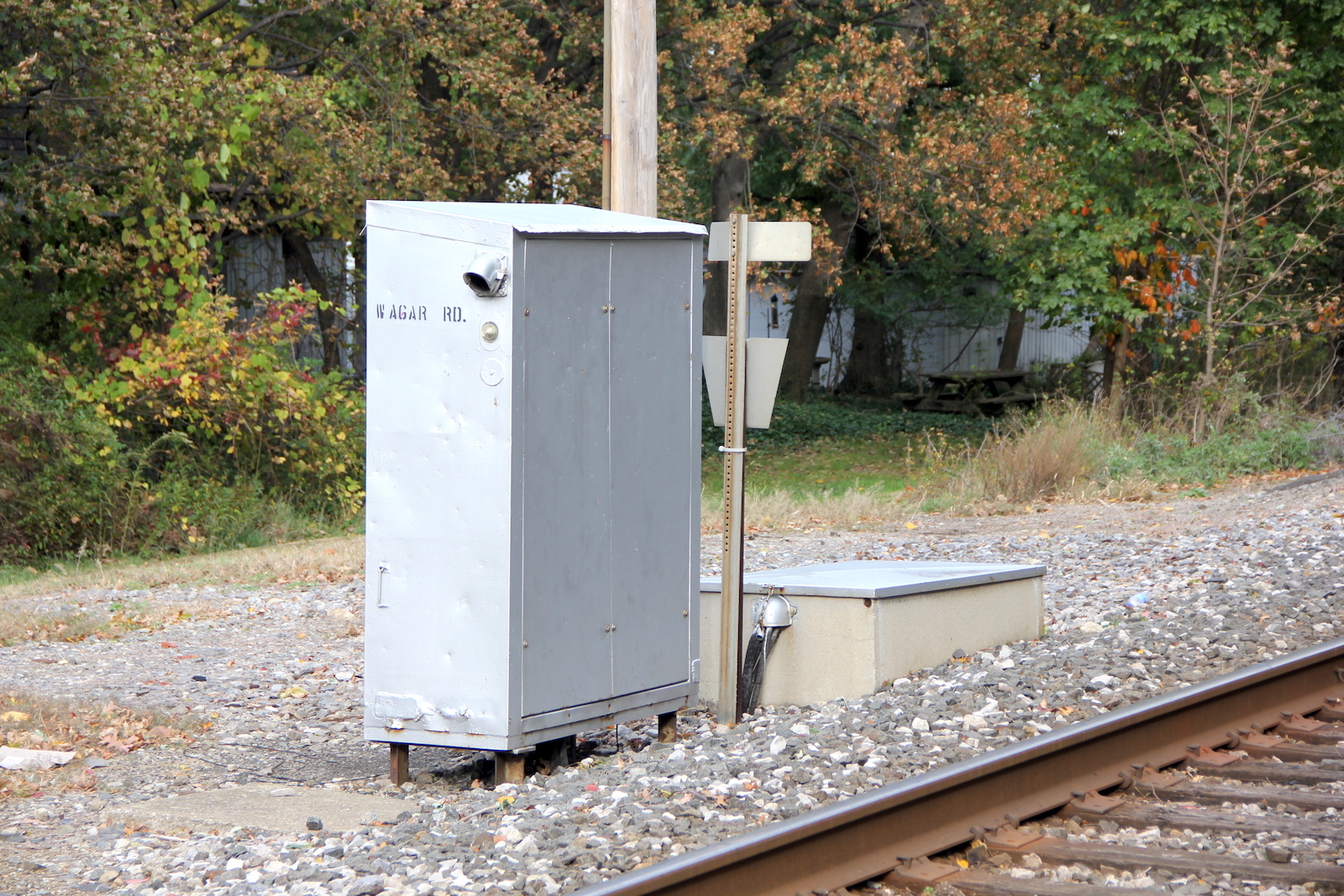

| The relay case in the northeast quadrant. |

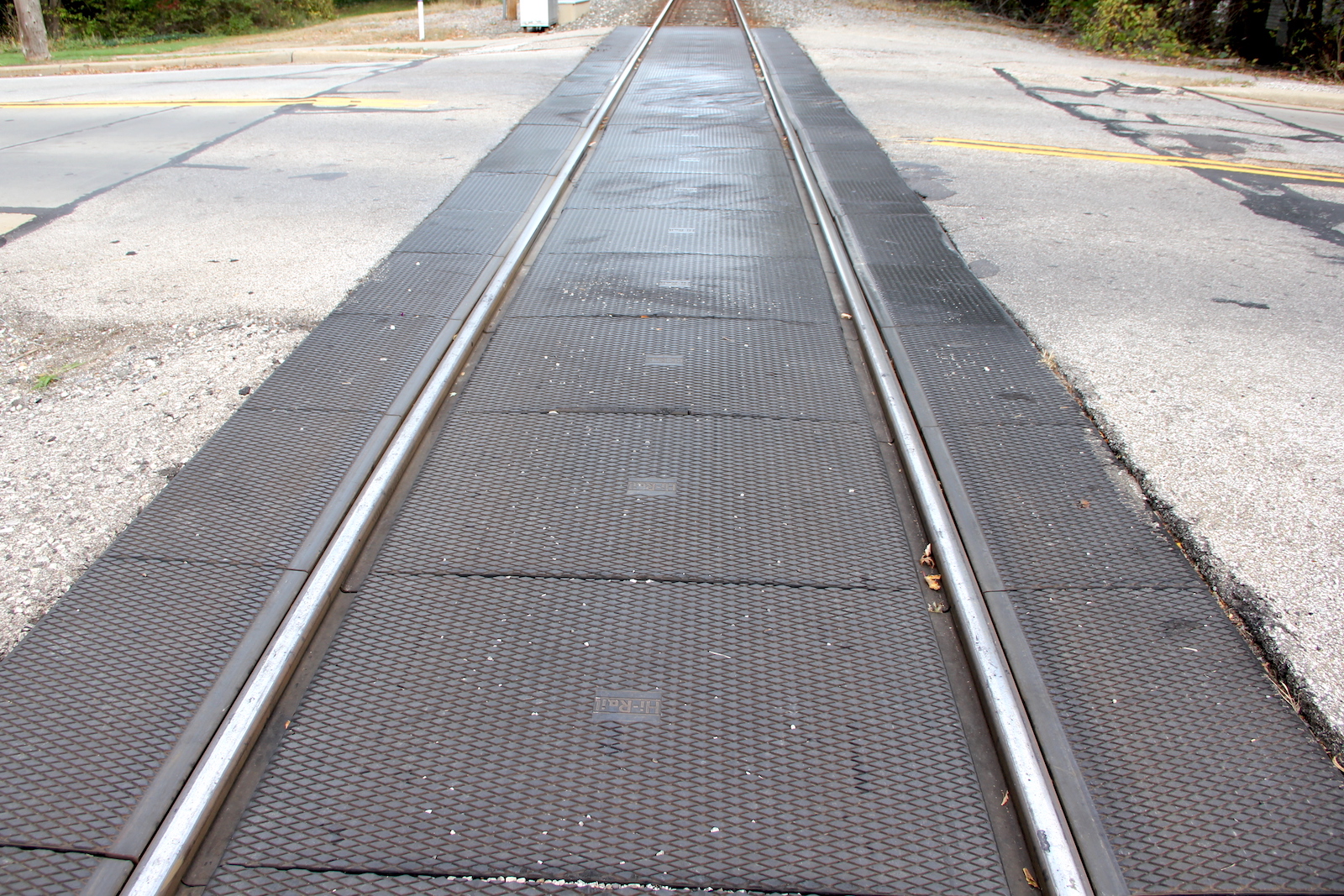

The grade is all rubber. |

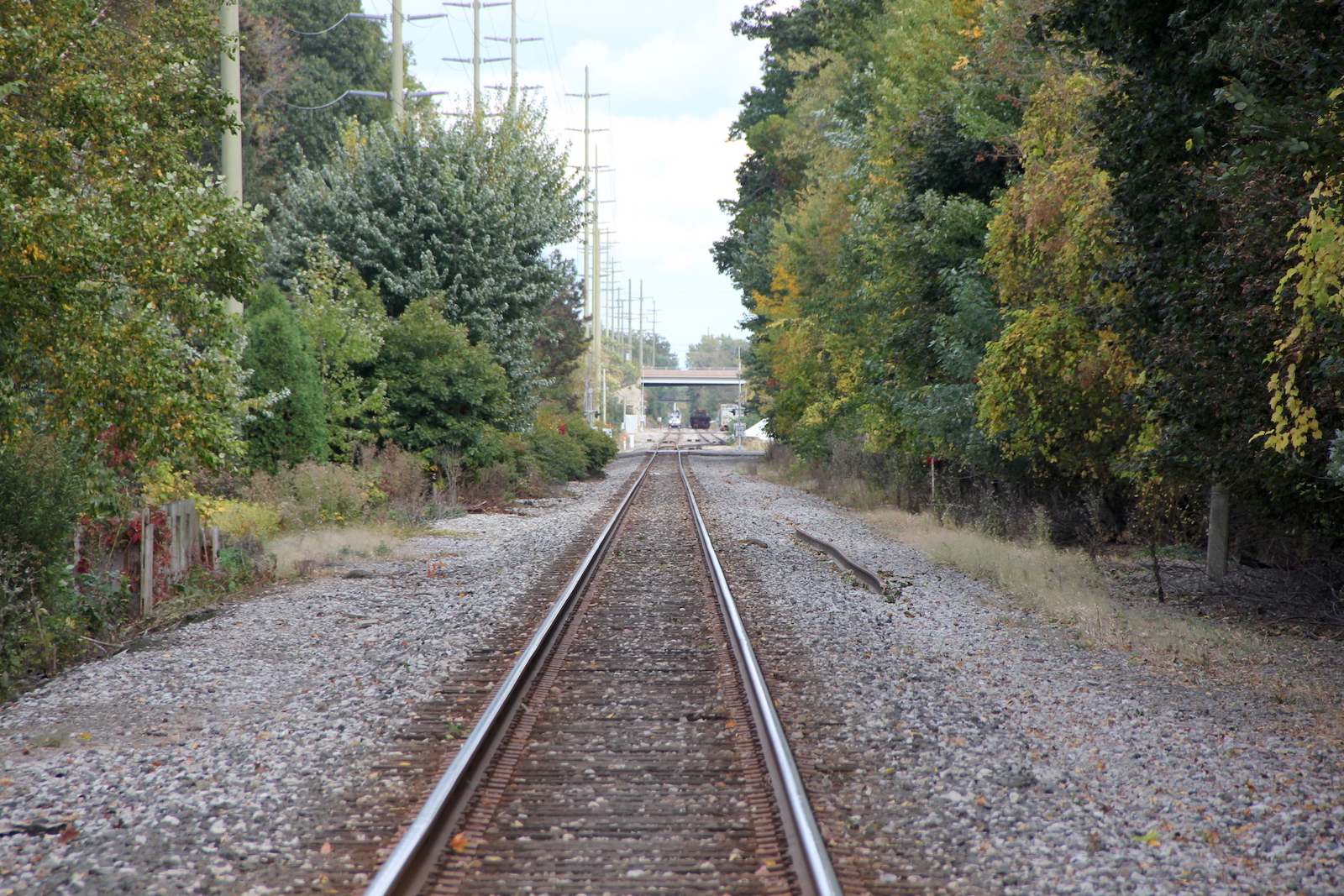

Track view facing west at Elmwood Rd. |
Track view facing east towards Moorewood St. |
