| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |

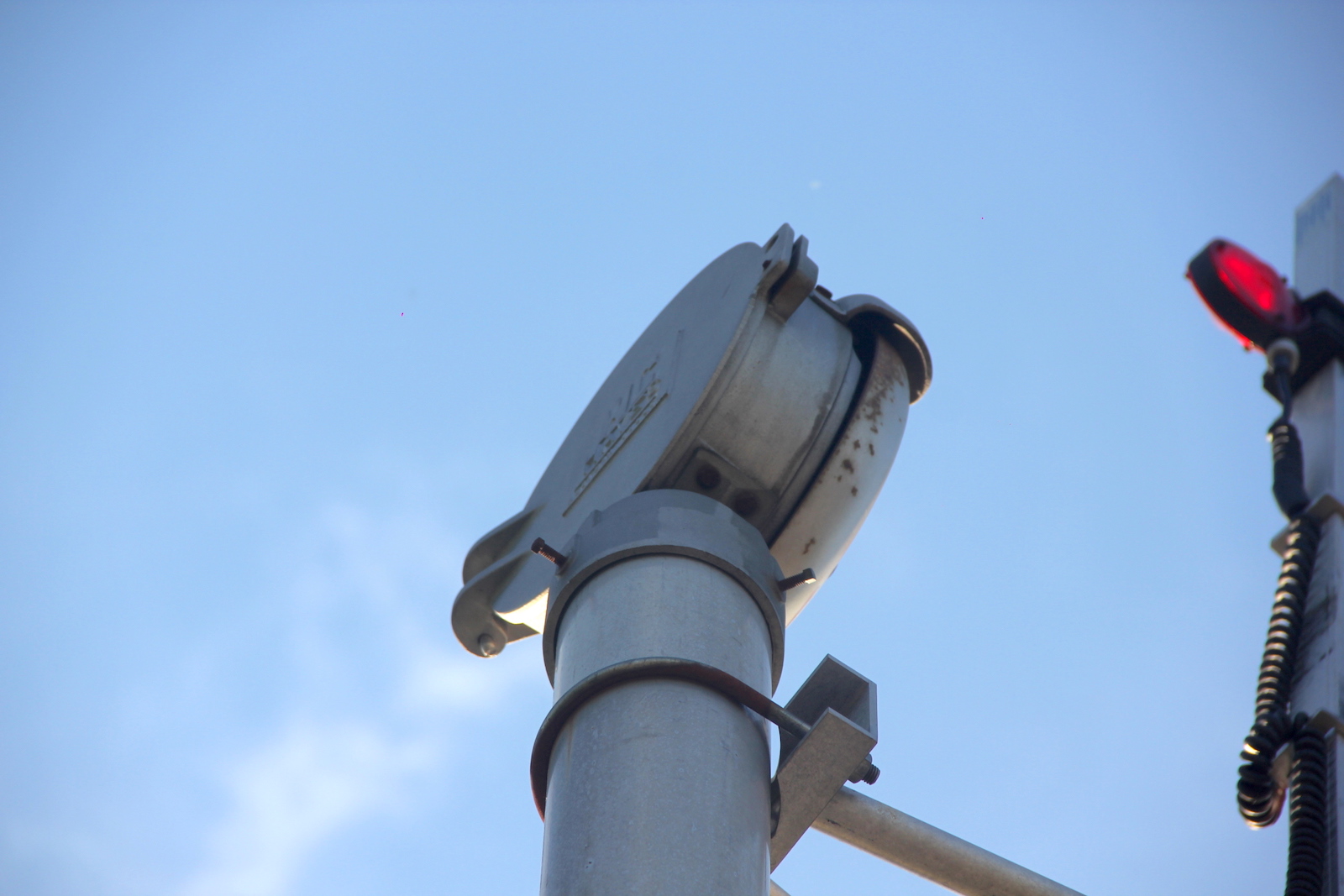

| Bell: | WCH Mechanical Bell 2nd Gen | None |

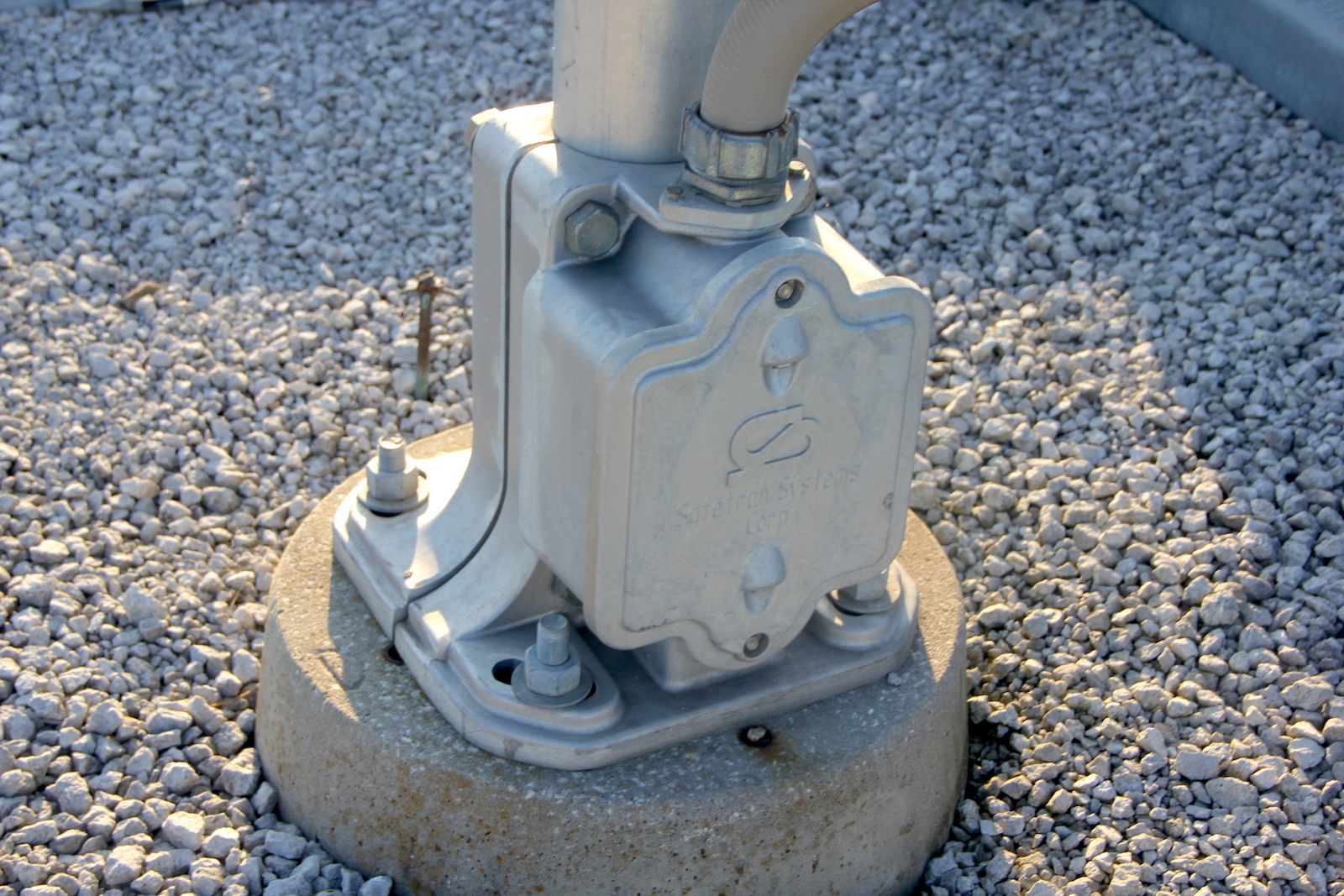

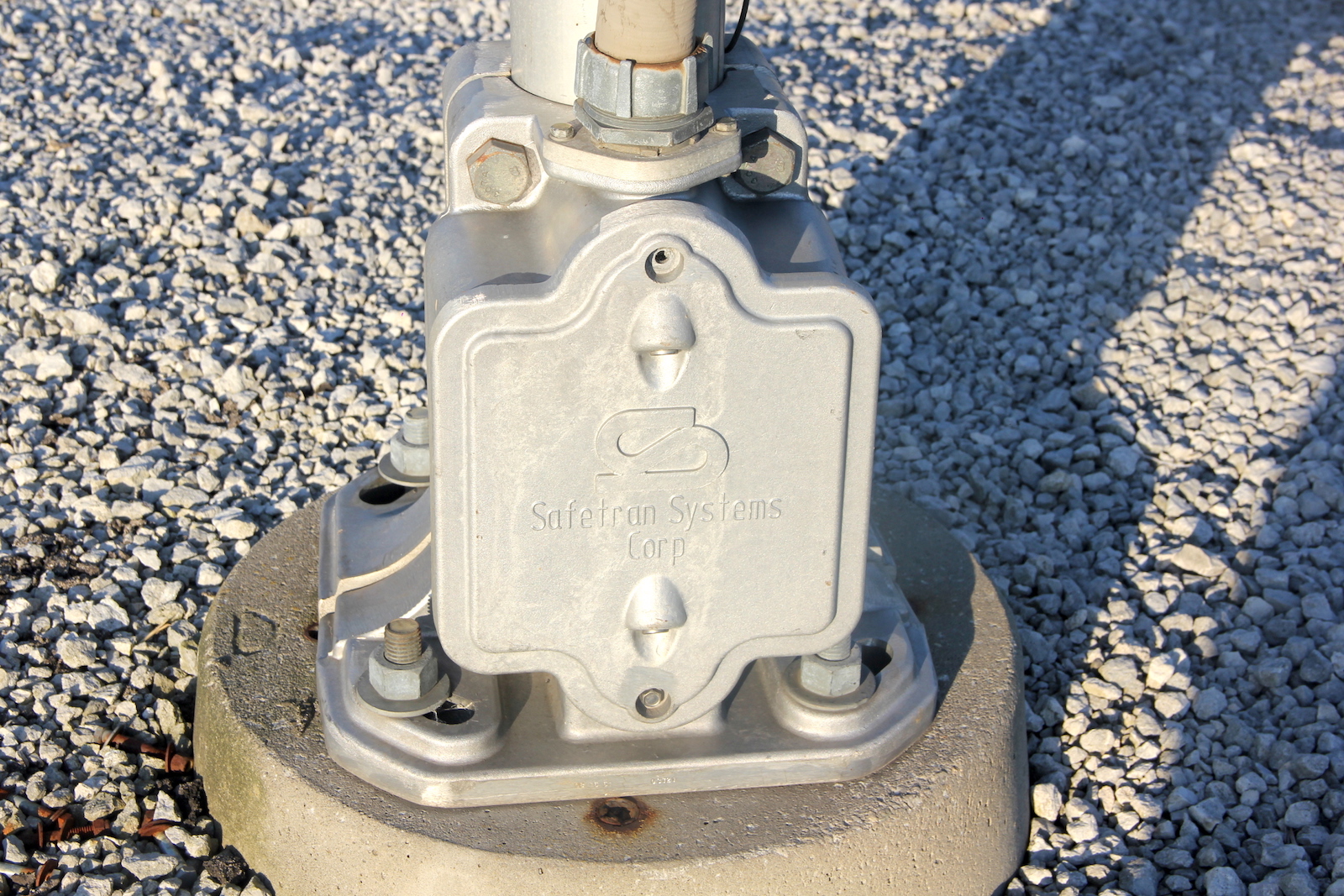

| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |

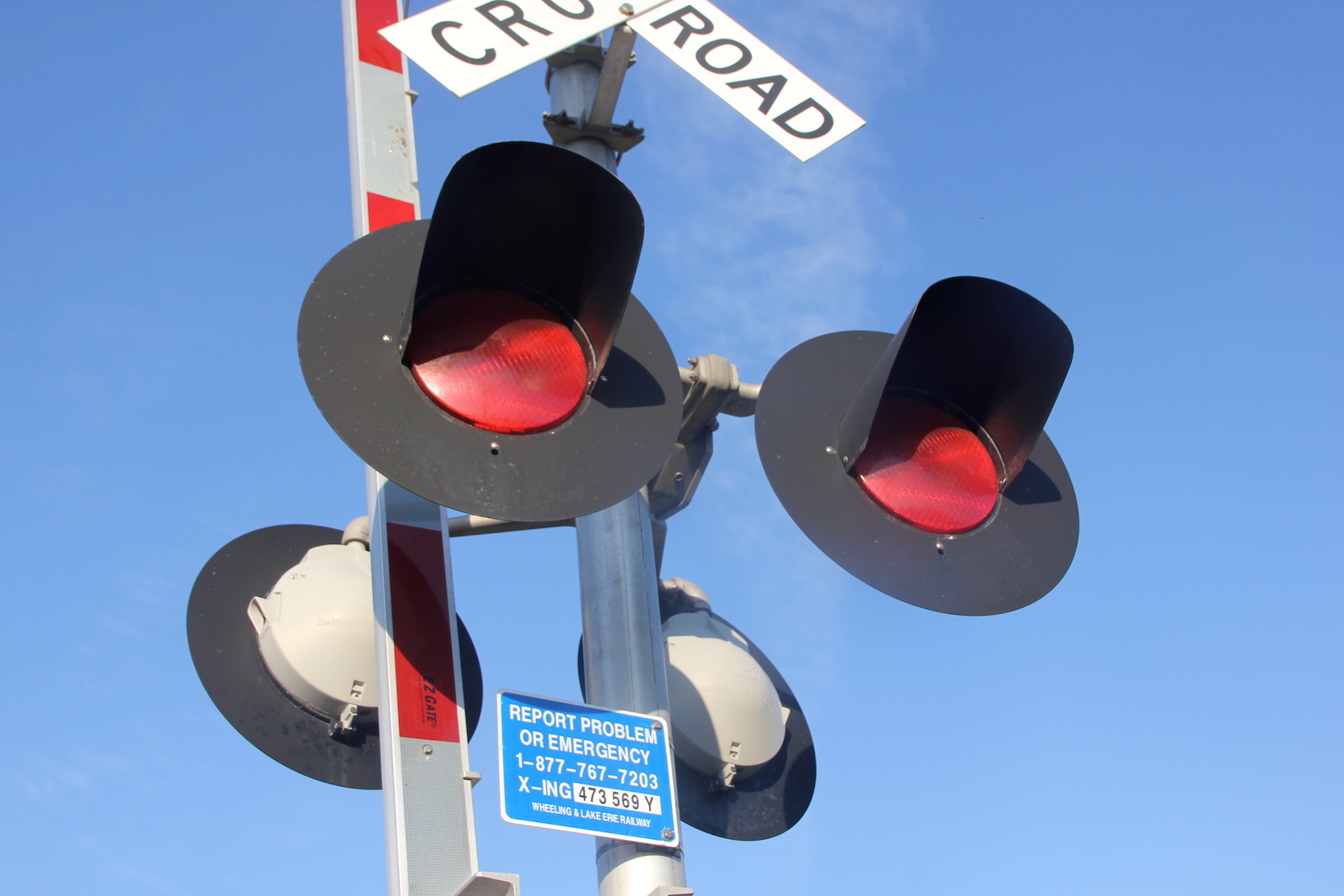

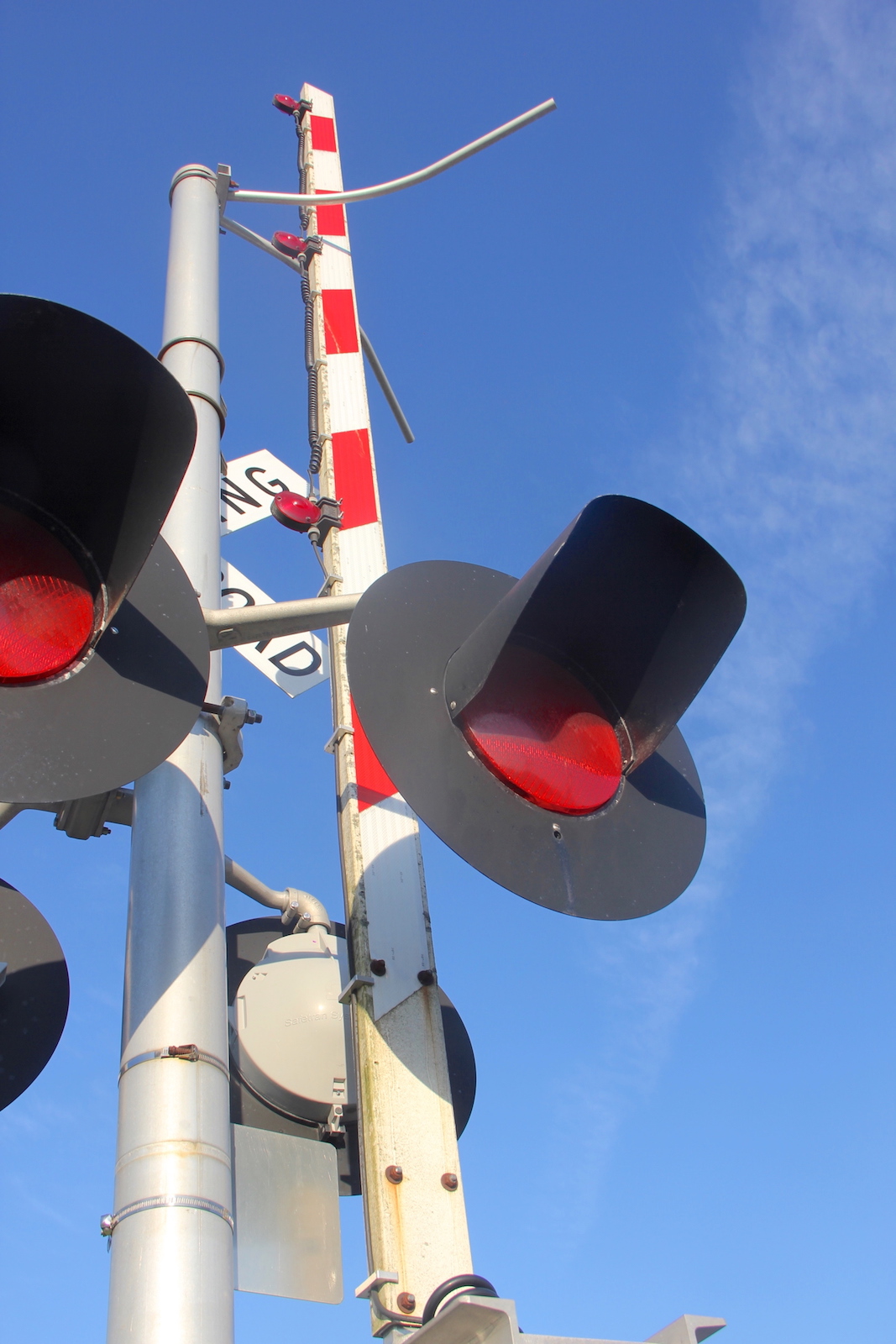

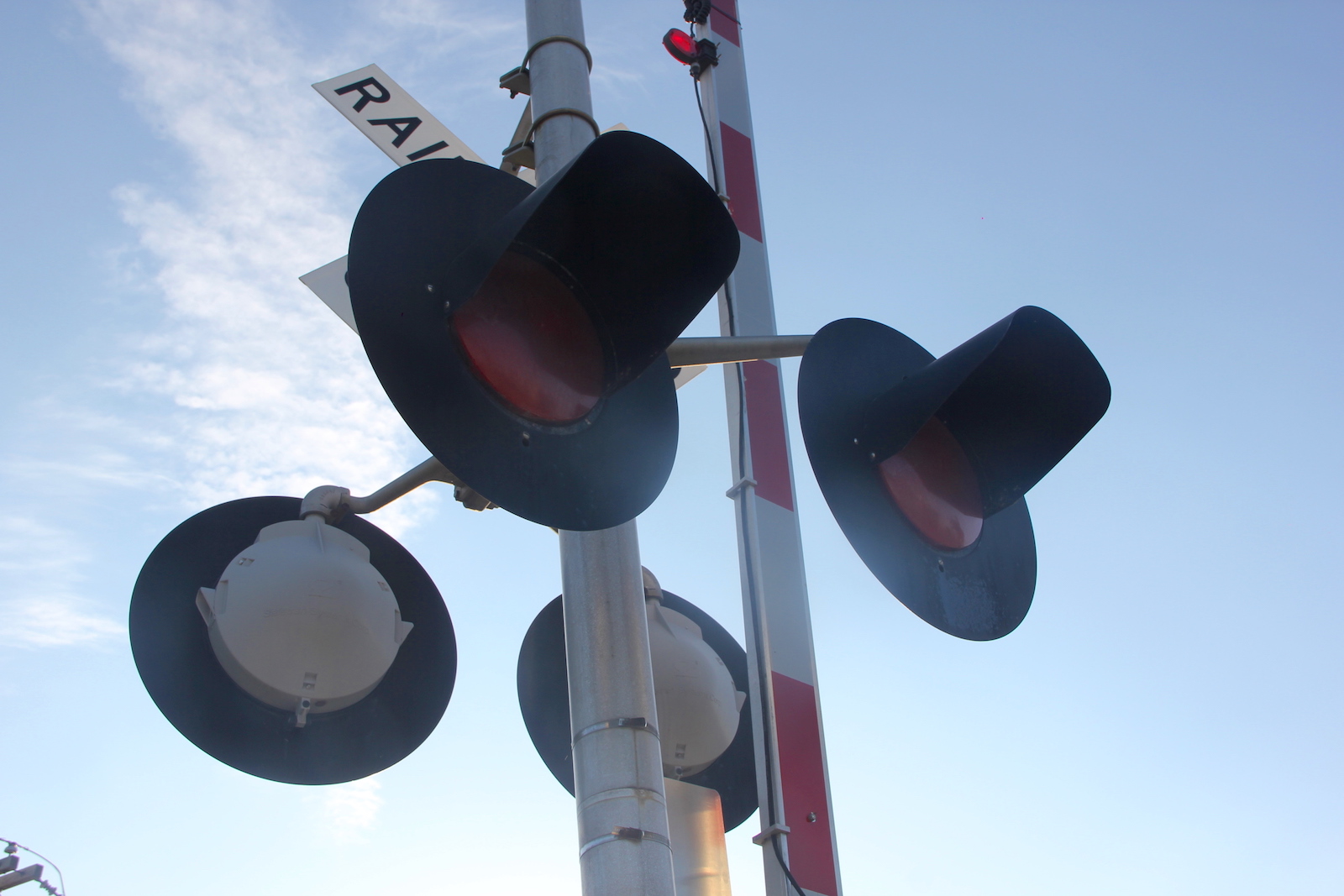

| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" RECO incandescents | 4" RECO incandescents |

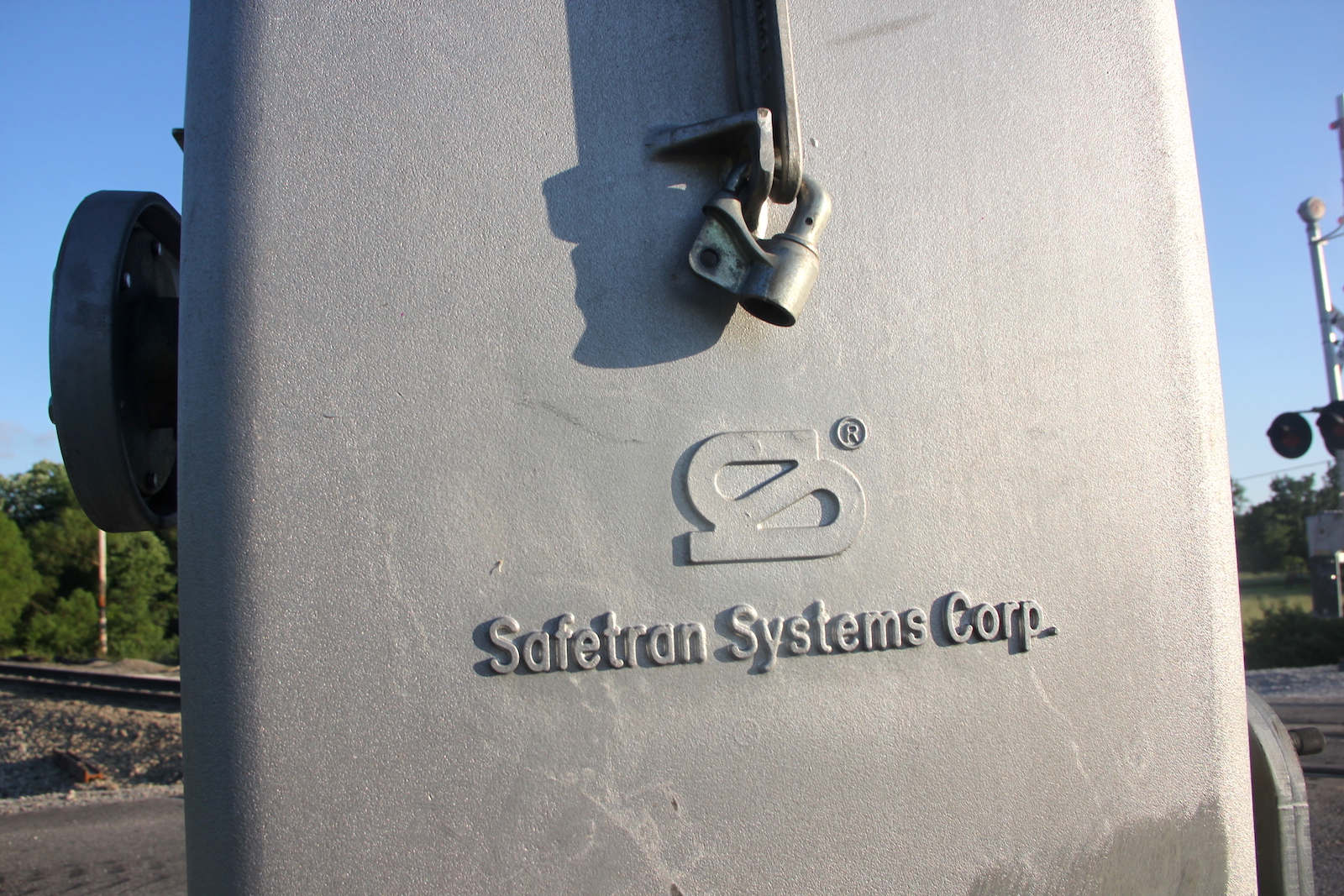

| Gate Mechanism: | Safetran 2000s w/ GSI Gate Saver | Safetran 2000s w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Diagonal Striping |
1 |
2
|
| Overview of 2 gated signals facing west. |
Overview facing east. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

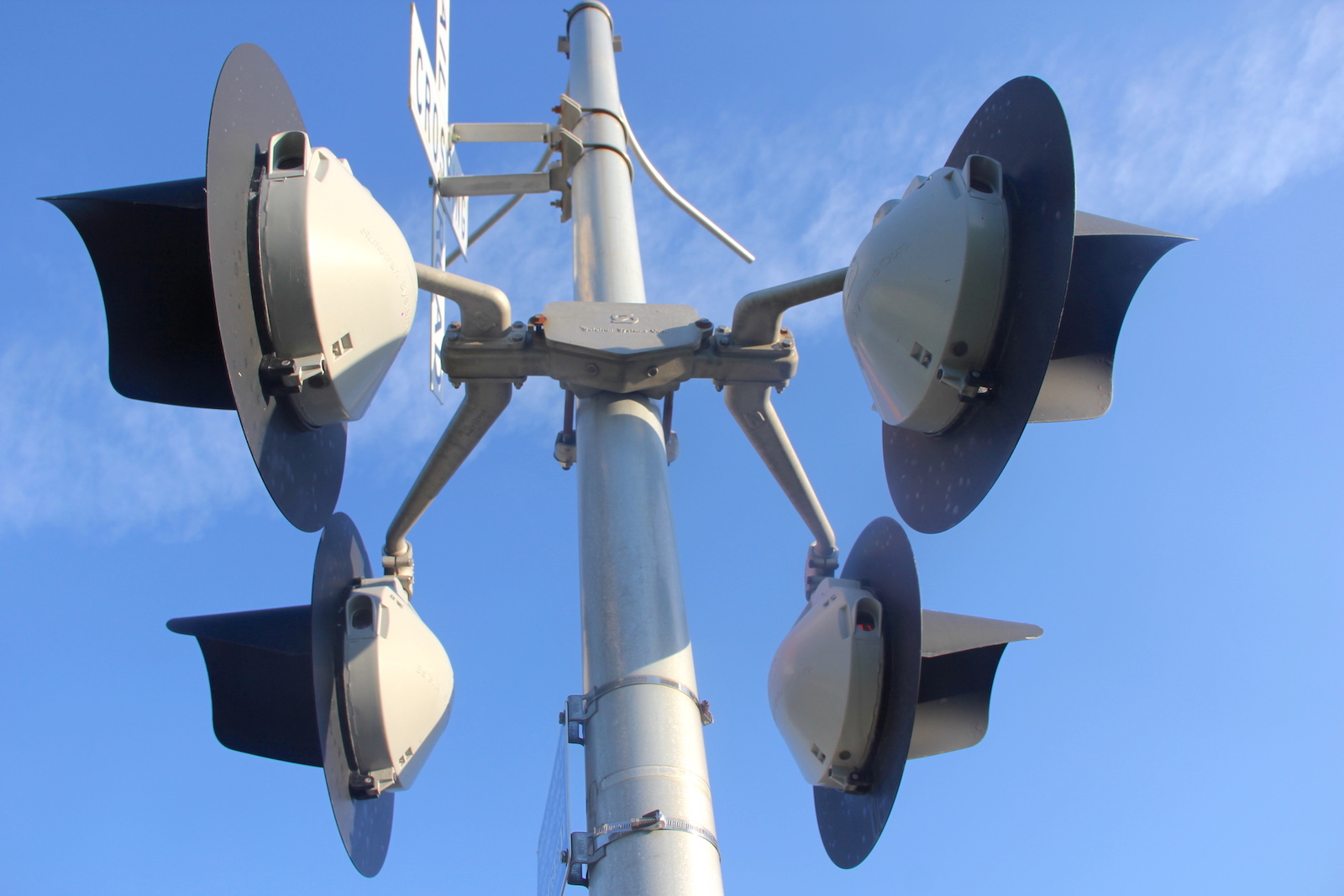

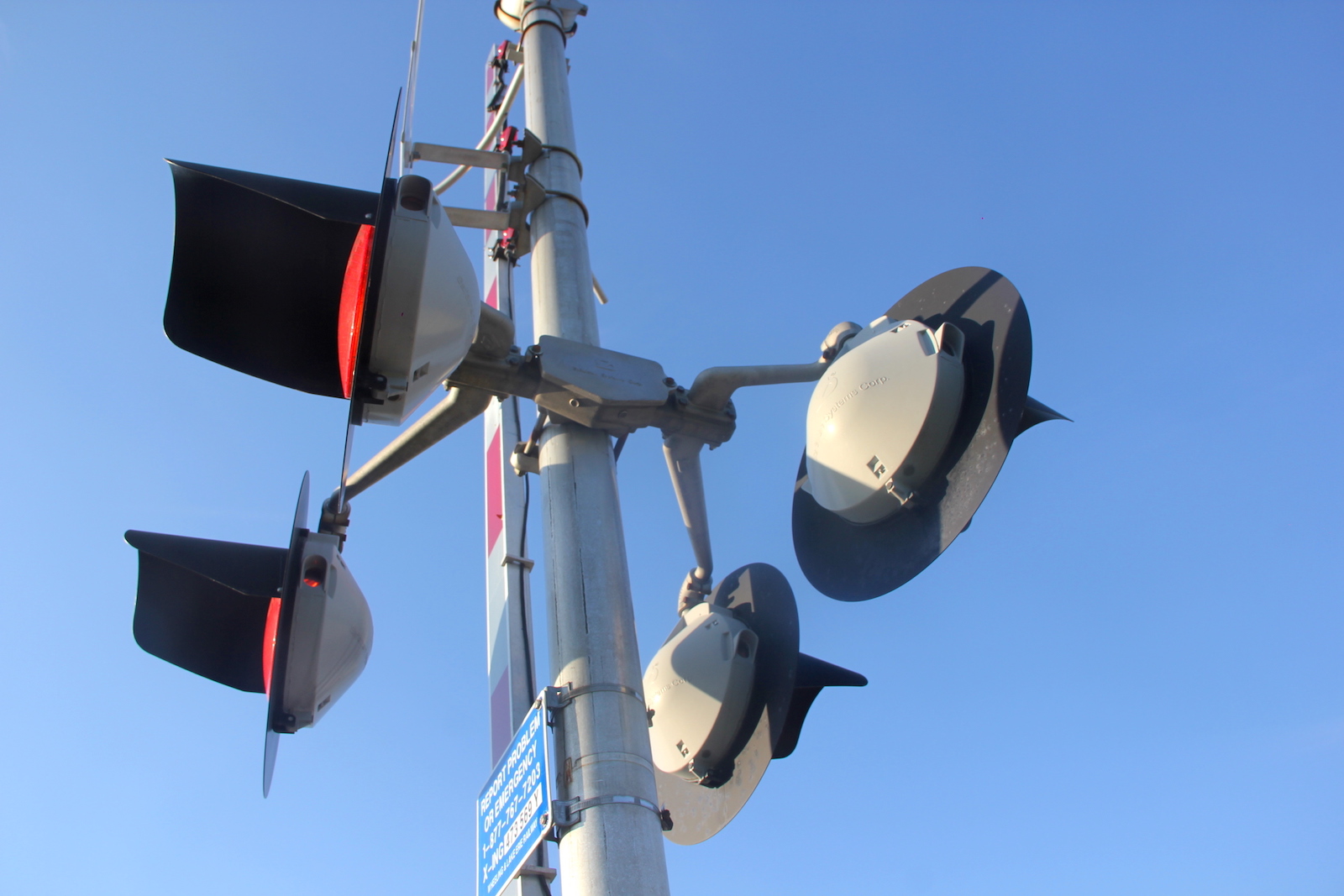

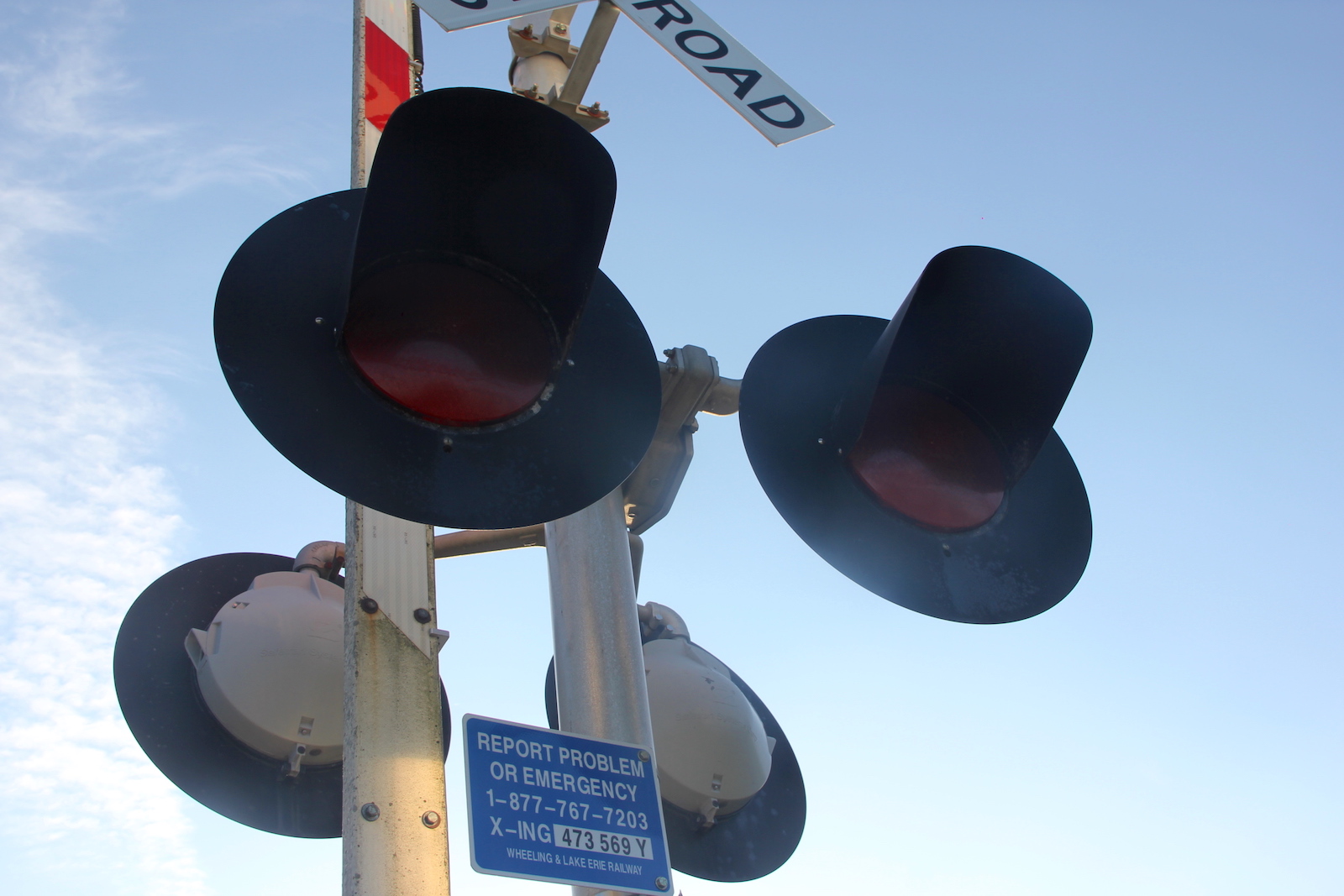

| The eastern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

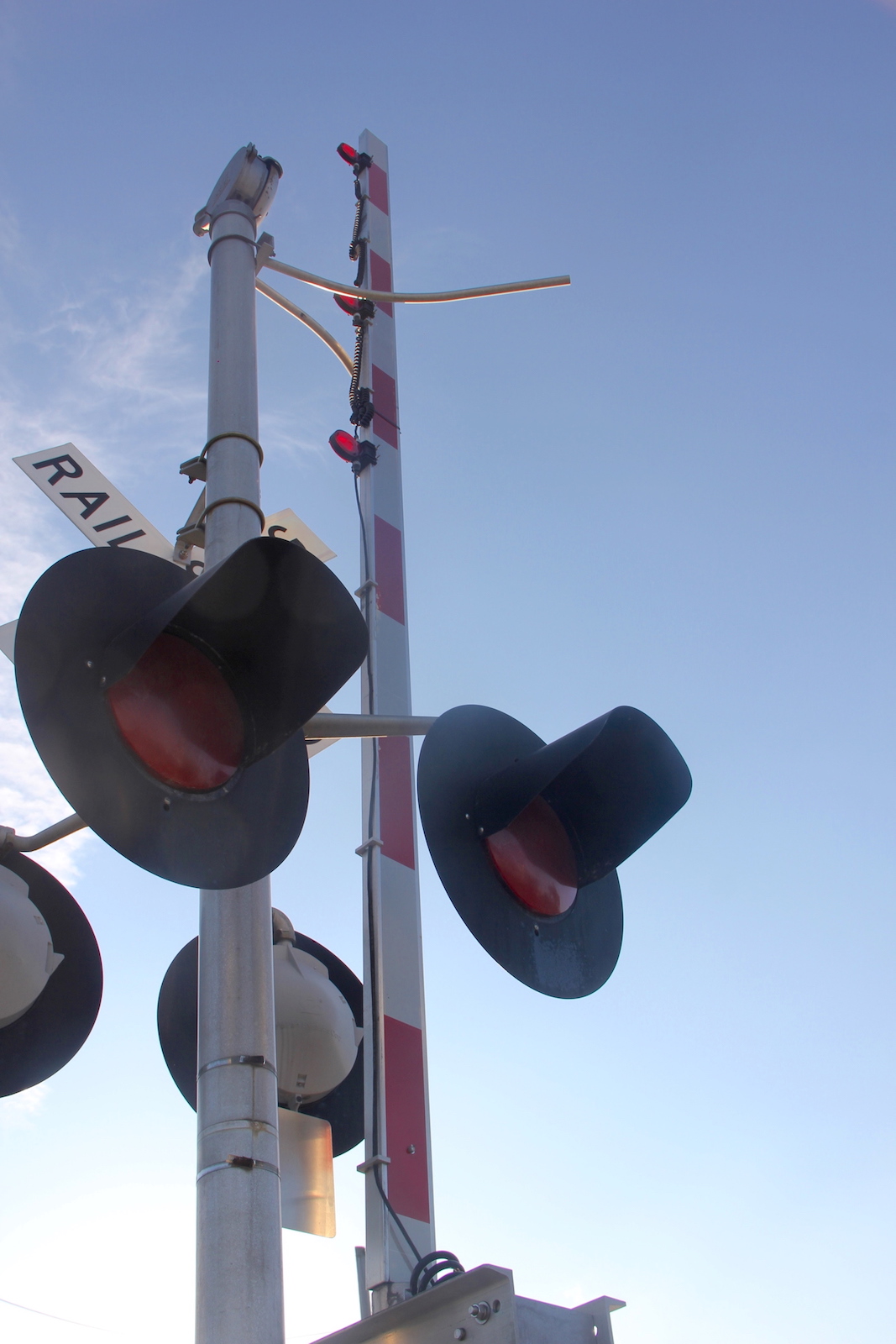

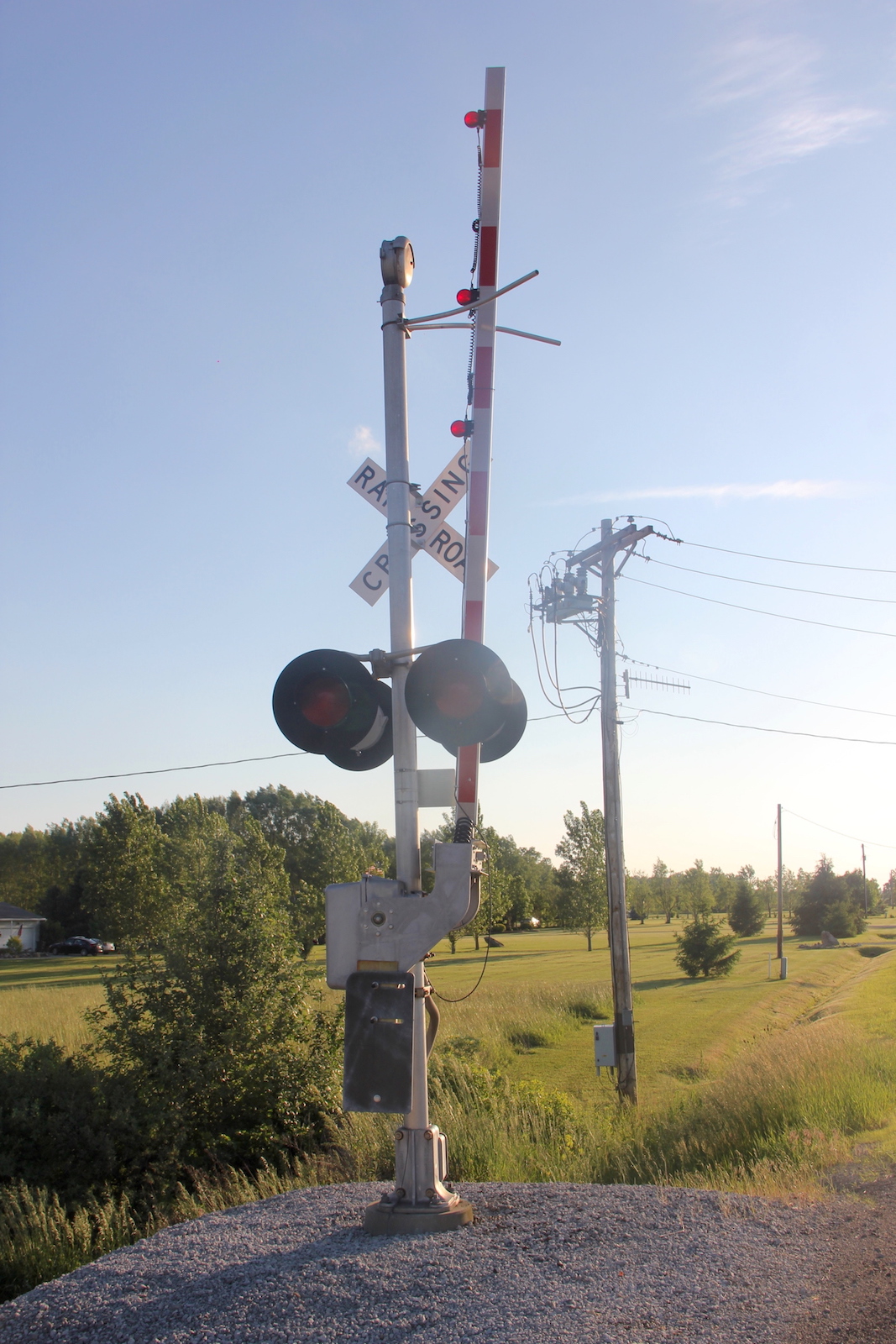

| The western signal. |
22
|
23
|
24
|
25
|
| The relay bungalow in the northwest quadrant. |

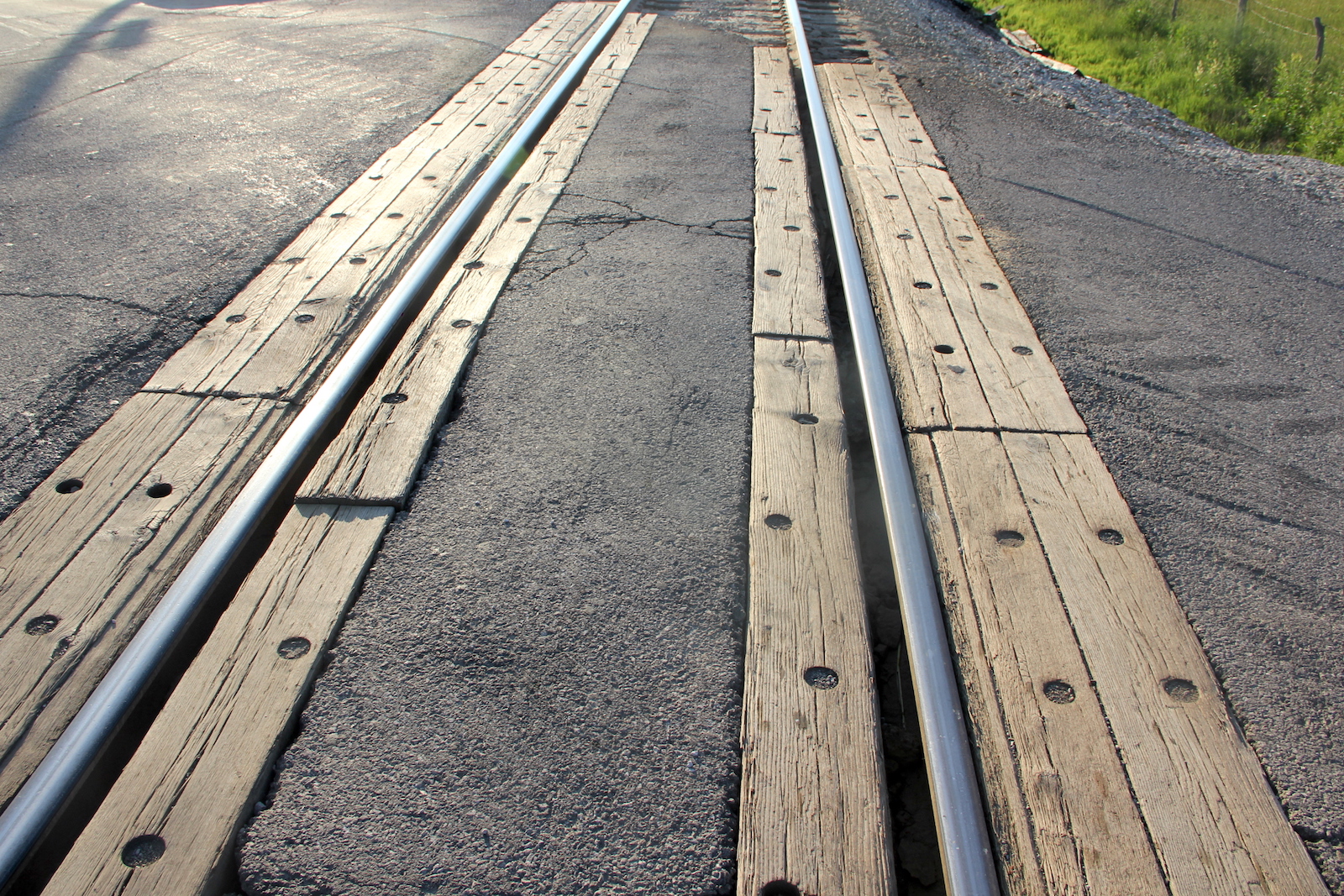

The grade is wood and asphalt. |
Track view facing west towards River Corners Rd. #2. |
Track view facing east at Pawnee Rd. |
