MP: CJ180.950 |
Updated June 2025
Total Accidents:
0
Crossing DOT #: 527974S
TOTAL DAILY
TRAINS: 6 (AS OF 2024)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 3 E-Bell | N/A |
| Base: | Safetran 5" Double Sided |
Safetran 5" Double Sided |
| Cantilever: | Safetran Cantilever |
Safetran Cantilever |
| Lights: | 10 - 12"x20" Safetran incandescents | 10 - 12"x20" Safetran incandescents |
| Light Brackets: | 4 - Safetran |
4 - Safetran |
| Gate Lights: | 3 - NEG 4" LEDs |
3 - NEG 4" LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
Page created by: Ethan the Railfanner
This crossing is located on the NS Dayton District.
|
O1 |
O2 |
O3 |
O4 |
|

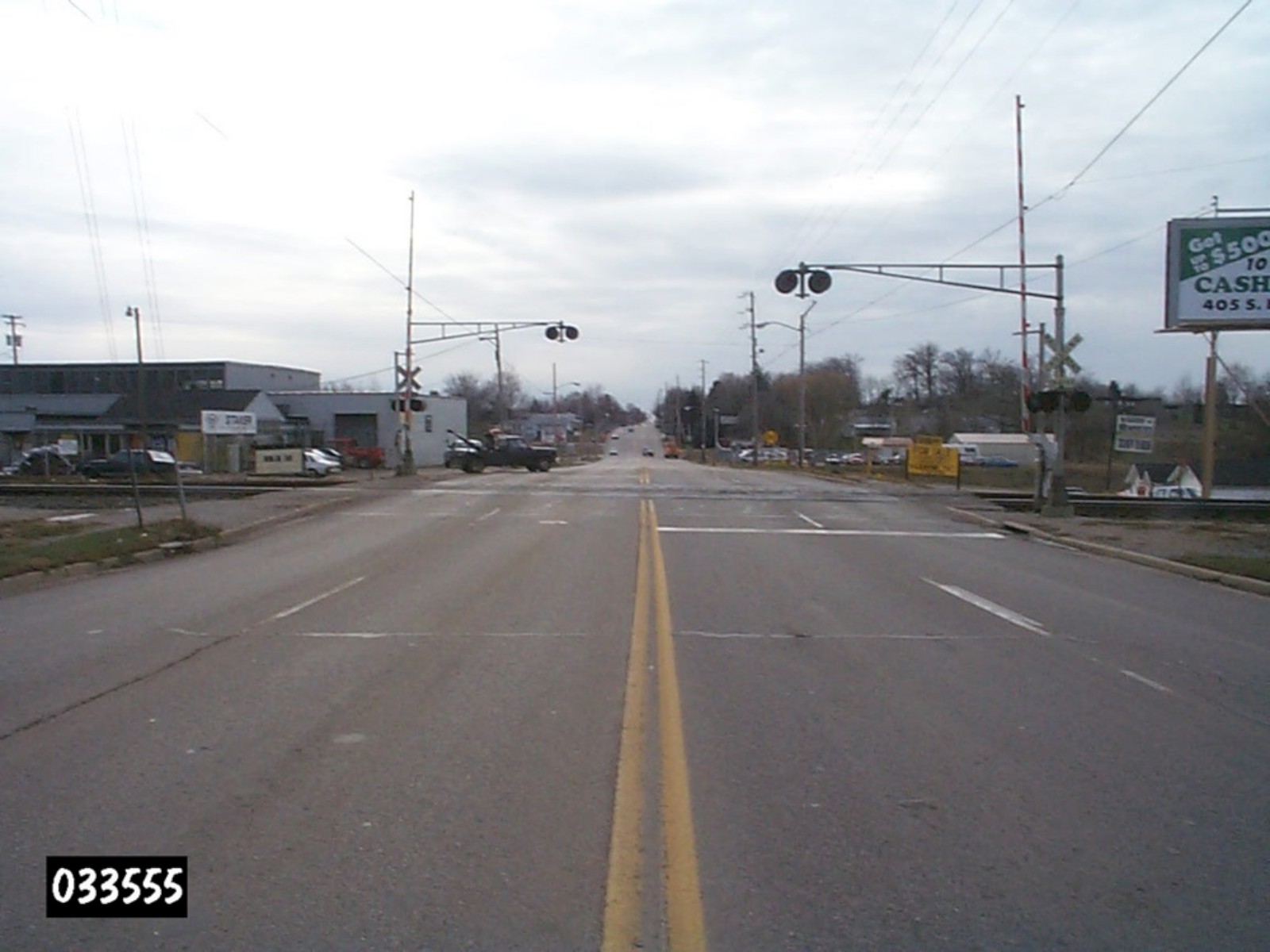

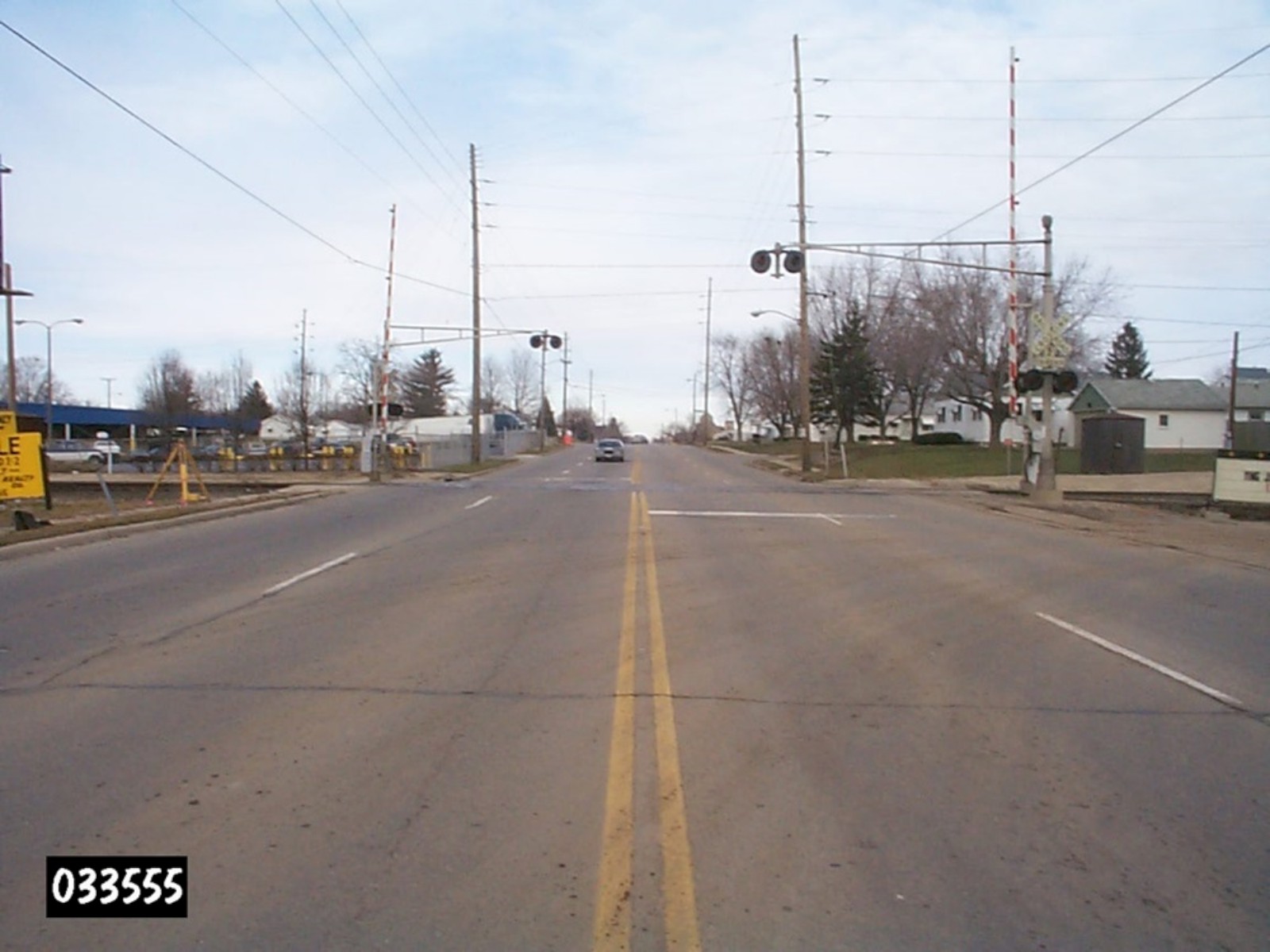

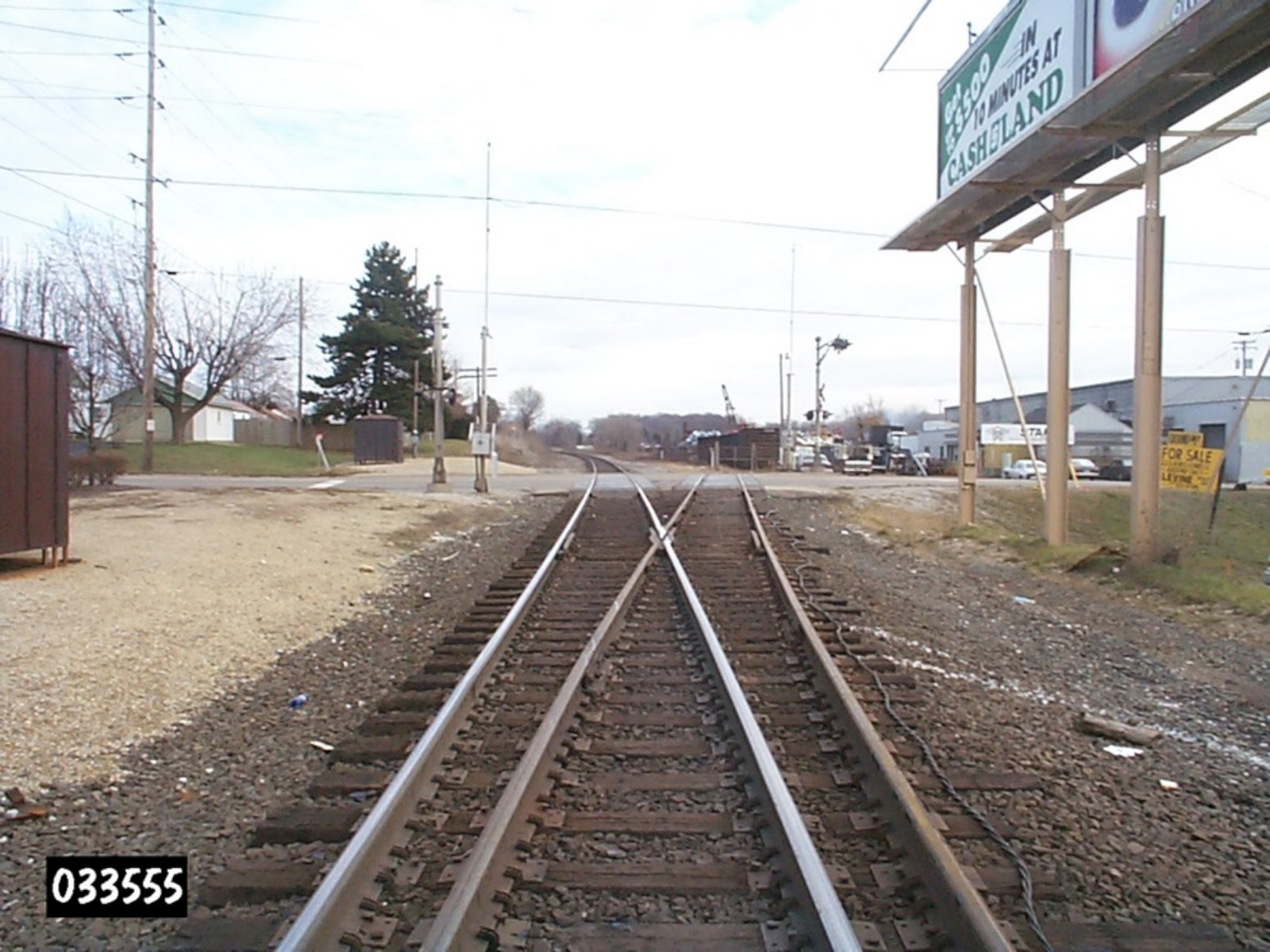

PUCO pictures from the late 90s shows
two FS/WCH cantilever signals with 8"x20" incandescents,
Safetran Model 85 gate mechanisms and a Safetran?
Mechanical Bell. You might also notice the "2 Tracks"
sign on both former signals, as there used to be a spur
that lead to a building east of the crossing. In late
2008, both signals were replaced with the current setup,
two wayside horns were added and the 2nd track was
removed.
|
|||
|
1 |
2 |
|

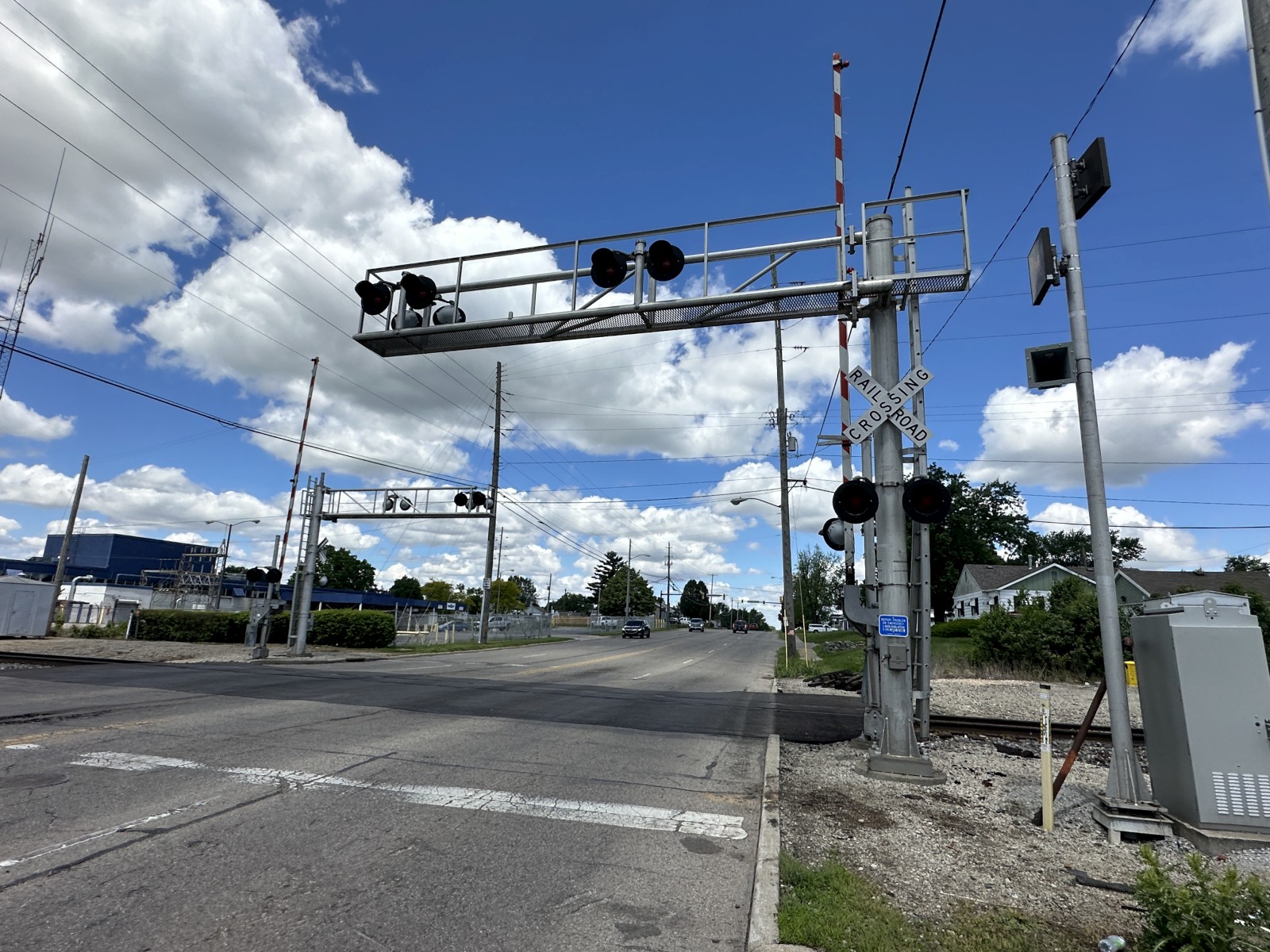

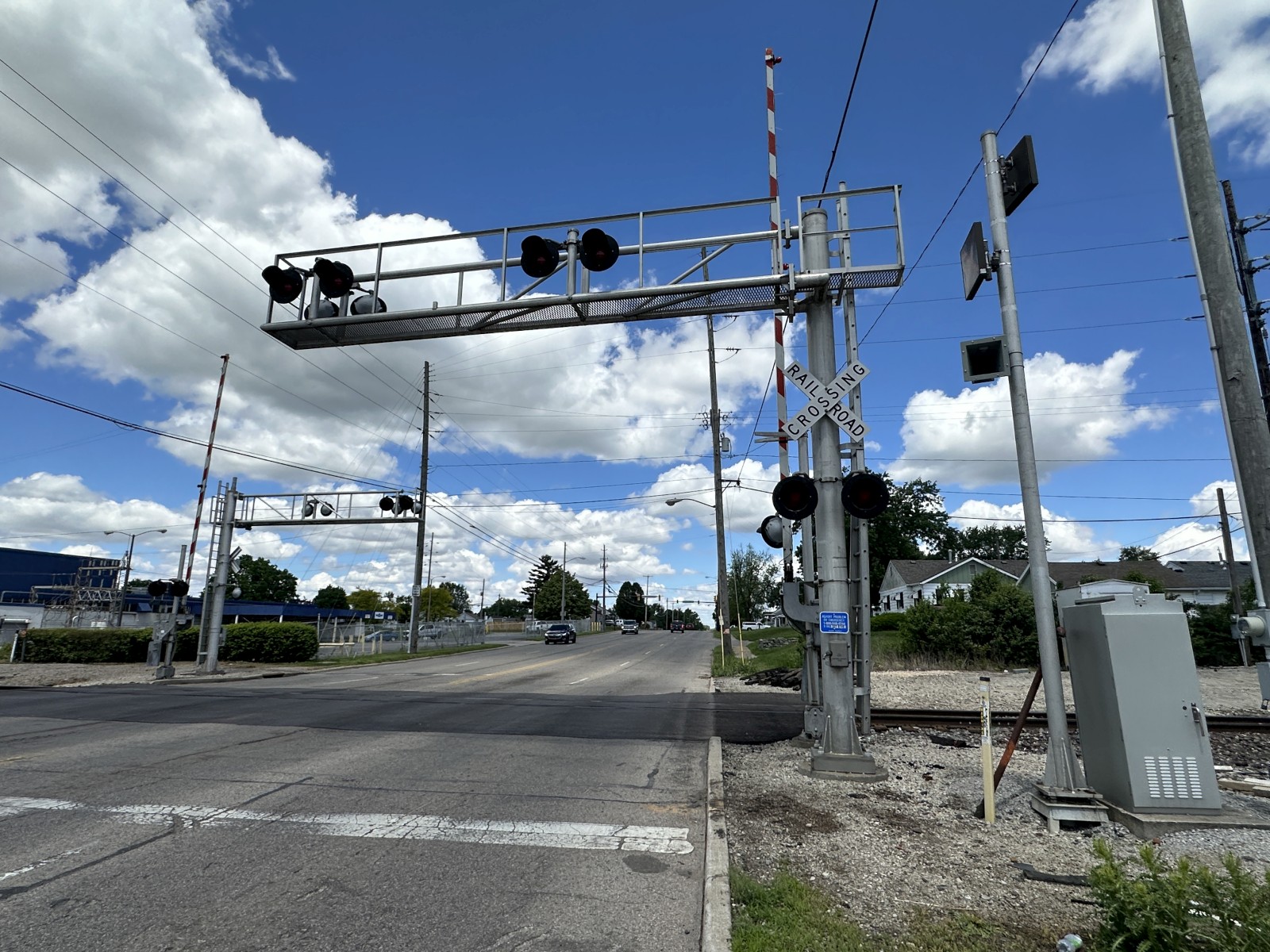

Overview of 2 gated cantilevers facing
north.
|
Overview facing south.
|
|
3 |
4 |
5 |
|
6 |
7 |
8 |
9 |
|
10 |
11 |
12 |
13 |
|

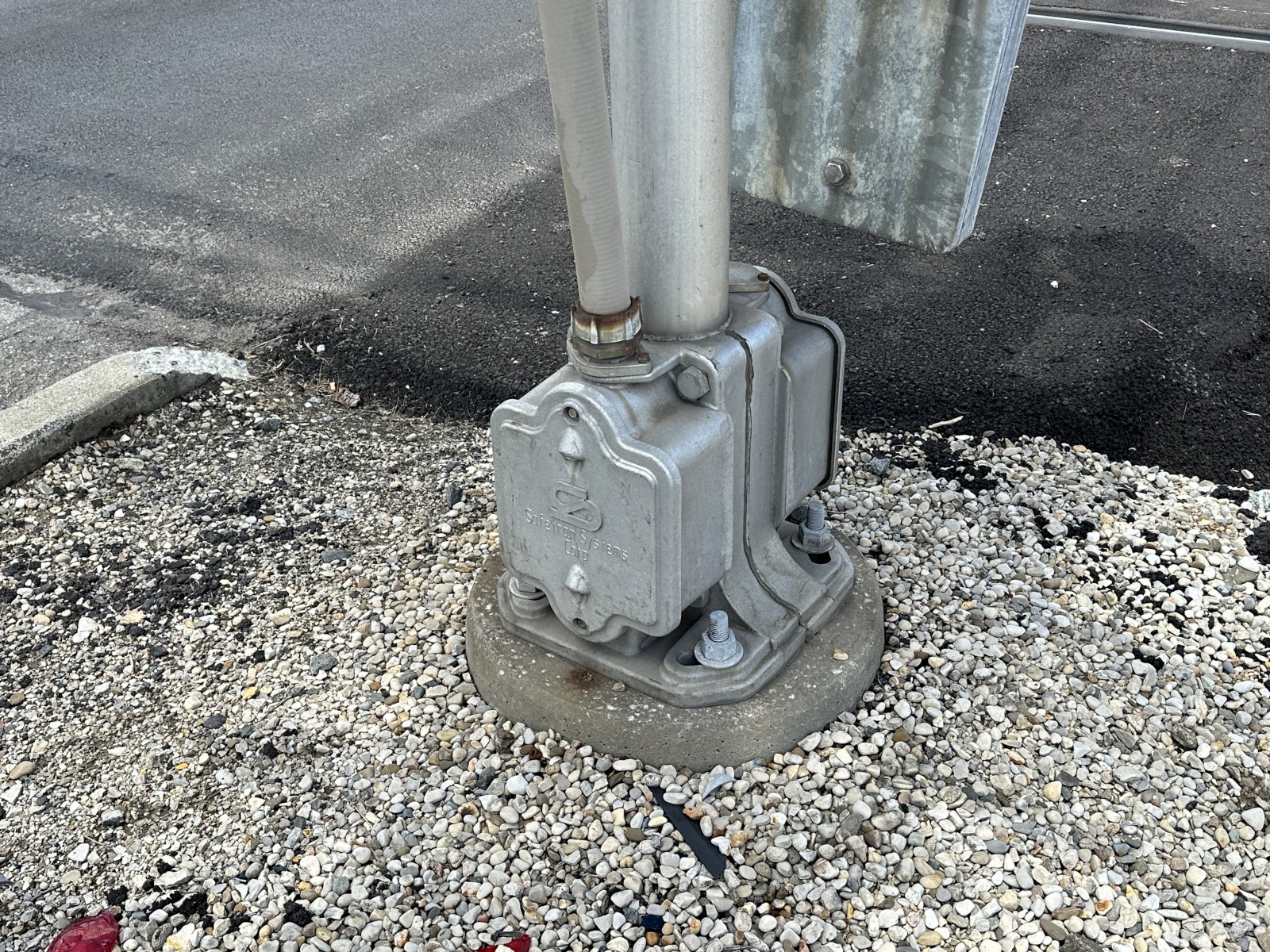

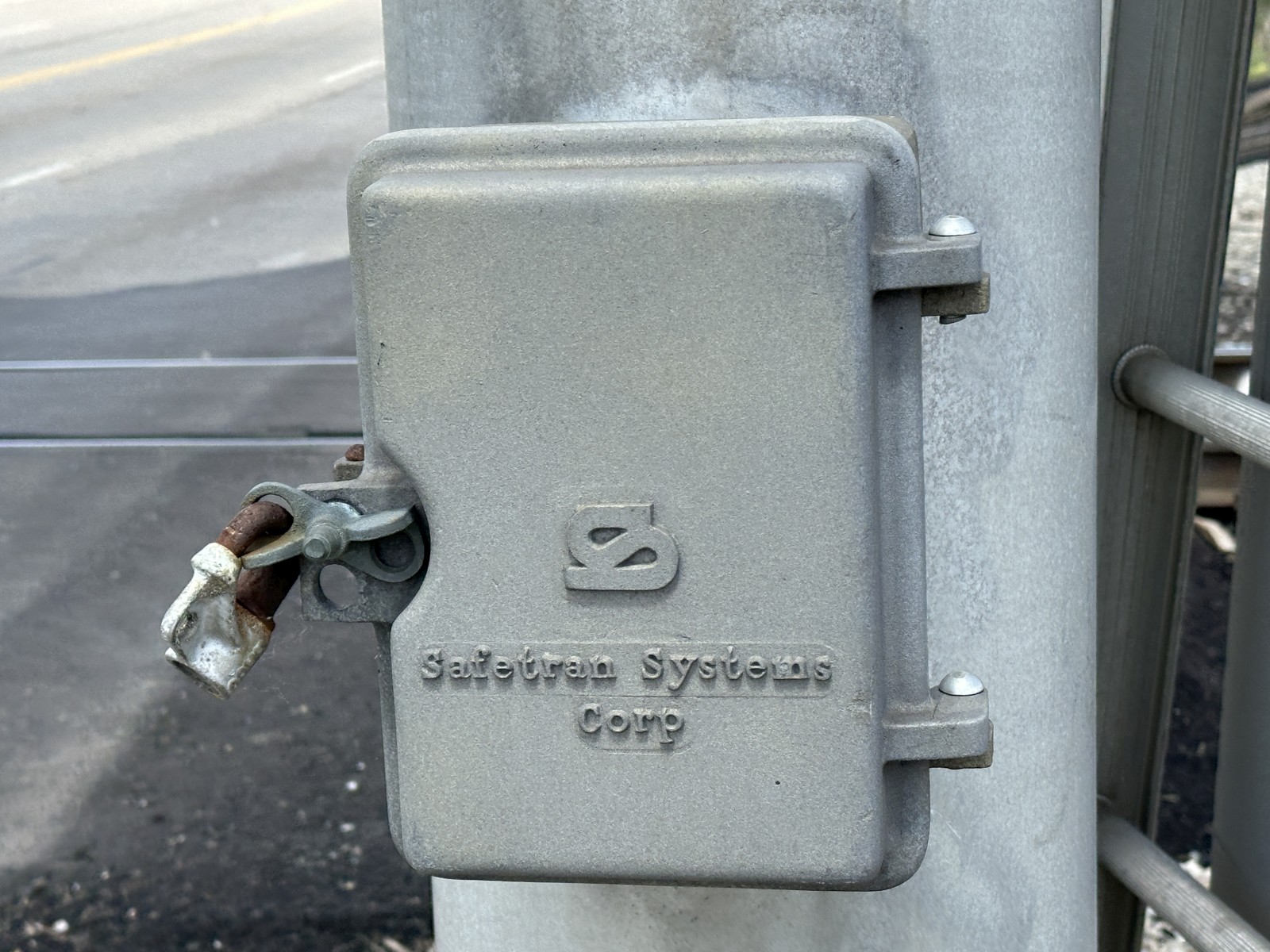

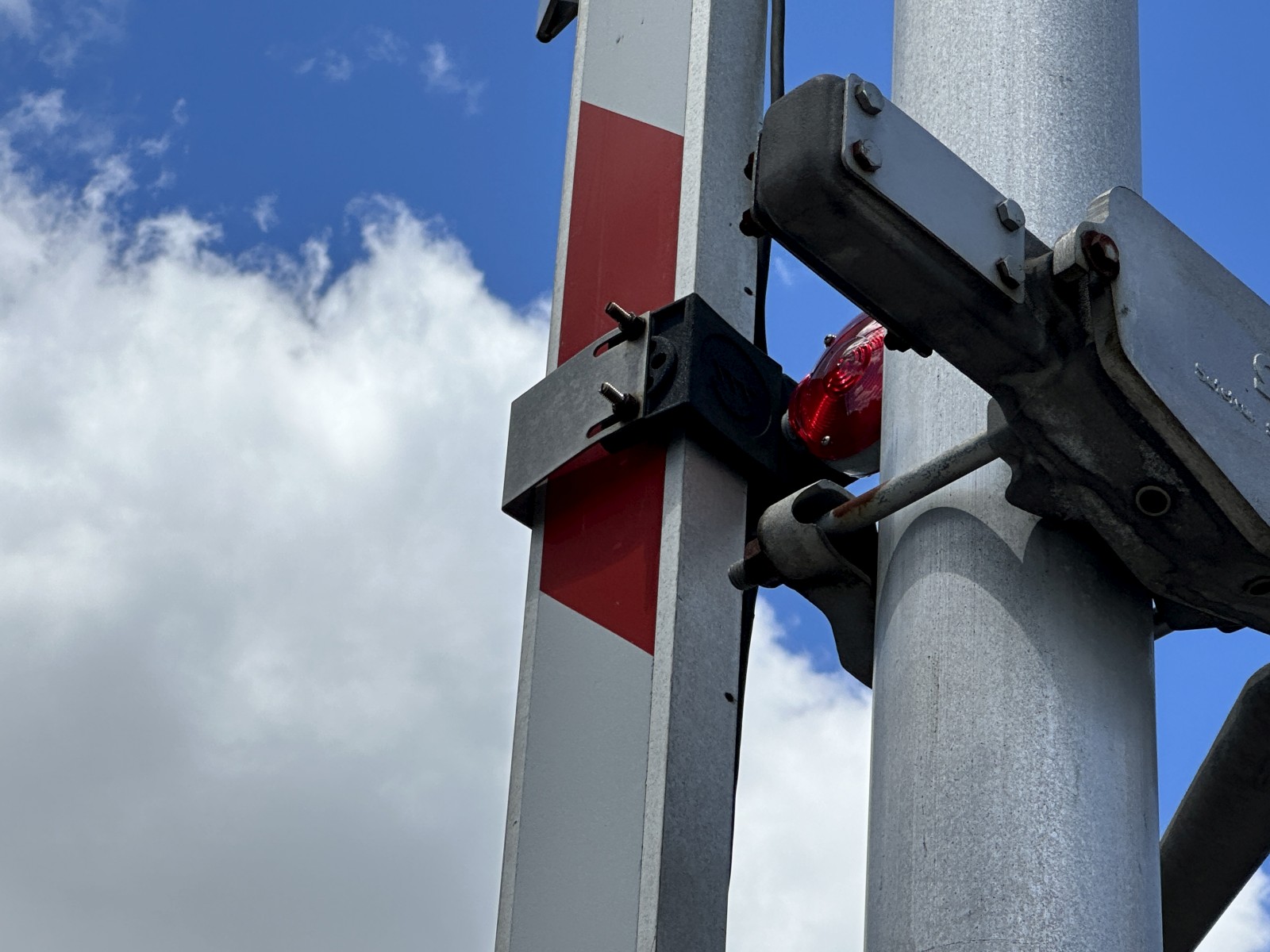

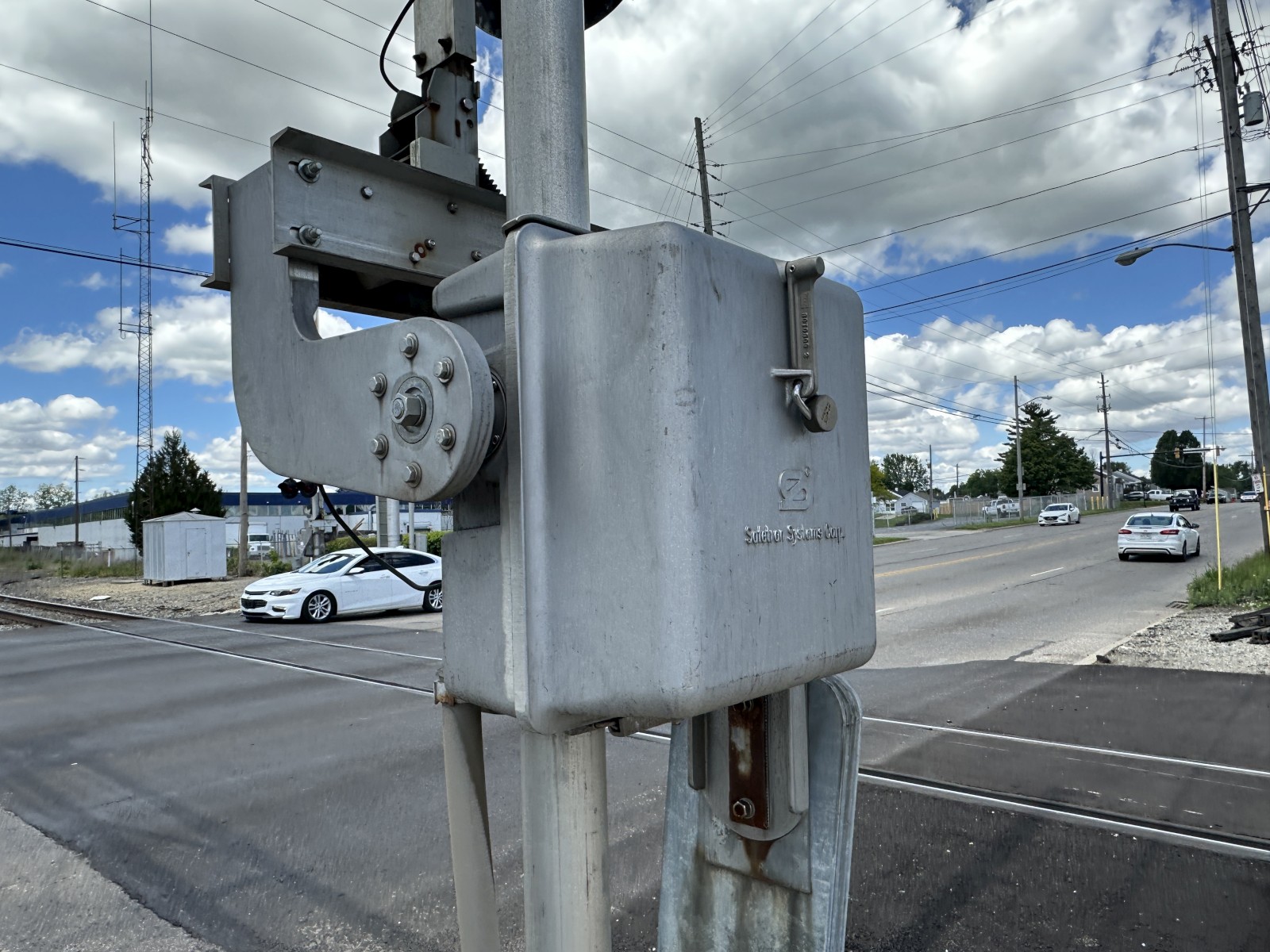

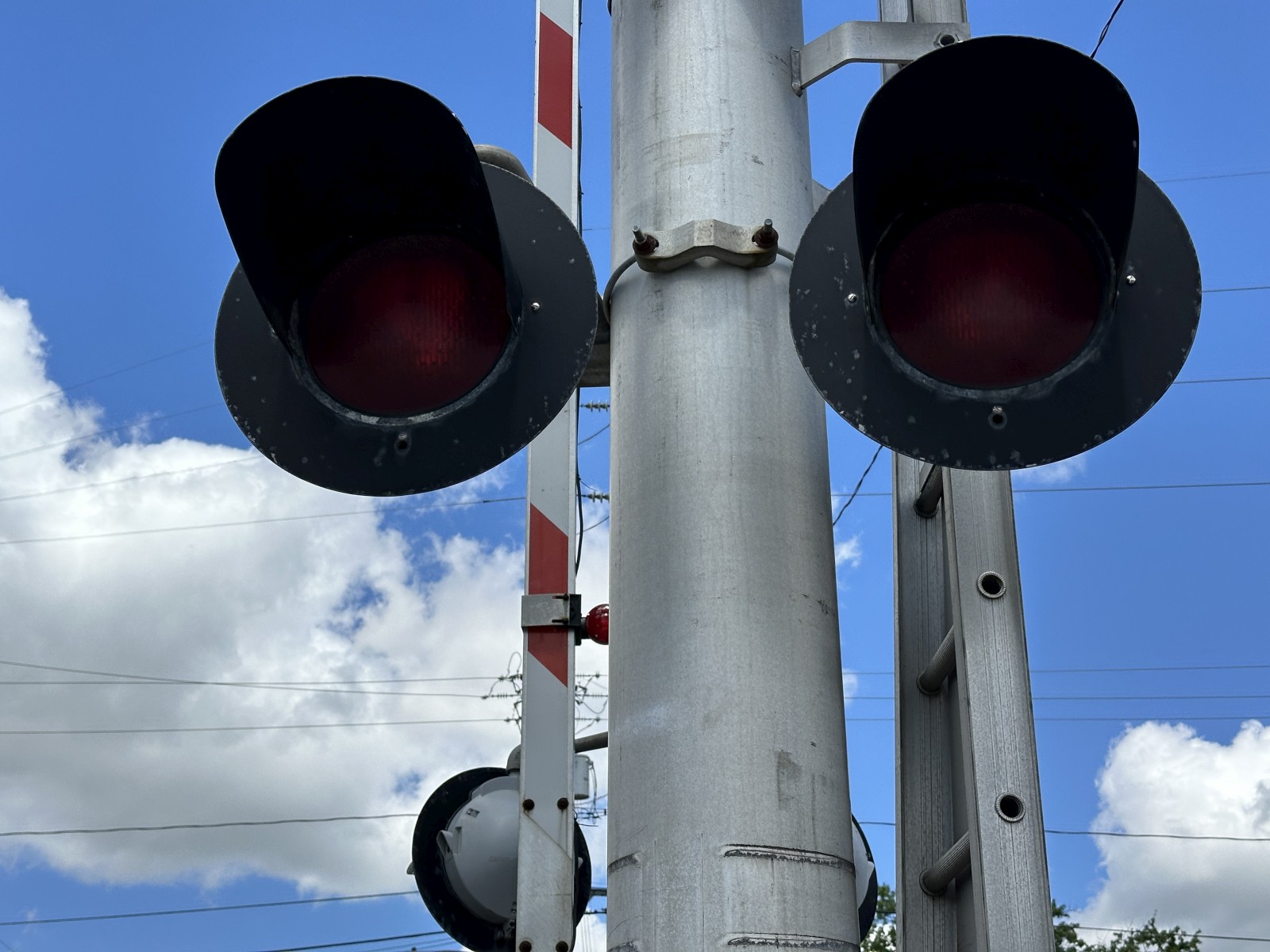

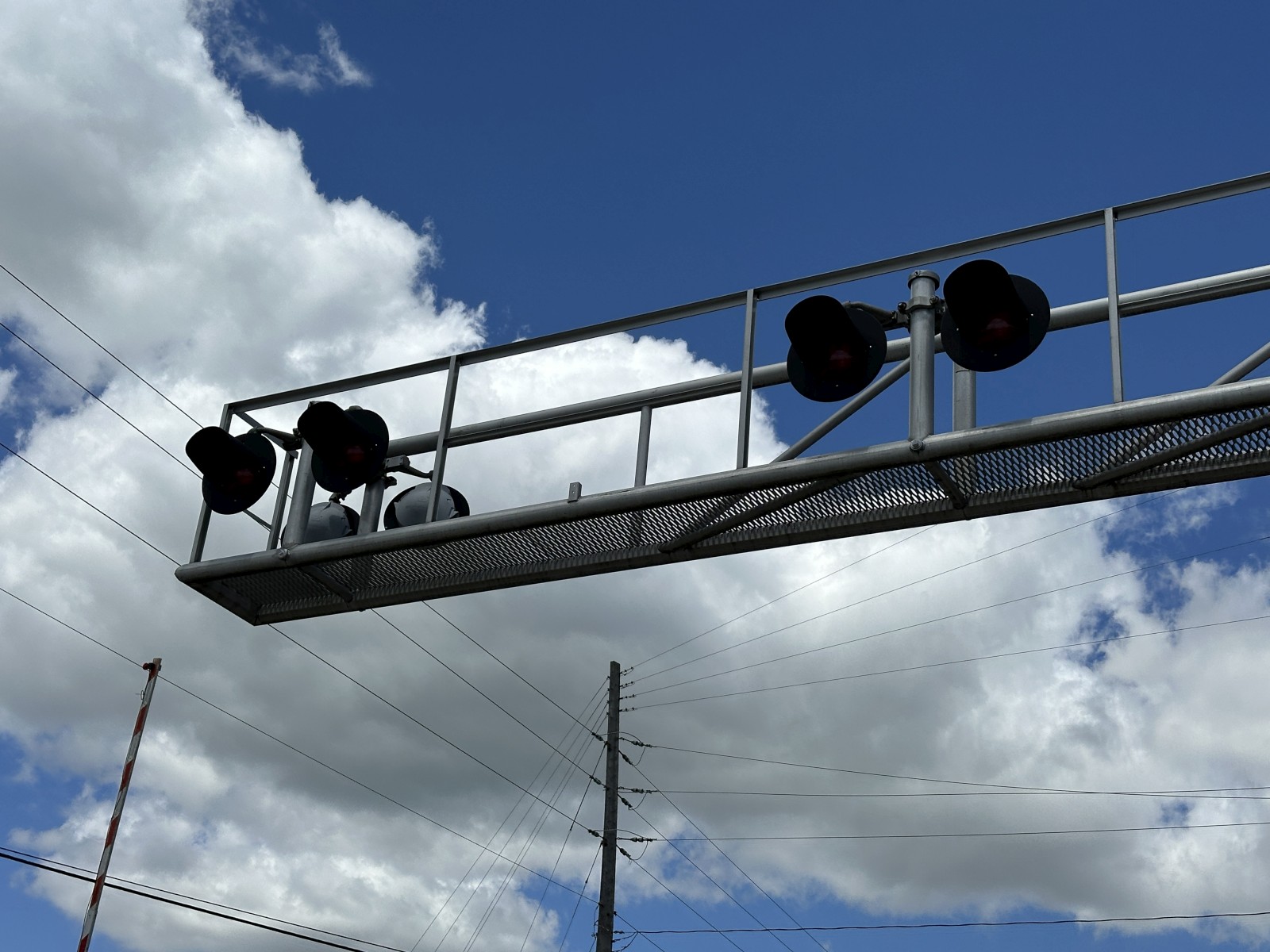

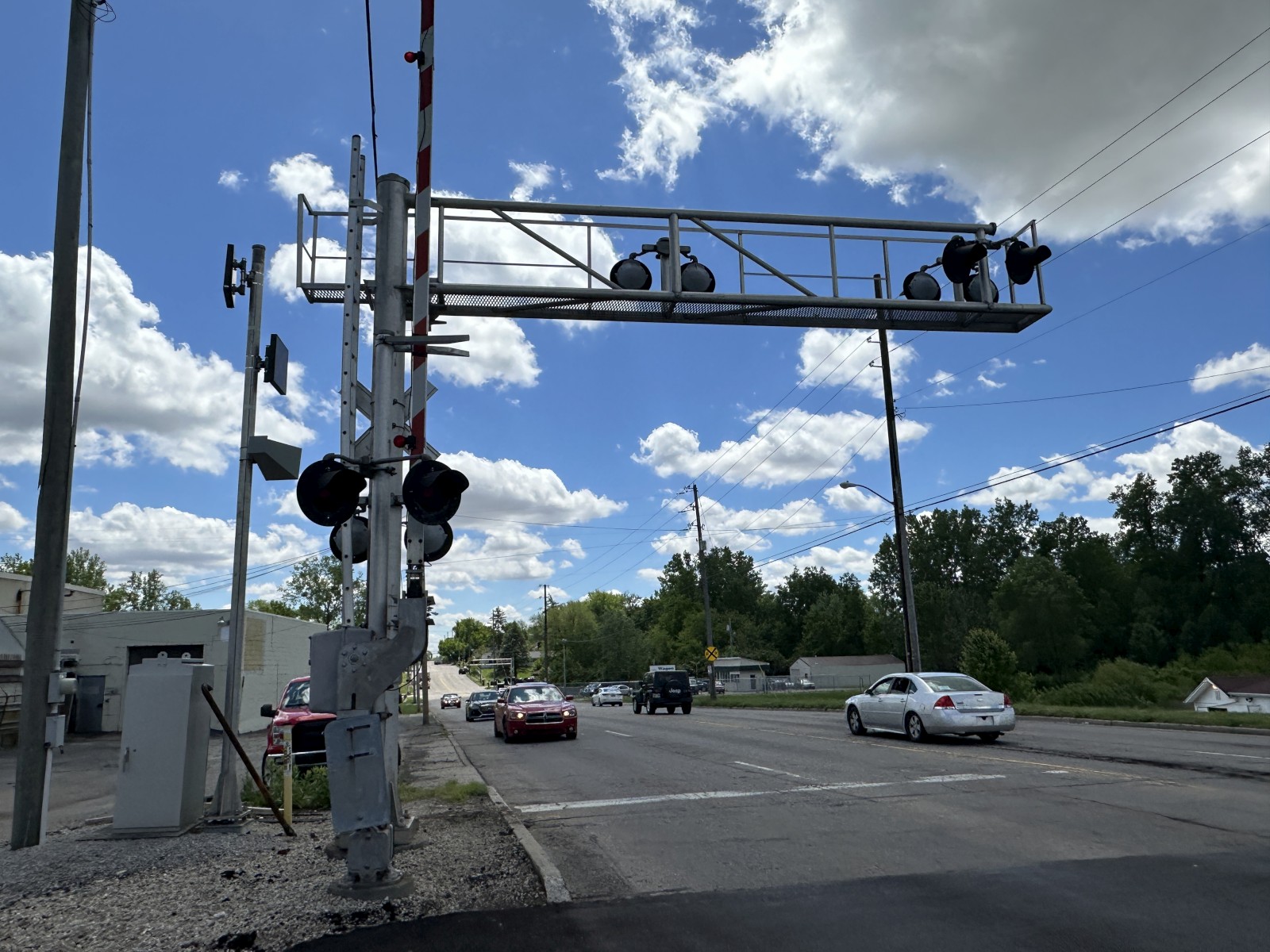

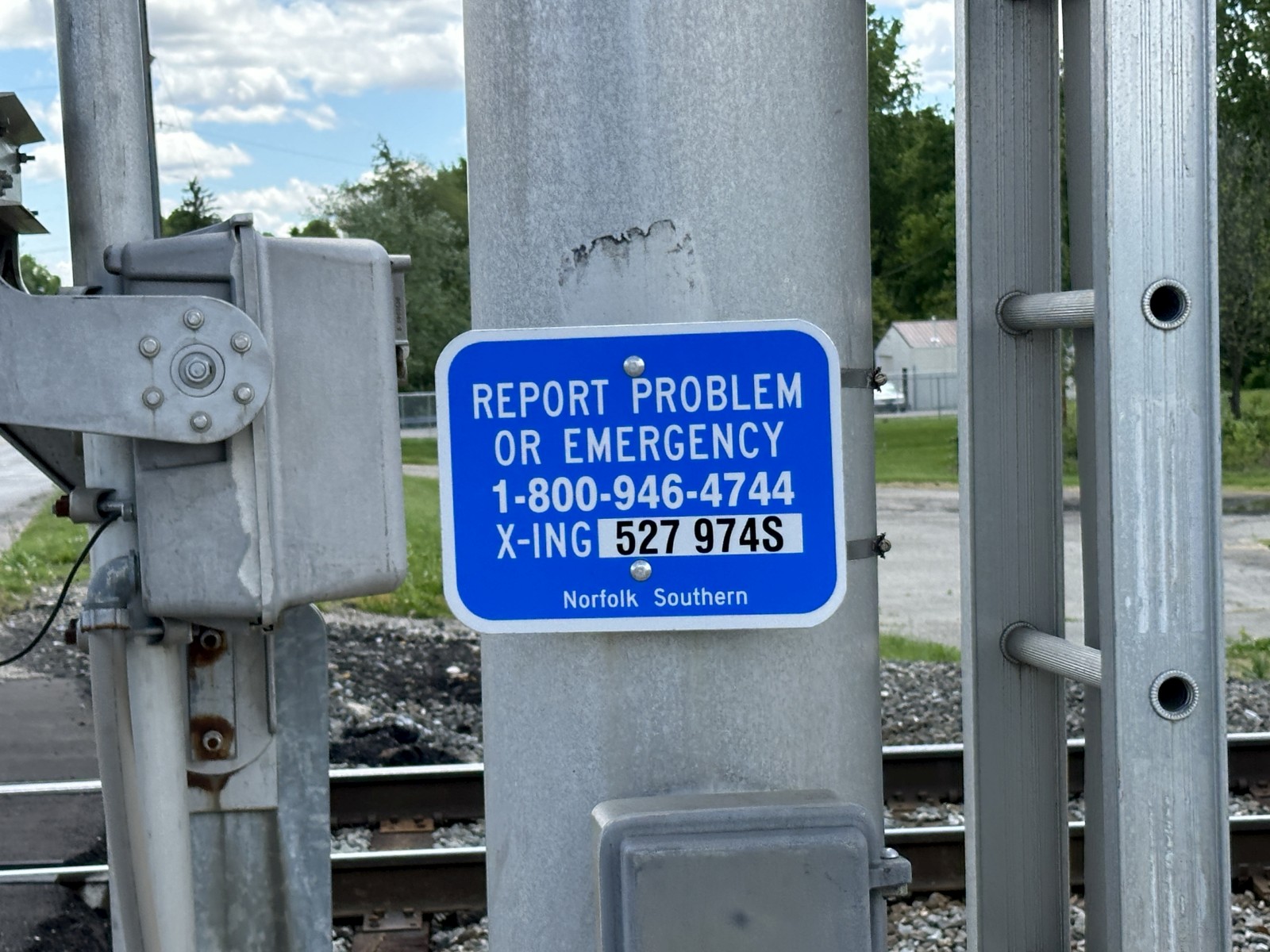

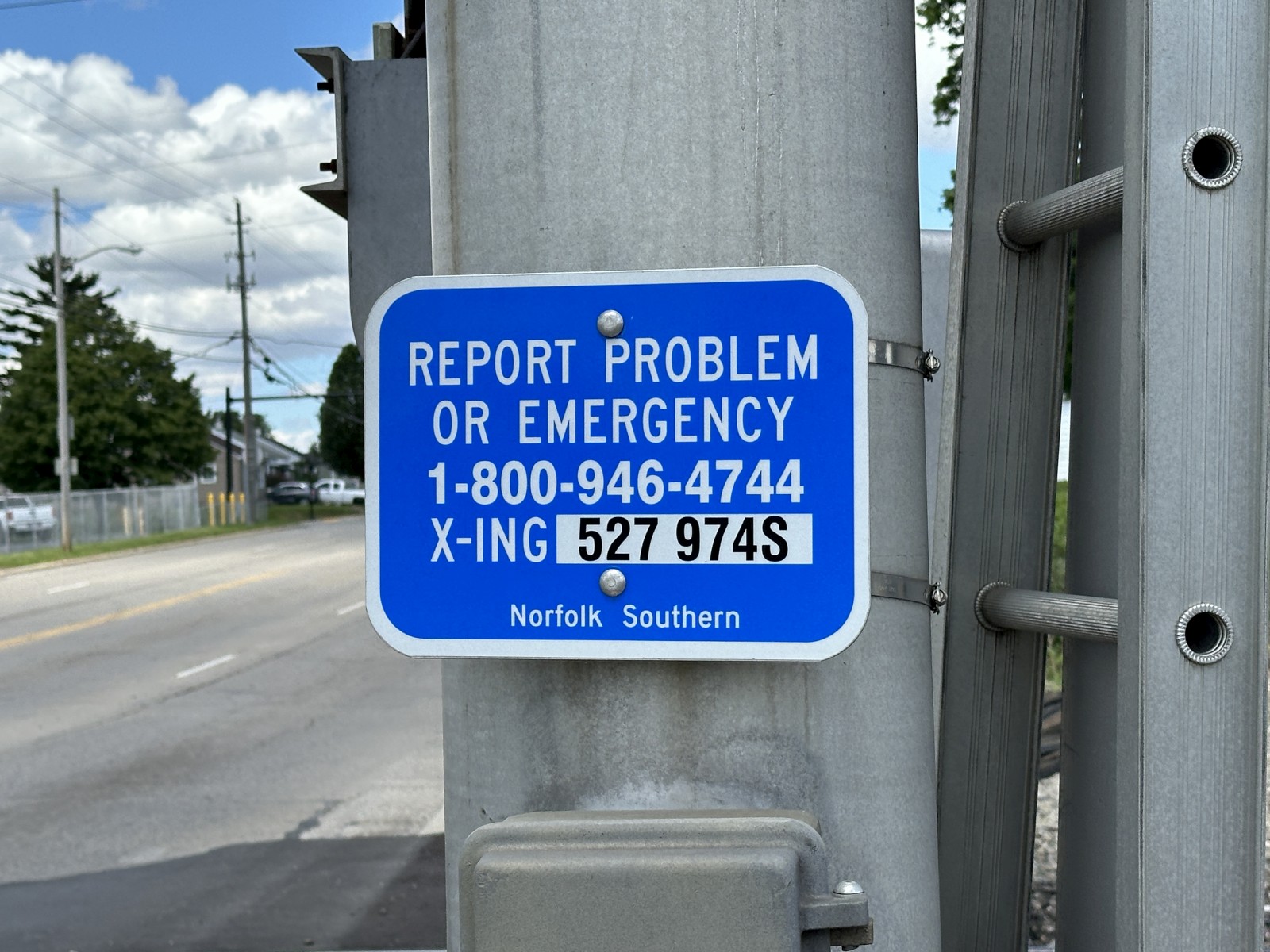

The southern signal.
|
|||
|
14 |
15 |
16 |
17 |
|
18 |
19 |
20 |
21 |
|
22 |
23 |
24 |
25 |
|

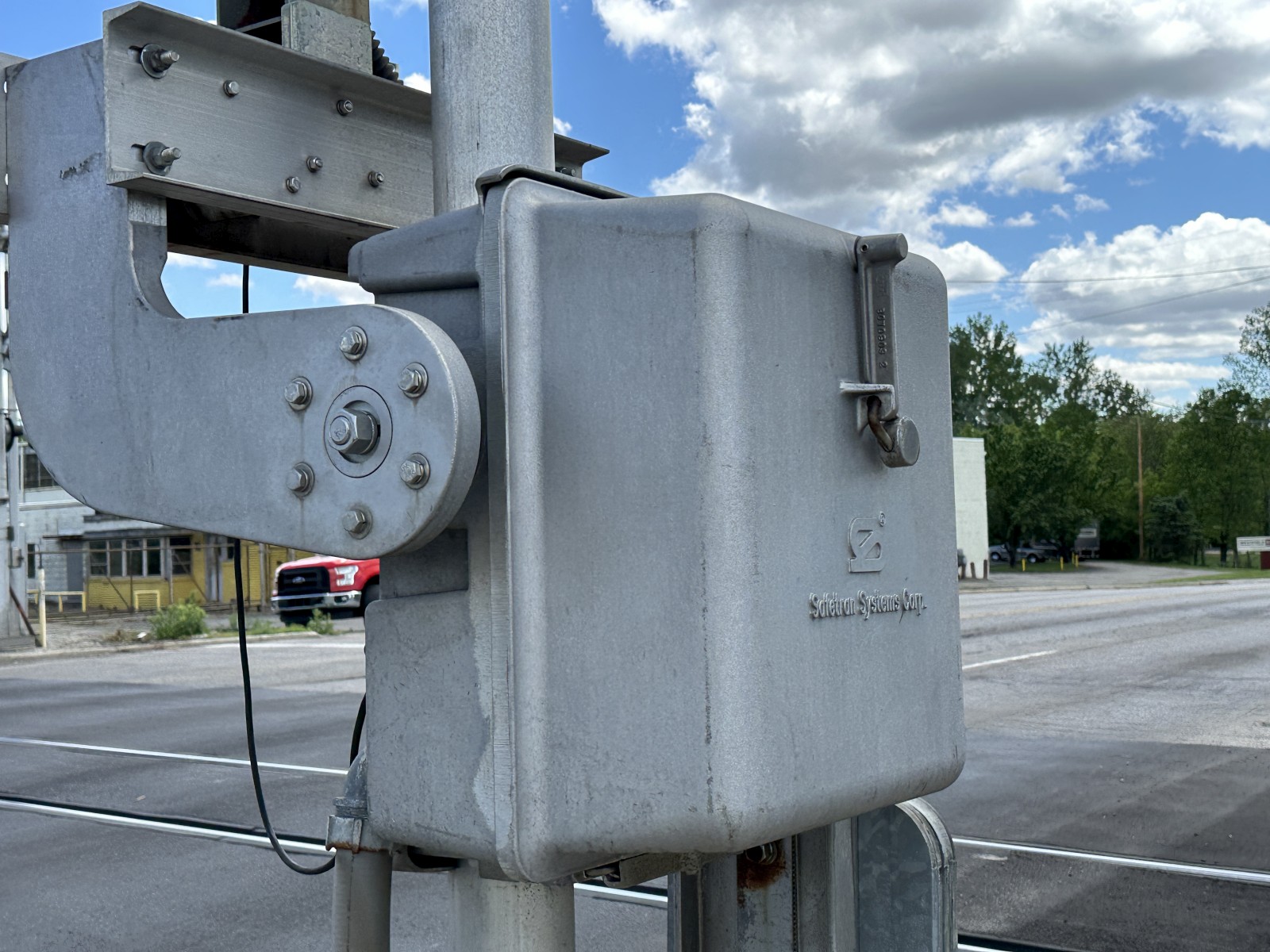

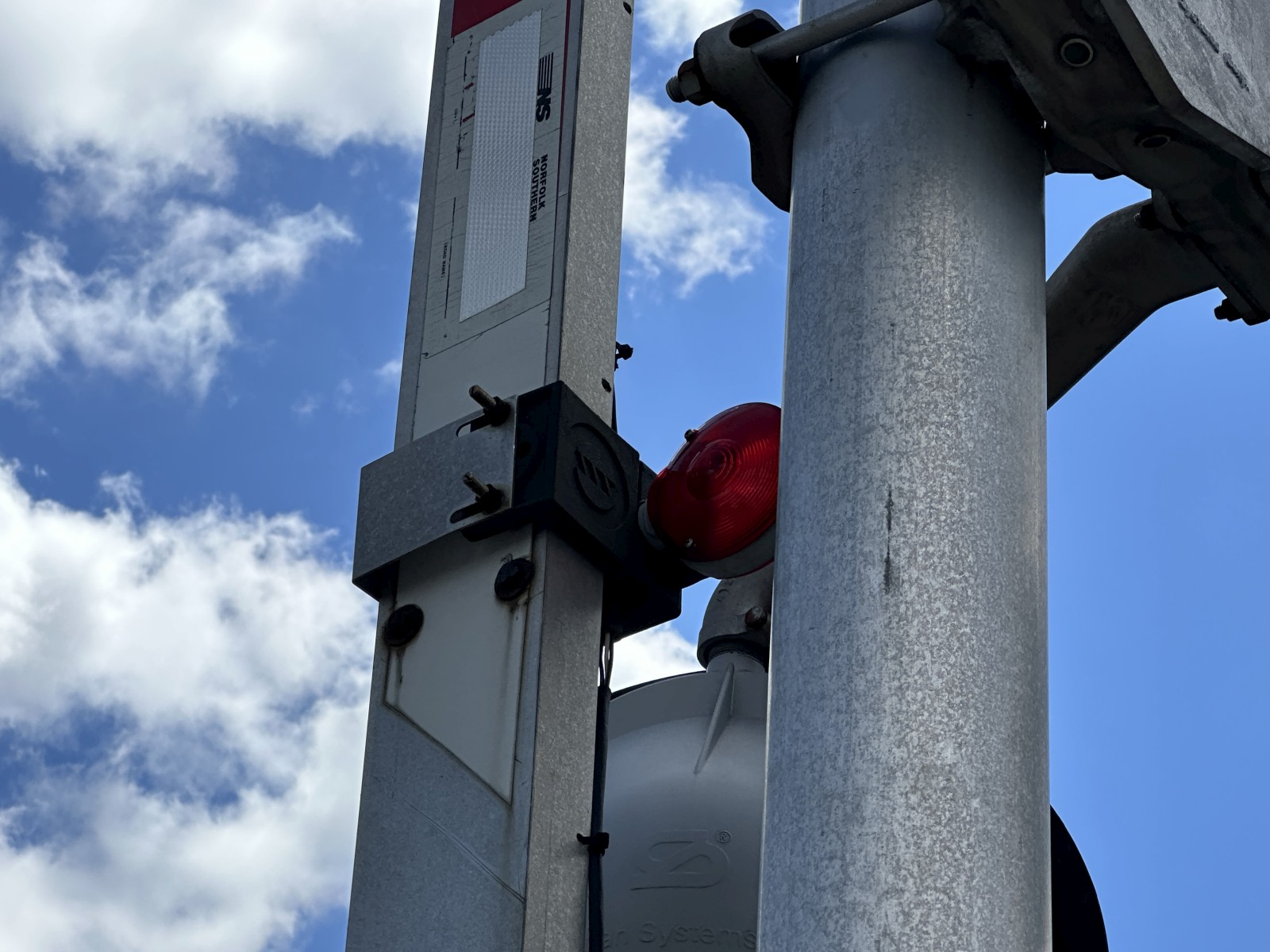

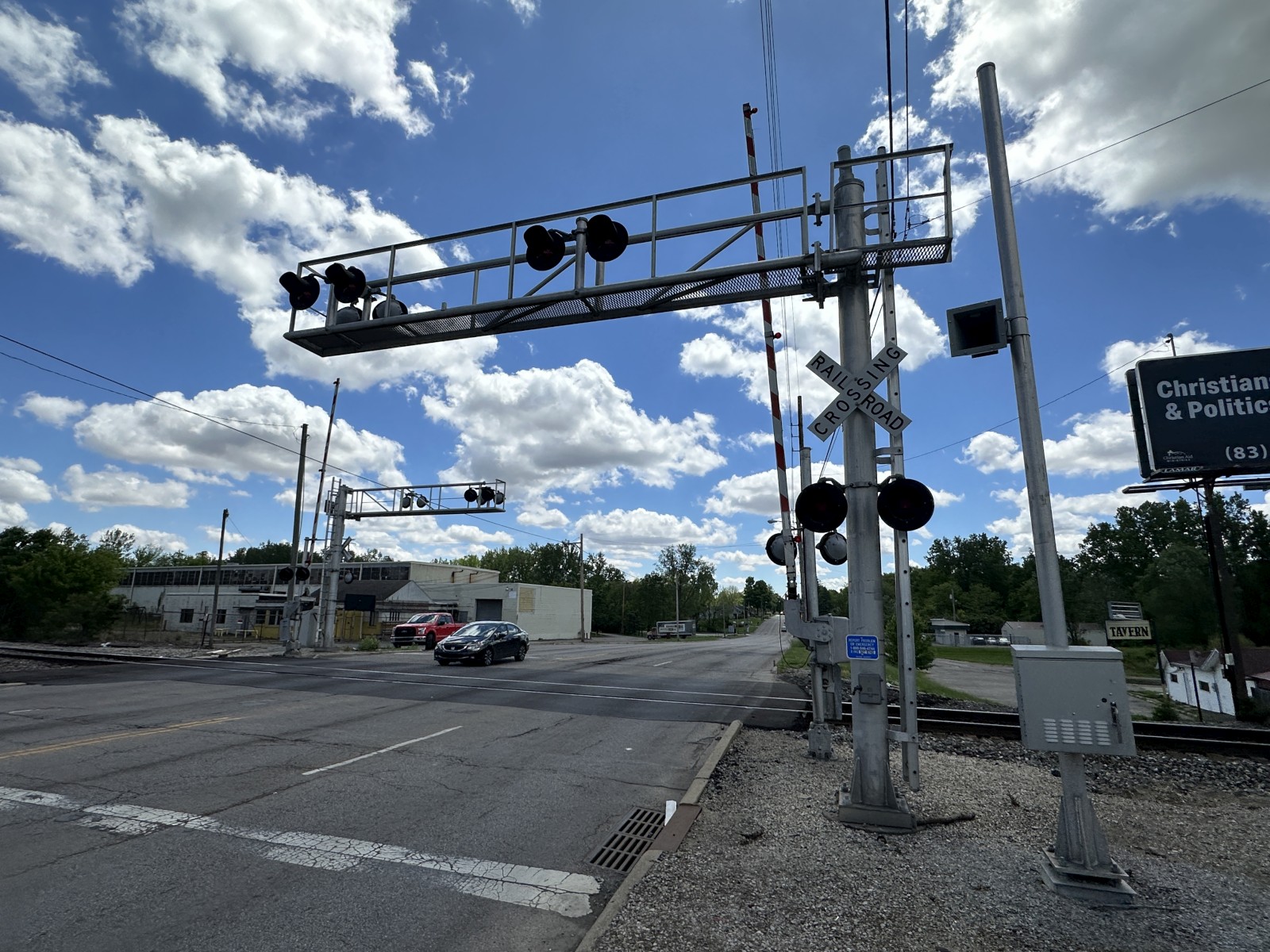

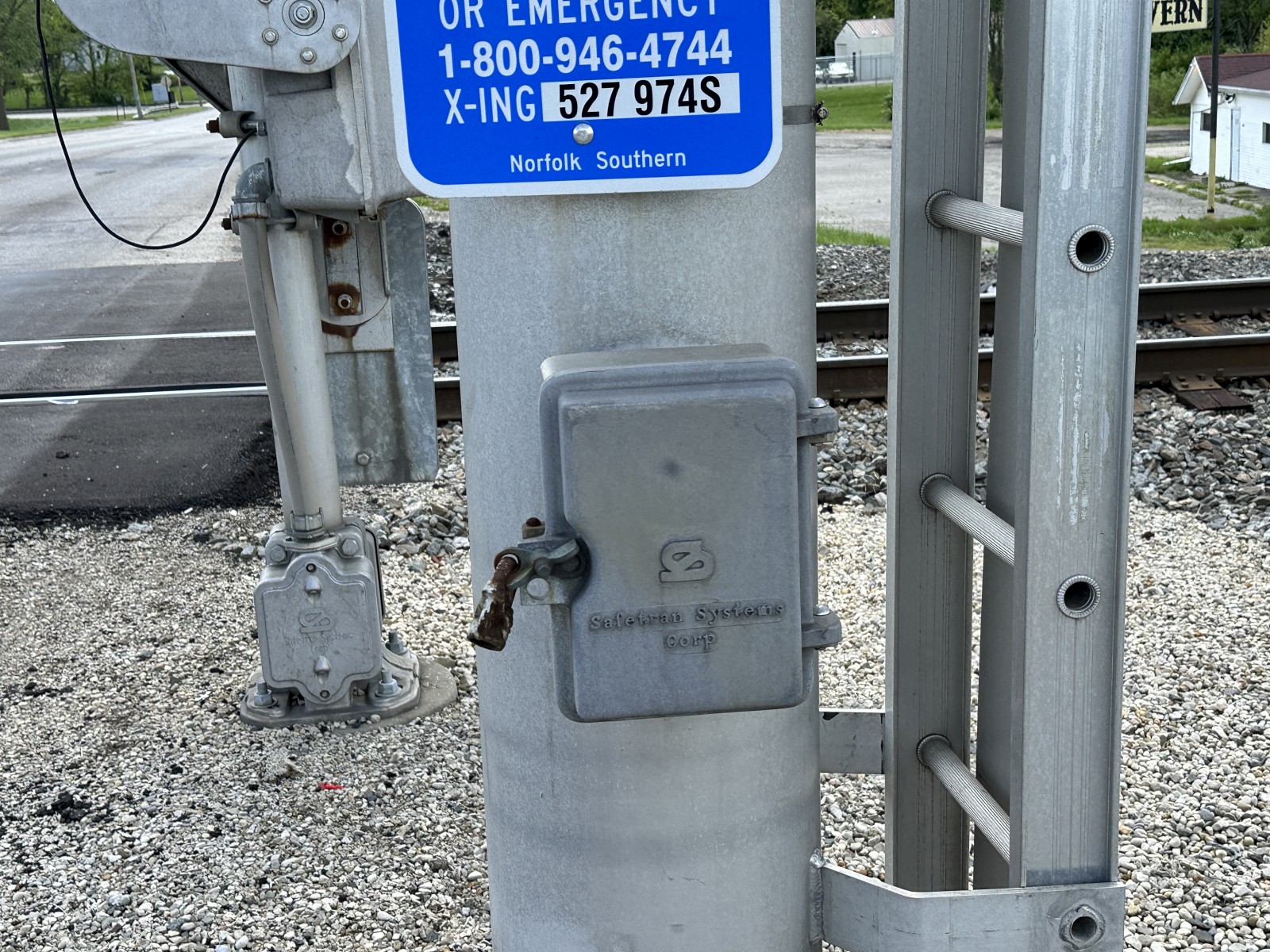

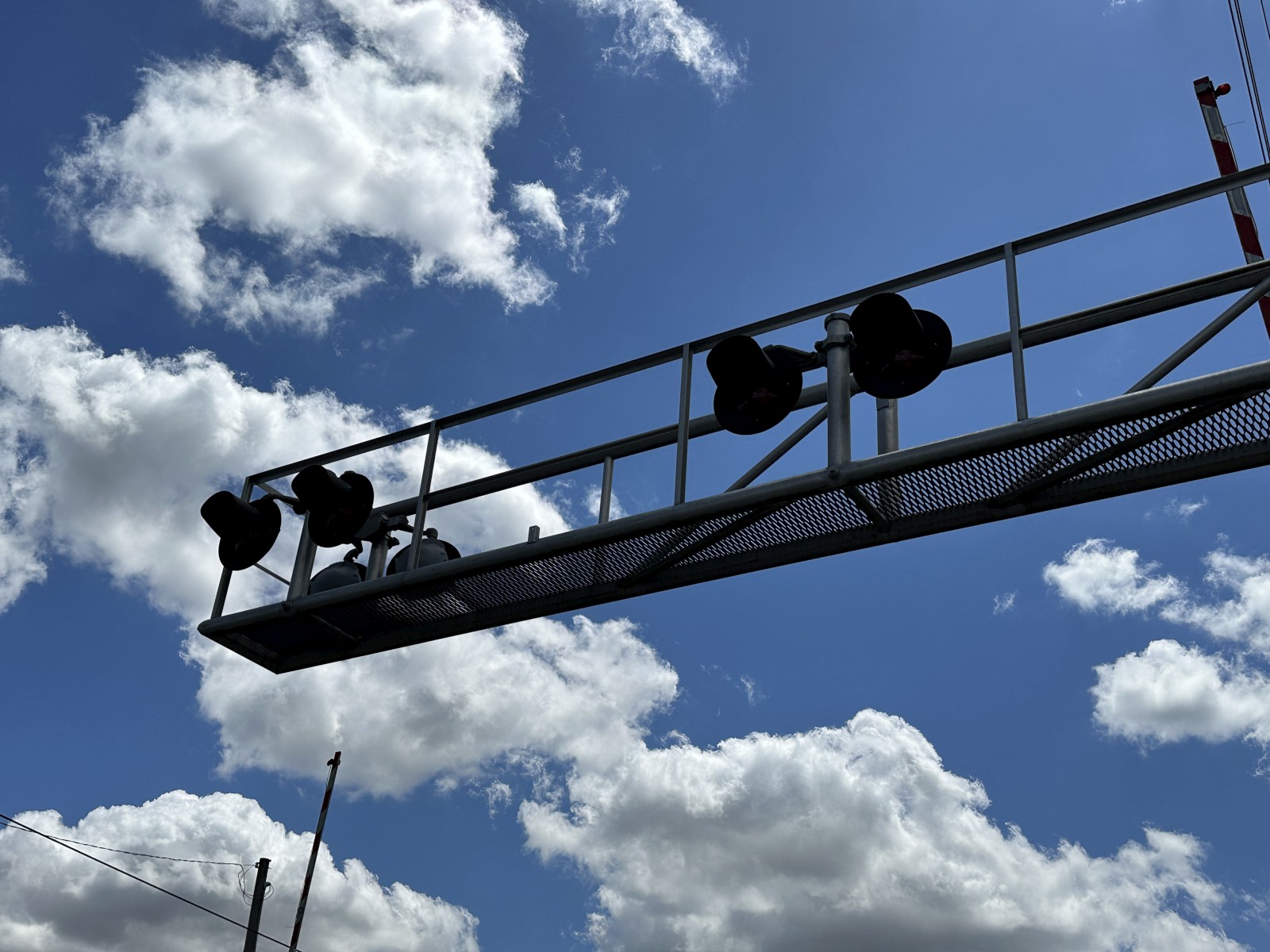

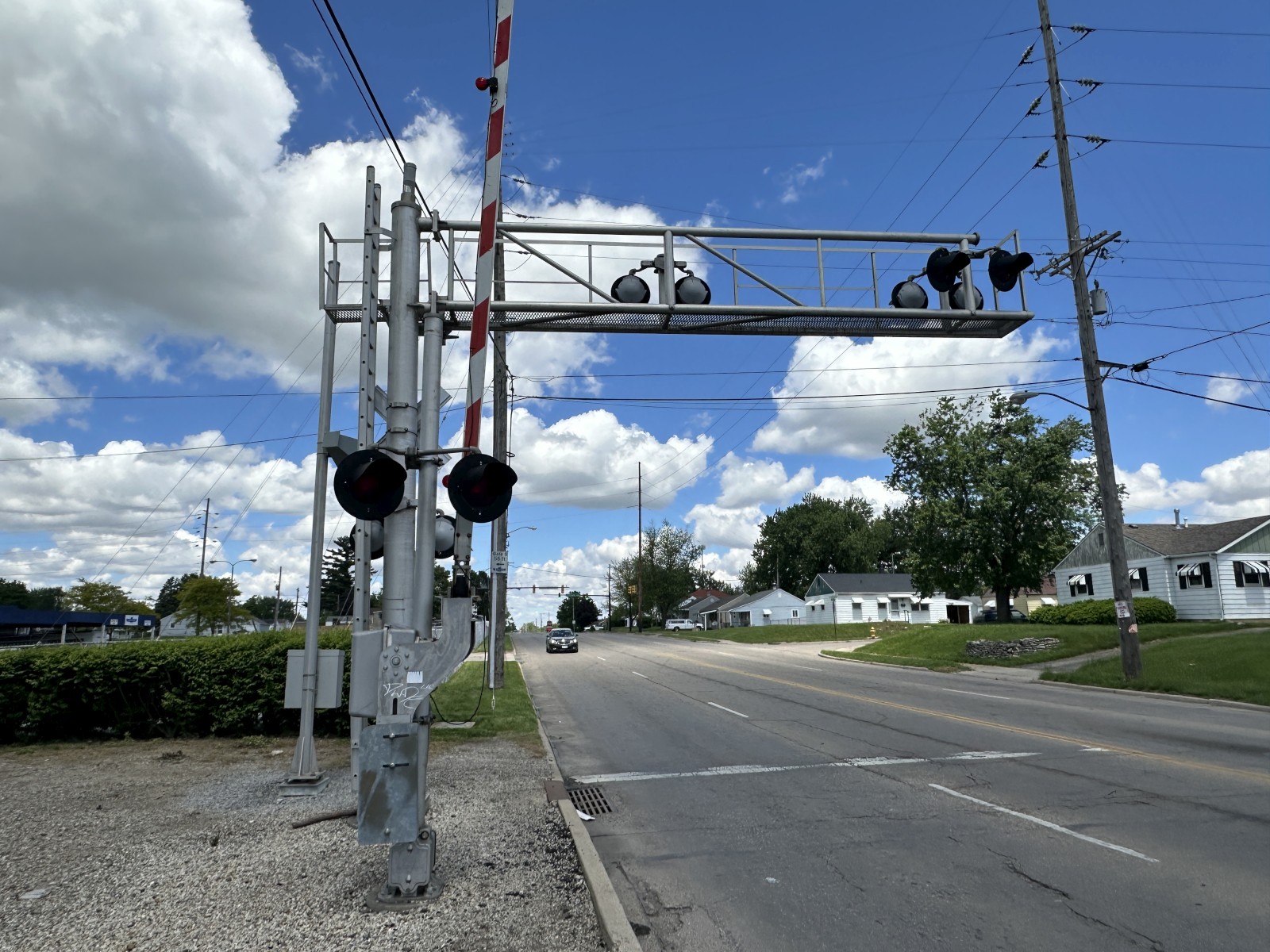

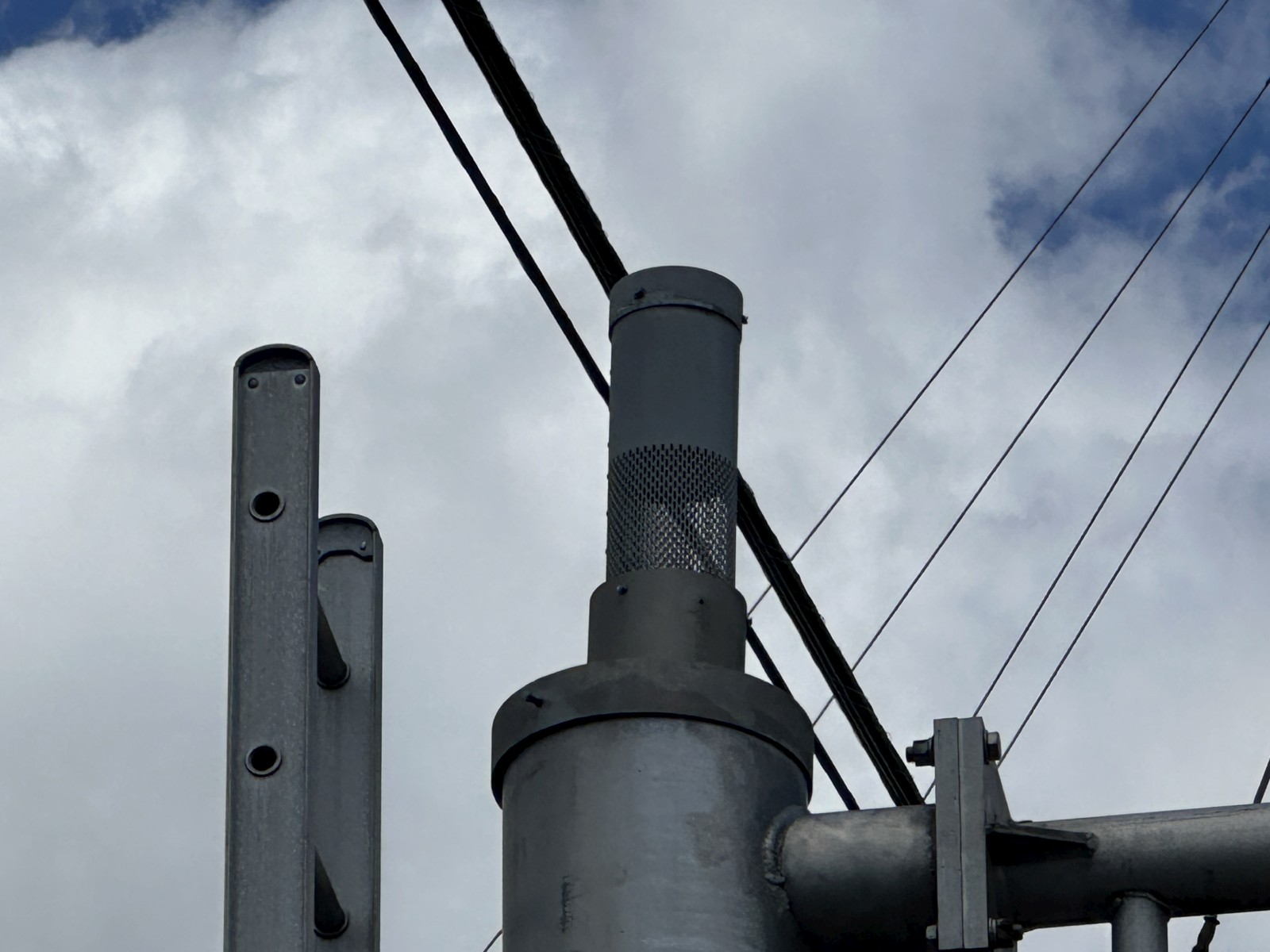

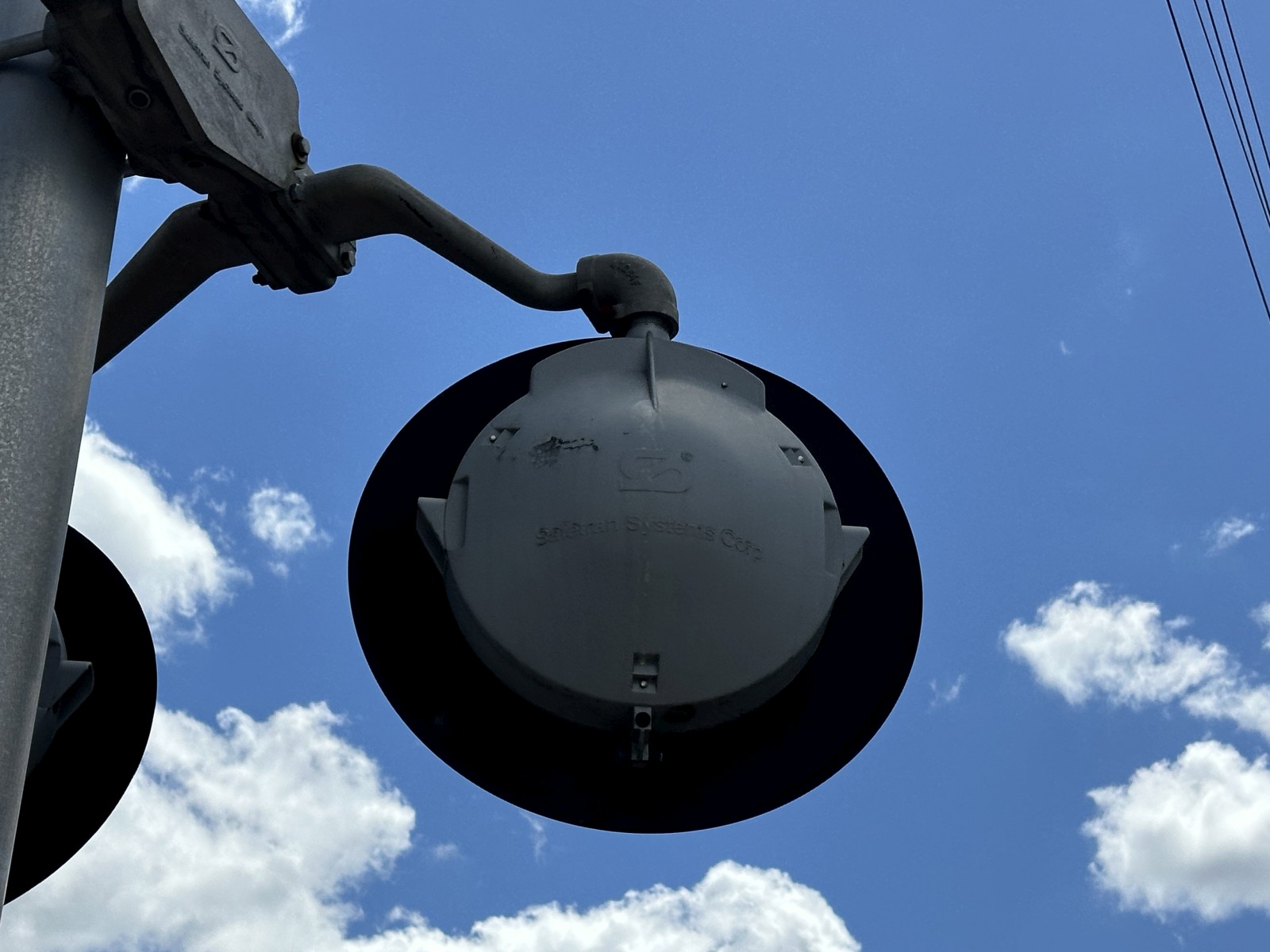

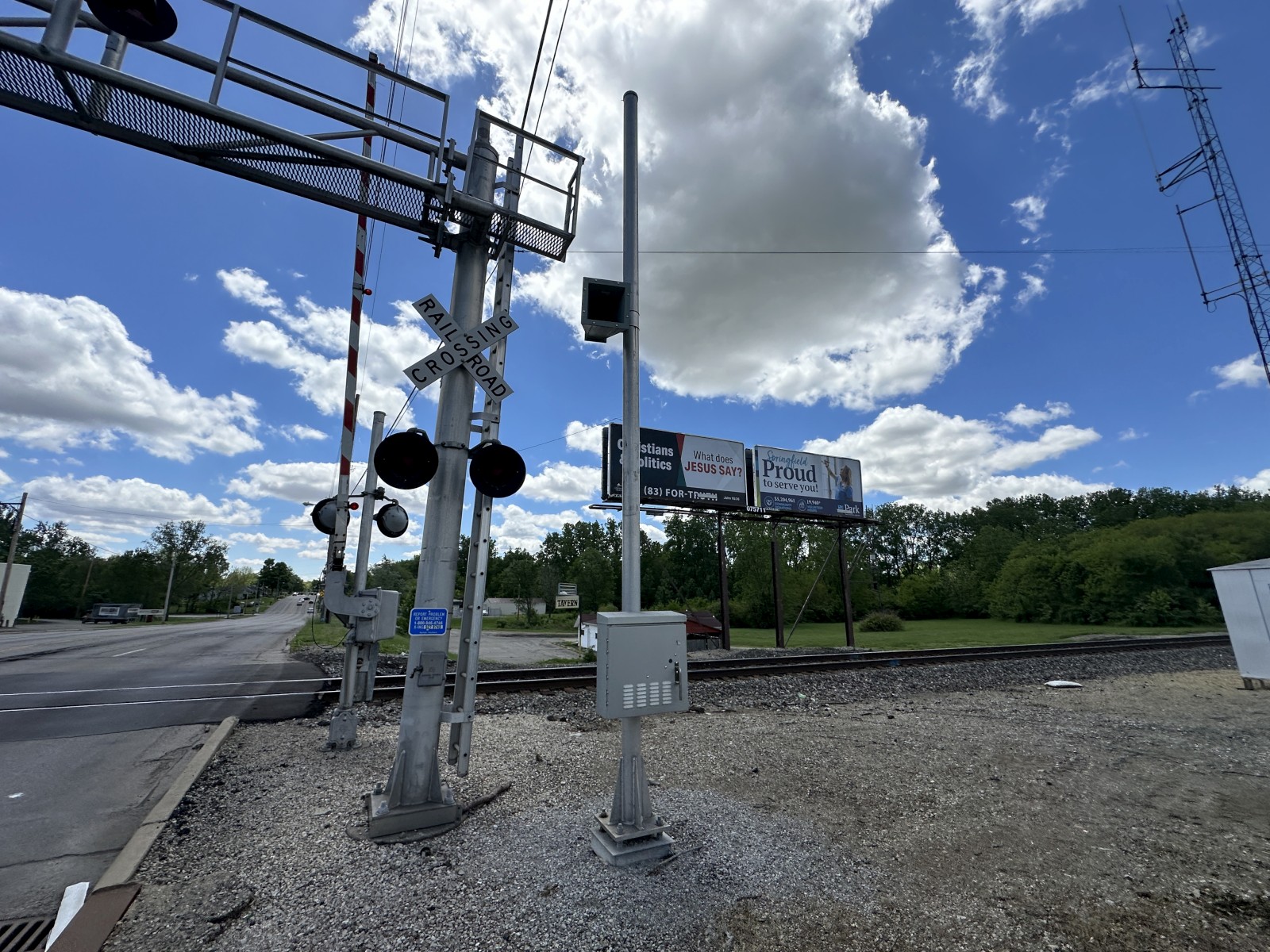

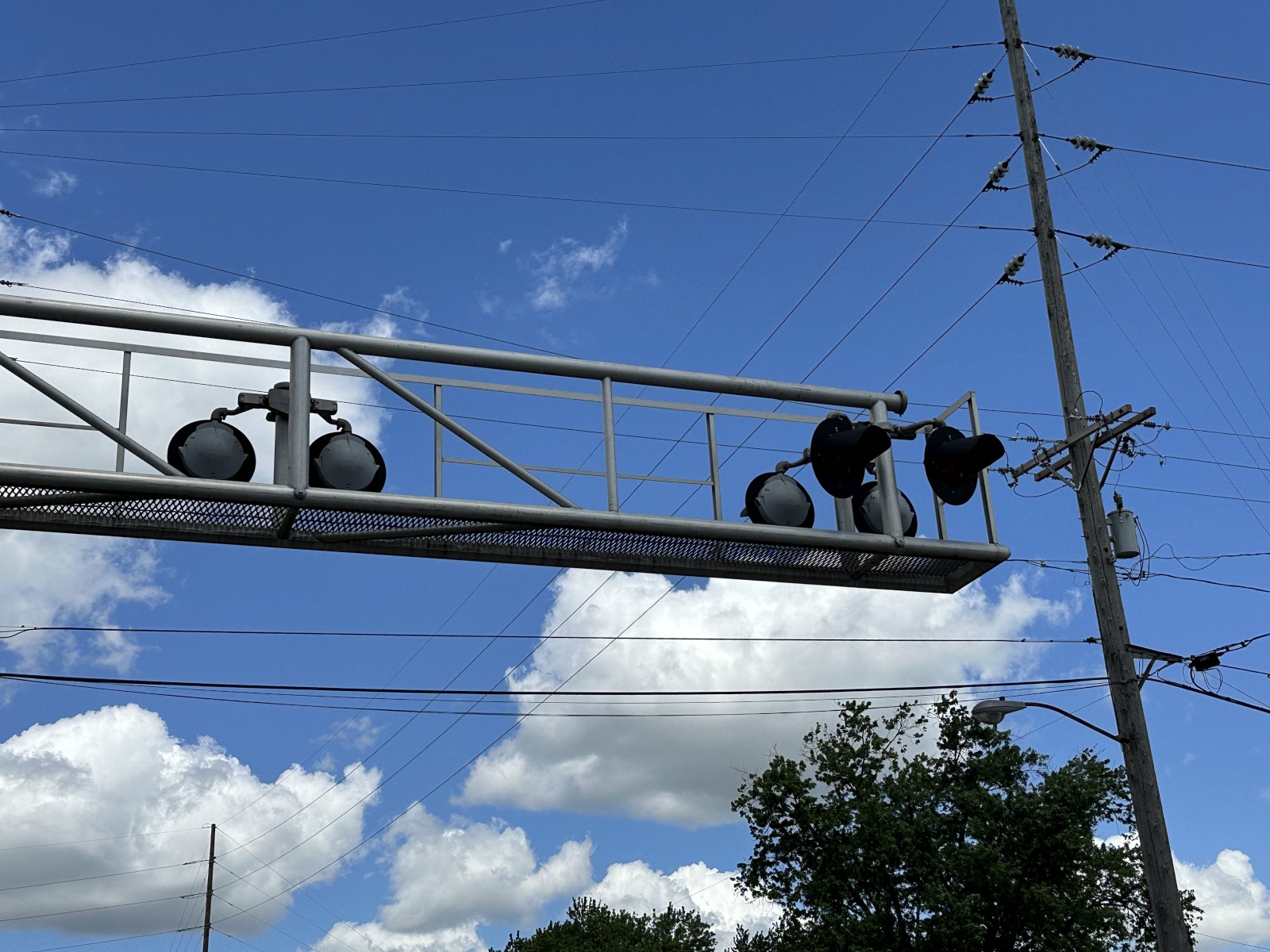

The northern signal.
|
|||
|
26 |
27 |
|
28 |
29 |
30 |
|

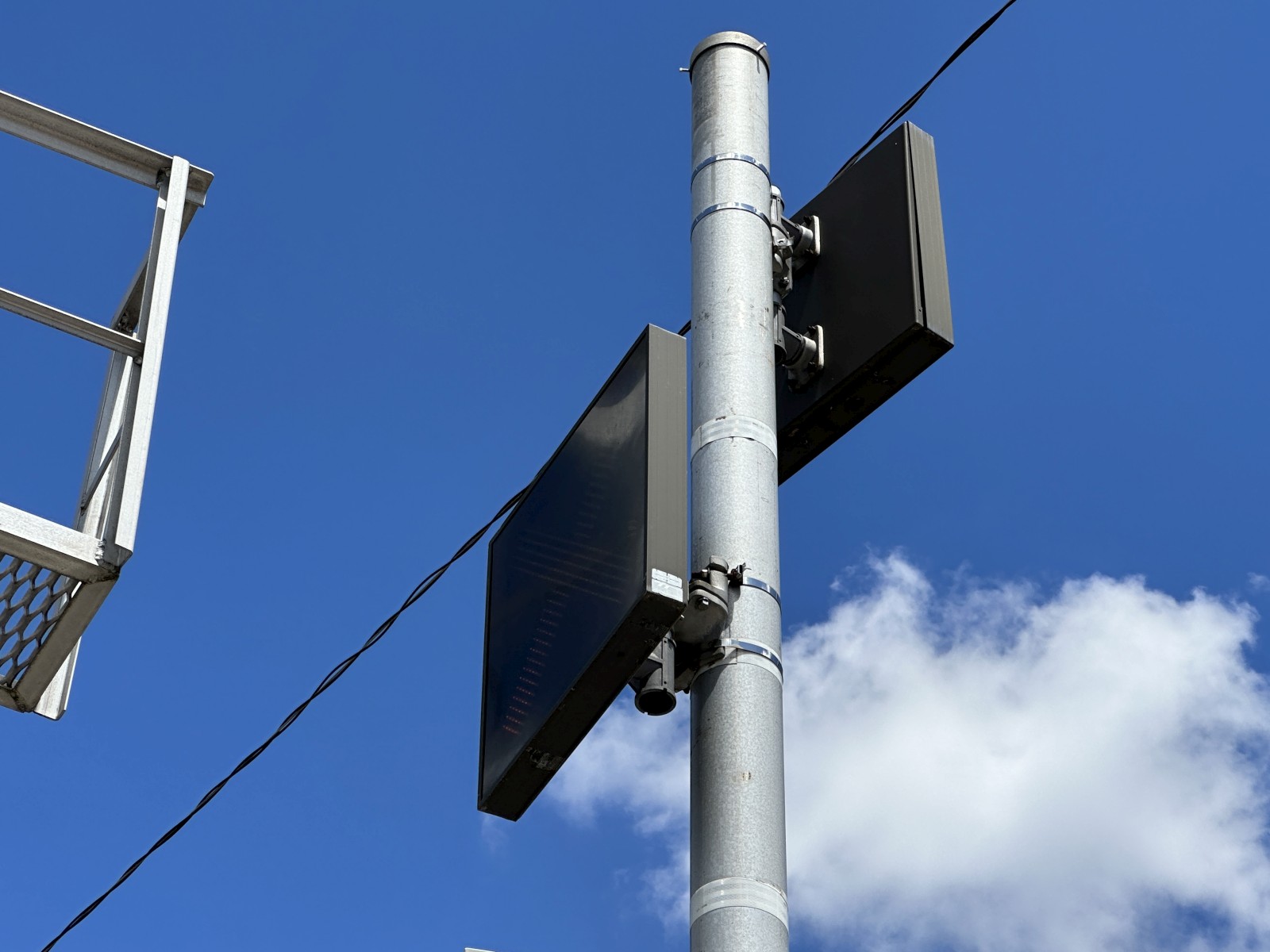

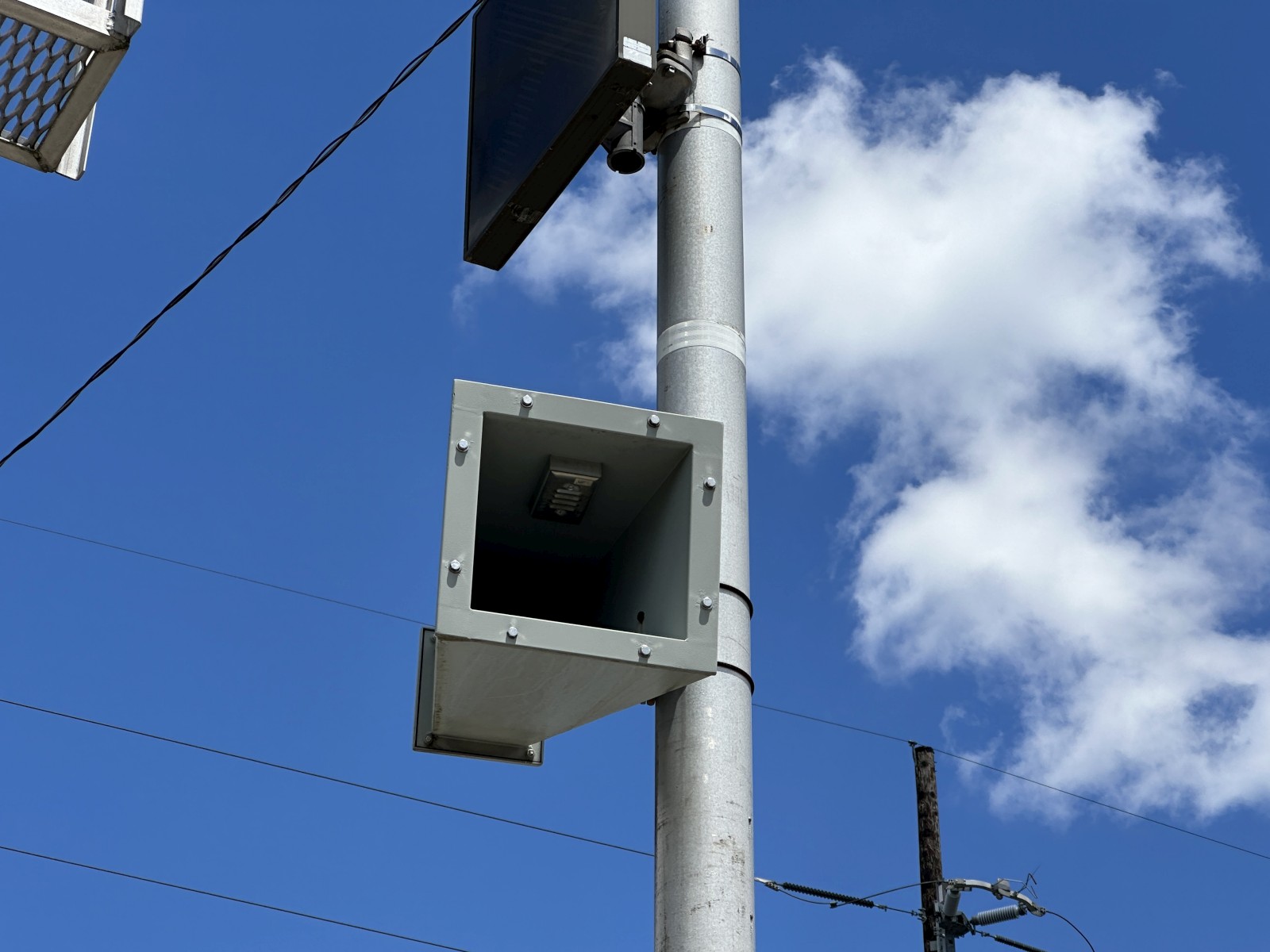

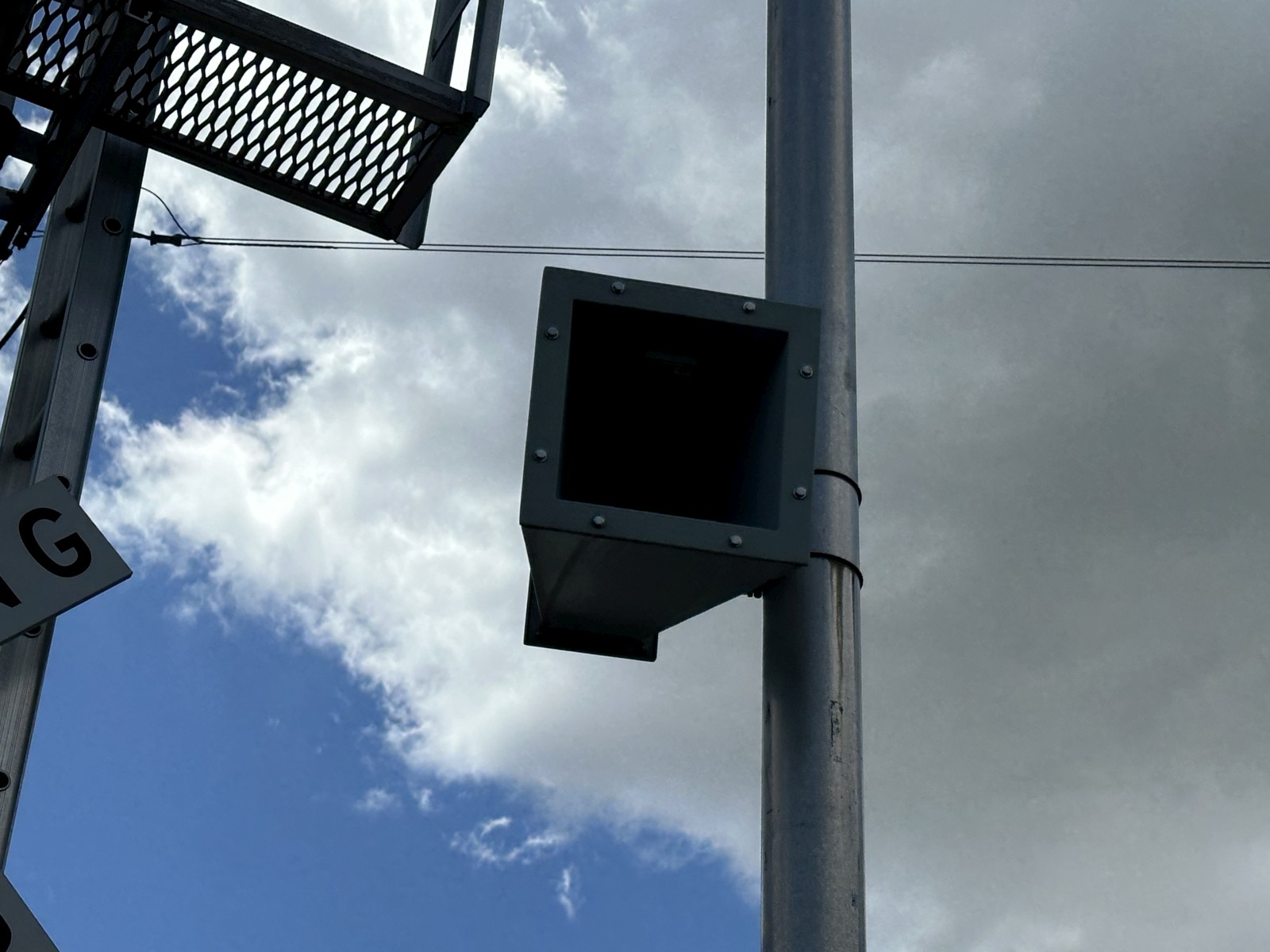

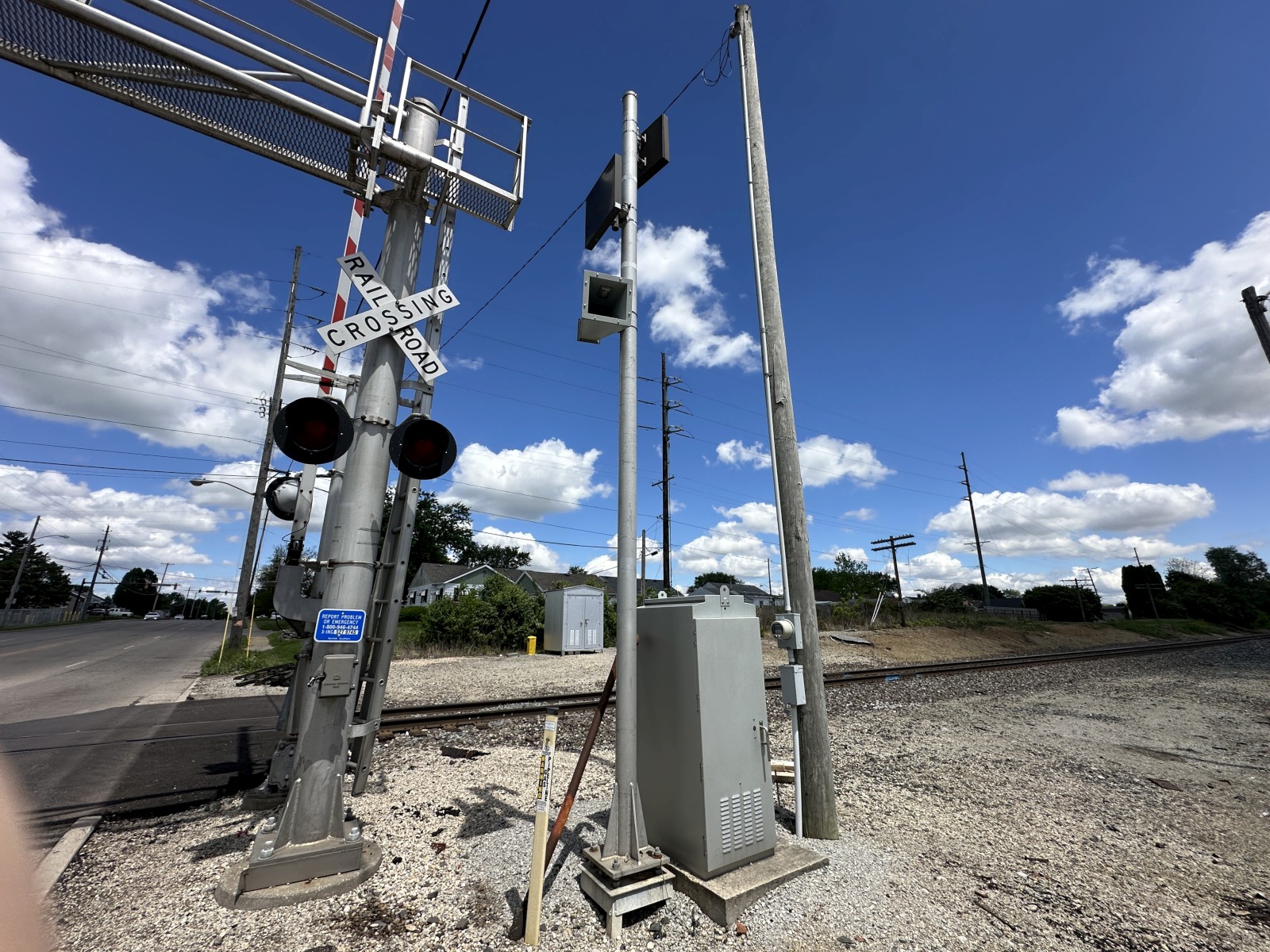

A pair of wayside horns at the
crossing.
|
||
|
31 |
32 |
33 |
34 |
|

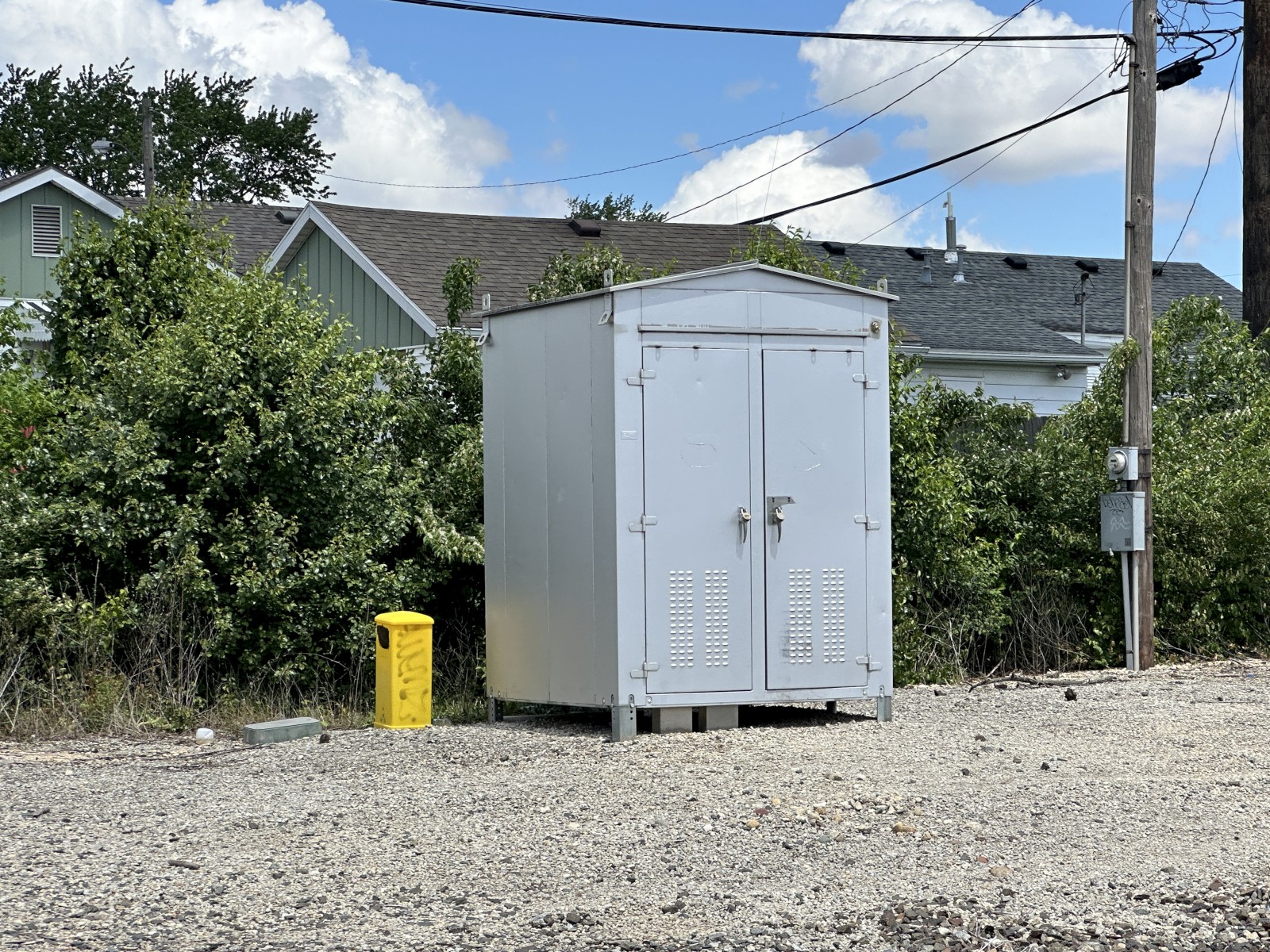

The relay bungalow.
|

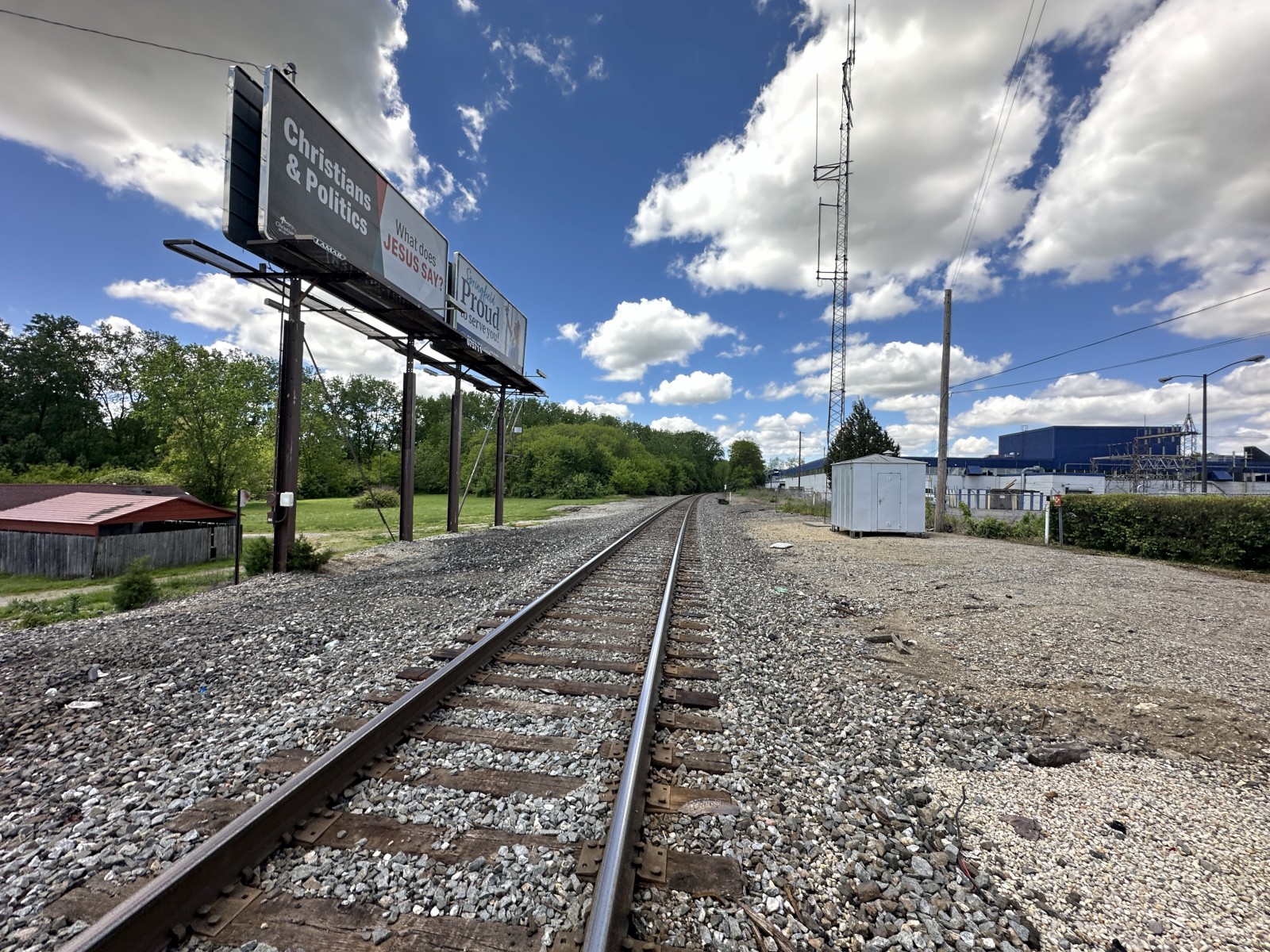

Track view facing east towards Charleston Pike.
|
Track view facing west towards Burt Street.
|

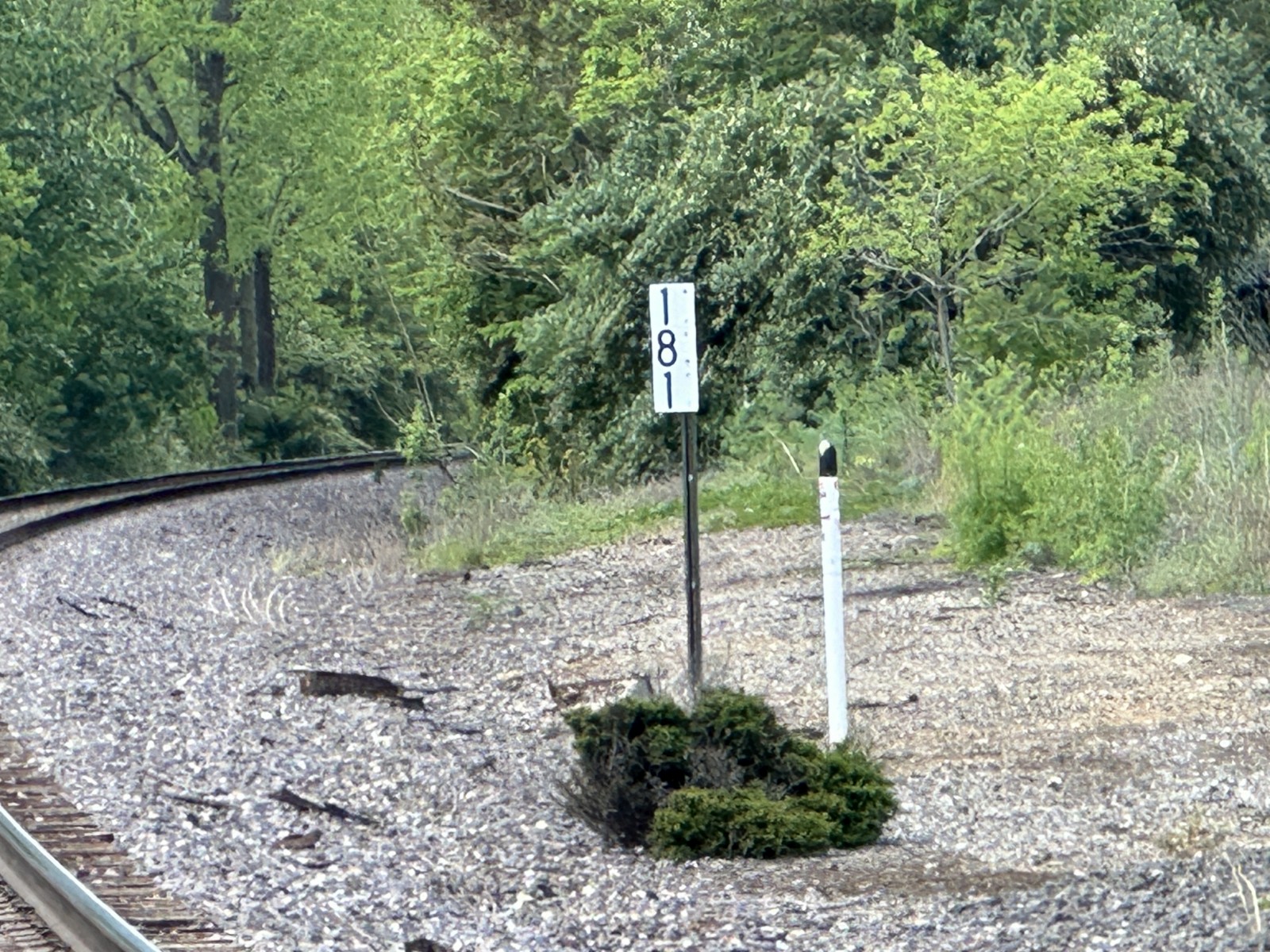

An M.P. marker stands near the
crossing.
|
All pictures were taken on 5-10-24.
