MP: CJ178.750 |
Updated June 2025
Total Accidents:
5*
Crossing DOT #: 527976F
TOTAL DAILY
TRAINS: 6 (AS OF 2024)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

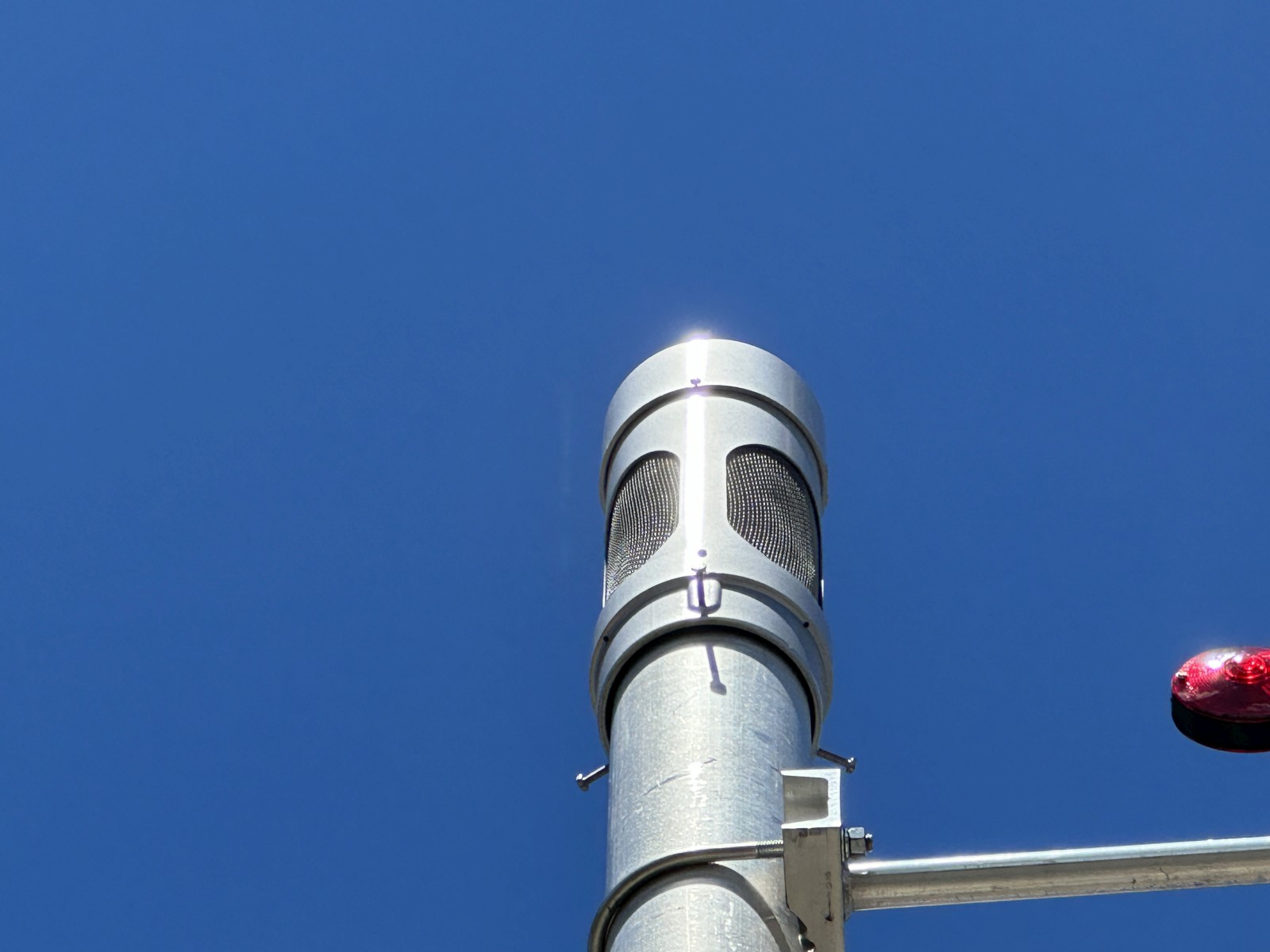

| Bell: | GS E-Bell | N/A |

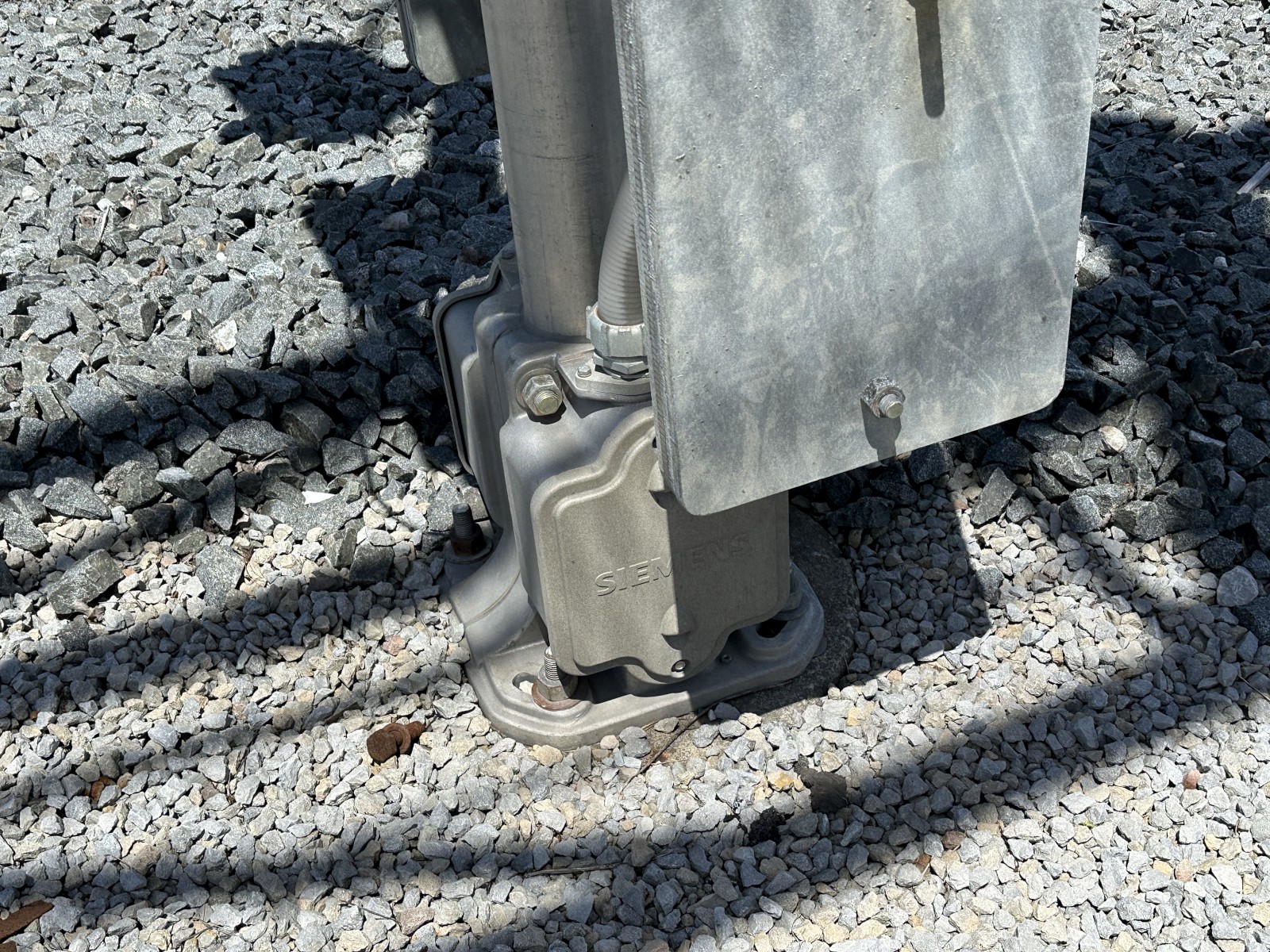

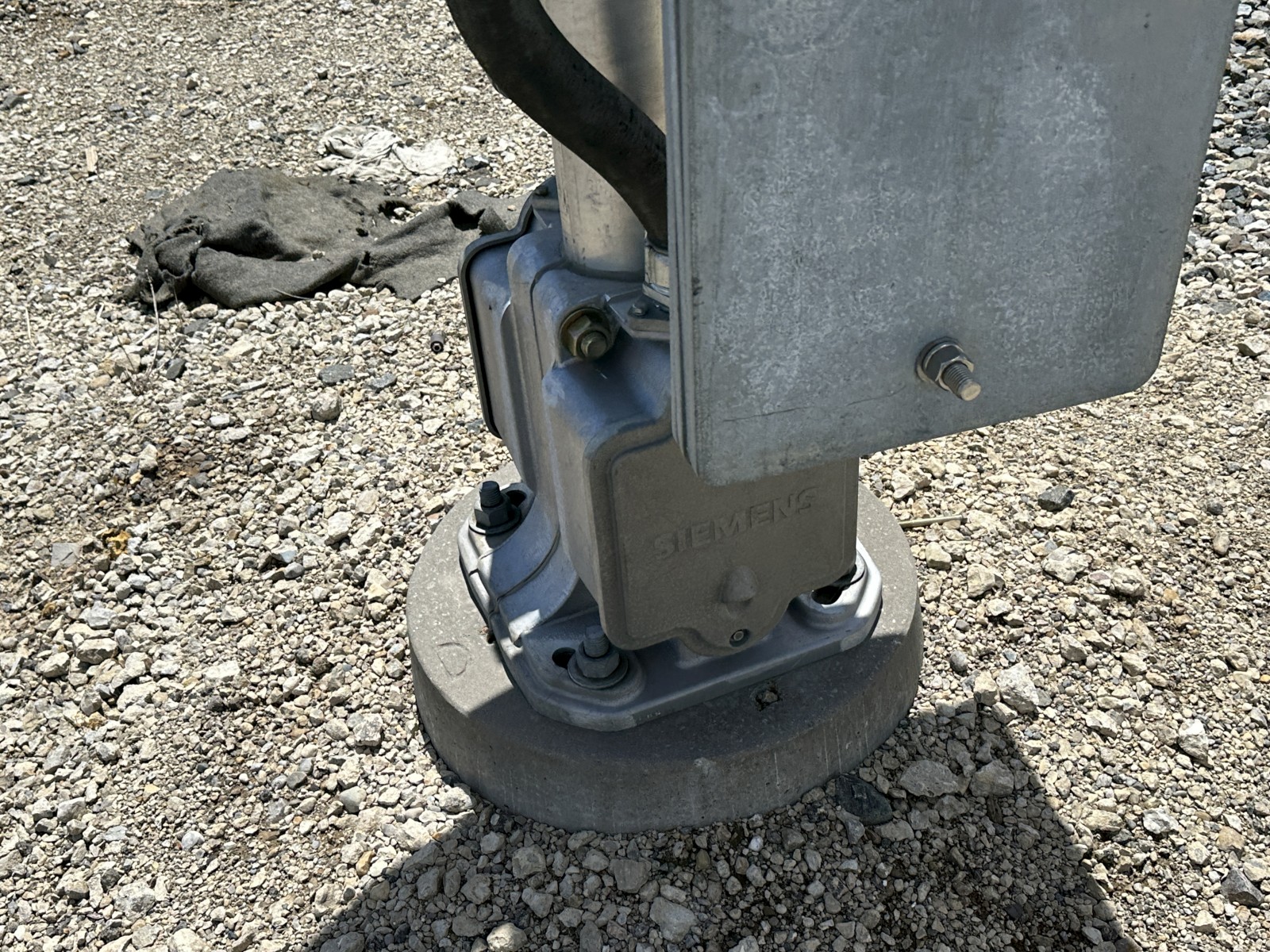

| Base: | Siemens 5" Double Sided |
Siemens 5" Double Sided |

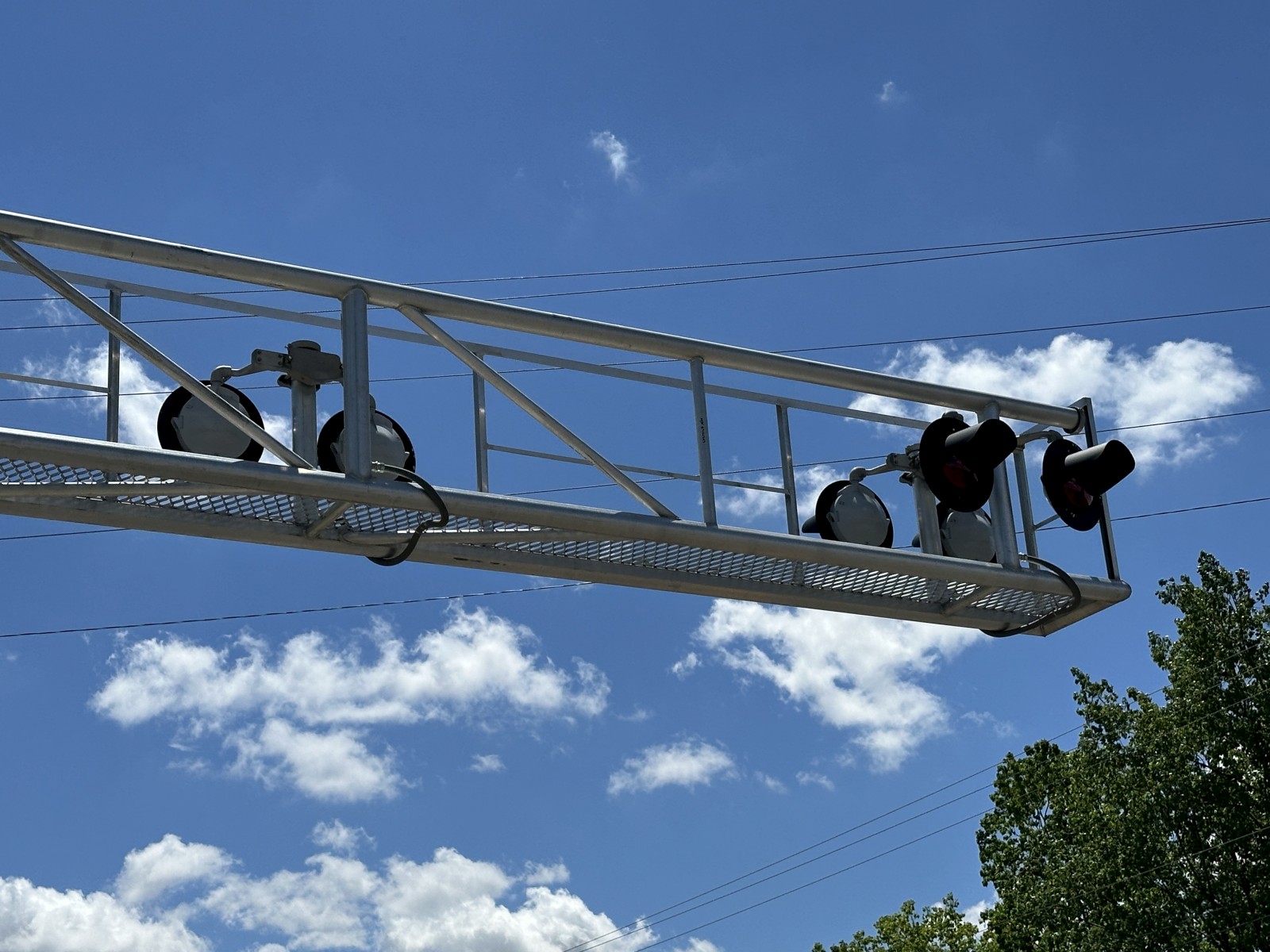

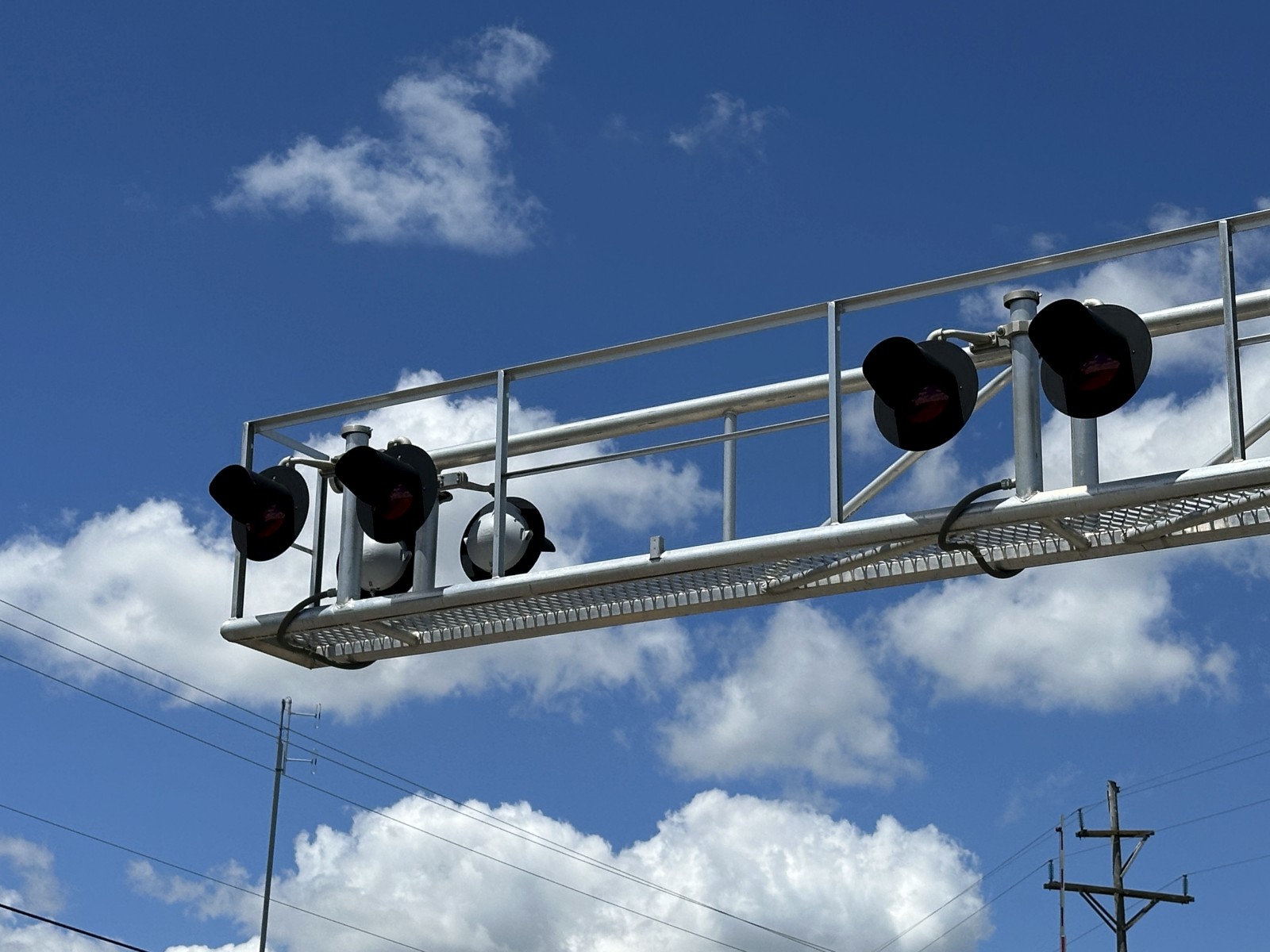

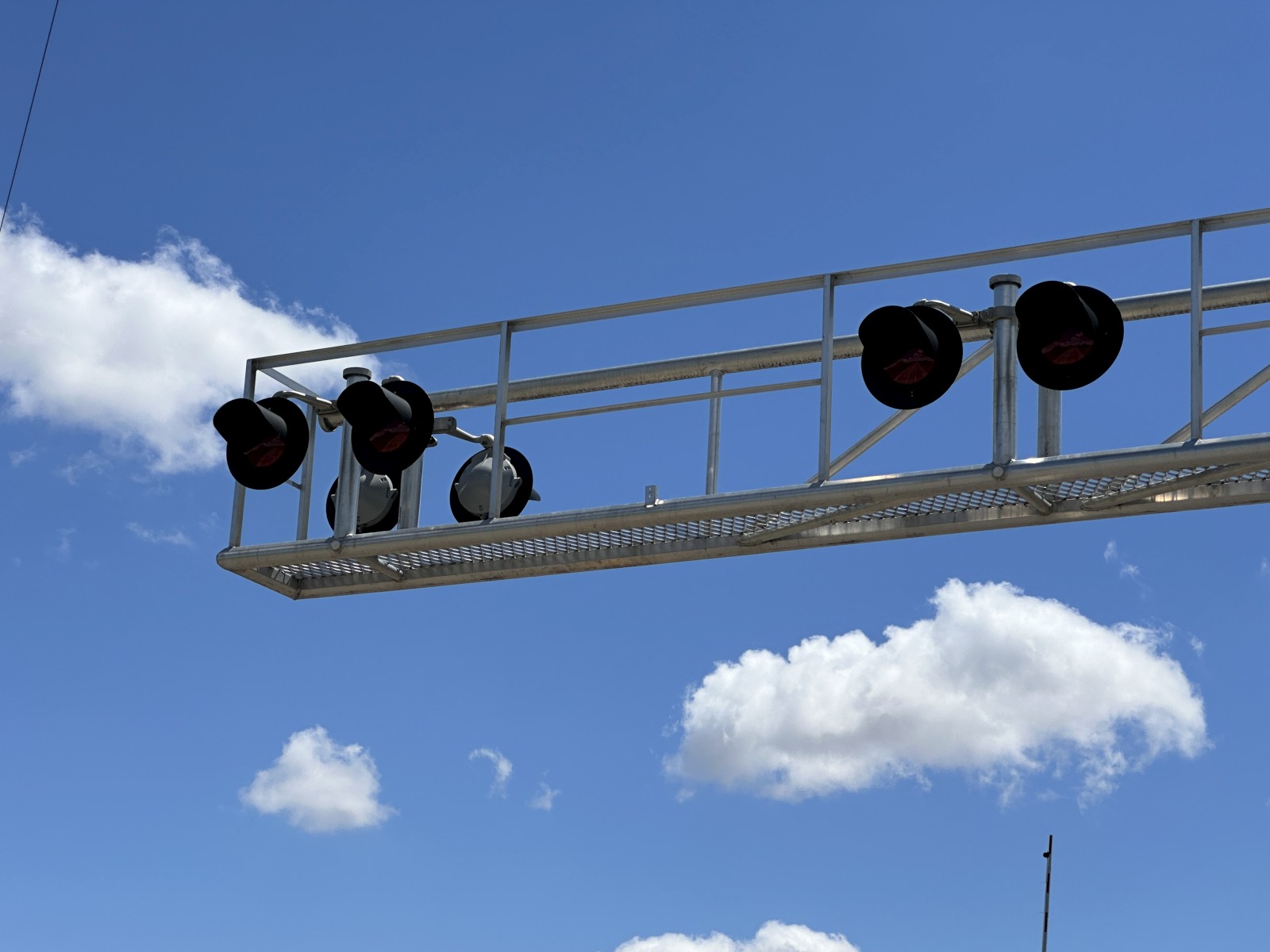

| Cantilever: | Siemens Cantilever |
Siemens Cantilever |

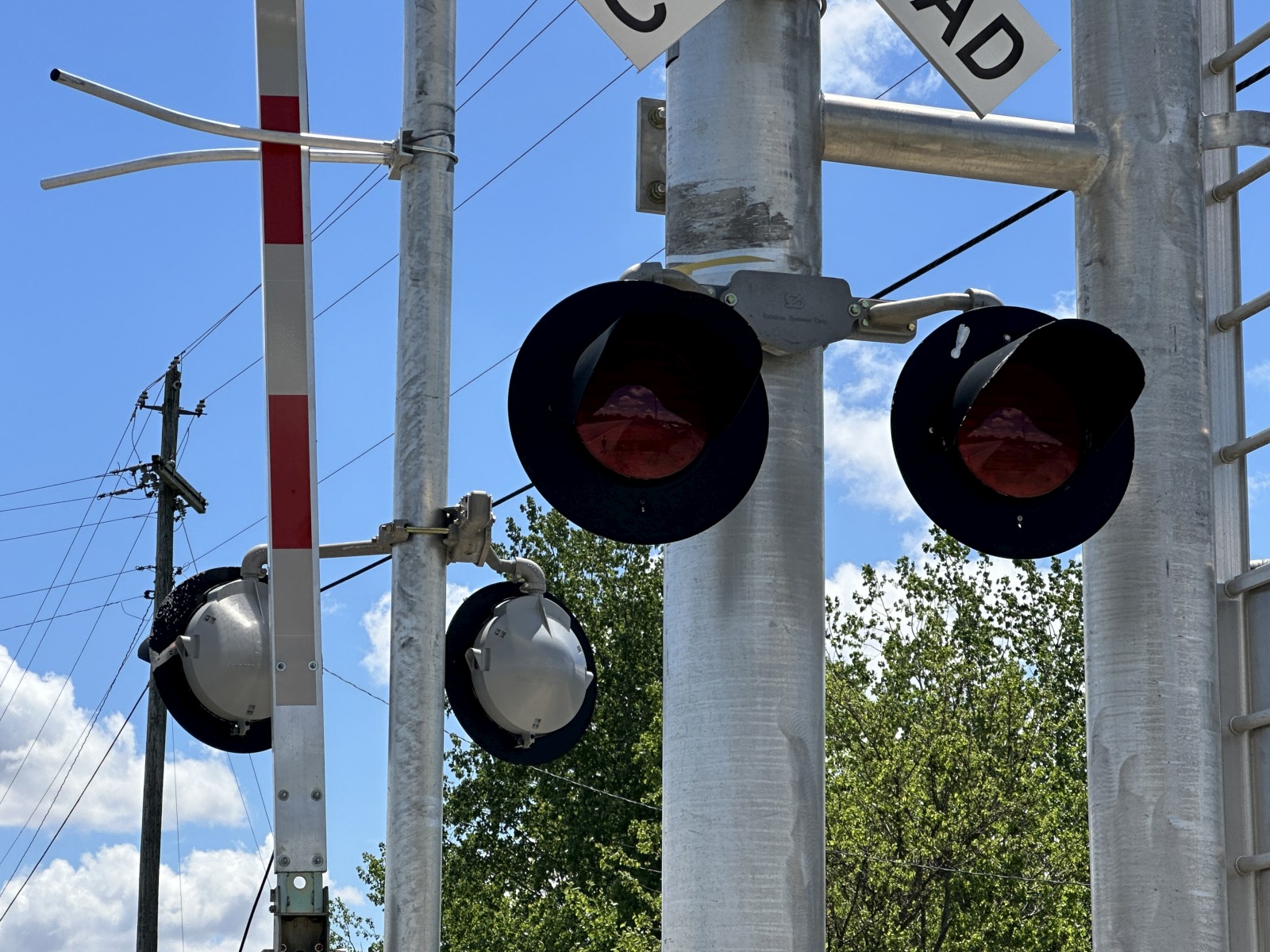

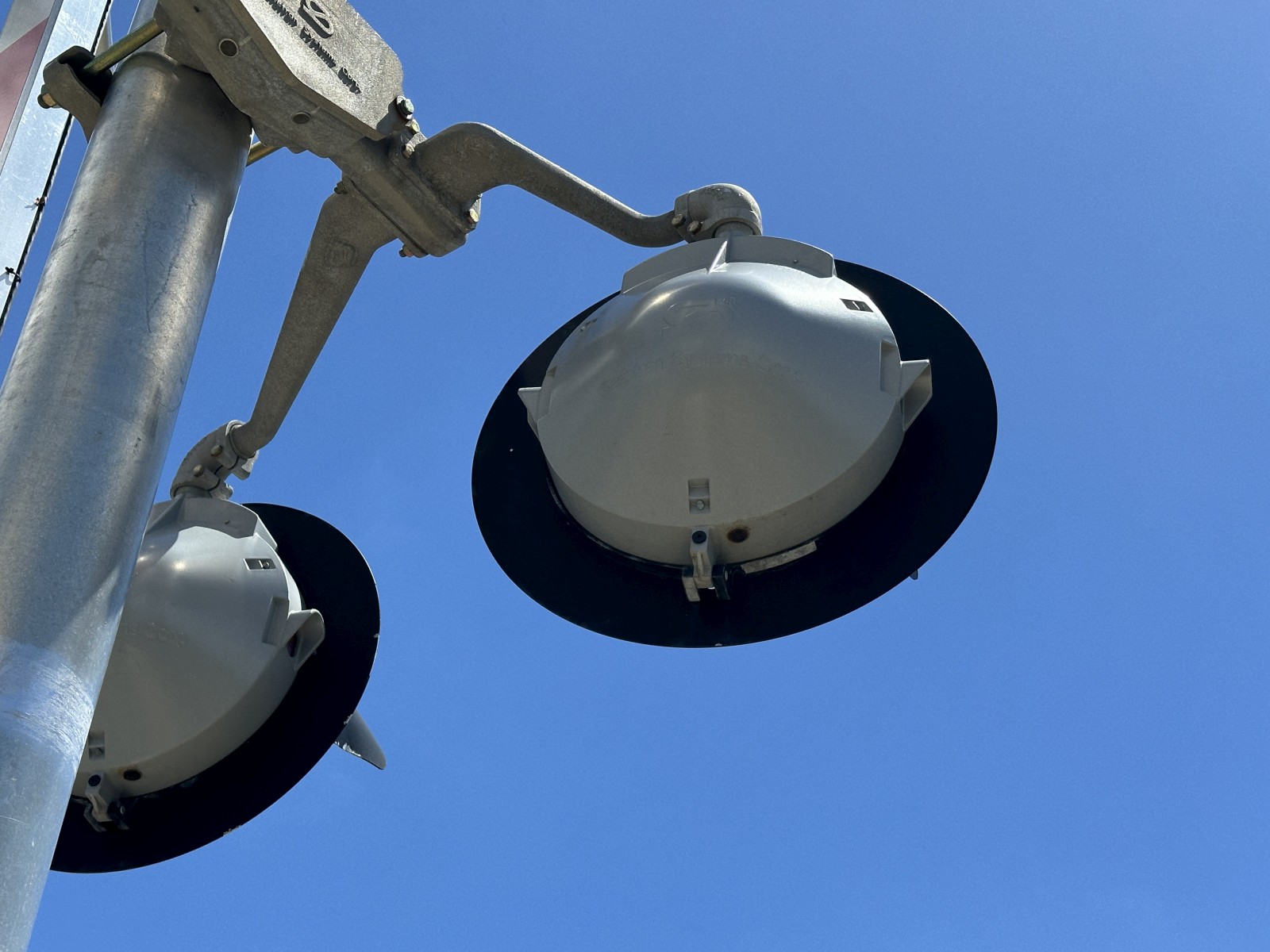

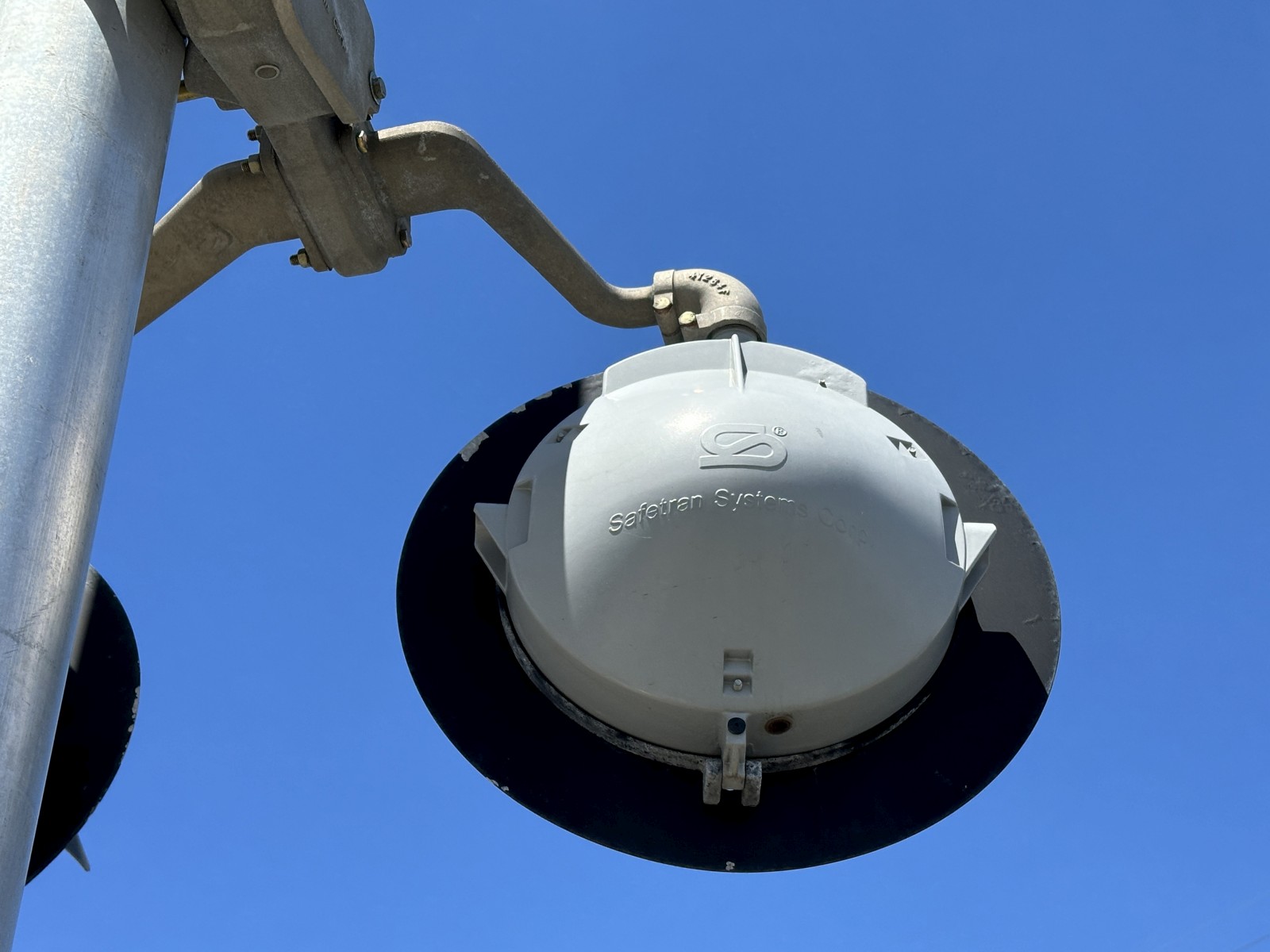

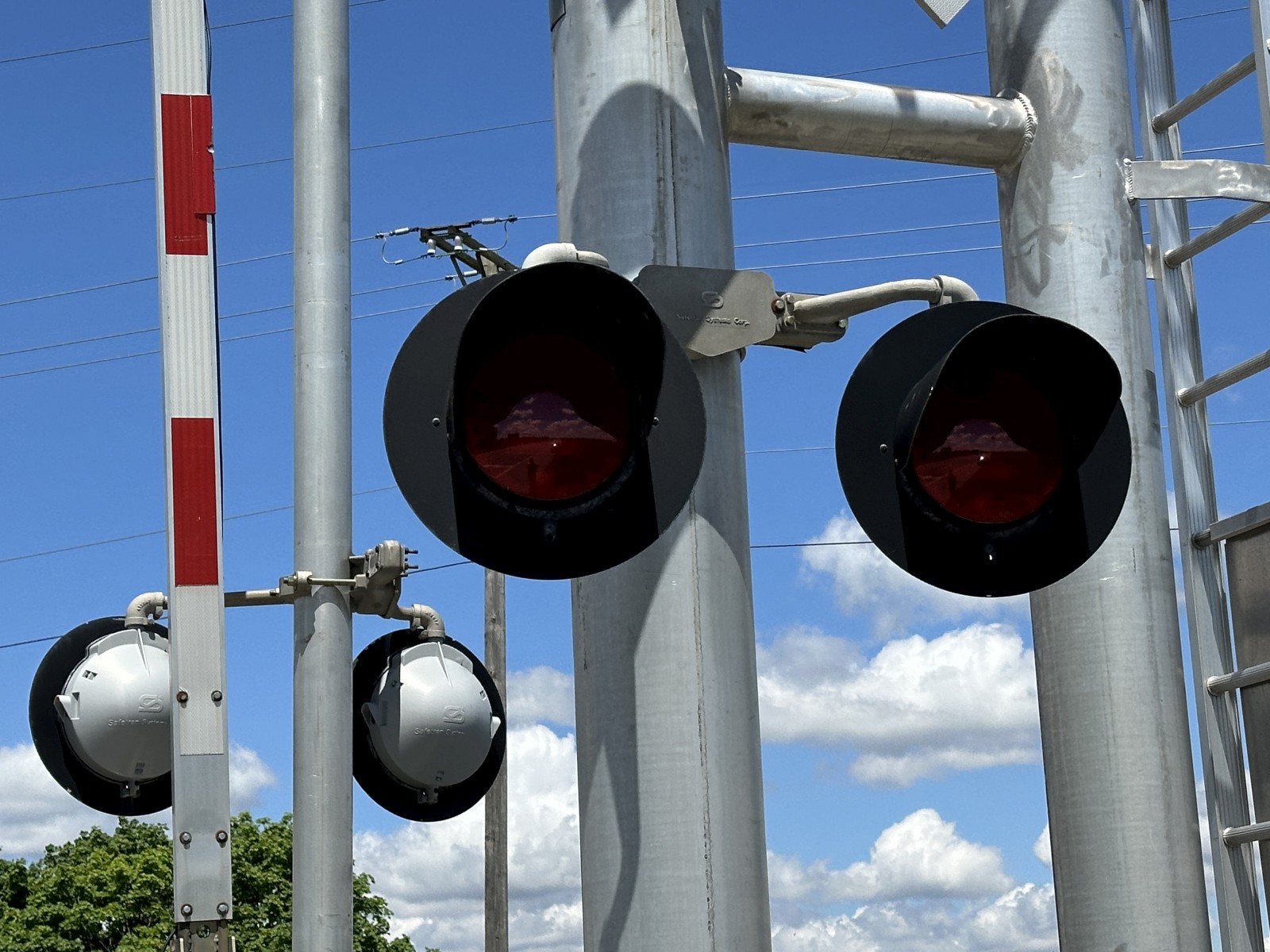

| Lights: | 10 - 12"x20" Safetran w/ GE Uniform Look LEDs | 10 - 12"x20" Safetran w/ GE Uniform Look LEDs |
| Light Brackets: | 4 - Safetran |
4 - Safetran |

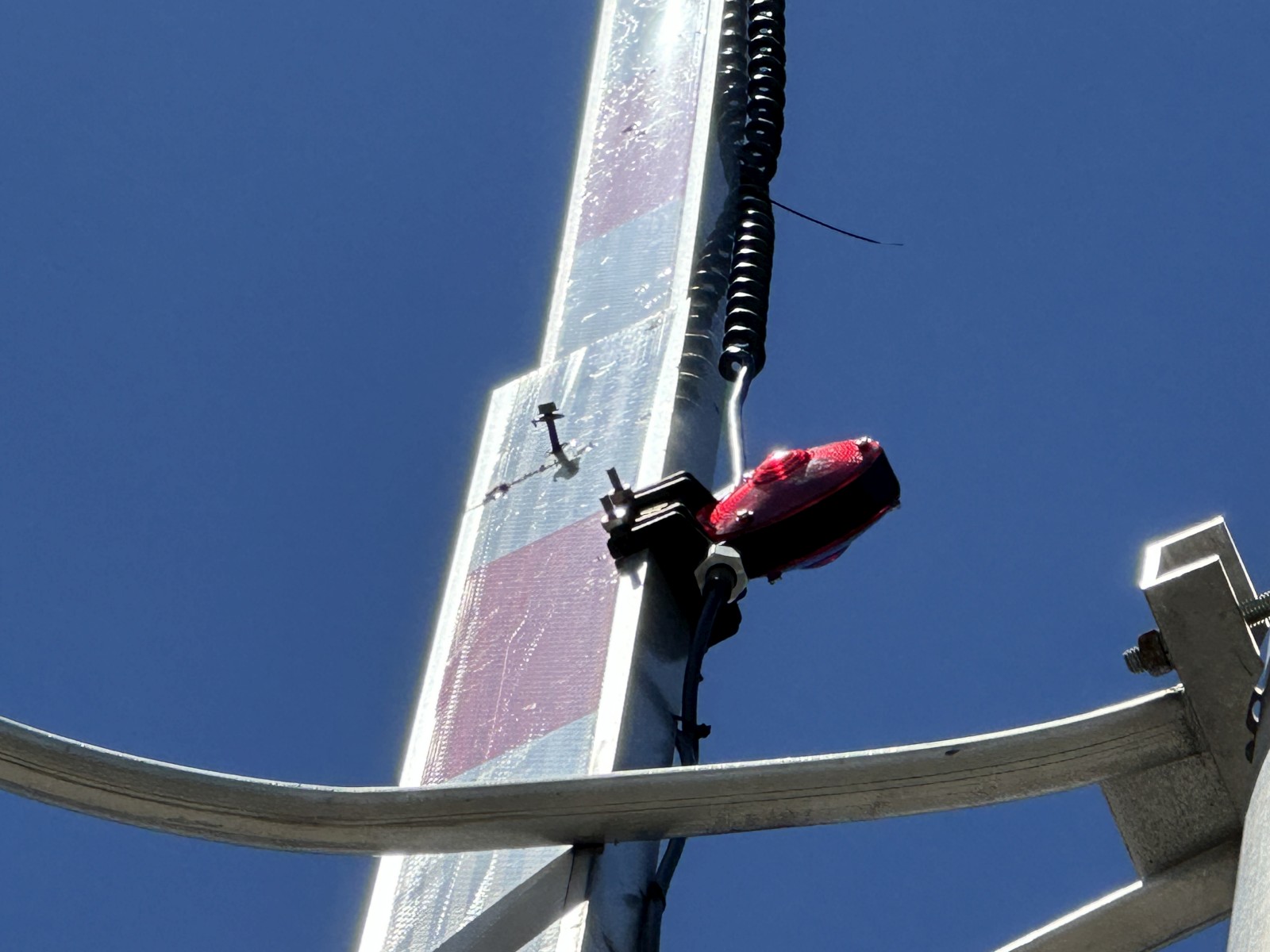

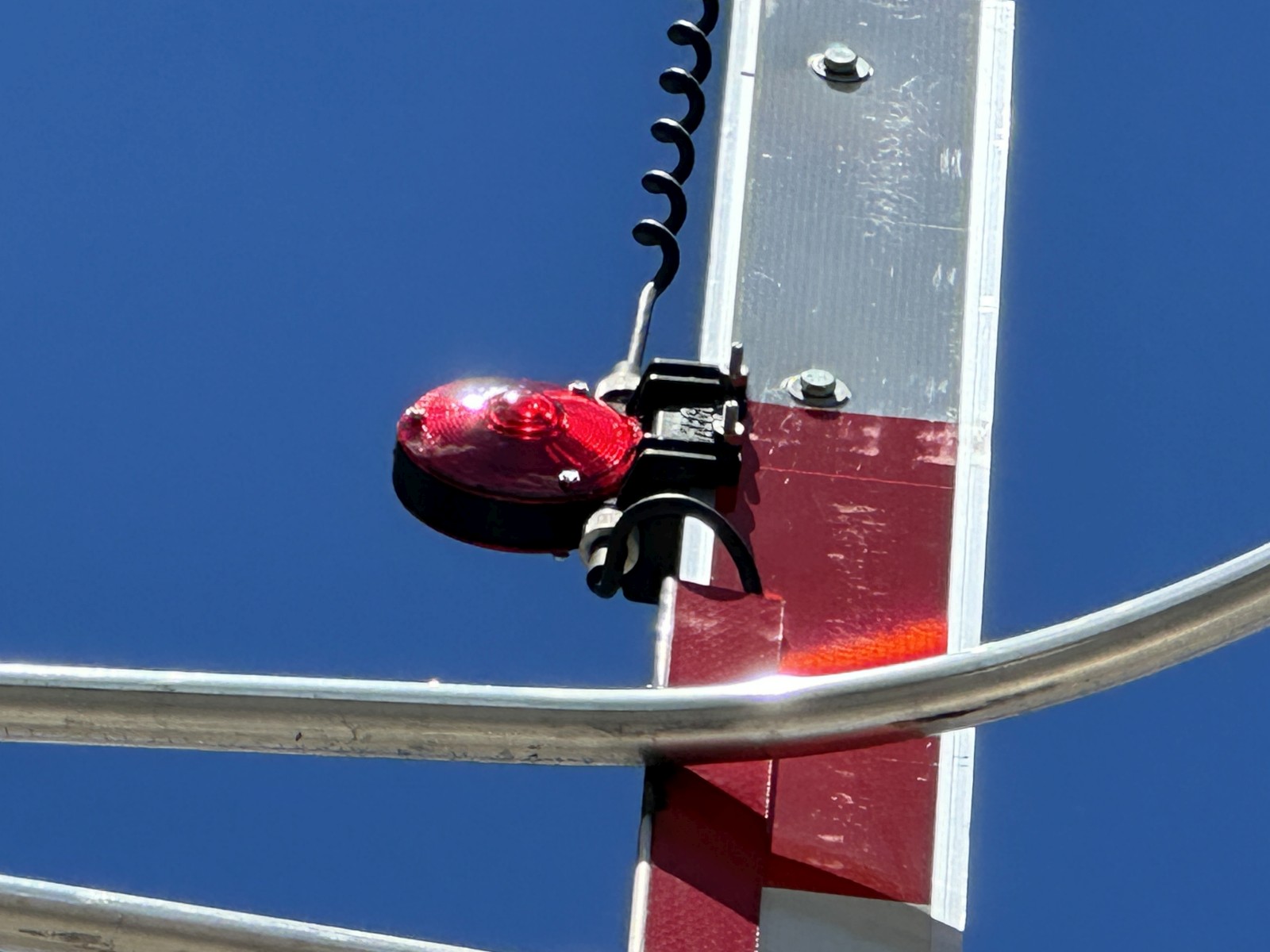

| Gate Lights: | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |

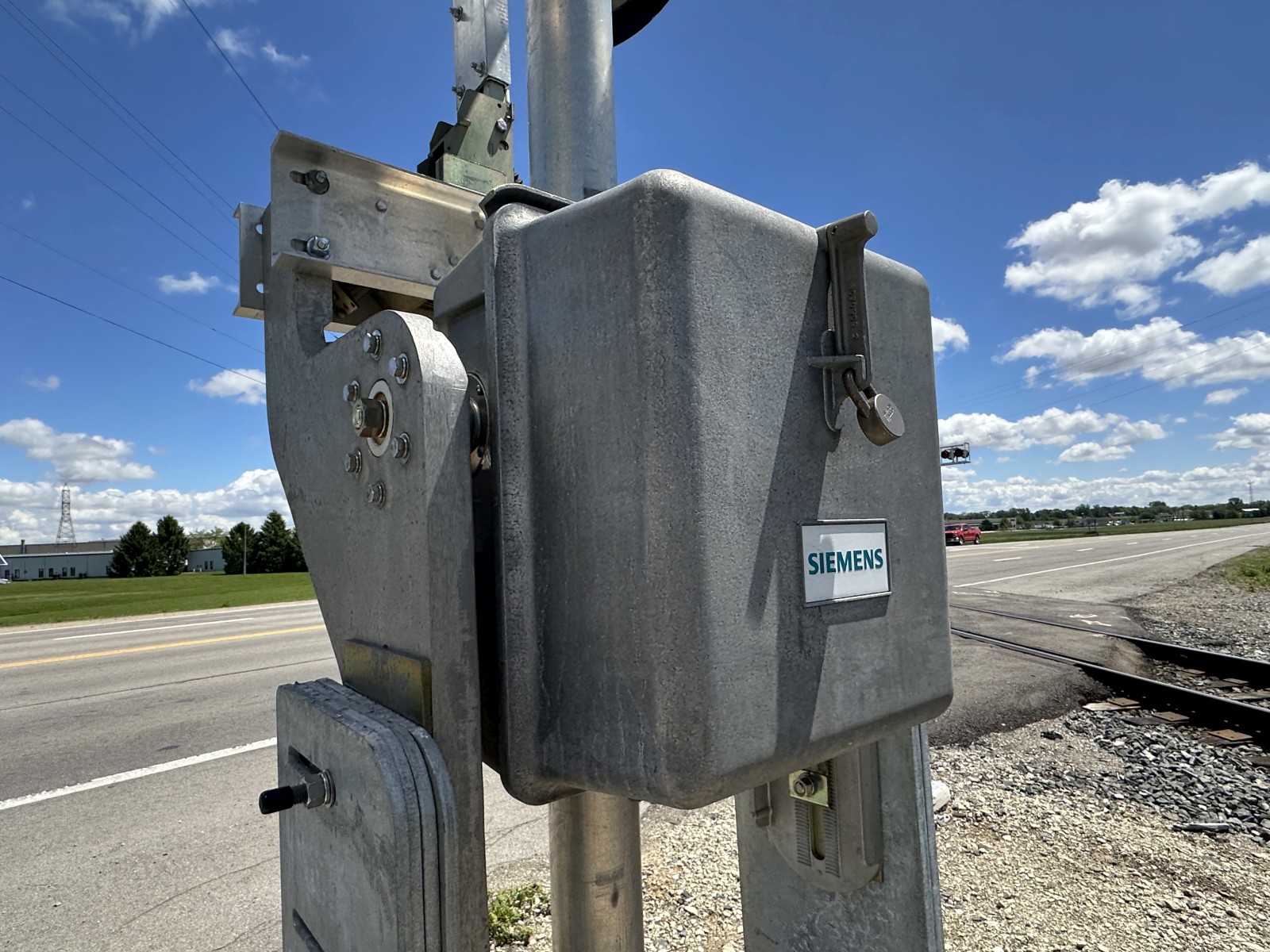

| Gate Mechanism: | Siemens Sticker Style 2 | Siemens Imprinted |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the NS Dayton District.
|
O1 |
O2 |
O3 |
O4 |
|

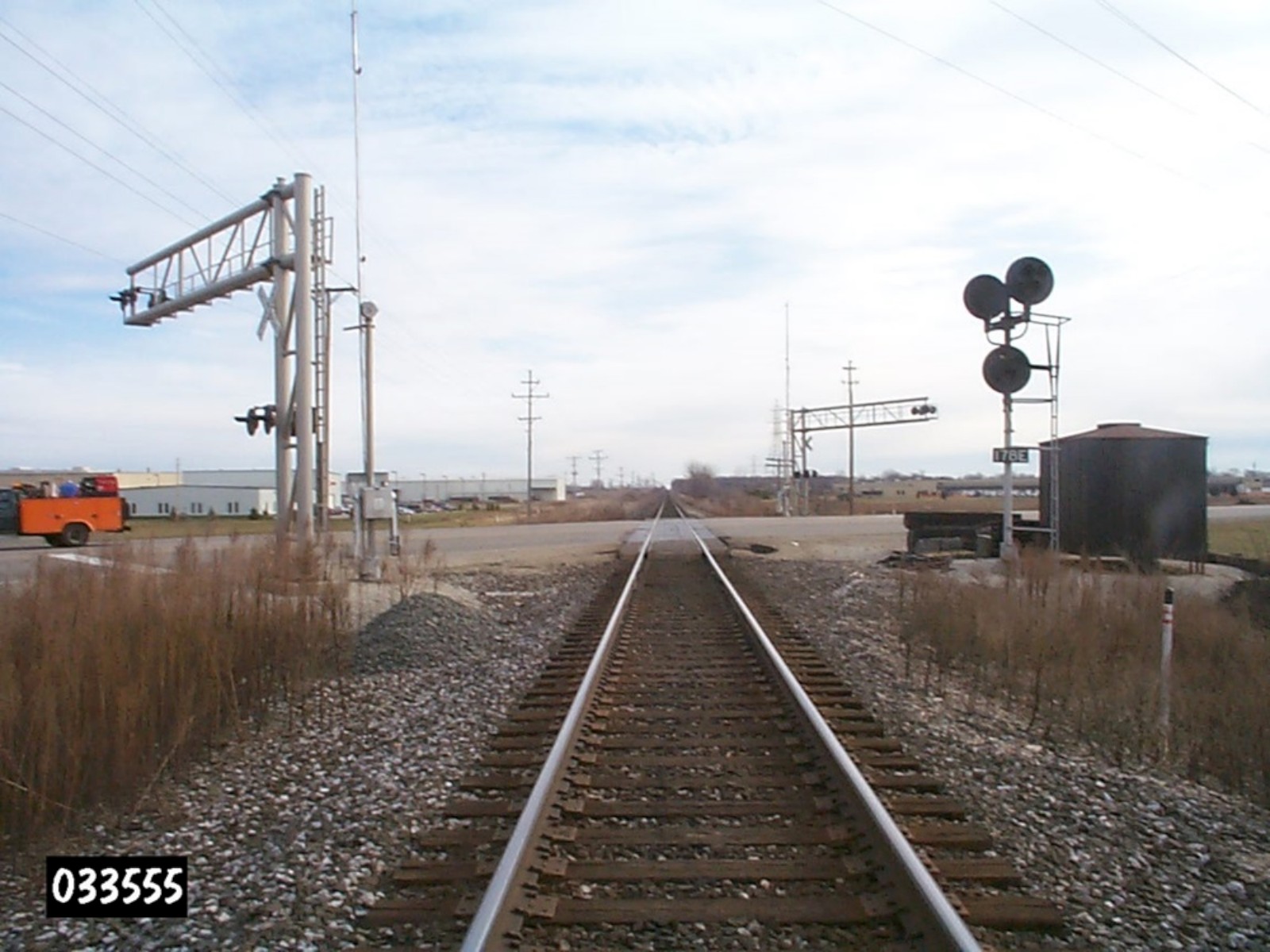

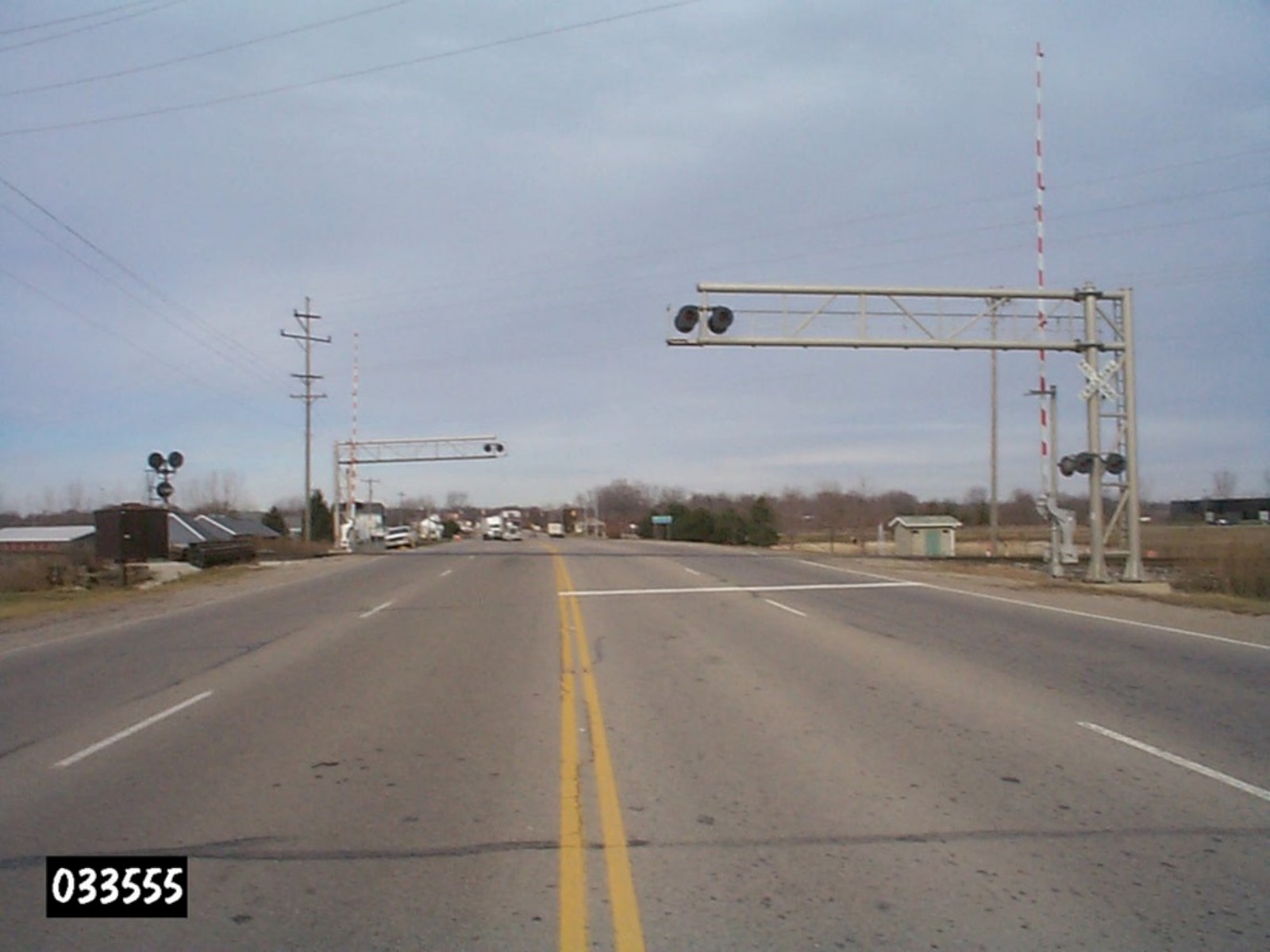

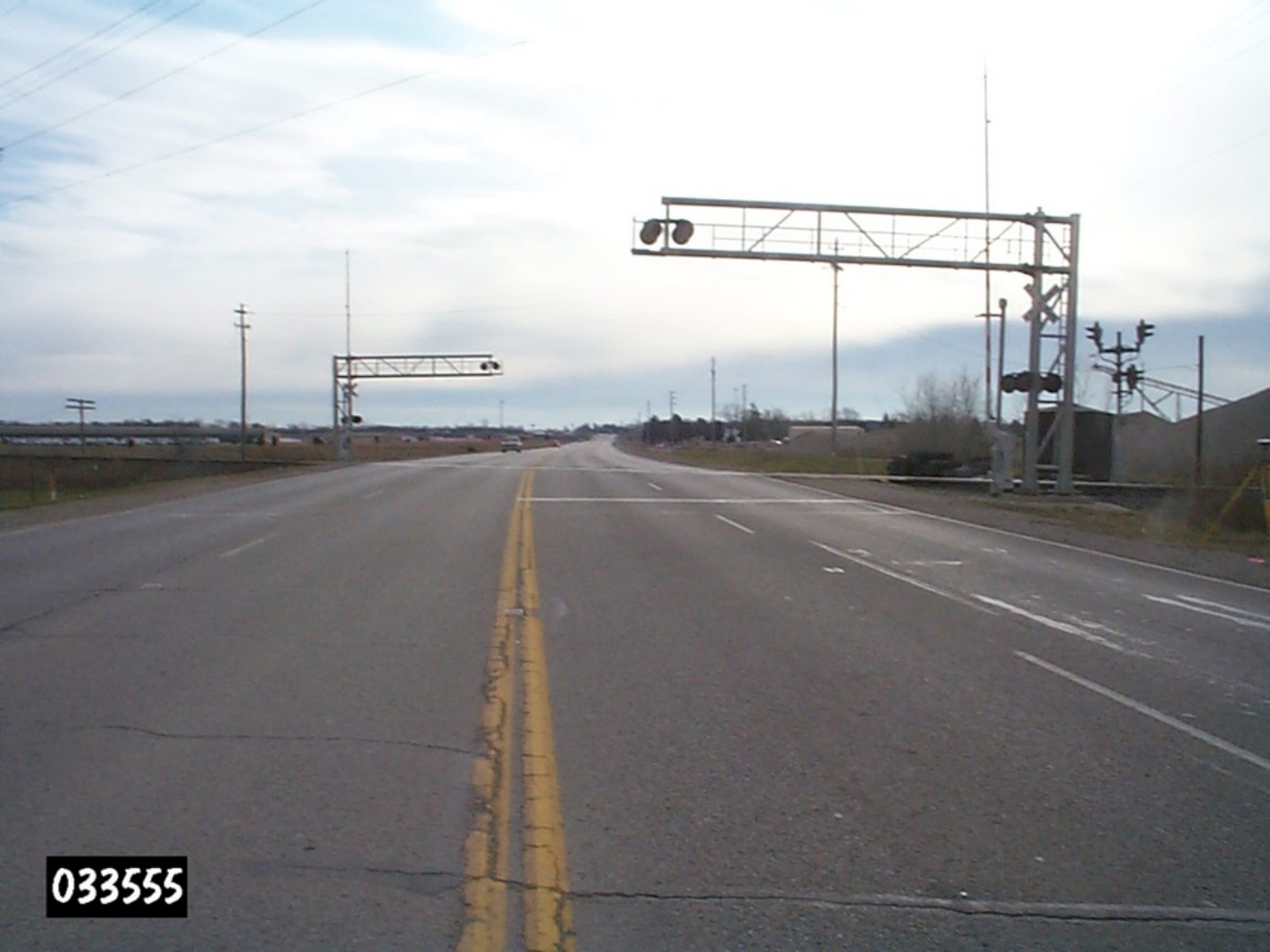

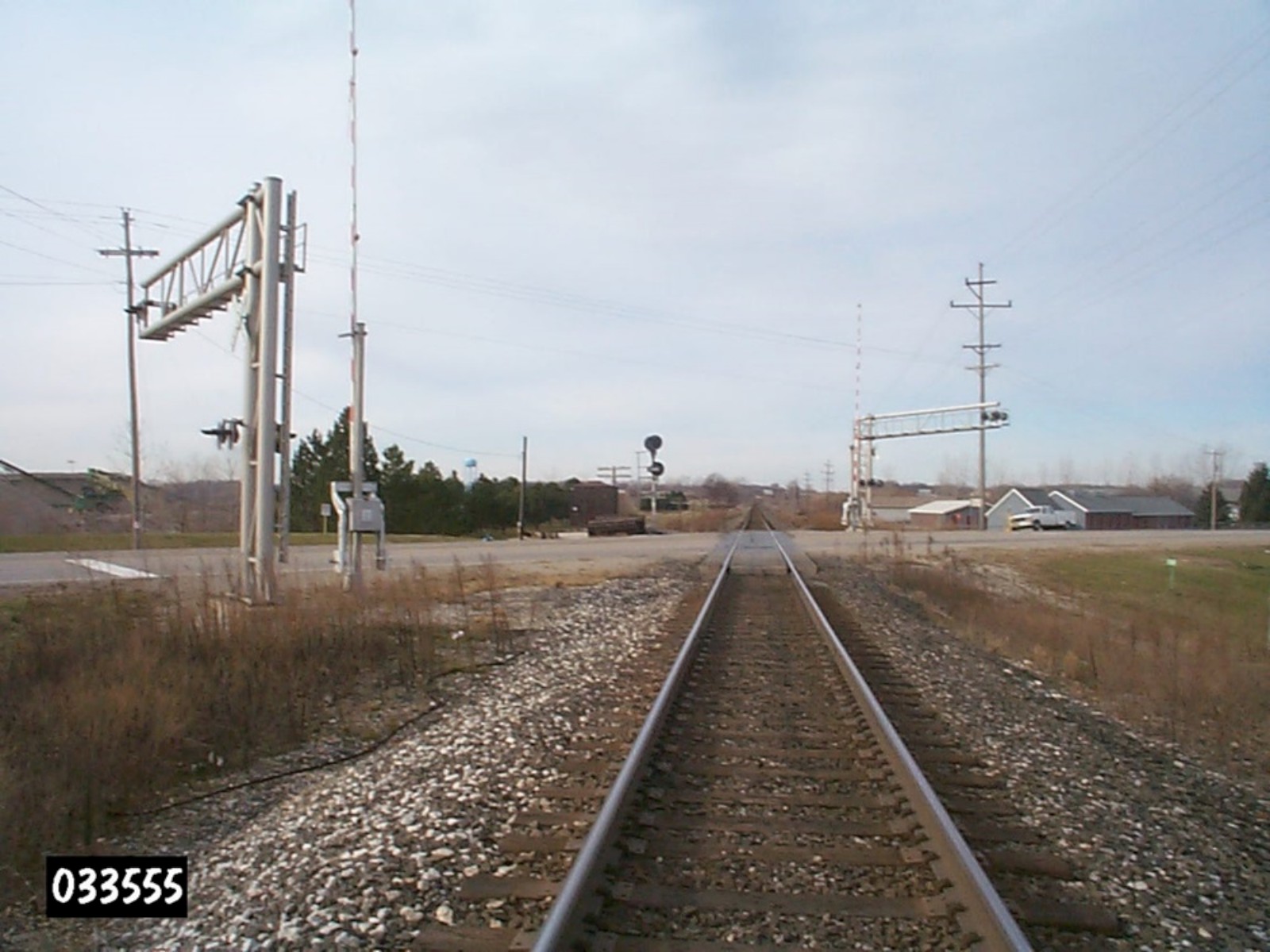

PUCO pictures from the late 90s shows
two MI cantilever signals with 8"x20" MI incandescents,
WABCO/US&S Model 75 gate mechanisms, and a Safetran
Mechanical Bell. NS replaced both gate masts in the
2000s with Safetran equipment, while the gate lights
came from NEG and the bell came from GS. By
2021, both signals were replaced with the current setup.
|
|||
|
1 |
2 |
|

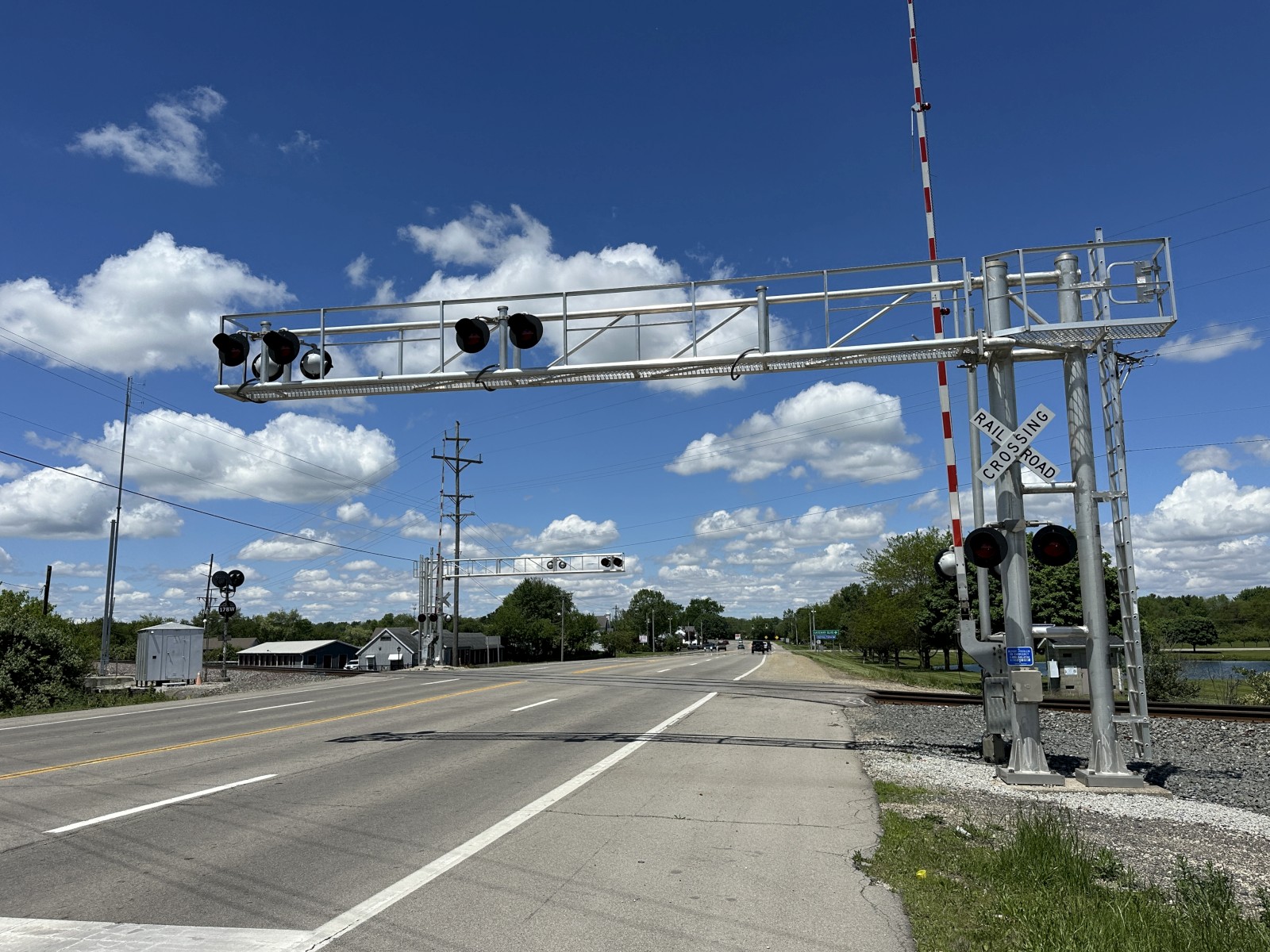

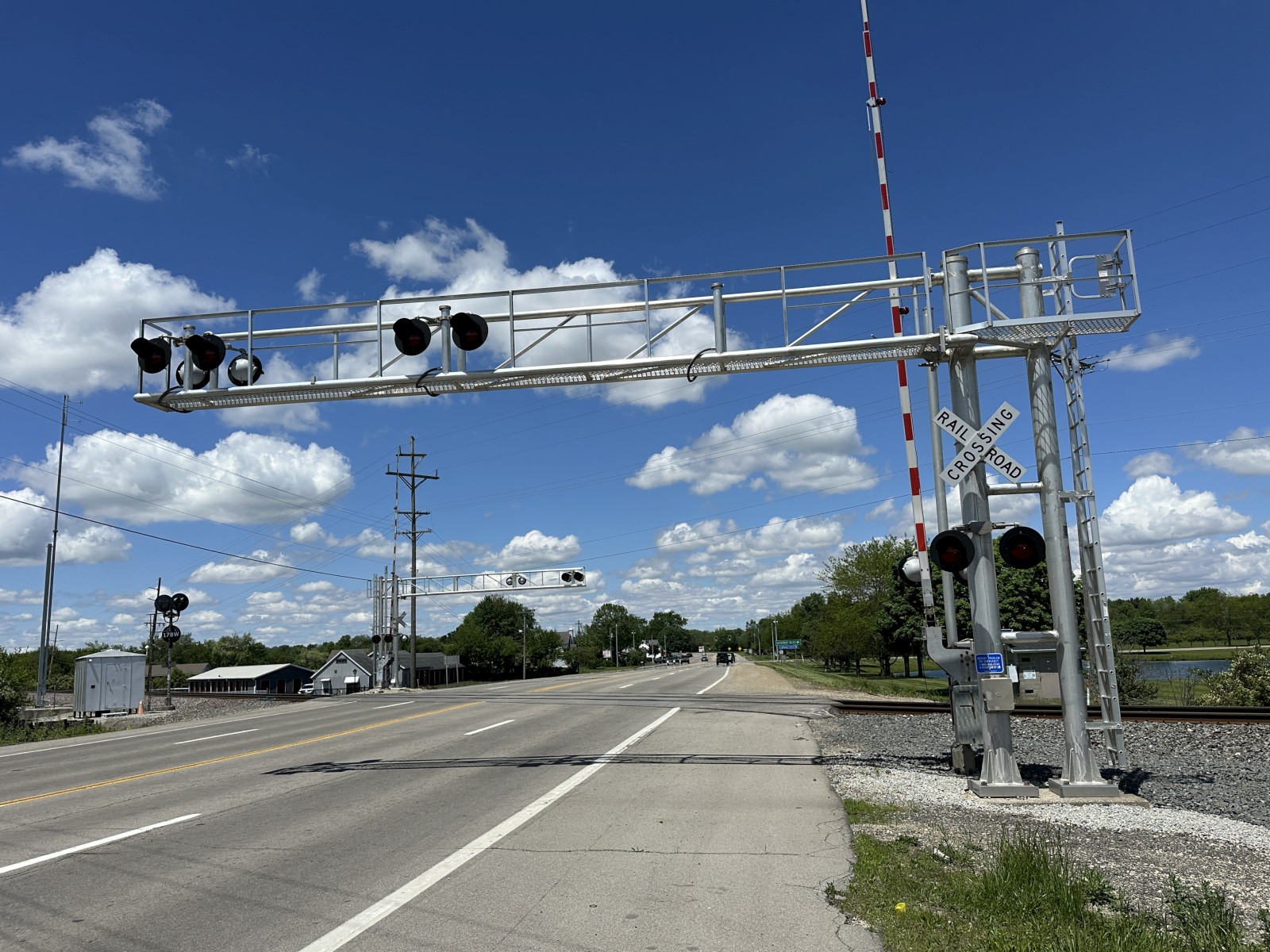

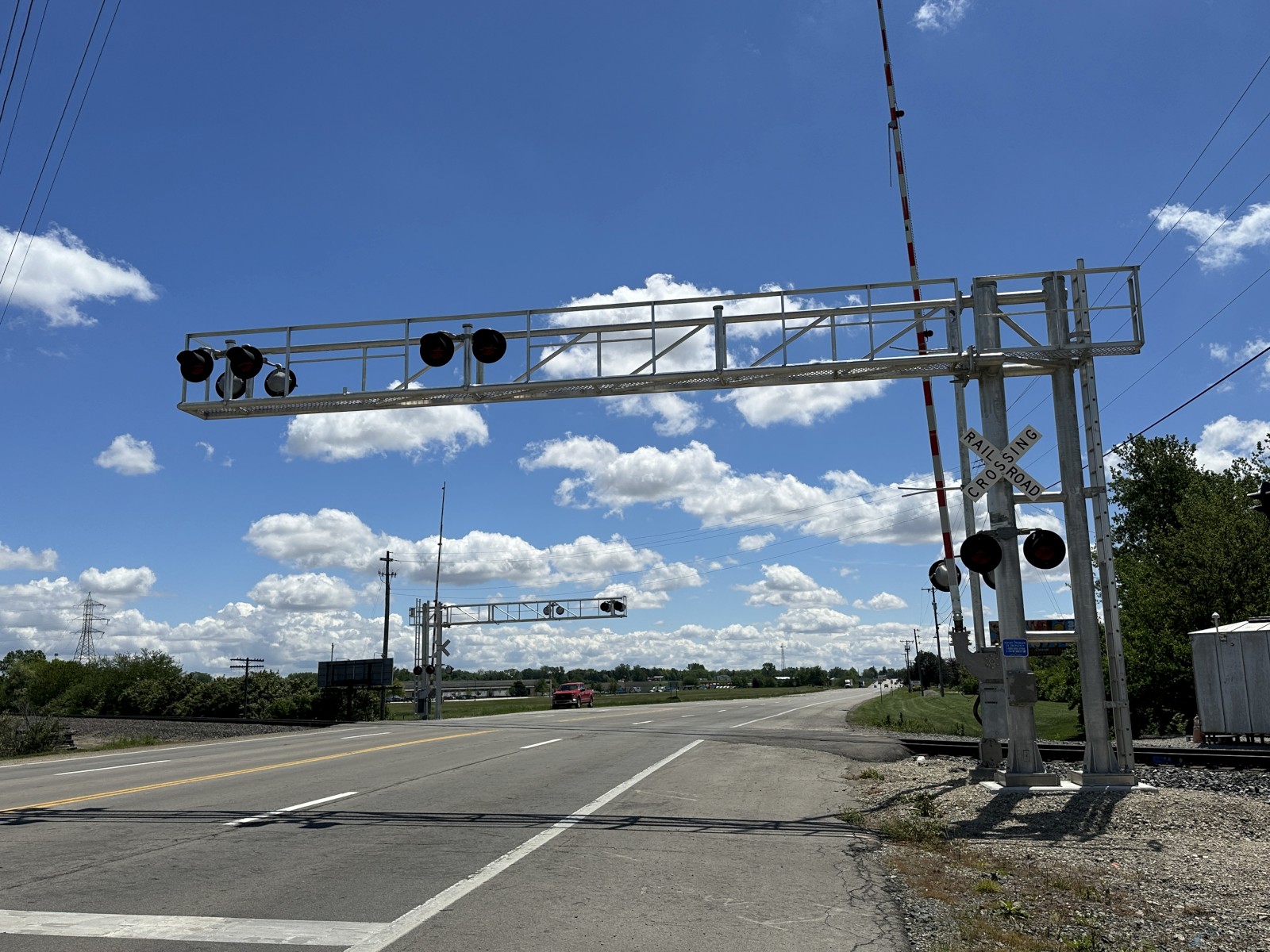

Overview of 2 gated cantilever signals
facing north.
|
Overview facing south.
|
|
3 |
4 |
5 |
|
6 |
7 |
8 |
9 |
|
10 |
11 |
12 |
13 |
|

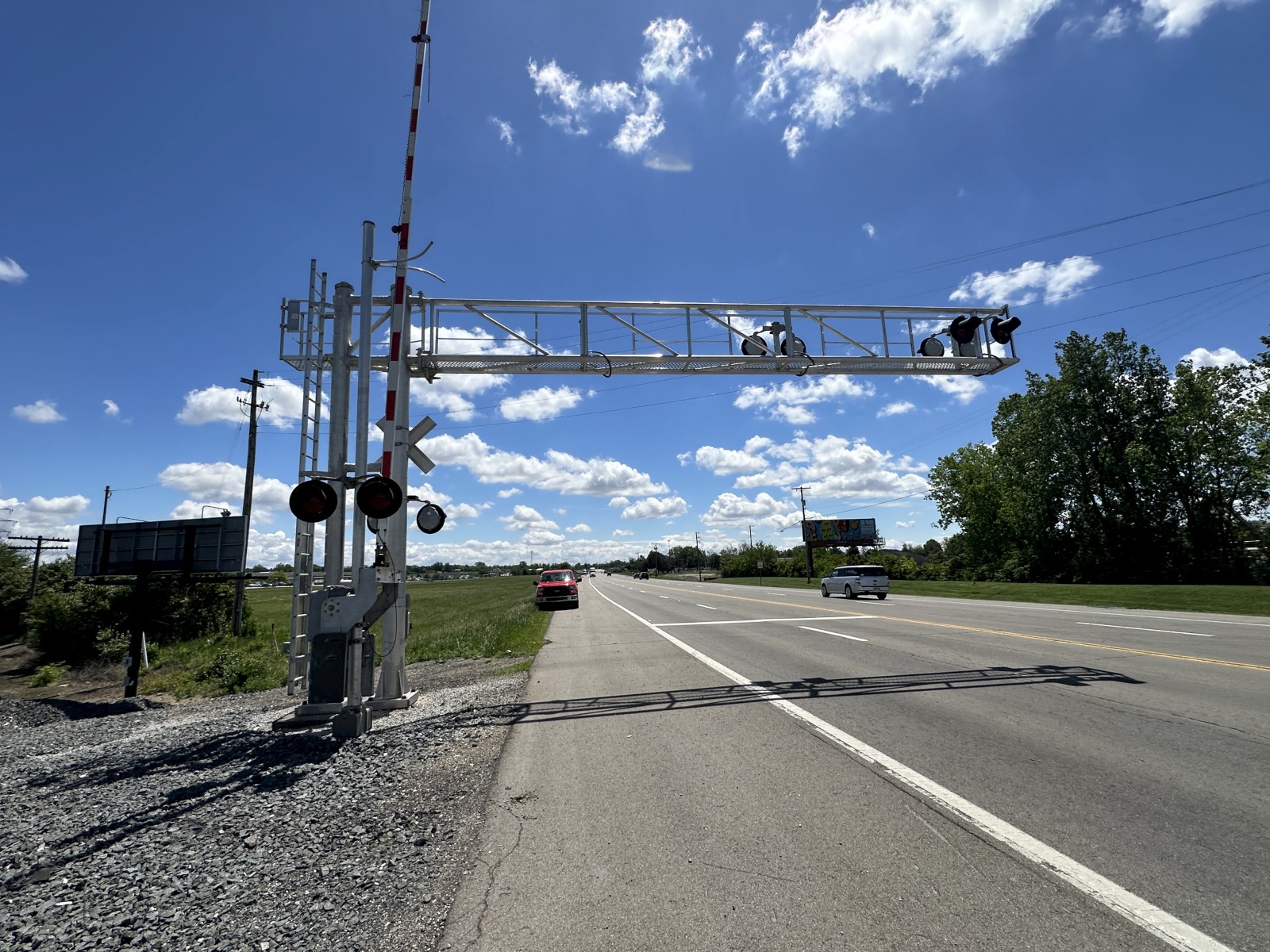

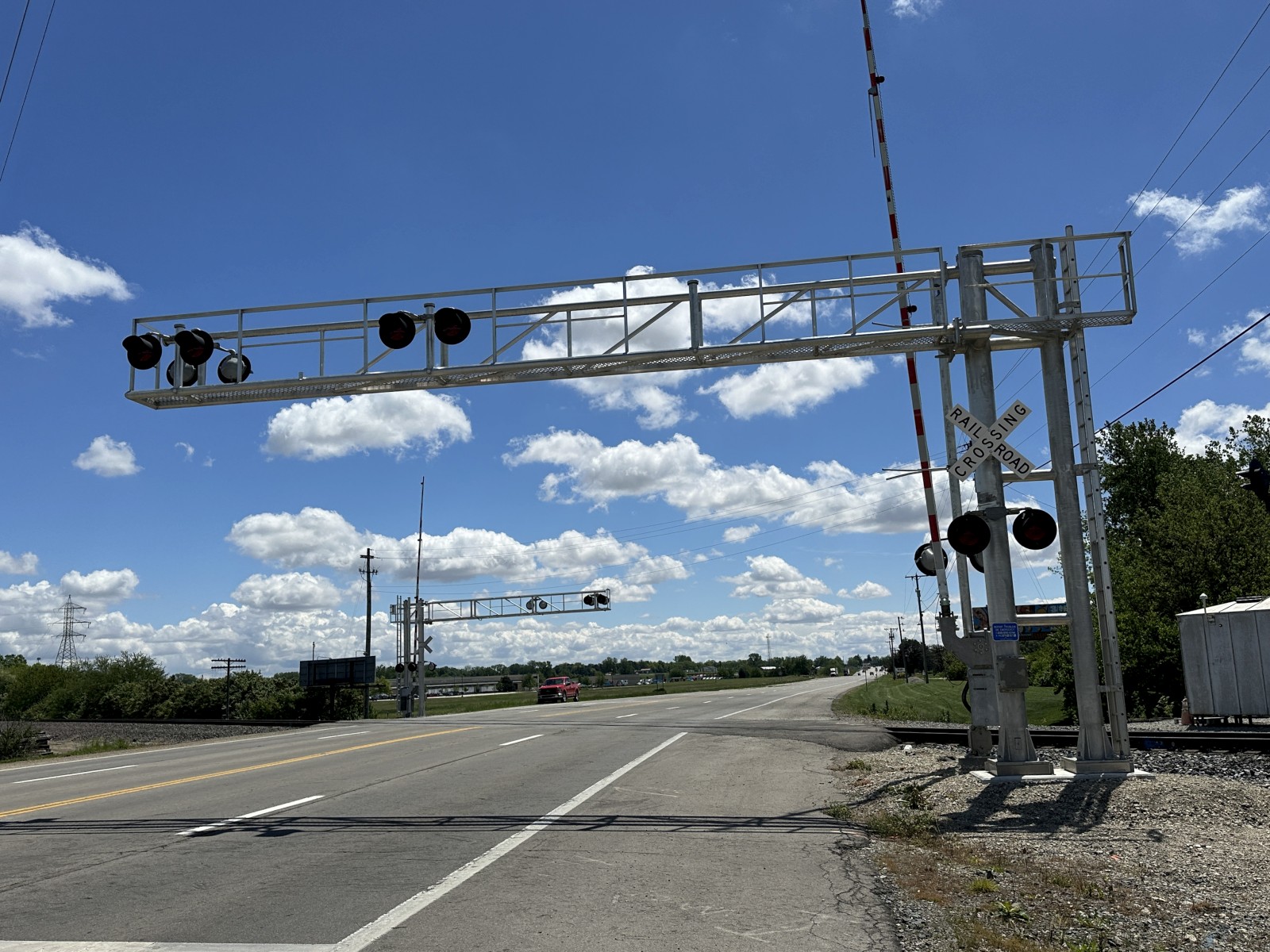

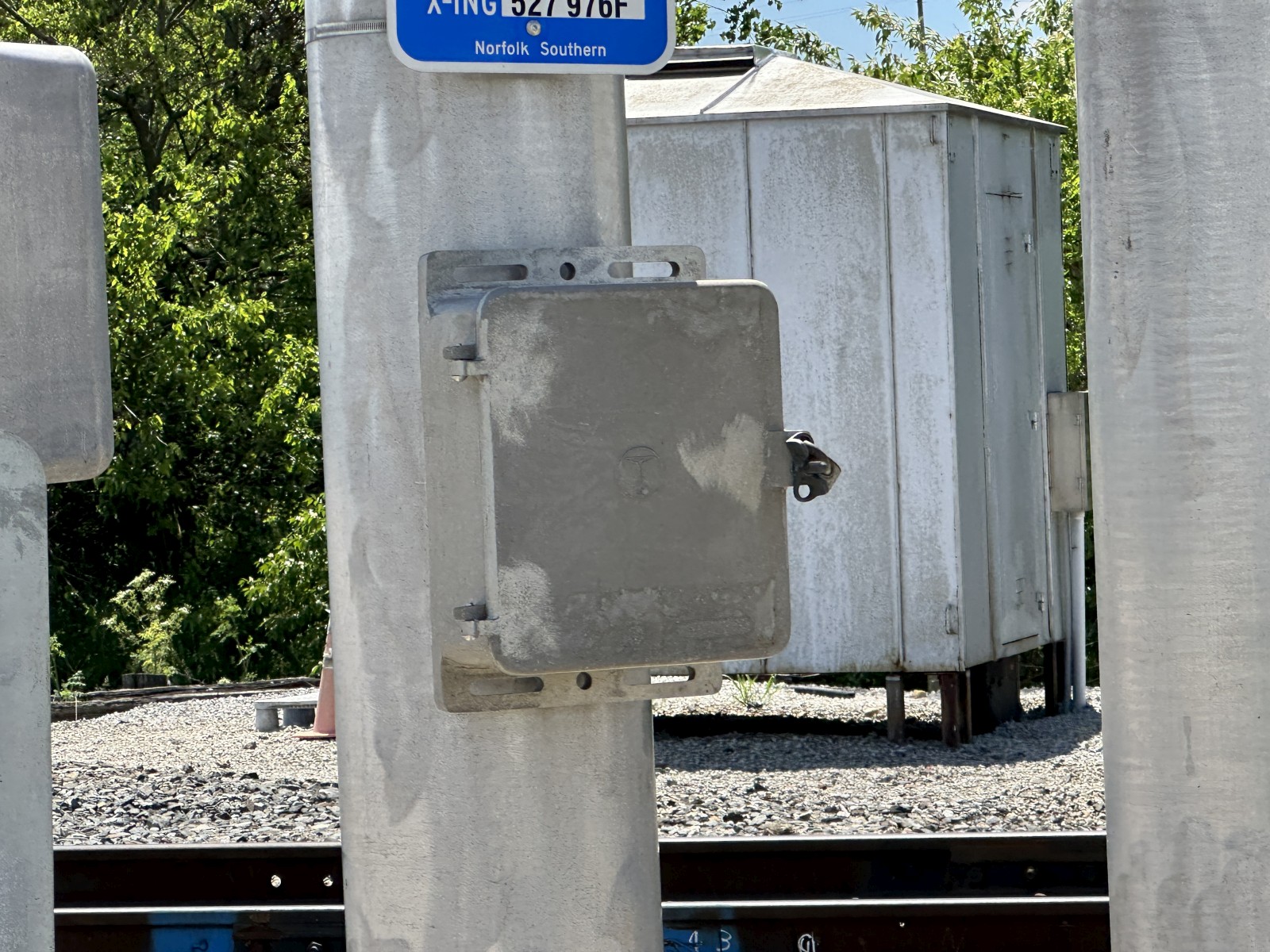

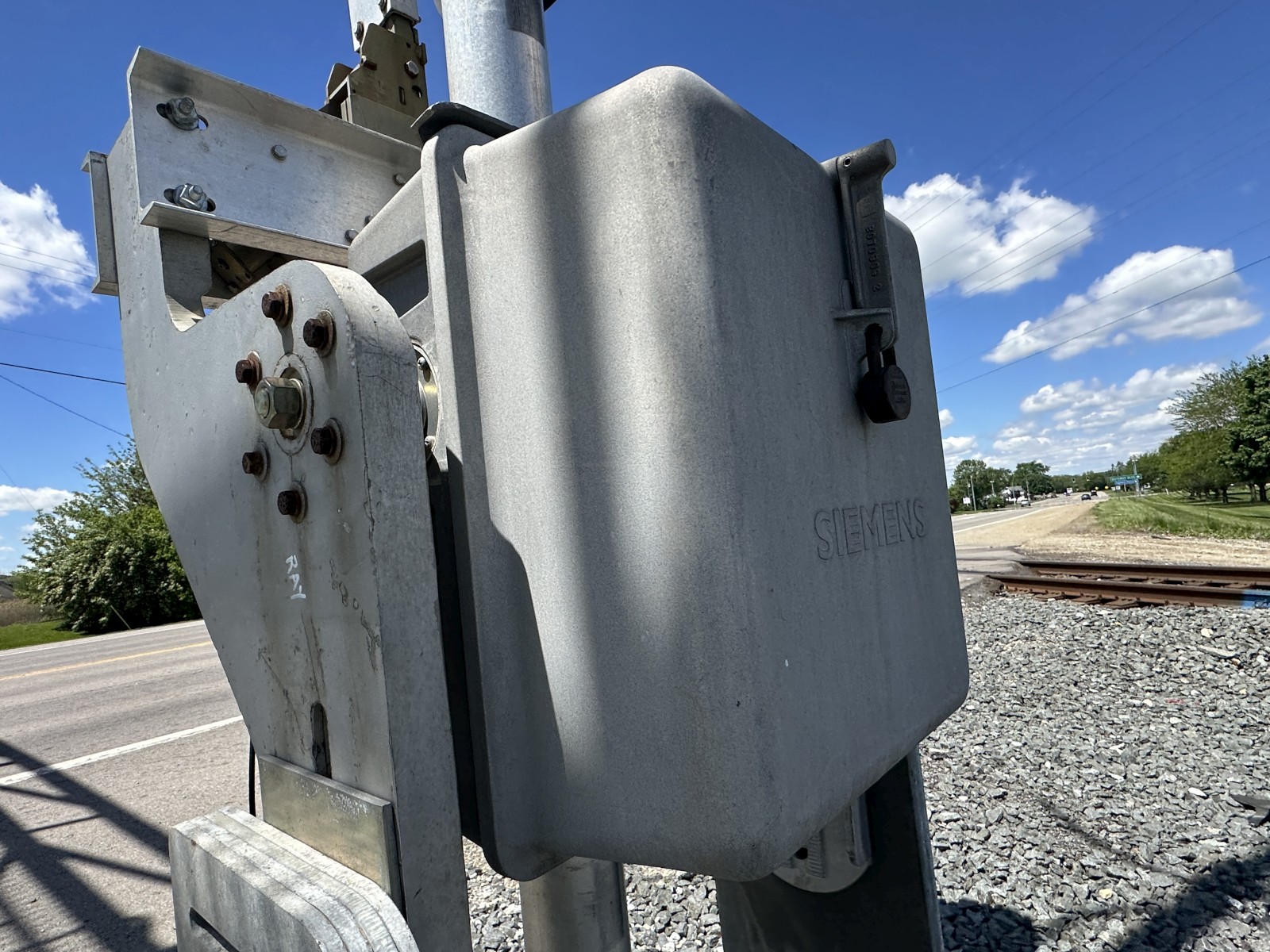

The southern signal.
|
|||
|
14 |
15 |
16 |
17 |
|
18 |
19 |
20 |
21 |
|
22 |
23 |
24 |
25 |
|

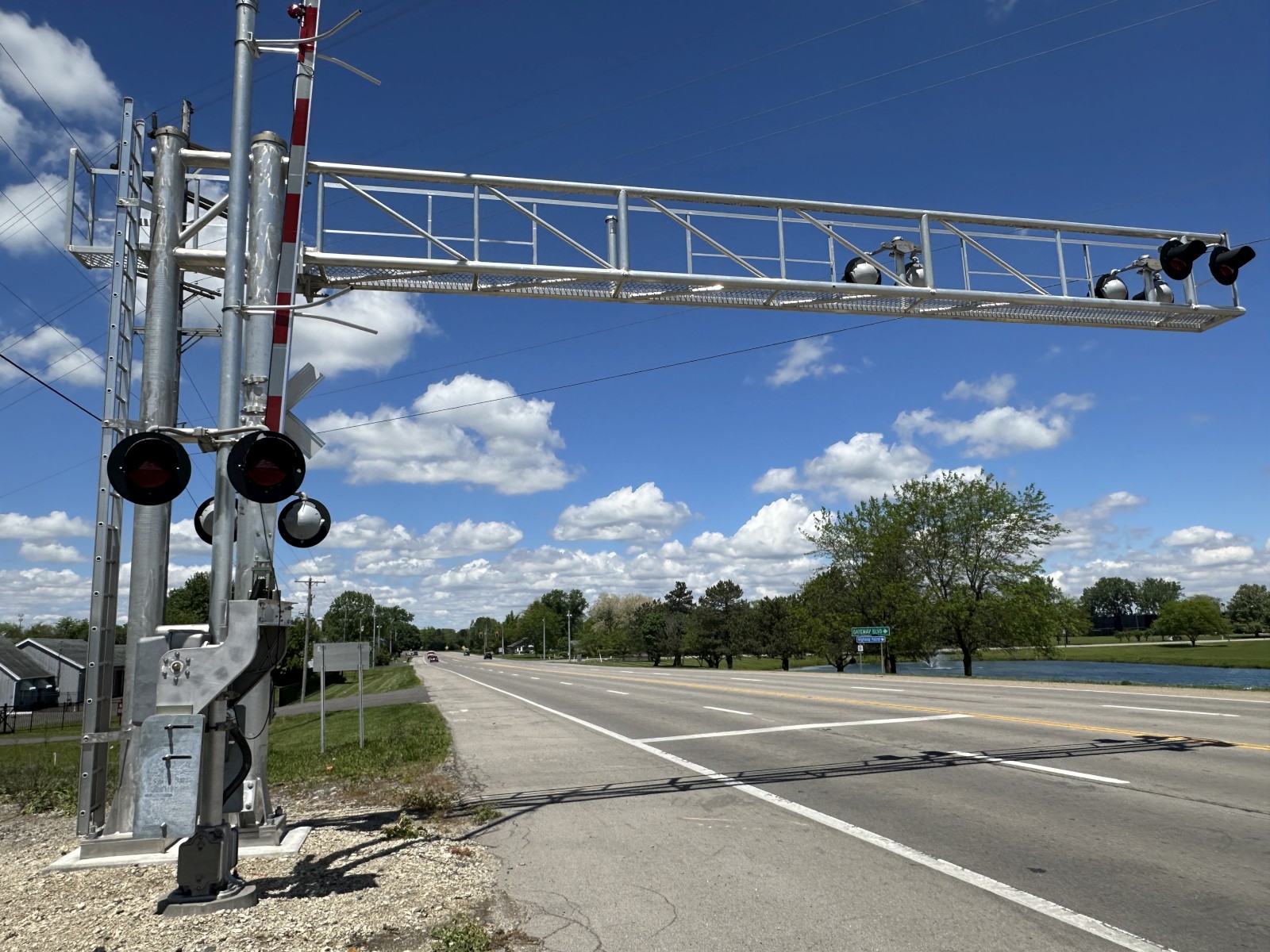

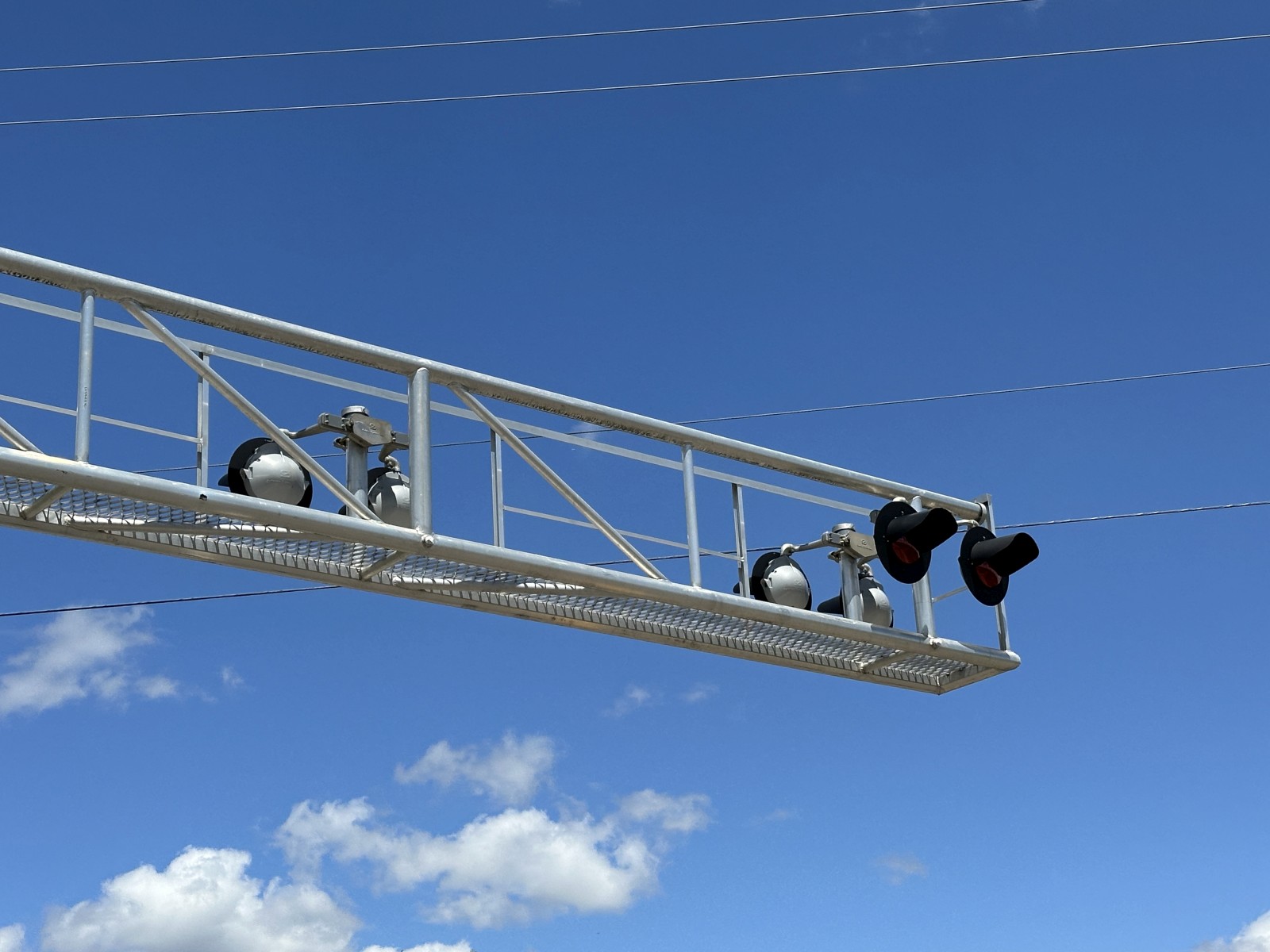

The northern signal. This crossing was
the site of a derailment on March 4, 2023, which I'll
technically count it as an accident, even though there
is no reference to the derailment in the accident
reports. Click here
for the derailment caught on dash cam.
|
|||
|
26 |
27 |
28 |
|

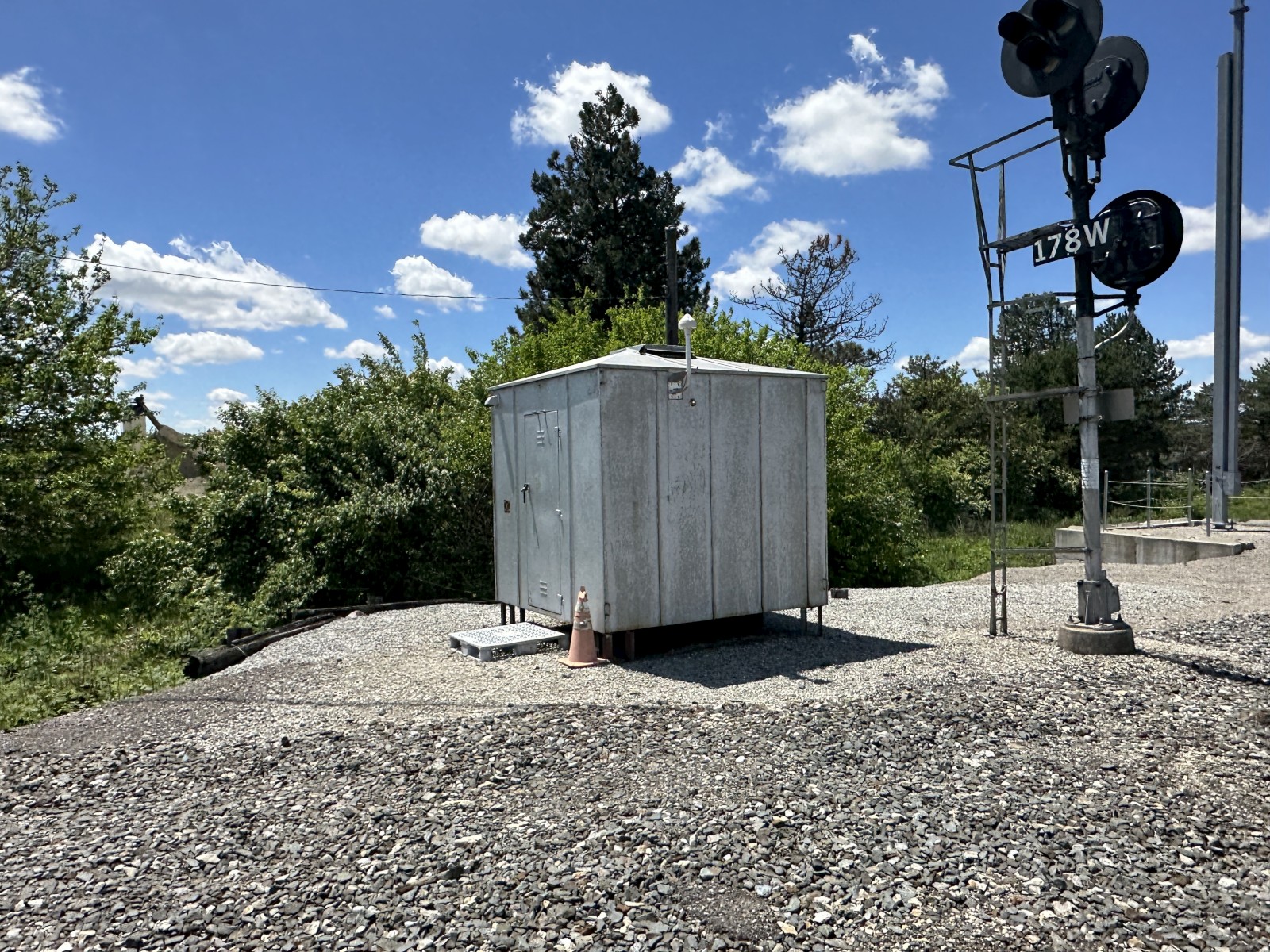

The relay bungalow.
|

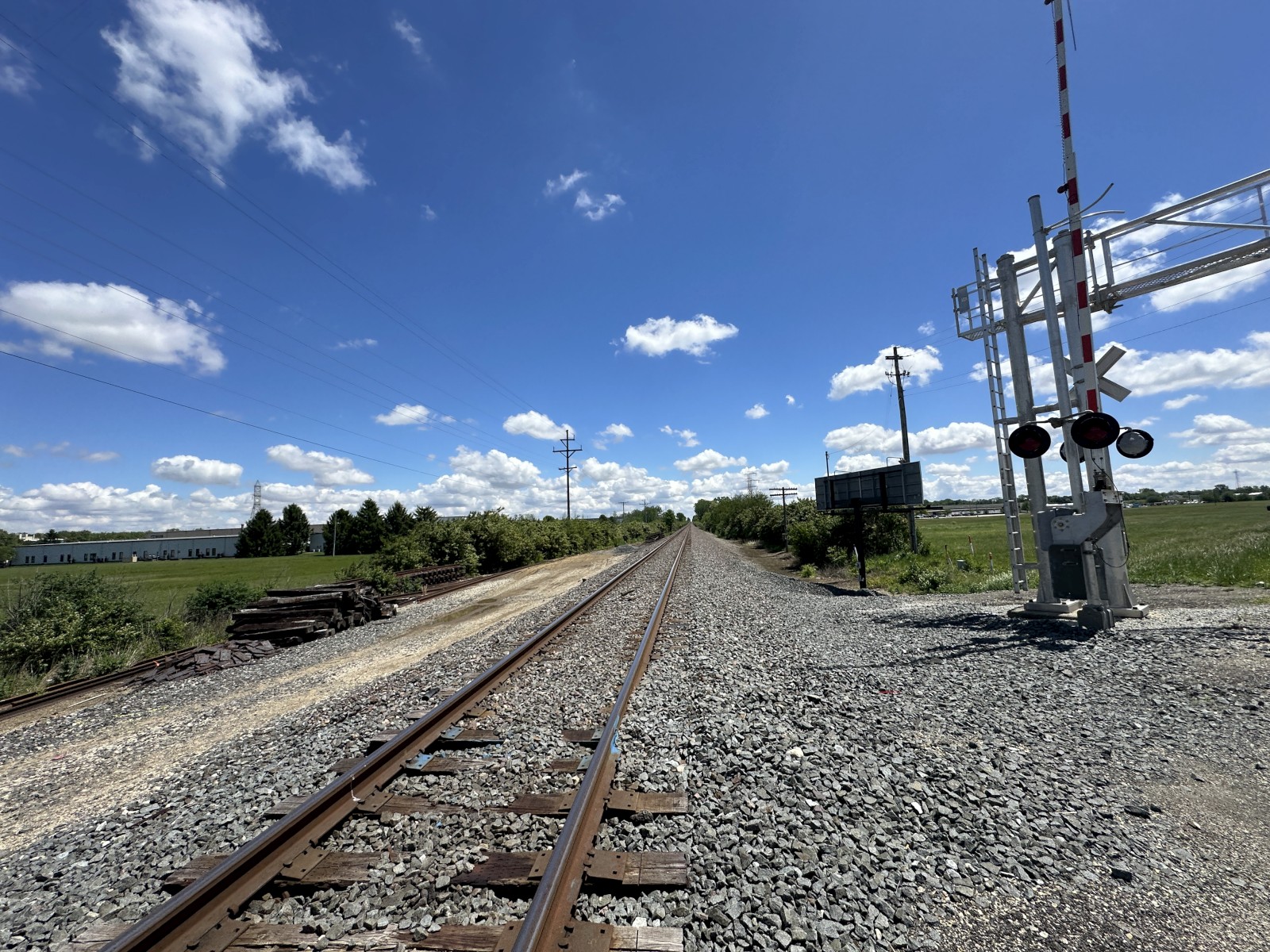

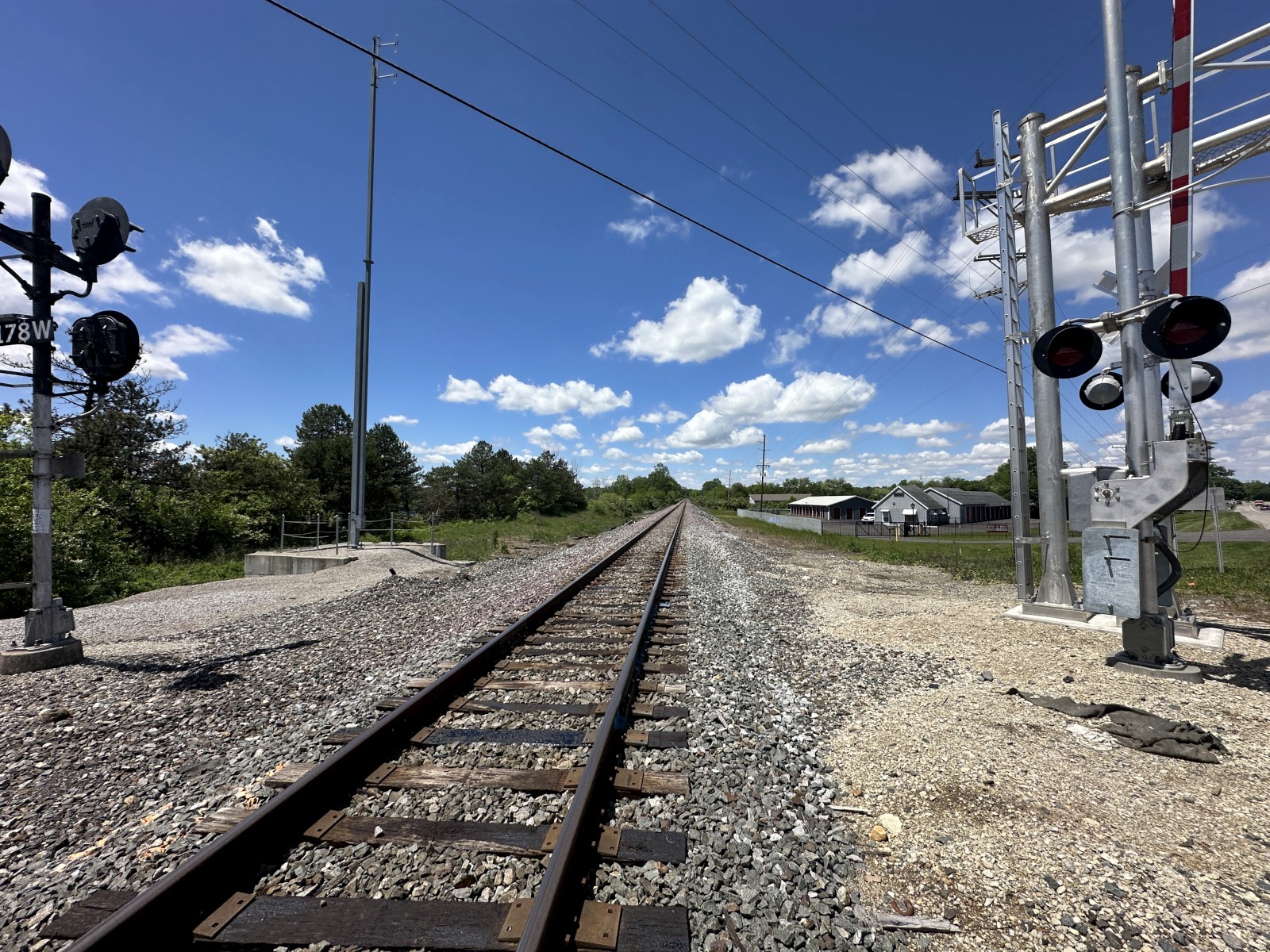

Track view facing east towards Titus Road.
|
Track view facing west towards Burnett Road #2.
|
|
29 |
30 |
|

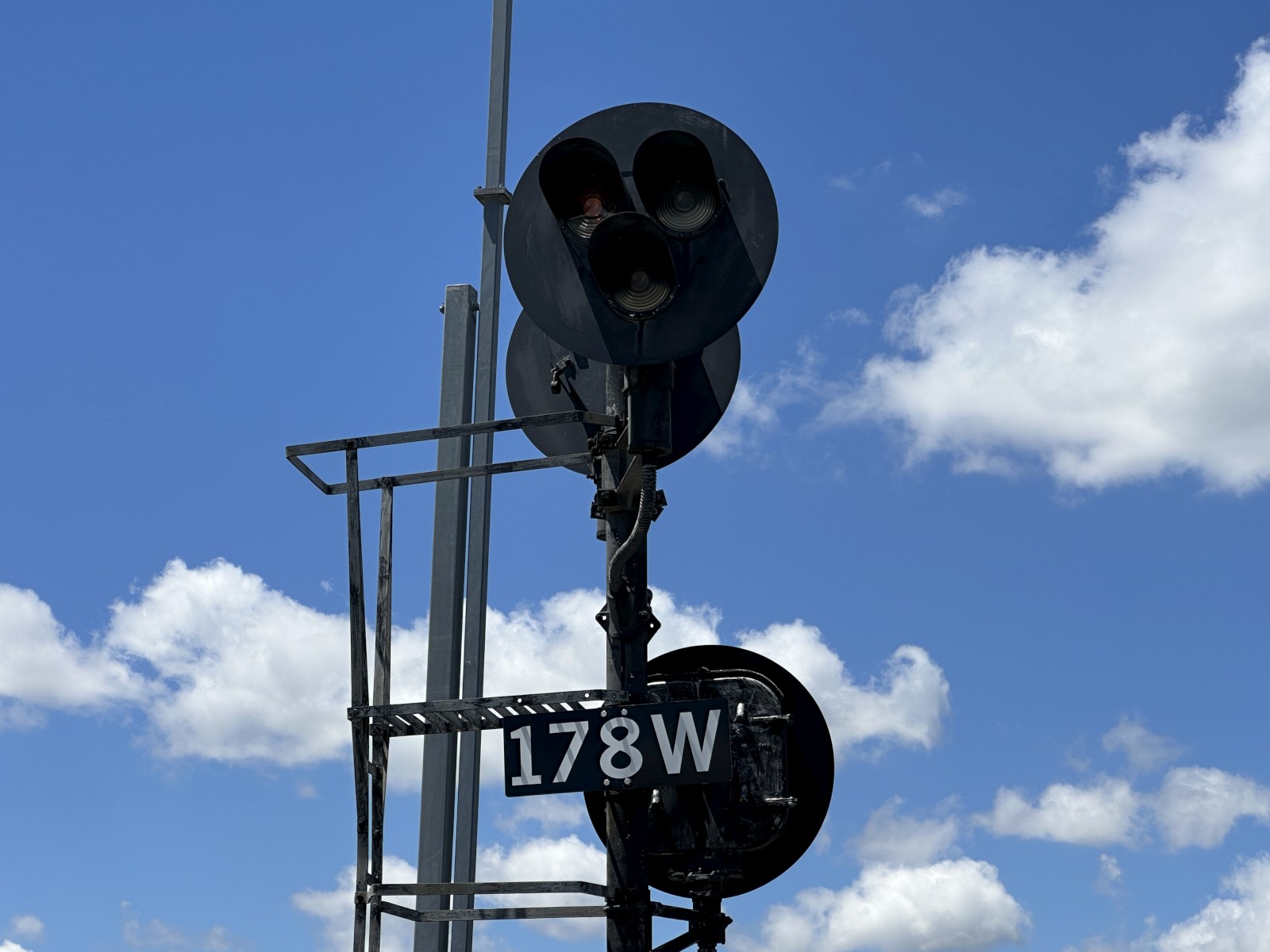

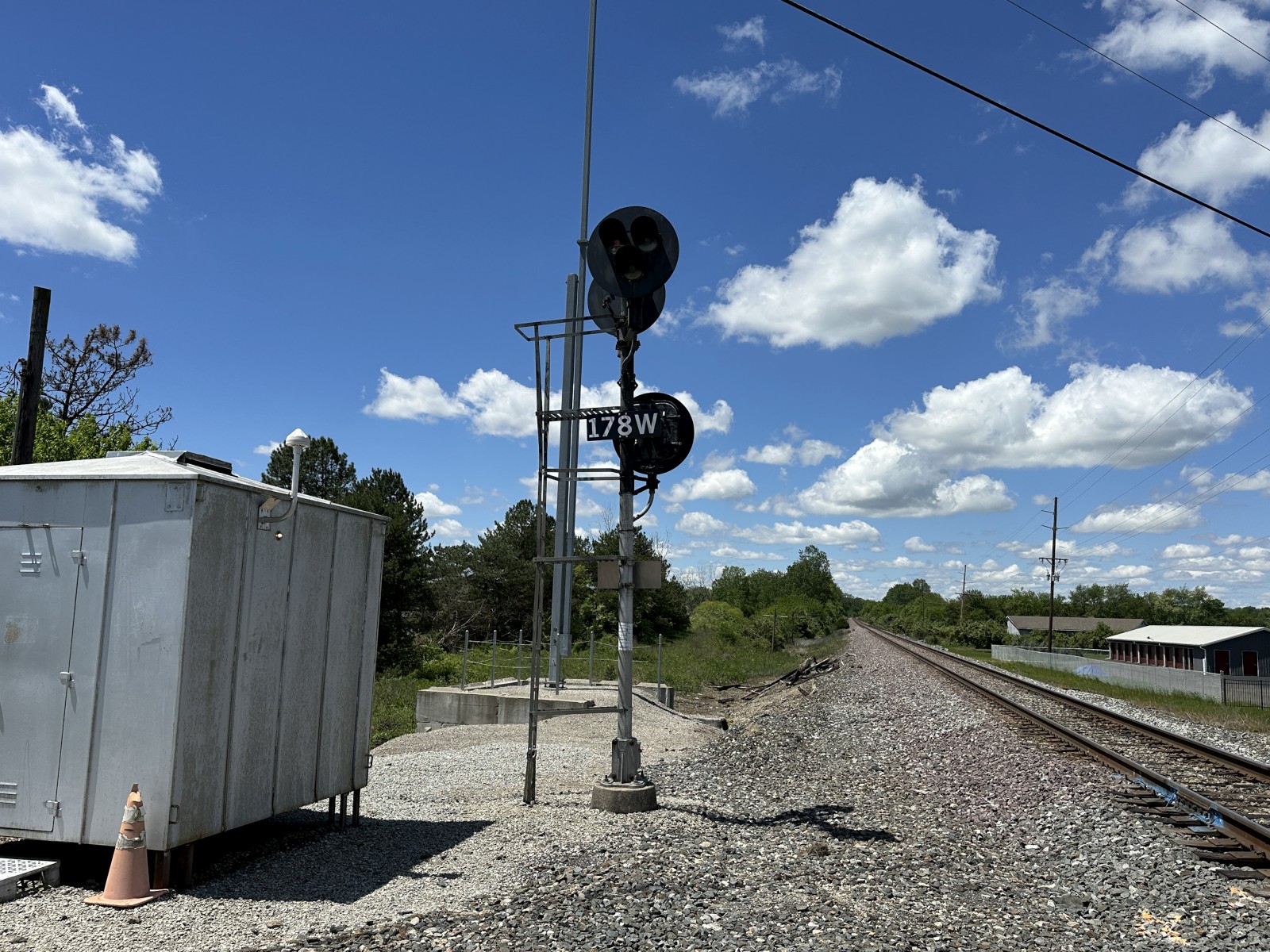

A CR-era tri-light wayside signal
stands near the crossing!
|
|
All pictures were taken on 5-10-24.
