MP: CJ183.890 |
Updated June 2025
Total Accidents:
0

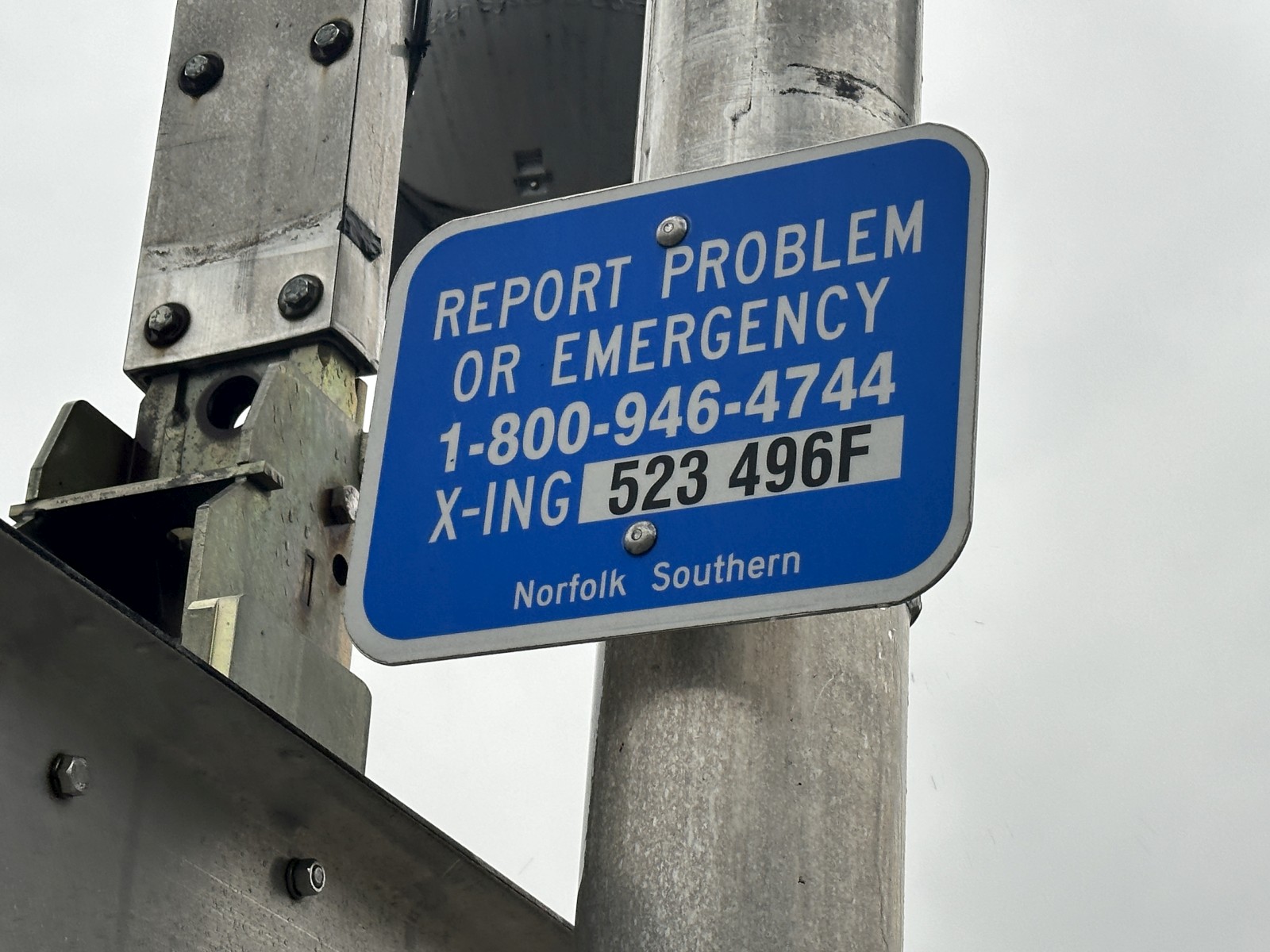

Crossing DOT #: 523496F
TOTAL DAILY
TRAINS: 7 (AS OF 2024)
| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | N/A | Safetran Type 3 E-Bell |
| Base: | Safetran 5" Double Sided |
Safetran 5" Double Sided |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Light Brackets: | Safetran | Safetran |
| Gate Lights: | 3 - NEG 4" LEDs | 3 - NEG 4" LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
Page created by: Ethan the Railfanner
This crossing is located on the NS Dayton District.
|
O1 |
O2 |
O3 |
O4 |
|

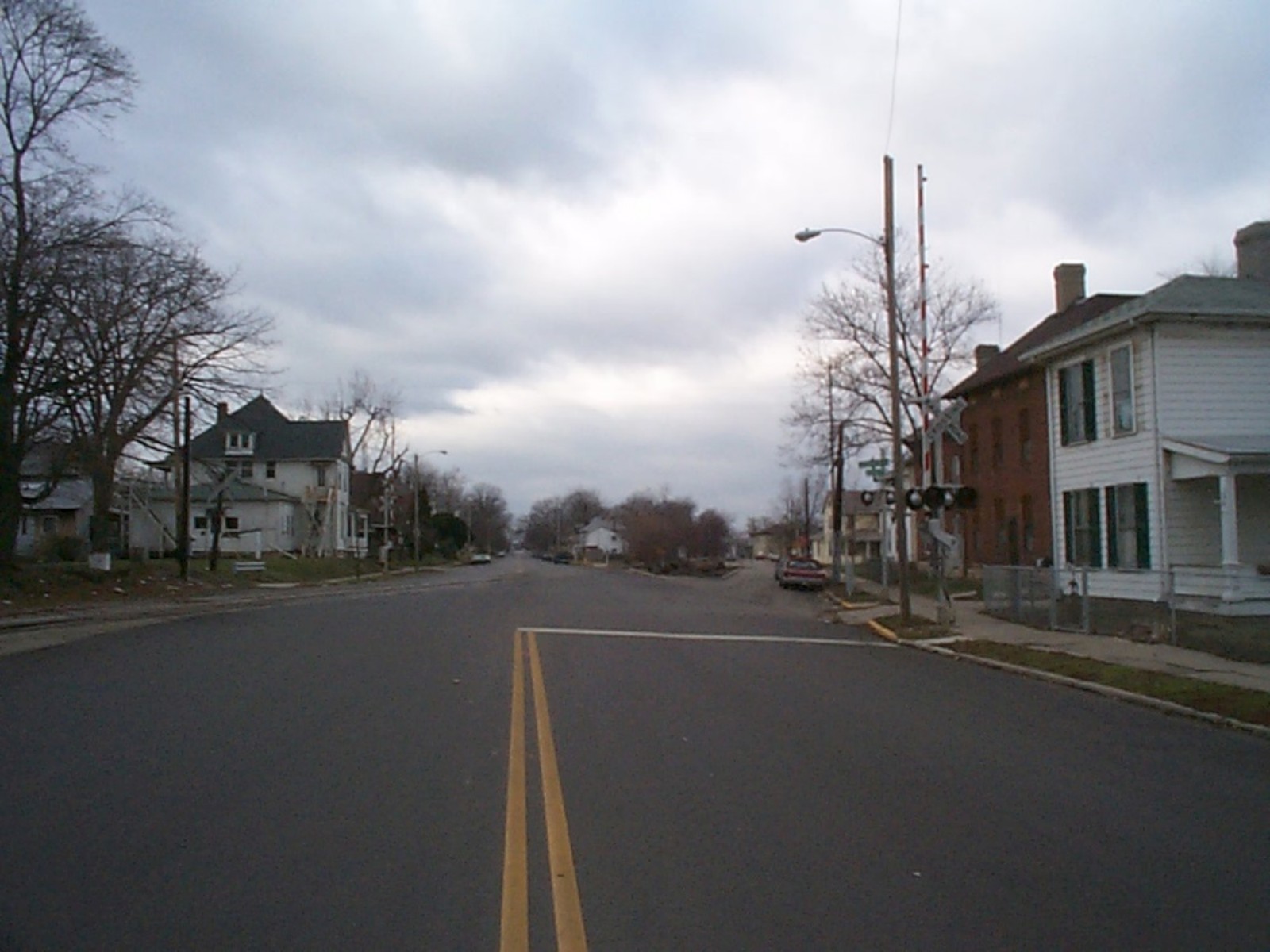

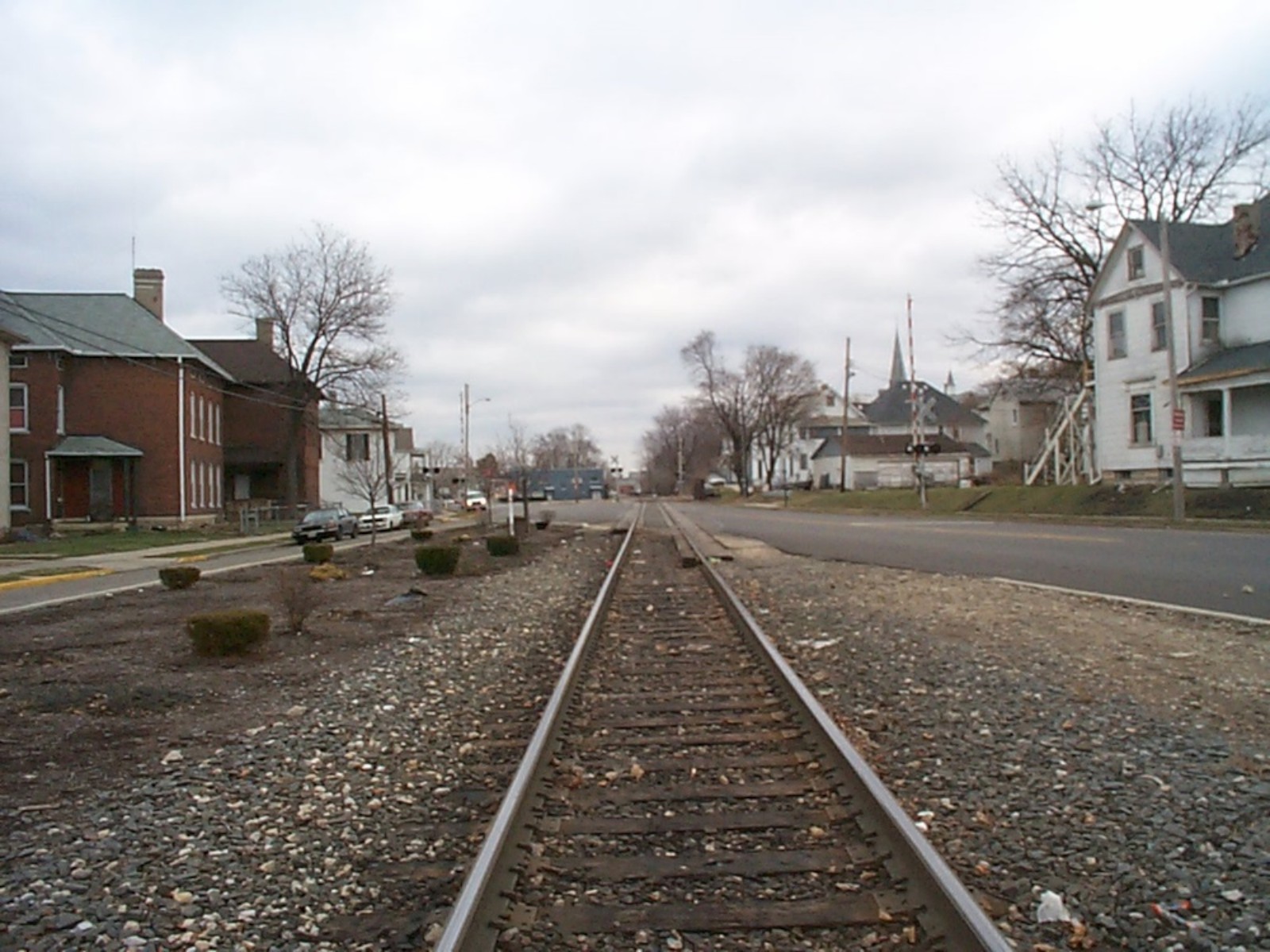

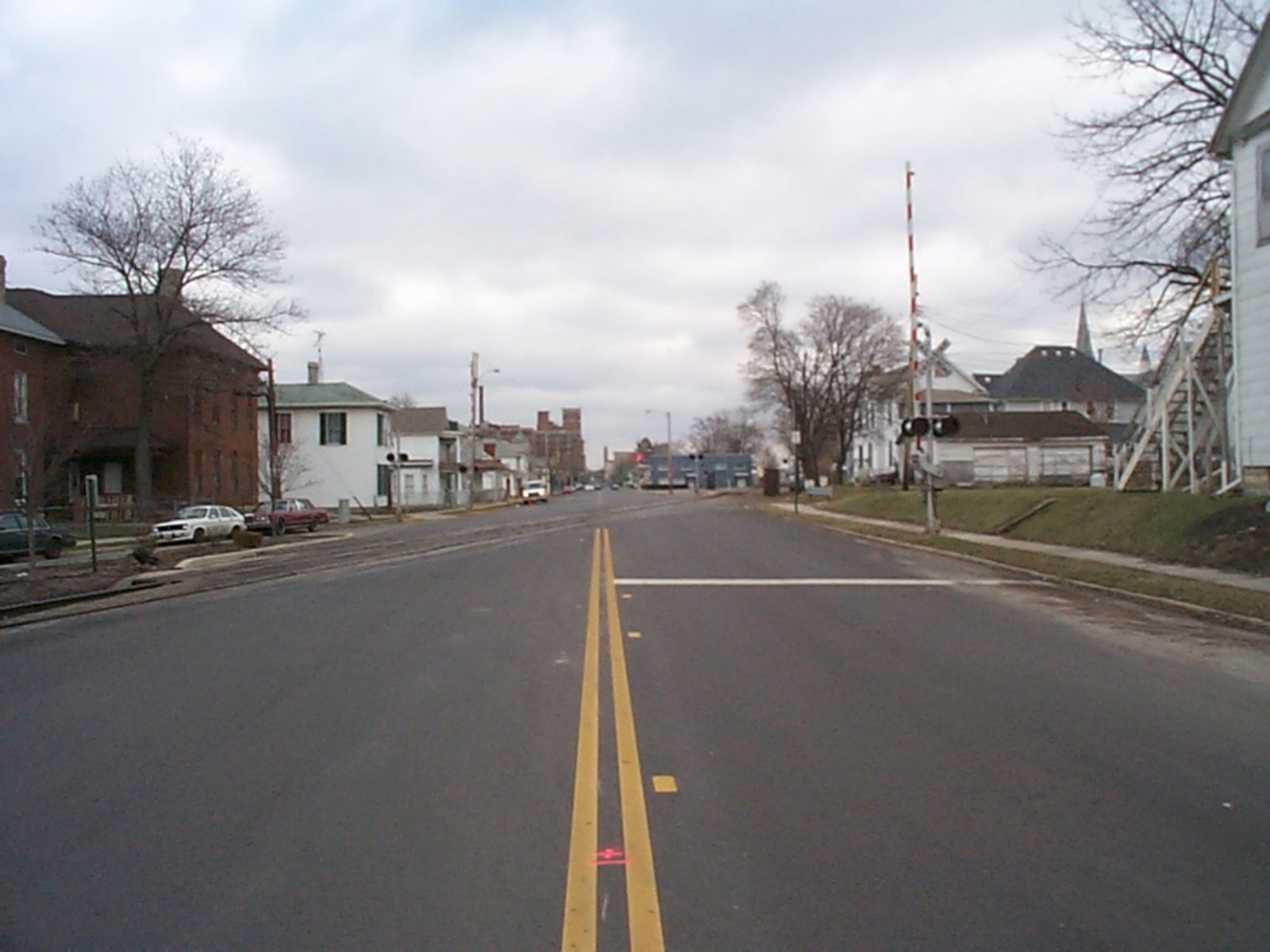

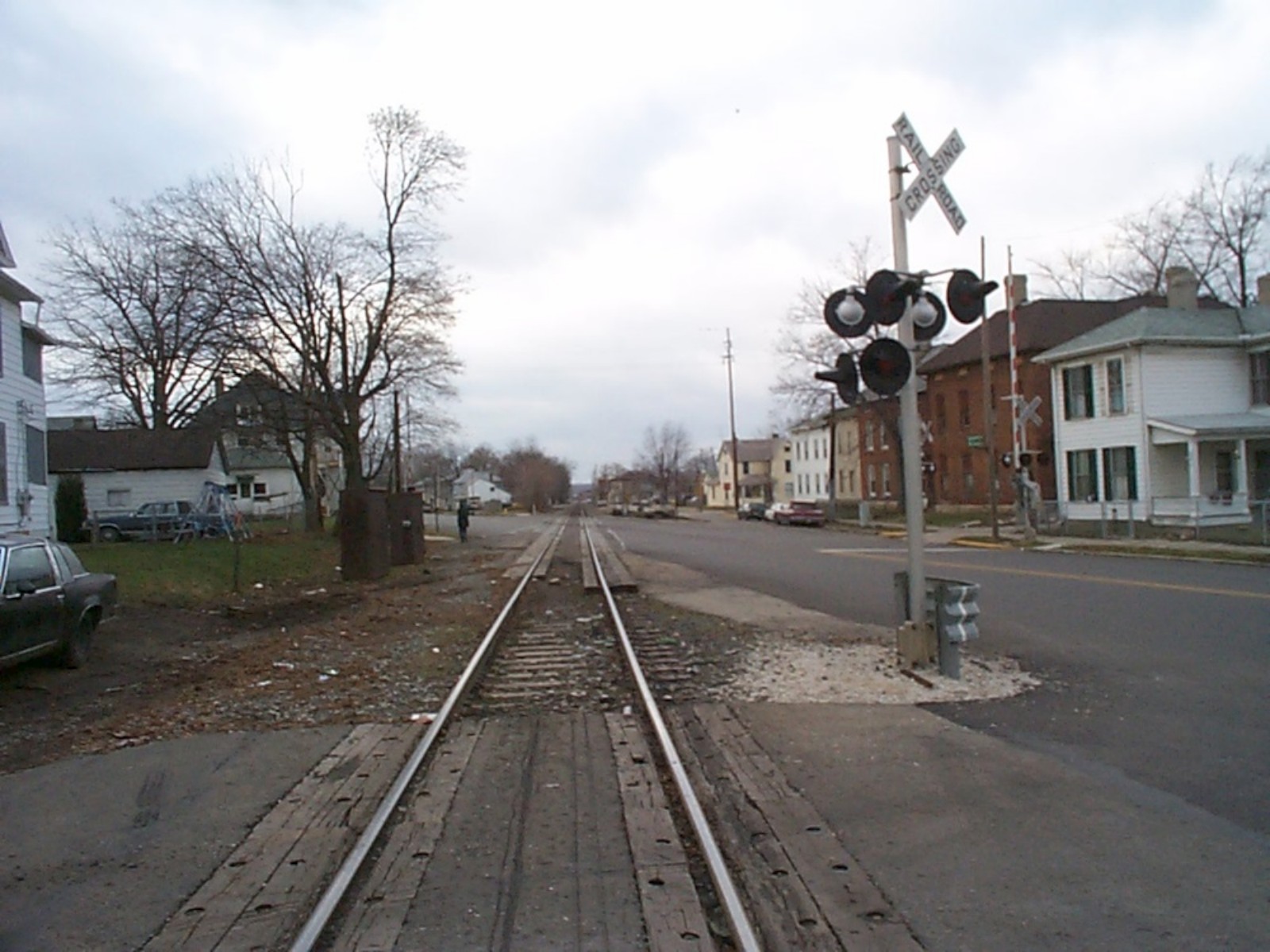

PUCO pictures from the late 90s shows
two gated CR signals with 8"x20" incandescents, WCH gate
mechanisms and a Safetran Mechanical Bell. If you look
closely, there was also an additional signal for Vananda
Avenue. Which now dead ends before the crossing. There
was also another crossing just 166 feet away from this
crossing. It had a gated mast signal and a gateless mast
signal, both with 8"x20" incandescents. By 2008, the
High Street signals were replaced with the current
setup, a wayside horn was added, and both the Vananda
Avenue and Race Street signals were removed, with the
latter closing that year.
|
|||
|
1 |
2 |
|

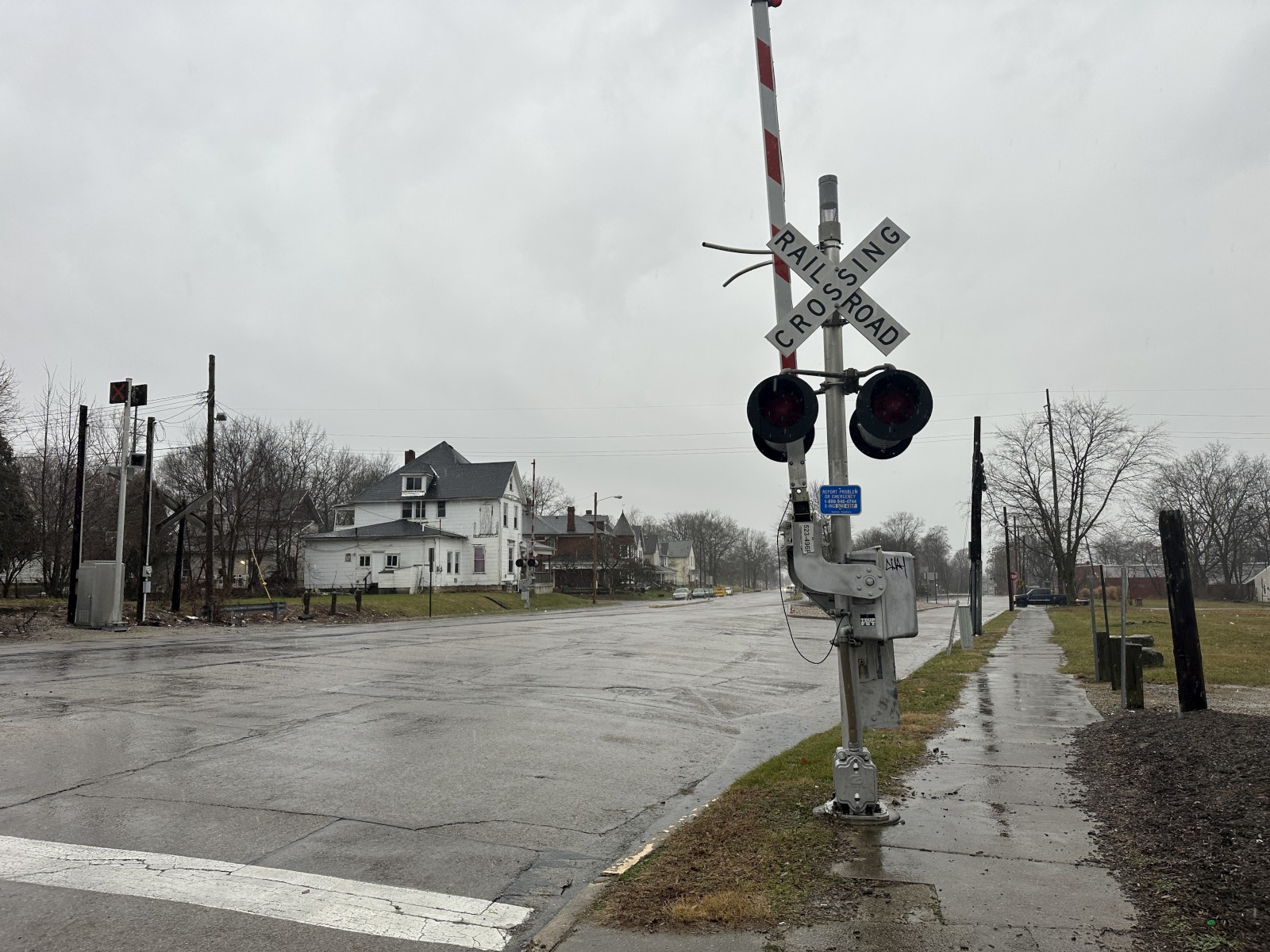

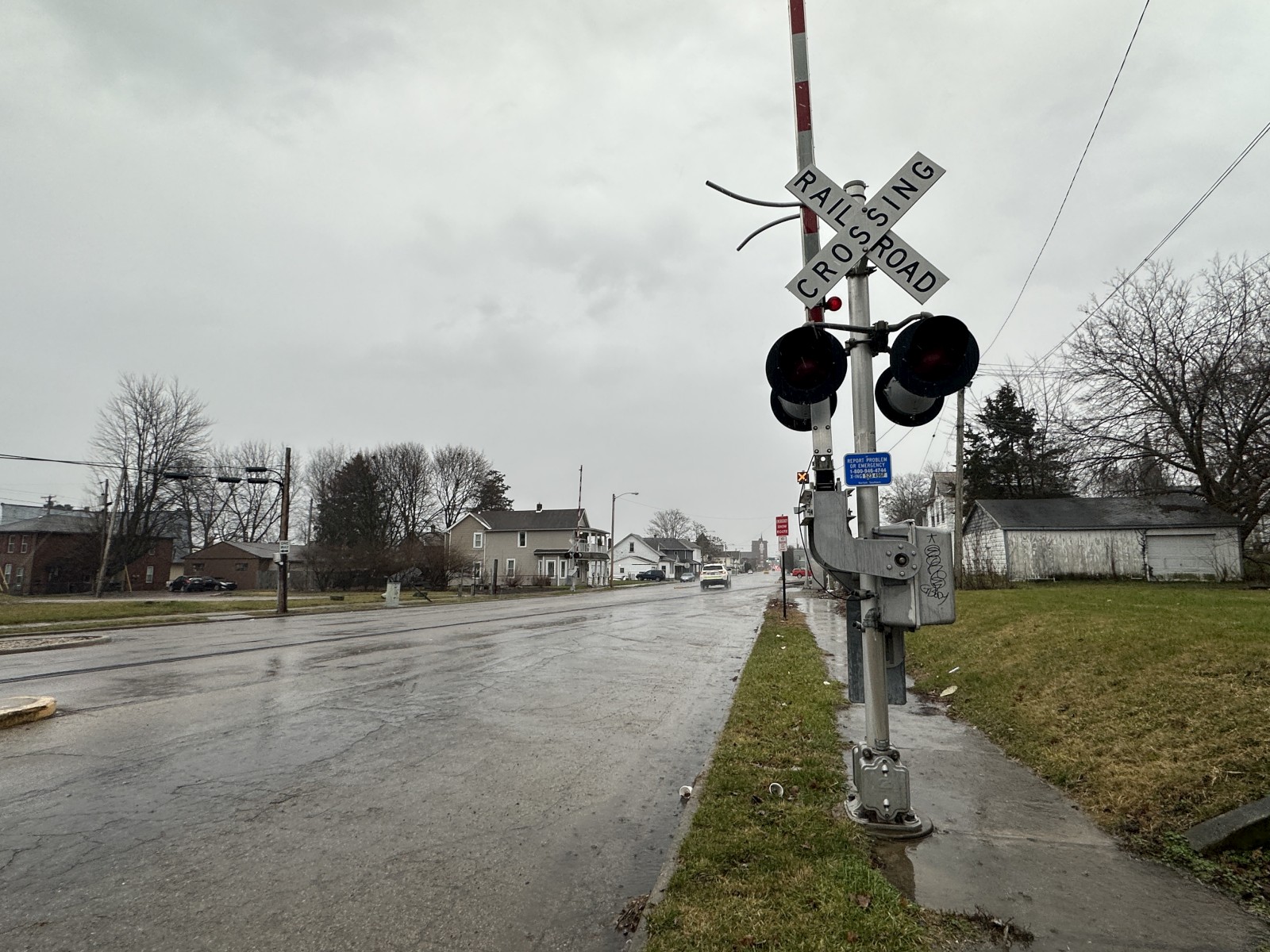

Overview of 2 gated signals facing
west.
|
Overview facing east.
|
|
3 |
4 |
5 |
|
6 |
7 |
8 |
|
9 |
10 |
11 |
|

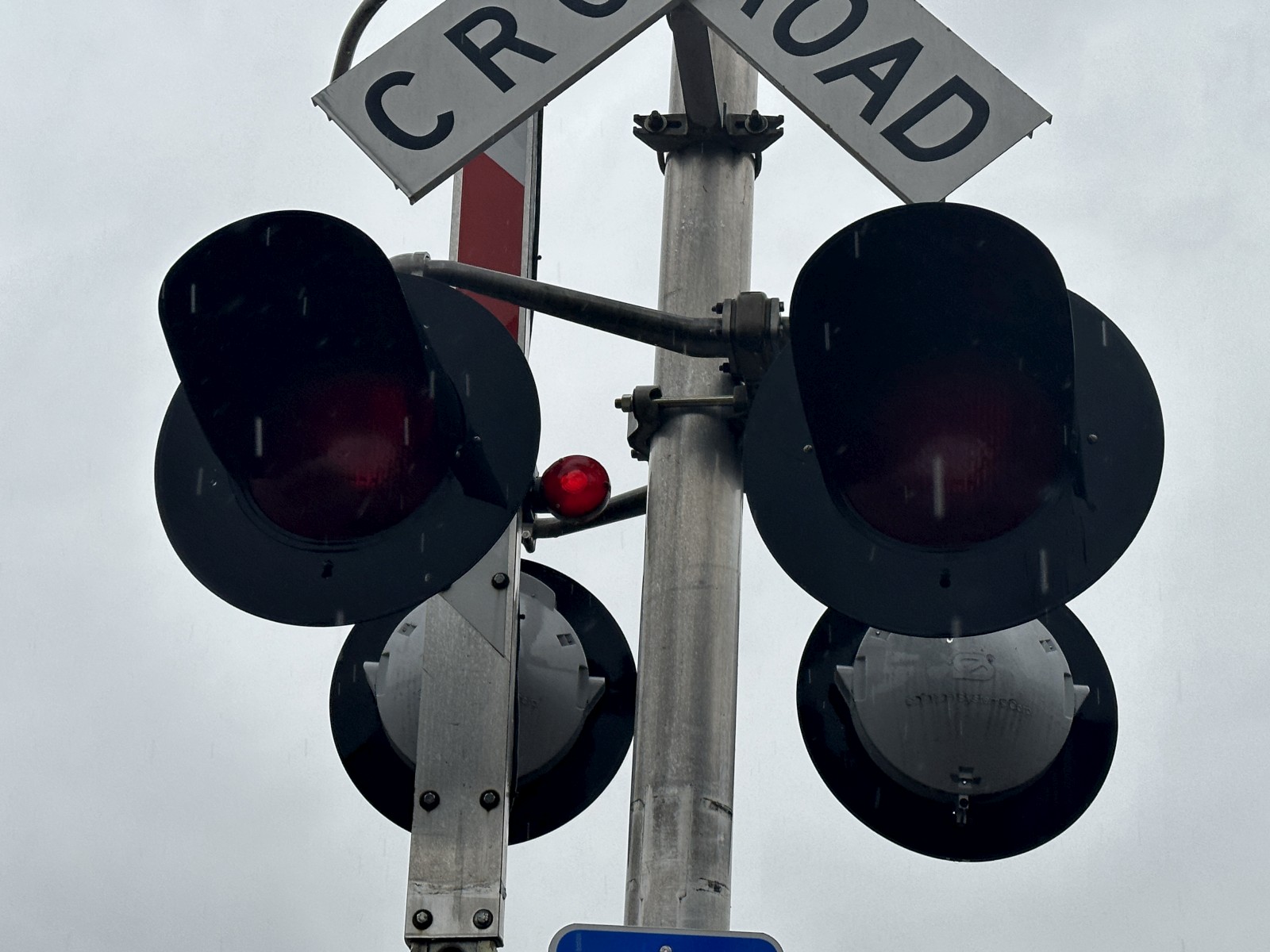

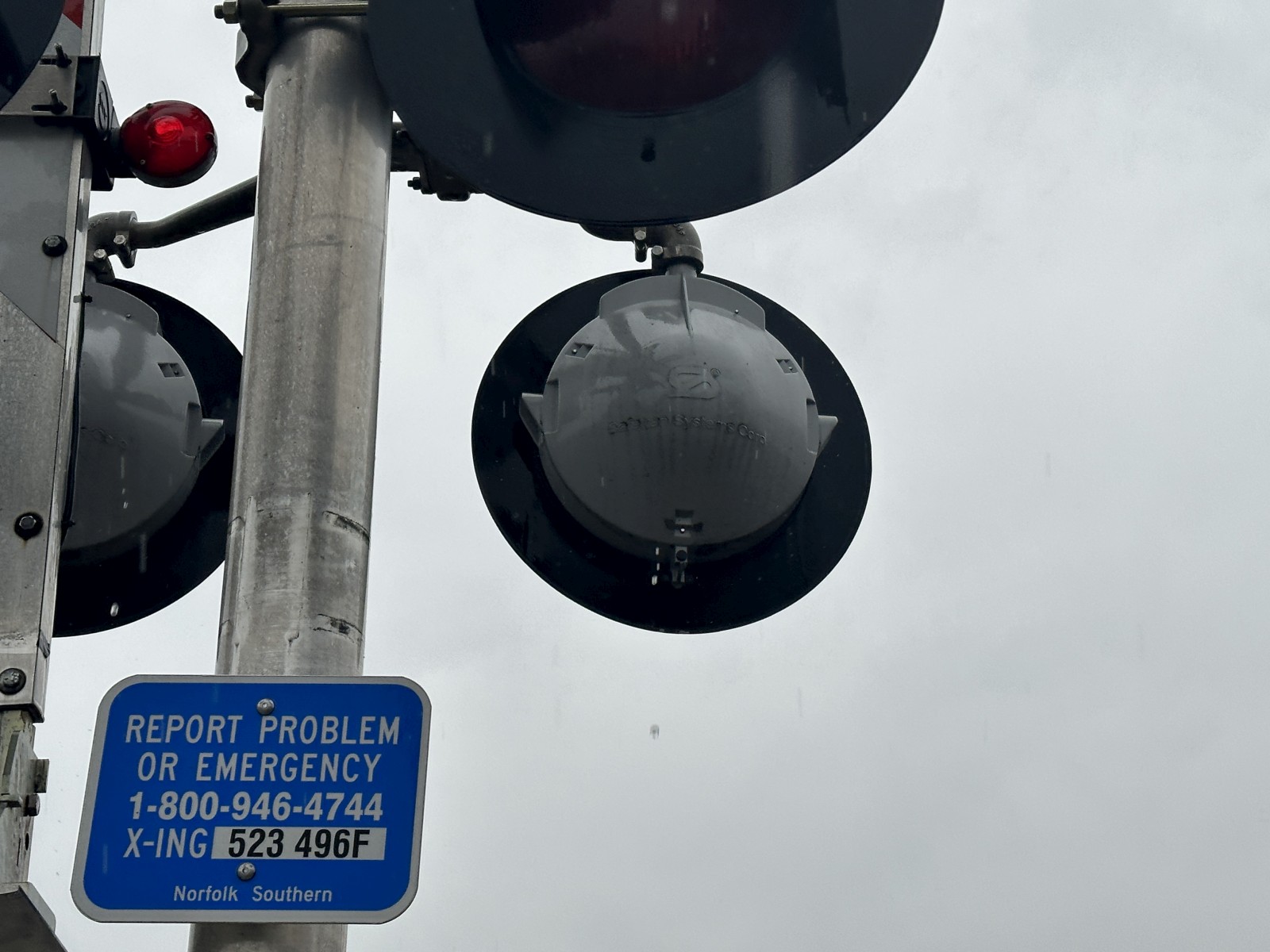

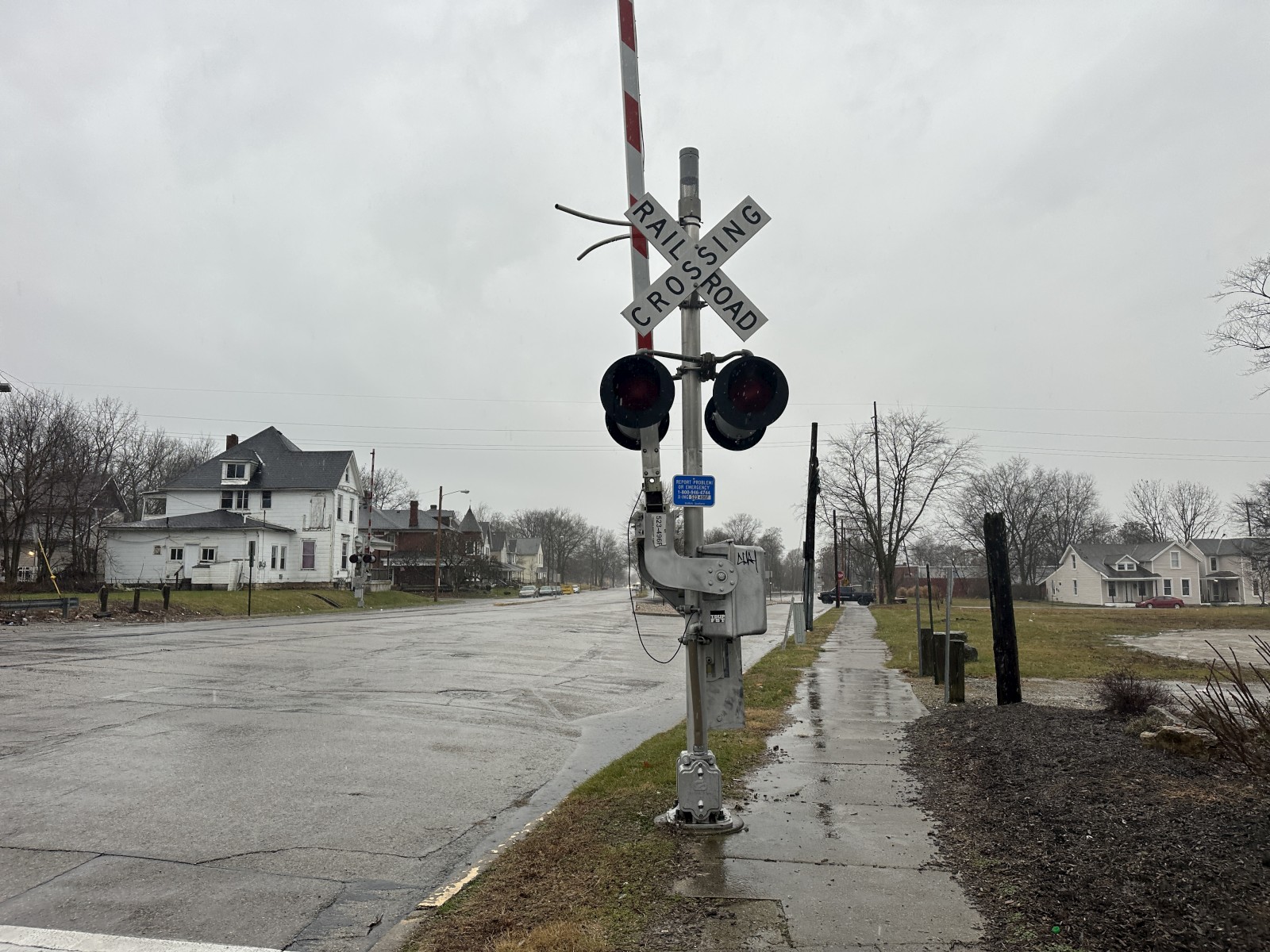

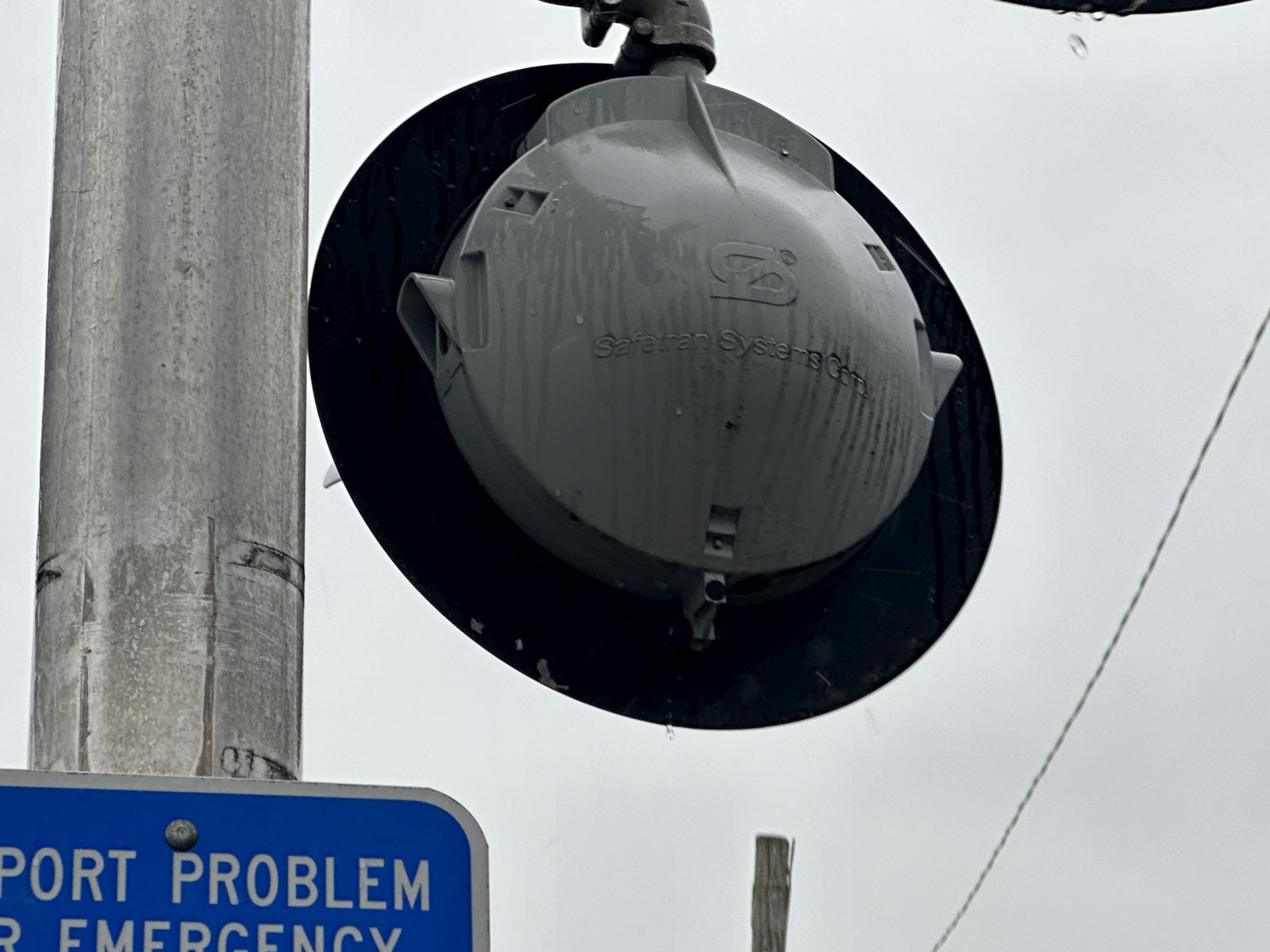

The eastern signal.
|
||
|
12 |
13 |
14 |
15 |
|
16 |
17 |
18 |
19 |
|

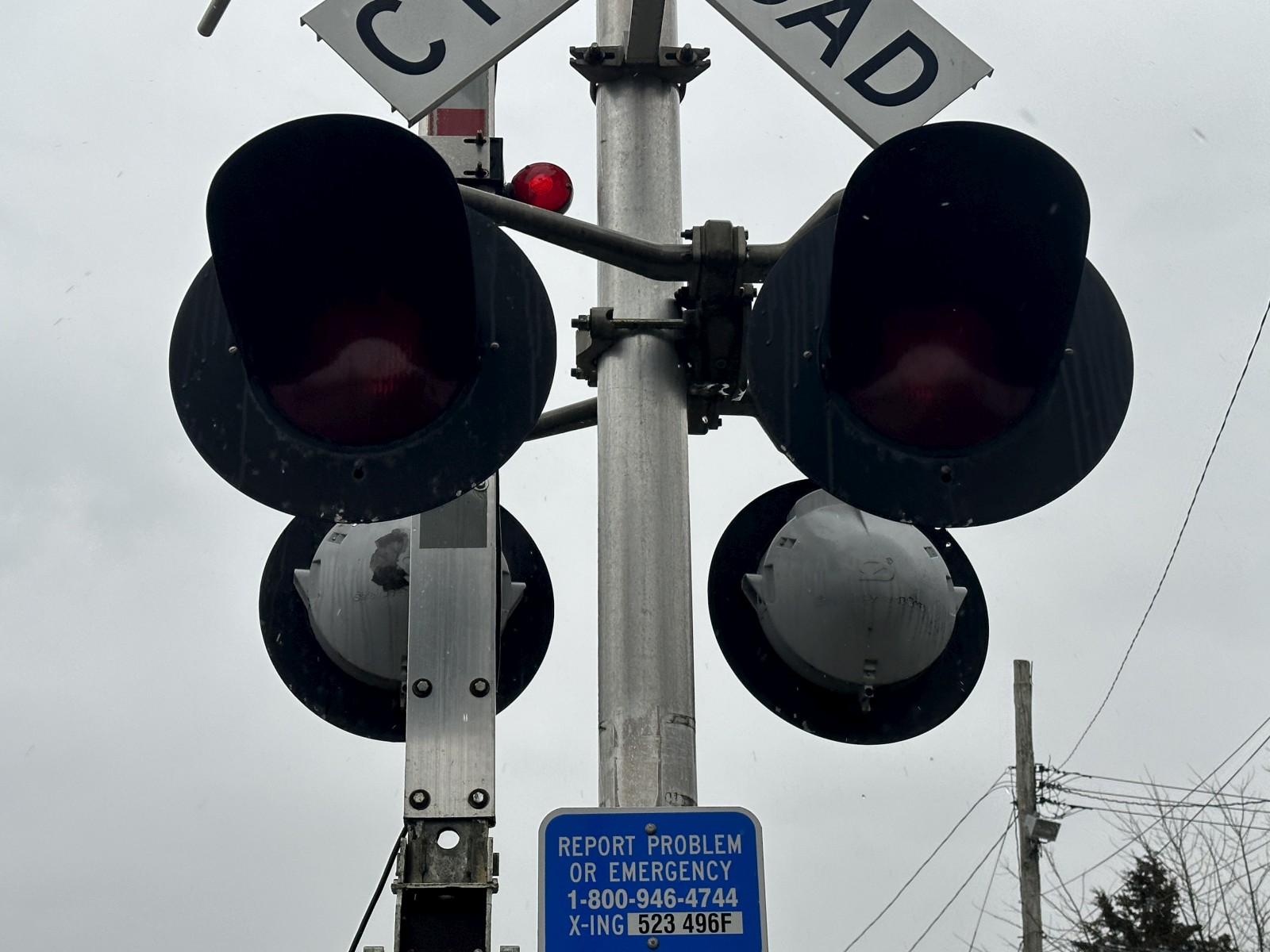

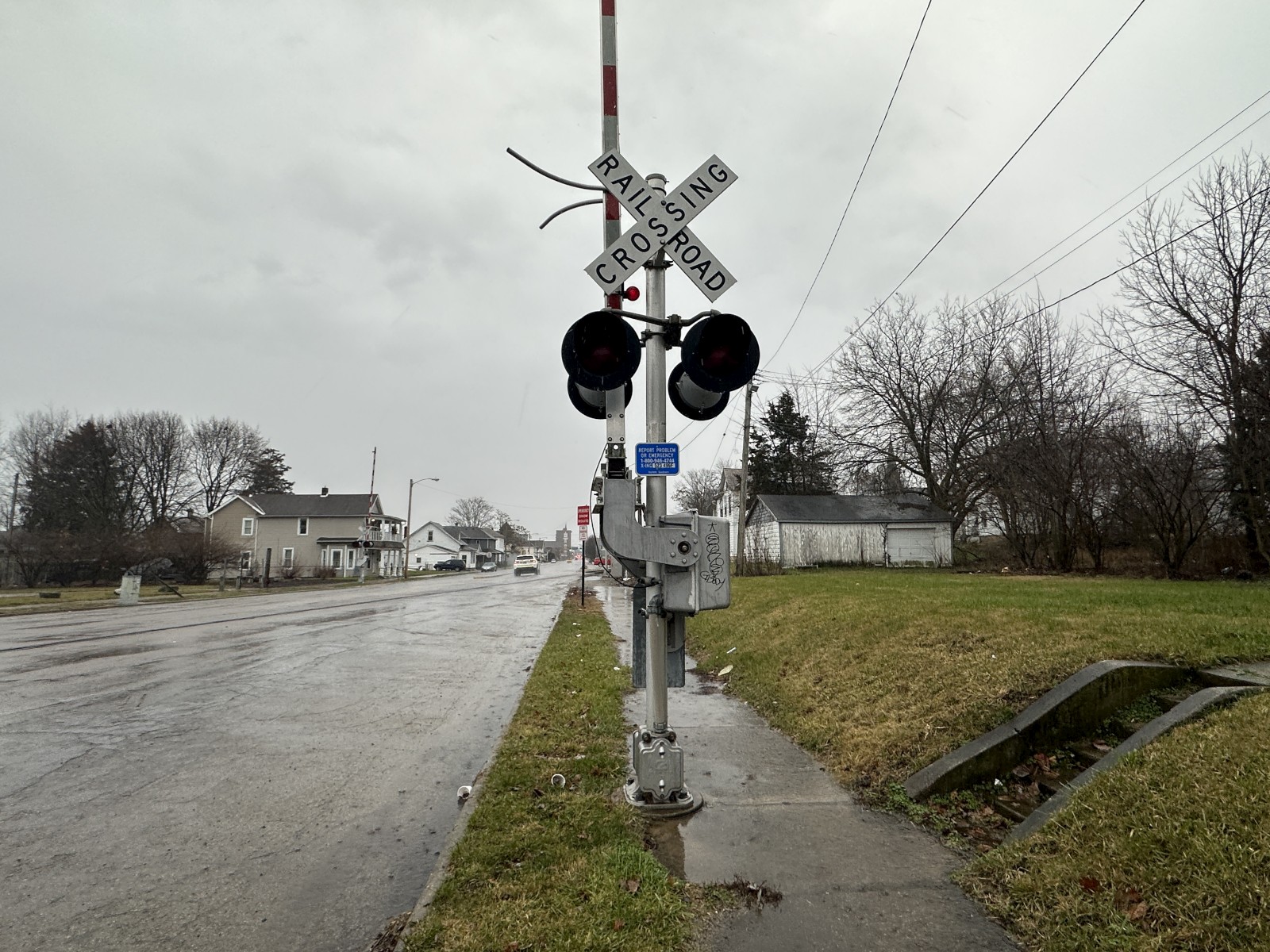

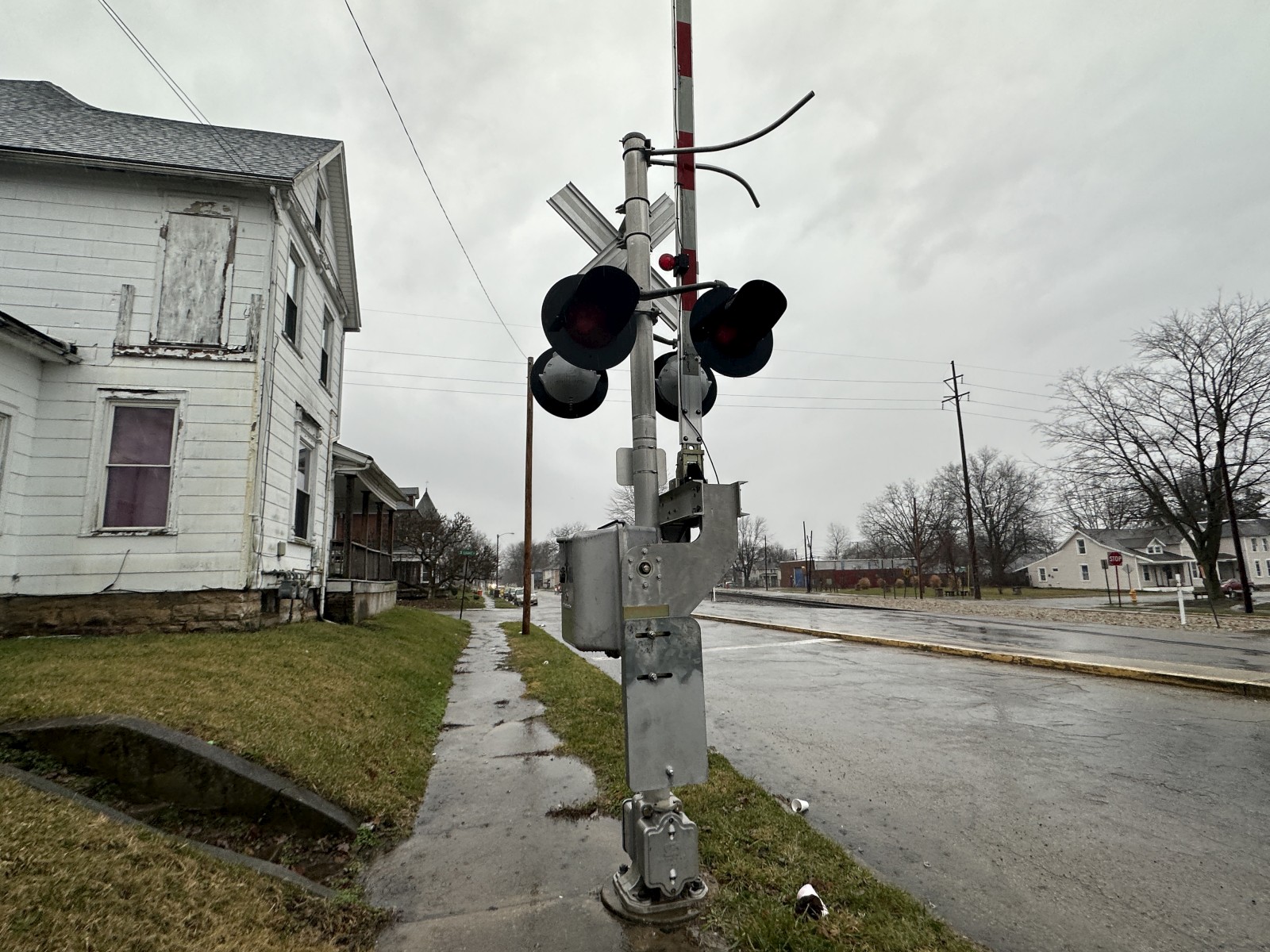

The western signal.
|
|||
|
20 |
21 |
22 |
|

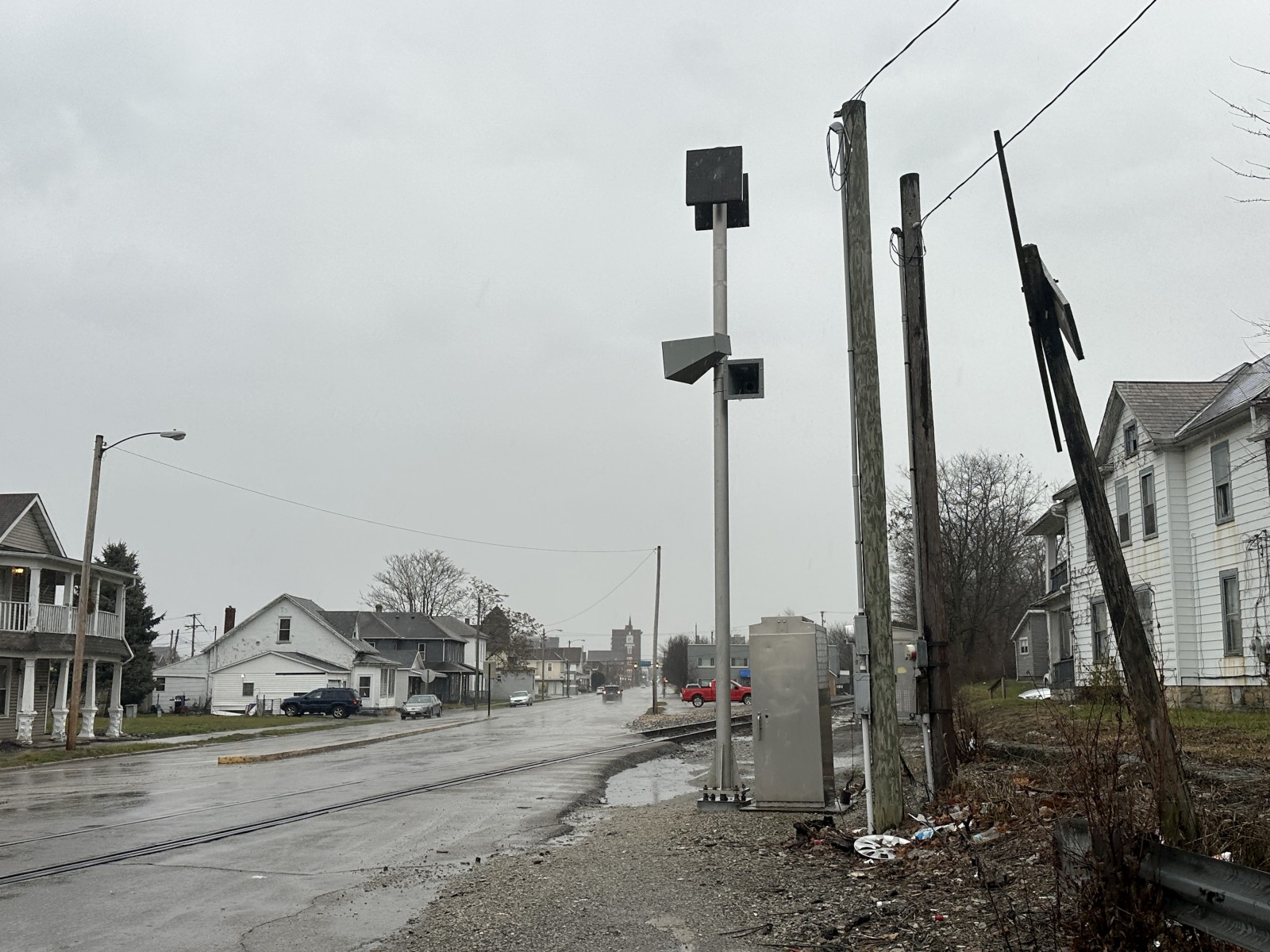

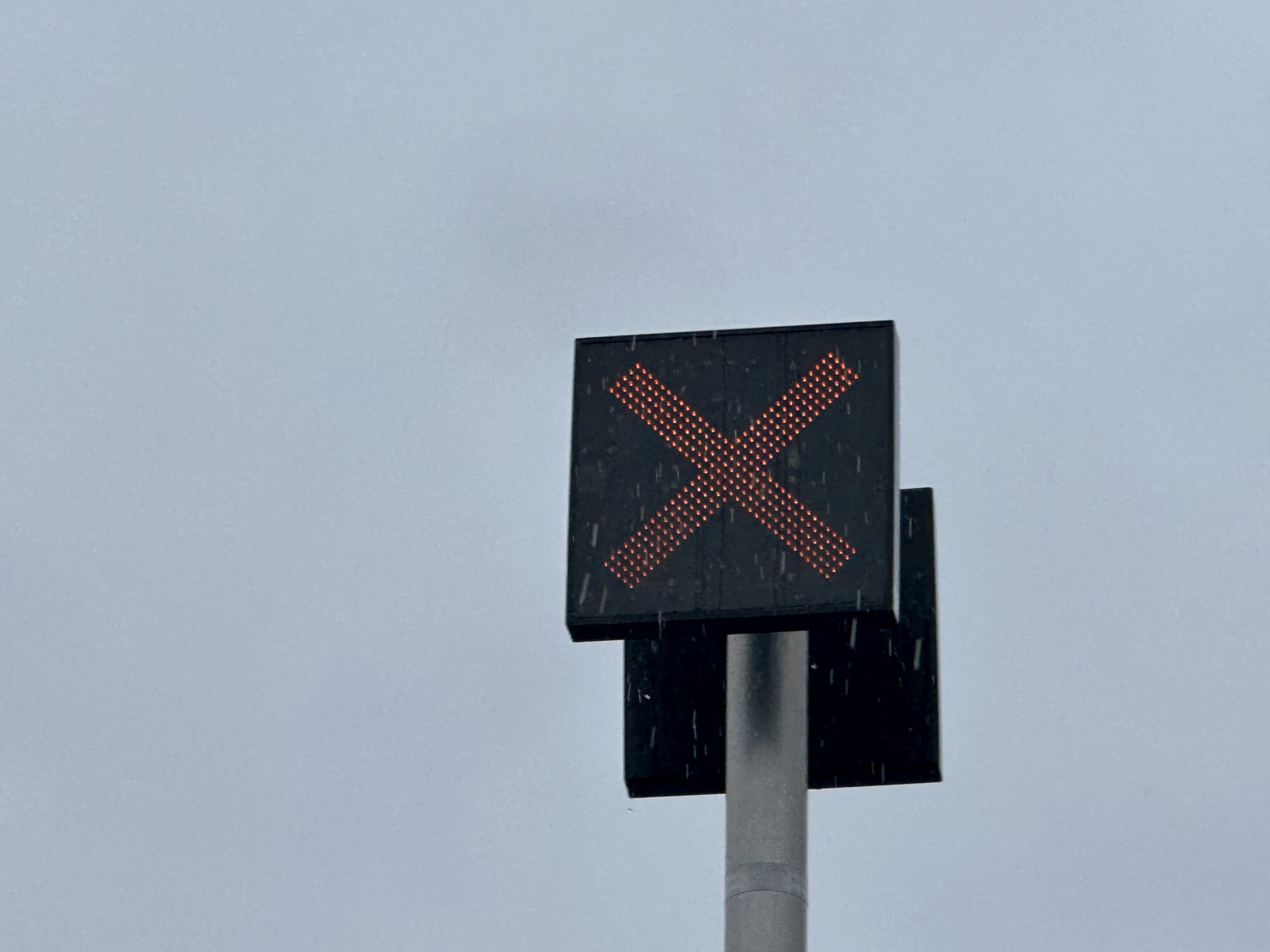

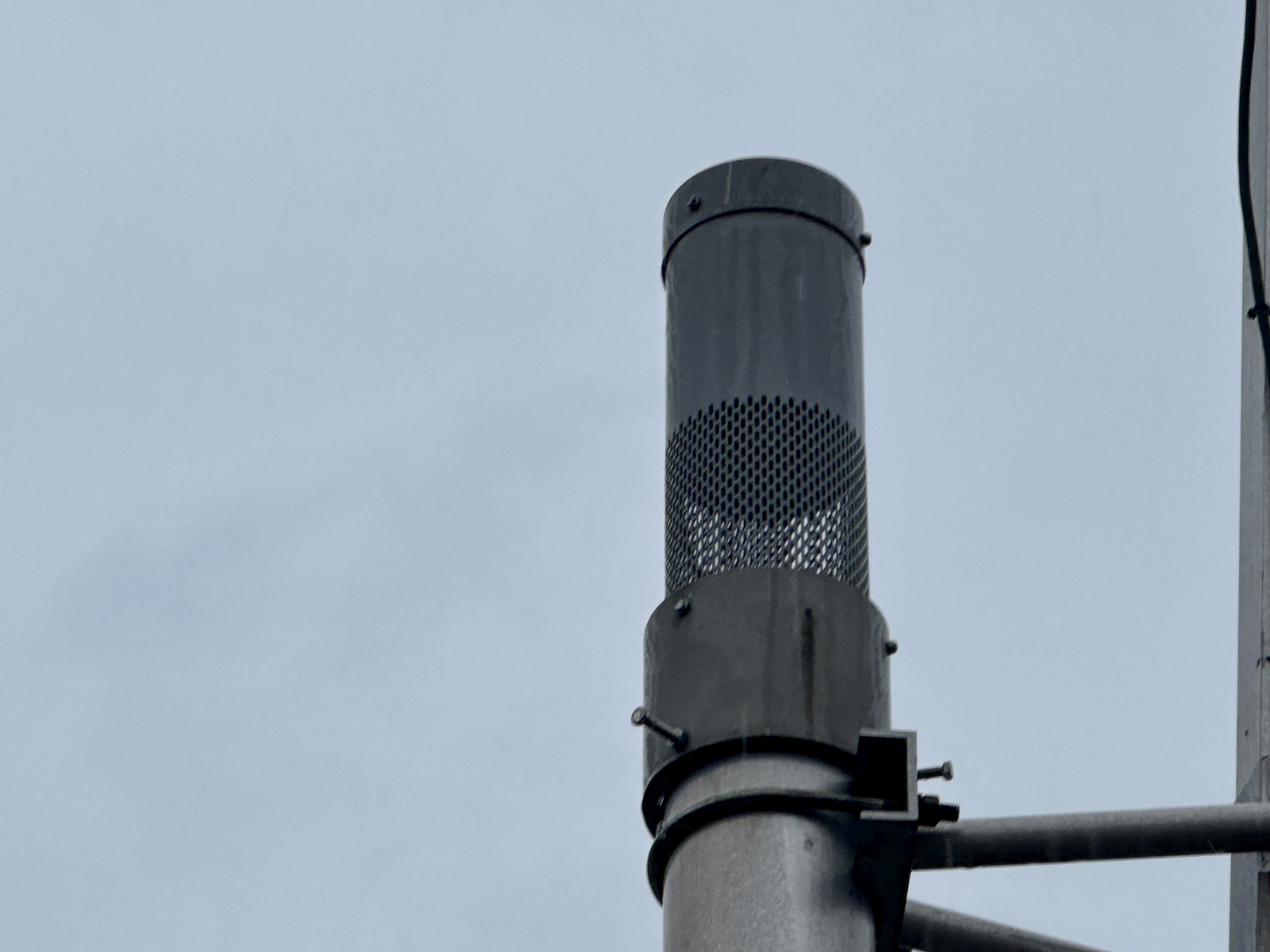

A wayside horn at the crossing.
|
||
|
23 |
24 |
|

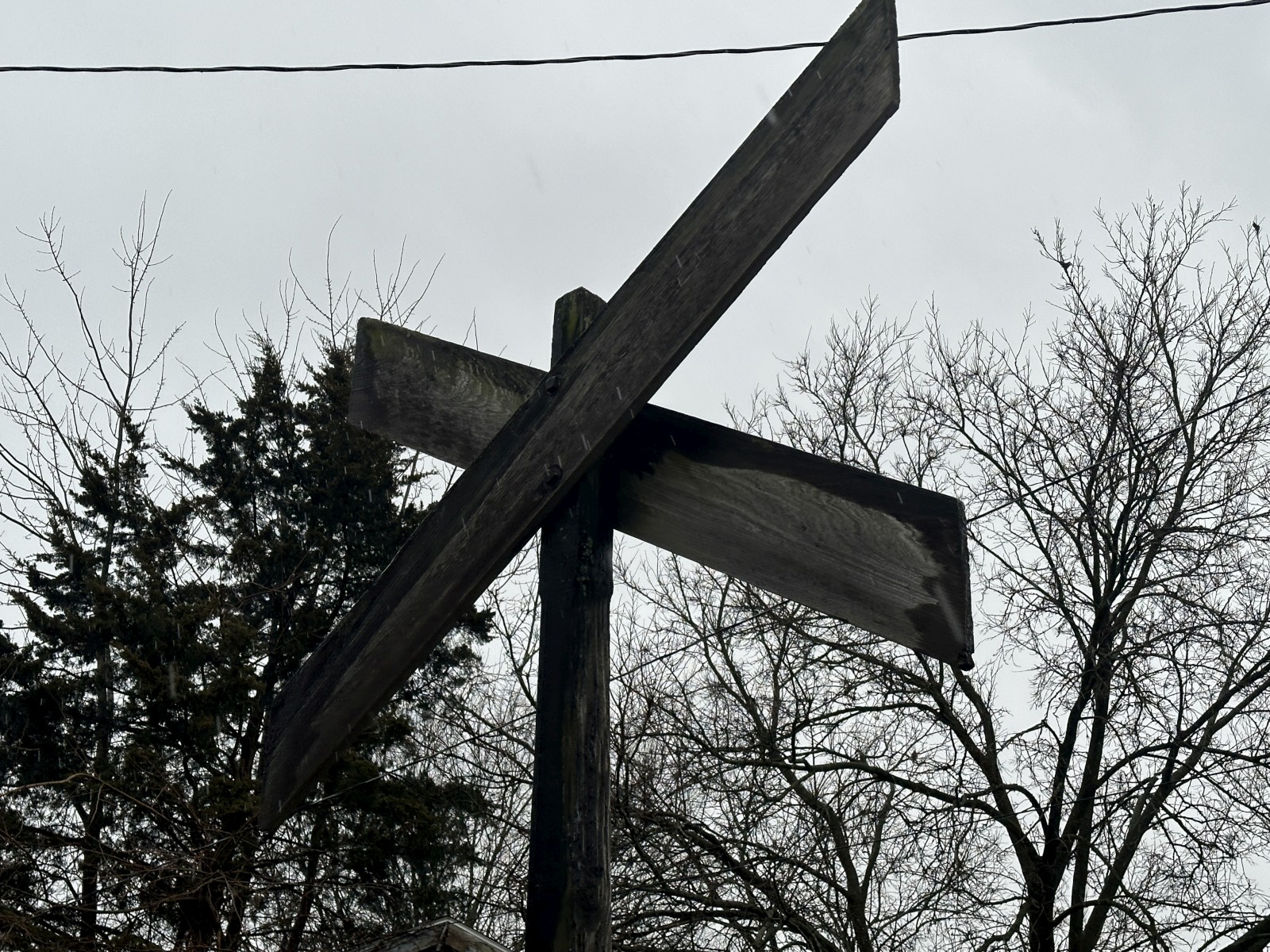

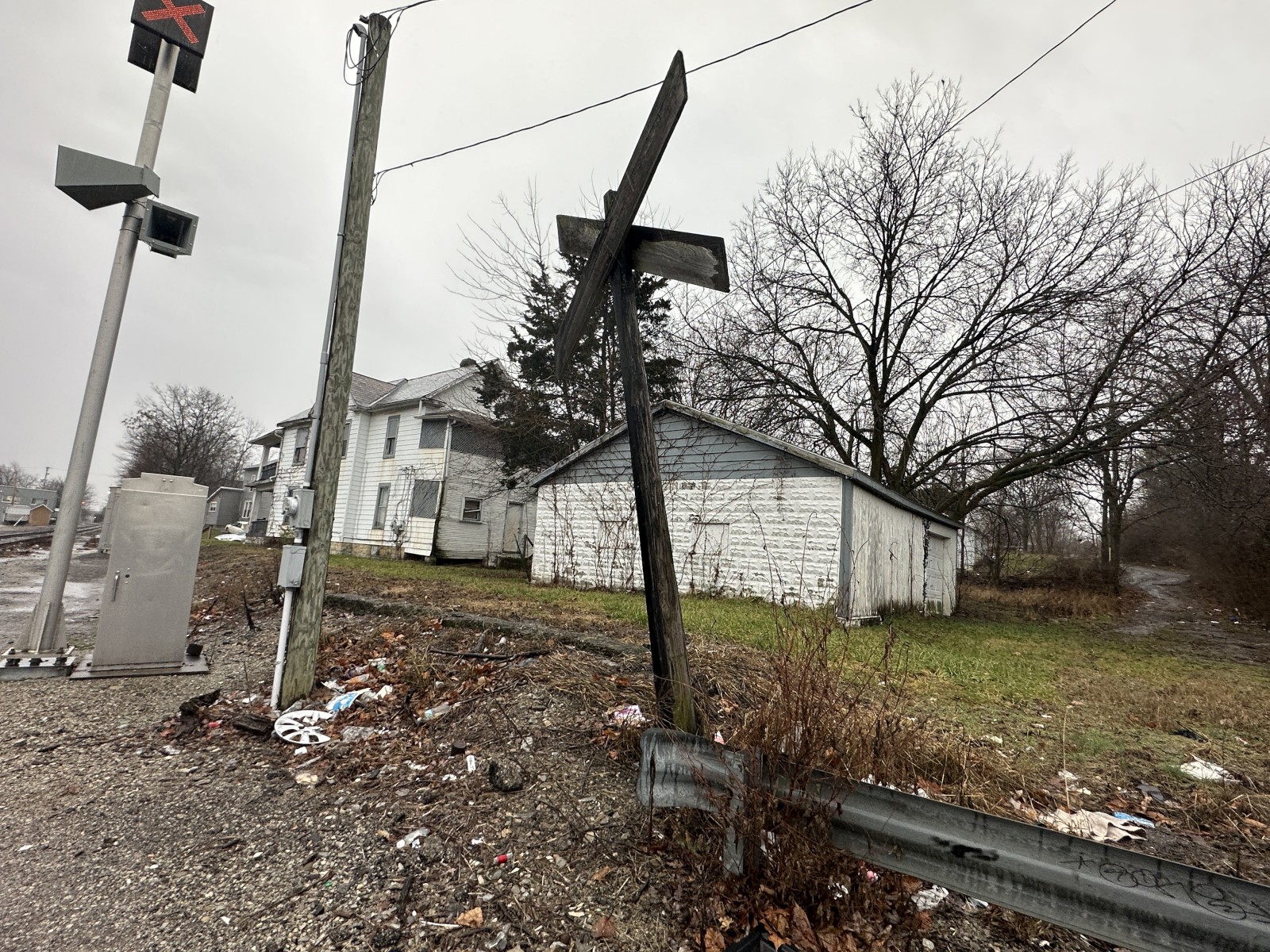

An old crossbuck post also stands
nearby.
|
|
|
25 |
26 |
|

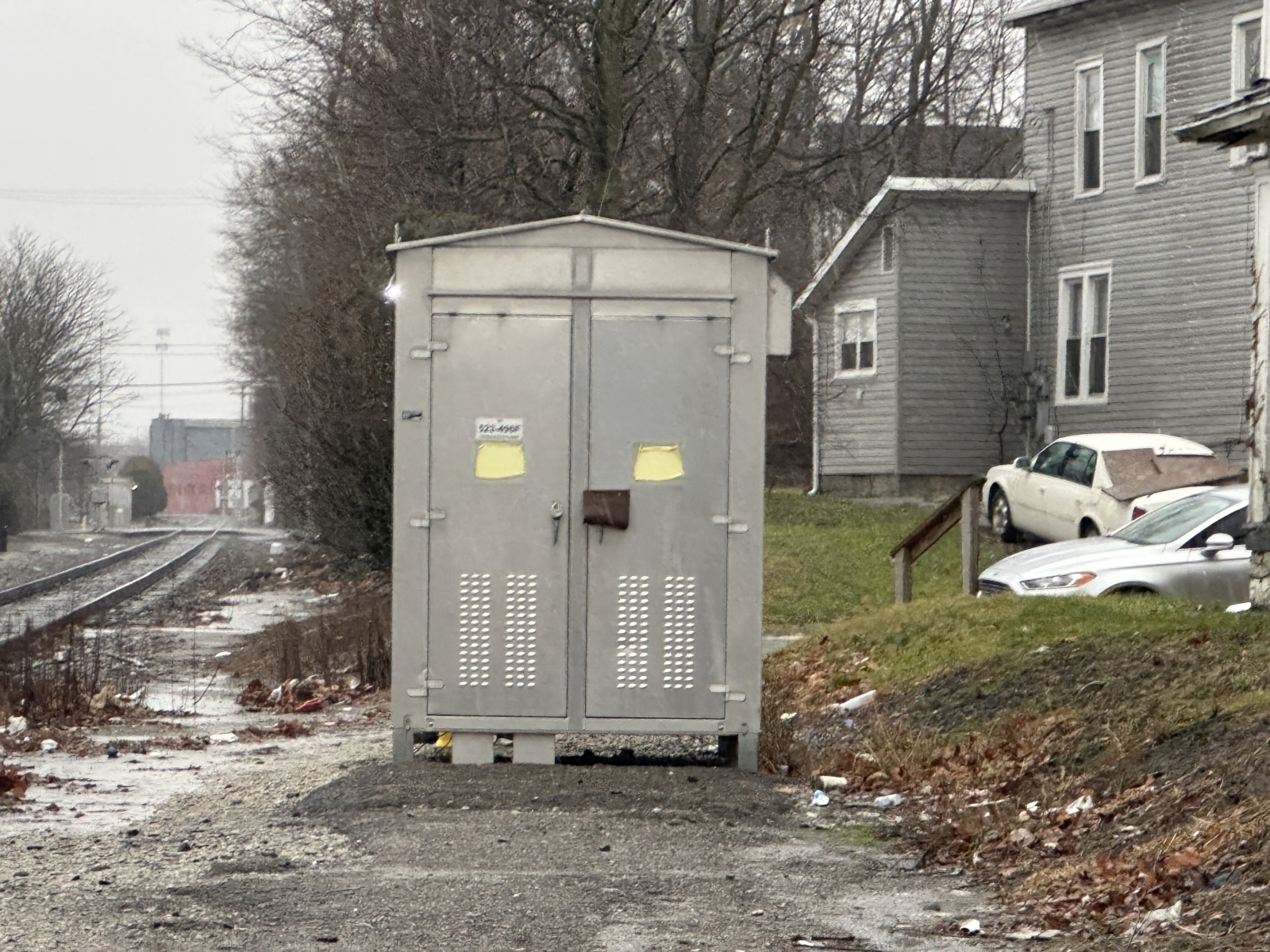

The relay bungalow.
|

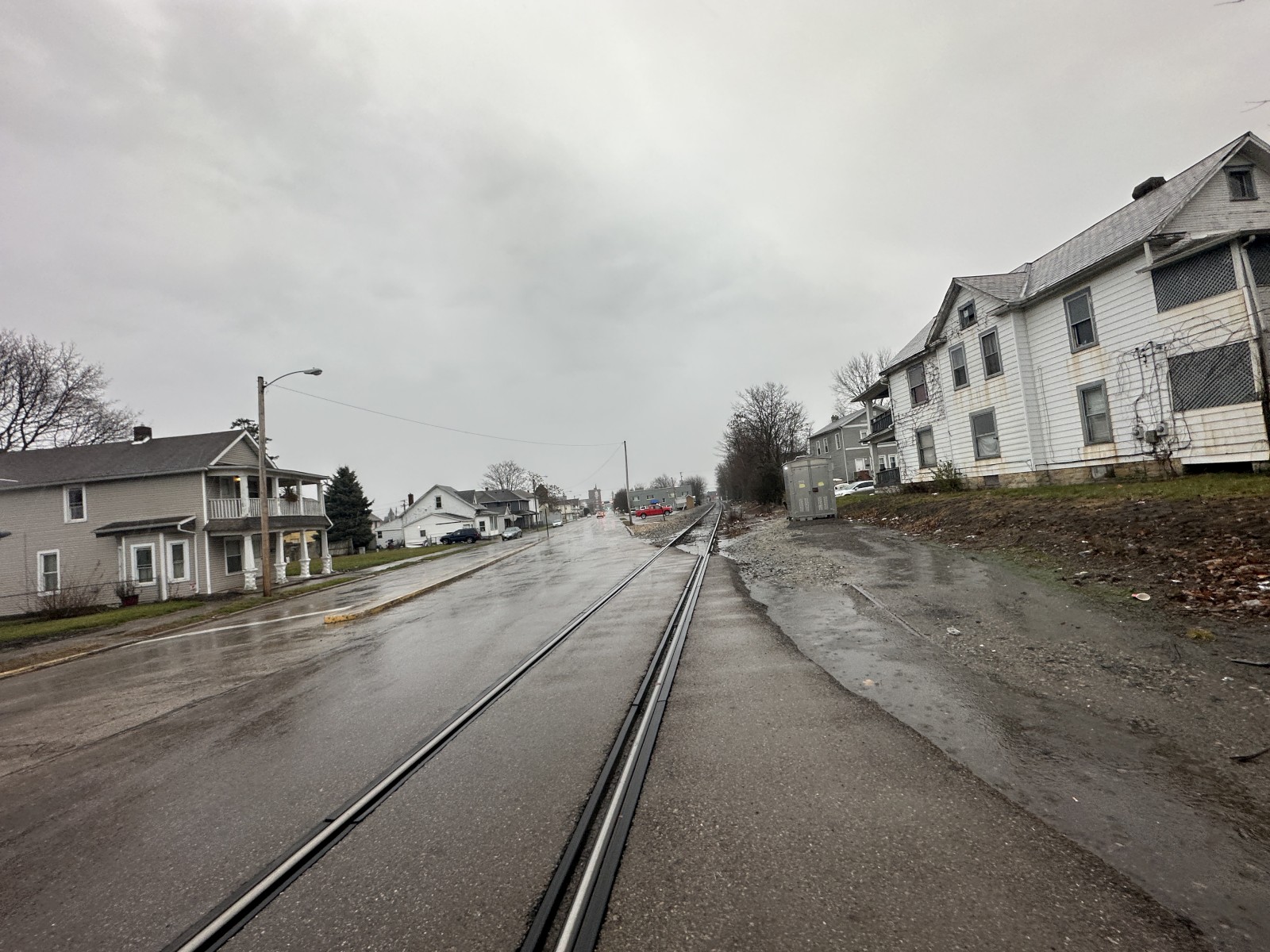

Track view facing east towards Yellow Springs Street. To
the west is Shaffer Street.
|
All pictures were taken on 1-12-24.
