MP: CJ184.010 |
Updated June 2025
Total Accidents:
1

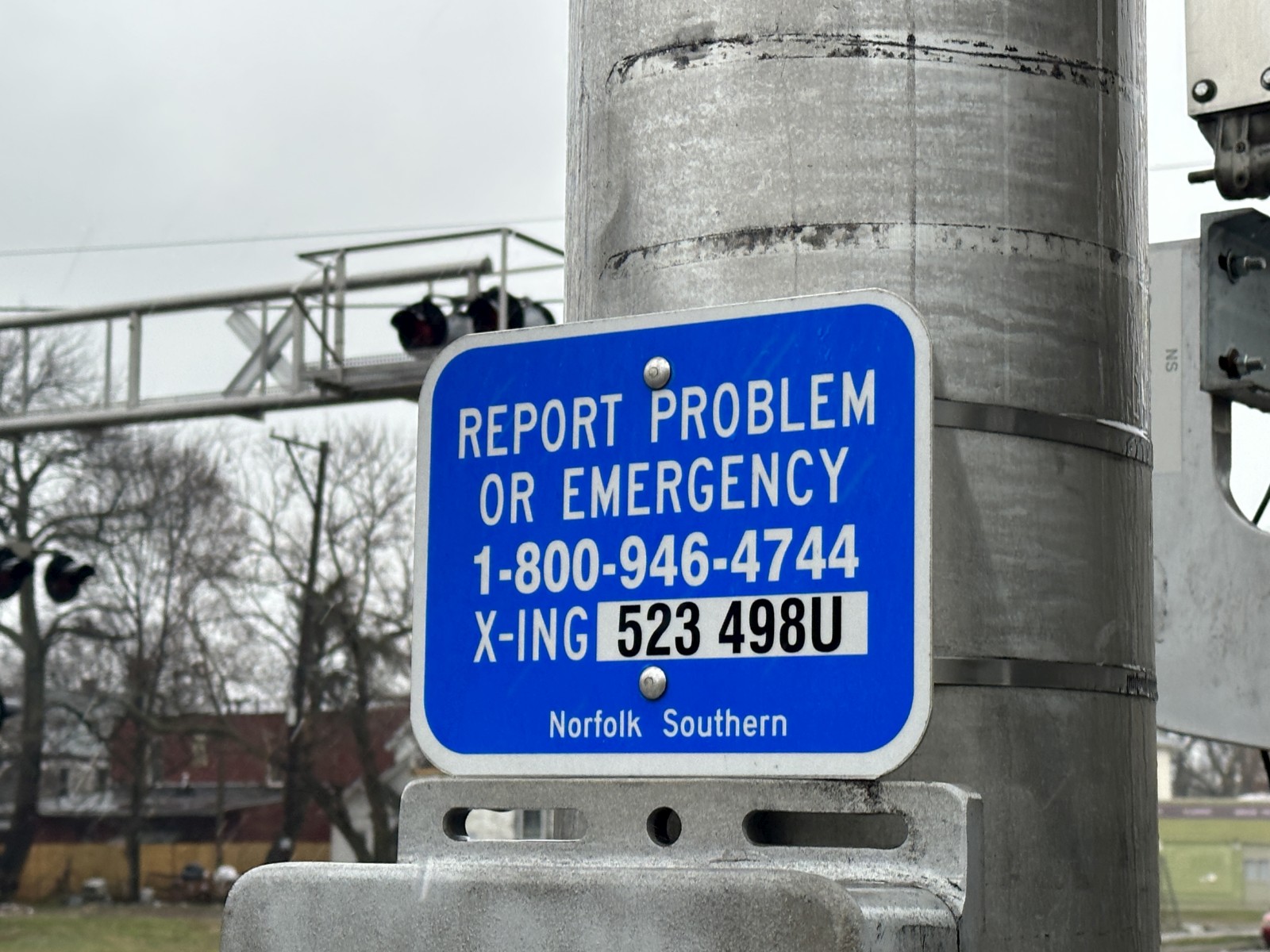

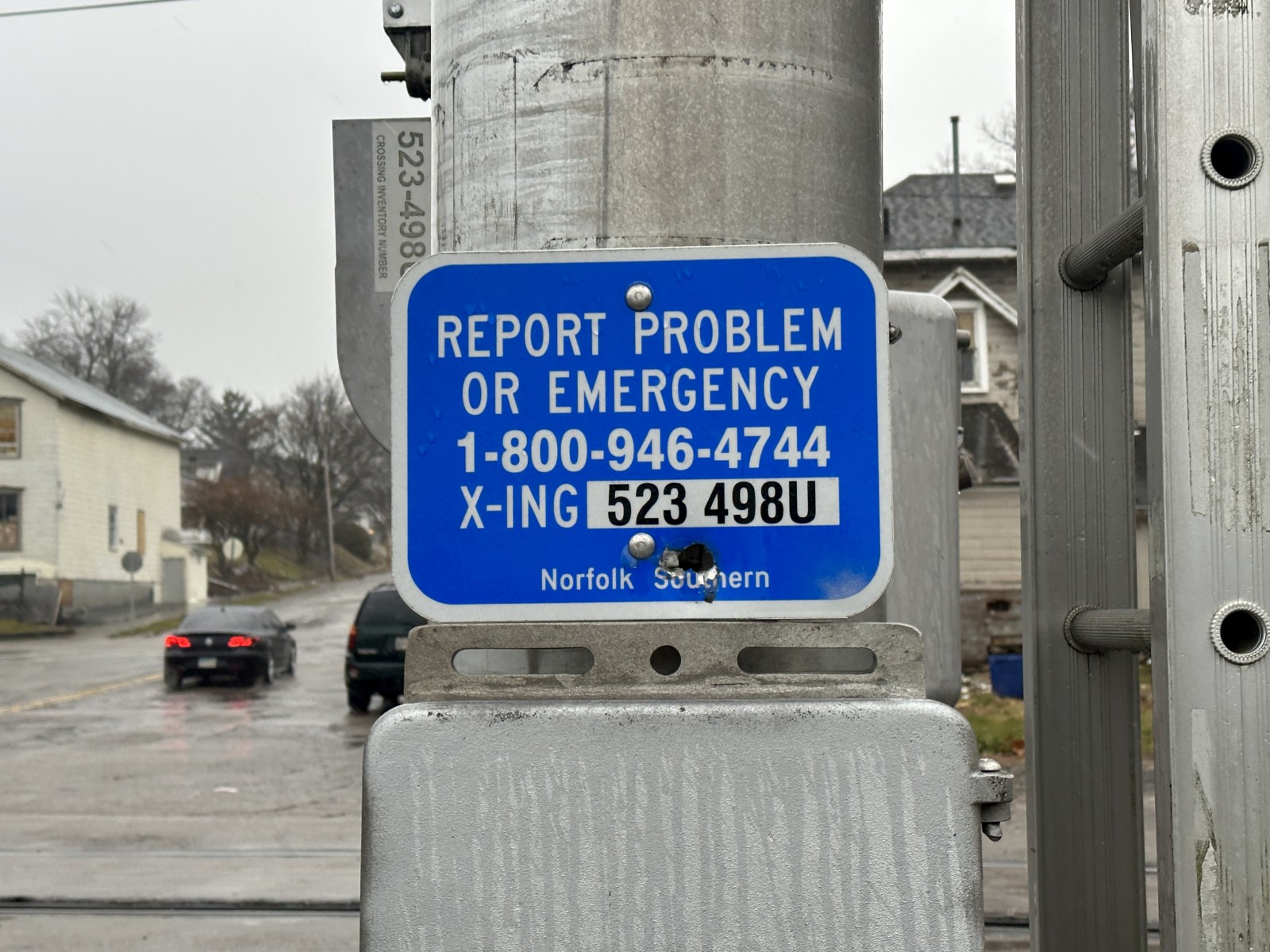

Crossing DOT #: 523498U
TOTAL DAILY
TRAINS: 16 (AS OF 2022)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 3 E-Bell | N/A |
| Base: | Safetran 5" Double Sided |
Safetran 5" Double Sided |
| Cantilever: | Siemens Cantilever | Siemens Cantilever |
| Lights: | 10 - 12"x20" Safetran incandescents | 8 - 12"x20" Safetran incandescents |
| Light Brackets: | 4 - Safetran | 3 - Safetran |

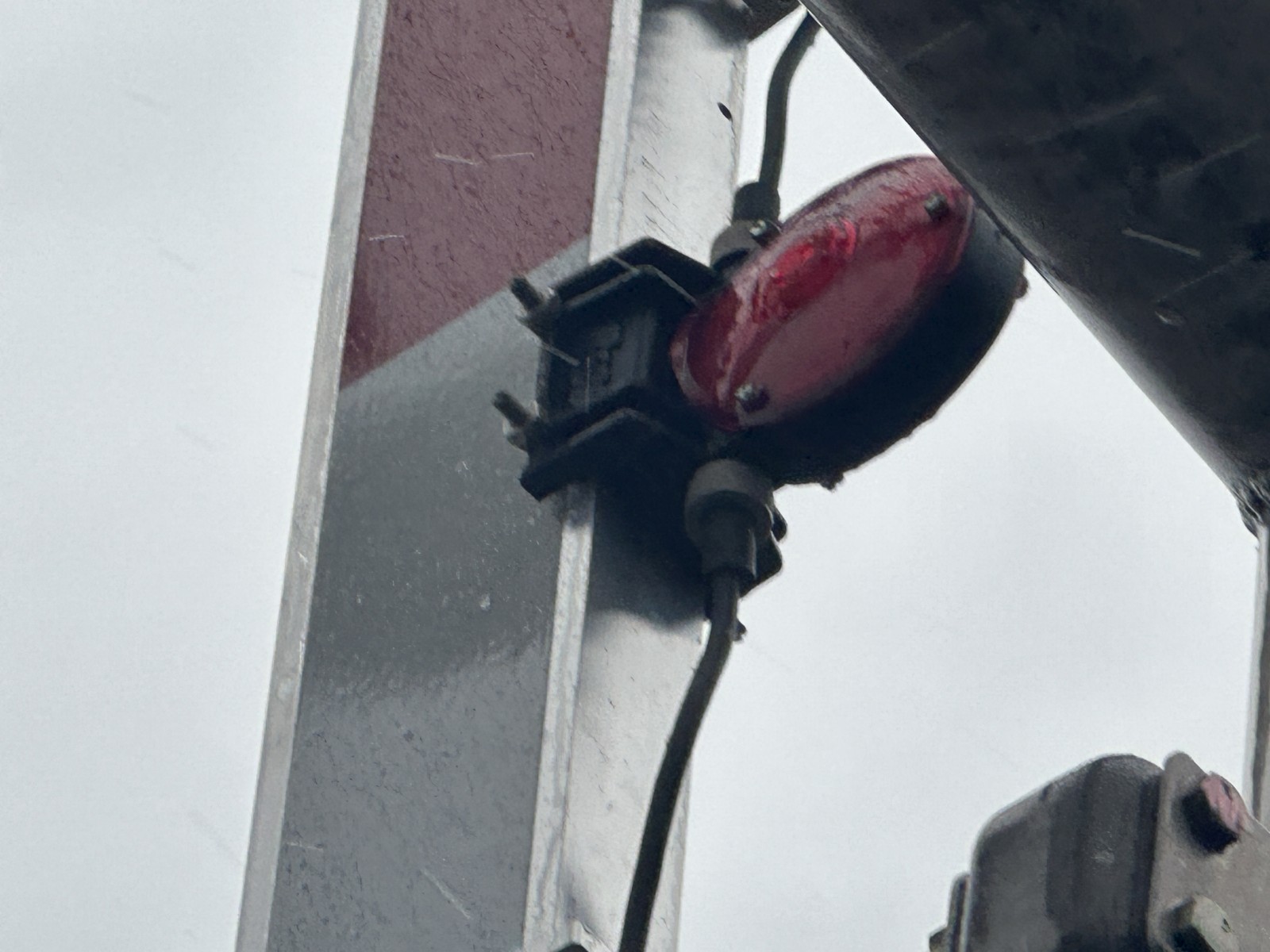

| Gate Lights: | 3 - RECO 4" LEDs | 3 - NEG 4" LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the NS Dayton District.
|
O1 |
O2 |
O3 |
O4 |
|

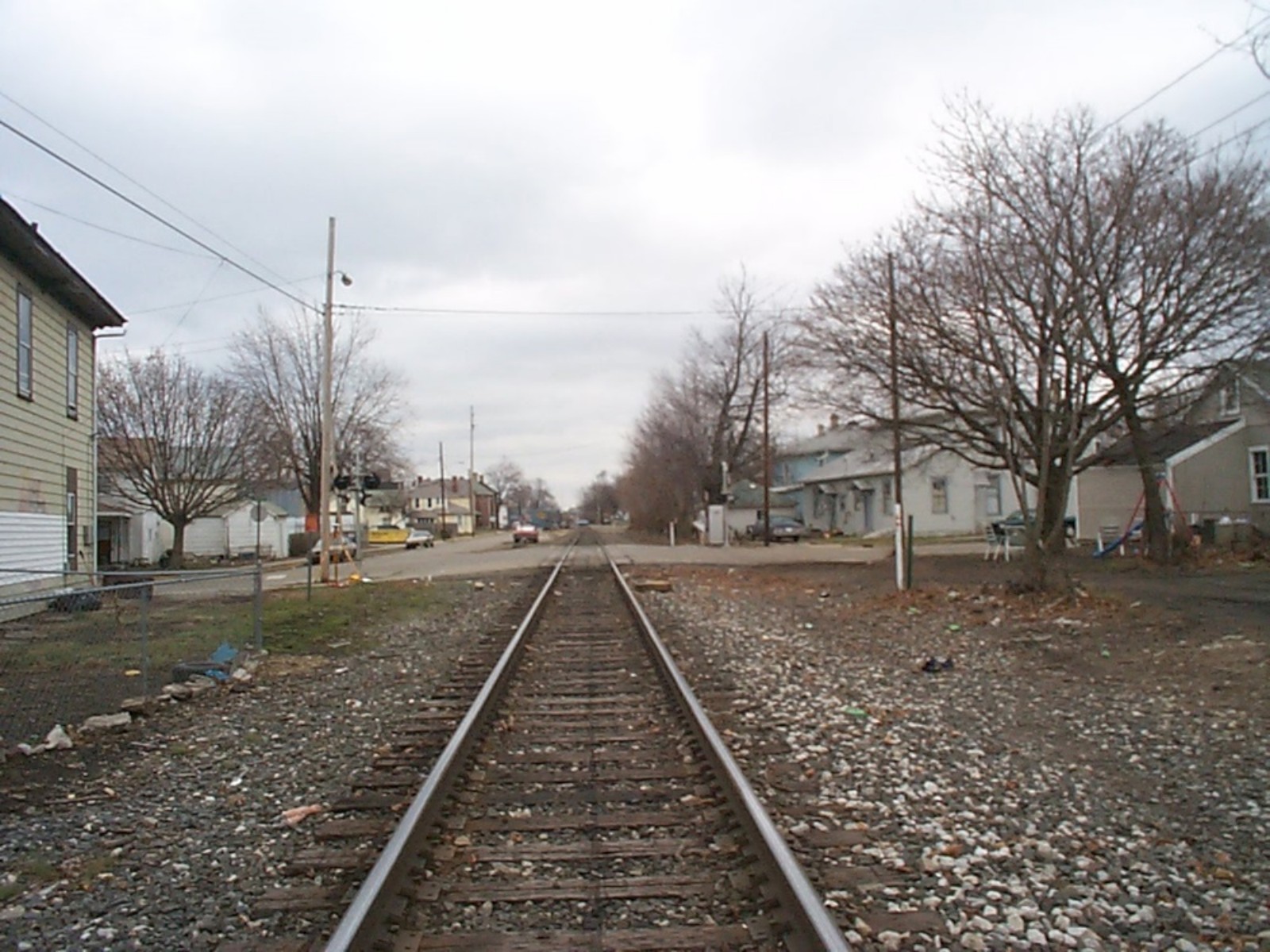

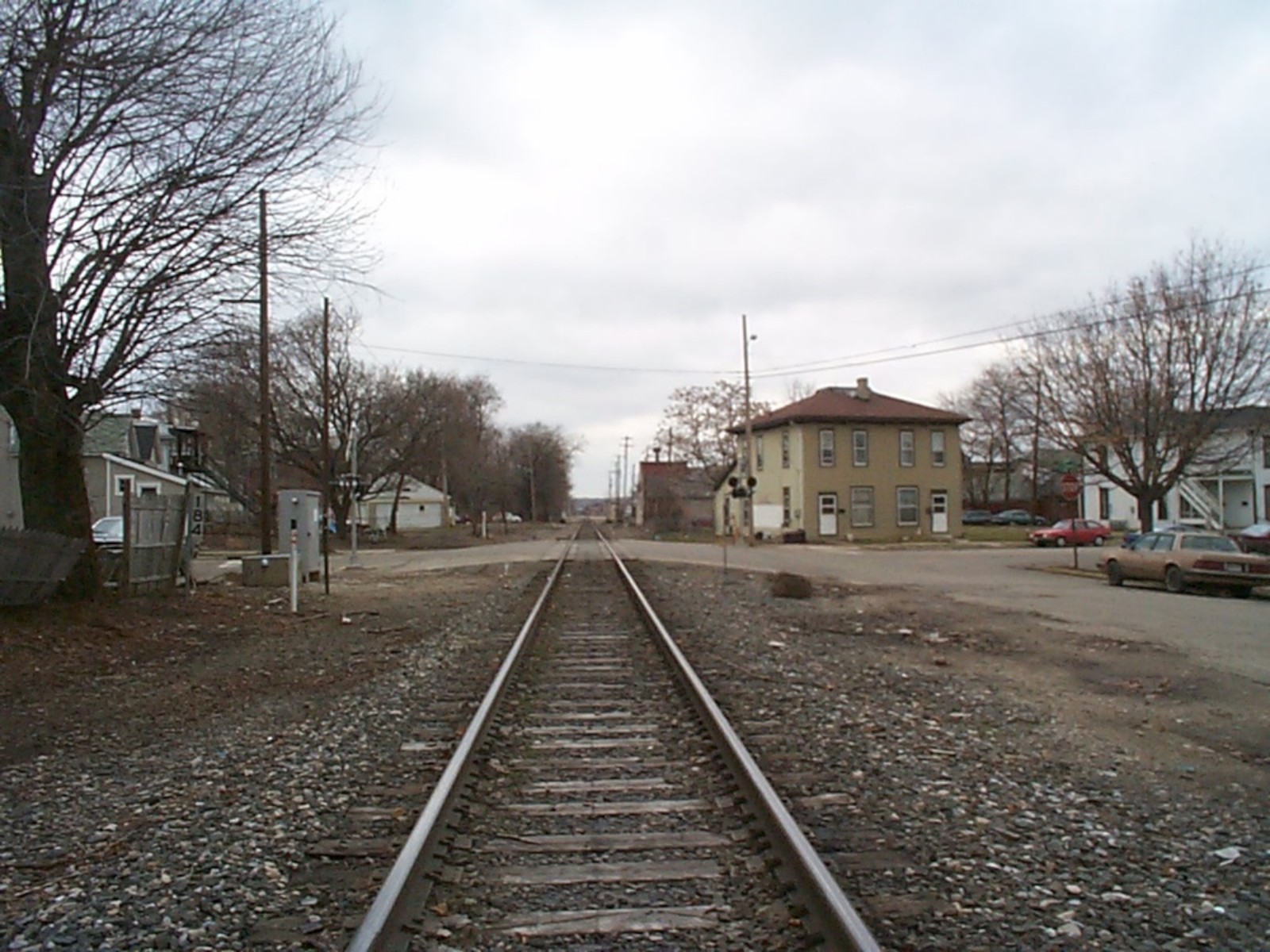

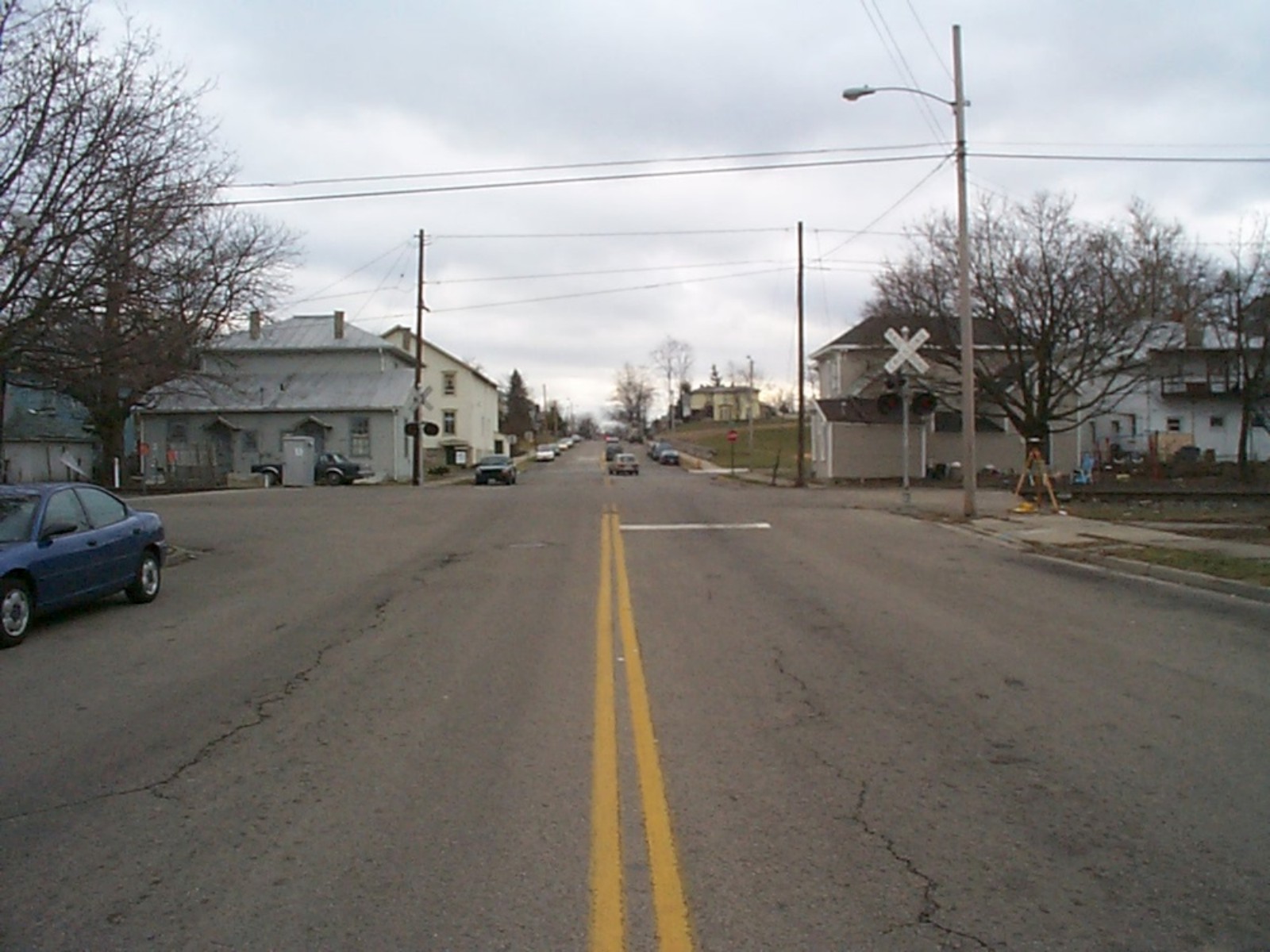

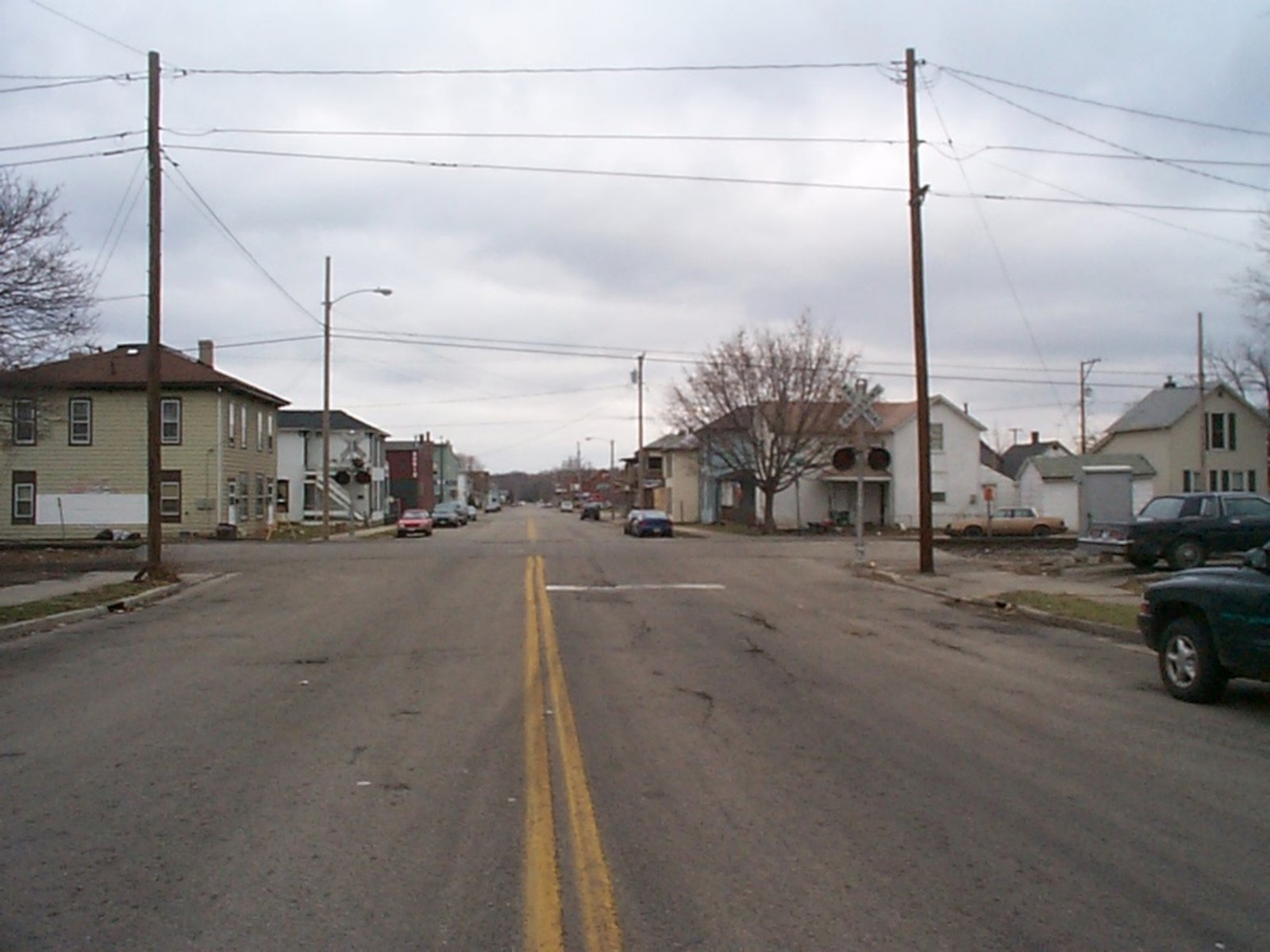

PUCO pictures from the late 90s shows
a gateless NYC setup with 8"x20" incandescents on the
mast, GRS LEX-C 8"x20" incandescents on the side for the
northern signal (the last and probably only known pair
in Springfield), and no bells. By 2008, both signals
were completely replaced with two gated cantilever
signals and a wayside horn was added to the crossing.
|
|||
|
1 |
2 |
|

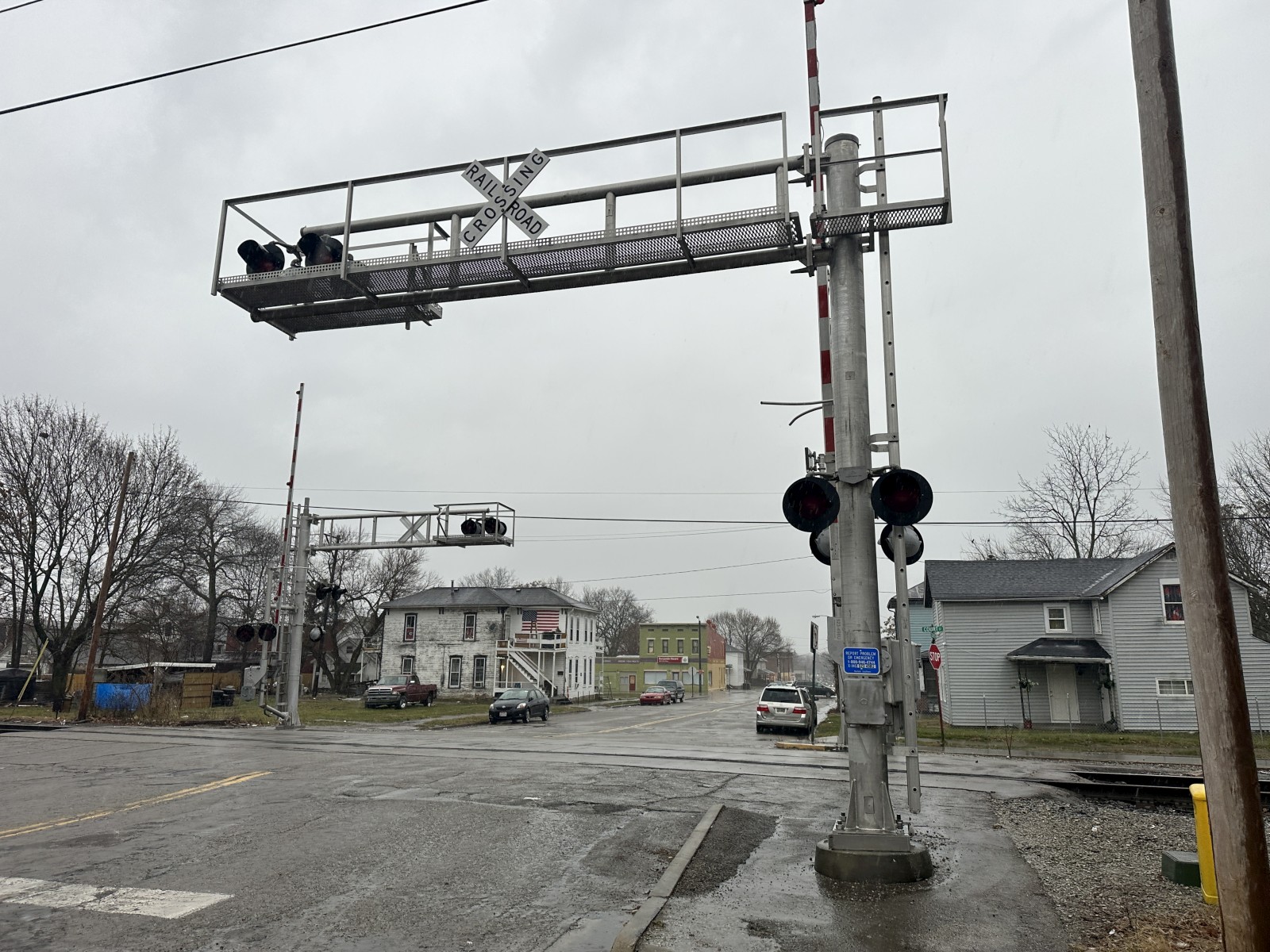

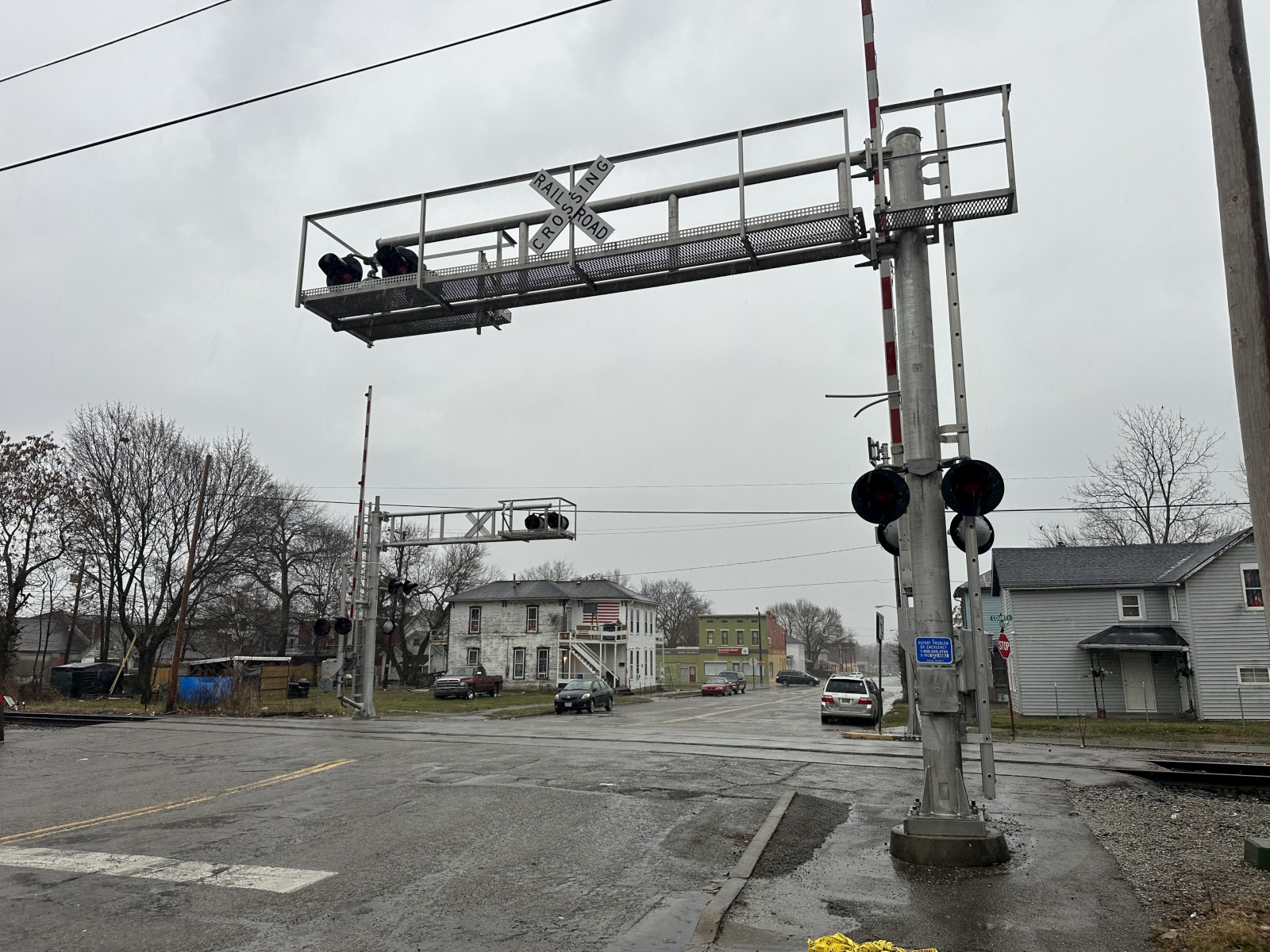

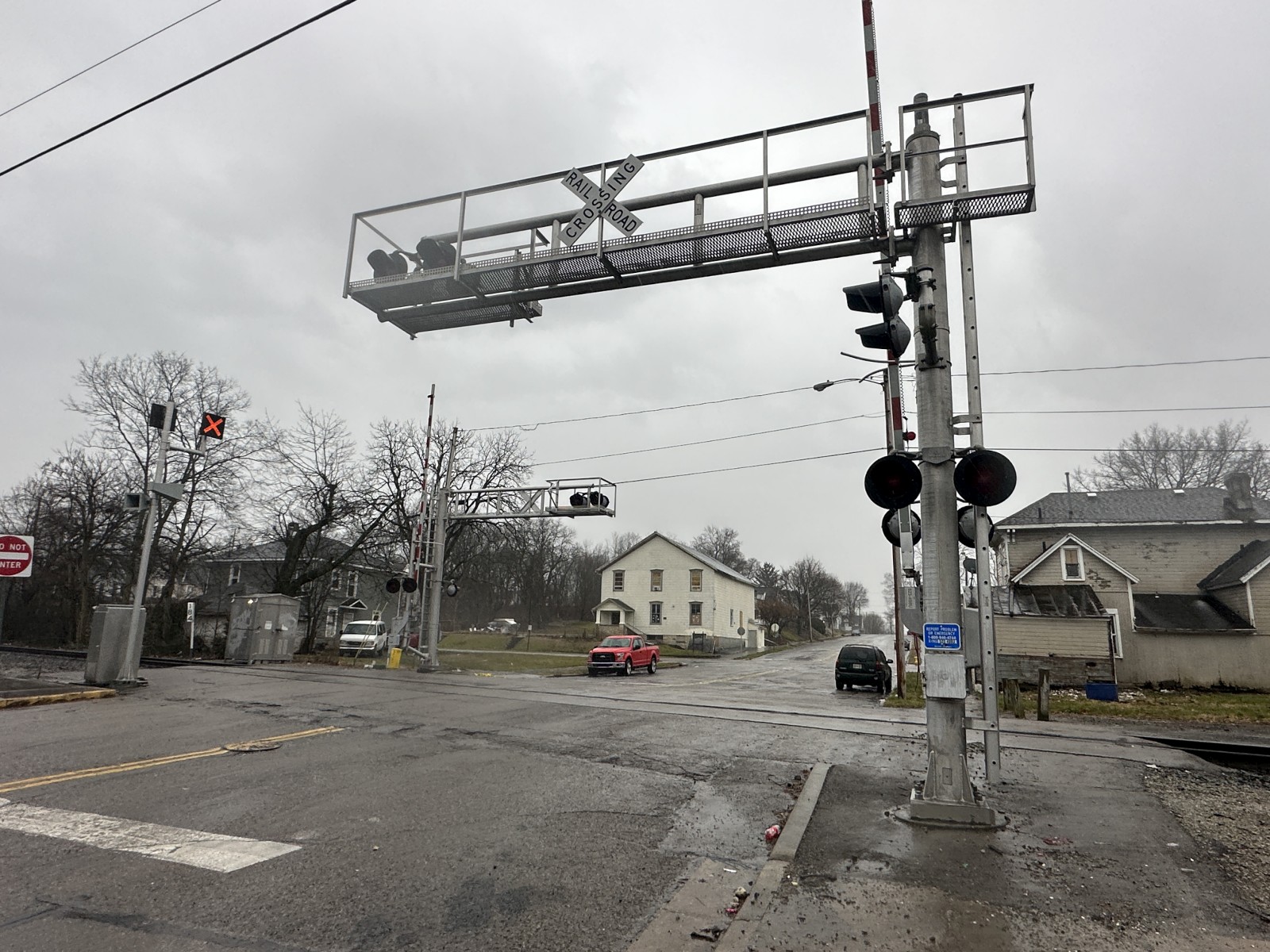

Overview of 2 gated cantilevers facing
north.
|
Overview facing south.
|
|
3 |
4 |
5 |
|
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|

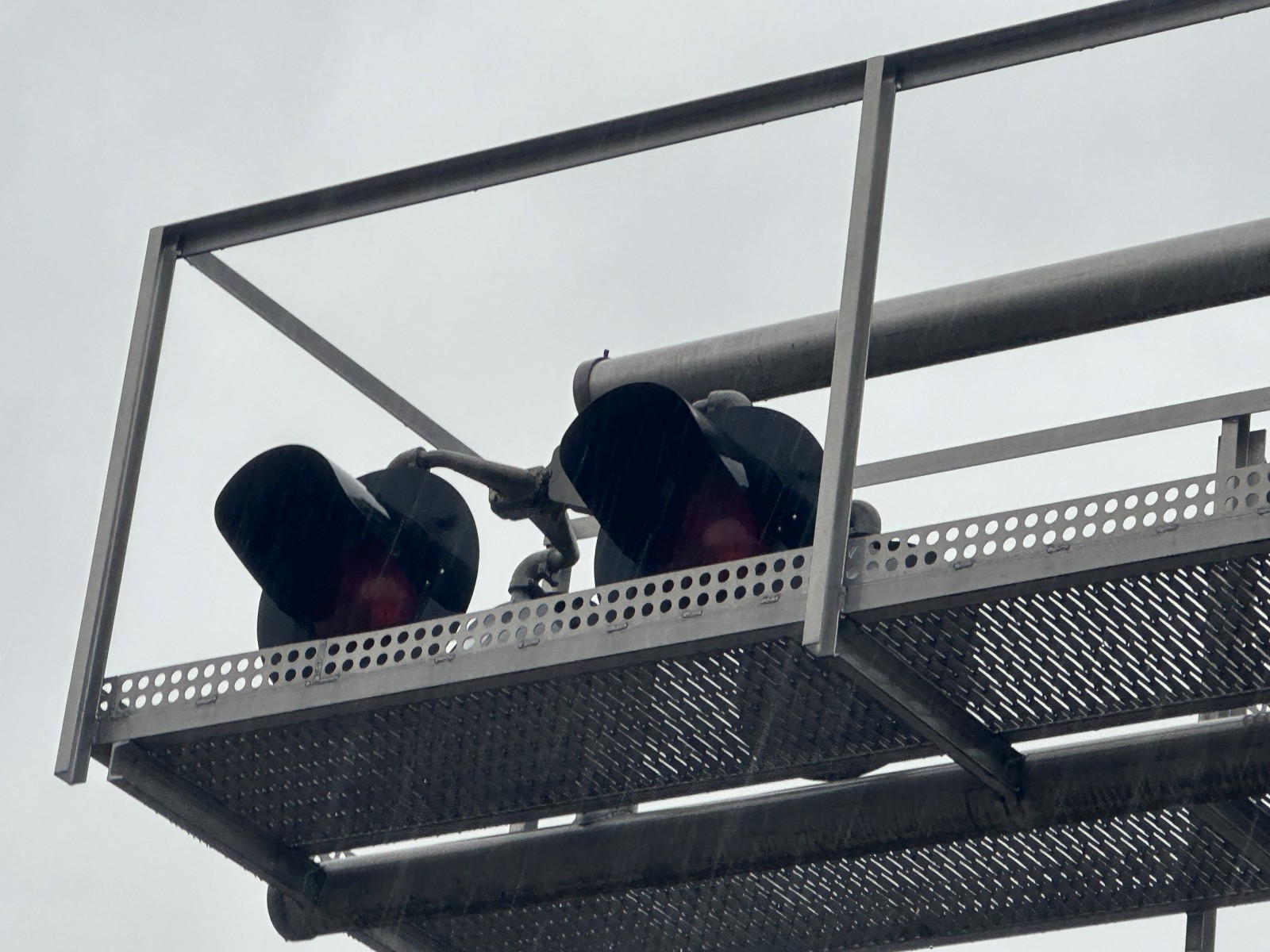

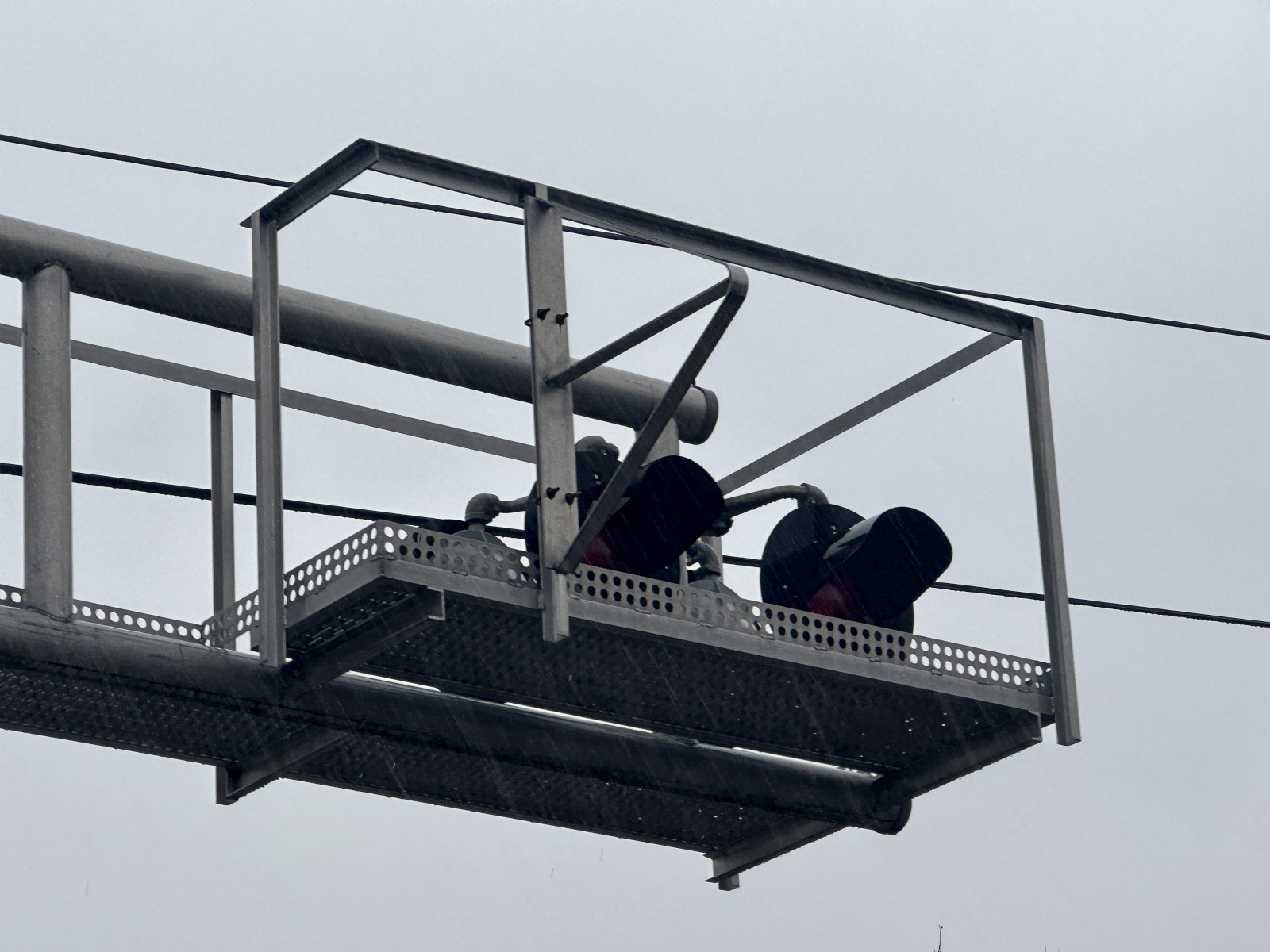

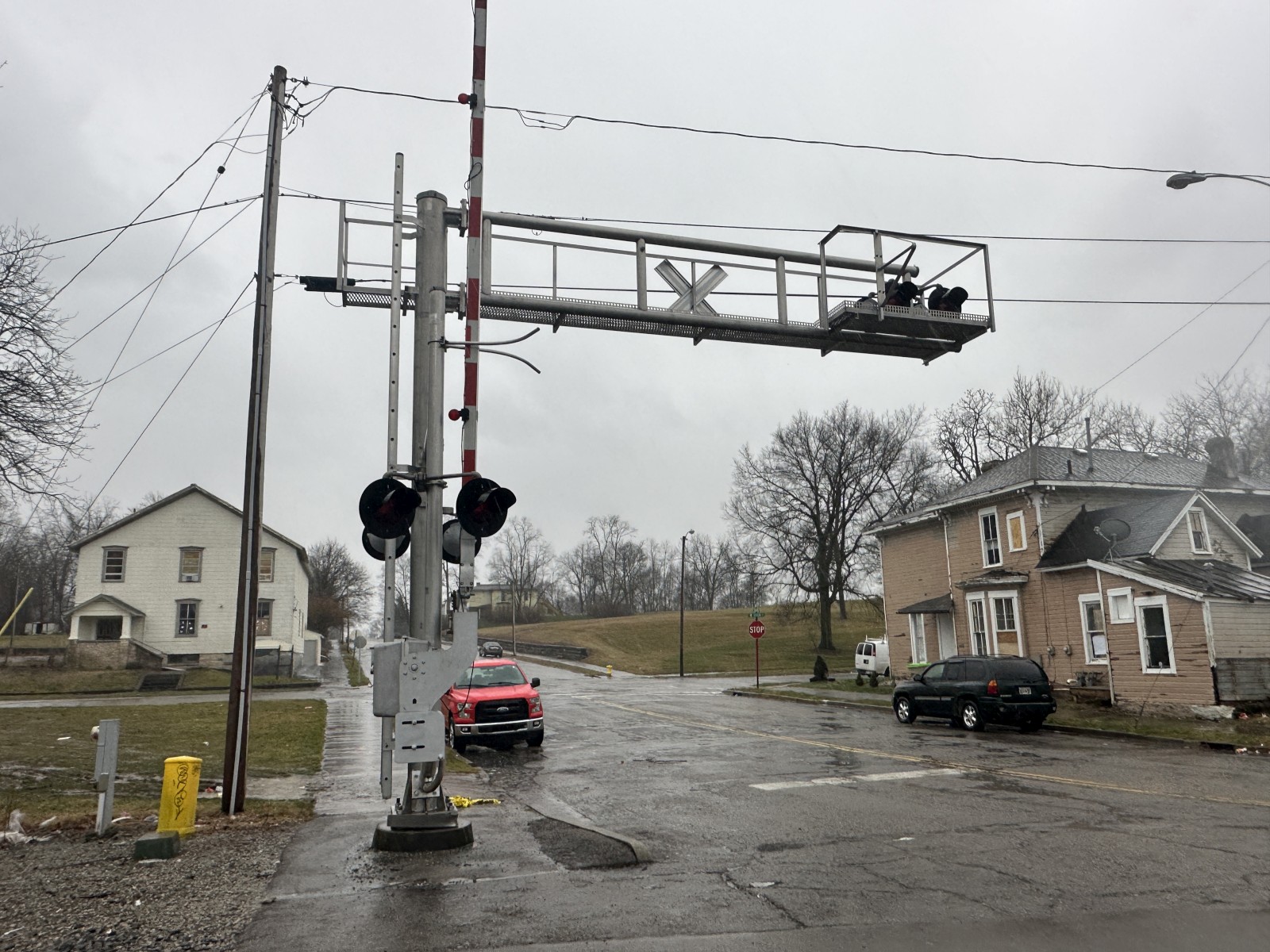

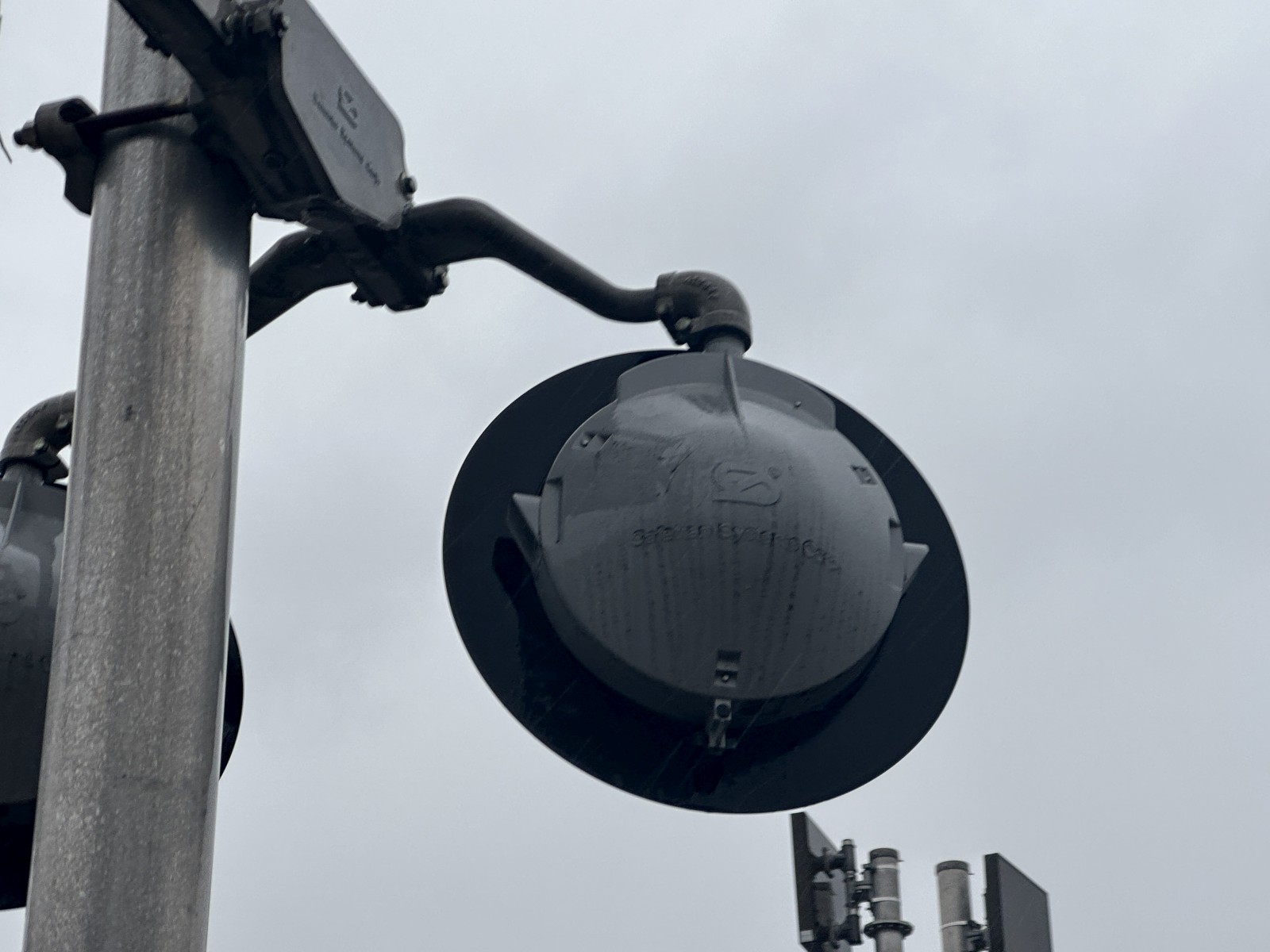

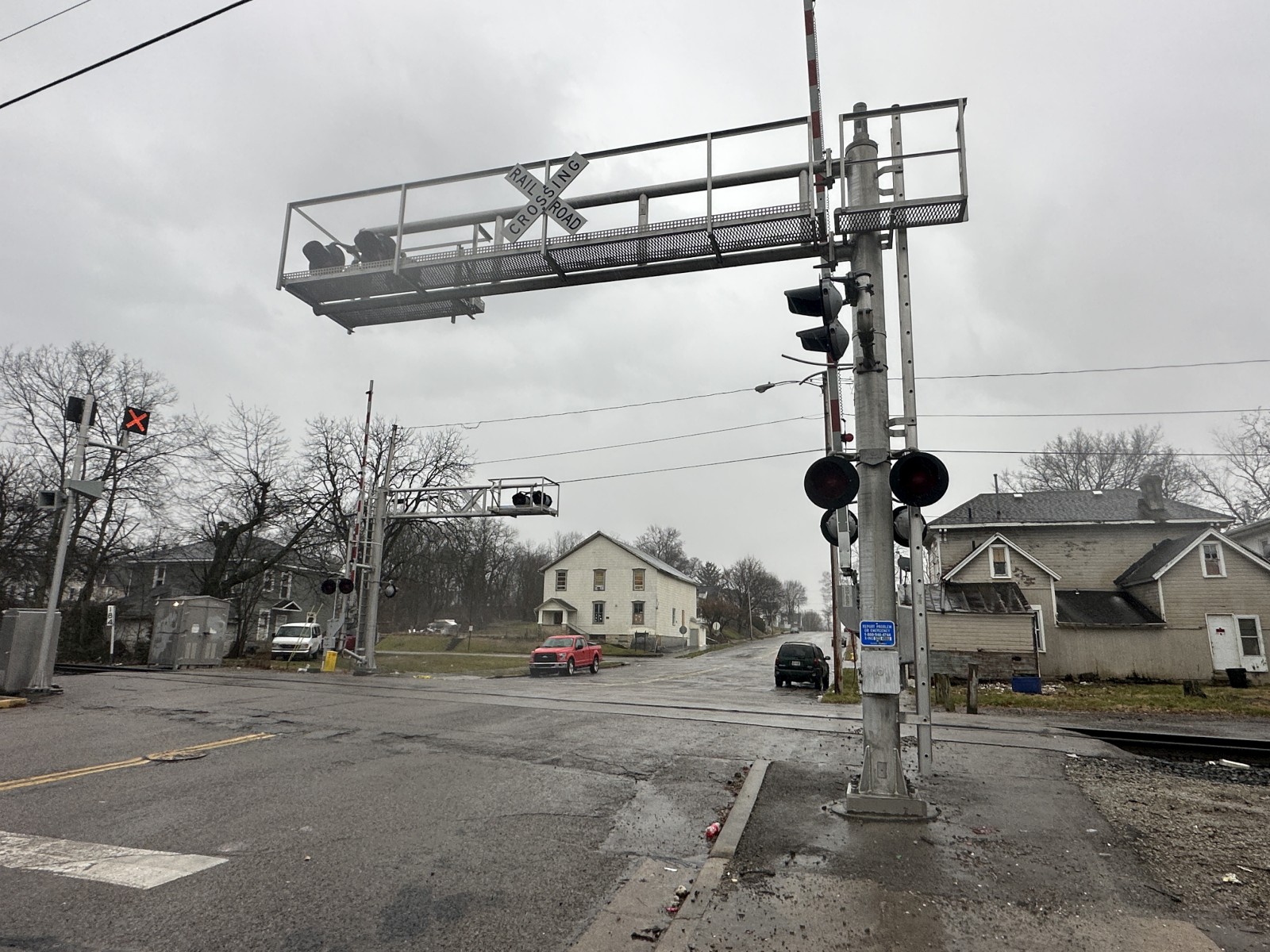

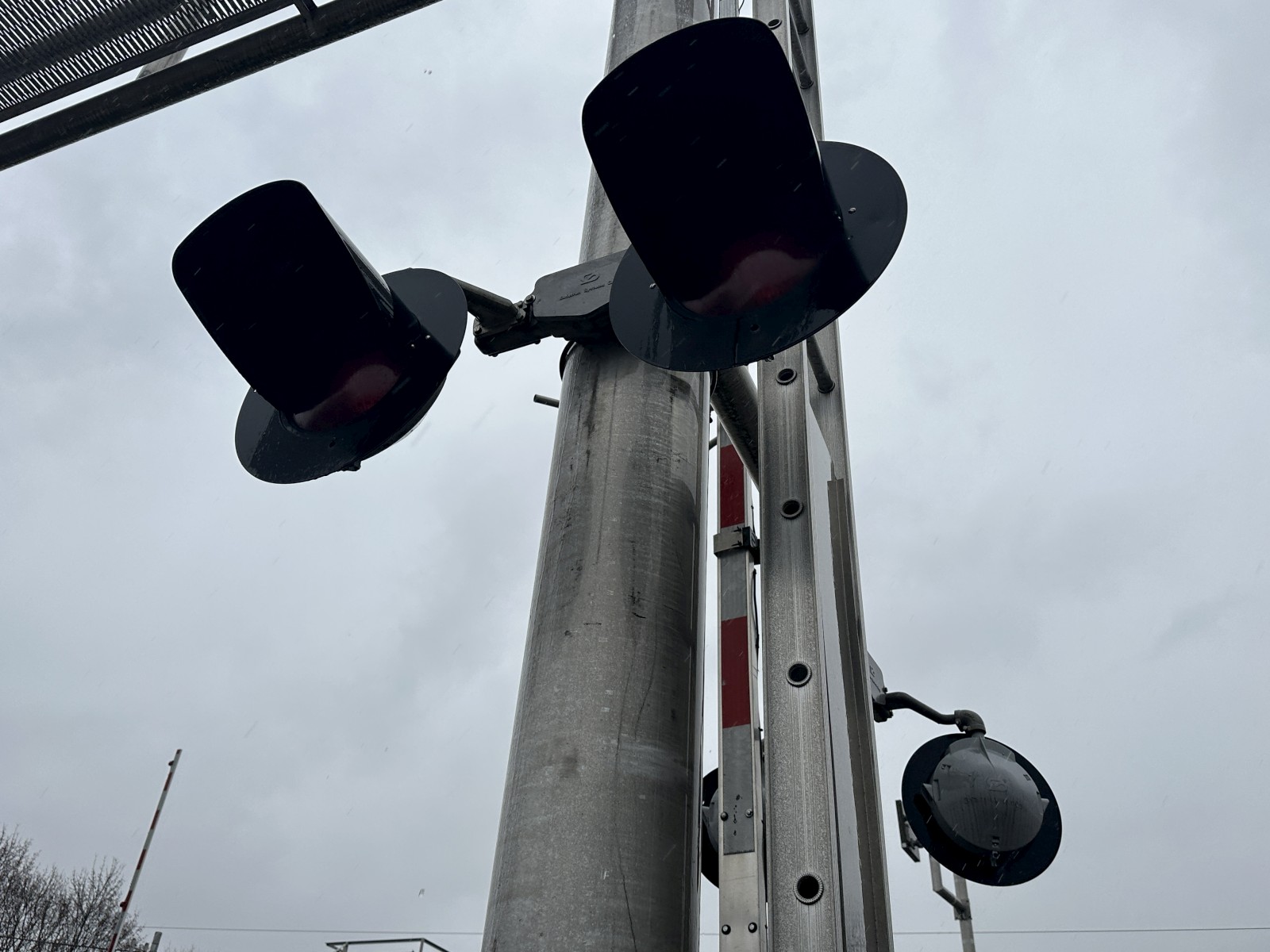

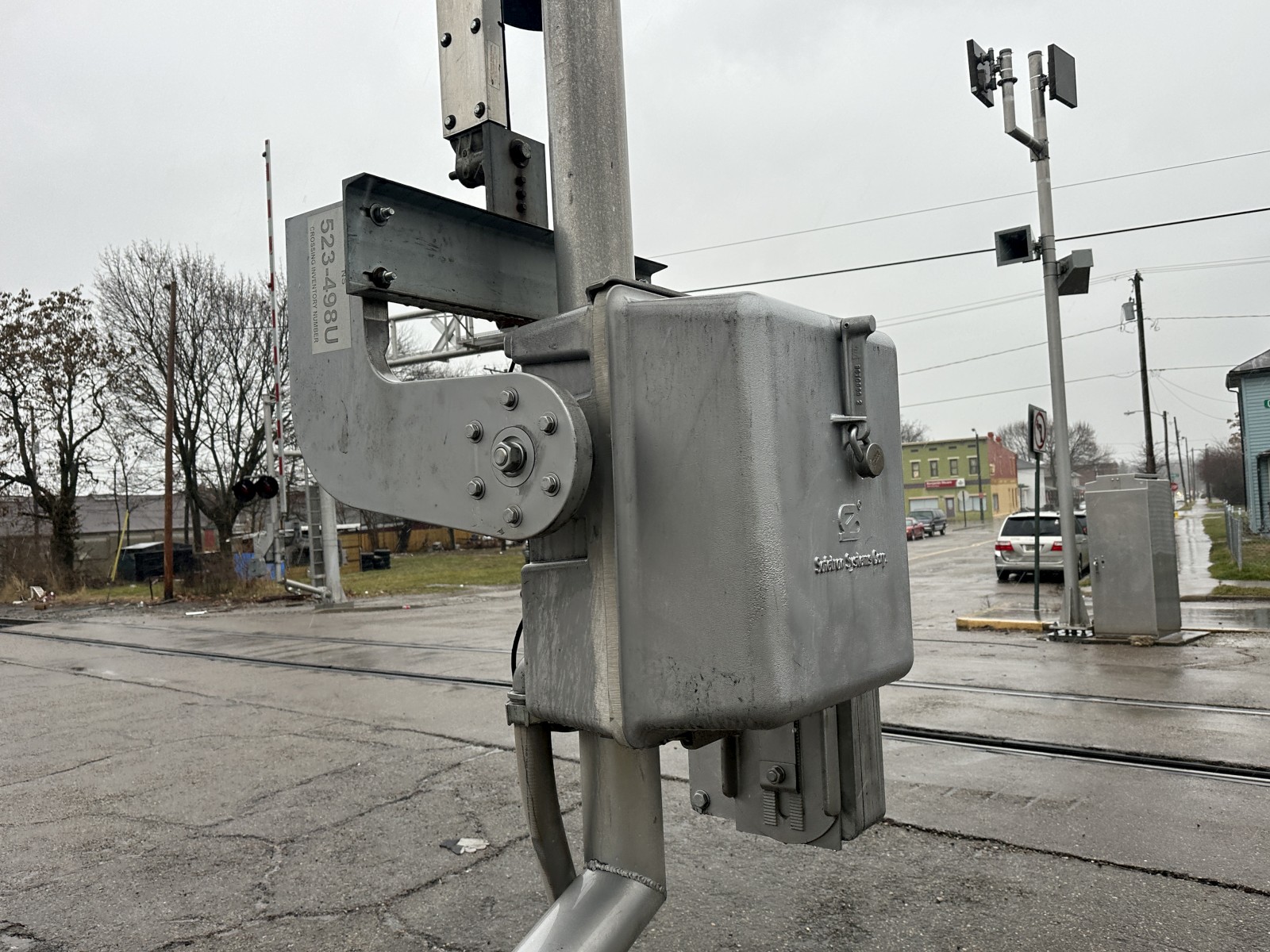

The southern signal.
|
|||
|
13 |
14 |
15 |
|
16 |
17 |
18 |
|
19 |
20 |
21 |
22 |
|

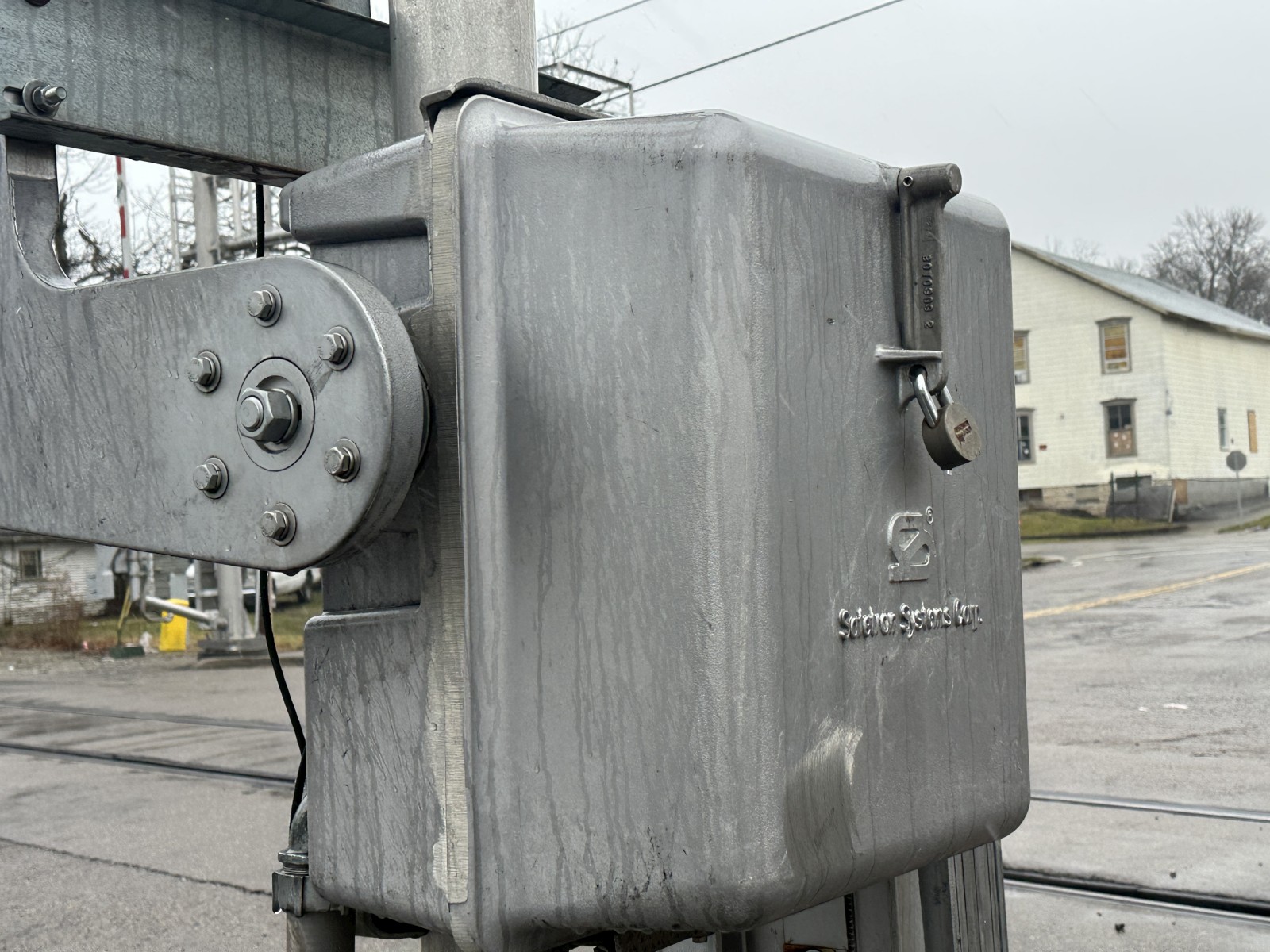

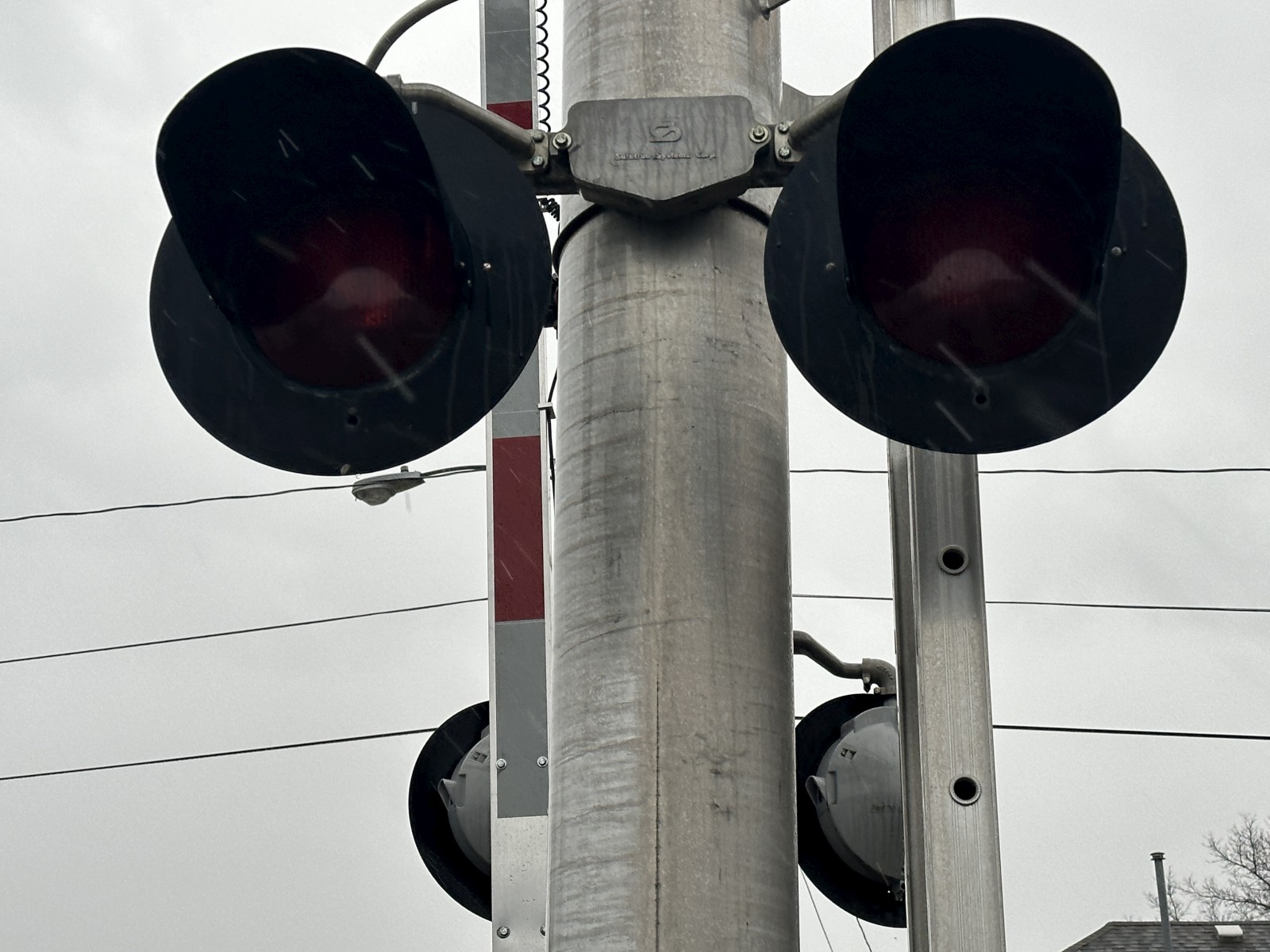

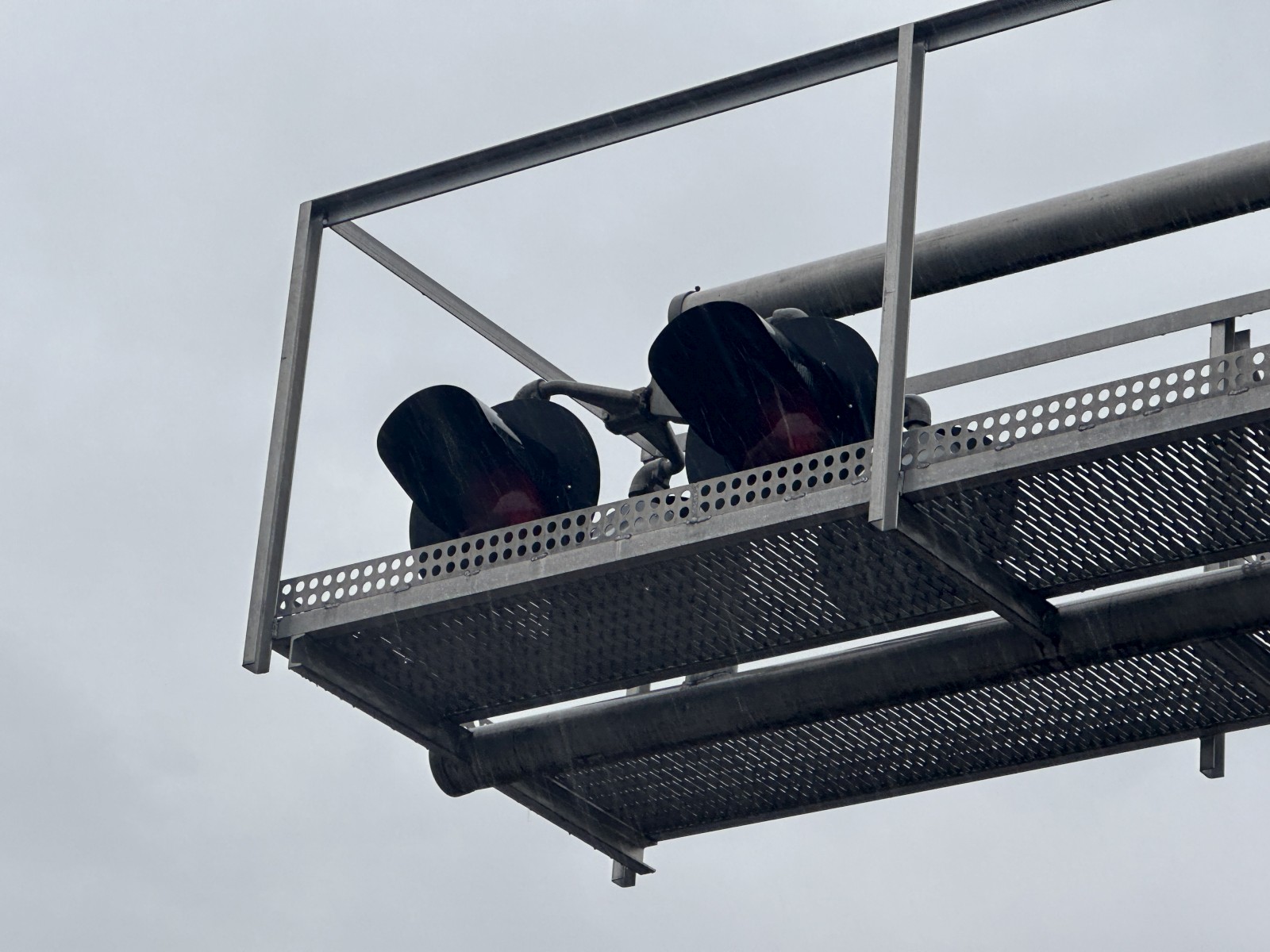

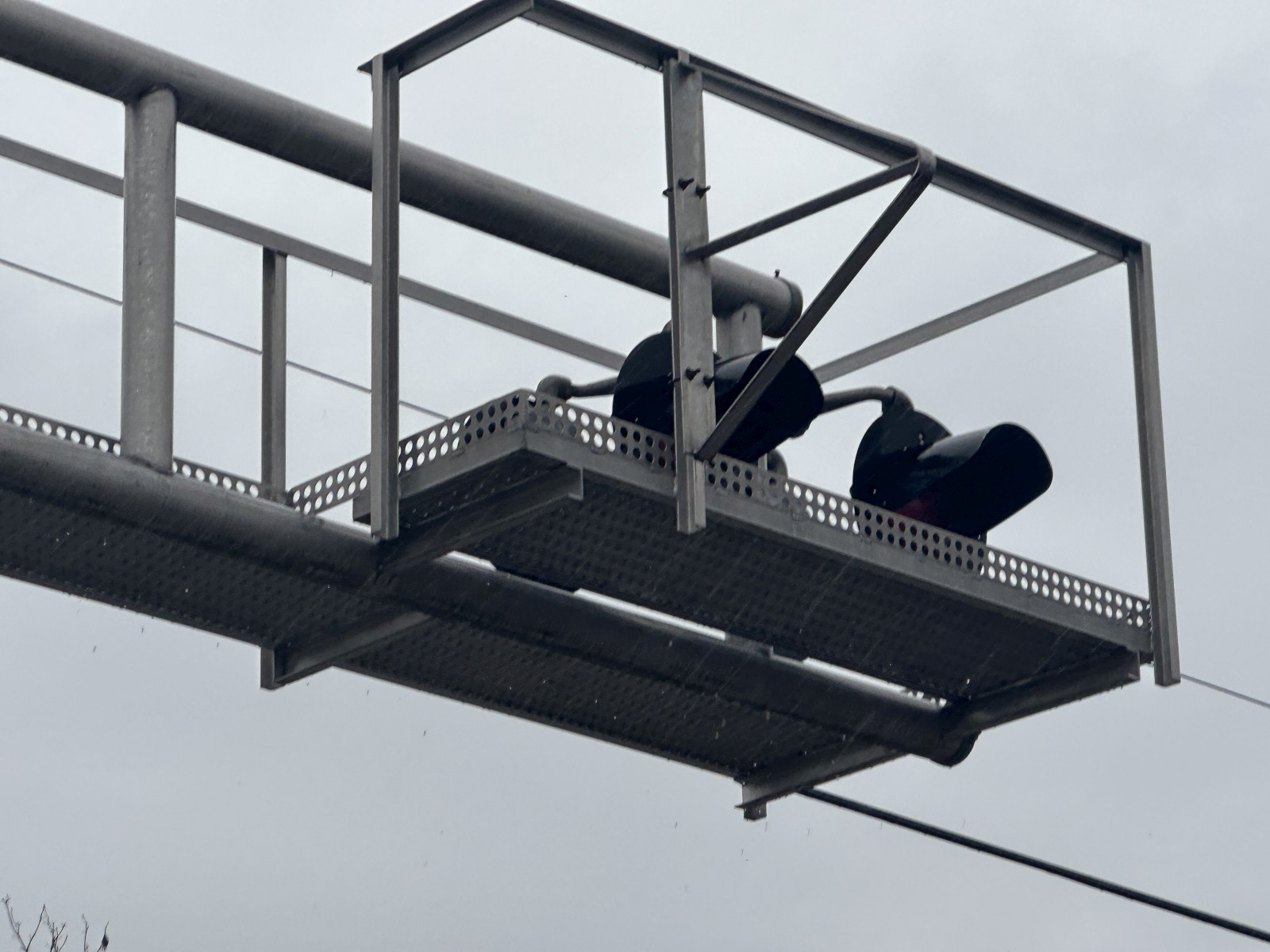

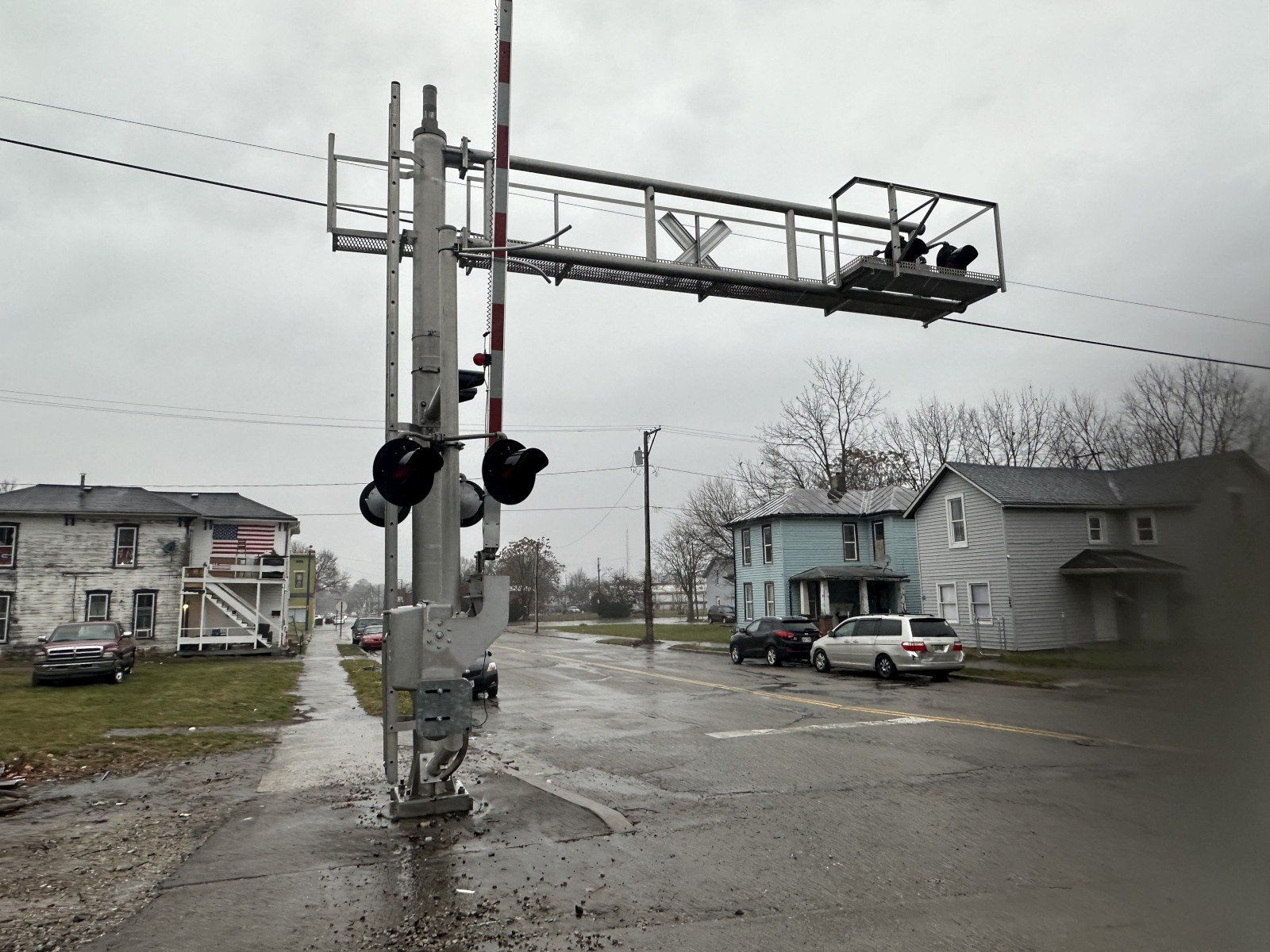

The northern signal.
|
|||
|
23 |
24 |
25 |
|

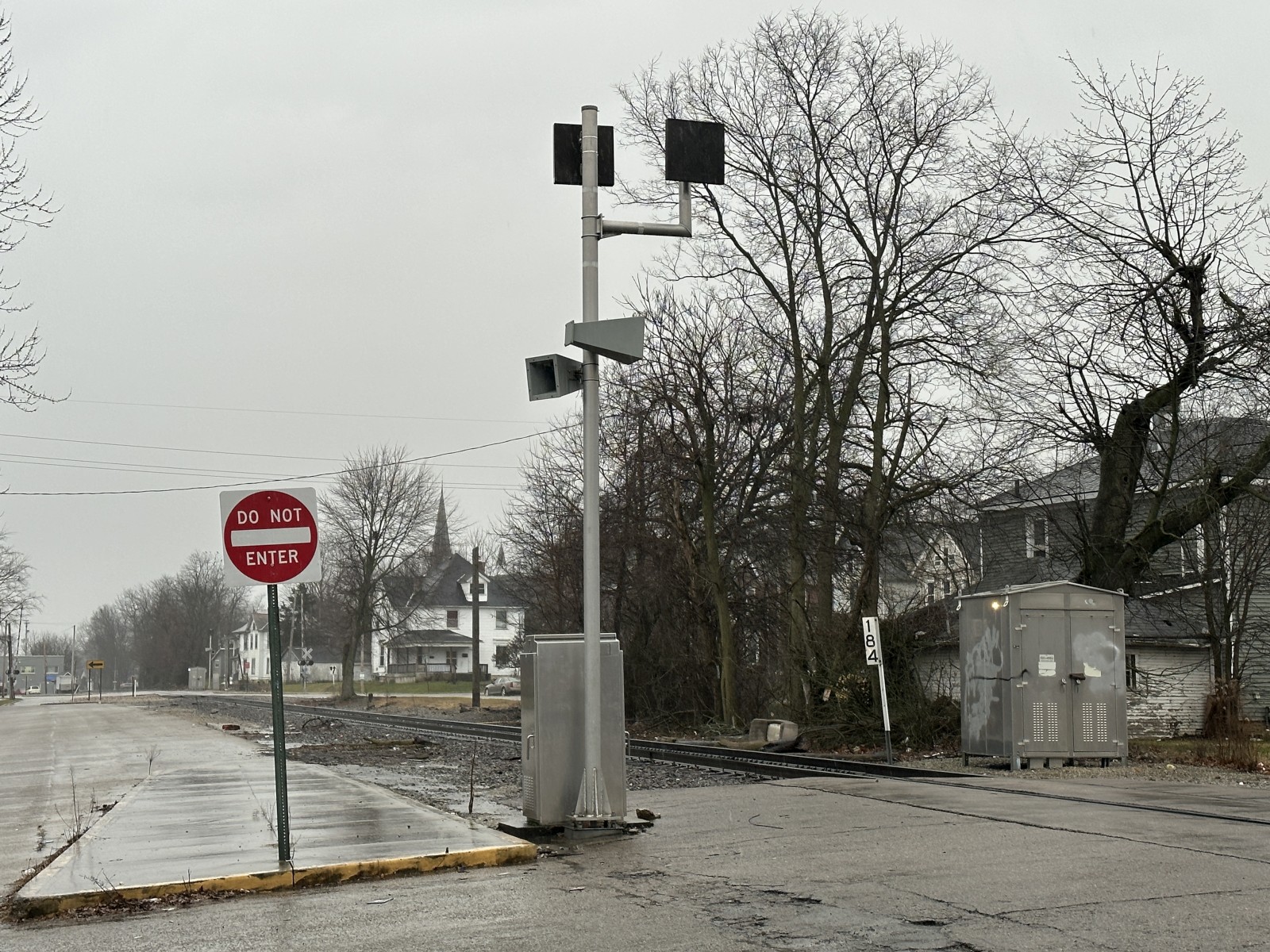

A wayside horn at the crossing.
|
||
|
26 |
27 |
28 |
29 |
|

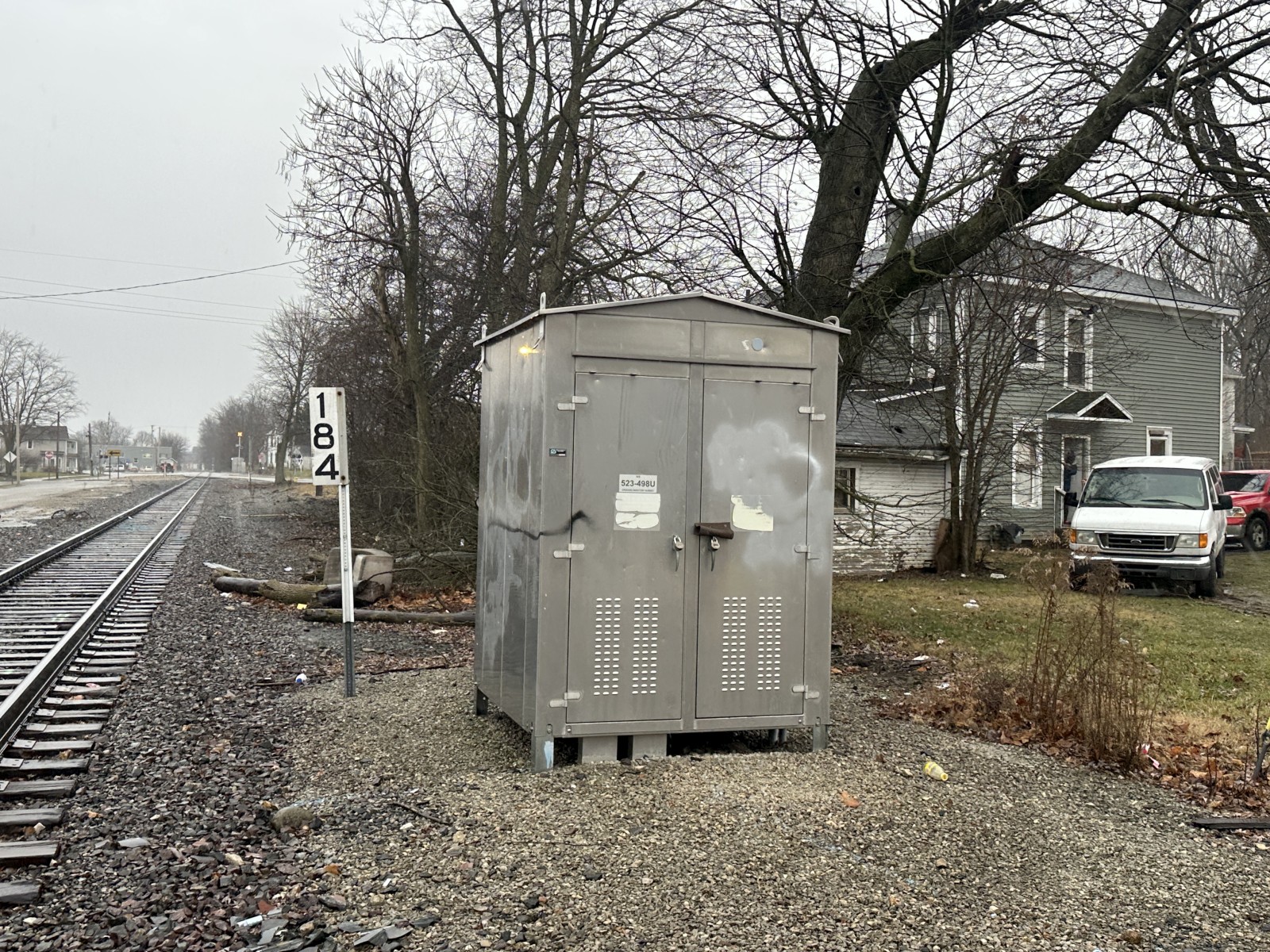

The relay bungalow.
|

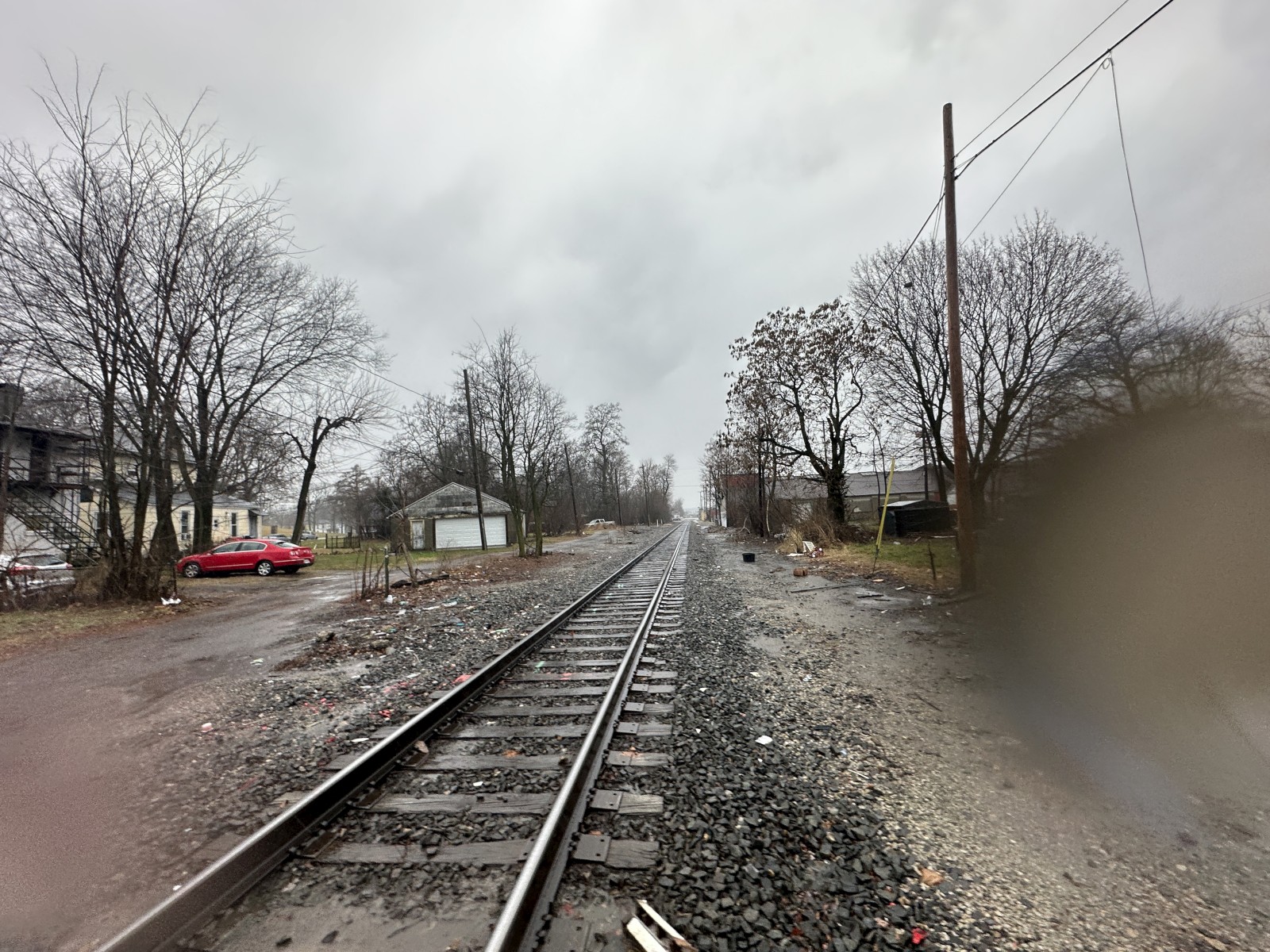

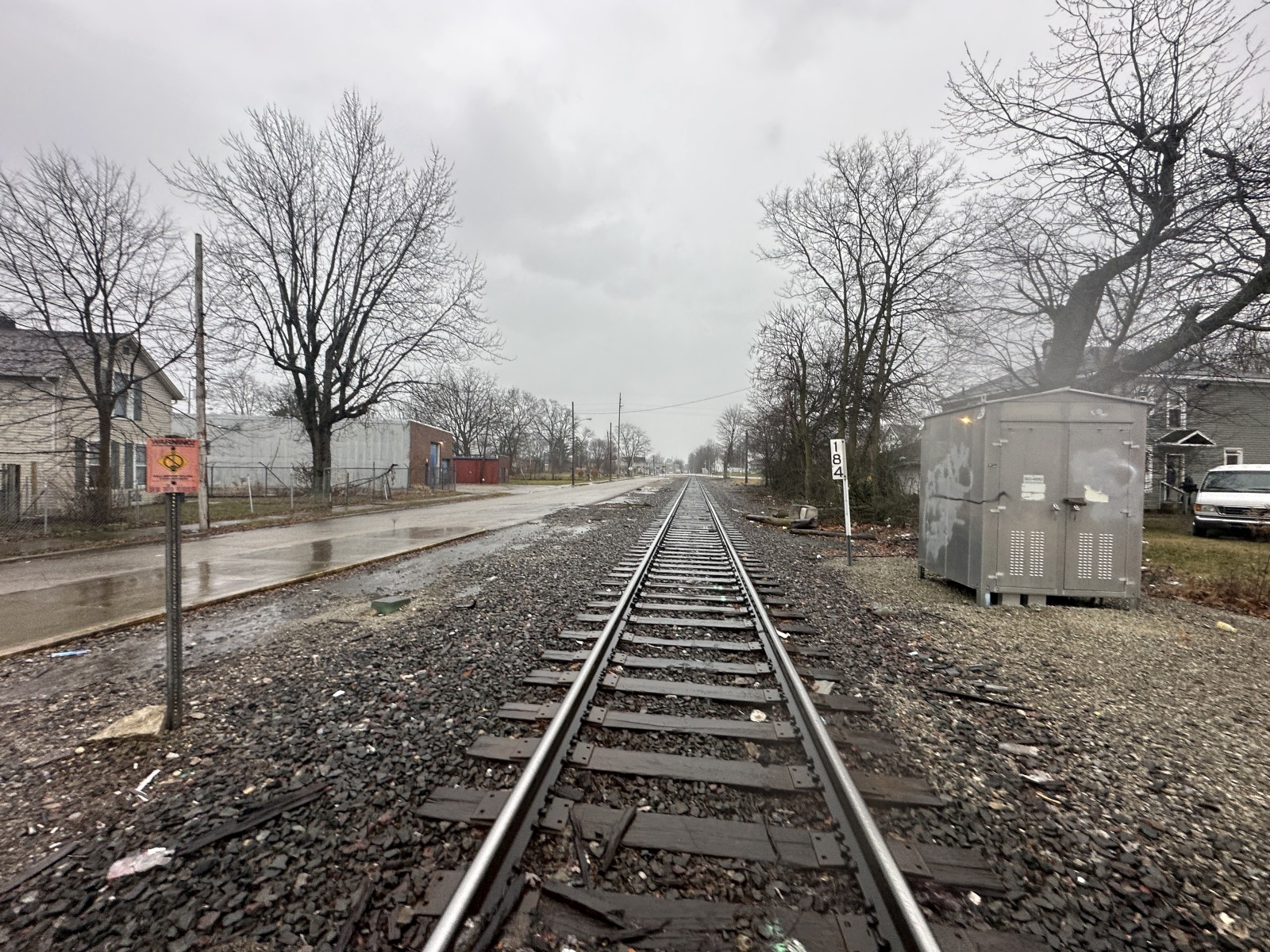

Track view facing west towards Western Avenue.
|
Track view facing east towards High Street #1.
|

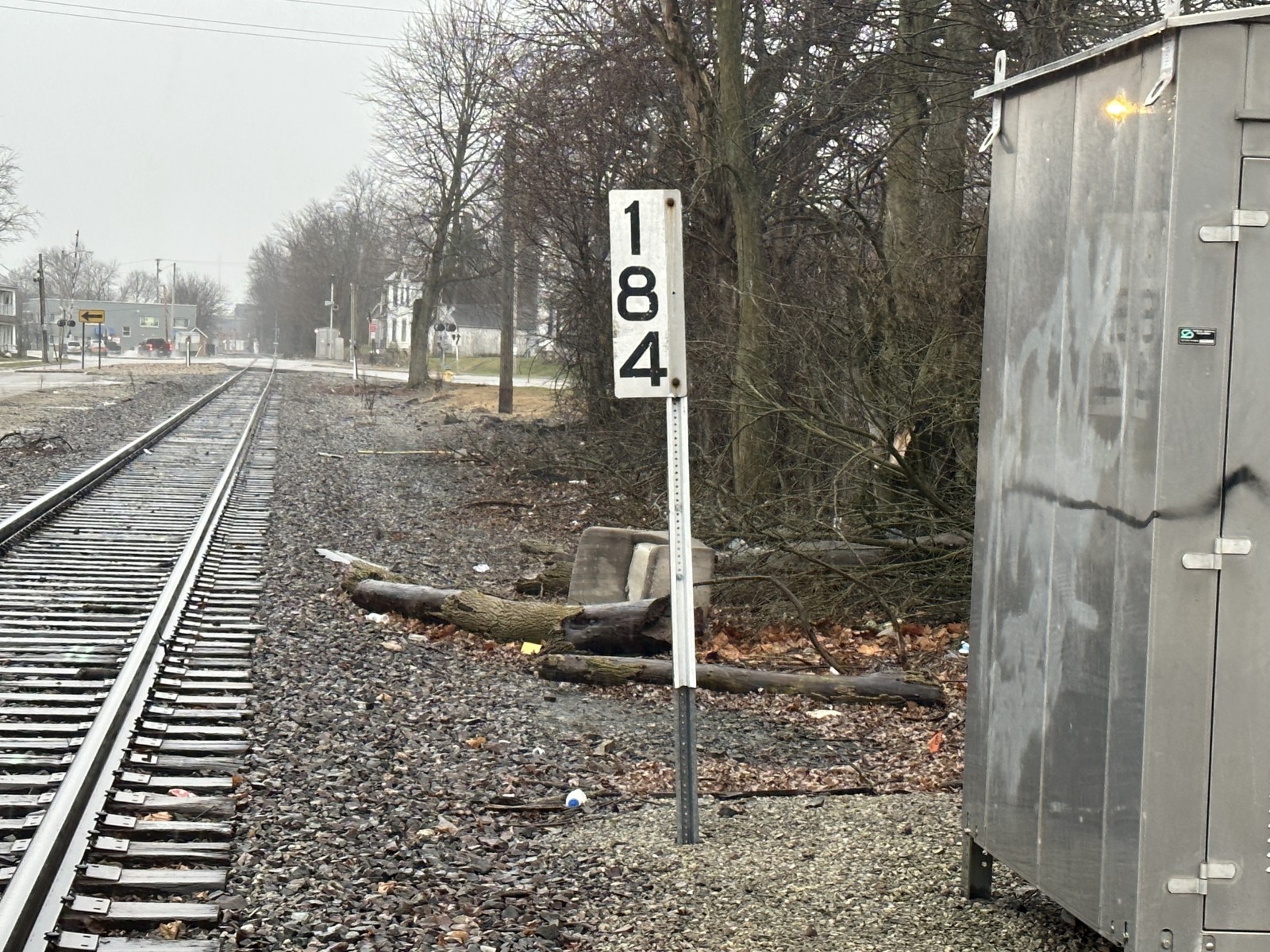

An M.P. marker stands near the
crossing.
|
All pictures were taken on 1-12-24.
