MP: 2.01
|
MP: 2.01 |
| Created March 2026 |
| Total Accidents:
2 Crossing DOTs #: 912966K, 923161V, 509138M TOTAL DAILY TRAINS: 1 (AS OF 2020) |
| >>>>>>>>>>>>>>> | Western Signal | Eastern Signal | Northern Signal Utah St. |
| Bell: | Safetran Mechanical Bell 2nd Gen | None | None |
| Cantilever: | WABCO Cantilever | WABCO Cantilever | None |
| Mast Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ | WRRS 5" Single Sided > |
| Lights: | 5 - 8"x20" WABCO incandescents 3 - 8"x20" WCH incandescents |
8 - 8"x20" WABCO incandescents | 2 - 8"x20" WRRS incandescents 2 - 8"x20" Safetran incandescents |
| Junction Boxes: | WABCO | WABCO | WRRS |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO | 3 - 4" RECO |

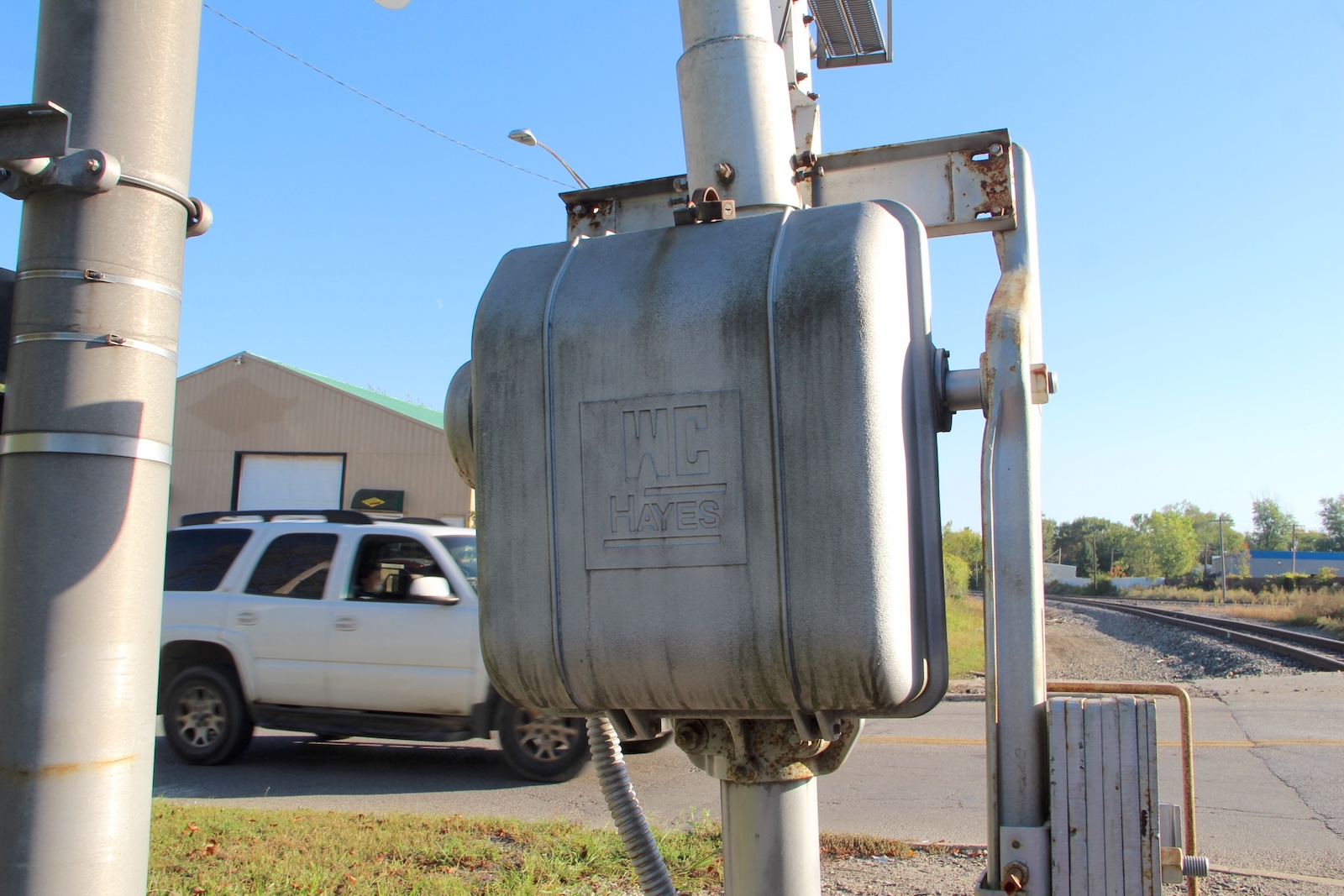

| Gate Mechanism: | WCH Style 3 w/ Standard Mount | WCH Style 3 w/ Standard Mount | WCH Style 3 w/ Standard Mount |
| Gate Striping: | Vertical Striping | Diagonal Striping | Diagonal Striping |
1 |
2 |

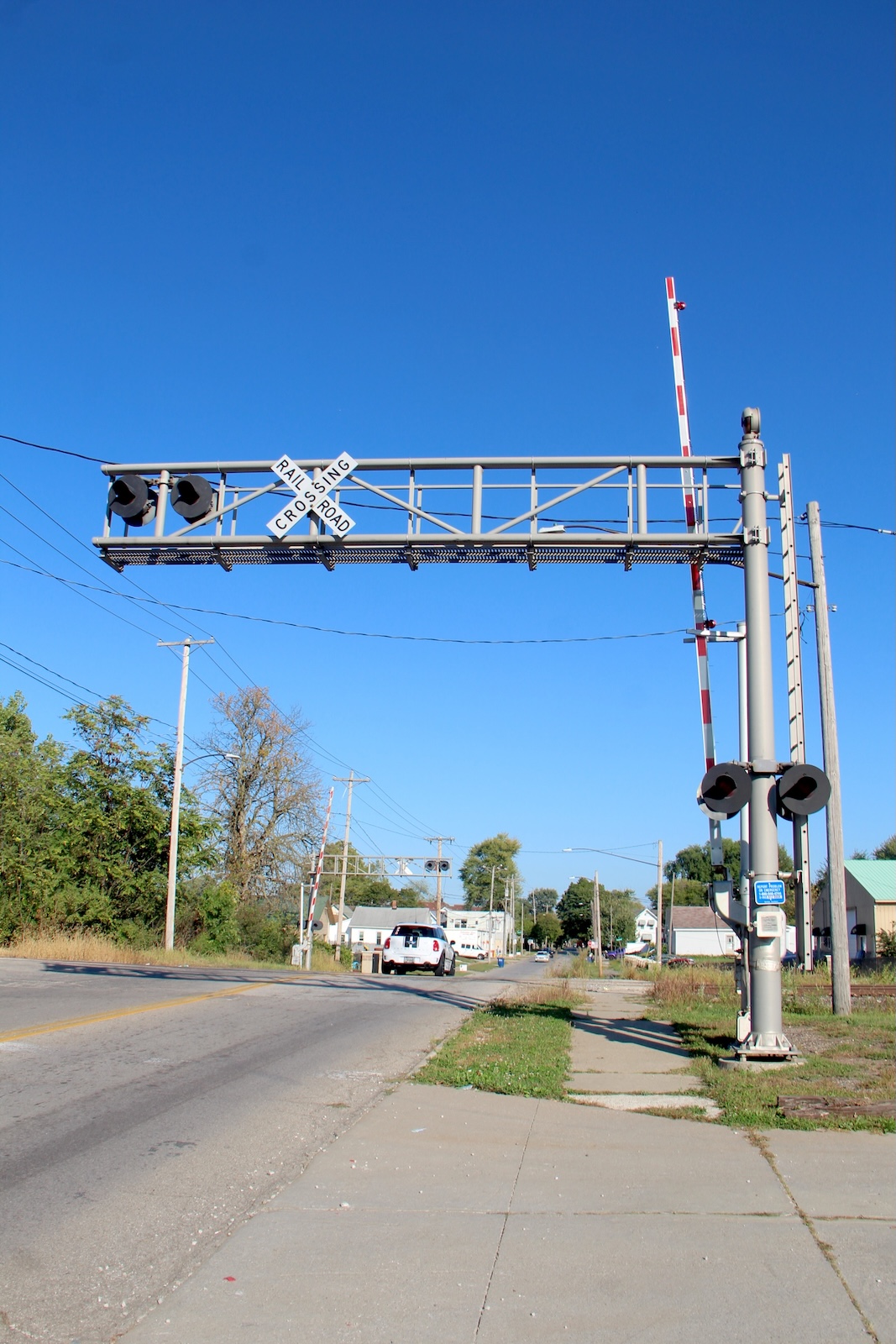

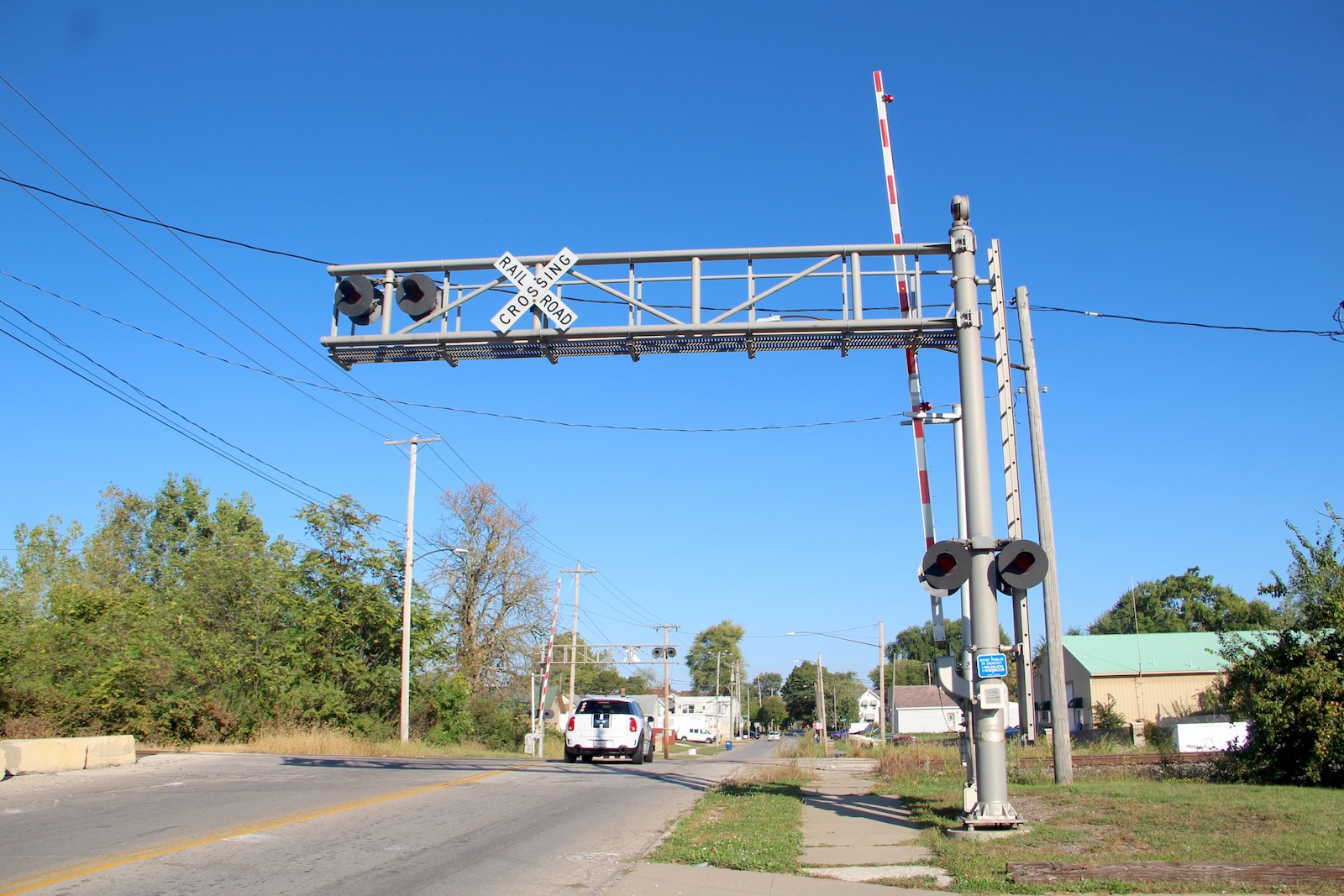

| Overview of a very nice cantilever facing east. | Overview facing west. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |

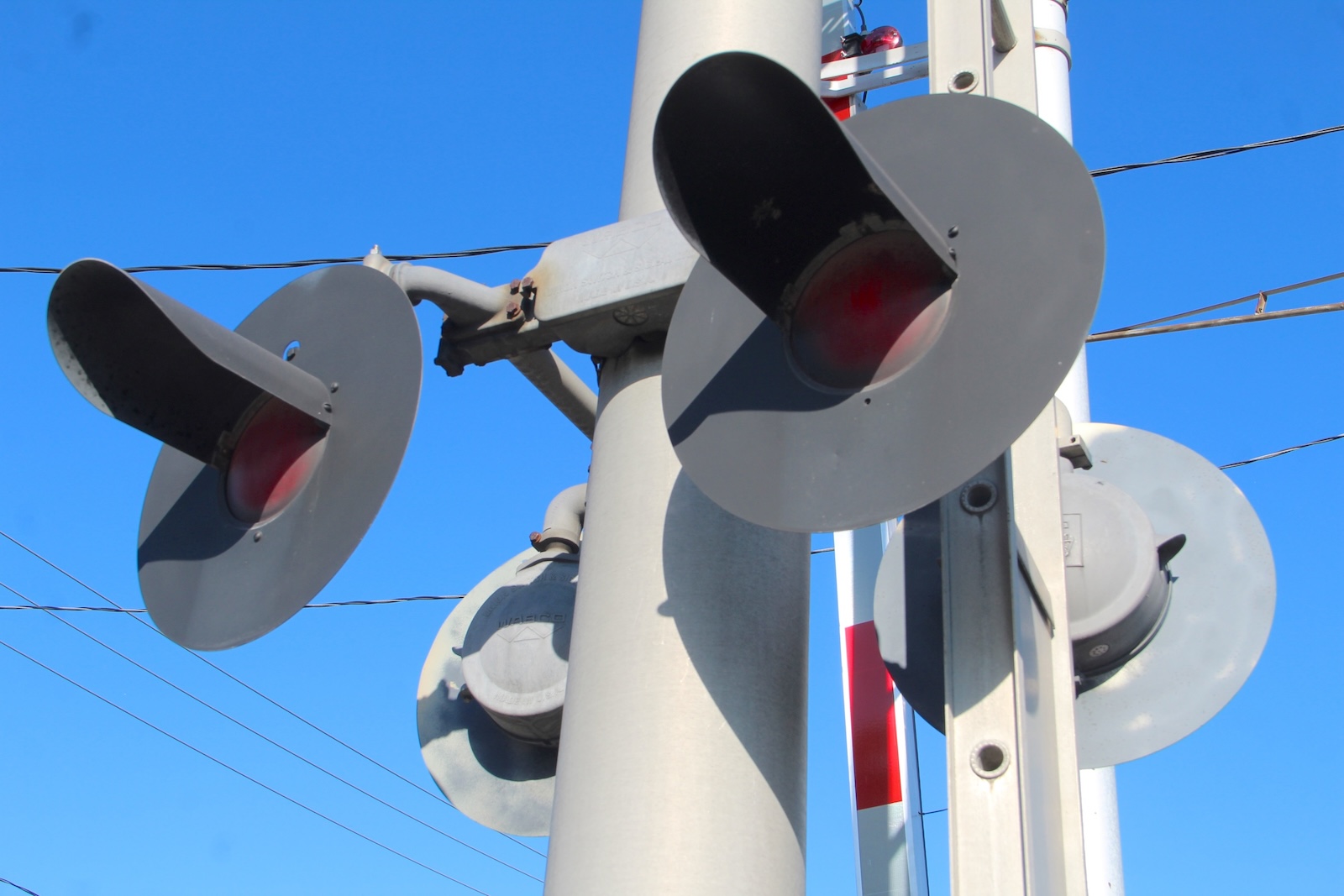

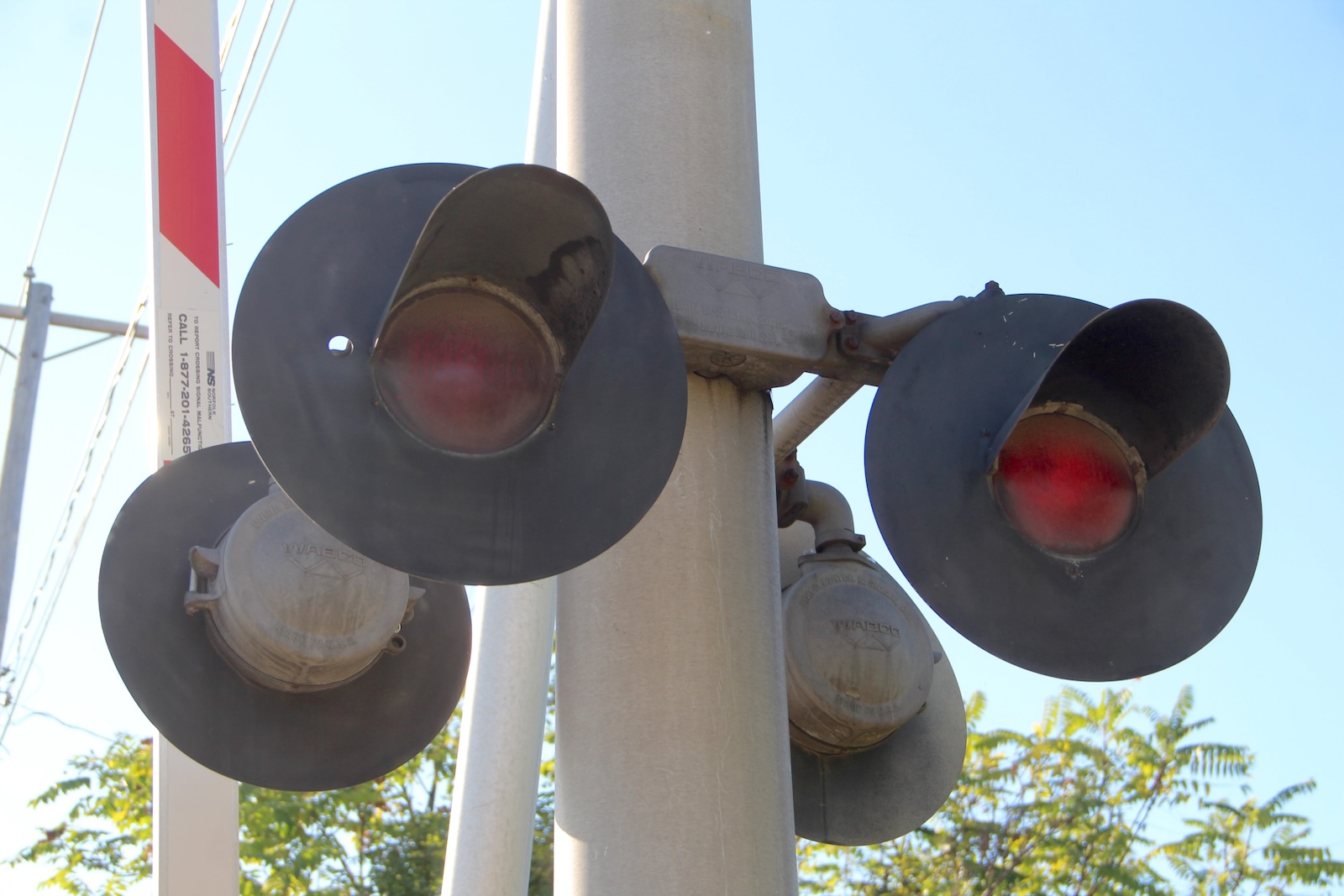

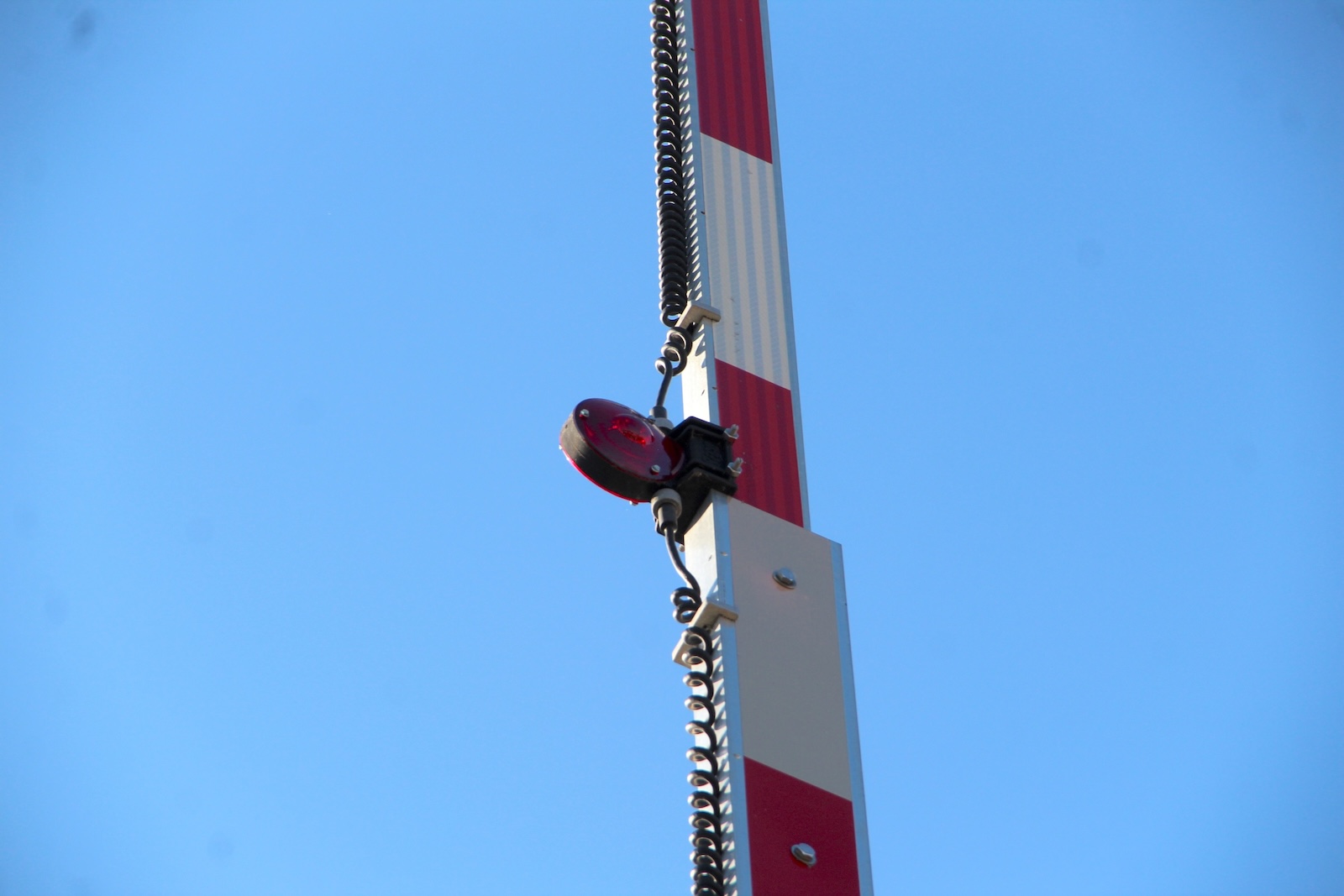

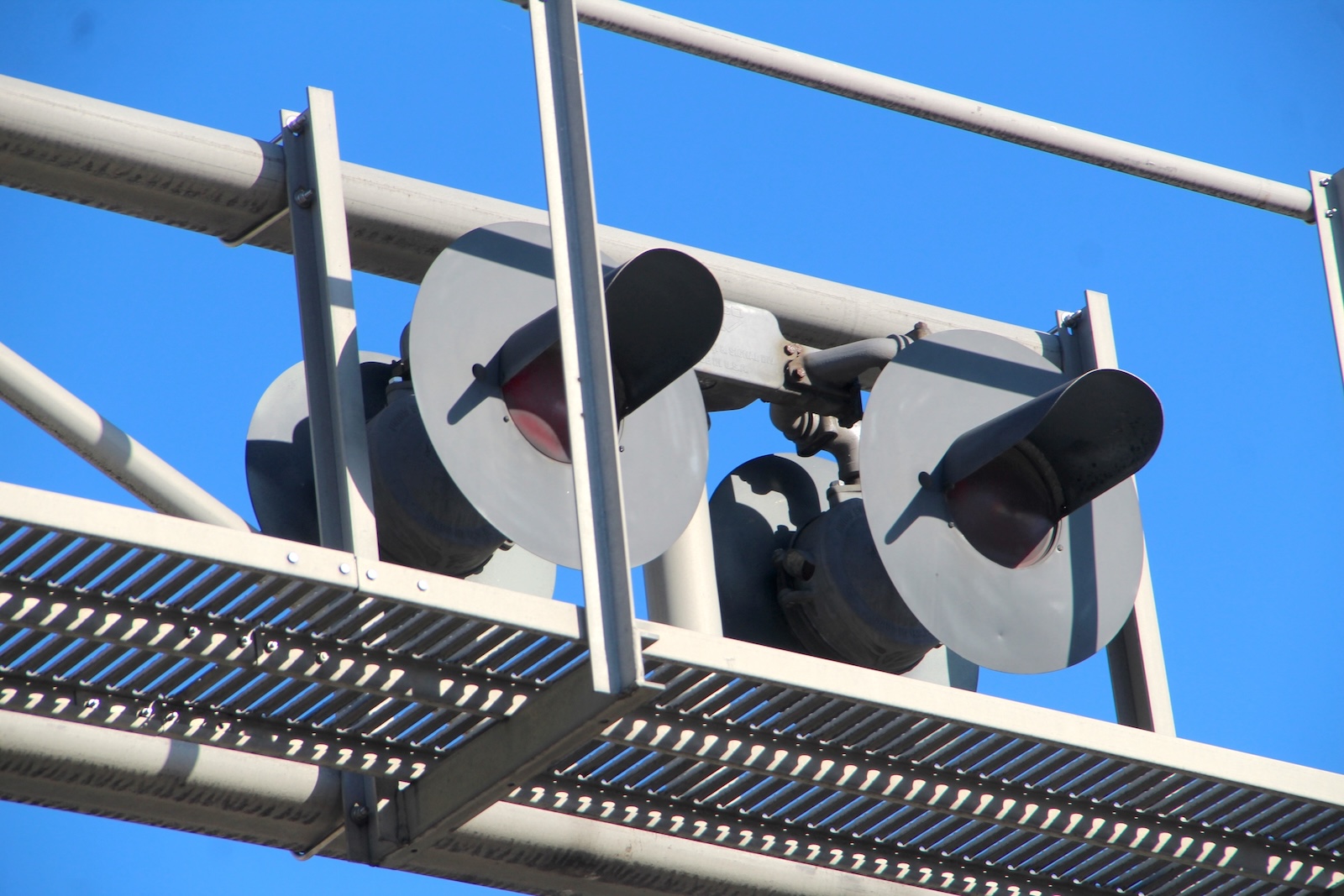

| The western signal. |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |

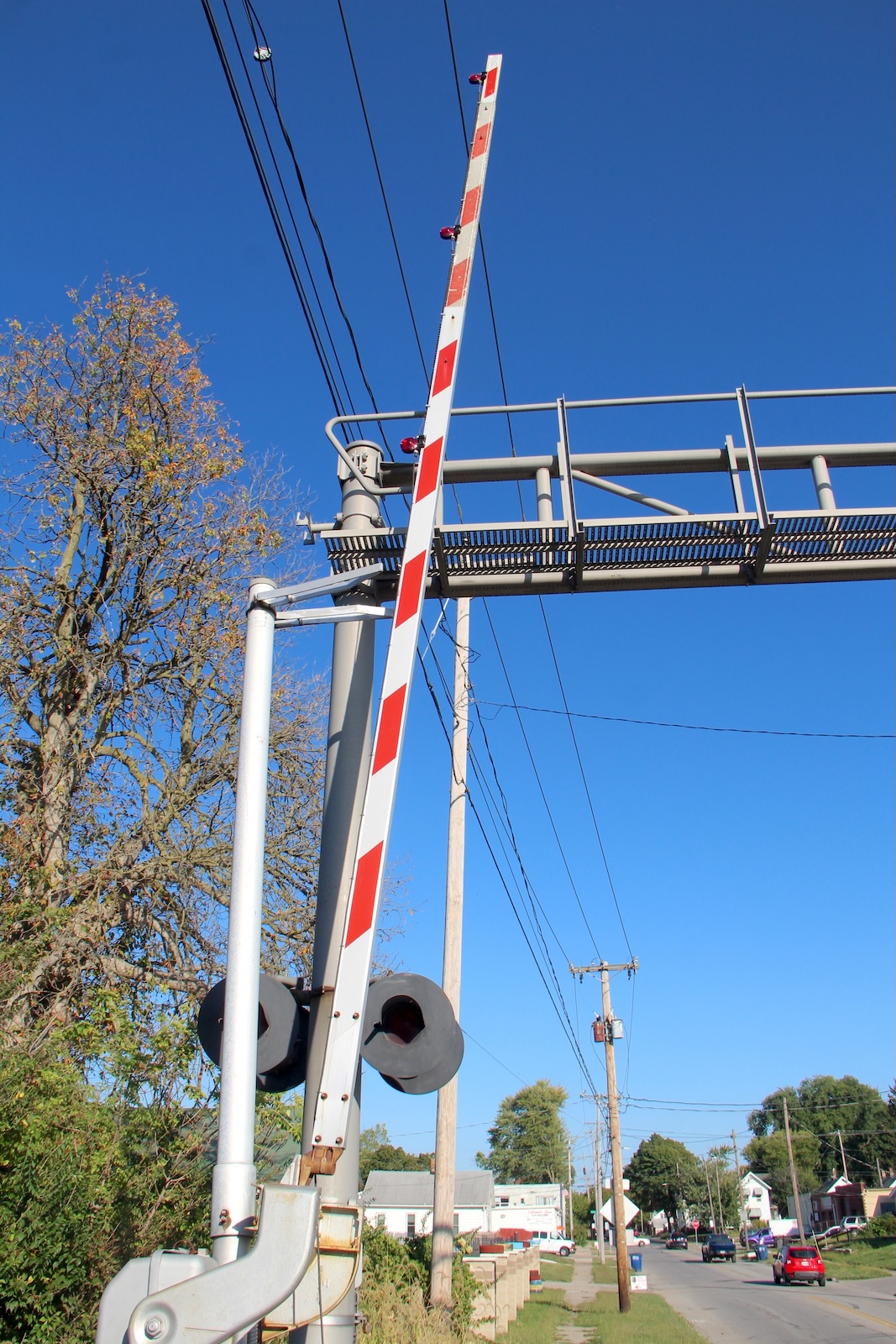

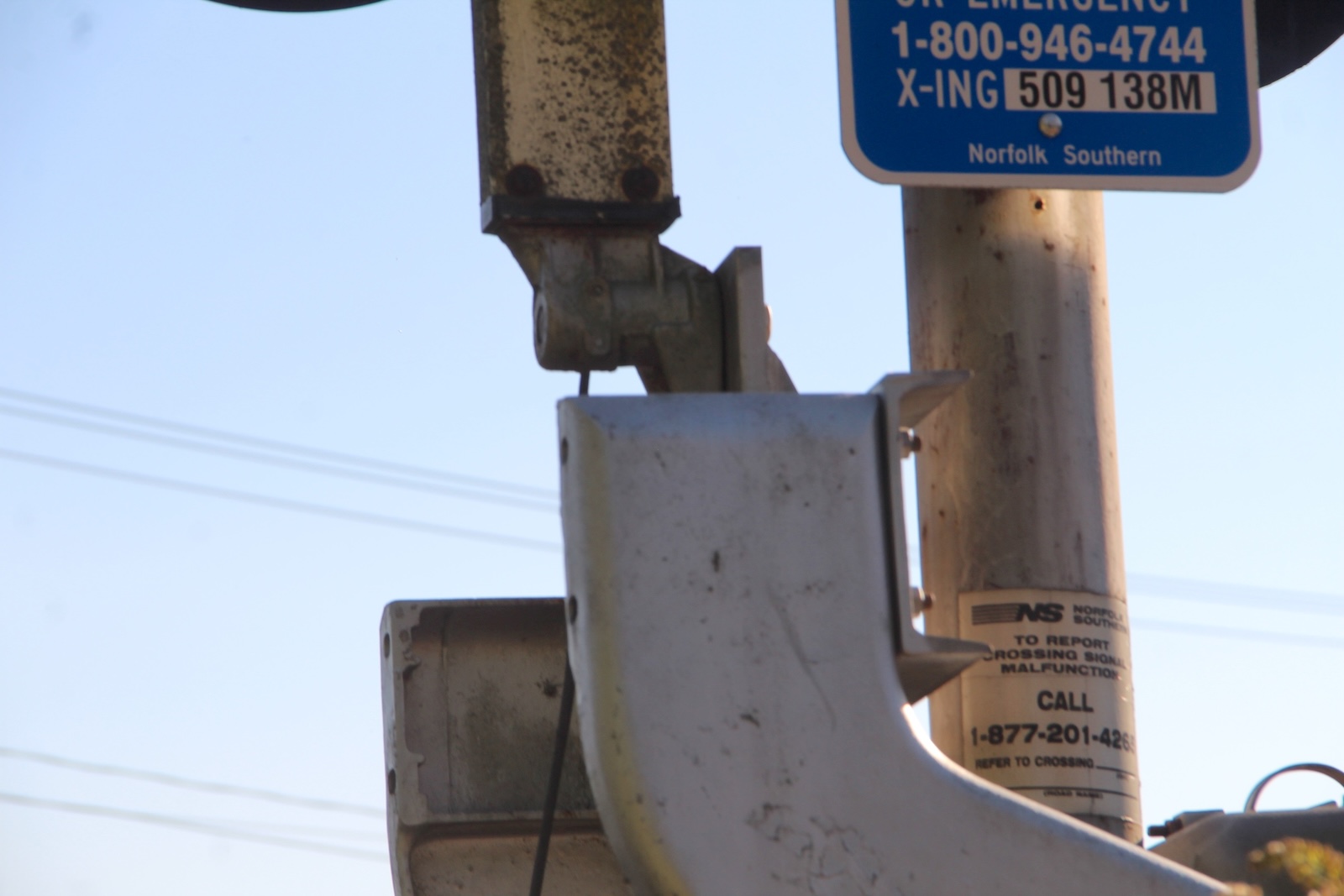

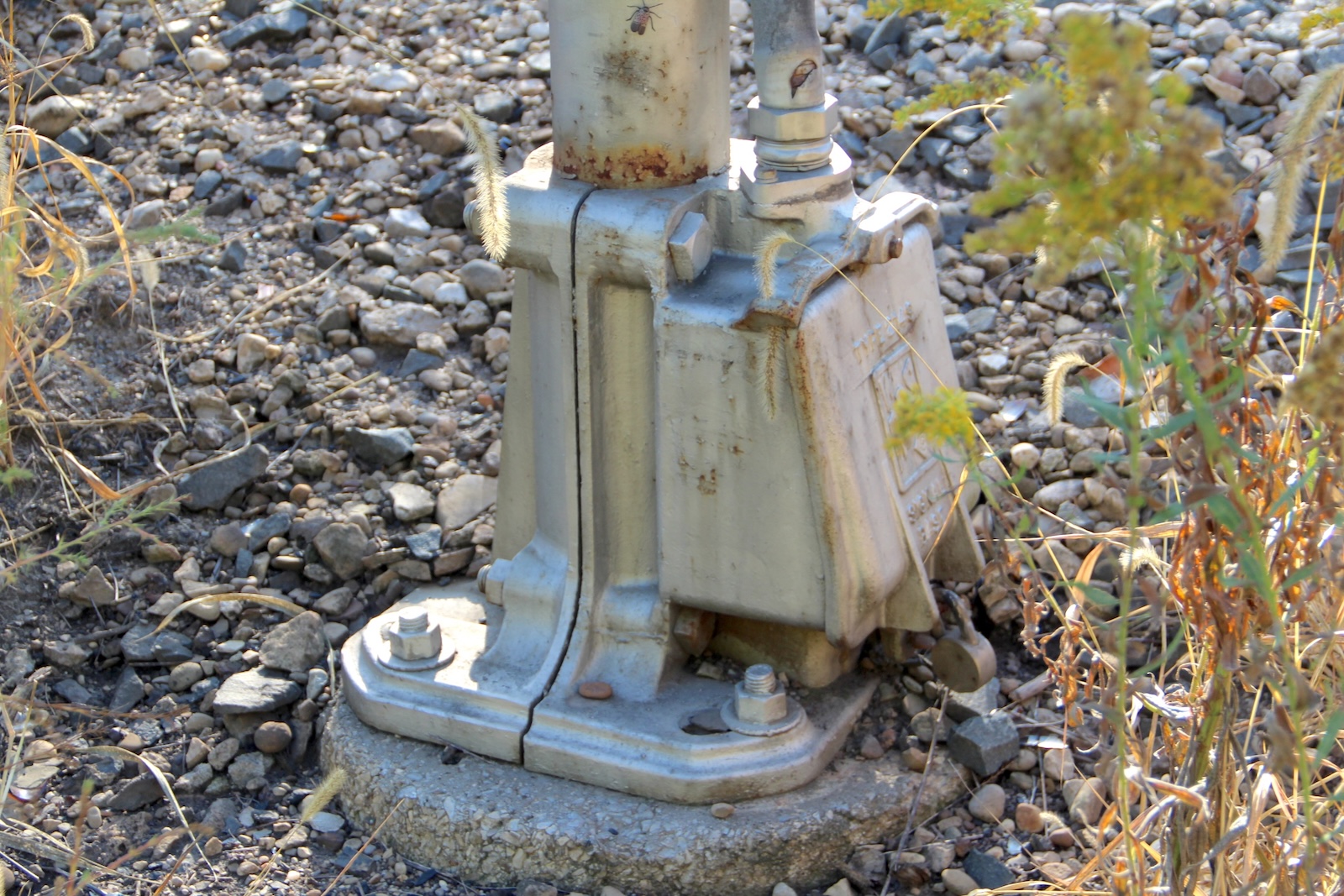

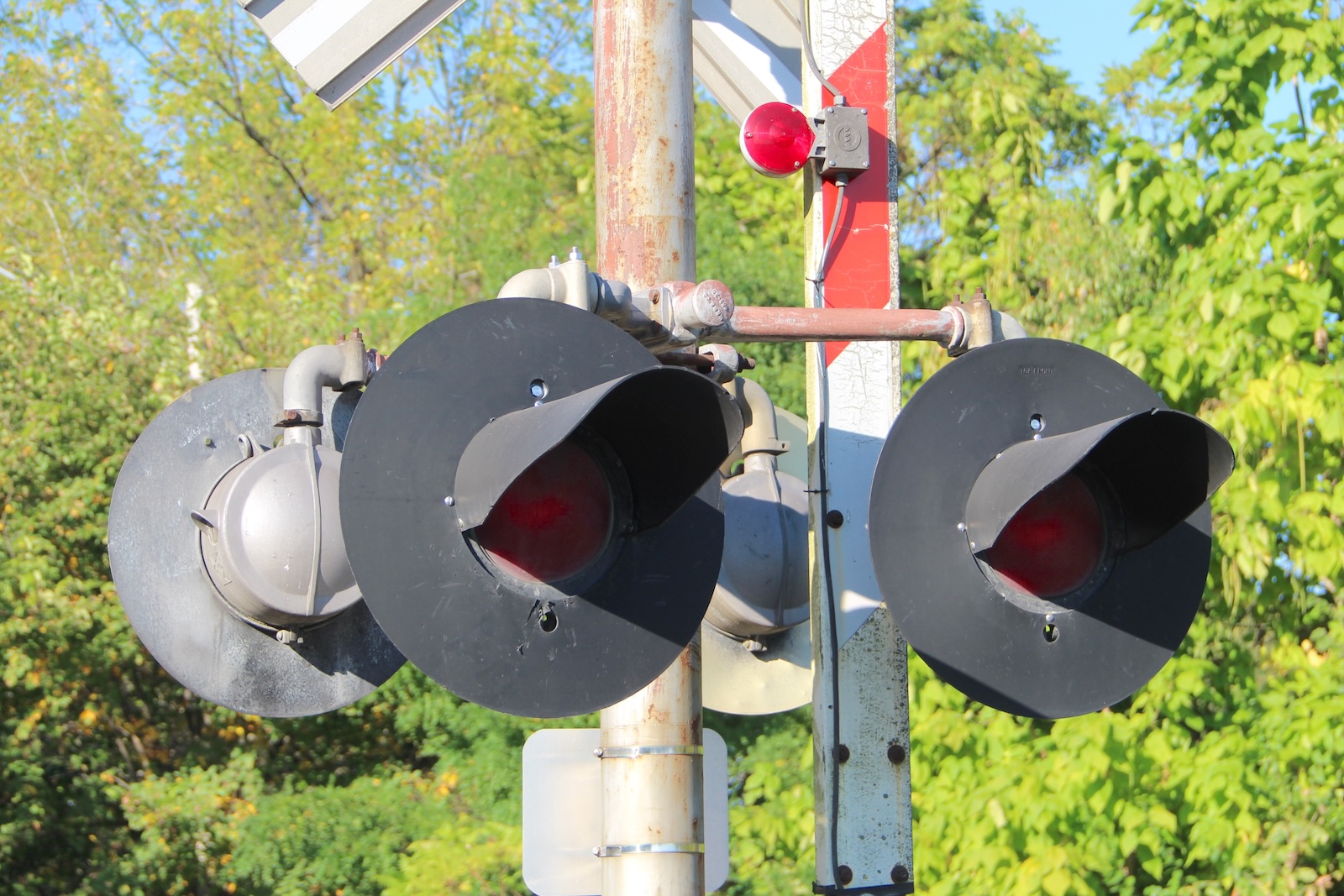

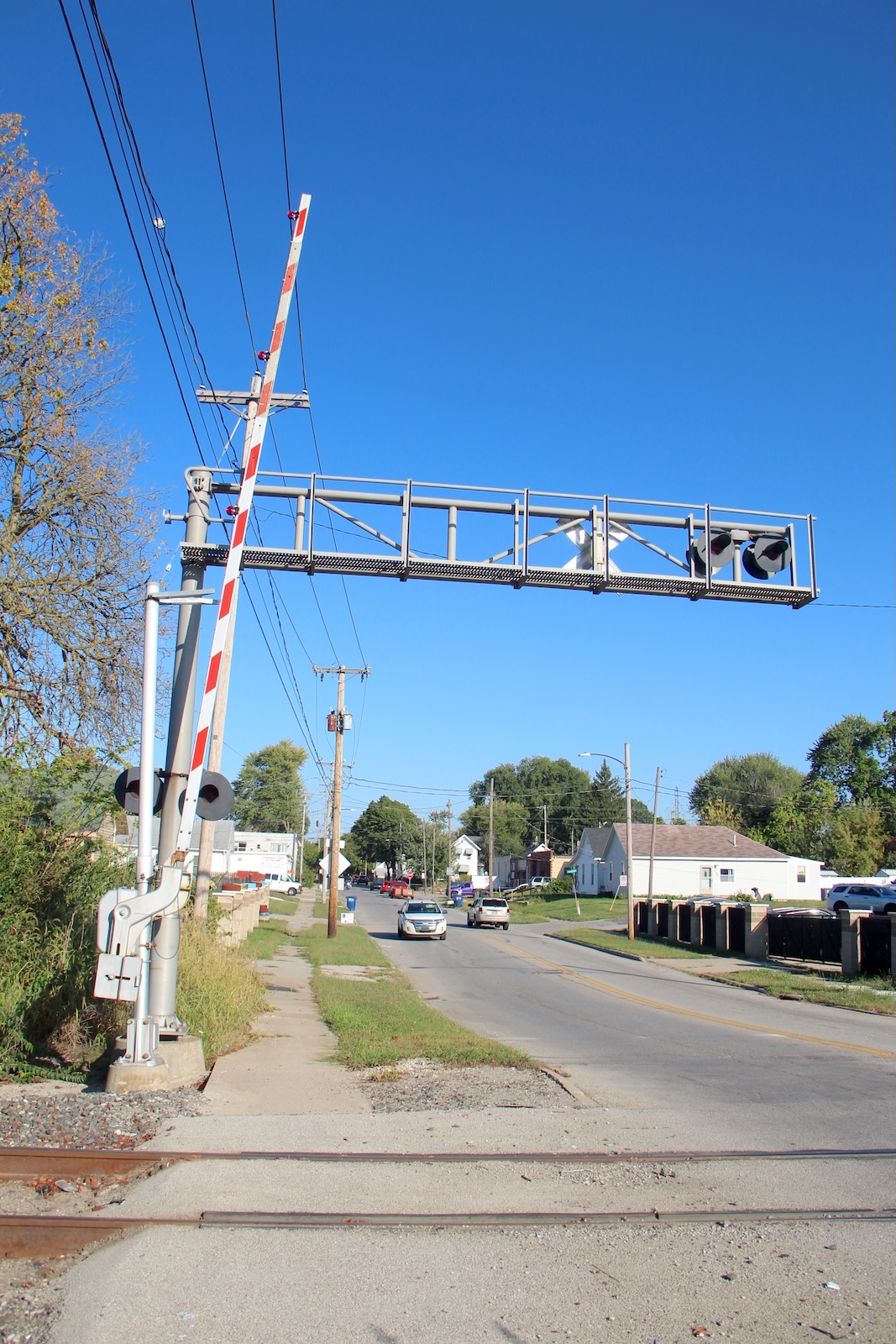

| The eastern signal. Each signal has its own seperate DOT number, likely owing to the fact these used to be 2 separate lines through here. However these days, both tracks essentially serve as a giant wye connecting to the NS Chicago Line. |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
41 |

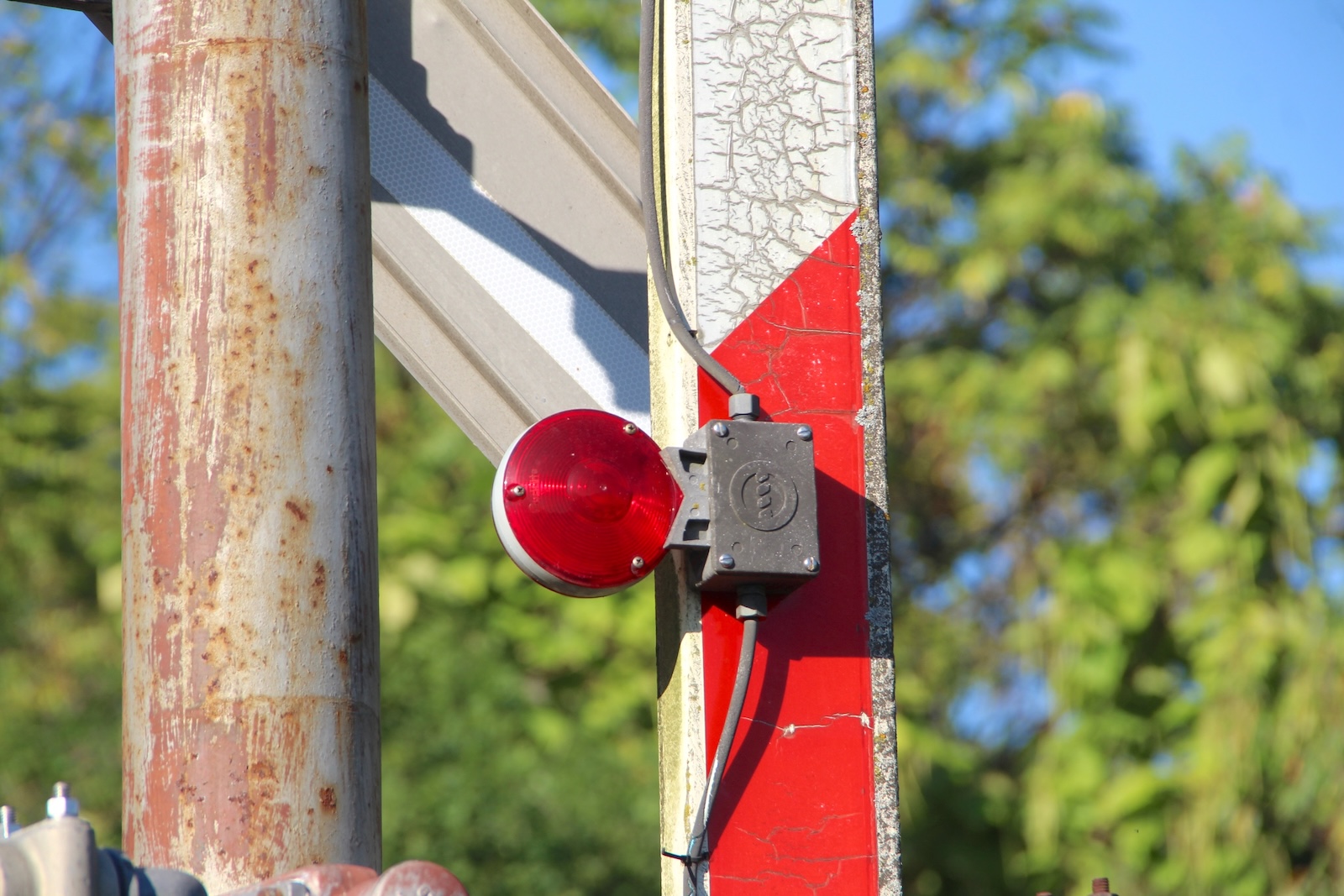

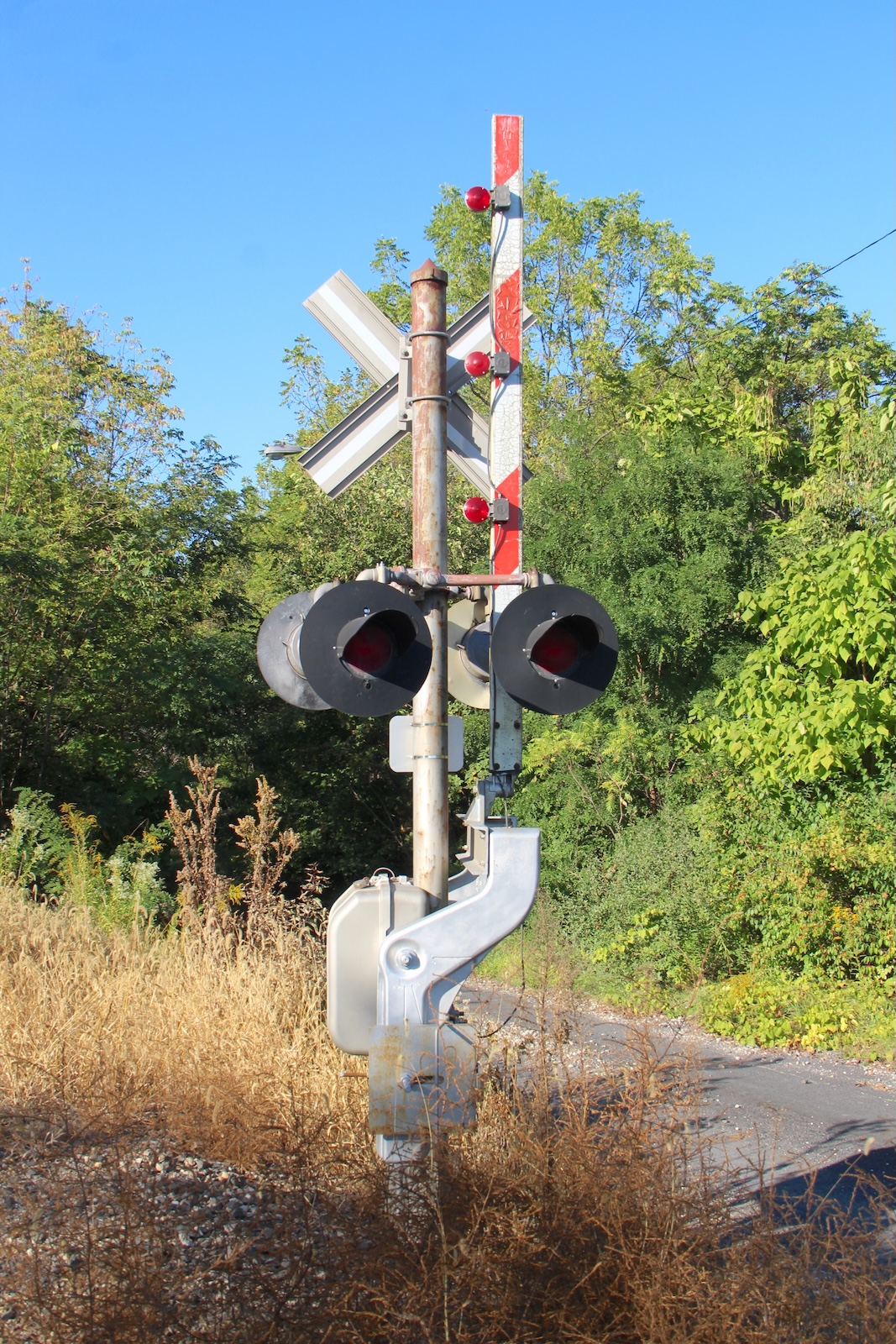

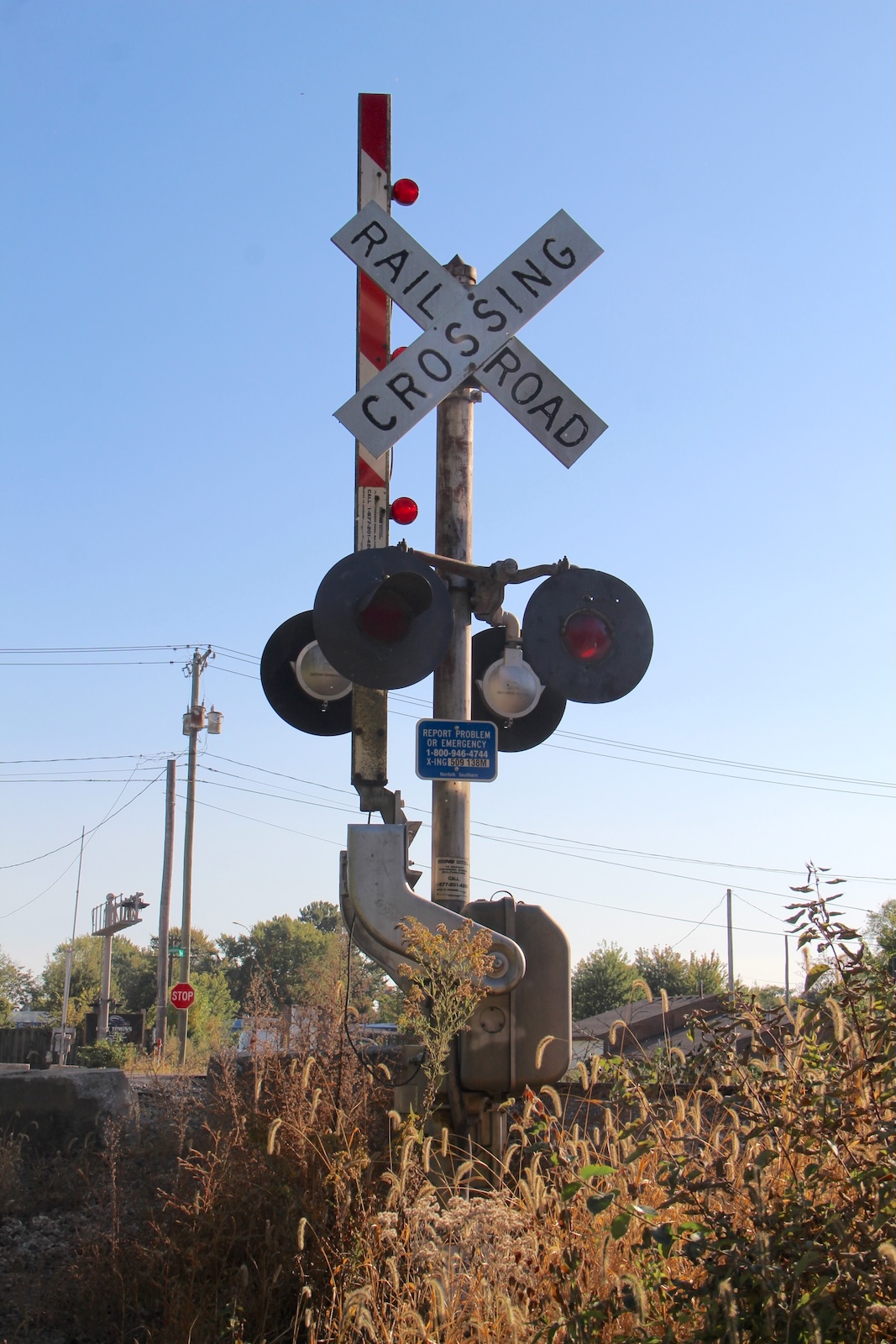

| The northern signal. This protects Utah St., which is closed to through traffic. Utah St. has its own separate DOT number. |
42 |
43 |
44 |
45 |

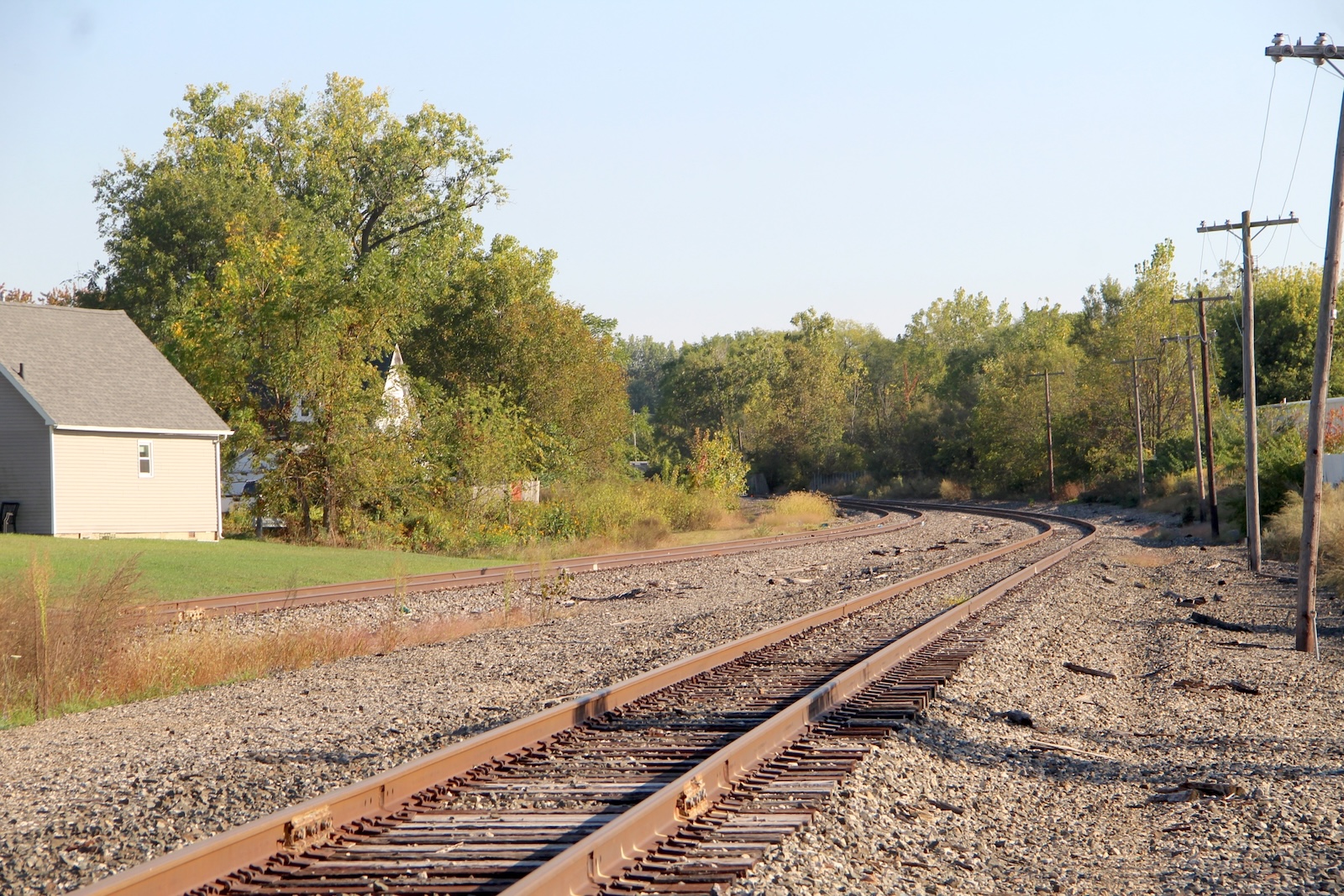

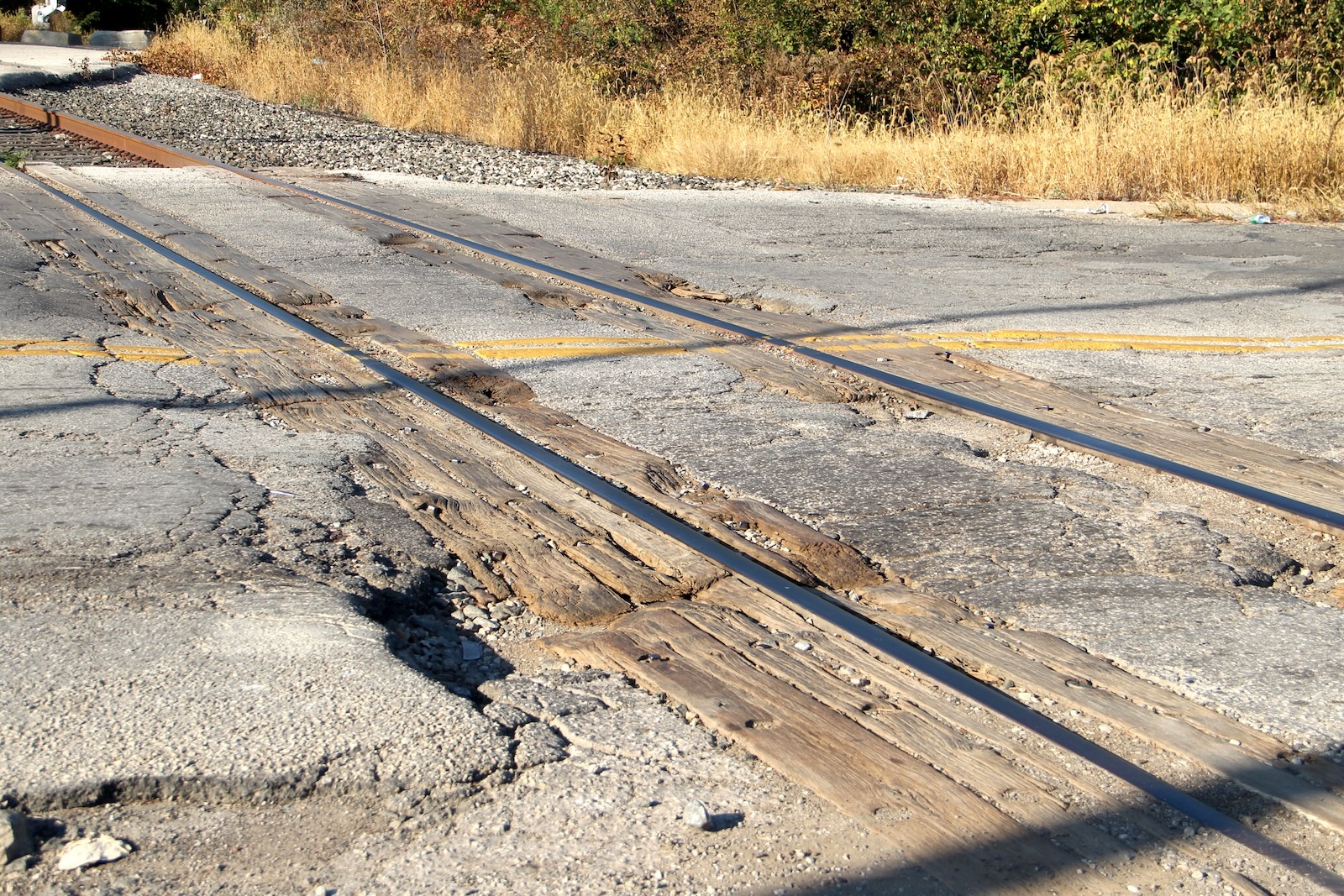

| The relay case on the south side between the tracks. | The west track grade is wood and asphalt. | Track view facing north towards Fassett St. | Track view facing south towards Oak St. |
46 |
47 |
48 |

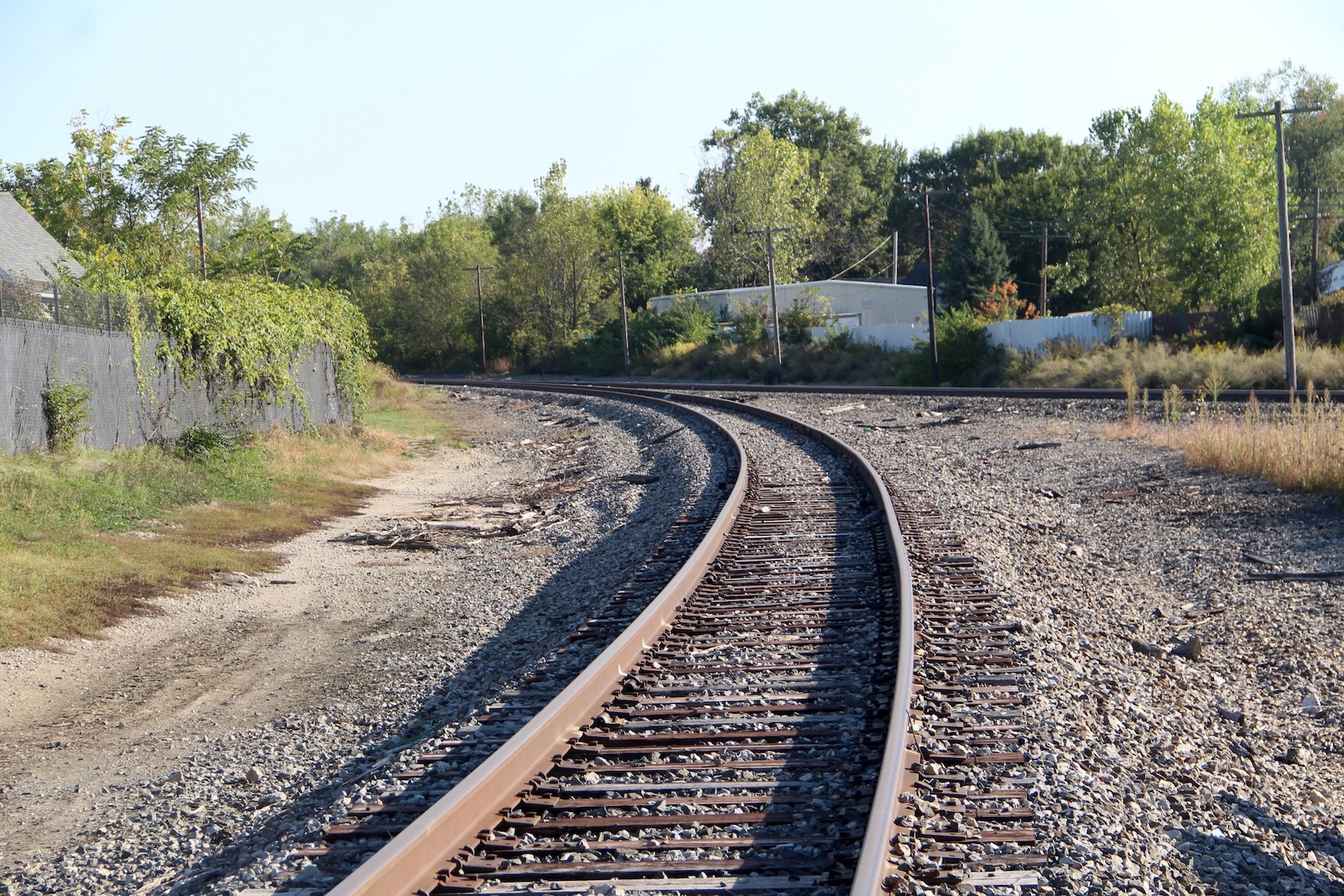

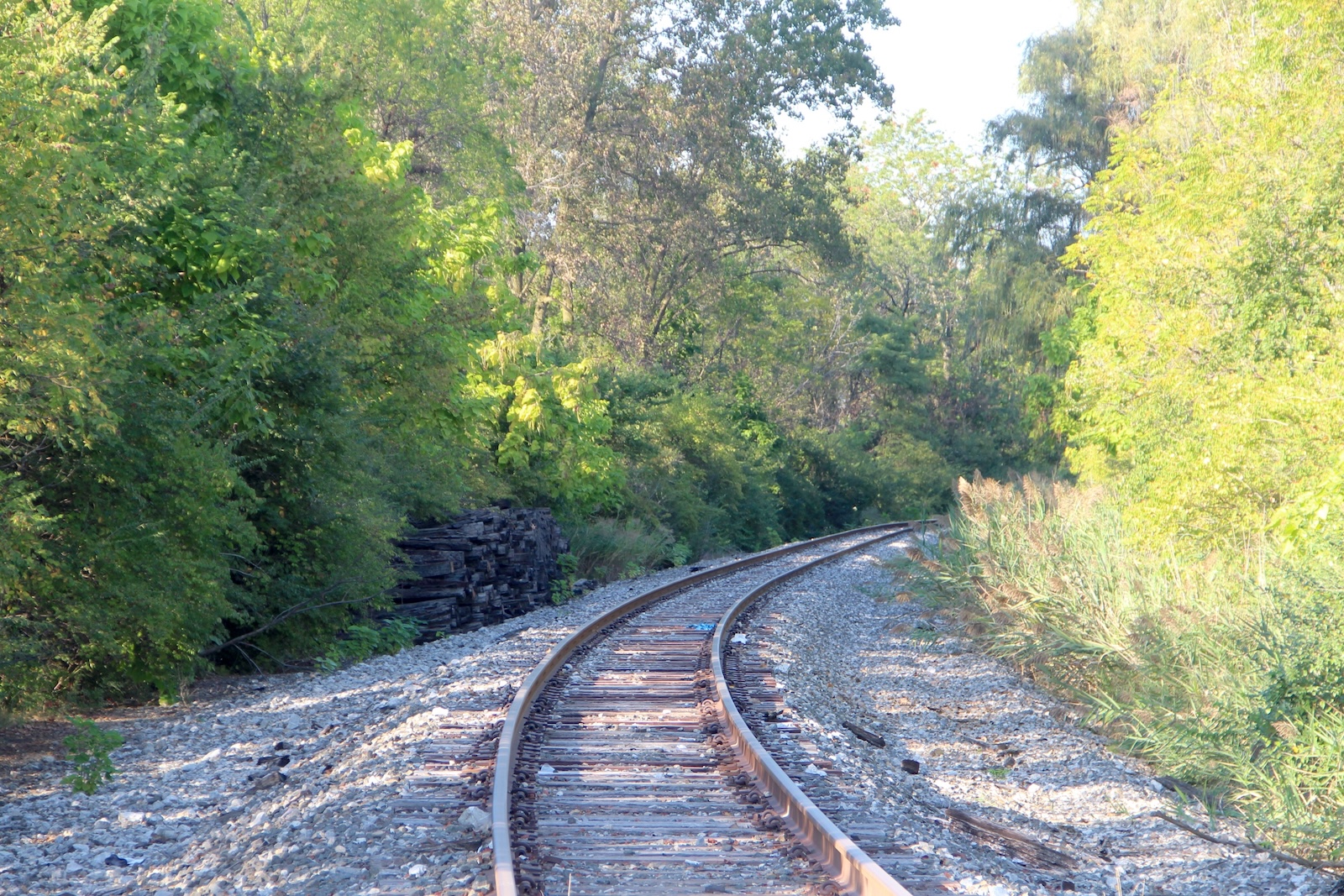

| The east track grade is rubber and asphalt. | Track view facing north towards Oak St. | Track view facing south towards Oak St. |
