| >>>>>>>>>>>>>> | Eastern Signal | Western Signal |
| Bell: | WCH 2nd Gen Mechanical | WCH 1st Gen Mechanical |
| Base: | N/A | Safetran 5" Single Sided > |
| Light Brackets: | 2 - Safetran | Safetran |
| Lights: | 6 - 12"x20" Safetran w/ Dialight Ball LEDs | 4 - 12"x20" Safetran w/ Dialight Ball LEDs |
| Gate Lights: | 3 - NEG Clear LEDs | 3 - NEG Clear LEDs |
| Gate Mechanism: | Safetran EM w/ Standard Mount | Safetran Late 1970s w/ Wishbone Mount |
| Gate Striping: | Vertical Striping | Diagonal Striping |
1 |
2 |

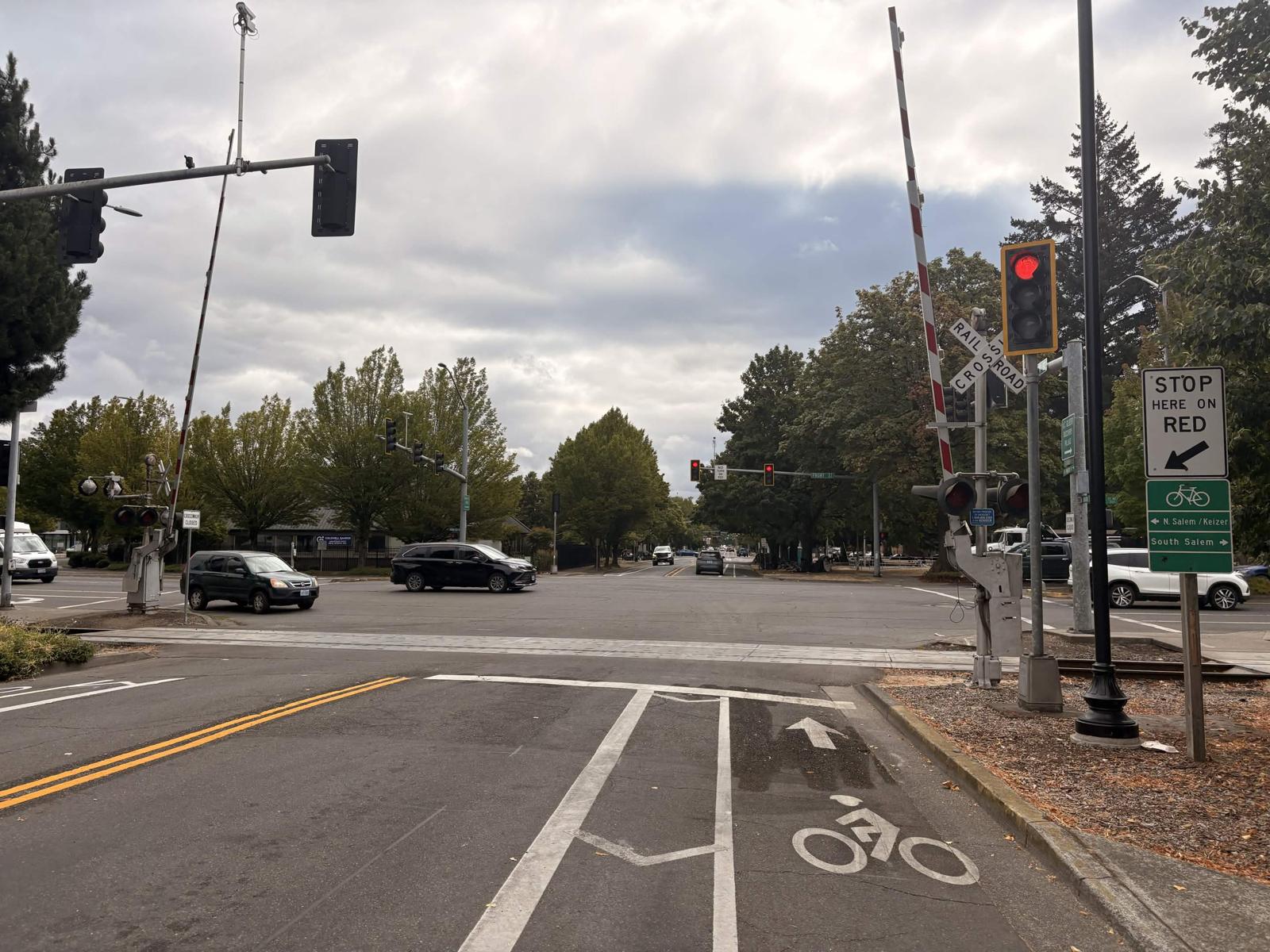

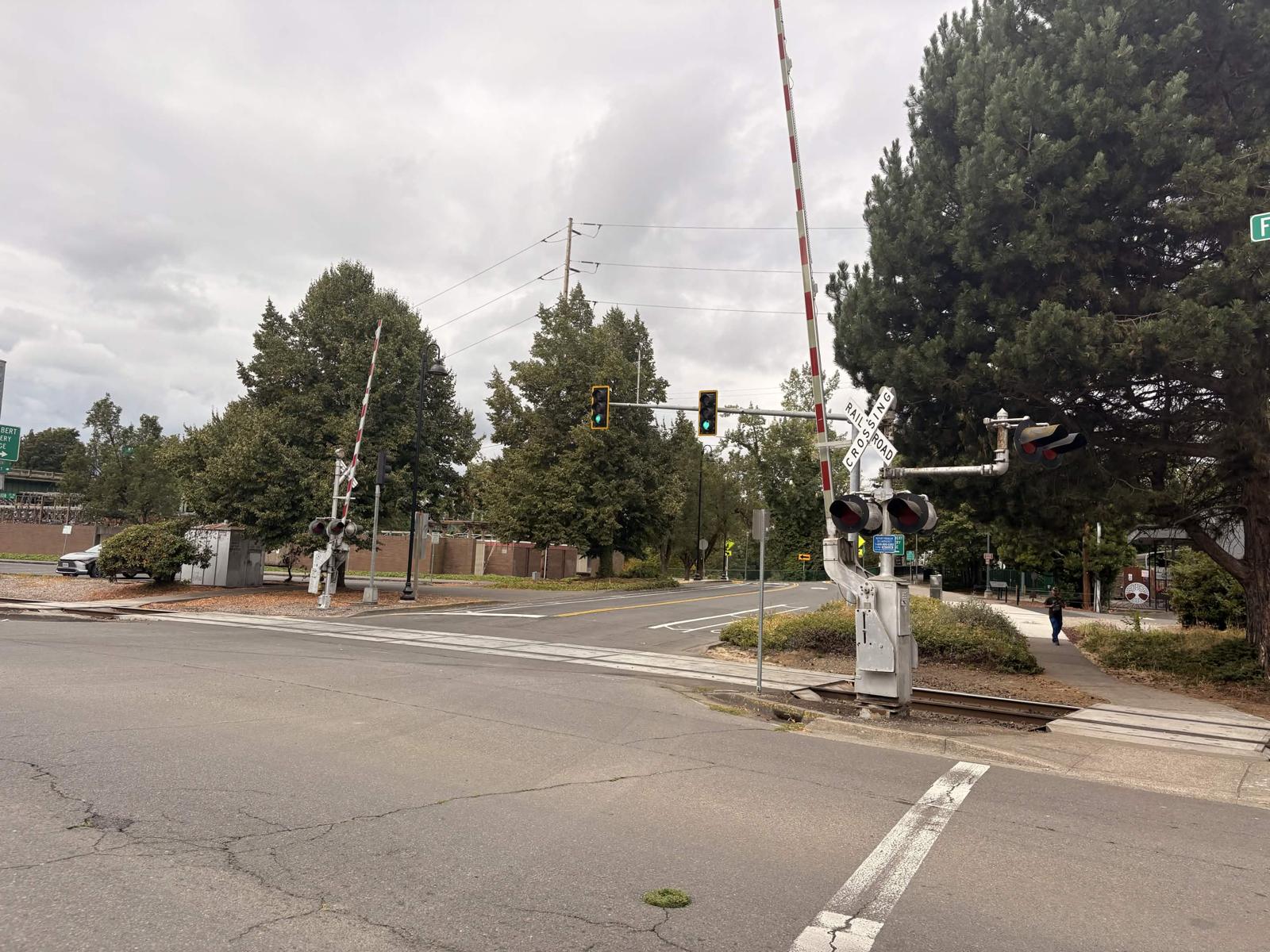

| Overview of 2 gated signals facing east. | Overview facing west. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |

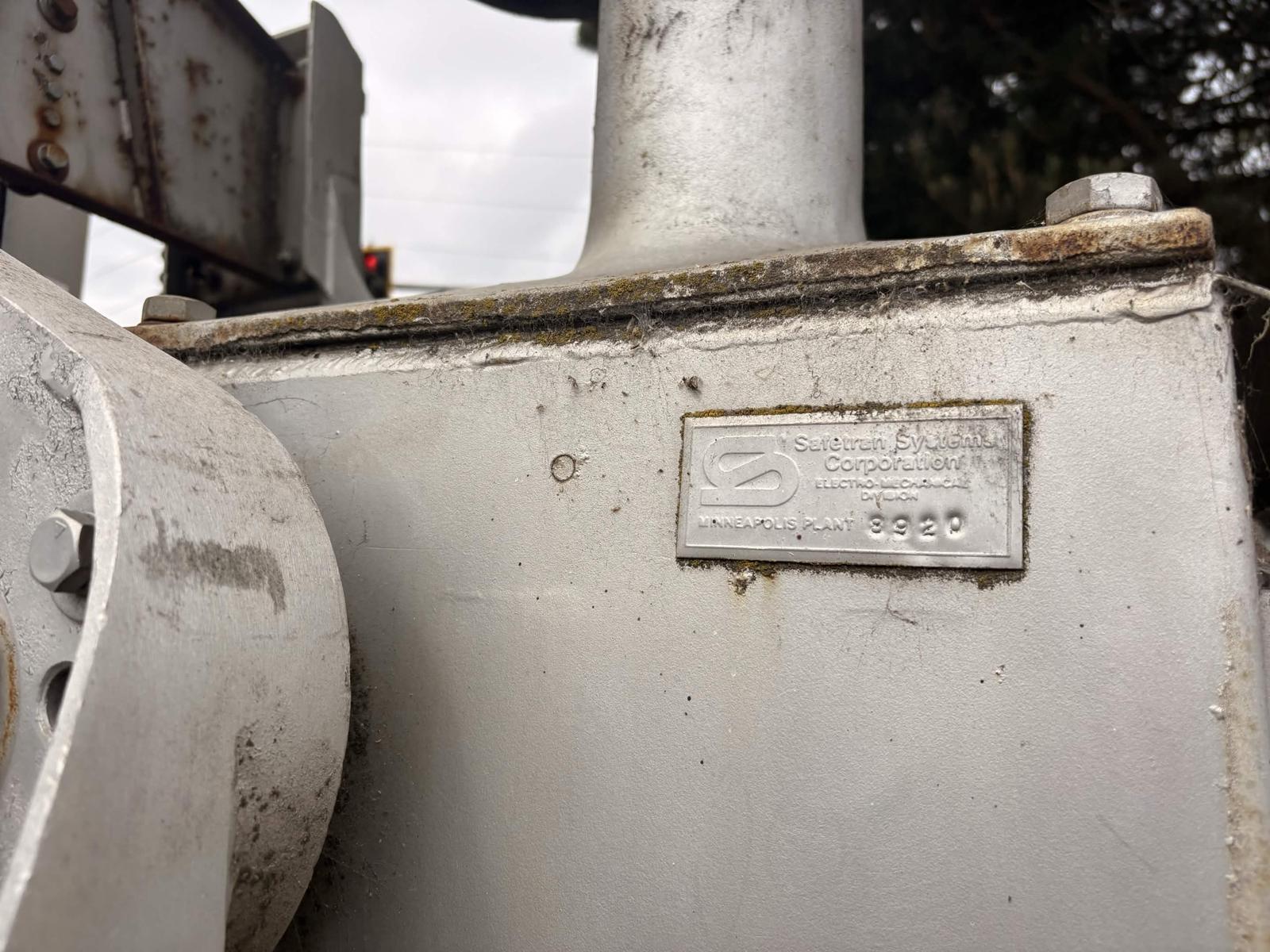

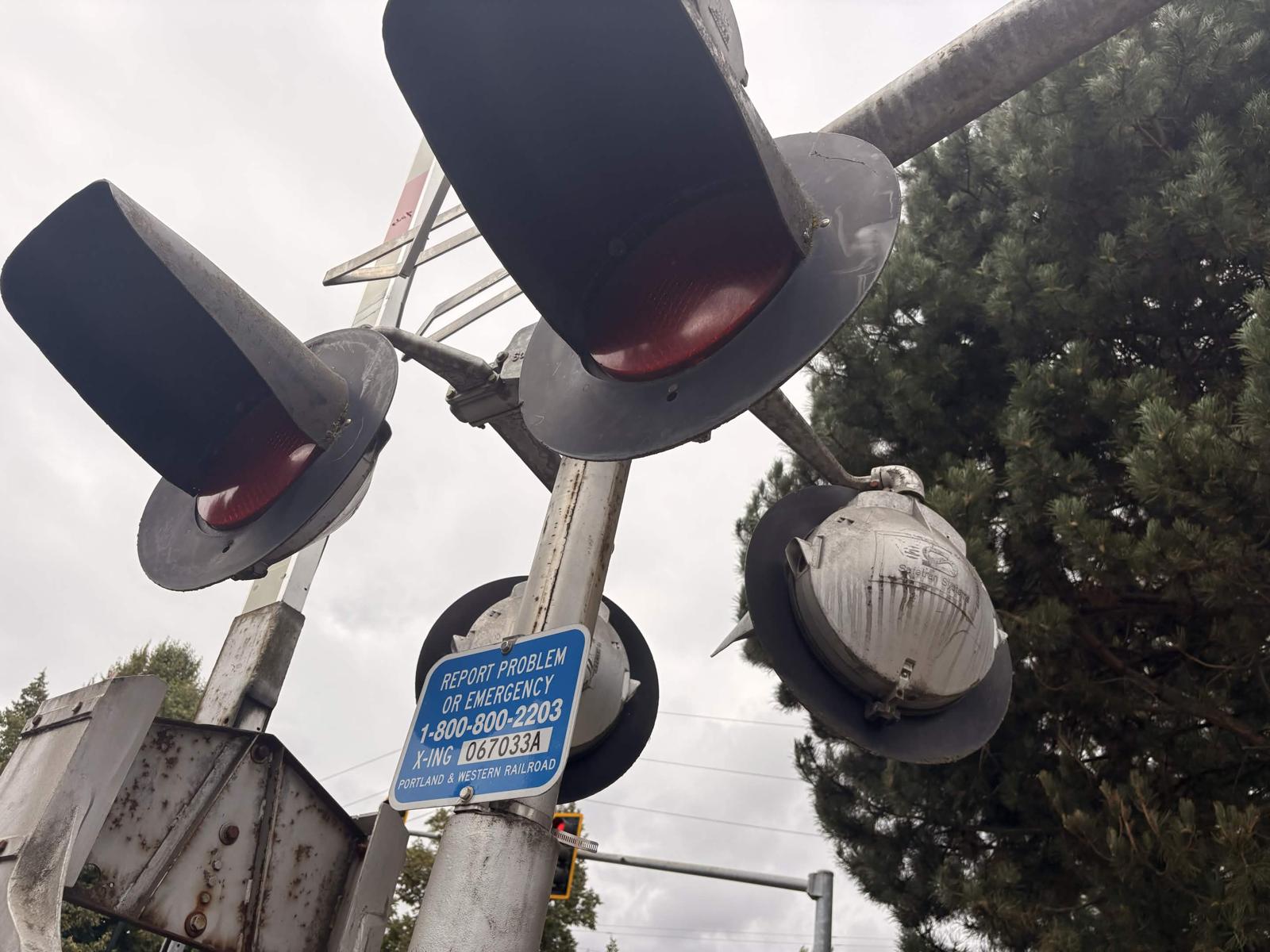

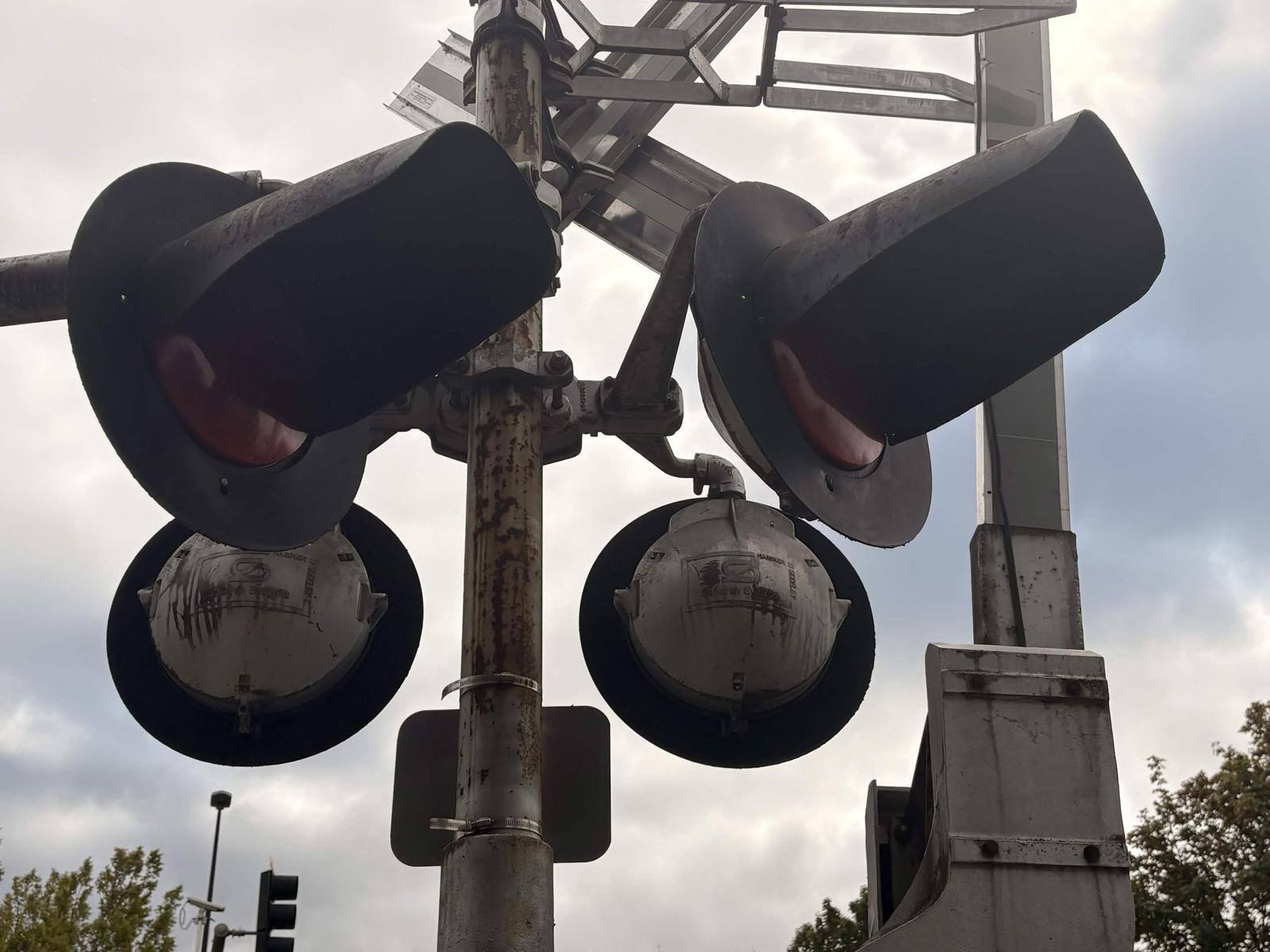

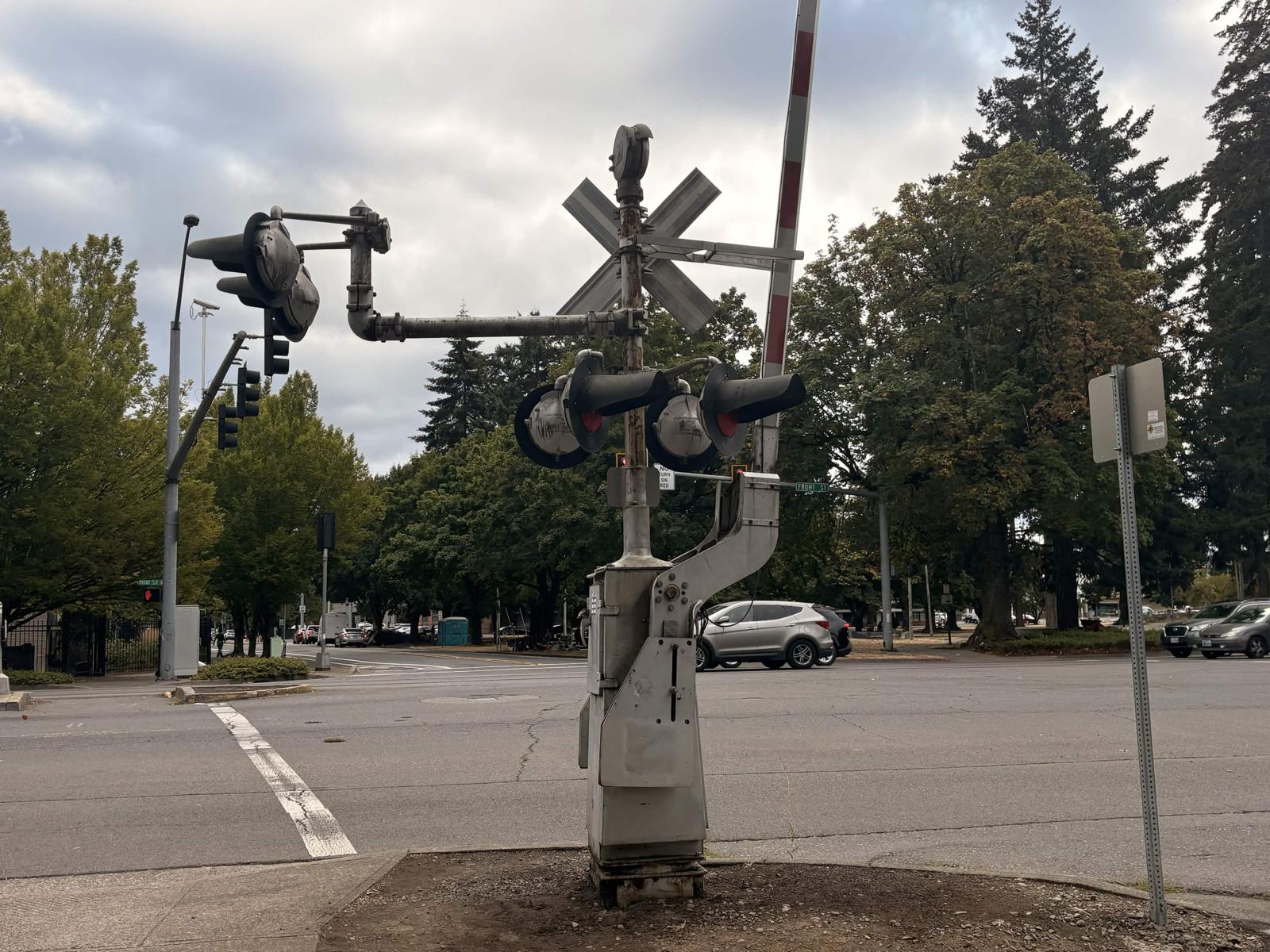

| The eastern signal. | |||
11 |
12 |
13 |
14 |
15 |
16 |
17 |

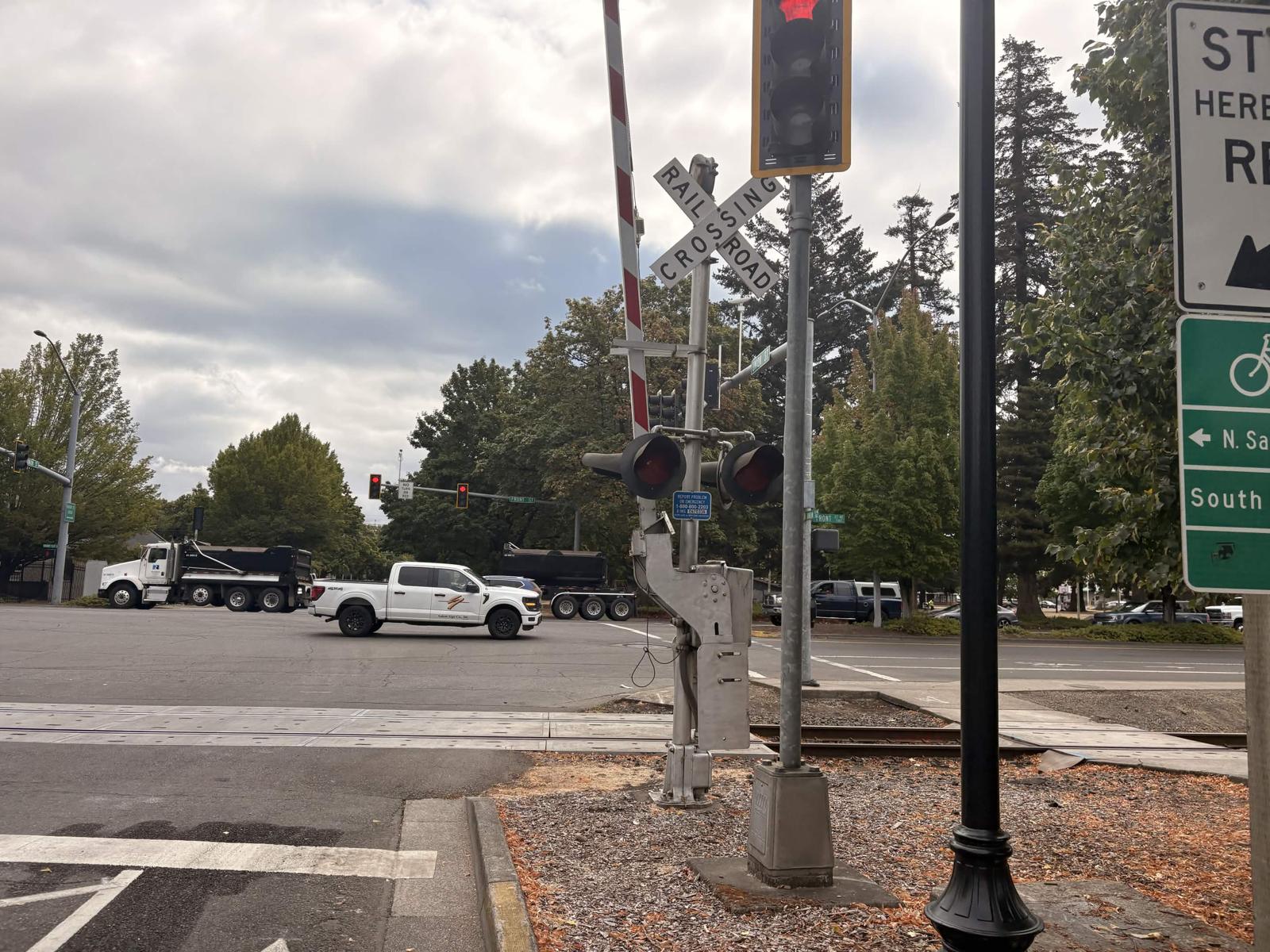

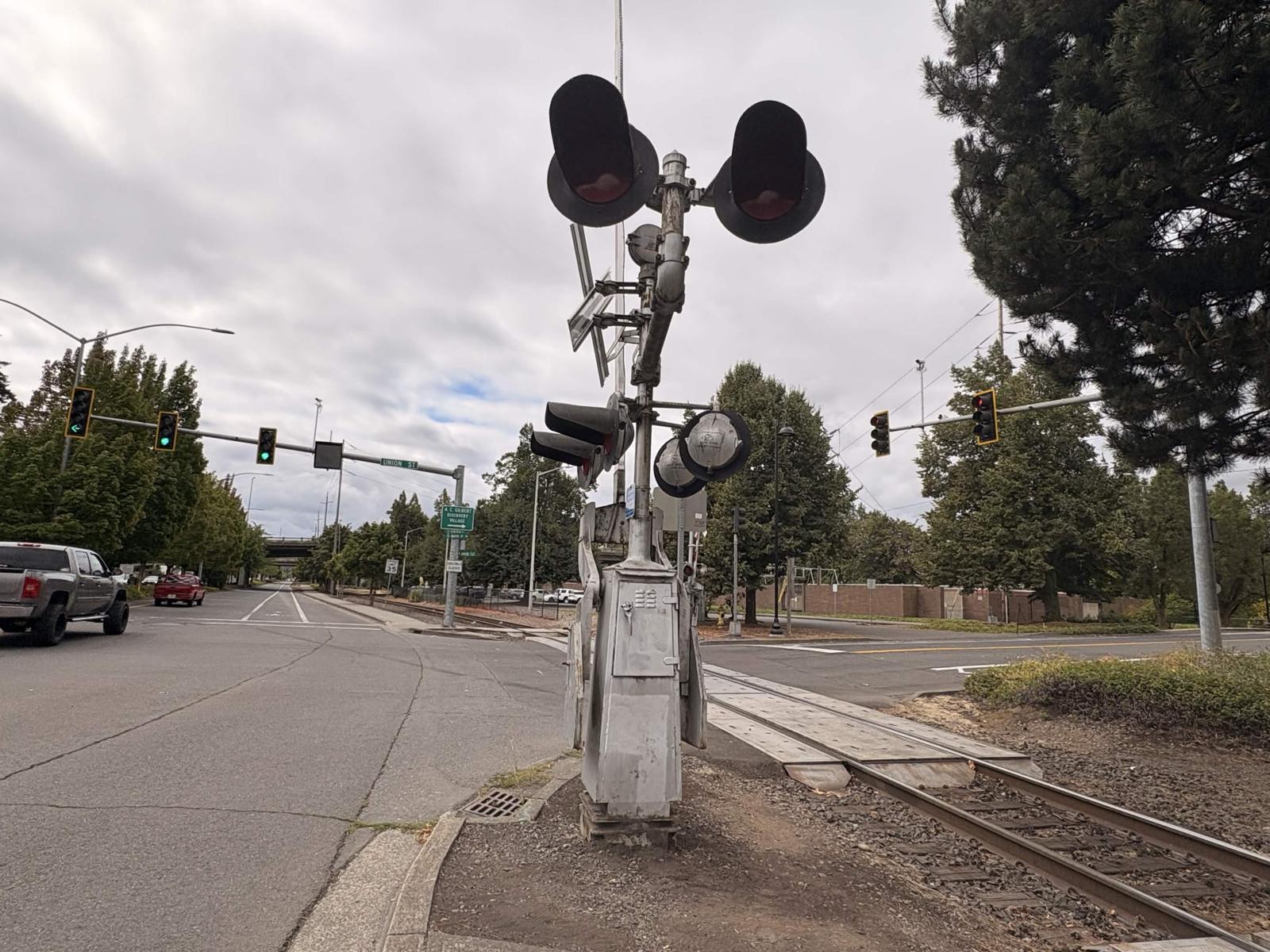

| The western signal. | |||
18 |
19 |
20 |

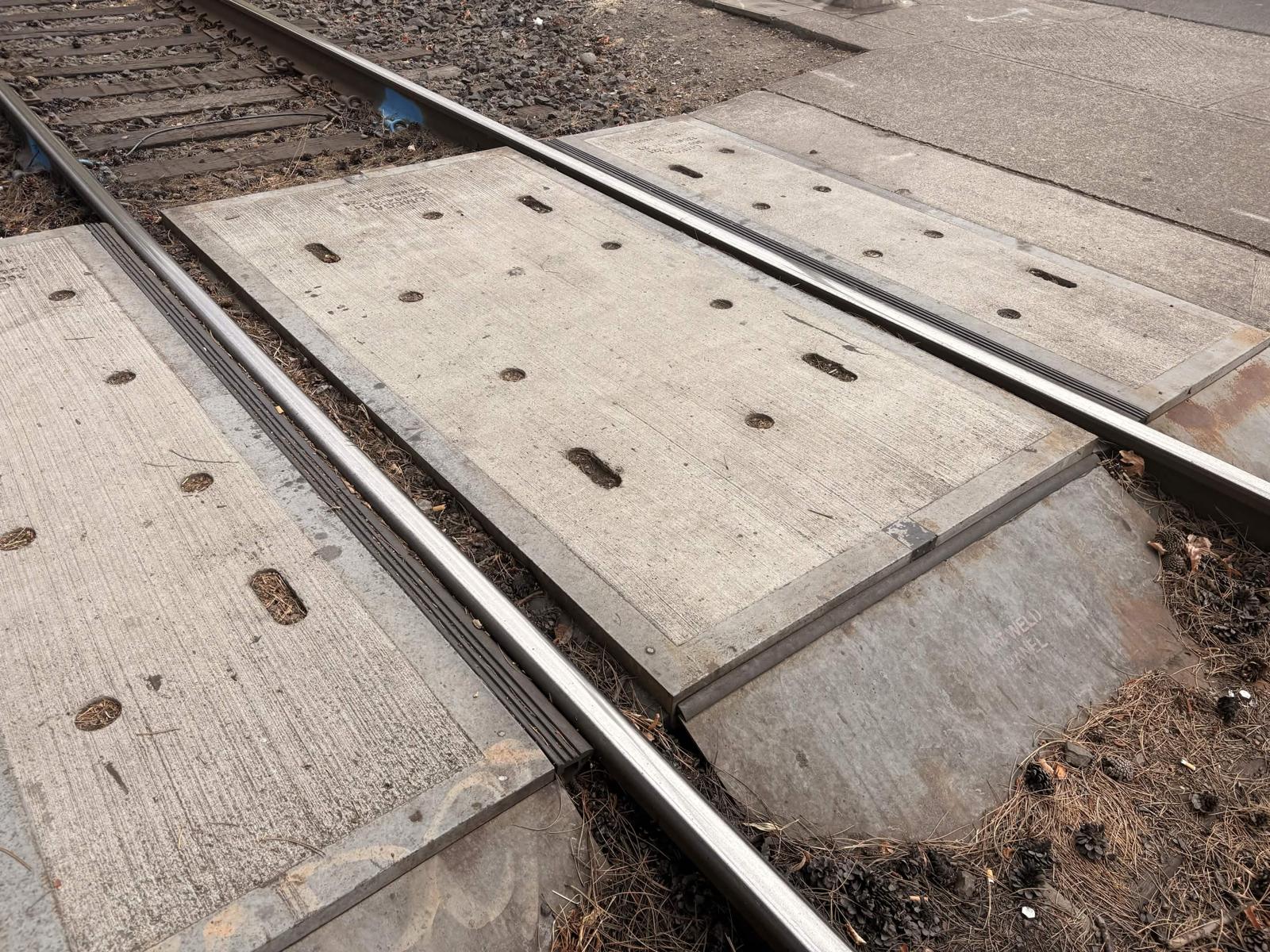

| The grades are all concrete. | The relay case in the southwest quadrant. | |
21 |
22 |

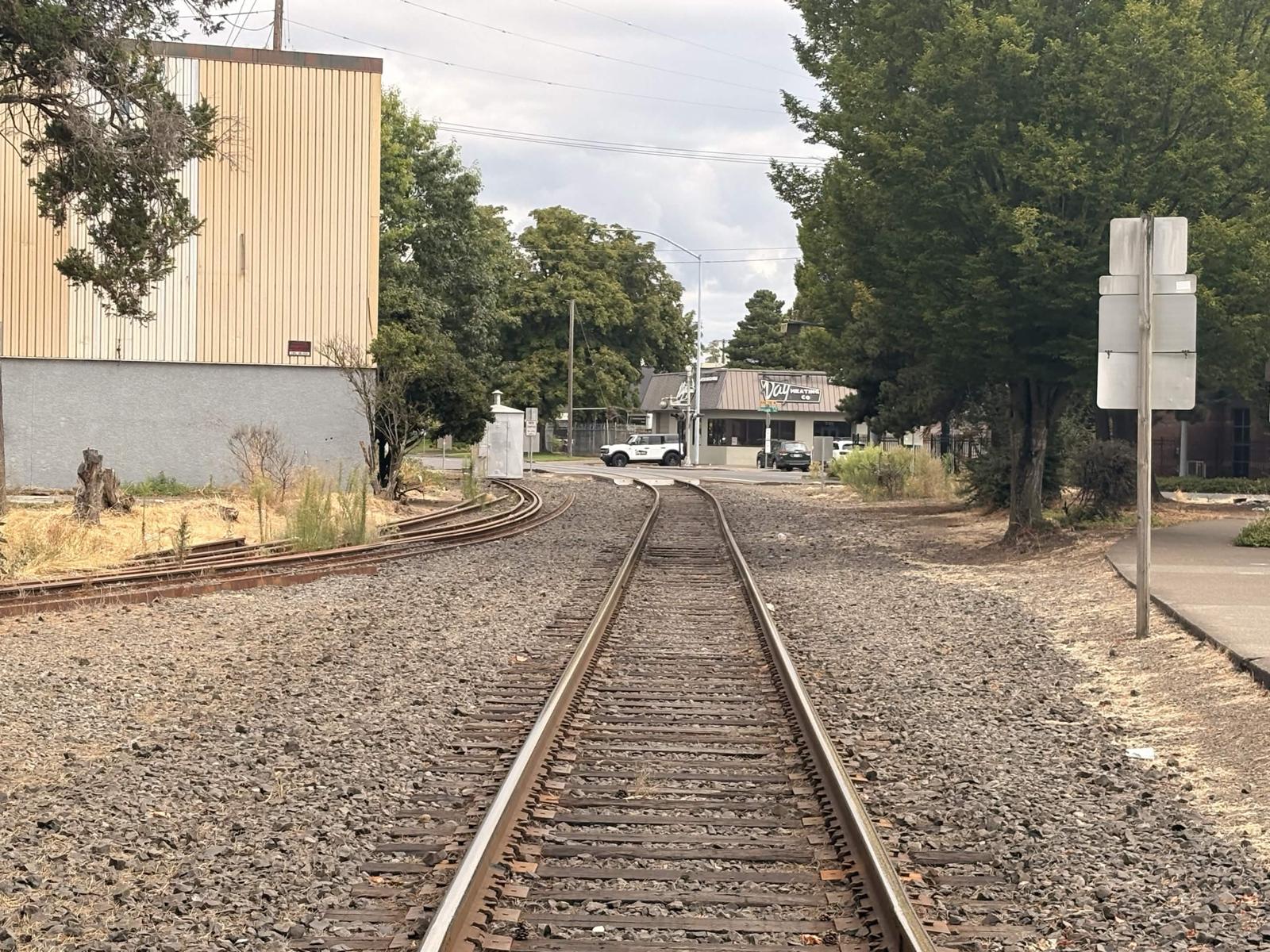

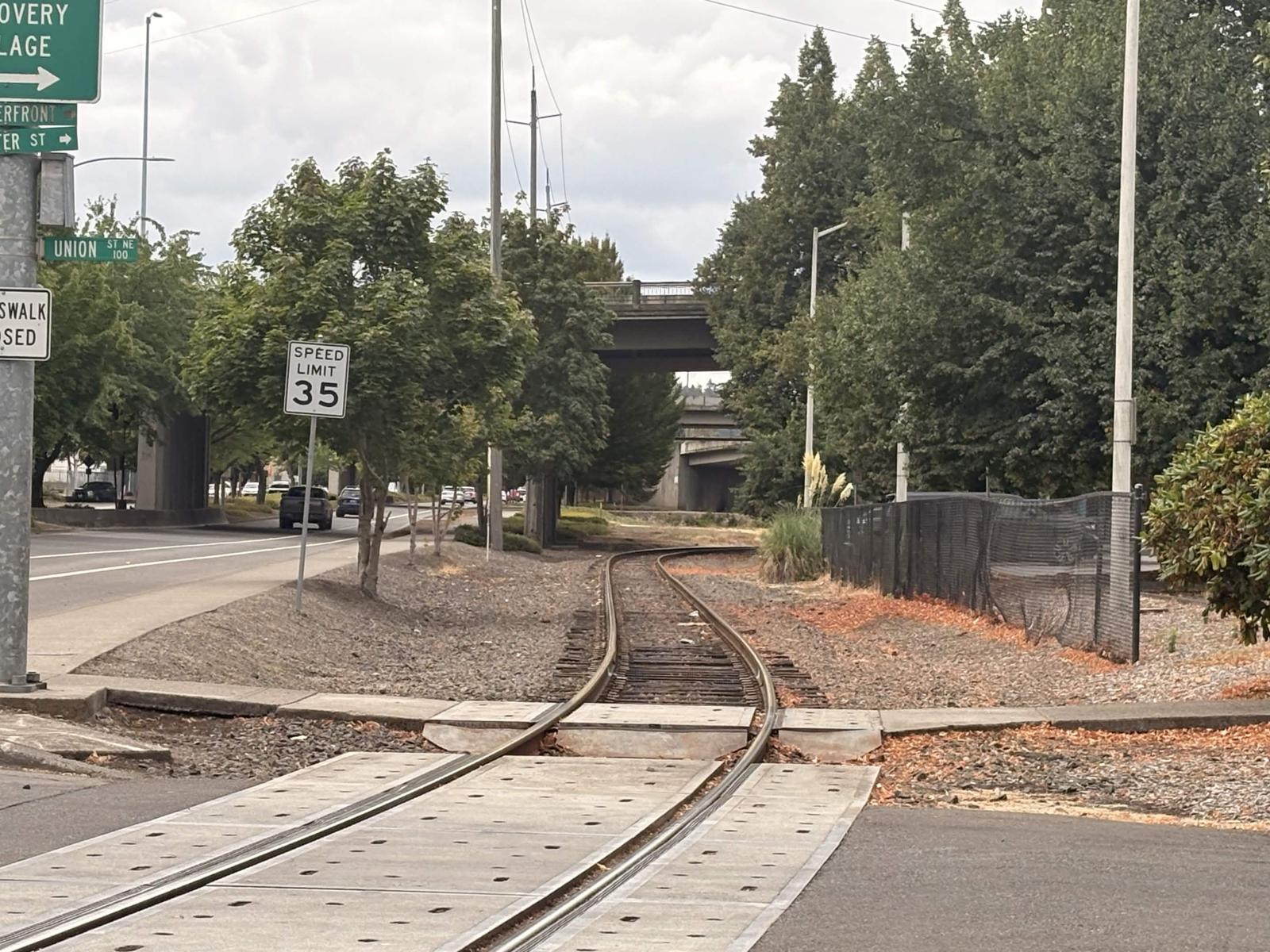

| Track view facing north towards Division St./Front St. #4. | Track view facing south towards Court St. #1/Riverfront Park Loop. |
