| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | None |

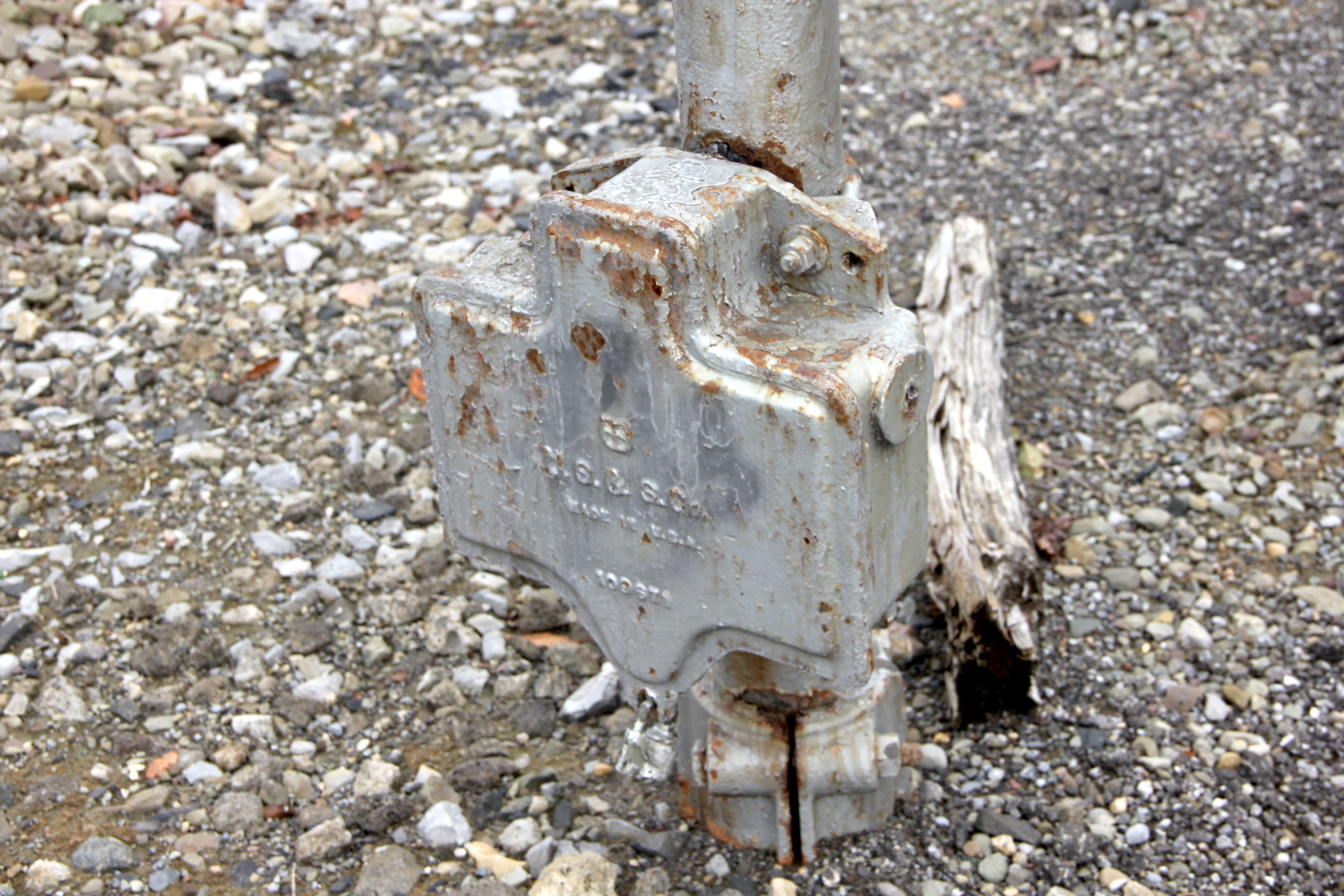

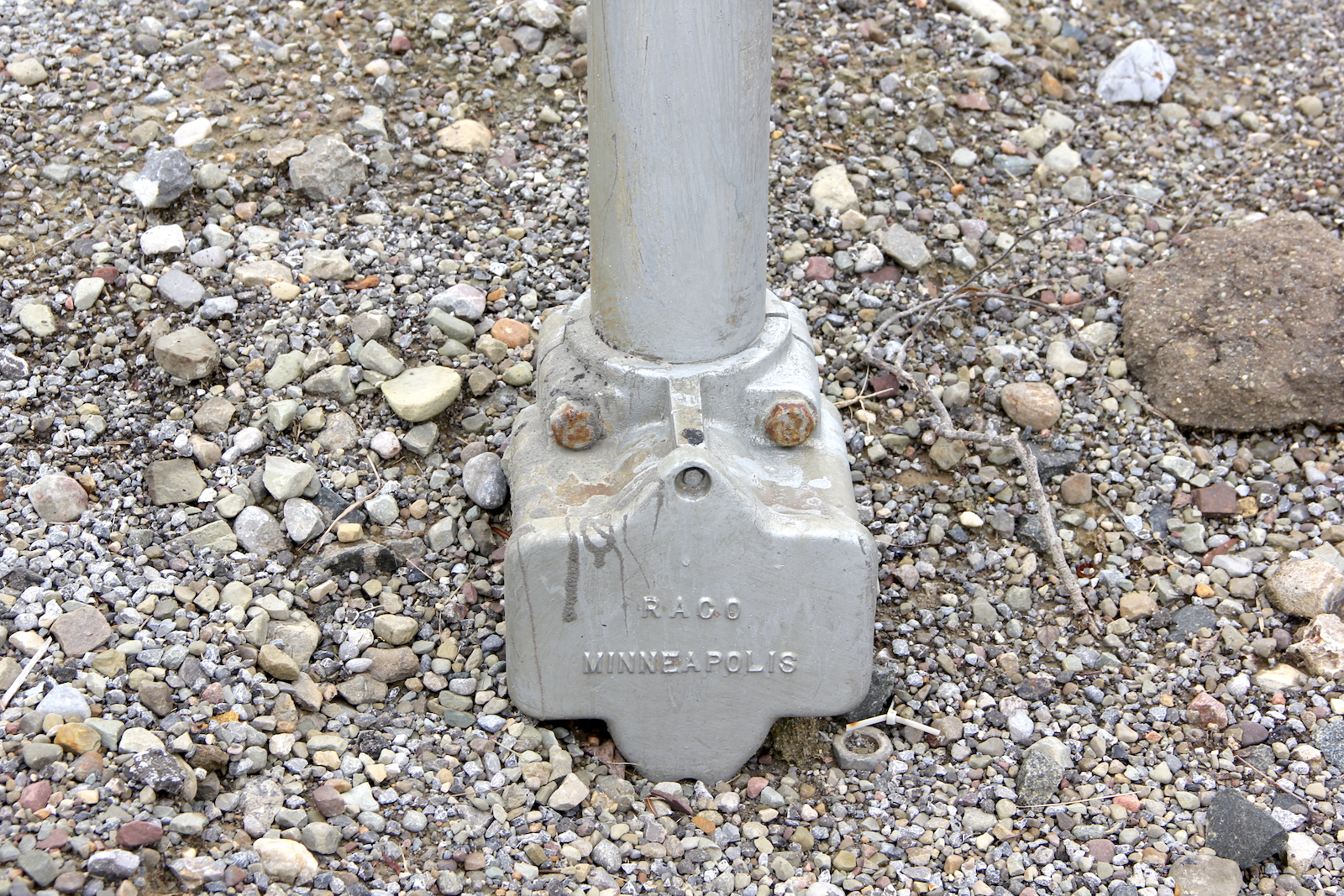

| Base: | RACO 4" Single Sided ^ | US&S 4" Clamp Base |
| Lights: | 2 - 8"x20" WABCO incandescents 2 - 8"x20" WABCO w/ 2nd Gen WCH LEDs |
4 - 8"x20" GRS LEX-C incandescents |
| Junction Box: | US&S | Safetran |
1 |
2 |

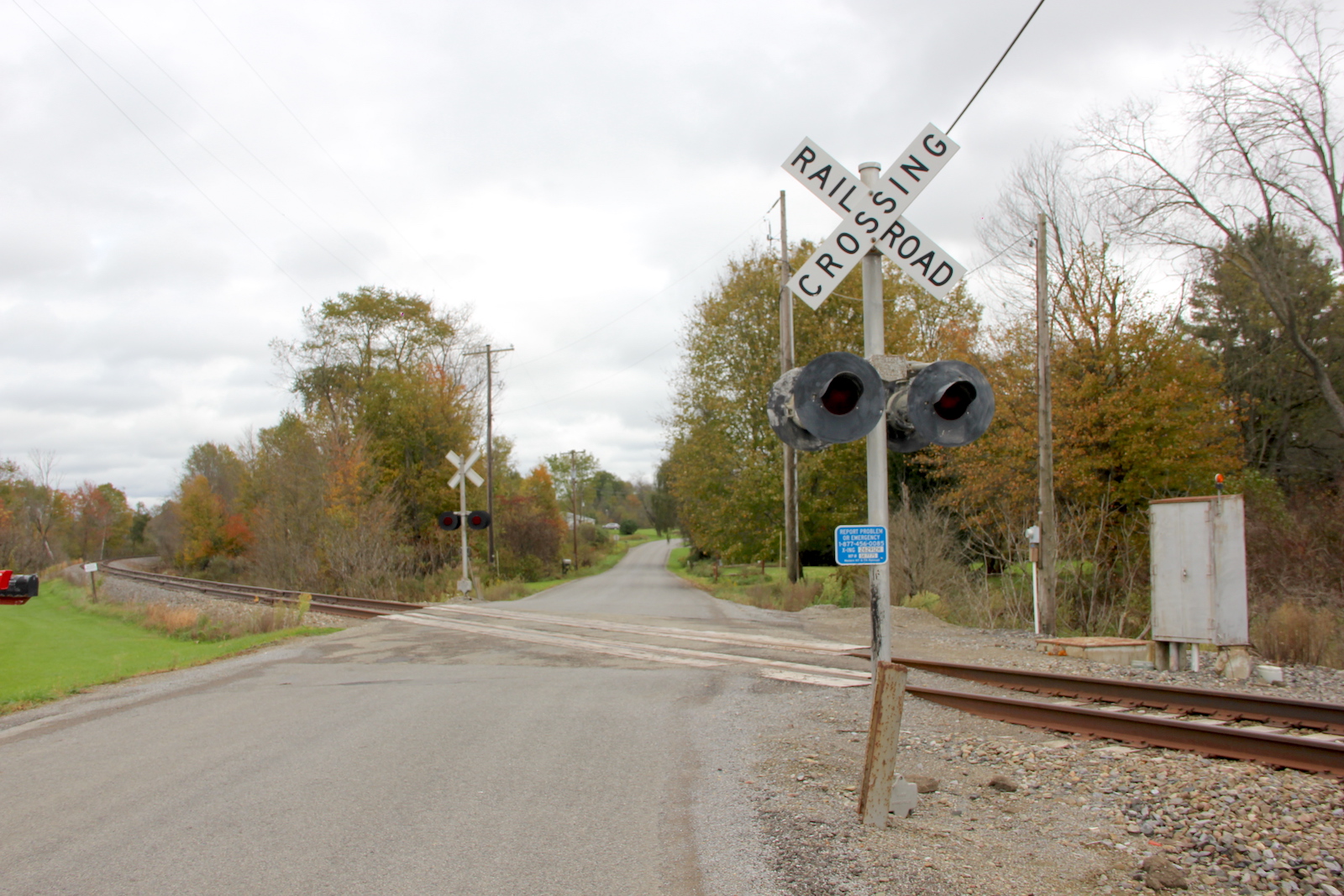

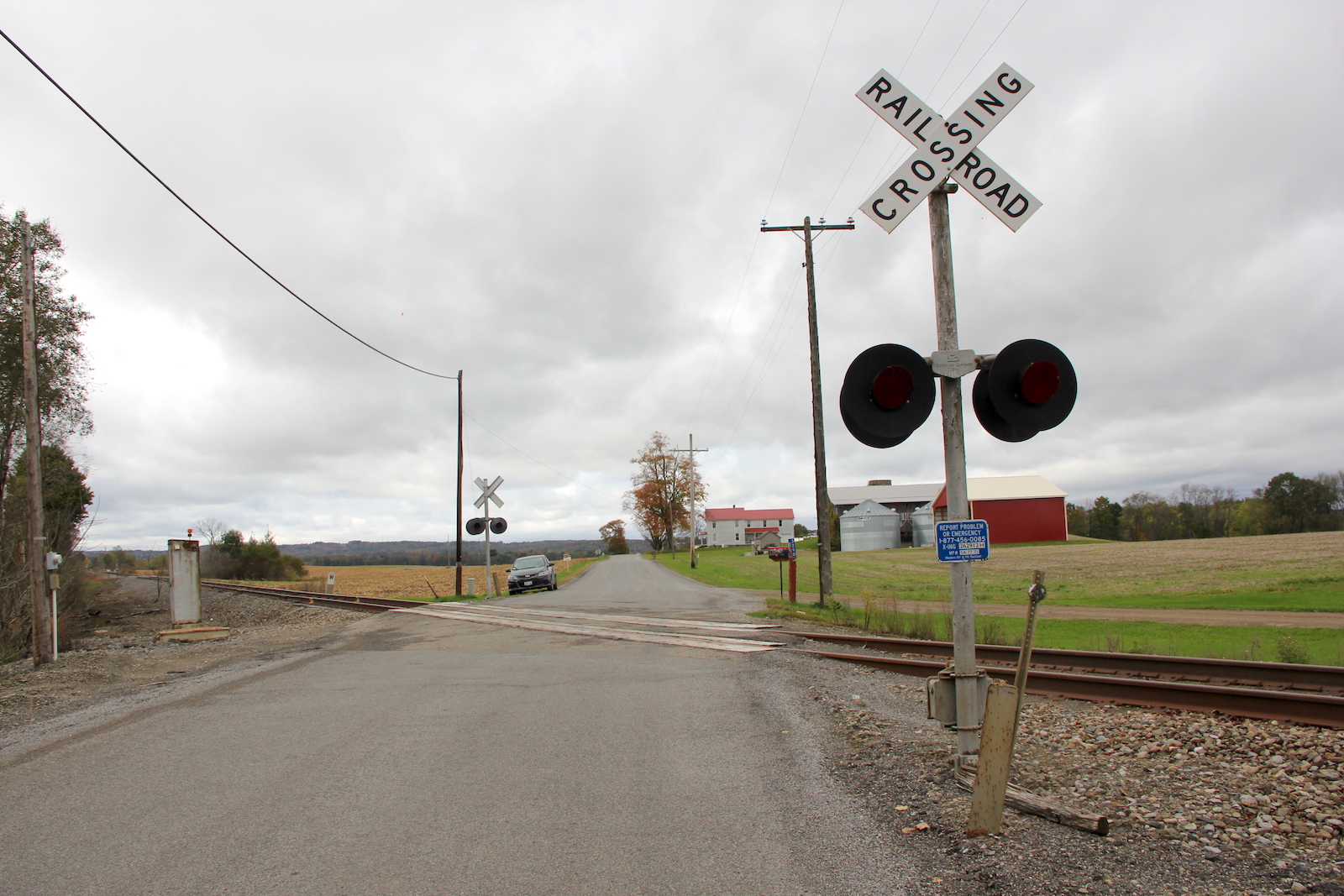

| Overview of 2 classic gateless signals facing west. | Overview facing east. |
3 |
4 |
5 |
6 |
7 |
8 |

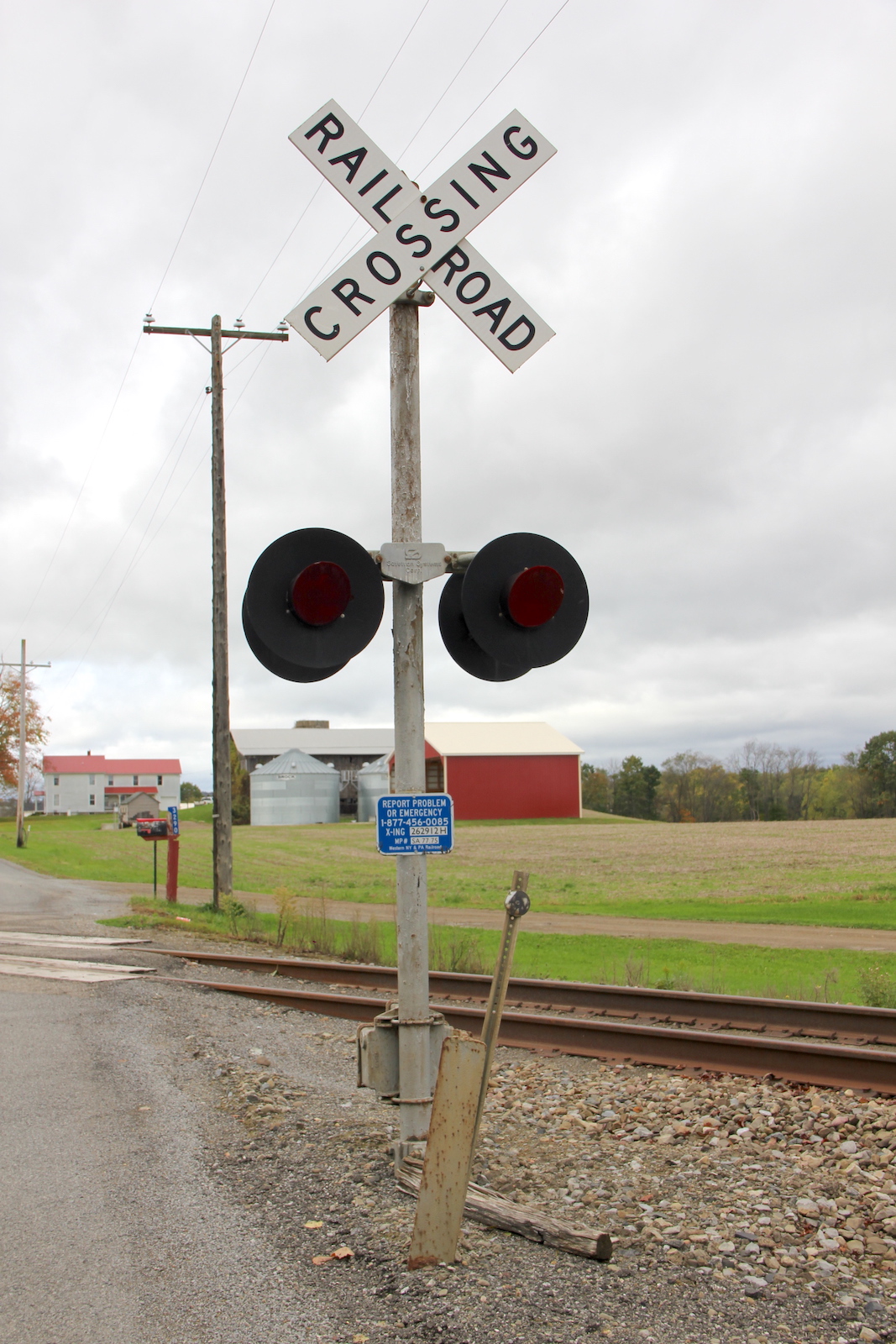

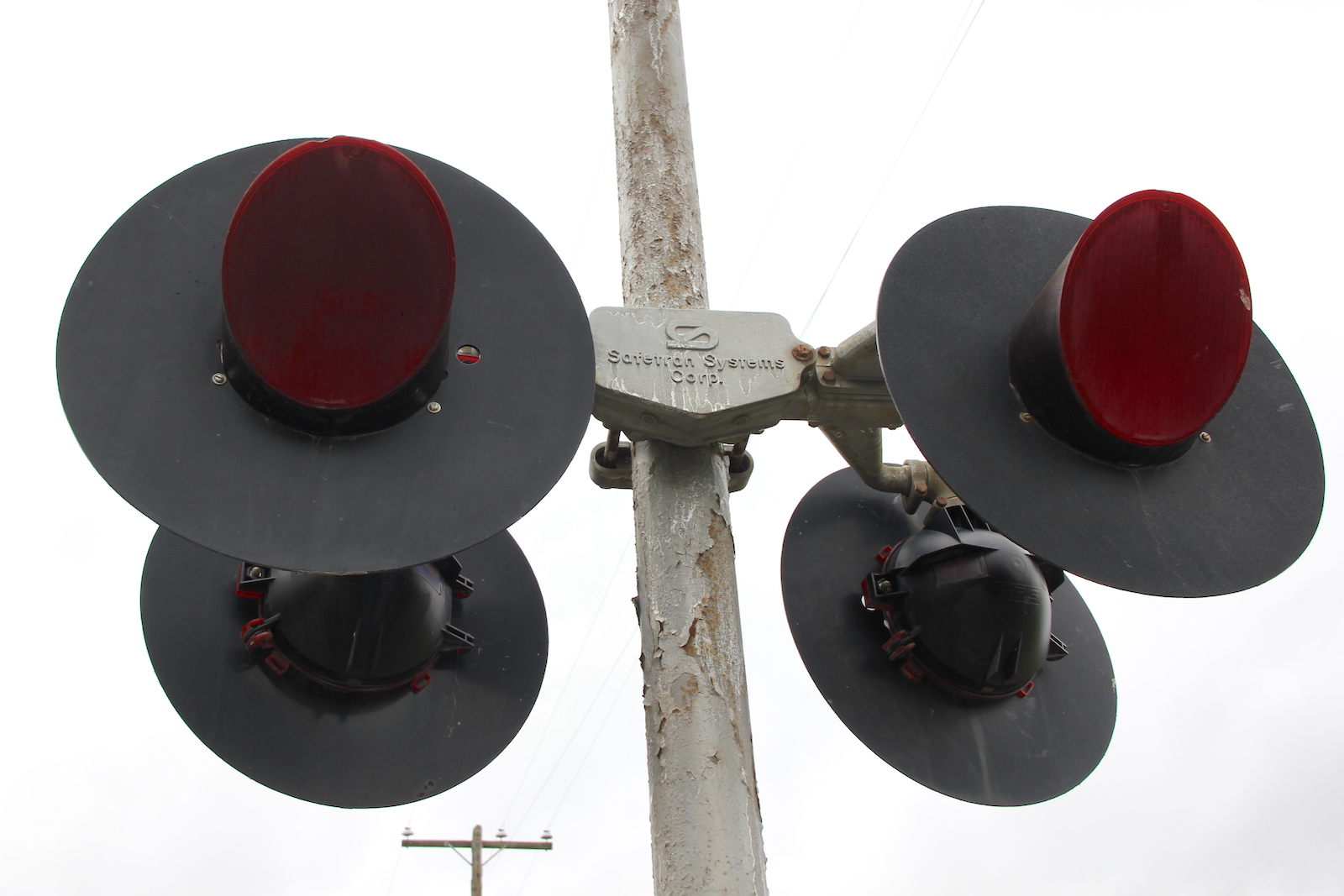

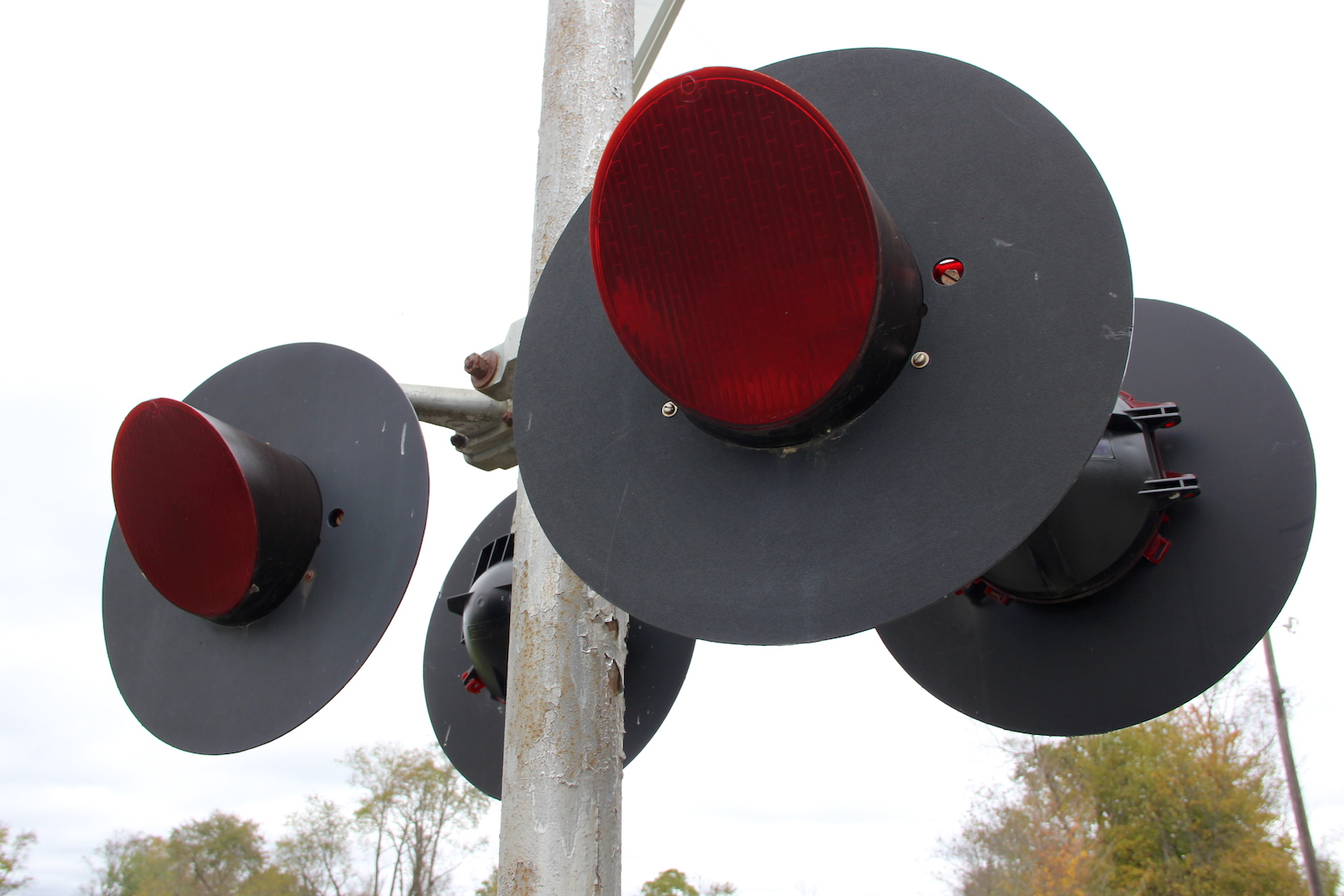

| The eastern signal. | ||
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |

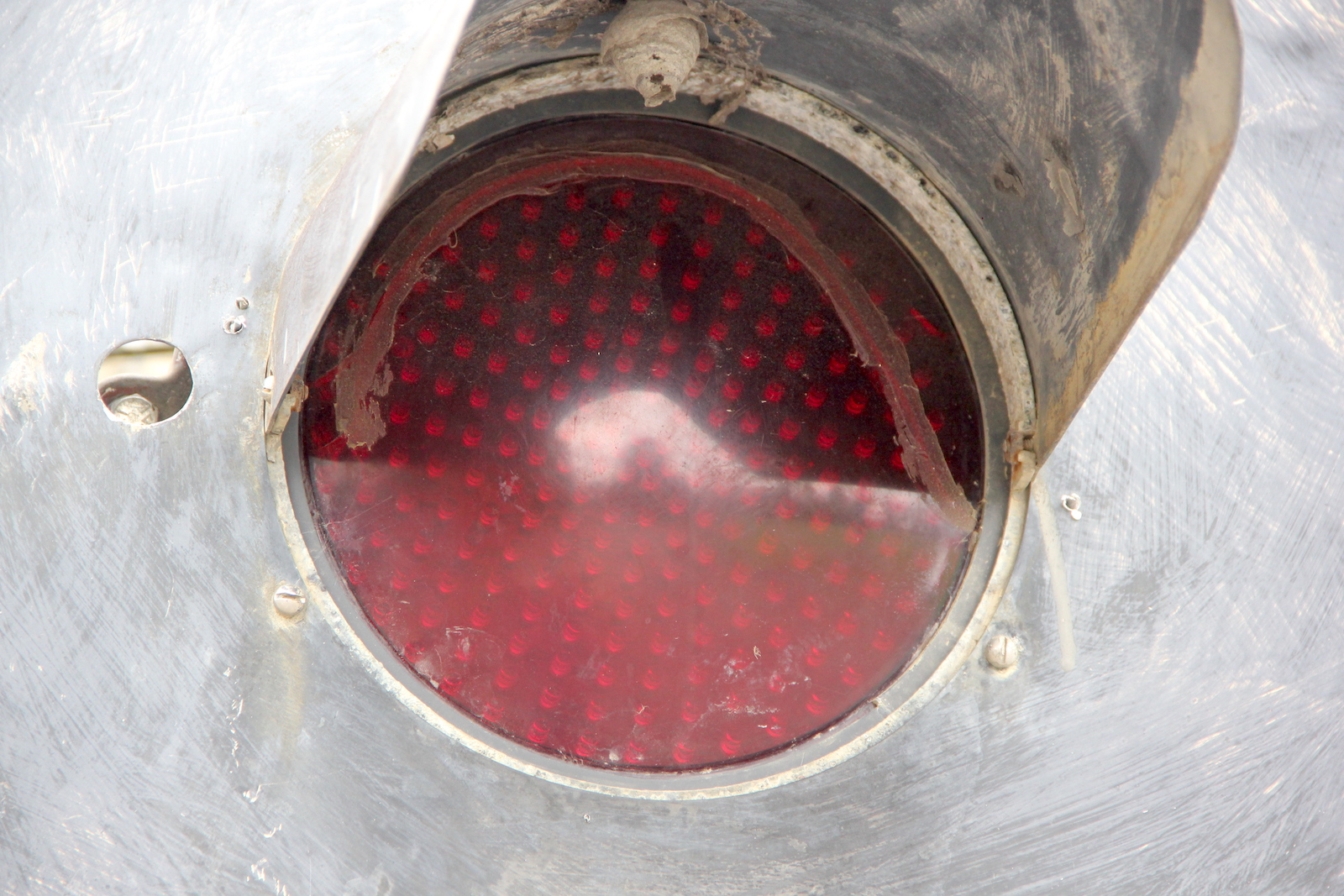

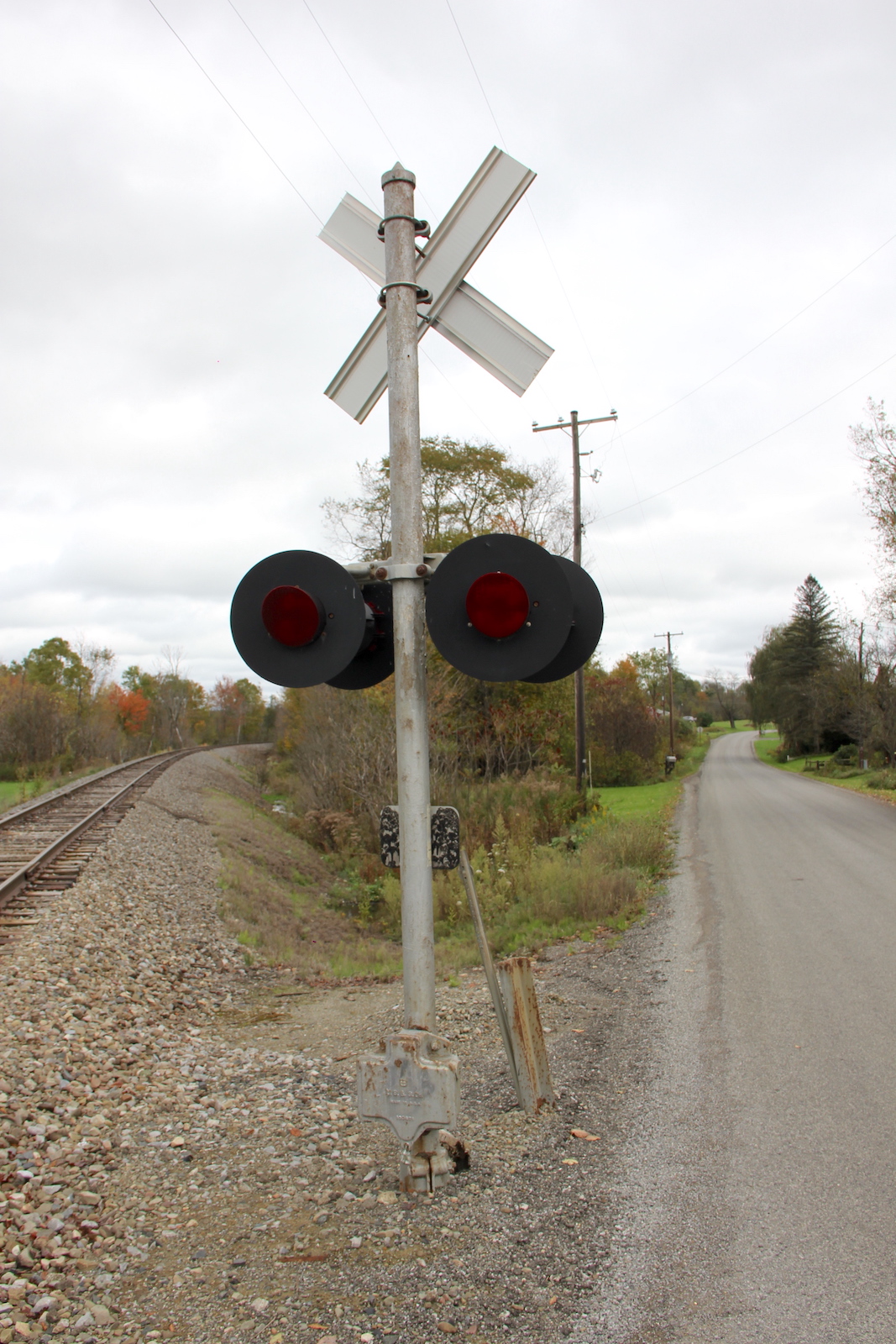

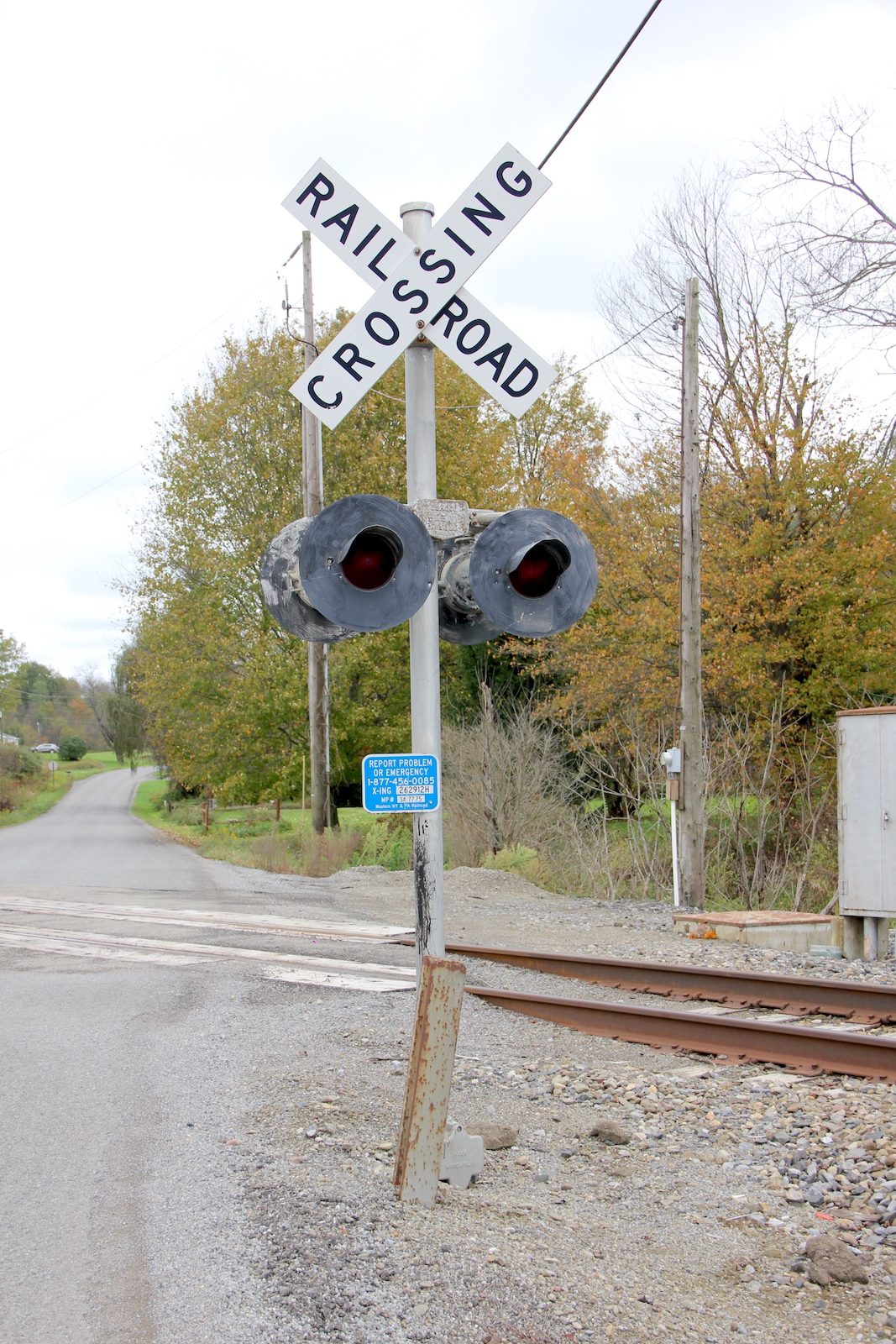

| The western signal. Not sure why the front lights are incandescent and the rear ones are LED. |
17 |
18 |
19 |
20 |

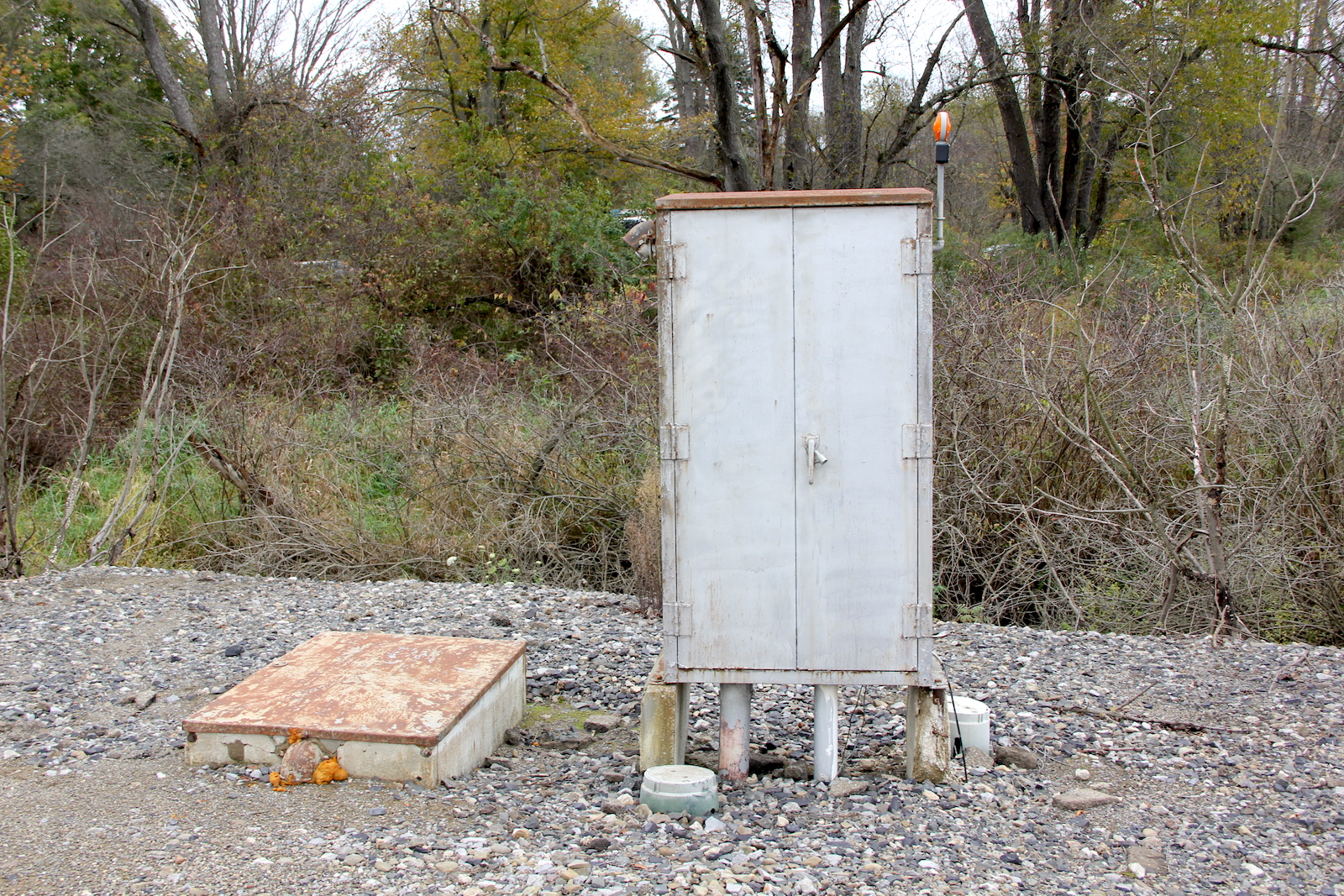

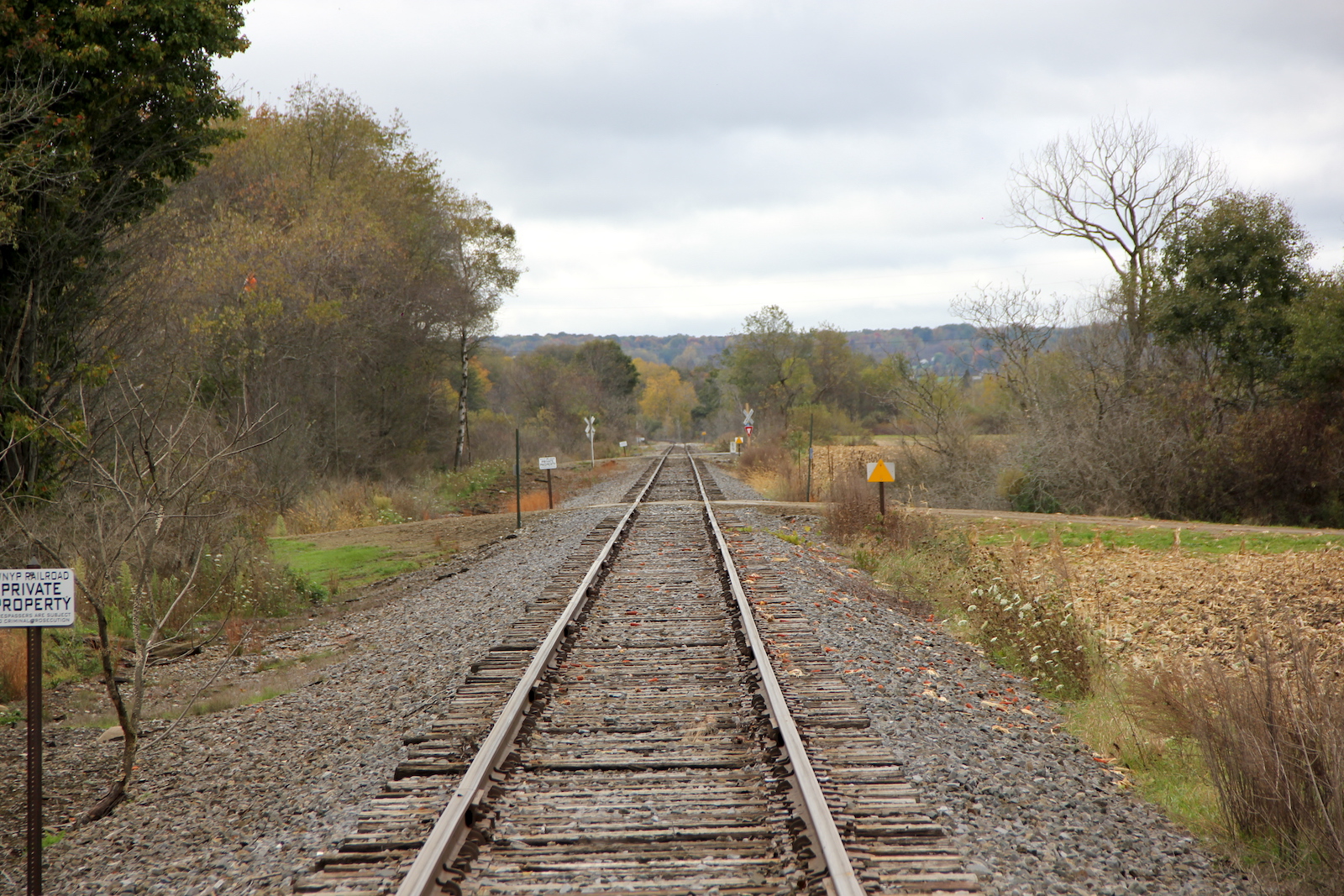

| The relay case in the southeast quadrant. | The grade is wood and asphalt. | Track view facing west at Gourley Rd. | Track view facing east towards High St. in Union City. |
