MP: 0295.90 |
Created December 26, 2024
Total Accidents: 6
Crossing

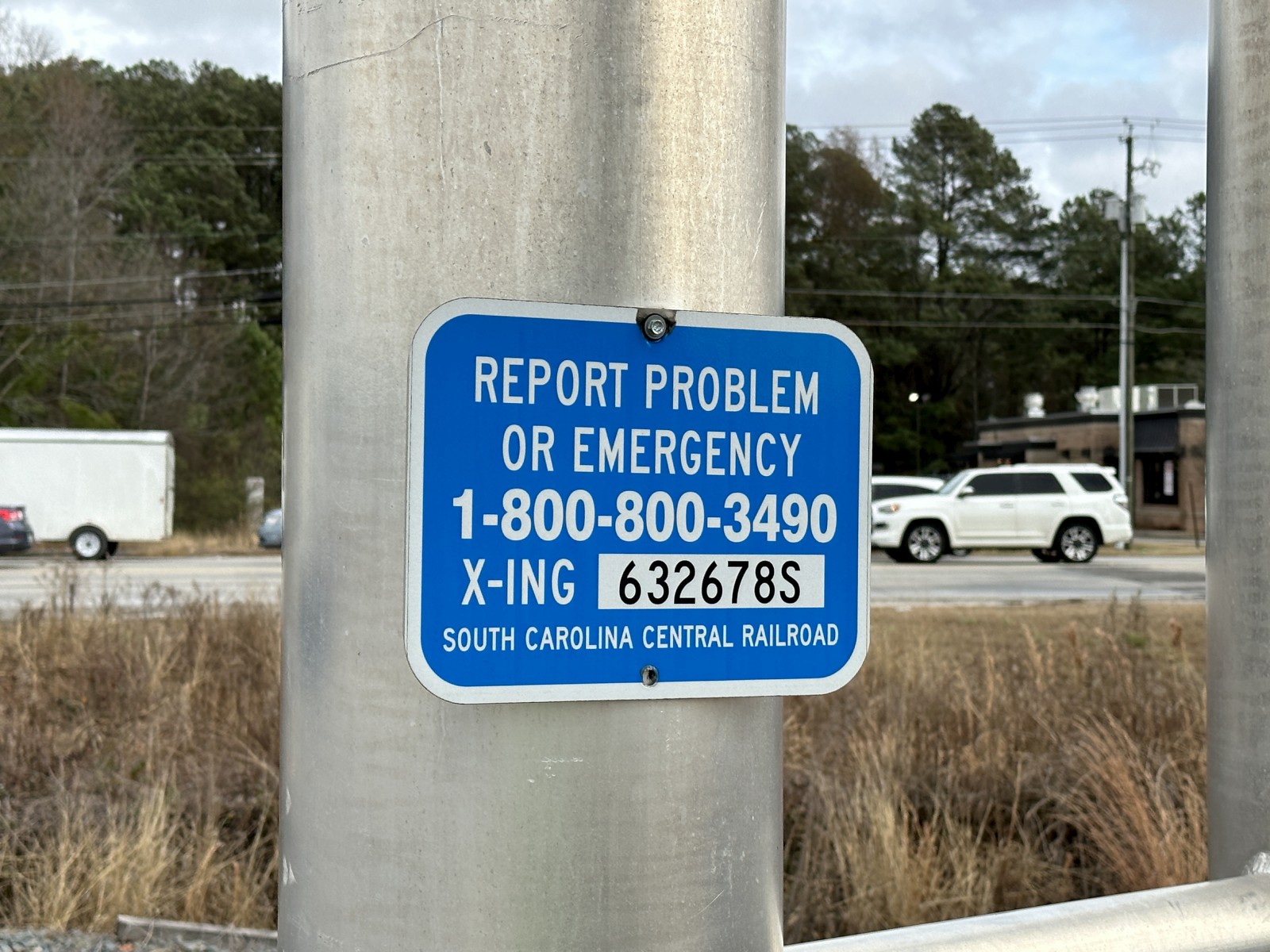

DOT #: 632678S
TOTAL
DAILY TRAINS: 4 (AS OF 2024)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |

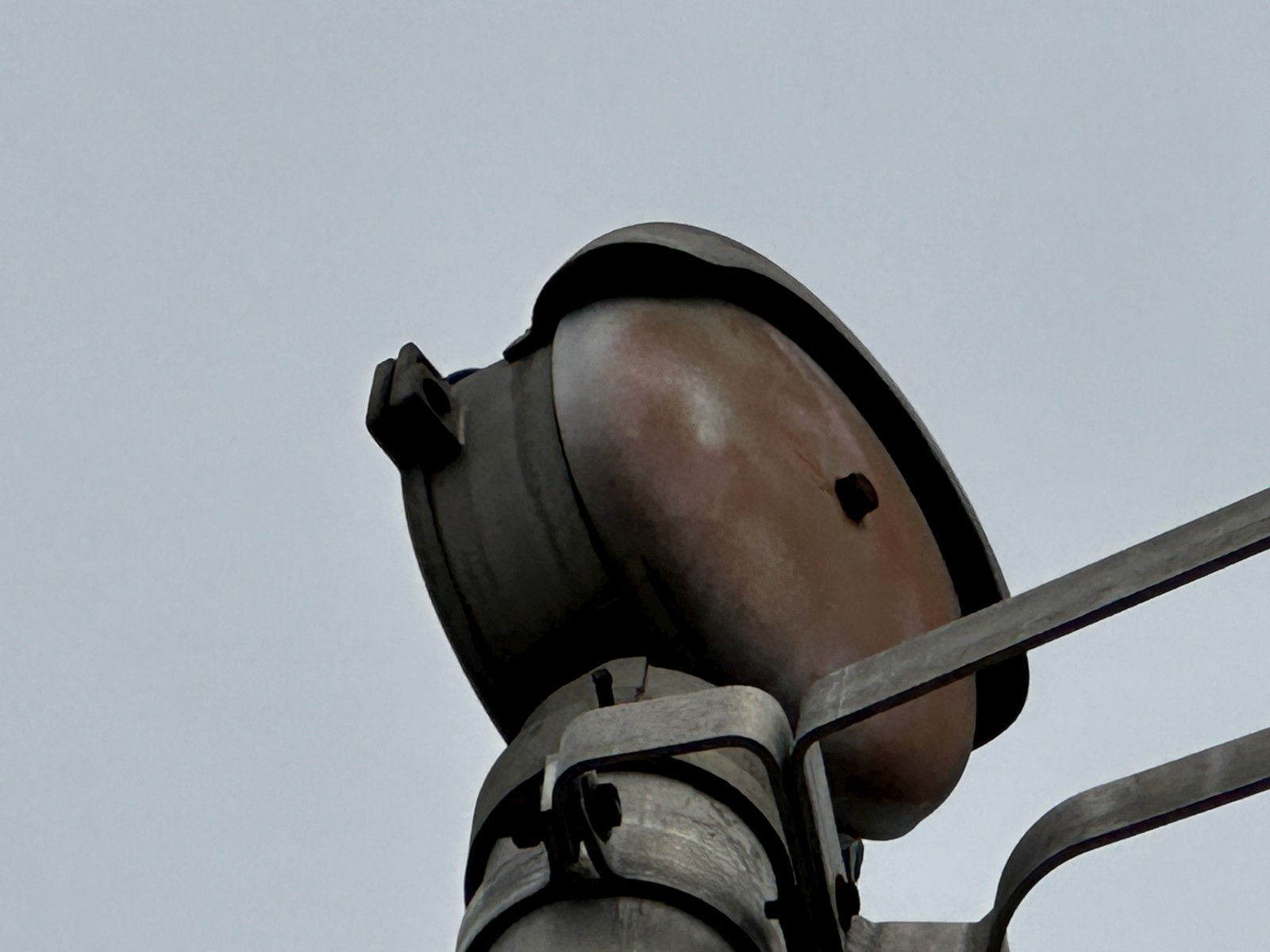

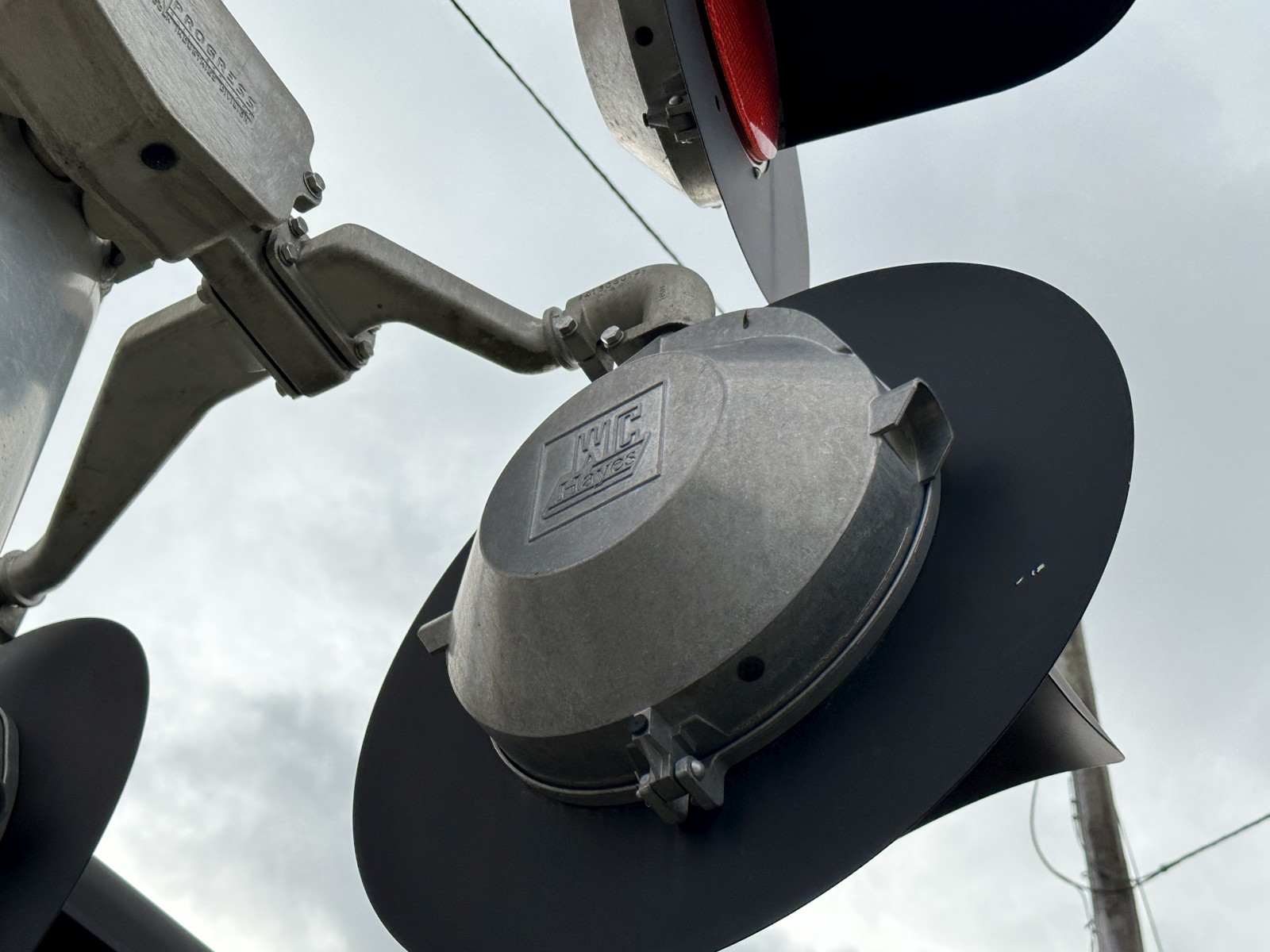

| Bell: | WCH 2nd Gen. Mechanical Bell | WCH 2nd Gen. Mechanical Bell |

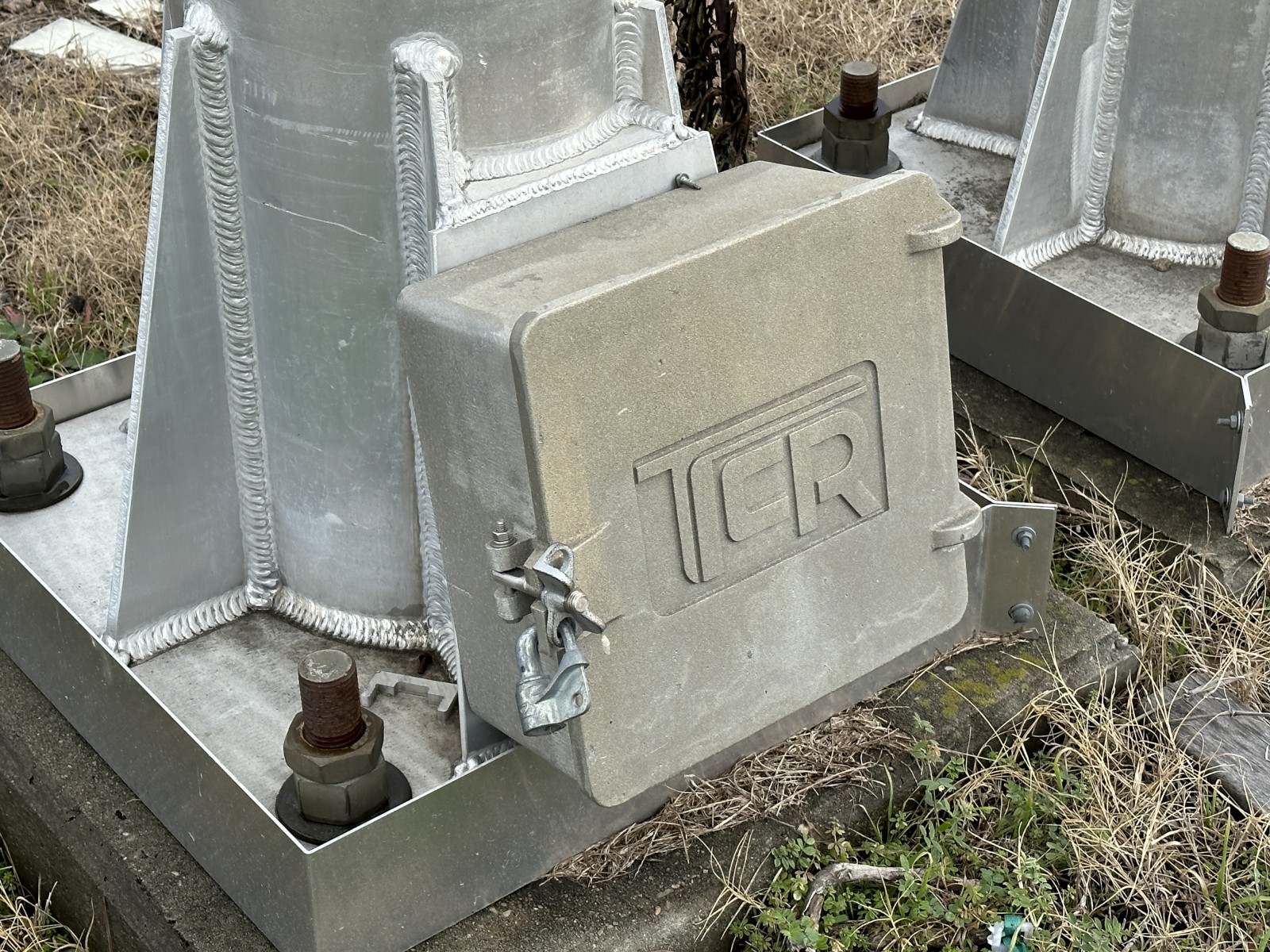

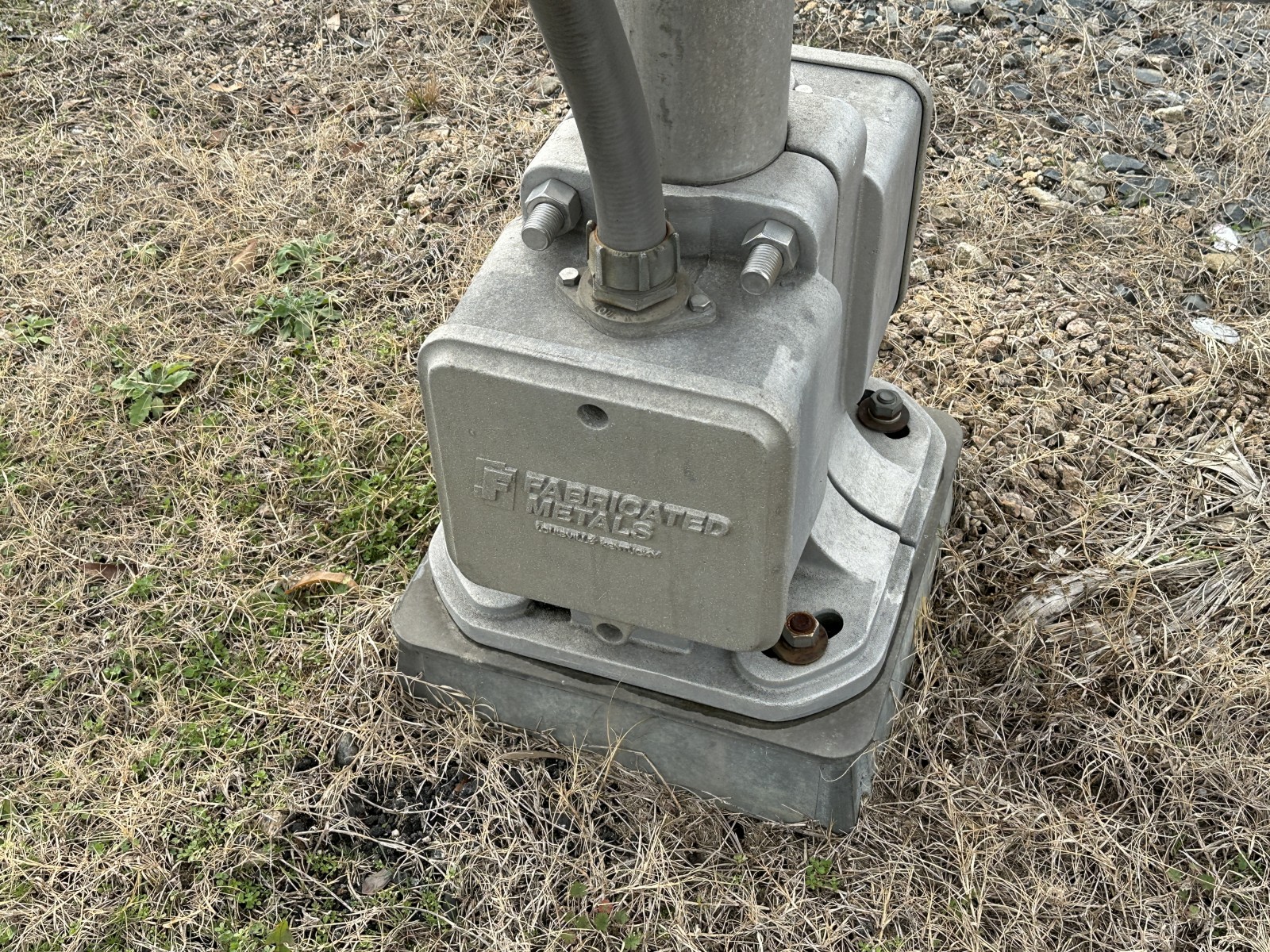

| Base: | Modern Industries Cantilever, Fabricated Metals Base | TCR Cantilever, PPI Base |

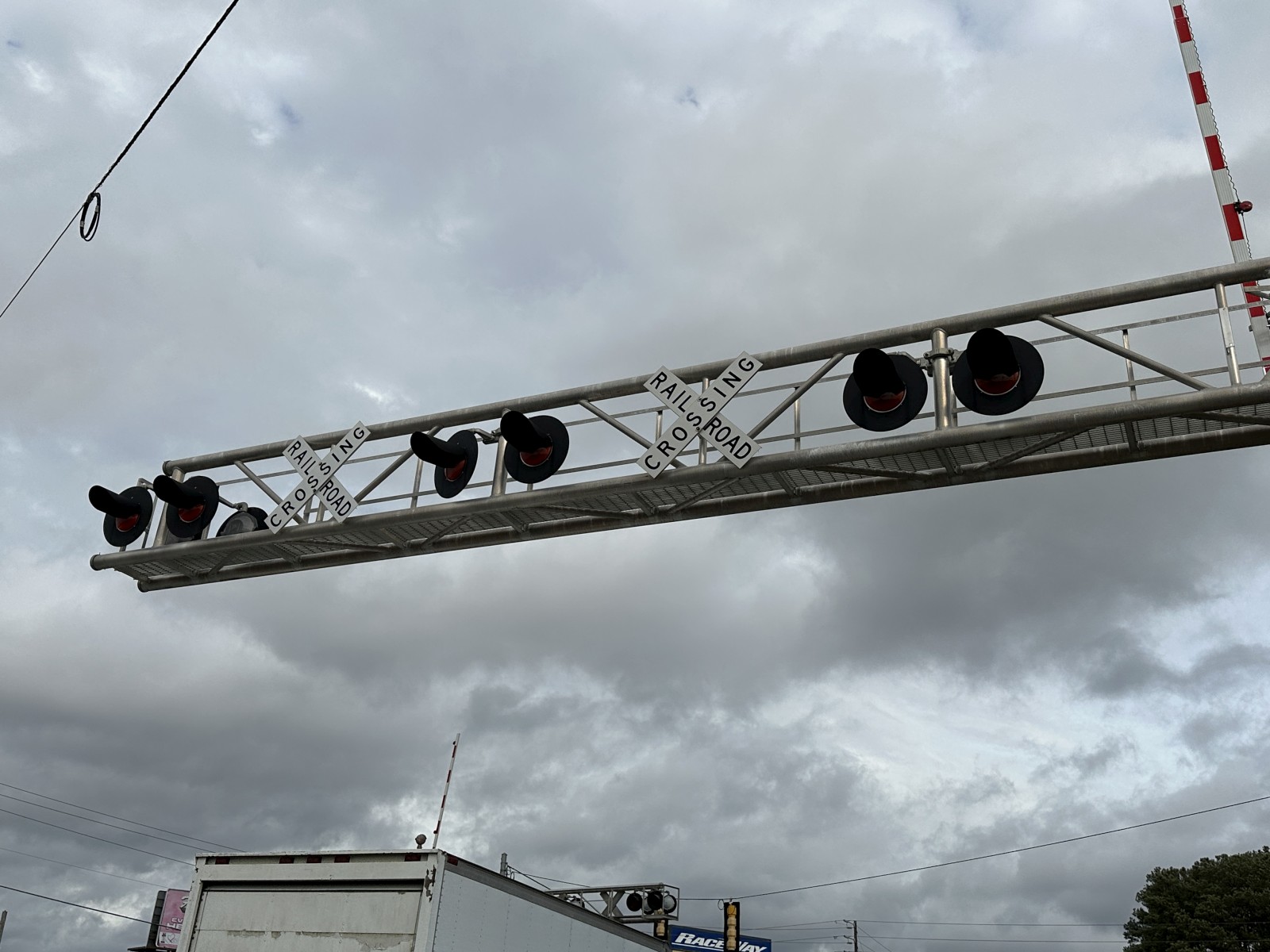

| Lights: | 2 - 12"x24" Modern Industries w/ Harmon Dotted LEDs 10 - 12"x20" Modern Industries w/ Harmon Dotted LEDs |
2 - 12"x20" Modern Industries w/ Harmon Dotted LEDs 12 - 12"x24" WCH Flatback w/ Dialight Low Wattage LEDs |

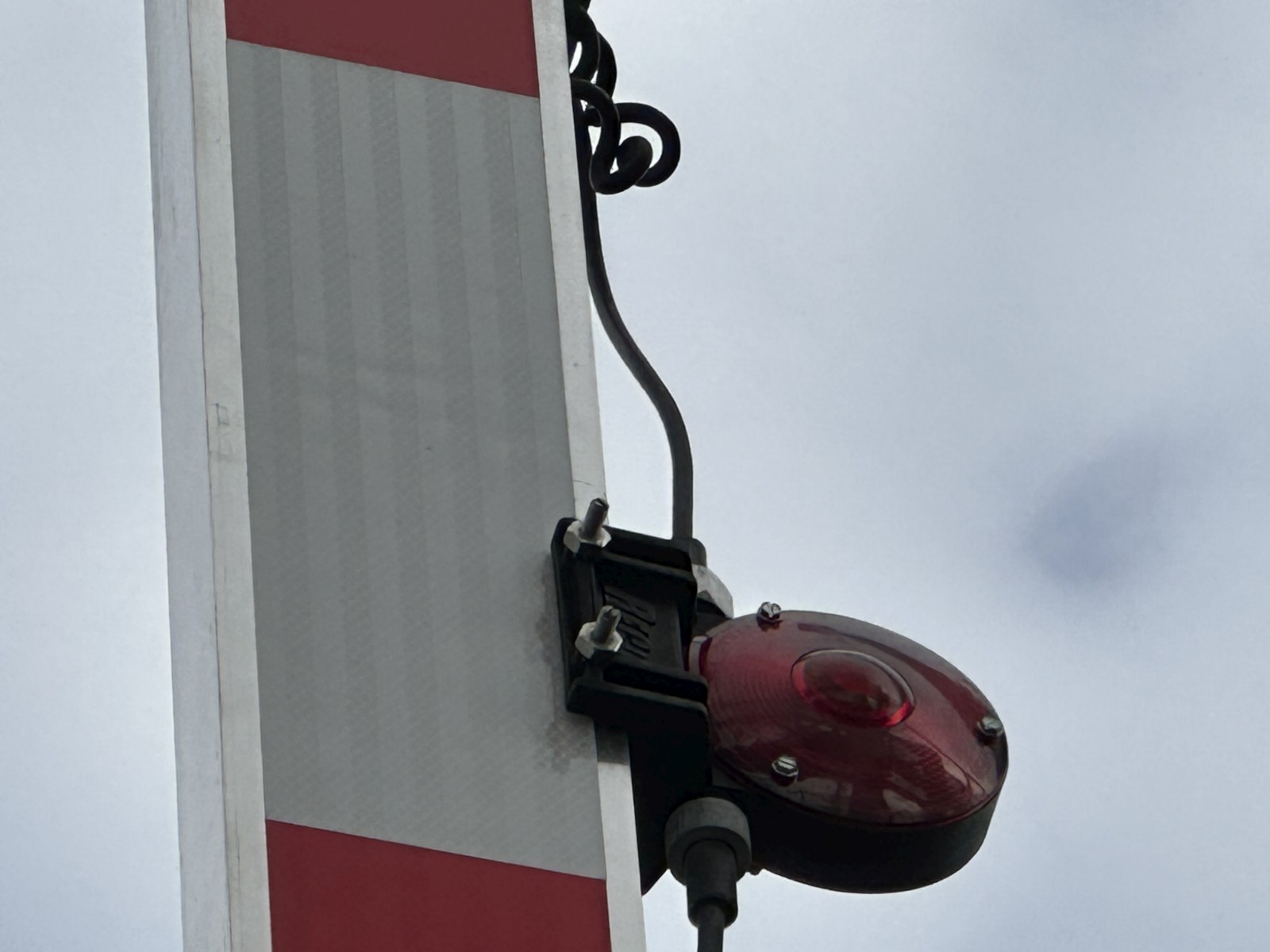

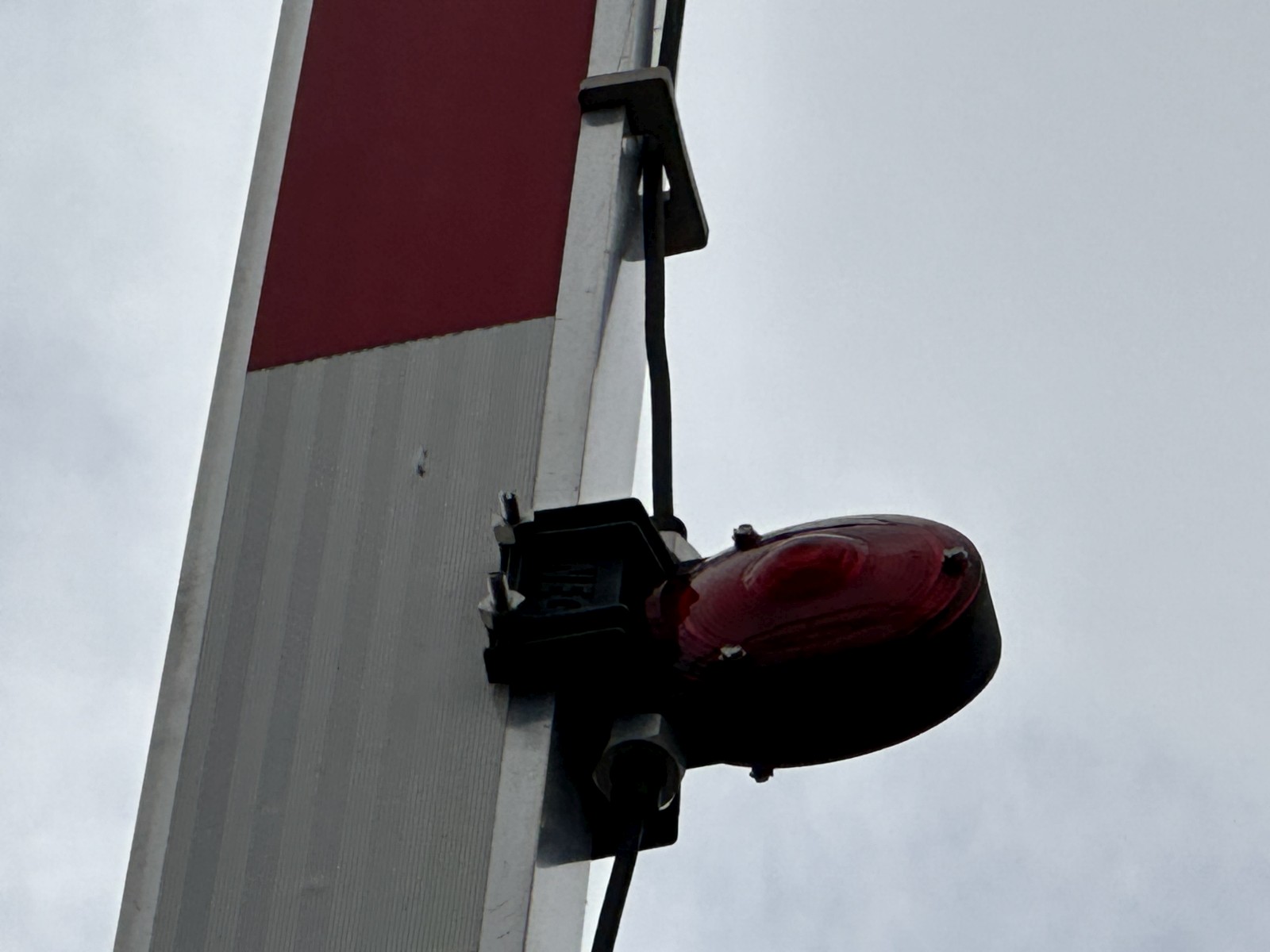

| Gate Lights: | 4" NEG LEDs | 4" NEG LEDs |

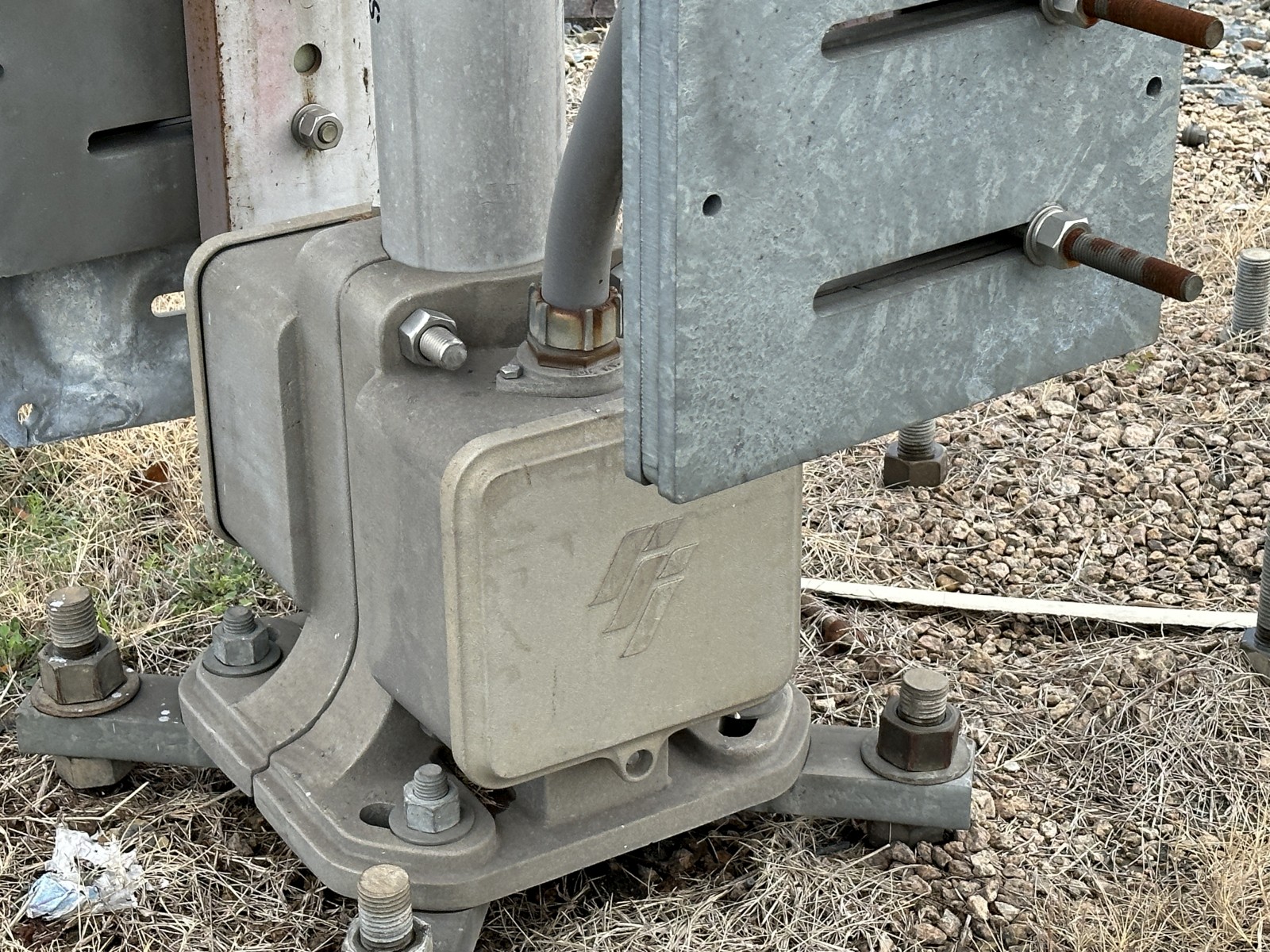

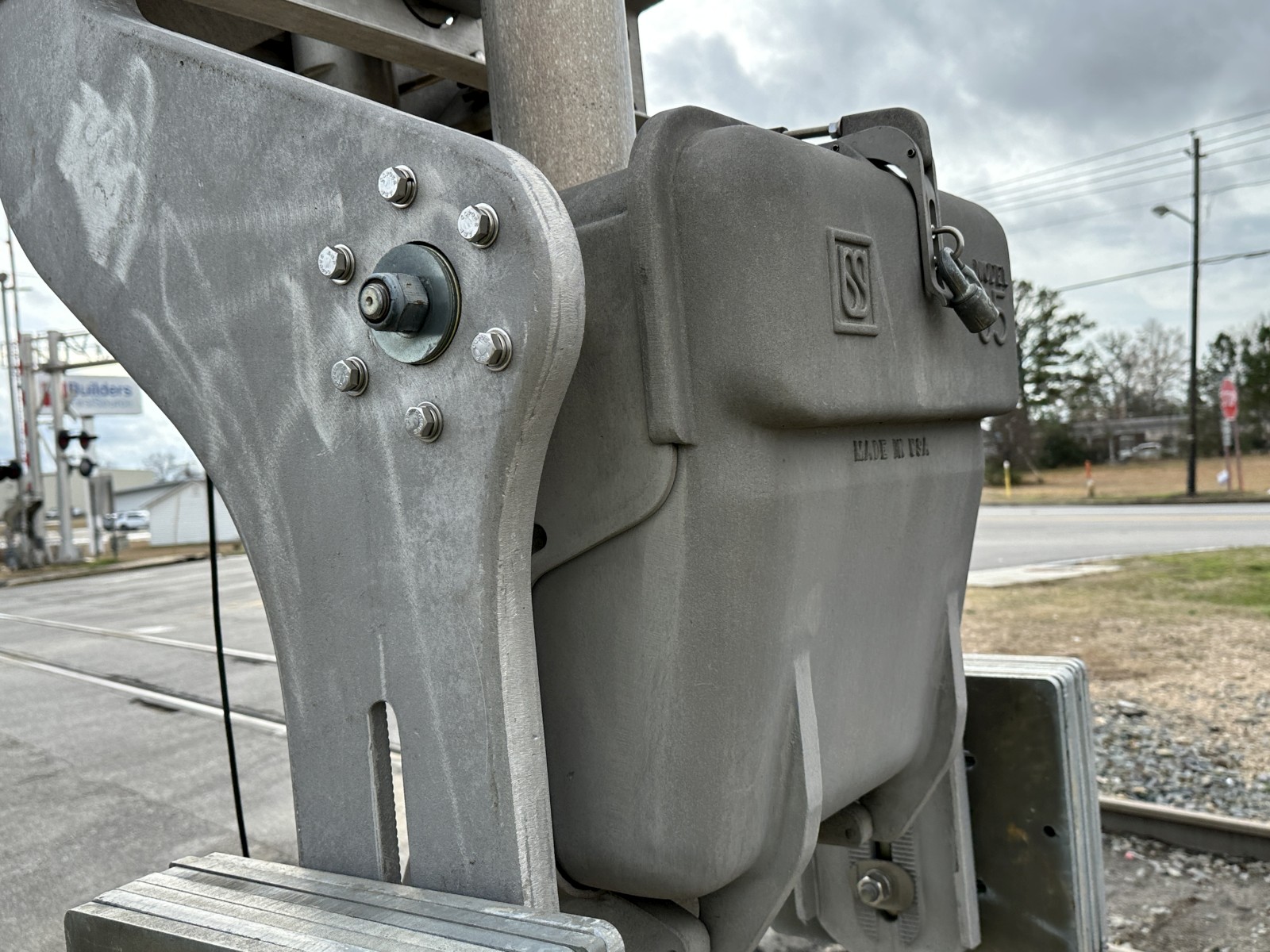

| Gate Mechanism: | US&S Model 95 Style 1 | US&S Model 95 Style 1 |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Ethan the Railfanner
This crossing is located on the SCRF Wadesboro Subdivision.
1 |
2 |

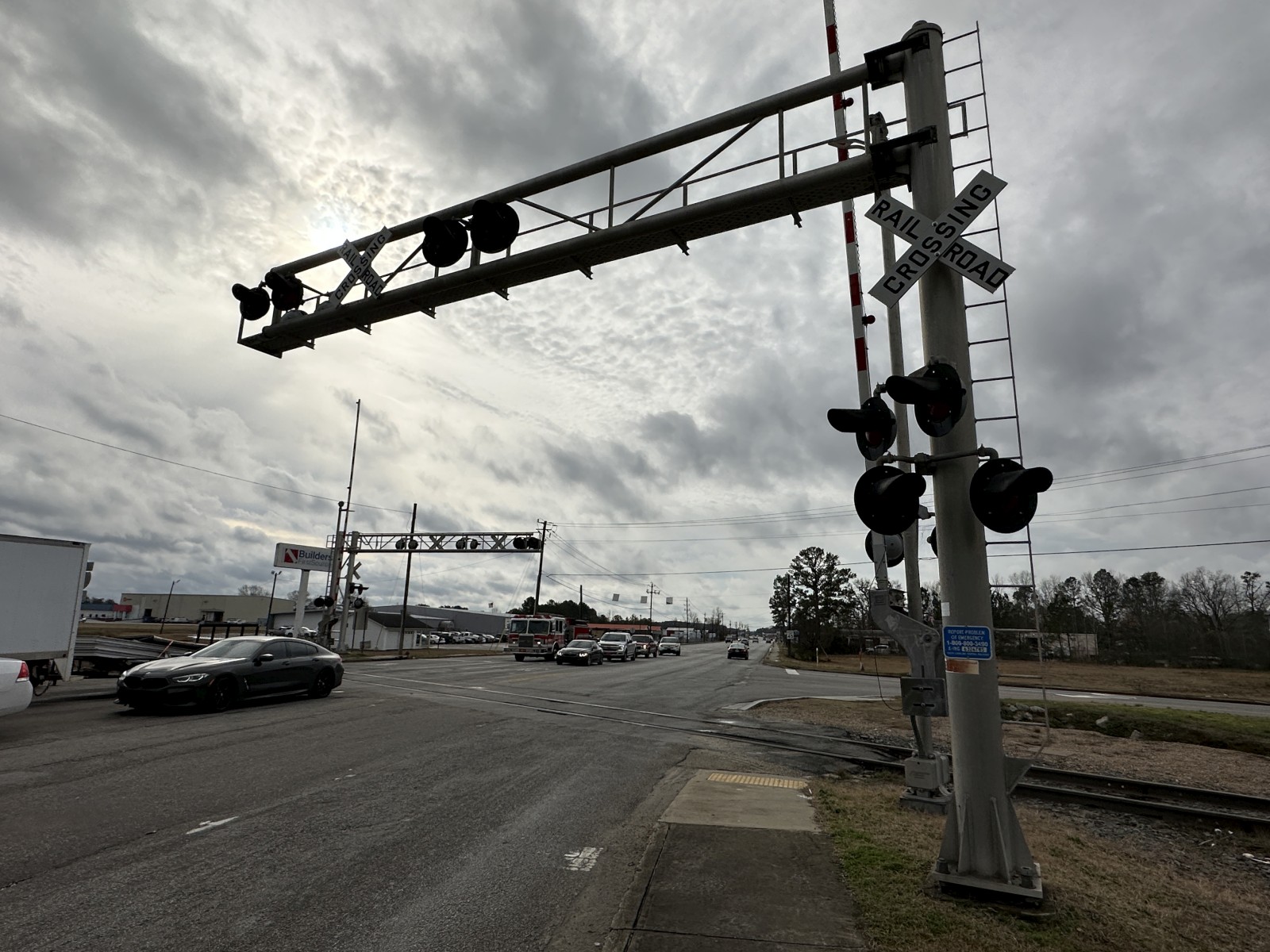

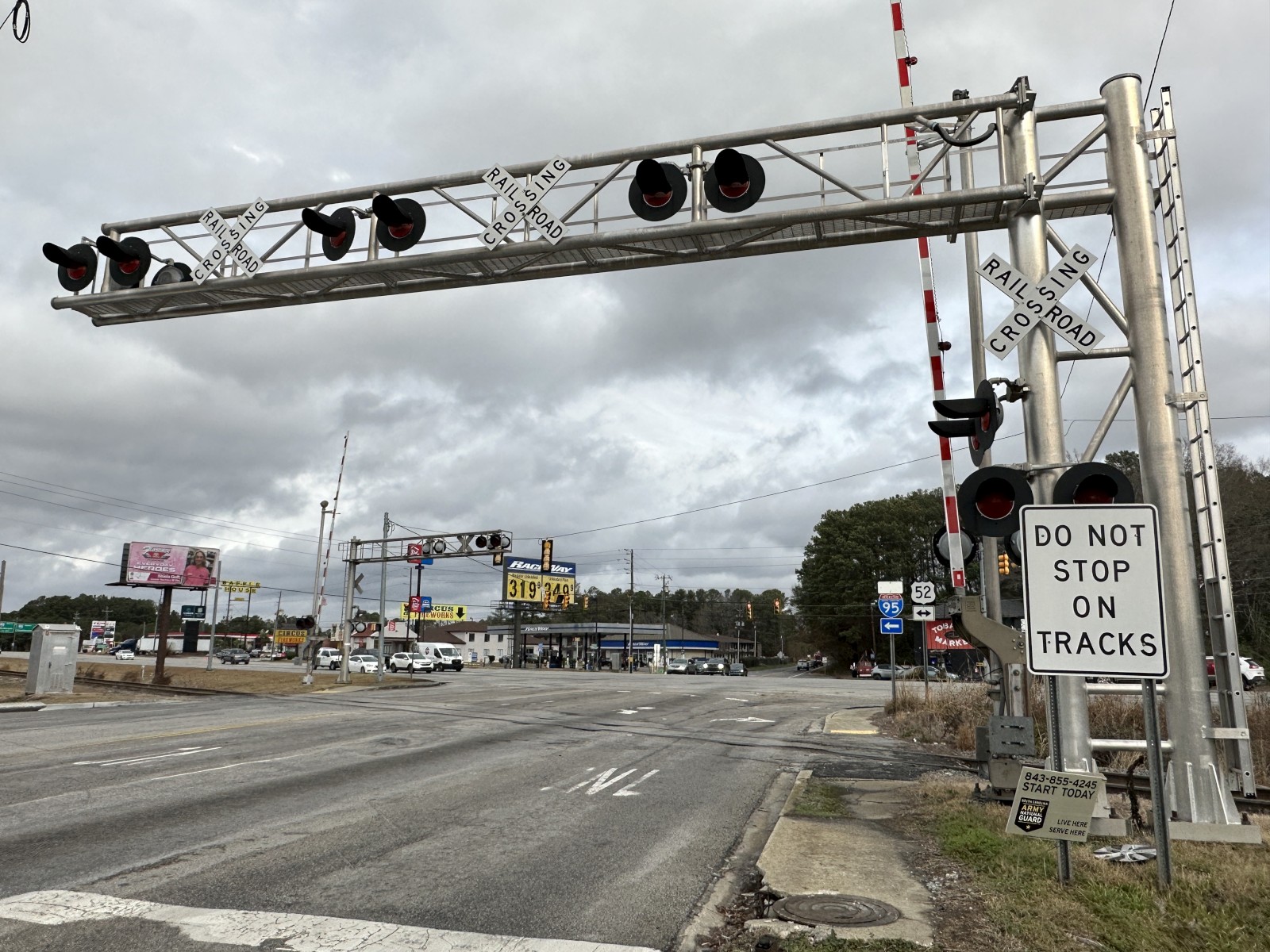

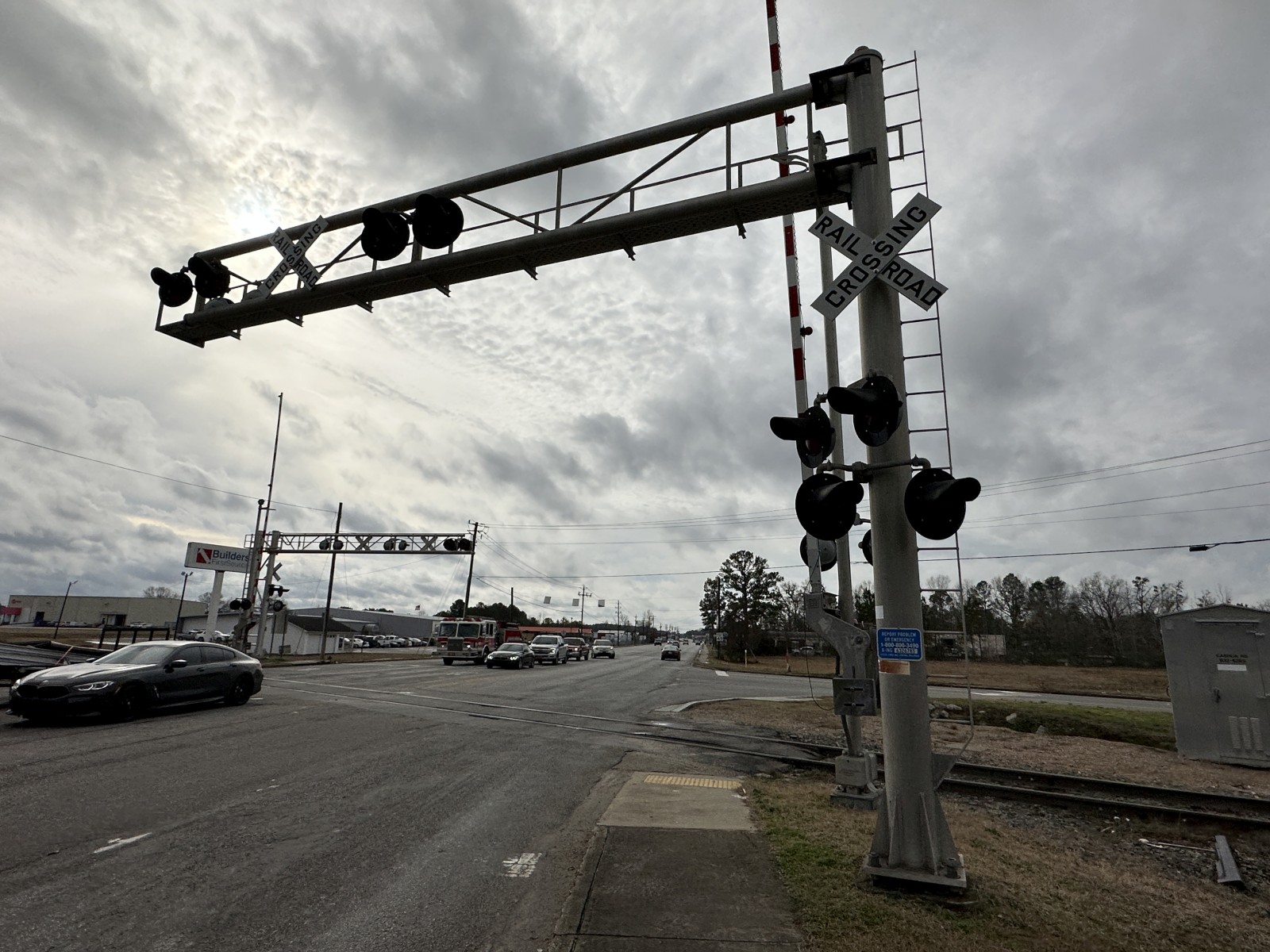

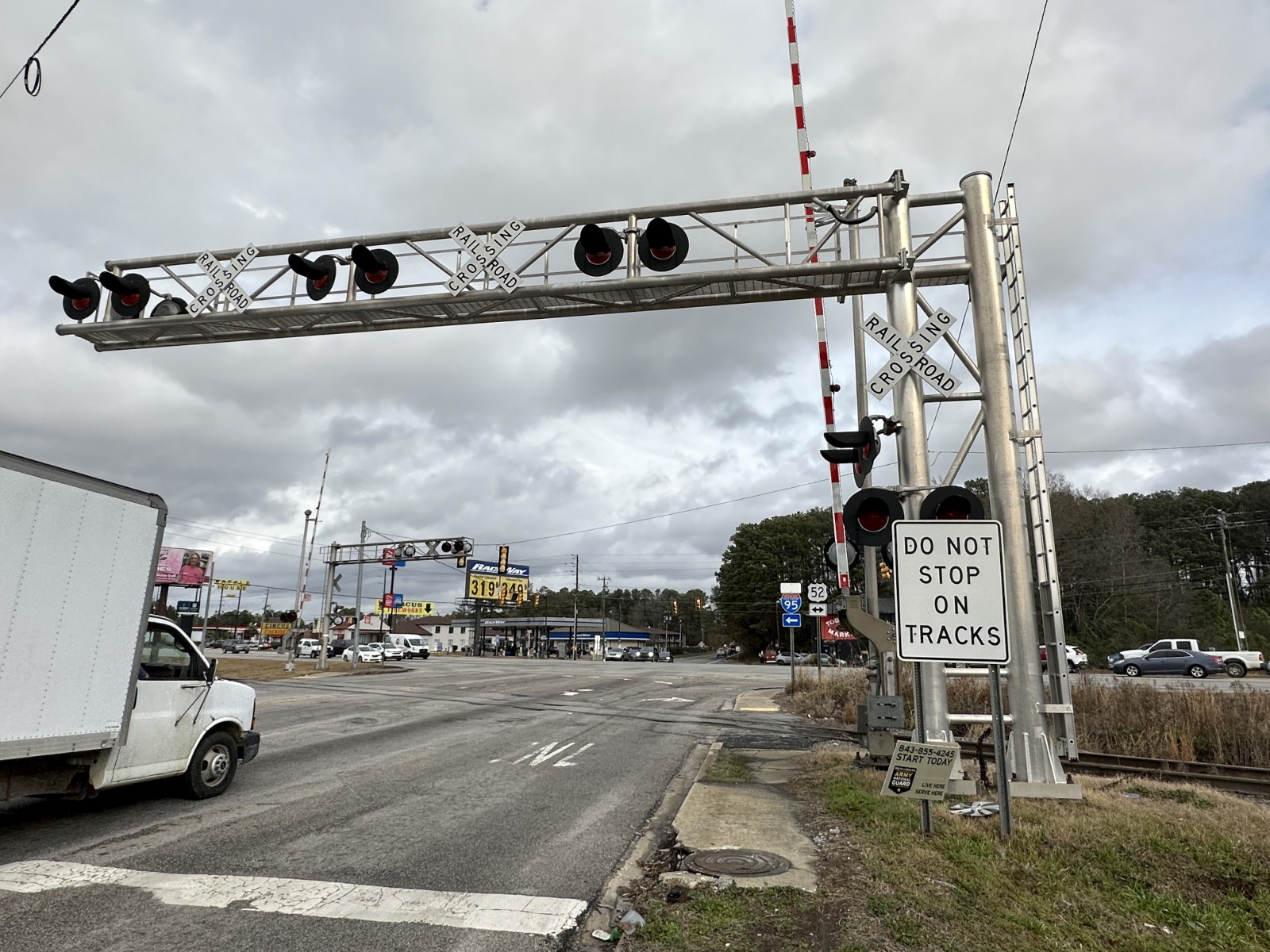

Overview of 2 gated cantilevers facing north. |

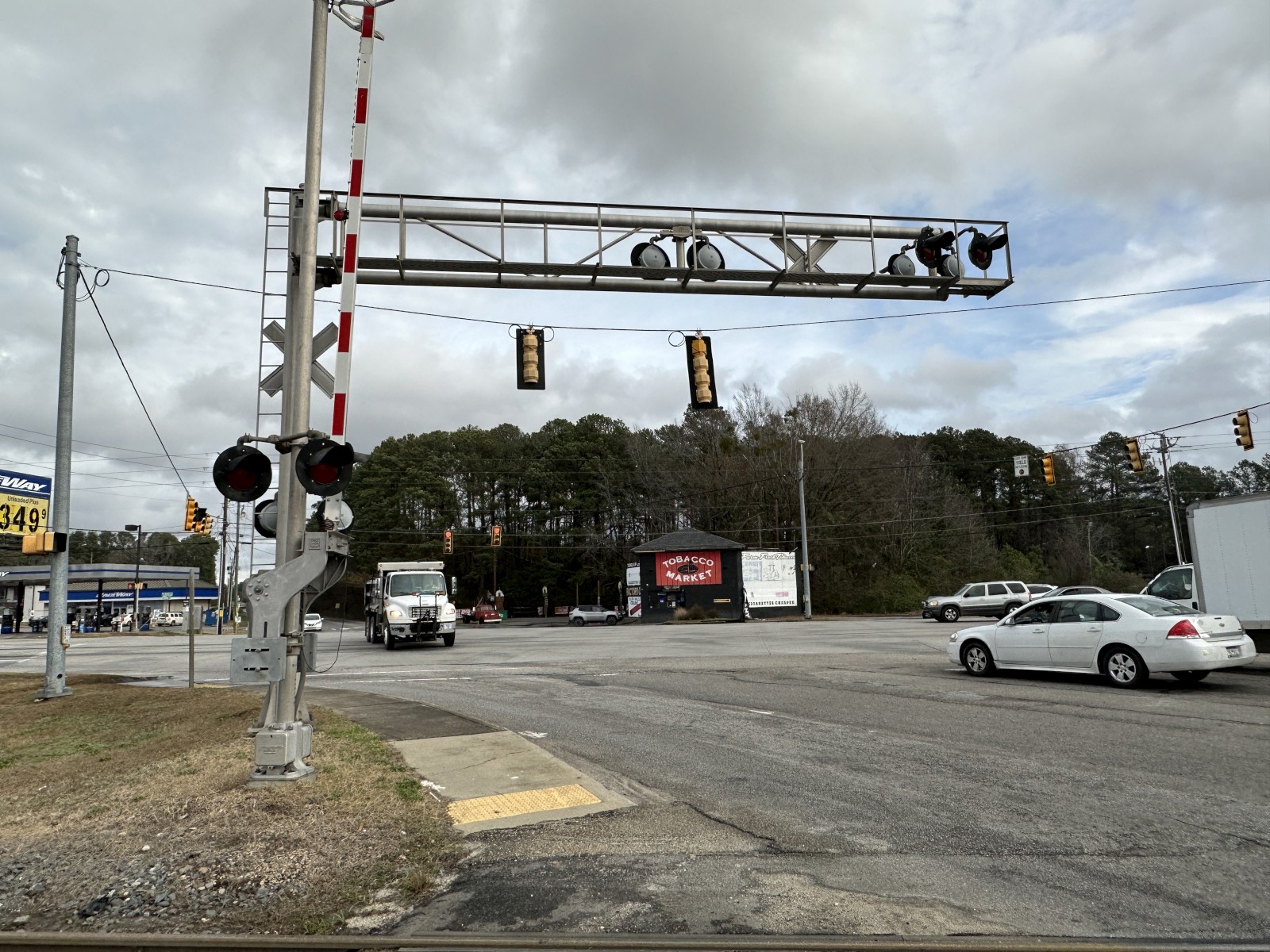

Overview facing south. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |

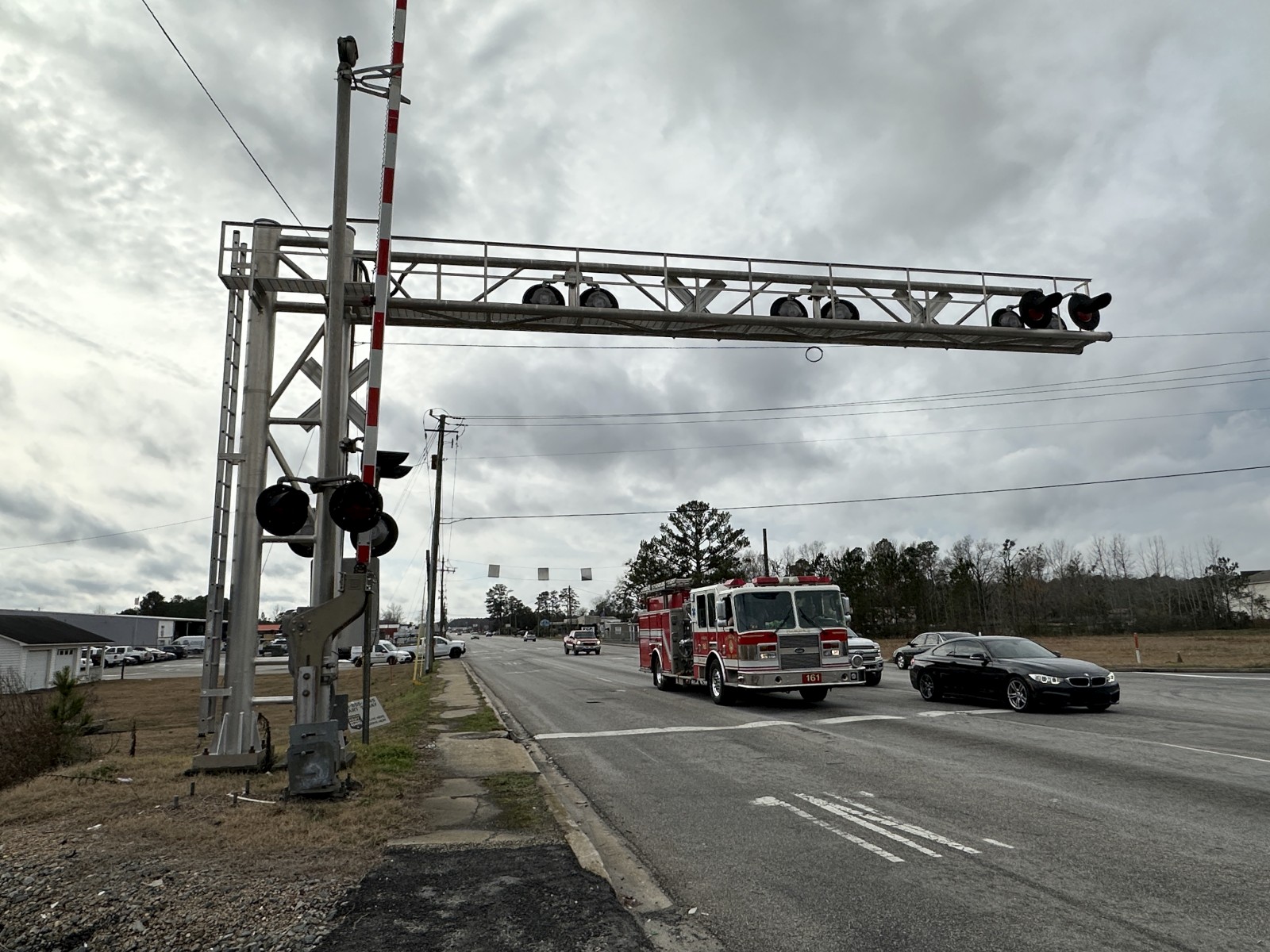

The southern signal. |
|||
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
The northern signal. |
|||
30 |
31 |
32 |

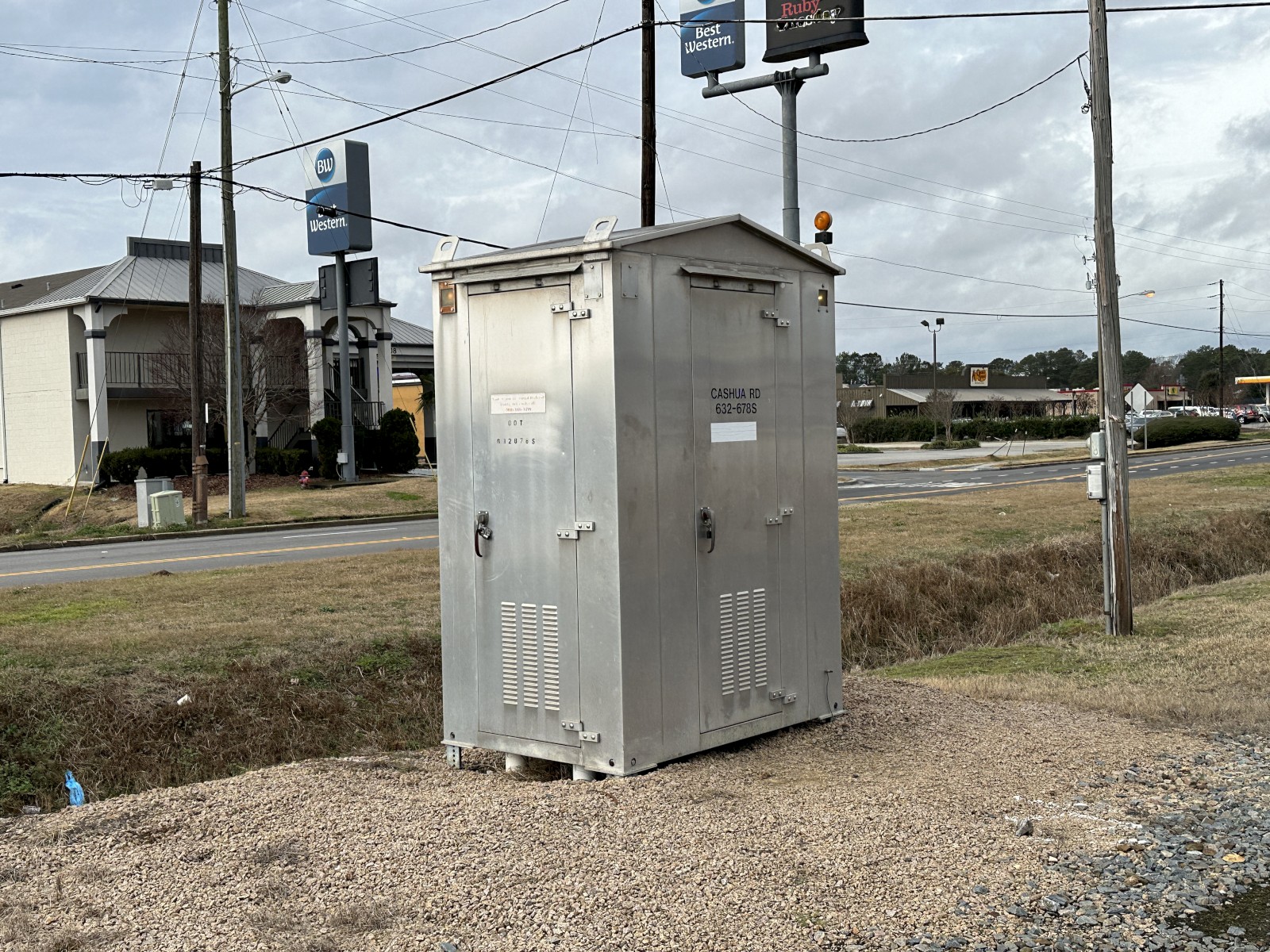

The relay bungalow. |

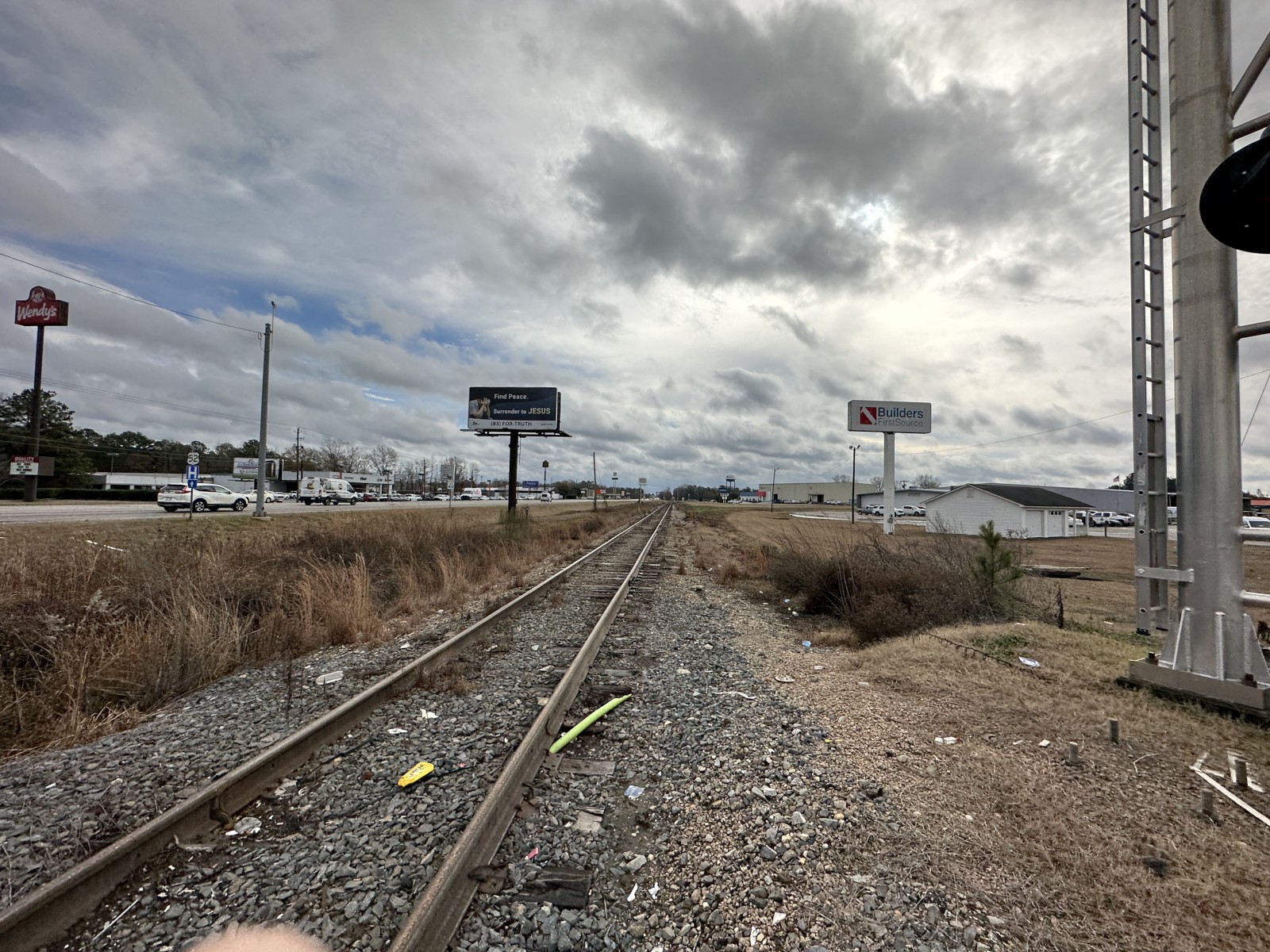

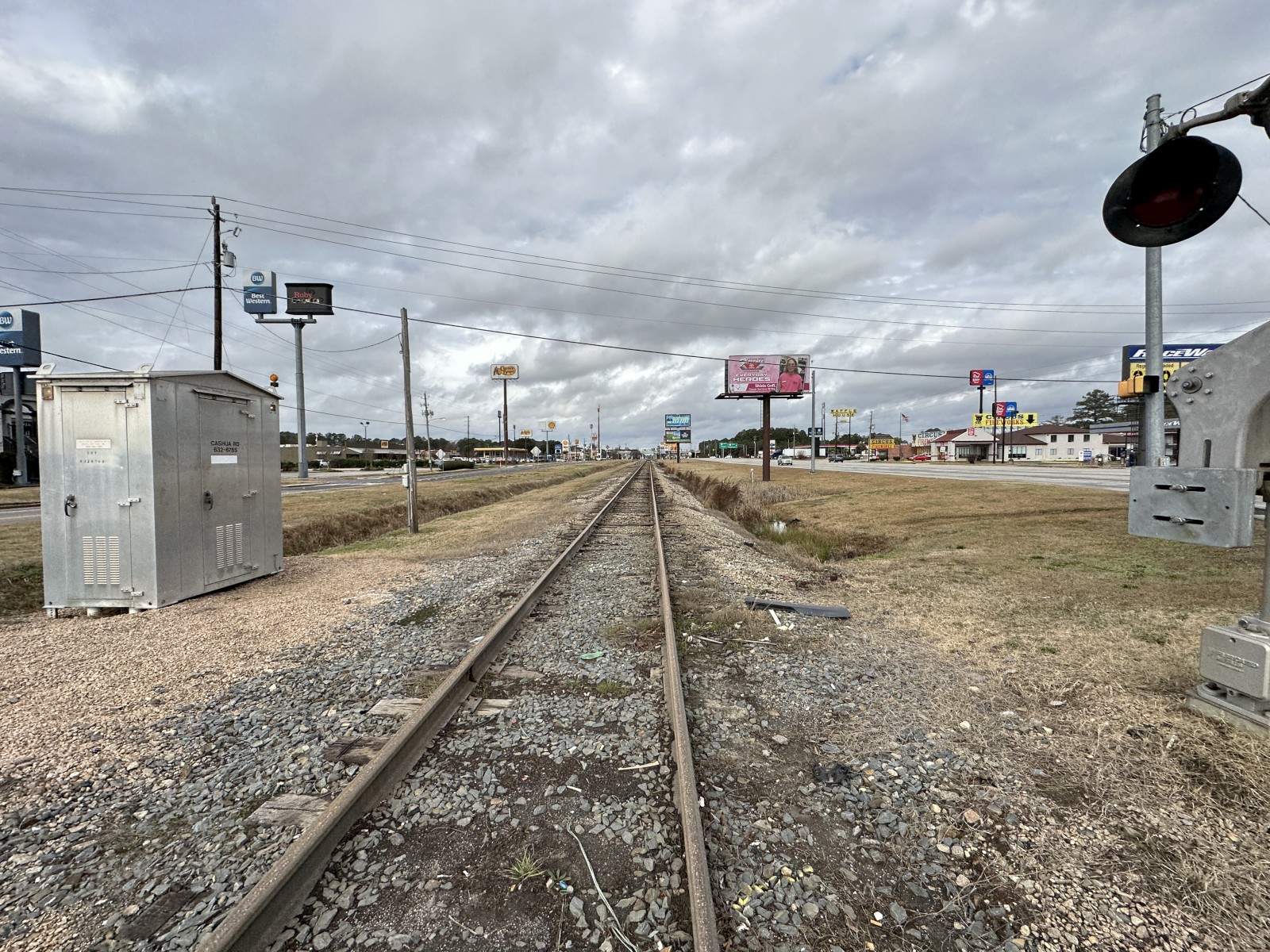

Track view facing east towards Schlitz Drive. |
Track view facing west towards SE Service Road. |
All pictures were taken on 1-4-23.
