MP: 0BA216.970 |
Created September 25, 2020
Total Accidents: 0
Crossing
DOT #: 350385H
TOTAL
DAILY TRAINS: 24 (AS OF 2018)
Page created by: freebrickproductions
This crossing is located on the CSX S&NA North Subdivision.
| >>>>>>>>>>>>> | Signal #1 | Signal #2 |
| Bell: | NEG electronic | Dead NEG electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs | 4 - 12x24" WCH w/ WCH 2nd Gen LEDs |
| Gate Lights: | 3 - RECO LEDs | 2 - RECO LEDs 1 - NEG LED |
| Gate Mechanism: | Invensys Rail | Invensys Rail |
| Gate Striping: | Vertical + Diagonal tip | Vertical + Diagonal tip |
1 |
2 |
3 |
4 |

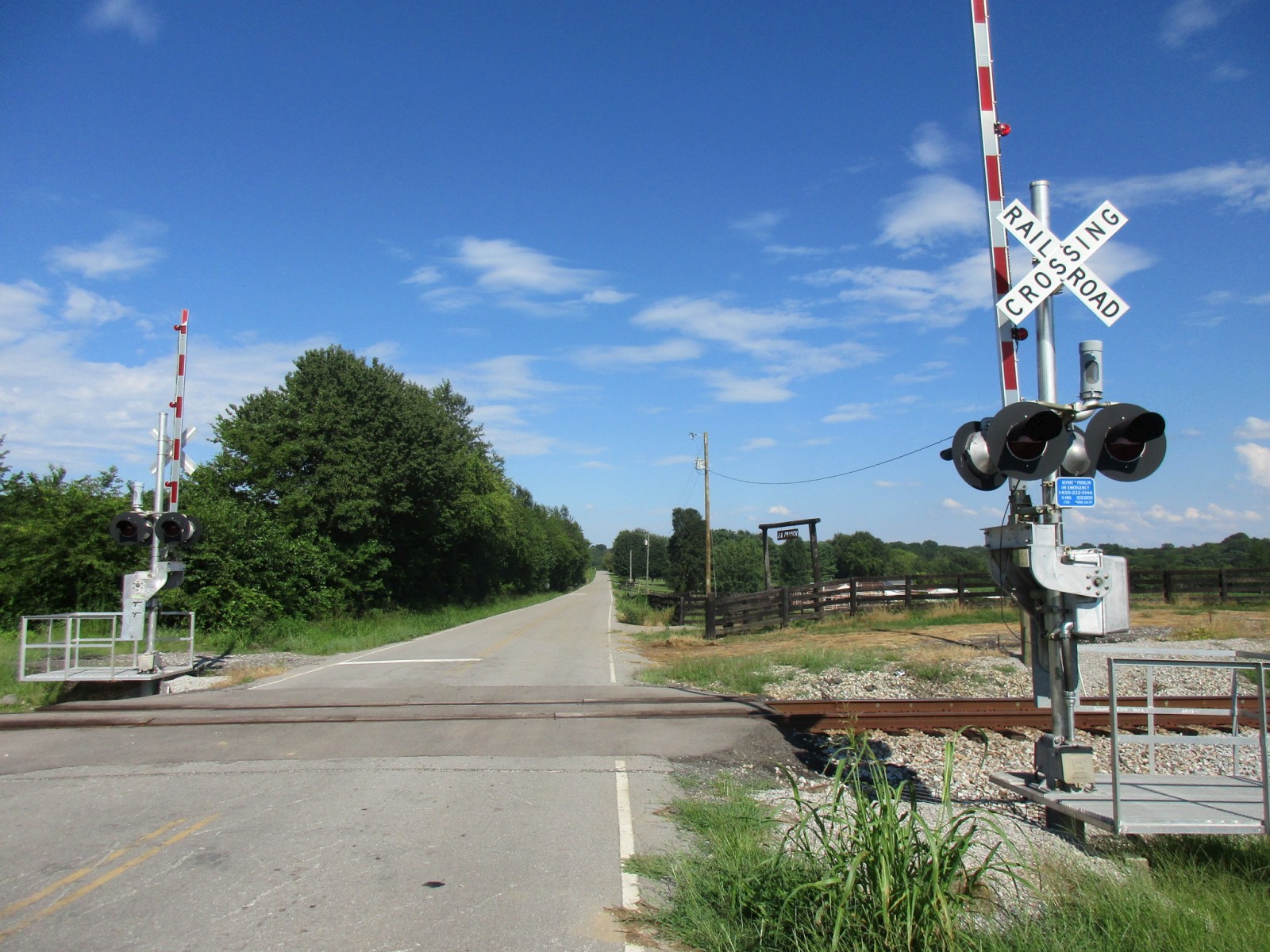

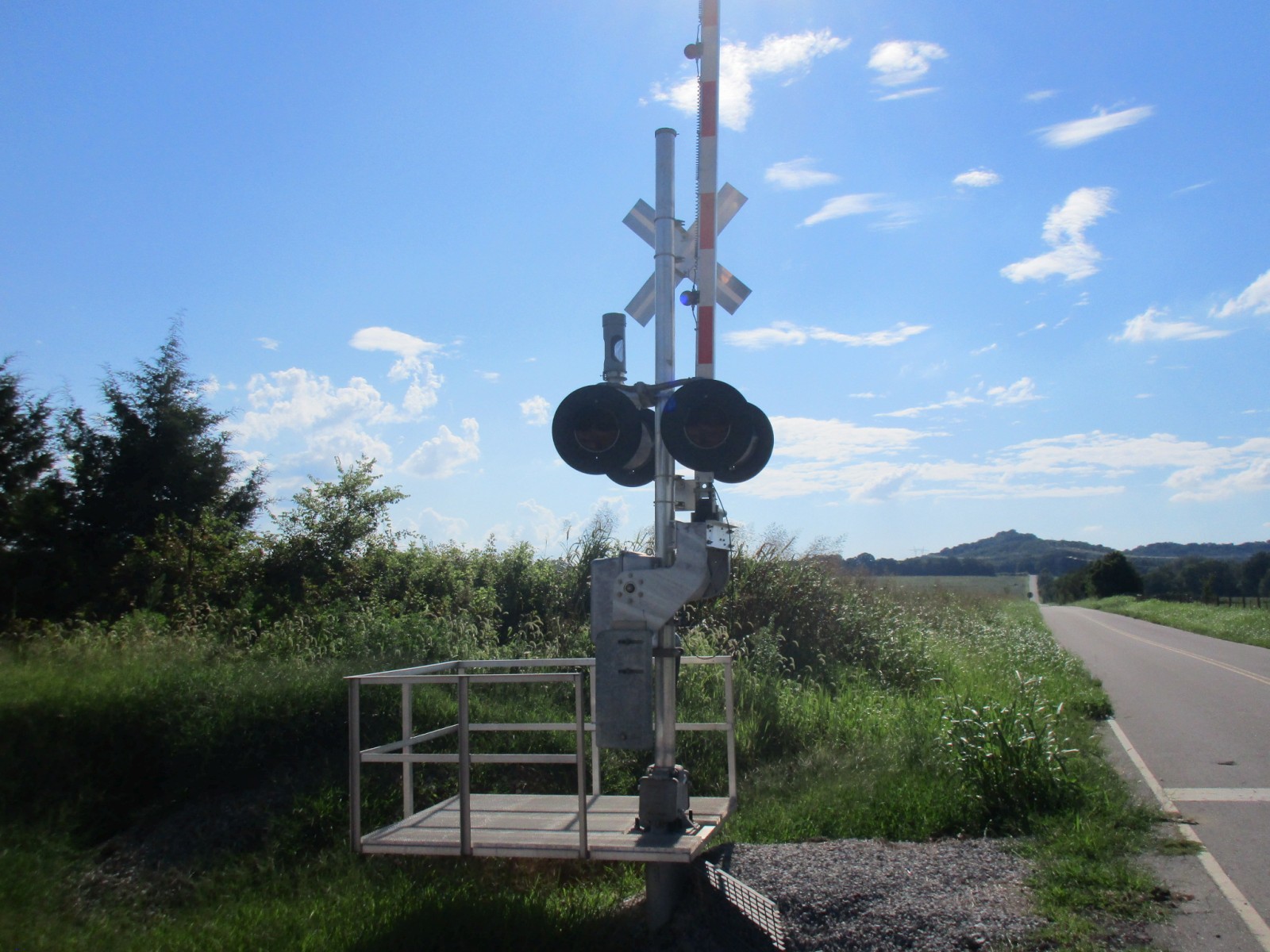

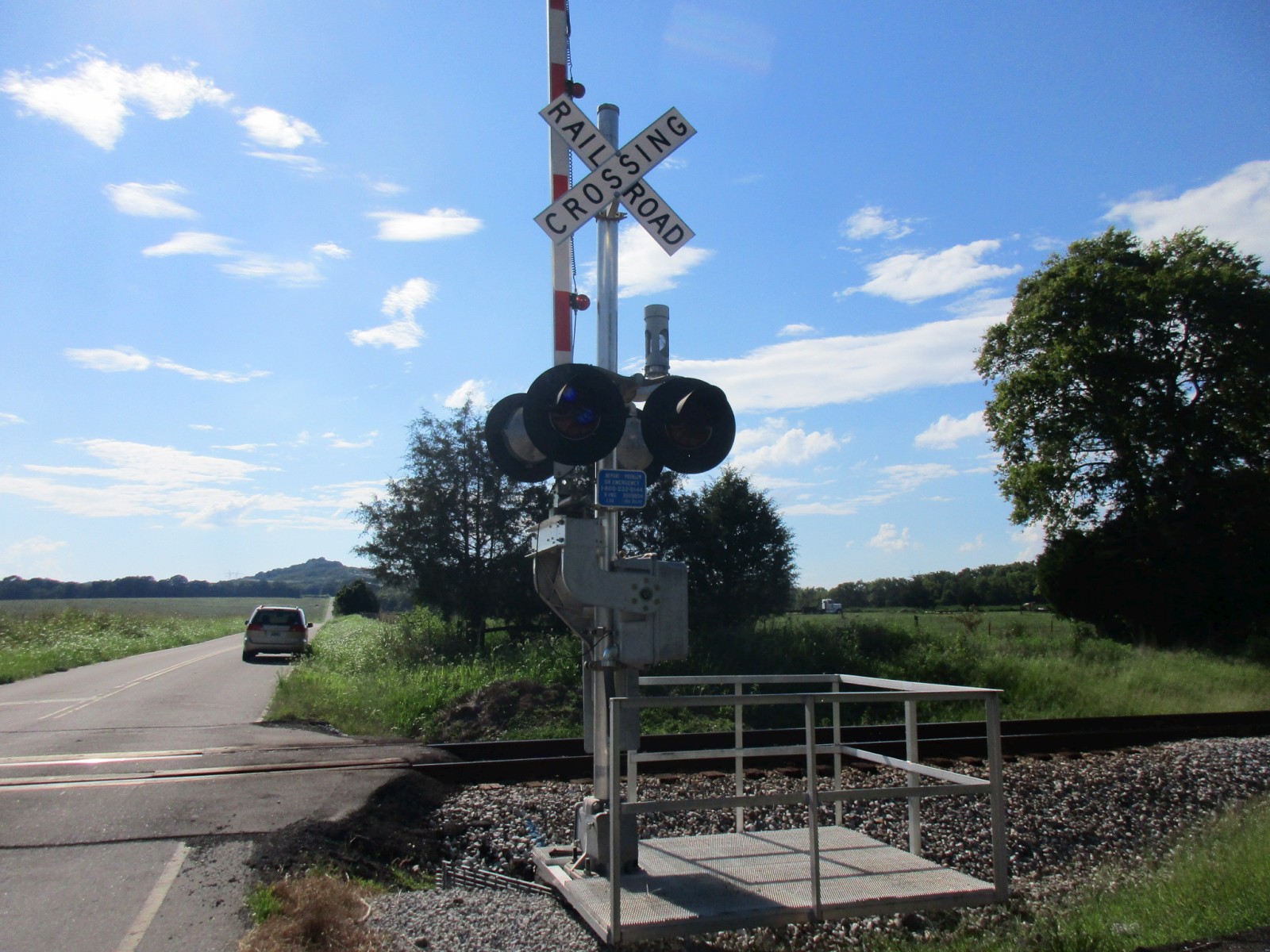

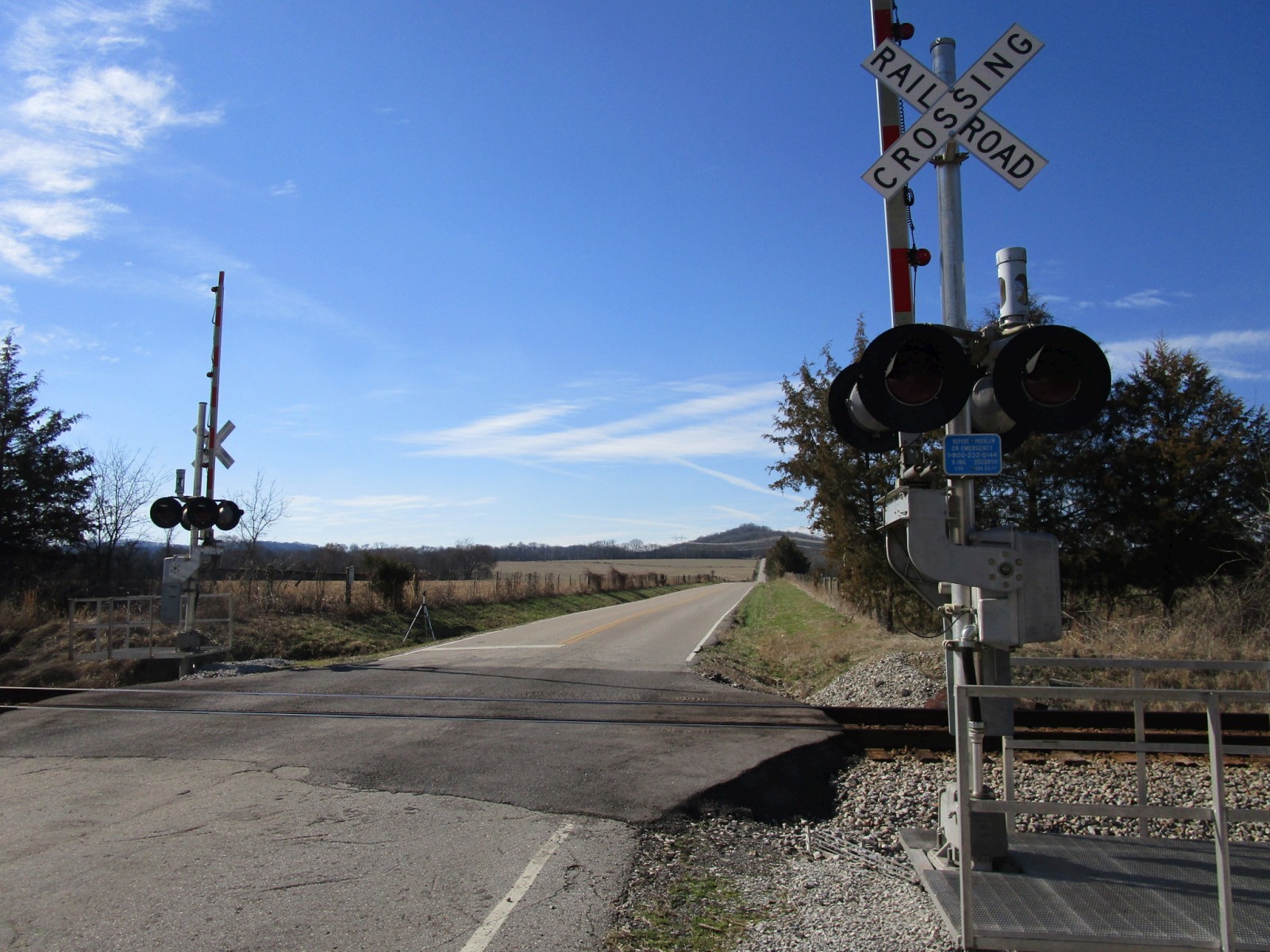

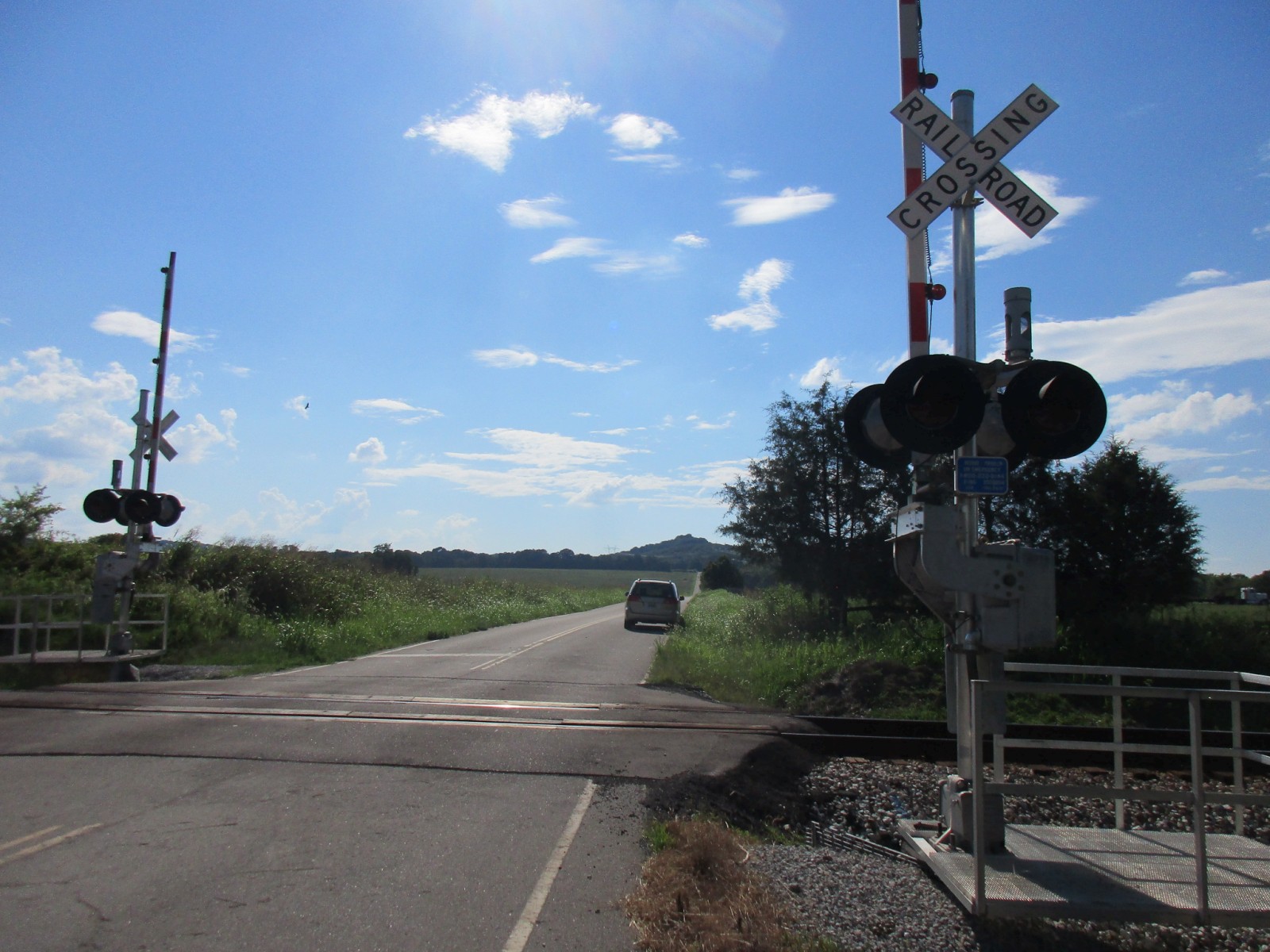

Overviews of the crossing. |

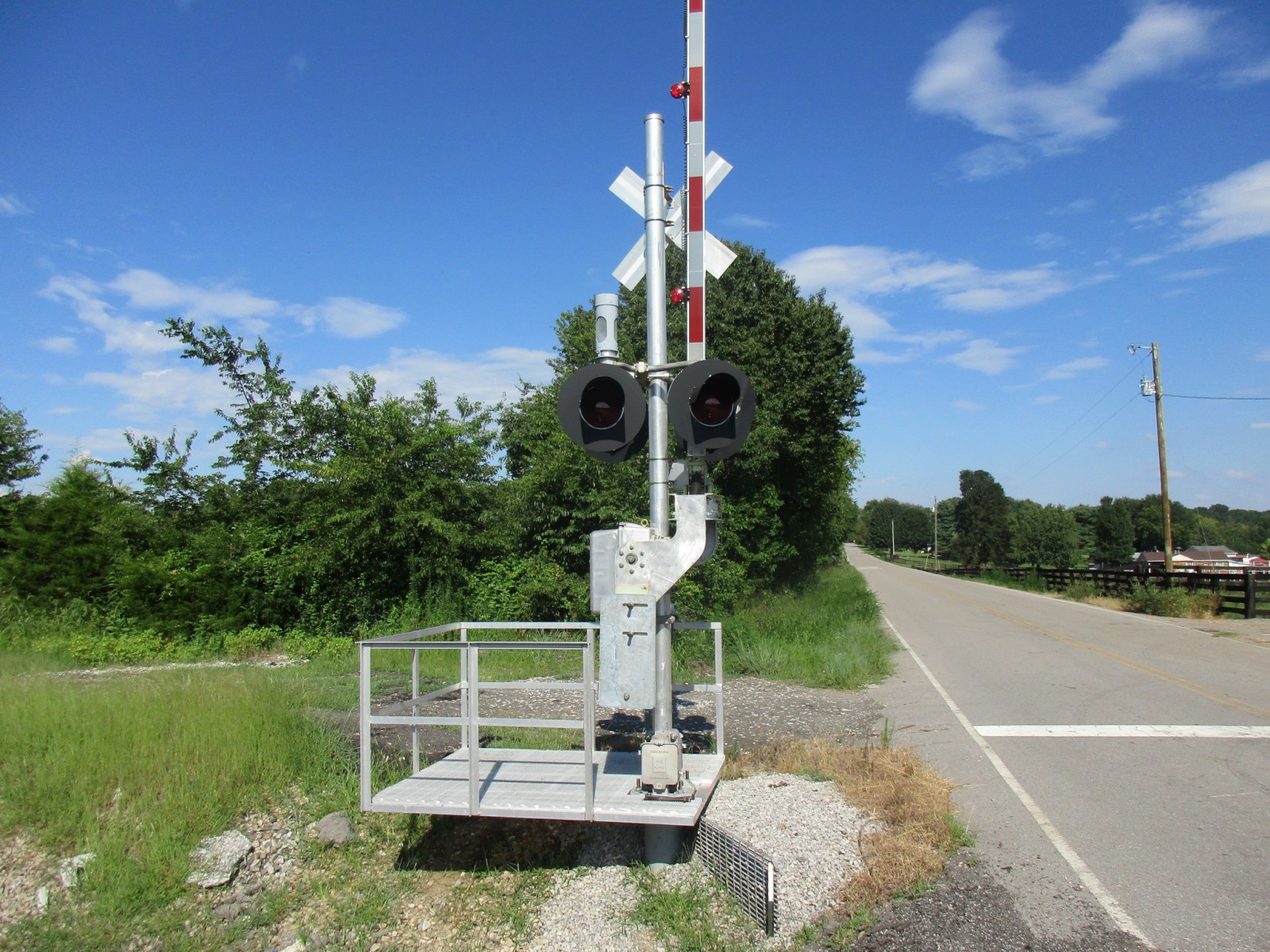

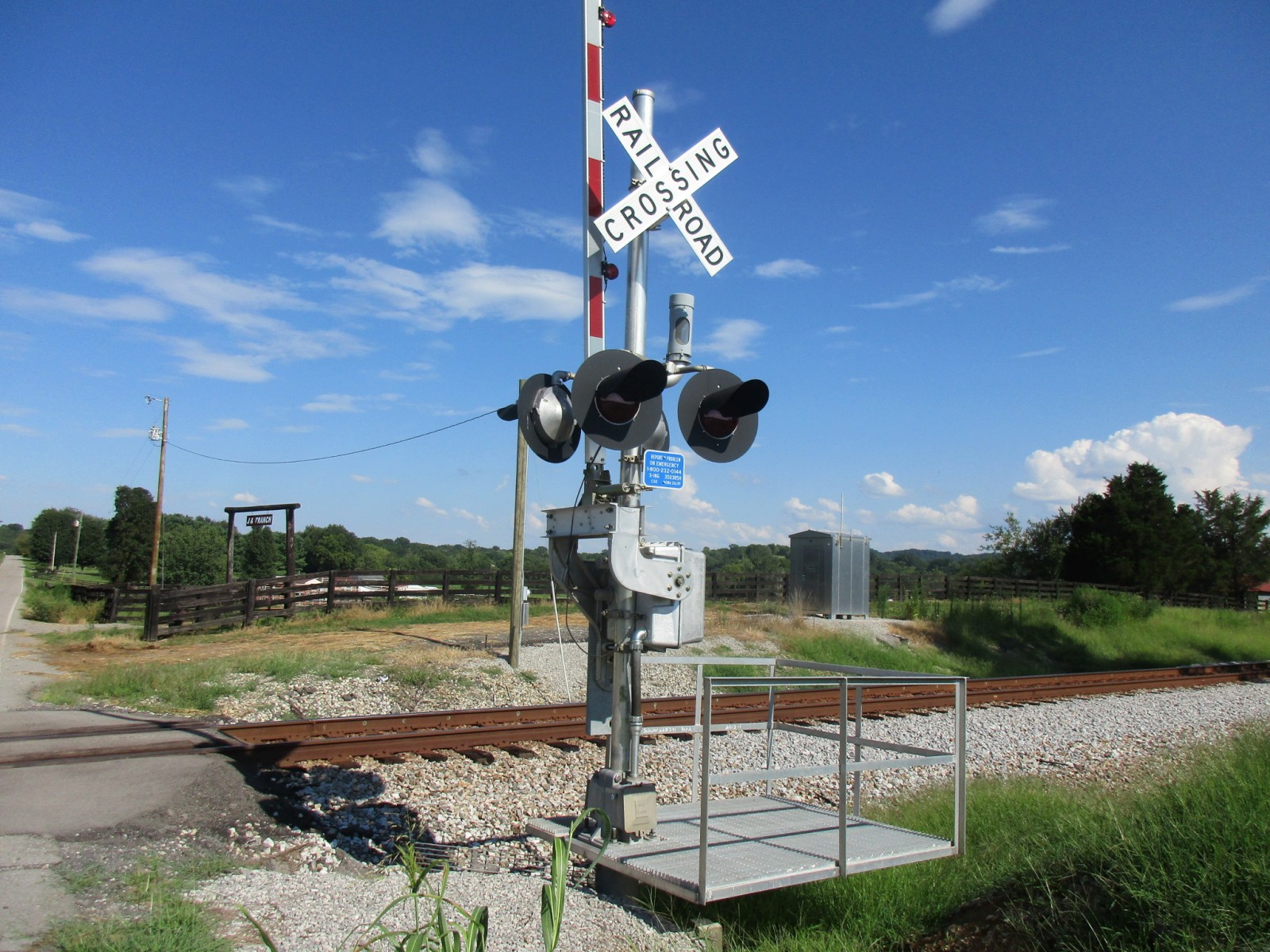

The first signal. |
||
5 |
6 |
7 |
8 |

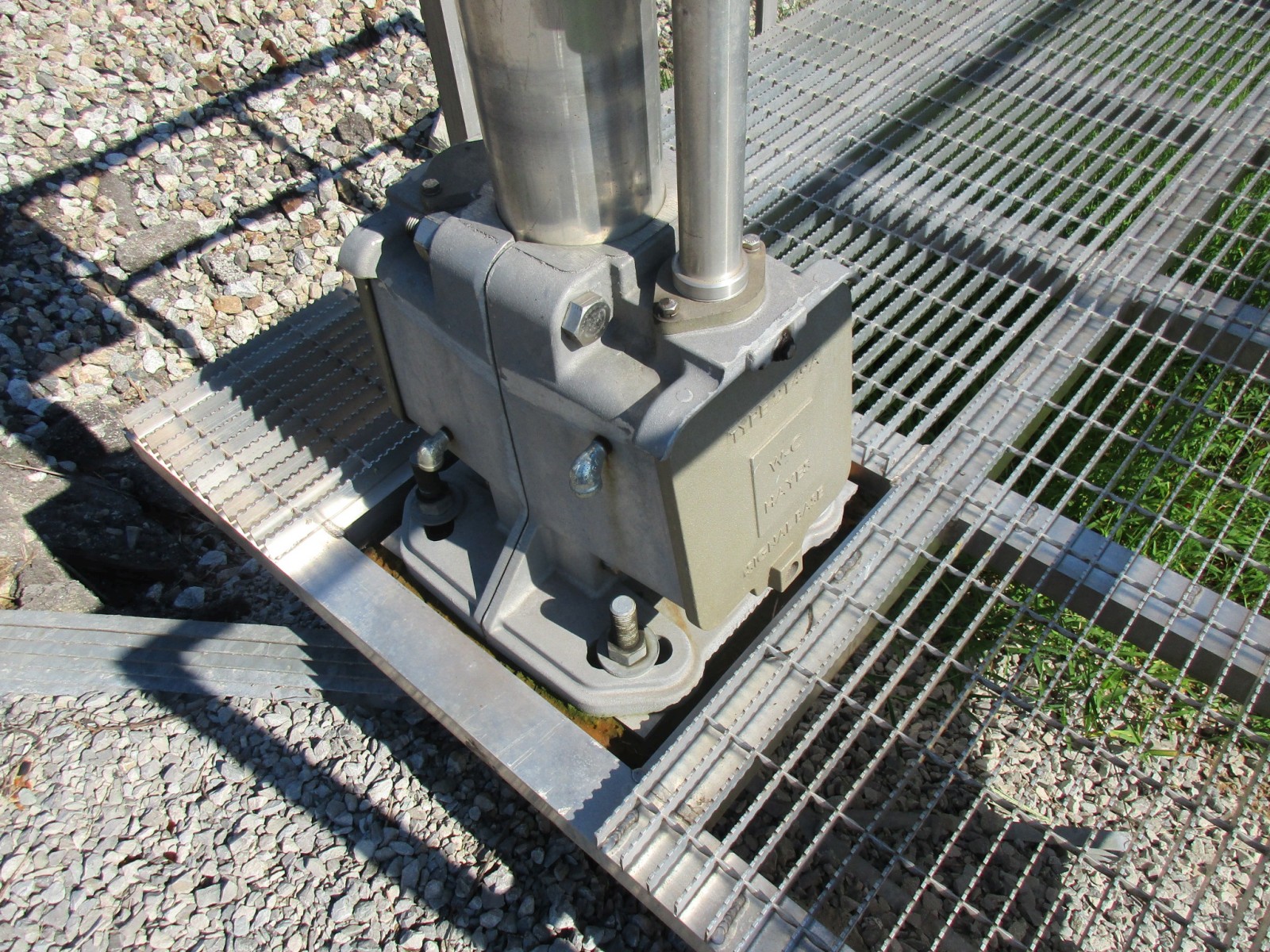

It has a WCH base. |

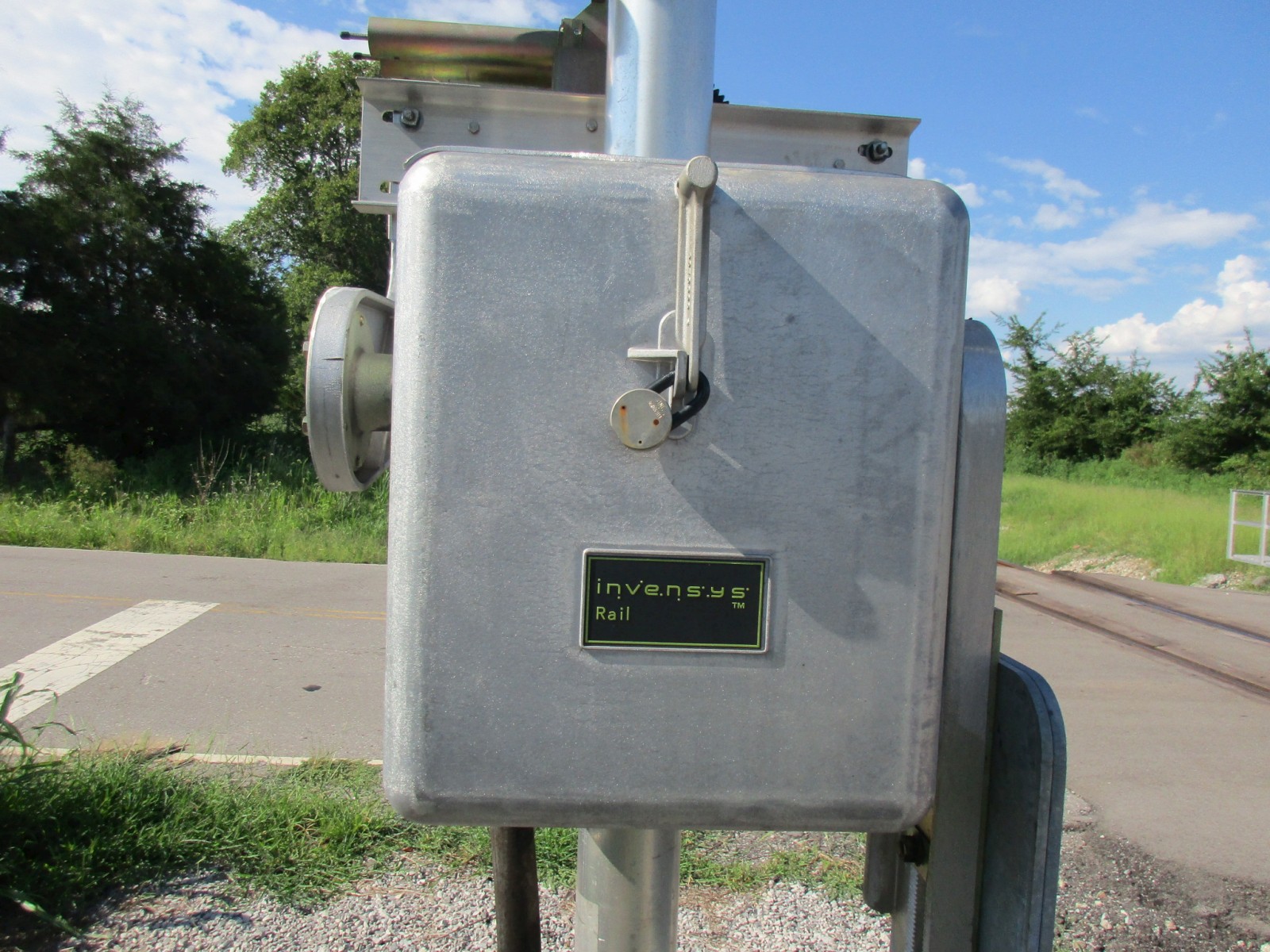

An Invensys Rail gate mechanism. |

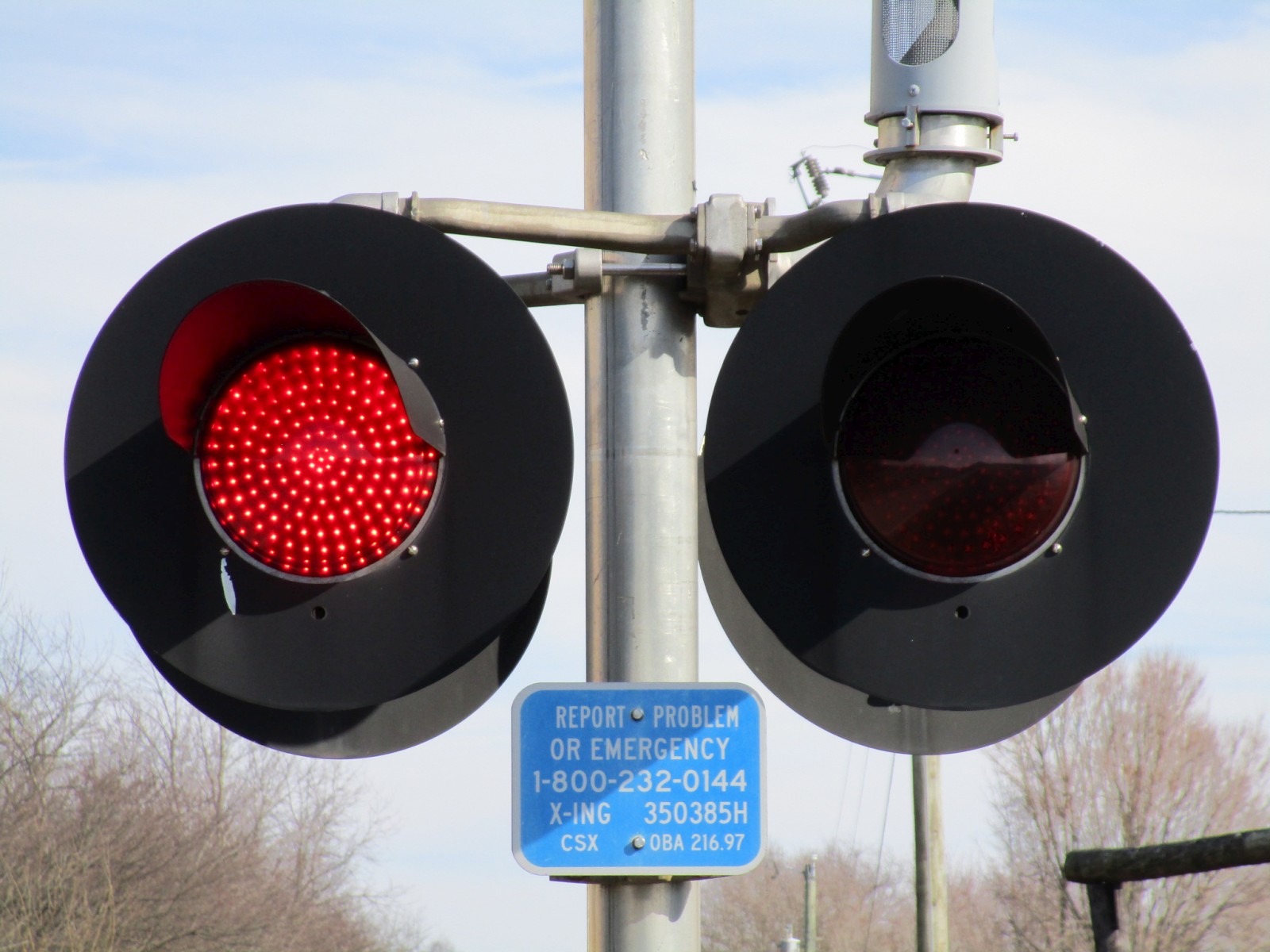

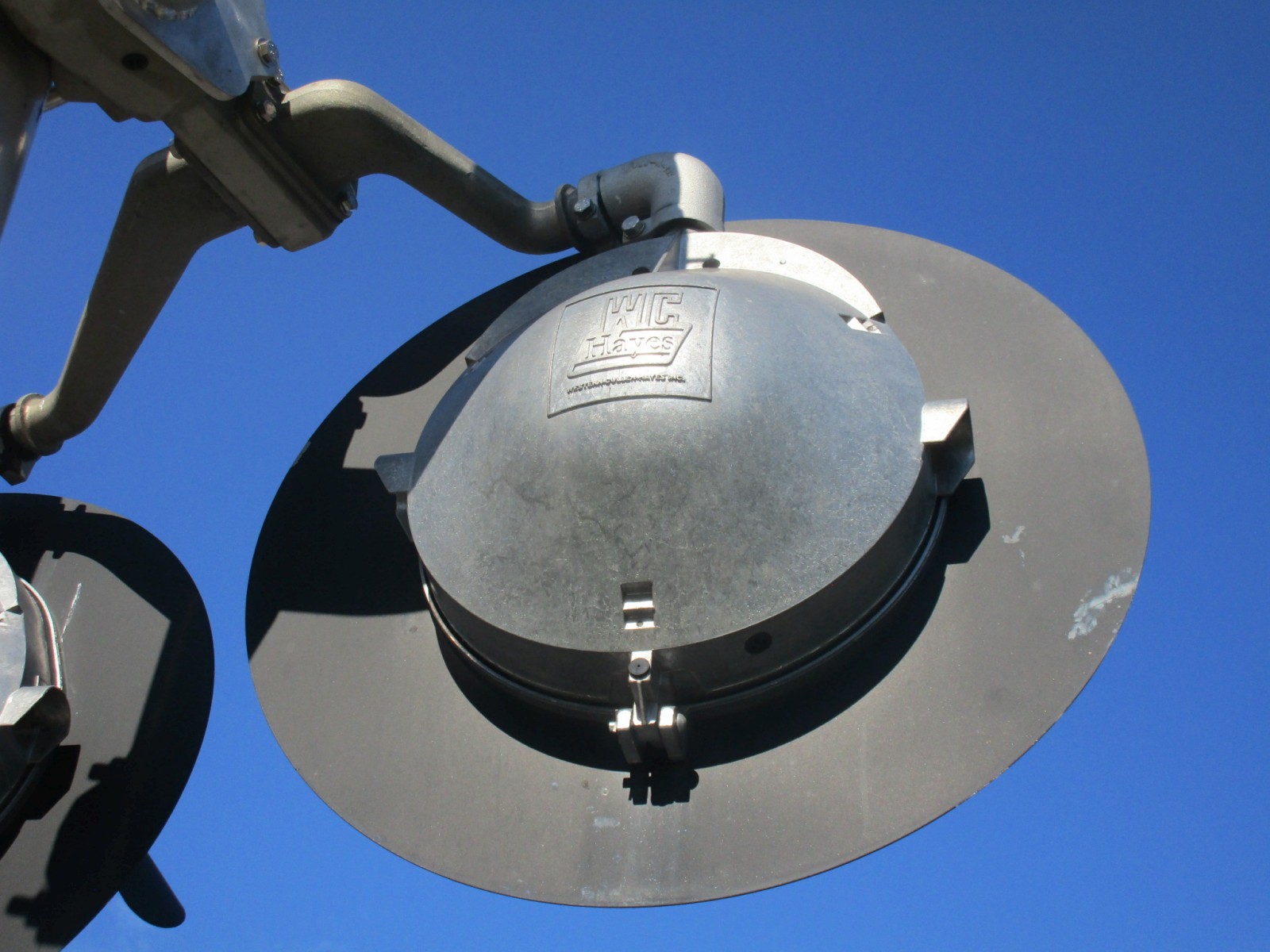

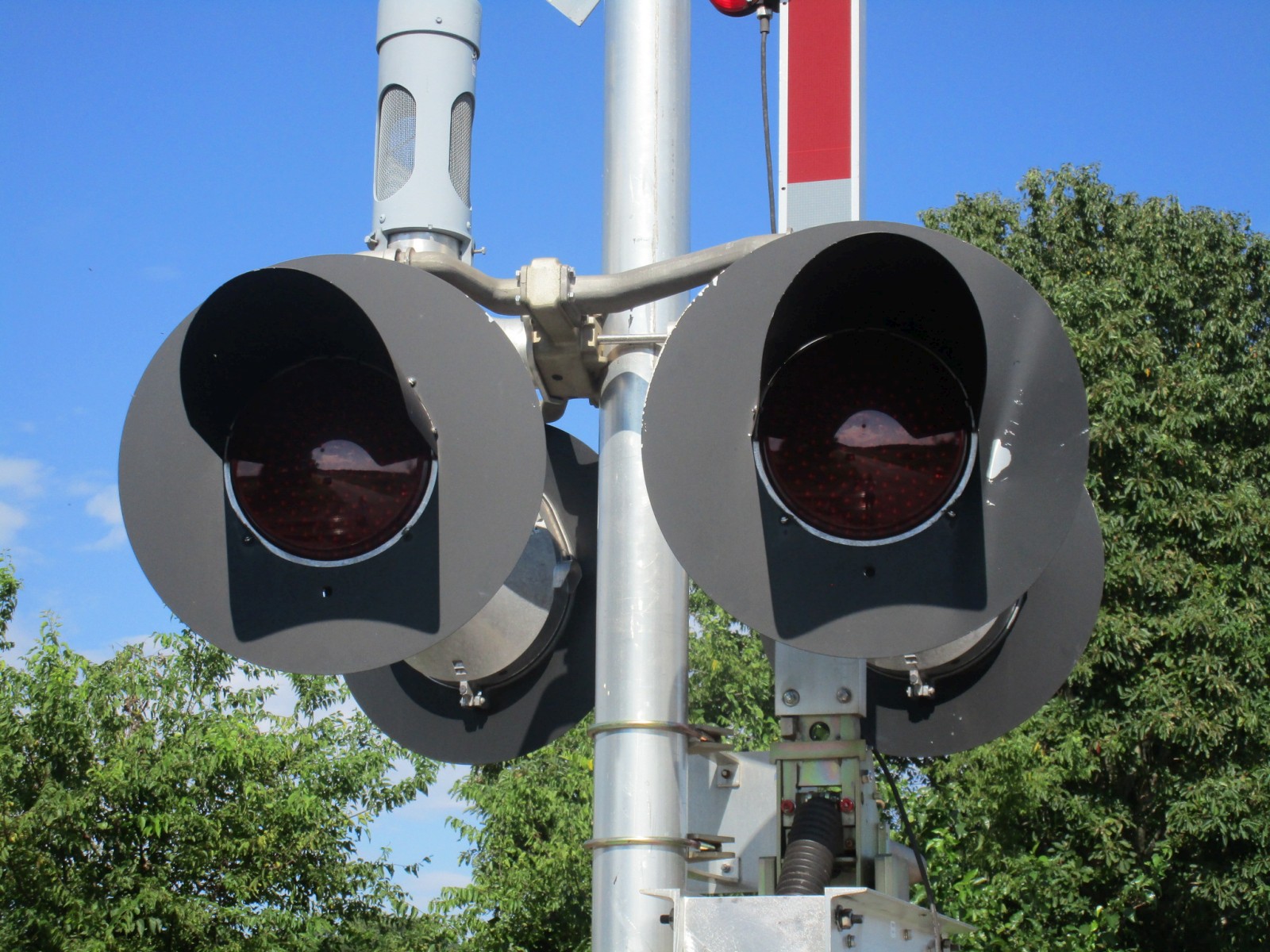

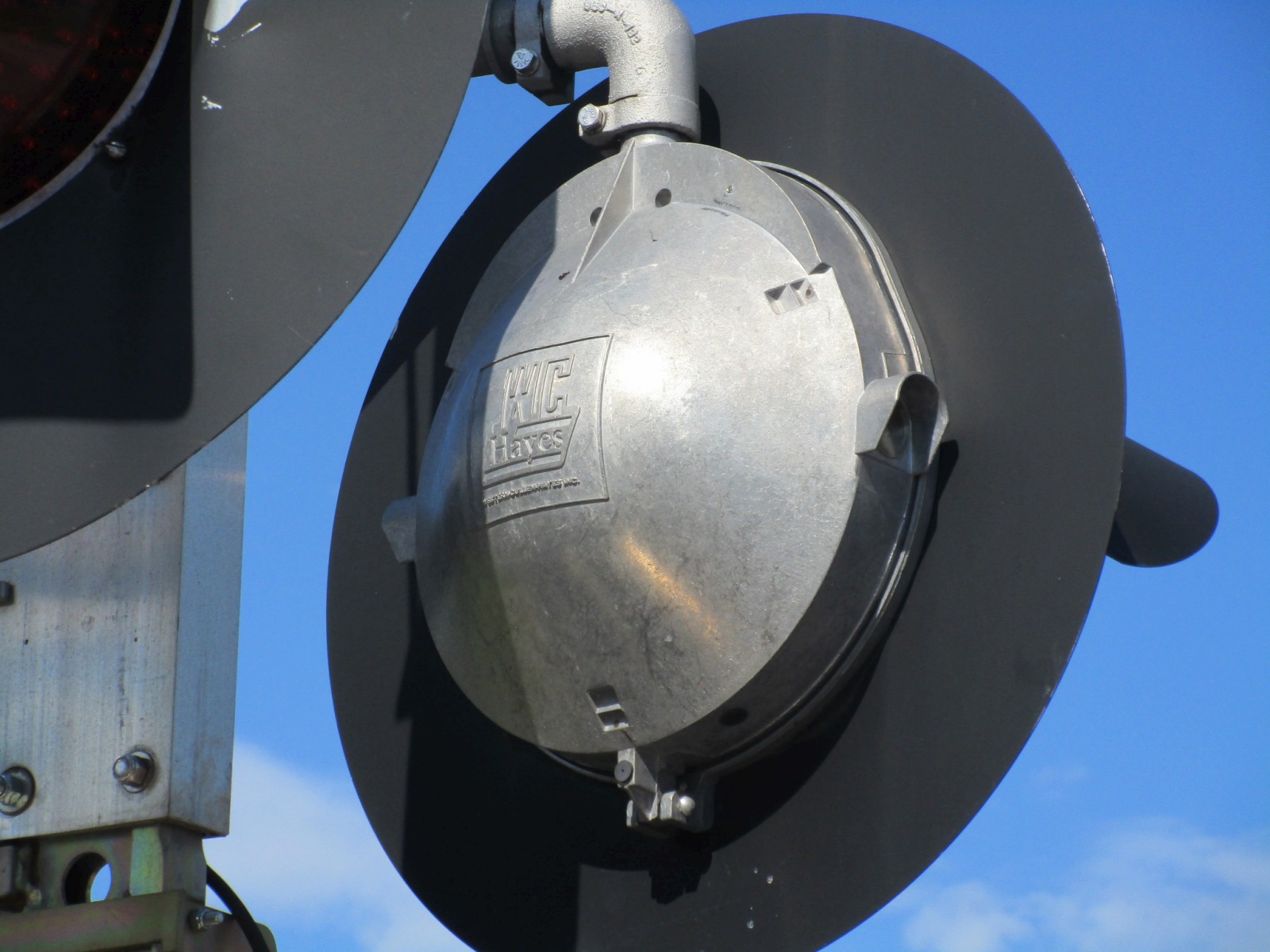

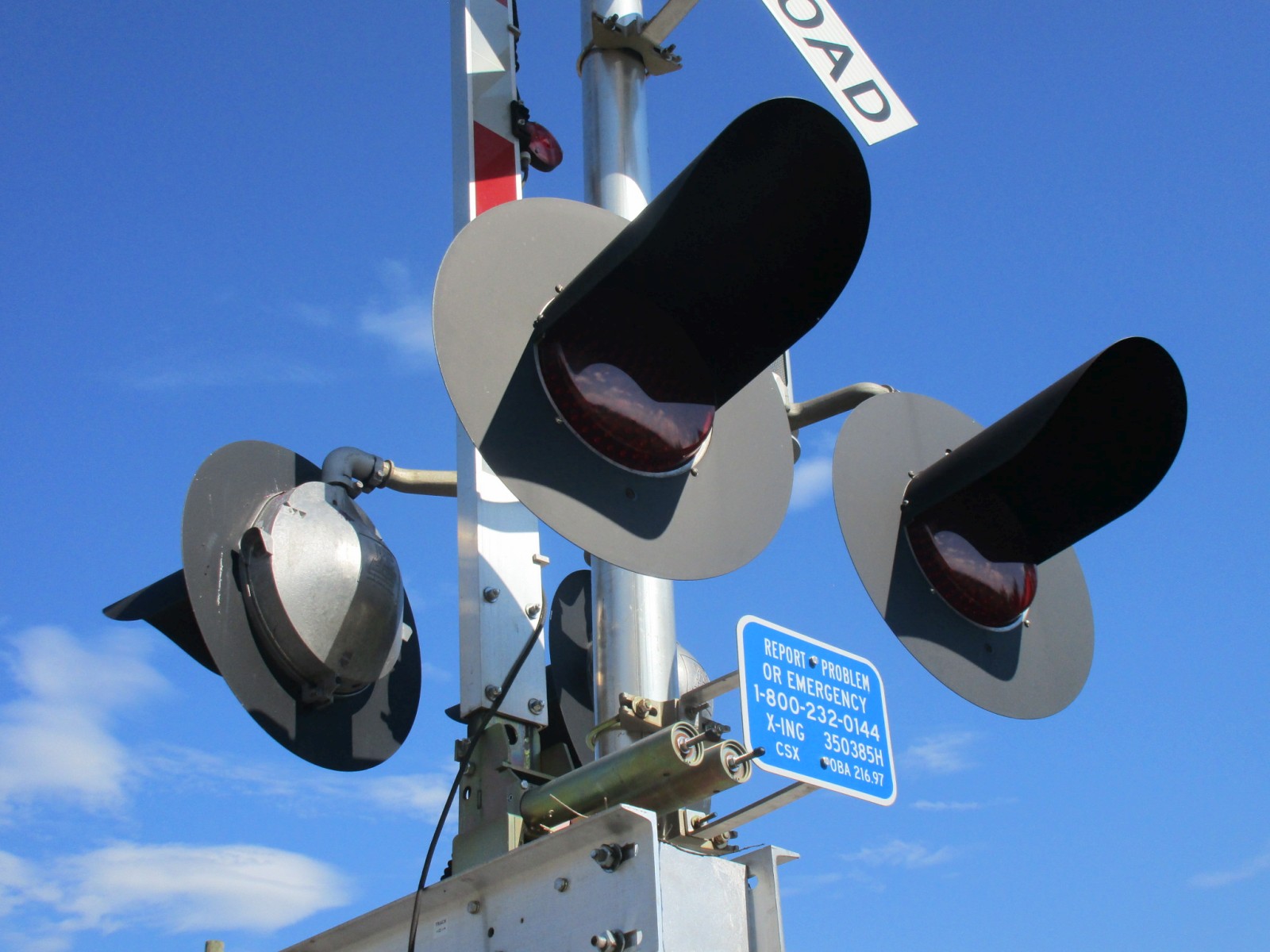

This signal has all WCH 12x24 inch lights with WCH 2nd Generation LEDs. |
|
9 |
10 |
11 |
12 |

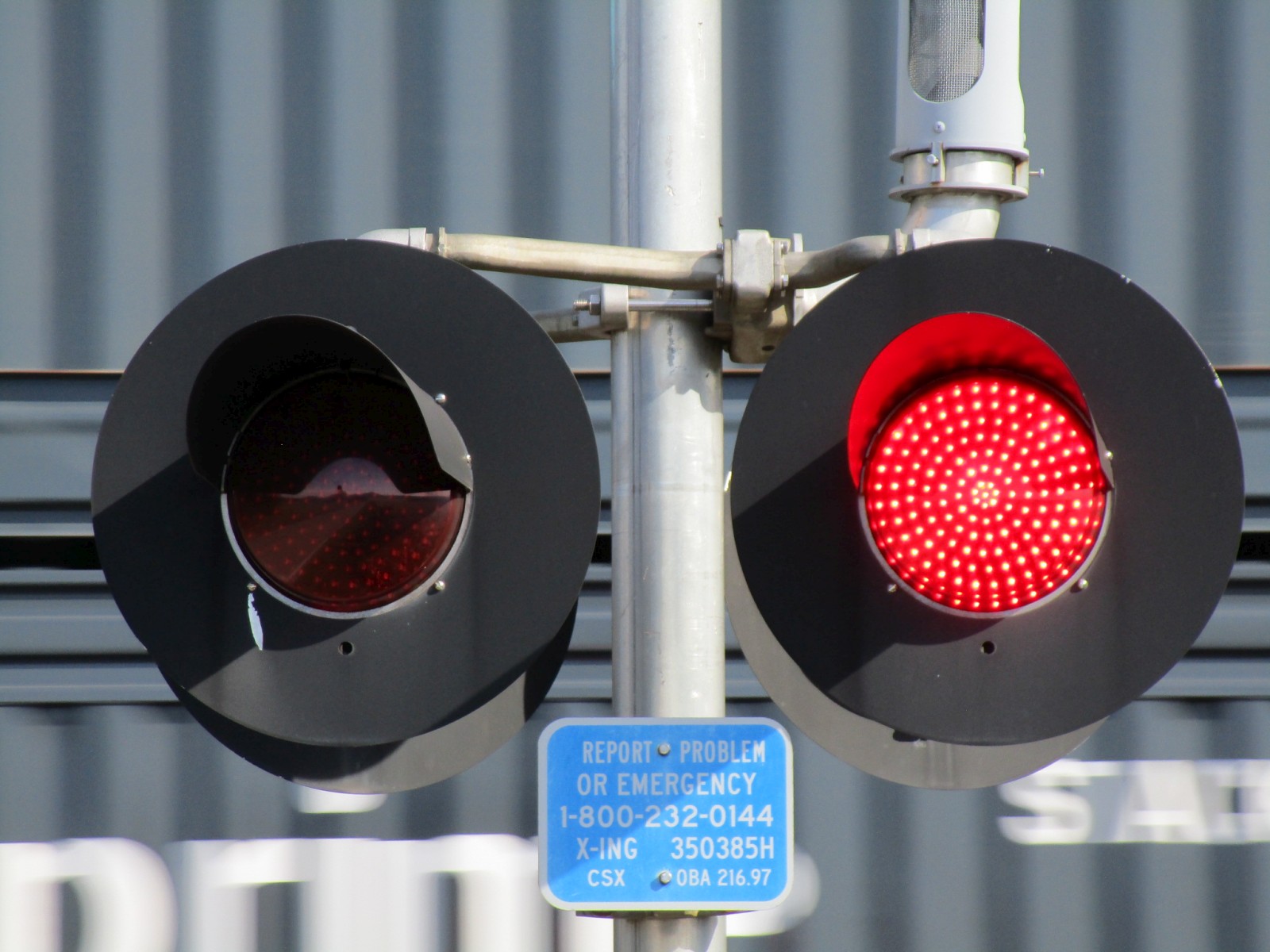

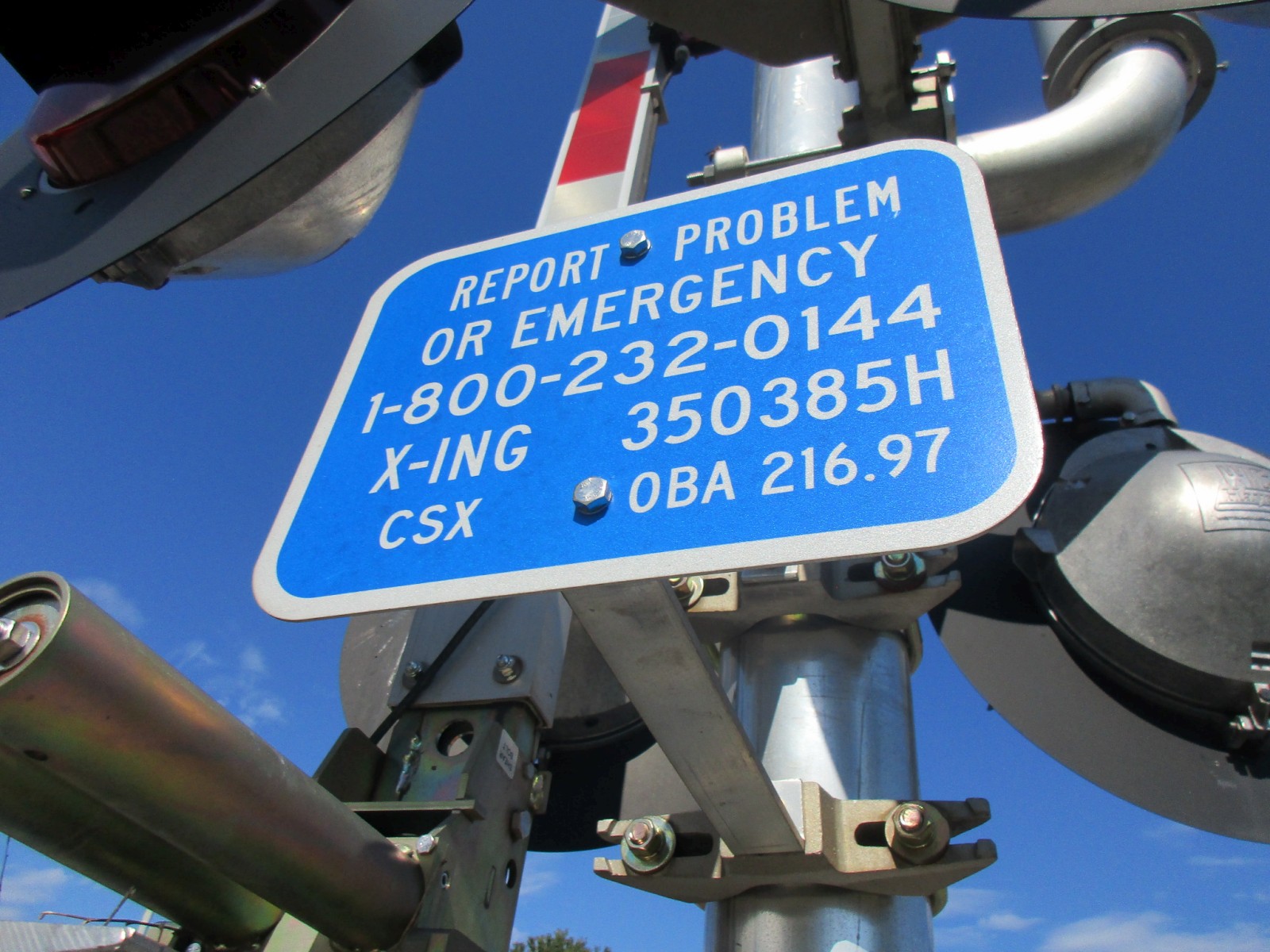

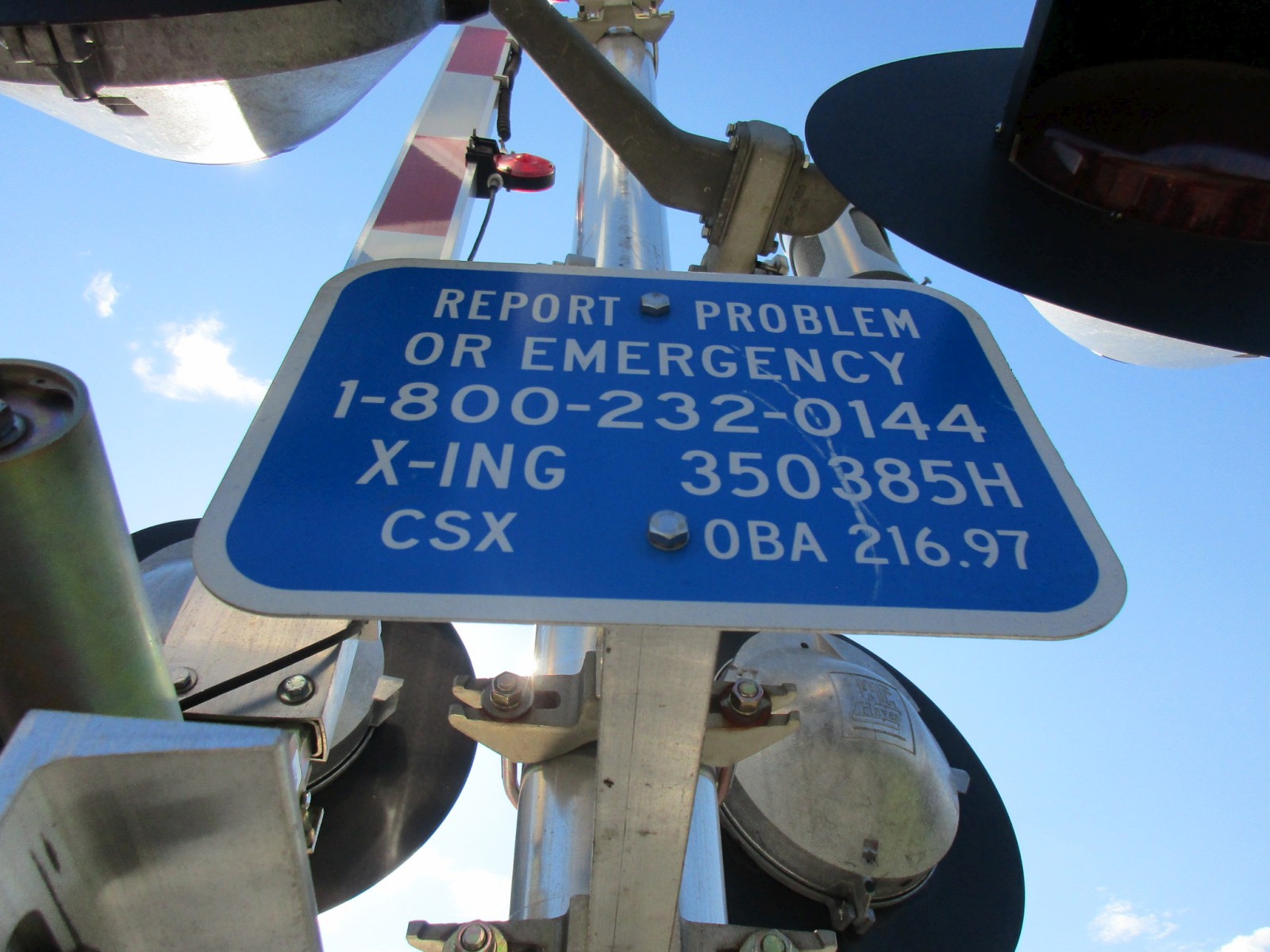

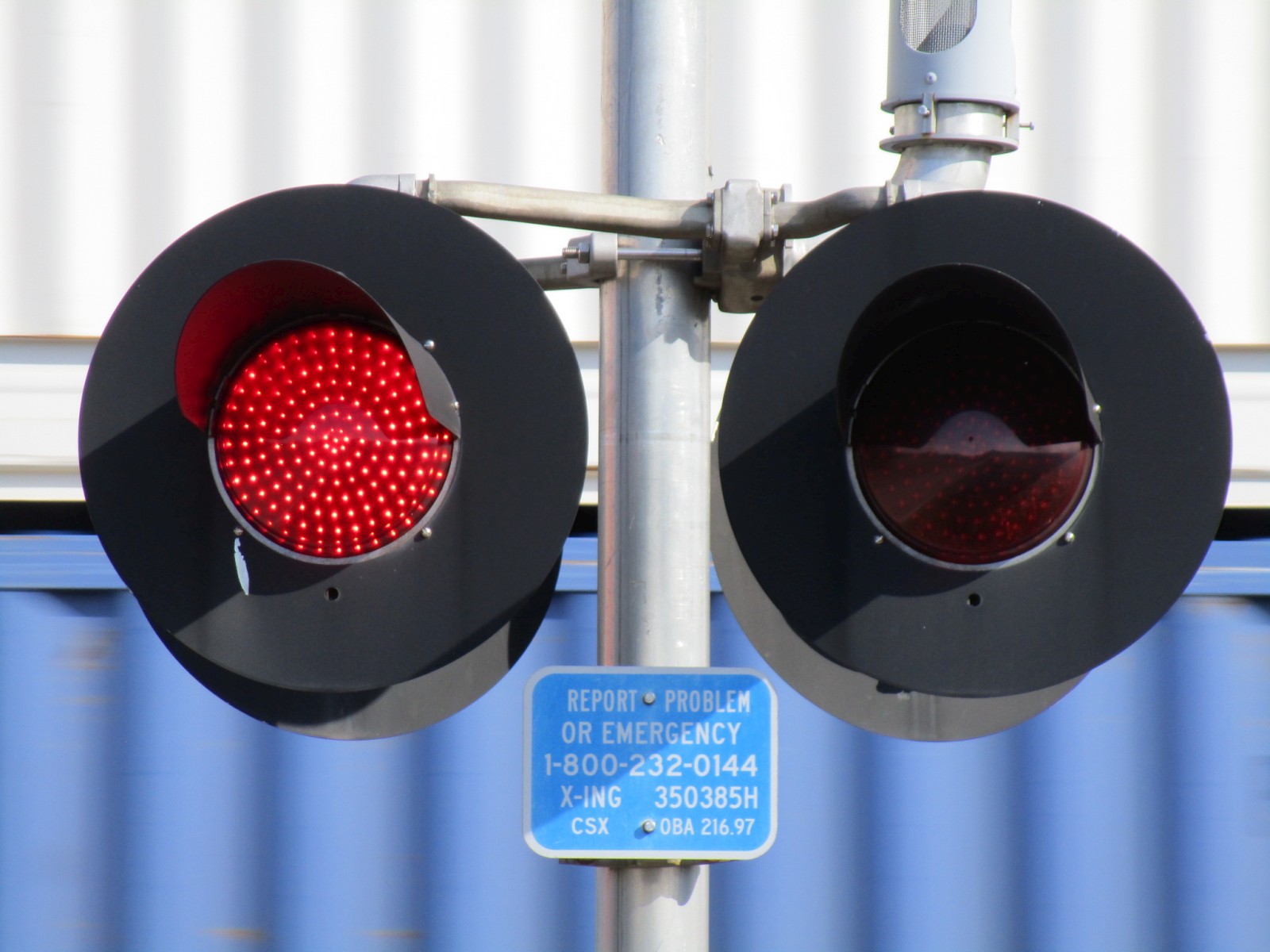

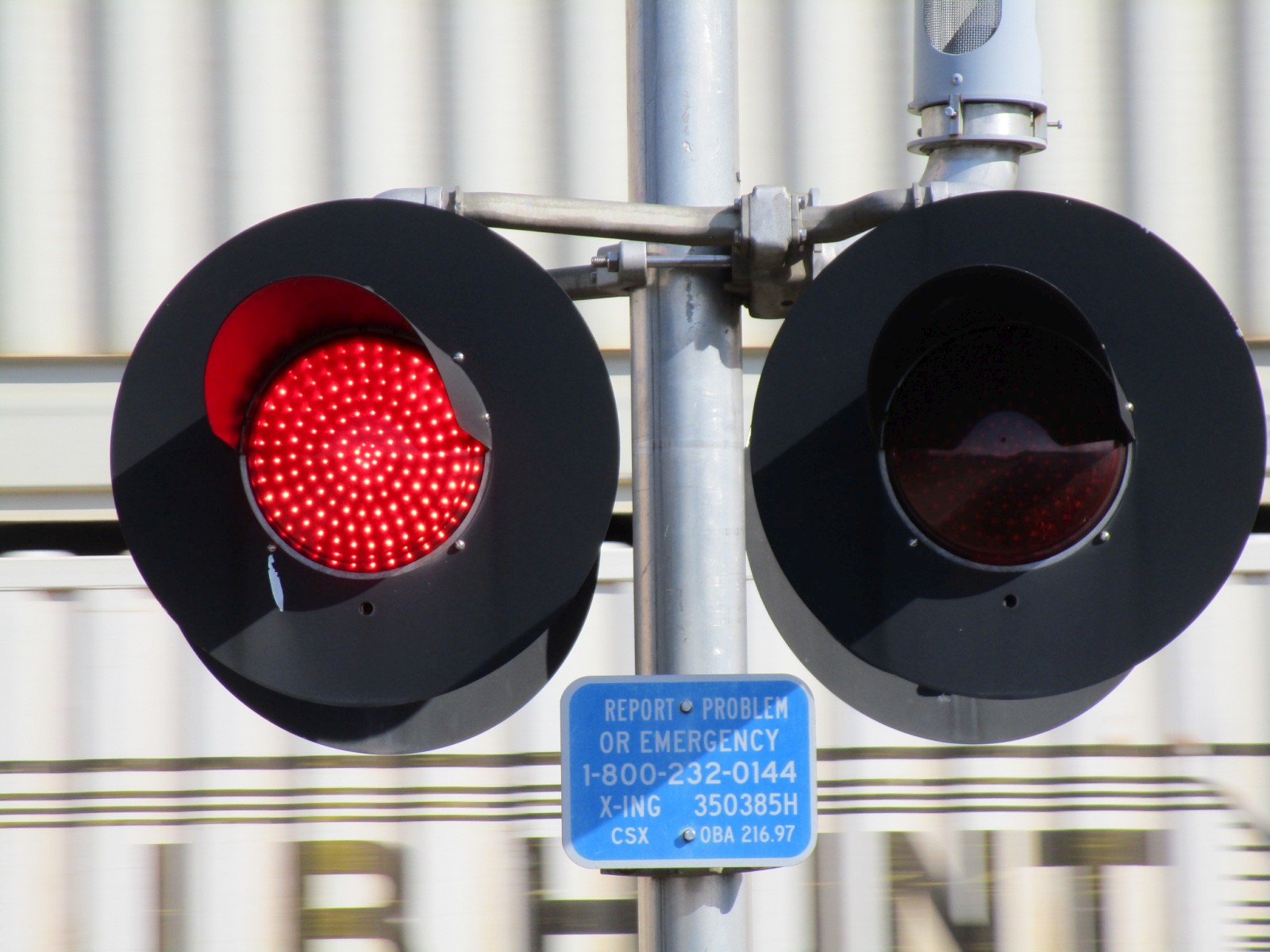

The emergency information. |

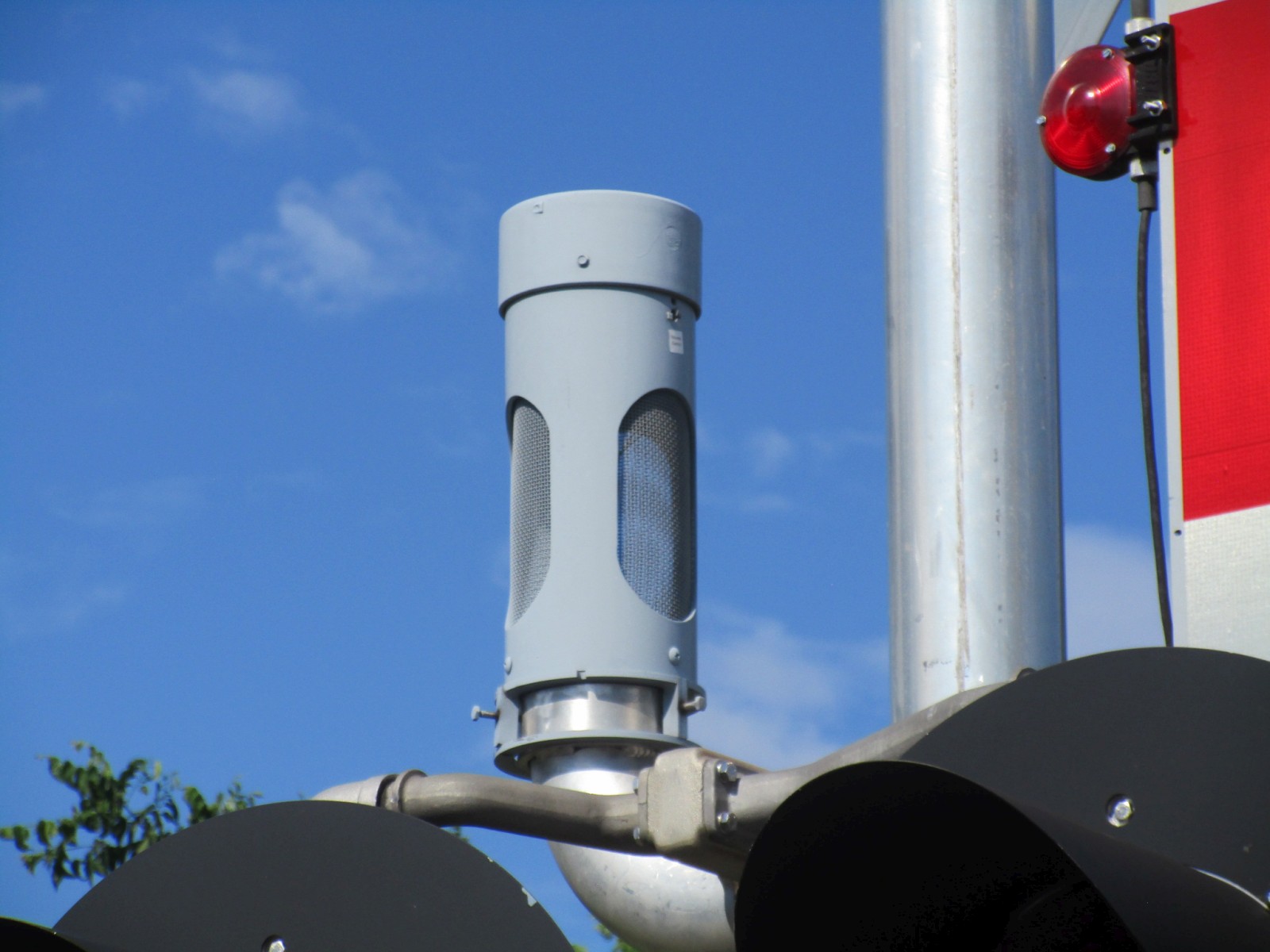

This signal has an NEG e-bell on it. |

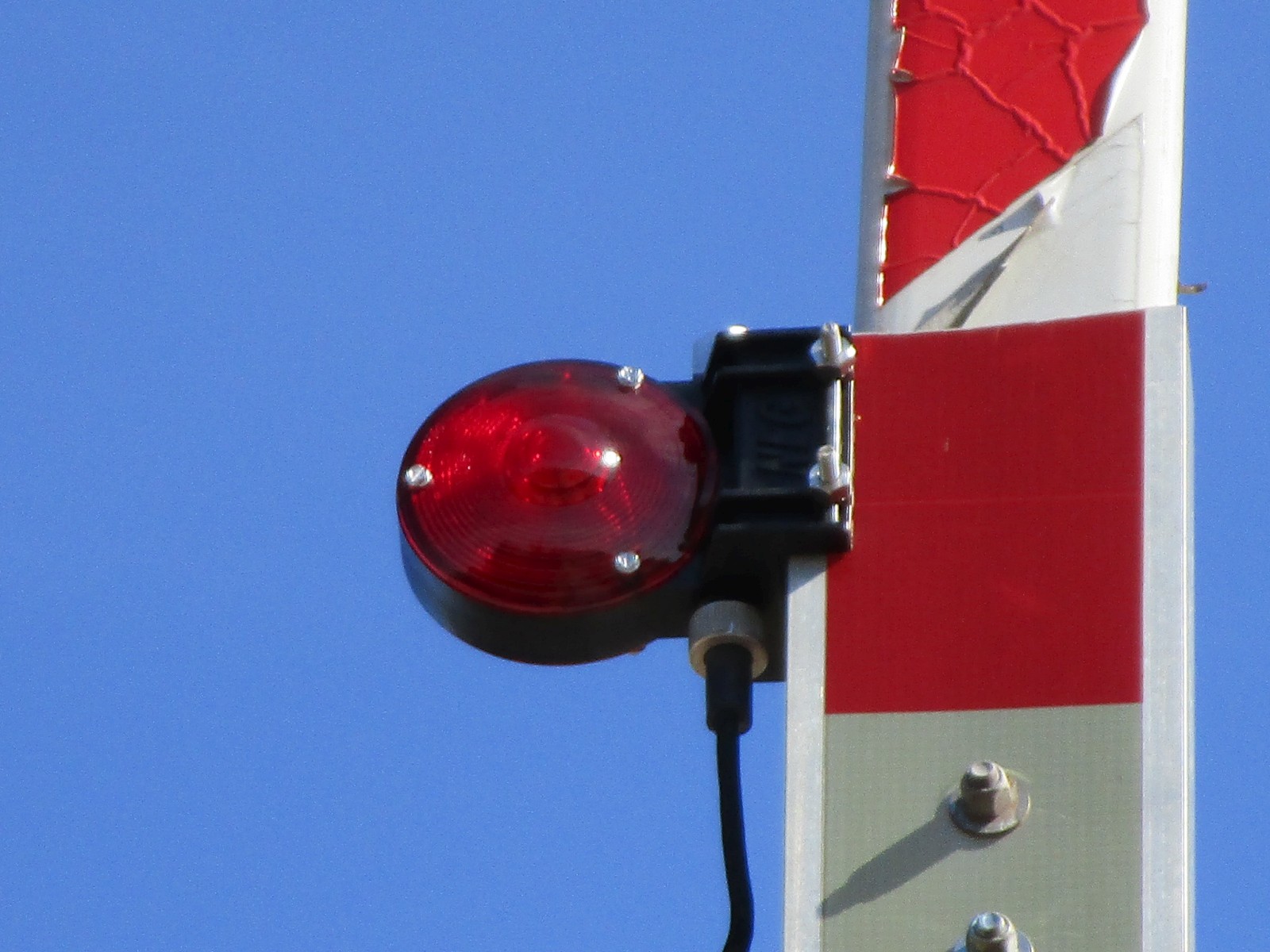

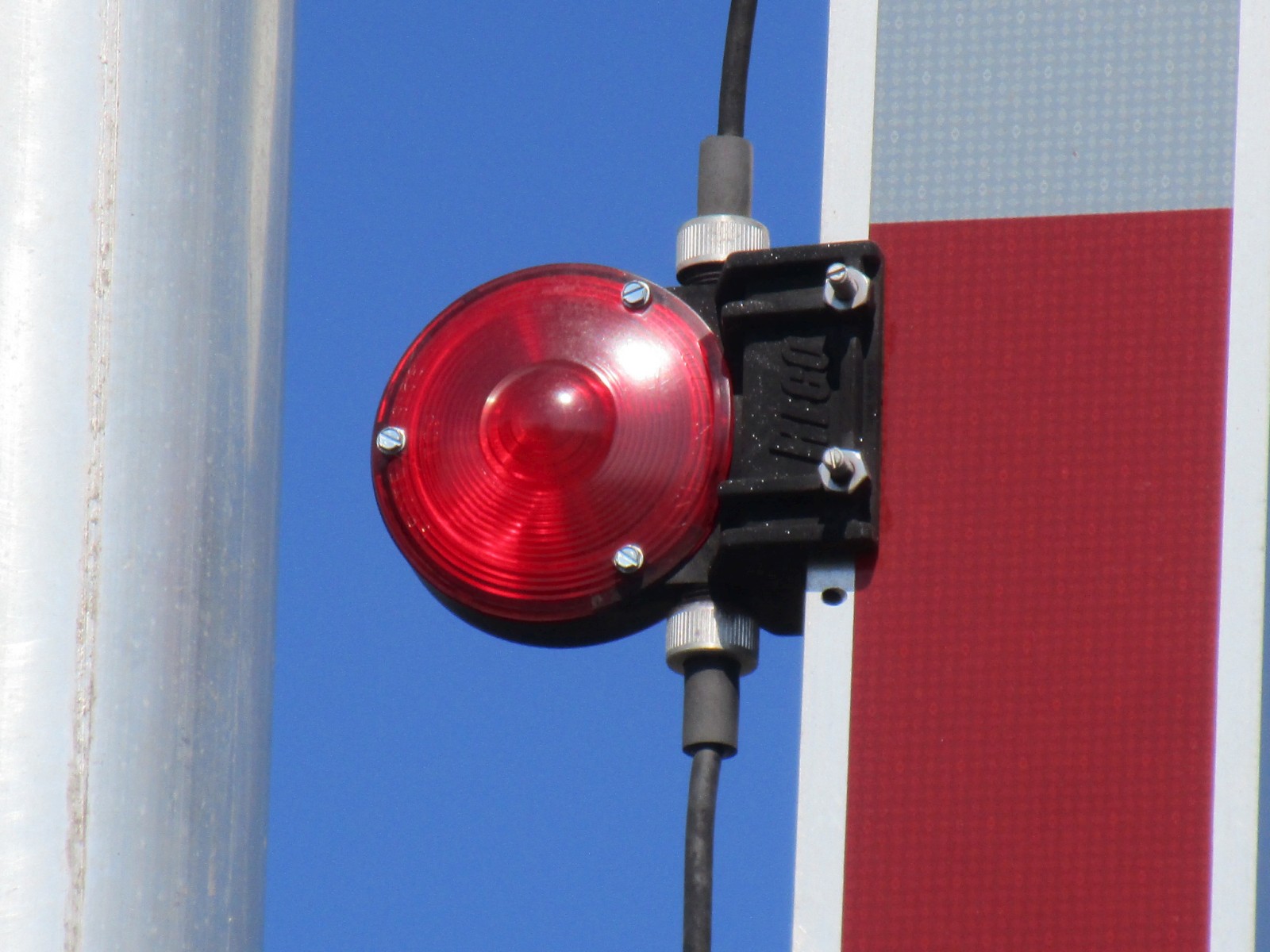

The gate lights here are from RECO. |
The second signal. |
13 |
14 |
15 |
16 |

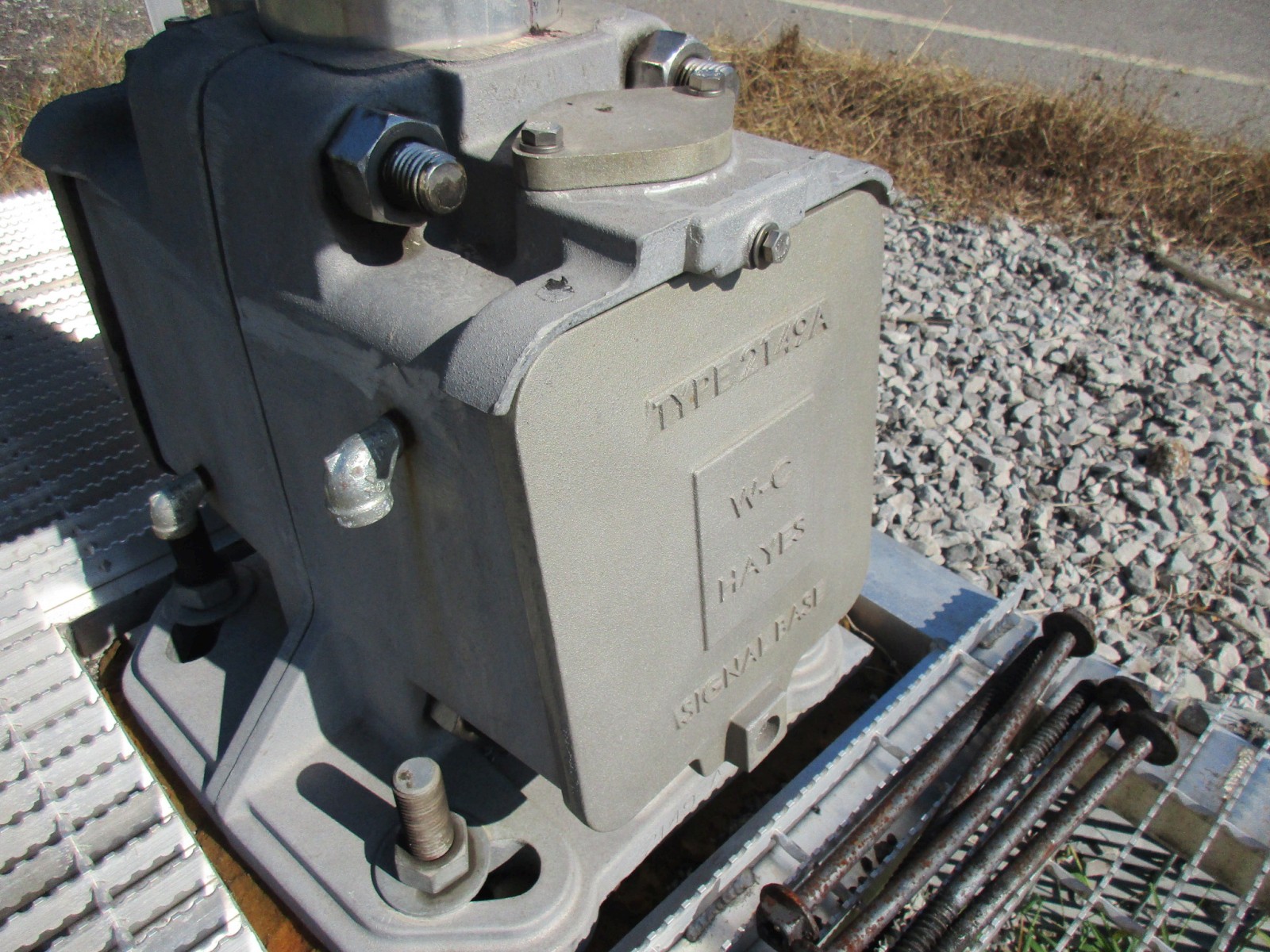

It has another WCH base. |

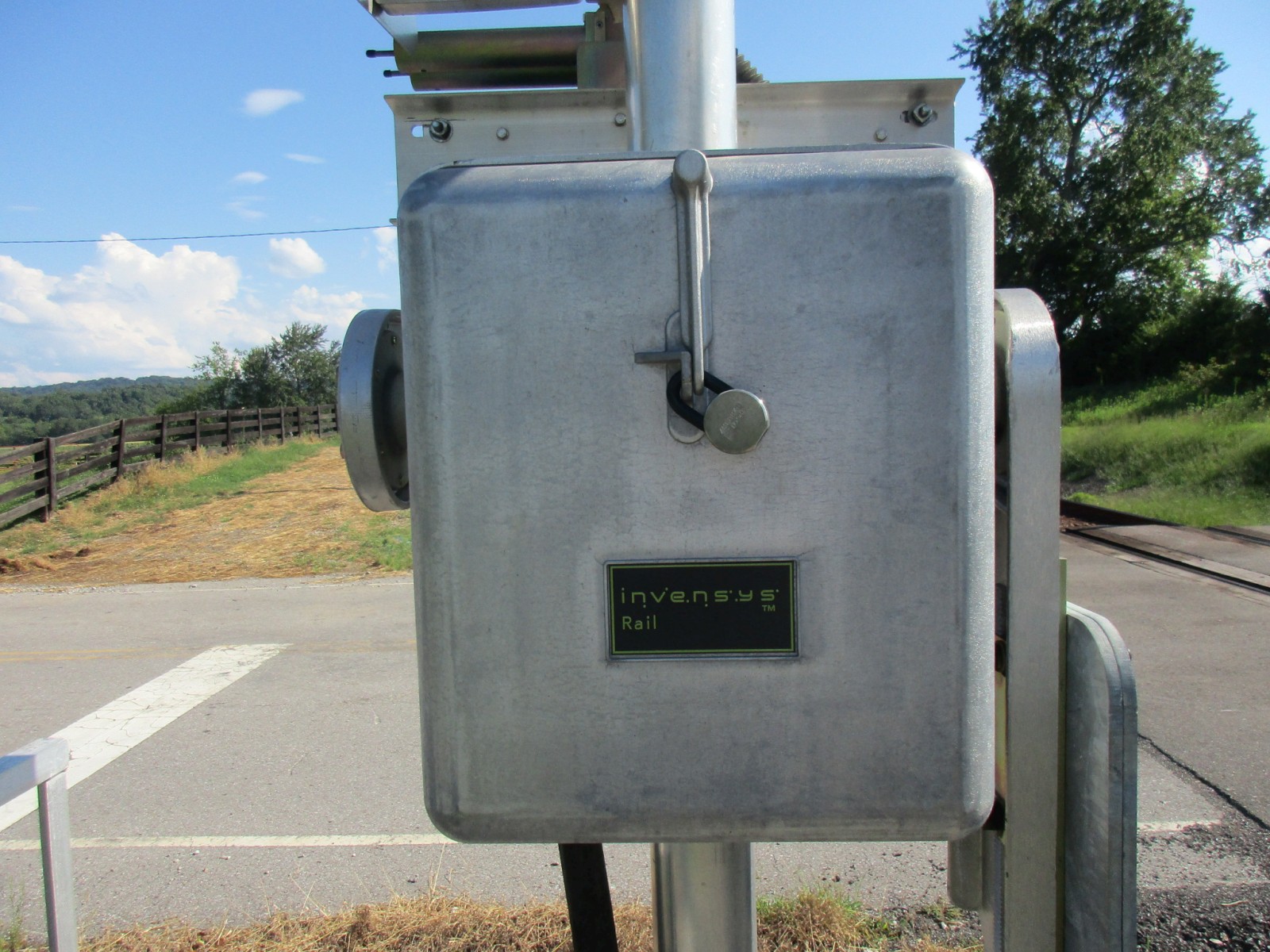

Another Invensys Rail gate mechanism. |
The emergency information. |
17 |
18 |
19 |
20 |
It has more WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

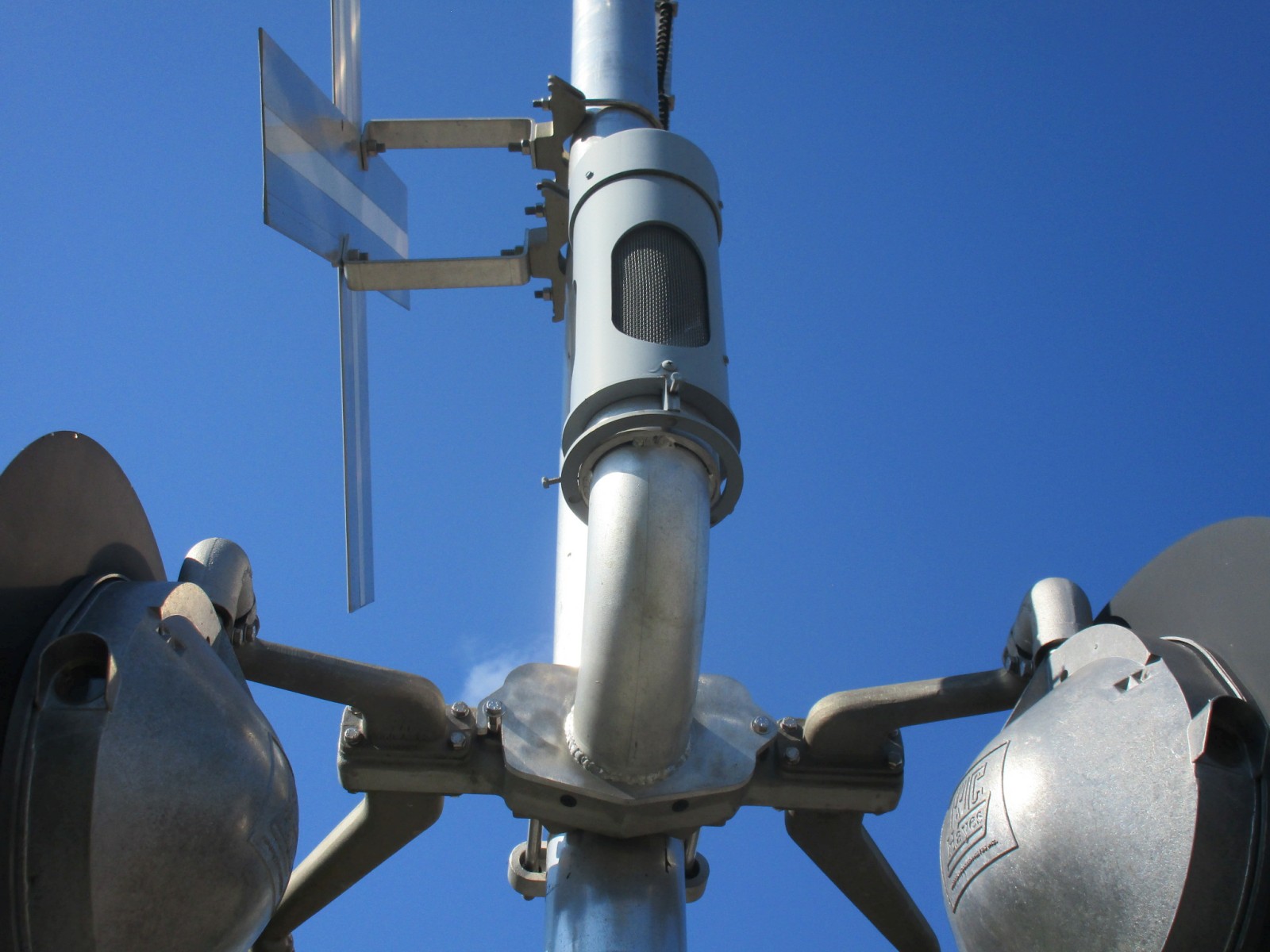

Another NEG e-bell over here. |

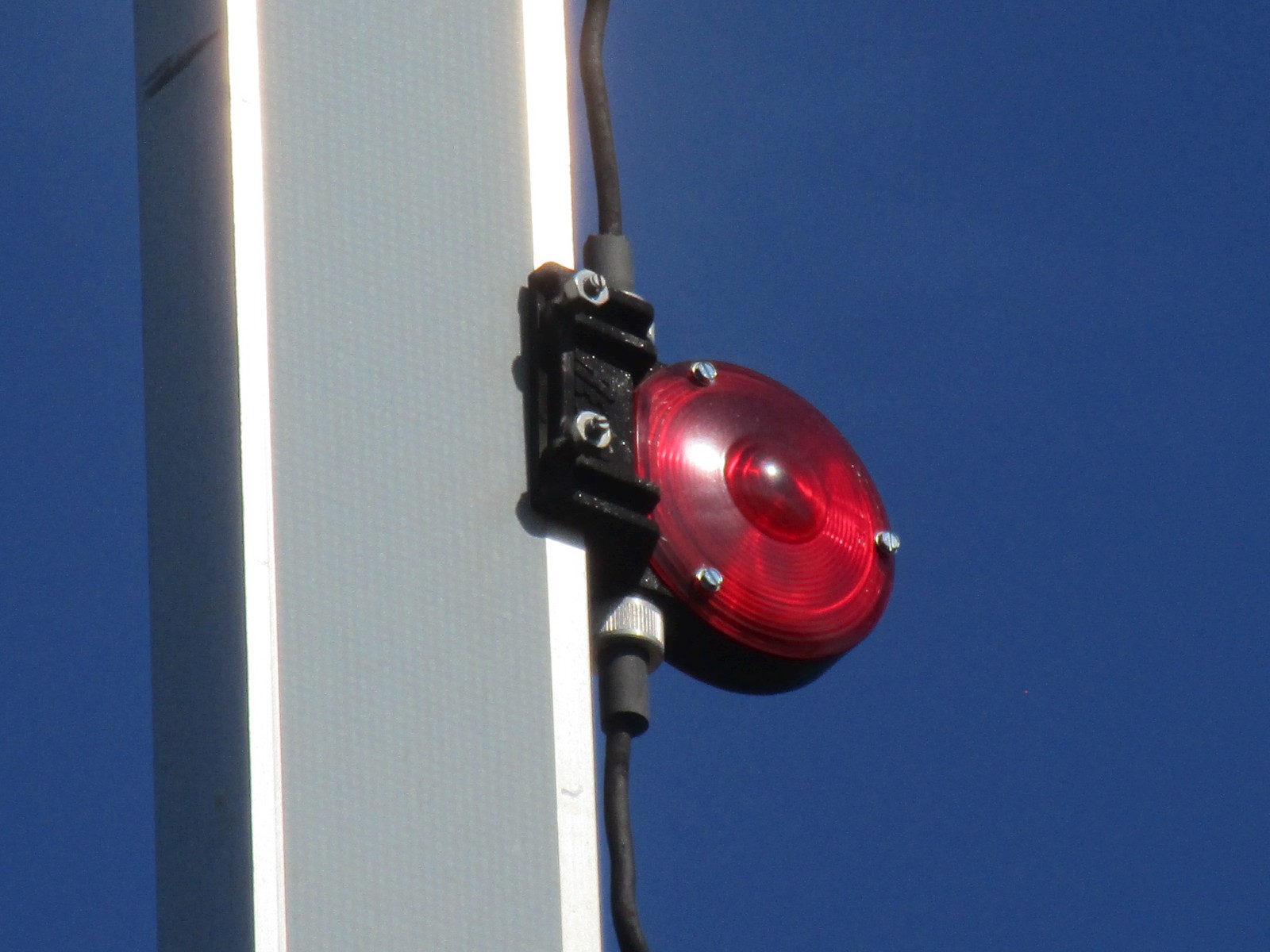

More RECO gate lights on this signal. |
|
21 |
22 |
23 |
24 |

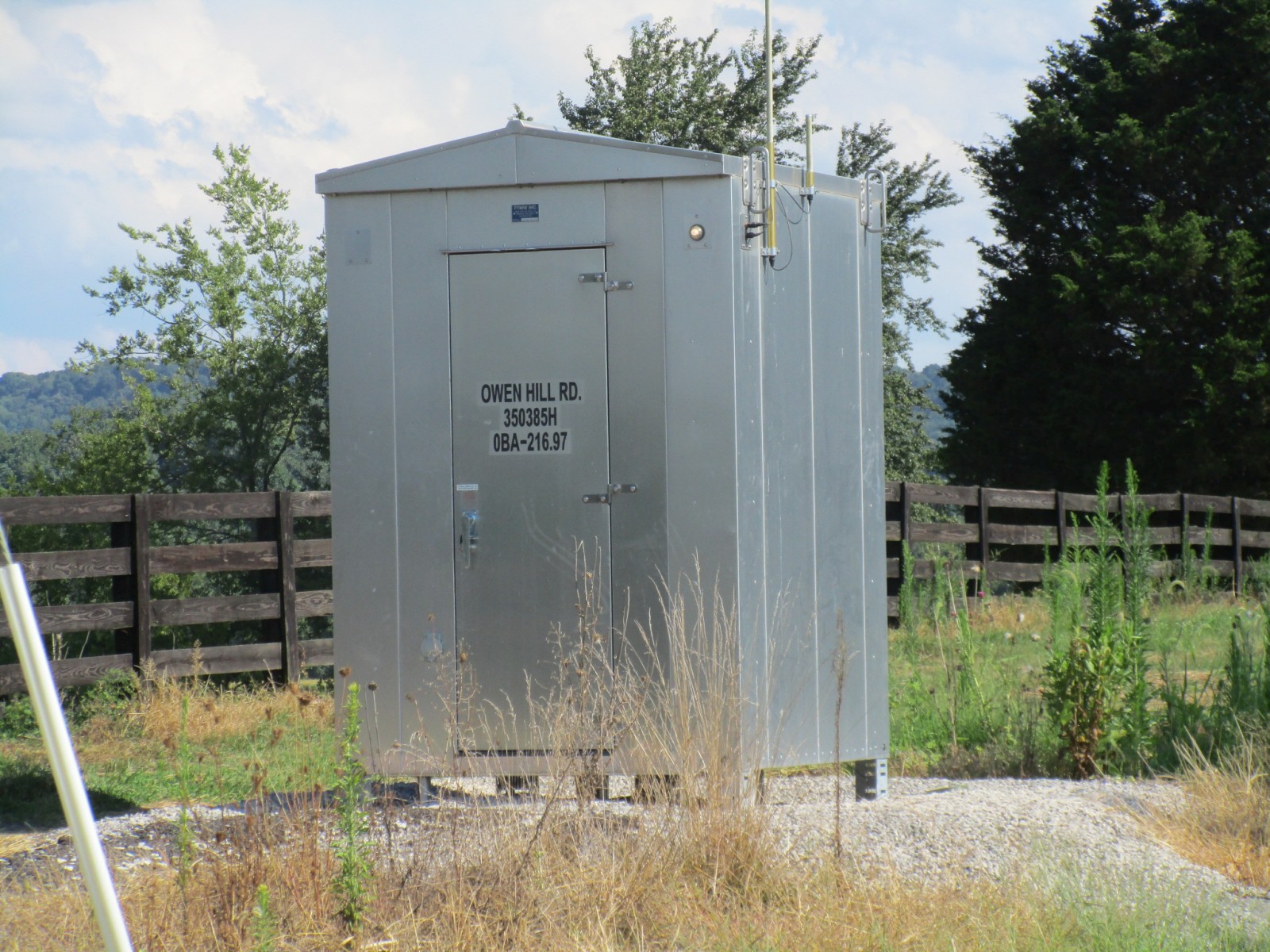

The relay case. |

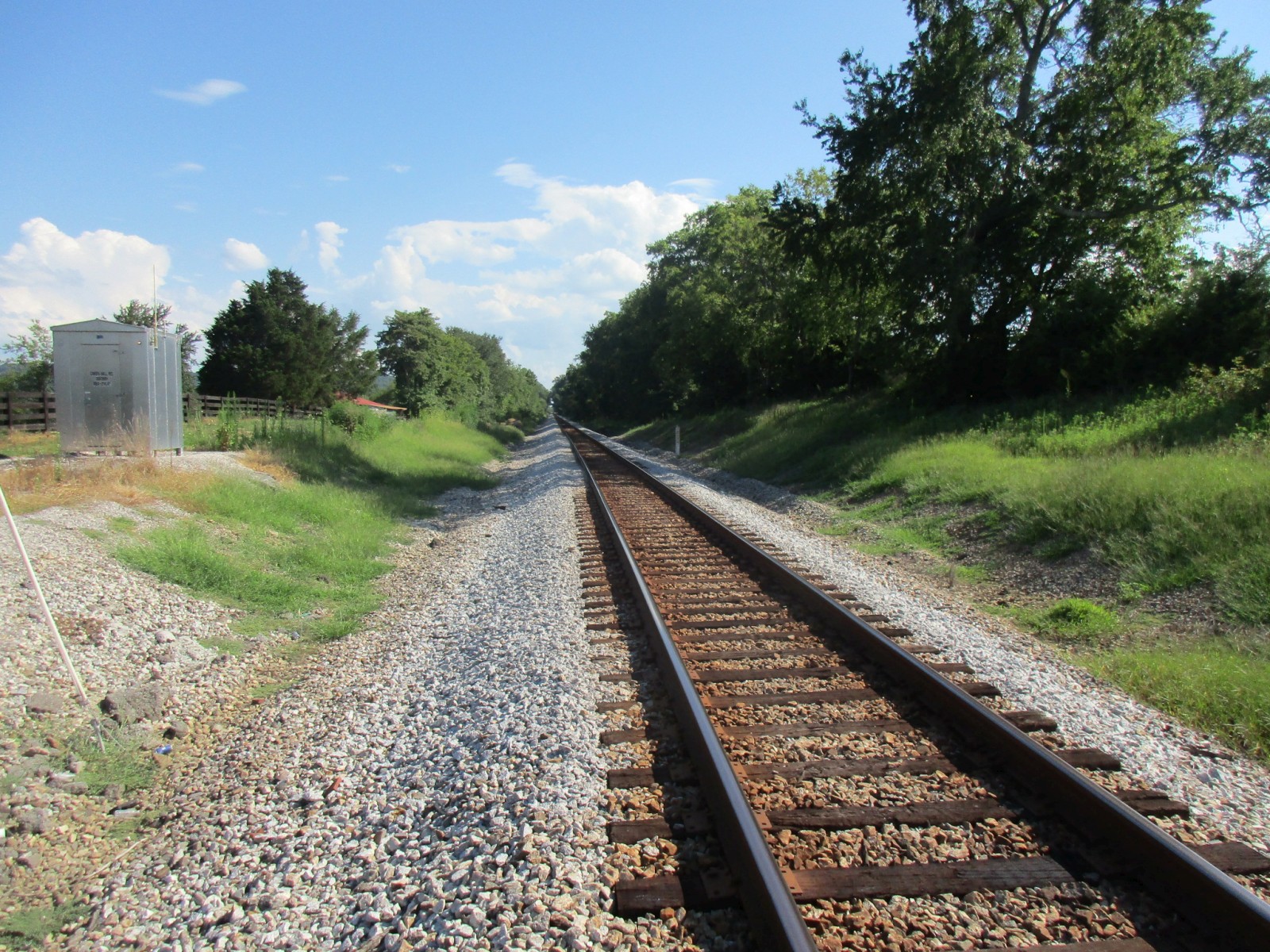

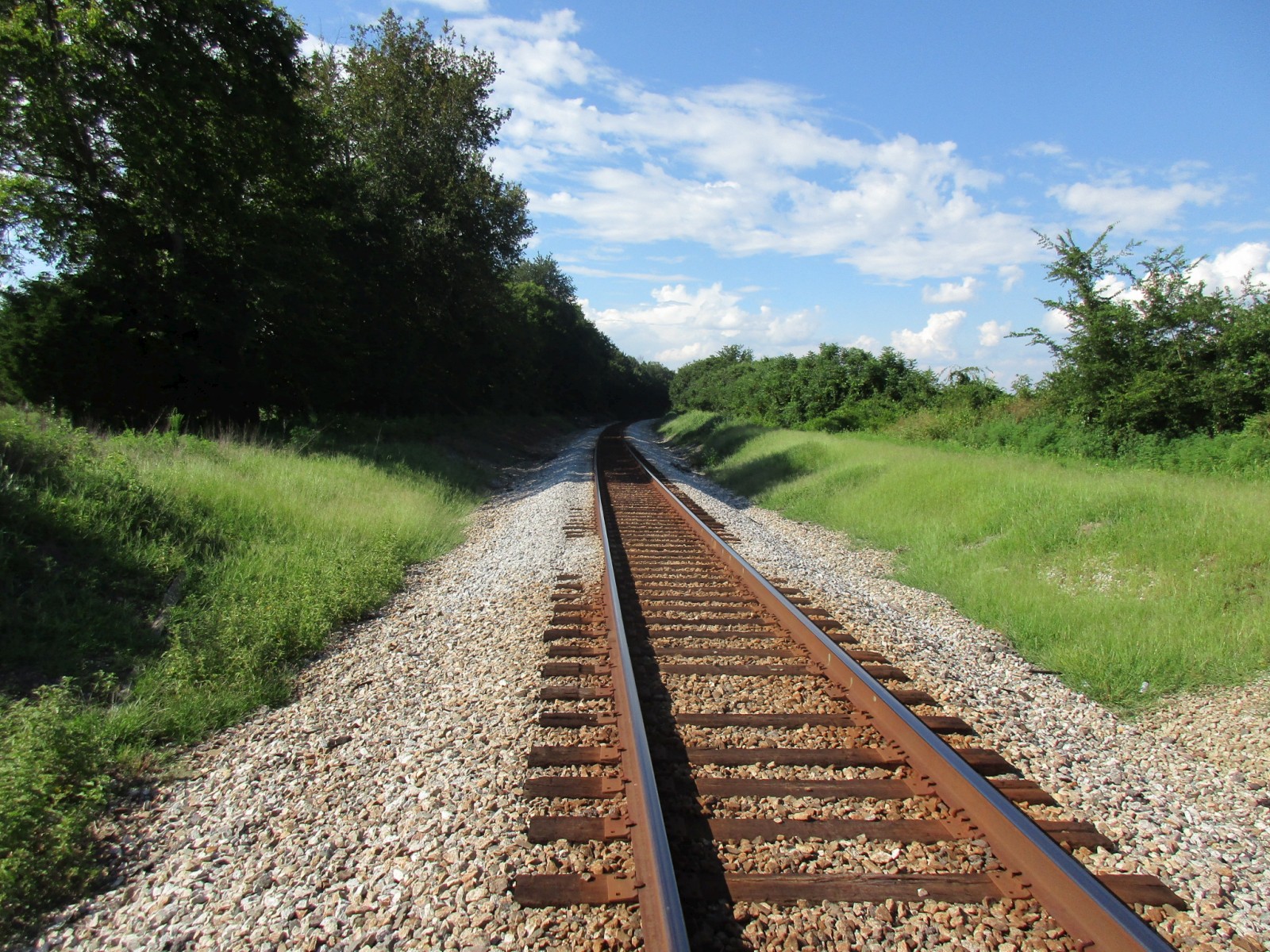

Looking south towards Flat Creek Road near Chapel Hill. |
Looking north towards New Town Road in College Grove. |

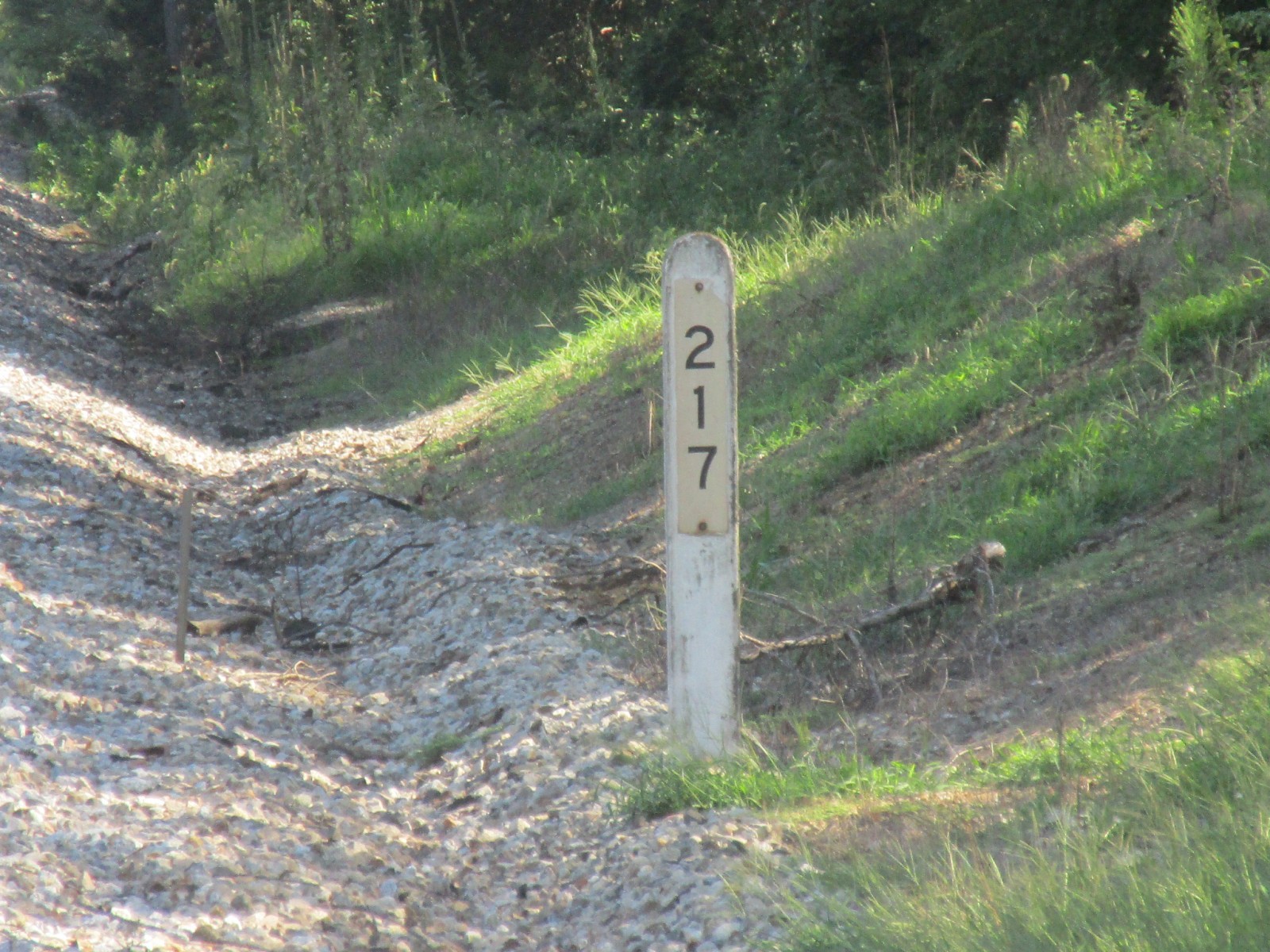

Milepost 217 stands near the crossing. |
25 |
26 |
27 |
28 |

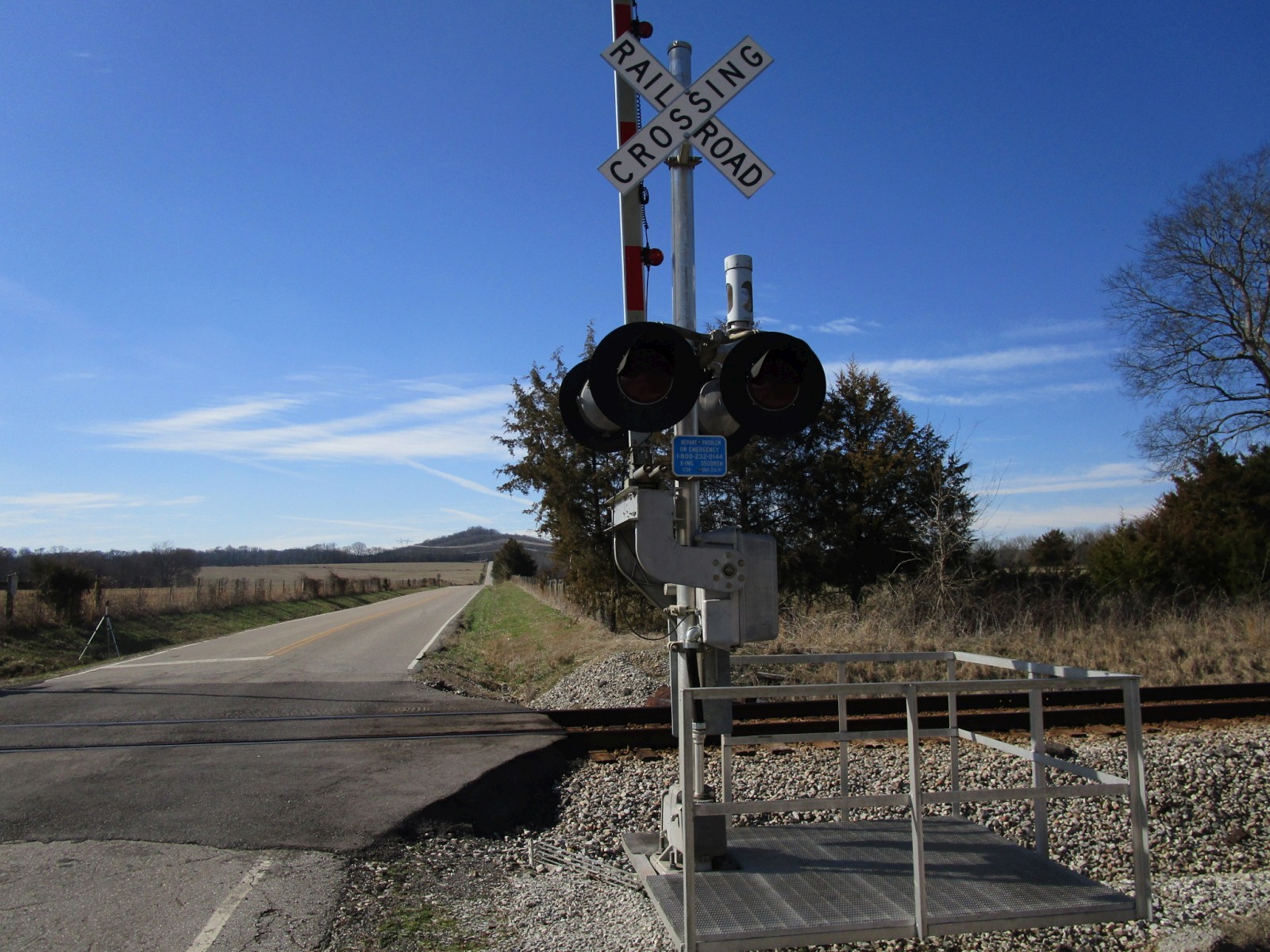

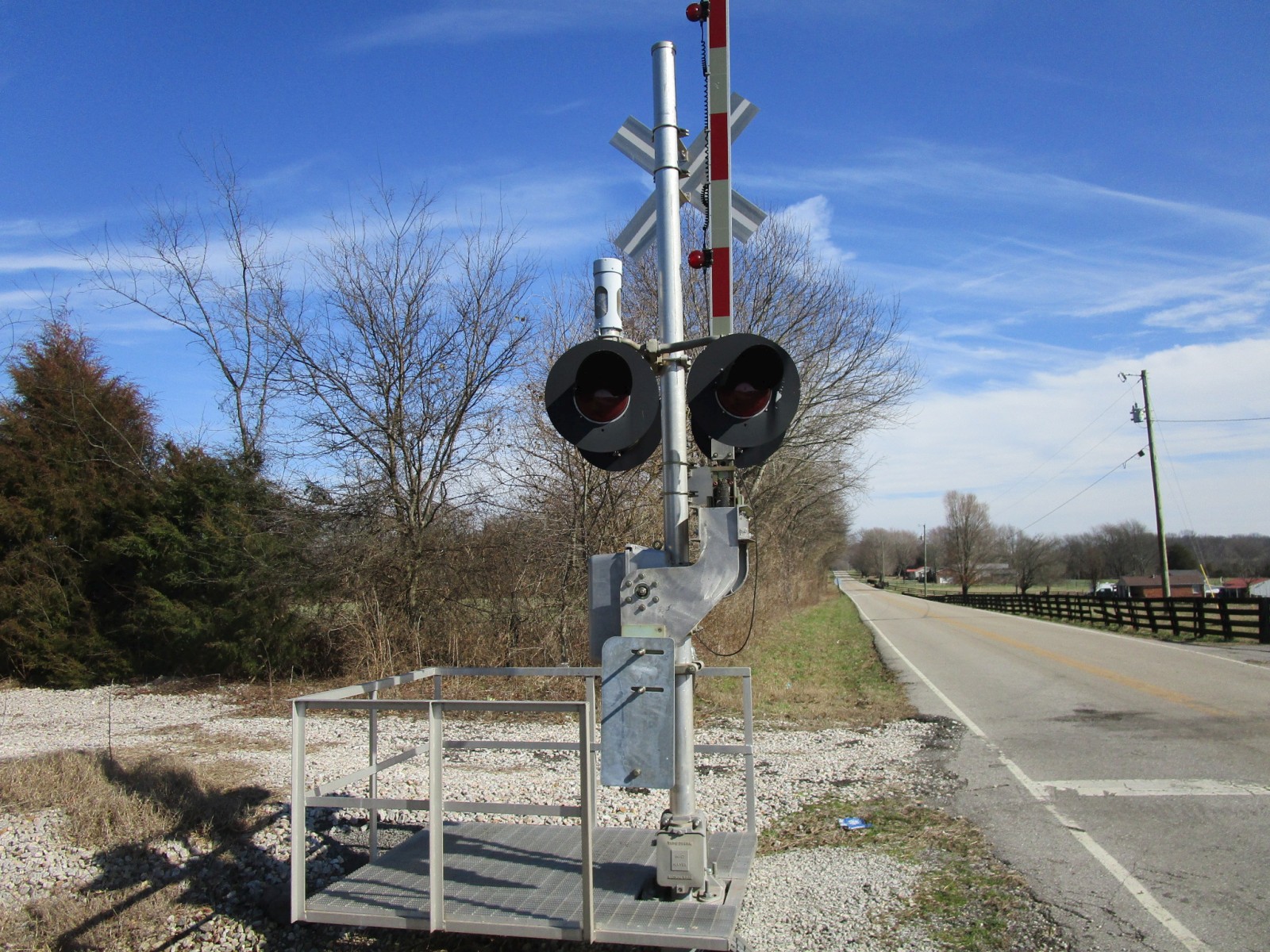

A return trip to the crossing on 2-10-23 finds that the second signal here had its tip gate light replaced with an NEG LED. |
|||
29 |
30 |
31 |
32 |

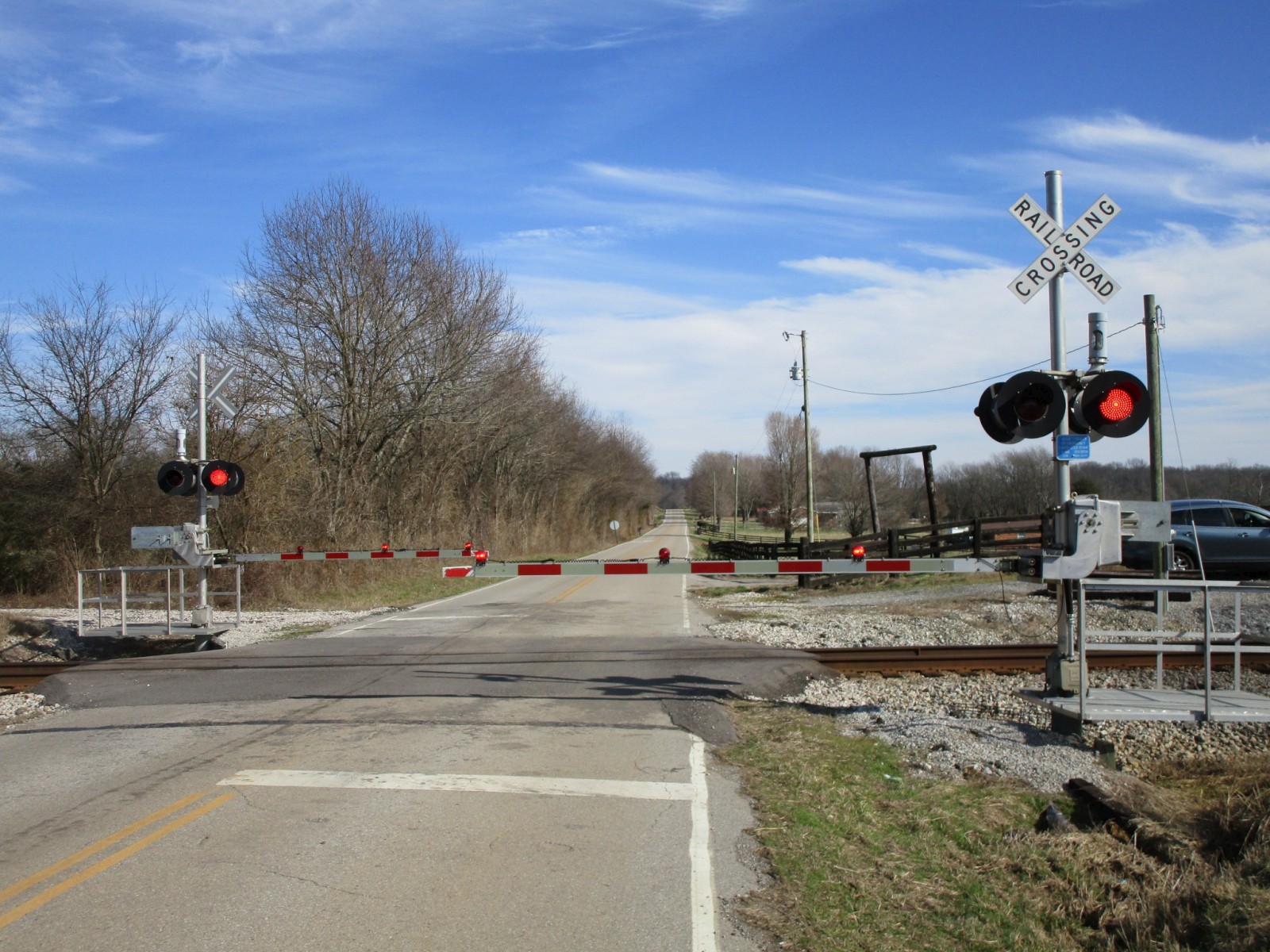

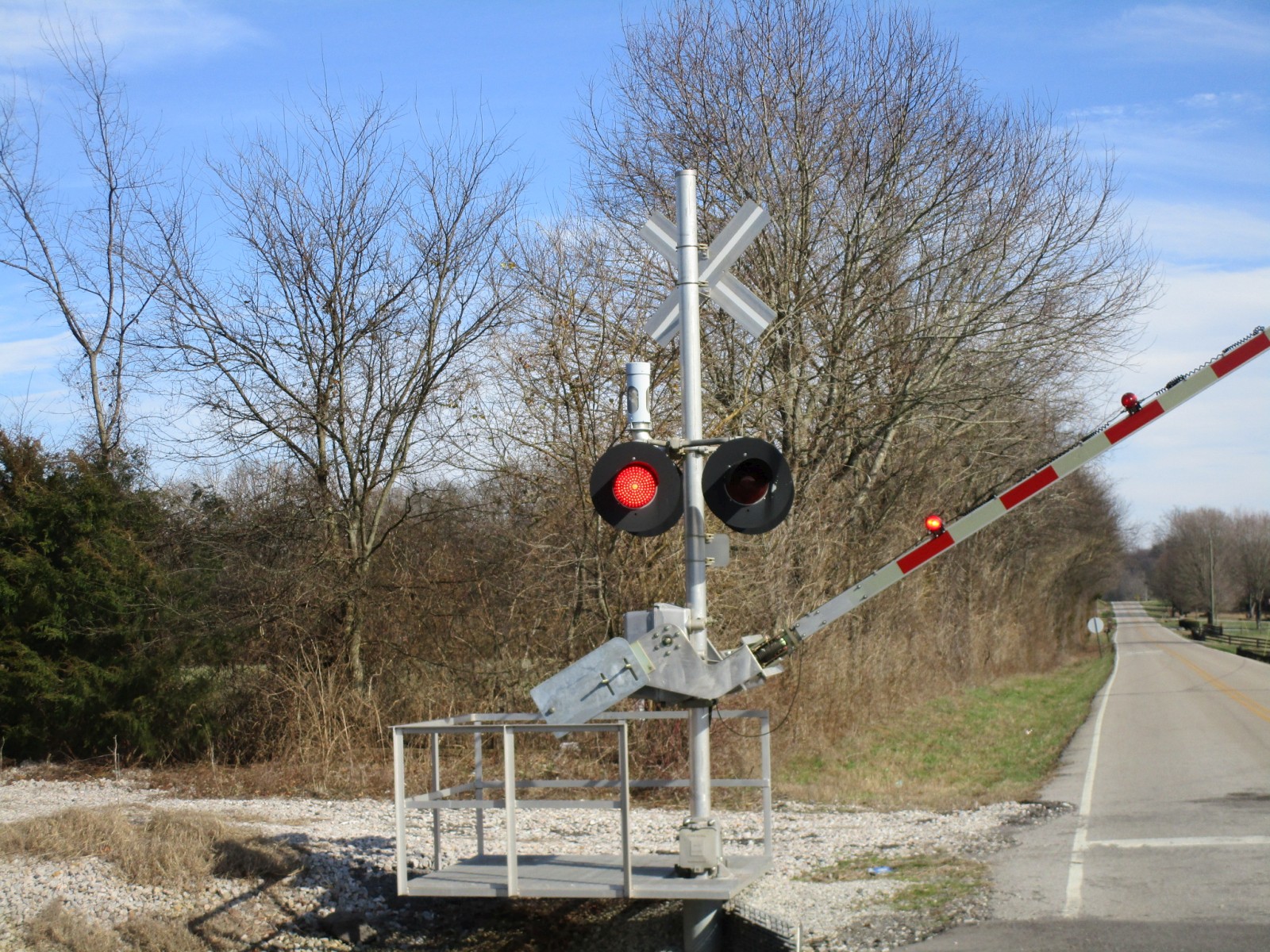

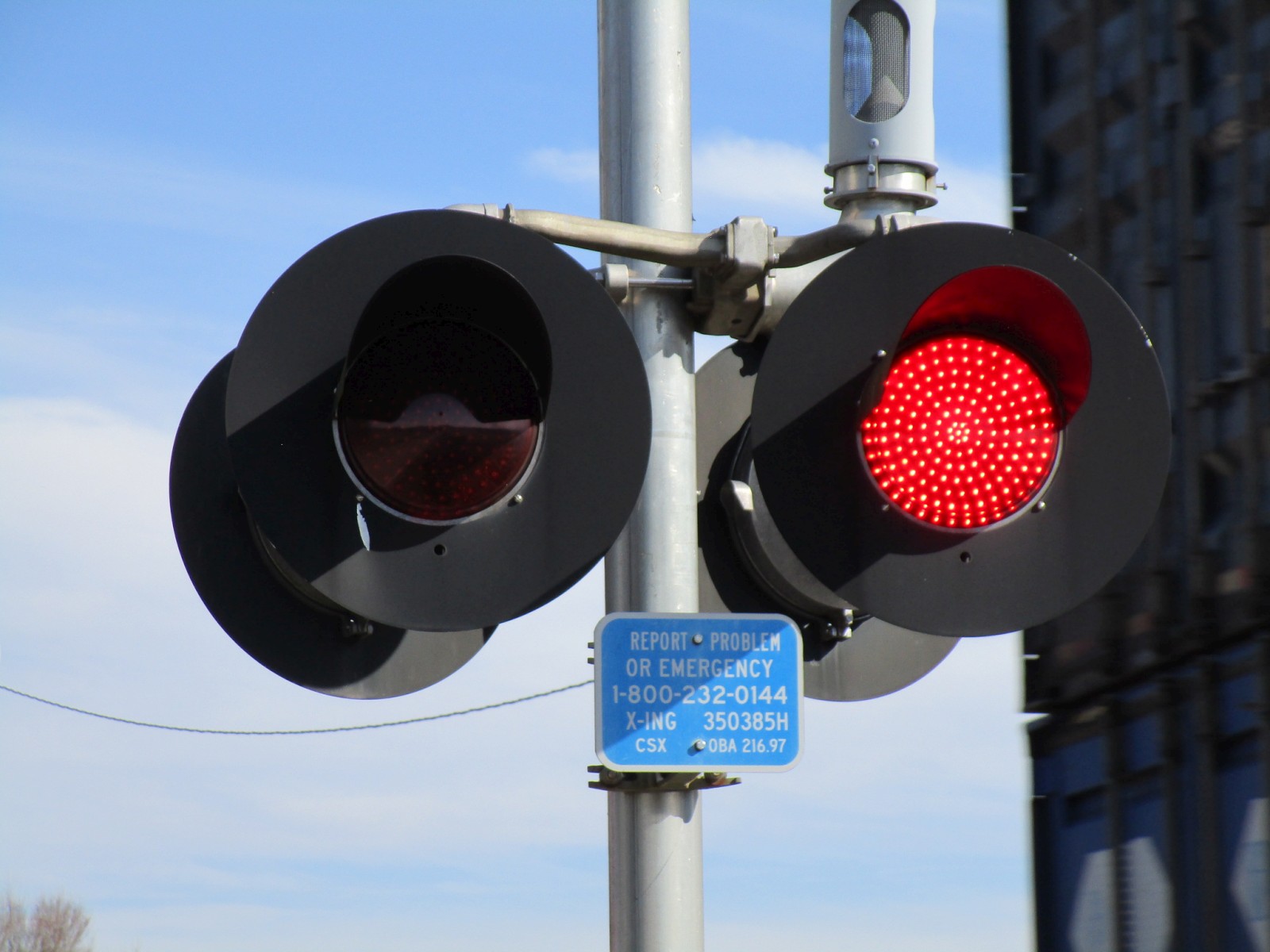

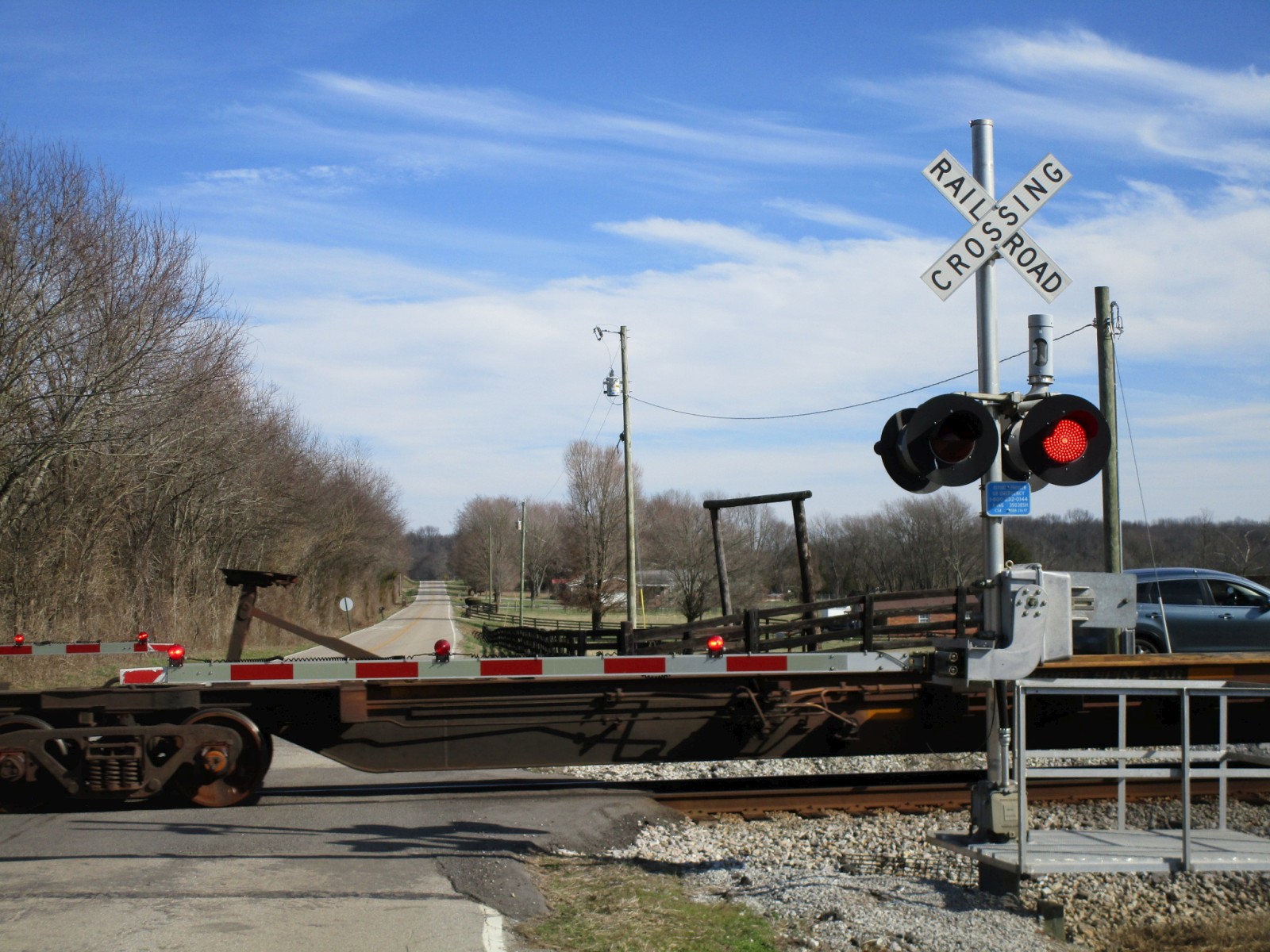

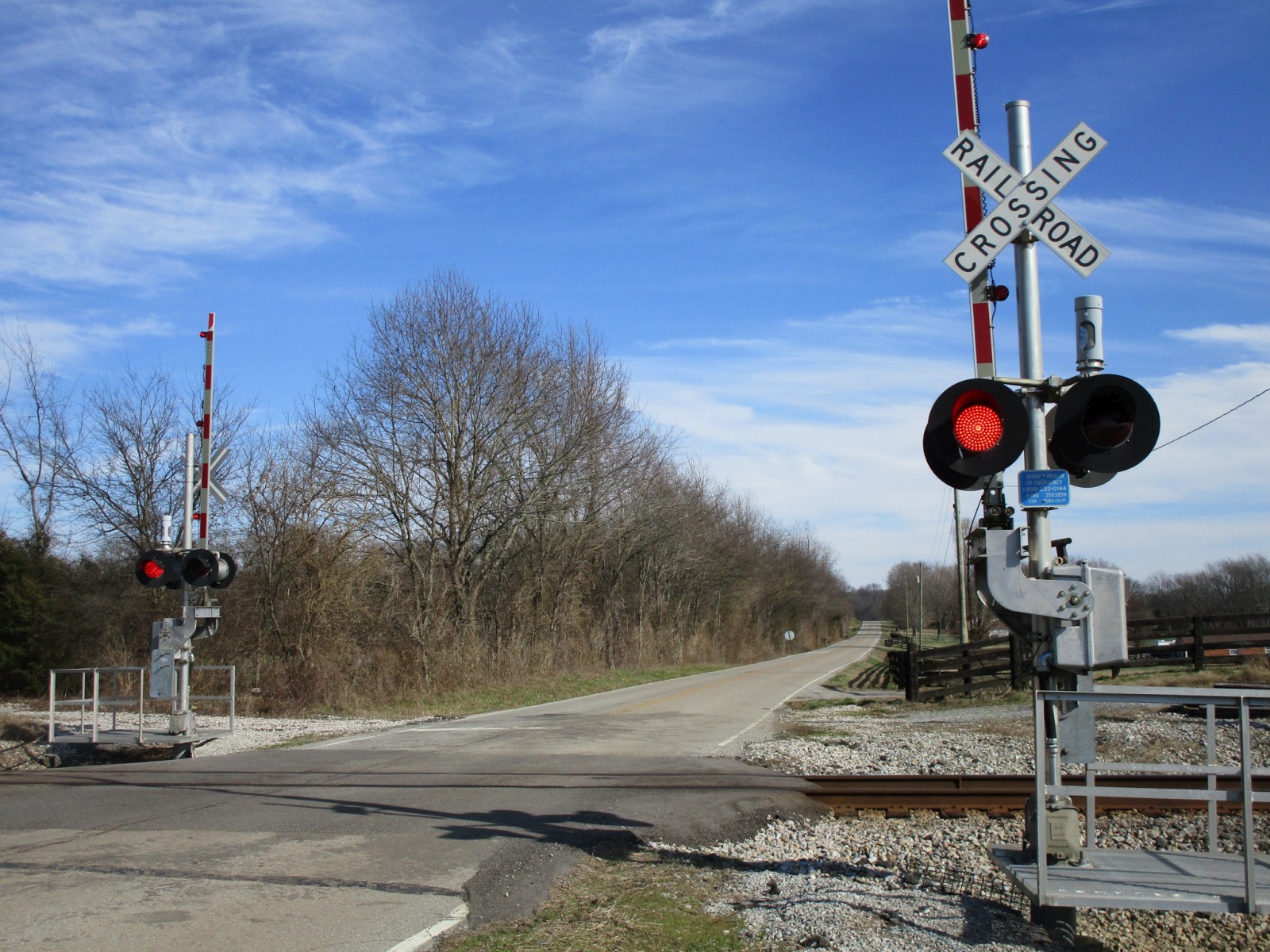

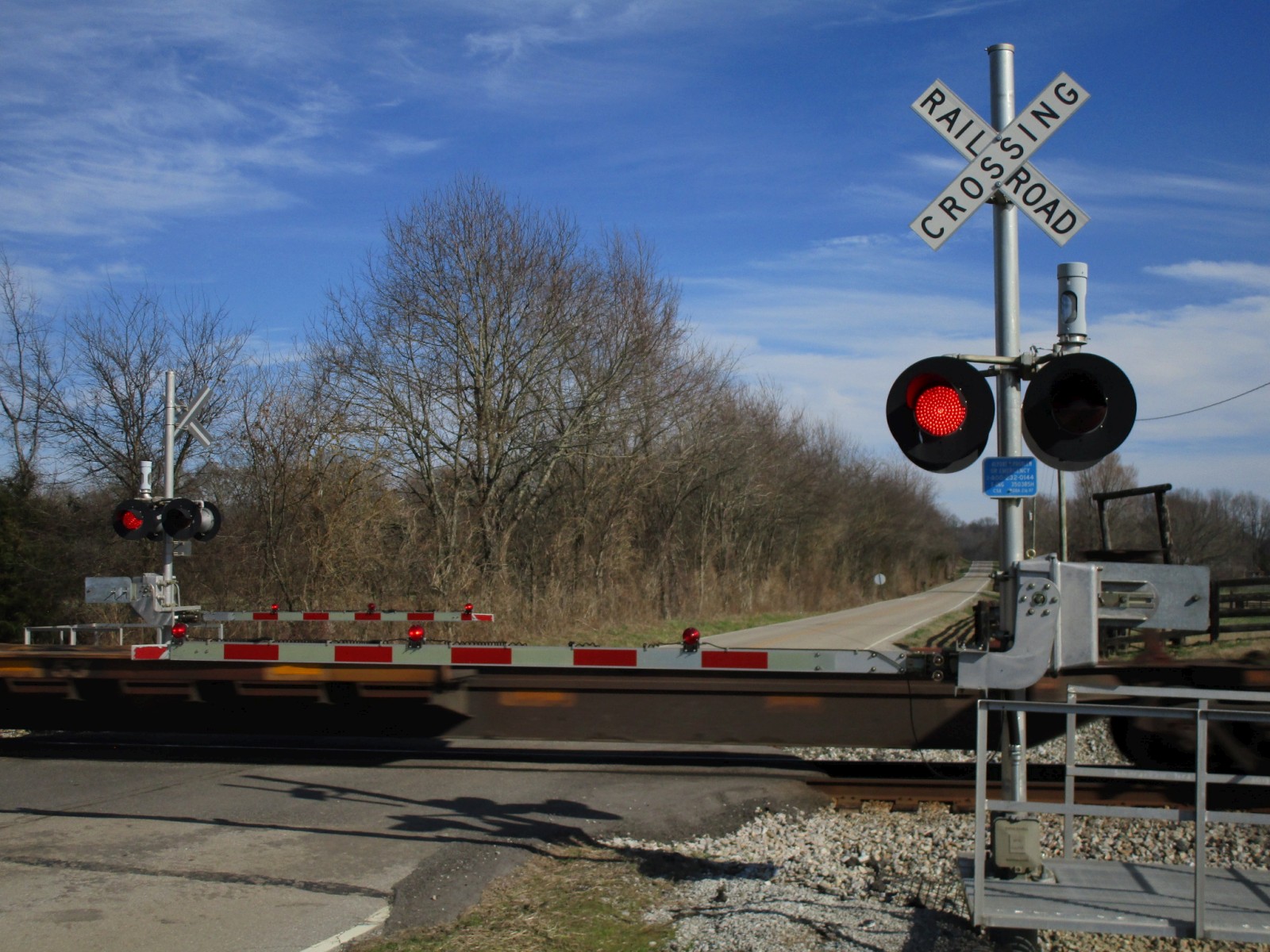

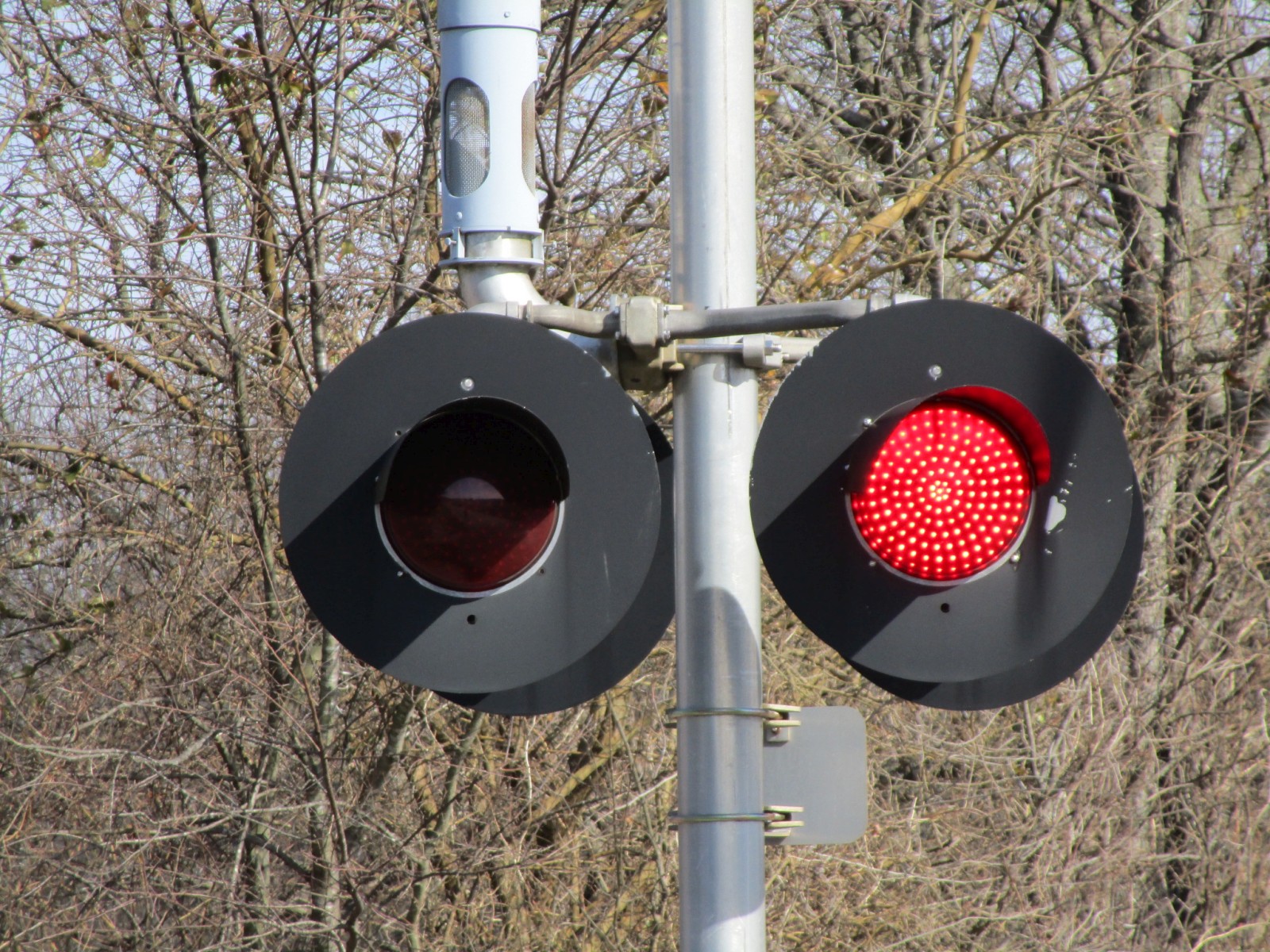

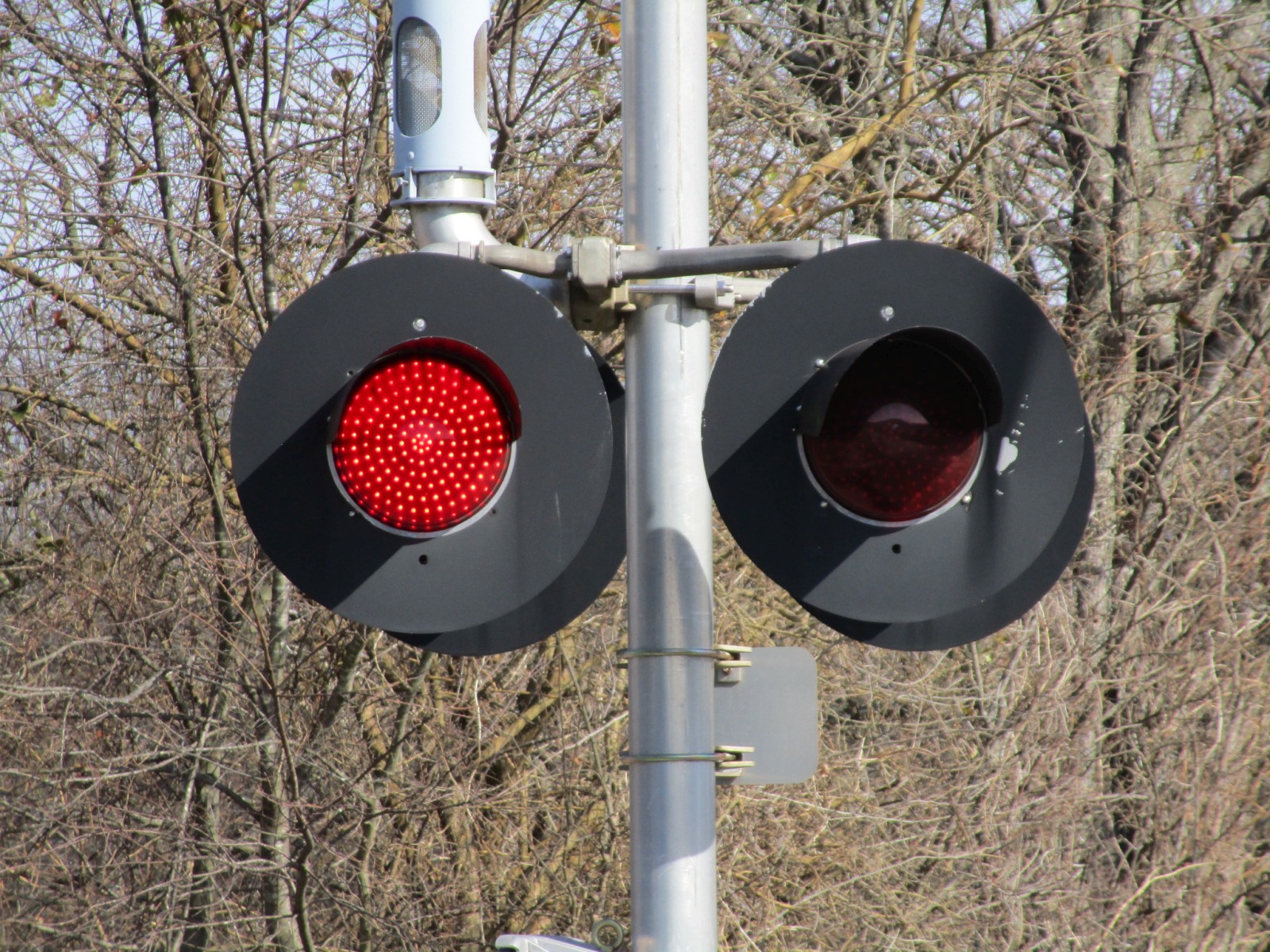

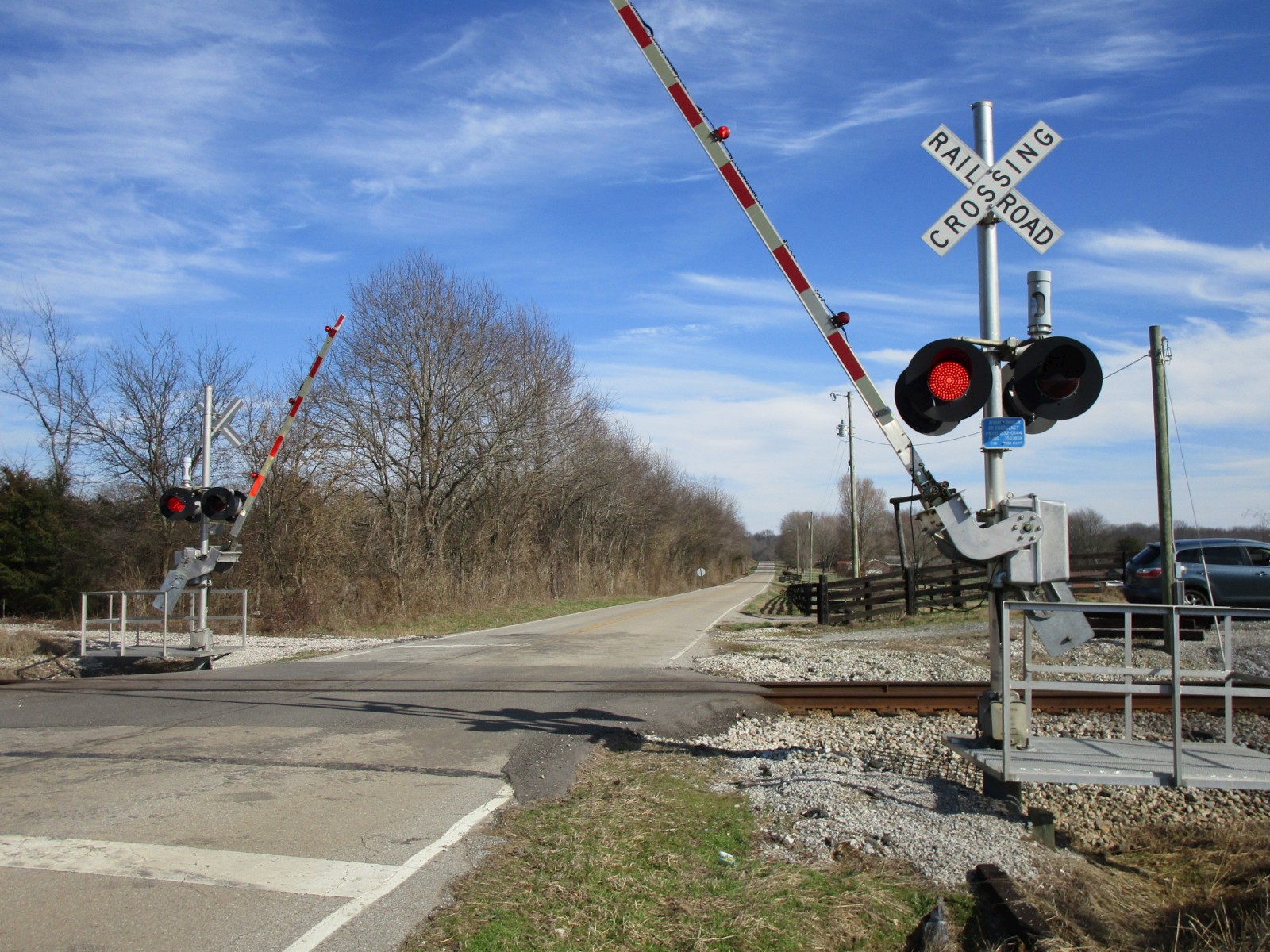

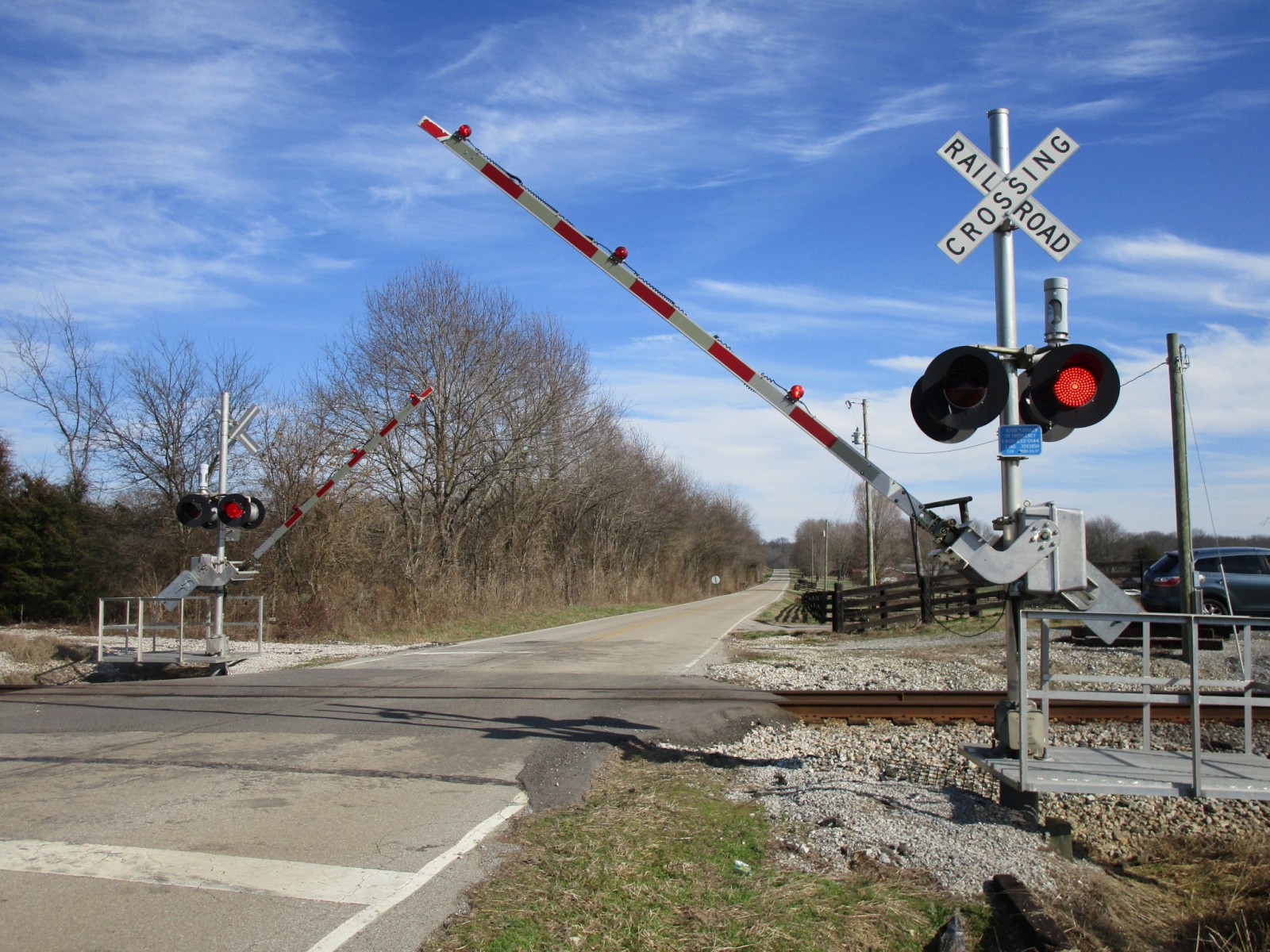

The crossing activates! |
|||
33 |
34 |
35 |
36 |

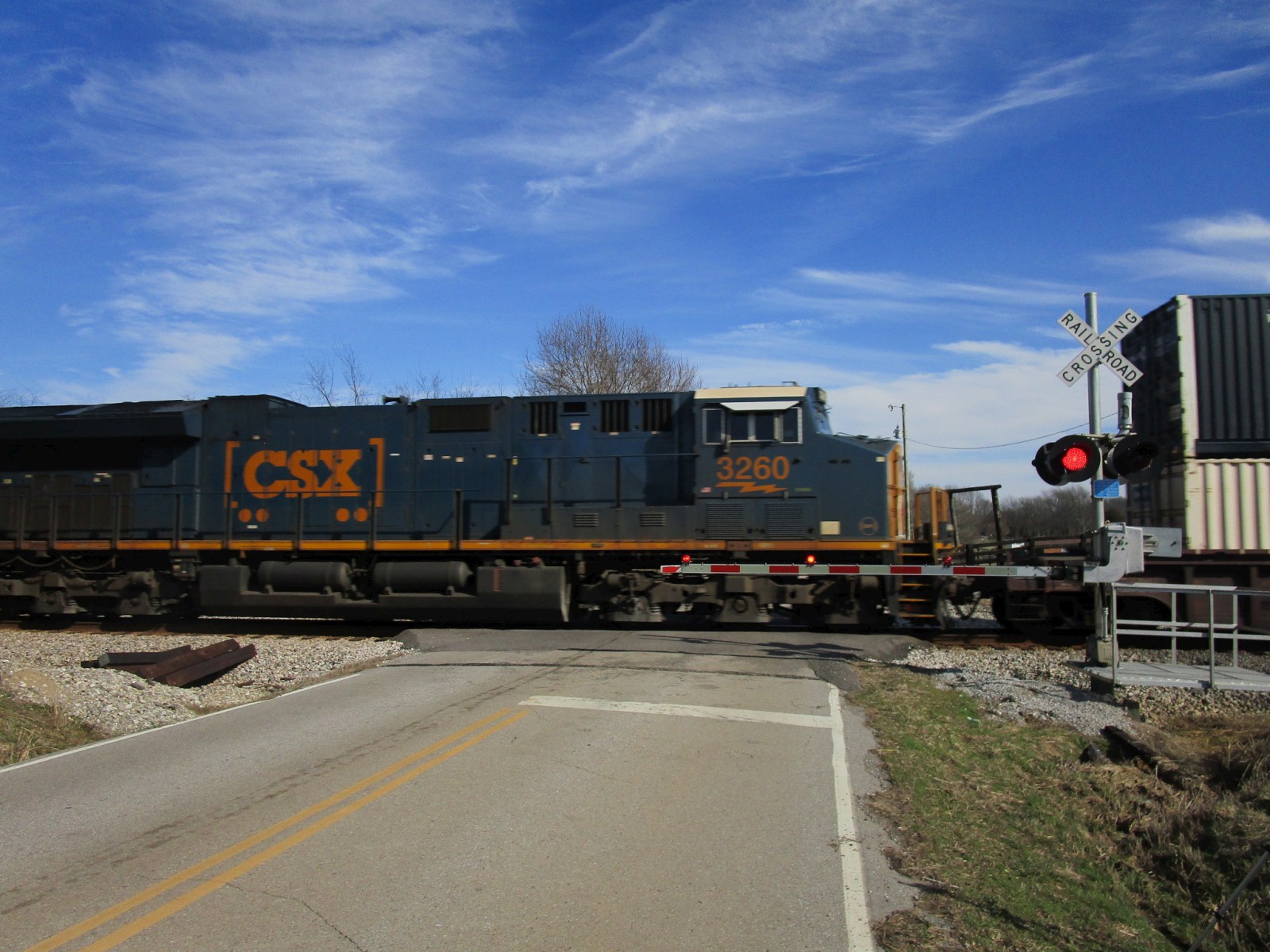

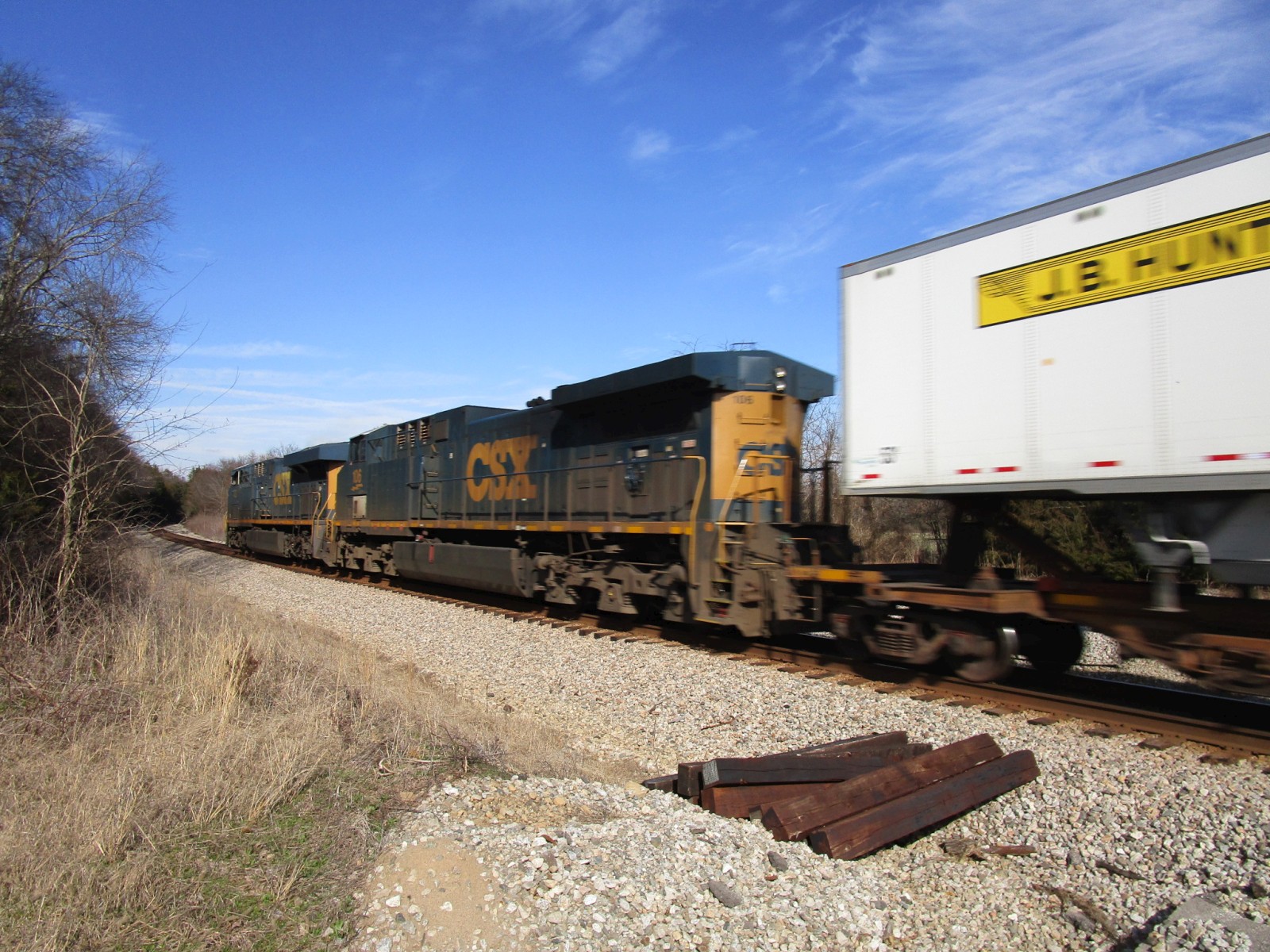

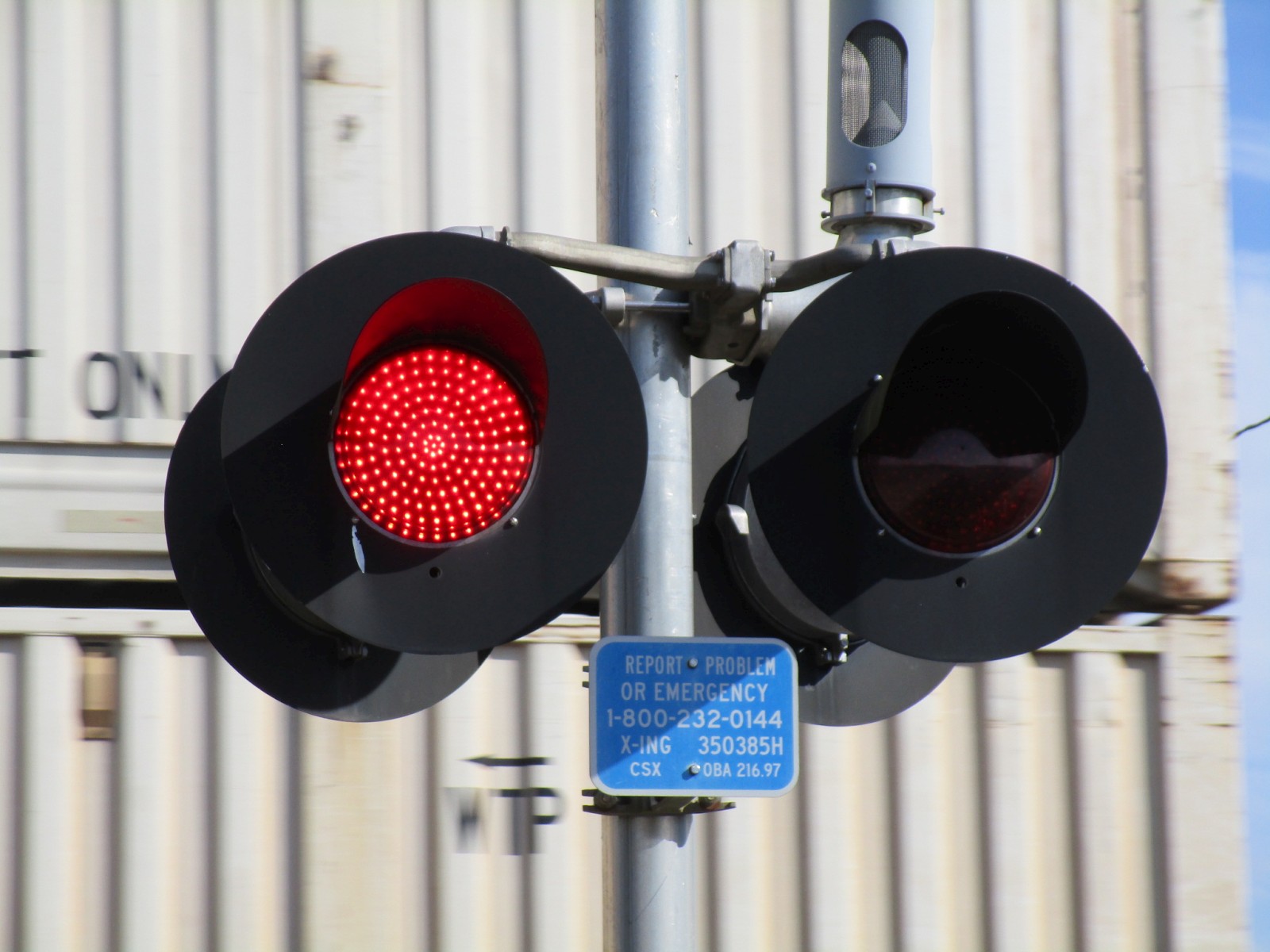

CSX I026 flies north through the crossing with an ES44AH leading an AC44CW on the head-end. |
|||
37 |
38 |
39 |
40 |
41 |
42 |
43 |
An ET44AH works as the mid-train DPU. |
|||
44 |
45 |
46 |
47 |
48 |
49 |
50 |

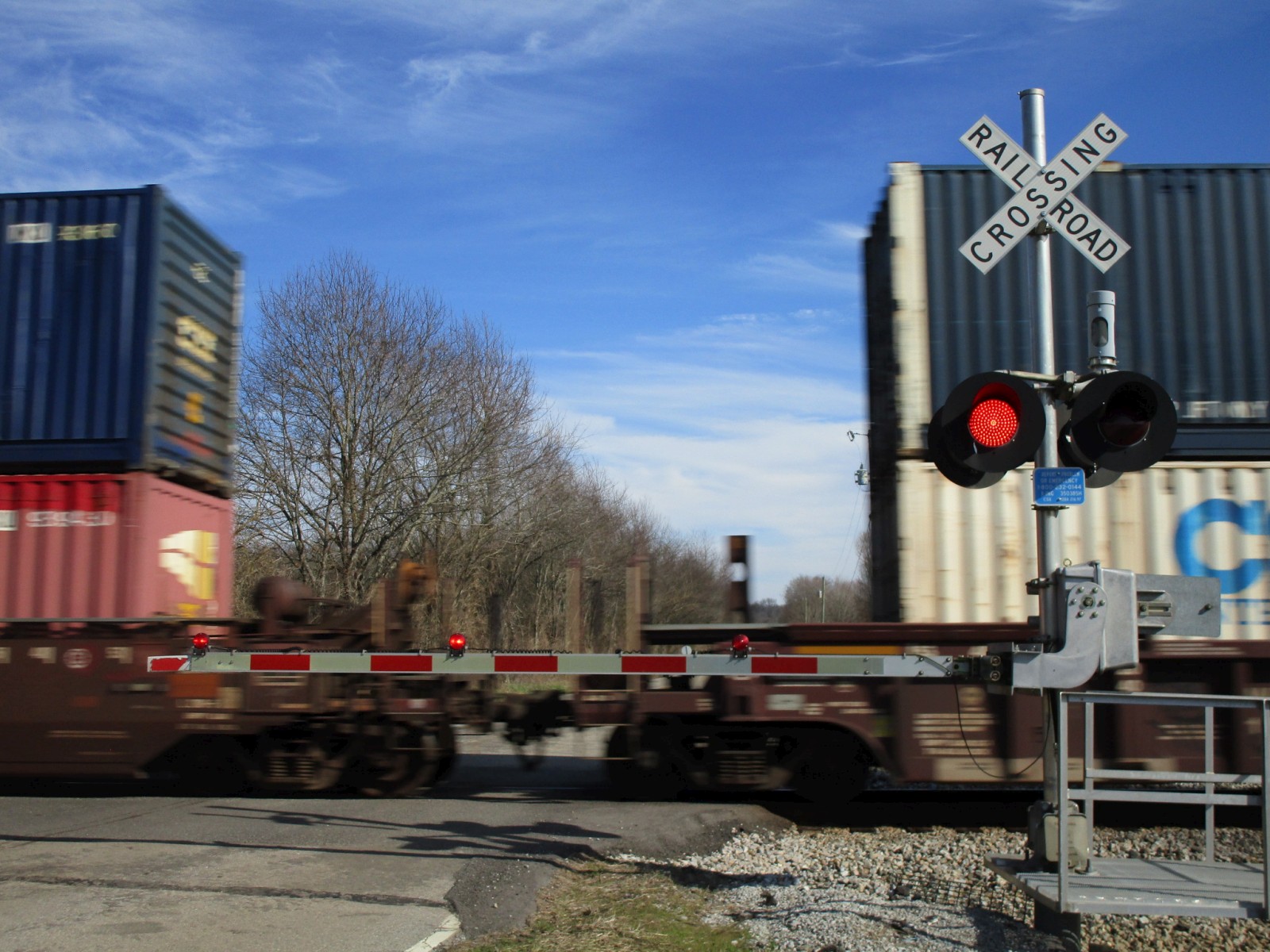

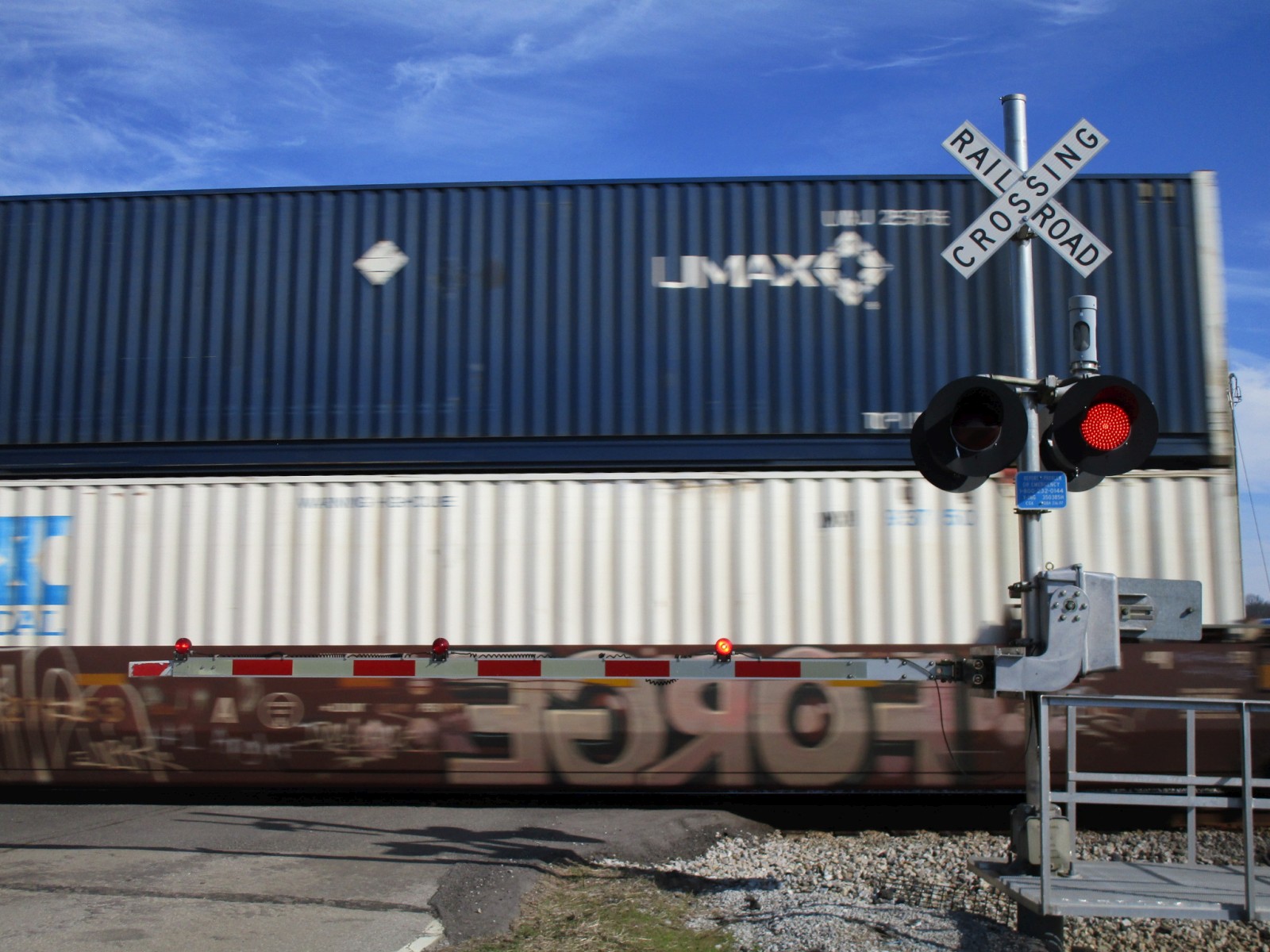

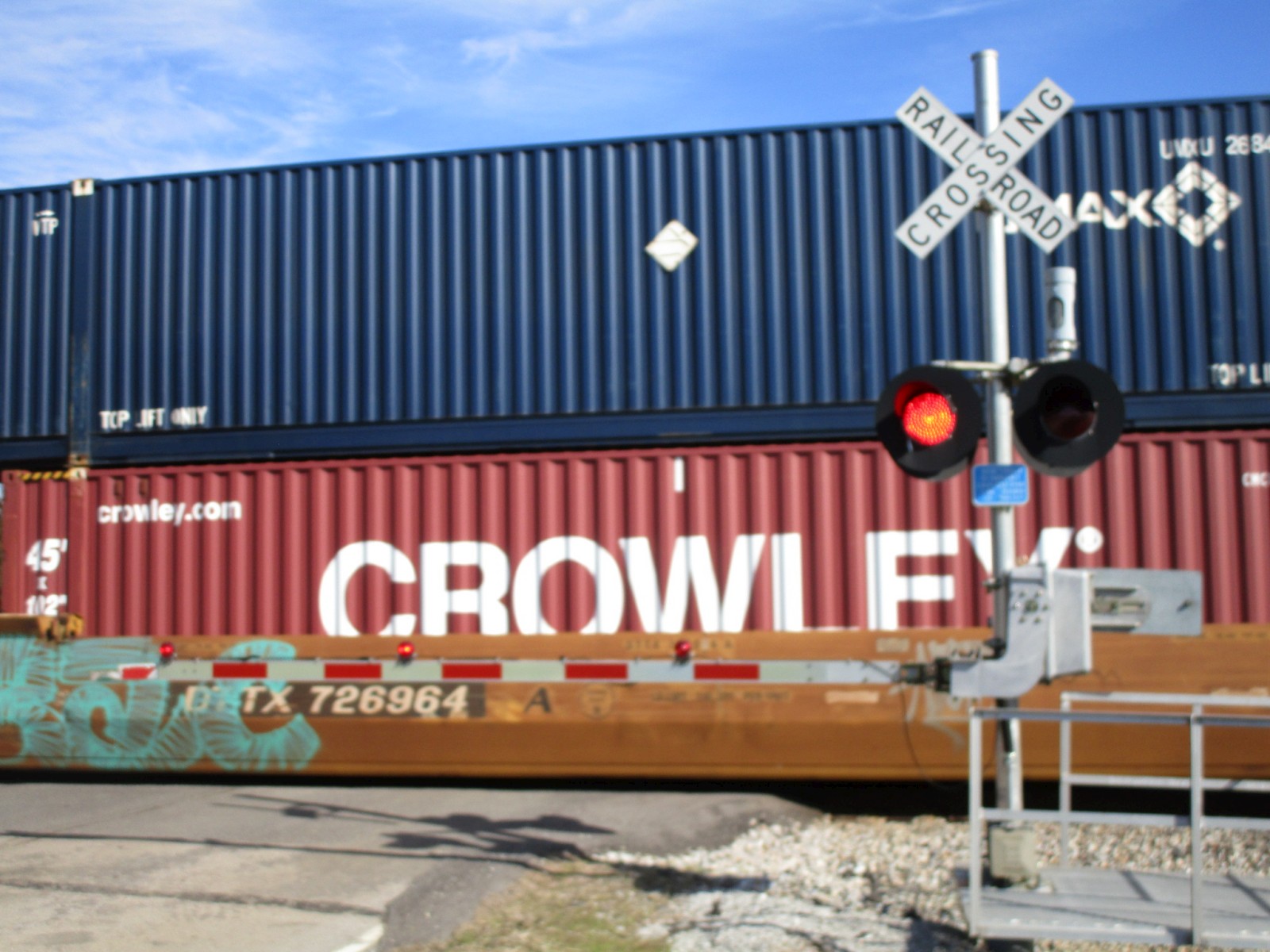

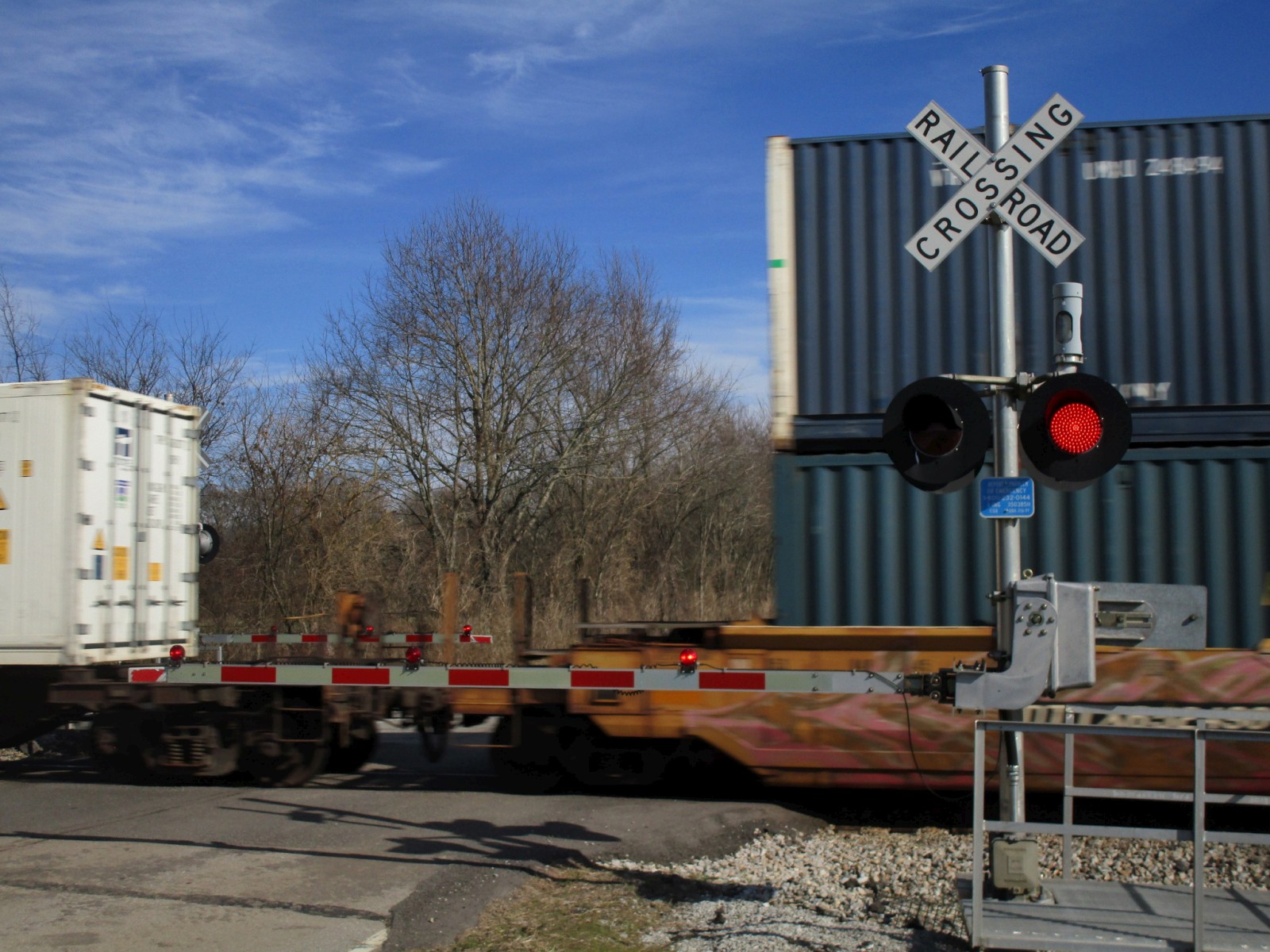

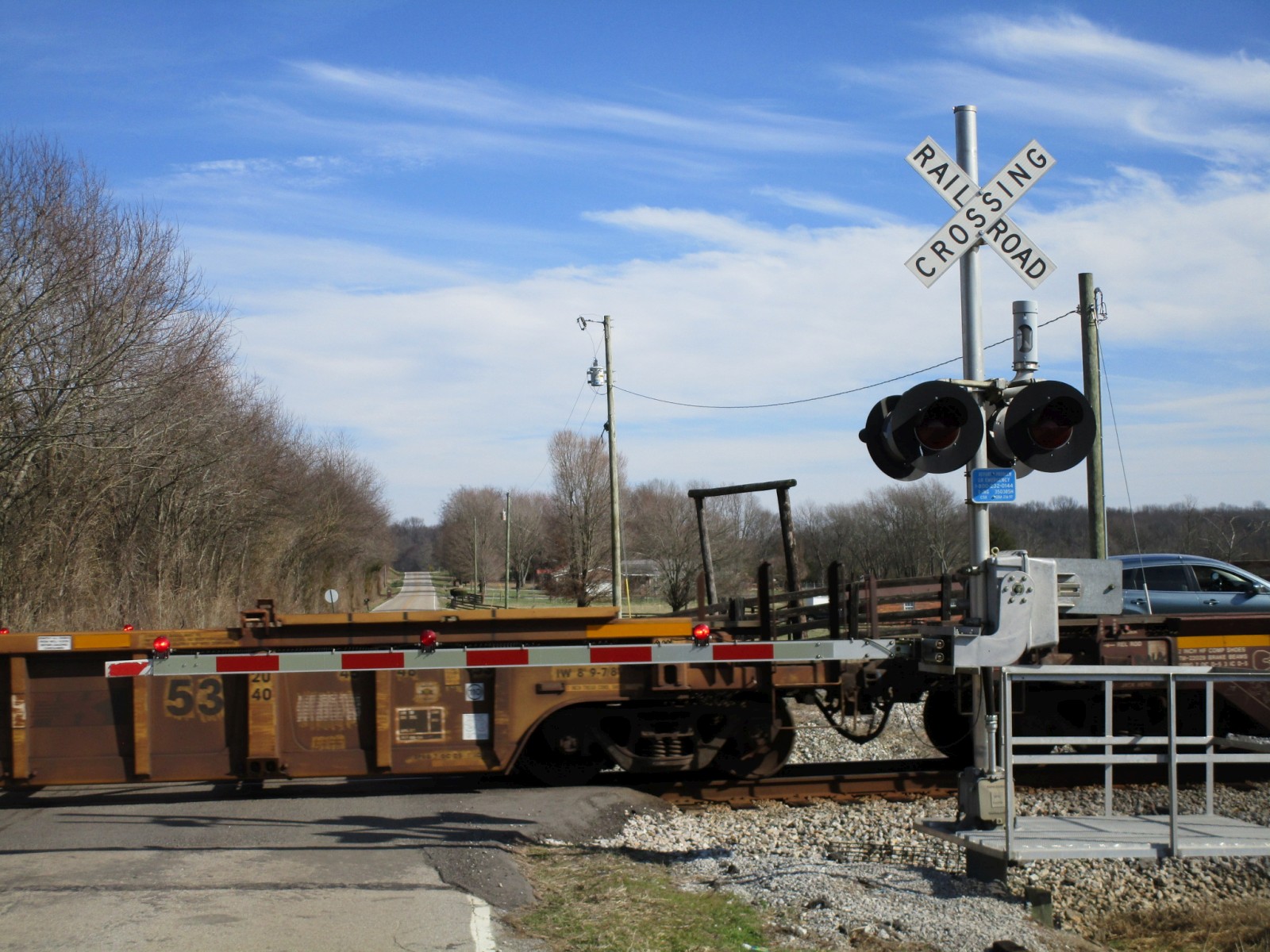

The train passes... |
|||
51 |
52 |
53 |
54 |

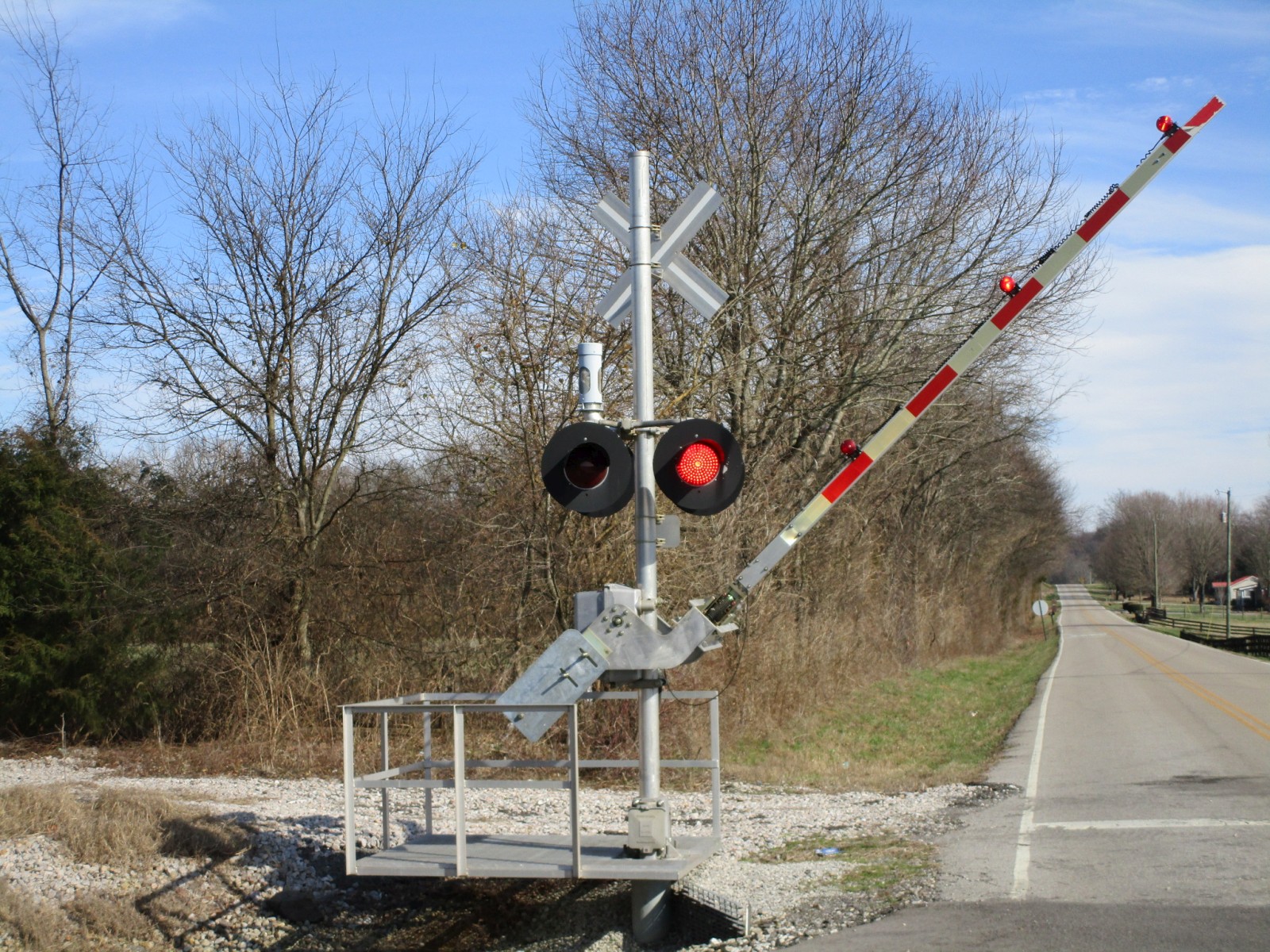

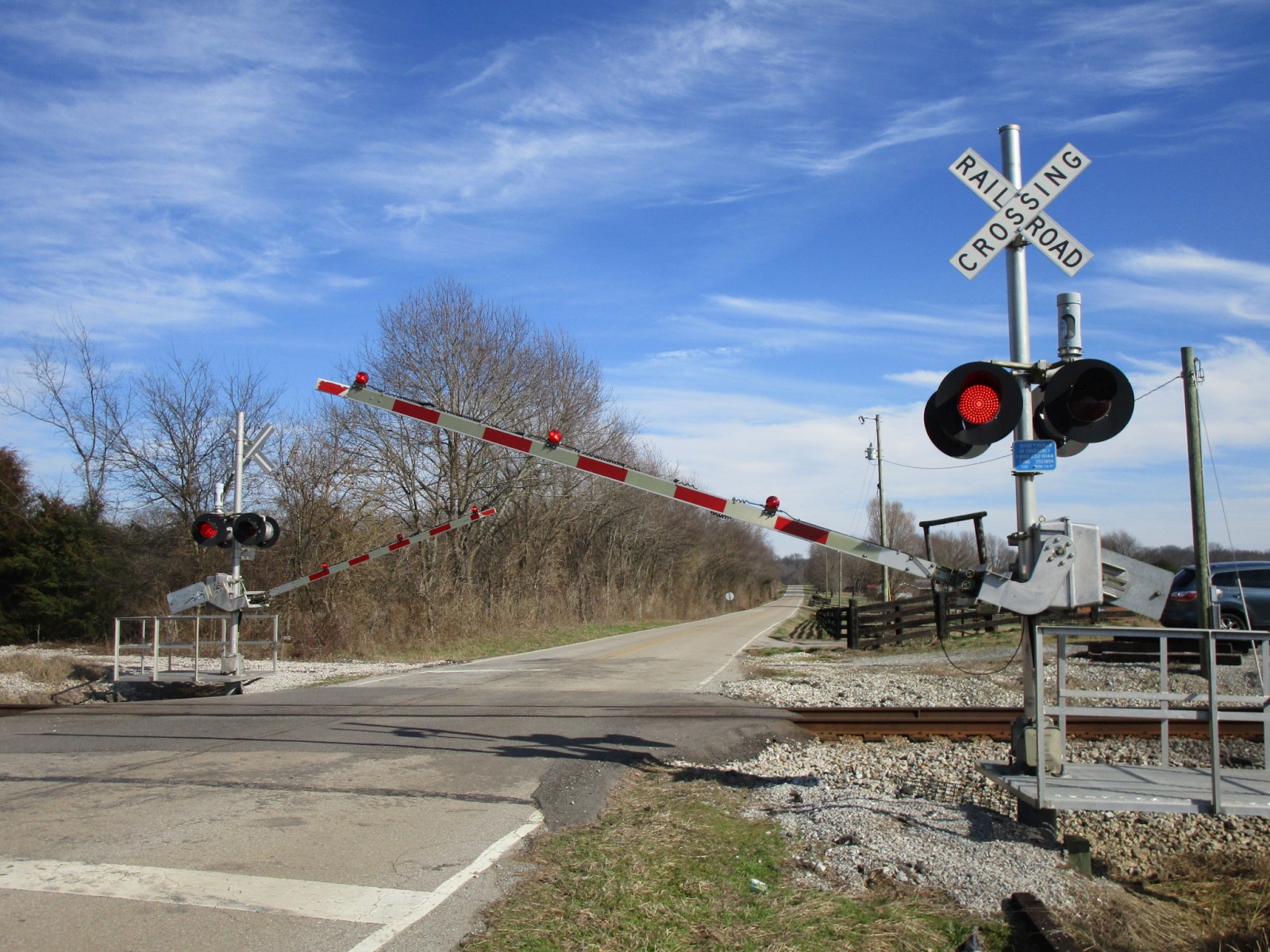

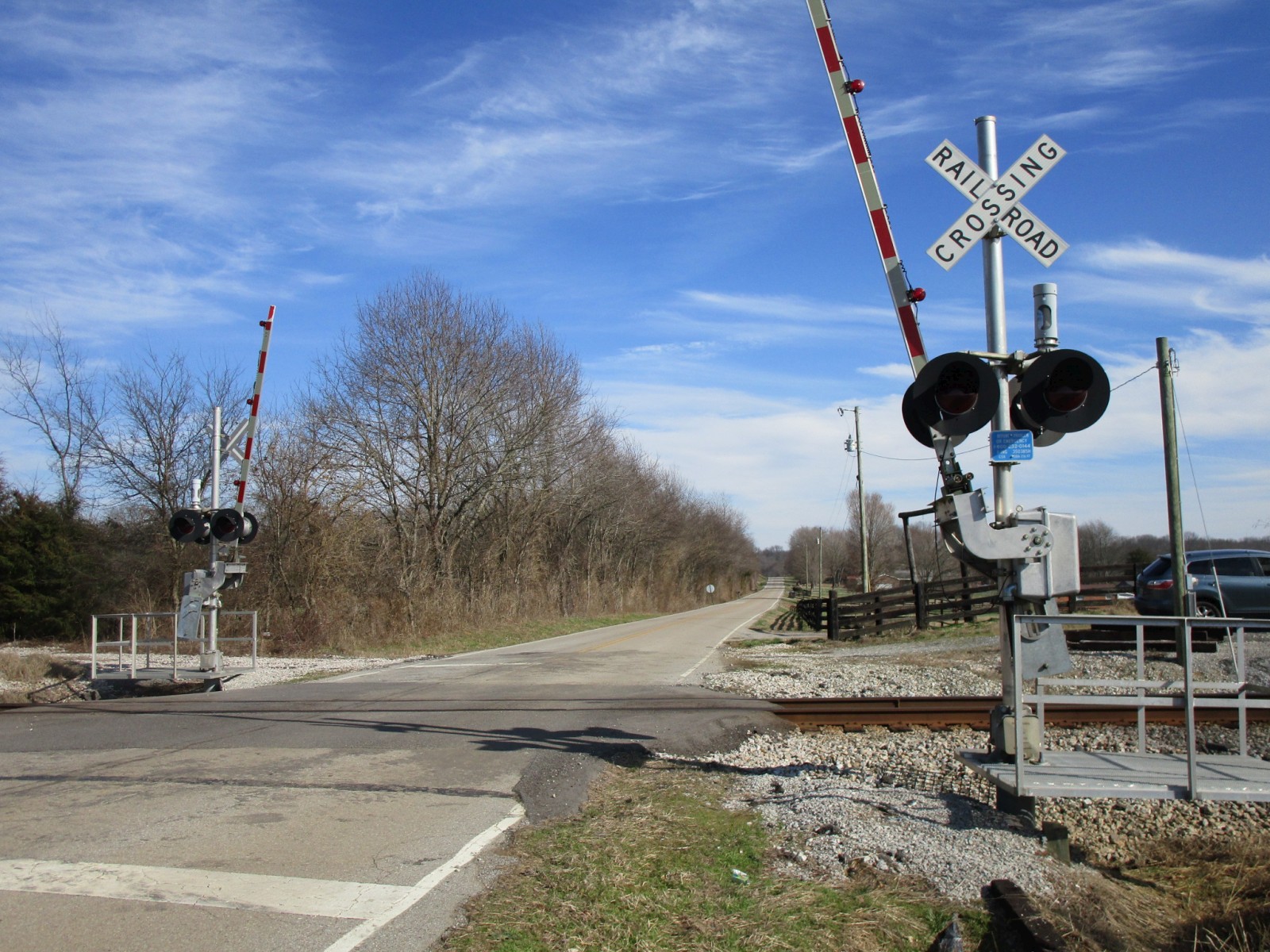

...and the signals deactivate. |
|||
Pictures 1-24 were taken on 8-3-17.
Pictures 25-54 and the video were taken on 2-10-23.
