MP:  A234.28



Created December 25, 2016



Total Accidents:   8
Crossing DOT #:  736677A
TOTAL DAILY TRAINS:   34   (AS OF 2022)



Page created by: freebrickproductions



This crossing is on the NS Chattanooga Terminal.



>>>>>>>>>>>>> Signal #1 Signal #2
Bell: General Signals Type 3 N/A
Cantilever: Safetran Safetran
Light Frames: 3 - 12x20" Safetran 4 - 12x20" Safetran
Base: Newer Safetran Older Safetran
Gate Lights: RECO RECO
Gate Mechanism: 2000s Safetran 2000s Safetran
Gate Striping: Vertical Vertical



1

2

3

4

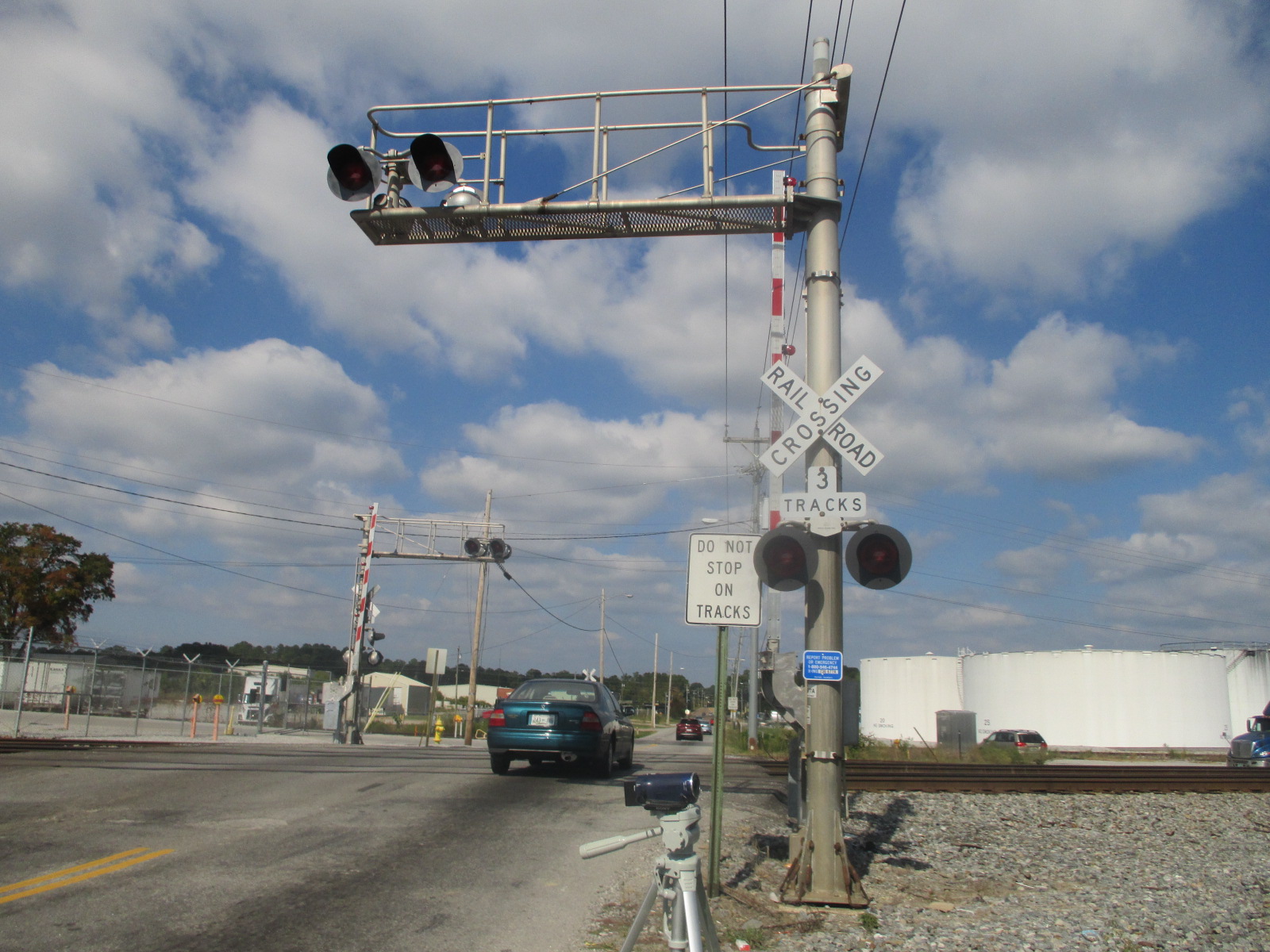

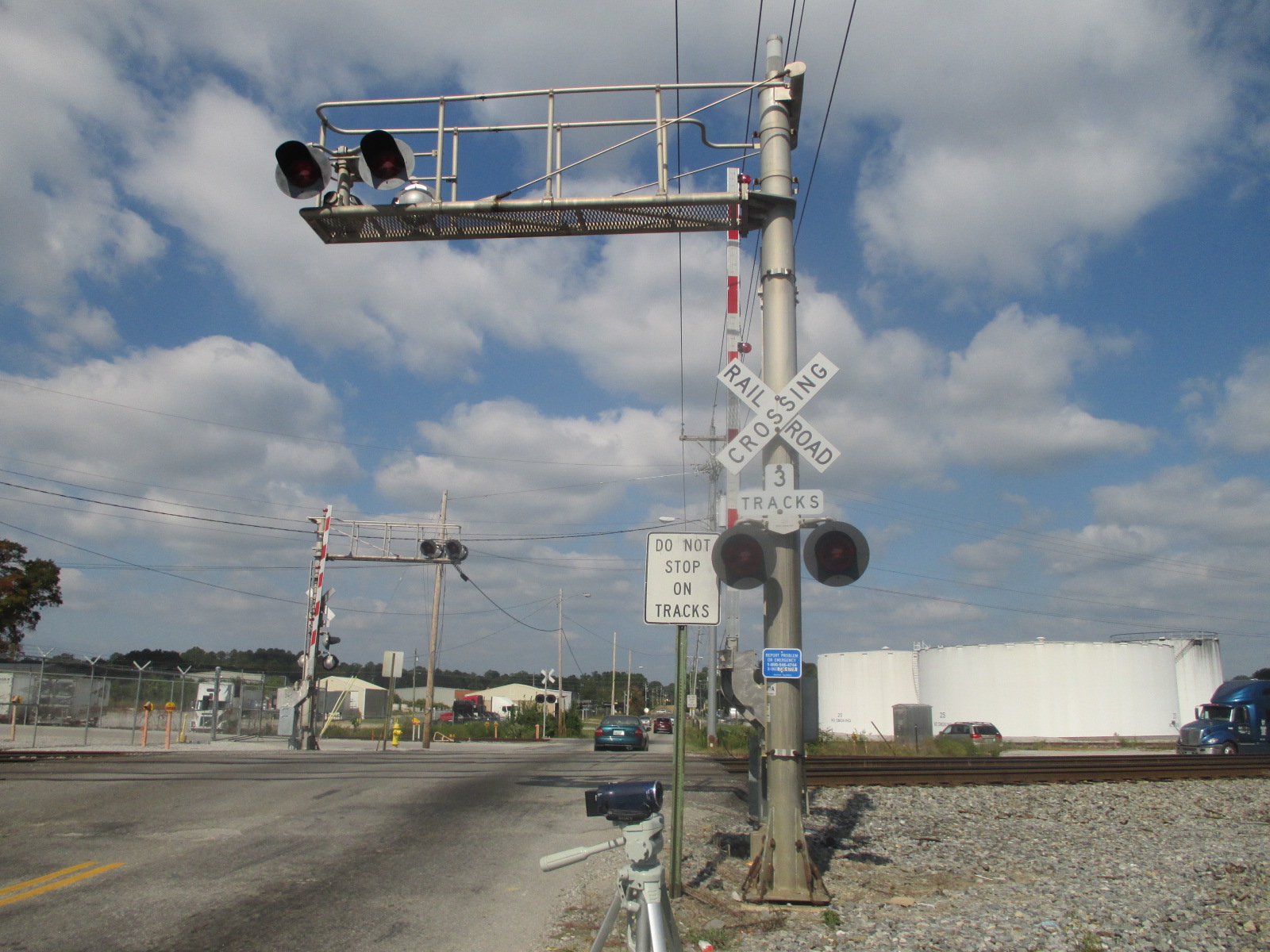

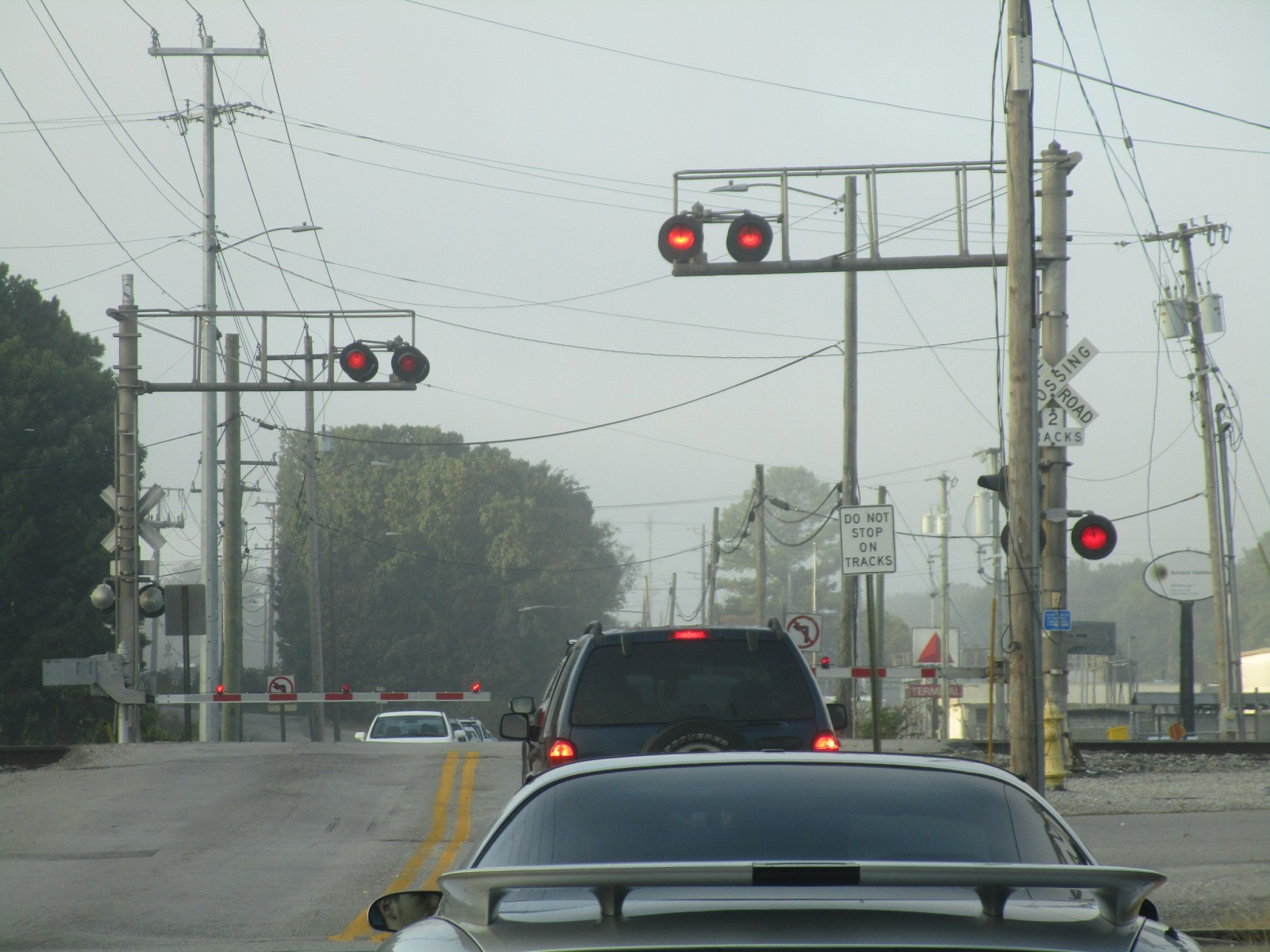

Overviews of the crossing.

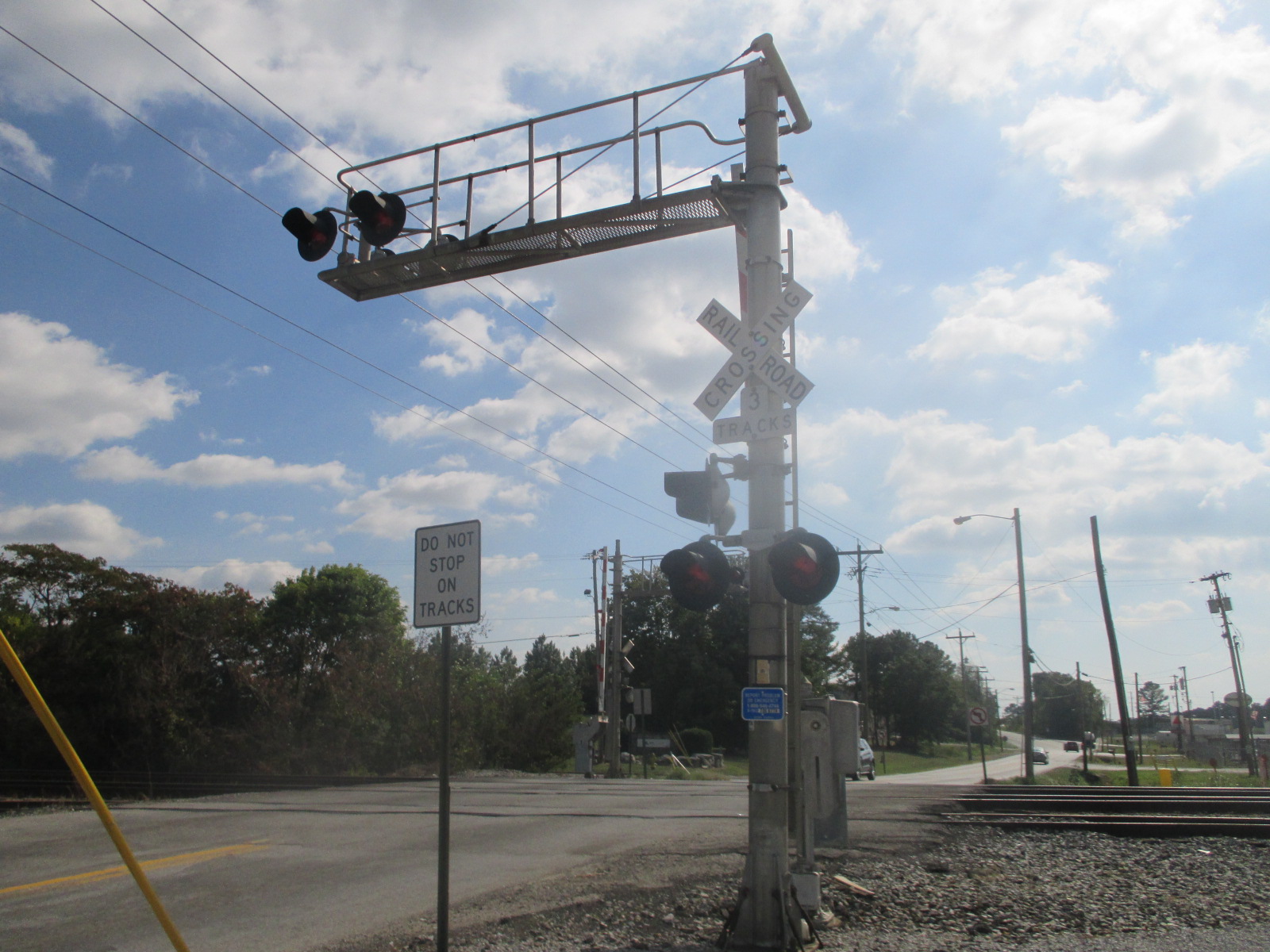

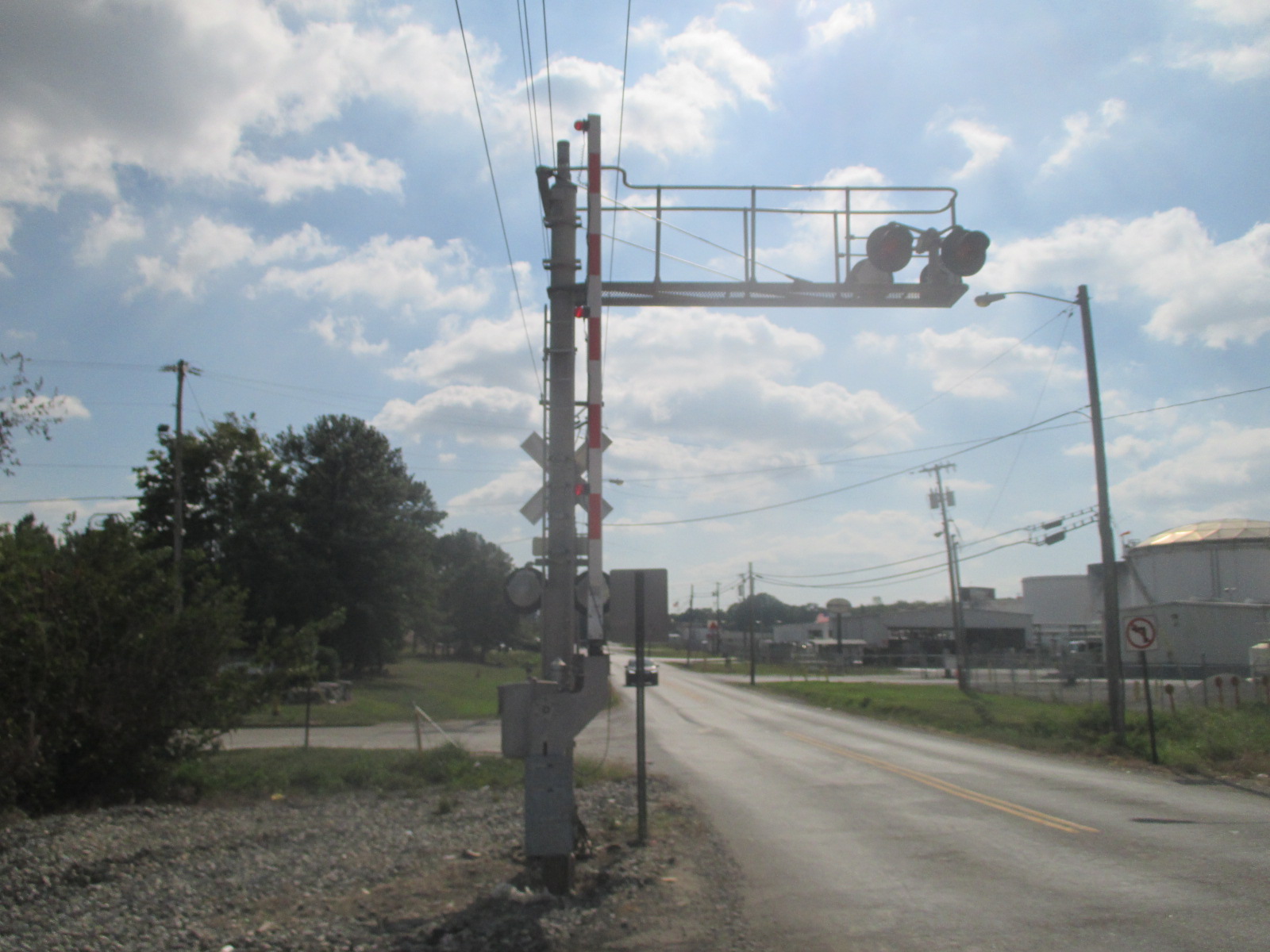

The first signal.

5

6

7

8

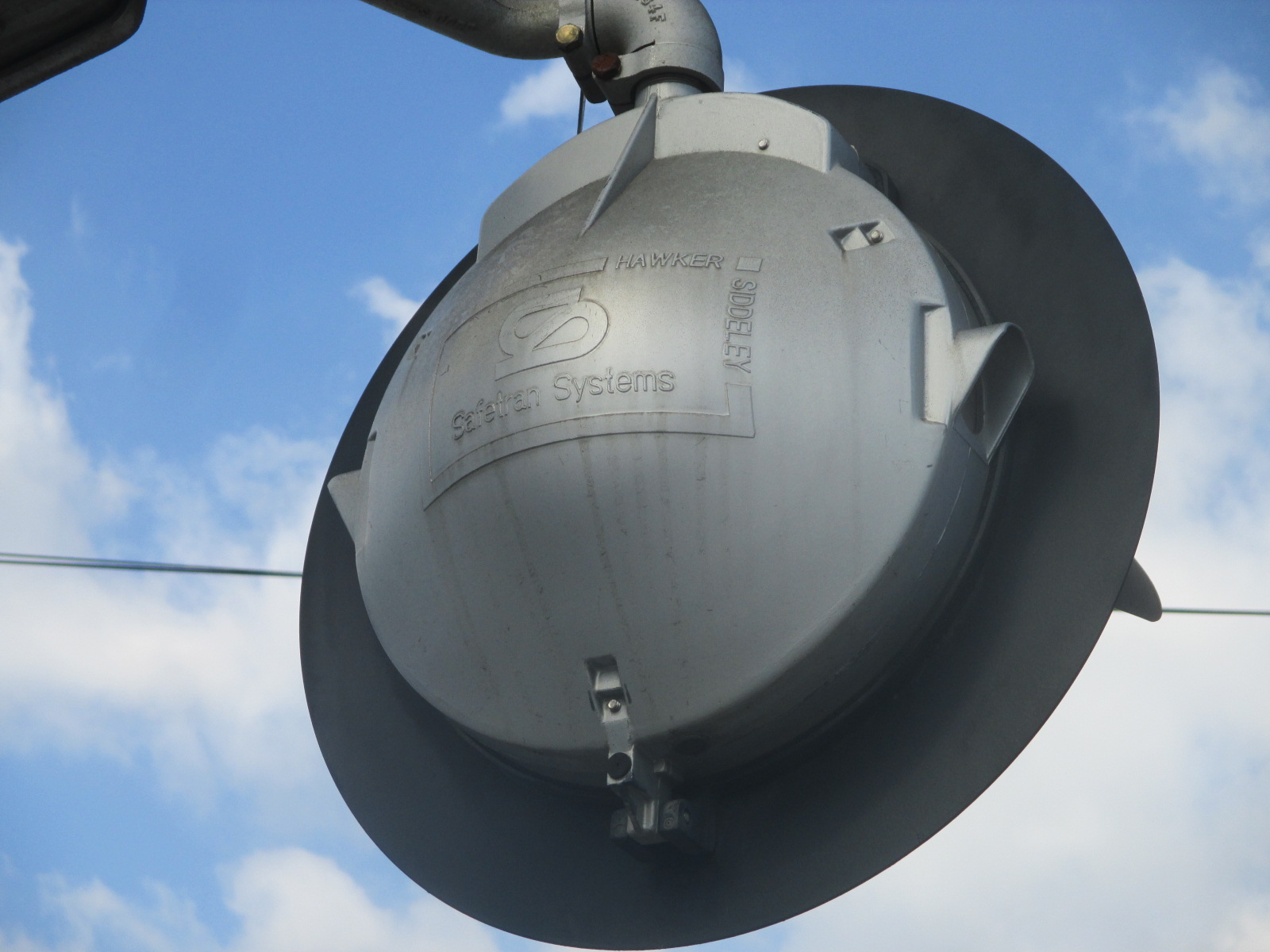

It has a Safetran cantilever.

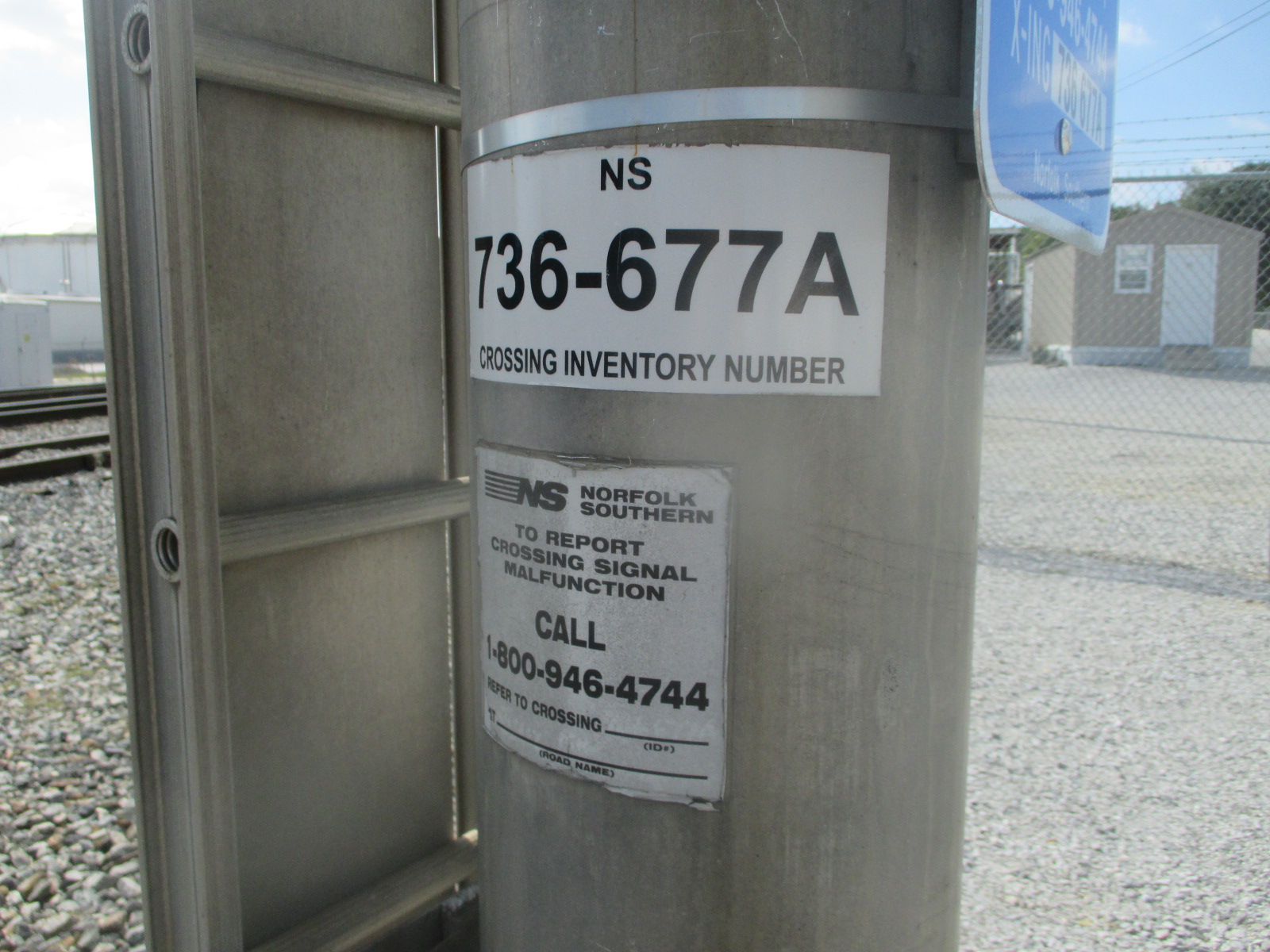

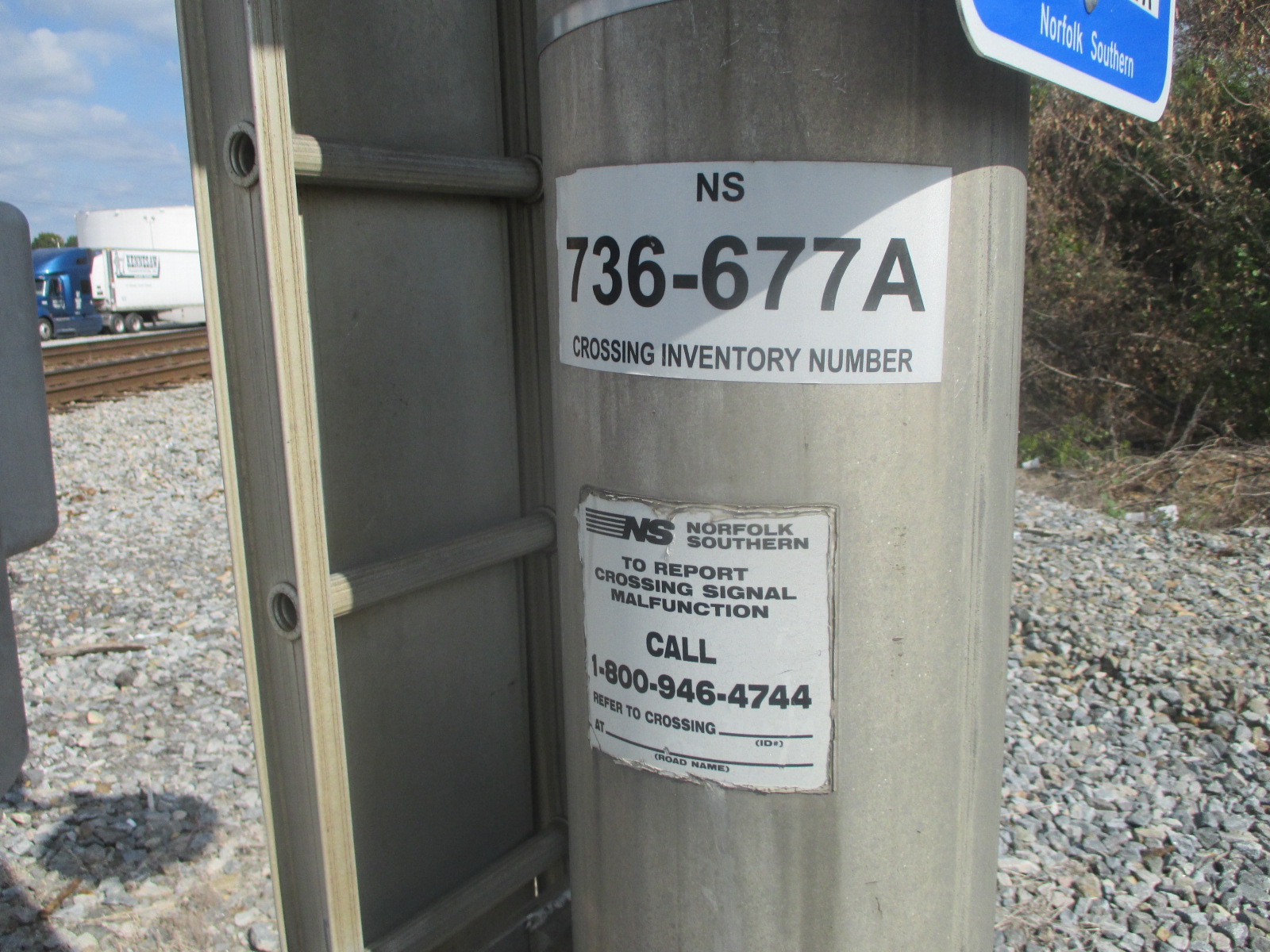

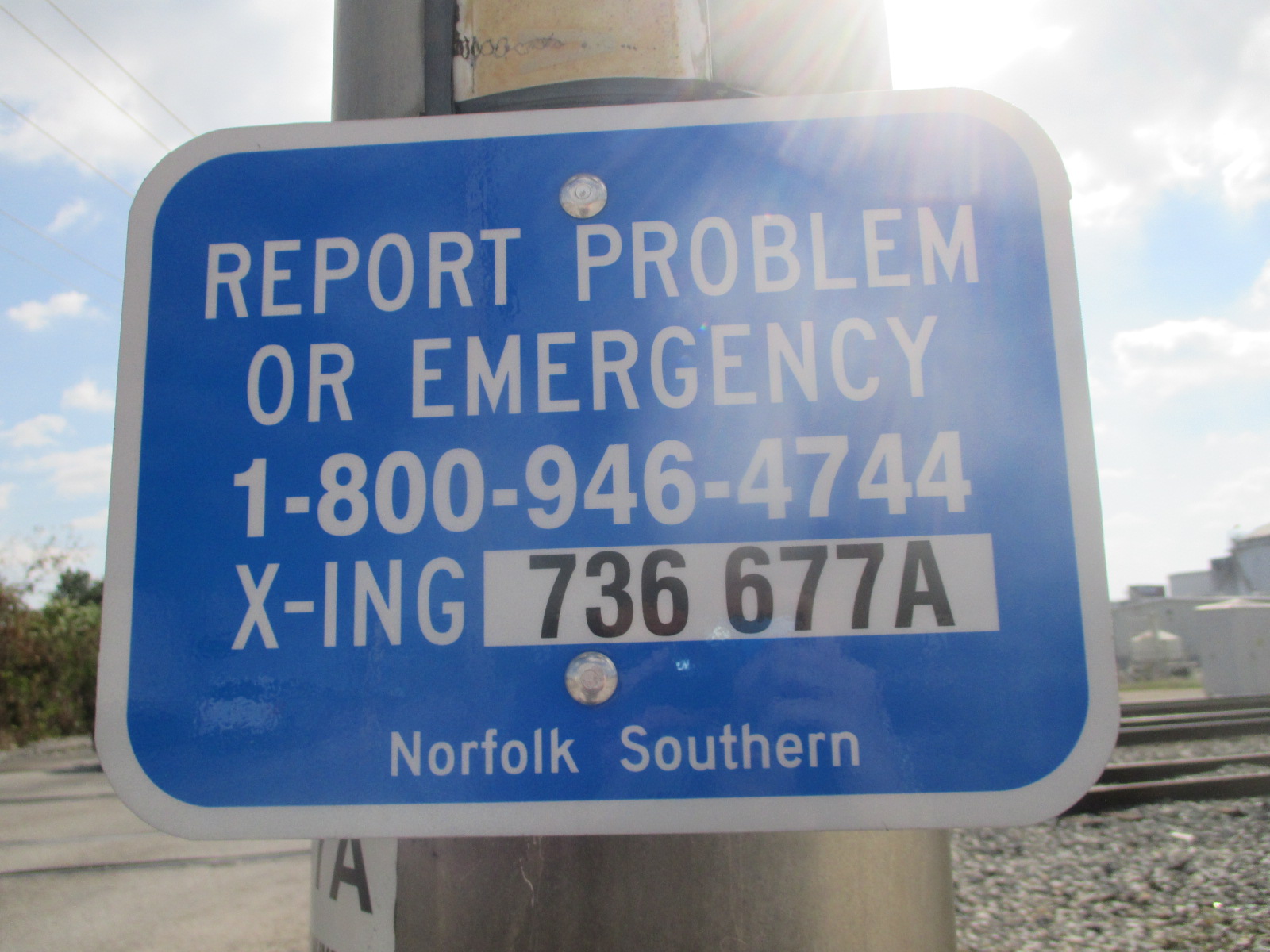

The emergency information and a DOT tag.

9

10

11

12

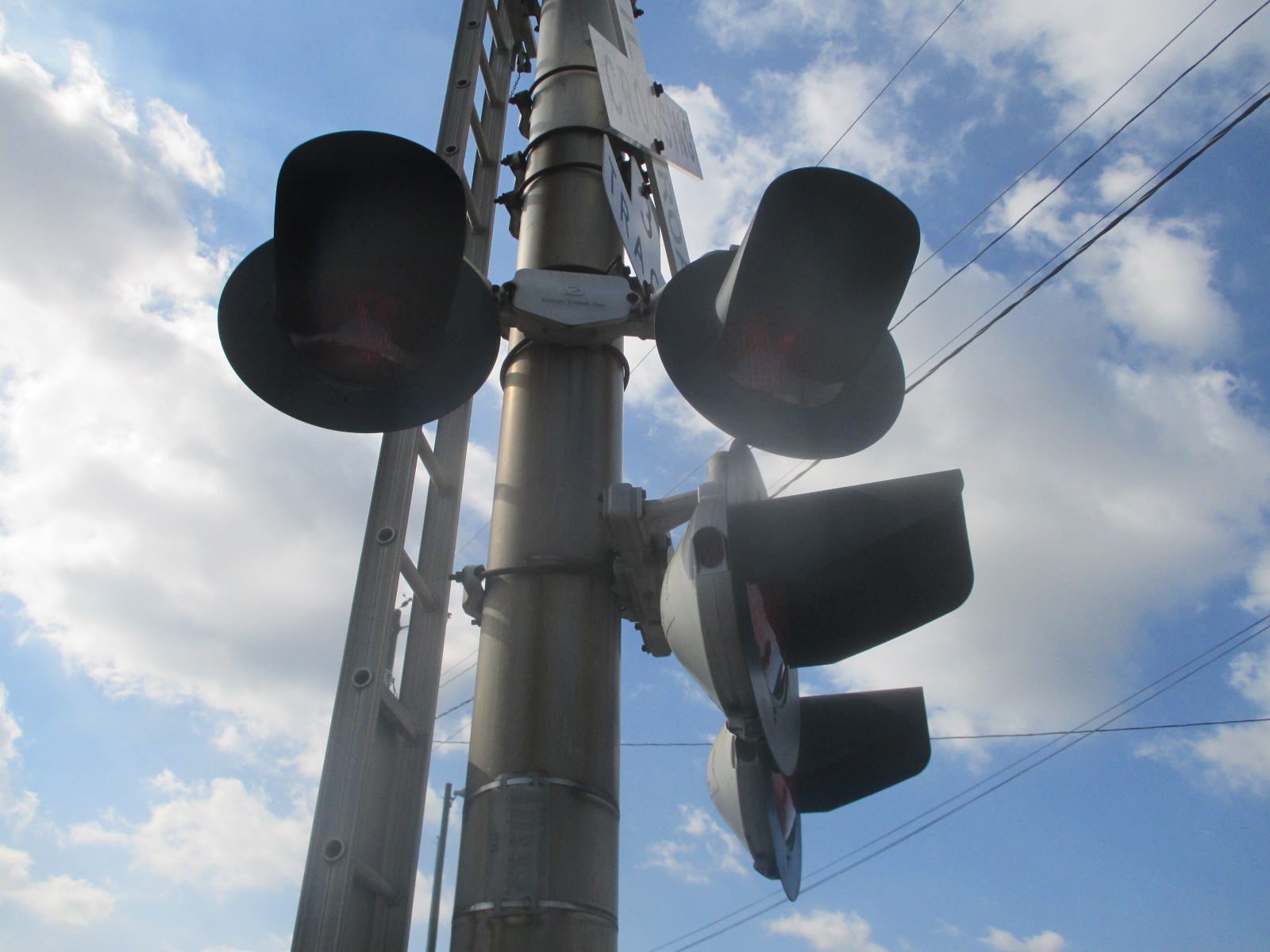

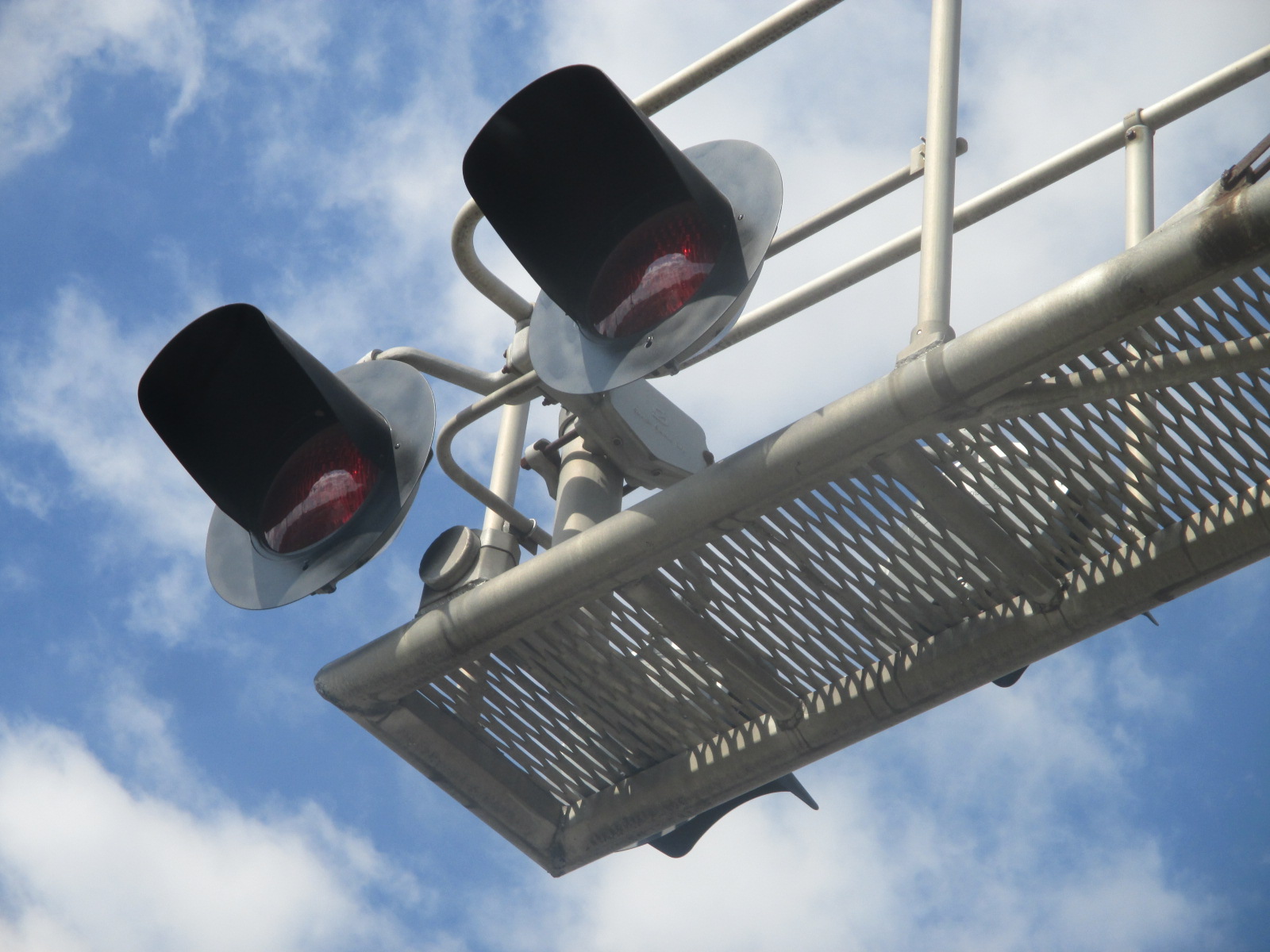

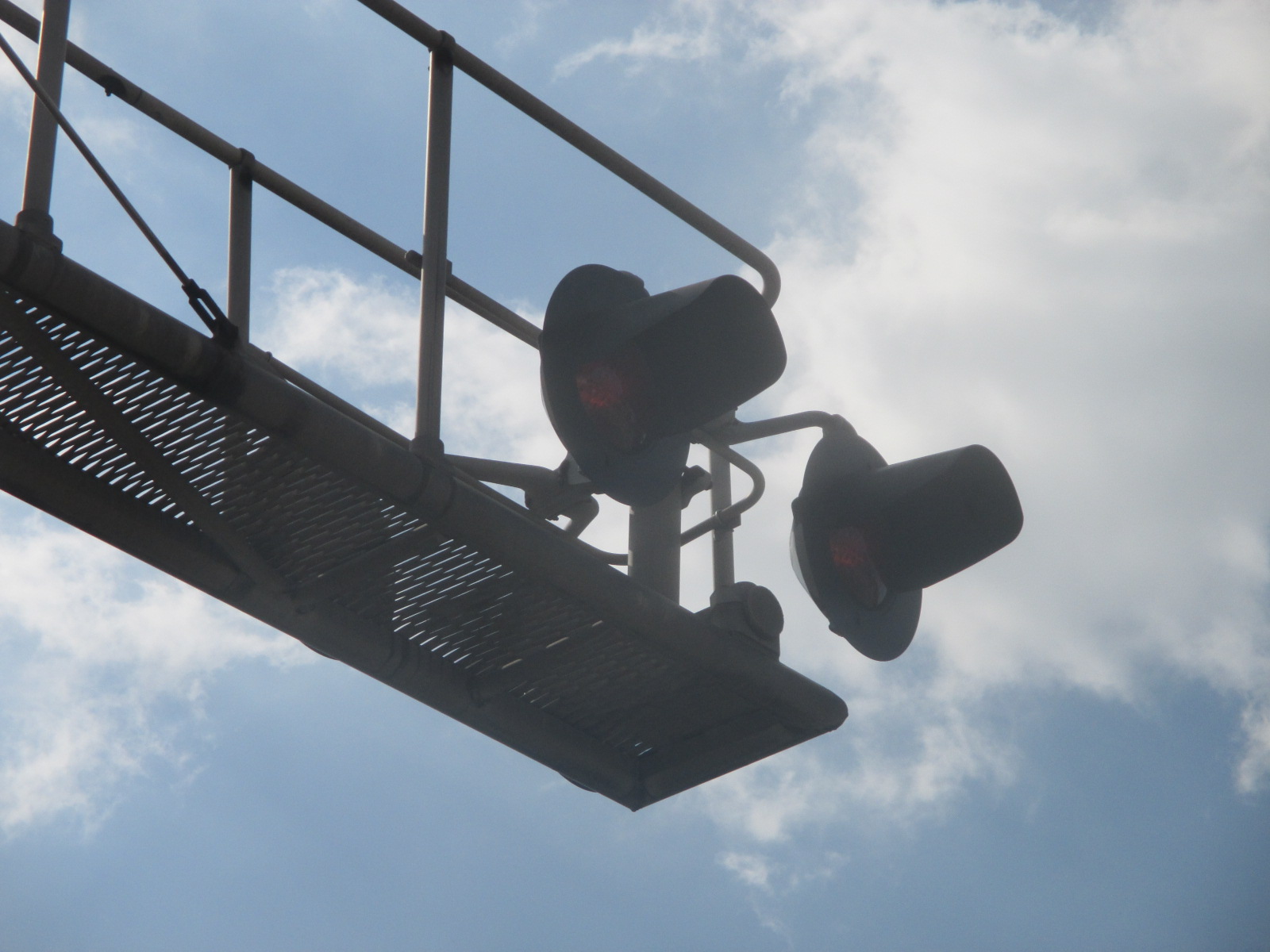

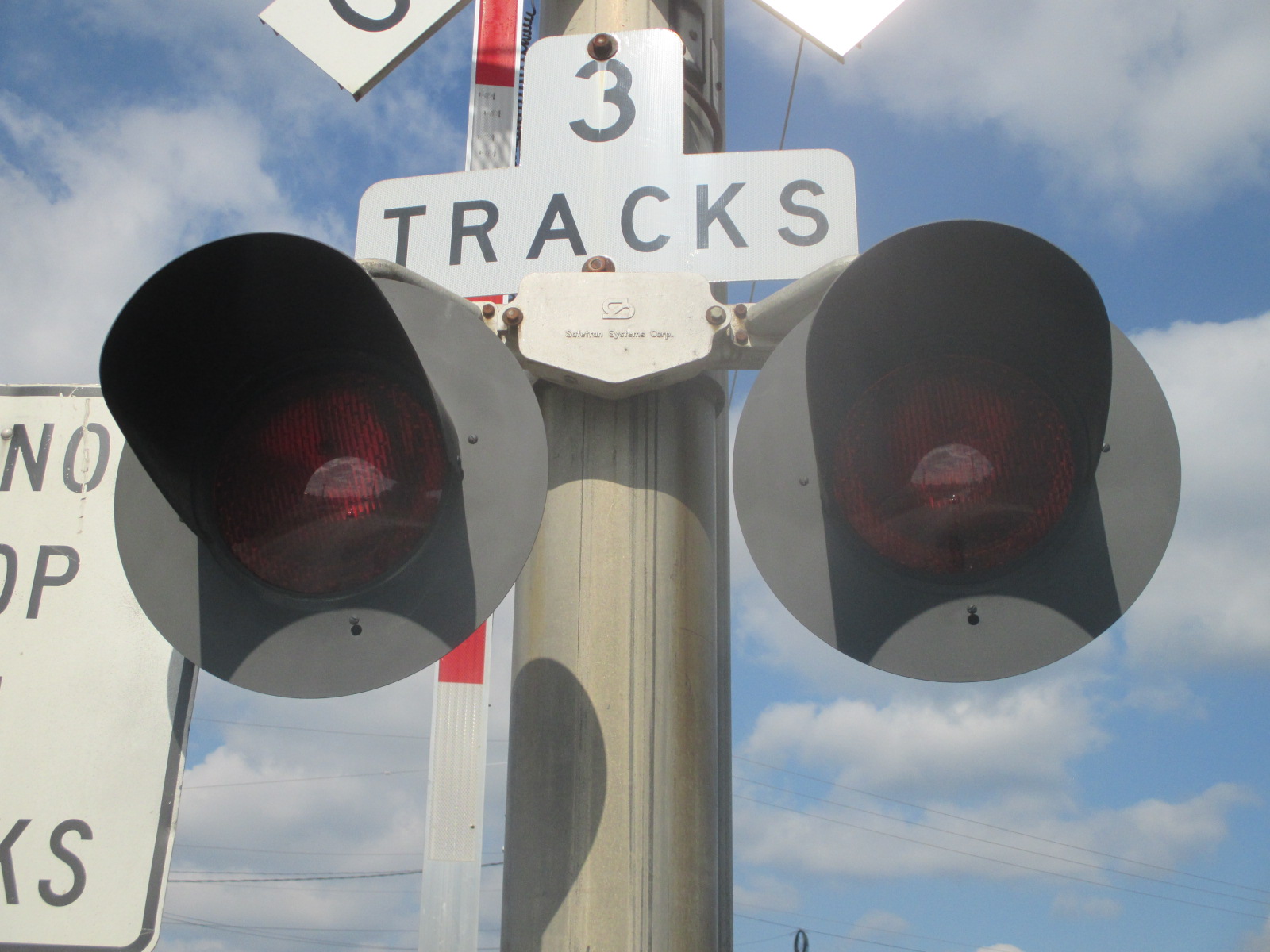

All of the lighs on this signal are Safetran 12x20 inch lights.

13

14

15

16

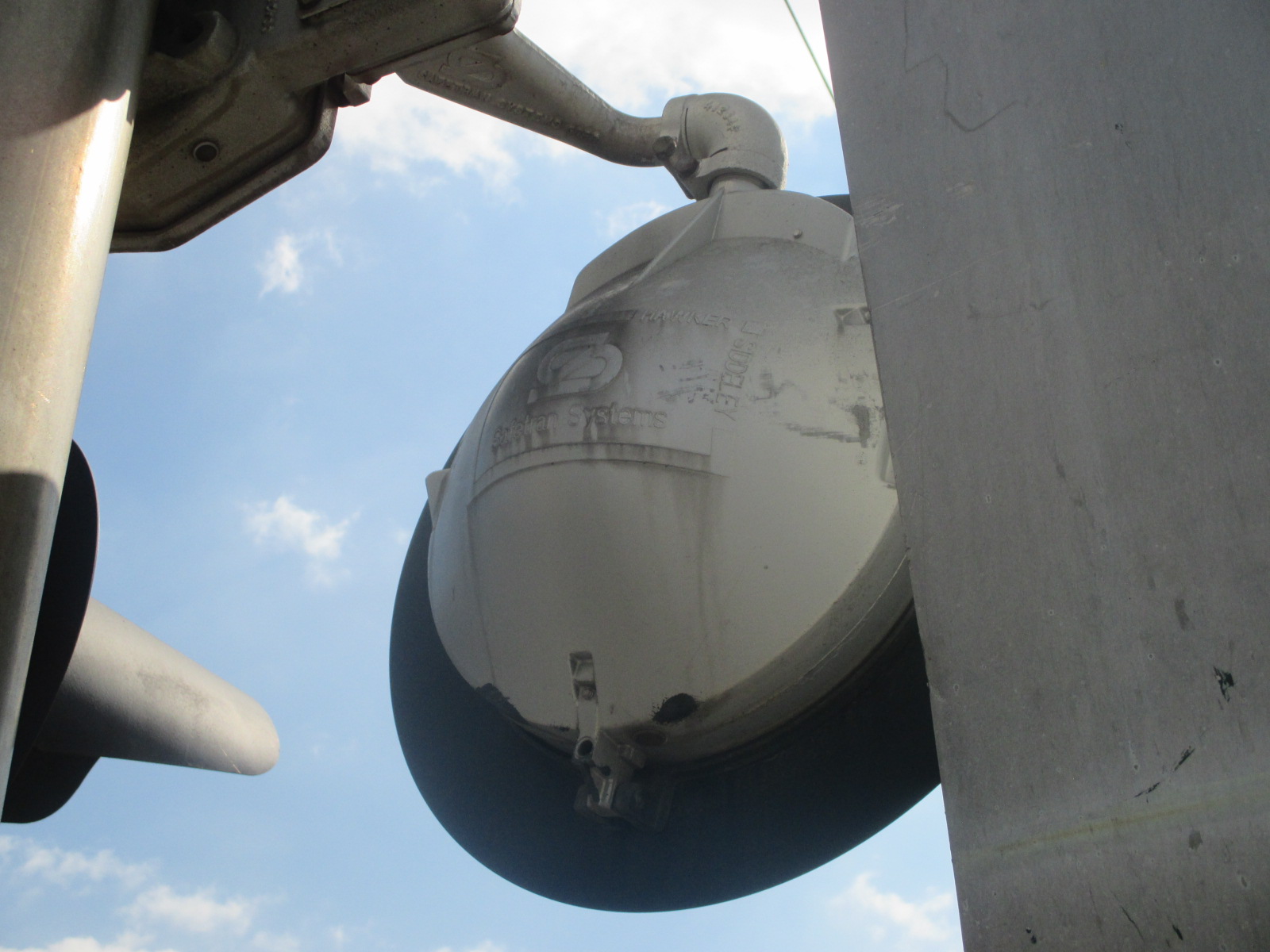

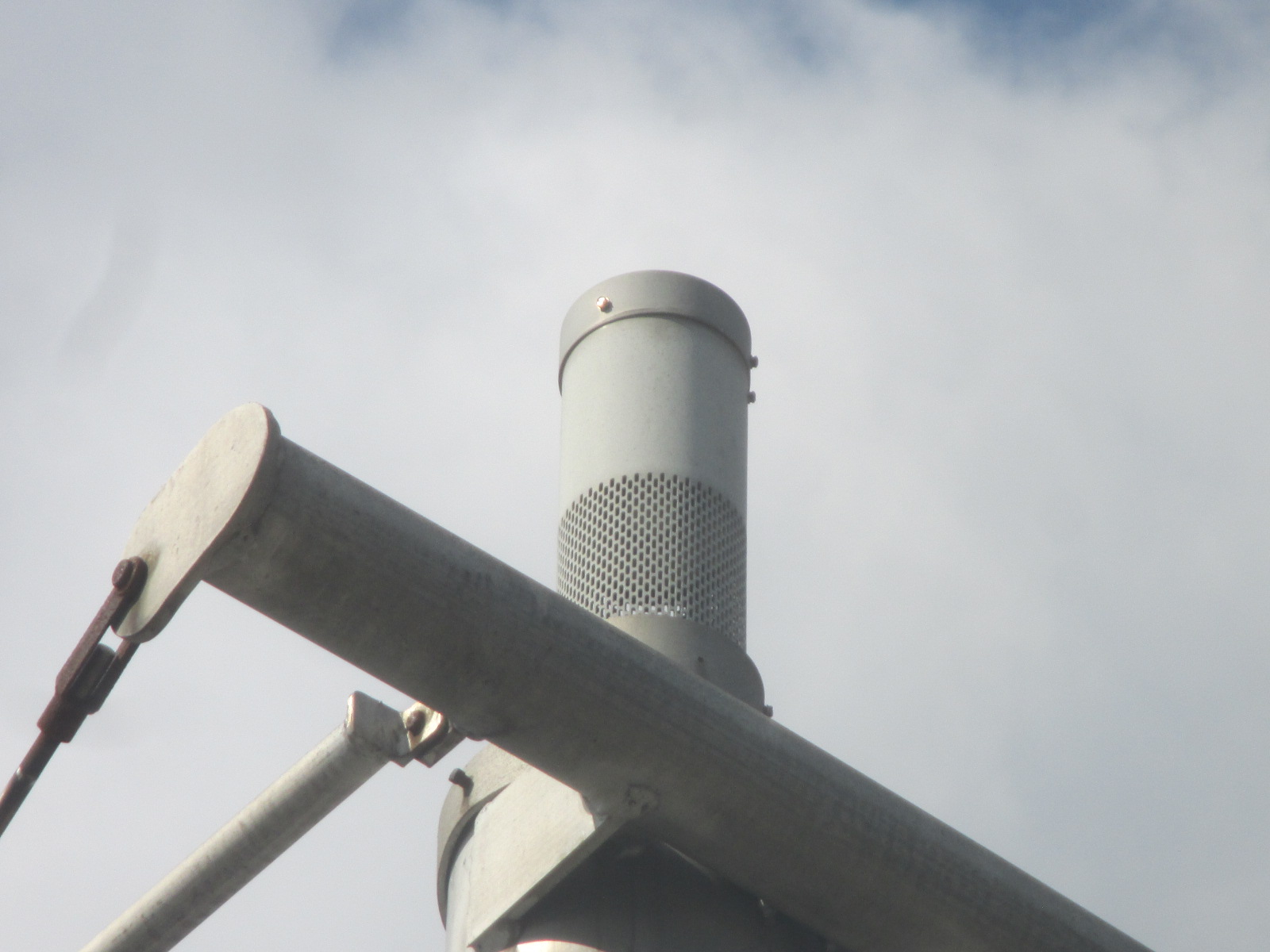

The lone bell here is a Safetran Type-3 electronic bell.

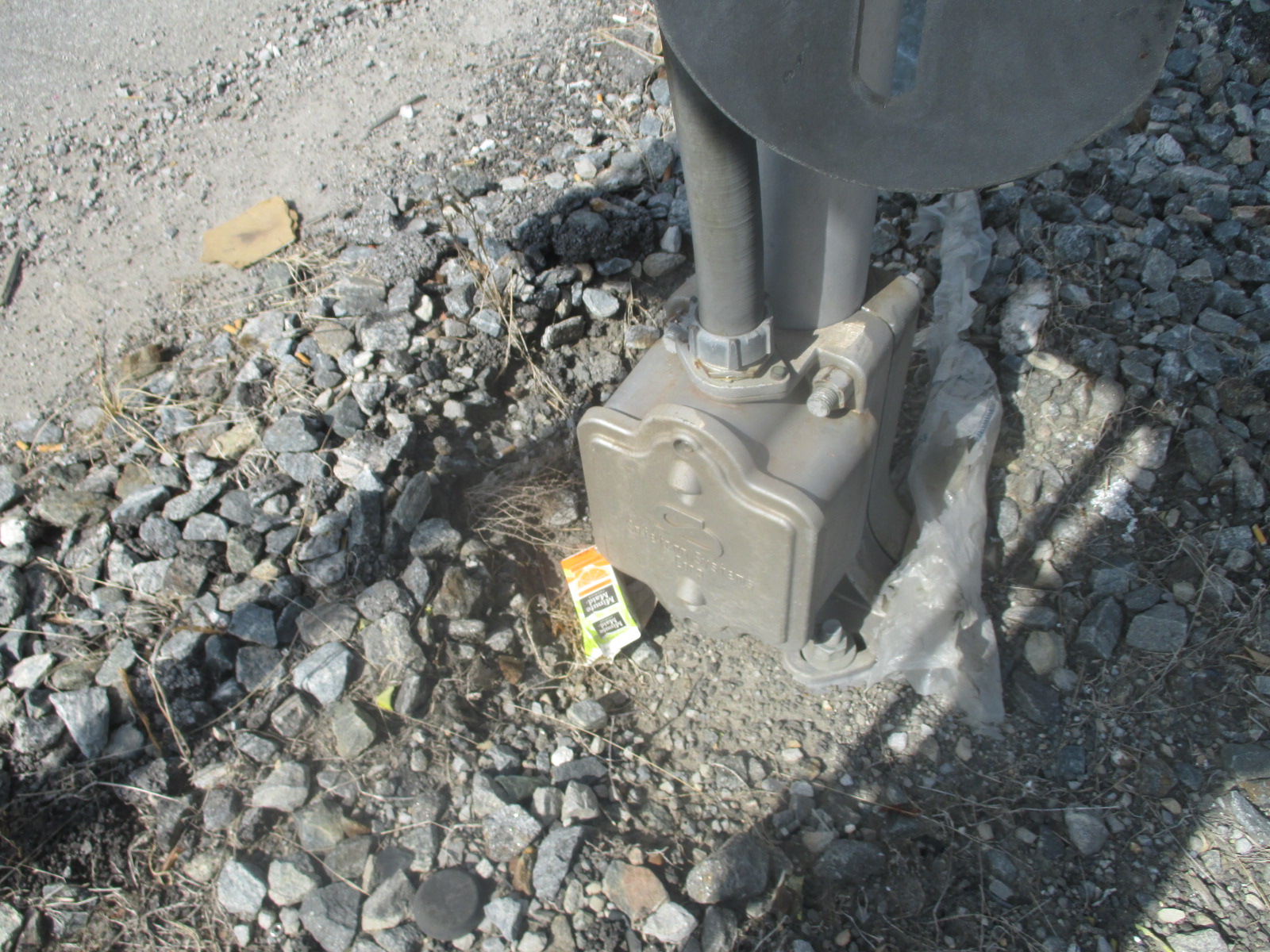

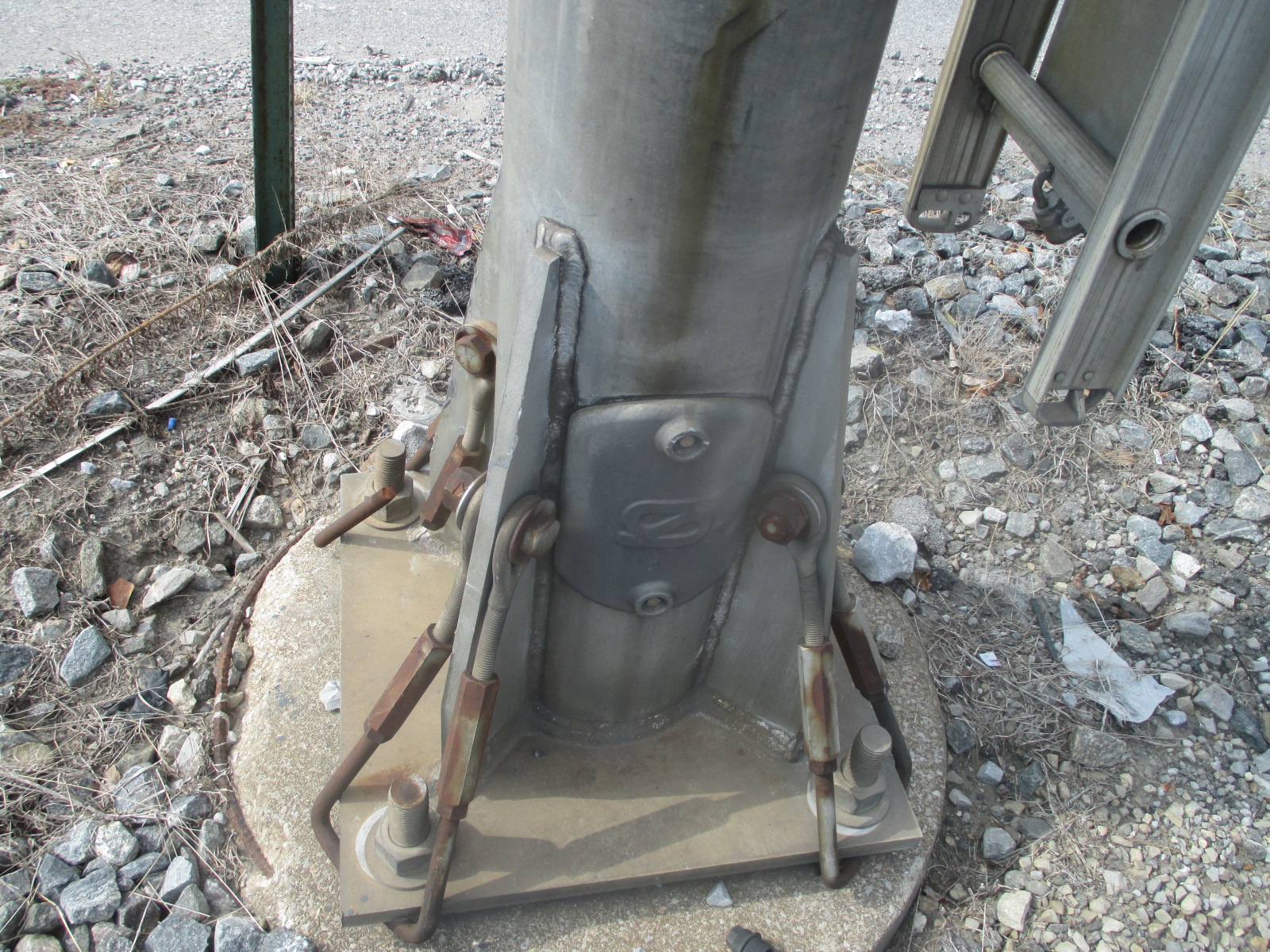

A Safetran base.

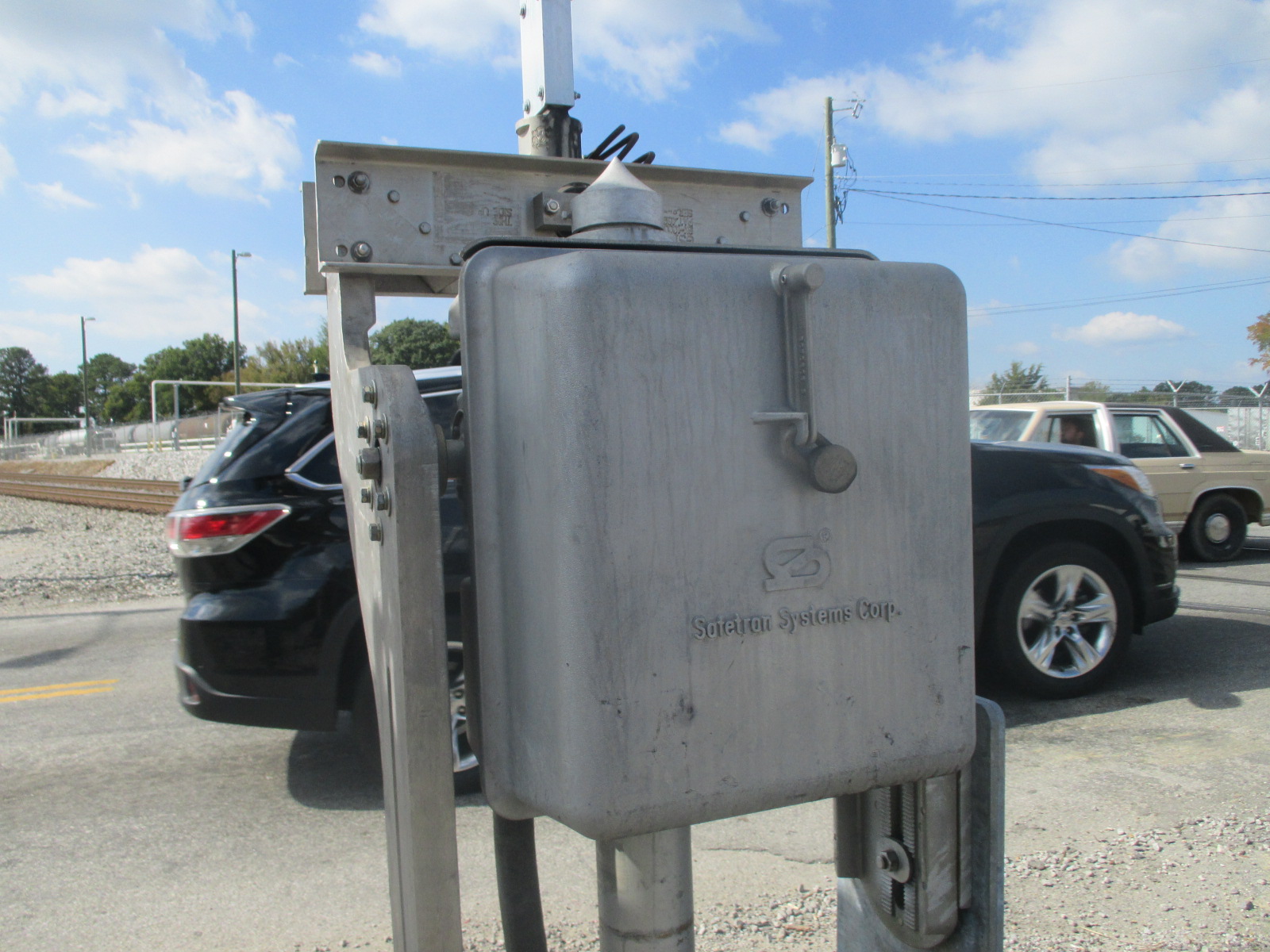

The gate mechanism is from Safetran.

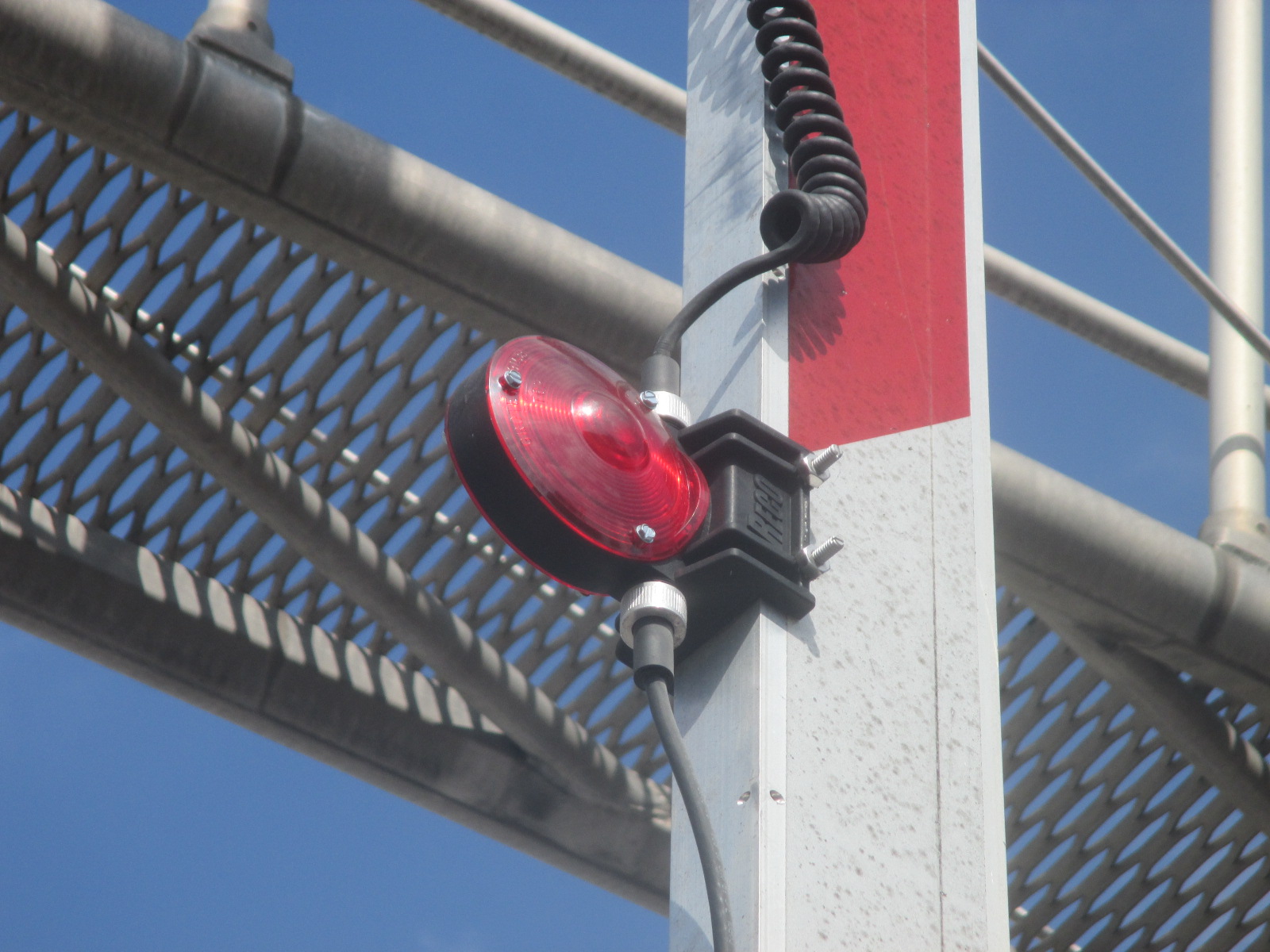

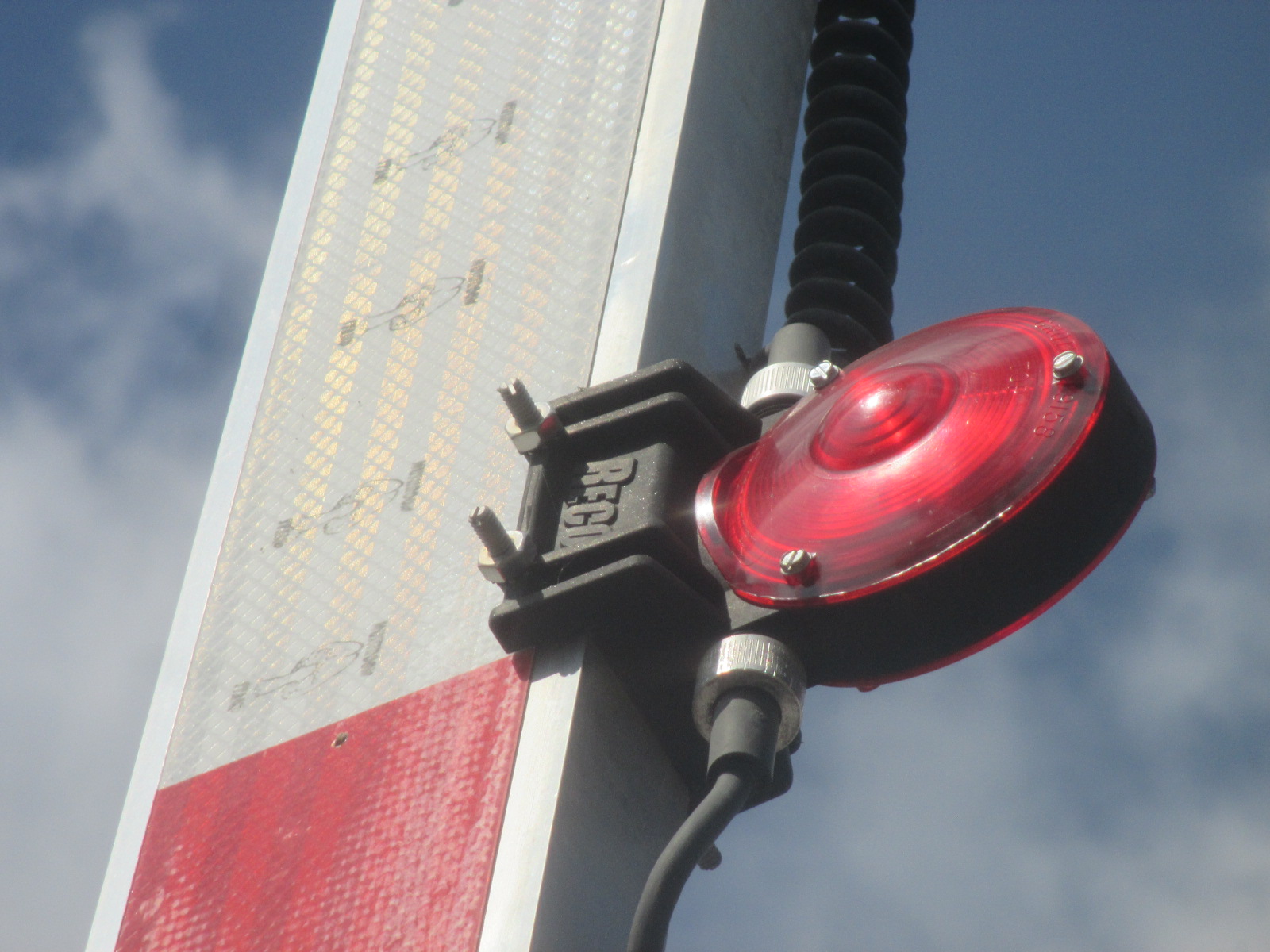

This signal has RECO gate lights.

17

18

19

20

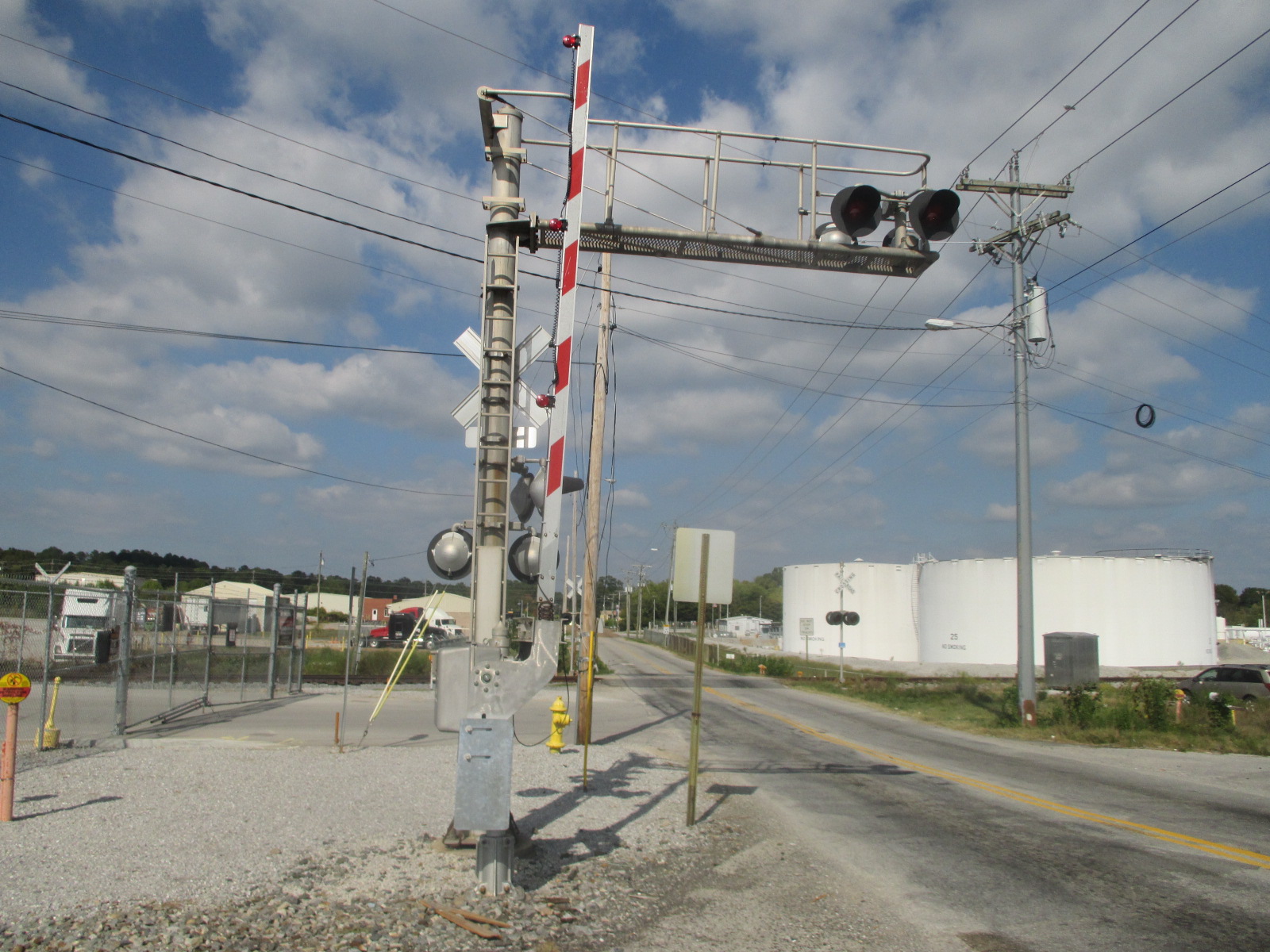

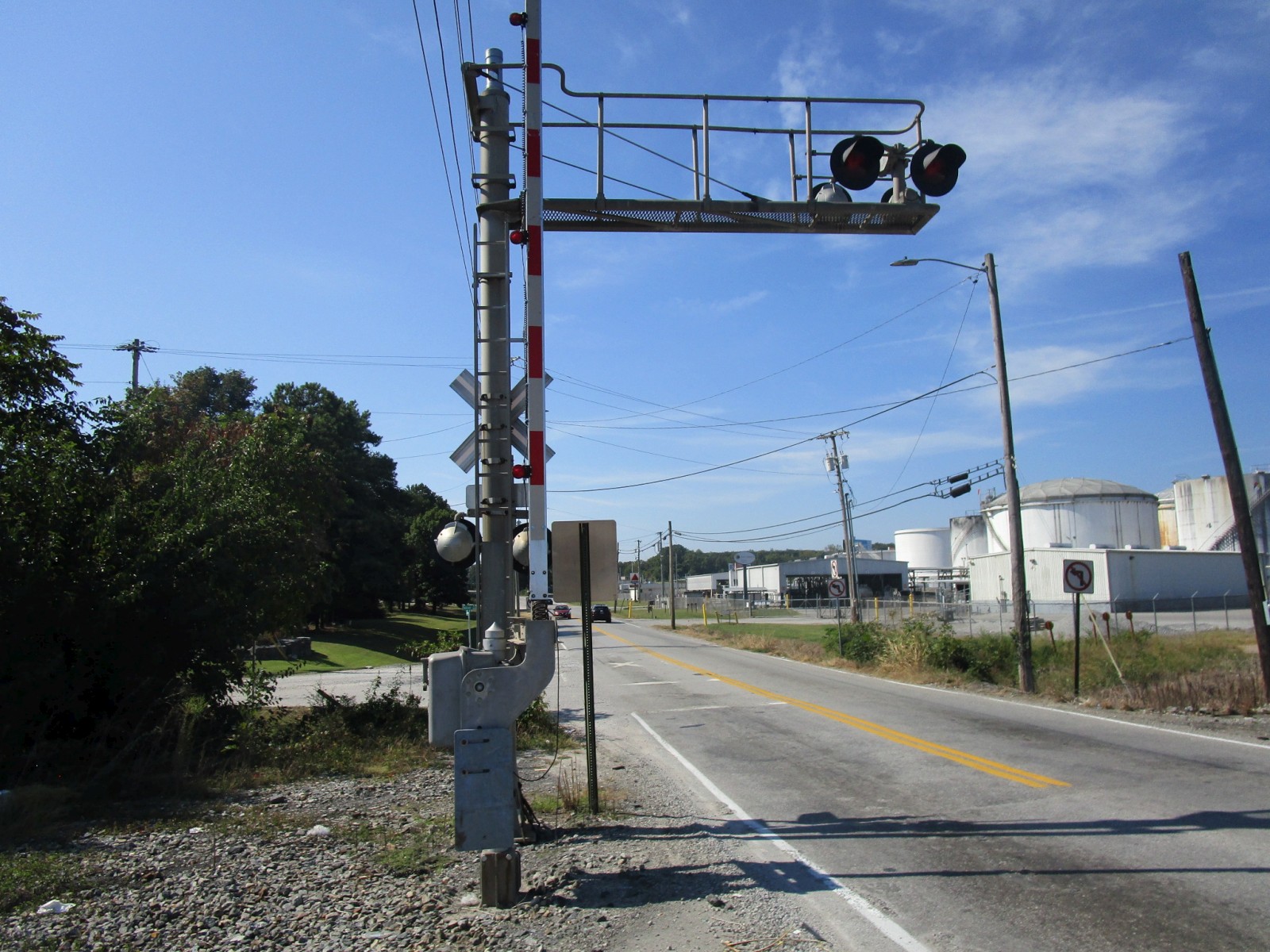

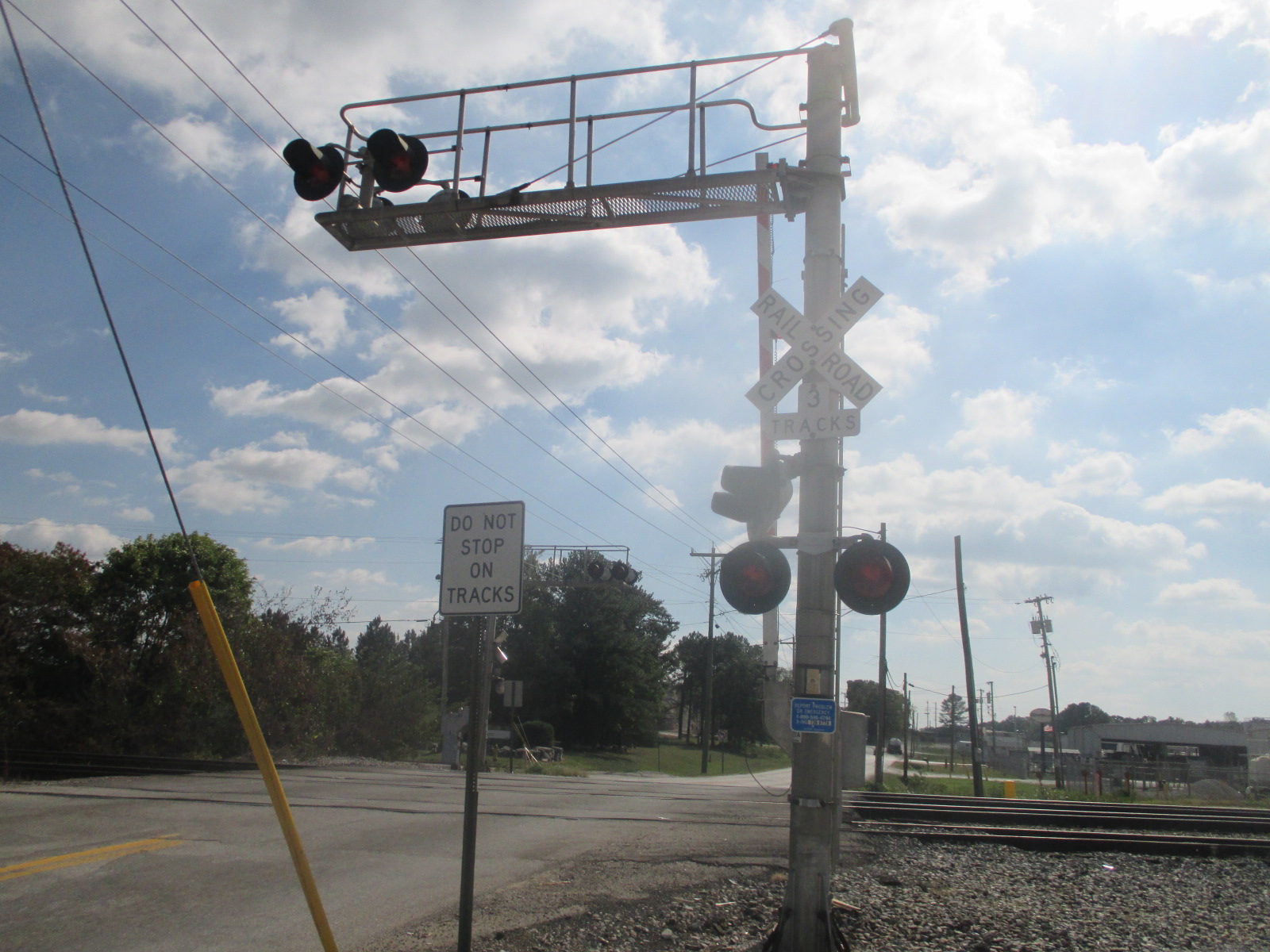

The second signal.
Another Safetran cantilever over here.

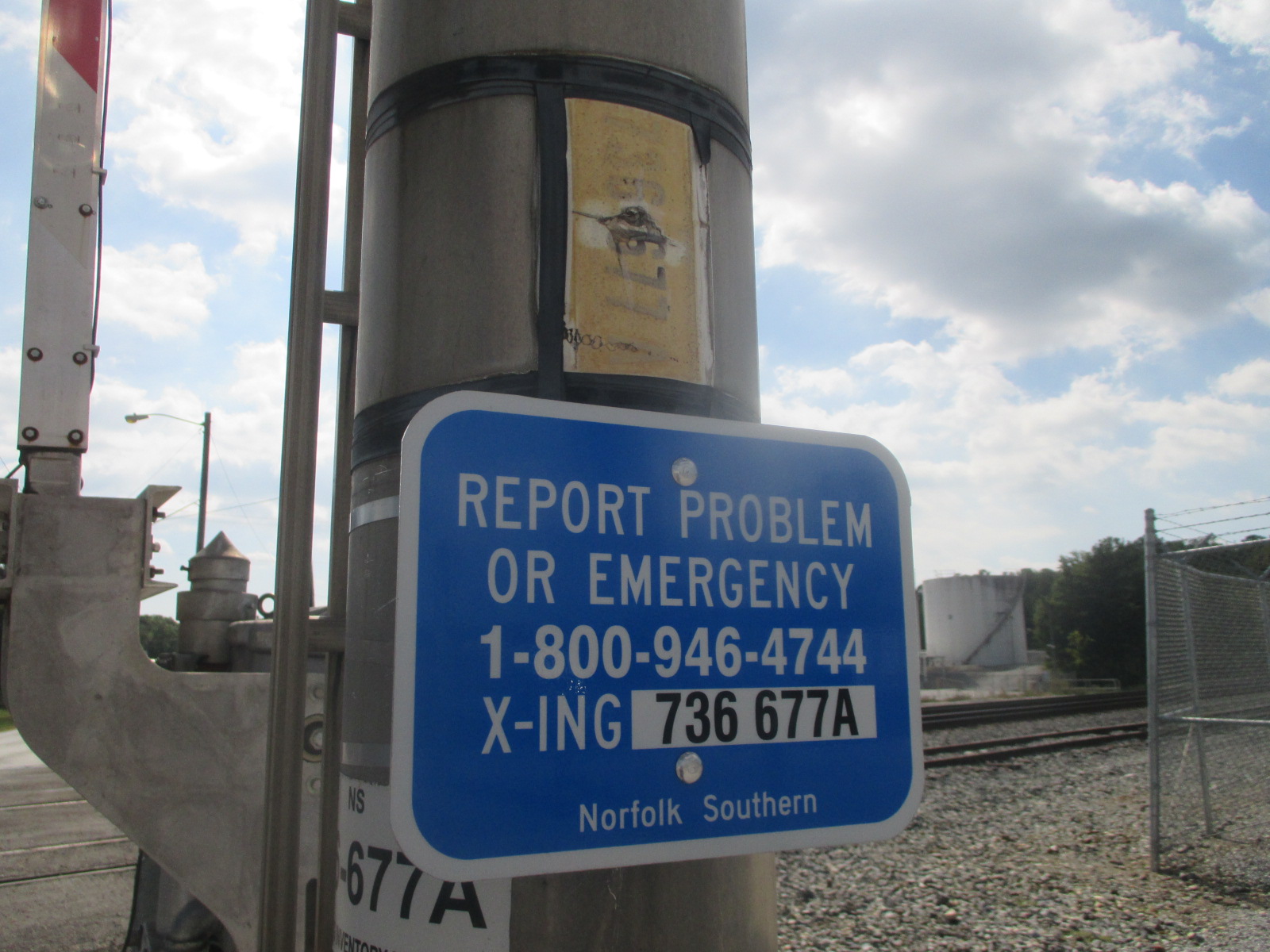

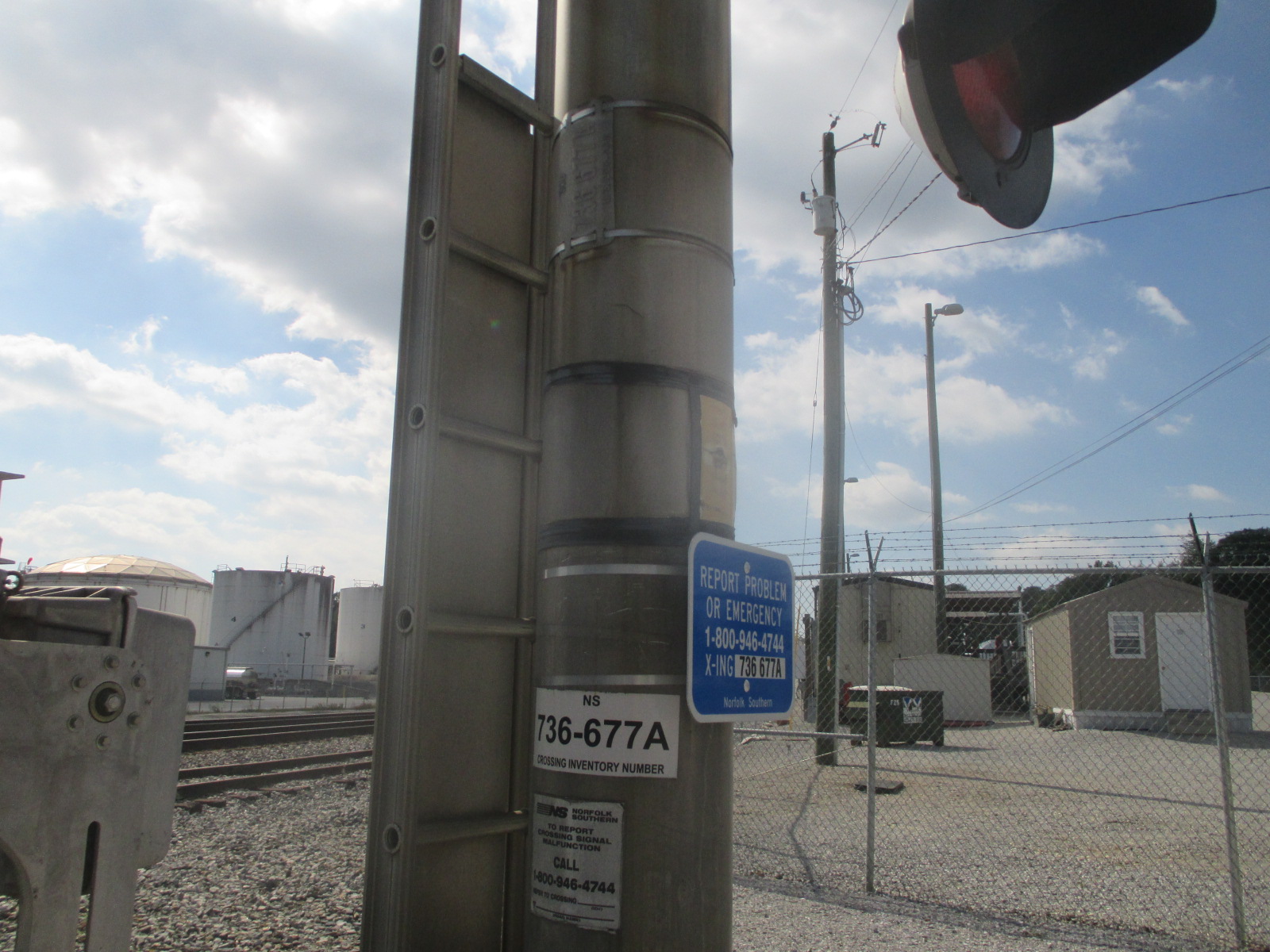

An assortment of DOT tags and emergency information.

21

22

23

24

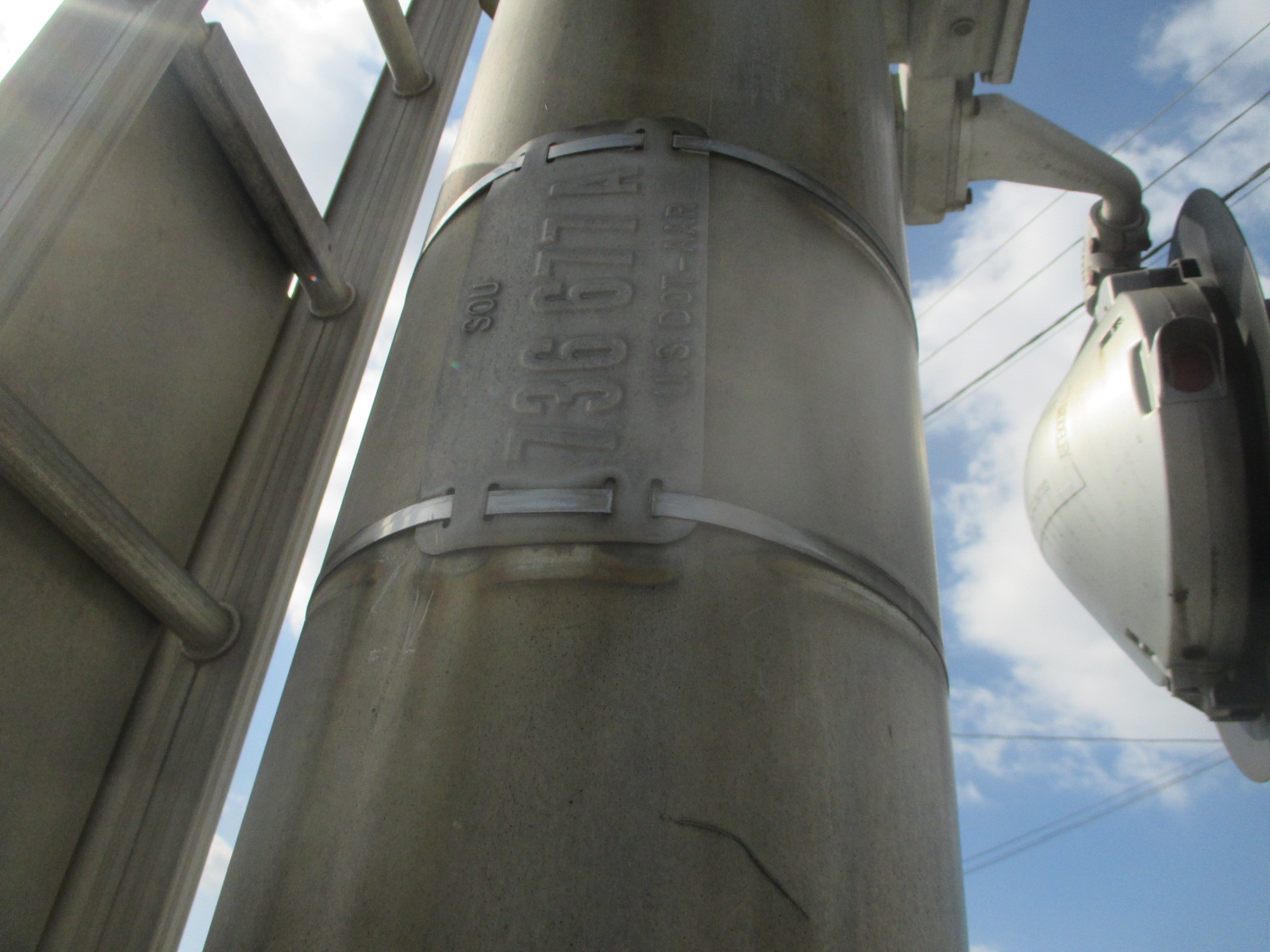

Close-ups of the various DOT tags and emergency information.

25

26

27

28

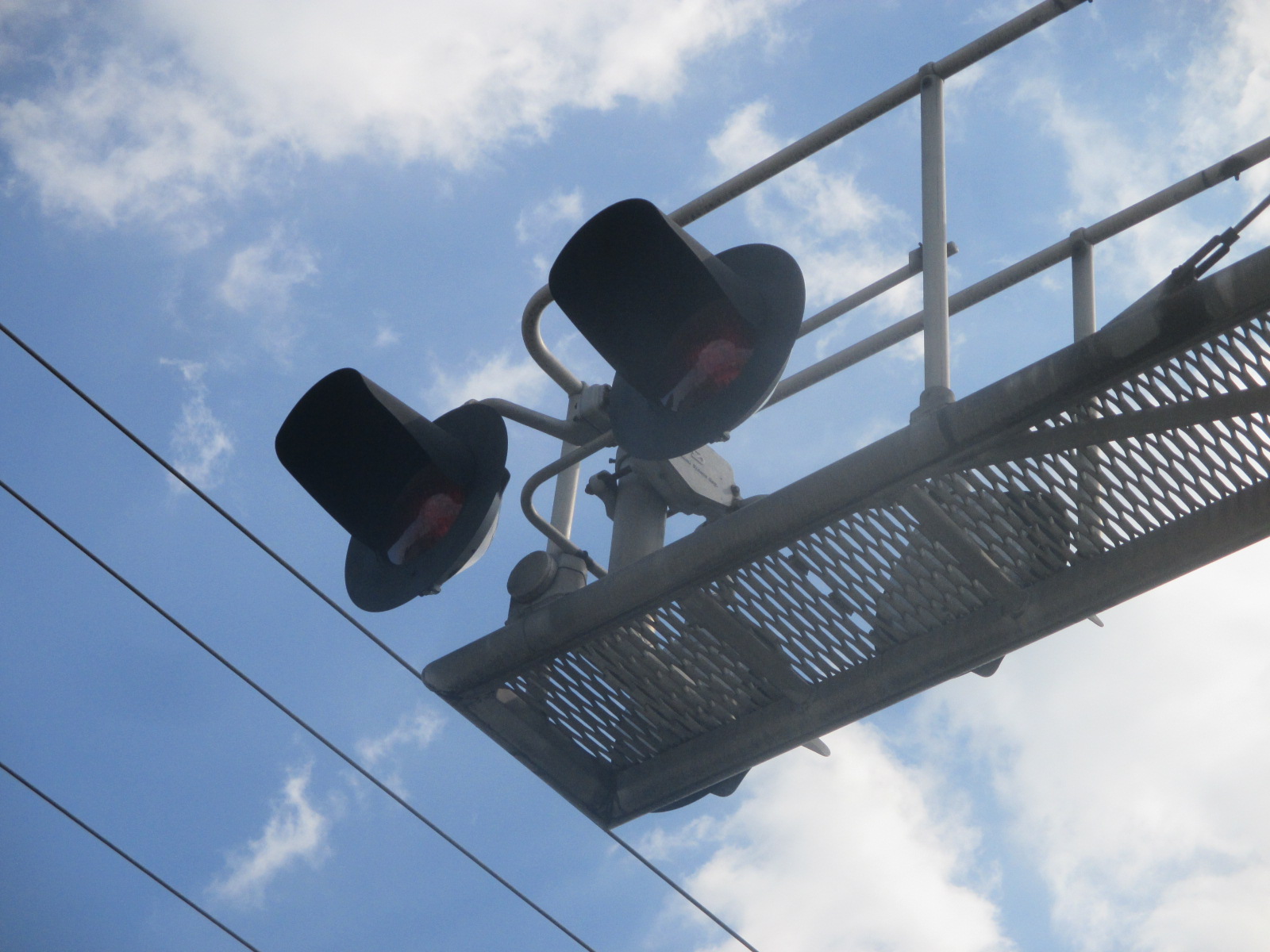

This signal has all Safetran 12x20 inch lights as well.

29

30

31

32

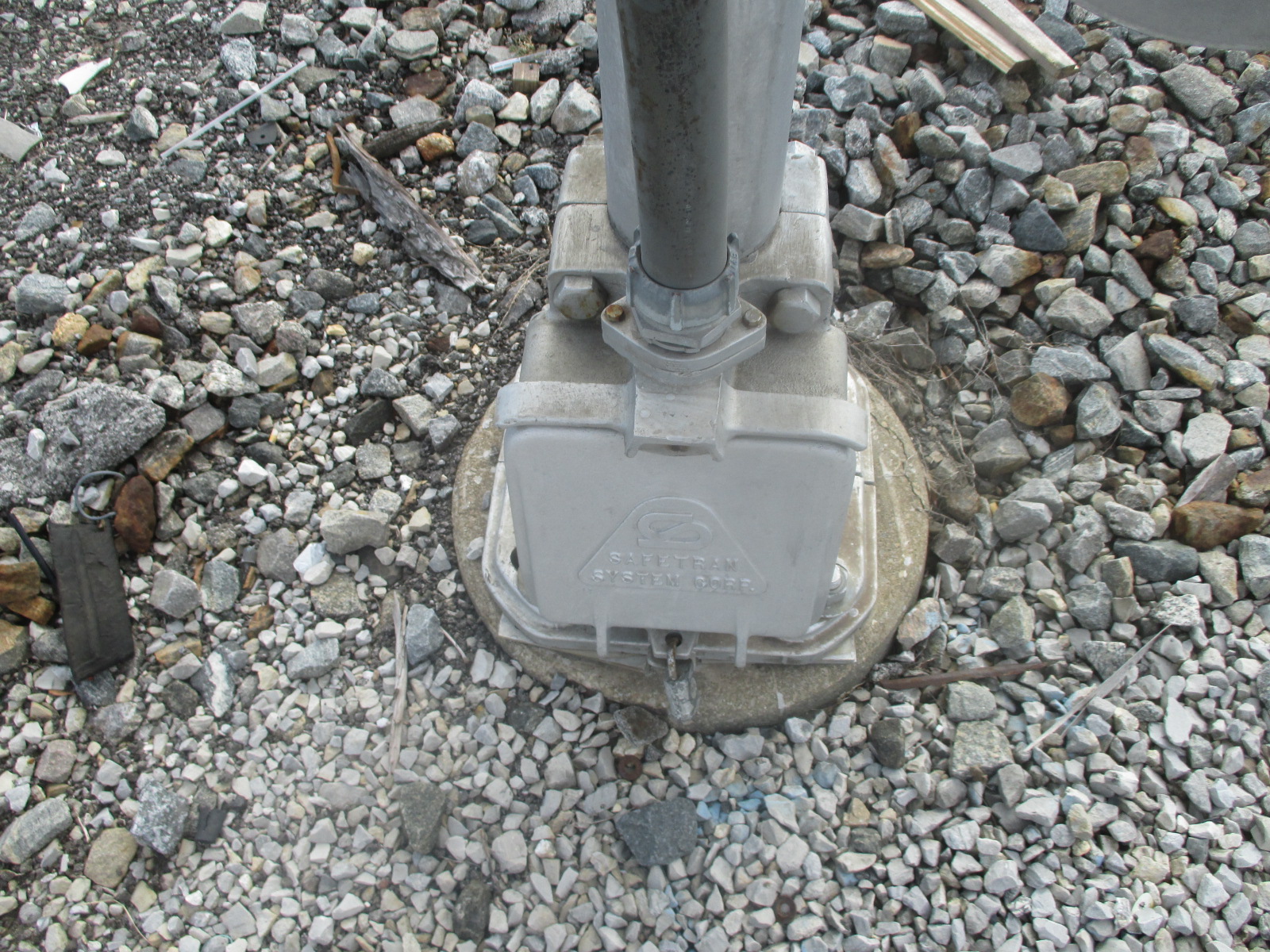

An older Safetran base.
Another Safetran gate mechanism.
More RECO gate lights over here.

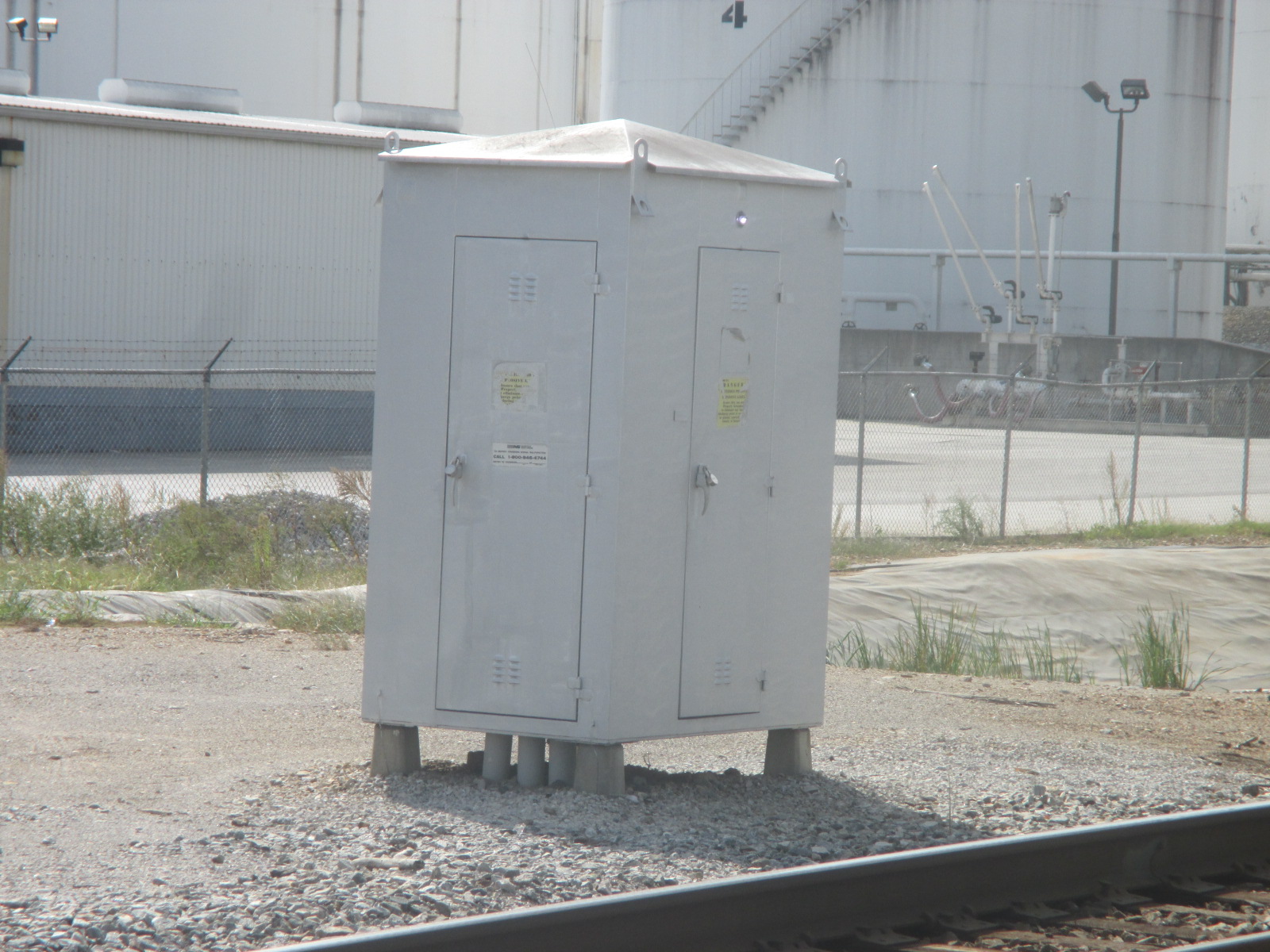

The relay case.

33

34

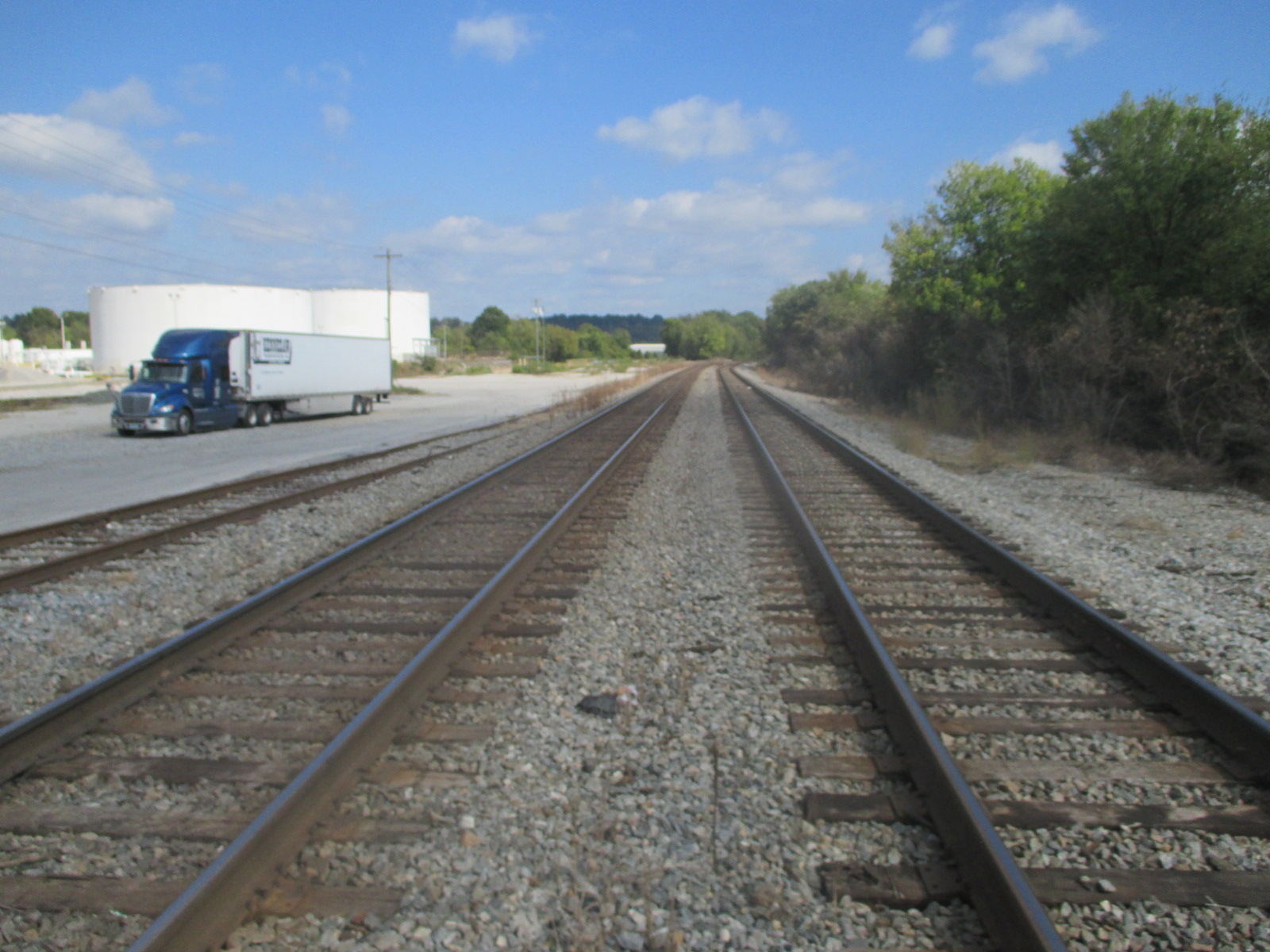

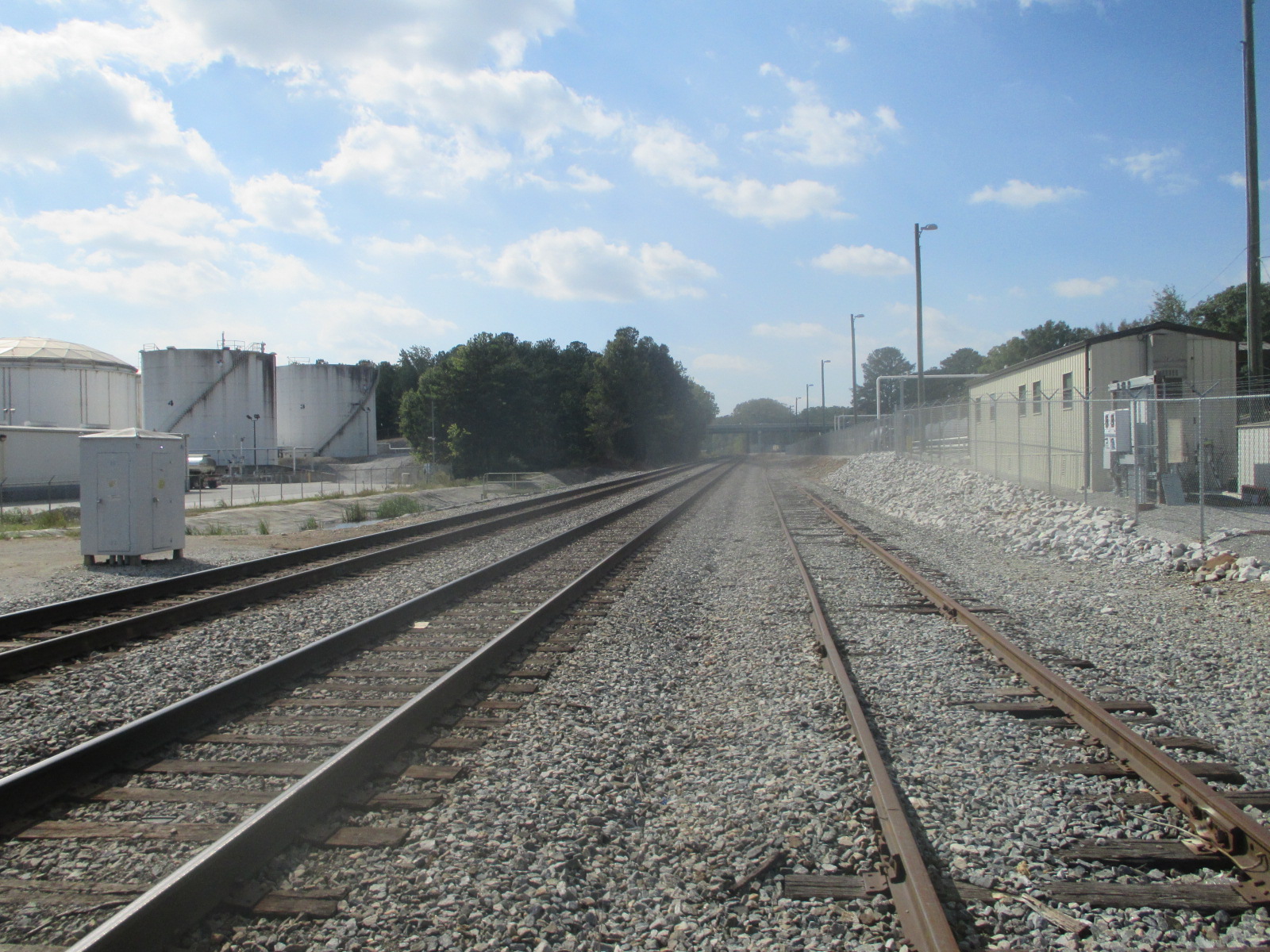

Track views. Picture 33 looks east towards Hickory Valley Road #1, Hickory Valley Road #2, and Old Hickory Valley Road.

35

36

37

38

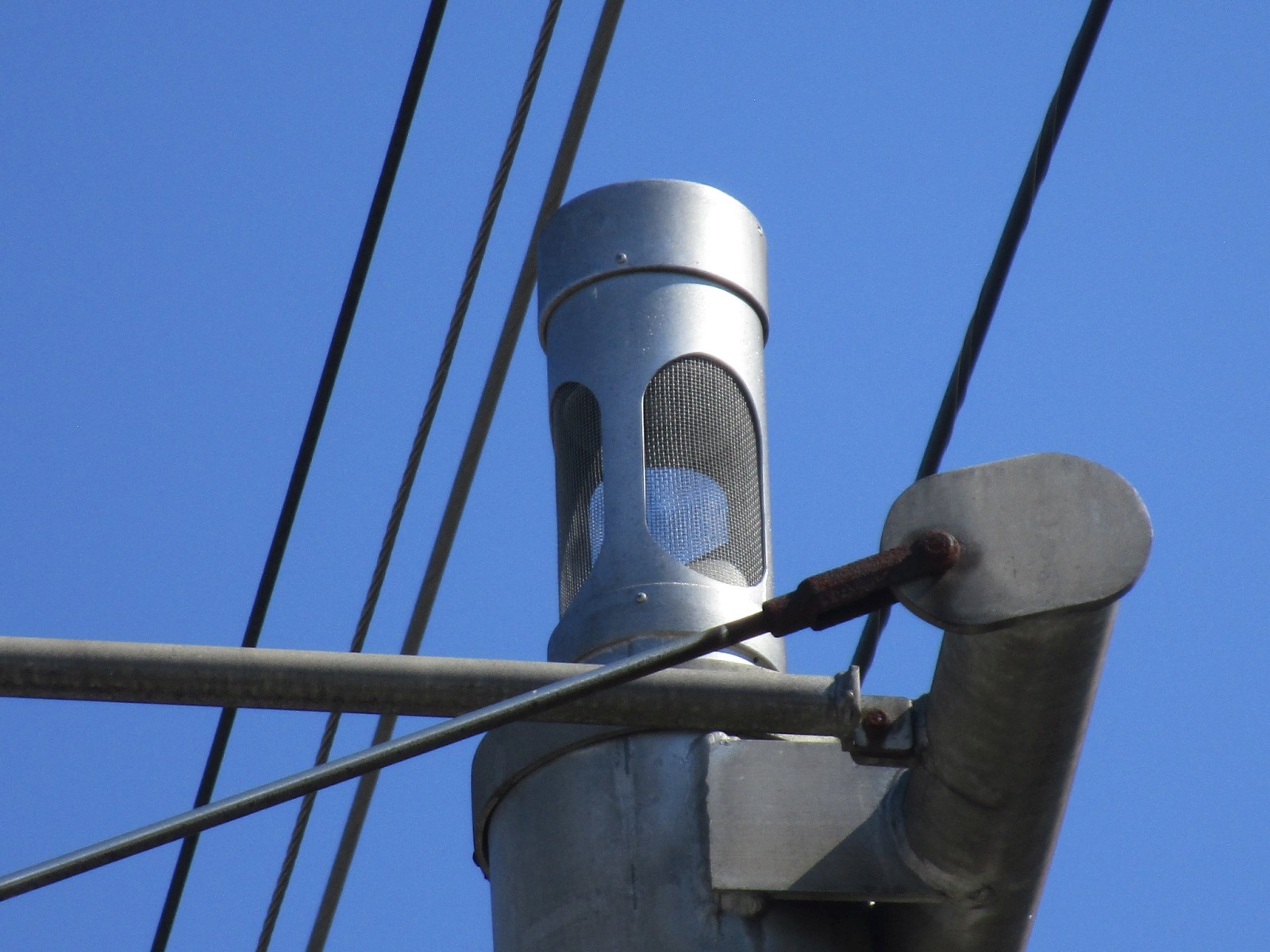

A return trip to the crossing on 9-23-23 finds that the Safetran Type 3 was replaced with a GS Type 3 e-bell.

39

40

41

42

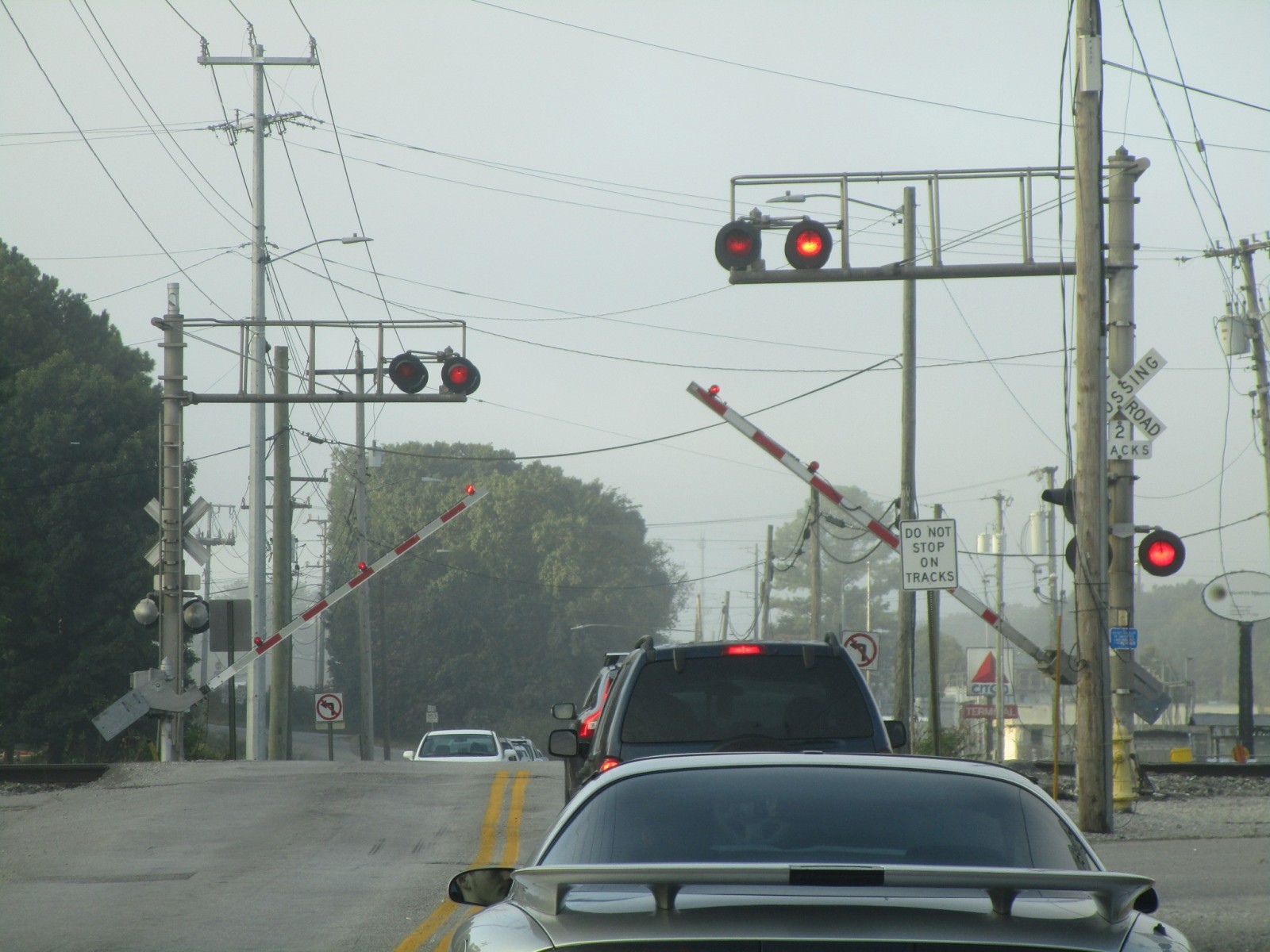

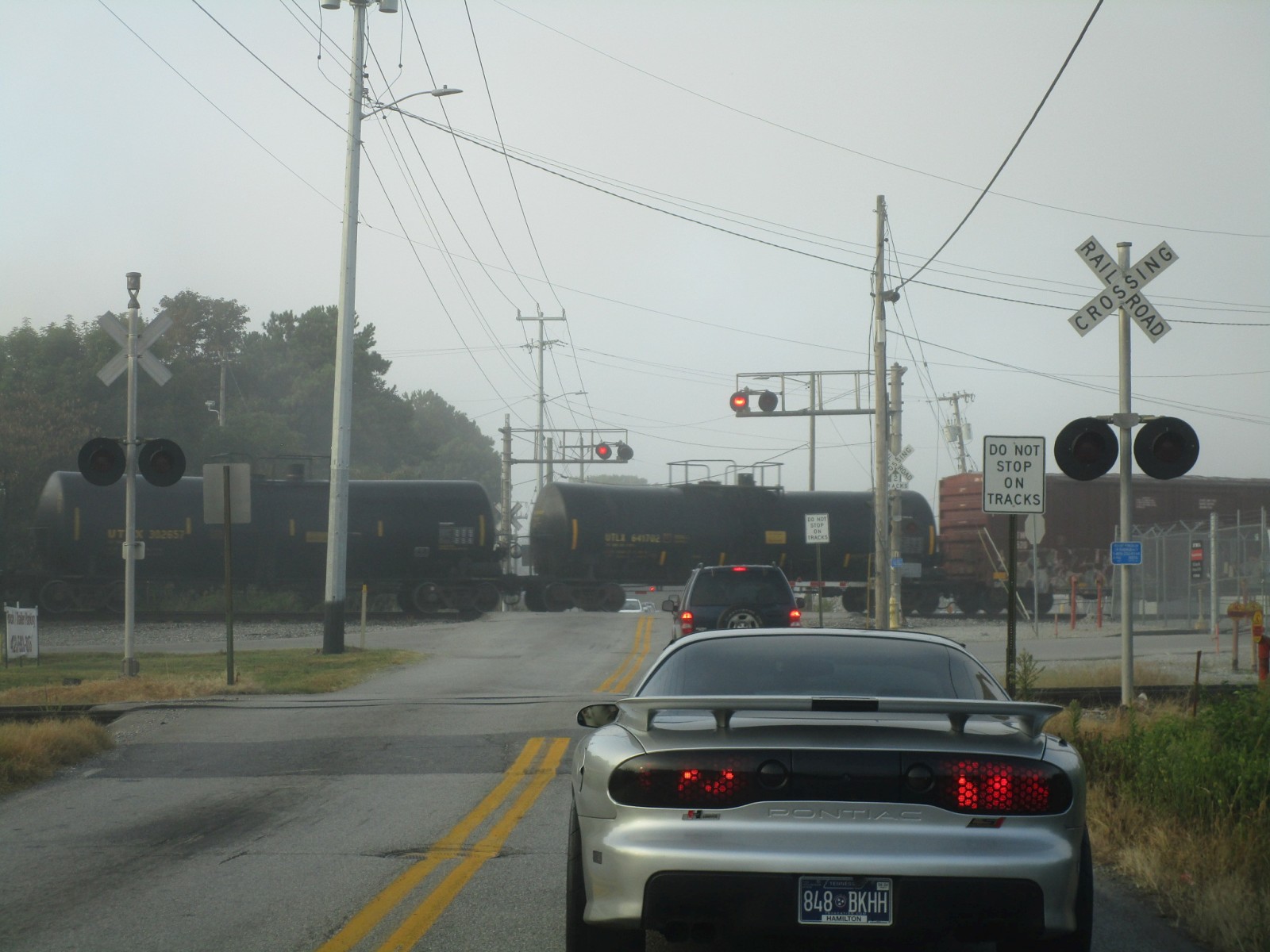

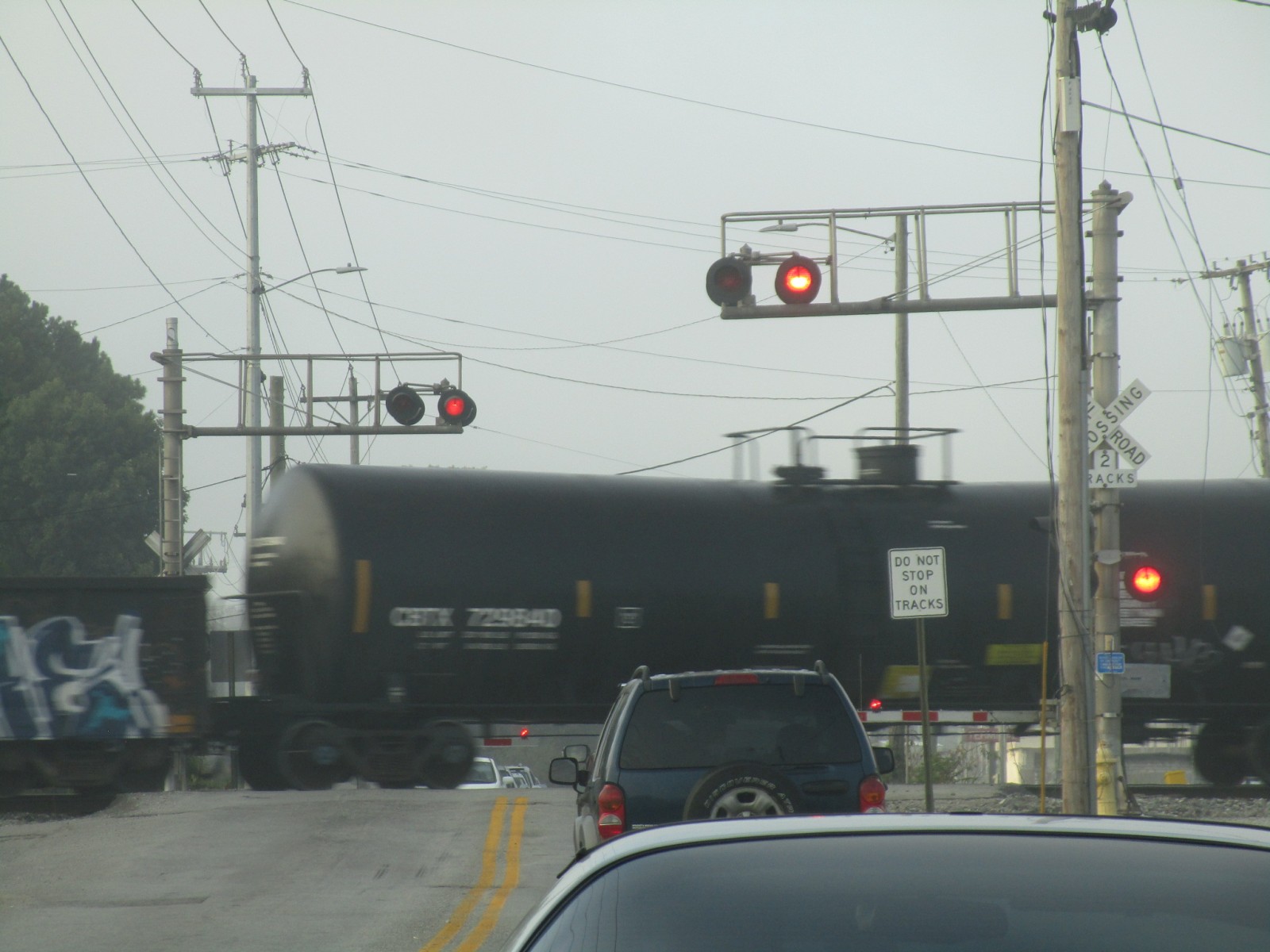

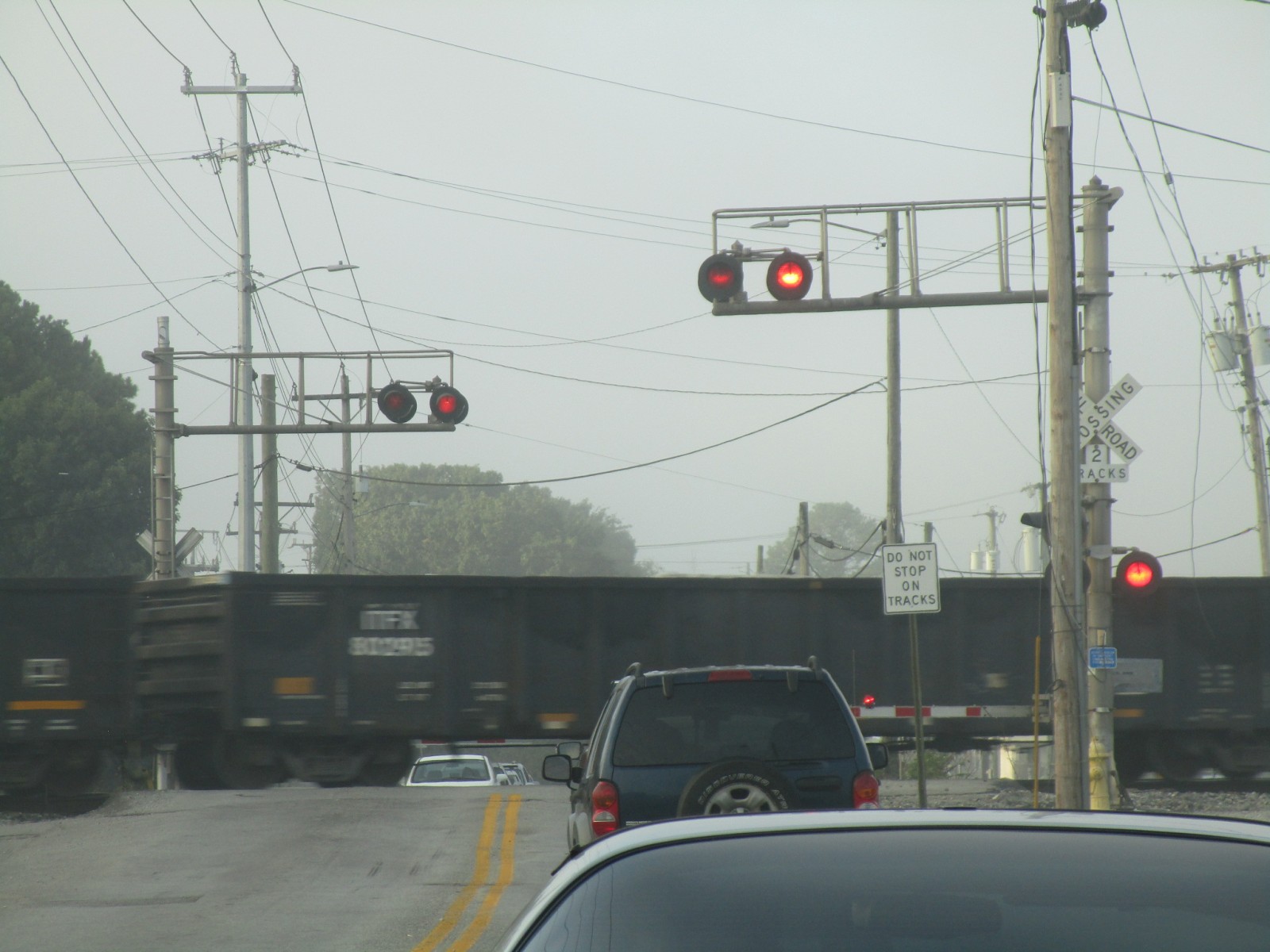

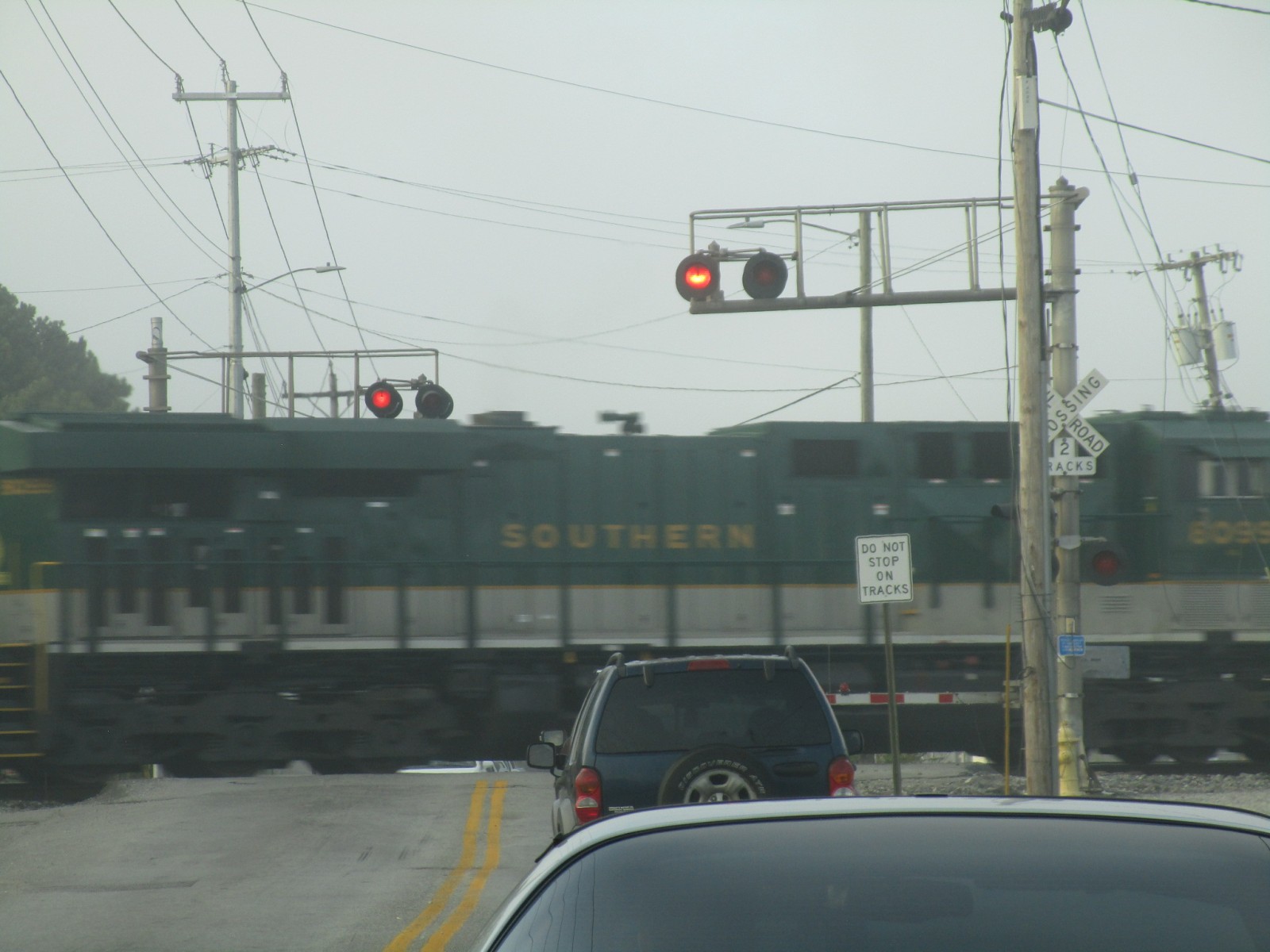

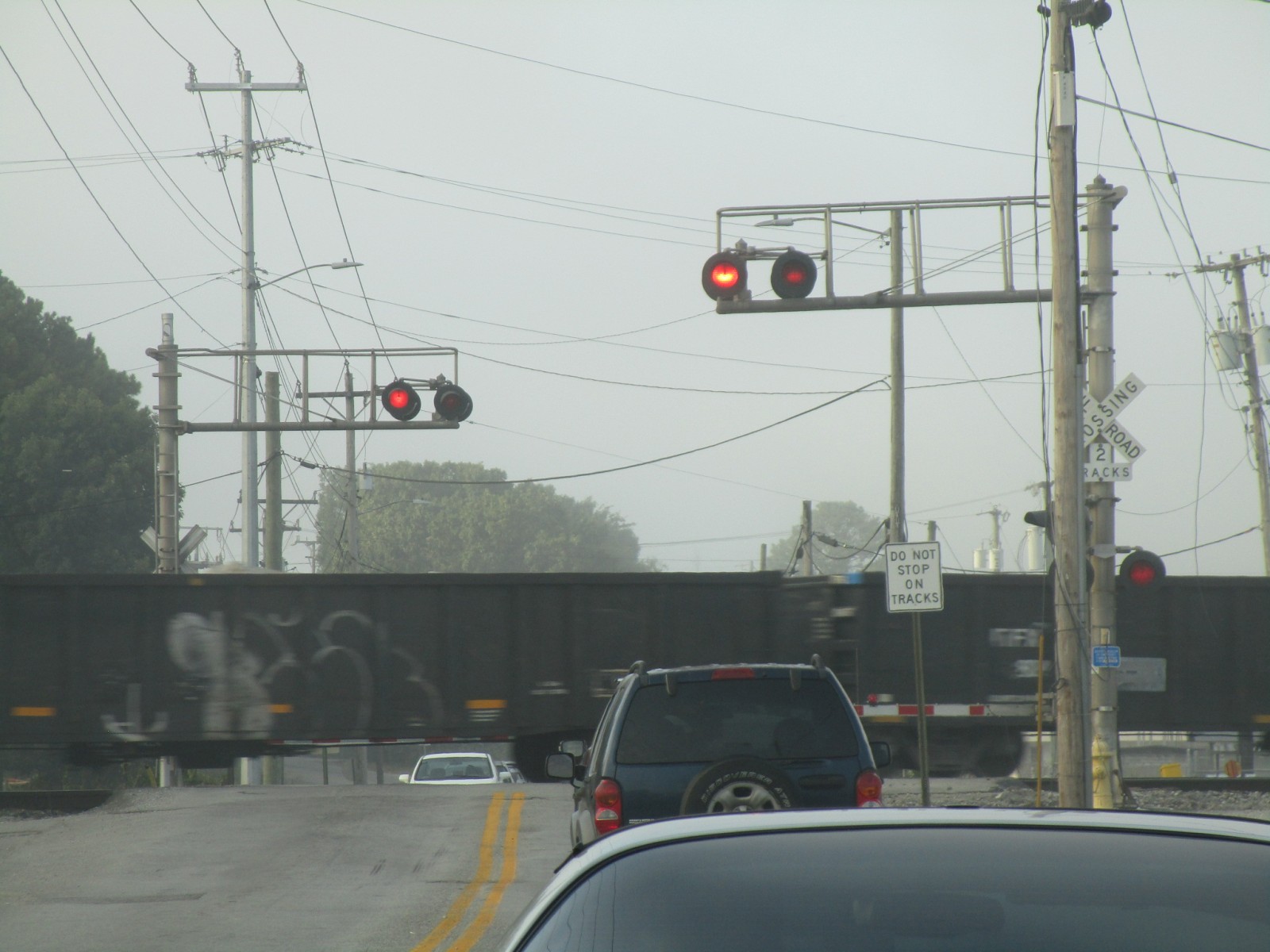

Some action shots of the crossing from 9-30-23, featuring the Southern Heritage Unit as the mid-train DPU. Jersey Pike #2 can be seen in Picture 39.

43

44

45

46

47







Pictures 1-34 were taken on 10-8-16.

The first video was taken by Elliot Hammerstone on 6-5-21.

Pictures 35-38 were taken on 9-23-23.

The second video was taken by Elliot Hammerstone on 7-26-23.
