MP:  A531.760



Created October 31, 2020



Total Accidents:   19
Crossing DOT #:  732135C
TOTAL DAILY TRAINS:   25   (AS OF 2019)



Page created by: Ethan the Railfanner



This crossing is located on the NS Memphis District West End.



1

2

3

4

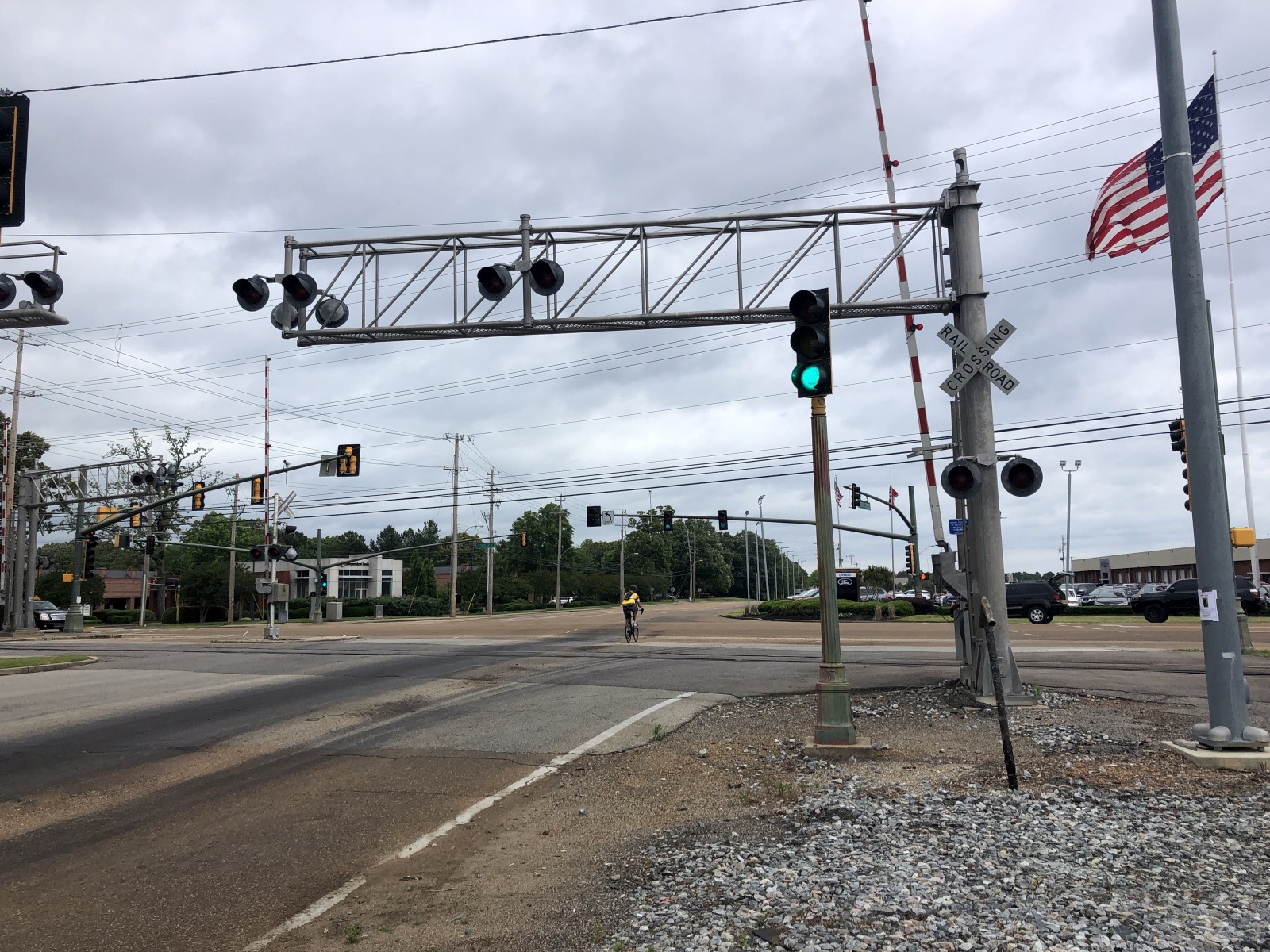

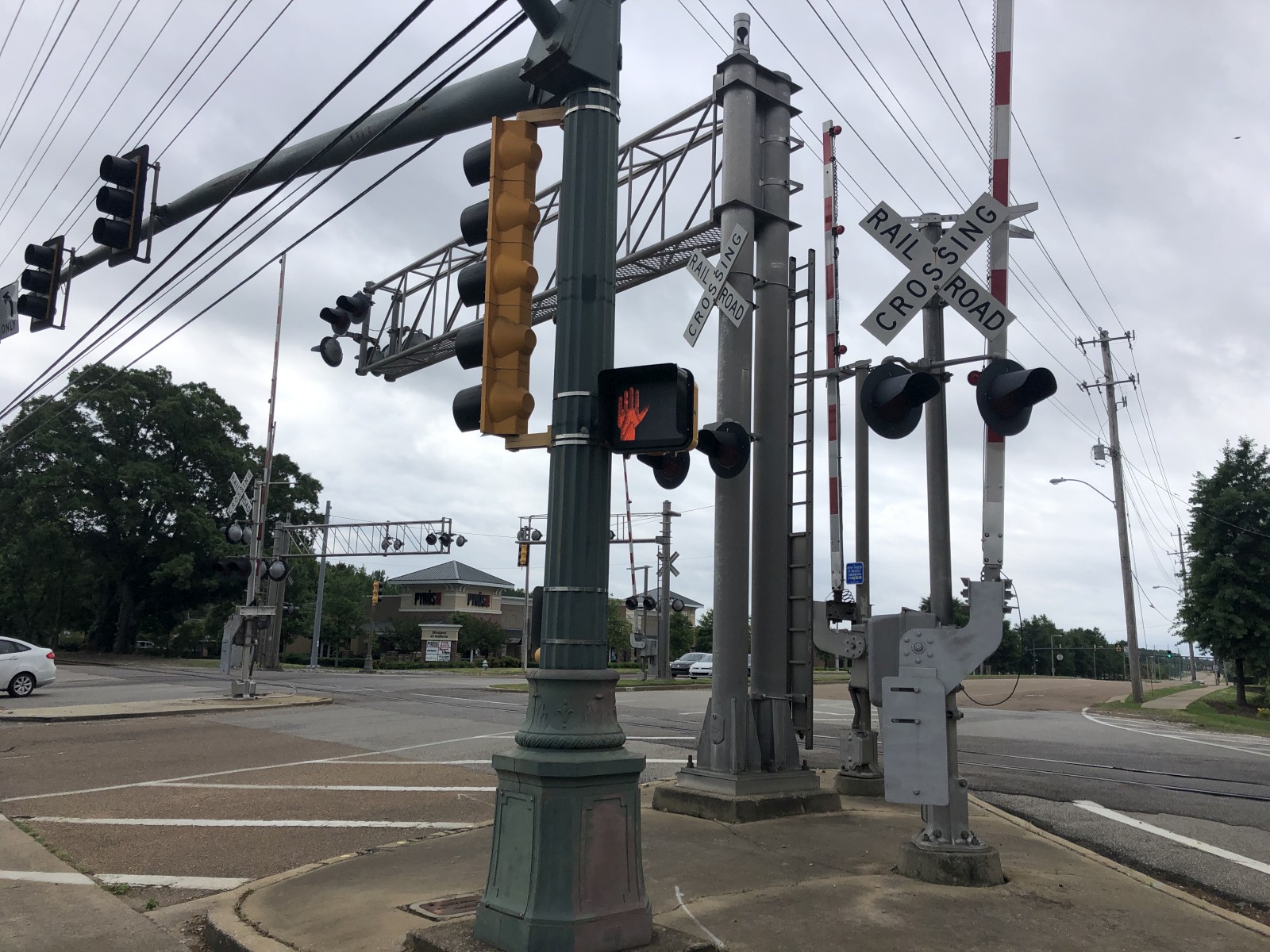

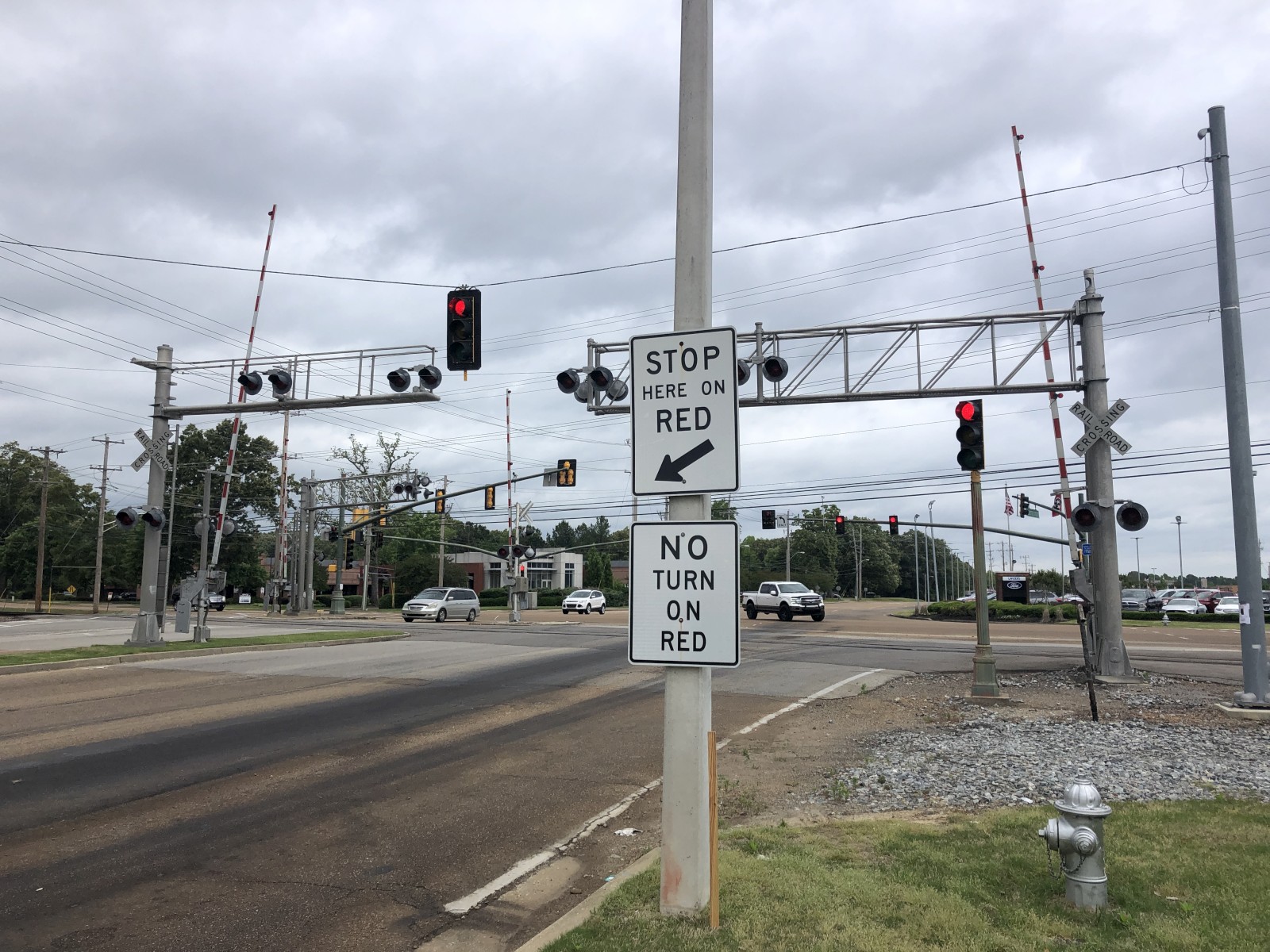

Overviews of this massive crossing.

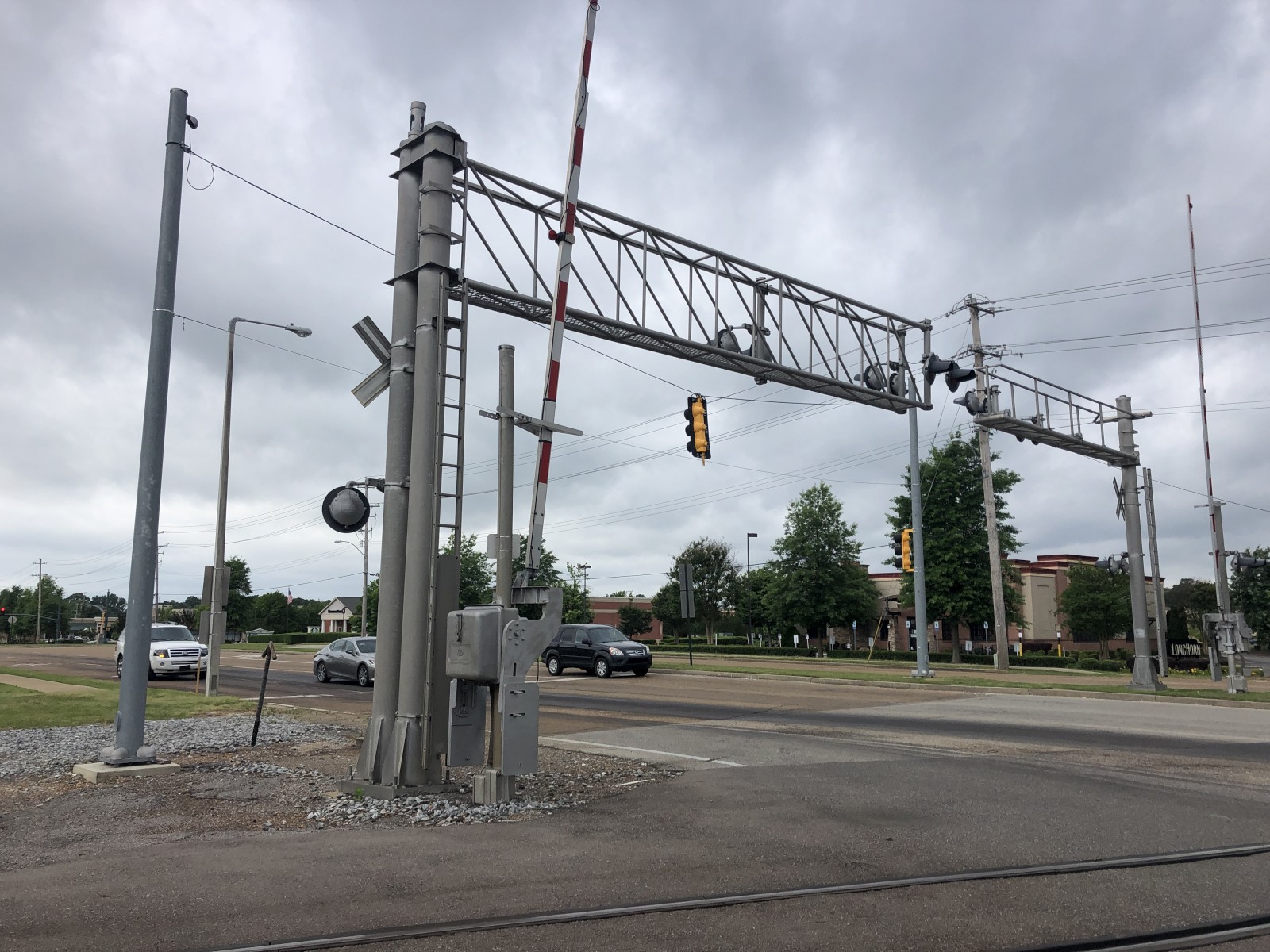

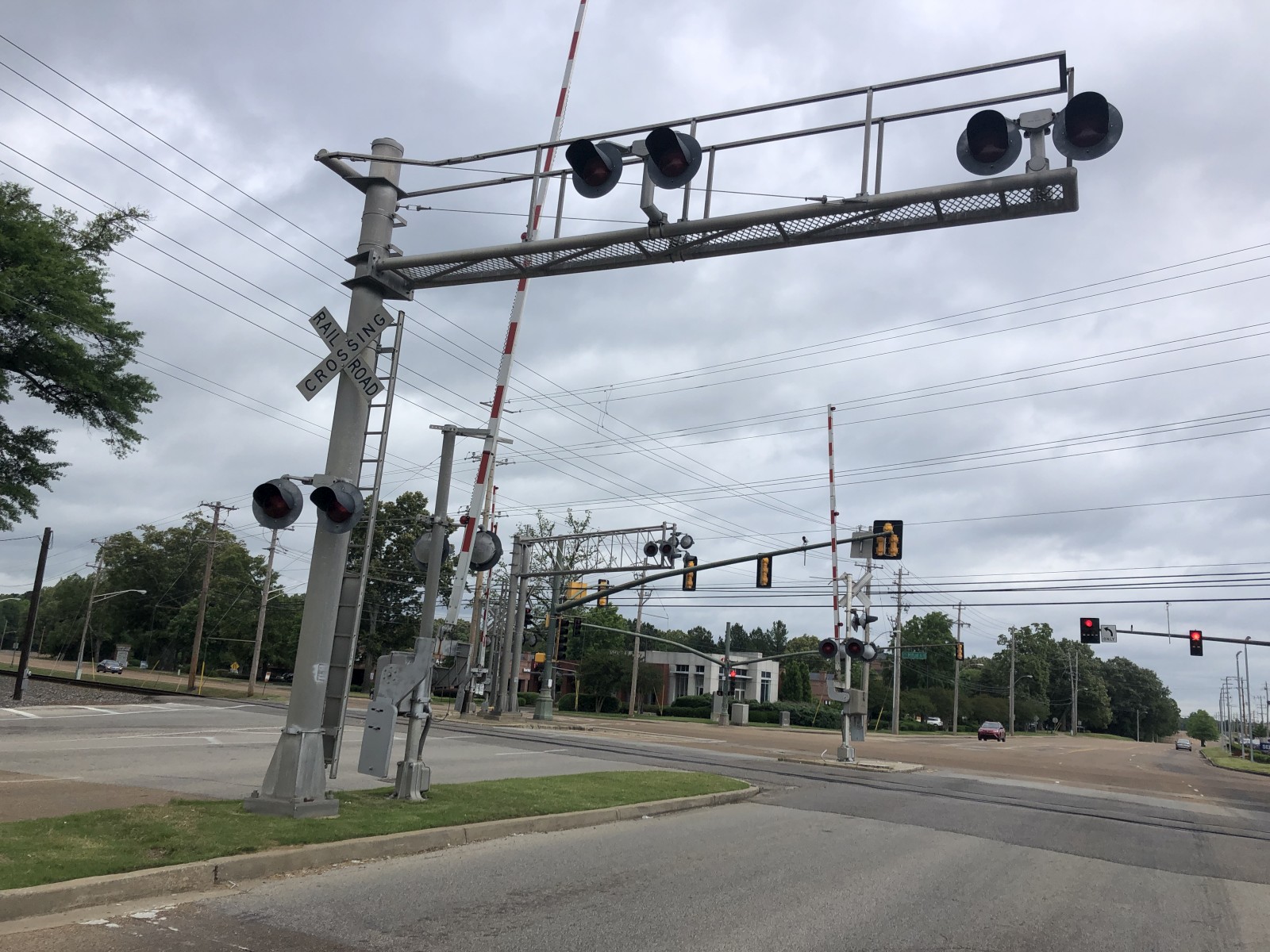

The southeastern cantilever signal.

5

6

7

8

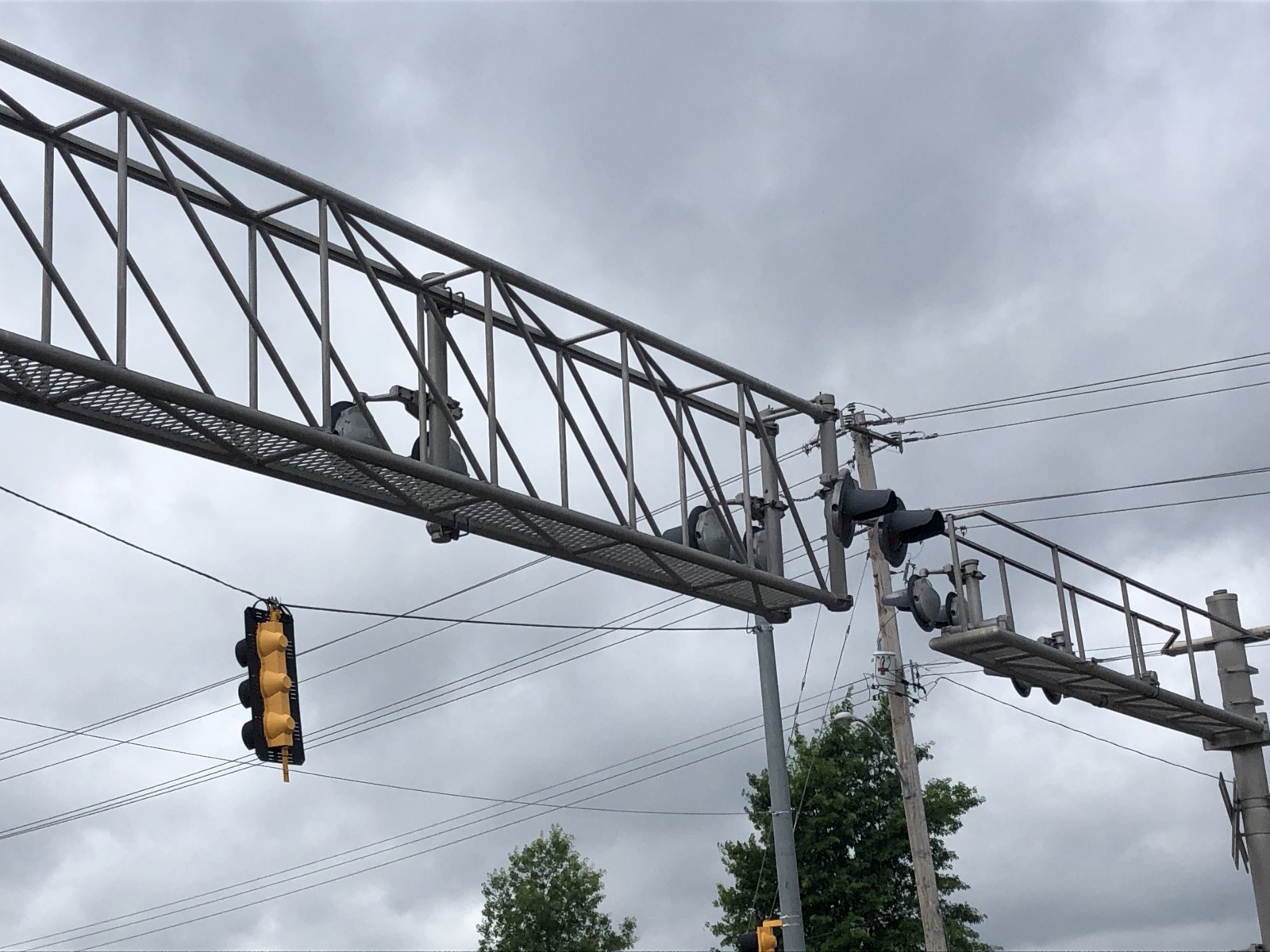

It has a Safetran cantilever.

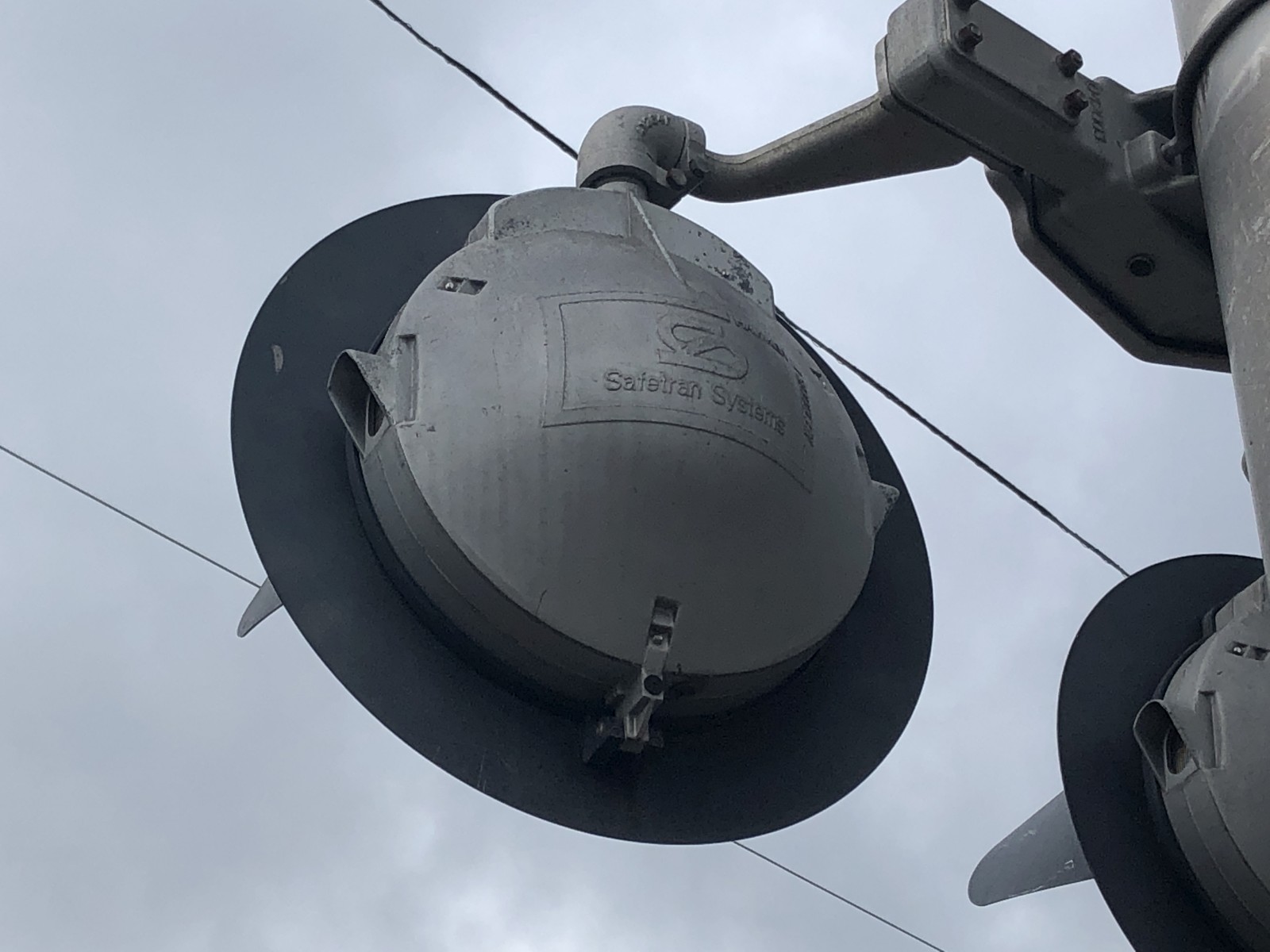

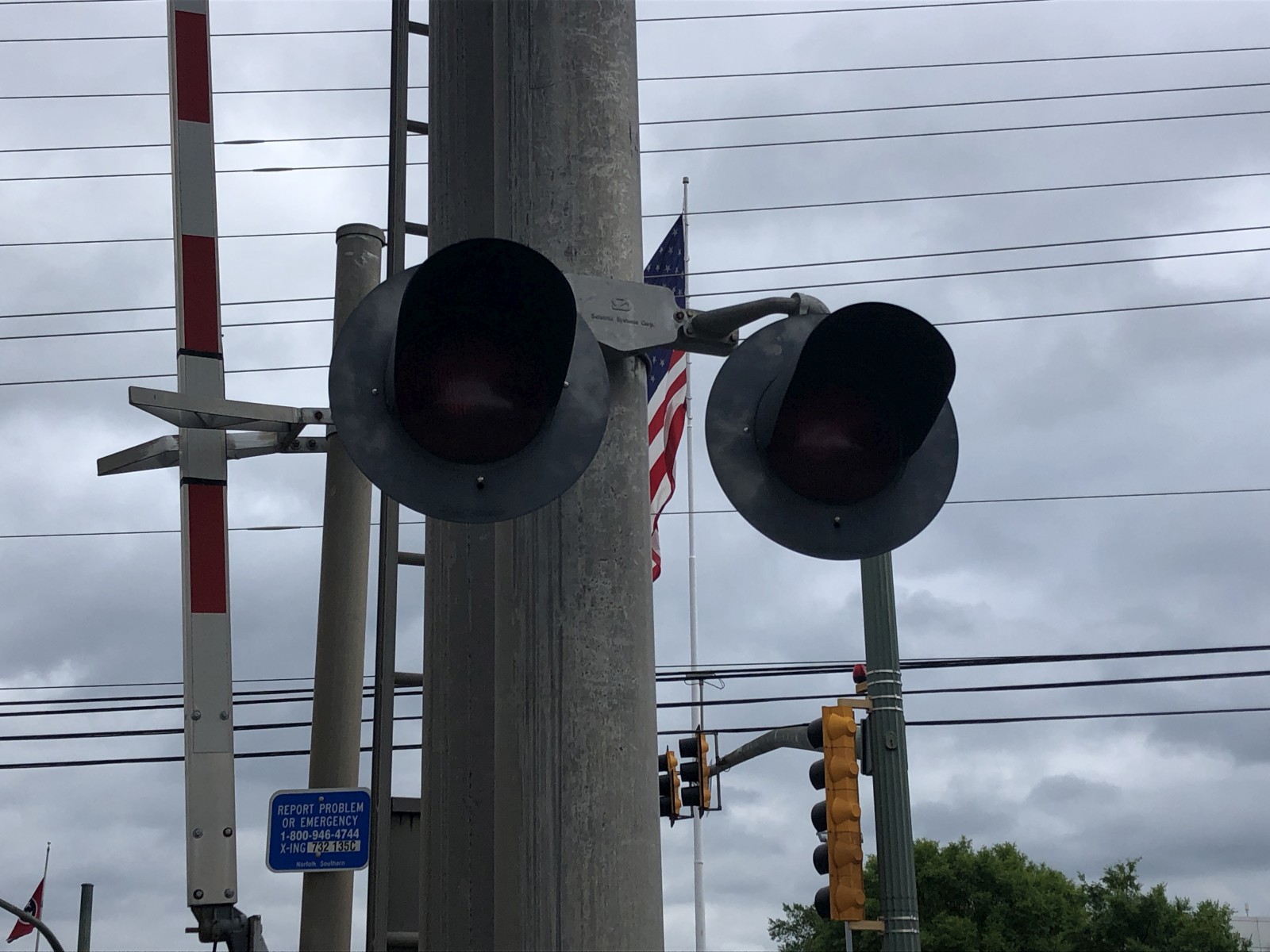

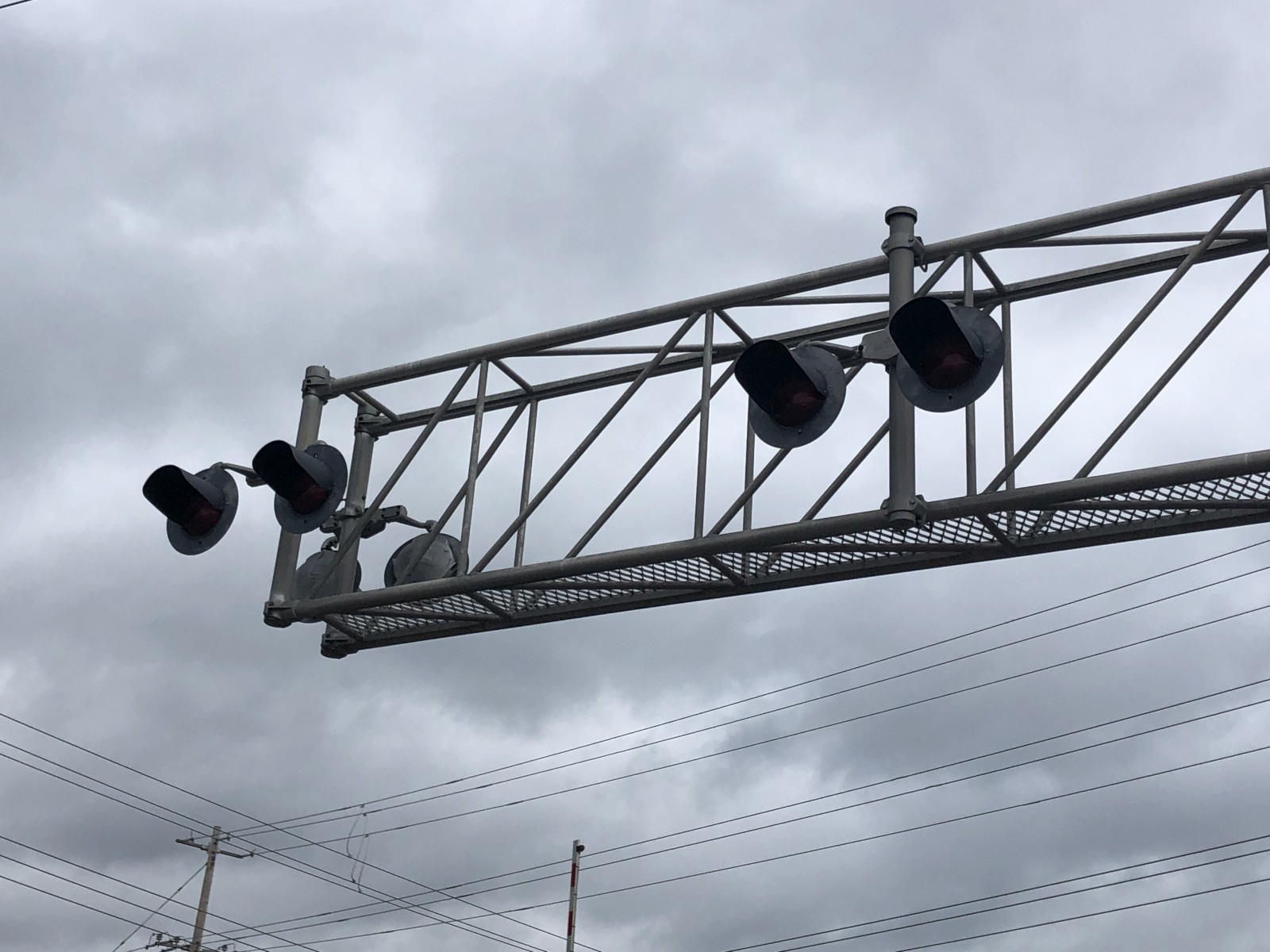

The lights on the cantilever are all Hawker-Safetran 12x20 incandescents.

9

10

11

12

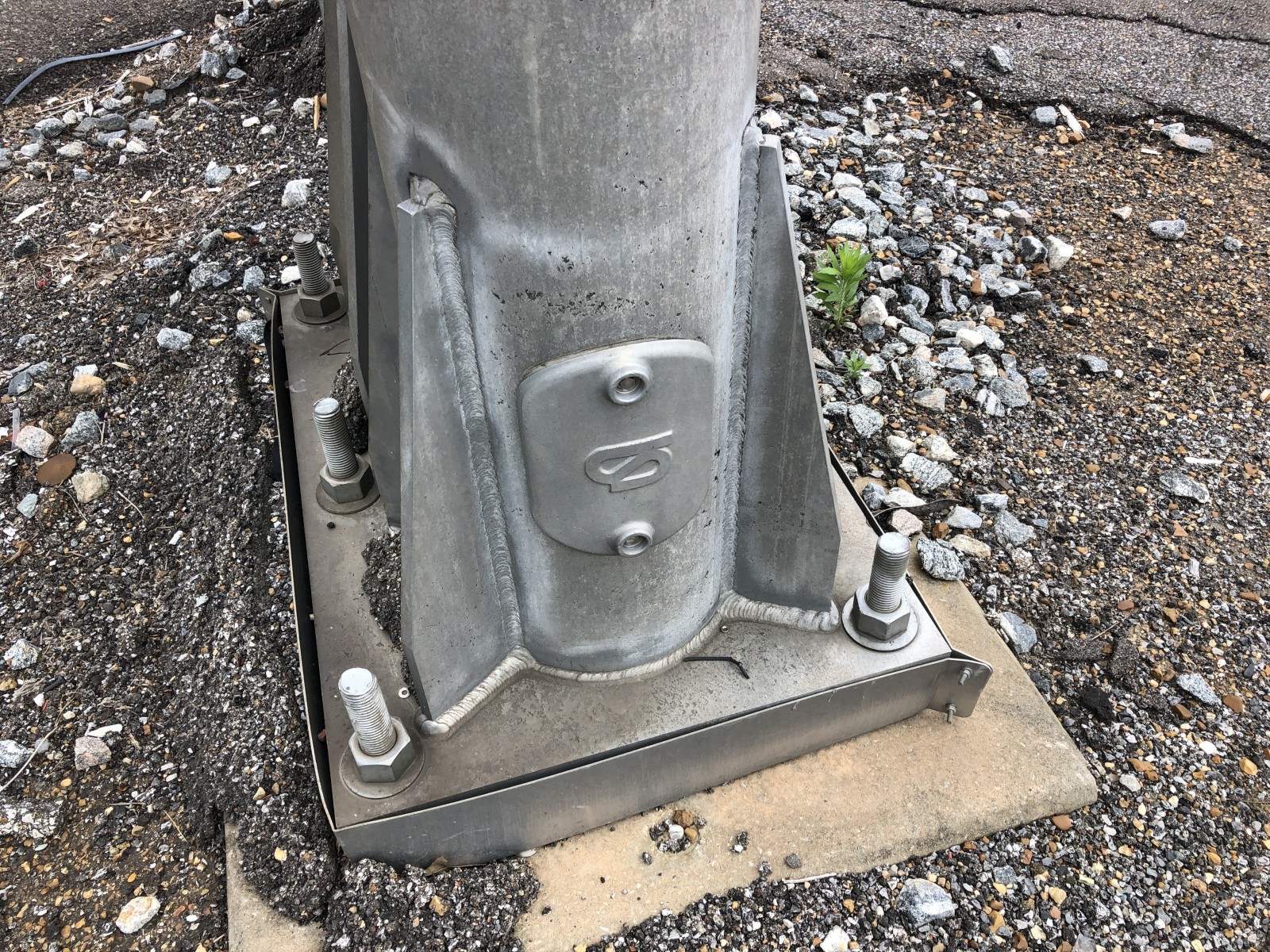

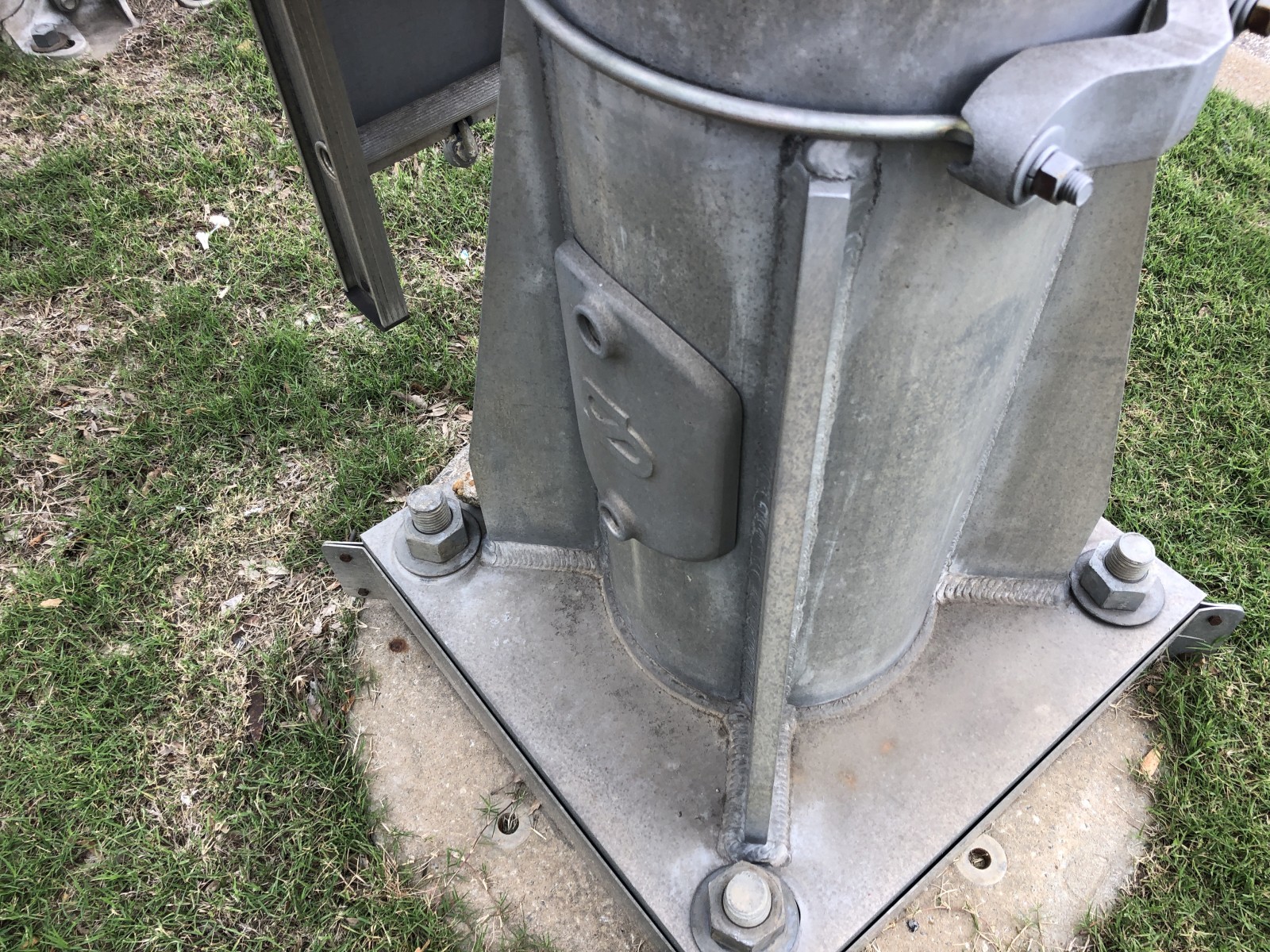

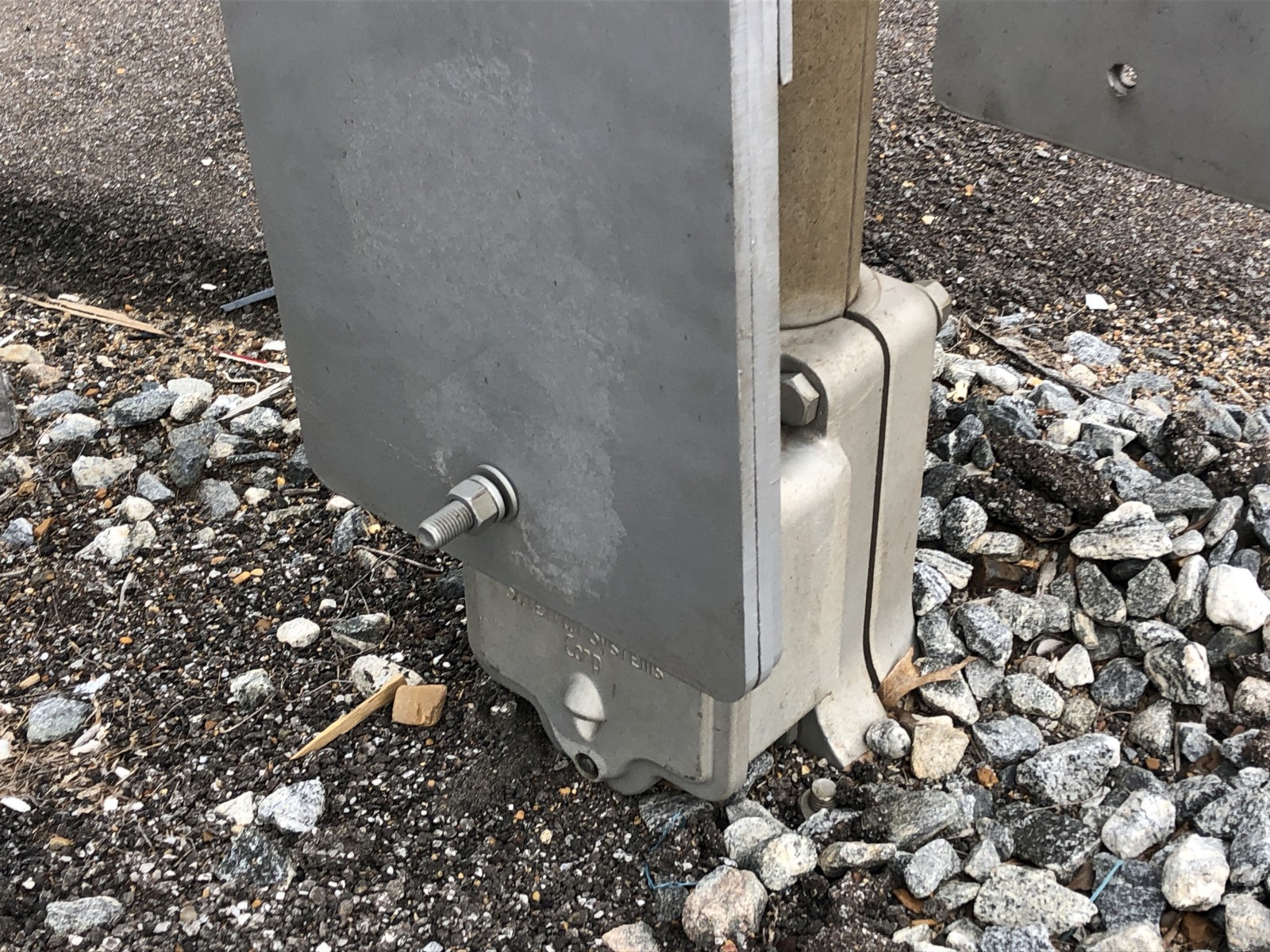

A Safetran base.

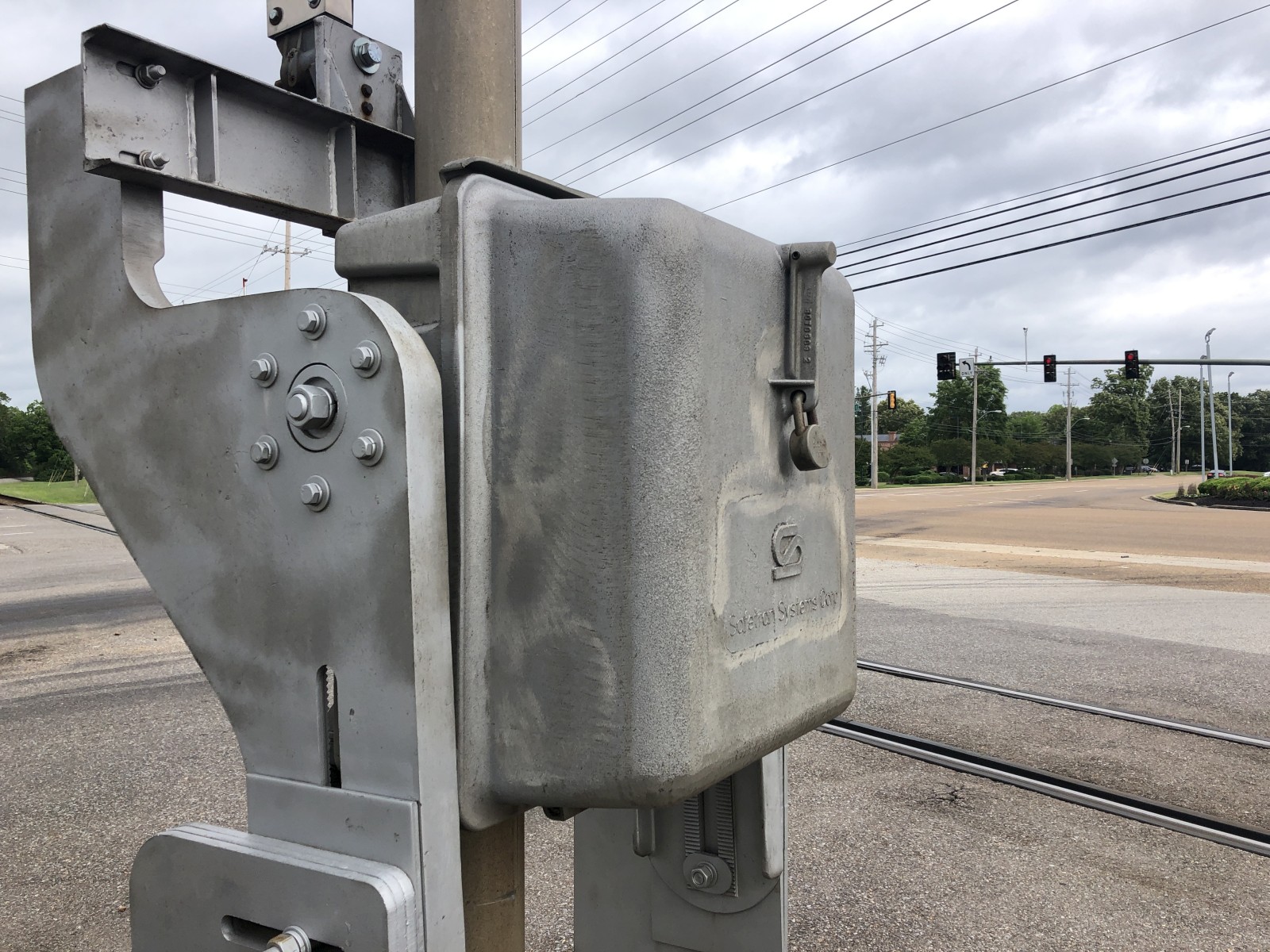

A Safetran gate mechanism.
The emergency inforamtion.

13

14

15

16

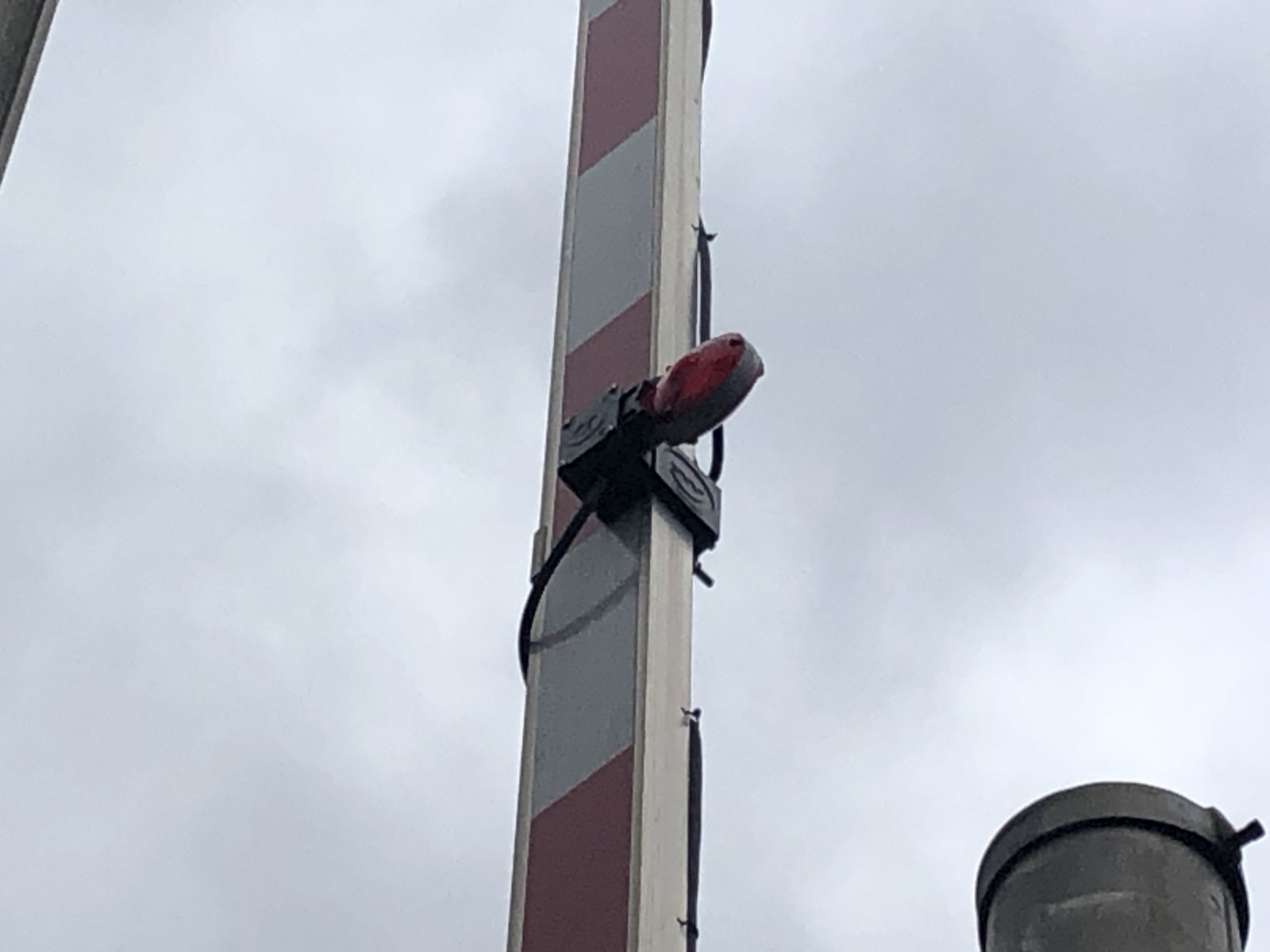

NEG gatelights on this sginal.

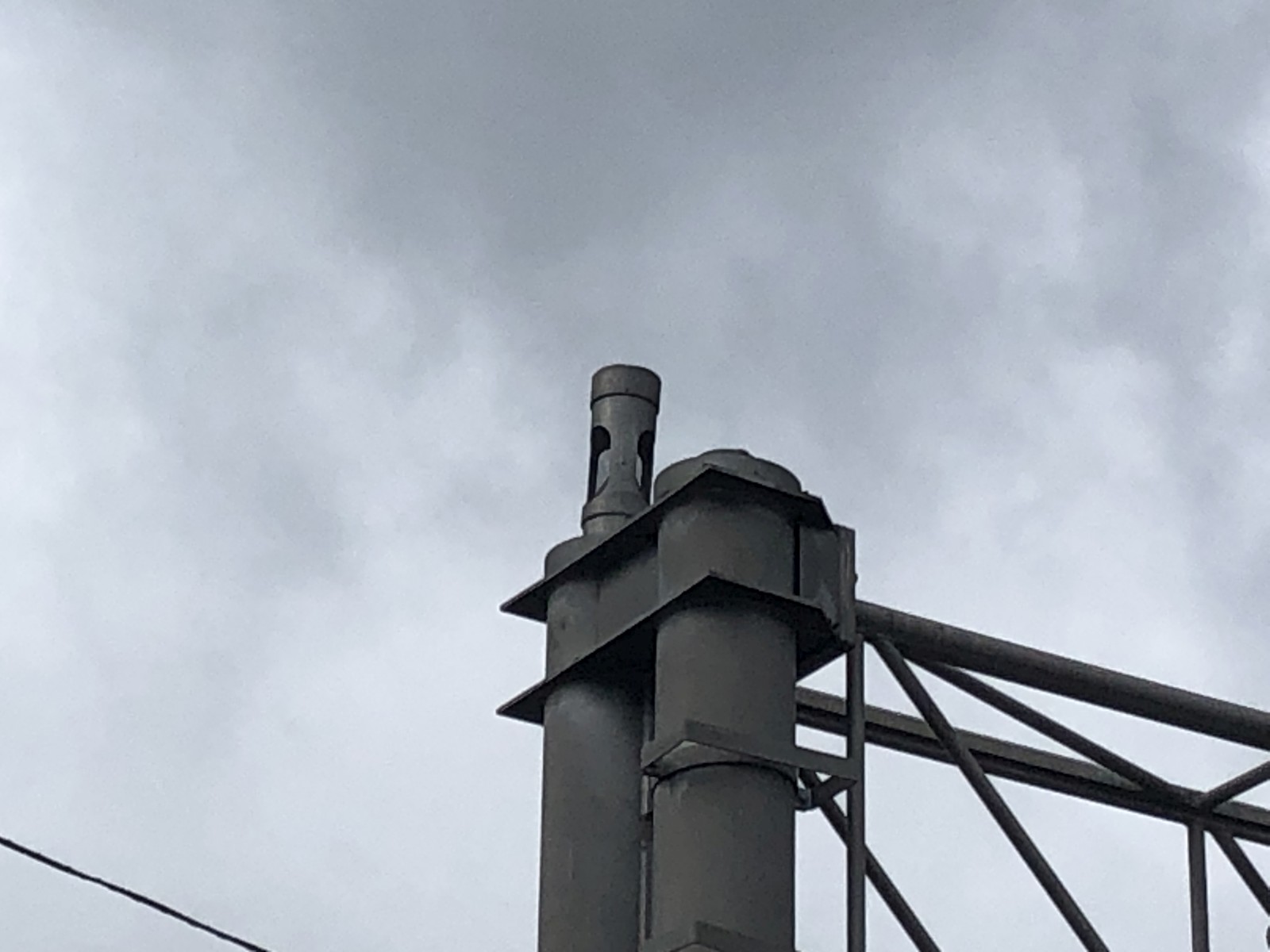

The bell on the cantilever is a General Signals E-Bell.

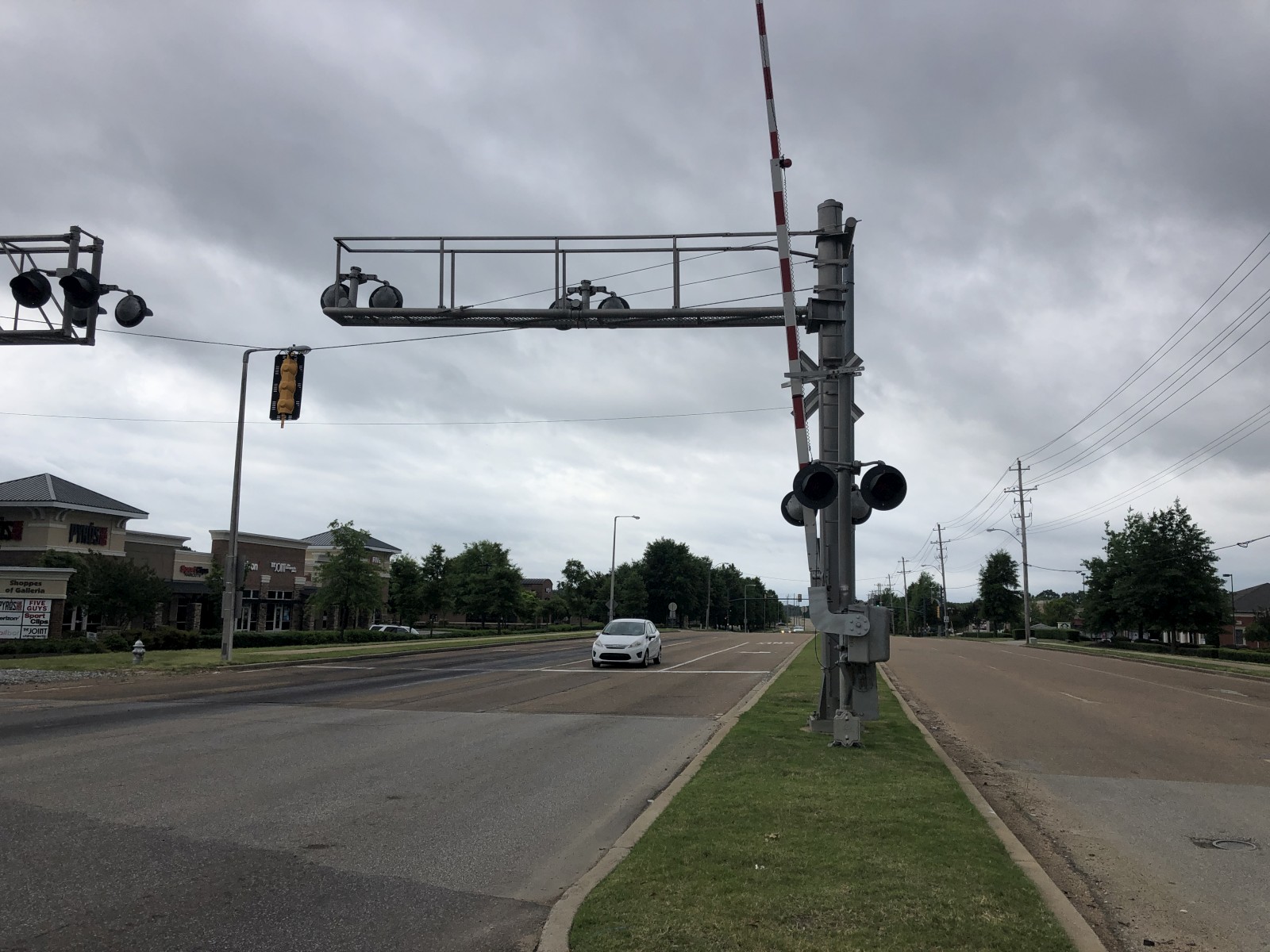

The southwestern cantilever signal.

17

18

19

20
It has another Safetran cantilever.

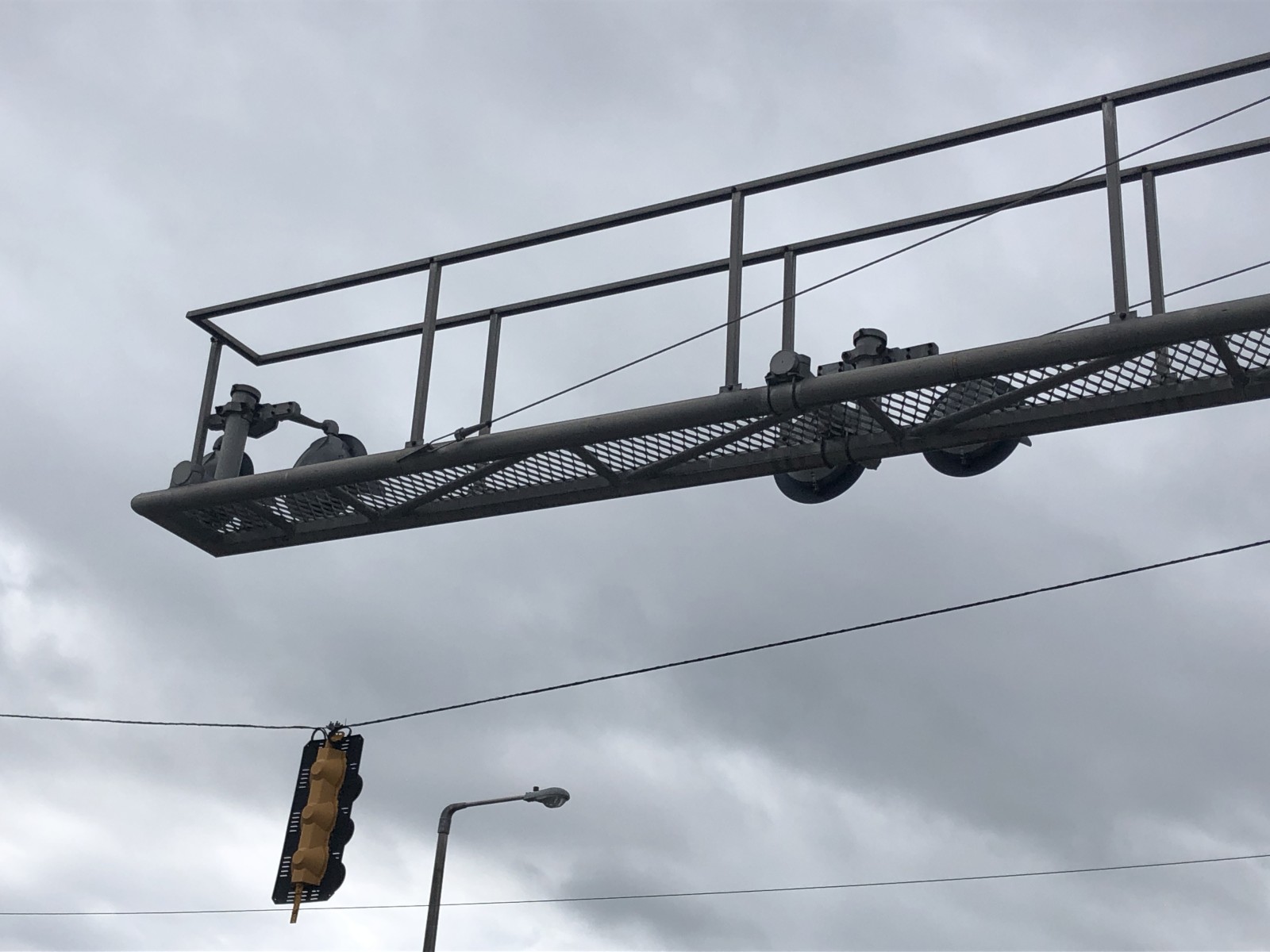

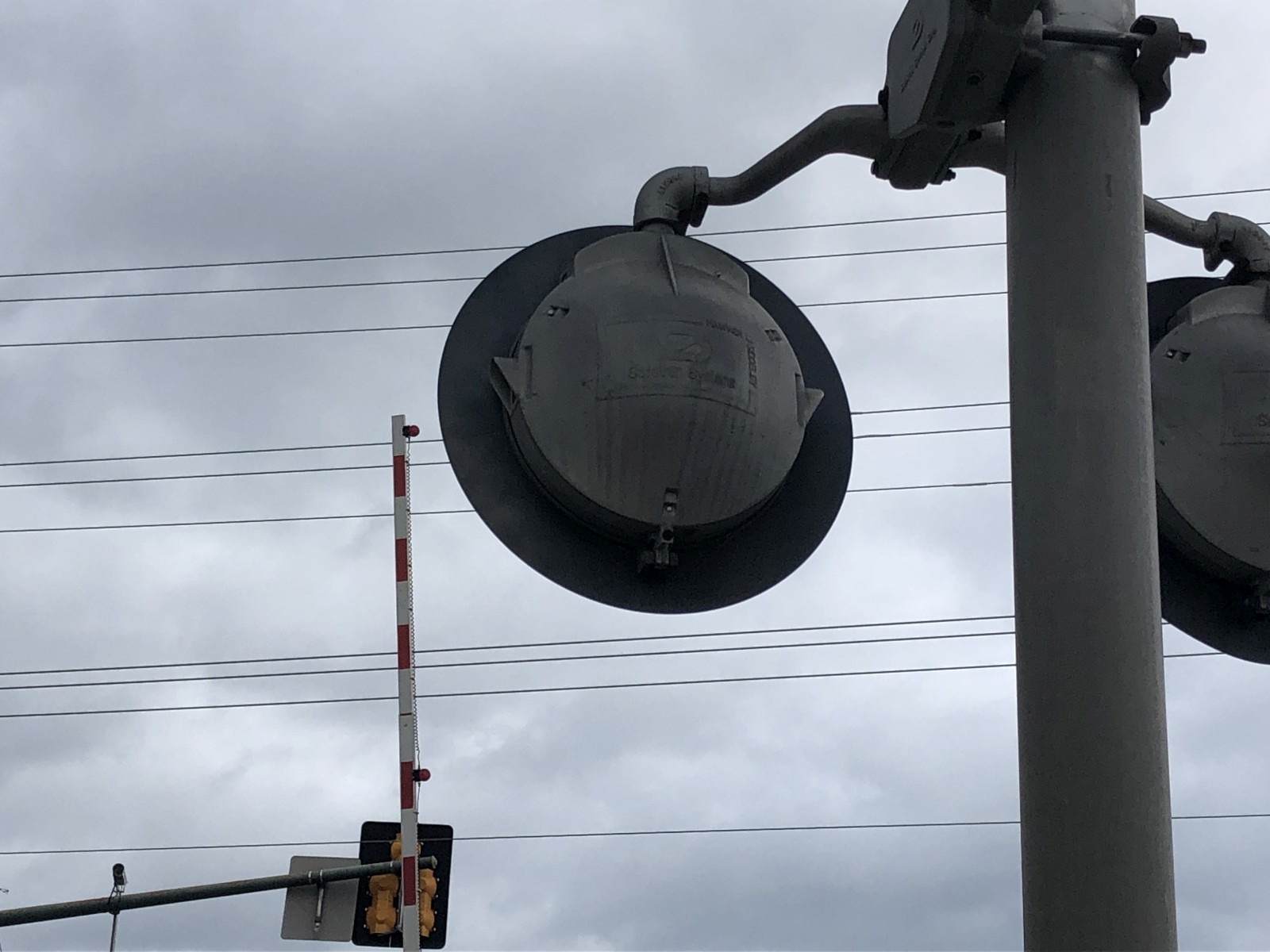

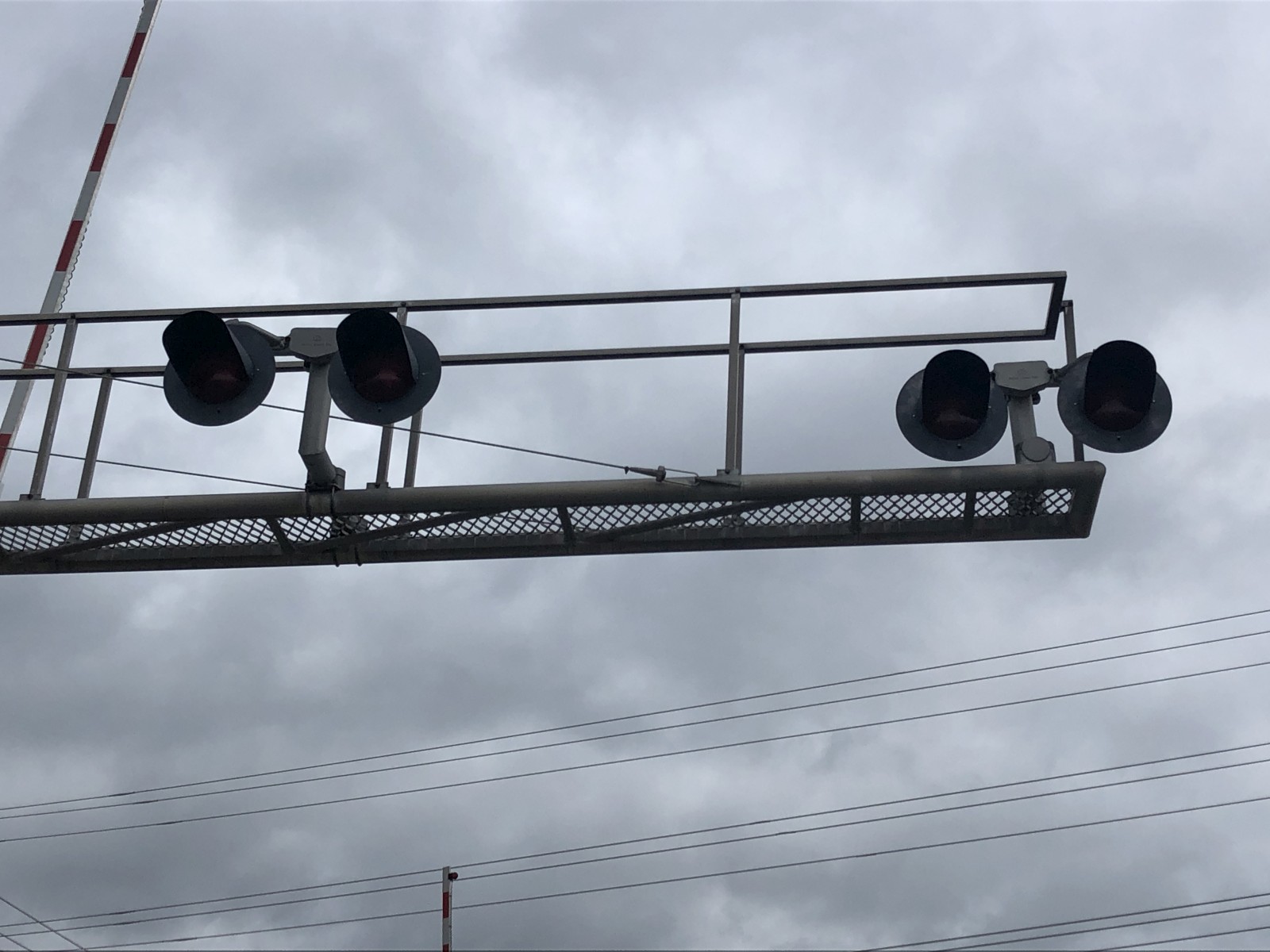

It has even more Hawker-Safetran 12x20 incandescent lights on the cantilever.

21

22

23

24

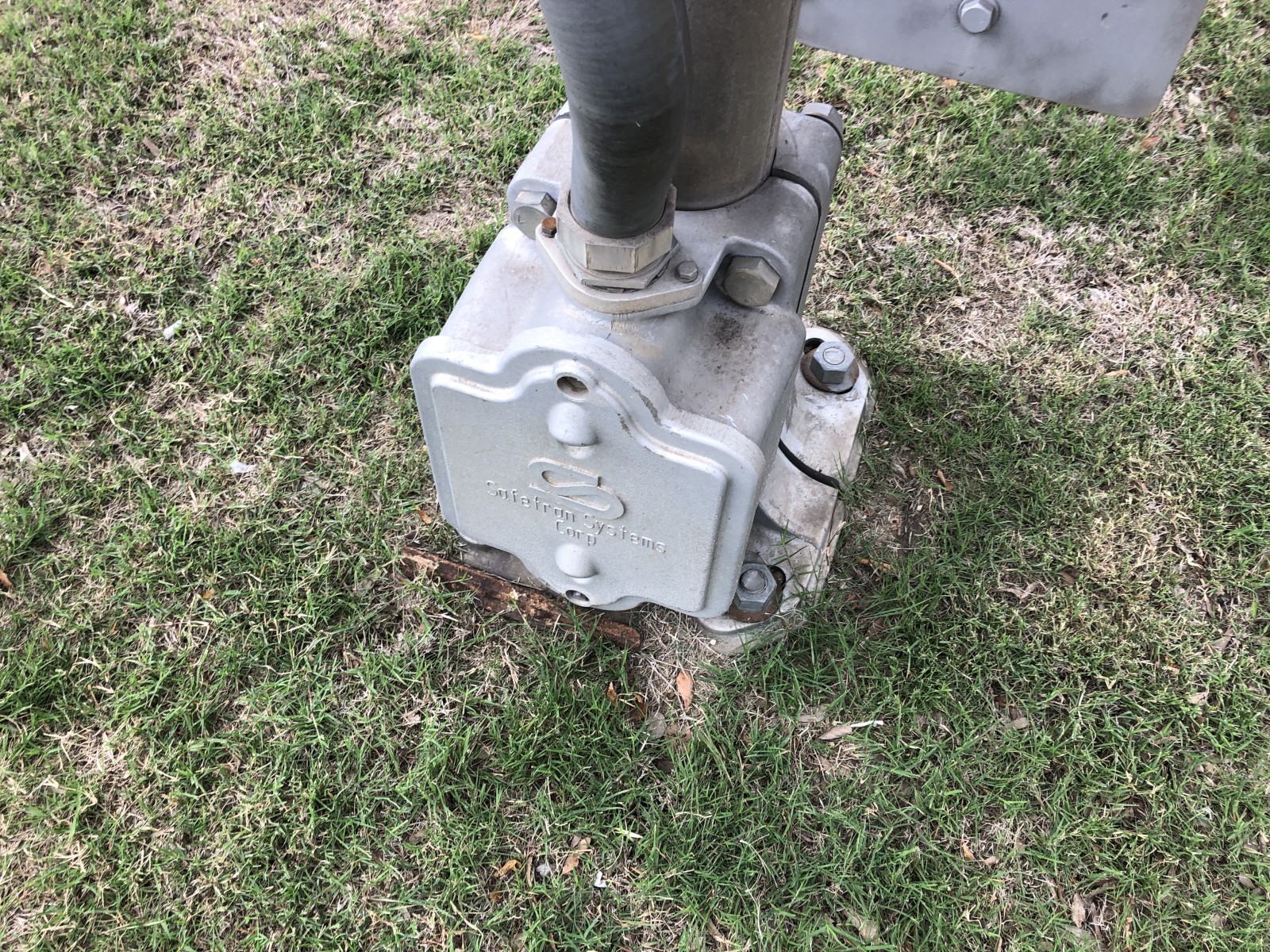

Another Safetran base.

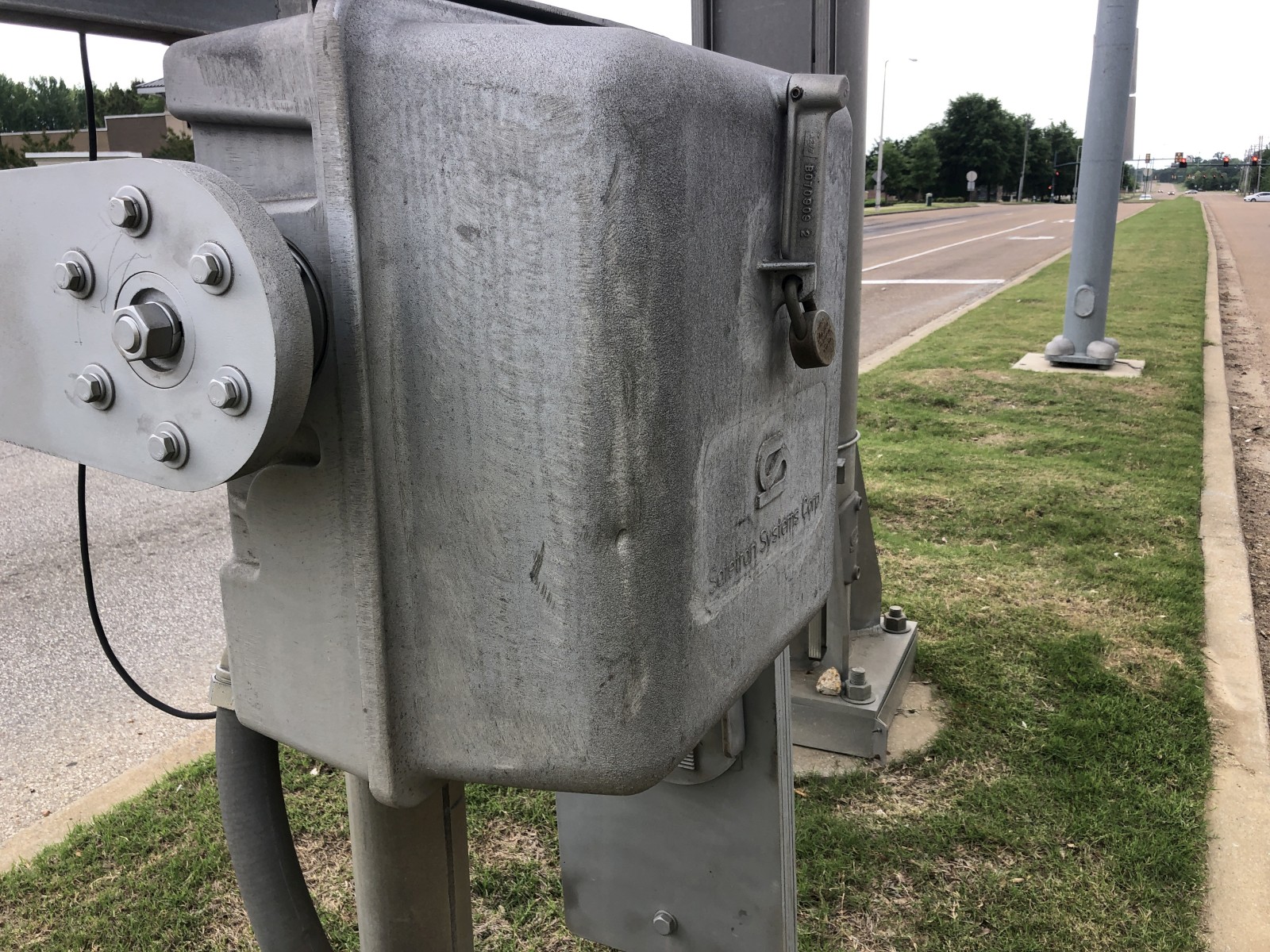

Another Safetran gate mechanism.

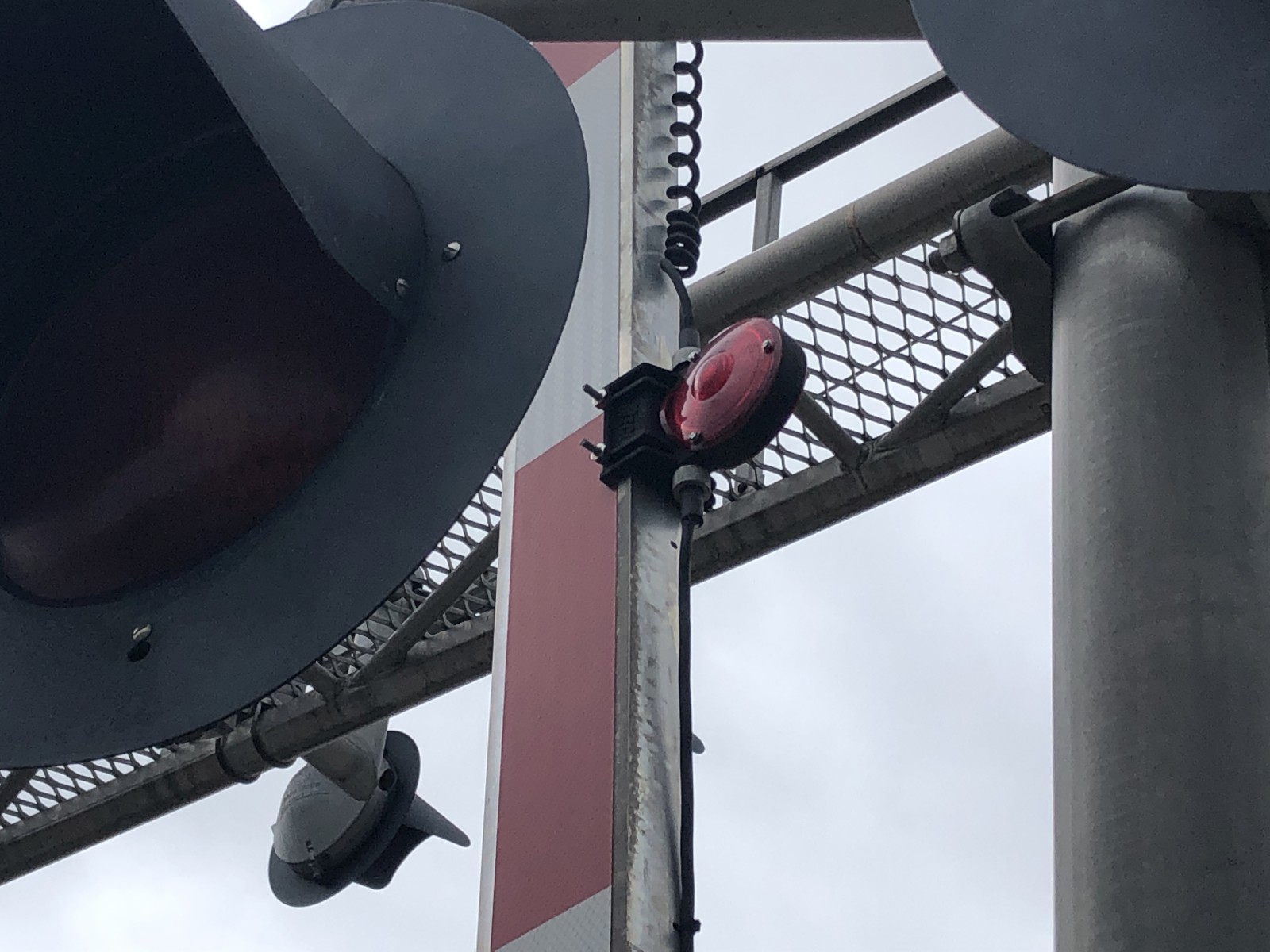

This signal uses RECO gatelights.

25

26

27

28

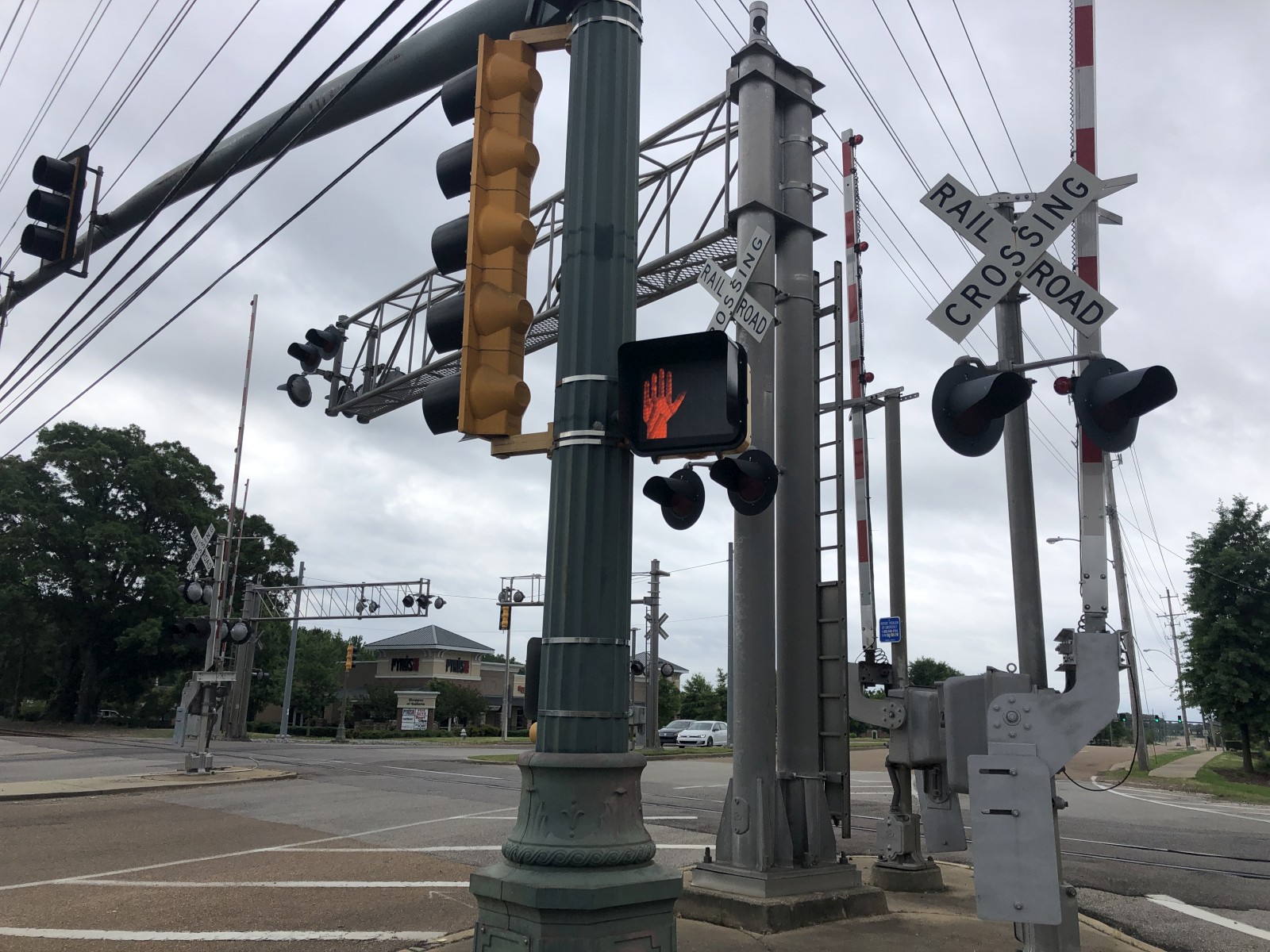

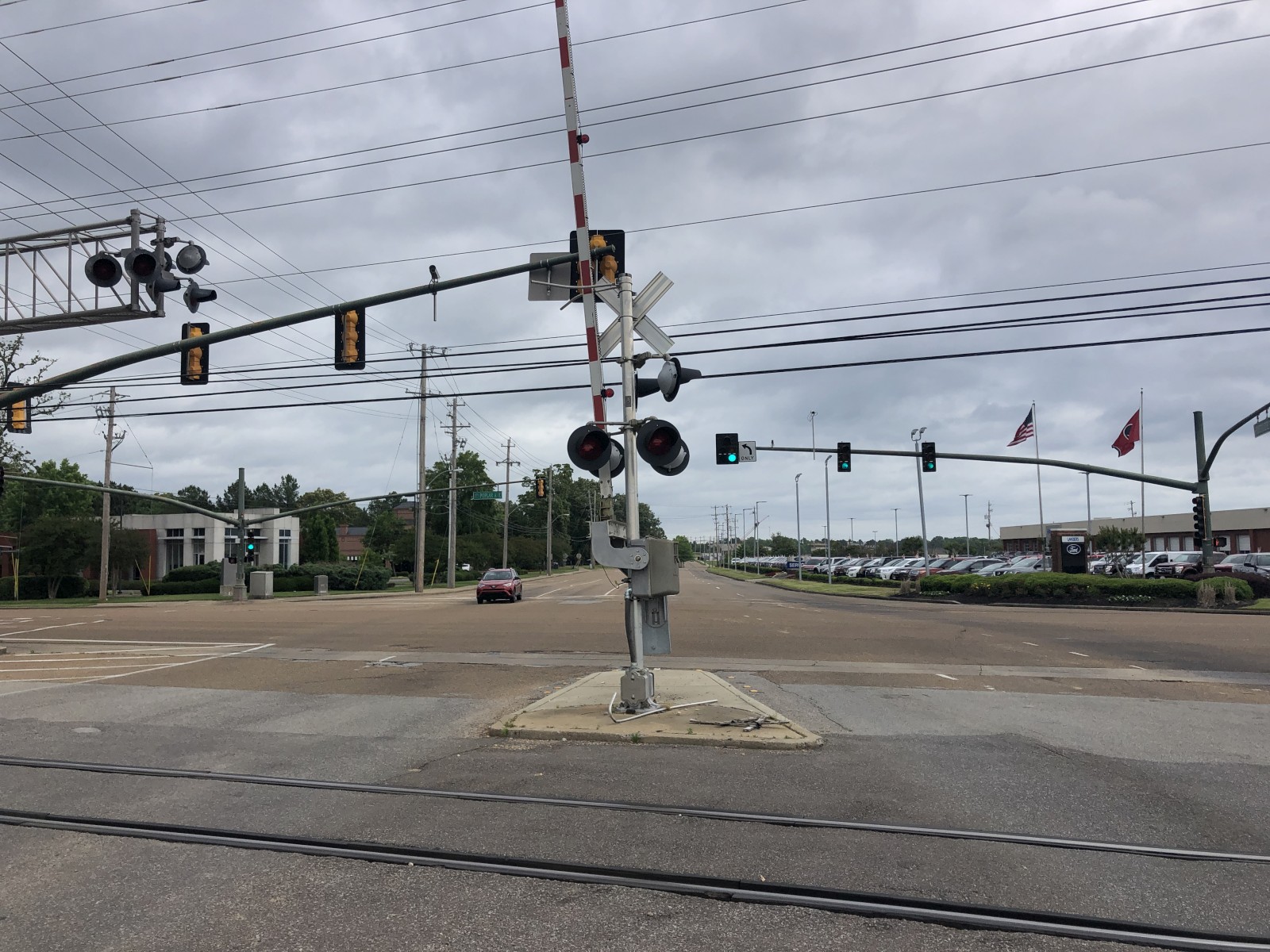

The northeastern mast signal.

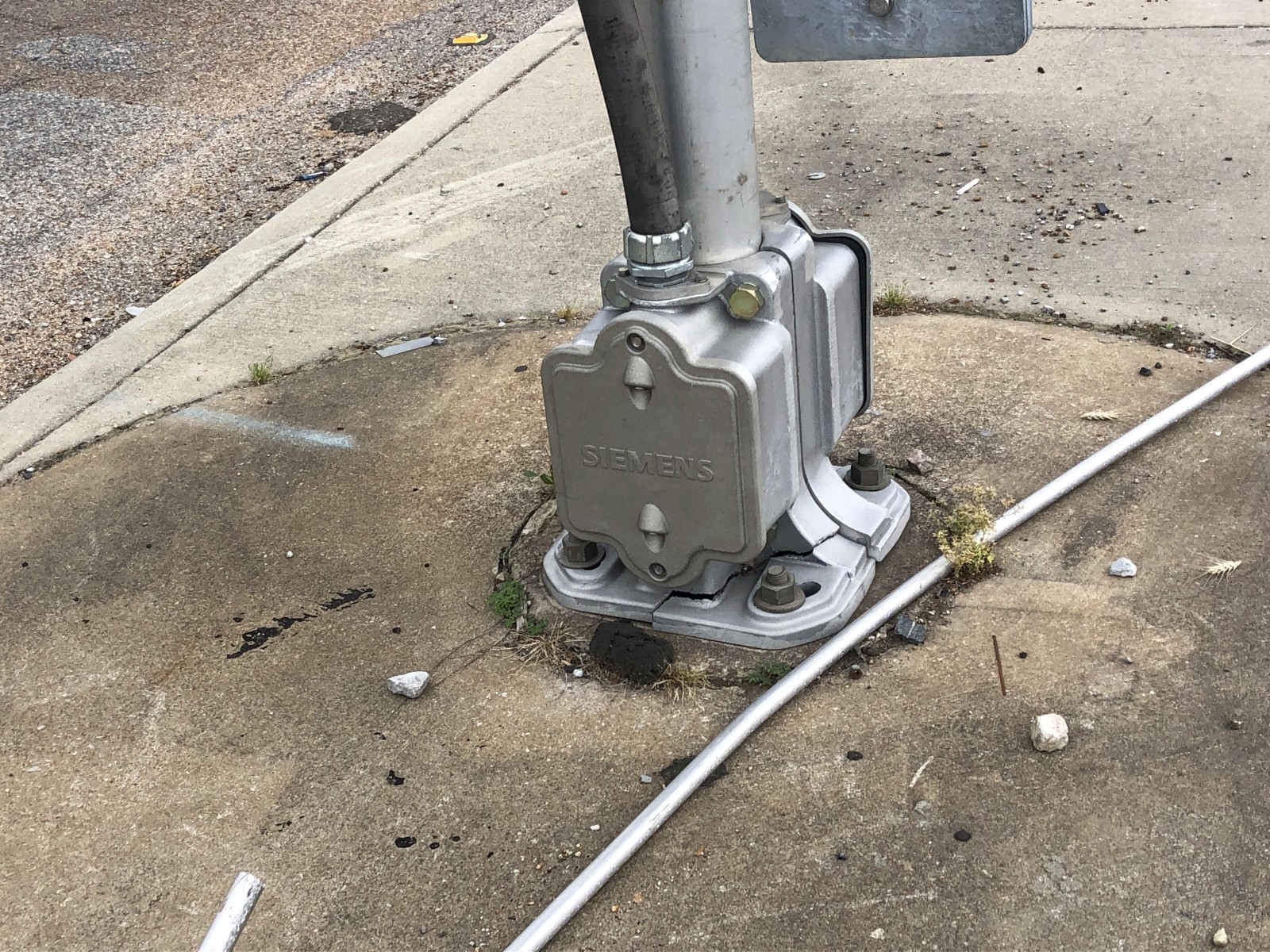

It has a Siemens base.

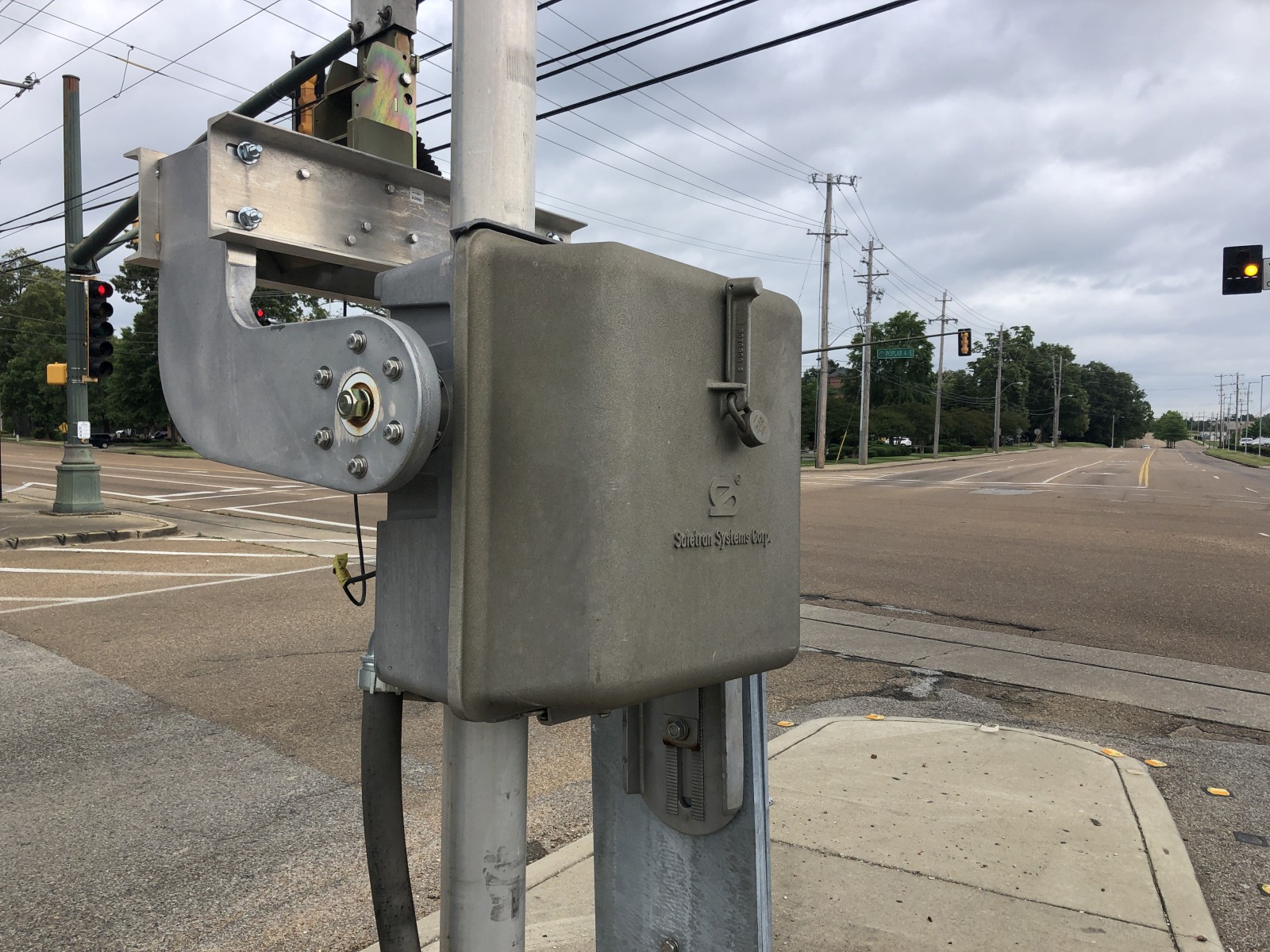

A third Safetran gate mechanism. This one is newer.

29

30

31

32

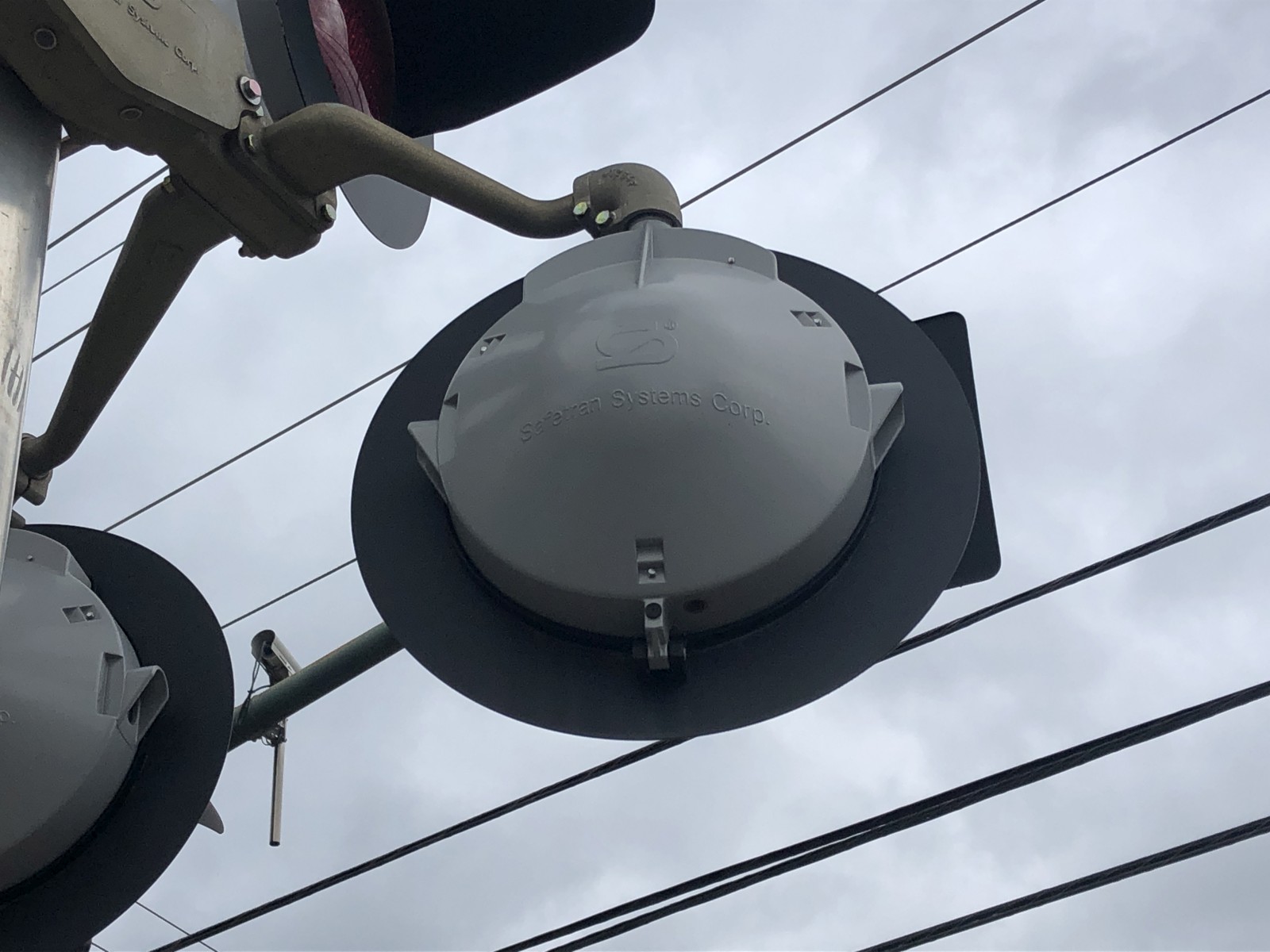

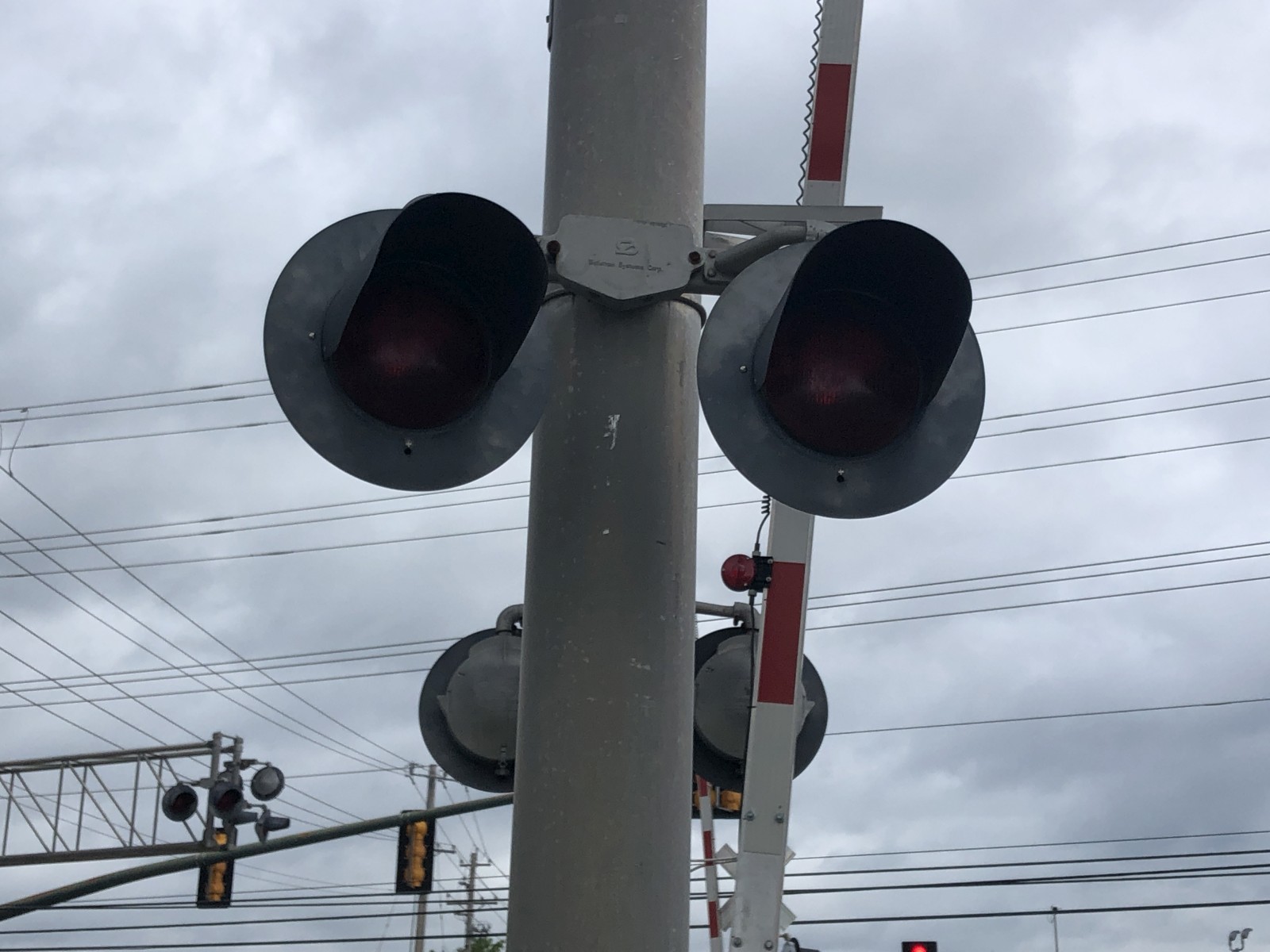

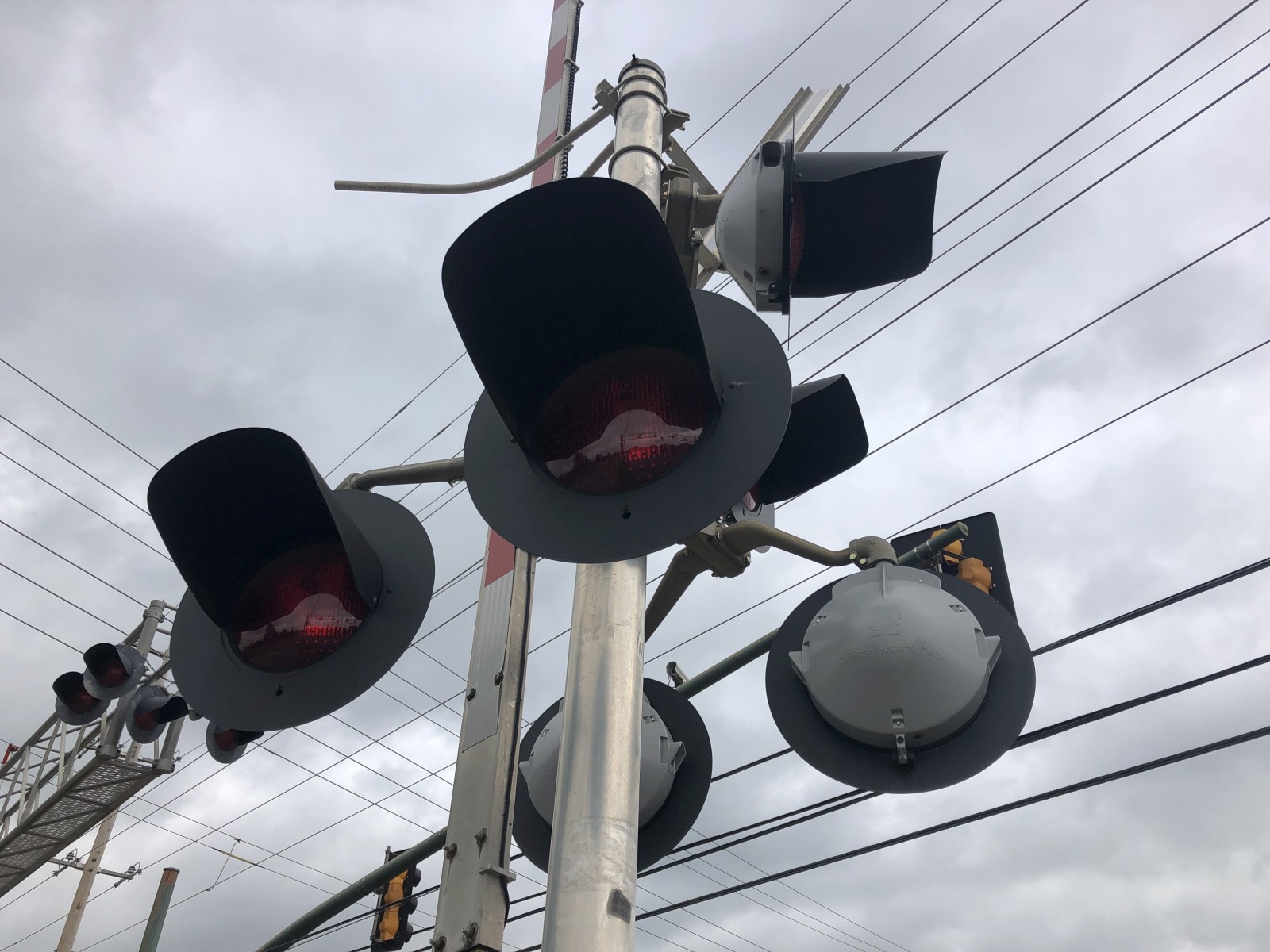

This signal has all normal Safetran 12x20 incandescent lights.

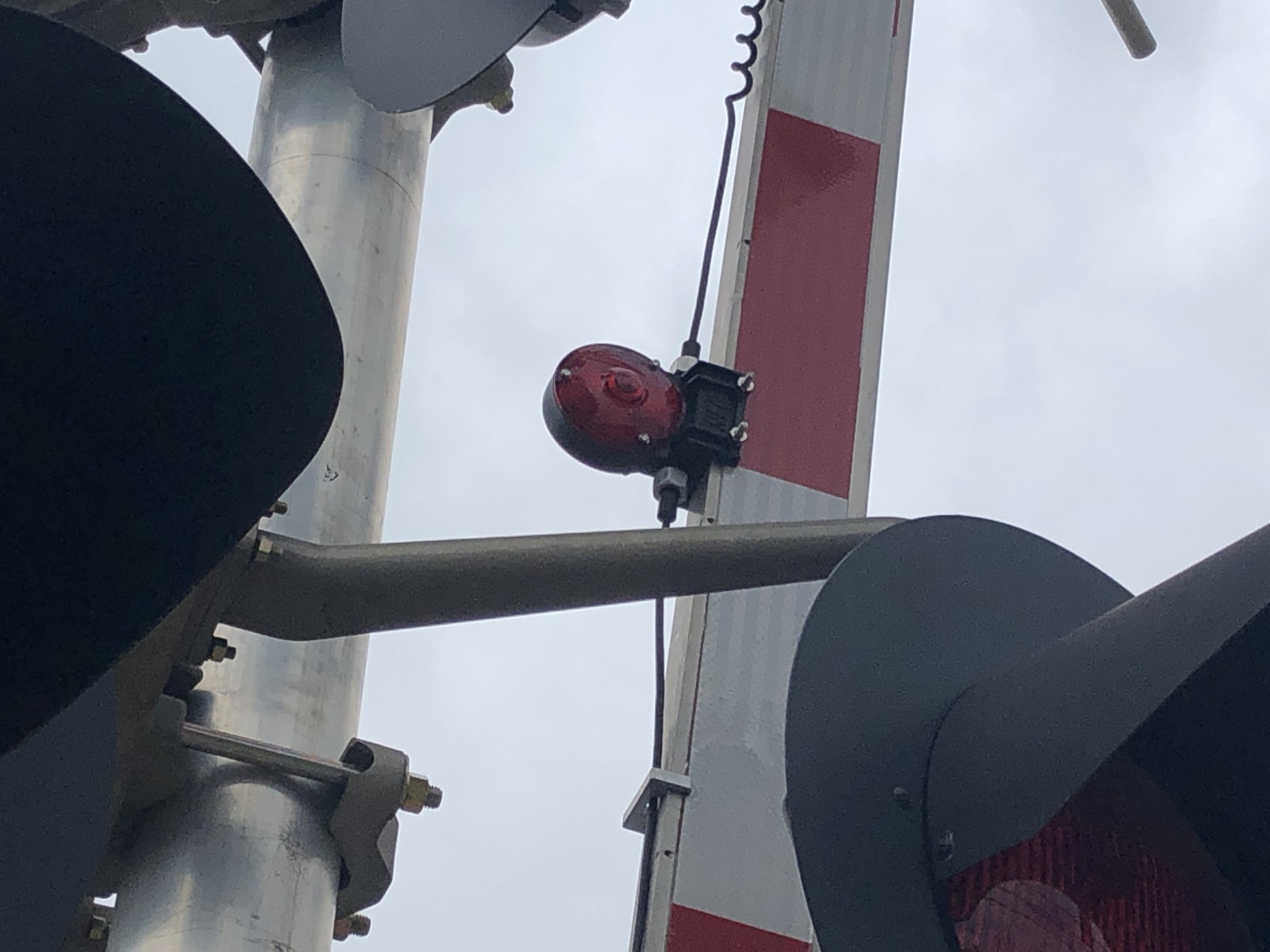

More RECO gatelights on this signal.

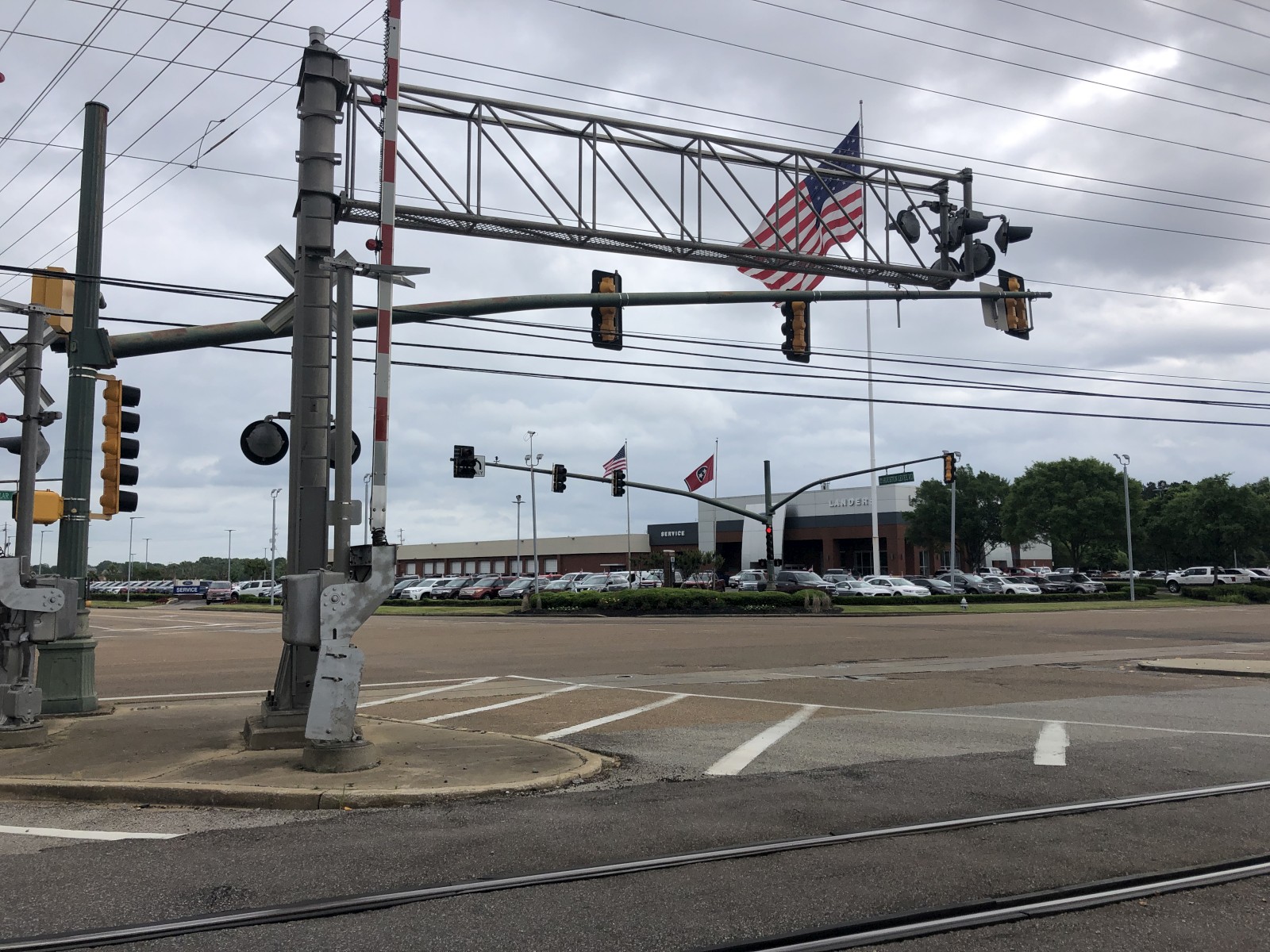

The northwestern cantilever signal.

33

34

35

36
It has a third Safetran cantilevr.

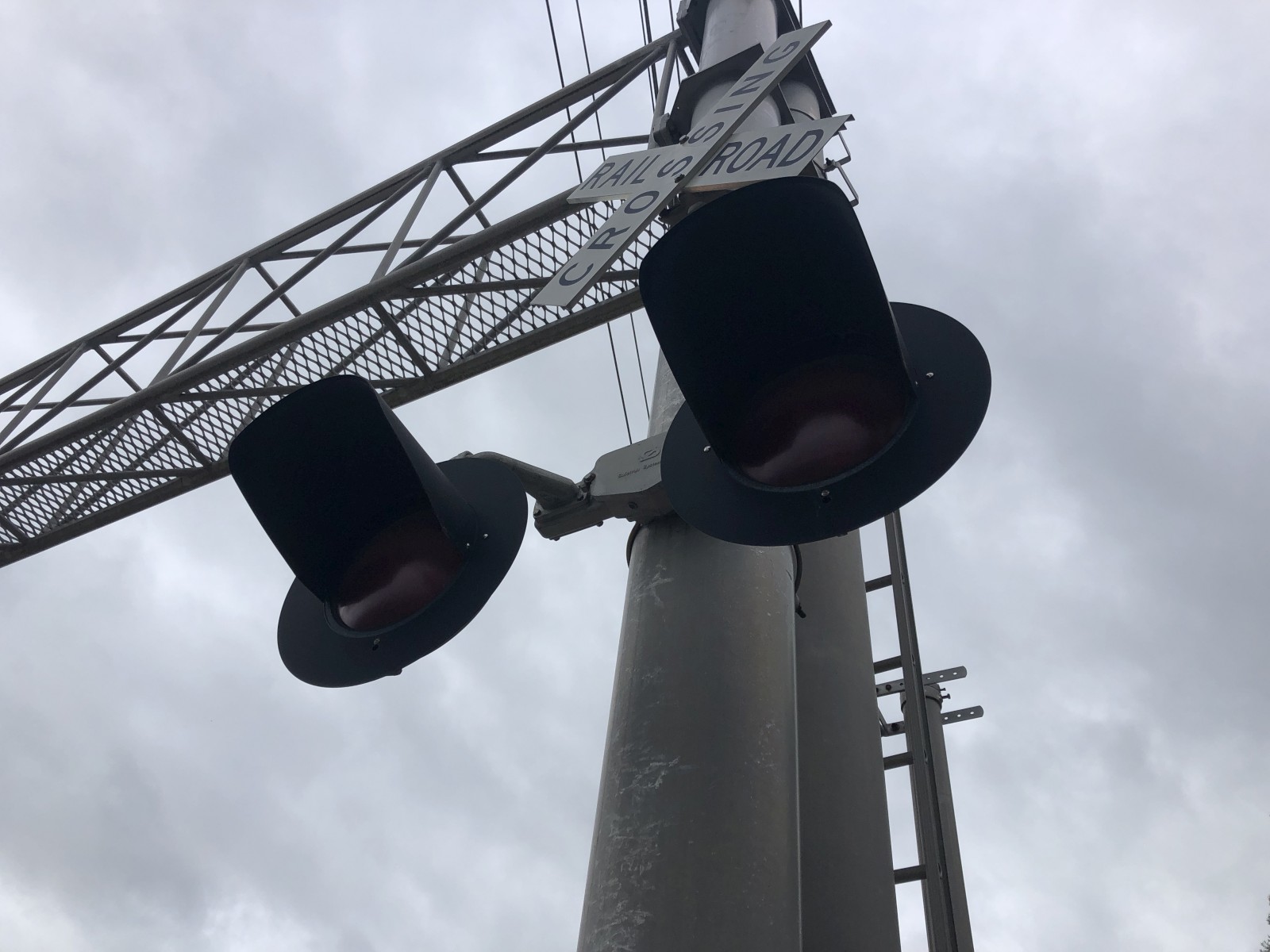

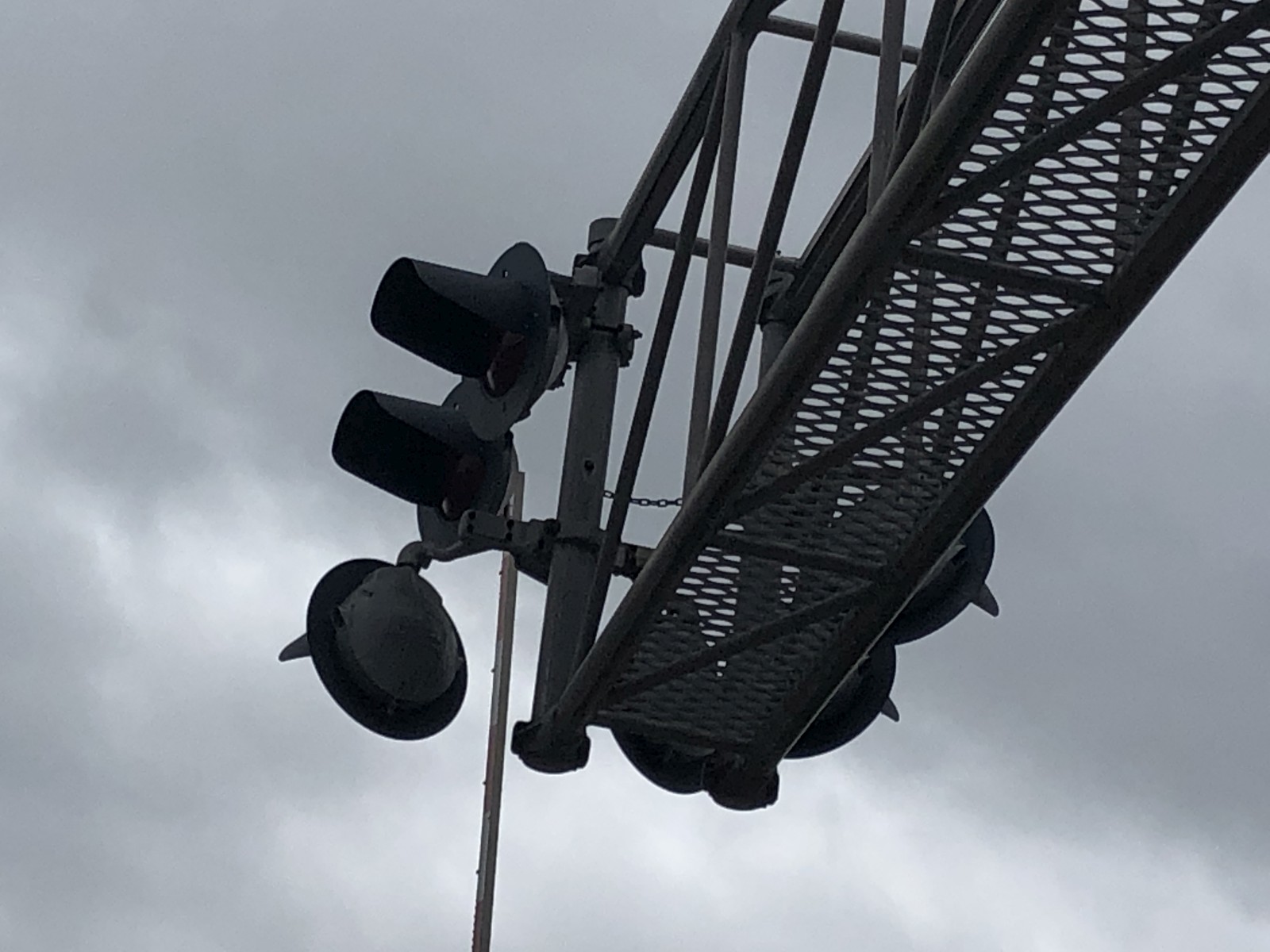

This cantilever has even more Hawker-Safetran 12x20 incandescent lights.

37

38

39

40

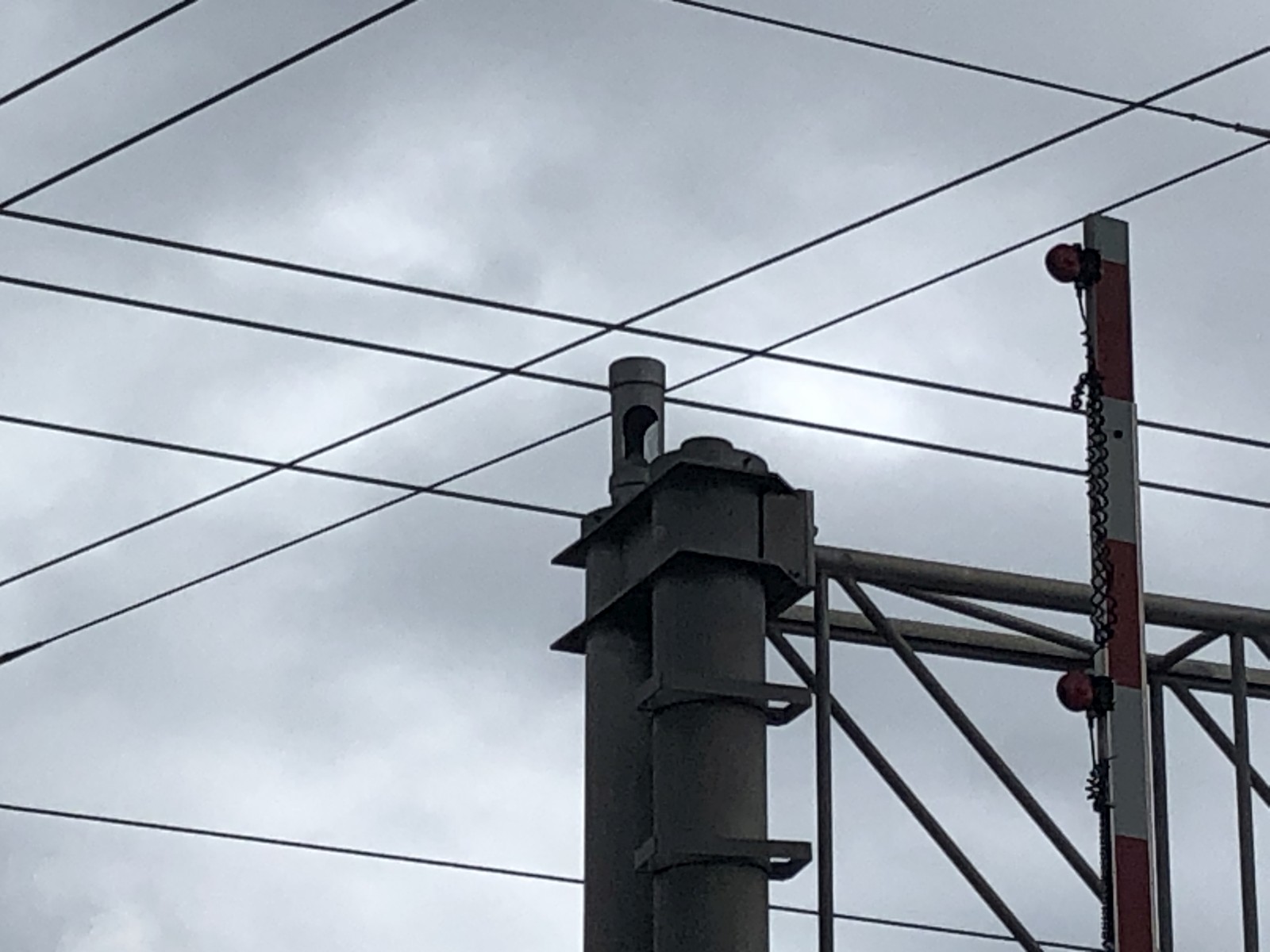

Another General Signals E-Bell over here.

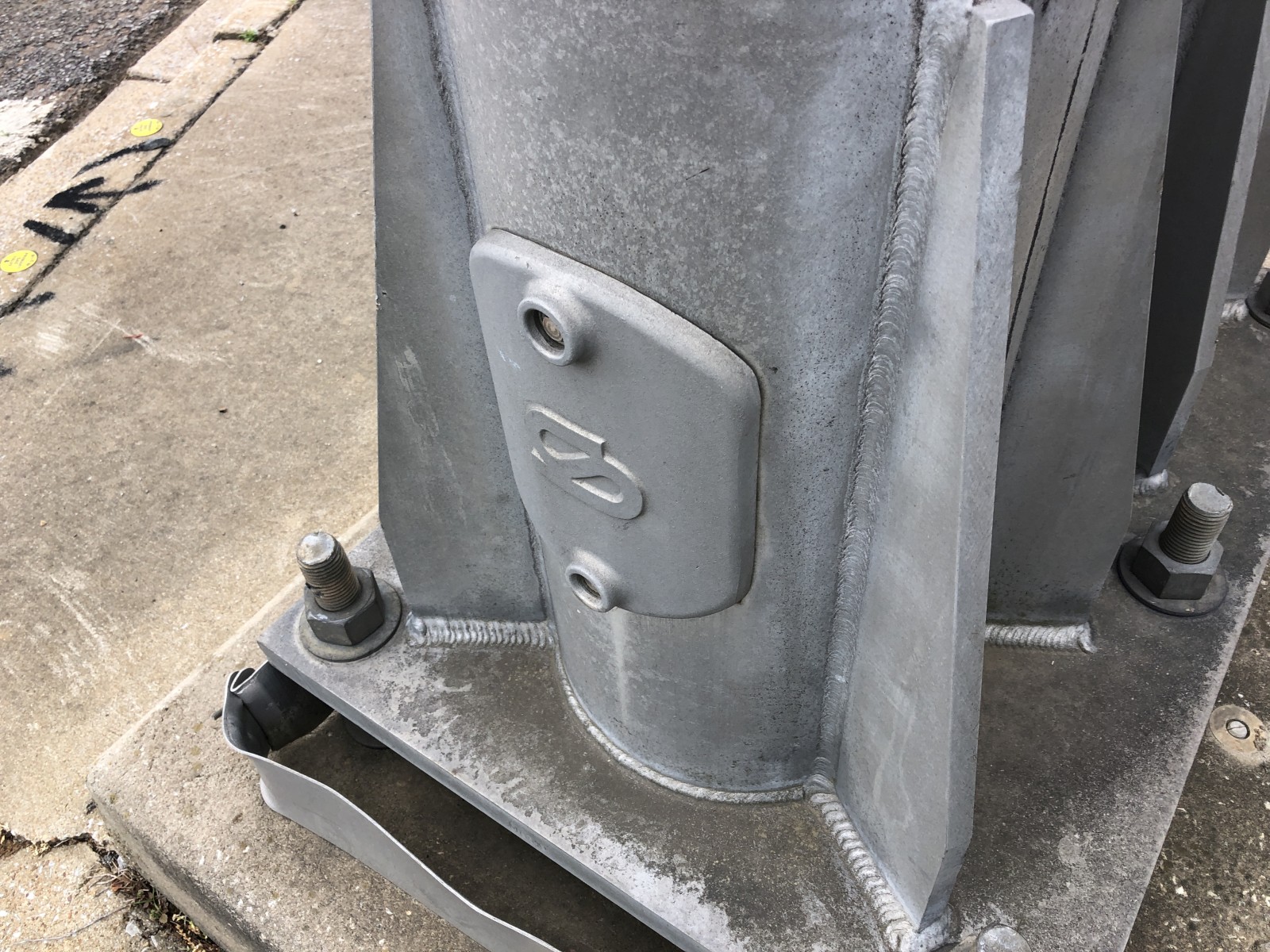

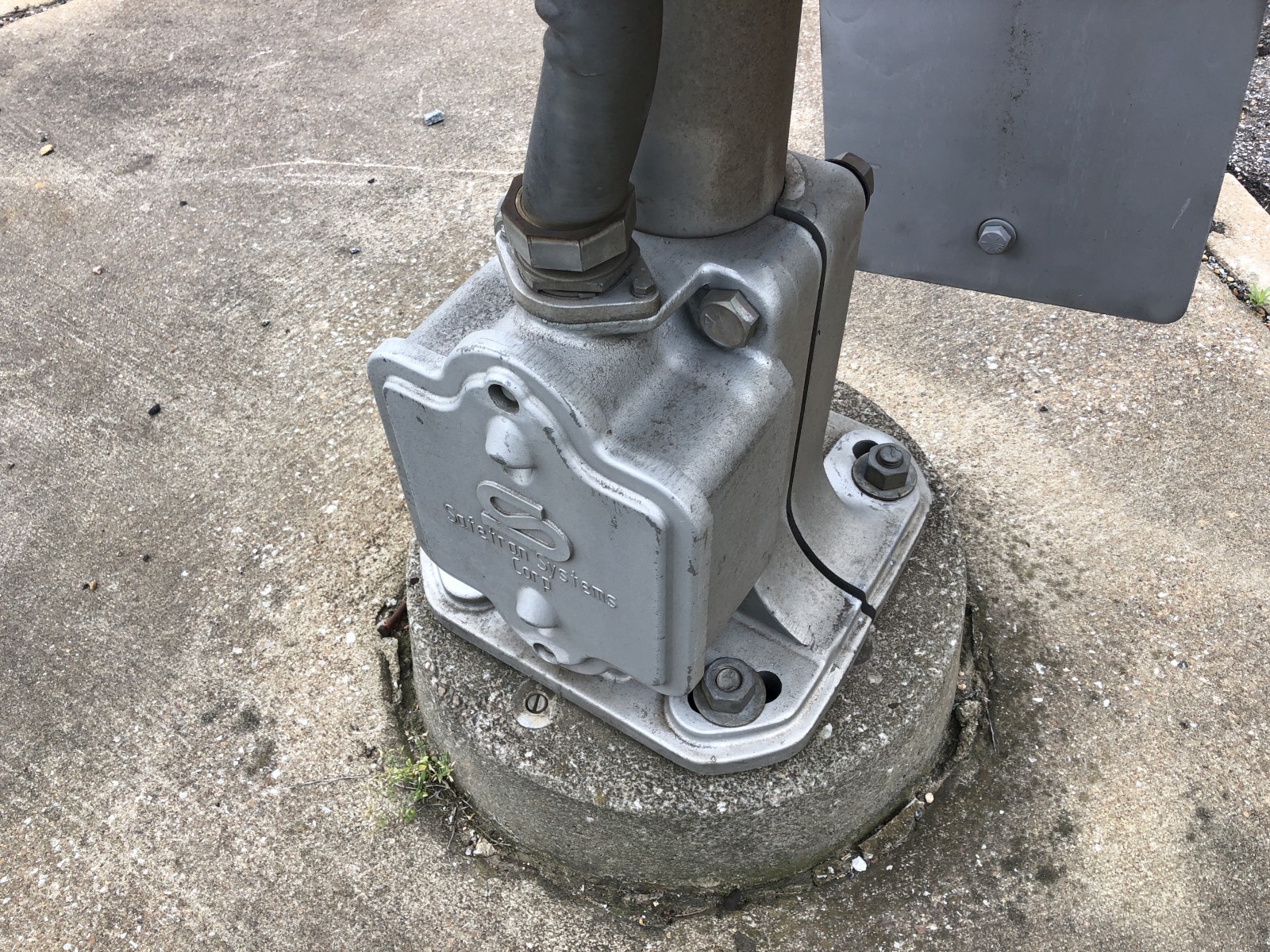

A third Safetran base.

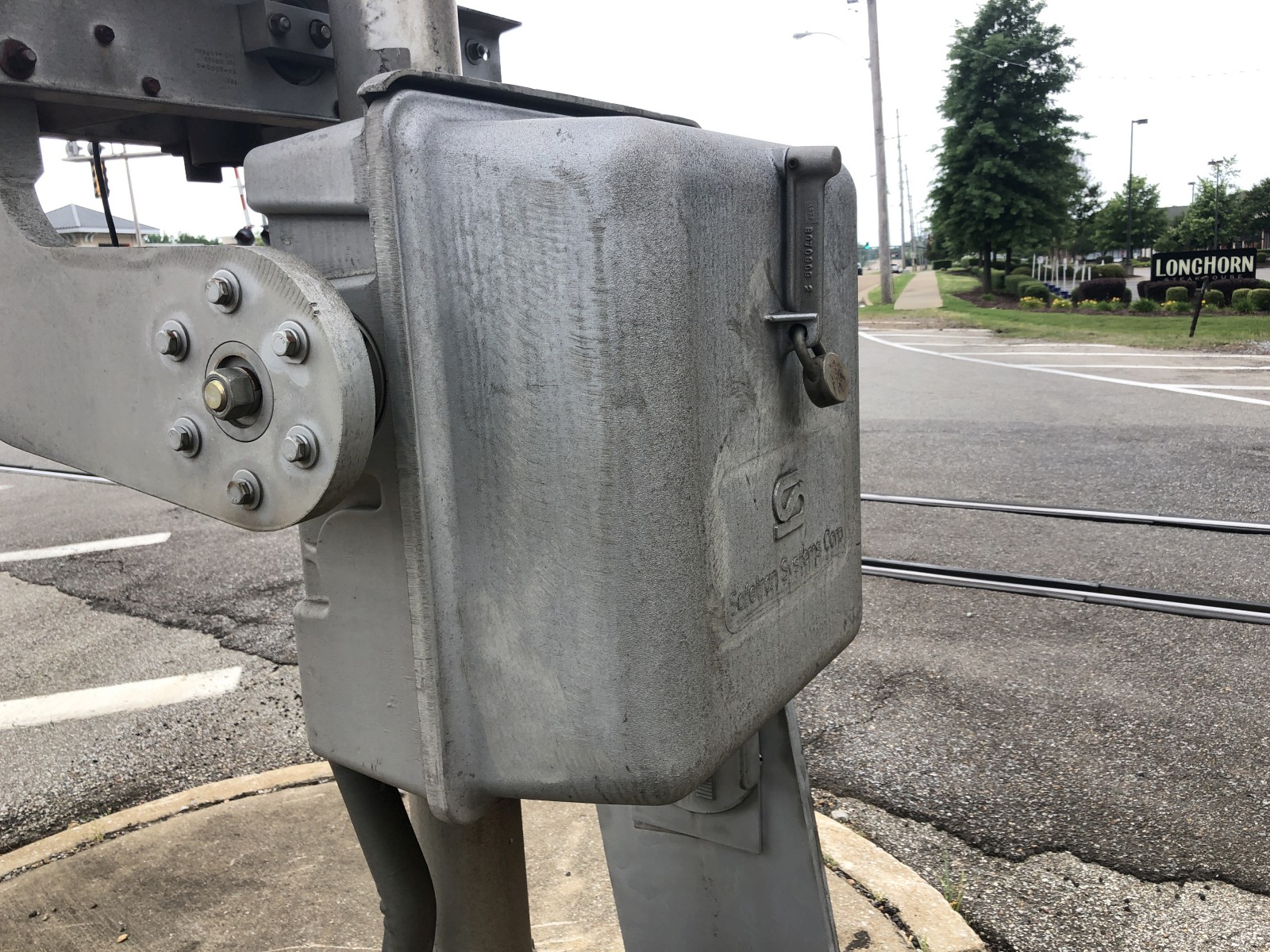

A fourth Safetran gate mechanism.

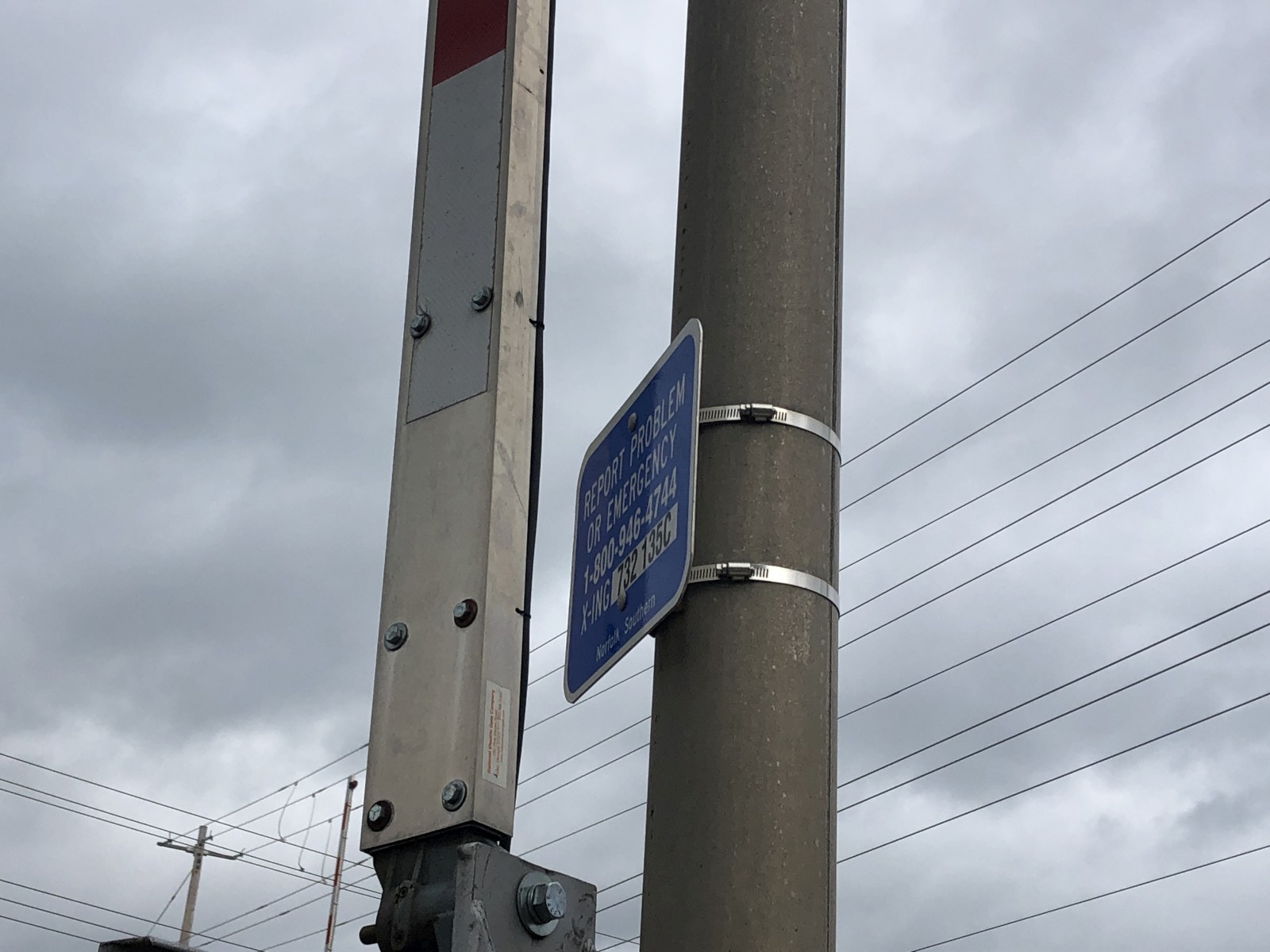

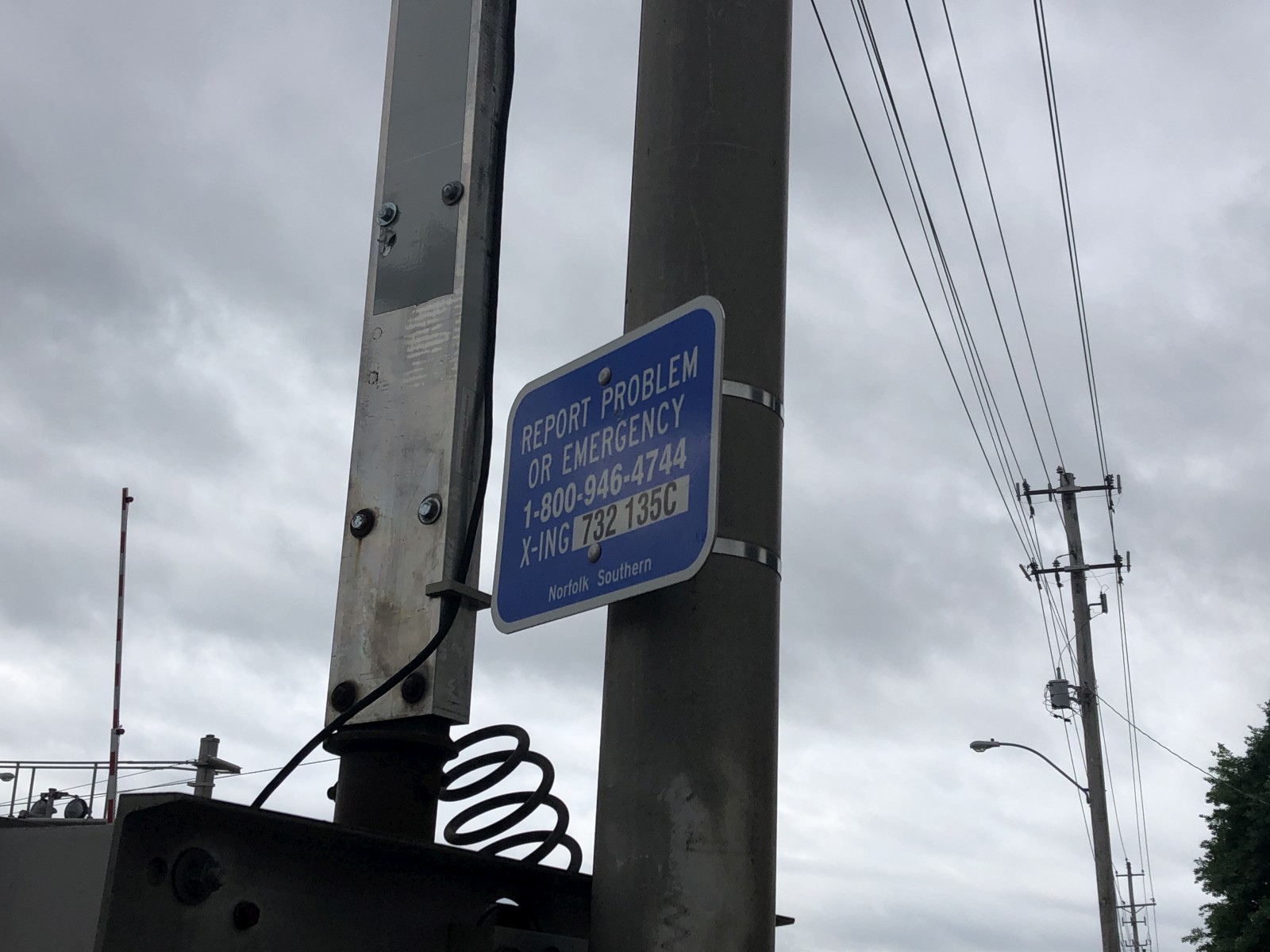

The emergency information.

41

42

43

44

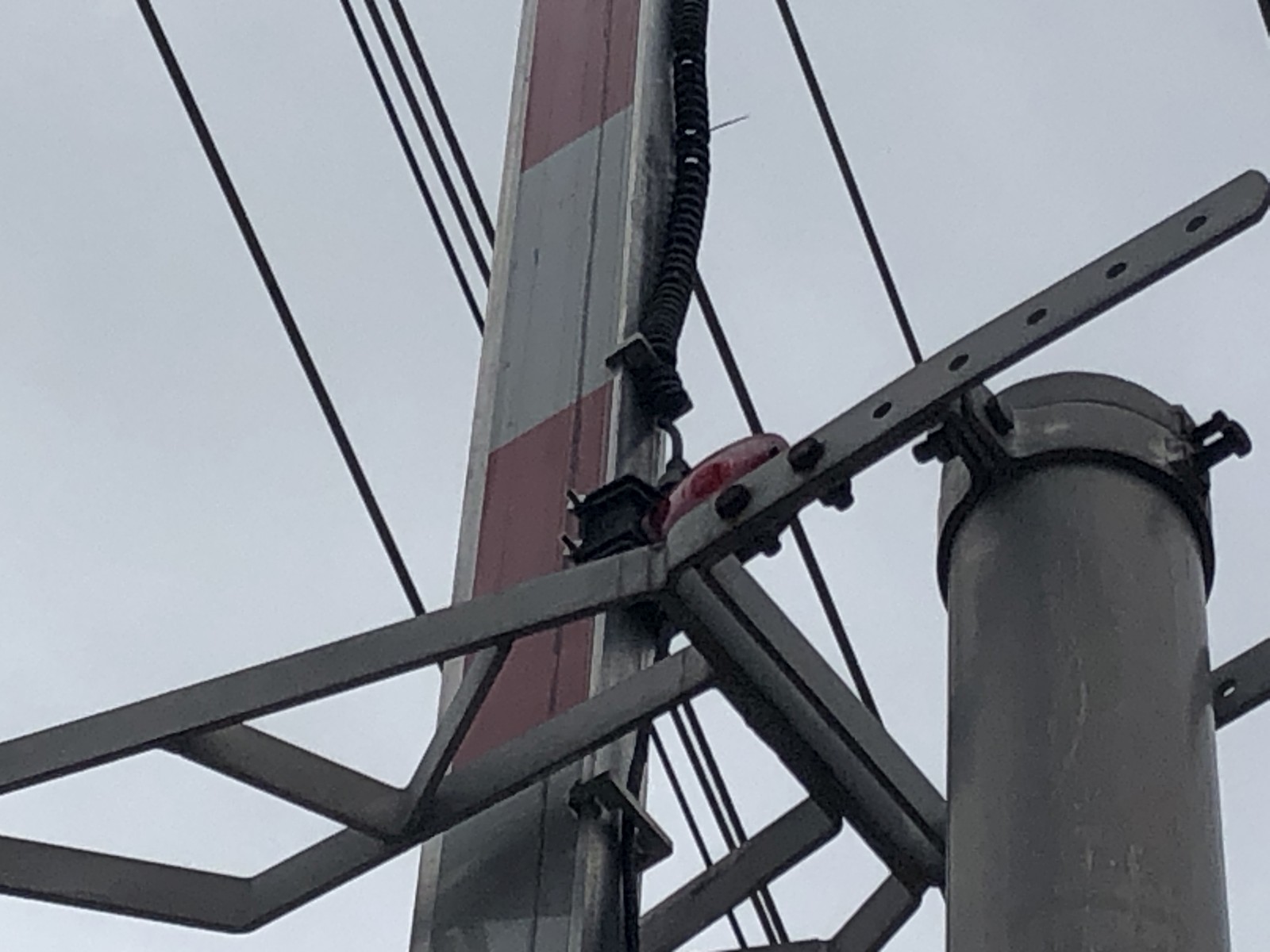

A third set of RECO gatelights on this signal.

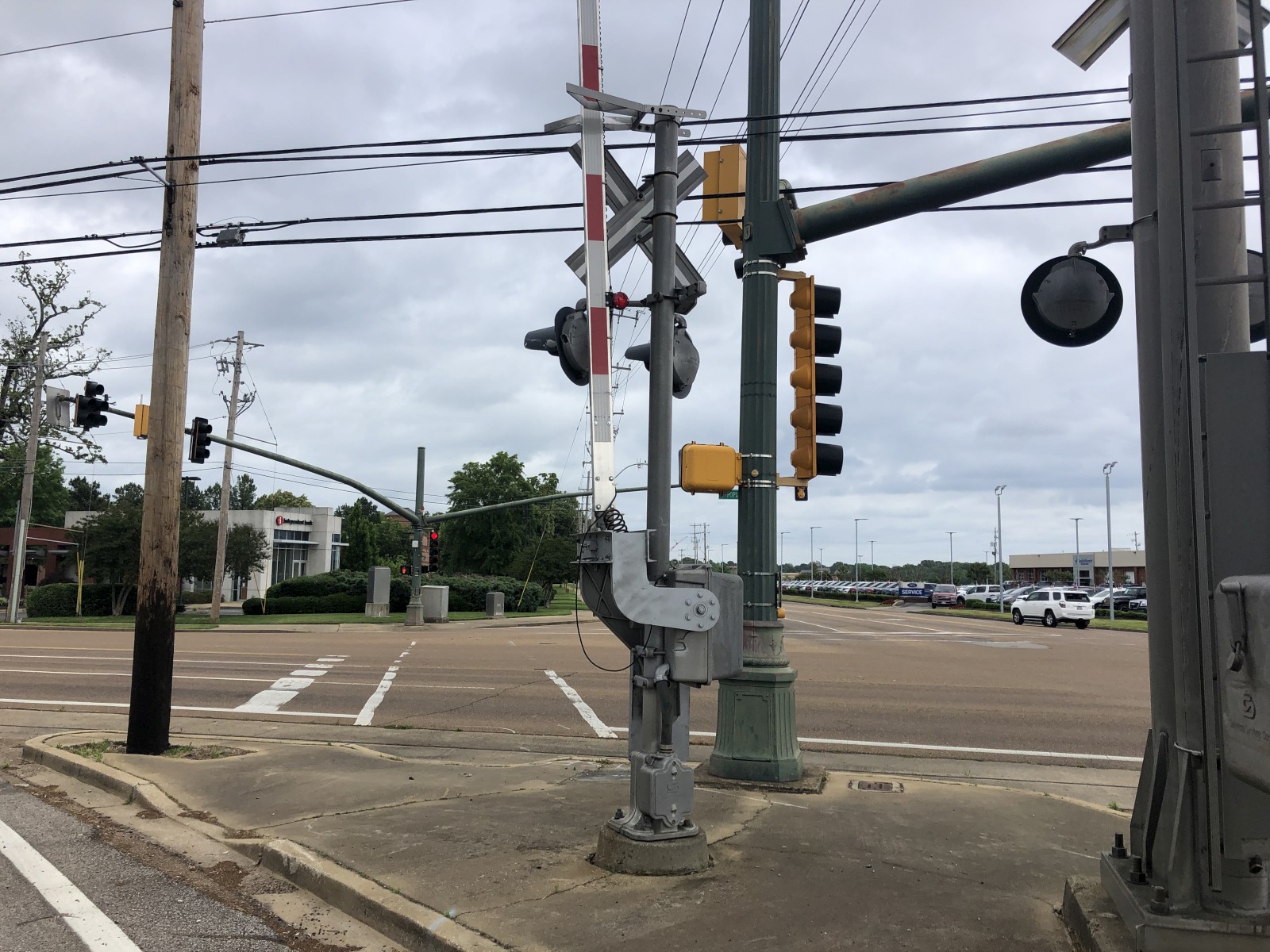

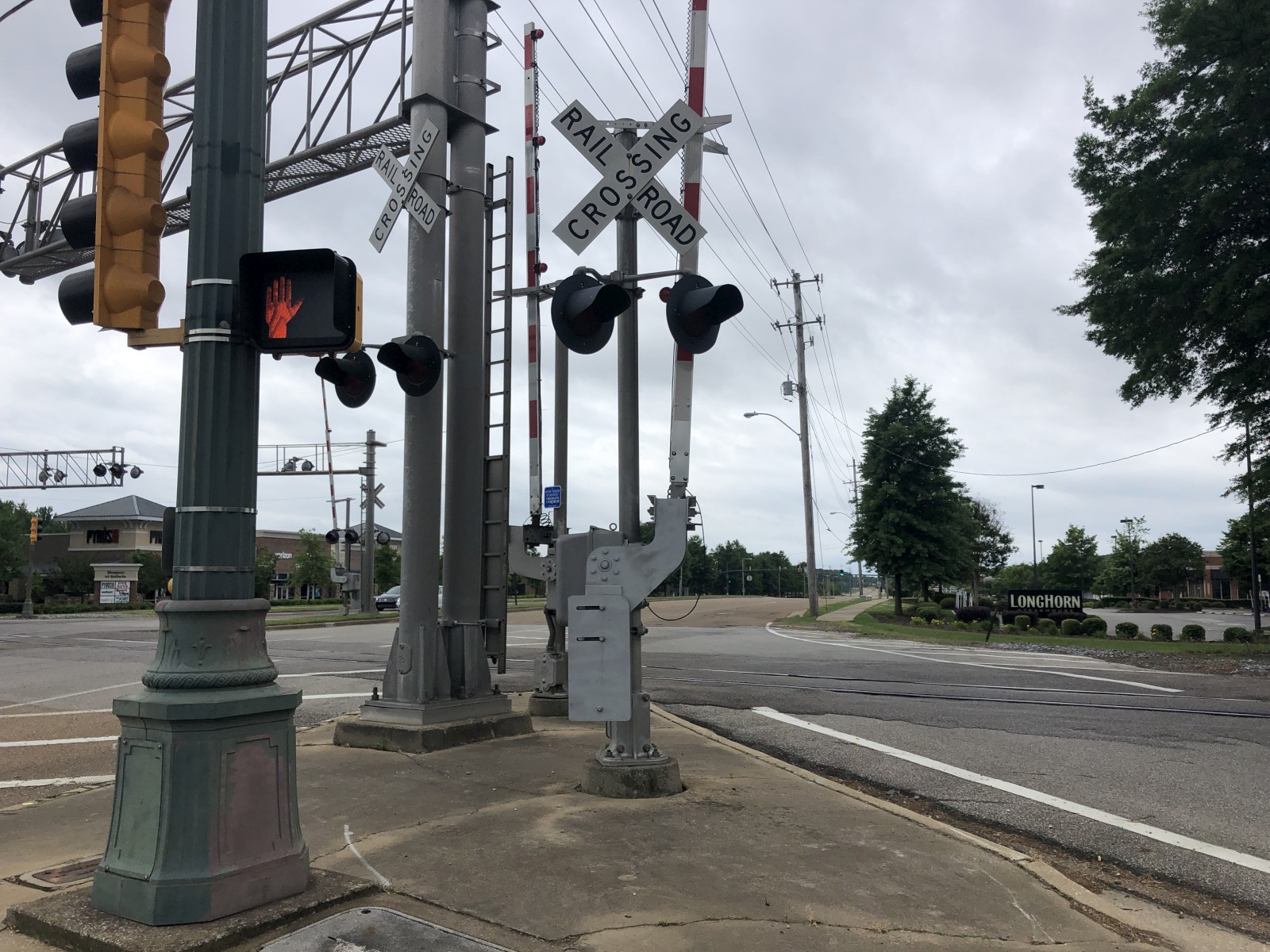

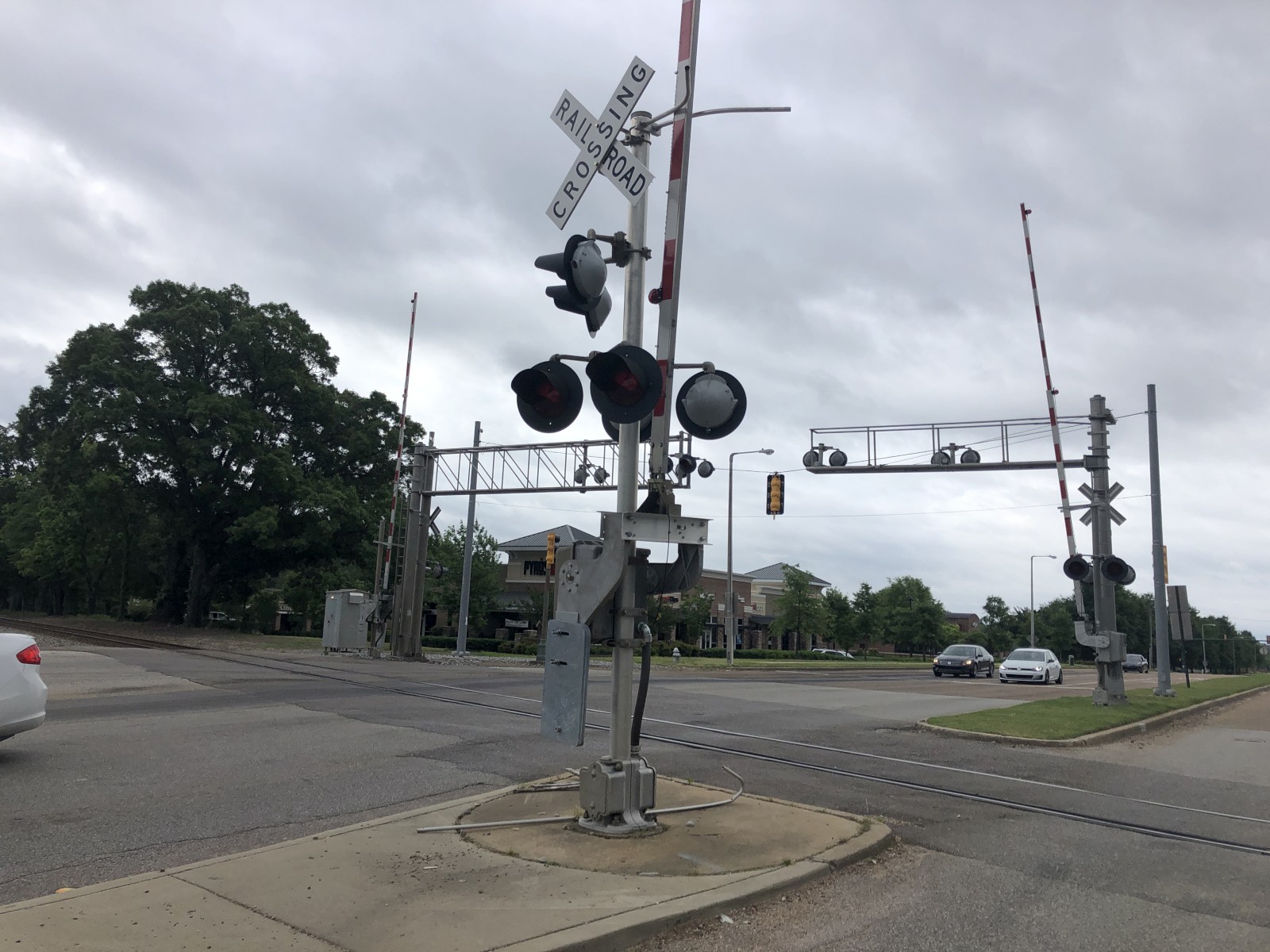

The extra turn signal.

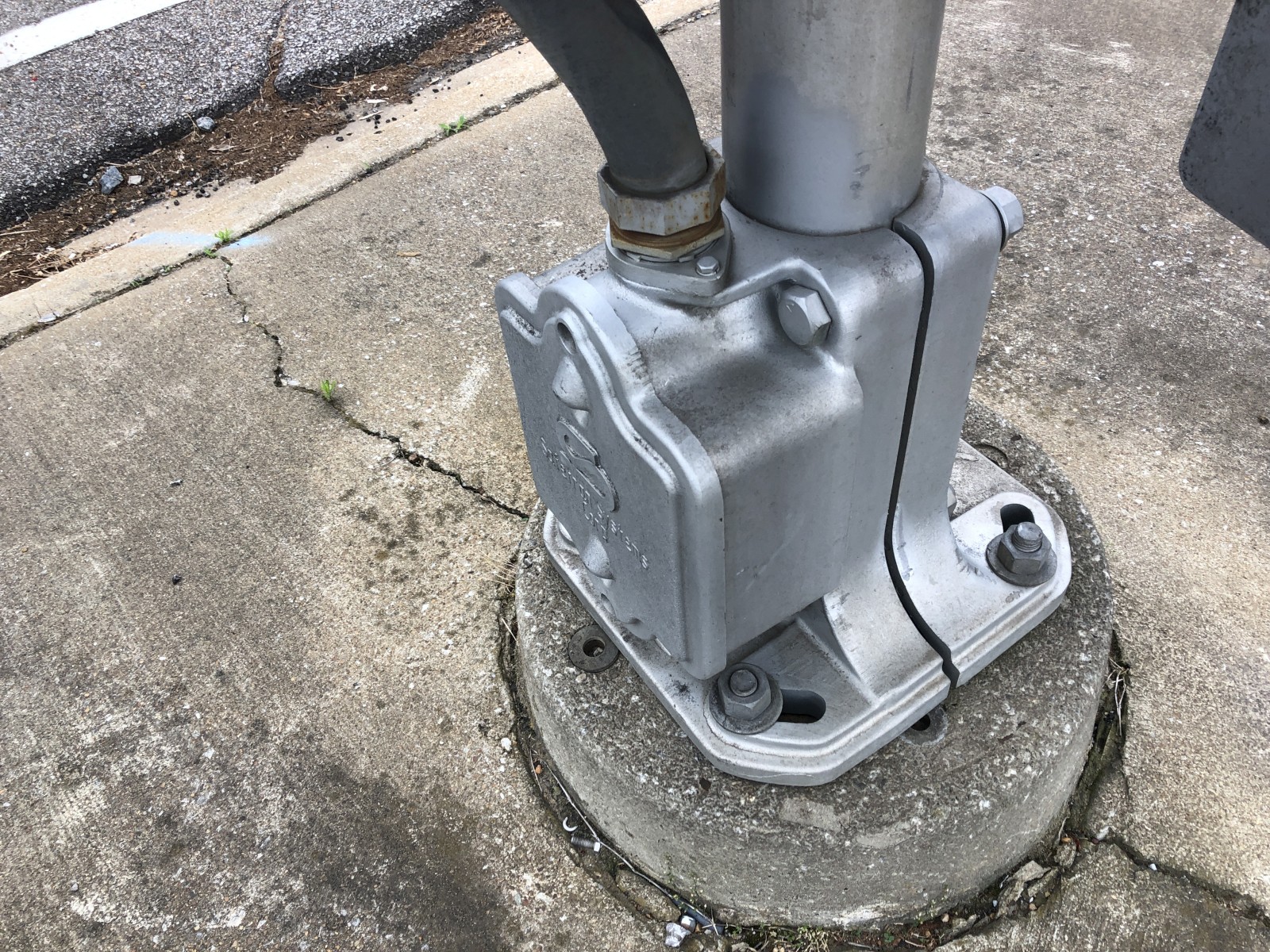

It has a fourth Safetran base.

45

46

47

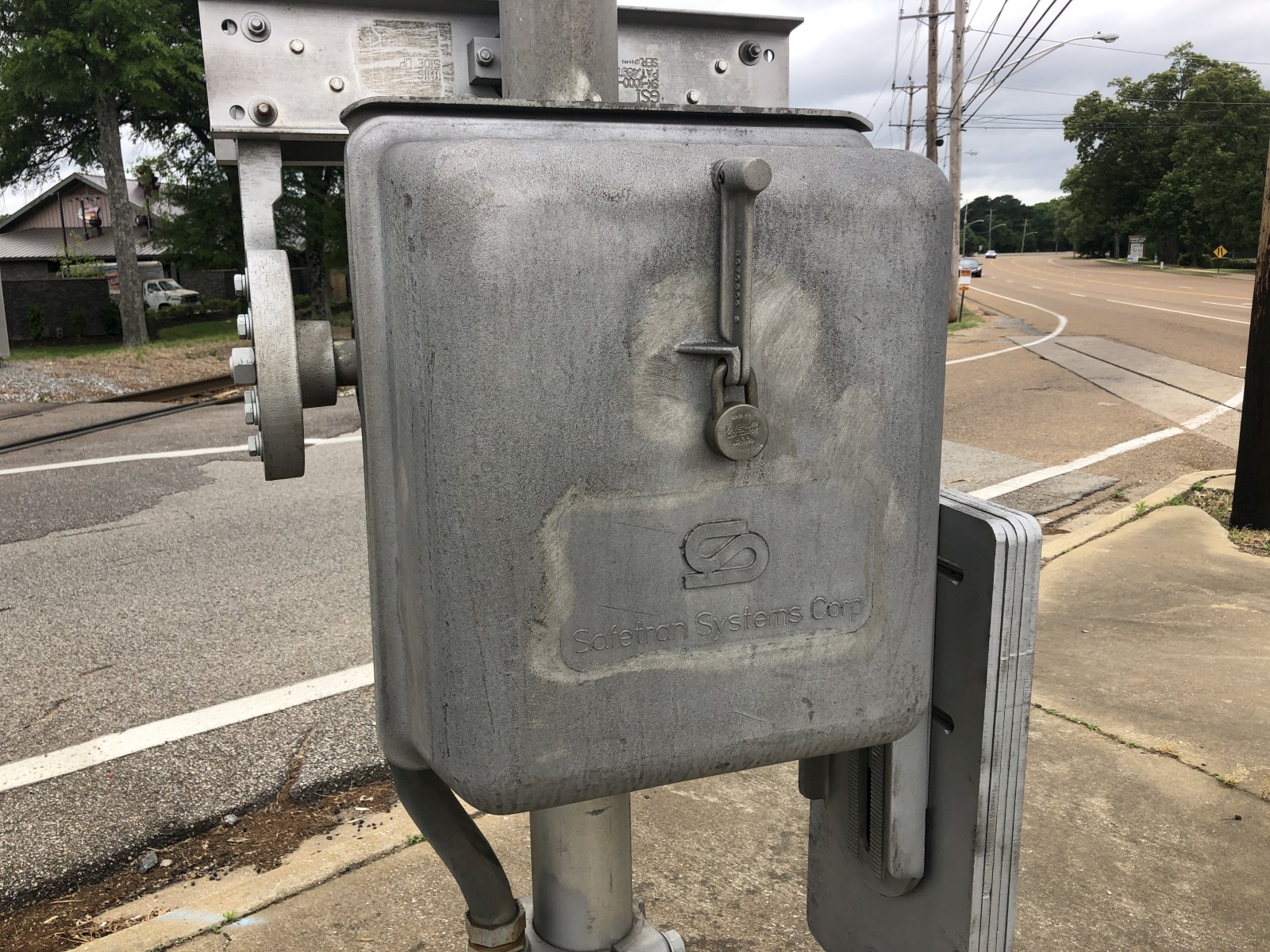

A fiftth Safetran gate mechanism.

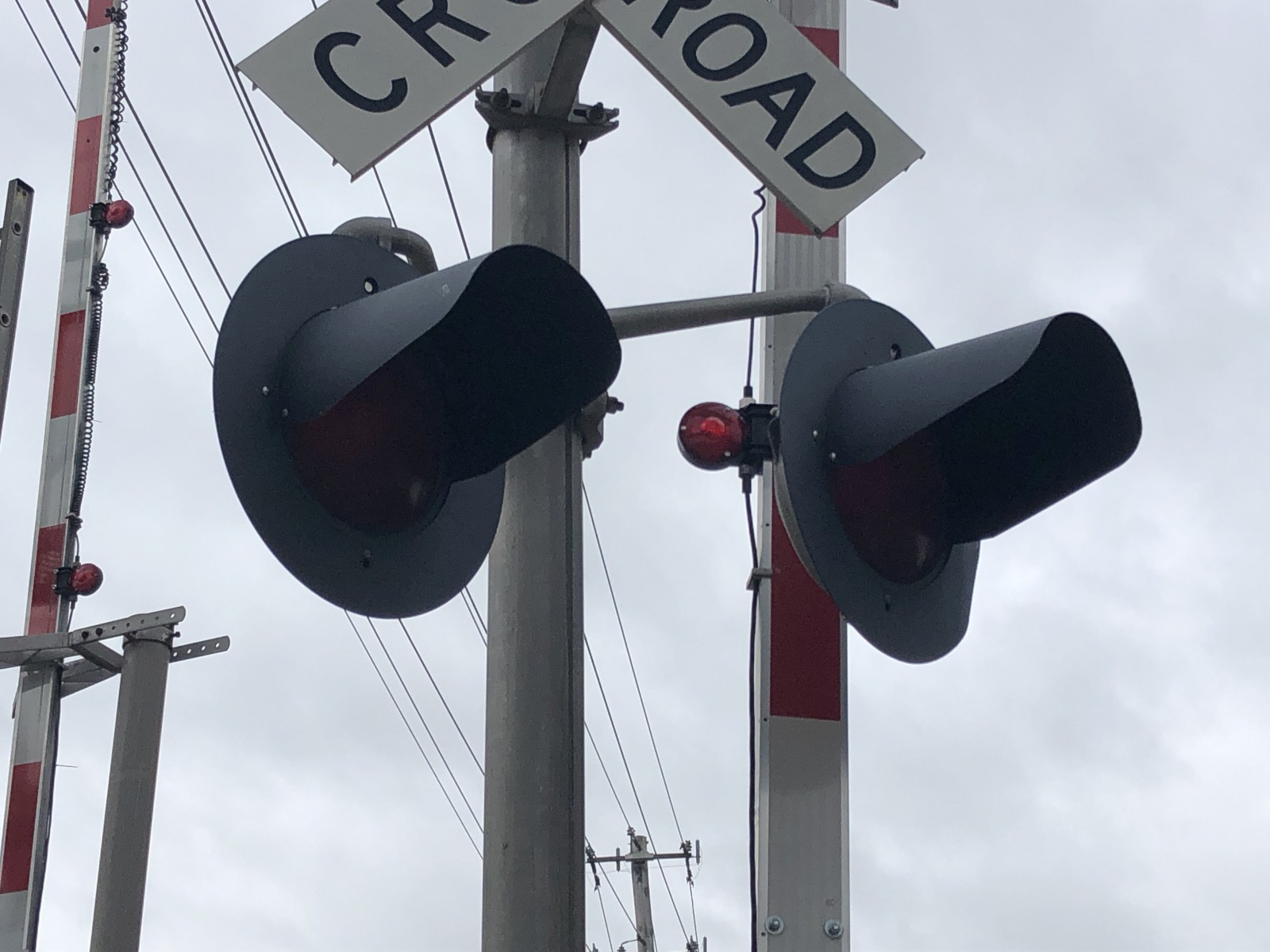

This signal just has a pair of Hawker-Safetran 12x20 incandescent lights.

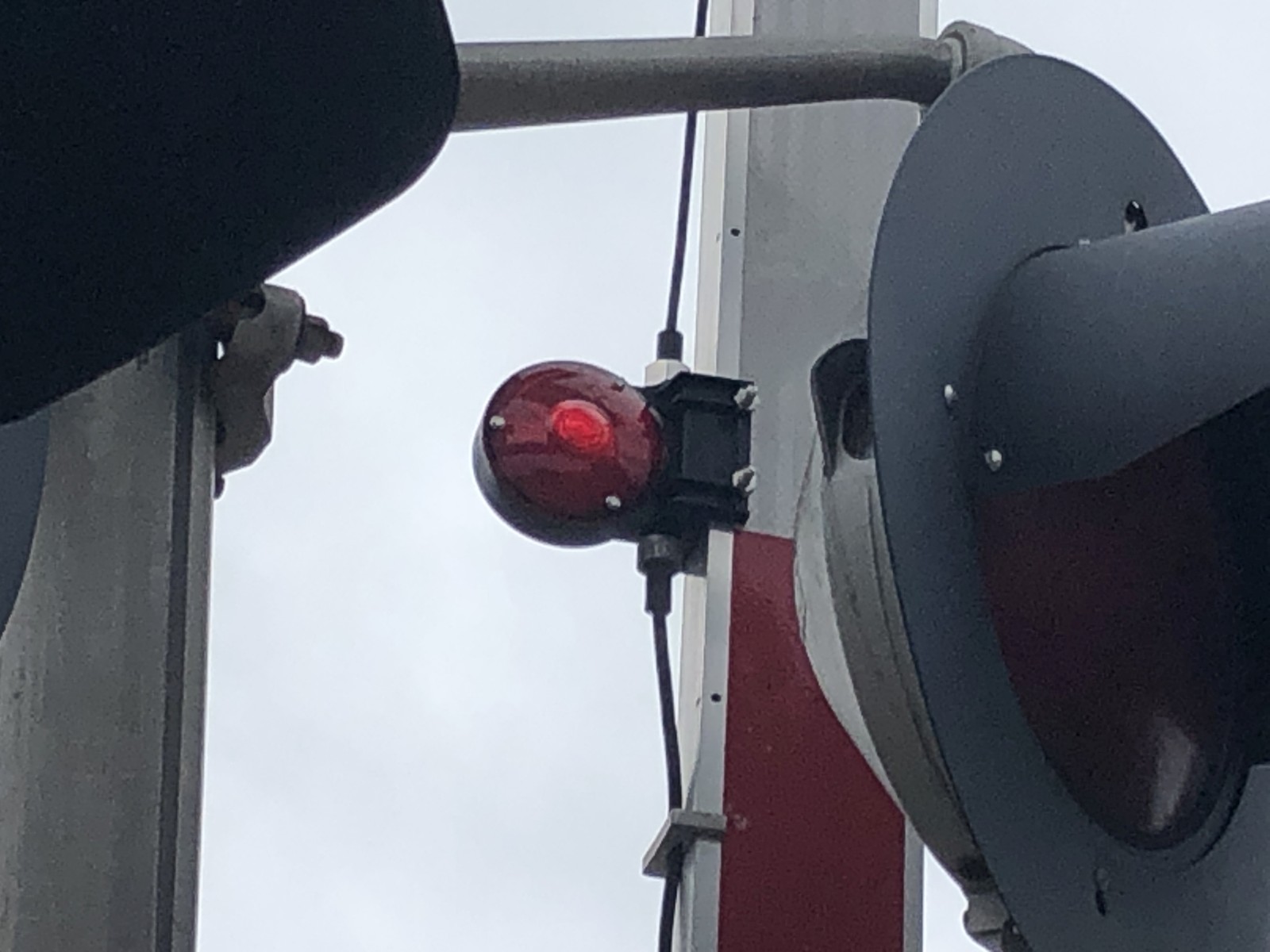

This time, this signal has a newer variety of NEG gatelights.

48

49

50

51

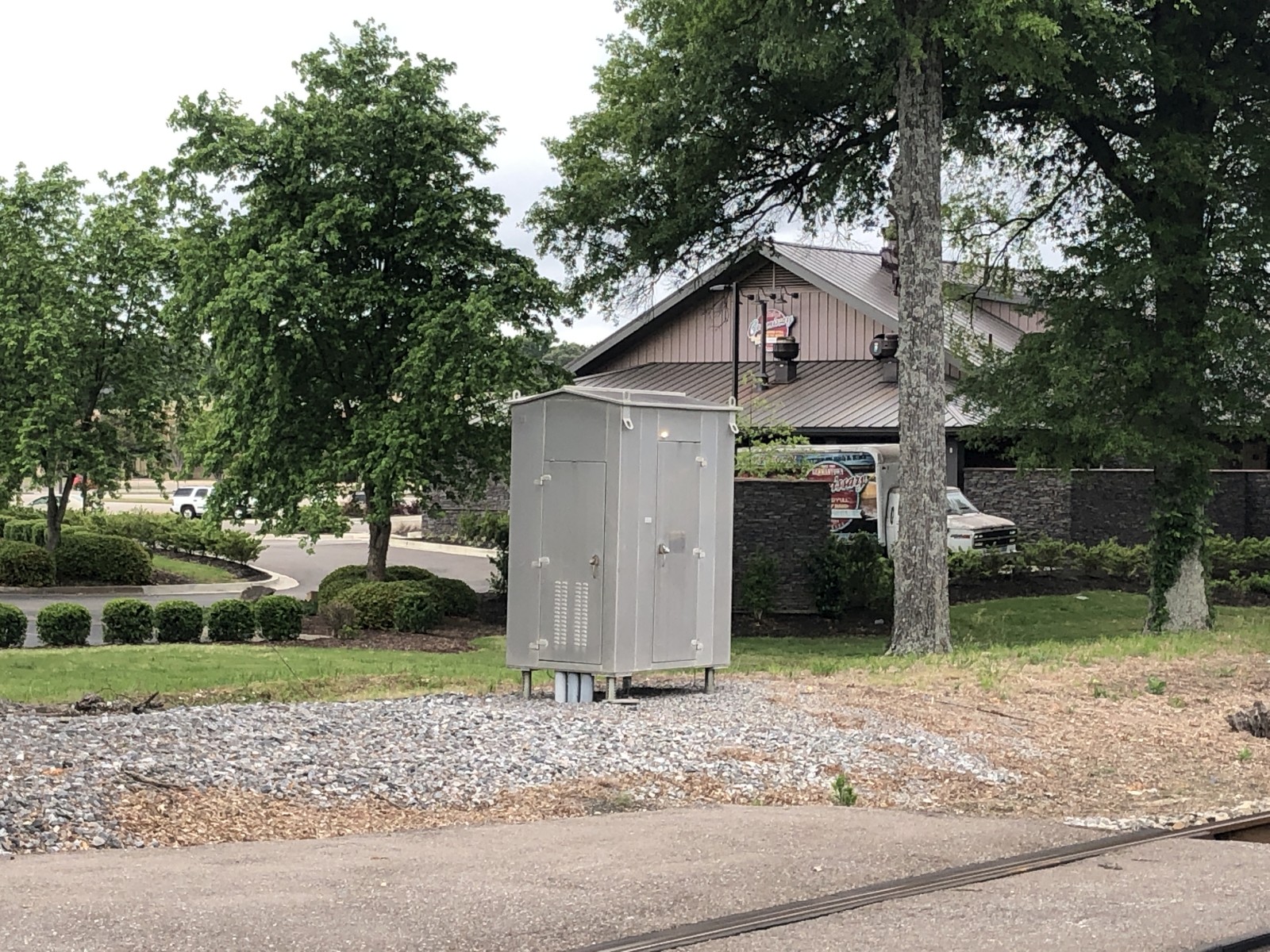

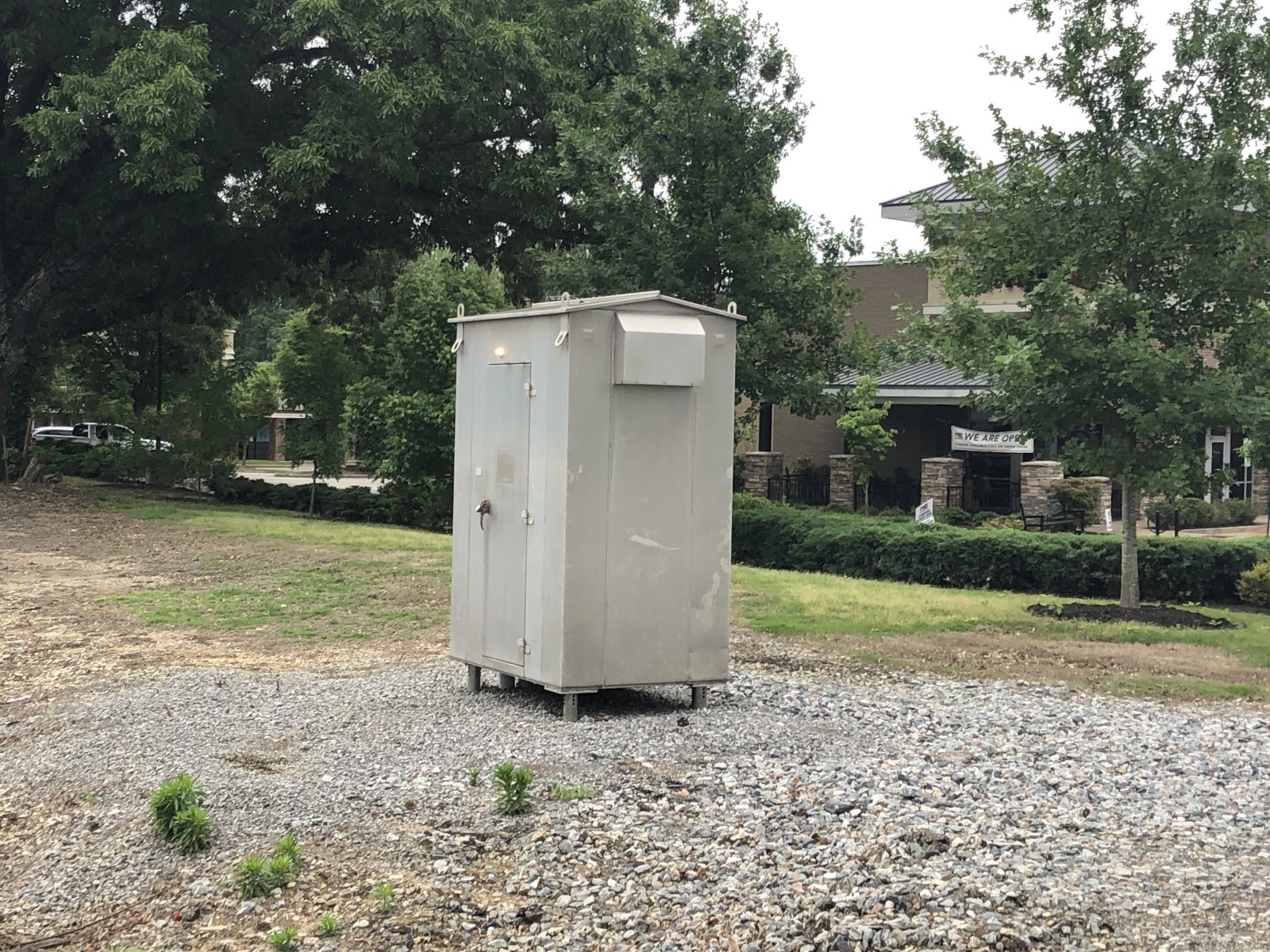

There are two relay bungalows here. I believe both control the signals here.

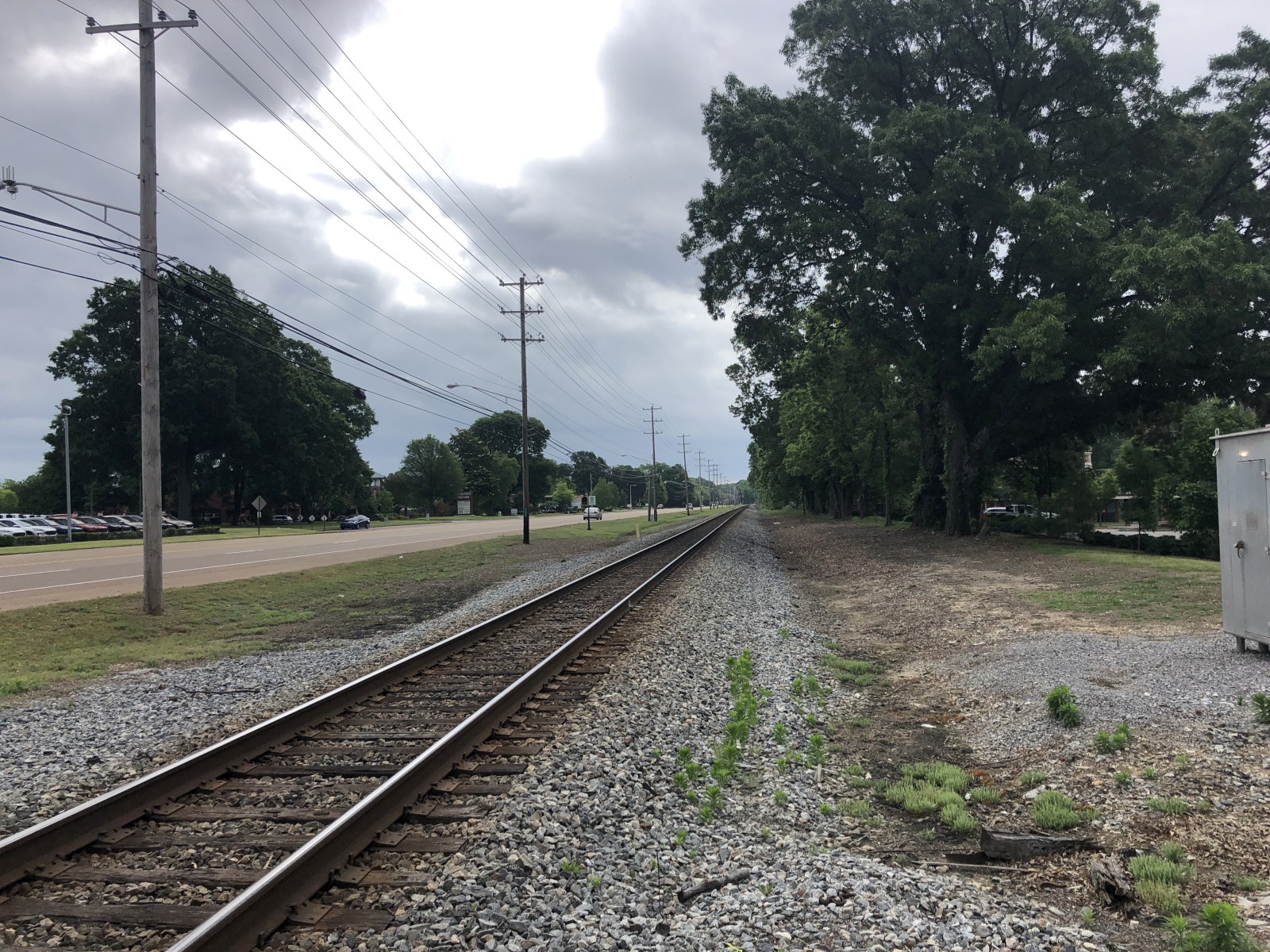

Track view facing east towards Bailey Station Road.

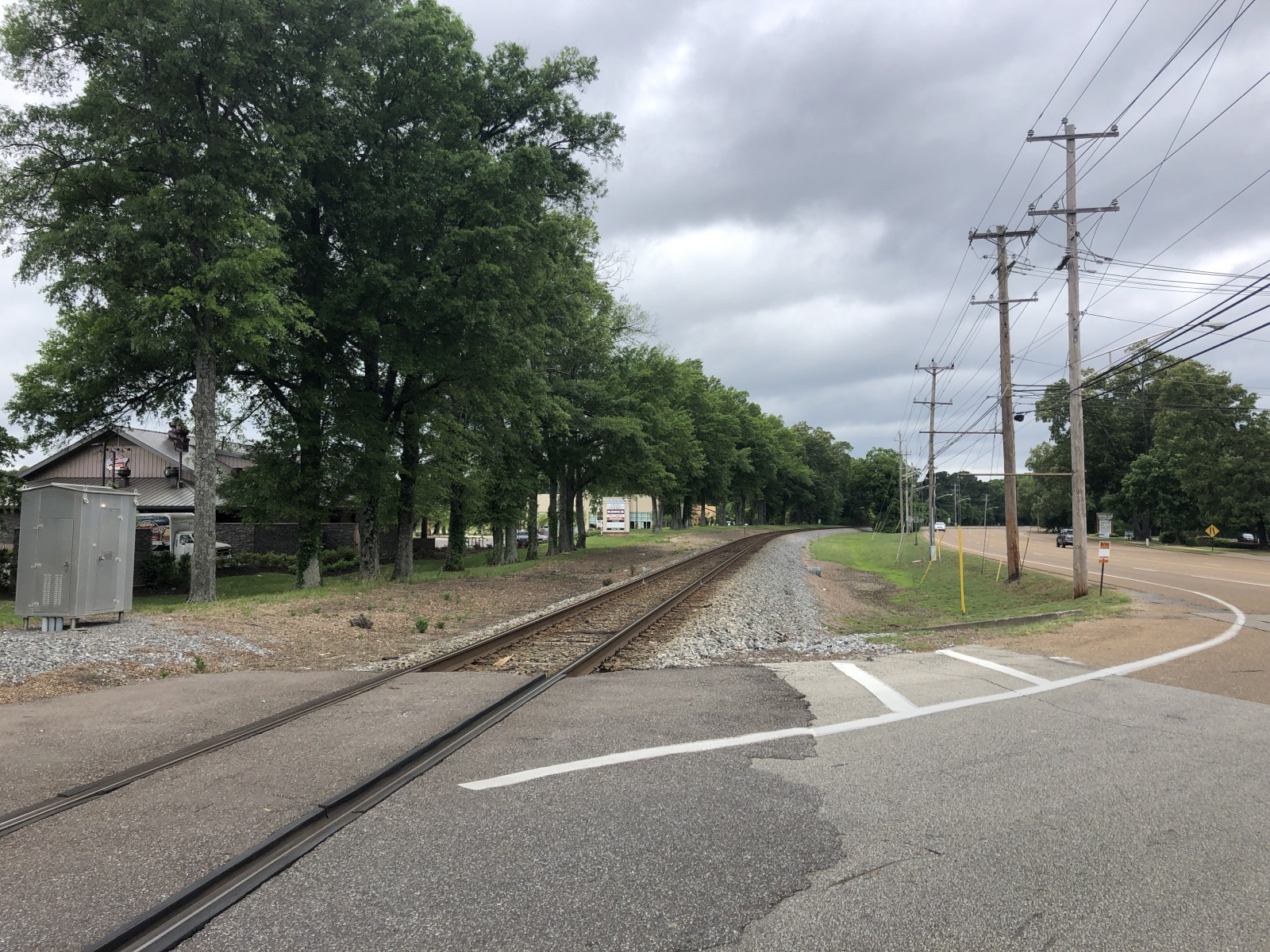

Track view facing west towards Forest Hill Irene Road in Germantown.



All pictures were taken on 5-17-20.
