MP: A235.46 |
Created February 25, 2019
Total Accidents: 2
Crossing
DOT #: 350686D
TOTAL
DAILY TRAINS: 3 (AS OF 2016)
Page created by: freebrickproductions
This crossing is located on the Tennessee Southern Railroad.
1 |
2 |
3 |
4 |

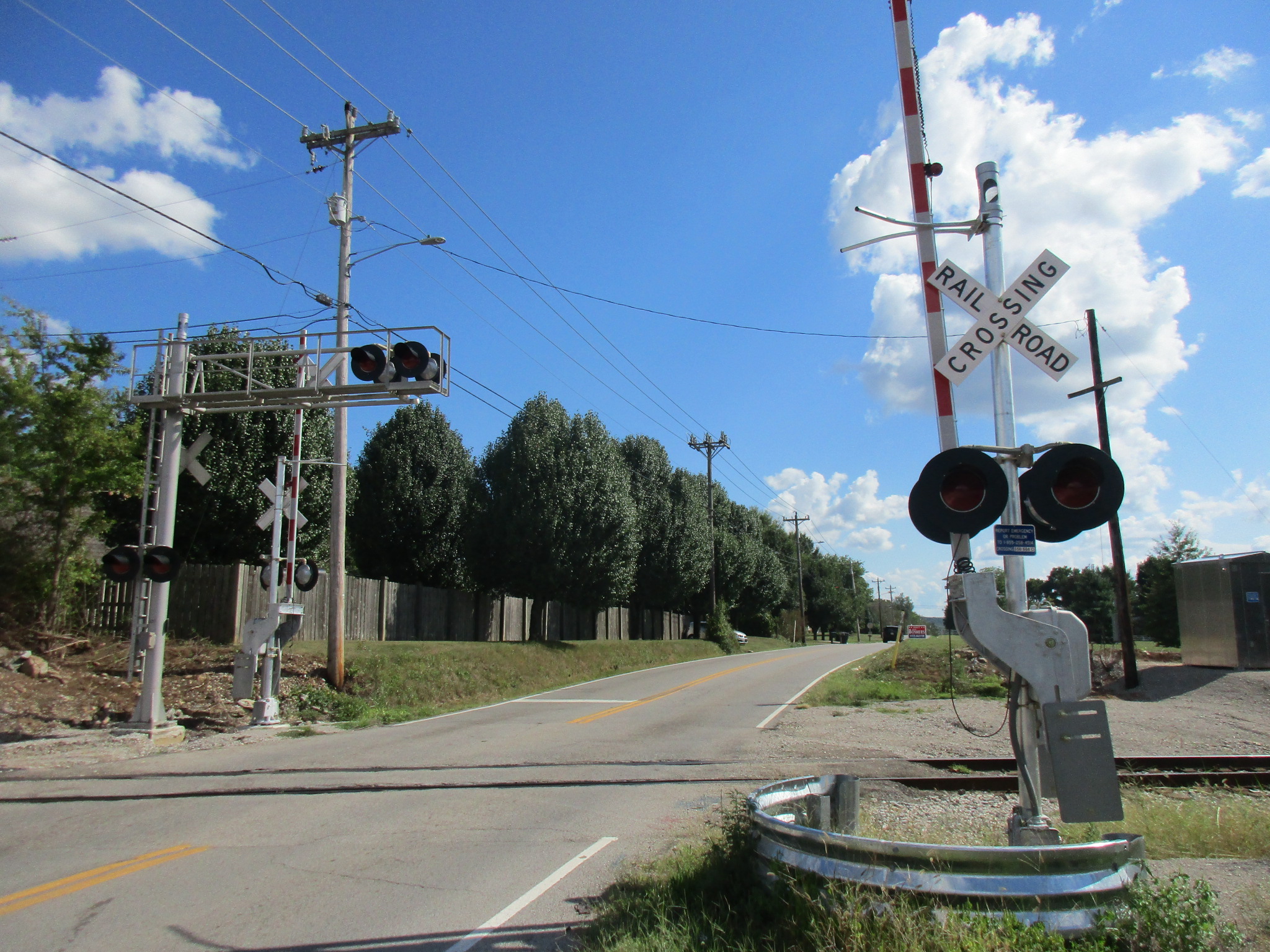

Overviews of the crossing. |

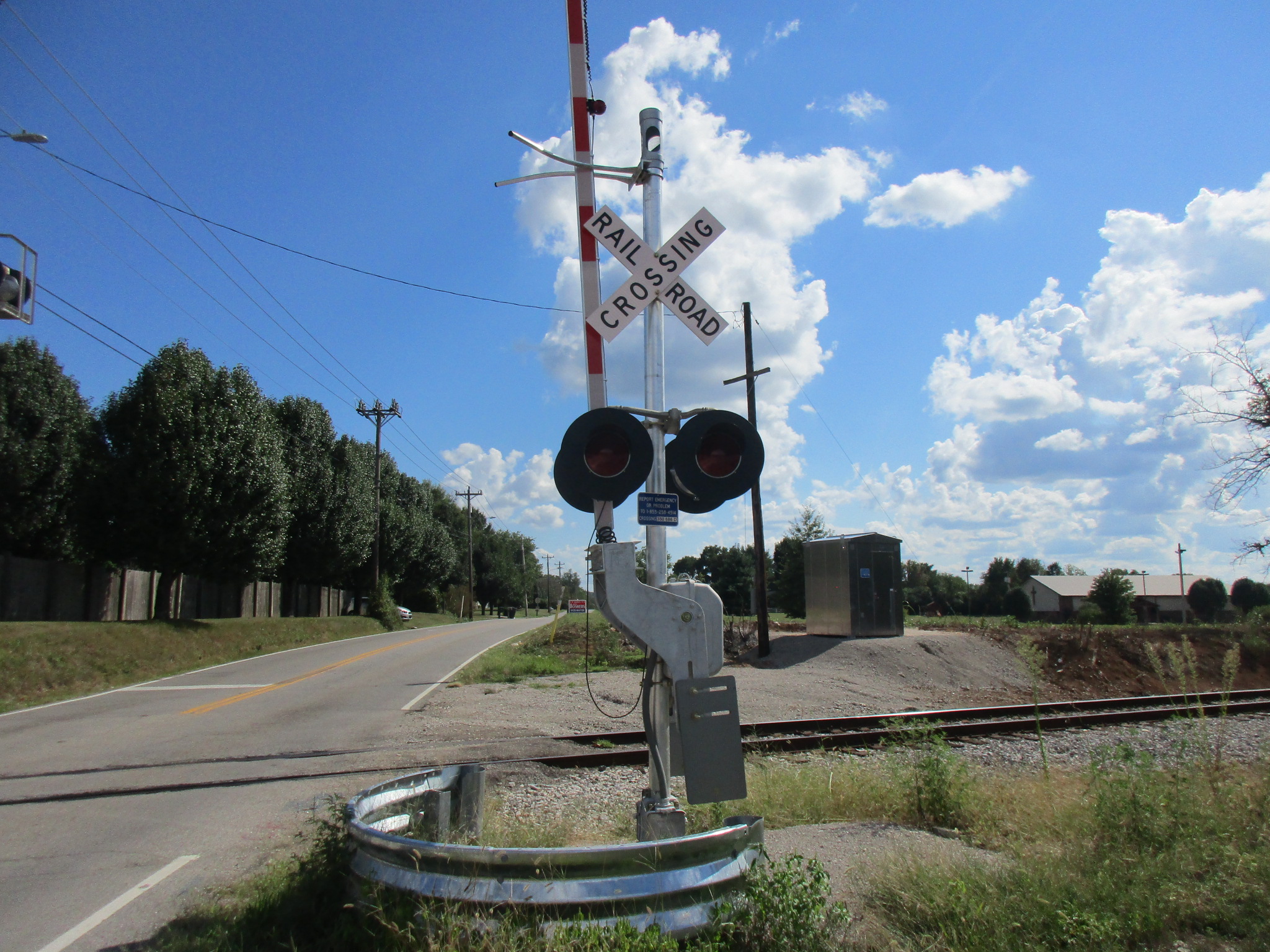

The first signal. |
||
5 |
6 |
7 |
8 |

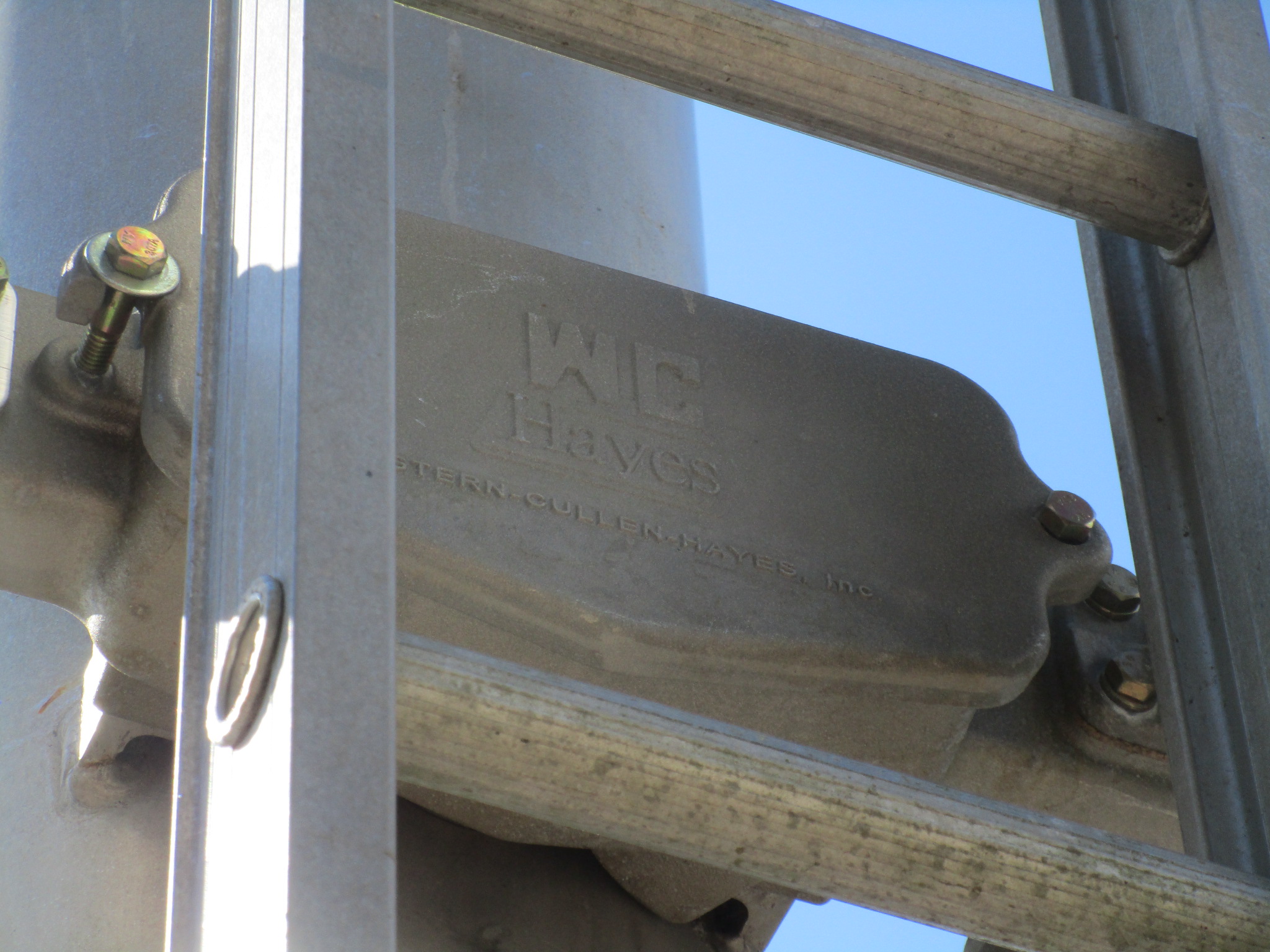

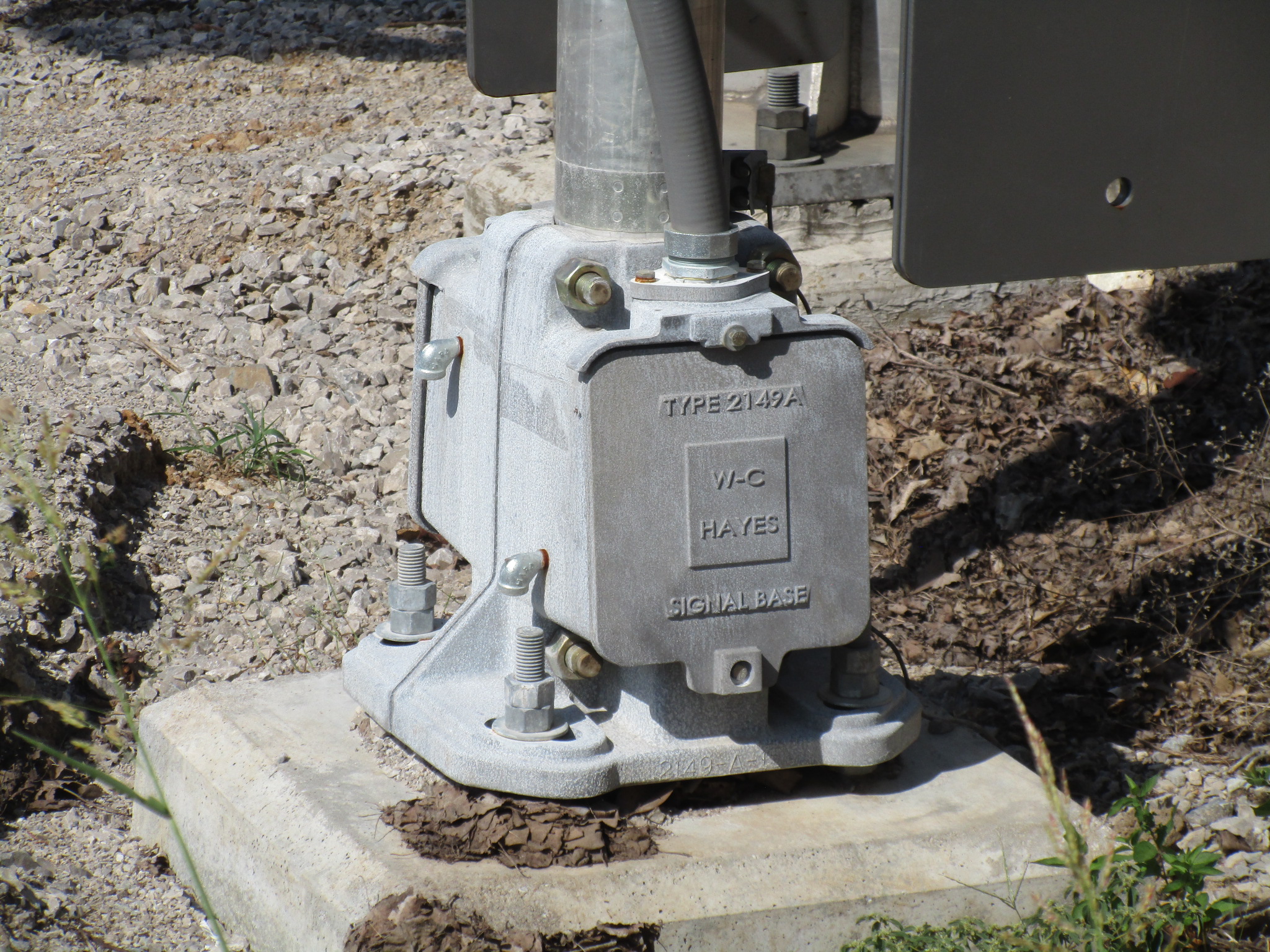

It has a WCH base. |

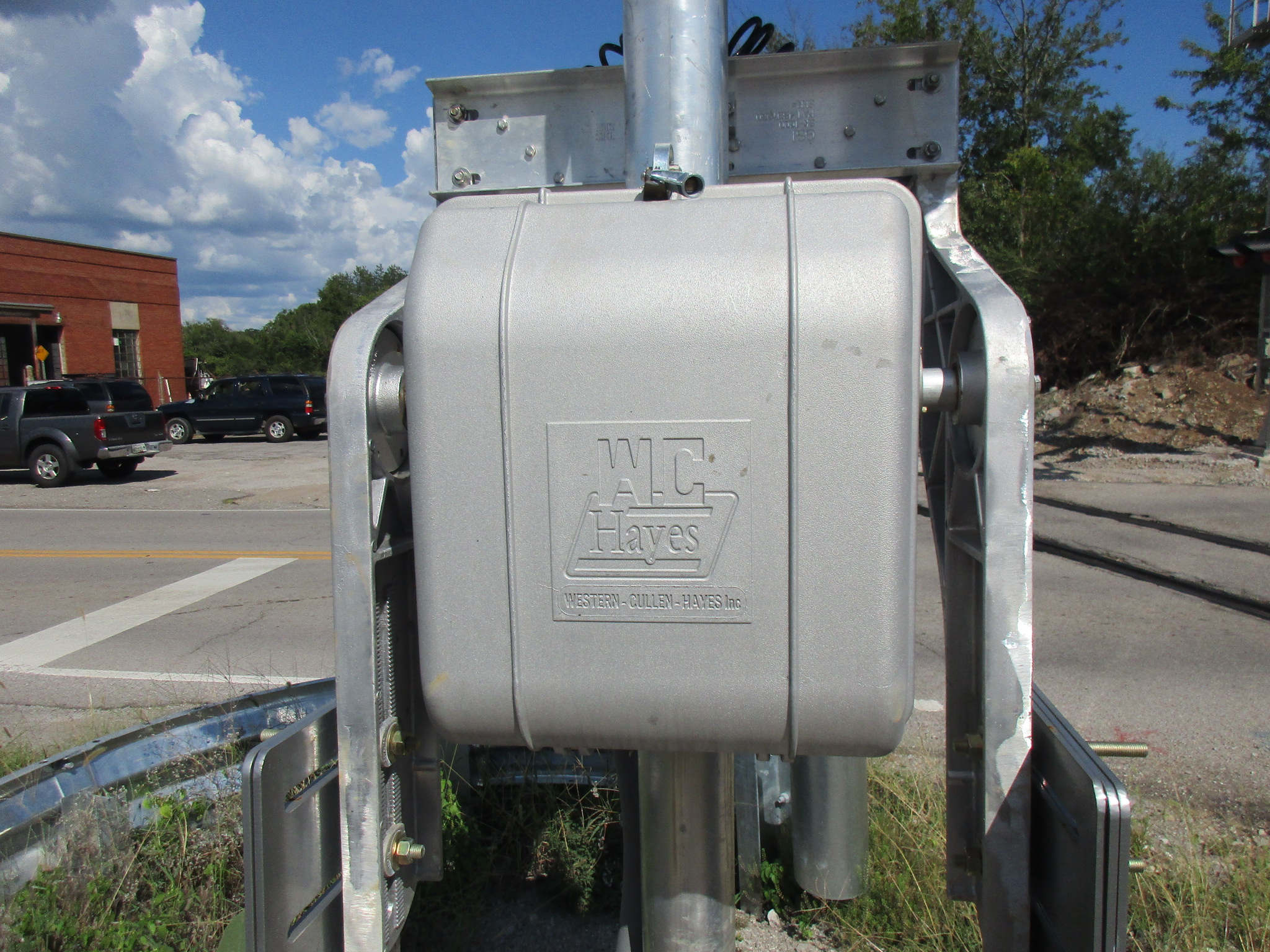

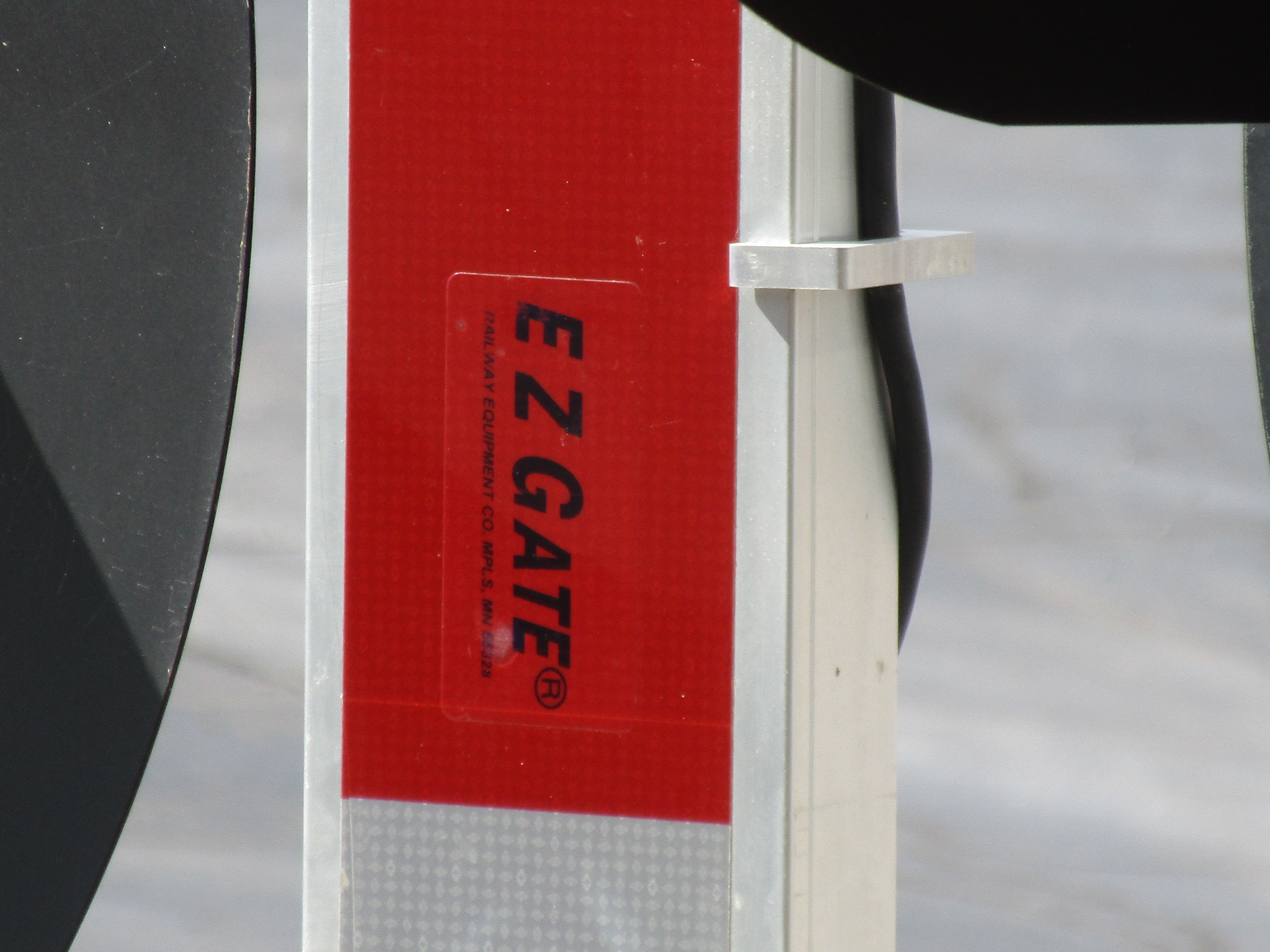

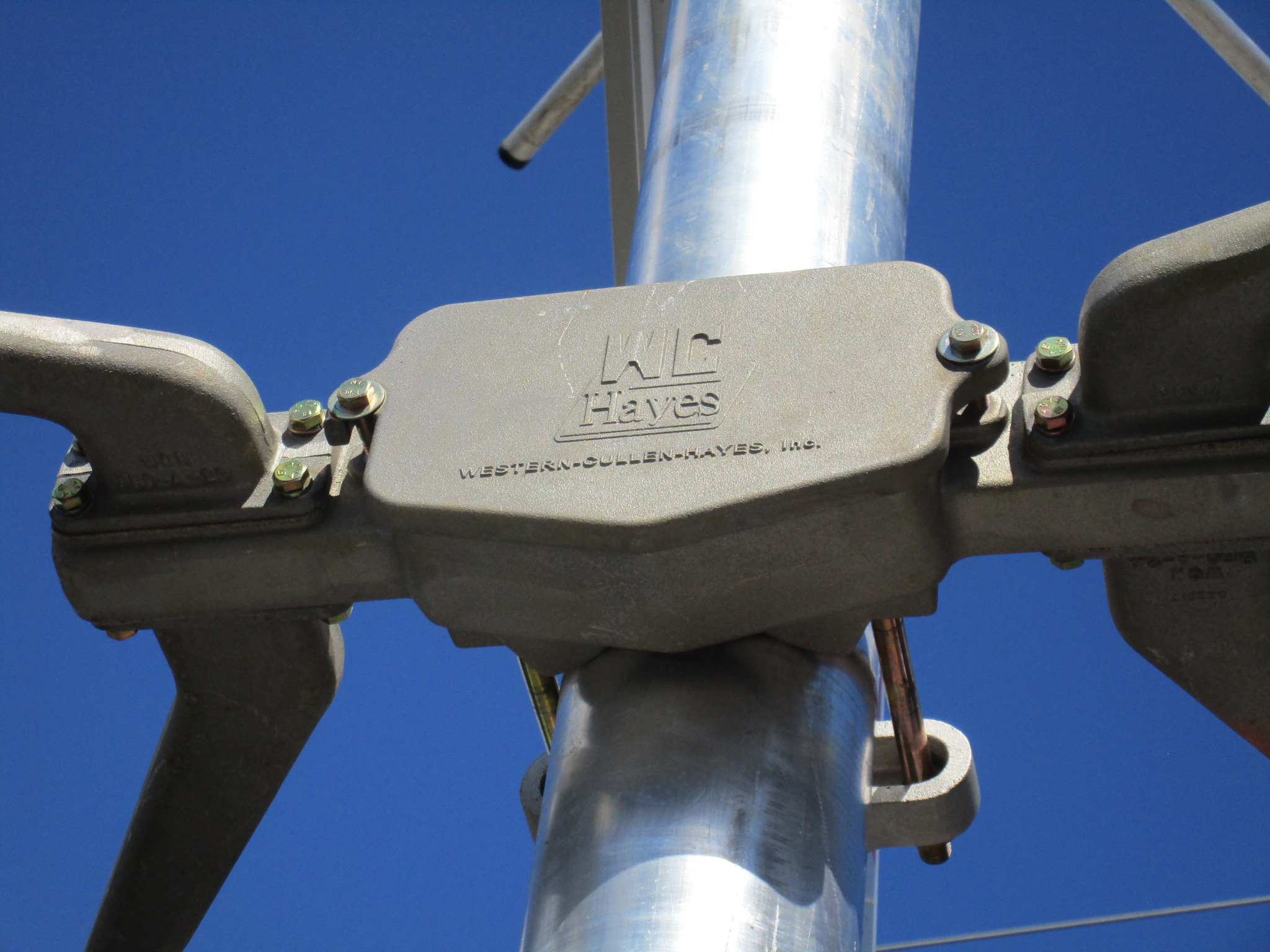

The signal also has a WCH gate mechanism with WCH counterweight arms and an E Z Gate gate arm. |
||
9 |
10 |
11 |
12 |

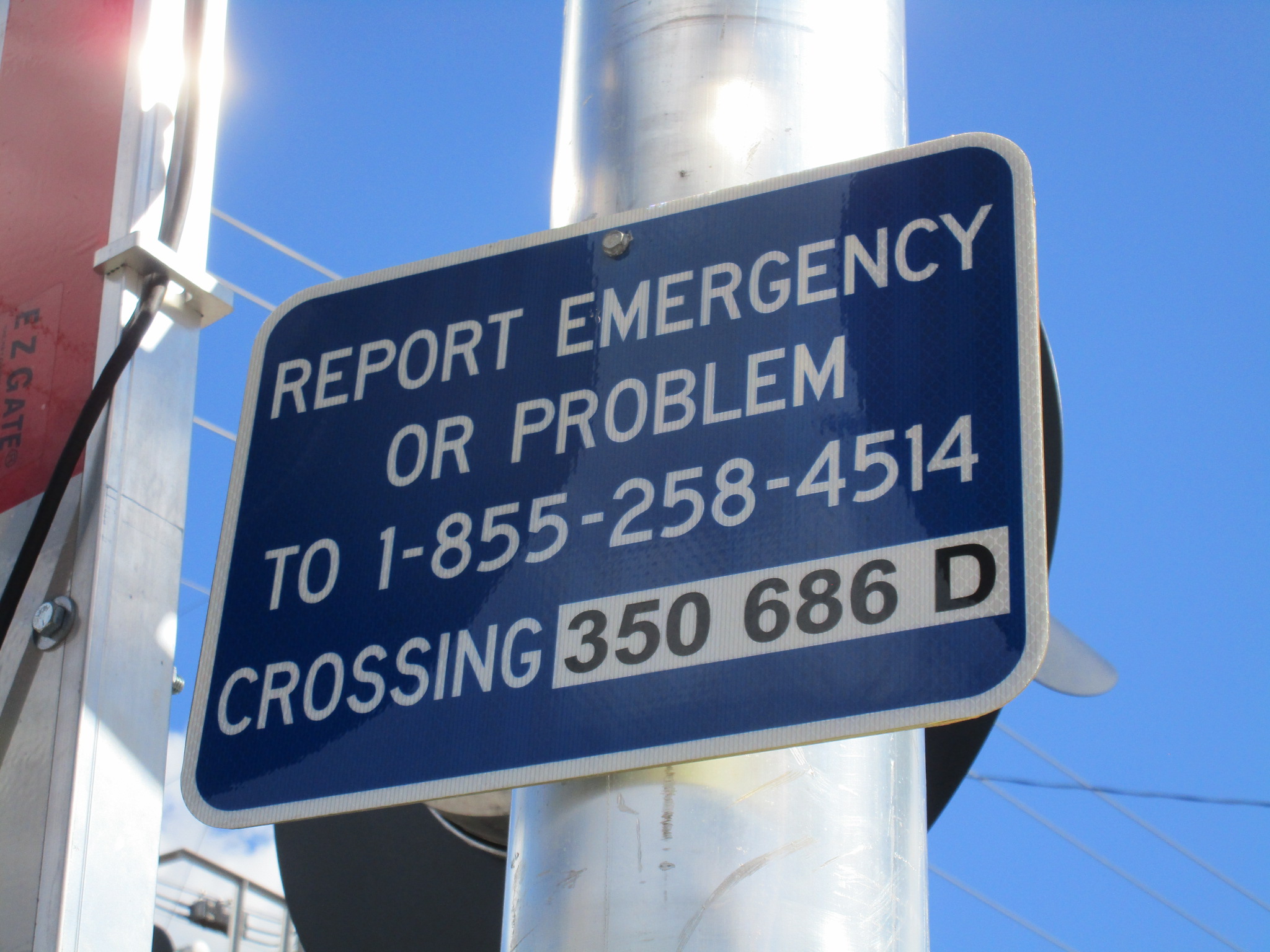

The emergency information. |

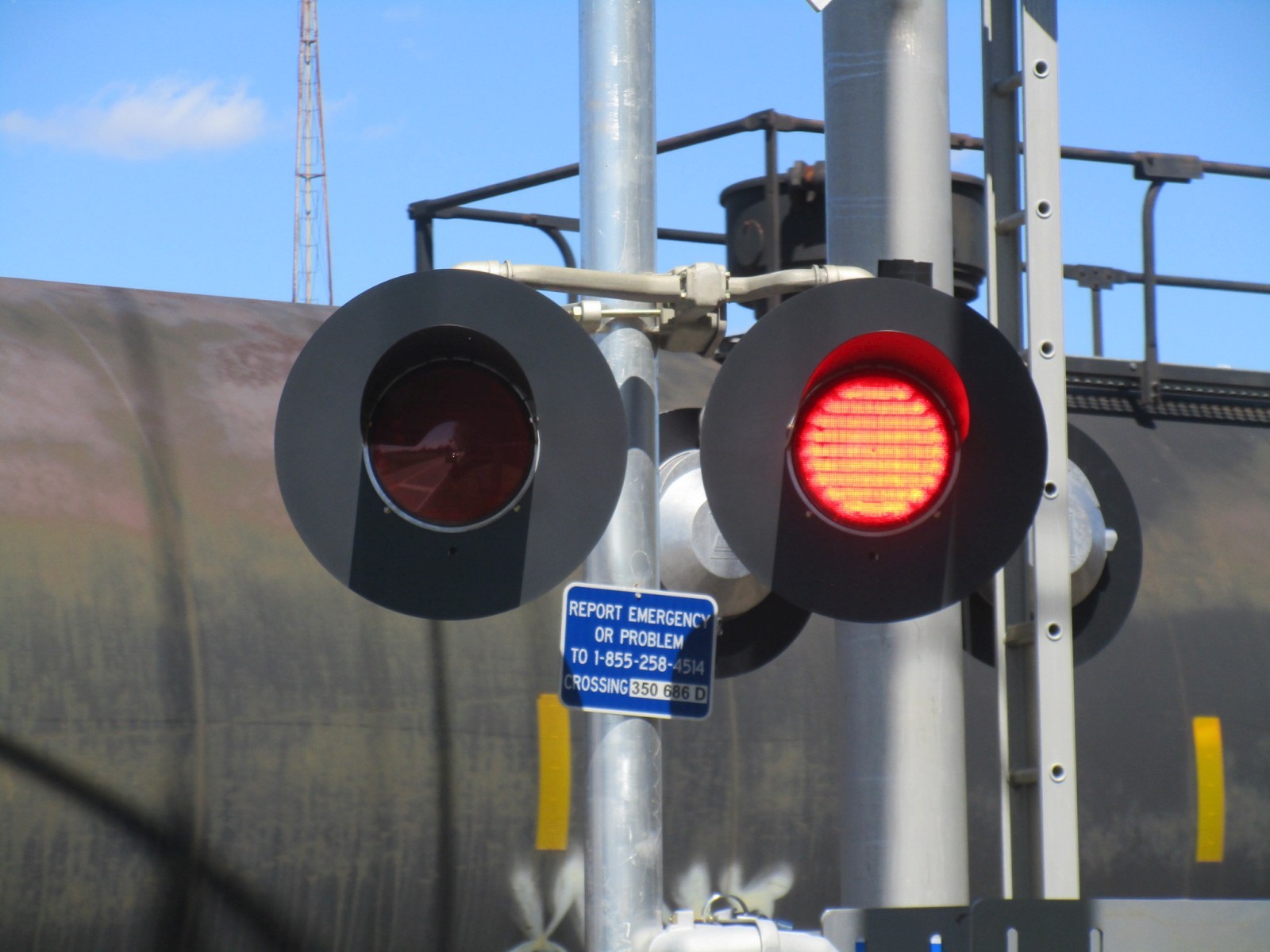

This signal uses all WCH 12x24 inch lights with GE Uniform Look LEDs and a WCH junction box. |
||
13 |
14 |
15 |
16 |

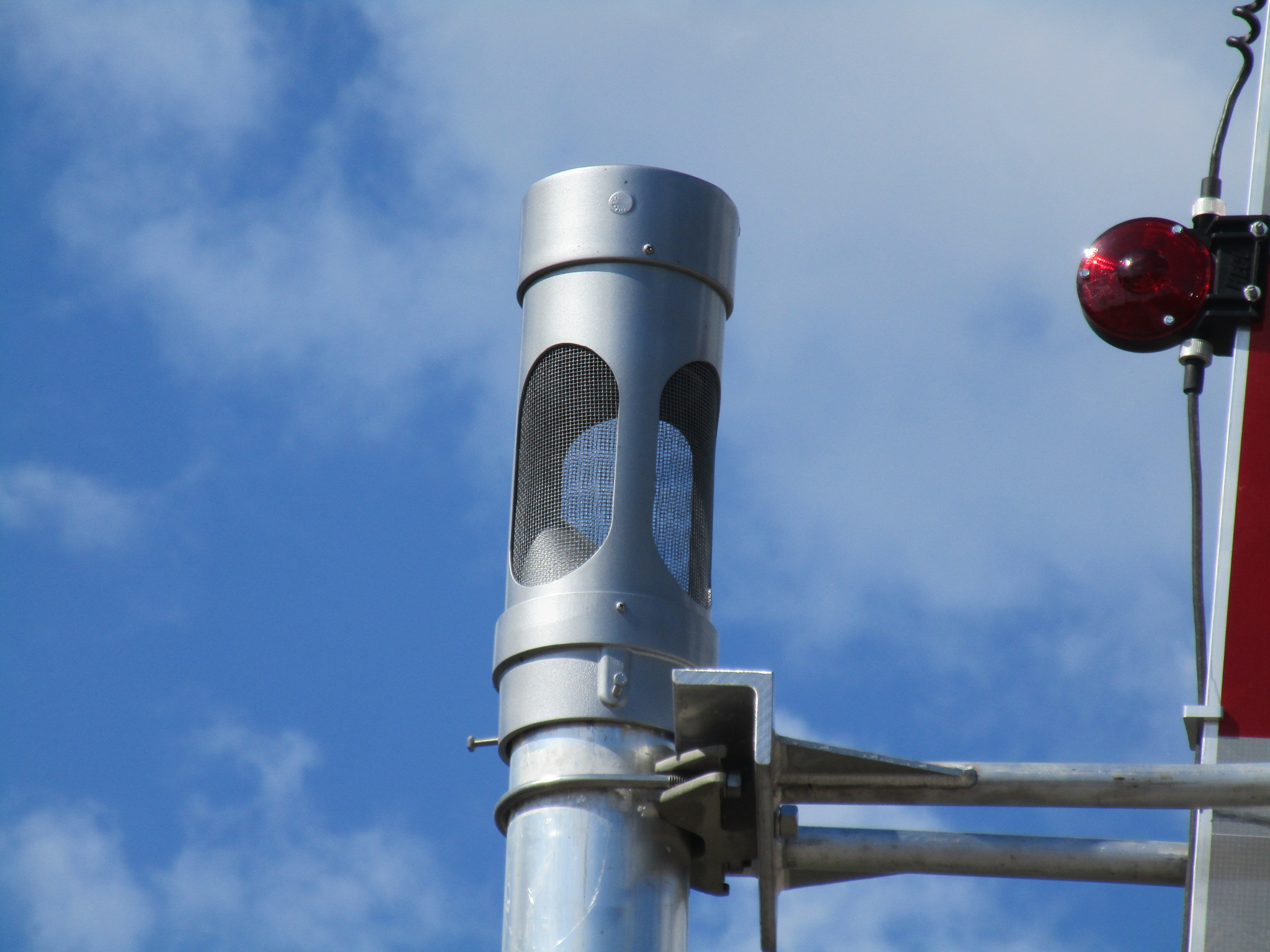

A General Signals Type 2 electronic bell. |

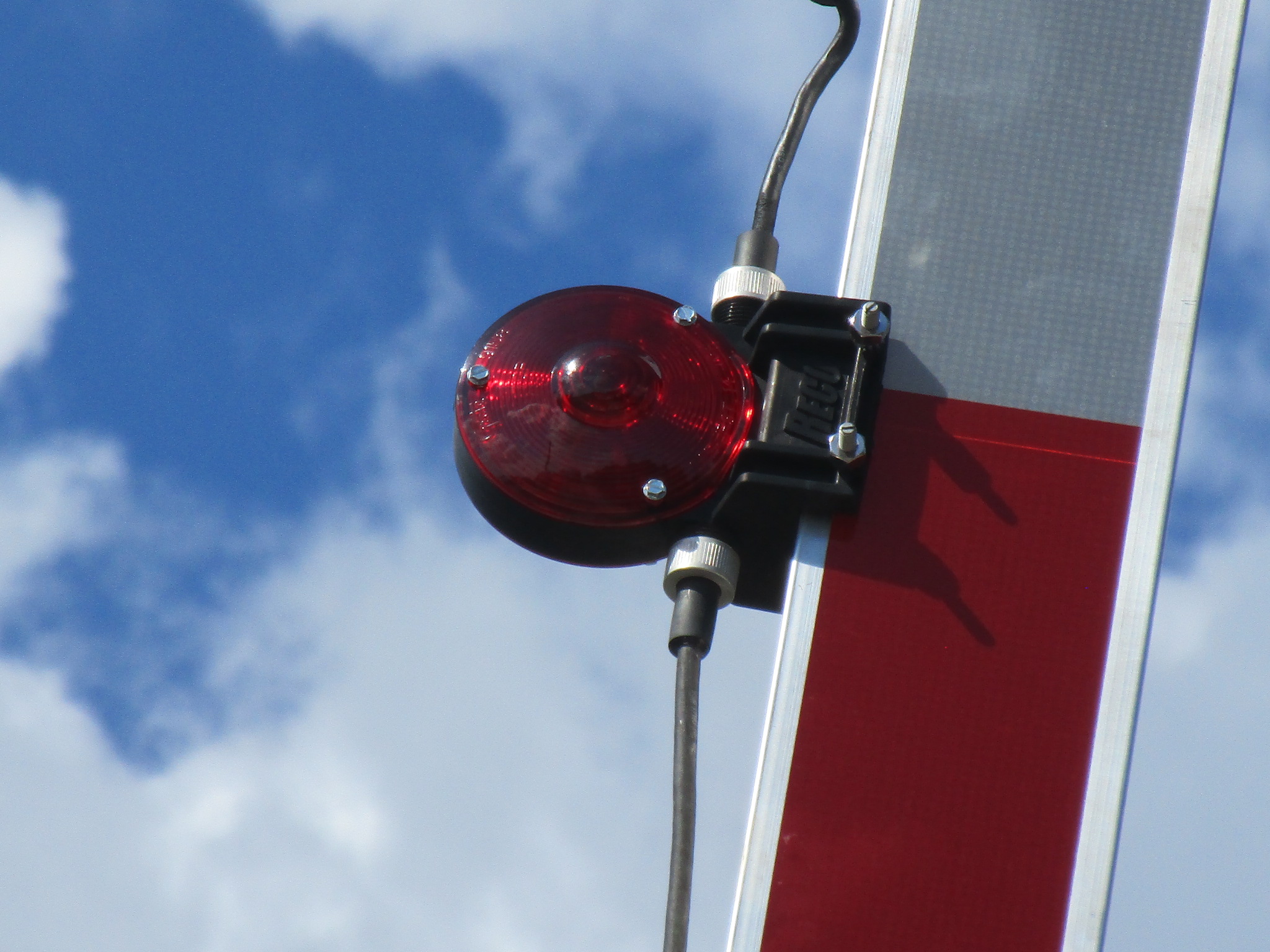

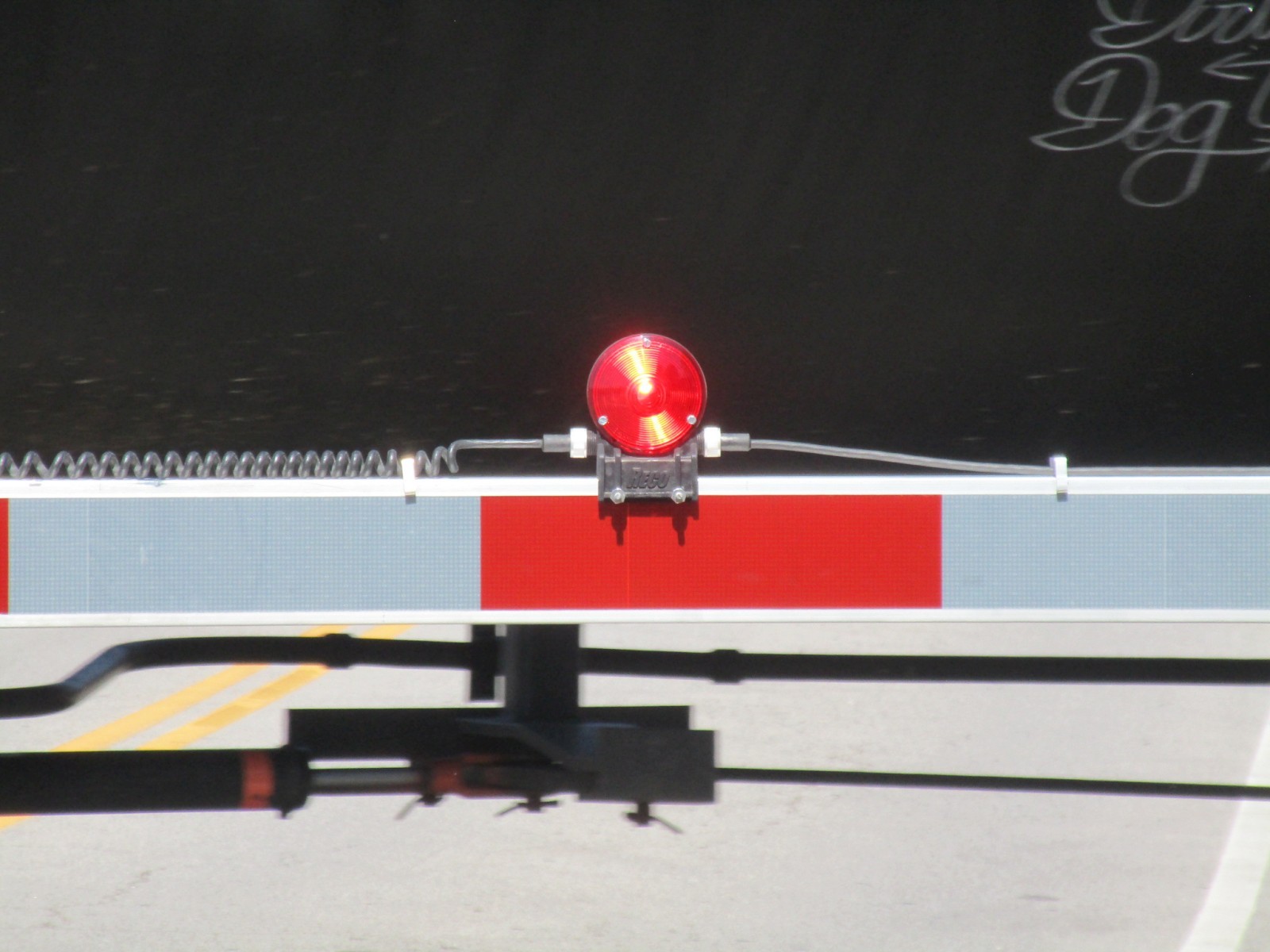

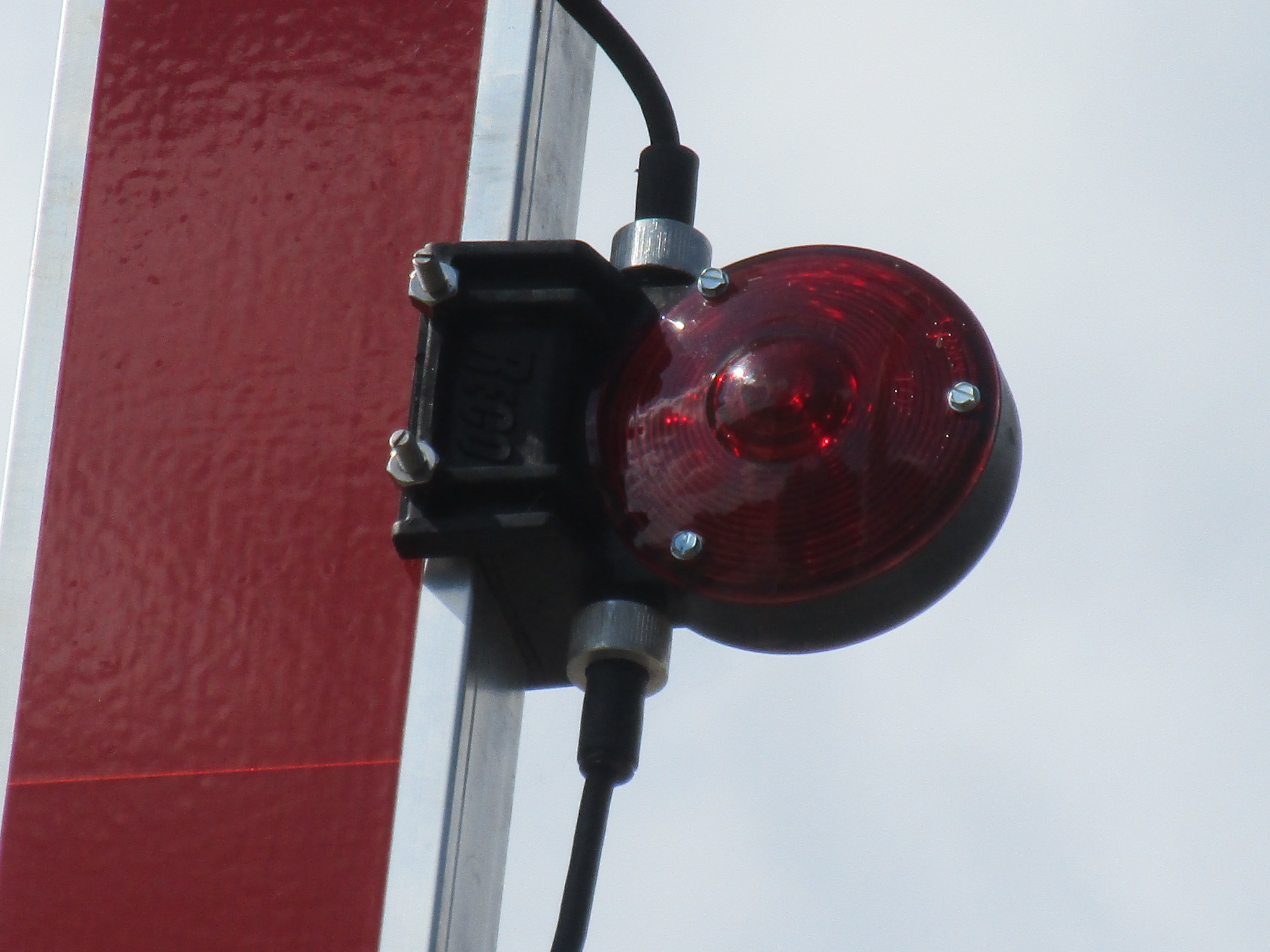

RECO gate lights here. |

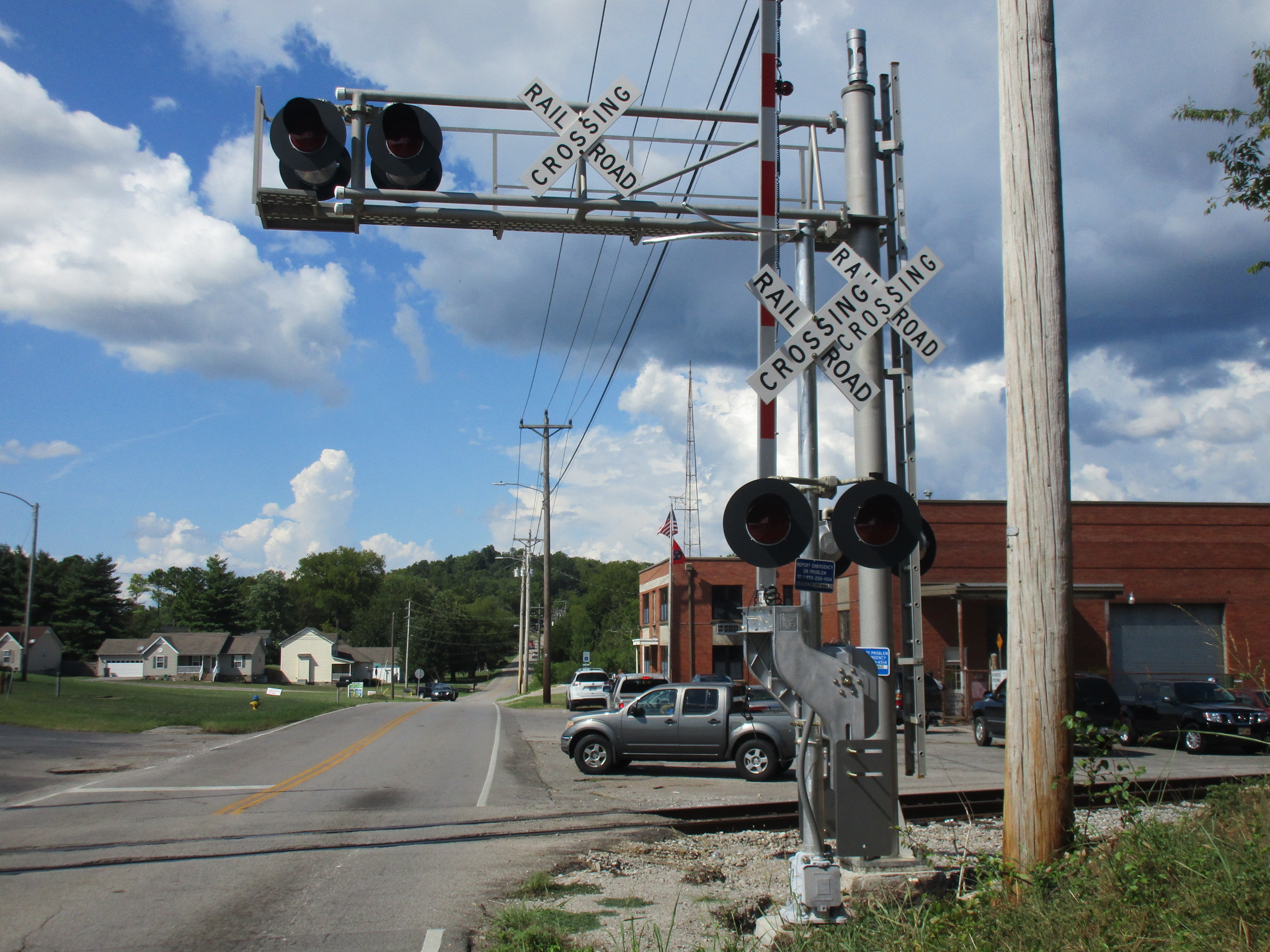

The second signal. If I recall correctly, the cantilever is Modern Industries (forgot to get a picture of the logo). |
|
17 |
18 |
19 |
20 |
The gate mast uses another WCH base. |

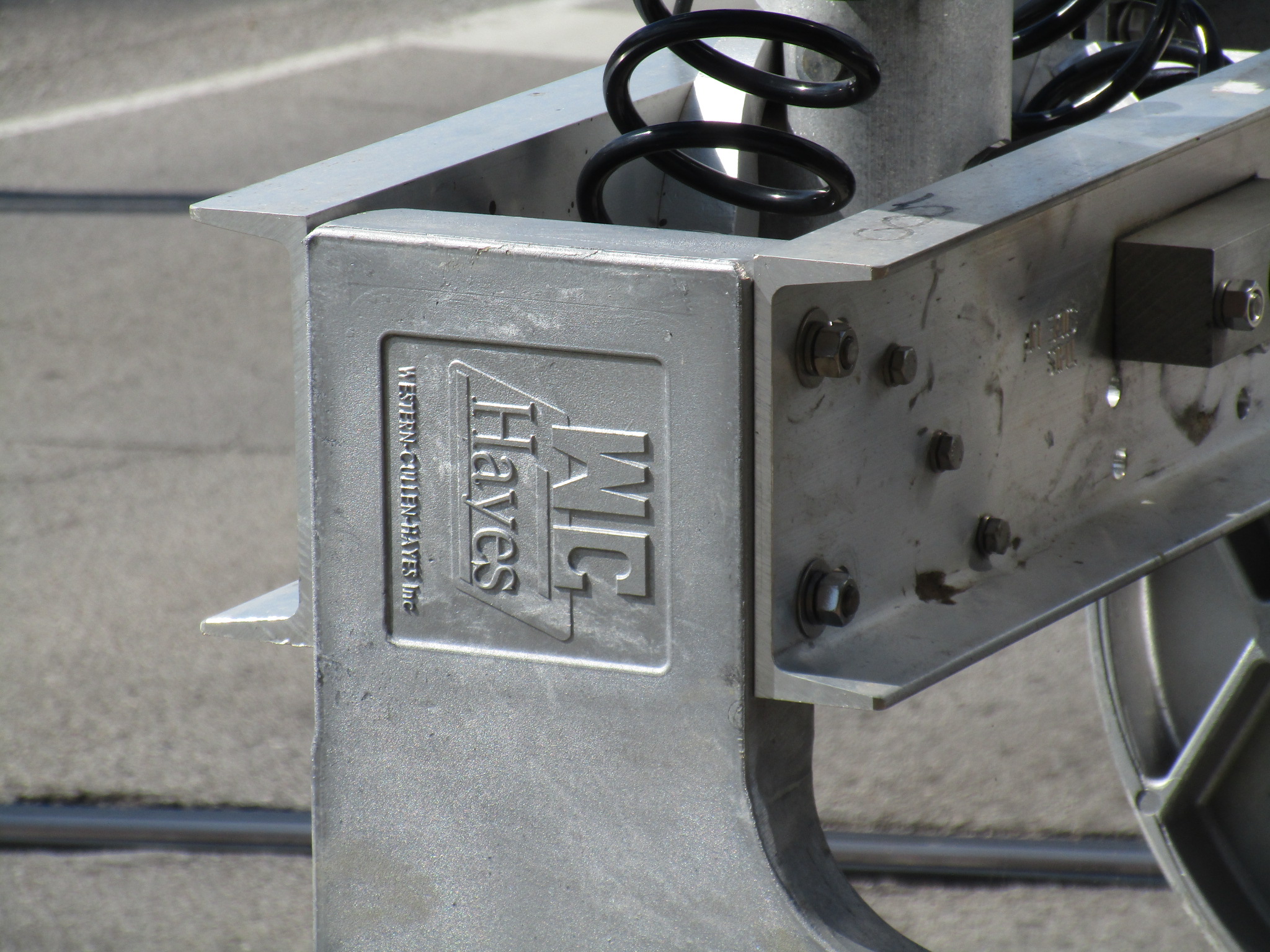

The signal has another WCH gate mechanism with WCH counterweight arms and an E Z Gate gate arm. |
||
21 |
22 |
23 |
24 |
The emergency information. |
The lights on the gate mast are another pair of WCH 12x24 inch lights with GE Uniform Look LEDs on a WCH junction box.. |
||
25 |
26 |
27 |
28 |
More RECO gate lights over here. |

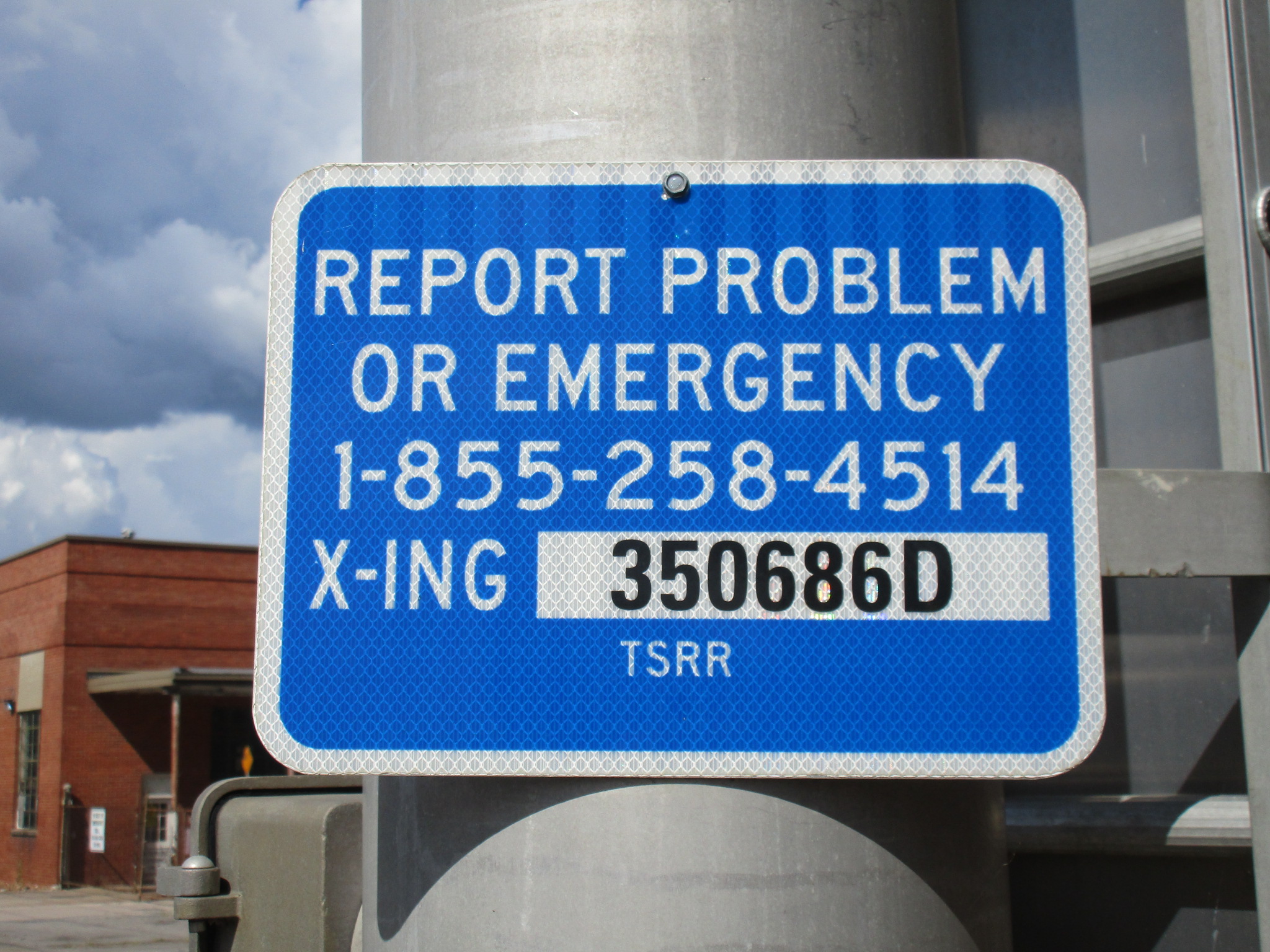

The emergency information, for the third time. |
The mast lights on the cantilever are a third pair of WCH 12x24 inch lights with GE Uniform Look LEDs. |
|
29 |
30 |
31 |
32 |
Another WCH junction box. |

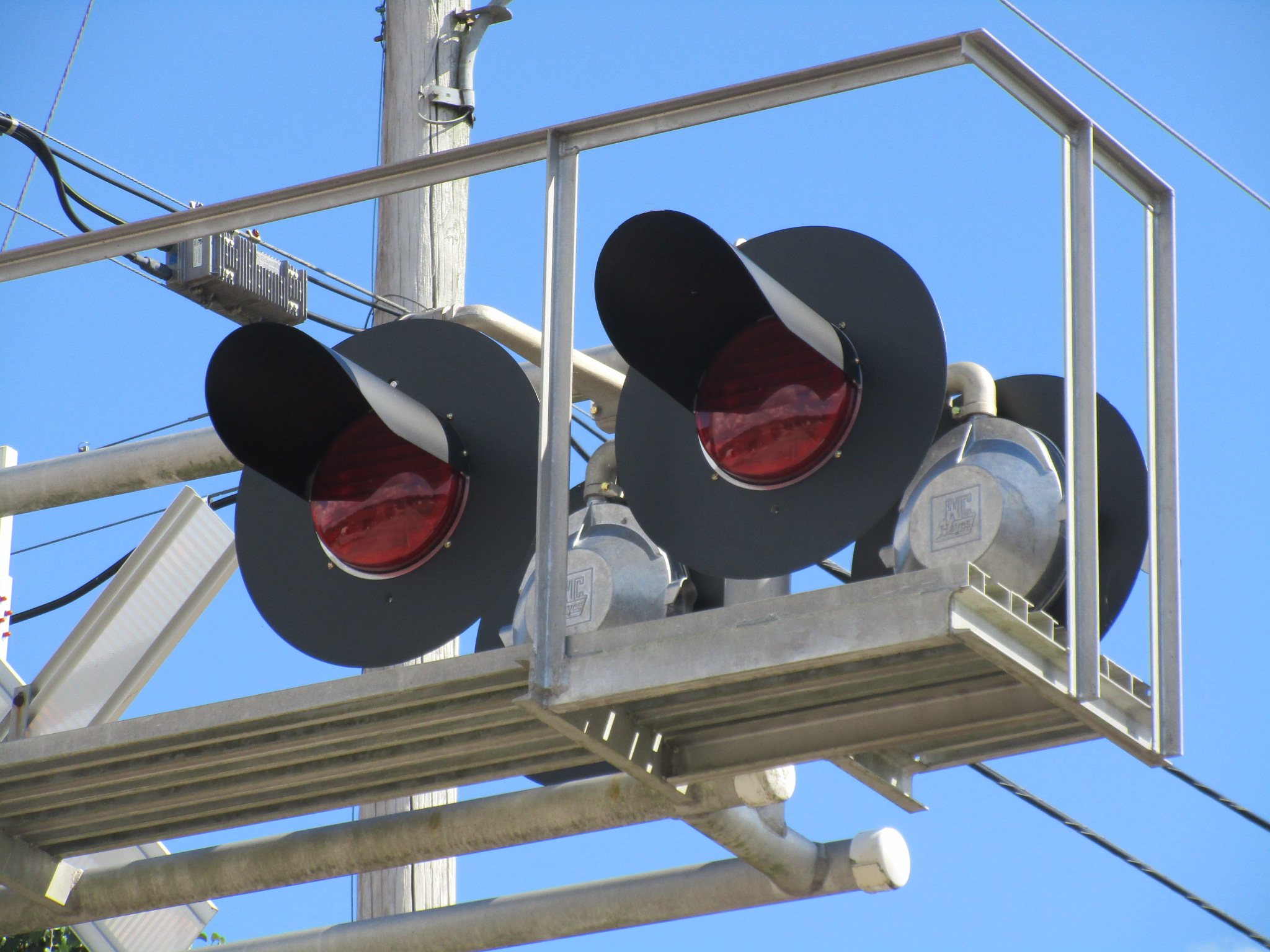

The overhead lights are more WCH 12x24 inch lights with GE Uniform Look LEDs. |
A General Signals Type 3 electronic bell here. |
|
33 |
34 |
35 |
36 |
There are two crossbucks on the masts, making a total of three crossbucks for the entire signal! |

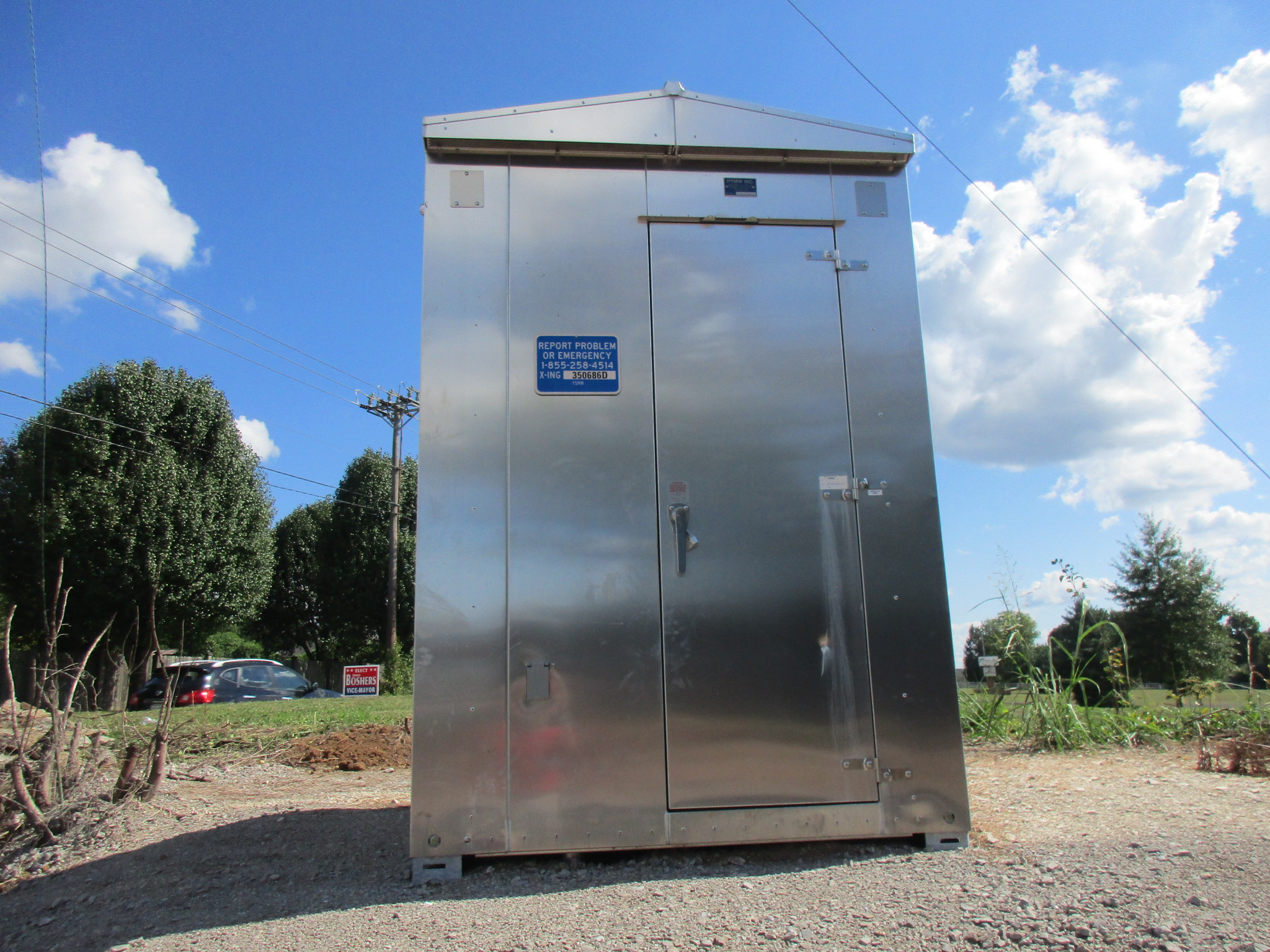

The relay case with a fourth emergency information sign on it! |
||
37 |
38 |
Track view looking southwest towards Rutherford Lane. |
Track view looking northeast towards Galloway Street and 7th Street. |
39 |
40 |
41 |
On March 19, 2019, freebrickproductions made a return trip to this crossing to see it in action. |
||
42 |
43 |
44 |

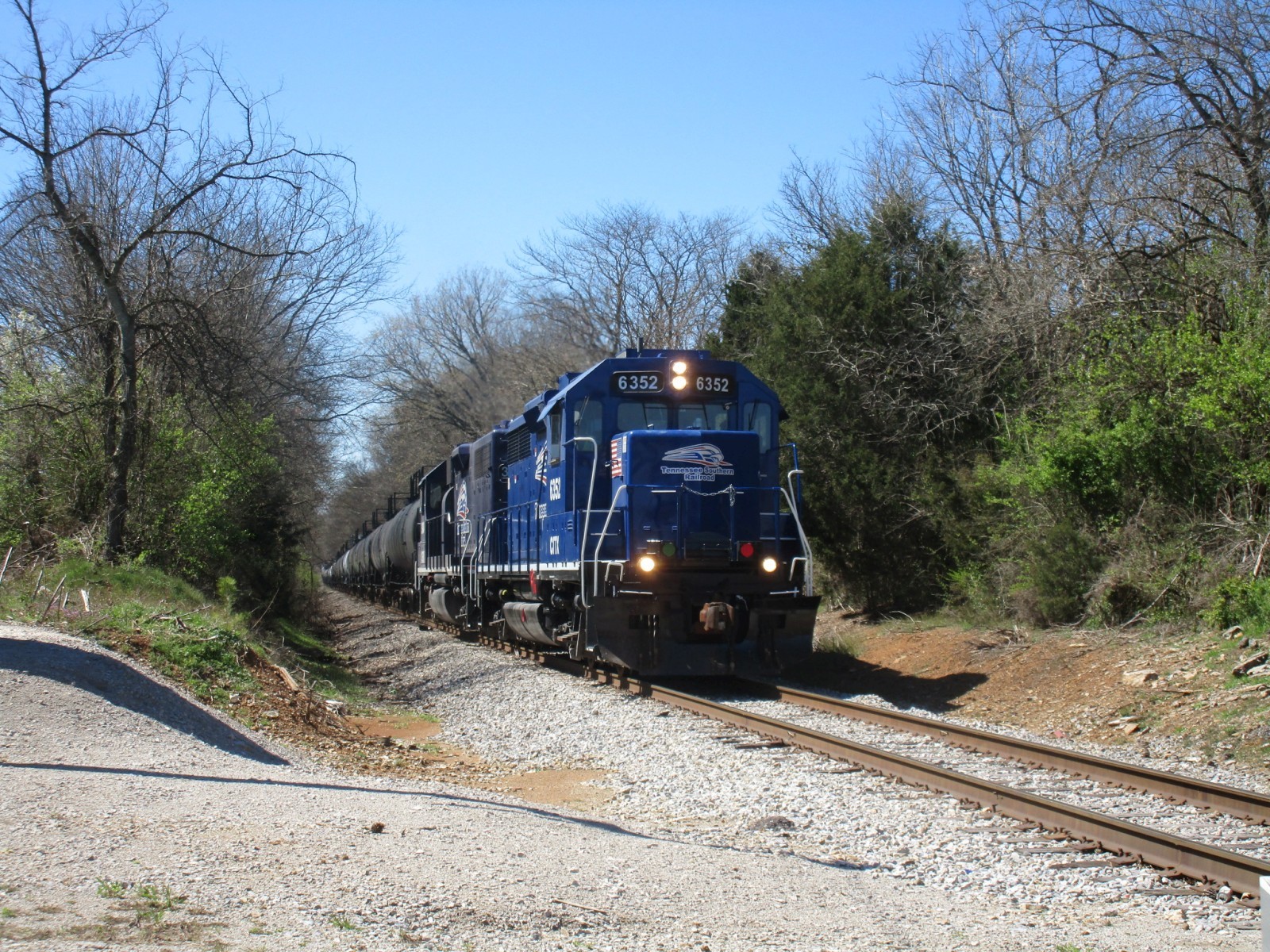

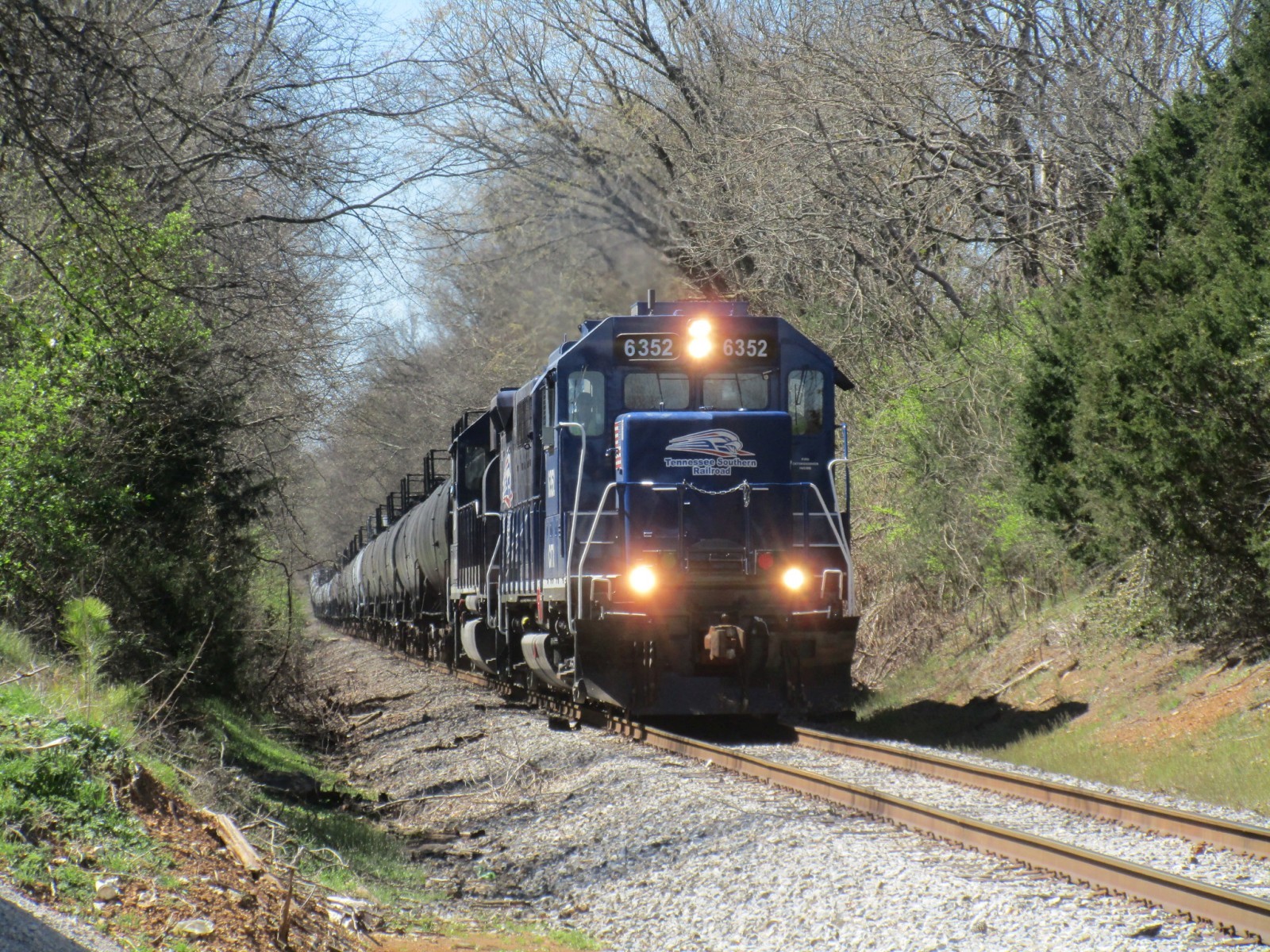

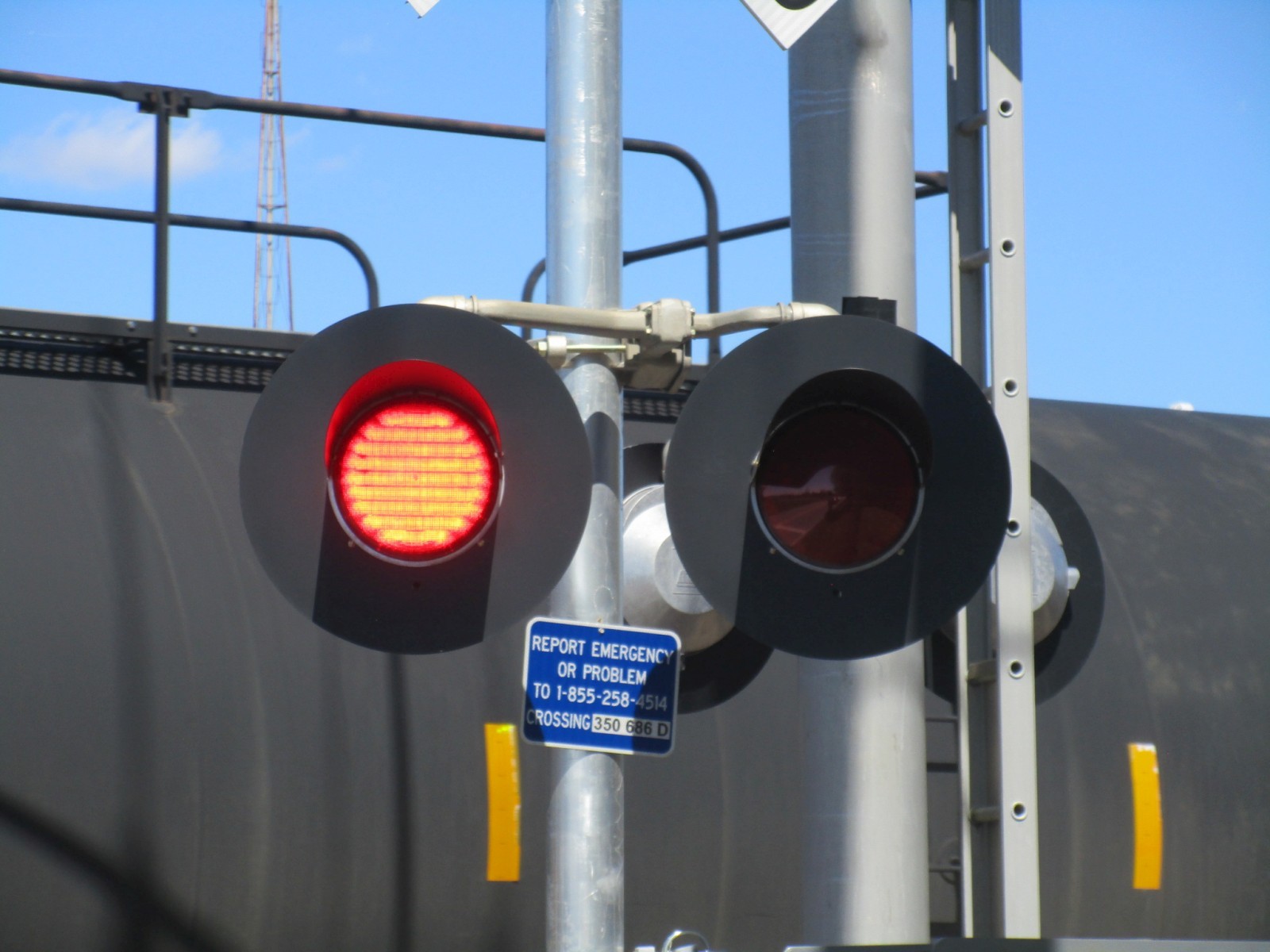

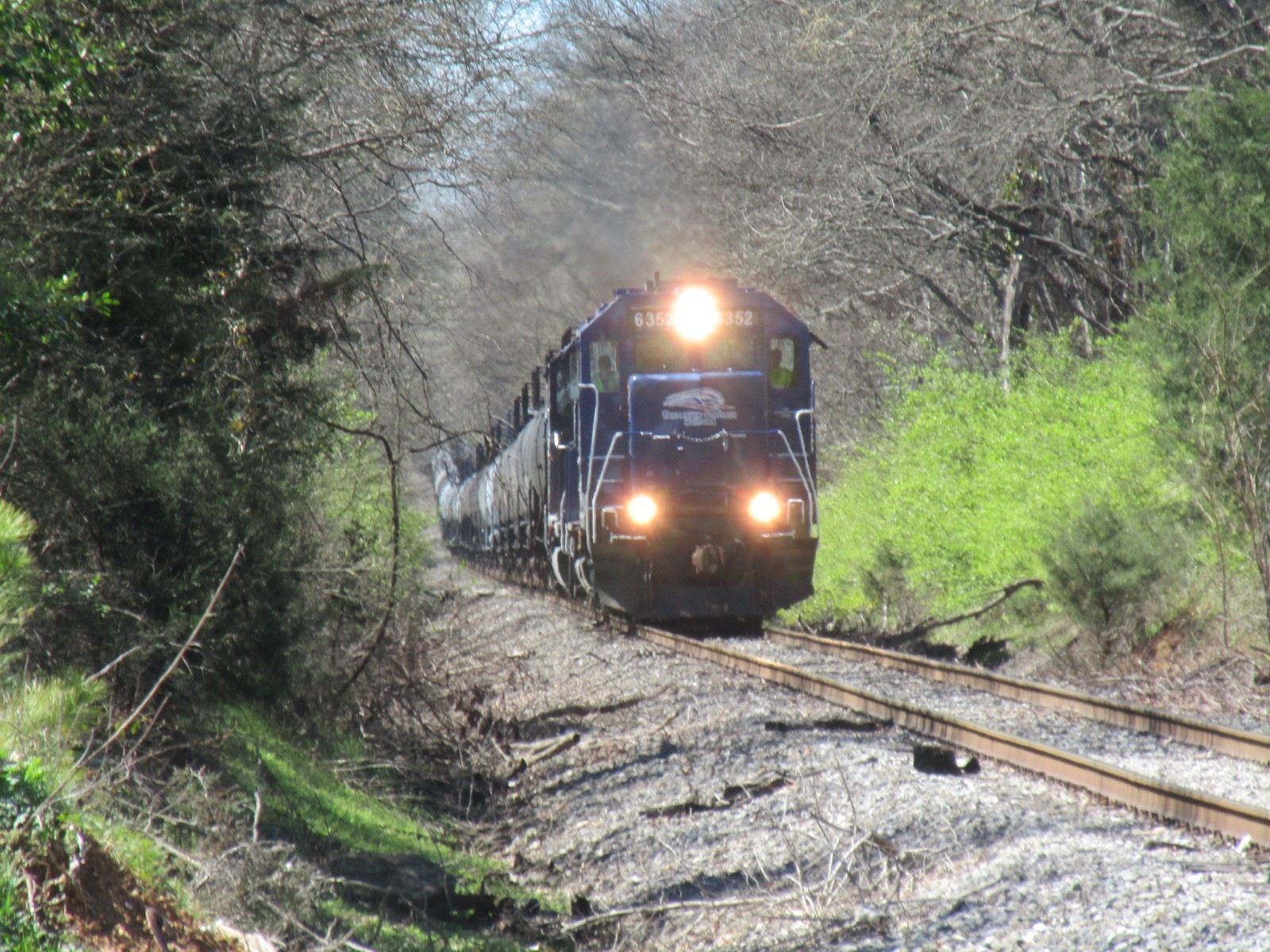

TSRR 6352 leads a local through the crossing. |
||
45 |
46 |
47 |
48 |
49 |
50 |
51 |
52 |
53 |
54 |
55 |
56 |
57 |
58 |
59 |
60 |
61 |
62 |

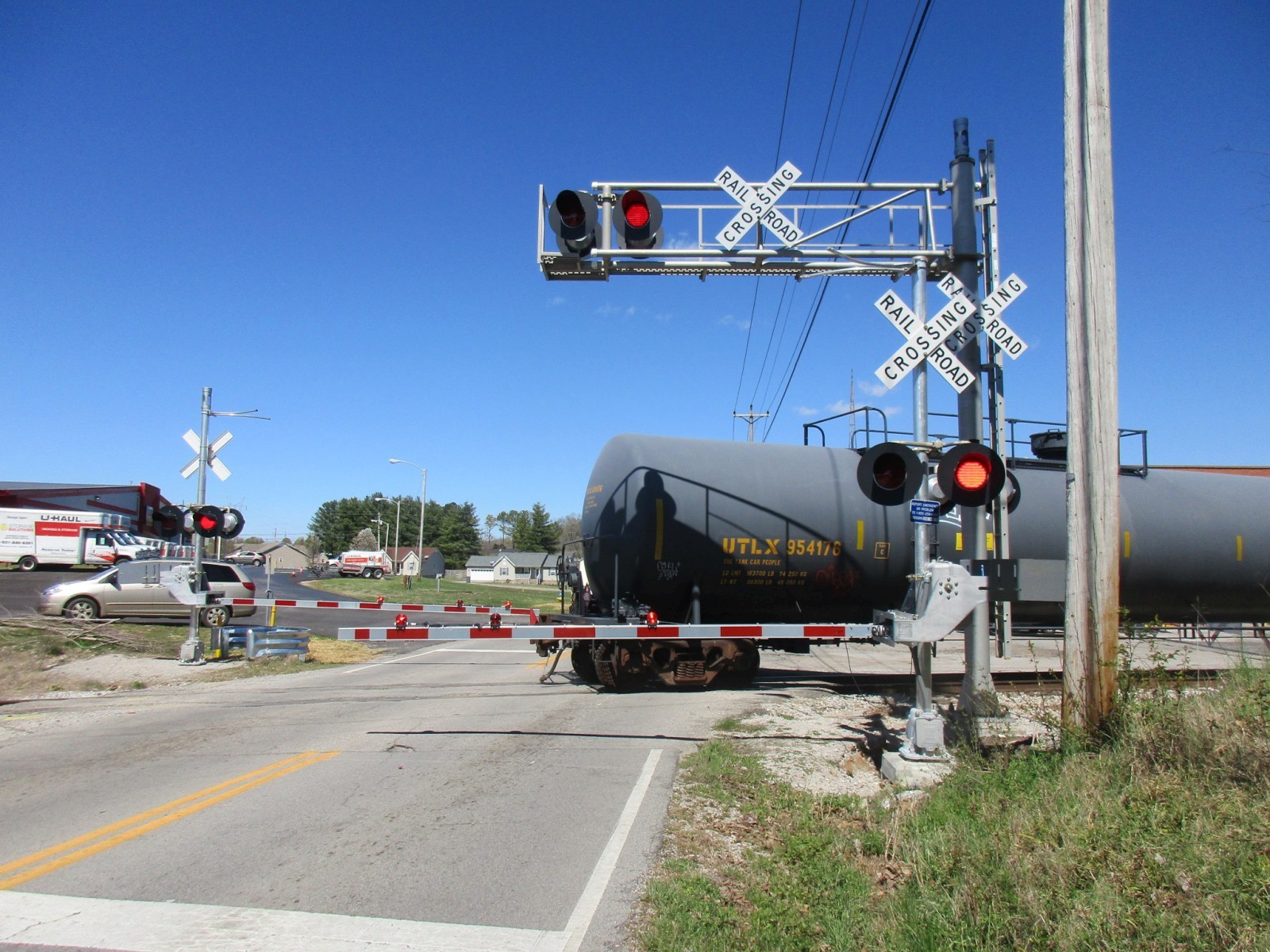

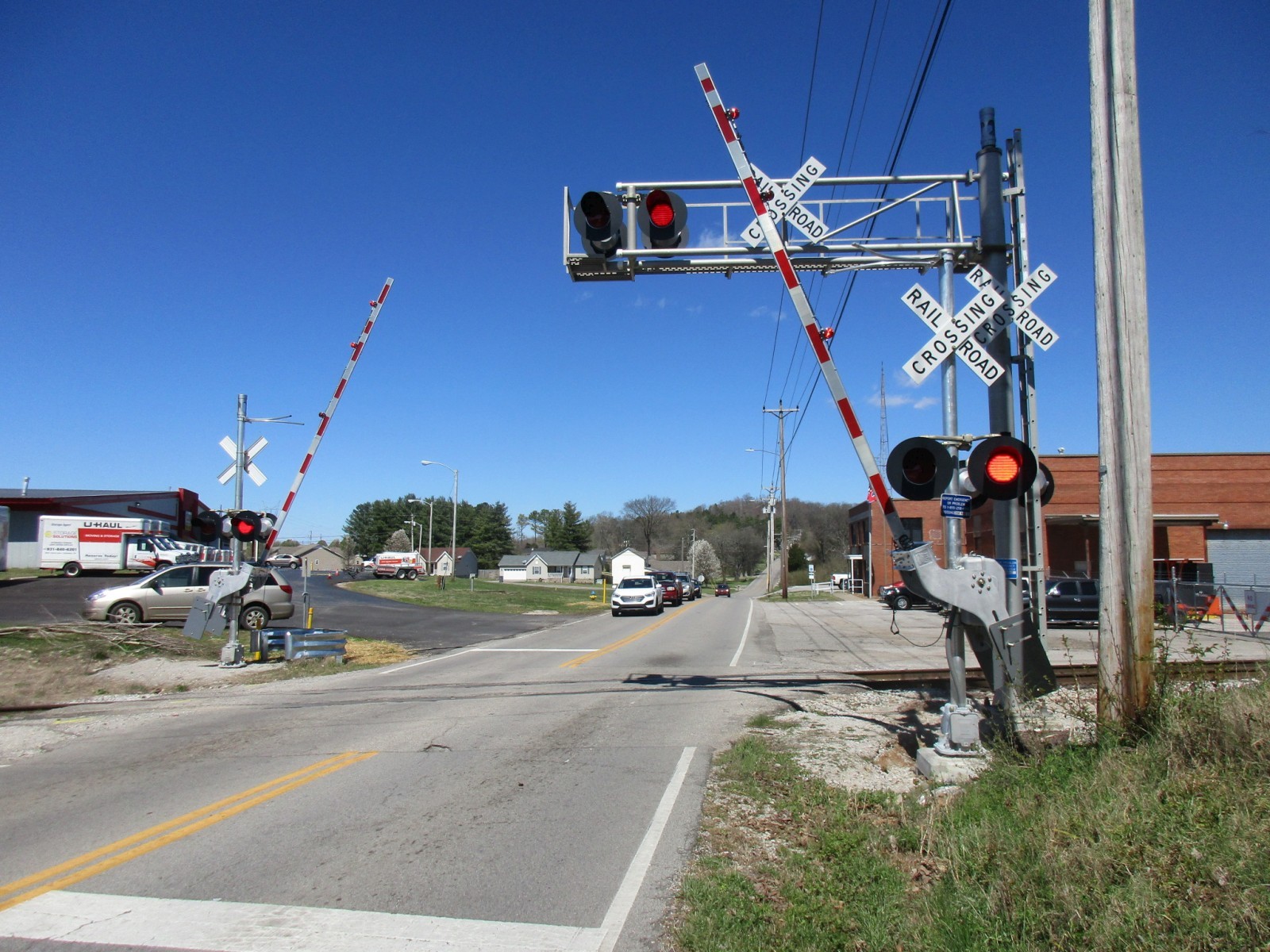

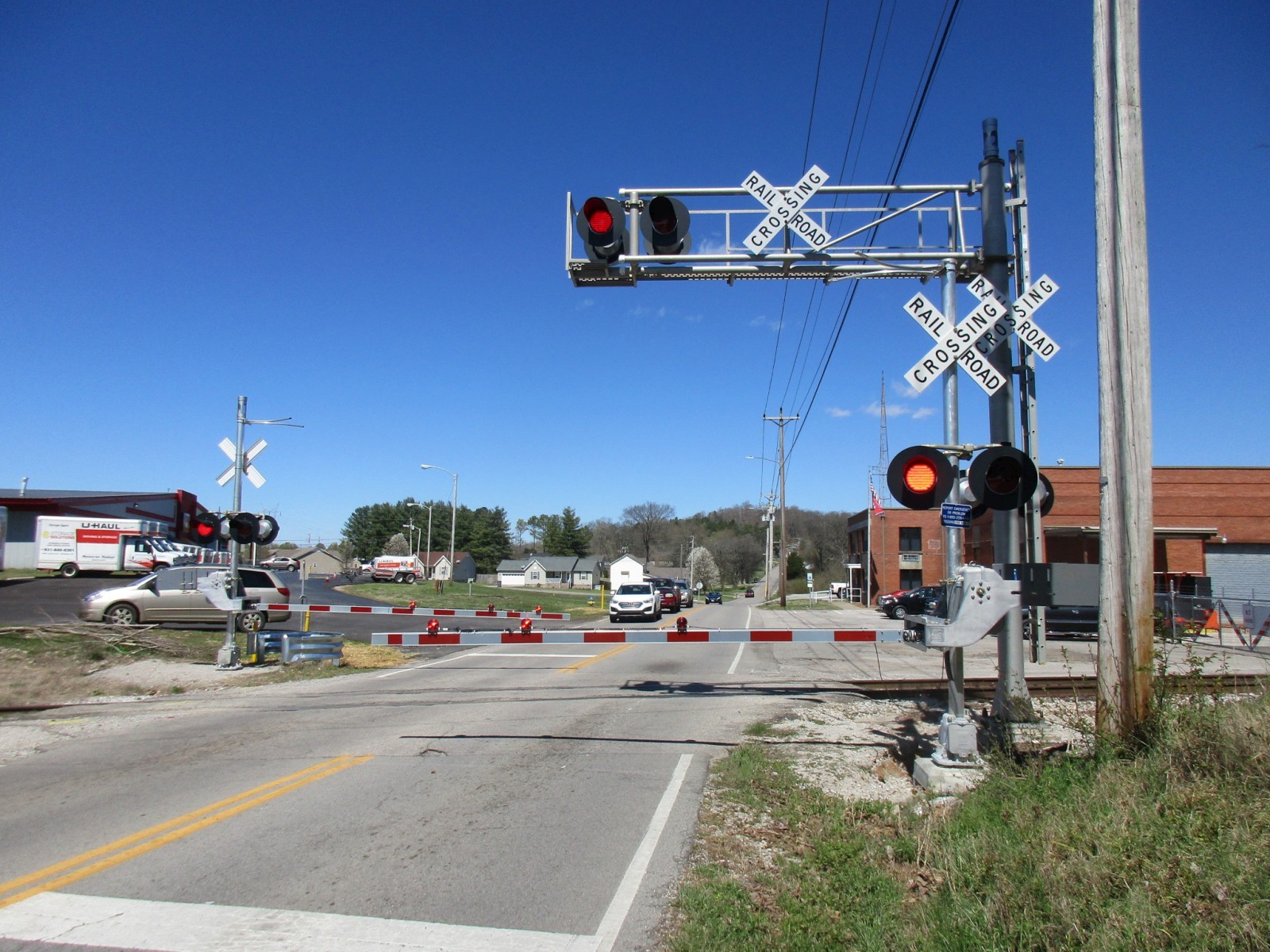

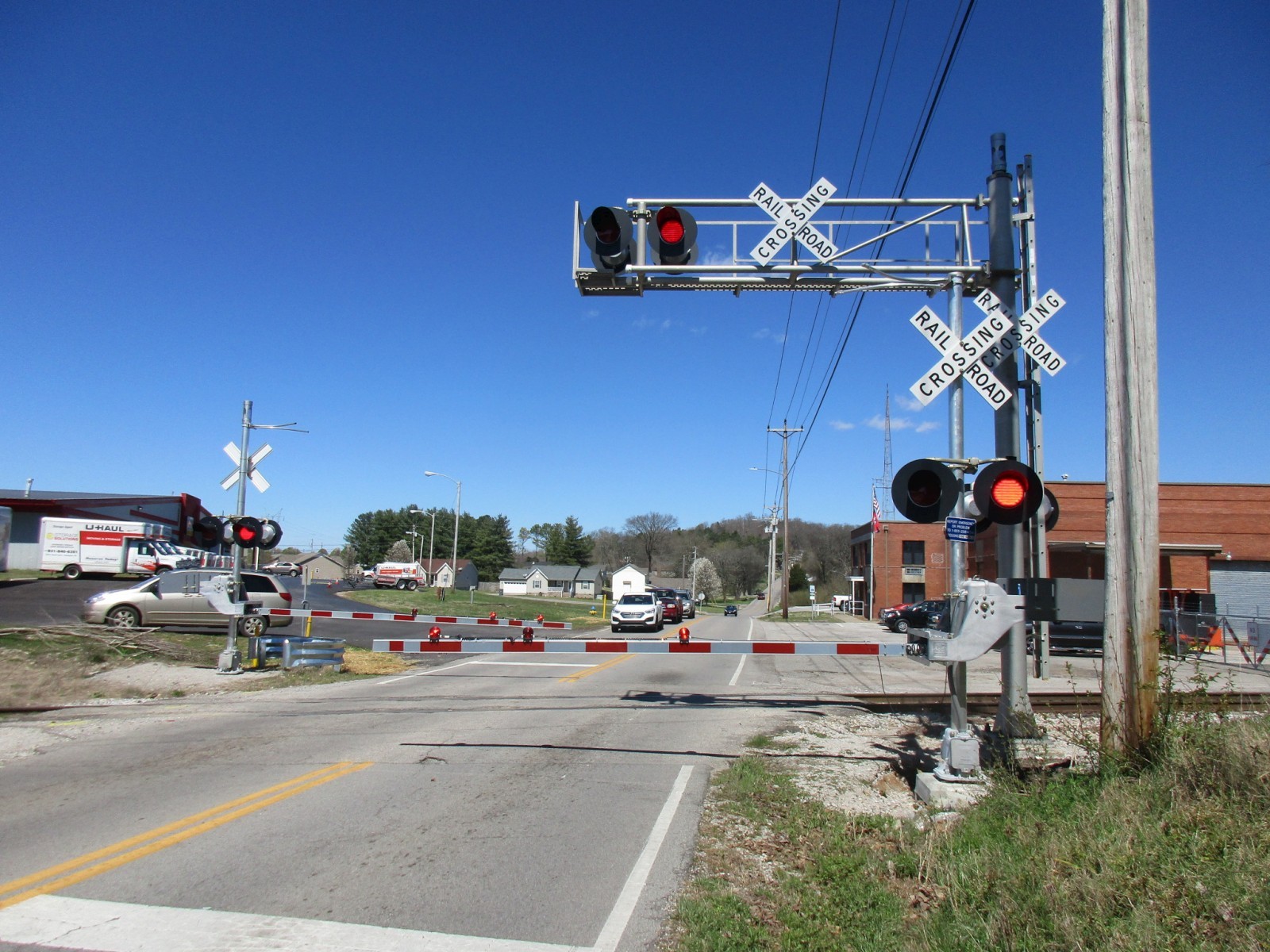

The train clears the crossing and the signals deactivate. |
||
Pictures 1-38 were taken on 8-30-18.
Picture 39-62 and the video was taken on 3-18-19.
