MP: 0030.43 |
Created January 25, 2021
Total Accidents: 0
Crossing
DOT #: 348829Y
TOTAL
DAILY TRAINS: 10 (AS OF 2019)
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | Safetran Type 2 E-Bell | Safetran Type 2 E-Bell |
| Base: | Safetran | Safetran |
| Lights: | 4 - 12"x20" Safetran w/ Dialight Ball LEDs | 4 - 12"x20" Safetran w/ Dialight Ball LEDs |
| Gate Lights: | 4" NEG LEDs, 7" NEG LED | 4" NEG LEDs |
| Gate Mechanism: | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
Page created by: Ethan the Railfanner
This crossing is located on the Nashville and Eastern Railroad, with the Music City Star and Tennessee Central Railway Museum having trackage rights over it.
1 |
2 |
3 |
4 |

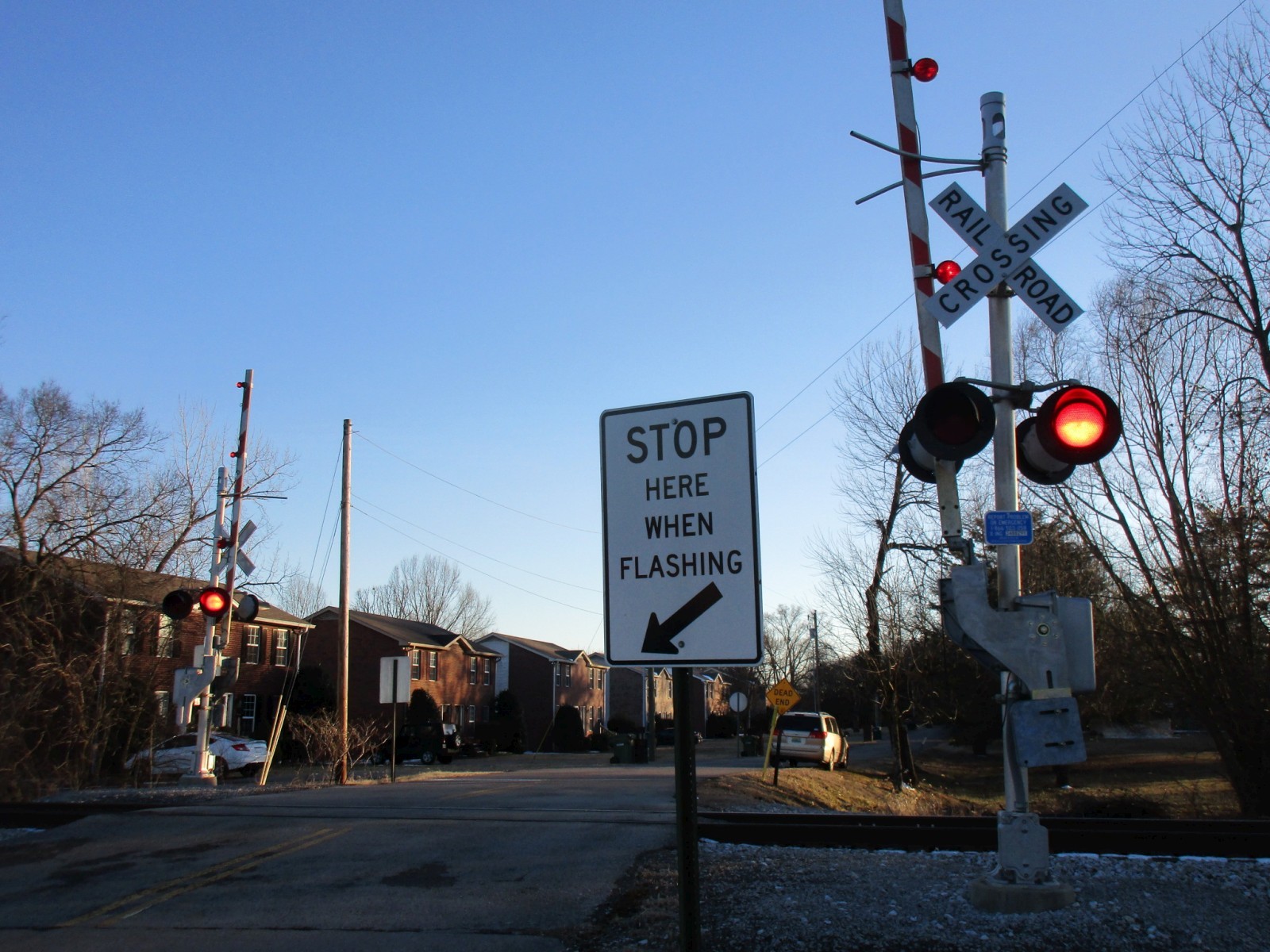

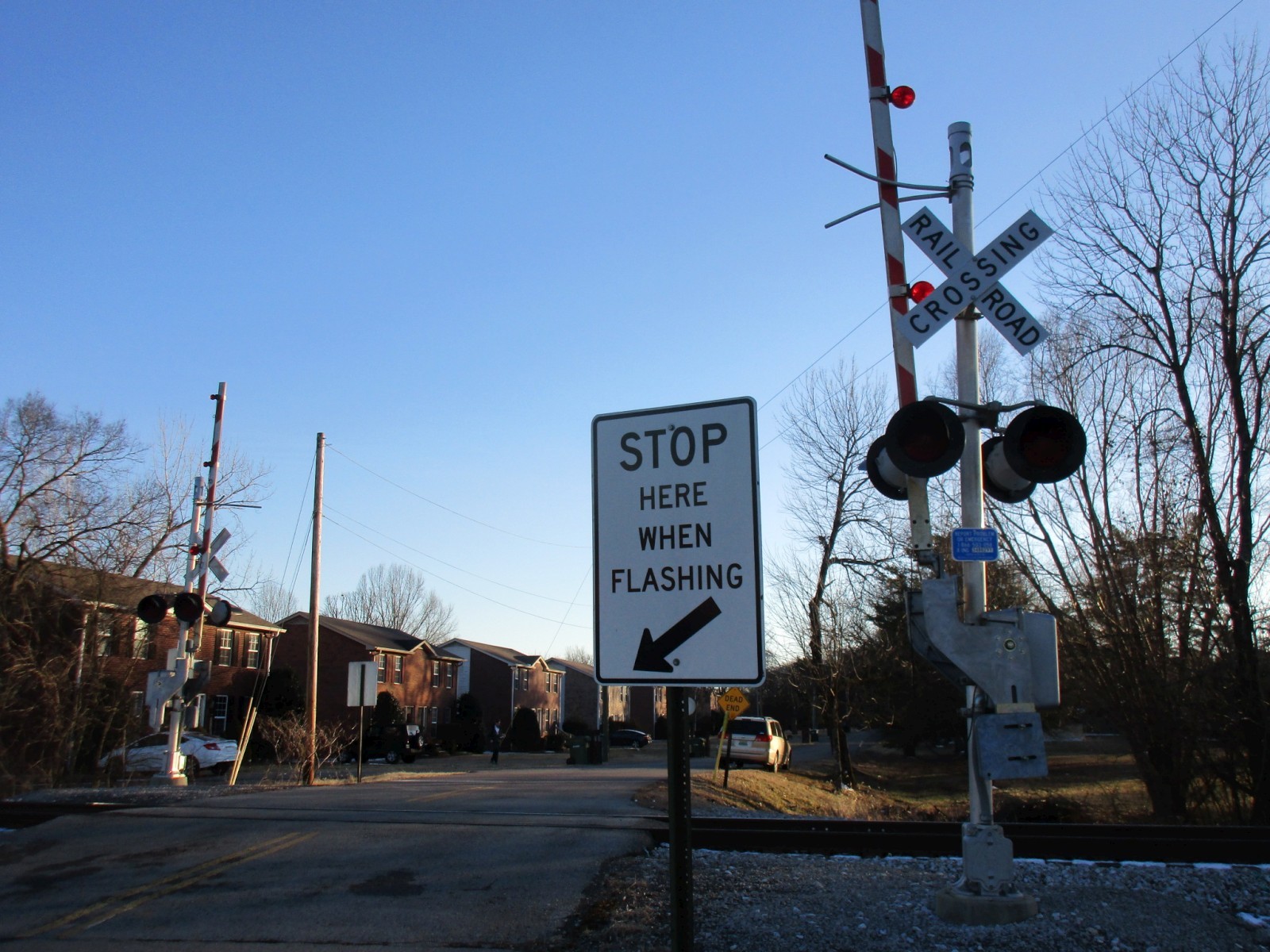

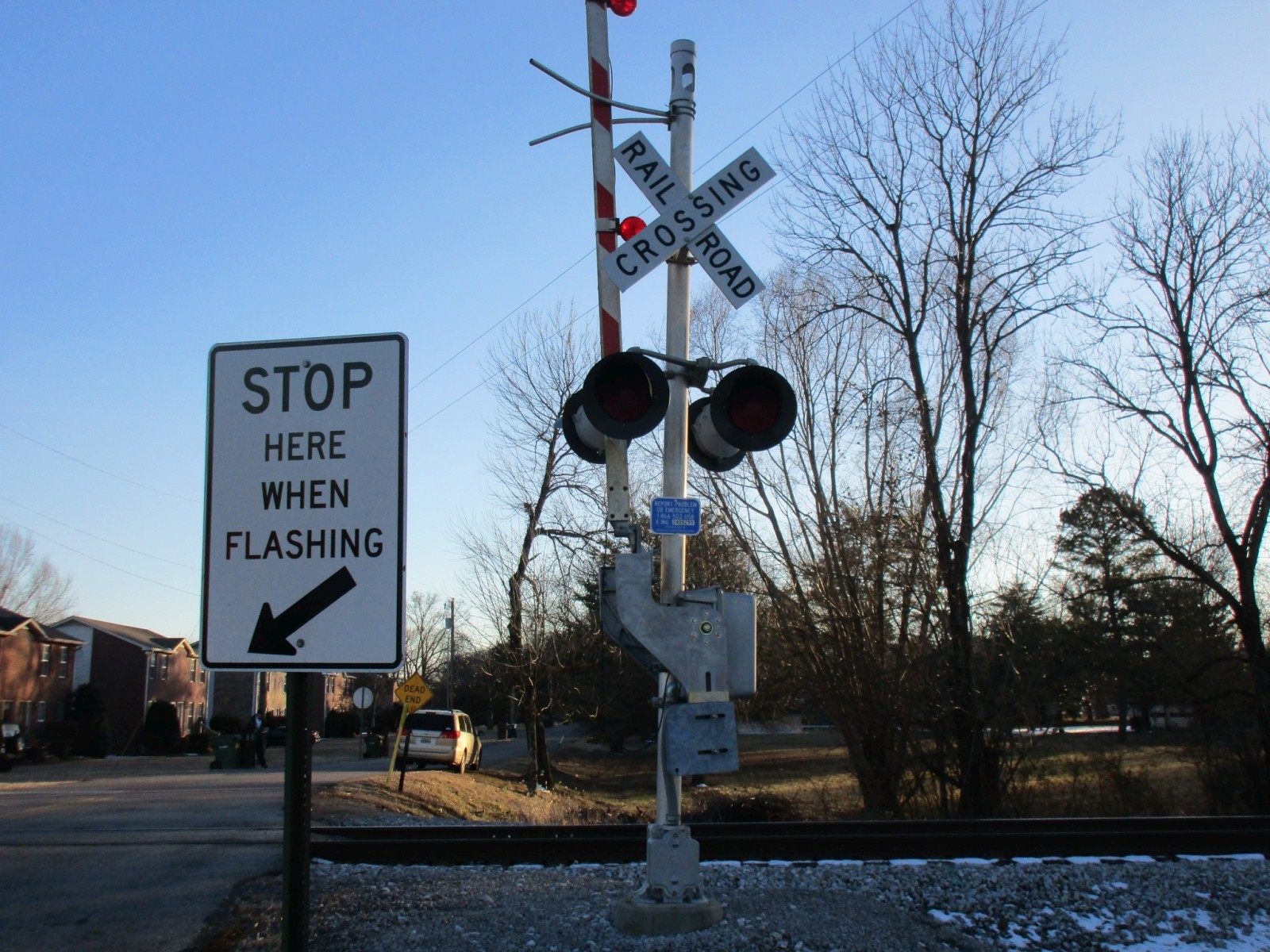

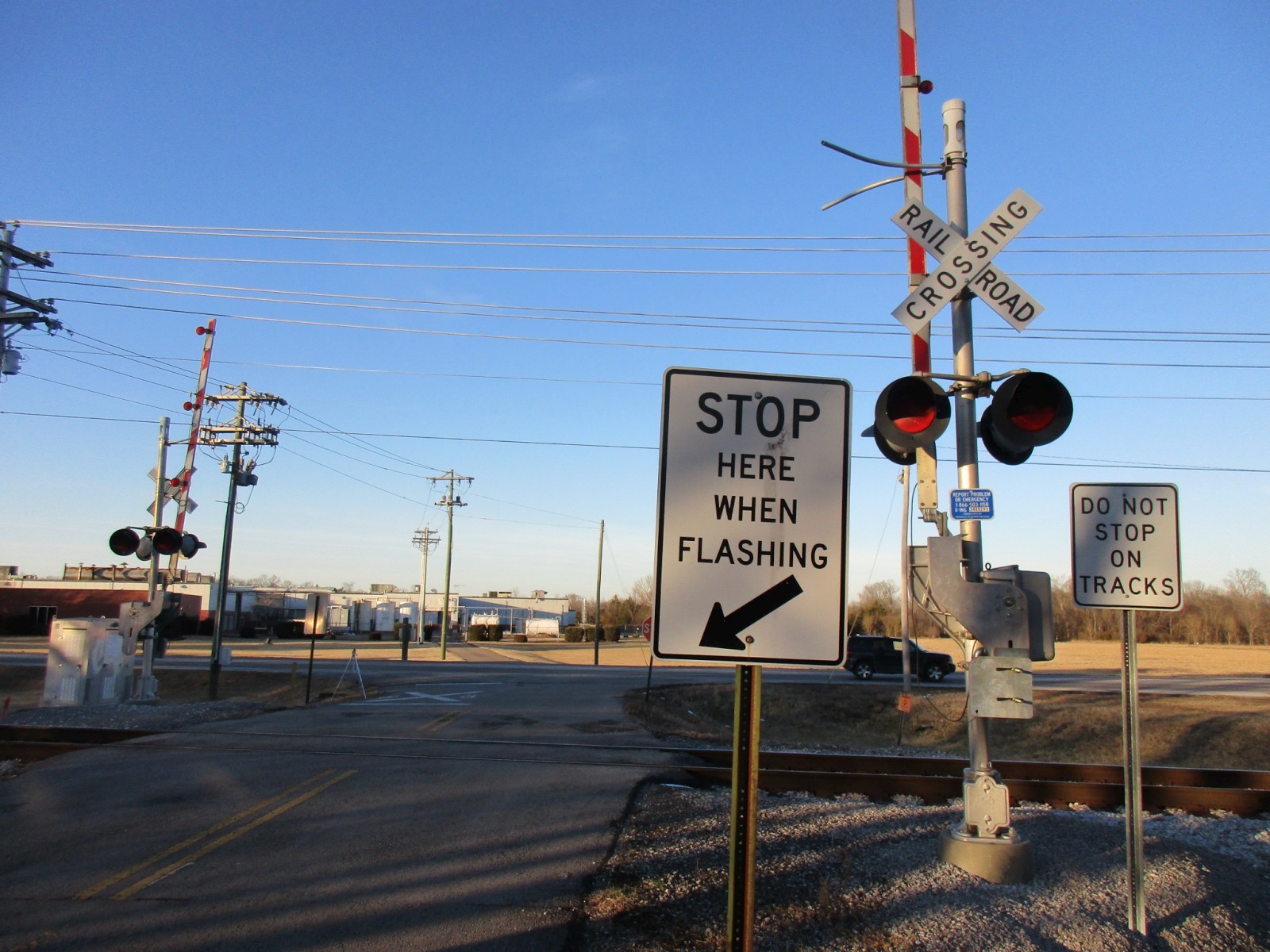

Overviews of this crossing. |

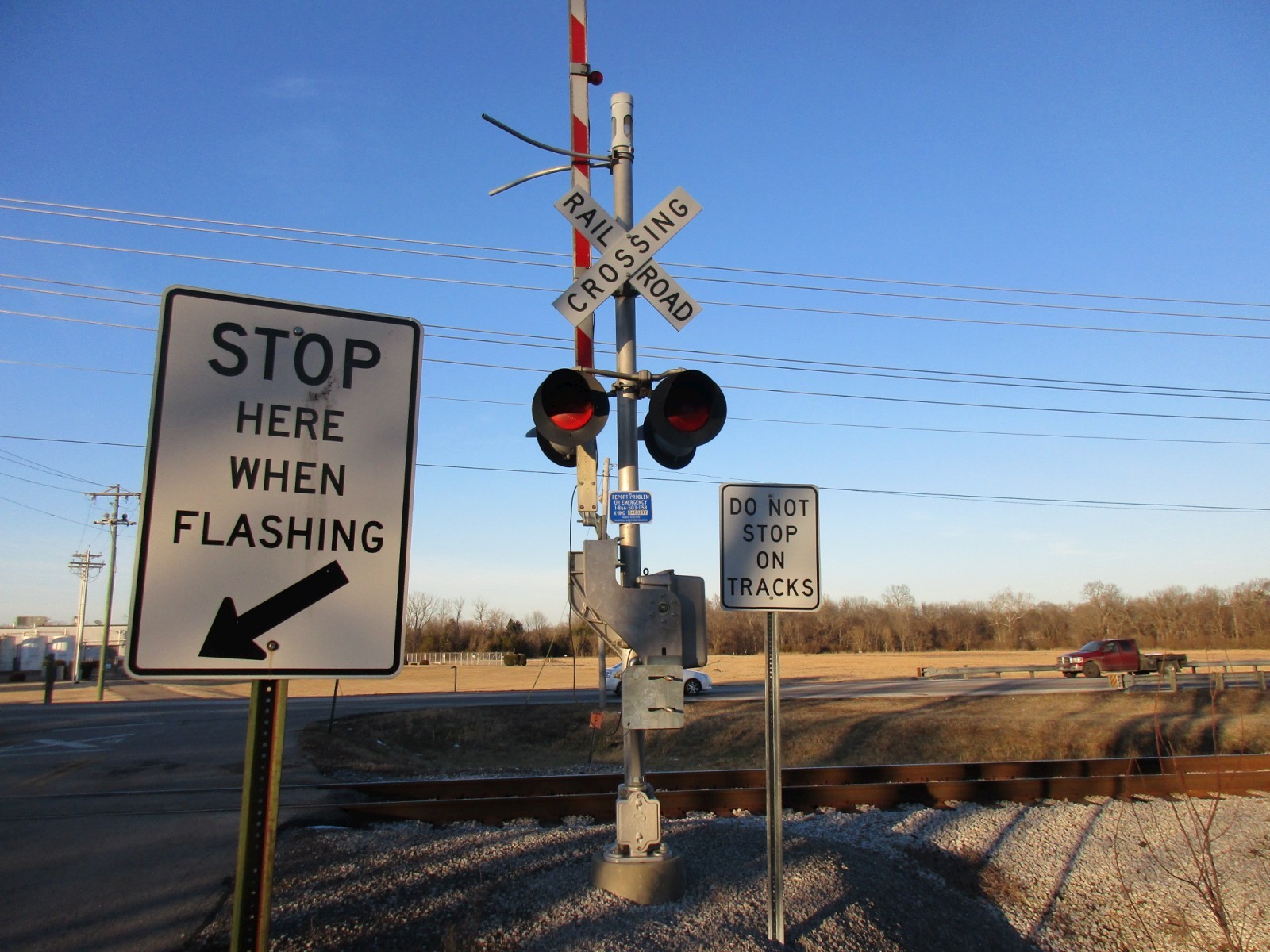

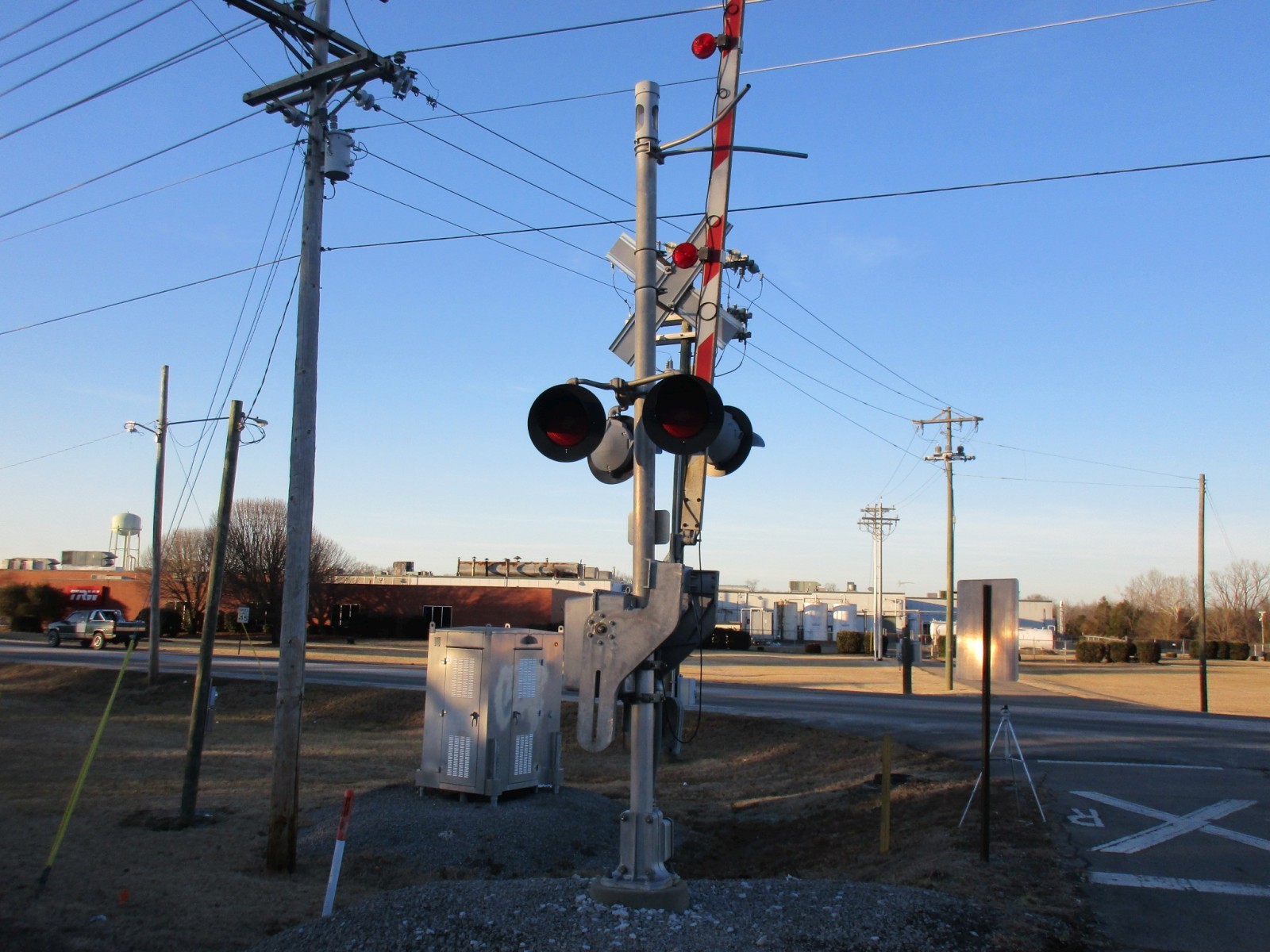

The northern signal. |
||
5 |
6 |
7 |
8 |

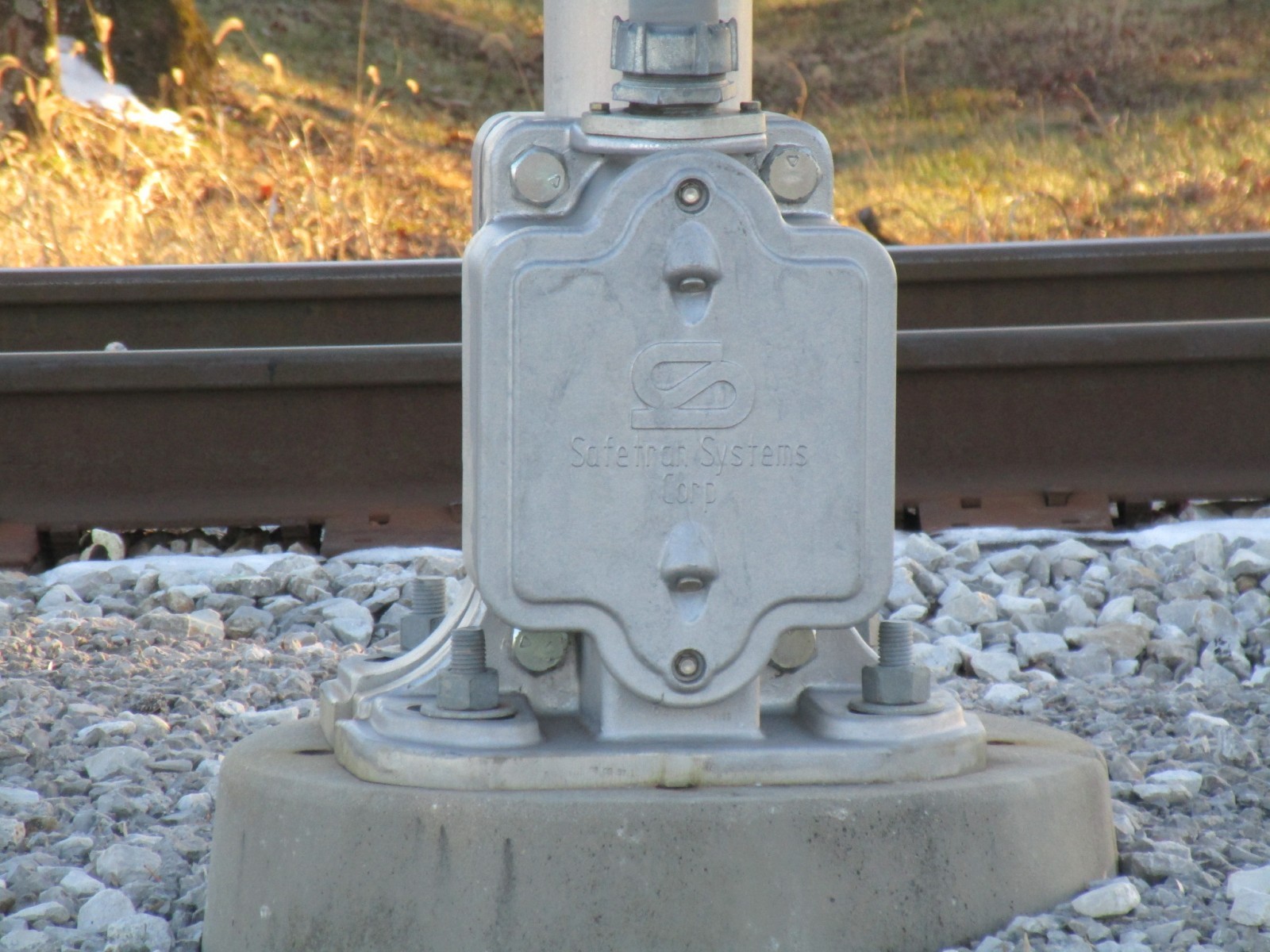

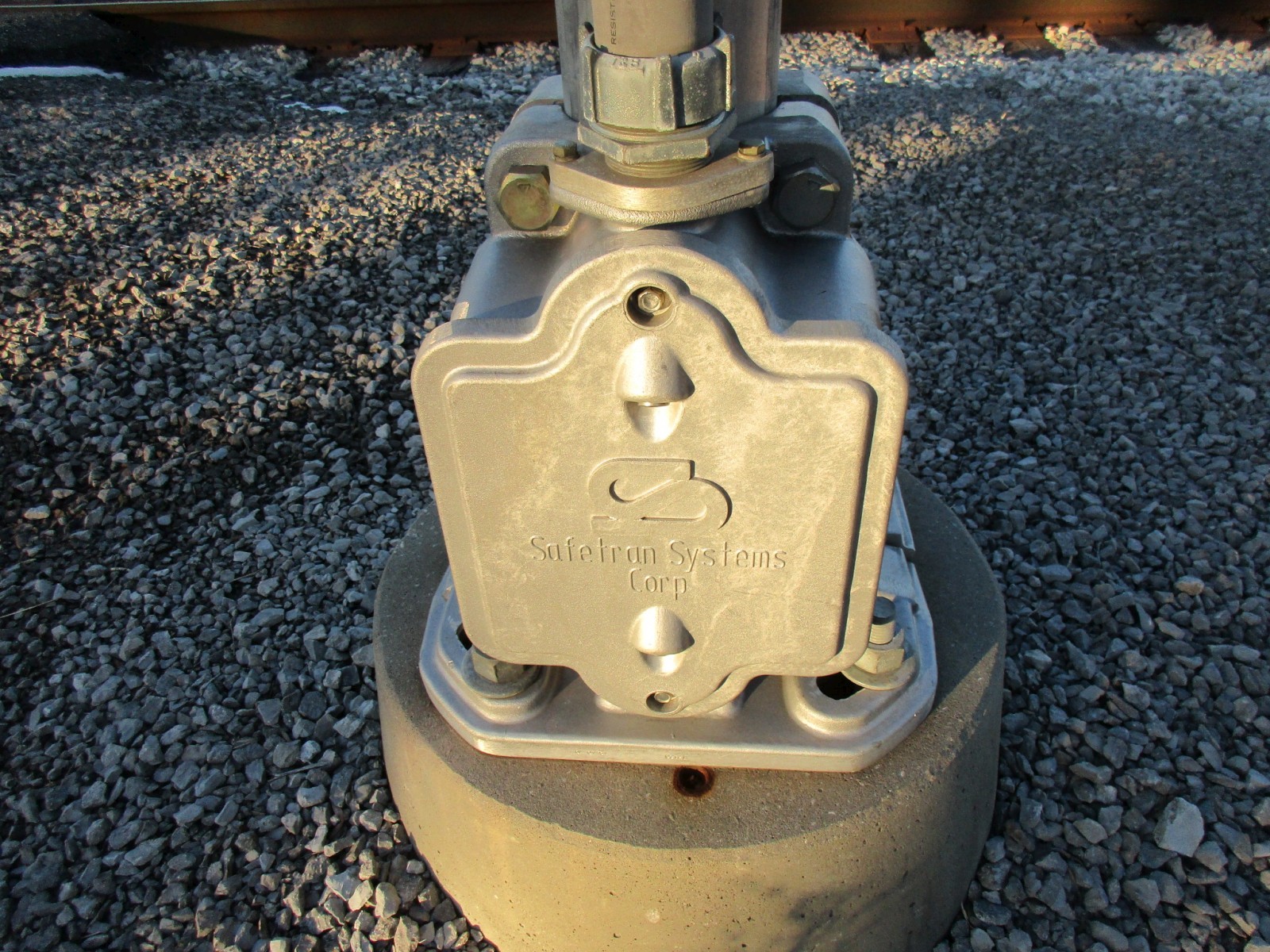

It has a Safetran base. |

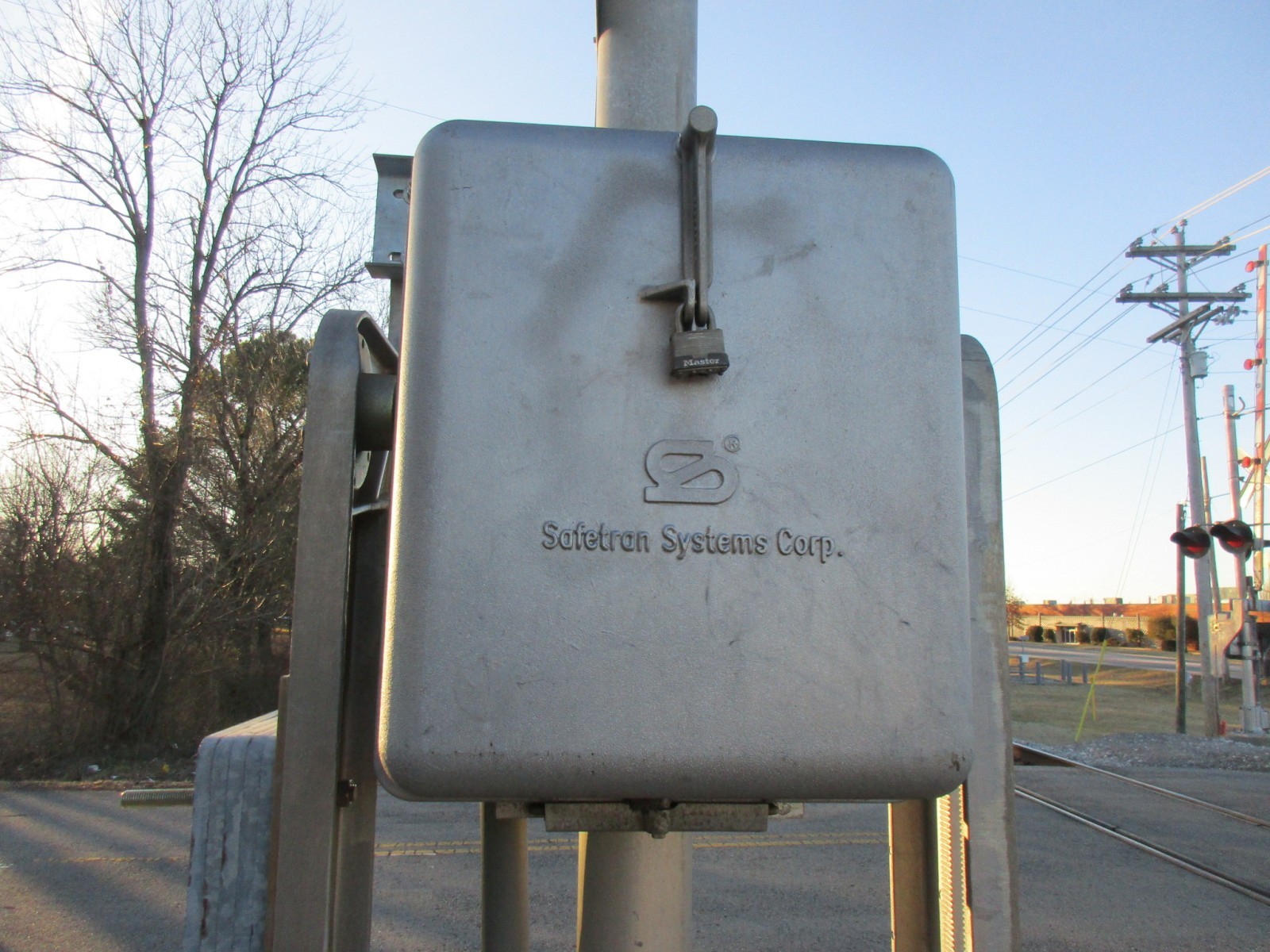

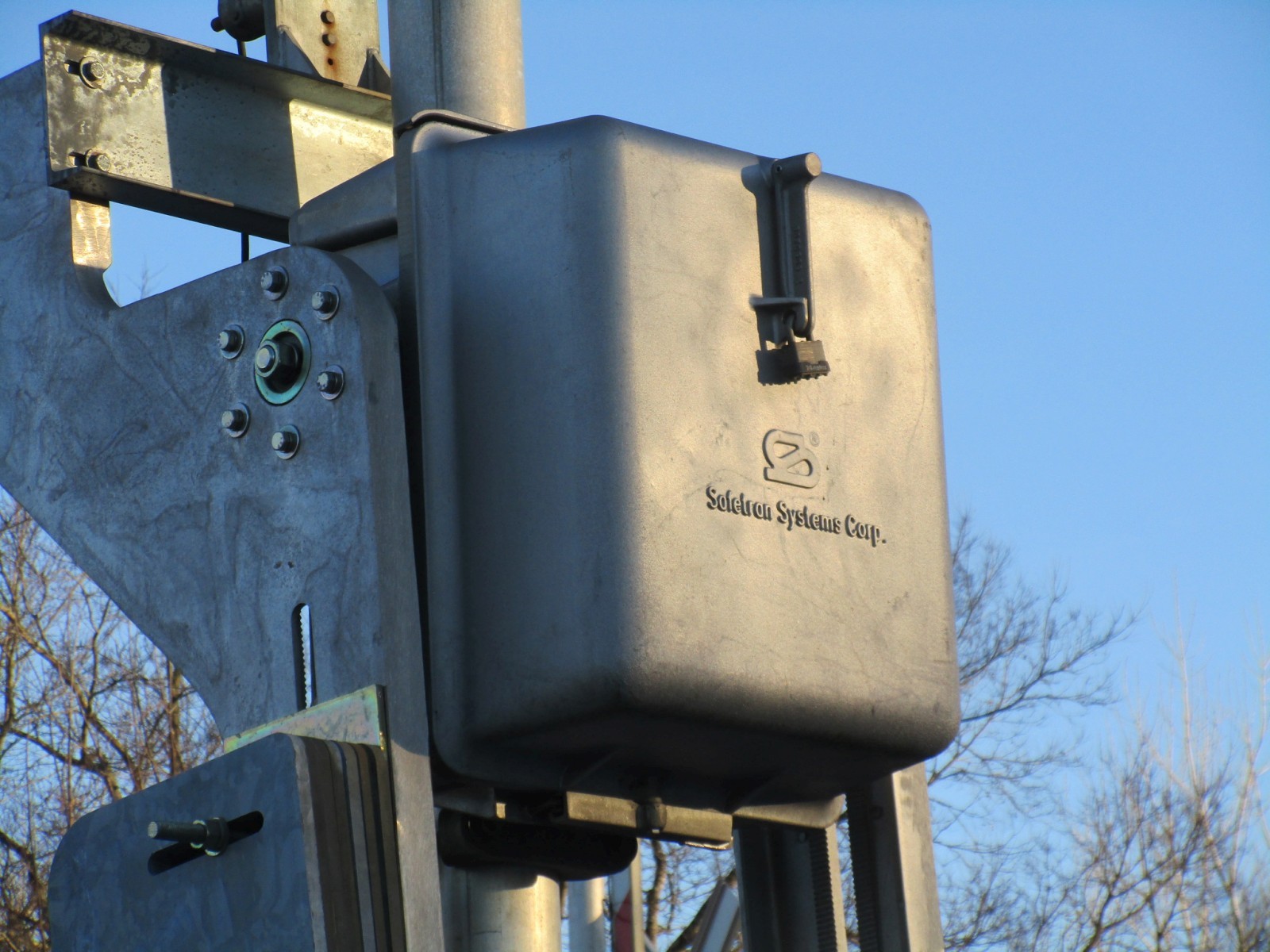

A Safetran gate mechanism. |

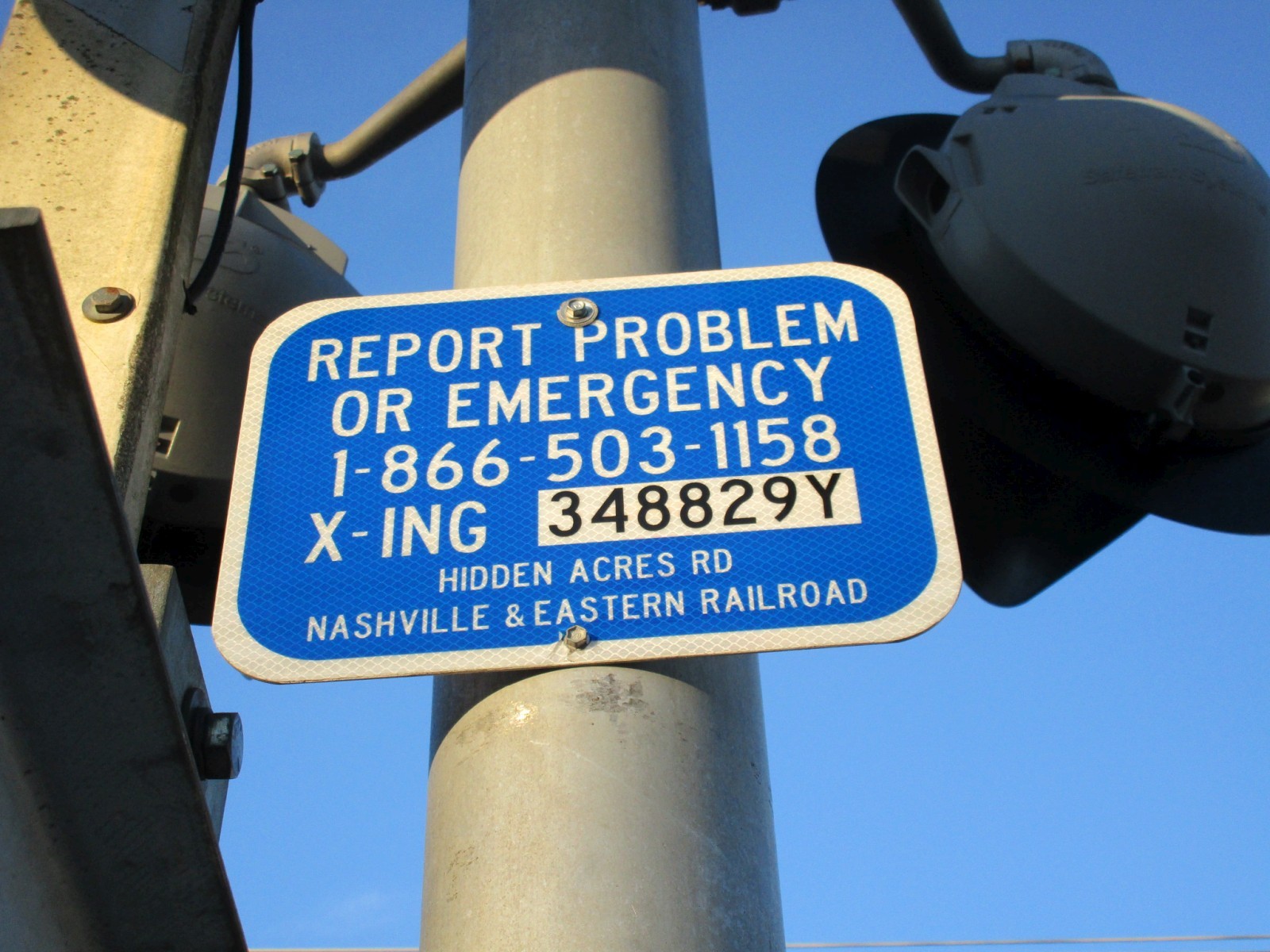

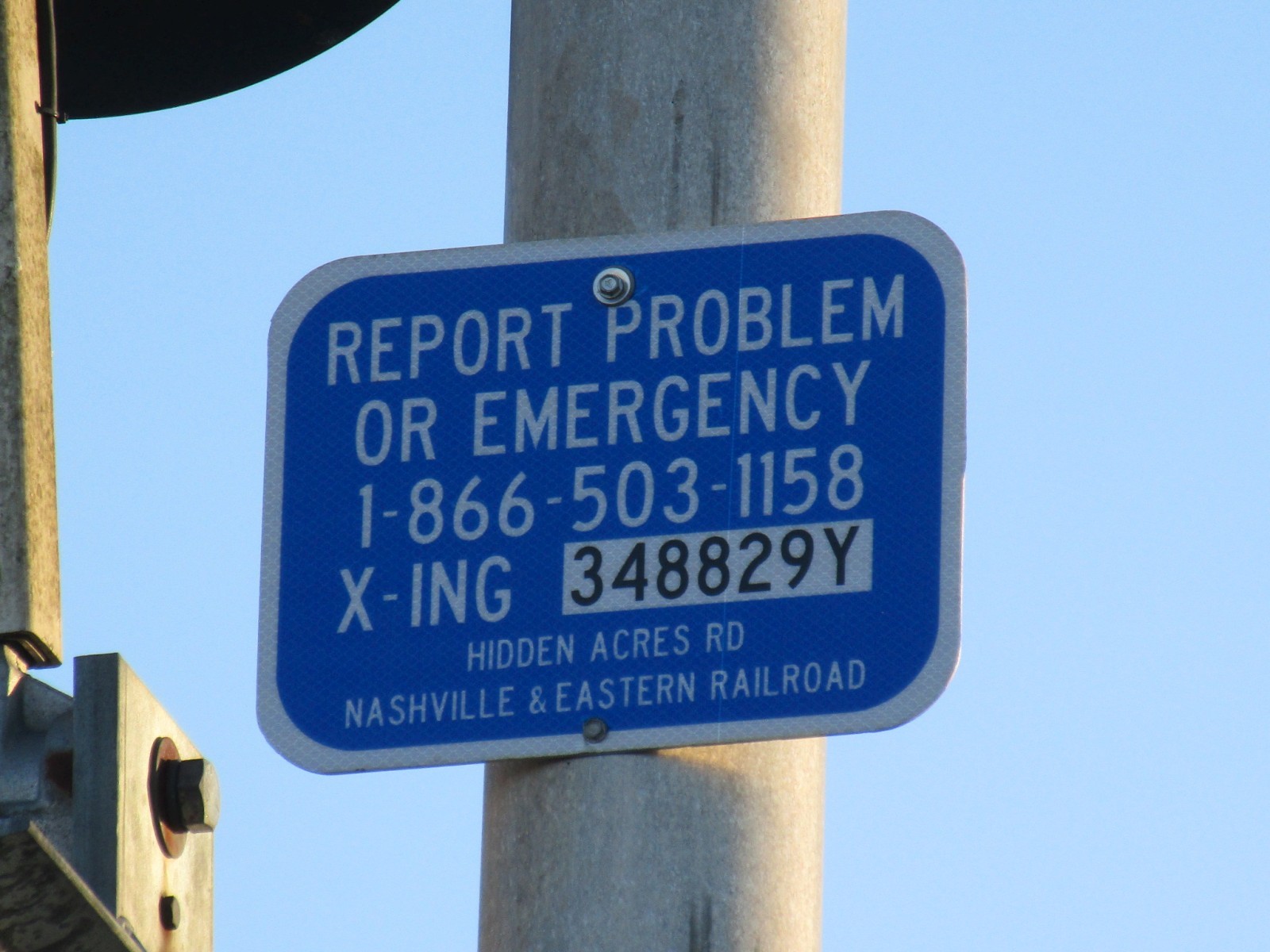

The emergency information. |

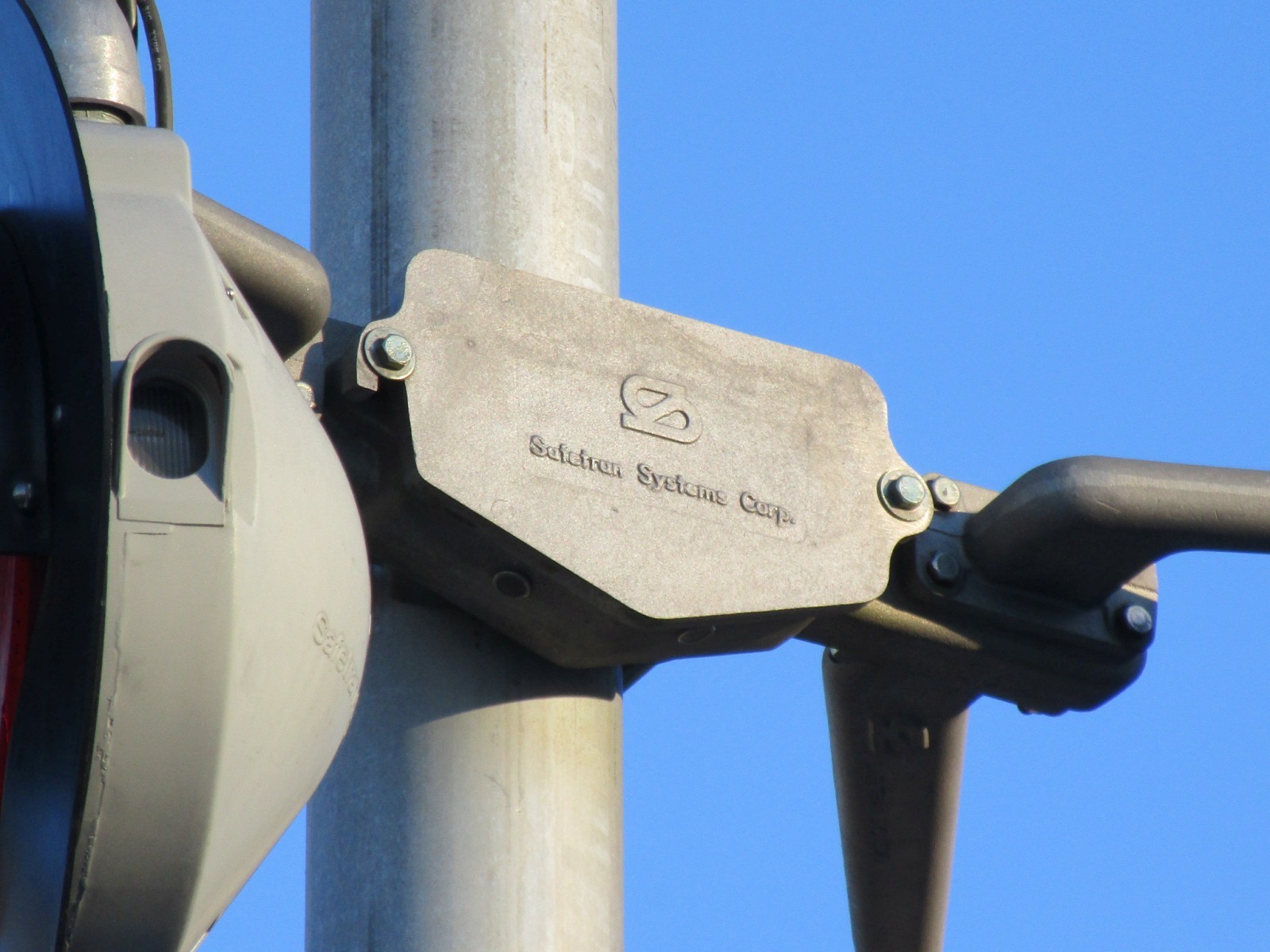

A Safetran junction box. |
9 |
10 |
11 |
12 |

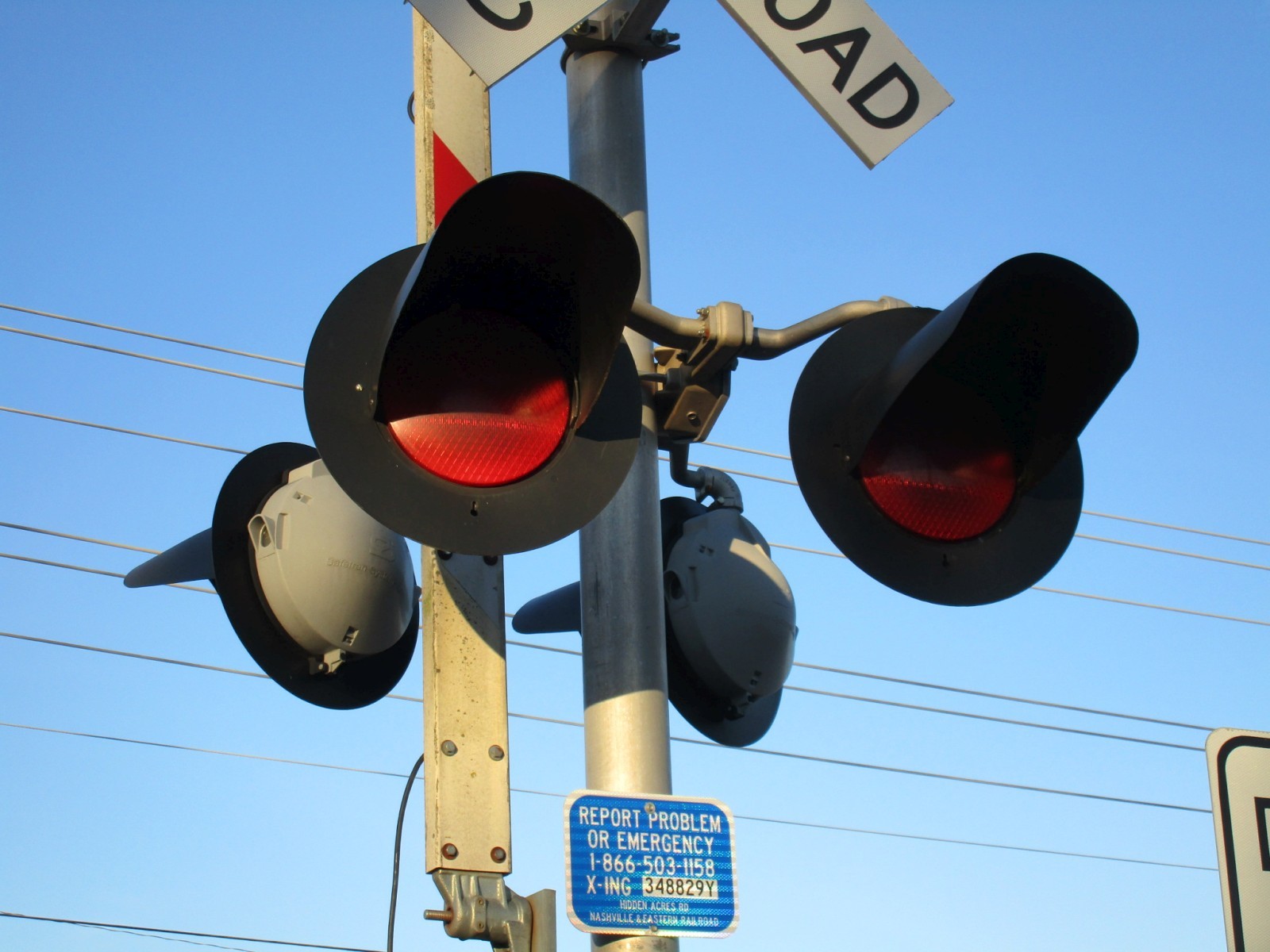

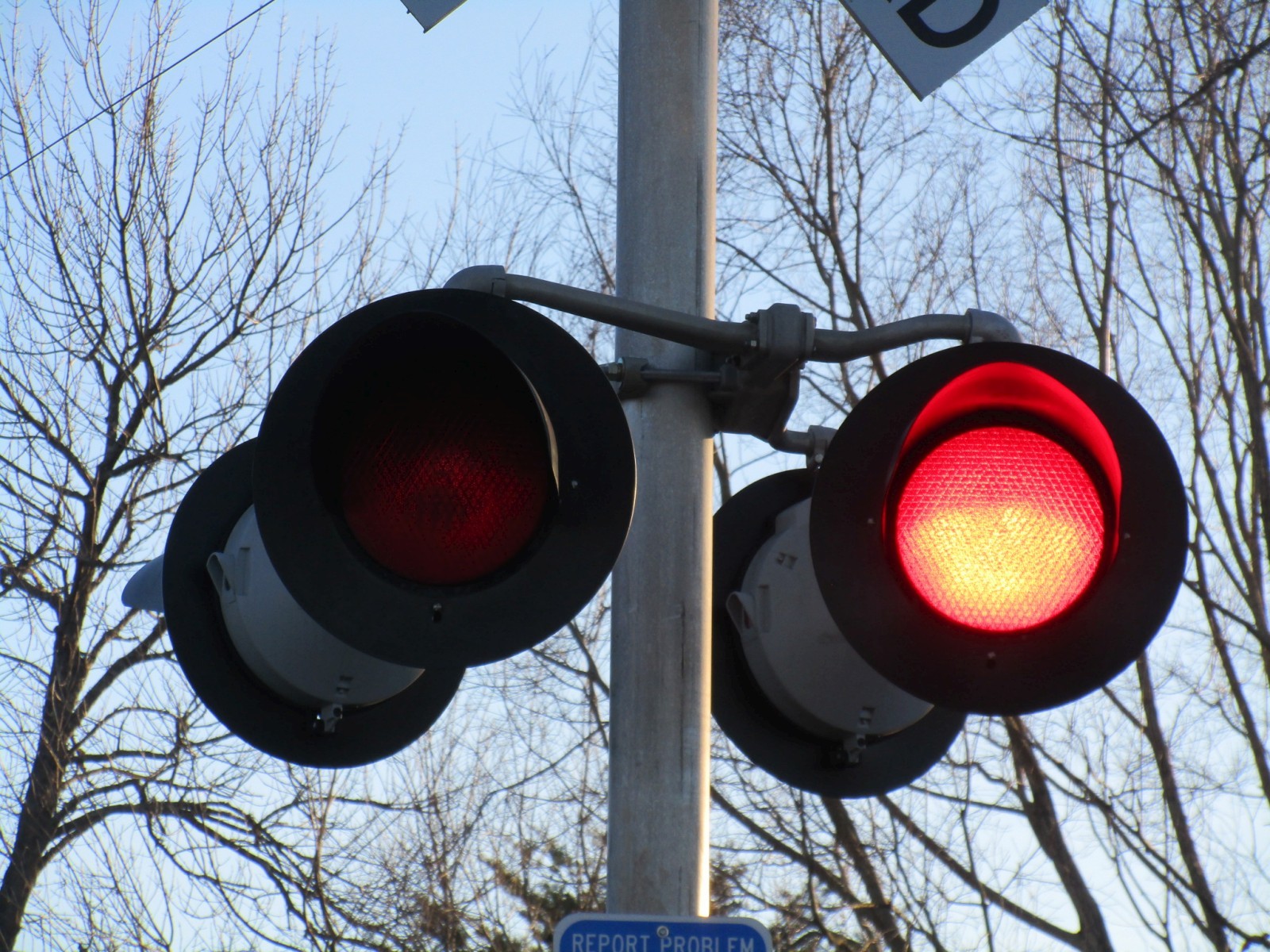

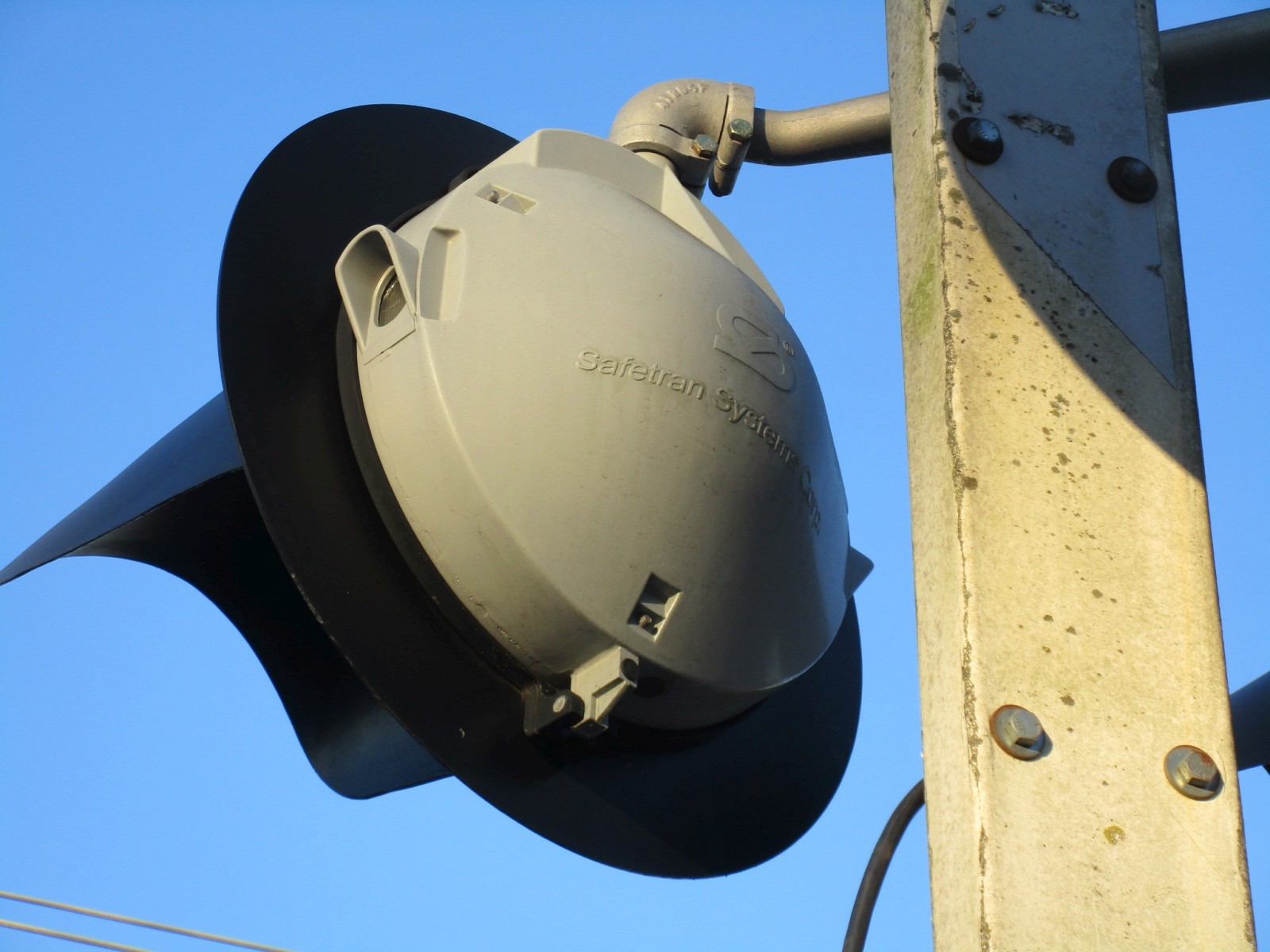

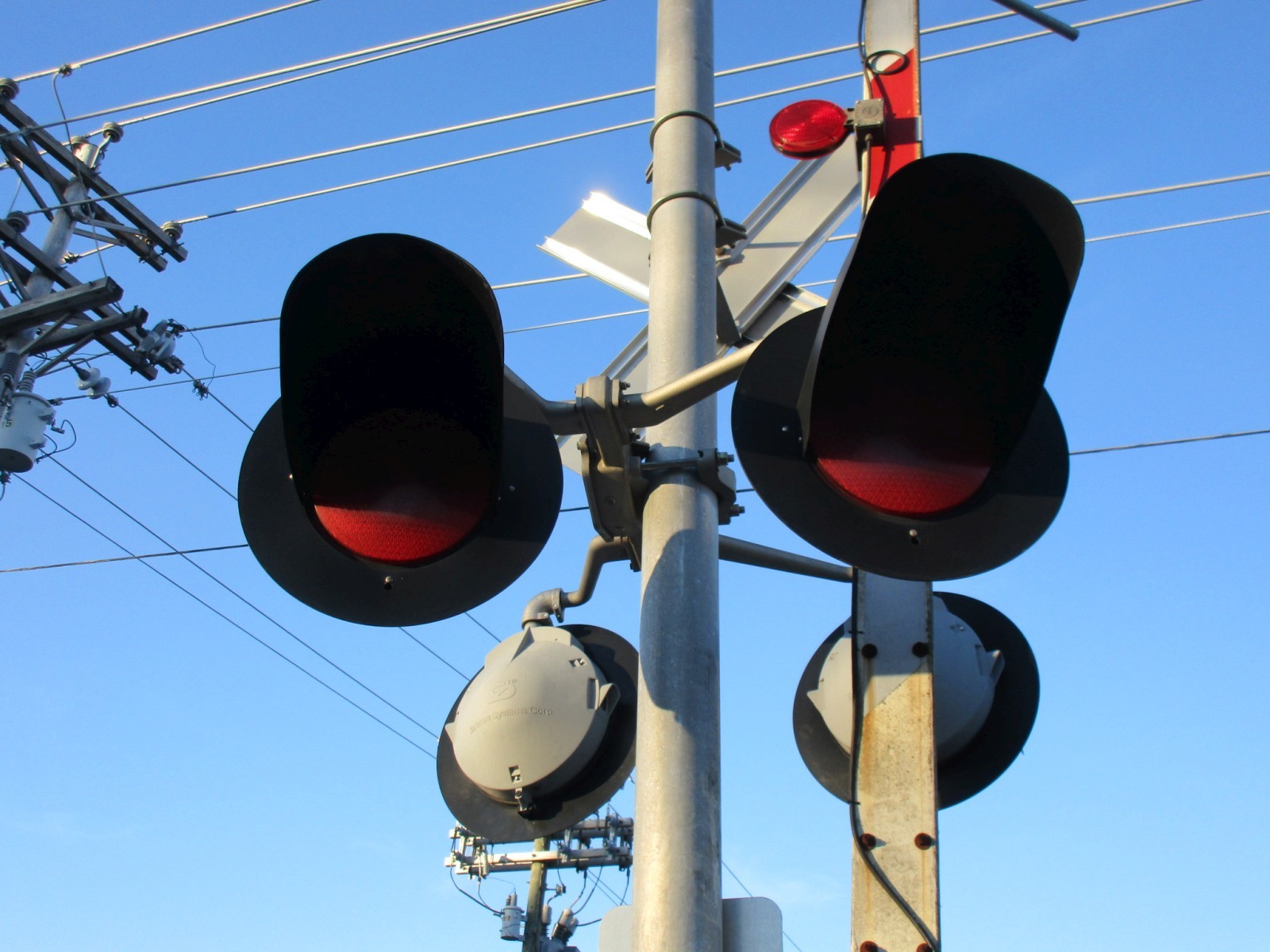

The lights on this signal are Safetran 12x20s with Dialight Ball LEDs. |

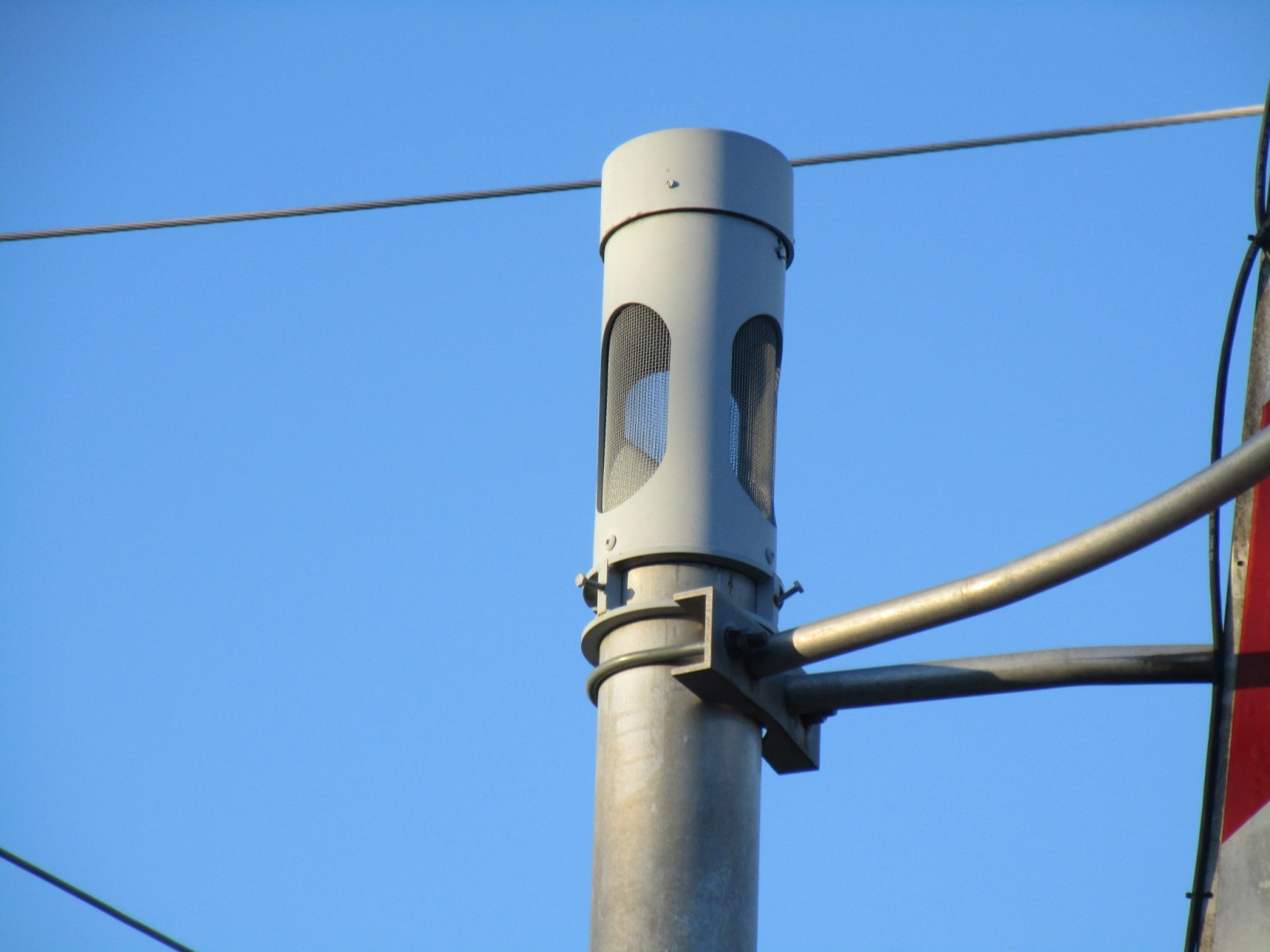

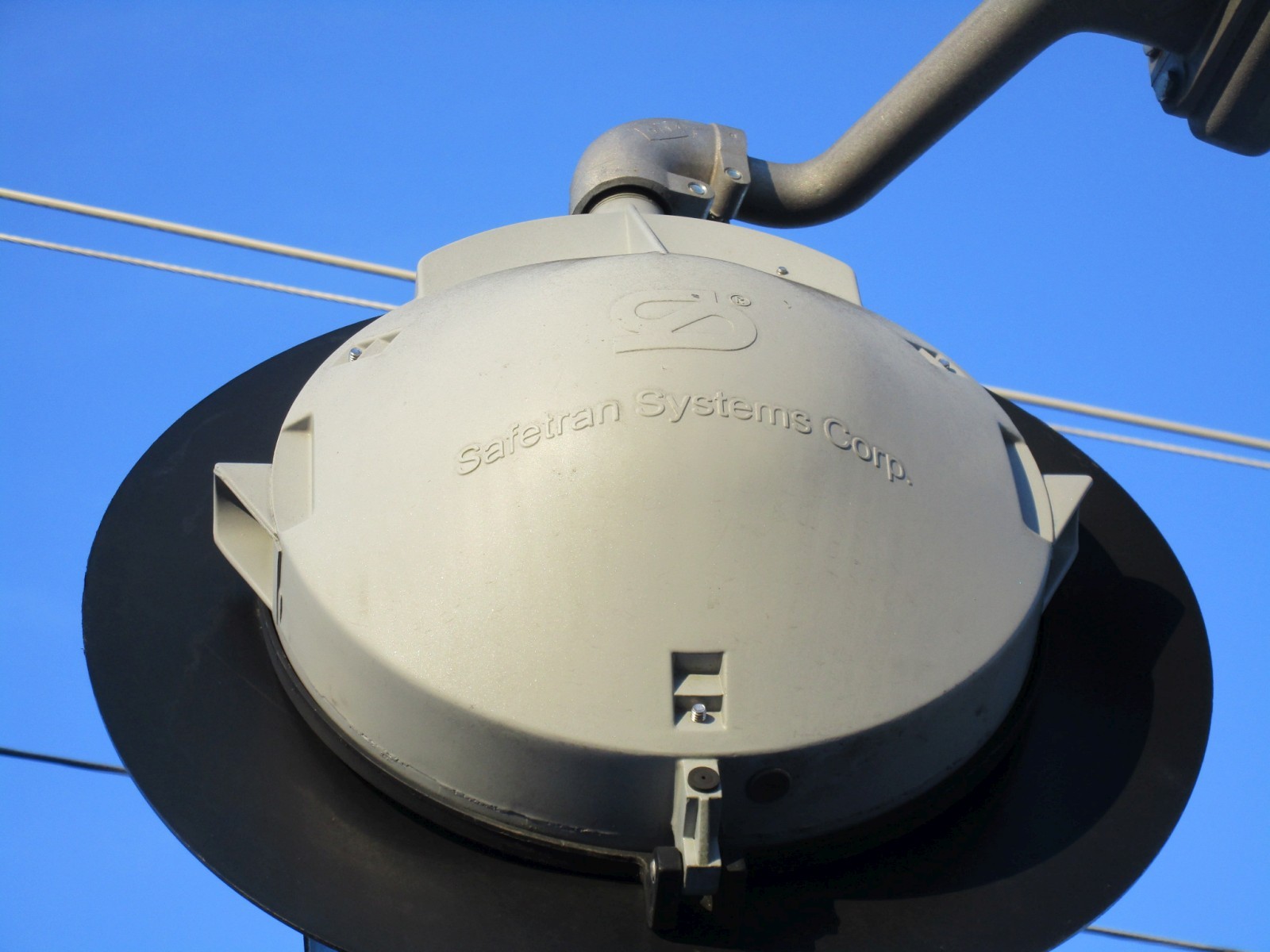

A Safetran Type 2 E-Bell stands on this signal. |

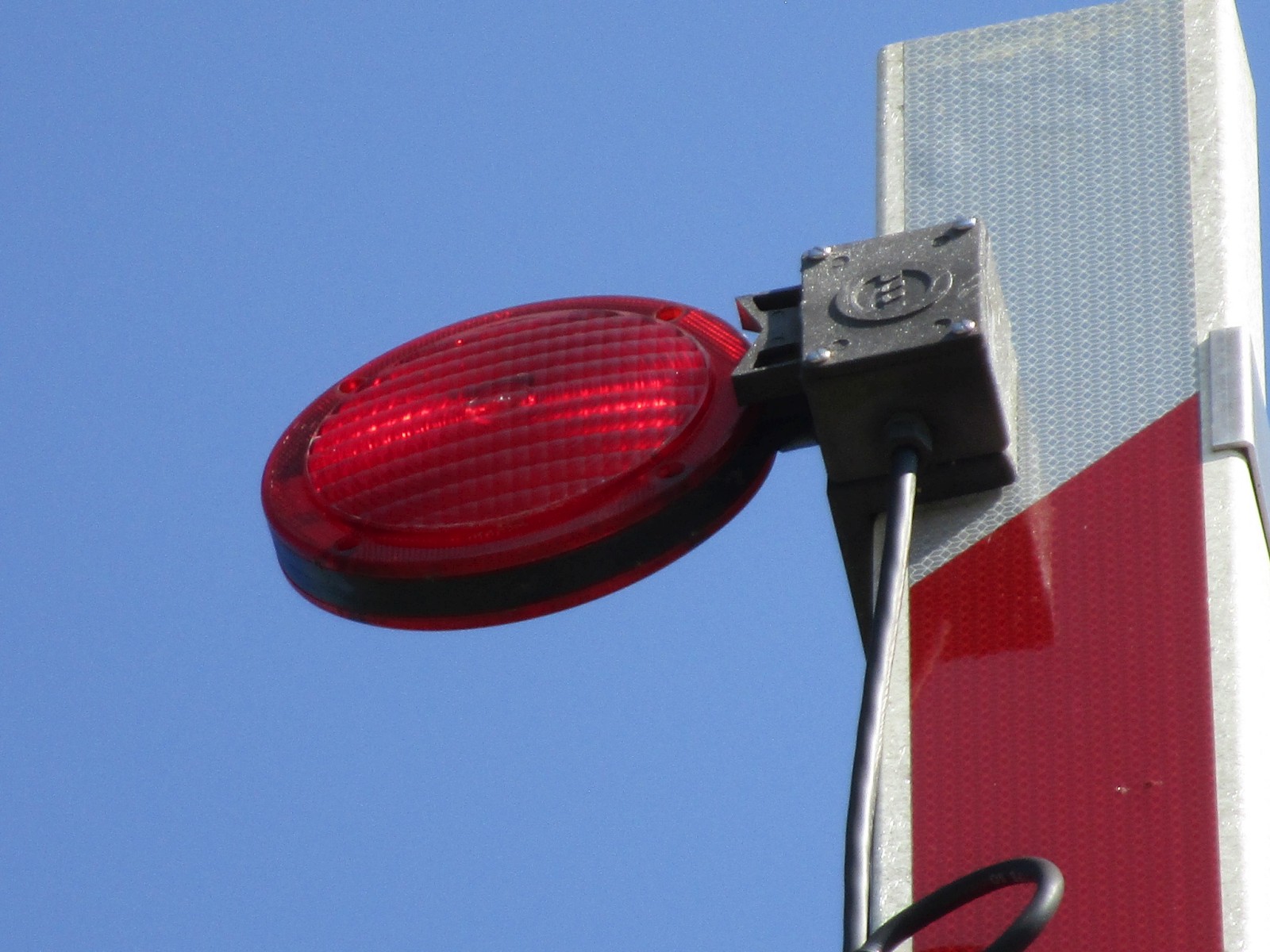

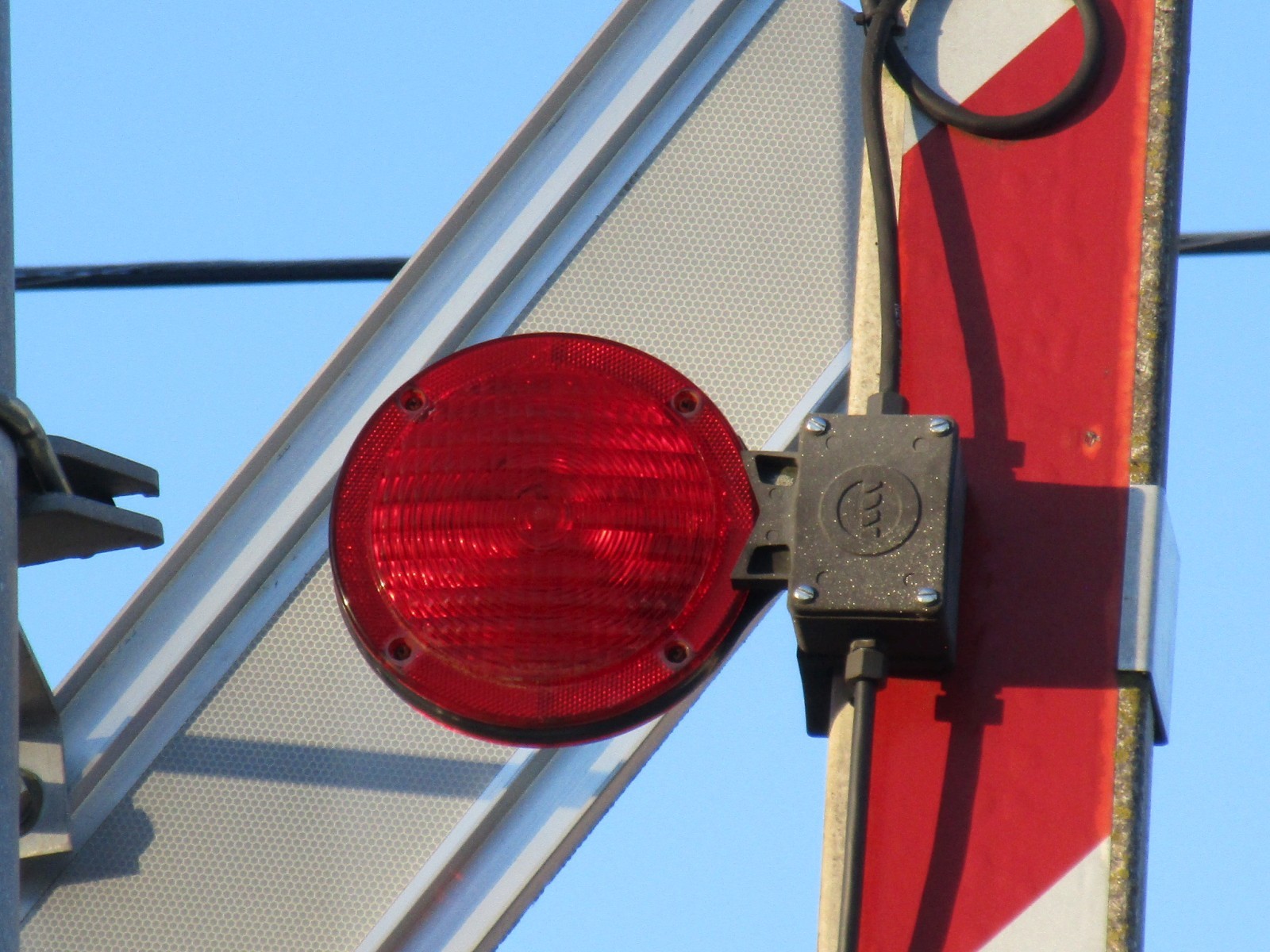

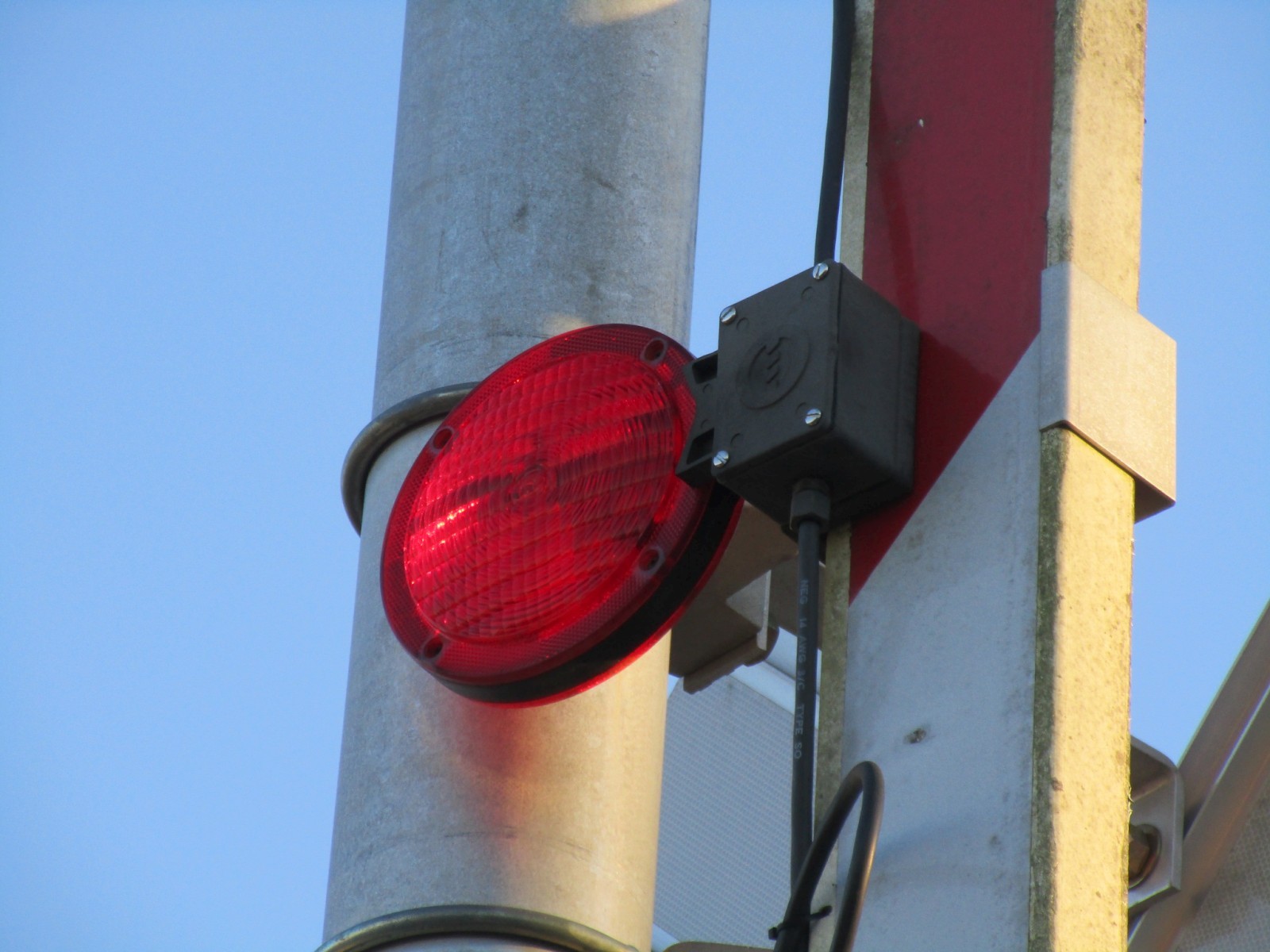

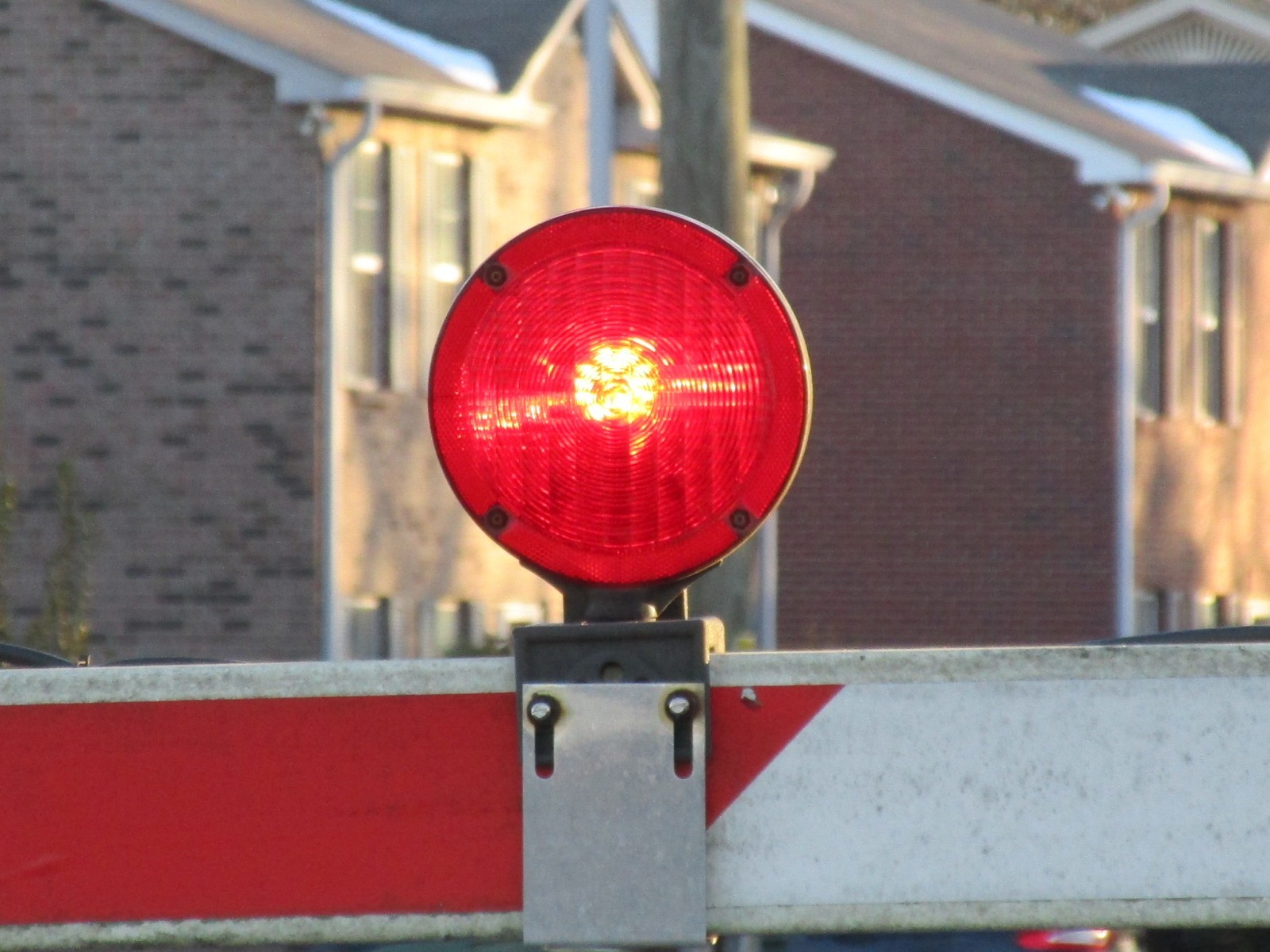

All NEG 7 inch gatelights on this signal! |
|
13 |
14 |
15 |
16 |

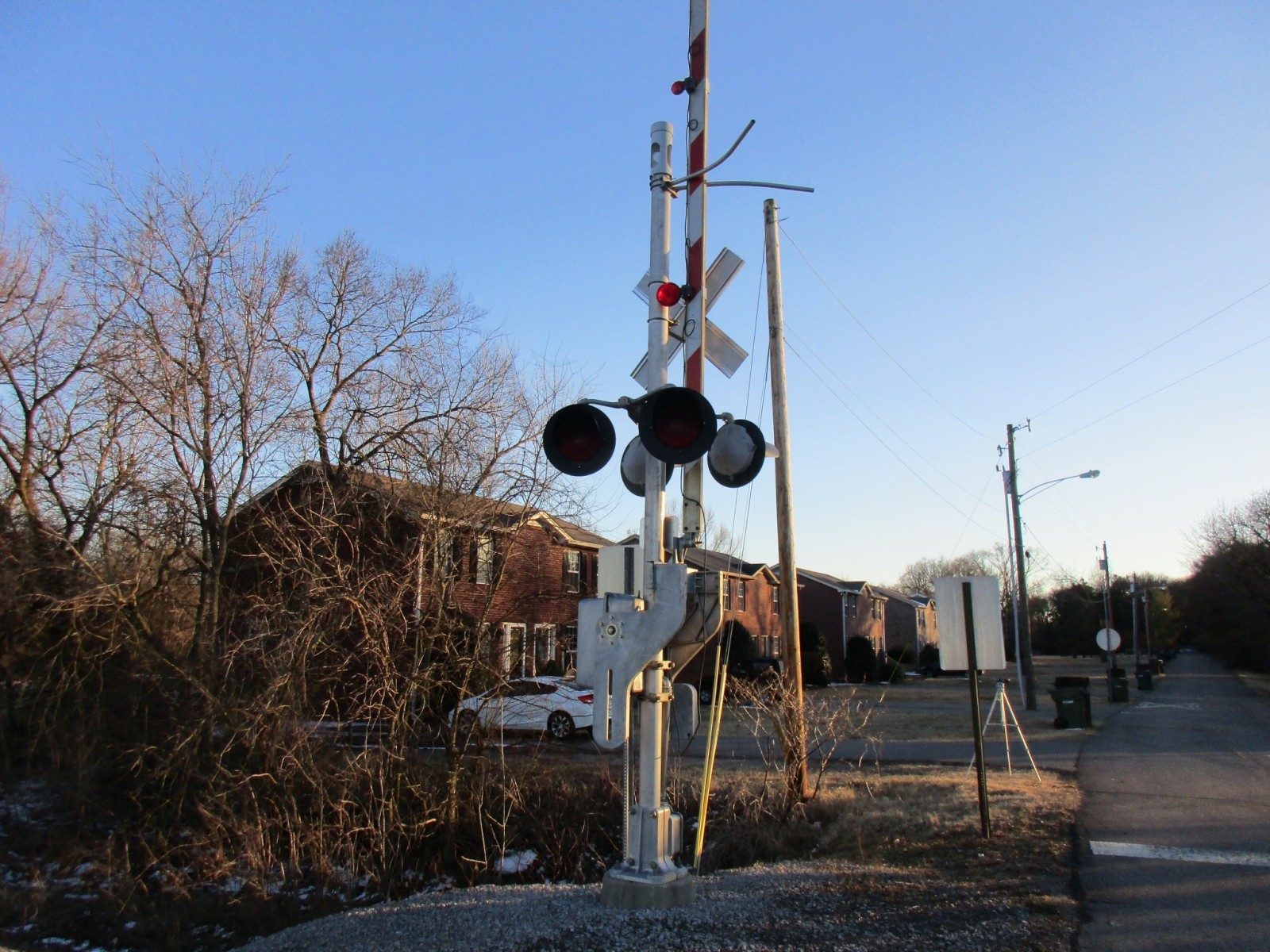

The southern signal. |
It has another Safetran base. |
Another Safetran gate mechanism. |
|
17 |
18 |
19 |
20 |
The emergnecy information. |

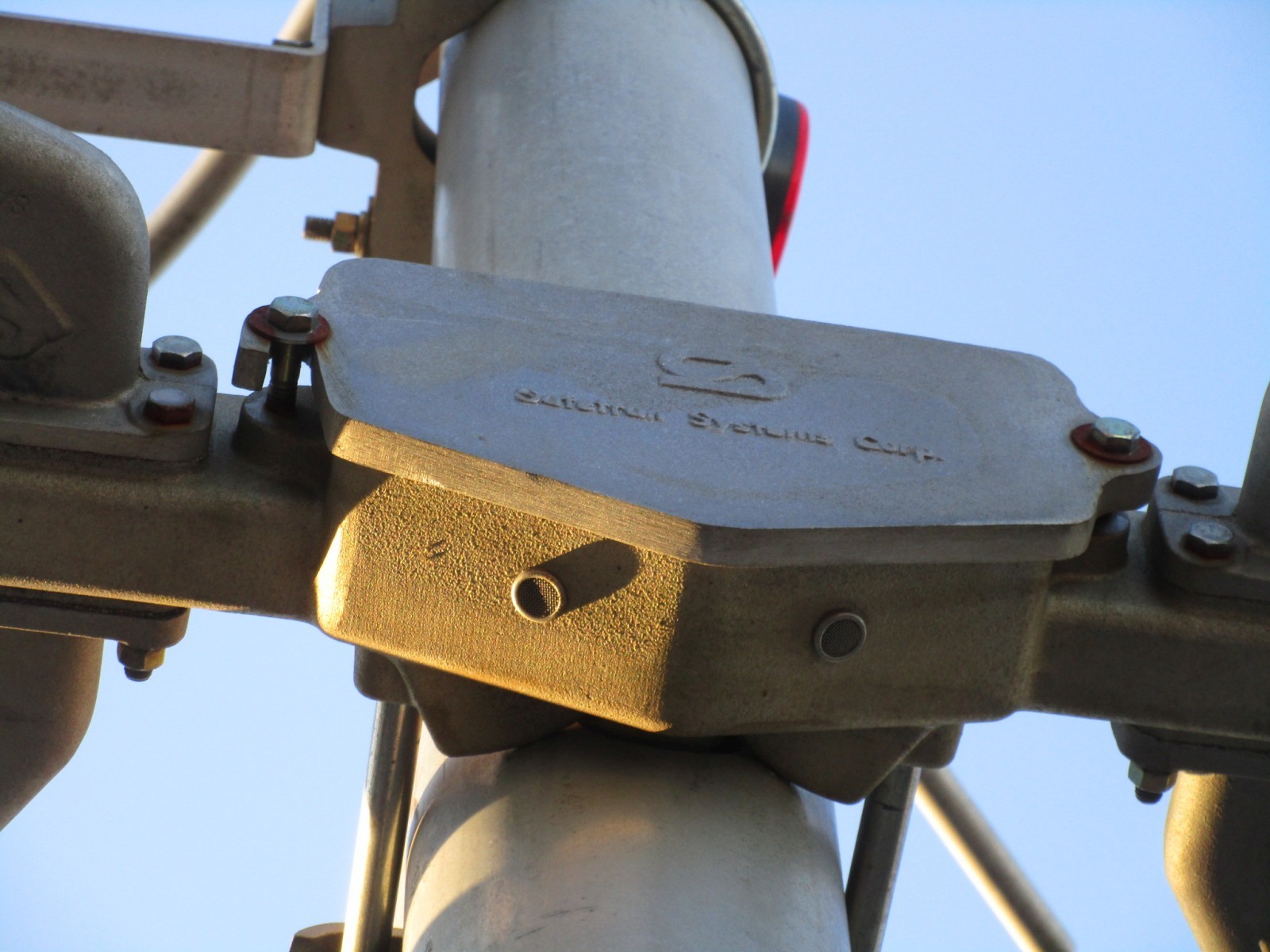

This signal has more Safetran 12x20 lights with Dialight Ball LEDs on another Safetran junction box.
|
||
21 |
22 |
23 |
24 |

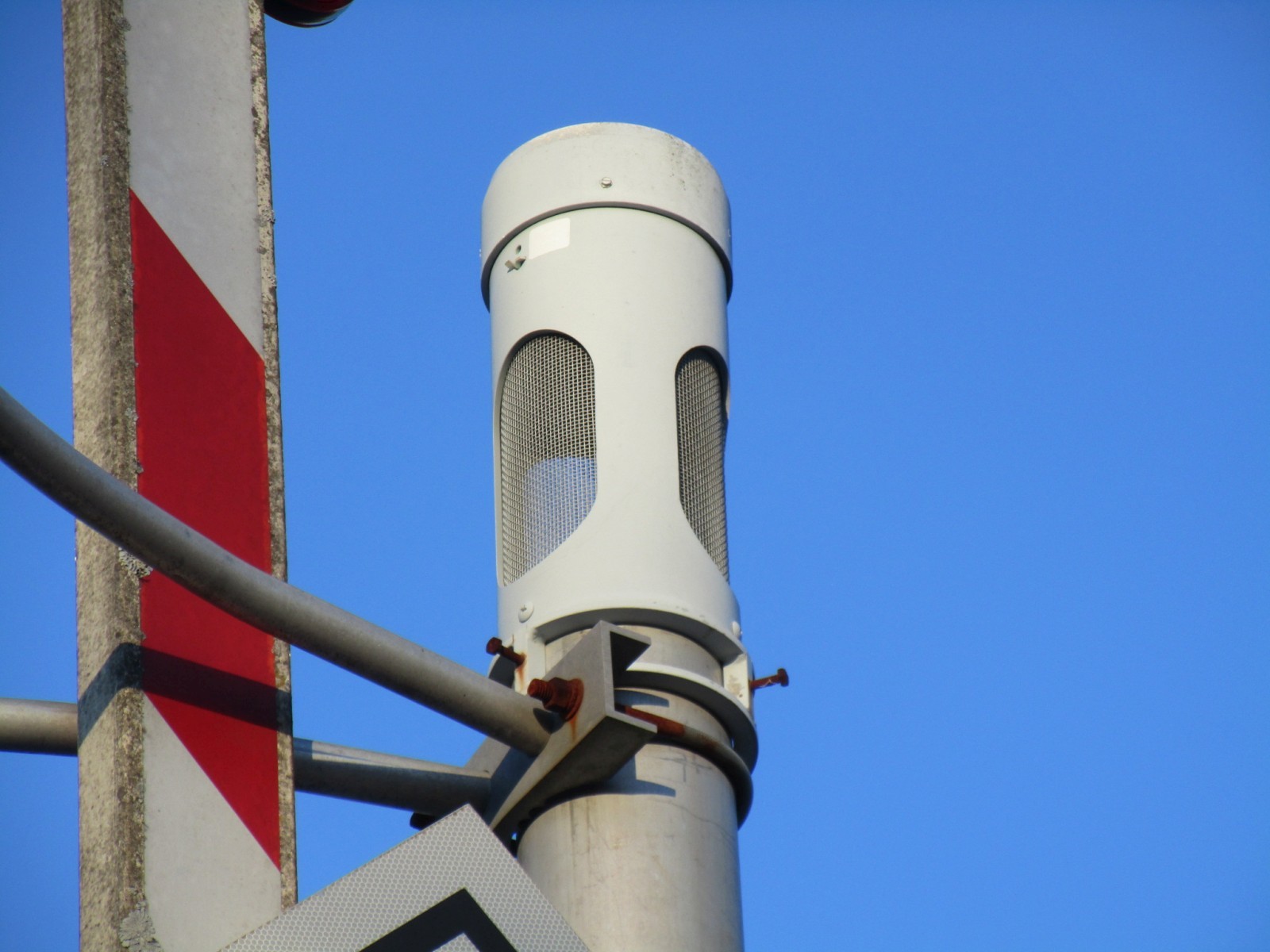

This signal has another Safetran Type 2 E-Bell. |

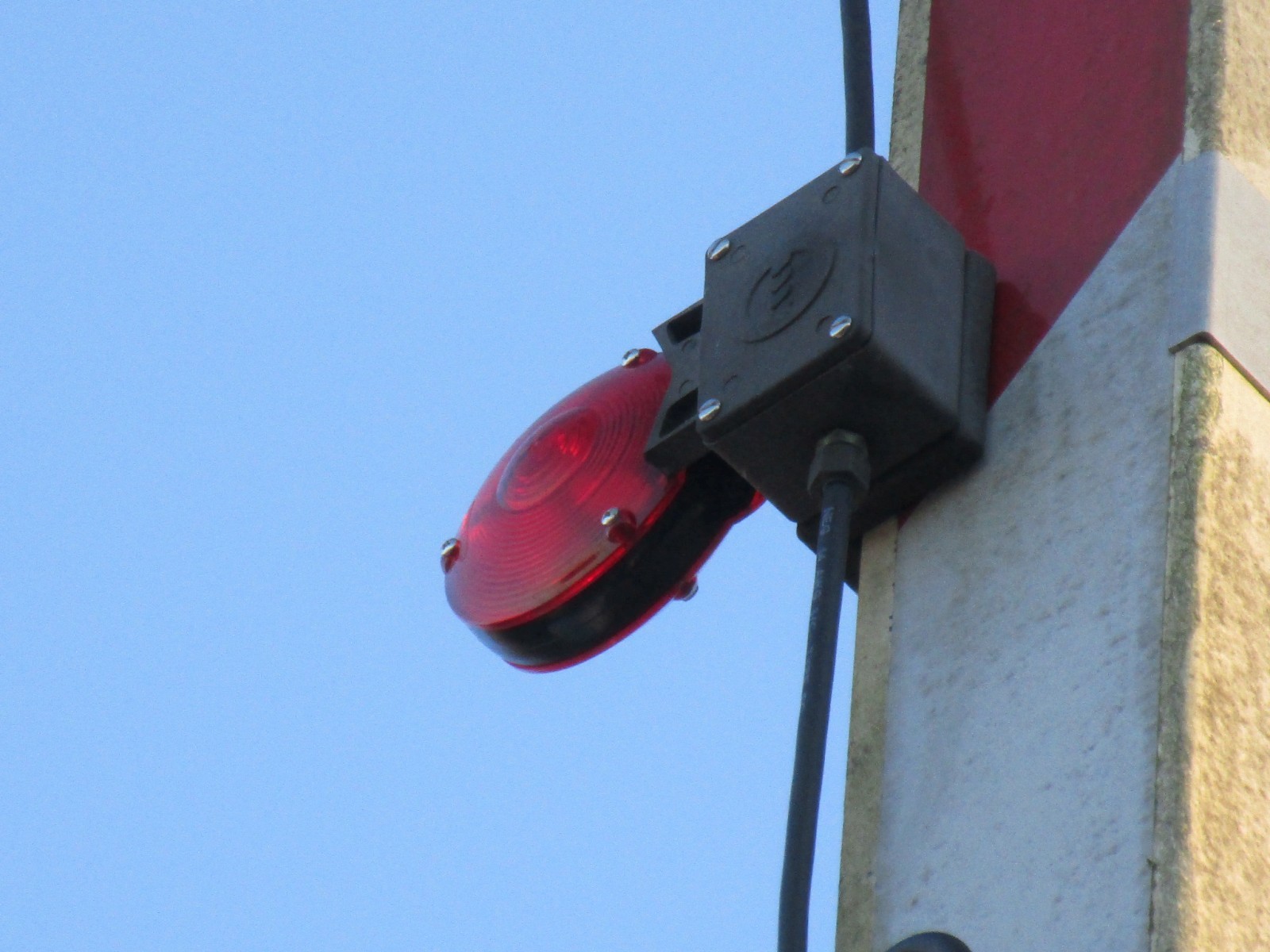

This signal has a mixture of 2 NEG 4 inch gatelights and a single NEG 7 inch gatelight! |

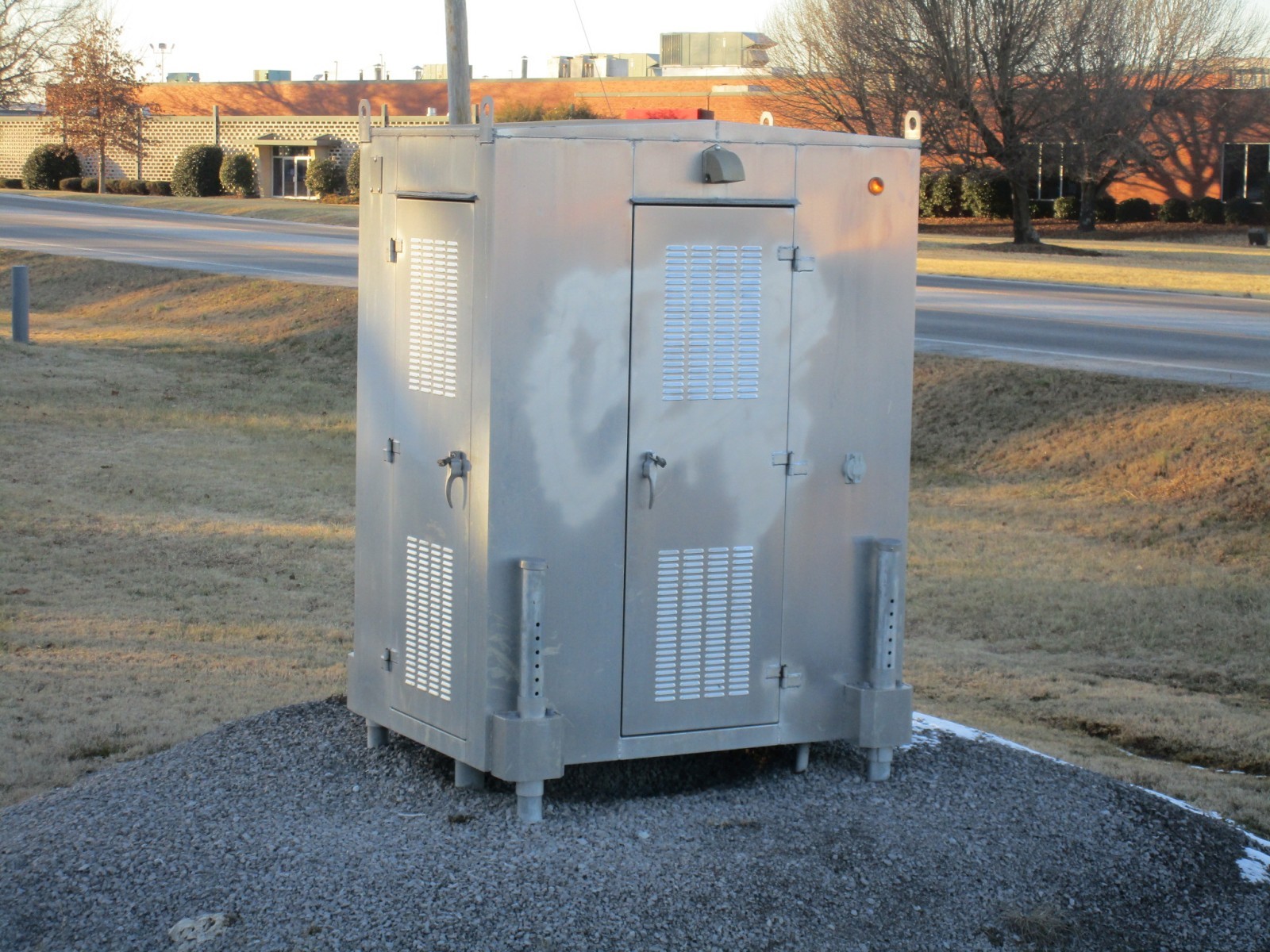

The relay bungalow. |
|
25 |
26 |
27 |
28 |

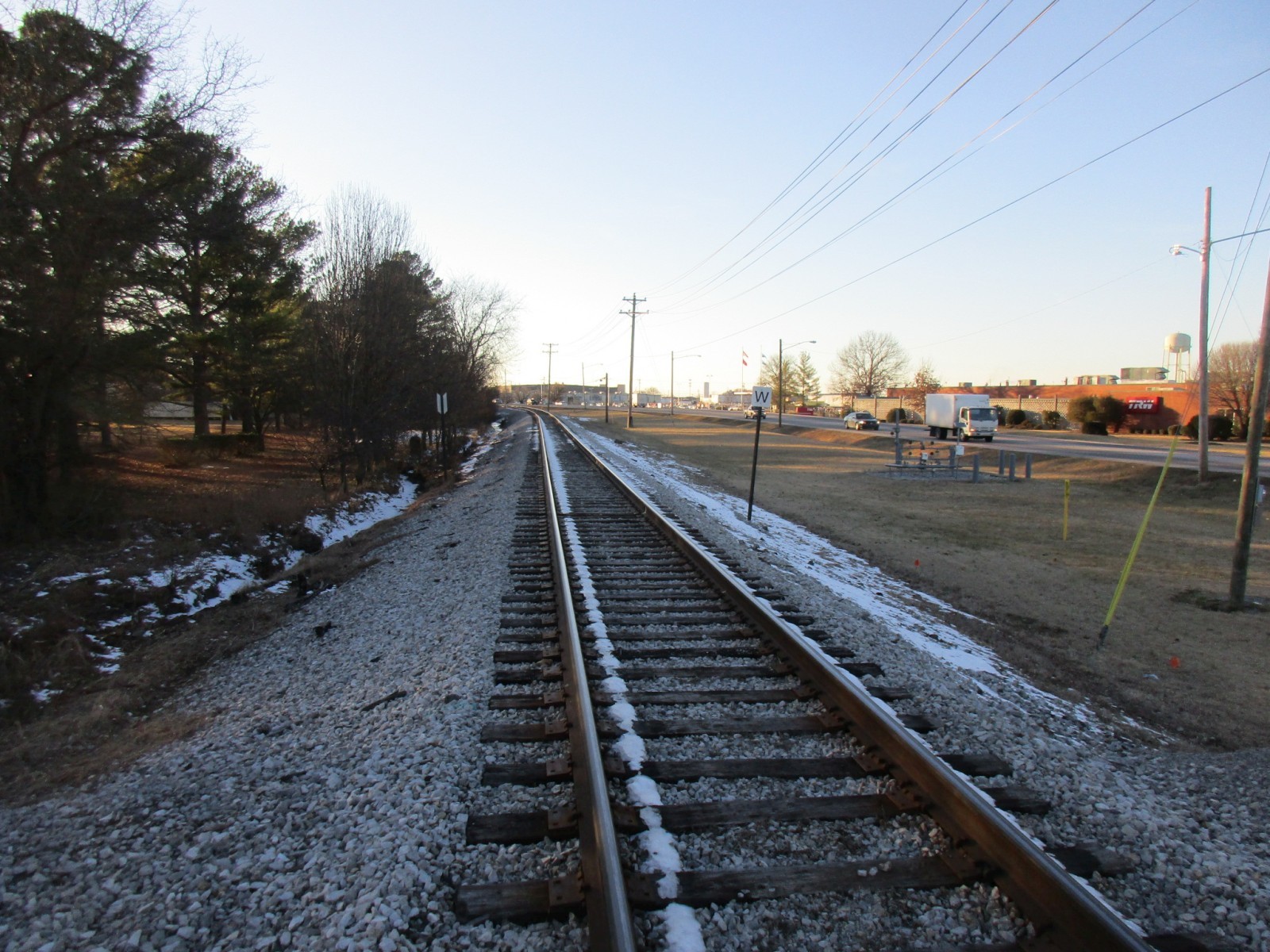

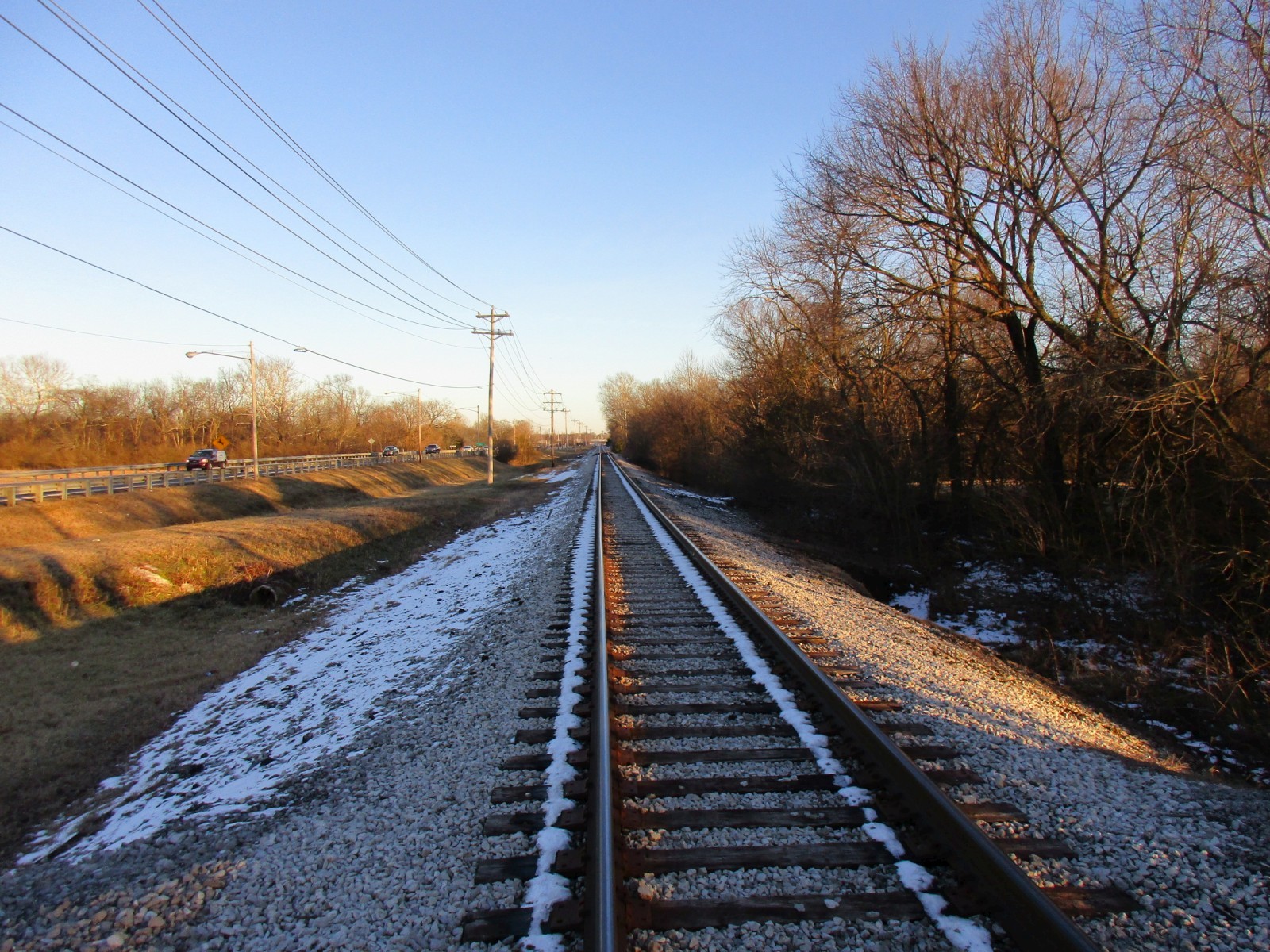

Track view facing west towards Hartmann Drive. |
Track view facing east towards Castle Heights Avenue. |
The crossing activates! |
|
29 |
30 |
31 |
32 |

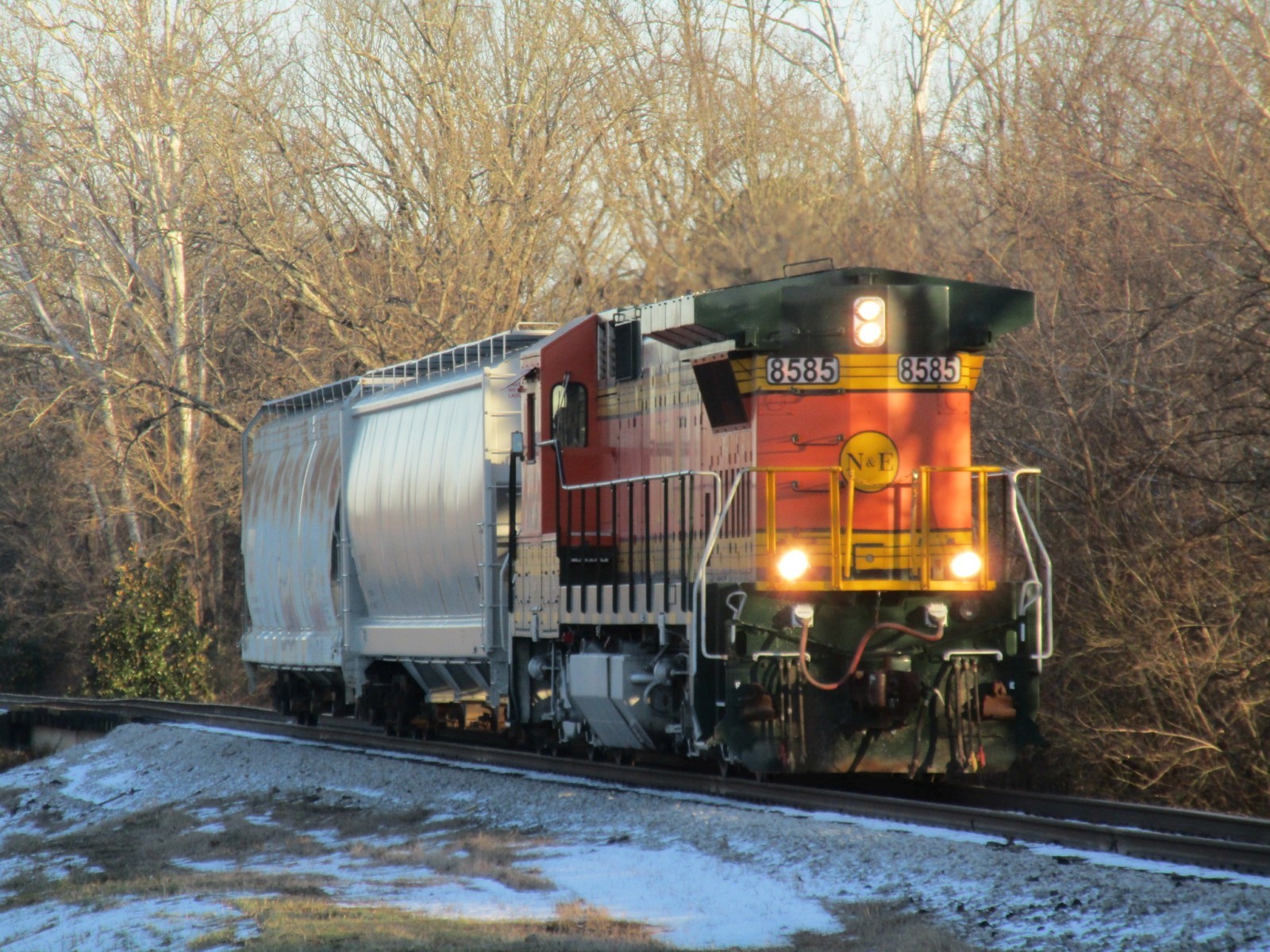

An NERR local leads through the rcossing. |
|||
33 |
34 |

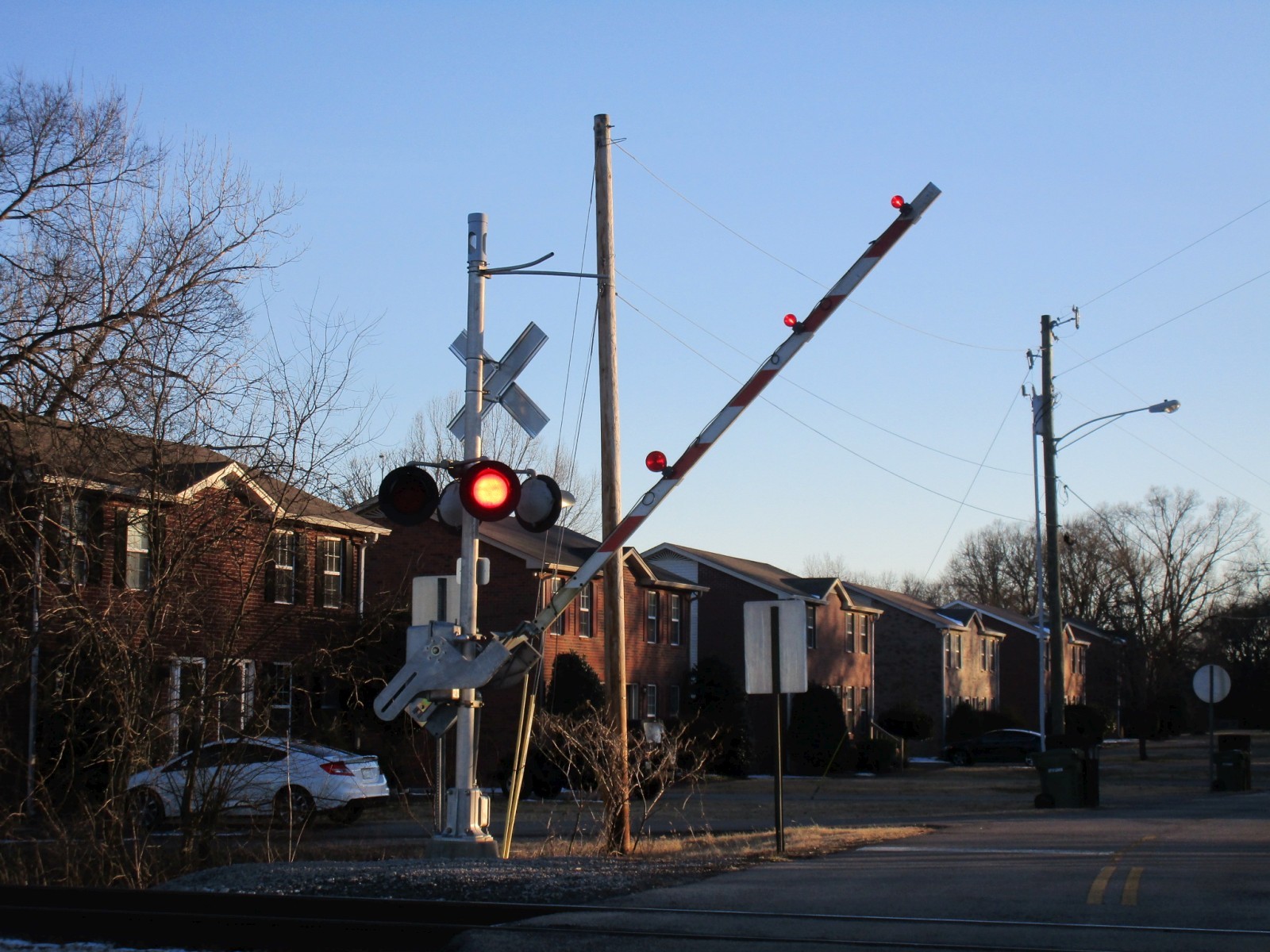

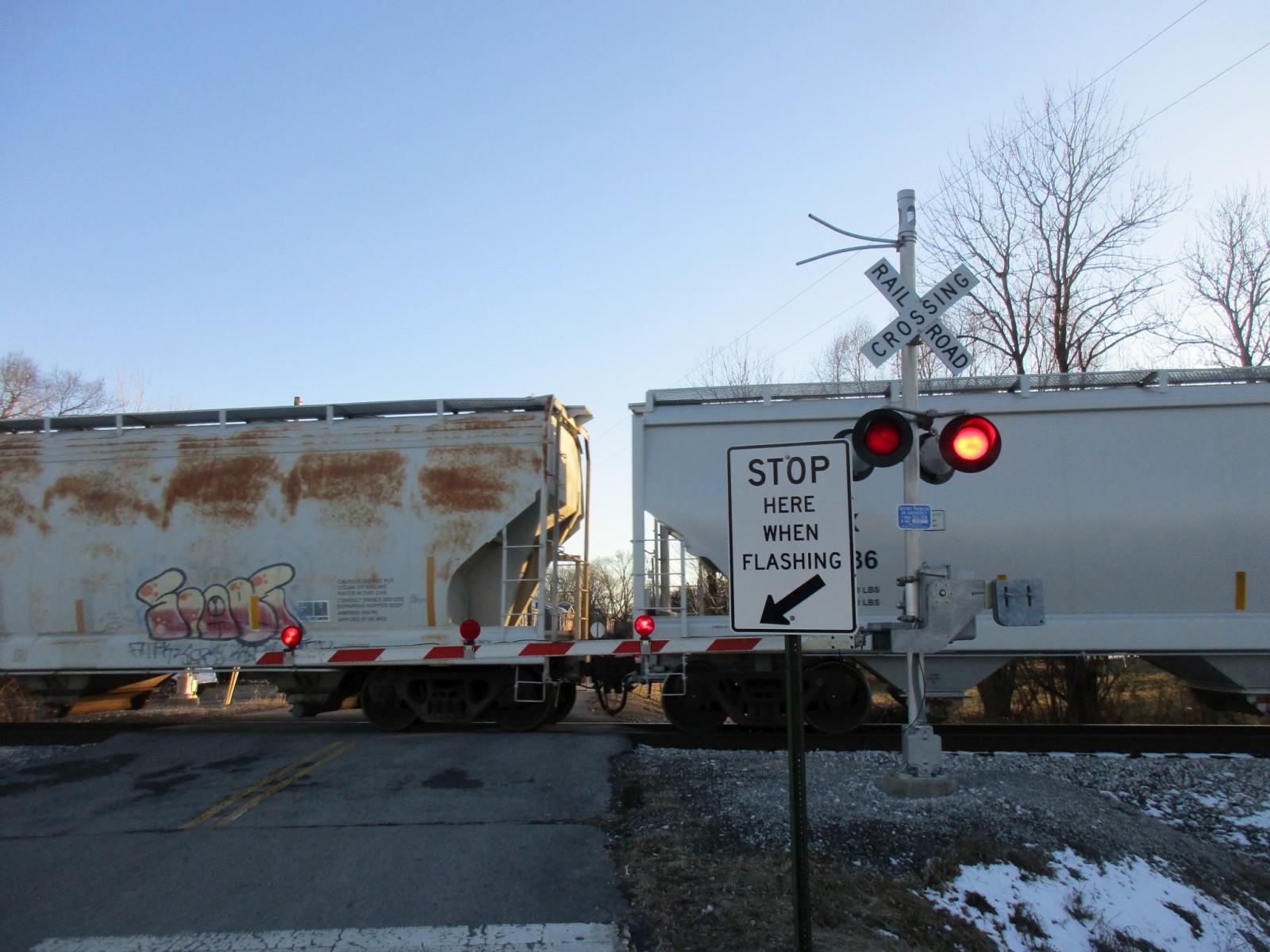

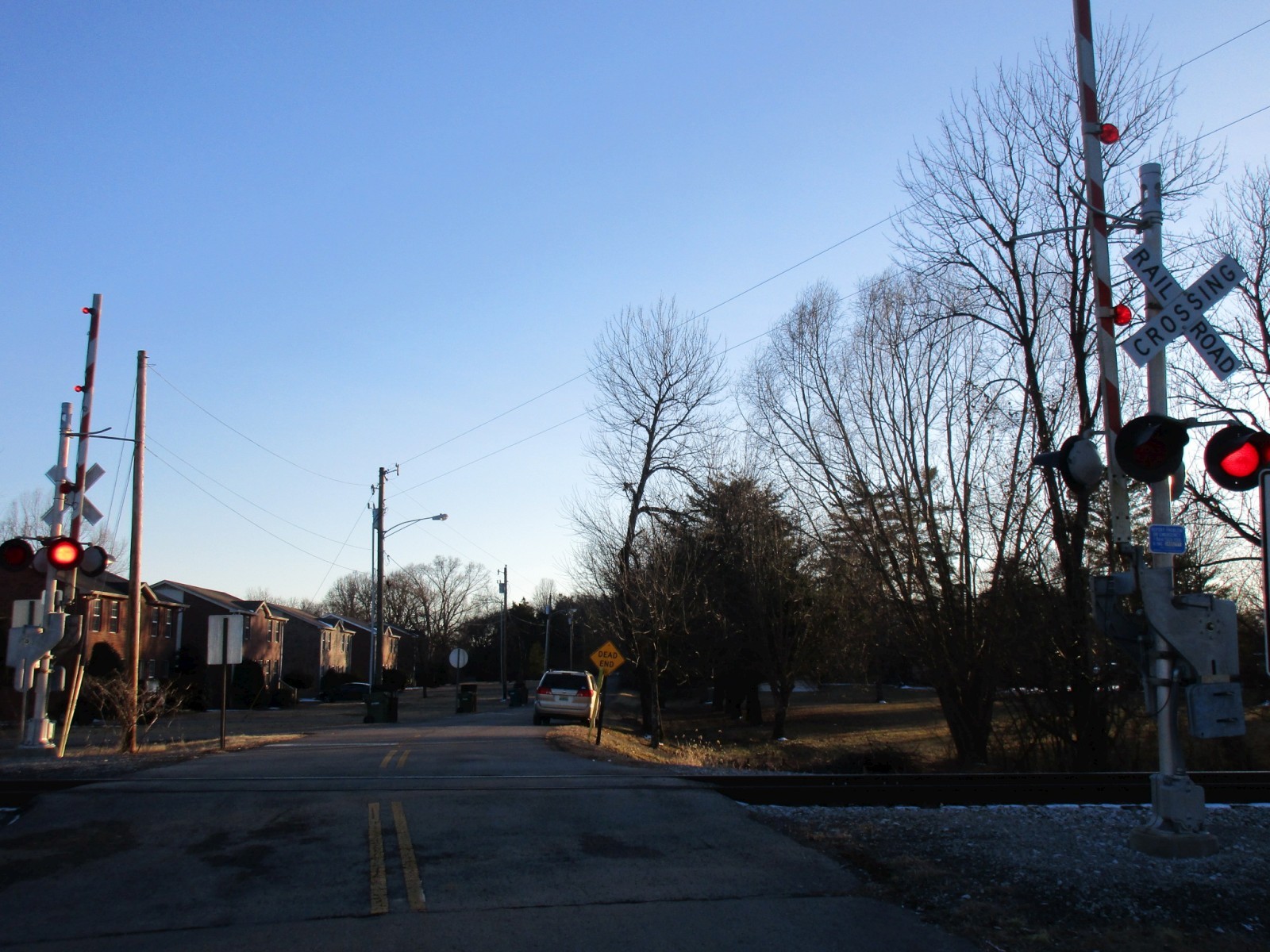

The train clears the crossing and the signals deactivate. |
|
35 |
36 |
37 |
38 |
39 |
40 |
41 |
42 |
43 |
44 |

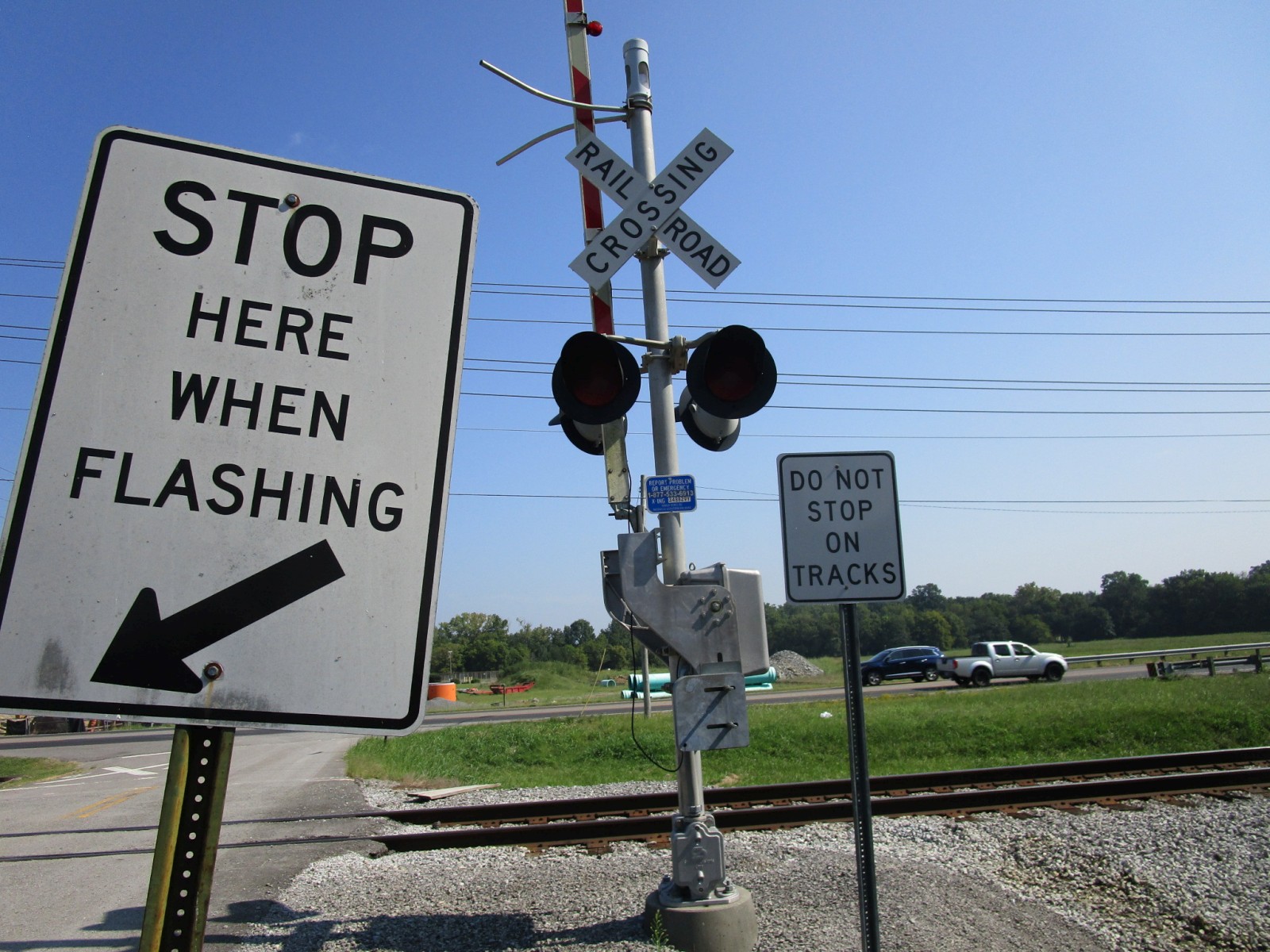

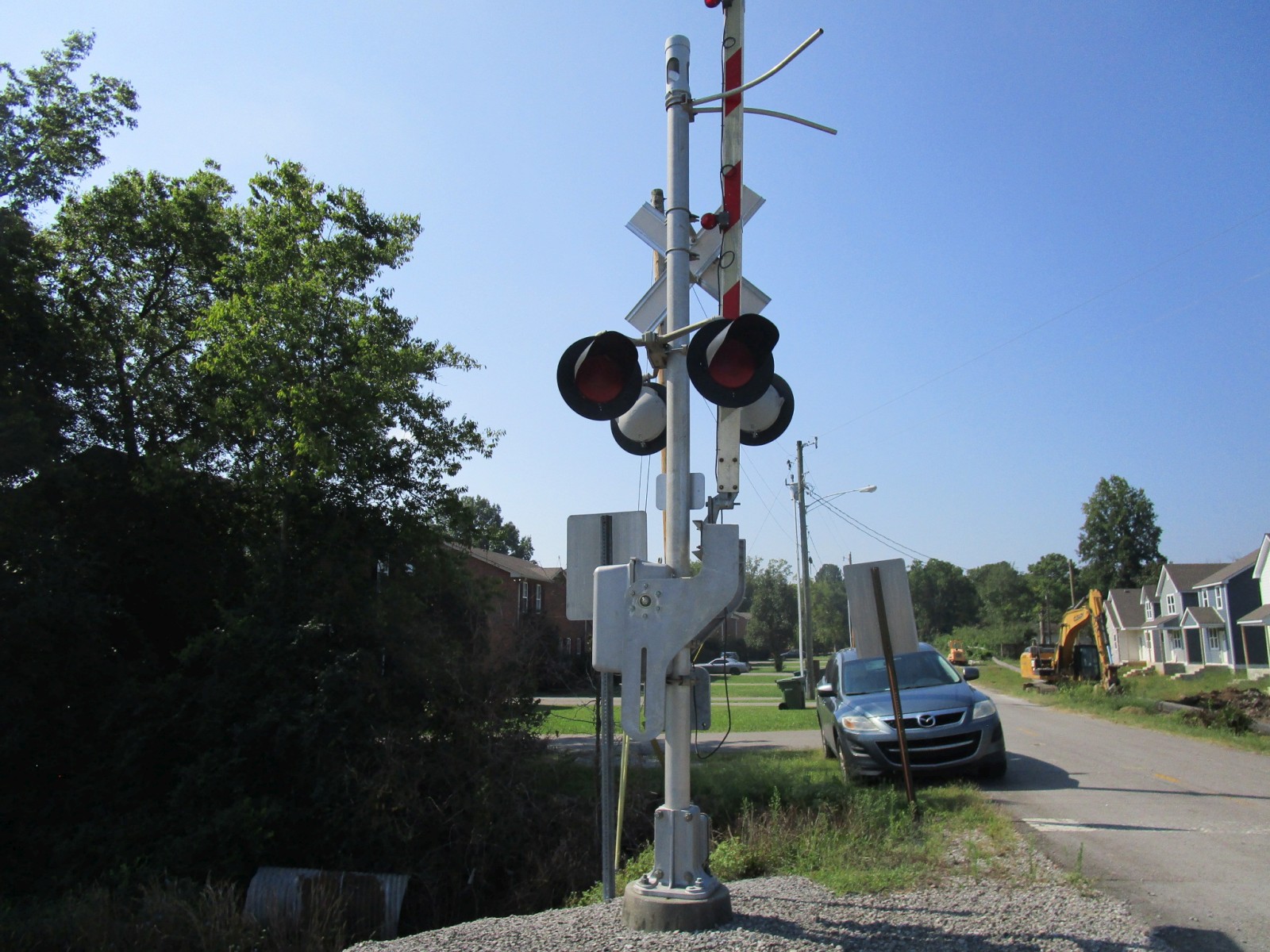

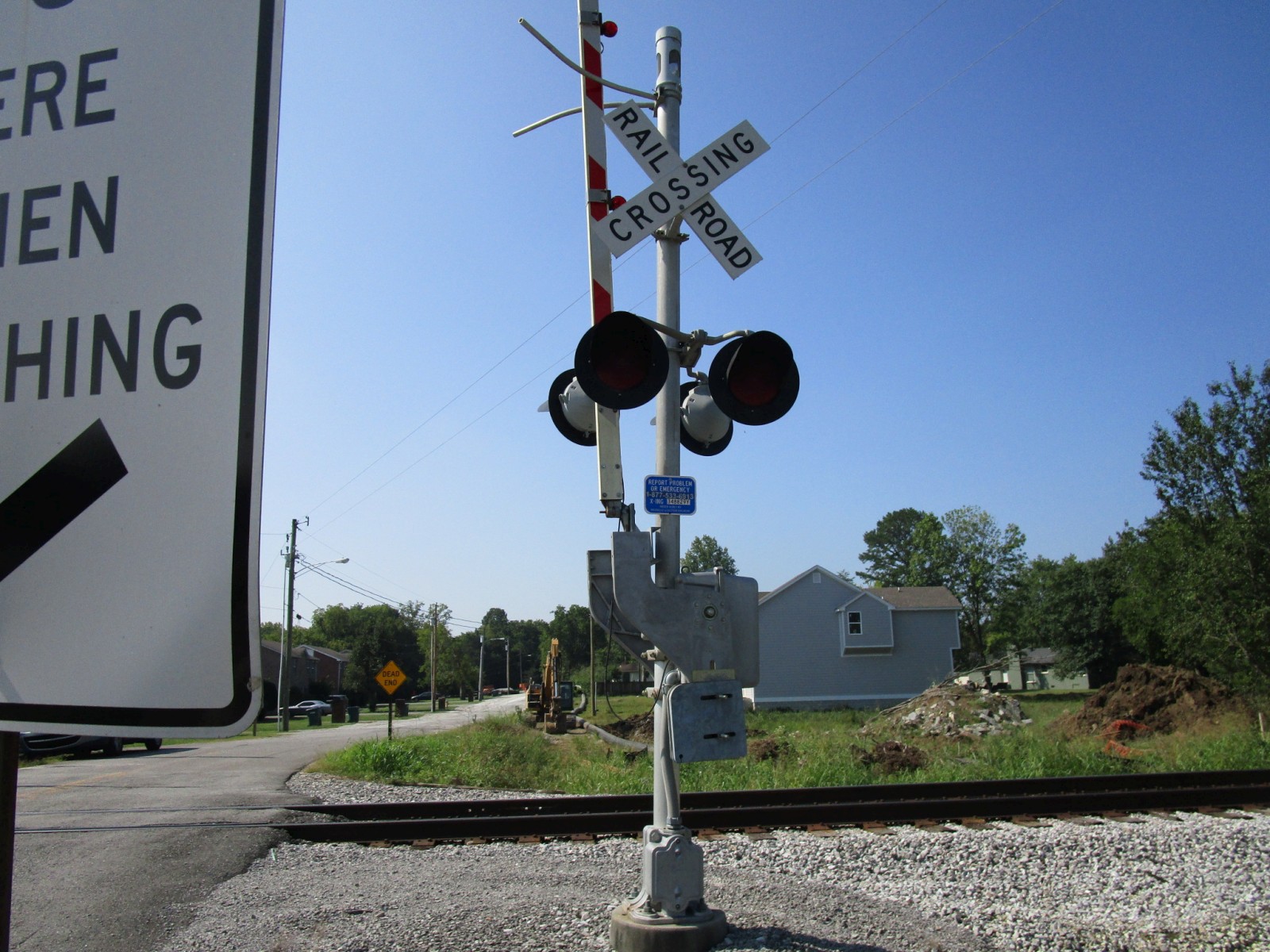

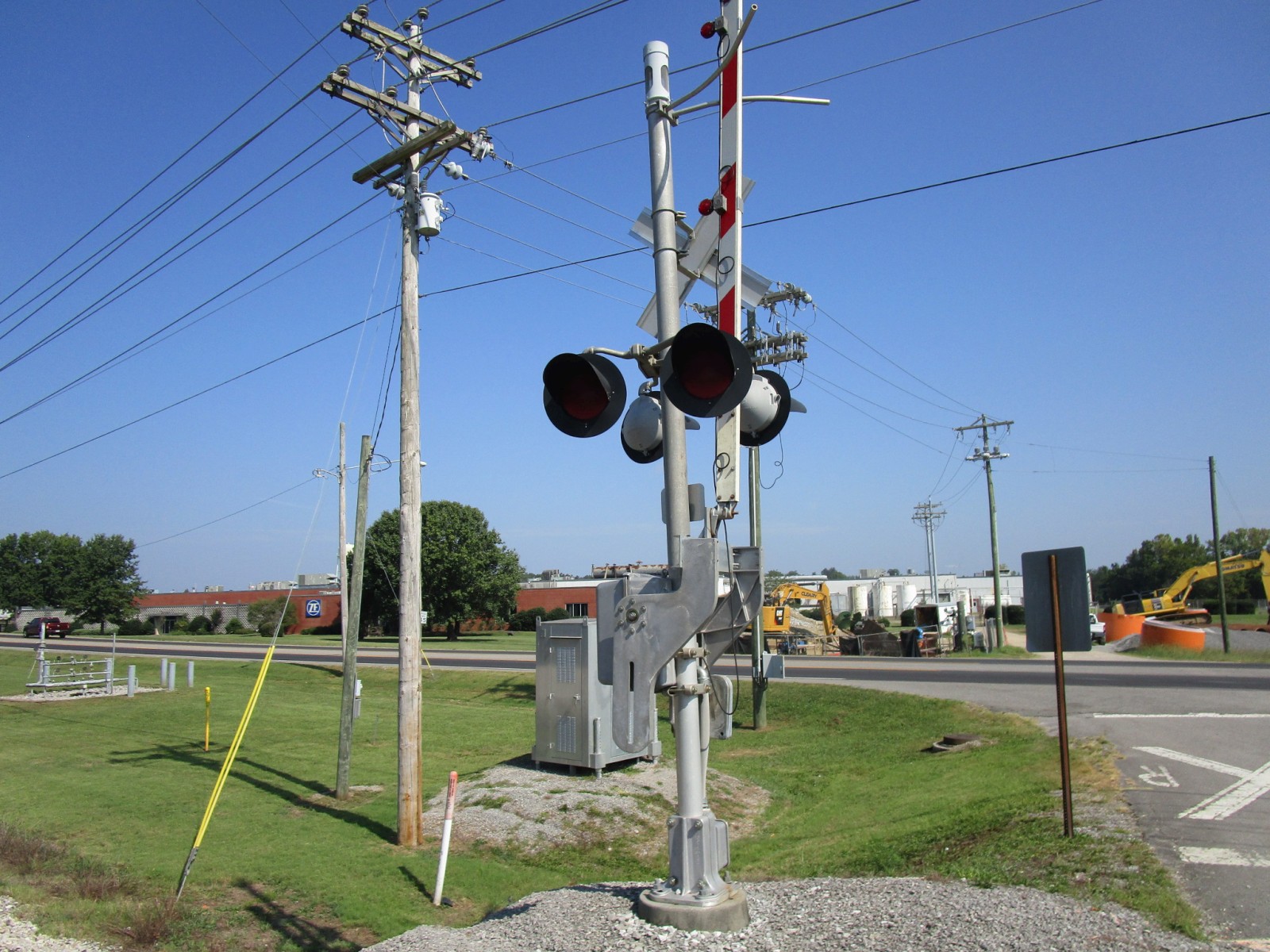

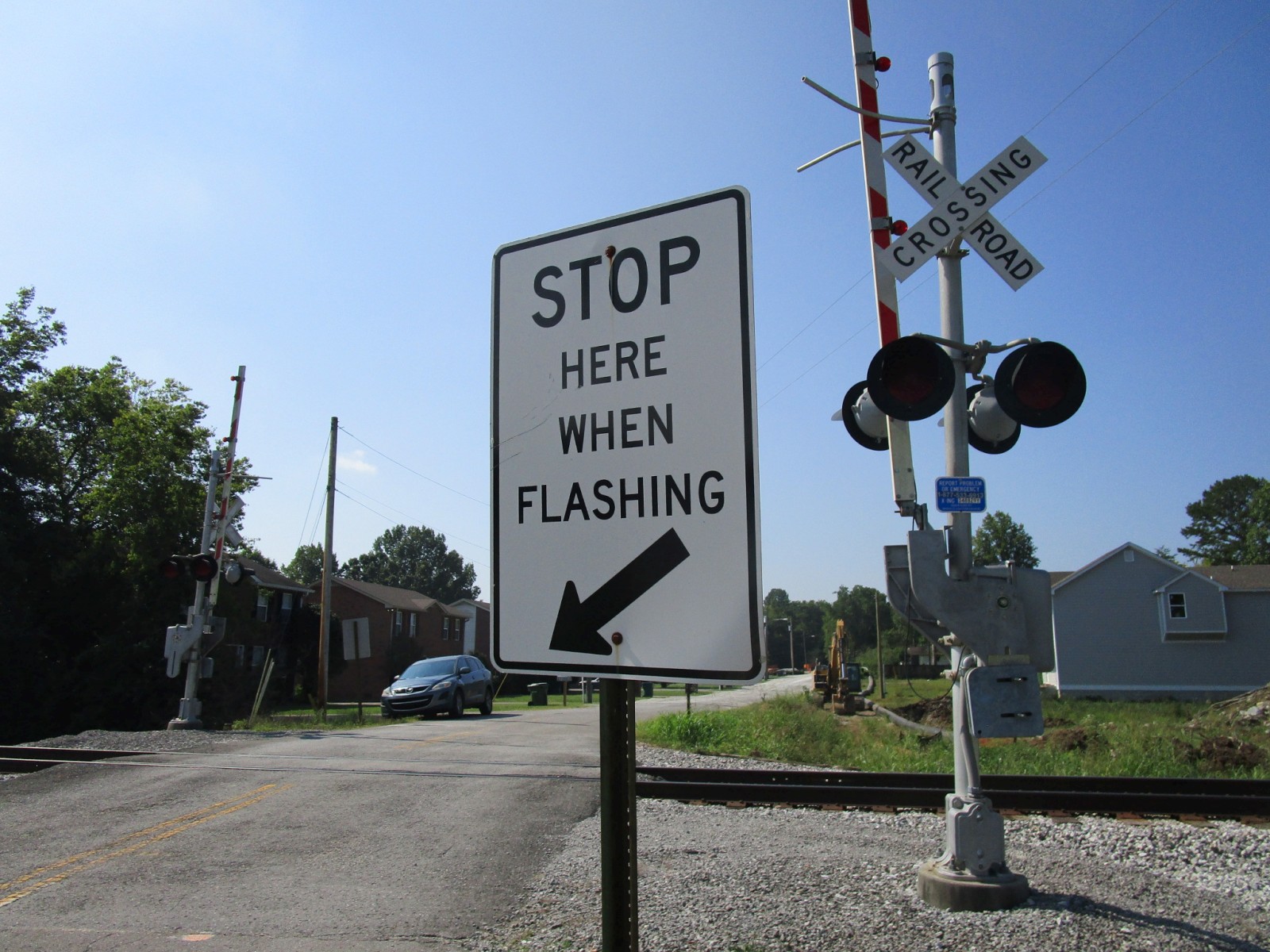

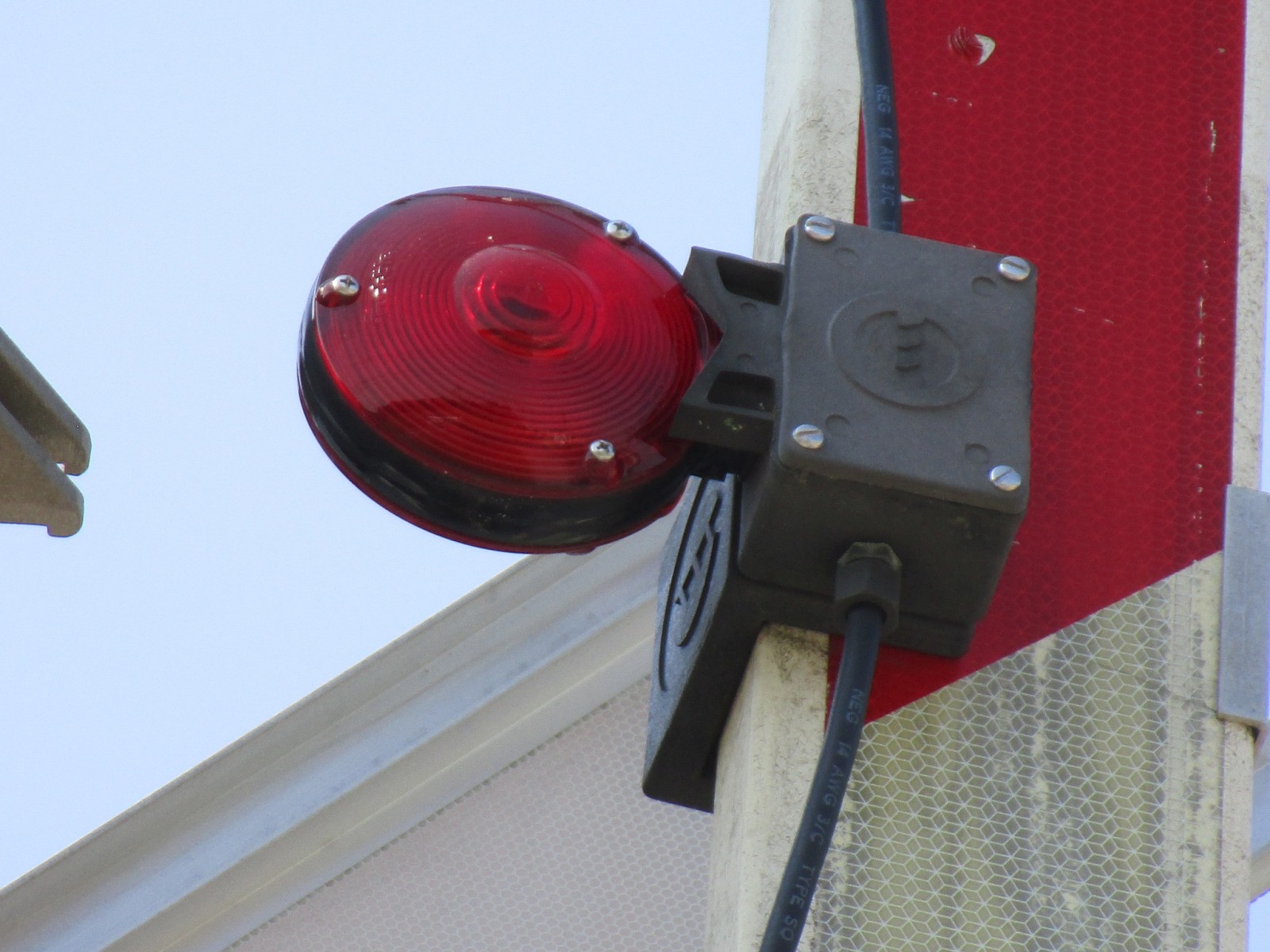

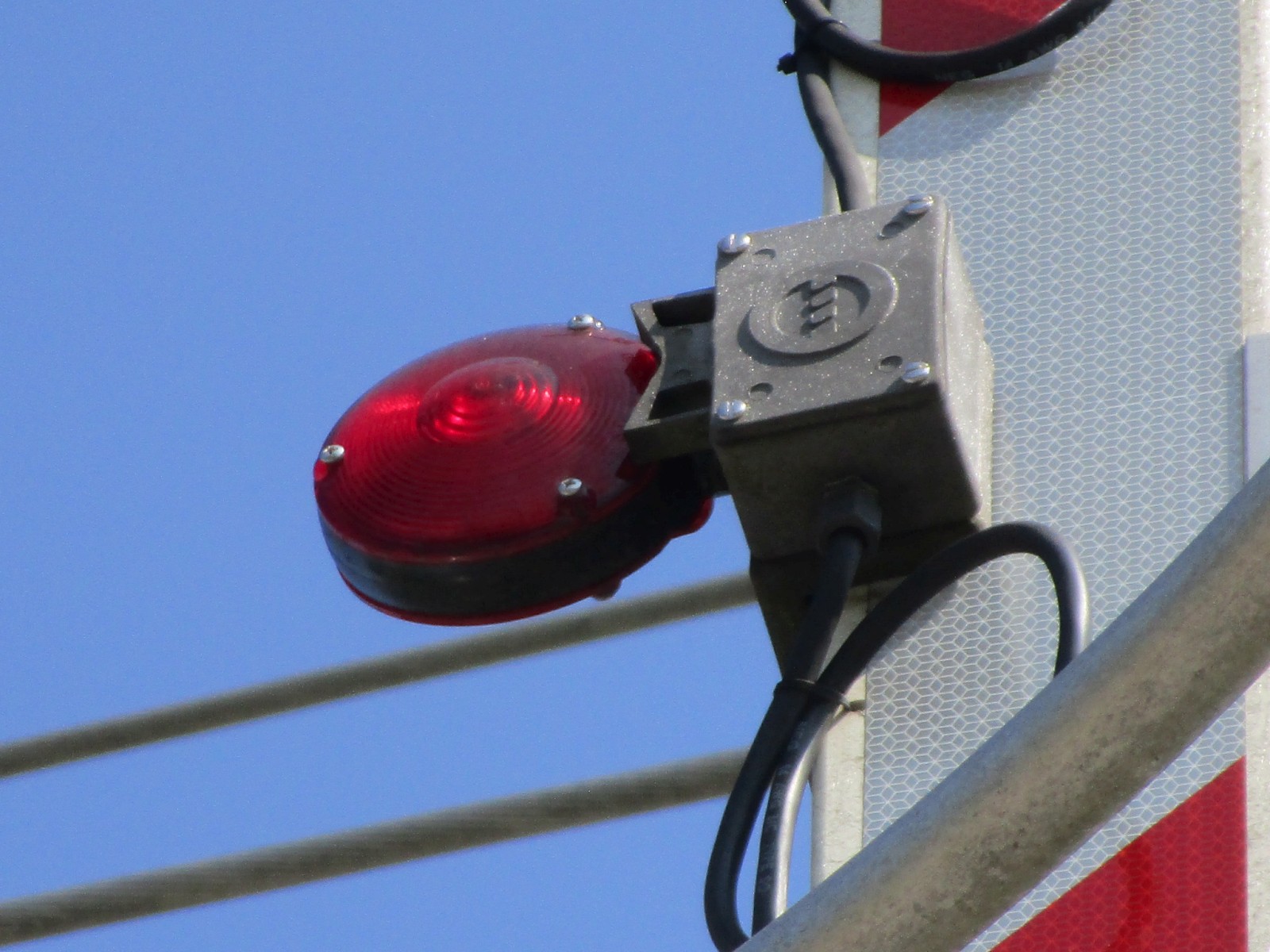

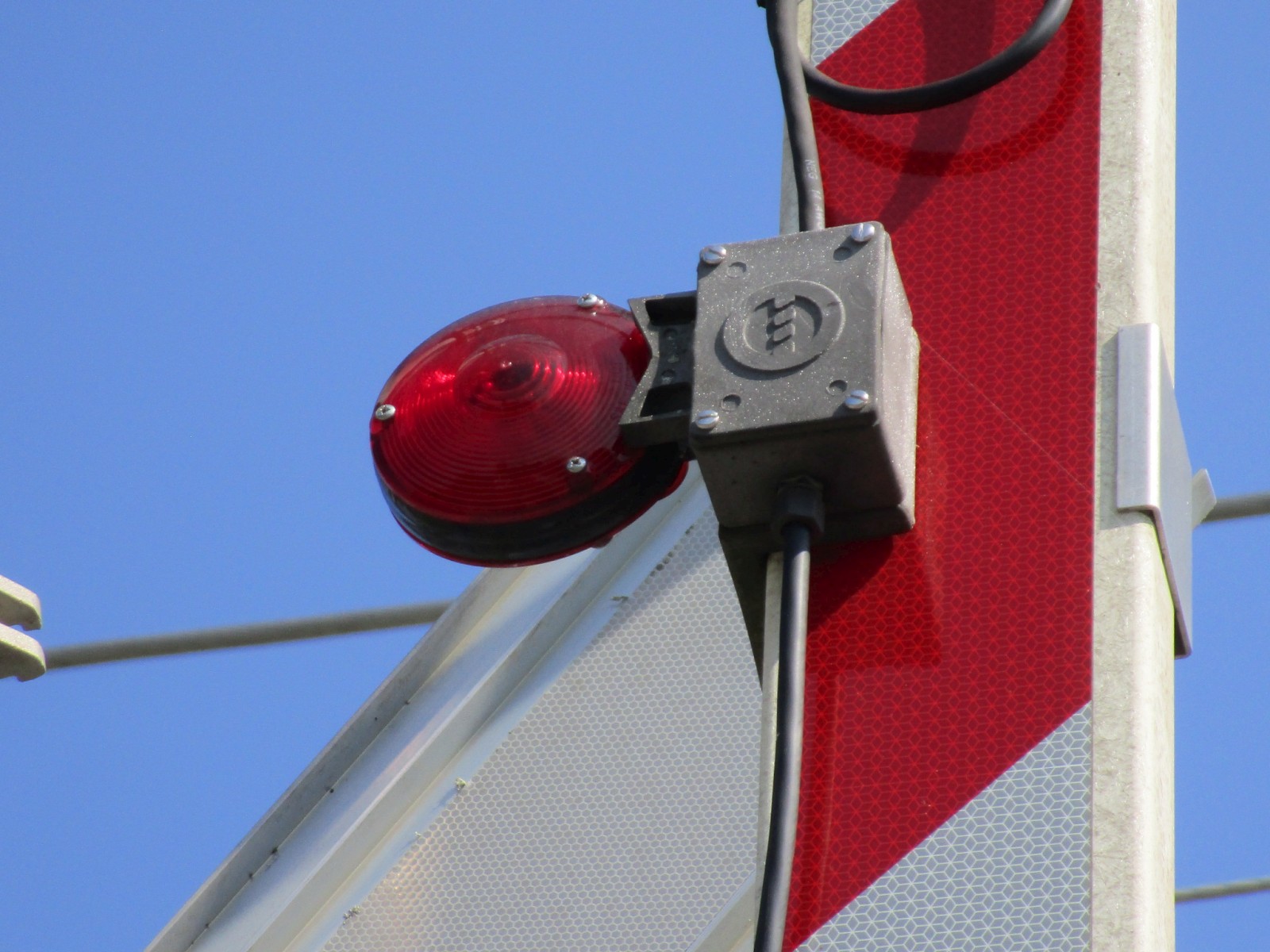

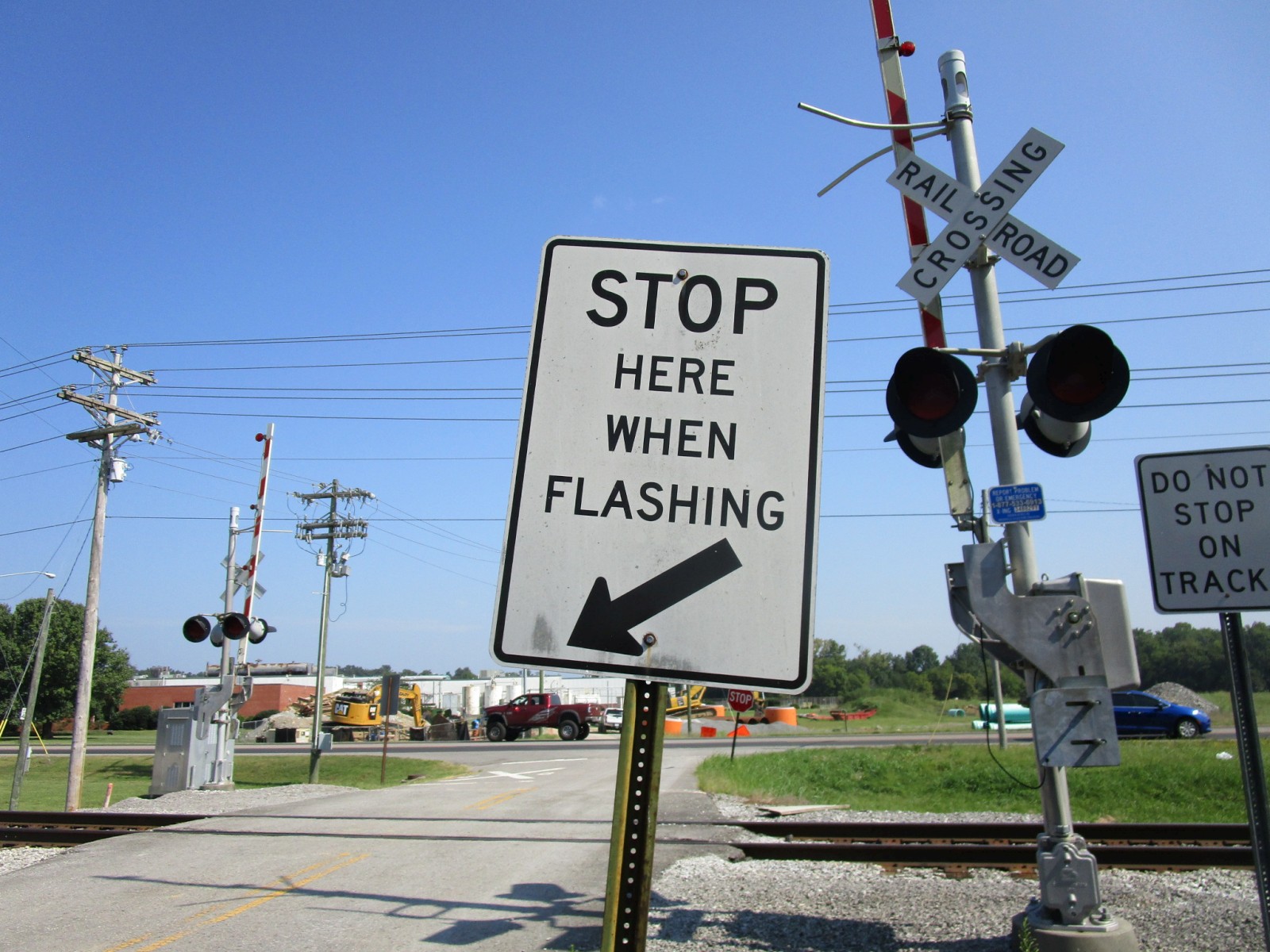

On August 25, 2023, freebrickproductions made a return trip to this crossing to find that the gatelights were replaced with all 4" NEG on the southern signal, and now 2 4" NEG and a 7" NEG on the northern signal. |
||||
Pictures 1-34 and the video were taken on 1-19-18 by freebrickproductions.
Pictures 35-44 were taken on 8-25-23 by freebrickproductions.
