MP:  00F340.360



Created May 20, 2020



Total Accidents:   4
Crossing DOT #:  348469D
TOTAL DAILY TRAINS:   5   (AS OF 2018)



>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: N/A NEG E-Bell
Base: WCH WCH

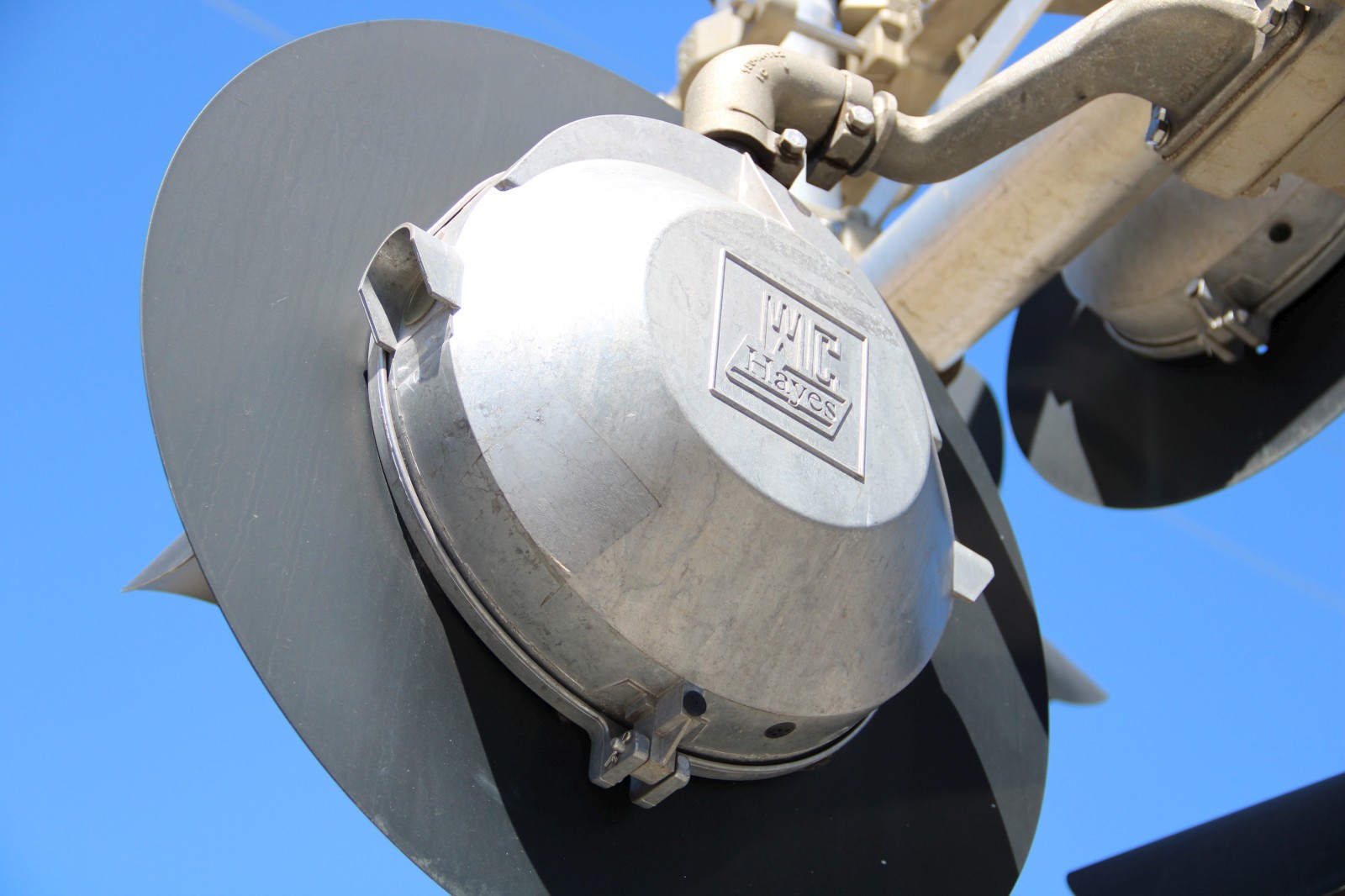

Lights: 6 - 12"x24" WCH Flatback w/ Leotek EV series LEDs 6 - 12"x24" WCH Flatback w/ Leotek EV series LEDs

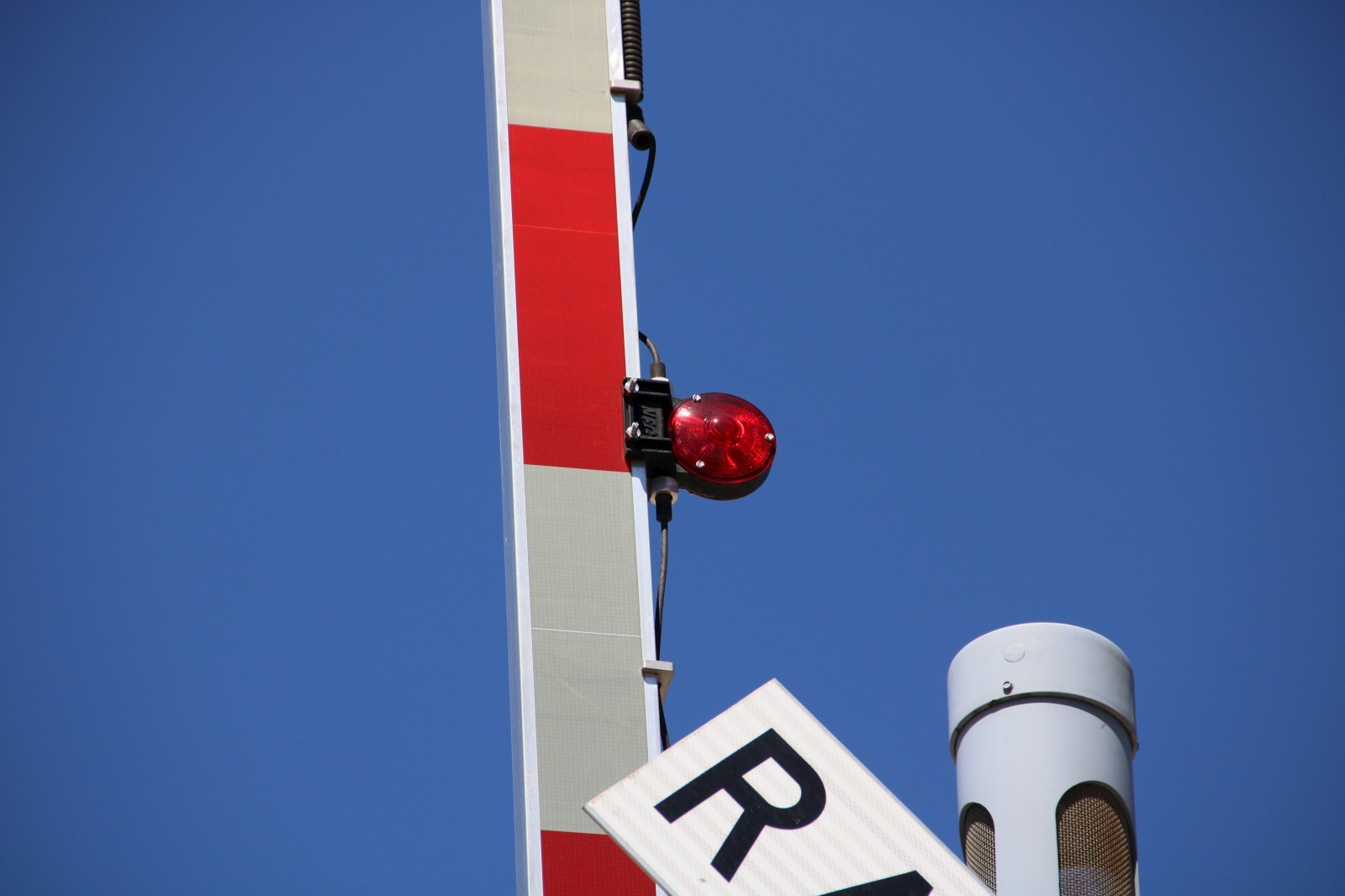

Gate Lights: 4" NEG LEDs 4" NEG LEDs
Gate Mechanism: Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical Striping Vertical Striping



Page created by: Ethan the Railfanner

This crossing is located on the CSX Memphis Subdivision.



1

2

3

4

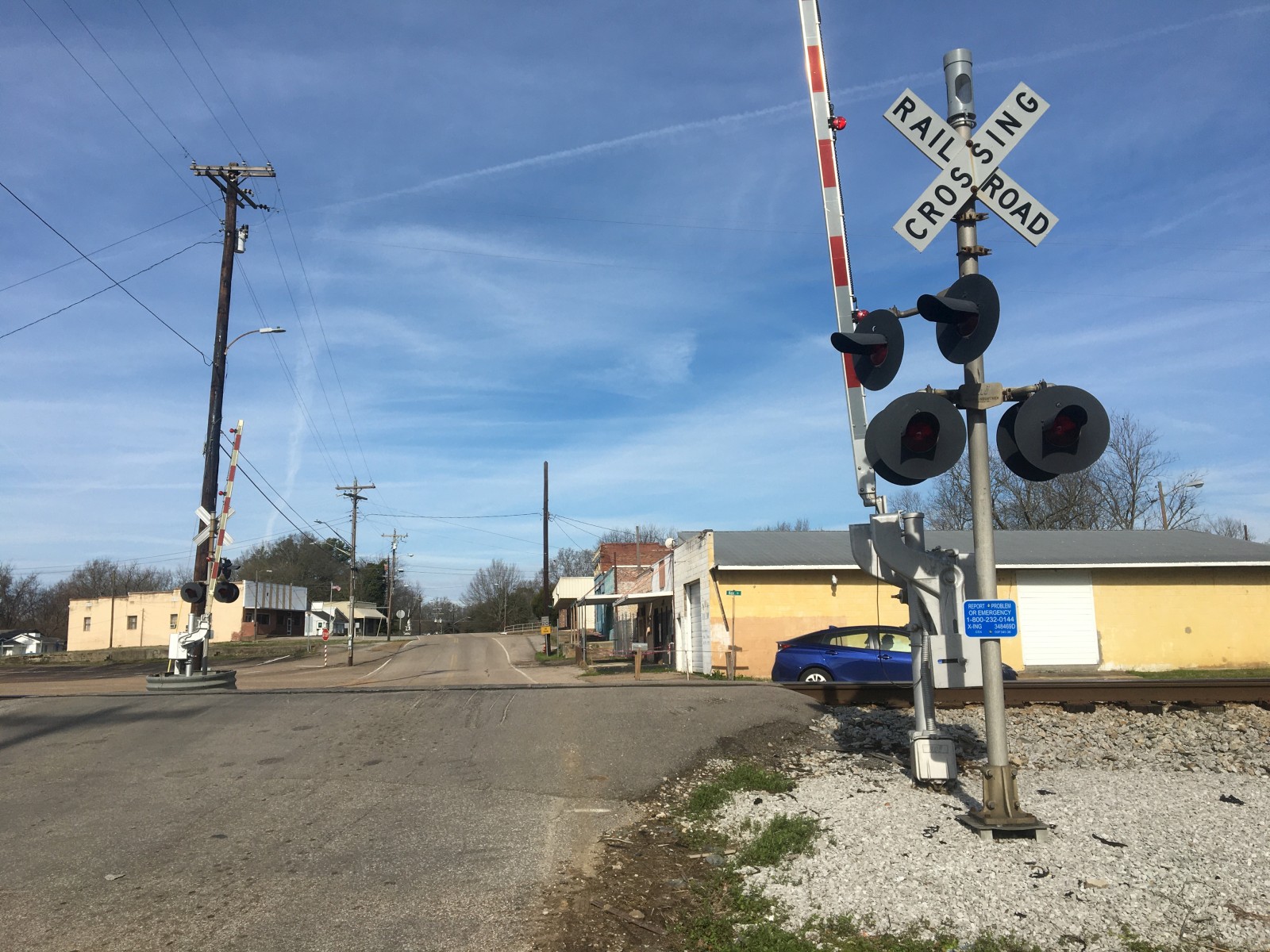

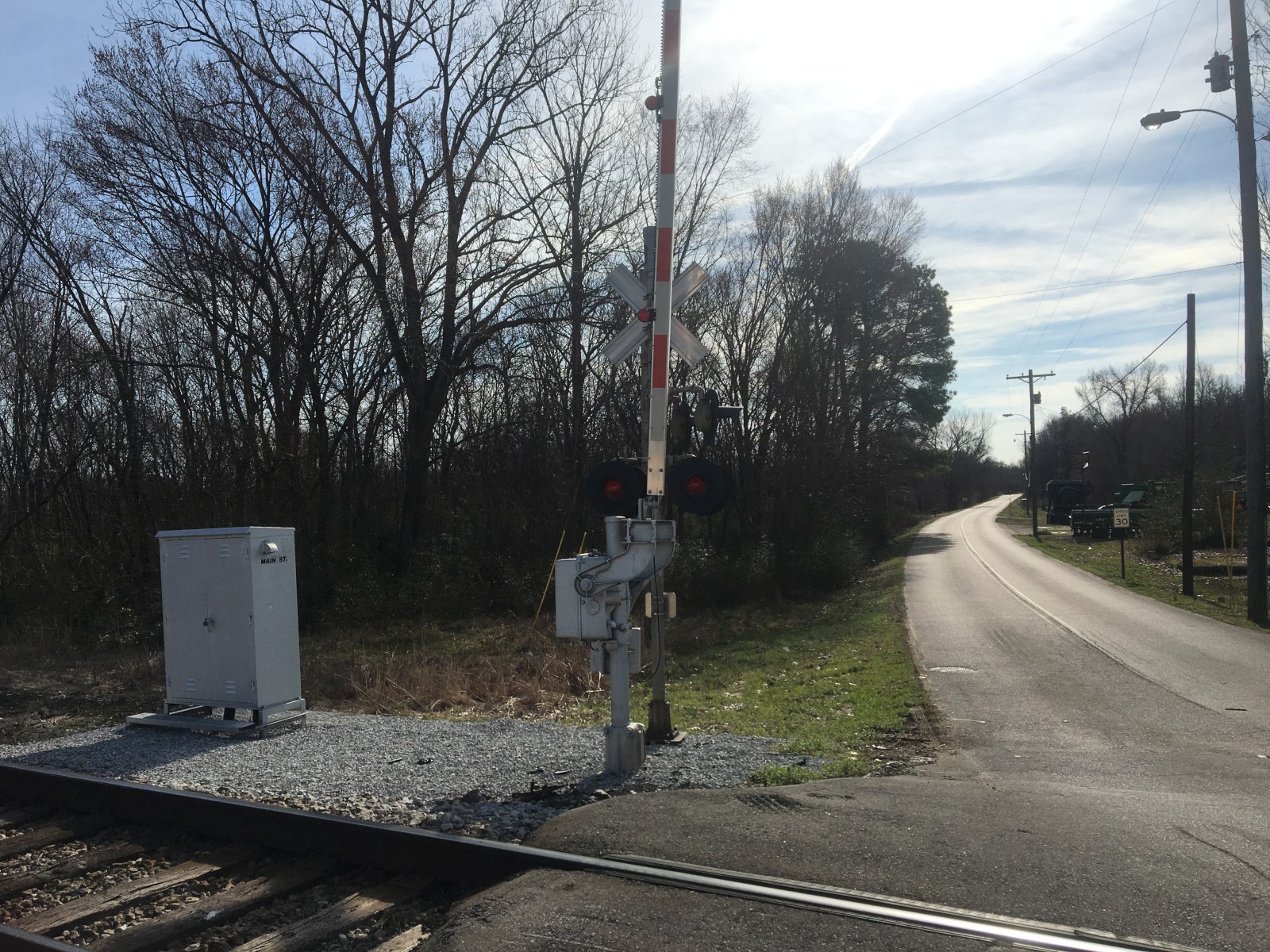

Overviews of this classic L&N install.

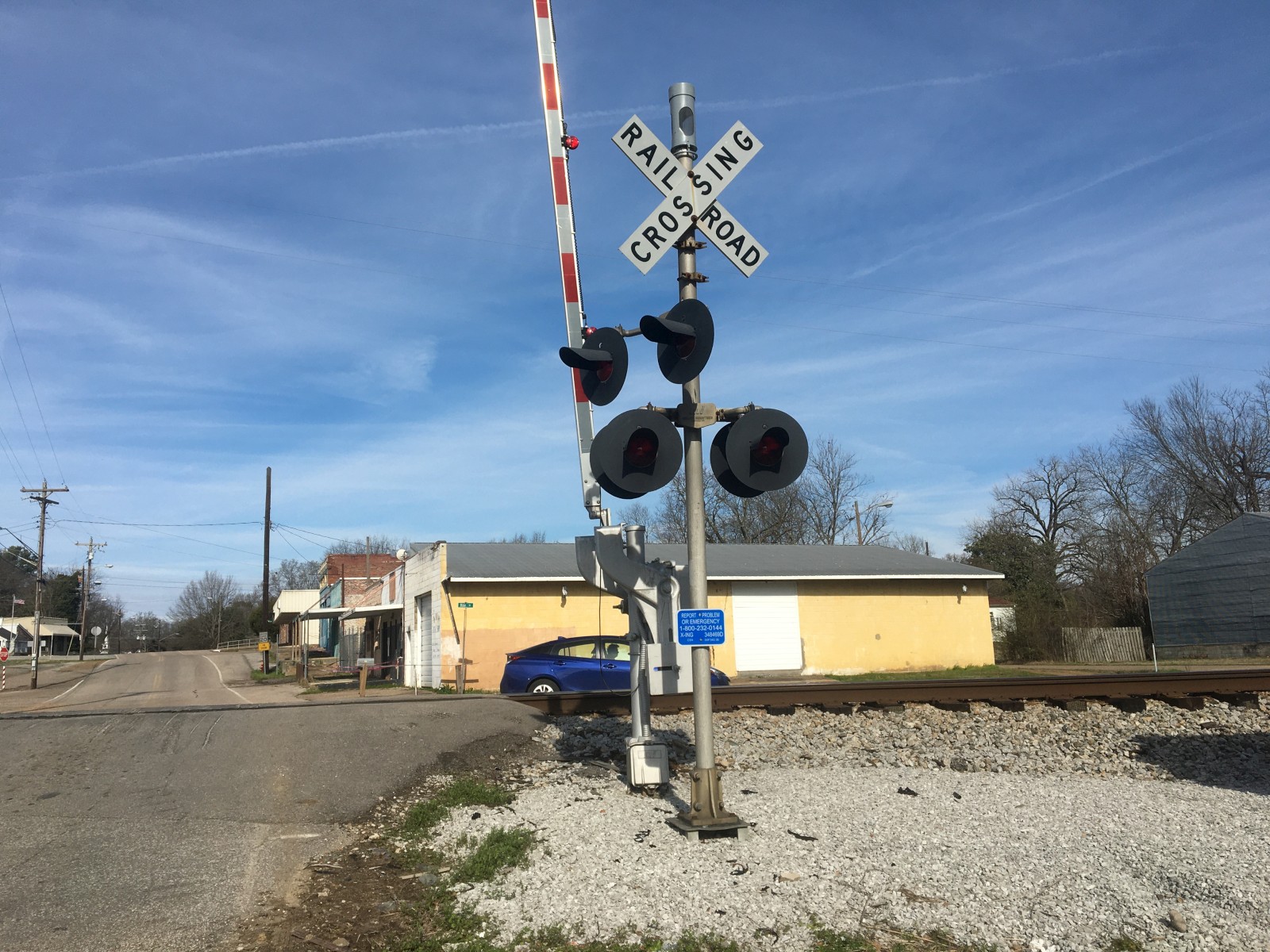

The southern signal.

5

6

7

8

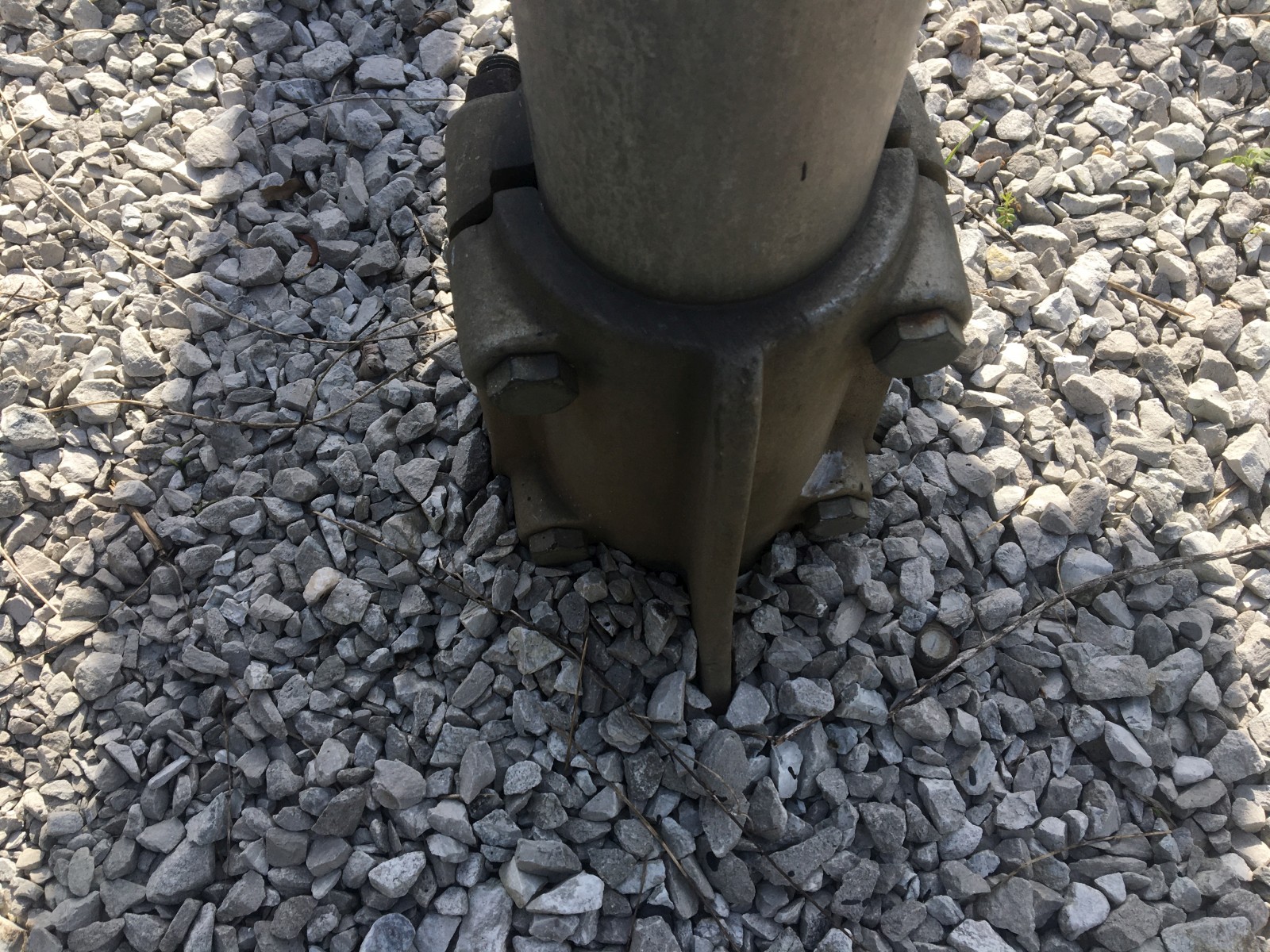

It has a clamp-styled base.

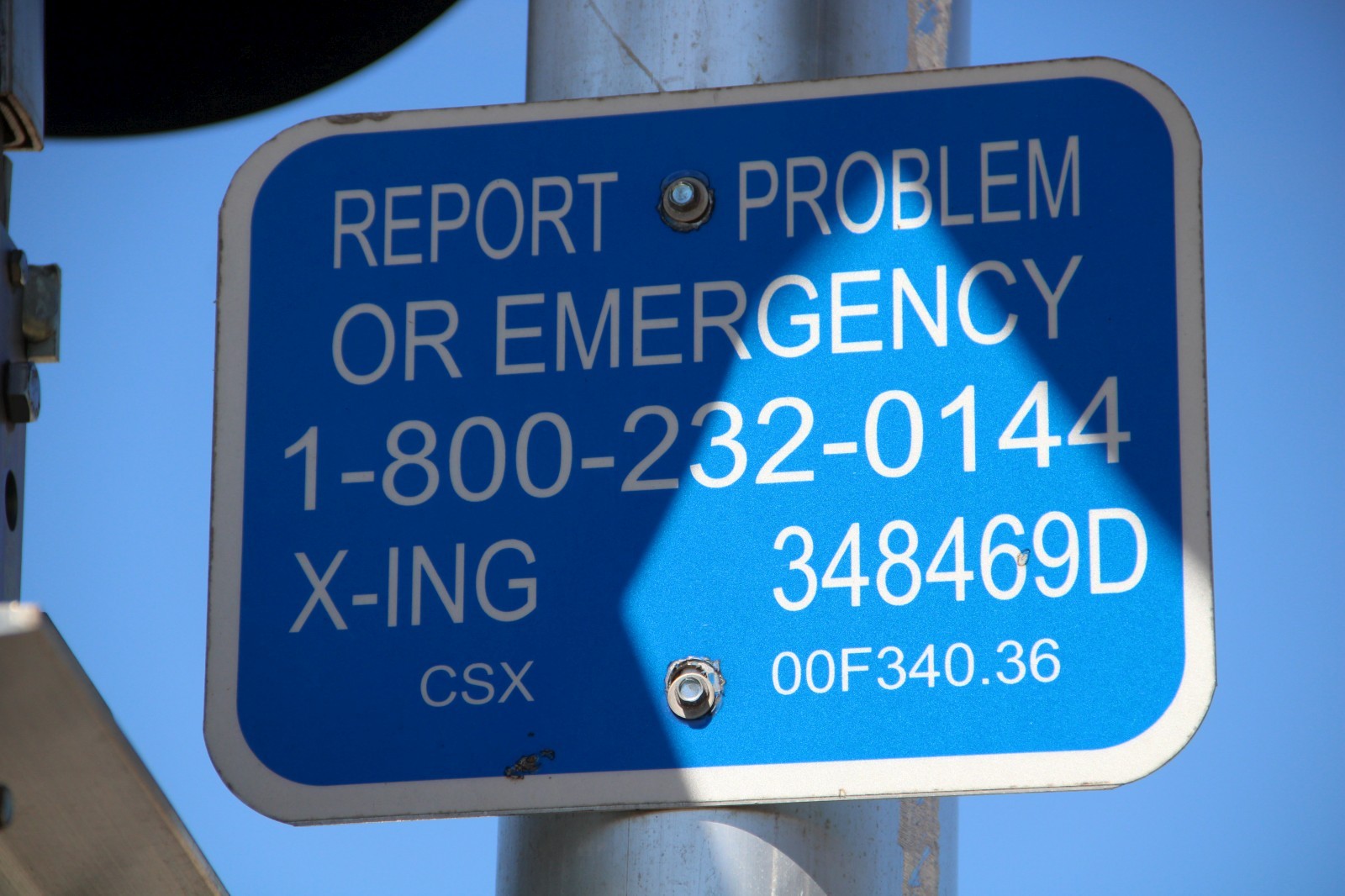

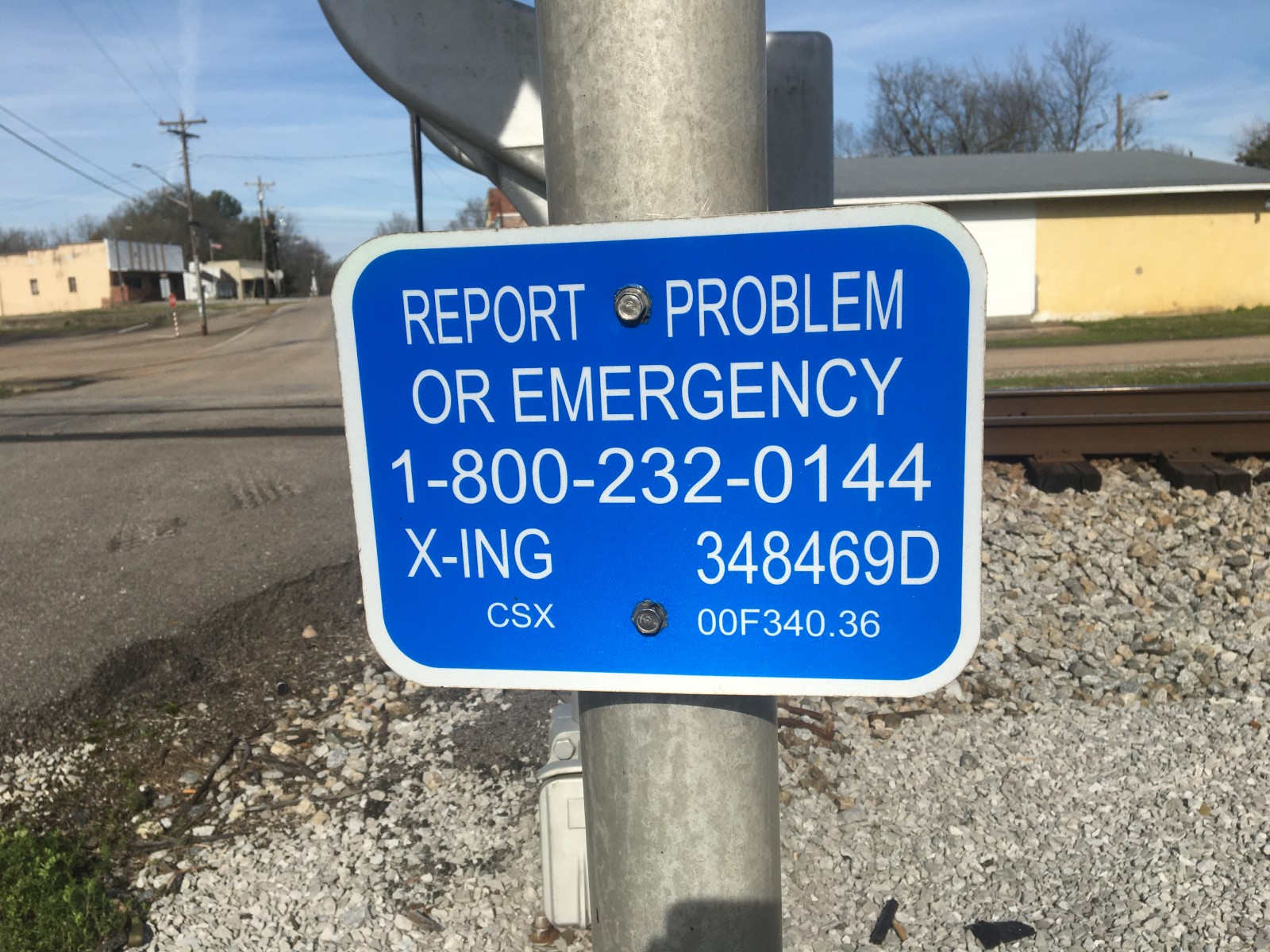

The emergency information.
The lights are Modern Industries 8 inch incandescents!

9

10

11

12

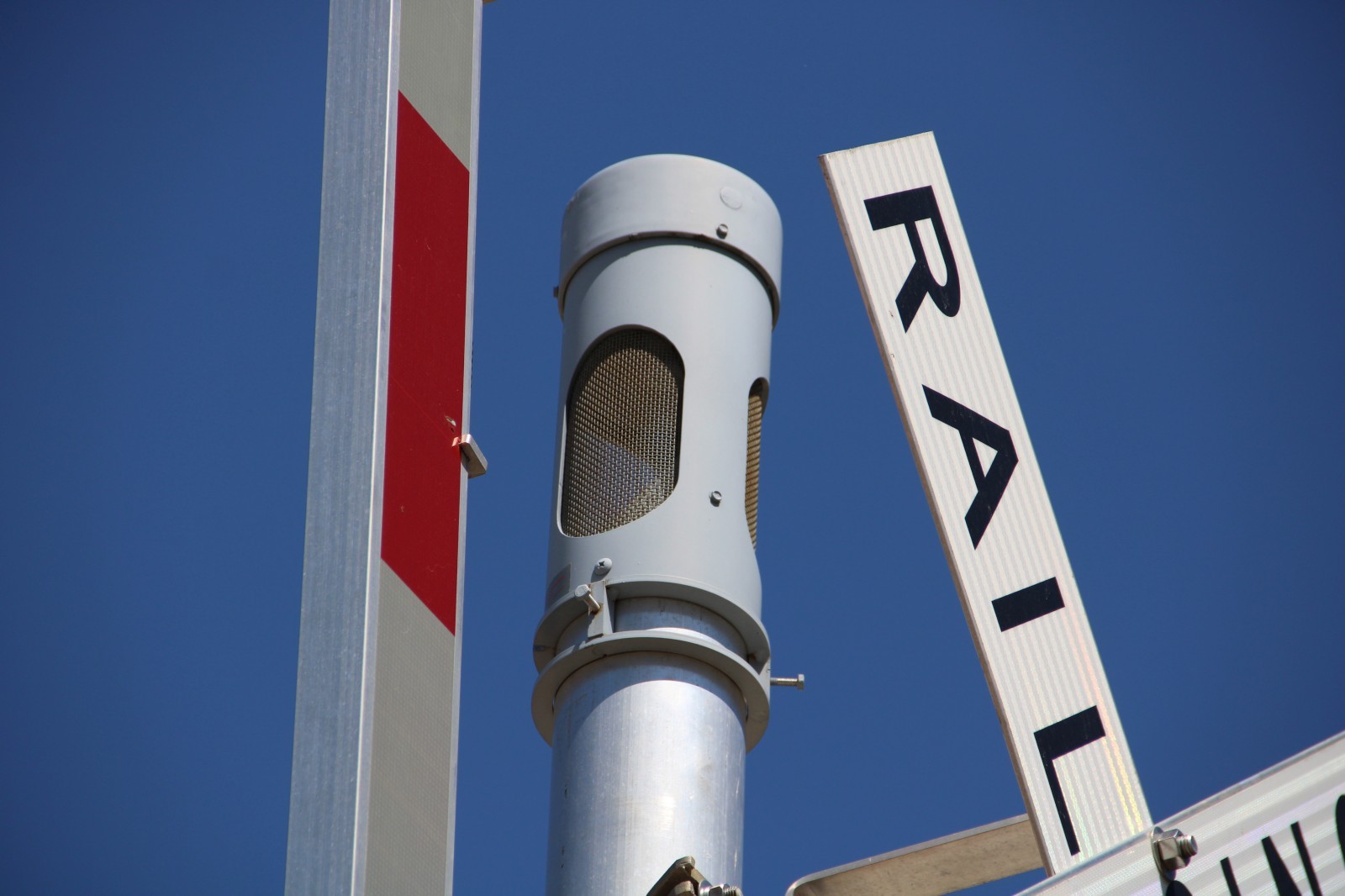

The bell is an NEG E-Bell.
A Modern Industries base.
A GRS gate mechanism!
The gatelights are from RECO.

13

14

15

16

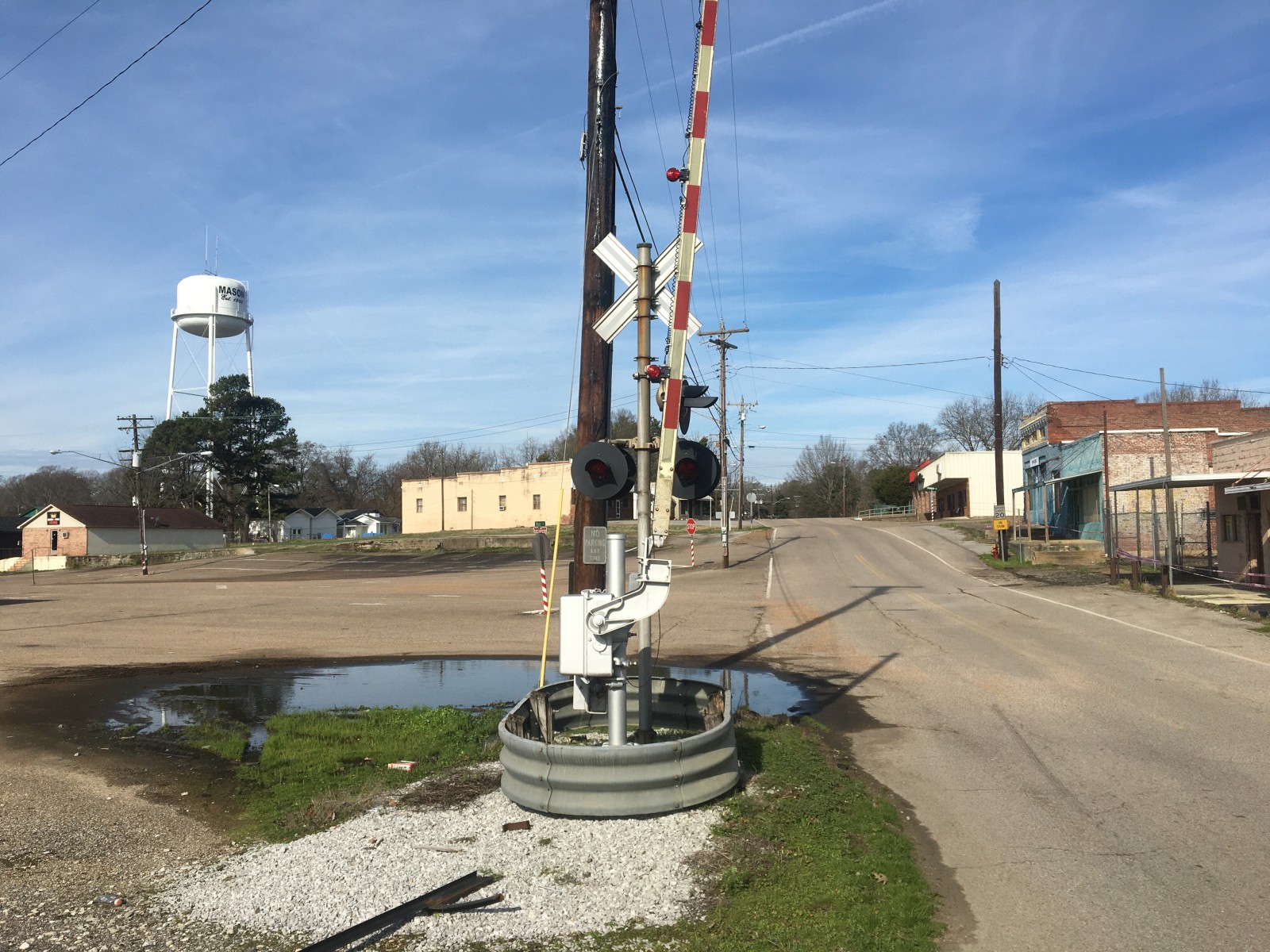

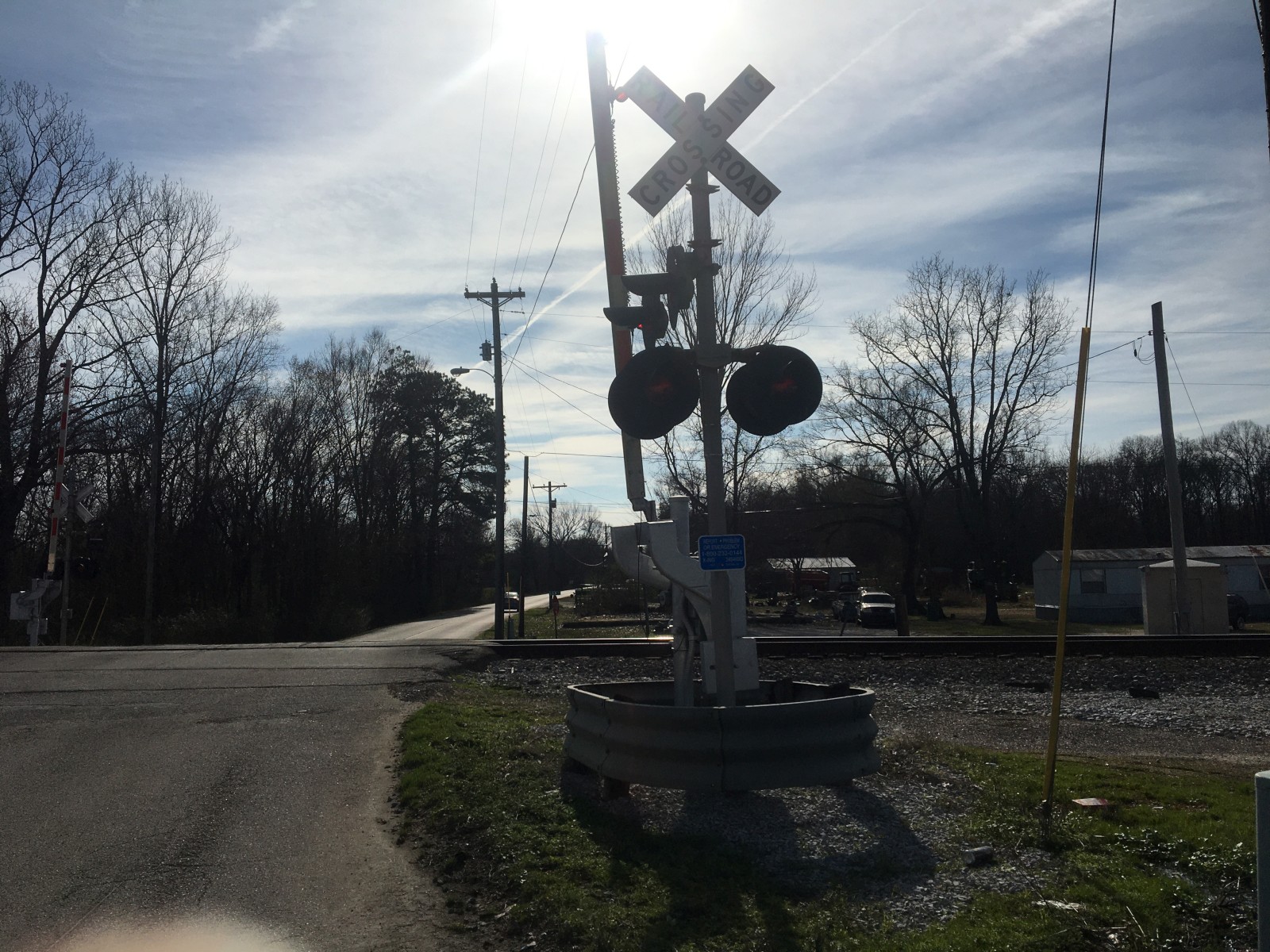

The northern signal.
It has another clamp-styled base.

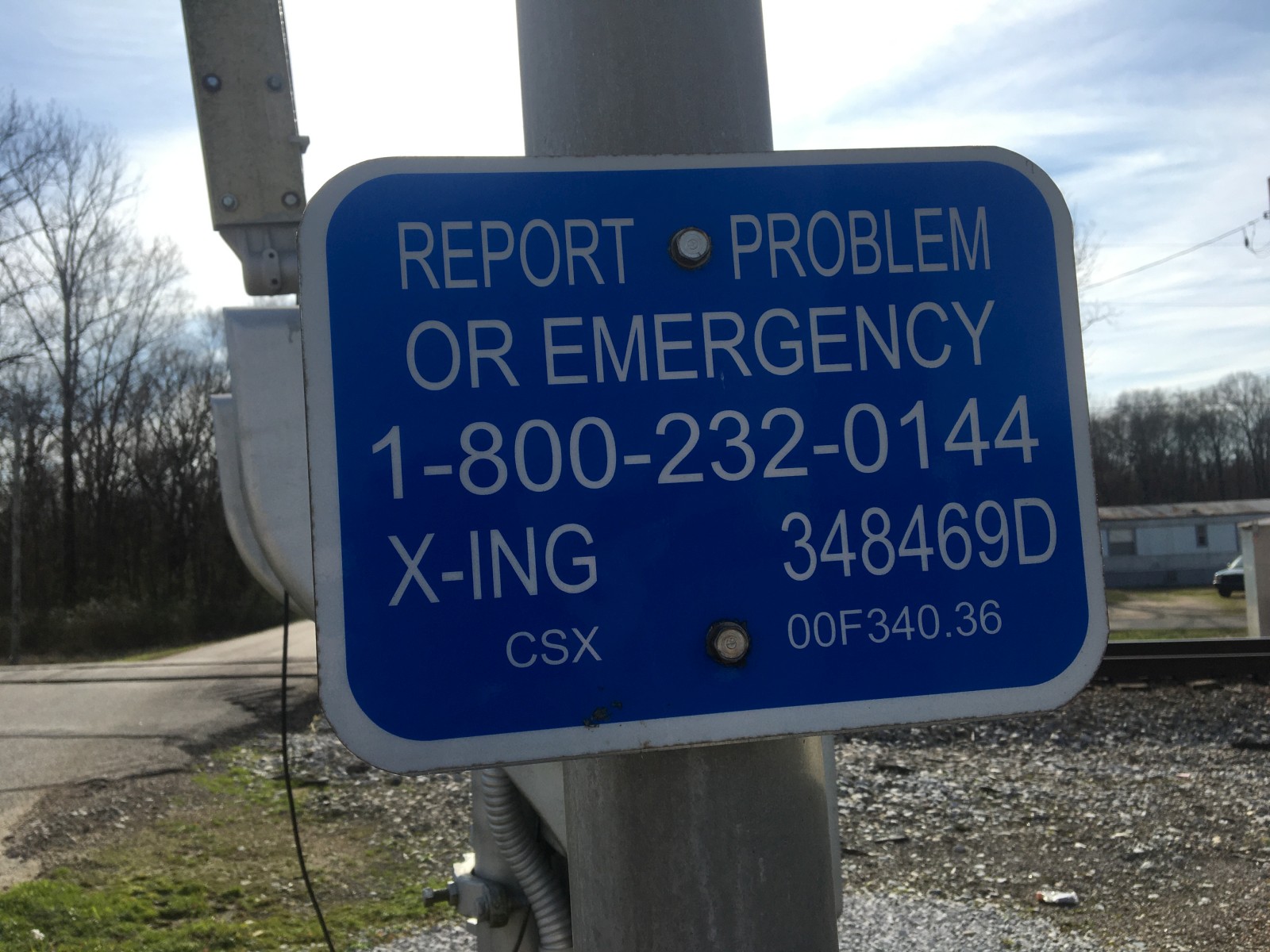

The emrgency information.

17

18

19

20
This signal has more Modern Industries 8 inch incandescent lights!
Another Modern Industries base.
Another GRS gate mechanism!

21

22

23

24
This signal has Progress Rail(?) gatelights!

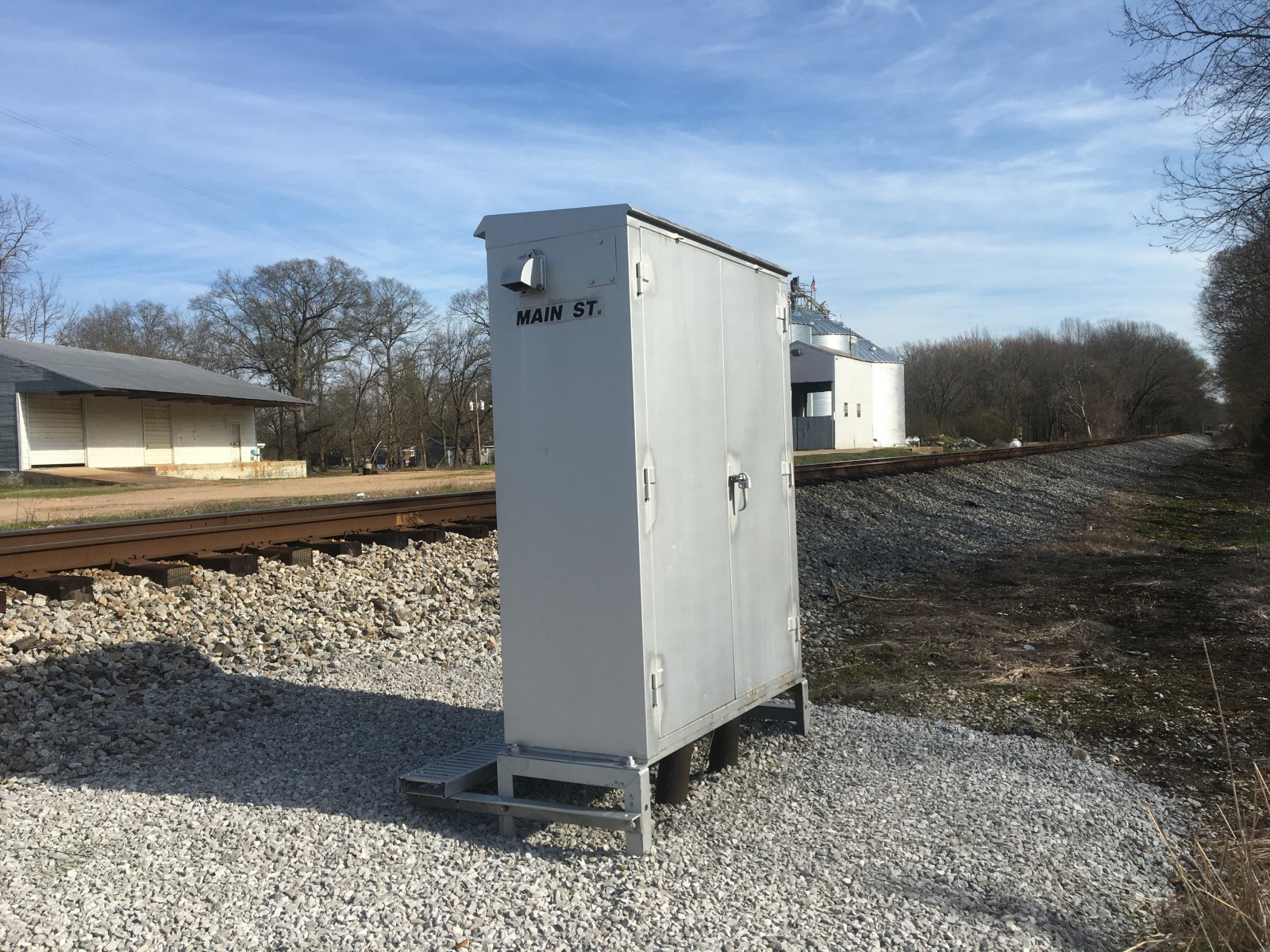

The relay case.

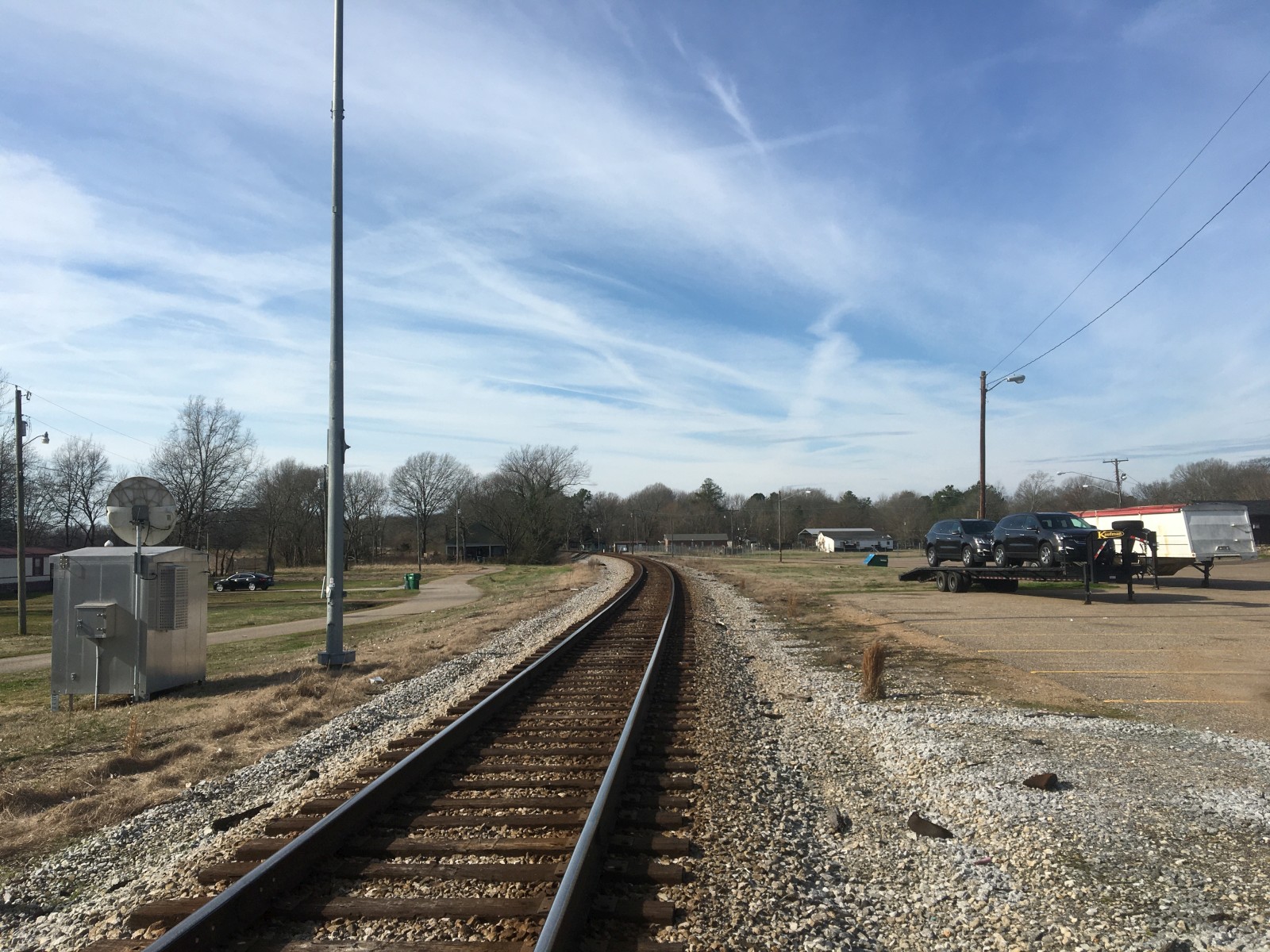

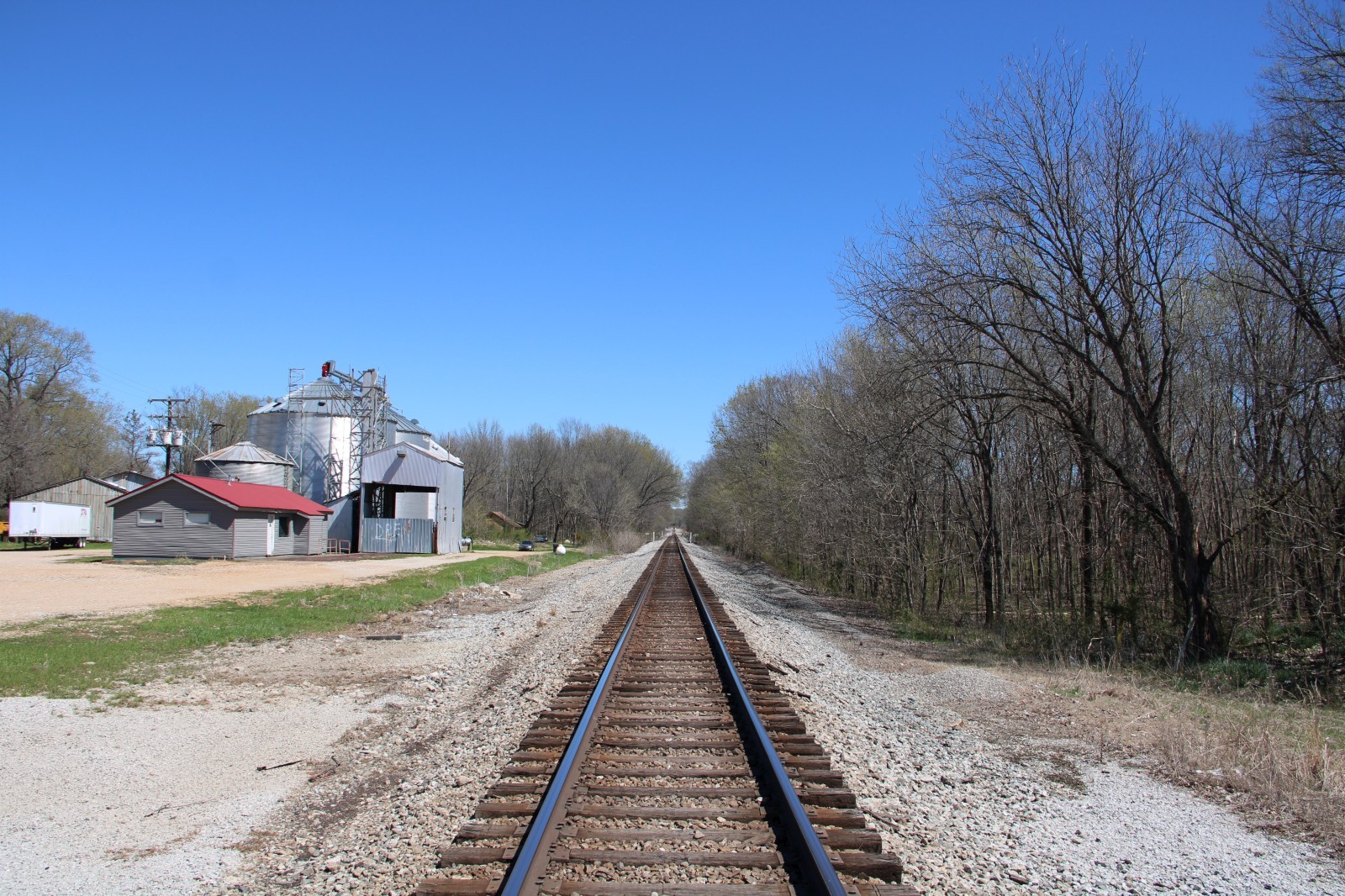

Track view facing east towards Muex Road near Stanton.

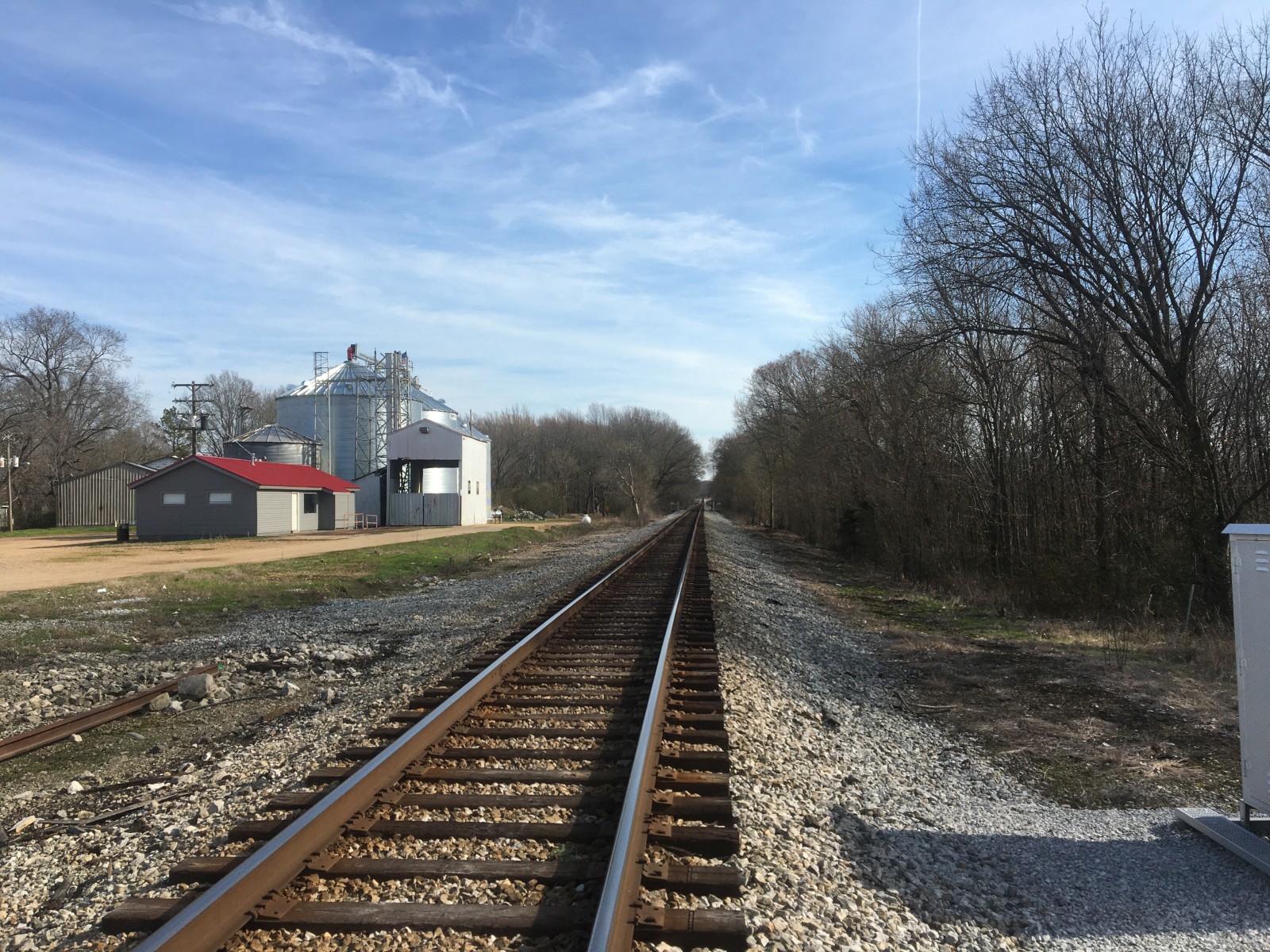

Track view facing west towards State Route 59 in Braden.

25
A pair of relay bungalows near the crossing. The one on the right is a defect detector one, though I'm not sure what the one on the left is for.

26

27

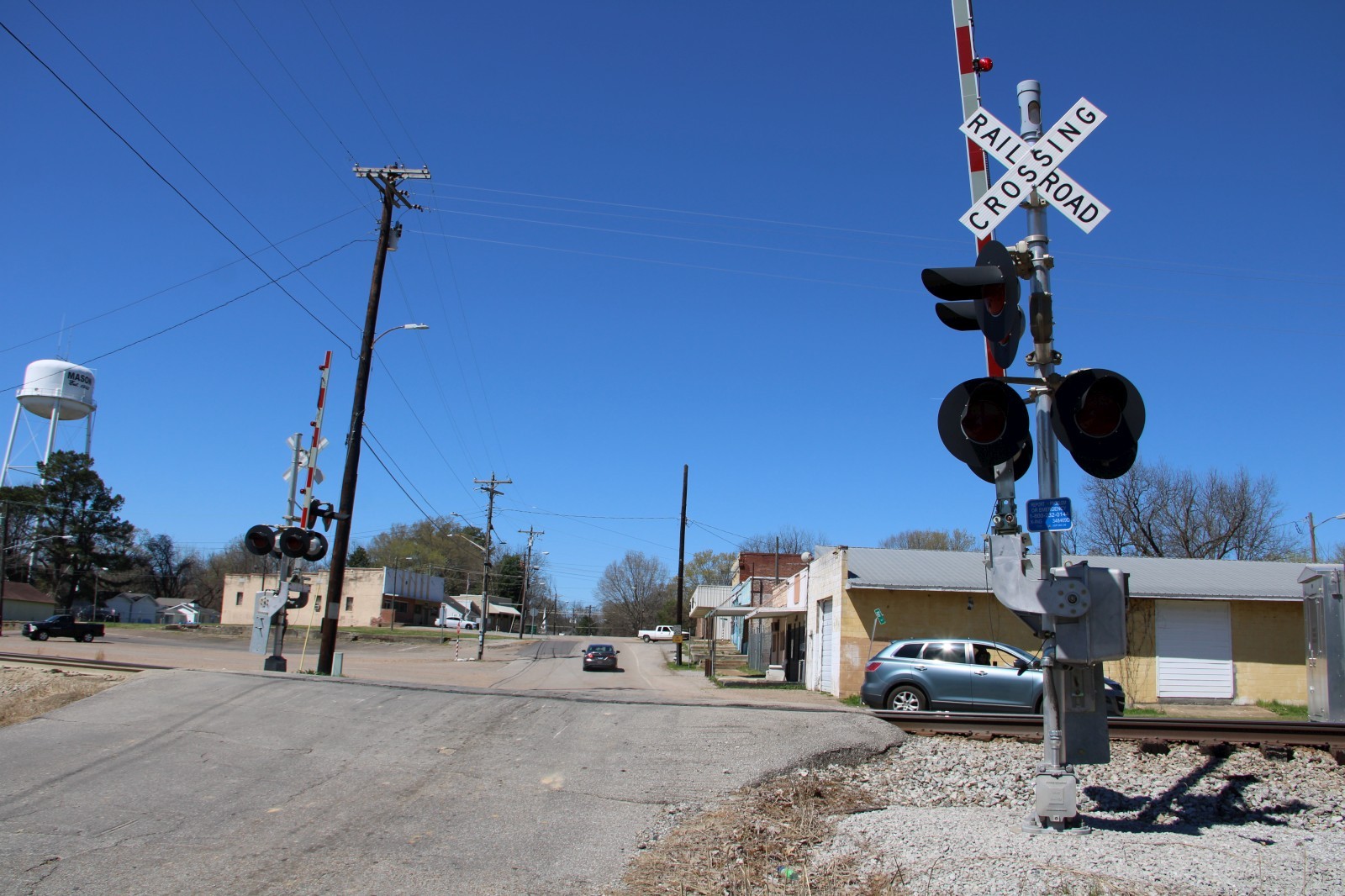

On March 22, 2025, freebrickproductions made a return trip to this crossing to find that the L&N setup was entirelly replaced!

28

29

30

31

32

33

34

35

36

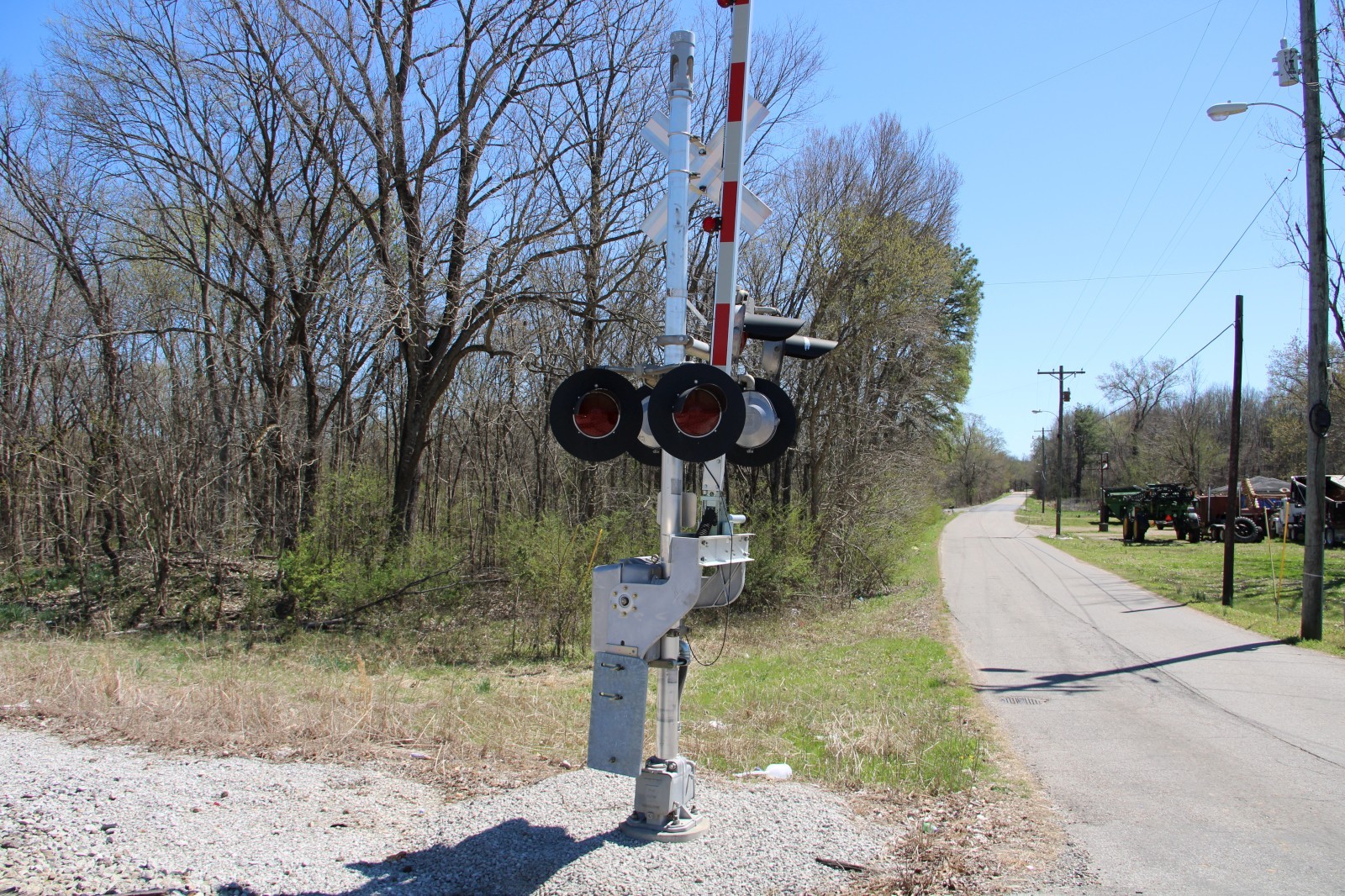

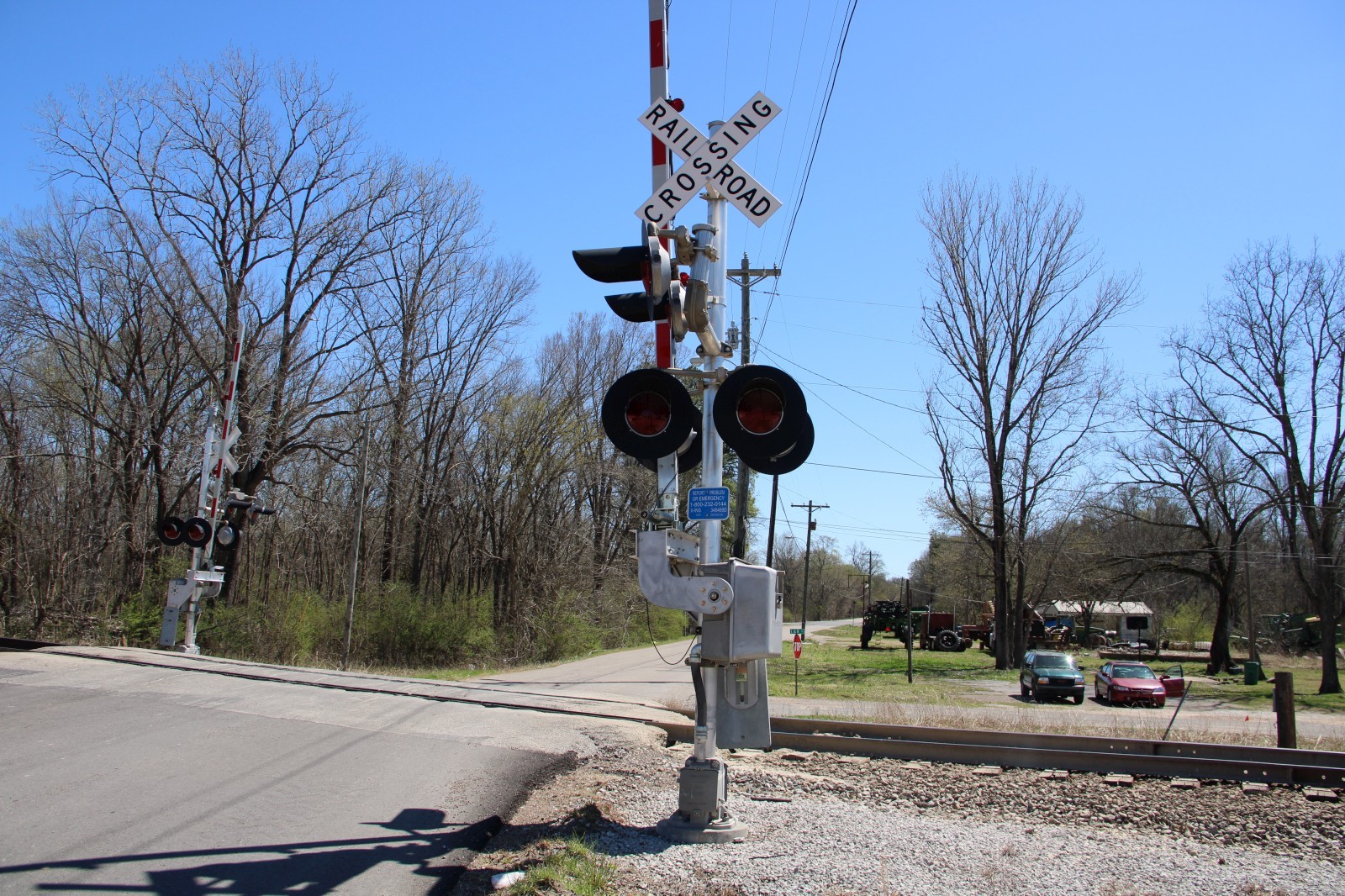

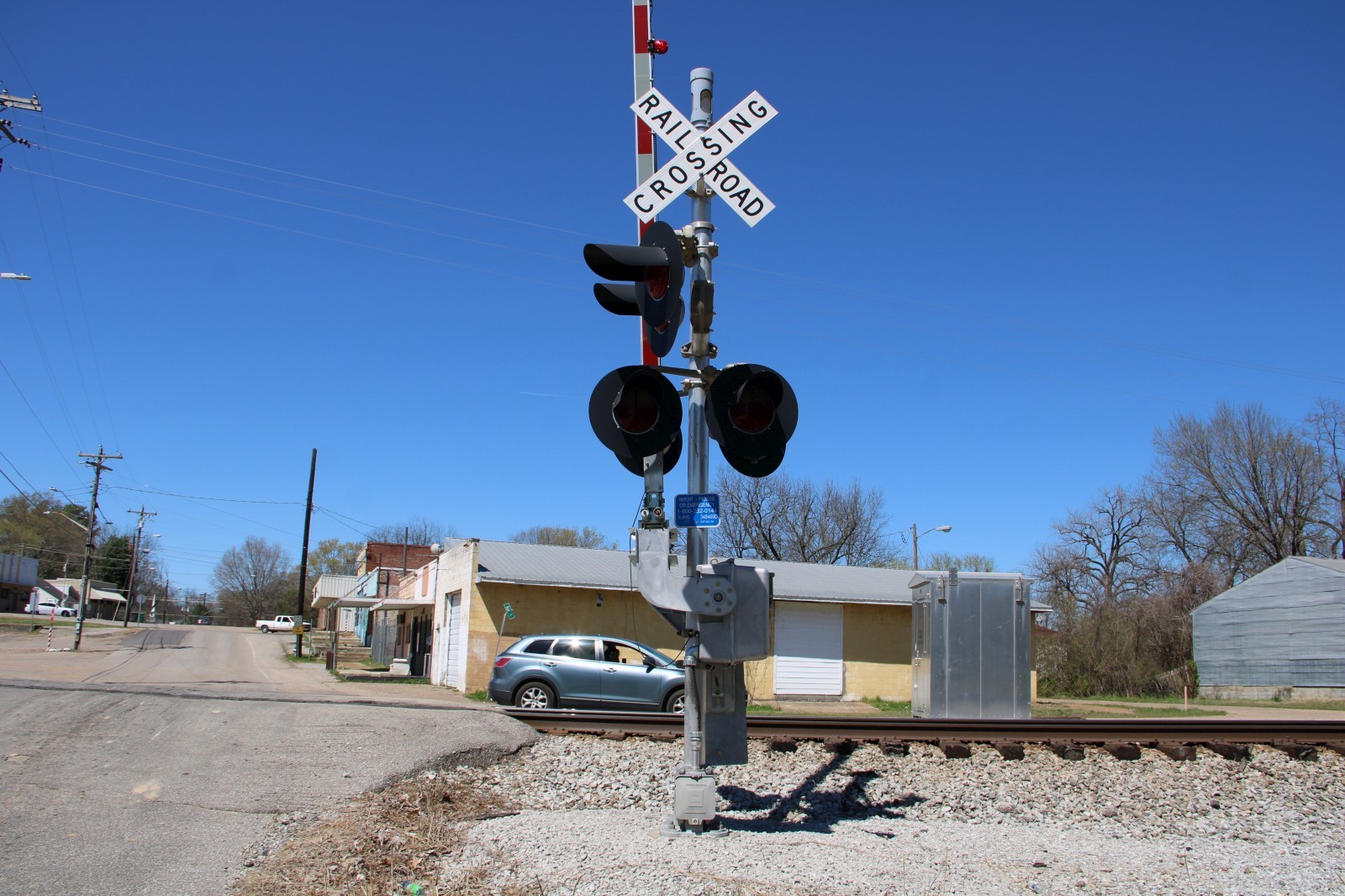

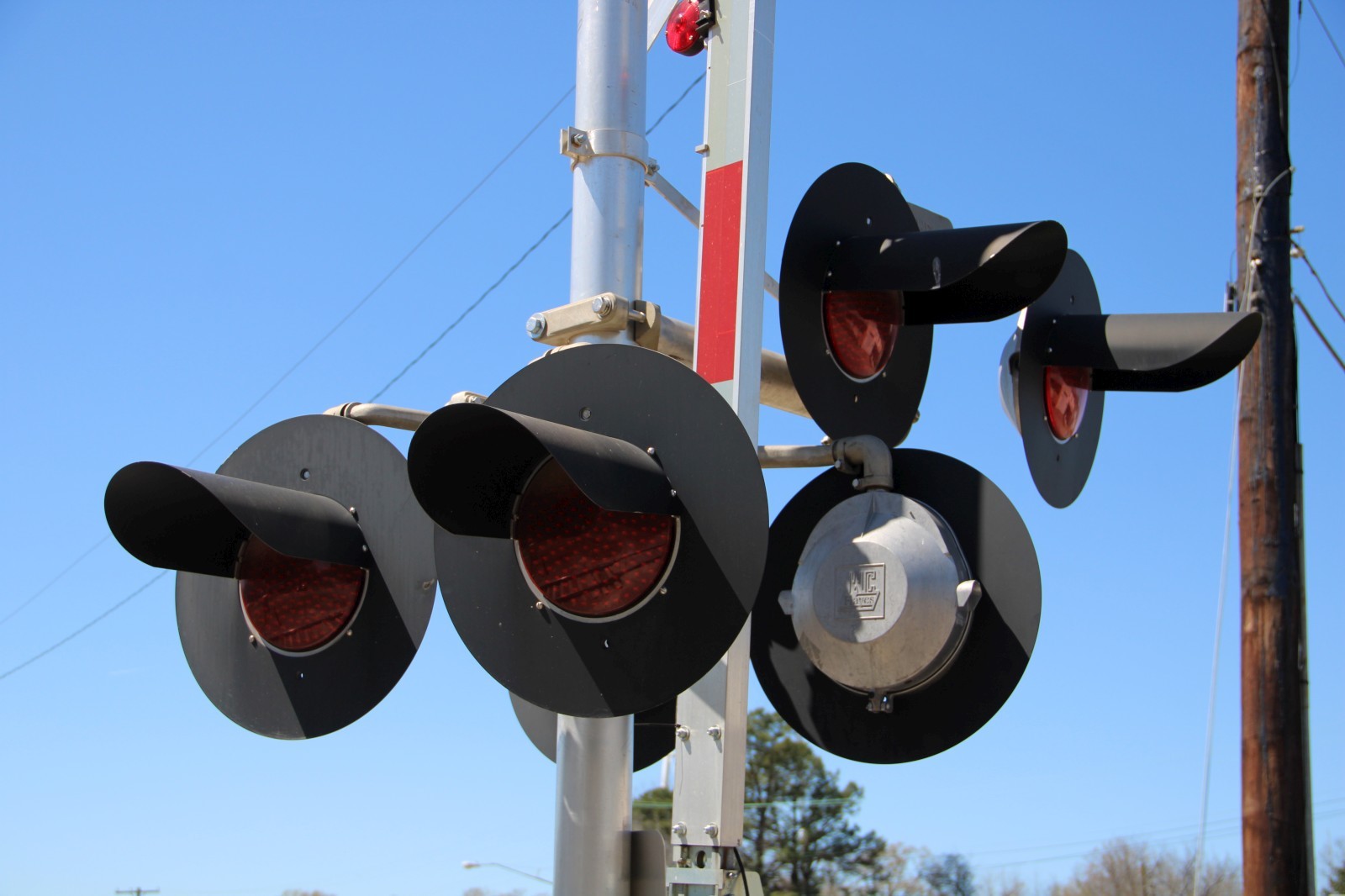

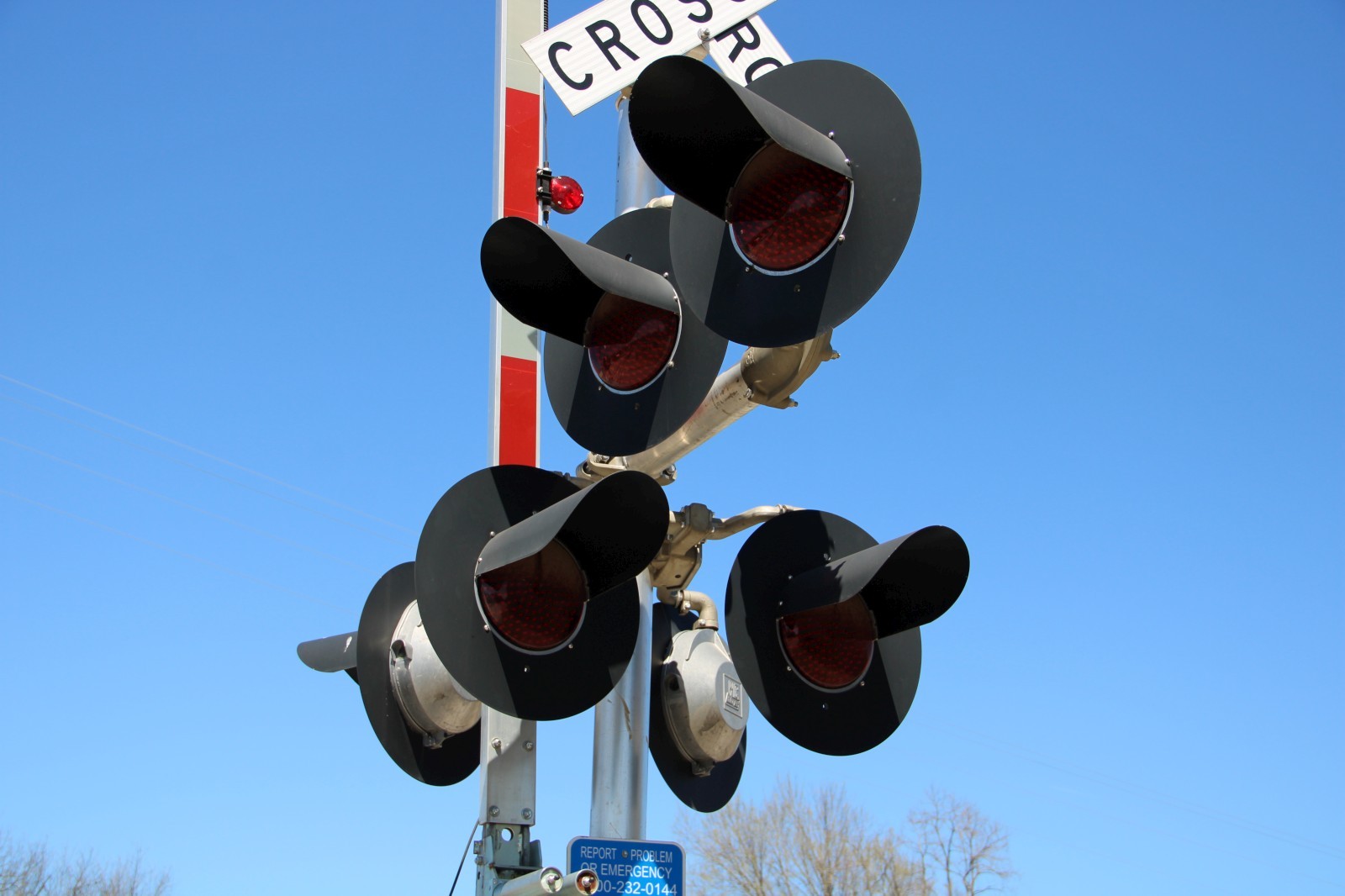

The new southern signal.

37

38

39

40

41

42

43

44

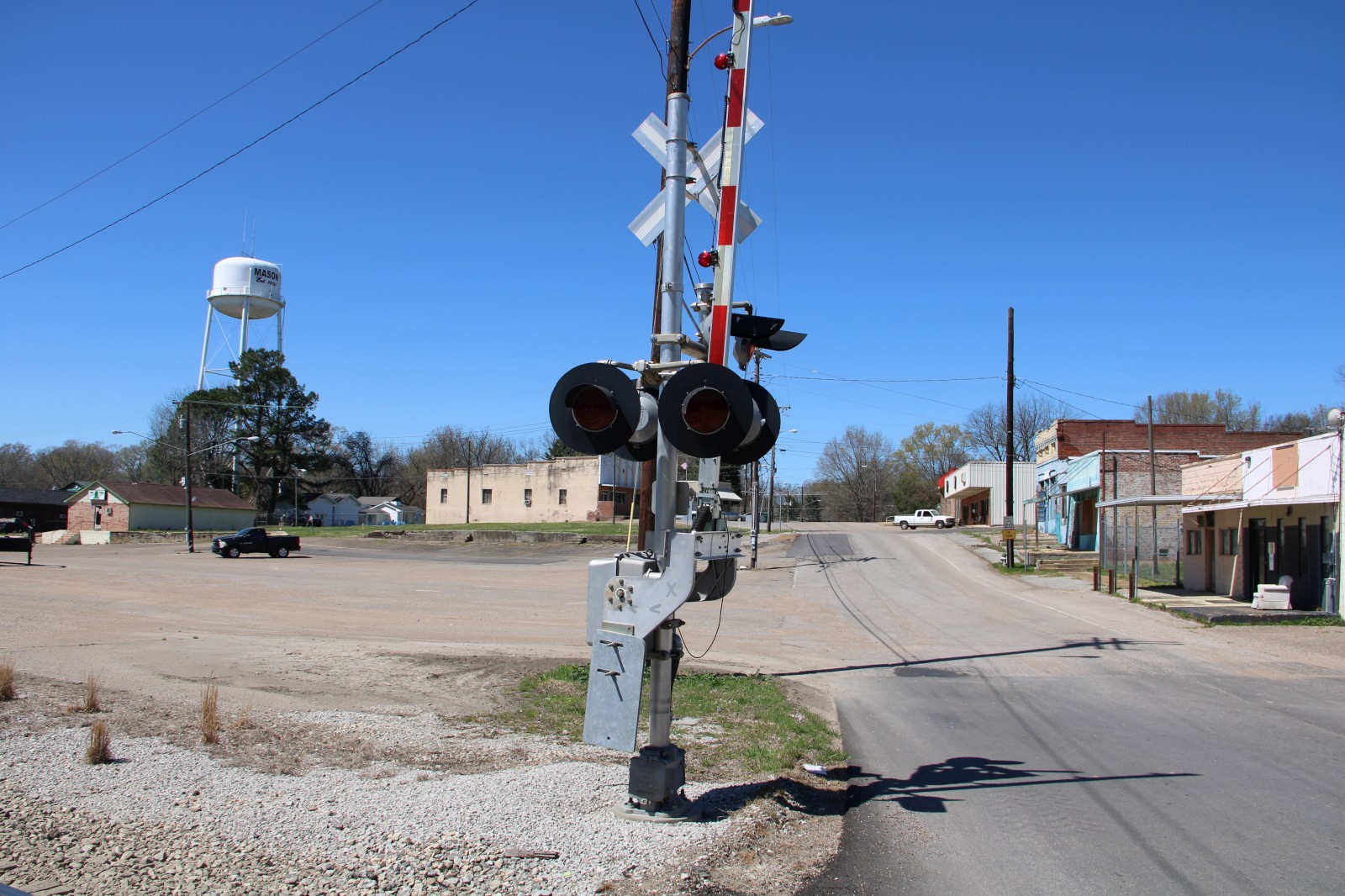

The new northern signal.

45

46

47

48
The new relay bungalow.
Track views.
An old signal foundation still stands here.



Pictures 1-25 were taken on 2-9-20.

Pictures 26-48 were taken on 3-22-25 by freebrickproductions.
