MP: 0382.980 |
Created August 25, 2020
Total Accidents: 0
Crossing
DOT #: 348593J
TOTAL
WEEKLY TRAINS: 10 (AS OF 2018)
Page created by: Ethan the Railfanner
This crossing is located on the UP North Memphis Lead & CSX Memphis Terminal Subdivision.
1 |
2 |
3 |
4 |

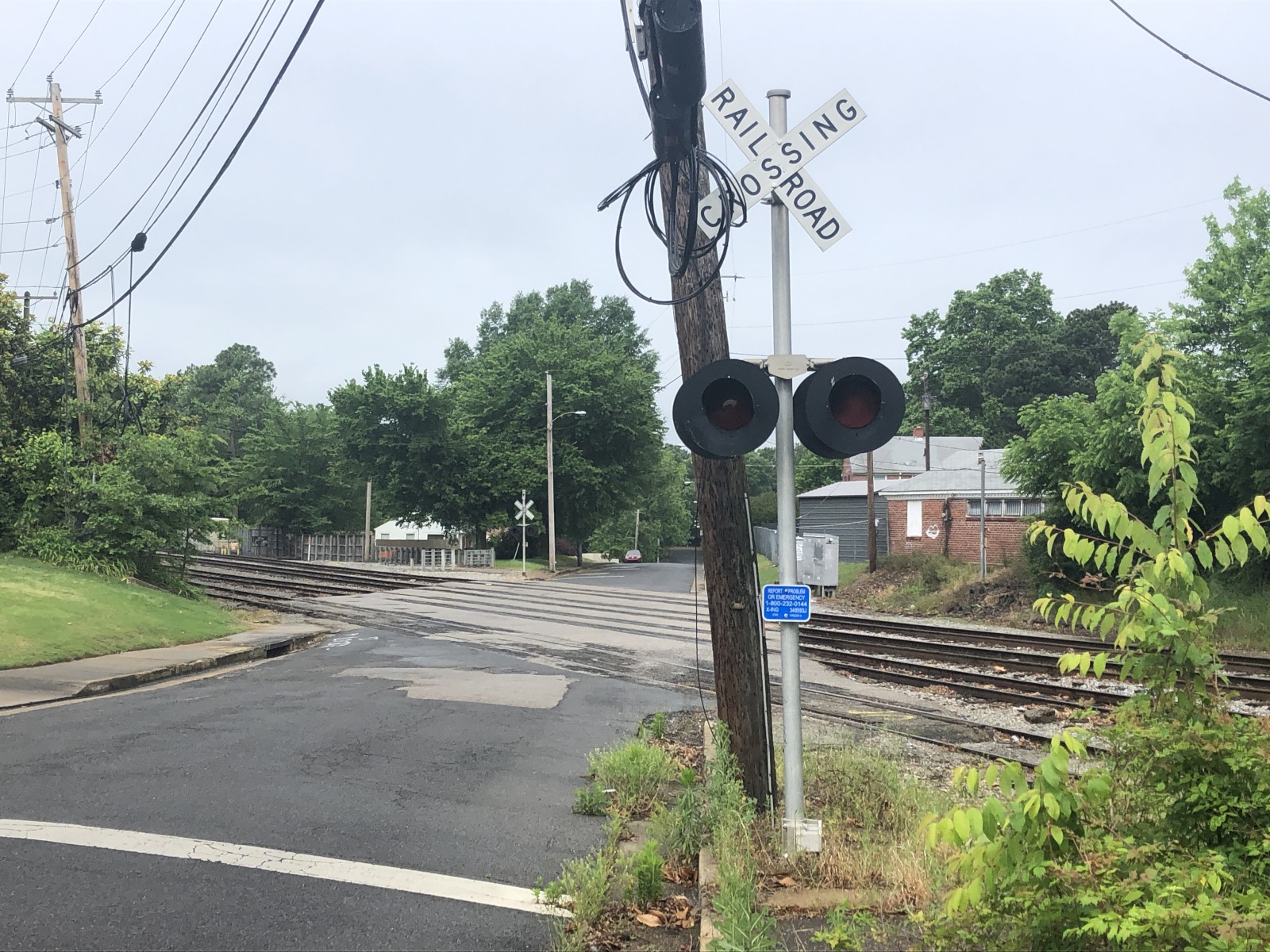

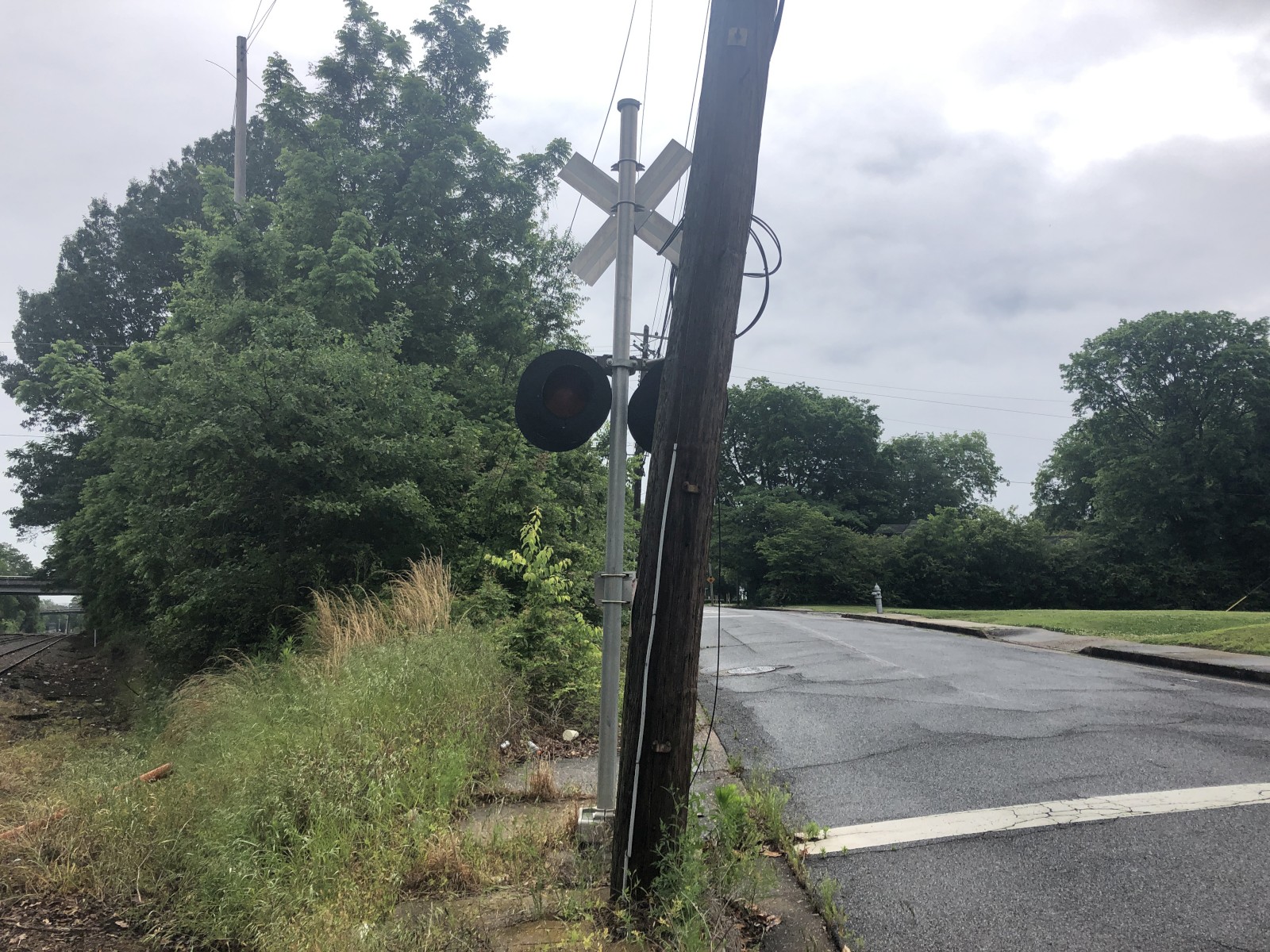

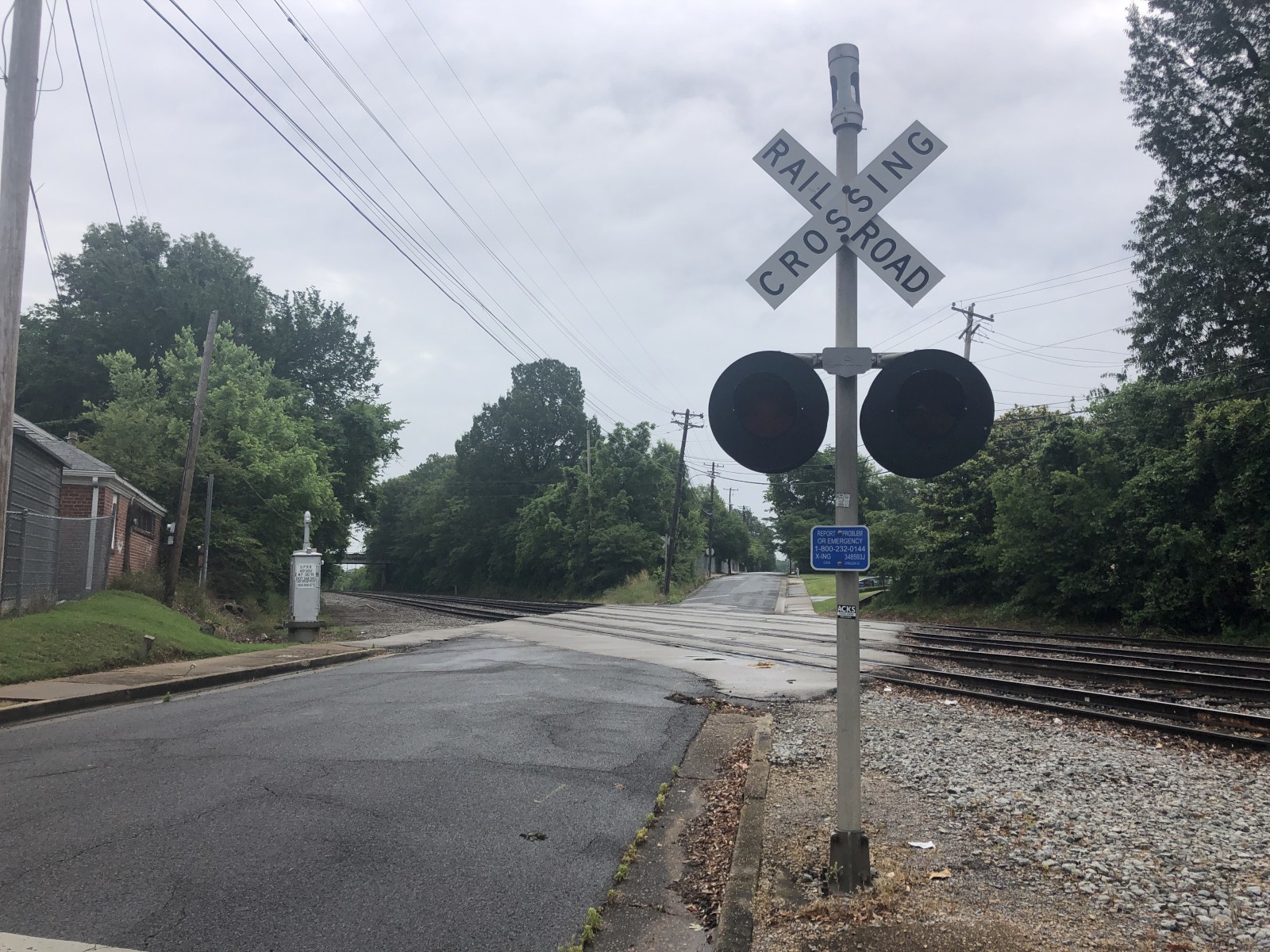

Overviews of this crossing. |

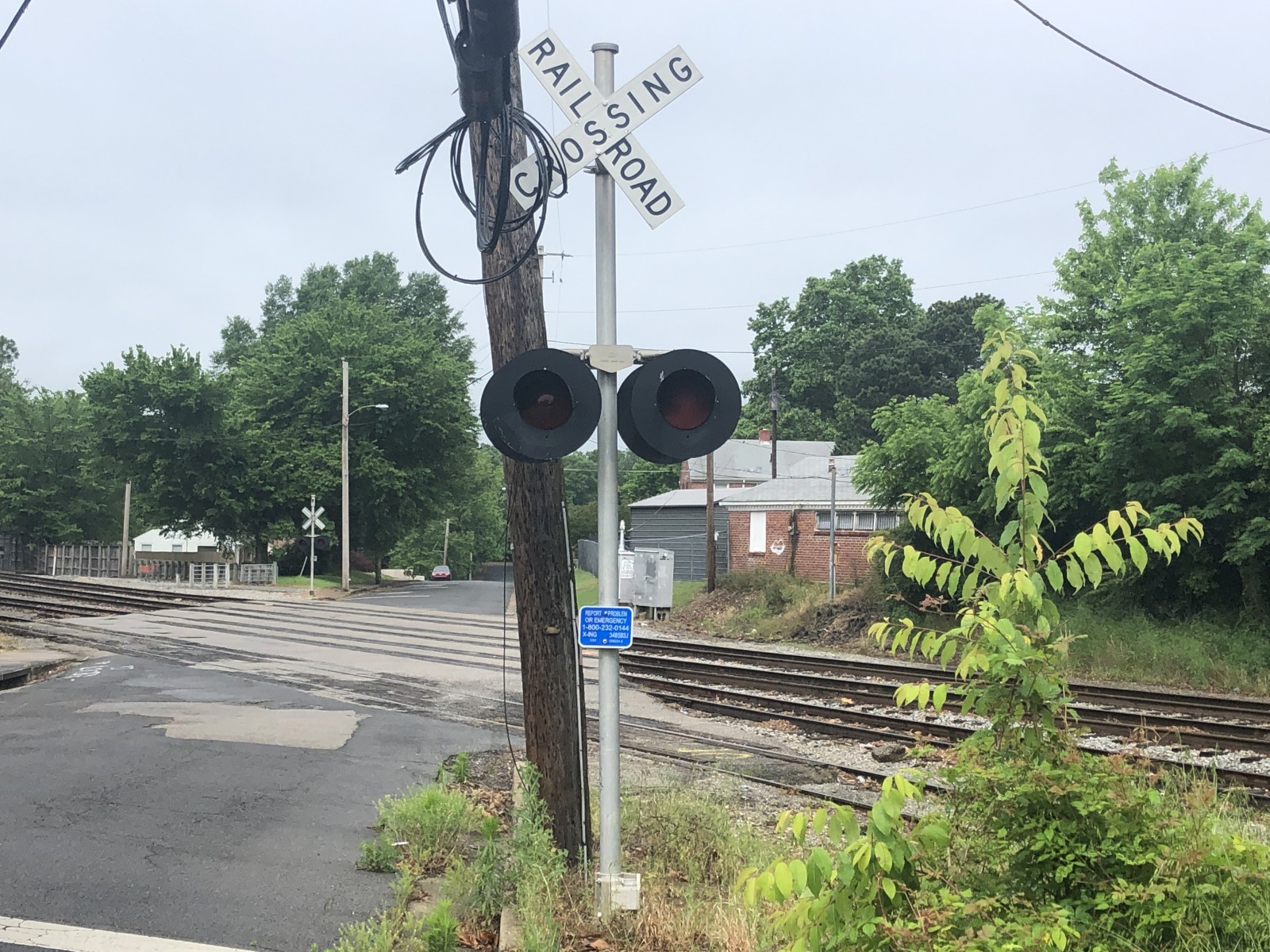

The eastern signal. |
||
5 |
6 |
7 |
8 |

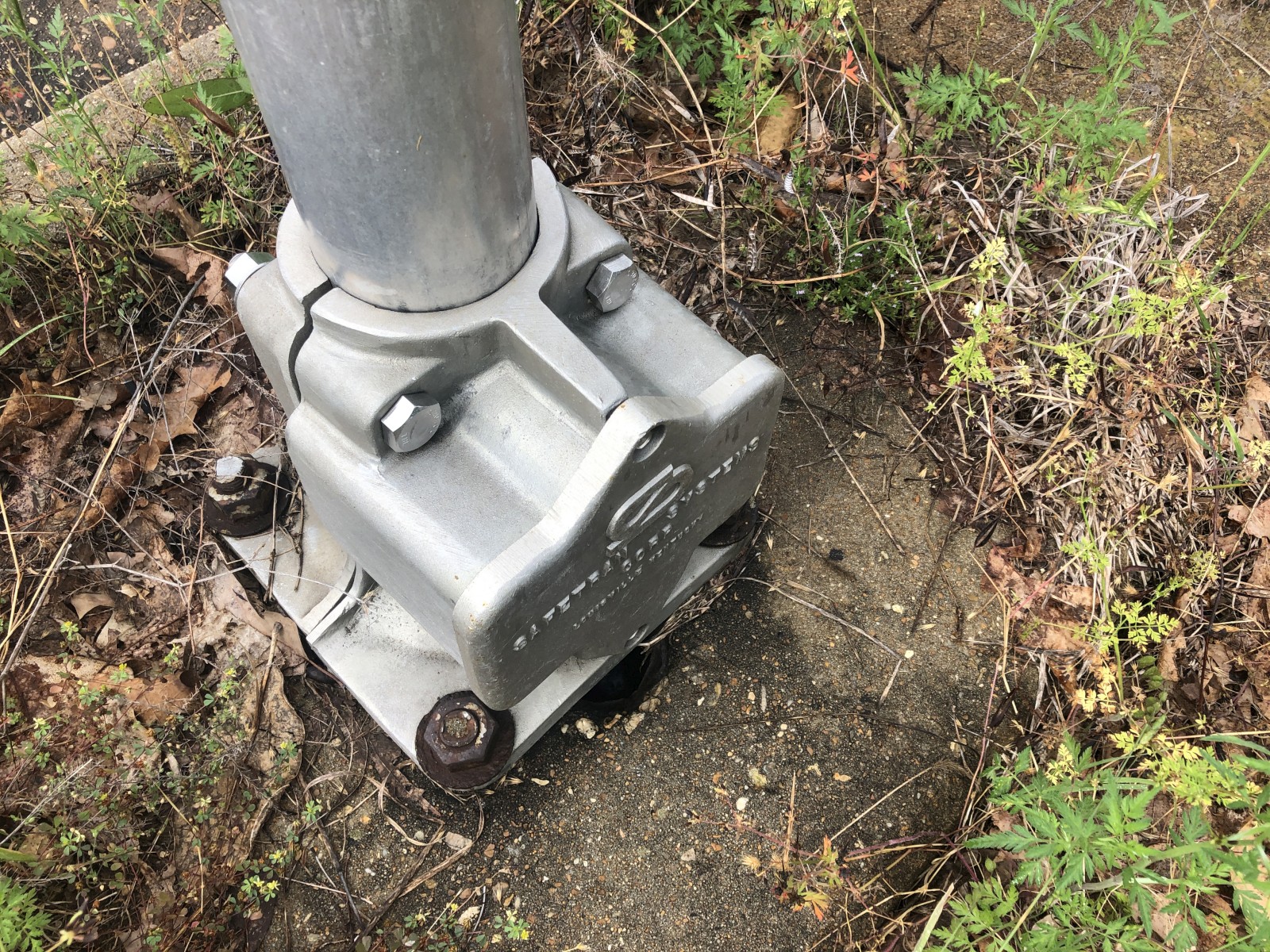

It has a Safetran base. |

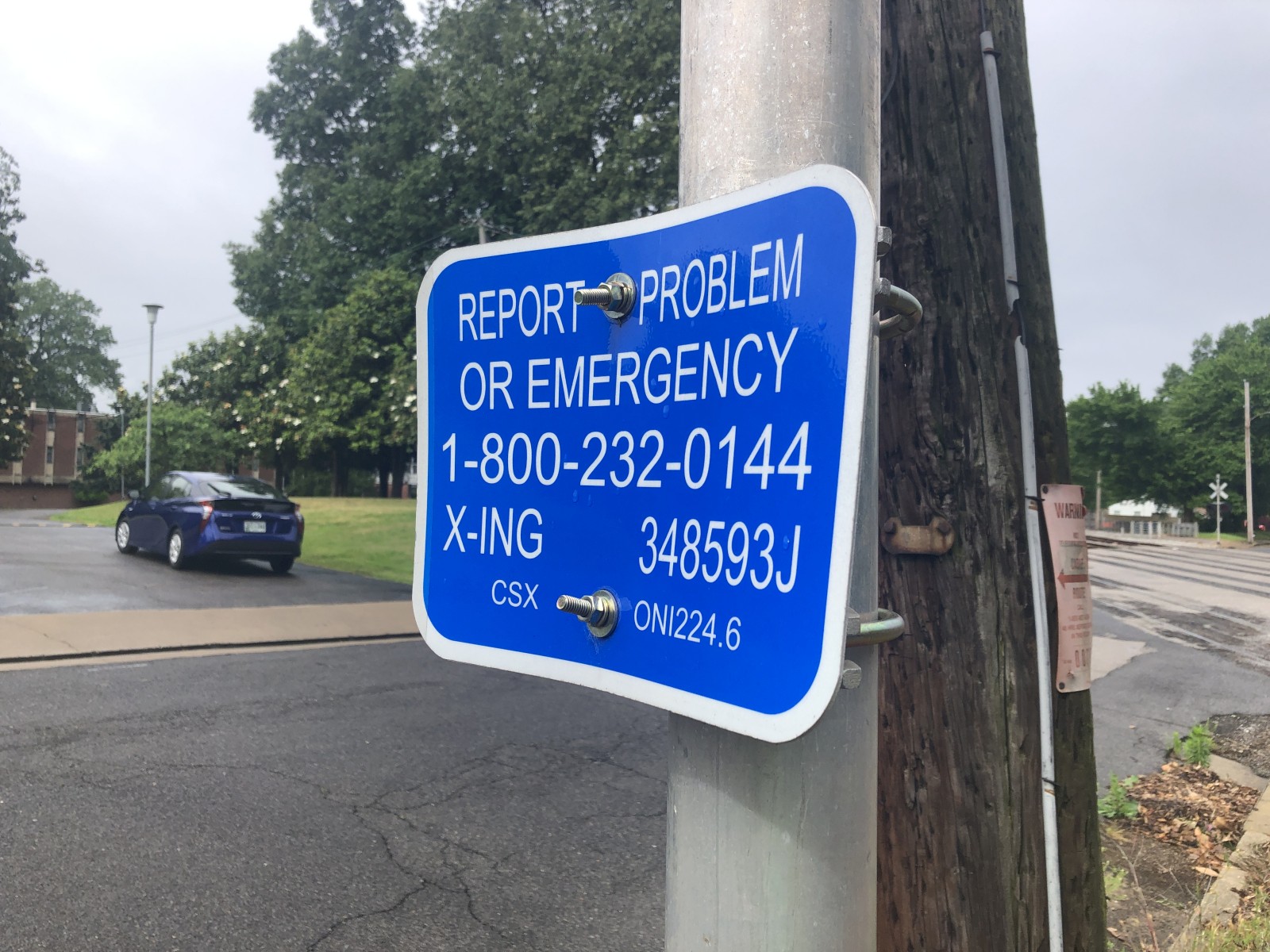

The emergency information. |

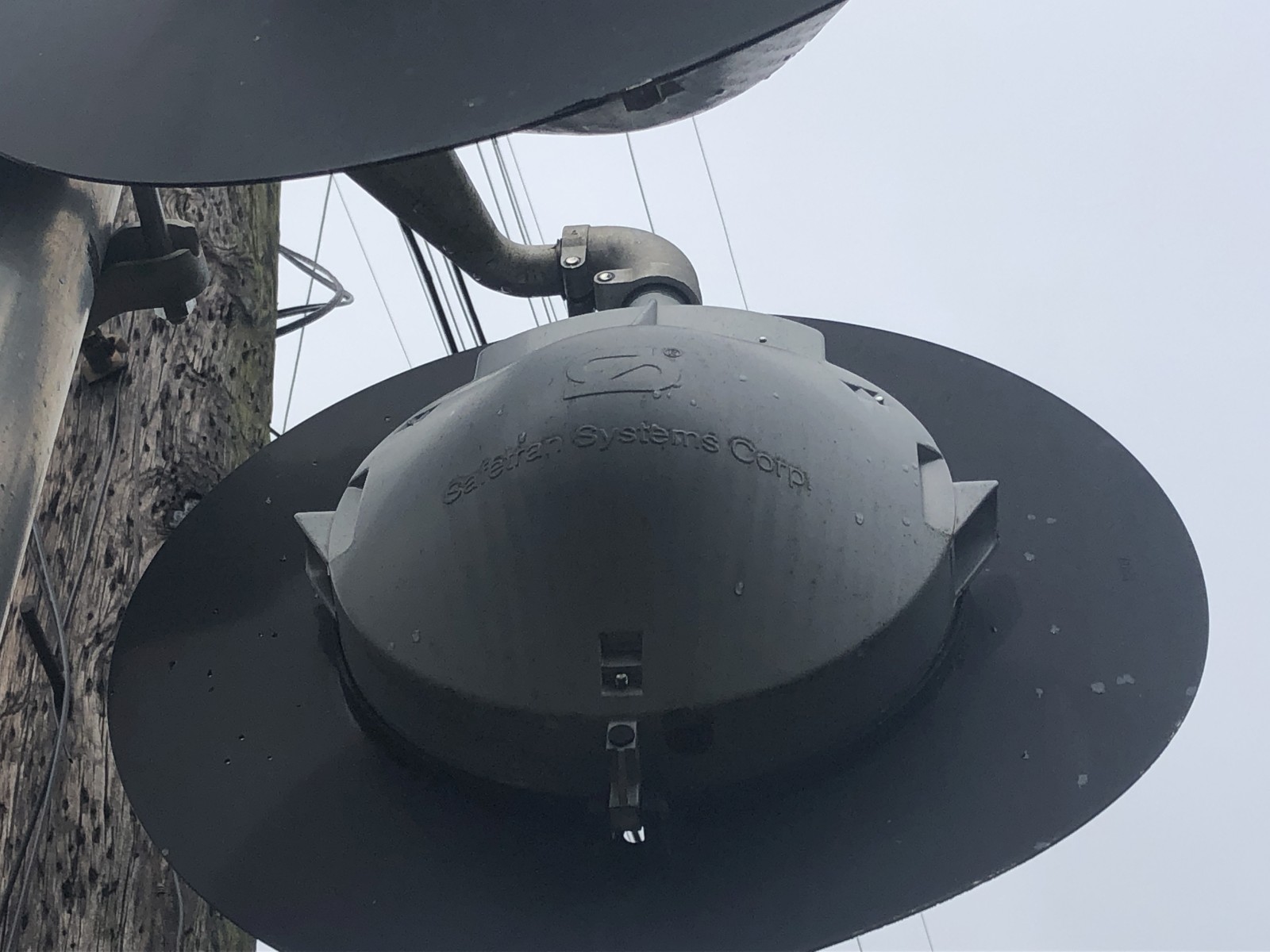

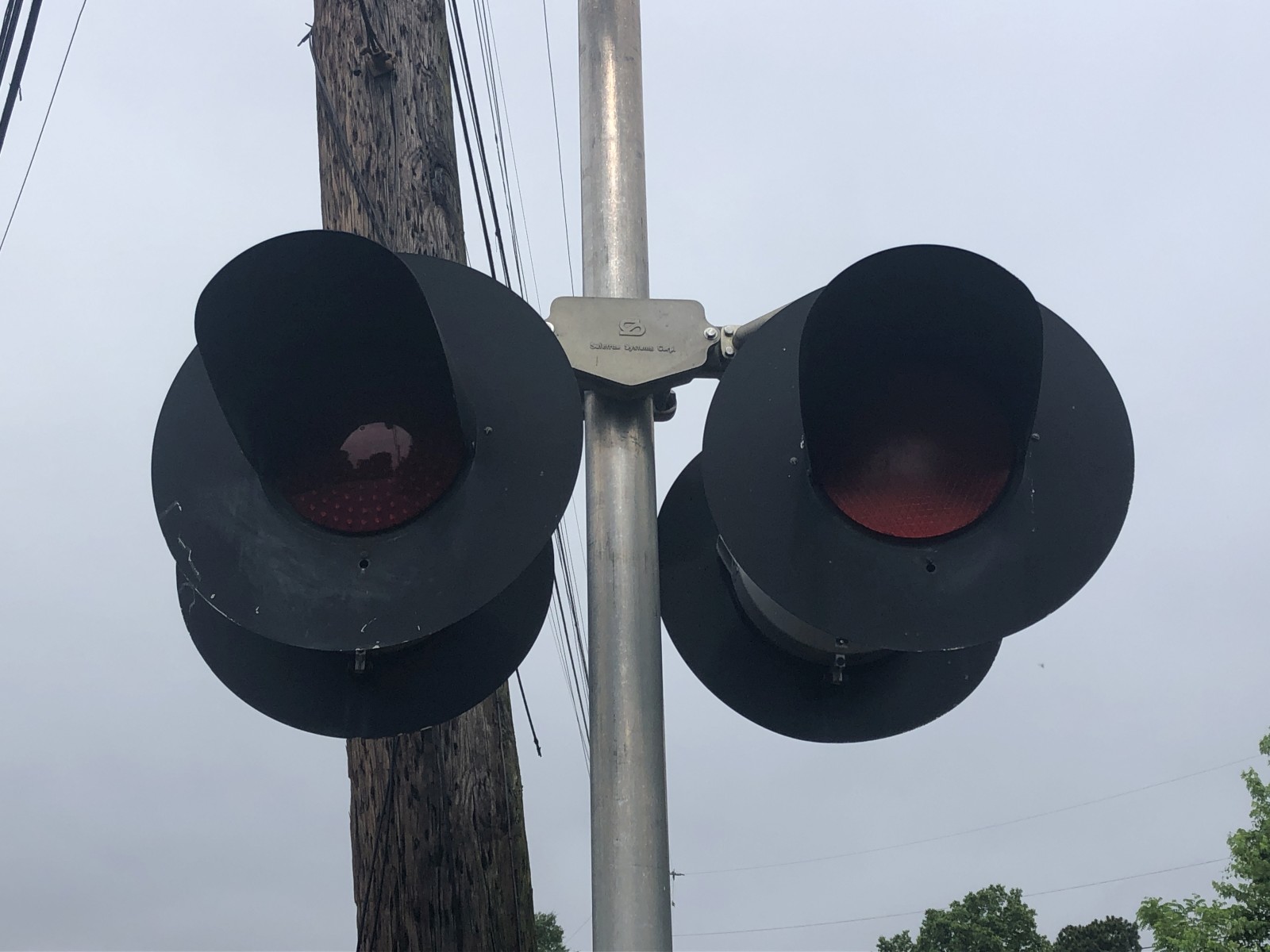

The lights are Safetran 12x24s with LEDs. |
|
9 |
10 |
11 |
12 |

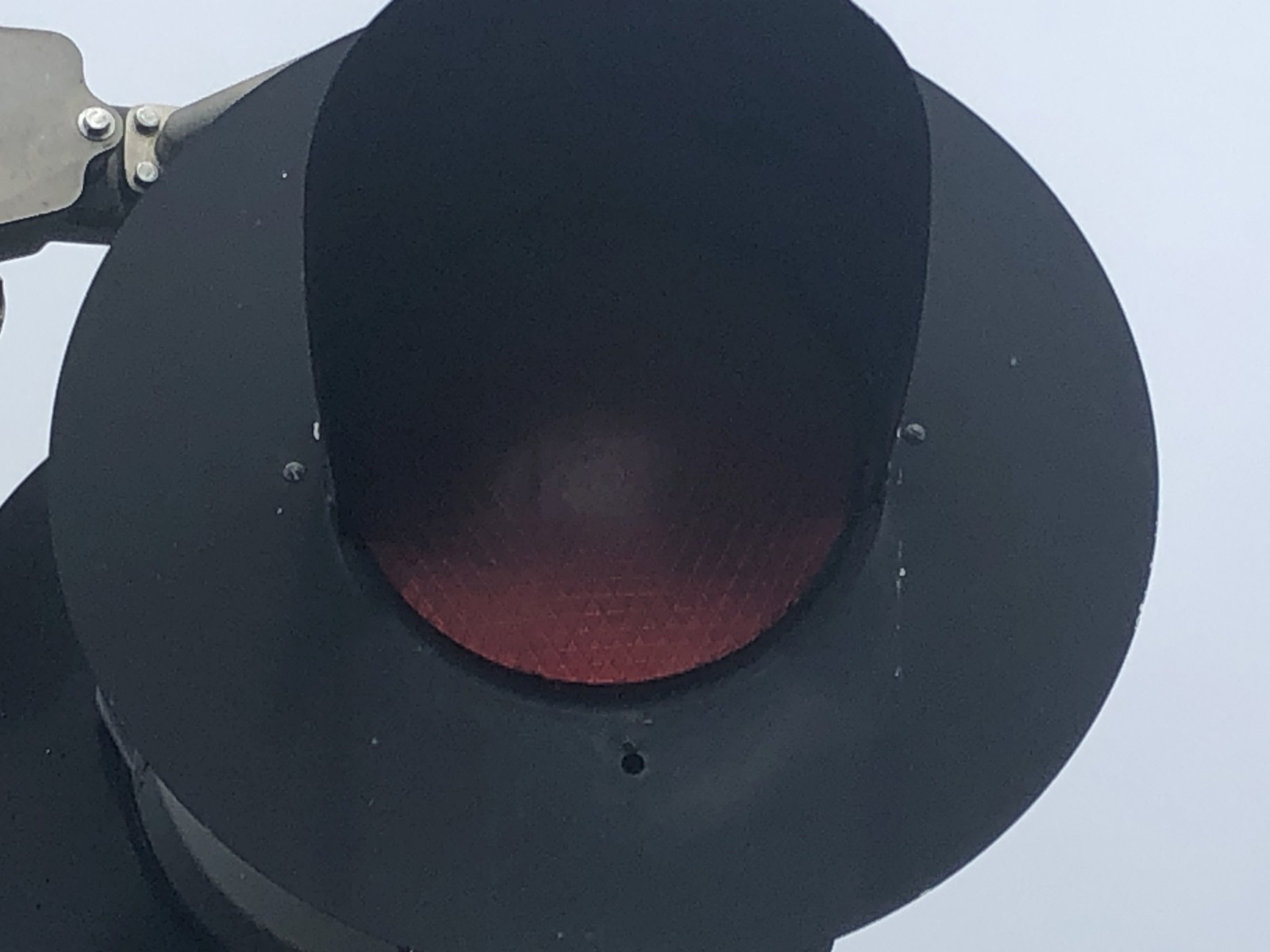

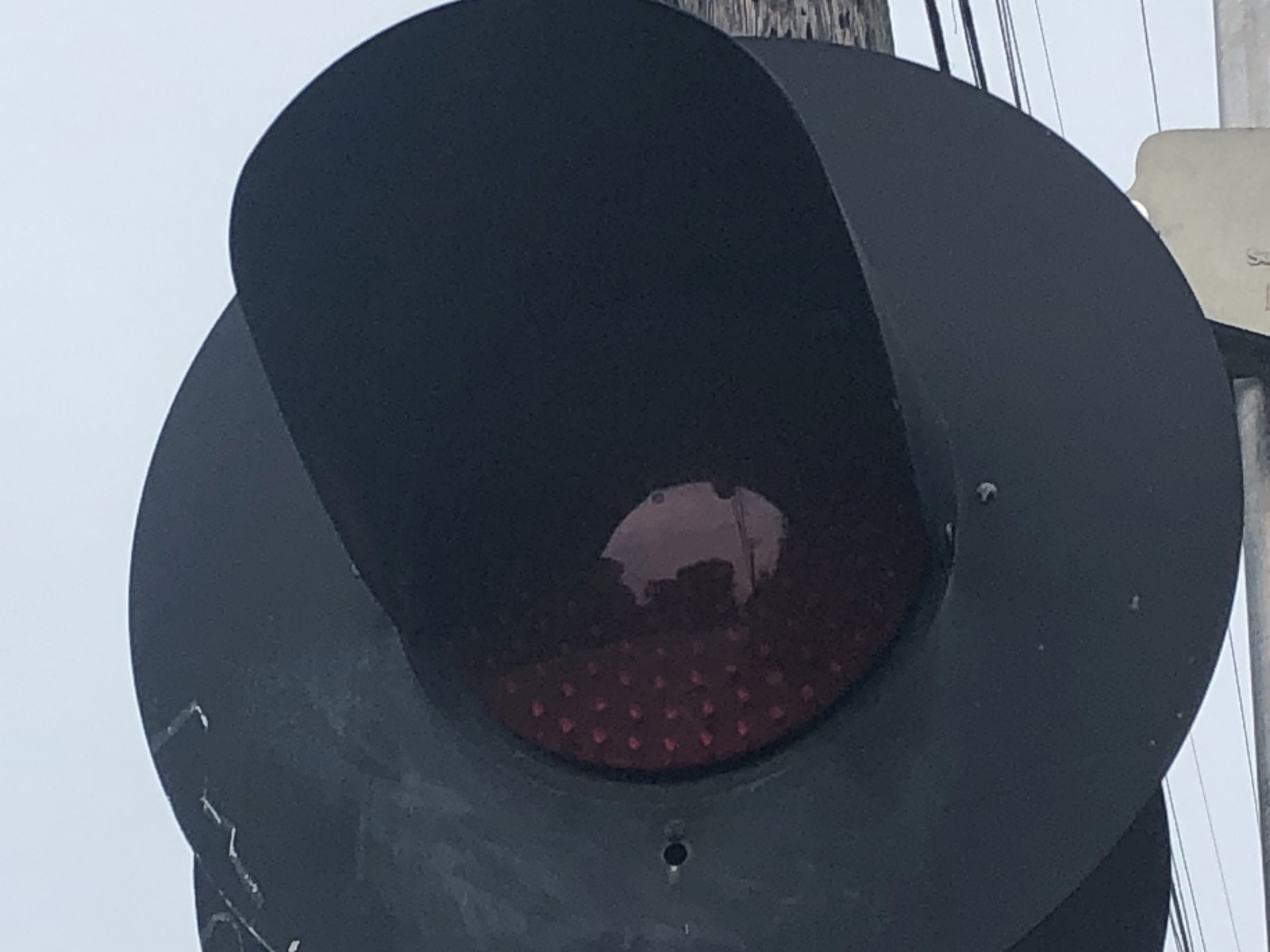

The LEDs are a mixture of 1 pair of Dialight Balls and 1 Pair of Leotek EV series. |

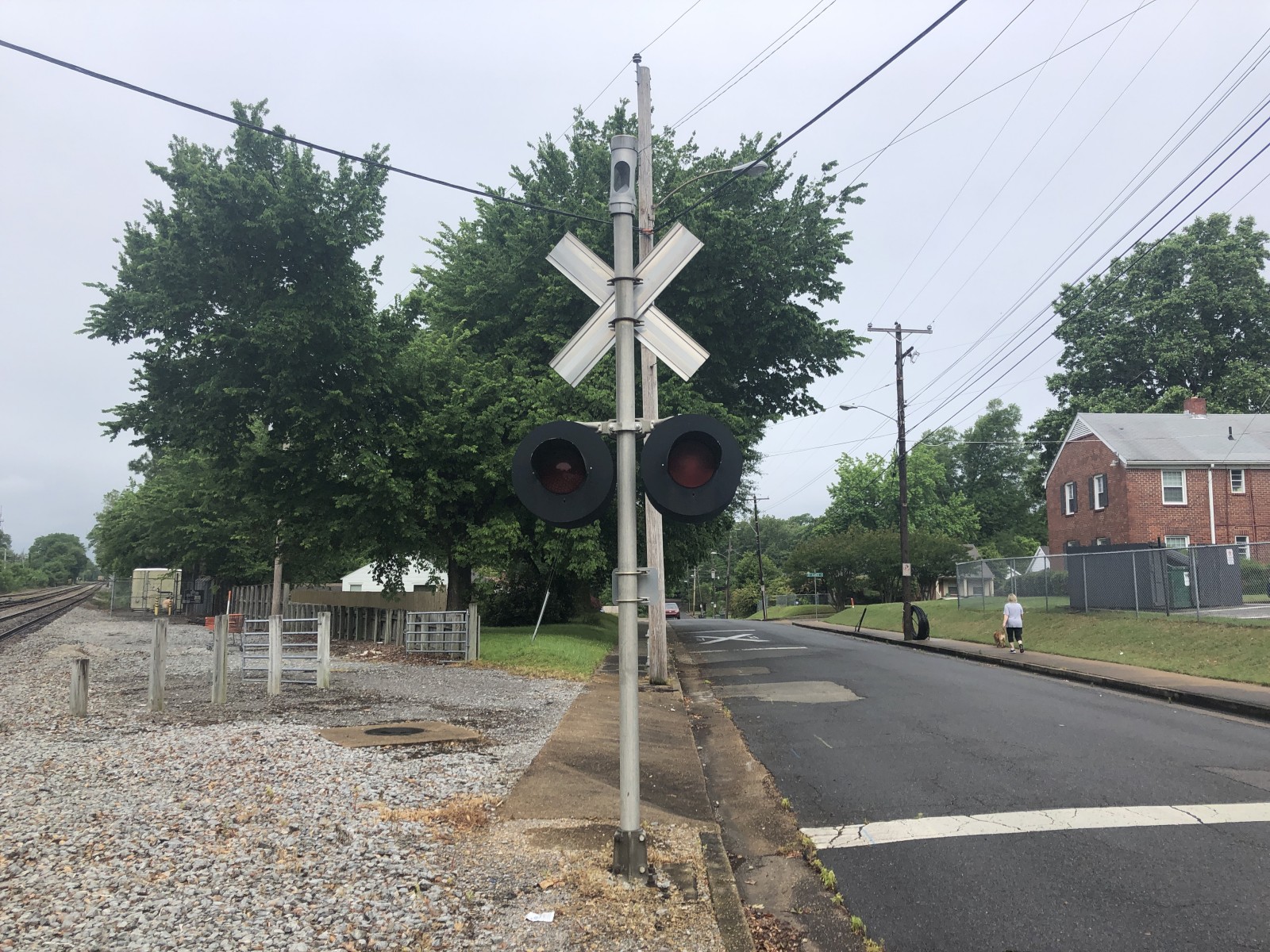

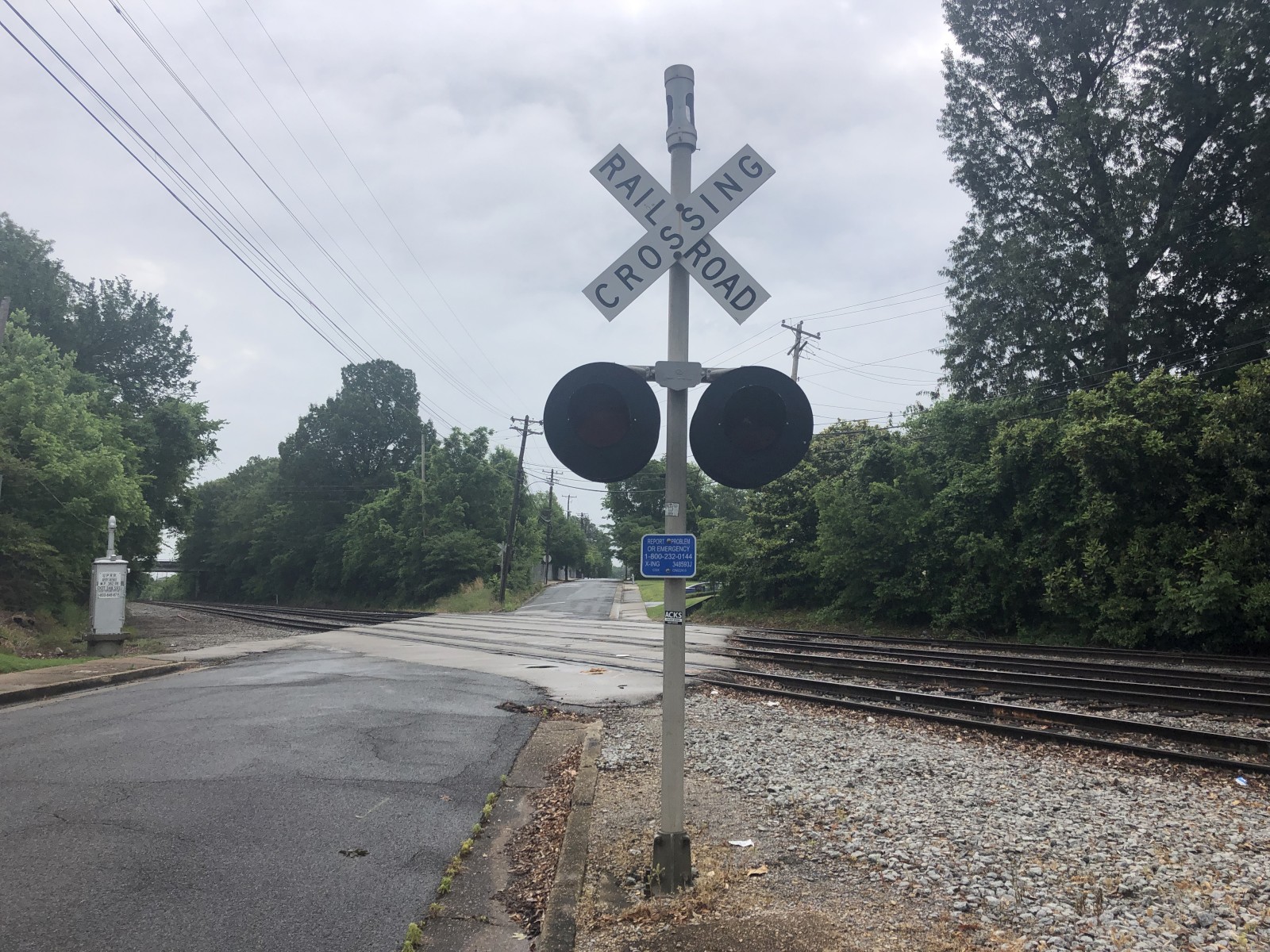

The western signal. |
||
13 |
14 |
15 |
16 |

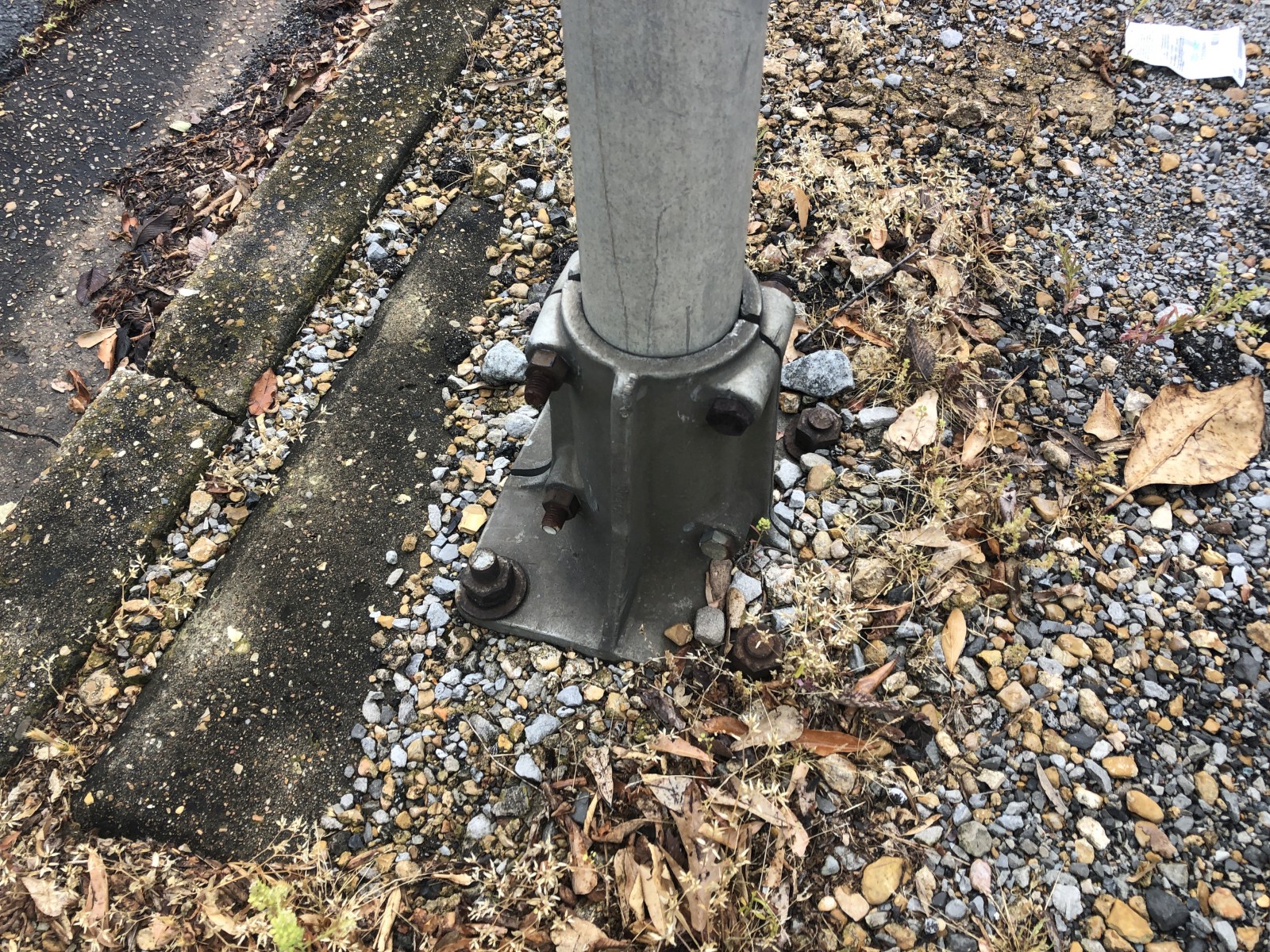

It has a clamp-styled base. |

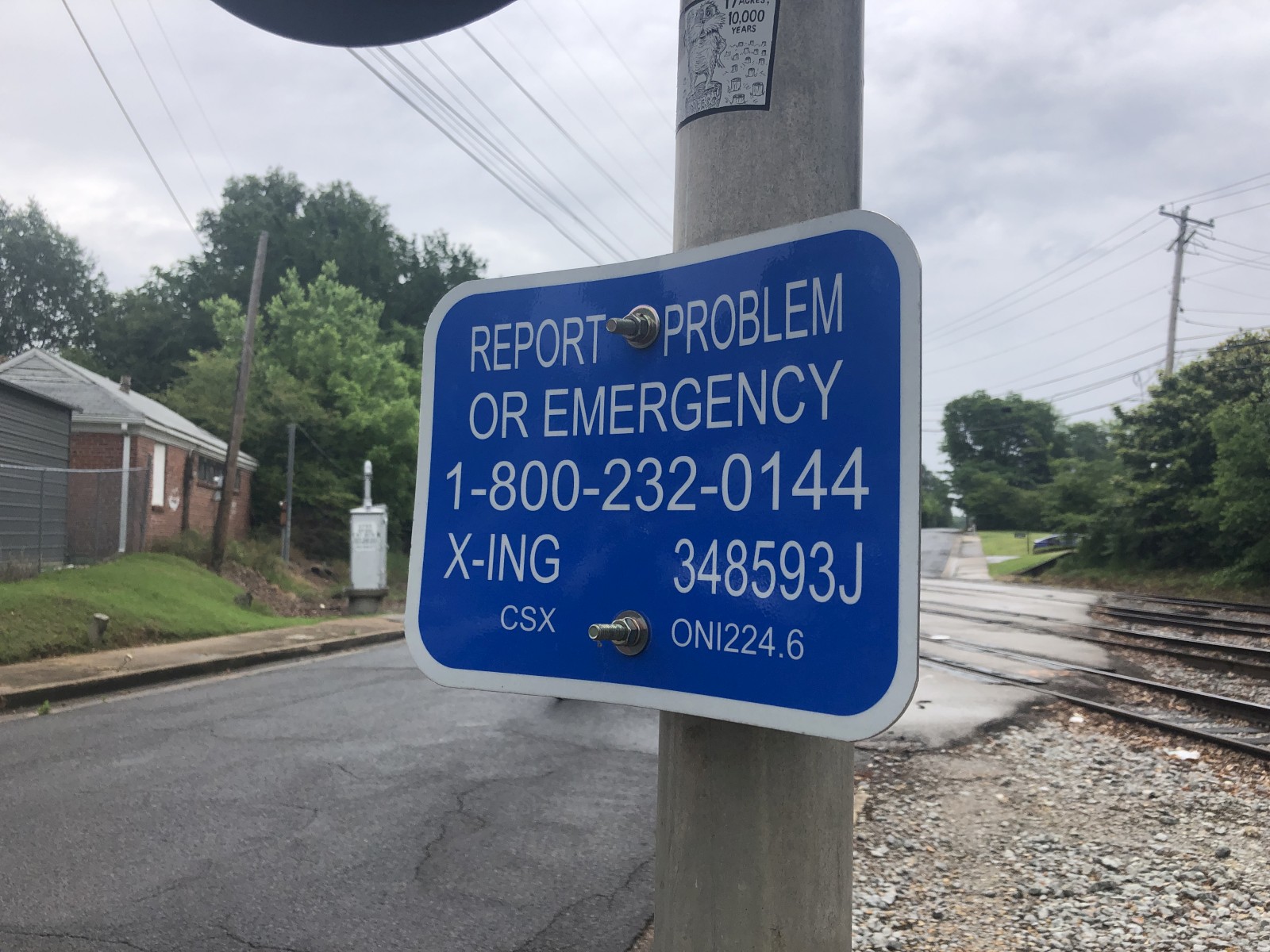

The emergency information. |

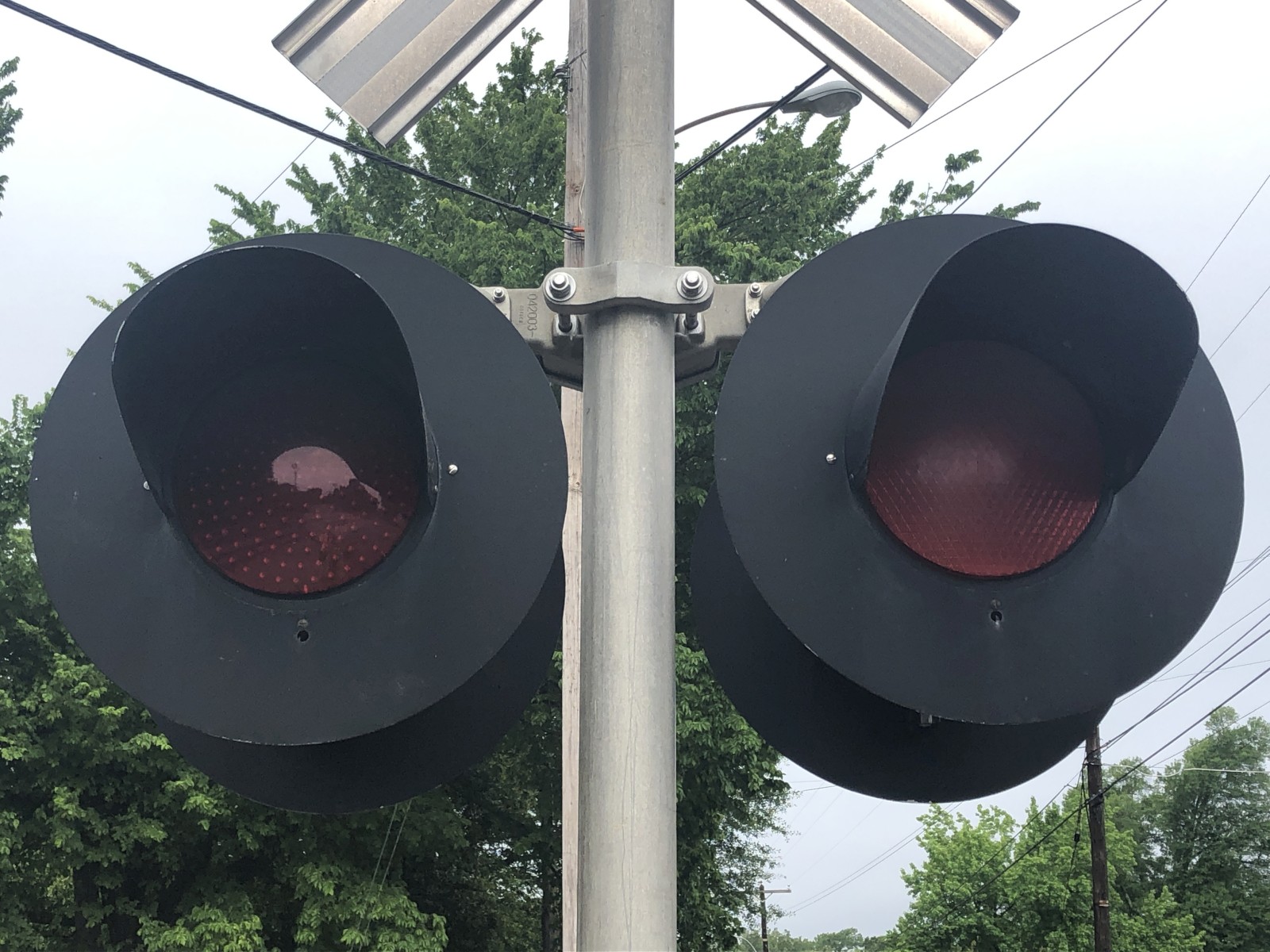

This signal has more Safetran 12x24 lights with LEDs. |
|
17 |
18 |
19 |
20 |

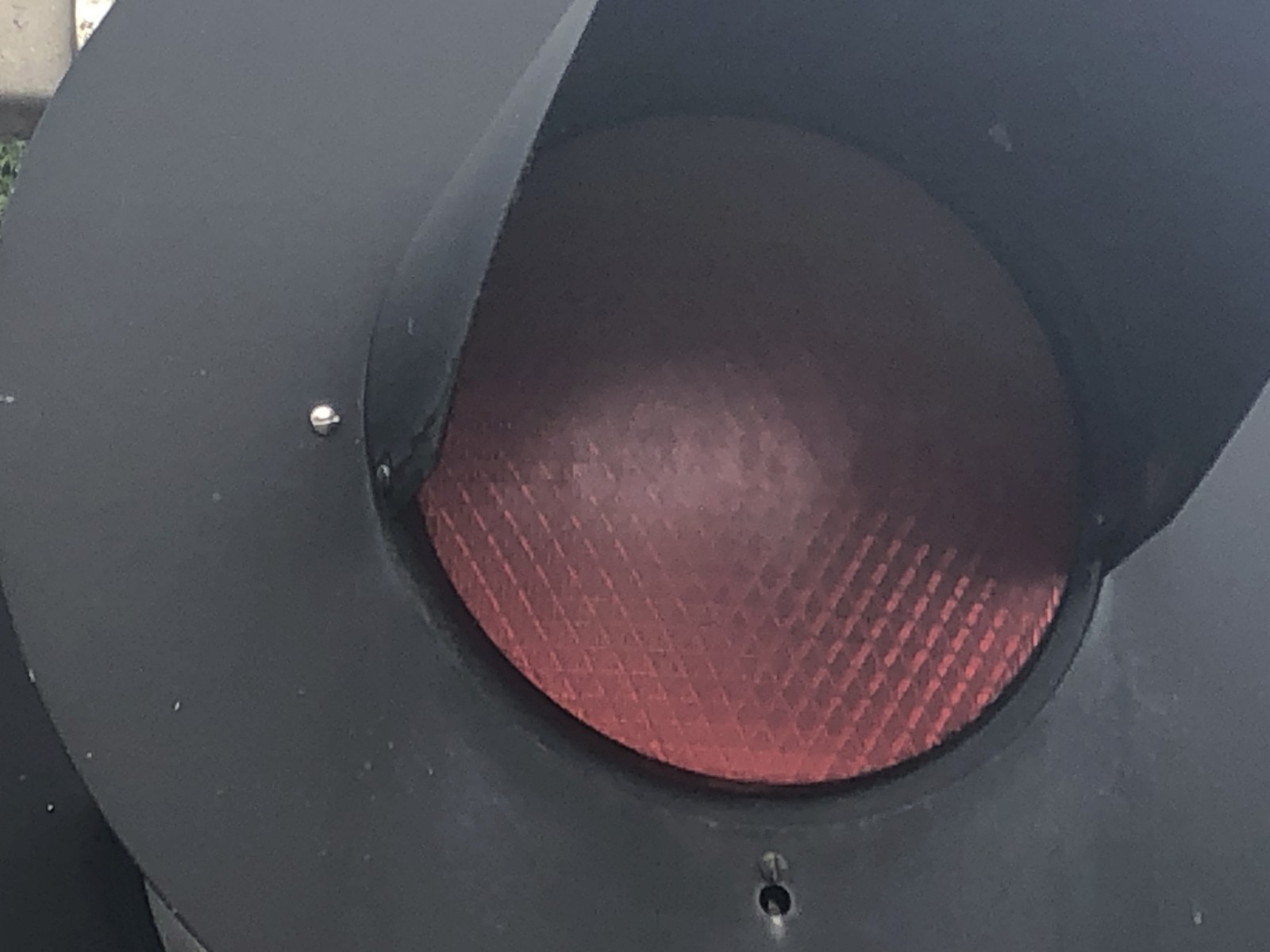

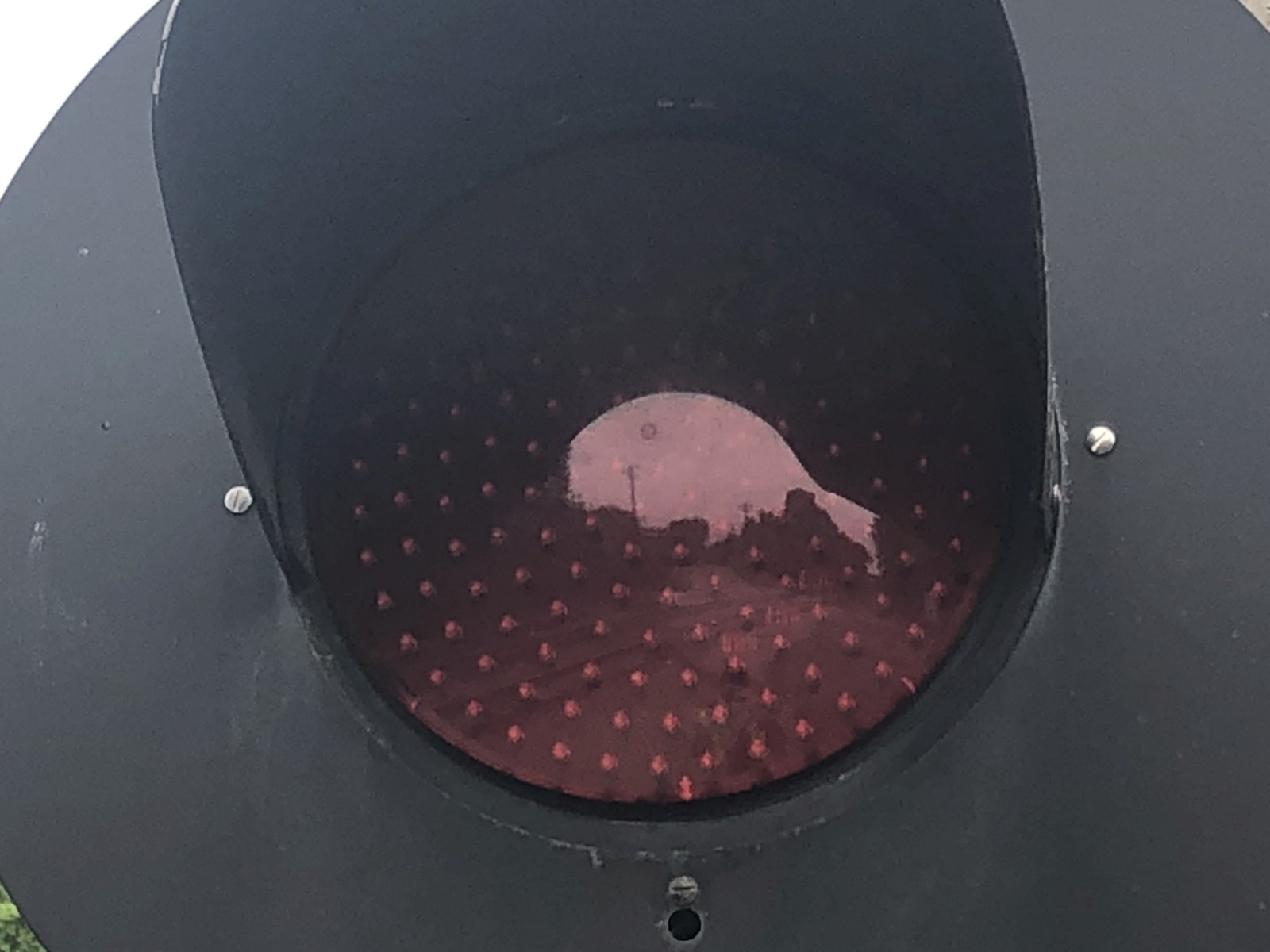

The LEDs are another mixture of 1 pair of Dialight Balls and 1 Pair of Leotek EV series. |

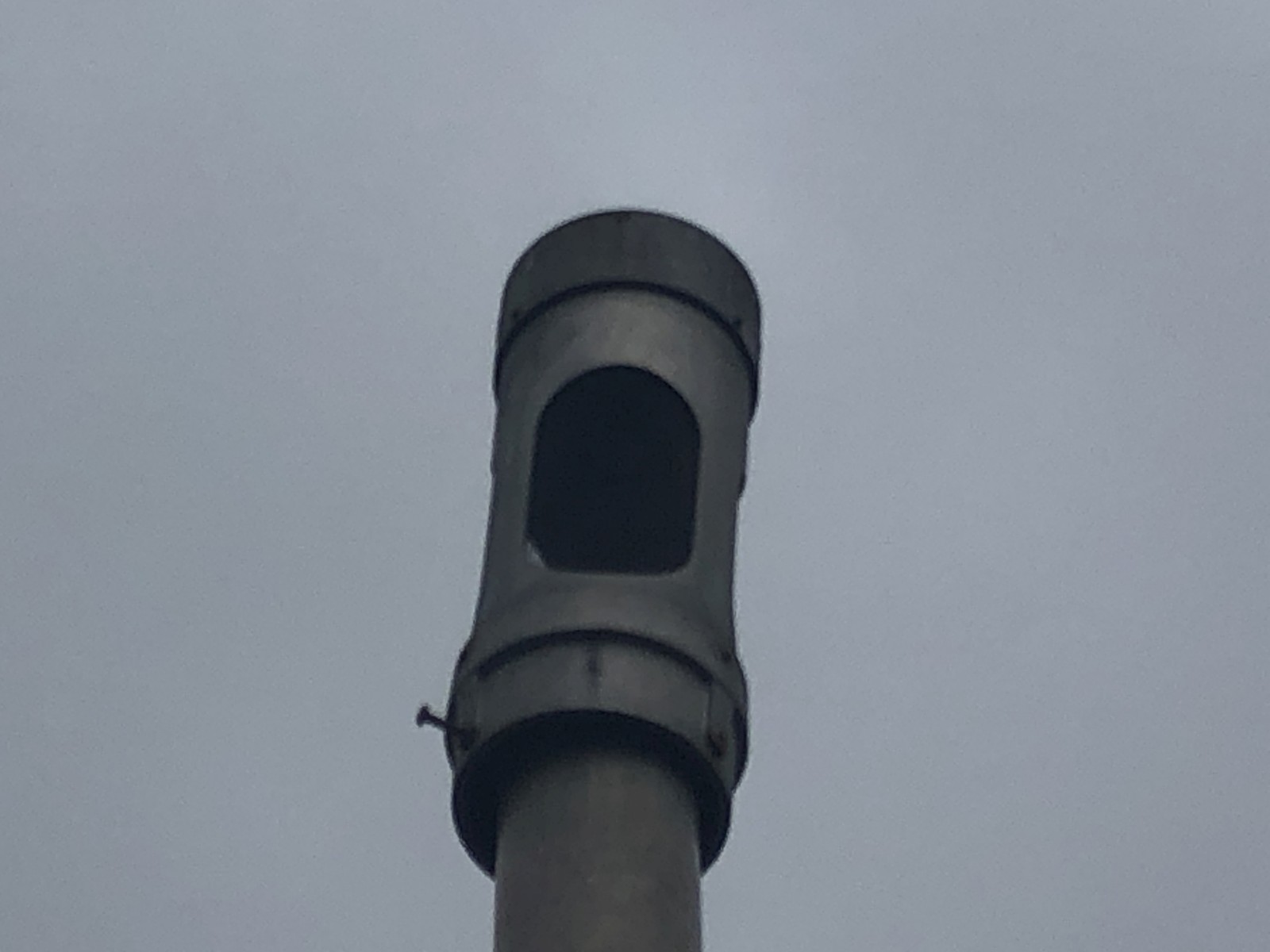

The bell is a General Signals E-Bell. |

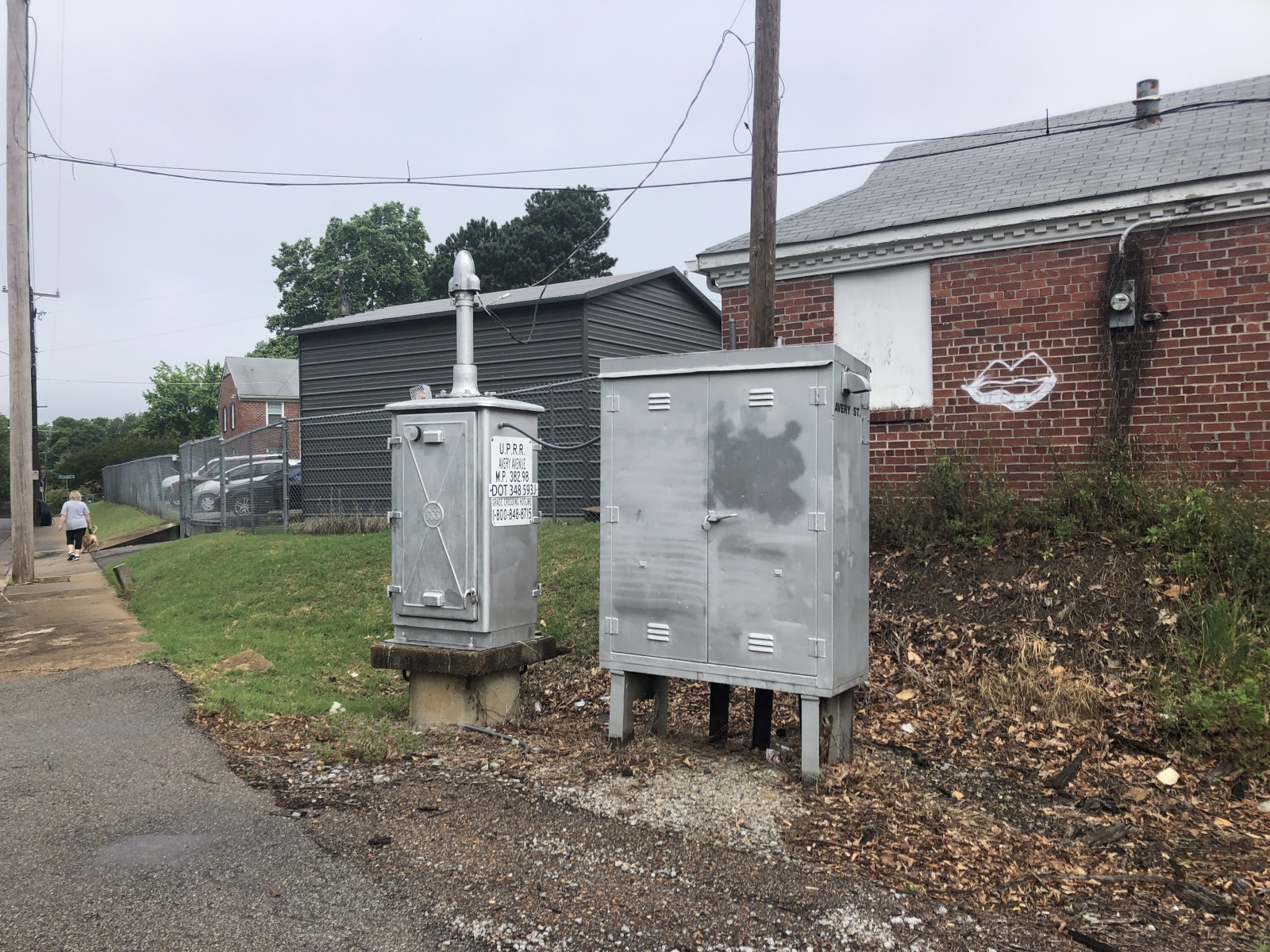

There are two relay cases at the crossing. I believe both control the signals at the crossing. |
|
21 |
22 |

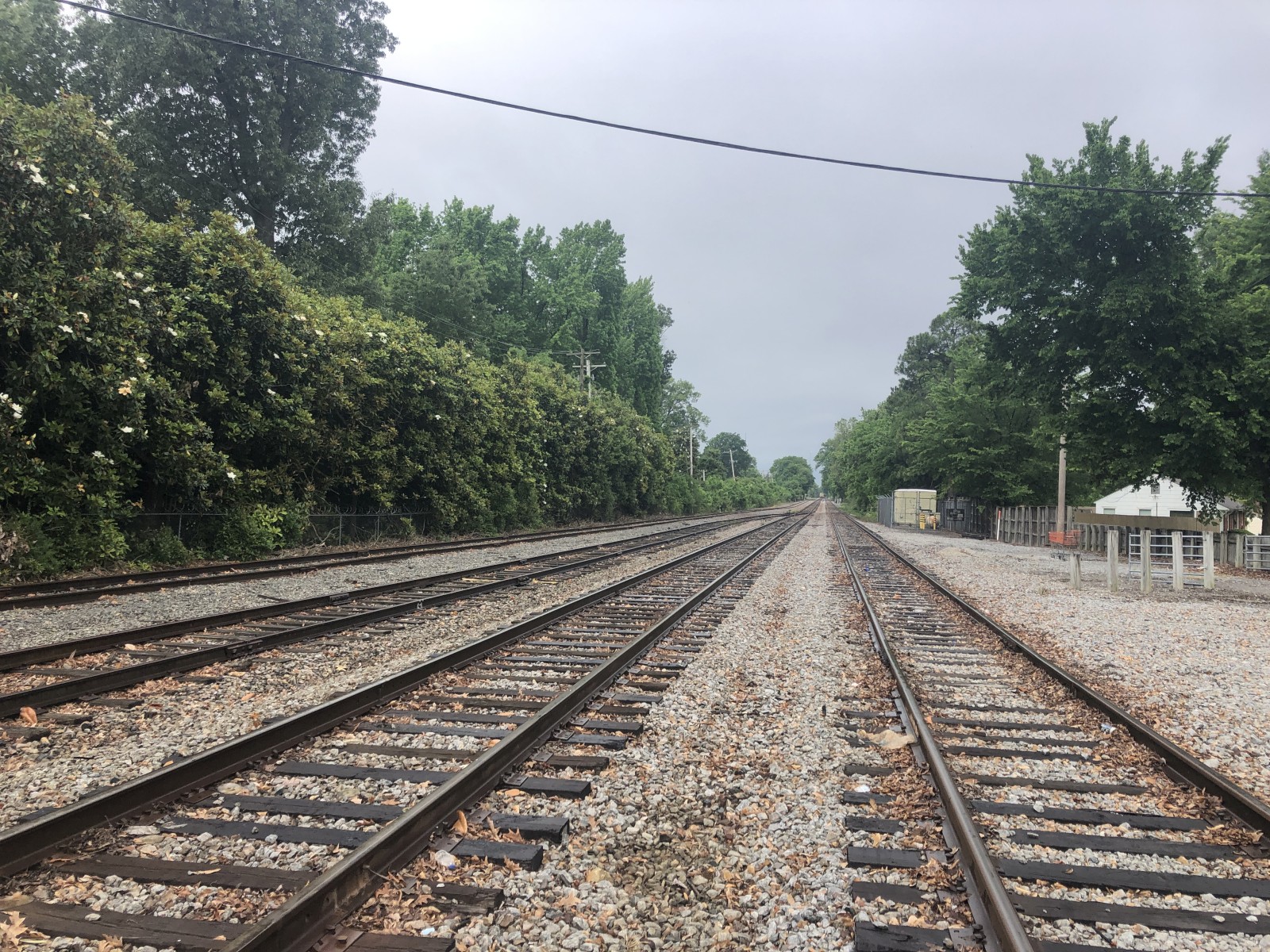

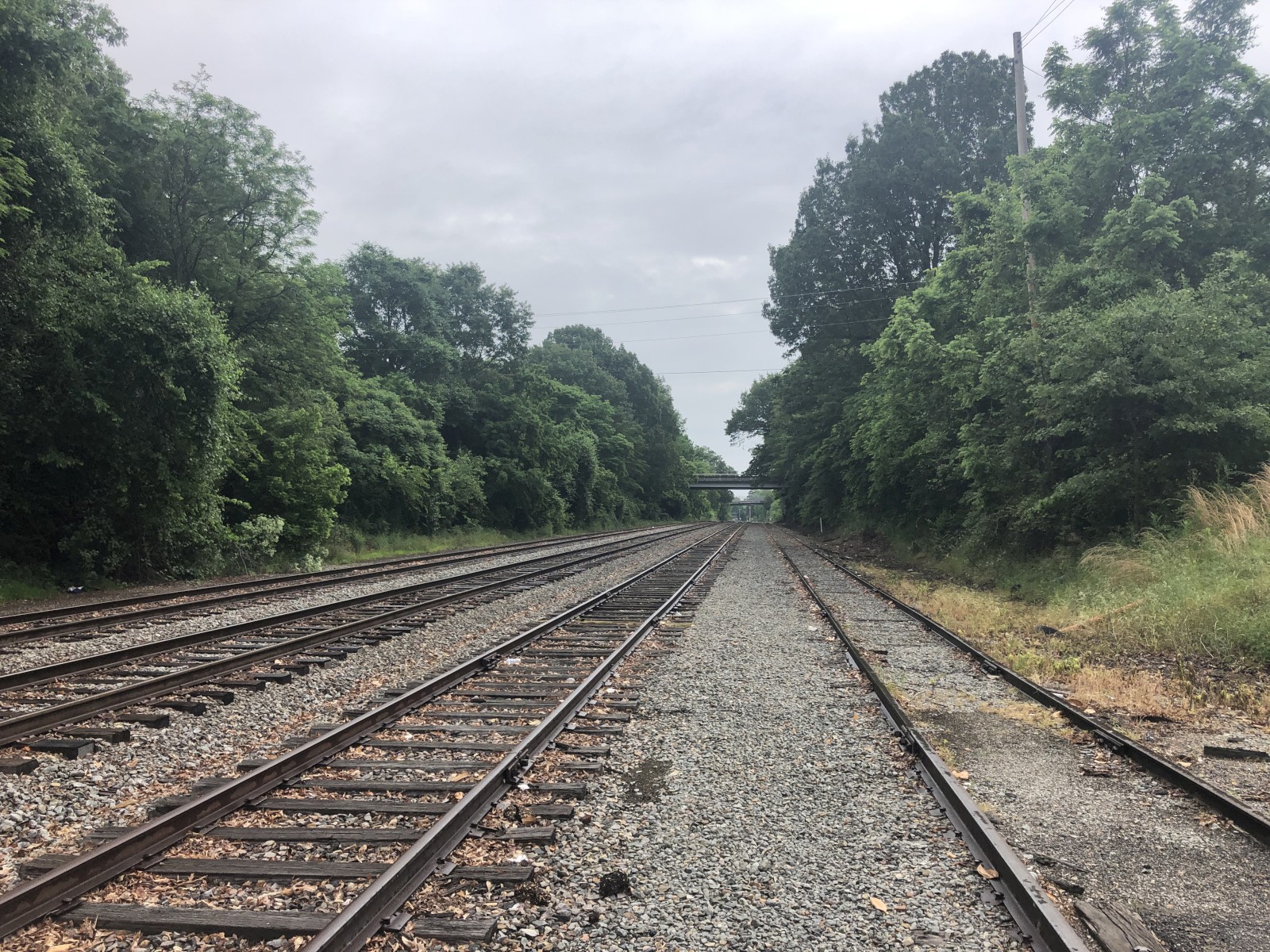

Track view facing northeast towards Broad Avenue #1 and #2. |
Track view facing southwest towards Cox Street. |
All pictures were taken on 5-16-20.
