Pictures 1-18 were taken on September 1, 2008 by TrainmanKight.
Pictures 19-54 wer taken on May 16, 2020 by Ethan the Railfanner.
CN comes by 1 time daily, Amtrak 2 times daily, and between 40 to 95 daily trains for the MATA trolley depending what time of day it is.
1     |
2  |
3  |
4   |

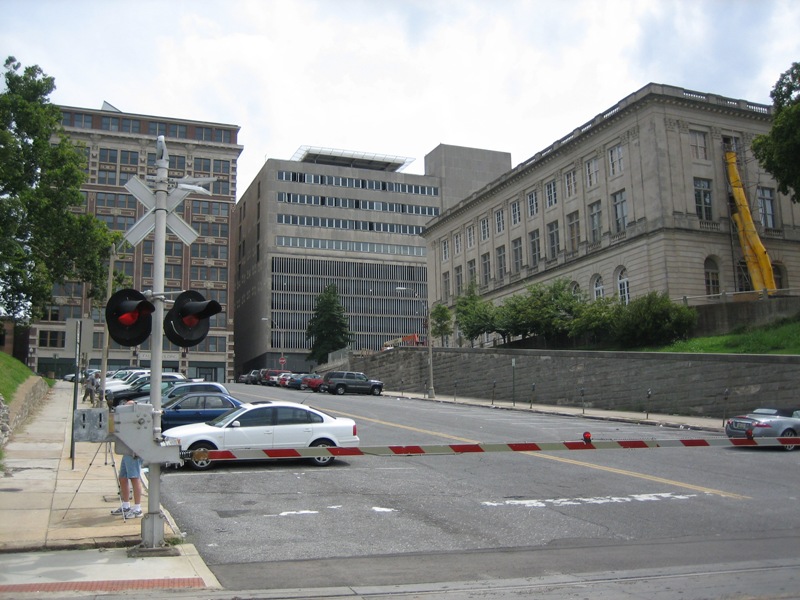

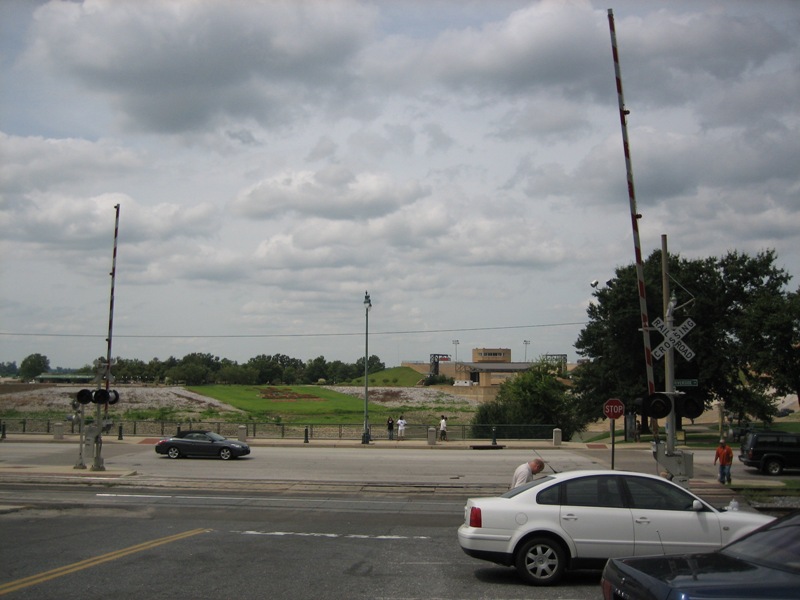

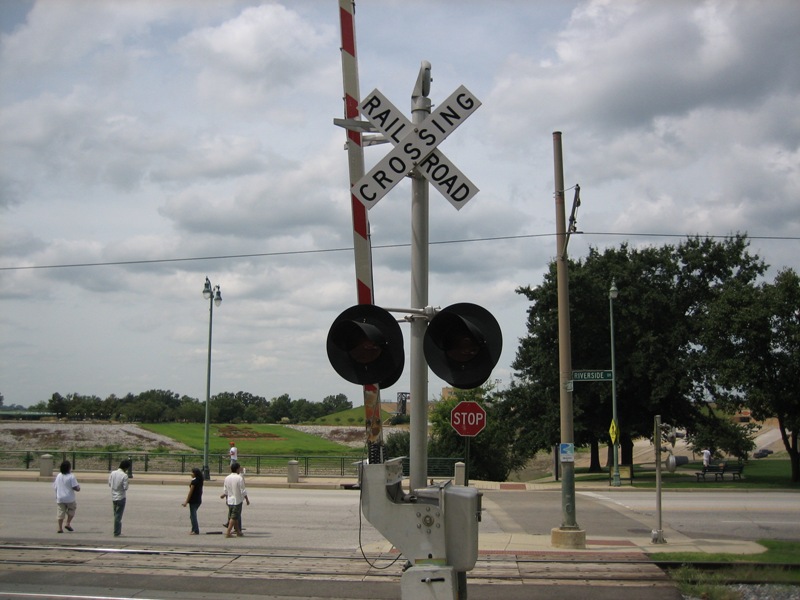

An overview of the crossing. |

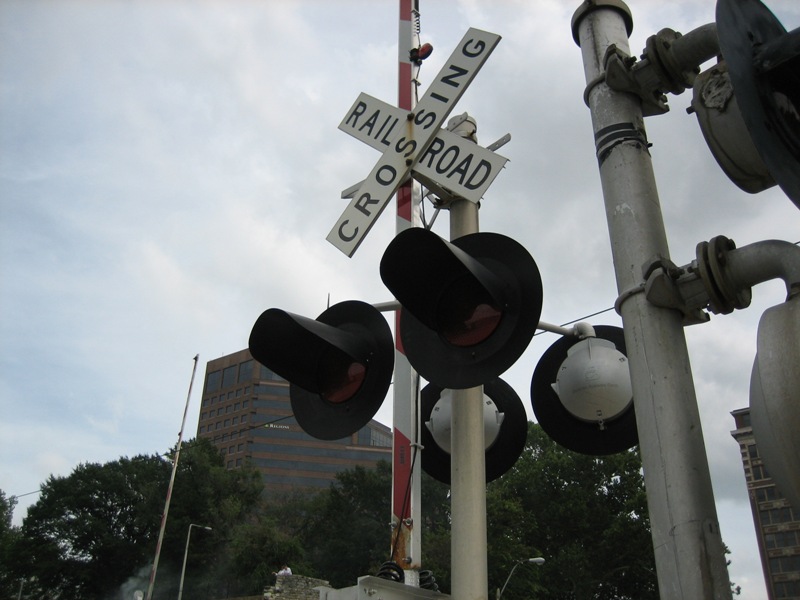

12"x24" Safetran frames with Dialight ball L.E.Ds with a Safetran hybrid bell on top. The gate mechanism is from Safetran. |
||
5   |
6   |
7  |
8  |

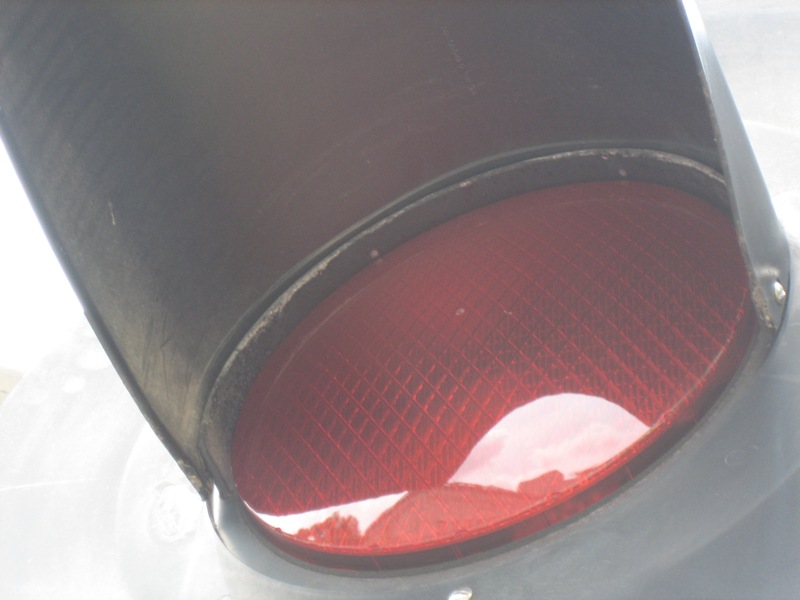

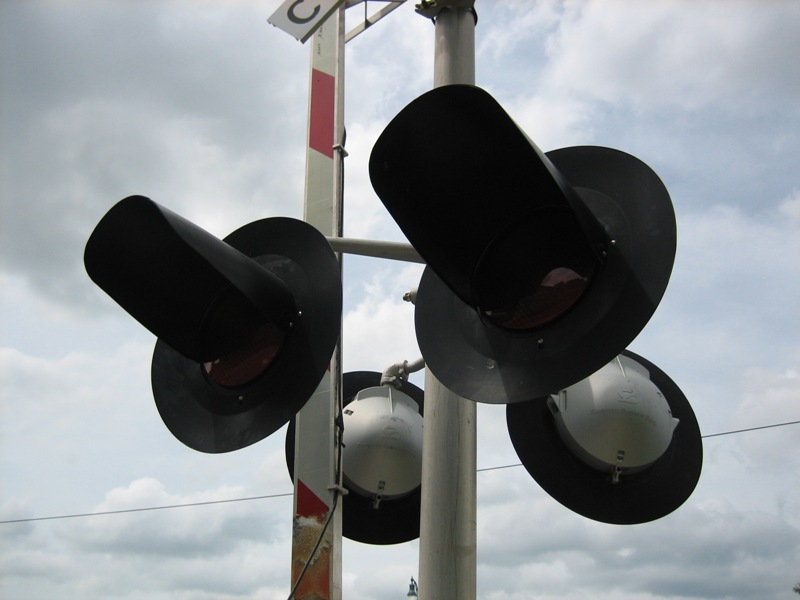

A close-up showing the lights are ball L.E.Ds. |

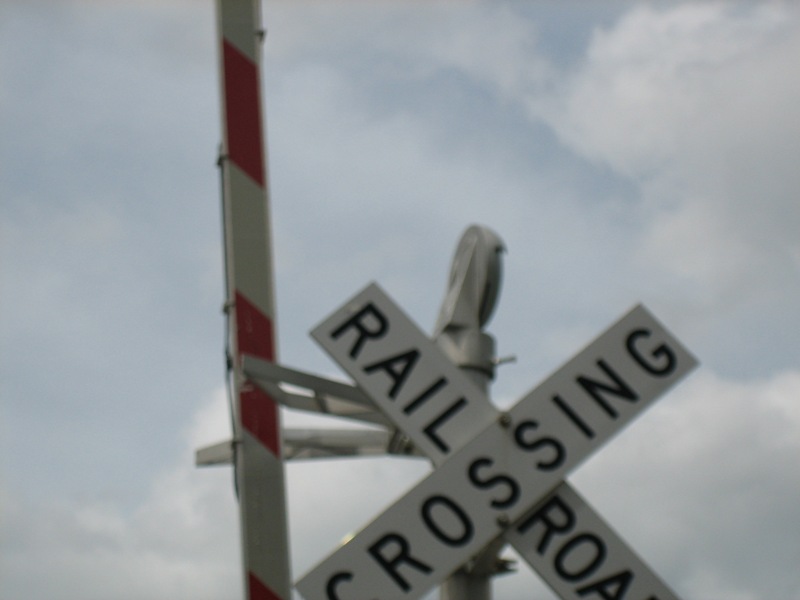

A closeup of the hybrid bell. |

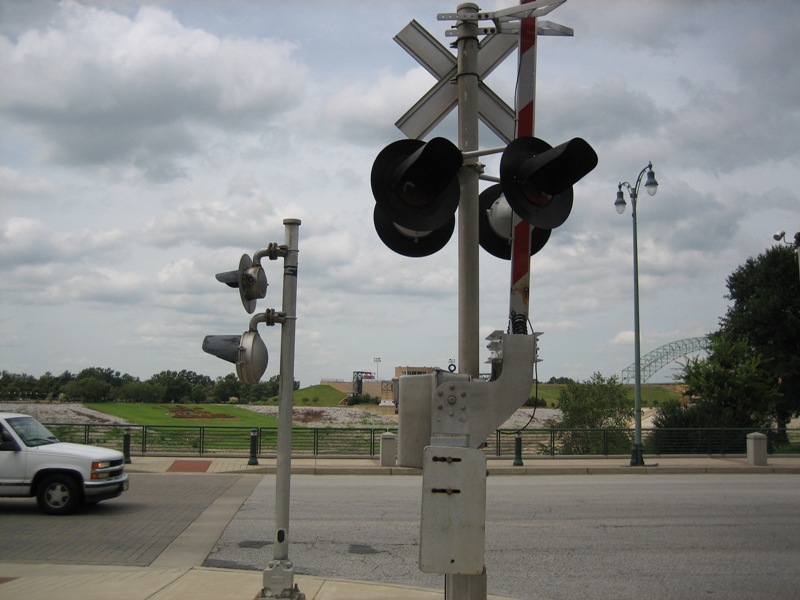

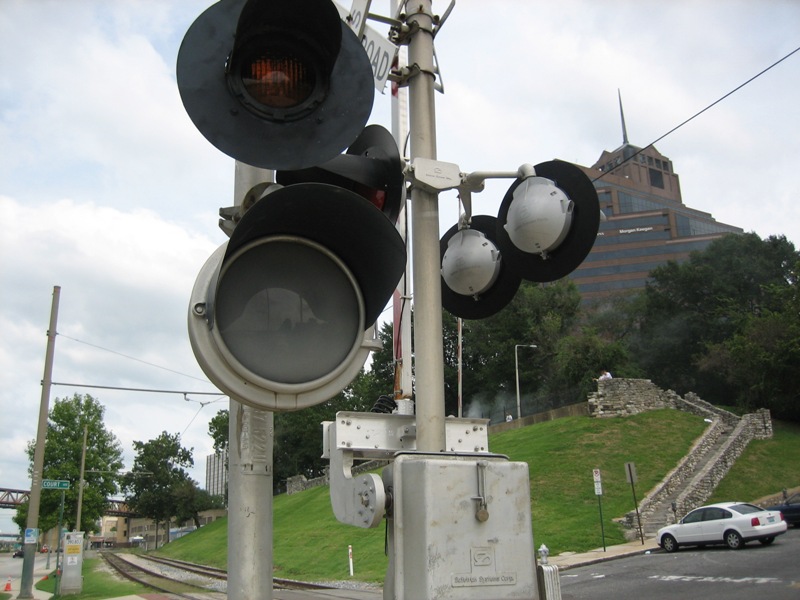

Views of the other signal. It's identical to the other signal, minus a bell. |
|
9  |
10  |
11  |
12  |

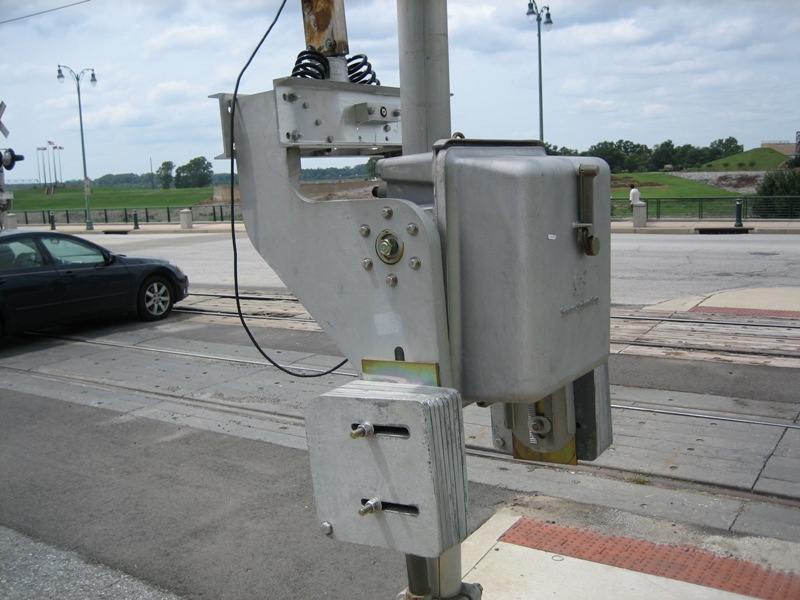

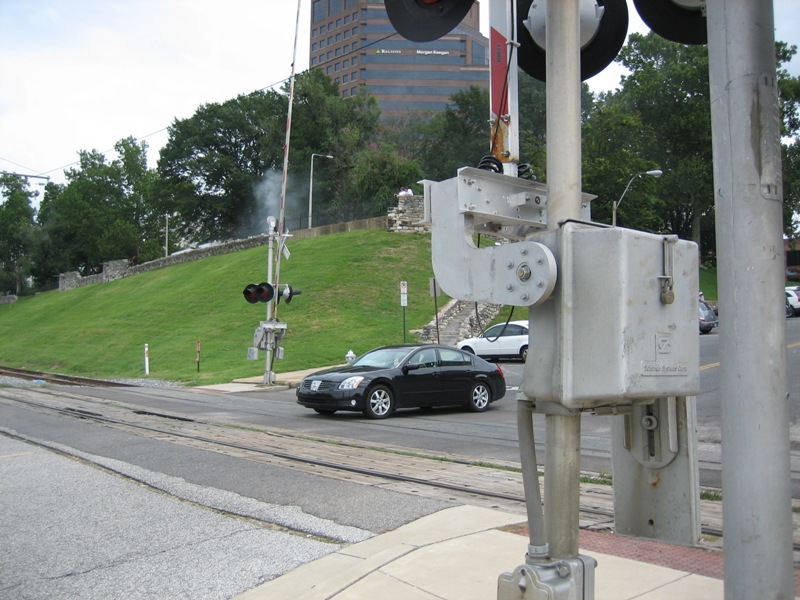

This gate mechanism is from Safetran too. |
Here's a "NO RIGHT TURN" signal from US&S. |

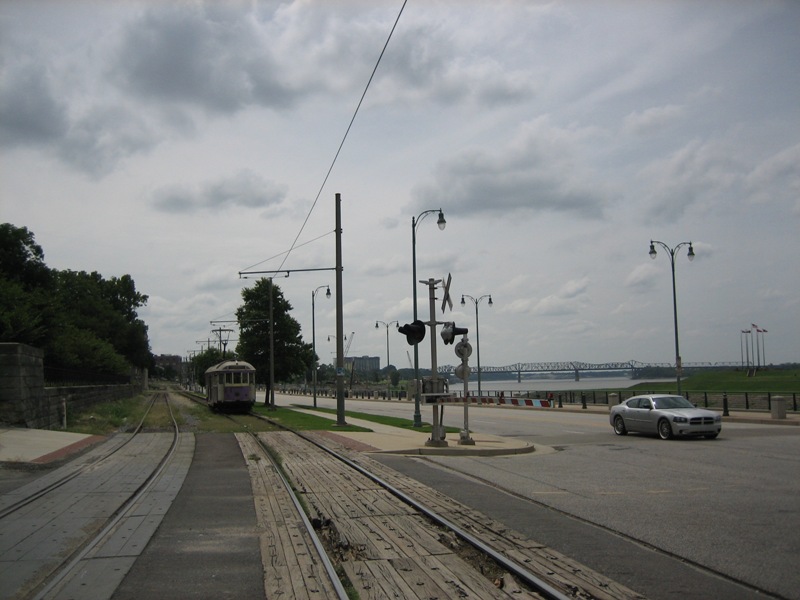

Facing North. |
Facing South. |
13  |
14  |
15   |
16   |

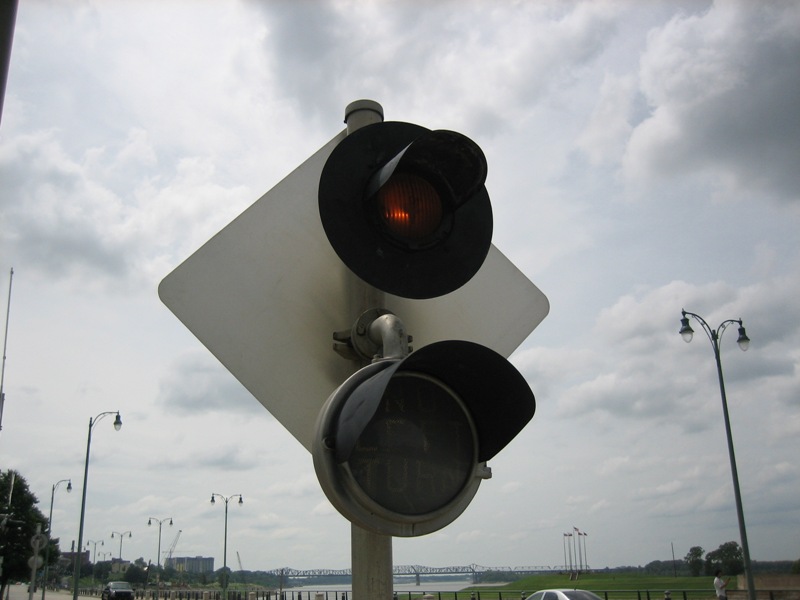

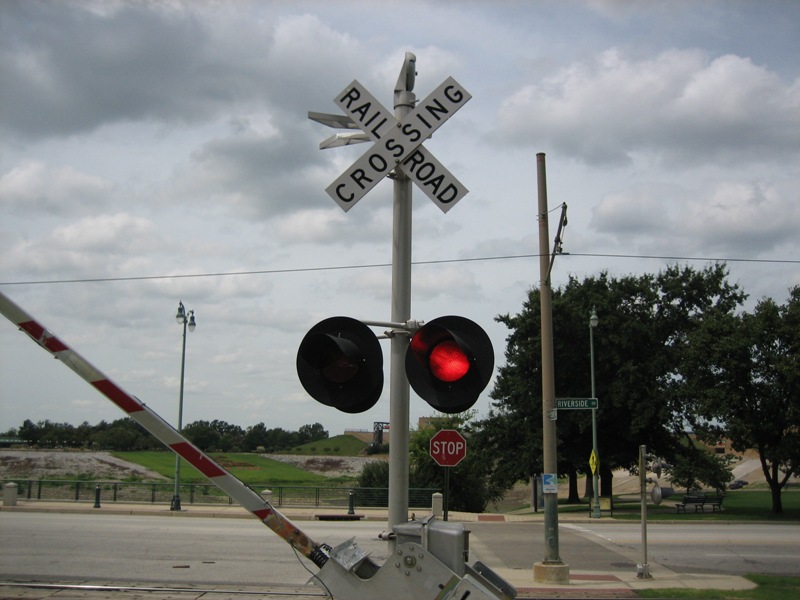

The signals start up. |

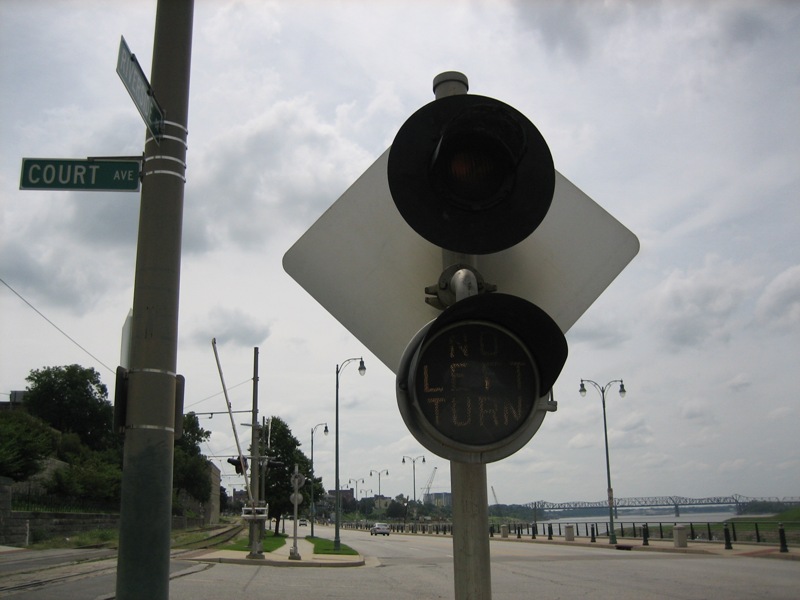

You can barely see the light flash in picture 15. You can see "NO LEFT TURN" in picture 16. |
||
17  |
18  |

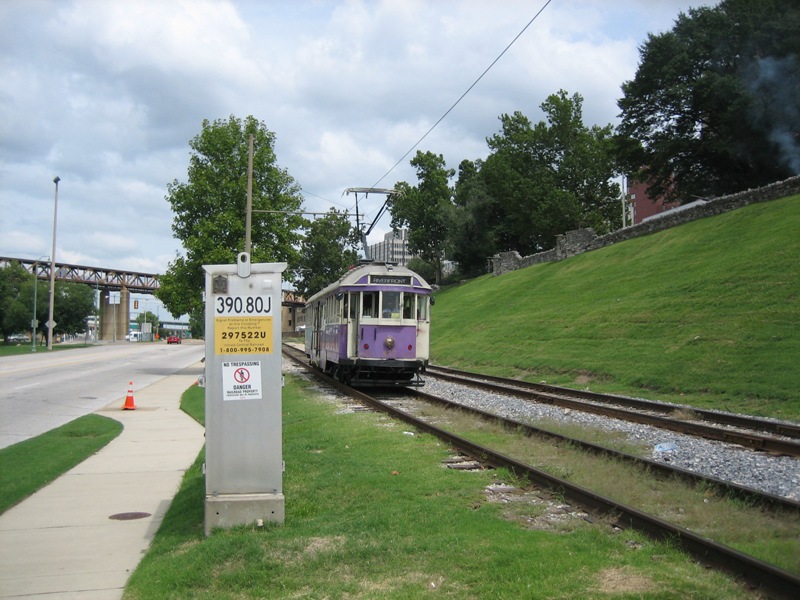

A trolley train from the "MATA" (
Memphis Area Transit Authority). |

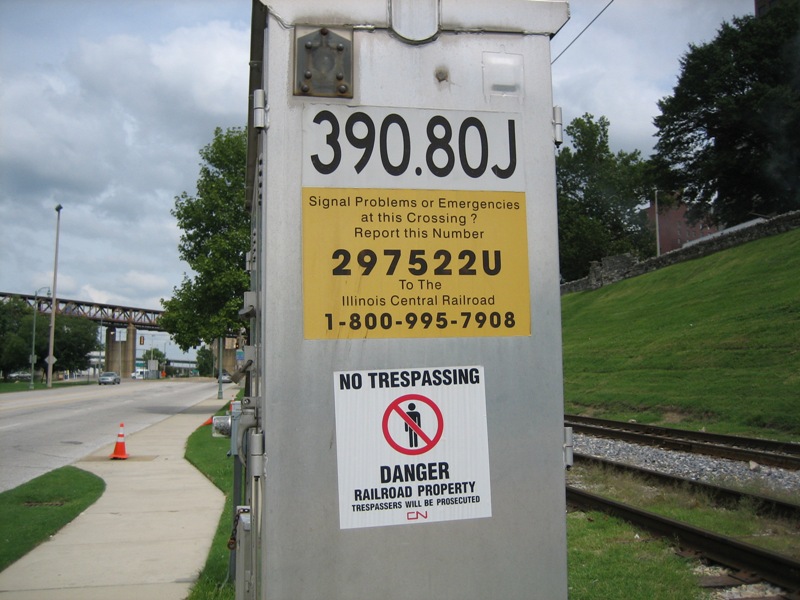

The relay case. |
Note: The Safetran Hybrid bell rings from Startup to when the gates fully lower, and then again when the gates rise to deactivation.
MATA runs 85 daily trains Monday-Thursday, 95 daily trains on Friday, 82 daily trains on Saturday, and 40 daily trains on Sunday.
19 |
20 |
A returtn trip on 5-16-20 by Ethan the Railfanner doesn't show a lot of changes to this crossing. |
|
21 |
22 |
23 |
24 |

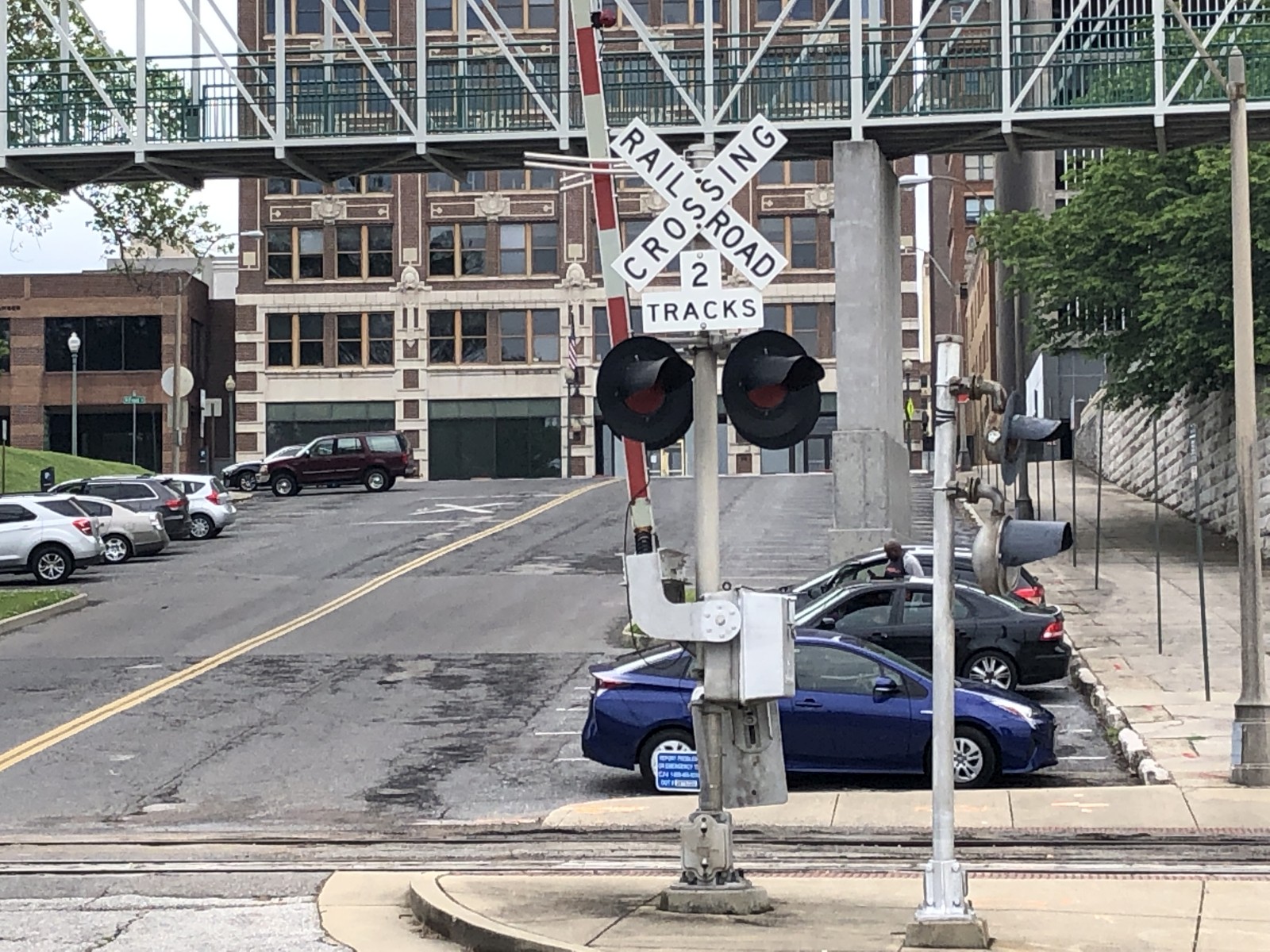

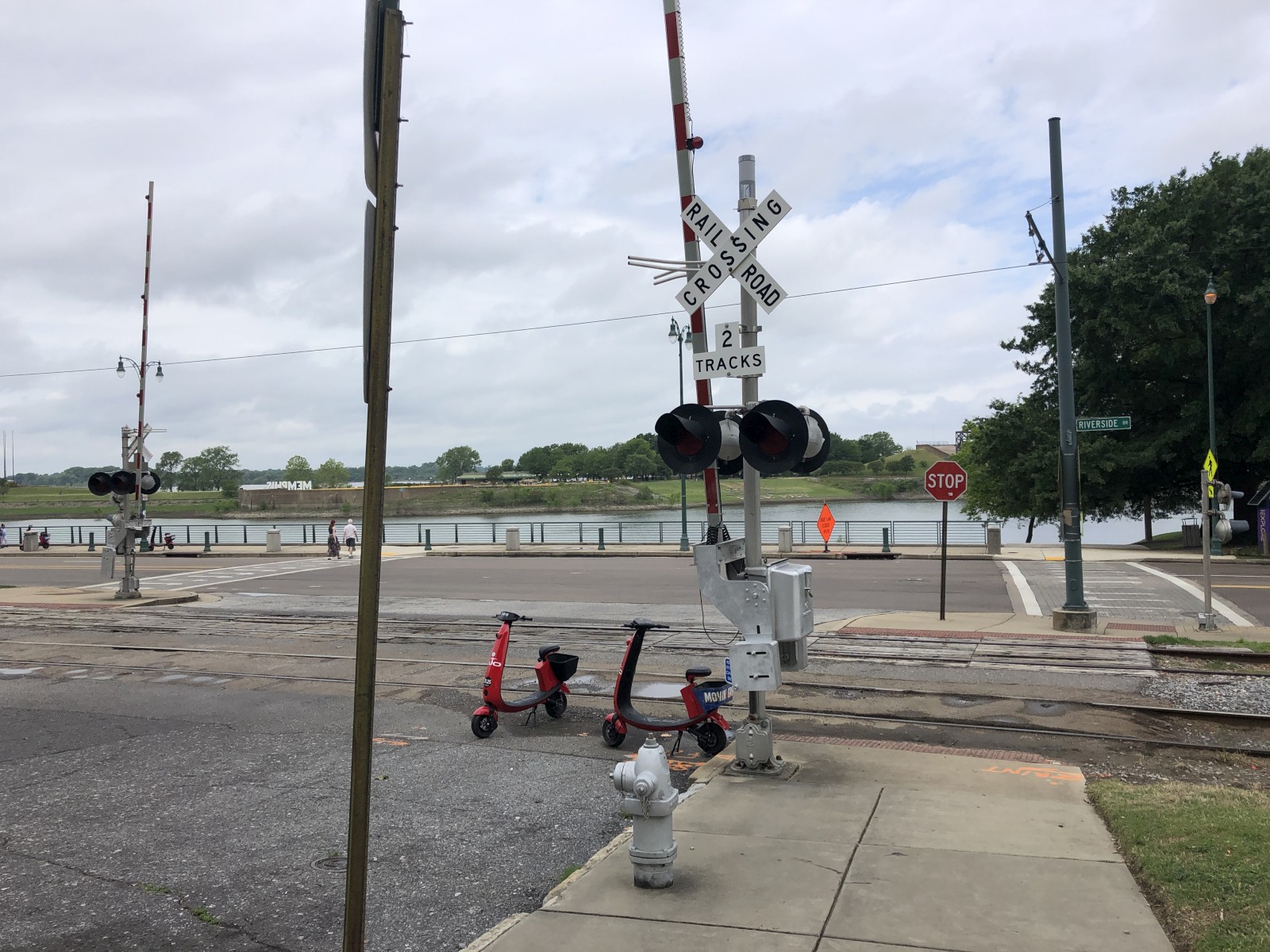

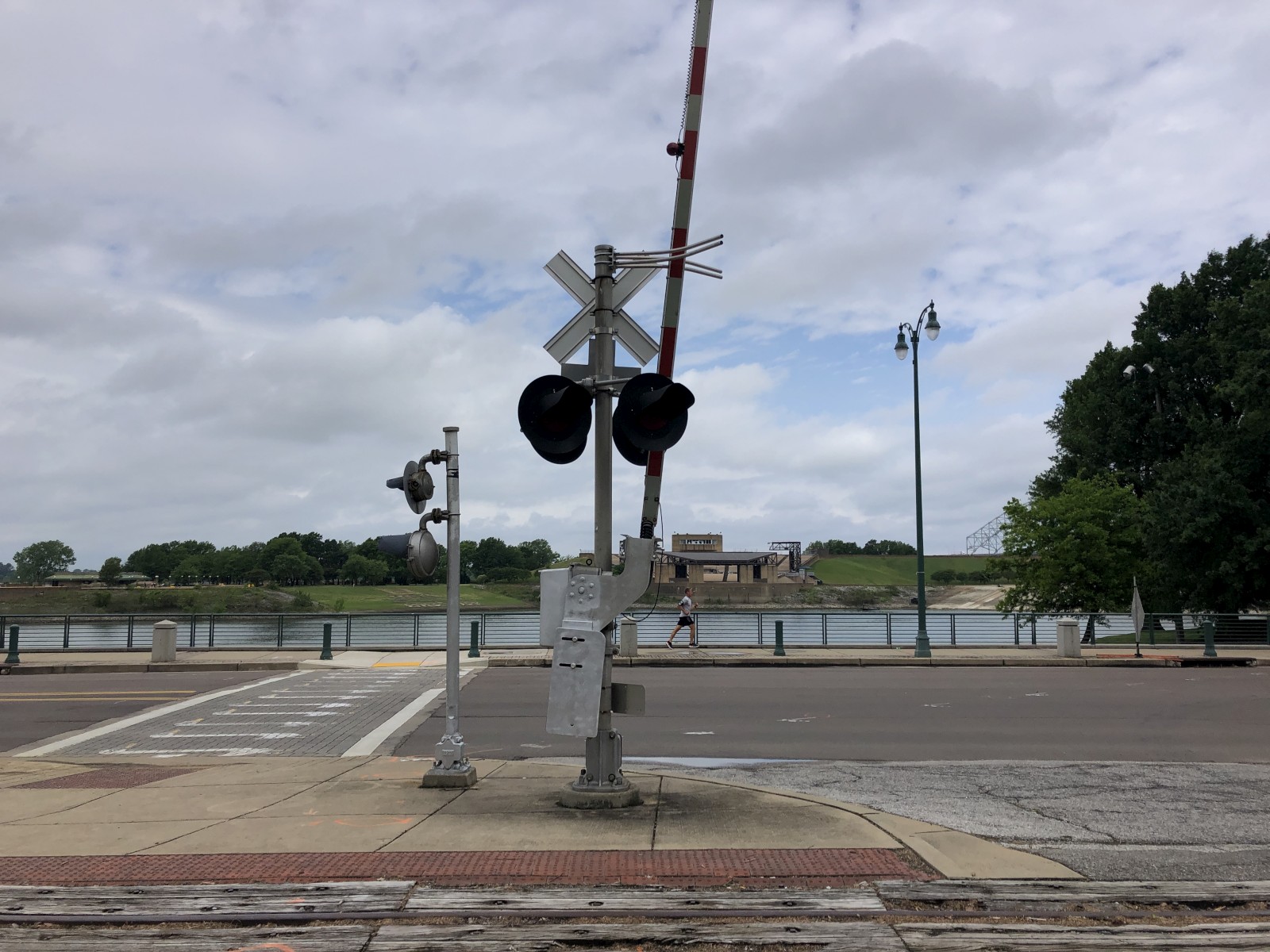

The western signal. |

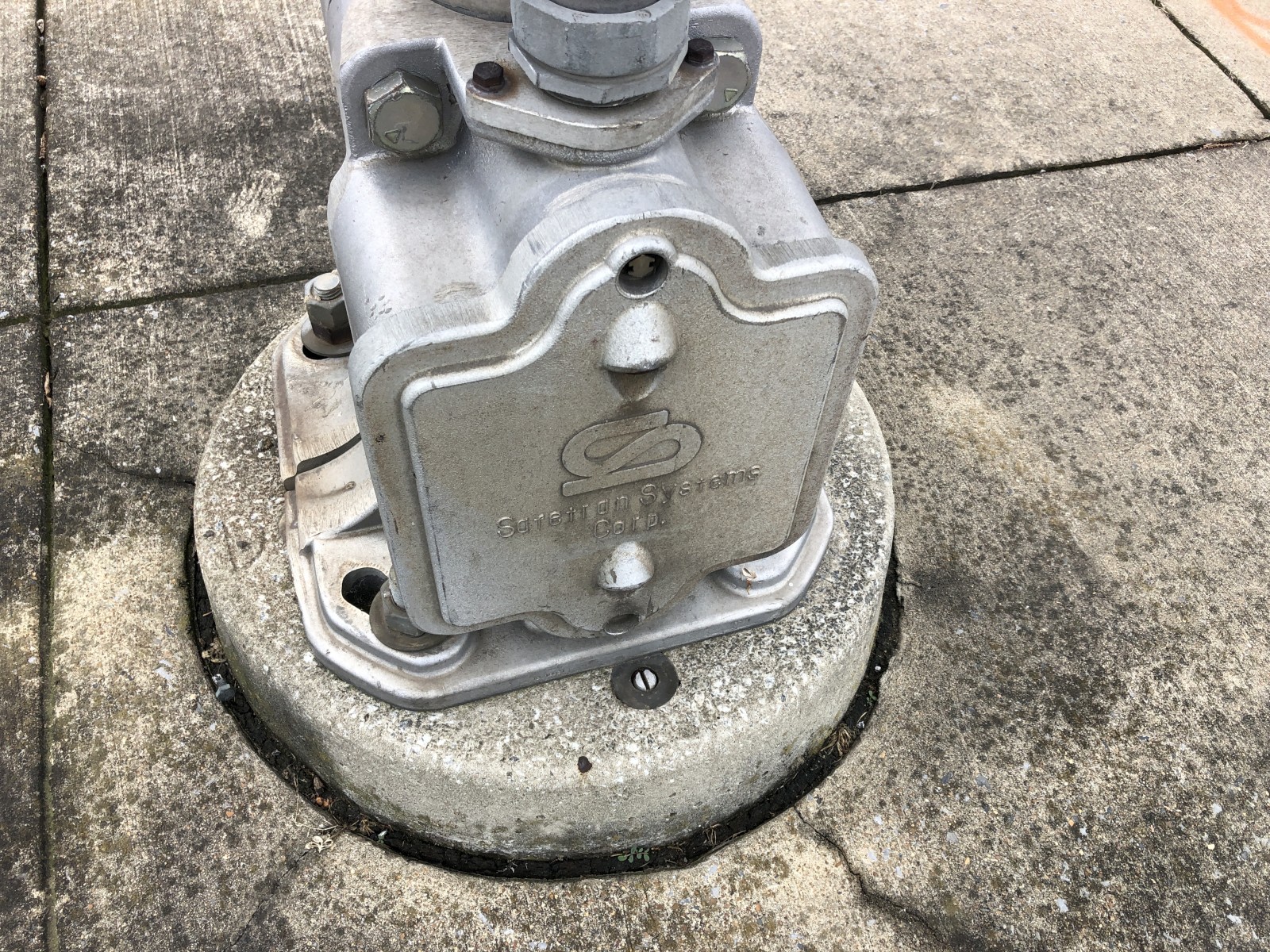

It has a 5-inch Safetran base. |

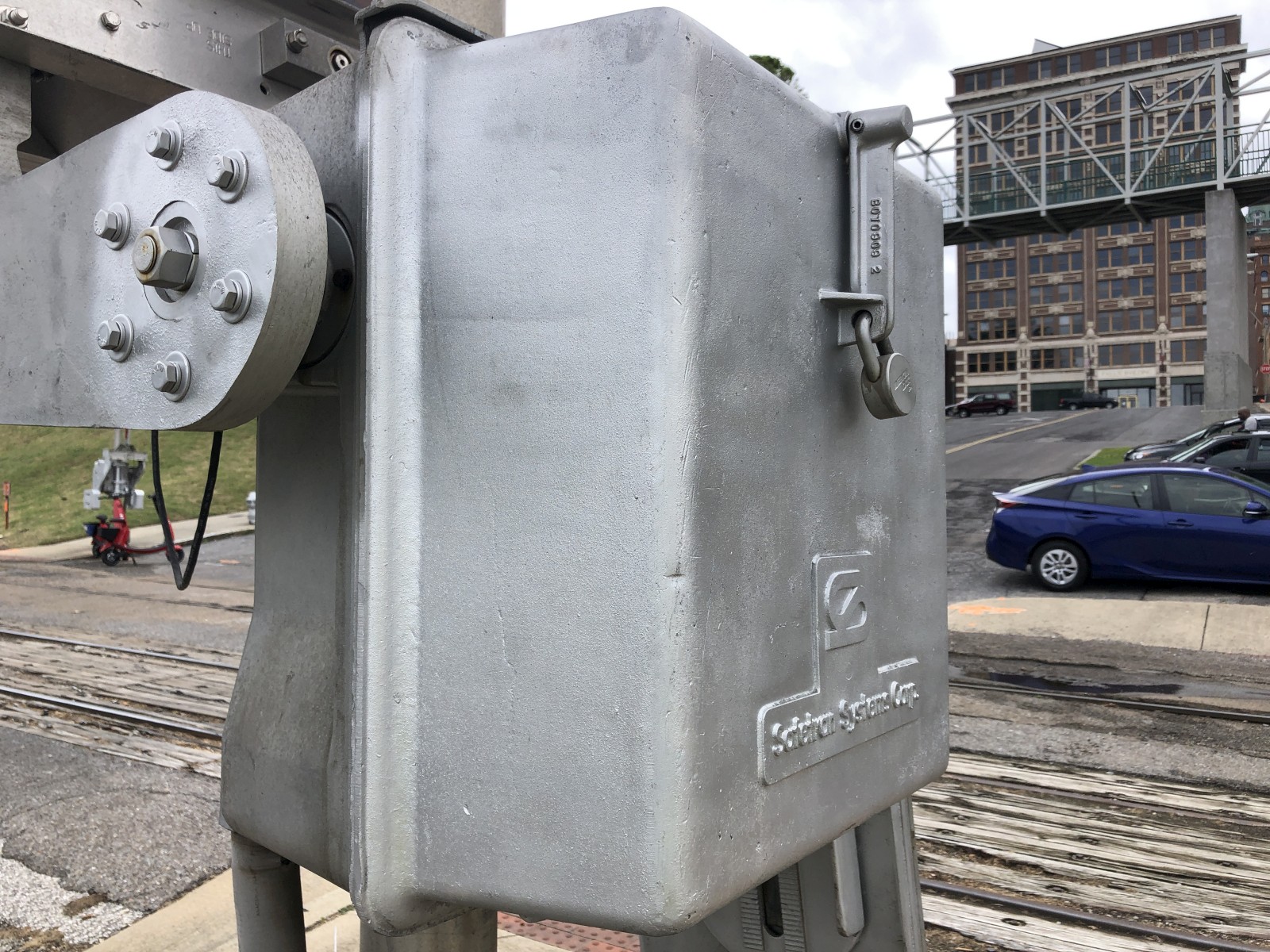

A Safetran gate mechanism. |
|
25 |
26 |
27 |
28 |

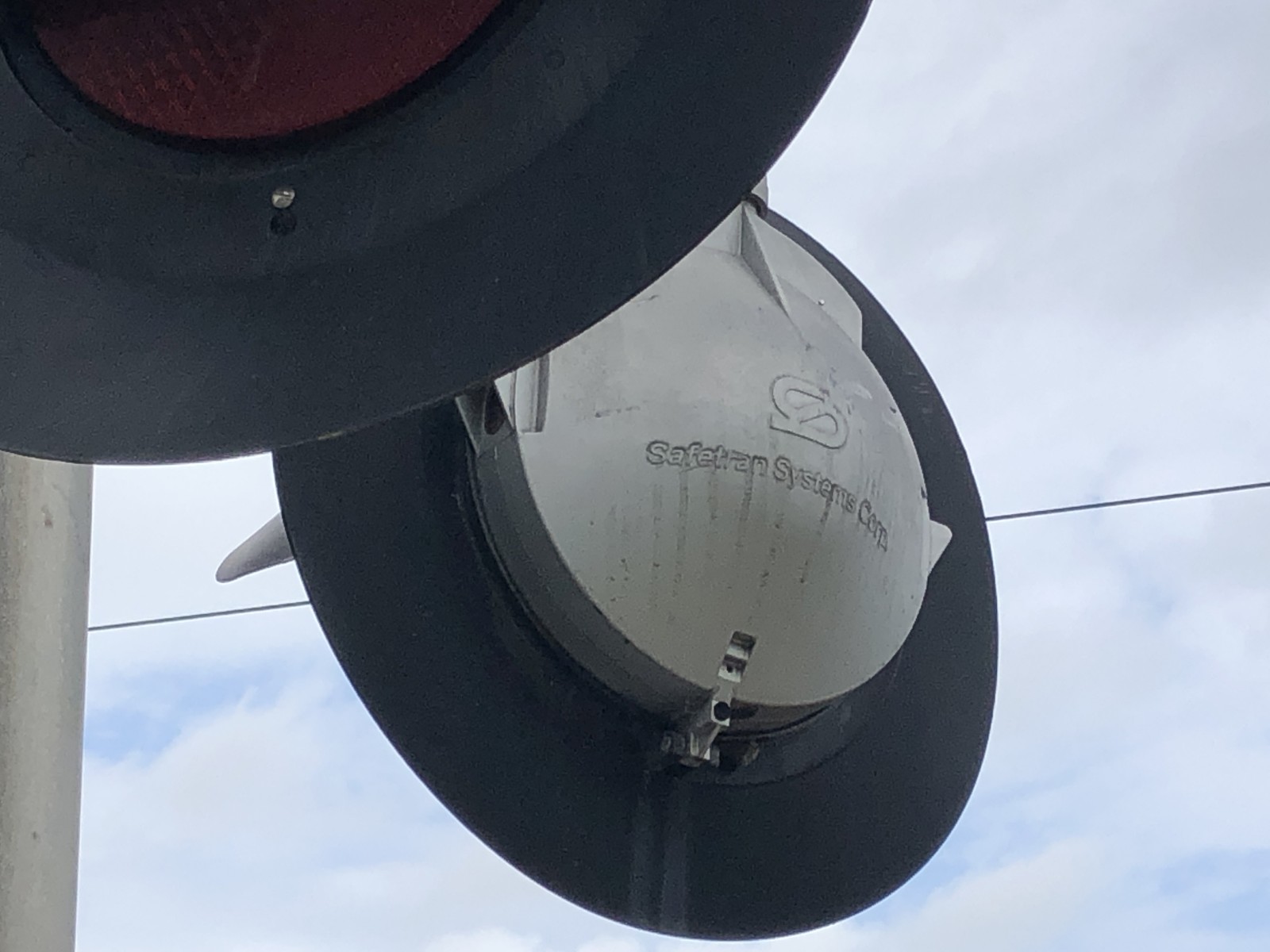

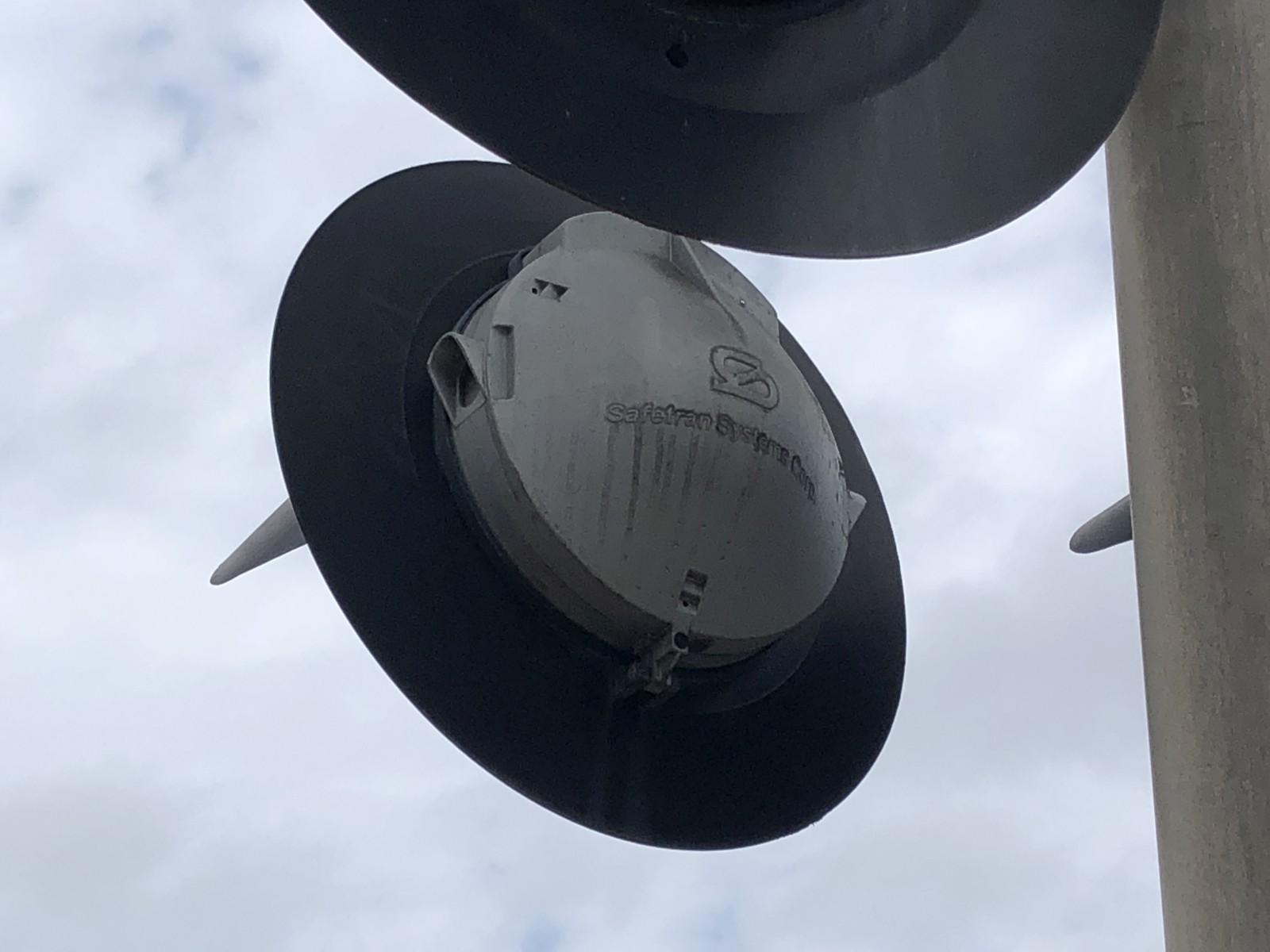

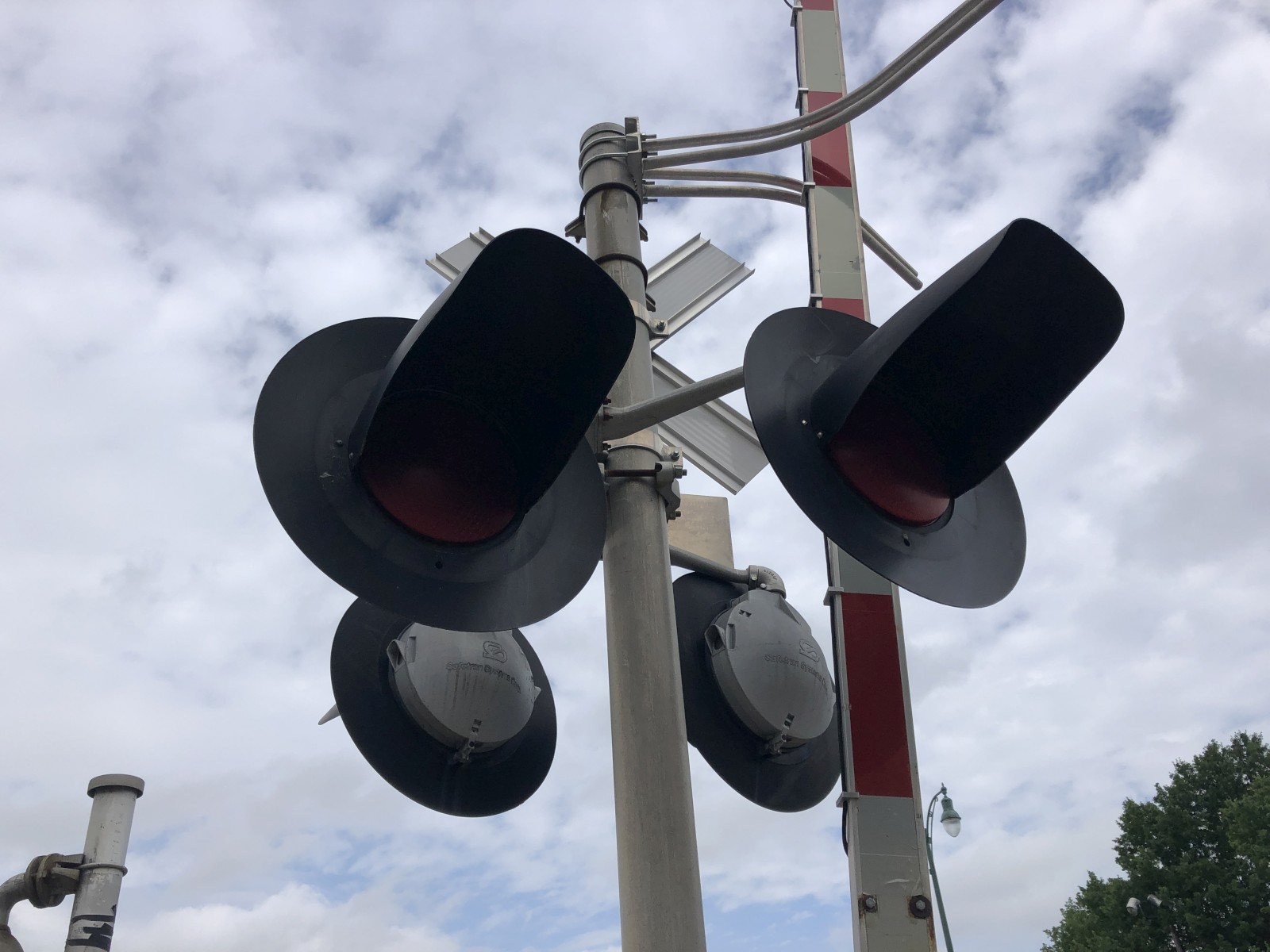

The lights on this signal are still Safetran 12x24s with Dialight Ball LEDs. |

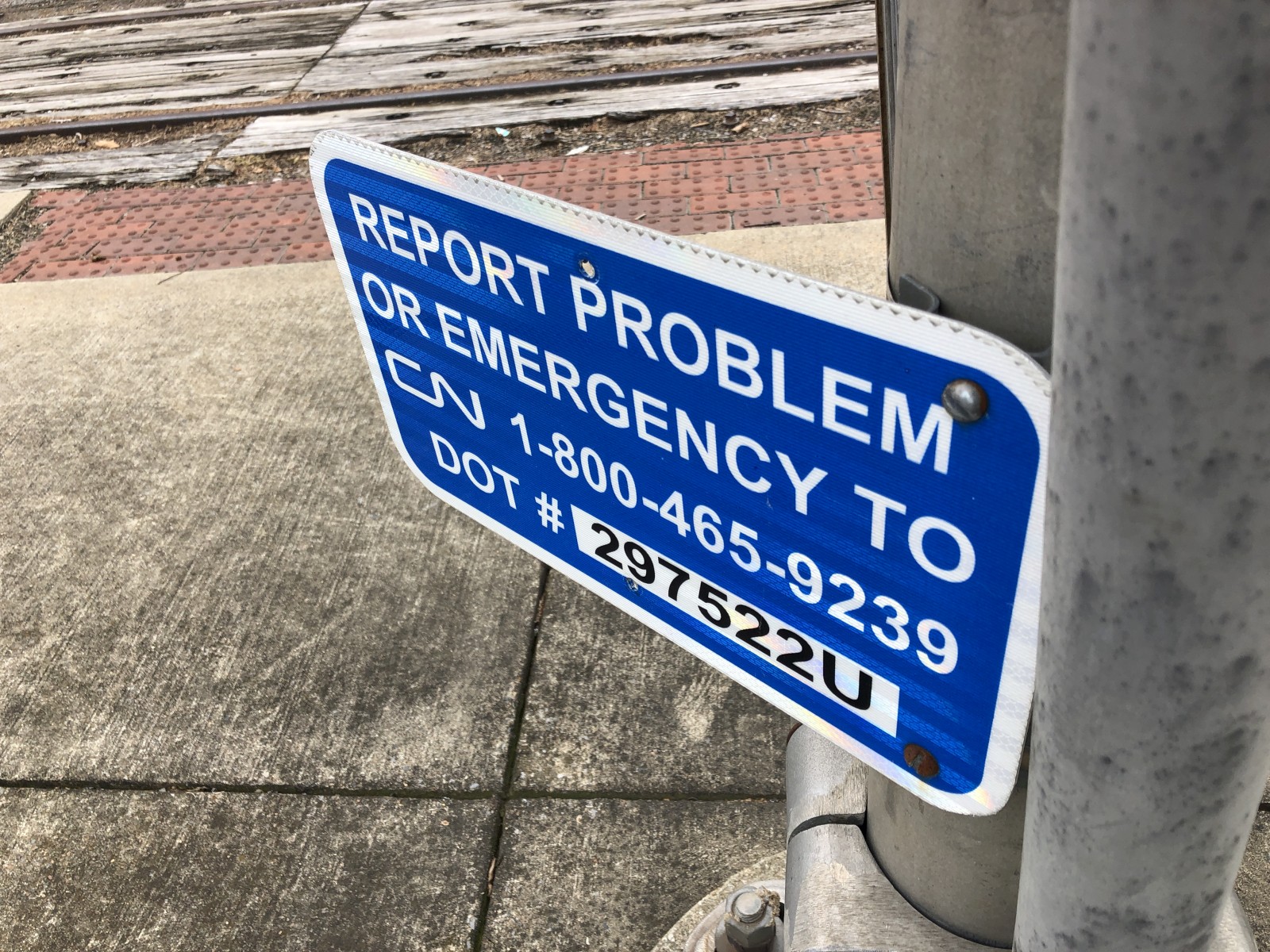

The emergency inforamtion. |

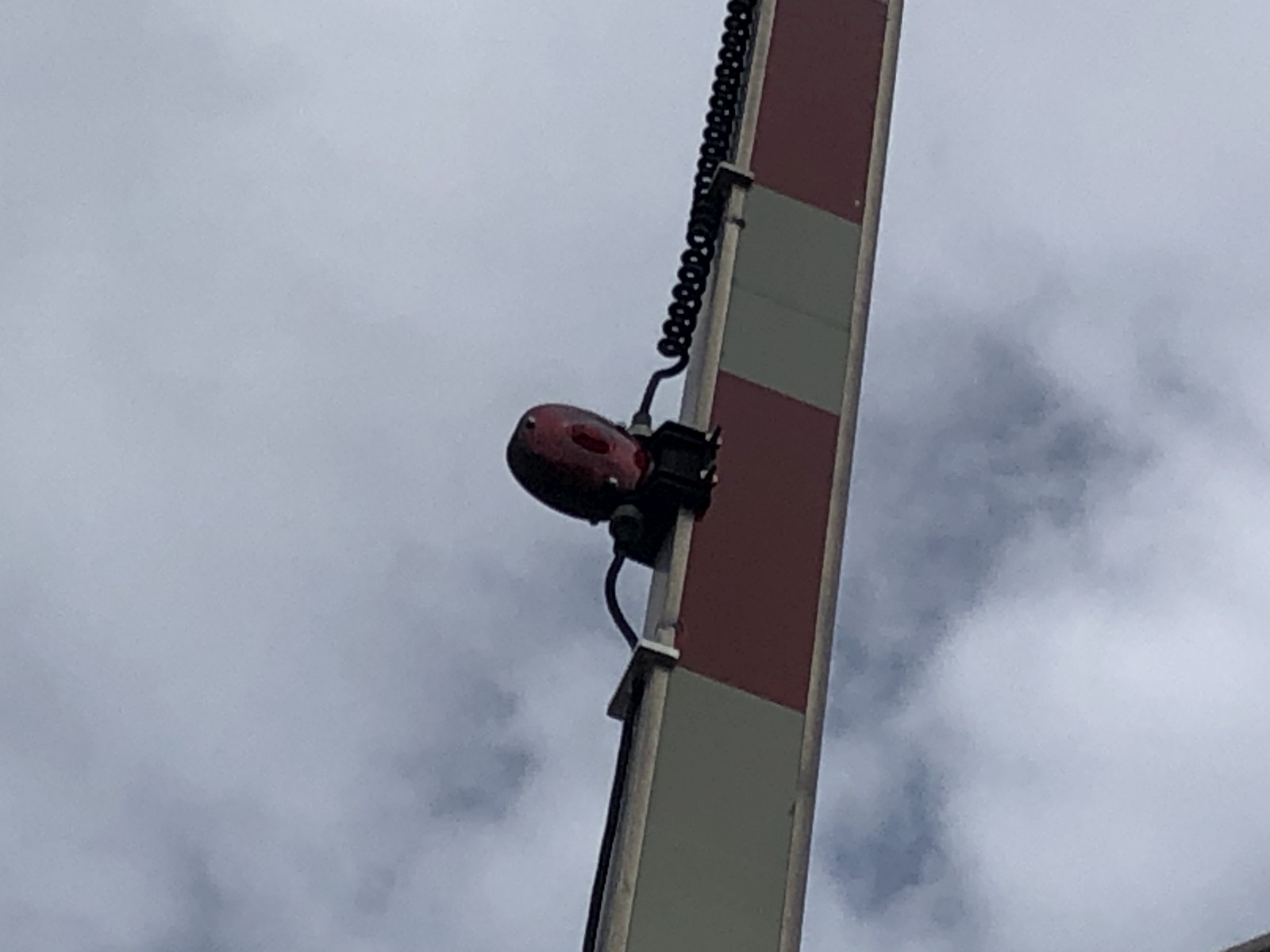

The gate lights are from REOC. |
|
29 |
30 |
31 |
32 |

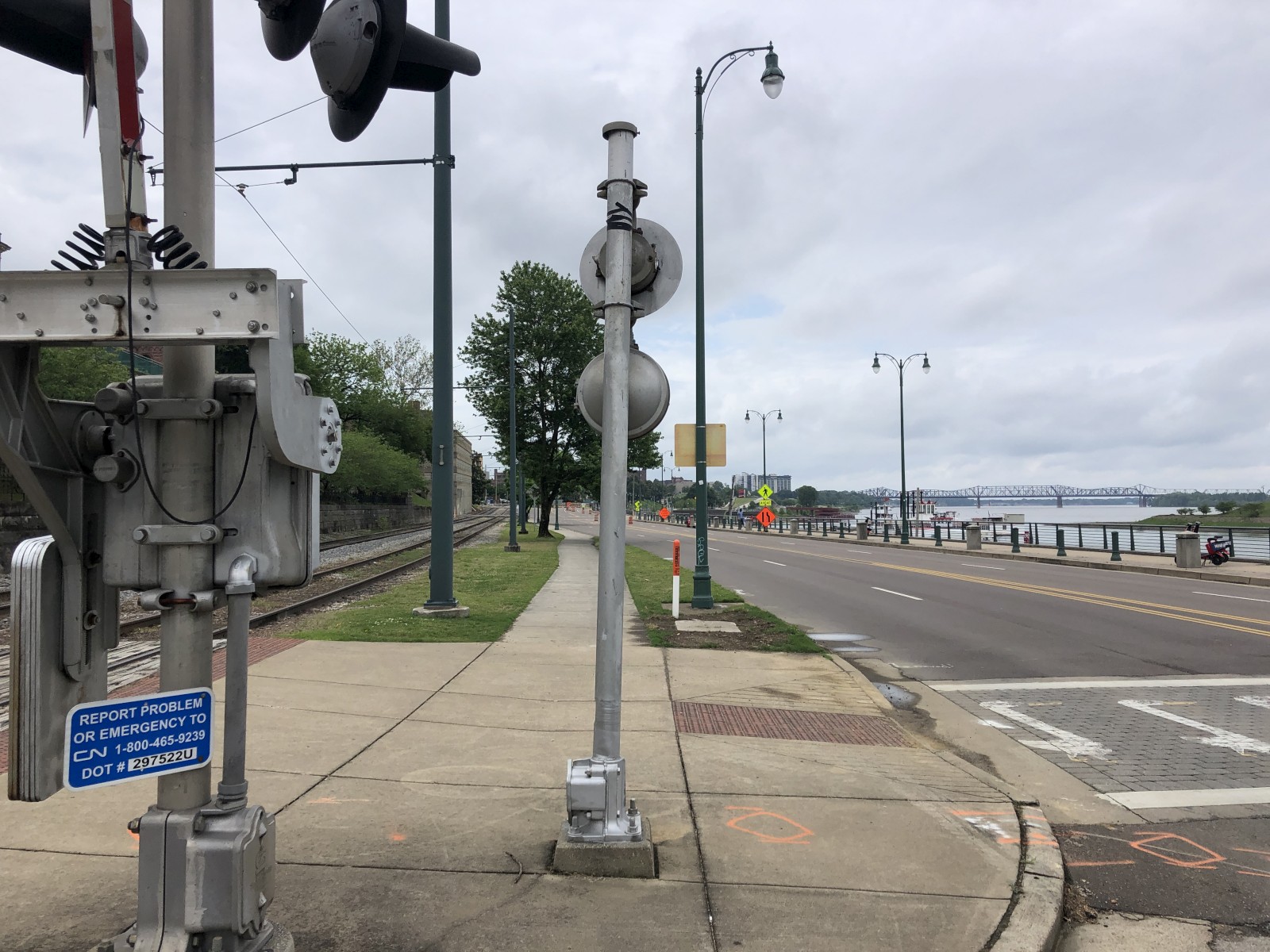

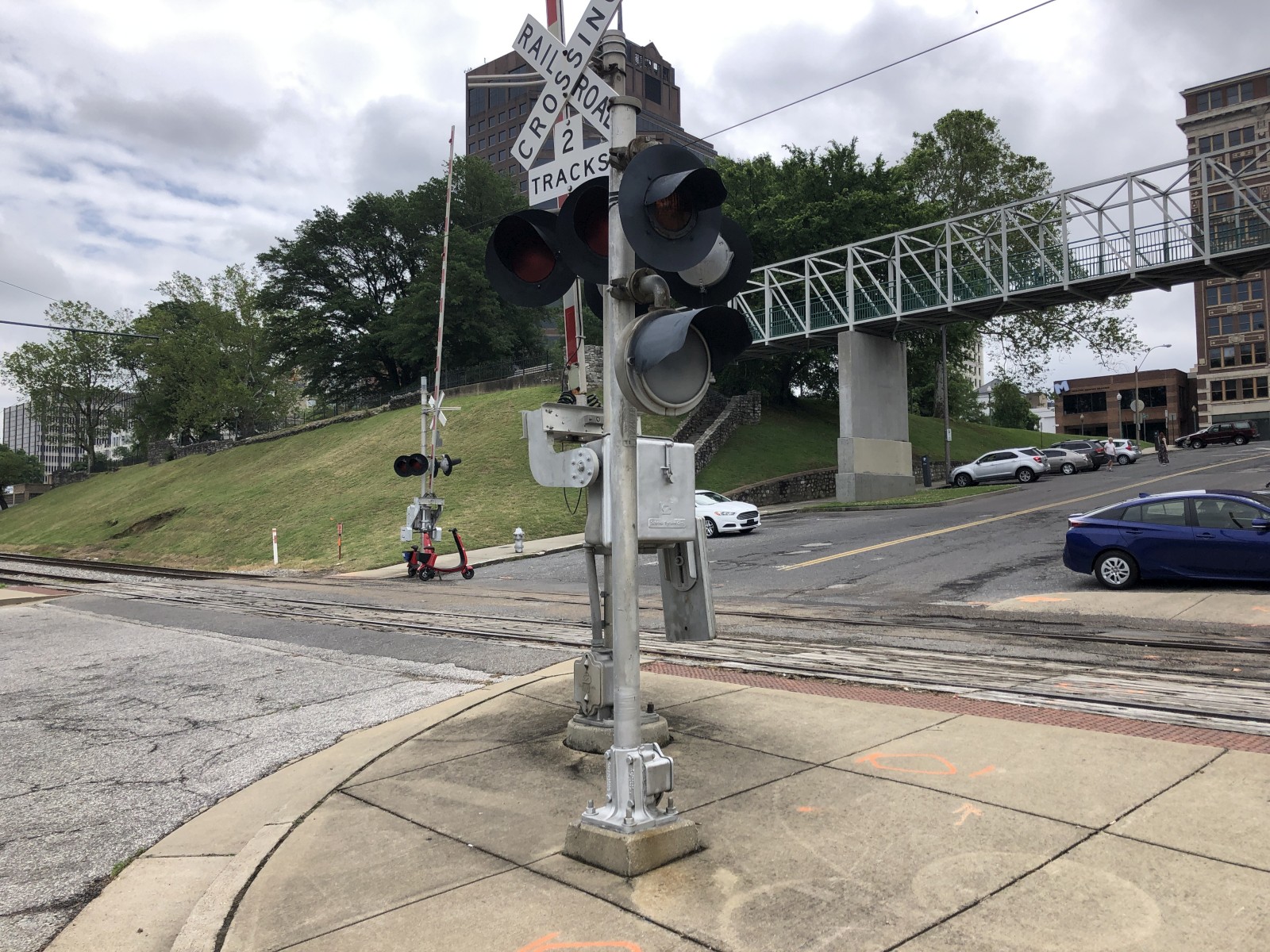

The southern no-turn signal. |
It has a 4-inch L&W base. |

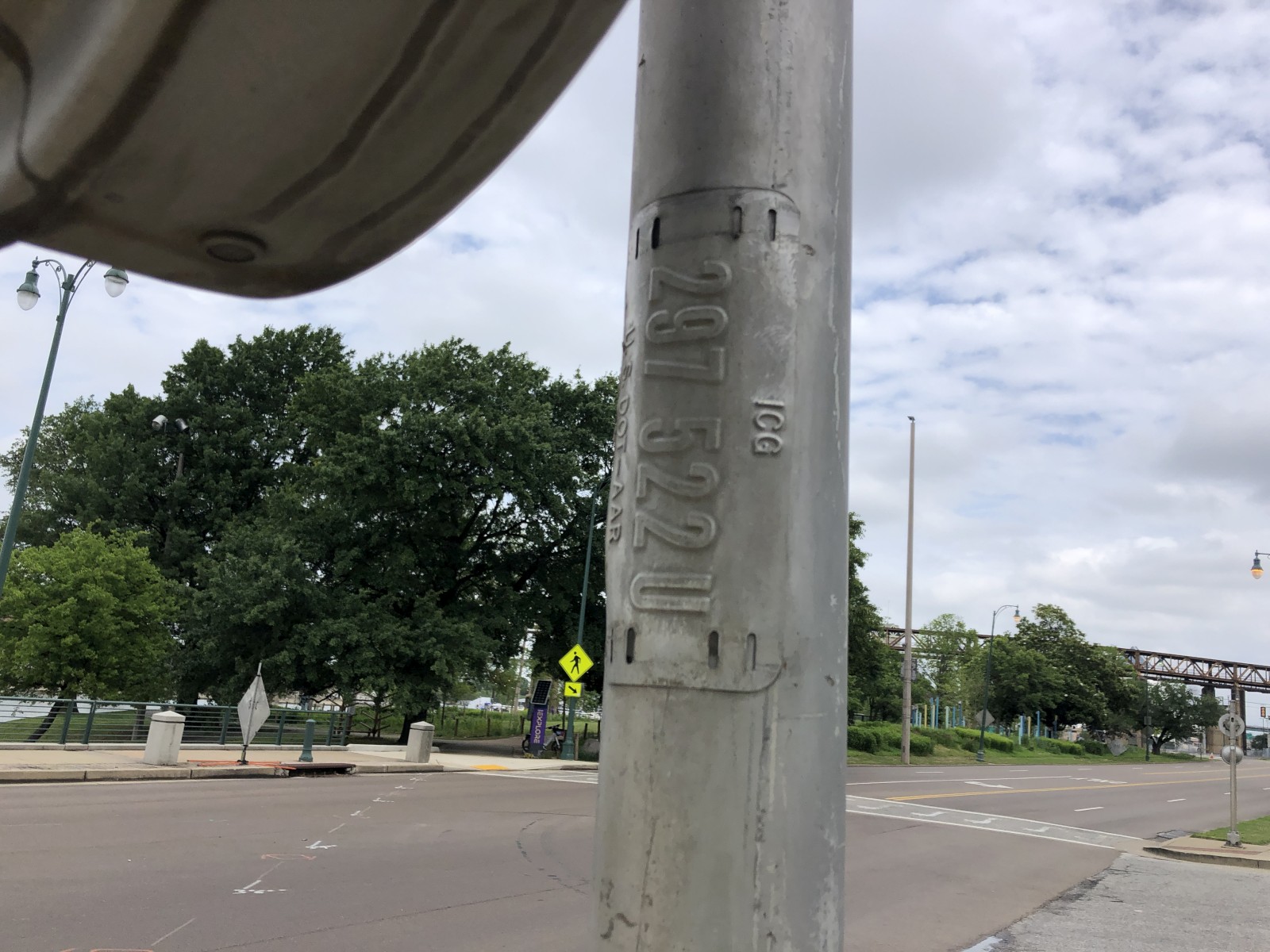

An old DOT tag. |
|
33 |
34 |
35 |
36 |

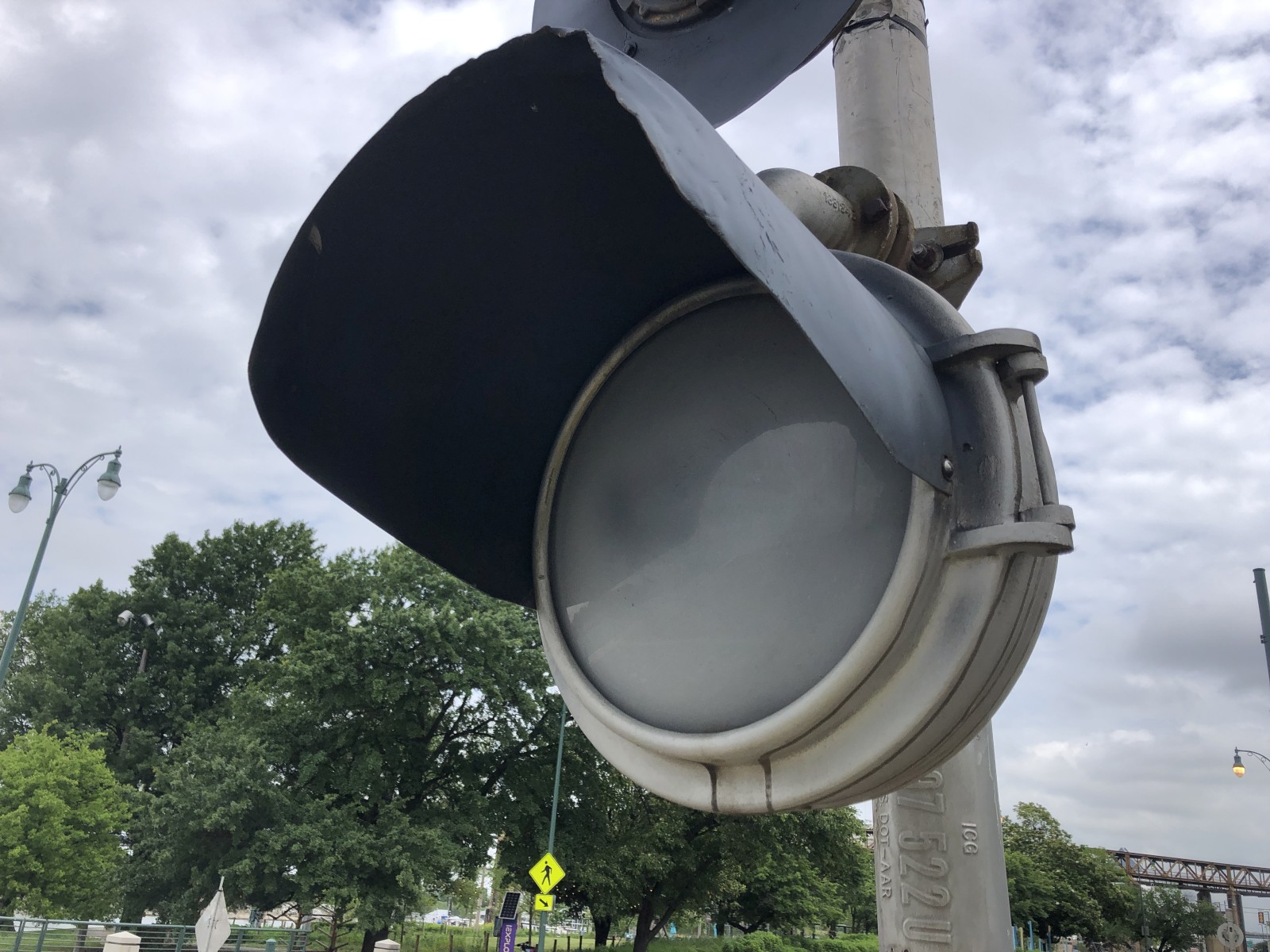

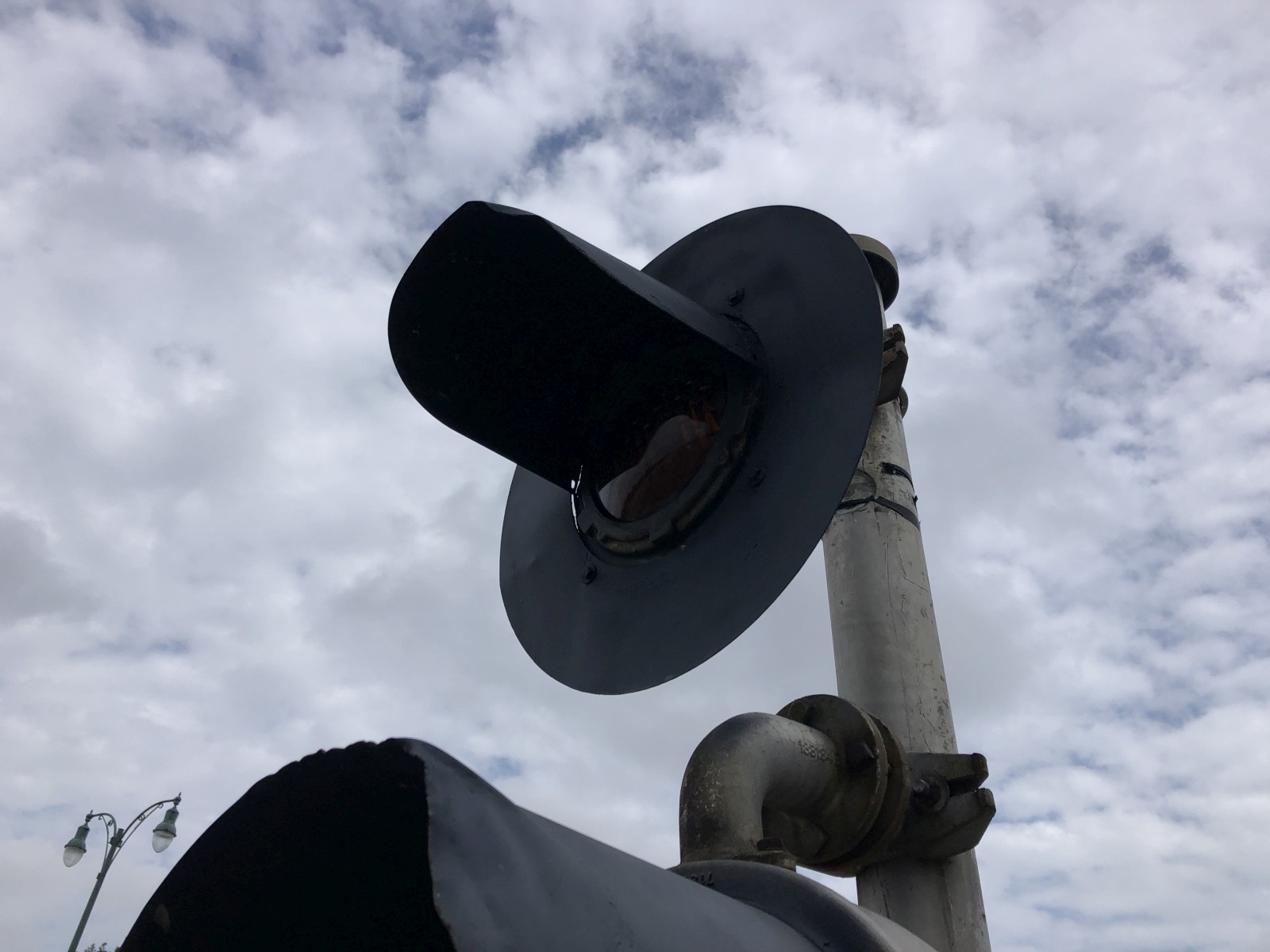

An unknown (Safetran?) 14 inch "No Right Turn" light. |

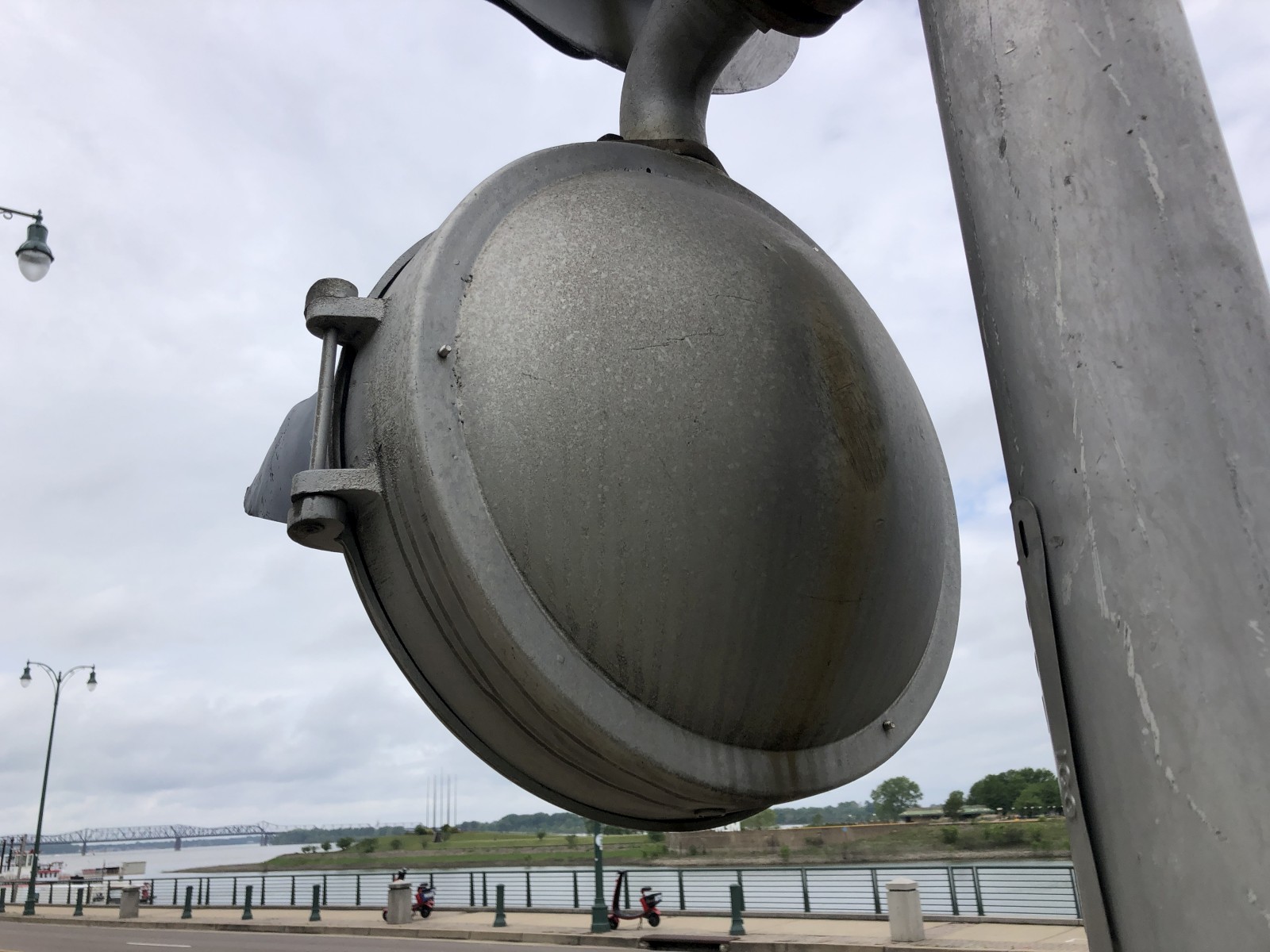

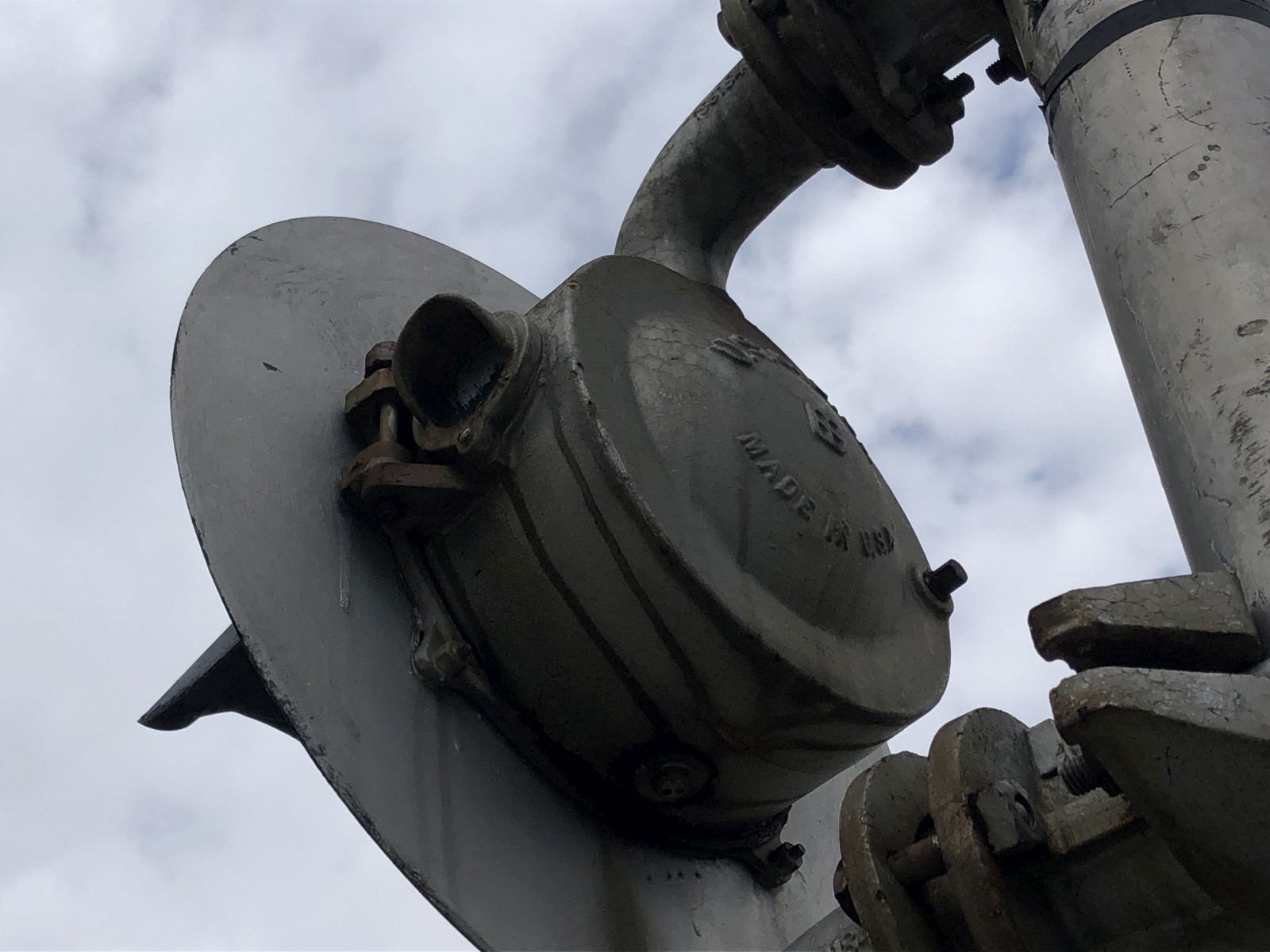

A US&S 8 incandescent light with yellow lens! |
||
37 |
38 |
39 |
40 |

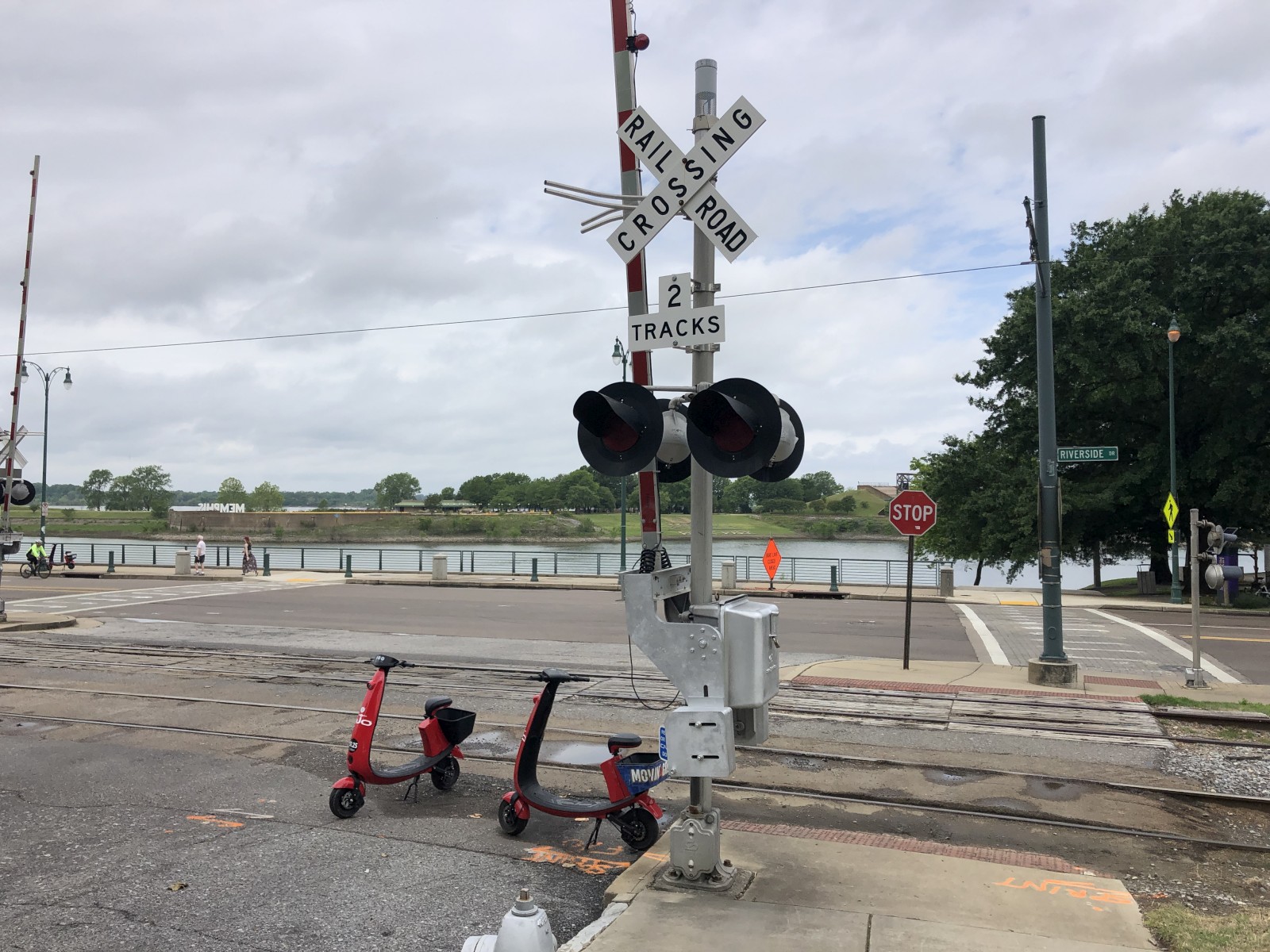

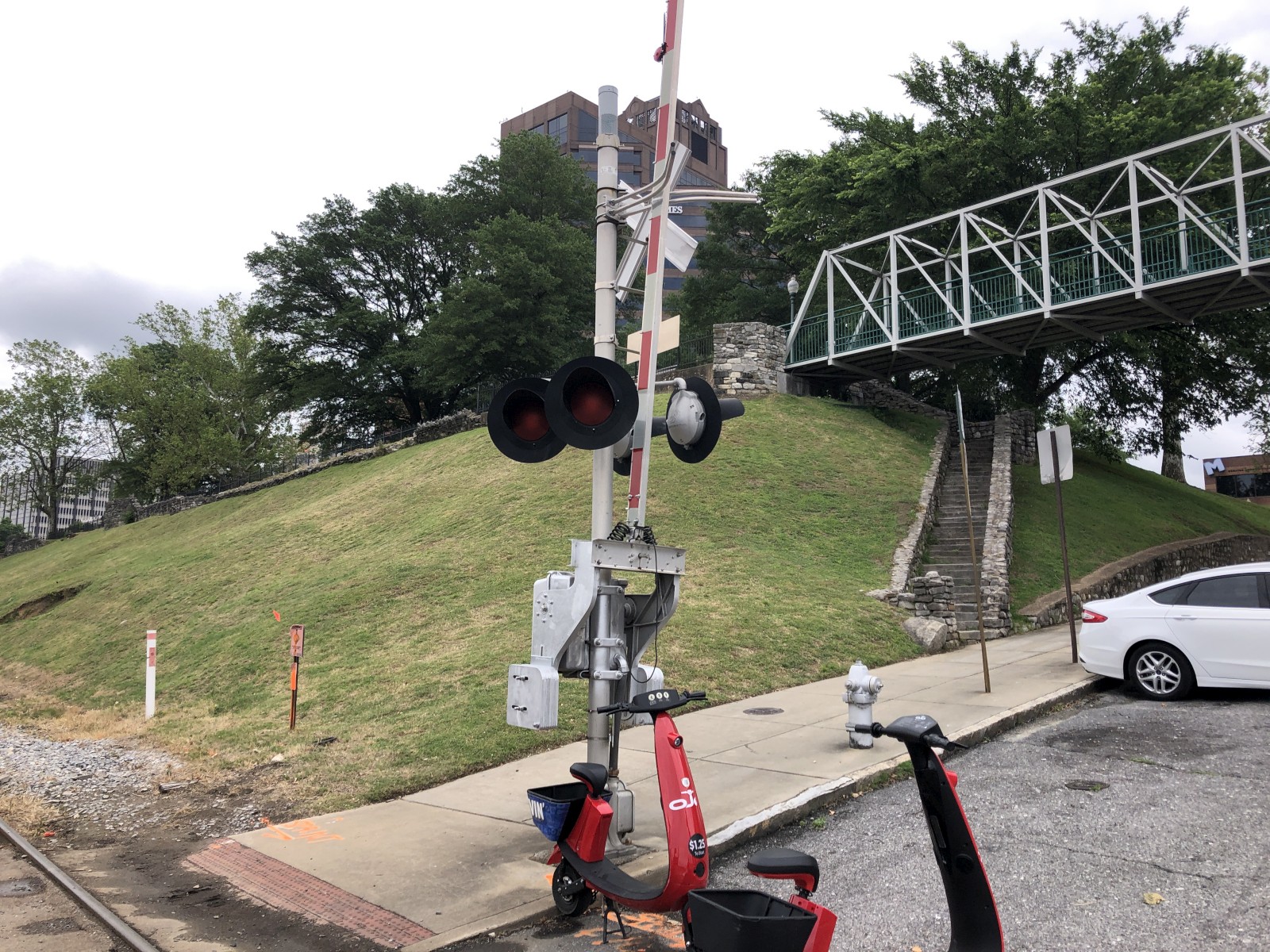

The eastern signal. |

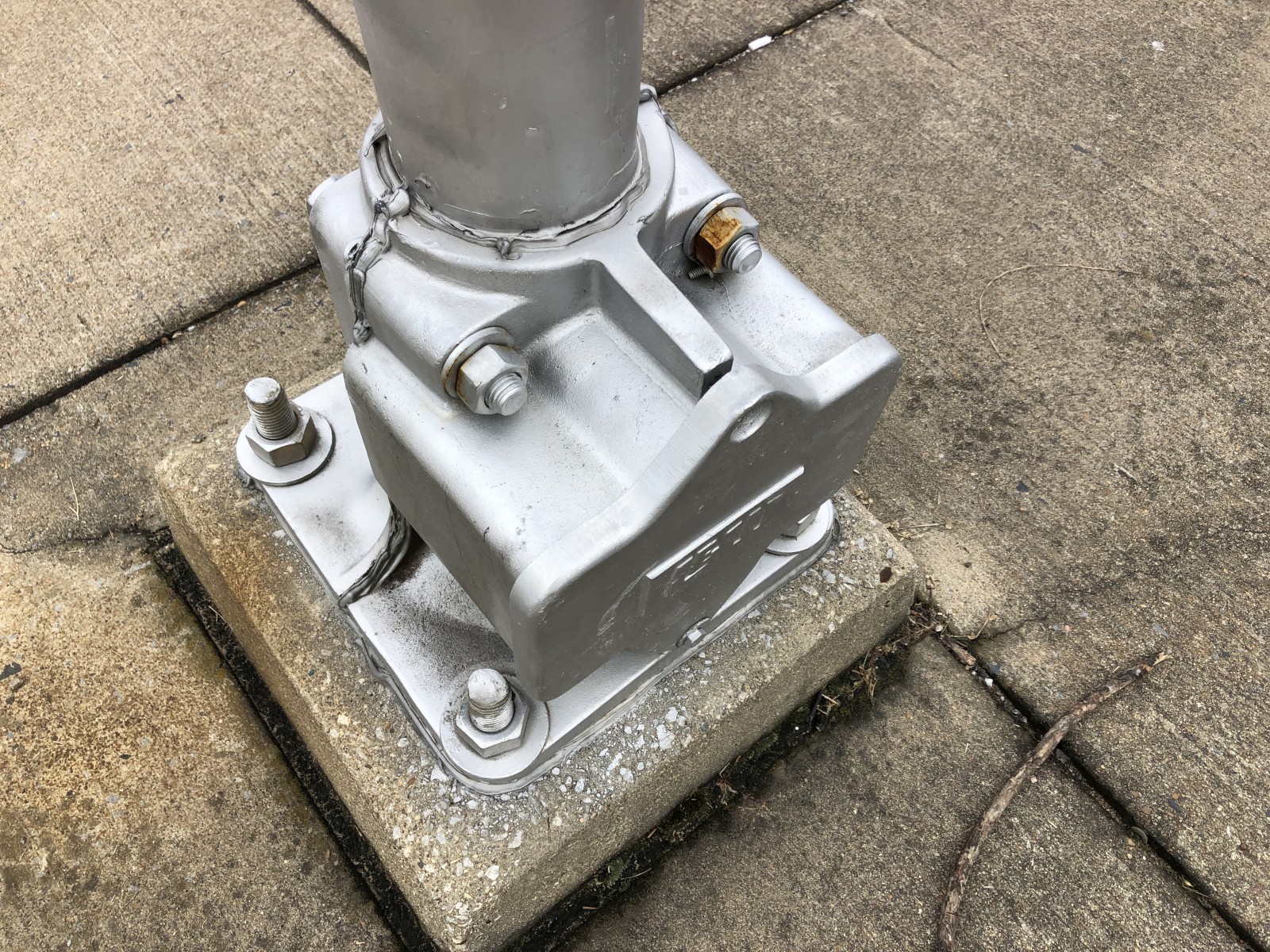

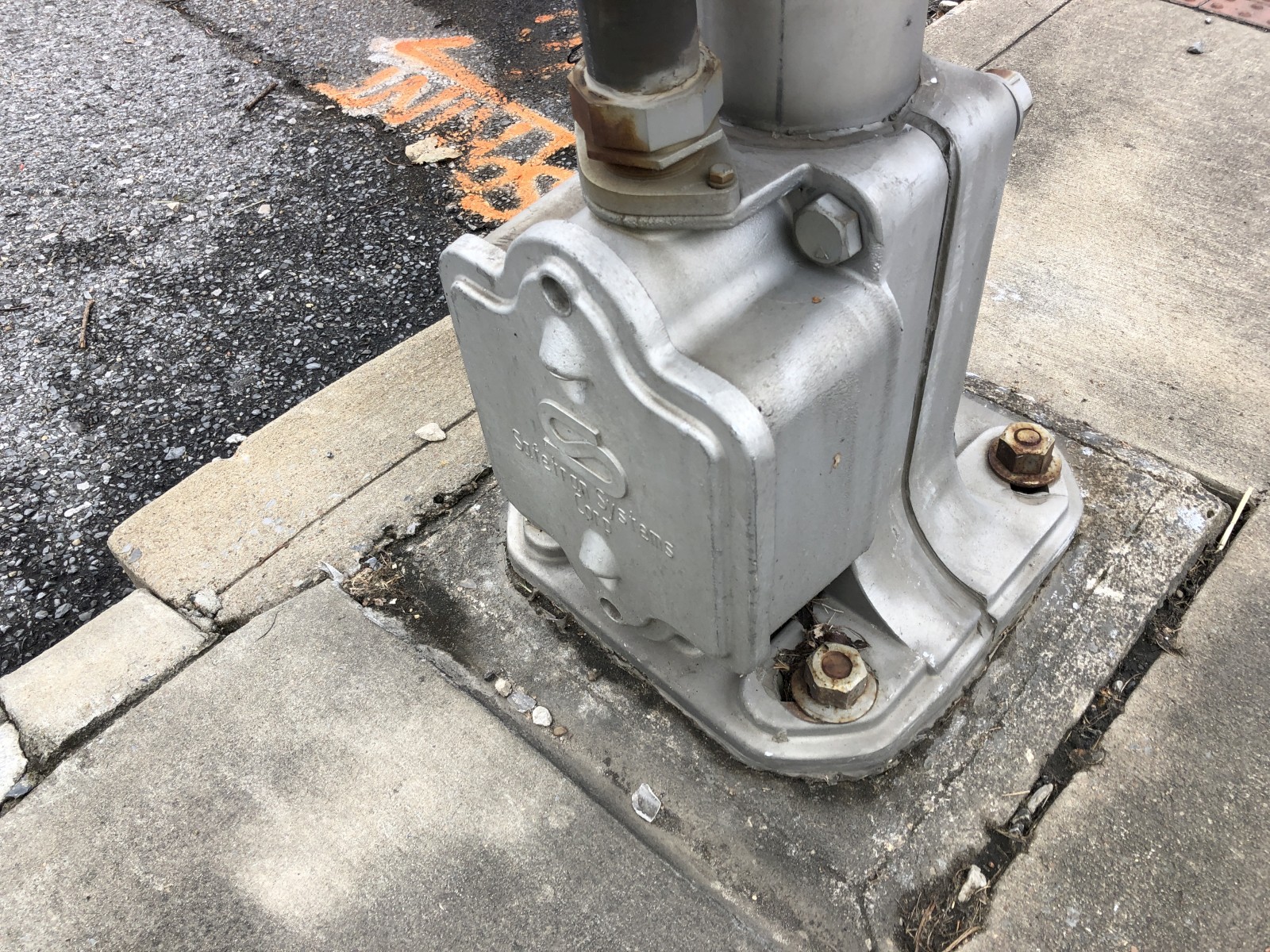

It has another 5-inch Safetran base. |

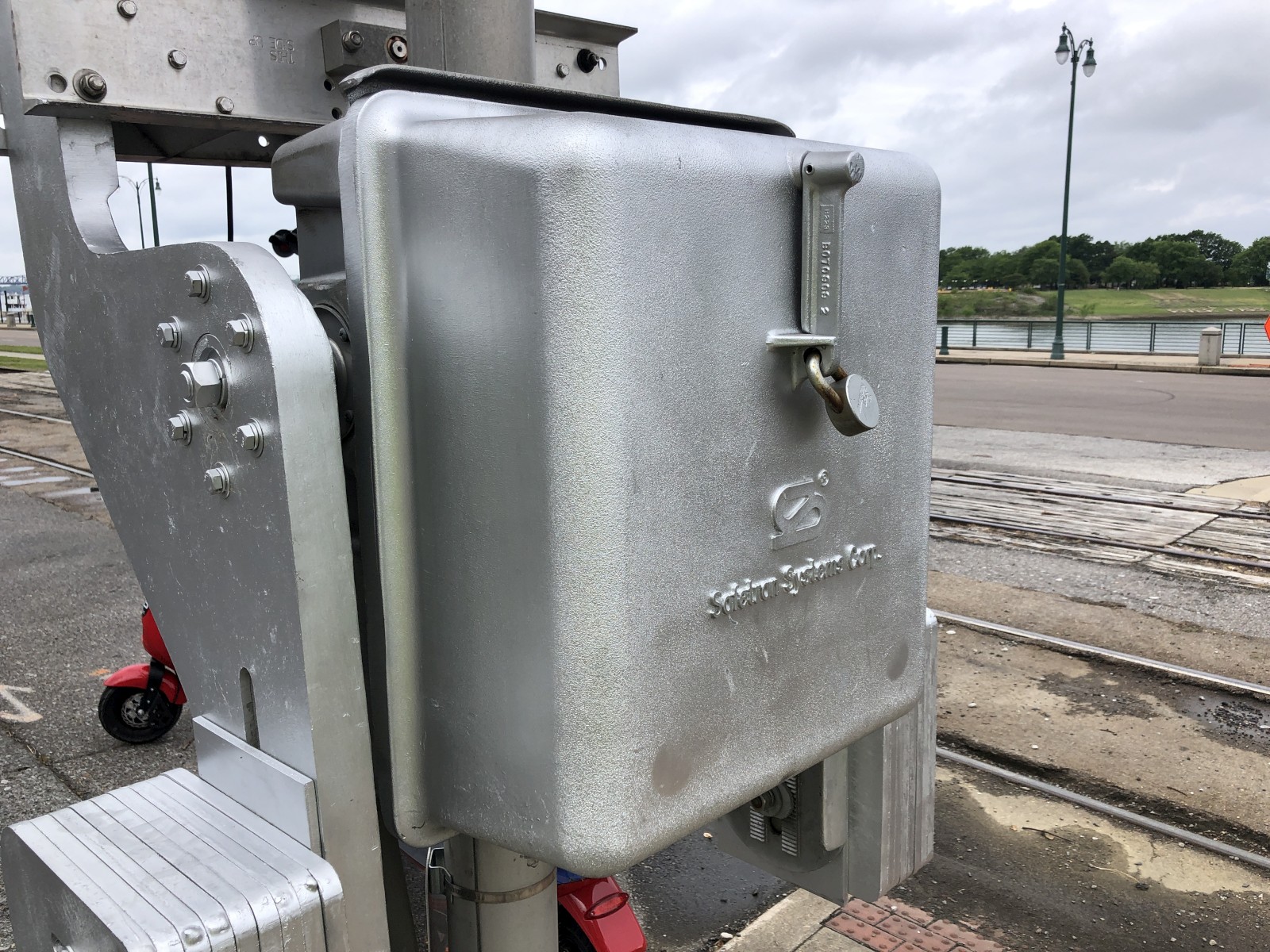

Another Safetran gate mechanism. |
|
41 |
42 |
43 |
44 |

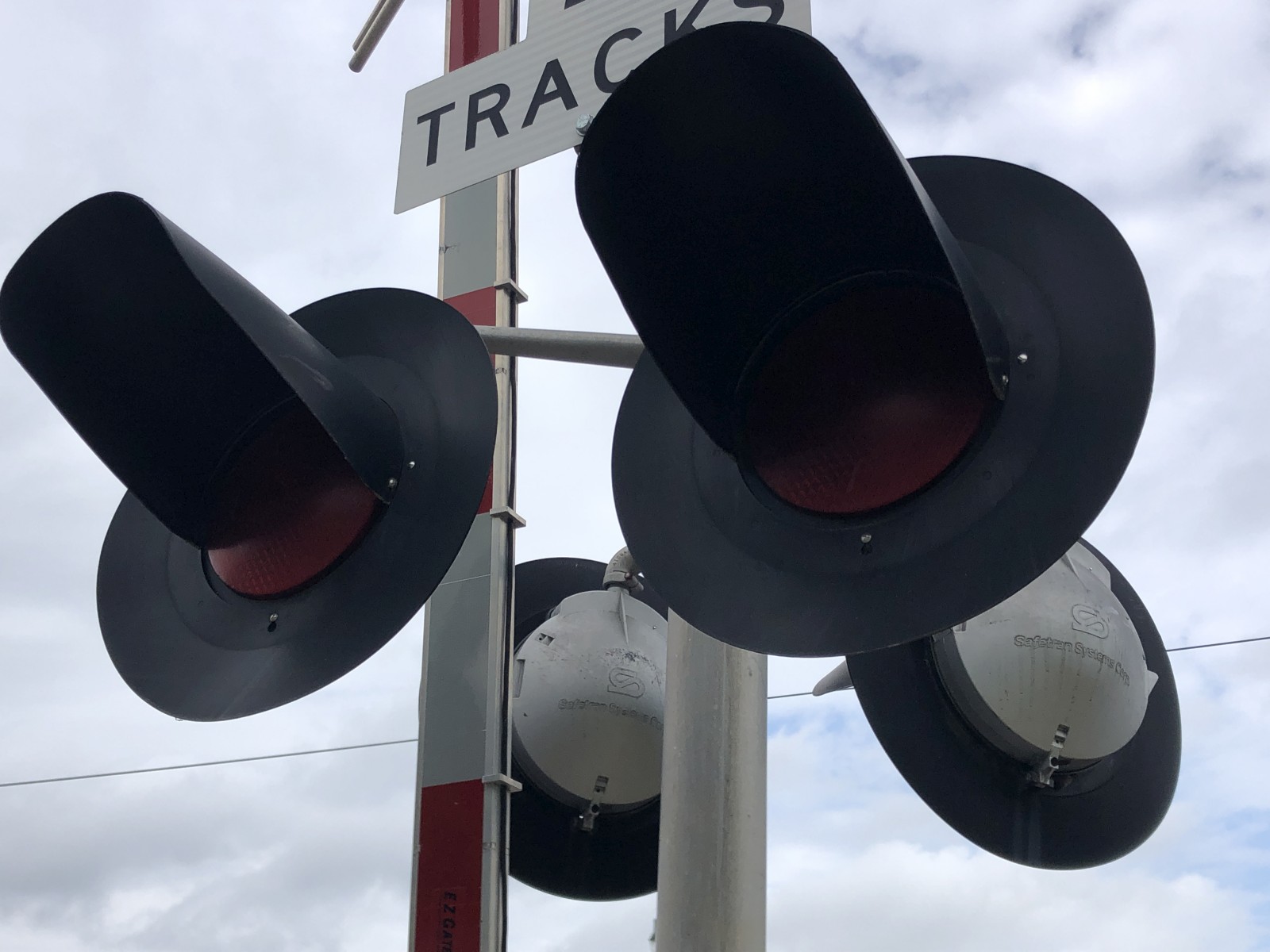

This signal also retains its' Safetran 12x24 lights with Dialight Ball LEDs. |

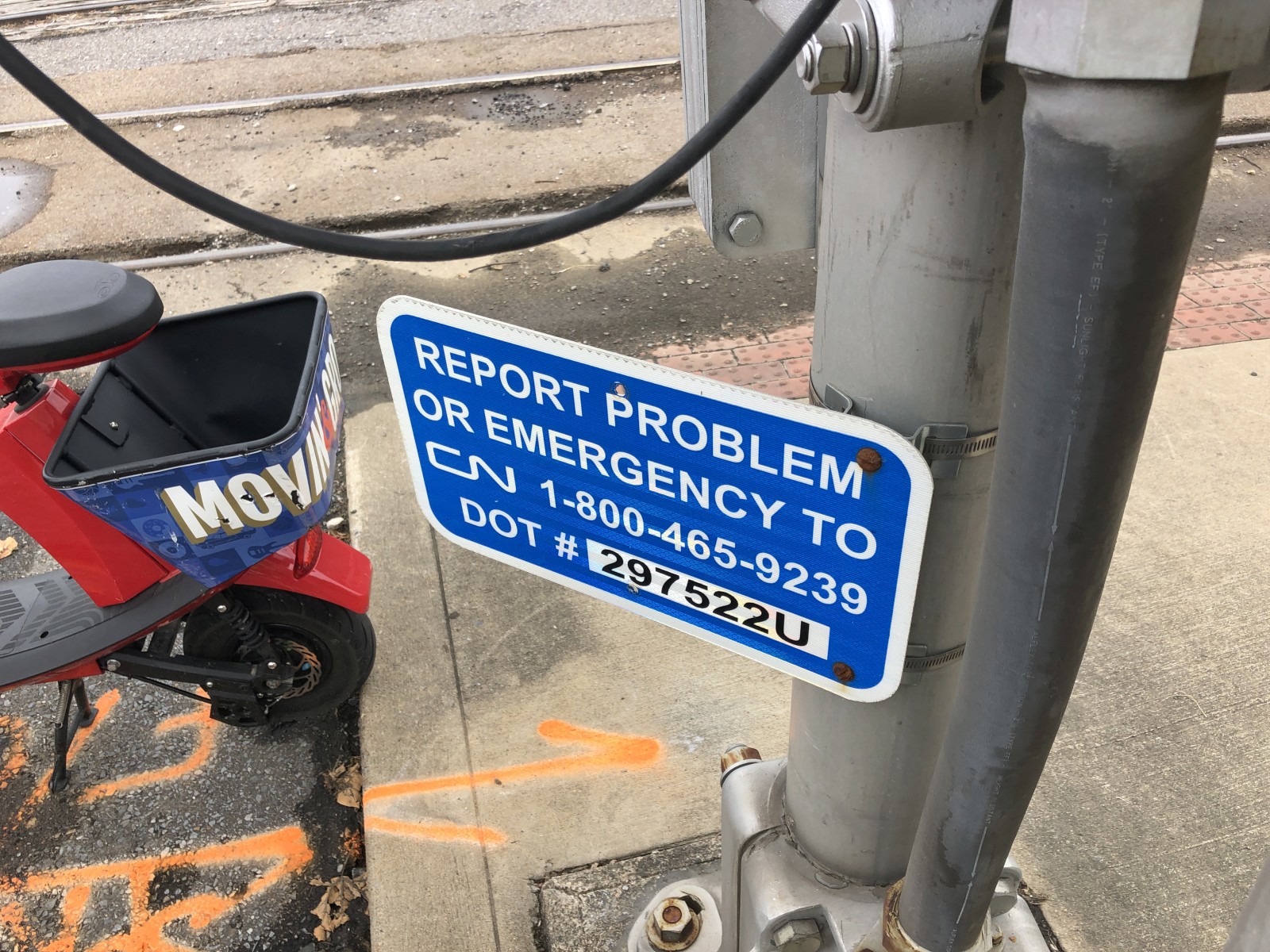

The emergency information. |

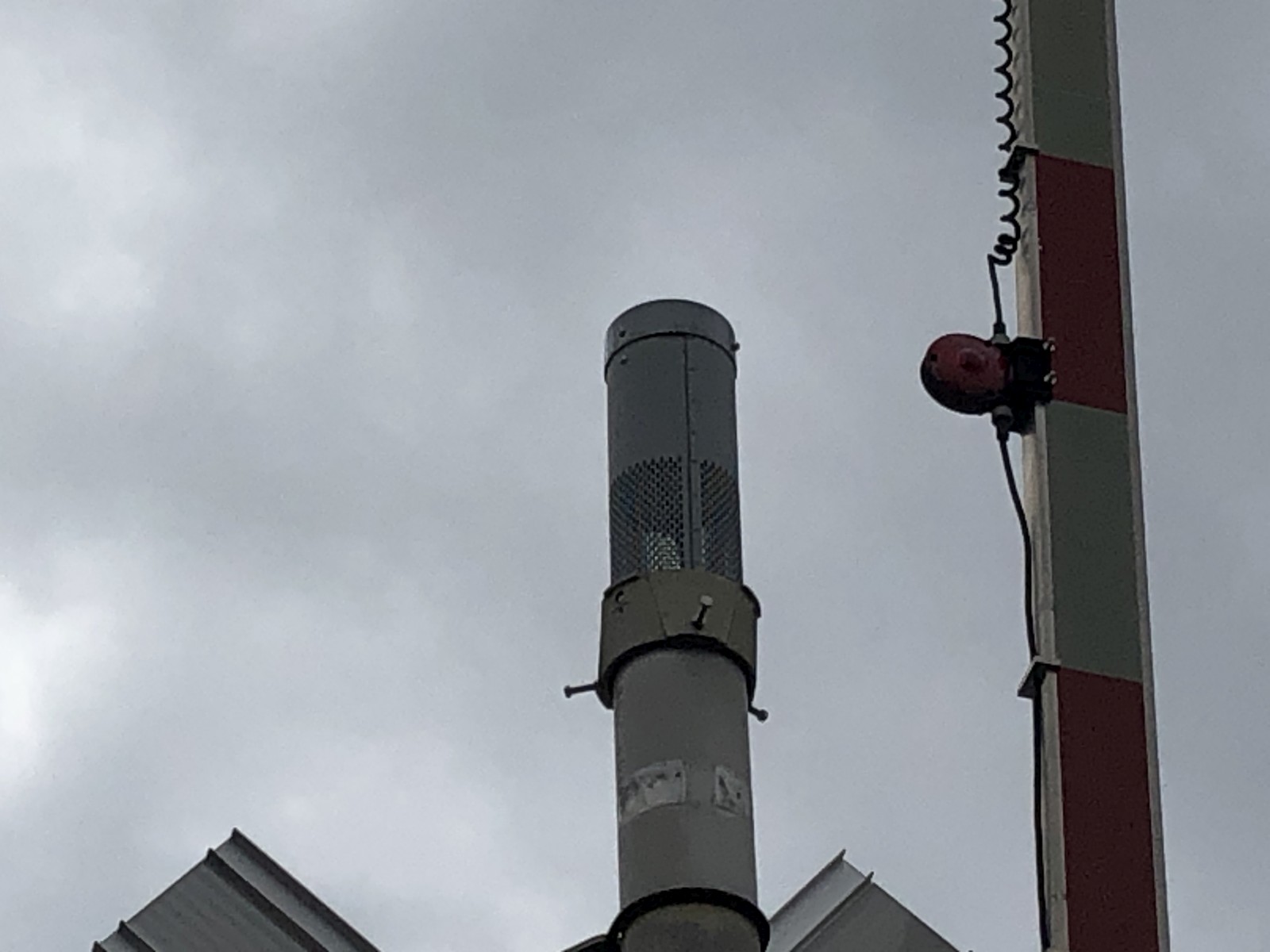

The bell here is now a Safetran Type 3 (Siemens) E-Bell. |
|
45 |
46 |
47 |
48 |

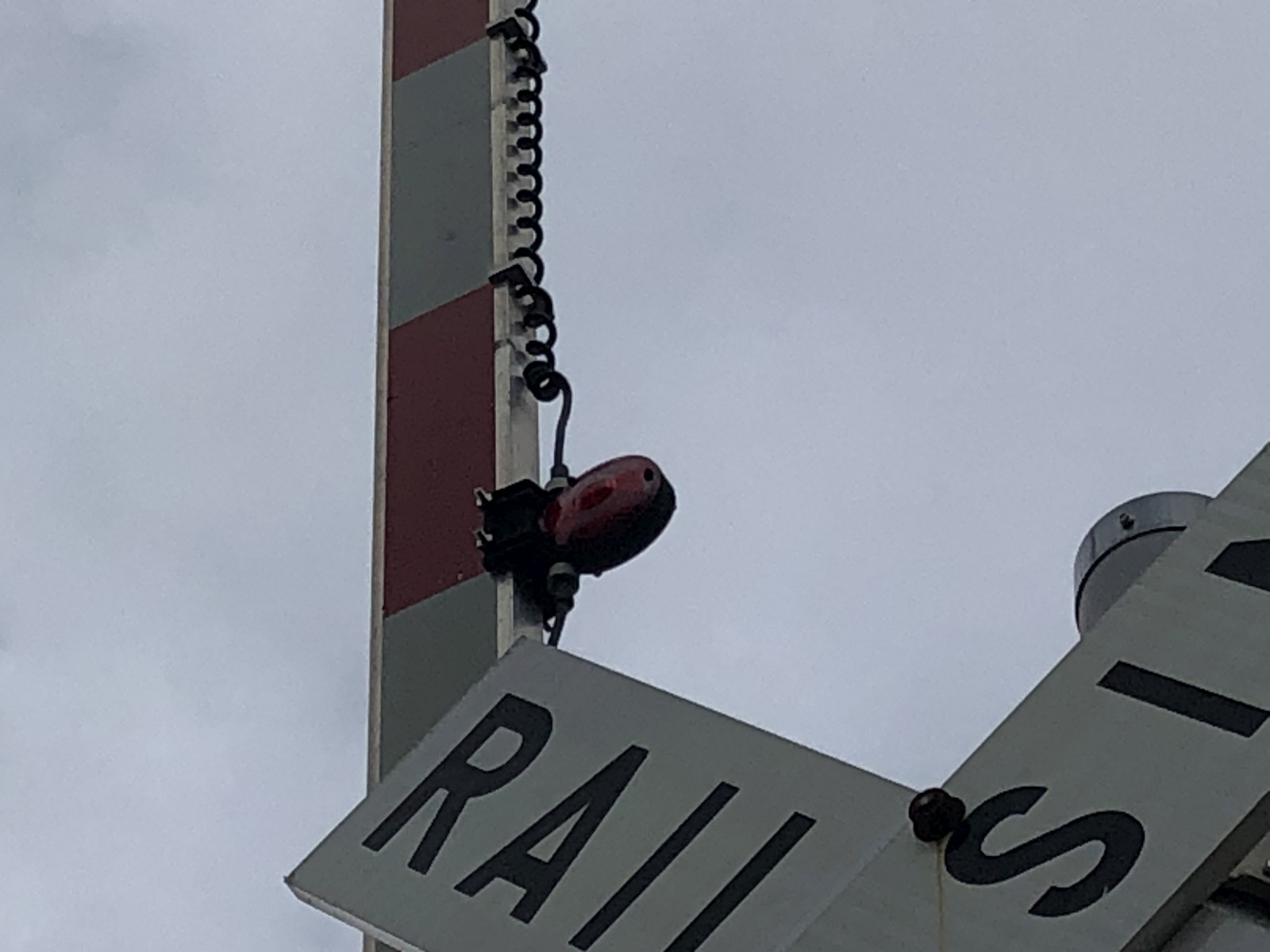

More RECO gatelights over here. |

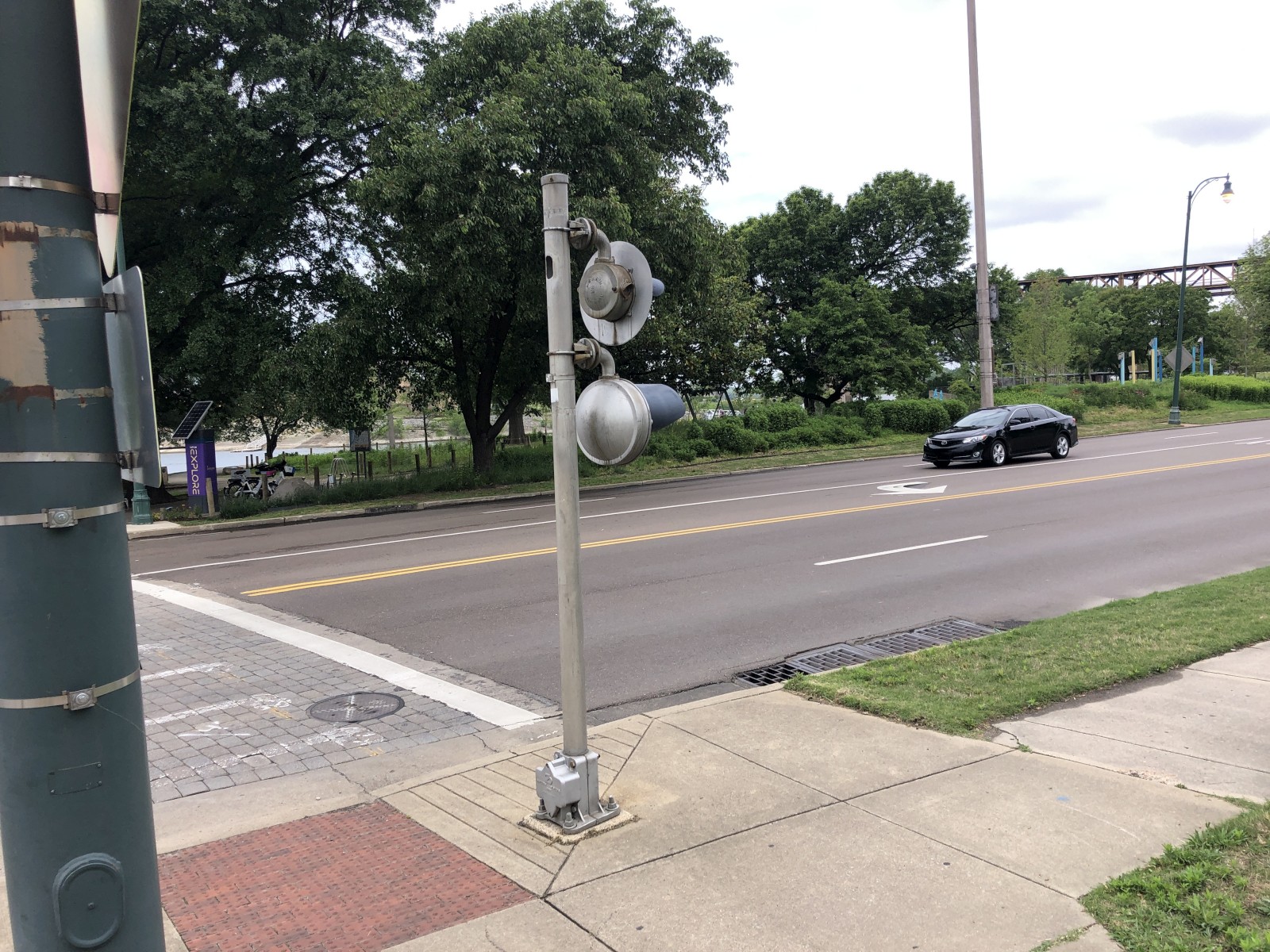

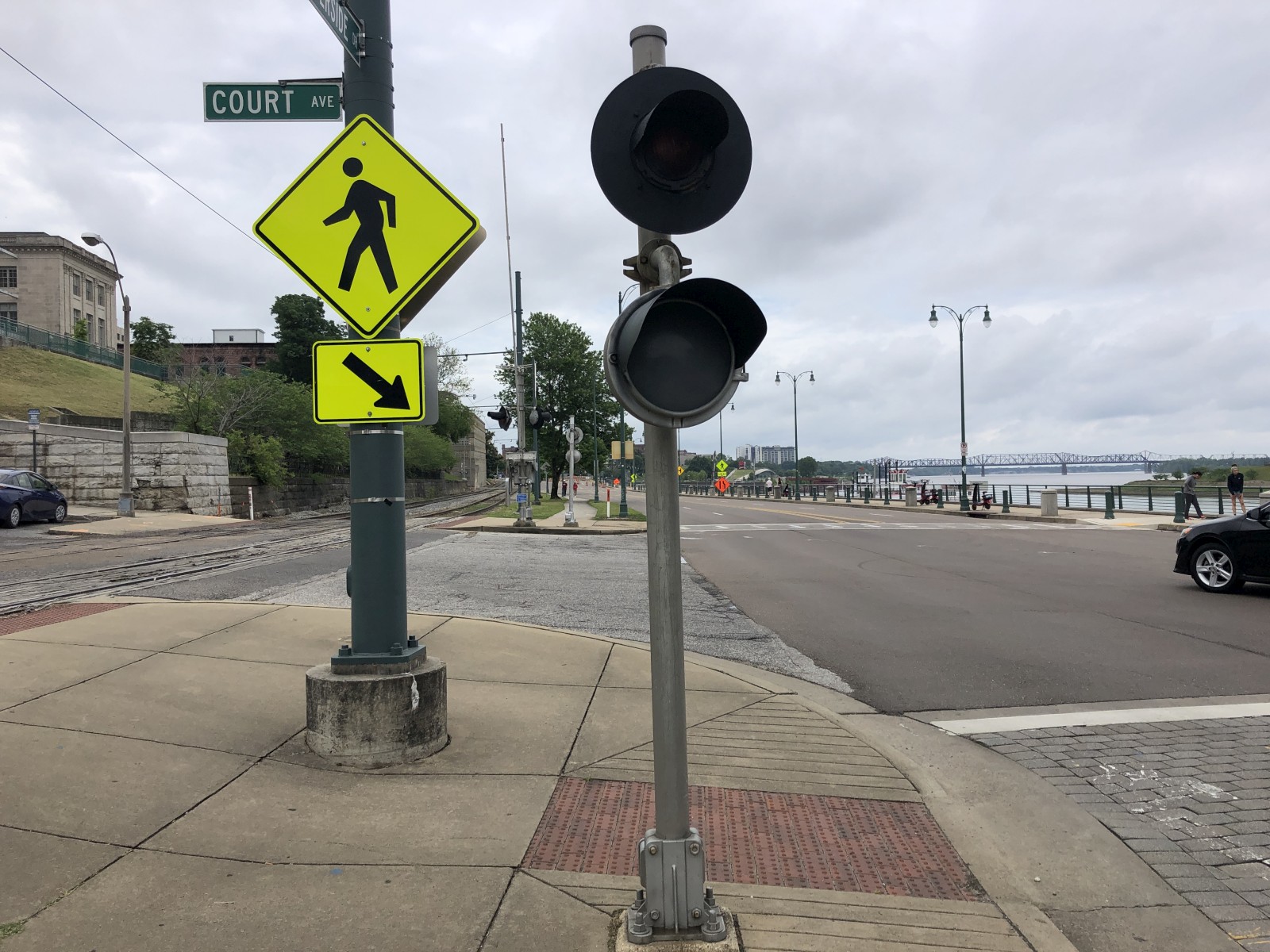

The northern no-turn signal. |

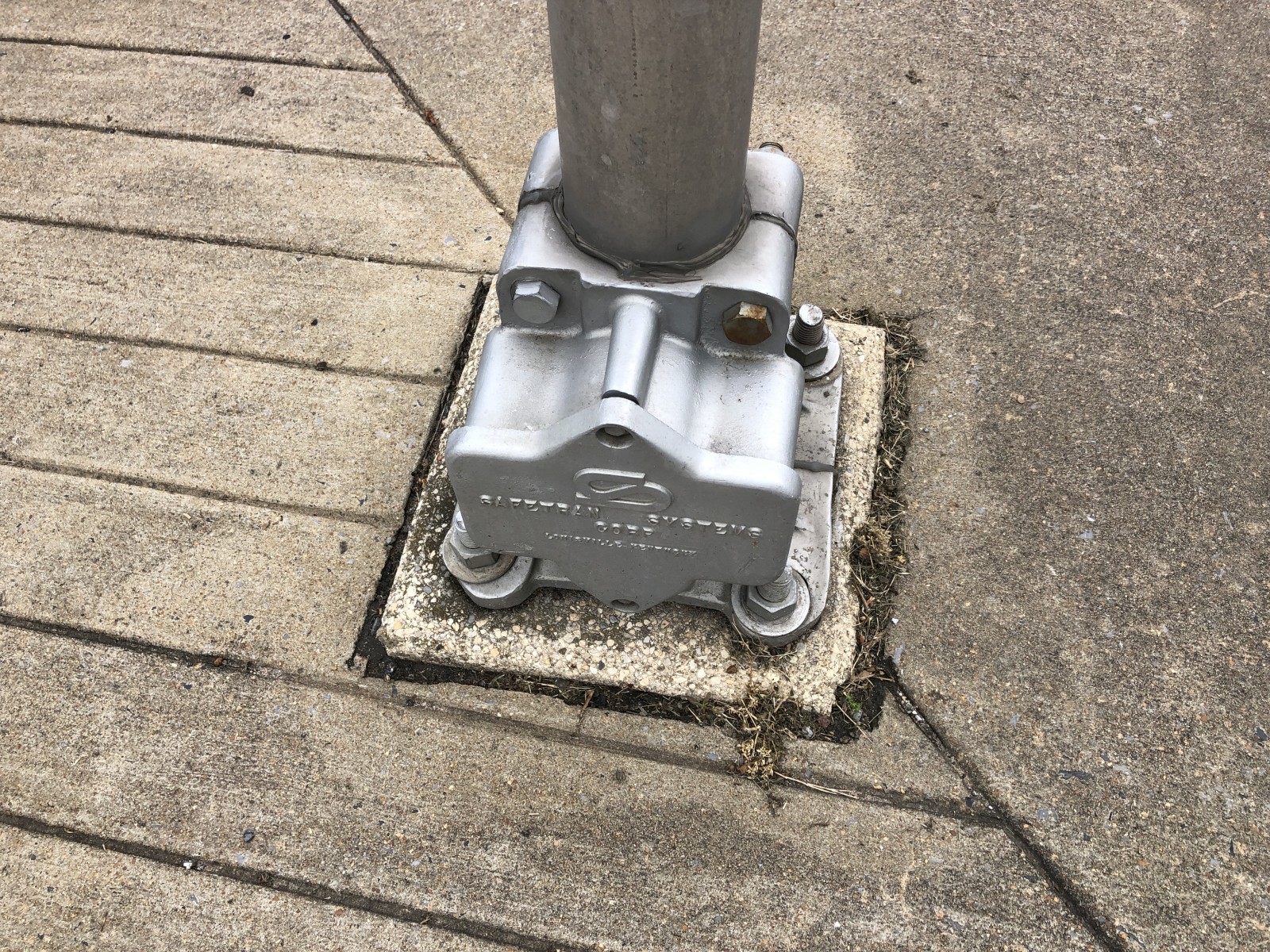

It has a 4-inch Safetran base. |
|
49 |
50 |
51 |
52 |

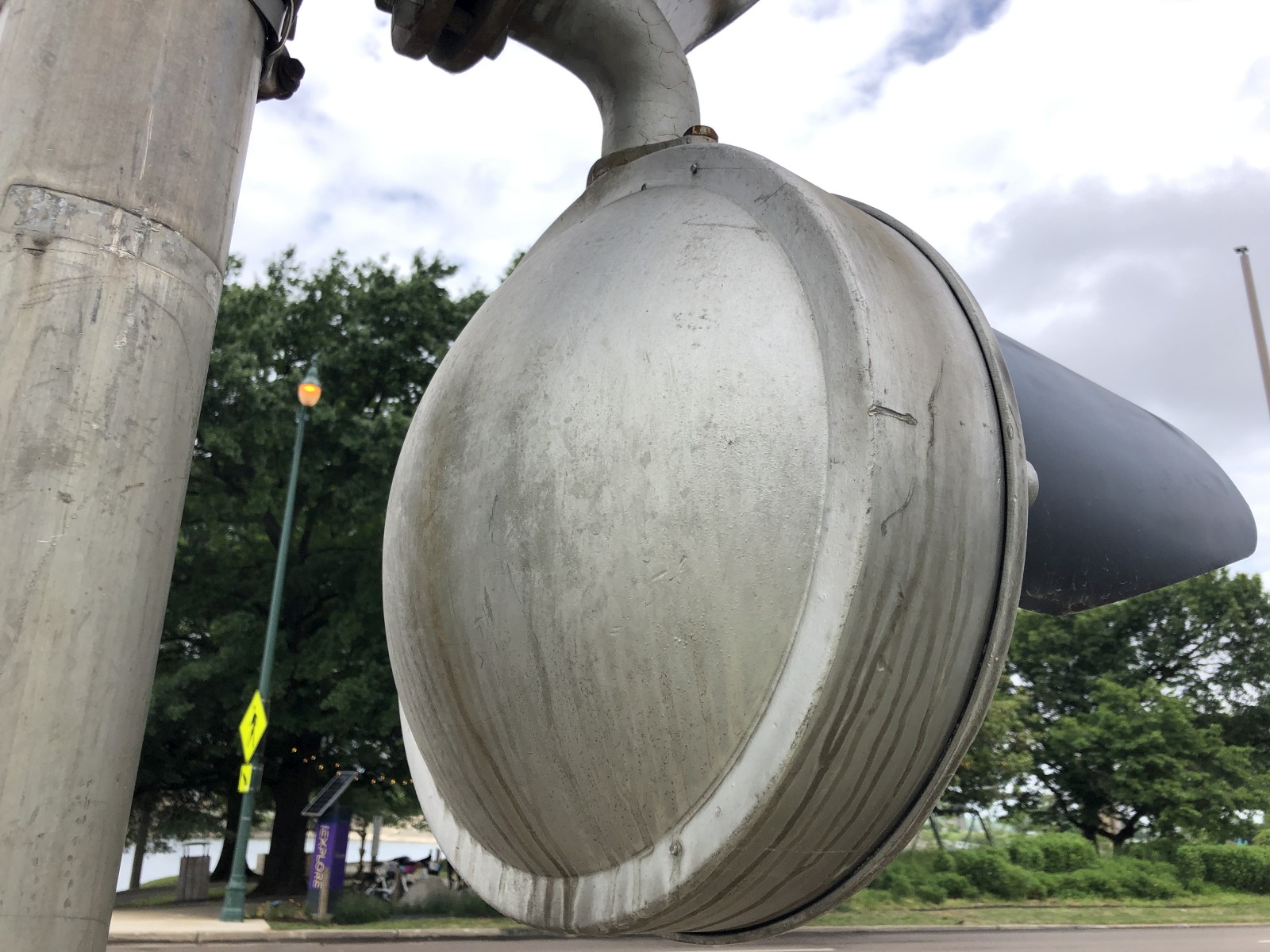

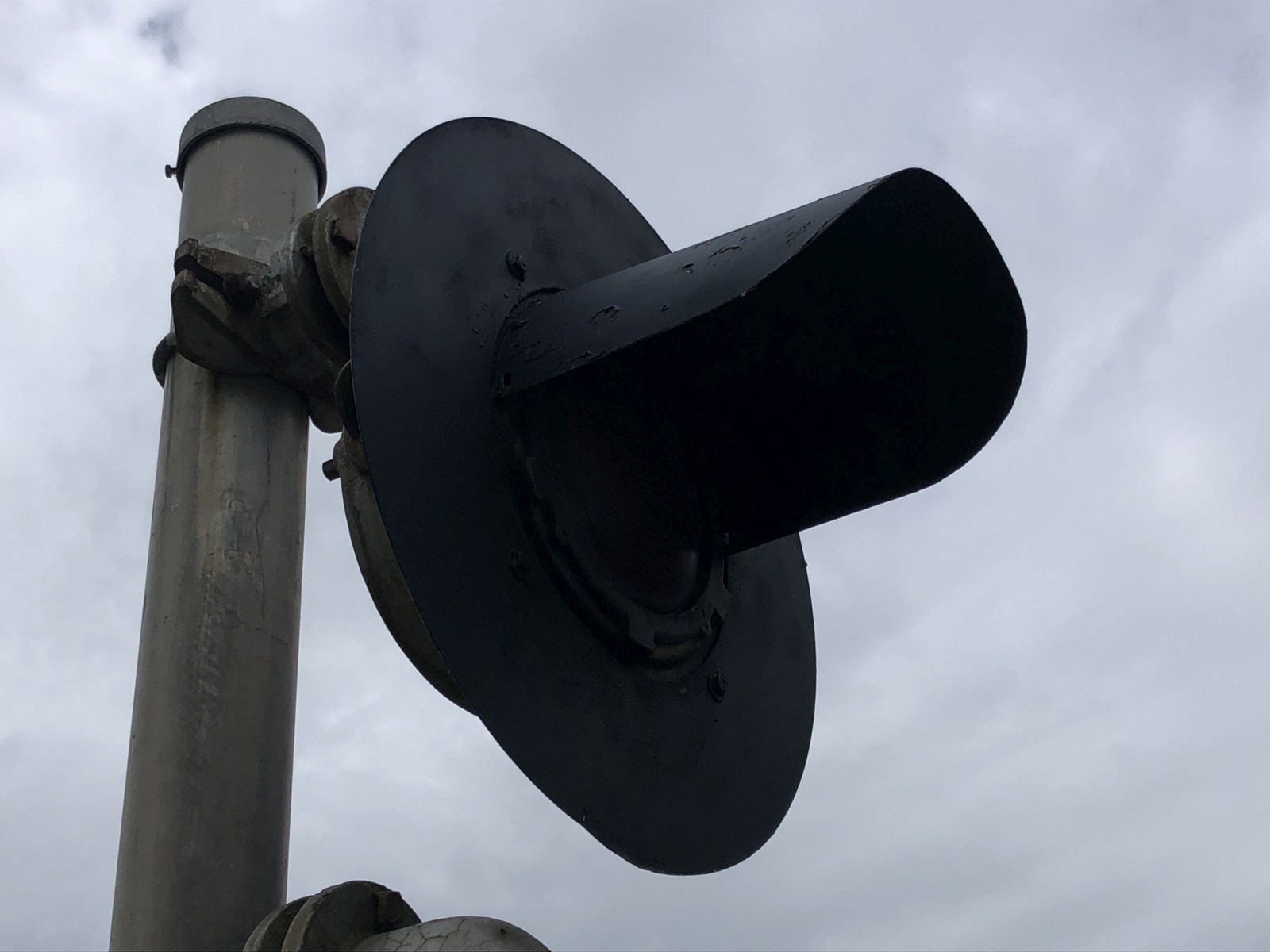

A Safetran(?) 14 inch "No Left Turn" light on this signal. |

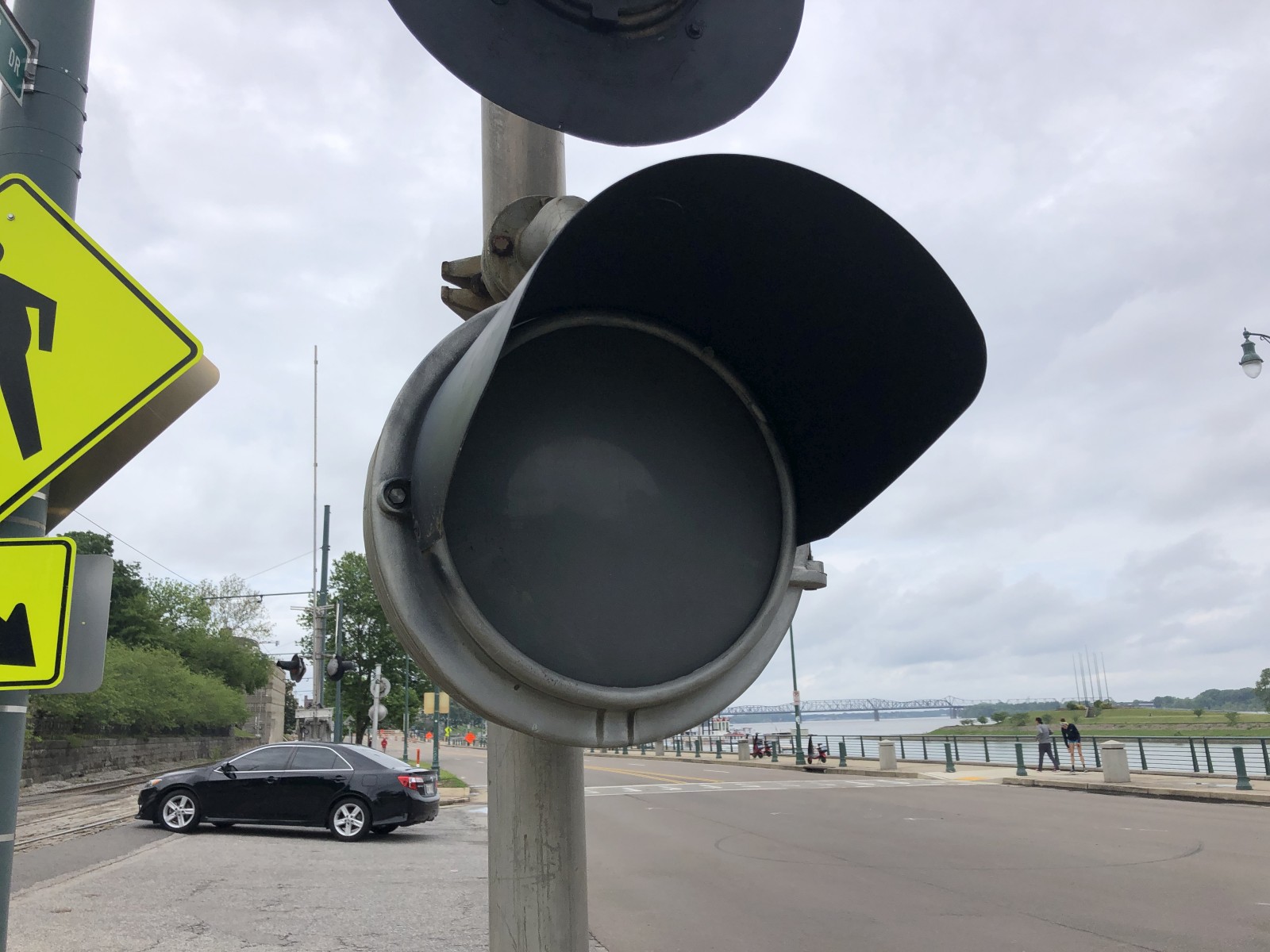

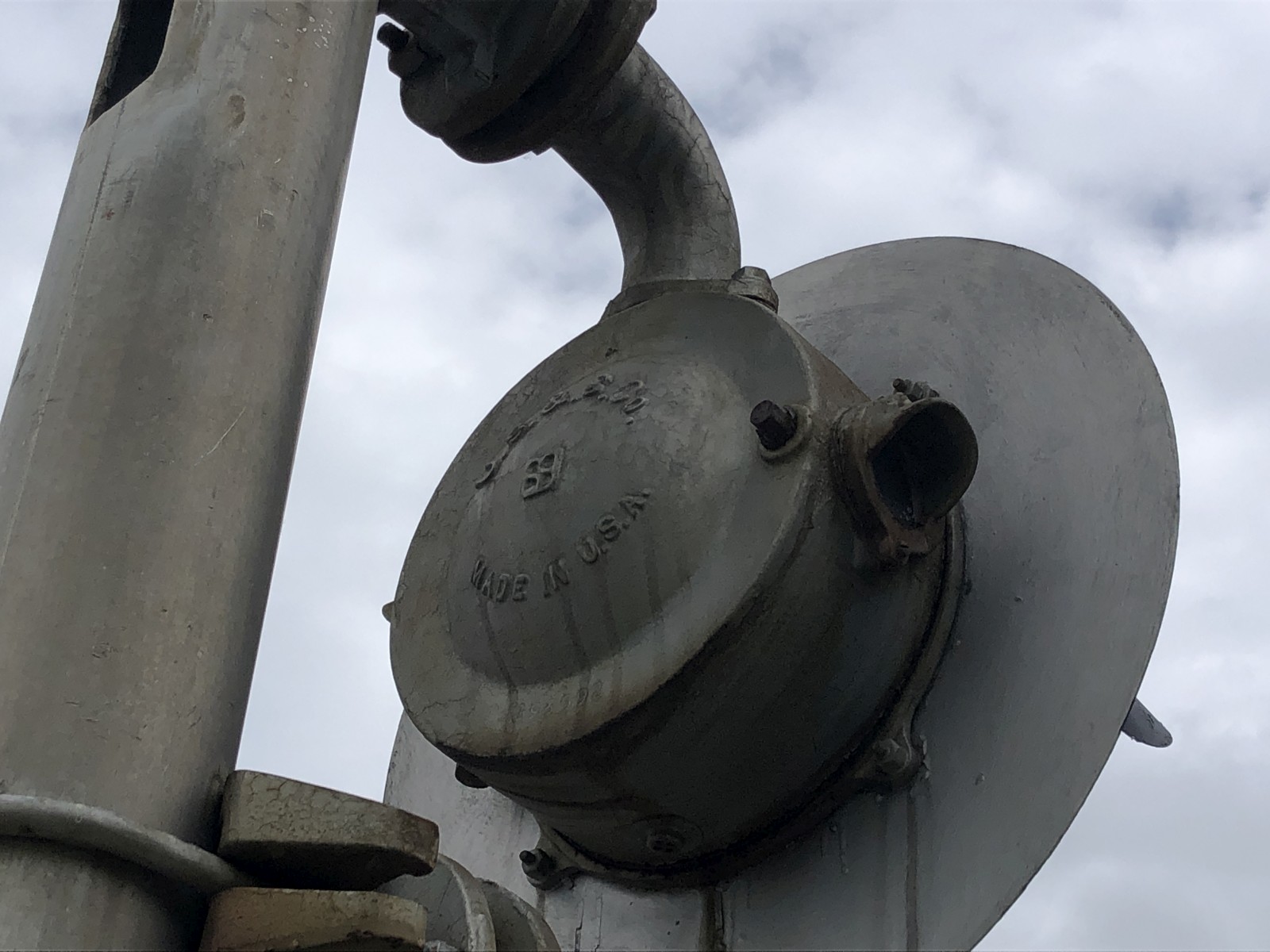

Another US&S 8 inch incandecent light with yellow lens! |
||
53 |
54 |

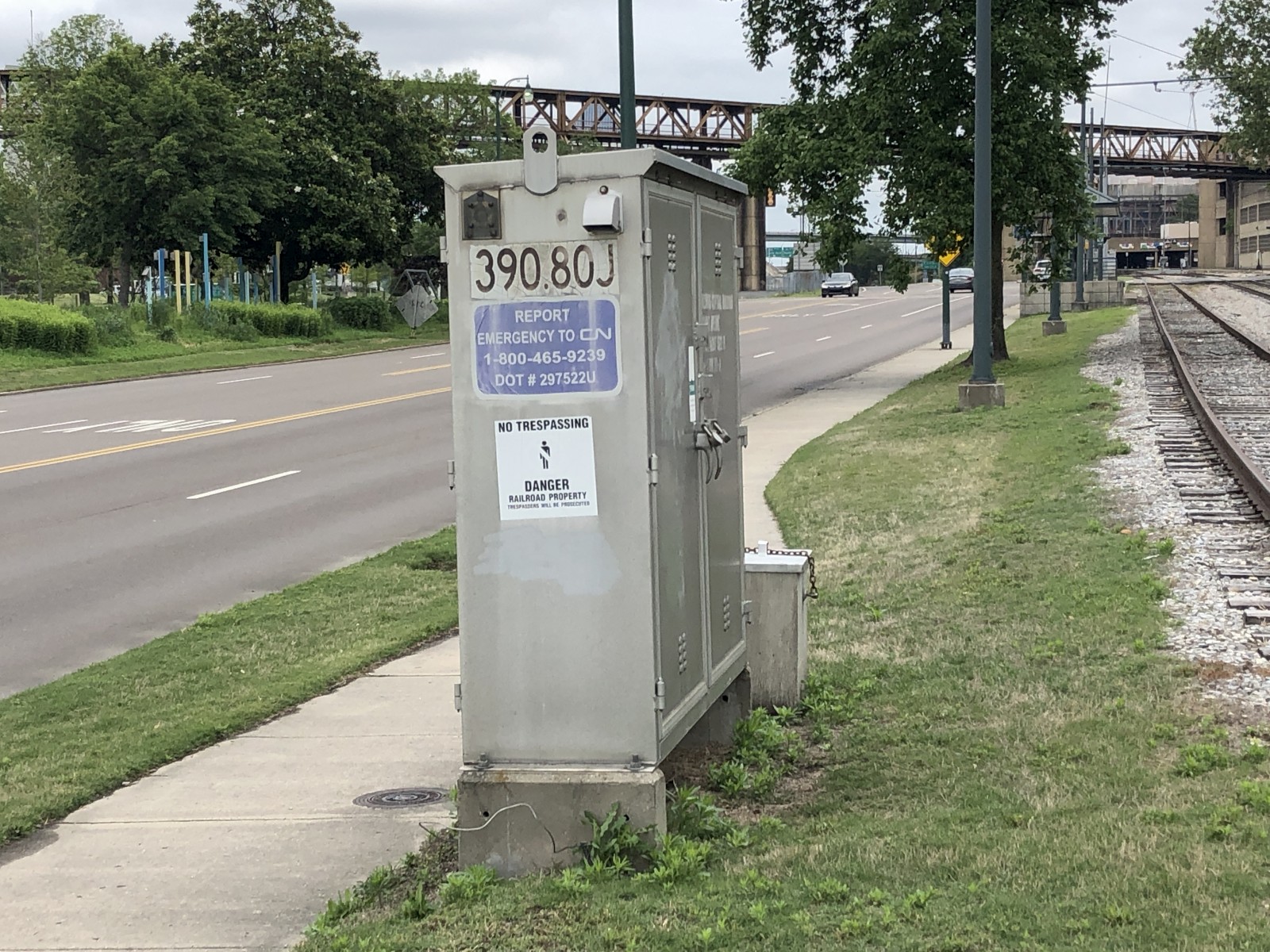

The relay case. |

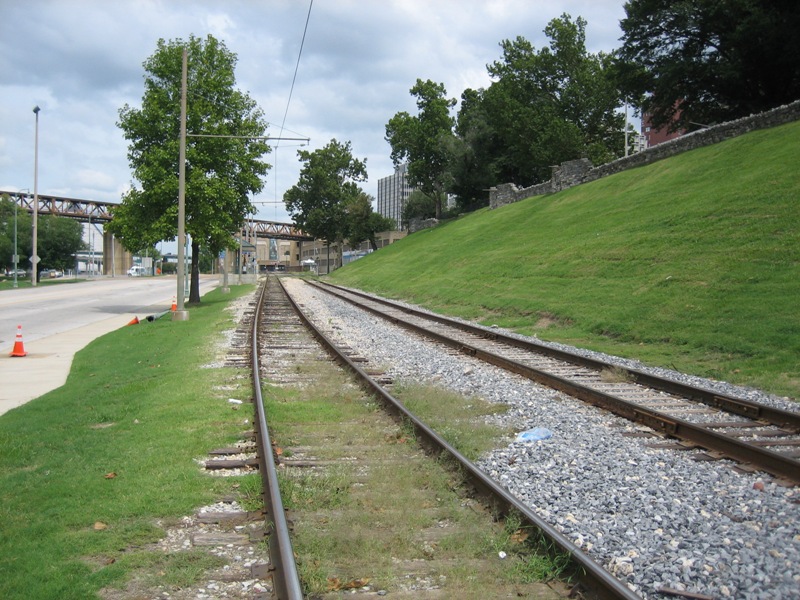

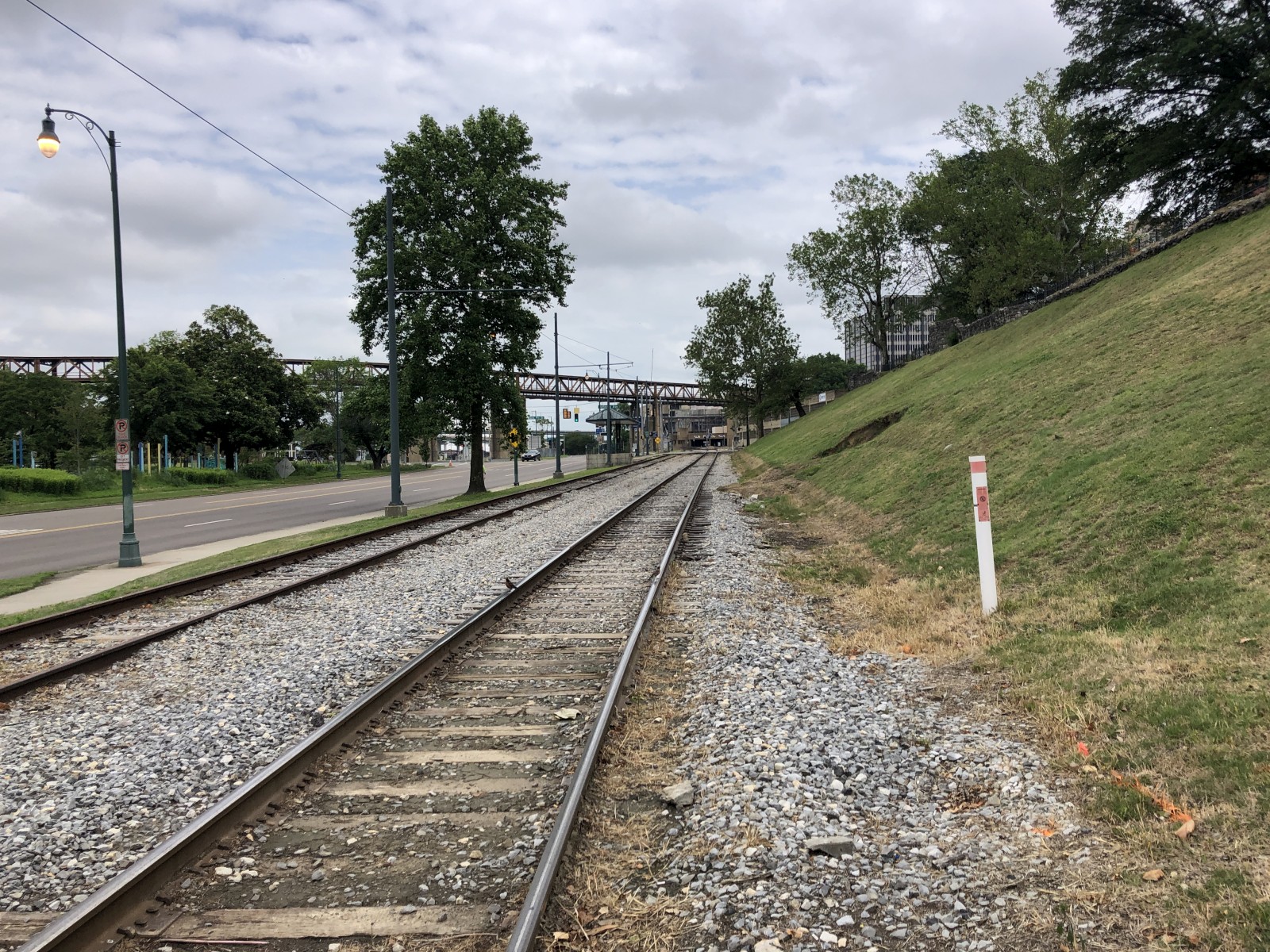

Track view facing north towards Jefferson Avenue. To the south is Monroe Avenue. |
Note from Ethan the Railfanner: MATA gets approximately 11 trains as of June 21, 2020, while CN and Amtrak each get 2 trains according to the latest inventory report, so therefore, this crossing now sees about 15 trains a day.
 |
